STREETBASS SUBWOOFERS
Features
• Composite foam surround for smooth, controlled bass
• High-precision motor assembly improves efficiency and output
• Rigid steel basket for strength and reduced resonance
• High-temperature, lightweight voice coil
• One-piece dust cap design
• Non-pressed paper cone for added warmth and depth
• Large-gauge, quick-release black nickel terminals
• Show Car approved
EPICX8 D2 | EPICX8 D4
User Guide
2
User Guide
STREETBASS SUBWOOFERS
The exclamation point within an equilateral triangle is intended to
alert the user of the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
Recycling notice: If the time comes and this apparatus has fulfilled
its destiny, do not throw it out into the trash. It has to be carefully
recycled for the good of mankind, by a facility specially equipped
for the safe recycling of electronic apparatii. Please contact your
local or state recycling leaders for assistance in locating a suitable
nearby recycling facility. Or, contact us and we might be able to
repair it for you.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not submerge this apparatus in water.
6. Clean only with a dry cloth.
7. SECURE MOUNTING (trust us—it matters): Mounting your subwoofer
enclosure properly isn’t just about keeping things clean—it’s about keep-
ing things safe. A loose subwoofer enclosure can turn into an unexpected
passenger during a hard stop or sharp turn, and let’s be honest, nobody
wants to get hit in the back of the head by their own bass system. Even
more, a poorly placed or unsecured enclosure can mess with important
stuff like fuel lines, brake lines, or electrical wiring—things you definitely
don’t want to discover the hard way. So before grabbing the drill, take a
moment to check what’s behind or underneath your mounting area (call
in a pro if you're unsure).
8. Use speaker wire of sufficient size to ensure adequate current to the speaker.
For EPICX Subwoofers, this means 10-14 gauge speaker wire.
9. To prevent excessive cone excursion and potential damage to the
subwoofer, it is advisable to use an infrasonic (subsonic) filter set half an
octave below Fb (the enclosure's tuning frequency).
10. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power
input terminals are damaged, objects have fallen into the apparatus, does
not operate normally, or has been dropped.
11. Exposure to high sound pressure levels may lead to permanent hearing
loss. Take every precaution to protect your hearing.
3
Specifications - EPICX8 D2/D4
400200 600
RMSMIN MAX
B
A
Speaker size ........................................................................................................ 8 in / 200 mm
Impedance
..............................................................................................EPICX8 D2 - 2 ohms
.....................................................................................................................EPICX8 D4 - 4 ohms
Voice Coil
................................................................................................................ 2 in / 50 mm
Resonant Frequency
.....................................................................................................47.2 Hz
Efficiency
...........................................................................................................................83.5 dB
Magnet Dimensions
.......................................5.31 x 2.44 x 0.98 in / 135 x 60 x 25 mm
The power handling of the EPICX8 varies depending on the enclosure the
subwoofer is installed in. Please see below to determine the enclosure type
and its power handling capabilities.
1. Sealed enclosure – 400 W RMS
2. Vented enclosure – 400 W RMS
3. Large vented enclosure – 350 W RMS
In the case of an oversized vented enclosure, reduced power is needed to control
the woofer's excursion and maintain high efficiency.
Dimensions

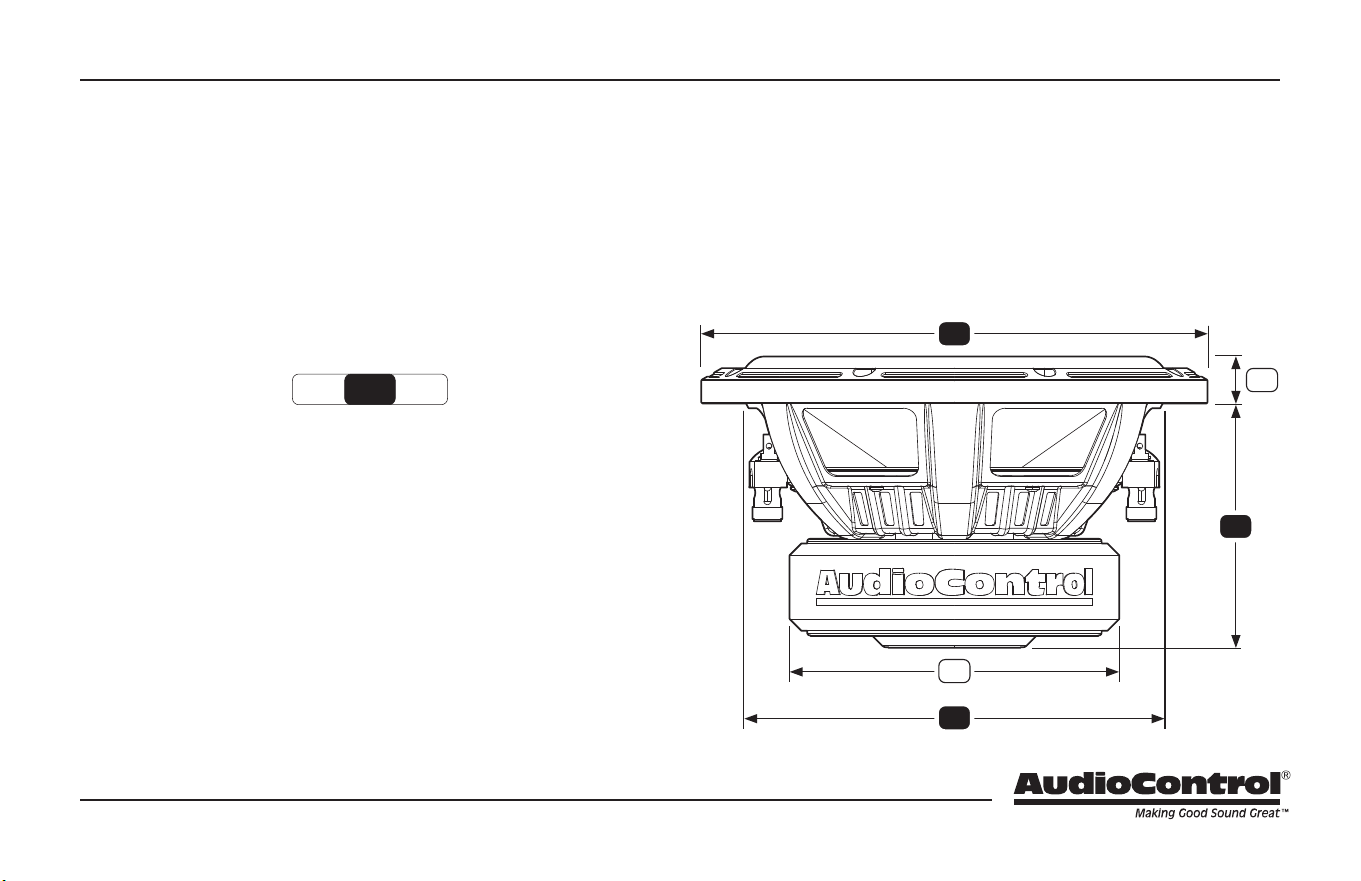

Overall Diameter (A) ................................................................................. 8.46
in / 215 mm
Cut Out Diameter (B) .................................................................................7.13 in / 181 mm
Mounting Depth (C) ................................................................................. 4.1 in / 103.9 mm
Mounting Height (D) ...................................................................................... 0.8 in / 20 mm
Motor Diameter (w/Cover) (E) ................................................................... 5.5 in / 140 mm
C
E
D
Speaker Music Power
4
User Guide
STREETBASS SUBWOOFERS
EPICX8 D2 EPICX8 D4
Qes 0.607 0.572
Qms 6.35 5.45
Qts 0.554 0.518
Fs 50.1 Hz 47.6 Hz
Vas 6.35 L 8.64 L
mms 87.83 g 78.5 g
Cms 0.115 mm/N 0.142 mm/N
Rms
Re 3.8 Ω 6.4 Ω
Bl 13.16 T.m 16.21 T.m
le 3.23 mH 4.69 mH
sd 209 cm2 209 cm2
XmaX 9.25 mm (one way) 9.25 mm (one way)
sensitivity 83.6 dB @ 1W/1m 84.1 dB @ 1W/1m
TS Parameters
Below are the TS parameters related to the EPICX8 D2/D4 subwoofer.
These specifications are intended for use in designing and modeling custom
enclosures to ensure optimal performance.
EPICX8 D2/D4 Specifications Continued
We have half a mind to leave this page half blank.
TS parameters are measured after a 8 to 12 hour break-in period and may change
slightly with use. They can also vary marginally between production batches.
4.35 Ns/m
4.32 Ns/m
5
EPIC Series
D
e
s
i
g
n
e
d
a
n
d
e
n
g
i
n
e
e
r
e
d
b
y
A
u
d
i
o
C
o
n
t
r
o
l
.
System Wiring / Single Subwoofer / Series
EPICX8 D2 (2Ω) = 4Ω
EPICX8 D4 (4Ω) = 8Ω

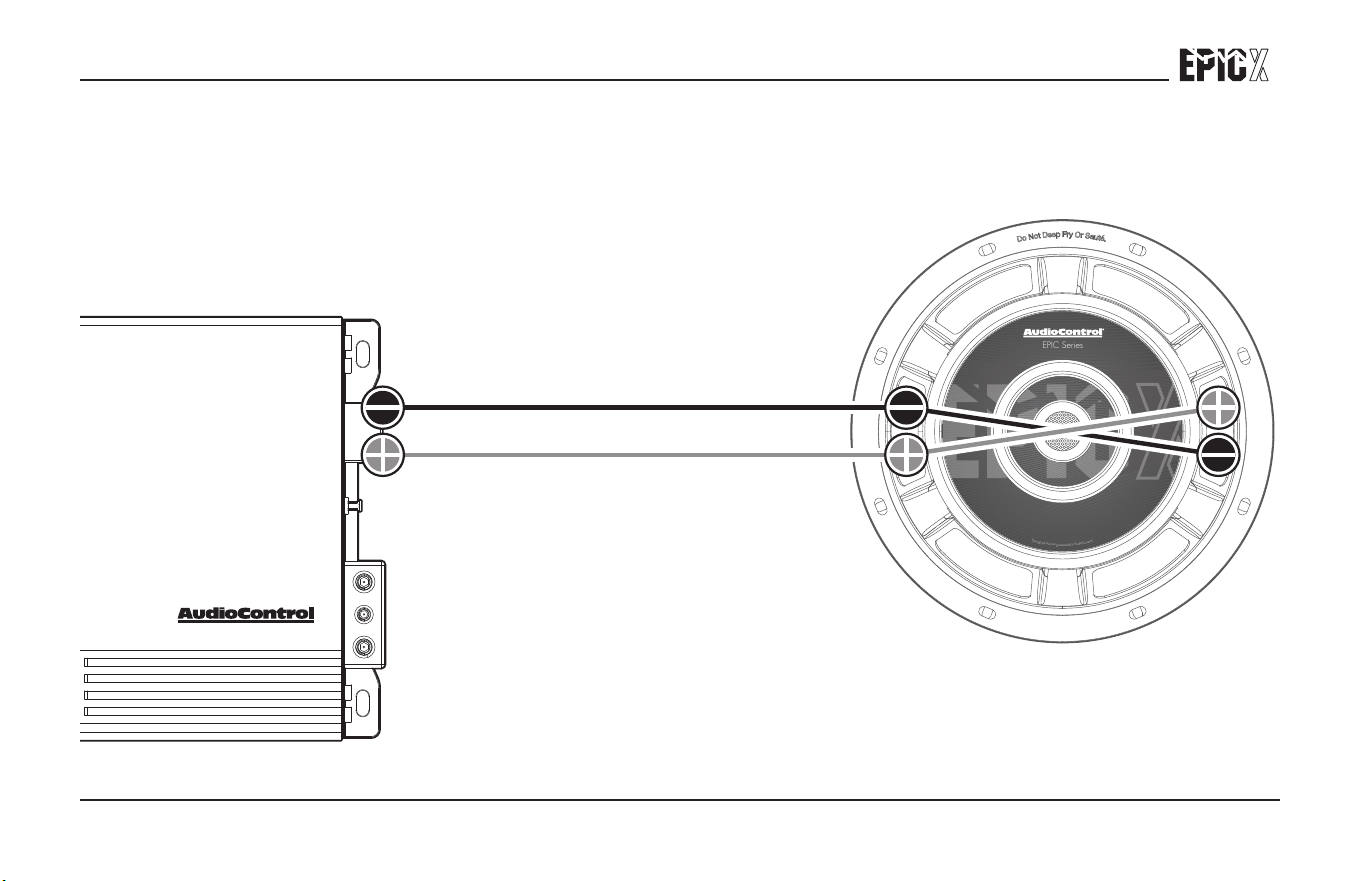

Wiring a dual voice coil subwoofer in series doubles the impedance the amplifier sees. Connect one voice coil’s negative terminal to the other voice coil’s positive
terminal to form a bridge. Connect the amp’s positive output to the first voice coil’s open positive terminal, and the amp’s negative output to the second voice coil’s
open negative terminal.
6
User Guide
STREETBASS SUBWOOFERS
System Wiring Continued
System Wiring / Single Subwoofer / Parallel

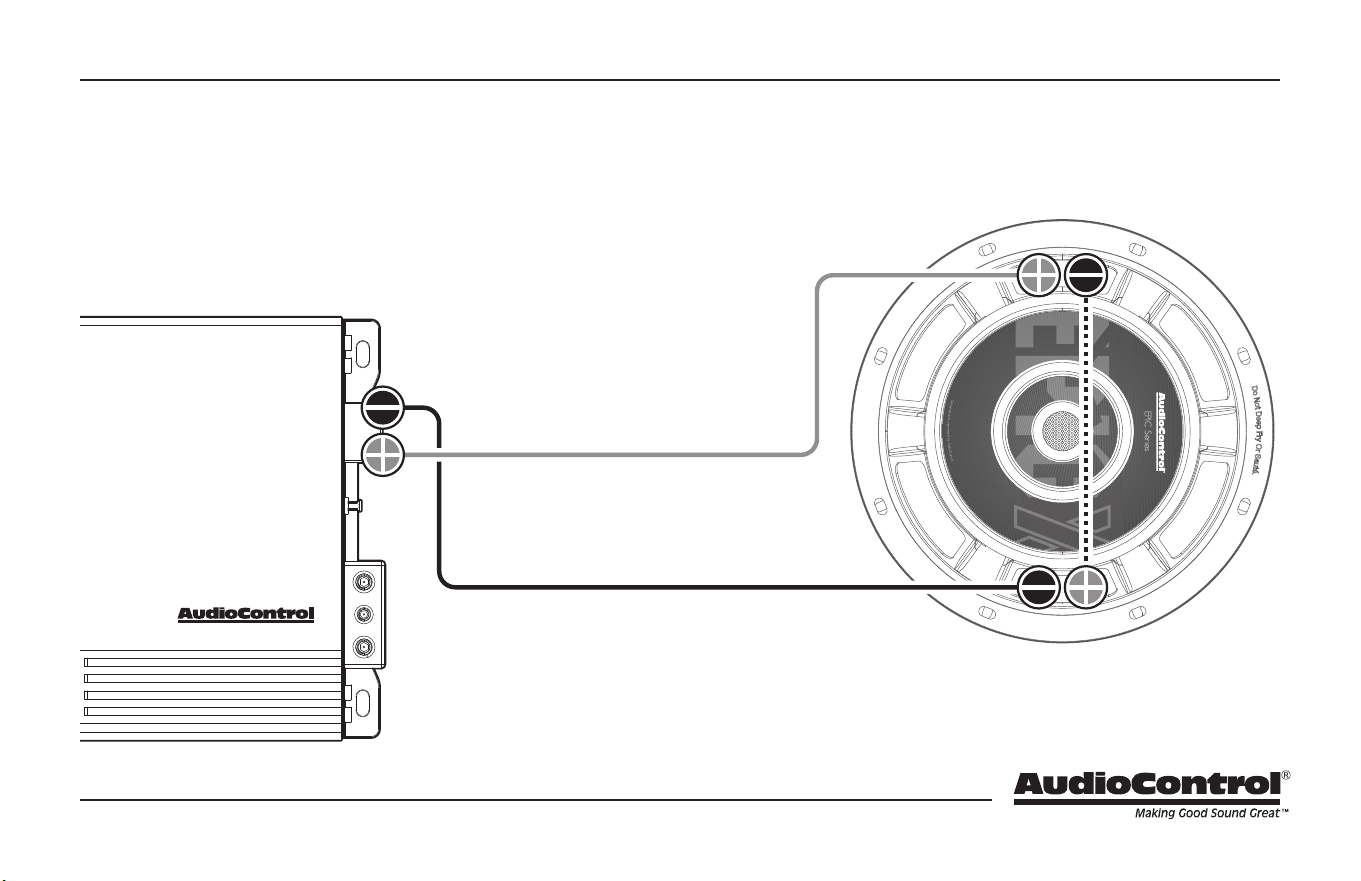

Wiring a dual voice coil subwoofer in parallel cuts the impedance the amplifier sees in half. Connect both positive voice coil terminals together, and both negative
voice coil terminals together. Connect the amp’s positive output to the joined positive terminals, and the amp’s negative to the joined negative terminals.
EPIC Series
D
e
s
i
g
n
e
d
a
n
d
e
n
g
i
n
e
e
r
e
d
b
y
A
u
d
i
o
C
o
n
t
r
o
l
.
EPICX8 D2 (2Ω) = 1Ω
EPICX8 D4 (4Ω) = 2Ω
7
System Wiring / Two Subwoofers / Series-Parallel
EPIC Series
D
e
s
i
g
n
e
d
a
n
d
e
n
g
i
n
e
e
r
e
d
b
y
A
u
d
i
o
C
o
n
t
r
o
l
.
EPIC Series
D
e
s
i
g
n
e
d
a
n
d
e
n
g
i
n
e
e
r
e
d
b
y
A
u
d
i
o
C
o
n
t
r
o
l
.
EPICX8 D2 (2Ω) = 2Ω
EPICX8 D4 (4Ω) = 4Ω

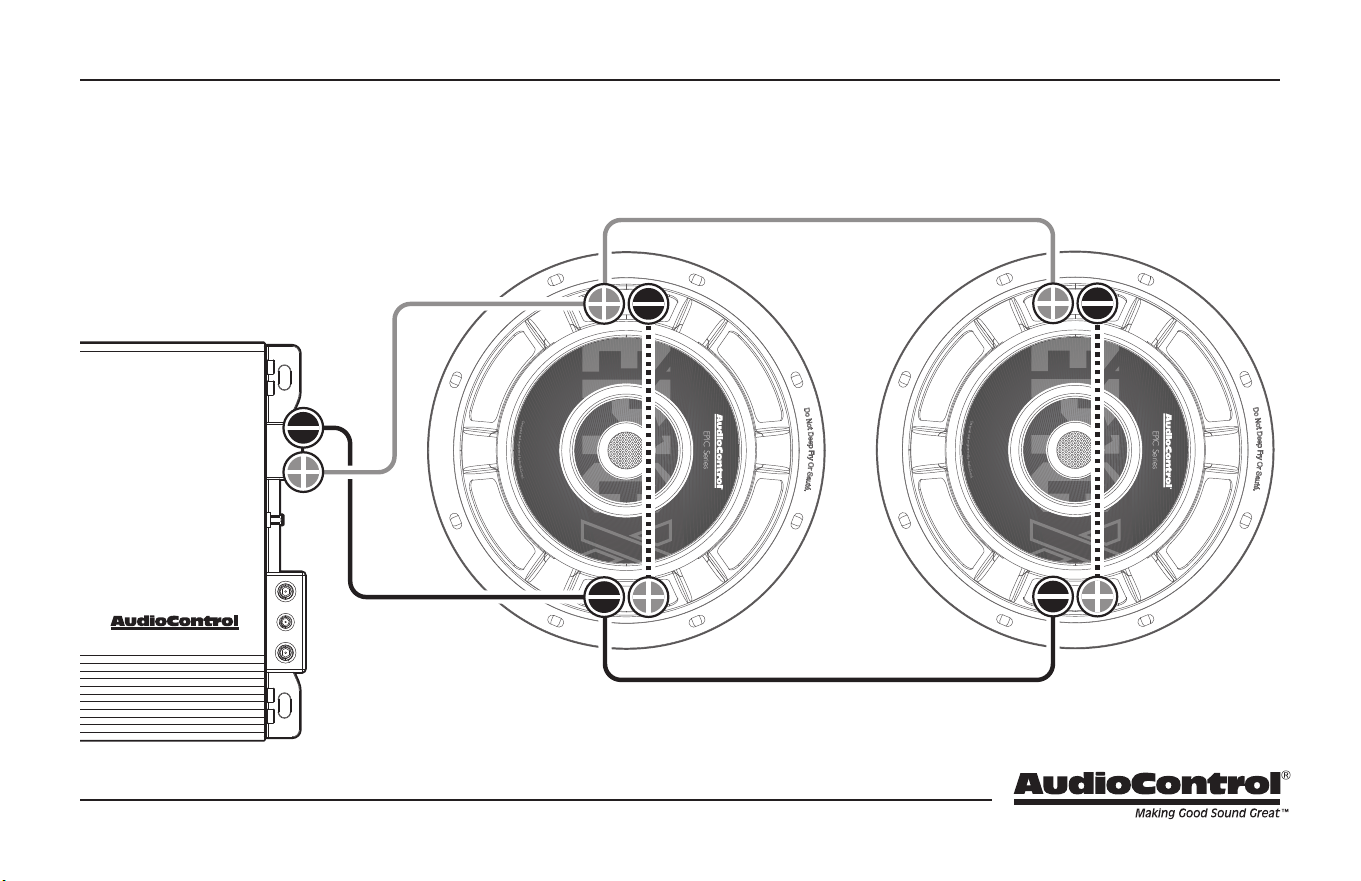

Connect one voice coil’s negative terminal to the other voice coil’s positive terminal to form a bridge—do this on both subwoofers. Connect the remaining open
terminals on each subwoofer together, positive to positive, negative to negative. Connect the amp’s positive output to the joined positives terminals, and the
amp’s negative output to the joined negative terminals.
System Wiring Continued
8
User Guide
STREETBASS SUBWOOFERS
EPIC Series
D
e
s
i
g
n
e
d
a
n
d
e
n
g
i
n
e
e
r
e
d
b
y
A
u
d
i
o
C
o
n
t
r
o
l
.
EPIC Series
D
e
s
i
g
n
e
d
a
n
d
e
n
g
i
n
e
e
r
e
d
b
y
A
u
d
i
o
C
o
n
t
r
o
l
.
System Wiring / Two Subwoofers / Parallel

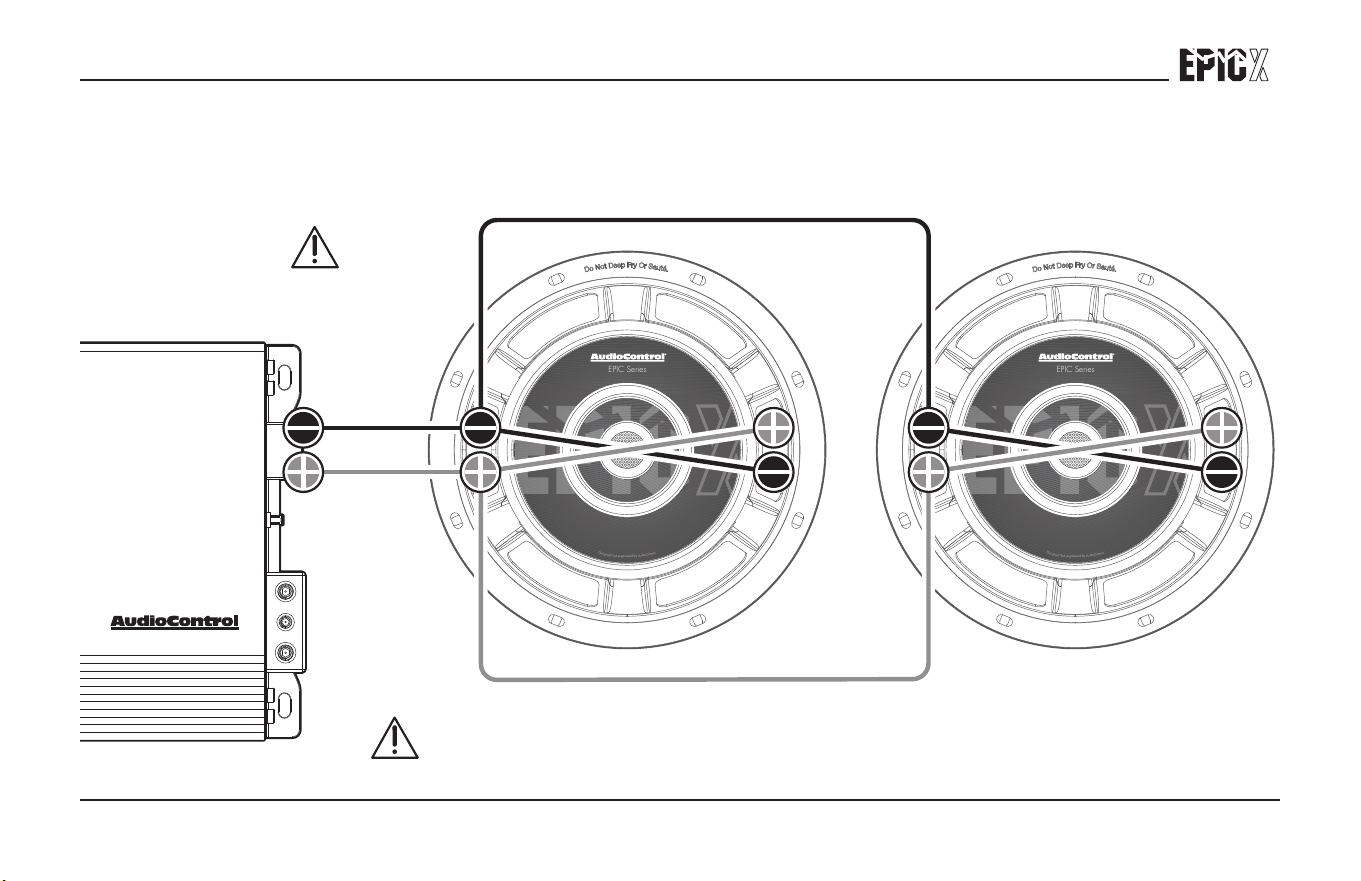

Connect both positive voice coil terminals together, and both negative voice coil terminals together—do this on both subwoofers. Connect the amp’s positive
output to the joined positive terminals on each subwoofer, and the amp’s negative output to the joined negative terminals on each subwoofer.
This wiring configuration is not recommended for the EPICX8 D2 (2Ω)
subwoofer! This configuration would result in a 0.5Ω load.
EPICX8 D2 (2Ω) =
EPICX8 D4 (4Ω) = 1Ω
System Wiring Continued
9
Respite
There is already a fine selection of blank stares filling this space.
Feel free to contribute yours before moving on.
10
User Guide
STREETBASS SUBWOOFERS
Enclosure Talk
Enclosure Size... It Matters
Once you’ve decided on a sealed or ported enclosure, you can fine-tune its
size to match your vehicle space and listening preferences.
Below is how enclosure size affects overall sound:
The MIN value is the smallest recommended
enclosure size, providing the most compact size,
while sacrificing some low-frequency bass response.
The IDEAL value is recommended for most listeners,
providing an excellent blend of low-frequency bass
with accurate and strong overall output.
The MAX value is the largest recommended
enclosure size, and although it is quite large, it
provides exceptional bass with extended low-frequency output.
MIN IDEAL MAX
MIN IDEAL MAX
MIN IDEAL MAX
More enclosure designs!
On the following pages, we’ve included a
selection of enclosure designs to help you
hit the ground running with your new EPICX
subwoofer—but this is just the beginning. For
more designs and inspiration, scan the QR code
with your phone!
Impressive! You picked up an EPICX subwoofer—or maybe even a few! After
you're done admiring the quality workmanship and attention to detail, it's
time to get it into a proper enclosure. "Enclosure" is just a fancy name for
a speaker box. Below are some tips you should consider before buying or
building one. If you're not into math, or if plugging in power tools gives you
anxiety, your best bet is to seek out a qualified AudioControl dealer. They’ve
got the skills, the experience, and the specialized tools to get the bass
bumpin'—and they usually smell alright, too.
Sealed vs. Ported Enclosure
Aaahh... The age-old question: Which is better, a sealed or ported enclosure?
The answer usually boils down to two factors: available space in the vehicle,
and personal music preference. Below are a few characteristics of sealed and
ported enclosures:
Sealed Enclosures
Smaller enclosure size
Excellent transient response
Less output per watt, but punchier, tighter sound
Lower dynamic output
Ported/Vented Enclosure
Larger enclosure size
Extended lower frequency response
More bass output per watt
Better dynamic output
If you have the space, we recommend a slot vented enclosure for the best
all-around bass experience.
11
Ported Enclosure

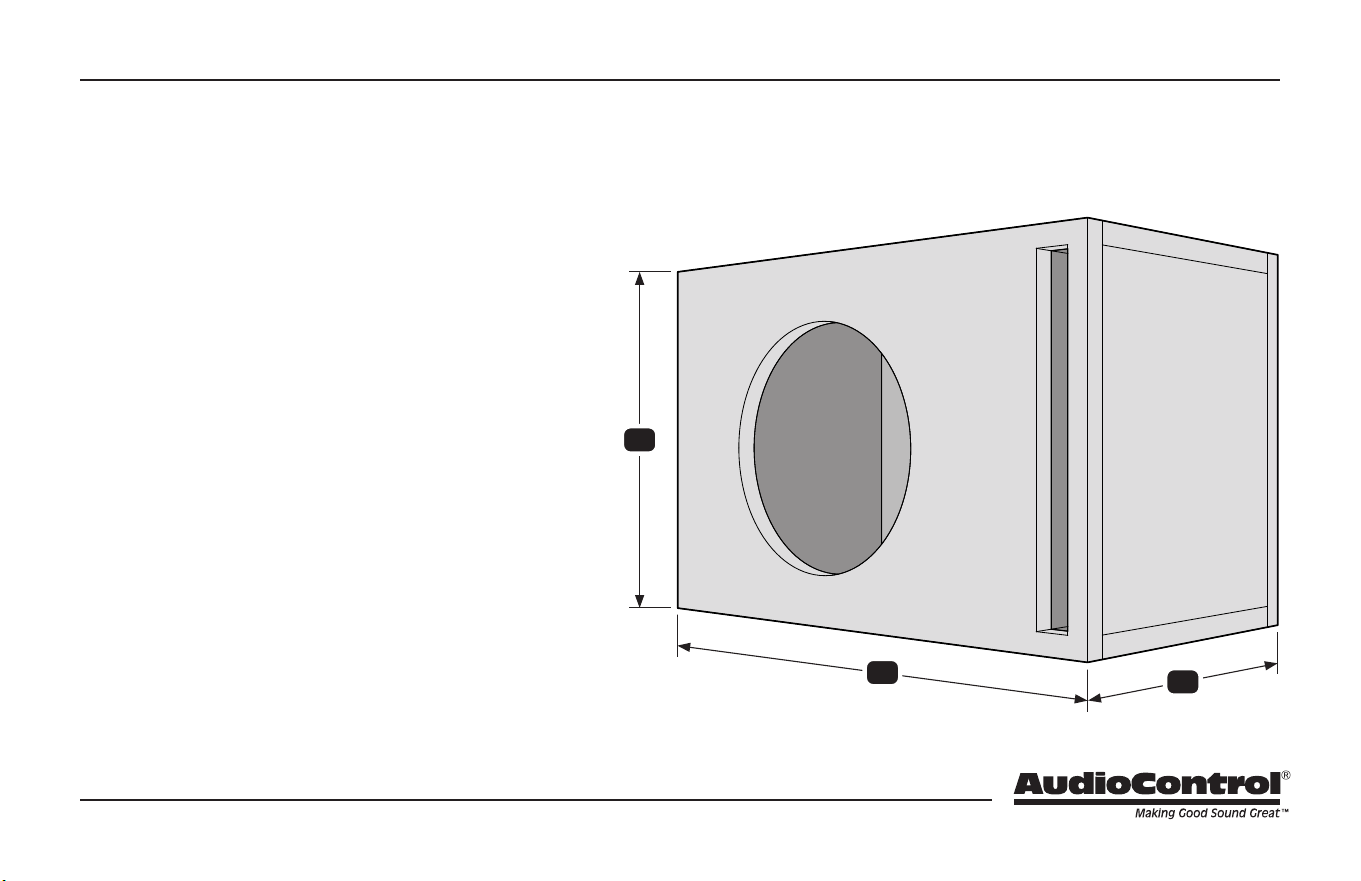

Below are the specifications for a vented enclosure designed to deliver
balanced, powerful bass performance from your EPICX8 D2 or D4 subwoofer.
A
B
C
Specifications
Length (A) ............................................................................................................ 17 in
Height(B).............................................................................................................. 12 in
Depth (C) ..........................................................................................................10.5 in
Exterior Volume .........................................................................................1.24 cu ft
Net Internal Volume (with Port and Subwoofer) ........................... 0.71 cu ft
Material Thickness .........................................................................................0.75 in
Port Area ...................................................................................................7.875 sq in
Port Inlet ......................................................................................... 0.75 in x 10.5 in
Port Length ......................................................................................................... 16 in
Tuning Frequency ...........................................................................................40 Hz
Enclosure Talk Continued
12
User Guide
STREETBASS SUBWOOFERS

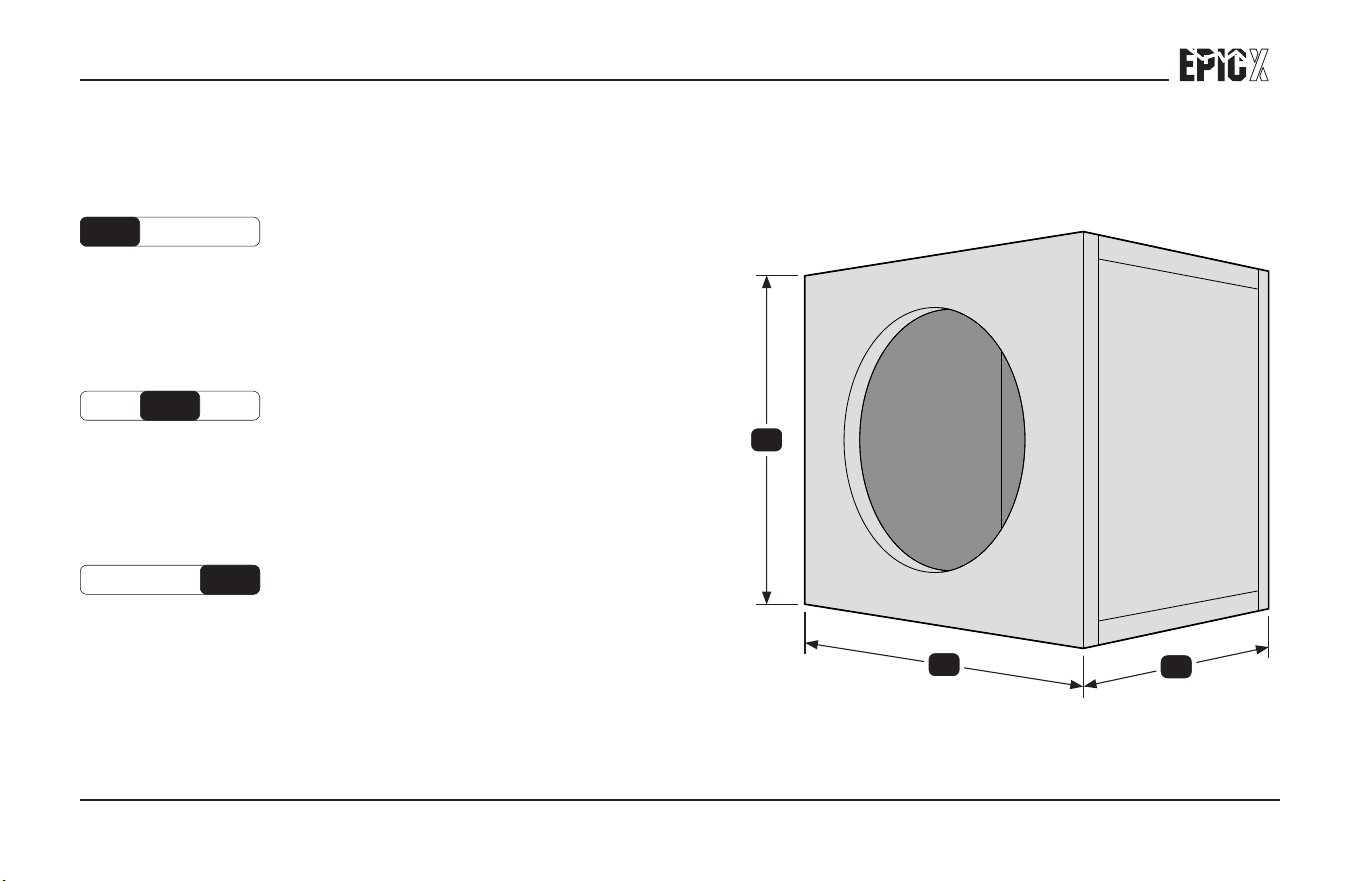

Sealed Enclosures
Length (A) ............................................................................................................ 12 in
Height(B)...........................................................................................................10.5 in
Depth (C) ............................................................................................................ 7.5 in
Internal Volume .........................................................................................0.25 cu ft
Material Thickness .........................................................................................0.75 in
Length (A) ............................................................................................................ 16 in
Height(B)...........................................................................................................10.5 in
Depth (C) ........................................................................................................... 7.5 in
Internal Volume .........................................................................................0.40 cu ft
Material Thickness .........................................................................................0.75 in
Length (A) .........................................................................................................17.5 in
Height(B).............................................................................................................. 12 in
Depth (C) ............................................................................................................... 9 in
Internal Volume .........................................................................................0.65 cu ft
Material Thickness .........................................................................................0.75 in
A
B
C
MIN IDEAL MAX
MIN IDEAL MAX
MIN IDEAL MAX
Enclosure Talk Continued
Below are the specifications for sealed enclosures in three sizes from small to
large. Refer back to page 10 for more on how enclosure size affects sound.
13
The Warranty
Peace of Mind
In just the same way as walking into a room and seeing a big hairy spider on
the wall, people are scared of warranties. Lots of fine print. Months of waiting
around. Well, fear no more. This warranty is designed to make you rave about
AudioControl. It’s a warranty that looks out for you and your client, plus
helps you resist the temptation to have your friend Sparky, who’s “good with
electronics,” try to repair your AudioControl product. So go ahead, read this
warranty, then register the information at www.audiocontrol.com/product-
registration and include your comments.
Our warranty has conditional conditions! “Conditional” doesn’t mean anything
ominous. The Federal Trade Commission tells all manufacturers to use the
term to indicate that certain conditions have to be met before they’ll honor
the warranty. If you meet all of these conditions, AudioControl will, at its
discretion, repair or replace any AudioControl speaker products that exhibit
defects in materials and/or workmanship for one (1) year from the date you
bought it. We will repair or replace it, at our option, during that time.
Here are the conditional conditions:
1. You must fully register your purchase within 15 days of the purchase date
by going to the AudioControl product registration page at:
www.audiocontrol.com/product-registration
Failure to register your product will negate the warranty.
2. You need to hold on to your sales receipt! All warranty service requires
original sales receipt documentation. The warranty only applies to the
original purchaser from an authorized AudioControl dealer. Note: Products
purchased from unauthorized dealers are not covered under warranty.
3. The AudioControl speaker products must have originally been purchased
from an authorized AudioControl dealer. If an authorized AudioControl
dealer installs your AudioControl product, the warranty is extended to
two (2) years.
4. Our warranty covers AudioControl products that have been installed
according to the instructions in this manual.
5. You cannot let anyone who isn’t: (A) the AudioControl factory; or
(B) someone authorized in writing by AudioControl, service your
AudioControl product. If anyone other than (A), or (B) messes with your
AudioControl product, the warranty is void.
6. The warranty is void if the serial number is altered, defaced or removed,
or if your product has been used improperly. Now that may sound like a
big loophole, but here is what we mean by this: Unwarranted abuse is:
(A) physical damage (don’t use your product to pound in fence posts);
(B) improper connections (120 volts into the speaker terminals can fry
the poor thing). This is the best product we know how to build, but for
example, if you mount it to the front bumper of your car, drop it over
Niagara Falls, or use it for anchoring your boat, something will go wrong.
Assuming you conform to 1 through 6, and it really isn’t all that hard to do, we
get the option of fixing your product, or replacing it with a new one, at our
discretion.
In the event that your product is out of warranty or not covered under our
warranty, you may request to have any damage repaired at our normal “Out of
Warranty” repair cost.
14
User Guide
STREETBASS SUBWOOFERS
Legalese
The warranty above is the only warranty issued by AudioControl. This warranty
gives you specific legal rights, and you may also have rights that vary from
state to state.
Promises of how well your AudioControl product will work are not implied by
this warranty. Other than what we’ve said we’ll do in this warranty, we have
no obligation, express or implied. We make no warranty of merchantability
or fitness for any particular purpose. Also neither we nor anyone else who
has been involved in the development or manufacture of the unit will have
any liability of any incidental, consequential, special or punitive damages,
including but not limited to any lost profits or damage to other parts of your
system by hooking up to the unit (whether the claim is one for breach of
warranty, negligence of other tort, or any other kind of claim). Some states do
not allow limitations of consequential damages.
And Now a Word from our Legal Department
For more information about this fine product, and for additional details of the
limited warranty and repair services, please visit www.audiocontrol.com
For technical questions, please visit www.audiocontrol.com/knowledge-base/
AudioControl – “a Stinger Company”
9620 Executive Center Dr N, Suite 200
St Petersburg, FL 33702
Support:
Phone: 425-777-7723
Email: [email protected]
©2025 AudioControl. All rights reserved.
As technology advances, AudioControl reserves the right to continuously change our
specifications, like our Pacific Northwest weather, although we are working on changing
that as well.
15
Complimentary Notes Page (filled with horizontal lines that may be used for notes, sonnets, poems, shopping lists, and complex crossover equations)
STREETBASS SUBWOOFERS
User Guide 915-045-0 Rev A
The End.
EPICX8 D2
EPIC Series
D
e
s
i
g
n
e
d
a
n
d
e
n
g
i
n
e
e
r
e
d
b
y
A
u
d
i
o
C
o
n
t
r
o
l
.
