4
Instruction Manual
Warning and Safety
*Read this guide before installation and using this appliance. Failure to follow the safety instructions
may result in property damage, serious injury, or death.
• In the case of the appliance emitting smoke or burning smell, shut down the appliance and
disconnect from the power supply immediately.
• This appliance uses R32 refrigerant. Handle the air conditioner with care and check if there
is any refrigerant leakage. In the case of refrigerant leakage, shut down the appliance and
disconnect from the power supply. Contact a qualied technician for inspection. Refrigerant
can by toxic and ammable. Rapid evoporation of refrigerant may cause frostbite, cardiac
arrhythmia, and / or skin irritation.
• This appliance must be plugged directly into a wall power socket. Do not connect this
appliance to a power strip, extension cord, surge protector, timers, or direct breaker.
• Ensure the voltage and current rating of the power supply corresponds to that on the
product specication.
• Make sure the appliance is connected to a properly grounded power outlet only.
• Do not use the appliance with a damaged cord or plug, or after the heater malfunctions, has
been dropped, or damaged in any manner.
• This appliance is designed to be used indoors only. Do not use this appliance outdoor or
expose it to outdoors elements such as rain, snow, sunlight, wind, or extreme temerpatures.
• Do not place or use the appliance in the bathroom, laundry area, or places that might come
into contact with water.
• Do not use this appliance near ammable substances such as alcohol, gasoline, paint, etc.
Or pressurized containers such as spray cans.
• Repairs should be carried out by a professional or qualied technician only. Incorrect repair
could expose the user to potential electric shock or other kinds of hazards.
• Do not place the appliance in contact with water. The electrical insulation could be damaged
and thus cause electric shock.
• Do not bend, tug, pull or compress the power cord to prevent damaging the power cord.
DANGER WARNING
DANGER
WARNING
CAUTION
Indicates an imminently
hazardous situation that, if not
avoided, will result in death,
serious injury, or serious
property damage.
Indicates a potentially
hazardous situation that, if not
avoided, will result in death,
serious injury, or serious
property damage.
Indicates a potentially
hazardous situation that, if not
avoided, will result in minor to
moderate injury. It may also
be used to indicate unsafe
practices.
5
v.01222024
Warning and Safety
• Do not run the power cord under the carpet or cover the cord with throw rugs, runners, or
similar covering. Arrange the cord away from high trafc area to prevent tripping over it.
• Only use this appliance as described in this manual.
• Do not obstruct the air inlet or outlet.
• Do not use abrasive solvents to clean this appliance.
• Proper adult supervision is required when using this appliance and there are children,
persons with reduced physical, sensory, or mental capabilities, or pets present.
• Do not leave the appliance operating unattended.
• Do not touch any moving parts when the air conditioner is in operation.
CAUTION
6
Instruction Manual
Product Specication
Model 048-APACI-10
Rated Power 1200 W
Rated Voltage 115 V
Frequency 60 Hz
Rated Current 12 A
Cooling Capacity 10000 BTU / h
SEERS 7.83
Operation Temperature 60°F - 90°F
7
v.01222024
Parts Details
NOTE:
• The graphical representation might have slight differences than the actual product.

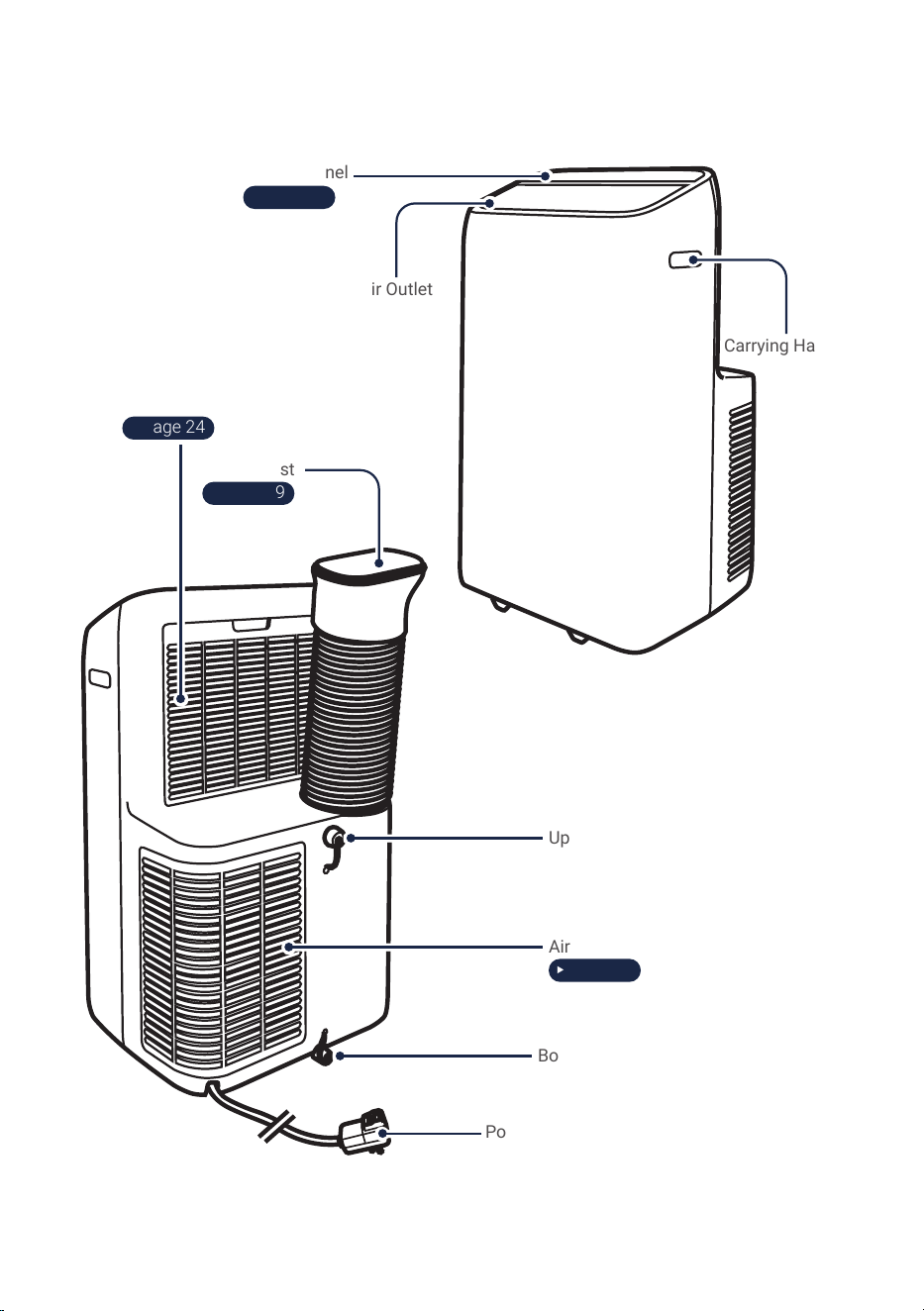

Air Outlet
Air Exhaust
Carrying Handle
Control Panel
Upper Drain Outlet
Air Filter
Air Filter
Bottom Drain Outlet
‣ Page 12
‣ Page 09
‣ Page 24
‣ Page 24
Power Plug
8
Instruction Manual
Parts Details

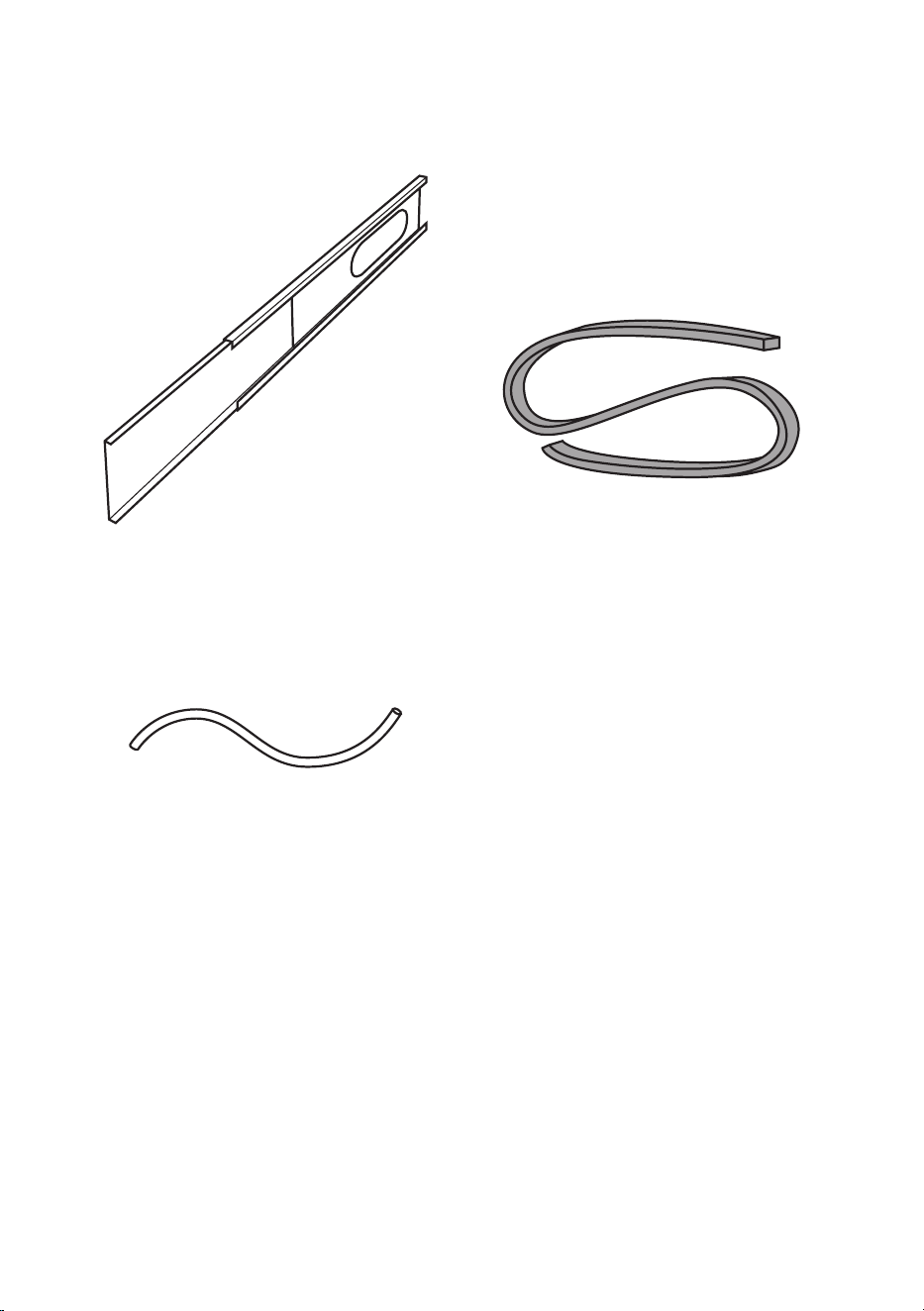

Window Slider Kit
1x
Drain Hose
1x
Foam Seal
1x
9
v.01222024
≥50cm / 19.7"≥50cm / 19.7"
Picking a installation location
Attaching exhaust hose

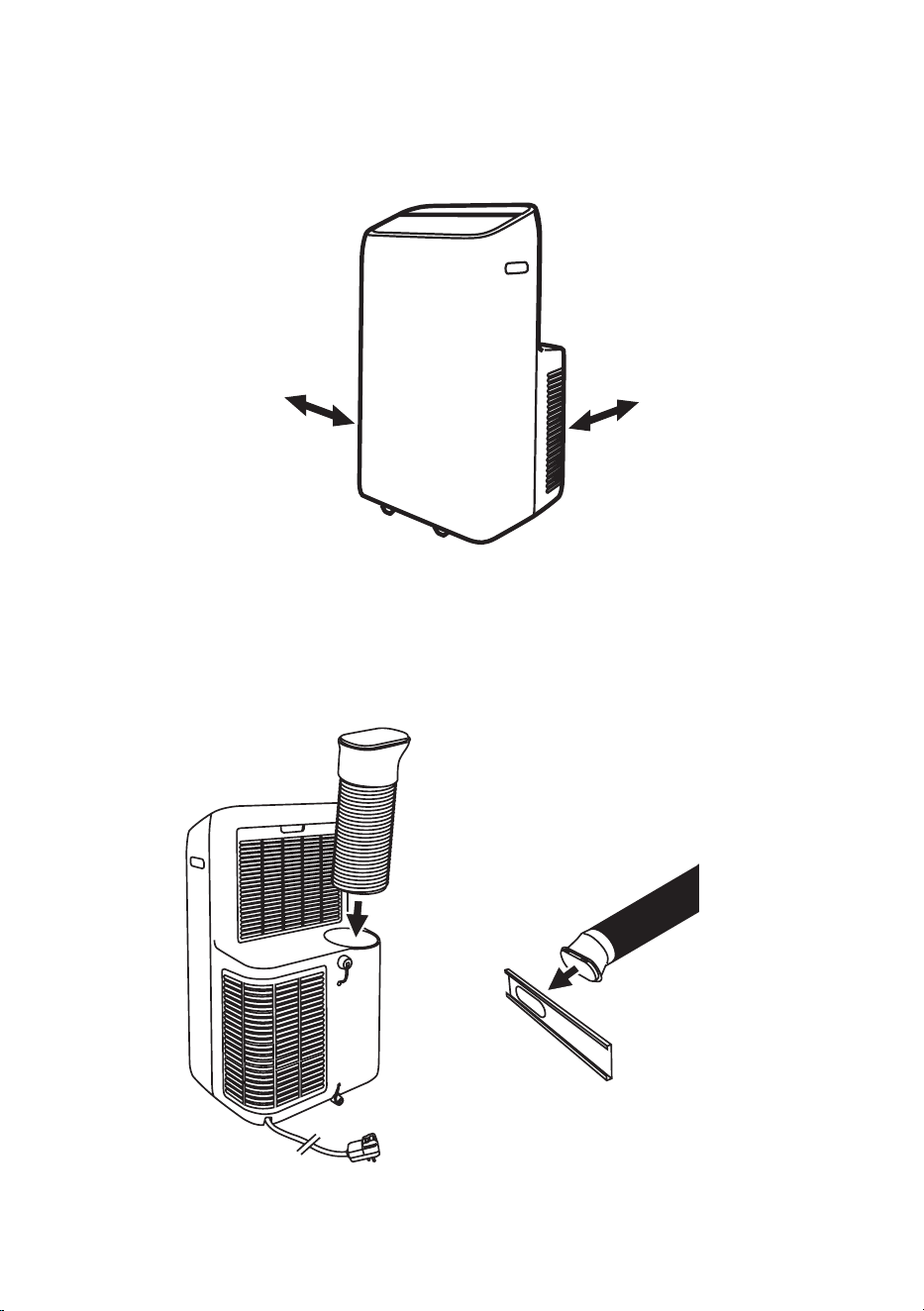

• The air conditioner must be place on a at ground.
• Keep the air conditioner at least 50 cm or 19.7" away from any wall or obstacles.
• Do not place the air conditioner in laundry room or near any open ignition sources such as open
ames, gas appliance, or electric heater.
• Firmly click the exhaust duct to the exhaust opening.
• Attach the other end of the exhaust duct to the window slider kit.
Installtion Guide
10
Instruction Manual
Installtion Guide
Horizontal Window Vertical Window
Foam Seal
Foam Seal

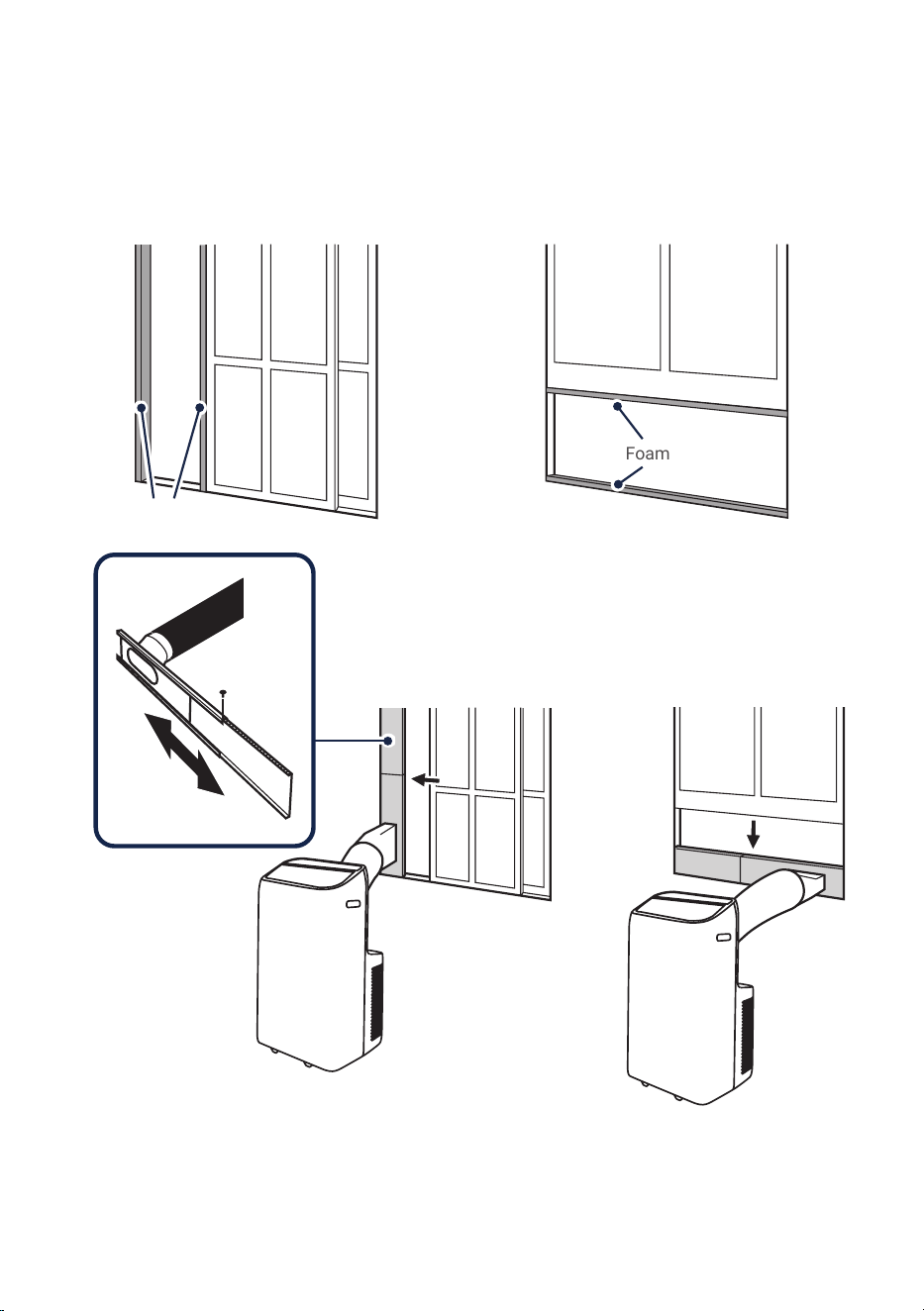

1. Attach foam seal to the window sash and the window frame.
2. Adjust the length of the window slider kit and secure the position with the provided screws.
3. Place the window slider kit between the window sach and window frame.
47cm - 130cm /
18.5" - 51"
Picking a installation location
11
v.01222024
Installtion Guide
• Exhaust duct should be kept to a minimum length and as straight as possible.
• Stretching or bending the duct excessively will decrease cooling efciency.
12
Instruction Manual
Control Panel

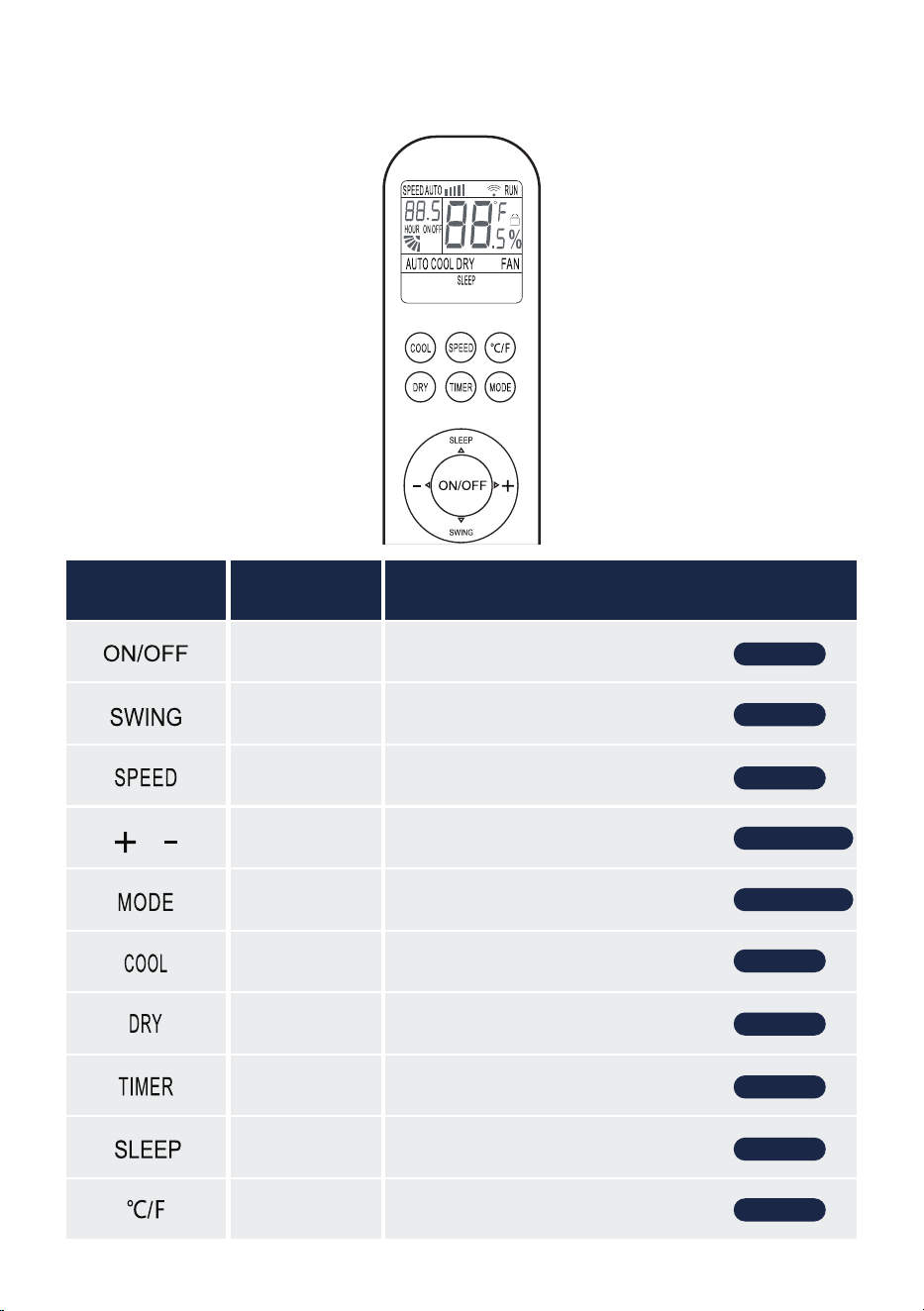

Icon Button Name Function
Power Button Power ON / OFF the air conditioner
Oscillation
Button
Enable the air outlet to oscillate
Fan Speed
Button
Control the fan speed
Increase /
Decrease Button
Adjust temperature / timer / unit setting
Mode Button Change the operation mode setting
Timer Button Enable shut down / turn on timer
Eco Button Enable ECO mode
‣ Page 15
‣ Page 16
‣ Page 17
‣ Page 16
‣ Page 16
‣ Page 15, 17
‣ Page 15, 16
13
v.01222024
Icon Button Name Function
Power Button Power ON / OFF the air conditioner
Swing Button Enable the air outlet to oscillate
Speed Button Control the fan speed
Increase /
Decrease Button
Adjust temperature / timer / unit setting
Mode Button Change the operation mode setting
Cool Button Shortcut for cool mode
Eco Button Shortcut for dry mode
Timer Button Enable shut down / turn on timer
Sleep Button Enable sleep mode
Unit Button Changing display unit between °C and °F
‣ Page 15
‣ Page 14
‣ Page 16
‣ Page 15
‣ Page 15
‣ Page 17
‣ Page 18
‣ Page 17
Remote Control
‣ Page 15, 17
‣ Page 15, 16
14
Instruction Manual
Remote Control
Changing Remote Control Battery

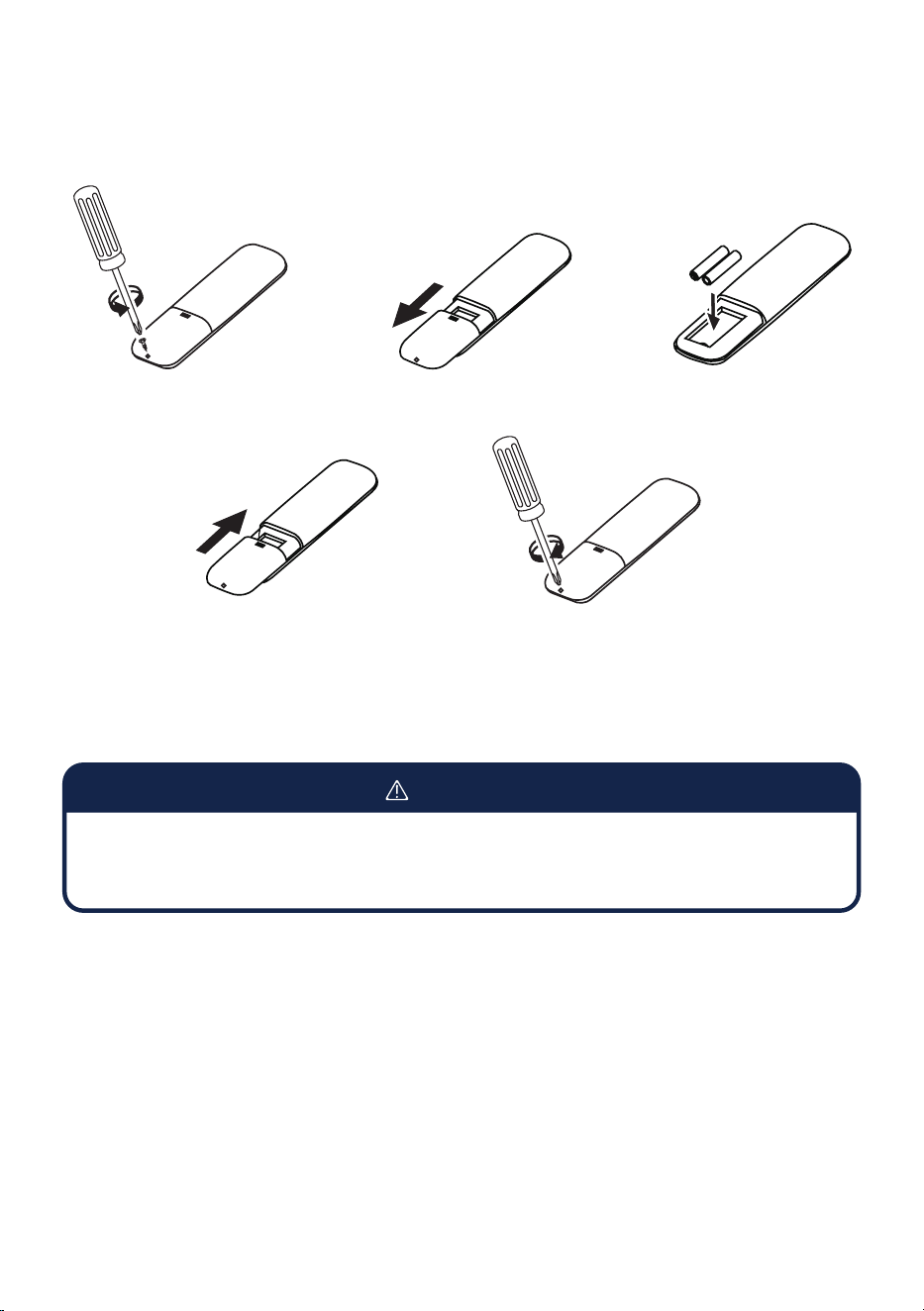

1. Remove the screw on the back cover of the remote control.
2. Remove the back cover and insert 2 new AAA 1.5v batteries.
3. Re-install the back cover to the remote control and secure with the screw.
• Do not user rechargeable batteries.
• Replace the old batteries with new ones of the same type.
• Do not dispose battieries as unsorted municipal waste.
WARNING
15
v.01222024
Operation Instructions
Power ON / OFF
Cool Mode
Dry Mode
Auto Mode
1. Press on the control panel or press on the remote control to turn on the unit.
2. Press on the control panel or press on the remote control again to turn off the
unit.
1. Press on the control panel or or on the remote control to select cool
mode.
- indicator will lights up on the control panel.
- indicator will lights up on the remote control display.
2. Press on the control panel or on the remote control to adjust temperature setting.
- Operation temperature range from 16°C - 32°C / 60°F - 90°F.
3. Press on the control panel or on the remote control to adjust fan speed.
1. Press on the control panel or or on the remote control to select dry mode.
- indicator will lights up on the control panel.
- indicator will lights up on the remote control display.
1. Press on the remote control to select auto mode.
- indicator will lights up on the remote control display.
NOTE:
In the AUTO mode
1.The fan speed on the control panel is not avilable
2.The temperature, ECO and sleep mode is not avilable.
16
Instruction Manual
Operation Instructions
Fan Mode
ECO Mode
Oscillation Function
1. Press on the control panel or on the remote control to select fan mode.
- indicator will lights up on the control panel.
- indicator will lights up on the remote control display.
2. Press on the control panel or on the remote control to adjust fan speed.
1. Press on the control panel when the air conditioner is operating in cool mode to enable
ECO mode.
- indicator will lights up on the control panel.
- The air conditioner will operatate with lower power consumption for 8 hours in ECO mode.
1. Press on the control panel or on the remote control to select fan mode.
- The vents on the air conditioner will osciallate side to side.
2. Press on the control panel or on the remote control again disable vent
oscillation.
NOTE:
• ECO mode is not accessable on the remote control.
17
v.01222024
Operation Instructions
Turn ON Timer
Shut OFF Timer
1. Make sure the air conditioner is OFF.
2. Press on the control panel or on the remote control to begin setting turn on
timer.
3. Press on the control panel or on the remote control to set the desired time.
4. Leave the setting for 5 seconds, the air conditioner will start the timer automatically.
5. When timer function is initiated, press on the control panel or on the remote
once to view the remaining time, press the button twice to cancel timer.
1. Make sure the air conditioner is ON.
2. Press on the control panel or on the remote control to begin setting shut off
timer.
3. Press on the control panel or on the remote control to set the desired time.
4. Leave the setting for 5 seconds, the air conditioner will start the timer automatically.
5. When timer function is initiated, press on the control panel or on the remote
once to view the remaining time, press the button twice to cancel timer.
NOTE：
If the panel is used to start the timing, you need to press the Timer key again on the remote control to
set the time on the remote control.
Changing Temperature Unit
1. Press and on the control panel for 3 seconds or on the remote control to
change temperature unit between degree Celsius and degree Fahrenheit.
18
Instruction Manual
Operation Instructions
Sleep Mode
Child Lock
WI-FI Function
1. Press on the remote control to enable sleep mode.
- The air conditioner will automatically adjust temperature and fan speed for sleep mode for 8
hours.
1. Press and on the remote control for 3 seconds to enable child lock.
- indicator will show up on the remote control.
NOTE:
• Sleep mode is not accessable on the control panel.
NOTE:
• Child lock function is not accessable on the control panel.

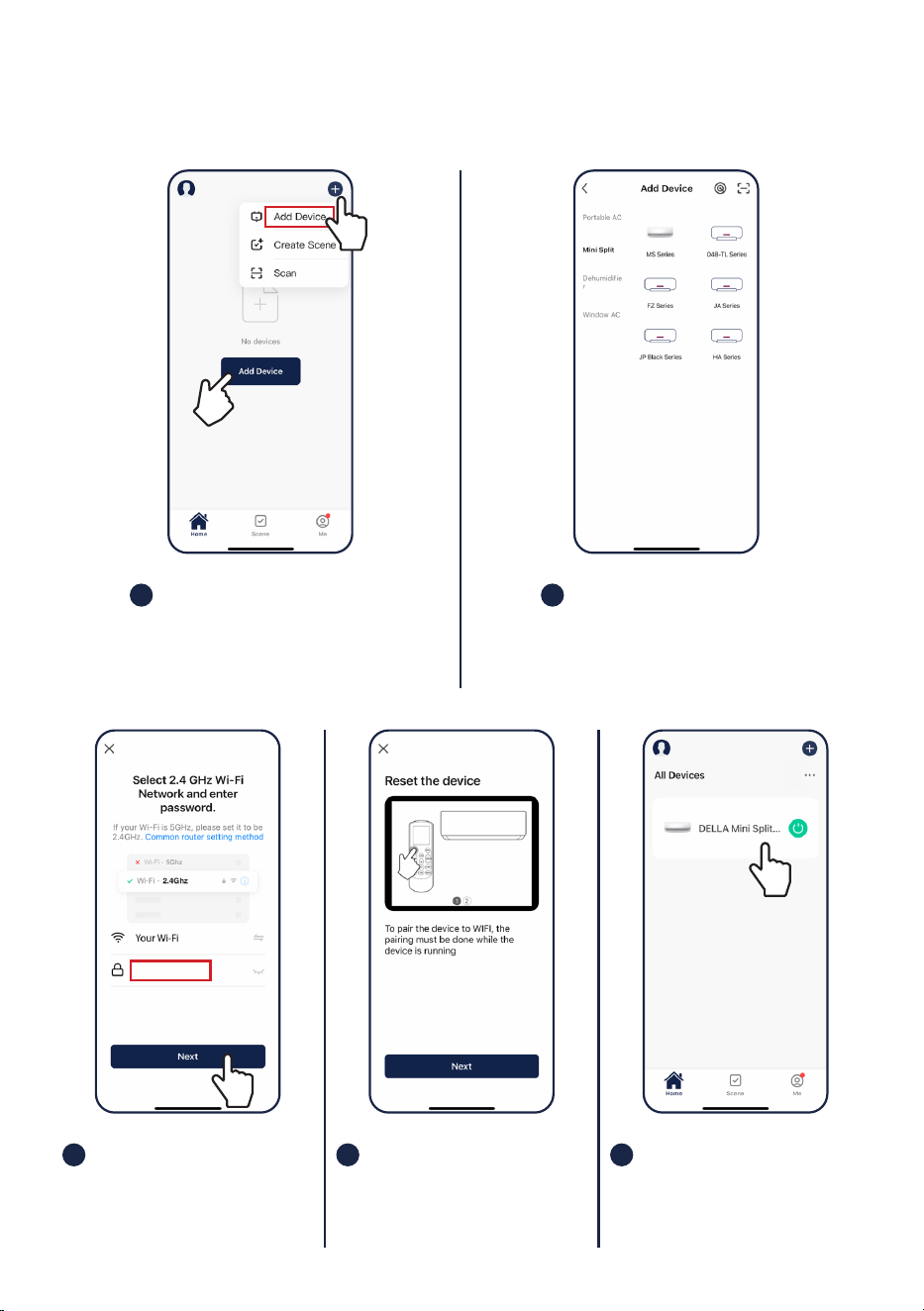

1.
2.
and on the
3 seconds to enable WI-FI function.
Press + and COOL on the remote control for3 seconds to enable WI-FI function. And it will ring
eight times- Pair your air conditioner to your smart phone application
- Pair your air conditioner to your smart phone application.
remote control for
Please configure the network when the remote control is on. If you configure the network when
the remote control is off, the product will shut down. At this time, you need to restart.
19
v.01222024
Operation Instructions
Water Drainage
Upper Drain Outlet
Drain Area
Bottom Drain Outlet

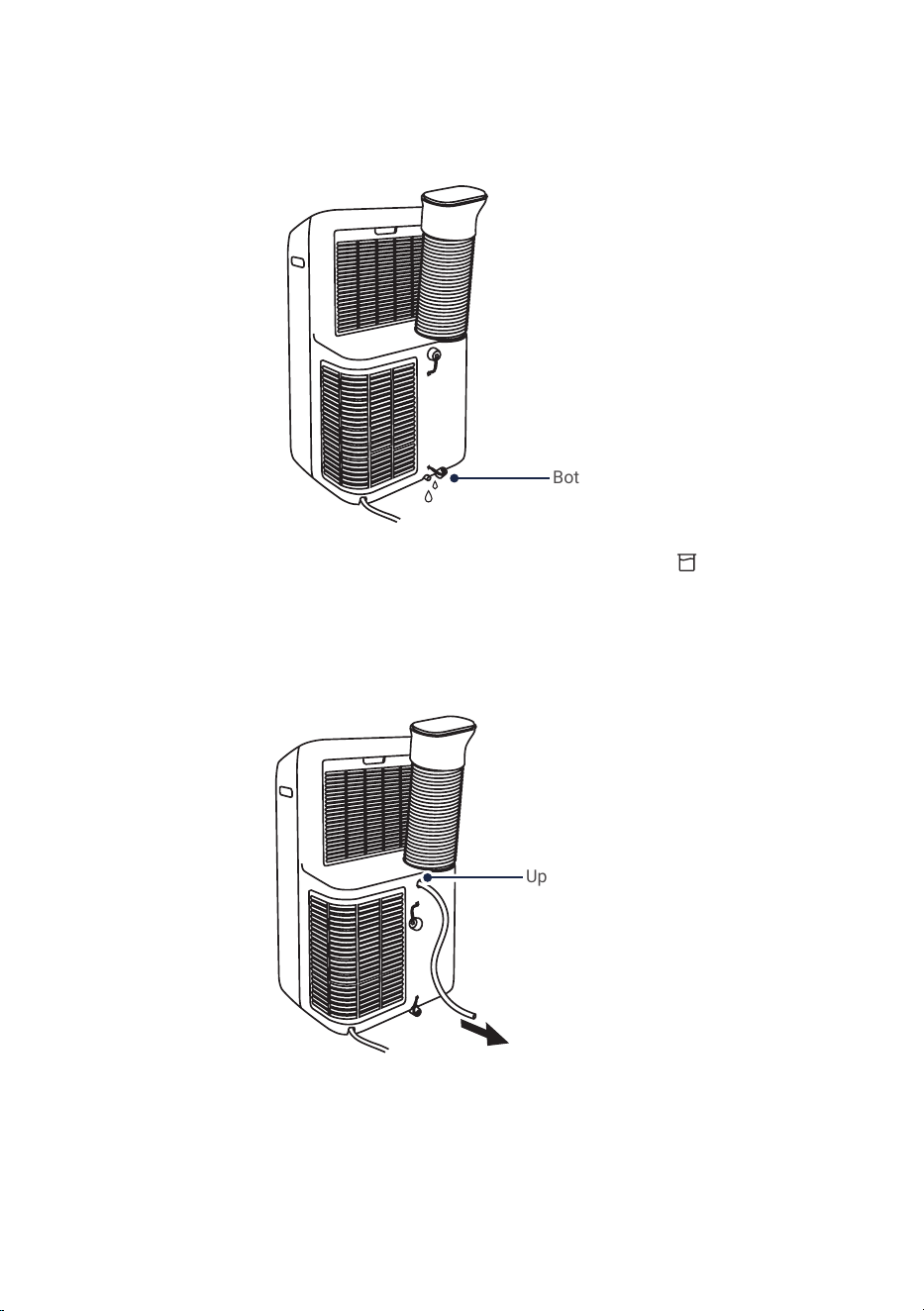

• When the internal water tank is fullm the digital display will show “FL” and indicator will light
up.
• Carefully move the air conditioner to a drain location, then remove the bottom drain plug and drain
the water.
• After draining, re-install the drain plug and restart the air conditioner.
• For continoue drainage during dry mode, remove the upper drain plug and insert a drain hose to the
outlet.
• Place the other end of the hose to a drain area.
20
Instruction Manual
Wi- / App Connection
• Search “DELLA+” on app store or google play, or scan the QR code
below to download the application.
• Enable permission of storage, location, and camera for this application,
otherwise it will have a problem operating.
Download the Application
NOTE:
• The Della+ application is free; however, data charges may apply when downloading or using the application.
• Every effort has been made to ensure the accuracy of the instruction and graphic representations at the time of producing this
user guide. Your application’s user interface, icons, and screen may look different from this guide due to updates and development
changes.
• Della+ app can be altered without notice for quality improvement and also be deleted depending on the circumstances of
manufacturing rms.
21
v.01222024
Wi- / App Connection
Tap the country menu.
Tap the “Register” button
for rst time user.
Enter your email address,
then read and agree to the
user agreement, and get
verication code.
Open the DELLA+ app on
your smart devices.
Select your country.
1
4
2
5
3
User Registration
22
Instruction Manual
Wi- / App Connection
Enter the verication
code.
Set your password and
tap “Done”.
76
User Registration
23
v.01222024
Wi- / App Connection
Add Device
Enter your Wi-Fi network
password, then tap “Next”.
You can see your device
on the device list after
adding.
Follow the in-app
instruction on adding the
device.
3 34
Select the appliance type
you want to add.
Tap “Add Device” in the
center of the screen or the
“+” dropdown menu from
the top right corner.
1 2
24
Instruction Manual
Care and Maintenance
Clean the Unit
Clean the Air Filter
1. Clean the heater with a soft dry cloth or a damped cloth with neutral detergent.

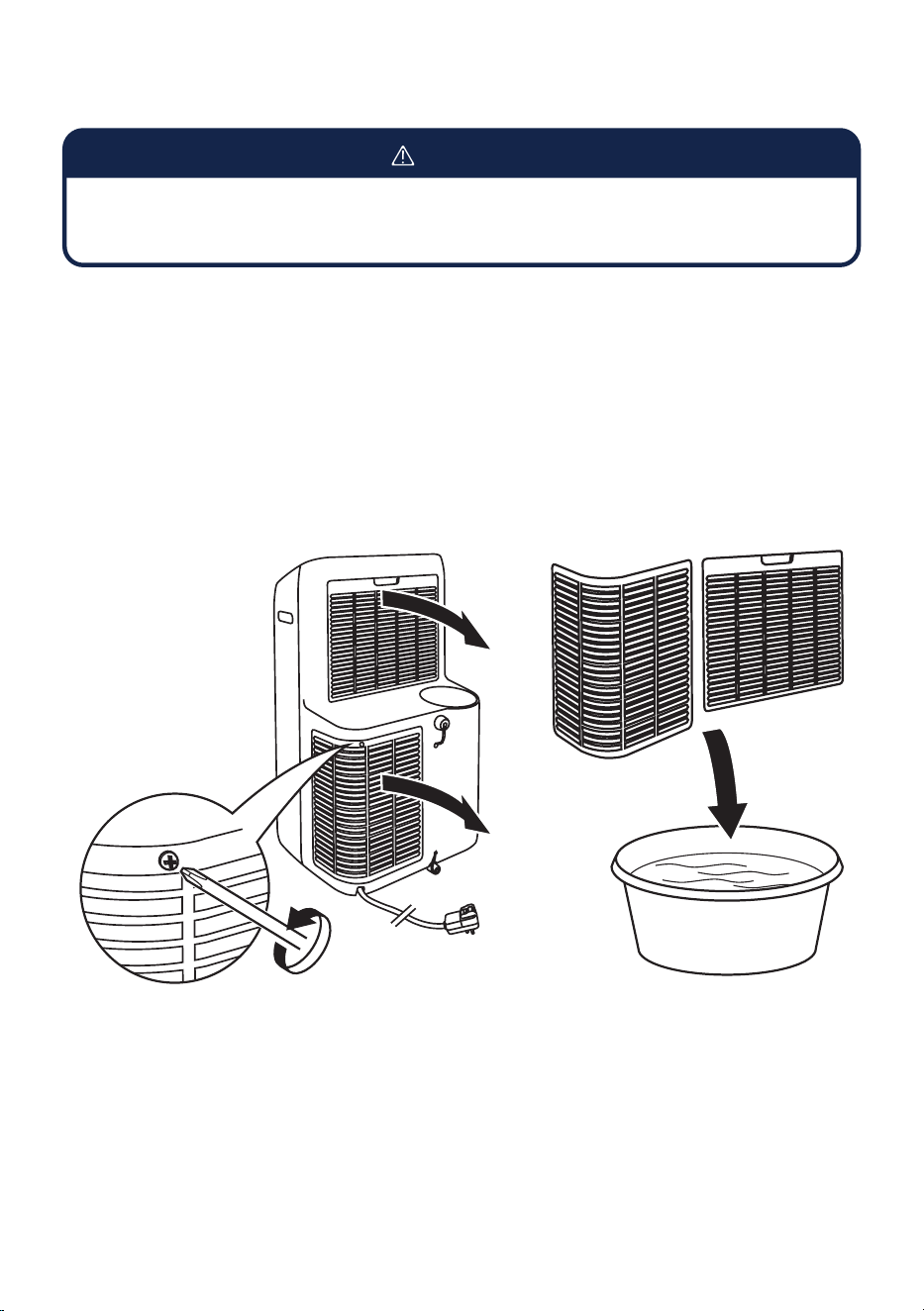

1. Remove the air lters from the air conditioner.
2. Clean the air lters with vacuum cleaner or with warm water with mild neutral detergent.
3. Make sure air lters are dry and then re-install it to the air conditioner.
NOTE:
• Do not ush the machine with water.
• Do not use volatile liquids such as thinner or alcohol to prevent damaging the unit.
• Before cleaning the unit, you must shut down the machine and cut off the power supply.
• Never ush the air conditioner with water.
CAUTION
25
v.01222024
Troubleshooting
Problem Possible Causes
The appliance is nonoperational
Power failure / plug pulled out
Power breaker tripped
The appliance does not start when
power on
4 minutes reset after shutting down the appliance
Temperature setting is higher than the environment tem-
perature
Poor Cooling effect
Obstruction on the vent
Dirty air lter
Room is too big
doors and / or windows are open
Room is too hot
Noise or Vibration The appliance is placed on uneven ground
26
Instruction Manual
27
v.01222024
www.dellahome.com
800-863-4143
6:00a.m. – 4:00p.m. PST Monday - Friday
©Della All rights reserved.
Under the copyright law, this document may not
be printed, translated, reproduced, or distributed,
in whole or in part without written permission from
DELLA.
Every effort has been made to ensure that the
information in this document is accurate, DELLA is
not responsible for printing or clerical errors.
All trademarks, logos, and brand names are the
property of their respective companies. Mention
of third-party products or service names is for
identification and informational purposes only.
Use of these names, brands, and trademarks
does not imply endorsement. DELLA assumes no
responsibility with regard to the performance or
use of these products.
