p/n: DPD-9PX2206
Revision 02
9PX6K-L
9PXEBM192RT-L
9PX 6000 Li-ion
9PX 6000 Li-ion
Advanced Users Guide
Eaton 9PX 6KVA Lithium-Ion
©Copyright 2023 Eaton, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced in any way without the
express written approval of Eaton.
SSaaffeettyy IInnssttrruuccttiioonnss
SAVE THESE INSTRUCTIONS.
This manual contains important instructions that should be followed during installation and
maintenance of the UPS and batteries.
The 9PX models that are covered in this manual are intended for installation in an environment within
0 to 40°C, free of conductive contaminant.
Supplier's Declaration of Conformity of Federal Communications Commission Statement This device
complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause
undesired operation,
For questions regarding this FCC SDoC declaration, contact Eaton Corporation by telephone or
through the Internet.
Eaton Corporation
8609 Six Forks Road,
Raleigh, NC 27615, USA
Telephone: 800-356-5794
SSppeecciiaall SSyymmbboollss
The following are examples of symbols used on the product to alert you to important information:
RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric shock
symbol.
CAUTION: REFER TO OPERATOR'S MANUAL - Refer to your operator's manual for
additional information, such as important operating and maintenance instructions.
This symbol indicates that you should not discard the UPS or the UPS batteries in the trash.
This product contains sealed, Lithium-Ion batteries and must be disposed of properly. For
more information, contact your local recycling/reuse or hazardous waste center.
This symbol indicates that you should not discard waste electrical or electronic equipment
(WEEE) in the trash. For proper disposal, contact your local recycling/reuse or hazardous
waste center.
SSaaffeettyy ooff PPeerrssoonnss
• The system has its own power source (the battery). Consequently, the power outlets may be
energized even if the systems is disconnected from the AC power source. Dangerous voltage
levels are resent within the system. It should be opened exclusively by qualified service
personnel.
• The system must be properly grounded at all times.
• The battery supplied with the system contains small amounts of toxic materials. To avoid
accidents, the directives listed below must be observed:
– Servicing of batteries should be performed or supervised by personnel knowledgeable about
batteries and the required precautions.
– When replacing batteries, replace with the same type and number of batteries or battery
packs.
– Do not dispose of batteries in a fire. The batteries may explode.
– Batteries constitute a danger (electrical shock, burns). The short-circuit current may be very
high.
• Precautions must be taken for all handling:
– Wear rubber gloves and boots.
– Do not lay tools or metal parts on top of batteries.
– Disconnect charging source prior to connecting or disconnecting battery terminals.
– Determine if battery is inadvertently grounded. If inadvertently grounded, remove source
from ground. Contact with any part of a grounded battery can result in electrical shock. The
likelihood of such shock can be reduced if such grounds are removed during installation and
maintenance (applicable to equipment and remote battery supplies not having a grounded
supply circuit).
PPrroodduucctt SSaaffeettyy
• To connect the UPS, instructions and operation described in the manual must be followed in the
indicated order.
• CAUTION - To reduce the risk of fire, the unit connects only to a circuit provided with 20 or 30
amperes maximum branch circuit overcurrent protection in accordance with the National Electric
Code, ANSI/NFPA 70 (US installations only).
• Check that the indications on the rating plate correspond to your AC powered system and to the
actual electrical consumption of all the equipment to be connected to the system.
• For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall
be easily accessible
• Never install the system near liquids or in an excessively damp environment. This equipment
should only be used in a dry indoor environment.
• Never let a foreign body penetrate inside the system.
• Never block the ventilation grates of the system.
• Never expose the system to direct sunlight or source of heat.
• If the system must be stored prior to installation, storage must be in a dry place.
• The admissible storage temperature range is -25ºC to +55ºC without batteries, 0°C to 40°C with
batteries.
• The system is not for use in a computer room AS DEFINED IN the standard for the Protection of
Information Technology Equipment, ANSI/NFPA 75 (US installations only).
SSppeecciiaall PPrreeccaauuttiioonnss
• The unit is heavy: wear safety shoes and use vacuum lifter preferentially for handling operations.
• All handling operations will require at least two people (unpacking, lifting, installation in rack
system).
• Before and after the installation, if the UPS remains de-energized for a long period, the UPS must
be energized for a period of 24 hours, at least once every 6 months (for a normal storage
temperature less than 25°C). This charges the battery, thus avoiding possible irreversible
damage.
• During the replacement of the Battery Module, it is imperative to use the same type and number
of element as the original Battery Module provided with the UPS to maintain an identical level of
performance and safety. If there are any questions, don’t hesitate to contact your local EATON
representative.
• All repairs and service should be performed by AUTHORIZED SERVICE PERSONNEL ONLY.
There are NO USER SERVICEABLE PARTS inside the UPS.
• For potential safety issue on defective UPS : DISCONNECT INTERNAL BATTERY for storage and
transportation.
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 v
TTaabbllee ooff CCoonntteennttss
11 IInnttrroodduuccttiioonn....................................................................................................................................................................................................................................................................................................11
1.1 Introduction............................................................................................................................................... 1
1.2 Environmental Protection ............................................................................................................................. 1
22 PPrreesseennttaattiioonn ..................................................................................................................................................................................................................................................................................................33
2.1 Standard Installations ..................................................................................................................................3
2.2 Accessories...............................................................................................................................................3

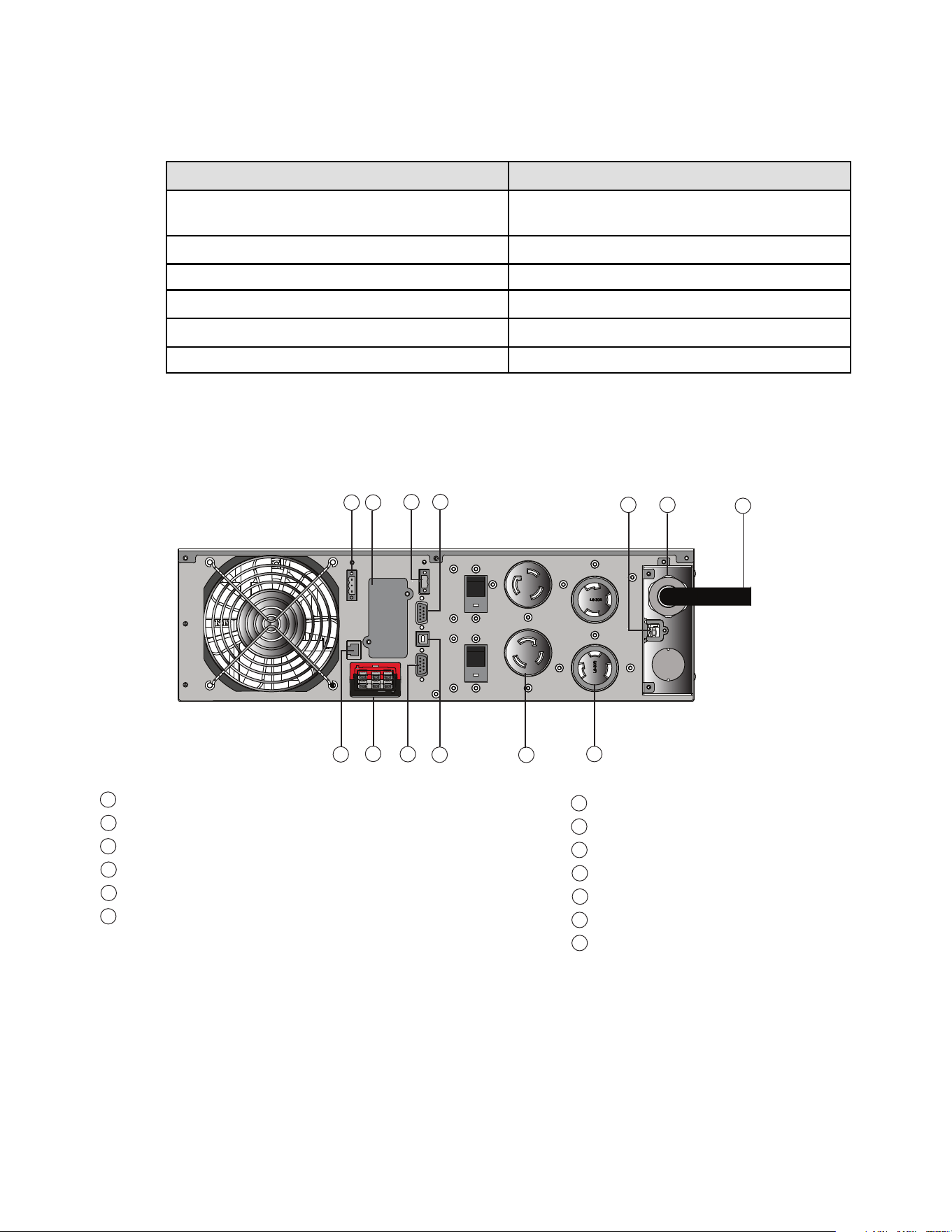

2.3 Rear Panels ...............................................................................................................................................4

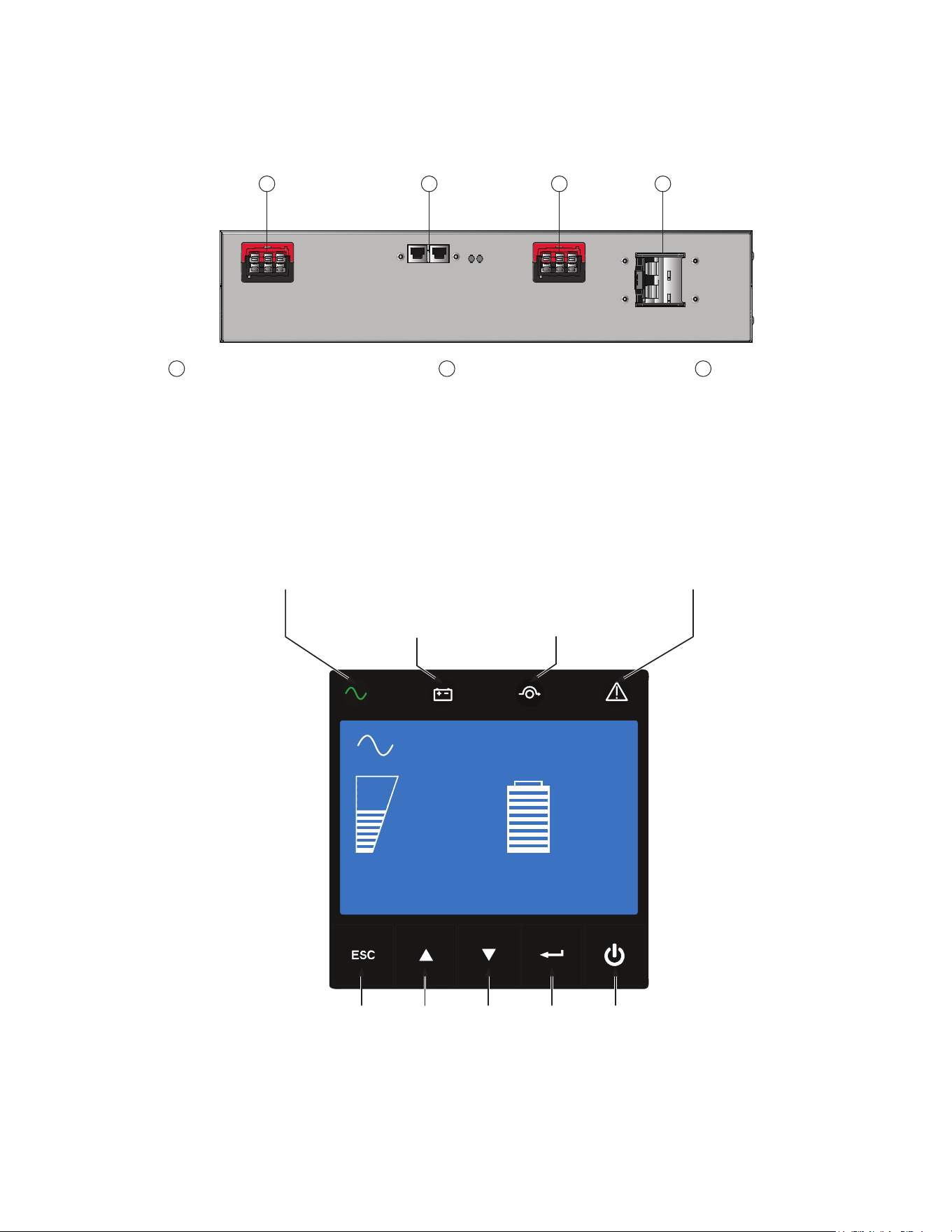

2.4 Control Panel .............................................................................................................................................5
2.5 LCD Description .........................................................................................................................................6
2.6 Display Functions ....................................................................................................................................... 7
2.7 User Settings............................................................................................................................................. 8
33 IInnssttaallllaattiioonn .................................................................................................................................................................................................................................................................................................. 1111
3.1 Inspecting the Equipment........................................................................................................................... 11

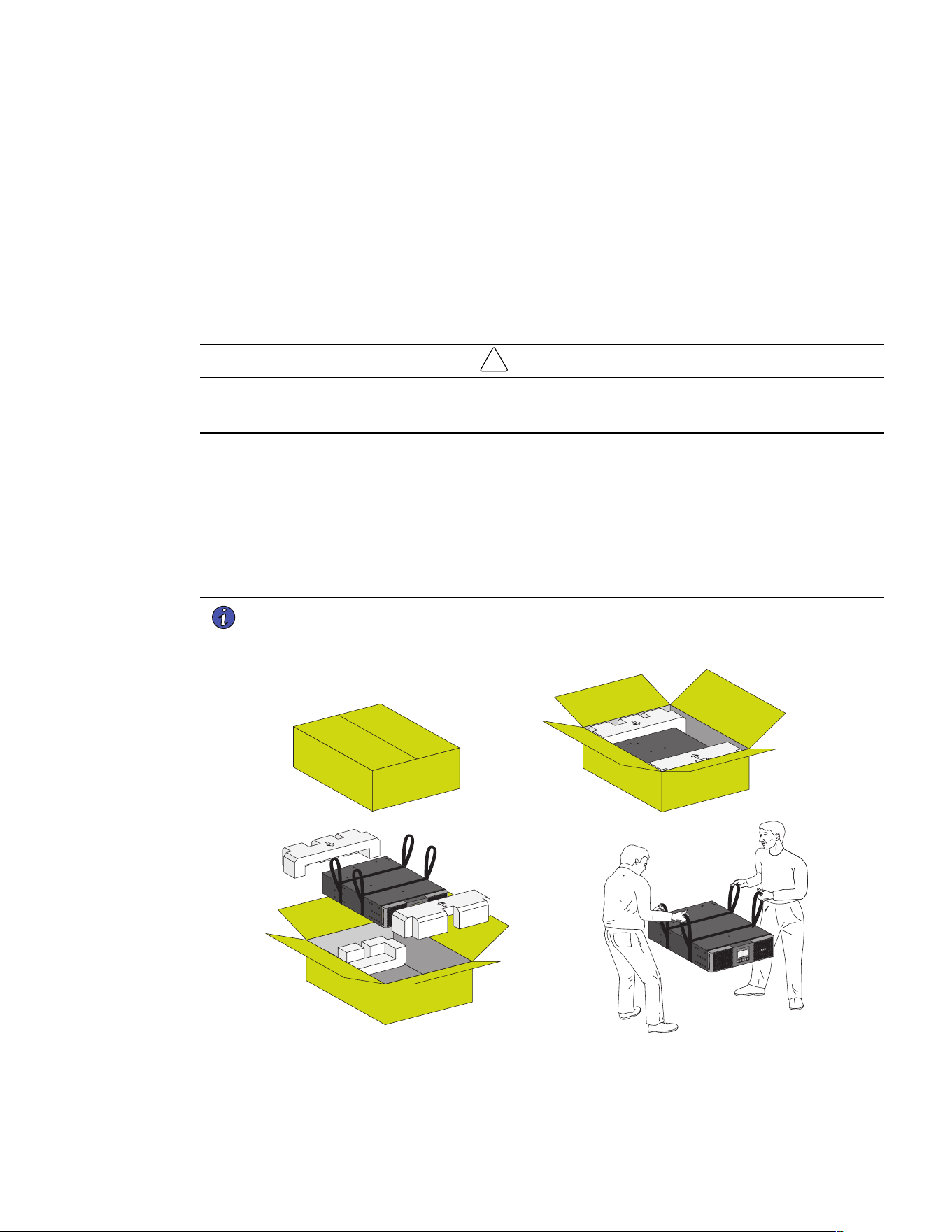

3.2 Unpacking the Cabinet............................................................................................................................... 11

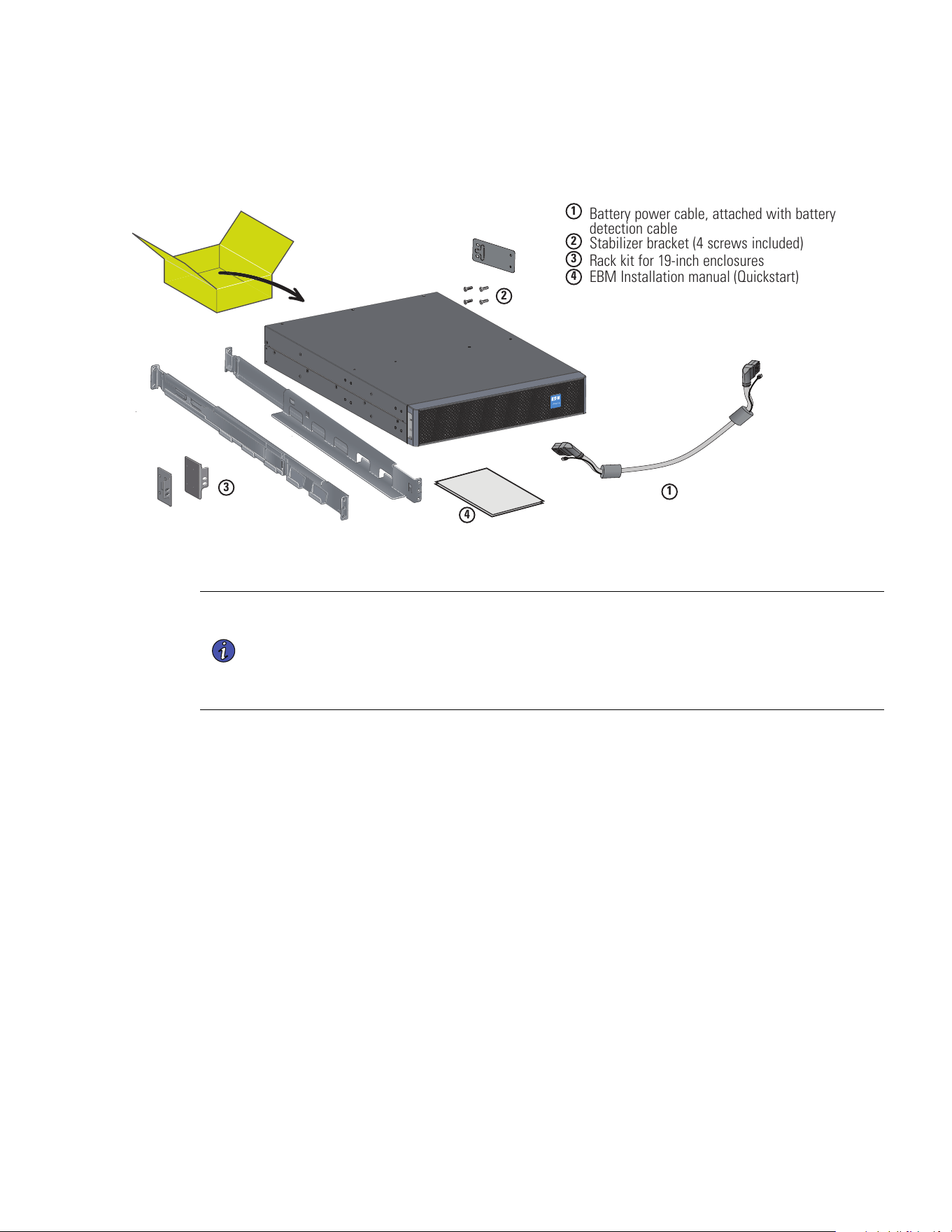

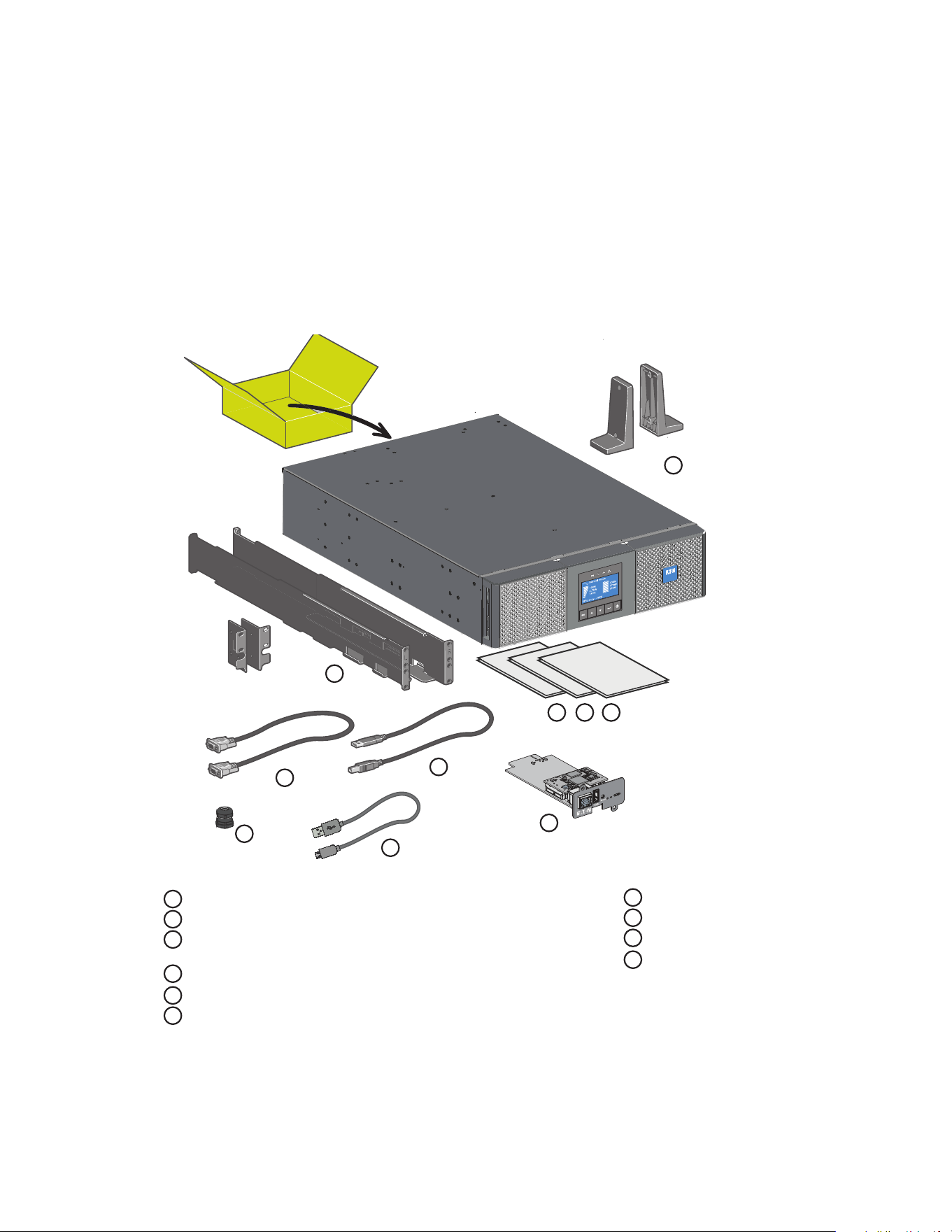

3.3 Checking the Accessory Kit ........................................................................................................................ 12

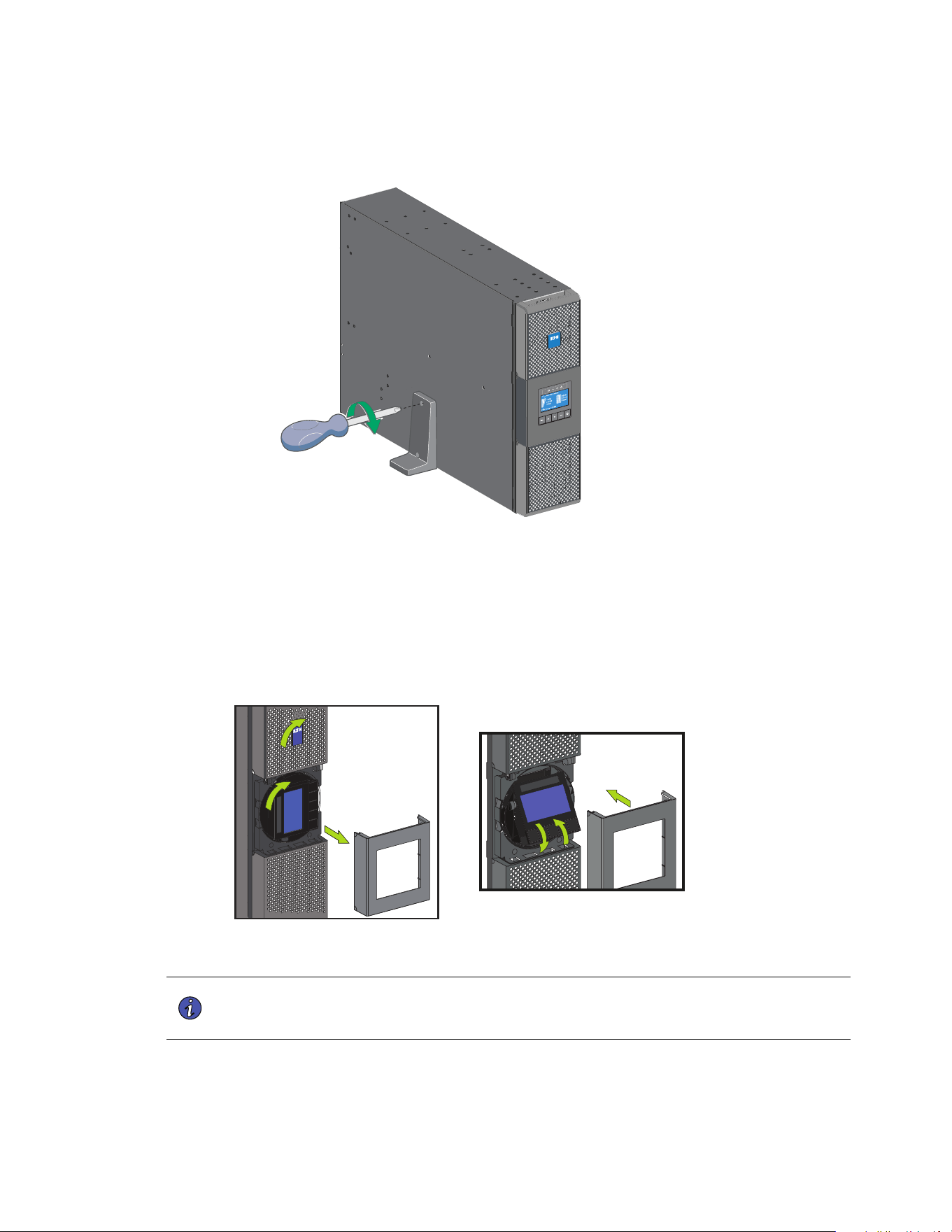

3.4 Tower Installation ..................................................................................................................................... 13

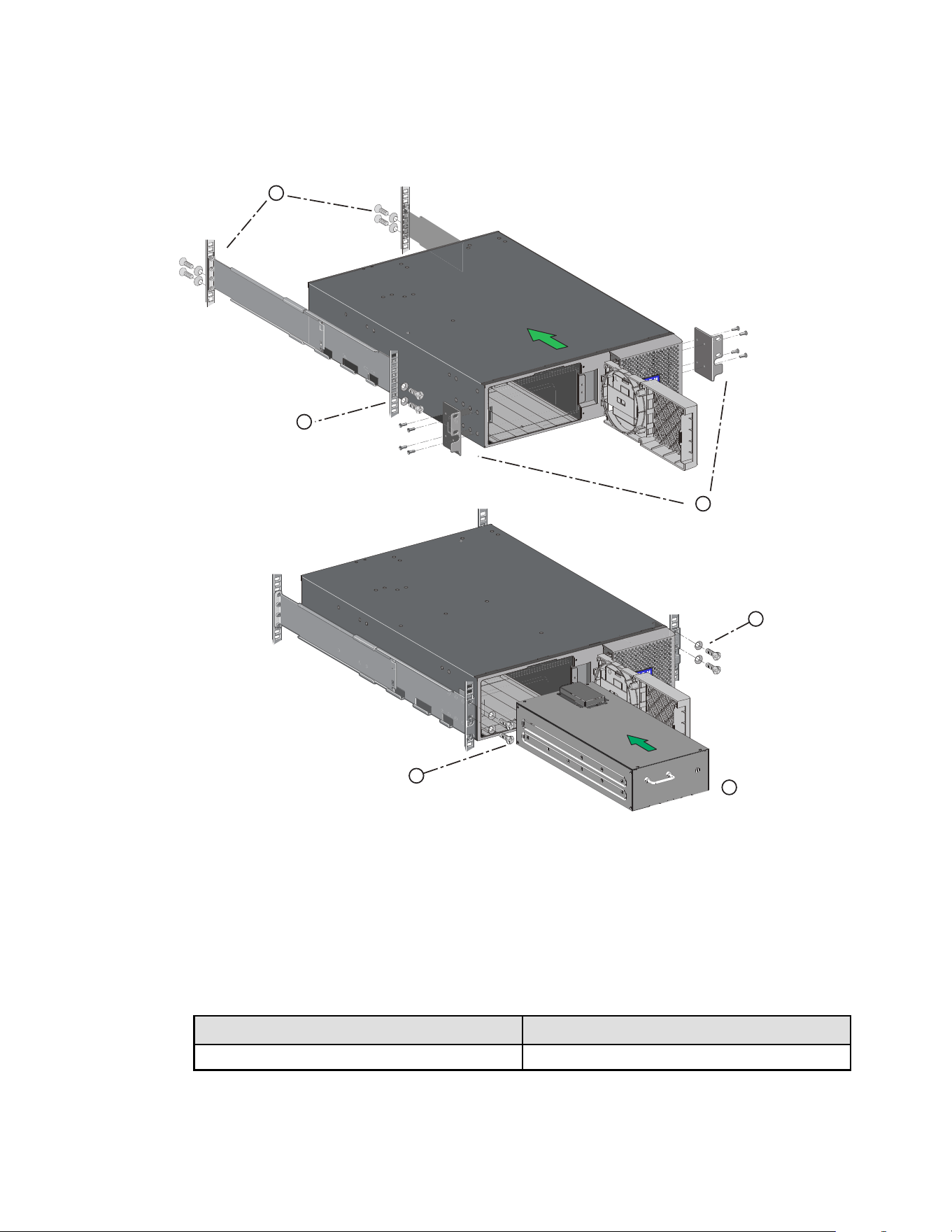

3.5 Rack Installation ....................................................................................................................................... 14
3.6 Installation Requirements........................................................................................................................... 16

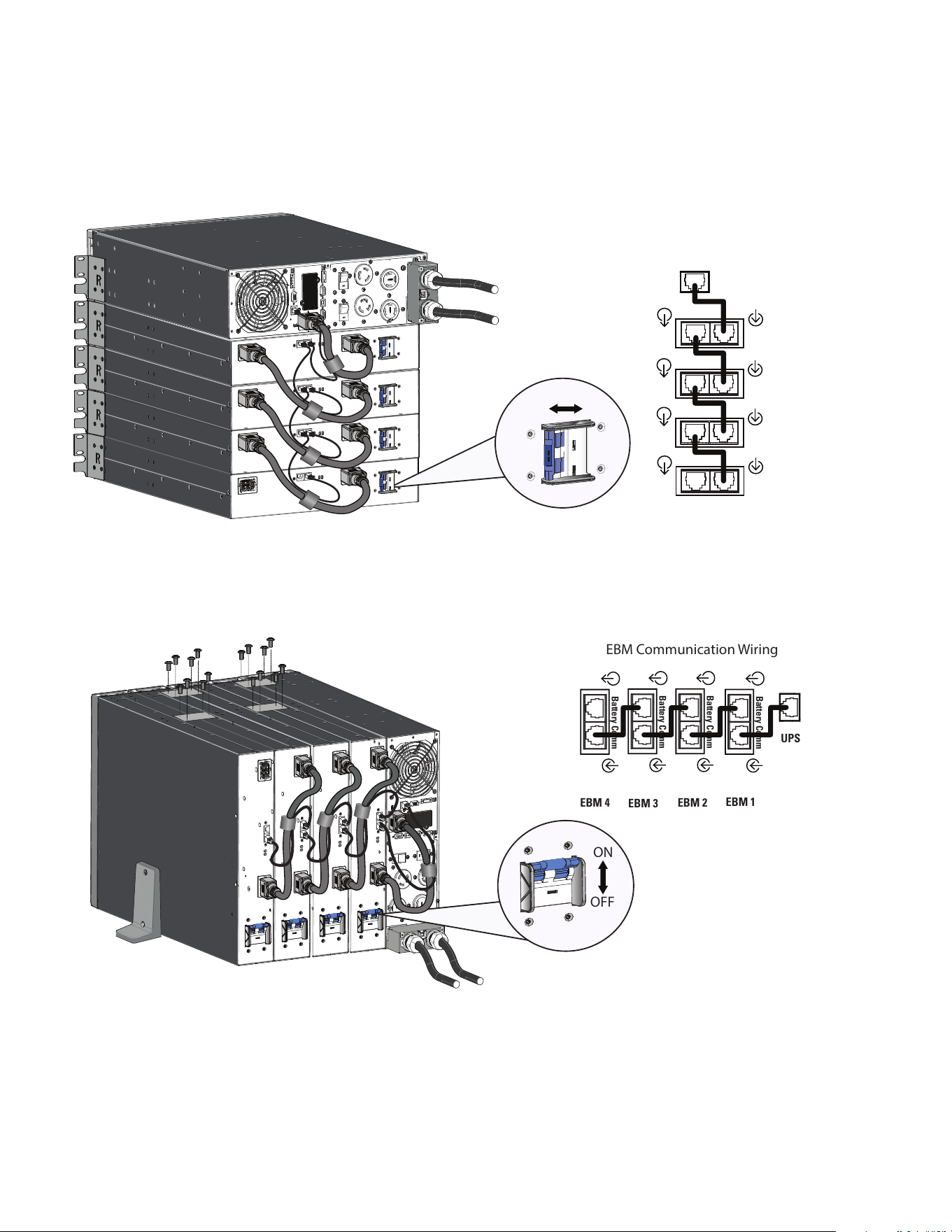

3.7 Connecting the EBM’s............................................................................................................................... 17

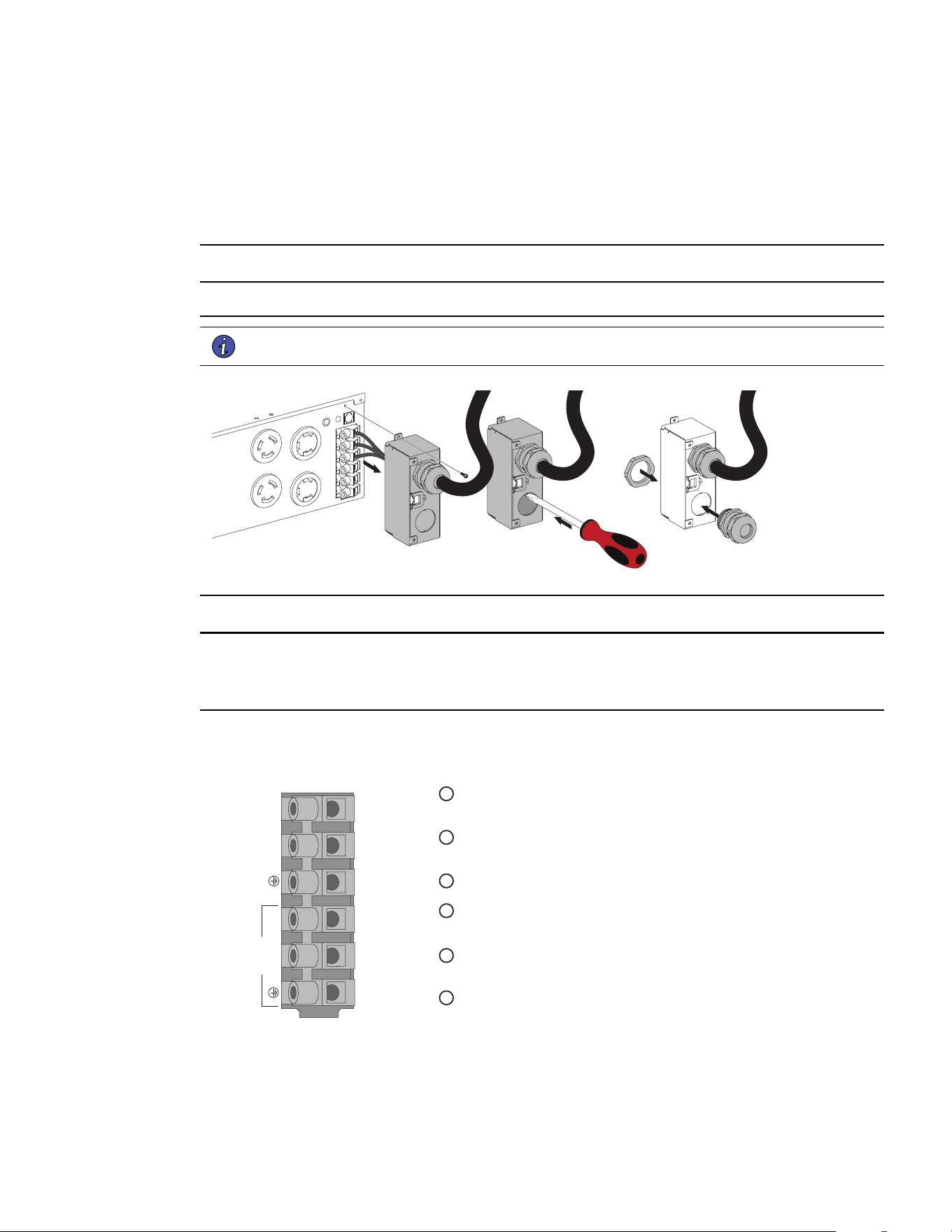

3.8 Power Cables Connection .......................................................................................................................... 19
3.9 Detecting Other Accessories ...................................................................................................................... 19
44 CCoommmmuunniiccaattiioonn ...................................................................................................................................................................................................................................................................................... 2211

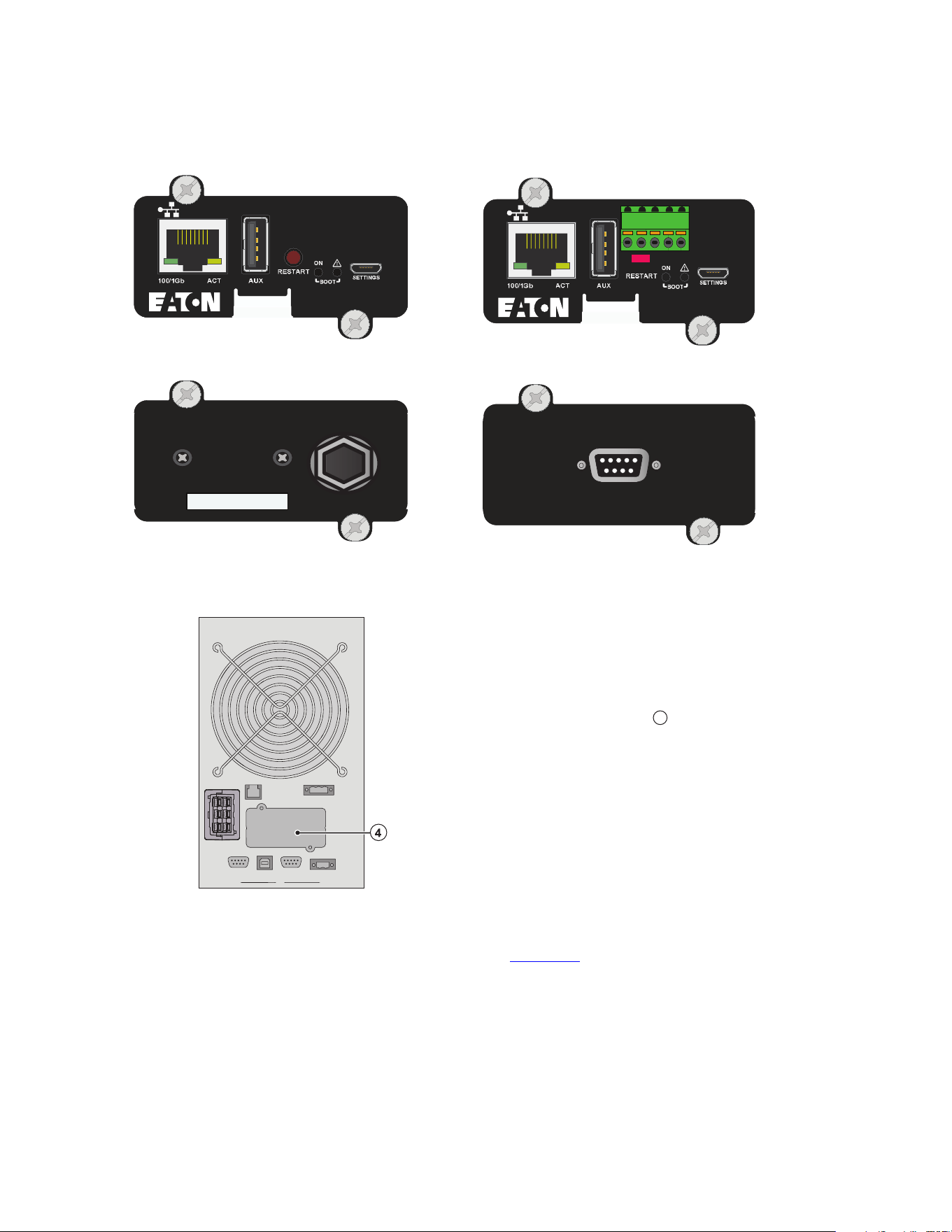

4.1 Communication Ports ................................................................................................................................ 21
4.2 UPS Remote Control Functions ................................................................................................................... 22
55 OOppeerraattiioonn........................................................................................................................................................................................................................................................................................................ 2255
5.1 Start-up and Normal Operation .................................................................................................................... 25
5.2 Starting the UPS on Battery ........................................................................................................................ 25
5.3 UPS Shutdown ........................................................................................................................................ 25
66 MMooddeess OOff OOppeerraattiioonn.......................................................................................................................................................................................................................................................................... 2277
6.1 Online Mode ........................................................................................................................................... 27
6.2 Battery Mode .......................................................................................................................................... 27
6.3 Bypass Mode .......................................................................................................................................... 27
6.4 Standby Mode ......................................................................................................................................... 27
6.5 Transferring Between Modes...................................................................................................................... 27
6.6 Setting High Efficiency Mode ...................................................................................................................... 28
6.7 Configuring Bypass Settings ....................................................................................................................... 28
6.8 Configuring Battery Settings ....................................................................................................................... 28
vi Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
6.9 Retrieving the Event Log ............................................................................................................................ 28
6.10 Retrieving the Fault Log ........................................................................................................................... 28
77 UUPPSS MMaaiinntteennaannccee................................................................................................................................................................................................................................................................................ 2299
7.1 Equipment Care ....................................................................................................................................... 29
7.2 Storing the Equipment ............................................................................................................................... 29

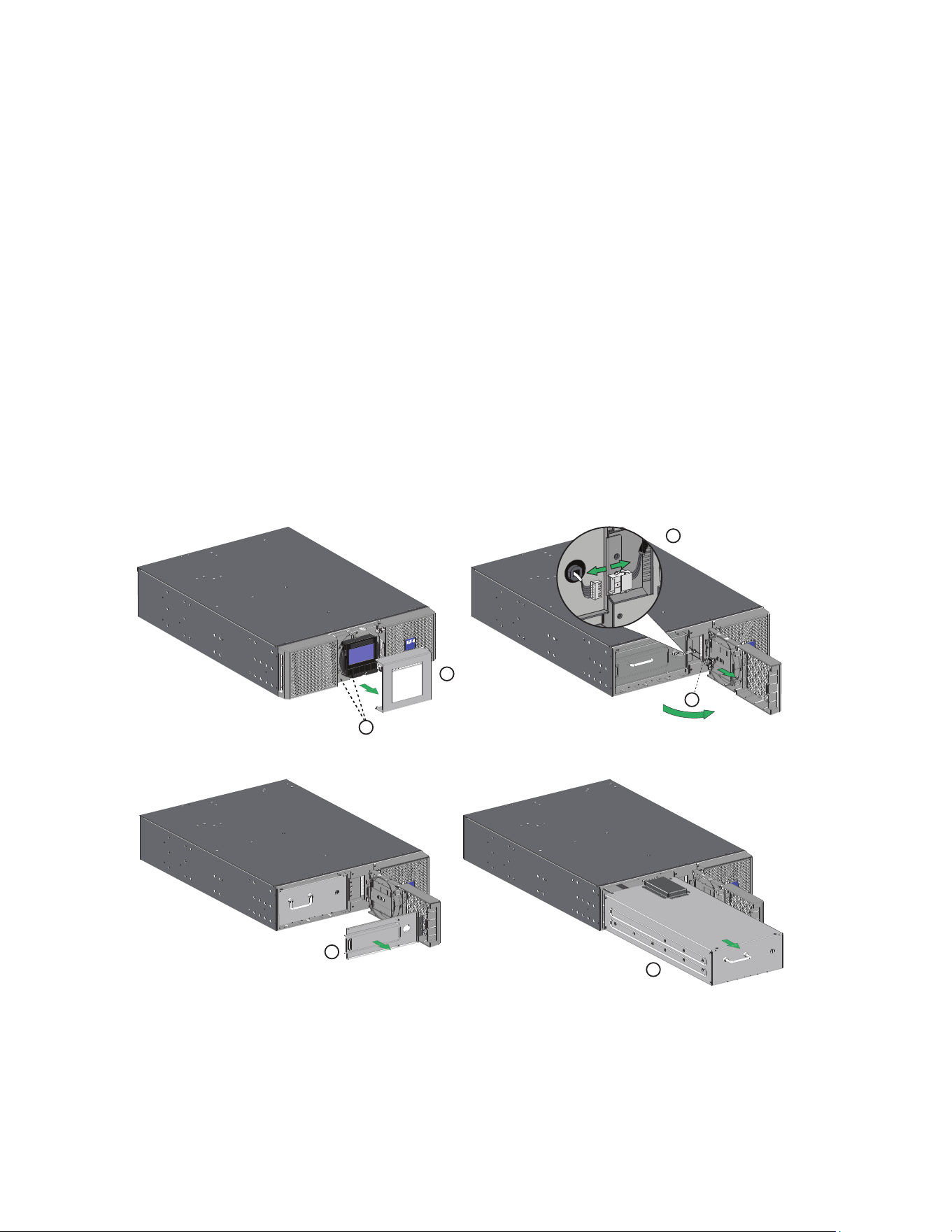

7.3 Replacing the Batteries .............................................................................................................................. 29
7.4 Battery Settings Reset............................................................................................................................... 31
7.5 Recycling The Used Equipment ................................................................................................................... 33
88 TTrroouubblleesshhoooottiinngg .................................................................................................................................................................................................................................................................................... 3355
8.1 Typical Alarms and Faults ........................................................................................................................... 35
8.2 Silencing the Alarm ................................................................................................................................... 36
8.3 Service and Support .................................................................................................................................. 37
8.4 Compliance Contact .................................................................................................................................. 37
99 SSppeecciiffiiccaattiioonnss.......................................................................................................................................................................................................................................................................................... 3399
9.1 Model Specifications ................................................................................................................................. 39
Table of Contents
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 1
CChhaapptteerr 11 IInnttrroodduuccttiioonn
11..11 IInnttrroodduuccttiioonn
Thank you for selecting an Eaton product to protect your electrical equipment.
The Eaton 9PX range has been designed with the utmost care.
We recommend that you take the time to read this manual to take full advantage of the many features of your
UPS (Uninterruptible Power System).
Before installing your Eaton 9PX, please read the information and safety instructions provided. Follow the
instructions in the quick start guide and if necessary, refer to this advance user guide.
To discover the entire range of Eaton products and the options available for the 9PX range, we invite you to visit
our web site at www.Eaton.com or contact your Eaton representative.
11..22 EEnnvviirroonnmmeennttaall PPrrootteeccttiioonn
EATON has implemented an environmental-protection policy.
Products are developed according to an eco-design approach.
Substances
This product does not contain CFCs, HCFCs, or asbestos.
Packing
To improve waste treatment and facilitate recycling, separate the various packing components.
• The cardboard we use comprises over 50% of recycled cardboard.
• Sacks and bags are made of polyethylene.
01
PET
• Packing materials are recyclable and bear the appropriate identification symbol.
Table 1. Packing Material Symbols
Materials Abbreviations Number in the symbols
Polyethylene terephthalat PET
01
High-density polyethylene HDPE 02
Polyvinyl chloride PVC
03
Low-density polyethylene LDPE 04
Polypropylene PP 05
Polystyrene PS
06
Follow all local regulations for the disposal of packing materials.
End of Life
Eaton will process products at the end of their service life in compliance with local regulations. Eaton works
with companies in charge of collecting and eliminating our products at the end of their service life.
Product
2 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
The product is made up of recyclable materials.
Dismantling and destruction must take place in compliance with all local regulations concerning waste. At the
end of its service life, the product must be transported to a processing center for electrical and electronic
waste.
Battery
The product contains lithium-ion (LFP) batteries that must be processed according to applicable local
regulations concerning batteries.
The battery may be removed to comply with regulations and in view of correct disposal.
Benefits
The Eaton® 9PX uninterruptible power system (UPS) protects your sensitive electronic equipment from the
most common power problems, including power failures, power sags, power surges, brownouts, line noise,
high voltage spikes, frequency variations, switching transients, and harmonic distortion.
Power outages can occur when you least expect it and power quality can be erratic. These power problems
have the potential to corrupt critical data, destroy unsaved work sessions, and damage hardware causing hours
of lost productivity and expensive repairs.
With the Eaton 9PX, you can safely eliminate the effects of power disturbances and guard the integrity of your
equipment. Providing outstanding performance and reliability, the Eaton 9PX’s unique benefits include:
• True online double-conversion technology with high power density, utility frequency independence, and
generator compatibility.
• Constant mode battery charger with a integrated battery management system (BMS) for temperature
regulation and life cycle monitoring.
• Selectable High Efficiency mode of operation.
• Standard communication options: one RS-232 communication port, one USB communication port, and
relay output contacts.
• Optional connectivity cards with enhanced communication capabilities.
• Extended runtime with up to four Extended Battery Modules (EBMs) per UPS.
• Remote On/Off control through Remote On/Off (ROO) and Remote Power Off (RPO) ports.
• Backed by worldwide agency approvals.
Environmental Protection
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 3
CChhaapptteerr 22 PPrreesseennttaattiioonn
22..11 SSttaannddaarrdd IInnssttaallllaattiioonnss

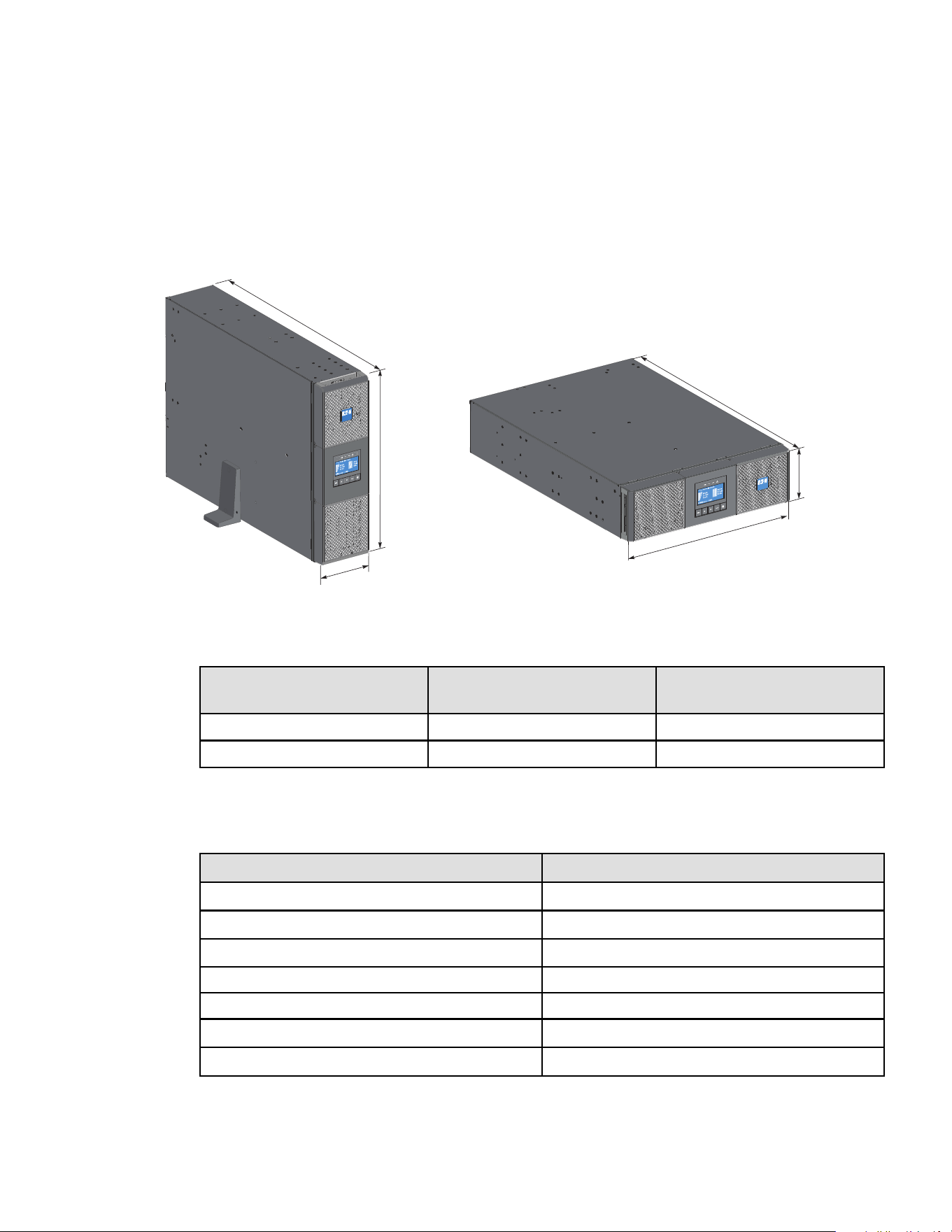

Figure 1. UPS Dimensions
D
W
H
D
H
W
9PX 6000 Li-ion
9PX 6000 Li-ion
Table 2. Weights and Dimensions
Description Weights
(lb/kg)
Dimensions (inch/mm)
D X W X H
9PX6K-L 81.4 / 36.9 27.0 x 17.3 x 5.1 / 685 x 440 x 130
9PXEBM192RT-L 78.9 / 35.8 25.4 x 17.2 x 3.4 / 645 x 438 x 85.3
22..22 AAcccceessssoorriieess
Table 3. UPS Accessories
Part number Description
9PXEBM192RT-L Extended Battery Module
9RK 4– post Rack Kit 9PX
RK2PC
2–post Rack Kit 9PX
Network-M2 Network Card
Network-M3 Network Card
INDGW-M2 Industrial Gateway Card (Modbus TCP / RTU)
Relay-MS Relay Card
4 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Table 3. UPS Accessories (Continued)
Part number Description
EMPDT1H1C2 Environmental Monitoring Probe Gen 2 (Compatible with
NETWORK-M2 only)
MBP6K208 Hotswap MBP 6000 208
9PXTFMR5 5kVA Transformer
9PXPPDM1
6kVA PPDM (Type 1)
9PXPPDM2
6kVA PPDM (Type 2)
EBMCBL192–L
1.8m cable 192V EBM
22..33 RReeaarr PPaanneellss
Figure 2. 9PX6K-L
RS232 communication port
USB communication port
Dry (relay)contacts communication port
Connector for ROO (Remote On / Off) control
Connector for communicating with an additional battery module
Connector for RPO (Remote Power Off) control
Slot for optional communication card
Connector for additional battery module
(2) L6-20R outlets
(2) L6-30R outlets
Input / Output terminal blocks
Connector for Hotswap / MBP detection
Input power cable with L6-30 plug
Rear Panels
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 5
Figure 3. 9PXEBM192RT-L
Connectors for battery modules
(to the UPS or to the other battery
modules)
Connector for communicating
with an additional battery module
Battery breaker
22..44 CCoonnttrrooll PPaanneell
The UPS has a five-button graphical LCD. It provides useful information about the UPS itself, load status, events,
measurements and settings.
Online mode
indicator (green)
Fault
indicator (red)
Online mode
100%
30min
1EBM
50%
2.7kW
3.0kVA
Efficiency: 95 %
Escape Up Down Enter On/Off
button
Battery mode
indicator (orange)
Bypass mode
indicator (orange)
Control Panel
6 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Indicator Status Description
Green
On
The UPS is operating normally on Online
or on High Efficiency mode.
Orange
On The UPS is on Battery mode.
Orange
On The UPS is on Bypass mode.
Red
On
The UPS has an active alarm or fault.
22..55 LLCCDD DDeessccrriippttiioonn
Figure 4. LCD Description
Operation status
Load/equipment status
Online mode
100%
30min
1EBM
50%
2.7kW
3.0kVA
Efficiency: 95%
Battery status
Efciency and load group information
The following table describes the status information provided by the UPS
Note: If other indicator appears, see the troubleshooting for additional information.
Table 4. LCD Operating Status
Operation status Cause Description
Standby mode
The UPS is Off, waiting for startup
command from user.
Equipment is not powered until
button is pressed.
Online mode
The UPS is operating normally. The UPS is powering and protecting the
equipment.
LCD Description
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 7
Table 4. LCD Operating Status (Continued)
Operation status Cause Description
Battery mode
A utility failure has occured and the UPS
is on Battery mode.
The UPS is powering the equipment with
the battery power. Prepare your
equipment for shutdown.
End of backup time
The UPS is on Battery mode and the
battery is running low.
Low Battery Warning settings:
[Capacity] [0%] ... [100%]
The alarm triggers when the set
percentage of battery capacity or
remaining back-up time is reached.
High Efficiency mode
The UPS is operating on High Efficiency
mode.
The UPS is powering and protecting the
equipment
Bypass mode
An overload or a fault has occurred, or a
command has been received, and the
UPS is in Bypass mode.
Equipment is powered but not protected
by the UPS.
22..66 DDiissppllaayy FFuunnccttiioonnss
Press the ( ) button to activate the menu options. use the two middle buttons ( and ) to scroll through
the menu structure. Press the (
) button to select an option. Press the ESC button to cancel or return to the
previous menu.
Table 5. Display Functions
Main menu Submenu Display information or Menu function
Measurements
[Load] [Input] [Bypass] [Output Efficiency] [Battery] [DC Bus] [Average Power Usage]
[Cumulat.Power Usage] [BMS Information]
Control
Go to Bypass Transfers the UPS on Bypass mode
Start battery test Starts a manual battery test
Reset fault state Clears active fault
Restore factory set Returns all settings to original values
Reset average
power
Clears average power usage measurement
Reset cumul.
power
Clears cumulated power usage measurement
Dry contacts test Tests dry contact relay outputs
BMS Auto Setup UPS will auto dectect the EBM quantities only when the UPS powered on for the first
time. If the quantity of EBMs is reduced, UPS will report BMS comm. loss. If the quantity
is increased, UPS cannot actively identify it. In those time, the user can select "BMS auto
setup" to manually refresh the battery quantity.
Display Functions
8 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Table 5. Display Functions (Continued)
Main menu Submenu Display information or Menu function
Settings
Local settings
Sets product general parameters
In/out settings Sets Input and Output parameters
On/Off settings Sets On/Off conditions
Battery settings Sets battery configuration
Event Log
Event filter Selects faults, alarms and/or events to display
Event list Displays the events stored
Reset fault list Clears events
Fault log
Fault list Displays the faults stored
Reset fault list Clears faults
Identification
[Product type/model] / [Part/Serial number] / [UPS/NMC firmware] / [Com card IPv4], [Com
card IPv6], [Com card MAC]
Registration Links to Eaton registration website
22..77 UUsseerr SSeettttiinnggss
The following table displays the options that can be changed by the user.
Table 6. User Settings
Submenu Available Settings Default settings
Local
Settings
Language
[English] [Français] [Deutsch] [Español] [Русский] [Simplified
Chinese] Menus, status, notices and alarms, UPS fault, Event Log
data and settings are in all supported languages.
[English] User
selectable when UPS is
powered for the first
time.
Date/ time
Format: [International] [US] [US]
LCD Modify LCD screen brightness and contrast to be adapted to room
light conditions.
Audible alarm
Mode: [Enabled] [Disabled on battery] [Always disabled] Enable or
disable the buzzer if an alarm occurs. Level: [High] [Low]
[Enabled] [High]
Protected
Access
[Enabled] [Disabled] Usage of password to access to Control,
Settings, Event logs Fault logs menus.
[Disabled]
In/Out
settings
Output voltage [200V] [208V] [220V] [230V] [240V] [208V]
Output
frequency
Frequency converter: [Enabled] [Disabled]
Frequency settable in frequency converter mode
[Disabled]
Output mode
[Industrial] [Network]
Set UPS behavior regarding transfer on Bypass
[Network]
Input volt
hysteresis
Sets input voltage hysteresis from [1] to |10V] [10V]
User Settings
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 9
Table 6. User Settings (Continued)
Submenu Available Settings Default settings
High Efficiency
mode
[Enabled] [Disabled] Power the output from Bypass for high efficiency [Disabled]
Bypass transfer
[Transfer if BP AC NOK]
[Enabled] [Disabled]
Allow transfer on Bypass out of tolerance
[Disabled]
Overload
prealarm
[10%] … [102%]
Load % when overload alarm occurs
[102%]
Redundancy
mode
[Unitary UPS] [Hot Standby]
Force slew rate value to 0.5Hz/s
Unitary UPS
On/Off
Settings
Cold Start
[Enabled] [Disabled]
Authorize the product to start on battery power.
[Enabled]
Forced reboot
[Enabled] [Disabled]
If mains recover during a shutdown sequence:
If set to Enabled, shutdown sequence will complete and wait 10
seconds prior to restart, If set to Disabled, shutdown sequence will
not complete and restart will occur immediately.
[Enabled]
Auto restart
[Enabled] [Disabled]
Authorize the product to restart automatically when mains recovers
after a complete battery discharge.
[Enabled]
Auto start
[Enabled] [Disabled]
The UPS automatically starts up as soon as mains power is available
(no need to press the
button).
[Disabled]
Energy Saving
[Disabled] [100W] … [1000W]
If Enabled, UPS will shutdown after 5 min. of back-up time, if load is
less than threshold.
[Disabled]
Sleep mode [Enabled] [Disabled]
If Disabled, LCD and communication will turn OFF immediately after
UPS is OFF.
If Enabled, LCD and communication stays ON 1h30 min after UPS is
OFF.
[Enabled]
Remote
Command
[Enabled] [Disabled]
If Enabled, shutdown or restart commands from software are
authorized.
[Enabled]
Bypass standby
[Enabled] [Disabled]
Define if output is powered from Bypass in Standby mode.
[Disabled]
Battery
settings
Low battery
warning
[Capacity] [0%] … [100%]
The alarm triggers when the set percentage of battery capacity or
remaining back-up time is reached.
[20%]
Restart bat.
level
[0%] ... [100%]
If set, automatic restart will occur only when percentage of battery
charge is reached.
[0%]
User Settings
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 11
CChhaapptteerr 33 IInnssttaallllaattiioonn
33..11 IInnssppeeccttiinngg tthhee EEqquuiippmmeenntt
If any equipment has been damaged during shipment, keep the shipping cartons and packing materials for the
carrier or place of purchase and file a claim for shipping damage. If you discover damage after acceptance, file a
claim for concealed damage.
To file a claim for shipping damage or concealed damage:
1. File with the carrier within 15 days of receipt of the equipment;
2. Send a copy of the damage claim within 15 days to your service representative.
!
IMPORTANT
Check the battery recharge date on the shipping carton label. If the date has passed and the batteries were
never recharged, do not use the UPS. Contact your service representative.
33..22 UUnnppaacckkiinngg tthhee CCaabbiinneett
Unpacking the cabinet in a low-temperature environment may cause condensation to occur in and on the
cabinet. Do not install the cabinet until the inside and outside of the cabinet are absolutely dry (hazard of
electric shock).
The cabinet is heavy. Follow Special precautions provided and on the carton
Unpack the equipment and remove all the packing materials and shipping carton.
NOTE Do not lift the UPS or EBM from the front panel.
12 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Discard or recycle the packaging in a responsible manner, or store it for future use. Place the cabinet in a
protected area that has adequate airflow and is free of humidity, flammable gas, and corrosion.
Packing materials must be disposed of in compliance with all local regulations concerning waste. Recycling
symbols are printed on the packing materials to facilitate sorting.
33..33 CChheecckkiinngg tthhee AAcccceessssoorryy KKiitt
Verify that the following additional items are included with the UPS:
Figure 5. 9PX6K-L
(2)Tower stands
Rack kit for 19-inch enclosures
Cable gland for Output connection
additional cable gland for Input
Network card communication card
RS232 communication cable
USB communication cable
Safety instructions
Quick Start Guide
NMC Card User Guide
NMC Card data cable
1
2
3
4
5
6
7
8
9
10
1
7 8 9
10
6
4
5
2
3
9PX 6000 Li-ion
Checking the Accessory Kit
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 13
Figure 6. 9PXEBM192RT-L
Battery power cable, attached with battery
detection cable
Stabilizer bracket (4 screws included)
Rack kit for 19-inch enclosures
EBM Installation manual (Quickstart)
1
2
3
4
1
2
3
4
9PX EBM Li-ion
NOTE 1 Discard the EBM user’s guide if you are installing the EBM with a new UPS at the same
time.
NOTE 2 Use the UPS user’s guide to install both the UPS and the EBM.
NOTE 3 If you ordered other UPS accessories, refer to specific user manuals to check the
packing contents.
33..44 TToowweerr IInnssttaallllaattiioonn
Tip If you ordered other UPS accessories, refer to specific user manuals to check the tower installation with
the UPS.
To install the cabinet:
1. Place the UPS on a flat, stable surface in its final location.
2. Always keep 6" or 150 mm of free space behind the UPS rear panel for ventilation.
3. If installing additional cabinets, place them next to the UPS in their final location.
Tower Installation
14 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Figure 7. Tower Installation
9PX 6000 Li-ion
• Adjustment of the orientation of the LCD panel and of the logo.
• Adjustment of the angle of vision of the LCD panel.
9PX 6000 Li-ion
33..55 RRaacckk IInnssttaallllaattiioonn
NOTE It is recommended that the UPS internal battery pack be removed before attempting to
install the UPS in a Rackmount configuration. Follow Steps 1–6 on how to remove the
battery pack from the UPS.
Rack Installation
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 15

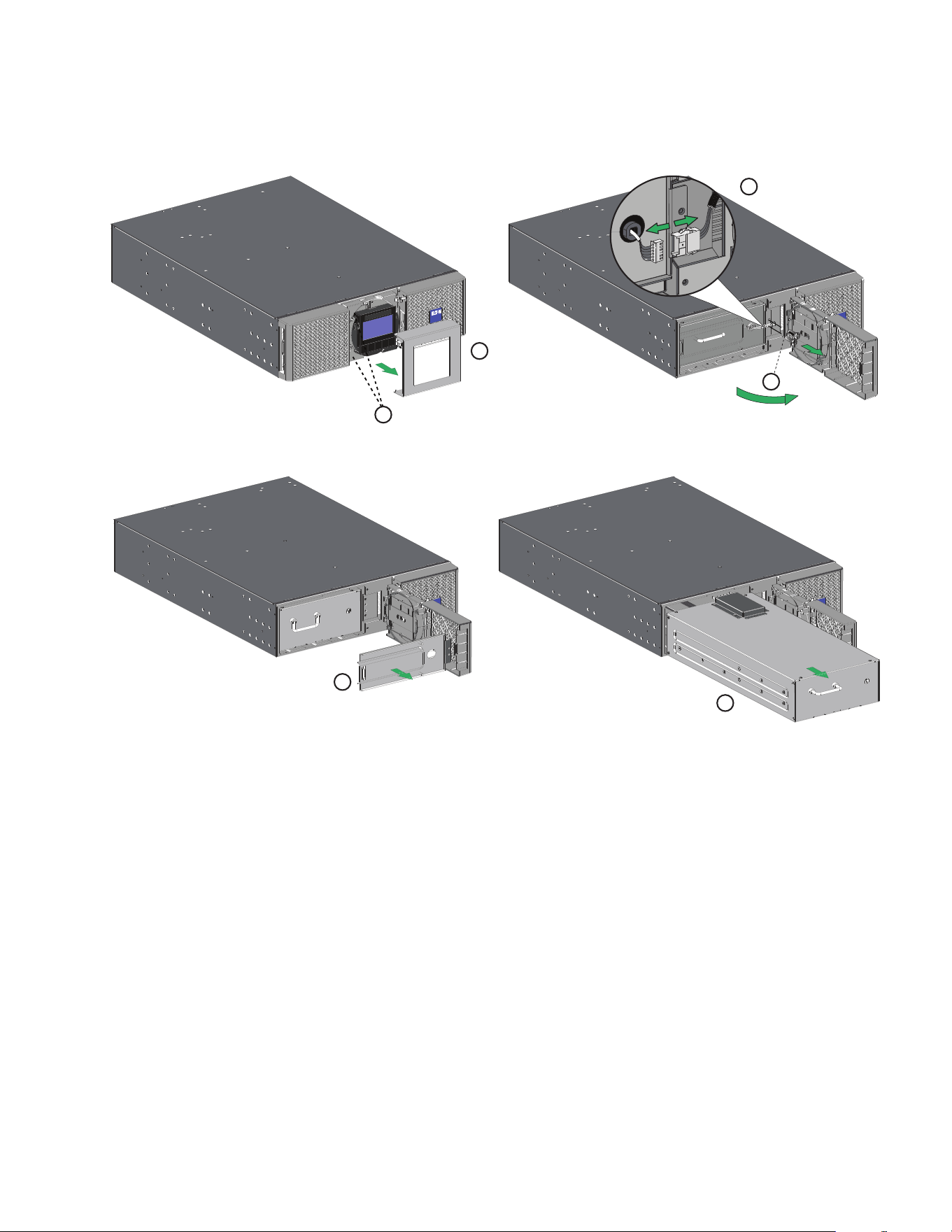

Figure 8. Removal of the Battery Pack
9PX 6000 Li-ion
3
1
5
2
4
6
To remove the battery pack:
1. Remove the center cover of the front panel.
2. Remove the two screws to open the left side of the front panel.
3. Disconnect the BMS battery connector.
A ribbon cable connects the LCD control panel to the UPS. Do not pull on the cable or disconnect it.
4. Remove the two screws that hold the metal protection cover in place.
5. Carefully guide the BMS cable through the hole in the metal protection cover and remove.
6. Pull out the handle of the battery pack, and slide the pack out slowly on to a flat and stable surface. Use
two hands to support the battery pack.
IInnssttaalllliinngg tthhee UUPPSS oonn tthhee RRaaiillss
Follow steps 1 to 5 for module mounting on the rails.
Rack Installation
16 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Figure 9. UPS Rackmount Installation
1
2
3
4
4
5
Screw back in the metal protection cover, connect the BMS connector together and install the screws for the
front panel, then clip the center cover.
The rails and necessary hardware are supplied by EATON.
33..66 IInnssttaallllaattiioonn RReeqquuiirreemmeennttss
Recommended protective devices and cable cross-sections.
1. Recommended upstream protection
UPS Power Rating
Upstream circuit breaker
6000VA D curve — 30A
Installation Requirements
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 17
2 poles circuit breaker
G N(L2) L1
N(L2)
L1
to UPS Normal AC source
2. Recommended cable cross-sections
Terminal Position Wire Function Terminal Wire Size
Rating
Minimum Input
Wire Size
Tightening Torque
L1 Phase
4-16 mm2 (12-6 AWG)
6 mm2 (10 AWG) 105°
C
10 mm2 (8 AWG) 75°C
Min 10 mm2 for
ground
10 lb in / 1.13 Nm
N (L2)
Neutral
(Phase)
Ground
33..77 CCoonnnneeccttiinngg tthhee EEBBMM’’ss
A small amount of arching may occur when connecting an EBM to the UPS. This is normal and will not harm
personnel. Insert the EBM cable into the UPS battery connector quickly and firmly.
1. Plug the EBM power cable(s) into the battery connector(s). Up to 4 EBMs may be connected to the UPS.
2. Verify that the EBM connections are tight and that adequate bend radius and strain relief exist for each
cable.
3. Connect the battery detection cable(s) to the connector of the UPS and of the EBM(s).
NOTE The EBM communication wiring connections are directional and must be connected in
the correct sequence to ensure proper detection, regulation and lifecycle monitoring of
the integrated battery management system (BMS). When multiple EBMs are used in
parallel, or when a new EBM is connected, please note that the voltage difference
between the different EBM’s should not be to large, less than 5V is recommended.
4. Turn the DC breaker on each EBM to the “ON” position.
Connecting the EBM’s
18 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Figure 10. Rack mount EBM Connection
ON
OFF
Battery Comm
Battery Comm
Battery Comm
Battery Comm
UPS
EBM 1
EBM 2
EBM 3
EBM 4
EBM Communication Wiring
Figure 11. Tower EBM Connection
Battery Comm
Battery Comm
Battery Comm
Battery Comm
UPS
EBM 1
EBM 2
EBM 3
EBM 4
EBM Communication Wiring
ON
OFF
Connecting the EBM’s
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 19
33..88 PPoowweerr CCaabblleess CCoonnnneeccttiioonn
AAcccceessss ttoo TTeerrmmiinnaall BBlloocckkss
1. Remove the terminal blocks cover (one screw)
2. Punch the knockouts and insert the cables/conduits inside
High leakage current. Earth connection essential before connecting supply.
NOTE The L6-30P input power cable is attached by Eaton.
This type of connection must be carried out by qualified electrical personnel.
Before carrying out any connection, check that the upstream protection device (Normal AC source) is open "O"
(Off). Always connect the ground wire first
If you ordered a HotSwap MBP or a PPDM, refer to the specific user manual to check the terminal blocks
connection of the UPS with this accessory.
OUTPUT
NORMAL AC SOURCE
L1L1
N(L2) N(L2)
Insert the Normal AC cable through the cable
gland.
Connect the three cables to the Normal AC source
terminal blocks.
Insert the Output cable through the cable gland.
Connect the three cables to the Output terminal
blocks.
Put back and secure the terminal blocks cover
with the screw.
Tighten the cable glands.
1
2
3
4
5
6
33..99 DDeetteeccttiinngg OOtthheerr AAcccceessssoorriieess
Tip If you ordered other UPS accessories, refer to specific user manuals to check the connection to the UPS.
Power Cables Connection
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 21
CChhaapptteerr 44 CCoommmmuunniiccaattiioonn
44..11 CCoommmmuunniiccaattiioonn PPoorrttss

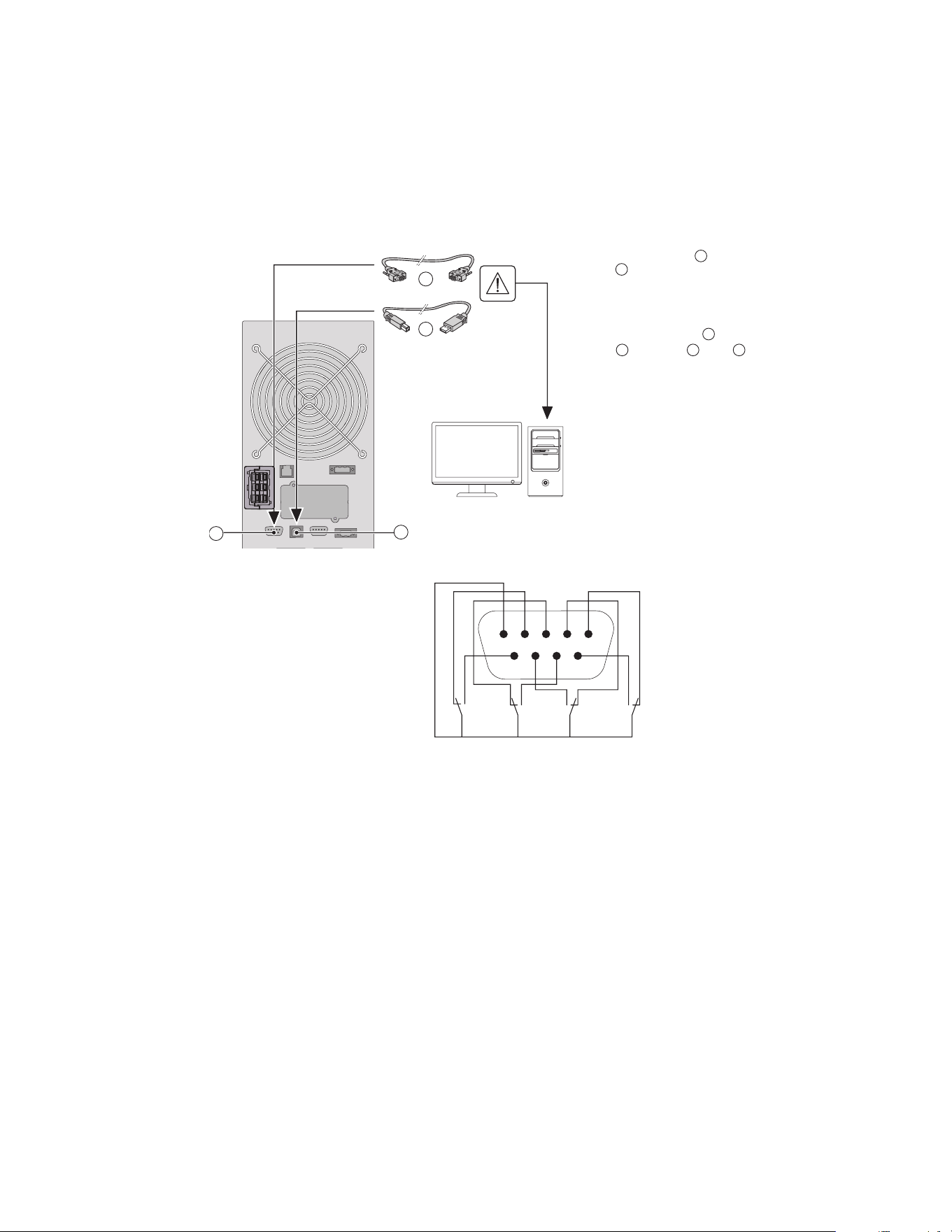

Figure 12. Communication Port Information
16
17
1.
Connect the RS232
16
or USB
17
communication cable to
the serial or USB port on
the computer.
2.
Connect the other end of the
communication cable
16
or
17
to the RS232
1
or USB
2
communication port on
the UPS.
The UPS can now communicate
with EATON power management
software.
1
2
1
6789
n.c. n.o. n.c.
common
n.o. n.o. n.c. n.o. n.c.
2345
Status active information: (if contact between pin and common is closed)
• Pin 1: not on bypass
• Pin 2: load not protected
• Pin 3: not low battery
• Pin 4: not on battery
• Pin 5: user common
• Pin 6: on bypass
• Pin 7: low battery
• Pin 8: load protected
• Pin 9: on battery
• n.o.: contact normally open
• n.c.: contact normally closed
22 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
!
IMPORTANT
The relay output contacts must not be connected to any utility connected circuits. Reinforced insulation to the
utility is required. The relay output contacts have a maximum rating of 250 Vac/5A.
44..22 UUPPSS RReemmoottee CCoonnttrrooll FFuunnccttiioonnss
RReemmoottee OONN//OOffff
Figure 13. Normally Open ROO
• Remote On/Off allows remote action of button to switch On/Off the UPS.
• When contact changes from open to closed, the UPS is switched-on (or stays On).
• When contact changes from closed to open, the UPS is switched-off (or stays Off).
• On/Off control via
button has priority over the remote control.
RReemmoottee PPoowweerr OOffff
RPO is used to shutdown the UPS remotely when the contact is open. This feature can be used for shutting
down the load and the UPS by thermal relay, for instance in the event of room over temperature. When RPO is
activated, the UPS shuts down the output and all its power converters immediately. The UPS remains on to
alarm the fault. The RPO circuit is an IEC 60950 safety extra low voltage (SELV) circuit. This circuit must be
separated from any hazardous voltage circuits by reinforced insulation.
• The RPO must not be connected to any utility connected circuits. Reinforced insulation to the utility is
required. The RPO switch must have a minimum rating of 27 Vdc and 20 mA and be a dedicated latching-
type switch not tied into any other circuit. The RPO signal must remain active for at least 250 ms for proper
operation.
• To ensure the UPS stops supplying power to the load during any mode of operation, the input power must
be disconnected from the UPS when the Remote Power Off function is activated.
Leave the RPO connector installed in the RPO port on the UPS even if the RPO function is not needed.
RPO connections:
UPS Remote Control Functions
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 23
Internal power supply External power supply
1 3 1 3 1 31 3
Normally closed Normally open Normally closed Normally open
Terminal wire size rating is 0.32-4 mm2 (22-12 AWG).
Suggested wire size is 0.82 mm2 (18 AWG).
Remote Control Connection and Test
1. Check the UPS is shut down and the electrical supply network disconnected.
2. Remove RPO connector from the UPS by unfitting the screws.
3. Connect a normally closed volt-free contact between the two pins of connector.
1 3
Normally closed
Contact open: shut down of UPS
To return to normal operation, deactivate the external remote shut down
contact and restart the UPS from the front panel.
4. Plug the RPO connector into the back of the UPS and fix the screws.
5. Connect and restart the UPS according to the previously described procedures.
6. Activate the external remote shut down contact to test the function. Always test the RPO function before
applying your critical load to avoid accidental load loss.
Connectivity Cards
Connectivity cards allow the UPS to communicate in a variety of networking environments and with different
types of devices. The 9PX models have one available communication bay for the following connectivity cards:
• Network-M2 card — has SNMP and HTTP capabilities as well as monitoring through a Web browser
interface; connects to a Gigabit Ethernet network. In addition, a Environmental Monitoring Probe can be
attached to obtain humidity, temperature, smoke alarm, and security information.
• INDGW-M2 card- has SNMP and HTTP capabilities and a Modbus to facilitate remote monitoring of the
UPS system through any Building Management System.
• Relay-MS card- has isolated dry contact (Form-C) relay outputs for UPS status: Utility failure, Battery
low, UPS alarm/OK, or on Bypass.
UPS Remote Control Functions
24 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Figure 14. Connectivity Card Options
INDGW-M2
NETWORK-M2 / NETWORK-M3 Card
Relay-MS Card
NETWORK-M2NETWORK-M2
Industrial Relay Card
P-116000059
RS232/Relay contacts
INDGW-M2
Industrial Relay Card
It is not necessary to shutdown
the UPS before installing
a communication card.
1.
Remove the slot cover
4
secured by screws.
2.
Insert the communication
card in the slot.
3. Secure the card cover with
the 2 screws.
Eaton Intelligent Power Software suite
Eaton Intelligent Power Software suite is available from Eaton.com . Eaton Software suite provides up-to-date
graphics of UPS power and system data and power flow. It also gives you a complete record of critical power
events, and it notifies you of important UPS or power information. If there is a power outage and the 9PX UPS
battery power becomes low, Eaton Software suite can automatically shut down your computer system to
protect your data before the UPS shutdown occurs.
UPS Remote Control Functions
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 25
CChhaapptteerr 55 OOppeerraattiioonn
55..11 SSttaarrtt--uupp aanndd NNoorrmmaall OOppeerraattiioonn
NOTE If you ordered a HotSwap MBP or a PPDM, refer to the specific user manual to check
the startup sequence of the UPS with this accessory.
To start the UPS:
1. Verify that the internal batteries are connected. See section .
2. If optional EBMs are installed, verify that the EBM are connected to the UPS. See section
3.7 Connecting the EBM’s.
3. Verify that the UPS power cord is plugged in.
4. The UPS front panel display illuminates and shows EATON logo.
5. Verify that the UPS status screen shows
.
6. Press the
button on the UPS front panel for at least 3 seconds. The UPS front panel display changes
status to "UPS starting...".
7. Check the UPS front panel display for active alarms or notices. Resolve any active alarms before
continuing. See section 8.1 Typical Alarms and Faults. If the
indicator is on, do not proceed until all
alarms are clear. Check the UPS status from the front panel to view the active alarms. Correct the alarms
and restart if necessary.
8. Verify that the
indicator illuminates solid, indicating that the UPS is operating normally and any loads
are powered and protected. The UPS should be in Online mode.
55..22 SSttaarrttiinngg tthhee UUPPSS oonn BBaatttteerryy
Before using this feature, the UPS must have been powered by utility power with output enabled at least once.
Battery start can be disabled. See Coldstart setting in 2.7 User Settings .
To Start the UPS on battery:
1. Press the
button on the UPS front panel until the UPS front panel display illuminates and shows a
status of "UPS starting...".
The UPS cycles through Standby mode to Battery mode. The
indicator illuminates solid.
The UPS supplies power to your equipment.
2. Check the UPS front panel display for active alarms or notices. Resolve any active alarms before
continuing. See 8.1 Typical Alarms and Faults.
Check the UPS status from the front panel to view the active alarms. Correct the alarms and restart if
necessary.
55..33 UUPPSS SShhuuttddoowwnn
To shut down the UPS:
1. Press the
button on the front panel for three seconds. A confirmation message will appear. When
confirmed, the UPS starts to beep and shows a status of "UPS shutting OFF...". The UPS then transfers to
Standby mode.
2. Set the upstream circuit breaker (not provided) to the "O" position (Off) to switch off the utility power.
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 27
CChhaapptteerr 66 MMooddeess OOff OOppeerraattiioonn
66..11 OOnnlliinnee MMooddee
During Online mode, the indicator illuminates solid and the UPS is powered from the utility. The UPS
monitors and charges the batteries as needed and provides filtered power protection to your equipment.
Optional High Efficiency and Energy Saving settings minimize heat contribution to the rack environment. See
2.7 User Settings.
66..22 BBaatttteerryy MMooddee
When the UPS is operating during a power outage, the alarm beeps once every ten seconds and the
indicator illuminates solid. The necessary energy is provided by the battery. When the utility power returns, the
UPS transfers to Online mode operation while the battery recharges. If battery capacity becomes low while on
Battery mode, the audible alarm beeps once every 3 seconds. This warning is approximate, and the actual time
to shutdown may vary significantly. Shutdown all applications on the connected equipment because automatic
UPS shutdown is imminent. When utility power is restored after the UPS shuts down, the UPS automatically
restarts.
66..33 BByyppaassss MMooddee
In the event of a UPS overload or internal failure, the UPS transfers your equipment to utility power. Battery
mode is not available and your equipment is not protected; however, the utility power continues to be passively
filtered by the UPS. The
indicator illuminates. Depending on overload conditions, the UPS remains in
Bypass mode for at least 5 seconds and will stay in this mode if three transfers to Bypass occur within 20
minutes.
The UPS transfers to Bypass mode when:
• the user activates Bypass mode through the front panel.
• the UPS detects an internal failure.
• the UPS has an overtemperature condition.
• the UPS has an overload condition listed in 9.1 Model Specifications.
The UPS shuts down after a specified delay for overload conditions listed in 9.1 Model Specifications. The UPS
remains on to alarm the fault.
66..44 SSttaannddbbyy MMooddee
When the UPS is turned-off and remains connected to AC source, the UPS is in Standby mode.
Depending if Bypass Standby setting is enabled, the output is powered but not protected.
The battery recharges when necessary and the communication ports are powered.
66..55 TTrraannssffeerrrriinngg BBeettwweeeenn MMooddeess
From Online (or Battery) to Bypass mode. Press any button to activate the menu options, then select
Control and Go to Bypass.
From Bypass to Online (or Battery) mode. Press any button to activate the menu options, then select
Control and Go back normal.
28 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
66..66 SSeettttiinngg HHiigghh EEffffiicciieennccyy MMooddee
In High Efficiency mode, the UPS operates normally on Bypass and transfers to Online (or Battery) mode in less
than 10 ms when utility fails. Transfers to High Efficiency mode will be active after 5 minutes of Bypass voltage
monitoring: if Bypass quality is not in tolerance, then the UPS will remain in Online mode.
Eaton recommends to use the HE mode only to protect IT equipment.
To set the High Efficiency mode:
1. Select Settings, In/Out settings, and High Efficiency mode.
2. Select Enabled and Enter to confirm.
3. The UPS transfers to High Efficiency mode after 5 minutes.
66..77 CCoonnffiigguurriinngg BByyppaassss SSeettttiinnggss
The following settings are available for configuring Bypass operation.
Bypass Transfer out of tolerance
1. Press any button to activate the menu options, then select Settings, Output settings, and Bypass transfer.
2. Select Enabled or Disabled for BP AC NOK, and Enter to confirm. If Enabled, the UPS transfers to Bypass
even if Bypass AC source is out of tolerance, depending on output mode. If Disabled, the UPS output is
shutdown.
66..88 CCoonnffiigguurriinngg BBaatttteerryy SSeettttiinnggss
Low battery warning
During discharge, the low battery alarm is activated if the battery capacity goes below 20%. This threshold can
be modified.
66..99 RReettrriieevviinngg tthhee EEvveenntt LLoogg
To retrieve the Event log through the display:
1. Press any button to activate the menu options, then select Event log.
2. Scroll through the listed events.
66..1100 RReettrriieevviinngg tthhee FFaauulltt LLoogg
To retrieve the Fault log through the display:
1. Press any button to activate the menu options, then select Fault log.
2. Scroll through the listed faults.
Setting High Efficiency Mode
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 29
CChhaapptteerr 77 UUPPSS MMaaiinntteennaannccee
77..11 EEqquuiippmmeenntt CCaarree
For the best preventive maintenance, keep the area around the equipment clean and dust free. If the
atmosphere is very dusty, clean the outside of the system with a vacuum cleaner. For full battery life, keep the
equipment at an ambient temperature of 25°C (77°F).
If the UPS requires any type of transportation, verify that the UPS is disconnected and turned off and then
disconnect the UPS internal battery connector .
If the UPS requires any type of transportation, verify that the UPS is disconnected and turned off. The batteries
are rated for a 8 year service life. The length of service life varies, depending on the frequency of usage and
ambient temperature. Batteries used beyond expected service life will often have severely reduced runtimes.
77..22 SSttoorriinngg tthhee EEqquuiippmmeenntt
If you store the equipment for a long period, recharge the battery every 6 months by connecting the UPS to
utility power. The internal batteries charge to 90% capacity in less than 4.7 hours. However, Eaton
recommends that the batteries charge for 48 hours after long-term storage. Check the battery recharge date on
the shipping carton label. If the date has passed and the batteries were never recharged, do not use them.
Contact your service representative.
77..33 RReeppllaacciinngg tthhee BBaatttteerriieess
• DO NOT DISCONNECT the batteries while the UPS is in Battery mode.
• The internal battery is heavy. Use caution when handling the heavy batteries.
Eaton Lithium-ion UPS batteries have an expected life span of 8 years. After 8 years of operation, the UPS will
provide a battery replacement notification reminding you that your batteries are nearing the end of their useful
life. You should take proactive steps to ensure you replace your batteries for optimal operation and reliability.
Contact your service representative to order new batteries.
-% 100%
-kW 100min
-kVA 1 EBM
Load not powered
8 years battery
Replacement is
recommended
Battery replacement
!
OK
Batteries can be replaced easily without turning off the UPS or disconnecting the load. If you prefer to remove
input power to change the batteries, see 5.3 UPS Shutdown .
Consider all warnings, cautions, and notes before replacing batteries.
• Servicing should be performed by qualified service personnel knowledgeable of batteries and required
precautions. Keep unauthorized personnel away from batteries.
• Batteries can present a risk of electrical shock or burn from high short circuit current. Observe the
following precautions:
1. Remove watches, rings, or other metal objects,
30 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
2. Use tools with insulated handles,
3. Do not lay tools or metal parts on top of batteries,
4. Wear rubber gloves and boots.
• When replacing batteries, replace with the same type and number of batteries or battery packs. Contact
your service representative to order new batteries.
• Proper disposal of batteries is required. Refer to your local codes for disposal requirements.
• Never dispose of batteries in a fire. Batteries may explode when exposed to flame.
• Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes and
may be extremely toxic.
• Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source from ground.
Contact with any part of a grounded battery can result in electrical shock. The likelihood of such shock can
be reduced if such grounds are removed during installation and maintenance (applicable to equipment and
remote battery supplies not having a grounded supply circuit).
• ELECTRIC ENERGY HAZARD. Do not attempt to alter any battery wiring or connectors. Attempting to alter
wiring can cause injury.
Figure 15. Internal Battery Pack Replacement
9PX 6000 Li-ion
3
1
5
2
4
6
To replace the battery pack:
1. Remove the center cover of the front panel.
Replacing the Batteries
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 31
2. Remove the two screws to open the left side of the front panel.
3. Disconnect the battery connectors.
A ribbon cable connects the LCD control panel to the UPS. Do not pull on the cable or disconnect it.
4. Remove the two screws that hold the battery protection cover in place.
5. Carefully guide the BMS cable through the hole in the metal protection cover and remove.
6. Pull out the handle of the battery pack, and slide the pack out slowly on to a flat and stable surface. Use
two hands to support the battery pack. See 7.5 Recycling The Used Equipment for proper disposal.
7. Verify that the replacement batteries have the same rating as the batteries being replaced.
8. Put the new battery pack into the UPS. Push the battery pack firmly,
9. Guide the BMS cable through the hole in the metal protection cover.
10. Reconnect the BMS communication cable connector.
11. Verify that all of the alarms have cleared on the display.
12. Screw back the metal protection cover and the front panel, then clip the center cover.
13. If the UPS was shut down during the battery replacement process see 5.1 Start-up and Normal Operation.
Replacing the EBM(s)
The EBM is heavy. Lifting the cabinet into a rack requires a minimum of two people.
To replace the EBM(s):
1. Unplug the EBM power cable and battery detection cable from the UPS. If additional EBM(s) are installed,
unplug the EBM power cable and battery detection cable from each EBM.
2. Replace the EBM(s). See 7.5 Recycling The Used Equipment for proper disposal.
A small amount of arcing may occur when connecting an EBM to the UPS. This is normal and will not harm
personnel. Insert the EBM cable into the UPS battery connector quickly and firmly.
3. Plug the EBM cable(s) into the battery connector(s). Up to four EBMs may be connected to the UPS.
4. Verify that the EBM connections are tight and that adequate bend radius and strain relief exist for each
cable.
5. Connect the battery detection cable(s) to the connector of the UPS and of the EBM(s).
6. If the UPS was shut down during the battery replacement process see .
77..44 BBaatttteerryy SSeettttiinnggss RReesseett
After replacement of the internal UPS batteries and extended battery modules the “BMS auto setup” and
“Reset battery life” setting will need to be reset in the “Control” menu of the display.
1. Press the
button on the main display.
2. Press the
button to display the “Control” option. Press .
3. Press the
to display the “BMS auto setup” or “Reset battery life” option of the control menu. Press the
button and use the to select “Yes”. Press the button to reset.
Battery Settings Reset
32 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Figure 16. BMS Auto Setup
Control
Go to bypass
Start battery test
Reset fault state
BMS auto setup
Reset battery life
Measurements
Control
Settings
Event log
Fault log
Identification
Register product
Menu
50% 100 %
Online mode
Press the
to advance the menu
2.7kW
3.0kVA
30min
1 EBM
Efficiency: 95%
BMS auto setup
Yes
No
Are you sure?
BMS auto setup
Done
4. Reset the battery life counter in the “Reset Battery Life” option of the control menu.
Figure 17. Battery Life Reset
Control
Go to bypass
Start battery test
Reset fault state
BMS auto setup
Reset battery life
Measurements
Control
Settings
Event log
Fault log
Identification
Register product
Menu
50% 100 %
Online mode
Press the
to advance the menu
2.7kW
3.0kVA
30min
1 EBM
Efficiency: 95%
Reset battery life
Yes
No
Are you sure?
Reset battery life
Done
Return the UPS to Normal Operation
If the UPS internal batteries and external battery packs were replaced without powering down the UPS:
1. Check the UPS front panel display for active alarms or notices. Resolve any active alarms before
continuing. See section 8.1 Typical Alarms and Faults . If the
indicator is on, do not proceed until all
alarms are clear.
2. Verify that the
indicator illuminates solid, indicating that the UPS is operating normally and any loads
are powered and protected. The UPS should be in normal mode. 5.1 Start-up and Normal Operation .
If the UPS internal batteries and external battery packs were replaced and the UPS was powered off:
1. Verify that the internal batteries are connected. See Figure 15 .
2. If optional EBMs are installed, verify that the EBM are connected to the UPS.
Battery Settings Reset
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 33
77..55 RReeccyycclliinngg TThhee UUsseedd EEqquuiippmmeenntt
Contact your local recycling or hazardous waste center for information on proper disposal of the used
equipment.
RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric shock symbol.
This symbol indicates that you should not discard the UPS or the UPS batteries in the trash. This
product contains sealed, Lithium-Ion batteries and must be disposed of properly. For more information,
contact your local recycling/reuse or hazardous waste center.
This symbol indicates that you should not discard waste electrical or electronic equipment (WEEE) in
the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center.
Recycling The Used Equipment
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 35
CChhaapptteerr 88 TTrroouubblleesshhoooottiinngg
88..11 TTyyppiiccaall AAllaarrmmss aanndd FFaauullttss
The Eaton 9PX are designed for durable, automatic operation and also alert you whenever potential operating problems may
occur. Usually the alarms shown by the control panel do not mean that the output power is affected. Instead, they are
preventive alarms intended to alert the user.
• Events are silent status information that are recorded into the Event log. Example = "AC freq in range".
• Alarms are recorded into the Event log and displayed on the LCD status screen with the logo blinking.
Some alarms may be announced by a beep every 3 seconds. Example = "Battery low".
• Faults are announced by a continuous beep and red LED, recorded into the Fault log and displayed on the
LCD with a specific message box. Example = Out. short circuit.
Use the following troubleshooting chart to determine the UPS alarm condition.
Checking the Alarms and Faults
To check the Event log or Fault log :
1. Press any button on the front panel display to activate the menu options.
2. Press the button to select Event log or Fault log.
3. Scroll through the listed events or faults.
The following table describes typical conditions.
Conditions Possible cause Action
Battery mode
LED is On.
1 beep every 10 seconds
A utility failure has occurred and the UPS
is in battery mode.
The UPS is powering the equipment with
battery power. Prepare your equipment
for shutdown.
Battery mode
LED is On.
1 beep every 3 seconds
The UPS is in Battery mode and the
battery is running low.
This warning is approximate, and the
actual time to shutdown may vary
significantly. Depending on the UPS load
and number of Extended Battery Modules
(EBMs), the "Battery Low" warning may
occur before the batteries reach 20%
capacity.
No battery
LED is On
Beep continuous
The batteries are disconnected. Verify that all batteries are properly
connected. To clear a battery
disconnected alarm a battery test must
be initiated. See 2.7 User Settings . If the
condition persists, contact your service
representative.
Battery fault
LED is On
Beep continuous
The battery test is failed due to bad or
disconnected batteries.
Verify that all batteries are properly
connected. If the condition persists,
contact your service representative. To
clear a battery disconnected alarm a
battery test must be initiated. See
2.7 User Settings . If the condition
persists, contact your service
representative.
36 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Conditions Possible cause Action
The UPS does not provide the expected
backup time.
The batteries need charging or service. Apply utility power for 48 hours to charge
the batteries. If the condition persists,
contact your service representative.
Bypass mode
LED is on.
An overload or a fault has occurred, or a
command has been received and the UPS
is in Bypass
Equipment is powered but not protected
by the UPS. Check for one of the
following alarms: overtemperature,
overload or UPS LED is on. failure.
Power Overload
LED is on.
Power requirements exceed the UPS
capacity (greater than 100% of nominal;
see “User Settings” on page 8 for
specific output overload ranges).
Remove some of the equipment from the
UPS. The UPS continues to operate, but
may switch to Bypass mode or shut down
if the load increases. The alarm resets
when the condition becomes inactive.
UPS Overtemperature
LED is on.
1 beep every 3 seconds
The UPS internal temperature is too high
or a fan has failed. At the warning level,
the UPS generates the alarm but remains
in the current operating state. If the
temperature rises another 10°C, the UPS
transfers to Bypass mode or shuts down
if Bypass is unusable.
If the UPS transferred to Bypass mode,
the UPS will return to normal operation
when the temperature drops 5°C below
the warning level. If the condition
persists, shut down the UPS.
Clear vents and remove any heat sources.
Allow the UPS to cool. Ensure the airflow
around the UPS is not restricted. Restart
the UPS. If the condition continues to
persist, contact your service
representative.
The UPS does not start
The input source is not connected
correctly.
Check the input connections.
The Remote Power Off (RPO) switch is
active or the RPO connector is missing.
If the UPS Status menu displays the
"Remote Power Off" notice, inactivate the
RPO input.
Input bad wiring /
Output bad wiring
LED is on.
Beep is continuous.
Input/Output cables are not connected to
the correct terminal blocks.
Connect correctly the Input/Output
cables.
MBP Disconnected
The HotSwap MBP is no more connected
to the UPS.
If the HotSwap MBP is connected to the
UPS, check that the detection connector
is correctly plugged.
88..22 SSiilleenncciinngg tthhee AAllaarrmm
Press the ESC (Escape) button on the front panel display to silence the alarm. Check the alarm condition and
perform the applicable action to resolve the condition. If the alarm status changes, the alarm beeps again,
overriding the previous alarm silencing.
Silencing the Alarm
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 37
88..33 SSeerrvviiccee aanndd SSuuppppoorrtt
If you have any questions or problems with the UPS, call your Local Distributor or your local service
representative and ask for a UPS technical representative. Please have the following information ready when
you call for service:
• Model number
• Serial number
• Firmware version number
• Date of failure or problem
• Symptoms of failure or problem
• Customer return address and contact information
If repair is required, you will be given a Returned Material Authorization (RMA) number. This number must
appear on the outside of the package and on the Bill Of Lading (if applicable). Use the original packaging or
request packaging from the Help Desk or distributor. Units damaged in shipment as a result of improper
packaging are not covered under warranty. A replacement or repair unit will be shipped, freight prepaid for all
warrantied units.
!
IMPORTANT
For critical applications, immediate replacement may be available. Call the Help Desk for the dealer or
distributor nearest you.
88..44 CCoommpplliiaannccee CCoonnttaacctt
• Eaton I.F. SAS - 110 Rue Blaise Pascal - 38330 Montbonnot St Martin – France.
•
Eaton Electrical Ltd., P.O. Box 554, Abbey Park, Southampton Road, Titchfield, PO14 4QA, United
Kingdom.
Service and Support
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 39
CChhaapptteerr 99 SSppeecciiffiiccaattiioonnss
99..11 MMooddeell SSppeecciiffiiccaattiioonnss
Input
Filter
AC/DC
Boost
DC/AC
Inverter
Output
Filter
Bypass
DC/DC
Battery
Charger
Table 7. Power Module List
Model Power ratings
9PX6K-L
5200VA / 4600W at 200V Output
5400VA / 4800W at 208V Output
5700VA / 5100W at 220V Output
6000VA / 5300W at 230V Output
6000VA / 5400W at 240V Output
Table 8. Extended Battery Module List
Model Configuration Battery Voltage For Power Module
9PXEBM192RT-L Rack / Tower 192Vdc 6000VA
Table 9. Weights and Dimensions
Description Weights
(lb/kg)
Dimensions (inch/mm)
D X W X H
9PX6K-L 81.4 / 36.9 27.0 x 17.3 x 5.1 / 685 x 440 x 130
9PXEBM192RT-L 78.9 / 35.8 25.4 x 17.2 x 3.4 / 645 x 438 x 85.3
Table 10. Electrical Input
Model Default Input
(Voltage/Max Current)
Input Nominal Voltages Input Voltage Window at
Rated Load
9PX6K-L 208V / 24.8A 200V, 208V, 220V, 230V, 240V 176-276V
Nominal Frequency 50/60Hz auto-sensing
40 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Table 10. Electrical Input (Continued)
Model Default Input
(Voltage/Max Current)
Input Nominal Voltages Input Voltage Window at
Rated Load
Frequency Range
50Hz : 40-60Hz before transfer to battery
60Hz : 50-70Hz before transfer to battery
Bypass Voltage Range
-20% / +15% of nominal value (default)
Noise Filtering MOV for normal and common mode noise
Table 11. Electrical Input Connections
Model Input Connection
9PX6K-L L6-30P cord or Hardwired
Table 12. Electrical Output
All Models Normal Mode Battery Mode
Voltage Regulation ±1% ±1%
Efficiency
> 98% (High Efficiency mode)
>93%
> 91%
Frequency Regulation Sync with line ±5% of nominal line
frequency (outside this range: ±0.5% of
auto-selected nominal frequency)
±0.5% of auto-selected nominal
frequency
Nominal Output
200*/208*/220*/230*/240V (voltage configurable)
6000VA* 4500/5400W*
Frequency 50 or 60 Hz, autosensing or configurable as a frequency converter
Output Overload
100-102% : no alarm
102-110% : load transfers to Bypass mode after 2 minutes
110-125% : load transfers to Bypass mode after 1 minute
125-150% : load transfers to Bypass mode after 10s
> 150% : load transfers to Bypass mode after 500ms
Output Overload ( Bypass Mode )
100-125% : no alarm
125-150% : UPS shuts down after 1 minute
> 150% : UPS shuts down after 1s
Voltage Waveform Sinewave
Harmonic Distortion
< 2% THDV on linear load
< 5% THDV on non-linear load
Transfer Time
Online Mode: 0ms (no break)
High Efficiency mode: 10ms maximum (due to loss of utility)
Power Factor Up to 0.9
Load Crest Ratio Up to 3:1
Model Specifications
Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02 41
Table 12. Electrical Output (Continued)
All Models Normal Mode Battery Mode
Output short-circuit current Max RMS & delay time: 56.5A/150ms; The max peak value: 92A
* 200/208/220/230V are derated at 4600/4800/5100/5300.
Table 13. Electrical Output Connections
Model Output Connection Output Cable
9PX6K-L
Hardwired
(2) L6-30R
(2) L6-20R
No
Table 14. Environmental and Safety
Certifications
EN/IEC 62040-1
EN/IEC 62040-2
EN/IEC 62040-3
UL1778 5th edition
CSA 22.2
EMC ( Emissions)*
CISPR32 (EN55032) Class A
AS/NZS CISPR32 Class A
IEC 61000 -3-11
IEC 61000 -3-12
FCC part 15 Class A
EMC (Immunity)
IEC 61000-2-2
IEC 61000-4-2, Level 3
IEC 61000-4-3, Level 3
IEC 61000-4-4, Level 4 (also on signal ports)
IEC 61000-4-5, Level 4, Criteria B
IEC 61000-4-6, Level 3
IEC 61000-4-8, Level 4
IEC 61000-4-12
* for output cable < 10m.
Agency Markings CE cULus ; UKCA; RCM; Ukr; EAC; Cmim
Operating Temperatures
0 to 40°C (32 to 104°F) in Online mode, with linear derating for
altitude
Note: thermal protection switches load to Bypass in case of
overheating.
Storage Temperatures
0 to 40°C (32 to 104°F) with batteries
-15 to 60°C (5 to 140°F) without batteries
Transit Temperature
-25 to 55°C (-13 to 130°F)
Relative Humidity 0 to 95% no condensing
Operating Altitude Up to 3,000 meters (9,843 ft) above sea level with 10% derating
per 1000m
Model Specifications
42 Eaton 9PX Lithium-Ion User Guide DPD-9PX2206—Rev 02
Table 14. Environmental and Safety (Continued)
Transit Altitude
Up to 10,000 meters (32,808 ft) above sea level
Audible Noise < 45 dBA at 1 meter typical
UPS enclosure IP rating: IP20
Power system: TN/TT/IT
Protective class: Class I
Table 15. Battery
Internal Batteries EBM
Rack / Tower configuration 9PX6K-L: 192Vdc 9PXEBM192RT-L: 192Vdc
Type
Lithium Iron Phosphate (LFP) battery module
Lithium-Ion float service life 8 years /25°C
Monitoring
Integrated battery management system (BMS) for temperature regulation and life
cycle monitoring.
EBM Battery Cable Length 350 mm / 13.78 in
Table 16. Communications Options
Communication Bay (1) available independent communication bay for connectivity
cards
Communication Ports
RS-232 (DB9): 1200-19200 bps
USB: 19200 bps
Relay Output Contacts (4) relay outputs (normally open or normally closed)
Remote On/Off 2 pins jumper (normally open)
Remote Power Off 3 pins jumper (normally open or normally closed)
Model Specifications
DPD-9PX220602
DPD-9PX2206 02
