SAFETY WARNINGS 4
FEATURES 7
PARTS 7
INSTALLATION 8
OPERATION 11
REMOTE CONTROL 13
CLEANING AND MAINTENANCE 15
EMPTYING THE INTERNAL WATER TANK 16
TROUBLESHOOTING 17
ERROR CODES 18
SUPPORT 18
TECHNICAL SPECIFICATION 20
4
SAFETY INSTRUCTIONS
Important!
• Carefully read the instruc�ons before opera�ng the unit.
• This appliance is for indoor use only.
• Ra�ng: This unit must be only connected to a 220-240 V / 50 Hz
earthed outlet. The fuse ra�ng can be found on the plug itself.
• Installa�on must be in accordance with the applicable regula�ons of the country where the
unit is used.
• If you have any doubt about the suitability of your electrical supply, have it checked and, if
necessary, modified by a qualified electrician.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabili�es. It is also not intended for use by those with a lack of
experience and knowledge unless they have been given supervision or instruc�on concerning
the use of the appliance by a person responsible for their safety.
• Do not leave children unsupervised with this appliance.
• You must follow the ven�ng and set-up instruc�ons; Incorrect opera�on can result in damage
to the unit, which is not covered under your warranty.
• This air condi�oner has been tested and is safe to use. However, as with any electrical
appliance - use it with care.
• Do not obstruct any of the ven�la�on openings.
• The airflow should never be restricted, for example, by ven�ng the unit into a condenser box
or reducing the hose diameter, as this can damage the unit.
• Disconnect the power from the appliance before dismantling, assembling or cleaning.
• An authorised service representa�ve should perform any service other than regular cleaning
or filter replacement. Failure to comply could result in a voided warranty.
• Avoid touching any moving parts of the appliance.
• Never insert fingers, pencils or any other objects through the guard.
• WARNING: Do not pierce or burn any part of the unit.
• Do not clean the unit by spraying it or immersing it in water.
• Never connect the unit to an electrical outlet using an extension cord. If an outlet is not
available, one should be installed by a qualified electrician.
• Never operate this appliance if the cord or plug is damaged. Ensure the power cord is not
stretched or exposed to sharp objects/edges.
• A damaged supply cord should be replaced by the manufacturer or a qualified electrician to
avoid a hazard.
• Do not use the appliance for any purpose other than its intended use.
• The air condi�oner unit must always be stored and transported upright; otherwise,
irreparable damage may be caused to the compressor. If there is doubt, we suggest wai�ng
at least 24 hours before star�ng the unit.
• Avoid restar�ng the air condi�oning unit unless 3 minutes have passed since being turned off.
This prevents damage to the compressor.
5
• Never use the mains plug as a switch to start and turn off the air condi�oning unit. Use the
provided POWER buton located on the control panel.
• Always place the unit on a dry, stable, flat surface.
• The appliance should not be installed in the laundry or wet rooms.
• The appliance must be placed in a room without sources of igni�on (for example, open
flames, an opera�ng gas appliance or an opera�ng electric heater).
• R290 refrigerant gas complies with European environmental direc�ves.
• R290 has a low GWP (Global Warming Poten�al) of 3.
• This air condi�oner contains around 150 g of R290 refrigerant gas.
• Do not use or store in an unven�lated space with an area smaller than 7.2 m
2
per unit.
• WARNING: The appliance must be stored in a room without con�nuously opera�ng igni�on
sources, for example, open flames, an opera�ng gas appliance or electric heaters.
• The room must be such as to prevent stagna�on of possible leaks of refrigerant gas as there
could be a danger of fire or explosion should the refrigerant come into contact with electric
heaters, stoves or other igni�on sources.
• Only store and use the unit whilst upright; do not lay it down or �p it.
• Do not place the unit near any ovens or other heat sources. This may be dangerous but will
lead to the unit working harder and using more energy.
• Do not place the unit in direct sunlight; this can affect its appearance and cause it to work
hard and be less energy efficient.
• Refrigerant gas may be odourless.
• Do not use the product and contact the retailer for advice if damage has occurred to the unit,
which may have compromised the refrigerant system.
• Any repairs or maintenance must only be conducted by a suitably qualified engineer. Before
opening and servicing the unit, the authorised engineer must possess a copy of the
manufacturer’s service manual and follow the safety informa�on contained within it to
ensure all hazards are minimised.
• The refrigerant system should not be perforated or punctured.
• At the end of the unit’s life�me, always dispose in line with local regula�ons.
• Ensure all storage condi�ons in the manual are followed.
• WARNING: Do not use means to accelerate the defros�ng process or to clean the unit.
6
WARNING: This appliance contains flammable refrigerant. If this leaks
and comes into contact with an external igni�on source, there is a fire
risk.
CAUTION: The opera�on manual should be read thoroughly.
CAUTION: Any service personnel working on the unit should read the
service manual prior.
CAUTION: Informa�on on opera�on and servicing is in the manual.
ENERGY SAVING AND UNIT SAFETY PROTECTION TIPS
• Do not cover or restrict the airflow from the outlet or inlet grills.
• For maximum performance, the minimum distance from a wall or object should be 50cm.
• Keep the filters clean. Under normal condi�ons, filters should only need cleaning once every
three weeks (approximately). Since the filters remove airborne par�cles, more frequent
cleaning may be necessary, depending on the air quality.
• For the ini�al start-up, set the fan speed to maximum and the thermostat to 5 degrees lower
than the current temperature. A�erwards, set the fan switch low and set the thermostat to
your desired se�ng.
• To protect the unit, we recommend not using the cooling func�on when the ambient
temperature exceeds 35
o
C. The unit's performance may be affected at lower temperatures
than this. If a scorching day is predicted, running the unit overnight in the desired room is
recommended.
7
FEATURES
•
3 in 1 cooling, fan, and dehumidifier.
•
5-speed fan: Balancing quiet opera�on with performance.
•
24 Hours Start/Stop Timer
•
Digital Thermostat: Set the temperature between 16°C and 32°C.
•
Remote Control.
•
Castors and Handle for Enhanced Portability.
•
Auto-Restart to retain the se�ngs in the event of power failure.
PART LIST
Exhaust Hose
Window Slide Bar
Drainage Pipe
Control Panel
Louvres
Front Cover
Castors
Top Cover
Handle
Upper Air Inlet
Upper Drainage Port
Exhaust outlet.
Lower Air Inlet
Lower Drainage Port
Upper Filter Frame
Exhaust Adaptor
Lower Filter Frame
Fishtail Adaptor
Remote Holder
and Handle
Cable Storage
8
INSTALLATION
WARNING:
Before using this unit, please keep it upright for at least 3-4 hours.
This unit can easily be moved from one room to another.
While moving the unit, please note that it must always be kept upright and placed on an even surface.
1.

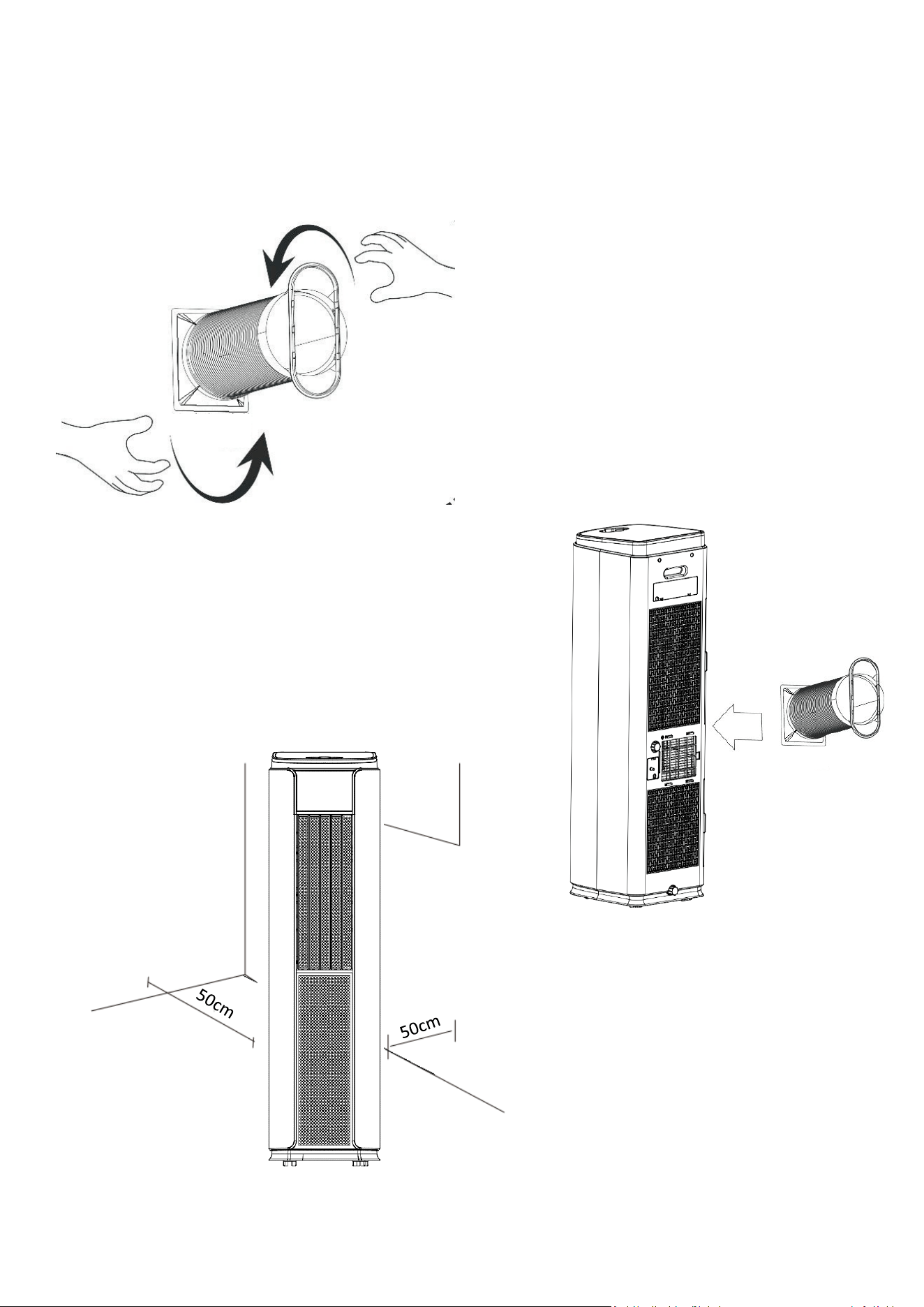

Attach the fishtail connector to the end of the
hose by extending the end and twisting until
firmly attached to the connector (At least 3
full rotations).
2. Attach the Hose to the Exhaust adaptor in the
same way by extending the end of the hose and
twisting until firmly attached (At least 3 full
rotations).
3.
Clip the Exhaust adaptor into position on the rear of the
unit. (To remove the adaptor, press the clips down to
release it from the unit)
4.

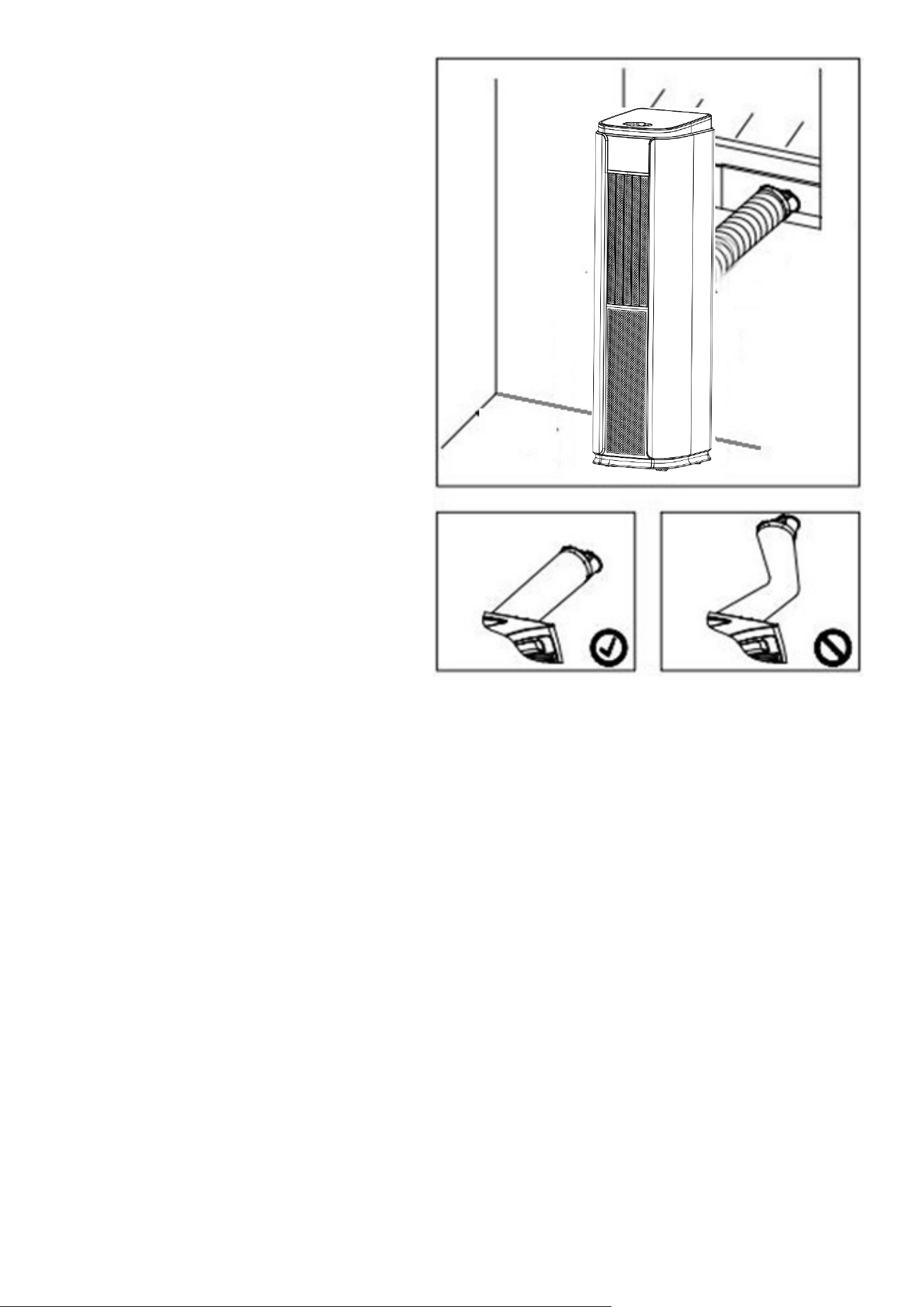

Make sure the unit is upright, and there
are no obstructions to the air inlets and
outlet grills, with at least 50cm of space
to the sides and rear of the unit.
9
INSTALLATION OF WINDOW KIT
The window kit (slide bar and fishtail adaptor) can be
used with sliding windows and doors. For other
types of windows, the fishtail adaptor should be
used on its own.

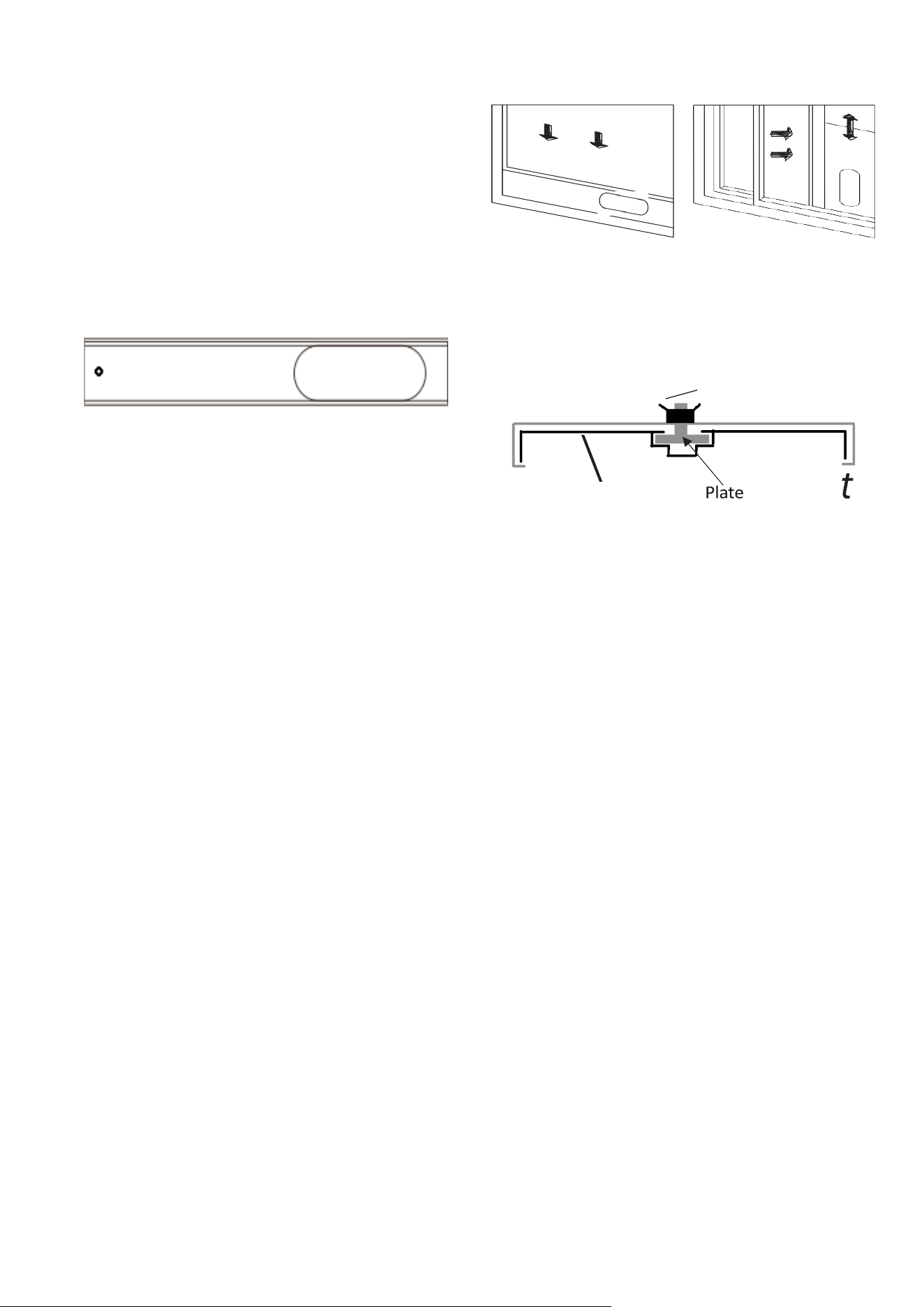

1.
Slide the rear section of the slide bar onto the front section, lining up the plate so it runs
within the groove. Extend the bar to the required length and use the supplied wing nut to
secure it.
2.
Push the screw thread of the plate through the
hole in the rear of the front slide bar section.
3.
Par�ally open the window and place the
extended slide bar in posi�on before closing
the window onto it.
4.
Fix the fishtail adaptor into the opening on the
slide bar.
NOTES:
•
The window kit is only designed to be installed with sliding or sash windows or
doors. The window kit is not designed to be used with any other style of windows.
•
The fishtail adaptor can be used without the slide bar with most windows/doors.
•
When using the air condi�oner, ensure that the opening around the fishtail adaptor
is as small as possible to ensure the unit's efficiency is not reduced.
•
The best form of installa�on is through a wall duct. By adequately ven�ng, you expel
hot air from your room while efficiently cooling it.
•
Your air condi�oner should be used without the vent pipe in dry mode. When
using dry mode, ensure that an external water tank is used, monitored and
regularly emptied before overflowing.
Permanent plumbing can also be installed, or
an external upli� water pump can be set up to allow
uninterrupted use.
Slide Bar
(Rear Selection)
Wingnut
10
IMPORTANT SAFEGUARDS
The length of the soft hose extends from
approximately 30 cm to 180 cm. If the hose is
extended above this length, the unit may
malfunction, which can invalidate the
warranty. The outlet vent must be well-
ventilated and not obstructed, as this will
cause the unit to overheat. Keep the hose as
straight and short as possible, and avoid
bending the air hose by more than 30
degrees to maintain the unit's performance.
Excessive bends in the hose may prevent the
unit from expelling hot air, leading to internal
damage, and invalidating the warranty.
11
OPERATION
Press the POWER button to turn the unit ON or OFF.
Press the MODE button to cycle between the 4 modes, and the indicator for the selected
mode will be illuminated.
COOL:
The room is cooled with the cold air expelled through the front air outlet while hot
air is expelled through the vent pipe. The desired room temperature can be set between
16 and 32 degrees using the + and - buttons, and the fan speed can be changed using the
SPEED button.
FAN:
The fan speed can be changed by pressing the SPEED button.
DRY:
It should be operated without the vent hose but with continuous drainage to
remove moisture from the air. The unit will run at low fan speed, with dH shown on the
display. Do not use it when the room temperature is below 15 degrees.
SMART COOL:
An intelligent cooling mode where the fan speed is automatically adjusted
based on the amount of cooling required. Attempts to change the fan speed will move the
unit into COOL mode.
Press the SPEED button to change between the five fan speeds. The display and LEDs will
indicate the currently selected fan speed. The fan speed cannot be altered in SMART COOL
and DRY modes.
Fan Speed
Display
LED’s Illuminated
Quiet
F1
Low
Low
F2
Low & Medium
Medium
F3
Medium
High
F4
Medium & High
Turbo
F5
High
Press to enter sleep mode. The sleep indicator will be illuminated, and all other indicators will
be turned off. In sleep mode, the appliance works at low fan speed. Press SLEEP again to exit
sleep mode.
12
The timer functions cannot be combined or repeated.
POWER ON TIMER
With the appliance on standby, press the TIMER button to set the power
-on timer. Use the +
and
-
buttons to adjust the timer's duration (1 to 24 hours). The Timer indicator will turn on, and
the unit will start after the selected number of hours.
POWER OFF TIMER
Press the TIMER button to set the power-off timer so the appliance runs with the desired
settings. Use the + and - buttons to adjust the timer's duration (1 to 24 hours). The timer
indicator will illuminate, and the unit will stop after a selected number of hours.
Used the + and – buttons to adjust the temperature in COOL and SMART COOL mode. They are
also used to set the duration of the TIMER. The buttons are not used in FAN or DRY modes.
Press both buttons together to change between displaying the temperature in Celsius and
Fahrenheit.
Use to enable the swing function.
Press SWING to activate and deactivate the up-down swing.
Press and hold SWING for 3 seconds to activate and deactivate the left-right swing.
The SMOOTH AIR function is designed to provide smooth, soft airflow while ensuring quiet
operation with the low fan speed. It provides a gentle refreshing breeze by utilising the small
holes within the louvre to distribute the air.
Press the SMOOTH AIR button to activate and deactivate the function.
When it is activated, both the up-down & left-right louvre will be fully open. The position of the
left-right louvre can be adjusted using the SWING button.
Pump
When the internal water tank is full, the unit will stop working.
Connect the drainage hose and place the other end into a bucket. Press and hold the SMOOTH
AIR button to start the pump function. This function can only be activated when the water tank is
full (E4 will be displayed).
Note: The pump is designed to make emptying the appliance easier, and is intended for purposes
such as draining into a bucket situated next to the unit. For longer distances, or greater heights an
external uplift pump should be used.
SMART COOL
When you turn on the smart, cool func�on, the unit will select the correct fan speed depending on the difference in
your desired temperature and the current temperature. If the difference is more than 2 degrees, the unit will use the
max fan speed; if it is less than this, it will use level F3.
Every 20 minutes, the unit will read the room temperature and adjust the fan accordingly. If the fan is already set to
the max or minimum speed, this may not change.
13
Scenario
Adjustment
Example
Desired temperature reached
Fan speed decreases by
one level.
The desired temperature is 22; the Current
room temperature is 22.
The current temperature has risen in the
last 20 minutes.
Fan speed increases by
one level unless it is
already at the max.
The desired temperature is 22; the room
temperature 20 minutes ago was 23 and is
now 24. The fan speed increased from F2
to F3.
The current temperature hasn’t dropped
more than a quarter of the difference
between the current temperature and
the desired temperature 20 minutes ago.
Fan speed increases by
one level unless it is
already at the max.
The desired temperature is 22; the room
temperature 20 minutes ago was 28 and is
now 27. The fan speed increased from F2
to F3.
The current temperature has dropped
more than half of the difference between
the current temperature and the desired
temperature 20 minutes ago.
Fan speed decreases by
one unless it is already at
the minimum.
The desired temperature is 22; the room
temperature 20 minutes ago was 26 and is
now 22. The fan speed decreased from F3
to F2.
Any change in temperature that is not
described.
Con�nues at the same
speed
The temperature stayed the same.
REMOTE CONTROL
REPLACING THE BATTERIES
The remote control takes a CR2025
batery. If the remote becomes
unresponsive, please change the batery
with a new batery, as shown in the
image.
Press to turn the unit on or off.
Press to change between Cooling, Fan, Dry and Smart Cool
modes.
Press to turn the �mer on or off.
Press to adjust the fan speed.
Press the sleep buton to enter sleep mode.
Press to turn on the le�-right swing func�on.
Press to turn on the up-down swing func�on.
Press to turn on the smooth air func�on.
Press to increase the desired temperature.
Press to decrease the desired temperature.
14
MULTI PROTECTIVE FUNCTIONS
FROST PROTECTION
In COOL, DRY or SMART COOL modes, if the temperature of the exhaust is too low, the machine will
automatically stop operating until the temperature has risen.
OVERFLOW PROTECTION
When the water in the internal water tank exceeds the warning level, the machine will stop operating and
sound an alarm with the LCD showing "E4". To resume operation, empty the internal water tank. After
emptying the water, the machine will automatically return to its original state.
AUTO-DEFROST
The machine has an automatic defrosting function. If the internal coils' temperature drops too low during
operation, the unit will enter auto defrost, and the heating symbol will flash on the control panel.
AUTOMATIC THERMAL PROTECTION
To protect the service life of the machine, the machine has automatic thermal protection. If the
temperature within the unit is outside of the specified range, the compressor and the lower motor will
stop operation. After the machine's temperature recovers, the appliance will automatically return to
regular operation.
COMPRESSOR PROTECTION
There is a 3-minute delay in starting the protection function to prevent damage to the compressor.
POWER DOWN MEMORY
If power is cut from the unit, when it is restored, the air conditioner will resume working with the same
settings as before the power interruption (After the compressor protection period). Note: any timer that
was set prior to the power interruption will not be saved.
15
CLEANING AND MAINTENANCE
PLEASE SHUT OFF THE UNIT AND UNPLUG FROM THE MAINS BEFORE CLEANING OR PERFORMING
ANY MAINTENANCE
CLEAN THE SURFACE
Clean the machine's surface with a wet, soft cloth. Do not use chemicals such as benzene, alcohol or
gasoline as acidic, corrosive, and alkaline substances may cause damage to the surface and or the
internal workings of the machine.
AIR FILTER CLEANING
If the filter screen is clogged with dust, the air conditioner's effectiveness is reduced. The filter screen
should be cleaned once every two weeks or as often as necessary in your environment.
CLEAN THE TWO FILTER SCREEN FRAMES

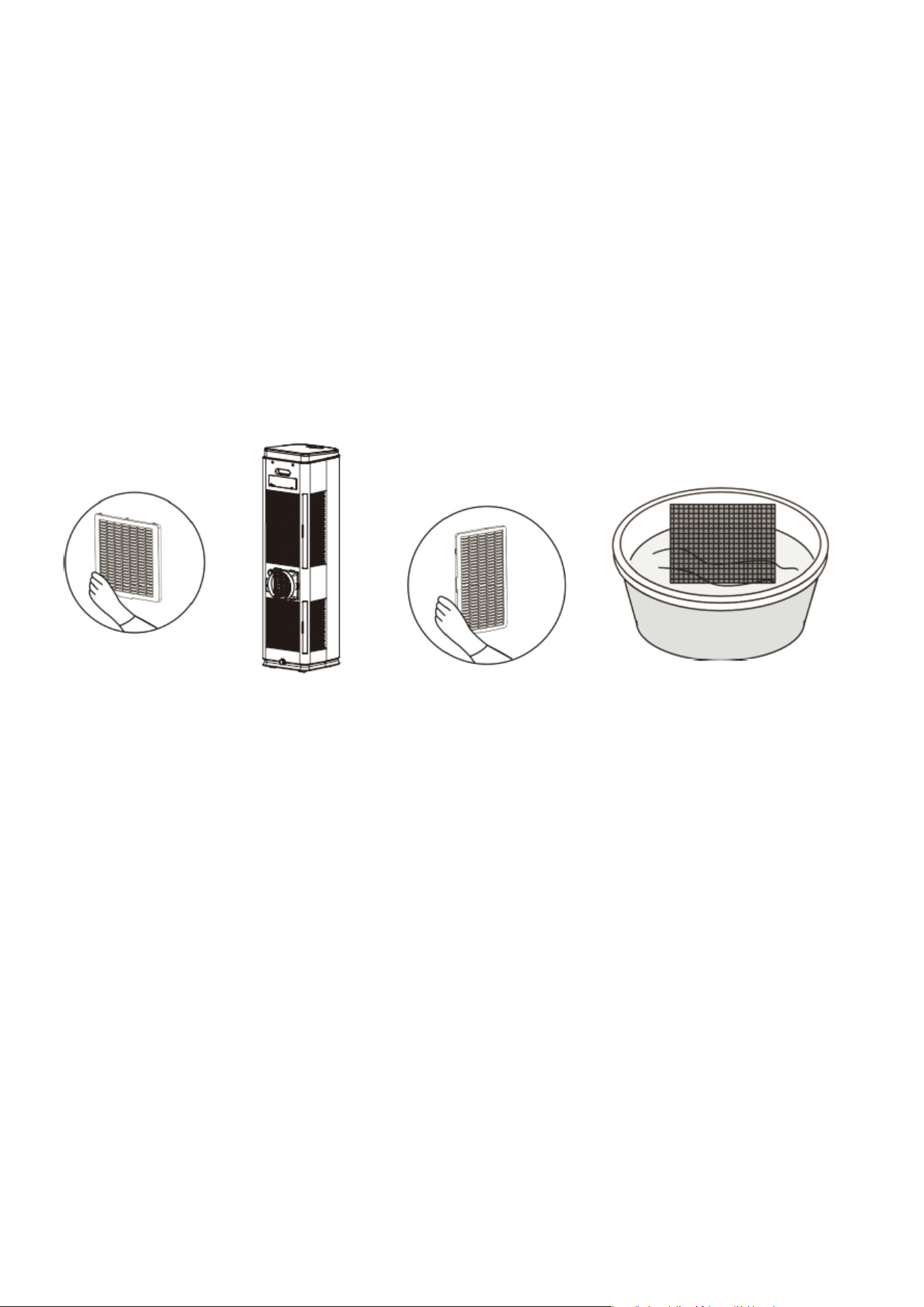

Remove the filter screens by pulling the base of it gently outwards to unclip it from the appliance. Once
removed, put the evaporator filter screen into warm water with neutral detergent (about 40 °C /104°F)
and dry it in the shade after rinsing it clean.
16
EMPTYING THE INTERNAL WATER TANK
When the internal water tank is full, the unit will stop working and display E4.
There are 3 options of how to drain the internal water tank:
1) PUMP ASSISTED DRAINAGE
Remove the rubber stopper from the upper drain port. Connect a
drainage pipe (12mm internal diameter) to the drain port, and route it
to a suitable drain. Press and hold the SMOOTH AIR button to start the
pump and drain the water tank.
2) MANUAL DRAINAGE:
The unit should be manually drained following END-OF-SEASON
maintenance before any prolonged period of storage.
Turn off the unit and unplug. Avoid moving the model abruptly, as this
may cause the water in the internal tank to spill out.
Place a tray in a drainage area under the lower drain port. Remove the
rubber stopper from the drain port - water will drain from the internal
tank. Once the tank is empty, place the rubber stopper back in position.
3) CONTINUOUS DRAINAGE:
Remove the rubber stopper from the lower drain port. Connect a
drainage pipe (12mm internal diameter) to the drain port. You can
plumb this pipe into your current plumbing system, lead it outside, use
gravity fall, or use an external water pump.
NOTE: This model has a self-evaporative function, which reduces the need to empty the water tank in
cooling mode. If the unit is vented correctly, most of the water is reused to cool the condenser coils, and
any excess is evaporated. Please do not use continuous drainage if you intend to use the self-evaporating
facility.
END-OF-SEASON MAINTENANCE
1.
Remove the rubber stoppers from the drainage holes and empty the internal tank. You
can also drain the water by leaning the unit backwards.
2.
Run the unit in fan mode, with a low fan speed, with the rubber stopper s�ll removed and
a container under the lower drain port.
3.
Keep the unit in this mode for half a day - un�l the conduit is dried. Doing this helps to
keep the inside of the unit dry and prevents mould from developing.
4.
Turn off the unit and disconnect the plug.
5.
Replace the rubber stopper.
6.
Coil the cable, bind it together, and put it into the cable storage compartment.
7.
Separate the vent pipe and store it safely.
8.
Cover the unit and keep it in a dry place.
9.
Take the bateries out of the remote control and store or dispose of them safely.
10.
Keep all accessories with the unit ready for next season.
17
TROUBLESHOOTING
Do not repair or disassemble the air condi�oning. Unqualified repair will invalidate the
warranty and may lead to failure, causing injuries and property damage. Only use it as directed
in this user manual and only perform opera�ons advised here.
Problems
Reasons
Solutions
The air
conditioner
does
not work.
There is no electricity.
Please turn it on after connecting it to a socket
with electricity.
The display shows "E4".
Discharge the water inside.
The ambient temperature is too low or too high.
Only use the machine within a temperature
range of 7-35
0
c (44-95°F).
In cooling mode, the room temperature
is lower
than the desired temperature.
Change the desired temperature.
In dry mode, the ambient temperature is low.
The ambient temperature must be above
17 °c. (62 °F).
The cooling
effect
is
not good.
There is direct sunlight.
Use curtains to reduce the direct sun heat.
Doors or windows are open; there are a lot of
people; or in cooling mode, there are other
sources of heat (e.g. fridges)
Close doors and windows; increase air
conditioning power
The filter screen is dirty.
Clean or replace the filter screen.
The air inlet or outlet is blocked.
Clear obstructions: make sure venting is correct
as described in this user manual and the hose is
not bent
Loud Noise
The air conditioning is not placed on a flat
surface.
Put the air conditioning in a flat, hard place (to
reduce noise).
The compressor does
not work.
Overheat protection starts.
Wait 3 minutes until the temperature is lowered,
then restart the machine.
The remote
control
does
not work.
The distance between the machine and the
remote control is too far.
Let the remote control get close to the air
conditioner and ensure that the remote control
directly faces the receiver.
The remote control is not aligned with the
receiver.
Batteries are dead.
Replace batteries.
Others
No refrigerant or there is minimal refrigerant.
Refer to Service Centre (check leakage, wielding,
vacuum pump, charge refrigerant according to
nameplate)
Anti-freezing protection
Waiting for defrosting.
The function will recover automatically. No user
input is needed.
High-pressure protection.
After the inside gas pressure comes down, it will
function normally. No user input is needed.
If problems not listed in the table occur or recommended solu�ons do not work, please get in touch
with the service centre.
1.
Has the unit been standing upright for at least 2 hours?
2.
Is the unit plugged into the mains?
3.
Is the fuse OK?
4.
Switch the unit off and wait three minutes to see if the issue is resolved.
Restart the unit.
5.
Check if the water tank is full.
18
ERROR CODES
CODE
CAUSE
SOLUTION
E2
Room temperature sensor error
Check to ensure filters are clean, vent pipe is not
restricted, and room temperature is within
operational range.
E3
Air Temperature Sensor Error
E4
Water Tank Full
Empty the water tank.
ES
Coil temperature sensor error
Check to ensure filters are clean, vent pipe is not
restricted, and room temperature is within
operational range.
COOL / DRY /
AUTO LIGHT
FLASHING
This is normal – shows which mode is
operating, but that the compressor is
not running.
The unit will start operation when the protection
period has finished (approx. 3 minutes)
Disposal: Do not dispose this product as unsorted municipal waste. Collection of such
waste must be handled separately as special treatment is necessary. Recycling facilities
are now available for all customers at which you can deposit your old electrical
products. Customers will be able to take any old electrical equipment to participating
civic amenity sites run by their local councils. Please remember that this equipment
will be further handled during the recycling process, so please be considerate when
depositing your equipment. Please get in touch with the local council for details of
your local household waste recycling centres.
electriQ UK SUPPORT
www.electriQ.co.uk/support
Please, for your own convenience, make these simple checks before calling the service line. Call the
number below if the unit fails to operate or complete the online form.
0330 390 3061
Office hours: 9 AM - 5 PM, Monday to Friday
www.electriQ.co.uk
Unit 2A, Trident Business Park,
Neptune Way, Leeds Road, Huddersfield, HD2 1UA.
19
LITHIUM / COIN BATTERIES:
BATTERY WARNING
KEEP OUT OF REACH OF CHILDREN
Swallowing can lead to chemical burns,
perforation of soft tissue, and death. Severe
burns can occur within 2 hours of ingestion.
Seek medical attention immediately.
• If the battery compartment (if applicable) does not close securely, stop using the
product and keep it away from children.
•
If you think batteries might have been swallowed, or placed inside any part of the
body, seek immediate medical attention
THERE MAY BE NO OBVIOUS SYMPTOMS OF BATTERY INGESTION
Unfortunately, it is not obvious when a button or coin battery is stuck in a child’s
oesophagus (food pipe). There are no specific symptoms associated with this. The child
might:
• cough, gag or drool a lot;
• appear to have a stomach upset or a virus;
• be sick;
• point to their throat or stomach;
• have a pain in their abdomen, chest or throat;
• be tired or lethargic;
• be quieter or more clingy than usual or otherwise “not themselves”;
• lose their appetite or have a reduced appetite; and
• not want to eat solid food / be unable to eat solid food.
These sorts of symptoms vary or fluctuate, with the pain increasing and then subsiding.
A specific symptom to button and coin battery ingestion is vomiting fresh (bright red)
blood. If the child does this seek immediate medical help.
The lack of clear symptoms is why it is important to be vigilant with “flat” or spare
button or coin batteries in the home and the products that contain them.
20
TECHNICAL
DATA
Model
SC08
Cooling capacity:
8,000 BTU
Rated Input:
900W
Running Current:
4.2A
Fan:
5 speeds
Airflow:
450m
3
/h
EER Rate:
A
Refrigerant:
R290/150g
Sound Power Level:
56dB(A)
Thermostat:
16-32˚C
Maximum Allowable Pressure of suction/
exhaust side:
1.0/3.5Mpa
Maximum Allowable Pressure
3.5MPa
Power Supply:
AC 230V/50 Hz
Net Weight:
28.5 kg
Dimension(L*D*H):
320*350*1190 mm
The unit must be vented outside when in air-cooling mode. For the purposes of EU
regulation EN12102, this is a local air conditioner that produces less than 65dB(A) sound
energy.
V20240417
