McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com

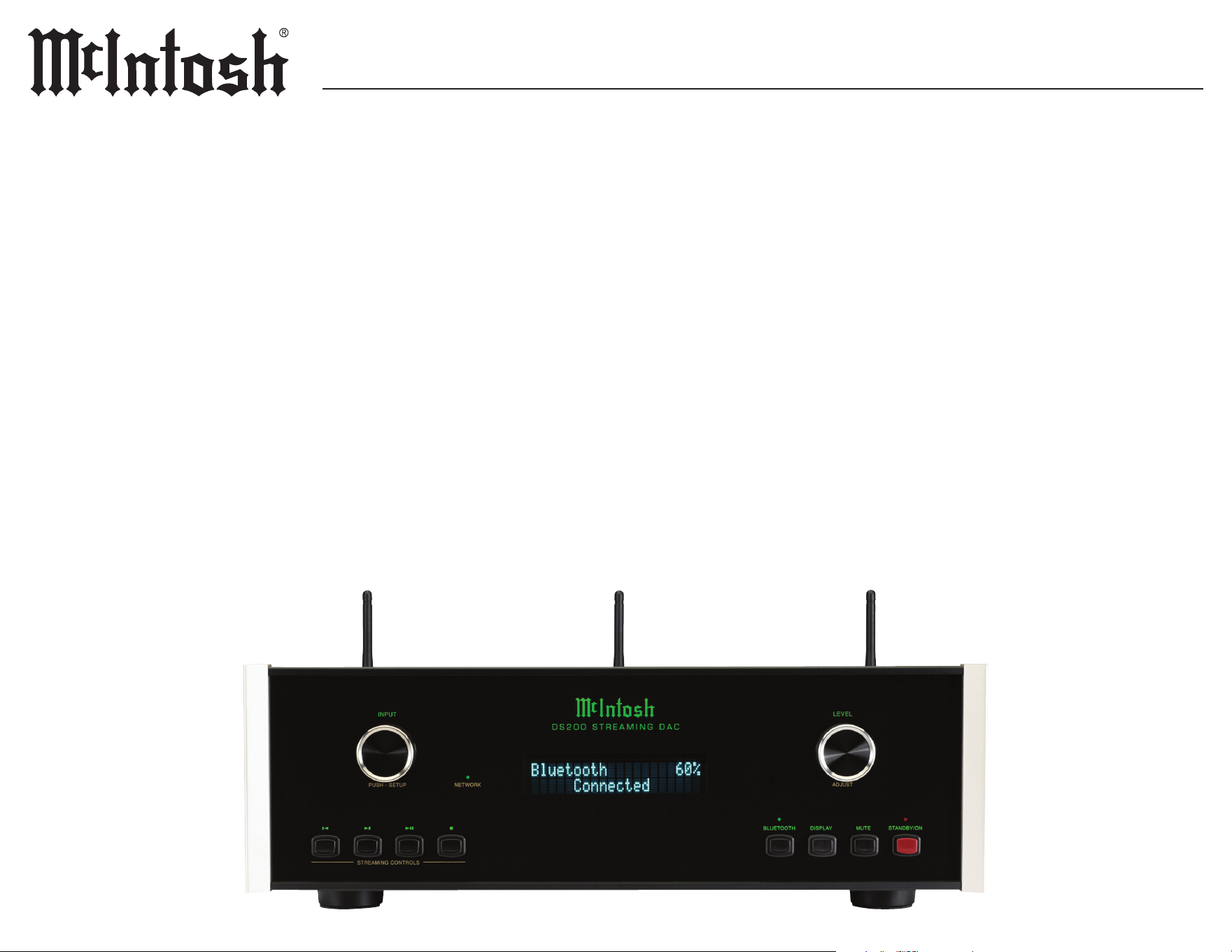

DS200DS200
STREAMING DAC
OWNER’S MANUAL
2
FCC Information (For US Customers)
1. IMPORTANT NOTICE:
DO NOT MODIFY THIS PRODUCT
This product, when installed as indicated in the
instructions contained in this manual, meets FCC
requirements. Modication not expressly approved
by McIntosh may void your authority granted by the
FCC to use the product.
2. CAUTION:
• To comply with FCC RF exposure compliance
requirement, separation distance of at least 20cm
must be maintained between this product and all
persons.
• This product and its antenna must not be co-located
or operating in conjunction with any other antenna or
transmitter.
3. COMPLIANCE INFORMATION:
• Product Name: DS200 Streaming DAC
• Model Number: DS200
• FCC ID: BWY-DS200 and contains
XCO-HSBT075
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, NY 13903
Tel. (607) 723-3512
IC Information (Canadian Customers)
1. PRODUCT:
IC:
2483A-DS200 and contains 7756A-HSBT075.
This product complies with RSS-210 of Industry
Canada. Operation is subject to the following two
conditions:
(1) this product may not cause harmful interference,
and (2) this product must accept any interference
received, including interference that may cause
undesired operation. This Class B digital Apparatus
complies with Canadian ICES-003.
2. CAUTION:
To reduce potential radio interference to other users,
the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that permitted for successful
communication.
Informations sur IC (pour les clients
Canadiens)
1. APPA R EIL:
IC: 2483A-DS200 et contiens 7756A-HSBT075.
Cet Appareil est conforme à la norme CNR-210 du
Canada. L’utilisation de ce dispositif est autorisée
seulement aux deux conditions suivantes : (1) il ne
doit pas produire de brouillage, et (2) l’utilisateur
du dispositif doit être prêt à accepter tout brouillage
radioélectrique reçu, même si ce brouillage est
susceptible de compromettre le fonctionnement du
dispositif. Cet Appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
2. ATTENTION:
An de réduire le risque d’interférence aux autres
utilisateurs, il faut choisir le type d’antenne et son
gain de façon à ce que la puissance isotrope rayon
-
née équivalente (p.i.r.e.) ne soit pas supérieure au
niveau requis pour l’obtention d’une communication
satisfaisante.
Canadian Customers: CAN ICES-003 (B)/
NMB-003 (B)
RF Exposure Information
This equipment complies with FCC and ISED
RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not
be co-located or operating in conjunction with any
other antenna or transmitter. In order to avoid the
possibility of exceeding the FCC and ISED RSS-102
radio frequency exposure limits, this equipment
should be installed and operated with minimum
distance 20 cm (7.9 inches) between the antenna
and your body during normal operation. Users must
follow the specic operating instructions for satisfy
-
ing RF exposure compliance.
Cet équipement est conforme aux limites d’exposition
aux rayonnements FCC et ISED CNR-102 établies
pour un environnement non contrôlé. Cet émetteur
ne doit pas être installé ou utilisé en conjonction avec
une autre antenne ou un autre émetteur. An d’éviter
la possibilité de dépasser les limites d’exposition
aux radiofréquences FCC et ISED, cet équipe
-
ment doit être installé et utilisé avec une distance
minimale de 20 cm (7.9 pouces) entre l’antenne
et votre corps pendant le fonctionnement normal.
Les utilisateurs doivent suivre les instructions
spéciques d’utilisation pour respecter la conformité
à l’exposition aux RF.
RED (EN) Information
1. DECLARATION OF CONFORMITY
Our products follow the provisions of EC/EU
directives:
LVD: 2014/35/EU
EMC: 2014/30/EU
RED: RED (EU) 2022/30 of 20 Oct 2021
supplementing Directive 2014/53/EU
ERP: EC regulation 1275/2008 and
its frame work directive 2009/125/EU
RoHS: 2015/863/EU
2.
IMPORTANT NOTICE:
DO NOT MODIFY THIS PRODUCT
This product, when installed as indicated in the
instructions contained in this manual, meets RED
directive requirements. Modication of the product
could result in hazardous Radio and EMC radiation.
3
DS200
Thank You from All of Us at McIntosh
You have invested in a precision instrument that
will provide you with many years of enjoyment.
Please take a few moments to familiarize yourself
with the features and instructions to get the maxi
-
mum performance from your equipment.
If you need further technical assistance, please
contact your dealer who may be more familiar with
your particular setup including other brands. You
can also contact McIntosh with additional ques
-
tions or in the unlikely event of needing service.
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, New York 13903
Technical Assistance (607) 723-3512
Fax (607) 724-0549
Customer Service (607) 723-3515
Fax (607) 723-1917
Email support@mcintoshlabs.com
Website www.mcintoshlabs.com
Please Take A Moment
For future reference, you can write down your
serial number and purchase information here. We
can identify your purchase from this information
if the occasion should arise:
Serial Number: __________________________
Purchase Date: ___________________________
Dealer Name: ___________________________
Table of Contents
General Information .. .. .. .. .. .. .. .. .. .. .. 4
Trademark and License Information .. .. .. .. 4
Performance Features.. .. .. .. .. .. .. .. .. .. .. 5
Connectors and Cable Information .. .. .. .. .. 6

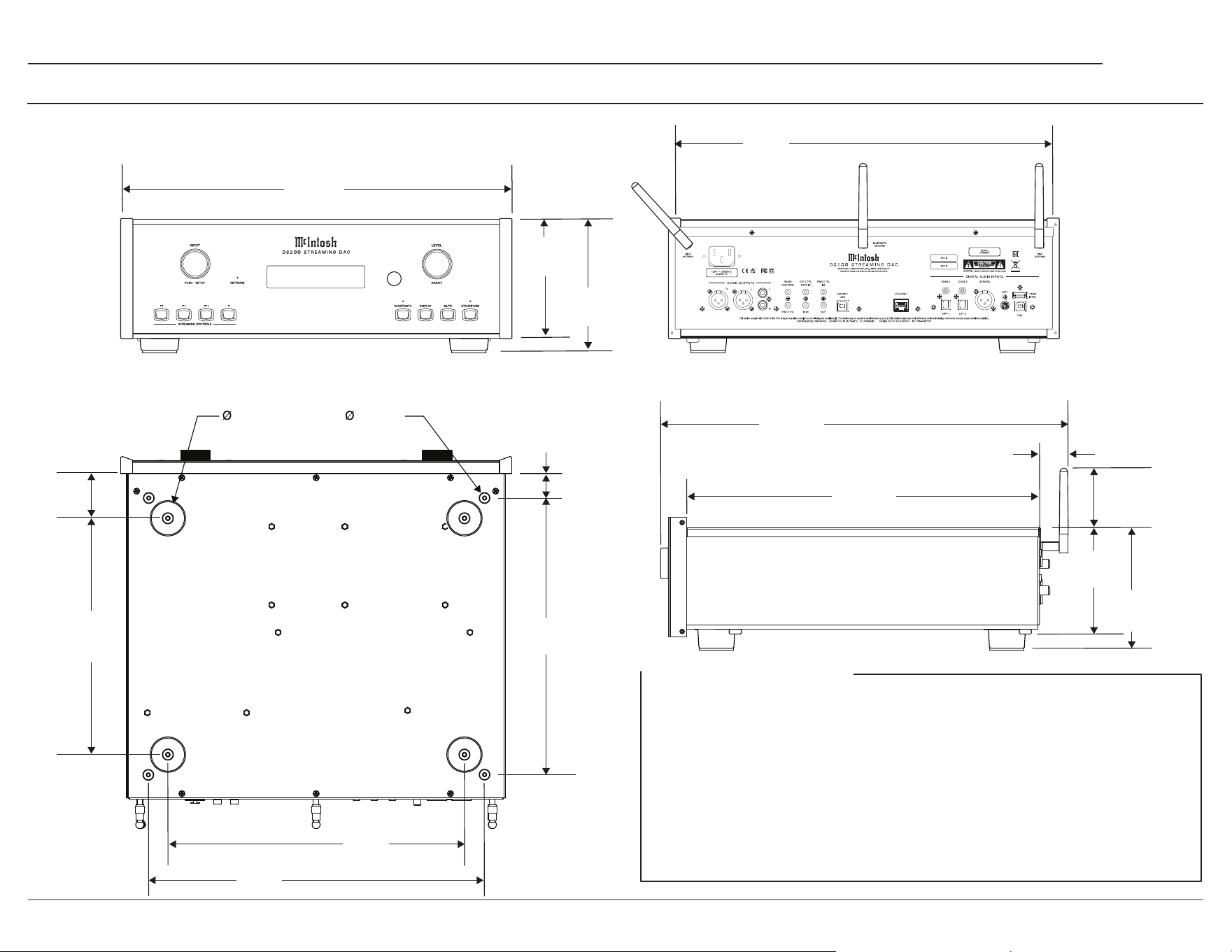

Dimensions .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 7

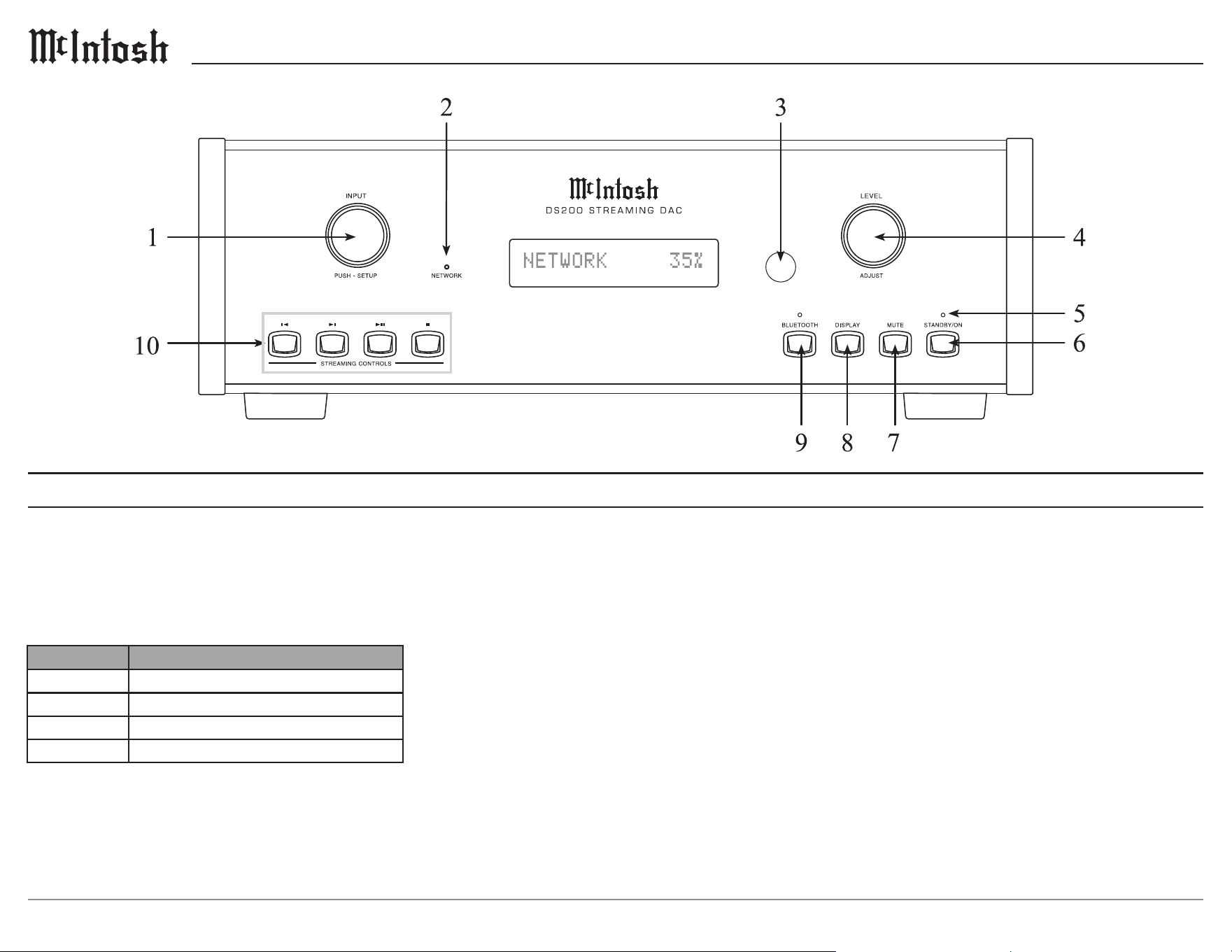

Front Panel .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 8

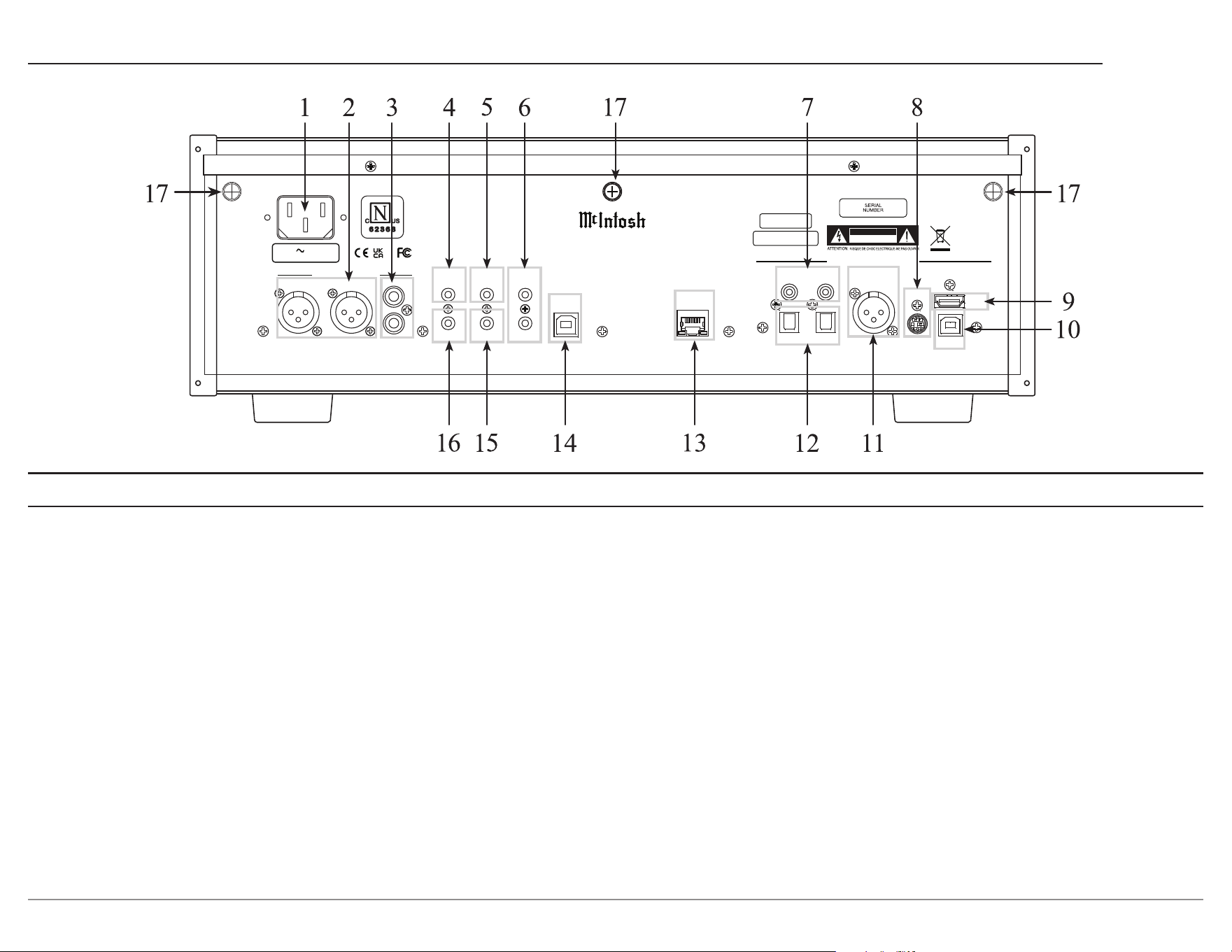

Rear Panel .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 9
System Configuration.. .. .. .. .. .. .. .. .. .. ..10

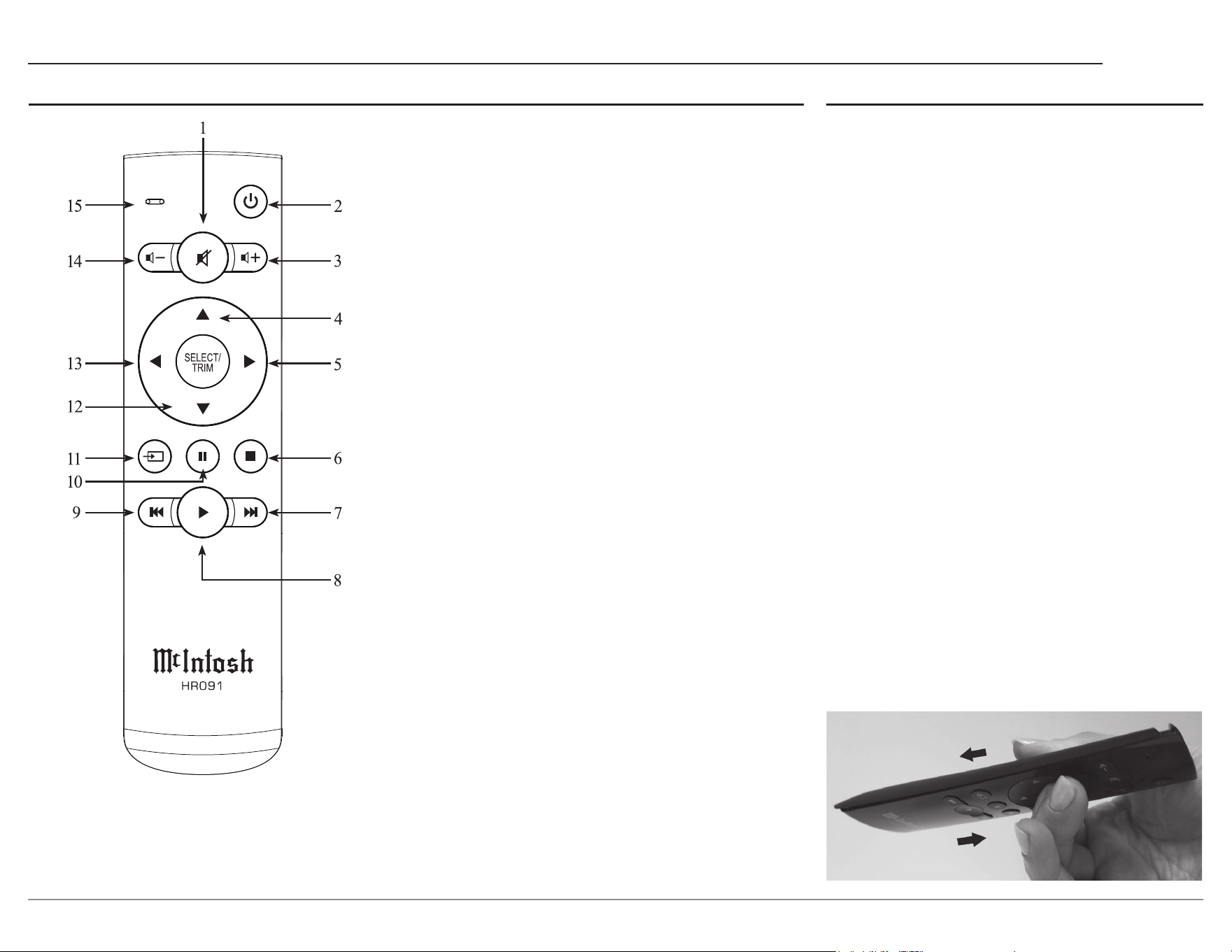

Navigating the Remote Control .. .. .. .. .. .. ..11
Navigating the Setup Menus .. .. .. .. .. .. .. ..12
System Menu .. .. .. .. .. .. .. .. .. .. .. .. .. ..12
System Menu Settings . .. .. .. .. .. .. .. .. 12-13
Input Menu .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..13
IR Menu .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..14
HDMI Menu . .. .. .. .. .. .. .. .. .. .. .. .. 14-15
How to Operate the DS200 . .. .. .. .. .. .. .. ..16

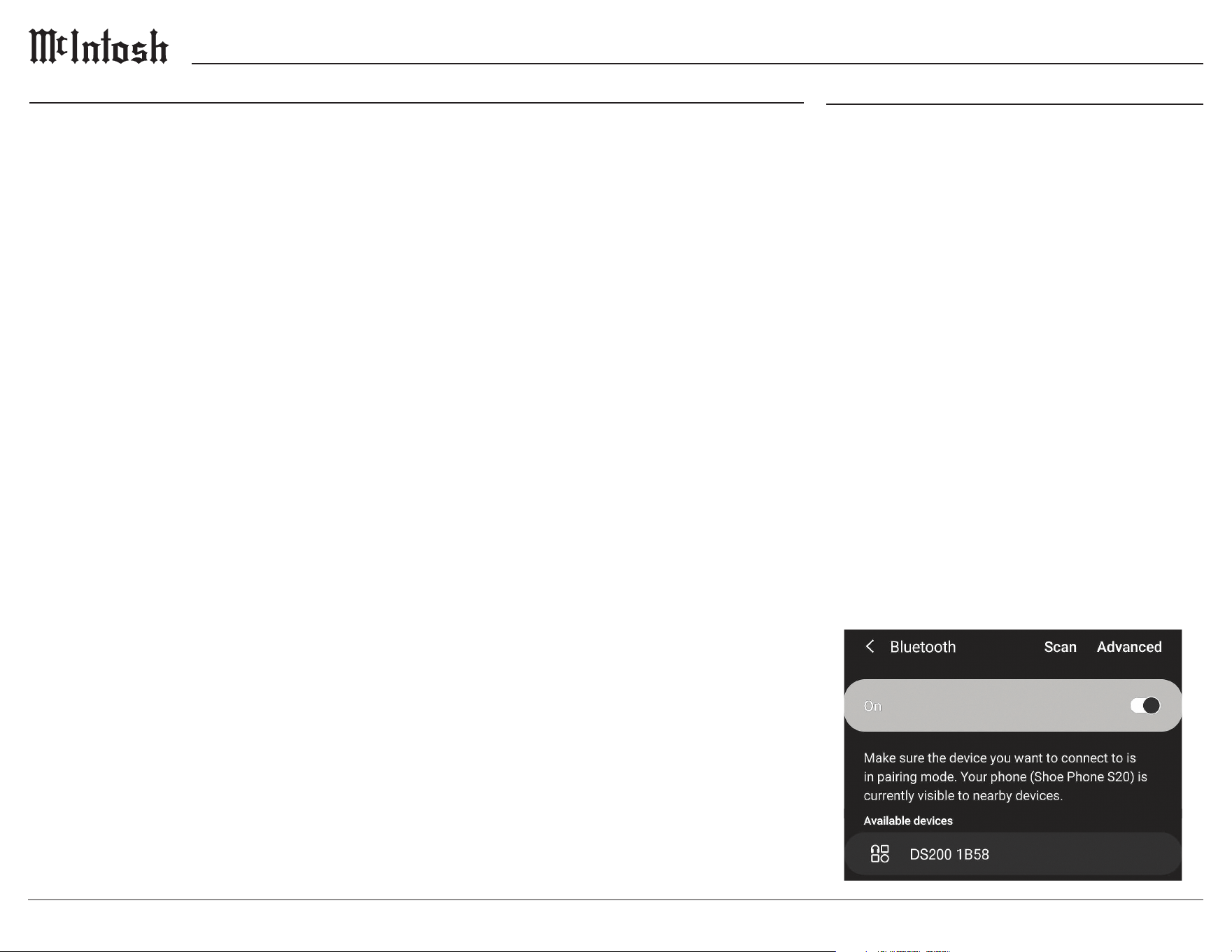

Bluetooth .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..16
Network Connections .. .. .. .. .. .. .. .. .. .17-18
The Browser Interface. .. .. .. .. .. .. .. .. .. ..19

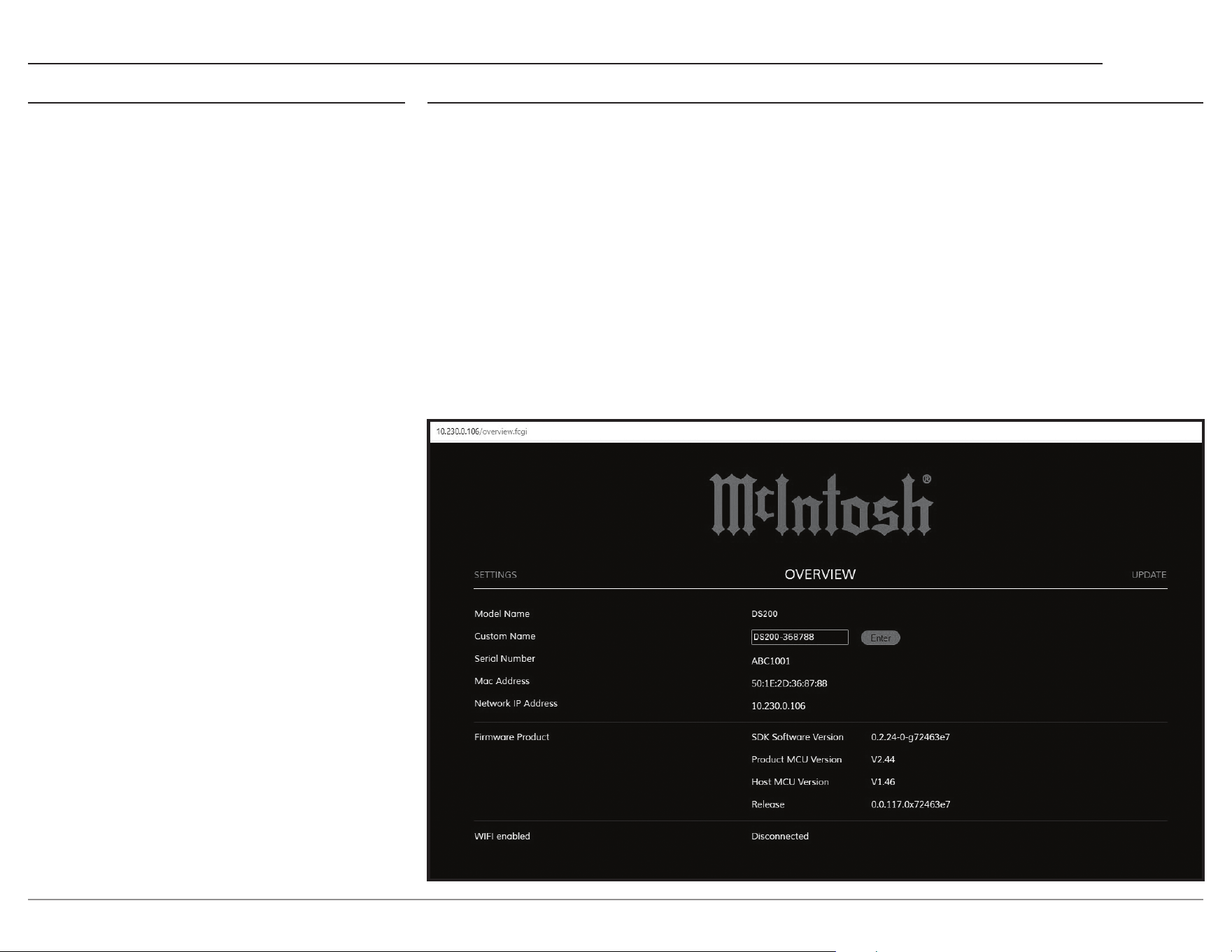

Overview Menu .. .. .. .. .. .. .. .. .. .. .. .. ..19

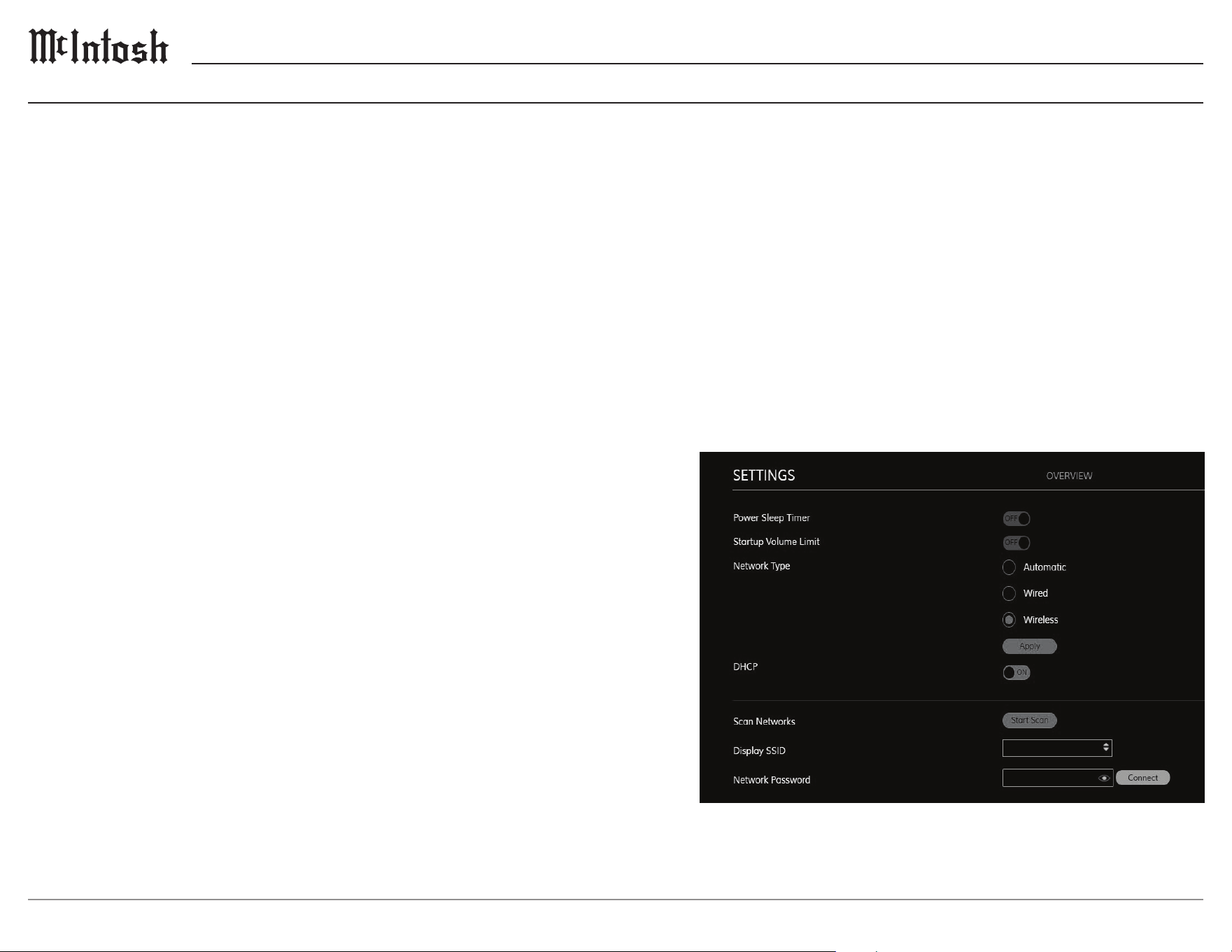

Settings Menu .. .. .. .. .. .. .. .. .. .. .. .. .. . 20

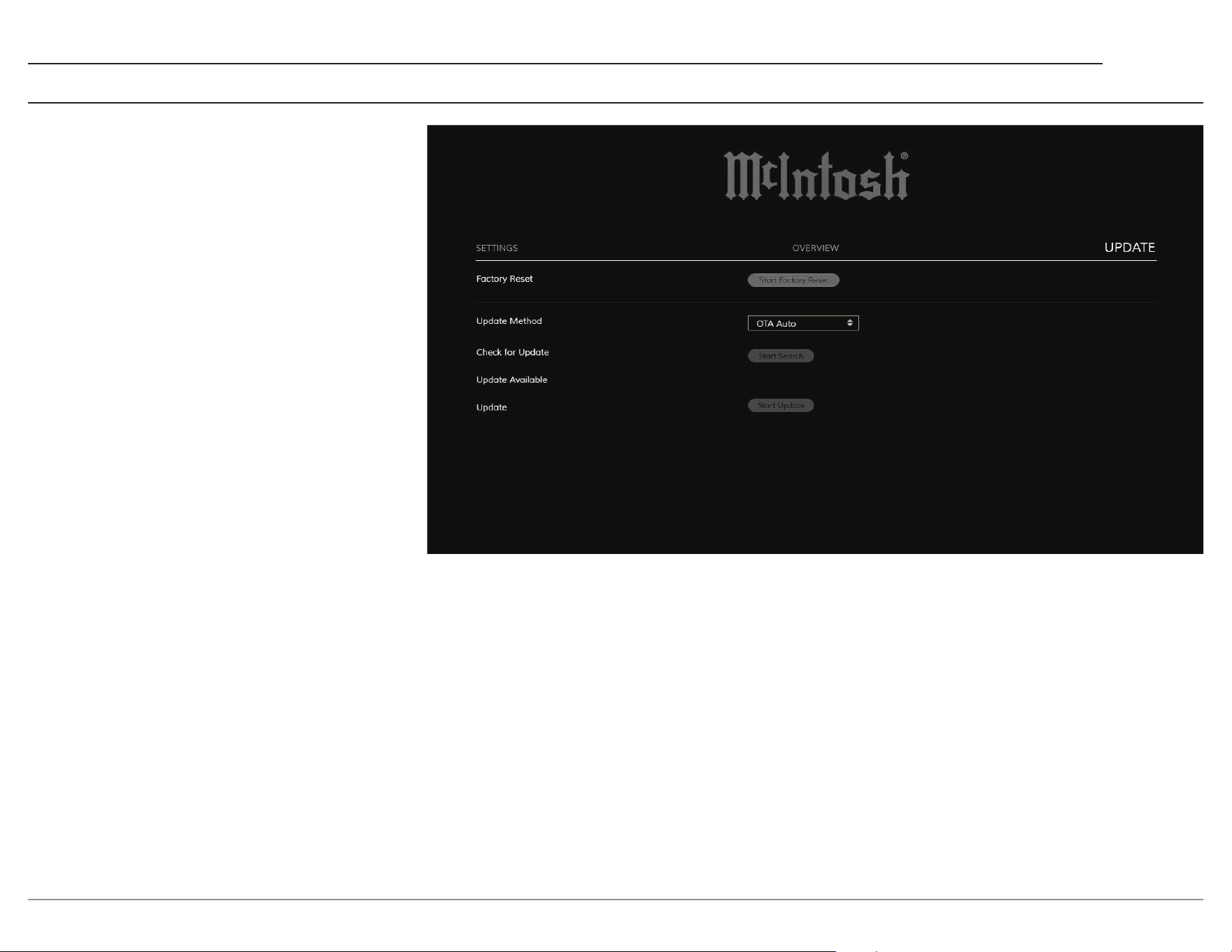

Update Menu .. .. .. .. .. .. .. .. .. .. .. .. .. ..21
Audio Specifications .. .. .. .. .. .. .. .. .. .. ..22
Digital Audio Specifications .. .. .. .. .. .. .. ..22
General Specifications. .. .. .. .. .. .. .. .. .. ..22

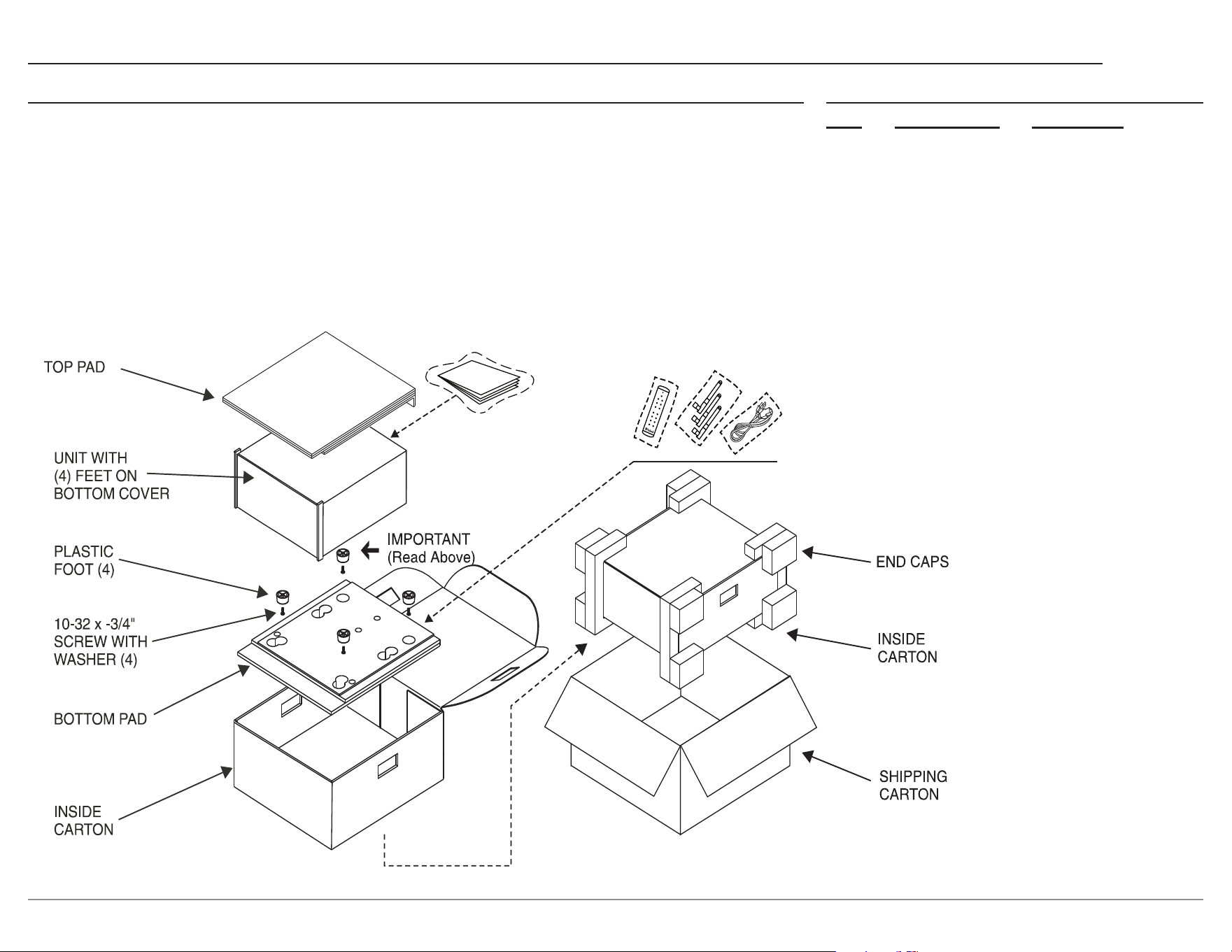

Packing Instructions .. .. .. .. .. .. .. .. .. .. . 23
Part List .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. . 23
Safety First
Please read the additional document called
INSTRUCTIONS: Safety - Lithium Batteries
- Disposal
4
The McIntosh DS200 incorporates copyright protected technology that is protected by U.S. patents and
other intellectual property rights. The DS200 uses the following technologies:
Trademark and License Information General Information
1. The main AC power going to the DS200 and
any other McIntosh component(s) should not
be applied until all the system components are
connected together. Failure to do so could result
in the malfunctioning of some or all of the
system’s normal operations. When the DS200
and other McIntosh components are in their
Standby/Power o mode, the microprocessor’s
circuitry inside each component is active and
communication is occurring between them.
2. The unbalanced outputs and the balanced outputs
can be used simultaneously.
3. The DS200 internal digital-to-analog converter
circuitry is designed to decode 2 channel PCM
(Pulse Code Modulation), Dolby Digital, DTS
bitstreams, and DSD (Direct Stream Digital)
digital signals present at the coaxial, optical, and
USB digital inputs. Other digital audio signal
format types will cause the audio outputs of the
DS200 to be muted.
4. The IR input, with a 3.5mm mini phone jack, is
congured for non-McIntosh IR sensors such as
a Xantech Model HL85BK Kit.
5. When discarding the unit, comply with local
rules or regulations. Batteries should never be
thrown away or incinerated but disposed of in
accordance with the local regulations concerning
battery disposal.
6. For additional information on the DS200
and other McIntosh products please visit the
McIntosh website at www.mcintoshlabs.com.
Trademark Logo License Information
ASIO is a trademark and software of
Steinberg Media Technologies GmbH.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS
Licensing Limited. DTS, DTS:X, and the
DTS:X logo are registered trademarks or
trademarks of DTS, Inc in the United States
and other countries. © 2020 DTS, Inc. ALL
RIGHTS RESERVED.
Dolby, Dolby Audio, and the double-D
symbol are registered trademarks of Dolby
Laboratories Licensing Corporation.
Manufactured under License from Dolby
Laboratories. Condential unpublished
works. Copyright © 2012-2024 Dolby
Laboratories. All rights reserved.
Use of the Works with Apple badge means
that an accessory has been designed to work
specically with the technology identied
in the badge and has been certied by
the developer to meet Apple performance
standards.
Apple, and AirPlay are trademarks of
Apple Inc., registered in the U.S. and other
countries and regions.
To use AirPlay with the UNIT Streaming
Audio Amplier, the latest version of iOS,
iPadOS, or macOS is recommended.
The Spotify Software is subject to third
party licenses found here: https://developer.
spotify.com/third-party-licenses.
Google Cast is a trademark of Google
LLC.
Qobuz Connect is a proprietary stream-
ing technology developed by Qobuz. All
related trademarks, logos, and software are
the property of Xandrie SA. Unauthorized
use, reproduction, or distribution of Qobuz
Connect is strictly prohibited.
Trademark Logo License Information
TIDAL is the rst global music streaming
service with high delity sound, hi-def
video quality, along with expertly curated
playlists and original content - making it a
trusted source for music and culture.
HIGH-DEFINITION MULTIMEDIA INTERFACE
TM
The terms HDMI, HDMI High-Denition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc.
The Bluetooth
®
word mark and logos are
registered trademarks owned by Bluetooth
SIG Inc. and any use of such marks by
McIntosh is under license. Other trade
-
marks and trade names are those of their
respective owners.
Qualcomm
®
aptX
TM
is a product of
Qualcomm Technologies, Inc. and/or its
subsidiaries. Qualcomm is a trademark of
Qualcomm Incorporated, registered in the
United States and other countries. aptX is
a trademark of Qualcomm Technologies
International, Ltd., registered in the United
States and other countries.
The Wi-Fi CERTIFIED logo is a registered
trademark of the Wi-Fi Alliance. Wi-Fi
Certication provides assurance that the
device has passed the interoperability
test conducted by the Wi-Fi Alliance, a
group that certies interoperability among
wireless LAN devices.
Roon Ready network devices have Roon’s
streaming technology built in, and are
certied by Roon Labs to provide the
highest level of quality and performance in
network streaming.
is Roon Tested device works over USB
and has been proled by the Roon team to
ensure simple setup and eortless daily use.
5
DS200
• Built-in casting technologies
Direct cloud based streaming supported for
Spotify Connect, Tidal Connect, and Qobuz Con
-
nect as well as smart device streaming via Apple
AirPlay, GoogleCast, Roon Ready, and Bluetooth.
• Digital Audio Inputs
The DS200 has coaxial, optical, MCT DIN,
HDMI (ARC), and USB inputs to decode PCM
and DSD signals from an external source. The
coaxial and optical inputs process digital signals
up to 192kHz with 24-bit resolution and decode
Dolby Digital and DTS bitstreams. The digital
MCT DIN connection allows for streaming of
high bandwidth digital signals (DSD, PCM)
from external sources. The USB input processes
PCM digital signals up to 192kHz with 32-bit
resolution, decodes up to DSD512 digital sig
-
nals and DXD 24-bit with a sampling rate of
352.8kHz (or 384kHz).
• Alphanumeric Fluorescent Display
The front panel information display indicates
the source selection, sampling frequency,
volume level, and setup mode selections.
The display intensity is adjustable.
• Dual Function
Connect the DS200 to an existing McIntosh ana-
log audio system to provide the latest in digital-
to-analog conversion from digital audio sources
or use the DS200 as the preamplier together
with McIntosh source components and power
amplier to form a complete audio system.
• Quad Balanced Digital-to-Analog Converter
The 8 channel 32-bit digital-to-analog converter
is used in a stereo quad balanced mode, assuring
the music is reproduced with a wide dynamic
range and extremely low distortion.
• Electronic Input Switching
Electronic input switching on all inputs provides
reliable, noiseless, distortion free switching.
• Balanced Outputs
The balanced outputs allow the connection of
long cable lengths without a loss in sound quality.
• Precision Tracking Volume Control
Volume levels are controlled by a new precision
digitally controlled attenuator system with a
tracking accuracy of 0.5dB.
• Remote Control with External Sensor Input
The remote control provides control of the DS200
operating functions and allows enjoyment of
your McIntosh system from another room in your
home by connecting an external sensor.
• Special Power Supply
Fully regulated power supplies ensure stable noise
free operation even though the power line varies.
• Power Control Input and Output
A power control connection for powering on
multiple McIntosh power ampliers, source
components, and accessories is included for your
convenience.
• Gold Plated Connectors
The input and output connector contacts are gold
plated for superior corrosion resistance and high
electrical conductivity.
• Glass Front Panel with LED Illumination
The famous McIntosh glass front panel is evenly
illuminated by multiple extra-long life Light
Emitting Diodes (LEDs) arranged with a special
orientation. The pristine beauty of the DS200 will
be retained for many years.
• HDMI TV Sound
The HDMI ARC (Audio Return Channel) allows
you to use your entire audio system to play the
sound from your TV, including the over-the-air
broadcasts, HDMI inputs, and streaming services.
Performance Features
6
XLR Connectors
Below is the pin conguration for the XLR bal-
anced output connectors on the DS200. Refer to
the diagram for connection:
PIN 1: Shield/Ground
PIN 2: + Input/Output
PIN 3: – Input/Output
Power Control Connector
The DS200 power control input receives an On/O
signal from +5 to +12 volts. The power control output
will in turn provide a +12 volt output signal with a
total current up to 25mA. An additional connection
is for controlling the illumination of other McIntosh
products’ meter power output indicators. The 3.5mm
stereo mini phone plug connects to a
McIntosh preamplier or A/V control
center power control output.
Data Input and IR IN Port Connectors
The DS200 data in port receives remote control sig-
nals from McIntosh preampliers and A/V control
centers. The data out port will send the converted
IR commands to another attached McIntosh compo
-
nent. A 3.5mm stereo mini phone plug
is used for connection.
The IR in port also uses a 3.5mm
stereo mini phone plug and allows the
connection of other brand IR receiv
-
ers to the DS200.
Note: The IR receiver must provide its own
power supply.
The RS232-C data cable is
a 3.5mm stereo mini phone
plug used to connect to exter
-
nal third party controllers.
Power
Control
Meter
Illumination
Control
Ground
PIN 2 PIN 1
PIN 3
Data
Signal
N/C
Data
Ground
IR Data
Control
Ground
N/C
USB Audio
The USB audio input of the DS200 provides the
capability to receive music/sound in a digital
format from a connected computer.
Software Requirements
Apple
®
computers with iOS-10.6.8 or later require
no additional driver install to communicate with
the DS200.
For Windows-based computers (PC), Windows 7
(Service Pack 1), or later is required. The correct
McIntosh USB audio driver must be installed for
the PC to communicate with the DS200.
To install the McIntosh USB driver for Windows-
based computers download the latest driver from
the McIntosh website: https://www.mcintoshlabs.
com/products/specialty-products/DS200
The driver can be found in the Downloads section
of the webpage under Software Updates. Choose
the McIntosh USB Audio Windows Driver. You
may select this driver in many third-party applica-
tions such as JRiver Media Center.
The DS200’s display will show the sampling rate
or bit rate for the USB input.
Service USB Port
The service USB port on the rear of the DS200 is
for McIntosh service use only. Use the USB audio
port for audio input.
Optical
The two optical inputs allow digital sources to be
connected to the DS200 using TOSLINK cables
also known as “optical audio cables.” The optical
inputs can handle high resolution digital audio up
to 192kHz/24-bit. The DS200 DAC will process
standard format SPDIF PCM signals, Dolby
Digital, and DTS bitstreams. Unsupported formats
can result in strange and/or unpleasant sounds.
Coax
The two digital coaxial inputs allow digital
sources to be connected to the DS200 using
Digital Audio RCA coaxial cables. The coax
inputs can handle high-resolution digital audio up
to 192kHz/24-bit. The DS200 DAC will process
standard format SPDIF PCM signals, Dolby Digi-
tal, and DTS bitstreams. Remember, unsupported
formats can result in strange and/or unpleasant
sounds.
DS200 TXD Out
Data being transmitted
DS200 RXD In
Data being received
Ground
Connectors and Cable Information
7
DS200
Dimensions
The following dimensions can assist
in determining the best location for your DS200.
NETWORK 35%
17 ¹⁄2”
44.5 cm
5 ³⁄8”
13.7 cm
14 ⁵⁄8”
40 cm
4 ³⁄4”
12.1 cm
17 ¹⁄8”
43.5 cm
6”
15.24 cm
INSIDE DIMENSION
5 ⁵⁄8”
14.3 cm
1 ⁵⁄16”
3.3 cm
2 ⁵⁄8”
6.7 cm
12
³⁄8”
31.4 cm
1
¹⁄8”
2.9 cm
10
⁹⁄16”
26.8 cm
2.0”
5.1 cm
13
¹⁄4”
33.7 cm
15”
38.1 cm
1
³⁄4”
4.4 cm
¹⁄2”
1.3 cm
17 ”
43.2 cm
A Note on Placement:
It is important to keep your McIntosh unit out of direct sunlight and only
use appropriate gentle cleaners because the organic anodize can become
discolored over time. While most products will maintain their classic dark
features for their lifetime, some situations can accelerate discoloration.
The most pervasive culprit is UV light, especially light directly from the
sun, or high intensity spotlights. Even high intensity short-term exposure
can result in discoloration.
Chemicals can also alter the nish of the anodize. Aggressive cleaners will
take their toll over time and actually etch away the anodize nish.
8
1. INPUT knob rotates to select dierent input
sources for playback, and navigates through
dierent options in the menus. Access menus
by holding or pressing the knob in.
2. NETWORK LED will light up in the
following ways:
3. IR Sensor receives commands from your
remote control.
Front Panel
4. LEVEL/ADJUST knob adjusts the output
level when “Adjustable” is selected in the setup
menu. Also used to navigate in the menus and
trims.
5. STANDBY/ON indicator LED illuminates
when the DS200 is connected to AC power.
6. STANDBY/ON button turns the DS200 on
and o.
7. MUTE button will mute and unmute the
audio outputs. (Active in Adjustable output
mode only.)
8. DISPLAY button will cycle through the
various signal format information, as provided
by the connected device or service.
9. BLUETOOTH button places the DS200
into pairing mode. The LED will ash during
pairing mode, and will light solid when
connected to a Bluetooth device.
10. STREAMING CONTROLS allows Play,
Stop, Next, and Back soundtrack control with
selected streaming services, and of Bluetooth
connections.
Note: Not every device and connection type allows
each control function. The backlite nomenclature
serves as a general guide.
LED Status
Amber
DS200 is in process of joining the network
Green solid
Connected to the network
Red solid
A network error has occurred
Red slow pulse
Firmware requires an upgrade
9
DS200
Rear Panel
1. AC Input uses a power cord to connect to an
AC outlet.
2. Balanced Outputs each use an XLR connector
cable for a balanced output signal.
3. Unbalanced Outputs use an RCA connector
cable for a xed or adjustable volume level
signal.
4. RS232 Connector communicates with exter-
nal control devices using a 3.5mm stereo mini
phone plug cable.
5. DATA IN receives operating data from a
McIntosh preamplier or control center.
6. Power Control IN receives turn on/o signals
from another McIntosh component.
Power Control OUT sends a turn on/o signals
to another McIntosh component.
7. COAX Inputs (1 and 2) accept coaxial cables
for digital signals.
8. MCT Input transfers signals from McIntosh
products with an MCT connector and is
required for SACD audio.
9. HDMI (ARC) Input connects with a compat-
ible ARC TV using an HDMI cord to share
control and digital audio connectivity. Note:
The HDMI ARC functionality of the DS200 is
only compatible with ARC TVs. Other devices
like DVD and Blu-ray players will not work.
10. USB AUDIO Input is a USB Type-B connec-
tor used to connect the DS200 to a computer to
stream digital audio.
11. AES/EBU accept balanced XLR connections
for digital signals.
12. OPTICAL Inputs (1 and 2) accept optical
connections for digital signals.
13. ETHERNET Input for a wired network
connection.
14. SERVICE USB is a USB Type-B port used for
service purposes only.
15. IR INput connects to an IR receiver using a
3.5mm stereo mini phone plug cable.
16. PRE CTRL reserved for future use.
17. ANTENNA - 2 Wi-Fi, 1 Bluetooth
Wi-Fi
ANTENNA
ETHERNET
120V 50/60Hz
35 WATTS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AUDIO OUTPUTS
L
R
IN
DATA IN
EXT CTRL
PWR CTRL
IR IN
OUT
RS232
CONTROL
PRE CTRL
LR
OPT 1 OPT 2
MCT
USB
HDMI
(ARC)
AES/EBU
COAX 1 COAX 2
DIGITAL AUDIO INPUTS
Wi-Fi
ANTENNA
This device complies with Part 15 of the FCC rules. Its operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
CAN ICES-003(B) / NMB-003(B) Contains FCC ID: BWY-DS200 IC: 2483A-DS200 Contains FCC ID: XCO-HSBT075 IC: 7756A-HSBT075
HANDCRAFTED IN USA WITH US AND IMPORTED PARTS
McINTOSH LABORATORY, INC., BINGHAMTON, NY
D S 2 0 0 S T R E A M I N G D A C
SERVICE
USB
BLUETOOTH
ANTENNA
MAC ID
MAC ID
10
REMOTE
CONTROL
REMOTE
CONTROL
DIGITAL
SOURCES
DS200
(DAC MODE)
PRE-AMP
(VOLUME CONTROL)
POWER
AMP
DIGITAL
SOURCES
DS200
(PRE-AMP/DAC MODE)
POWER
AMP
DIGITAL
AUDIO
POWER
CONTROL
DATA
POWER
CONTROL
DATA
VARIABLE
ANALOG
AUDIO
DIGITAL
AUDIO
POWER
CONTROL
VARIABLE ANALOG AUDIO
POWER CONTROL
POWER
CONTROL
FIXED
ANALOG
AUDIO
REMOTE
CONTROL
REMOTE
CONTROL
DIGITAL
SOURCES
DS200
(DAC MODE)
PRE-AMP
(VOLUME CONTROL)
POWER
AMP
DIGITAL
SOURCES
DS200
(PRE-AMP/DAC MODE)
POWER
AMP
DIGITAL
AUDIO
POWER
CONTROL
DATA
POWER
CONTROL
DATA
VARIABLE
ANALOG
AUDIO
DIGITAL
AUDIO
POWER
CONTROL
VARIABLE ANALOG AUDIO
POWER CONTROL
POWER
CONTROL
FIXED
ANALOG
AUDIO
System Conguration for DAC Mode
Setup Menu Notes:
Level Adjust = Fixed (default)
Front IR = Disabled
Power IR = Disabled
Input IR = Disabled
System Conguration for Preamp / DAC Mode
Shown below are two dierent system congurations. Your system may vary from this, however the actual components would be connected in a similar
manner.
Note: The preamplifier or power amplifier may be connected to the DS200 balanced or unbalanced outputs.
Setup Menu Notes:
Level Adjust =
Adjustable
Front IR = Enabled
Power IR = Enabled
Input IR = Enabled
System Congurations
11
DS200
Navigating the Remote Control
Remote Control - Changing the Battery
The back of the remote control is held in place
by magnets. To remove the back of the remote to
reveal the battery, slide the front of the remote up
while sliding the back of the remote down. The
goal is to move the back 3/16 of an inch from the
top of the remote and then lift it o.
Open the remote
1. Hold the remote upside down and backwards with
the McIntosh name facing down and away from
you. You should be looking at the back of the
remote.
2. Pinch the remote with your index nger resting on
the SELECT/TRIM button and your thumb on the
backside (facing you) opposite your index nger’s
position. Your thumb and remote should both be
pointing away from you.
3. Use your thumb to slide the back open 3/16 of an
inch by sliding your thumb away from you towards
the thicker end of the remote, while your index
nger goes in the opposite direction (towards you).
Make sure you do not hold the side edge with
either hand.
4. Lift the back o with your other hand before it
snaps closed again.
5. Remove and replace the battery noting the polarity.
Replace the back
Place the back in position 3/16 of an inch from the
edge. Slide the back towards the top of the remote
and the magnets will help you snap it into place.
Note: The following additional discrete IR commands for external control systems are available: POWER ON, POWER OFF,
INPUT (Down), COAX 1, COAX 2, OPT 1, OPT 2, AES/EBU, USB, MCT, HDMI ARC, Network, and Bluetooth. Contact
McIntosh Technical Assistance or your dealer for more information.
1. Mute: Mutes audio playback.
2. Power: Turns the unit on and o.
3. Volume Up: Increases the volume.
4. Trim Adjust: Adjusts the active trim function
and manually tunes up the dial with contempo
-
rary McIntosh tuners.
5. Trim Select: Selects the desired trim function.
6. Stop button: Stops CD playback
7. Next Preset: Selects next track during CD
playback.
8. Play button: Resumes media from where it left
o after pausing.
9. Previous Preset: Selects previous track during
CD playback.
10. Pause button: Pauses CD playback.
11. Input select: Selects desired input.
12. Trim Adjust: Adjusts the active trim function
and manually tunes up the dial with contempo
-
rary McIntosh tuners.
13. Trim Select: Selects the desired trim function.
14. Volume Down: Decreases the volume level.
15. Command LED: Illuminates when a command
is sent to the DS200.
12
System Menu
The System Menu contains the following informa-
tion about the DS200.
Setting Options
DS200 V_._ _
S/N AKFxxxx
Version Number
Serial Number
WIRELESS Firmware
V_._ _
Version Number
BLUETOOTH Firmware
V_._ _
Version Number
Di1 FIRMWARE
V_._ _
Version Number
SETUP: Level Adjust
Setting %
Fixed/Adjustable
SETUP: Fixed Level
Setting %
100% - 0%
SETUP: R232
Baud Rate
115200, 57600, 38400,
19200, 9600 Baud
SETUP: Auto-O Setting Enabled/Disabled
Network Standby Setting Enabled/Disabled
SETUP: Max. Output 1.0, 1.5, 2.0, 2.5, 3.0, 4.0,
5.0, 6.0, 7.0, 8.0, 9.0 Volts
RMS
Stream Ctrl LEDs Auto, Always On
FACTORY RESET
Note: Default settings are marked in bold.
Navigating the Setup Menus
Options
• SETUP: System Menu
• SETUP: Input Menu
• SETUP: IR Menu
• SETUP: HDMI Menu
Entering Setup Menu
To enter the Setup Menu, push and hold the
INPUT knob. Once the display shows the unit
model, the rmware version, and the serial
number, release the knob and you are in the
setup menu. See next section for the setup menu
over view.
Note: “Enter Code” will appear if the INPUT knob is held
too long. This is for support purposes only. Press the
knob again to exit.
Selecting/Adjusting Menu Settings
You can navigate through and select the dierent
options in the menus by rotating the INPUT knob.
To adjust a selected setting, use the ADJUST
knob. If a category in a menu has a submenu
available, the display will show “Hold Input,”
allowing you to hold down the INPUT knob to see
additional options.
Exiting/Navigating Back
A brief deliberate press (not hold) and release of
the INPUT knob will exit the current menu. Make
additional presses until the display shows the
main operating screen to continue normal use of
the unit.
System Setup Menu
The following is a list of the available settings
options. A down arrow ↓ represents being taken
to a submenu after holding the INPUT knob while
the display says “Hold Input.” The selectable
options will be listed in brackets [ ] and separated
by commas, with a brief description underneath of
what each option does when selected.
Serial Number
The DS200’s unique serial number can be viewed
by entering the setup menu and rotating the
INPUT knob until you see “S/N:.” The numbers
and letters to the right are the unit’s serial number.
This number can also be found on the rear of the
unit.
Firmware Version
Firmware is internal software that controls the
DS200’s functionality. Firmware upgrades when
available can be installed by qualied technicians.
The version of the main rmware of the DS200
can be viewed by entering the setup menu. The
rst setting is called DS200. The number to the
right is the version number. For example, if the
VFD displays “DS200 V101,” then the main
rmware is version 1.01.
There is also rmware for controlling the digital
audio hardware. To see the digital audio rmware
version, enter the setup menu and rotate the IN-
PUT knob until you see “Di1 FIRMWARE.” The
number following the V to the right is the digital
audio rmware version.
13
DS200
Setting Options
COAX 1 On/Name/O
COAX 2 On/Name/O
OPTI 1 On/Name/O
OPTI 2 On/Name/O
USB On/Name/O
MCT On/Name/O
HDMI(ARC) On/Name/O
NETWORK On/Name/O
BLUETOOTH On/Name/O
The following changes can be made:
SETUP: Inputs
(Hold INPUT knob)
↓
SETUP: [ input name ]
[ On / Rename, Off ]
On / Rename: The selected input will be func-
tioning as normal. Hold in the INPUT knob to
enter the menu to rename the input*.
O: The selected input will be deactivated and
will no longer be selectable from the main display
during normal use. Change this setting back to
“On /Rename” to make it selectable again.
*Renaming Inputs: While in the selected input’s
submenu, use the INPUT knob to navigate to the
input with the name you’d like to change (and turn
it on using the ADJUST knob if it isn’t already)
so that the display says “SETUP: [ input name ]
On / Rename” and hold the INPUT knob to begin
renaming. The character you are currently adjust-
ing will be blinking. Rotate the INPUT knob to
select which character you want to change and use
the ADJUST knob to change the character.
Output Level Adjust
Select the xed setting for a system where the
DS200 DAC will feed a xed line-level signal into
a preamplier or integrated amp that has its own
master volume control under RS232 control.
Select the adjustable setting when using the
DS200 as both a DAC and a preamplier, to
directly feed a power amplier. In this case the
DS200 ADJUST knob will work as the system
volume control, or select the Fixed setting and
choose the xed volume output level, 100% to 0%.
SETUP: LEVEL ADJUST
< ADJUSTABLE
RS232 Baud Rate Setup
The settings for serial communications are:
8 bit, no parity and 1 stop bit
The speed at which the DS200 communicates
with devices plugged into the RS232 Port (the
Baud Rate) can be adjusted with this Setting.
It is recommended to leave this at the highest
setting of 115200.
SETUP: RS232
115200
Auto-O
Enabled: The DS200 automatically enters
Standby Mode after approximately 30 minutes of
not playing sound or changing settings.
Disabled: The DS200 will not power o auto-
matically and will remain on until you turn it o.
SETUP: Auto-Off
Enabled >
Network Standby
Enabled: The network and Wi-Fi section will
remain powered even when the unit is in Standby
mode. This will allow the unit to be remotely
activated and turned On by your mobile device or
network connected device, like a PC.
Disabled: The Network and Wi-Fi section will
not be powered when the unit is in Standby mode,
preventing remote activation.
SETUP: Network Standby
Enabled >
Max Output
Use to select the output voltage at the analog
outputs. 2.0V is recommended when feeding a
preamplier input. A higher voltage can be se-
lected when feeding an amplier input.
Stream Control LEDs:
In Auto mode the LEDs above the left hand
buttons will turn on and o depending on the
capabilities of the streaming source. In ON mode
the LED’s will always be on.
Factory Reset
Use the factory reset option if you wish to return
all settings to factory defaults. All previous setup
changes will be lost.
While on this option, hold the INPUT knob until the
display says “In Progress!” and immediately release.
Once the display says “Completed!” your unit’s
settings will be set back to their factory defaults.
FACTORY RESET
Input Menu
14
IR Menu
Front IR Sensor Settings:
You can enable or disable the functionality of the
IR sensor to change whether or not the DS200 will
accept commands from the remote control. You
may want to do this if you have an external IR sen
-
sor that operates the DS200 with other devices.
SETUP: Front IR
Enabled >
Power IR, Input IR, and Trim IR Settings:
The DS200 can be controlled by another McIntosh
unit’s remote control using the Data In port. If you
want to limit what commands sent by the connected
unit aect the DS200 you can use the Power IR,
Input IR, and Trim settings.
If you wish to disable input commands coming from
the data port or from a connected external IR sensor
connected the IR in, enter the setup menu. Select
Input IR on or o by rotating the ADJUST knob.
If you wish to disable trim commands coming from
the data port or from a connected external IR sensor
connected the IR in, enter the setup menu. Select
Trim IR on or o by rotating the ADJUST knob.
Setting Options
SETUP: IR Codes Normal/Alternate
SETUP: Front IR Enabled/Disabled
SETUP: Power IR Enabled/Disabled
SETUP: Input IR Enabled/Disabled
SETUP: Trim IR Enabled/Disabled
IR Codes Settings:
By default, the included HR091 remote control
sends “Normal” IR codes when buttons are pressed.
Any McIntosh device set to receive “Normal” IR
codes will receive the signal. To prevent control
-
ling multiple devices with the remote control at
once, change this setting to “Alternate” to prevent
signals from the remote control being read. Then an
optional remote control like the McIntosh HR085
or HR093 set to alternate codes would control the
DS200.
To change from the Normal to Alternate control
codes, press and hold the SELECT and number
2 buttons simultaneously until the device select
McIntosh LED ashes twice. Change the setting
of the desired remote to Alternate before verifying
proper operation by pressing the volume buttons on
the remote.
SETUP: IR Codes
Normal >
HDMI Menu
Setting Options
SETUP: HDMI CEC
VOL
On/O
SETUP: HDMI CEC Pwr On/O
SETUP: Lip Sync Mode Auto/Manual
SETUP: HDMI Gain 0dB - +14dB
in 1dB intervals
SETUP: OPTI 1 Gain 0dB - +15dB
in 1dB intervals
SETUP: OPTI 2 Gain 0dB - +15dB
in 1dB intervals
HDMI CEC Settings
On: Allows compatible devices to use CEC
(Consumer Electronics Control) to control certain
functions of the DS200.
O: Prevents DS200 from being controlled w/ CEC.
SETUP: HDMI CEC VOL
ON >
On: Allows compatible devices to use CEC (Con-
sumer Electronics Control) to power on/o the
DS200 or be powered on/o by the DS200.
O: Prevents devices from using CEC to power on/o
the DS200 or be powered on/o by the DS200.
SETUP: HDMI CEC PWR
ON >
15
DS200
Entering Trim Functions Menu
A brief deliberate press (not hold) and release of
the INPUT knob will take you to the trim func-
tions menu.
Adjusting Trim Functions
You can navigate through and select the dierent
options in the menus by rotating the INPUT knob.
To adjust a selected setting, use the ADJUST
knob. The remote control will also adjust these
settings.
Note: The balance and input trim settings in this menu will
only be adjusted and affect the currently selected
input and their configurations will be independently
saved.
Trim Functions Menu Options
Settings Options
Balance L, Center, R
Input Trim -6dB to +6dB
in 1dB intervals
Brightness 4 Levels
Dim
Bright
HDMI Lip Sync Mode Settings
Auto: The DS200 will automatically synchronize
audio signals received through HDMI.
Manual: Disables auto video/audio synchroni-
zation through HDMI, allowing you to manu-
ally calibrate audio/video sync from connected
devices.
SETUP: Lip Sync Mode
Auto >
Digital Gain Settings
To get more even playback volume from your
connected digital devices, adjust their individual
volumes with this setting. The defaults are +0dB
for HDMI and +0dB for optical.
SETUP: Digital Gain
Adjusting Audio Balance
If you want one loudspeaker to be louder than the
other, while on the balance setting, use the AD-
JUST knob to adjust the meter to whichever chan-
nel you wish to be louder. The more lled the meter
is under a channel, the louder that channel will get,
while the opposite channel will get quieter.
Adjusting Input Trim Levels
Devices connected to the various inputs may be
sending audio at varying volumes to the DS200.
This could result in uneven playback volume when
changing sources. To correct this, you can raise or
lower the volume of an input as it enters the DS200
by adjusting its trim level with this setting.
Adjusting Brightness
The front information display can be adjusted for
brightness in four levels from dim to bright.
16
How to Operate the DS200
Bluetooth
Here are the basic steps to start enjoying the
DS200 Wireless Loudspeaker System right away.
This Quick Start will get sound owing from the
DS200 via a Bluetooth connection. That way you
can hear some music as you read the rest of this
manual.
1. Connect to the DS200 to AC power.
2. Power the DS200 On by pressing and releasing
the STANDBY/ON button.
3. Press the BLUETOOTH button to select the
Bluetooth input. Press and release the BLUE-
TOOTH button again and the display will show
‘Pai r i ng’.
4. On the phone (or other device) you wish to
connect, press SCAN in the Bluetooth section
of Settings.
5. The DS200 will appear as “DS200 xxxx” in
Available Devices.
6. Choose the DS200 to pair.
7. When asked to conrm you want to pair the
DS200 to your device, select OK.
8. The DS200 should now be “Connected for
audio.”
9. Play some music.
Powering On / Turning O:
While the unit is in Standby Mode (no lights
except the LED indicator light are on), press the
STANDBY/ON push button to power on the unit.
Power down the unit by pressing the STANDBY/
ON button, “Entering Network Sleep Mode” will
be indicated on the display as it turns o. Using
the remote control, press the power button to turn
the DS200 On or O where appropriate. If power
control is connected from a preamplier, the
DS200 will automatically turn on and o with the
preamplier.
The DS200 has the ability to automatically switch
power On or O to source components via the
power control connections. The data port con-
nections allow for the remote operation of basic
functions using the remote control. With an
external sensor connected to the DS200, remote
control operation of the system is possible from
another room and/or when the DS200 is located in
a cabinet with the doors closed.
Selecting an Input for Playback:
You can change the current playback source by
rotating the INPUT knob or by using the input
button on the remote control.
Adjusting the Level:
If the level setting in the setup menu is set for
“Adjustable,” rotate the LEVEL knob or use the
volume buttons on the remote control to adjust the
volume. The current volume level is represented
by a percentage on the display.
Note: The volume control will not affect audio if the level
setting in the setup menu is set for “Fixed” level.
MCT Input
When playing a multi-layer SACD, select the
stereo (SACD) or CD layer. The multi-channel
layer will not reproduce sound.
Note About Initial Network Connection
When your DS200 connects to your network for
the rst time, it will automatically look for the
latest software update. If available, the DS200
will install the newest version. When updating, a
message will be displayed on the front panel.
You may adjust how future updates are handled.
See “Update Menu” on page 21.
Troubleshooting
In the unlikely event that your commands are not
being registered by the unit, you can reset the
microprocessors. To do so, hold the STANDBY/
ON button down until the LED indicator light
switches o. Release the button, and when the
light illuminates again, you can press the button
again to power the unit On and resume normal
operation.
17
DS200
Wi-Fi connection using an iOS Device
Setting up the DS200 as a AirPlay Speaker will
connect the DS200 to your Wi-Fi network:
• Make sure your iOS device is on the Wi-Fi
network you wish to connect the DS200 to
• With the DS200 powered on, the NETWORK
LED should not be solidly illuminated green
(if it were lit, it would indicate the DS200 is
currently connected to a network)
• Open up Settings on the iOS device
• Open up the Wi-Fi submenu
• Look at the Wi-Fi network list and nd “Set Up
New AirPlay Speaker”
• Select the DS200
• The DS200 will be added to your network
Ethernet
For a wired connection to your network, use an
Ethernet cable to connect the DS200 to your
router.
Note: A solid red Network/Wi-Fi LED indicates that a
network error has occurred. See page 8.
Note that plugging in an Ethernet cable will
disable the Wi-Fi radio of the DS200. The DS200
will use the Ethernet connection for all network
activity. To enable Wi-Fi, the Ethernet cable must
be removed.
With an Ethernet connection, you can use the
DS200 browser interface to provide the DS200
with your Wi-Fi settings. For more information,
see “The Browser Interface” on page 19.
Setting up Wi-Fi Without Ethernet
To initially connect your DS200 to a Wi-Fi net-
work without using an Ethernet connection or
iOS connection (as described above) follow these
steps:
• Power the DS200 o and then on
• When the green LED below the Left Knob is
blinking, open your PC or phone’s Wi-Fi Con-
nection Settings
• Look for a network name starting with
“softAP”
• Open a web browser (Chrome or Firefox)
• Type 192.168.255.249 in the browser’s address
bar and press enter and the DS200 interface
should open
• Select Settings from the DS200 interface
• Select Wireless in Network Type
• Select Start Scan
• Select your network
• Provide your password and press Connect
• Your DS200 will connect to your network
Google Cast
To Cast to your DS200, you will need:
• The latest version of Google Home App
• Wireless network and access password
With your mobile device/tablet connected to
the same Wi-Fi network as your DS200 and the
DS200 powered on:
• Open the Google Home App
• Follow the steps for the DS200 if they auto-
matically appear
To manually add the DS200
• Tap the + at the top of the screen
• Select “Set up device”
• Select “Setup new devices”
• Follow the set up steps for a “Speaker”
Once the DS200 is setup, you can choose to Cast
to it. To Cast:
• Choose the Cast button in the top right corner
of a Google Cast-enabled app
• Choose the DS200
• When connected the Cast button will change
colors
• Cast music, etc. to your DS200
Network Connections
18
HDMI ARC
The HDMI ARC (Audio Return Channel) allows
you to use your entire audio system to play the
sound from your TV.
Notes:
• Ensure you are connected to the TV’s HDMI input
port that is labeled “ARC”.
• Your TV’s setup menu and settings may need to be
adjusted before sound is heard.
• When the DS200 is set to the HDMI input, the
unit will automatically turn On and Off with the TV.
The front display will show “Entering HDMI
Standby Mode” when turning Off.
• Multi-channel formats will be down mixed to a
2-channel output.
Audio formats supported by HDMI ARC:
• PCM (2 channel)
• Dolby Digital (up to 5.1 channel)
• DTS Digital Surround (up to 5.1 channel)
AirPlay
AirPlay is an Apple technology designed to
control home audio systems and speakers in any
room – with a tap or by simply asking Siri.
To control this AirPlay-enabled device, follow
the “Wi-Fi Connection using an iOS Device”
instructions.
Siri Voice Control
Use Siri on your iPhone, iPad, HomePod, or
Apple TV to control your DS200 with just your
voice.
Roon
When connected to your network, the DS200 will
be available as a Zone for your Roon server. (If
you have a Roon server.) The DS200 can be con-
nected to your Wi-Fi using AirPlay (see “Wi-Fi
connection using an iOS Device” on page 17) or
Google Cast. It can also be directly connected
with an Ethernet cable.
Tidal Connect
To listen to music on TIDAL through the DS200,
using the Tidal app, select the content you want to
play and then select the connect icon
on the
Now Playing screen.
This will bring up a list of nearby devices to
stream through. Locate the DS200 and select to
pair.
If you are unable to nd your device, make sure
the device is connected to the same Wi-Fi network
you are streaming from.
Once paired you can use your TIDAL app as a
remote. TIDAL is compatible with select smart
assistants that enable voice controls. Depending
on your region, you may enable this feature by
linking your TIDAL account with your selected
smart device. This option can normally be found
in the Settings section of your respective Smart
Devices app.
Spotify Connect
Use your phone, tablet or computer as a remote
control for Spotify. Go to spotify.com/connect to
lear n how.
Qobuz Connect
Qobuz is a high quality music platform. Pioneer of
high quality sound since 2007, the French platform
oers an intimate and enriching experience. Qobuz
gives access to an unparalleled wealth of content:
more than 100 million tracks available in the best
sound quality (Hi-Res and lossless/CD) and exclusive
editorial content written by a team of experts.
Use a phone, tablet, or computer as a remote control
for Qobuz. Go to https://www.qobuz.com/us-en/
magazine/story/2025/05/14/qobuz-connect-how-it-
works/ to learn how.
Qualcomm
®
aptX
™
Audio
aptX
™
is a codec that can provide CD quality
music over Bluetooth connections. The DS200
will automatically utilize aptX when connected to
a source that supports aptX. Simply connect with
Bluetooth as described in “Bluetooth” on page 16.
The DS200 also supports the higher resolution
aptX HD (24-bit/48kHz). If your device utilizes
aptX HD then that resolution will be utilized
automatically.
The DS200 also features aptX LL (Low Latency)
which automatically ensures Bluetooth can deliver
sound in sync with visual media. It reduces delay
and improves end-to-end speed of the audio trans-
mission, resulting in a high quality, synchronized
user experience with any transmitting device that
supports aptX LL.
Network Connections continued
19
DS200
The Browser Interface
The Overview menu provides the following
information about the DS200:
• Serial Number
• MAC Address
• Network IP Address
• Firmware versions
The Overview menu also includes the following
settings that can be changed:
• Custom name
• Wi-Fi enabled
Custom Name
You can provide a Custom Name for the DS200.
This is the name that will display for available
AirPlay devices. If you wish to change the default
name, type the new name in the box and press
Enter.
Wi-Fi Enabled
The Overview Menu provides an indicator for
the status of your Wi-Fi (Wi-Fi enabled). When
enabled the indicator will show ON and be green.
An Ethernet connection takes precedence and
will automatically disable Wi-Fi. Wi-Fi, if set
up, will re-engage when the Ethernet cable is
disconnected.
Overview Menu
To view the DS200’s browser interface, you will
need its IP address.
• Connect your DS200 to a network with either a
wired or wireless connection.
• Rotate Input knob until NETWORK is
selected.
• Press Front Panel DISPLAY button three times.
• Note the IP address from the DISPLAY
window.
With the DS200’s IP address:
• Type the address of the DS200 into the address
bar of your router
The DS200 Browser interface has three
submenus:
• Overview
• Settings
• Update
Click on the desired heading to enter that menu.
20
Power Sleep Timer
The Power Sleep Timer has two settings:
• ON (default)
• OFF
The DS200 will power o into a sleep state after
approximately 30 minutes of no sound or user
input. If Power Sleep Timer is set to ON, the
DS200 will enter Standby Mode after 60 minutes
of uninterrupted sleep. In this Standby Mode, the
Wi-Fi radio is powered o and the unit can not
be woken via the network. Standby Mode power
consumption is less than 0.5 watts.
If the Power Sleep Timer is set to OFF, the DS200
will power o into a sleep state after 30 minutes
of non-activity, but will not enter Standby Mode.
The DS200 can be woken from sleep by input
from the network (or physically pushing the Power
Button). In a sleep state, the DS200 will continue
to work with devices congured to control it in
your Google Home collection.
The DS200 can be made to immediately enter a
sleep state by pressing the STANDBY/ON button.
Startup Volume Limit
The Startup Volume Limit has two settings:
• ON
• OFF (default)
When the Startup Volume Limit is ON, upon
power loss or return to play from Sleep or
Standby, the rst playback of the product will start
at a low volume level. When switched to OFF, the
product will resume playback at the last volume
level.
Net work Ty pe
The Settings Menu allows you to change settings
for Wired and Wireless network connections.
Select Network Type to see/change settings:
• Automatic
• Wired
• Wireless
If Network Type is set to Automatic, the DS200
will automatically connect to either Wi-Fi or
Ethernet depending on what is available as long as
they have been setup properly.
If Network Type is set to Wired, the DS200 will
limit the network connection to the Ethernet port
connection.
If Network Type is set to Wireless, the following
submenus appear:
• Scan Networks
• Display SSID
• Network Password
To set up a wireless connection for
the DS200:
1. Select Start Scan
2. In the Display SSID submenu,
select a wireless network using
the up/down arrows
3. Enter the Network Password
for that Network
4. Select Connect
DHCP
DHCP can be set to ON (Default) or OFF. If
you change this setting to OFF, you will need to
provide the following information manually:
• IP
• Netmask
• Gateway
• DNS (1st and 2nd)
With DHCP ON, this information is automatically
acquired and the submenus to enter the informa-
tion are not visible.
Settings Menu
21
DS200
The Update menu allows you to reset settings to
the factory defaults as well as update your DS200.
Factory Reset
To restore Factory settings, select the “Start Fac-
tory Reset” button.
Note: You will lose your Wi-Fi settings.
An alternative method for Factory Reset can be
found in the System Setup Menu, see page 12.
After the DS200 has reset it will be in its sleep
state. Press the red STANDBY ON button to
wake the DS200 and the front panel display will
illuminate.
Update Method
Update Method allows you to set how the DS200
updates its rmware.
The Update Method options are:
• OTA Auto
• OTA Manual
• Service
Note: OTA stands for Over The Air.
When the Update Method is set to the default of
OTA Auto, the DS200 will periodically check for
updates and install them automatically.
When the Update Method is set to OTA Manual,
the DS200 will only check for available updates
when you select the Start Search button.
If an update is available, you can install it by
selecting the Start Update button.
The Service option for updating is for service
purposes by a McIntosh qualied technician only.
While the DS200 is in the process of updating the
rmware, a message will be displayed on the front
panel.
Update Menu
22
Audio Specications
Frequency Response
+/-0.5dB from 20Hz to 20kHz
+0.5/-3dB from 5Hz to 60kHz (source dependent)
Total Harmonic Distortion
0.005%
Fixed Output level
Unbalanced: 2.0Vrms
Balanced: 4.0Vrms
Adjustable Output level
0 - 8.0Vrms Unbalanced
0 - 16.0Vrms Balanced
Signal To Noise Ratio (A-Weighted)
100dB
Dynamic Range
100dB
Output Impedance
100 ohms Unbalanced and Balanced
General Specications
Power Control Out
12VDC, 25mA
Power Requirements
Field AC Voltage conversion of the DS200 is not
possible. The DS200 is factory congured for
one of the following AC Voltages:
100 Volts, 50/60Hz at 35 watts
110 Volts, 50/60Hz at 35 watts
120 Volts, 50/60Hz at 35 watts
220 Volts, 50/60Hz at 35 watts
230 Volts, 50/60Hz at 35 watts
240 Volts, 50/60Hz at 35 watts
Standby Power, less than 0.5 watts
Note: Refer to the rear panel of the DS200 for the correct
voltage.
Overall Dimensions
Width is 17 1/2 inches (44.5cm)
Height is 6 inches (15.2cm) including plastic feet
Depth is 17 inches (43.2cm) including front knobs
and rear antennas
Weight
20.5 pounds (9.3 kg) net, 27.5 pounds (12.5 kg) in
shipping carton
Shipping Carton Dimensions
Width is 25 inches (63.5cm)
Height is 12 1/4 inches (31.1cm)
Depth is 26 3/4 inches (67.9cm)
Digital Audio Specications
Digital Input Signal Format
Coaxial and optical inputs - SPDIF (PCM), and
bitstream
MCT - SACD, PCM
USB Audio - DSD, DXD, PCM
HDMI - PCM, Dolby Digital, DTS
Digital Input Sample Rates
Optical: PCM 16-bit, 24-bit 44.1-192kHz
Coaxial: PCM 16-bit, 24-bit 44.1-192kHz
MCT: PCM, SACD, 16-bit, 24-bit 44.1-192kHz
USB: PCM
16-bit, 24-bit, 32-bit 44.1-192kHz
DXD DXD352.8kHz, DXD384kHz
DSD DSD64, DSD128, DSD256, DSD512
HDMI: PCM 24-bit, 44.1-192kHz, bitstream
Digital Inputs
Coaxial: 0.5V p-p/75 ohms
Optical: -15dbm to -21dbm (TOS Link)
MCT: 0.5V p-p/75 ohms
USB Audio 2.0: USB Type-B Connector
HDMI: 2.0 ARC
Digital Network/Wi-Fi Input Sample Rate
24-bit/44.1kHz to 192kHz
Streaming Support
Apple AirPlay, Google Cast, Spotify Connect,
Tidal Connect, Roon, Qobuz Connect
Supported Audio Formats
(Must also be supported by chosen source app and
device) MP3, AAC, FLAC, ALAC, WMA, Ogg
Vorbis, WAV, M4A, OGG, AIFF
Connectivity
Wi-Fi CERTIFIED
TM
a, b, g, n, ac
W PA
TM
, WPA2
TM
, WMM
®
2.4/5 GHz, Ethernet
Bluetooth 5.0
AVRCP, A2DP, aptX, aptX HD, aptX LL
23
DS200
Packing Instructions Part List
Qty Part Number Description
1 033838 Shipping Carton
1 033725 Top Pad
1 241145 Manual Package
1 033836 Inside Carton
1 034576 Bottom Pad
4 034669 Foam End Cap
4 017937 Plastic Foot
1 HR091 Remote Control
3 122476 Wi-/BT Antenna
1 Note 1 AC Power Cord
Note 1: AC power cords are country specic.
In the event it is necessary to repack the equip-
ment for shipment, the equipment must be packed
exactly as shown below.
It is very important that the four plastic feet
are attached to the bottom of the equipment.
This will ensure the proper equipment location
on the bottom pad. Failure to do this will result
in shipping damage.
Use the original shipping carton and interior parts
only if they are all in good serviceable condition.
If a shipping carton or any of the interior part(s)
are needed, please call or write Customer Service
Department of McIntosh Laboratory. Refer to
page 3. Please see the Part List for the correct part
numbers.
MANUAL
REMOTE
POWER CORD
ANTENNAS
© 2025 McIntosh Laboratory, Inc.
McIntosh Part No. 24114501
The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated
who reserve the right to improve design without notice. The DS200 is designed to employ
non-McIntosh-provided services some of which require separate customer subscriptions and
some of which do not, as part of the Product’s functionality. Because McIntosh cannot control
the providers of such services or the services themselves, the owner of the Product therefore
assumes all risks related to the use of services provided by anyone other than McIntosh itself.
McIntosh cannot and does not warrant against, and shall have no liability of any kind for any
of the following that are attributable to non- McIntosh providers or services: (i) interruption,
discontinuance, or other unsatisfactory performance of service; (ii) reduced Product function-
ality that is so attributable; or (iii) any other loss or damage of any kind that is so attributable.
Printed in the U.S.A.
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, NY 13903
www.mcintoshlabs.com
