UNDERCUPBOARD
INSTALLATION & USER
INSTRUCTIONS
Qasair Rangehoods Installation Instructions2
Qasair Rangehoods Installation Instructions
3
Standard Warranty / Extended Warranty
Important Information
Cutout Dimensions
Duct Direction Change Instructions
Instructions for Models
MT / MC
Instructions for Models
FA
Instructions for Models
CON / NDCH / LIS / ETN
Instructions for Models
WCV
Instructions for Models
WES / EAS
Installation Ideas
Operation Details, Rangehood Cleaning, Filter Cleaning
Ducting Pieces

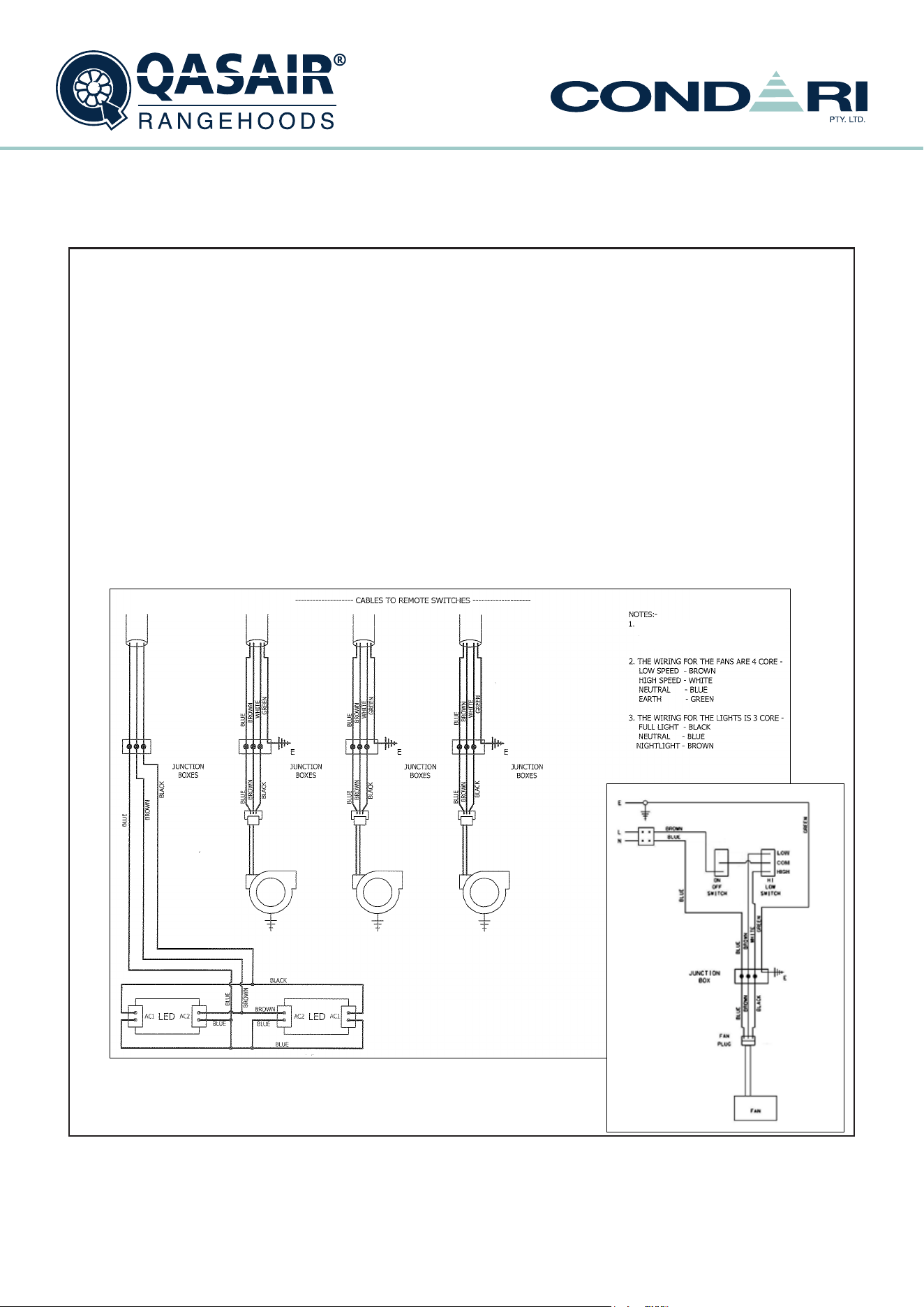

Remote Switching Specications
Appliance Guarantee
Guarantee Exclusions
6
4
7
8
11
13
23
27
51
46
34
31
52
53
54
Qasair Rangehoods Installation Instructions4
The installation of QASAIR Rangehoods must comply with the information in this booklet. QASAIR Rangehoods are
designed and made to work efciently over all domestic cookware available on the Australian market.
Clearance from cooktop to Rangehood
For electric hot plate cooktops
As there are no regulations for Rangehoods over an electric hot plate, please follow the manufacturers Instructions /
Recommendations.
For Induction cooktops
Induction cooktops may present problems with condensation on lters of Rangehoods.
All Qasair Rangehoods installed above an induction cooktop must be installed no less than 750mm between the
induction cooktop and the Rangehood, with the exception of the Eastmore (EAS) Rangehood which can be installed
no less than 600mm. Undermount (NDCH) and Conley (CON) Rangehoods are not suitable for induction cooktops.
For gas cooktops
All Qasair Rangehood installations over a gas appliance must comply with (AS/NZS 5601.1).
The Regulations for the installation of Gas Appliances (AS/NZS 5601.1) states that the clearance between the
highest part of the burner of a gas cooking appliance and a Rangehood be no less than 600mm. If the gas
appliance is designed for use without a cooking vessel like an indoor barbecue or open ame grill, then the
clearance from the cooking surface to the Rangehood shall be no less than 1200mm.
All Qasair Rangehoods installed above a gas cooktop must be installed no less than 600mm between the highest
part of the burner and the Rangehood.
The recommendation for Qasair Wallmount Rangehoods is that they be installed between 700 to 800mm above the
highest part of the burner. When the Rangehood is installed in a galley or partially enclosed kitchen the Rangehood
can be installed between 900 to 1000mm above the highest part of the burner.
Qasair Island Rangehoods should not be installed any higher than 800mm above the highest part of the burner as
any movement around the bench will result in fumes being drawn out from the catchment area of the Rangehood
with the exception of the Thermidor and Liverpool which for aesthetic reasons is installed ush with the ceiling.
Ducting
1. Every QASAIR Rangehood must be ducted to the outside atmosphere by the use of zinc-alume duct or
non-porous and non-ammable materials. Do not use of any type of exible ducting or plastic PVC piping.
Rangehoods must not be vented into a wall cavity or a ceiling space. Externally ducting the rangehood prevents
a build up of grease, which can be a re risk. Ensure the external outlet vent does not restrict the airow in any
way, as this may result in reduced performance.
2. QASAIR Rangehoods must be ducted in duct work equivalent to the outlet of the rangehood ie: The cross
sectional area of the rangehood outlet and the duct work must be equal. Do not reduce the duct size or have
sharp bends. Enlarge the duct size if the duct is to run 6 metres or longer. Advice from CONDARI is available to
ensure optimum performance. Always use nonammable materials to minimise the risk of re in the duct.
3. Ensure all ducting pieces are correctly tted and sealed with either duct tape or silicone to ensure that fumes
do not escape into the ceiling space and seep into living areas through vents or light ttings.
IMPORTANT INFORMATION
Qasair Rangehoods Installation Instructions
5
Other Important Information
1. Always adequately ventilate the room when the rangehood is in use at the same time as appliances
burning gas or other fuels.
2. WARNING: Incorrect venting will result in additional noise and a reduction in efciency. Exhaust air must not be
discharged into any chimney or ue, which may carry combustible products from other sources.
a) Do not discharge the air-ow from the rangehood into a ue used for exhausting fumes
from burning gas or fuel;
b) For cleaning purposes please refer to page 51 of installation instructions for stainless steel;
c) If cleaning is not carried out in accordance with the instructions as listed on page 51, there may be an
increased risk of re;
d) Some parts of the rangehood may become hot when cooking;
e) This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
3. The installation and tting of the rangehood should be done in such a way that will allow the unit to be removed
if service is required. Additional costs incurred in the removal of wall tiles, damage to walls or bench tops are not
covered by warranty.
4. To reduce the risk of xing screws coming in contact with live parts, do not drill or screw into the rangehood.
Live wires are encapsulated where possible to prevent user contact. If necessary drill from the inside out and
only through single sheet material.
5. NOTE: CONDARI recommend an air movement of between 1000 to 1400 cubic metres per hour over an indoor
barbecue, depending on the length of the duct run. Ensure a twin motor unit is installed over indoor barbecues
for optimum results. Barbecues should be positioned under the centre of the hood where the fans are mounted
and not near the outer edges where leakage may occur.
6. The lights in the rangehoods are LED and come with a night light except for D400L-1 and SEN400L-1.
7. If the supply cord is damaged, an authorised service centre or licensed electrician must replace it.
8. Do not ambé under the rangehood.
9. QASAIR domestic rangehoods must not to be used over barbecues approved for outdoor use only,
CONDARI make a range of hoods specically for outdoor barbecues in alfresco areas under the CONDOR
name.
10. CONDARI can manufacture rangehoods to be used over commercial cookers in domestic applications.
12. NOTE: Ensure all requirements are met with gas and electrical regulations and or state authorities.
Qasair Rangehoods Installation Instructions6
INSTALLATION INSTRUCTIONS
EXECUTIVE / FLINDERS RANGE
CUTOUT DIMENSIONS
MODEL HOOD SIZE BASE SIZE
PROUD MOUNT
CUT OUT DIMENSION
FLUSH MOUNT
CUT OUT DIMENSION
CON 60L 243 x 580 280 x 600 258 x 585 280 x 600
CON 80L
243 x 780 280 x 800 258 x 785 280 x 800
NDCH 90L 243 x 880 280 x 900 258 x 885 280 x 900
NDCH 100L 243 x 980 280 x 1000 258 x 985 280 x 1000
NDCH 120L 243 x 1180 280 x 1200 258 x 1185 280 x 1200
LIS 500L 390 x 480 430 x 500 400 x 485 430 x 500
LIS 800L 390 x 780 430 x 800 400 x 785 430 x 800
LIS 900L 390 x 870 430 x 900 400 x 885 430 x 900
LIS 1000L 390 x 980 430 x 1000 400 x 985 430 x 1000
LIS 1200L 390 x 1180 430 x 1200 400 x 1185 430 x 1200
LIS 1500L 390 x 1480 430 x 1500 400 x 1485 430 x 1500
WES 60L / EAS 60L 290 x 565 330 x 600 300 x 570 330 x 600
WES 80L / EAS 80L 290 x 780 330 x 800 300 x 785 330 x 800
WES 90L / EAS 90L 290 x 880 330 x 900 300 x 885 330 x 900
WES 100L / EAS 100L 290 x 980 330 x 1000 300 x 985 330 x 1000
WES 120L / EAS 120L 290 x 1180 330 x 1200 300 x 1185 330 x 1200
WCV 1000L 560 x 980 600 x 1000 570 x 985 600 x 1000
WCV 1300L 560 x 1280 600 x 1300 570 x 1285 600 x 1300
WCV 1600L 560 x 1580 600 x 1600 570 x 1585 600 x 1600
WCV 1800L 560 x 1780 600 x 1800 570 x 1785 600 x 1800
ETN 600L 340 x 580 380 x 600 355 x 585 380 x 600
ETN 900L 340 x 880 380 x 900 355 x 885 380 x 900
ETN 1200L 340 x 1180 380 x 1200 355 x 1185 380 x 1200
Qasair Rangehoods Installation Instructions
7

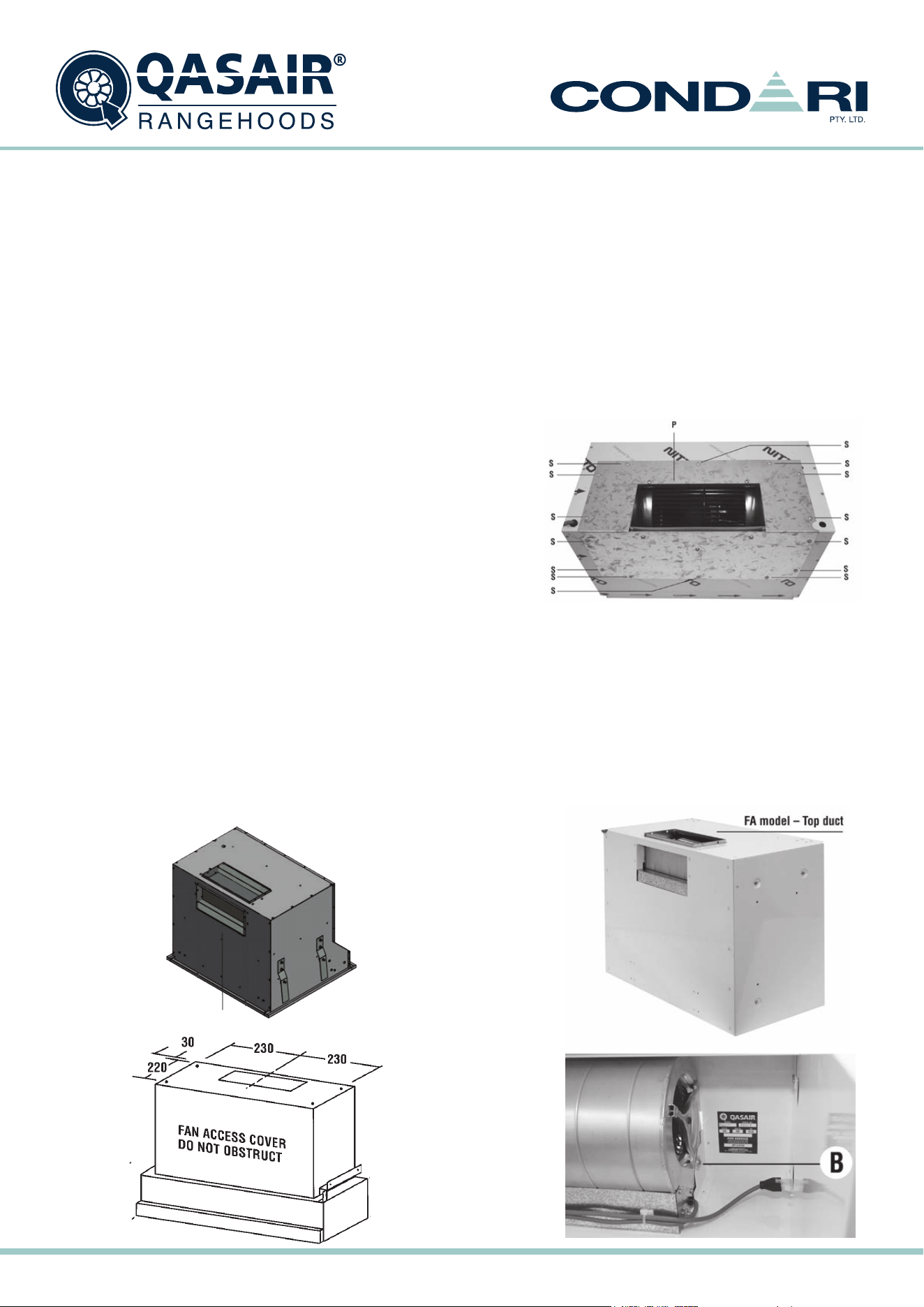

DUCT DIRECTION CHANGE INSTRUCTIONS
Before installing your rangehood check whether it has the fan mounted for back or top ducting.
For top ducting, the unit will have the air outlet at the top, and for back ducting, the unit will have the air outlet at the
back.
To change from top to back or back to top, proceed as follows:
Duct direction for ETN, NDCH and CON models
The motor shown is fitted to the back plate (P) and this plate is attached to the hood by screws (S). To change from
top to back, remove the filters, unplug fan(s). Undo all the screw (S), carefully remove the plate and turn it around so
the motor points out the way required. Fit and reconnect the fan(s), and fit all the screws again and tighten.
Duct direction for LIS / FA / MT / MC / EAS and WES
To change the duct direction, proceed as follows:
1. Remove the screws from the fan access panel and remove access panel (for MT and MC models only).
2. Disconnect fan(s).
3. Unscrew the 2 x 7mm screws (B) fixing the fan to the hood. Remove fan entirely. Repeat for each fan.
4. Rotate the fan assembly and re-install so that the air outlet meets with the rangehood outlet hole through which
you are going to vent (top or back).
5. Replace the 2 x 7mm screws holding each fan.
6. Reconnect the fan(s)
7. Refit the fan access panel (for MT, EAS and WES models only).
LIS model – Rear duct
Qasair Rangehoods Installation Instructions8
INSTALLATION INSTRUCTIONS

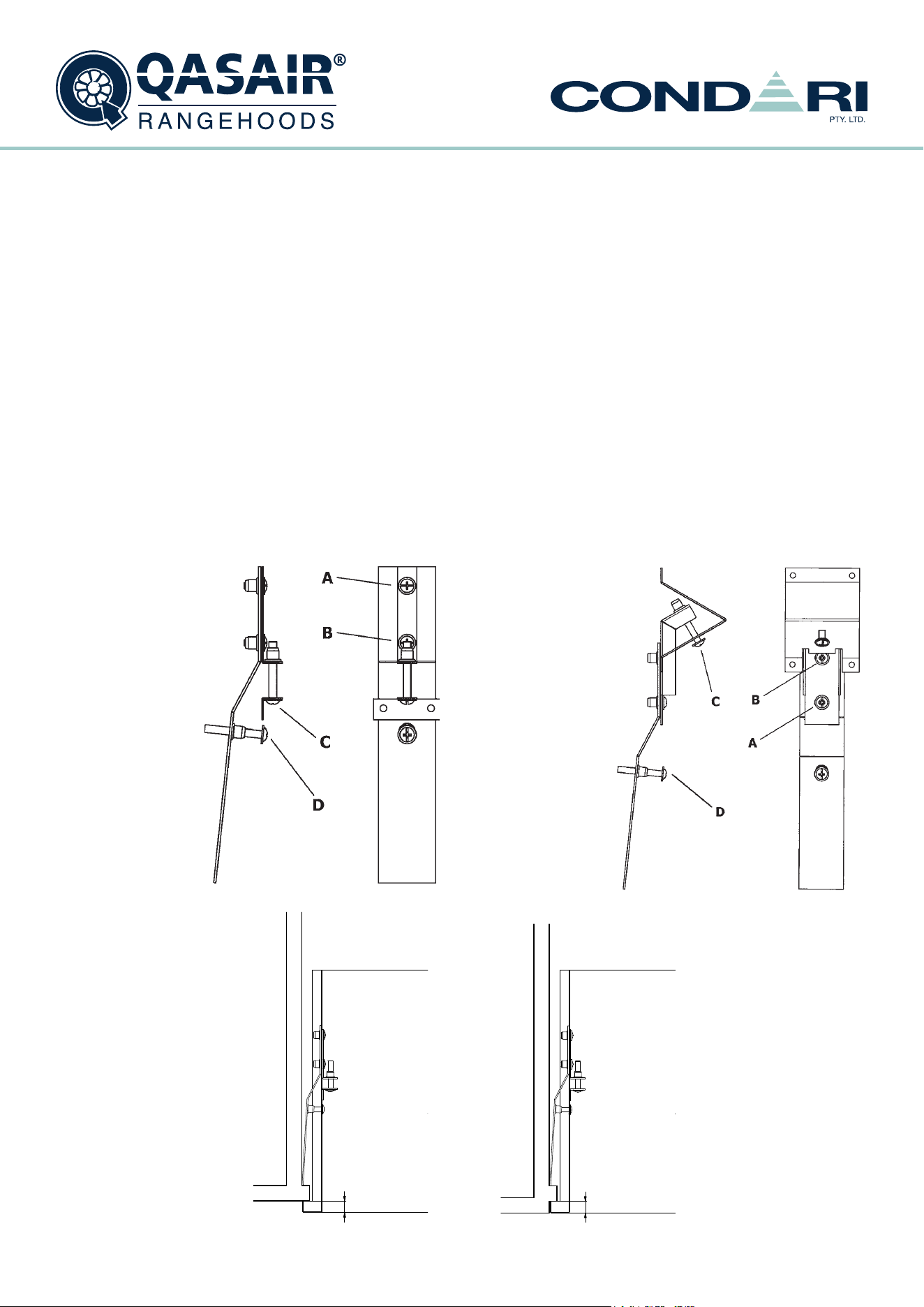

• MT
• MC
1. Fit a shelf at 410mm from the base of the cupboard.
2. Note hinge location prior to drilling.
3. Work from the centre line mark and drill 4 x M5 to M8 holes.
4. For top ducted models, cut out hole for the ducting allow 20mm clearance.
5. Fix left and right hand mounting brackets (supplied) 145mm from the base of the cupboard flush with the rear
of the unit. Notch to the back.
6. Lift rangehood onto mounting brackets by holding either end. DO NOT use the slide mechanism as this may
cause damage.
7. Insert the 4 x 50mm pan head screws supplied through the shelf and into the rangehood. Turn clockwise to level
the rangehood.
8. Fix the rangehood position by inserting 2 x no 8 1/2 inch screws through the left and right hand brackets.
9. Fit doors.
10. Minor adjustments may be required on the rangehood handle. Loosen the screws on the rear of the handle and
adjust handle position and re- tighten. The rangehood handle can be replaced.
11. All of the rangehoods shown on pages 1 and 8 are supplied with a 10AMP plug and lead for connection
to a 10AMP GPO, which must be in an accessible position.
12. The handle can be removed and replaced with one made by the cabinet maker to fit in with the kitchen cabinets.
The MT 90 has 3 screws and the MT 60 has 2 screws. These can be accessed by sliding the facia out and
un-screwing the front from underneath and behind the facia. The handle will come off by tilting it forward from
the top.
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.
Qasair Rangehoods Installation Instructions
9
Mini Trim
Technical Specification Sheet
MT Slide Out
Motor Box /
Flue Width
Body Width
Light Centres
LED Light
Light Qty
Motor Qty
Filter Qty
1
N/A
Model Model MT 60L-1
2
320mm
Nightlight
N/A
Minimum Height
(H =)
Page 1 of 1Condari Pty Ltd.
All-thread
Fixing Centres
PowderKote
Available
Maximum Height
(H =)
Corner Type
Conversion
Top/Back Back/Top
Electrical Connection
YES
N/A
10 Amp Lead
N/A
Square
N/A
Version: B 03/12/2014F
N/A
514mm
x
1
7
7
m
m
2
MT 90L-1
1
Cool
YES
MT 60L-1
600mm
518mm
1
10 Amp Lead
YES
407mm
x
1
7
7
m
m
MT 90L-1
N/A
Square
Cool
YES
518mm
900mm
1
Filter Size
N/A
N/A
Power entry location
is the same for all
MT models.
2
0
3
8
2
7
5
1
7
0
1
2
0
3
9
5
2
5
5
2
0
1
1
0
2
0
1
1
0
This view is shown
with slide out trim
in closed position.
MINI TRIM - MT
Qasair Rangehoods Installation Instructions10
Motor Box /
Flue Width
Condari Pty Ltd. Page 1 of 1
Version: B 03/12/2014
F
Body Width
Model
Motor Qty
Light Centres
Light Qty
Nightlight
LED Light
Filter Qty
Model
Filter Size
Conversion
Top/Back Back/Top
Electrical Connection
Minimum Height
(H =)
Maximum Height
(H =)
PowderKote
Available
All-thread
Fixing Centres
Corner Type
MC 1000L-2MC 1000L-2
1000mm
918mm
2
Cool
YES
2
320mm
2
457mm
x
1
7
7
m
m
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
Marcel
Technical Specification Sheet
MC Slide Out
Power Entry
1
7
0
2
7
5
4
5
5
1
7
9
1
0
0
2
0
2
5
5
2
0
1
1
0
2
0
1
1
0
This view is shown
with slide out trim
in closed position.
MARCEL - MC
Qasair Rangehoods Installation Instructions
11
INSTALLATION INSTRUCTIONS
• FA
1. The rangehood is designed to be fitted within joinery and can be installed by inserting screws in the three holes
provided on each side, or to the top or back by drilling your own mounting holes as required.
2. When installed, cover the access holes to the side fixing screws with the plastic plugs supplied.
3. Fit filters.
4. Install front panel to suit as per your kitchen design.
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.
Qasair Rangehoods Installation Instructions12
Door Width
Condari Pty Ltd. Page 1 of 1
Version: B 03/12/2014F
Body Width
Model
Motor Qty
Light Centres
Light Qty
Nightlight
LED Light
Filter Qty
Model
Filter Size
Conversion
Top/Back Back/Top
Electrical Connection
Minimum Height
(H =)
Maximum Height
(H =)
PowderKote
Available
All-thread
Fixing Centres
Corner Type
FA 60L-1 FA 90L-2FA 90L-1FA 60L-1FA 90L-2FA 90L-1
598mm
Centre
2
573.4mm
1
Cool
YES
1
274mm
x
2
9
0
m
m
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
898mm
873.4mm
1
Cool
YES
2
350mm
2
898mm
873.4mm
2
Cool
YES
2
350mm
2
424mm
x
2
9
0
m
m
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
424mm
x
2
9
0
m
m
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
Foldaway
Technical Specification Sheet
FA
Undercupboard
Power Entry
3
0
0
4
5
0
2
0
1
1
0
2
0
0
4
4
4
2
0
1
1
0
Power Entry
This view is shown
with door in closed
position
.
1
0
FOLDAWAY - FA
Qasair Rangehoods Installation Instructions
13
INSTALLATION INSTRUCTIONS
• CON
• NDCH
• LIS
• ETN
1. Loosen screws A and B by turning anti-clockwise.
2. Turn screw ‘D’ anti-clockwise to extend the outer spring bracket.
3. Insert rangehood into cut out and turn screw ‘C’ clockwise to align rangehood with cupboard base.
4. Do not over tighten.
5. Tighten screw ‘A’ by turning clockwise to lock xing bracket.
6. Fit off ductwork as required.
7. To remove rangehood, turn screw ‘D’ clockwise.
Models: ETN
NDCH
Models: LIS
CON
RANGEHOOD SPRING BRACKETS
MOUNTING POSITION
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.
Flush Mount ( 1 : 4 )Proud Mount ( 1 : 4 )
AAB B
Cupboard
Front of Rangehood
FLUSH MOUNT
Cupboard
Front of Rangehood
PROUD MOUNT
12
12
Qasair Rangehoods Installation Instructions14
Motor Box /
Flue Width
Condari Pty Ltd. Page 1 of 1
Version: A 01/07/2014
F
Body Width
Model
Motor Qty
Light Centres
Light Qty
Nightlight
LED Light
Filter Qty
Model
Filter Size
Conversion
Top/Back Back/Top
Electrical Connection
Minimum Height
(H =)
Maximum Height
(H =)
PowderKote
Available
All-thread
Fixing Centres
Corner Type
CON 60L-1 CON 80L-2CON 80L-1CON 60L-1CON 80L-2CON 80L-1
600mm
Centre
2
580mm
1
Cool
YES
1
269mm
x
2
5
0
m
m
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
800mm
780mm
1
Cool
YES
2
379mm
2
800mm
780mm
2
Cool
YES
2
379mm
2
379mm
x
1
5
7
m
m
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
379mm
x
1
5
7
m
m
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
Conley
Technical Specification Sheet
CON
Undercupboard
Power Entry
2
8
0
3
6
0
1
2
1
0
1
1
0
1
0
1
1
0
Power Entry
2
4
0
CONLEY - CON
Qasair Rangehoods Installation Instructions
15
Undermount
Technical Specification Sheet
NDCH
Undercupboard
Motor Qty
LED Light
Nightlight
Model
Body Width
Motor Box /
Flue Width
Light Qty
Light Centres
Filter Qty
Cool
YES
1
880mm
900mm
NDCH 90L-1
2
Page 1 of 2
All-thread
Fixing Centres
Condari Pty Ltd.
PowderKote
Available
2
770mm
NDCH 90L-2
2
770mm
880mm
Minimum Height
(H =)
Model
Maximum Height
(H =)
Corner Type
Square
N/AN/A
Version: B 19/12/2014F
Square
Electrical Connection
N/A
N/A
340mm
x
2
6
0
m
m
YES
NDCH 90L-1 NDCH 90L-2
Cool
YES
900mm
2
2
10 Amp Lead
YES
340mm
x
2
6
0
m
m
10 Amp Lead
N/A
Filter Size
Conversion
Top/Back Back/Top
N/A
N/A
N/A
Power entry location
is the same for all
NDCH models.
2
8
0
1
2
3
6
0
1
0
1
1
0
2
4
0
1
0
1
1
0
UNDERMOUNT - NDCH
Qasair Rangehoods Installation Instructions16
Undermount
Technical Specification Sheet
NDCH
Undercupboard
2
Light Centres
Filter Qty
860mm
Motor Box /
Flue Width
Body Width
Motor Qty
Nightlight
Light Qty
LED Light
1060mm
Cool
NDCH 120L-2
1180mm
YES
2
NDCH 100L-2
Cool
980mm
Model
2
All-thread
Fixing Centres
Page 2 of 2
Version: B 19/12/2014F
Condari Pty Ltd.
2
Corner Type
Maximum Height
(H =)
2
1000mm 1200mm Filter Size
Electrical Connection
Minimum Height
(H =)
Square
N/A
N/A N/A
Square
Model
PowderKote
Available
N/A
N/A
10 Amp Lead
N/A
N/A
YES
479mm
x
2
6
0
m
m
N/A
NDCH 100L-2
YES
NDCH 120L-2
10 Amp Lead
379mm
x
2
6
0
m
m
YES
2
Conversion
Top/Back Back/Top
Power entry location
is the same for all
NDCH models.
2
8
0
1
2
3
6
0
1
0
1
1
0
2
4
0
1
0
1
1
0
UNDERMOUNT - NDCH
Qasair Rangehoods Installation Instructions
17
Motor Box /
Flue Width
Condari Pty Ltd. Page 1 of 3
Version: B 03/12/2014F
Body Width
Model
Motor Qty
Light Centres
Light Qty
Nightlight
LED Light
Filter Qty
Model
Filter Size
Conversion
Top/Back Back/Top
Electrical Connection
Minimum Height
(H =)
Maximum Height
(H =)
PowderKote
Available
All-thread
Fixing Centres
Corner Type
LIS 500L-1 LIS 800L-2LIS 800L-1LIS 500L-1LIS 800L-2LIS 800L-1
500mm
Centre
1
480mm
1
Cool
YES
1
459mm
x
2
9
0
m
m
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
800mm
780mm
1
Cool
YES
2
380mm
2
800mm
780mm
2
Cool
YES
2
380mm
2
379mm
x
2
9
0
m
m
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
379mm
x
2
9
0
m
m
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
Lismore
Technical Specification Sheet
LIS
Undercupboard
Power entry location
is the same for all
LIS models.
4
3
0
2
0
2
0
4
0
0
2
0
1
1
0
3
1
5
2
0
1
1
0
7
5
3
9
0
1
2
1
5
0
LISMORE - LIS
Qasair Rangehoods Installation Instructions18
Lismore
Technical Specification Sheet
LIS
Undercupboard
Motor Box /
Flue Width
Body Width
Light Centres
LED Light
Light Qty
Motor Qty
Filter Qty
2
424mm
Model Model LIS 900L-2
2
480mm
Nightlight
N/A
Minimum Height
(H =)
Page 2 of 3Condari Pty Ltd.
All-thread
Fixing Centres
PowderKote
Available
Maximum Height
(H =)
Corner Type
Conversion
Top/Back Back/Top
Electrical Connection
YES
N/A
10 Amp Lead
N/A
Square
N/A
Version: B 03/12/2014F
N/A
424mm
x
2
9
0
m
m
2
LIS 1000L-2
2
Cool
YES
LIS 900L-2
900mm
870mm
2
10 Amp Lead
YES
479mm
x
2
9
0
m
m
LIS 1000L-2
N/A
Square
Cool
YES
980mm
1000mm
2
Filter Size
N/A
N/A
Power entry location
is the same for all
LIS models.
4
3
0
2
0
2
0
4
0
0
2
0
1
1
0
2
0
1
1
0
3
1
5
3
9
0
7
5
1
2
1
5
0
LISMORE - LIS
Qasair Rangehoods Installation Instructions
19
Minimum Height
(H =)
Filter Size
Model
Conversion
Top/Back Back/Top
N/A
LIS 1200L-3
Electrical Connection
Page 3 of 3
Body Width
Motor Box /
Flue Width
Motor Qty
Model
Nightlight
Filter Qty
Light Qty
Version: B 03/12/2014F
Light Centres
Maximum Height
(H =)
Corner Type
Condari Pty Ltd.
1180mm
1200mm
LIS 1200L-2
4
LED Light
580mm
YES
N/A
N/A
10 Amp Lead
290mm
x
2
9
0
m
m
LIS 1200L-2
N/A
LIS 1500L-3
N/A
YESYES
2
N/A
290mm
x
2
9
0
m
m
365mm
x
2
9
0
m
m
All-thread
Fixing Centres
PowderKote
Available
LIS 1500L-3
1500mm
1480mm
3
3
1200mm
1180mm
452mm
4
YES
4
Cool Cool
3
2
LIS 1200L-3
N/A
Square
YES
10 Amp Lead10 Amp Lead
YES
N/A
Square
N/A
N/A
N/A
Square
N/A
580mm
2
Cool
Lismore
Technical Specification Sheet
LIS
Undercupboard
Power entry location
is the same for all
LIS models.
4
3
0
2
0
2
0
4
0
0
2
0
1
1
0
2
0
1
1
0
3
1
5
7
5
1
2
3
9
0
1
5
0
LISMORE - LIS
Qasair Rangehoods Installation Instructions20
Eaton
Technical Specification Sheet
ETN
Undercupboard
Motor Qty
LED Light
Nightlight
Model
Body Width
Motor Box /
Flue Width
Light Qty
Light Centres
Filter Qty
Cool
YES
1
580mm
600mm
ETN 600L-1
2
Page 1 of 2
All-thread
Fixing Centres
Condari Pty Ltd.
PowderKote
Available
2
800mm
ETN 900L-1
1
520mm
880mm
Minimum Height
(H =)
Model
Maximum Height
(H =)
Corner Type Square
N/AN/A
Version: C 2/6/2016F
Square
Electrical Connection
N/A
N/A
479mm x 290mm
YES
ETN 600L-1 ETN 900L-1
Cool
YES
900mm
1
2
10 Amp Lead
YES
379mm x 290mm
10 Amp Lead
N/A
Filter Size
Conversion
Top/Back Back/Top
N/A
N/A
N/A
Power entry location
is the same for
all ECH models.
2
3
5
2
3
5
2
0
1
7
110
10
110
10
340
290
12
380
2
3
5
2
3
5
M
o
t
o
r
B
o
x
W
i
d
t
h
B
o
d
y
W
i
d
t
h
M
o
t
o
r
B
o
d
y
W
i
d
t
h
B
o
d
y
W
i
d
t
h
EATON - ETN
Qasair Rangehoods Installation Instructions
21
Eaton
Technical Specification Sheet
ETN
Undercupboard
2
Light Centres
Filter Qty
800mm
Motor Box /
Flue Width
Body Width
Motor Qty
Nightlight
Light Qty
LED Light
1060mm
Cool
ETN 1200L-2
1180mm
YES
2
ETN 900L-2
Cool
880mm
Model
2
All-thread
Fixing Centres
Page 2 of 2
Version: C 2/6/2016F
Condari Pty Ltd.
3
Corner Type
Maximum Height
(H =)
2
900mm 1200mm
Filter Size
Electrical Connection
Minimum Height
(H =)
Square
N/A
N/A N/A
Square
Model
PowderKote
Available
N/A
N/A
10 Amp Lead
N/A
N/A
YES
340mm
x 290mm
N/A
ETN 900L-2
YES
ETN 1200L-2
10 Amp Lead
379mm
x 290mm
YES
2
Conversion
Top/Back Back/Top
Power entry location
is the same for
all ECH models.
2
0
1
7
1
0
0
2
3
5
2
3
5
2
3
5
1
0
0
2
3
5
110
10
110
10
340
290
12
380
M
o
t
o
r
B
o
x
W
i
d
t
h
B
od
y
W
i
d
t
h
M
o
t
o
r
B
o
x
W
i
d
t
h
B
o
d
y
W
i
d
t
h
1
0
0
2
3
5
2
3
5
1
0
0
2
3
5
2
3
5
EATON - ETN
INSTALLATION INSTRUCTIONS
• WCV
All the rangehoods are supplied as Top ducted and can be Side or Back ducted through separate ducting pieces.
Side ducting can be either Left or Right.
When being installed over a gas cooker with an open flame griller the filters must be 1200 mm above the cooking
surface. In these cases, it may be necessary to have remote switching as the switches on the rangehood may be
out of reach.
Please refer to Gas Installation Code AG 601 – 2002.
1. Unplug power cable ‘A’ and fan cables.
2. Remove screws ‘B’ and remove inner section of rangehood.
3. Loosen screws ‘C’ & ‘D’ by turning anti-clockwise.
4. Turn screw ‘F’ anti-clockwise to extend the spring bracket.
5. Insert outer shell of rangehood into cutout and turn screw ‘E’ clockwise to align rangehood with cupboard base. Be
sure that the spring bracket has engaged with the cabinet panel before tightening ‘E’.
6. Do not over tighten.
7. Tighten screw ‘C’ by turning clockwise to lock xing bracket.
8. Ret inner section of rangehood with screws ‘B’.
9. Plug power cable ‘A’ into it’s socket and in in fan cables.
10. Fit off ductwork as required.
11. To remove rangehood repeat points 1 & 2 loosen screw ‘C’, turn screw ‘F’ clockwise.
Installation Instructions
WCV1000L-2 WCV1300L-3
WCV1600L-3 WCV1800L-3
Cutout Dimensions -
WCV1000L-2 985 x 568
WCV1300L-3 1285 x 568
WCV1600L-3 1585 x 568
WCV1800L-3 1785 x 568
A
B
C
D
E
1. Unplug power cable A and fan cables.
2. Remove screws B and remove inner section of rangehood.
3. Loosen screws C & D by turning anti-clockwise.
4. Insert outer shell of rangehood into cutout and turn screw E clockwise
to align rangehood with cupboard base.
5. Do not over tighten this screw.
6. Tighten screw C by turning clockwise to lock fixing bracket.
7. Refit inner section of rangehood
with screws B.
8. P
lug power cable A into it's socket and plug in fan cables.
9. Fit off duct work as required.
10. To remove rangehood repeat points 1 & 2,
loosen screw C, turn screw F clockwise.
F
Installation Instructions
WCV1000L-2 WCV1300L-3
WCV1600L-3 WCV1800L-3
Cutout Dimensions -
WCV1000L-2 985 x 568
WCV1300L-3 1285 x 568
WCV1600L-3 1585 x 568
WCV1800L-3 1785 x 568
A
B
C
D
E
1. Unplug power cable A and fan cables.
2. Remove screws B and remove inner section of rangehood.
3. Loosen screws C & D by turning anti-clockwise.
4. Insert outer shell of rangehood into cutout and turn screw E clockwise
to align rangehood with cupboard base.
5. Do not over tighten this screw.
6. Tighten screw C by turning clockwise to lock fixing bracket.
7. Refit inner section of rangehood
with screws B.
8. P
lug power cable A into it's socket and plug in fan cables.
9. Fit off duct work as required.
10. To remove rangehood repeat points 1 & 2,
loosen screw C, turn screw F clockwise.
F
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.
MOUNTING POSITION
Flush Mount ( 1 : 4 )Proud Mount ( 1 : 4 )
AAB B
Cupboard
Front of Rangehood
FLUSH MOUNT
Cupboard
Front of Rangehood
PROUD MOUNT
12
12
Qasair Rangehoods Installation Instructions
22
Qasair Rangehoods Installation Instructions
23
COBAR
Technical Specification Sheet
WCV
Undercupboard
Body Width
LED Light
Motor Qty
Model
Light Qty
Light Centres
Filter Qty
YES
4
580mm
Cool
WCV 1000L-2
1000mm
2
Nightlight
3
PowderKote
Available
Maximum Height
(H =)
Version: A 13/11/2014F
N/A
Square
Condari Pty Ltd.
All-thread
Fixing Centres
Corner Type
580mm
4
YES
Cool
3
Motor Box /
Flue Width
10 Amp Lead
WCV 1000L-2
290mm
x
4
2
2
m
m
N/A N/A
Page 1 of 3
4
980mm
Square
N/A
N/A
YES
290mm
x
4
2
2
m
m
N/A
Electrical Connection
Model WCV 1300L-3
YES
10 Amp Lead
1300mm
1280mm
WCV 1300L-3
Minimum Height
(H =)
Filter Size
Top Ducted
Conversion: Back , Side
N/A
N/A
Power entry location
is the same for all
Cobar models.
6
0
0
2
8
0
1
2
5
0
0
2
0
3
0
1
1
0
3
4
0
5
6
0
COBAR - WCV
Qasair Rangehoods Installation Instructions24
272mm
x
4
2
2
m
m
YES
10 Amp Lead
YES
WCV 1800L-3
4
3
YES
816mm
WCV 1800L-3
1780mm
1800mm
1580mm
Motor Box /
Flue Width
Cool
All-thread
Fixing Centres
Condari Pty Ltd.
N/A
N/A N/A
N/A
N/A
Square
PowderKote
Available
N/A
Minimum Height
(H =)
Top Ducted
Conversion: Back , Side
Electrical Connection
Filter Size
Model
Corner Type
N/A
6
Maximum Height
(H =)
Page 2 of 3
Square
N/A
290mm
x
4
2
2
m
m
WCV 1600L-3
Version: A 13/11/2014F
10 Amp Lead
YES
4
1600mm
WCV 1600L-3
Filter Qty
Light Centres
Light Qty
Nightlight
LED Light
Motor Qty
Body Width
3
Cool
5
872mm
Model
Undercupboard
COBAR
Technical Specification Sheet
WCV
Power entry location
is the same for all
Cobar models.
5
6
0
3
4
0
1
1
0
3
0
2
0
5
0
0
1
2
2
8
0
6
0
0
COBAR - WCV
Qasair Rangehoods Installation Instructions
25
WCV B2
WCV S2
WCV B3
WCV S3
W
C
V
S
3
T
COBAR
Technical Specification Sheet
Undercupboard
WCV
Version: A 13/11/2014F
Page 3 of 3Condari Pty Ltd.

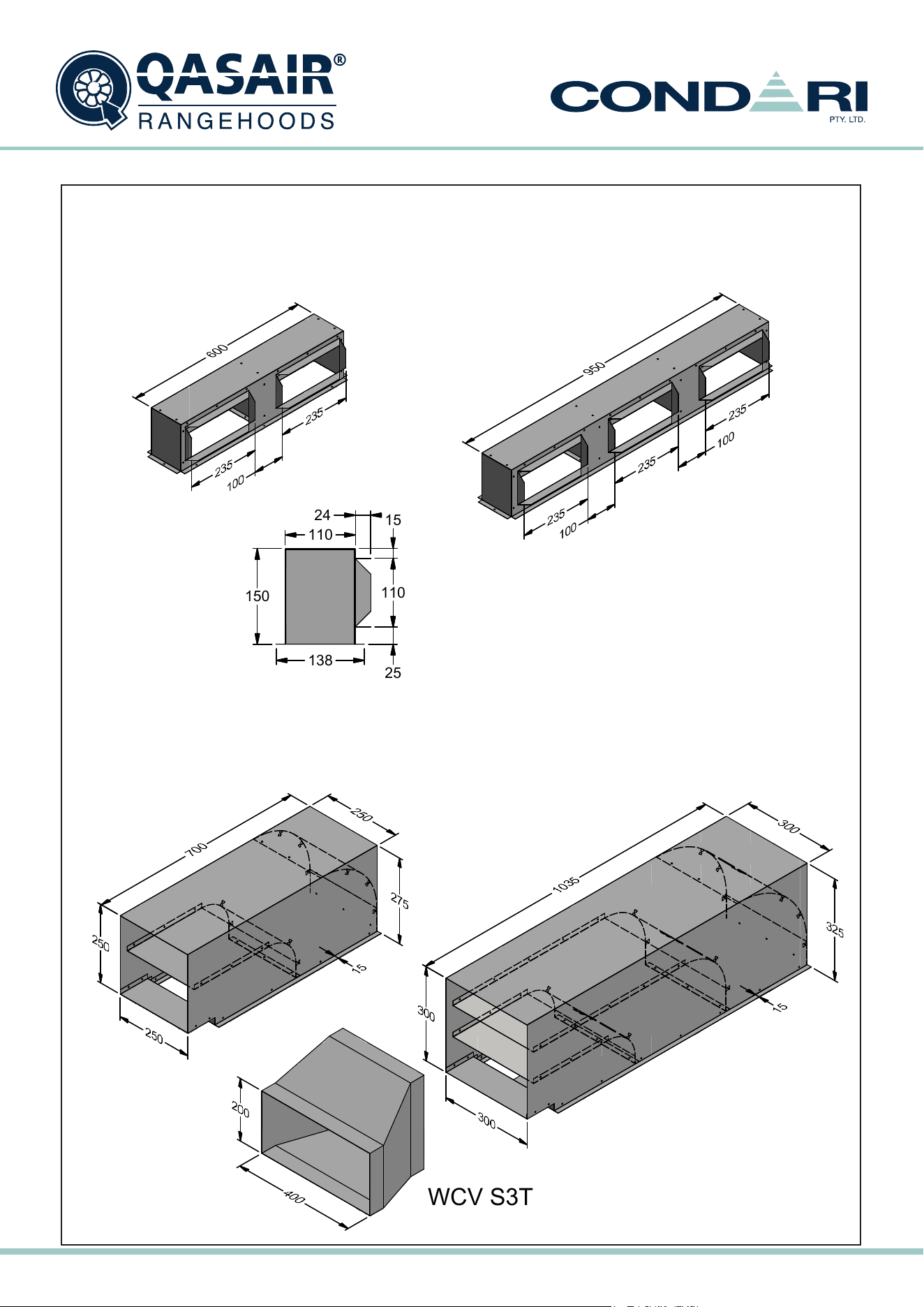

Ducted Pieces
BACK DUCTED PIECES
SIDE DUCTED PIECES
1
1
0
1
5
0
1
3
8
1
1
0
2
4
2
5
1
5
COBAR - WCV
INSTALLATION INSTRUCTIONS
• WES
• EAS
1. Loosen screws A and B by turning anti-clockwise.
2. Turn ‘D’ anti-clockwise to extend the outer spring bracket.
3. Insert rangehood into cut out and turn screw ‘C’ clockwise to align rangehood with cupboard base.
4. Do not over tighten.
5. Tighten screw ‘A’ by turning clockwise to lock xing bracket.
6. Fit off ductwork as required.
7. To remove rangehood, turn screw ‘D’ clockwise.
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.
Model: WES Model: EAS
WESTMORE
EASTMORE
RANGEHOOD SPRING BRACKETS
A
B
C
B
C
D
D
A
MOUNTING POSITION
Flush Mount ( 1 : 4 )Proud Mount ( 1 : 4 )
AAB B
Cupboard
Front of Rangehood
FLUSH MOUNT
Cupboard
Front of Rangehood
PROUD MOUNT
12
12
The Westmore (WES) rangehood must be installed at a minimum of 750mm over induction cooktops
The Eastmore (EAS) rangehood can be installed at a minimum of 600mm over induction cooktops
Qasair Rangehoods Installation Instructions
26
Qasair Rangehoods Installation Instructions
27
Eastmore
Technical Specification Sheet
EAS
Undercupboard
Motor Qty
LED Light
Nightlight
Model
Body Width
Motor Box /
Flue Width
Light Qty
Light Centres
Filter Qty
Cool
YES
1
565mm
600mm
EAS 60L-1
2
Page 1 of 2
All-thread
Fixing Centres
Condari Pty Ltd.
PowderKote
}
Available
2
380mm
EAS 80L-2
2
300mm
780mm
Minimum Height
(H =)
Model
Maximum Height
(H =)
Corner Type Square
N/AN/A
Version: C 30/05/2017F
Square
Electrical Connection
N/A
N/A
272mm x 272mm
YES
EAS 60L-1 EAS 80L-2
Cool
YES
800mm
2
2
10 Amp Lead
YES
379mm x 260mm
10 Amp Lead
N/A
Filter Size
Conversion
Top/Back Back/Top
N/A
N/A
N/A
Power entry location
is the same for all
EAS models.
Motor Access
Panel
Motor Access
Panel
330
12
FILTER
330
110
20
20 110
290
FILTER
225
570
EASTMORE - EAS
Qasair Rangehoods Installation Instructions28
Eastmore
Technical Specification Sheet
EAS
Undercupboard
N/A
10 Amp Lead
N/A
YES
N/A
479mm x 260mm
N/A
Square
N/A
N/A N/A
N/A N/A
SquareSquare
PowderKote
}
Available
Condari Pty Ltd.
Maximum Height
(H =)
EAS 100L-2
2
900mm 1200mm
680mm
3
2
1160mm
1000mm
2
480mm
2
YES
Cool
980mm
YES
2
Cool
Minimum Height
(H =)
N/A
10 Amp Lead
YES
379mm x 260mm
N/A
10 Amp Lead
EAS 90L-2
YES
Cool
2
880mm
2
Motor Qty
Model
429mm x 260mm
N/A
YES
2
430mm
Light Centres
Filter Size
ModelEAS 120L-2 EAS 90L-2
Corner Type
All-thread
Fixing Centres
Electrical Connection
Conversion
Top/Back Back/Top
EAS 100L-2 EAS 120L-2
Filter Qty
Nightlight
Light Qty
LED Light
Body Width
Motor Box /
Flue Width
Version: C 30/05/2017F
Page 2 of 2
Power entry location
is the same for all
EAS models.
Motor Access
Panel
Motor Access
Panel
330
12
110
20
20 110
290
570
FILTER
330
FILTER
225
EASTMORE - EAS
Qasair Rangehoods Installation Instructions
29
Westmore
Technical Specification Sheet
WES
Undercupboard
Motor Qty
LED Light
Nightlight
Model
Body Width
Motor Box /
Flue Width
Light Qty
Light Centres
Filter Qty
Cool
YES
1
565mm
600mm
WES 60L-1
2
Page 1 of 2
All-thread
Fixing Centres
Condari Pty Ltd.
PowderKote
}
Available
2
380mm
WES 80L-2
2
300mm
780mm
Minimum Height
(H =)
Model
Maximum Height
(H =)
Corner Type Square
N/AN/A
Version: C 30/05/2017F
Square
Electrical Connection
N/A
N/A
272mm x 272mm
YES
WES 60L-1 WES 80L-2
Cool
YES
800mm
2
2
10 Amp Lead
YES
379mm x 260mm
10 Amp Lead
N/A
Filter Size
Conversion
Top/Back Back/Top
N/A
N/A
N/A
Power entry location
is the same for all
WES models.
Motor Access
Panel
Motor Access
Panel
330
12
FILTER
145
450
110
20
20 110
290
FILTER
60
WESTMORE - WES
Westmore
Technical Specification Sheet
WES
Undercupboard
N/A
N/A
mm x mm
N/A
N/A
N/A
Square
N/A
479mm x 260mm
N/A
10 Amp Lead
YES
10 Amp Lead
YES
N/A
379mm x 260mm
YES
N/A
N/A
10 Amp lead
Model
Conversion
Top/Back Back/Top
2
3
2
Corner Type Square
1160mm
1200mm
YES
WES 120L-2
680mm
2
Cool
YES
Cool
480mm
2
2
980mm
1000mm
2
Cool
880mm
430mm
2
Light Qty
2
YES
Electrical Connection
Maximum Height
(H =)
Minimum Height
(H =)
Filter Size
PowderKote
}
Available
N/A
N/A
429mm x 260mm
WES 100L-2
900mm
All-thread
Fixing Centres
Condari Pty Ltd.
WES 90L-2 WES 120L-2WES 90L-2 WES 100L-2
Motor Qty
Nightlight
Filter Qty
Motor Box /
Flue Width
Model
Body Width
Light Centres
LED Light
Version: C 30/05/2017F
Page 2 of 2
Power entry location
is the same for all
WES models.
Motor Access
Panel
Motor Access
Panel
FILTER
60
290
11020
20
110
450
FILTER
145
12
330
WESTMORE - WES
Qasair Rangehoods Installation Instructions
30
Qasair Rangehoods Installation Instructions
31
REMOTE SWITCHING SPECIFICATIONS
3 FAN (no lights)
1. Wiring to the appliance must comply with State and local regulations.
2. Switching is not provided with this unit. - The order was for the controls to be separate from the unit.
3. You may use any switching to connect the rangehood (e.g. Clipsal switches).
4. All fans must be controlled by at least one ON/OFF and one HI/LO switch.
(i.e. single or twin motor models).
5. Please refer to Wiring Diagram below for detailed wiring information.
DRAWING NUMBER
CIRCUIT DIAGRAM
DESIGNER
CHECKED
M. Malesevic REVISION
CONDARI PTY LTD
DATE
8 Argent Place, Ringwood VIC 3134
Ph: (03) 9873 5877 / Fx: (03) 9873 5748
REM SW 3 FAN
REMOTE SWITCH 3 FAN
A
22/08/2013
BROWN
BLUE
BLUE
BLACK
BROWN
M. Brewin
BLACK
BLUE
BLUE
BROWN BROWN
WHITE
GREEN
WHITE
GREEN
JUNCTION
BOXES
-------------------- CABLES TO REMOTE SWITCHES --------------------
NOTES:-
1. IT IS NECESSARY TO PROVIDE
AN ON/OFF AND A HIGH/LOW
SWITCH FOR EACH FAN.
2. THE WIRING FOR THE FANS ARE 4 CORE -
LOW SPEED - BROWN
HIGH SPEED - WHITE
NEUTRAL - BLUE
EARTH - GREEN
BROWN
BLUE
BROWN
BLACK
BLUE
WHITE
GREEN
JUNCTION
BOXES
www.condari.com.au
WIRING DIAGRAM
For further information, please contact Condari Pty Ltd
phone: 03 9482 7088 fax: 03 9482 7011
NOTE: This diagram is for reference only. A qualied elecrician must connect remote
switching to rangehood.
Reected in this drawing is the most common method of connecting the rangehood.
Be aware that Active voltage must NOT be applied to both the ‘White- High’ or
‘Brown-Low’ wires at the same time. This will cause the fan to fail.
ALL FANS MUST BE CONTROLLED
BY AT LEAST ONE ON/OFF AND
ONE HI/LO SWITCH.
Qasair Rangehoods Installation Instructions32
REMOTE SWITCHING SPECIFICATIONS
3 FAN, LED and NIGHTLIGHT
1. Wiring to the appliance must comply with State and local regulations.
2. Switching is not provided with this unit. - The order was for the controls to be separate from the unit.
3. You may use any switching to connect the rangehood (e.g. Clipsal switches).
4. All fans must be controlled by at least one ON/OFF and one HI/LO switch.
(i.e. single or twin motor models).
5. Please refer to Wiring Diagram below for detailed wiring information.
www.condari.com.au
WIRING DIAGRAM
For further information, please contact Condari Pty Ltd
phone: 03 9482 7088 fax: 03 9482 7011
NOTE: This diagram is for reference only. A qualied elecrician must connect remote
switching to rangehood.
Reected in this drawing is the most common method of connecting the rangehood.
Be aware that Active voltage must NOT be applied to both the ‘White- High’ or
‘Brown-Low’ wires at the same time. This will cause the fan to fail.
ALL FANS MUST BE CONTROLLED
BY AT LEAST ONE ON/OFF AND
ONE HI/LO SWITCH.
Qasair Rangehoods Installation Instructions
33
REMOTE SWITCHING SPECIFICATIONS
3 FAN with LED
1. Wiring to the appliance must comply with State and local regulations.
2. Switching is not provided with this unit. - The order was for the controls to be separate from the unit.
3. You may use any switching to connect the rangehood (e.g. Clipsal switches).
4. All fans must be controlled by at least one ON/OFF and one HI/LO switch.
(i.e. single or twin motor models).
5. Please refer to Wiring Diagram below for detailed wiring information.
AC1 AC2
LED
AC2
AC1
LED
BLUE
BLUE
BROWN
BLUE
BROWN
BLUE
BROWN
DRAWING NUMBER
CIRCUIT DIAGRAM
DESIGNER
CHECKED
M. Malesevic REVISION
CONDARI PTY LTD
DATE
8 Argent Place, Ringwood VIC 3134
Ph: (03) 9873 5877 / Fx: (03) 9873 5748
REM SW 3 FAN LED
REMOTE SWITCH 3 FAN LED
A
22/08/2013
BROWN
BLUE
BLUE
BLACK
BROWN
M. Brewin
BLACK
BLUE
BLUE
BROWN
BROWN
WHITE
GREEN
WHITE
GREEN
JUNCTION
BOXES
-------------------- CABLES TO REMOTE SWITCHES --------------------
NOTES:-
1. IT IS NECESSARY TO PROVIDE
AN ON/OFF AND A HIGH/LOW
SWITCH FOR EACH FAN.
2. THE WIRING FOR THE FANS ARE 4 CORE -
LOW SPEED - BROWN
HIGH SPEED - WHITE
NEUTRAL - BLUE
EARTH - GREEN
3. THE WIRING FOR THE LIGHTS IS 2 CORE -
ACTIVE - BROWN
NEUTRAL - BLUE
BROWN
BLUE
BROWN
BLUE
JUNCTION
BOXES
BLUE
BROWN
WHITE
GREEN
BLACK
BLUE
BROWN
JUNCTION
BOXES
www.condari.com.au
WIRING DIAGRAM
For further information, please contact Condari Pty Ltd
phone: 03 9482 7088 fax: 03 9482 7011
NOTE: This diagram is for reference only. A qualied elecrician must connect remote
switching to rangehood.
Reected in this drawing is the most common method of connecting the rangehood.
Be aware that Active voltage must NOT be applied to both the ‘White- High’ or
‘Brown-Low’ wires at the same time. This will cause the fan to fail.
ALL FANS MUST BE CONTROLLED BY
AT LEAST ONE ON/OFF AND ONE
HI/LO SWITCH.
Qasair Rangehoods Installation Instructions34
I/I: Inside to Inside Measurement
SINGLE MOTOR DUCTING
NOTE:
This Zinc Alume Strip is provided to join some duct pieces together.
It will be clearly shown on the drawing of the piece it is supplied with.
110. DD-1H L
Duct Director Single Motor Horizontal Left
102. HB-1
Horizontal Bend Single Motor 90º
101. DL-1 Single Motor Duct Length 1200mm
DL-1 CB Single Motor Duct
Length
1200mm Colourbond
105. BD/WV-H-1 SS
Back Draft Wall Vent Single Motor Horizontal
445M2 Stainless Steel
106. VB-1
Vertical Bend Single Motor 90º
104. BD/WV-H-1
Back Draft Wall Vent Single Motor Horizontal
See alternative Duct Piece No. 145
108. BD/WV-V-1
Back Draft Wall Vent Single Motor
Vertical
107. VB-1/45
Vertical Bend Single Motor 45º
109. BD/WV-V-1 SS
Back Draft Wall Vent Single Motor Vertical
445M2 Stainless Steel
103. HB-1/45
Horizontal Bend Single Motor 45º
101. DL-1 E
Single Motor Duct Length Extension
101. DL-1 A
Single Motor Duct Length 300mm
Qasair Rangehoods Installation Instructions
35
SINGLE MOTOR DUCTING
120. DR-200/90
200Ø Bend 90º
122. BD/WV-200Ø
Back Draft Wall Vent
123. CH-200
Chairman’s Hat 200Ø
124. CH-200 CB
Chairman’s Hat 200Ø Colourbond
125. BD/RC-1
Back Draft Roof Cowl Single Motor
121. BD-6/7/9-WV-R/R
Back Draft Wall Vent Rear Register Kit to
Suit 6/7/900H
112. TT-1
Twisted Transition Single Motor
113. DLE-DLE
Flue Joiner Single Motor
119. DR-200/45
200Ø Bend 45º
116. TR-1
Single Motor Transition DL-1 to 200Ø
117. DR-200
Duct Length 200Ø
118. DR-200 CB
Duct Length 200Ø Colourbond
115. CD-920 TO DL-1
Cavity Duct to DL-1
114. CD-920
Cavity Duct Extendible
111. DD-1H R
Duct Director Single Motor Horizontal
Right
Qasair Rangehoods Installation Instructions36
SINGLE MOTOR DUCTING
138. RCP 200 SS
Roof Cap 200Ø 445M2 Stainless Steel
137. WVC-6/7/9H-R/R
Wall Vent Cover to Suit Rear Register Kit
for 6/7/900H
133. WVC-V-1
Wall Vent Cover Single Motor Vertical
136. EV/DL-1
Eave Vent to Suit DL-1
132. WVC-H-1 SS
Wall Vent Cover Single Motor Horizontal
445M2 Stainless Steel
134. WVC-V-1 SS
Wall Vent Cover Single Motor Vertical
445M2 Stainless Steel
135. 6/7/900H-SC
Spiggot Cap to Suit 6/7/900H
130. CF 6/7/900H
Ceiling Flange to Suit 6/7/900H
131. WVC-H-1
Wall Vent Cover Single Motor Horizontal
See alternative Duct Piece No. 145
139. RC 200 SS
Roof Cowl 200Ø 445M2 Stainless Steel
140. RC 200
Roof Cowl 200Ø
127. BD/SQ-RC 200
Back Draft Roof Cowl Single Motor 200Ø
128. DLE-S/S CAP
Stainless Steel Flue Cap to Suit DLE
129. BD/M-1
Back Draft Damper Single Motor
126. BD/RC-1 CB
Back Draft Roof Cowl Single Motor
Colourbond
Qasair Rangehoods Installation Instructions
37
WALL VENT
144. FRWV-V-1 SS
Fire Rated Wall Vent Vertical
445M2 Stainless Steel
143. FRWV-H-1 SS
Fire Rated Wall Vent Horizontal
445M2 Stainless Steel
142. FRC 200 SS
Fire Rated 200Ø Roof Cowl
445M2 Stainless Steel
141. RC 1 SS
Roof Cowl Single Motor 445M2 Stainless Steel
WALL VENT
145. BD/WV/K-H-1
Back Draft Wall Vent & Cover Single Motor
Horizontal kit assembled as one piece
BDWVK-H-1
400
75
150
250
2
4
0
I
/
I
1
1
0
I
/
I
7
5
1
5
0
2
5
0
3
1
7
2
4
8
3
1
8
I
/
I
All the above ducting pieces
are all made in stainless
steel type 445M2 which
has a chromium content of
22% which is far greater
than marine grade stainless
steel and provides better
protection.
This is stated on the
description of each piece in
the ducting brochure.
ROOF COWLS, WALL VENTS
AND WALL VENT COVERS
WALL VENT
The wall vent covers have
stainless steel screening
type 316 and meets the
requirements for stainless
steel screening under the
Australian Standard.
AS 3959-2009 Construction
of Buildings in Bushfire
prone areas.
WALL VENT COVERS SPECIFICATIONS
FIRE RATED APPROVED
Qasair Rangehoods Installation Instructions38
I/I: Inside to Inside Measurement
TWIN MOTOR DUCTING
NOTE:
This Zinc Alume Strip is provided to join some duct
pieces together. It will be clearly shown on the drawing
of the piece it is supplied with.
212. DLE-2 TO DLE-2
Flue Joiner Twin Motor
210. BD/WV-V-2 SS
Back Draft Wall Vent Twin Motor Vertical
445M2 Stainlerss Steel
209. BD/WV-V-2
Back Draft Wall Vent Twin Motor Vertical
203. HB-2
Horizontal Bend Twin Motor 90º
208. VB-2/45
Vertical Bend Twin Motor 45º
207. VB-2
Vertical Bend Twin Motor 90º
206. BD/WV-H-2 SS
Back Draft Wall Vent Twin Motor Horizontal
445M2 Stainless Steel
205. BD/WV-H-2
Back Draft Wall Vent Twin Motor
Horizontal
204. HB-2/45
Horizontal Bend Twin Motor 45º
202. DL-2
Twin Motor Duct Length 1200mm
201. TMT
Twin Motor Transition
211. TT-2
Twisted Transition Twin Motor
Qasair Rangehoods Installation Instructions
39
TWIN MOTOR DUCTING
224. HB-250
Horizontal Bend 250SQ 90º
223. DL-250
Duct Length 250SQ
222. TMT-250
Twin Motor Transition to 250SQ
220. DL-2/250SQ
Twin Motor Transition DL-2 to 250SQ
221. TMT-250/300
Twin Motor Transition 250SQ to 300Ø
219. DR-300/90
300Ø Bend 90º
225. HB-250/45
Horizontal Bend 250SQ 45º
226. TMT-250/90 L
Duct Deflector 250SQ Left
227. TMT-250/90 R
Duct Deflector 250SQ Right
218. DR-300/45
300Ø Bend 45º
217. DR-300 CB
Duct Length 300Ø Colourbond
216. DR-300
Duct Length 300Ø
215. TR-2
Twin Motor Transition from DL-2 to 300Ø
214. TMT-300
Twin Motor Transition to 300Ø
213. BD-10/12/15-WV-R/R
Back Draft Wall Vent 10/12/1500H
Qasair Rangehoods Installation Instructions40
TWIN MOTOR DUCTING
232. CH-300
Chairman’s Hat 300Ø
233. CH-300 CB
Chairman’s Hat 300Ø Colourbond
234. BD/SQ-RC 300
Back Draft Roof Cowl 300Ø
236. DLE-2-S/S CAP
Stainless Steel Flue Cap to Suit DLE-2
237. CF 10/12/1500H
Ceiling Flange to Suit 10/12/1500H
235. BD/RC-250 SQ
Back Draft Roof Cowl 250SQ
239. CF 3F-1200-2
Ceiling Flange tp suit 3F 1200-2
240. CF 4F-900-2
Ceiling Flange to Suit 4F 900-2
238. CF 3F-900-2
Ceiling Flange to Suit 3F 900-2
230 BD/RC-2
Back Draft Roof Cowl Twin Motor
229. BD/WV-250 SQ SS
Back Draft Wall 250SQ 445M2 Stainless
Steel
231. BD/RC-2 CB
Back Draft Roof Cowl Twin Motor
Colourbond
242. WVC-H-2
Wall Vent Cover Twin Motor Horizontal
241. CF 4F-1200-2
Ceiling Flange to suit 4F 1200-2
228. BD/WV-250 SQ
Back Draft Wall Vent 250SQ
Qasair Rangehoods Installation Instructions
41
TWIN MOTOR DUCTING
244. WVC-V-2
Wall Vent Cover Twin Motor Vertical
245. WVC-V-2 SS
Wall Vent Cover Twin Motor Vertical
445M2 Stainless Steel
246. WVC-250 SQ
Wall Vent Cover 250SQ
250. DD-2H-L
Duct Director Twin Motor Horizontal Left
248. WVC-10/12/15H-R/R
Wall Vent Cover to suit 10/12/1500H
247. WVC-250 SQ SS
Wall Vent Cover 250SQ 445M2 Stainless
Steel
249. 10/12/15H-SC
Spiggot Cap to Suit 10/12/1500H
253. DD-2V-R
Duct Director Twin Motor Vertical Right
254. EV/DL-2
Eave Vent to Suit DL-2
256. BD/WV-300Ø
Back Draft Wall Vent
257. BD/WVC-SBS
Twin Motor Wall Vent Deflector
255. BD/M-250SQ
Back Draft Damper Twin Motor 250SQ
243.WVC-H-2 SS
Wall Vent Cover Twin Motor Horizontal
445M2 Stainless Steel
251. DD-2H-R
Duct Director Twin Motor Horizontal Right
252. DD-2V-L
Duct Director Twin Motor Vertical Left
Qasair Rangehoods Installation Instructions42
TWIN MOTOR DUCTING
FRBDWVK-H-2
9
5
2
4
0
I
/
I
1
1
0
I
/
I
75
400
150 210
250
EXTENDED
COMPRESSED
2
5
0
1
5
0
6
5
3
I
/
I
6
5
2
2
4
8
7
5
268. FRWV/K-H-2
Kit assembled as one piece. Fire rated Two
Single Motor Back Draft Wall Vent Horizontal
with telescopic length & cover
BDWVK-H-2
250
75
150 210
400
2
4
0
I
/
I
1
1
0
I
/
I
9
5
EXTENDED
COMPRESSED
6
5
2
2
4
8
6
5
3
I
/
I
2
5
0
7
5
1
5
0
267. BD/WV/K-H-2
Kit assembled as one piece. Two Single Motor
Back Draft Wall Vent Horizontal
with telescopic length & cover
261. RC 300 SS
Roof Cowl 300Ø 445M2 Stainless Steel
262. RC 2 SS
Roof Cowl Twin Motor 445M2 Stainless
Steel
258. CF 3F-1500-2
Ceiling Flange to Suit 3F 1500-2
259. RCP 300 SS
Roof Cap 300Ø 445M2 Stainless Steel
260. RV 300 SS
Roof Ventilation Cowl 300Ø 445M2
Stainless Steel
263. FRC 300 SS
Fire Rated Roof Cowl 300Ø
445M2 Stainless Steel
WALL VENT
265. FRWV-V-2 SS
Fire Rated Wall Vent Twin Motor Vertical
445M2 Stainless Steel
266. FRWV-250 SQ SS
Fire Rated Wall Vent Twin Motor 250SQ
445M2 Stainless Steel
WALL VENTWALL VENT
264. FRWV-H-2 SS
Fire Rated Wall Vent Twin Motor Horizontal
445M2 Stainless Steel
WALL VENTWALL VENT
All the above ducting pieces
are all made in stainless
steel type 445M2 which
has a chromium content of
22% which is far greater
than marine grade stainless
steel and provides better
protection.
This is stated on the
description of each piece in
the ducting brochure.
ROOF COWLS, WALL VENTS
AND WALL VENT COVERS
The wall vent covers have
stainless steel screening
type 316 and meets the
requirements for stainless
steel screening under the
Australian Standard.
AS 3959-2009 Construction
of Buildings in Bushfire
prone areas.
WALL VENT COVERS SPECIFICATIONS
FIRE RATED APPROVED
Qasair Rangehoods Installation Instructions
43
NOTE:
This Zinc Alume Strip is provided to join some duct pieces together.
It will be clearly shown on the drawing of the piece it is supplied with.
I/I: Inside to Inside Measurement
TRIPLE MOTOR DUCTING
306. VB-3/45
Vertical Bend Triple Motor 45º
305. VB-3
Vertical Bend Triple Motor 90º
304. HB-3/45
Horizontal Bend Triple Motor 45º
302. DL-3
Triple Motor Duct Length
303. HB-3
Horizontal Bend Triple Motor 90º
301. 3MT-DL-3
Three Motor Transition to DL-3
307. TT-3
Triple Motor Twisted Transition
308. TMT-400x200/350
Triple Motor Transition DL-3 to 350Ø
311. DR-350 CB
Duct Length 350Ø Colourbond
310. DR-350
Duct Length 350Ø
312. DR-350/45
350Ø Bend 45º
309. TR-3
Triple Motor Transition to 350Ø
Qasair Rangehoods Installation Instructions44
TRIPLE MOTOR DUCTING
324. WVC-H-3
Wall Vent Cover Triple Motor Horizontal
323. BD/WV-V-3 SS
Back Draft Wall Vent Triple Motor Vertical
445M2Stainless Steel
322. BD/WV-V-3
Back Draft Wall Vent Triple Motor Vertical
320. BD/WV-H-3
Back Draft Wall Vent Triple Motor Horizontal
321. BD/WV-H-3 SS
Back Draft Wall Vent Triple Motor Horizontal
445M2 Stainless Steel
319. CH-350 CB
Chairmans Hat 350Ø Colurbond
325.WVC-H-3 SS
Wall Vent Cover Triple Motor Horizontal
445M2 Stainless Steel
326. WVC-V-3
Wall Vent Cover Triple Motor Vertical
327. WVC-V-3 SS
Wall Vent Cover Triple Motor Vertical
445M2 Stainless Steel
317. BD/SQ-RC 350 SS
Back Draft Roof Cowl 350Ø
445M2 Stainless Steel
318. CH-350
Chairmans Hat 350Ø
316. BD/SQ-RC 350
Back Draft Roof Cowl Triple Motor 350SQ
313. DR-350/90
350Ø Bend 90º
314. BD/RC-3
Back Draft Roof Cowl Triple Motor
315. BD/RC-3 SS
Back Draft Roof Cowl Triple Motor
445M2 Stainless Steel
Qasair Rangehoods Installation Instructions
45
TRIPLE MOTOR DUCTING
329. DD-3V-R
Duct Director Triple Motor Vertical Right
328. DD-3V-L
Duct Director Triple Motor Vertical Left
330. BD/WV-350Ø
Back Draft Wall Vent
332. FRWV-V-3 SS
Fire Rated Wall Vent Triple Motor Vertical
WALL VENT
WALL VENT
331. FRWV-H-3 SS
Fire Rated Wall Vent Triple Motor
Horizontal
333. FRC 350 SS
Fire Rated Roof Cowl 350Ø 445M2
Stainless Steel
FRBDWVK-H-3
9
5
9
5
2
4
0
I
/
I
1
1
0
I
/
I
75
400
250
150 210
EXTENDED
COMPRESSED
9
8
7
2
4
8
9
8
8
I
/
I
2
5
0
1
5
0
7
5
335. FRWV/K-H-3
Kit assembled as one piece. Fire rated Three
Single Motor Back Draft Wall Vent Horizontal
with telescopic length & cover
BDWVK-H-3
9
5
9
5
2
4
0
I
/
I
1
1
0
I
/
I
250
75
150 210
400
EXTENDED
COMPRESSED
2
4
8
9
8
7
1
5
0
2
5
0
7
5
9
8
8
I
/
I
334. BD/WV/K-H-3
Kit assembled as one piece. Three Single
Motor Back Draft Wall Vent Horizontal
with telescopic length & cover
WALL VENT WALL VENT
All the above ducting pieces
are all made in stainless
steel type 445M2 which
has a chromium content of
22% which is far greater
than marine grade stainless
steel and provides better
protection.
This is stated on the
description of each piece in
the ducting brochure.
ROOF COWLS, WALL VENTS
AND WALL VENT COVERS
The wall vent covers have
stainless steel screening
type 316 and meets the
requirements for stainless
steel screening under the
Australian Standard.
AS 3959-2009 Construction
of Buildings in Bushfire
prone areas.
WALL VENT COVERS SPECIFICATIONS
FIRE RATED APPROVED
Qasair Rangehoods Installation Instructions46
3. FA 60L-1 T 4. FA 60L-1 T
5. FA 60L-1 T
6. FA 60L-1 T / FA 60L-1 B
INSTALLATION IDEAS
Condari recommends Qasair and Condor Rangehoods be installed using ducting that is:
• rigid
• non-ammable
• correctly sized
to ensure maximum air movement and minimum noise levels.
Ducting incorrectly with exible or smaller diameter ducting will dramatically reduce the air movement
and increase the noise level of the rangehood and will void the manufacturer’s warranty.
The Installation Ideas below will give you some guidelines on how to correctly duct your Qasair and
Condor Rangehood using Qasair and Condor ducting pieces.
FA 60L-1 T
FA 60L-1 B
Rangehood
FA 60L-1 T
Rangehood
FA 60L-1 T
Rangehood
FA 60L-1 T
Rangehood
Qasair Rangehoods Installation Instructions
47
7. FA 90L-2 T 8. FA 90L-2 T
9. FA 90L-2 T 10. FA 90L-2 B
11. FA 90L-2 T 12. FA 90L-2 T
FA 90L-2 T
Rangehood
FA 90L-2 T
Rangehood
FA 90L-2 T
Rangehood
FA 90L-2 T
Rangehood
FA 90L-2 T
Rangehood
FA 90L-2 B
Rangehood
Qasair Rangehoods Installation Instructions48
13. 600HL-1 T / 700HL-1 T / 900HL-1 T 14. 600HL-1 T
15. CON 60L-1 T 16. CON 80L-1 T
17. CON 60L-1 T 18. CON 80L-2 T
CON 80L-2 T RangehoodCON 60L-1 T Rangehood
CON 60L-1 T Rangehood
CON 80L-1 T Rangehood
600HL-1 T Rangehood
600HL-1 T / 700HL-1 T / 900HL-1 T
Rangehood
Qasair Rangehoods Installation Instructions
49
19. 1200HL-2 T 20. LIS 800L-2 T
21. LIS 1000L-2 T 22. 3F 900L-2 T / 1200L-2 T
23. LIS 500L-1 T 24. LIS 800L-1 T
LIS 800L-2 T
Rangehood
1200HL-2 T
Rangehood
LIS 1000L-2 T
Rangehood
3F 900L-2 T / 1200L-2 T
Rangehood
LIS 800L-1 T
Rangehood
LIS 500L-1 T
Rangehood
Qasair Rangehoods Installation Instructions50
25. CON 80L-1 T / LIS 1000-2 T 26. LIS 1200L-2 B
1. FA 60L-1 B2. FA 90L-1 T
FA-60L-1 B
Rangehood
FA-90L-1 T
Rangehood
LIS 1200L-2 B
Rangehood
LIS 1000L-2 T
Rangehood
CON 80L-1 T
Rangehood
Qasair Rangehoods Installation Instructions
51
FILTER CLEANING
OPERATION DETAILS
RANGEHOOD CLEANING
For the best results, please clean filters regularly.
Condari recommends cleaning filters once per month, or immediately after heavy use.
You can do this by hand washing in warm soapy water, or by placing filters in the top rack of the
dishwasher using a detergent of pH 8 or less.
Note: Washing the filters in the dishwasher may cause discolouration of the filters.
We recommend washing filters in the dishwasher without detergent or use one of the powder
detergent.
Ensure the filters are completely dry before placing them back.
Do not operate the rangehood without the filters installed.
Condari does not recommend the use of corrosive, caustic or acidic products, particulary industrial
or citric products.
Condari has experienced problems with many of the dishwashing detergents now on the market.
Particularly with the tablet type detergents as many come from overseas, which are made for a hard
water environment. We have found that these detergents have a deleterious effect on the filters and
the result is that the filters last for about 50 to 60 washes.
This is equivalent to about 5 to 6 years life.
Qasair Rangehoods are made from stainless steel, either type 304 or type 316.
* Type 304 is classied as 18/8 stainless steel
* Type 316 is classied as 18/10 stainless steel
This means that the stainless steel is made of 18% nickel and either 8% or 10% of chromium respectively.
Stainless steel gets its protective coating from the chromium oxidising in the air to form a protective surface
of chromium oxide. This can be attacked by different substances, such as salt water or sea air. The stainless
steel will start to show pit marks which are referred to in the industry as tea staining. This will happen to
marine grade stainless steel type 316 in the same way it will happen to stainless steel type 304, it will just
take longer to happen.
The way to overcome this is to clean the stainless steel with warm soapy water and then polish it with a cloth
so that the chromium will oxidise again.
When exposed to sea water or sea side conditions this is only a stop gap measure as the attack will start
again.
With stainless steel rangehoods exposed in Alfresco areas we recommend spraying the hood with vegetable
oil and rubbing it all over the rangehood, if it is going to be unused over a period of time.
Light ON and OFF
Fan Left Side ON and OFF
Right Side Fan/s ON and OFF
Light High and Low
Fan Left Side High and Low
Right Side Fan/s High and Low
Qasair Rangehoods Installation Instructions52
CONDARI PTY LTD APPLIANCE GUARANTEE
The benefits conferred by this warranty are in addition to all other rights and remedies in respect of the product
which the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.
Condari P/L in Melbourne (and by their agency in Country Areas and other States) warrants that the appliance
will be free from defects in materials and workmanship for a period of 36 months from the date of purchase of
the appliance to the consumer.
If there is a breach of this warranty, Condari will rectify, free of charge, at it’s nearest service centre or
authorised service agency any fault caused by faulty workmanship or material at the time of manufacture
occurring in the appliance within 36 months from the date of purchase of the appliance to the customer.
This warranty is conditional upon the appliance being used only for personal, domestic and household purposes
and installed and operated in accordance with QASAIR Instructions and does not apply to articles which by their
nature are consumable.
If a defect is caused by neglect, misuse, or failure to follow operating instructions where special precautions are
detailed for user attention then a charge shall be made for the service call.
For example:
With the filters the user is specifically requested:
• To clean filter regularly by handwashing or placing in a dishwasher at least once a month.
• To turn rangehood off after each use.
• Note: Warranty under filter cleaning on page 51
Where a claim is made under warranty, CONDARI reserves the right to determine whether or not the fault is
caused by faulty workmanship or material or that the part is defective.
The consumer shall be fully responsible for all expenses whatsoever incidental to the removal of parts from
the unit or to their replacement. Amongst other things, such responsibility shall extend to damaged walls, tiles,
fixtures and fittings whether or not the unit has been built into a cupboard and irrespective of the stage either of
its installation or the fitting of any other item whatsoever in its vicinity.
No other person, or firm or corporation is authorised by Condari to offer or give on its behalf any other greater
warranty than that given by Condari under this warranty.
Condari Pty Ltd provides to all QASAIR Rangehoods a 10 year motor replacement warranty. This is a change
over warranty.
The installation of the rangehood must comply with the information in this guide. Failure to follow the instructions
may result in loss of the warranty.
We do point out that incorrect installation such as the ducting being the incorrect size or the duct run being too
long will result in the motor failing and possible burning out.
The change over will be carried out by a authorized technician and will be charged at the rates applicable at
time of the change over.
Qasair Rangehoods Installation Instructions
53
EXCLUSIONS
There are some exclusions from the Condari Pty Ltd Guarantee. (on previous page)
CONDOR Rangehoods are designed to be used over all domestic barbecues available
in AUSTRALIA.
QASAIR Rangehoods are not to be used over barbecues approved for outdoor use only.
Outdoor barbecues will have a rating plate on them specifying that they are approved for outdoor use only and
also a mega joule rating per burner or a total mega joule rating.
In practice any barbecue or outdoor cooking appliance over 50 mega joule will need a specially made
rangehood with an air movement exceeding 2000 cubic meters per hour.
QASAIR have hoods to go over domestic cookers such as VIKING, WOLF and CAPITAL cooking appliances.
These brands have a mega joule rating of up to 95 mj and therefore special hoods are required for the
appliances.
CONDARI will manufacture special rangehoods to go over commercial cooking appliances situated in domestic
kitchens.
Once the heat output is over 50 mega joule a special rangehood is required.
Qasair Rangehoods Installation Instructions54
Date purchased
Purchased from
Model
Serial No
The purchaser must fill in the above information and keep this with the original purchase document.
This form must be produced if and when
a claim is made under this warranty.
QASAIR Rangehoods are made in Ringwood, Australia.
Tel: +61 3 9482 7088
Fax: +61 3 9482 7011
Email: [email protected]
STANDARD
WARRANTY
Pleae Note that the Warranty is from the date of installation and the service technician will need to see proof of
purchase so he can provide service under the guarantee.
If no proof of purchase then the service call will be charged at standard rates and if proof provided later,
reimbursement will be made.
Qasair Rangehoods Installation Instructions
55
Customer Name:
Model Number: Serial Number:
Purchased from:
Purchased Date: Installed Date:
Installer Name:
Installer Signature:
Condari Pty Ltd authorised installer stamp:
(This is required for validity of extended warranty)
EXTENDED
WARRANTY
Pleae note: The installation warranty does not cover the ageing process in a building or any problems due to
storm damage.
Condari Pty Ltd provides an extended warranty from 36 months to 72 months if installed by an authorised
Qasair installer and the below form is completed.
The authorised installer also offers a warranty on their workmanship for the same period of 72 months with a
guarantee that the installation is in compliance with
‘Qasair installation instructions’.
Qasair Rangehoods Installation Instructions56
NOTES
Qasair Rangehoods Installation Instructions
57
NOTES
Qasair Rangehoods Installation Instructions58
NOTES
Qasair Rangehoods Installation Instructions
59
NOTES
DISTRIBUTED IN AUSTRALIA BY CONDARI PTY LTD
Tel: 1300 360 563
HEAD OFFICE
VIC Tel: 03 9482 7088 Fax: 03 9482 7011
Email: [email protected]
Website: www.condari.com.au
YOUR DISTRIBUTORS
QLD Tel: 07 3423 3503 Fax: 07 3282 9122 Email: salesqld@qasair.com.au
WA Tel: 08 9242 5387 Fax: 08 9201 0887 Email: saleswa@qasair.com.au
TAS Tel: 03 9482 7088 Fax: 03 9482 7011 Email: [email protected]
New Zealand
Singapore
QASAIR RANGEHOODS MADE IN RINGWOOD 3134
CONDARI RESERVES THE RIGHT TO CHANGE SPECIFICATION WITHOUT NOTICE
rev. 150318
www.condari.com.au
