en Operator’s manual
smart Irrigation Control
Art. 19035
en
GARDENA smart Irrigation Control
1. SAFETY WARNINGS ...................................... 4
2. ASSEMBLY ............................................. 6
3. INSTALLATION .......................................... 9
4. OPERATION ............................................ 20
5. MAINTENANCE .......................................... 23
6. STORAGE .............................................. 23
7. TROUBLESHOOTING ..................................... 24
8. TECHNICAL DATA ........................................ 26
9. ACCESSORIES / SPARE PARTS .............................. 27
10. SERVICE ............................................... 27
11. DISPOSAL .............................................. 28
12. TRADEMARK ATTRIBUTION ................................ 29
2
en
Translation of the original instructions.
This product may be used under supervision, or if instruction
regarding the safe use of the product has been provided and the
resulting dangers have been understood, by children aged 8 and above,
as well as by persons with physical, sensory or mental disabilities or a lack
of experience and knowledge. Children must not be allowed to play with
the product. Cleaning and user maintenance must not be performed by
children without supervision.The use of this product by young people
under the age of16 is not recommended.
Intended use:
The GARDENA smart Irrigation Control is intended for private use in
domestic and hobby gardens, to control sprinklers and irrigation systems.
It can be used for automatic watering during holidays. It is not intended
for use in an indoor irrigation system.
The GARDENA smart Irrigation Control is part of a garden irrigation
system and can only be programmed together with the GARDENA smart
Gateway.
The GARDENA smart Irrigation Control is configured via the GARDENA
smart App and controls the watering. Sprinklers, a sprinkler system or a drip
head watering system can be used for watering.
The GARDENA smart Irrigation Control carries out watering fully auto-
matically according to the set program and can therefore also be used during
holidays.
DANGER!
Risk of injury!
The product must not be used for industrial purposes or in
conjunction with chemicals, foodstuffs, easily flammable and
explosive materials.
3
en
1. SAFETY WARNINGS
Important!
Read the operator’s manual
carefully before use and keep
for future reference.
1.1 Explanation of the
symbols:
Read operator’s manual.
1.2 Safety warnings:
DANGER!
Cardiac arrest!
This product makes an electro-
magnetic field while it oper-
ates. This field can affect the
functioning of active or pas-
sivemedical implants and
cause serious or fatal injuries
(e. g. pacemakers).
v Consult your physician and
the manufacturer of your
implant before using this
product.
v After using the product,
disconnect the mains plug
from the mains socket.
DANGER!
Risk of suffocation!
Small parts can be easily swal-
lowed. There is also a risk that
the polybag can suffocate tod-
dlers.
v Keep toddlers away when
you assemble the product.
DANGER!
Electric shock!
Risk of injury due to electric
shock.
• The product must be supplied
through a residual current
device (RCD) having a rated
residual operating current
not exceeding 30 mA.
The product must only be operated
with the 36 V (DC) power supply unit
provided. Do not use an adapter.
Protect the 36 V (DC) power supply
unit from moisture and direct sun-
light when connected.
Install the Irrigation Control in
aweatherproof location.
Check the power cord for damage
before use.
4
en
The product must be used only for
controlling commercially available
24V (AC) valves. The electric power
consumption per channel must
not exceed 500 mA (a GARDENA
Irrigation Valve Art. 1278 requires
150 mA).
5
en
2. ASSEMBLY
2.1 Location of installation of the Irrigation Control:
The Irrigation Control is splash-proof. We recommend installing the Irrigation
Control in a location protected from the weather.
2.2 Cable cross-section of the connection cable:
The maximum permissible distance between the product and the valve
depends on the cross-section of the connection cable. For a distance of
30m, the cross-section is 0.5 mm² and 0.75 mm² for a distance of 45m.
No more than 2 valves (except for the master valve) must be in operation
at the same time.
The GARDENA Connection Cable Art. 1280 has a cross-section of
0.5mm² and is 15 m long.
This cable allows to connect up to 6 valves. For a waterproof connection
of the cable, use the GARDENA Cable Clip Art. 1282.
6
en
2.3 To assemble the Irrigation Control on the wall:
Both screws and wall plugs are included in the scope of delivery.
The distance between the holes is 120 mm.
WARNING!
Risk of falling!
If you install the Irrigation Control at a height of more than 2.0 m, you risk
falling to the ground during installation.
v Install the Irrigation Control at a height of 2.0 m maximum.
v Do not climb on a ladder or similar aid to install the Irrigation Control.
v Keep both feet firmly on the ground when mounting the Irrigation
Control.
1
1. Remove the cover
1
.
7
en
36 VDC
VALVES
S/N: 00000000
MASTER
1+
–
23456CCM
TOP
RESET 5s
120 mm
2. Mark the positions of the holes. To do this, hold the Irrigation Control
horizontally against the wall and mark 2 holes at a distance of 120mm.
3. Drill the holes and install the Irrigation Control at the wall using the
2 wall plugs and screws supplied.
NOTE:
The cables must be led downwards!
Pay attention to the cable lengths, especially during initial installation.
If you want to mount several Irrigation Controls, install them one above the
other with a vertical distance of 150 mm.
The cable routing allows you to install up to 3 irrigation controls one above
the other.
8
en
3. INSTALLATION
3.1 To remove the cable strain relief:
VALVES
S/N: 00000000
TOP
RESET 5s
MASTER
123456CCM
36 VDC
+
–
4
3
v Loosen both screws
3
and remove the cable strain relief
4
.
9
en
3.2 Connection overview:
123456CCCC 123456CCCC
VALVES
S/N: 00000000
TOP
RESET 5s
MASTER
123456CCM
36 VDC
POWER
SUPPLY
PUMP
CONTROL
V1
V2
V3
(ART. 1278)(ART. 1278)
(ART. 1255)
(ART. 1278)
V4
V5
V6
(ART. 1278) (ART. 1278) (ART. 1278)
(ART. 1255)
36 VDC
+
–
Valve Box Art. 1255 Valve Box Art. 1255
10
en

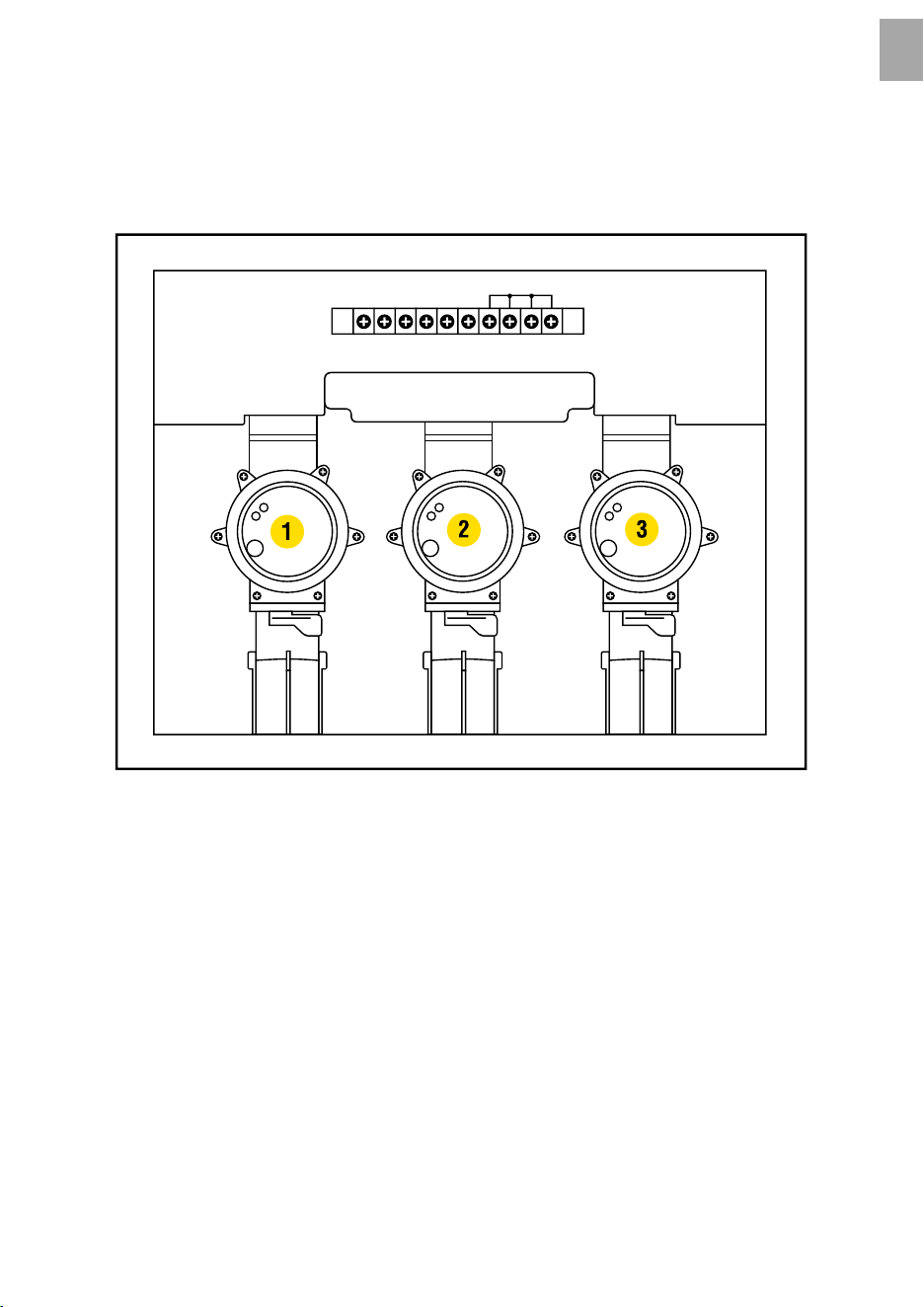

3.3 To connect the valves to the Valve Box:
Make sure that the terminal block has been correctly installed in the valve box.
!
123456CCCC
V1 V2 V3
(ART. 1278) (ART. 1278) (ART. 1278)
1. Label the valves (1 – 6) with the yellow stickers of the valve box.
This allows to clearly assign the signal cable terminals VALVES 1 – 6 of
the Irrigation Control to the valves.
11
en
"
123456CCCC

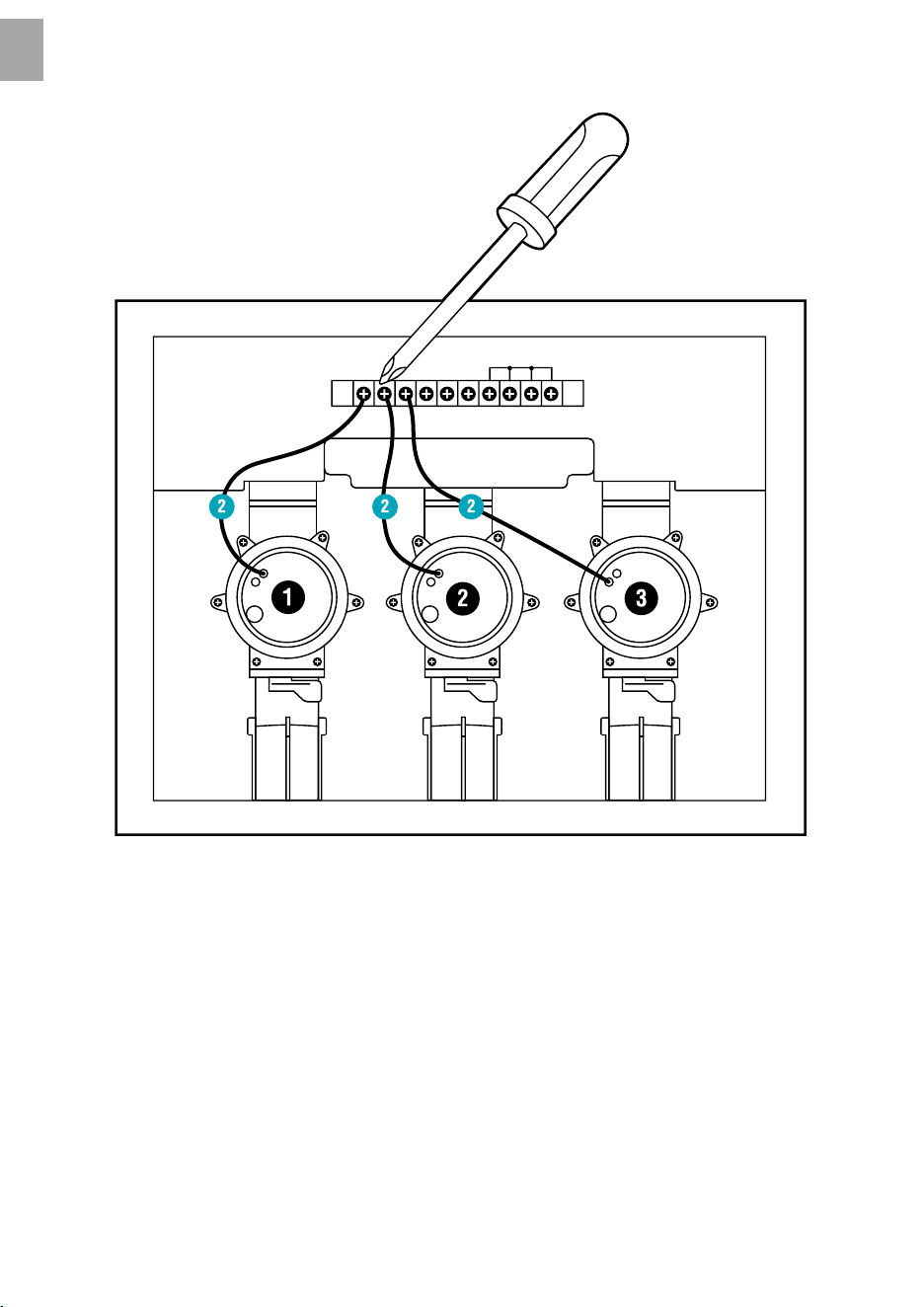

2. Connect a cable of the valve V1 to the signal cable terminal 1 of the
Valve Box.
3. Connect a cable of the valve V2 to the signal cable terminal 2 of the
Valve Box.
4. Connect a cable of the valve V3 to the signal cable terminal 3 of the
Valve Box.
12
en
§
123456CCCC

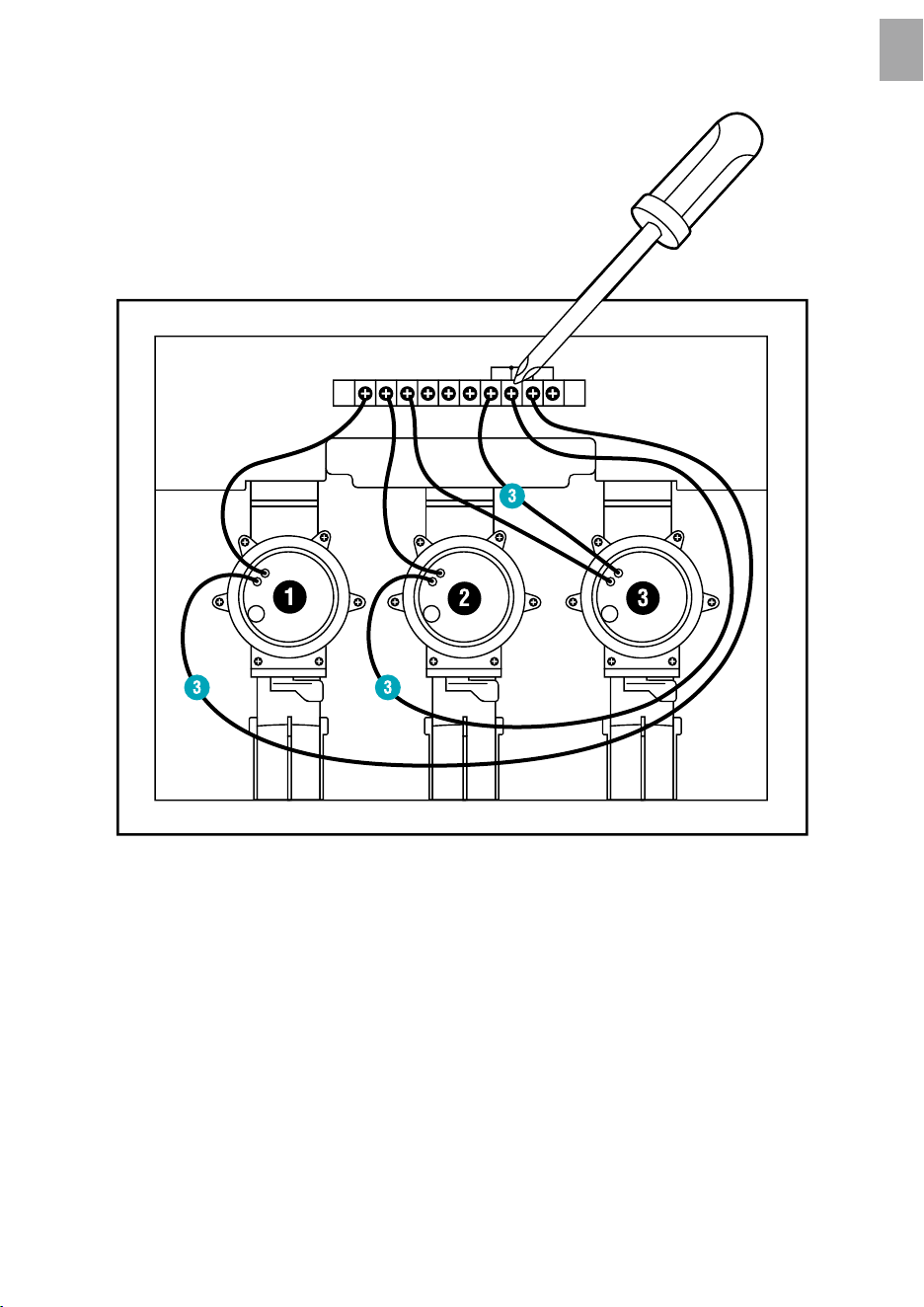

5. Connect the other cable of the valve V1 to a signal cable terminal C
of the Valve Box.
All 4 signal cable terminals C are connected to each other and equivalent.
6. Connect the other cable of the valve V2 to a signal cable terminal C
of the Valve Box.
7. Connect the other cable of the valve V3 to a signal cable terminal C
of the Valve Box.
13
en
3.4 To connect the Valve Box to the Irrigation Control:
Tip: Press down the signal cable terminal with your index finger, screwdriver
or ballpoint pen to connect the cables.
With the GARDENA Connection Cable Art. 1280 you can connect up
to 6 valves with the Irrigation Control.
$
123456CCCC 123456CCCC
VALVES
S/N: 00000000
TOP
RESET 5s
MASTER
123456CCM
36 VDC
+
–
1. Connect the signal cable terminal 1 of the valve box to the signal cable
terminal VALVES 1 of the Irrigation Control.
2. Connect the signal cable terminal 2 of the valve box to the signal cable
terminal VALVES 2 of the Irrigation Control.
3. Connect the signal cable terminal 3 of the valve box to the signal cable
terminal VALVES 3 of the Irrigation Control.
14
en
%
123456CCCC 123456CCCC
VALVES
S/N: 00000000
TOP
RESET 5s
MASTER
12345 6CCM
36 VDC
+
–
4. Connect one signal cable terminal C of the Valve Box to the blue signal
cable terminal C of the Irrigation Control.
15
en
3.5 To connect the master valve:
Master Channel:
The master channel M is activated as soon as one of the valves is activated.
You can connect a central valve as master valve upstream of the other valves.
&
123456CCCC
TOP
RESET 5s
123456CCCC
VALVES
S/N: 00000000
MASTER
123456CCM
36 VDC
POWER
SUPPLY
PUMP
CONTROL
36 VDC
+
–
V Connect both cables to the signal cable terminals M and C of the
Irrigation Control (polarity does not have to be considered).
16
en
3.6 To connect the power supply:
CAUTION!
Property damage!
The Irrigation Control is damaged if the power supply unit is connected
tocable terminals other than the 36 V DC cable terminals.
v Connect the power supply unit to the 36 V DC terminals only.
CAUTION!
Property damage!
Damaging of the Irrigation Control system by short circuit.
v Check all wiring before you plug in the power supply.
17
en
/
123456CCCC
123456CCCC
36 VDC
POWER
SUPPLY
VALVES
S/N: 00000000
TOP
RESET 5s
MASTER
123456CCM
36 VDC
+
–
1. Connect the red cable to the red cable terminal and the black cable to
the black cable terminal. (The polarity has to be considered.)
2. Plug the power supply unit into a socket.
18
en
3.7 To close the cover:
VALVES
S/N: 00000000
TOP
RESET 5s
MASTER
123456CCM
36 VDC
+
–
4
3
1. Attach the cable strain relief
4
and tighten the two screws
3
.
2. Push the cover onto the Irrigation Control.
19
en
4. OPERATION
4.1 LED Display:
3 12
1
LED Power:
Green: Power on
2
LED Connection display / Signal:
Green flashing: While connecting
Green: Signal strength high
Yellow: Signal strength medium
Red: Signal strength low
Red flashing: Inclusion mode failed
3
LED Active watering:
Green: Active watering
Red flashing: Valve error (see 7. TROUBLESHOOTING)
20
en
4.2 To operate the Irrigation Control with the
GARDENA smart App:
You can use the GARDENA smart App to control all GARDENA smart
system products from anywhere at any time. The free GARDENA smart
App is available on the App Store (Apple) and on Google Play.
For the integration, you need a GARDENA smart Gateway connected to
the Internet. You can integrate all GARDENA smart system products via
the app. To do so, follow the instructions in the app.
The following options to operate the Irrigation Control are available to you:
– According to the timings in the GARDENA smart App:
Watering days, start, duration
– As required in the GARDENA smart App:
Start and finish
– Operation via Amazon Alexa, Apple Home App (Siri) and Google Assistant
21
en
4.3 To perform a factory reset:
VALVES
S/N: 00000000
TOP
RESET 5s
MASTER
123456CCM
36 VDC
+
–
5
1. Push the Reset key
5
for a short time.
New connection.
– or –
2. Push and hold down the Reset key
5
for at least 5 seconds.
Cancels the existing connection and allows a new connection to be
established, e. g. different Gateway.
22
en
5. MAINTENANCE
5.1 To clean the Irrigation Control:
Do not use caustic / abrasive cleaning agents.
v Clean the Irrigation Control with a damp cloth (do not use solvent).
6. STORAGE
6.1 To put into storage:
The product must be stored away from children.
The irrigation valves may become permanently damaged if exposed to
temperatures below 5 °C. We advise you to take the following measures
before the onset of frost:
1. Close the tap and detach the connecting hose between the tap and
the GARDENA Connecting Point, Art. 2722.
2. If the irrigation system is connected directly to your house’s water system:
Turn off the water supply and open the drain cock in the water pipe for the
house.
3. Set the selection lever on all valves to the “ON” position.
4. Drain the irrigation valve / valve box.
This can be done in the following ways:
• Drain the system using compressed air
– or –
• remove all valves and store in a frost-free place
– or –
• for the Valve Box V3, open the drain cap and drain the supply pipe.
As long as the pipes coming from the Valve Box V3 outlets are drained
via a drain valve (e. g. in the GARDENA pop-up sprinklers) which is not
attached at ahigher point than the irrigation valve, the irrigation valves
can be left mounted in the valve box.
• The smart Irrigation Control can remain installed after it has been
deactivated.
23
en
7. TROUBLESHOOTING
7.1 Troubleshooting table:
Problem Possible Cause Remedy
LED Power
illuminates red
Undervoltage. v Check the power
connection.
Wrong power supply. v Check the power supply.
MCU Communication
error.
v Reset the Irrigation
Control to factory set-
tings.
LED Active
Watering flashes
red
Can’t open valve because
of limit of 2.
v Check the program.
Valve is not connected. v Check the valve.
Single channel overcurrent. v Check the current of the
channel.
Sum overcurrent. v Check the sum current
of the valves.
Watering schedule
cancelled.
v Restart the program.
Master channel error. v Check the master
channel.
Watering duration too
short.
v Increase the watering
duration.
Watering program is
not being undertaken
(no watering)
The valve has previously
been manually opened.
v Avoid any program over-
lap.
Water tap closed. v Open the water tap.
No function Faulty wiring. v Check the cable
terminals.
Power supply unit is not
connected.
v Connect the power
supply unit.
Power supply unit is too
hot.
v Disconnect the power
supply unit and let it be
cooled down. Connect
the power supply unit
again.
v Protect the power supply
unit from direct sunlight.
24
en
Problem Possible Cause Remedy
Inclusion is not
possible (Inclusion)
No wireless connection to
the gateway.
v Select another position
for the Irrigation Control
or the gateway.
No power supply available. v Check the mains cable.
Irrigation Control does
not respond
Faulty wiring. v Check the cable termi-
nals.
No wireless connection to
the gateway.
v Check the wireless con-
nection to the gateway.
NOTE:
Repairs must only be done by the GARDENA service departments or
specialist dealers approved by GARDENA.
v For any other malfunctions please contact the GARDENA service
department.
25
en
8. TECHNICAL DATA
smart Irrigation Control Unit Value (Art. 19035)
Input voltage V (DC) 36
Input current mA 1000
Output voltage V (AC) 24
Max. output current mA 900
Operation temperature range
(outdoors)
°C + 5 – + 40
SRD:
Frequency range MHz 863 – 870
Maximum power mW 25
Free field radio range (approx.) m 100
Power supply
Mains voltage V (AC) 100 – 240
Mains frequency Hz 50 – 60
Rated power W 36
Standby power (approx.) W < 0.1
Output voltage V (DC) 36
Max. output current mA 1000
EC / UKCA Declaration of Conformity:
Hereby, GARDENA Manufacturing GmbH declares that the radio equipment
type (Art. 19035) is in compliance with directive 2014/53/EU.
The full text of the EC / UKCA declaration of conformity is available at the
following internet address:
http://www.gardena.com/int/support/safety-regulations
26
en
9. ACCESSORIES / SPARE PARTS
GARDENA
smart Sensor
Sensor for controlling the smart system. Art. 19040
GARDENA Watering
Valve 24 V
Valve for controlling individual parts of
an irrigation system.
Art. 1278
GARDENA Valve Boxes Box for installing the watering valves
underground.
Art. 1254 / 1255
GARDENA Connection
Cable
Cable for connecting watering valves. Art. 1280
GARDENA Cable Clips Clip for the water-tight connection of
connection cables.
Art. 1282
10. SERVICE
Please contact the address below.
27
en
11. DISPOSAL
11.1 Disposal of the Irrigation Control:
(according to Directive 2012/19/EU / S.I. 2013 No. 3113)
The product must not be disposed of to normal household waste.
It must be disposed of in line with local environmental regulations.
IMPORTANT!
Dispose of the product through or via your local recycling collection centre.
28
en
12. TRADEMARK ATTRIBUTION
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S.
and other countries. App Store is a service mark of Apple Inc. registered in the
U.S. and other countries.
Google and the Google Play logo are trademarks of Google LLC.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or
its affiliates.
Other trademarks and trade names are those of their respective owners.
29
en
30
Deutschland / Germany
GARDENA Manufacturing GmbH
Central Service
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen:
(+49) 731 490-123
Reparaturen:
(+49) 731 490-290
http://www.gardena.com
Albania
KRAFT SHPK
Autostrada Tirane-Durres
Km 7
1051 Tirane
Phone: (+355) 69 877 7821
Argentina
ROBERTO C. RUMBO S.R.L.
Predio Norlog
Lote 7
Benavidez. ZC: 1621
Buenos Aires
Phone: (+54) 11 5263-7862
Armenia
AES Systems LLC
Marshal Babajanyan Avenue 56/2
0022 Yerevan
Phone: (+374) 60 651 651
masisohanyan@icloud.com
Australia
Husqvarna Australia Pty. Ltd.
Locked Bag 5
Central Coast BC
NSW 2252
Phone: (+ 61) (0) 2 4352 7400
customer.servic[email protected]
Austria / Österreich
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Tel.: (+43) 732 77 01 01-485
service.gardena@husqvarnagroup.
com
Azerbaijan
Proqres Xüsusi Firması
Aliyar Aliyev 212, Baku, Azerbaijan
Sales: +994 70 326 07 14
Aftersales: +994 77 326 07 14
www.progress-garden.az
info@progress-garden.az
Bahrain
M.H. Al-Mahroos
BUILDING 208, BLOCK 356,
ROAD 328
Salhiya
Phone: +973 1740 8090
Belarus / Беларусь
ООО «Мастер Гарден»
220118, г. Минск,
улица Шаранговича, дом 7а
Тел. (+375) 17 257 00 33
mg@mastergarden.by
Belgium
Husqvarna Belgium nv
Gardena Division
Leuvensesteenweg 542
Planet II E
1930 Zaventem
België
Bosnia / Herzegovina
Silk Trade d.o.o.
Poslovna Zona Vila Br. 20
Phone: (+387) 61 165 593
Brazil
Nordtech Maquinas e Motores Ltd.
Avenida Juscelino Kubitschek de
Oliveira
Curitiba
3003 Brazil
Phone: (+55) 41 3595-9600
contato@nordtech.com.br
www.nordtech.com.br
Bulgaria
AGROLAND България АД
бул. 8 Декември, № 13
Офис 5
1700 Студентски град
София
Тел.: (+359) 24 66 6910
info@agroland.eu
Canada / USA
GARDENA Canada Ltd.
125 Edgeware Road
Unit 15 A
Brampton L6Y 0P5
ON, Canada
Phone: (+1) 905 792 93 30
gardena.customerservice@
husqvarnagroup.com
Chile
REPRESENTACIONES JCE S.A.
2286 Avenida General Oscar Bonilla
Concepcion
Phone: (+ 56) 2 2414 2600
contacto@jce.cl
China
Husqvarna (Shanghai)
Management Co., Ltd.
富世华（上海）管理有限公司
3F, Benq Square B,
No 207, Song Hong Rd.,
Chang Ning District,
Shanghai, PRC. 200335
上海市长宁区淞虹路207号明
基广场B座3楼, 邮编: 200335
Colombia
Equipos de Toyama Colombia SAS
Cra. 68 D N
o
25 B 86 Of. 618
Edificio Torre Central
Bogota
Phone: +57 (1) 703 95 20 /
+57 (1) 703 95 22
servicioalcliente@toyama.com.co
www.toyama.com.co
Costa Rica
Exim CIA Costa Rica
Calle 25A, B°. Montealegre
Zapote
San José
Costa Rica
Phone: (+506) 2221-5654 /
(+506) 2221-5659
Croatia
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Phone: (+43) 732 77 01 01-485
service.gardena@
husqvarnagroup.com
Cyprus
Pantelis Papadopoulos S.A.
92 Athinon Avenue
Athens
10442 Greece
Phone: (+30) 21 0519 3100
Czech Republic
Gardena
Service Center Vrbno
c/o Husqvarna
Manufacturing CZ s.r.o.
Jesenická 146
79326 Vrbno pod Pradedem
Phone: 800 100 425
Denmark
GARDENA DANMARK
Lejrvej 19, st.
3500 Værløse
Tlf.: (+45) 70 26 47 70
www.gardena.com / dk
Dominican Republic
BOSQUESA, S.R.L
Carretera Santiago Licey
Km. 5 ½
Esquina Copal II.
Santiago De Los Caballeros
51000 Dominican Republic
Phone: (+1) 809-562-0476
contacto@bosquesa.com.do
Egypt
Universal Agencies Co
26, Abdel Hamid Lotfy St.
Giza
Phone: (+20) 3 761 57 57
Estonia
Husqvarna Eesti OÜ
Valdeku 132
EE-11216 Tallinn
Finland
Oy Husqvarna Ab
Juurakkotie 5 B 2
01510 Vantaa
www.gardena.fi
France
Husqvarna France
9/11 Allée des pierres mayettes
92635 Gennevilliers Cedex
France
http://www.gardena.com/fr
N° AZUR: 0 810 00 78 23
(Prix d’un appel local)
Georgia
Transporter LLC
#70, Beliashvili street
0159 Tbilisi, Georgia
Number: (+995) 322 14 71 71
info@transporter.com.ge
www.transporter.com.ge
Service Address and
Importer to Great Britain
Husqvarna UK Ltd
Preston Road
Aycliffe Industrial Park
Newton Aycliffe
County Durham
DL5 6UP
Phone: (+44) (0) 344 844 4558
info[email protected].uk
Greece
Π.ΠΑΠΑΔΟΠΟΥΛΟΣ ΑΕΒΕ
Λεωφ. Αθηνών 92
Αθήνα
Τ.Κ.104 42
Ελλάδα
Τηλ. (+30) 210 5193 100
Hong Kong
Tung Tai Company
151-153 Hoi Bun Road
Kwun Tong, Kowloon
Hong Kong
Phone: (+852) 3583 1662
admin@tungtaico.com
Hungary
Husqvarna Magyarország Kft.
Ezred u. 1 – 3
1044 Budapest
Phone: (+36) 1 251-4161
vevoszolgalat.husqvarna@
husqvarna.hu
Iceland
BYKO ehf.
Skemmuvegi 2a
200 Kópavogur
Phone: (+354) 515 4000
byko@byko.is
MHG Verslun ehf
Víkurhvarf 8
203 Kópavogur
Phone: (+354) 544 4656
India
B K RAMAN AND CO
Plot No. 185, Industrial Area,
Phase-2, Ram Darbar
Chandigarh
160002 India
Phone: (+91) 98140 06530
raman@jaganhardware.com
Iraq
Alshiemal Alakhdar Company
Al-Faysalieah, Near Estate Bank
Mosul
Phone: (+964) 78 18 18 46 75
Ireland
Liffey Distributors Ltd.
309 NW Business Park, Ballycoolen
15 Dublin
Phone: (+353) 1 824 2600
Israel
HAGARIN LTD.
2 Nahal Harif St.
8122201 Yavne
Phone: (+972) 8-932-0400
Italy
Husqvarna Italia S.p.A.
Centro Direzionale Planum
Via del Lavoro 2, Scala B
22036 ERBA (CO)
Phone: (+39) (0) 31 4 14 77 00
assistenza.it[email protected]
Japan
Husqvarna Zenoah Co. Ltd. Japan
1-9 Minamidai, Kawagoe
350-1165 Saitama
Japan
Kazakhstan
ТОО "Ламэд"
Russian
Адрес: Казахстан, г. Алматы,
ул. Тажибаевой, 155/1
Тел.: (+7) (727) 355 64 00 /
(+7) (700) 355 64 00
Kazakh
Мекен-жайы: Қазақстан,
Алматы қ.,
көш. Тәжібаевой, 155/1
Тел.: (+7) (727) 355 64 00 /
(+7) (700) 355 64 00
Kuwait
Palms Agro Production Co
Al Rai- Fourth Ring Road – Block 56.
P.O Box: 1976 Safat
13020 Al-Rai
Phone: (+965) 24 73 07 45
info@palms-kw.com
Kyrgyzstan
OOsO Alye Maki
Av. Moladaya Guardia 83
720014 Bishkek
Phone: (+996) 312 322115
Latvia
Husqvarna Latvija SIA
Ulbrokas 19A
LV-1021 Rīga
Lebanon
Technomec
Safra Highway (Beirut – Tripoli) Center
622 Mezher Bldg.
P.O.Box 215
Jounieh
Phone: (+961) 9 853527 /
(+961) 3 855481
Lithuania
UAB Husqvarna Lietuva
Ateities pl. 77C
LT-52104 Kaunas
31
Luxembourg
Magasins Jules Neuberg
39, rue Jacques Stas
Luxembourg-Gasperich 2549
Case Postale No. 12
Luxembourg 2010
Phone: (+352) 40 14 01
Malaysia
Glomedic International Sdn Bhd
Jalan Ruang No. 30
Shah Alam, Selangor
40150 Malaysia
Phone: (+60) 3-7734 7997
Malta
I.V. Portelli & Sons Ltd.
85, 86, Triq San Pawl
Rabat - RBT 1240
Phone: (+356) 2145 4289
Mauritius
Espace Maison Ltée
La City Trianon, St Jean
Quatre Bornes
Phone: (+230) 401 6950
Mexico
AFOSA
Av. Lopez Mateos Sur # 5019
Col. La Calma 45070
Zapopan, Jalisco, Mexico
Phone: (+52) 33 3818-3434
Moldova
Convel SRL
Republica Moldova,
mun. Chisinau,
sos. Muncesti 284
Phone: (+373) 22 857 126
www.convel.md
Mongolia
Soyolj Gardening Shop
Narnii Rd
Ulaanbaatar
14230 Mongolia
Phone: +976 7777 5080
soyolj@magicnet.mn
Morocco
Proekip
64 Rue de la Participation
Casablanca-Roches Noires
20303 Morocco
Phone: (+212) 661342107
Netherlands
Husqvarna Nederland B.V.
GARDENA Division
Postbus 50131
1305 AC ALMERE
Phone: (+31) 36 521 00 10
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao
Phone: (+599) 9 767 66 55
New Zealand
Husqvarna New Zealand Ltd.
PO Box 76-437
Manukau City 2241
Phone: (+64) (0) 9 9202410
North Macedonia
Sinpeks d.o.o.
Ul. Kravarski Pat Bb
7000 Bitola
Phone: (+389) 47 20 85 00
Norway
Husqvarna Norge AS
Gardena Division
Trøskenveien 36
1708 Sarpsborg
Northern Cyprus
Mediterranean Home & Garden
No 150 Alsancak, Karaoğlanoğlu
Caddesi
Girne
Phone: (+90) 392 821 33 80
info@medgardener.com
Oman
General Development Services
PO 1475, PC - 111
Seeb
111 Oman
Phone: 9 68 24 58 28 16
Paraguay
Agrofield SRL
AV. CHOFERES DEL CHACO
1449 C / 25 DE MAYO
Asuncion
Phone: (+595) 21 608 656
consultas@agrofield.com.py
Peru
Sierras y Herramientas Forestal SAC
Av. Las Gaviotas 833, Chorrillos
Lima
Phone: (+51) 1 2 52 02 52
supervisor[email protected]
www.siersac.com
Philippines
Royal Dragon Traders Inc
10 Linaw Street, Barangay Saint
Peter
Quezon City
1114 Philippines
Phone: (+63) 2 7426893
aida.fernandez@rdti.com.ph
Poland
Gardena Service Center Vrbno
c/o Husqvarna Manufacturing
CZ s.r.o.
Jesenická 146
79326 Vrbno pod Pradedem
Czech Republic
Phone: (22) 336 78 90
Portugal
Husqvarna Portugal, SA
Lagoa - Albarraque
2635 - 595 Rio de Mouro
Phone: (+351) 21 922 85 30
Fax : (+351) 21 922 85 36
Romania
Madex International Srl
Soseaua Odaii 117 - 123,
RO 013603 Bucureşti, S1
Phone: (+40) 21 352 7603
Russia / Россия
ООО „Хускварна“
141400, Московская обл.,
г. Химки,
улица Ленинградская,
владение 39, стр.6
Бизнес Центр
„Химки Бизнес Парк“,
помещение ОВ02_04
http://www.gardena.ru
Saudi Arabia
SACO
Takhassusi Main Road P.O. Box:
86387
Riyadh 12863
40011 Saudi Arabia
Phone: (966) 11 482 8877
webmast[email protected]
Al Futtaim Pioneer Trading
5147 Al Farooq Dist.
Riyadh 7991
Phone: (+971) 4 206 6700
Serbia
Domel d.o.o.
Slobodana Đurića 21
11000 Belgrade
Phone: (+381) 11 409 57 12
Singapore
Hy-Ray PRIVATE LIMITED
40 Jalan Pemimpin
#02-08 Tat Ann Building
Singapore 577185
Phone: (+65) 6253 2277
info@hyray.com.sg
Slovak Republic
Gardena
Service Center Vrbno
c/o Husqvarna
Manufacturing CZ s.r.o.
Jesenická 146
79326 Vrbno pod Pradedem
Phone: 0800 154044
Slovenia
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Phone: (+43) 732 77 01 01-485
service.gardena@
husqvarnagroup.com
South Africa
Husqvarna South Africa (Pty) Ltd
Lifestyle Business Park – Ground
Floor Block A
Cnr Beyers Naude Drive and
Ysterhout Road
Randpark Ridge, Randburg
Phone: (+27) 10 015 5750
South Korea
Kyung Jin Trading Co., Ltd
8F Haengbok Building,
210, Gangnam-Daero
137-891 Seoul
Phone: (+82) 2 574 6300
Spain
Husqvarna España S.A.
Calle de Rivas nº 10
28052 Madrid
Phone: (+34) 91 708 05 00
atencionclient[email protected]
Sri Lanka
Hunter & Company Ltd.
130 Front Street
Colombo
Phone: 94-11 232 81 71
Suriname
Deto Handelmaatschappij N.V.
Kernkampweg 72-74
P.O. Box: 12782
Paramaribo
Suriname
Phone: (+597) 43 80 50
info@deto.sr
Sweden
Husqvarna AB /
GARDENA Sverige
Drottninggatan 2
561 82 Huskvarna
Sverige
Phone: (+46) (0) 36-14 60 02
Switzerland / Schweiz
Husqvarna Schweiz AG
Consumer Products
Industriestrasse 10
5506 Mägenwil
Phone: (+ 41) (0) 62 887 37 90
Taiwan
Hong Ying Trading Co., Ltd.
No. 46 Wu-Kun-Wu Road
New Taipei City
Phone: (+886) (02) 2298 1486
Tajikistan
ARIERS JV LLC
39, Ayni Street, 734024
Dushanbe, Tajikistan
Thailand
Spica Co. Ltd
243/2 Onnuch Rd., Prawat
Bangkok
10250 Thailand
Phone: (+66) (0)2721 7373
Tunisia
Société du matériel agricole et
maritime
Nouveau port de peche de Sfax
Bp 33
Sfax 3065
Phone: (+216) 98 419047 /
(+216) 74 497614
Türkiye
Dost Bahçe
Yunus Mah. Adil Sk. No:3
Kartal
Istanbul
34873 Türkiye
Phone: (+90) 216 389 39 39
Turkmenistan
I.E. Orazmuhammedov
Nurmuhammet
80 Ataturk, BERKARAR Shopping
Center,
Ground floor, A77b,
Ashgabat 744000
TURKMENISTAN
Phone: (+993) 12 468859
Mob: (+993) 62 222887
info@jayhyzmat.com /
bekgiyev@jayhyzmat.com
www.jayhyzmat.com
UAE
Al-Futtaim ACE Company
L.L.C Building, Al Rebat Street
Festival City, Dubai
7880 UAE
Phone: (+971) 4 206 6700
Ukraine / Україна
АТ «Альцест»
вул Петропавлівська 4
08130, Київська обл.
Києво-Святошинський
р-н. с. Петропавлівська
Борщагівка
Україна
Тел.: (+38) 0 800 503 000
Uruguay
FELI SA
Entre Ríos 1083
11800 Montevideo
Phone: (+598) 22 03 18 44
Uzbekistan
AGROHOUSE MChJ
O’zbekiston, 111112
Toshkent viloyati
Toshkent tumani
Hasanboy QFY, THAY yoqasida
Phone: (+998)-93-5414141
(+998)-71-2096868
info@agro.house
www.agro.house
Vietnam
Vision Joint Stock Company
BT1-17, Khu biet thu – Khu Đoan
ngoai giao Nguyen Xuan Khoat
Xuan Đinh, Bac Tu Liem
Hanoi, Vietnam
Phone: (+8424)-38462833/34
Zimbabwe
Cutting Edge
159 Citroen Rd, Msasa
Harare
Phone: (+263) 8677 008685
19035-20.962.01/0323
© GARDENA Manufacturing GmbH
D-89079 Ulm
http://www.gardena.com
