ON
OFF
DC 5V
5.8GHz wireless connection
Bluetooth

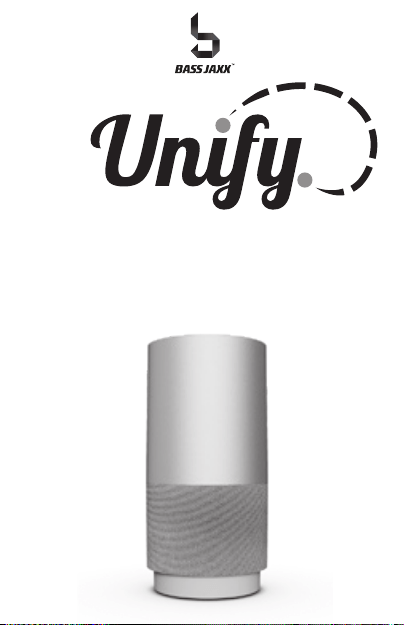

Thank you for purchasing the Unify Multi-Connection Bluetooth Speaker.
This manual provides more information about this wireless speaker,
please read the instructions before using.
Instruction Manual
Product Overview
Multi-Connection
Power on
Note: Always power off the speaker when not in use.
Power off
Reconnect Wireless speaker to your mobile device
4. You will hear a beep sound when pairing is successful.
When powered on, the wireless speaker will automatically connect with the last
successfully paired device.
Pair Wireless speaker with your mobile device
2. Power on the wireless speaker.
3. Activate the Bluetooth function on your phone within range and select
“
BT UNIFY SPEAKER
” from the list shown.
Package Contents
1. Keep the distance between your wireless speaker and mobile phone
(or other devices) within 32.8 Feet.
Switch on the Power Button.
Switch off the Power Button.
Back
Front
-The input voltage to the product is DC 5V 1A.
-In order to charge the product in safe manner and reliable conditions, please only adopt
certified appropriate charger/ adapter for charging the product.
-Only charge the product at ambient temperatures between 10 deg °C/ 50 deg °F and 40
deg °C/104 deg °F.
- Do not heat above 70 deg °C/158 deg °F, eg. Do not expose to sunlight or throw into fire.
-Switch off the product after use.
-Please note that we won’t take any responsibility for any wrong operation (eg. Voltage
higher than 5V) as this may result in severe injury or loss of property, and we cannot
control the operating process during the time the user using this product.
-In extreme cases, abuse or misuse of Lithium battery pack can lead to explosion, heat
generation, fire development or smoke development.
Safety instructions for the lithium battery and charging the product
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. This
Keep All Relevant Information For Future Reference
On/Off switch
LED
Indicator
Micro USB
Charging Port
FAQ
If the Wireless speaker cannot be paired with your device,
please try the following:
Ensure that your speaker is in pairing mode or reconnection mode.
Ensure that Bluetooth search function of your mobile device is activated.
If the Wireless speaker
cannot be recharged:
If you use a power outlet, ensure that the power supply is connected securely
and the outlet works. If you use a computer, ensure that it is connected and the
USB port is powered.
FCC ID: 2ADM5-SP-0207B
ITEM# SP-0207B
Technical specification
Driver Diameter: 52 mm
Impedance: 4 Ohms
Power Supply:
Li-ion Battery 3.7V 1200 mAh
Playtime: 1.5-2 Hours
Charging Time: 3 Hours
Bluetooth Range: 32.8 Feet
Charging Method: USB Charging
Micro USB Charging Cable Included
Made in China
Includes:
1(One) Speaker 3.5in. x 7.1in. x 3.5in. (8.9cm x 18cm x 8.9cm)
1(One) Charging Cable 19.7in. (50cm)
1(One) Instruction Manual
Multi-Connection
BLUETOOTH SPEAKER
(Need more than 1pc Unify Multi-Connection Bluetooth Speaker to perform this
function.)
1. Make sure all Unify Multi-Connection Bluetooth Speaker are unpaired from
Bluetooth devices
2. Turn off all Unify Multi-Connection Bluetooth Speaker.
3. Turn on 1pc and pair with your Bluetooth device as “Host Speaker”.
4. After the first speaker is connected to your Bluetooth device, turn on other Unify
Multi-Connection Bluetooth Speakers as “Branch Speaker”.
5. Start playing music from the connected Bluetooth device, the “Branch Speaker” will
automatically connected with the Host speaker. The LED on the Branch speakers will
turns to green.
6. “Host Speaker” and “Branch Speaker” will start playing the music.
Remark: for this Multi-Connection, please note only 1 “Host Speaker” connect with
Bluetooth device. Pair both Host and Branch speakers to Bluetooth devices may
cause the multi-connection function failure.
1. Use the Micro USB charging cable provided with this wireless speaker.
2. Connect the Micro USB plug to Micro USB charging port on the speaker, then
connect the USB plug to a USB port on a computer or wall adapter to begin charging.
3. The LED Indicator will turn red while charging and will turn off once fully charged.
NOTE:
• You must select a qualified charger from a regular manufacturer.
• You must charge the Wireless speaker if it has been not used for
more than 6 months.
Charging your Wireless speaker
For your safety, please always use appropriate 5V input charger/Adapter to
charge the product. DO NOT USE Quick Charging USB Adapter to charge the
product, as it might damage the product.
equipment should be installed and operated with minimum distance 20cm
between the radiator& your body.
