Parts Manual
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
FORM NO.
769-00578H
PRINTED IN U.S.A.
Hydrostatic Lawn Tractor
SERIES 1000
Models LT1042
LT1045
LT1046
LT1050
02/08/2007
2
DESCRIPTION PAGE
Axle, Front ....................................................... 6
Battery ............................................................. 16

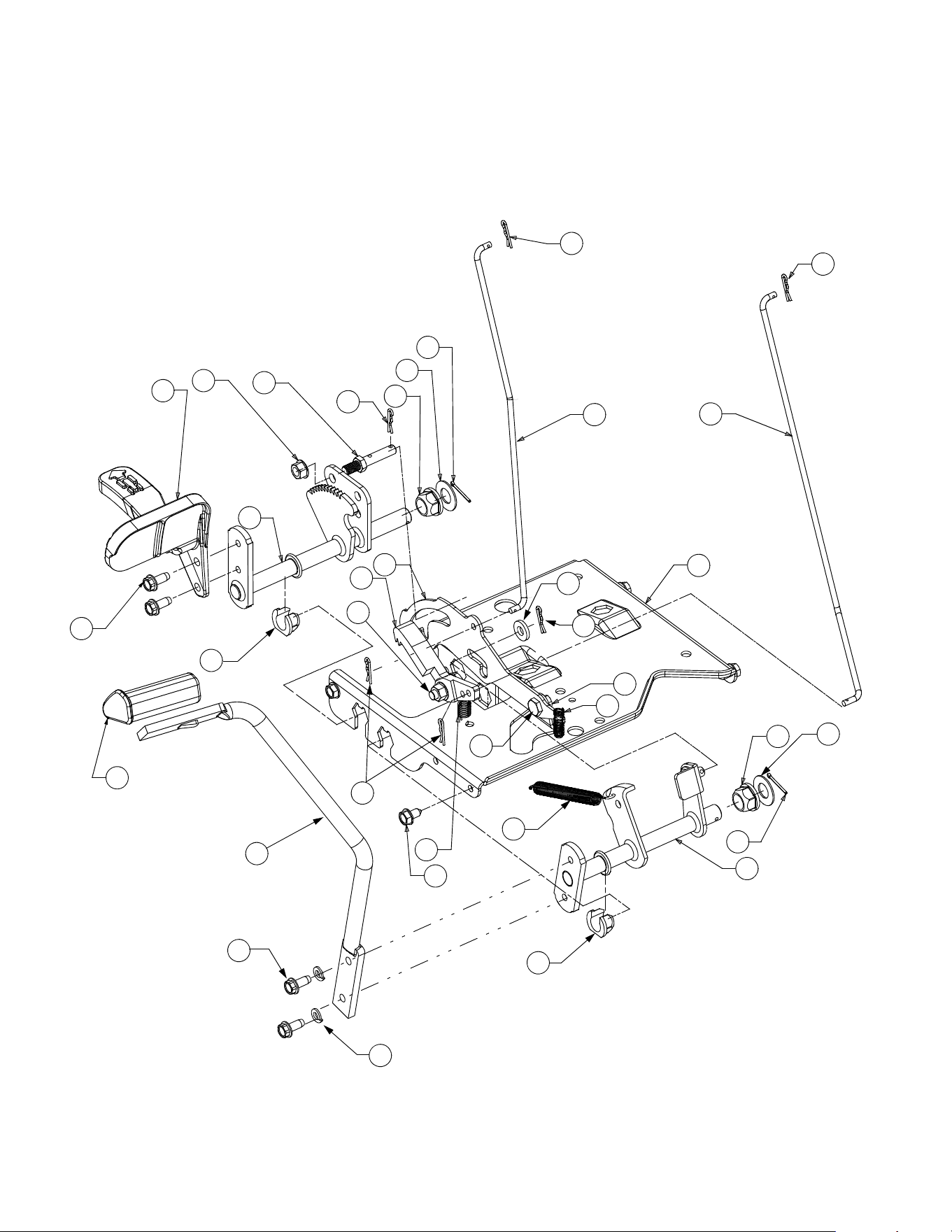

Brake Pedal ..................................................... 12

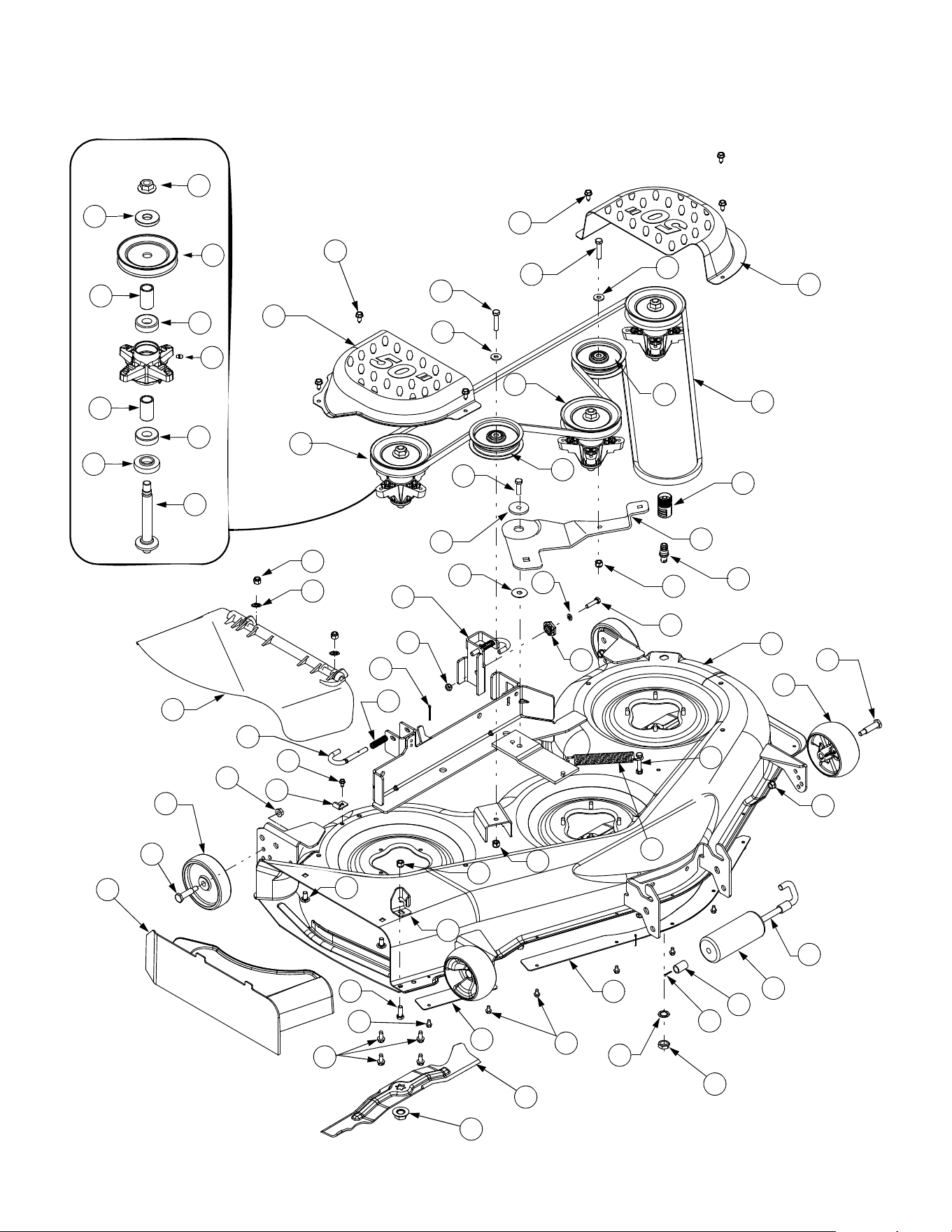

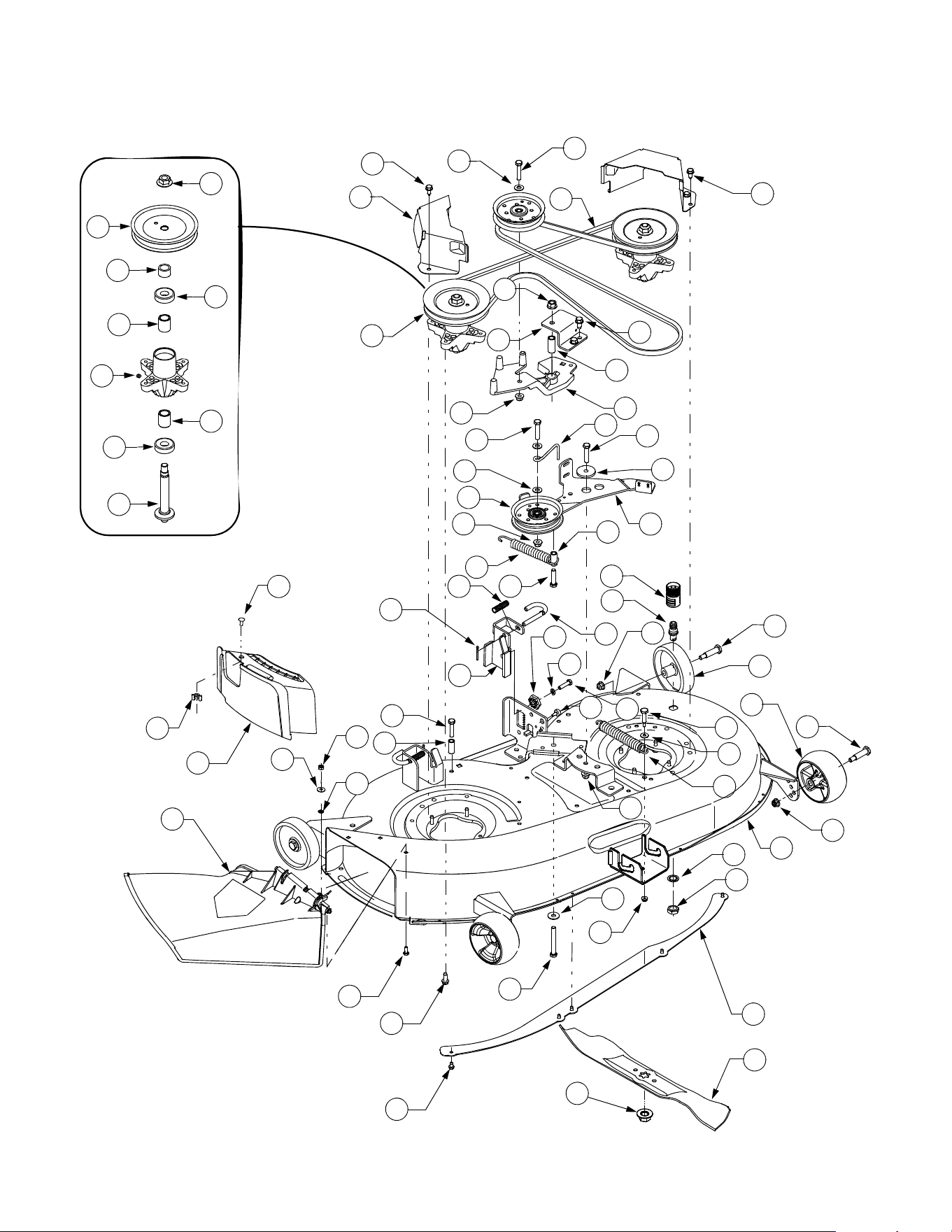

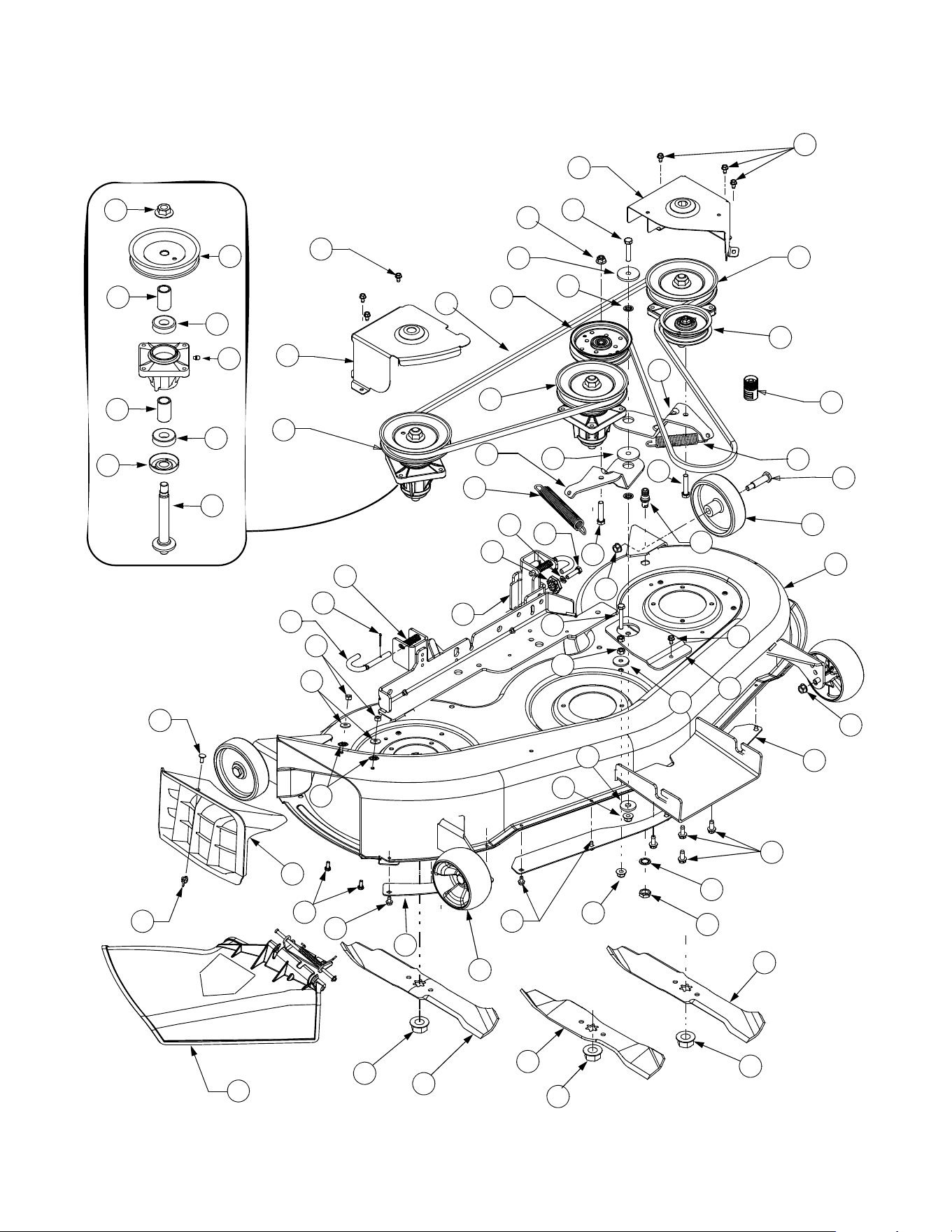

Deck, 42-inch.................................................... 20
Deck, 46-inch.................................................... 22
Deck, 50-inch.................................................... 24
Dash Panel ...................................................... 16
Drive System ................................................... 4

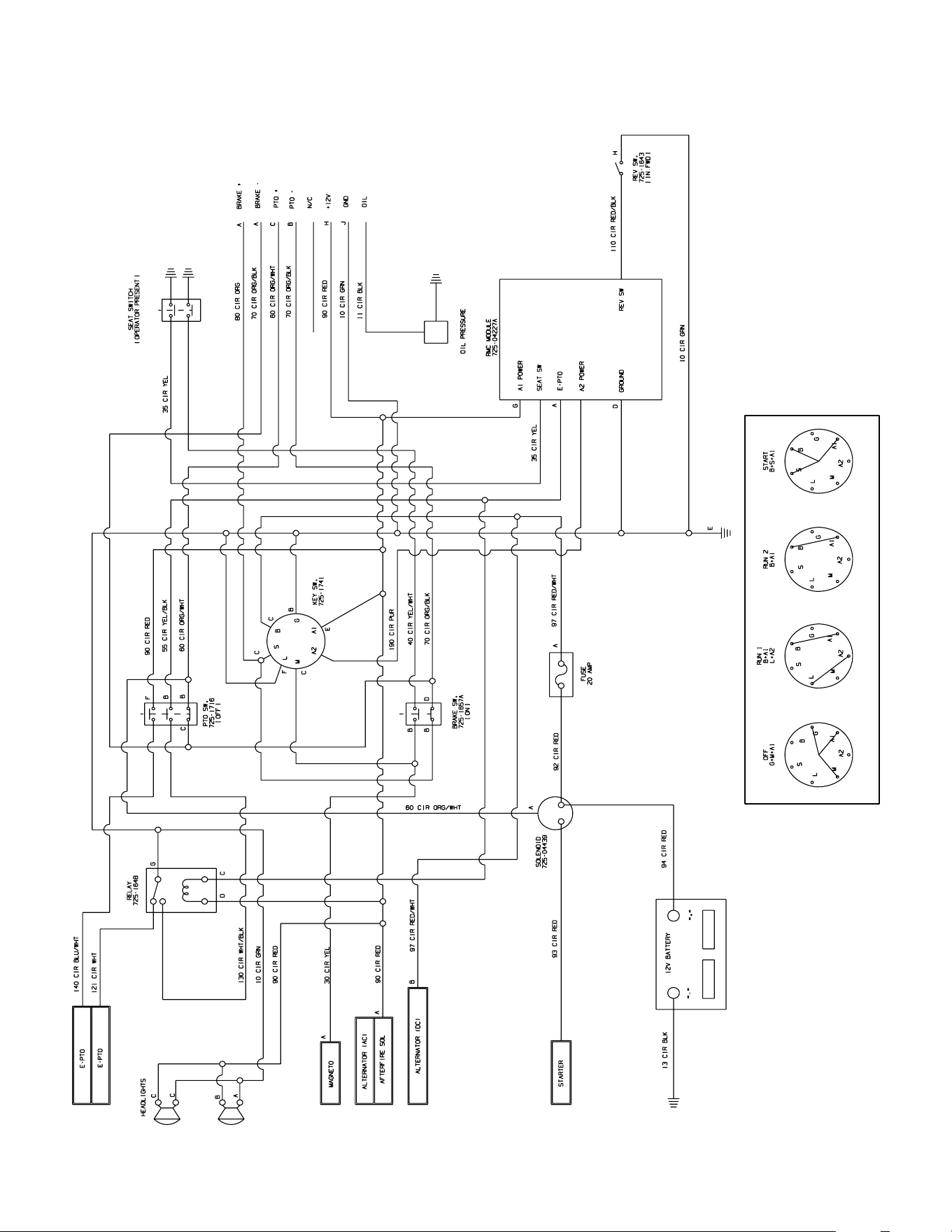

Electrical Schematic ......................................... 46
Engine Accessories ......................................... 15
Fender ............................................................. 10
Frame .............................................................. 8
Fuel Tank ......................................................... 10
Head Lamp ...................................................... 18

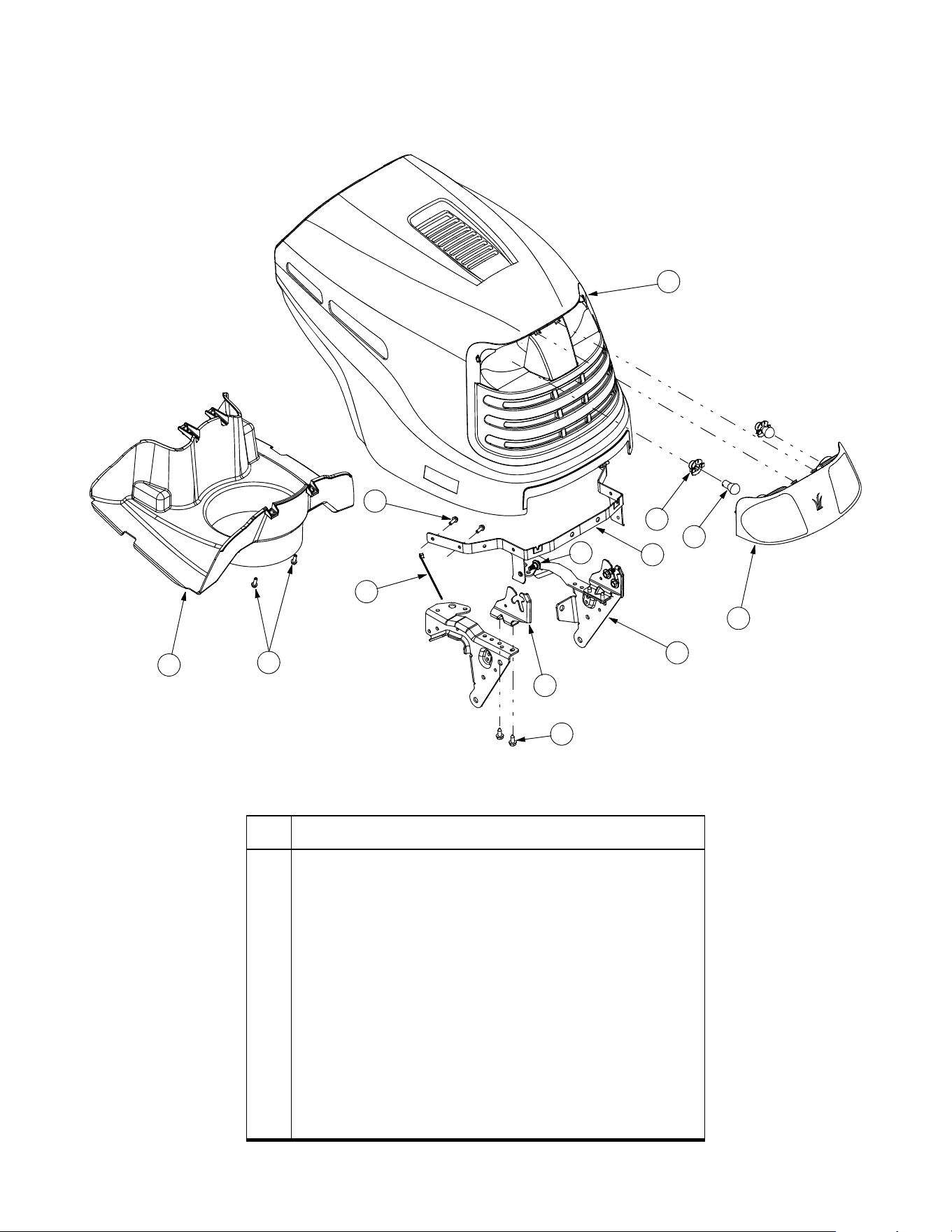

Hood ................................................................ 18
Lift Linkage ...................................................... 11
Muffler .............................................................. 15
PTO ................................................................. 19

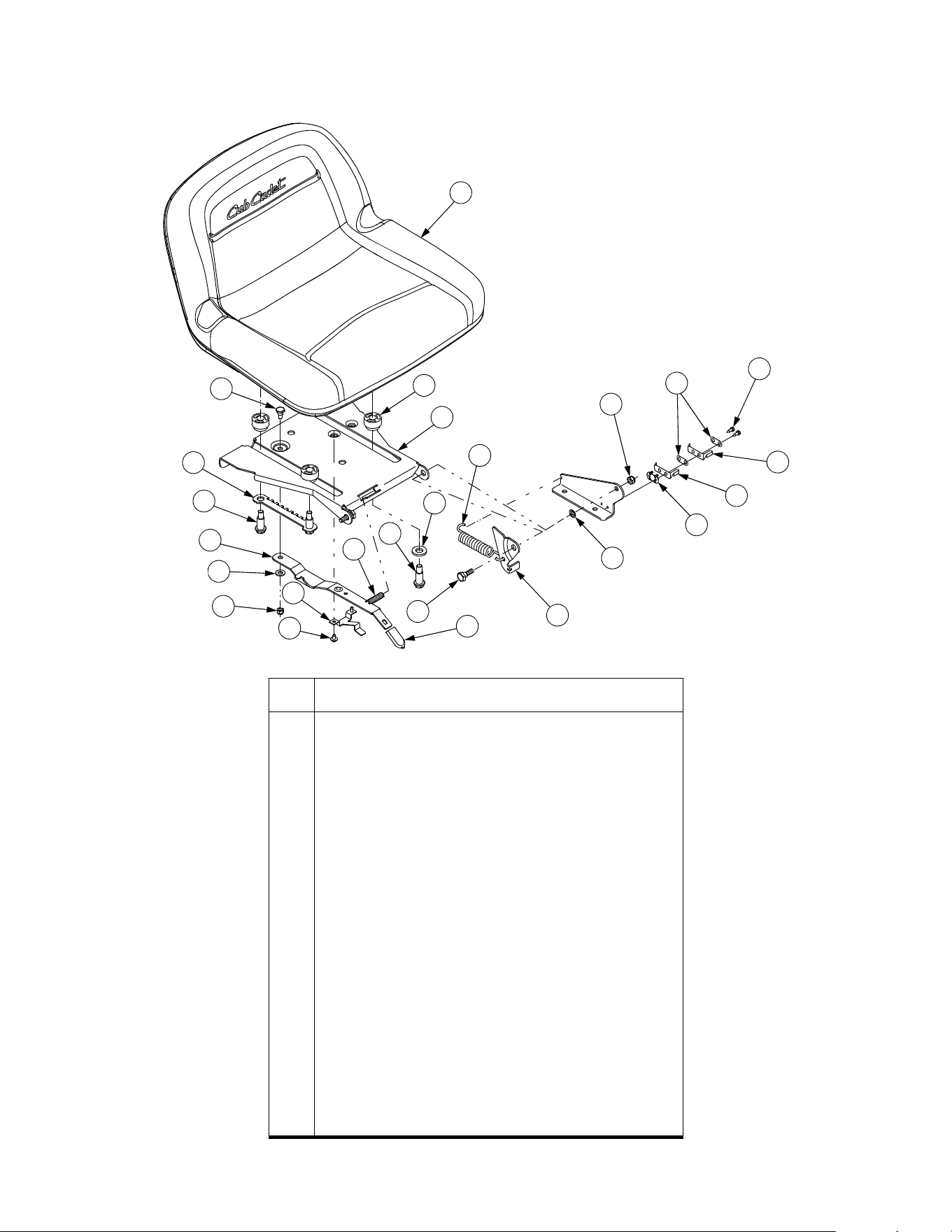

Seat ................................................................. 14
Steering ........................................................... 6

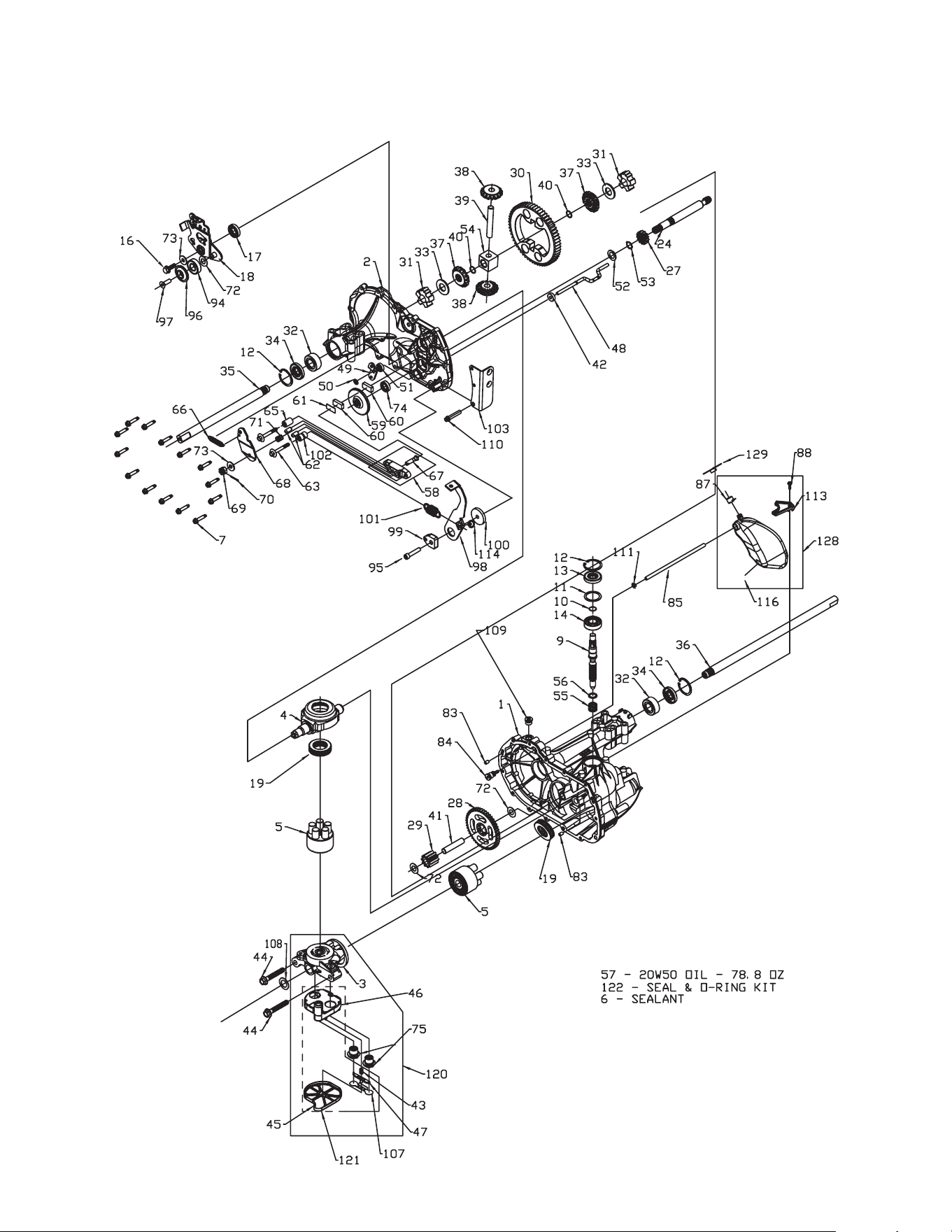

Transmission, Hydrostatic ............................... 26
Wheels, Front & Rear ...................................... 3
Single-Cylinder Engines

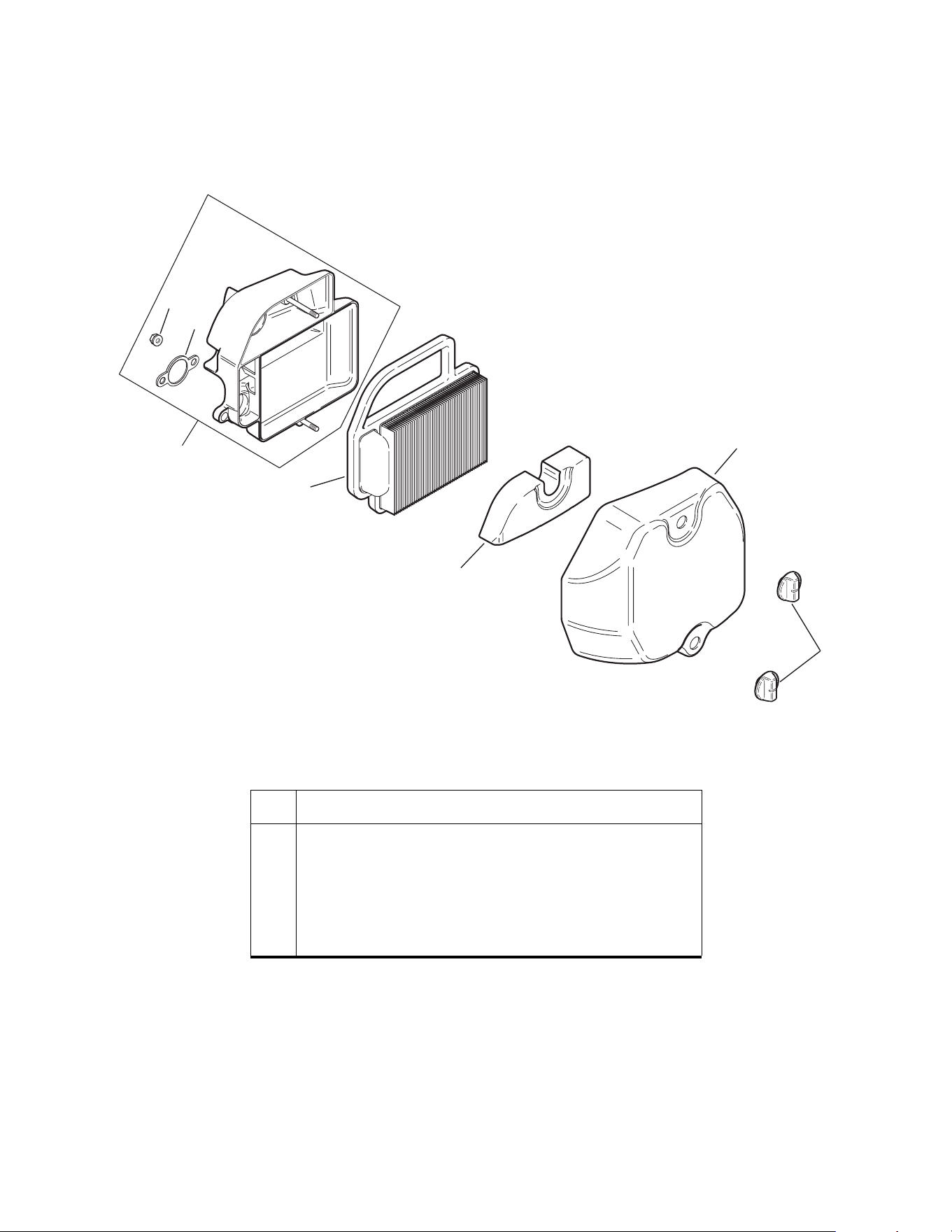

Air Intake/Filtration....................................... 30

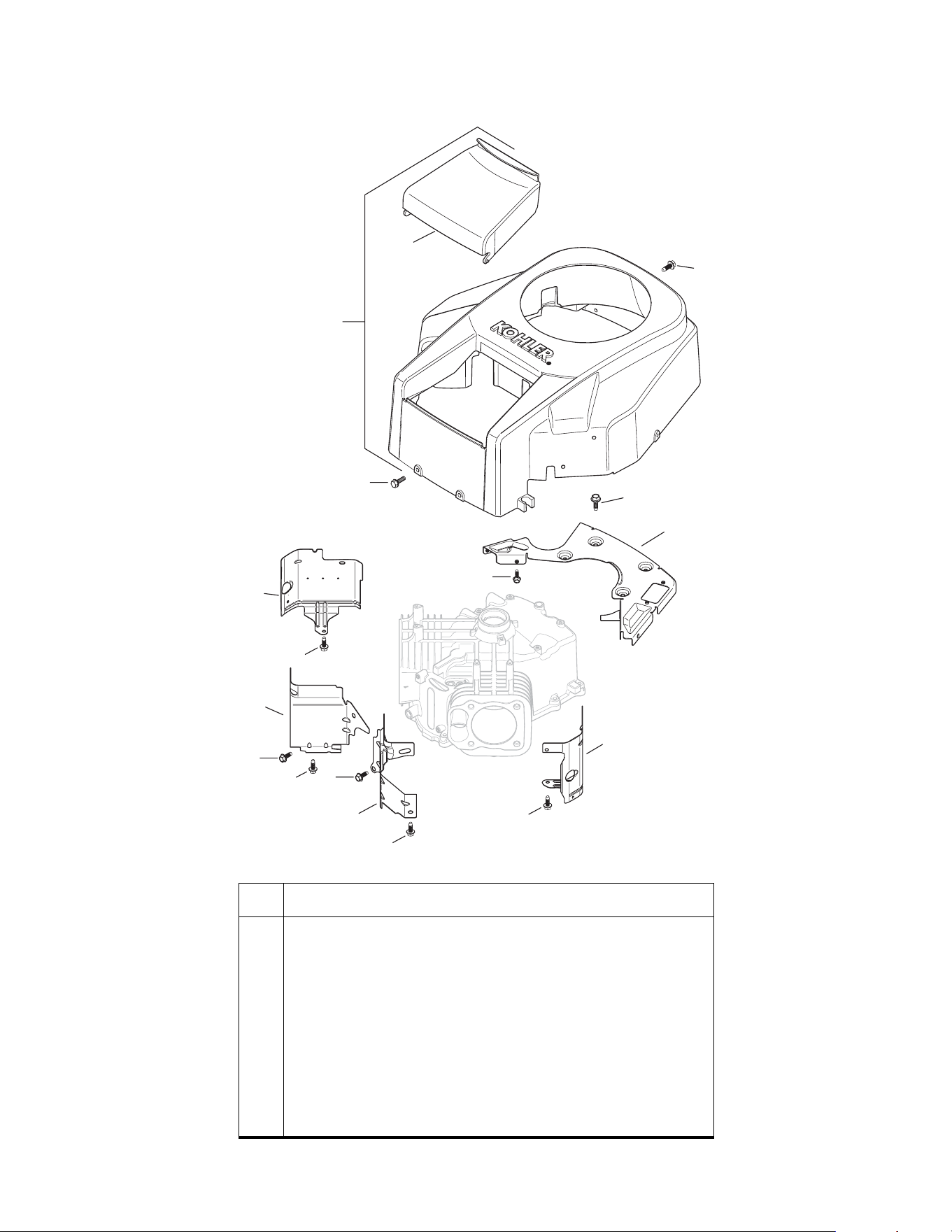

Blower Housing ........................................... 34

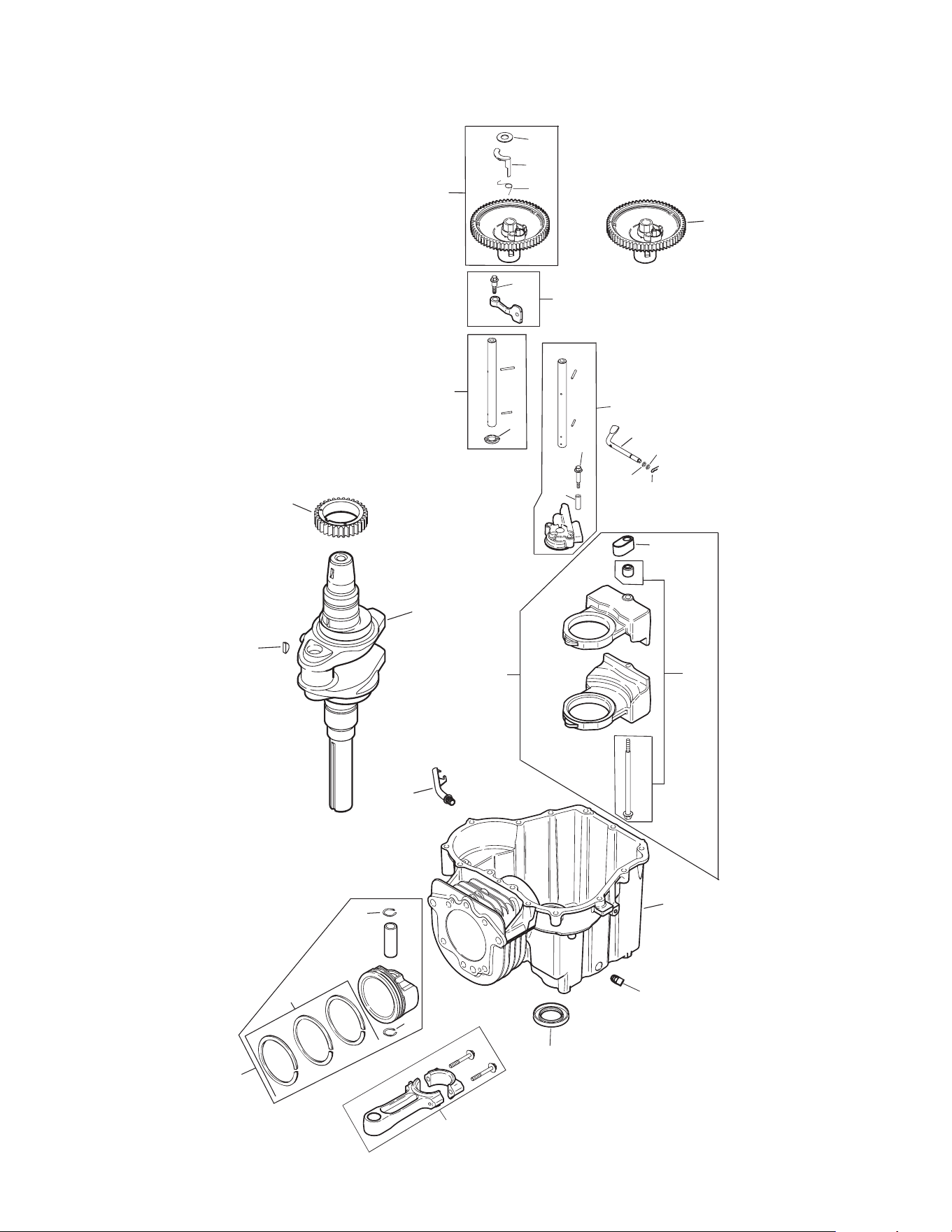

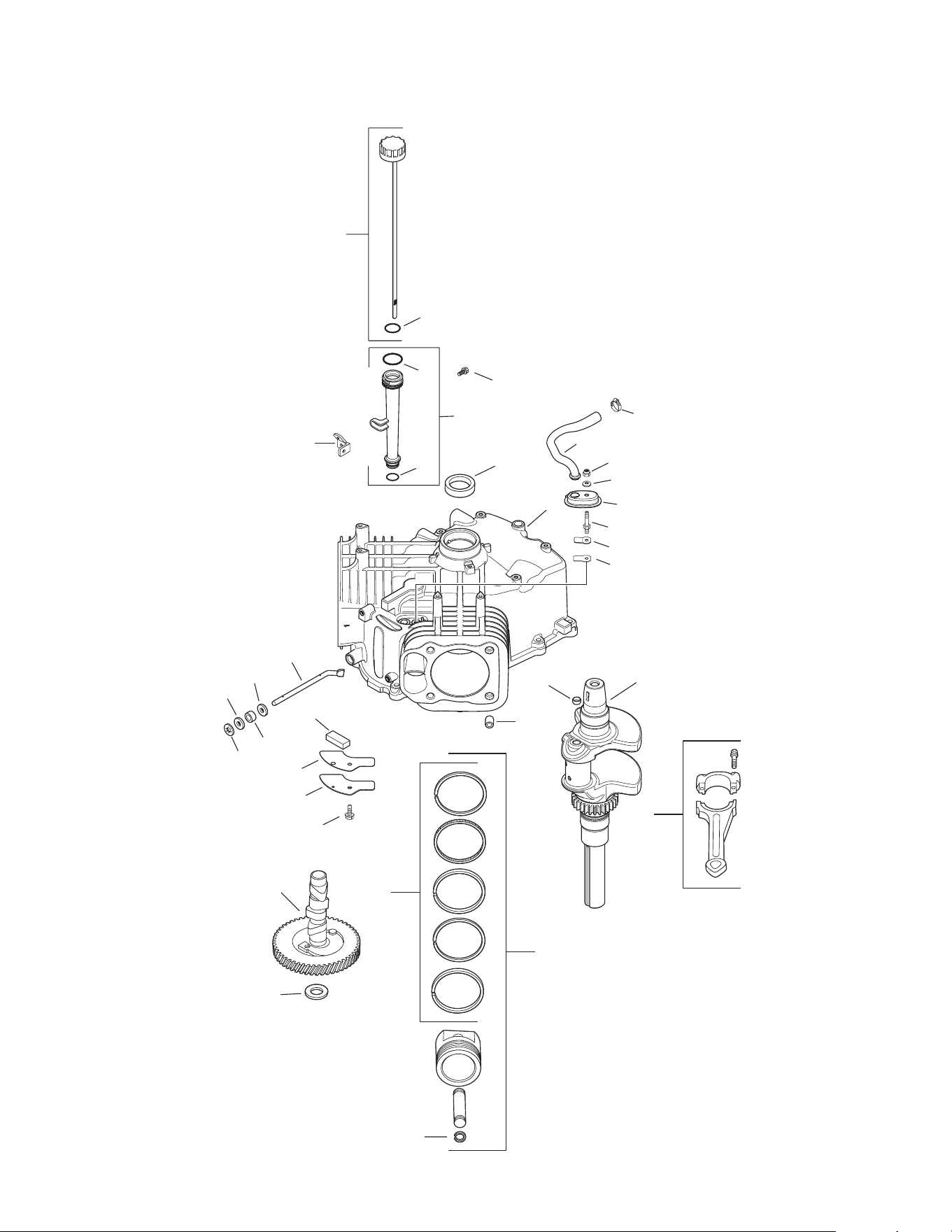

Crankcase ................................................... 28
Cylinder Head.............................................. 31

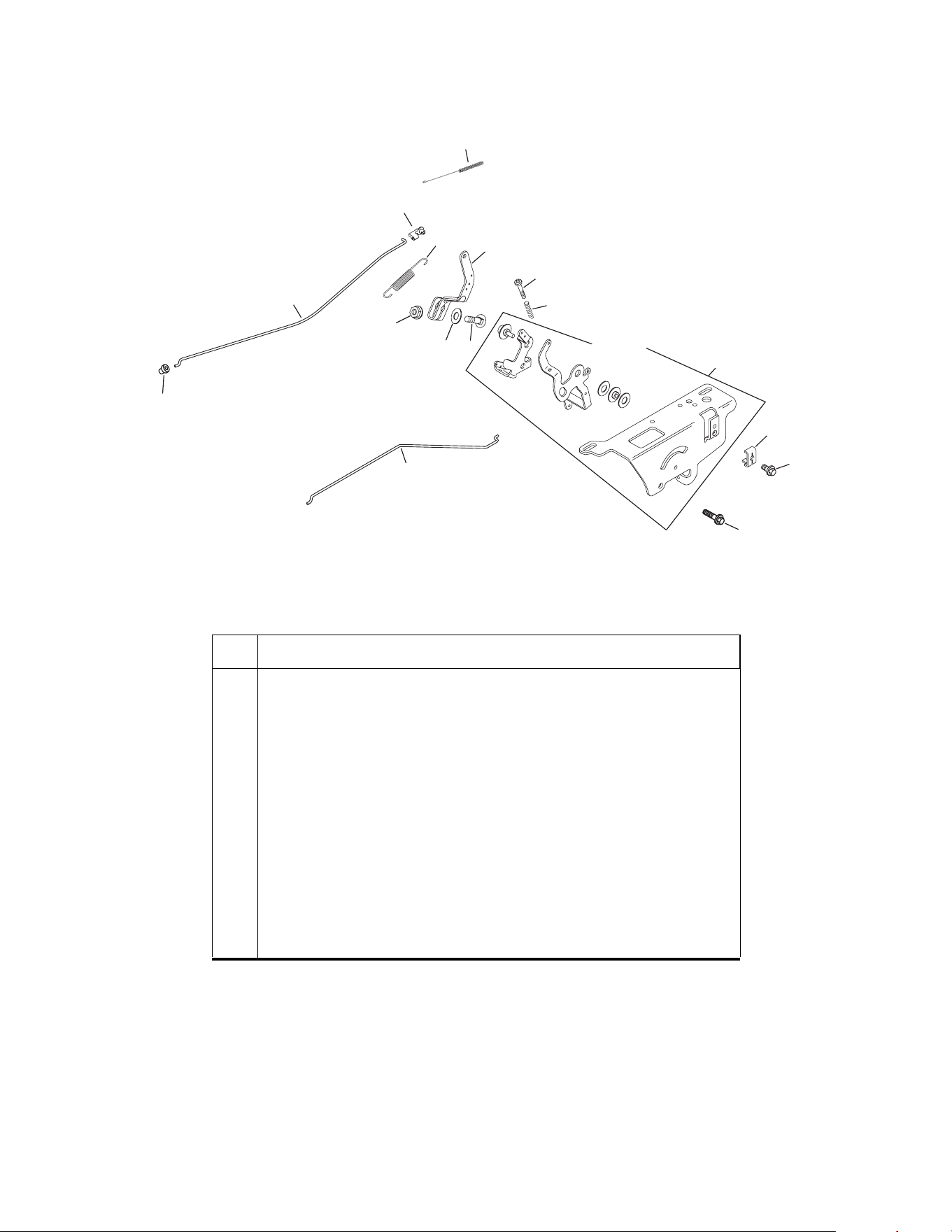

Engine Controls ........................................... 32

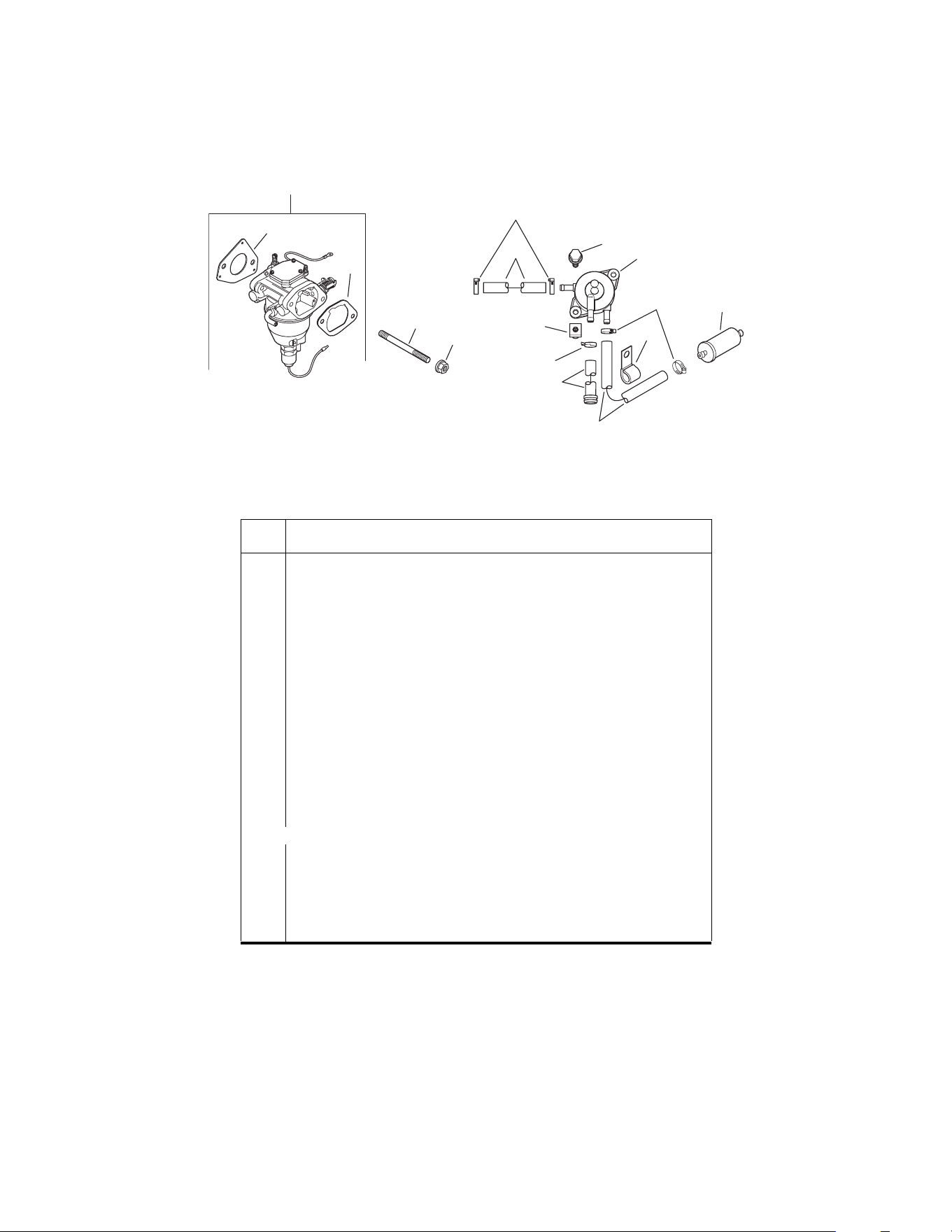

Fuel System................................................. 33

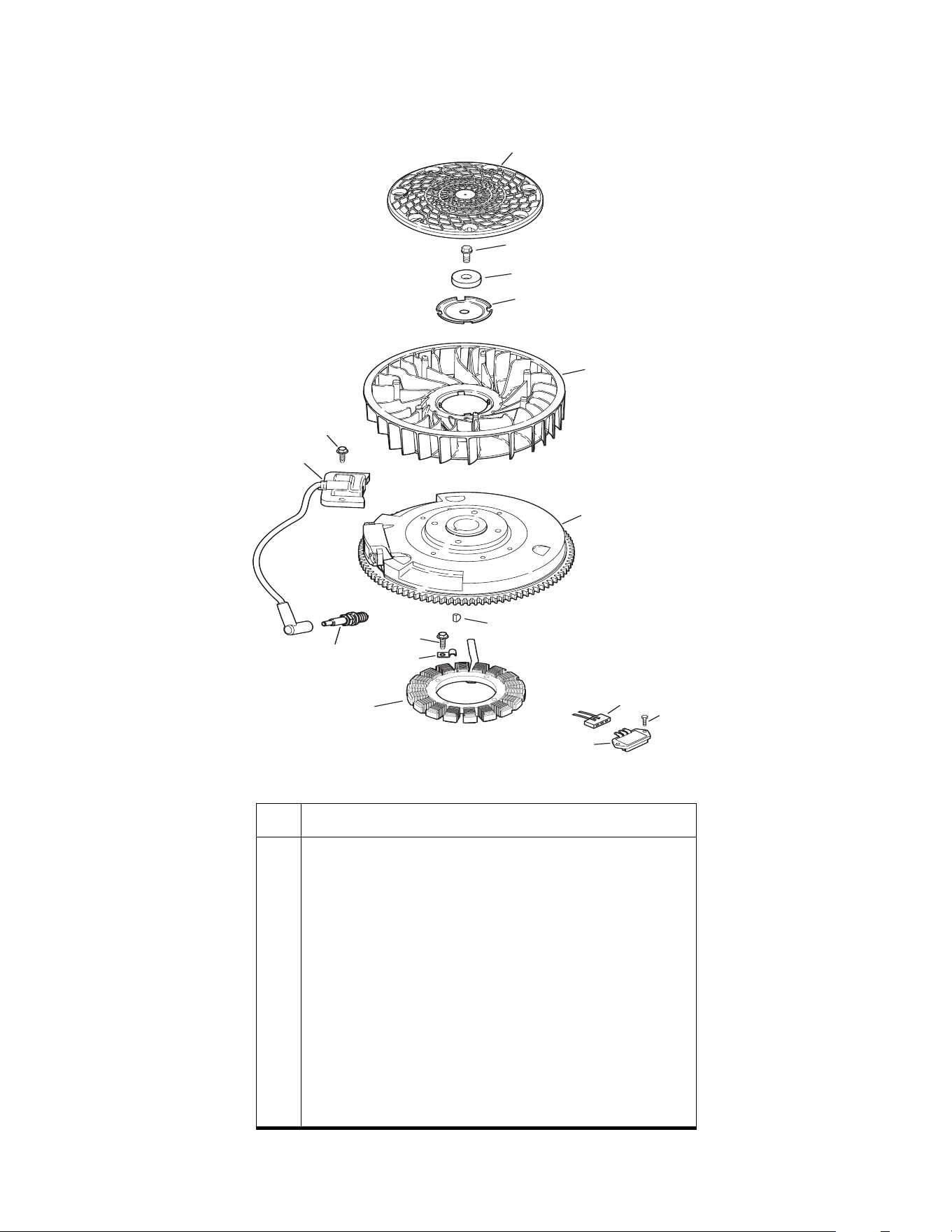

Ignition / Electrical ....................................... 34
Oil Pan / Lubrication .................................... 35

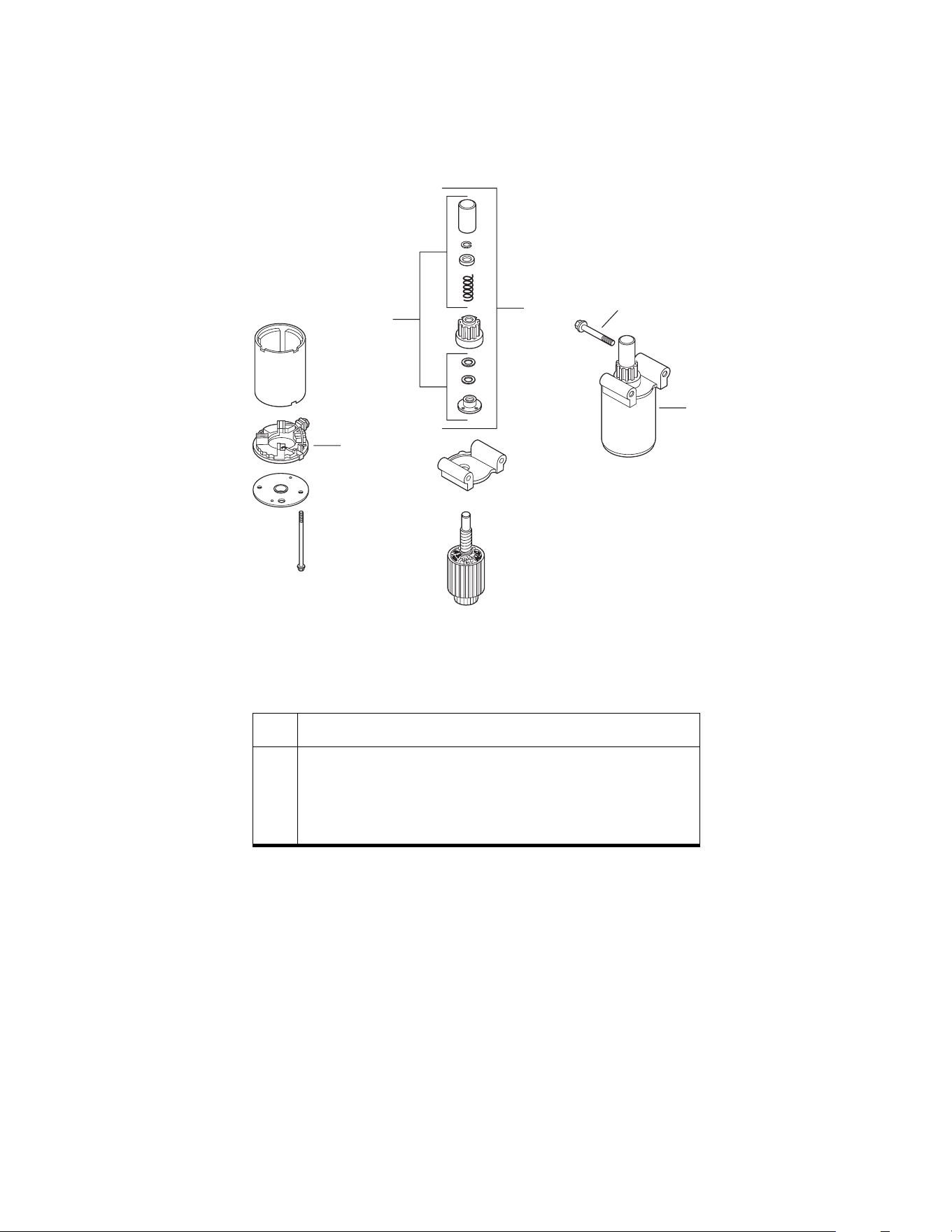

Starting System ........................................... 34
Twin-Cylinder Engines

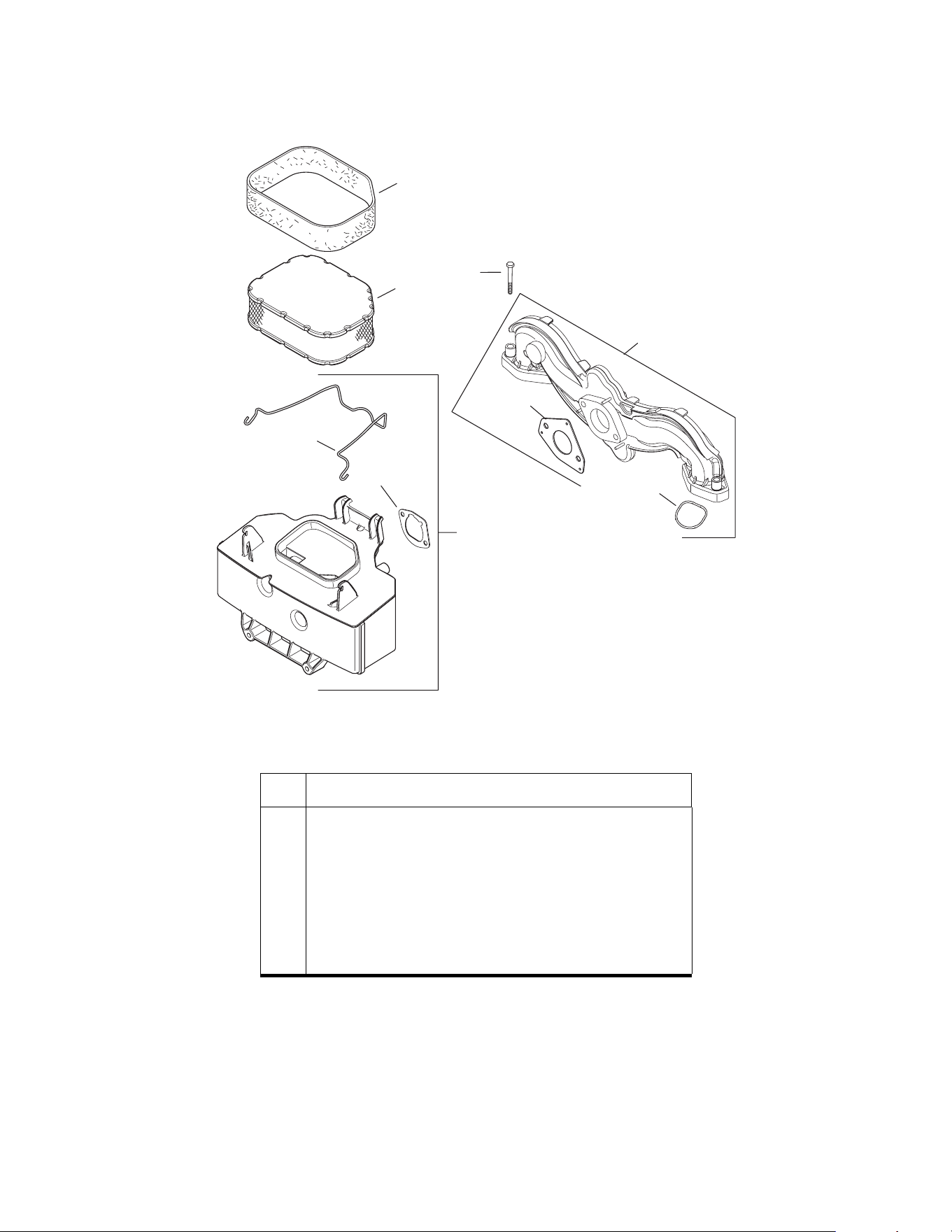

Air Intake/Filtration....................................... 36
Blower Housing ........................................... 37
Crankcase ................................................... 38

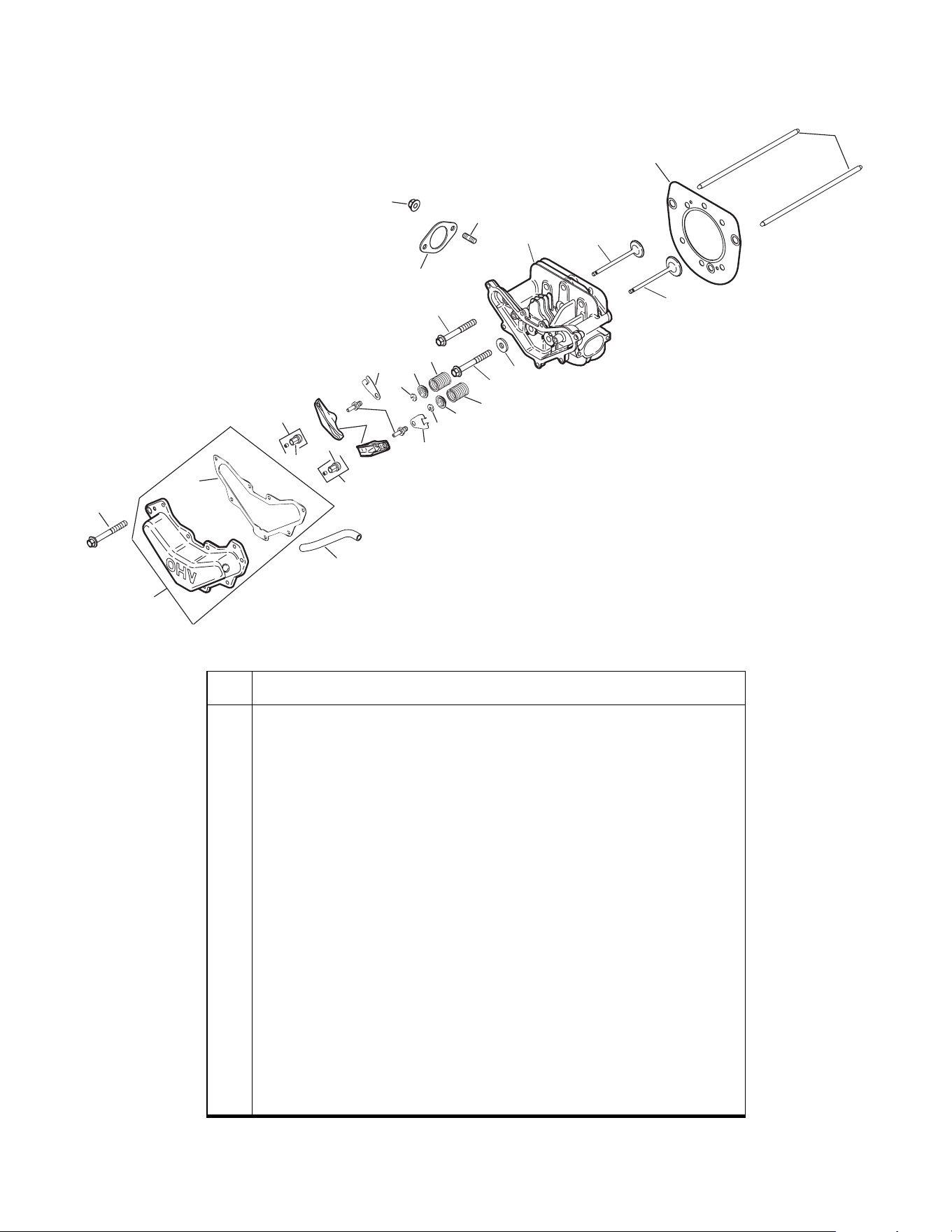

Cylinder Head.............................................. 40
Engine Controls ........................................... 41
Fuel System................................................. 42
Ignition / Electrical ....................................... 43

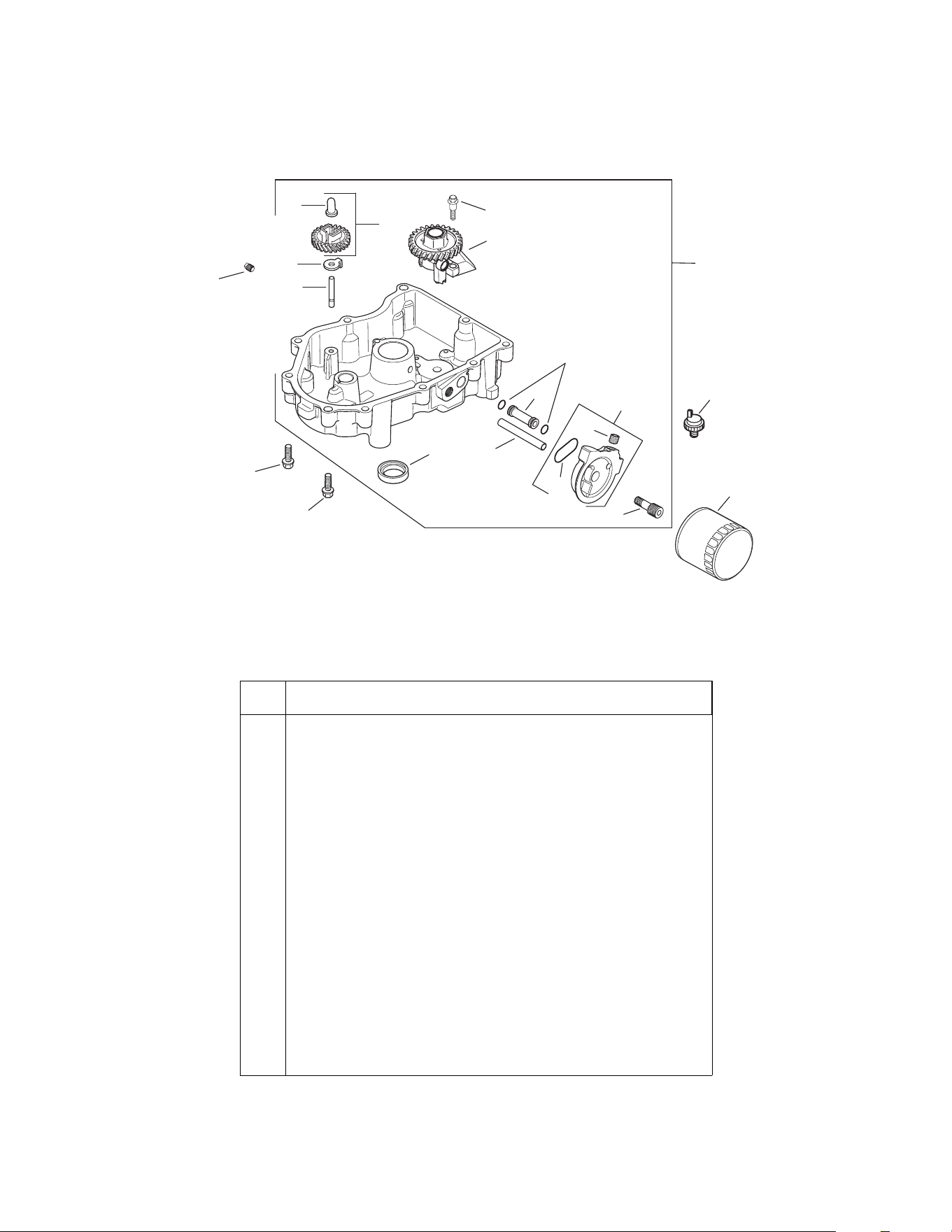

Oil Pan / Lubrication .................................... 44
Starting System ........................................... 45
DESCRIPTION PAGE
SERIES 1000 HYDROSTATIC LAWN TRACTORS
TABLE OF CONTENTS
NOTE, For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part,
numbered 700-xxxx, is painted Cub
Yellow, the part number to order would be
700-xxxx-0716.
Cub Yellow: 0716
Cub Beige: 0499
Powder Black: 0637
3

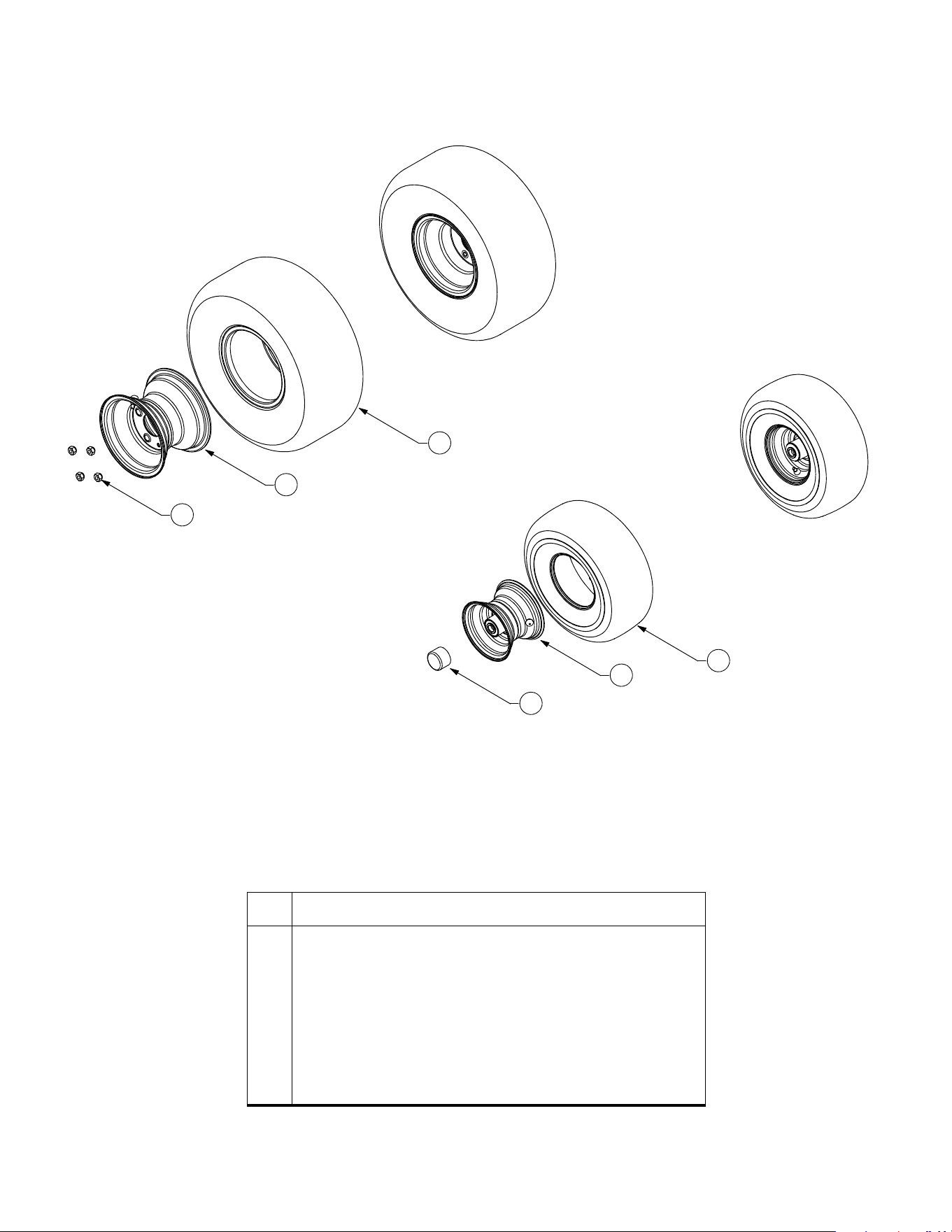

WHEELS
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 734-04139 Tire, Turf, Cub Cadet 20 x 10 x 8 2
2 634-0246A
734-0255
Rim Assembly, 8.0 x 6.19 (4-Lug)
Valve, Tubeless Air
2
2
3 712-3050 Lug Nut, 7/16-14 8
4 734-04140 Tire, Turf, Cub Cadet 15 x 6 x 6 2
5 634-04081
741-04137
734-0255
Rim Assembly, 6 x 4.5 (Includes Flange
Bearings and Valve)
Bearing, Flange
Valve, Tubeless Air
2
4
2
6 731-05674 Hub Cap 2
1
2
3
5
6
4
4

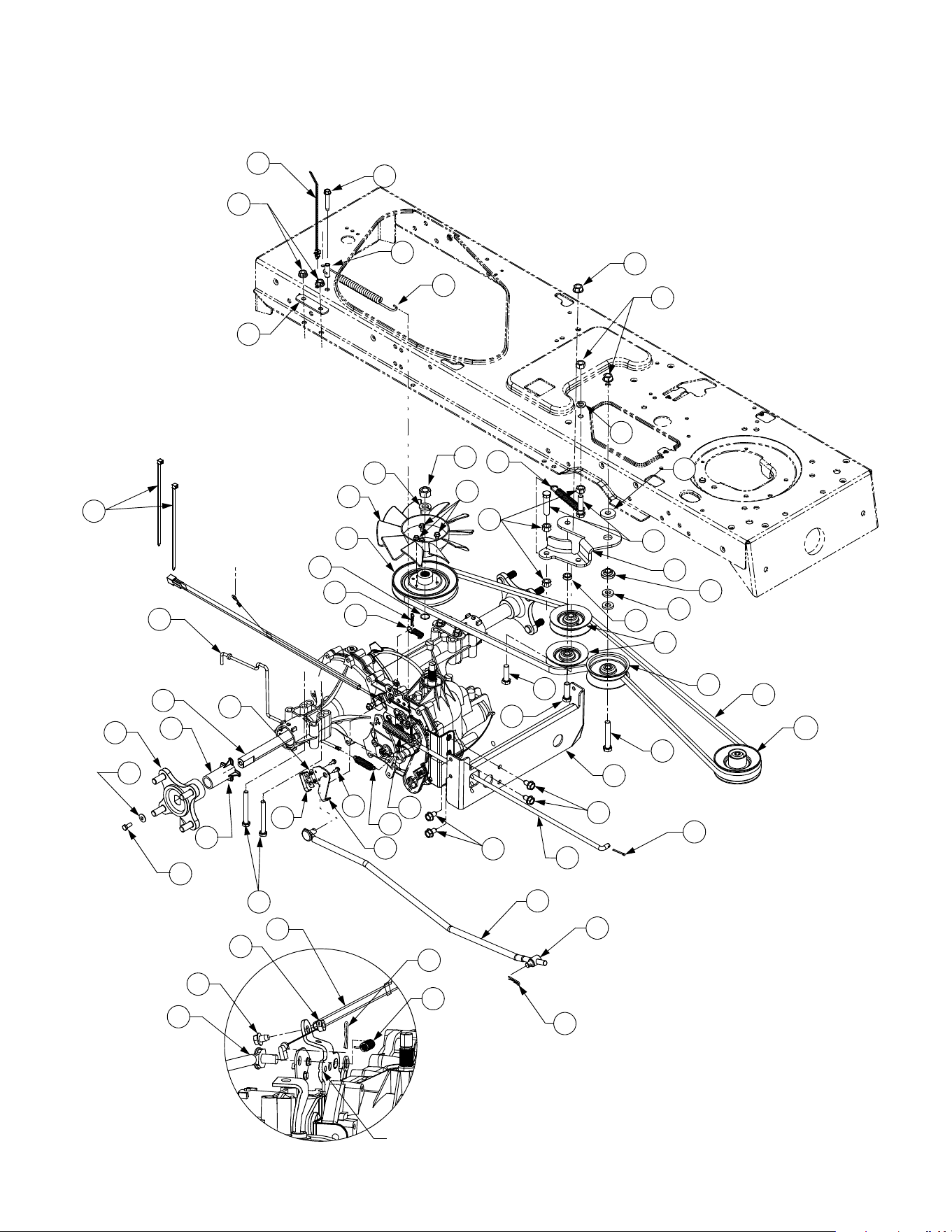

DRIVE SYSTEM
45
16
Attach Spring Here
10
44
36
35
23
51
30
32
26
28
44
43
15
24
50
12
46
48
47
40
41
31
11
38
35
23
33
49
29
17
34
13
20
27
18
18
53
25
19
42
4
6
7
9
9
8
5
2
3
1
A
22
37
38
14
39
B
B
36
52
54
21
A
5
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 17840 Bracket, Mounting, Transaxle 2
2 618-04228 Hub Assembly, Wheel 2
3 618-0319 Transmission, Hydrostatic 1
618-04269A Transmission, Hydrostatic w/ Drain 1
4 629-04124 Harness Assembly, Ground & Reverse 1
5 783-04442 Bracket Assembly, Idler, Center Dbl 1
6 710-1266 Hex Cap Screw, 5/16-18,3.5, Gr5 4
7 710-0227 Screw, #8-18, 0.500 2
8 710-0344 Hex Cap Screw, 3/8-16, 1.50, Gr5 3
9 710-0726 Screw, 5/16-12, 0.75 6
10 710-0599 Screw, 1/4-20, 0.5 1
11 710-3007 Screw, #12-24, 0.375 3
12 710-3011 Hex Cap Screw, 3/8-16, 2.25, Gr5 1
13 710-0778 Hex Cap Screw, 1/4-20, 1.5, Gr5 1
14 710-0627 Hex Cap Screw, 5/16-24 x .750 2
15 711-0832 Ferrule, 3/8-24 x .375 Dia 1
16 712-04064 Nut, Hex Nylon Lock, 1/4-20 1
17 712-3066 Nut, Hex, 1/2-20, Gr5 1
18 712-04065 Nut, Nylon Lock, 3/8-16 4
19 731-05300 Sleeve, 2.4” 2
20 712-04052 Nut, Nylon Lock, 5/16-18, Gr5 5
21 750-0566A Spacer, 1” 1
22 712-3017 Nut, Hex, 3/8-16, Gr8 3
23 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2
24 714-0111 Pin, Cotter, 3/32, 1.0 1
25 725-0157 Cable, Tie, 3/16 x .05 x 7.4 2
26 725-1644 Switch, Spring, Short 1
27 726-0154 Tie, Cable, Push Mount 7.5 Lg 2
28 726-0320 Plate, Insulator Nut 1
29 731-1449A Fan, Blade, 10” 1
30 732-0209 Spring, .48 OD x 2.03 Extension 1
31 732-04323B Spring, Extension, .563 Dia x 3.72 Lg 1
32 732-0716C Spring, Extension, .59 OD x 4.00 Lg 1
33 732-0729 Ring, Wire 1
34 732-0994 Spring, Extension, .500 Dia x 7.0 1
35 732-3118 Spring, Extension, 3/8 OD x 1.44 1
36 710-0502A Screw, 3/8-16, 1.25 1
37 736-0169 Washer, Lock, 3/8, Regular Duty 1
38 736-0921 Washer, Lock, 1/2 1
39 736-0242 Bell Washer 2
40 736-3010 Washer, Flat, .407 x .812 x .135 3
41 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 1
42 747-1149 Rod, Hydro Bypass 1
43 747-04139 Rod, Brake, Hydro 1
44 747-1151 Rod, Control, Hydro 1
45 756-0978B Pulley, Engine 1
46 754-0461 Belt, V Type, Poly 1
47 756-0116A Pulley, Idler, V Type x 3.06 Dia 2
48 756-04224 Pulley, Idler, Flat 2.75 OD 1
49 756-04111 Pulley, Engine, 4.11Dia. 1
50 783-0810B Bracket, Transmission, Torque Hydro 1
51 783-1019B Bracket, Actuator, Switch 1
52 736-0320 Washer, Flat, .38 x 1.92 x .060 1
53 714-0507 Pin, Cotter, 3/32, .750 1
54 750-0535 Spacer, .38 x .625 x .21 1
DRIVE SYSTEM
6

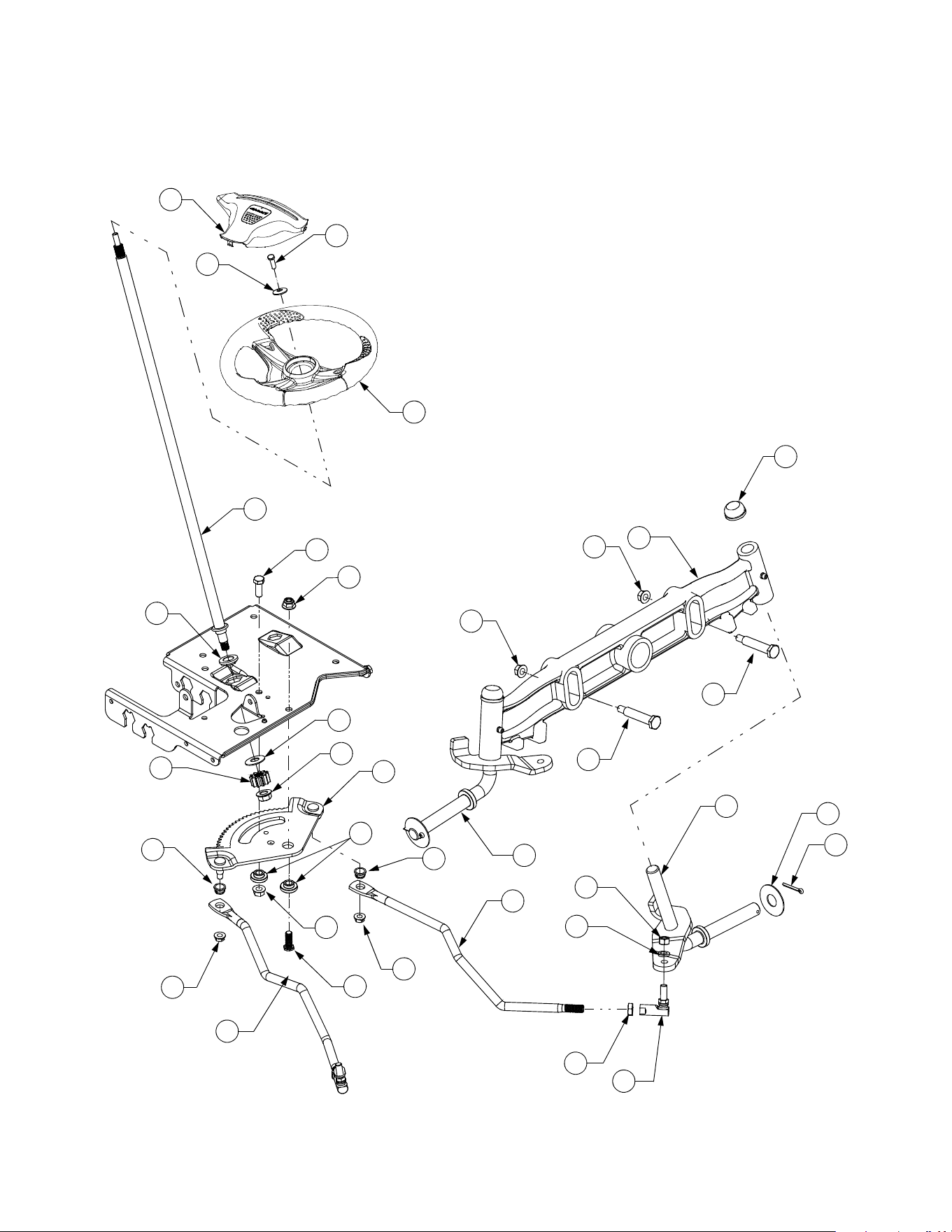

STEERING
18
20
10
19
19
17
15
11
9
8
7
2
9
3
1
13
6
5
12
23
27
21
26
24
7
22
25
14
4
28
16
27
7
7
13
7
STEERING
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 1
2 711-1408 Link, Drag, RH 1
3 711-1409A Link, Drag, LH 1
4 710-1260 Self-tapping Screw, 5/16-18 x .75 1
5 712-0240 Nut, Jam, 7/16-20, Gr2 2
6 712-0214 Nut, Hex, 3/8-24, Gr5 2
7 712-04065 Nut, Nylon Lock, 3/8-16 4
8 712-0459 Nut, Flange Lock, 7/16-20 1
9 712-3004A Nut, Flange Lock, 5/16-18 2
10 717-1550E Gear, Steering, 11/90 Ratio 1
11 717-1554 Gear, Pinion, Steering 1
12 723-0448A Ball Joint, 7/16-20 2
13 710-04095 Hex Cap Screw, 3/8-16, 1.00 1
14 736-3004 Washer, Flat, .406 x .875 x .105 1
15 736-3084 Washer, Flat, .510 x 1.120 x .060 1
16 731-04532A Cover, Steering Wheel 1
17 738-04154 Spacer, Shoulder, 1.00 x .38 x .38 2
18 738-04075 Shaft, Steering, .625 OD x 25.00 Lg 1
19 741-0475 Bushing, Plastic, .380 ID 2
20 741-0656A Bearing, Hex Flange, 5/8 1
21 638-04003A Axle Ass’y, LH .750 Dia (LT1045, LT 1046 & LT 1050) 1
638-04005 Axle Ass’y, LH .750 Dia (LT1042) 1
22 638-04004A Axle Ass’y, RH .750 Dia (LT1045, LT 1046 & LT 1050) 1
638-04006 Axle Ass’y, RH .750 Dia (LT1042) 1
23 726-0341 Push Cap, .75 2
24 714-04039 Pin, Cotter, 5/32, 1.25 2
25 719-04105 Axle, Pivot, Cast .750 Dia 1
26 736-0866 Washer, Flat, .755 x 1.92 x.060 2
27 738-1011A Screw, Shoulder, .500 x 2.230, 3/8-16 2
28 631-04008A Wheel, Steering, Three Spoke 1
8

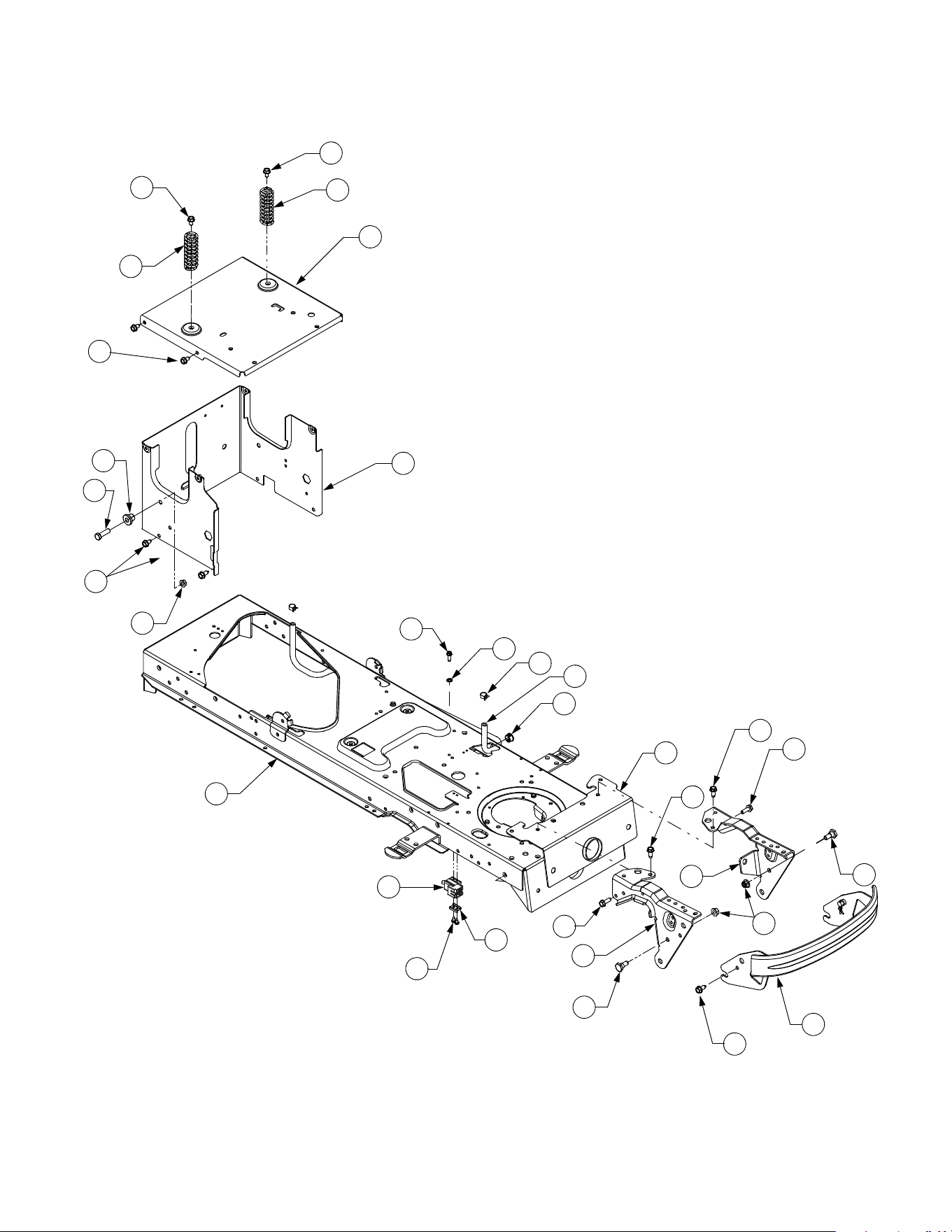

FRAME
13
13
16
18
14
19
17
17
20
21
5
5
7
2
9
3
8
1
4
22
23
9
12
24
11
6
8
8
8
8
8
5
9
FRAME
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 17962 Plate, Switch 1
2 683-04173B Frame Assembly, Lower 1
3 683-04238 Bumper Assembly 1
4 710-0224 Screw, Hex Head, 10-16 x .5 2
5 710-0726 Screw, Self-tapping, 5/16-18, 0.75 7
6 726-0205 Clamp, Hose, .490 Dia. 2
7 710-1652 Screw, Hex Wash. Hd. Tapp, 1/4-20 x 0.625 1
8 710-1260A Screw, Self-tapping, 5/16-12, 0.75 6
9 712-04065 Nut, Nylon Lock, 3/8-16 2
10 710-0607 Screw, Hex Wash. Tapp, 5/16-18 x .5 1
11 751-10349 Fuel Line, Low Permeation, 29” 1
12 741-04092 Snap Bushing 1
13 732-04035 Spring, Compression, 1.28 OD x 3.125 2
14 736-0222 Washer, Lock, Ext 1/4 2
16 738-04058 Shoulder Spacer 2
17 738-0143 Shoulder Screw, 3/8-16 2
18 710-3005 Hex Screw 3/8-16 x 1.25 2
19 783-0726E Bracket, Pivot, Support RH 1
20 783-0727D Bracket, Pivot, Support LH 1
21 783-0728B Bracket, Pivot, Bar 1
22 783-04810D Frame, Upper 1
23 783-04746 Bracket, Frame, Seat 1
24 725-04039 Switch, Interlock 1
10

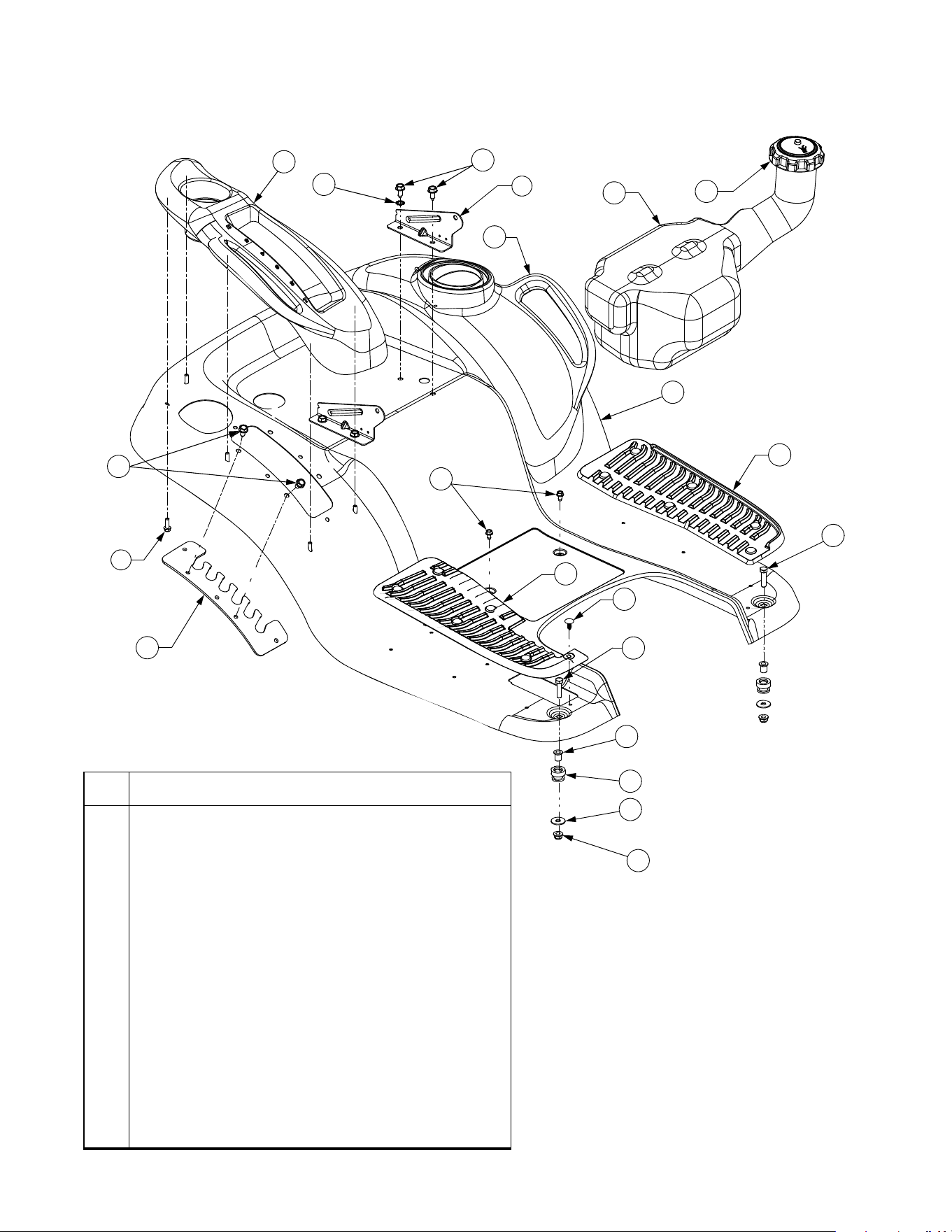

FENDER & FUEL TANK
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-0528 Screw, 5/16-18 x 1.25 2
2 710-0406A Screw, 5/16-12, 0.625 6
3 710-0895 Screw, 1/4-15, 0.750 9
4 712-04063 Nut, Nylon Lock, 5/16-18 2
5 731-2616A Cover, Fender, RH 1
6 731-2617 Cover, Fender, LH 1
7 736-3078 Washer, Flat, .349 x 1.00 x .063 2
8 783-0677B Bracket, Lift, Adjustment 1
9 783-1489C Bracket, Seat, Mount 2
10 783-04477A Fender 1
11 726-3046 Clip, Ratchet, .250 Dia 12
12 735-0697A Pad, Foot, LH 1
13 735-0698B Pad, Foot, RH 1
14 751-0819B Tank, Fuel 1
15 751-3124D Cap, Fuel 1
16 710-0599 Screw, Self-tapping, 1/4-20, 0.500 2
17 736-0607 Washer, Lock, 5/16 External Tooth 1
18 735-0690 Grommet 2
19 750-3310 Flange Spacer, .3125 x .4375 x .625 2
10
12
11
5
2
3
8
1
1
7
4
6
2
9
15
14
13
16
17
19
18
11

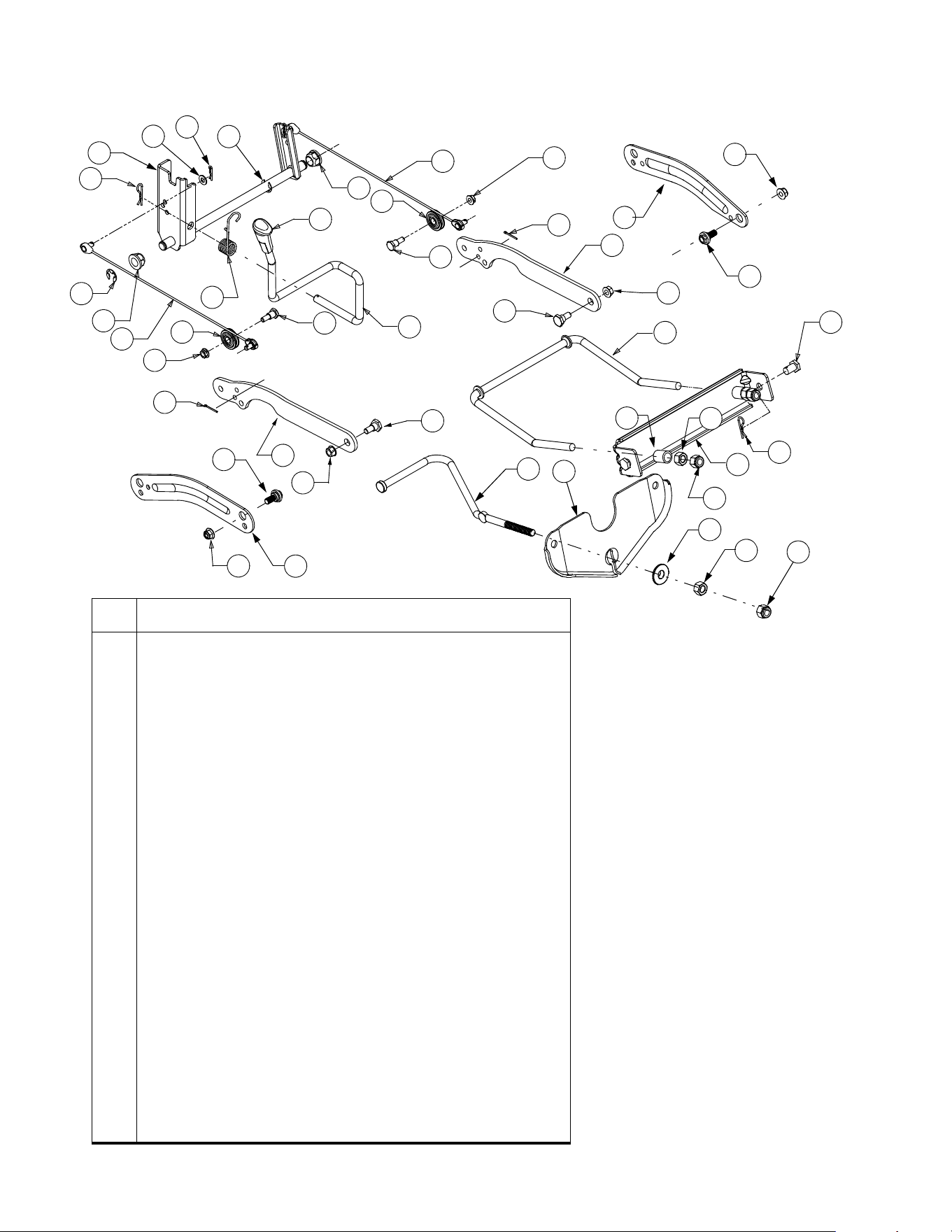

LIFT ASSEMBLY
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 683-04223 Shaft Assembly, Lift 1
2 711-0332 Pin, Clevis, .50 Dia x .78 Lg 2
3 783-0720A Bracket, Deck (46- and 50-inch Decks) 1
4 712-04065 Nut, Nylon Lock, 3/8-16 2
5 712-04063 Nut, Nylon Lock, 5/16-18, Gr5 2
6 712-3083
Nut, Hex Lock, 1/2-13, Gr8, Nylon 2
7 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2
8 714-0111 Pin, Cotter, 3/32, 1.0 2
9 714-04023 Pin, Click, .092 x 1.64 Lg 2
10 716-0106A E-ring, .625 Dia. Shaft 2
11 720-0311 Grip, Handle 1
12 732-0874 Spring, Torsion 1
18 738-0138A Screw, Hex Cap, 5/16-18x.620 Gr2 2
19 738-0143 Shoulder Screw, 3/8-16 2
20 741-0225
Bearing, Hex Flange 2
22 746-0968 Cable, Lift, 16.16 Lg 2
23 747-04447 Handle, Lift 1
24 747-1130B Rod, Deck .5" Dia. (46-inch Decks) 1
747-1324 Rod, Deck .5" Dia. (50-inch Decks) 1
25 756-1154 Pulley, Roller 2
26 783-0678B Arm, Lift (46- and 50-inch Decks) 2
27 783-04568 Hanger Bracket, Deck (42-inch Decks) 1
28 747-04269A Rod, Deck, .448" Dia. (42-inch Decks) 1
29 783-04494 RH Arm, Lift (42-inch Deck) 1
30 783-04711 LH Arm, Lift (42-inch Deck) 1
31 748-04069 Pivot Cup 1
32 712-0206 Nut, Hex, 1/2-13 2
33 738-04130 Shoulder Screw, 3/8-16 2
34 750-0151 Spacer, .55 x .75 x 1.125 (50-inch Decks) 2
5
8
4
4
8
5
9
1
7
22
20
25
11
18
23
18
14
10
12
25
22
20
10
26
19
24
2
9
6
B
B
A
A
3
27
26
29
30
28
6
31
32
32
19
33
4
33
4
34
12
PEDAL ASSEMBLY
10
11
10
25
26
19
23
10
12
27
17
13
21
23
19
11
24
14
10
22
24
7
8
2
9
1
3
4
4
16
18
15
6
5
20
10
13
PEDAL ASSEMBLY
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 647-04100 Control Assembly, Brake 1
2 647-0049A Control Assembly, Hydro 1
3 710-0726 Screw, Self-tapping, 5/16-12, 0.75 4
4 710-1260A Screw, Self-tapping, 5/16-18, 0.75 1
5 736-0119 Washer, Lock, 5/16 1
6 783-04641 Pedal, Brake 1
7 711-04159B Pin, 3/8-16, 3/8 x 2.68 1
8 712-04065 Nut, Nylon Lock, 3/8-16 2
9 712-3004A Nut, Flange Lock, 5/16-18, Gr5 1
10 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 5
11 714-0111 Pin, Cotter, 3/32, 1.0 2
12 719-0584B Pedal, Hydro Control 1
13 732-0335 Spring, Compression, .405 x 1.17 1
14 732-0955 Spring, Extension, .50 OD x 1.41 Lg 1
15 732-0963 Spring, Extension, .50 Dia x 6.37 Lg 1
16 735-3049A Pad, Brake, Control 1
17 783-0663E Bracket, Lockout, Hydro 1
18 783-04612 Bracket, Support, Stearing 1
19 736-0187 Washer, Flat .64 x 1.24 x .06 2
20 736-0262 Washer, Flat, .385 x .870 x .092 1
21 738-0155 Shoulder, Screw .437 1
22 738-0380 Shoulder, Screw 3/8-16 1
23 741-0225 Bearing, Hex Flange 2
24 741-3065B Bearing, Hex Flange, .628 ID, Split 2
25 747-04096 Rod, Control, Cruise 1
26 747-04093A Rod, Control, Brake Lock 1
27 748-04039C Latch, Cruise 1
14
ADJUSTABLE SEAT
22
23
24
6
18
15
9
14
8
2
3
4
13
1
17
12
7
10
11
15
21
20
16
19
5
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 783-0739A Lever, Seat, Adjustment 1
2 710-1268 Screw, #10-16, 0.375 2
3 712-04063 Nut, Nylon Lock, 5/16-18, Gr5 2
4 712-04064 Nut, Nylon Lock, 1/4-20 GrF 1
5 720-0433 Grip, Seat, Adjustment (Yellow) 1
6 726-0201 Nut, Speed, .3125 ID 2
7 731-04074 Spacer, Seat, Adjustment 4
8 732-0499 Spring, Compression .41 x 1.50 1
9 732-1184 Spring, Extension, .80 Dia x 4.6 1
10 783-0738D Bracket, Seat Pivot 1
11 757-04053 Seat, Cub Cadet, High Back 1
12 783-0753 Selector, Seat, Adjustment 1
13 736-0204 Washer, Flat, .344 x ..620 x .033 1
14 736-3019 Washer, Flat, .531 x 1.062 x .134 2
15 738-0137A Screw, Shlder, .340 x .285, 1/4-20 1
16 738-0296 Shoulder, Screw .437 x .286 Lg 2
17 738-0966A Screw, Shoulder, .50 x.925, 3/8-16 4
18 783-0209D LH Bracket, Seat Lift 1
19 783-0611 Stop, Seat, Adjustment 1
20 710-0227 Screw, #8-18 x .50 2
21 726-0279 Plate, Insulator 2
22 725-1303 Spring Switch, Outer 1
23 725-1439 Spring Switch, Inner 1
24 726-0278 Plate, Insulator Boss 1
15

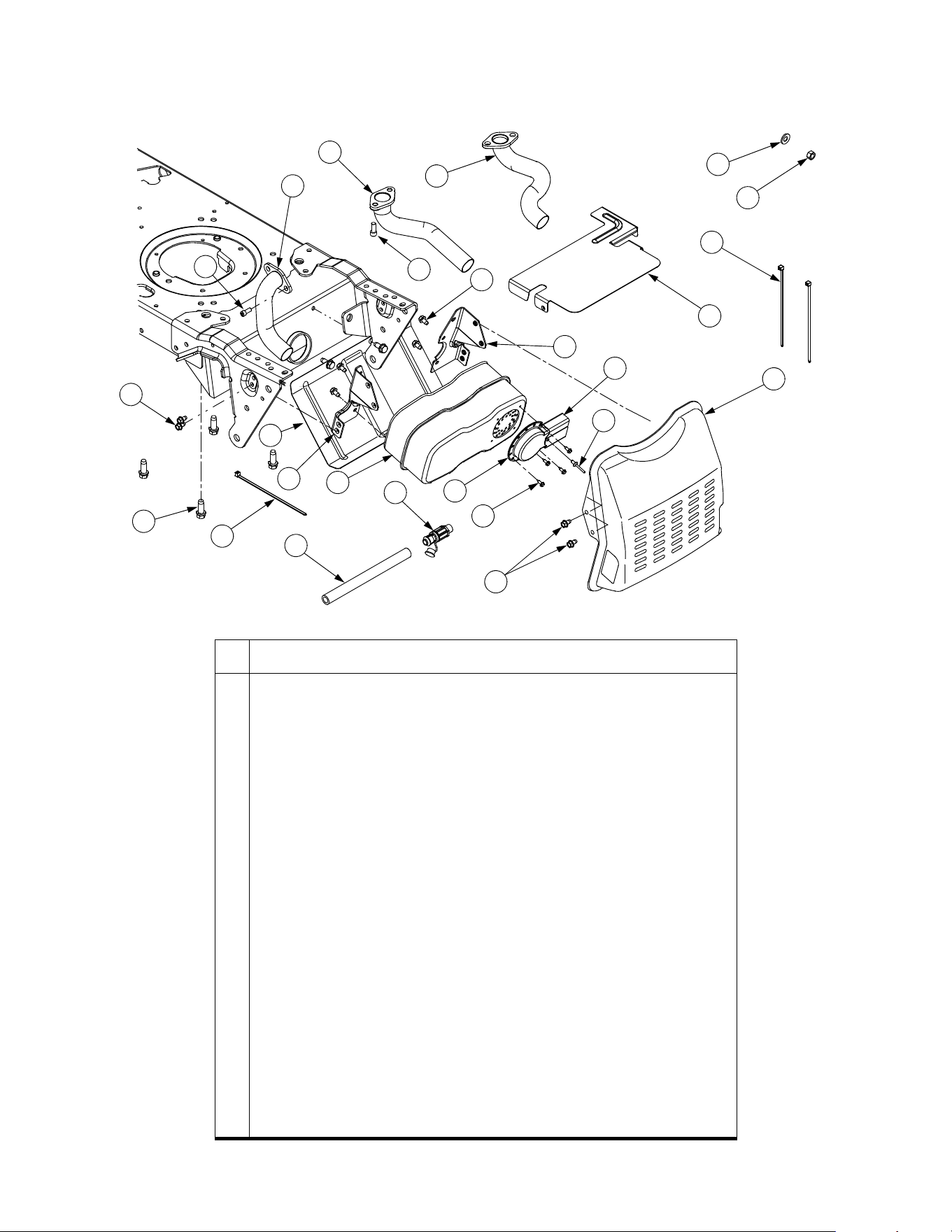

ENGINE ACCESSORIES
1
23
10
21
4
13
6
17
2
6
15
14
9
8
18
19
5
22
2
12
12
20
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-0227 Screw, #8-18, 0.500 4
2 710-0599 Screw, Hex, 1/4-20, 0.500 8
3 710-0726 Screw, Hex, 5/16-12 x .75 2
4 710-0654A Screw, Hex, 3/8-16 x 1.00 (LT1042 & LT1045) 4
710-1315 Screw, Hex, 3/8-16 x 1.25 (LT1046 & LT1050) 4
5 751-0617A Muffler, Single Inlet (LT1042 & LT1045) 1
751-0805 Muffler, Dual Inlet (LT1046 & LT1050) 1
6 725-0157 Cable, Tie, 3/16 x .05 x 7.4 2
7 712-3004A Nut, Flange Lock, 5/16-18 (LT1046 & LT1050) 2
8 712-3005 Hex Flange Nut, 3/8-16 (LT1046 & LT1050) 1
9 736-0300 Lock Washer,.406 x.875 x.059 (LT1046 & LT1050) 1
10 751-0564A Deflector, Muffler 1
11 783-04573 Muffler Bracket, LH 1
12 783-04574 Muffler Bracket, RH 1
13 751-10017 Pipe, Exhaust (LT1042 & LT1045) 1
14 751-10517 Drain, Oil 1
15 751-3141 Extension Hose, Oil Drain 1
16 783-05410 Heat Shield, Lower 1
17 783-04256 Shield, Muffler (LT1046 & LT1050) 1
18 751-10007 Pipe, Exhaust, LH (LT1046 & LT1050) 1
19 751-10006 Pipe, Exhaust, RH (LT1046 & LT1050) 1
20 783-04783 Heat Shield, Upper (LT1046 & LT1050) 1
21 728-04000 Rivet, Pop, .188 x .325 1
22 710-0642 Screw, Hex, 1/4-20, 0.750 4
23 751-10353 Extension, Deflector 1
24 710-1314A Screw, 5/16-18, 0.75 2
16
24
24
16
DASH PANEL
6
11
7
20
15
8
9
19
18
3
17
25
10
26
16
31
34
3
3
7
36
35
2
3
1
12
13
21
24
27
28
29
4
22
30
23
14
7
17

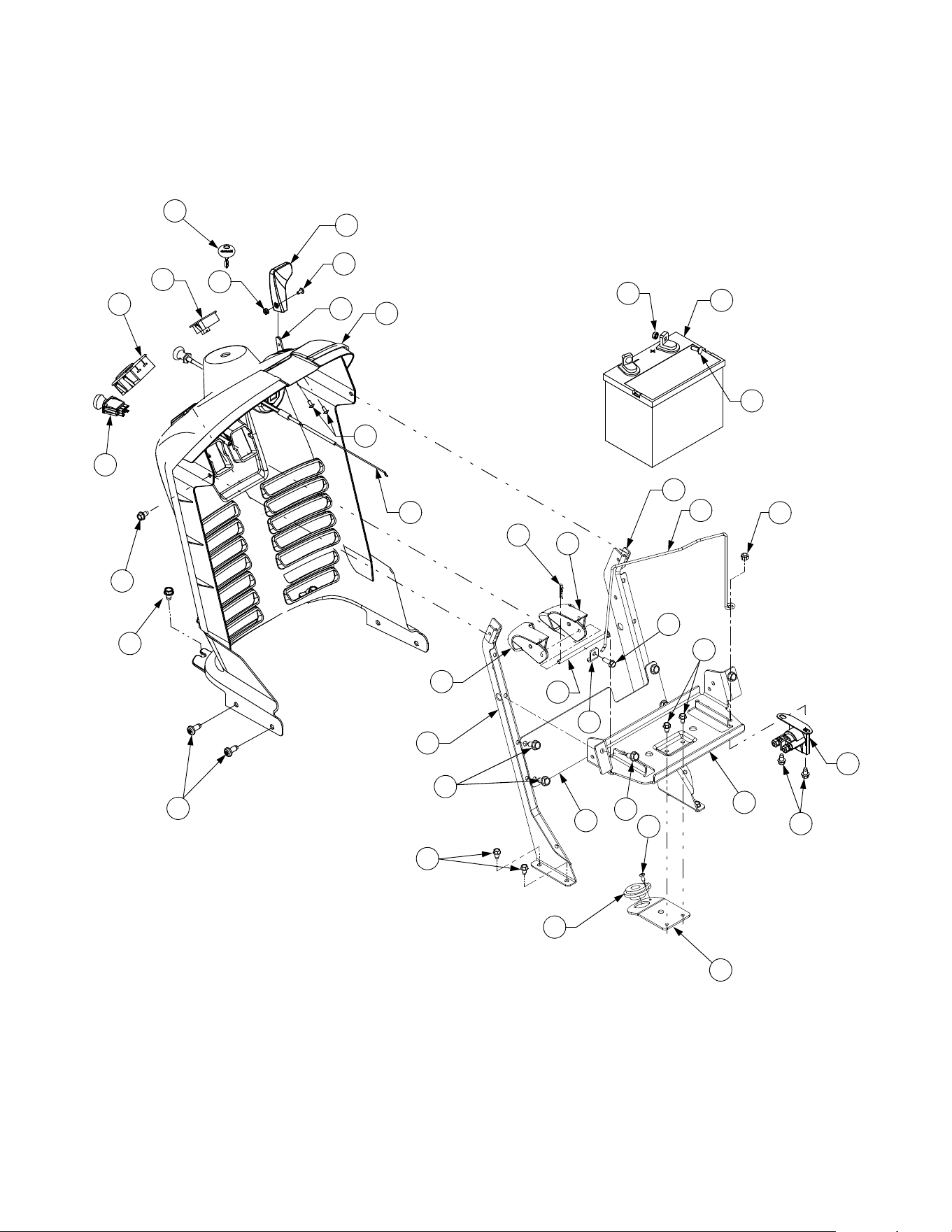

DASH PANEL
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-0351 Screw, #10-16 x .5 1
2 710-0192 Screw, #10-24 x .375 2
3 710-0599 Screw, Self-tapping, 1/4-20, 0.500 8
4 725-04227B Switch Module, Ignition 1
6 710-04666 Screw, Flange, 1/4-20, .75, 2
7 710-0726 Screw, Hex, 5/16-12 x .75 10
8 710-0895 Screw, 1/4-15, 0.750 1
9 710-1611B Screw, Torx Hd. Tapp. 5/16-18 x .75 2
10 710-3217 Screw, Machine, #8-32, 0.375, Trus Phillips 1
11 712-0142 Nut, 8-32 1
12 712-04064 Nut, Nylon Lock, 1/4-20 1
13 747-04215 Hold-down Rod, Battery 1
14 746-1087 Control, Throttle, 27.4 (LT1042 & LT1045) 1
746-04352 Control, Throttle, 38.0 (LT1046 & LT1050) 1
15 714-0104 Internal Cotter Pin, .072 x 1.13 1
16 725-04439 Solenoid, 12V, 100 Amp 1
17 731-05004 Dash 1
18 731-04294A Lever, Dash, Cruise 1
19 731-04293A Lever, Dash, Brake 1
20 731-3161 Knob, Throttle Control 1
21 783-04285E Dash Support, RH 1
22 725-04258 Switch, PTO, Yellow 1
23 725-2054 Ignition Key, Plastic 1
725-1744 Ignition Key, Metal 1
24 783-04323D Dash Support, LH
25 746-04121 Control, Choke, 24.0 (LT1042 & LT1045) 1
746-04120 Control, Choke, 37.5 (LT1046 & LT1050) 1
26 747-1323A Rod, .250 Dia x 4.25 Lg. 1
27 783-04475 Bracket, Steering Support 1
28 783-04506B Plate, Dash Support 1
29 741-0587 Steering Colume Bearing 1
30 725-04022B Monitor, Systems Indicator / Hour Meter 1
31 783-1447B Bracket, Support, Battery 1
34 783-1499 Bracket, Rod, Dash 1
35 725-1737A Battery, 190 CCA (LT1042 & LT1045) 1
725-1750A Battery, 235 CCA (LT1046 & LT1050) 1
36 712-0271 Nut, Sems, 1/4-20 2
— 725-04402 Wire Harness (LT1042 & LT1045 ) 1
18
HOOD & GRILLE
7
1
4
4
5
6
8
9
3
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 731-04567A Hood 1
2 731-04569A Hood Plenum (LT1042 & LT1045) 1
731-04579A Hood Plenum (LT1046 & LT1050) 1
3 710-0726 Self-tapping Screw, 5/16-18 x.625 4
4 710-0895 Screw, 1/4-15 x .75 8
5 725-0157 Cable Tie 1
6 783-04840 Pivot Bracket, Hood, RH 1
7 783-04841 Pivot Bracket, Hood, LH 1
8 738-04091 Shoulder Screw, .43 x .29 x 5/16-18 2
9 783-04606B Pivot Bracket 1
10 725-0963 Miniature Lamp, 12 V 2
11 725-1649 Lamp Socket 2
12 731-04577 Headlight Lens 1
– 777X41562 Headlight Lens Reflector, RH 1
– 777X41563 Headlight Lens Reflector, LH 1
– 629-04083 Headlight Harness 1
2
12
11
10
19

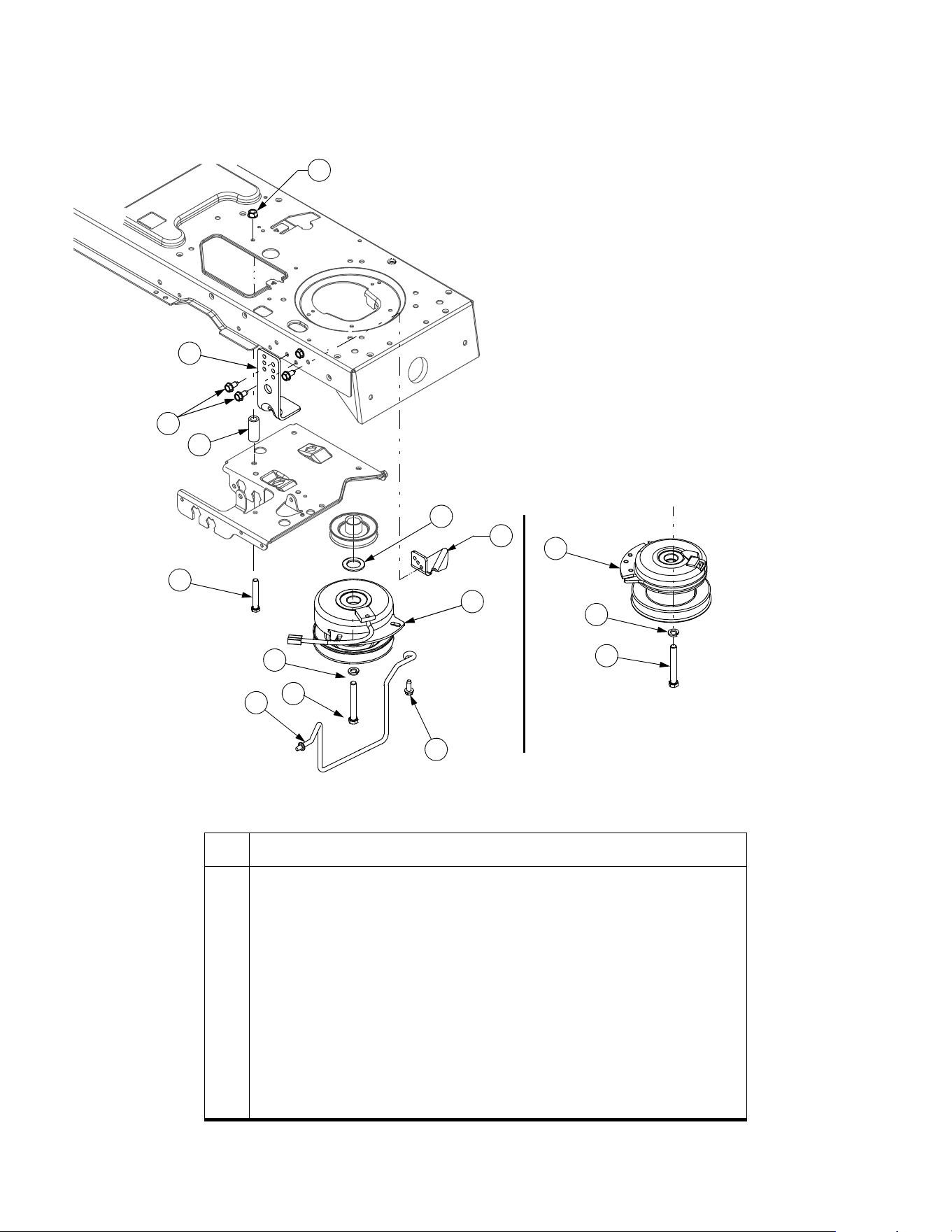

POWER TAKE-OFF (PTO) SYSTEM
6
12
10
2
7
1
5
3
8
9
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-3011 Screw, 3/8-16 x 2.25 GR5 1
2 710-0726 Screw, 5/16-12, .75 3
3 710-1260A Screw, 5/16-18, .75 1
4 710-04379A Screw, Hex Cap , 7/16-20 x 3.5 GR5 1
5 717-04163 Clutch, PTO (Model LT1042) 1
6 717-04174A Clutch, PTO (Model LT1045, LT1046 & LT1050) 1
7 712-04065 Nut, Hx. Nylon Lock, 3/8-16 1
8 736-0171 Washer, Lock, 7/16, Regular Duty 1
9 747-04307 Rod, Belt Keeper (Model 1042, LT1045 & LT1046) 1
10 748-0415B Spacer, 3/8 x 1.54 1
11 736-0277 Washer, Flat, 1.031 x 1.62 x .095 1
12 783-04467 Deck Stop (Model LT1050) 1
13 783-04419B Bracket, Clutch (Model LT1045, LT1046 & LT1050) 1
14 710-3157A Screw, Hex Cap, 7/16-20 x 3.25 GR5 (Model LT1042) 1
14
11
13
4
8
20
42-INCH MOWER DECK
40
29
15
14
45
25
9
24
20
31
14
22
35
26
6
19
3
18
17
36
11
21
27
16
4
5
23
33
42
28
1
7
7
41
38
2
8
34
37
56
47
50
51
48
46
48
50
43
49
14
32
44
28
47
A
54
53
55
57
58
30
58
30
14
A
52
59
14
B
B
60
61
62
63
12
13
10
39
21
42-INCH MOWER DECK
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
33 738-04162A Spacer, Shoulder, .8840 x .190 1
34 742-04126 Blade, 21.20 Lg, 3-in-1 2
35 747-1116 Rod, Handle, Deck Release .375 2
36 712-3087 Wing Nut, 1/4-20 1
37 731-2363 Baffle, Mulch 1
38 754-04045 Belt, V-Type 1
39 756-04129 Pulley, Idler, 4.25 Dia. 2
40 783-1146A Skirt, Deck 1
41 783-04327B Cover, Belt 2
42 783-04491D Idler Bracket, Pivot 1
43 738-04241 Shaft, Spindle, 5.5 2
44 710-3144 Screw, 3/8-16, 2.0 1
45 738-3056 Screw, Shoulder, .498 x 2.50, 3/8-16 2
46 737-3000 Lube Fitting, 3/16 2
47 712-0417A Nut, Flange, 5/8-18 4
48 750-1000 Spacer, 1.322 4
49 756-1227 Pulley, 6.3 Dia. 2
50 741-0919 Ball Bearing, .787 x 1.85 x .551 4
51 748-04739 Spacer, .820 x 1.15 x .730 1
52 783-05490 Support Bracket, Pivot 1
53 710-0347 Screw, 3/8-16, 1.75 1
54 747-04530 Keeper Rod, Belt 1
55 710-3005 Screw, 3/8-16, 1.25 1
56 750-04637A Spacer, .455 x .697 x 1.585 1
57 719-04233 Idler Bracket, Cast 1
58 710-0778 Screw, Self-tapping, 1/4-20 x 1.50 2
59 735-0271A Bumper, Rubber 2
60 712-0459 Nut, Flange Lock, 7/16-20 1
61 710-0623 Screw, Self-tapping, 3/8-16 x .75 2
62 738-04272 Screw, Shoulder, .374 x 1.16 1
63 732-0459C Spring, Extension .94 x 6.74 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 618-04461 Spindle Assembly 2
2 683-04262 Deck Weldment, 42 inch 1
3 683-0254B Bracket, Deck Hanger LH 1
4 710-3015 Screw, Hex Cap, 1/4-20, .750, Gr5 2
5 710-1260A Screw, Self-tapping, 5/16-18 x .750 8
6 710-0528 Screw, Self-tapping, 5/16-18 x 1.25 1
7 710-0726 Screw, Self-tapping, 5/16-12 x .75 6
8 710-0599 Screw, Self-tapping, 1/4-20 x .50 5
9 738-0373 Screw, Shoulder, .498 x 1.53, 3/8-16 2
10 736-0322 Washer, Flat, .450 x 1.25 x .164 1
11 712-3006 Nut, Hex, 1/4-20, Gr5 2
12 736-0173 Washer, Flat, .28 x .74 x .063 1
13 712-04064 Nut, Hx. Nylon Lock, 1/4-20 1
14 712-04065 Nut, Hx. Nylon Lock, 3/8-16 8
15 712-0641 Nut, Hex, M16-1.5 1
16 731-1032B Chute Assembly, Side Discharge 1
17 710-0134 Carriage Screw, 1/4-20, .62 1
18 714-0470 Pin, Cotter, 1/8 x 1.25 2
19 717-04074 Adjustment Gear, Deck 1
20 721-04041 Coupler, Hose 1
21 726-0233 Nut, Push, .25 ID x .50 OD 2
22 732-0306A Spring, Extension, .531 x 1.75 1
23 732-04391 Spring, Extension .94 x 7.57 1
24 734-0973 Wheel Deck 5.0 x 1.38 2
25 734-04155 Wheel Deck 5.0 2
26 736-0119 Washer, Lock, 5/16, Regular Duty 1
27 736-0270 Washer, Belleville, .265 x .75 x .062 2
28 736-0300 Washer, Flat, .406 x .875 x .059 2
29 736-0225 Washer, Lock, Internal Tooth 1
30 750-0566A Spacer, .260 x .372 x 1.030 2
31 737-04003C Port, Water 1
32 710-0510 Screw, Hex Cap, 37/16-20, 3.0 1
22
27
9
28
27
14
14
13
24
46-INCH MOWER DECK
25
7
1
1
4
1
7
36
12
32
31
26
21
38
19
12
22
16
15
18
29
17
37
6
2
3
12
34
5
20
7
8
41
40
42
43
44
45
7
23
49
50
50
47
52
48
51
14
39
48
14
10
7
53
54
4
25
4
55
56
57
58
46
12
11
35
23
46-INCH MOWER DECK
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 618-0660 Spindle Assembly 3
2 683-0254B Bracket Assembly, Deck Hanger 1
3 683-04172 Deck Weldment, 46-inch 1
4 710-0347 Screw, 3/8-16, 1.75 1
5 736-0322 Washer, Flat, .450 x 1.25 x .164 1
6 710-0528 Screw, 5/16-18, 1.25, Gr5 1
7 710-0599 Screw, Hex. Wash, 1/4-20, 0.5 13
8 710-3015 Screw, Hex Cap, 1/4-20, .750, Gr5 2
9 710-1260A Self-tapping Screw, 5/16-18 x .75 12
10 756-0627D* Pulley, Idler, 3.5” 1
756-04129** Idler Pulley, 4.25” 1
11 712-04063 Nut, Nylon Lock, 5/16-18 1
12 712-04065 Nut, Nylon Lock, 3/8-16 7
13 712-3006 Nut, Hex, 1/4-20, Gr5 2
14 712-0417A Nut, Hex. Flange, 5/8-18 6
15 714-0111 Cotter Pin, 1.0 2
16 717-04074 Deck Adjustment Gear 1
17 726-0233 Push Nut 2
18 732-0306A Compression Spring, 1.75 2
19 732-0594A Extension Spring, 7.33 1
20 734-04155 Deck Wheel, 5.0 2
21 734-0973 Deck Wheel, 2
22 736-0119 Washer, Lock, 5/16, Regular Duty 1
23 736-0270 Washer, Belle, .265 x .75 x .062 2
24 731-1032B Chute Assembly, Side Discharge 1
25 738-04162A Spacer, Shoulder, .884 x .190 2
26 738-0373 Shoulder Screw 4
27 742-04125 Blade, 16.28 2
28 742-04124 Blade, 14.88 1
* Late-production models were built with 3.5” idler pulley 756-0627D in this location and v-belt 754-04153.
** Early-production models were built with 4.25” idler pulley 756-04129 in this location and v-belt 754-04118.
IMPORTANT: When ordering replacement parts, do not mix early-production idler/pulley and late-production idler/pulley components.
29 747-1116 Rod, Handle, Deck Release 2
31 754-04153* Belt, V-Type 1
754-04118** Belt, V-Type 1
32 756-04129 Idler Pulley, 4.25” 1
34 783-0141 Deck Skirt, Center 1
35 783-0142 Deck Skirt, RH 1
36 783-0747B Belt Cover, LH 1
37 783-0805C Belt Cover, RH 1
38 783-05118 Bracket, Idler 1
39 710-0134 Carriage Screw, 1/4-20, .62 1
40 731-05264 Mulch Plug 1
41 712-3087 Nut, Wing, 1/4-20 1
42 712-0641 Nut, Hex, M16-1.5 2
43 736-0225 Washer, Lock, Internal Tooth 2
44 737-04003C Port, Water 2
45 721-04041 Coupler, Hose 1
46 710-3103 Hex Screw, 5/16-18 x 2.0 1
47 756-1188 Pulley, 5.75 Dia. 3
48 741-0919 Ball Bearing, .787 x 1.85 x .551 6
49 738-1186 Shaft, Spindle, 5.75 3
50 750-0952 Spacer, 1.8 6
51 17983 Bearing Shield 3
52 737-3000 Lube Fitting, 3/16 3
53 783-05463 Support Bracket, Idler 1
54 712-3010 Hex Nut, 5/16-18 2
55 783-05118 Bracket, Idler 1
56 732-0826A Extension Spring, .865 x 4.68 1
57 712-0229 Push Nut, 3/8 1
58 736-0343 Washer, Flat, .330 x 1.25 x .120 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
24
11
7
15
40
2
43
4
41
36
34
16
33
31
9
25
17
22
19
44
7
15
2
41
3
23
27
38
10
1
19
30
35
14
13
16
6
12
37
17
46
10
16
24
45
28
29
19
35
5
8
26
42
47
48
49
50
52
51
60
54
53
56
56
59
55
58
57
17
58
11
10
50-INCH MOWER DECK
25
50-INCH MOWER DECK
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 16606 Hook, Retainer 1
2 618-04126A Spindle Assembly 3
3 683-0254B Hanger Bracket Assembly 1
4 783-05474 Idler Bracket 1
5 683-04075 Weldment, 50-inch Deck 1
6 703-3279 Chute Stop 1
7 710-0347 Screw, 3/8-16, 1.75 2
8 710-3103 Screw, 5/16-18 x 2.00 1
9 710-0528 Screw, 5/16-18, 1.25, Gr5 1
10 710-0599 Screw, 1/4-20 x 0.5 8
11 710-0607 Screw, 5/16-18 x .75 6
12 710-1260A Screw, 5/16-18 x .75 12
13 710-04095 Screw, 3/8-16 x 1.0 1
14 710-3178 Screw, Carriage, 3/8-16 x .75 1
15 736-0300 Washer, Flat, .406 x .875 x .059 2
16 712-04065 Nut, Nylon Lock, 3/8-16 1
17 712-0417A Nut, Hex, Flange, 5/8-18 2
18 712-04063 Nut, Nylon Lock, 5/16-18 1
19 712-0431 Nut, Flange Lock, 3/8-16 5
20 712-3010 Nut, Hex, 5/16-18, Gr5 4
21 712-3019 Nut, 7/16-14 2
22 631-04070A Chute Assembly, Side Discharge 1
23 714-0470 Pin, Cotter, 1/8 x 1.25 1
24 714-3004 Pin, Cotter, 3/32 x 1.25 2
25 717-04074 Deck Adjustment Gear 1
26 711-1737 Roller Pin 1
27 732-0306A Spring, Compression, .531 x 1.75 1
28 732-0459B Spring, Extension, .94 x 6.74 2
29 734-04155 Deck Wheel, 5.0 2
30 734-0973 Deck Wheel, 5.0 2
31 736-0119 Washer, Lock, 5/16 1
32 736-0407 Washer, Bell, .45 x 1.0 x .062 1
33 736-0406 Washer, Flat, .442 x 1.38 x .060 1
34 710-3005 Screw, 3/8-16, 1.25 1
35 738-0373 Shoulder Screw 4
36 738-04162A Spacer, Shoulder, .884 x .190 2
37 742-04053B Blade, 17.90 3
38 747-1116 Rod, Deck Release .375 Dia. 2
39 750-0151 Spacer, .550 x .755 x 1.1 2
40 754-04077 Belt, V-Type, Aramid 1
41 756-04129 Pulley, Idler, 3.5” 2
42 750-0151 Spacer, 1.1” 2
43 783-04399 LH Belt Cover 1
44 783-04400 RH Belt Cover 1
45 783-04414A Deck Skirt, Center 1
46 783-04415 Deck Skirt, RH 1
47 731-3005 Roller 1
48 731-04651 Baffle, Mulch 1
49 712-0641 Nut, Hex, M16-1.5 2
50 736-0760 Washer, Lock 2
51 737-04003C Port, Water 2
52 721-04041 Coupler, Hose 1
53 738-1010A Shaft, Spindle, 5.75 3
54 736-0315 Washer, Flat, .760 x 1.5 x .120 3
55 737-3000 Lube Fitting, 3/16 3
56 750-1000 Spacer, .800 x 1.10 x 1.322 6
57 750-1349A Spacer, 79 x 1.84 x .55 3
58 741-0919 Ball Bearing, .787 x 1.85 x .551 6
59 756-04216 Pulley, 5.39” 3
60 726-0233 Push Nut 2
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
26

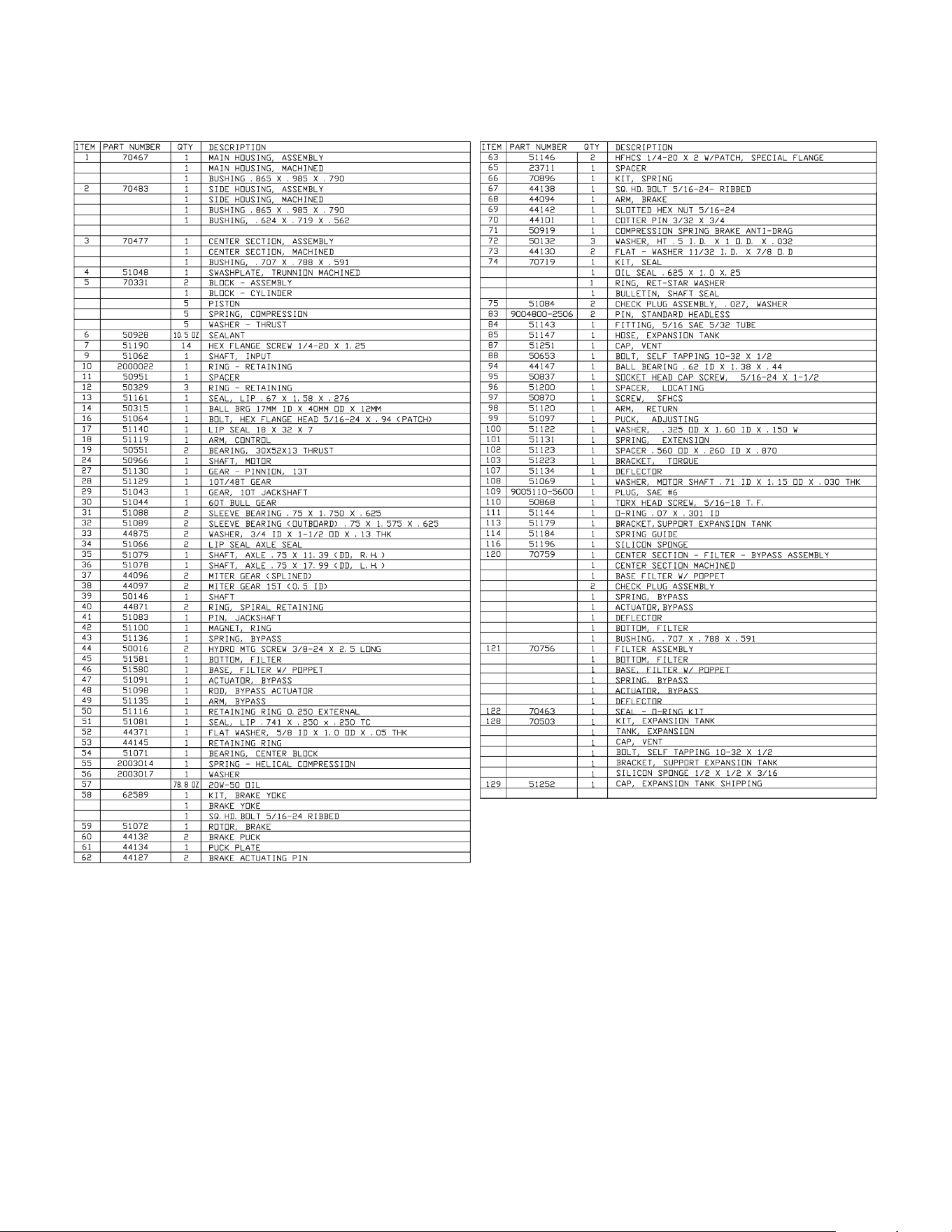

HYDROSTATIC TRANSMISSION
27
HYDROSTATIC TRANSMISSION
NOTE: Include a HG- prefix when ordering replacement transmission parts (i.e. HG-70467).
28
17
23
1
2
3
4
5
6
7
7
9
10
11
12
13
15
16
18
19
20
21
23
22
24
25
26
8
14
28
29
30
SINGLE-CYLINDER ENGINE — CRANKCASE
29
SINGLE-CYLINDER ENGINE — CRANKCASE
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 — Crankcase (LT1042: Not available) 1
(LT1045: Use
Short Block KH-20-522-01)
2 KH-25-139-57-S Plug, sq. hd. pipe 3/8" 1
3 KH-20-032-01-S Seal, oil 1
4 KH-20-067-04-S Rod, connecting 1
5 KH-20-874-05-S Piston w/ Ring Set (Includes 6,7) 1
6 KH-20-108-02-S Ring Set (89 mm) 1
7 KH-20-018-04-S Retainer, piston pin 2
8 KH-20-123-02-S Tube, drainback 1
9 KH-20-755-04-S Kit, balance weight (Includes 10,11) 1
10 KH-20-380-16-S Kit, screw/guide pin 1
11 KH-20-423-02-S Shoe, guide 1
12 KH-12-154-05 Clip, hitch pin 1
13 KH-M-631015 Washer, plain 1
14 KH-X-25-102-S Washer, plain 1
15 KH-20-144-02-S Shaft, governor cross 1
16 KH-20-393-02-S Pump assembly, oil (Includes 17-19) 1
17 KH-20-112-02-S Spacer, oil pump screw 2
18 KH-20-086-13-S Screw, oil pump 2
19 KH-20-144-06-S Shaft center, cam – Exhaust 1
20 KH-20-468-01-S Washer, thrust 1
21 KH-20-090-01-S Lever assembly, cam (2) (Includes 22) 1
22 KH-20-086-06-S Screw, shoulder 1
23 KH-20-010-04-S Gear assembly, cam (Includes 24-26) 2
24 KH-20-089-06-S Spring, ACR 1
25 KH-20-044-16-S Weight, ACR 1
26 KH-20-468-03-S Washer, thrust – ACR 2
28 KH-20-014-20-S Crankshaft 1
29 KH-X-42-15 Key 3/16" 1
30 KH-20-043-12-S Gear, crankshaft 1
30
SINGLE-CYLINDER ENGINE — AIR INTAKE / FILTRATION
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-20-096-04-S Cover, air cleaner 1
2 KH-25-341-04-S Knob, cover 2
3 KH-20-083-03-S Element, precleaner 1
4 KH-20-083-02-S Element, air cleaner 1
5 KH-20-094-01-S Kit, air cleaner base (Includes 6) 1
6 KH-12-041-02 Gasket, air cleaner base 1
7 KH-M-641060-S Nut, hex, flange M6 x 1.0 1
3
4
1
2
5
6
7
31

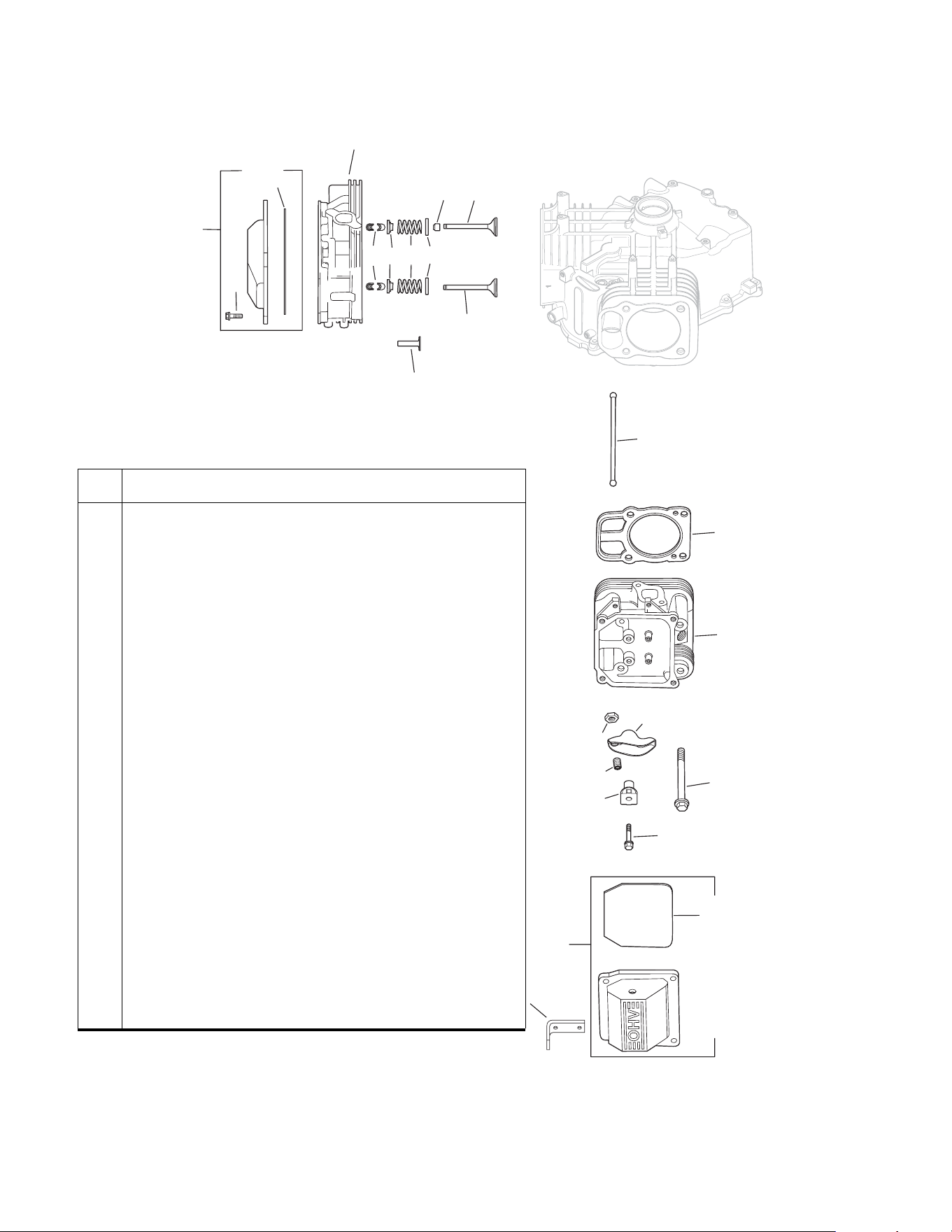

SINGLE-CYLINDER ENGINE — CYLINDER HEAD
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-20-096-07-S Kit, valve cover (Includes 2) 1
2 KH-20-041-04-S Gasket, valve cover 1
3 KH-M-645020-S Screw, hex. flange M6x1.0x20 7
4 KH-20-326-01-S Hose, breather 1
5 KH-20-086-04-S Screw, set 2
6 KH-20-599-01-S Pivot, rocker arm 2
7 KH-20-186-01-S Arm, rocker 2
8 KH-20-086-03-S Stud, rocker 2
9 KH-20-146-03-S Plate, push rod guide 2
10 KH-20-062-01-S Lock, retainer 2
11 KH-20-173-01-S Cap, valve spring 2
12 KH-20-089-03-S Spring, valve 2
13 KH-20-086-02-S Screw, hex. flange M10x1.5x37 6
14 KH-12-468-05 Washer, flat 1/2" 1
15 KH-20-318-01-S Head, cylinder 1
16 KH-20-016-01-S Valve, exhaust 1
17 KH-20-017-01-S Valve, intake 1
18 KH-20-841-02-S Kit, head gasket, (Includes 13, 14, KH-12-041-01-S,
KH-12-041-02-S & KH-20-041-07-S
1
19 KH-20-411-04-S Rod, push 2
20 KH-25-072-04 Stud, exhaust 2
21 KH-20-041-12-S Gasket 1
22 KH-M-0841080 Nut, hex flange M8x1.25 2
19
18
16
17
15
14
13
13
12
12
11
11
9
10
10
9
8
7
6
5
6
5
4
1
3
2
20
22
21
32

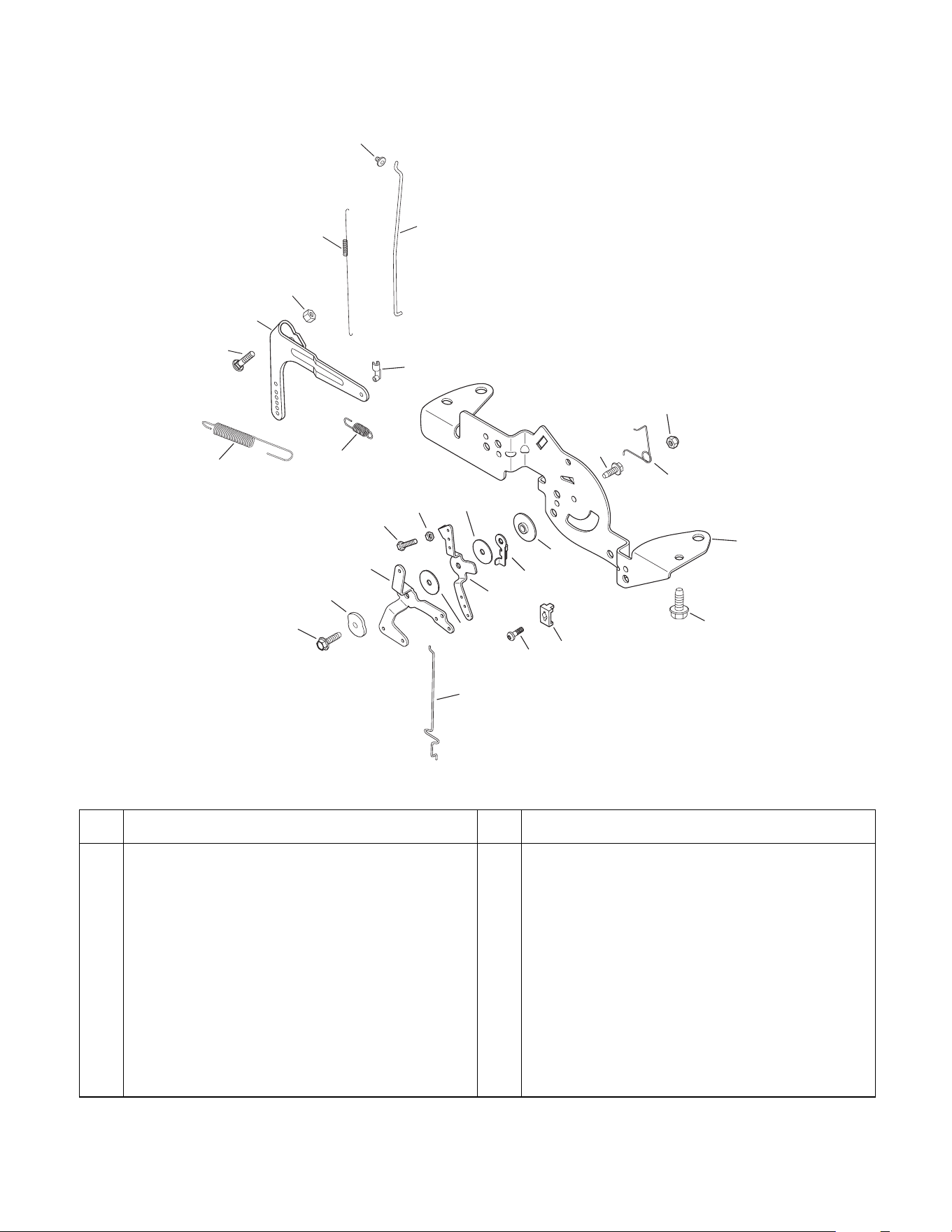

SINGLE-CYLINDER ENGINE — ENGINE CONTROLS
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-20-536-05-S Control assembly, speed (Includes 4,6,7,12) 1
2 KH-12-237-01 Clamp, cable 2
3 KH-M-545016-S Screw, hex flange thread forming M5x0.8x16 2
4 KH-M-664020-S Screw, 6 lobed socket thread forming M6x1.0x20 2
5 KH-20-079-05-S Linkage, choke – single wire 1
6 KH-12-089-11 Spring, speed control 1
7 KH-20-086-10-S Screw, thread forming M4x0.7x25 1
8 KH-20-090-02-S Lever, governor 1
9 KH-52-211-04 Bolt, round head square neck 1/4-20 x 1" 1
10 KH-X-22-11 Washer, internal tooth lock 1/4" 1
11 KH-12-100-07 Nut, hex. flange 1/4-20" 1
12 KH-20-089-11-S Spring, governor 1
13 KH-20-089-10-S Spring, linkage 1
14 KH-25-158 -11 Bushing, throttle linkage 1
15 KH-20-079-04-S Linkage, throttle 1
16 KH-25-158-08 Bushing, linkage retaining 1
6
7
10
1
2
3
4
5
9
8
11
12
13
14
16
15
33

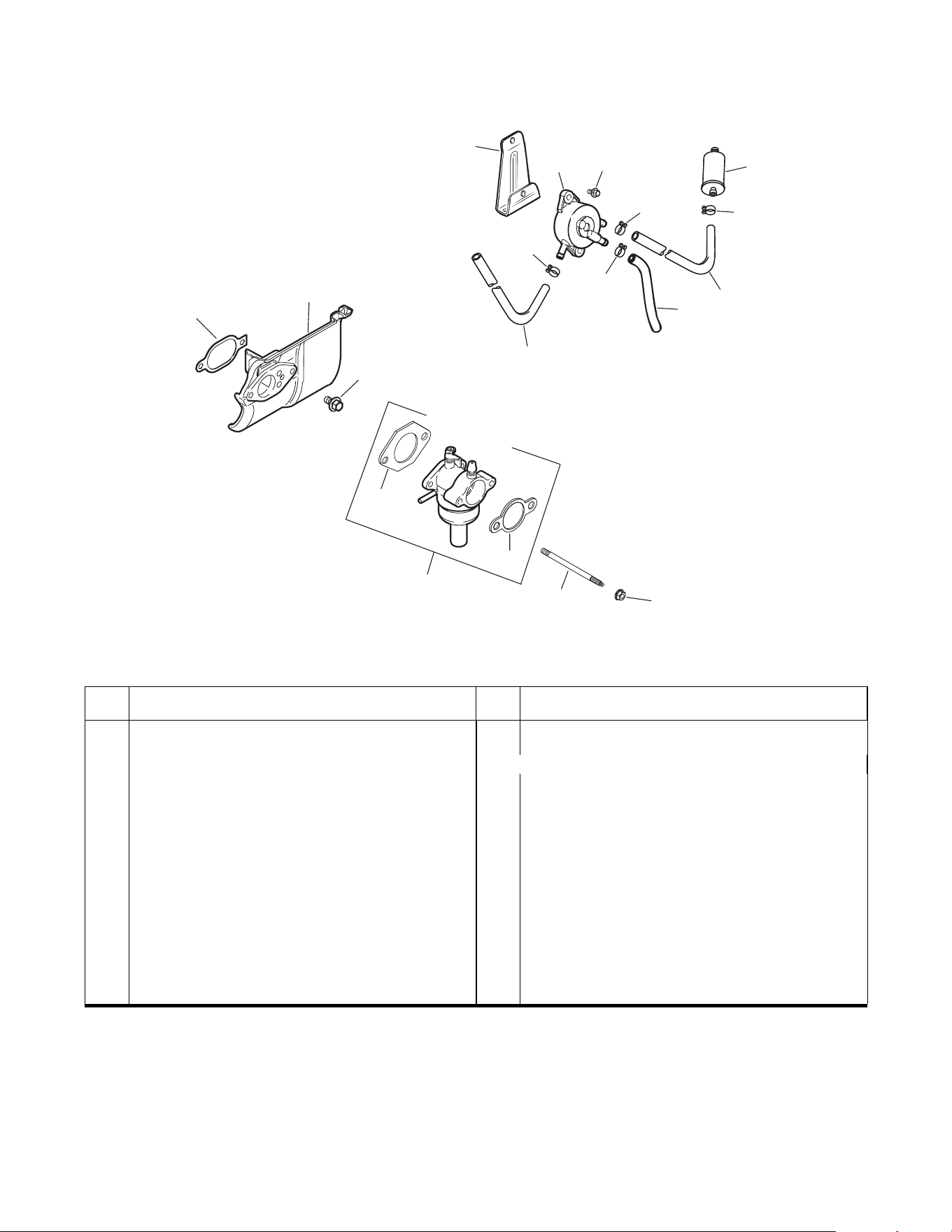

SINGLE-CYLINDER ENGINE — FUEL SYSTEM
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-20-041-07-S Gasket, heat deflector 1
2 KH-20-265-01-S Deflector, heat 1
3 KH-M-651020-S Screw, hex. flange 1
4 KH-20-853-16-S Carburetor w/gaskets
(Includes 5,6)
1
5 KH-12-041-01 Gasket, carburetor 1
6 KH-12-041-02 Gasket, air cleaner 1
7 KH-20-072-05-S Stud, carburetor mounting 1
8 KH-M-641060-S Nut, hex. flange M6x1.0 2
9 KH-20-126-02-S Bracket, fuel pump mounting 1
10 KH-24-393-16 Pump, fuel 1
11 KH-M-545010 Screw, hex. flange 1
12 KH-25-237-14-S Clamp, hose 6
13 KH-25-050-22-S Filter, fuel 1
14 KH-20-353-01-S Line, fuel 15.75" (pump to fil-
ter)
1
15 KH-41-353-06-S Line, fuel 4" (pump to carb) 1
16 KH-52-353-20 Line, fuel 10" (pump to fitting) 1
NOT ILLUSTRATED
KH-20-431-01-S Sleeve, fuel line 1
KH-X-22-11 Washer, lock 1/4" (ground) 1
KH-12-755-110-S
Kit, choke shaft 1
KH-12-757-02 Kit, float 1
KH-12-757-03 Kit, carburetor repair 1
KH-12-757-33 Kit, solenoid repair 1
KH-12-757-37-S Kit, bowl replacement
w/gaskets
1
KH-12-454-03-S Tie, wire 1
KH-20-755-06-S Kit, High Altitude (5K ft)
(Includes 5,6)
1
KH-20-755-07-S Kit, High Altitude (10K ft)
(Includes 5,6)
1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
3
1
2
4
5
6
7
8
9
11
12
13
14
15
16
12
12
12
10
34

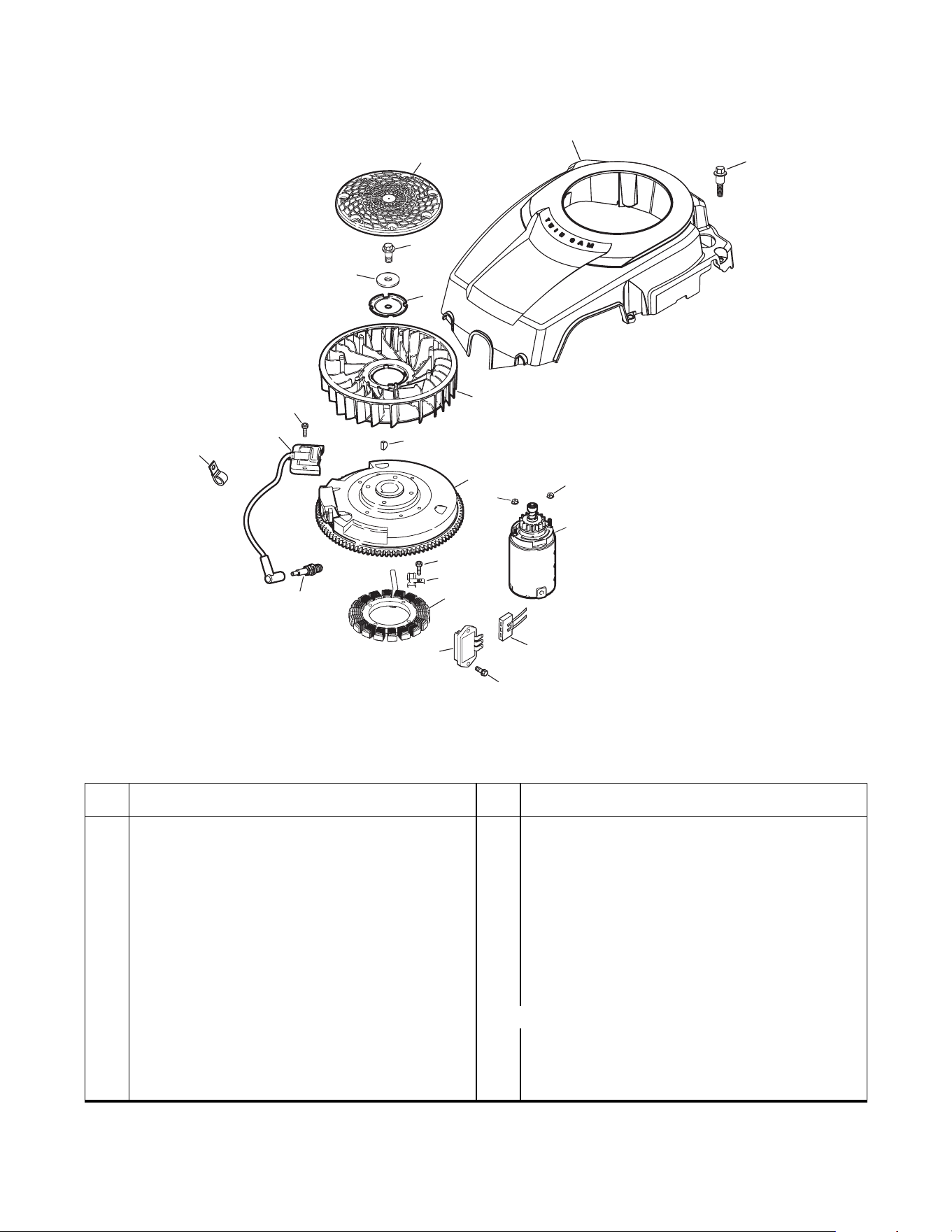

SINGLE-CYLINDER ENGINE — IGNITION / ELECTRICAL & BLOWER HOUSING
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-20-162-02-S Screen, grass 1
2 KH-12-086-14 Screw, hex. flange
M10-1.5 x 46
1
3 KH-12-468-03 Washer, flat 1
4 KH-20-146-02-S Plate, fan mounting 1
5 KH-20-157-01-S Fan 1
6 KH-X-42-15 Key, woodruff 1
7 KH-20-025-05-S Flywheel 1
8 KH-20-086-17-S Screw, hex. socket
M5-0.8 x 25
2
9 KH-20-154-02-S Clip, wire 1
10 KH-237878 Kit, stator 1
11 KH-236602-S Connector, body (3 contact) 1
12 KH-M-545020-S Screw, hex. flange
M5-0.8 x 20
2
13 KH-41-403-09 Rectifier-regulator 1
14 759-3336 Plug, spark 1
15 KH-231285-S Clip, cable 2
16 KH-20-584-01-S Module, ignition 1
17 KH-M-561025-S Screw, hex socket
M5 x 0.8 x 25
2
18 KH-20-098-06-S Starter Ass’y, inertia drive 1
19 KH-25-100-31-S Nut, hex. serrated flange
#10-24
2
20 KH-12-100-07 Nut, hex. flange 1/4-20 1
21 KH-20-027-06-S Housing, blower 1
22 KH-20-086-06-S Screw, shoulder M5-0.8 x 36 4
NOT ILLUSTRATED
KH-20-027-06-S Clamp. wire (clamps harness
to blower housing)
1
KH-20-176-02-S Harness, wiring 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
14
11
10
12
8
13
16
17
6
15
9
7
5
1
4
2
3
18
19
20
21
22
35

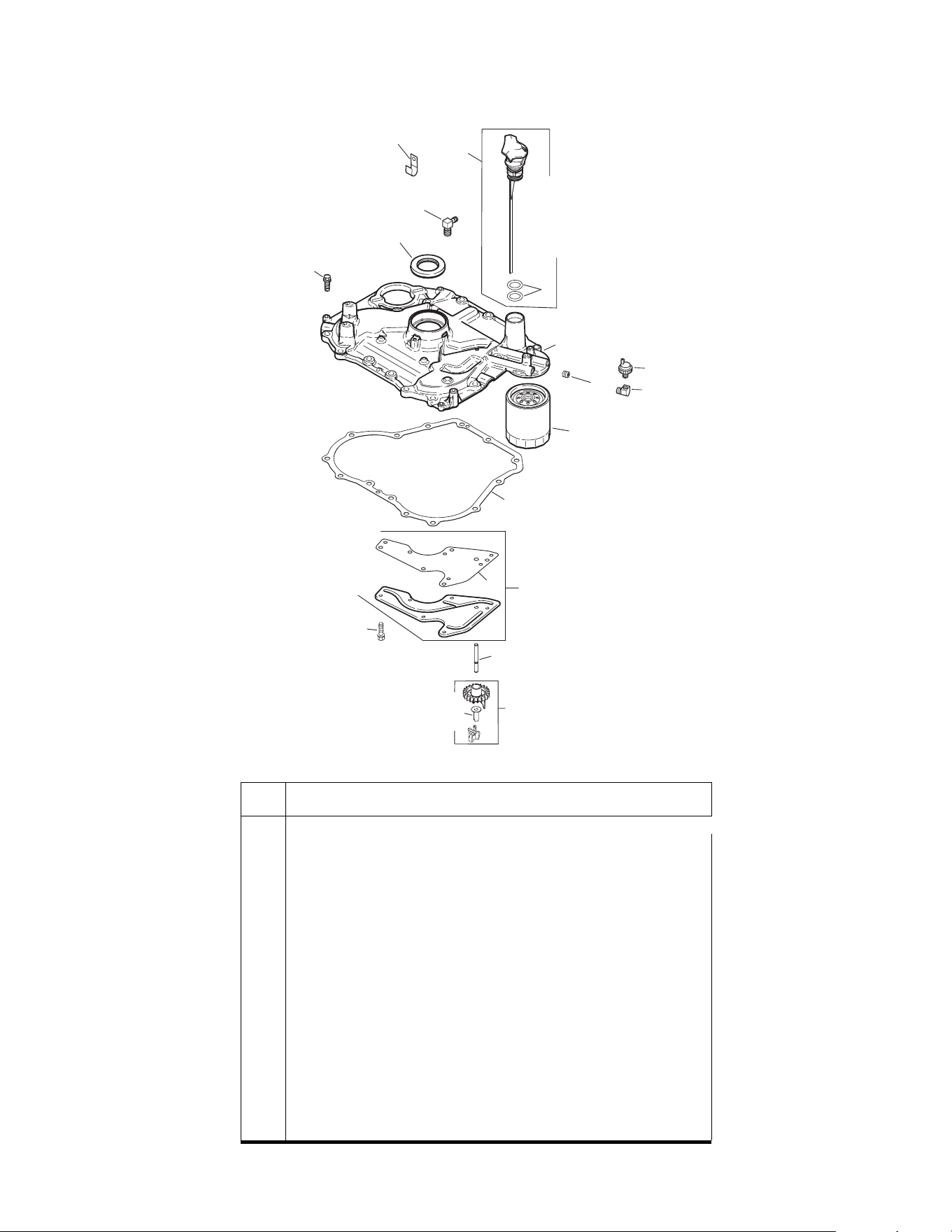

SINGLE-CYLINDER ENGINE — OIL PAN / LUBRICATION
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-20-040-03-S Kit, dipstick assembly (Includes 2) 1
2 KH-20-153-01-S O-Ring, dipstick 1
3 KH-20-009-03-S Plate assembly, closure (Includes 4,10,11) 1
4 KH-25-139-60-S Plug, pipe 2
5 KH-25-099-24-S Switch, pressure 1
6 KH-25-054-13-S Elbow, street 1
7 KH-12-050-08 Filter, oil 1
8 KH-20-041-01-S Gasket, closure plate 1
9 KH-20-096-02-S Kit, oil passage cover (Includes 8) 1
10 KH-20-041-02-S Gasket, oil passage 1
11 KH-20-144-03-S Shaft, governor gear 1
12 KH-20-310-03-S Kit, gear and weight assembly (Includes 11) 1
13 KH-12-380-01-S Pin, governor regulating 1
14 KH-M-545013-S Screw, hex. flange M5x0.8x13 6
15 KH-M-851030-S Screw, hex. flange M8x1.25x30 14
16 KH-20-032-01-S Seal, oil 1
17 KH-25-155-02-S Connector, 90° 1
18 KH-231285-S Clip, cable 1
13
1
2
4
3
7
8
10
9
11
12
14
15
16
6
5
18
17
36
TWIN-CYLINDER ENGINE — AIR INTAKE / FILTRATION
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-24-164-51-S Manifold, intake (Includes 2,3) 1
2 KH-24-041-52-S Gasket, carburetor 1
3 KH-24-153-27-S O-Ring, intake port 2
4 KH-32-094-03-S Base, air cleaner (Includes 5,6) 1
5 KH-24-041-14 Gasket, air cleaner base 1
6 KH-32-344-02-S Latch, air cleaner element 1
7 KH-32-083-03-S Element, air cleaner 1
8 KH-M-651040-S Screw, hex. flange M6x1.0x40 4
9 KH-32-083-05-S Pre-cleaner, element 1
4
5
8
1
2
3
7
6
9
37
TWIN-CYLINDER ENGINE — BLOWER HOUSING & BAFFLES
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-32-027-03-S Housing, blower (Includes 2, 41 037 10-S) 1
2 KH-32-096-08-S Cover, air cleaner 1
3 KH-M-545016-S Screw, hex. flange M5x0.8x16 4
4 KH-M-645016-S Screw, hex. flange M6x1.0x16 8
5 KH-32-146-05-S Plate, backing w/rectifier-regulator opening 1
6 KH-32-063-05-S Baffle, cylinder barrel - #2 side 1
7 KH-32-063-02-S Baffle, valley - #2 side 1
8 KH-M-545010 Screw, hex. flange M5x0.8x10 4
9 KH-32-063-03-S Baffle, valley - #1 side 1
10 KH-32-063-04-S Baffle, cylinder barrel-#1 side 1
11 KH-M-545020-S Screw, hex. flange M5x0.8x20 2
12 KH-24-086-12 Screw, hex. cap M6x1.7x18 2
10
9
5
6
7
2
3
1
4
4
4
8
4
8
4
11
12
38
TWIN-CYLINDER ENGINE — CRANKCASE
19
22
21
20
23
24
31
32
7
18
9
8
30
29
33
1
3
2
4
5
6
14
17
16
15
12
11
25
13
26
27
28
10
34
35
39
TWIN-CYLINDER ENGINE — CRANKCASE
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-32-038-01-S Kit, dipstick (Includes 2) 1
2 KH-12-153-03 O-Ring 1
3 KH-M-545016-S Screw, hex. flange thread forming 1
4 KH-12-123-04 Tube, oil fill (Includes 5,6) 1
5 KH-12-153-02-S O-Ring, upper oil fill tube 1
6 KH-12-153-01-S O-Ring, lower oil fill tube 1
7 KH-24-126-19 Bracket, oil fill tube 1
8 KH-24-032-01-S Seal, oil 1
9 Crankcase (USE: Miniblock KH-32-782-01) 1
10 KH-25-237-14-S Clamp, hose 1
11 KH-32-326-04-S Hose, breather 1
12 KH-M-547050-S Nut, hex. lock M5x0.8 1
13 KH-32-468-01-S Washer, sealing 1
14 KH-32-081-02-S Housing, breather 1
15 KH-32-072-02-S Stud, breather cover 2
16 KH-24-018-04 Retainer, breather reed 2
17 KH-24-402-05-S Reed, breather 2
18 KH-24-380-16-S Pin, locating 6
19 KH-24-067-13-S Connecting Rod (Std.) 2
20 KH-32-874-06-S Piston w/Ring Set (Std.) (Includes 21) 2
TBD Piston w/Ring Set (.25) 2
21 KH-24-018-01 Retainer, piston pin 4
22 KH-24-108-05-S Ring Set (Std.) 2
KH-24-108-06-S Ring Set (.25) 2
23 KH-12-422-10 Shim, camshaft (yellow) A.R.
KH-12-422-09 Shim, camshaft (red) A.R.
KH-12-422-13 Shim, camshaft (black) A.R.
KH-12-422-07 Shim, camshaft (white) A.R.
KH-12-422-08 Shim, camshaft (blue) A.R.
KH-12-422-11 Shim, camshaft (green) A.R.
KH-12-422-12 Shim, camshaft (gray) A.R.
24 KH-32-012-01-S Kit, camshaft 1
25 KH-M-645016-S Screw, hex. flange thread forming 1
26 KH-32-096-04-S Cover, breather 1
27 KH-32-041-01-S Gasket, breather cover 1
28 KH-32-050-01-S Filter, breather 1
29 KH-28-032-09-S Seal, governor cross shaft 1
30 KH-24-018-09-S Ring, retainer 1
31 KH-M-931010-S Washer, plain 8 mm 1
32 KH-24-468-15-S Washer, flat 1/4" 1
33 KH-24-144-38-S Shaft, governor cross 1
34 KH-32-014-02-S Crankshaft (Includes 35) 1
35 KH-52-139-09 Plug, cup 1
40
13
4
5678
11
10
9
2
22
23
14
16
19
21
2
20
15
1
12
18
17
3
TWIN-CYLINDER ENGINE — CYLINDER HEAD
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-24 755 141-S Kit, valve cover - plain (Includes 2,3) 1
2 KH-24 153 28-S O-Ring 1
3 KH-M-651030-S Screw, hex. flange M6x1.0x30 4
4 KH-32 318 01-S Head assembly, #1 cylinder 1
5 KH-12 755 03 Kit, retainer 4
6 KH-12 173 01 Cap, valve spring 2
7 KH-24 089 02 Spring, valve 2
8 KH-235011-S Retainer, spring 2
9 KH-66 032 05-S Seal, valve stem 1
10 KH-24 017 01
KH-24 017 02
Valve, intake (Std.)
Valve, intake (.25)
1
1
11 KH-24 016 01
KH-24 016 02
Valve, exhaust (Std.)
Valve, exhaust (.25
1
1
12 KH-32 019 01-S Tappet 4
13 KH-32 411 02-S Rod, push 2
14 KH-24 841 03-S Kit, cylinder head gasket (Includes
head mounting hardware & KH-24 -
041-49-S, KH- 24-153-27-S)
2
15 KH-32 318 02-S Head assembly, #2 cylinder 1
16 KH-32 186 02-S Arm, rocker 2
17 KH-32 100 04-S Nut, hex. M10x0.75 4
18 KH-32 086 03-S Screw, set 4
19 KH-32 599 02-S Pivot, rocker arm 2
20 KH-12 086 16 Screw,Hex. flange M10x1.5x90 4
21 KH-32-086-04-S Screw, hex. flange M6x1.0x45 4
22 KH-32 096 06-S Kit, valve cover - breather (Includes 2) 1
23 KH-24 445 01 Strap, lifting 1
24 KH-25 072 04 Stud, M8x1.25x33 4
25 KH-24 041 49-S Gasket, exhaust manifold 1
26 KH-M-841080 Nut, hex. flange M8x1.25 4
41
TWIN-CYLINDER ENGINE —ENGINE CONTROLS
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-24-211-03-S Bolt, round hd square neck 1
2 KH-24-090-33-S Lever, governor 1
3 KH-M-641060-S Nut, hex. flange M6x1.0 1
4 KH-24-089-01 Spring, linkage 1
5 KH-25-158-08 Bushing, linkage retaining 1
6 KH-24-079-04 Linkage, throttle 1
7 KH-25-158-11 Bushing, throttle linkage 1
8 KH-M-545016-S Screw, hex. flange
M5x0.8x16
1
9 KH-M-547050-S Nut, hex. lock M5x0.8 1
10 KH-24-089-03 Spring, choke return 1
11 KH-24-126-161-S Bracket, control 1
12 KH-M-645016-S Screw, hx. flange M6x1.0x16 4
13 KH-47-237-02 Clamp, dual conduit 1
14 KH-24-086-43-S Screw, thread forming 1
15 KH-24-079-22-S Linkage, choke 1
16 KH-24-112-27-S Spacer, control assembly 1
17 KH-24-090-47-S Lever, throttle actuator 1
18 KH-24-090-13 Lever, throttle control 1
19 KH-24-468-01 Washer, plain 5.5 mm 1
20 KH-M-545020-S Screw, hx. flange M5x0.8x20 1
21 KH-41-468-03 Washer, spring 1/4" 1
22 KH-24-090-05 Lever, choke 1
23 KH-M-403025 Screw, hex. head cap 1
24 KH-M-446030-S Nut, hex. M4x0.7 1
25 KH-24-468-20-S Washer, plain 1
26 KH-24-089-25-S Spring, governor 1
27 KH-24-089-55-S Spring, governor 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
19
24
17
16
20
21
15
22
23
18
25
10
14
13
12
8
9
11
6
1
2
3
5
7
4
27
26
42
TWIN-CYLINDER ENGINE — FUEL SYSTEM
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-32-853-04-S Kit, carburetor w/gaskets (Includes 2,3) 1
2 KH-24-041-52-S Gasket, carburetor 1
3 KH-24-041-14 Gasket, air cleaner base 1
4 KH-M-629105-S Stud, carburetor 2
5 KH-M-641060-S Nut, hex. flange M6x1.0 2
6 KH-25-237-14-S Clamp, hose 4
7 KH-25-111-34-S Line, fuel (Fuel line comes in lengths of 24" -
Cut to needed length for carburetor con-
nections.)
2
8 KH-24-100-01 Nut, plastic 2
9 KH-25-237-01-S Clamp, hose 1
10 KH-32-326-02-S Hose, fuel pump 1
11 KH-24-086-12 Screw, hex. cap M6x1.7x18 2
12 KH-24-393-16 Pump, pulse fuel 1
13 KH-25-050-22-S Filter, fuel 1
14 KH-47-154-01-S Clip, cable 1
NOT ILLUSTRATED
KH-24-757-36-S Kit, service choke repair 1
KH-24-757-38-S Kit, service gasket repair 1
KH-24-757-44-S Kit, float w/gaskets 1
KH-24-757-45-S Kit, solenoid valve w/gaskets 1
KH-24-757-46-S Kit, overhaul w/gaskets 1
6
7
8
11
6
12
13
4
5
1
2
3
14
10
9
7
43
TWIN-CYLINDER ENGINE — IGNITION/ELECTRICAL
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-32-162-03-S Screen, grass 1
2 KH-12-086-14 Screw, hex. flange M10x1.5x45 1
3 KH-12-468-03 Washer, plain 3/8" 1
4 KH-20-146-02-S Plate, fan mounting 1
5 KH-32-157-01-S Fan 1
6 KH-32-025-05-S Flywheel 1
7 KH-X-42-15 Key 1
8 KH-236602-S Connector (3 contact) 1
9 KH-M-551016-S Screw, heavy hex. flange M5x0.8x16 2
10 KH-41-403-09 Rectifier-regulator 1
11 TBD Kit, 15 amp stator 1
12 KH-235173 Clip, cable 1
13 KH-M-548025-S Screw, hex. head thread forming 2
14 759-3336 Spark plug 2
15 KH-24-584-36-S Module, ignition 2
16 KH-M-545020-S Screw, hex. flange thread forming 4
14
10
9
8
13
11
15
16
12
6
5
1
4
7
2
3
44
TWIN-CYLINDER ENGINE — OIL PAN/LUBRICATION
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-32-199-02-S Pan assembly, oil (Includes 2-15) 1
2 KH-32-086-01-S Screw, hex. flange thread forming shoulder 2
3 KH-32-393-08-S Oil pump assembly 1
4 KH-24-043-12 Kit, governor gear w/pin (Includes 5) 1
5 KH-12-380-01 Pin, governor regulating 1
6 KH-24-448-02-S Tab, locking 1
7 KH-12-144-02 Shaft, governor gear 1
8 KH-52-032-08-S Seal, oil (PTO end) 1
9 KH-32-123-01-S Tube, oil feed - filter to oil pan 1
10 KH-32-123-03-S Tube, oil feed - oil pan to filter 1
11 KH-24-153-01 O-Ring 2
12 KH-32-029-10-S Adapter, oil filter (Includes 13,14) 1
13 KH-25-139-60-S Plug, hex. ctsk. 1/8" 1
14 KH-32-153-02-S O-Ring, oil filter adapter 1
15 KH-32-136-03-S Nipple, oil filter 1
16 KH-25-099-24-S Switch, pressure 1
17 KH-52-050-02 Filter, oil 1
18 KH-24-086-17-S Screw, hex. flange M8x1.25x45 1
19 KH-24-086-16-S Screw, hex. flange M8x1.25x45 9
20 KH-25-139-57-S Plug, sq. hd. solid 3/8" 1
19
18
17
20
1
2
3
4
5
6
7
8
10
9
11
12
13
14
15
16
45
5
2
3
4
1
TWIN-CYLINDER ENGINE — STARTING SYSTEM
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-M-839080 Screw, hex. flange M8x1.25x70 2
2 KH-32-098-01-S Starter assembly (Includes 3-5) 1
3 KH-12-755-39-S Kit, drive 1
4 KH-12-755-38-S Kit, drive parts 1
5 KH-12-243-04-S Commutator, end cap 1
46
ELECTRICAL SCHEMATIC
47
NOTES
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
