Two-Way Marine Component/Coaxial Speaker System
One Pair 6.5'' Two-Way Marine Component Kit,
240 Watts w/ 4 Ohm Impedance (Pair)
PLMR65C2B - PLMR65C2W
2
www.PyleUSA.com
INSTALLATION OPTIONS

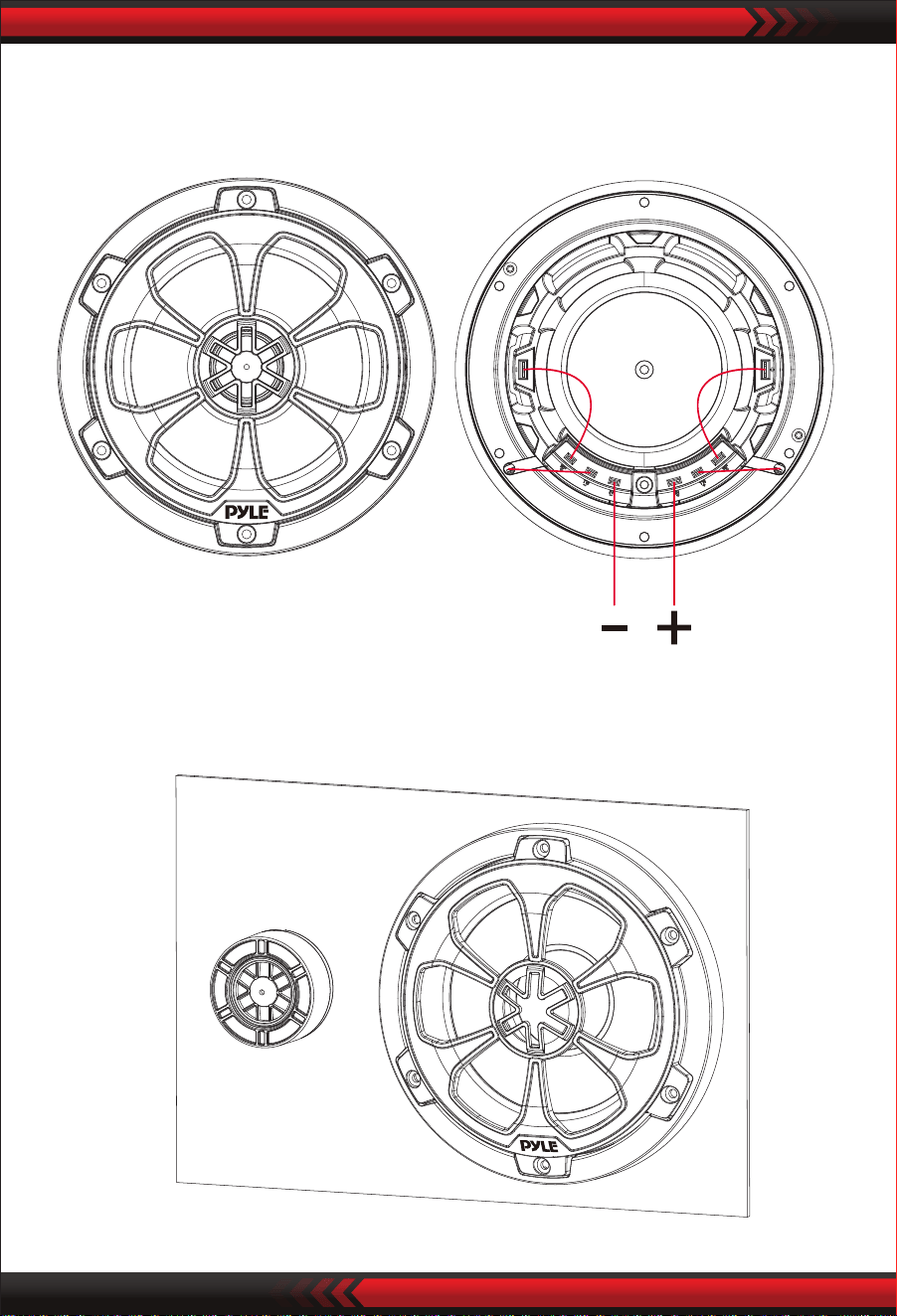

Version 1: By 2-Way coaxial speaker usage.
Version 2: By 2-Way component speaker usage, the tweeter can be removed
and installed onto a surface. See the steps below.
3
www.PyleUSA.com

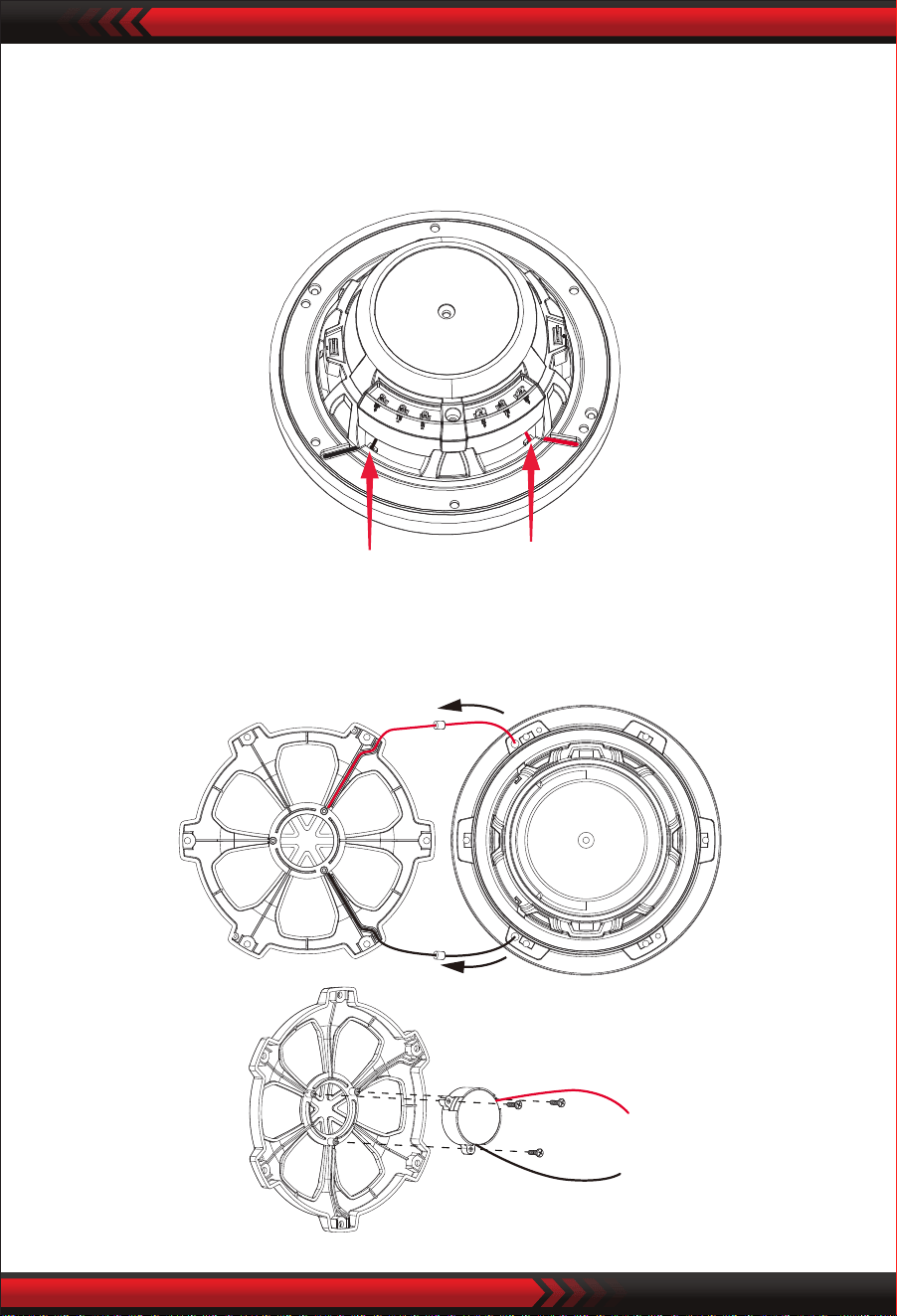

STEP 1.
Remove the tweeter wires: Facing down the speaker and pull the red + black
tweeter wires (see below drawing point by red arrows).
Remove the wires from the groove.
STEP 2.
Remove the speaker grill: Pull the grill up and then the tweeter wires will
also pulled out with rubber plugs. Put the grill upside down and loose the
screws around the tweeter cover. Pull the wires out of the grooves to remove
the tweeter completely.
4
www.PyleUSA.com

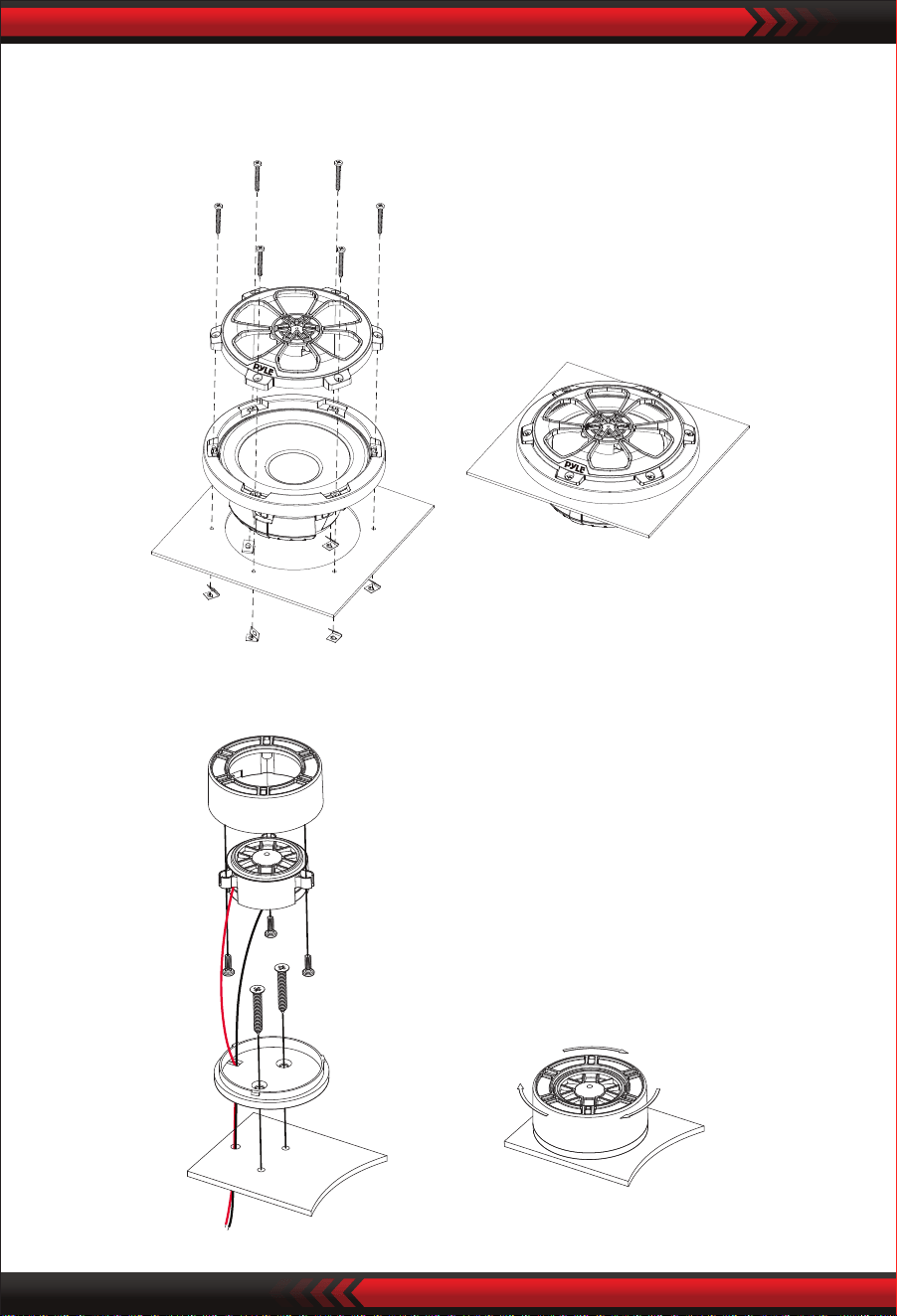

STEP 3.
Put the grill back to the speaker and fasten the screws.
STEP 4.
Put the tweeter as surface mount.
5
www.PyleUSA.com
Features:
• One Pair 6.5'' Two-Way Marine Component Speaker Systems
• Butyl Rubber Surround
• 1'' High-Temperature ASV Voice Coil
• Water-resistant Construction 2 Way Attachable Grille Design
• High Quality Poly Injection Cone
• 1'' Neodymium PEI Dome Detachable Tweeter as Options of Component or
Coaxial Speaker Application.
• Ensures Low Distortion
• Surface Mount Capability
• Built in Matching Crossover Network on Speaker Unit
• Marine Grade Waterproof Rating: IP-X5
What's in the Box:
• (2) Marine 2-Way Speakers
• (2) Tweeter Surface Mount Plastic Housings
• (2) 4M Power Cables
• (2) 0.15M Red Wires
• (2) 0.15M Black Wires
• Stainless Screw Bag
Technical Specs:
• Power Handling: 240 Watts MAX
• Impedance: 4 Ohm
• Sensitivity: 91 dB
• Mounting Depth: 2.44''
• Magnet Structure: 11 oz.
• Weight of Speaker with Grill: 2.18 lbs.
• Frequency Response: 60Hz - 20KHz
• Product Dimension: 6.93'' x 6.93'' x 3.66'' -inches
