Water Heaters
The purpose of this manual is
twofold: one, to provide the
installer with the basic directions
and recommendations for the
proper installation and adjustment
of the water heater; and two, for
the owner–operator, to explain
the features, operation, safety
precautions, maintenance and
troubleshooting of the water
heater. This manual also includes
a parts list.
It is imperative that all persons
who are expected to install,
operate or adjust this water heater
read the instructions carefully
so they may understand how
to perform these operations. If
you do not understand these
instructions or any terms within
it, seek professional advice.
Any questions regarding the
operation, maintenance, service
or warranty of this water heater
should be directed to the seller
from whom it was purchased. If
additional information is required,
refer to the section on “If you
need service.”
Do not destroy this manual.
Please read carefully and
keep in a safe place for future
reference.
!
Recognize this symbol as
an indication of Important
Safety Information!
Single and Double Element Models,
With Energy Cover
®
LISTED
E11867
786H
AP23176
Water Heaters
Electric Residential
Use & Care Manual
With Installation Instructions for the Installer
2
Care and Cleaning
Draining .............. 14
Maintenance ........... 14
Extended Shut-Down ... 15
Safety Information
Safety Precautions ..... 3, 4
Installation Instructions
Location ............... 5
Water Connections. . . . . . . 6
Electrical Connections. . . . 8
Operating Instructions
Safety Controls ........ 12
Water Temperature .....13
Troubleshooting Tips
Before You Call
For Service ............ 16
Customer Service

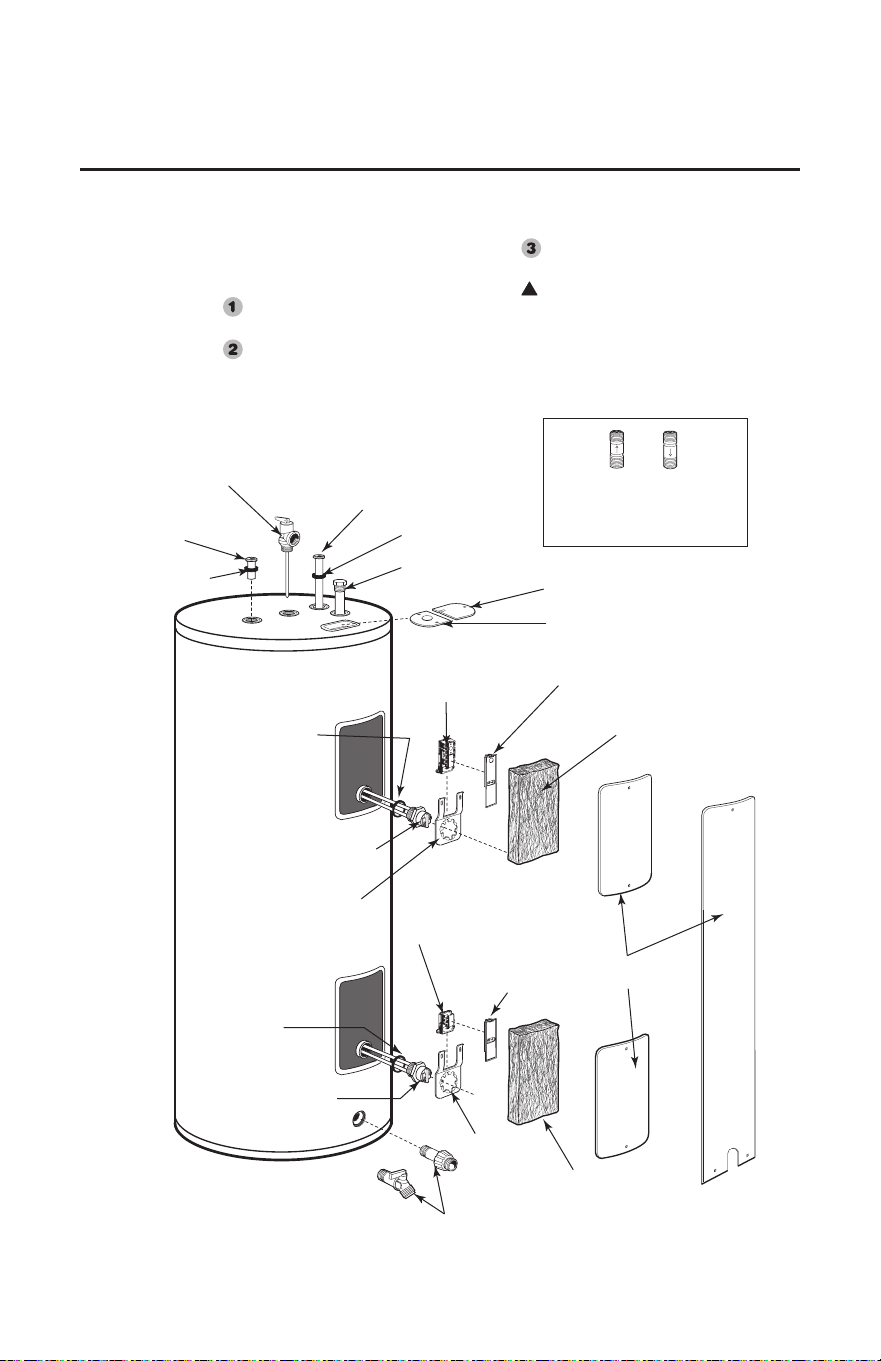

Parts List .............. 17
If You Need
Service ............... 18

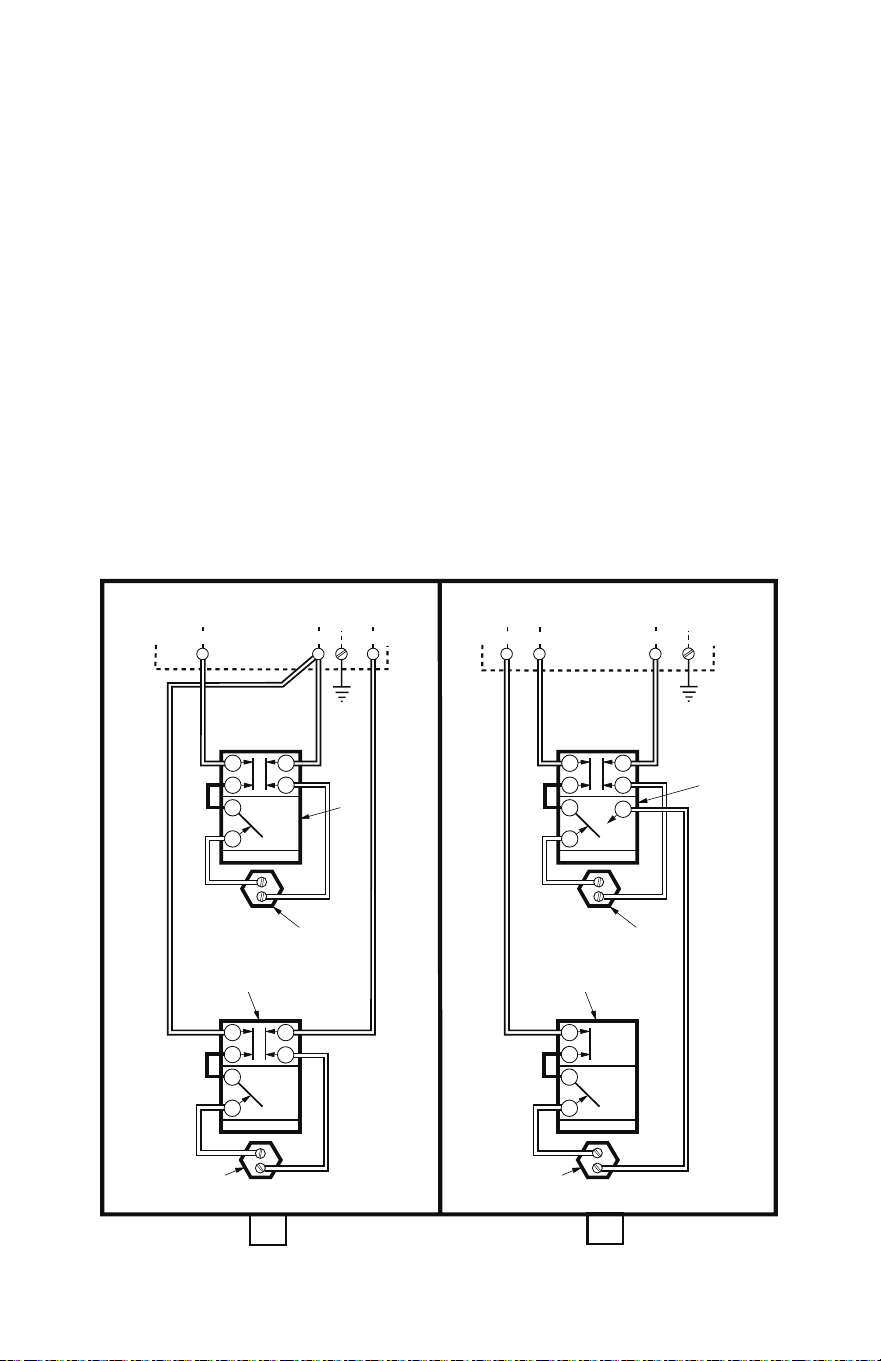

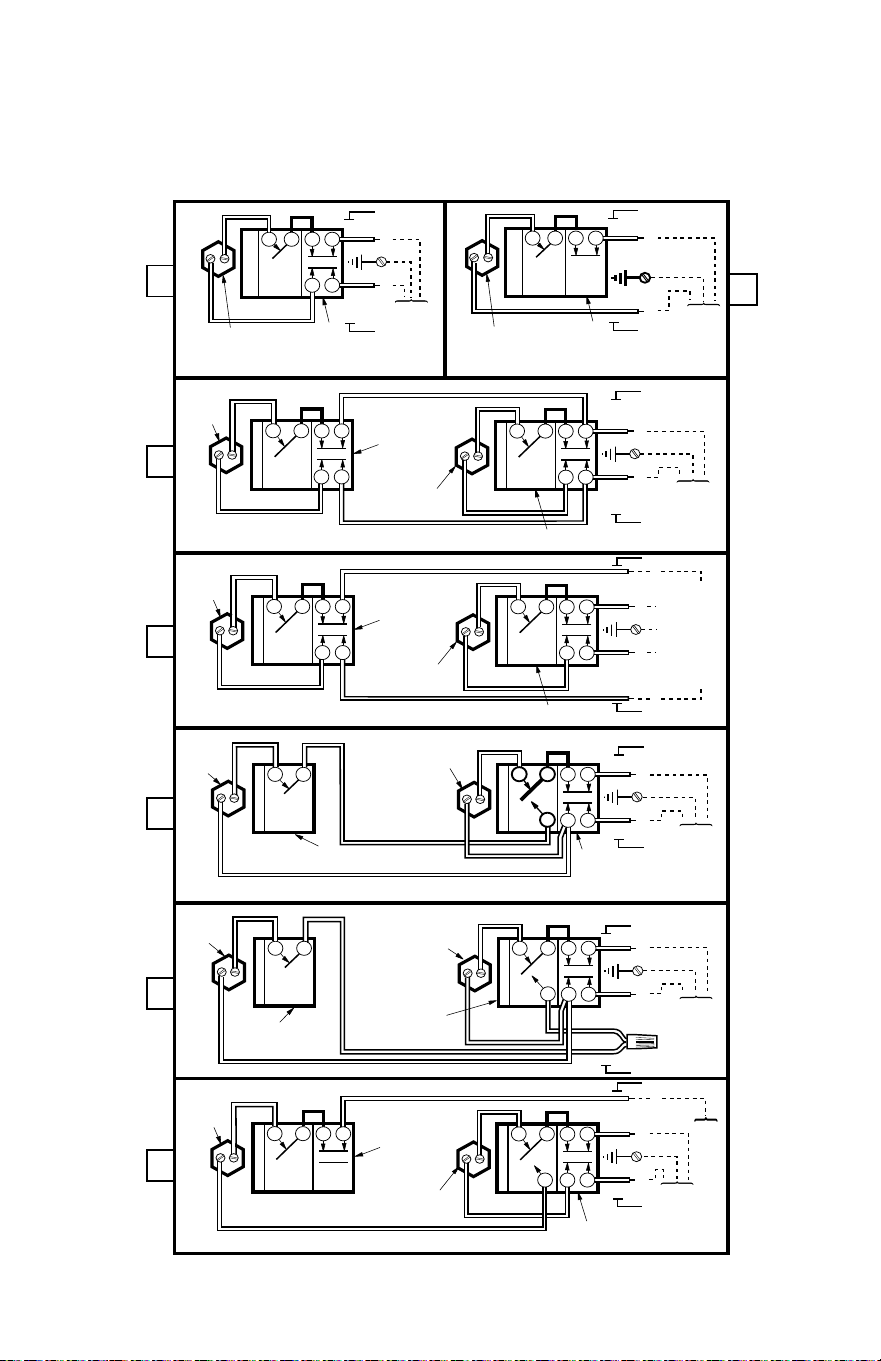

Wiring Diagram .... 19, 20
FOR YOUR RECORDS
Write the model and serial numbers here:
#
#
You can find them on a label on the appliance.
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain
service under the warranty.
Inside you will find many helpful hints on how to use
and maintain your water heater properly. Just a little
preventive care on your part can save you a great deal of
time and money over the life of your water heater.
You’ll find many answers to common problems in the
Before You Call For Service section. If you review our chart
of Troubleshooting Tips first, you may not need to call for
service at all.
READ THIS MANUAL
Your safety and the safety of others are very important.
There are many important safety messages in this manual
and on your appliance. Always read and obey all safety
messages.
!
This is the safety alert symbol. Recognize this
symbol as an indication of Important Safety
Information!
This symbol alerts you to potential hazards that
can kill or hurt you and others.
All safety messages will follow the safety alert symbol and
either the word “DANGER”, “WARNING”, “CAUTION”
or “NOTICE”.
These words mean:
!
DANGER
An imminently hazardous
situation that will result in death
or serious injury.
!
WARNING
A potentially hazardous situation
that could result in death or
serious injury and/or damage to
property.
!
CAUTION
A potentially hazardous situation
that may result in a minor or
moderate injury.
NOTICE:
Attention is called to observe a
specified procedure or maintain
a specific condition.
READ THE SAFETY INFORMATION
3

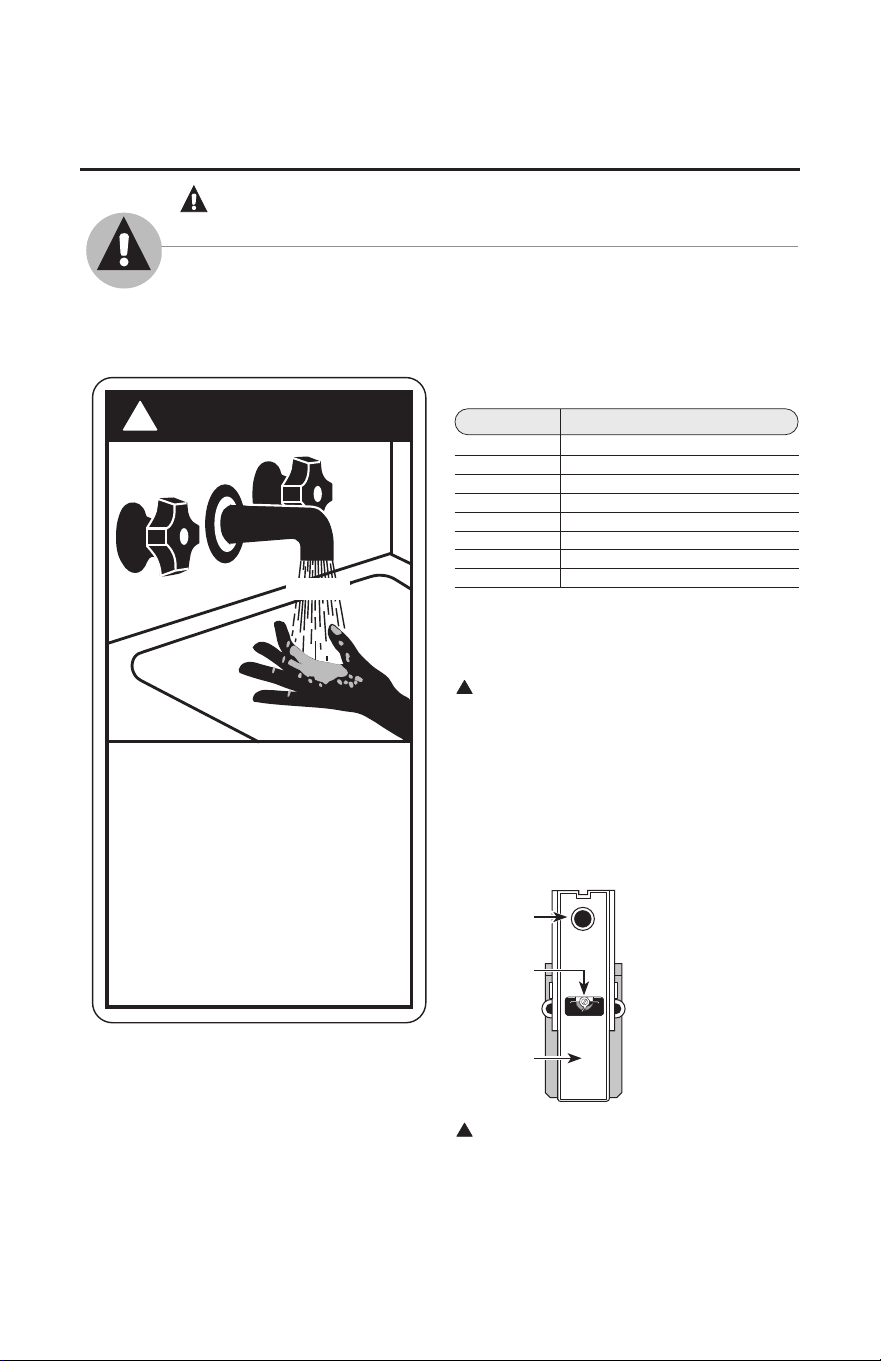

Time/Temperature Relationship in Scalds
Temperature Time To Produce a Serious Burn
120°F (49°C) More than 5 minutes
125°F (52°C) 1½ to 2 minutes
130°F (54°C) About 30 seconds
135°F (57°C) About 10 seconds
140°F (60°C) Less than 5 seconds
145°F (63°C) Less than 3 seconds
150°F (66°C) About 1½ seconds
155°F (68°C) About 1 second
Table courtesy of Shriners Burn Institute
The chart shown above may be used as a guide
in determining the proper water temperature for your
home.
!
DANGER: Households with small children,
disabled, or elderly persons may require a 120°F
(49°C) or lower thermostat setting to prevent
contact with “HOT” water.
The temperature of the water in the heater is regulated
by the adjustable surface mounted thermostat(s)
located behind the jacket access panel(s). Dual
element heaters have two thermostats. To comply with
safety regulations the thermostat(s) were set at 120°F
(49°C) before the water heater was shipped from the
factory.
The illustration at the left
shows the temperature
adjustment dial used
for setting the water
temperature.
Refer to the Operating
Instructions in this manual
for detailed instructions
in how to adjust the
thermostat(s).
!
DANGER: Hotter water increases the potential
for Hot Water SCALDS.
D ANGER
!
HOT
Water temperature over 125°F (52°C)
can cause severe burns instantly or
death from scalds.
Children, disabled and elderly are
at highest risk of being scalded.
See instruction manual before
setting temperature at water
heater.
Feel water before bathing or
showering.
Temperature limiting valves are
available, see manual.
BURN
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
R
E
S
E
T
R
E
S
E
T
TURN OFF
POWER
BEFORE
SERVICING
90°F150°F
125°F
(66°C)
(52°C)
(32°C)
Reset button
Thermostat
protective
cover
Thermostat
dial pointer
DANGER!
WATER TEMPERATURE SETTING
Safety and energy conservation are factors to be considered when selecting the
water temperature setting of water heater’s thermostat. Water temperatures
above 125°F (52°C) can cause severe burns or death from scalding. Be sure to
read and follow the warnings outlined on the label pictured below. This label is
also located on the water heater near the thermostat access panel.
NOTICE: Mixing valves are recommended
for reducing point of use water temperature
by mixing hot and cold water in branch
water lines. It is recommended that a mixing
valve complying with the Standard for
Temperature Actuated Mixing Valves for
Hot Water Distribution Systems, ASSE 1017
be installed. See page 13 for more details
and contact a licensed plumber or the local
plumbing authority for further information.
4
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire
or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
Be sure to read and understand the entire Use and Care Manual before attempting to
install or operate this water heater. It may save you time and cost. Pay particular attention
to the Safety Instructions. Failure to follow these warnings could result in serious bodily
injury or death. Should you have problems understanding the instructions in this manual,
or have any questions, STOP, and get help from a qualified service technician, or the local
electric utility.
FOR INSTALLATIONS IN THE STATE OF CALIFORNIA
California Law requires that all new and replacement water heaters, and all existing
residential water heaters, must be braced, anchored, or strapped to resist falling or
horizontal displacement due to earthquake motion. At a minimum, any water heater
shall be secured in accordance with the California Plumbing Code, or modifications
made thereto by a city, country, or city and country pursuant to Section 17958.5. Generic
instructions for California titled "Guidelines for Earthquake Bracing Residential Water
Heaters" can be obtained by:
∙ Writing the California, Department of General Services, Division of State Architect, 1102
Q Street, Suite 5100, Sacramento, CA 95814
∙ Calling (916) 445-8100
∙ Following web address:
https://www.dgs.ca.gov/-/media/Divisions/DSA/Publications/gas_shutoff/
waterheaterbracing
READ AND FOLLOW THIS SAFETY INFORMATION
CAREFULLY.
SAVE THESE INSTRUCTIONS
Have the installer show you the location of the circuit breaker and how to shut it off if necessary.
Turn off the circuit breaker if the water heater has been subjected to overheating, fire, flood,
physical damage or if the ECO fails to shut off.
● Read this manual entirely before installing
or operating the water heater.
● Use this appliance only for its intended
purpose as described in this Use and Care
Manual.
● Be sure your appliance is properly installed
in accordance with local codes and the
provided installation instructions.
● DO NOT attempt to repair or replace
any part of your water heater unless it is
specifically recommended in this manual.
All other servicing should be referred to a
qualified technician.
● DO NOT turn on the electrical supply
or operate this water heater unless it is
completely full of water.
SAFETY PRECAUTIONS
5
Installing the water heater.
The location chosen for the water heater must take into consideration the following:
Local Installation Regulations
This water heater must be installed
in accordance with these instructions,
local codes, utility codes, utility
company requirements or, in the
absence of local codes, the latest edition
of the National Electrical Code. It is
available from some local libraries or
can be purchased from the National Fire
Protection Association, Batterymarch
park, Quincy, MA 02269 as booklet
ANSI/NFPA 70.
Location
Locate the water heater in a clean dry
area as near as practical to the area of
greatest heated water demand. Long
uninsulated hot water lines can waste
energy and water.
Place the water heater in such a
manner that the thermostat and element
access panels can be removed to
permit inspection and servicing such
as removal of elements or checking
controls.

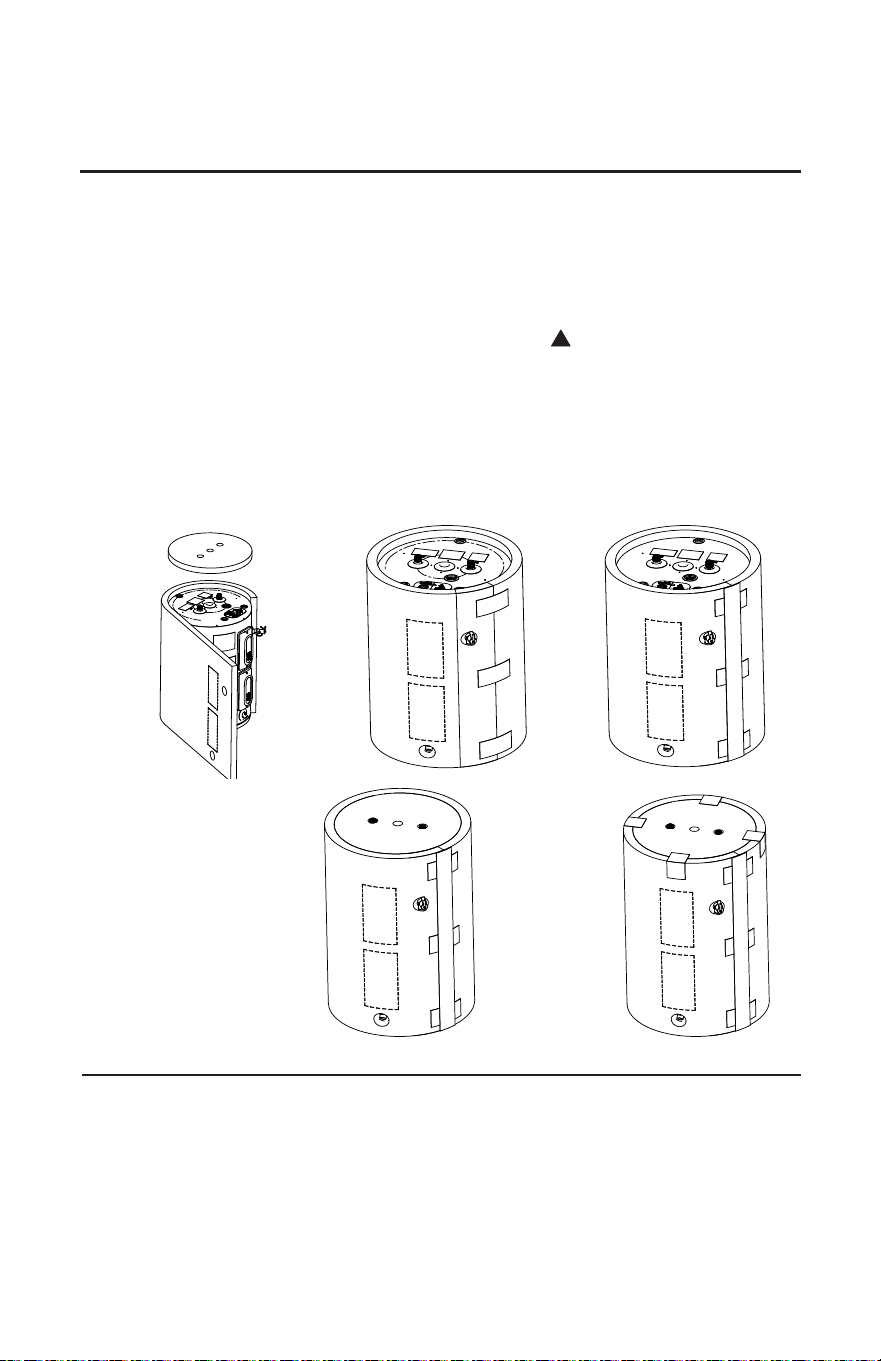

The water heater has been sized to fit
through narrow doorways and to be
installed in tight/spaces. The energy
cover should be installed in the final
location.
The water heater and water lines
should be protected from freezing
temperatures. DO NOT install the
water heater in outdoor, unprotected
areas.
Make certain the floor underneath
the water heater is strong enough to
sufficiently support the weight of the
water heater once it is filled with water.
!
CAUTION: The water heater
should not be located in an area
where leakage of the tank or
connections will result in damage to
the area adjacent to it or to lower
floors of the structure. Where such
areas cannot be avoided, it is
recommended that a suitable catch
pan, adequately drained, be installed
under the water heater.
A— Diameter of water
heater plus 2″ min.
B— Maximum 2″
NOTICE: Auxiliary drain pan MUST conform to local codes.
Drain Pan Kits are available from the store where the water heater was purchased,
or any water heater distributor.
B
A
To open drain, line
should be at least 3/4″
ID and pitched for
proper drainage.
Inspect Shipment
Inspect the water heater for possible damage. Check the markings on the rating
plate of the water heater to be certain the power supply corresponds to the water
heater requirements.
6
Installing the water heater.

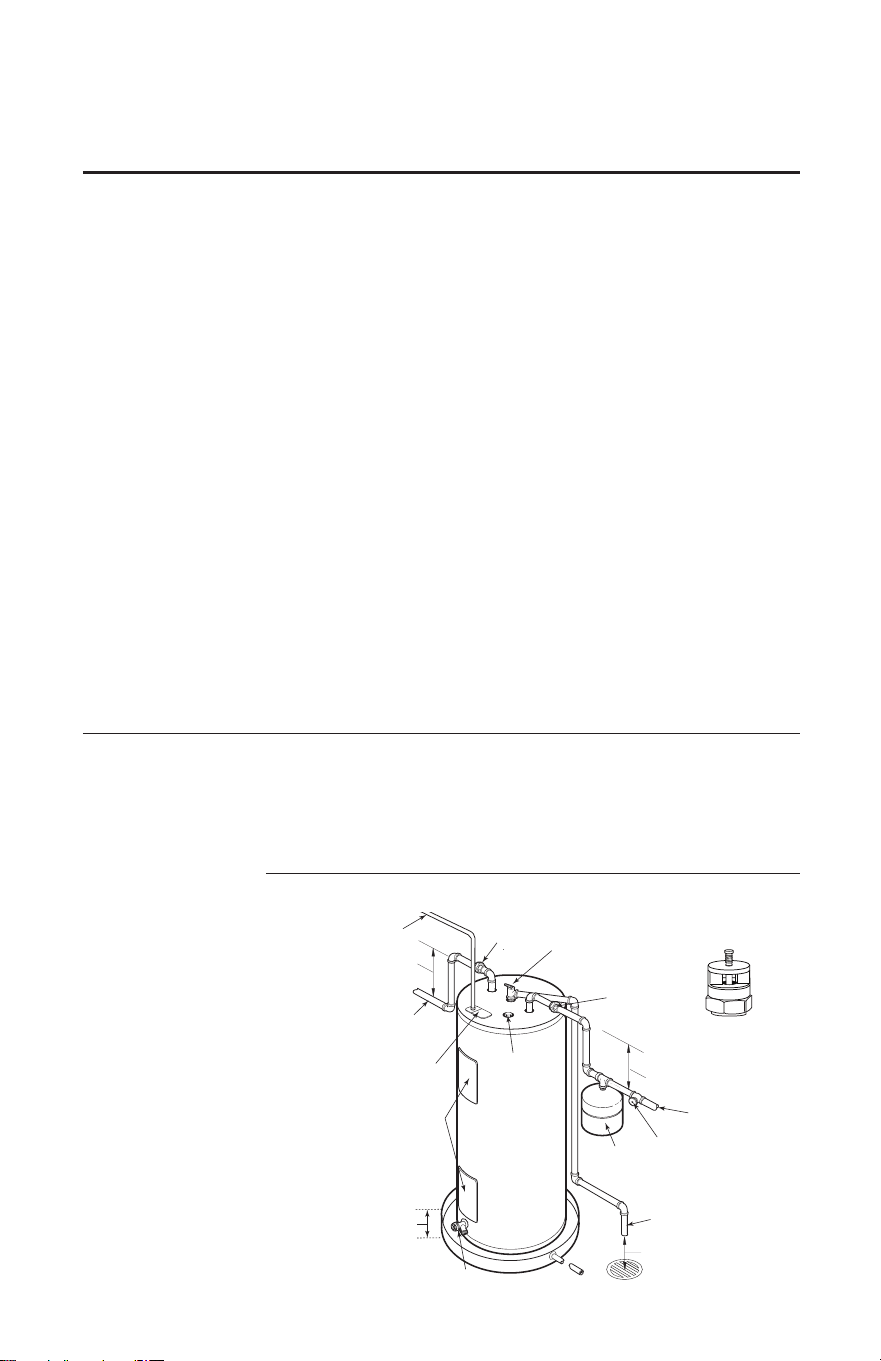

Typical Installation
Thermal Expansion
Determine if a check valve exists in the
inlet water line. Check with your local
water utility. It may have been installed
in the cold water line as a separate back
flow preventer, or it may be part of a
pressure reducing valve, water meter or
water softener. A check valve located in
the cold water inlet line can cause what is
referred to as a “closed water system”. A
cold water inlet line with no check valve
or back flow prevention device is referred
to as an “open” water system.
As water is heated, it expands in volume
and creates an increase in the pressure
within the water system. This action is
referred to as “thermal expansion”.
In an “open” water system, expanding
water which exceeds the capacity of the
water heater flows back into the city main
where the pressure is easily dissipated.
A “closed water system”, however,
prevents the expanding water from
flowing back into the main supply line,
and the result of “thermal expansion”
can create a rapid and dangerous pressure
increase in the water heater and system
piping. This rapid pressure increase can
quickly reach the safety setting of the
relief valve, causing it to operate during
each heating cycle. Thermal expansion,
and the resulting rapid and repeated
expansion and contraction of components
in the water heater and piping system
can cause premature failure of the relief
valve, and possibly the heater itself.
Replacing the relief valve will not correct
the problem!
The suggested method of controlling
thermal expansion is to install an
expansion tank in the cold water line
between the water heater and the check
valve (refer to the illustration below).
The expansion tank is designed with an
air cushion built in that compresses as
the system pressure increases, thereby
relieving the over pressure condition and
eliminating the repeated operation of the
relief valve. Other methods of controlling
thermal expansion are also available.
Contact your installing contractor, water
supplier or plumbing inspector for
additional information regarding this
subject.
NOTICE: DO NOT
apply heat to the hot or
cold water connections.
If sweat connections are
used, sweat tubing to
adapter before fitting
adapter to the water
connections on heater.
Any heat applied to the
water supply fittings will
permanently damage
the dip tube and/or heat
traps.
Water Supply Connections
Refer to the illustration below for suggested typical installation. The installation of
unions or flexible copper connectors is recommended on the hot and cold water
connections so that the water heater may be easily disconnected for servicing if
necessary. The HOT and COLD water connections are clearly marked and are 3/4″ NPT
on all models. Install a shut-off valve in the cold water line near the water heater.
R
E
L
I
E
F
V
A
L
V
E
COLD
HOT
Heat trap
6" minimum
Heat trap
6" minimum
6" air gap
Union
To electrical
distribution panel
Temperature
&
Pressure
Relief Valve
Anode
Union
Hot water outlet
to fixtures
Jacket access
panels
Drain valve
Auxiliary catch pan
2" maximum
Relief valve discharge line
to suitable open drain
Thermal
expansion tank
(if required)
Electrical junction box
(use only copper conductors)
To cold water
supply
Shut-off
valve
Vacuum Relief Valve
(Not Supplied)
If required, install per local codes
and valve manufacturer’s
instructions.
7
!
WARNING: The
pressure rating of the
relief valve must not
exceed 150 PSI, the
maximum working
pressure of the water
heater as marked on
the rating plate.
A new combination temperature and pressure relief valve, complying with the Standard for Relief Valves
for Hot Water Supply Systems, ANSI Z21.22, is supplied and must be installed in the opening provided and
marked for the purpose on the water heater. No valve of any type should be installed between the relief
valve and the tank. Local codes shall govern the installation of relief valves.
Relief Valve
The Btu/h rating of the relief valve
must not be less than the input rating
of the water heater as indicated on the
rating label located on the front of the
heater
(1 watt=3.412 Btu/h).
Connect the outlet of the relief valve
to a suitable open drain so that the
discharge water cannot contact live
electrical parts or persons and to
eliminate potential water damage.
Piping used should be of a type
approved for hot water distribution.
The discharge line must be no smaller
than the outlet of the valve and must
pitch downward from the valve to allow
complete drainage (by gravity) of the
relief valve and discharge line. The
end of the discharge line should not be
threaded or concealed and should be
protected from freezing. No valve of
any type, restriction or reducer coupling
should be installed in the discharge line.
To Fill the Water Heater
Make certain the drain valve on the
water heater is completely closed.
Open the shut-off valve in the cold
water supply line.
Open each hot water faucet slowly to
allow the air to vent from the water
heater and piping.
A steady flow of water from the hot
water faucet(s) indicates a full water
heater.
Condensation
Condensation can form on the tank
when it is first filled with water.
Condensation might also occur with a
heavy water draw and very cold inlet
water temperature.
This condition is not unusual, and will
disappear after the water becomes
heated. If, however, the condensation
continues, examine the piping and
fittings for possible leaks.
!
WARNING: DO NOT
turn on the electrical
supply or operate this
water heater unless it is
completely full of water.
The tank must be full of
water before heater is
turned on. The water
heater warranty does not
cover damage or failure
resulting from operation
with an empty or
partially empty tank.
8
Installing the water heater.
Electrical Connections
WARNING
WARNING
Water heater junction box.
Junction
box cover
Wire connections
Ground screw
Conduit
connector
DO NOT turn on the
electrical supply or operate
this water heater unless it is
completely full of water.
!
A separate branch circuit with copper
conductors, overcurrent protective
device and suitable disconnecting
means must be provided by a qualified
electrician.
All wiring must conform to local codes
or latest edition of National Electrical
Code ANSI/NFPA 70.
The water heater is completely wired to
the junction box inside jacket at the top
front of the water heater. An opening for
1/2″ or 3/4″ electrical fitting is provided
for field wiring connections.
The voltage requirements and wattage
load for the water heater are specified
on the rating plate on the front of the
water heater.
The branch circuit wiring should include
either:
Metallic conduit or metallic
sheathed cable approved for use as
a grounding conductor and
installed with fittings approved for
the purpose.
Non-metallic sheathed cable,
metallic conduit or metallic
sheathed cable not approved for
use as a ground conductor shall
include a separate conductor for
grounding. It should be attached to
the ground terminals of the water
heater and the electrical
distribution box.
!
CAUTION: The presence of water in
the piping and water heater does not
provide sufficient conduction for a
ground. Non-metallic piping,
dielectric unions, flexible connectors
etc. can cause the water heater to be
electrically isolated.
NOTICE: This guide recommends minimum branch circuit sizing and wire size based on National Electric
Code. Refer to wiring diagrams in this manual for field wiring connections.
Branch Circuit Sizing and Wire Size Guide
Single Phase
Wiring
Total Water
Heater
Wattage
Recommended Over Current
Protection
(Fuse or circuit breaker amperage
rating)
Copper Wire Size AWG Based on
NE.C. Table 310-16 (75°C)
120V 208V 240V 277V 480V 120V 208V 240V 277V 480V
1,500 20 15 15 15 15 12 14 14 14 14
2,000 25 15 15 15 15 10 14 14 14 14
3,000 35 20 20 15 15 8 12 12 14 14
4,000 - 25 25 20 15 - 10 10 12 14
4,500 - 30 25 25 15 - 10 10 10 14
5,000 - 30 30 25 15 - 10 10 10 14
5,500 - 35 30 25 15 - 8 10 10 14
6,000 - 40 35 30 20 - 8 8 10 12
8,000 - 50 45 40 25 - 8 8 8 10
9,000 - - 50 45 25 - - 8 8 10
10,000 - - - 50 30 - - - 8 10
11,000 - - - 50 30 - - - 8 10
12,000 - - - - 35 - - - - 8
See the top of next page for 3 Phase wiring.
9
This water heater meets or exceeds
the National Appliance Energy
Conservation Act requirements where
the UEF rating was established with
the energy cover installed. The energy
cover must be installed in accordance
with the instructions provided.
Energy Efficiency

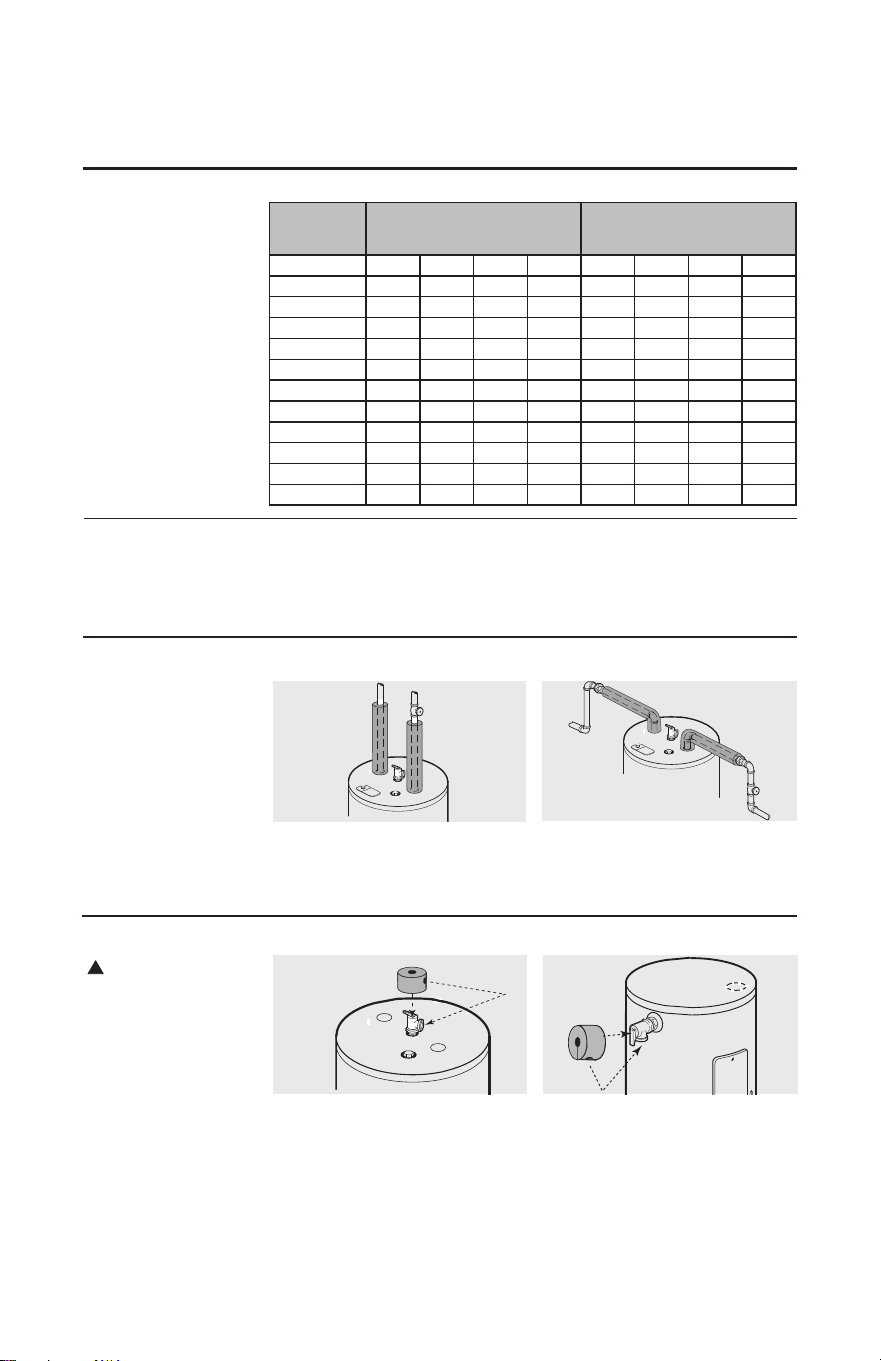

For increased energy efficiency, some
water heaters have been supplied with
a 2-3/8” section of pipe insulation.
Please install the insulation, according
to the illustrations above, that best
meets your requirements.
Slip the insulation cover over the T&P
Valve through the center hole and align
the hole in the side with the opening of
the T&P Valve.
R
E
L
I
E
F
V
A
L
V
E
C
OLD
HOT
Typical top connection arrangement
Typical side connection arrangement
Relief Valve Insulation Installation
!
CAUTION: Ensure
the T&P Valve opening
is not obstructed by the
insulation.
For increased energy efficiency, some
water heaters have been supplied with
two 24” sections of pipe insulation.
Please install the insulation, according
to the illustrations above, that best
meets your requirements.
R
E
L
I
E
F
V
A
L
V
E
COLD
HOT
Typical vertical piping arrangement
R
E
L
I
E
F
V
A
L
V
E
COL
D
HOT
Typical horizontal piping arrangement
Hot and Cold Pipe Insulation Installation
3 Phase
Wiring
Total Water
Heater
Wattage
Recommended Over Current
Protection (Fuse or circuit breaker
amperage rating)
Copper Wire Size AWG Based on
NE.C. Table 310-16 (75°C)
208V 240V 277V 480V 208V 240V 277V 480V
3,000 20 20 15 15 12 12 14 14
4,000 25 25 20 15 10 10 12 14
4,500 30 25 25 15 10 10 10 14
5,000 30 30 25 15 10 10 10 14
5,500 35 30 25 15 8 10 10 14
6,000 40 35 30 20 8 8 10 12
8,000 50 45 40 25 8 8 8 10
9,000 - 50 45 25 - 8 8 10
10,000 - - 50 30 - - 8 10
11,000 - - 50 30 - - 8 10
12,000 - - - 35 - - - 8
10
Installing the water heater.
Heat Trap
For increased energy efficiency, some
water heaters have been supplied with
factory installed internal or external heat
traps in the hot outlet and cold water
inlet openings.
NOTICE: DO NOT apply heat to the
HOT or COLD water connections.
If sweat connections are used, sweat
tubing to adapter before fitting
adapter to the water connections on
heater. Any heat applied to the water
supply fittings will permanently
damage the dip tube and/or heat
traps.
Figure 4
Figure 5
Items Provided:
1 - water heater energy cover
1 - water heater energy cover top
2 - tape strips - 3” x 40”
Installation:
1. With vinyl side out, wrap the cover
around water heater as shown in
Figure 1.
2. Apply 3 pieces of tape 6” long
across cover seam as shown in
Figure 2.
3. Apply a strip of tape 32” long over
entire length of seam, as shown in
Figure 3.
4. Insulate top of water heater by
placing top insulation as shown
in Fig 4.
5. Secure top insulation to cover
by using 4 tape strips 6” long as
shown in fig. 5.
!
CAUTION: Avoid contact with
your eyes and skin. Wear long
sleeved, loose fitting clothing, gloves
and eye protection when handling
fiberglass. Wash with soap and
warm water after handling.
Water Heater Energy Cover Installation Instructions
Figure 1
Figure 3
Figure 2
11
Installation Checklist
A. Water Heater Location
B. Water Supply
C. Relief Valve
D. Wiring
❑ Close to area of heated water demand.
❑ Indoors and protected from freezing
temperatures.
❑ Area free of flammable vapors.
❑ Provisions made to protect area from water
damage.
❑ Sufficient room to service heater.
❑ Water heater completely filled with water.
❑ Air purged from water heater and piping.
❑ Water connections tight and free of leaks.
❑ Temperature and Pressure Relief Valve
properly installed and discharge line run to
open drain.
❑ Discharge line protected from freezing.
❑ Power Supply voltage agrees with water
heater rating plate.
❑ Branch circuit wire and fusing or circuit
breaker of proper size.
❑ Electrical connections tight and unit
properly grounded.
12
Safety Precautions
DO turn off power to water heater
if it has been subjected to over
heating, fire, flood, physical
damage.
DO NOT turn on water heater
unless it is filled with water.
DO NOT turn on water heater if
cold water supply shut-off valve is
closed.
If there is any difficulty in
understanding or following the
Operating Instructions or the
Care and Cleaning section, it is
recommended that a qualified
person or serviceman perform the
work.
Operating the water heater.
CAUTION: Hydrogen gas can be produced in a hot water system served by this water heater that has
not been used for a long period of time (generally two weeks or more). HYDROGEN GAS IS
EXTREMELY FLAMMABLE!! To dissipate such gas and to reduce risk of injury, it is recommended that
the hot water faucet be opened for several minutes at the kitchen sink before using any electrical appliance
connected to the hot water system. If hydrogen is present, there will be an unusual sound such as air
escaping through the pipe as the water begins to flow. DO NOT smoke or use an open flame near the faucet
at the time it is open.
Safety Controls
The water heater is equipped with a
combination thermostat and temperature
limiting control (ECO) that is located
above the heating element in contact
with the tank surface. If for any reason
the water temperature becomes
excessively high, the temperature
limiting control (ECO) breaks the
power circuit to the heating element.
Once the control opens, it must be reset
manually.
CAUTION: The cause of the high
temperature condition must be
investigated by qualified service
technician and corrective action must
be taken before placing the water
heater in service again.

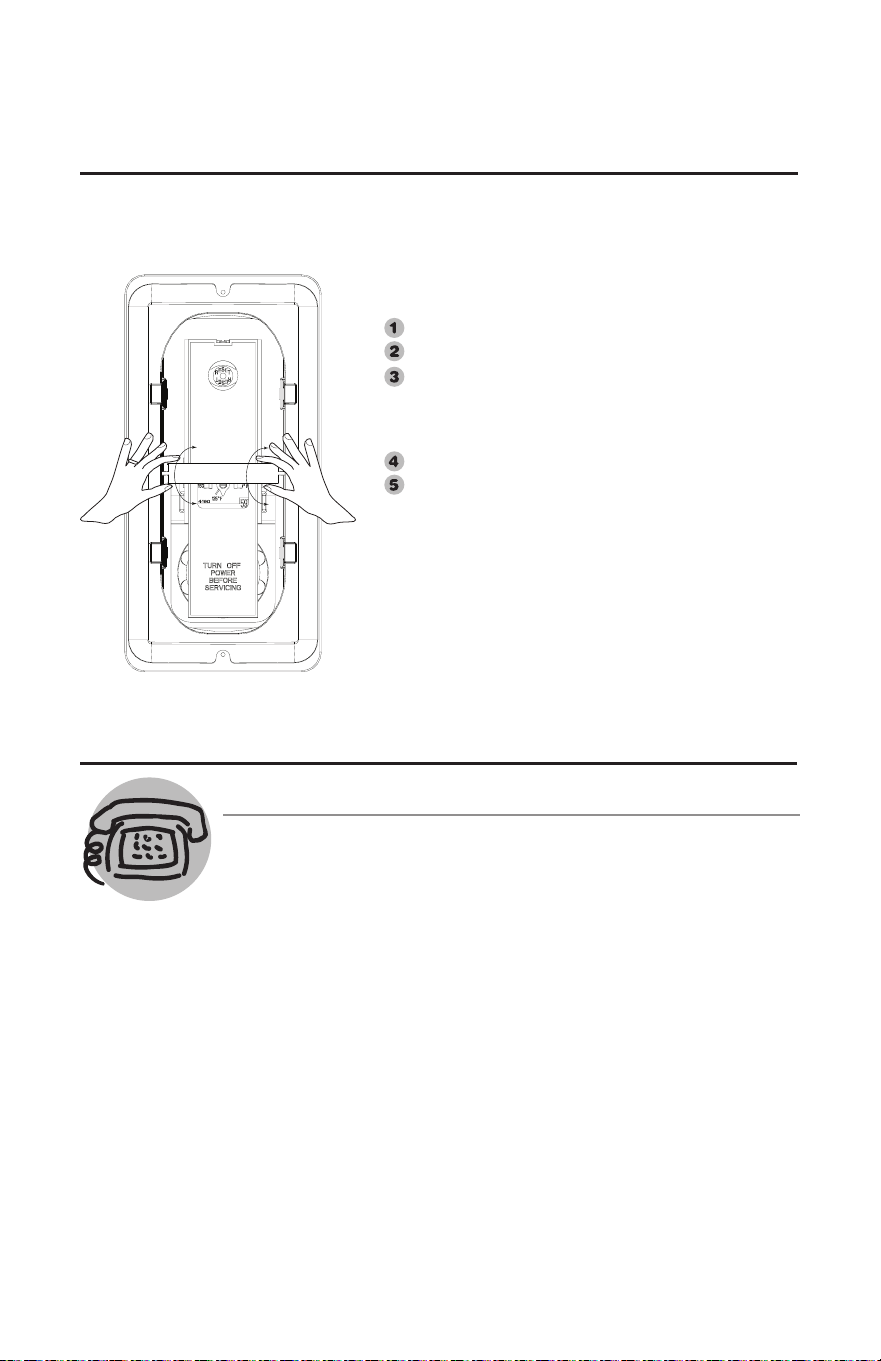

To reset the temperature limiting
control:
Turn off the power to the water
heater.
Remove the jacket access panel(s)
and insulation.
The thermostat protective cover
should not be removed.
Press the red RESET button.
Replace the insulation and jacket
access panel(s) before turning on
the power to the water heater.
WARNING: If the
water heater has been
subjected to flood, fire, or
physical damage, turn off
power and water to the
water heater.
DO NOT operate the
water heater again until
it has been thoroughly
checked by qualified
service personnel.
13
If adjustment is necessary…
Turn off the power to the water
heater.
Remove the jacket access panel(s)
and insulation exposing the
thermostat(s).
The thermostat protective cover(s)
should not be removed.
Using a small screwdriver, set the
thermostat(s) dial pointer(s) to
the desired temperature.
Replace the insulation and jacket
access panel(s). Turn on the power
to the water heater.
R
E
S
E
T
R
E
S
E
T
TURN OFF
POWER
BEFORE
SERVICING
90°F150°F
125°F
(66°C)
(52°C)
(32°C)
Type 59T thermostat and
protective cover.
Time/Temperature Relationship in Scalds
Temperature Time To Produce a Serious Burn
120°F (49°C) More than 5 minutes
125°F (52°C) 1
1
/2 to 2 minutes
130°F (54°C) About 30 seconds
135°F (57°C) About 10 seconds
140°F (60°C) Less than 5 seconds
145°F (63°C) Less than 3 seconds
150°F (66°C) About 1
1
/2 seconds
155°F (68°C) About 1 second
Table courtesy of Shriners Burn Institute
!
DANGER: There is a
hot water scald potential if
the thermostat is set too
high. Households with small
children, disabled, or
elderly persons may require
a 120°F (49°C) or lower
thermostat setting to
prevent contact with HOT
water.
Water Temperature Setting
The temperature of the water in the
water heater can be regulated by setting
the temperature dial of the adjustable
surface mounted thermostat(s) located
behind the jacket access panel(s).
Dual element heaters have two
thermostats.
Safety and energy conservation are
factors to be considered when selecting
the water temperature setting of the
water heater’s thermostat(s). The lower
the temperature setting, the greater the
savings in energy and operating costs.
However, for the best first hour hot
water delivery, the following thermostat
settings are recommended. Upper
thermostat: 125°F (52°C) - 130°F
(54°C), Lower thermostat: 120°F (49°C).
To comply with industry codes and
standards the thermostat(s) are factory
set at 120°F (49°C) or less where local
codes require. This is the recommended
starting point.
Contact (such as at the water use
fixture) with water temperatures above
125°F (52°C) can cause severe burns
or death from scalding. Be sure to read
and follow the warnings outlined in this
manual and on the label on the water
heater. This label is located on the water
heater near the thermostat access panel.
Mixing valves are recommended for
reducing point of use water temperature
by mixing hot and cold water in
branch water lines. It is recommended
that a mixing valve complying
with the Standard for Temperature
Actuated Mixing Valves for Hot Water
Distribution Systems, ASSE 1017 be
installed. See page 4 for more details
and contact a licensed plumber or the
local plumbing authority for further
information.
The chart below may be used as a
guide in determining the proper water
temperature for your home.
Reset button
Thermostat
protective
cover
Thermostat
dial pointer
14
Care and cleaning of the water heater.
Draining the Water Heater
CAUTION: Shut off power to the
water heater before draining water.
DANGER: Before manually
operating the relief valve, make
certain no one will be exposed to the
hot water released by the valve. The
water drained from the tank may be
hot enough to present a scald hazard
and should be directed to a suitable
drain to prevent injury or damage.
In order to drain the water heater, turn
off the cold water supply. Open a hot
water faucet or lift the handle on the
relief valve to admit air to the tank.
Attach a garden hose to the drain
valve on the water heater and direct
the stream of water to a drain. Open
the valve.
Routine Preventative Maintenance
Properly maintained, your water heater
will provide years of dependable
trouble-free service.
It is suggested that a routine preventive
maintenance program be established
and followed by the user.
It is further recommended that a
periodic inspection of the operating
controls, heating element and wiring
should be made by service personnel
qualified in electric appliance repair.
Most electrical appliances, even
when new, make some sound when
in operation. If the hissing or singing
sound level increases excessively, the
electric heating element may require
cleaning. Contact a qualified installer or
plumbing contract to inspect.
At least once a year, lift and release
the lever handle on the temperature
pressure relief valve, located near the
top of the water heater, to make certain
the valve operates freely. Allow several
gallons to flush through the discharge
line to an open drain.
A water heater’s tank can act as a
setting basin for solids suspended in the
water.It is therefore not uncommon for
hard water deposits to accumulate in the
bottom of the tank. It is suggested that a
few quarts of water be drained from the
water heater’s tank every month to clean
the tank of these deposits.
Rapid closing of faucets or solenoid
valves in automatic water using
appliances can cause a banging noise
heard in a water pipe. Strategically
located risers in the water pipe system
or water hammer arresting devices can
be used to minimize the problem.
The anode rod should be removed from
the water heater’s tank annually for
inspection and replaced when more than
6″ of core wire is exposed at either end
of the rod.
Make sure the cold water supply is
turned off before removing anode rod.
DANGER: Before
manually operating the
relief valve, make certain
no one will be exposed to
the danger of coming in
contact with the hot water
released by the valve. The
water may be hot enough
to create a scald hazard.
The water should be
released into a suitable
drain to prevent injury or
property damage.
NOTICE: If the
temperature and pressure
relief valve on the hot
water heater discharges
periodically, this may be
due to thermal expansion
in a closed water
system. Contact the
water supplier or your
plumbing contractor on
how to correct this. DO
NOT plug the relief valve
outlet.
15
Care and cleaning of the water heater.
Vacation and Extended Shut-Down
If the water heater is to remain idle for
an extended period of time, the power
and water to the appliance should
be turned off to conserve energy
and prevent a build-up of dangerous
hydrogen gas.
The water heater and piping should be
drained if they might be subjected to
freezing temperatures.
After a long shut-down period, the
water heater’s operation and controls
should be checked by qualified service
personnel. Make certain the water
heater is completely filled again before
placing
it in operation.
NOTICE: Refer to the
Hydrogen Gas Caution in
the Operating Instructions.
Anode Rod
This water heater is equipped with an
anode rod designed to prolong the life
of the glass lined tank. The anode rod is
slowly consumed, thereby eliminating
or minimizing corrosion of the glass
lined tank.
Water sometimes contains a high sulfate
and/or mineral content and together
with cathodic protection process
can produce a hydrogen sulfide, or
rotten egg odor in the heated water.
Chlorination of the water supply should
minimize the problem.
NOTICE: DO NOT
remove the anode rod
from the water heater’s
tank, except for inspection
and/or replacement,
as operation with the
anode rod removed will
greatly shorten the life of
the glass lined tank and
will exclude warranty
coverage.
16
Before You Call For Service…
Troubleshooting Tips
Save time and money! Review the chart on this page first and you may not need to call
for service.
Problem Possible Causes What To Do
Rumbling noise Water conditions in your ● Remove and clean the heating elements.
home caused a build up of
scale or mineral deposits
on the heating elements.
Relief valve Pressure build up caused ● This is an unacceptable condition and must be
producing popping by thermal expansion corrected. Contact the water supplier or plumbing
noise or draining in a closed system. contractor on how to correct this. DO NOT plug the
relief valve outlet.
Rattling noise Internal heat trap ● This is normal for heat trap fittings when in operation
during periods fittings in operation. and does not indicate a need for service.
of water usage
Not enough or Water usage may have ● Wait for the water heater to recover after an abnormal
no hot water exceeded the capacity demand.
of the water heater.
A fuse is blown or a circuit ● Replace fuse or reset circuit breaker.
breaker tripped.
Electric supply may be off. ● Make sure electric supply to water heater and
disconnect switch, if used, are in the ON position.
The thermostat may ● See the Temperature regulation of the water heater
be set set too low. section of this manual.
Leaking or open hot ● Make sure all faucets are closed.
water faucets.
Electric service to your ● Contact the local electric utility.
home may be interrupted.
Improper wiring. ● See the Installing the water heater section of this
manual.
Manual reset limit (ECO). ● See the Temperature regulation of the water heater
section of this manual.
Cold water inlet ● This is normal. The colder inlet water takes longer
temperature may be to heat.
colder during the
winter months.
Water is too hot The thermostat ● See the Temperature regulation of the water heater
is set too high. section of this manual.
!
CAUTION: For your safety DO NOT attempt repair of electrical wiring, thermostats, heating elements or other safety
devices. Refer repairs to qualified service personnel.
17
Replacement Parts.
For 30–40 gallon models with single and double elements.
Instructions For Placing a Parts Order
Address parts orders to the distributor or
store where the heater was purchased.
All parts orders should include:
The model and serial number of the
water heater from the rating plate.
Specify voltage and wattage as marked
on the rating plate.
Part description (as noted below) and
number of parts desired.
!
CAUTION: For your safety DO NOT
attempt repair of electrical wiring,
thermostat(s), heating elements or other
operating controls. Refer repairs to
qualified service personnel.
R
E
S
E
T
R
E
S
E
T
1
4
0
1
3
0
1
2
0
1
1
0
1
0
0
9
0
T
H
E
R
M
-
O
-
D
I
S
C
T
U
R
N
O
FF
P
O
W
E
R
B
E
F
O
R
E
S
E
R
VI
CI
N
G
T
UR
N
O
F
F
P
O
W
E
R
BE
F
O
R
E
S
E
R
V
I
C
I
N
G
1
4
0
1
3
0
1
2
0
1
1
0
1
0
0
9
0
T
H
E
R
M
-
O
-
D
I
S
C
Drain valve
Jacket access
panel(s)
Heating element
gasket
Heating element
Thermostat
bracket
Lower thermostat
Cavity
insulation
Lower thermostat
protective cover
Cavity insulation
Upper thermostat protective cover
(on double element models only)
Upper thermostat
(on double element
models only)
Upper thermostat bracket
(on double element
models only)
Heating element
(on double element
models only)
Heating element
gasket
(on double element
models only)
Junction box cover
Plate cover
Anode rod
Dip tube gasket
Dip tube/internal heat trap
Temperature & Pressure
relief valve
Internal heat trap
Internal heat trap
gasket
Some models may have
been supplied with
External heat traps
in lieu of Internal heat traps
18
IF YOU NEED SERVICE
1. Should you have any questions about your new water heater, or if it requires adjustment, repair,
or routine maintenance, it is suggested that you first contact your installer, plumbing contractor or
previously agreed upon service agency. In the event the firm has moved, or is unavailable, refer
to the telephone directory, commercial listings or local utility for qualified service assistance.
2. Should your problem not be solved to your complete satisfaction, you should then contact the
Manufacturer’s National Service Department at the following address:
800 Interstate Park Drive
Montgomery, Alabama 36109
Phone: 1-866-279-4566.
When contacting the manufacturer, the following information will be requested:
a. Model and serial number of the water heater as shown on the rating plate attached to the jacket of
the heater.
b. Address where the water heater is located and physical location.
c. Name and address of installer and any service agency who performed service on the water heater.
d. Date of original installation and dates any service work was performed.
e. Details of the problems as you can best describe them.
f. List of people, with dates, who have been contacted regarding your problem.
Cavity Insert Instructions
The following instructions are intended for qualified service personnel
ONLY, and should only be done when necessary.
In order to replace the thermostat or heating element, remove the
cavity insert crossbar by following the instructions below:
Turn off the power to the water heater.
Remove the jacket access panel(s) and insulation.
Rotate the crossbar up and down until it breaks away from
the remainder of the cavity insert.
(See illustration to the left)
Discard the crossbar. It cannot and need not be replaced.
Replace the thermostat and/or element as necessary.
Replace the insulation and jacket access panel(s) before
turning on the power to the water heater.
NOTICE: The cavity insert crossbar is necessary for the
manufacturing process only. The removal of the crossbar will
not interfere with the operation of the water heater.
19
Grounding conductor may be required.
Refer to Wiring Section of Manual
*
This water heater is factory equipped for two (2) wire connection to
electrical power. For use with "off-peak" meter (timer) remove wire
nut from red and black leads and connect to "off-peak" meter (timer).
!
SINGLE ELEMENT
DOUBLE ELEMENT
SIMULTANEOUS OPERATION
DOUBLE ELEMENT
SIMULTANEOUS OPERATION
WITH 4 WIRE OUTLET
DOUBLE ELEMENT
NON-SIMULTANEOUS
DOUBLE ELEMENT
NON-SIMULTANEOUS
WITH 4 WIRE OUTLET
!
DOUBLE ELEMENT
NON-SIMULTANEOUS
WITH 3 WIRE OUTLET
FIG. A-1
FIG. A-2 FIG. B FIG. C FIG. D FIG. E FIG. F
2
1
2
THERMOSTAT
& HIGH TEMP.
LIMIT (ECO)
HEATING
ELEMENT
WHITE
BLACK
BLACK
H
JUNCTION
BOX
N
1
G
*
BRANCH CIRCUIT
TO ELECTRICAL
DISTRIBUTION
PANEL
120 V ONLY
2
1
2
THERMOSTAT
& HIGH TEMP.
LIMIT (ECO)
HEATING
ELEMENT
RED
BLACK
BLACK
L1
G
*
BRANCH CIRCUIT
TO ELECTRICAL
DISTRIBUTION
PANEL
JUNCTION
BOX
4
L2
RED
1 3
SINGLE ELEMENT
2
UPPER
THERMOSTAT
& HIGH TEMP.
LIMIT (ECO)
UPPER
HEATING
ELEMENT
BLUE
L1
JUNCTION
BOX
4
L2
1 3
BLACK
RED
BLACK
LOWER
HEATING
ELEMENT
LOWER
THERMOSTAT
& HIGH TEMP
LIMIT (ECO)
1
2
1
1
2
BLUE
CONNECTOR TO "OFF
PEAK"
METER (TIMER)
TM2
4
YELLOW
YELLOW
2
BRANCH CIRCUIT
TO ELECTRICAL
DISTRIBUTION
PANEL
BLACK
LOWER
HEATING
ELEMENT
2
UPPER
THERMOSTAT
& HIGH TEMP.
LIMIT (ECO)
UPPER
HEATING
ELEMENT
BLUE
YELLOW
BLACK
L1
JUNCTION
BOX
4
L2
RED
1 3
1
2
BLACK
RED
LOWER
THERMOSTAT
1
2
4
BRANCH CIRCUIT
TO ELECTRICAL
DISTRIBUTION
PANEL
2
1
2
UPPER
THERMOSTAT
& HIGH TEMP.
LIMIT (ECO)
UPPER
HEATING
ELEMENT
BLUE
YELLOW
L1
JUNCTION
BOX
4
L2
RED
1 3
1
2
4
BLACK
BLUE
BLACK
BLUE
YELLOW
LOWER
THERMOSTAT
LOWER
HEATING
ELEMENT
TM 1
BLACK
TM 2
BRANCH CIRCUIT
TO ELECTRICAL
DISTRIBUTION
PANEL
G
*
G
*
G
*
BRANCH CIRCUIT
TO ELECTRICAL
DISTRIBUTION
PANEL
UPPER THERMOSTAT
& HIGH TEMP. LIMIT
(ECO)
2
UPPER
HEATING
ELEMENT
BLUE
L1
JUNCTION
BOX
4
L2
1 3
RED (10 GA)
BLACK
LOWER
HEATING
ELEMENT
LOWER
THERMOSTAT
& HIGH TEMP
LIMIT (ECO)
1
2
4
1 3
1
2
RED
2
BLACK
(10 GA)
YELLOW
BLACK (10
GA)
RED
(10 GA)
G
*
2
UPPER THERMOSTAT
& HIGH TEMP. LIMIT
(ECO)
UPPER
HEATING
ELEMENT
BLUE
L1
BRANCH CIRCUIT
TO ELECTRICAL
DISTRIBUTION PANEL
JUNCTION
BOX
4
L2
1 3
BLACK (10 GA)
RED (10 GA)
BLACK
LOWER
HEATING
ELEMENT
LOWER
THERMOSTAT
& HIGH TEMP
LIMIT (ECO)
1
2
4
1 3
1
2
RED
2
BLUE
(10 GA)
TO SECOND POWER SOURCE,
"OFF PEAK" METER, OR
TIMER
TM2
TM1
YELLOW
(10 GA)
YELLOW
G
*
THIS ELECTRIC WATER HEATER IS WIRED AS INDICATED BELOW AND ON THE NEXT PAGE
20
Wiring Diagrams
Electric Water Heaters for
3 - Phase Applications
Therm-O-Disc Thermostats
(Type 59T)
For the connection of this
water heat er to a 3-Phase Branch
Circuit, con nect field wiring to
the water heater as indicated in
the ap pro pri ate wiring diagram
at right. A sep a rate junction box
is being supplied with this water
heater (check bot tom of carton)
to accomodate wir ing and con-
duit con nec tions. Install the
Junction Box as shown on the
Installation/Instruction Sheet
in clud ed in the plastic bag
at tached to the heater.
DOUBLE ELEMENT
SIMULTANEOUS OPERATION
DOUBLE ELEMENT
NON-SIMULTANEOUS
FIG. G
FIG. H
2
UPPER THERMOSTAT
& HIGH TEMP. LIMIT (ECO)
UPPER
HEATING
ELEMENT
BLUE
4
L3
BLACK
BLACK
LOWER
HEATING
ELEMENT
LOWER
THERMOSTAT
& HIGH TEMP
LIMIT (ECO)
1
1
2
RED
2
BLUE
YELLOW
G
*
YELLOW
3
L2
1
1
L1
2
4
3- PHASE BRANCH CIRCUIT
TO ELECTRICAL
DISTRIBUTION PANEL
2
UPPER THERMOSTAT
& HIGH TEMP. LIMIT (ECO)
UPPER
HEATING
ELEMENT
BLUE
3- PHASE BRANCH CIRCUIT
TO ELECTRICAL
DISTRIBUTION PANEL
4
L3
BLACK (10 GA)
RED (10 GA)
BLACK
LOWER
HEATING
ELEMENT
LOWER
THERMOSTAT
& HIGH TEMP
LIMIT (ECO)
1
4
1
2
RED
2
BLUE (10 GA)
YELLOW
G
*
YELLOW (10 GA)
3
3
L2
1
1
L1
2
Wiring Diagrams Electric Water Heaters for
3 - Phase Applications
Therm-O-Disc Thermostats
(Type 59T)
For the connection of this water heater to a 3-Phase Branch Circuit, connect field
wiring to the water heater as indicated in the appropriate wiring diagram at right.
A separate junction box is being supplied with this water heater (check bottom
of carton) to accommodate wiring and conduit connections. Install the Junction
Box as shown on the Installation/Instructions Sheet included in the plastic bag
attached to the water heater
