4 Gal (15Litre) WET/DRY VACUUM
OWNER'S MANUAL
IMPORTANT: READ THIS OPERATOR’S MANUAL
BEFORE USING!
TABLE OF CONTENTS
Specifications
Troubleshooting

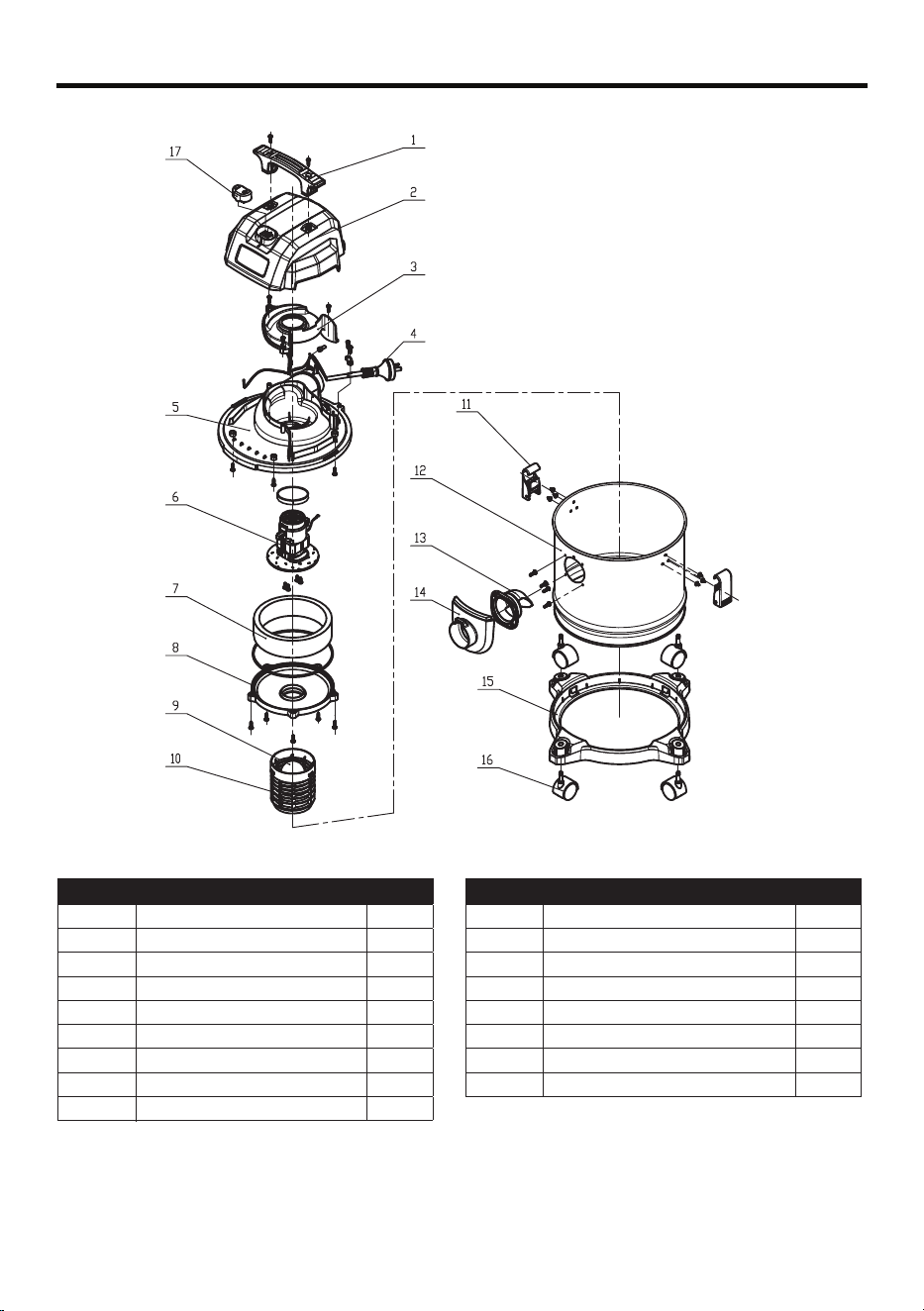

Exploded View and Parts List
Care and Maintenance
Assembly
Safety Information
Package Contents
3
4
5
7
9
9
10
2
Warranty 11
To order replacement bag, filters or parts contact;
Customer Service
AUS 1300 660 457
NZ 0800 474 876
email: [email protected]
INTRODUCTION
Dear Customer,
Thank you for purchasing this wet/dry vacuum which has passed through our extensive
quality assurance processes. Every care has been taken to ensure that it reaches you in
perfect condition. However, in the unlikely event that you should experience a problem,
or if you require any assistance please do not hesitate to contact us;
PRODUCT SPECIFICATIONS
240V / 50Hz / 850WattPower
SL19301-4BModel
Single StageMotor
15 LitreTank Capacity
1.2 m x 3.2 cmHose
H05VV-F 2 x 0.75mm² x 3mPower cord
WARNING:
Use only extension cords that are rated for outdoor use. Extension cords in poor condition or that
are too small in wire size can pose fire and shock hazards.
For any queries or assistance call
Customer Service
AUS 1300 660 457
NZ 0800 474 876
Hours of operation:
Monday to Friday
8.00am - 5.00pm AEST
Do not return to place of purchase.
Keep your purchase receipt, this will be required to make any claims
under the 12 month warranty.
Please take note of serial number and write
here for ease of reference:
Serial Number:
Date of Purchase:
Place of Purchase:
Receipt Number:
If you have a problem, call customer service do not return this wet/dry
vacuum to the place of purchase.
3
PACKAGE CONTENTS
4

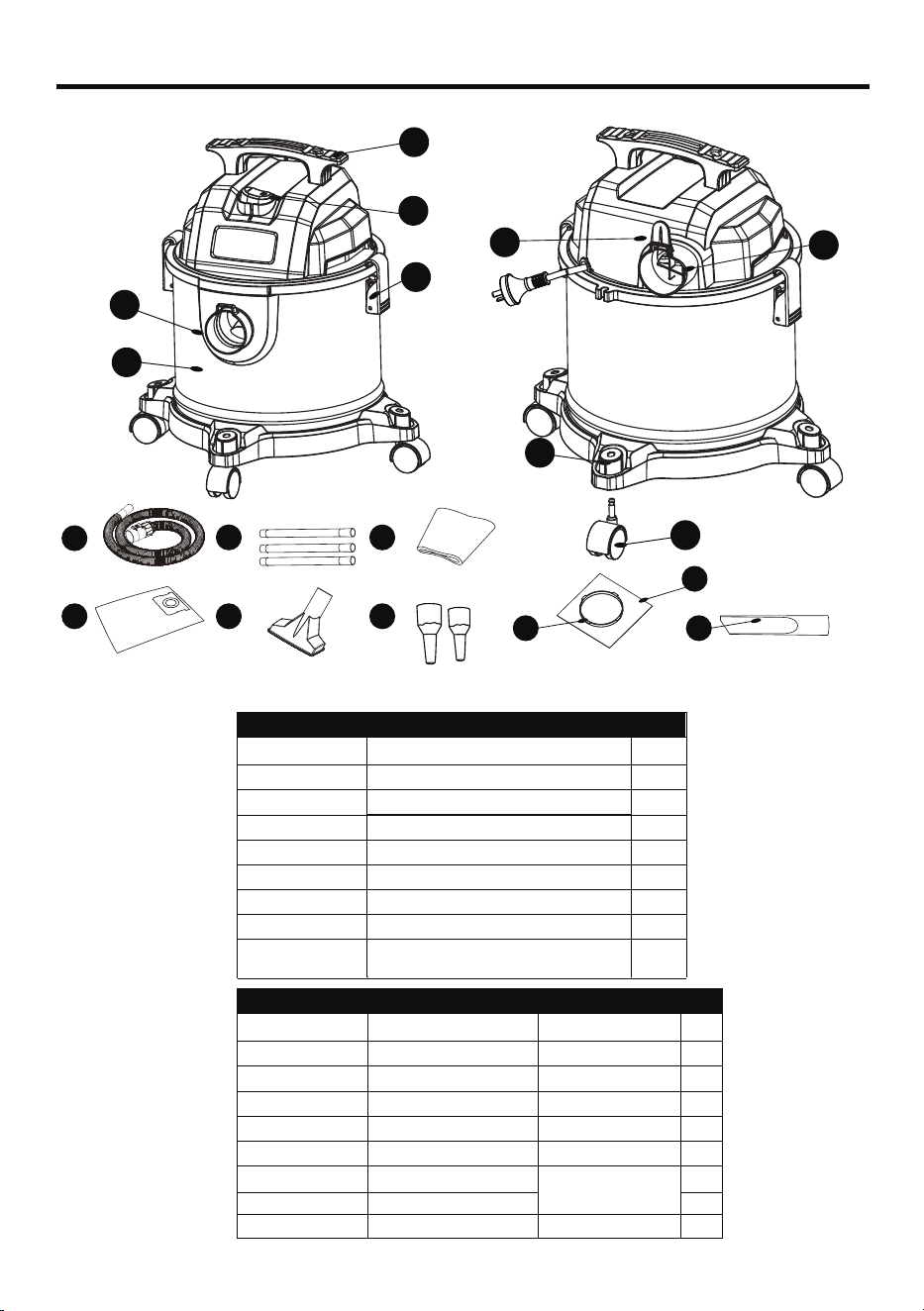

PART DESCRIPTION Part No.
J
Hose 13-3304
K 25-1205A
20-1200A
25-1238N
13-1588
13-4001
L
M
Foam filter (Wet)
N
O
Inflation Kit
Gulper nozzle
Extension wand
20-1100N
13-1508
P
Q
Reusable filter (Dry)
R 1
Crevice nozzle
Clamp ring
QTY
1
1
3
1
1
1
1
1
PART DESCRIPTION QTY
A Handle
1
B
Power switch
1
C
Lid latch
2
D
Vacuum port
1
E
Dust tank
1
F
Blowing port
1
G
Power cord wrap
1
H
Accessory holder
1
I
Casters（To be assembled
before use)
4
A
B
C
D
E
G
H
I
F
K L
J
P R
Q
M N O
Disposable filter bag
SAFETY INFORMATION
5
IMPORTANT!
IMPORTANT!
IMPORTANT! IMPORTANT!
IMPORTANT!
IMPORTANT SAFETY INSTRUCTIONS & GROUNDING INSTRUCTIONS
When using an electrical appliance, basic precautions should be always followed, including the
following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
WARNING:
To reduce the risk of fire, electric shock, or injury:
1. Do not leave appliance when plugged in or when in operation. Unplug from outlet when not in
use and before performing any service on it.
2. Do not expose to rain. Store indoors.
3. Always disconnect the plug from the wall outlet before removing the tank cover.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
5. Do not use with damaged cord or plug. If appliance is not working as i
t should, has been dropped,
damaged, left outdoors or dropped into water, contact service center for assistance.
6. Do not: pull or carry by cord, use cord as a handle, close a door on cord or pull cord around sharp
edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any openings blocked; kee
p free of dust, lint,
hair and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
11. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
12. Do not use without dust bag and/or filters in place.
13. Turn off all controls before unplugging.
14. Use extra care when cleaning on stairs.
15. Do not use to pick up flammable or combustible liquids such as gasoline or
use in areas where
they may be present.
16. Do not use the cleaner as a sprayer of flammable liquids such as oil-based paint, lacquers, etc.
17. Do not vacuum toxic, carcinogenic, combustible or other hazardous materials such as asbestos,
arsenic, barium, beryllium, lead, pesticides or other health endangering materials.
18. Do not pick up soot, cement, plaster or drywall dust without filter and dust bag in place. These are
very fine particles that may affect the performance of the motor or be exhausted back into the air.
Additional dust bags are available.
19. Do not leave th
e cord lying on the floor once you have finished the cleaning job. It can become a
tripping hazard.
20. Use special care when emptying heavily loaded tanks.
21. To avoid spontaneous combustion, empty tank after each use.
22. The operation of a utility vac can result in foreign objects being blown into eyes, which can result
in eye damage. Always wear safety goggles when operating vacuum.
23. STAY ALERT. Watch what you are doing and use common sense. Do not use vacuum cleaner
when you are tired,
distracted or under the influence of drugs, alcohol or medication causing
diminished control.
NOTE: Use only as described in this manual. Use only manufacturer's recommended attachments.
ATTENTION:
Read all safety rules carefully before attempting to operate. Retain for future reference.
!
DANGER:
Never operate this unit when flammable materials or vapors are present because electrical devices
produce arcs or sparks that can cause a fire or explosion.
!
!
IMPORTANT! IMPORTANT!
IMPORTANT! IMPORTANT!
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
IMPORTANT!
Remove the plug from the socket before performing maintenance. Before using the machine make
sure that the frequency and voltage shown on the rating plate correspond with the mains voltage.
Specifications and details are subject to change without prior notice. The accessories shown in the
pictures may vary from model to model.
IMPORTANT SAFEGUARDS
The symbol on the product or packaging indicates that the product must not be treated as domestic
refuse. Instead, it should be handed in to a collection point for the recycling of electrical and electronic
components. By ensuring the product is treated in the correct manner, you will help prevent any
negative impact on the environment and health that might arise were the product to be discarded as
ordinary refuse. For further information about recycling, you should contact your local authorities,
refuse collection service or the sales outlet where you bought the goods.
SAFETY INFORMATION
6
24. This appliance is provided with double insulation. Use only identical replacement parts. See
instructions for servicing double insulated appliances.
2
26. To reduce the risk of injury from accidental starting, always shut off vacuum and disconnect
the power plug from the wall outlet before installing any part or cleaning accessory.
5. Unplug before connecting the hose, nozzle and the like.
IMPORTANT:
WARNING:
SERVICING OF DOUBLE-INSULATED WET/DRY VAC
In a double-insulated Wet/Dry Vac, two systems of insulation are provided instead of grounding. No
grounding means is provided on a double-insulated appliance, nor should a means for grounding be
added. Servicing a double-insulated Wet/Dry Vac requires extrem
e care and knowledge of the system
and should be done only by qualified service personnel. Replacement parts for a double-insulated
Wet/Dry Vac must be identical to the parts they replace. Your double-insulated Wet/Dry Vac is marked
with the words "DOUBLE INSULATED" and the symbol (square within a square) may also be
marked on the appliance.
To reduce the risk of injury from electrical shock, unplug power cord before servicing the electrical
parts of the Wet/Dry Vac.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a haz
ard.
IMPORTANT:
Remove the plug from the socket before performing maintenance. Before using the machine make
sure that the frequency and voltage shown on the rating plate correspond with the mains voltage.
Specifications and details are subject to change without prior notice. The accessories shown in the
pictures may vary from model to model.
IMPORTANT SAFEGUARDS
The symbol on the product or packaging indicates that the product must not be treated as
domestic refuse. Instead, it should be handed in to a collection point for the recycling of electrical
and electronic components. By ensuring the product is treated in the right way, this will help to
prevent the negative impact on environment and health that may result from the product being
thrown away as general waste. For further information about recycling, you should contact the
local authorities, refuse collection service or the sales outlet where you boughtthe goods.
This product can expose you to chemicals including lead, which is known to the
State of California to cause cancer, birth defects or other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
WARNING:
!
OPERATING INSTRUCTIONS
ASSEMBLY
7
To reduce the risk of fire or explosion, do not operate this vac in areas with flammable gases,
vapors or explosive dust in the air. Flammable gases or vapors include but are not limited to:
lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol or aerosol sprays. Explosive
dusts include but are not limited to: coal, magnesium, aluminum, and grain or gun powder. Do not
vacuum explosive dust, flammable or combustible liquids or hot ashes. Do not use this vac as a
sprayer for any flammable or combustible liquid. To reduce the risk of health hazards from vapors
or dusts, do not vacuum toxic materials.
WARNING:
WARNING:
The operation of any utility vac can result in foreign objects being blown into the eyes, which can
result in severe eye damage. Always wear safety eyewear complying with ANSI Z87.1 (or in
Canada, CSA Z94.3) before starting operation.
To reduce risk of hearing damage, wear ear protectors when using the vac for extended hours or
when using it in a noisy area.
This 15 liter wet/dry vac is assembled at the factory and ready for use when you remove it from the
carton. The unit is ready for dry vacuuming or blowing. After you plug the power cord into the wall
receptacle, turn the unit “ON” by pushing the switch from position “O” to position “I”. The “O” is
the “OFF” position and the “I” is the “ON” position.
CAUTION:
DRY PICK-UP
NOTE:

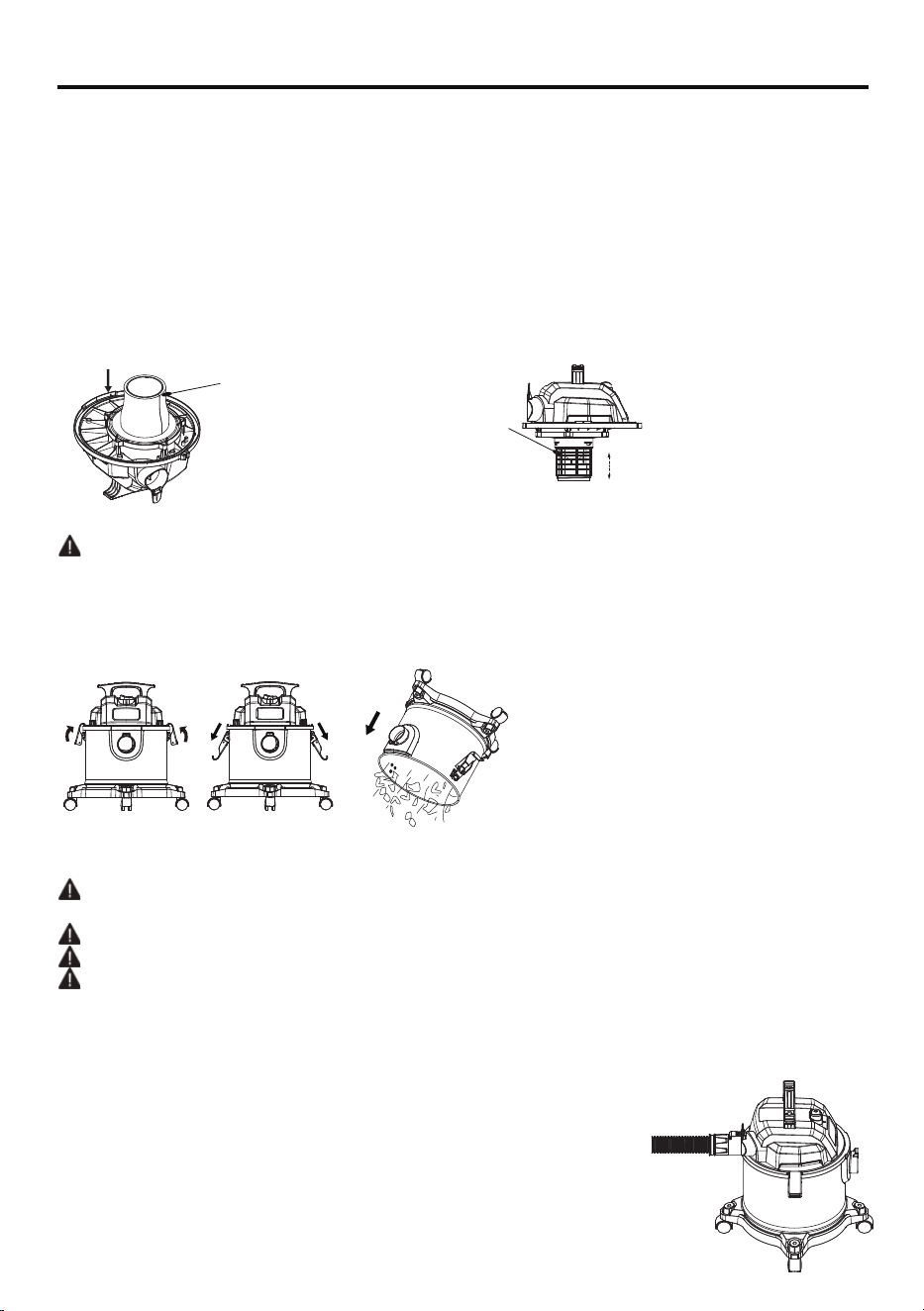

1. The foam sleeve and reusable dry filter may be used to pick up dust and dry material; you must
install both to ensure proper filtration. lf the vacuum has been used to pick up liquids, the foam
sleeve must be cleaned and dried before insalling for dry pick up.
The filter must always be in correct position to reduce the risk of leaks and possible damage to vac.
Make sure that the filter is completely covering the filter cage and that the clamp ring is as close to
the lid as possible. Make sure there are no gaps between the filter and the lid. (See illustration). It is
very important to assemble the filter to the cage without
allowing any possible leaks or tears. Any
leaks will allow the picked up debris to be blown out of the blowing port and back into the
surrounding environment.
2. When using the vac to pick up very fine dust, it will be necessary to empty the dust tank and clean
or replace the filter at more frequent intervals to maintain peak vac performance.
A dry filter is necessary to pick up dry material. If you use the vac to pick up dust when the filter is wet,
t
he filter will clog quickly and be very difficult to clean. If the filter gets wet, replace it before continuing to
do dry pickups.
Reusable filter
Clamp ring
O = OFF I = ON
INSTALLATION OF HANDLE

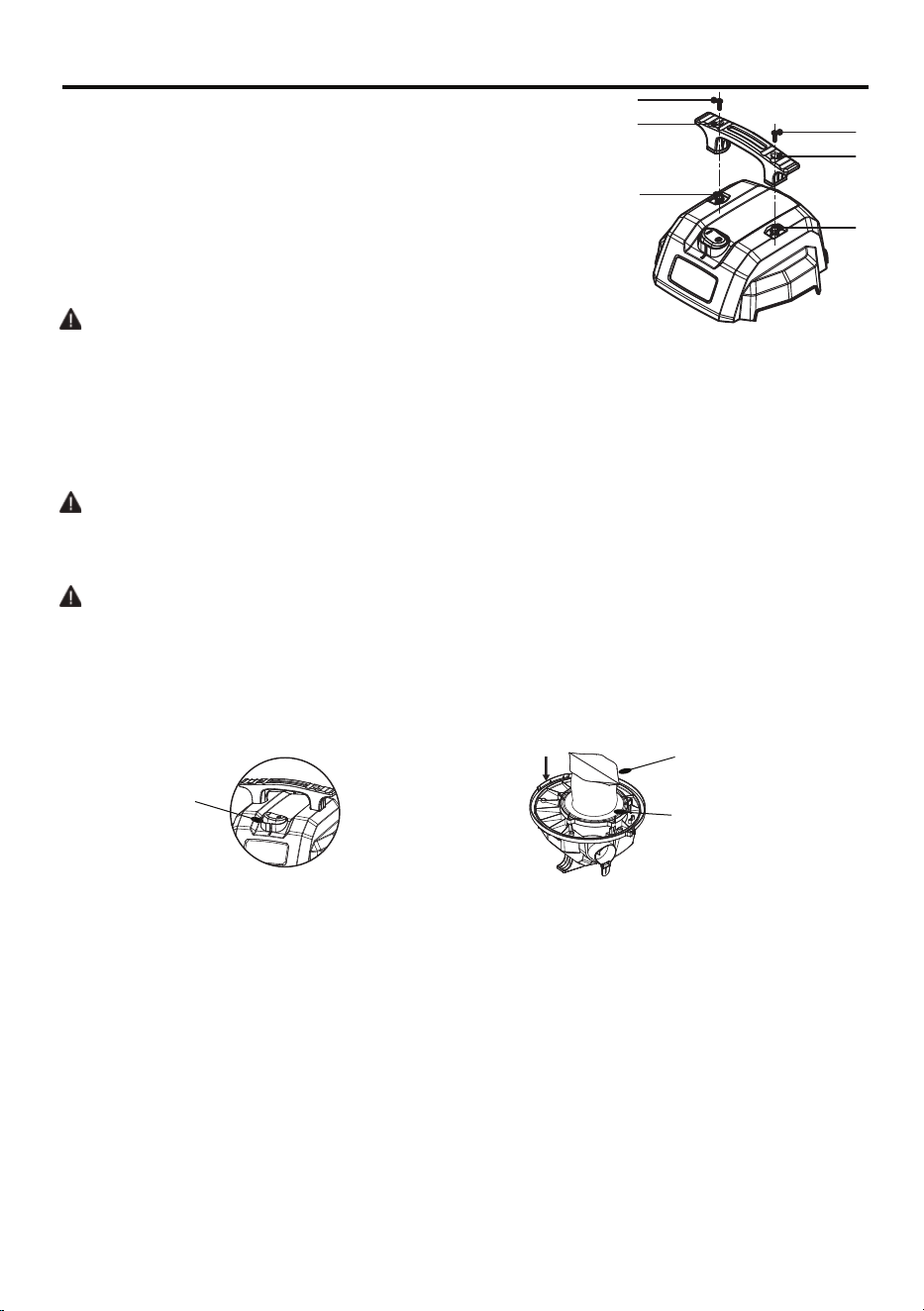

To install handle
1. Place handle in recess (3)
2. Insert provided screws (1)
3. Use Phillips screwdriver to secure and tighten.
(2)
(1)
(3)
(2)
(1)
(3)
WET PICK-UP
The vac contains a blowing feature. It has the capability to blow sawdust and other debris. It can be
used to blow dust and debris out of garages or off patios and driveways. Follow the steps below to
use the vac as a blower.
1. Locate blowing port on the vac.
2. Insert one end of the 3.2cm x 1.2m hose into the blowing port.
3. Turn vac “ON”.
EMPTY THE TANK
BLOWING OPERATION
WARNING:
To reduce the risk of injury from accidental starting, unplug power cord before emptying the dust tank.
WARNING:
Always wear safety eyewear complying with ANSI Z87.1 (or in Canada CSA Z94.3)
when using as a blower.
WARNING:
To avoid injury to bystanders, keep them clear of blowing debris.
CAUTION:
Wear a dust mask if blowing creates dust which might be inhaled.
CAUTION:
To reduce the risk of hearing damage, wear ear protectors when using the vac/blower
for extended hours or when using it in a noisy area.
1. Remove reusable filter and replace it with foam filter when you do wet pickups.
2. This wet/dry vac is equipped with a float mechanism which will rise automatically to cut off the
airflow when the liquid in the tank reaches a predetermined level. When this happens, turn off vac,
unplug the power cord, and empty the dust tank. You will know that the float has shut the airflow off
because the suction ceases and the motor noise becomes higher in pitch due to increased motor
speed. The liquid capacity may vary with the rate of pickup.
IMPORTANT!
1. To reduce the risk of damage to the vac, do not run motor with float in raised position.
2. Wet pick up accessories should be washed periodically after picking up wet, sticky kitchen
accident. This can be accomplished with a warm solution of soap and water.
OPERATING INSTRUCTIONS
8
Foam filter
Float in raised position
1. Remove the power head assembly of the wet/dry vac by pulling outward on the lid clips located
on each side of the vac. Lift off the power head assembly.
2. Dump the tank contents into the proper waste disposal container.
CARE AND MAINTENANCE
9
Minor problems often can be fixed without calling customer service.
Vacuum will not run
Loss of suction,
wet pick-up
Loss of suction, dry
pick-up
No electricity
1. Full tank
2. Clogged hose
3. Clogged filter
1. Drain and clean tank
2. Remove hose and clean debris
3. Clean or replace filter
Make sure electrical outlet has voltage
(A qualified electrician may need to be contacted)
WARNING:
TROUBLESHOOTING
1. Full tank
2. Clogged hose
3. Clogged filter
1. Drain and clean tank
2. Remove hose and clean debris
3. Clean or replace filter
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The filter should be cleaned often to maintain pe ak vac performance.
FILTER REPLACEMENT
WARNING:
To reduce the risk of injury from accidental starting, unplug power cord before changing
or cleaning filter.
IMPORTANT:
To avoid damage to the impeller and motor, always reinstall the reusable filter
before using the vac for dry pickups and always reinstall the foam filter before using the vac for
wet pickups.
IMPORTANT:
After cleaning, check the filter for tears or small holes. Do not use a filter with holes or
tears in it. Even a small hole can cause a lot of dust to come out of the vac. Replace it immediately.
NOTE:
Before installing the filter on the vac, clean the area of the lid so that the clamp ring will seal
the bag against the lid and stop small particles from bypassing the filter bag.
If the filter is clean and not damaged, replace it on the filter cage. If it cannot be reused, place a new
filter over the filter cage.
NOTE:
Clean the filter in an open area. Cleaning should be done outdoors and not in living quarters.
WARNING:
Do not remove filter cage and float. The float prevents water from entering the impeller
and damaging the motor. The cage prevents fingers from touching the moving impeller.
CLEANING
To keep the wet/dry vac looking its best, clean the outside with a cloth dampened with warm water
and mild soap.
To clean the tank:
1. Dump out debris.
2. Wash tank thoroughly with warm water and mild soap.
3. Wipe out with dry cloth.
STORAGE
Before storing the vac, the dust tank should be emptied and cleaned. The cord should be wrapped
and hung on the unit and the accessories should be kept in the accessory holder so they can be
readily available. The vac should be stored indoors.
10
EXPLODED VIEW/PARTS LIST
PART DESCRIPTION QTY PART DESCRIPTION QTY
1 Handle 1
Lid latch assembly
2 Top cover 1
12 1
3 Thermal baffle 1
13
1
4 Power cord 1
14
1
1
15
1
5
Middle Frame
1
16
4
6 Motor
1
7 Silencer sponge
8
9
17
1
Float
Motor bottom support
1
Dust tank
Vacuum port deflector
Vacuum port
Caster dolly
1
Filter cage
10
11
Power switch
Caster
1
2
You are not required to do anything to register your wet/dry vacuum purchase. Please attach
the purchase receipt to this manual and ensure both are kept safe. We hope you enjoy your
new wet/dry vacuum , and if you have any problems call customer service on the above
phone numbers. Do not return to place of purchase.
Smart Marketing Group Pty Ltd (SMG) warrants that this wet/dry vacuum will be free from
manufacturing faults or defects for 12 months from the date of purchase, providing original
purchase receipt is kept and shown when needed and is subject to the terms and
conditions below.
If a warranty fault appears within the warranty period, SMG reserves the right to replace or
repair the product. In the event that SMG chooses to replace the product, this original
warranty will expire at the original date. If the product includes various accessories or
components, only the defective accessory or component will be replaced or repaired.
SMG reserves the right to replace defective parts of the product with parts and components
of similar quality, grade and composition where an identical part or component is not
available. Products presented for repair may be replaced by refurbished products of the same
type rather than being repaired. Refurbished parts may be used to repair the products.
WHAT IS COVERED
• Manufacturing fault or defect.
HOW TO CLAIM UNDER THIS WARRANTY
• Call customer service.
• Ensure you have the following: Original purchase receipt, Model of wet/dry vacuum,
Serial number of wet/dry vacuum.
• Discuss the issue.
• Customer service will advise which authorised service agent to take the wet/dry vacuum to
provided the issue is a warranty one.
• Take wet/dry vacuum to authorised service agent for repair.
WHAT IS NOT COVERED
• Use of wet/dry vacuum for hire.
• Commercial use of wet/dry vacuum.
• Use of wet/dry vacuum in a commercial application.
• Damage or deterioration due to transport.
• Damage caused by negligence, misuse, abuse or accident or incorrect voltage and wattage.
• Any corrosion or rusting.
• Damage caused by incorrect set up and start up.
• Replacement parts due to general wear and tear.
• Wet/dry vacuum with serial number defacement, modification or removal.
• Wet/dry vacuum which have been serviced by other than an authorised SMG service agent.
• Wet/dry vacuum with no original purchase receipt.
• Wet/dry vacuum which have been on sold, not original purchaser.
• Damage due to non-servicing of wet/dry vacuum as is required by this manual.
• Blockages / damage caused by dust, dirt, spiders webs or insects.
• Damage caused by the incorrect fitting of accessories.
• Damage caused by overloading, overworking the wet/dry vacuum.
• Damage to attached equipment or third party accessories.
• Damage caused by attached equipment or third party accessories.
CONTACT DETAILS
Smart Marketing Group Pty Ltd
33-35 Lionel Road, Mt. Waverley,
Victoria 3149, Australia.
AUS 1300 660 457
NZ 0800 474 876
EXPRESS WARRANTY STATEMENT WET/DRY VACUUM
WARRANTY
11
As soon as you have purchased the wet/dry vacuum, we recommend that you check to make
sure it is intact and that you read the operating instructions carefully before using it. The
purchase receipt for this product is to be retained and must be presented if making a claim
under the terms of the Smart Marketing Group (SMG) warranty. Bank account statements are
not acceptable for proof of purchase.
This warranty does not cover wet/dry vacuum intended for hire or use in commercial
applications or in commercial premises. The warranty will under no circumstances extend to
reimbursement or payment of damages, whether direct, indirect or consequential.
The warranty is void if there is evidence the wet/dry vacuum has been modified or tampered
with in any way or used with unauthorised accessories without our consent.
SMG declines any responsibility or liability whatsoever arising from misuse or abuse, negligent
handling of the wet/dry vacuum or if the product has not been installed or failure to comply
with the relevant safety, operating, setting and maintenance instructions (see further in this
manual). The warranty does not extend to installation or disconnection costs.
Any item sent freight forward/collect for repair will be refused. Warranty repairs are free of
charge, provided the product is delivered to our service department or authorised service
agent. The wet/dry vacuum will need to be returned, adequately protected in a box. SMG
will not be responsible for any in-transit loss or damage. Assistance under the warranty will
only be made available if the request is made to our customer service team on the contact
numbers listed below and proof of purchase is provided.
This is a repair only warranty you will need to take the wet/dry vacuum to the authorised
service agent after contacting our customer service centre.
If the product includes various accessories or components, only the defective accessory or
component will be replaced or repaired.
SMG reserves the right to replace defective parts of the product with parts and components
of similar quality, grade and composition where an identical part or component is not available.
Products presented for repair may be replaced by refurbished products of the same type
rather than being repaired. Refurbished parts may be used to repair the products.
Damage caused by third party accessories is not covered under this warranty. Damage caused
to attached equipment or third party accessories will not be covered under this warranty. Rust
and corrosion are not covered under this warranty.
If a warranty fault is found the freight cost will be credited to the owner. If no fault is found the
product will be returned and any costs associated with the service will be charged to the owner.
Blockages caused by spider webs, insects, dirt, accumulated dust, incorrect voltage and wattage
are not covered by this warranty.
SMG reserves the right to replace or repair the product within the warranty period. Parts found
to be defective due to a manufacturing fault will be replaced free of charge.
In the event of SMG choosing to replace the product, the warranty will expire at the original
date of purchase. If no warranty fault is found the owner will be advised and the product will
be returned and any costs associated with the service will be charged to the owner.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure. The benefits of this warranty are in addition to any rights and
remedies imposed by Australian State and Federal legislation that cannot be excluded.
In New Zealand, this SMG warranty is in addition to the conditions and guarantees which are
mandatory as implied by the New Zealand Consumer Guarantee Act 1993. For service, spare
parts or product informationplease contact customer service:
Australia: 1300 660 457
New Zealand: 0800 474 876
COMPLETE WARRANTY STATEMENT – WET/DRY VACUUM
WARRANTY
12
or its affiliates and are used under license by Alton Industry Ltd. Group
The Stanley Black & Decker, Inc.
New Britain, CT 06053 U.S.A
http://www.stanleyblackanddecker.com
Stanley® and are trademarks of Stanley Black & Decker, Inc.,
Do not return to place of purchase.
Smart Marketing Group Pty Ltd
Customer Service
Australia: 1300 660 457
New Zealand: 0800 474 876
Operating times: Monday – Friday 8.00am - 5.00 pm
Australian Eastern Standard Time (AEST)
33-35 Lionel Road, Mt. Waverley
Victoria 3149, Australia.
