USER GUIDE
2-Channel Amplifier
www.PyleUSA.com
2
About PyleUSA
Pyle, founded in the 1960s, has evolved into a renowned manufacturer
of high-quality advanced woofers. Our journey started with the iconic
Pyle Driver, becoming a household name in original speakers. In the late
20th century, we expanded into replacement speakers, car audio, home
audio, marine audio, and professional audio & musical instruments with
our Pyle Pro line.
Pyle Car:
Transform your car into a perfect listening environment with our c
ompetitively priced speakers, ampliers, and head units. Upgrade from
factory speakers to enhance your music experience. Explore accessories
like navigation systems, DVD players, iPod interfaces, and safety-focused
cameras.
Pyle Home:
Discover a range of home entertainment products, including projectors,
TVs, mounts, stands, and HD technology. Pyle Home oers bass-expanding
mini speakers, headphones, vintage turntables, power ampliers, horn
speakers, and more for an enriched media experience at home and on
the go.
Pyle Pro:
As the leading source of audio equipment worldwide, Pyle Pro caters to
musicians, studio engineers, and amateurs. Our PA Systems, featuring
wireless microphones, rechargeable batteries, and iPod/iPhone docks,
are ideal for various events. Explore our emerging guitar line, eects
pedals, and USB-to-analog converters without compromising on quality.
www.PyleUSA.com
3
California Prop 65 Warning
WARNING:
This product may expose you to chemicals, which is known to
the state of California to cause cancer, birth defects and other
reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
CONTENTS
IC WARNING
INSTALLATION PRECAUTIONS
CONTROLS, INPUT AND OUTPUT CABLES
ADJUSTMENT CONTROLS AND SETTINGS
POWER AND SPEAKER WIRING
REGISTER PRODUCT
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
4
4
5
6
7
7
www.PyleUSA.com
4
IC WARNING
- English:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operation of the
device.
- French:
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNR d’Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
(1) L’appareil ne doit pas produire de brouillage; (2)L’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
This equipment complies with IC RSS-102 radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être installé
et utilisé avec un minimum de 20cm de distance entre la source de rayonnement
et votre corps.
Installation Precautions
1. Vessel Layout Investigation: Before drilling or cutting any holes, carefully
investigate your vessel’s layout.
2. Caution Near Critical Components: Take special care when working near
the gas tank, fuel lines, hydraulic lines, and electrical wiring.
3. Operating Amplier: Never operate the amplier when it is unmounted.
Attach all audio system components securely within the amplier to prevent
damage, especially in an accident.
4. Mounting Considerations: Do not mount this amplier in a way that wire
connections are unprotected, in a pinched condition, in contact with any metal
surfaces in your marine vessel, or likely to be damaged by nearby objects.
IC WARNING
- English:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operation of the
device.
- French:
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNR d’Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
(1) L’appareil ne doit pas produire de brouillage; (2)L’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
This equipment complies with IC RSS-102 radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être installé
et utilisé avec un minimum de 20cm de distance entre la source de rayonnement
et votre corps.
Installation Precautions
1. Vessel Layout Investigation: Before drilling or cutting any holes, carefully
investigate your vessel’s layout.
2. Caution Near Critical Components: Take special care when working near
the gas tank, fuel lines, hydraulic lines, and electrical wiring.
3. Operating Amplier: Never operate the amplier when it is unmounted.
Attach all audio system components securely within the amplier to prevent
damage, especially in an accident.
4. Mounting Considerations: Do not mount this amplier in a way that wire
connections are unprotected, in a pinched condition, in contact with any metal
surfaces in your marine vessel, or likely to be damaged by nearby objects.
www.PyleUSA.com
5
5. Power Connection Safety: Before making or breaking power connections in
your system, disconnect the marine vessel battery. Conrm that your head
unit or other equipment is turned o while connecting the input jacks and
speaker terminals.
Replacing Power Fuse:
If you need to replace the power fuse, use only an identical fuse to the one
supplied with the amplier. Using a fuse of a dierent type or rating may result
in damage to your audio system or amplier, which is not covered by the
manufacturer’s warranty.
Caution about Level Control:
Do not misuse the level control! Avoid mistaking the input level control for a
volume control. It is designed ONLY to match the output level of your audio
source to the input level of your amplier. Do not adjust this input level to
maximum unless your input level requires it.
Ignoring these instructions may result in an input overload to the amplier,
leading to excessive audio distortion and potentially causing the protection
circuit to engage.
Controls, Input and Output Cables
www.PyleUSA.com
6

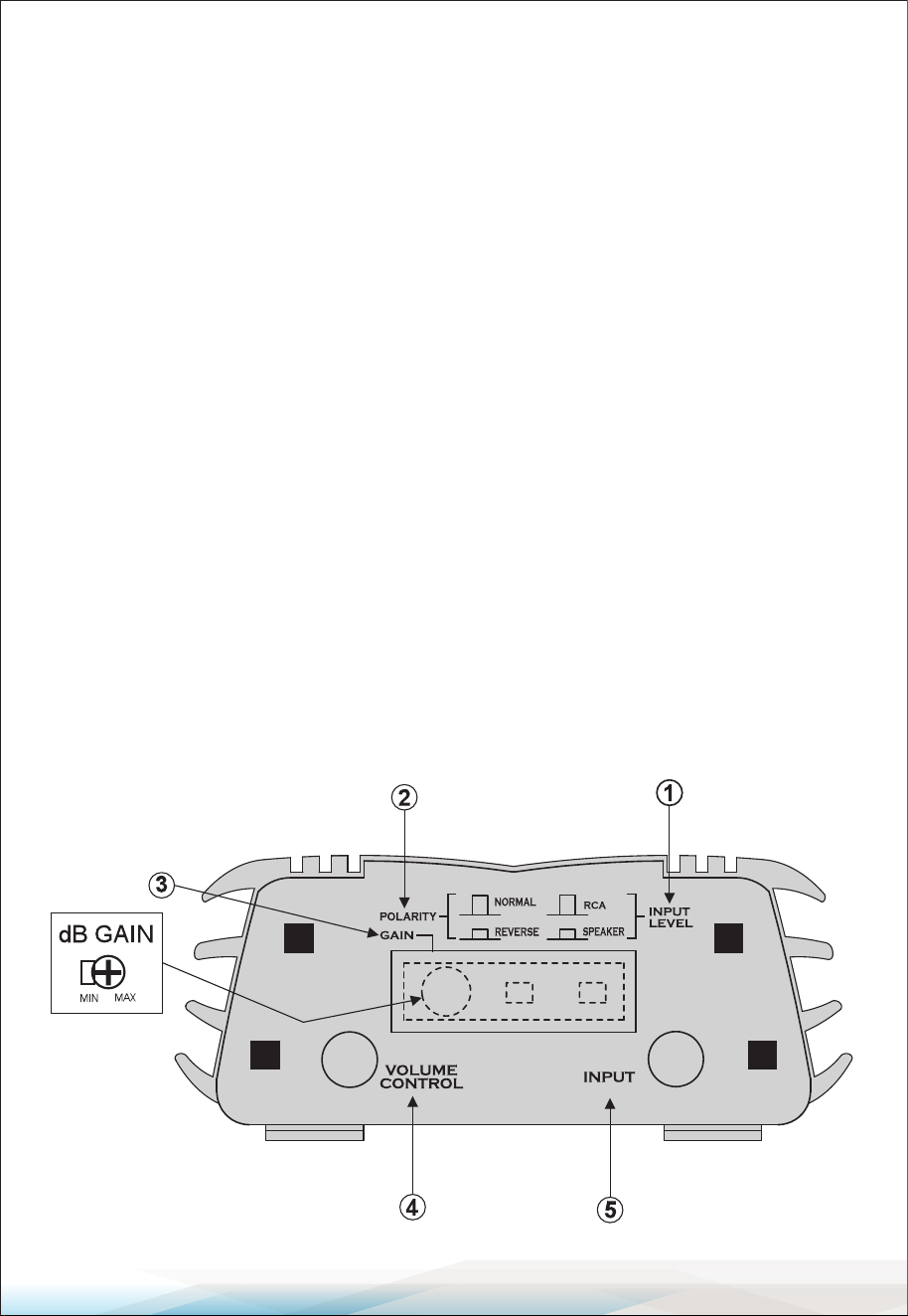

Adjustment Controls and Settings
1. INPUT LEVEL Switch:
The INPUT LEVEL switch determines the input sensitivity of the amplier.
• For LINE-level sources (typically RCA connections), set it to LINE (out).
• When connecting to loudspeaker outputs, headphones, or high-level sources,
set it to SPEAKER (in). Ensure to replace the watertight plug after adjustments.
2. POLARITY Switch:
The POLARITY switch optimizes bass performance when multiple sets of
loudspeakers produce bass.
• Play bass-heavy music and switch between NORMAL and REVERSE
positions to nd the setting resulting in more pleasing bass response.
• If unsure or minimal interaction with other speakers, leave the switch in the
NORMAL position.
3. GAIN Control:
The GAIN control adjusts the overall amplier level.
• When used without volume control, set the gain to balance with other
loudspeakers, keeping it as low as possible while ensuring full output power.
• With an external volume control, set it to FULL (clockwise) and adjust the
amplier gain until reaching full output power.
Adjusting Output Power Level
1. To determine full output power, turn the GAIN control clockwise until the
apparent loudness reaches a point where it doesn't increase further.
Leave the control at this setting.
2. VOLUME CONTROL Plug: This waterproof remote volume control, when
installed, can turn o the Marine Amplier Kits by turning it all the way down.
3. INPUT: Stereo RCA audio input for connecting other audio devices.
4. Connecting Bluetooth:
• Turn on the amplier; the red Bluetooth indicator LED blinks.
• In your phone settings, nd and open the "Bluetooth" function.
• Search for the Bluetooth device named "pyle amplier."
After a successful connection, the red Bluetooth indicator LED will stay on.
• Bluetooth Version: 3.0
• Note: Only models PLMRMB2CW and PLMRMB2CB feature built-in Bluetooth.
5. Power Connection Safety: Before making or breaking power connections in
your system, disconnect the marine vessel battery. Conrm that your head
unit or other equipment is turned o while connecting the input jacks and
speaker terminals.
Replacing Power Fuse:
If you need to replace the power fuse, use only an identical fuse to the one
supplied with the amplier. Using a fuse of a dierent type or rating may result
in damage to your audio system or amplier, which is not covered by the
manufacturer’s warranty.
Caution about Level Control:
Do not misuse the level control! Avoid mistaking the input level control for a
volume control. It is designed ONLY to match the output level of your audio
source to the input level of your amplier. Do not adjust this input level to
maximum unless your input level requires it.
Ignoring these instructions may result in an input overload to the amplier,
leading to excessive audio distortion and potentially causing the protection
circuit to engage.
Controls, Input and Output Cables
Adjustment Controls and Settings
1. INPUT LEVEL Switch:
The INPUT LEVEL switch determines the input sensitivity of the amplier.
• For LINE-level sources (typically RCA connections), set it to LINE (out).
• When connecting to loudspeaker outputs, headphones, or high-level sources,
set it to SPEAKER (in). Ensure to replace the watertight plug after adjustments.
2. POLARITY Switch:
The POLARITY switch optimizes bass performance when multiple sets of
loudspeakers produce bass.
• Play bass-heavy music and switch between NORMAL and REVERSE
positions to nd the setting resulting in more pleasing bass response.
• If unsure or minimal interaction with other speakers, leave the switch in the
NORMAL position.
3. GAIN Control:
The GAIN control adjusts the overall amplier level.
• When used without volume control, set the gain to balance with other
loudspeakers, keeping it as low as possible while ensuring full output power.
• With an external volume control, set it to FULL (clockwise) and adjust the
amplier gain until reaching full output power.
Adjusting Output Power Level
1. To determine full output power, turn the GAIN control clockwise until the
apparent loudness reaches a point where it doesn't increase further.
Leave the control at this setting.
2. VOLUME CONTROL Plug: This waterproof remote volume control, when
installed, can turn o the Marine Amplier Kits by turning it all the way down.
3. INPUT: Stereo RCA audio input for connecting other audio devices.
4. Connecting Bluetooth:
• Turn on the amplier; the red Bluetooth indicator LED blinks.
• In your phone settings, nd and open the "Bluetooth" function.
• Search for the Bluetooth device named "pyle amplier."
After a successful connection, the red Bluetooth indicator LED will stay on.
• Bluetooth Version: 3.0
• Note: Only models PLMRMB2CW and PLMRMB2CB feature built-in Bluetooth.
www.PyleUSA.com
7
Power and Speaker Wiring
Wire Color
Red
Black
Blue
White
White Black
Gray
Gray/Black
Description
Battery (+), 12dc
Battery (-), Ground
Remote Turn On, 12vdC = ON
CHI (+)
CHI (-)
CH2 (+)
CH2 (-)
Register Product
Thank you for choosing PyleUSA. By registering your product, you
ensure that you receive the full benets of our exclusive warranty
and personalized customer support. Complete the form to
access expert support and to keep your PyleUSA purchase in
perfect condition.
Start Here
Model Number:
PLMRMP1A
PyleUSA.com/pages/register
Black Red
Blue
Questions or Comments?
We are here to help!
Phone: 1.718.535.1800
PyleUSA.com/ContactUs
