MSC5XGRN_MSC5XBLK_ MSC5XPUR_MSC5XGRY 1 REV. 01/07/25
MSC5XGRN, POWER TOOL CART - GREEN
MSC5XPUR, POWER TOOL CART - PURPLE
MSC5XBLK, POWER TOOL CART - BLACK
MSC5XGRY, POWER TOOL CART - THUNDERSTORM GRAY
Copyright © 2025
All rights reserved.
It is the responsibility of the owner to make sure all personnel read this manual prior to using the device. It is also the responsibility of the
device owner to keep this manual intact and in a convenient location for all to see and read. If the manual or product labels are lost or not
legible, contact Matco Tools for replacements. If the operator is not fluent in English, the product and safety instructions shall be read and
discussed with the operator in the operator's native language by the purchaser/owner or his designee, making sure that the operator
comprehends its contents. PLEASE NOTE: Loading cart beyond rated capacity may cause structural damage to the cart as well as personal
and /or property damage. Please educate your customers to the dangers of overloading.
• Read and follow all instructions in User's Manual.
• Do not load carts beyond rated capacity
PLEASE NOTE:
Loading cart beyond rated capacity may cause structural damage to the cart as well as personal and/or property
damage. Please educate your customers to the "dangers of overloading". Do not attempt to push cart with items on the top lid.
• Lock lid and drawers before moving. • Apply brake on locking casters anytime cart is in place. • Do not pull cart. Push from
handle on end to move. • Units can tip or fall causing damage or personal injury. • Cart is designed to roll easily on
flat surfaces and should not be used on uneven or inclined surfaces. • Do not open more than one loaded drawer at a time.
• Do not stand on or step in drawers. • Keep children away from unit. • Wear gloves when lifting edges. • Before connecting to
a power supply, always check to make sure the power supply corresponds to the voltage required on the product. • Fully insert
plug to reduce the risk of electric shock. • Always unplug when not in use. • Disconnect power before installing or servicing.
• Do not try to plug in unit or product when hands are wet or damp, or if standing on a wet or damp surface or in water. • Never
attempt to pick up unit or plugged in product that should fall in standing water. • This unit is not waterproof and is intended for general
use indoors. • Do not use in potentially dangerous locations, such as flammable or explosive atmospheres. • Keep cord away from
heat, oil, sharp edges or moving parts. • Failure to heed these warnings may result in personal injury and/or property damage.
WARNING
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and
birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Caster Capacity (Each) ....................396 lbs.
Top Till Capacity ..............................150 lbs.
Drawer Capacity ..............................100 lbs.
Power Drawer Capacity ..................100 lbs.
Security Drawer Capacity .................50 lbs.
Total Capacity ................................. 900 lbs.
MSC5XGRN_MSC5XBLK_ MSC5XPUR_MSC5XGRY 2 REV. 01/07/25
MSC5XGRN, POWER TOOL CART - GREEN
MSC5XPUR, POWER TOOL CART - PURPLE
MSC5XBLK, POWER TOOL CART - BLACK
MSC5XGRY, POWER TOOL CART - THUNDERSTORM GRAY

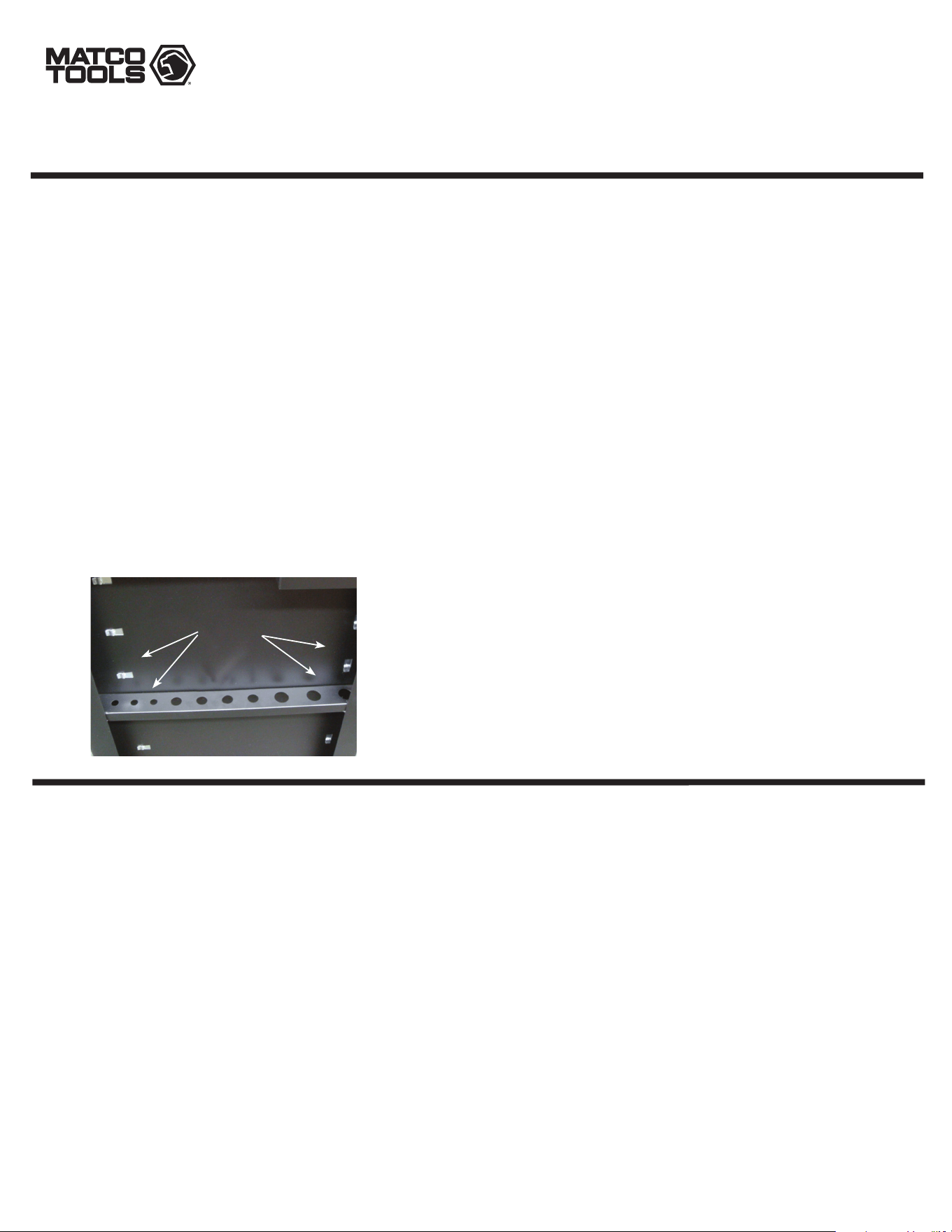

Mounting Slots
TROUBLESHOOTING
Problem: Drawers appear not to fit, do not slide in accurately and
bump the cart sides.
Solution: The roller bearing slides must be fully engaged into the
mounting slots on all drawers. They potentially could fall out of
position during shipment. Check the side of the cart to determine
which slide is out of position.
Remove the drawer that is out of position. The drawer is
removed by the two clips on the actual roller bearing slide.
Simply push the roller bearing slide back down into position.
Insert the drawer back onto the roller bearing slides.
Problem: Back Lock/Unlock Switch does not engage
the drawer.
Solution: The inside Lock/Unlock slide potentially could fall
out of its groove during shipment. Unscrew the four screws that
are holding the Lock/Unlock slide in place.
Once the screws are removed, simply place the latch back onto
the slide and tighten the four screws back down.
TOTAL DIMENSIONS
Total Storage Volume .............................................31079.7 cu. in.
Product Weight ................................................................... 430 lbs.
Total Storage Area (Square Inches) ......................... 5477.4 sq. in.
Cart Volume ................................................................... 32.5 cu. ft.
Storage Volume ............................................................ 17.99 cu. ft.
Height (Floor to Lid) ..........................................................46.75 in.
Depth (Drawer Face to Back of Cart) ....................................24 in.
Width (Not including push handle) .....................................50 in.
WEIGHT RATINGS
Max Total Capacity .............................................................900 lbs.
Top Till Compartment ........................................................150 lbs.
Power Drawer ....................................................................100 lbs.
3" Drawer ............................................................................ 100 lbs.
4" Drawer ............................................................................ 100 lbs.
5" Drawer ............................................................................100 lbs.
6" Drawer ............................................................................100 lbs.
SPECIFICATIONS
WARRANTY
This MATCO TOOLS service/storage cart carries a one (1) year warranty (only for the parts listed below) subject to the terms and
conditions below.
What is Covered
MATCO TOOLS warrants the following components of this product to be free from defects in workmanship and materials.
The components covered by the one (1) year warranty include welded joints, paint, drawers, lid, hinge, slides, casters, handles
and pulls, gas pistons, bumpers, key lock, drawer lock mechanism, hardware, clips, and grommets.
What is NOT Covered (Exclusions)
This warranty does not cover normal wear, damage caused by neglect and misuse. Disassembly of any product will void the
warranty. This warranty also only applies to a genuine MATCO TOOLS branded product that was purchased from an authorized
MATCO TOOLS dealer. Purchases outside of this are not covered. If the product has been modified in any way it will not be
covered.
Drawer liners are not covered under warranty.
Themed, Special or Limited Edition Product - Any MATCO TOOLS storage/service cart that is a limited, special, or themed design
will not be covered under the one (1) year warranty due to the special paint, decals, and screen-printing. Therefore, decals and
screen-printing, and will only carry an OUT OF THE BOX warranty. However, other interchangeable components such as the
drawers, lid, gas pistons, bumpers, casters, slides, hardware, key lock, drawer lock mechanism, clips and grommets will all retain
the one (1) year warranty.
MSC5XGRN_MSC5XBLK_ MSC5XPUR_MSC5XGRY 3 REV. 01/07/25
MSC5XGRN, POWER TOOL CART - GREEN
MSC5XPUR, POWER TOOL CART - PURPLE
MSC5XBLK, POWER TOOL CART - BLACK
MSC5XGRY, POWER TOOL CART - THUNDERSTORM GRAY
MSC5XGRN_MSC5XBLK_ MSC5XPUR_MSC5XGRY 4 REV. 01/07/25
MSC5XGRN, POWER TOOL CART - GREEN
MSC5XPUR, POWER TOOL CART - PURPLE
MSC5XBLK, POWER TOOL CART - BLACK
MSC5XGRY, POWER TOOL CART - THUNDERSTORM GRAY

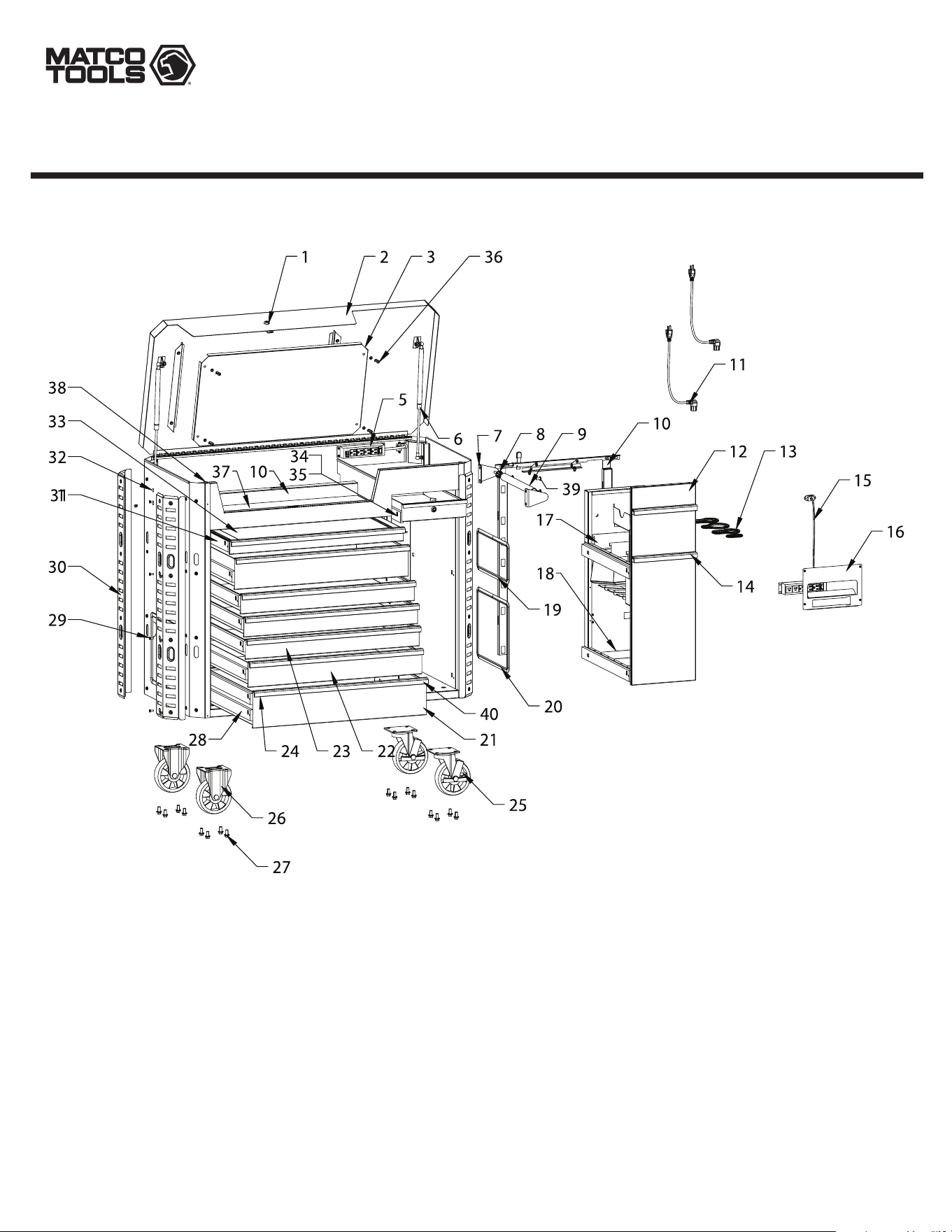

Item Part No Parts Name Qty
1 RSLOCK2KBK01 LOCK w/2 KEYS (EACH) 2
2 RSLID10RGR LID (INCL. 10 RIVETS) - GREEN 1
2 RSLID10RPP LID (INCL 10 RIVETS) - PURPLE 1
2 RSLID10RGY01 LID (INCL. 10 RIVETS) - THUNDERSTORM GRAY 1
2 RSLID10RBK LID (INCL. 10 RIVETS) - BLACK 1
3 RSTCBPNHGR TOP COVER BACKPLATE - NO HOLES - GREEN 1
3 RSTCBPNHPP TOP COVER BACKPLATE - NO HOLES - PURPLE 1
3 RSTCBPNHGY TOP COVER BACKPLATE -
NO HOLES - THUNDERSTORM GRAY 1
3 RSTCBPNHBK TOP COVER BACKPLATE - NO HOLES - BLACK 1
5 RSPSTT 4 USB POWER STRIP - TOP TRAY 1
6 RSGP9 GAS SHOCK (EACH) 2
7 RSHDLBRKTBK04 PUSH HANDLE BRACKET
(PAIR) (INCL. HARDWARE) 1
8 RSRT ROUND TUBE (PAIR) 1
9 RSPUSHHDL11 PUSH HANDLE 1
10 RSLMGR LOCKING MECHANISM - GREEN 1
10 RSLMPP LOCKING MECHANISM - PURPLE 1
10 RSLIMGY02 LOCKING MECHANISM - THUNDERSTORM GRAY 1
10 RSLMBK01 LOCKING MECHANISM - BLACK 1
11 RSPOWCORD03 POWER CORD FOR POWER STRIP (EACH) 2
12 RSPDRWGR POWERED DRAWER - GREEN 1
12 RSPDRWPP POWERED DRAWER - PURPLE 1
12 RSPDRWGY01 POWERED DRAWER - THUNDERSTORM GRAY 1
12 RSPDRWBK03 POWERED DRAWER - BLACK 1
13 RSPDPR PROTECTIVE RING (SET OF 4)
- POWERED DRAWER 1
14 RSDRWPULLPOW POWERED DRAWER PULL (EACH) 2
15 RSPSPD01 POWER STRIP (INCL. HARDWARE)
- POWER DRAWER 1
16 RSPSCGR POWER STRIP COVER - GREEN 1
16 RSPSCPP POWER STRIP COVER - PURPLE 1
16 RSPSCGY POWER STRIP COVER - THUNDERSTORM GRAY 1
16 RSPSCBK POWER STRIP COVER - BLACK 1
17 RSUPPDBK01 UPPER PARTITION (SET OF 3) 1
18 RSLPPDBK01 LOWER PARTITION (SET OF 3) 1
19 RSPC150 PROTECTIVE COIL (EACH) - 339.5X150 1
20 RSPC275 PROTECTIVE COIL (EACH) - 339.5X275 2
21 RS6INFDRWGR01 6" FULL DRAWER (EACH) - GREEN 1
21 RS6INFDRWPP01 6" FULL DRAWER (EACH) - PURPLE 1
21 RS6INFDRWGY02 6" FULL DRAWER (EACH)
- THUNDERSTORM GRAY 1
21 RS6INFDRWBK02 6" FULL DRAWER (EACH) - BLACK 1
Item Part No Parts Name Qty
22 RS4INFDRWGR01 4" FULL DRAWER (EACH) - GREEN 1
22 RS4INFDRWPP01 4" FULL DRAWER (EACH) - PURPLE 1
22 RS4INFDRWGY02 4" FULL DRAWER (EACH)
- THUNDERSTORM GRAY 1
22 RS4INFDRWBK04 4" FULL DRAWER (EACH) - BLACK 1
23 RS3INFDRWGR01 3" FULL DRAWER (EACH) - GREEN 3
23 RS3INFDRWPP01 3" FULL DRAWER (EACH) - PURPLE 3
23 RS3INFDRWGY02 3" FULL DRAWER (EACH)
- THUNDERSTORM GRAY 3
23 RS3INFDRWBK04 3" FULL DRAWER (EACH) - BLACK 3
24 RS5INFDRWGR01 5" FULL DRAWER (EACH) - GREEN 1
24 RS5INFDRWPP01 5" FULL DRAWER (EACH) - PURPLE 1
24 RS5INFDRWGY01 5" FULL DRAWER (EACH)
- THUNDERSTORM GRAY 1
24 RS5INFDRWBK03 5" FULL DRAWER (EACH) - BLACK 1
25 RS6INLCBK 6" LOCKING CASTER (EACH) - BLACK 2
26 RS6INRNLCBK 6" RIGID NON LOCKING CASTER
(EACH) - BLACK 2
27 RS6INBKBK01 6" CASTER BOLT KIT - BLACK 1
28 RSBBSLIDE09 BALL BEARING SLIDE (PAIR) 9
29 RSPCBK PROTECTIVE COVER BOLT KIT (32 PCS) 1
30 RSABUMP ANGLED BUMPER (4 PCS) 1
31 RSSP8230SLIDE ROLLER BEARING SLIDE (PAIR) 1
32 RSFDPCK PLASTIC PUSH FASTENERS (4 PCS) 1
33 RS2INWTTGR 2" WRITING TABLE TOP - GREEN 1
33 RS2INWTTPP 2" WRITING TABLE TOP - PURPLE 1
33 RS2INWTTGY 2" WRITING TABLE TOP
- THUNDERSTORM GRAY 1
33 RS2INWTTBK 2" WRITING TABLE TOP - BLACK 1
34 RSRBS ROLLER BEARING SLIDE (PAIR) 1
35 RS3INHDRWGR 3" HIDDEN DRAWER (EACH) - GREEN 1
35 RS3INHDRWPP 3" HIDDEN DRAWER (EACH) - PURPLE 1
35 RS3INHDRWGY 3" HIDDEN DRAWER (EACH)
- THUNDERSTORM GRAY 1
35 RS3INHDRWBK 3" HIDDEN DRAWER (EACH) - BLACK 1
36 RSTCBPHK TOP COVER BACK PLATE HARDWARE KIT 1
37 RSLINER9PC DRAWER LINER KIT (9 PCS) 1
38 RSRCLM RUBBER COVER FOR LOCKING MECHANISM 1
39 PUSH HANDLE HARDWARE (INCL. W/ITEM 7) 1
40 RSDRWPULL03 ALUMINUM DRAWER PULL (EACH) 7
NS RSPAINTJGSF321 TOUCH UP PAINT - GREEN 1
NS RSPAINTJGSF323 TOUCH UP PAINT - PURPLE 1
NS RSPAINTJGSF010 TOUCH UP PAINT - THUNDERSTORM GRAY 1
NS RSPAINTJGSF114 TOUCH UP PAINT - BLACK 1
