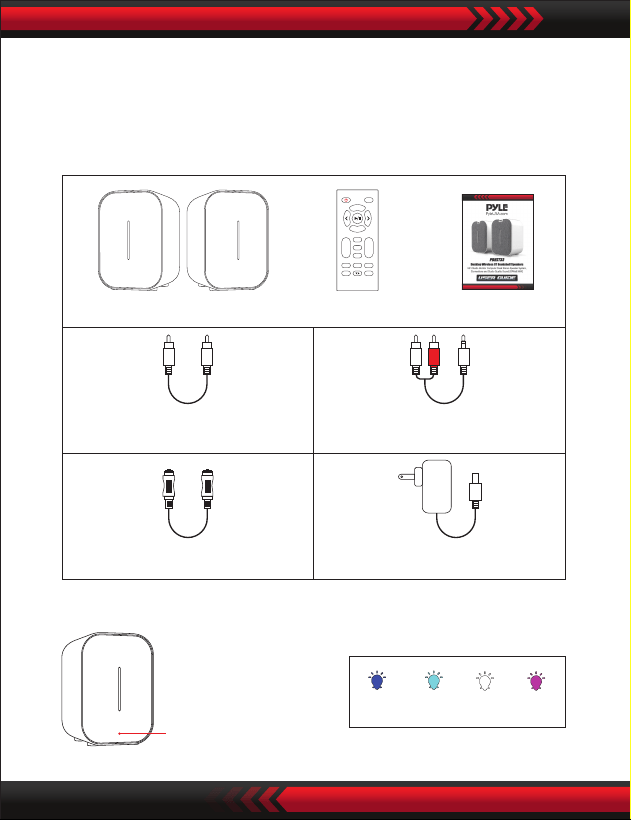

Box Contents
LED Indicators and Button Introduction
RCABT
Optical USB
Active Speaker
LED Indicators
RCA to RCA
audio cable
Stereo RCA to
3.5mm audio cable
Digital Optical cable Power Adapter
Bookshelf Speaker Remote Control Quick Start
MUTE
VOL+
VOL-
MUSIC
MOVIE
DIALOG
BT OPT USB
RCA RESET
TREB+
TREB-
BASS+
BASS-
www.PyleUSA.com 3

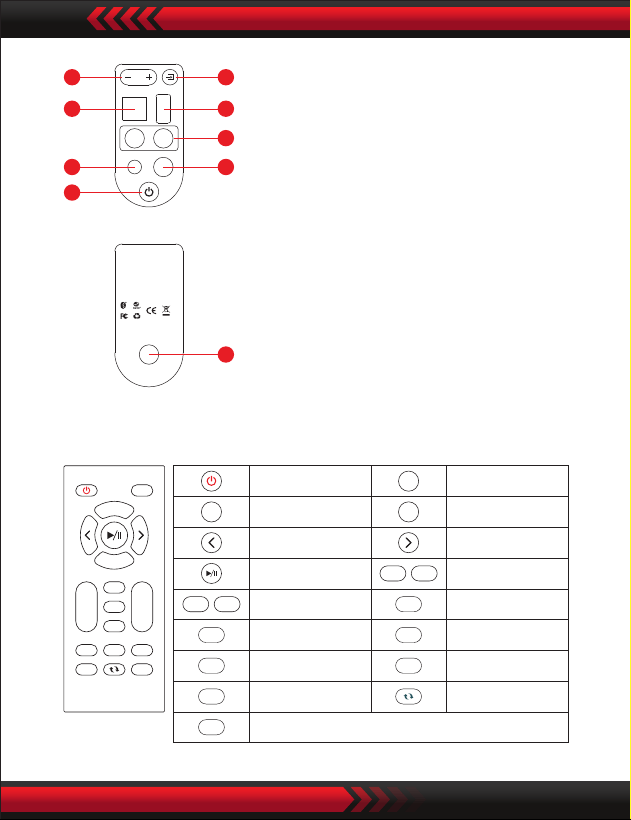

Know Your Remote
01. Volume control
02. Input selection
Press in to navigate between audio
sources: BT -> Optical -> RCA -> USB
03. Optical input port
04. USB input port
05. RCA input port
06. Power port
07. Left speaker audio output
08. Power switch
09. Left speaker audio in
Active Speaker
USB
DC IN SPK OUT
OPT
RCA IN
L R
01
03 04
02
05
07
06
08
Passive Speaker
Product Name: Bookshelf Speaker
Model: PBKST33
Input Voltage: 19-22V
Power Consumption: 50W
SPK IN
09
Power button
Volume up
Previous track
Play/pause
Movie mode
Dialogue mode
Increase or
decrease bass
Increase or
decrease treble
Music mode
Next track
Volume down
Mute/Unmute
MUTE
VOL+
VOL-
MOVIE
DIALOG
MUSIC
BASS+ BASS-
TREB+ TREB-
Restore factory settings
OPT
Optical mode
USB
USB mode Input selection
RESET
BT
BT mode
MUTE
VOL+
VOL-
MUSIC
MOVIE
DIALOG
BT OPT USB
RCA RESET
TREB+
TREB-
BASS+
BASS-
www.PyleUSA.com4

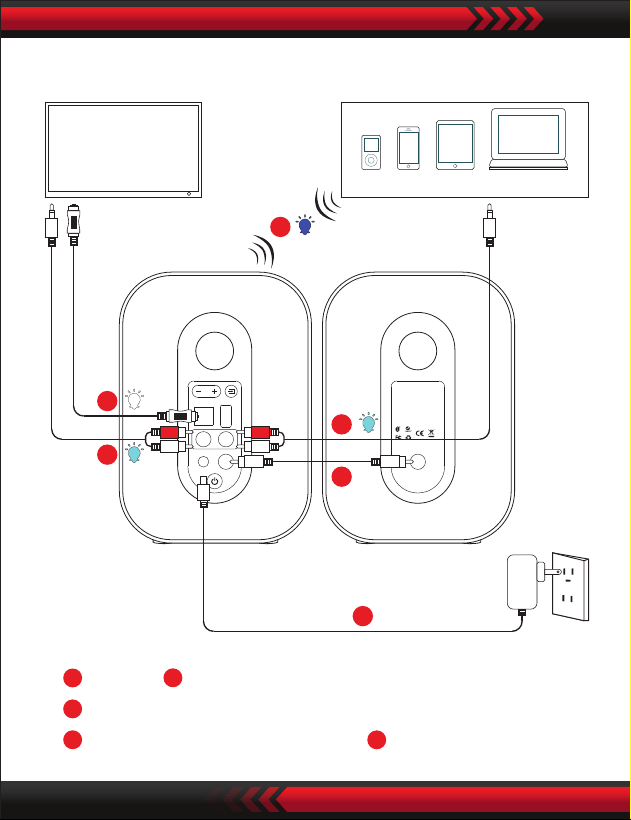

Connection Diagram
BT
a
Digital Optical cable
(supplied)
b
Stereo RCA to 3.5mm audio cable
(supplied)
c
RCA to RCA audio cable
(supplied)
d
Power Adapter
(supplied)
e
BT Device
TV
Active Speaker Passive Speaker
USB
DC IN SPK OU T
OPT
RCA IN
L R
Product Name: Bookshelf Speaker
Model: PBKST33
Input Voltage: 19-22V
Power Consumption: 50W
SPK IN
BT signal
up to 30 feet
d
c
b
a
e
c
www.PyleUSA.com 5
Connecting with a TV
Setting “PCM” on your TV
When all cables are connected properly, and LED indicator
lights properly, if there is no sound from tv or Soundbar, please
set your tv as below:
B
Method 2. Connecting using a RCA to 3.5mm audio cable.
Select RCA mode.
A
Method 1. Connecting using an Optical cable.
Select Optical mode and set the TV’s audio output
to “PCM”. (More information on PCM page)
Active Speaker
TV
A
Optical digital
cable
(supplied)
B
RCA to 3.5mm audio
cable
(supplied)
www.PyleUSA.com6
1. Press "Menu" on the TV’s remote control.
2. Press the arrow keys on the remote to scroll to "Audio Settings."
3. Press "OK" on the remote control.
4. Scroll to "Advanced Audio" and press "OK". Some televisions
may not have an"Advanced Audio" menu and may list various
audio settings instead.
5. Scroll to "Audio Output Mode" or "Digital Audio Output Mode"
and press "OK".
6. Scroll until "PCM" is displayed as the current audio output.
7. Press "OK" to save the settings.
Connecting a Wireless BT Device
a. Press the “BT” button on the remote or press the “ ” button
on back panel of the active speaker, the LED indicator blinks blue.
b. Turn on Wireless BT on the BT device.
c. Select “PyleUSA” and connect it. When your BT device is
connected, the LED indicator blinks blue slowly.
d. Play music les from the device, connected via BT, through the
bookshelf speaker.
BT
or
BT signal
up to 30 feet
www.PyleUSA.com 7
Troubleshooting
No sound
• Check if the power indicator light is ON.
• Try to turn up the volume using either the master volume control
or remote control.
• Ensure the audio cables are rmly connected and the input is
set correctly on the speakers.
• Check if there is signal output from the audio source.
Cannot connect via Wireless BT
• Make sure the speaker is switched to BT input, in other audio
input mode BT can not be paired or connected. Disconnect from
any BT device by press and hold the volume dial in BT mode,
then try again.
• Eective BT transmission range is 10 meters, make sure operation
is within the range.
• Try another BT device for connection.
The PBKST33 Bookshelf Speaker does not turn on
Check if mains power is connected or if the wall outlet is switched on.
Specications
Power output:
L/R: 25W + 25W
Signal to noise ratio dB(A):
L/R: ≥80dB (A)
Input sensitivity:
RCA: R/L: 600±50mV
OPT: R/L: 500±50mFFS
Frequency response:
45HZ-20KHZ
Bass unit:
3 inch (76.2mm)
Tweeter unit:
1 inch (25.4mm)
