© Allegion 2017
111834 Rev. 09/17
Customer Service
1-888-805-9837 www.schlage.com
8’ Rail Length
TOP MOUNT SLIDING DOOR HARDWARE
2 11
10 3
-3/16”
(5.5 mm)
-5/16”
(8 mm)
-3/8”
(10 mm)
(If using Floor
Guide )
-3/8”
(10 mm)

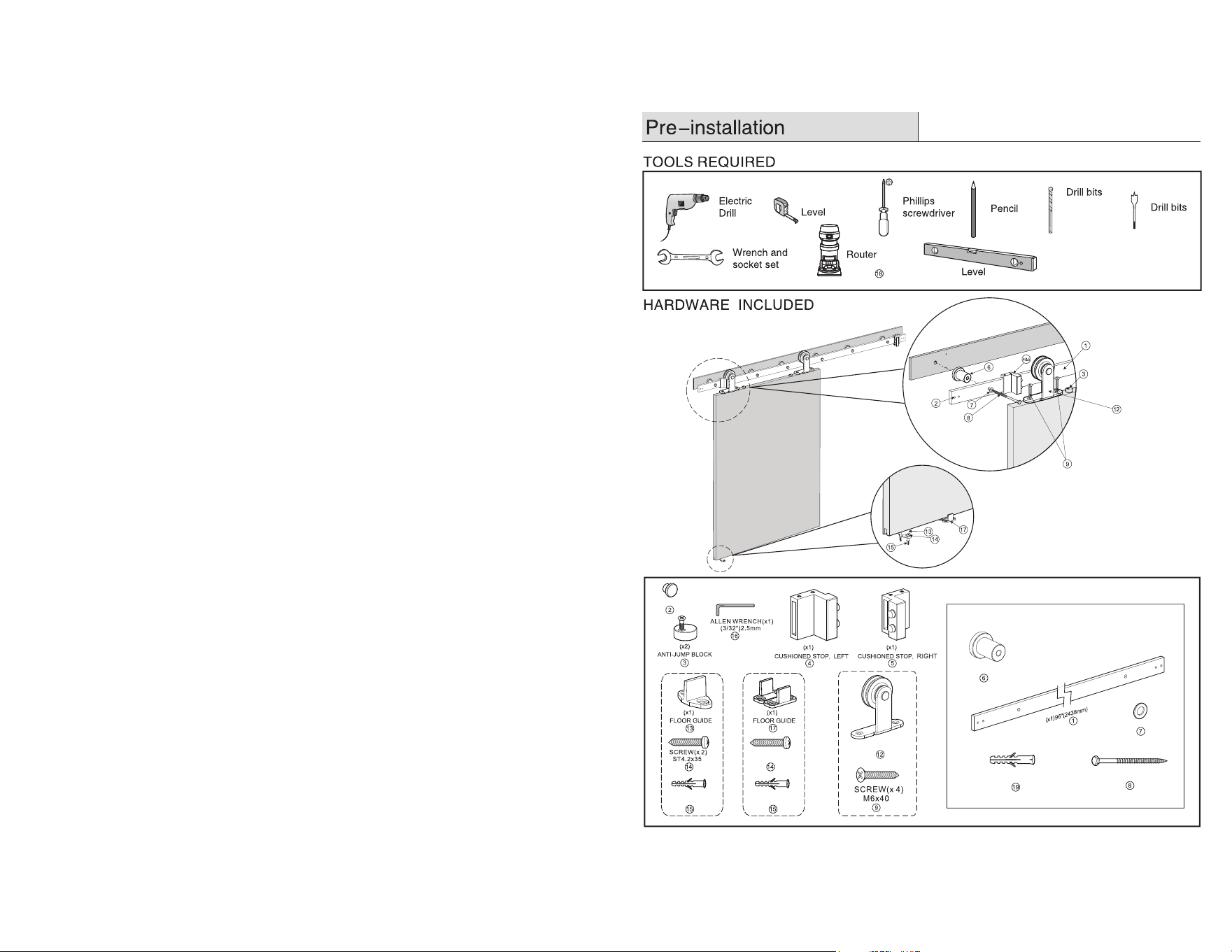

ANCHOR (x6)
Ø10
ANCHOR (x4)
Ø8
ANCHOR (x2)
Ø8
SCREW (x4)
ST4.2x35
PLUG (x4)
WASHER (x6)
STANDOFF (x6)
HANGER (x2)
SCREW (x6)
M8x90
RECOMMENDATIONS
Review all instructions before beginning installation.
Two-person installation.
Use non-scratch tools on exterior surfaces.
NOTE: If the opening width is greater than 1219 mm, or for
bi-parting door, connect two tracks with the Track Adaptor.
Install one track, connect with adaptor, then install other track.
4 9
8 5
(25 mm)

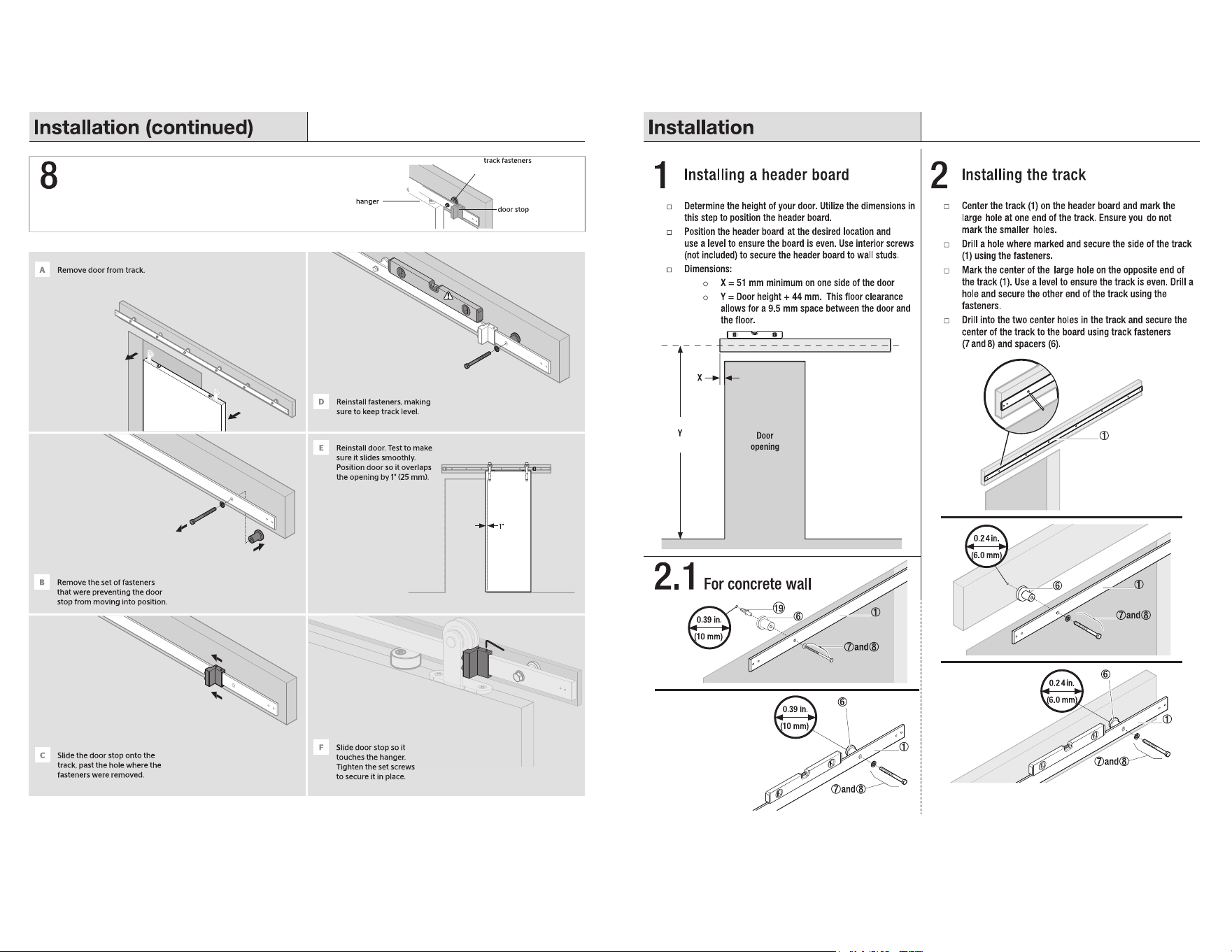

Use the instructions below as a remedy
if the Door Stop needs to be installed
inside the Track Fastener.
6 7
