Door alignment method change
2023. 05. 03
FM4BM30(I)FI
FM4BM36(I)FI
FM4FBM36(I)FI
Refrigerator
Installation Manual
Confidential
2
TABLE OF CONTENTS
Symbols and Their Meanings ........................................................................................................................................ 4
Installation Place ............................................................................................................................................................ 7
Tool list ........................................................................................................................................................................... 10
ALTERNATIVES FOR INSTALLATION ................................................................................................................................ 11
PREPARATION FOR INSTALLATION ................................................................................................................................ 12

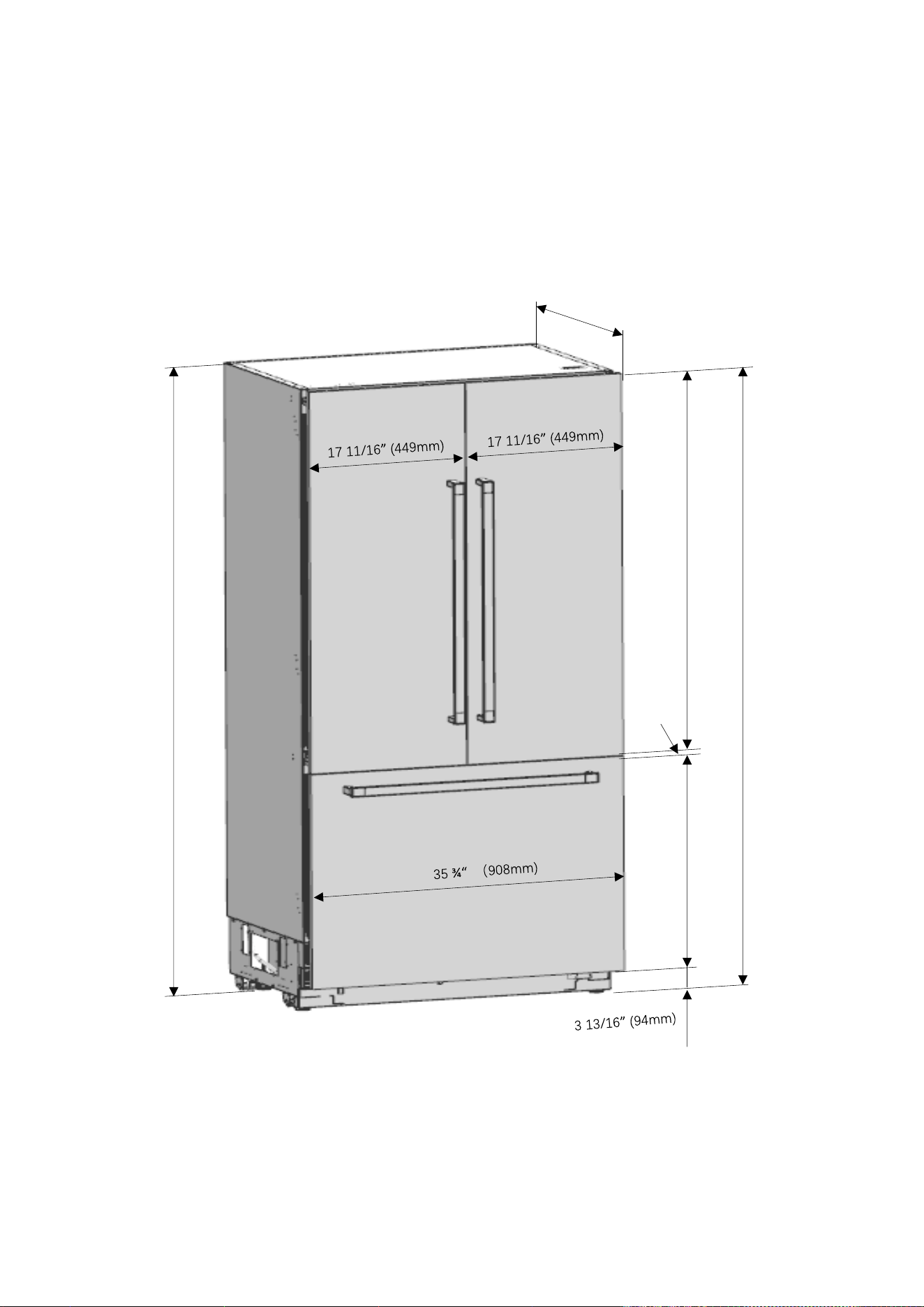

Cabinet Dimensions ....................................................................................................................................................... 12
Location of the Electrical Wiring .................................................................................................................................... 13
Location of the Water System ....................................................................................................................................... 14
Product Dimensions …… .............................................................................................................................................. 16
Unpacking ...................................................................................................................................................................... 26
Removing Accessories from the Back ............................................................................................................................ 28
Removing Mounting Parts in the Freezer Compartment .............................................................................................. 29
Removing the Freezer Crisper ........................................................................................................................................ 30
Removing the Freezer Drawer Bin .................................................................................................................................. 31
Removing the Lower Ventilation Assembly .................................................................................................................... 32
Removing the Upper Ventilation Part ............................................................................................................................ 32
PREPARING FOR INSTALLATION .................................................................................................................................... 33
Mounting the Anti-Tip Brackets ..................................................................................................................................... 33
Alternative Anti-Tip Method .......................................................................................................................................... 36
Preparing the Water Hose and the Power Plug ............................................................................................................. 37
INSTALLATION INTO THE CABINET ................................................................................................................................ 38
Taking the Appliance from the Wooden Pallet .............................................................................................................. 38
Placing the Appliance into the Cabinet .......................................................................................................................... 39
Adjusting the Height of the Appliance in the Cabinet .................................................................................................... 42
Adjusting the Appliance with Respect to the Side Walls ................................................................................................ 43
Attaching the Cabinet Connection Brackets ................................................................................................................... 46
INSTALLING AT THE BOTTOM ........................................................................................................................................ 48
Water connection .......................................................................................................................................................... 48
Attaching the upper vent hole part ............................................................................................................................... 50
Attaching the lower vent hole assembly ....................................................................................................................... 51
Attaching the decorative parts ...................................................................................................................................... 52
Confidential
3
DOOR OVERLAY PREPARATION .......................................................................................................................................... 55
Removing the Mechanism Covers ................................................................................................................................. 55
Removing the Door Panel-Adjustment Mechanisms on the Refrigerator ..................................................................... 56
Preparing Door Overlay Panels ...................................................................................................................................... 57
Preparing the Fridge Door Overlay Panel ...................................................................................................................... 58
Preparing the Freezer Door Overlay Panel .................................................................................................................... 60
Installing the Fridge Door Overlay Panel ....................................................................................................................... 62
Installing the Freezer Door Overlay Panel ..................................................................................................................... 69
HINGE ADJUSTMENT .......................................................................................................................................................... 75
Adjusting the Strength of the Hinges ............................................................................................................................. 75
CHANGING THE SWING OF THE DOOR .............................................................................................................................. 76
Removing the Fridge Door ............................................................................................................................................. 76
Removing and Preparing the Fridge Inner Door ............................................................................................................ 80
Replacing the Hinges ...................................................................................................................................................... 82
Installing the Fridge Door............................................................................................................................................... 86
DUAL INSTALLATION ......................................................................................................................................................... 87
Cabinet Dimensions ....................................................................................................................................................... 87
Location of the Electrical Supply .................................................................................................................................... 88
Location of the Water Supply ........................................................................................................................................ 89
Mounting Part Lists ........................................................................................................................................................ 90
Attaching the Fasteners and Connecting Brackets ......................................................................................................... 92
Adjusting the Height of the Appliance in the Cabinet .................................................................................................. 94
Attaching the Mounting Brackets ................................................................................................................................... 95
Attaching the Upper Mounting Brackets ........................................................................................................................ 95
Attaching the Decorative Parts ....................................................................................................................................... 96
Completing the Installation ............................................................................................................................................ 98
Confidential
4
Symbols and Their Meanings
Symbols used in the installation manual are as follows.
Important information or useful usage tips.
WARNING: Conditions that may damage the product or its operating functions.
ATTENTION: Conditions containing serious injury risk.
Conditions containing electric shock risk.
Packaging materials of the product have been manufactured from recyclable materials.
Disposing the packaging materials
The package has been designed to protect the product during transport.
The packaging materials used for the product do not harm the nature during disposal and
they need to be recycled.
All plastic packaging materials, bags etc. must be disposed safely and kept out of the reach of children.
Please return the packaging to your dealer.
WARNING:
This installation manual has been prepared to help installation teams. The User Manual provided with the product
must also be taken into consideration.
You may get seriously injured and your product may get damaged if you ignore the warnings given in this or other
manuals. Please read the following carefully.
WARNING:
R600a Refrigerant
This product contains R600a isobutane refrigerant, which is a very eco-friendly natural gas. However, it is also
flammable. Please follow the warnings given below:
• If the product has been transported horizontally, you must wait for 4 hours minimum before plugging it in.
• The following instructions must be followed during installation:
• Dimensions of the installation area must be suitable.
• Dimensions, features and position of the object used to support and fix the product to this area must be
suitable.
Confidential
5
• Minimum clearances between product parts and surrounding structures must be suitable.
• Minimum dimensions and proper organization of ventilation holes must be observed.
• The product must be connected to the mains power,
and corresponding connections of other components must be suitable.
• The product must be disconnectable from the power supply after installation.
• The socket or fuse must be accessible to de-energize the product.
• Extension cables or ungrounded (two-terminal) adapters must not be used.
ATTENTION:
You must wear gloves and eye protectors when installing the product.
You must also take measures against high noise levels when using power tools.
ATTENTION:
Make sure that your product is suitable for your local mains.
ATTENTION:
The product must be installed by a qualified technician according to the installation instructions.
WARNING:
The product may tip over since it is quite heavy. For this reason, precautions must be taken against tipping over.
The doors of the product must be kept closed until it reaches the destination, and it must be transported
in accordance with the installation instructions.
Confidential
6

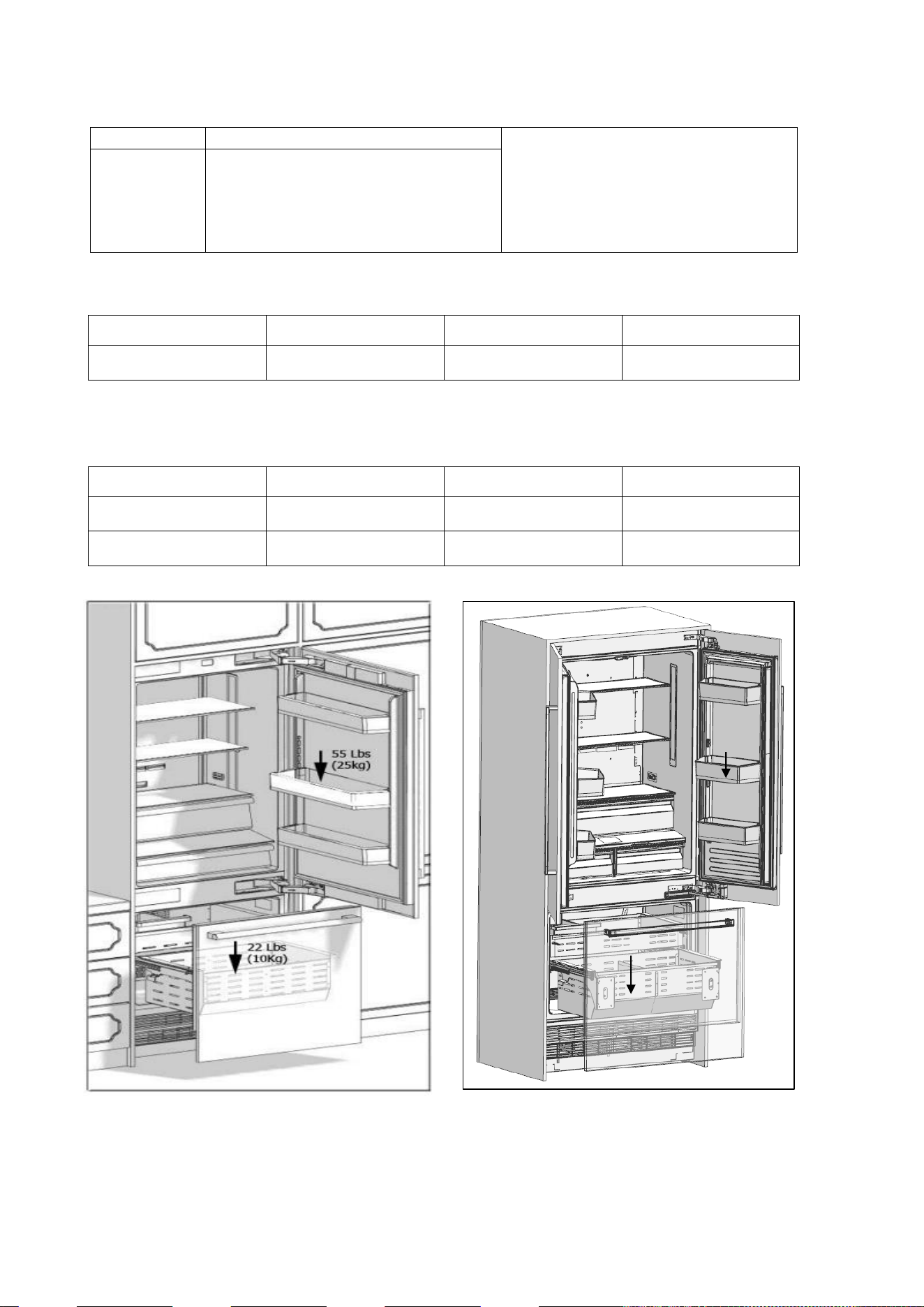

Product weight:
Load bearing capacity of the doors (does not include overlay panel weight)
Climate range
Ambient temperature of the room
This appliance has been designed to
be used in certain climate ranges
(ambient temperatures). It must not
be used out of this range.
SN
N
ST
T
Between +50
o
F (10
o
C) and +90
o
F (32
o
C)
Between +60
o
F (16
o
C) and +90
o
F
(32
o
C)
Between +60
o
F (16
o
C) and +110
o
F (38
o
C)
Between +60
o
F (16
o
C) and +120
o
F (43
o
C)
Category
FM4BM30(I)FBI
FM4BM36(I)FBI
FM4FBM36(I)FBI
Product weight
361Ibs (164kg)
373Ibs (169kg)
355IIbs (161kg)
Max load
FM4BM30(I)FBI
FM4BM36(I)FBI
FM4FBM36(I)FBI
Fridge door(s)
55Ibs (25kg)
55Ibs (25kg)
22Ibs (10kg) ea.
Freezer drawer
22Ibs (10kg)
22Ibs (10kg)
22Ibs (10kg)
22Lbs
(10kg)
22Lbs
(10kg)
FM4FBM36(I)FBI
TRF-76BINFIA
TRF-91BINFIA
FM4BM30(I)FBI
FM4BM36(I)FBI
Confidential
7
Installation Place
You must follow the instructions below:
• The floor on which the product will be installed must be capable of bearing 1,200 pounds (544 kg) minimum.
• Kitchen floor and the bottom of the product must be at the same level. Otherwise, problems may occur with
the air circulation of the product.
• There must be no objects preventing the installation of the product at the back and on the side walls of the
product's installation place.
• The power socket must be in the correct place.
• The dimensions of the furniture where the product will be installed must be in strict conformity with the
dimensions given in the manual.
• Do not install the product with the fridge and the freezer directly next to each other without the use of the
correct side by side joining kit. Otherwise, condensation and damage may occur in the product. (Please see
"Dual Cabin Installation" for detailed information)
• The flatness of the floor where the product will be installed must be checked with a Bubble Level Tool.
• The installation area must not be subjected to direct sunlight, and it must be away from heat sources, ovens,
radiators etc.
• The ambient temperature must be between 55°F (13°C) and 110°F (43°C). Otherwise, functional errors may
arise when the product is running.
• If it is not possible to avoid installing the product near a heat source, the minimum clearances given below must
be maintained between the product and the said source:
• 1 1/4" (3 cm) from electric hobs or ovens
• 12" (30 cm) from gas or fuel operated hobs or ovens.
Please observe the following rules:
• The circuit breaker or fuse must be easily accessible in case of an emergency.
• Plug or cable must not touch the back surface of the product. Otherwise,
it may get damaged due to the vibration of the product.
• Do not connect the plugs of other appliances behind this product.
• If the humidity or salinity level is high where the product is used, corrosion may be seen
on the outer surface of the product.
• Keep the installation room dry and well-cleaned to avoid corrosion.
Confidential
8
To avoid the risk of electric shock:
• Connect the plug to a grounded 3-pin socket.
• Do not remove the ground terminal of the plug.
• Do not use adapters.
• Do not use extension cables.
ATTENTION:
Failure to follow these instructions may result in death, fire, or electric shock. Connecting the grounding conductor
of the equipment to an improper place may lead to electric shock. Please have the grounding checked by a qualified
electrician or service technician if you have any doubt about the proper grounding of the product.
Installation, repair, and other procedures performed by unqualified persons may cause danger. Before installing the
appliance, make sure that the voltage, load, and circuit current parameters on the data plate are in compliance with
the power mains in your house.
The appliance is provided with a NEMA 5-15 P plug and a 3-pin power cable which is in the UL list and ready to be
connected to a 120 V, 60 Hz power supply. Fuse is 15 A. The appliance must be connected to a 3-pin socket. The
receptacle must be installed only by a licensed electrician.
If the electrical wiring or the electric power supply of the house needs alteration, the necessary procedures must be
performed by a qualified electrician.
ATTENTION:
Do not install your refrigerator:
• In outdoor areas.
• In environments where water is dripping.
• In environments where temperature is lower than 55°F (13°C).
Furniture:
Make sure that the furniture where you will install the appliance has been safely mounted in your kitchen.
Your furniture must be connected to the floor and the wall properly and with suitable connections.
For the best installation, clearances between the furniture and the product must be in compliance
with the values specified in the installation instructions.
Side walls must be free of clearances and their surfaces must be flat.
Minimum thickness of the side walls must be 5/8" (16 mm).
Minimum thickness of the doors to be attached to the product must be ¾" (19 mm) .
ATTENTION:
The stainless steel door option is also available
Confidential
9
Ventilation:
Vent holes where the air enters and exits the unit must not be blocked or obstructed. In addition, you must
periodically clean the dust and dirt that accumulate on these holes over time.
Electrical Connection:
• Never use an extension cable.
• The power socket absolutely must be grounded and checked by an authorized person.
• Location of the electrical wiring must comply with the dimensions specified in the manual.
ATTENTION:
RISK OF ELECTRIC SHOCK
Electrical grounding is necessary. This appliance is equipped with a three-pin plug
to protect you against possible electric shocks.
• Do not remove the round grounding terminal from the plug.
• Do not use two-pin grounding adapters.
• Do not use extension cables to energize the product.
ATTENTION:
Do not connect the grounding cable to the gas pipe. Please have the grounding checked by a qualified electrician if
you are not sure about the grounding of the product. Do not install a fuse on the neutral line or grounding circuit.
WARNING:
Please wait for 3-6 hours before energizing the product to protect it against possible damage. This way, the
refrigerant and the lubricants in the system get balanced.
Water Connection
• Pressure of the mains water must be in compliance with the values specified in the manual.
• The location of the water system must comply with the dimensions specified in the manual.
IMPORTANT INFORMATION:
Bypass is recommended for the water filtering system if a reverse osmosis system is used.
Confidential
10

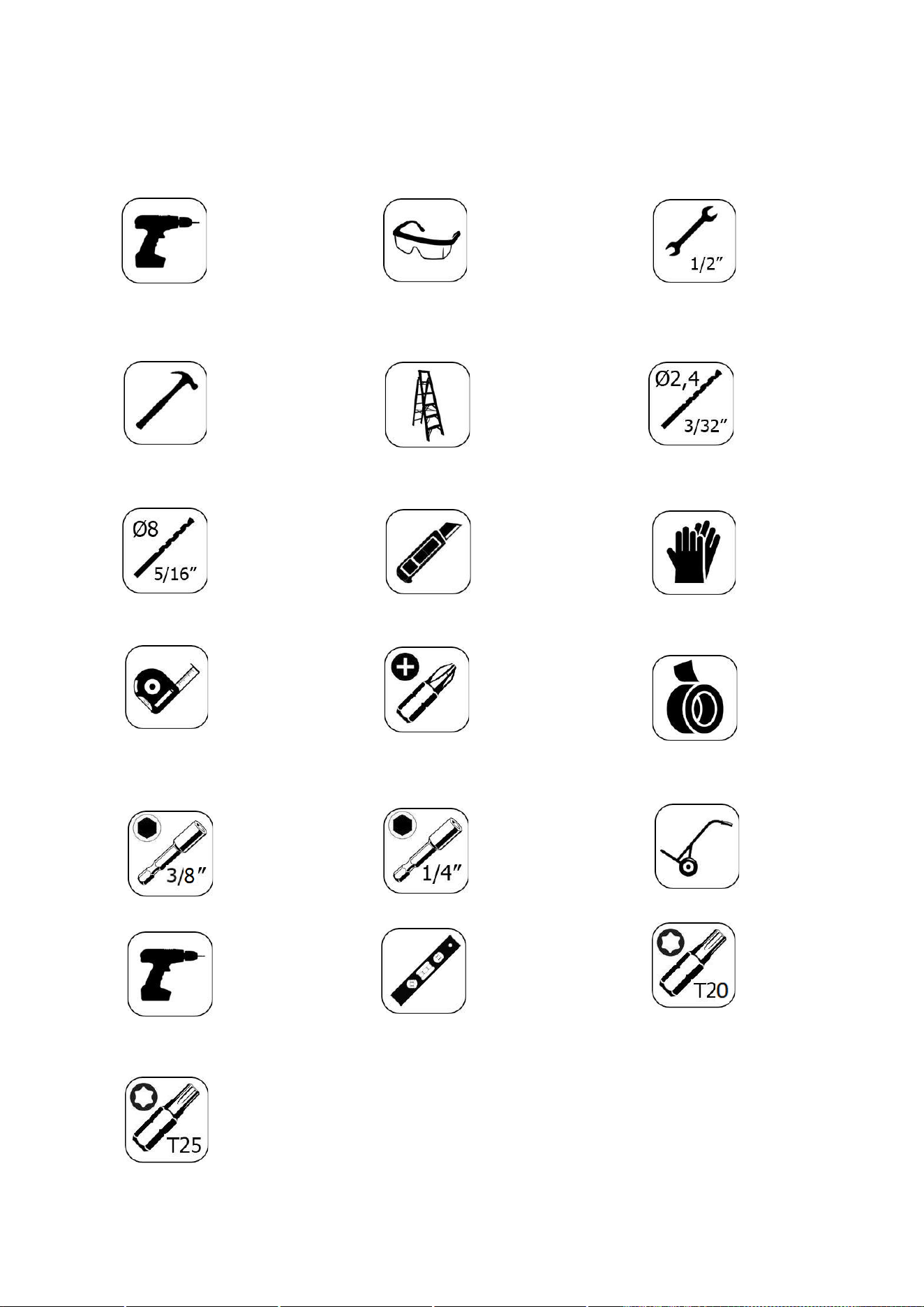

TOOL LIST
Tools to be used when installing the product are as follows:
Cordless
Drill
Safety
Goggles
½"
Wrench
Hammer
Ladder Ø2.4
Drill Bit
Ø8.0
Drill Bit
Box
Cutter
Safety
Gloves
Tape
Measure
Phillips Bit
Masking Tape
3/8"
Socket
Standar
d bit
screwd
river
Torx
25 bit
¼"
Socket
Bubble
Level
Tool
Appliance Cart
Torx 20 bit
Confidential
11

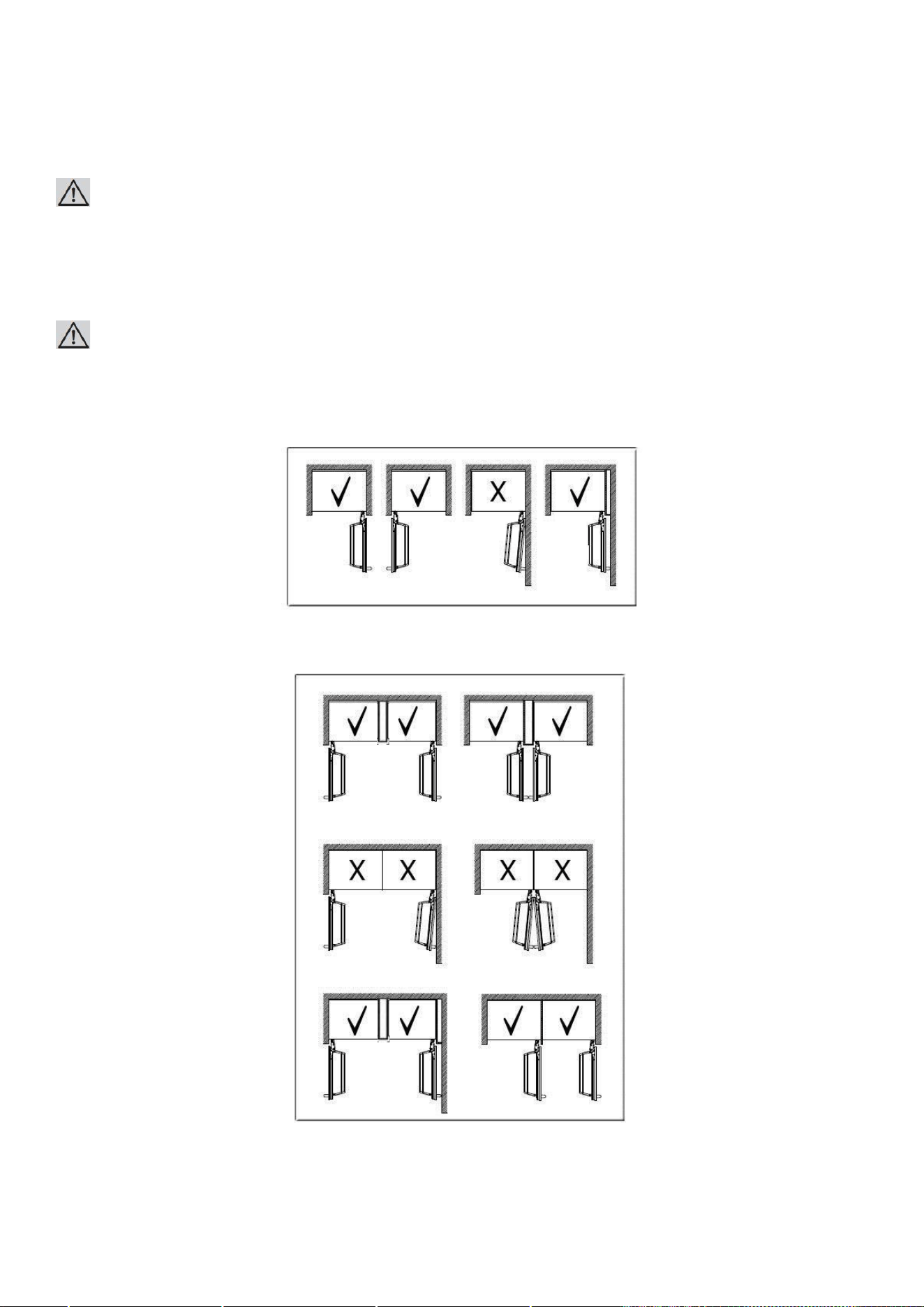

ALTERNATIVES FOR INSTALLATION
WARNING:

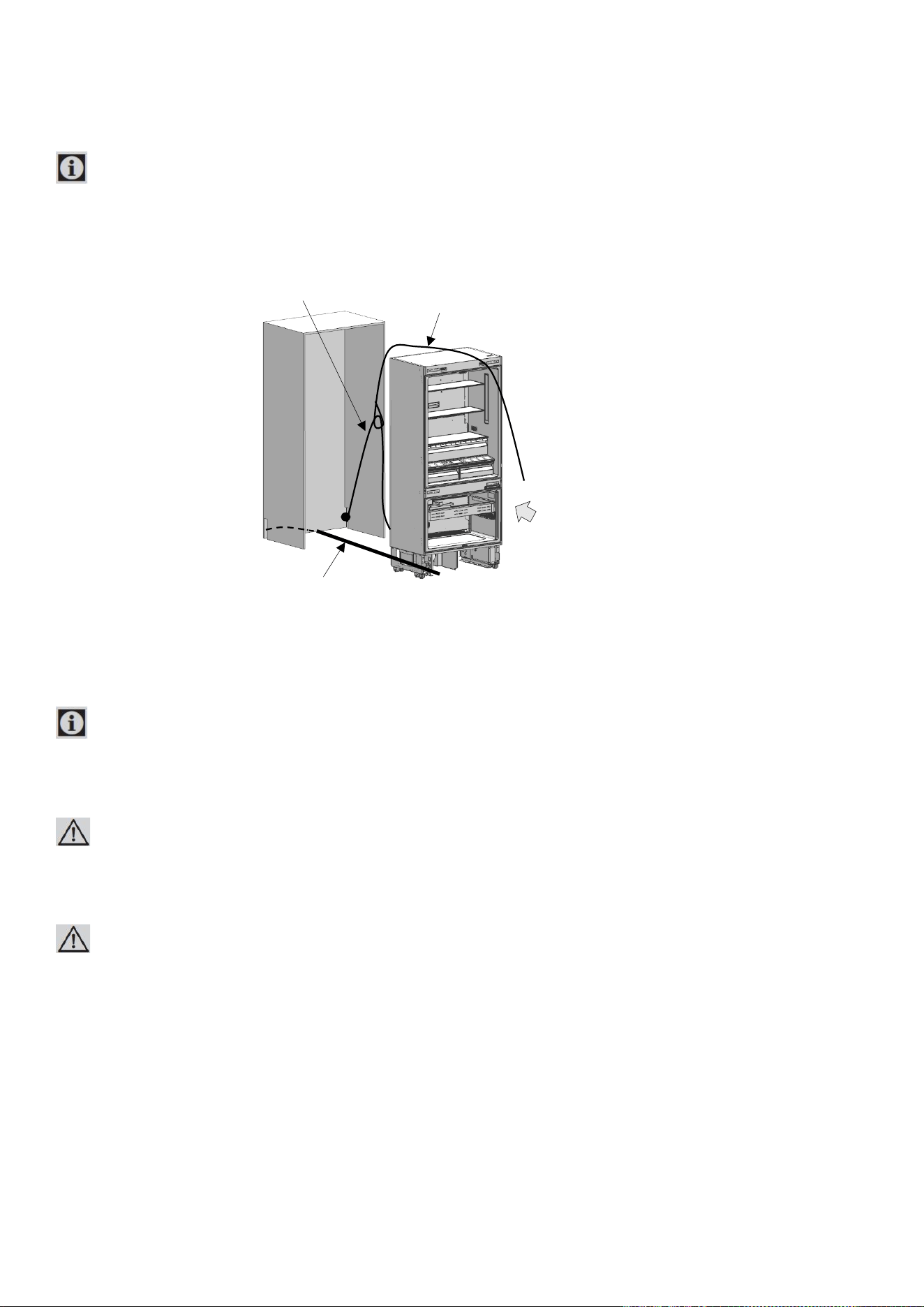

The product can be placed in various ways based on the kitchen design. It must be installed in a place where it is
ensured that the door can be opened and closed properly. If the doors cannot be opened 90 degrees at least, you
cannot completely open the drawers inside the product. See door swing dimensions on page 19 - 22.
WARNING:
Door swing should be done before installing the door overlay panels – see pages 76 - 78 for instructions.

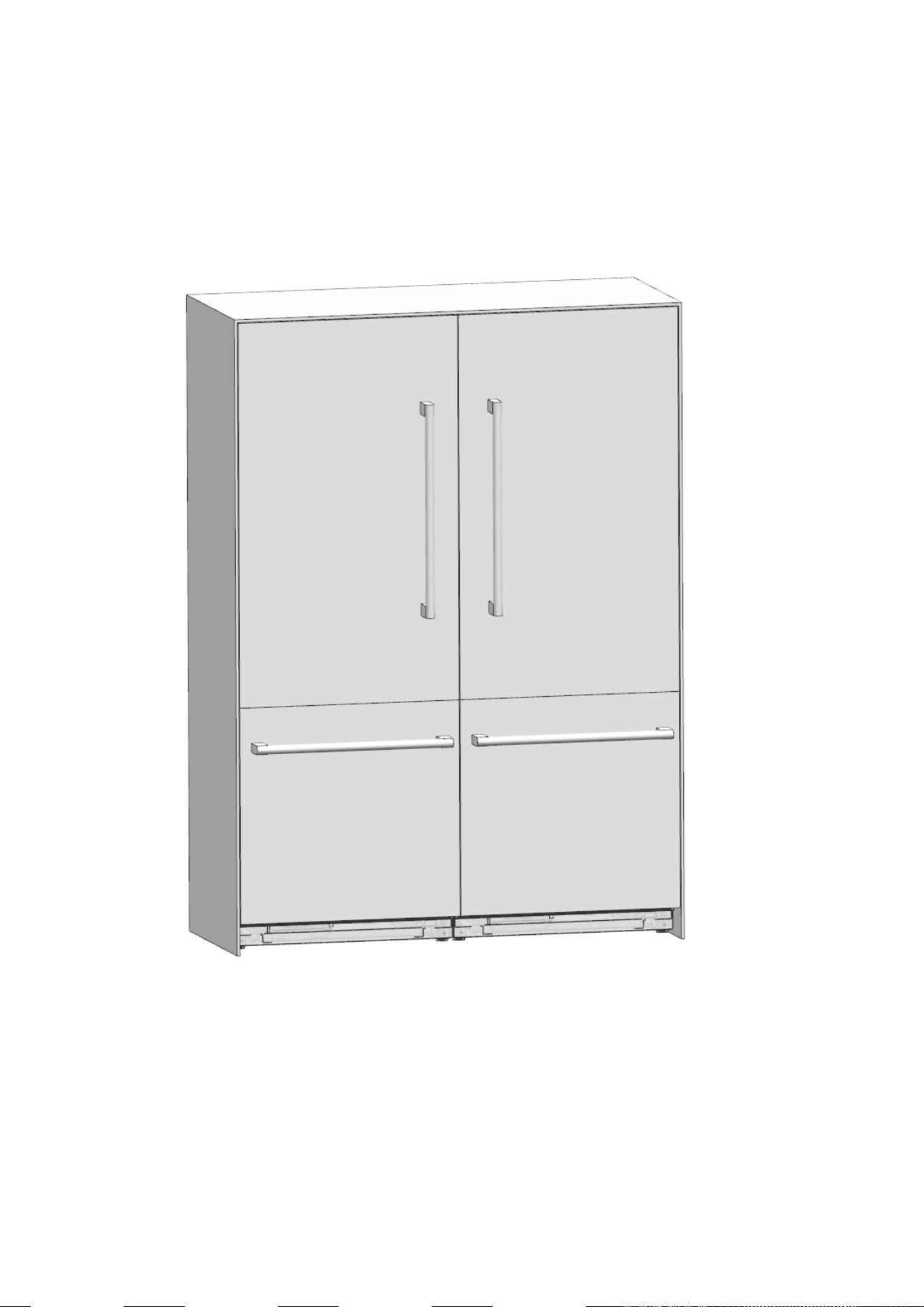

• Single cabin placement methods
• Dual cabin placement methods
Confidential
12
PREPARATION FOR INSTALLATION
The instructions below have been prepared according to Built-in type.
Built-in: The Appliance and Panels fully seat into the opening, and dedicated cabinet is placed
between the two kitchen cabinets or decorative columns.
This is the most common installation scenario.

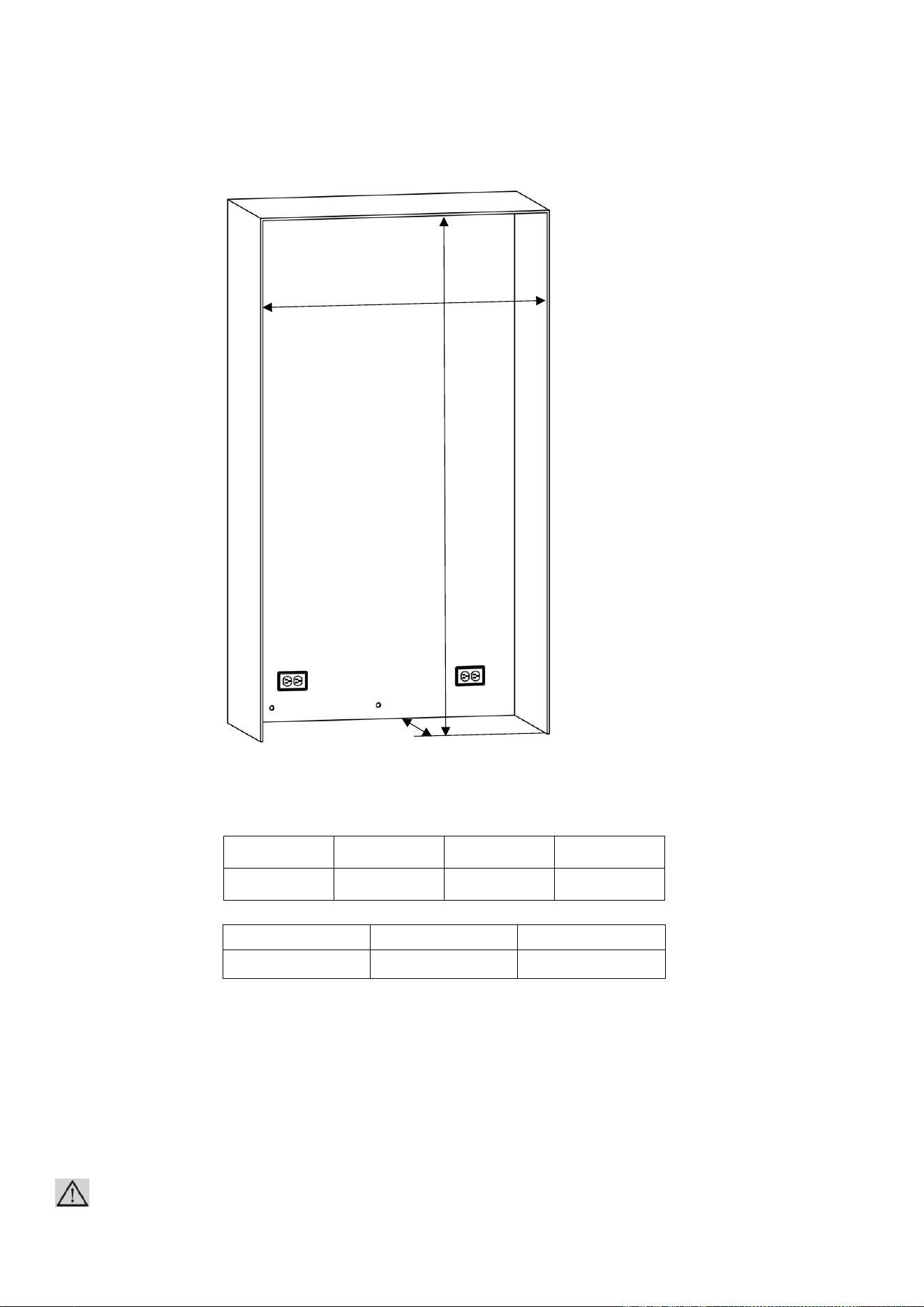

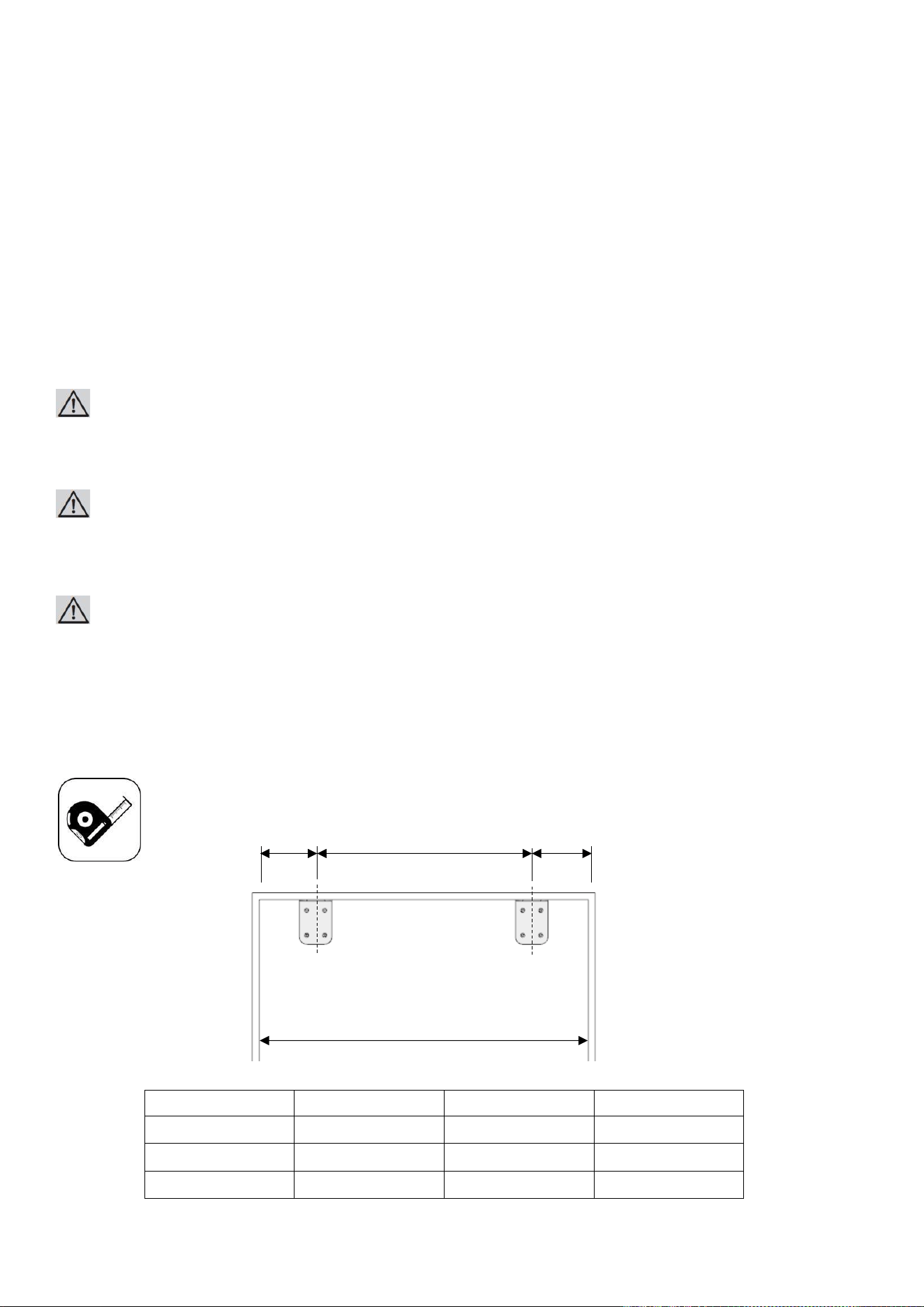

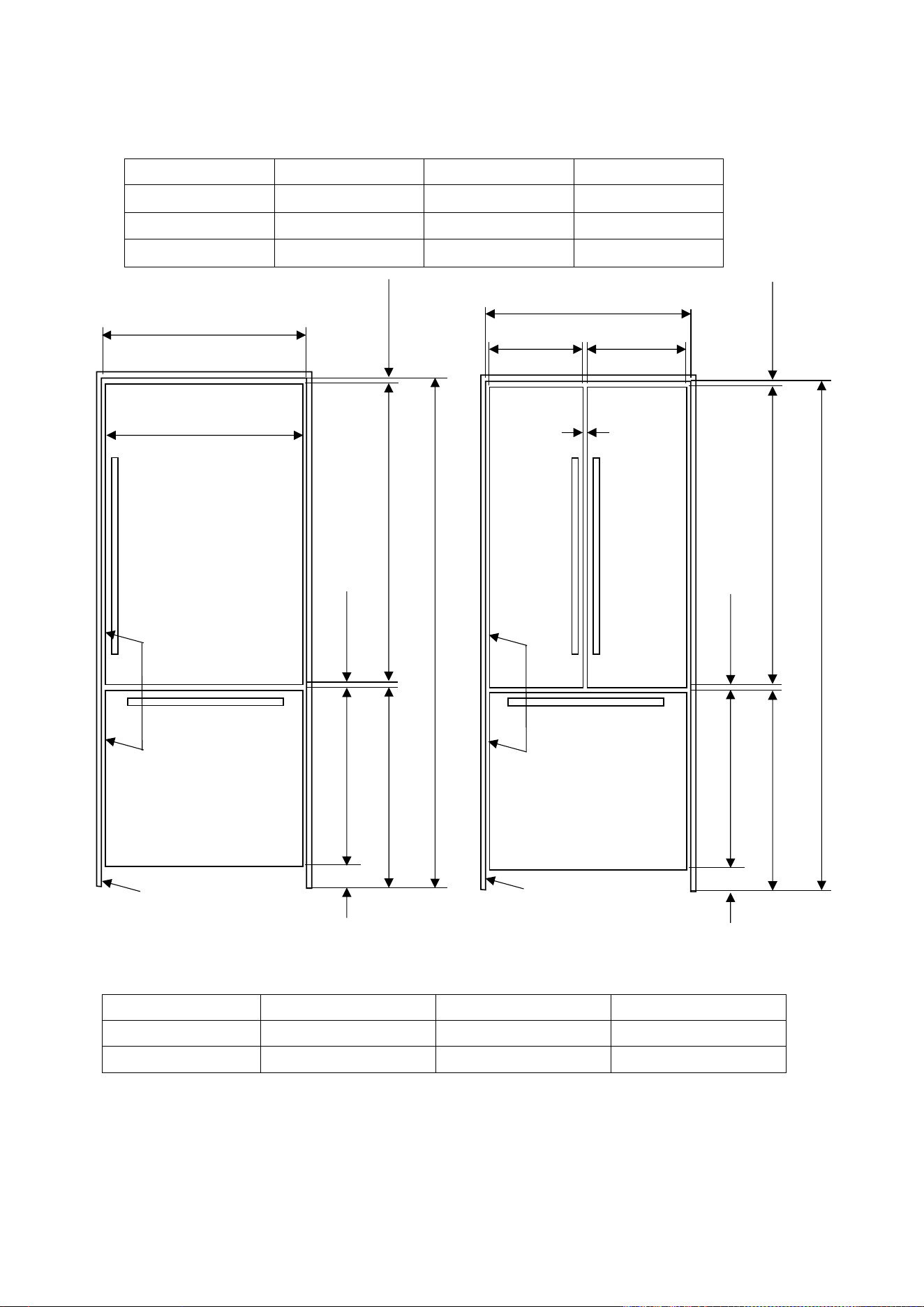

Cabin Dimensions
• Cabinet dimensions below must be checked before starting the installation.
Category
FM4BM30(I)FBI
FM4BM36(I)FBI
FM4FBM36(I)FBI
A
width
30" (762mm)
36" (914mm)
36" (914mm)
B
depth
25" (635mm)
25" (635mm)
25" (635mm)
C
height
84" (2134mm)
84" (2134mm)
84" (2134mm)
C
Confidential
13

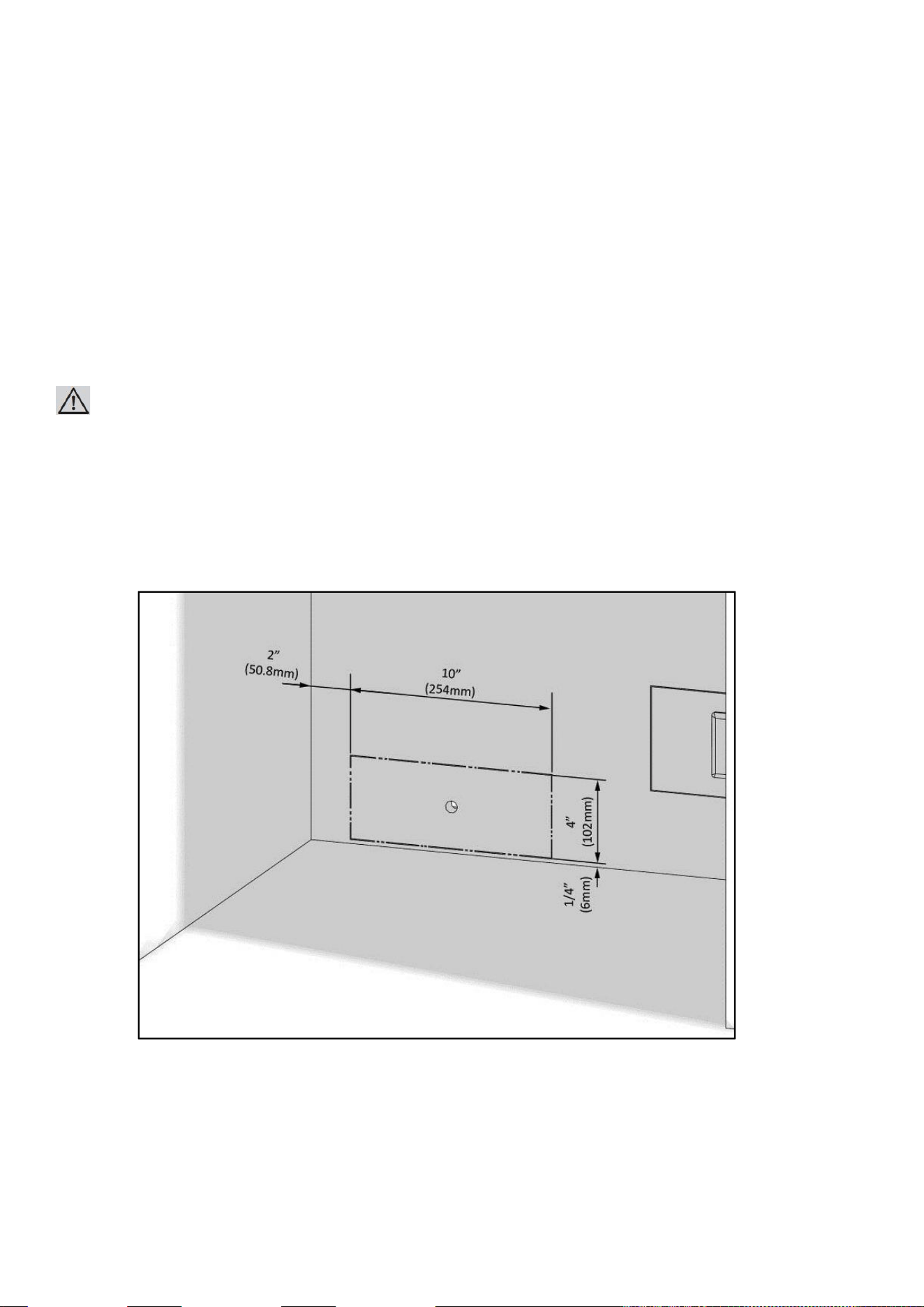

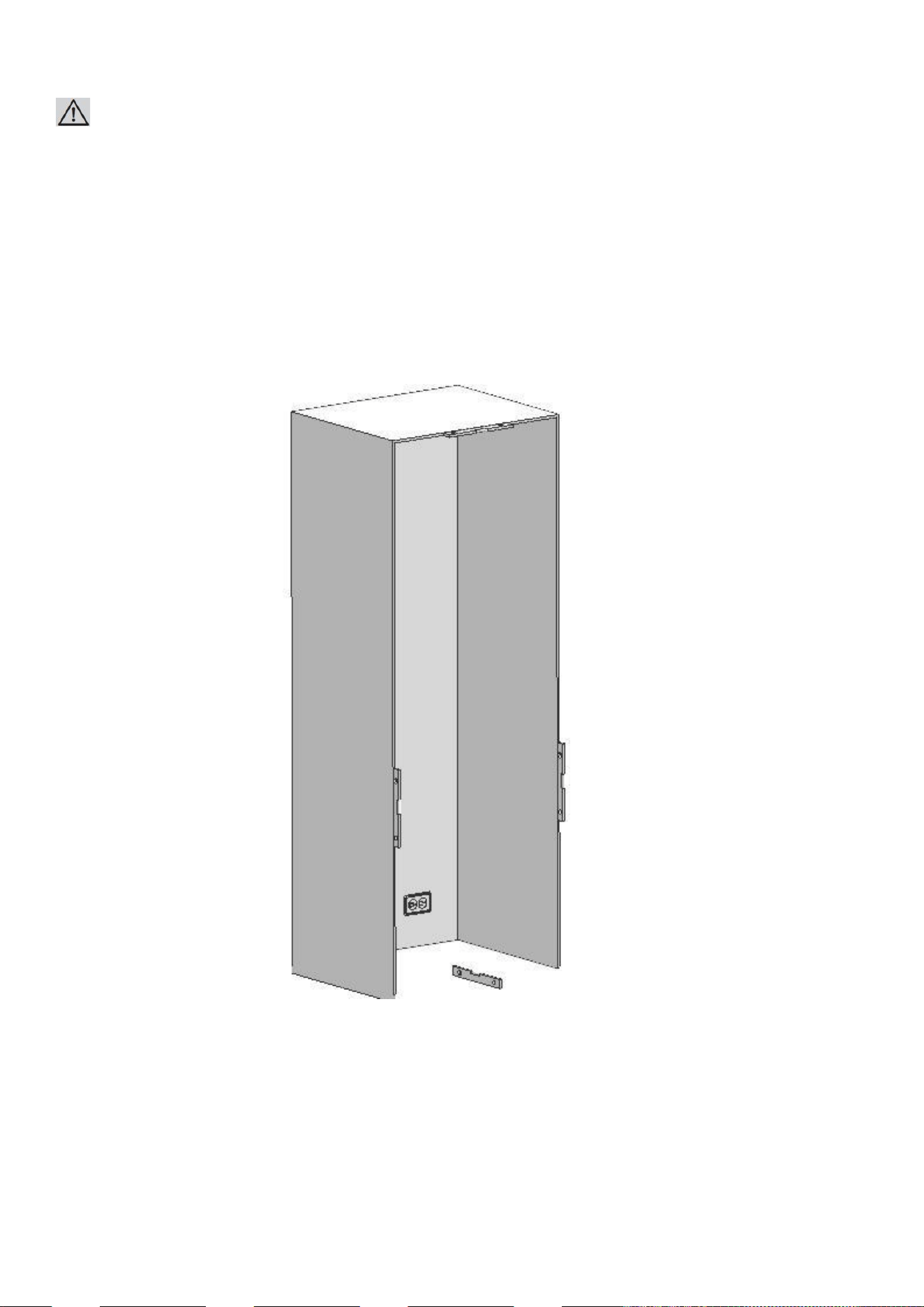

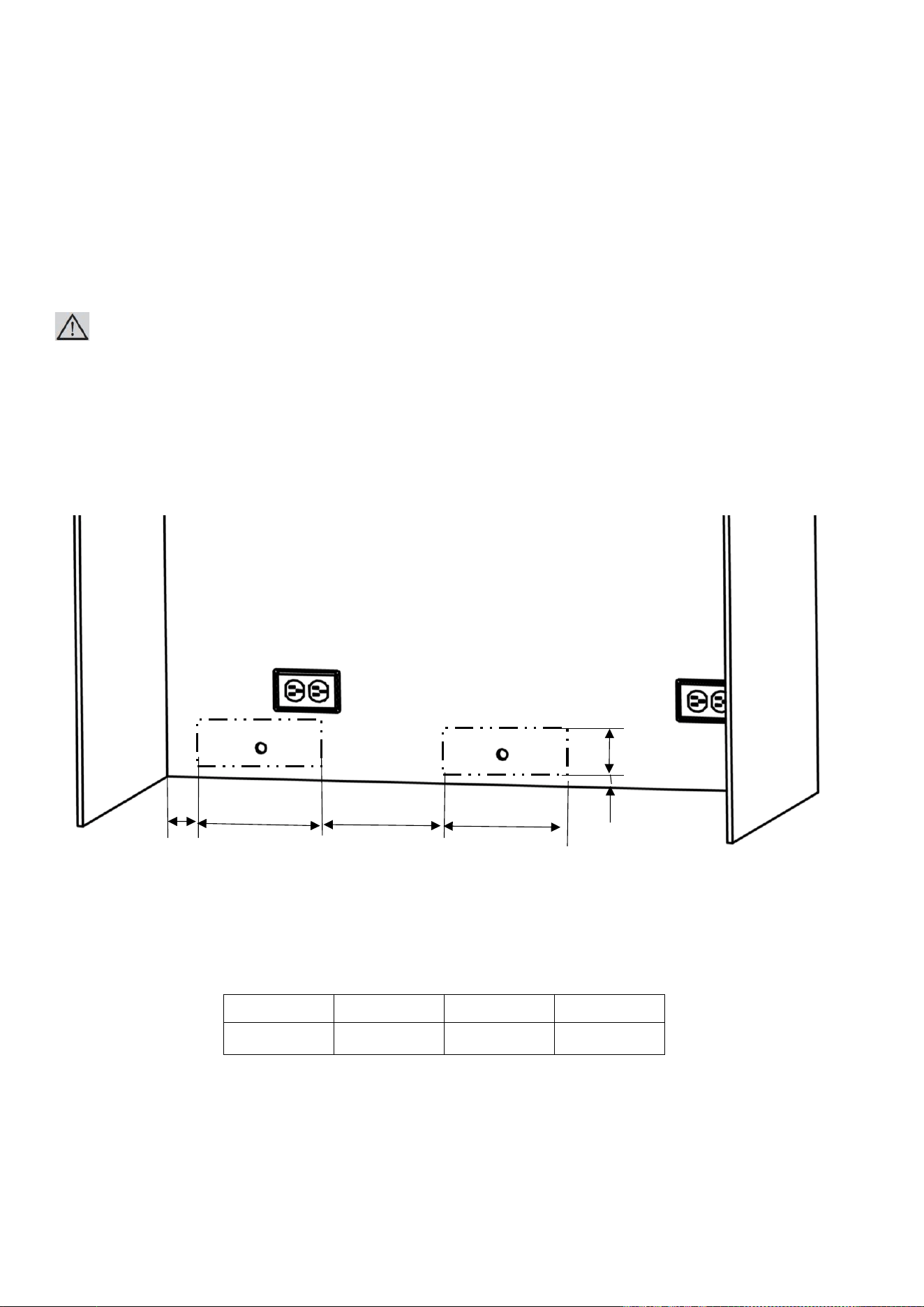

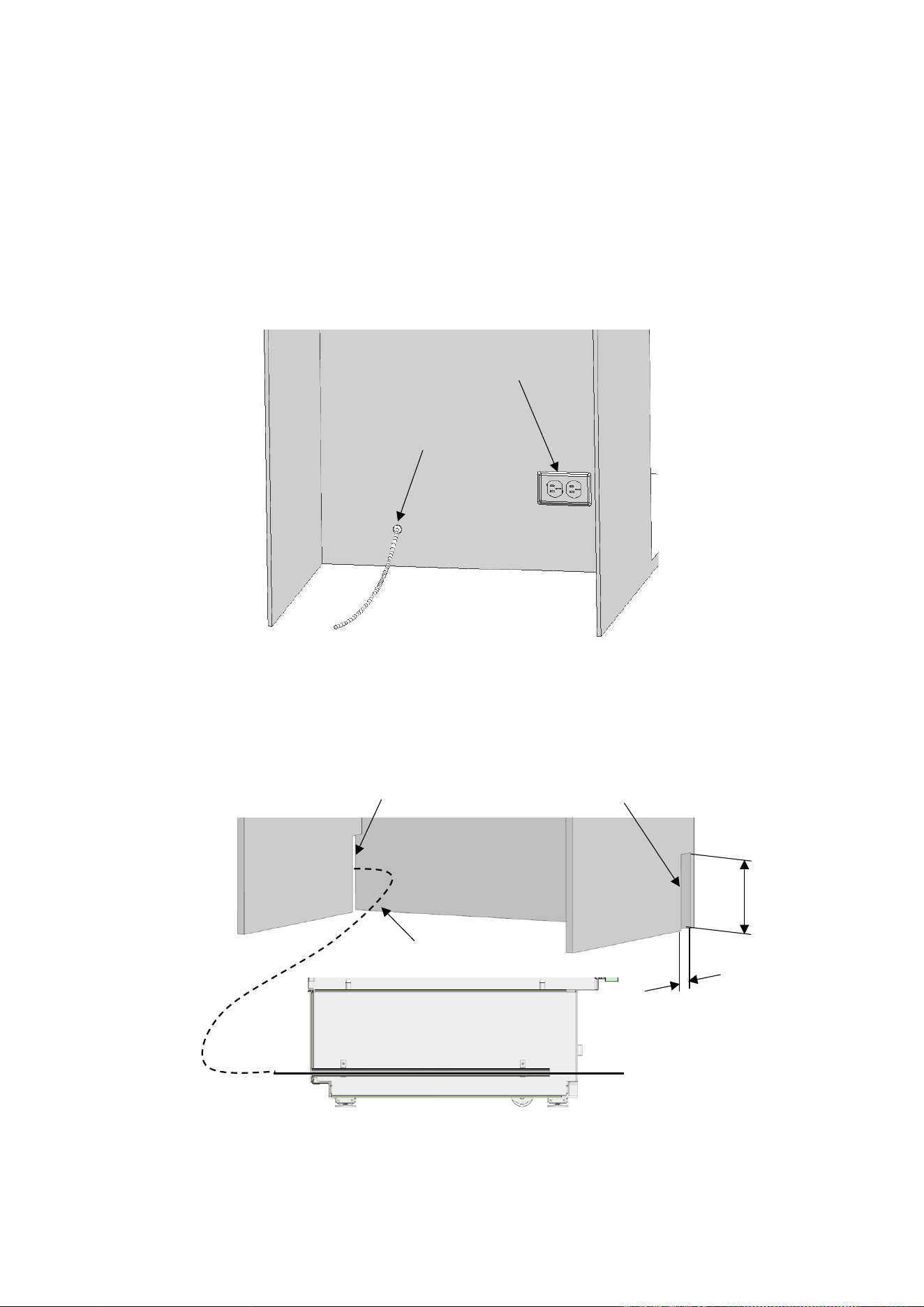

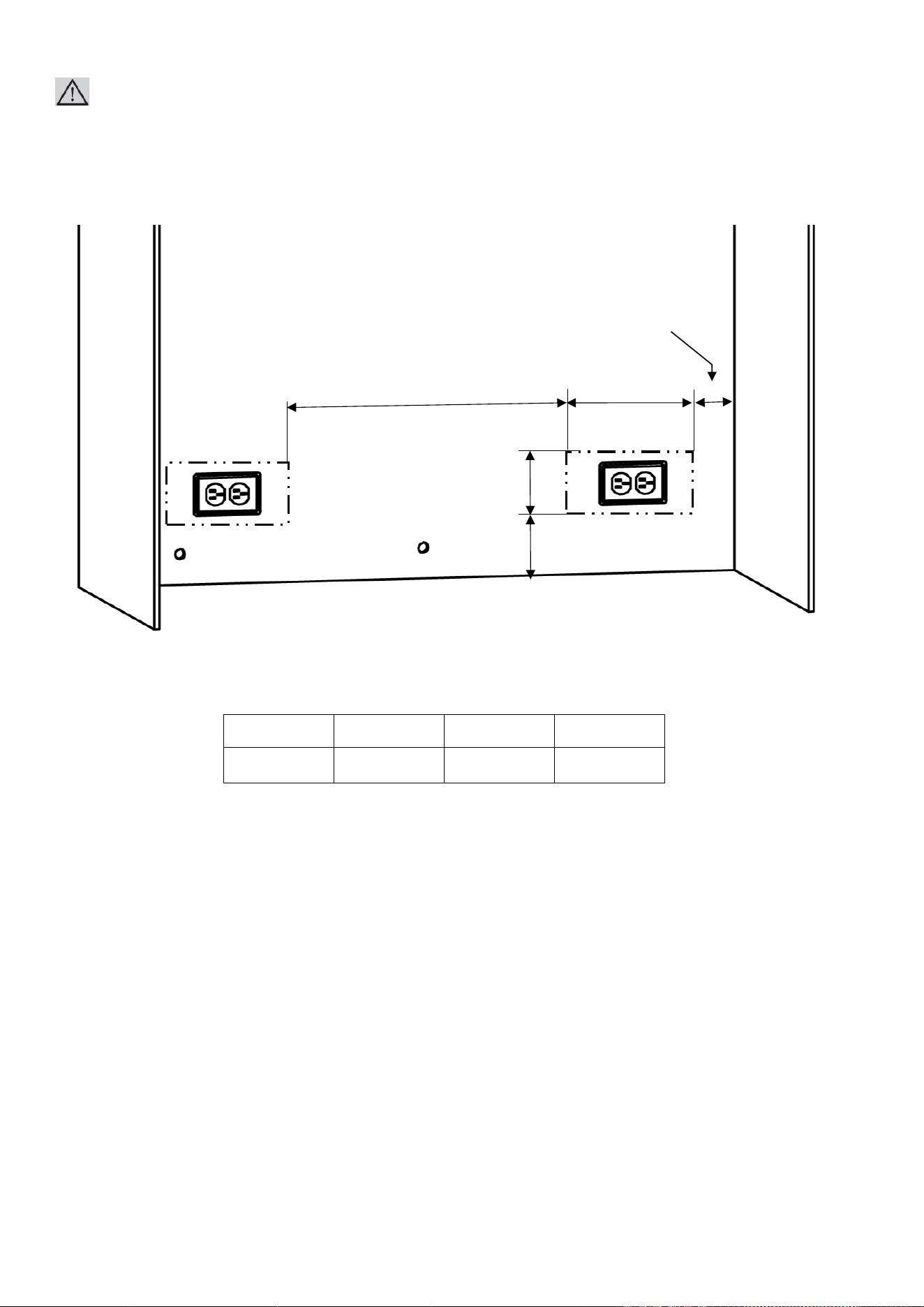

Location of the Electrical Wiring
Location of the electrical wiring must be within the range given below.
ATTENTION:
Do not use extension cables or two-pin adaptor and do not remove the ground terminal of the grounding cable.
ATTENTION:
A qualified electrician must ensure that the poles of the socket are connected correctly.
Verify that the grounding of the socket is correct.
Confidential
14

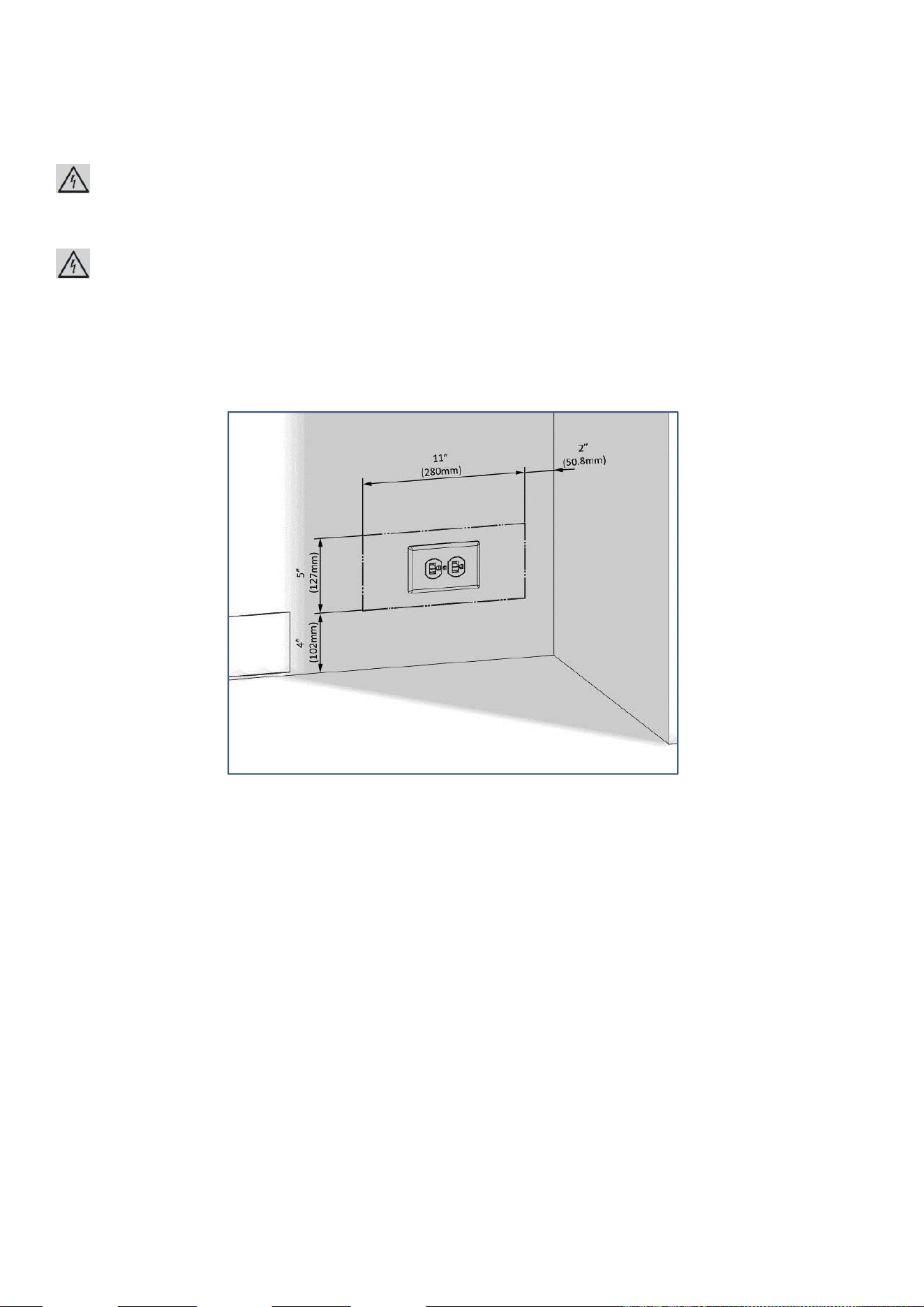

Location of the Water System
The water connected to the appliance must be potable.
Location of the water system must be within the range given below.
Water system of the refrigerator must be connected to the water mains system in the house.
The user must be able to switch it on/off with the valve when necessary.
Objects that might pierce the water hoses or cause them to twist must not be present
where the water line is installed.
Pressure of the water system must be between 25-80 psi (1.7-5.5 Bar).
If the water pressure exceeds 80 psi, install a pressure limiting device or water impact protector to the inlet valve.
Never install the product or operate the appliance if it is possible for the water pressure to exceed 120 psi.
WARNING:
Make sure that there is no water leakage when making the water connections. Otherwise,
there will be water on the floor and the furniture will get damaged.
You will need a hose with a minimum length of 60" (1.5 meters) and a diameter of ¼"
for water connections of the product during installation.
A connector that has a thread with an external diameter of ¼ must be used to connect the hose end to the product.
Before completing the installation, make sure that water flows and there is no water leakage.
Confidential
15

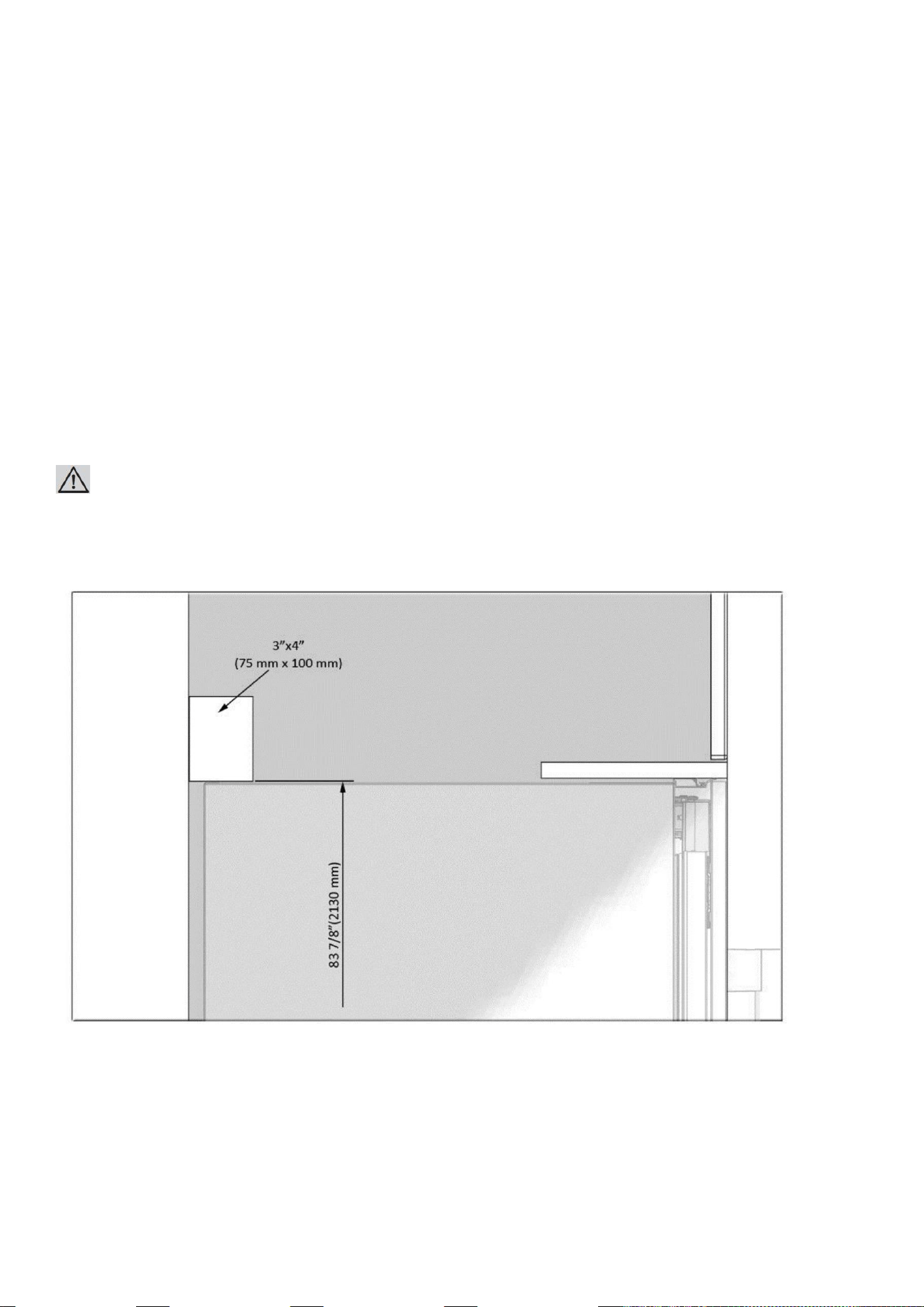

WARNING:
• Flatness of the floor where the product will be installed must be checked with a Bubble Level Tool.
• Uprightness of the furniture flanges must be checked with a Bubble Level Tool.
• If the appliance is not level and square, problems may arise with the installation.
Confidential
16

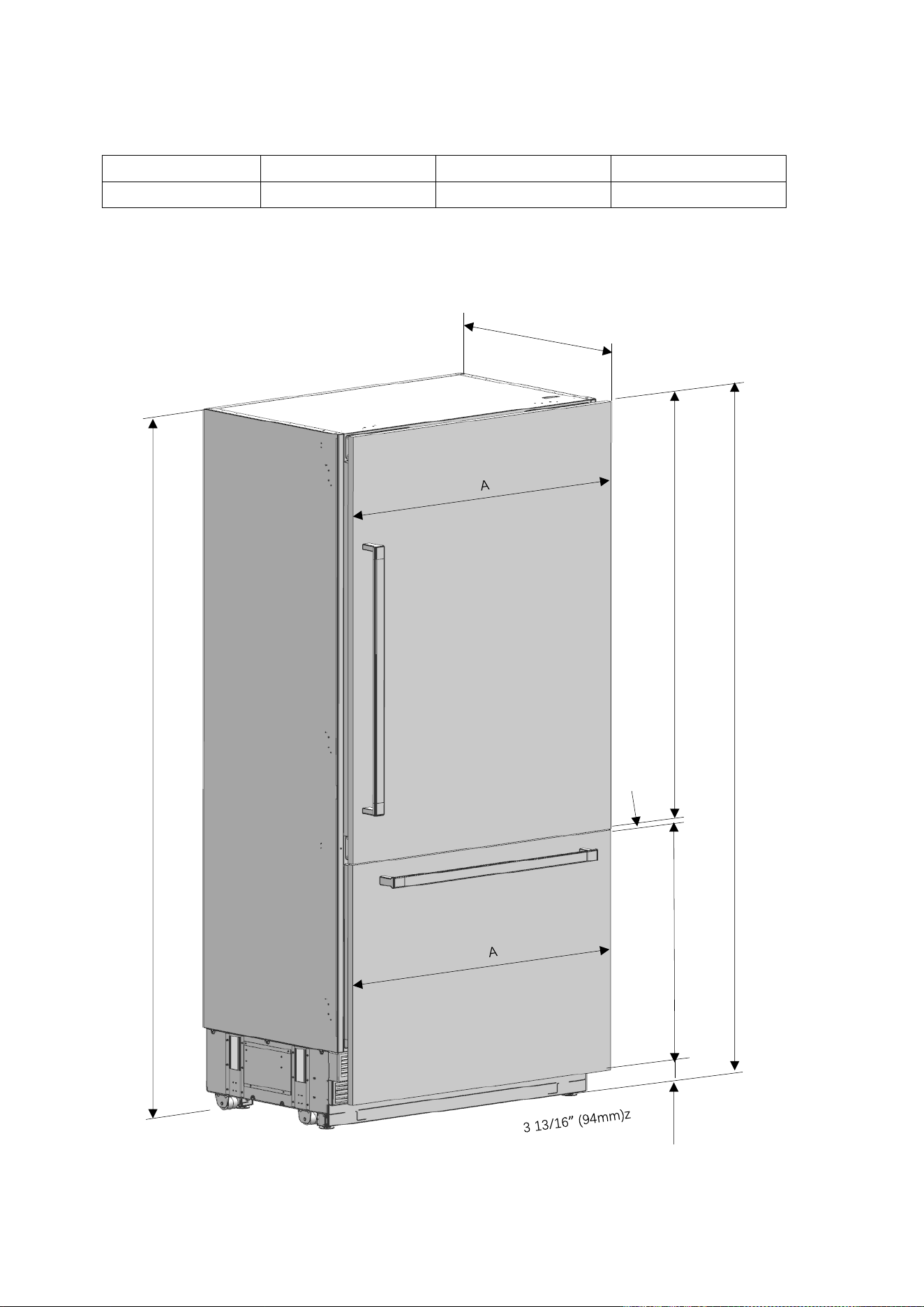

PRODUCT DIMENSIONS
Category
FM4BM30(I)FBI
FM4BM36(I)FBI
FM4FBM36(I)FBI
A
29 3/4” (756mm)
35 3/4” (908mm)
35 3/4” (908mm)
51 1/16
” （1297mm)
28 11/16
” (729mm)
83 9/16
” (2123mm)
without panel: 23 5/16” (592mm)
with panel: 24 ¼” (616mm)
83 9/16
” (2123)
Gap : 1/8
” (3mm)
Confidential
17
51 1/16
” （1297mm)
28 11
/16” (729mm)
83 9/16
” (2123mm)
without panel: 23 5/16” (592mm)
with panel: 24 ¼” (616mm)
83 9/16
” (2123)
Gap : 1/8
” (3mm)
FM4FBM36(I)FBI
Confidential
18
Category
FM4BM30(I)FBI
FM4BM36(I)FBI
FM4FBM36(I)FBI
A
15 9/32" (388mm)
15 9/32" (388mm)
15 9/32" (388mm)
Confidential
19
Category
FM4BM30(I)FBI
FM4BM36(I)FBI
A
32 7/16” (824mm)
38 7/16” (976mm)
B
29 3/4“ (756mm)
35 3/4“ (908mm)
C
55 1/32” (1398mm)
61” (1550mm)
21 27/32
” (555mm)
3/8” (10mm) plus
handle depth

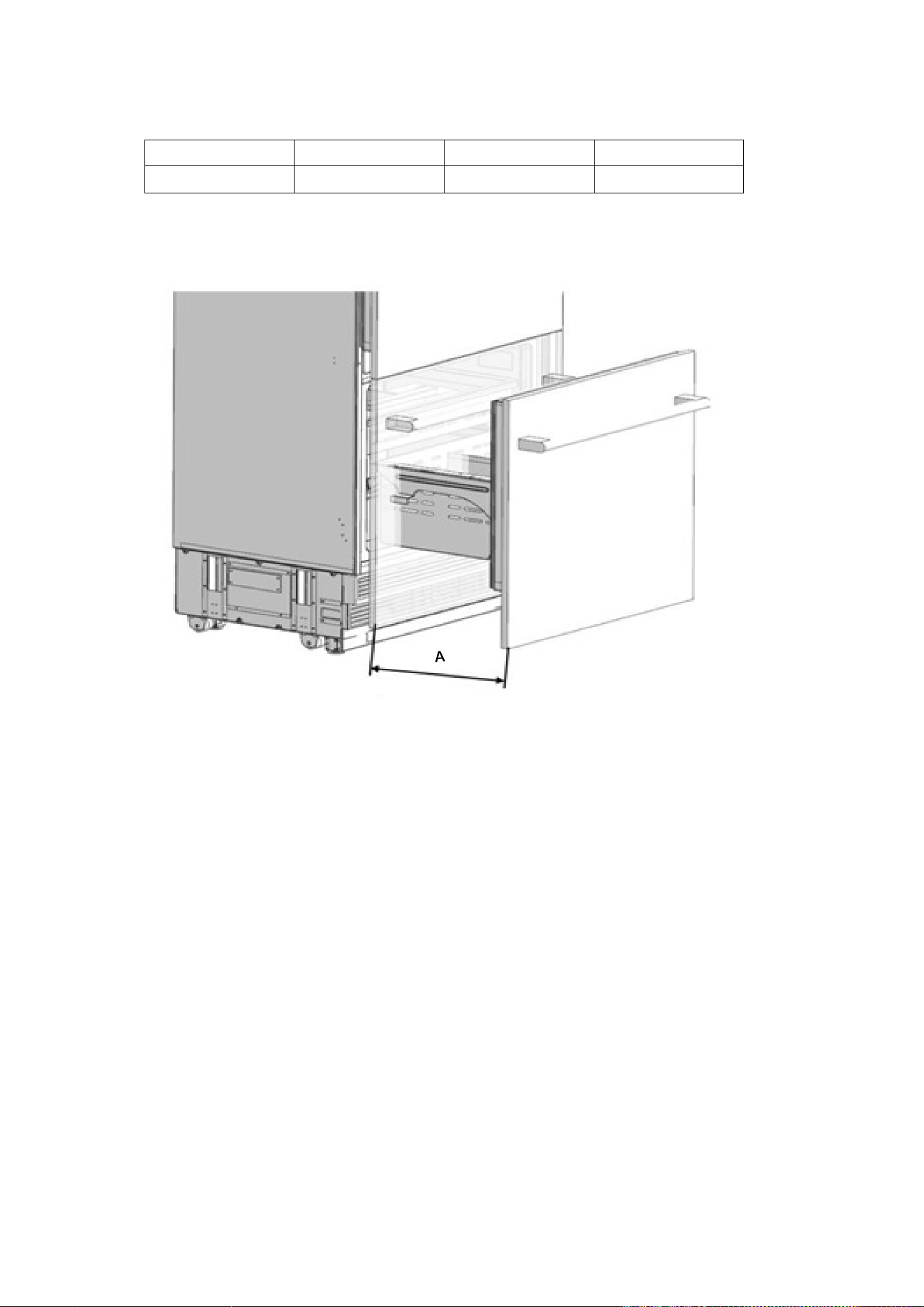

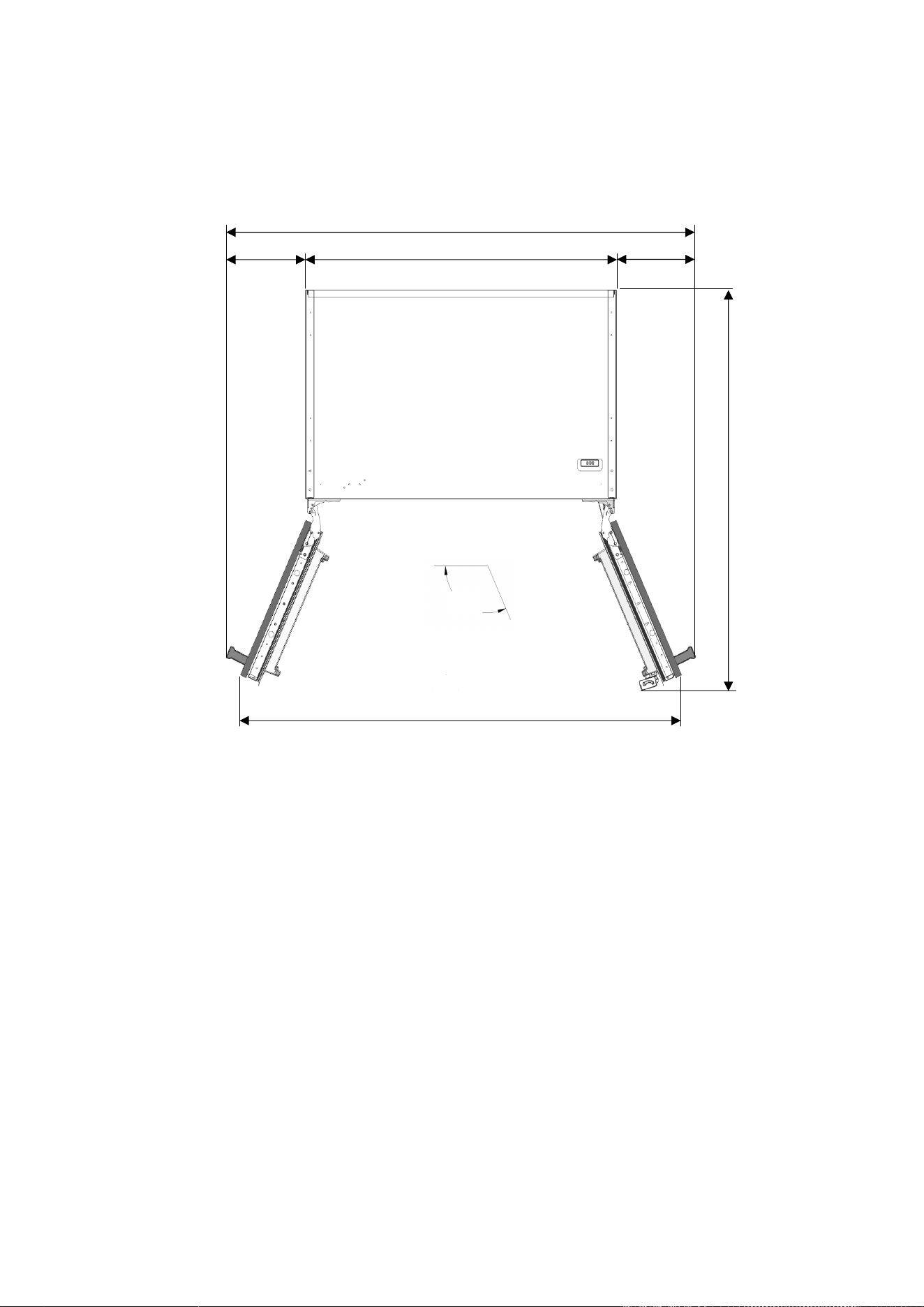

90°Door swing
Minimum to wall
3/8” (10mm)
90°
B
C
A
Confidential
20
Category
FM4BM30(I)FBI
FM4BM36(I)FBI
A
443/8” (1127mm)
54 3/4” (1391mm)
B
29 3/4“ (756mm)
35 3/4“ (908mm)
C
14 5/8” (371mm)
19” (483mm)
D
52 11/16” (1338mm)
57 11/16” (1466mm)

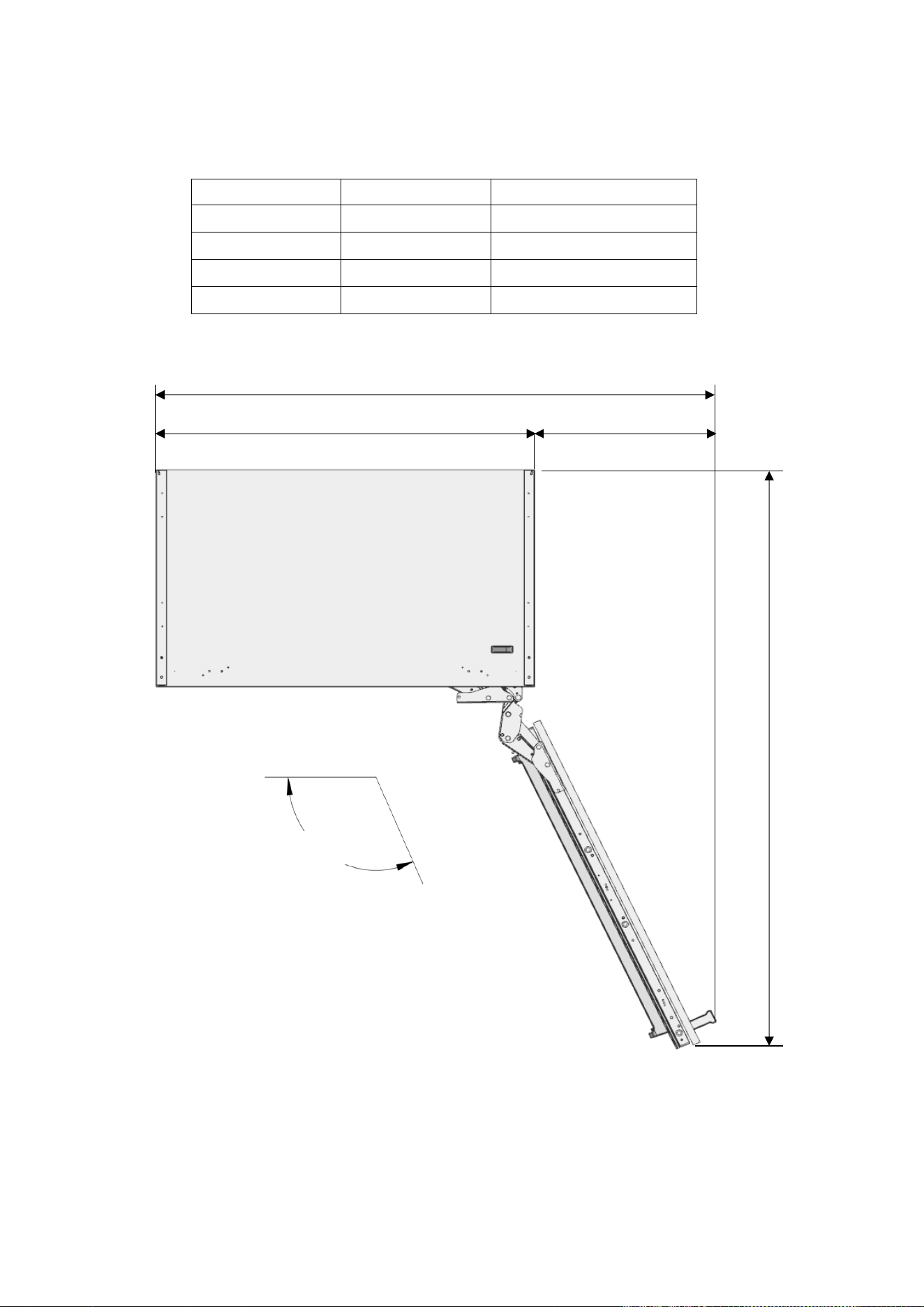

115°Door swing
using included stop pin
115°
A – includes handle
minus handle
C – includes handle
D
B
Confidential
21
35 ¾” (908mm)
21 27/32
” (555mm)
42” (1068mm)
1/16” (4mm)
1/16” (4mm) plus
handle depth
90
°
Door swing
90°
FM4FBM36(I)FBI
Confidential
22
41 ¾”
(1061mm)
53 27/32” (1368mm)
9 1/16” (230mm)
35 ¾” (908mm)
1
115°Door
9 1/16” (230mm)
50 3/4” (1289mm)
Minimum to
wall
Minimum to
wall
FM4FBM36(I)FBI
Confidential
23

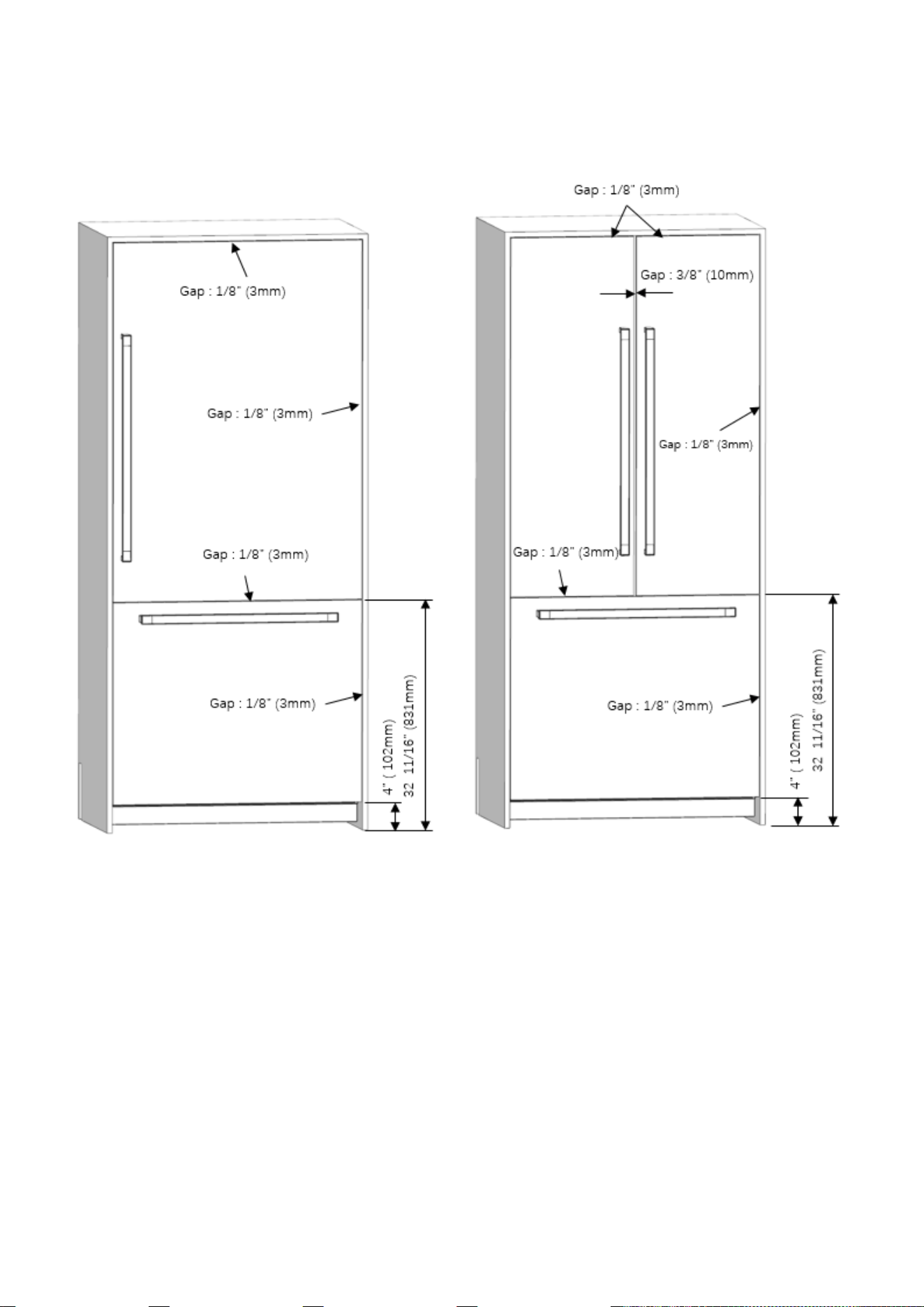

51 1/16
” (1297mm)
28 11/16
” (729mm)
4” (102mm)
32 11/16
” (831mm)
1/8” (3mm)
5/32” (4mm)
1/8” (3mm)
84” (2134mm)
1/8” (3mm)
3/4” (19mm)
Remaining space
after install
Minimum height
adjustment for leveling
Anti tip bracket location
5/32” (4mm)
84” (2134mm)
83 27/32
” (2130mm)
Front 5/16
”
(8mm)
Rear ¼” (7mm)
Assembly dimension between
Wood panel and fridge door
4” (83mm)
3/4” (19mm)
Assembly dimension between
Wood panel and freezer door
1/4” (6mm)
Confidential
24
FM4FBM36(I)FBI
FM4BM30(I)FBI
FM4BM36(I)FBI
Confidential
25

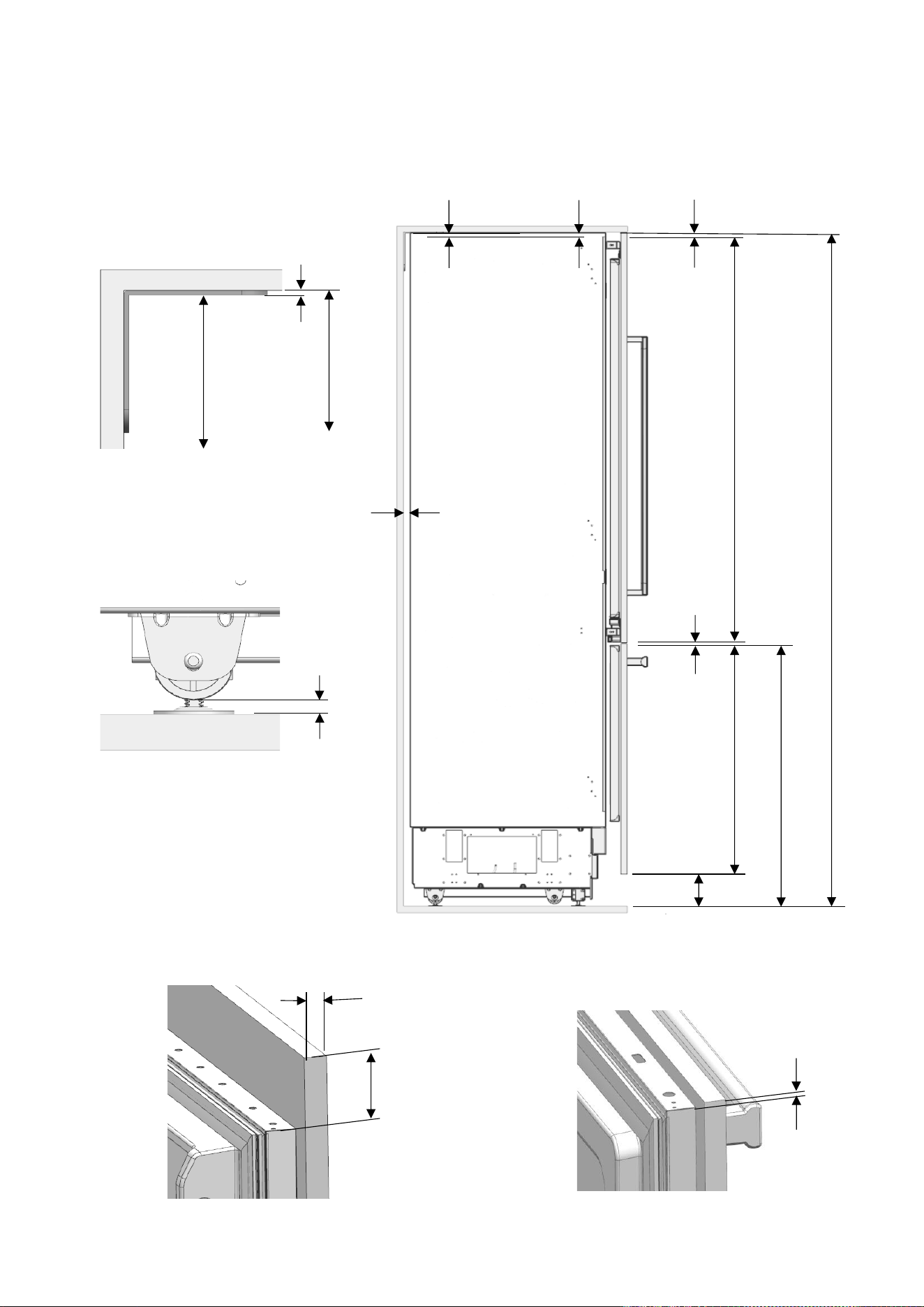

Dimensions that can change based on the min/max. height of the cabinet:
A
B
C
standard
4” (102mm)
32 11/16” (831mm)
84” (2134mm)
minimum
3 13/16”(97mm)
32 1/2“ （826mm）
83 13/16“ （2129mm）
maximum
5 3/8“（137mm）
34 1/8“ （866mm）
85 3/8“ （2169mm）
Category
FM4BM30(I)FBI
FM4BM36(I)FBI
FM4FBM36(I)FBI
D
30” (762mm)
36” (914mm)
36” (914mm)
E
29 3/4” (756mm)
35 3/4” (908mm)
35 3/4” (908mm)
17011/16
”
(449mm)
Freezer panel height
Furniture wood panel
Door wood panel
28 11/16
” (729mm)
A
B
51 1/16
” (1297mm)
1/8” (3mm)
C
1/8” (3mm)
Fridge panel height
36” (914mm)
Freezer panel height
Furniture wood panel
Door wood panel
28 11/16
” (729mm)
A
B
51 1/16
” (1297mm)
1/8” (3mm)
C
1/8” (3mm)
Fridge panel height
D
E
3/8” (10mm)
17011/16”
(449mm)
Confidential
26

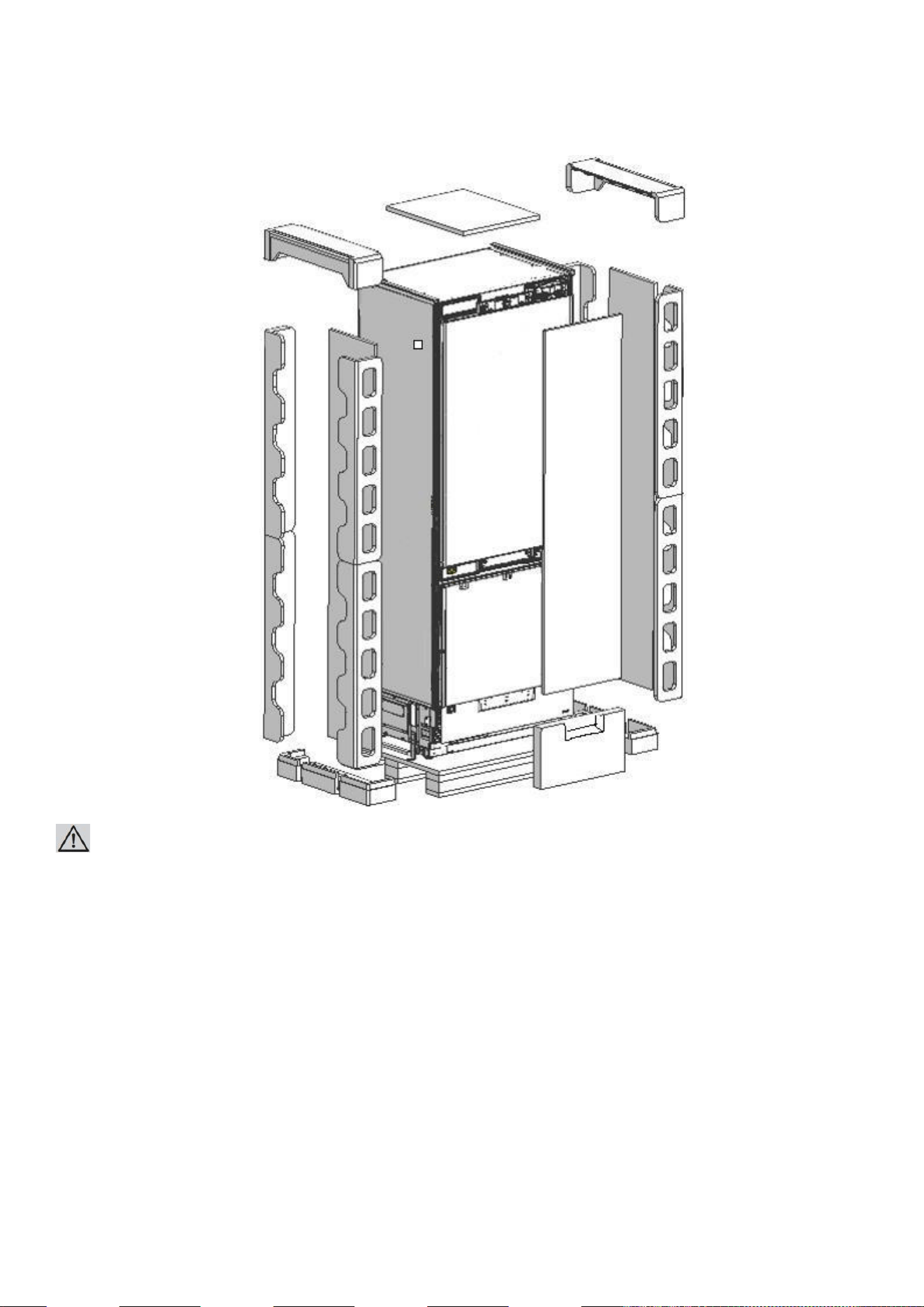

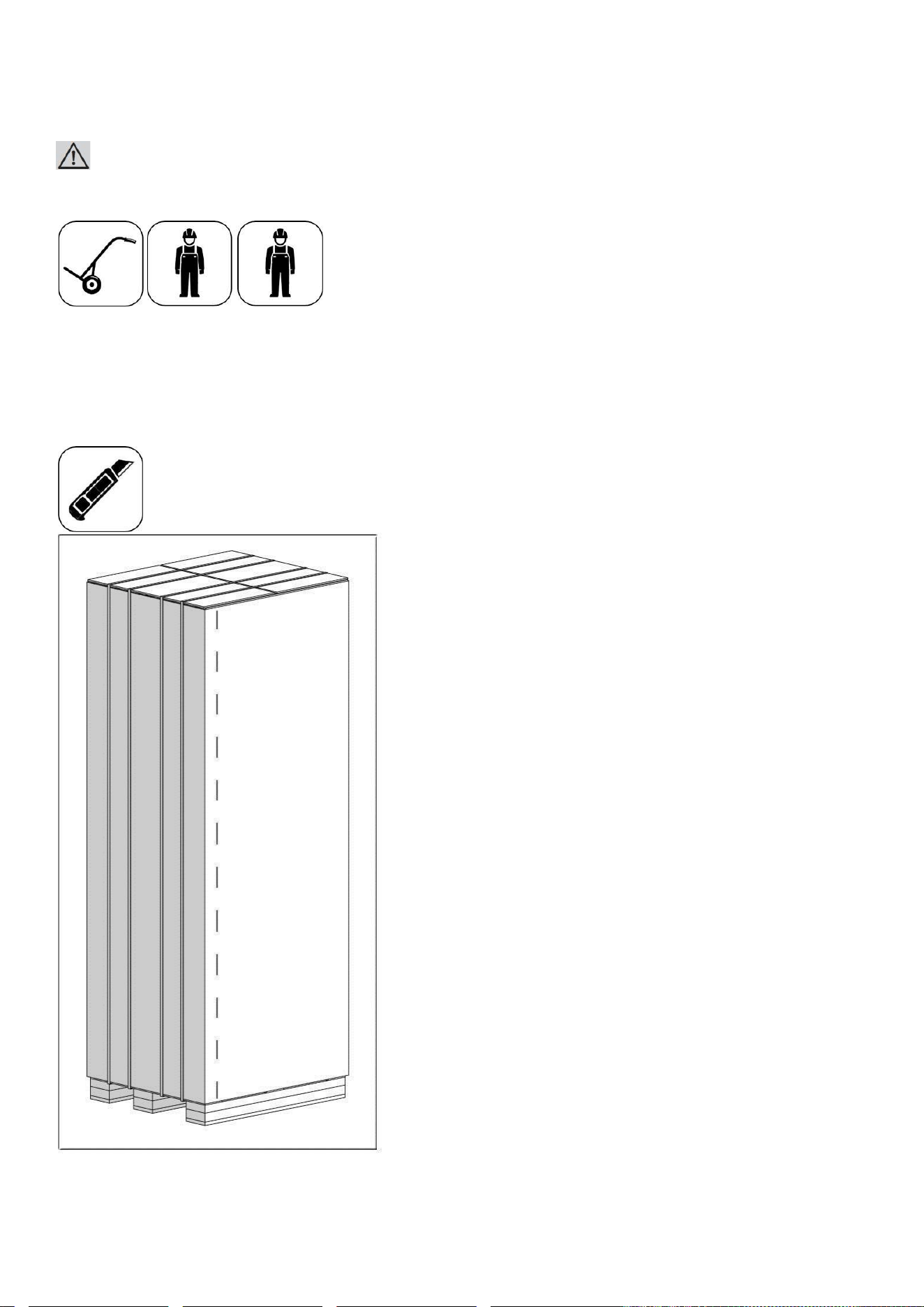

Unpacking

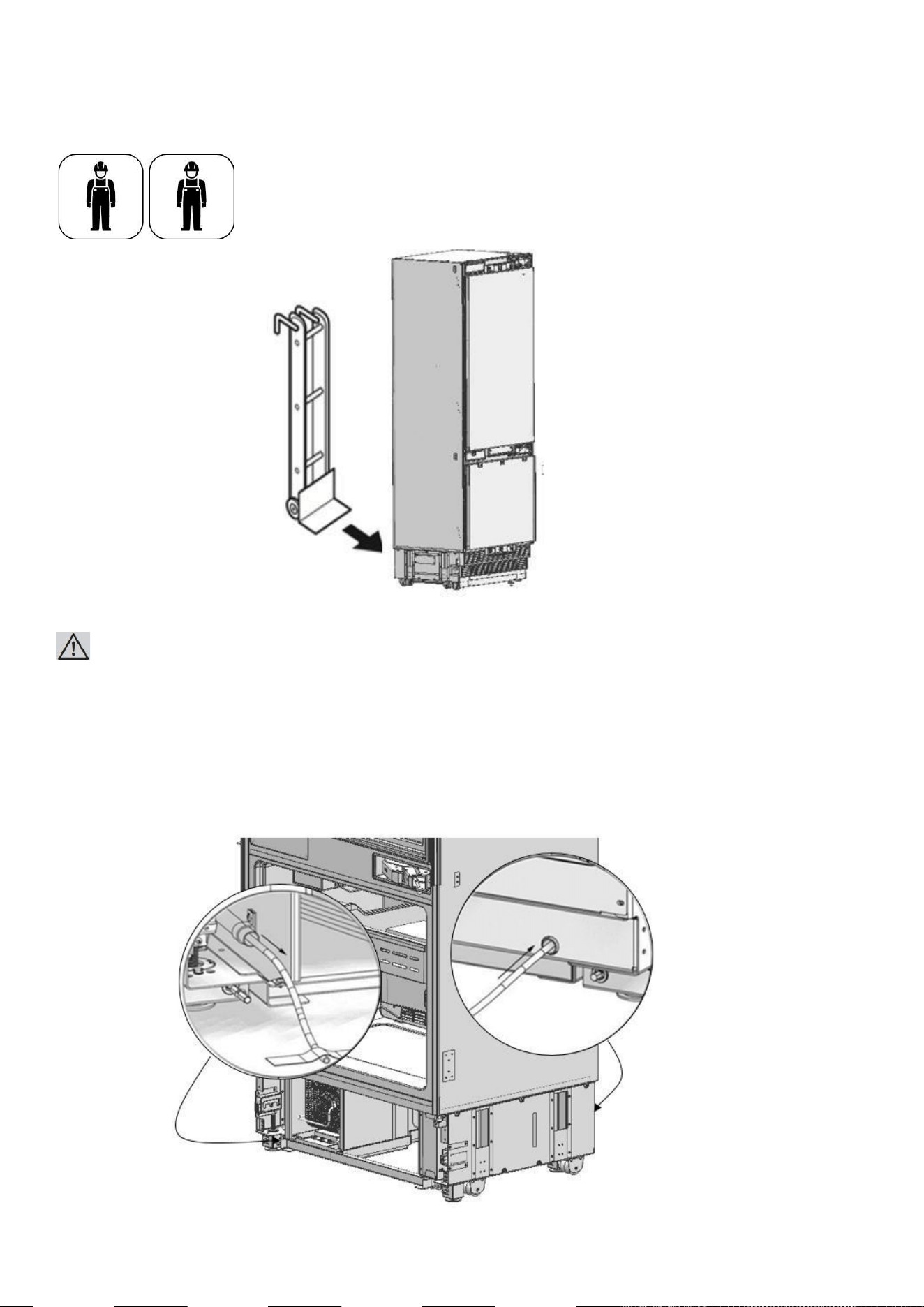

WARNING:
At least two persons must carry the refrigerator.
• Use a box cutter to remove the tape.
• Cut the Packaging Board with a Box Cutter through the section illustrated in dotted lines
and remove it.
Confidential
27
⚫ Remove the Packaging Polystyrene material.
ATTENTION:
Do not remove the tape of the upper door on the product until the refrigerator is placed into the cabinet.
Risk of tipping over.
Confidential
28

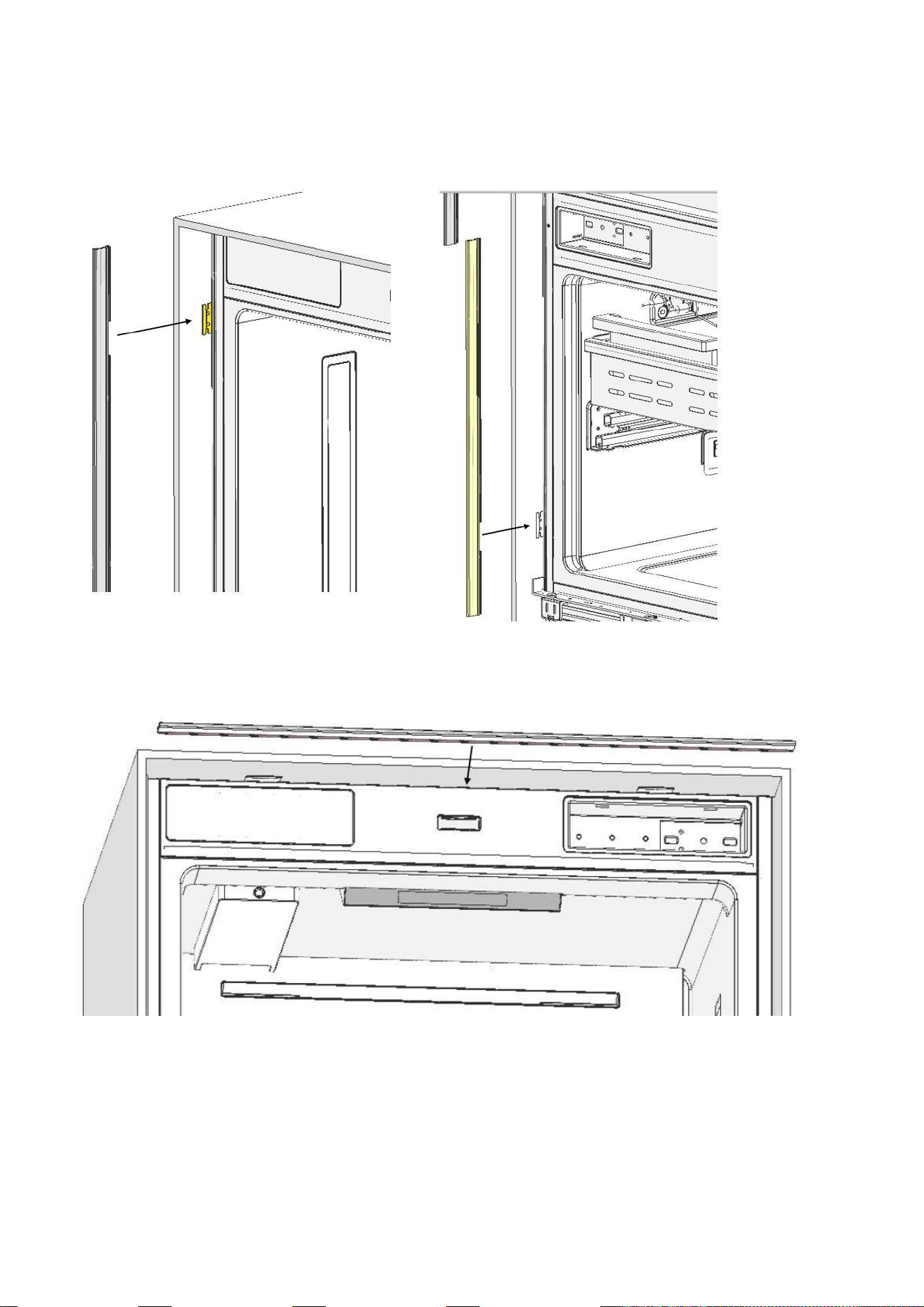

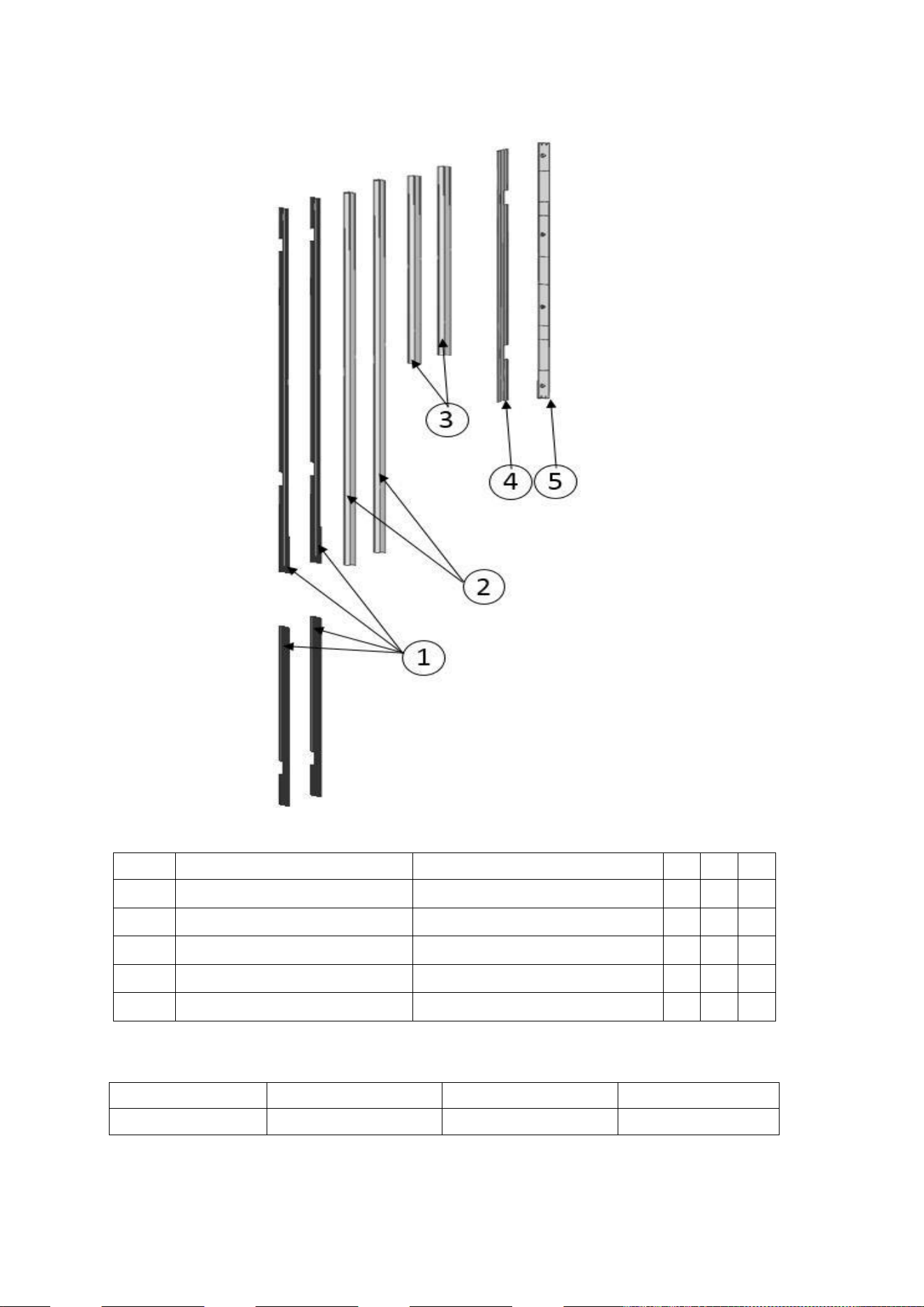

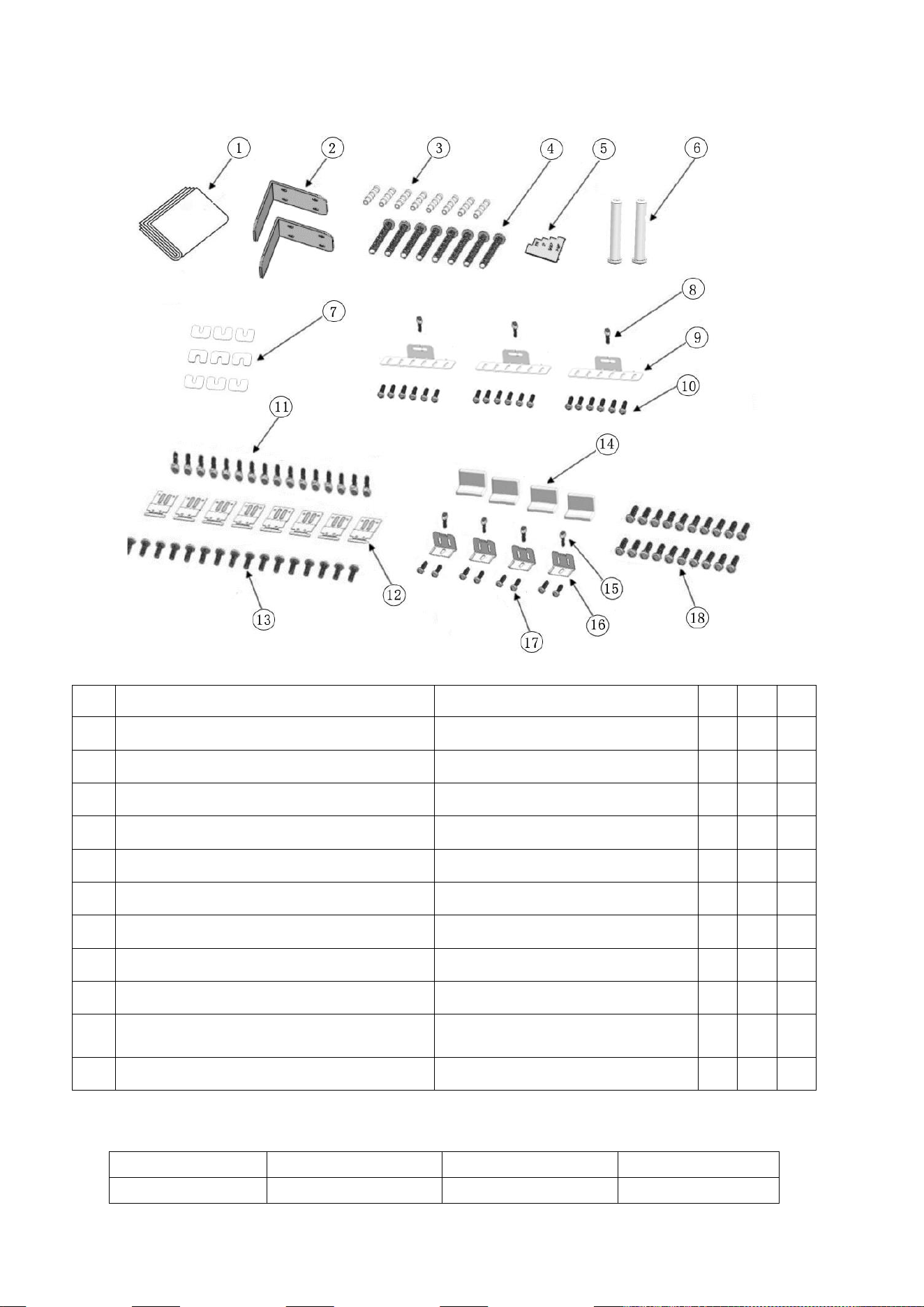

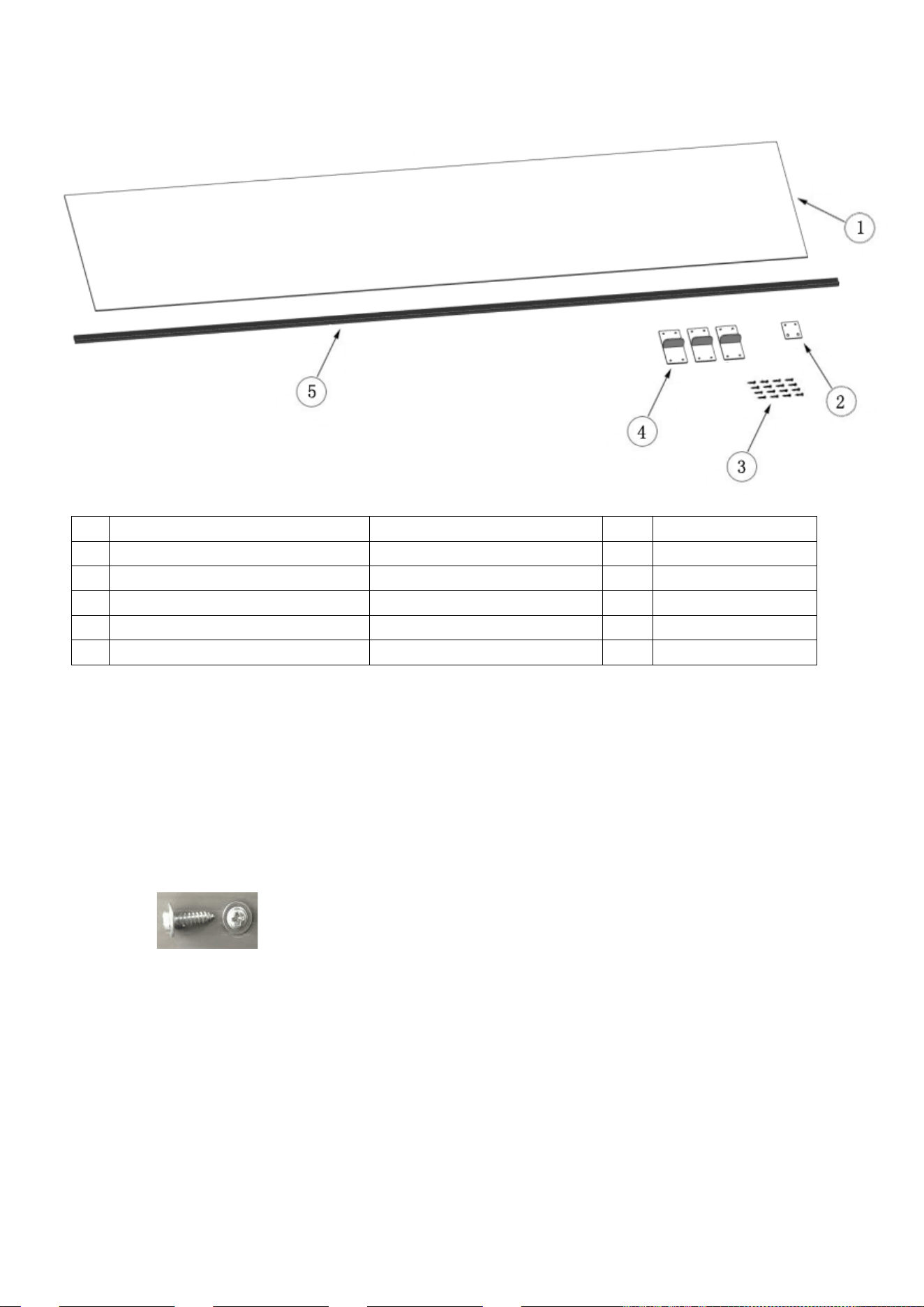

Removing Accessories from the Back
√ Conference
No
Part name
spec
30
36
36F
1
Trim fridge furniture side
PVC extrusion L=617, L=1,259
4
4
4
2
Trim fridge door side
PVC extrusion L=1136
2
2
4
3
Trim freezer door side
PVC extrusion L=556
2
2
2
4
Trim furniture top
PVC extrusion L=762, L=914
1
1
1
5
Cover freezer door top
abs
1
1
1
Category
FM4BM30(I)FBI
FM4BM36(I)FBI
FM4FBM36(I)FBI
Abbreviation.
30
36
36F
Confidential
29

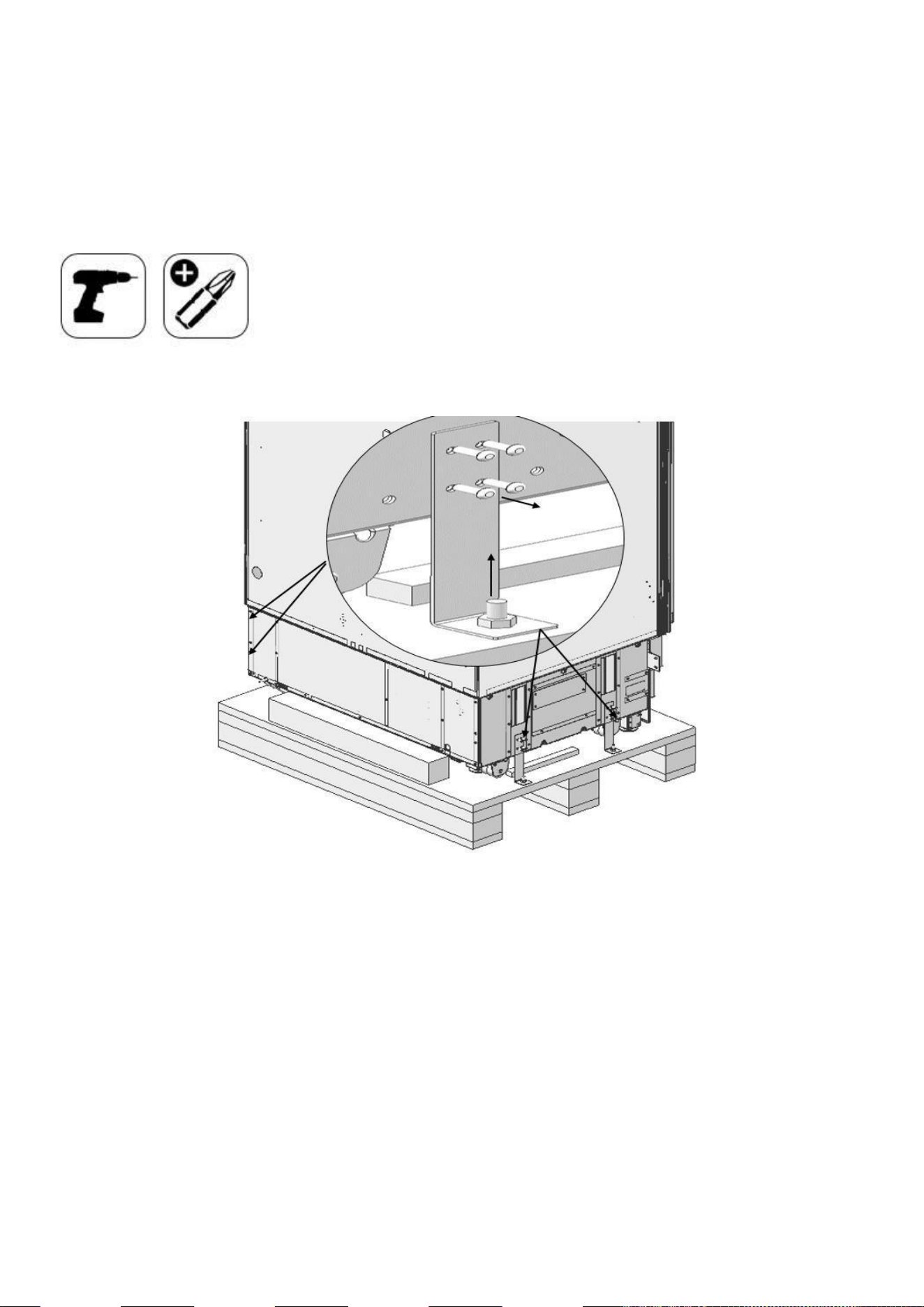

Removing mounting Parts in the Freezer Compartment
⚫ Open the freezer compartment and remove the mounting boxes and documents in the crisper.
√ Conference
No
Part name
spec
30
36
36F
1
Furniture door preparation template
paper
1
1
1
2
Anti tip bracket
T4.0, Zn-coating
2
2
2
3
Dowel
-
8
8
8
4
Anti tip bracket screws
M8*L60
8
8
8
5
Position adjustment jig
PS
1
1
1
6
90° limiting pins
sus
2
2
-
7
Freezer furniture door adjustment washer
abs
9
9
9
8
Screw freezer door hanger bracket
ST4.8*16, round head screw
3
3
3
9
Freezer door hanger bracket
T1.0, Cr+zn-coating
3
3
3
10
Screw freezer furniture door
hanger bracket
ST4x14, counter sunk head screw
18
18
18
11
Screw cabinet connecting bracket
M4*12, truss washer head
16
16
16
Category
FM4BM30(I)FBI
FM4FBM36(I)FBI
FM4FBM36(I)FBI
Abbreviation.
30
36
36F
Confidential
30

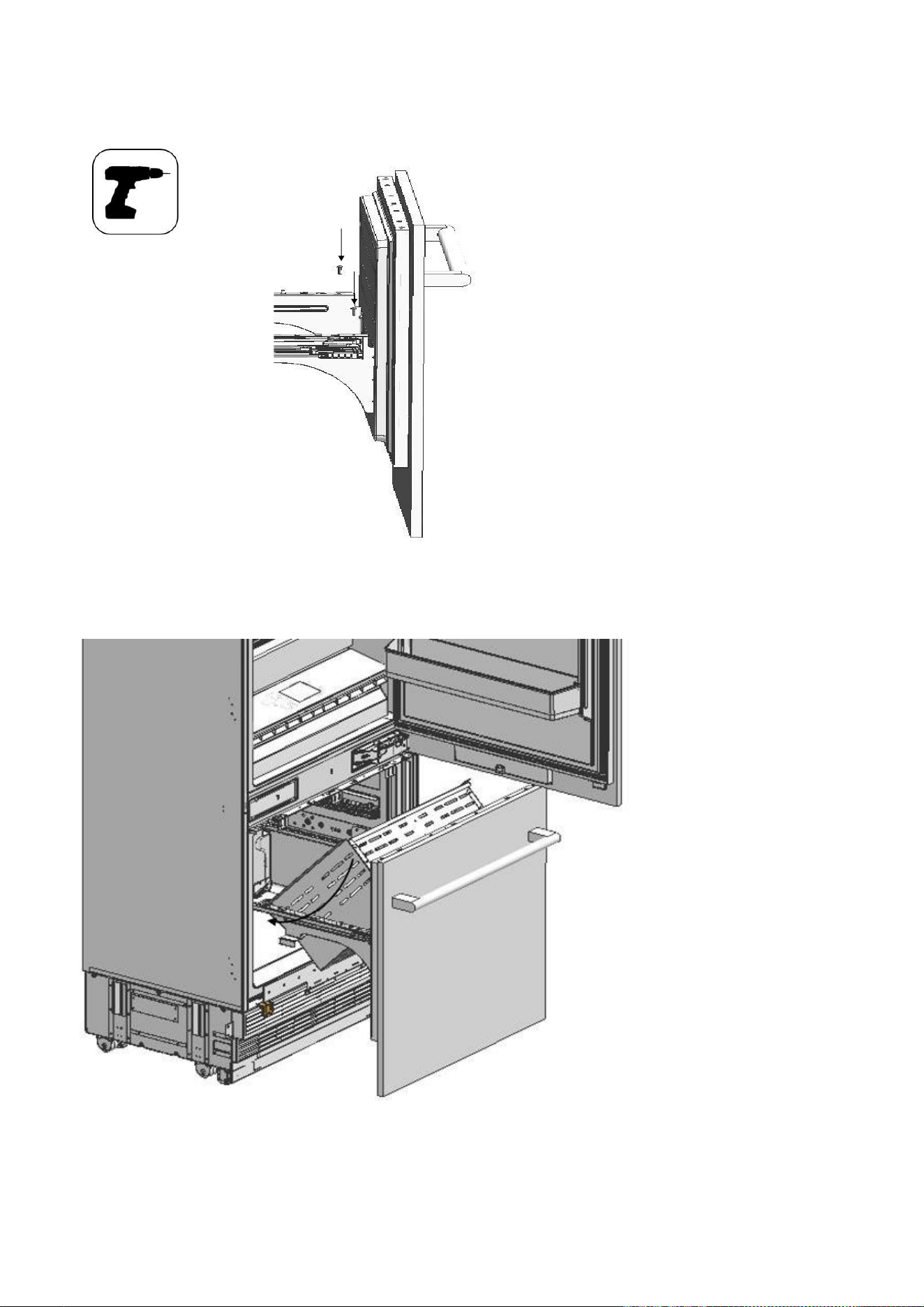

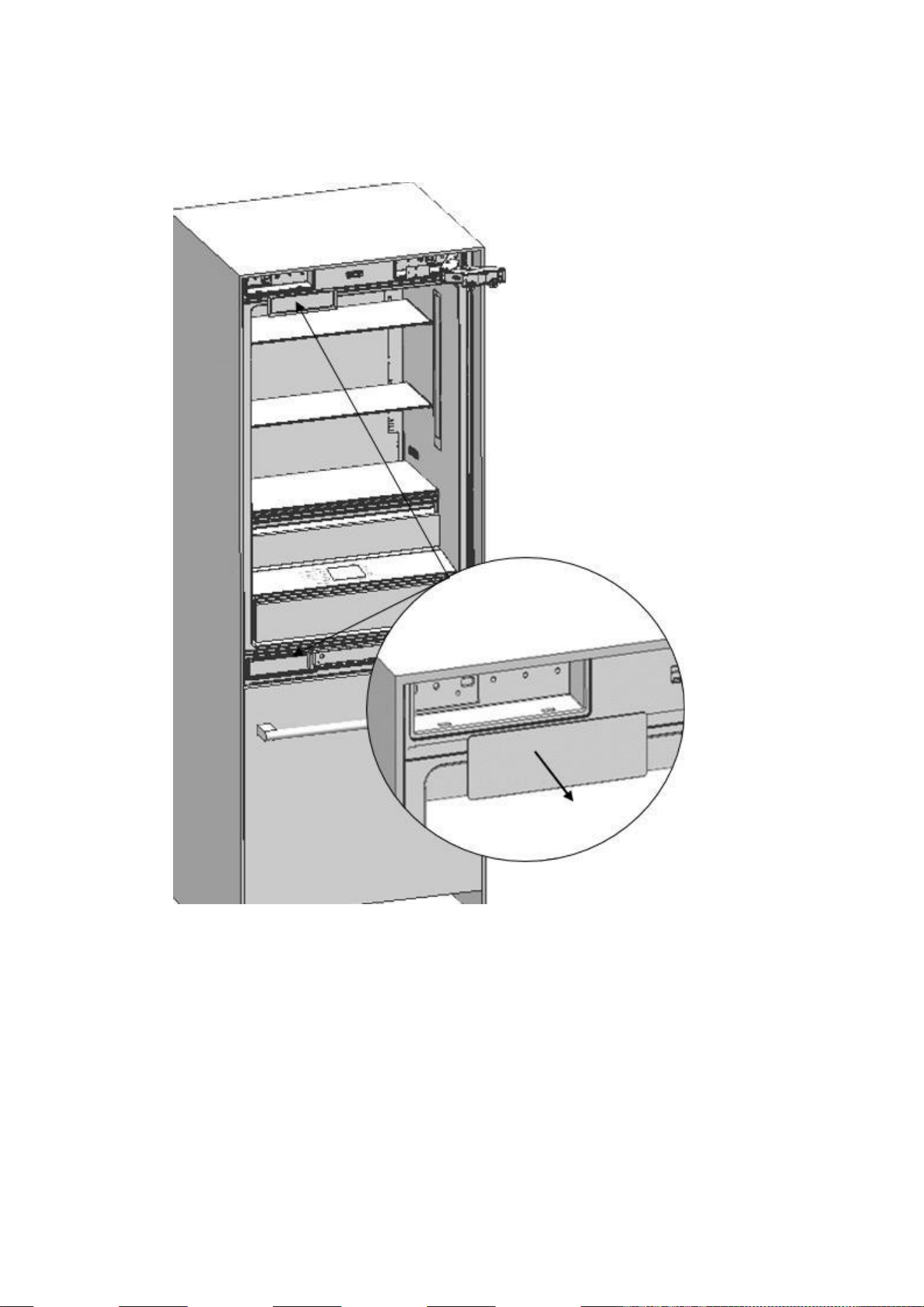

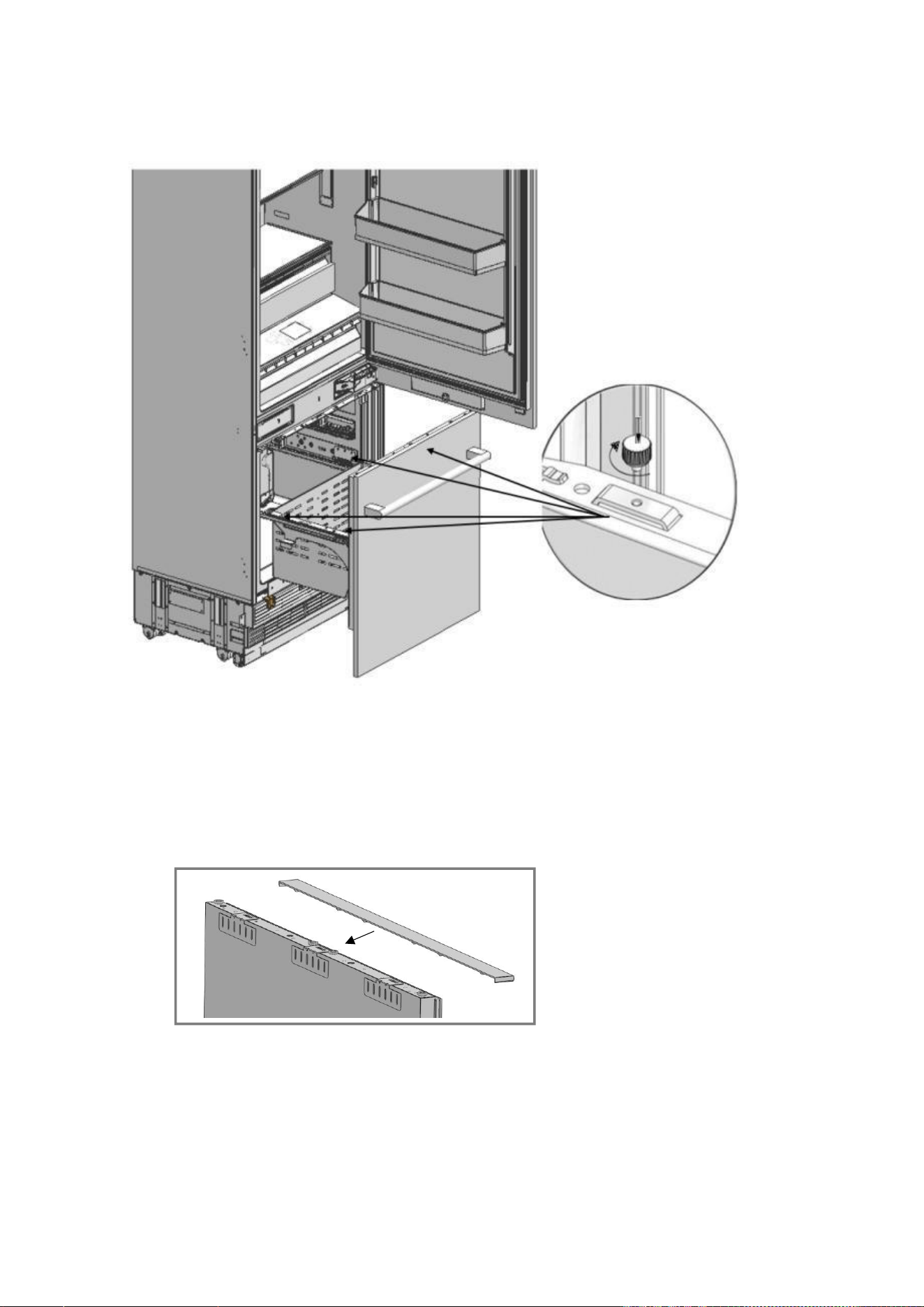

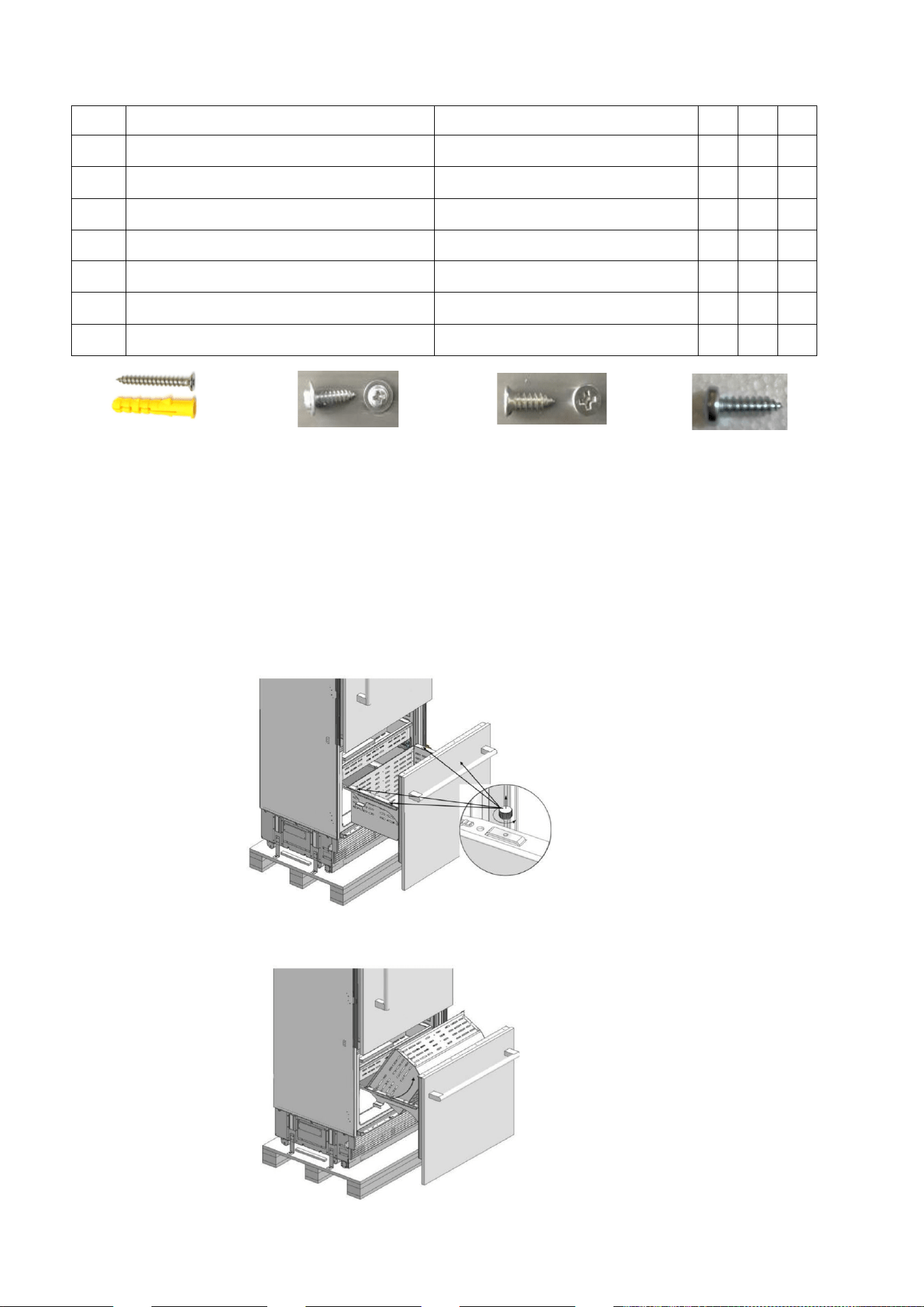

Removing the Freeze Drawer Bin
⚫ Remove it manually with 4 knurled screws.
⚫ Remove the Lower Bin.
No
Part name
spec
76
91
92
12
Cabinet- cabin connecting bracket
T1.0, Zn-coating
8
8
8
13
Screw cabin connecting bracket
ST4x14, counter sunk head screw
16
16
16
14
Cover furniture door bracket
abs
4
4
2
15
Screw door fixing bracket
M4*12, truss washer head
4
4
2
16
Door- door furniture connecting bracket
T1.0, Cr+zn-coating
4
4
2
17
Screw furniture door fixing bracket
ST4x14, counter sunk head screw
8
8
4
18
Screw furniture door hanger bracket
ST4x14, counter sunk head screw
20
20
24

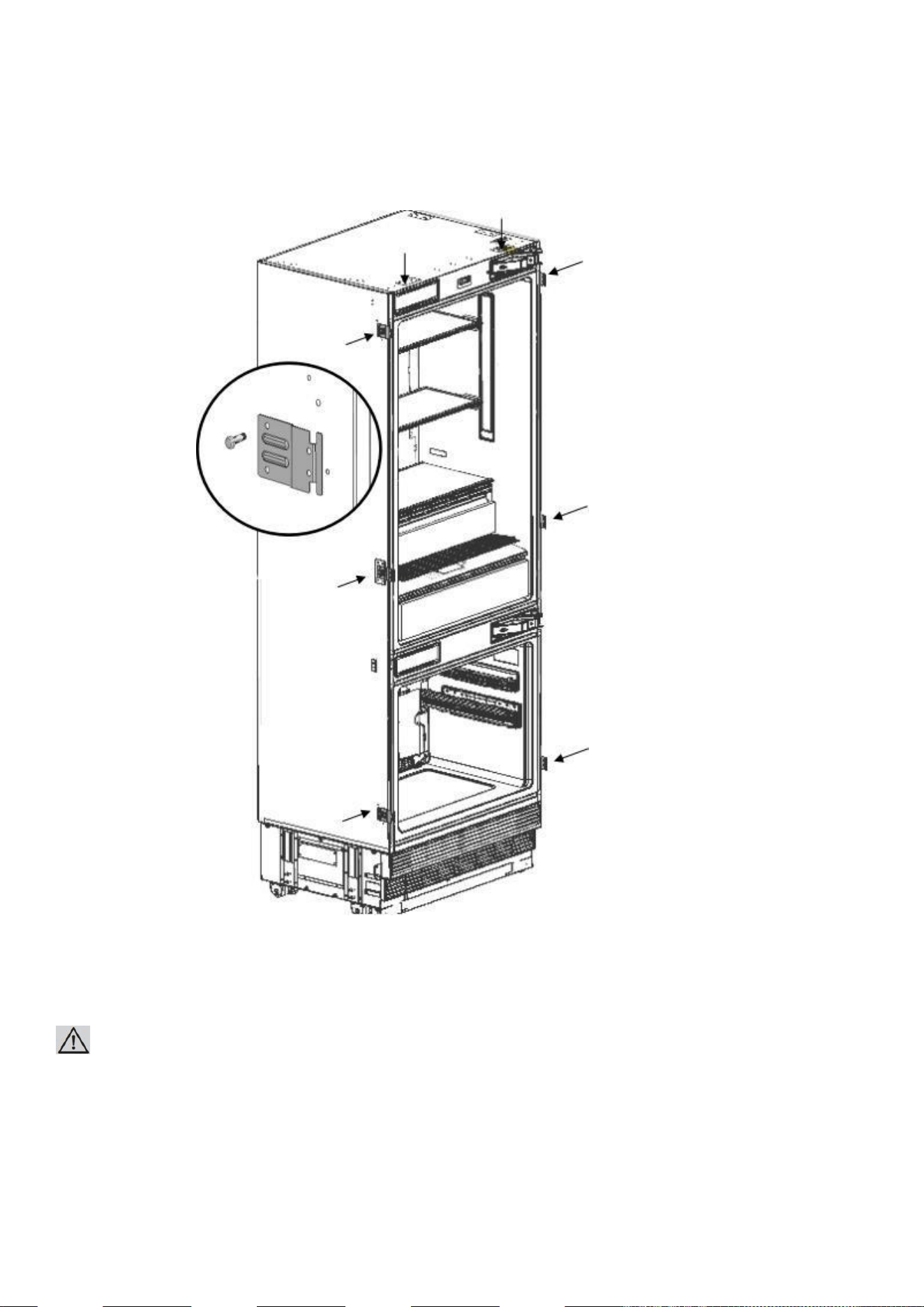

⚫ Anti tip bracket
screws
⚫ dowels
⚫ Truss washer head screw
Spec : M4x12
Fixing Refrigerator
Such as cabinet and door
(press part)
⚫ Counter sunk head screw
Spec : ST4x14
Fixing the cabin and
furniture door
(wood part)
⚫ Round head screw
Spec : ST 4.8x16
Fixing freezer door top part
and furniture door
(press part)
Confidential
31

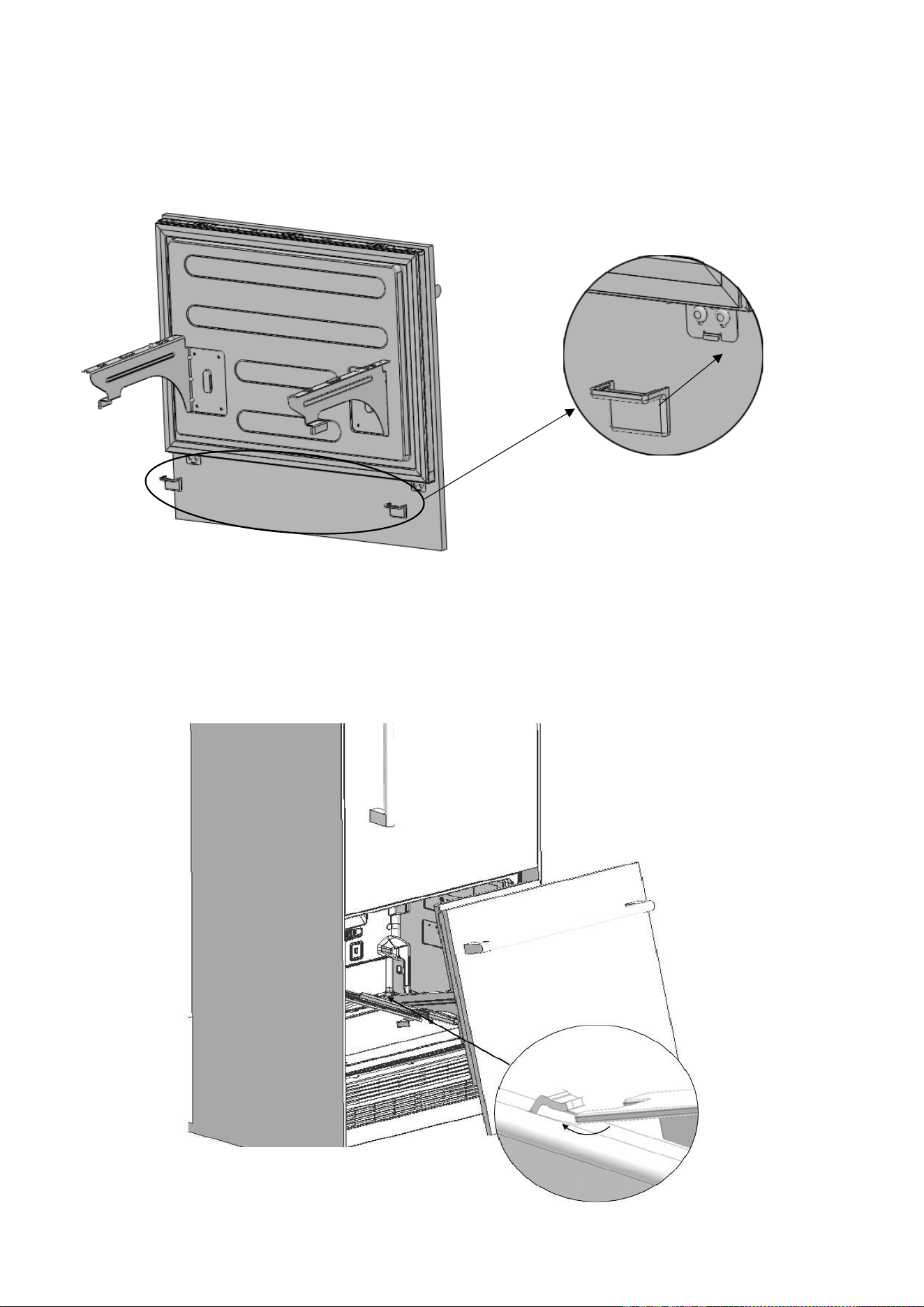

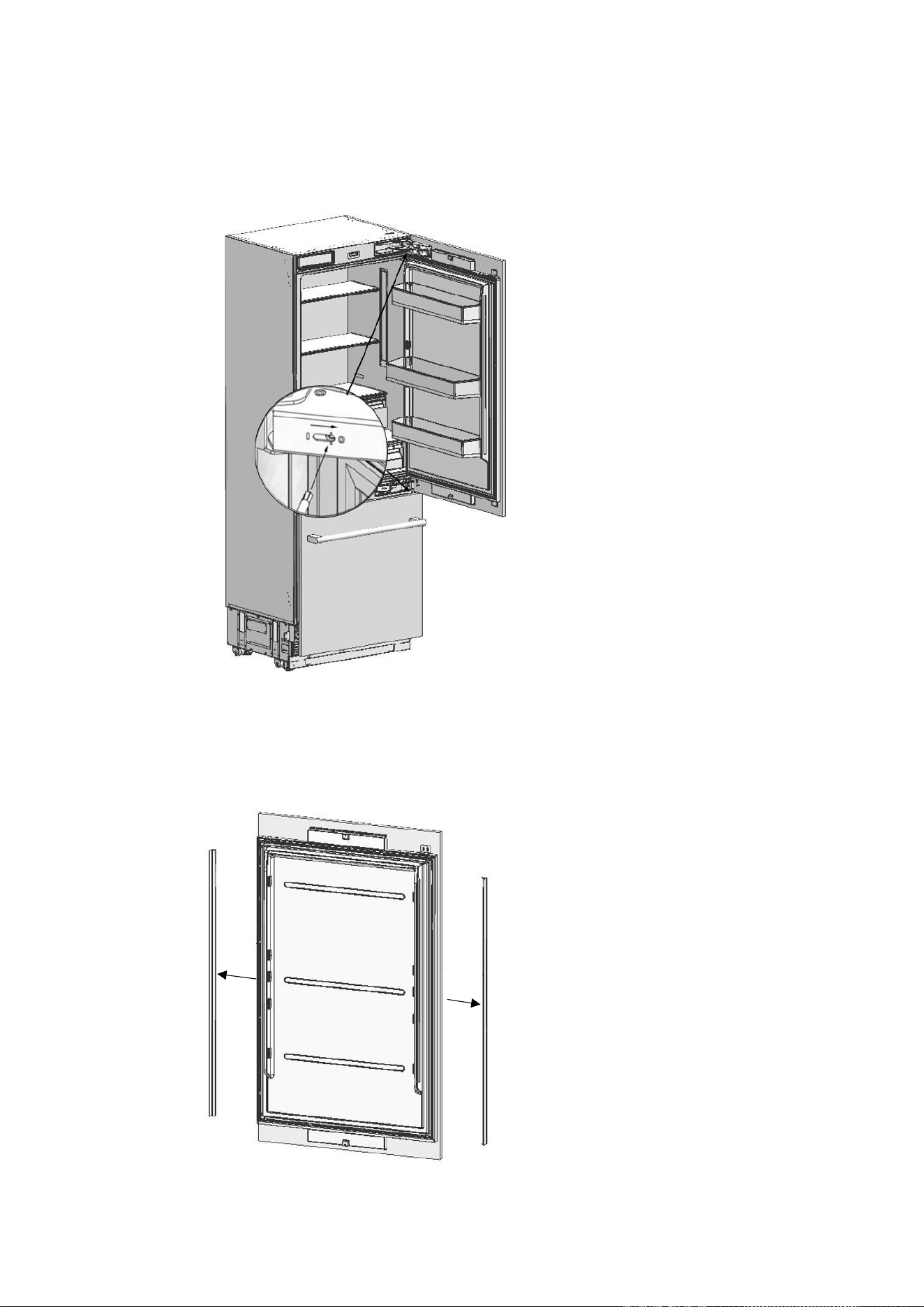

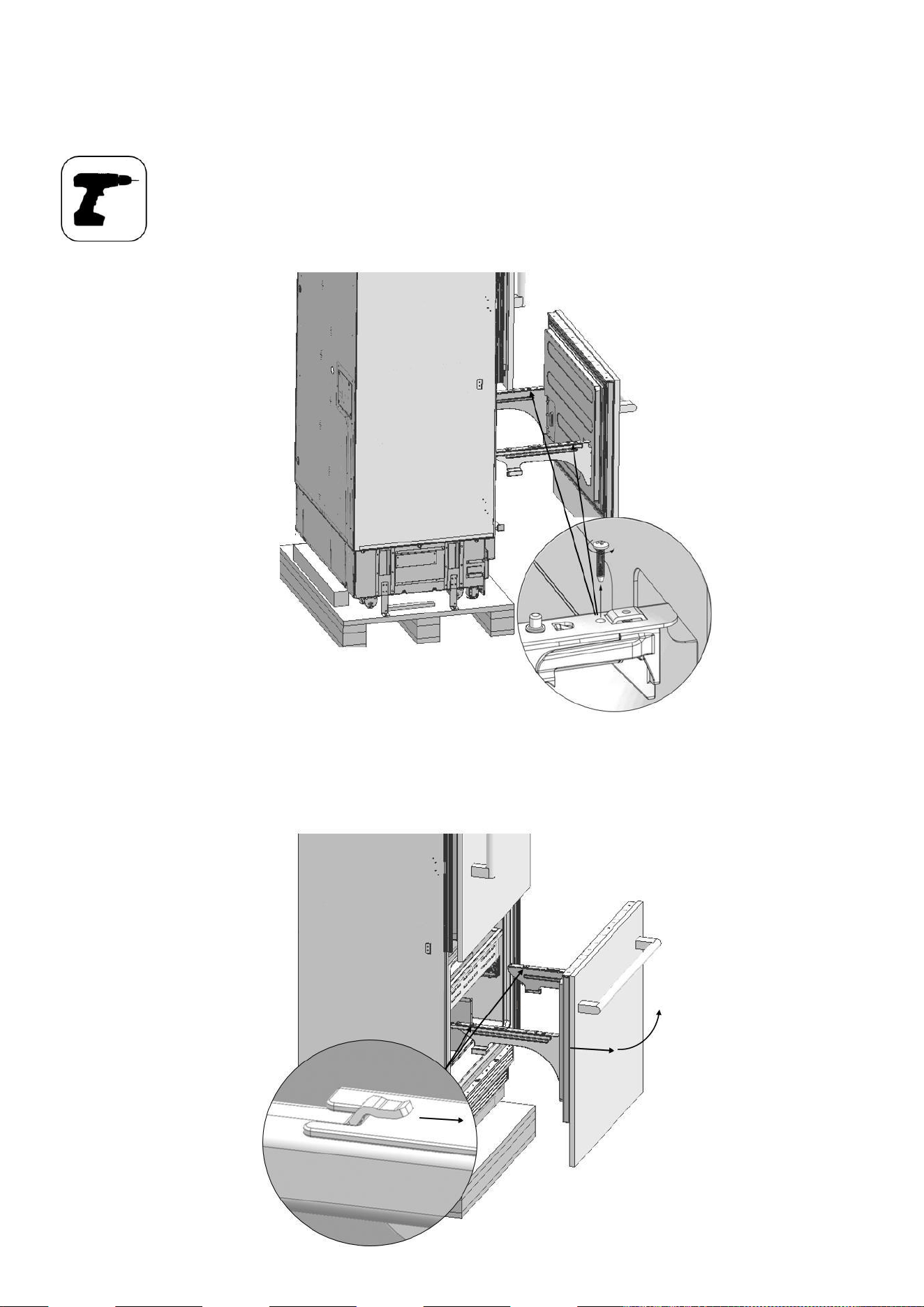

Removing the Freezing Drawer
Remove 2 screws which are near the front section and connect the freezing door and the rail.
⚫ Pull the door frontward to free it from the tabs at the back and remove it.
Confidential
32

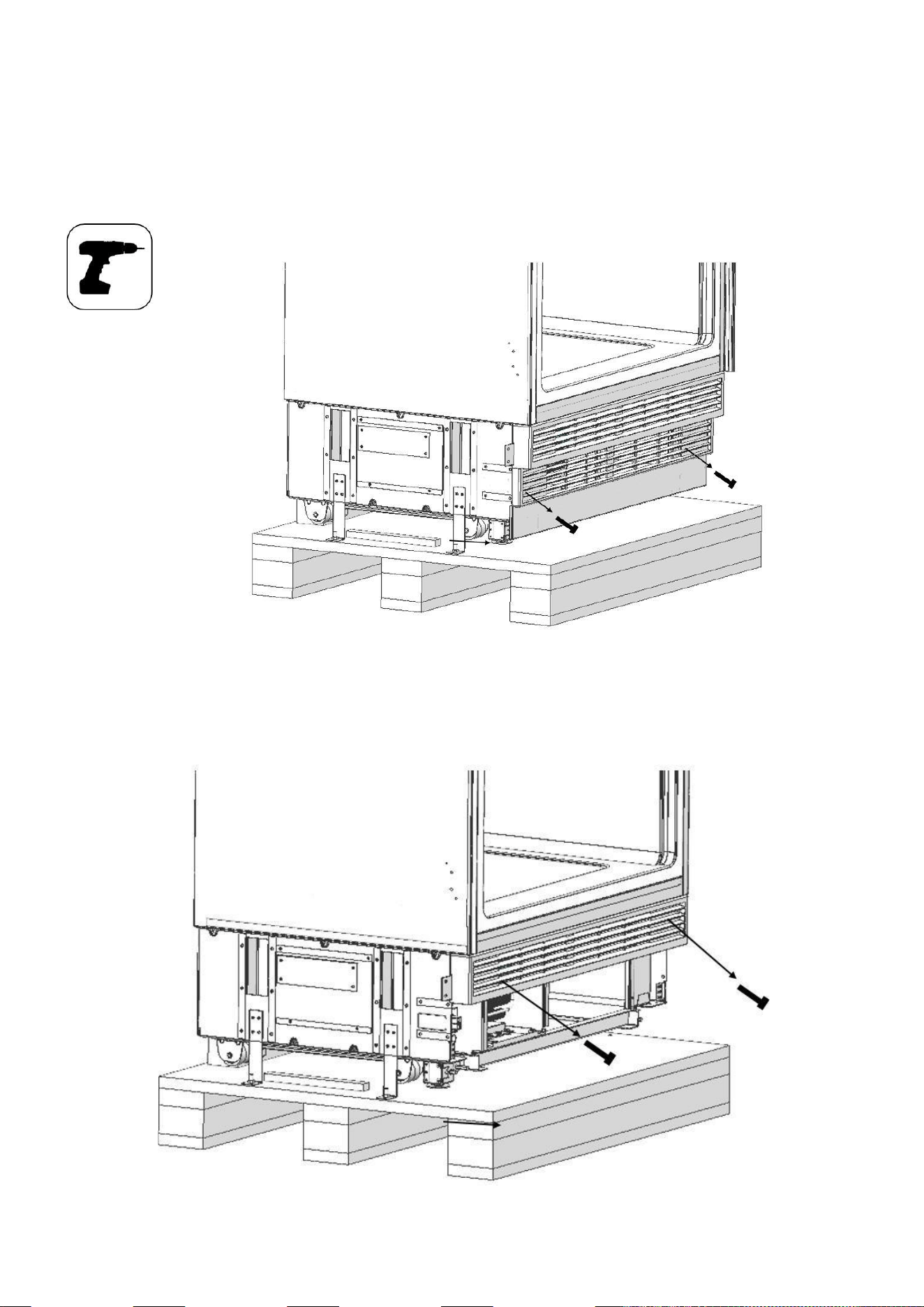

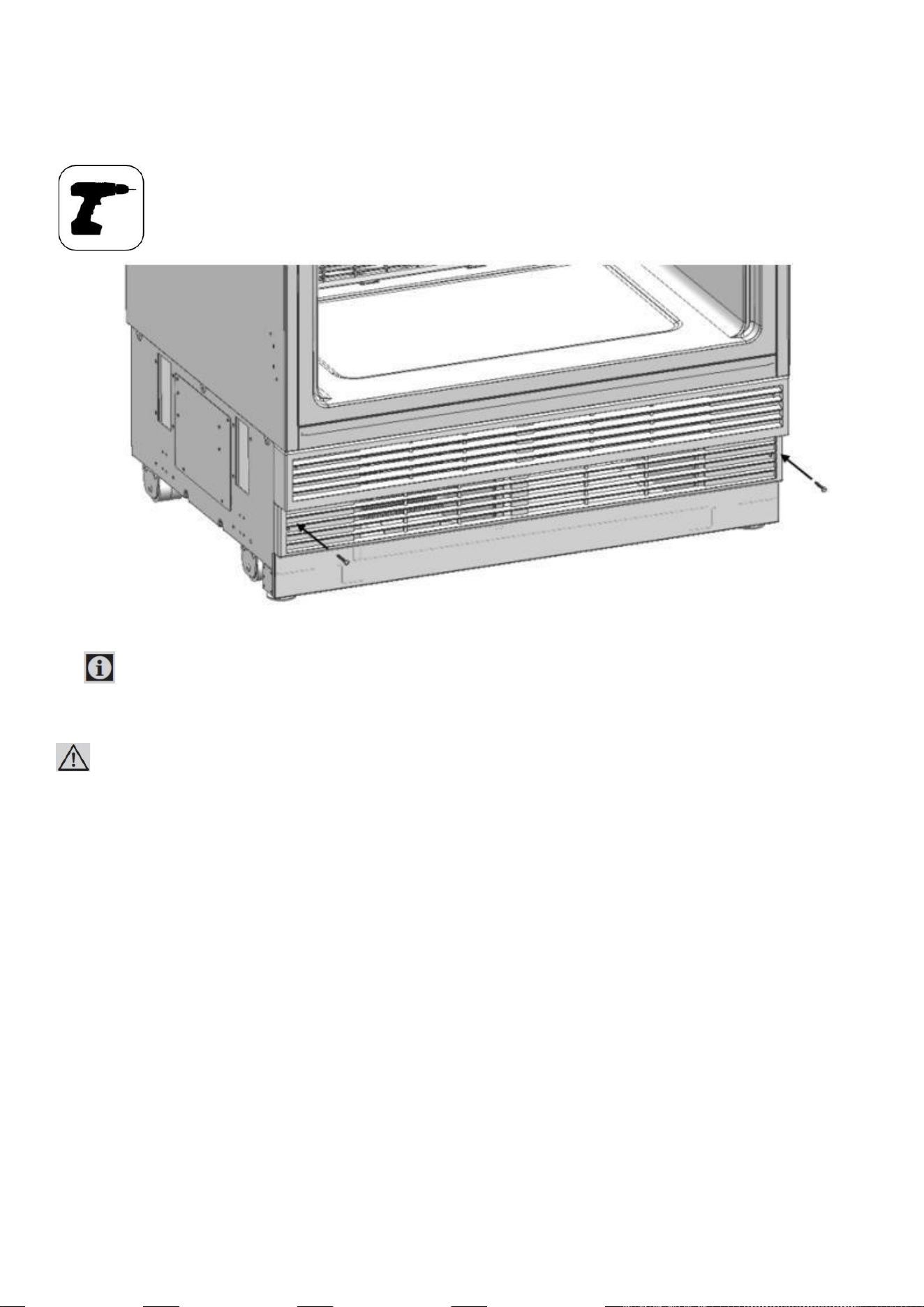

Removing the Lower Ventilation Assembly
⚫ Remove the 2 screws to take out the Lower Vent Hole Assembly.

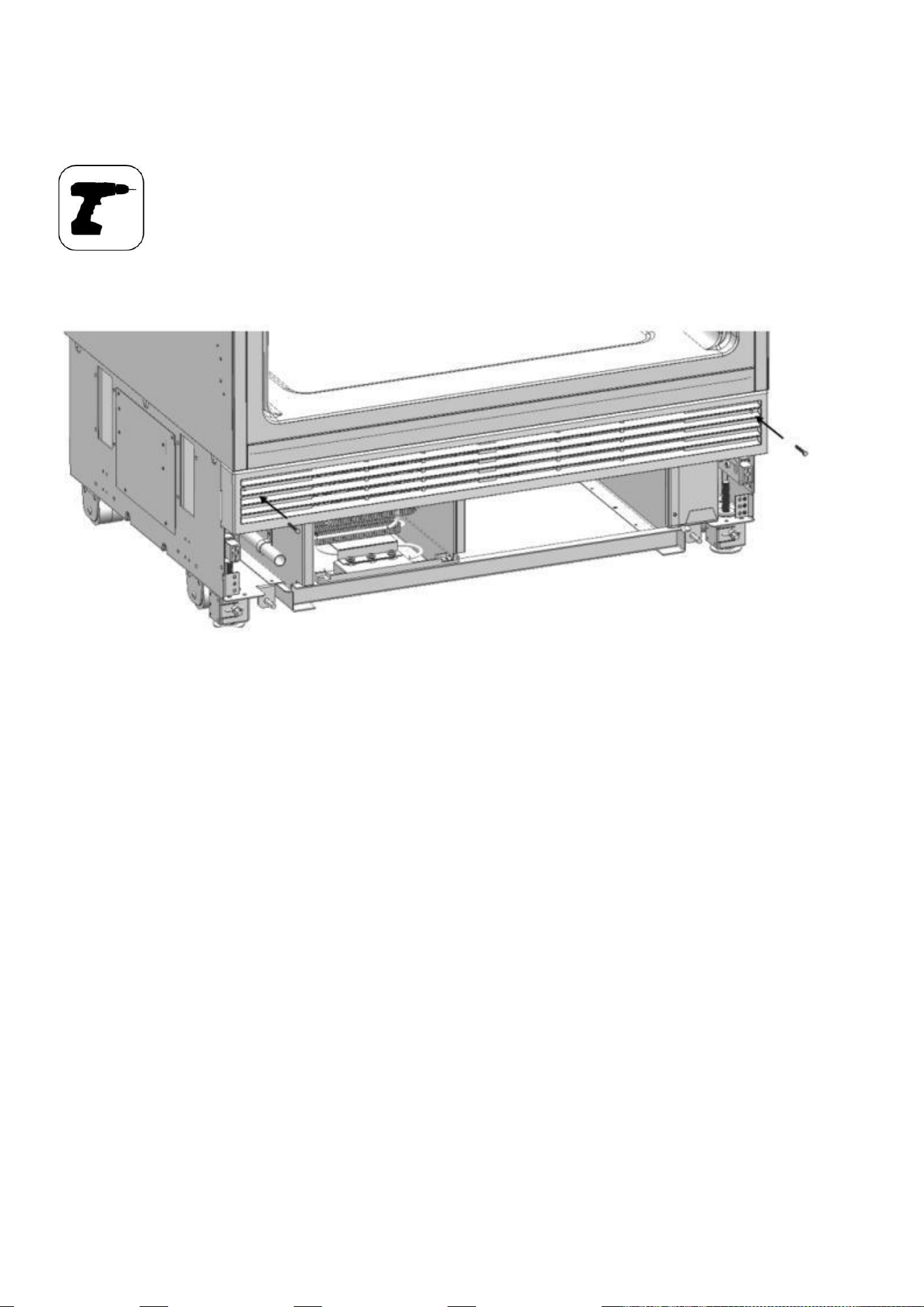

Removing the Upper Ventilation Part
⚫ Remove the 2 screws to take out the Upper Vent Hole Part.
Confidential
33
PREPARING FOR INSTALLATION
Continue to install the product according to the instructions below. Additionally, consider national and local
instructions regarding installation.
Please observe the following:
• For the USA, The National Electrical Code, ANSI/NFPA 70 – last version/State or Municipality
directives and/or regional directives.
• For Canada, The Canadian Electrical Code, C22.1 – last version/State or Municipality directives
and/or regional directives.
Mounting the Anti-Tip Brackets
WARNING:
You must definitely use anti-tip brackets to prevent the appliance from tipping over in absence of connecting to a
secured cabinet. Using them in addition to securing to the cabinet, increases security.
WARNING:
Make sure that there is no electrical or water connection where the screws will be tightened, and connections will
be established.
WARNING:
Please remember to use the necessary protective equipment when drilling holes in the wall and performing
installation.
⚫ Mark the wall for Anti-Tip Brackets (item No.2).
Category
FM4BM30(I)FBI
FM4BM36(I)FBI
FM4FBM36(I)FBI
A
30" (762mm)
36" (914mm)
36" (914mm)
B
23 5/8" (600mm)
23 5/8" (600mm)
23 5/8" (600mm)
C
3 3/16" (81mm)
6 3/16" (157mm)
6 3/16" (157mm)
B
C
C
Anti tip brackets on the wall
A
Confidential
34

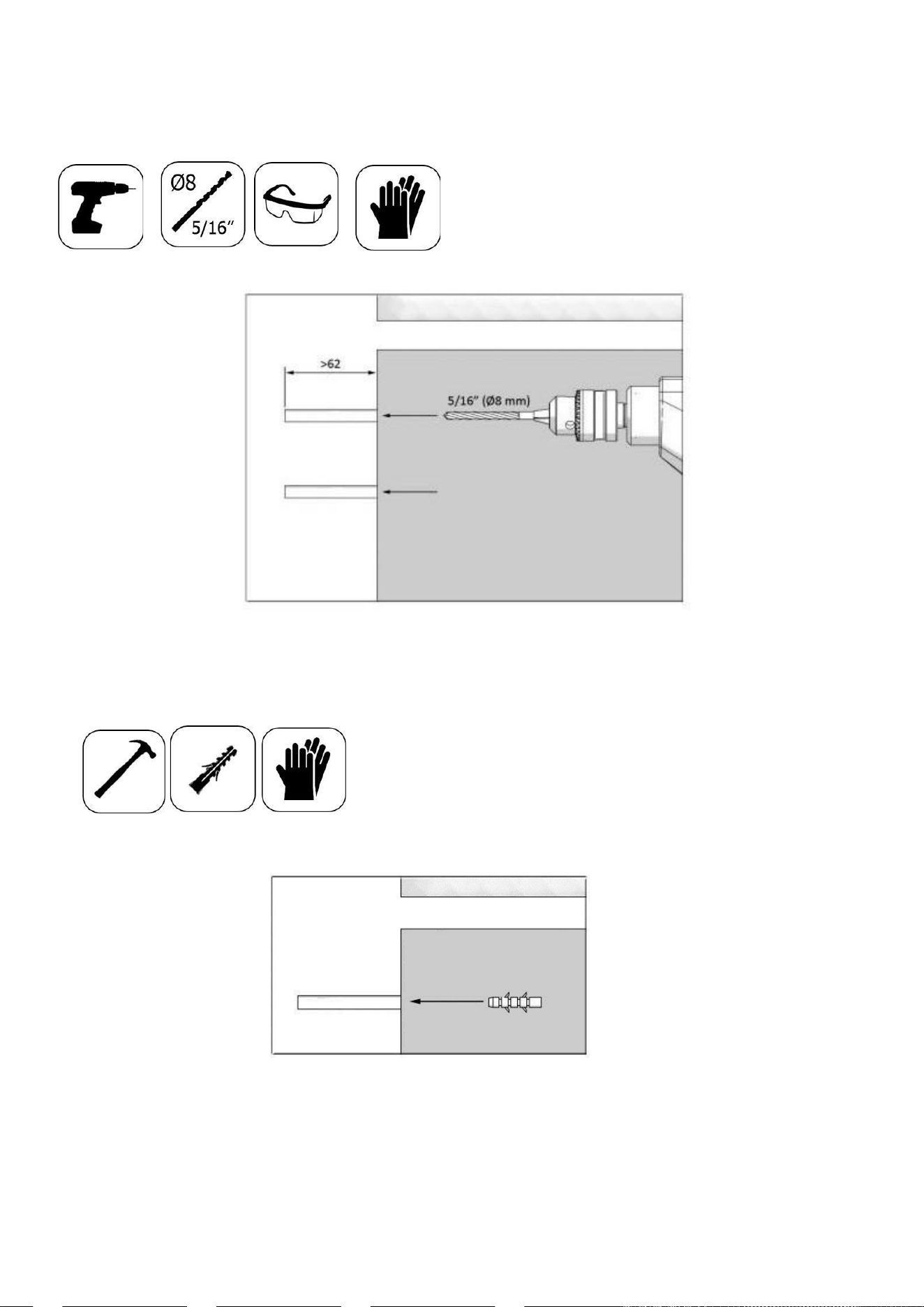

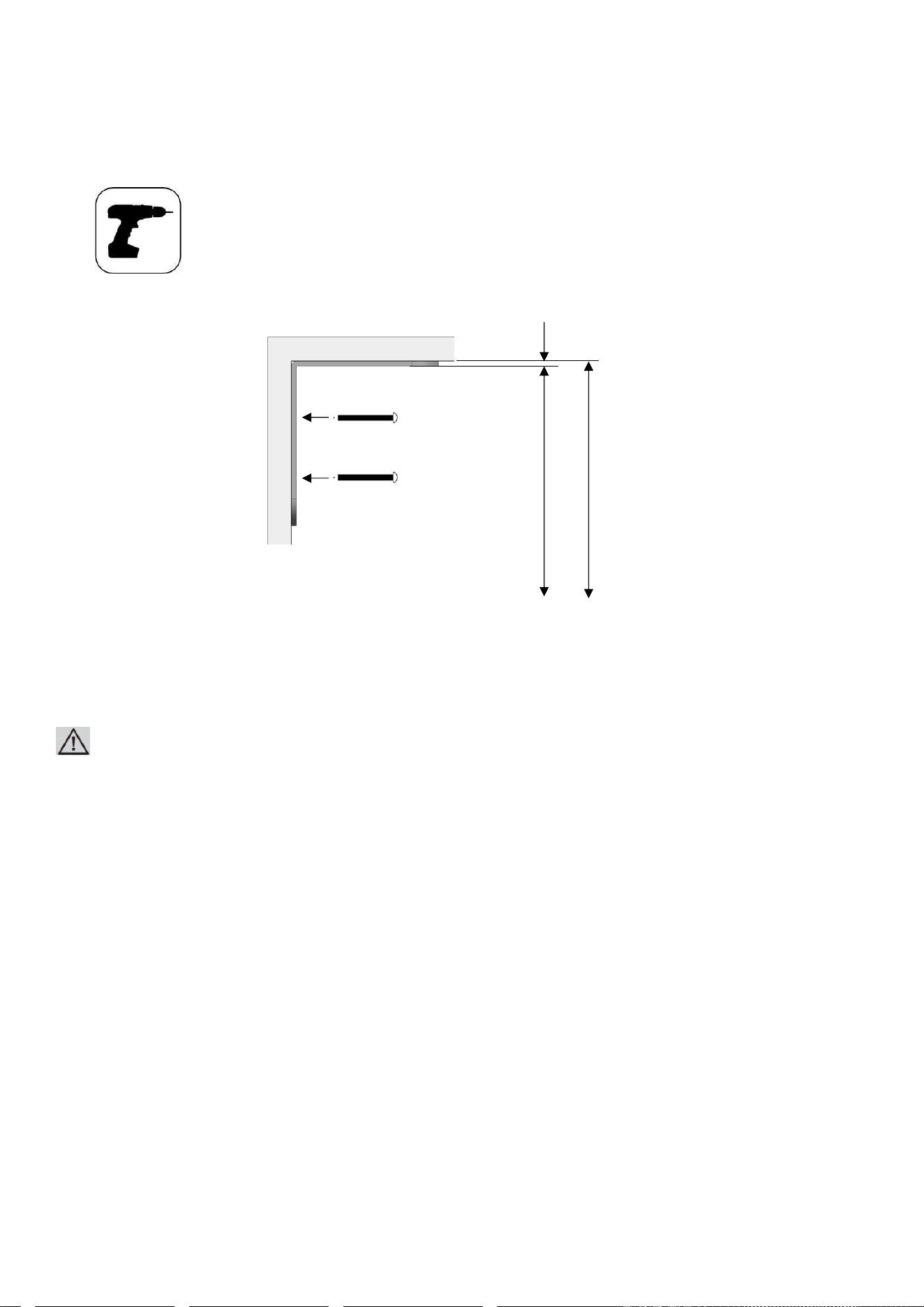

⚫ Use a drill to create holes for dowels (item No.3) at the marked points. (5/16” -Ø8)
⚫ Use the hammer to fit the dowels (item No.3)
Confidential
35
⚫ Fit the anti-tip brackets (item No.2) into their places, using 4 screws (item No.4) for each.
You must use both the (2) brackets to ensure the safety of the product.
WARNING:
If you are not sure whether the existing connection parts are fit to the wall as securely as they should be,
you can use alternative anti-tip methods.
If there is furniture at the back wall of the refrigerator, please make sure that the furniture is fixed to the wall.
For this, you need to be sure that the back wall of the furniture is fixed to the concrete back wall or to a wooden
stud with suitable fasteners.
5/32
”
(4mm)
84” (2134mm)
83 27/32
”
(2130mm)
Thickness
Confidential
36
Alternative anti-tip method:
If the anti-tip brackets cannot be connected securely, you must use the alternative method below.
In this method, you can use wooden blocking to avoid the risk of tipping over.
It must be installed as illustrated in the figure below.
There must be no clearance between the product and the wooden blocking .
Minimum section dimensions of the blocking must be 3"x4" (75 mm x 100 mm). The width of the blocking must be
equal to the clearance where it will be installed.
An additional block must be used if the niche depth is more than anticipated. The blocking must contact the
product with a contact of 2" (50.8 mm).
To determine the location for the blocking, mark it on the rear wall, select suitable screws and connect safely.
WARNING:
The number and features of the screws to be used for the blocking must be determined so that there is a secure
connection.
Confidential
37
Preparing the Water Hose and the Power Plug
You will need a hose with a minimum length of 60" (1.5 meters) and a diameter of ¼" for water connections
of the product during installation.
A connector that has a thread with an external diameter of ¼ must be used to connect the hose end to the product.
You can choose the method A or method B below to prevent the cable from getting jammed.
⚫ Method A ：Locate the water hose and power supply on the back.
⚫ Method B ：Locate the water hose and power supply on the side.
Water hose
2” (50.8mm)
8” (203.2mm)
Keep for power cord.
Keep open for water line.
water line location
Cable location
Utilize the factory installed pass-through tube to feed the waterline
through to the front where the connection to the valves will be made.
Confidential
38
INSTALLATION TO THE CABINET
Taking the Refrigerator from the Wooden Pallet
⚫ Remove the brackets that connect the refrigerator to the Wooden Pallet.
Confidential
39

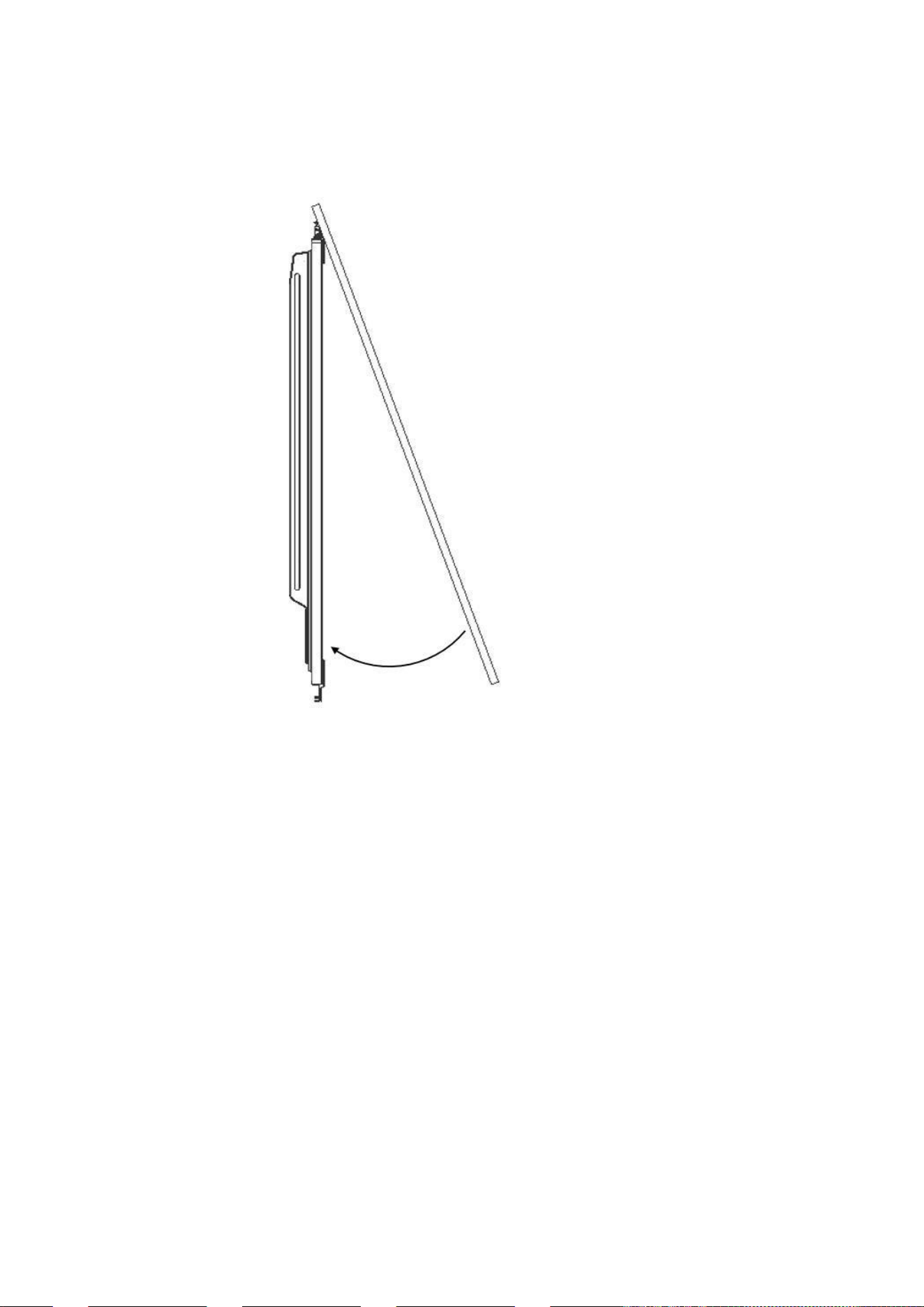

⚫ Recline the refrigerator slowly and pull back with the help of the cart, and then land it.
ATTENTION:
The risk of tipping over is high as of this point. You should not open the doors
until the product is placed into the cabinet.
Placing the Refrigerator into the Cabinet
⚫ Insert the waterline into the tube at the back and take it out from the front.
Confidential
40
IMPORTANT INFORMATION:
⚫ Apply the below method to prevent the cable from getting jammed.
⚫ Start the refrigerator and make sure it has power. (You can check if the lights in the freezer
compartment are on or off to see if the product is operating).
IMPORTANT INFORMATION:
You can use masking tape and similar protectors on parts you think this is necessary to protect the edges of the
furniture when placing the product.
WARNING:
The plug of the product must be accessible after installation. If the plug is not accessible after installation, the power
must be cut off from the circuit breaker.
WARNING:
Make sure that the mains cable is not pinched when placing the product.

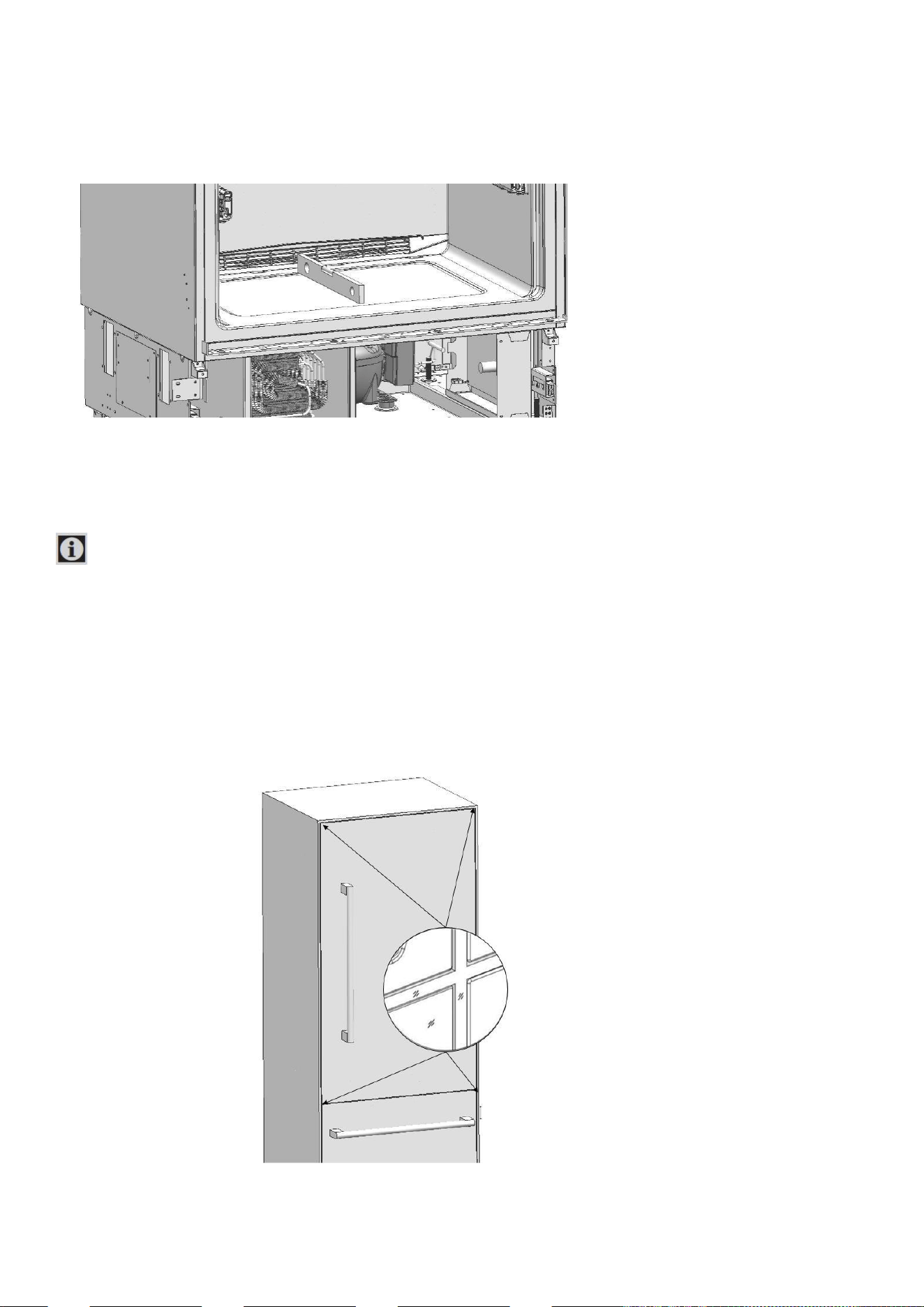

⚫ Push the product carefully towards the cabin to place it. If there is strain during the placement
of the product into the cabin:
- The floor might be rough or uneven.
- Adjustable feet might be loose.
(please see the relevant section to learn how to adjust the adjustable feet)

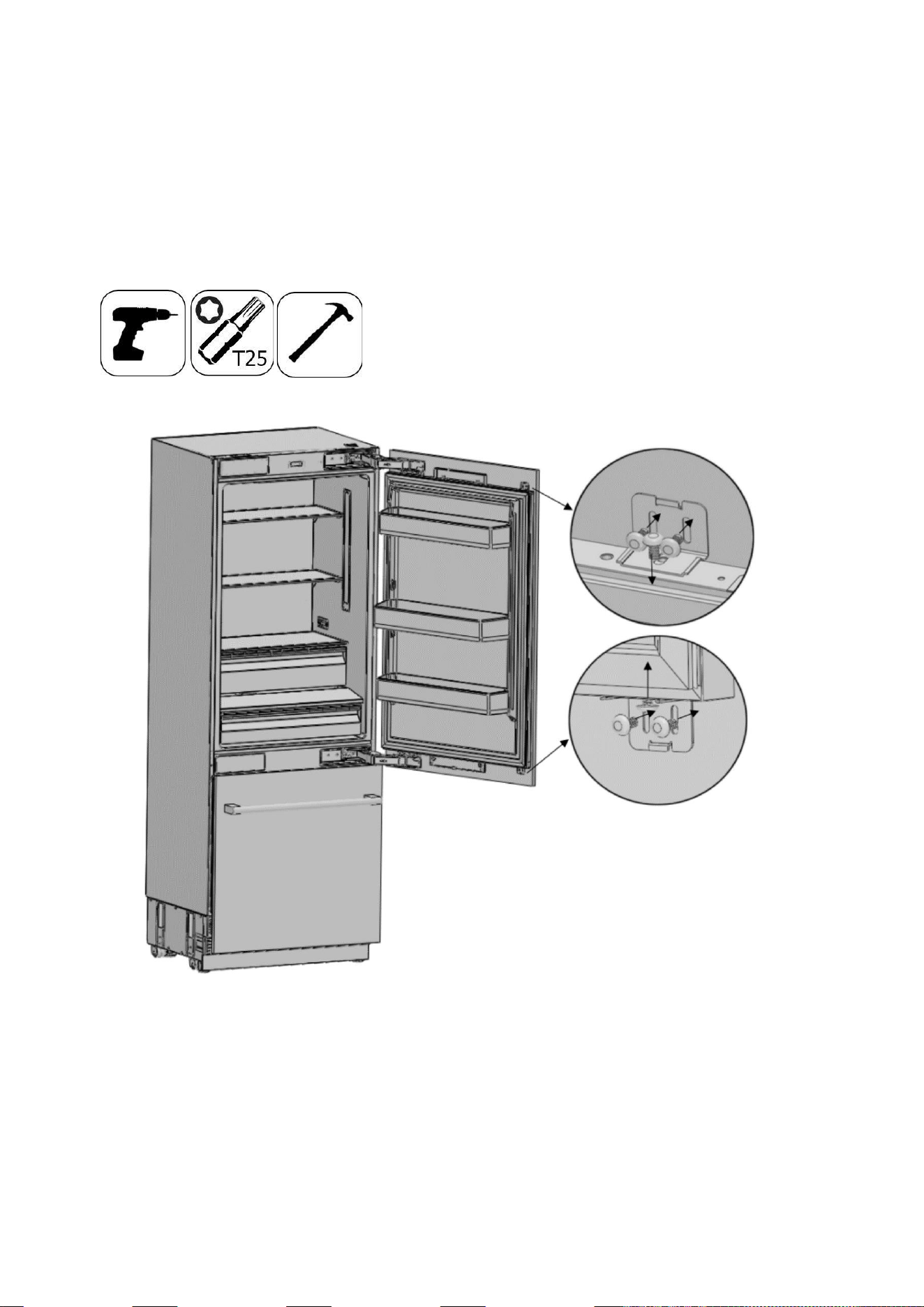

⚫ You must attach the freezer door temporarily to align the product before placing it.
Nylon string
Power cord
Water hose
Move to wall
Confidential
41

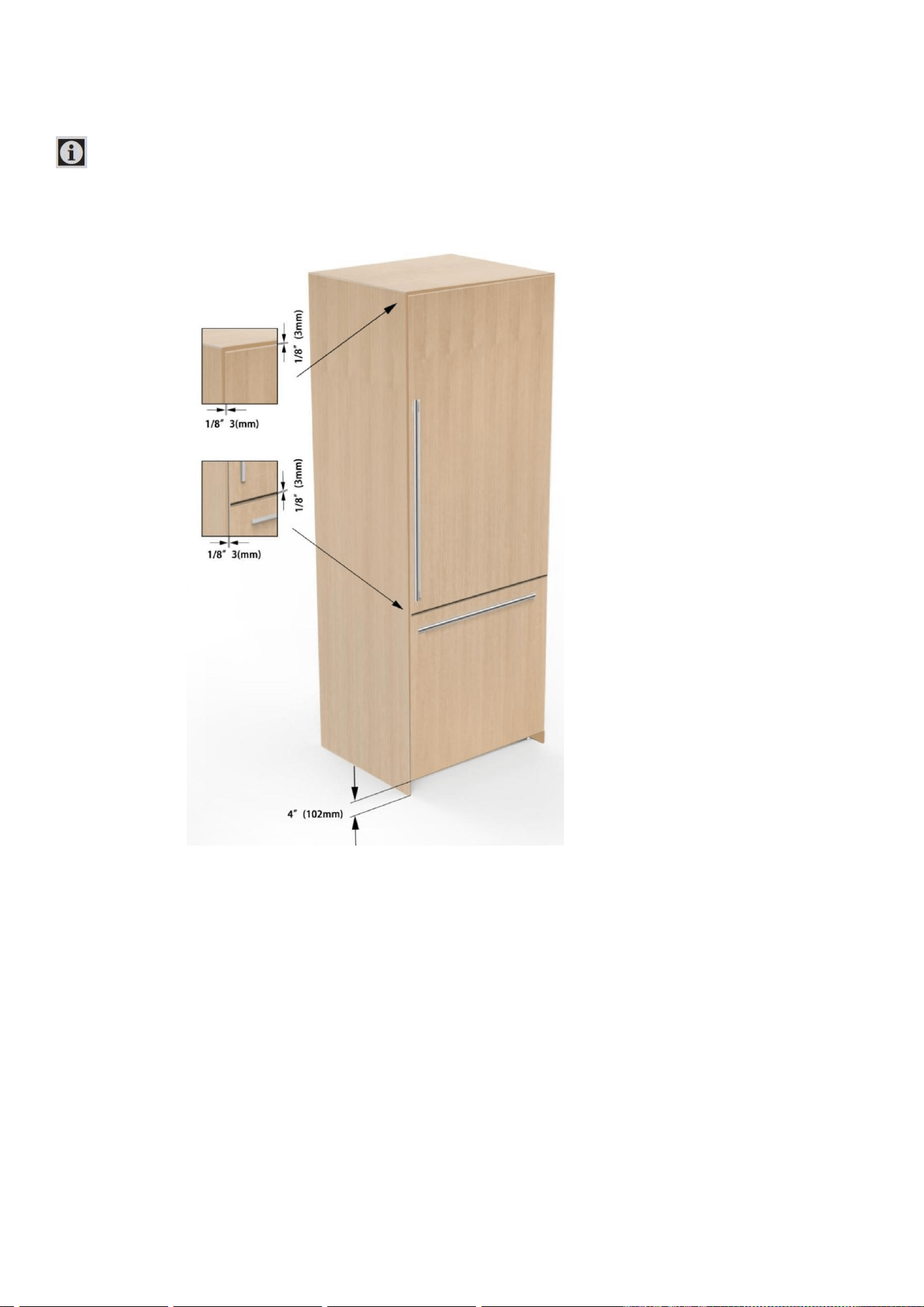

IMPORTANT INFORMATION:
You must use the upper edges of the freezer door when aligning the product with the furniture.
Adjustment of other edges are explained in the following pages.
Confidential
42
Adjusting the Height of the Refrigerator in the Cabinet

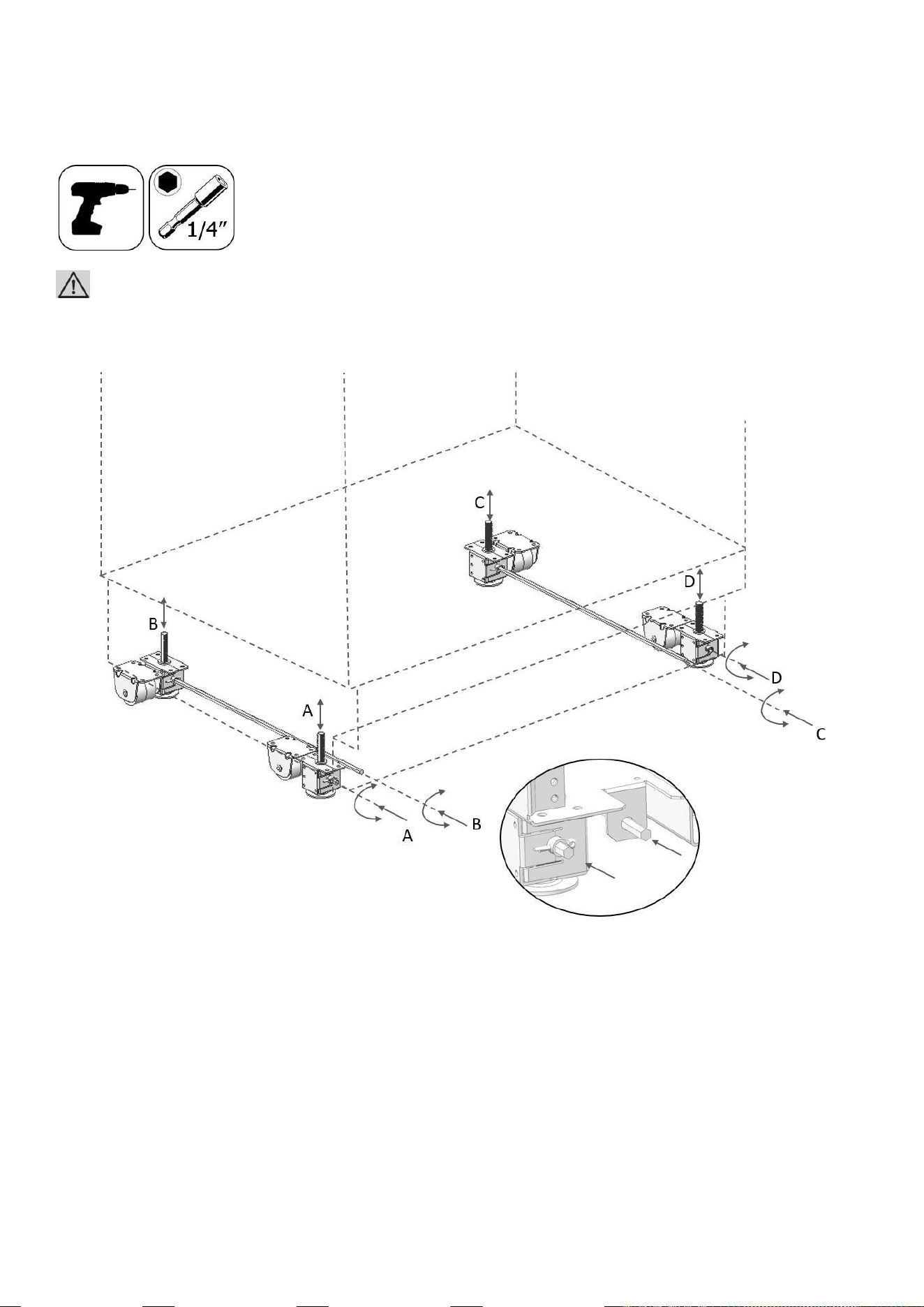

⚫ Adjust the refrigerator height using the adjustable feet.
WARNING:

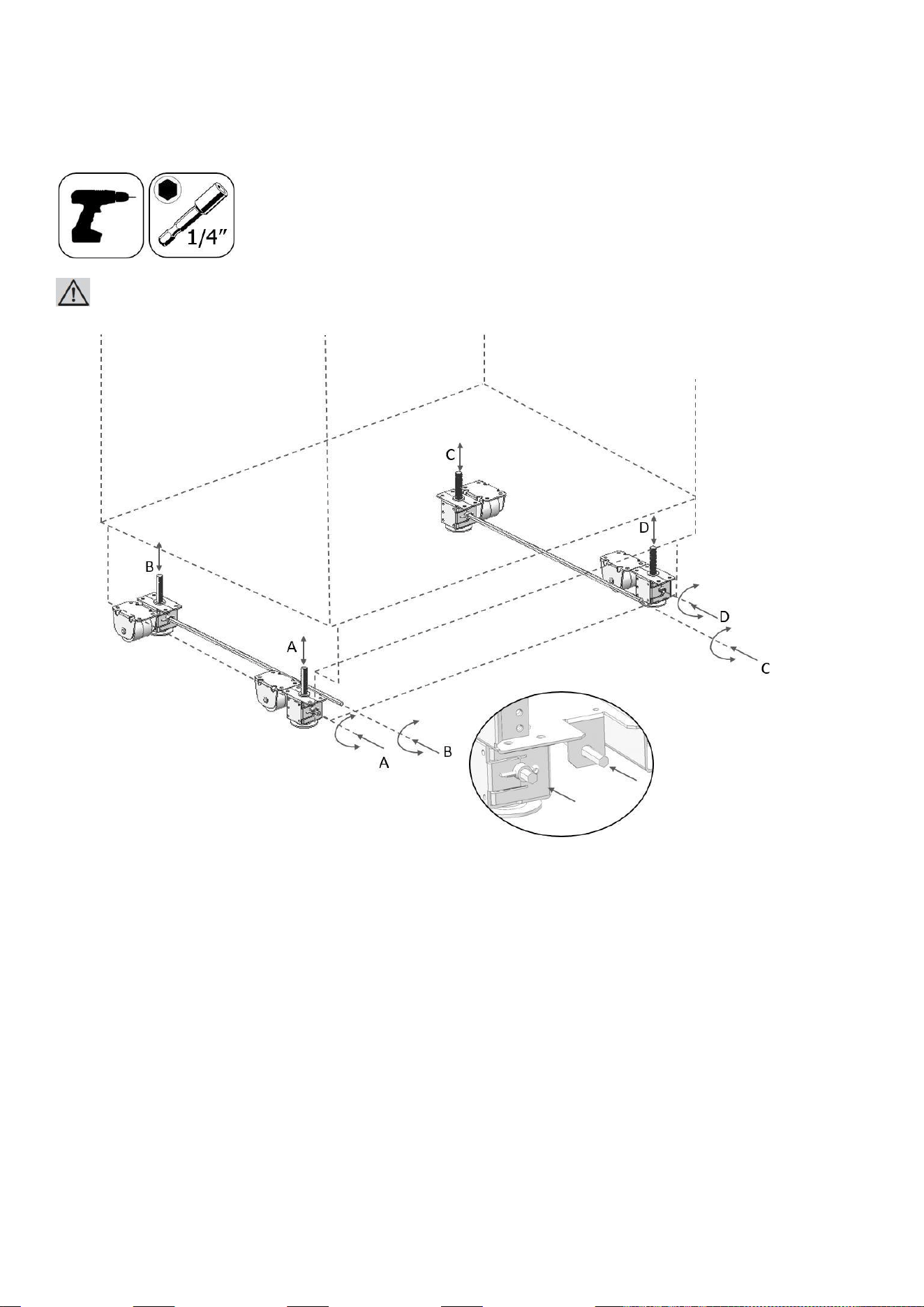

Start with raising the front feet first (before the back feet) to reduce the risk of the appliance falling frontward.
A/D –Turn the key clockwise to lift the front.
B/C –Turn the key clockwise to lift the rear.
Confidential
43
⚫ After adjusting the adjustable feet, check the level in both width and depth directions.
The maximum height that the adjustable feet can reach is 1 9/16" (40 mm) and the product height is 85 3/8"
(2,169 mm)
IMPORTANT INFORMATION:
Adjusting the Appliance with Respect to the Side Walls
⚫ For products with overlay panels in place, the position of the appliance is adjusted
so that the door and the furniture surfaces are flush.
You can also use position adjustment jig (Item No5) if necessary.
Confidential
44
⚫ For products without overlay panels in place already, the product is placed using the adjustment
part (Item No5) as shown in the figure below.
IMPORTANT INFORMATION:
It is very important to align the upper edge of the freezer door when aligning, as its position is fixed and all other
panels can be adjusted with respect to it.
All the other edges can be adjusted with the adjustment mechanisms.
Confidential
45
⚫ The position adjustment jig (Item No5) must be adjusted according to the thickness of the door.
It can adjust the level for 4 different door thickness levels.
Appliance
Confidential
46

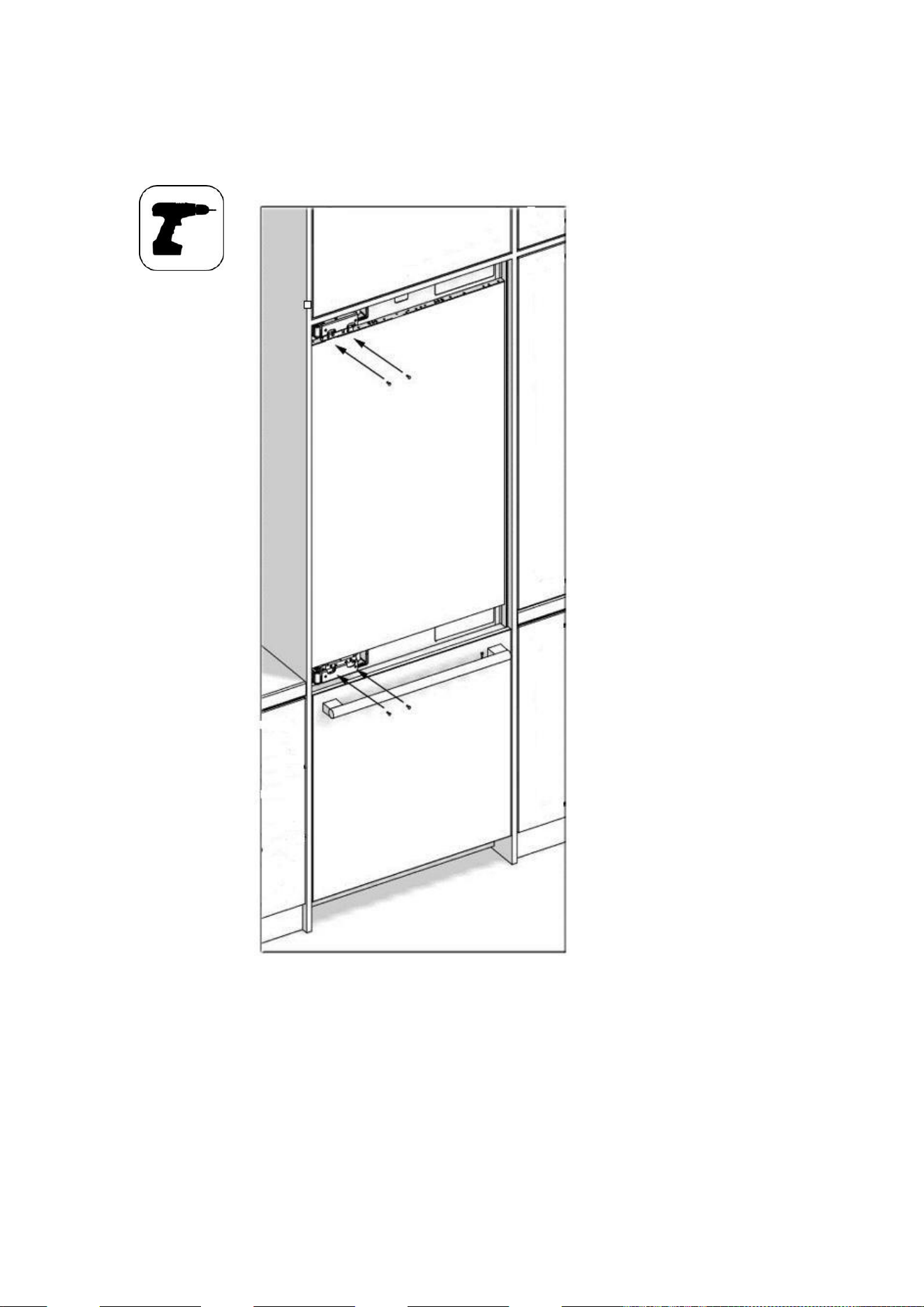

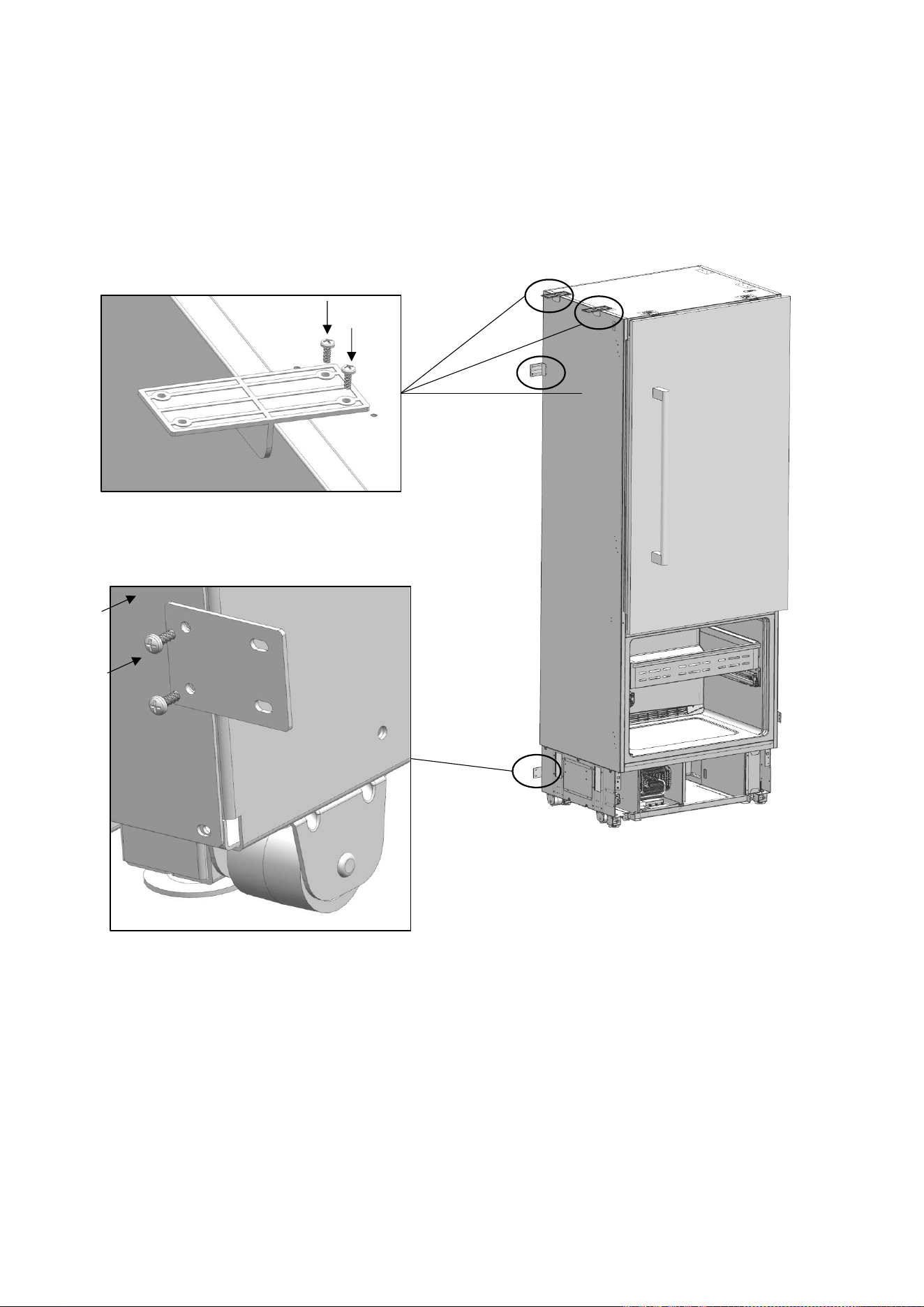

Attaching the Cabinet Connection Brackets

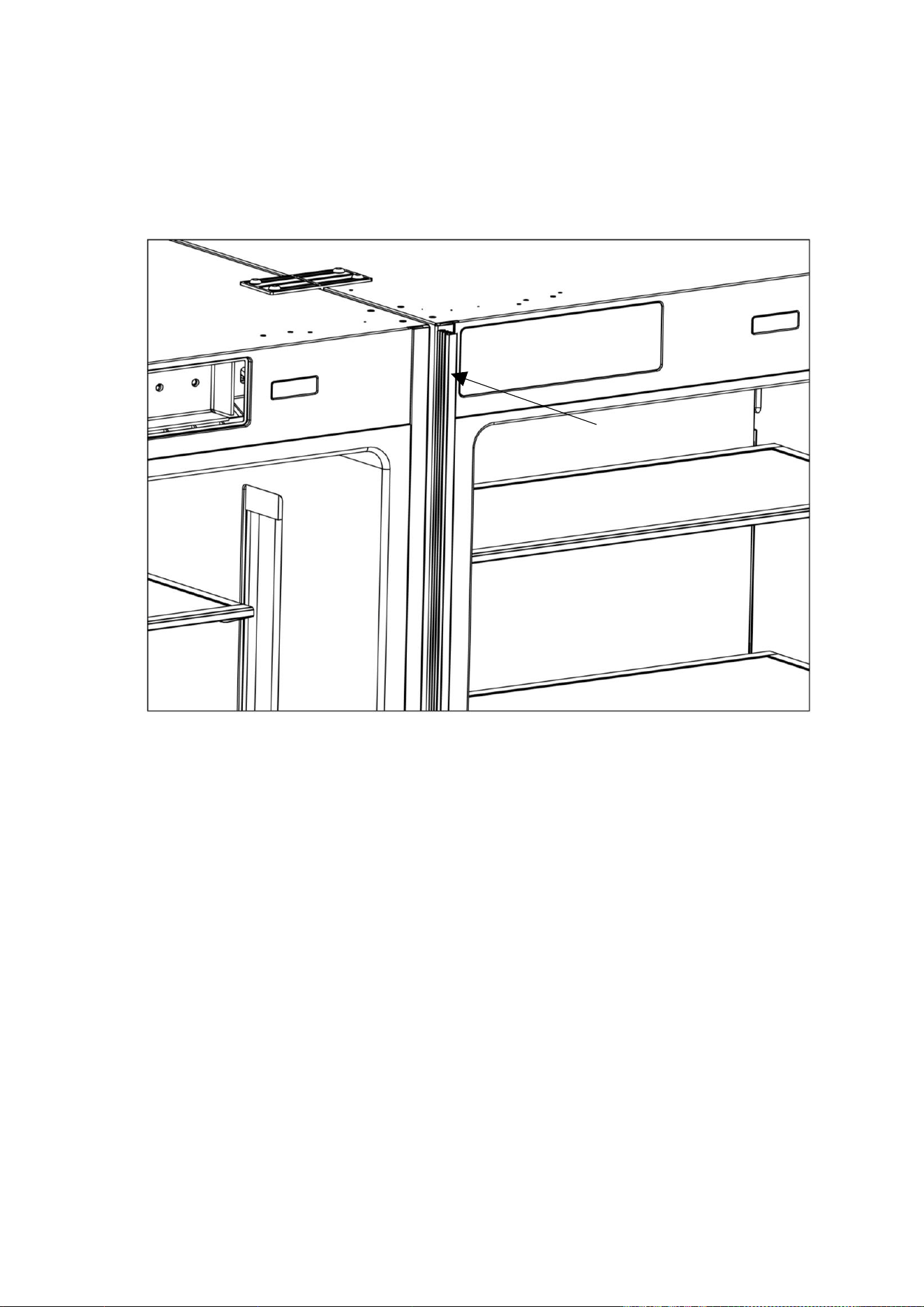

⚫ Fix the cabinet connection brackets (Item No12) to the appliance, where: 2 on the top, and 3 on each side.
Use screw cabinet connecting bracket (Item No11) to tighten.
WARNING:
Before starting to screw the side and upper brackets, please make sure that water is supplied to the product and
there is no water leakage.
Confidential
47
IMPORTANT INFORMATION:
If you have difficulty tightening the screws, opening a reference hole with the drill will make this procedure easier.
⚫ Attach cabinet connection brackets (Item No12) to the cabinet
with 16 screws cabin connecting bracket (Item No13).
Confidential
48
INSTALLATION AT THE BOTTOM
Water connection

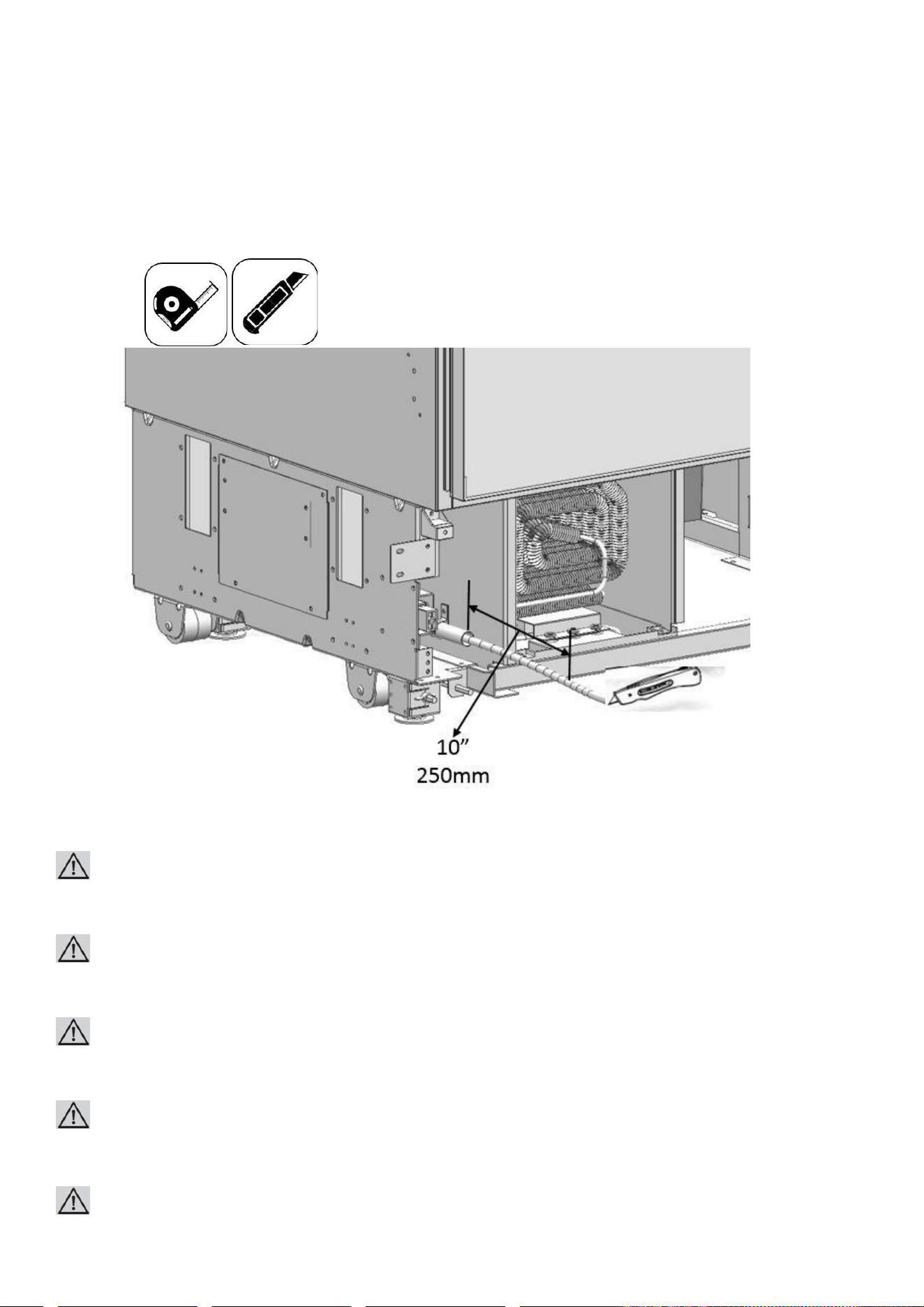

⚫ Use the box cutter to cut the water hose squarely from the end of the pass-through tube,
leaving a section of 10".
⚫ Use the 2 wrenches to firmly connect the hose coming from the mains and the hose coming
from the valve.
WARNING:
The hose coming from the mains must be one piece. Do not use extension hoses.
WARNING:
Make sure that the power is cut off when making the water connection of the product.
WARNING:
The water valve must be off when connecting the water hose.
WARNING:
It is recommended that the water on/off valve remains accessible after installing the product.
WARNING:
This product is suitable for use with cold water mains only.
Confidential
49

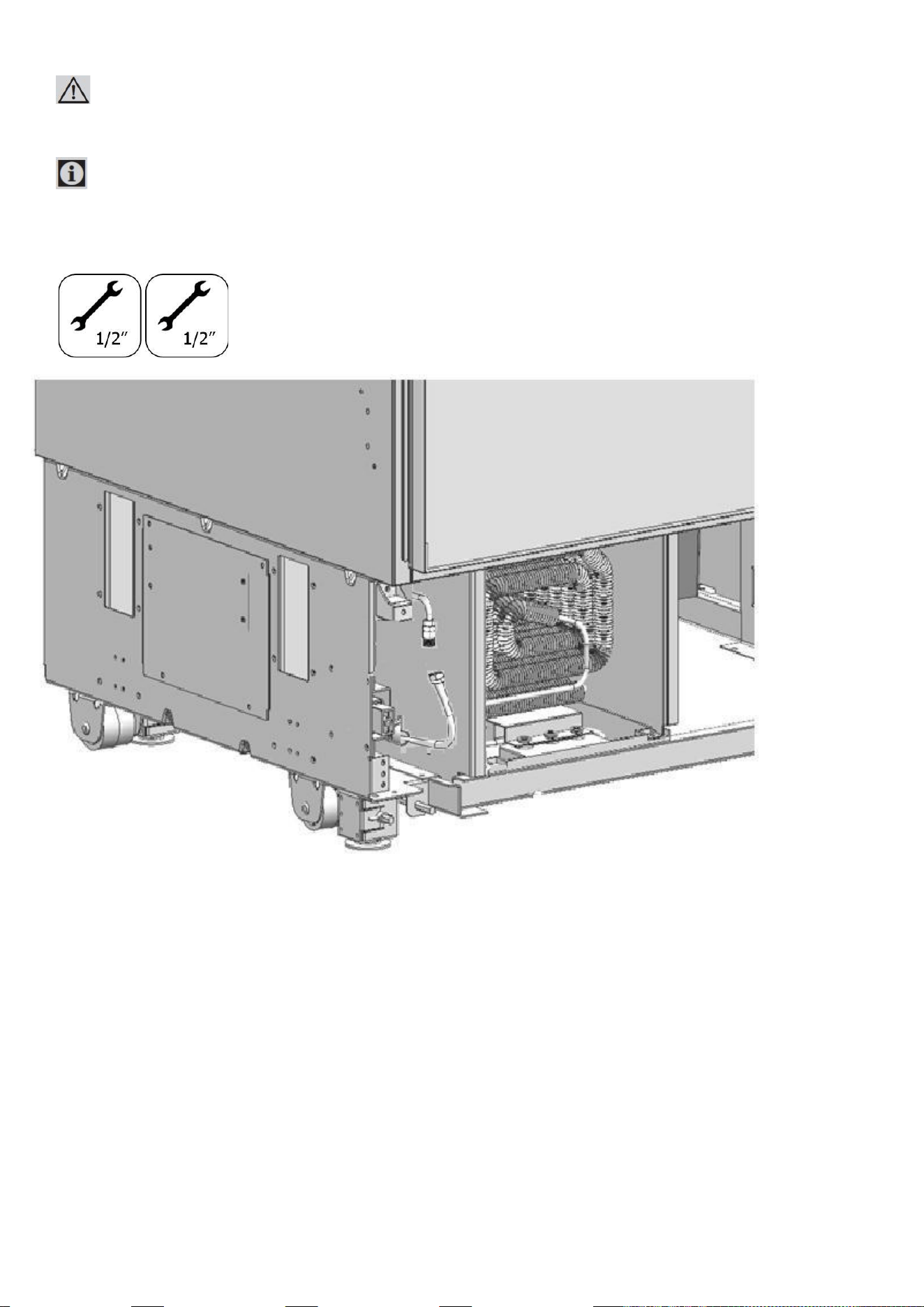

WARNING:
Pressure of the water system must be between 25-80 psi (1.7-5.5 Bar).
IMPORTANT INFORMATION:
Once the connection is complete, you must turn on the mains valve and make sure
that there is no leakage at that point.
Confidential
50
Attaching the Upper Ventilation Part

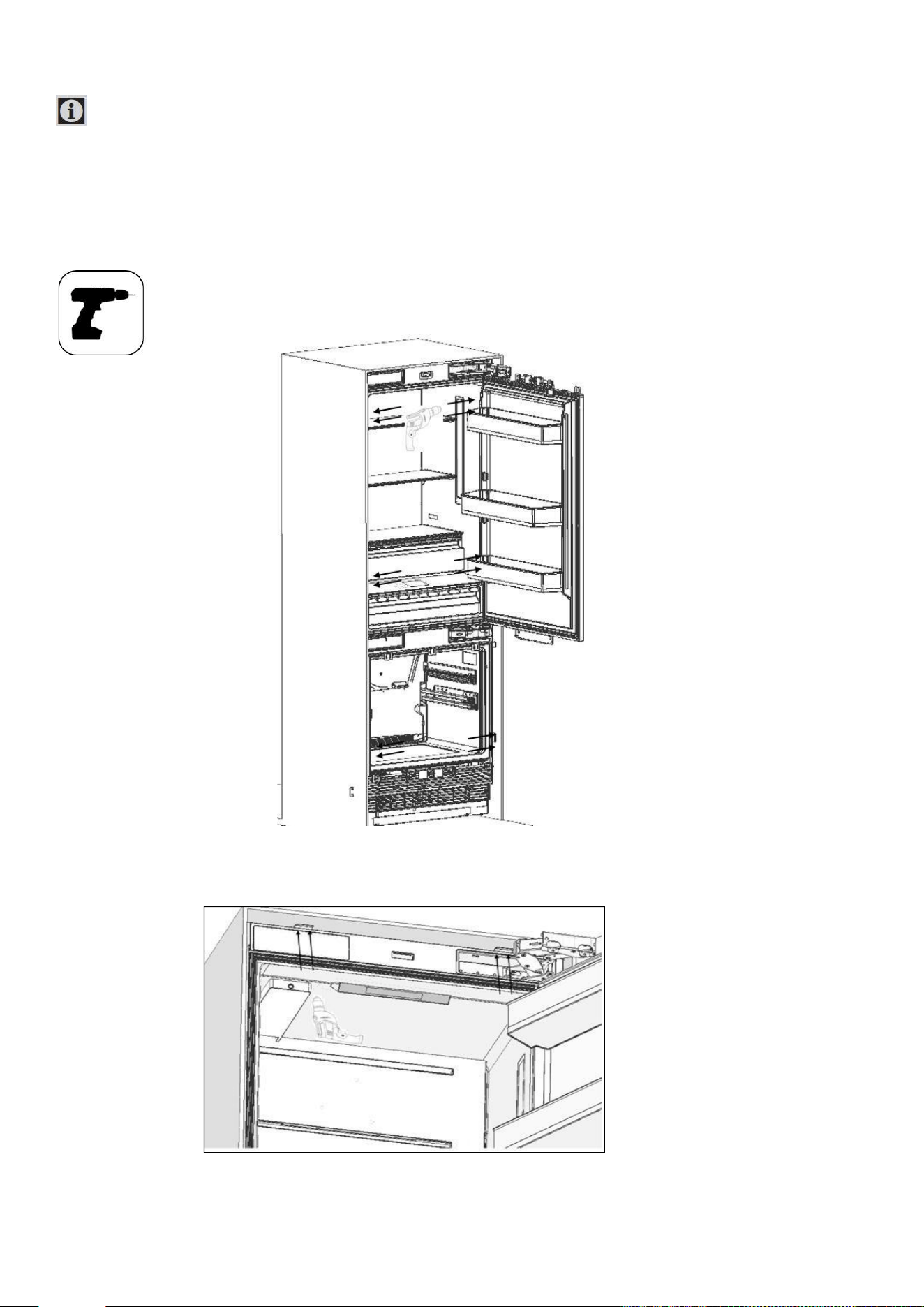

⚫ Use 2 screws to attach the upper vent hole part.
Confidential
51

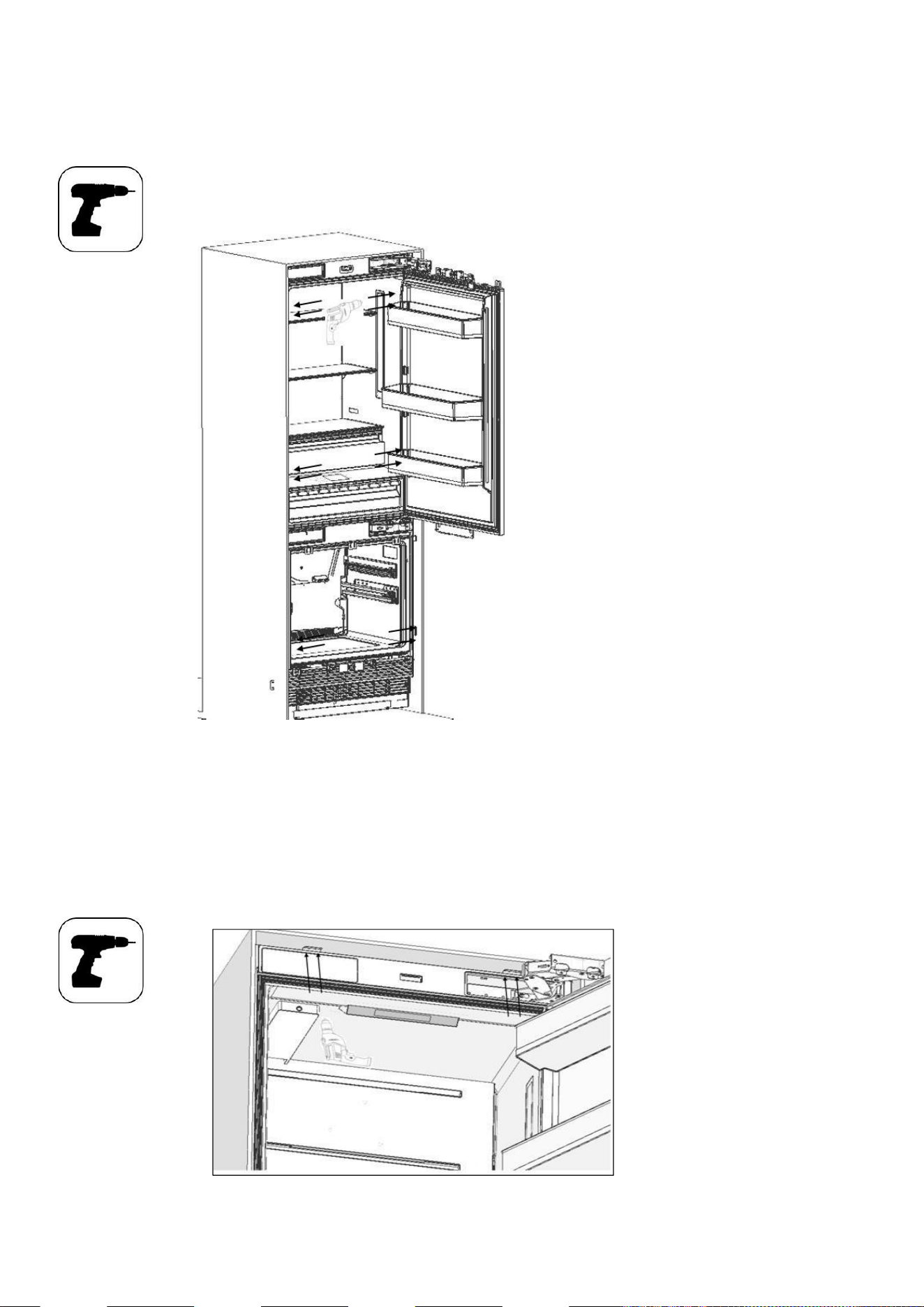

Attaching the Lower Ventilation Assembly
⚫ Use 2 screws to attach the lower ventilation part.
IMPORTANT INFORMATION:
You can move the lower vent hole ventilation part to adjust it to the kick plate in the kitchen.
WARNING:
Forward-backward travel distance of the lower kick plate can be 15/16" (23 mm).
As you can see in the figure, the decorative kick plate must not be in front of the upper vent hole level.
Confidential
52

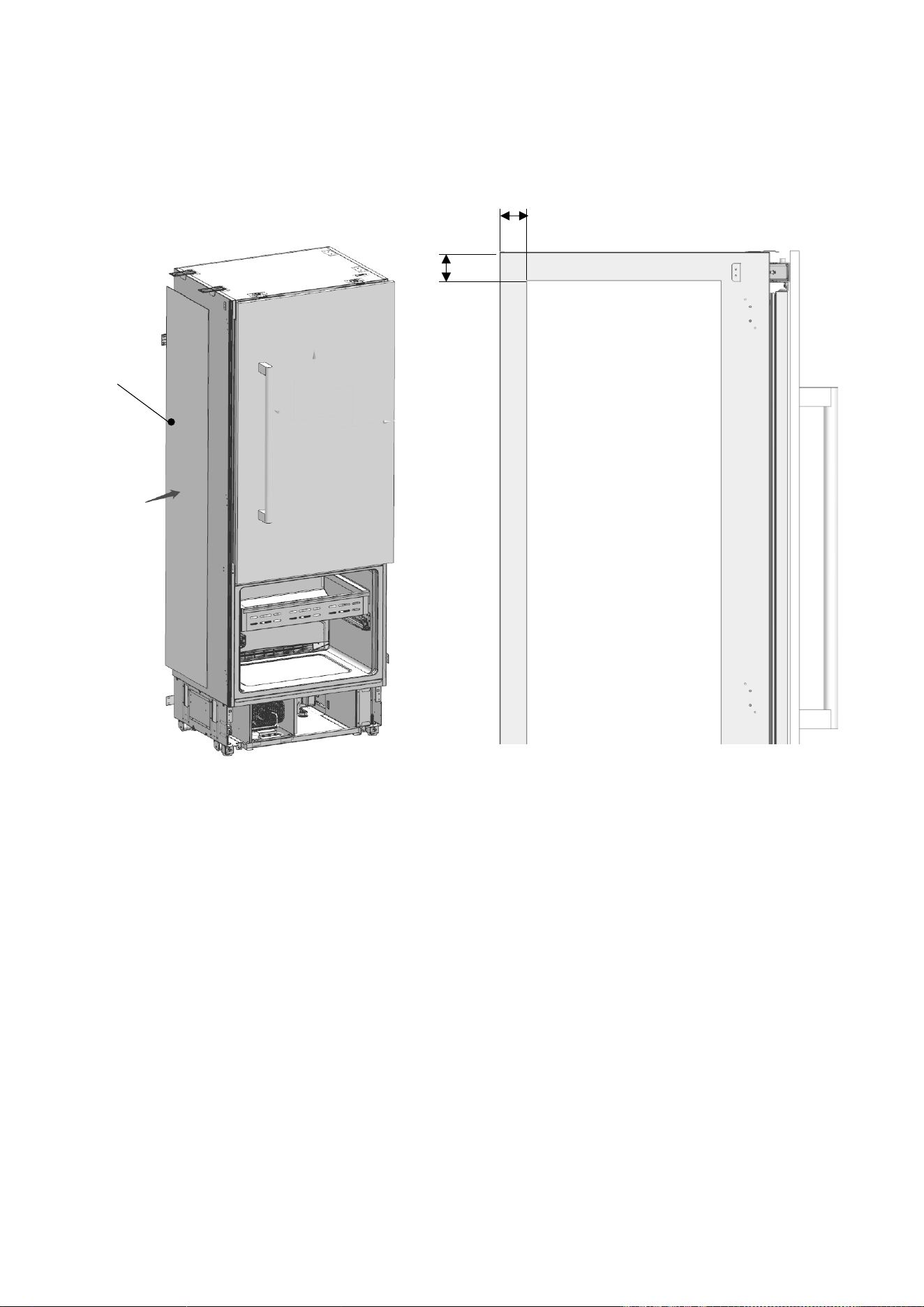

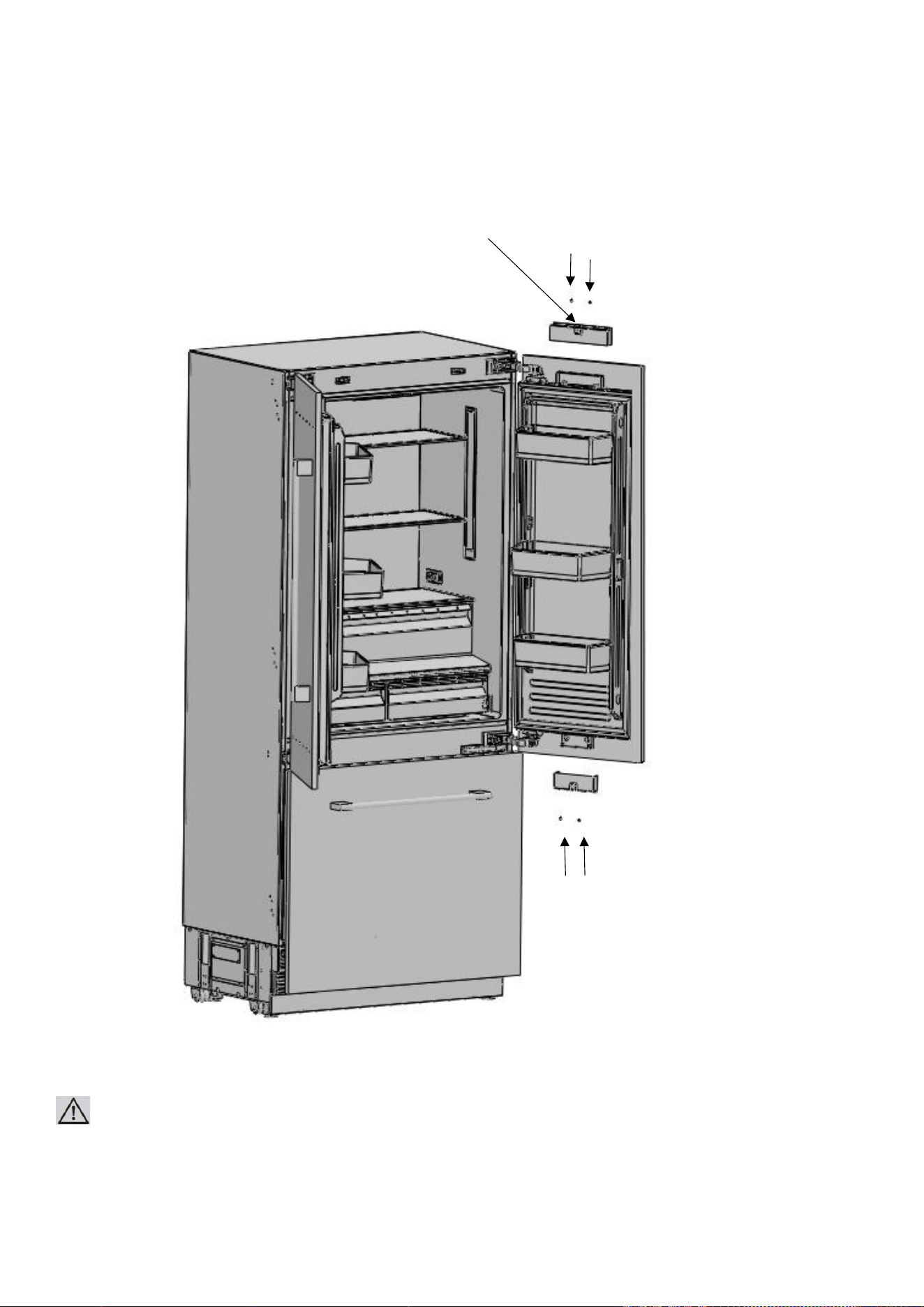

Attaching the Decorative Trim Parts

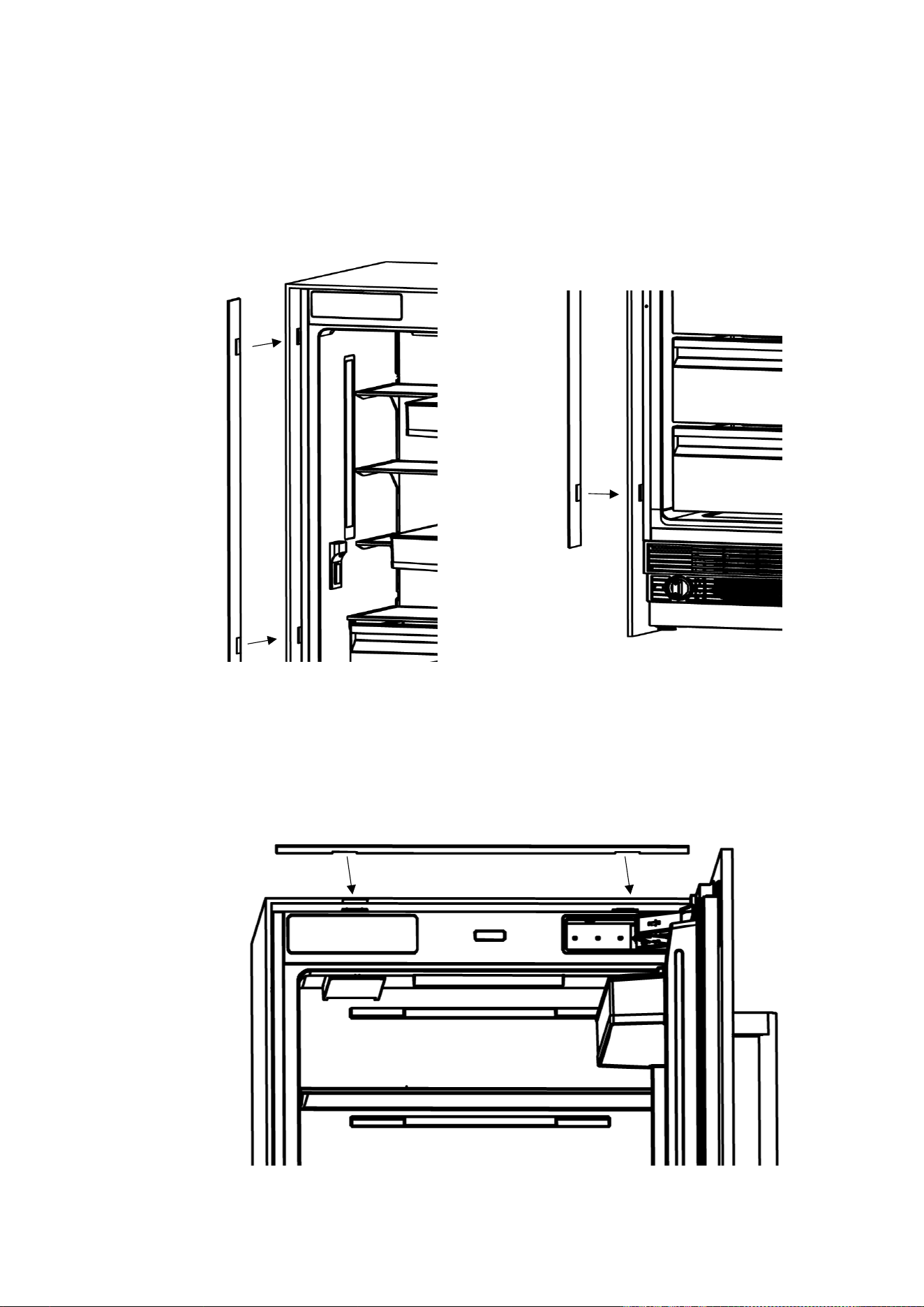

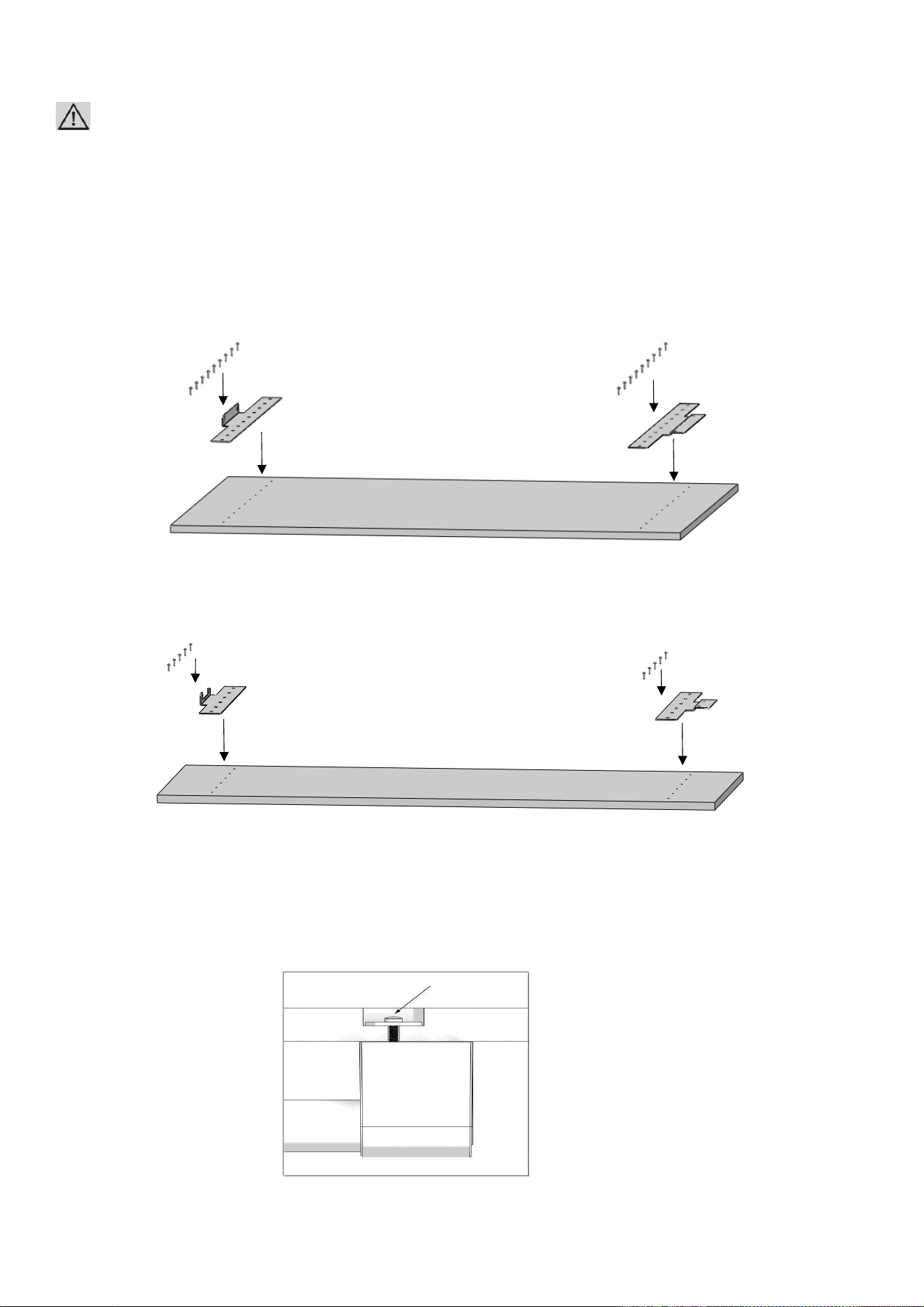

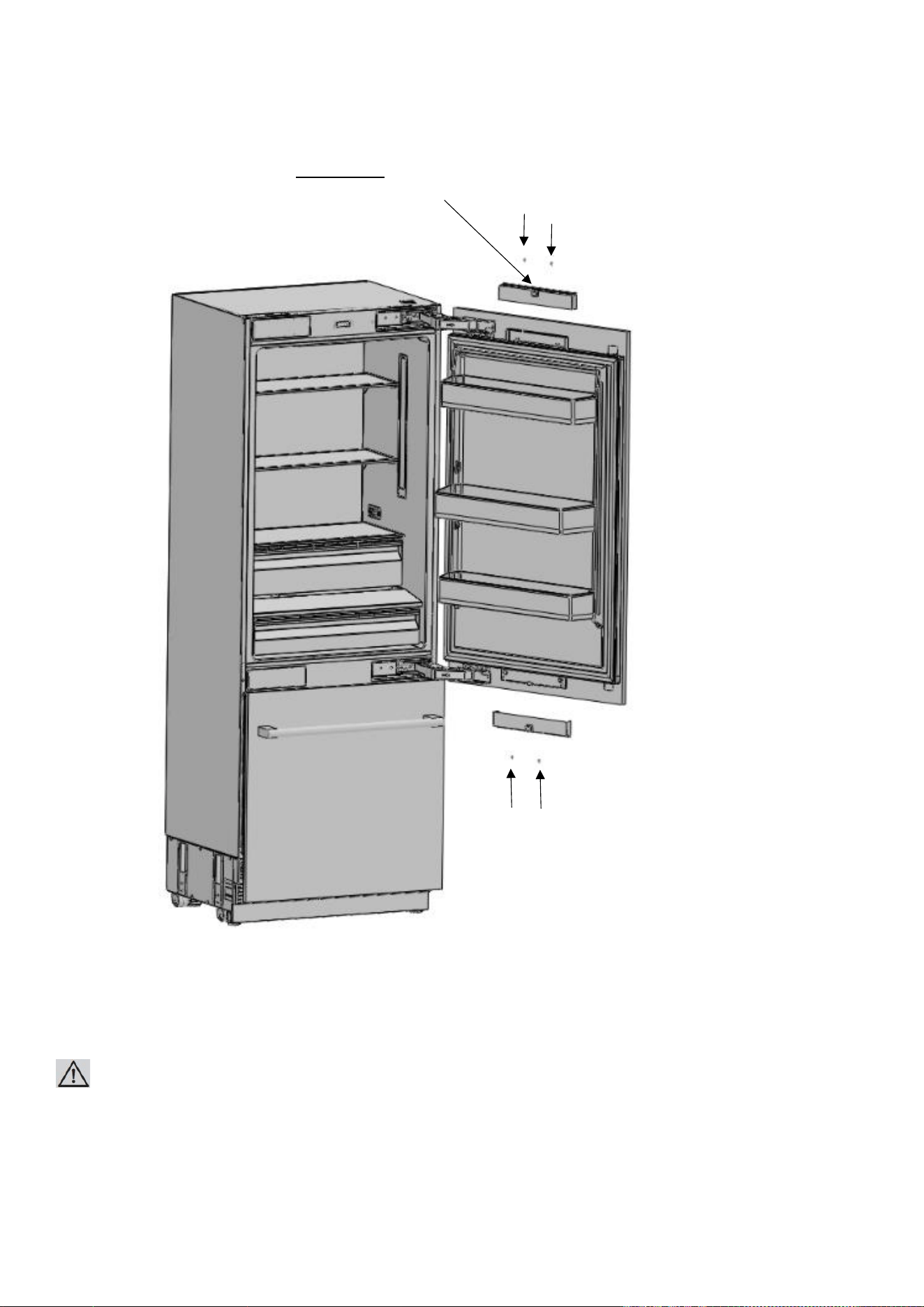

⚫ Attach the trim fridge furniture side (Item No1) onto cabinet-cabin connecting bracket (Item No12).
⚫ Attach the trim furniture top (Item No4) over top cabinet connection bracket (Item No12).
Confidential
53
WARNING:
Maximum weights of the door overlay panels to be mounted to the product are
as follows. Fridge Door: 35.7 lbs. (16.2 kg)
Freezer Door: 19.8 lbs. (9 kg)

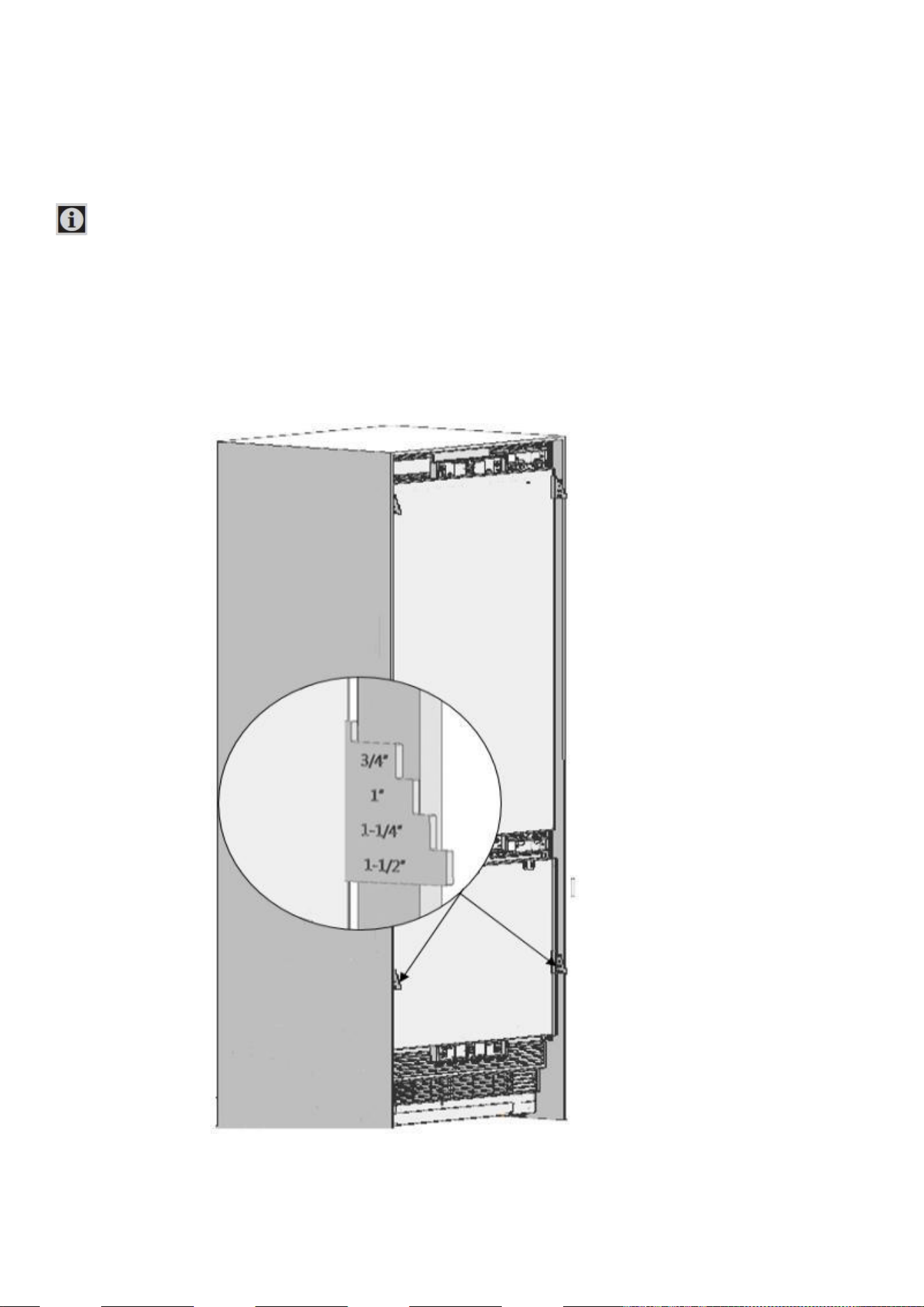

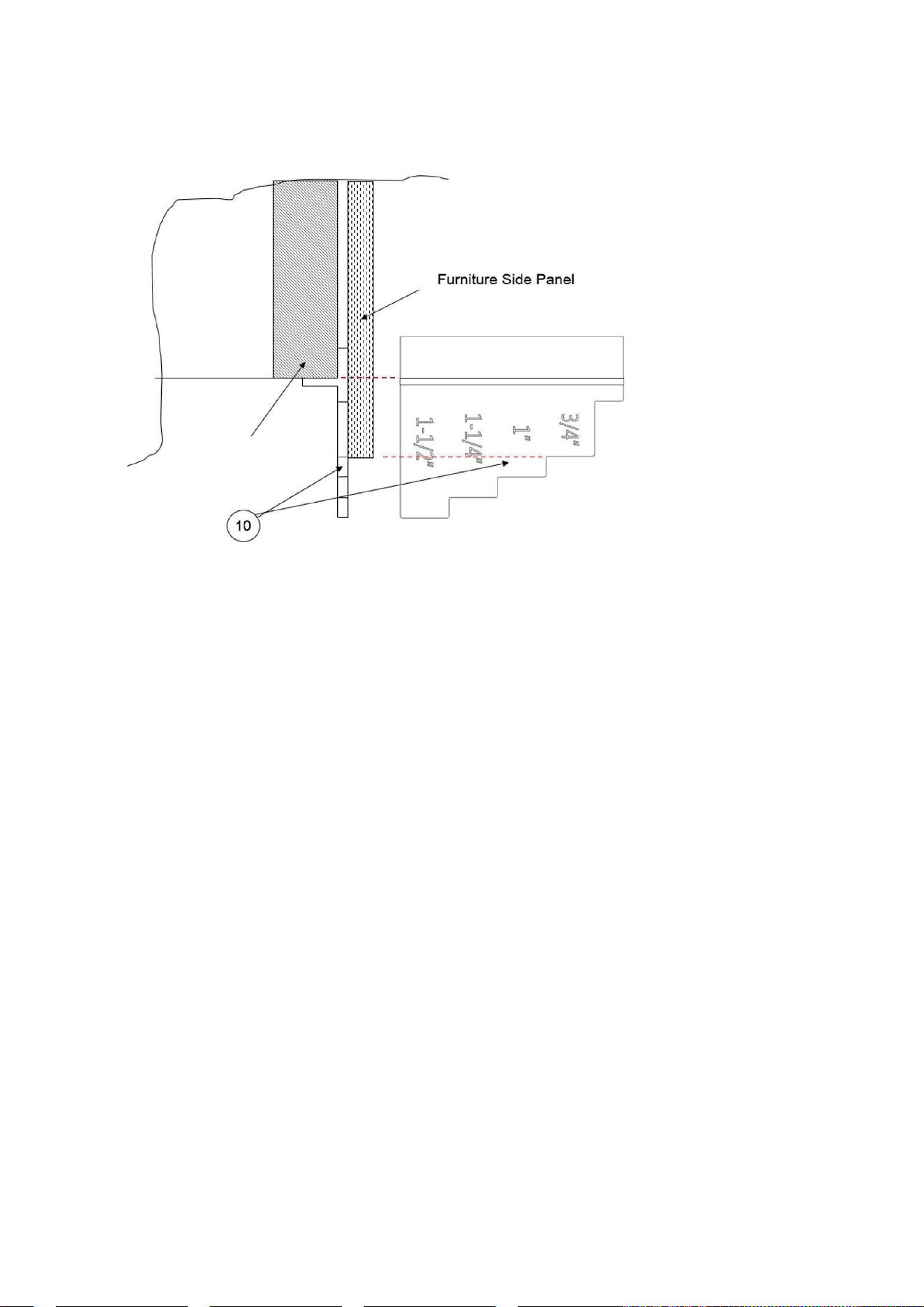

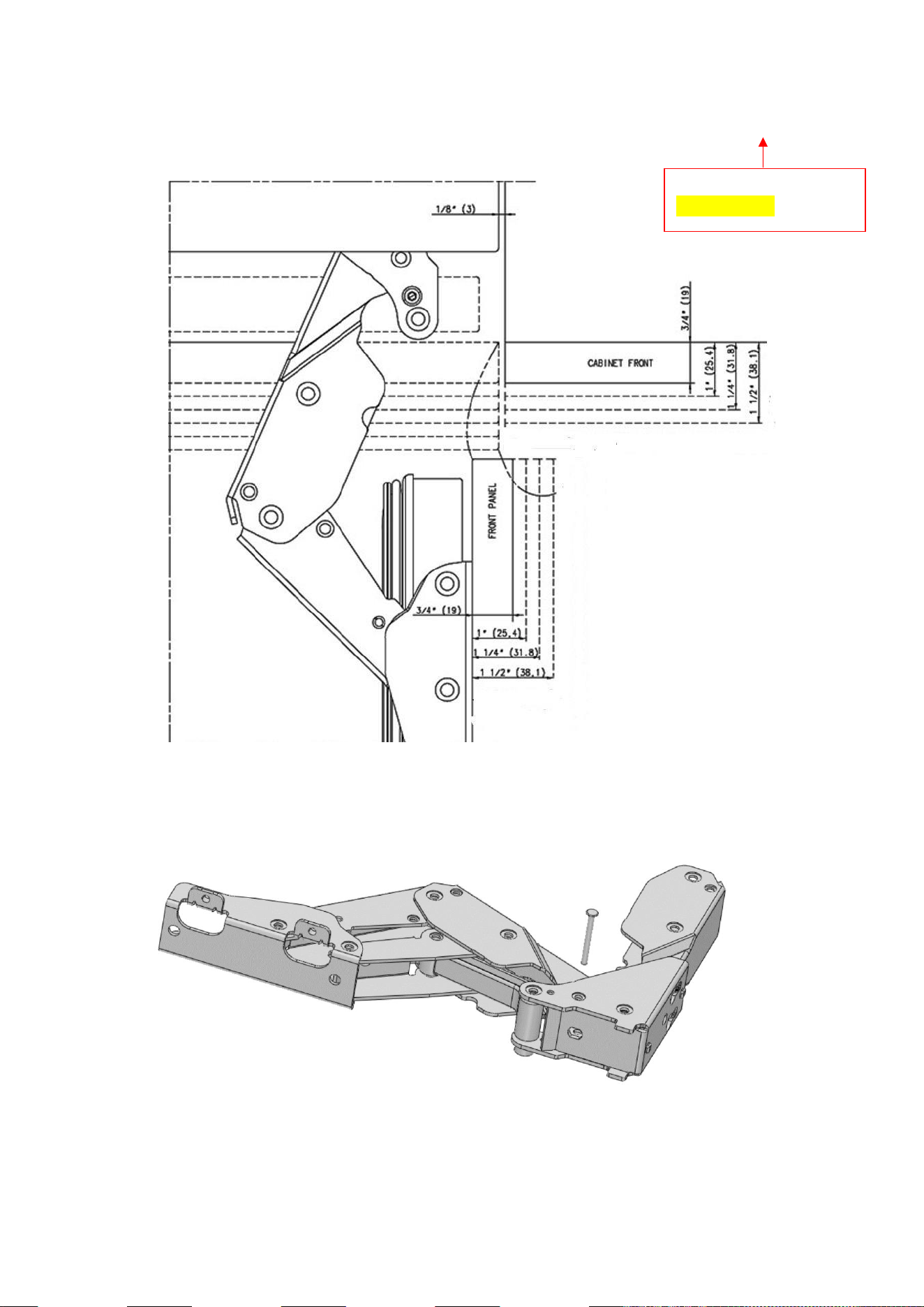

Choosing the Door Thickness

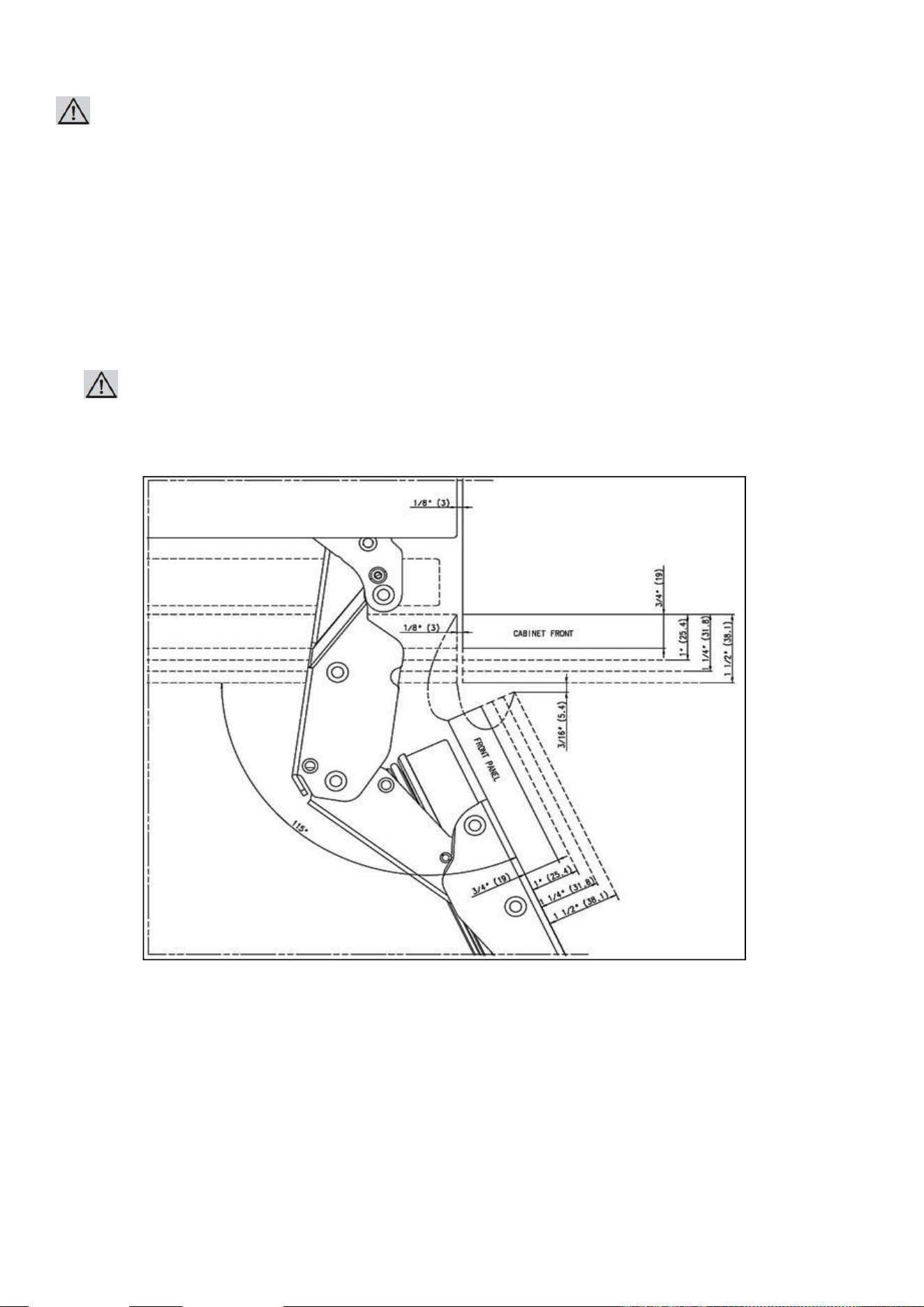

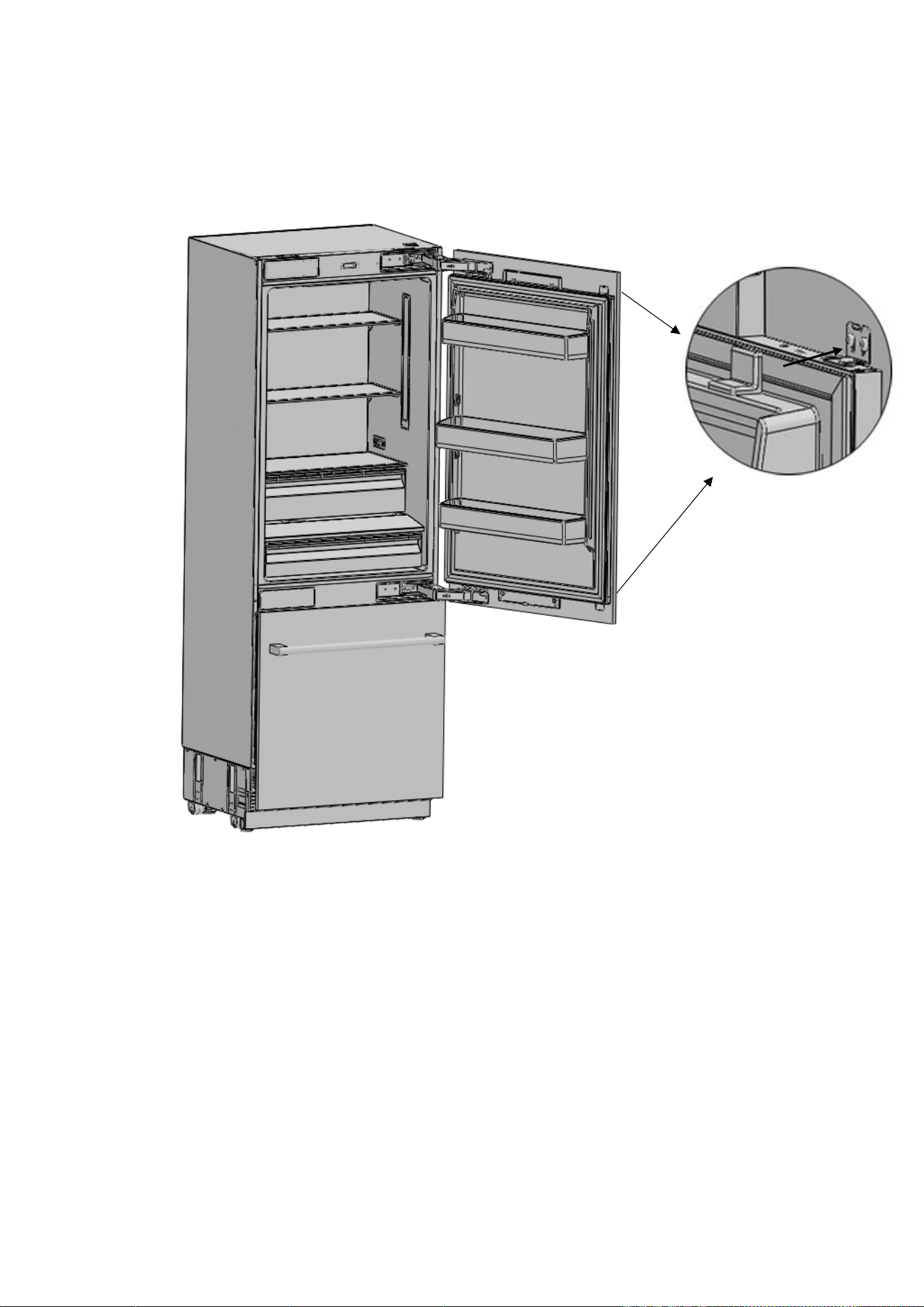

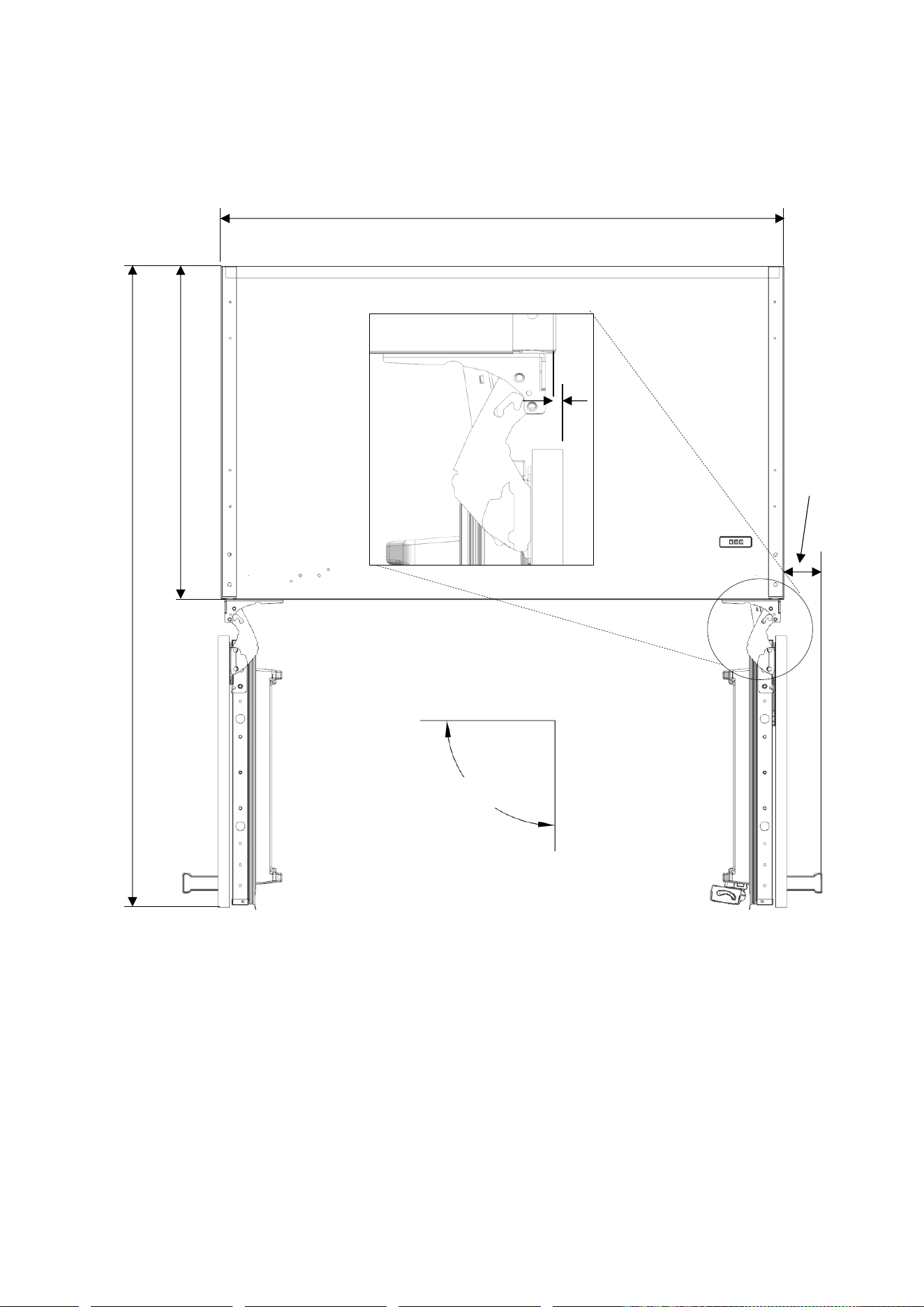

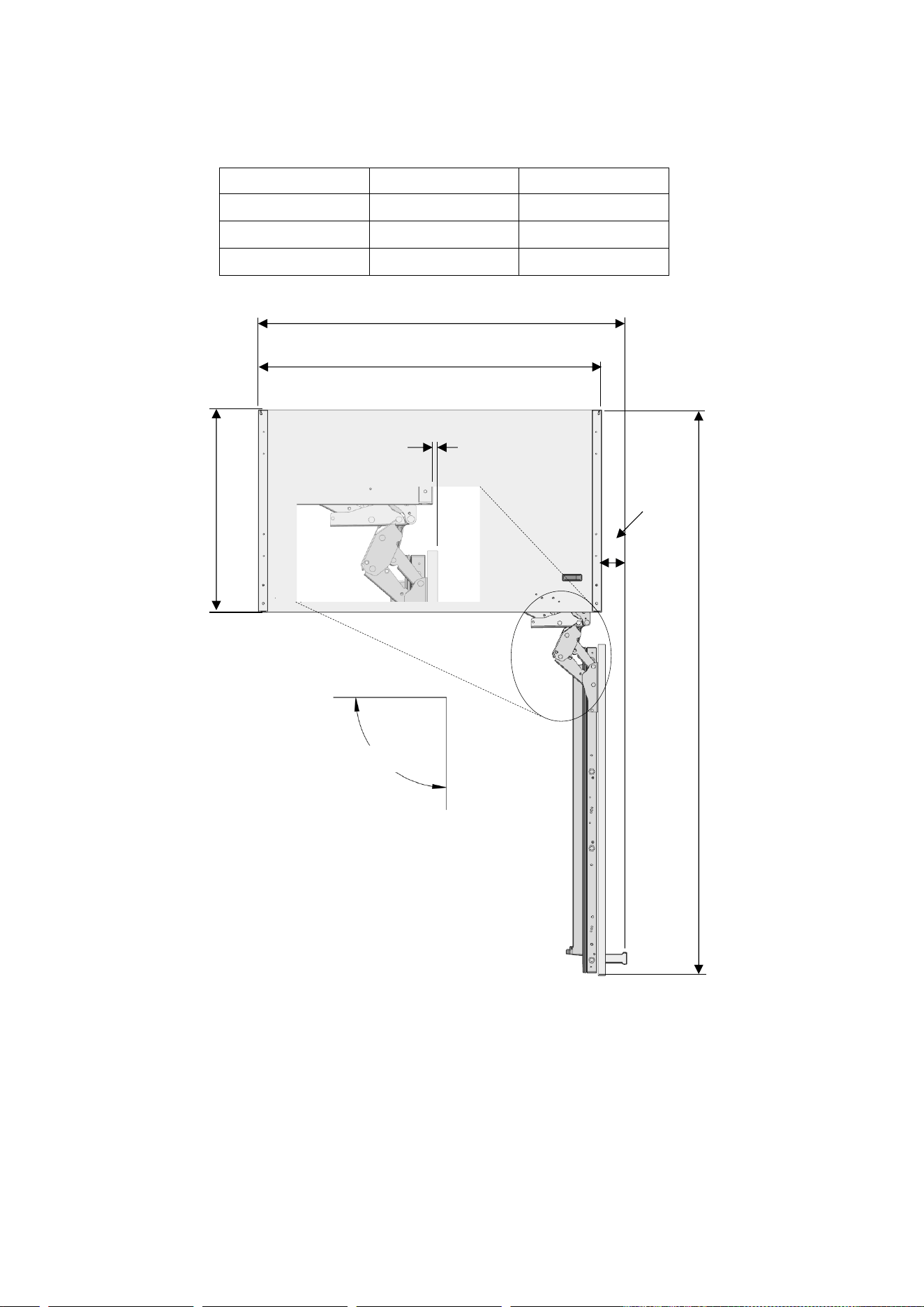

⚫ The door of your refrigerator can open to 115° maximum. If the door is going to open to this angle to,
you can choose the following thickness levels.
WARNING:
If the door thickness is more than 1 ½” (38 mm), the door opening must be limited to 90°. You must use a
limiting pin on the hinge (included).
Confidential
54
⚫ You can limit the opening degree of your door to 90° if you want.
In this case, the door thickness levels can be like the following (you can look at the relevant section to learn
how to attach the 90° limiting pin (Item No6).
What section is this???
added below
90°limit pin should be inserted to upper hinge and lower hinge
Confidential
55
DOOR OVERLAY PREPARATION
This section contains information about preparing the door overlay panels and mounting them to the product.

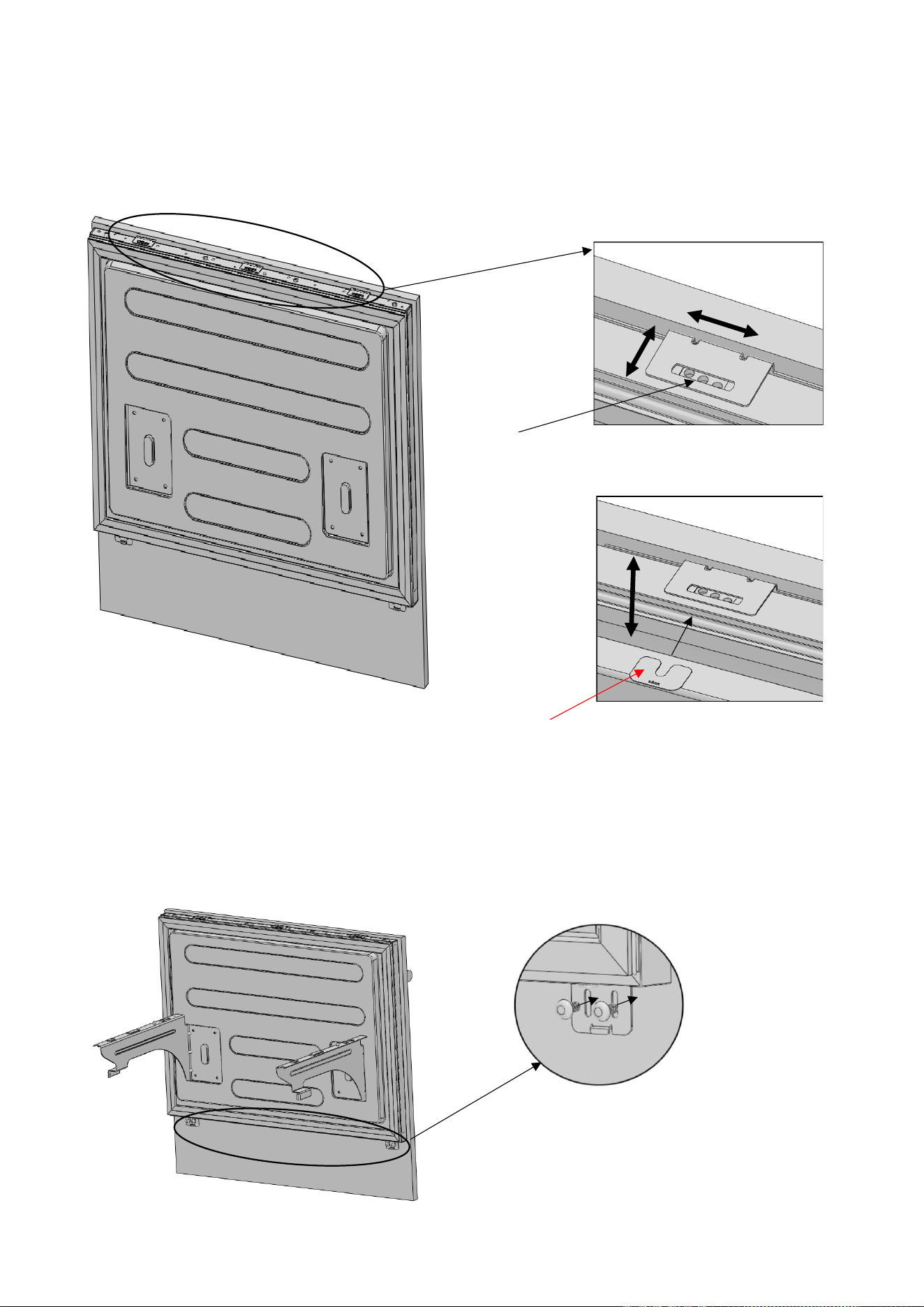

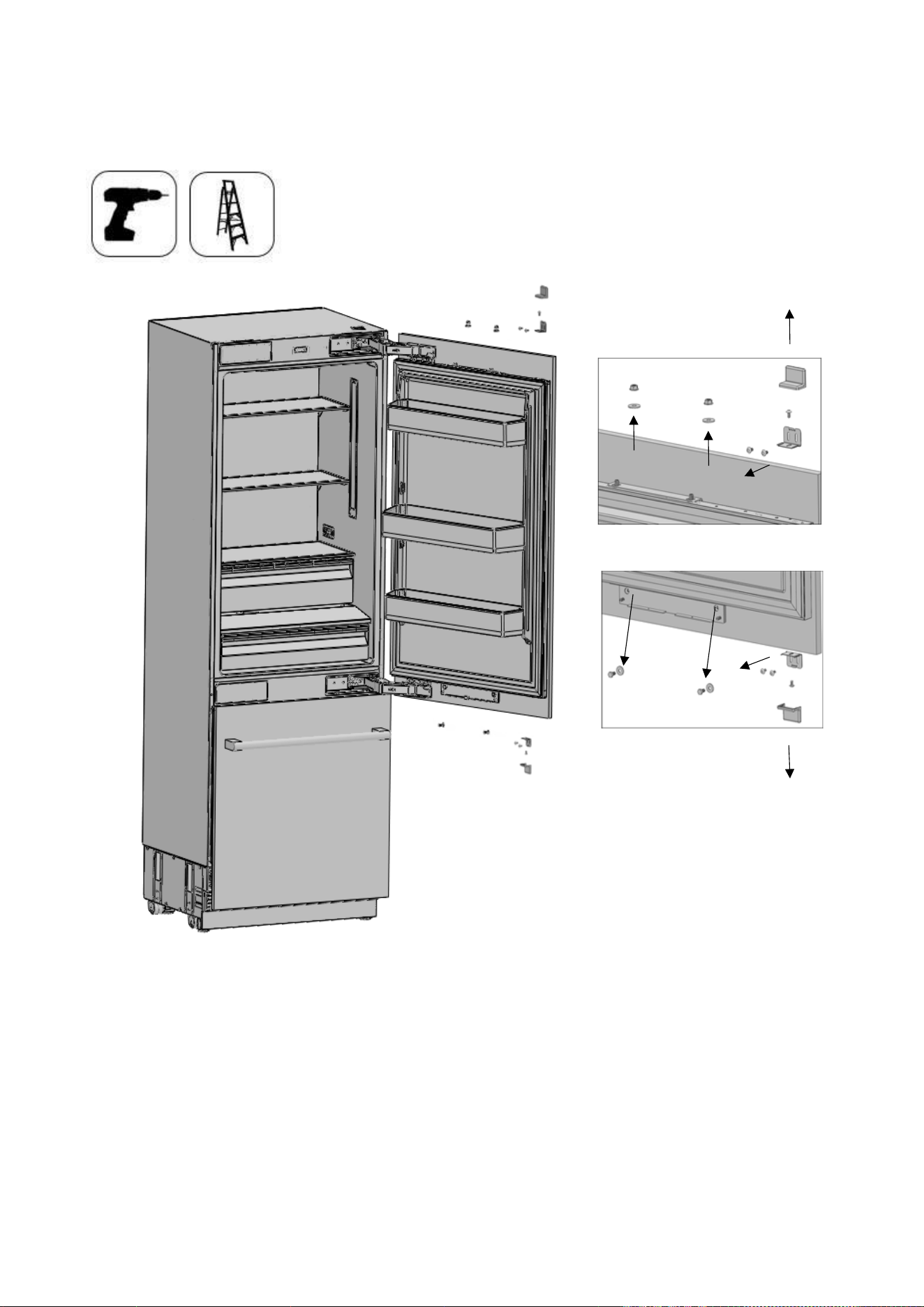

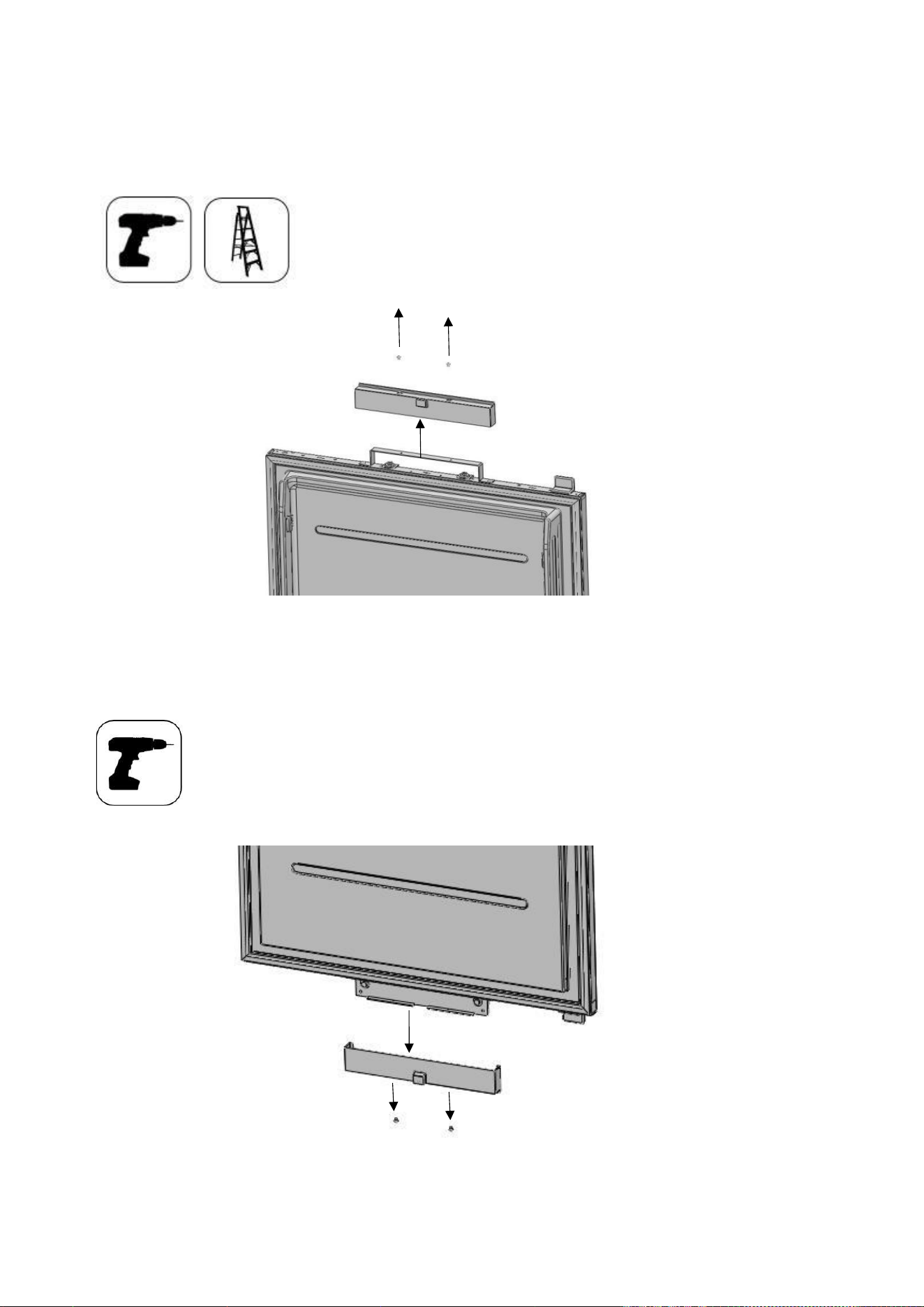

Removing the Mechanism Covers

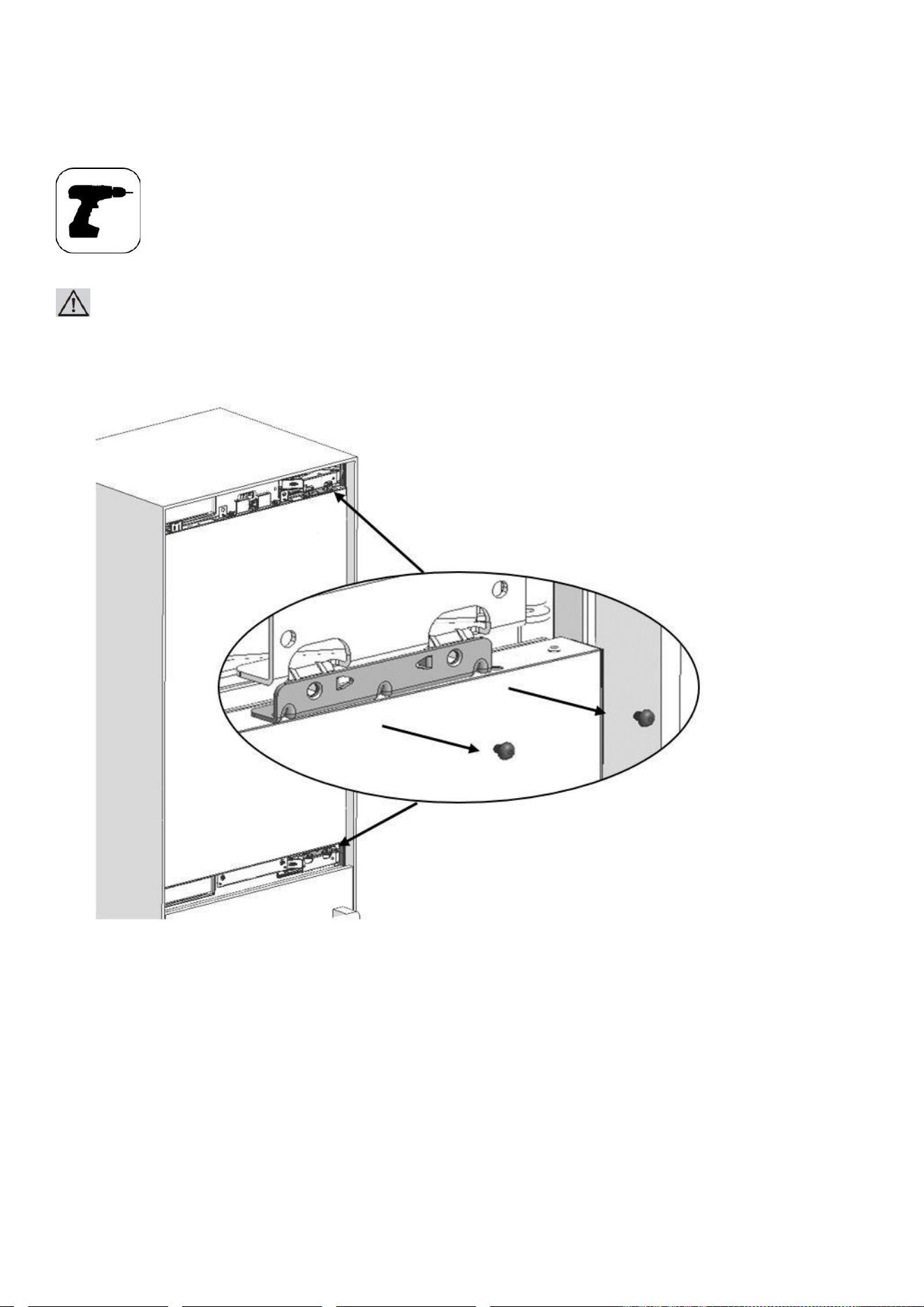

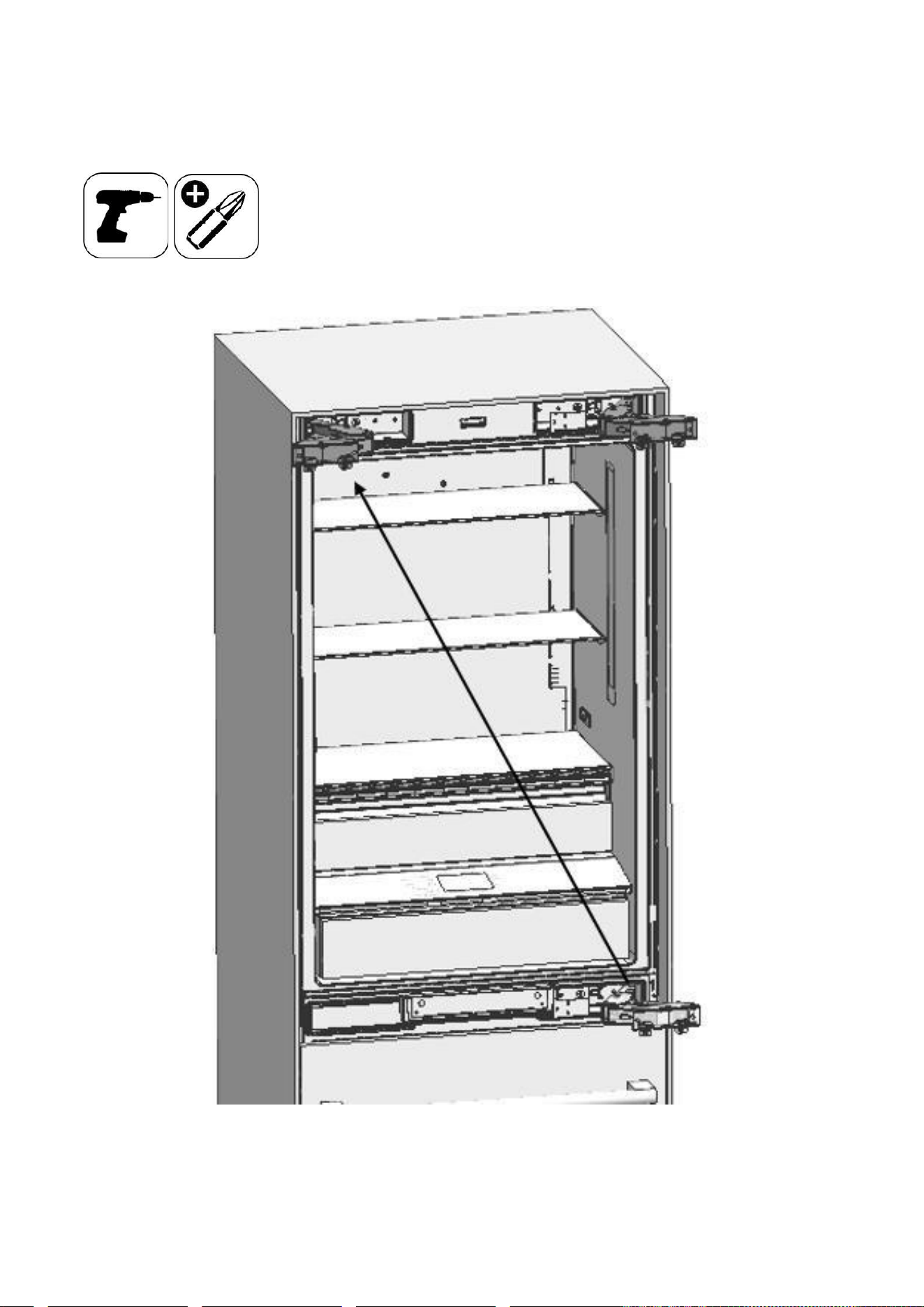

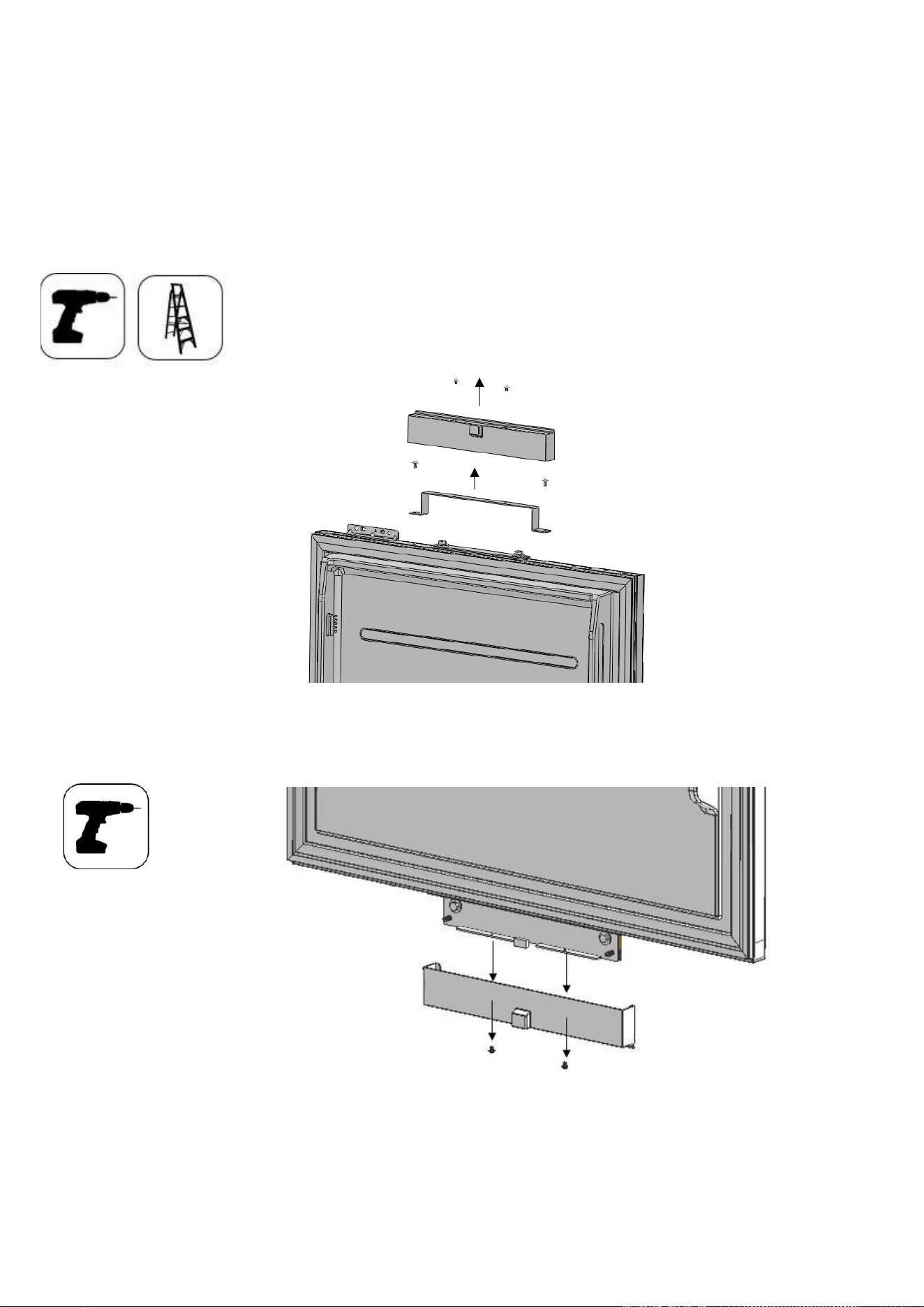

⚫ Remove screws to take off the upper bracket cover and fixing bracket.
⚫ Remove two screws to take off the lower bracket cover.

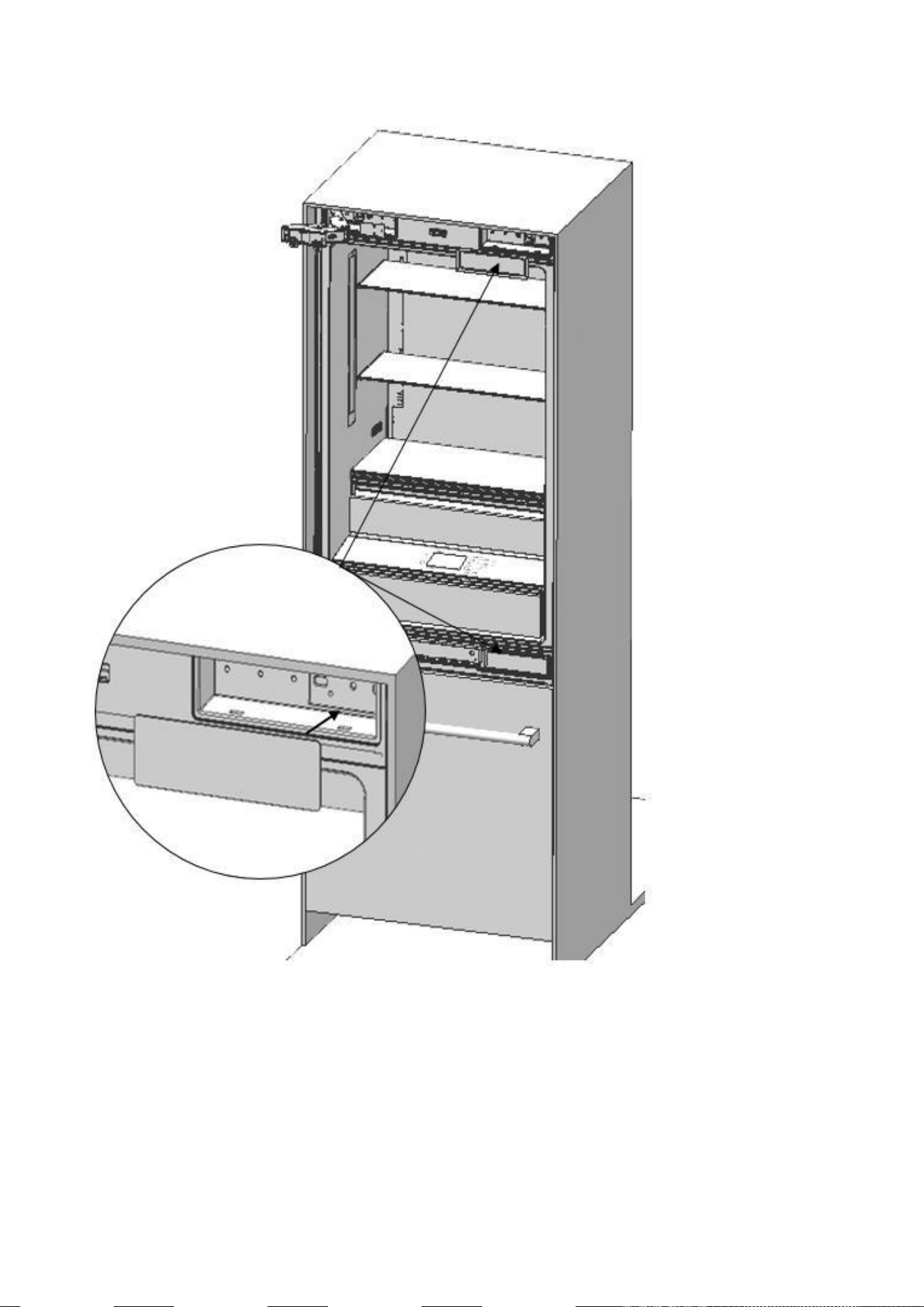

IMPORTANT: There is a magnet
inserted into this cover that is
necessary for the appliance to detect
when the door is closed. Ensure this
cover with magnet is replaced when
completing the installation.
Confidential
56

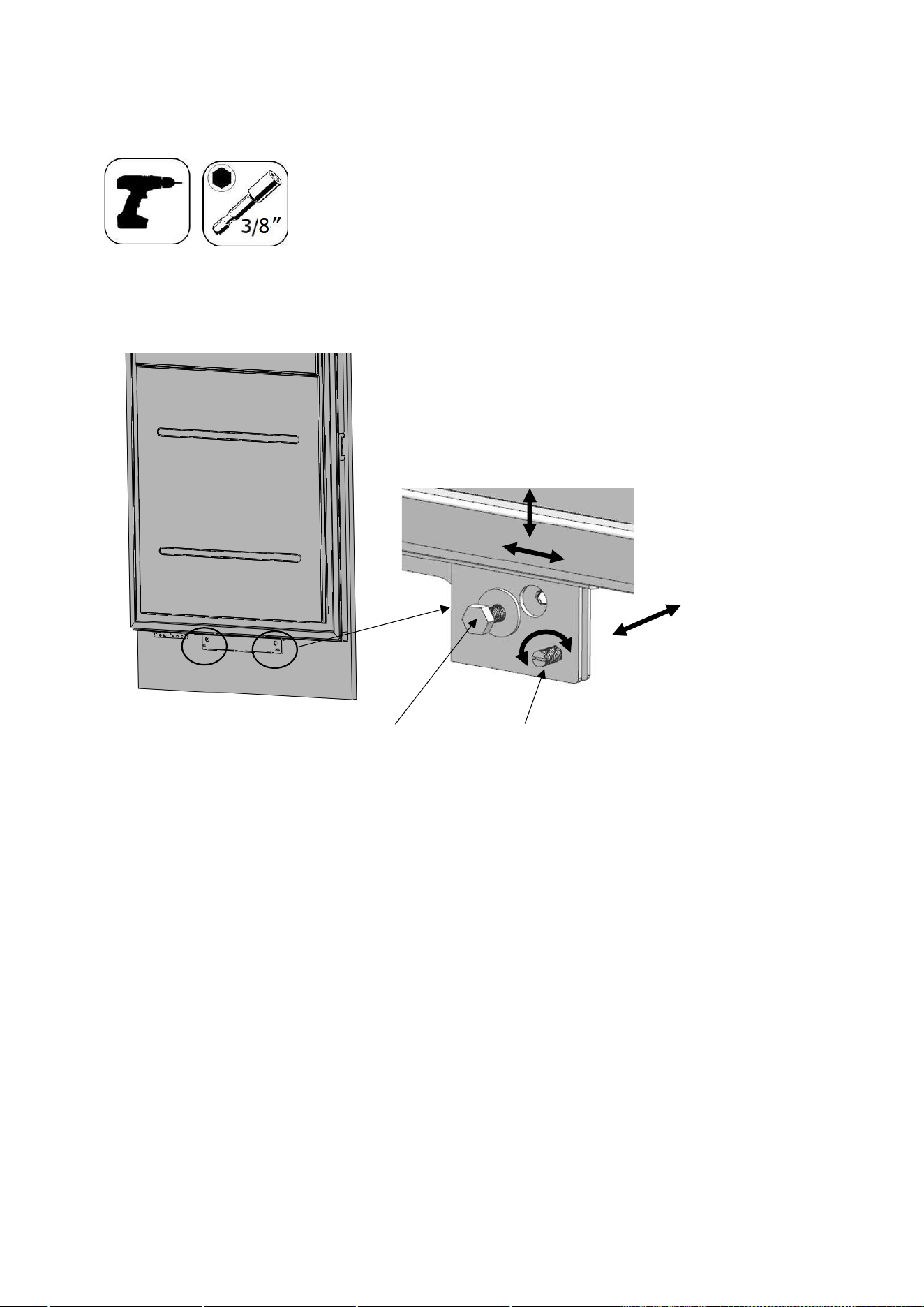

Removing the Panel-Adjustment Mechanisms on the Refrigerator

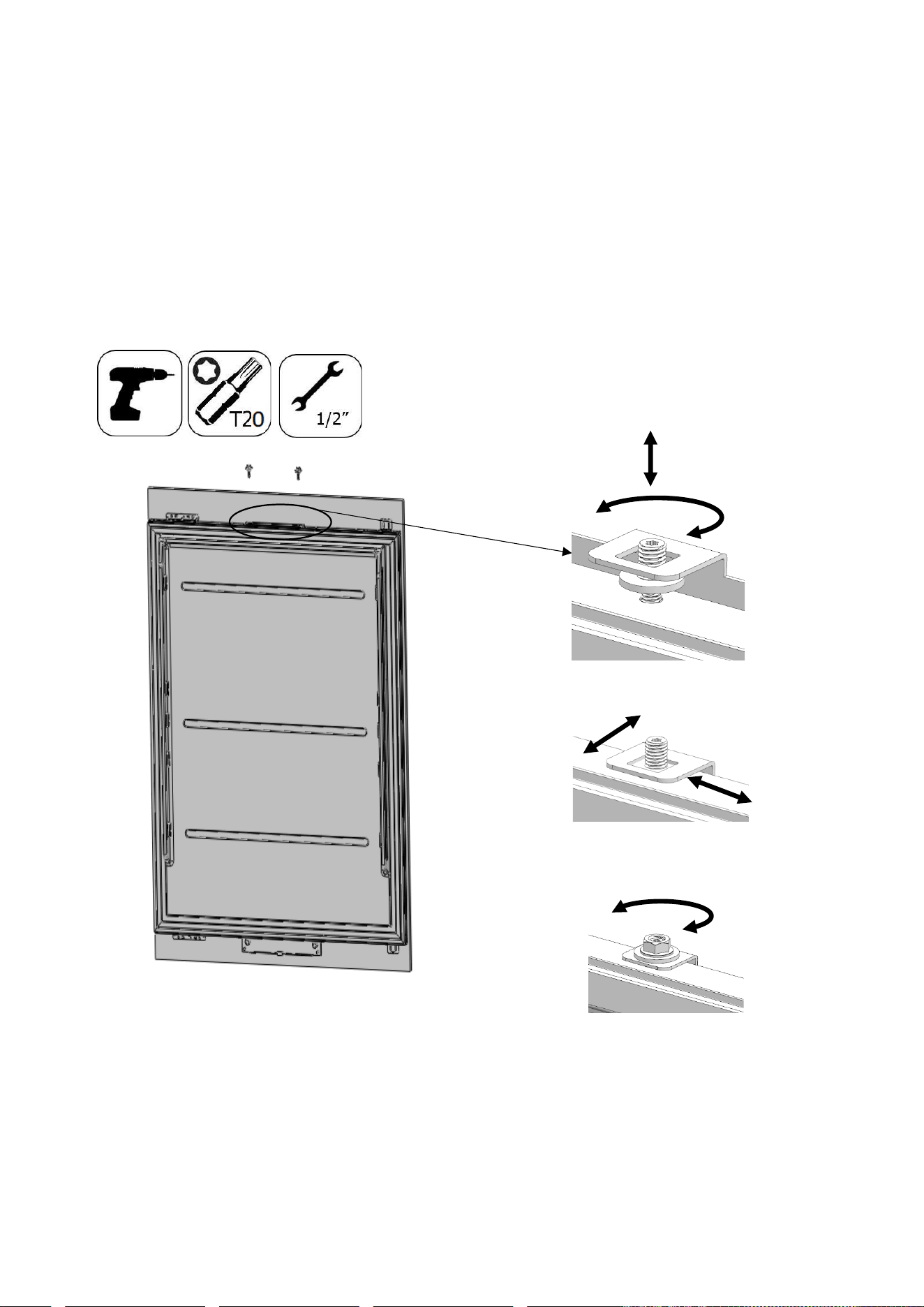

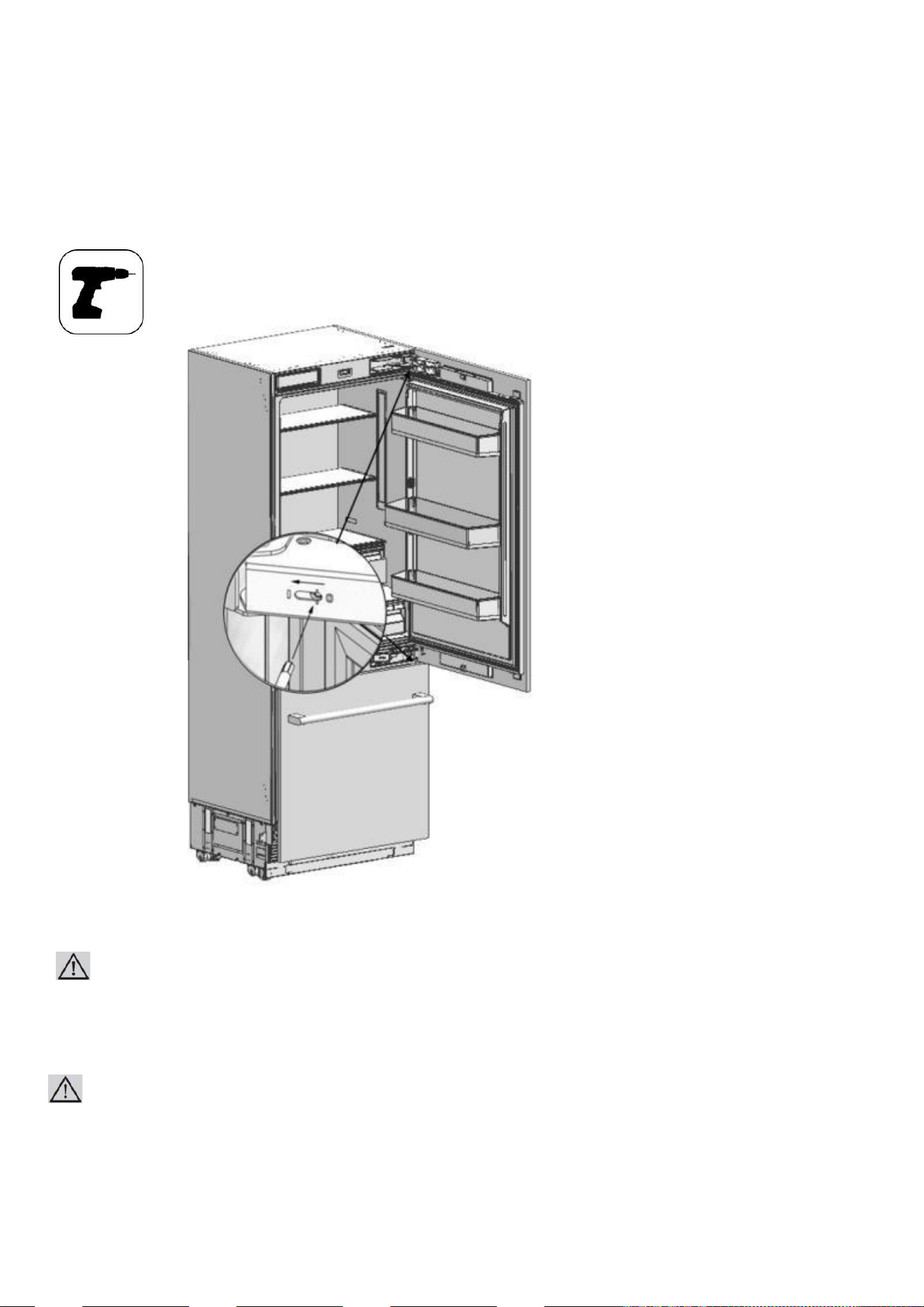

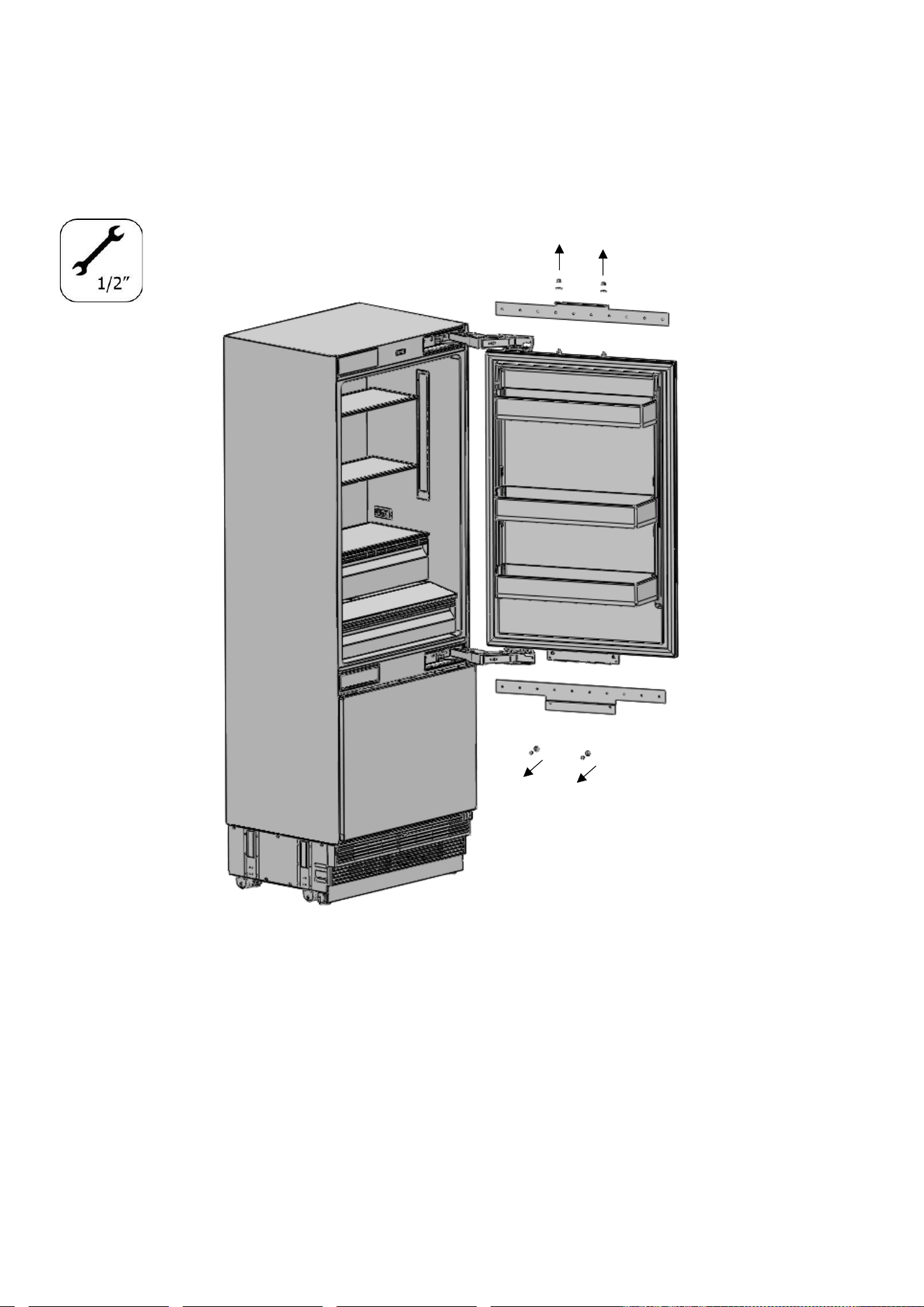

⚫ Remove the upper and lower Adjusting Mechanism assemblies from the door.
Confidential
57
Preparing the Door Overlay Panels
IMPORTANT INFORMATION:
You must take the dimensions into account when grouping the bracket parts on the furniture doors.

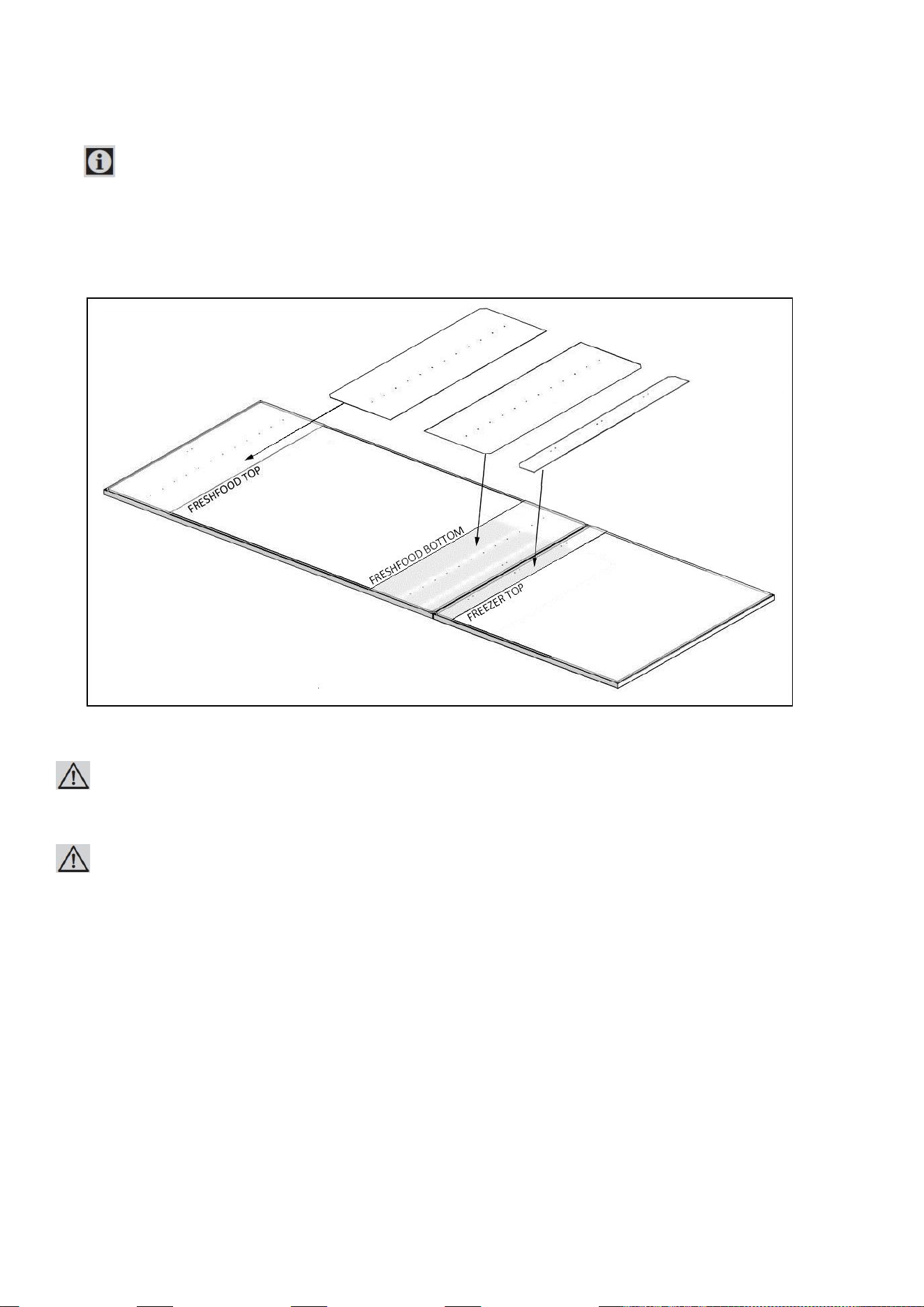

When marking, you can use the "Furniture door preparation template" (Item No 1) provided
with the product.
WARNING:
Handle connection holes must be adjusted according to the handles to be used in kitchen design.
WARNING:
Minimum thickness of the door must be ¾" (19mm).
Confidential
58

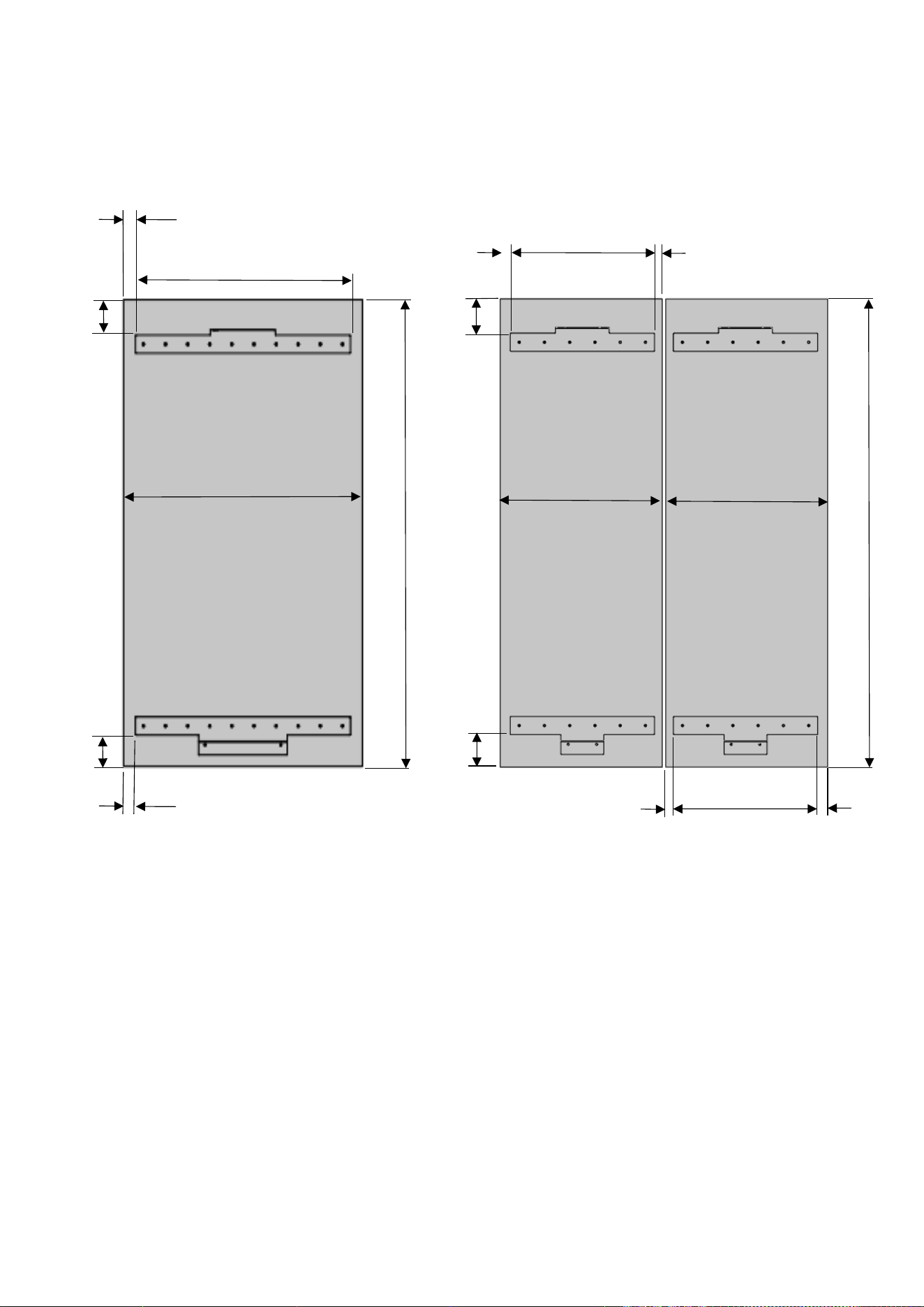

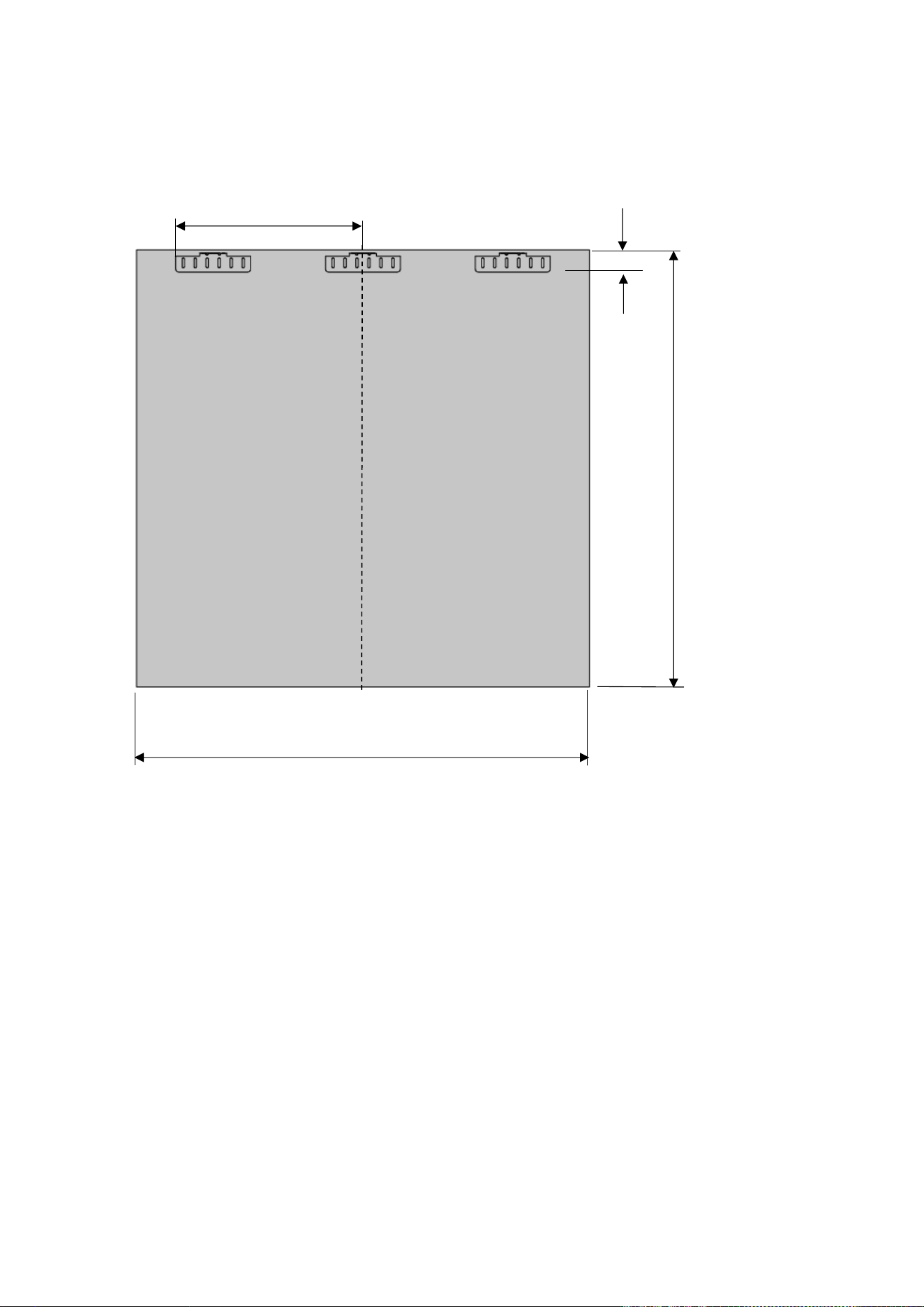

Preparing the Fridge Door Overlay Panel
76：1 7/16” (38mm)
91：4 7/16” (114mm)
76：29 3/4“ (756mm)
91：35 3/4“ (908mm)
51 1/16
” (1297mm)
3 7/16
” (87mm)
26 13/16”(680mm)
3 13/16
” (98mm)
FM4BM30(I)FBI
FM4BM36(I)FBI
FM4FBM36(I)FBI
Right door
Left door
1 1/8” (28mm)
15 3/4“ (400mm)
3 3/4“ (95mm)
17 11/16”
(449mm)
3 7/13” (90mm)
51 1/16” (1297mm)
13/16” (21mm)
76：1 7/16” (38mm)
91：4 7/16” (114mm)
17 11/16”
(449mm)
1 1/8” (28mm)
15 3/4“ (400mm)
13/16” (21mm)
Confidential
59
WARNING:
You must use screws suitable for the door thickness.

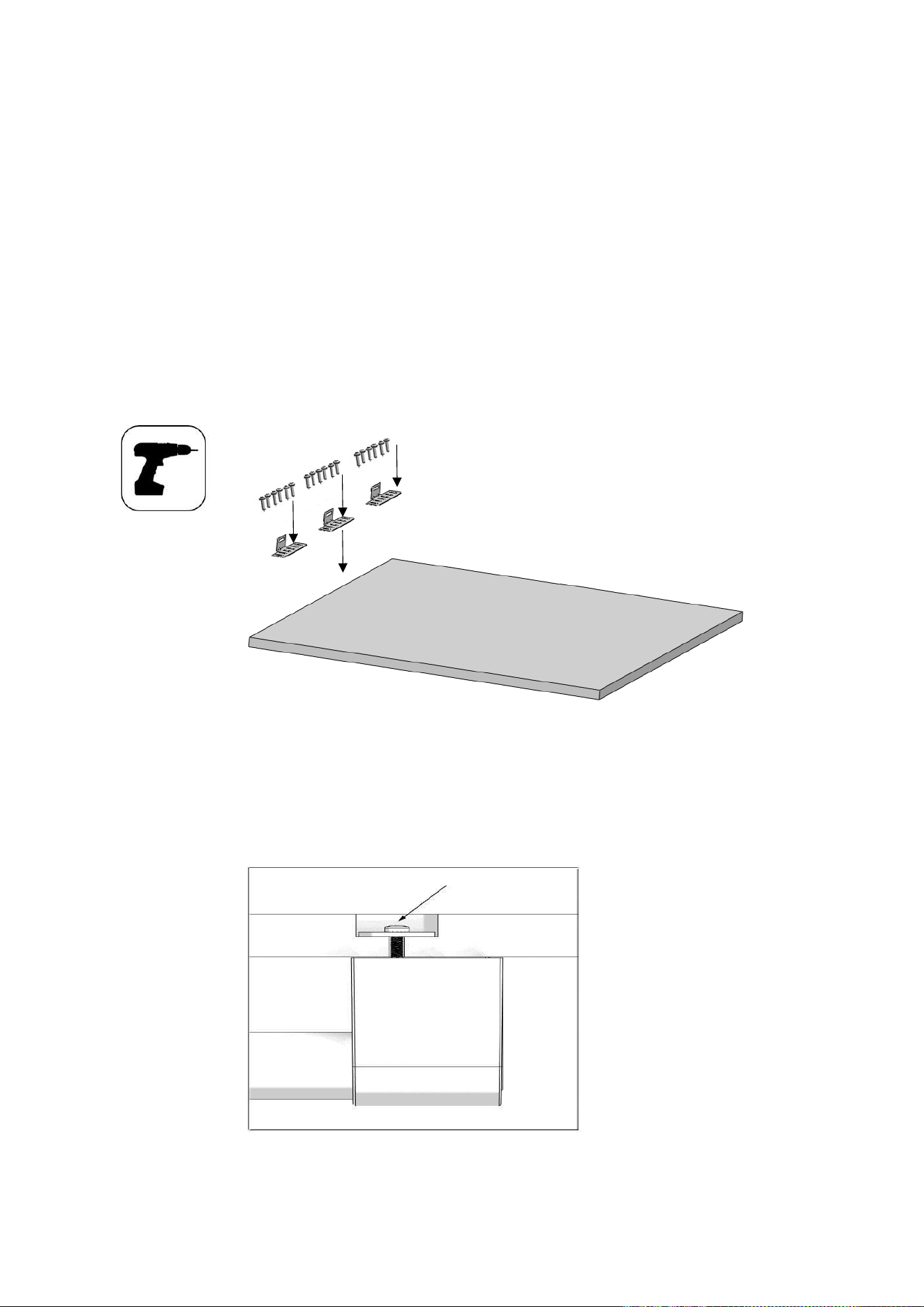

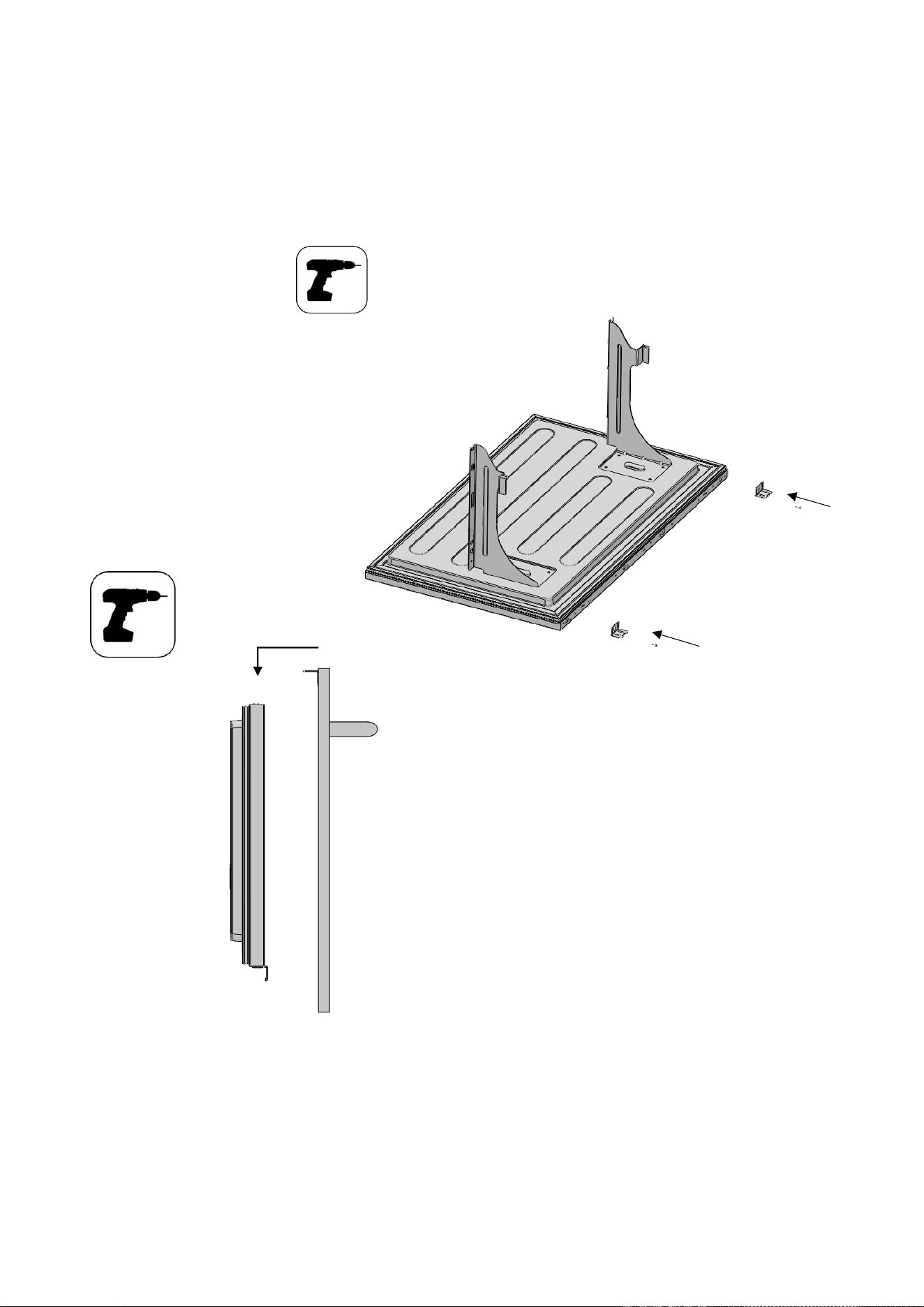

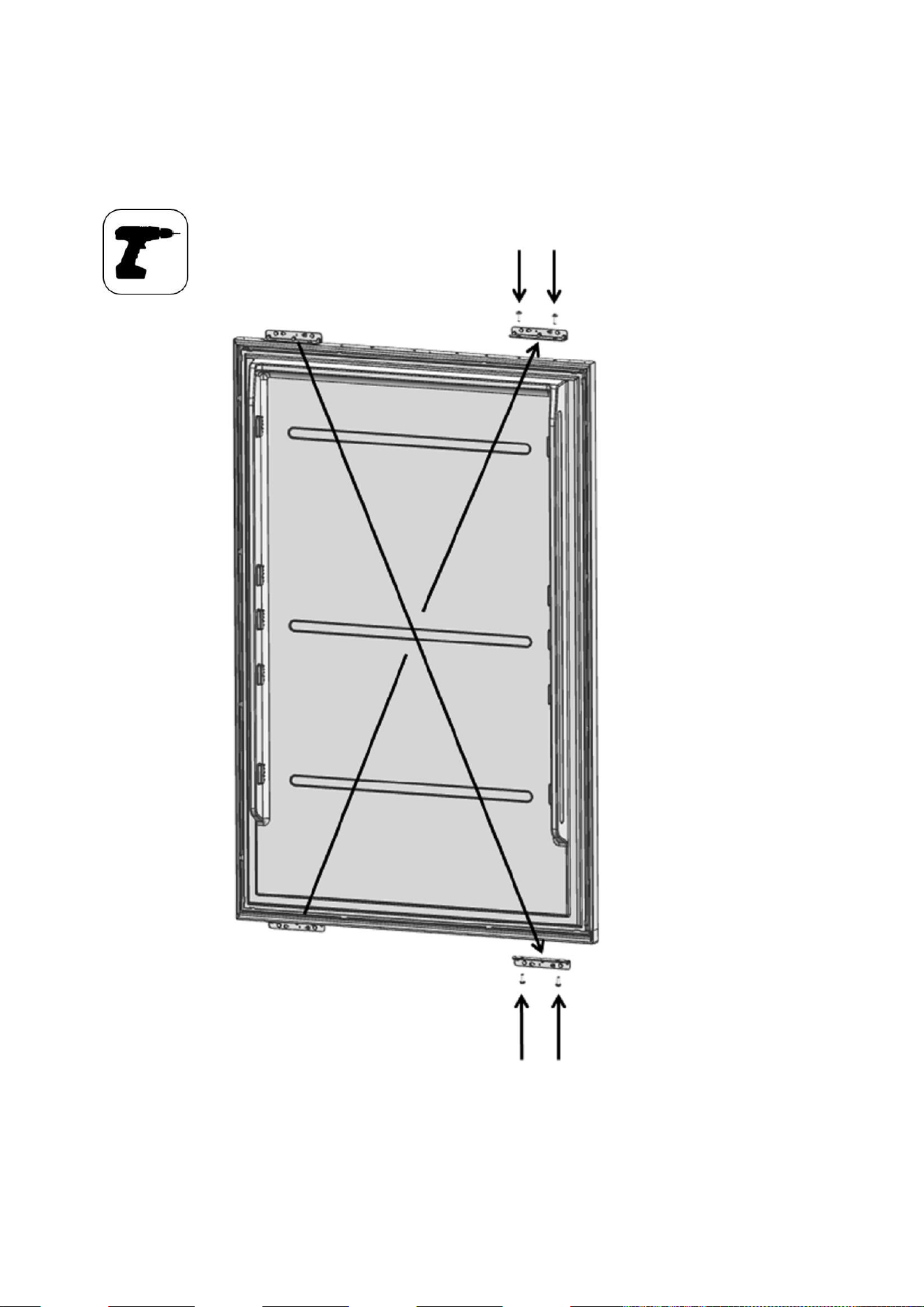

⚫ Install the two hanger brackets using the provided screws (Item No18).
You can also use the furniture door preparation template (Item No 1) provided
with the product to align these parts.
It is recommended to keep this template for future reference.
⚫ Attach the fridge door handle.
⚫ Depending on the style of screw you may need to countersink. The screw head must not protrude.
FM4BM30(I)FBI
FM4BM36(I)FBI
FM4FBM36(I)FBI
Confidential
60
Preparing the Freezer Door Overlay Panel
FM4BM30(I)FBI：12 5/16” (313mm)
FM4BM36(I)FBI/FM4FBM36(I)FBI：15 5/16” (389mm)
1 7/16” (37mm)
28 11/16
“ (729mm)
FM4BM30(I)FBI：29 3/4 “ (756mm)
FM4BM36(I)FBI/FM4FBM36(I)FBI：35 3/4” (908mm)
Confidential
61
WARNING:
Handle connection holes must be adjusted according to the handles to be used in kitchen design.
WARNING:
Minimum thickness of the door must be ¾" (19 mm).
WARNING:
You must use screws suitable for the door overlay panel thickness.
⚫ Attach freezer door hanger brackets (Item No9) using 6 screws (Item No18) for each.
⚫ Attach the freezing door handle.
⚫ Depending on the style of screw you may need to countersink.
The screw head must not protrude.
Confidential
62
INSTALLING THE FRIDGE DOOR OVERLAY
1. Attach the fridge door overlay panel to the fridge door.
Confidential
63
How to align the fridge door with bolts.
Position of the door overlay panel to the kitchen cabinets must be flush.
To achieve this, you should adjust 3D direction using by two fixing bolt to perform fine adjustments.
Before you begin, review the position of the door overlay panels with respect to the adjacent cabinets.
Distances between door overlay panels must be 1/8" (3 mm), assuming that the panel dimensions are correct.
You can make door adjustments based on this distance.
• How to align the door overlay upper part with bolts.
Front & back
Left & right
Up & down
Fixing overlay panel completely
Back out slotted screw to its loosest
position (counterclockwise), then
adjust accordingly.
Confidential
64
• How to align the door overlay panel lower section with bolts.
Up & down
Left & right
Fixing furniture door completely
Front & back
Use the set screws to position the panel in the Z (depth) direction
then fix in place firmly with the washers and bolts removed in the
earlier steps. Do not over-tighten as it will bend the brackets.
Confidential
65
Once you are satisfied with the panel positioning - finally fix the door overlay panel with the provided
brackets shown below. This gives additional strength to the handle side where most of the pulling pressure
is applied to the door overlay panel.
• Use the door overlay panel connecting bracket (Item No16) to join the furniture door.
• Use 1 screw door fixing bracket (Item No15) to fix on the door.
• Use 2 screws (Item No17) to fix on the door overlay panel.
FM4BM30(I)FBI
FM4BM36(I)FBI
Confidential
66
• Snap on the door bracket covers. (Item No14).
FM4BM30(I)FBI
FM4BM36(I)FBI
Confidential
67
• Snap on the bracket covers.
WARNING:
There is a magnet on the cover door hanger bracket upper.
This is a functional part for the operation of the product.
It should not be confused with the lower cover.
FM4BM30(I)FBI
FM4BM36(I)FBI
IMPORTANT: Ensure the upper cover contains
a magnet to detect door opening / closing.
Confidential
68
• Attach and screw the upper/lower decoration cover.
WARNING:
There is a magnet on the cover door hanger bracket upper.
This is a functional part for the operation of the product.
It should not be confused with the lower cover.
FM4FBM36(I)FBI
IMPORTANT: Ensure the upper cover contains a
magnet to detect door opening / closing.
Confidential
69
INSTALLING THE FREEZER DOOR OVERLAY PANEL
• Attach door overlay panel connecting bracket (Item No16) on the door lower section
with screw door fixing bracket (Item No15).
⚫ Attach the door overlay panel
to the freezing door
Confidential
70
How to align the freezing door overlay panel to the lower section
• How to align the freezer door overlay panel upper part with screw freezer door hanger bracket (Item No8).
• Use the door overlay panel
connecting bracket (Item No16) to join the freezer door overlay panel.
• Use 2 screws (Item No17) to secure the door overlay panel.
Front & back
Left & right
Up & down
Use the corresponding
screw hole that will
position the ideal
depth of the panel
If there is gap between bracket and foaming door, this plastic shim can
be used to fill the space.
Confidential
71
• Clip the door overlay panel bracket cover onto the brackets (Item No14).
• Install the complete freezer door assembly onto the rails.
Confidential
72
• Once the freezer door assembly is in place, secure to the drawer rails with 2 screws.
• Locate the drawer onto the rail and tighten the screws.
Confidential
73
• Snap the freezer drawer cover strip (Item No5) onto the buttons on top of the freezer drawer. It should fit
tightly against the overlay panel.
Confidential
74

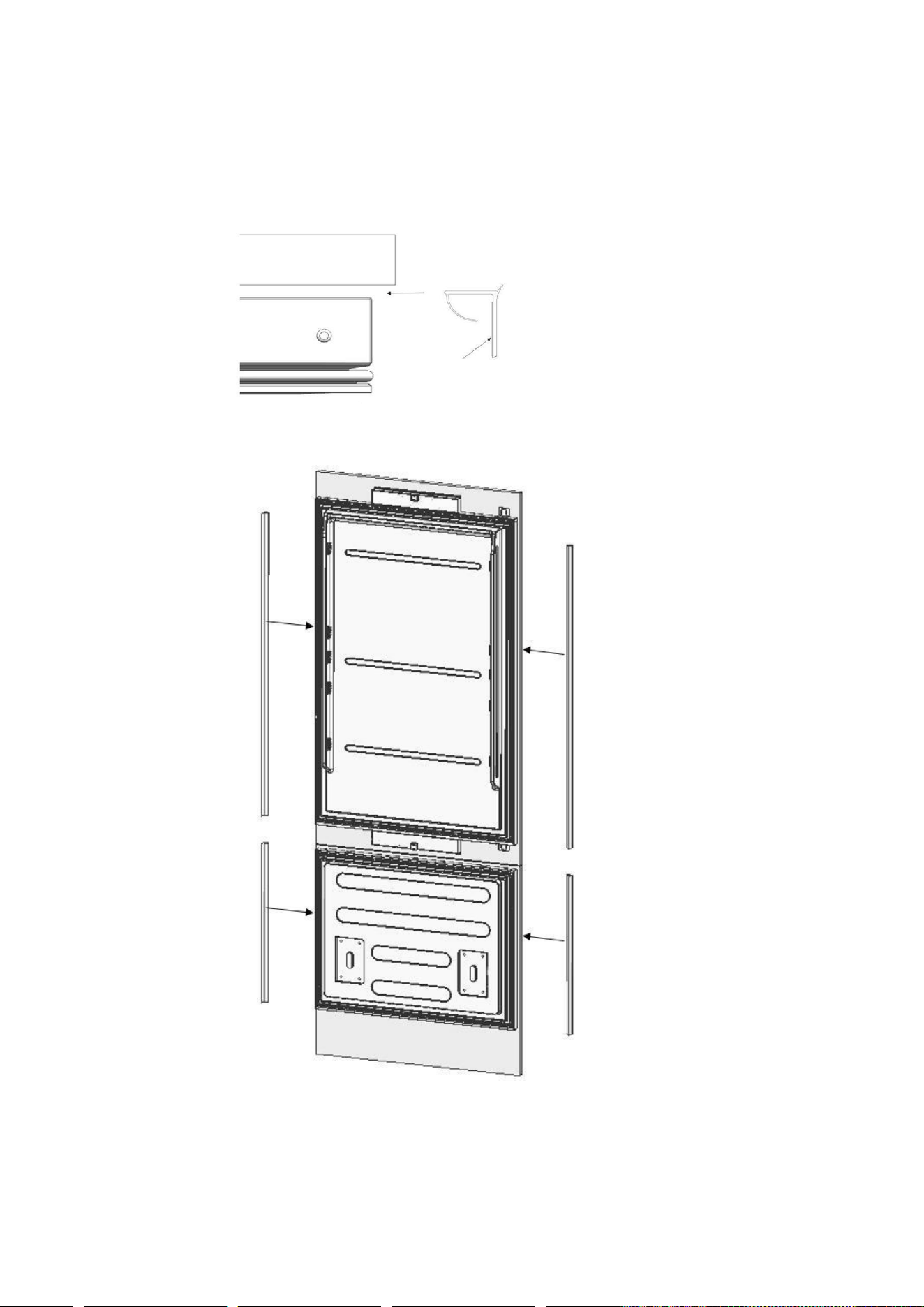

• Attach the door side trim (Item No2,3)
The backing paper of the double-sided tape should be removed before attaching the parts.
Tape
Confidential
75
HINGE ADJUSTMENT
Adjusting the strength of the hinges
• Use a drill to adjust the strength of the close assist of the upper and lower hinges of the fridge door.
Set the hinge adjustment screw to position "I" from position "0".
WARNING:
The door must be fully open during this adjustment.
WARNING:
This hinge adjustment must definitely be performed after the door has been adjusted.
0 = Weakest setting
l = Strongest setting
Confidential
76
CHANGING SWING OF THE FRIDGE DOOR
Removing the fridge door
• Set the hardness level of the hinge to "0".
ATTENTION:
Failure to set the hinge to "0" and continuing the installation like that may cause injury.
• Remove the side trims.
Confidential
77
• Loosen 2 screws of the upper cover of the fridge door and remove it.
• Remove the upper adjustment kits.
• Loosen 2 screws of the lower cover of the fridge door and remove it.
Confidential
78

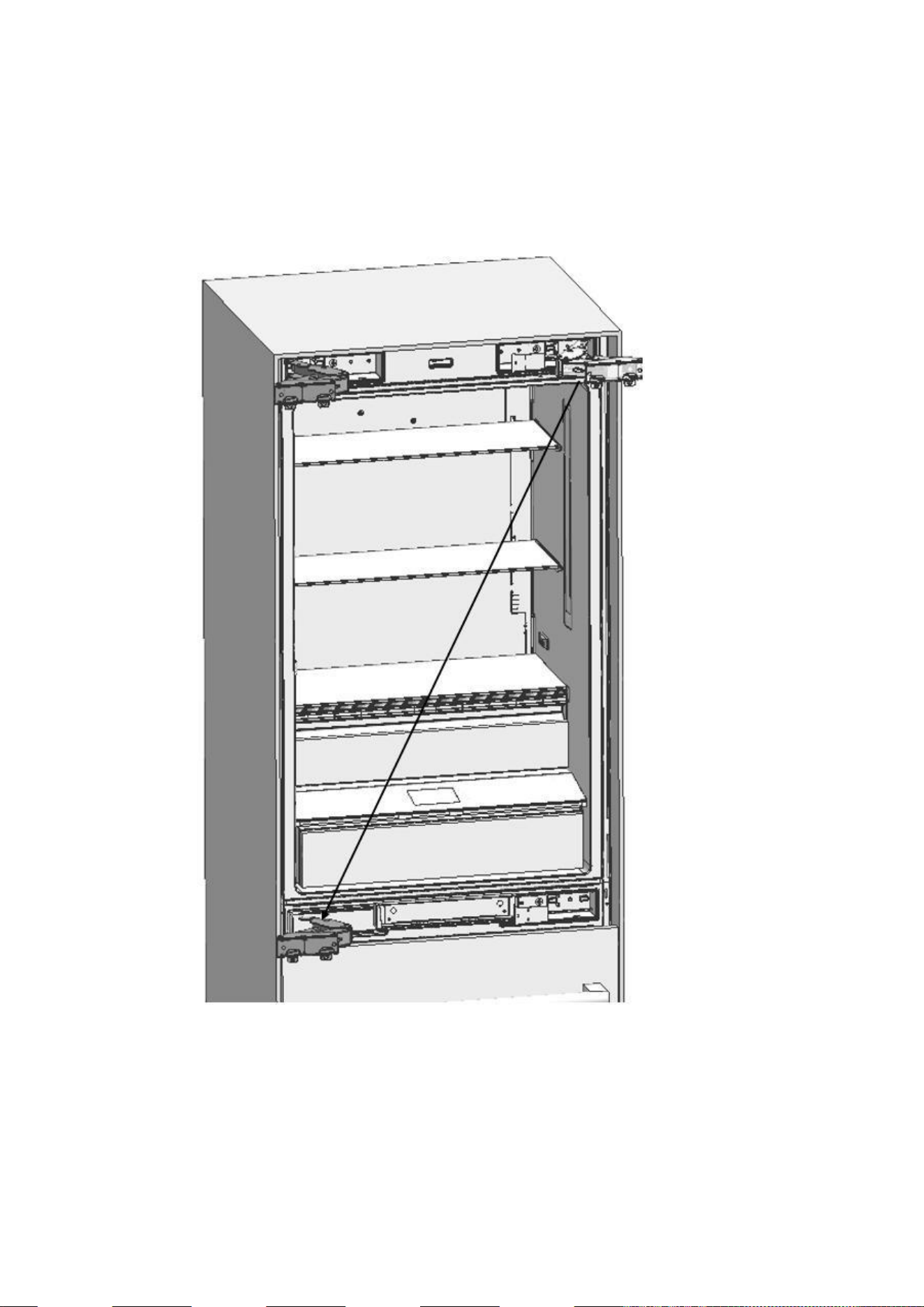

• Remove fridge lower and upper bracket and fixing screws.
FM4BM30(I)FBI
FM4BM36(I)FBI
Confidential
79
WARNING:
The clad door will be released when these screws are removed.
You must take measures to prevent the door from falling.
You can tape the Furniture Door to the Inner Door or ask for help from another person.
• Take the Fridge Furniture Door and lay it down on a table upside down.
• You must attach the Furniture Door by rotating it 180° based on its current position.
Confidential
80
Removing and preparing the Fridge Inner Door
• Remove the hinge connection screws of the Hinge Brackets.
ATTENTION:
The appliance door will be released when these screws are removed. You must take measures
to prevent the door from falling.
Confidential
81
• Take out the fridge door and lay it down on a table remove the fixing parts and
screw them to the opposite side of the door as shown figure.
Confidential
82
Replacing the hinges
• Remove the Hinge Caps located at the other side where you will fix the hinges.
Confidential
83
• Remove the lower right hinge by loosening its 2 screws and fix it to its slot at the upper left side.
Confidential
84
• Remove the upper right hinge by loosening its 2 screws and fix it to its slot at the lower left side.
Confidential
85
• Attach the hinge slot caps removed from the left side to the hinge caps at the right side.
Confidential
86
Installing the Fridge Door
• Place the Fridge Door to the refrigerator and fix it with 4 screws.
DUAL INSTALLATION
If you are going to make a dual installation, you must use the FM4JOINKIT installation kit
Available from your dealer.
The instructions below have been prepared according to Built-in type.
Built-in: Overlay panels for a flush finish with adjacent cabinetry. This is the most common installation scenario.
Confidential
87
Cabinet Dimensions
Cabinet dimensions below must be checked before starting the installation.
√ Dual opening dimension
√ Reference
Location of the Electrical Wiring
Location of the electrical wiring must be within the range given below.
ATTENTION:
Do not use extension cables or two-pin adaptors and do not remove the ground terminal of the grounding cable.
Category
30"+30"
(76+76mm)
30"+36"
(76+91mm)
36"+36"
(91+91mm)
“A” Dimension
60” (1524mm)
66” (1676mm)
72” (1828mm)
Category
FM4BM30(I)FBI
FM4BM36(I)FBI
Abbreviation
30” (76mm)
36” (91mm)
“A”
84” (2134mm)
2“ (635mm)
Confidential
88
ATTENTION:
A qualified electrician must ensure that the poles of the socket are connected correctly. Verify that
the grounding of the socket is correct.
Category
30"+30"
(76+76mm)
30"+36"
(76+91mm)
36"+36"
(91+91mm)
“A” Dimension
19 1/8”
(485mm)
25 1/16”
(637mm)
25 1/16”
(637mm)
2 “ (50.8mm)
11 “ (280mm)
“A”
5” (127mm)
4” (102mm)
Confidential
89
Location of the water system
The water connected to the water mains must be potable.
The location of the water system must be within the range given below.
The water system of the refrigerator must be connected to the water mains system in the house.
The user must be able to switch it on/off with the valve when necessary.
Objects that might pierce the water hoses or cause them to twist must not be present where the water line is installed.
Pressure of the water system must be between 25-80 psi (1.7-5.5 Bar).
If the water pressure exceeds 80 psi, install a pressure limiting device or water impact protector to the inlet valve.
Never install the product or operate the appliance if it is possible for the water pressure to exceed 120 psi.
WARNING:
Make sure that there is no water leakage when making the water connections.
Otherwise, there will be water on the floor and the furniture will get damaged.
You will need a hose with a minimum length of 60" (1.5 meters) and a diameter of ¼"
for water connections of the product during installation.
A connector that has a thread with an external diameter of ¼ must be used to connect the hose end to the product.
Before completing the installation, make sure that water flows and there is no water leakage.
Category
76+76
76+91
91+91
“A” Dimension
20” (508mm)
20” (508mm)
26” (660mm)
4” (102mm)
2“ (50.8mm)
10“ (254mm)
7/8” (21mm)
A “
10“ (254mm)
Confidential
90
Mounting Part list
No
Part name
Spec
Q’ty
Remark
1
Insulation foam panel
Sponge, gray, T3.0*400*1750
1
2
Connecting bracket
T2.0, Cr+zn-coating
2
3
Truss washer head
M4*12
16
4
Fastener
POM
3
5
Central cover
PVC extrusion L=1876
1
Truss washer head screw
Spec : M4x12
Fixing Refrigerator
Such as cabinet and door
(press part)
Confidential
91
Stick the insulation panel (Item No1) to the side of one appliance so that it remains in between two cabins.
60
55
Insulation Panel
T3.0*400*1750
Insulation Panel
Confidential
92

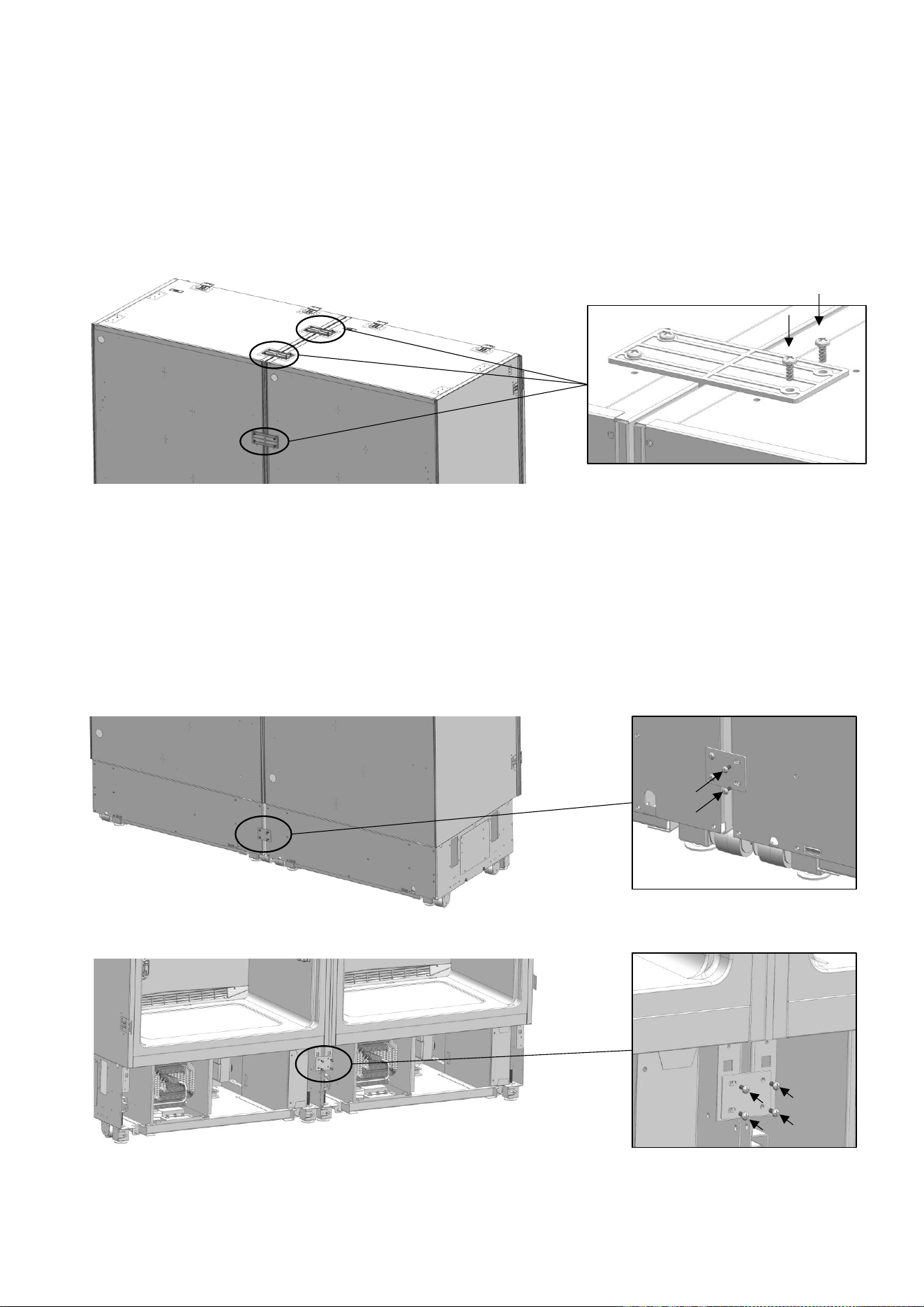

Attaching the fasteners and connecting bracket
Screw the connecting bracket(Item No2) and fasteners (Item No4) that are going
to connect two refrigerators together.
Connecting bracket
Fastener
Confidential
93
Make power and water connections of the refrigerator as explained earlier in this manual.
After making sure that they are in alignment Screw the upper brackets to the other refrigerator.
After making sure that they are in alignment screw the lower brackets to the other refrigerator.
Confidential
94
Adjusting the height of the refrigerator in the cabinet
Adjust the refrigerator height using the adjustable feet.
WARNING:
Fist start with raising the front feet (before the back feet) to reduce the risk of the appliance falling frontward.
• A/D –Turn the key clockwise to lift the front.
• B/C –Turn the key clockwise to lift the rear.
Confidential
95
Screwing the bracket furniture on the cabinet side walls
Secure the appliance connecting brackets to the cabinet with 12 screws .
Screwing the bracket furniture on the cabinet top wall
Secure the appliance connecting brackets to the cabinet with 4screws.
Confidential
96
Attaching the decorative trim parts
Attach the side trim onto the cabinet-appliance connecting brackets.
Attach the top trim onto the cabinet-appliance connecting brackets.
Confidential
97
Attach the trim furniture middle ( Item No5) between two refrigerators.
Confidential
98
Completion installation
You can see previous pages for other installation procedures.
