MC55240DEB
MC55240DE
MC55240DES
2
We thank you
for the confidence you have shown by purchasing
our appliance which is designed to simplify your life. To make the use of the
product easier, we have supplied detailed instructions for use, and installation
instructions supplied on a separate sheet. The instructions should allow you to
learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh food and for long-term storage of
frozen food (up to one year, depending on the type of food).
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
Important safety warning
!
https://www.fridgemaster.co.uk
According to EN standard
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
Contents
Safety and warning information…........2

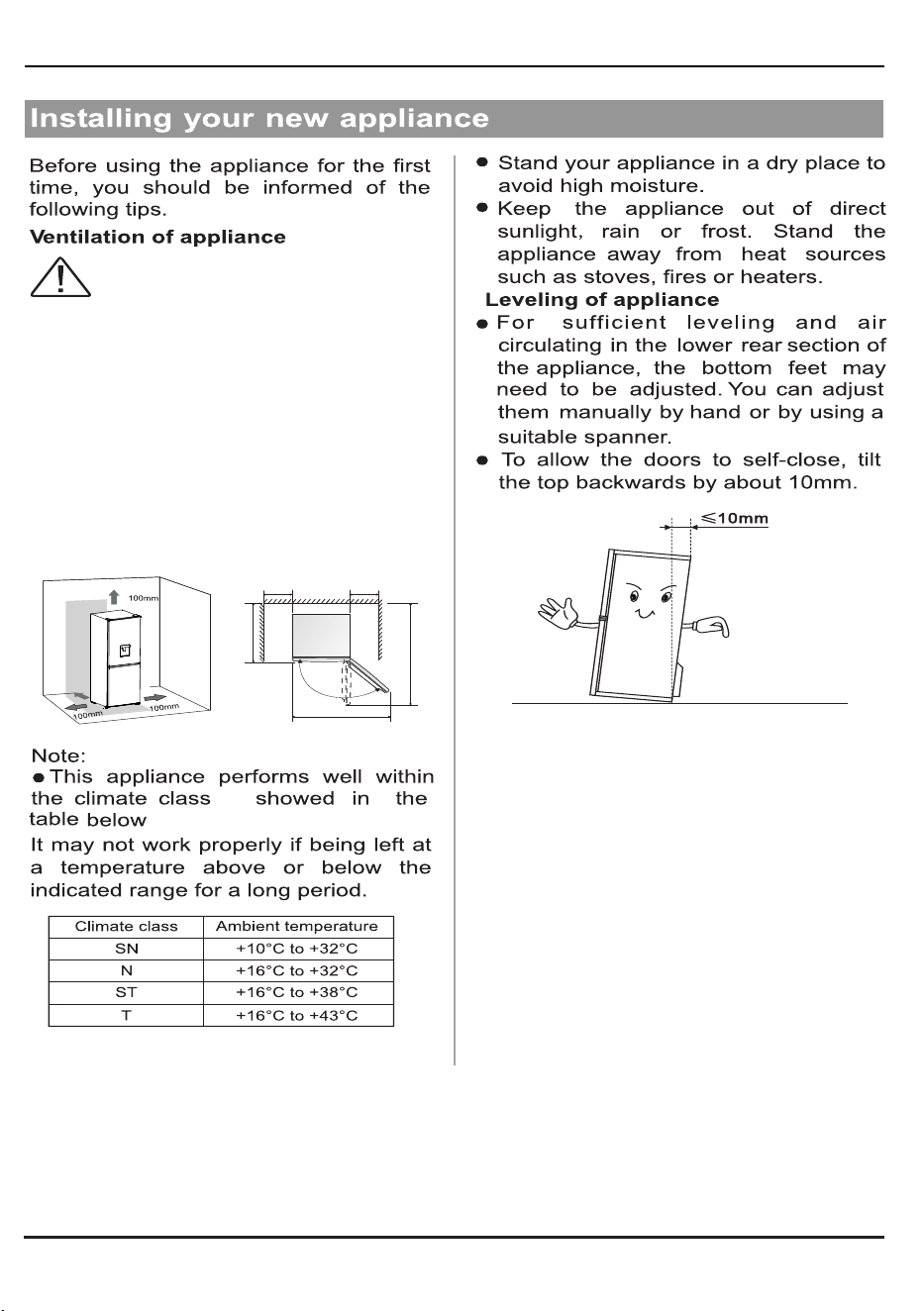

Installing your new appliance………....8
Description of the appliance.................9
Reversing the door............…..........10
Operation.............……….…...............13
Using your appliance.…….…..........14
Helpful hints and tips……….…........16
Cleaning and care.....……………….17
Troubleshooting......…………………19
Disposal of the appliance.......…..…20
2
For your safety and correct usage, before installing and first using the
appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is important to
make sure that all people using the appliance are thoroughly familiar with
its
operation and safety features. Save these instructions and be sure that
they remain with the appliance if it is moved or sold, so that anyone using
it throughout its life, will be properly informed on its usage and safety
notices.
For the safety of life and property, keep the precautions of these user's
instructions as the manufacturer is not responsible for damages caused
by omission.
Safety for children and others who are vulnerable people
According to IEC standard
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning
●
use of the appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the
appliance.
3
Keep all packaging away from children as there is risk of
suffocation.
If you are discarding the appliance, pull the plug out of the socket,
cut the connection cable (as close to the appliance as you can) and
remove the door to prevent children playing from suffering an
electric shock or from closing themselves inside it.
If this appliance, featuring a magnetic door seals, is to replace an
older appliance having a spring lock (latch) on the door or lid, be
sure to make the spring lock unusable before you discard the old
appliance. This will prevent it from becoming a death trap for a child.
General safety
WARNING —This appliance is intended to be used in
household and similar applications such as
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential
type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
WARNING — Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
WARNING — If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
WARNING — Keep ventilation opening, in the appliance enclosure or
in the built-in structure, clear of obstruction.
WARNING — Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by
the manufacturer.
WARNING — Do not damage the refrigerant circuit.
WARNING — Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
WARNING ―Food needs to be packed in bags before putting into the
refrigerator, and liquids need to be packed in bottles or capped
containers to avoid the problem that the product design structure is not
easy to clean.
The symbol is a warning and indicates the refrigerant and
insulation
blowing gas are flammable.
Warning: Risk of fire / flammable materials
4
WARNING — The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so only at an
authorized waste disposal centre. Do not expose to flame.
WARNING —When positioning the appliance, ensure the supply
cord is not trapped or damaged.
WARNING —Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of
environmental compatibility, which is nevertheless flammable. During
transportation and installation of the appliance, ensure that none of
the components of the refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
If the refrigerant circuit should be damaged:
WARNING — Refrigerators contain refrigerant and gases in the
insulation. Refrigerant and gases must be disposed of professionally
as they may cause eye injuries or ignition. Ensure that tubing of the
refrigerant circuit is not damage prior to proper disposal.
Replacing the illuminating lamps
WARNING—The illuminating lamps must not be replaced by the user!
If the illuminating lamps is damaged, contact the customer helpline for
assistance.
This warning is only for refrigerators that contain illuminating lamps.
5
Daily use
Do not store flammable gases or liquids in the appliance, There is a
risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers,mixers etc.).
When unplugging always pull the plug from the mains socket,do not
pull on the cable.
Do not place hot items near the plastic components of this
appliance.
Electrical safety
1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged.
A crushed or damaged power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the
appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power
plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the interior
lighting lamp cover.
7.
The fridge is only applied with power supply of single phase
alternating current of 220~240V/50Hz. If fluctuation of voltage in the
district of user is so large that the voltage exceeds the above scope, for
safety sake, be sure to apply A.C. automatic voltage regulator of more
than 350W to the fridge. The fridge must employ a special power socket
instead of common one with other electric appliances. Its plug must
match the socket with ground wire.
-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is situated.
It is dangerous to alter the specifications or modify this product in any
way.
Any damage to the cord may cause a short circuit, fire, and/or electric
shock.
6
Do not place food products directly against the air outlet on the rear
wall.
Store pre-packed frozen food in accordance with the frozen food
manufacture’s instructions.
The appliances manufactures storage recommendations should be
strictly adhered to relevant instructions for storage.
Do not place carbonated or fizzy drinks in the freeze compartment
as it creates pressure on the container,which may cause it to
explode,resulting in damage to the appliance.
Frozen food can cause frost burns if consumed straight from the
freezer compartment.
Do not place the appliance in direct sunlight.
Keep buring candles,lamps and other items with naked flames
away from the appliance so that do not set the appliance on fire.
The appliance is intended for keeping food stuff and/or beverages
in normal household as explained in this instruction booklet. The
appliance is heavy.Care should be taken when moving it.
Do not remove nor touch items from the freezer compartment if
your hands are damp/wet,as this could cause skin abrasions or
frost/freezer burns.
Never use the base,drawers, doors etc. to stand on or as supports.
Frozen food must not be refrozen once it has been thawed out.
Do not consume ice popsicles or ice cubes straight from the freezer
as this can cause freezer burn to the mouth and lips.
To avoid items falling and causing injury or damage to
the appliance, do not overload the door racks or put too much food
in the crisper drawers.
This refrigerating appliance is not intended to be used as a built-in
appliance.
7
For electrical connection carefully, follow the instructions given in this
manual.
Unpack the appliance and check if there are damages on it. Do not
connect the appliance if it is damaged. Report possible damages
immediately to the place you bought it. In this case retain packing.
It is advisable to wait at least four hours before connecting the
appliance to allow the oil to flow back in the compressor.
Adequate air circulation should be around the appliance, lacking this
leads to overheating. To achieve sufficient ventilation, follow the
instructions relevant to installation.
Wherever possible, the back of the product should not be too close to
a wall to avoid touching or catching warm parts
(compressor, condenser) to prevent the risk of a fire, follow the
instructions relevant to installation.
The appliance must not be located close to radiators or cookers.
Make sure that the mains plug is accessible after the installation of
the appliance.
Service
Any electrical work required to do the servicing of the appliance
should be carried out by qualified electrician or competent person.
This product must be serviced by an authorized Service Center,
and only genuine spare parts must be used.
1) If the appliance is Frost Free.
2) If the appliance contains freezer compartment.
Installation Important!
Before maintenance, switch off the appliance and disconnect the mains
plug from the mains socket.
Do not clean the appliance with metal objects, steam cleaner, ethereal
oils, organic solvents or abrasive cleansers.
Do not use sharp objects to remove frost from the appliance. Use a
plastic scraper.
Caution!
Care and cleaning
8
940
In order to improve efficiency
of the cooling system and save
energy, it is necessary to maintain good
ventilation around the appliance for the
dissipation of heat. For this reason, sufficient
clear space should be available around the
refrigerator. Suggest :It is advisable for there
to be 50-70mm of space from the back to the
wall, at least 100mm from its top,at last
100mm from its side to the wall and a clear
space in front to allow the doors to open 135°.
As shown in following diagrams.
≥
100
1120～
1140
≥
100
50-70mm
607～
627
135°
N
Freezer
Fridge
9
Description of the appliance
View of the appliance
Controller box and LED light1.
Door switch2.
Shelf3.
4. Vegetable drawer cover
5. Vegetable drawer
Serving tray6.
Freezer upper drawer7.
8. Freezer lower drawer
9. Adjustable foot
10. Egg rack(inside)
11. Upper rack
12. Middle rack
13. Water storage box part
Refrigerator door14.
15. Lower rack
16.
Freezer door
Note: To get the best energy efficiency of this product, please place all shelves, drawers on
their original position as the illustration above.
10
Reversing the door
Remove the door shelf
pressinwardly
. Use a putty knife or thin-bla2.
screwdriver to prize the screw hole cover
which is at the top left corner of the
refrigerator, and the upper hinge cover which
is at the top right corner of the refrigerator.
3.. Unscrew the special flange sel
tapping screws which are used for fixing the
right upper hinge part by a 8mm socket driver
or a spanner (please support the upper door
with your hand when doing it) .
right upper hinge part
special flange
selftapping screws
4.4.Remove the upper hinge axi
transfer it to reversed side and tighten
securely, then put it in a safe place.
upper hinge
cover (right)
screw hole cover
②
③
①
5.. Remove the upper door from t
middle hinge by carefully lifting the door
straight up.
NOTE: When removing the door, watch for
washer(s) between the center hinge and the
bottom of the upper door that may stick to the
door. Do not lose.
11
6.. Place the upper door on a smoo
surface with its panel upwards. Loose
screw ②
and part ①, then Install them to
the left side and tighten
①
Stop block
①
②
Self-tapping screw
②
7.. Unscrew the two special flange sel
tapping screws which are used for fixing the
middle hinge part, then remove the middle
hinge part that hold the lower door in place.
NOTE: When removing the door, watch for
washer(s) between the lower hinge and the
bottom of the lower door that may stick to the
door. Don’t lose it.
. Place the lower door on a smoo8.
surface with its panel upwards. Loose screw
② and part ①, then Install them to the left
side and tighten securely.
. Change screw hole covers on midd9.
cover plate from left to right (as shown in
figure below).
Stop bloc
①
②
Self-tapping scre
①
②
screw hole covers
screw hole covers
10.0. Lay the refrigerator on soft f
packaging or similar material. Remove both
adjustable bottom feet parts, and remove the
front feet board and the lower hinge part by
unscrewing the special flange self-tapping
screws.
12
Replace the lower hinge part to the11.
left side and fixing it with the special flange
self-tapping screws. Replace the adjustable
bottom feet parts
to another side and fixing it.
12. Transfer the lower door to the
property position, adjust the lower hinge part,
make the hinge axis into the lower hole of the
lower door, then tight the bolts.
Upturn the middle hinge part the13.
direction 180 degree, transfer it and adjust its
position, make the middle hinge axis into
the upper hole of the lower door, tight the
bolts.
middle hinge part
selftapping screws
14. Transfer the upper door to the
appropriate position. Secure the door’s level,
make the middle hinge axis into the lower
hole of the upper door.
15. Transfer the upper hinge part and
make the upper hinge axis into the upper
hole of the upper door, and adjust the
position of the upper door
(please support the upper door with your
hand when doing it), fixing the upper hinge
part with the special flange self-tapping
screws.
upper hinge part
16. Install the screw hole cover on the
top right corner of the refrigerator. Install the
upper hinge cover (which is in the plastic bag)
on the left corner. Put the other upper hinge
cover into the plastic bag.
upper hinge cover (left)
17. Open the upper door and install the
door shelves, then close it.
screw hole
cover
Warning!
When changing the side at which the door
opens, the appliance must not be connected
to the mains. Remove plug from the mains
beforehand.
13
Operatio
Starting up and temperature regulation
The temperature selector knob is located on
the top of the refrigerator compartment.
Setting 0 means:
Off.
Clockwise rotate the knob to turn on the
appliance
Setting 1 means:
Highest temperature, warmest setting.
Setting 7 (end-stop) means:
Lowest temperature, coldest setting.
Insert the plug of the connection lead into the
plug socket with protective earth contact. When
the refrigerator
compartment door is opened, the internal
lighting is switched on.After the fridge has
been placed in position,wait for 5 minutes
before electricity is supplied.Don't store
anything until the temperature inside the
fridge becomes low enough.
Important! For optimum food preservation, a
medium setting is generally the most suitable. If
you want the temperature higher or colder please
turn the knob to warmer or colder setting
accordingly. When you turn the knob to colder
which can lead to the the more energy
efficiency. Otherwise, it
would result in more
energy-consuming.
High temperature setting will
accelerate food waste.
Important! High ambient temperatures (e.g. on
hot summer days) and a cold setting
(position 6 to 7) may cause the compressor to run
continuously or even non-stop!Reason: when the
ambient temperature is high, the compressor must
run continuously to maintain the low
temperature in the appliance
Warning! If the LED light is
damaged. DO NOT CHANG IT BY
THE USER!
Changing the LED light carried out by
inexperienced persons may cause injury or
serious malfunctioning. it must be replaced by a
qualified persons in order to avoid a hazard.
Contact your local Service Force Center for help.
Before changing the LED light, switch off the
appliance and unplug it, or pull the fuse or the
circuit breaker.
LED Light data: 220-240 V,max.1.5W.
To switch off the appliance, set the
temperature regulator to position “0”.
Unplug the mains plug.
Press the Lampshade, and slide it
backwards.
To change the LED light, undo the
screw .
Remove the bulb fixed block, change the
defective LED light .
Refit the bulb fixed block, the Lampshade
cover and the screw.
Put the refrigerator back into operation.
Changing the LED light
LED light
Lampshade
Screw
Control Box
Bulb fixed block
0
1
2
3
4
5
6
7
14
Various glass, plastic storage shelves or
wire trays are included with your appliance-
different models have different combinations
and different models have different features.
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
Accessories 1)
Movable shelves/trays
Remove and install the door shelf
Remove the door shelf
press inwardly
press inwardly
Install the door shelf
Warning:The door shelfmust not removed
and installed by the user! If the door shelf is
damaged ,contact the customer helpline for
assistance .To replace the door shelf, the
below steps can be followed:
Press the right side of the door shelf
inwardly ,while holding the left side . When
the notch of the shelf has been detached
from the refrigerator door , remove the rack
obliquely upwardly .
Firstly tilt the left side of the door shelf , and
make sure the notch has been fastened to the
door .Then press the right side inwardly.
push it down to the right place.
Freezer food compartment
For freezing fresh food and storing frozen
and deep-frozen food for long periods of
time.
Thawing food
In the refrigerator compartment.
At room temperature.
In a microwave oven.
In a conventional or convection oven. Food
once thawed should not be
1) If the appliance contains related
accessories and functions.
2) If the appliance contains a freezer
compartment.
For storing frozen food. Ice-
cube tray
For making ice and storing ice-cubes.
Refrigerator compartment
Vegetable Drawer
For storing fruit and vegetables.
Freezer Drawer
For storing food that does not need to frozen
and different sections suitable for different
kinds of food.
Using your appliance
15
Water Dispenser
The water dispenser, located in the
fridge door, is for storing drinking
water. With this appliance you can
obtain chilled water easily without
opening the refrigerator. You should
review of following tips.
Dispenser Pad
water storage box
dispenser part
water supply inlet cover
water storage box cover
Before using
Before using this appliance for the first
time, you should use it based on
following instructions:
1.. Hold the two sides of the water ta
tightly, then pull up the water tank by
shaking up and down.
2. Unscrew the head, then clean it2.
the inside of water tank.
①
②
Using your appliance
.
dispenser part
Slot
Guide
① ②
③
④
Assembling
Before assembling, please drain the water
inside the tank, and check whether
the washer reversed or not.
1.. Insert the head into the hol
2.. Fit the tank along the guides
the door.
3.. Press down two side of the tan
4.. When you hear a click sound, th
means the installation is completed.
1.. Be careful not to press on the hea
2.. when fitting the water tank, ensu
the head inserted into the hole first.
Filling water
1.. Open the water supply inlet cov
from the left side.
2.
Fill the water.
Caution!
●
Fill with water up to 2.5L (which is
suggested), and not above the level.
Otherwise, it may overflow even when
the cap cover is close.
Accessories 2)
Helpful hints and tips
Energy saving tips
We recommend that you follow the tips
below to save energy.
Try to avoid keeping the door open for long
periods in order to conserve energy.
Ensure the appliance is away from any
sources of heat (Direct sunlight, electric oven
or cooker etc)
● Don't set the temperature colder than
necessary.
Don't store warm food or evaporating
liquid in the appliance.
Place the appliance in a well ventilated,
humidity free, room. Please refer to Installing your
new appliance chapter.
If the diagram shows the correct
combination for the drawers, crisper and
shelves, do not adjust the combination as
this is designed to be the most energy
efficient configuration.
●
●
●
●
Hints for fresh food refrigeration
Do not place hot food directly into the
●
refrigerator or freezer, the internal temperature
will increase resulting in the compressor having to
work harder and will consume more energy.
●
Do cover or wrap the food，particularly if it
has a strong flavor.
Place food properly so that air can
●
circulate freely around it.
Hints for refrigeration
●
Meat (All Types) wrap in polythene food:
wrap and place on the glass shelf above the
vegetable drawer. Always follow food storage times
and use by dates suggested by manufacturers.
●
Cooked food, cold dishes, etc.:
They should be covered and may be placed
on any shelf.
●
Butter and cheese:
Should be wrapped in airtight foil or plastic film
wrap.
●
Other beverage(milk,juice,
carbonated beverage etc) is not
suggestted to be used than potable
water.Especially beverage
including grain must not be used
(may result in
failure).
●
Hot water can not be filled into the
water tank directly.
Warning!
Don't touch other parts of the appliance when
filling water, it may cause the water leakage.
Receiving Water
You should use the correct cups to
receive water underneath the water
dispenser.
Warning!
Don’t push the dispenser lever
forward without cup, it may cause
the water leak from the dispenser.
Cleaning
1. Put the water tank out of the door
carefully, and then wash the tank,cap
cover,cover bucket, and the valve lightly in
water.
2. After you have successfully
cleaned the appliance, you should dry it
by natural drying or using the dryer.
3. You should clean the receiving
tank with dry towel regularly to avoid
overflowing.
16
●
It is recommended to label and date each
frozen package in order to keep track of the
storage time.
Hints for the storage of frozen food
Ensure that frozen food has been stored
correctly by the food retailer
Once defrosted， food will deteriorate
rapidly and should not be re-frozen. Do not exceed
the storage period indicated by the food
manufacturer.
Switching off your appliance
If the appliance needs to be switched off for an
extended period, the following steps should be
taken prevent mould on the appliance.
1.. Remove all foo
2.. Remove the power plug from the mai
socket.
3.
. Clean and dry the interior thorough .
4.. Ensure that all the doors are wedg
open slightly to allow air to circulate.
film wrap.
Milk bottles:
Should have a lid and be stored in the door racks.
Hints for freezing
When first starting-up or after a period out
of use, let the appliance run at least 2 hours on the
higher settings before putting food in the
compartment.
Prepare food in small portions to enable it
to be rapidly and completely frozen and to make it
possible to subsequently thaw only the quantity
required.
●
Wrap up the food in aluminum foil or
polyethylene food wraps which are airtight,
●
Do not allow fresh，unfrozen food to
touch the food which is already frozen to avoid
temperature rise of the latter.
Iced products，if consumed immediately
after removal from the freezer compartment, will
probably cause frost burns to the skin.
●
●
●
●
●
●
●
Cleaning and care
For hygienic reasons the appliance
(including exterior and interior accessories) should
be cleaned regularly at least every two months.
Caution! The appliance must not be
connected to the mains during cleaning.
Danger of electrical shock! Before cleaning switch
the appliance off and remove the plug from the
mains socket.
Exterior cleaning
To maintain good appearance of your
appliance, you should clean it regularly.
-Wipe the digital panel and display panel with a
clean, soft cloth.
-Spray water onto the cleaning cloth instead of
spraying directly on the surface of the appliance.
This helps ensure an even distribution of
moisture to the surface.
-Clean the doors, handles and cabinet
surfaces with a mild detergent and then wiped dry
with a soft cloth.
Caution!
-Don't use sharp objects as they are likely to scratch
the surface.
-Don't use thinner, car detergent, clorox, ethereal oil,
abrasive cleansers or organic
17
1.Remove existing food and accessori1.
2.. When defrosting is completed, clean yo
solvent such as Benzene for cleaning. They may
damage the surface of the appliance and may cause
fire.
Interior cleaning
You should clean the appliance interior
regularly. It will be easier to clean when food stocks
are low. Wipe the inside of the fridge freezer with a
weak solution of bicarbonate of soda, and then rinse
with warm water using a wrung-out sponge or cloth.
Wipe completely dry before replacing the shelves
and baskets.
Thoroughly dry all surfaces and removable parts.
A layer of frost may occur on the freezer
compartment's interior walls if the freezer door is
opened frequently or kept open too long. If the frost
is too thick, choose a time when the supply of food
stocks are low and proceed as follows:
baskets, unplug the appliance from the mains
power and leave the doors open. Ventilate the
room thoroughly to accelerate the thawing
process.
freezer as described above.
Defrosting in frozen-food storage
compartment
Take the ice tray and food in drawers out or put
them into the fresh food compartment
temporarily.
Set the knob of the temperature regulator to
position “0”(where the compressor will stop
working) and leave the door of the refrigerator
open until ice and frost dissolve thoroughly and
accumulation at the bottom of the freezer
chamber. Wipe off the water with soft cloth.
In the case of speeding up the process of
defrosting, you may put a bowl of warm water
(about 50°C) into the freezer chamber, and
scrape away the ice and frost with a
defrosting spatula. After doing so,be sure to
set the knob of the temperature regulator to
the original position.
It is not advisable to heat the freezer chamber
directly with hot water or hair dryer while
defrosting to avoid deformation of the inner
case.
It is also not advisable to scrape off ice and
frost or separate food from the containers
which have been congealed together with the
food with sharp tools or wooden bars, so as
not to damage the inner casing or the surface
of the evaporator.
Caution! Don't use sharp objects to remove frost
from the freezer compartment. Only after the interior
is completely dry should the appliance be switched
back on and plugged back into the mains socket.
Door seals cleaning
Take care to keep door seals clean. Sticky food and
drinks can cause seals to stick to the cabinet and tear
when you open the door. Wash seal with a mild
detergent and warm water. Rinse and dry it
thoroughly after cleaning.
Caution! Only after the door seals are completely dry
should the appliance be powered on.
Defrosting in fresh food storage
compartment
It is automatically controlled by switching the
temperature regulator on or off so that there is no
need of operation of defrosting. Water from
defrosting will be drained into an drip tray through
a drain pipe at the back of the fridge
automatically.
Defrosting in freezer chamber is operated
manually. Before defrosting, take the food out.
Defrosting
Why defrosting
Water contained in food or getting into air inside
the fridge be opening doors may form a frost layer
inside. It will weaken the refrigeration when the
frost is thick. While it is more than 10mm thick,
you should defrost.
Warning! Switching off the appliance before
defrosting, turn the temperature regulator to
position “0”.
Important! The fridge should be defrosted at
least every one month. During the using
process, if the door was opened frequently or
using the appliance in the extreme humidity,
we advise the user to defrost every two
weeks.
Go out of use for a long time
Remove all refrigerated packages.
Switch off the appliance by turning the
temperature regulator to position “0”.
Remove the mains plug or switch off or
disconnect the electricity supply.
Clean thoroughly (see section: Cleaning and
Care)
Leave the door open to avoid the build up of
odors.
Note:
If the appliance contains freezer
compartment
18
Troubleshooting
If you experience a problem with your appliance or are concerned that the appliance is not functioning
correctly, you can carry out some easy checks
according to this section before
before calling
for
service.
19
It is normal to frequently hear the sound of the motor, it will need to
run more when in following circumstances:
●
Temperature setting is set colder than necessary
●
Large quantity of warm food has recently been stored
within the appliance.
●
The temperature outside the appliance is too high.
●
Doors are kept open too long or too often.
●
After your installing the appliance or it has been switched
off for a long time.
The motor runs
continuously
Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks
mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased
the product.
Problem
Possible cause & Solution
Appliance is not
working correctly
Check whether the power cord is plugged into the power
outlet
properly.
Check the fuse or circuit of your power supply,replace if
necessary.
The ambient temperature is too low. Try setting the chamber
temperatur
e to a colder level to solve this problem.
Odours from the
compartments
The interior may need to be cleaned
Some food, containers or wrapping cause odours.
Noise from the appliance
Other unusual noises are due to the reasons below and may need
you to check and take action:
●
The cabinet is not level.
●
The back of appliance touches the wall.
●
Bottles or containers fallen or rolling.
The sounds below are quite normal:
●
Compressor running noises.
●
Air movement noise from the small fan motor in the
freezer compartment or other compartments.
●
Gurgling sound similar to water boiling.
●
Popping noise during automatic defrosting.
●
Clicking noise before the compressor starts.
A layer of frost occurs in
the compartment
Ensure food is placed within the appliance to allow sufficient
ventilation. Ensure that door is fully closed. To remove the frost,
refer to cleaning and care chapter.
20
Temperature inside is too
warm
You may have left the doors open too long or too frequently; or the
doors are kept open by some obstacle; or the appliance is located
with insufficient clearance at the sides, back and top .
Temperature inside is
too cold
Doors can’t be
closed easily
Increase the temperature by following the “operation” chapter.
Check whether the top of the refrigerator is tilted back by
10-15mm to allow the doors to self close, or if something inside
is preventing the doors from closing.
Water drips
on the floor
The light is not working
The water pan (located at the rear bottom of the cabinet) may not be
properly leveled, or the draining spout under neath the top of the
compressor depot may not be properly positioned to direct water into
this pan, or the water spout is blocked. You may need to pull the
refrigerator away from the wall to check the pan and spout.
●
The light may be damaged. Refer to replace lights in
operation chapter.
Disposal of the appliance
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the packaging
into a suitable waste collection container to recycle it.
Before disposal of the appliance
1.
Pull out the mains plug from the mains socket.
2.
Cut off the power cord and discard with the mains plug.
Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must
be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the
refrigerant circuit is not damage prior to proper disposal.
Correct Disposal of this product
This symbol on the product or in its packing indicates that this product may not be
treated as household waste. Instead, it should be taken to the appropriate waste
collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be
caused by the inappropriate waste handling of this product. For more detailed
information about the recycling of this product, please contact your local council
your household waste disposal service, or the shop where you purchased the
product.
21
~
~
~

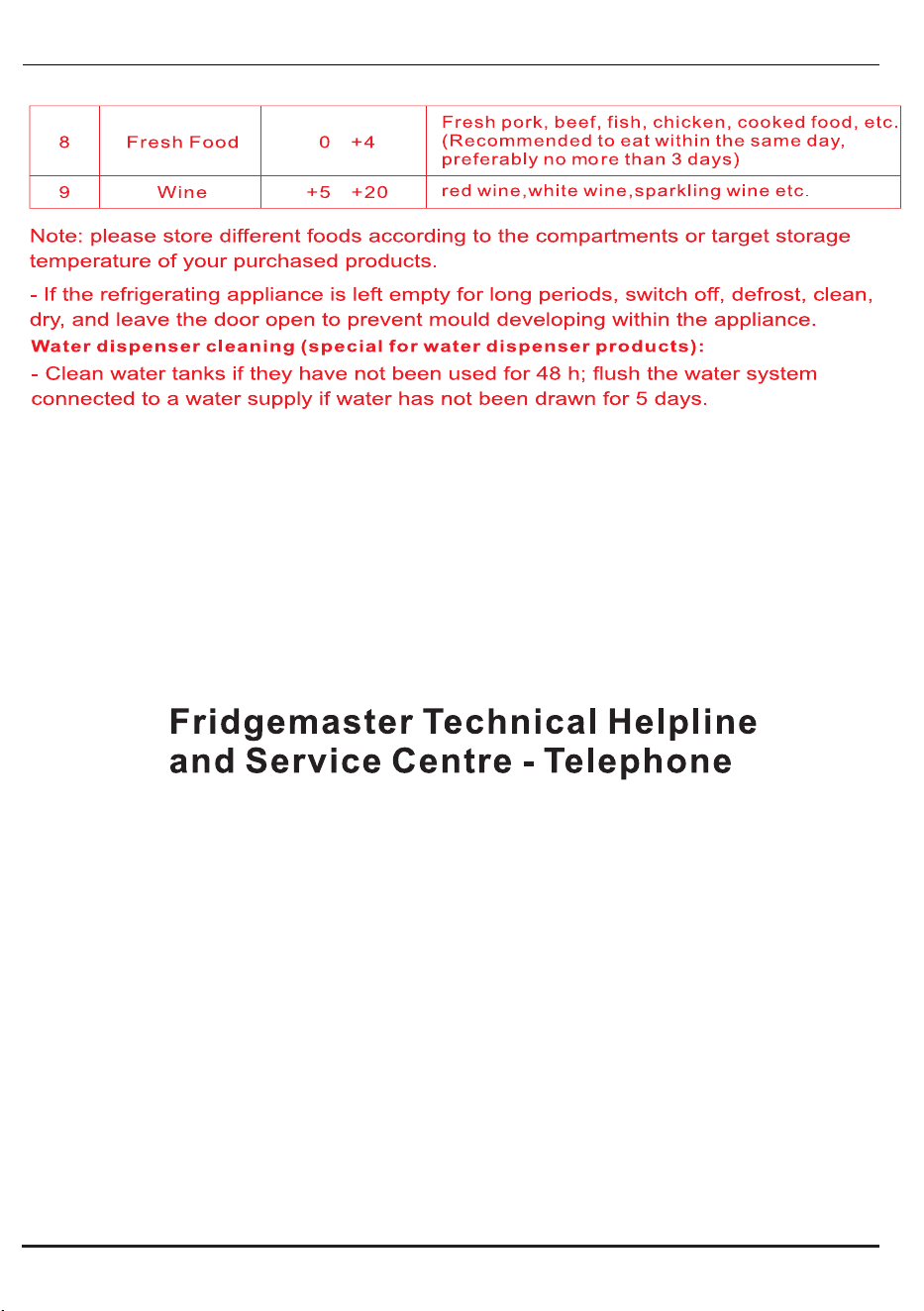

- Clean water tanks if they have not been used for 48 h.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry,
and leave the door open to prevent mould developing within the appliance.
2
2
~
~
0191 387 0804
FRIDGEMASTER
Ground floor, Munroe Court,
White Rose Office Park,
Millshaw Park Lane,
Leeds LS11 0EA
United Kingdom
Fridgemaster Technical helpline and
Service Centre
Telephone 0191 387 0804
