GM-30 PLUS
User Manual
GMRS Radio

PREFACE
Thank you for purchasing GM-30 PLUS Two Way Radio, It is a multitask GMRS transceiver. Combining the latest technology in
radio communication along with a sturdy mechanical frame, GM-30 PLUS is the ideal and effective solution for the
professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels)
or for leisure users that just want to keep up with friends and family.
IMPORTANT NOTICE
To help you ward off bodily injury or property loss that may arise from improper operation, please read all the
information carefully before using our products. This contains instructions for safe usage and RF energy
awareness and control for compliance with applicable standards and regulation.
Safety Information for GMRS Radios
Your wireless handheld portable transceiver contains a low power transmitter. When the talk button is pushed, it sends out
radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the
Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless
devices.
FCC Part 15.21 Warning Statement
THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
I

Table of Contents
1. GETTING STARTED 5.6 Channel mode and Channel selection
1.1 Regulations and Safety Warnings 5.7 Selecting a Zone
1.2 Content of the packaging 5.8 Making a call
1.3 Features and Functions 5.9 Using the Flashlight
2. BATTERY INFORMATION 5.10 Emergency Alert
2.1 Charging the Battery Pack 5.11 FM Radio (FM)
2.2 Charger Supplied 5.12 Monitor
2.3 Use Caution with the Li-ion Battery 5.13 Keypad lock
2.4 How to Charge 5.14 Frequency reversal
2.5 Using the Type-C Charger 5.15 TX repeaters tone
2.6 Battery Maintenance 5.16 Weather Radio/Scan Weather Channel
2.7 Prolonging the life of your battery 6. ADVANCED FEATURES
2.8 How to Store the Battery 6.1 Scanner
3. PREPARATION 6.2 DTMF
3.1 Installing / Removing the Battery 6.3 Amateur Radio Setup
3.2 Installing / Removing the Antenna 7. MAIN MENU FUNCTIONS
3.3 Installing / Removing the Belt Clip 7.1 Basic use
3.4 Installing Additional Speaker/Microphone 7.2 Using short-cuts
4. RADIO OVERVIEW 7.3 Radio Settings
4.1 Status Indications 7.4 GPS function
4.2 LCD icon summary 7.5 Program Channel
4.3 Main keypad controls 7.6 Radio Info
5. BASIC OPERATIONS Appendix A. – Trouble shooting guide
5.1 Power on the radio Appendix B. - Technical Specifications
5.2 Adjusting the volume Appendix C. - Shortcut Menu operations
5.3 Main Band/Sub Band Switch Appendix D. - DCS Table
5.4 VFO/Channel Switch Appendix E. - CTCSS Table
5.5 Frequency (VFO) mode
II

1. GETTING STARTED
1.1 Regulations and Safety Warnings
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
Important: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this device. Your radio is set up to transmit a regulated signal on an assigned frequency. It is
against the law to alter or adjust the settings inside the radio to exceed those limitations. Any adjustments to your radio
must be made by qualified technicians.
To be safe and sure:
• Never open your radio’s case.
• Never change or replace anything in your radio except the battery.
Your radio might cause TV or radio interference even when it is operating properly. To determine whether your radio is
causing the interference, turn it off. If the interference goes away, your radio is causing it. Try to eliminate the interference by
moving your radio away from the receiver. If you cannot eliminate the interference, the FCC requires that you stop using the
radio.
Hazardous Environments: Do not operate the radio in hazardous environments. Explosion or fire may result.
Do not operate the radio near unshielded electrical blasting caps.
Under certain conditions, radios can interfere with blasting operations and may cause an explosion. Turn your radio OFF to
prevent accidental transmission when in a blasting area or in areas posted: "Turn off two-way radio." Construction crews
often use remote control RF devices to set off explosives.
Care and Safety: To clean the radio, use a soft cloth dampened with water. Do not use cleaners or solvents because they can
harm the body of the unit and leak inside, causing permanent damage. Use a dry, lint-free cloth to clean the battery
contacts.
-1-

RF Exposure Information
WARNING! Read this information before using the radio. In August 1996 the Federal Communications Commission (FCC) of
the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to
radio frequency electromagnetic energy emitted by FCC regulated transmitters.
Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The
design of the radio complies with the FCC guidelines and these international standards.
Never allow children to operate the radio without adult supervision and the knowledge of the following guidelines.
WARNING! It is up to the user to properly operate this radio transmitter to insure safe operation. Please adhere to the
following:
Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call
quality, damage the radio, or result in violation of FCC regulations.
Do not use the radio with a damaged antenna.
If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for a
replacement antenna.
Hand-held Operation (Held-to-Face)
This device was evaluated for typical hand-held (held-to- face) operations with a 1 inch spacing from the front of the radio.
For hand-held operation, the radio should be held 1 inch from the user's face in order to comply with FCC RF exposure
requirements.
For more information about RF exposure, please visit the FCC web site at www.fcc.gov.
Body-worn Operation
This device was evaluated for body-worn operations with the supplied belt-clip accessory. (All necessary accessories are
included in the package; any additional or optional accessories are not required for compliance with the guidelines.) Third
party accessories (unless approved by the manufacturer) should be avoided as these might not comply with FCC RF exposure
guidelines.
For more information about RF exposure, please visit the FCC web site at www.fcc.gov.
-2-

GMRS Communication
This GMRS (General Mobile Radio Service) feature is a land-mobile service available for short-distance, two-way
communications in the USA. You must have a valid FCC license to communicate on these channels. The GMRS/FRS
frequencies that radio this radio uses are set aside for communicating with others while hiking, biking, and working; keeping
track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors;
arranging meeting spots with others while shopping at the mall. Licensed users will be issued a call sign by the FCC, which
should be used for station identification when operating this radio. GMRS users should also cooperate by
engaging in
permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of
their transmission time.
FCC License Required
This two-way radio operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal
Communications Commission) license. A user must be licensed prior to transmitting on the GMRS band with this radio.
Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules. Operation of this radio is
subject to additional rules specified in 47 C.F.R. Part 95. For licensing information and application forms, please call the FCC
Hotline at 800418-FORM. Request form #159 and form #605. Questions regarding the license application should be directed
to the FCC at 888-CALL-FCC. Additional information is available on the FCC’s website at www.fcc.gov.
NOTE: Even if you operate this radio on FRS (Family Radio Service) channels at low power (0.5 watt), you are required to have
an FCC license. Because this radio operates in the 0.5 to 5 watt GMRS power range all GMRS rules apply and will
require you have a GMRS license even for FRS (Family Radio Service) communication. Normal FRS only radios operate
at a maximum power of 0.5 watt (500 mill watt) power and have an integral (non-detachable) antenna.
FCC Warnings
Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those
recommended by may cause a violation of the technical regulations of part 95 of the FCC rules, or violation of type
acceptance requirements of part 2 of the rules.
-3-

■ Precautions for Portable Terminals
Operating Prohibitions
To protect you against any property loss, bodily injury or even death, be sure to observe the following safety instructions:
1. Do not operate the product in a location containing fuels, chemicals, explosive atmospheres and other flammable or
explosive materials. In such location, only an approved Ex-protection model is allowed for use, but any attempt to
assemble or disassemble it is strictly prohibited.
2. Do not operate the product near or in any blasting area.
3. Do not operate the product near any medical or electronic equipment that is vulnerable to RF signals.
4. Do not hold the product while driving.
5. Do not operate the product in any area where use of wireless communication equipment is completely prohibited.
Important Tips
To help you make better use of the product, be sure to observe the following instructions:
1. Do not use any unauthorized or damaged accessory.
2. Keep the product at least 2.5 centimeters away from your body during transmission.
3. Do not keep the product receiving at high volume for a long time.
4. For vehicles with an air bag, do not place the product in the area over the air bag or in the air bag deployment area.
5. Keep the product and its accessories out of reach of children and pets.
6. Please operate the product within the specified temperature range.
7. Continuous transmission for a long time may lead to heat accumulation within the product. In this case, please keep it at
a proper location for cooling.
8. Handle the product with care.
9. Do not disassemble, modify or repair the product and its accessories without authorization.
■ Precautions for Batteries
Charging Prohibitions
To protect you against any property loss, bodily injury or even death, be sure to observe the following safety instructions:
1. Do not charge or replace your battery in a location containing fuels, chemicals, explosive atmospheres and other
-4-

flammable or explosive materials.
2. Do not charge your battery that is wet. Please dry it with a soft and clean cloth prior to charge.
3. Do not charge your battery suffering deformation, leakage and overheat.
4. Do not charge your battery with an unauthorized charger.
5. Do not charge your battery in a location where strong radiation is present.
6. Overcharge shall always be prohibited for it may shorten the life of your battery.
Maintenance Instructions
To help your battery work normally or prolong its life, be sure to observe the following instructions:
1. Accumulated dust on charging connector may affect normal charging. Please use a clean and dry cloth to wipe it on a regular basis.
2. It is recommended to charge the battery under 5℃~40℃. Violation of the said limit may cause battery life reduction or even battery
leakage.
3. To charge a battery attached to the product, turn it off to ensure a full charge.
4. Do not remove the battery or unplug the power cord during charging to ensure a smooth charging process.
5. Do not dispose of the battery in fire.
6. Do not expose the battery to direct sunlight for a long time nor place it close to other heating sources.
7. Do not squeeze and penetrate the battery, nor remove its housing.
Transportation Instructions
1. Damaged batteries must not be transported.
2. To avoid short circuit, separate the battery from metal pars or from each other if two or more batteries are transported in one packaging.
3. The radio must be switched off and secured against switch-on, if the battery is attached.
The content of the shipment must be declared in the shipping documents and by a Battery Shipping Label on the packaging. Contact your hauler
for the local regulations and further information.
1.2 Content of the packaging
This transceiver comes shipped with the following items in the box:
• 1 Radio body • 1 Belt Clip • 1 Antenna
• 1 Lithium-Ion battery pack • Instruction Manual • 1 Wrist Belt
*If any item is missing, please notify your Radioddity
-5-

1.3 Features and Functions
• 1.77" TFT large screen, full keyboard, fully open menu operation
• Scanner function: VFO scan range setting, three scan recovery methods, channel scan, CTC/DCS scan, scan channel
addition and removal
• 22 Modifiable GMRS Channels (RX &TX) • 8 Modifiable GMRS Repeater Channels (RX & TX)
• Built-in input method, allows this device to edit channel name
• NOAA Weather Radio Channel Reception in the United States and Canada
• Frequency step, selectable between 2.5K | 5.0K | 6.25K | 10.0K | 12.5K | 20.0K | 25.0K | 50.0K
• Type-C direct charging and charging stand, more convenient battery life
• Dual-band handheld transceiver. • DTMF encoder and DTMF manual dial
• High Capacity Lithium-Ion battery. • Broadcast FM radio receiver 78-108 MHz
• 50 CTCSS tones and 105 DCS codes. • VOX (voice activated transmit).
• 10 zones storage, Up to 1000 named memory channels. • Alarm function.
• High or low power selectable. • Display illumination programmable via keypad.
• Function beep on the keyboard. • Dual watch / Dual reception.
• Programmable repeater offset. • Battery saving function.
• Transmission time-out timer. • Scan mode.
• Busy channel lock out. • Built in CTCSS/DCS tones.
• Ten (10) levels of Squelch adjustment. • Cross band reception.
• End of transmission tone, aka “Roger Beep”. • One touch search frequency
• Two (2) pins for Kenwood accessory port
• GPS positioning function, location sharing and requesting location information from others
-6-

2. BATTERY INFORMATION
2.1 Charging the Battery Pack
The Li-ion battery pack is not charged at the factory; please charge it before use.
Charging the battery pack for the first time after purchase or extended storage (more than 2 months) may not bring the battery pack to its
normal maximum operating capacity. Best operation will require fully charging/discharging the battery two or three times before the operating
capacity will reach its best performance. The battery pack life may be depleted when its operating time decreases even though it has been fully
and correctly charged. If this is the case, replace the battery pack.
2.2 Charger Supplied
Please use the specified charger provided by Radioddity. Other models may cause explosion and personal injury. After installing the battery
pack, and if the radio displays low battery with a red flashing lamp or voice prompt, please charge the battery.
2.3 Use Caution with the Li-ion Battery
(1) Do not short the battery terminals or throw the battery into a fire. Never attempt to remove the casing from the battery pack, as Radioddity
cannot be held responsible for any accident caused by modifying the battery.
(2) The ambient temperature should be between 5℃-40℃ (40˚F - 105˚F) while charging the battery. Charging outside this range may not fully
charge the battery.
(3) Please turn off the radio before inserting it into the charger. It may otherwise interfere with correct charging.
(4) To avoid interfering with the charging cycle, please do not cut off the power or remove the battery during charging until the green light is
on.
(5) Do not recharge the battery pack if it is fully charged. This may shorten the life of the battery pack or damage the battery pack.
(6) Do not charge the battery or the radio if it is damp. Dry it before charging to avoid damage.
NOTICE
When keys, ornamental chain or other electric metals contact the battery terminal, the battery may become damage or injure a human. If
the battery terminals are short circuited it will generate a lot of heat. Take care when carrying and using the battery. Remember to put the
battery or radio into an insulated container. Do not put it into a metal container.
2.4 How to Charge
(1) Plug the AC adaptor into the AC outlet, and then plug the cable of the AC adaptor into the DC jack located on the back of the charger. The
indicator light blinks orange and is then ready to charge battery.
-7-

(2) Plug the battery or the radio into the charger. Make sure the battery terminals are good in contact with charging terminals. The indicator
light turns to red--- charging begins.
(3) It takes approximately 2-5 hours to fully charge the battery. When the lamp lights green, the charging is completed. Remove the battery or
the radio unit with its battery from socket
NOTICE
when charging a radio (with battery) the indicating lamp will not turn into green to show the fully charged status if the radio is powered on.
Only when the radio is switched off will the lamp indicate normal operation. The radio consumes energy when it is power-on, and the
charger cannot detect the correct battery voltage when the battery has been fully charged. So the charger will charge the battery in constant
voltage mode and fail to indicate correctly when the battery has been fully charged.
(4) LED Indicator
Red LED Green LED Status
Flashing Steady
Standby (charger empty)
Error (charger with radio)
Steady Off Charging
Off Steady Charge complete.
The charger and battery are fitted with matching notches so that you can charge your battery on its own! Practical if you have two batteries.
That way you can charge one battery while still using your radio.
Radio should be turned OFF during charge cycle.
2.5 Using the Type-C Charger
The Type-C charger is a handy port that allows you to conveniently charge your Li-on battery pack.
(1) Make sure your radio is turned OFF.
(2) Plug the Type-C cable into the Type-C charging port on your battery. Connect the other end of the Type-C charger to wall power outlet.
(3) An empty battery will be fully charged in 6 hours.
(4) The battery meter on LCD will move to indicate the battery is charging.
2.6 Battery Maintenance
The battery for your radio comes uncharged from the factory; please let it charge for at least four to five hours before you start using your
radio.
• Use only batteries approved by the original manufacturer.
-8-

• Never attempt to disassemble your battery pack.
• Do not expose your batteries to fire or intense heat
• Dispose of batteries in accordance with local recycling regulations. Batteries do not belong in your trashcan!
2.7 Prolonging the life of your battery
• Only charge batteries in normal room temperatures.
• When charging a battery attached to the radio, turn the radio off for a faster charge.
• Do not unplug the power to the charger or remove the battery and/or radio before it's finished charging.
• Never charge a wet battery.
• Batteries wear out over time. If you notice a considerably shorter operating time with your radio, please consider purchasing a new battery.
• Battery performance will be reduced in temperatures below freezing. When working in cold environments, keep a spare battery on you.
Preferably inside your jacket or in a similar location in order to keep the battery warm.
• Dust can interfere with the contacts on the battery. If necessary wipe the contacts with a clean cloth to ensure proper contact with radio and
charger.
If your battery has become wet, remove it from the radio, wipe it dry with a towel and put it in a plastic bag with a handful of dry rice. Tie the
bag up and let it sit over night.
The rice will absorb any remaining moisture in the battery.
This method is only effective against minor splashes (light rain for instance). A soaked radio may very well be beyond repair.
2.8 How to Store the Battery
(1) If the battery needs to be stored, keep it in status of 80% discharged.
(2) It should be kept in low temperature and dry environment.
(3) Keep it away from hot places and direct sunlight.
(4) To avoid severe capacity degradation of your battery while in long-term storage, please cycle the battery at least every six (6) months.
NOTICE
• Do not short circuit the battery terminals.
• Never attempt to remove the casing from the battery pack.
• Never store the battery in unsafe surroundings, as a short may cause an explosion.
• Do not put the battery in a hot environment or throw it into a fire, as it may cause an explosion.
-9-

3. PREPARATION
3.1 Installing / Removing the Battery
Installing the Battery Pack
(1) Position the battery pack over the back of the radio.
(2) Engage the battery pack into the radio until battery pack is fully seated into the radio housing.
(3) Tighten the screws using a coin or at object to secure the battery pack to the radio. Do not overtighten.
To Remove Battery Pack from Radio
(1) Loosen the screws on the back of the battery pack.
(2) Lift the bottom of the battery pack slightly to remove it from the radio housing.
(3) Pull the battery pack out of the radio housing.
NOTE:
The Li-ON battery pack can also be charged in the battery charger.
3.2 Installing / Removing the Antenna
(1) Installing the Antenna: Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it
clockwise until secure.
(2) Removing the Antenna: Turn the antenna counter-clockwise to remove it.
3.3 Installing / Removing the Belt Clip
(1) Installing the Belt Clip: Place the belt clip above the corresponding holes on the back of the radio, and screw it into place clockwise with the
two supplied screws.
(2) Removing the Belt Clip: Unscrew counter-clockwise to remove the belt clip.
3.4 Installing Additional Speaker/Microphone (Optional)
Pry open the rubber MIC-Headset jack cover and then insert the Speaker / Microphone plug into the double jack.
-10-

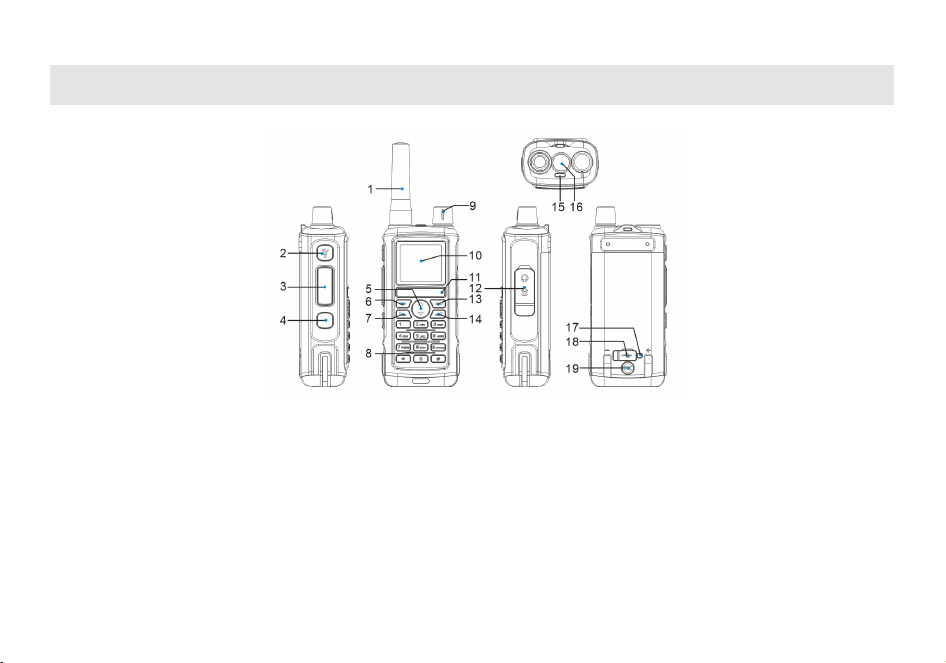

4. RADIO OVERVIEW
1. Antenna 2. SK1- FM radio / Emergency Alert key 3. PTT key
4. SK2- Monitor key(Custom Keys) 5. or navigation keys 6. MENU key
7. P1 key 8. Numeric keypad 9. Power / Volume knob
10. Color LCD 11. MIC Input 12. Speaker/Mic Jacks
13. EXIT Key 14. P2 key 15. LED Status Indicator
16. GPS Antenna 17. Type-C charging indicator 18. Type-C charging port
19. Battery tightening screw
-11-

"SK2" customization function
Press and hold the SK2 key as the Monitor function. SK2 allows you to set shortcut functions through the CPS programming software or the
radios menu.
• FM RADIO: Quickly turn on or off the FM radio function.
• Scan: Quickly turn on or off the scan function. You can also turn on or off the scan function by hold down the # key.
• SEARCH: Quickly turn on or off the one-touch frequency search function.
• VOX: Quickly turn on or off the VOX function.
4.1 Status Indications
The top LED will help you to identify the current radio status.
LED Indication What it Indicates
Constant Green Receiving Signal
Constant Red Transmitting signal
Flashes Green Monitor mode/Scanning Receiving
4.2 LCD icon summary
Icon Description
Battery level indicator
RSSI
Operating band signal
Make sure you can hear the DTMF side tone from the radio speaker, set to DT-ST, ANI-ST, DT+ANI.
D Dual watch enabled
VOX enabled
GNSS function enabled
Keypad lock enabled
Zone1~ Zone1 Indication of the current channel's region. Working in storage mode
VFO In the current working VFO mode. Allow manual frequency input
H Transmit power level indicator, According to Power High
L Transmit power level indicator, According to Power Low
-12-

DCS enabled
CTCSS enabled
+ Enables access of repeaters in VFO/Frequency Mode. TX will be shifted higher in frequency than RX。
- Enables access of repeaters in VFO/Frequency Mode. TX will be shifted lower in frequency than RX
R Reverse function enabled
T
Talkaround has been activated, off grid at the central turntable. The transmission frequency is equal to
the receive frequency
The confidential calling feature is activated
N Narrowband enabled
4.3 Main keypad controls
• MENU key: It is used for activating the MENU, choose each MENU selection and confirm the parameter.
When listening to broadcast FM, the key switches between 65-75 MHz and 76-108 MHz bands.
• P1 key: press the key to switch between frequency (VFO) mode and channel (MR) mode.
•■ key: Press it for more than 2 seconds, the channel and frequency will move upwards rapidly; in SCAN mode, press this
control to move the scanning upwards.
•■ key: Keep it pressed it for more than 2 seconds, the channel and frequency will move downwards rapidly; in SCAN mode,
press this control to move the scanning downwards.
•EXIT key: Press to exit the Menu and functions.
• P2 key: The key switches between A (upper) and B (lower) displays. The frequency or channel on the selected display
becomes the active listening and transmit frequency or channel.
• Numeric keypad
With these keys you can input the information or your selections on the radio. In TX mode, push the number keys to send a corresponding
DTMF code.
•
Key
A short momentary press of the key enables the reverse function.
-13-

The radios features a keypad lock that locks out all keys except for the three side keys.
To enable or disable the keypad lock, press and hold the
key for about two seconds.
•
key
When listening to broadcast FM a momentary press will start the scanning. Scanning in broadcast FM will stop as soon as an active station is
found, regardless of scanner resume method.
To enable the scanner, press and hold the
key for about two seconds.
Short press the
key to quickly enter the DTMF dialing.
5.BASIC OPERATIONS
5.1 Power on the radio
• Turning the unit on
To turn the unit on, simply rotate the Volume/Power knob clockwise until you hear a "click". If your radio powers on correctly there should be
an audible double beep after about one second and the display will show a message or flash the LCD depending on settings for about one
second. Then it will display a frequency or channel. If the Voice prompt is enabled, the voice will announce "frequency mode" or "channel
mode".
• Turning the unit off
Turn the Volume/Power knob counter-clock wise all the way until you hear a "click". The unit is now off.
5.2 Adjusting the volume
To turn up the volume, turn the volume/power knob clock-wise. To turn the volume down, turn the Volume/Power knob counter-clock-wise. Be
careful not to turn it too far, as you may inadvertently turn your radio off.
By using the monitor function, enabled from the [Monitor] key below the PTT, you can more easily adjust your volume by adjusting it to the
un-squelched static.
5.3 Main Band/Sub Band Switch
In standby mode, press the [P2] key to switch between the main frequency band or sub frequency bands.
Those in large font are the main bands and those in small font are the sub-bands.
-14-

5.4 VFO/Channel Switch
Press [P1] key to switch between VFO and channel display.
• In channel mode (MR), the channel number will be displayed on the right.
• In frequency mode (VFO), the ‘VFO’ will be displayed on the right.
5.5 Frequency (VFO) mode
In Frequency (VFO) mode you can navigate up and down the band by using the or keys. Each press will increment or decrement your
frequency according to the frequency step you've set your transceiver to.
You can also input frequencies directly on your numeric keypad with kilohertz accuracy.
The following example assumes the use of a 12.5 kHz frequency step.
Example. Entering the frequency 462.5625 MHz on display A
(1) In standby mode, press [P1] key to switch to the frequency (VFO) mode.
(2) Enter [4][6][2][5][6][2][5] [0] on the numeric keypad.
WARNING!
Just because you can program in a channel does not mean you're automatically authorized to use that frequency. Transmitting on frequencies
you're not authorized to operate on is illegal, and in most jurisdictions a serious offence. However, it is legal in most jurisdictions to listen.
Contact your local regulatory body for further information on what laws, rules and regulations apply to your area.
5.6 Channel (MR) mode and Channel selection
There are two modes of operation: Frequency (VFO) mode, and Channel or Memory (MR) mode.
For everyday use, Channel (MR) mode is going to be a whole lot more practical than Frequency (VFO) mode. However, Frequency (VFO) mode is
very handy for experimentation out in the field. Frequency (VFO) mode is also used for programming channels into memory.
In Channel (MR) mode you can navigate up and down the channel by using the or keys or the encoder.
Ultimately which mode you end up using will depend entirely on your use case.
Press [P1] key to switch the radio between VFO and Channel mode, select Channel mode.
• Operation 1: Press the or navigation key to select the channel.
• Operation 2: Input the channel numbers by the keyboard. For example, if you want switch to channel 12, input [0][1][2] a total of 3 digits, and
it will switch to channel 12.
-15-

When the voice prompt function is enabled, the corresponding channel will be broadcast by voice.
5.7 Selecting a Bank
A bank is a group of channels with the same property. The radio supports up to 10 banks, with a maximum of 100 channels per bank. To select a
bank, do one of the following:
Press [MENU] key go to Menu > Bank, press or navigation key to select a bank, and then press [MENU] key to switch to the selected bank.
The corresponding regional alias will be displayed at the bottom of the screen.
5.8 Making a call
press [P1] key to switch between frequency (VFO) mode and channel (MR) mode.
• Channel mode call: After selecting a channel, hold down the [PTT] key to initiate a call to the current channel. Speak into the microphone with
normal tone. Making a call, the red LED is on.
• Receive a call: When you release the [PTT] key, you can answer it without any action.
When receiving a call, the green LED is on.
NOTE: To ensure the best reception volume, keep the distance between the microphone and the mouth at the time of transmission from 2.5
cm to 5 cm.
5.9 Emergency Alert
The Emergency Alert feature can be used to signal members in your group for help.
To activate the emergency alert function, press and hold the [SK1] key for 3 seconds. The radio will send out a loud siren sound and the
flashlight will flash.
Press the [SK1] key to exit the emergency alert function.
WARNING: The Emergency Alert feature should only be used in the even of an actual emergency.
5.10 FM Radio (FM)
The frequency ranges to listen to the radio is 65-108MHz. When listening to broadcast FM, press [MENU] key switches between 65-75 MHz and
76-108 MHz band.
(1) In frequency or channel mode, Press [SK1] key to turn on the radio.
(2) Select the desired radio frequency with the or keys or input the frequency. Or
-16-

• Press to automatically search a radio station.
(3) Press [SK1] key to exit FM radio.
Note: while you are listening to the radio, the frequency or channel of A / B receiving signal will automatically switch to the frequency or
channel mode for normal transmitting and receiving.
When the signal disappears the radio will automatically switch again to FM radio mode.
5.11 Monitor
In standby, press and hold the [SK2] key to enter Monitor. When receiving matched carrier but the signaling or the signal is too weak, this
function allows monitor the weak signal.
Stop pressing the [SK2] key to turn off the speakers and return to standby mode.
» If no signal, it will emit noise when press the [SK2] Key.
5.12 Keypad lock
The radio features a keypad lock that locks out all keys except for the three side keys.
To enable or disable the keypad lock, press and hold
the key for about two seconds.
You can also enable so that the radio automatically locks the keypad after ten seconds from the menu.
5.13 TX Repeaters tone
Press [PTT] + [SK2] key to send 1750Hz repeaters tone. This function is useful for communications through repeaters.
If you have the keypad lock enabled on your radio, you can still send a 1750Hz tone the regular way without having to unlock your radio.
5.14 Weather Radio/Scan Weather Channel
Your radio has a NOAA Weather Radio function, to enable the user to receive weather reports from designated NOAA stations. Your radio also
has a NOAA Weather Scan function, to enable the user to scan all 10 channels of the NOAA Weather Radio.
(1) To turn the NOAA Weather Scan on, press and hold the
key for 3 seconds , icon appears. The radio will go to Weather band
mode.
(2) Press and hold the
key for 3 seconds to start automatic scanning of all 10 channels and stop on active channels. Pressing and holding
the
key for 3 seconds during a NOAA weather scan will stop the scan.
-17-

(3) After stopping NOAA weather scan, it is allowed to manually select the weather channel by press the or key.
(4) To exit the Weather Radio broadcast mode, press the [EXIT] key or [PTT] key.
Weather channel frequencies and names
Channel Number RX Frequency MHz Channel Number RX Frequency MHz
CH-01 162.550 CH-06 162.500
CH-02 162.400 CH-07 162.525
CH-03 162.475 CH-08 161.650
CH-04 162.425 CH-09 161.775
CH-05 162.450 CH-10 163.275
NOTE: Weather Channels Wx 1 Thru 10, Receive-only channels for NOAA and Canadian weather broadcasts. You cannot transmit on these
channels.
5.15 One touch frequency Search
(1) Through the CPS program software or the radio menu >> Radio Setting >> Press the SK2 key
to define the SK2 side key as a Search function.
(2) The radio will act as a receiver. Briefly press the preset "Search " key, and the screen will
display“SEARCH SEEK..."
(3) If the transmitter continues to transmit and the unit receives an effective frequency (the
strongest and stable signal), the received frequency will be displayed. If there is a CTCSS or DCS,
the CTCSS or DCS value is displayed, and if there is no CTCSS or DCS, NONE is displayed
(4) You can press the [MENU] key to save the Search frequency and CTCSS or DCS to the channel.
Note: During frequency Search, press the # key on the radio to switch between UHF or VHF bands.
6. ADVANCED FEATURES
6.1 Scanner
-18-

The radios features a built in scanner for the VHF and UHF bands. When in Frequency (VFO) mode it will scan in steps according to your set
frequency step. In Channel (MR) mode it will scan your channels.
To enable the scanner, press and hold the
key for about two seconds. You can change the scanning direction with the or keys. Press
and hold the
key to exit scanning mode.
6.1.1 Frequency Ranger
In frequency mode, the frequency sweep range can be precisely set. Input the start value and end value of the sweep frequency through the
keyboard.
EX: Enter 144146, in frequency mode, scan in the range of 144.000-146.000MHZ. Enter 430440, in frequency mode, scan in the range of
430.000-440.000MHZ.
Note: for VFO frequency Ranger, see Menu > SCAN > Freq Ranger.
6.1.2 Scan modes
The scanner is configurable to one of three ways of operation: Time, carrier or search, each of which is explained in further details in their
respective section below.
Time operation
In Time Operation (TO) mode, the scanner stops when it detects a signal, and after a factory preset time out, it resumes scanning.
Carrier operation
In Carrier Operation (CO) mode, the scanner stops when it detects a signal, and after a factory preset time with no signal it resumes
scanning.
Search operation
In Search Operation (SE) mode, the scanner stops when it detects a signal.
To resume scanning you must press and hold the
key again.
Note: for Scan mode, see Menu>SCAN>Scan Mode.
6.1.3 Scan Sub-Code
To search for a CTCSS code, do the following:
(1) In VFO mode, enter a known frequency, such as 144.525.
-19-

(2) Press [MENU] key to enter menu>>Scan>>3 Scan Sub-Code.
(3) Press or to select CTCSS;
(4) Press the [MENU] key to enter the CTCSS code, and scan the CTCSS code in sequence. When a valid CTCSS code is scanned, it stays on the
CTCSS code and the speaker is turned on.
(5) Press the [MENU] key to store the scanned CTCSS code and exit the scan to return to the previous menu. In standby mode, the
icon will
be displayed on the top line of the screen. Press and hold the PTT key to make a callback.
To search for a DCS code, do the following:
(1) In VFO mode, enter a known frequency, such as 144.525.
(1) Press [MENU] key to enter menu>>Scan>>3 Scan Sub-Code.
(2) Press or to select DCS;
(3) Press the [MENU] key to enter the DCS code scanning, and scan the DCS code in turn. When a valid DCS code is scanned, it stays on the DCS
code and the speaker is turned on.
(4) Press the [MENU] key to store the scanned DCS code and exit the scan to return to the previous menu. In standby mode, the
icon will
be displayed on the top line of the screen. Press and hold the PTT key to make a callback.
6.1.4 Sub-Code scan storage
In MR mode or VFO mode, the scanned CTCSS/DCS code can be stored as only TX CTCSS/DCS code, RX CTCSS/DCS code only, TX and RX
CTCSS/DCS code to replace the CTCSS/DCS code setting of the current channel or frequency mode of the radio.
To save the settings of CTCSS/DCS code scan, the operation is as follows:
(1) Press [MENU] key to enter menu >> SCAN >> 4 Scan Memory.
(2) Press the [MENU] key to enter the Scan Memory setting, and press the or key to select:
• ALL: The scanned CTCSS/DCS code will be stored as the received and transmitted CTCSS/DCS code of the current channel or frequency
mode (at the same time as the received and transmitted Sub-Code).
• DECODER: The scanned CTCSS/DCS code will be stored as the receiver CTCSS/DCS code of the current channel or frequency mode (only
replace its receiver RX CTC/DCS).
• ENCODER: The scanned CTCSS/DCS code will be stored as the transmitted CTCSS/DCS code of the current channel or frequency mode
(only replace its transmitted TX CTC/DCS).
(3) Press the [MENU] key to save the settings and return to the previous menu;
-20-

Note: Only when a valid CTCSS/DCS code is scanned and stopped, press the [MENU] key to store the CTCSS/DCS code and replace the
corresponding CTCSS/DCS code of the current channel or frequency.
6.2 DTMF
DTMF is an in-band signaling method using dual sinusoidal signals for any given code. Originally developed for telephony systems, it has proved
a very versatile tool in many other areas.
In two-way radio systems, DTMF is most commonly used for automation systems and remote control. A common example would be in amateur
radio repeaters where some repeaters are activated by sending out a DTMF sequence (usually a simple single-digit sequence).
DTMF frequencies and corresponding codes
1209Hz 1336Hz 1477Hz 1633Hz
697Hz 1 2 3 A
770Hz 4 5 6 B
852Hz 7 8 9 C
941Hz * 0 # D
The radios has a full implementation of DTMF, including the A, B, C and D codes. The numerical keys, as well as the and keys
correspond to the matching DTMF codes. The A, B, C and D codes are located in the [MENU], , and [EXIT] keys respectively.
To send DTMF codes, press the key(s) corresponding to the message you want to send while holding down the PTT key.
In general, there are two forms of selective calling in two-way radio systems: Group call, and Private call.
Group call, as the name suggest, is a one-to-many form of communication. Every radio in your working group is configured the same way and
any radio will make contact with every other radio in the group.
Private call, some times also known as paging, is a one-to-one form of communication.
Every radio is programmed with a unique ID code. And only by sending out a matching code can you get that radio to open up to your
transmissions.
6.3 Dual Watch
In certain situations, the ability to monitor two channels at once can be a valuable asset. This can be achieved in one of two ways. You can either
have one receiver in your radio and flip-flop between two frequencies at a fixed interval (known as Dual Watch), or you can equip a radio with
-21-

two receivers (known as Dual Receive or Dual VFO). The former method is cheaper to implement and far more common than the latter.
The radio features Dual Watch functionality (single receiver) with the ability to lock the transmit frequency to one of the two channels it
monitors.
Enabling or disabling Dual Watch mode
(1) Press the [MENU] key to enter the main menu.
(2) Enter 3 on the numeric keypad to get to Radio Settings.
(3) Press the [MENU] key to confirm, enter 15 on the numeric keypad to get to 15 Dual Watch.
(4) Press the [MENU] key to select.
(5) Use the or keys to enable or disable.
(6) Press the [MENU] key to confirm.
(7) Press [EXIT] to return to the previous menu.
The dual watch function is turned on, and the icon 'D' is displayed on the top line of the screen.
·
Repeat the above operation, select "OFF", the dual watch function is disabled, and the icon 'D' on the top line of the screen disappears.
Note: When the dual watch function is turned on, the icon 'D' is displayed on the screen, and the "Singal Mode" submenu is automatically
shielded in the radio setting menu.
After the dual watch is turned off, the radio setting menu will automatically add "Singal Mode". After turning on the single display mode, the
radio will display the channel name, frequency and channel sequence on the same screen.
7. MAIN MENU FUNCTIONS
The menu function allows you to perform operations such as selecting Banks, Setting SCAN, Radio Settings, Program Channels, and viewing
Radio Information.
7.1 Basic use
Use menus with arrow keys
(1) Press the [MENU] key to enter the main menu.
(2) Use the or keys to navigate between menu items.
(3) After finding the desired next menu item, press the [MENU] key again to select the menu item.
(4) Use the or keys to navigate between the next menu items.
-22-

(5) After finding the desired next menu item, press the [MENU] key again to select the menu item.
(6) Use the or keys to select the desired parameter.
(7) When you have selected the parameter to be set for a given menu item;
(8) To confirm your selection, press [MENU] and it will save your setting and bring you back to the main menu.
(9) To cancel your changes, press [EXIT] and it will reset that menu item and bring you out of the menu entirely.
(10) To exit out of the menu at any time, press the PTT key.
7.2 Using short-cuts
As you may have noticed if you looked at Appendix C, Menu definitions, every menu item has a numerical value associated with it. These
numbers can be used for direct access of any given menu item.
Using the menu with short-cuts
(1) Press the [MENU] key to enter the menu.
(2) Use the numerical keypad to enter the number of the menu item.
(3) To enter the menu item, press [MENU] the key.
(4) For entering the desired parameter you have two options:
a) Use the arrow keys as we did in the previous section; or
b) Use the numerical keypad to enter the numerical short-cut code.
(5) And just as in the previous section;
a) To confirm your selection, press and it will save your setting and bring you back to the main menu.
b) To cancel your changes, press and it will reset that menu item and bring you out of the menu entirely.
(6) To exit out of the menu at any time, press the key.
(7) All further examples and procedures in this manual will use the numerical menu short-cuts.
[MENU] + 1: Quick access to Banks selection, up to 10 banks are stored, each bank stores 100 channels;
[MENU] + 2: Quickly enter the Scan Settings. You will be able to set the VFO frequency range, Scan mode, Scan Sub-Code, Scan Memory;
[MENU] + 3: Quickly enter the Radio settings (general settings of the radio);
[MENU] + 4: Quickly enter GNSS position system settings (GNSS switch, time zone setting, position mode setting)
[MENU] + 5: Quick access to Program Channel (Alias, TX and RX Frequency, TX Power, Bandwidth, Display mode, Channel Memory and Channel
delete);
-23-

[MENU] + 6: Quickly query the radio information (ANI ID, Firmware version, Hardware version);
7.3 Radio Settings
(1) Step frequency (Step) – MENU + 1
This function lets you select the desired frequency step.
The selectable steps are the following: 2.5K/5.0K/6.25K/10K/12.5K/20K/25K/50K/100K.
Note: in channel mode, this function cannot be modified.
(2) Squelch level (Squelch) – MENU + 2
Thanks to this function you can adjust the squelch in 5 different levels:
• OFF: opened squelch. With this setting, the radios will detect all signals, also the weakest ones, but will also receive the background noise or
undesired signals.
• Levels 1- 5: level 1 (lowest squelch level), level 5 (highest squelch level).
If the squelch is set to the highest level, the radio will receive the strongest signals only.
(3) Power save (Power Save) – MENU + 3
When the radio is in standby, the power saving function reduces battery consumption. Turning on will be more power efficient, but you may
miss the first few syllables before RX turns on.
(4) VOX Function (Vox Switch) – MENU + 4
The VOX feature allows hands-free calls without using the PTT button. As soon as you speak into the microphone, communication will start
automatically.
ON: Activate the VOX function;
Off: Turns off the VOX function.
(5) VOX Level (Vox Level) – MENU + 5
From this menu, you can select the VOX sensitivity level.
The selection range is from 1 to 9。
Note: Level 1 is the least sensitive, while level 9 is the most sensitive.
-24-

The VOX feature is not enabled when the radio is in scan or FM radio mode.
(6) VOX Delay – MENU + 6
When the VOX is enabled, set up the VOX delay to help to extend the transmission time to avoid stopping a transmission too early.
Range 0.5 – 2.0 seconds. Step 0.1 second. Default 1 seconds
(7) Time-Out-Timer (TOT) – MENU + 7
The Time-Out Timer (TOT) sets the duration that the radio can continuously transmit before transmission is automatically terminated. This
feature is used to prevent any single user from occupying a channel for too long.
Range: Off, 15 –180 seconds, Step 15 seconds. Default 60 seconds.
Note: If this option is set to OFF, press and hold the PTT key to keep transmission.
(8) Transmission Overtime Alarm (TOA) – MENU + 8
Allows users to define a duration an alert will be given before terminating the transmission. With the TOA function enabled, if the TOT function
(Time Out Timer) has been turned on and your transmission reaches the pre-set end-transmission time, the transceiver will warn you and the
TX red indicator starts blinking.
Range 0 – 10 seconds, Step 1 second. Default Off.
(9) Voice prompts function (Voice) – MENU + 9
With this function, you activate a voice that informs you about any operation/ selection you are doing.
(10) Language selection (Language) – MENU + 10
With this function, you can select the language of the LCD display and operation prompt.
(11) Roger beep (ROGER) – MENU + 11
When the PTT is released, the radio will beep to confirm to other users that you have finished your transmission and that they can start talking.
(12) Keypad beep (Beep) – MENU + 12
When this function is enabled, every time a key is pressed, you will hear a beep tone.
(13) Backlight (Backlight) – MENU +13
With this function you can adjust the auto off time of the display backlight.
Always: The backlight is always on.
-25-

5S-20S adjustable.
Note: This function is valid when turn off the power save.
(14) Power on image (Power on Display) – MENU + 14
With this function you can set the display mode when the radio is turned on. Available options:
• PICTURE: Display the preset startup picture.
• MESSAGE: Welcome message.
• VOLTAGE: The power voltage is momentarily displayed.
(15) Dual Watch Operation (Dual Watch) – MENU + 15
When this function is activated, you can receive the frequency of channel A and channel B at the same time.
If a signal is detected, the
or pointer will blink on the corresponding channel or frequency.
Note: In Dual Watch operation mode, the 'D' icon will be displayed on the top line of the screen, you can freely change the parameters of AB
channel or frequency.
(16) Auto Keypad Lock (AutoLock) – MENU + 16
When this feature is activated, the keypad will be automatically locked after 10s; this prevents accidental pressure of any keys.
The keypad lock can be manually activated/deactivated through the keypad: keep pressed
.
(17) Alarm Mode (Alarm Mode) – MENU + 17
This function can set the tone alarm/code alarm/site alarm of the radio.
Keep pressed the [SK1] key for 3 seconds to start the alarm tone.
The following three options can be selected:
• Site: the speaker emits an alarm tone but the radio doesn’t transmit;
• Tone: the speaker emits an alarm tone and the radio transmits it;
• Code: the speaker emits an alarm tone and the radio transmits it followed by ANI-ID code.
(18) Local Alarm Tone (Alarm Tone) – MENU + 18
Whether to emit an alarm whistle locally when the emergency alarm function is triggered.
(19) ANI-ID (ANI-ID) – MENU + 19
-26-

Displays the ANI code set by the software. Manual changes are allowed if necessary, and you can edit up to 3 digits.
ANI-ID is sent when alarm is active and menu 16 = SEND CODE.
The ANI-ID will be sent during DTMF signaling calls.
(20) ANI-ID (ANI-ID) – MENU + 20
Displays the ANI code set by the software. Manual changes are allowed if necessary, and you can edit up to 3 digits.
ANI-ID is sent when alarm is active and menu 16 = SEND CODE.
The ANI-ID will be sent during DTMF signaling calls.
(21) PTT-ID (PTT-ID) – MENU + 21
When to Send PTT-ID Codes are sent during either the beginning or ending of a transmission.
With this function you can decide when sending the ANI-ID code in tx mode.
You can choose amongst 4 possibilities.
• Off: Press PTT to turn it off. That is, the current channel or VFO mode disables DTMF signaling.
• BOT: The code is sent when you press the PTT.
• EOT: The code is sent when the PTT is released.
• BOTH: The code is sent when you press and release the PTT.
(22) Signal code sending delay (PTT-DLY) – MENU + 22
PTT-ID signal code sending delay time setting, range 100-3000ms.
(23) 1750Hz Repeater Tone (ALERT) – MENU + 23
With this function you can select 1000Hz, 1450Hz, 1750Hz, 2100Hz repeater tone. To send out a repeater tone; You hold down the [PTT] +SK2
key.
If you have the keypad lock enabled on your radio, you can still send a 1750Hz tone the regular way without having to unlock your radio.
(24) Squelch tail elimination (TAIL) – MENU + 24
This function is used eliminate squelch tail noise between handhelds that are communicating directly (no repeater). Reception of a 55 Hz or
134.4 Hz tone burst mutes the audio long enough to prevent hearing any squelch tail noise.
(25) SK2 function definition(Press SK2) – MENU + 25
-27-

The SK2 key allows users to customize functions:
• FM RADIO: FM radio on/off.
• SCAN: Scan on/off.
• SEARCH: one touch Search on/off.
• VOX: Vox on/off.
(26) Reset (Reset) – MENU + 26
With this function you can reset the transceiver to the factory-programmed settings and parameters. After that, you can set the desired
functions. There are two types of reset:
• VFO: Menu Reset
• ALL: Menu and channel Reset
7.4 GPS function
The position system is a typical DTMF calling application. For the method of setting call codes, call names, and local IDs, please refer to
"Signaling Calls".
It is necessary to ensure that the radios that receive and send GPS location information operate on the same frequency or channel, and are set
to the main frequency band.
In GPS mode, you can only view location information and cannot make normal calls. Voice intercom must exit GPS mode in order to proceed.
You can set the system time, GPS on/off, time zone, and GPS mode through the position system menu. Press [GPS] key to view, share, and
request location information.
(1) GPS on/off settings
Set path: [MENU] + 4 + [MENU]: Press the / key to select whether to turn GPS ON/OFF.
*After turning on the position system, the screen displays the icon
(2) Time zone settings:
Set path: [MENU] + 4 + [MENU] + 2: Press the / key to select the correct time zone.
-28-

(3) GPS mode settings
This machine is equipped with a multi-mode GPS module, mainly including GPS from the United States and Beidou from China.
Set path: [MENU] + 4 + [MENU] + 3: Press the / key to select GPS mode (Beidou, GPS, or GPS+Beidou).
Use of GPS
In standby mode, press and hold [P2] key to enter GPS mode and display "My Place” as an
information list. Press [MENU] key to switch My Place in the information list mode or electronic
compass mode. Press the / key to switch the information of the selected member. The
current Contact sequence will be displayed at the top of the interface.
Press the [EXIT] key to exit GNSS mode
Find My Place

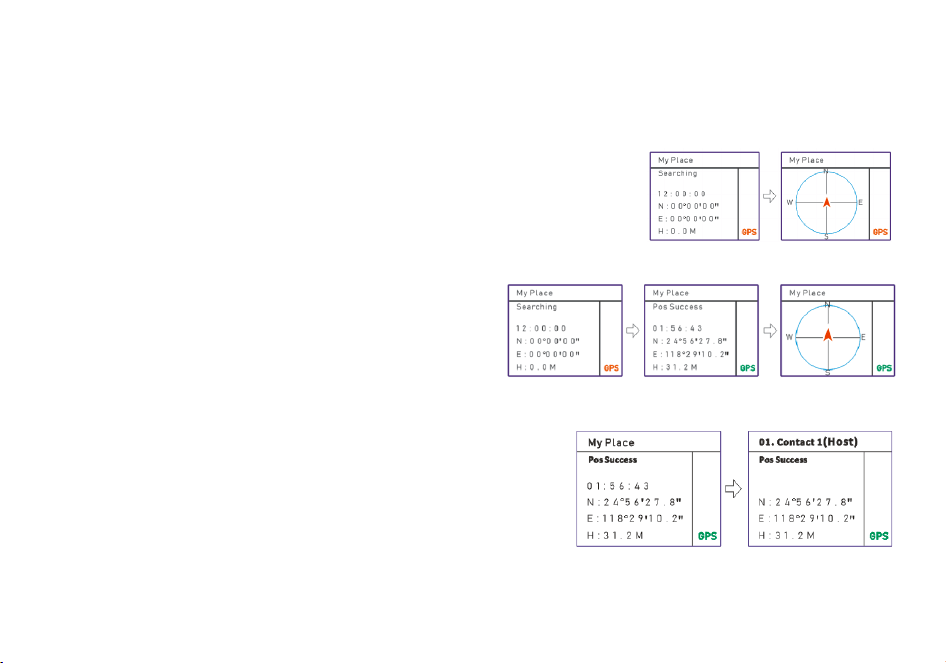

1. Press and hold [P2] key to enter GPS mode.
2. Use the /key to switch to "My Place".
3. At this point, the GPS is in receive mode and displays "Searching" The
GPS character on the right is red, indicating that the positioning has not been successful.
Note: If "Searching" is displayed for a long time, it is recommended that you search
for satellites in an open location.
4. Display "Pos Successful" to indicate that the radios position has been successfully
obtained, and display the current time, longitude, latitude, and altitude, Where N is
north latitude, E is east longitude, and H is height. The GPS character on the right is
green.
5. Press the [MENU] key to switch between the GPS position information interface
and the GPS distance direction interface.
-29-

Share My Place information (send to others)

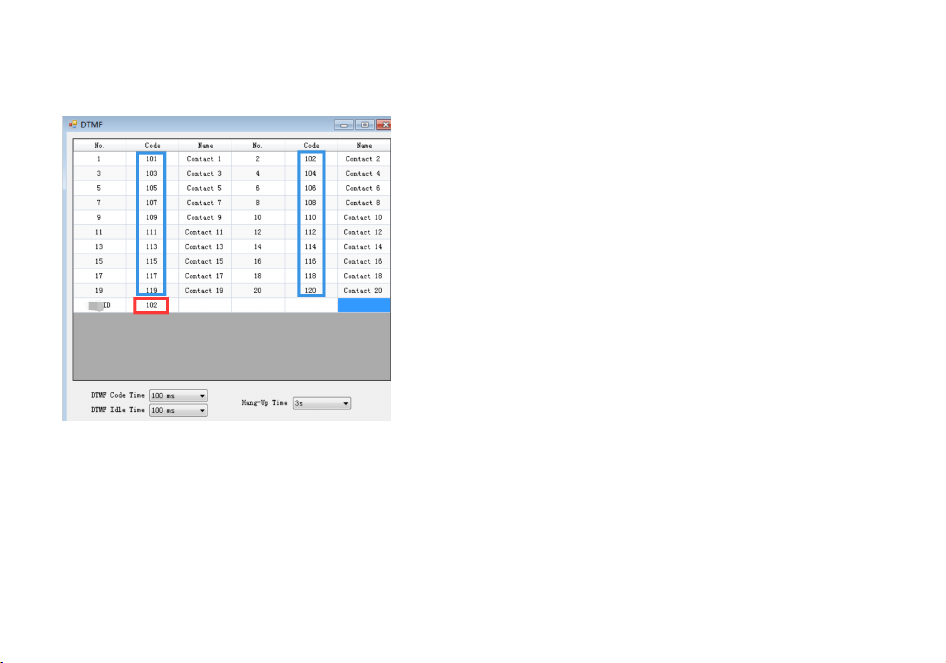

1. Set the ID of each member in CPS-DTMF in advance (up to 20)
2. After the GPS position of the radio is successful, press the [MENU] key to switch to the location information interface.
3. Press the / key to select the pre programmed Contact sequence (01-20), and display the member sequence and name on the first line. Select
the member sequence labeled as "Host".
4. Press the [PTT] key to share the current location information of the device with group members.
Requesting someone else's place

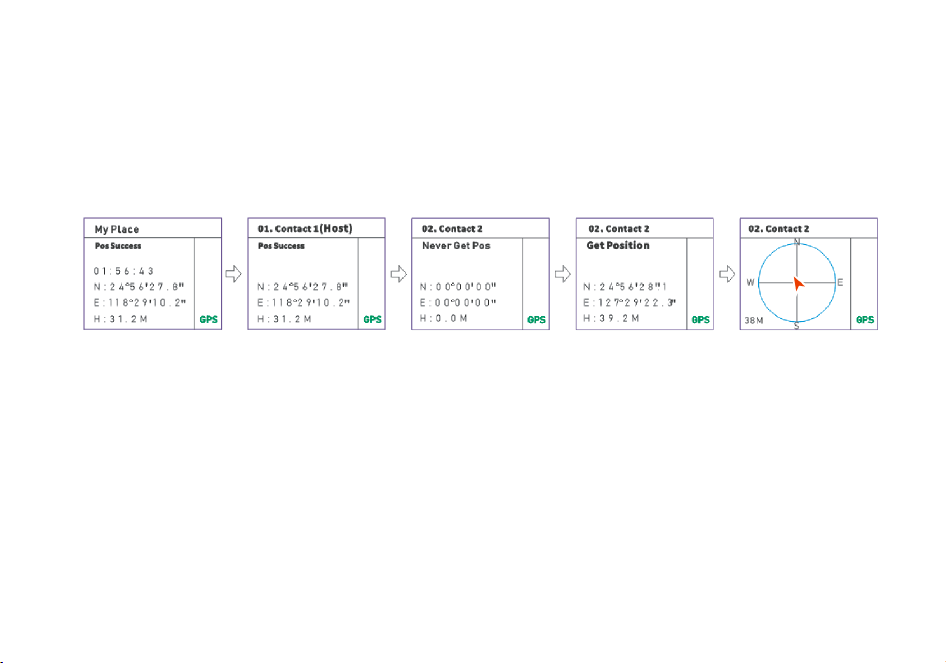

1. After the GPS position of the radios is successful, press the [MENU] key to switch to the My Place information interface.
2. Press the / key to select the pre programmed Contact sequence (01-20), and display the sequence and call name on the first line. Select
-30-

member sequences that are not marked as " Host ".
3. Press the [PTT] key to initiate a position request command to the target member.
4. Press the [MENU] key to switch to the electronic compass interface and display the reference distance between two radios.
-Disable transmission during waiting for reception.
-If the other party receives your request, they will reply with your location information.
-The red arrow represents your position, the arrow direction is the direction of your teammate, and the lower left corner is the reference
distance between the two radios.
7.5 Program Channel
Channel configuration is only applicable to the current channel and will not change the configuration parameters of other
channels. It allows to modify the channel name, Receive or Transmit frequency, Tx_Rx CTCSS/DCS, add the current channel to
the scan list, Working Mode, and channel memory and channel delete.
(1) Channel name (CHNAME) – MENU +1
To set the channel name you have at your disposal 26 letters (A-Z) and 10 numbers (0-9). You can use up to 8 characters for the channel name.
Edit the desired channel name with the keypad and then confirm by pushing [MENU] key. To exit the function press [EXIT]
key.
(2) RX Frequency – MENU +2
Input the RX frequency by keypad, click the [MENU] key to save, press EIXT key to return.
(3) TX Frequency – MENU +3
Input the TX frequency by keypad, click the [MENU] key to save, press [EXIT] key to return.
-31-

(4) Transmit power (Tx Power) – MENU +4
Set up the TX power for current channel.
WARNING: Channels 8-14 are low power transmissions and power switching is prohibited.
(5) Wide/Narrow Bandwidth – MENU +5
Select wideband or narrowband for the current channel.
Wide: 25 KHz; Narrow: 12.5 KHz
Warning: Channels 8-14 are fixed at narrowband 12.5 KHz, channel bandwidth change is prohibited.
(6) Receiving CTCSS (Rx CTCSS) – MENU +6
As DCS codes, the CTCSS codes can be added to the channels for creating new private channels.
Note: there are 50 groups of CTCSS tones.
(7) Receiving DCS (Rx DCS) – MENU + 7
DCS codes are similar to access codes and can be added to channels, so as to create a sort of personal channel. They enable the radio to
communicate with the users that are tuned on the same channel and have set the same DCS code. You can choose amongst:
• Off: Off
• D023N-D754N (Normal DCS), D023I-D754I (Inverse DCS)
Note: In radio there are 208 groups of normal and inverse DCS codes.
(8) Transmitting CTCSS (Tx CTCSS) – MENU +8
In this Menu you can set a CTCSS tone in tx mode.
You can choose: Off or CTCSS (67.0 to 254.1 Hz)
Note: there are 50 groups of CTCSS tones.
(9) Transmitting DCS (Tx DCS) – MENU+9
In this Menu you activate DCS codes in tx mode. You can choose between normal R-DCS (D023N-D754N) and inverted R-DCS (D023I-D754I)
Note: the groups of DCS codes are 208.
(10) Call Encryption (Encryption) – MENU +10
If the channel is configured with CTCSS/DCS and encryption is turned on, the communication will remain private.
-32-

Allows setting CTCSS/DCS code in RX/TX CTCSS/DCS menu.
The encryption icon
will be displayed on the screen when the encryption function is turned on.
(11) Signal code (Signaling) – MENU +11
Selects 1 of 20 DTMF codes. The DTMF codes are programmed with software and are up to 3 digits each.
(12) Working Mode (CH-MDF) – MENU +12
This function is used to set the display mode of the current channel. The radio offers three working modes:
• NAME: Channel name
• FREQ: Frequency Mode
• CH: Channel Mode
NOTE: The channel name allows editing via the CPS programming software and the channel Name in the Program Channel.
(13) Monitor (SP-MUTE) – MENU +13
With this function, the monitor opens if one of these options is detected:
• QT: When radios is set in this mode, the monitor feature is activated only when the radio receives the correct CTCSS tones.
• QT*DTMF: The monitor is activated when the radio receives the correct CTCSS tone or the correct DTMF code.
(14) Scan Add (Scan Add) – MENU+14
In channel mode, to scan the current channel, the channel must be added to the scan group.
• On: Turn on the scan function of the current channel.
• Off: Do not scan the current channel.
(15) Busy Channel Lock (Busy Lock) – MENU+15
When this function is on, it may prevent other radios’ interference. If the selected channel is being used by other radios, when you press key
PTT, your radio cannot transmit.
Release the PTT and transmit as soon as the frequency is no longer busy.
(16) Channel Memory - (CH-Memory) – MENU +16
This menu is used to either create new or modify existing channels (1 through 100) so that they can be accessed from MR/Channel Mode.
The channels already stored are displayed as CH-XXX ("CH" and -channel number), and other channels only display channel numbers.
-33-

(17) Channel Delete (CH-Delete) – MENU +17
This menu is used to delete the programmed information from the specified channel (1 through 100) so that it can either be programmed again
or be left empty.
* Differences in menus in frequency mode
(14) Frequency offset (Offset) – MENU + 14
In this menu you can set the deviation between tx and rx. The frequency offset of this radio is 00.000-99.998MHz.
(15) Frequency offset direction (Direction) – MENU + 15
Using this function, you can set the direction of the frequency offset in rx and tx.
You ha ve the following options:
• OFF: No offset.
• Plus: Positive offset(+);
• Minus: Negative offset(-);
7.6 Radio Info
Show the Radio ID, firmware version, Hardware version.
-34-

Appendix A. – Trouble shooting guide
Phenomena Analysis Solution
You cannot turn on the radio.
The battery may be installed improperly. Remove and reattach the battery.
The battery power may run out. Recharge or replace the battery.
The battery may suffer from poor contact caused by dirty
or damaged battery contacts.
Clean the battery contacts or replace the battery.
During receiving, the voice is weak or
intermittent.
The battery voltage maybe low. Recharge or replace the battery.
The volume level may be low. Increase the volume.
The antenna maybe loose or maybe installed incorrectly. Turnoff the radio, and then remove and reattach
the antenna.
The speaker maybe blocked. Clean the surface of the speaker.
You cannot communicate with other
group members.
The frequency or signaling type maybe inconsistent with
that of other members.
Verify that your TX/RX frequency and signaling type
are correct.
You may be too far away from other members. Move towards other members.
You hear unknown voices or noise.
You may be interrupted by radios using the same
frequency.
Change the frequency, or adjust the squelch level.
The radio in analog mode maybe set with no signaling. Request your dealer to set signaling for the current
channel to avoid interference
You are unable to hear anyone
because of too much noise and hiss.
You may be too far away from other members. Move towards other members.
You may be in an unfavorable position. For example, your
communication may be blocked by high buildings or
blocked in an underground area.
Move to an open and flat area, restart the radio,
and try again.
It may be the result of external disturbance (such as
electromagnetic interference).
Stay away from equipment that may cause
interference.
The radio keeps transmitting.
VOX may be turned on or the headset is not installed in
place
Turn off the VOX function. Check that the
headphones are in place.
NOTE: If the above solutions cannot fix your problems, or you may have some other queries, please contact your dealer
for more technical support.
-35-

Appendix B. - Technical Specifications
GENERAL
Channel Capacity 1000
Channel Spacing 25.0 KHz/12.5 KHz
Input Voltage 7.4 VDC
Battery Life: 5% TX, 5% RX, 90% Standby Li-on: 15 hours
Operating temperature -10˚C to 60˚C
Antenna Impedance 50Ω
Radio Dimensions 143mm X 64mm X 41mm (not including antenna)
Radio Weight 298 g (with Li-ON battery)
TRANSMITTER
Frequency Range (TX) GMRS
RF Output Power GMRS
Modulation 16K0F3E/11K0F3E
Spurious Emission -16 dBm<1GHz, -16 dBm>1GHz
Frequency Stability ±2.5 ppm
Audio Distortion ≤5%
FM Hum & Noise 40 dB
RECEIVER
Frequency Range 108-136, 136-174, 220-260, 350-390, 400 to 520 MHz (Scan Receiver)
Sensitivity: 12 dB SINAD -120 dBm
Adjacent Channel Selectivity -60 dBm
Intermodulation and Rejection -70 dBm
Rated Audio Power Output 0.75 Watts @ 16 Ω
Rated Audio Distortion ≤5%
NOTE: All specifications may be modified without prior notice or liability. Thank you.
-36-

Appendix C. - Shortcut Menu operations
Menu Name Setting Description
1 BANK 1 BANK 1 Channel1-Channel100
A Bank is a group of channels grouped together. The radio has 10
Banks. A Bank can have the maximum of 100 channels.
2 SCAN
1 Freq Ranger NNNNnnn Input VFO range lower and upper frequency
2 Scan Mode
Time
Time Operation - scanning will resume after a fixed time has
passed
Carrier
Carrier Operation -scanning will resume after the signal
disappears
Search Search Operation -scanning will not resume
3 Scan SubCode
CTCSS Search within CTCSS Tone (Rang 67-254.1, A total of 50 groups)
DCS Search within DCS Code (Rang 023N-754I, A total of 210 groups)
4 Scan Memory
ALL
RX_TX are saved
(default is all, encoding and decoding are the same)
DECODER Save only in Transmitter CTCSS/DCS
ENCODER Save only in Receiver CTCSS/DCS
3
Radio
Setting
1 Step 2.5-100K
Selects the amount of frequency change in VFO/Frequency mode
when scanning or pressing the or keys.
2 Squelch OFF,LEVEL1-LEVEL5
Squelch silences the receiver when there is no signal. Setting the
squelch to 0 will open up the squelch entirely.
3 Power Save
OFF
Turn off radio sleep. The battery consumption is large, and the
standby time may be shortened
ON
Turn on radio sleep. Turning on is more power efficient, but you
might miss the first few syllables before the RX turns on.
4 VOX Switch
OFF Turn off the radio VOX.
ON Turn on the radio VOX.
5 VOX Level LEVEL1-LEVEL9
When enabled it is not necessary to push the [PTT] button on the
-37-

transceiver. Adjust the gain level to an appropriate sensitivity to
allow smooth transmission.
6 VOX Delay 0.5……2.0s
When the VOX is enabled, set up the VOX delay to help to extend
the transmission time to avoid stopping a transmission too early.
0.5s-2s, Step 0.1 second. a total of 16 times offered.
7 TOT
OFF Allow continuous launch, launch time is not limited
15;30;45…180
Maximum allowed time for transmission while holding down the
PTT key.
8 TOA
OFF Disable TOA function
1……10 Activate TOA function. Range 0 – 10 seconds, Step 1 second.
9 Voice
OFF Disable voice prompts
ON Activate voice prompts
10 Language
Chinese Display menus and voice prompts in Chinese language
English Display menus and voice prompts in English language
11 ROGER
OFF Disable ROGER function. Release PTT key without ROGER audio.
ON
Activate the ROGER function. Sends an end-of-transmission tone
to indicate to other stations that the transmission has ended.
12 Beep
OFF Disable key confirmation tone.
ON
Activation key to confirm tone. Allows audible confirmation of a
key press
13 BackLight
ALWAYS ON The backlight is always on.
5……20
Set the backlight off time in no-operation delay time. 5-20, step
value is 5.
14
Power on
Display
PICTURE Show preset picture when radio is on
MESSAGE Display preset information when radio is on
VOLTAGE Display battery voltage when radio is on
15 Dual Watch
OFF Disable dual table, dual receive.
ON
Monitor [A] and [B] at the same time. The display with the most
recent activity ([A] or [B]) becomes the selected display.
16 AutoLock OFF
Disable automatic keypad lock. Allow manual keypad lock (press
and hold the
key to lock/unlock the keyboard)
-38-

ON
When ON, the keypad will be locked if not used in 8 seconds.
Pressing the key for 2 seconds will unlock the keypad.
17 Alarm Mode
On Site Sounds alarm through your radio speaker only
Send Sound Transmits a cycling tone over-the-air
Send Code
Transmits '119' (911 in reverse) followed by the ANI code
over-the-air
18 Alarm Tone
OFF The radio speaker blocks the alarm sound.
ON The radio speaker sounds an alarm
19 ANI-Edit 100
View the ANI ID, and if necessary, will allow to change the ANI ID
20 DTMF-ST
OFF No DTMF Side Tones are heard
DT-ST Side Tones are heard only from manually keyed DTMF codes
ANI-ST Side Tones are heard only from automatically keyed DTMF codes
DT+ANI All DTMF Side Tones are heard
21 PTT-ID
OFF No ID is sent.
BOT The selected S-CODE is sent at the beginning
EOT The selected S-CODE is sent at the ending
BOTH The selected S-CODE is sent at the beginning and ending
22 PTT-DLY 100-3000ms Signal code sending delay. PTT-ID Delay (milliseconds)
23 ALERT
1000Hz
The following configurations will transmit accordingly:
PTT + SK3 = Transmits 1000Hz Tone Burst
1450Hz PTT + SK3 = Transmits 1450Hz Tone Burst
1750Hz PTT + SK3 = Transmits 1750Hz Tone Burst
2100Hz PTT + SK3 = Transmits 2100Hz Tone Burst
24 TAIL
OFF Disable Squelch Tail Elimination.
ON
Enable Squelch tail elimination. to prevent any squelch tails from
being heard.
25 Press SK2
FM Radio FM radio on/off
Search Search on/off
Scan Scan on/off
-39-

VOX VOX on/off
26 Reset
VFO
Reset the radio's VFO menu to factory defaults (no reset for bank,
scan settings)
ALL Resets the radio to factory defaults, with some exceptions.
4 GNSS
1 GPS On/Off
OFF Turn off the position system, long press the MENU key is ineffective
ON
Turn on the position system, press and hold the MENU key to enter GPS
mode
2 Time Zone -12 to 0 to + 12 Set the time zone of the region
3 GPS Mode
GPS
BDS
GPS+BDS
5
Program
Channel
1 CH.NAME Channel 1
View channel name, allows to rename the current channel. Press
the key to switch the input method, allowing the input of
letters, numbers and symbols.
2 RX Frequency
View the current channel Receiver frequency, allow to change the
current frequency. Input the RX frequency by keypad, click the
Menu key to save
。
* Channels 1-30 are GMRS fixed frequencies, frequency change
is prohibited.
3 TX Frequency
View the current channel Transmitter frequency, allow to change
the current frequency. Input the TX frequency by keypad, click
the Menu key to save
*Channels 1-30 are GMRS fixed frequencies, frequency change is
prohibited.
4 Trans Power
High
Selects between HIGH transmitter power when in VFO/Frequency
mode.
Low
Selects between LOW transmitter power when in VFO/Frequency
mode.
WARNING: Channels 8-14 are low power transmissions and power switching
is prohibited
5 Bandwidth
Wide Wideband (25 kHz bandwidth)
Narrow narrowband (12.5 kHz bandwidth)
-40-

Warning: Channels 8-14 are fixed at narrowband 12.5 KHz, channel
bandwidth change is prohibited.
6 RX CTCSS OFF;67-254.1
Mutes the speaker of the transceiver in the absence of a specific
and continuous sub-audible signal. If the station you are listening
to does not transmit this specific and continuous signal, you will
not hear anything.
7 RX DCS OFF;023N-754I
Mutes the speaker of the transceiver in the absence of a specific
low-level digital signal. If the station you are listening to does not
transmit this specific signal, you will not hear anything.
8 TX CTCSS OFF;67-254
Transmits a specific and continuous sub audible signal to unlock
the squelch of a distant receiver (usually a repeater).
9 TX DCS OFF;023N-754I
Transmits a specific low-level digital signal to unlock the squelch
of a distant receiver (usually a repeater).
10 Encryption
OFF Disable encrypted mode, your conversations are not private.
ON
Activating encryption mode ensures the privacy of your
conversations.
To use the Encryption function, the other part of the radio must
also have Encryption activated and must be tuned on the same
DCS code.
11 Signaling 1-20
Selects 1 of 15 DTMF codes. The DTMF codes are programmed
with software and are up to 5 digits each.
12 CH-MDF
NAME
MR/Channel mode is displayed in NAME format. Note: NAME
allows CPS program or edit in the channel name(Munu 1).
FREQ MR/Channel mode is displayed in frequency format.
CH MR/Channel mode is displayed in CH format.
13 SP-Mute
QT
when radios is set in this mode, the monitor feature is activated
only when the radio receives the correct CTCSS/DCS.
QT*DTMF
• QT*DTMF: the monitor is activated when the radio receives the
correct CTCSS/DCS or the correct DTMF code.
14 SCAN ADD
OFF Forbid the current channel to join the scan group.
ON Add the current channel to the scan group.
15 Busy Lockout OFF The [PTT] button on the channel is always allowed.
-41-

ON
Disables the [PTT] button on a channel that is already in use.
The transceiver will sound a beep tone and will not transmit if the
[PTT] button is pressed when a channel is already in use.
16 OffSet Specifies the difference between the TX and RX frequencies
17 Direction
None
TX = RX (simplex). Disable access to repeaters in VFO/Frequency
mode
Plus
Plus frequency shift direction. TX will be shifted higher in
frequency than RX
Minus
Minus frequency shift direction. TX will be shifted lower in
frequency than RX
16 CH_Memory CH001-CH100
This menu is used to either create new or modify existing
channels (1 through 100) so that they can be accessed from
MR/Channel Mode.
17 CH_Delete CH001-CH100
This menu is used to delete the programmed information from
the specified channel (1 through 100) so that it can either be
programmed again or be left empty.
6
Radio
Info
Radio ID\Firmware\Hardware
Displays radio ID, firmware version, hardware version. to check
the radio information.
Appendix D. - DCS Table
DCS CODE LIST
Number Code Number Code Number Code Number Code Number Code
1 D023N 2 D025N 3 D026N 4 D031N 5 D032N
6 D036N 7 D043N 8 D047N 9 D051N 10 D053N
11 D054N 12 D065N 13 D071N 14 D072N 15 D073N
16 D074N 17 D114N 18 D115N 19 D116N 20 D122N
21 D125N 22 D131N 23 D132N 24 D134N 25 D143N
26 D145N 27 D152N 28 D155N 29 D156N 30 D162N
31 D165N 32 D172N 33 D174N 34 D205N 35 D212N
36 D223N 37 D225N 38 D226N 39 D243N 40 D244N
41 D245N 42 D246N 43 D251N 44 D252N 45 D255N
-42-

46 D261N 47 D263N 48 D265N 49 D266N 50 D271N
51 D274N 52 D306N 53 D311N 54 D315N 55 D325N
56 D331N 57 D332N 58 D343N 59 D346N 60 D351N
61 D356N 62 D364N 63 D365N 64 D371N 65 D411N
66 D412N 67 D413N 68 D423N 69 D431N 70 D432N
71 D445N 72 D446N 73 D452N 74 D454N 75 D455N
76 D462N 77 D464N 78 D465N 79 D466N 80 D503N
81 D506N 82 D516N 83 D523N 84 D526N 85 D532N
86 D546N 87 D565N 88 D606N 89 D612N 90 D624N
91 D627N 92 D631N 93 D632N 94 D645N 95 D654N
96 D662N 97 D664N 98 D703N 99 D712N 100 D723N
101 D731N 102 D732N 103 D734N 104 D743N 105 D754N
106 D023I 107 D025I 108 D026I 109 D031I 110 D032I
111 D036I 112 D043I 113 D047I 114 D051I 115 D053I
116 D054I 117 D065I 118 D071I 119 D072I 120 D073I
121 D074I 122 D114I 123 D115I 124 D116I 125 D122I
126 D125I 127 D131I 128 D132I 129 D134I 130 D143I
131 D145I 132 D152I 133 D155I 134 D156I 135 D162I
136 D165I 137 D172I 138 D174I 139 D205I 140 D212I
141 D223I 142 D225I 143 D226I 144 D243I 145 D244I
146 D245I 147 D246I 148 D251I 149 D252I 150 D255I
151 D261I 152 D263I 153 D265I 154 D266I 155 D271I
156 D274I 157 D306I 158 D311I 159 D315I 160 D325I
161 D331I 162 D332I 163 D343I 164 D346I 165 D351I
166 D356I 167 D364I 168 D365I 169 D371I 170 D411I
171 D412I 172 D413I 173 D423I 174 D431I 175 D432I
176 D445I 177 D446I 178 D452I 179 D454I 180 D455I
181 D462I 182 D464I 183 D465I 184 D466I 185 D503I
186 D506I 187 D516I 188 D523I 189 D526I 190 D532I
-43-

191 D546I 192 D565I 193 D606I 194 D612I 195 D624I
196 D627I 197 D631I 198 D632I 199 D645I 200 D654I
201 D662I 202 D664I 203 D703I 204 D712I 205 D723I
206 D731I 207 D732I 208 D734I 209 D743I 210 D754I
Appendix E. - CTCSS Table
CTCSS CHART (Hz)
Number
Frequency
Number
Frequency
Number
Frequency
Number
Frequency
Number
Frequency
1 67.0 2 69.3 3 71.9 4 74.4 5 77.0
6 79.7 7 82.5 8 85.4 9 88.5 10 91.5
11 94.8 12 97.4 13 100 14 103.5 15 107.2
16 110.9 17 114.8 18 118.8 19 123.0 20 127.3
21 131.8 22 136.5 23 141.3 24 146.2 25 151.4
26 156.7 27 159.8 28 162.2 29 165.5 30 167.9
31 171.3 32 173.8 33 177.3 34 179.9 35 183.5
36 186.2 37 189.9 38 192.8 39 196.6 40 199.5
41 203.5 42 206.5 43 210.7 44 218.1 45 225.7
46 229.1 47 233.6 48 241.8 49 250.3 50 254.1
-44-

Disclaimer
The accuracy and completeness of the contents are sought in the process of compilation, but we do not bear any
responsibility for the possible errors or omissions. With the continuous development of technology, we reserve the right to
change the design and specification of the product without notice. No copy, modification, translation and dissemination of
this handbook may be made in any form without the prior written authorization of our department.
Print version: GM-30 PLUS(GPS) V2.0
-45-

Thank You for Shopping at Radioddity!
FIND TUTORIALS, SUPPORT AND MORE
https://www.radioddity.com/
https://www.facebook.com/radioddity
https://www.youtube.com/c/Radioddityradio
