Zyxel USG FLEX User Guide

This is the main product document for model USGFLEX200-EU0101F.

The file format is pdf, 1268 pages, you can download this manual here .

background
Default Login Details
User’s Guide
ZyWALL USG FLEX
Series
Copyright © 2025 Zyxel and/or its affiliates. All rights reserved.

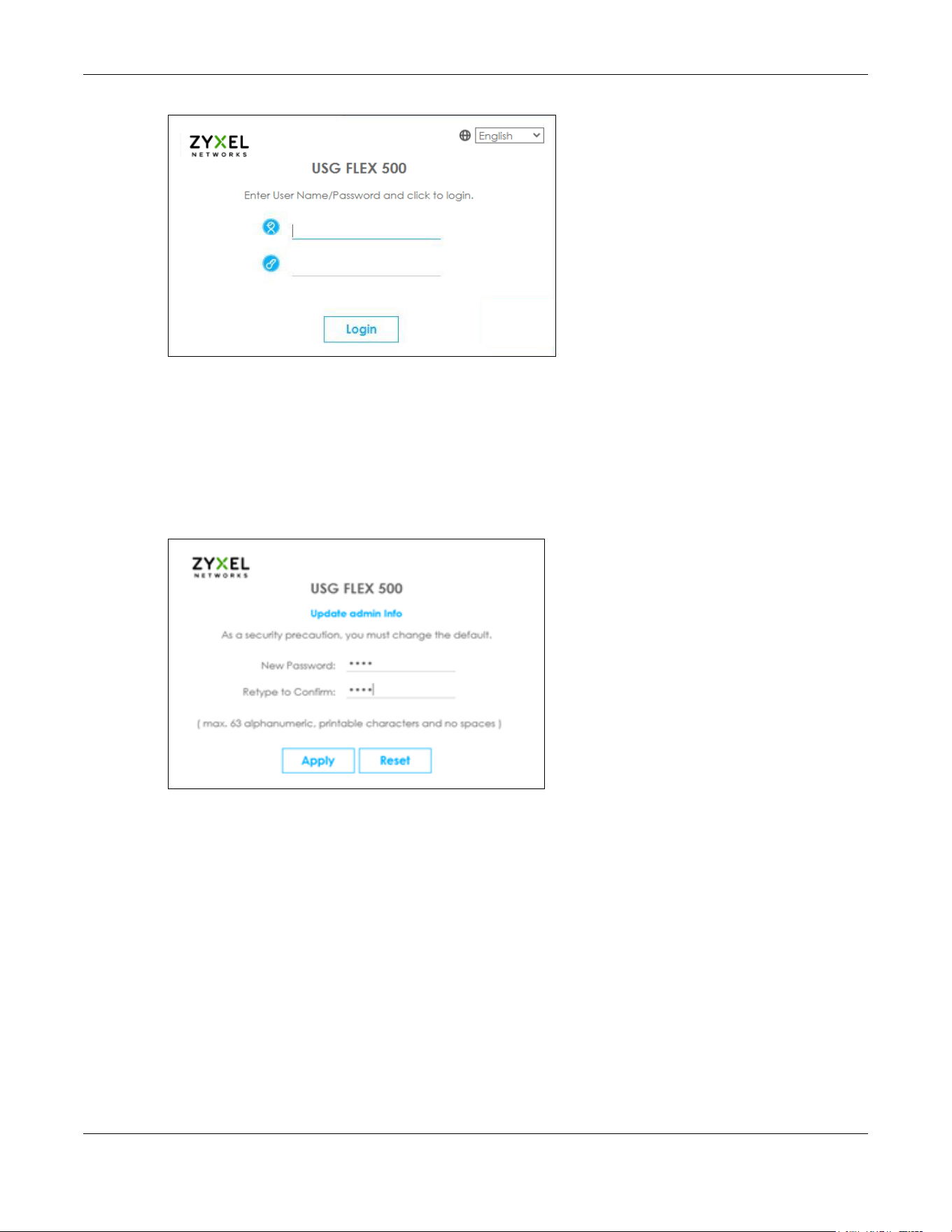

Login IP Address https://(IP assigned by NCC)
or
https://myrouter.local
or
https://192.168.1.1
User Name admin
Password See Zyxel Device label or 1234
Version 5.40 Edition 1, 5/2025
background
USG FLEX Series User’s Guide
2
IMPORTANT!
READ CAREFULLY BEFORE USE.
KEEP THIS GUIDE FOR FUTURE REFERENCE.
This is a User’s Guide for a series of products. Not all products support all firmware features. Screenshots
and graphics in this book may differ slightly from your product due to differences in product features or
Web Configurator brand style. Every effort has been made to ensure that the information in this manual
is accurate.
Note: The version number on the cover page refers to the Zyxel Device’s latest firmware
version to which this User’s Guide applies.
Related Documentation
•Quick Start Guide
The Quick Start Guide shows how to connect the Zyxel Device and access the Web Configurator
wizards. (See the wizard real time help for information on configuring each screen.) It also contains a
connection diagram and package contents list.
•CLI Reference Guide
The CLI Reference Guide explains how to use the Command-Line Interface (CLI) to configure the
Zyxel Device.
Note: It is recommended you use the Web Configurator to configure the Zyxel Device.
• Web Configurator Online Help
Click the help icon in any screen for help in configuring that screen and supplementary information.
•More Information
Go to support.zyxel.com to find other information on Zyxel Device.
background
Document Conventions
USG FLEX Series User’s Guide
3
Document Conventions
Warnings and Notes
These are how warnings and notes are shown in this guide.
Warnings tell you about things that could harm you or your device.
Note: Notes tell you other important information (for example, other things you may need to
configure or helpful tips) or recommendations.
Syntax Conventions
• All models in this series may be referred to as the “Zyxel Device” in this guide.
• Product labels, screen names, field labels and field choices are all in bold font.
• A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Configuration >
Network > Interface > Ethernet means you first click Configuration in the navigation panel, then
Network, then the Interface sub menu and finally the Ethernet tab to get to that screen.
Icons Used in Figures
Figures in this user guide may use the following generic icons. The Zyxel Device icon is not an exact
representation of your device.
Zyxel Device Router Wireless Router / Access Point
Switch Firewall Server
Internet Network Cloud Smartphone
USB Dongle
background
Contents Overview
USG FLEX Series User’s Guide
4
Contents Overview
Introduction ........................................................................................................................................... 30
Web Configurator ................................................................................................................................. 45
Initial Setup Wizard ............................................................................................................................... 67
Hardware, Interfaces and Zones ........................................................................................................ 94
Quick Setup Wizards ........................................................................................................................... 106
Dashboard .......................................................................................................................................... 153
Monitor ................................................................................................................................................. 164
Licensing .............................................................................................................................................. 256
Wireless ................................................................................................................................................. 265
Interfaces ............................................................................................................................................. 318
Routing ................................................................................................................................................. 431
DDNS .................................................................................................................................................... 458
NAT ....................................................................................................................................................... 464
Redirect Service .................................................................................................................................. 481
ALG ....................................................................................................................................................... 487
UPnP ..................................................................................................................................................... 494
IP/MAC Binding ................................................................................................................................... 509
Layer 2 Isolation .................................................................................................................................. 514
DNS Inbound LB .................................................................................................................................. 518

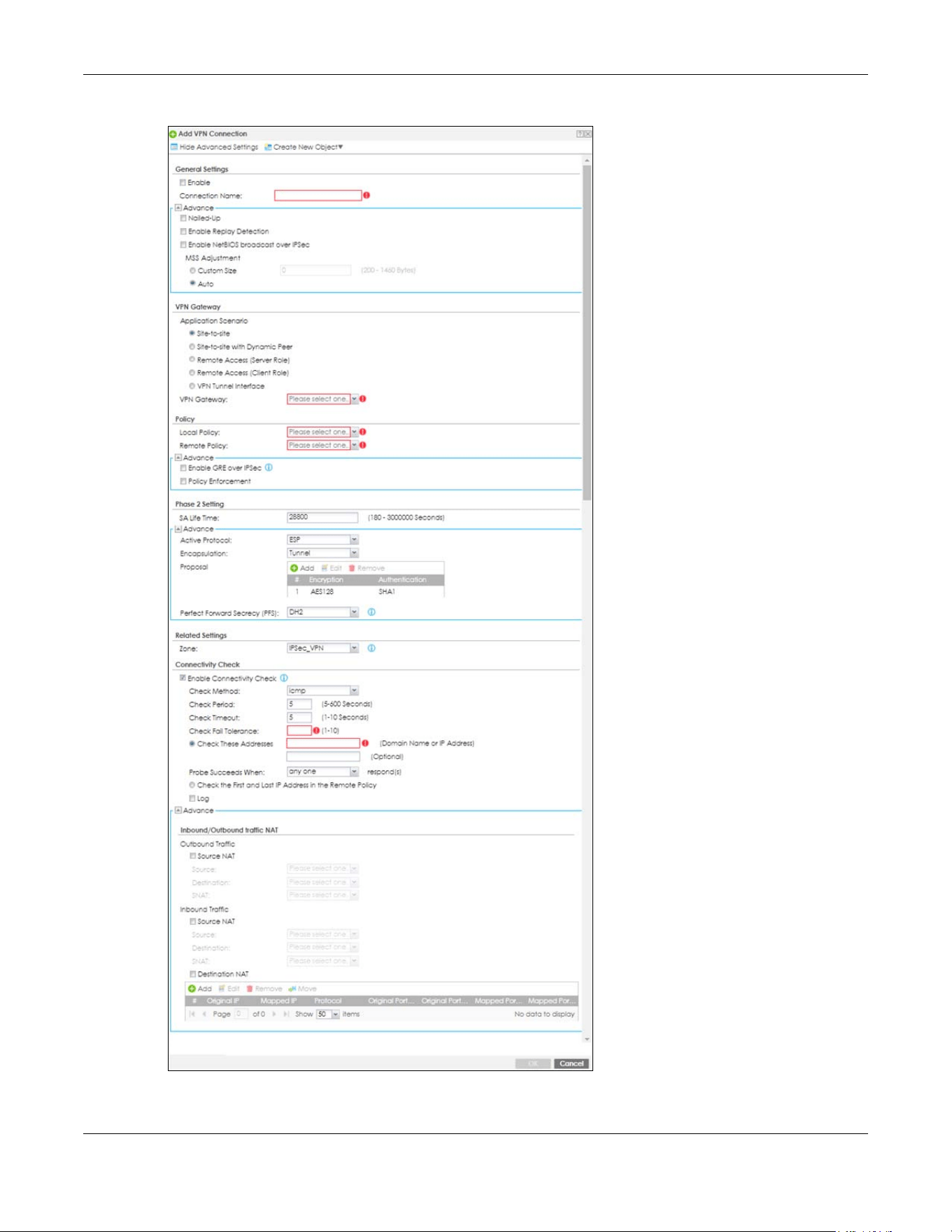

IPSec VPN ............................................................................................................................................ 524
SSL VPN ................................................................................................................................................ 562

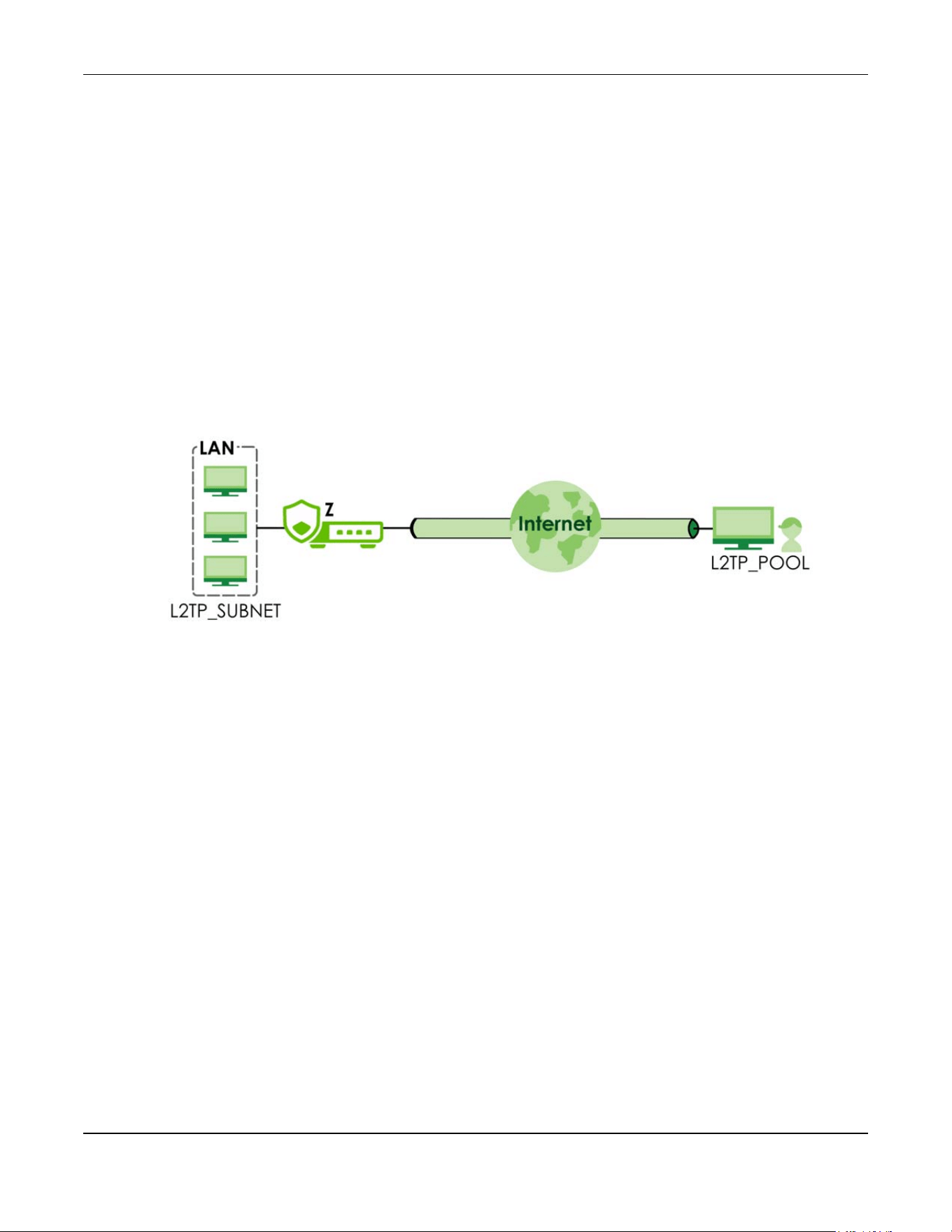

L2TP VPN .............................................................................................................................................. 568
Remote AP VPN .................................................................................................................................. 574
BWM (Bandwidth Management) ..................................................................................................580
Web Authentication .......................................................................................................................... 597
Hotspot ................................................................................................................................................ 627
Printer Manager .................................................................................................................................. 645
Free Time ............................................................................................................................................. 657
IPnP ....................................................................................................................................................... 662
Walled Garden ................................................................................................................................... 665
Advertisement Screen ....................................................................................................................... 671
Security Policy ..................................................................................................................................... 674
Application Patrol ............................................................................................................................... 707
Content Filter ....................................................................................................................................... 721
Anti-Malware ....................................................................................................................................... 770
Reputation Filter .................................................................................................................................. 791
IPS ......................................................................................................................................................... 827
Sandboxing ......................................................................................................................................... 854
Email Security ...................................................................................................................................... 858
background
Contents Overview
USG FLEX Series User’s Guide
5
Collaborative Detection & Response .............................................................................................. 877
SSL Inspection ...................................................................................................................................... 891
IP Exception ......................................................................................................................................... 915
Astra Cloud Security ........................................................................................................................... 920
Object .................................................................................................................................................. 922
Device HA ......................................................................................................................................... 1056
Mgmt. & Analytics ............................................................................................................................ 1063
System ................................................................................................................................................ 1076
Log and Report ................................................................................................................................. 1139
File Manager ..................................................................................................................................... 1153
Diagnostics ....................................................................................................................................... 1174
Packet Flow Explore ......................................................................................................................... 1196
Shutdown ........................................................................................................................................... 1203
Troubleshooting ................................................................................................................................ 1206
background
Table of Contents
USG FLEX Series User’s Guide
6
Table of Contents
Document Conventions ......................................................................................................................3
Contents Overview .............................................................................................................................4
Table of Contents.................................................................................................................................6
Part I: User’s Guide..........................................................................................29
Chapter 1
Introduction ........................................................................................................................................30
1.1 Overview ......................................................................................................................................... 30
1.1.1 Model Feature Differences .................................................................................................. 30
1.2 On Premises Mode ......................................................................................................................... 31
1.3 Monitor Mode ................................................................................................................................. 32
1.4 Nebula Mode .................................................................................................................................. 33
1.4.1 NCC Portal ............................................................................................................................. 34
1.4.2 Your Zyxel Device .................................................................................................................. 34
1.4.3 Activation Email .................................................................................................................... 35
1.5 Changing the Mode ...................................................................................................................... 36
1.5.1 From Nebula Mode to On Premises Mode ........................................................................ 36
1.5.2 From On Premises Mode to Nebula Mode ........................................................................ 38
1.5.3 From Nebula Mode to Cloud Monitoring Mode ............................................................... 38
1.6 Registration at Zyxel ....................................................................................................................... 38
1.6.1 Grace Period ......................................................................................................................... 39
1.6.2 Applications ........................................................................................................................... 39
1.7 Management Overview ................................................................................................................ 42
1.8 Remote Access to the Zyxel Device Networks ........................................................................... 44
Chapter 2
Web Configurator...............................................................................................................................45
2.1 Overview ......................................................................................................................................... 45
2.2 Web Configurator Access ............................................................................................................. 45
2.3 Security Best Practices ................................................................................................................... 46

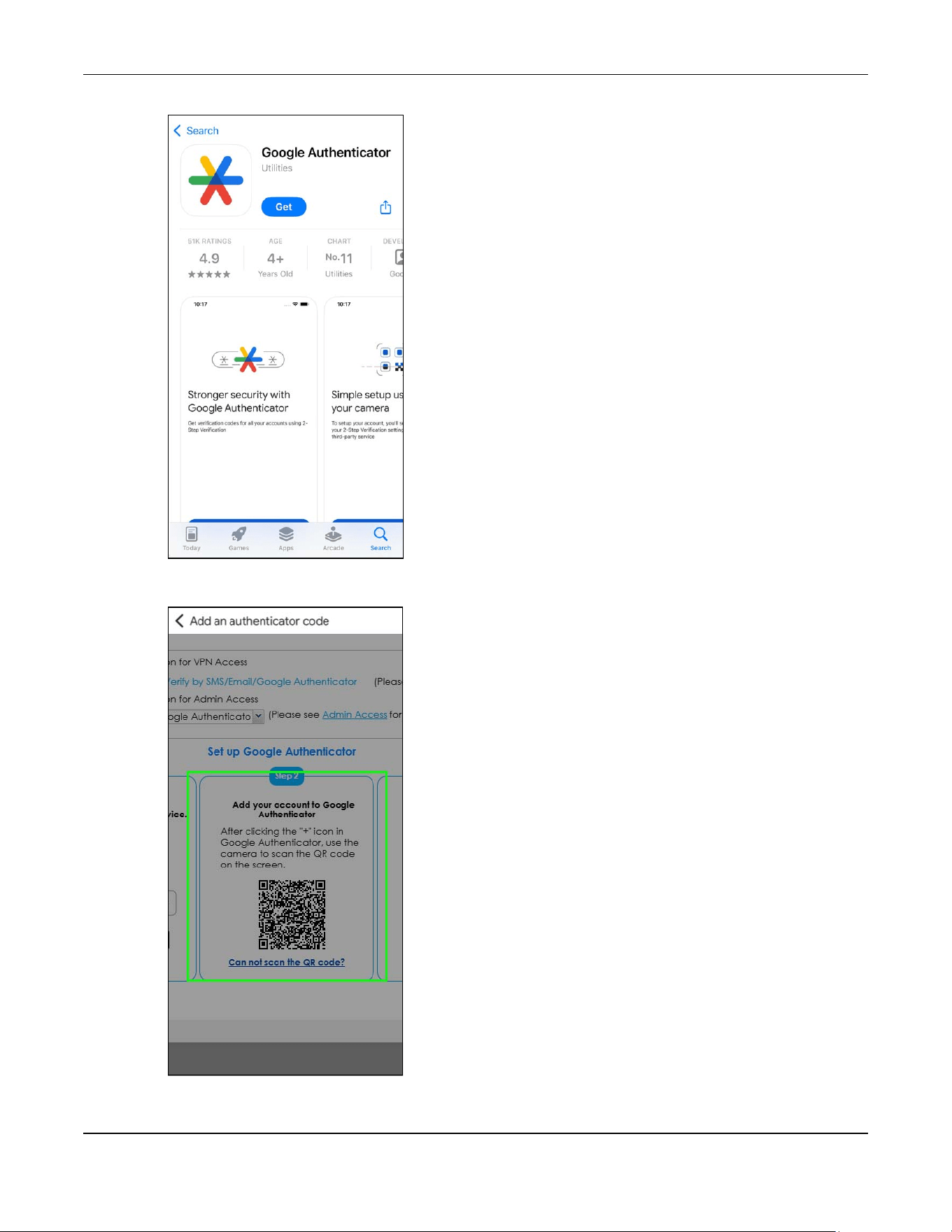

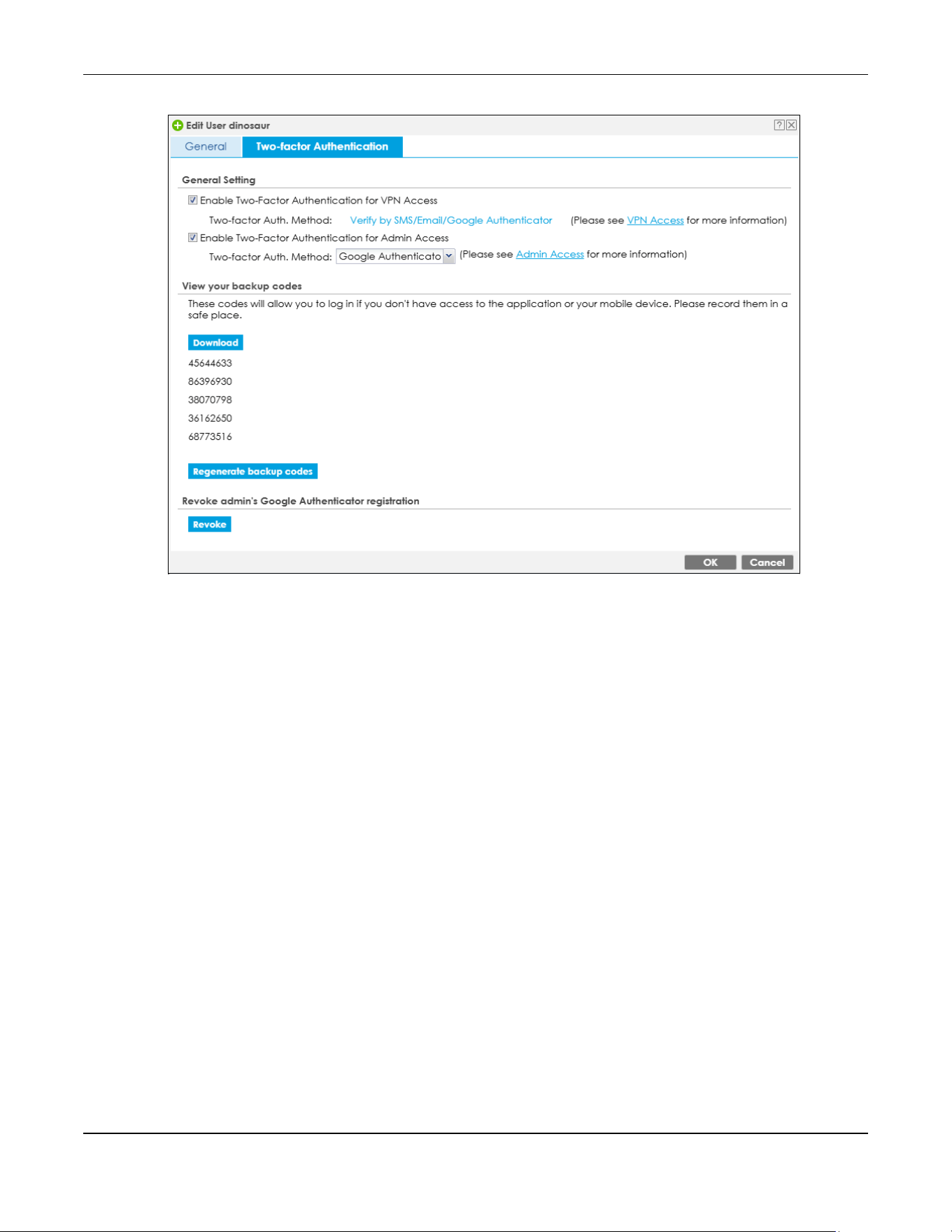

2.3.1 Two-Factor Authentication .................................................................................................. 47

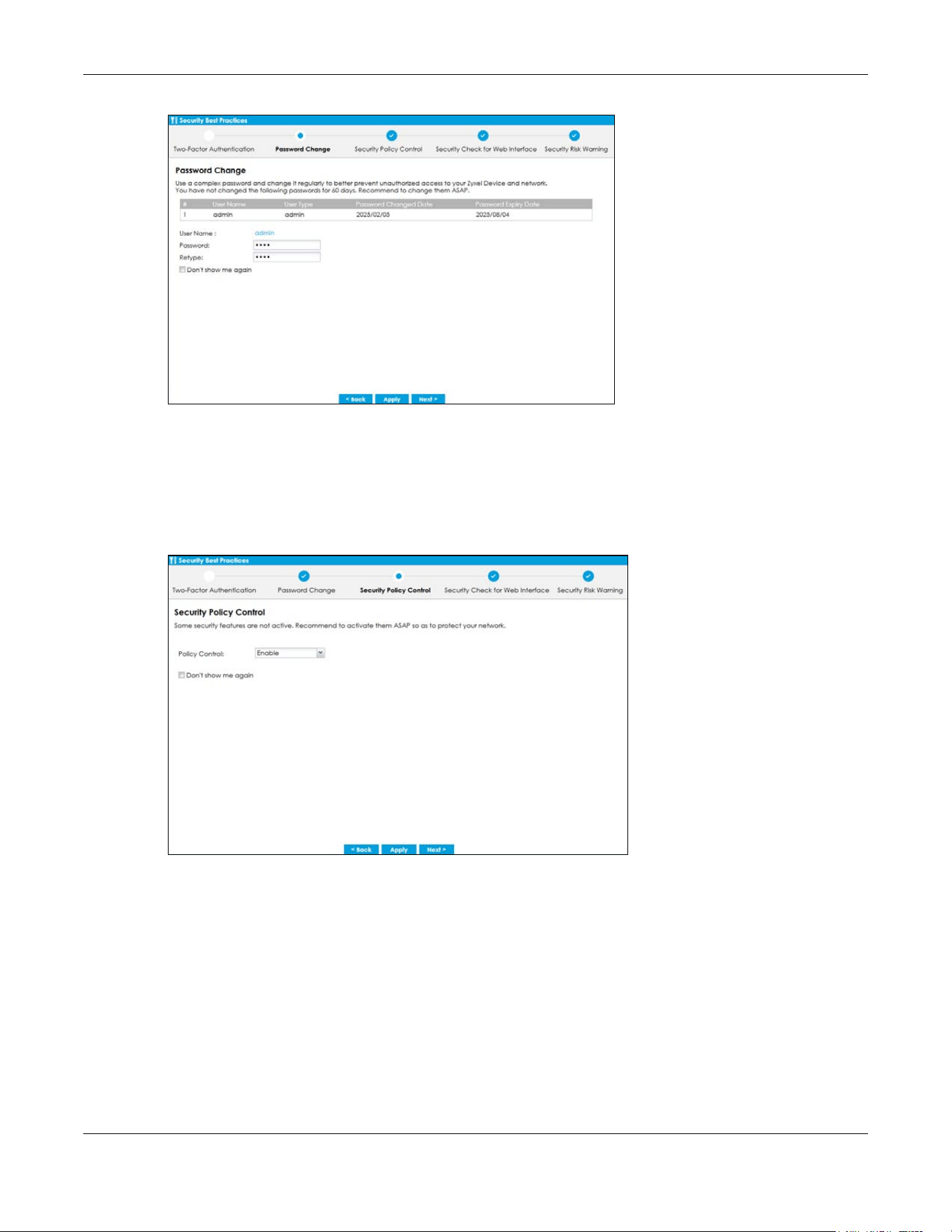

2.3.2 Password Change ................................................................................................................. 47
2.3.3 Security Policy Control .......................................................................................................... 48

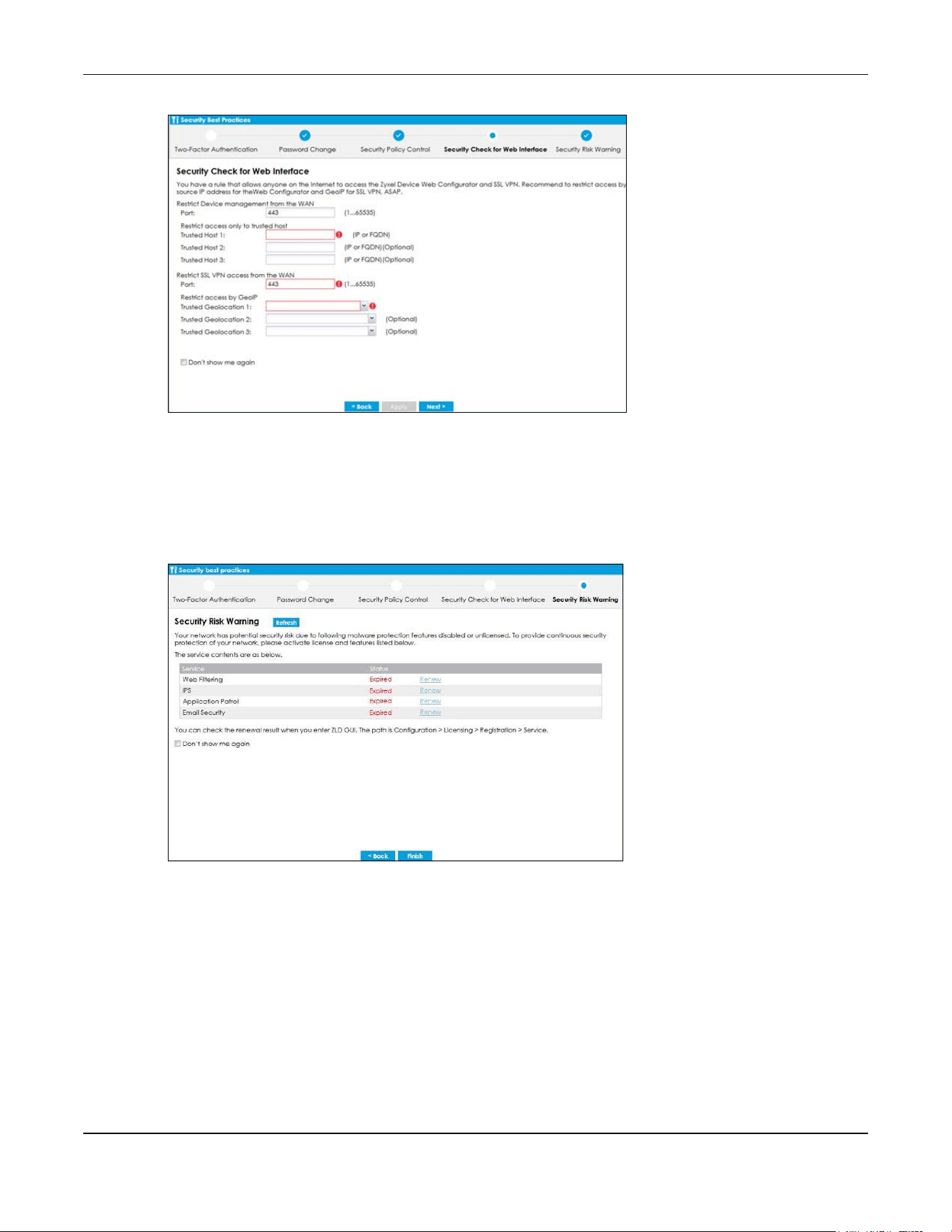

2.3.4 Security Check for Web Interface ...................................................................................... 48
2.3.5 Security Risk Warning ............................................................................................................ 49
background
Table of Contents
USG FLEX Series User’s Guide
7
2.4 Web Configurator Screens Overview ..........................................................................................49
2.5 Navigation Panel ............................................................................................................................ 54
2.6 Tables and Lists ................................................................................................................................ 63
Chapter 3
Initial Setup Wizard.............................................................................................................................67
3.1 Initial Setup Wizard: Select Management Mode ........................................................................ 67
3.1.1 Welcome Screen .................................................................................................................. 68
3.1.2 Internet Access Setup - WAN Interface .............................................................................. 68
3.1.3 Internet Access: Ethernet .................................................................................................... 70
3.1.4 Internet Access: PPPoE ......................................................................................................... 71
3.1.5 Internet Access: PPTP ........................................................................................................... 72
3.1.6 Internet Access: L2TP ............................................................................................................ 74
3.1.7 Internet Access Setup - Second WAN Interface ............................................................... 76

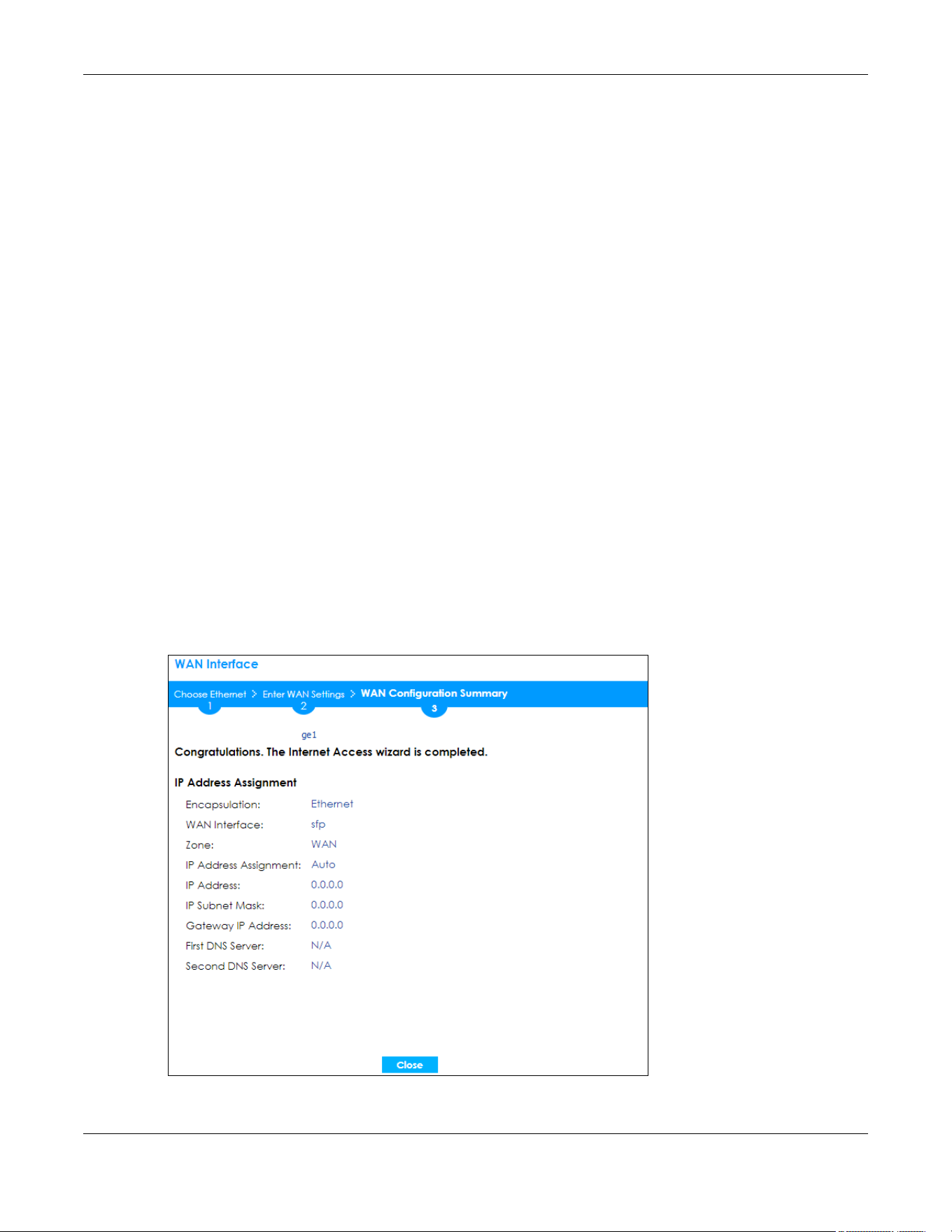

3.1.8 Internet Access: Congratulations ....................................................................................... 77
3.1.9 Date and Time Settings ........................................................................................................ 78
3.1.10 Register Device ................................................................................................................... 78
3.1.11 Activate Service .................................................................................................................. 80
3.1.12 Service Settings .................................................................................................................... 81

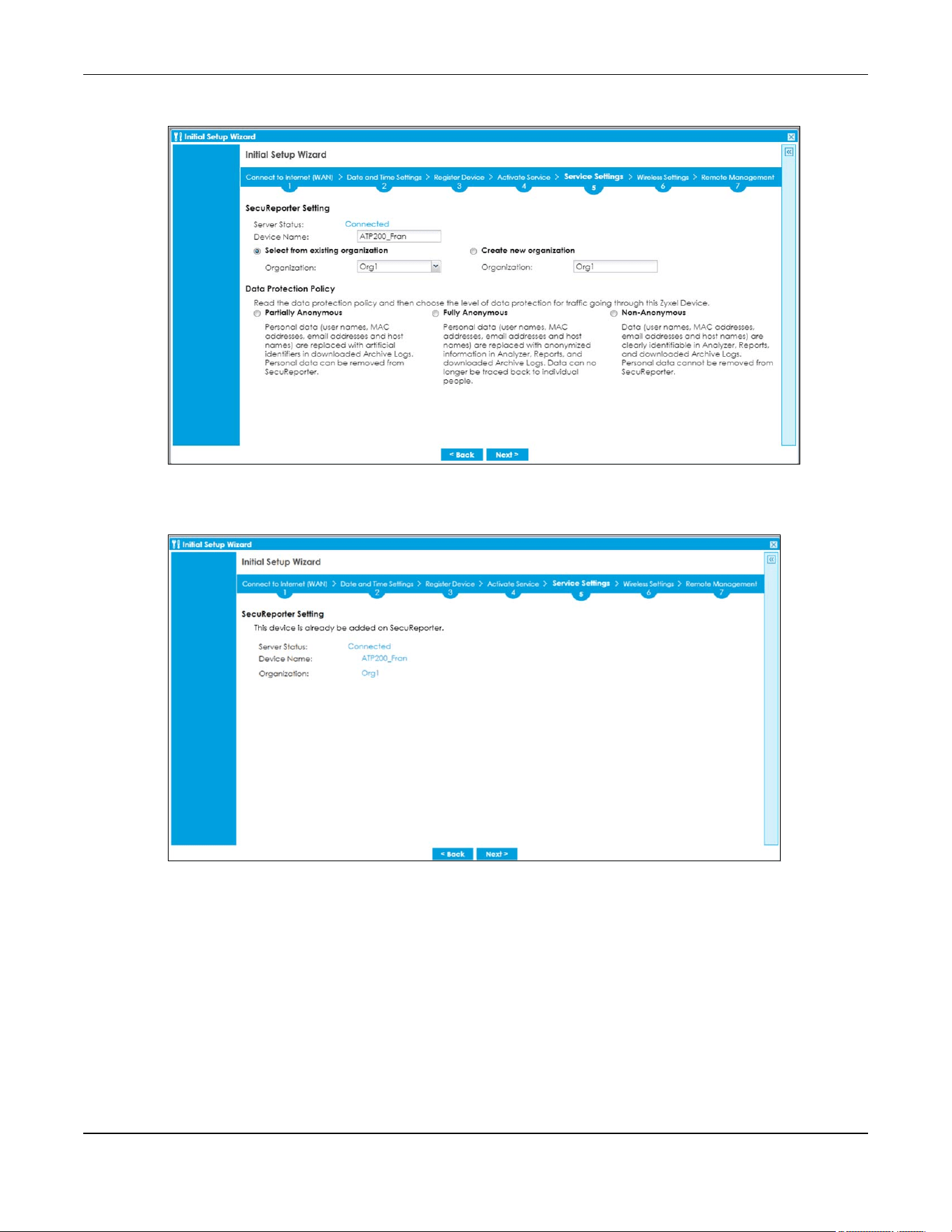

3.1.13 Service Settings: SecuReporter ..........................................................................................82
3.1.14 Wireless Settings: Management Mode ............................................................................. 83
3.1.15 Wireless Settings: AP Controller ......................................................................................... 84
3.1.16 Wireless Settings: SSID & Security ...................................................................................... 84

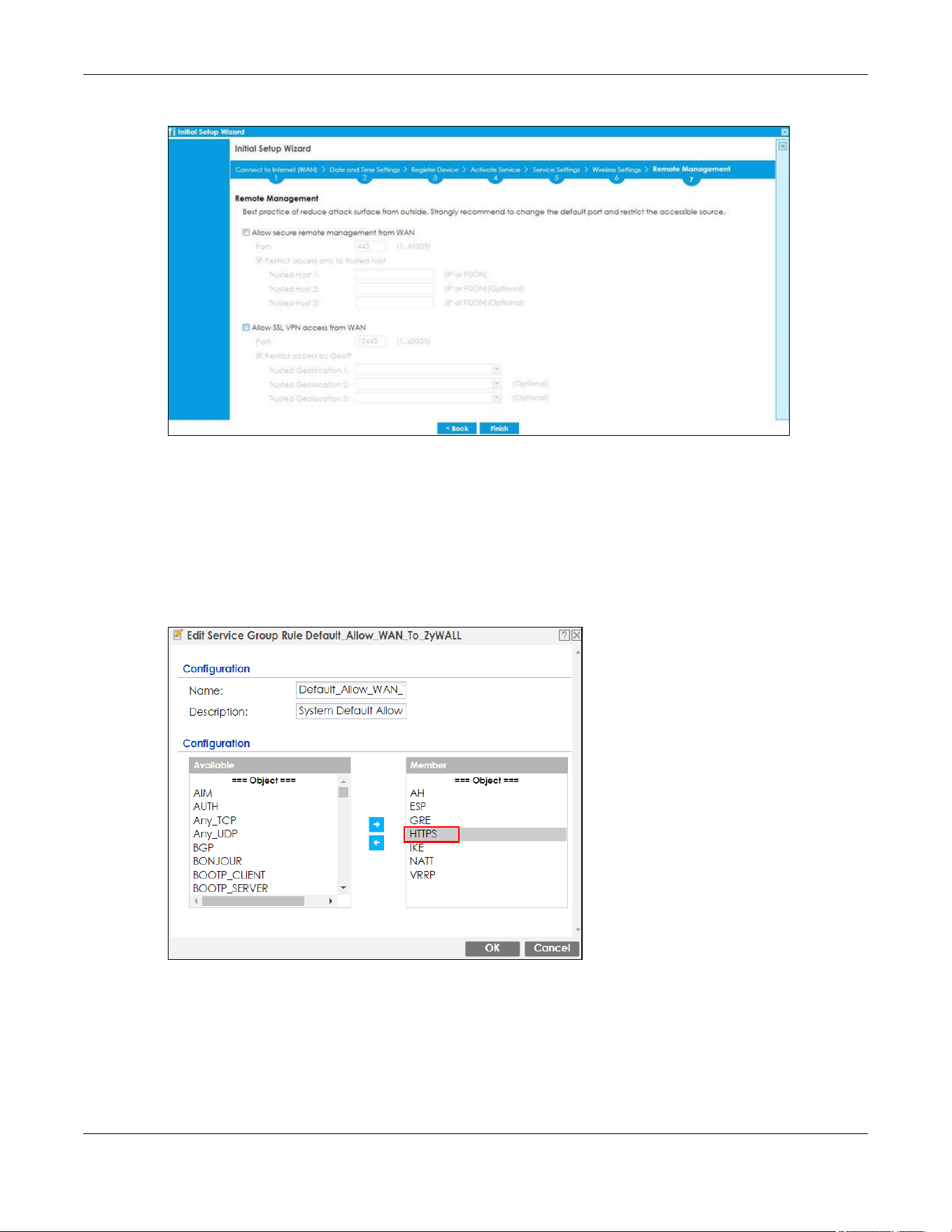

3.1.17 Remote Management ......................................................................................................85
3.2 Nebula Mode Initial Setup Wizard ................................................................................................ 86
3.2.1 Connect to Internet (WAN) ................................................................................................. 87
3.2.2 Internet Access: Ethernet ..................................................................................................... 88
3.2.3 Internet Access: PPPoE ......................................................................................................... 89
3.2.4 Internet Access: Congratulations ....................................................................................... 91
3.2.5 QR Code ................................................................................................................................ 92
Chapter 4
Hardware, Interfaces and Zones......................................................................................................94
4.1 Hardware Overview ....................................................................................................................... 94
4.1.1 Front Panels ............................................................................................................................ 94
4.1.2 Rear Panels ............................................................................................................................ 97
4.1.3 Console Port Pin Connection ..............................................................................................99
4.2 Installation Scenarios ................................................................................................................... 100
4.2.1 Desktop Installation Procedure ......................................................................................... 101
4.2.2 Rack-mounting .................................................................................................................... 102
4.2.3 Wall-mounting ..................................................................................................................... 103
4.3 Default Zones, Interfaces, and Ports .......................................................................................... 104
4.4 Stopping the Zyxel Device .......................................................................................................... 105
background
Table of Contents
USG FLEX Series User’s Guide
8
Chapter 5
Quick Setup Wizards........................................................................................................................106
5.1 Quick Setup Overview ................................................................................................................. 106
5.2 WAN Interface Quick Setup ........................................................................................................ 107
5.2.1 Choose an Ethernet Interface ........................................................................................... 107
5.2.2 Select WAN Type ................................................................................................................. 108
5.2.3 Configure WAN IP Settings ................................................................................................. 108
5.2.4 ISP and WAN and ISP Connection Settings ...................................................................... 109
5.2.5 Quick Setup Interface Wizard: Summary ......................................................................... 112
5.3 Remote Access VPN Setup-Scenario ......................................................................................... 113
5.3.1 IKEv2 IPSec Client- VPN Configuration ............................................................................. 114
5.3.2 IKEv2 IPSec Client- User Authentication ............................................................................ 116
5.3.3 IKEv2 IPSec Client- Summary ..............................................................................................116
5.3.4 IKEv2 IPSec Client-Config Provision ................................................................................... 117
5.3.5 L2TP over IPSec Client-VPN Configuration ....................................................................... 118
5.3.6 L2TP over IPSec Client- User Authentication .................................................................... 119
5.3.7 L2TP over IPSec Client- Summary ...................................................................................... 120
5.3.8 L2TP over IPSec Client-Config Provision ............................................................................ 121
5.4 VPN Setup Wizard ......................................................................................................................... 121
5.4.1 Welcome .............................................................................................................................. 121
5.4.2 VPN Setup Wizard: Wizard Type ........................................................................................ 122
5.4.3 VPN Express Wizard - Scenario .......................................................................................... 123
5.4.4 VPN Express Wizard - Configuration ................................................................................. 124
5.4.5 VPN Express Wizard - Summary ......................................................................................... 124
5.4.6 VPN Express Wizard - Finish ................................................................................................ 125
5.4.7 VPN Advanced Wizard - Scenario ................................................................................... 126
5.4.8 VPN Advanced Wizard - Phase 1 Settings ...................................................................... 127
5.4.9 VPN Advanced Wizard - Phase 2 ..................................................................................... 129
5.4.10 VPN Advanced Wizard - Summary ................................................................................ 130
5.4.11 VPN Advanced Wizard - Finish ....................................................................................... 132
5.5 VPN Settings for Configuration Provisioning Wizard: Wizard Type ........................................... 133
5.5.1 Configuration Provisioning Express Wizard - VPN Settings ............................................. 133
5.5.2 Configuration Provisioning VPN Express Wizard - Configuration .................................. 134
5.5.3 VPN Settings for Configuration Provisioning Express Wizard - Summary ...................... 135
5.5.4 VPN Settings for Configuration Provisioning Express Wizard - Finish .............................. 136
5.5.5 VPN Settings for Configuration Provisioning Advanced Wizard - Scenario ................. 137
5.5.6 VPN Settings for Configuration Provisioning Advanced Wizard - Phase 1 Settings .... 138
5.5.7 VPN Settings for Configuration Provisioning Advanced Wizard - Phase 2 .................. 139
5.5.8 VPN Settings for Configuration Provisioning Advanced Wizard - Summary ................ 140
5.5.9 VPN Settings for Configuration Provisioning Advanced Wizard - Finish ....................... 143
5.6 VPN Settings for L2TP VPN Settings Wizard ................................................................................. 143
5.6.1 L2TP VPN Settings ................................................................................................................ 144
5.6.2 L2TP VPN Settings ................................................................................................................ 145
background
Table of Contents
USG FLEX Series User’s Guide
9
5.6.3 VPN Settings for L2TP VPN Setting Wizard - Summary .................................................... 145
5.6.4 VPN Settings for L2TP VPN Setting Wizard - Completed ................................................ 147
5.7 Wireless Setup Wizard ................................................................................................................... 147
5.7.1 Management Mode ........................................................................................................... 148
5.7.2 SSID ....................................................................................................................................... 148
5.7.3 Radio .................................................................................................................................... 150
5.7.4 Summary .............................................................................................................................. 151
5.7.5 Wizard Completed ............................................................................................................. 152
Chapter 6
Dashboard........................................................................................................................................153
6.1 Overview ....................................................................................................................................... 153
6.1.1 What You Can Do in this Chapter ..................................................................................... 153
6.2 The General Screen ..................................................................................................................... 153
6.2.1 Device Information Screen ................................................................................................155
6.2.2 System Status Screen .......................................................................................................... 156
6.2.3 Tx/Rx Statistics ...................................................................................................................... 156
6.2.4 The Latest Logs Screen ....................................................................................................... 157
6.2.5 System Resources Screen ................................................................................................... 157
6.2.6 DHCP Table Screen ............................................................................................................. 159
6.2.7 Number of Login Users Screen ........................................................................................... 160
6.2.8 Current Login User ............................................................................................................... 161
6.2.9 VPN Status ............................................................................................................................ 161
6.2.10 SSL VPN Status .................................................................................................................... 161
6.3 The Advanced Threat Protection Screen .................................................................................. 162
Part II: Technical Reference.........................................................................163
Chapter 7
Monitor..............................................................................................................................................164
7.1 Overview ....................................................................................................................................... 164
7.1.1 What You Can Do in this Chapter ..................................................................................... 164
7.2 The Port Statistics Screen ............................................................................................................ 166
7.2.1 The Port Statistics Graph Screen ....................................................................................... 167
7.3 Interface Status Screen ................................................................................................................ 168
7.4 The Traffic Statistics Screen .......................................................................................................... 172
7.5 The Session Monitor Screen ........................................................................................................ 175
7.6 The DHCP Table Screen ............................................................................................................... 177
7.7 The Device Insight Screen ........................................................................................................... 178
7.7.1 The Device Insight Edit Screen ...........................................................................................181
7.7.2 The Device Insight Feedback Screen ............................................................................... 181
background
Table of Contents
USG FLEX Series User’s Guide
10
7.8 The Login Users Screen ................................................................................................................. 182
7.9 Dynamic Guest ............................................................................................................................ 184
7.10 IGMP Statistics ............................................................................................................................. 185
7.11 The DDNS Status Screen ............................................................................................................. 186
7.12 IP/MAC Binding ........................................................................................................................... 187
7.13 Cellular Status Screen ................................................................................................................ 188
7.13.1 More Information .............................................................................................................. 190
7.14 The UPnP Port Status Screen ..................................................................................................... 191
7.15 USB Storage Screen .................................................................................................................... 192
7.16 Ethernet Neighbor Screen ........................................................................................................ 193
7.17 FQDN Object Screen ................................................................................................................ 194
7.18 Virtual Server Load Balancing .................................................................................................. 196
7.19 AP Information: AP List ............................................................................................................... 197
7.19.1 AP List: More Information ................................................................................................ 202
7.19.2 AP List: Edit AP ................................................................................................................... 204
7.20 AP Information: Radio List .......................................................................................................... 208
7.20.1 Radio List: More Information ............................................................................................210
7.21 AP Information: Built-in AP ........................................................................................................ 211
7.22 AP Information: Top N APs ........................................................................................................ 212
7.23 AP Information: Single AP .......................................................................................................... 213
7.24 ZyMesh ......................................................................................................................................... 214
7.25 SSID Info ....................................................................................................................................... 215
7.26 Station Info: Station List .............................................................................................................. 216
7.27 Station Info: Top N Stations ........................................................................................................ 218
7.28 Station Info: Single Station ......................................................................................................... 219
7.29 Detected Device ....................................................................................................................... 220
7.30 Wireless Health ............................................................................................................................ 222
7.31 The Printer Status Screen ........................................................................................................... 223
7.32 The IPSec Screen ........................................................................................................................ 223
7.32.1 Regular Expressions in Searching IPSec SAs ................................................................... 225
7.33 The SSL Screen ............................................................................................................................. 225
7.34 The L2TP over IPSec Screen ....................................................................................................... 226
7.35 The Remote AP VPN Screen ...................................................................................................... 227
7.36 The App Patrol Screen ............................................................................................................... 228
7.37 The Content Filter Screen .......................................................................................................... 229
7.37.1 Web Content Filter ............................................................................................................ 229
7.37.2 DNS Content Filter ............................................................................................................. 230
7.38 The Anti-Malware Screen .......................................................................................................... 232
7.39 The Reputation Filter Screen ...................................................................................................... 234
7.39.1 IP Reputation ..................................................................................................................... 234
7.39.2 DNS Threat Filter ................................................................................................................. 236
7.39.3 URL Threat Filter .................................................................................................................. 237
7.40 The IPS Screen ............................................................................................................................. 238
background
Table of Contents
USG FLEX Series User’s Guide
11
7.41 Sandboxing ................................................................................................................................ 241
7.42 The Email Security Screens ......................................................................................................... 242
7.42.1 Email Security Summary ................................................................................................... 242
7.42.2 The Email Security Status Screen ..................................................................................... 244
7.43 Collaborative Detection & Response (CDR) ........................................................................... 246
7.43.1 CDR History ........................................................................................................................ 247
7.44 The SSL Inspection Screens ........................................................................................................ 248
7.44.1 Certificate Cache List ....................................................................................................... 249
7.45 Log Screens ................................................................................................................................. 250
7.45.1 View Log ............................................................................................................................ 251
7.45.2 View AP Log ....................................................................................................................... 252
7.45.3 Dynamic Users Log ............................................................................................................ 254
Chapter 8
Licensing...........................................................................................................................................256
8.1 Registration Overview .................................................................................................................. 256
8.1.1 What you Need to Know ....................................................................................................256
8.1.2 Gold Security Pack License and UTM Bundled License .................................................. 257
8.1.3 Registration Screen ............................................................................................................. 259
8.1.4 Service Screen ..................................................................................................................... 260
8.2 Signature Update ......................................................................................................................... 262
8.2.1 What you Need to Know ....................................................................................................263
8.2.2 The Signature Screen .......................................................................................................... 263
8.2.3 Auto Update ........................................................................................................................ 264
Chapter 9
Wireless.............................................................................................................................................265
9.1 Overview ....................................................................................................................................... 265
9.1.1 What You Can Do in this Chapter ..................................................................................... 265
9.1.2 What You Need to Know ................................................................................................... 265
9.2 Built-in AP ...................................................................................................................................... 269
9.2.1 Wireless > Built-in AP > General > Add/Edit SSID .............................................................. 270
9.2.2 Wireless > Built-in AP > Radio .............................................................................................. 274
9.3 Controller Screen ......................................................................................................................... 280
9.3.1 Connecting an AP to the Zyxel Device ............................................................................ 281
9.3.2 Connecting an AP to the Zyxel Device Manually ........................................................... 282
9.3.3 Connecting an AP to the Zyxel Device Using DHCP Option 138 .................................. 282
9.4 AP Management Screens ........................................................................................................... 283
9.4.1 Mgnt. AP List ....................................................................................................................... 283
9.4.2 AP Policy .............................................................................................................................. 299
9.4.3 AP Group ............................................................................................................................. 300
9.4.4 Firmware ............................................................................................................................... 306
9.5 Rogue AP ....................................................................................................................................... 308
background
Table of Contents
USG FLEX Series User’s Guide
12
9.5.1 Add/Edit Rogue/Friendly List .............................................................................................. 310
9.6 Wireless Health .............................................................................................................................. 311
9.7 Auto Healing ................................................................................................................................. 312
9.8 RTLS Overview ............................................................................................................................... 313
9.8.1 What You Can Do in this Chapter ..................................................................................... 314
9.8.2 Before You Begin ................................................................................................................. 314
9.8.3 Configuring RTLS .................................................................................................................. 314
9.9 Technical Reference .................................................................................................................... 315
9.9.1 Dynamic Channel Selection .............................................................................................. 315
9.9.2 Load Balancing ................................................................................................................... 316
Chapter 10
Interfaces..........................................................................................................................................318
10.1 Interface Overview .................................................................................................................... 318
10.1.1 What You Can Do in this Chapter ................................................................................... 318
10.1.2 What You Need to Know ................................................................................................. 319
10.1.3 What You Need to Do First ...............................................................................................323
10.2 Port Role ....................................................................................................................................... 323
10.3 Port Group ................................................................................................................................... 324
10.4 Port Configuration ...................................................................................................................... 325
10.5 Ethernet Summary Screen ......................................................................................................... 327
10.5.1 Ethernet Edit ...................................................................................................................... 329
10.5.2 Proxy ARP ........................................................................................................................... 345
10.5.3 Virtual Interfaces .............................................................................................................. 346
10.5.4 References ......................................................................................................................... 348
10.5.5 Add/Edit DHCPv6 Request/Release Options ................................................................. 348
10.5.6 Add/Edit DHCP Extended Options ................................................................................. 349
10.6 PPP Interfaces ............................................................................................................................. 351
10.6.1 PPP Interface Summary .................................................................................................... 351
10.6.2 PPP Interface Add or Edit ................................................................................................ 352
10.7 Cellular Configuration Screen ................................................................................................... 357
10.7.1 Cellular Choose Slot ......................................................................................................... 360
10.7.2 Add / Edit Cellular Configuration .................................................................................... 360
10.8 Tunnel Interfaces ........................................................................................................................ 366
10.8.1 Configuring a Tunnel ........................................................................................................ 368
10.8.2 Tunnel Add or Edit Screen ................................................................................................ 369
10.9 VLAN Interfaces ......................................................................................................................... 373
10.9.1 VLAN Summary Screen .....................................................................................................374
10.9.2 VLAN Add/Edit ................................................................................................................. 375
10.10 Bridge Interfaces ...................................................................................................................... 387
10.10.1 Bridge Summary .............................................................................................................. 388
10.10.2 Bridge Add/Edit .............................................................................................................. 390
10.11 LAG ............................................................................................................................................ 400
background
Table of Contents
USG FLEX Series User’s Guide
13
10.11.1 Available Interfaces for LAG ......................................................................................... 401
10.11.2 LAG Summary Screen .....................................................................................................401
10.11.3 LAG Add/Edit ................................................................................................................. 402
10.12 VTI ............................................................................................................................................... 412
10.12.1 Restrictions for IPSec Virtual Tunnel Interface .............................................................. 412
10.12.2 VTI Screen ........................................................................................................................ 412
10.12.3 VTI Add/Edit ..................................................................................................................... 413
10.13 Trunk Overview ......................................................................................................................... 417
10.13.1 What You Need to Know ............................................................................................... 417
10.14 The Trunk Summary Screen ...................................................................................................... 420
10.14.1 Configuring a User-Defined Trunk ................................................................................. 421
10.14.2 Configuring the System Default Trunk .......................................................................... 423
10.15 Example: WAN Trunk Failover .................................................................................................. 424
10.16 Example: Trunk Tagged VLAN Traffic to a Switch ................................................................. 426
10.17 Interface Technical Reference ............................................................................................... 426
Chapter 11
Routing..............................................................................................................................................431
11.1 Policy and Static Routes Overview ........................................................................................... 431
11.1.1 What You Can Do in this Chapter ................................................................................... 431
11.1.2 What You Need to Know ................................................................................................ 432
11.2 Policy Route Screen ................................................................................................................... 433
11.2.1 Policy Route Edit Screen .................................................................................................. 435
11.3 IP Static Route Screen ................................................................................................................ 440
11.3.1 Static Route Add/Edit Screen .......................................................................................... 440
11.4 Policy Routing Technical Reference ........................................................................................442
11.5 Routing Protocols Overview ..................................................................................................... 442
11.5.1 What You Need to Know ................................................................................................. 443
11.6 The RIP Screen ............................................................................................................................. 443
11.7 The OSPF Screen ......................................................................................................................... 445
11.7.1 Configuring the OSPF Screen .......................................................................................... 448
11.7.2 OSPF Area Add/Edit Screen ........................................................................................... 449
11.7.3 Virtual Link Add/Edit Screen ...........................................................................................451
11.8 BGP (Border Gateway Protocol) .............................................................................................. 452
11.8.1 Allow BGP Packets to Enter the Zyxel Device ................................................................ 452
11.8.2 Configuring the BGP Screen ............................................................................................ 453
11.8.3 The BGP Neighbors Screen .............................................................................................. 455
11.8.4 Example Scenario ............................................................................................................. 456
Chapter 12
DDNS .................................................................................................................................................458
12.1 DDNS Overview ........................................................................................................................... 458
12.1.1 What You Can Do in this Chapter ................................................................................... 458
background
Table of Contents
USG FLEX Series User’s Guide
14
12.1.2 What You Need to Know ................................................................................................. 458
12.2 The DDNS Screen ........................................................................................................................ 459
12.2.1 The Dynamic DNS Add/Edit Screen ................................................................................ 460
Chapter 13
NAT....................................................................................................................................................464
13.1 Overview ..................................................................................................................................... 464
13.2 NAT Overview ............................................................................................................................. 464
13.2.1 What You Can Do in this Chapter ................................................................................... 465
13.2.2 What You Need to Know ................................................................................................. 465
13.3 The NAT Screen ........................................................................................................................... 466
13.3.1 The NAT Add/Edit Screen .................................................................................................467
13.4 NAT Technical Reference .......................................................................................................... 470
13.5 Virtual Server Load Balancing ................................................................................................... 472
13.5.1 Load Balancing Example 1 .............................................................................................. 472
13.5.2 Load Balancing Example 2 .............................................................................................. 473
13.5.3 Virtual Server Load Balancing Process ........................................................................... 473
13.5.4 Load Balancing Rules ....................................................................................................... 474
13.5.5 Virtual Server Load Balancing Algorithms ...................................................................... 475
13.6 The Virtual Server Load Balancer Screen ................................................................................. 476
13.6.1 Adding/Editing a Virtual Server Load Balancing Rule .................................................. 476
Chapter 14
Redirect Service...............................................................................................................................481
14.1 Overview ..................................................................................................................................... 481
14.1.1 HTTP Redirect ..................................................................................................................... 481
14.1.2 SMTP Redirect .................................................................................................................... 481
14.1.3 What You Can Do in this Chapter ................................................................................... 482
14.1.4 What You Need to Know ................................................................................................. 482
14.2 The Redirect Service Screen ..................................................................................................... 484
14.2.1 The Redirect Service Edit Screen ..................................................................................... 485
Chapter 15
ALG....................................................................................................................................................487
15.1 ALG Overview ............................................................................................................................. 487
15.1.1 What You Need to Know ................................................................................................. 487
15.1.2 Before You Begin ............................................................................................................... 490
15.2 The ALG Screen .......................................................................................................................... 490
15.3 ALG Technical Reference ......................................................................................................... 492
Chapter 16
UPnP...................................................................................................................................................494
16.1 UPnP and NAT-PMP Overview ................................................................................................... 494
background
Table of Contents
USG FLEX Series User’s Guide
15
16.2 What You Need to Know ........................................................................................................... 494
16.2.1 NAT Traversal ..................................................................................................................... 494
16.2.2 Cautions with UPnP and NAT-PMP .................................................................................. 495
16.3 UPnP Screen ................................................................................................................................ 495
16.4 Technical Reference .................................................................................................................. 496
16.4.1 Turning on UPnP in Windows 7 Example ......................................................................... 496
16.4.2 Turn on UPnP in Windows 10 Example ............................................................................ 500
16.4.3 Auto-discover Your UPnP-enabled Network Device .................................................... 502
16.4.4 Web Configurator Easy Access in Windows 7 ............................................................... 505
16.4.5 Web Configurator Easy Access in Windows 10 ............................................................. 507
Chapter 17
IP/MAC Binding................................................................................................................................509
17.1 IP/MAC Binding Overview ......................................................................................................... 509
17.1.1 What You Can Do in this Chapter ................................................................................... 509
17.1.2 What You Need to Know ................................................................................................. 509
17.2 IP/MAC Binding Summary ......................................................................................................... 510
17.2.1 IP/MAC Binding Edit .......................................................................................................... 511
17.2.2 Static DHCP Edit ................................................................................................................ 512
17.3 IP/MAC Binding Exempt List ....................................................................................................... 513
Chapter 18
Layer 2 Isolation...............................................................................................................................514
18.1 Overview ..................................................................................................................................... 514
18.1.1 What You Can Do in this Chapter ................................................................................... 514
18.2 Layer-2 Isolation General Screen ............................................................................................. 515
18.3 Allow List Screen ......................................................................................................................... 516
18.3.1 Add/Edit Allow List Rule ................................................................................................... 517
Chapter 19
DNS Inbound LB................................................................................................................................518
19.1 DNS Inbound Load Balancing Overview ................................................................................. 518
19.1.1 What You Can Do in this Chapter ................................................................................... 518
19.2 The DNS Inbound LB Screen ...................................................................................................... 519
19.2.1 The DNS Inbound LB Add/Edit Screen ............................................................................ 520
19.2.2 The DNS Inbound LB Add/Edit Member Screen ............................................................ 522
Chapter 20
IPSec VPN .........................................................................................................................................524
20.1 Virtual Private Networks (VPN) Overview ................................................................................. 524
20.1.1 What You Can Do in this Chapter ................................................................................... 526
20.1.2 What You Need to Know ................................................................................................. 526
20.1.3 Before You Begin ............................................................................................................... 529
background
Table of Contents
USG FLEX Series User’s Guide
16
20.2 The VPN Connection Screen ..................................................................................................... 529
20.2.1 The VPN Connection Add/Edit Screen .......................................................................... 531
20.3 The VPN Gateway Screen ......................................................................................................... 538
20.3.1 The VPN Gateway Add/Edit Screen ............................................................................... 540
20.4 VPN Concentrator ..................................................................................................................... 546
20.4.1 VPN Concentrator Requirements and Suggestions ...................................................... 546
20.4.2 VPN Concentrator Screen ............................................................................................... 546
20.4.3 The VPN Concentrator Add/Edit Screen ........................................................................ 547
20.5 Zyxel Device IPSec VPN Client Configuration Provisioning .................................................... 548
20.6 Example: IPSec VPN with IKEv2 on a Mobile Phone ............................................................... 550
20.6.1 Configuration on Android ................................................................................................551
20.6.2 Configuration on iOS ........................................................................................................ 551
20.7 IPSec VPN Background Information ......................................................................................... 552
Chapter 21
SSL VPN..............................................................................................................................................562
21.1 Overview ..................................................................................................................................... 562
21.1.1 What You Can Do in this Chapter ................................................................................... 562
21.1.2 What You Need to Know ................................................................................................. 562
21.2 The SSL Access Privilege Screen ................................................................................................ 563
21.2.1 The SSL Access Privilege Policy Add/Edit Screen ......................................................... 565
21.3 The SSL Global Setting Screen ................................................................................................... 567
Chapter 22
L2TP VPN............................................................................................................................................568
22.1 Overview ..................................................................................................................................... 568
22.1.1 What You Can Do in this Chapter ................................................................................... 568
22.1.2 What You Need to Know ................................................................................................. 568
22.2 L2TP VPN Screen ......................................................................................................................... 569
22.2.1 Example: L2TP and Zyxel Device Behind a NAT Router ................................................ 571
Chapter 23
Remote AP VPN................................................................................................................................574
23.1 Overview ..................................................................................................................................... 574
23.2 Configuring a Remote AP ......................................................................................................... 575
23.3 Remote AP VPN Screen ............................................................................................................. 579
Chapter 24
BWM (Bandwidth Management) .................................................................................................580
24.1 Overview ..................................................................................................................................... 580
24.1.1 What You Can Do in this Chapter ................................................................................... 580
24.1.2 What You Need to Know ................................................................................................ 580
24.2 The Bandwidth Management Configuration .......................................................................... 584
background
Table of Contents
USG FLEX Series User’s Guide
17
24.2.1 The Bandwidth Management Add/Edit Screen ............................................................ 587
24.3 Example: Prioritize a Specific Application ............................................................................... 595
Chapter 25
Web Authentication ........................................................................................................................597
25.1 Web Auth Overview ................................................................................................................... 597
25.1.1 What You Can Do in this Chapter ................................................................................... 597
25.1.2 What You Need to Know ................................................................................................. 598
25.2 Web Authentication General Screen ...................................................................................... 599
25.2.1 User-Authentication Access Control Example ............................................................... 604
25.2.2 Authentication Type Screen ............................................................................................ 610
25.2.3 Custom Web Portal / User Agreement File Screen ....................................................... 614
25.3 SSO Overview .............................................................................................................................. 615
25.4 SSO - Zyxel Device Configuration ............................................................................................. 617
25.4.1 Configuration Overview ................................................................................................... 617
25.4.2 Configure the Zyxel Device to Communicate with SSO .............................................. 617
25.4.3 Enable Web Authentication ............................................................................................ 618
25.4.4 Create a Security Policy ................................................................................................... 620
25.4.5 Configure User Information ..............................................................................................621
25.4.6 Configure an Authentication Method ........................................................................... 622
25.4.7 Configure Active Directory ..............................................................................................623
25.5 SSO Agent Configuration .......................................................................................................... 624
Chapter 26
Hotspot..............................................................................................................................................627
26.1 Overview ..................................................................................................................................... 627
26.2 Billing Overview ........................................................................................................................... 627
26.2.1 What You Need to Know ................................................................................................. 627
26.3 The Billing > General Screen ...................................................................................................... 628
26.4 The Billing > Billing Profile Screen ............................................................................................... 630
26.4.1 The Account Generator Screen ...................................................................................... 631
26.4.2 The Account Redeem Screen ......................................................................................... 634
26.4.3 The Billing Profile Add/Edit Screen ................................................................................... 636
26.5 The Billing > Discount Screen ..................................................................................................... 637
26.5.1 The Discount Add/Edit Screen ......................................................................................... 639
26.6 The Billing > Payment Service Screen ....................................................................................... 639
26.6.1 The Payment Service > Desktop / Mobile View Screen ............................................... 641
Chapter 27
Printer Manager ...............................................................................................................................645
27.1 Printer Manager Overview ........................................................................................................ 645
27.1.1 What You Can Do in this Chapter ................................................................................... 645
27.2 The Printer Manager > General Screen ................................................................................... 645
background
Table of Contents
USG FLEX Series User’s Guide
18
27.2.1 Add Printer Rule ................................................................................................................. 648
27.2.2 Edit Printer Rule .................................................................................................................. 648
27.2.3 Discover Printer ................................................................................................................. 649
27.2.4 Edit Printer Manager (Discover Printer) .......................................................................... 651
27.3 The Printout Configuration Screen ............................................................................................ 652
27.4 Printer Reports Overview ........................................................................................................... 653
27.4.1 Key Combinations ............................................................................................................. 653
27.4.2 Daily Account Summary .................................................................................................. 653
27.4.3 Monthly Account Summary ............................................................................................. 654
27.4.4 Account Report Notes ..................................................................................................... 654
27.4.5 System Status ..................................................................................................................... 655
Chapter 28
Free Time...........................................................................................................................................657
28.1 Free Time Overview ................................................................................................................... 657
28.1.1 What You Can Do in this Chapter ................................................................................... 657
28.2 The Free Time Screen ................................................................................................................. 657
Chapter 29
IPnP....................................................................................................................................................662
29.1 IPnP Overview ............................................................................................................................ 662
29.1.1 What You Can Do in this Chapter ................................................................................... 662
29.1.2 IPnP Screen ........................................................................................................................ 663
Chapter 30
Walled Garden.................................................................................................................................665
30.1 Walled Garden Overview ........................................................................................................ 665
30.2 Walled Garden > General Screen ........................................................................................... 665
30.3 Walled Garden > URL Base Screen .......................................................................................... 666
30.3.1 Adding/Editing a Walled Garden URL ........................................................................... 667
30.4 Walled Garden > Domain/IP Base Screen .............................................................................. 668
30.4.1 Adding/Editing a Walled Garden Domain or IP ........................................................... 669
30.4.2 Walled Garden Login Example ....................................................................................... 669
Chapter 31
Advertisement Screen.....................................................................................................................671
31.1 Advertisement Overview ........................................................................................................... 671
31.1.1 Adding/Editing an Advertisement URL .......................................................................... 672
Chapter 32
Security Policy..................................................................................................................................674
32.1 Overview ..................................................................................................................................... 674
32.2 What You Can Do in this Chapter ............................................................................................ 675
background
Table of Contents
USG FLEX Series User’s Guide
19
32.2.1 What You Need to Know ................................................................................................. 675
32.3 The Security Policy Screen ......................................................................................................... 676
32.3.1 Configuring the Security Policy Control Screen ............................................................ 677
32.3.2 The Security Check for Web Interface Screen .............................................................. 680
32.3.3 The Security Policy Control Add/Edit Screen ................................................................. 684
32.3.4 Example: Allow a Server to Ping the Zyxel Device Without Creating Logs ................ 686
32.3.5 Example: Create a Guest Network with Internet Access Only .................................... 688
32.4 Anomaly Detection and Prevention Overview ...................................................................... 691
32.4.1 The Anomaly Detection and Prevention General Screen ........................................... 691
32.4.2 Creating New ADP Profiles ..............................................................................................692
32.4.3 Traffic Anomaly Profiles ................................................................................................... 694
32.4.4 Protocol Anomaly Profiles ................................................................................................ 696
32.4.5 The ADP Allow List Screen ................................................................................................ 700
32.4.6 Creating New ADP Allow List Rule ................................................................................... 701
32.5 The Session Control Screen ........................................................................................................ 701
32.5.1 The Session Control Add/Edit Screen .............................................................................. 703
32.6 Security Policy Example Applications ......................................................................................704
Chapter 33
Application Patrol............................................................................................................................707
33.1 Overview ..................................................................................................................................... 707
33.1.1 What You Can Do in this Chapter ................................................................................... 707
33.1.2 What You Need to Know ................................................................................................ 707
33.2 Application Patrol Profile ........................................................................................................... 708
33.2.1 Profile Action: Apply to a Security Policy ....................................................................... 709
33.2.2 Application Patrol Profile > Add/Edit - My Application ............................................... 712
33.2.3 Application Patrol Profile > Add/Edit - Query Result ..................................................... 713
33.3 Example: Block an Application ................................................................................................. 715
33.3.1 Block an Application At a Specified Time ..................................................................... 718
33.3.2 Block YouTube ................................................................................................................... 720
Chapter 34
Content Filter ....................................................................................................................................721
34.1 Overview ..................................................................................................................................... 721
34.1.1 What You Can Do in this Chapter ................................................................................... 721
34.1.2 What You Need to Know ................................................................................................. 721
34.1.3 Before You Begin ............................................................................................................... 723
34.2 Web Content Filter General Screen .........................................................................................724
34.2.1 Apply to a Security Policy ................................................................................................ 726
34.2.2 Web Content Filter Add Category Service .................................................................... 728
34.2.3 Content Filter Add Filter Profile Custom Service ........................................................... 741
34.3 Web Content Filter Trusted Web Sites Screen ........................................................................ 744
34.4 Web Content Filter Forbidden Web Sites Screen ................................................................... 745
background
Table of Contents
USG FLEX Series User’s Guide
20
34.5 DNS Content Filter General Screen .......................................................................................... 746
34.5.1 DNS Content Filter Add Profile ......................................................................................... 748
34.6 DNS Content Filter Allow List Screen ......................................................................................... 761
34.7 DNS Content Filter Block List Screen ......................................................................................... 762
34.8 Content Filter Technical Reference ......................................................................................... 763
34.9 Example: Block LAN Users From Using a Remote WAN Application ..................................... 764
Chapter 35
Anti-Malware....................................................................................................................................770
35.1 Overview ..................................................................................................................................... 770
35.1.1 What You Can Do in this Chapter ................................................................................... 774
35.2 Anti-Malware Screen ................................................................................................................. 775
35.3 The Allow List Screen .................................................................................................................. 779
35.4 The Block List Screen .................................................................................................................. 780
35.5 Anti-Malware Signature Searching ........................................................................................... 781
35.6 Anti-Malware Profile ................................................................................................................... 782
35.6.1 Add or Edit an Anti-Malware Profile ............................................................................... 783
35.6.2 Link a Profile ....................................................................................................................... 785
35.6.3 Anti-Malware Advance Screen ...................................................................................... 786
35.6.4 Remove Profiles ................................................................................................................. 788
35.7 Anti-Malware Technical Reference ......................................................................................... 789
Chapter 36
Reputation Filter ...............................................................................................................................791
36.1 Overview ..................................................................................................................................... 791
36.1.1 What You Need to Know ................................................................................................. 791
36.1.2 What You Can Do in this Chapter ................................................................................... 791
36.2 IP Reputation Screen .................................................................................................................. 792
36.2.1 IP Reputation Allow List Screen ........................................................................................ 796
36.2.2 IP Reputation Block List Screen ........................................................................................ 797
36.2.3 IP Reputation External Block List Screen ......................................................................... 798
36.2.4 IP Reputation External Block List Screen Add/Edit ........................................................ 799
36.3 DNS Threat Filter Screen ............................................................................................................. 800
36.3.1 DNS Threat Filter Allow List Screen ................................................................................... 804
36.3.2 DNS Threat Filter Block List Screen ................................................................................... 806
36.4 DNS Threat Filter Profile ............................................................................................................... 807
36.4.1 Add or Edit a DNS Threat Filter Profile ............................................................................. 808
36.4.2 Link a Profile ....................................................................................................................... 810
36.4.3 DNS Threat Filter Advance Screen .................................................................................. 811
36.4.4 Remove Profiles ................................................................................................................. 813
36.5 URL Threat Filter Screen .............................................................................................................. 814
36.5.1 URL Threat Filter Allow List Screen .................................................................................... 816
36.5.2 URL Threat Filter Block List Screen .................................................................................... 817
background
Table of Contents
USG FLEX Series User’s Guide
21
36.5.3 URL Threat Filter External Block List Screen ..................................................................... 818
36.6 URL Threat Filter Profile ................................................................................................................ 820
36.6.1 Add or Edit a URL Threat Filter Profile .............................................................................. 821
36.6.2 Link a Profile ....................................................................................................................... 823
36.6.3 URL Threat Filter Advance Screen ................................................................................... 824
36.6.4 Remove Profiles ................................................................................................................. 826
Chapter 37
IPS......................................................................................................................................................827
37.1 Overview ..................................................................................................................................... 827
37.1.1 What You Can Do in this Chapter ................................................................................... 827
37.1.2 What You Need To Know ................................................................................................. 827
37.1.3 Before You Begin ............................................................................................................... 828
37.2 The IPS Screen ............................................................................................................................. 828
37.2.1 Query Example .................................................................................................................. 835
37.3 IPS Custom Signatures ............................................................................................................... 836
37.3.1 Add / Edit Custom Signatures ......................................................................................... 837
37.3.2 Custom Signature Example ............................................................................................. 841
37.3.3 Applying Custom Signatures ............................................................................................ 843
37.3.4 Verifying Custom Signatures ............................................................................................ 844
37.4 The Allow List Screen ................................................................................................................. 844
37.5 IPS Profile ...................................................................................................................................... 845
37.5.1 Add or Edit an IPS Profile .................................................................................................. 846
37.5.2 Link a Profile ....................................................................................................................... 848
37.5.3 The IPS Advance Screen ..................................................................................................849
37.5.4 Remove Profiles ................................................................................................................. 850
37.6 IPS Technical Reference ............................................................................................................ 851
Chapter 38
Sandboxing ......................................................................................................................................854
38.1 Overview ..................................................................................................................................... 854
38.1.1 What You Need to Know ................................................................................................. 855
38.2 Sandboxing Screen .................................................................................................................... 855
Chapter 39
Email Security...................................................................................................................................858
39.1 Overview ..................................................................................................................................... 858
39.1.1 What You Can Do in this Chapter ................................................................................... 858
39.1.2 What You Need to Know ................................................................................................. 858
39.2 Before You Begin ........................................................................................................................ 859
39.3 The Email Security Screen ......................................................................................................... 860
39.4 The Allow List Screen .................................................................................................................. 862
39.5 The Block List Screen .................................................................................................................. 863
background
Table of Contents
USG FLEX Series User’s Guide
22
39.5.1 The Block or Allow List Add/Edit Screen ......................................................................... 864
39.5.2 Regular Expressions in Block or Allow List Entries ............................................................ 866
39.6 Email Security Profile ................................................................................................................... 866
39.6.1 Add or Edit Email Security Profile ..................................................................................... 867
39.6.2 Link a Profile ....................................................................................................................... 869
39.6.3 The Email Security Advance Screen .............................................................................. 870
39.6.4 Remove Profiles ................................................................................................................. 873
39.7 Email Security Technical Reference ......................................................................................... 873
Chapter 40
Collaborative Detection & Response.............................................................................................877
40.1 Overview ..................................................................................................................................... 877
40.1.1 What You Can Do in this Chapter ................................................................................... 878
40.2 Before You Begin ........................................................................................................................ 878
40.3 The Collaborative Detection & Response Screen ................................................................. 880
40.3.1 Add VLAN ......................................................................................................................... 882
40.4 The Exempt List Screen ............................................................................................................... 889
Chapter 41
SSL Inspection...................................................................................................................................891
41.1 Overview ..................................................................................................................................... 891
41.1.1 What You Can Do in this Chapter ................................................................................... 891
41.1.2 What You Need To Know ................................................................................................. 891
41.1.3 What You Can Do in this Chapter ................................................................................... 892
41.1.4 Before You Begin ............................................................................................................... 892
41.2 The SSL Inspection Profile Screen .............................................................................................. 892
41.2.1 Apply to a Security Policy ................................................................................................ 894
41.2.2 Add / Edit SSL Inspection Profiles .................................................................................... 897
41.3 Exclude List Screen .................................................................................................................... 898
41.4 Certificate Update Screen ....................................................................................................... 911
41.5 Install a CA Certificate in a Browser ......................................................................................... 912
Chapter 42
IP Exception......................................................................................................................................915
42.1 Overview ..................................................................................................................................... 915
42.2 The IP Exception Screen ............................................................................................................. 915
42.2.1 The IP Exception Add/Edit Screen ................................................................................. 916
42.3 Example: Bypass a Website ....................................................................................................... 917
Chapter 43
Astra Cloud Security........................................................................................................................920
43.1 Overview ..................................................................................................................................... 920
43.2 Astra Cloud Security Screen ...................................................................................................... 920
background
Table of Contents
USG FLEX Series User’s Guide
23
Chapter 44
Object...............................................................................................................................................922
44.1 The Device Insight Screen ......................................................................................................... 922
44.1.1 Device Insight Add/Edit Screen ...................................................................................... 923
44.1.2 Example: Block a Profile ................................................................................................... 924
44.2 Zones Overview .......................................................................................................................... 928
44.2.1 What You Need to Know ................................................................................................. 929
44.2.2 The Zone Screen ................................................................................................................ 930
44.3 User/Group Overview ................................................................................................................ 931
44.3.1 What You Need To Know ................................................................................................. 932
44.3.2 User/Group User Summary Screen .................................................................................. 934
44.3.3 User Add/Edit General Screen ........................................................................................ 935
44.3.4 User Add/Edit Two-factor Authentication Screen ........................................................ 939
44.3.5 User/Group Group Summary Screen .............................................................................. 950
44.3.6 User/Group Setting Screen ............................................................................................. 952
44.3.7 User/Group MAC Address Summary Screen ................................................................ 956
44.3.8 User /Group Technical Reference .................................................................................. 958
44.4 AP Profile Overview .................................................................................................................... 959
44.4.1 Radio Screen ..................................................................................................................... 961
44.4.2 SSID Screen ....................................................................................................................... 967
44.5 MON Profile ................................................................................................................................. 986
44.5.1 Configuring MON Profile .................................................................................................. 987
44.5.2 Add/Edit MON Profile ....................................................................................................... 988
44.5.3 Technical Reference ........................................................................................................ 989
44.6 ZyMesh Overview ....................................................................................................................... 990
44.6.1 ZyMesh Profile .................................................................................................................... 991
44.6.2 Add/Edit ZyMesh Profile ................................................................................................... 993
44.7 Address/Geo IP Overview ......................................................................................................... 993
44.7.1 What You Need To Know ................................................................................................. 993
44.7.2 Address Summary Screen ................................................................................................ 994
44.7.3 Address Group Summary Screen .................................................................................... 998
44.7.4 Geo IP Summary Screen ................................................................................................ 1000
44.8 Service Overview ...................................................................................................................... 1003
44.8.1 What You Need to Know ............................................................................................... 1003
44.8.2 The Service Summary Screen ........................................................................................ 1004
44.8.3 The Service Group Summary Screen ........................................................................... 1006
44.9 Schedule Overview ................................................................................................................. 1008
44.9.1 What You Need to Know ............................................................................................... 1008
44.9.2 The Schedule Screen ...................................................................................................... 1008
44.9.3 The Schedule Group Screen .......................................................................................... 1011
44.10 AAA Server Overview ............................................................................................................ 1013
44.10.1 Directory Service (AD/LDAP) ....................................................................................... 1013
44.10.2 RADIUS Server ................................................................................................................ 1014
background
Table of Contents
USG FLEX Series User’s Guide
24
44.10.3 ASAS ................................................................................................................................ 1014
44.10.4 What You Need To Know ............................................................................................. 1015
44.10.5 Active Directory or LDAP Server Summary ................................................................. 1016
44.10.6 RADIUS Server Summary ............................................................................................... 1019
44.11 Auth. Method Overview ....................................................................................................... 1022
44.11.1 Before You Begin ........................................................................................................... 1022
44.11.2 Example: Selecting a VPN Authentication Method ................................................. 1022
44.11.3 Authentication Method Objects ................................................................................. 1023
44.11.4 Two-Factor Authentication .......................................................................................... 1025
44.11.5 Two-Factor Authentication VPN Access .................................................................... 1028
44.11.6 Two-Factor Authentication Admin Access ................................................................ 1030
44.11.7 Example: Admin Login with Two-factor Authentication by SMS ............................. 1031
44.12 Certificate Overview .............................................................................................................. 1032
44.12.1 What You Need to Know ............................................................................................. 1032
44.12.2 Verifying a Certificate .................................................................................................. 1034
44.12.3 The My Certificates Screen .......................................................................................... 1035
44.12.4 The Trusted Certificates Screen ................................................................................... 1044
44.12.5 Certificates Technical Reference ............................................................................... 1049
44.13 ISP Account Overview .......................................................................................................... 1049
44.13.1 ISP Account Summary .................................................................................................. 1049
44.14 DHCPv6 Overview .................................................................................................................. 1052
44.14.1 The DHCPv6 Request Screen ....................................................................................... 1052
44.14.2 DHCPv6 Lease Screen .................................................................................................. 1054
Chapter 45
Device HA.......................................................................................................................................1056
45.1 Device HA Overview ................................................................................................................ 1056
45.1.1 What You Can Do in These Screens .............................................................................. 1056
45.2 Device HA Status ...................................................................................................................... 1056
45.3 Device HA Pro ........................................................................................................................... 1058
45.3.1 Deploying Device HA Pro .............................................................................................. 1059
45.3.2 Configuring Device HA Pro ............................................................................................ 1059
45.4 View Log .................................................................................................................................... 1061
Chapter 46
Mgmt. & Analytics..........................................................................................................................1063
46.1 Mgmt. & Analytics Overview ................................................................................................... 1063
46.1.1 What You Can Do in this Chapter ................................................................................. 1063
46.2 Cloud CNM SecuManager .....................................................................................................1063
46.3 Cloud CNM SecuReporter ....................................................................................................... 1066
46.4 Nebula ....................................................................................................................................... 1070
46.4.1 Cloud Monitoring Mode ................................................................................................. 1070
46.4.2 Cloud Management Scenario A - Native Mode ........................................................ 1072
background
Table of Contents
USG FLEX Series User’s Guide
25
Chapter 47
System.............................................................................................................................................1076
47.1 Overview ................................................................................................................................... 1076
47.1.1 What You Can Do in this Chapter ................................................................................. 1076
47.2 Host Name ................................................................................................................................. 1077
47.3 USB Storage ............................................................................................................................... 1077
47.4 Date and Time .......................................................................................................................... 1079
47.4.1 Pre-defined NTP Time Servers List ................................................................................... 1082
47.4.2 Time Server Synchronization .......................................................................................... 1082
47.5 Console Port Speed ................................................................................................................. 1083
47.6 DNS Overview ........................................................................................................................... 1084
47.6.1 DNS Server Address Assignment .................................................................................... 1084
47.6.2 Configuring the DNS Screen .......................................................................................... 1084
47.6.3 (IPv6) Address Record .................................................................................................... 1088
47.6.4 PTR Record ....................................................................................................................... 1088
47.6.5 Adding an (IPv6) Address/PTR Record ........................................................................ 1088
47.6.6 CNAME Record ............................................................................................................... 1089
47.6.7 Adding a CNAME Record .............................................................................................. 1089
47.6.8 Domain Zone Forwarder ............................................................................................... 1090
47.6.9 Adding a Domain Zone Forwarder ............................................................................... 1090
47.6.10 MX Record .................................................................................................................... 1091
47.6.11 Adding a MX Record .................................................................................................... 1091
47.6.12 Security Option Control ................................................................................................1092
47.6.13 Editing a Security Option Control ................................................................................ 1092
47.6.14 Adding a DNS Service Control Rule ............................................................................ 1093
47.7 WWW Overview ........................................................................................................................ 1094
47.7.1 Service Access Limitations ............................................................................................. 1094
47.7.2 System Timeout ................................................................................................................ 1094
47.7.3 HTTPS ................................................................................................................................. 1094
47.7.4 Configuring WWW Service Control ............................................................................... 1095
47.7.5 Service Control Rules ...................................................................................................... 1098
47.7.6 Customizing the WWW Login Page .............................................................................. 1099
47.7.7 HTTPS Example ................................................................................................................. 1104
47.8 SSH ........................................................................................................................................... 1111
47.8.1 SSH Implementation on the Zyxel Device .................................................................... 1112
47.8.2 Requirements for Using SSH ............................................................................................ 1112
47.8.3 Configuring SSH ............................................................................................................... 1112
47.8.4 Service Control Rules ...................................................................................................... 1113
47.8.5 SSH Example .................................................................................................................... 1114
47.9 Telnet ......................................................................................................................................... 1115
47.9.1 Configuring Telnet ........................................................................................................... 1115
47.9.2 Service Control Rules ...................................................................................................... 1117
47.10 FTP ............................................................................................................................................ 1117
background
Table of Contents
USG FLEX Series User’s Guide
26
47.10.1 Configuring FTP .............................................................................................................. 1117
47.10.2 Service Control Rules .................................................................................................... 1119
47.11 SNMP ....................................................................................................................................... 1119
47.11.1 SNMPv3 and Security ....................................................................................................1120
47.11.2 Supported MIBs ............................................................................................................. 1121
47.11.3 SNMP Traps ..................................................................................................................... 1121
47.11.4 Configuring SNMP ......................................................................................................... 1121
47.11.5 Add SNMPv3 User .......................................................................................................... 1124
47.11.6 Service Control Rules .................................................................................................... 1124
47.12 Authentication Server ............................................................................................................ 1125
47.12.1 Add/Edit Trusted RADIUS Client .................................................................................. 1127
47.13 Notification > Mail Server ....................................................................................................... 1128
47.14 Notification > SMS ................................................................................................................... 1129
47.15 Notification > Response Message ........................................................................................ 1131
47.16 Language Screen ................................................................................................................... 1131
47.17 IPv6 Screen .............................................................................................................................. 1132
47.18 Zyxel One Network (ZON) Utility ........................................................................................... 1133
47.18.1 Requirements ................................................................................................................. 1133
47.18.2 Run the ZON Utility ......................................................................................................... 1134
47.18.3 Zyxel One Network (ZON) System Screen .................................................................. 1137
Chapter 48
Log and Report...............................................................................................................................1139
48.1 Overview ................................................................................................................................... 1139
48.1.1 What You Can Do In this Chapter ................................................................................ 1139
48.2 Email Daily Report ..................................................................................................................... 1139
48.3 Log Setting Screens ................................................................................................................. 1141
48.3.1 Log Setting Summary ...................................................................................................... 1141
48.3.2 Edit System Log Settings ................................................................................................ 1143
48.3.3 Edit Log on USB Storage Setting ................................................................................... 1147
48.3.4 Edit Remote Server Log Settings ................................................................................... 1148
48.3.5 Log Category Settings Screen ....................................................................................... 1150
Chapter 49
File Manager ..................................................................................................................................1153
49.1 Overview ................................................................................................................................... 1153
49.1.1 What You Can Do in this Chapter ................................................................................. 1153
49.1.2 What you Need to Know ................................................................................................ 1153
49.2 The Configuration Screen ........................................................................................................ 1157
49.2.1 The Configuration Schedule Backup Screen .............................................................. 1162
49.3 Firmware Management ......................................................................................................... 1163
49.3.1 Cloud Helper ................................................................................................................... 1163
49.3.2 The Firmware Management Screen ............................................................................. 1166
background
Table of Contents
USG FLEX Series User’s Guide
27
49.3.3 Firmware Upgrade through USB Stick ........................................................................... 1170
49.3.4 Firmware Integrity Check ............................................................................................... 1170
49.4 The Shell Script Screen ............................................................................................................ 1171
Chapter 50
Diagnostics ....................................................................................................................................1174
50.1 Overview ................................................................................................................................... 1174
50.1.1 What You Can Do in this Chapter ................................................................................. 1174
50.2 The Diagnostics Screens .......................................................................................................... 1174
50.2.1 Scripts ............................................................................................................................... 1174
50.2.2 The Diagnostics Controller Screen ................................................................................ 1175
50.2.3 The Diagnostics AP Screen ............................................................................................. 1177
50.2.4 The Diagnostics Files Screen .......................................................................................... 1179
50.3 The Packet Capture Screen .................................................................................................... 1180
50.3.1 The Packet Capture on AP Screen ............................................................................... 1182
50.3.2 The Packet Capture Files Screen .................................................................................. 1185
50.3.3 The Packet Capture Remote Capture Screen ............................................................ 1186
50.4 The CPU / Memory Status Screen ........................................................................................... 1187
50.5 The System Log Screen ............................................................................................................ 1189
50.6 The Network Tool Screen ......................................................................................................... 1189
50.7 The Routing Traces Screen ...................................................................................................... 1193
50.8 The Wireless Frame Capture Screen ...................................................................................... 1194
50.8.1 The Wireless Frame Capture Files Screen .................................................................... 1195
Chapter 51
Packet Flow Explore ......................................................................................................................1196
51.1 Overview ................................................................................................................................... 1196
51.1.1 What You Can Do in this Chapter ................................................................................. 1196
51.2 Routing Status .......................................................................................................................... 1196
51.3 The SNAT Status Screen ............................................................................................................ 1200
Chapter 52
Shutdown........................................................................................................................................1203
52.1 Overview ................................................................................................................................... 1203
52.1.1 What You Need To Know ............................................................................................... 1203
52.2 The Shutdown / Reboot Screen ..............................................................................................1203
Part III: Appendices and Troubleshooting................................................1205
Chapter 53
Troubleshooting..............................................................................................................................1206
background
Table of Contents
USG FLEX Series User’s Guide
28
53.1 Resetting the Zyxel Device ...................................................................................................... 1225
53.2 Getting More Troubleshooting Help ....................................................................................... 1225
Appendix A Customer Support ................................................................................................... 1226
Appendix B Product Features...................................................................................................... 1232
Appendix C Legal Information .................................................................................................... 1236
Index...............................................................................................................................................1248
background
29
PART I
User’s Guide
background
USG FLEX Series User’s Guide
30
CHAPTER 1
Introduction
1.1 Overview
Zyxel Device refers to these models as outlined below.
• USG FLEX 100
• USG FLEX 100AX
• USG FLEX 100W
• USG FLEX 200
• USG FLEX 500
• USG FLEX 700
1.1.1 Model Feature Differences
Note the following differences between the USG FLEX models:
Table 1 USG FLEX Model Feature Comparison
FEATURE/MODEL
USG FLEX
100
USG FLEX
100W/
USG FLEX
100AX
USG FLEX
200
USG FLEX
500
USG FLEX
700
Microsoft Azure Yes Yes Yes Yes Yes
Amazon VPC CLI only CLI only CLI only CLI only CLI only
Anomaly Detection & Prevention Yes Yes Yes Yes Yes
Email Security (Anti-Spam) Yes Yes Yes Yes Yes
IPS (IDP) Yes Yes Yes Yes Yes
Anti-Malware Yes Yes Yes Yes Yes
App Patrol Yes Yes Yes Yes Yes
Web Filtering (Content Filtering) Yes Yes Yes Yes Yes
SecuReporter Yes Yes Yes Yes Yes
Reputation Filter (IP and DNS) Yes Yes Yes Yes Yes
URL Threat Filter Yes Yes Yes Yes Yes
Sandboxing Yes Yes Yes Yes Yes
Secure WiFi Yes Yes Yes Yes Yes
IP Exception Yes Yes Yes Yes Yes
AP Controller Yes Yes Yes Yes Yes
Device HA Pro No No No Yes Yes
Hotspot Management No No Yes Yes Yes
Concurrent Device Upgrade No No No Yes Yes
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
31
• Not all models support all features. See Table 1.1.1 on page 30 for the specific features that your
model supports.
The following security features work without a security license:
• Configuration > Content Filter > Trusted Web Sites
• Configuration > IPS > Custom Signatures
• Configuration > Anti-Virus > Black/White List
• Configuration > Anti-Spam/Email Security > Block/Allow List
For information on interface names by model, default port or interface name mapping, and default
interface or zone mapping please see
Section 4.3 on page 104.
See the product’s datasheet for detailed information on a specific model.
1.2 On Premises Mode
When you log into the Web Configurator for the first time or when you reset the Zyxel Device to its
default configuration, the Initial Setup Wizard screen displays. Choose On Premises Mode to manage
your Zyxel Device directly using either the browser-based Web Configurator or the Command Line
Interface (CLI).
LAG No No No Yes Yes
Port Group No No No No Yes
Port Role Yes Yes Yes Yes No
SD-WAN Mode No No No No No
SSL Application Yes Yes Yes Yes Yes
SSL encrypted traffic inspection Yes Yes Yes Yes Yes
Bundled UTM Feature License
Validity
1 year 1 year 1 year 1 year 1 year
Virtual Server Load Balancing Yes Yes Yes Yes Yes
Built-in AP No Yes No No No
Management by Nebula Control
Center (NCC)
Yes Yes Yes Yes Yes
Table 2 Security Feature List
• Application Security (Application Patrol) • Intrusion Prevention System (IPS)
• Anomaly Detection & Prevention (ADP) • Web Filtering (Content Filtering)
• Malware Blocker (Anti-Virus) • Email Security (Anti-Spam)
• Secure Socket Layer (SSL) encrypted traffic
Inspection
Table 1 USG FLEX Model Feature Comparison (continued)
FEATURE/MODEL
USG FLEX
100
USG FLEX
100W/
USG FLEX
100AX
USG FLEX
200
USG FLEX
500
USG FLEX
700
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
32
Figure 1 On Premises Mode
Follow the wizard to configure the Zyxel Device network settings to manage your Zyxel Device directly.
Note that once you complete the device registration step and register your Zyxel Device at
portal.myzyxel.com, you cannot change to Nebula Mode unless you reset the Zyxel Device.
1.3 Monitor Mode
Select Monitor Mode in Configuration > Mgmt. & Analytics > Nebula > Monitor Mode to monitor your
Zyxel Device using Nebula Control Center (NCC) but configure settings on the web configurator at the
same time. You must have created an organization and a site on NCC first.
Note: You cannot set the Zyxel Device to Monitor Mode if Device HA is enabled on the Zyxel
Device.
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
33
Figure 2 Configuration > Mgmt. & Analytics > Nebula > Monitor Mode
1.4 Nebula Mode
When you log into the Web Configurator for the first time or when you reset the Zyxel Device to its
default configuration, the Initial Setup Wizard screen displays. Choose Nebula Mode to manage your
Zyxel Device remotely using Nebula Control Center (NCC). Select this mode if you want to configure
and monitor one or more Zyxel Devices through the cloud.
Figure 3 Nebula Mode
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
34
Follow the wizard to configure the Zyxel Device network settings to connect to NCC. Note that once you
complete th WAN configuration step, you cannot change to On Premises Mode unless you reset the
Zyxel Device.
Nebula Control Center (NCC) is an Internet portal that allows you to configure and monitor groups of
Zyxel Devices in organizations. You cannot manage a Zyxel Device directly through the Web
Configurator or Command Line Interface (CLI) when NCC is managing the Zyxel Device. See
Table 1.1.1
on page 30 to see which Zyxel Devices can be managed by NCC.
Follow this procedure to have NCC manage your Zyxel Device.
1.4.1 NCC Portal
You should already have created an account at myZyxel.com. Follow these steps at the NCC portal.
1 Log into NCC (https://nebula.zyxel.com) with your Zyxel account. If you do not have a Zyxel account,
you will be redirected to another screen to create one.
2 After you log in, click Go under Nebula Control Center and then Let’s Start to run the NCC setup wizard.
Create an organization and a site or select an existing site.
3 Add the Zyxel Device to this site by entering its MAC address and serial number. You’ll find the MAC
address and serial number of the Zyxel Device on its label or scan the QR code using the Nebula Mobile
app.
4 Configure the WAN interface that the Zyxel Device will use to connect to NCC through the Internet.
5 If you’re given a choice, select Native Mode. If you cannot select Native Mode, configure the email
address of the person who will configure the Zyxel Device for management by NCC. An email will be
sent to this person containing an activation link that allows management of the Zyxel Device by NCC.
1.4.2 Your Zyxel Device
The person who will configure the Zyxel Device for management by NCC should follow this procedure.
1 Use an Ethernet cable to connect the WAN port of the Zyxel Device (P1 or P2) to the Ethernet port of a
device that will provide Internet access.
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
35
2 Use another Ethernet cable to connect the LAN port of the Zyxel Device (P3 or P4) to your computer.
Make sure your computer can receive an IP address automatically. This is the default for all computers,
so the computer should be fine unless you changed it.
3 Connect the power port to an appropriate power source and turn on the Zyxel Device. Wait for the SYS
LED to turn solid green.
4 Back up your current configuration before passing management to NCC. Log into the web
configurator, and go to Maintenance > File Manager > Configuration File. Select startup-config.conf,
then click Download.
5 If you cannot select Native Mode, reset the Zyxel Device to the factory defaults. Push the Reset button
until the port connection LEDs turn off (after about 5 seconds). Your Zyxel Device will reboot to the
factory defaults and all previous configurations will be erased.
Skip this step if you did not configure your Zyxel Device before (including just logging in and changing
the default password.). You must reset the Zyxel Device if it does not have the factory default
configuration.
1.4.3 Activation Email
If you cannot select Native Mode in the NCC setup wizard, do the following after the Zyxel Device is on:
1 Check your mailbox for an email from NCC. You may need to check your spam folder
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
36
2 Follow the instructions in the email if you did not complete the instructions above. Look for an activation
link in the email. Click the activation link or copy the link to your web browser. You will see a screen
saying NCC registration is in process. Please wait.
3 When you see a screen saying NCC registration has succeeded, management of your Zyxel Device has
passed to Nebula Control Center. The NCC administrator can now configure and manage your device.
Note: ZTP is supported in firmware version 5.37 or earlier.
1.5 Changing the Mode
Follow the steps below to change your Zyxel Device from On Premises Mode to Nebula Mode or from
Nebula Mode to On Premises Mode.
1.5.1 From Nebula Mode to On Premises Mode
Follow this procedure if you want to manage the Zyxel Device directly using the web configurator or CLI.
1 Log into NCC (https://nebula.zyxel.com) with your Zyxel account. Go to Organization-wide > License &
Inventory > Devices.
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
37
2 Select the Zyxel Device you want to remove from NCC. You must know the MAC address and serial
number.
3 Click Remove from organization.
4 If the Zyxel Device is connected to NCC, the Zyxel Device will automatically reset after you remove the
Zyxel Device from the organization and site.
If the Zyxel Device is not connected to NCC, press the reset button. The Zyxel Device will reboot to the
factory defaults.
All NCC configurations for the Zyxel Device will be erased.
5 Log into the Zyxel Device. Run the wizard and choose On Premises Mode.
6 To restore your previous configuration, log into the web configurator, and go to Maintenance > File
Manager > Configuration File.
7 Under Upload Configuration File, click Browse, select the startup-config.conf on your computer that you
backed up previously and click Upload. The Zyxel Device will then return to the previous settings.
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
38
1.5.2 From On Premises Mode to Nebula Mode
1 Back up your current configuration in Maintenance > File Manager > Configuration File.
2 Reset the Zyxel Device to the factory default by pushing the Reset button until the port connection LEDs
turn off (after about 5 seconds). Your Zyxel Device will reboot to the factory defaults.
3 Log into the Zyxel Device. Run the wizard and choose Nebula Mode.
4 If you have a choice of Native Mode or ZTP, select Native Mode.
1.5.3 From Nebula Mode to Cloud Monitoring Mode
See Cloud Monitoring Mode to Nebula Mode if you want to monitor the Zyxel Device using Nebula
Control Center (NCC) while configuring settings on the web configurator at the same time.
1.6 Registration at Zyxel
portal.myZyxel.com is Zyxel’s online services center where you can register your Zyxel Device and
manage subscription services available for your Zyxel Device (see Configuration > Licensing >
Registration > Service for services available for your Zyxel Device).
• For Zyxel Devices that already have firmware version 4.25 or later, you have to register your Zyxel
Device and activate the corresponding service at Zyxel (through your Zyxel Device).
• For Zyxel Devices upgrading to firmware version 4.25 or later, you may skip registering your Zyxel
Device and activating the corresponding service at Zyxel (through your Zyxel Device). However, it is
highly recommended to at least register your Zyxel Device. At the time of writing, the Firmware
Upgrade license providing Cloud Helper new firmware notifications, is free when you register your
Zyxel Device.
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
39
Note: You need to create a Zyxel account at http://portal.myZyxel.com before you can
register your device and activate the services at Zyxel.
You may need your Zyxel Device’s serial number and LAN MAC address to register it at
Zyxel. See the label at the back of the Zyxel Device’s for details.
Figure 4 Zyxel Login
1.6.1 Grace Period
SecuReporter and service licenses have a 15-day grace period after a license expires. Services will
continue to work in this period during which you will receive notifications to renew your licenses. New
licenses are valid for 1 year from the date of purchase.
1.6.2 Applications
These are some Zyxel Device application scenarios.
Security Router
Security includes a Stateful Packet Inspection (SPI) firewall.
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
40
Figure 5 Applications: Security Router Applications: Security Router
IPv6 Routing
The Zyxel Device supports IPv6 Ethernet, PPP, VLAN, and bridge routing. You may also create IPv6 policy
routes and IPv6 objects. The Zyxel Device can also route IPv6 packets through IPv4 networks using
different tunneling methods.
Figure 6 Applications: IPv6 Routing
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
41
VPN Connectivity
Set up VPN tunnels with other companies, branch offices, telecommuters, and business travelers to
provide secure access to your network. AS is an Authentication Server in the below figure.
Figure 7 Applications: VPN Connectivity
SSL VPN Network Access
SSL VPN lets remote users use their web browsers for a very easy-to-use VPN solution. A user just browses
to the Zyxel Device’s web address and enters his user name and password to securely connect to the
Zyxel Device’s network. Here full tunnel mode creates a virtual connection for a remote user and gives
him a private IP address in the same subnet as the local network so he can access network resources in
the same way as if he were part of the internal network.
Figure 8 SSL VPN With Full Tunnel Mode
User-Authentication Access Control
Set up security policies to restrict access to sensitive information and shared resources based on the user
who is trying to access it. In the following figure user A can access both the Internet and an internal file
server. User B has a lower level of access and can only access the Internet. User C is not even logged in,
so and cannot access either the Internet or the file server.
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
42
Figure 9 Applications: User-Authentication Access Control
Load Balancing
Set up multiple connections to the Internet on the same port, or different ports, including cellular
interfaces. In either case, you can balance the traffic loads between them.
Figure 10 Applications: Multiple WAN Interfaces
1.7 Management Overview
You can manage the Zyxel Device in the following ways.
Web Configurator
The Web Configurator allows easy Zyxel Device setup and management using an Internet browser. This
User’s Guide provides information about the Web Configurator.
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
43
Figure 11 Managing the Zyxel Device: Web Configurator
Command-Line Interface (CLI)
The CLI allows you to use text-based commands to configure the Zyxel Device. Access it using remote
management (for example, SSH or Telnet) or through the physical or Web Configurator console port.
See the Command Reference Guide for CLI details. The default settings for the console port are:
FTP
Use File Transfer Protocol for firmware upgrades and configuration backup or restore.
SNMP
The device can be monitored and/or managed by an SNMP manager. See Section 47.11 on page 1119.
CloudCNM
Use the CloudCNM screen (see Section 47.16 on page 1131) to enable and configure management of
the Zyxel Device by a Central Network Management system.
Table 3 Console Port Default Settings
SETTING VALUE
Speed 115200 bps
Data Bits 8
Parity None
Stop Bit 1
Flow Control Off
background
Chapter 1 Introduction
USG FLEX Series User’s Guide
44
Management Authentication
Managers must be authenticated with a username and password, using one of:
•Local Zyxel Device authentication
• An external RADIUS server
• An external LDAP server
• Certificates
1.8 Remote Access to the Zyxel Device Networks
Your Zyxel Device keeps your networks safe while allowing external access by applying the security
measures below:
• Two-Factor Authentication: Use two-factor authentication to have double-layer security to access
the Zyxel Device. The first layer is the VPN client/Zyxel Device’s login user name / password. The
second layer is an authorized SMS (through mobile phone number) or email address. See Section
44.11.4 on page 1025 for more information on two-factor authentication.
• Device Insight: The Zyxel Device can identify and display the basic information and status of clients
that are connected to the Zyxel Device networks in Monitor > Network Status > Device Insight. See
Section 7.7 on page 178 for more information on viewing the device insight.
Create device insight profiles in Configuration > Object > Device Insight to block specified clients from
accessing the Internet or the Zyxel Device. See Section 44.1 on page 922 for more information on
creating and using the device insight profiles.
• IPSec VPN: You can create highly secure connections with IKEv2 or EAP authentication to access
networks behind the Zyxel Device. For example, home workers can securely access company
resources if they have proper authentication. See
Chapter 20 on page 524 for more information on
IPSec VPN.
• Upload Bandwidth Limit: Zyxel subscription-based SecuExtender IPSec VPN clients with Windows
version 5.6.80.007 or later or macOS version 1.2.0.7 or later support upload bandwidth limit. Use this to
set the maximum bandwidth for uploading traffic from IPSec VPN clients over IPSec VPN tunnels. See
Section 20.5 on page 548 for more information on upload bandwidth limit.
background
USG FLEX Series User’s Guide
45
CHAPTER 2
Web Configurator
2.1 Overview
The Web Configurator is an HTML-based management interface that allows easy system setup and
management through Internet browser. Use a browser that supports HTML5, such as Microsoft Edge,
Mozilla Firefox, or Google Chrome.
In order to use the Web Configurator you need to allow:
• Web browser pop-up windows from your device.
• JavaScript (enabled by default).
• Java permissions (enabled by default).
The recommended minimum screen resolution is 1024 x 768 pixels.
Note: Screenshots and graphics in this book may differ slightly from your product due to
differences in product features or Web Configurator brand style.
2.2 Web Configurator Access
This section shows how to access the Web Configurator.
1 Make sure your Zyxel Device hardware is properly connected. See the Quick Start Guide.
2 In your browser go to https://192.168.1.1 or https://myrouter.local. By default, the Zyxel Device
automatically routes this request to its HTTPS server, and it is recommended to keep this setting. The Login
screen appears.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
46
If you want to change the display language for the Zyxel Device’s Web Configurator screens, select
from the drop-down list box. You can also change the display language in Configuration
> System >
Language.
3 Enter the user name (default: “admin”) and password (default: “1234”). Click Login.
4 If this is your first login, change the default admin password on the Update Admin Info screen. Enter a
new password, then click Apply. Log in again using the user
name (default: admin) and your new
password. Click Login. Refer to
Chapter 3 on page 67 to begin the initial setup.
Note: In Configuration > Object > User/Group > Setting, you can enable Password Complexity
to require a new password to consist of at least 8 characters and at most 64, where at
least 1 character must be a number, at least 1 a lower case letter, at least 1 an upper
case letter and at least 1 a special character from the keyboard, such as
!@#$%^&*()_+. You can also require periodic changing of the password in that screen
by configuring Password must changed every (days).
2.3 Security Best Practices
For a secure network, we recommend configuring the Zyxel Device with two-factor authentication,
regularly changing your password, and completing the security settings.
The Security Best Practices screen appears after each login to remind you of the recommended security
settings. Click Begin to start the setup. A checkmark indicates a completed setup.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
47
2.3.1 Two-Factor Authentication
Enhance security with two-factor authentication by using Google Authenticator to access the Zyxel
Device. Follow the instructions on the screen to set up the two-factor authentication. See
Google
Authentication on page 1027 for more information.
2.3.2 Password Change
Regularly changing passwords can enhance security by reducing the risk of unauthorized access.
Depending on the password change interval under Login Security in Configuration > Object > User/
Group > Setting, the password must be changed every set number of days.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
48
2.3.3 Security Policy Control
Use this screen to activate the security configuration. Select Enable from the drop-down list, then click
Apply to activate the security policy configured in Configuration > Security Policy > Policy Control >
Policy.
2.3.4 Security Check for Web Interface
When the Zyxel Device detects a rule that allows unrestricted Internet access to the Web Configurator
and SSL VPN, restrict the access by using the source IP address for the Web Configurator and the GeoIP
for SSL VPN.
Use this screen to configure settings to secure your Zyxel Device. You can configure:
• Secure SSL access from the Internet to the Zyxel Device.
• Secure SSL access from the Internet to the network behind the Zyxel Device.
See Chapter 32 on page 680 for more information.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
49
2.3.5 Security Risk Warning
Keep the licenses up to date to receive critical security enhancements, avoid malware risks, and ensure
optimal performance. Click Renew to extend the license. See
Section 8.1.4 on page 260 for more
information.
Other Security Measures
New firmware contains patches to enhance security. Make sure to check for new firmware regularly
and update firmware in Maintenance > Firmware Management.
2.4 Web Configurator Screens Overview
The Web Configurator screen is divided into these parts:
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
50
• A – title bar
• B – navigation panel
• C – main window
Figure 12 Web Configurator Screen Overview
Title Bar
Figure 13 Title Bar
The title bar icons in the upper right corner provide the following functions.
Table 4 Title Bar: Web Configurator Icons
LABEL DESCRIPTION
SecuReporter This icon shows when SecuReporter is enabled and the Zyxel Device is added to an
organization.
Click this to open the SecuReporter portal page.
Web Console Click this to open one or multiple console windows from which you can run command line
interface (CLI) commands. You will be prompted to enter your user name and password. See
the Command Reference Guide for information about the commands.
Logging in to the Zyxel Device with HTTPS, so you can open one or multiple console windows.
CLI Click this to open a popup window that displays the CLI commands sent by the Web
Configurator to the Zyxel Device.
Reference Click this to check which configuration items reference an object.
Site Map Click this to see an overview of links to the Web Configurator screens.
A
C
B
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
51
About
Click About to display basic information about the Zyxel Device.
Figure 14 About
This table describes the fields in this screen.
Community Go to https://community.zyxel.com for product discussions.
Help Click this to open the help page for the current screen.
Notification Only Admin or Limited Admin can see notifications. Notifications display what’s new in the Zyxel
Device firmware (ZLD), information on security services about to expire.
Slide the switch to Off if you don’t want notifications. Click an item to see more details on it.
Click the Refresh icon or refresh the browser page to update notifications. The latest
notification appears at the top. An item is removed once it has been read.
Up to five notifications can be shown here. If there are more than five notifications, then click
All Notifications to see them.
About Click this to display basic information about the Zyxel Device.
Logout Click this to log out of the Web Configurator.
Table 5 About
LABEL DESCRIPTION
Current Version This shows the firmware version of the Zyxel Device.
Released Date This shows the date (yyyy-mm-dd) and time (hh:mm:ss) when the firmware is released.
System
Protection
Signature
This shows the system protection signature version of the Zyxel Device. These signatures do not
require a license. The Zyxel Device will synch with the Cloud Helper Server every day to update
these signatures automatically.
System protection signatures protect your Zyxel Device and local networks from web attacks,
such as command injection, cross-site scripting and path traversal.
Command injection: This is an attack in which an attacker uses the Zyxel Device vulnerabilities
to execute commands to control your Zyxel Device.
Cross-site scripting: This is an attack in which an attacker implants malicious scripts in a website.
When you visit this website, the malicious scripts are sent and executed on your web browser.
Path traversal: This is an attack that allows an attacker to access files you store in the web root
folder.
OK Click this to close the screen.
Table 4 Title Bar: Web Configurator Icons (continued)
LABEL DESCRIPTION
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
52
Site Map
Click Site MAP to see an overview of links to the Web Configurator screens. Click a screen’s link to go to
that screen.
Figure 15 Site Map
Web Console
Click Web Console to open one or multiple console windows from which you can run CLI commands.
You will be prompted to enter your user name and password. See the Command Reference Guide for
information about the commands. Logging in to the Zyxel Device with HTTPS, so you can open one or
multiple console windows.
Figure 16 Web Console Window
Reference
Click Reference to open the Reference screen. Select the type of object and the individual object and
click Refresh to show which configuration settings reference the object.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
53
Figure 17 Reference
The fields vary with the type of object. This table describes labels that can appear in this screen.
CLI Messages
Click CLI to look at the CLI commands sent by the Web Configurator. Open the pop-up window and
then click some menus in the Web Configurator to display the corresponding commands.
Table 6 Reference
LABEL DESCRIPTION
Type Select an object type to see the services.
Name This identifies the object for which the configuration settings that use it are displayed. Click the
object’s name to display the object’s configuration screen in the main window.
# This field is a sequential value, and it is not associated with any entry.
Service This is the type of setting that references the selected object. Click a service’s name to display the
service’s configuration screen in the main window.
Priority If it is applicable, this field lists the referencing configuration item’s position in its list, otherwise N/A
displays.
Name This field identifies the configuration item that references the object.
Description If the referencing configuration item has a description configured, it displays here.
Refresh Click this to update the information in this screen.
Cancel Click Cancel to close the screen.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
54
Figure 18 CLI Messages
2.5 Navigation Panel
Use the navigation panel menu items to open status and configuration screens. Click the arrow in the
middle of the right edge of the navigation panel to hide the panel or drag to resize it. The following
sections introduce the Zyxel Device’s navigation panel menus and their screens.
Figure 19 Navigation Panel
Dashboard
The dashboard displays general device information, system status, system resource usage, licensed
service status, and interface status in widgets that you can re-arrange to suit your needs. See the Web
Help for details on the dashboard.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
55
Monitor Menu
The monitor menu screens display status and statistics information.
Table 7 Monitor Menu Screens Summary
FOLDER OR LINK TAB FUNCTION
Traffic Statistics
Port Statistics Port Statistics Displays packet statistics for each physical port.
Interface Status Interface
Summary
Displays general interface information and packet statistics.
Traffic Statistics Traffic
Statistics
Collect and display traffic statistics.
Session Monitor Session
Monitor
Displays the status of all current sessions.
Network Status
DHCP Table DHCP Table Displays a list of interfaces and their DHCP-assigned IP addresses.
Device Insight Device
Insight
Displays a list of WiFi and wireless clients connected to the Zyxel Device
networks.
Login Users Login Users Lists the users currently logged into the Zyxel Device.
Dynamic Guest Dynamic
Guest
List the dynamic guest accounts in the Zyxel Device’s local database. These
are accounts that are created automatically and allowed to access the
Zyxel Device’s services for a certain period of time.
IGMP Statistics IGMP
Statistics
Collect and display IGMP statistics.
DDNS Status DDNS Status Displays the status of the Zyxel Device’s DDNS domain names.
IP/MAC Binding IP/MAC
Binding
Lists the devices that have received an IP address from Zyxel Device
interfaces using IP/MAC binding.
Cellular Status Cellular
Status
Displays details about the Zyxel Device’s mobile broadband connection
status.
UPnP Port Status Port Statistics Displays details about UPnP connections going through the Zyxel Device.
USB Storage Storage
Information
Displays details about USB device connected to the Zyxel Device.
Ethernet
Neighbor
Ethernet
Neighbor
View and manage the Zyxel Device’s neighboring devices through Smart
Connect (Layer Link Discovery Protocol (LLDP)). Use the Zyxel One Network
(ZON) utility to view and manage the Zyxel Device’s neighboring devices
through the Zyxel Discovery Protocol (ZDP).
FQDN Object FQDN Object Displays FQDN (Fully Qualified Domain Name) object cache lists used in DNS
queries.
Virtual Server LB Virtual Server
Load
Balancer
Status
Displays traffic statistics between a client and a real server.
Wireless
AP Information AP List Lists APs managed by the Zyxel Device.
Radio List Lists wireless details of APs managed by the Zyxel Device.
Built-in AP Displays associated wireless client usage and number. (For Zyxel Device
model names containing ‘W’.)
Top N APs Lists managed APs with the most wireless traffic usage and most associated
wireless stations.
Single AP Lists APs wireless traffic usage and associated wireless stations for a managed
AP.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
56
ZyMesh ZyMesh Link
Info
Display statistics about ZyMesh wireless connections between managed APs.
SSID Info SSID Info Display information about the AP’s wireless clients.
Station Info Station List Lists wireless clients associated with the APs managed by the Zyxel Device.
Top N
Stations
Lists wireless stations with the most wireless traffic usage.
Single Station Lists wireless traffic usage for an associated wireless station.
Detected
Device
Detected
Device
Display information about suspected rogue APs.
Wireless Health Wireless
Health
Displays information about health or wireless networks for your APs and
connected wireless clients.
Printer Status Printer Status Display information about the connected statement printers.
VPN Monitor
IPSec IPSec Displays and manages the active IPSec SAs.
SSL SSL Lists users currently logged into the VPN SSL client portal. You can also log out
individual users and delete related session information.
L2TP over IPSec L2TP over
IPSec
Displays details about current L2TP sessions.
Remote AP VPN Remote AP
VPN
Displays and manages the active remote APs.
Security Statistics
App Patrol Summary Displays application patrol statistics.
Content Filter Web
Content Filter
Collect and display web content filter statistics.
DNS Content
Filter
Collect and display DNS content filter statistics.
Anti-Malware Summary Collect and display statistics on the malware that the Zyxel Device has
detected.
Reputation Filter Summary Displays counts, IP addresses and URLs that are blocked by the Zyxel Device.
IPS Summary Collect and display statistics on the intrusions that the Zyxel Device has
detected.
Sandboxing Summary Displays the sandboxing statistics.
Email Security Summary Collect and display spam statistics.
Status Displays how many mail sessions the ZyWALL is currently checking and DNSBL
(Domain Name Service-based spam Black List) statistics.
CDR Containment
List
Displays what clients are currently contained by Collaborative Detection &
Response (CDR).
History Displays what clients were and are contained by Collaborative Detection &
Response (CDR).
SSL Inspection Summary Collect and display SSL Inspection statistics.
Certificate
Cache List
Displays traffic to destination servers using certificates.
Log View Log Lists log entries.
View AP Log Lists AP log entries.
Dynamic
Users Log
Lists the Zyxel Device’s dynamic guest account log messages.
Table 7 Monitor Menu Screens Summary (continued)
FOLDER OR LINK TAB FUNCTION
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
57
Configuration Menu
Use the configuration menu screens to configure the Zyxel Device’s features.
Table 8 Configuration Menu Screens Summary
FOLDER OR LINK TAB FUNCTION
Quick Setup Quickly configure WAN interfaces or VPN connections.
Licensing
Registration Registration Register the device and activate trial services.
Service View the licensed service status and upgrade licensed services.
Signature
Update
Signature Update signatures immediately or by a schedule.
Wireless
Built-in AP General Allow WiFi clients to access your Zyxel Device wirelessly to connect to
the network.
Controller Configuration Configure manual or automatic controller registration.
AP
Management
Mgnt AP List Edit or remove entries in the lists of APs managed by the Zyxel Device.
AP Policy Configure the AP controller’s IP address on the managed APs and
determine the action the managed APs take if the current AP
controller fails.
AP Group Create groups of APs, define their radio, VLAN, port and load
balancing settings.
Firmware Update the firmware on APs connected to your Zyxel Device.
Rogue AP Rogue/Friendly AP
List
Configure how the Zyxel Device monitors rogue APs.
Wireless Health Wireless Health Enable wireless health to improve the APs wireless network
performance in Zyxel Device networks.
Auto Healing Auto Healing Enable auto healing to extend the wireless service coverage area of
the managed APs when one of the APs fails.
RTLS Real Time Location
System
Use the managed APs as part of an Ekahau RTLS to track the location
of Ekahau WiFi tags.
Network
Interface Port
Port Role/Port
Group/ Port
Configuration
Use this screen to set the Zyxel Device’s flexible ports such as LAN, OPT,
WLAN, or DMZ.
Ethernet Manage Ethernet interfaces and virtual Ethernet interfaces.
PPP Create and manage PPPoE and PPTP interfaces.
Cellular Configure a cellular Internet connection for an installed mobile
broadband card.
Tunnel Configure tunneling between IPv4 and IPv6 networks.
VLAN Create and manage VLAN interfaces and virtual VLAN interfaces.
Bridge Create and manage bridges and virtual bridge interfaces.
LAG Configure interface and LAG parameters for each LAG interface.
VTI Configure IP address assignment and interface parameters for VTI
(Virtual Tunnel Interface).
Trunk Create and manage trunks (groups of interfaces) for load balancing.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
58
Routing Policy Route Create and manage routing policies.
Static Route Create and manage IP static routing information.
RIP Configure device-level RIP settings.
OSPF Configure device-level OSPF settings, including areas and virtual links.
BGP Configure exchange of Border Gateway Protocol (BGP) information
over an IPSec tunnel.
DDNS DDNS Define and manage the Zyxel Device’s DDNS domain names.
NAT NAT Set up and manage port forwarding rules.
Virtual Server Load
Balancer
Configure virtual server load balancer rules that distribute incoming
connection requests to a virtual server between multiple real
(physical) servers
Redirect
Service
Redirect Service Set up and manage HTTP and SMTP redirection rules.
ALG ALG Configure SIP, H.323, and FTP pass-through settings.
UPnP UPnP Configure interfaces that allow UPnP and NAT-PMP connections.
IP/MAC Binding Summary Configure IP to MAC address bindings for devices connected to each
supported interface.
Exempt List Configure ranges of IP addresses to which the Zyxel Device does not
apply IP/MAC binding.
Layer 2 Isolation General Enable layer-2 isolation on the Zyxel Device and the internal
interfaces.
Allow List Enable and configure the allow list.
DNS Inbound LB DNS Load Balancing Configure DNS Load Balancing.
VPN
IPSec VPN VPN Connection Configure IPSec tunnels.
VPN Gateway Configure IKE tunnels.
Concentrator Combine IPSec VPN connections into a single secure network
Configuration
Provisioning
Set who can retrieve VPN rule settings from the Zyxel Device using the
Zyxel Device IPSec VPN Client.
SSL VPN Access Privilege Configure SSL VPN access rights for users and groups.
Global Setting Configure the Zyxel Device’s SSL VPN settings that apply to all
connections.
L2TP VPN L2TP VPN Configure L2TP over IPSec tunnels.
Remote AP VPN Remote AP VPN Configure the IP address pool for the Zyxel Device to assign an IP
address to the outgoing interface of each RAP IPSec tunnel.
BWM BWM Enable and configure bandwidth management rules.
Web
Authentication
Web Authentication
General/
Authentication
Type/Custom
Web Portal File/
Custom User
Agreement File
Define a web portal and exempt services from authentication.
SSO Configure the Zyxel Device to work with a Single Sign On agent.
Hotspot
Table 8 Configuration Menu Screens Summary (continued)
FOLDER OR LINK TAB FUNCTION
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
59
Billing General Configure the general billing settings, such as the accounting
method.
Billing Profile Configure the billing profiles for the web-based account generator
and each button on the connected statement printer.
Discount Configure discount price plans.
Payment Service Enable online payment service and configure the service pages.
Printer
Manager
General Configure the printer list, enable printer management and customize
the account printout.
Printout
Configuration
Detect the connected statement printers, change their IP addresses
and/or add them to the managed printer list.
Free Time Free Time Allow users to get a free account for Internet surfing during the
specified time period.
IPnP IPnP Enable IPnP on the Zyxel Device and the internal interfaces.
Walled Garden Walled Garden
General/URL Base/
Domain/IP Base
Create walled garden links that display in the login screen.
Advertisement Advertisement Enable and set advertisement links.
Security Policy
Policy Control Policy Create and manage level-3 traffic rules and apply Security Service
profiles.
ADP General Display and manage ADP bindings.
Profile Create and manage ADP profiles.
Allow List Create an allow list for certain IP or services to let them pass the ADP
flood detection.
Session Control Session Control Limit the number of concurrent client NAT/security policy sessions.
Security Service
AppPatrol Profile Manage different types of traffic in this screen. Create App Patrol
template(s) of settings to apply to a traffic flow using a security policy.
Content Filter Web Content Filter:
General
Create and manage the detailed filtering rules for content filtering
profiles and then apply to a traffic flow using a security policy.
Web Content Filter:
Trusted Web Sites
Create a list of allowed web sites that bypass content filtering policies.
Web Content Filter:
Forbidden Web Sites
Create a list of web sites to block regardless of content filtering
policies.
DNS Content Filter:
General
Create and manage the detailed filtering rules for DNS content
filtering profiles and then apply to a traffic flow using a security policy.
DNS Content Filter:
Allow List
Create a list of allowed web sites that bypass DNS content filtering
policies.
DNS Content Filter:
Block List
Create a list of web sites to block regardless of content filtering
policies.
Anti-Malware Anti-Malware Enable, specify actions to take when encountering malware or
compressed files, and set up a black list to identify files with malware
file patterns and a white list to identify files that should not be checked
for malware.
Block/Allow List Set up a block list to identify spam and an allow list to identify
legitimate email.
Signature Search for particular signatures to get more information about them.
Table 8 Configuration Menu Screens Summary (continued)
FOLDER OR LINK TAB FUNCTION
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
60
Reputation
Filter
IP Reputation
General/Allow List/
Block List/ External
Block List
Enable IP reputation and specify what action the Zyxel Device takes
when any IP address with bad reputation is detected.
You can also set up an allow list to identify which IPv4 addresses
should be allowed, and a block list to identify which IPv4 addresses
should be blocked.
Set up an external block list which uses block list entries stored in a file
on a web server that supports HTTP or HTTPS and is reachable from the
Zyxel Device. The Zyxel Device will block incoming and outgoing
packets from the black list entries in this file.
DNS Threat Filter
General/Profile/
Allow List/ Block List
Enable DNS threat filtering and specify what action the Zyxel Device
takes when a access attempt to a blocked Fully Qualified Domain
Name (FQDN) is detected.
You can also set up an allow list to identify which FQDNs should be
allowed, and a block list to identify which FQDNs should be blocked.
General/Allow List/
Block List/ External
Block List
Enable URL filtering and specify what action the Zyxel Device takes
when a access attempt to a blocked website is detected.
You can also set up an allow list to identify which IPv4 addresses and/
or URLs should be allowed, and a block list to identify which IPv4
addresses and/or URLs should be blocked.
Set up an external block list which uses block list entries stored in a file
on a web server that supports HTTP or HTTPS and is reachable from the
Zyxel Device. The Zyxel Device will block incoming and outgoing
packets from the black list entries in this file.
IPS IPS Enable and configure IPS settings. Create, import, or export custom
signatures.
Allow List Configure signatures that will be exempted from IPS inspection.
Sandboxing Sandboxing Enable sandboxing, and specify the actions the Zyxel Device takes
when malicious or suspicious files are detected.
Email Security Email Security Turn email security on or off and manage email security policies.
Create email security templates of settings to apply to a traffic flow
using a security policy.
Block/Allow List Set up a block list to identify spam and an allow list to identify
legitimate email.
CDR Collaborative
Detection &
Response
Turn CDR on or off and manage CDR policies. Create CDR templates
of settings to apply to a traffic flow using a security policy.Configure
Collaborative Detection & Response triggering policies with
containment actions.
Exempt List Set up a list of devices that are exempt from Collaborative Detection
& Response checking.Configure IPv4 and/or MAC addresses of
devices that are exempt from CDR checking.
SSL Inspection Profile Decrypt HTTPS traffic for Security Service inspection. Create SSL
Inspection templates of settings to apply to a traffic flow using a
security policy.
Exclude List Configure services to be excluded from SSL Inspection.
Certificate Update Use this screen to update the latest certificates of servers using SSL
connections to the Zyxel Device network.
Table 8 Configuration Menu Screens Summary (continued)
FOLDER OR LINK TAB FUNCTION
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
61
IP Exception IP Exception Use this screen to view the IP exception list for the anti-malware and
IPS (Intrusion Prevention System) features.
The Zyxel Device will not intercept nor inspect the incoming packets
that match the rules in the IP exception list for the anti-malware and/
or IPS (Intrusion Prevention System) features.
Object
Device Insight Device Insight Configure profiles to block specified clients from accessing the
Internet or the Zyxel Device.
Zone Zone Configure zone templates used to define various policies.
User/Group User Create and manage users.
Group Create and manage groups of users.
Setting Manage default settings for all users, general settings for user sessions,
and rules to force user authentication.
MAC Address Configure the MAC addresses of wireless clients for MAC
authentication using the local user database.
AP Profile Radio Create templates of radio settings to apply to policies as an object.
SSID Create templates of wireless settings to apply to radio profiles or
policies as an object.
MON Profile MON Profile Create and manage rogue AP monitoring files that can be
associated with different APs.
ZyMesh Profile ZyMesh Profile Create and manage ZyMesh files that can be associated with
different APs.
Address/Geo IP Address Create and manage host, range, and network (subnet) addresses.
Address Group Create and manage groups of addresses to apply to policies as a
single objects.
Geo IP Update the database of country-to-IP address mappings and
manually configure country-to-IP address mappings for geographic
address objects that can be used in security policies.
Service Service Create and manage TCP and UDP services.
Service Group Create and manage groups of services to apply to policies as a single
object.
Schedule Schedule Create one-time and recurring schedules.
Schedule Group Create and manage groups of schedules to apply to policies as a
single object.
AAA Server Active Directory Configure the Active Directory settings.
LDAP Configure the LDAP settings.
RADIUS Configure the RADIUS settings.
Auth. Method Authentication
Method
Create and manage ways of authenticating users.
Two-factor
Authentication
Configure SMS or email authentication to access the Zyxel Device
through a VPN tunnel.
Certificate My Certificates Create and manage the Zyxel Device’s certificates.
Trusted Certificates Import and manage certificates from trusted sources.
ISP Account ISP Account Create and manage ISP account information for PPPoE/PPTP
interfaces.
Table 8 Configuration Menu Screens Summary (continued)
FOLDER OR LINK TAB FUNCTION
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
62
DHCPv6 Request Configure IPv6 DHCP request type and interface information.
Lease Configure IPv6 DHCP lease type and interface information.
Device HA Device HA Status See the license status for Device HA Pro, and see the status of the
active and passive devices.
Device HA Pro Configure Device HA Pro global settings, monitored interfaces and
synchronization settings.
View Log See logs of the active and passive devices
Mgmt. & Analytics SecuManager Enable and configure management of the Zyxel Device by a Central
Network Management system.
SecuReporter Enable SecuReporter logging and access the SecuReporter security
analytics portal that collects and analyzes logs from your Zyxel Device
in order to identify anomalies, alert on potential internal or external
threats, and report on network usage.
Nebula Use this screen to let Nebula manage your Zyxel Device.
System
Host Name Host Name Configure the system and domain name for the Zyxel Device.
USB Storage Settings Configure the settings for the connected USB devices.
Date/Time Date/Time Configure the current date, time, and time zone in the Zyxel Device.
Console Speed Console Speed Set the console speed.
DNS DNS Configure the DNS server and address records for the Zyxel Device.
WWW Service Control Configure HTTP, HTTPS, and general authentication.
Login Page Configure how the login and access user screens look.
SSH SSH Configure SSH server and SSH service settings.
TELNET TELNET Configure telnet server settings for the Zyxel Device.
FTP FTP Configure FTP server settings.
SNMP SNMP Configure SNMP communities and services.
Auth. Server Auth. Server Configure the Zyxel Device to act as a RADIUS server.
Notification Mail Server Configure a mail server with authentication to send reports and
password expiration notification emails.
SMS Enable the SMS service to send dynamic guest account information in
text messages and authorization for VPN tunnel access to a secured
network.
Response Message Create a web page when access to a website is restricted due to a
security service.
Language Language Select the Web Configurator language.
IPv6 IPv6 Enable IPv6 globally on the Zyxel Device here.
ZON ZON Use the Zyxel One Network (ZON) utility to view and manage the Zyxel
Device’s neighboring devices through the Zyxel Discovery Protocol
(ZDP).
Log & Report
Email Daily
Report
Email Daily Report Configure where and how to send daily reports and what reports to
send.
Log Settings Log Settings Configure the system log, email logs, and remote syslog servers.
Table 8 Configuration Menu Screens Summary (continued)
FOLDER OR LINK TAB FUNCTION
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
63
Maintenance Menu
Use the maintenance menu screens to manage configuration and firmware files, run diagnostics, and
reboot or shut down the Zyxel Device.
2.6 Tables and Lists
Web Configurator tables and lists are flexible with several options for how to display their entries.
Click a column heading to sort the table’s entries according to that column’s criteria.
Table 9 Maintenance Menu Screens Summary
FOLDER
OR LINK
TAB FUNCTION
File
Manager
Configuration File Manage and upload configuration files for the Zyxel Device.
Firmware
Management
View the current firmware version and upload firmware. Reboot with your
choice of firmware.
Shell Script Manage and run shell script files for the Zyxel Device.
Diagnostics Diagnostics Collect diagnostic information.
This screen includes the sub-tabs below:
•Controller
•AP
• Filer
Packet Capture Capture packets for analysis.
This screen includes the sub-tabs below:
•Capture
•Capture on AP
•Remote Capture
• Files
CPU/Memory
Status
View CPU and memory usage statistics.
System Log Connect a USB device to the Zyxel Device and archive the Zyxel Device system
logs to it here.
Network Tool Identify problems with the connections. You can use Ping or Traceroute to help
you identify problems.
Routing Traces Configure traceroute to identify where packets are dropped for
troubleshooting.
Wireless Frame
Capture
Capture wireless frames from APs for analysis.
Packet
Flow
Explore
Routing Status Check how the Zyxel Device determines where to route a packet.
SNAT Status View a clear picture on how the Zyxel Device converts a packet’s source IP
address and check the related settings.
Shutdown/
Reboot
Shutdown/ Reboot Turn off or restart the Zyxel Device.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
64
Figure 20 Sorting Table Entries by a Column’s Criteria
Click the down arrow next to a column heading for more options about how to display the entries. The
options available vary depending on the type of fields in the column. Here are some examples of what
you can do:
• Sort in ascending or descending (reverse) alphabetical order
• Select which columns to display
•Group entries by field
•Show entries in groups
• Filter by mathematical operators (<, >, or =) or searching for text
Figure 21 Common Table Column Options
Select a column heading cell’s right border and drag to re-size the column.
Figure 22 Resizing a Table Column
Select a column heading and drag and drop it to change the column order. A green check mark
displays next to the column’s title when you drag the column to a valid new location.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
65
Figure 23 Moving Columns
Use the icons and fields at the bottom of the table to navigate to different pages of entries and control
how many entries display at a time.
Figure 24 Navigating Pages of Table Entries
The tables have icons for working with table entries. You can often use the [Shift] or [Ctrl] key to select
multiple entries to remove, activate, or deactivate.
Figure 25 Common Table Icons
Here are descriptions for the most common table icons.
Table 10 Common Table Icons
LABEL DESCRIPTION
Add Click this to create a new entry. For features where the entry’s position in the numbered list is
important (features where the Zyxel Device applies the table’s entries in order like the security policy
for example), you can select an entry and click Add to create a new entry after the selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the entry’s
settings. In some tables you can just click a table entry and edit it directly in the table. For those types
of tables small red triangles display for table entries with changes that you have not yet applied.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove it
before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Connect To connect an entry, select it and click Connect.
Disconnect To disconnect an entry, select it and click Disconnect.
References Select an entry and click References to check which settings use the entry.
Move To change an entry’s position in a numbered list, select it and click Move to display a field to enter a
number for where you want to put that entry and press [ENTER] to move the entry to the number that
you entered. For example, if you enter 6, the entry you are moving becomes number 6 and the
previous entry 6 (if there is one) gets pushed up (or down) one.
background
Chapter 2 Web Configurator
USG FLEX Series User’s Guide
66
Working with Lists
When a list of available entries displays next to a list of selected entries, you can often just double-click
an entry to move it from one list to the other. In some lists you can also use the [Shift] or [Ctrl] key to
select multiple entries, and then use the arrow button to move them to the other list.
Figure 26 Working with Lists
background
USG FLEX Series User’s Guide
67
CHAPTER 3
Initial Setup Wizard
3.1 Initial Setup Wizard: Select Management Mode
When you log into the Web Configurator for the first time or when you reset the Zyxel Device to its
default configuration, the Initial Setup Wizard screen displays. This wizard helps you configure Internet
connection settings and activate subscription services.
Note: For Zyxel Devices that already have firmware version 4.25 or later, you have to register
your Zyxel Device and activate the corresponding service at Zyxel Account(through
your Zyxel Device).
This chapter provides information on configuring the Web Configurator's Initial Setup Wizard. See the
feature-specific chapters in this User’s Guide for background information.
• Click the double arrow in the upper right corner to display or hide the help.
• Click Logout to exit the Initial Setup Wizard or click Next to continue the wizard. Click Finish at the end
of the wizard to complete the wizard.
Select On Premises Mode to manage your Zyxel Device using the Web Configurator or the Command
Line Interface (CLI). Use this mode to secure your networks with the Zyxel Device security services. Follow
the On Premises mode wizard to set up your Zyxel Device, such as configuring the WAN settings,
registering your Zyxel Device and allowing remote access to your Zyxel Device.
Select Nebula Mode to manage your Zyxel Device using Nebula Control Center (NCC). NCC is a cloud
based network management system that allows you to remotely manage and monitor your Zyxel
Device. Use this mode to manage your Zyxel Device with accounts at different privilege levels. You can
also manage your Zyxel Device licenses and status through NCC.Follow the Nebula mode wizard to
configure the WAN settings to pass the management of your Zyxel Device to NCC.
Note: You need to press the reset button to change the Zyxel Device mode once you finish
the wizard. You will not see this screen if you reset the Zyxel Device through the web
configurator or the CLI.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
68
Figure 27 Management Mode: On Premises Mode
3.1.1 Welcome Screen
Select On Premises Mode in the previous screen to show the Welcome screen. Use this screen to see the
settings you can configure using the On Premises mode initial setup wizard.
Figure 28 On Premises Mode- Welcome
3.1.2 Internet Access Setup - WAN Interface
Use this screen to set how many WAN interfaces to configure and the first WAN interface’s type of
encapsulation and method of IP address assignment.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
69
The screens vary depending on the encapsulation type. Refer to information provided by your ISP to
know what to enter in each field.
Note: Enter the Internet access information exactly as your ISP gave it to you. Leave a field
blank if you don’t have that information.
• I have two ISPs: Select this option to configure two Internet connections. Leave it cleared to configure
just one. This option appears when you are configuring the first WAN interface.
• VLAN Tagged: Select this to tag the traffic going out from the Zyxel Device. Enter a VLAN ID. This 12-bit
number uniquely identifies each VLAN. Allowed values are 1-4080.
• Encapsulation: Choose the Ethernet option when the WAN port is used as a regular Ethernet. Choose
PPPoE, PPTP or L2TP for a dial-up connection according to the information from your ISP.
• MTU: The Maximum Transmission Unit. Enter the maximum size of each data packet, in bytes, that can
move through this interface. If a larger packet arrives, the Zyxel Device divides it into smaller
fragments. Allowed values are 576-1500. Usually, this value is 1500.
• WAN Interface: This is the interface you are configuring for Internet access.
• Zone: This is the security zone to which this interface and Internet connection belong.
• IP Address Assignment: Select Auto if your ISP did not assign you a fixed IP address.
Select Static if the ISP assigned a fixed IP address.
• DHCP Option 60: This field will show if you choose Auto as the IP Address Assignment. DHCP Option 60
is used by the Zyxel Device for identification to the DHCP server using the VCI (Vendor Class Identifier)
on the DHCP server. The Zyxel Device adds it in the initial DHCP discovery message that a DHCP client
broadcasts in search of an IP address. The DHCP server can assign different IP addresses or options to
clients with the specific VCI or reject the request from clients without the specific VCI.
Enter a string using up to 63 of these characters [a-zA-Z0-9!\"#$%&\'()*+,-./:;<=>?@\[\\\]^_`{}] to
identify this Zyxel Device to the DHCP server. For example, Zyxel-TW.
Figure 29 Internet Access
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
70
3.1.3 Internet Access: Ethernet
This screen is read-only if you set the previous screen’s IP Address Assignment field to Auto. If you set the
previous screen’s IP Address Assignment field to Static, use this screen to configure your IP address
settings.
•VLAN ID: This displays the VLAN ID tag for the traffic going out from the Zyxel Device, which you
configured in the previous screen.
• Encapsulation: This displays the type of Internet connection you are configuring.
• MTU: This displays the maximum size of each data packet that can move through this interface.
• First WAN Interface: This is the number of the interface that will connect with your ISP.
• Zone: This is the security zone to which this interface and Internet connection will belong.
• IP Address: Enter your (static) public IP address. Auto displays if you selected Auto as the IP Address
Assignment in the previous screen.
• DHCP Option 60: This field will show if you selected Auto as the IP Address Assignment in the previous
screen. This displays the string you configured to identify DHCP server using VCI.
The following fields display if you selected static IP address assignment.
• IP Subnet Mask: Enter the subnet mask for this WAN connection's IP address.
• Gateway IP Address: Enter the IP address of the router through which this WAN connection will send
traffic (the default gateway).
• First / Second DNS Server: These fields display if you selected static IP address assignment. The Domain
Name System (DNS) maps a domain name to an IP address and vice versa. Enter a DNS server's IP
address(es). The DNS server is extremely important because without it, you must know the IP address
of a computer before you can access it. The Zyxel Device uses these (in the order you specify here) to
resolve domain names for VPN, DDNS and the time server. Leave the field as 0.0.0.0 if you do not want
to configure DNS servers.
3.1.3.1 Possible Errors
• Check that your cable connection is coming from the correct interface you’re using for the WAN
connection on the Zyxel Device.
• Check that the interface is connected to the device you’re using for Internet access such as a
broadband router and that the router is turned on. The LED of the interface you’re using for the WAN
connection on the Zyxel Device should be orange.
• If your Zyxel Device was not able to obtain an IP address, check that your Internet access information
uses DHCP as the WAN connection type. If it fails again, check with your Internet service provider or
administrator for correct WAN settings.
• If your Zyxel Device was not able to use the IP address entered, check that you were given an IP
address, subnet mask and gateway address as part of your Internet access information. Re-enter your
IP address, subnet mask and gateway IP address exactly as given. If it fails again, check with your
Internet service provider or administrator for correct IP address, subnet mask and gateway address
and other WAN settings.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
71
Figure 30 Internet Access: Ethernet Encapsulation
3.1.4 Internet Access: PPPoE
3.1.4.1 Internet Access - First WAN Interface
•VLAN ID: This displays the VLAN ID tag for the traffic going out from the Zyxel Device, which you
configured in the previous screen.
3.1.4.2 ISP Parameters
•VLAN ID: This displays the VLAN ID tag for the traffic going out from the Zyxel Device, which you
configured in the previous screen.
• Encapsulation: This displays the type of Internet connection you are configuring.
• MTU: This displays the maximum size of each data packet that can move through this interface.
• Enter the PPPoE Service Name from your service provider. PPPoE uses a service name to identify and
reach the PPPoE server. You can use alphanumeric and -_@$./ characters, and it can be up to 64
characters long.
• Authentication Type - Select an authentication protocol for outgoing connection requests. Options
are:
• Chap/PAP - Your Zyxel Device accepts either CHAP or PAP when requested by the remote node.
• Chap - Your Zyxel Device accepts CHAP only.
• PAP - Your Zyxel Device accepts PAP only.
• MSCHAP - Your Zyxel Device accepts MSCHAP only.
• MSCHAP-V2 - Your Zyxel Device accepts MSCHAP-V2 only.
• Enter the User Name given to you by your ISP. You can use alphanumeric and -_@$./ characters, and
it can be up to 31 characters long.
• Enter the Password associated with the user name. Use up to 64 ASCII characters except the [] and ?.
This field can be blank.
•Select Nailed-Up if you do not want the connection to time out. Otherwise, enter the Idle Timeout in
seconds that elapses before the router automatically disconnects from the PPPoE server.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
72
3.1.4.3 WAN IP Address Assignments
• WAN Interface: This is the name of the interface that will connect with your ISP.
• Zone: This is the security zone to which this interface and Internet connection will belong.
• IP Address: Enter your (static) public IP address. Auto displays if you selected Auto as the IP Address
Assignment in the previous screen.
• First / Second DNS Server: These fields display if you selected static IP address assignment. The Domain
Name System (DNS) maps a domain name to an IP address and vice versa. Enter a DNS server's IP
address(es). The DNS server is extremely important because without it, you must know the IP address
of a computer before you can access it. The Zyxel Device uses these (in the order you specify here) to
resolve domain names for VPN, DDNS and the time server. Leave the field as 0.0.0.0 if you do not want
to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a
machine in order to access it.
3.1.4.4 Possible Errors
• Check that you’re using the correct PPPoE Service Name and Authentication Type.
• Make sure that your Internet access information uses PPPoE as the WAN connection type. Re-enter
your PPPoE user name and password exactly as given. If it fails again, check with your Internet service
provider or administrator for correct WAN settings and user credentials.
• If you were given an IP address and DNS server information as part of your Internet access
information, re-enter them exactly as given. If it fails again, check with your Internet service provider
or administrator for correct IP address, subnet mask and gateway address and other WAN settings.
Figure 31 Internet Access: PPPoE Encapsulation
3.1.5 Internet Access: PPTP
3.1.5.1 ISP Parameters
• MTU: This displays the maximum size of each data packet that can move through this interface.
• Authentication Type - Select an authentication protocol for outgoing calls. Options are:
• Chap/PAP - Your Zyxel Device accepts either CHAP or PAP when requested by the remote node.
• Chap - Your Zyxel Device accepts CHAP only.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
73
• PAP - Your Zyxel Device accepts PAP only.
• MSCHAP - Your Zyxel Device accepts MSCHAP only.
• MSCHAP-V2 - Your Zyxel Device accepts MSCHAP-V2 only.
• Enter the User Name given to you by your ISP. You can use alphanumeric and -_@$./ characters, and
it can be up to 31 characters long.
• Enter the Password associated with the user name. Use up to 64 ASCII characters except the [] and ?.
This field can be blank. Re-enter your password in the next field to confirm it.
•Select Nailed-Up if you do not want the connection to time out. Otherwise, enter the Idle Timeout in
seconds that elapses before the router automatically disconnects from the PPTP server.
3.1.5.2 PPTP Configuration
• Base Interface: This identifies the Ethernet interface you configure to connect with a modem or router.
•Enter a Base IP Address (static) assigned to you by your ISP.
• Enter the IP Subnet Mask assigned to you by your ISP (if given).
• Gateway IP Address: Enter the IP address of the router through which this WAN connection will send
traffic (the default gateway).
• Server IP: Enter the IP address of the PPTP server.
•Enter a Connection ID or connection name. It must follow the “c:id” and “n:name” format. For
example, C:12 or N:My ISP. This field is optional and depends on the requirements of your broadband
modem or router. You can use alphanumeric and -_: characters, and it can be up to 31 characters
long.
3.1.5.3 WAN IP Address Assignments
• First WAN Interface: This is the connection type on the interface you are configuring to connect with
your ISP.
• Zone This is the security zone to which this interface and Internet connection will belong.
• IP Address: Enter your (static) public IP address. Auto displays if you selected Auto as the IP Address
Assignment in the previous screen.
• First / Second DNS Server: These fields display if you selected static IP address assignment. The Domain
Name System (DNS) maps a domain name to an IP address and vice versa. Enter a DNS server's IP
address(es). The DNS server is extremely important because without it, you must know the IP address
of a computer before you can access it. The Zyxel Device uses these (in the order you specify here) to
resolve domain names for VPN, DDNS and the time server. Leave the field as 0.0.0.0 if you do not want
to configure DNS servers.
3.1.5.4 Possible Errors
• Check that you’re using the correct PPPT Service IP, Base IP Address, IP Subnet Mask, Gateway IP
Address, Connection ID and Authentication Type.
• Make sure that your Internet access information uses PPTP as the WAN connection type. Re-enter your
PPTP user name and password exactly as given. If it fails again, check with your Internet service
provider or administrator for correct WAN settings and user credentials.
• If you were given an IP address and DNS server information as part of your Internet access
information, re-enter them exactly as given. If it fails again, check with your Internet service provider
or administrator for correct IP address, subnet mask and gateway address and other WAN settings.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
74
Figure 32 Internet Access: PPTP Encapsulation
3.1.6 Internet Access: L2TP
3.1.6.1 ISP Parameters
• Authentication Type - Select an authentication protocol for outgoing connection requests. Options
are:
• Chap/PAP - Your Zyxel Device accepts either CHAP or PAP when requested by the remote node.
• Chap - Your Zyxel Device accepts CHAP only.
• PAP - Your Zyxel Device accepts PAP only.
• MSCHAP - Your Zyxel Device accepts MSCHAP only.
• MSCHAP-V2 - Your Zyxel Device accepts MSCHAP-V2 only.
• Enter the User Name given to you by your ISP. You can use alphanumeric and -_@$./ characters, and
it can be up to 31 characters long.
• Enter the Password associated with the user name. Use up to 64 ASCII characters except the [] and ?.
This field can be blank.
•Select Nailed-Up if you do not want the connection to time out. Otherwise, enter the Idle Timeout in
seconds that elapses before the router automatically disconnects from the PPPoE server.
3.1.6.2 L2TP Configuration
• Base Interface: This identifies the Ethernet interface you configure to connect with a modem or router.
•Enter a Base IP Address (static) assigned to you by your ISP.
• IP Subnet Mask: Enter the subnet mask for this WAN connection's IP address.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
75
• Gateway IP Address: Enter the IP address of the router through which this WAN connection will send
traffic (the default gateway).
• Server IP: Enter the IP address of the L2TP server.
3.1.6.3 WAN IP Address Assignments
• WAN Interface: This is the name of the interface that will connect with your ISP.
• Zone: This is the security zone to which this interface and Internet connection will belong.
• IP Address: Enter your (static) public IP address. Auto displays if you selected Auto as the IP Address
Assignment in the previous screen.
• First / Second DNS Server: These fields display if you selected static IP address assignment. The Domain
Name System (DNS) maps a domain name to an IP address and vice versa. Enter a DNS server's IP
address(es). The DNS server is extremely important because without it, you must know the IP address
of a computer before you can access it. The Zyxel Device uses these (in the order you specify here) to
resolve domain names for VPN, DDNS and the time server. Leave the field as 0.0.0.0 if you do not want
to configure DNS servers.
3.1.6.4 Possible Errors
• Check that you’re using the correct L2PT Server IP, Subnet Mask, Gateway IP Address, IP Subnet Mask
and Authentication Type.
• Make sure that your Internet access information uses L2TP as the WAN connection type. Re-enter your
L2TP user name and password exactly as given. If it fails again, check with your Internet service
provider or administrator for correct WAN settings and user credentials.
• If you were given an IP address and DNS server information as part of your Internet access
information, re-enter them exactly as given. If it fails again, check with your Internet service provider
or administrator for correct IP address, subnet mask and gateway address and other WAN settings.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
76
Figure 33 Internet Access: L2TP Encapsulation
3.1.7 Internet Access Setup - Second WAN Interface
If you selected I have two ISPs, after you configure the First WAN Interface, you can configure the
Second WAN Interface. The screens for configuring the second WAN interface are similar to the first (see
Section 3.1.2 on page 68).
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
77
Figure 34 Internet Access: Step 3: Second WAN Interface
3.1.8 Internet Access: Congratulations
You have set up your Zyxel Device to access the Internet. A screen displays with your settings. Click
Connection Test to check that you can access the Internet. If you cannot, click Back and confirm that
you entered the settings correctly. If you have, check that you got the correct settings from your ISP or
network administrator.
Figure 35 Internet Access: Summary
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
78
3.1.9 Date and Time Settings
It’s important to have correct date and time values in the logs. The Zyxel Device can automatically
update the time and date by detecting your time zone and whether Daylight Savings is in effect in that
time zone.
If your Zyxel Device cannot get the correct date and time, it may not able to connect to a time server.
Check that the Zyxel Device has Internet access, then click Sync. Now.
Figure 36 Date and Time Settings
3.1.10 Register Device
Click the Register button in this screen to register your device at account.zyxel.com.
Note: The Zyxel Device must be connected to the Internet in order to register.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
79
Figure 37 Register Device
You may need the Zyxel Device’s serial number and LAN MAC address to register it at Zyxel Account if
you have not already done so. Refer to the label at the back of the Zyxel Device’s for details.
Figure 38 myZyxel Login
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
80
Click Refresh or use the Configuration > Licensing > Registration screen to update your Zyxel Device
registration status. Please note that you cannot change to Nebula Mode once you click Next unless you
reset the Zyxel Device.
Figure 39 Registered Device
3.1.11 Activate Service
After you register your Zyxel Device, you can register for the services supported by your model. See
Subscription Services Available on page 256 for more information on the subscription services for the two
types of security packs.
Here are the services available for the Zyxel Device.
• Web Filtering (CF): access a database that can block websites by category.
• IPS (IDP): use this feature to detect Intrusion Detection and Prevention attacks.
• Application Patrol: use signatures for Application Patrol inspection to manage the use of various
applications on the network.
• Anti-Malware: use signatures to detect malware patterns in files.
• Email Security (Anti-Spam): use anti-spam signatures to mark or discard spam (unsolicited
commercial or junk email).
• Sandboxing: provide a safe environment to separate running programs from your network and host
devices. This field is available with a Gold Security Pack license.
• Reputation Filter: use this feature to detect and manage IP addresses, FQDNs or URLs with a bad
reputation. This field is available with a Gold Security Pack license.
• SecuReporter: collect and analyze logs from your Zyxel Device in order to identify anomalies, notify
you of potential internal or external threats, and report on network usage.
• Collaborative Detection & Response: detect wired and WiFi clients that are sending malicious traffic in
your network and then block or quarantine traffic coming from them.
• Network Premium: allow users to log in once to get access to permitted resources.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
81
Figure 40 USG FLEX Activate Service
Click Refresh and wait a few moments for the registration information to update in this screen. If the
page does not refresh, make sure the Internet connection is working and click Refresh again. To check
your Internet connection, try to access the Internet from a computer connected to a LAN port on the
Zyxel Device. If you cannot, then check your Internet access settings on the Zyxel Device.
3.1.12 Service Settings
You can enable or disable the following features in this screen. This screen varies depending on the
security pack that you purchase. See
Subscription Services Available on page 256 for more information
on the subscription services for the two types of security packs.
Note: Select the I have read SecuReporter GDPR and agree policy check box to have
SecuReporter collect and analyze logs from this Zyxel Device. This check box won’t
appear again if you have already selected this before.
• Use this feature to detect and block access to specific URLs, by comparing URL addresses of sites that
users attempt to access with a database of either permitted or blocked sites.
• Anti-Malware: Use this feature to detect malware patterns in files.
• IPS: Use this feature to detect Intrusion Detection and Prevention attacks.
• IP Reputation: Use this feature to detect and block IP addresses with a bad reputation. This field is
available with a Gold Security Pack license.
• DNS Threat Filter: Use this feature to detect and block domain names with a bad reputation. This field
is available with a Gold Security Pack license.
• Sandboxing: Use this feature to provide a safe environment to separate running programs from your
network and host devices. This field is available with a Gold Security Pack license.
• Content Filter: Use this feature to access a database that can block websites by category.
• App Patrol: Use this feature to manage the use of various applications on the network.
• Email Security: Use this feature to mark or discard spam (unsolicited commercial or junk email).
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
82
• SecuReporter: Use this feature to collect and analyze logs from your Zyxel Device in order to identify
anomalies, notify you of potential internal or external threats, and report on network usage.
• Collaborative Detection & Response: Use this feature to detect wired and WiFi clients that are sending
malicious traffic in your network and then block or quarantine traffic coming from them.
Figure 41 USG FLEX Service Settings
3.1.13 Service Settings: SecuReporter
Use this screen to add the Zyxel Device to a new or existing organization, and choose the level of data
protection for traffic going through this Zyxel Device.
• Server Status: This is the connection status between the Zyxel Device and the SecuReporter server. This
field shows Connected when the Zyxel Device can synchronize with the SecuReporter server. This field
shows Timeout when the Zyxel Device can’t synchronize with the SecuReporter server. This field shows
Fail when the connection between the Zyxel Device and the SecuReporter server is down.
• Device Name: Enter the name of the Zyxel Device. This Zyxel Device will be added to a new or existing
organization.
• Organization: This field appears if you haven’t created an organization in the SecuReporter server.
Enter a name of up to 255 characters and description to create a new organization.
• Select from existing organization: Select an existing organization from the drop-down list box to add
the Zyxel Device to the selected organization.
• Create new organization: Enter a name of up to 255 characters and description to create a new
organization.
• Partially Anonymous: Select this and personal data, such as user names, MAC addresses, email
addresses, and host names, will be replaced with artificial identifiers in downloaded logs.
• Fully Anonymous: Select this and personal data, such as user names, MAC addresses, email
addresses, and host names, will be replaced with anonymized information in downloaded logs.
• Non-Anonymous: Select this and personal data, such as user names, MAC addresses, email
addresses, and host names, will be identifiable in downloaded logs.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
83
Figure 42 SecuReporter Settings
The following screen appears when the Zyxel Device is already added in an organization.
Figure 43 SecuReporter Settings
3.1.14 Wireless Settings: Management Mode
The Management Mode screen appears for Zyxel Devices that have a built-in AP. Select Built-in AP if you
want WiFi clients to access your Zyxel Device wirelessly. Select AP Controller to allow the Zyxel Device to
manage APs in the same network as the Zyxel Device. Both modes cannot work simultaneously. Click
Next to continue the wizard.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
84
Figure 44 Wireless Setup Wizard > Management Mode (Models with Built-in AP)
3.1.15 Wireless Settings: AP Controller
The Zyxel Device can act as an AP Controller that can manage APs in the same network as the Zyxel
Device. Select Yes if you want your Zyxel Device to manage APs in your network; otherwise select No.
Figure 45 Wireless Setup Wizard > Management Mode
3.1.16 Wireless Settings: SSID & Security
Configure SSID and wireless security in this screen.
SSID Setting
• SSID - Enter a descriptive name of up to 32 printable characters for the wireless LAN.
• Security Mode - Select Pre-Shared Key to add security on this wireless network. Otherwise, select None
to allow any wireless client to associate this network without authentication.
• Pre-Shared Key - Enter a pre-shared key of between 8 and 63 case-sensitive ASCII characters
(including spaces and symbols) or 64 hexadecimal characters.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
85
• Hidden SSID - Select this option if you want to hide the SSID in the outgoing beacon frame. A wireless
client then cannot obtain the SSID through scanning using a site survey tool.
• Enable Intra-BSS Traffic Blocking - Select this option if you want to prevent crossover traffic from within
the same SSID. Wireless clients can still access the wired network but cannot communicate with each
other.
For Zyxel Devices with Built - in AP Only
Bridged to: Zyxel Devices with W in the model name have a built-in AP. Select an interface to bridge with
the built-in AP wireless network. Devices connected to this interface will then be in the same broadcast
domain as devices in the AP wireless network.
Figure 46 Wireless Settings: SSID & Security
3.1.17 Remote Management
Configure settings in this screen to add a rule that has priority over other rules in Policy Control. It restricts
access to the web configurator and SSL VPN service from the Internet.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
86
Figure 47 Remote Management
• Enable Allow secure remote management from WAN to create a rule in the Policy Control screen. It
allows you to access the Zyxel Device from the WAN using HTTPS.
• Enable Restrict access only to trusted host to have the Zyxel Device allow access only from the IP
addresses or FQDNs specified in the fields below.
• Enable Allow SSL VPN access from WAN to allow access to the Zyxel Device remotely through the SSL
VPN tunnel.
• Enable Restrict access by GeoIP to have the Zyxel Device allow access only from countries specified
in the fields below.
Figure 48 Object > Service > Service Group - HTTPS
3.2 Nebula Mode Initial Setup Wizard
Select Nebula Mode to manage and monitor your Zyxel Device remotely. Follow the wizard to configure
the WAN settings to pass the management of your Zyxel Device to NCC.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
87
Figure 49 Management Mode: Nebula Mode
3.2.1 Connect to Internet (WAN)
Configure the WAN interface that the Zyxel Device will use to connect to Nebula through the Internet.
Use this screen to set how many WAN interfaces to configure and the first WAN interface’s type of
encapsulation and method of IP address assignment.
The screens vary depending on the encapsulation type. Refer to information provided by your ISP to
know what to enter in each field.
Note: Enter the Internet access information exactly as your ISP gave it to you. Leave a field
blank if you don’t have that information.
• I have two ISPs: Select this option to configure two Internet connections. Leave it cleared to configure
just one. This option appears when you are configuring the first WAN interface.
• VLAN Tagged: Select this to tag the traffic going out from the Zyxel Device. Enter a VLAN ID. This 12-bit
number uniquely identifies each VLAN. Allowed values are 1-4080.
• Encapsulation: Choose the Ethernet option when the WAN port is used as a regular Ethernet. Choose
PPPoE for a dial-up connection according to the information from your ISP.
• MTU: The Maximum Transmission Unit. Enter the maximum size of each data packet, in bytes, that can
move through this interface. If a larger packet arrives, the Zyxel Device divides it into smaller
fragments. Allowed values are 576-1500. Usually, this value is 1500.
• WAN Interface: This is the interface you are configuring for Internet access.
• IP Address Assignment: Select Auto if your ISP did not assign you a fixed IP address.
Select Static if the ISP assigned a fixed IP address.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
88
• DHCP Option 60: This field will show if you choose Auto as the IP Address Assignment. DHCP Option 60
is used by the Zyxel Device for identification to the DHCP server using the VCI (Vendor Class Identifier)
on the DHCP server. The Zyxel Device adds it in the initial DHCP discovery message that a DHCP client
broadcasts in search of an IP address. The DHCP server can assign different IP addresses or options to
clients with the specific VCI or reject the request from clients without the specific VCI.
Enter a string using up to 63 of these characters [a-zA-Z0-9!\"#$%&\'()*+,-./:;<=>?@\[\\\]^_`{}] to
identify this Zyxel Device to the DHCP server. For example, Zyxel-TW.
Figure 50 Internet Access
3.2.2 Internet Access: Ethernet
This screen is read-only if you set the previous screen’s IP Address Assignment field to Auto. If you set the
previous screen’s IP Address Assignment field to Static, use this screen to configure your IP address
settings.
•VLAN ID: This displays the VLAN ID tag for the traffic going out from Zyxel Device you configured in the
previous screen.
• Encapsulation: This displays the type of Internet connection you are configuring.
• MTU: This displays the maximum size of each data packet that can move through this interface.
• First WAN Interface: This is the number of the interface that will connect with your ISP.
• IP Address: Enter your (static) public IP address. Auto displays if you selected Auto as the IP Address
Assignment in the previous screen.
• DHCP Option 60: This field will show if you selected Auto as the IP Address Assignment in the previous
screen. This displays the string you configured to identify DHCP server using VCI.
The following fields display if you selected static IP address assignment.
• IP Subnet Mask: Enter the subnet mask for this WAN connection's IP address.
• Gateway IP Address: Enter the IP address of the router through which this WAN connection will send
traffic (the default gateway).
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
89
• First / Second DNS Server: These fields display if you selected static IP address assignment. The Domain
Name System (DNS) maps a domain name to an IP address and vice versa. Enter a DNS server's IP
address(es). The DNS server is extremely important because without it, you must know the IP address
of a computer before you can access it. The Zyxel Device uses these (in the order you specify here) to
resolve domain names for VPN, DDNS and the time server. Leave the field as 0.0.0.0 if you do not want
to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a
machine in order to access it.
3.2.2.1 Possible Errors
• Check that your cable connection is coming from the correct interface you’re using for the WAN
connection on the Zyxel Device.
• Check that the interface is connected to the device you’re using for Internet access such as a
broadband router and that the router is turned on. The LED of the interface you’re using for the WAN
connection on the Zyxel Device should be orange.
• If your Zyxel Device was not able to obtain an IP address, check that your Internet access information
uses DHCP as the WAN connection type. If it fails again, check with your Internet service provider or
administrator for correct WAN settings.
• If your Zyxel Device was not able to use the IP address entered, check that you were given an IP
address, subnet mask and gateway address as part of your Internet access information. Re-enter your
IP address, subnet mask and gateway IP address exactly as given. If it fails again, check with your
Internet service provider or administrator for correct IP address, subnet mask and gateway address
and other WAN settings.
Figure 51 Internet Access: Ethernet Encapsulation
3.2.3 Internet Access: PPPoE
Internet Access - First WAN Interface
•VLAN ID: This displays the VLAN ID tag for the traffic going out from the Zyxel Device, which you
configured in the previous screen.
ISP Parameters
• Encapsulation: This displays the type of Internet connection you are configuring.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
90
• MTU: This displays the maximum size of each data packet that can move through this interface.
• Enter the PPPoE Service Name from your service provider. PPPoE uses a service name to identify and
reach the PPPoE server. You can use alphanumeric and -_@$./ characters, and it can be up to 64
characters long.
• Authentication Type - Select an authentication protocol for outgoing connection requests. Options
are:
• Chap/PAP - Your Zyxel Device accepts either CHAP or PAP when requested by the remote node.
• Chap - Your Zyxel Device accepts CHAP only.
• PAP - Your Zyxel Device accepts PAP only.
• MSCHAP - Your Zyxel Device accepts MSCHAP only.
• MSCHAP-V2 - Your Zyxel Device accepts MSCHAP-V2 only.
• Enter the User Name given to you by your ISP. You can use alphanumeric and -_@$./ characters, and
it can be up to 31 characters long.
• Enter the Password associated with the user name. Use up to 64 ASCII characters except the [] and ?.
This field can be blank.
IP Address Assignments
• WAN Interface: This is the name of the interface that will connect with your ISP.
• IP Address: This displays Auto as the IP Address Assignment is set to Auto in the previous screen.
The following fields display if you selected static IP address assignment.
• IP Subnet Mask: Enter the subnet mask for this WAN connection's IP address.
• Gateway IP Address: Enter the IP address of the router through which this WAN connection will send
traffic (the default gateway).
• First / Second DNS Server: These fields display if you selected static IP address assignment. The Domain
Name System (DNS) maps a domain name to an IP address and vice versa. Enter a DNS server's IP
address(es). The DNS server is extremely important because without it, you must know the IP address
of a computer before you can access it. The Zyxel Device uses these (in the order you specify here) to
resolve domain names for VPN, DDNS and the time server. Leave the field as 0.0.0.0 if you do not want
to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a
machine in order to access it.
3.2.3.1 Possible Errors
• Make sure that your Internet access information uses PPPoE as the WAN connection type. Re-enter
your PPPoE user name and password exactly as given. If it fails again, check with your Internet service
provider or administrator for correct WAN settings and user credentials.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
91
Figure 52 Internet Access: PPPoE Encapsulation
3.2.4 Internet Access: Congratulations
You have set up your Zyxel Device to access the Internet. A screen displays with your settings. Click
Connection Test to check that you can access the Internet. If you cannot, click Back and confirm that
you entered the settings correctly. If you have, check that you got the correct settings from your ISP or
network administrator.
Click Next to go to the next screen to finish the Nebula mode wizard. Please note that you cannot
change to On Premises Mode once you click Next unless you reset the Zyxel Device.
If you cannot access Nebula through the Internet after you left this screen, log in to the Zyxel Device
using the support account. Use the Local GUI web configurator for troubleshooting.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
92
Figure 53 Internet Access: Summary
3.2.5 QR Code
Click the link to go to Nebula. Follow the steps in this screen to run the Nebula setup wizard.
Create an organization and a site. Add the Zyxel Device to this site by entering its MAC address and
serial number. Select Native Mode when you’re given a choice. Click Finish to close the wizard.
Figure 54 Go to Nebula
If you see this screen right after you select Nebula Mode, click the link or the Go to Nebula button to go
to Nebula directly. Follow the steps in this screen to run the Nebula setup wizard.
background
Chapter 3 Initial Setup Wizard
USG FLEX Series User’s Guide
93
Configure the WAN interface that the Zyxel Device will use to connect to Nebula through the Internet on
the Nebula setup wizard. Configure an email address to receive the activation link. Follow the steps in
the email to allow automatic management of the Zyxel Device by Nebula (ZTP). Click Back to go back
to the management mode selection screen.
Figure 55 Go to Nebula
background
USG FLEX Series User’s Guide
94
CHAPTER 4
Hardware, Interfaces and
Zones
4.1 Hardware Overview
This section describes the front and rear panels for each model.
Note: Your Zyxel Device may not support SFP if its hardware version is HW:Rev 2.0. Please
check your Zyxel Device label.
The following table summarizes the port features of the Zyxel Device by model.
For information on interface names by model, default port or interface name mapping, and default
interface or zone mapping please see
Section 4.3 on page 104.
4.1.1 Front Panels
The LED indicators are located on the front panel.
Figure 56 USG FLEX 100 Front Panel
Table 11 USG FLEX Series Port Comparison Table
USG FLEX MODELS USG FLEX 100
USG FLEX 100W
USG FLEX 100AX
USG FLEX 200 USG FLEX 500 USG FLEX 700
USB 3.0 Ports 1 1 2 2 2
1 Gbps SFP interface 1 1 1 1 2
10/100/1000 Mbps
Ethernet WAN Ports
1 1 2 – –
10/100/1000 Mbps
Ethernet Ports
4 4 4 7 12
Console Port 1 (RJ45) 1 (RJ45) 1 (DB9) 1 (DB9) 1 (DB9)
background
Chapter 4 Hardware, Interfaces and Zones
USG FLEX Series User’s Guide
95
Figure 57 USG FLEX 100AX Front Panel
Figure 58 USG FLEX 100W Front Panel
Figure 59 USG FLEX 200 Front Panel
Figure 60 USG FLEX 500 Front Panel
Figure 61 USG FLEX 700 Front Panel
background
Chapter 4 Hardware, Interfaces and Zones
USG FLEX Series User’s Guide
96
The following table describes the front panel LEDs.
Table 12 LED Descriptions
LED COLOR STATUS DESCRIPTION
PWR Off The Zyxel Device is turned off.
Green On The Zyxel Device is turned on.
Red On There is a hardware component failure. Shut down the device, wait for a few
minutes and then restart the device. If the LED turns red again, then please
contact your vendor.
SYS Green Off The Zyxel Device is not ready or has failed.
On The Zyxel Device is ready and running.
Blinking The Zyxel Device is booting.
Red On The Zyxel Device has an error or has failed.
2.4G Green Off The 2.4G wireless interface is off.
On The 2.4G wireless interface is ready.
Blinking The 2.4G wireless connection is active.
5G Green Off The 5G wireless interface is off.
On The 5G wireless interface is ready.
Blinking The 5G wireless connection is active.
P1 (SFP)
LINK Yellow Off There is no connection on this port.
On This port has a successful 1000 Mbps link.
Green Off There is no connection on this port.
On This port has a successful 100 Mbps link.
ACT Green Off There is no traffic on this port.
Blinking The Zyxel Device is sending or receiving packets on this port at 100/1000 Mbps.
P2, P3...
(WAN/
LAN/
DMZ)
Yellow Off There is no connection on this port.
On This port has a successful 1000 Mbps link.
Blinking The Zyxel Device is sending or receiving packets on this port at 1000 Mbps.
Green Off There is no connection on this port.
On This port has a successful 10/100 Mbps link.
Blinking The Zyxel Device is sending or receiving packets on this port at 10/100 Mbps.
background
Chapter 4 Hardware, Interfaces and Zones
USG FLEX Series User’s Guide
97
The following table describes the ports on the front panel.
4.1.2 Rear Panels
The connection ports are located on the rear panel.
Figure 62 USG FLEX 100 Rear Panel
Table 13 Front Panel Ports
LABEL DESCRIPTION
RESET Press the button in for about 5 seconds (or until the SYS LED starts to blink), then release it to
return the Zyxel Device to the factory defaults (password is 1234, LAN IP address 192.168.1.1 and
so on).
CONSOLE You can use the console port to manage the Zyxel Device using CLI commands. You will be
prompted to enter your user name and password. See the Command Reference Guide for
more information about the CLI.
When configuring using the console port, you need a computer equipped with
communications software configured to the following parameters:
• Speed 115200 bps
• Data Bits 8
•Parity None
•Stop Bit 1
• Flow Control Off
USB Connect a storage device for system logs (see Maintenance > Diagnostics > System Log) and
storage (see Configuration > System > USB Storage).
P1-P5 (USG FLEX
100AX)
P2-P7 (USG FLEX
200)
P2-P8 (USG FLEX
500)
P1-P12 (USG FLEX
700)
These are 1G RJ-45 Ethernet ports.
background
Chapter 4 Hardware, Interfaces and Zones
USG FLEX Series User’s Guide
98
Figure 63 USG FLEX 100AX Rear Panel
Figure 64 USG FLEX 100W Rear Panel
Figure 65 USG FLEX 200 Rear Panel
Figure 66 USG FLEX 500 Rear Panel
Figure 67 USG FLEX 700 Rear Panel
Note: Make sure you connect the Zyxel Device's power cord to a socket-outlet with an
earthing connection or its equivalent.
background
Chapter 4 Hardware, Interfaces and Zones
USG FLEX Series User’s Guide
99
The following table describes the items on the rear panel.
Note: Use an 8-wire Ethernet cable to run your Gigabit Ethernet connection at 1000 Mbps.
Using a 4-wire Ethernet cable limits your connection to 100 Mbps. Note that the
connection speed also depends on what the Ethernet device at the other end can
support.
4.1.3 Console Port Pin Connection
This series has two types of console ports.
The RJ-45 connector pins are as follows.
Figure 68 RJ-45 Connector Pins
The DB-9 connector pins are as follows.
Table 14 Rear Panel Items
LABEL DESCRIPTION
Console You can use the console port to manage the Zyxel Device using CLI commands. You will be
prompted to enter your user name and password. See the Command Reference Guide for
more information about the CLI.
When configuring using the console port, you need a computer equipped with
communications software configured to the following parameters:
• Speed 115200 bps
• Data Bits 8
•Parity None
•Stop Bit 1
• Flow Control Off
Power Use the included power cord to connect the power socket to a power outlet. Turn the power
switch on if your Zyxel Device has a power switch.
Lock Attach a lock-and-cable from the Kensington lock (the small, metal-reinforced, oval hole) to a
permanent object, such as a pole, to secure the Zyxel Device in place.
Fan The fans are for cooling the Zyxel Device. Make sure they are not obstructed to allow maximum
ventilation.
background
Chapter 4 Hardware, Interfaces and Zones
USG FLEX Series User’s Guide
100
Figure 69 DB-9 Connector Pins
These are the cable pinouts for RJ-45 to DB-9.
These are the signal names.
4.2 Installation Scenarios
The Zyxel Device can be:
• Placed on a desktop.
• Wall-mounted on a wall.
• Rack-mounted on a standard EIA rack.
Table 15 Cable Pinouts for RJ-45 to DB-9
CONSOLE PORT / RJ-45 PIN SIGNAL DB-9 PIN
1 DTR 6
2 DSR 4
3 RxD 3
4 CTS 7
5 GND 5
6 TxD 2
7 RTS 8
8 NC 1, 9
Table 16 Signal Names
SIGNAL SIGNAL NAME
RxD Receive Data
TxD Transmit Data
DTR Data Terminal Ready
GND Ground
DSR Data Set Ready
RTS Request to Send
CTS Clear to Send
RI Ring Indicator
NC Not Connected
background
Chapter 4 Hardware, Interfaces and Zones
USG FLEX Series User’s Guide
101
The following table summarizes the installation scenarios of the Zyxel Device by model.
WARNING! Do not block the ventilation holes on the Zyxel Device. Allow
100 mm clearance for the ventilation holes to prevent your Zyxel Device
from overheating. Do not store things on the Zyxel Device. Do not place
a Zyxel Device on another high temperature device. Overheating could
affect the performance of your Zyxel Device, or even damage it.
4.2.1 Desktop Installation Procedure
1 Make sure the Zyxel Device is clean and dry.
2 Remove the adhesive backing from the rubber feet.
3 Attach the rubber feet to each corner on the bottom of the Zyxel Device. These rubber feet help
protect the Zyxel Device from shock or vibration, and allow air circulation.
Figure 70 Attaching Rubber Feet
Table 17 USG FLEX Series Installation Comparison Table
USG FLEX MODELS USG FLEX 100
USG FLEX 100W/
USG FLEX 100AX
USG FLEX 200 USG FLEX 500
USG FLEX
700
Rubber feet for desktop
placement
Yes Yes Yes Yes Yes
Wall Mounting Yes Yes Yes No No
Rack Mounting No No No Yes Yes
background
Chapter 4 Hardware, Interfaces and Zones
USG FLEX Series User’s Guide
102
4 Set the Zyxel Device on a smooth, level surface strong enough to support the weight of the Zyxel Device
and the connected cables. Make sure there is a power outlet nearby.
Note: Make sure to use the rubber feet when stacking the Zyxel Devices on a desk.
4.2.2 Rack-mounting
Use the following steps to mount the Zyxel Device on an EIA standard size, 19-inch rack or in a wiring
closet with other equipment using a rack-mounting kit. Make sure the rack will safely support the
combined weight of all the equipment it contains and that the position of the ZyWALL does not make
the rack unstable or top-heavy. Take all necessary precautions to anchor the rack securely before
installing the unit.
Use a #2 Phillips screwdriver to install the screws.
Note: Failure to use the proper screws may damage the unit.
1 Align one bracket with the holes on one side of the Zyxel Device and secure it with the included bracket
screws (smaller than the rack-mounting screws).
2 Attach the other bracket in a similar fashion.
Figure 71 Attach Brackets
3 After attaching both mounting brackets, position the Zyxel Device in the rack and match up the bracket
holes with the rack holes. Secure the Zyxel Device to the rack with the rack-mounting screws.
Figure 72 Mount on Rack
Note: Make sure there is at least 100 mm of clearance at the sides and 100 mm in the rear to
allow air circulation and the attachment of cables and the power cord. When stacking
in a rack, make sure there is at least 40 mm of clearance between Zyxel Devices.
background
Chapter 4 Hardware, Interfaces and Zones
USG FLEX Series User’s Guide
103
4.2.3 Wall-mounting
Do the following to attach your Zyxel Device to a wall.
The following table lists the distance “X” between mounting holes for each model:
1 Drill into a wall two holes 3 mm – 4 mm (0.12" – 0.16") wide, 20 mm – 30 mm (0.79” – 1.18”) deep and a
distance X (see the preceding table) apart. Place two screw anchors in the holes.
Figure 73 Wall Mounting Screw Specifications
2 Screw two screws with 6 mm – 8 mm (0.24" – 0.31") wide heads into the screw anchors. Do not screw the
screws all the way in to the wall; leave a small gap between the head of the screw and the wall.
The gap must be big enough for the screw heads to slide into the screw slots and the connection cables
to run down the back of the Zyxel Device.
Note: Make sure the screws are securely fixed to the wall and strong enough to hold the
weight of the Zyxel Device with the connection cables.
3 Use the holes on the bottom of the Zyxel Device to hang the Zyxel Device on the screws.
Table 18 Distance “X” Between FLEX Mounting Holes
MODEL NAME DISTANCE “X”
USG FLEX 100 174 mm (6.85”)
USG FLEX 100W 174 mm (6.85”)
USG FLEX 200 206 mm (8.11”)
background
Chapter 4 Hardware, Interfaces and Zones
USG FLEX Series User’s Guide
104
Figure 74 Wall Mounting
Note: Wall-mount the Zyxel Device horizontally. The Zyxel Device's side panels with ventilation
slots should not be facing up or down as this position is less safe.
Make sure there is 100 mm of clearance at the sides and 1 – 1.5 mm distance between
the screw head and the wall to allow air circulation and the attachment of cables and
the power cord.
4.3 Default Zones, Interfaces, and Ports
The default configurations for zones, interfaces, and ports are as follows. References to interfaces may
be generic rather than the specific name used in your model. For example, this guide may use “the
WAN interface” rather than “wan1” or “wan2”, “ge2” or” ge3”.
An OPT (optional) Ethernet port can be configured as an additional WAN port, LAN, WLAN, or DMZ port.
The following table shows the default physical port and interface mapping for each model at the time
of writing.
Table 19 Default Physical Port – Interface Mapping
PORT / INTERFACE P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14
USG FLEX 100 sfp wan lan1 lan1 lan1 opt
USG FLEX 100AX wan lan1 lan1 lan1 opt
USG FLEX 100W sfp wan lan1 lan1 lan1 opt
USG FLEX 200 sfp wan wan lan1 lan1 lan1 lan1
USG FLEX 500 ge1 ge2 ge3 ge4 ge5 ge6 ge7 ge8
USG FLEX 700 ge1 ge2 ge3 ge4 ge5 ge6 ge7 ge8 ge9 ge1
0
ge1
1
ge1
2
ge1
3
ge1
4
background
Chapter 4 Hardware, Interfaces and Zones
USG FLEX Series User’s Guide
105
The following table shows the default interface and zone mapping for each model at the time of
writing.
4.4 Stopping the Zyxel Device
Always use Maintenance > Shutdown > Shutdown or the shutdown command before you turn off the
Zyxel Device or remove the power. Not doing so can cause the firmware to become corrupt.
Table 20 Default Zone – Interface Mapping
ZONE / INTERFACE SFP WAN LAN1 LAN2 DMZ OPT
USG FLEX 100 sfp_ppp WAN1_PPP LAN1 LAN2 DMZ opt_ppp
USG FLEX 100W/
USG FLEX 100AX
sfp_ppp WAN1_PPP LAN1 LAN2 DMZ opt_ppp
Table 21 Default Zone – Interface Mapping
ZONE / INTERFACE WAN LAN1 LAN2 DMZ OPT
NO DEFAULT
ZONE
USG FLEX 200 WAN1
WAN1_PPP
WAN2
WAN2_PPP
LAN1 LAN2 DMZ SFP
SFP_PPP
GE7
GE7_PPP
GE8
GE8_PPP
Table 22 Default Zone – Interface Mapping
ZONE / INTERFACE WAN LAN DMZ OPT NO DEFAULT ZONE
USG FLEX 500 GE2
GE2_PPP
GE3
GE3_PPP
GE4
GE5
GE6 GE1
GE1_PPP
GE7
GE7_PPP
GE8
GE8_PPP
USG FLEX 700 GE1
GE1_ppp
GE2
GE2_ppp
GE3
GE4
GE5 GE13
GE13_ppp
GE14
GE14_ppp
GE6–GE12
GE6_ppp–GE12_ppp
background
USG FLEX Series User’s Guide
106
CHAPTER 5
Quick Setup Wizards
5.1 Quick Setup Overview
The Web Configurator's quick setup wizards help you configure Internet and VPN connection settings.
This chapter provides information on configuring the quick setup screens in the Web Configurator. See
the feature-specific chapters in this User’s Guide for background information.
In the Web Configurator, click Quick Setup to open the first Quick Setup screen.
Figure 75 USG FLEX Quick Setup
• WAN Interface
Click this link to open a wizard to set up a WAN (Internet) connection. This wizard creates matching ISP
account settings in the Zyxel Device if you use PPPoE or PPTP. See Section 5.2 on page 107.
• Remote Access VPN Setup
Click this link to open a wizard to configure a VPN (Virtual Private Network) rule for a secure
connection to another computer or network. Zyxel VPN Client creates a full or split tunnel VPN rule for
clients with SecuExtender IPSec. L2TP over IPSec Client creates full tunnel VPN rule for clients with
supported mobile devices.
• VPN Setup
Use VPN Setup to configure a VPN (Virtual Private Network) rule for a secure connection to another
computer or network. Use VPN Settings for Configuration Provisioning to set up a VPN rule that can be
retrieved with the Zyxel Device IPSec VPN Client. You only need to enter a user name, password and
the IP address of the Zyxel Device in the IPSec VPN Client to get all VPN settings automatically from
the Zyxel Device. See
Section 5.4 on page 121. Use VPN Settings for L2TP VPN Settings to configure the
L2TP VPN for clients.
• Wireless Setup
Use this wizard to configure the Zyxel Device as an AP Controller that can manage APs in the same
network as the Zyxel Device or the built-in AP if your Zyxel Device has this feature.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
107
• Wizard Help
If the help does not automatically display when you run the wizard, click the arrow to display it.
5.2 WAN Interface Quick Setup
Click WAN Interface in the main Quick Setup screen to open the WAN Interface Quick Setup Wizard
Welcome screen. Use these screens to configure an interface to connect to the Internet. Click Next.
Figure 76 WAN Interface Quick Setup Wizard
5.2.1 Choose an Ethernet Interface
Select a WAN interface (names vary by model) that you want to configure for a WAN connection and
click Next.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
108
Figure 77 Choose an Ethernet Interface
5.2.2 Select WAN Type
WAN Type Selection: Select the type of encapsulation this connection is to use. Choose Ethernet when
the WAN port is used as a regular Ethernet.
Otherwise, choose PPPoE, PPTP or L2TP for a dial-up connection according to the information from your
ISP.
Figure 78 WAN Interface Setup: Step 2
The screens vary depending on what encapsulation type you use. Refer to information provided by your
ISP to know what to enter in each field. Leave a field blank if you don’t have that information.
Note: Enter the Internet access information exactly as your ISP gave it to you.
5.2.3 Configure WAN IP Settings
Use this screen to select whether the interface should use a fixed or dynamic IP address.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
109
Figure 79 WAN Interface Setup: Step 2 Ethernet Dynamic IP
Figure 80 WAN Interface Setup: Step 2 Ethernet Static IP
• WAN Interface: This is the interface you are configuring for Internet access.
• Zone: This is the security zone to which this interface and Internet connection belong.
• IP Address Assignment: Select Auto If your ISP did not assign you a fixed IP address.
Select Static if you have a fixed IP address and enter the IP address, subnet mask, gateway IP address
(optional) and DNS server IP address(es).
5.2.4 ISP and WAN and ISP Connection Settings
Use this screen to configure the ISP and WAN interface settings. This screen is read-only if you select
Ethernet and set the IP Address Assignment to Auto. If you set the IP Address Assignment to Static and/or
select PPTP or PPPoE, enter the Internet access information exactly as your ISP gave it to you.
Note: Enter the Internet access information exactly as your ISP gave it to you.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
110
Figure 81 WAN and ISP Connection Settings: (PPTP)
Figure 82 WAN and ISP Connection Settings: (PPPoE)
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
111
Figure 83 WAN and ISP Connection Settings: (L2TP)
ISP Parameter: This section appears if the interface uses a PPPoE or PPTP Internet connection.
• Encapsulation: This displays the type of Internet connection you are configuring.
• Service Name: Enter the PPPoE service name if you were given one by your ISP.
• Authentication Type: Use the drop-down list box to select an authentication protocol for outgoing
calls. Options are:
• CHAP/PAP - Your Zyxel Device accepts either CHAP or PAP when requested by this remote node.
• CHAP - Your Zyxel Device accepts CHAP only.
• PAP - Your Zyxel Device accepts PAP only.
• MSCHAP - Your Zyxel Device accepts MSCHAP only.
• MSCHAP-V2 - Your Zyxel Device accepts MSCHAP-V2 only.
• User Name: Enter the user name given to you by your ISP. You can use alphanumeric and -_@$./
characters, and it can be up to 31 characters long.
• Password: Enter the password associated with the user name above. Use up to 64 ASCII characters
except the [] and ?. This field can be blank.
• Retype to Confirm: Enter your password again for confirmation.
• Nailed-Up: Select Nailed-Up if you do not want the connection to time out.
• Idle Timeout: Enter the time in seconds that elapses before the router automatically disconnects from
the PPPoE server. 0 means no timeout.
• PPTP Configuration: This section only appears if the interface uses a PPTP Internet connection.
• Base Interface: This displays the identity of the Ethernet interface you configure to connect with a
modem or router.
• Base IP Address: Enter the (static) IP address assigned to you by your ISP.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
112
• IP Subnet Mask: Enter the subnet mask assigned to you by your ISP (if given).
• Gateway IP Address: For PPTP or L2TP, enter the gateway IP address if you were given one by your ISP.
• Server IP: Enter the IP address of the PPTP server.
• Connection ID: Enter the connection ID or connection name in this field. It must follow the "c:id" and
"n:name" format. For example, C:12 or N:My ISP. This field is optional and depends on the
requirements of your DSL modem. You can use alphanumeric and -_: characters, and it can be up to
31 characters long.
IP Address Assignment
• WAN Interface: This displays the identity of the interface you configure to connect with your ISP.
• Zone: This field displays to which security zone this interface and Internet connection will belong.
• IP Address: This field is read-only when the WAN interface uses a dynamic IP address. If your WAN
interface uses a static IP address, enter it in this field.
• IP Subnet Mask: If your WAN interface uses Ethernet encapsulation with a static IP address, enter the
subnet mask in this field.
• Gateway IP Address: Enter the IP address of the Ethernet device connected to this WAN port.
• First DNS Server / Second DNS Server: These fields only display for an interface with a static IP address.
Enter the DNS server IP address(es) in the field(s) to the right. Leave the field as 0.0.0.0 if you do not
want to configure DNS servers. If you do not configure a DNS server, you must know the IP address of
a machine in order to access it.
5.2.5 Quick Setup Interface Wizard: Summary
This screen displays an example WAN interface’s settings.
Figure 84 Interface Wizard: Summary WAN
• Encapsulation: This displays what encapsulation this interface uses to connect to the Internet.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
113
• Service Name: This field only appears for a PPPoE interface. It displays the PPPoE service name
specified in the ISP account.
• Server IP: This field only appears for a PPTP interface. It displays the IP address of the PPTP server.
• User Name: This is the user name given to you by your ISP.
• Nailed-Up: If No displays the connection will not time out. Yes means the Zyxel Device uses the idle
timeout.
• Idle Timeout: This is how many seconds the connection can be idle before the router automatically
disconnects from the PPPoE server. 0 means no timeout.
• Connection ID: If you specified a connection ID, it displays here.
• WAN Interface: This identifies the interface you configure to connect with your ISP.
• Zone: This field displays to which security zone this interface and Internet connection will belong.
• IP Address Assignment: This field displays whether the WAN IP address is static or dynamic (Auto).
• IP Address: This field displays the current IP address of the Zyxel Device WAN interface selected in this
wizard.
• IP Subnet Mask: This field displays the subnet mask of the Zyxel Device WAN interface selected in this
wizard.
• Gateway IP Address: This field displays the IP address of the Ethernet device connected to this WAN
port.
• First DNS Server /Second DNS Server: If the IP Address Assignment is Static, these fields display the DNS
server IP address(es).
5.3 Remote Access VPN Setup-Scenario
The purpose of this wizard is to create VPN rules to securely access a company’s network from
anywhere.
Use the IKEv2 IPSec Client scenario if the VPN client has a SecuExtender VPN client or a non-
SecuExtender VPN client.
A non-SecuExtender VPN client is a computer or mobile operating system that supports IPSec VPN with
IKEv2. The supported computer or mobile operating systems are:
• Windows 8 and later versions.
• iOS 14.8 and later versions.
• macOS 10.12 and later versions.
• Android 10.0 and later versions. Install strongSwan on your device first.
Use the L2TP over IPSec Client scenario if the VPN client has a supported computer or mobile operating
system. This scenario supports clients with:
• Windows 8 and later versions.
• iOS 13 and later versions.
• macOS 10.12.2 and later versions.
• Android 10.0 and later versions.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
114
Figure 85 Remote Access VPN Setup Wizard Welcome
5.3.1 IKEv2 IPSec Client- VPN Configuration
This is for:
• A client using the Zyxel VPN Client with SecuExtender IPSec that wants to create a Full Tunnel or Split
Tunnel VPN rule.
• A client using a non-SecuExtender VPN client that wants to create a Full Tunnel VPN rule.
Use this screen to configure basic settings such as pre-shared key, incoming interface and tunnel mode.
Figure 86 IKEv2 IPSec Client: VPN Configuration
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
115
• The IKEv2 IPSec Client scenario supports Extended Authentication Protocol (EAP) authentication. EAP
is important when connecting to existing enterprise authentication systems.
• Choose Interface if you want to use a pre-configured interface on the Zyxel Device. Select an
interface from the drop-down list box for incoming traffic to your Zyxel Device.
• Choose Domain Name/ IPv4 if you are using a static IP address or if you are using DDNS to assign the
interface a dynamic IP address. Enter the domain name or the IP address in the text box. For
example, vpn.zyxel.com.
• Choose Auto to have the Zyxel Device generate a certificate from the current wizard settings. This is
the certificate the Zyxel Device uses to identify itself when setting up the VPN tunnel.
• Choose Manual to select an existing certificate from the drop down list box. This field is not available if
there is no existing certificate for the wizard rule you are configuring.
Note: Please make sure the Host IP Address or the Host Domain Name in the certificate you
want to select matches the incoming interface IP Address or Domain Name. If a VPN
client is on the WAN, the IP Address or the Domain Name must be public. Create a new
certificate in Configuration > Object > Certificate > My Certificate if no existing
certificate matches the wizard rule IP Address or Domain Name.
• Full Tunnel encrypts all traffic through the VPN. Clear Allow Client VPN Traffic Through WAN if you want
to block traffic from the remote client to the Internet. Select Allow Client VPN Traffic Through WAN to
allow only traffic encrypted by the Zyxel Device from the remote client to the Internet.
• Split Tunnel only encrypts traffic going to a networks behind the Zyxel Device. Select the interface to
the LAN, DMZ or guest network from the drop-down list box. Traffic going to the Internet through this
interface is encrypted. Traffic going to the Internet from the remote client does not go through the
Zyxel Device and is not encrypted.
Figure 87 IKEv2 IPSec Client: Client Network and Upload Bandwidth Limit
• The IP Address Pool is used to assign IP addresses to the VPN clients. You can define the range of the
IP Address Pool by entering a starting IP address and an ending IP address under Customer Defined.
• The Domain Name System (DNS) maps a domain name to an IP address and vice versa. The Zyxel
Device uses these to resolve domain names for VPN. The Zyxel Device can act as a DNS proxy.
Alternatively, assign a custom DNS server that is reachable from the network behind the Zyxel Device.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
116
• For the Second DNS Server, enter a secondary DNS server’s IP address that is checked if the first one is
unavailable.
• Upload Bandwidth Limit is only available for Zyxel subscription-based SecuExtender IPSec VPN clients
with Windows versions 5.6.80.007 or later or macOS versions 1.2.0.7 or later.
• Use Upload Bandwidth Limit to set the maximum bandwidth for uploading traffic from Zyxel IPSec VPN
clients over IPSec VPN tunnels.You can also change the bandwidth limit in Configuration > VPN >
IPSec VPN > Configuration Provisioning.
5.3.2 IKEv2 IPSec Client- User Authentication
Use this screen to add users to allow them to access the VPN tunnel.
Figure 88 IKEv2 IPSec Client: User Authentication
• Only local users configured on the Zyxel Device can be added to the Member list to be allowed VPN
access in the wizard.
• If you want to add users from external databases, you may modify the rule in Configuration > Object
> User/Group > User > Add A User in Expert Mode.
5.3.3 IKEv2 IPSec Client- Summary
Use this screen to view the summary of your previous configuration.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
117
Figure 89 IKEv2 IPSec Client: Summary
• The default name for the VPN rule created using the wizard is RemoteAccess_Wiz.
• After you click Save, the RemoteAccess_Wiz rule now appears in VPN > IPSec VPN > VPN Connection
and VPN > IPSec VPN > VPN Gateway. If you modify a rule created using the wizard here, please
change the name. If you want to rerun the wizard without changing the name, you will be prompted
to overwrite the previously modified VPN rule.
5.3.4 IKEv2 IPSec Client-Config Provision
Click Non SecuExtender VPN Client on the left to show the following screen. This scenario is for VPN
clients without SecuExtender IPSec. Use this screen to download a VPN configuration script to send to
VPN clients using supported operating systems.
Figure 90 IKEv2 IPSec Client: Config Provision
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
118
To use the Download Script, your device needs to support:
• For supported Windows, iOS and macOS clients, click the link to download the VPN configuration
script and send it to the remote VPN client.
• For Android clients, install strongSwan on your Android device first. Then click the link to download the
VPN configuration script and send it to the client along with the Pre-Shared Key.
5.3.5 L2TP over IPSec Client-VPN Configuration
This scenario is for a client using a L2TP over IPSec Client with supported computer or mobile operating
systems that wants to create a Full Tunnel VPN rule only. Use this screen to configure basic settings such
as pre-shared key, incoming interface and tunnel mode.
Figure 91 L2TP over IPSec Client: VPN Configuration
•For Pre-Shared Key, enter 8-128 alphanumeric characters (0-9, a-z, A_Z) or 8-128 pairs of hexadecimal
characters (0-9, A-F) beginning with 0x.
• Choose Interface if you want to use a pre-configured interface on the Zyxel Device. Select an
interface from the drop-down list box for incoming traffic to your Zyxel Device.
• Choose Domain Name/ IPv4 if you are using a static IP address or if you are using DDNS to assign the
interface a dynamic IP address. Enter the domain name or the IP address in the text box. For
example, vpn.zyxel.com.
• Full Tunnel encrypts all traffic through the VPN. Clear Allow Client VPN Traffic Through WAN if you want
to block remote traffic from the remote client to the Internet. Select Allow Client VPN Traffic Through
WAN to allow only traffic encrypted by the Zyxel Device from the remote client to the Internet.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
119
Figure 92 L2TP over IPSec Client: VPN Configuration for Zyxel Client
• The IP Address Pool is used to assign to the L2TP VPN clients. Alternatively, you can define the range of
the IP Address Pool by entering a starting IP address and an ending IP address under Customer
Defined.
• The Domain Name System (DNS) maps a domain name to an IP address and vice versa. The Zyxel
Device uses these to resolve domain names for VPN. The Zyxel Device can act as a DNS proxy.
Alternatively, assign a custom DNS server that is reachable from then network behind the Zyxel
Device.
• For the Second DNS Server, enter a secondary DNS server’s IP address that is checked if the first one is
unavailable.
5.3.6 L2TP over IPSec Client- User Authentication
Use this screen to add users to allow them to access the VPN.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
120
Figure 93 L2TP over IPSec Client: User Authentication
• Only local users configured on the Zyxel Device can be added to the Member list to be allowed VPN
access in the wizard.
• If you want to add users from external databases, you may modify the rule in Configuration > Object
> User/Group > User > Add A User in Expert Mode.
5.3.7 L2TP over IPSec Client- Summary
Use this screen to view the summary of your previous configuration.
Figure 94 L2TP over IPSec Client: User Summary
• The default name for the VPN rule created using the wizard is RemoteAccess_L2TP_Wiz.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
121
• After you click Save, the RemoteAccess_L2TP_Wiz rule now appears in VPN > L2TP VPN. If you modify a
rule created using the wizard here, please change the name. If you want to rerun the wizard without
changing the name, you will be prompted to overwrite the previously modified VPN rule.
5.3.8 L2TP over IPSec Client-Config Provision
Use this screen to download a VPN configuration script to send to VPN clients using supported operating
systems.
Figure 95 L2TP over IPSec Client: Config Provision
To use the Download Script, your device needs to support:
• For Windows, iOS and macOS clients, click the link to download the VPN configuration script and send
it to the remote VPN client.
• For and Android and Windows 7 clients, you need to configure the rule manually. Send the Pre-
Shared Key and the Zyxel Device interface IP or domain name to the client. Users with Android 10.0
and later versions or Windows 7 must configure an L2TP over IPSec rule on their mobile device using
this information.
5.4 VPN Setup Wizard
Click VPN Setup in the main Quick Setup screen to open the VPN Setup Wizard Welcome screen.
5.4.1 Welcome
Use wizards to create Virtual Private Network (VPN) rules. After you complete the wizard, the Phase 1 rule
settings appear in the Configuration > VPN > IPSec VPN > VPN Gateway screen and the Phase 2 rule
settings appear in the Configuration > VPN > IPSec VPN > VPN Connection screen.
• VPN Settings configures a VPN tunnel for a secure connection to another computer or network.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
122
• VPN Settings for Configuration Provisioning sets up a VPN rule the Zyxel Device IPSec VPN Client can
retrieve. Just enter a user name, password and the IP address of the Zyxel Device in the IPSec VPN
Client to get the VPN settings automatically from the Zyxel Device.
• VPN Settings for L2TP VPN Settings sets up a L2TP VPN rule that the Zyxel Device IPSec L2TP VPN client
can retrieve.
Figure 96 VPN Setup Wizard Welcome
5.4.2 VPN Setup Wizard: Wizard Type
Choose Express to create a VPN rule with the default phase 1 and phase 2 settings to connect to
another ZLD-based Zyxel Device using a pre-shared key.
Choose Advanced to change the default settings and/or use certificates instead of a pre-shared key to
create a VPN rule to connect to another IPSec device.
Figure 97 VPN Setup Wizard: Wizard Type
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
123
5.4.3 VPN Express Wizard - Scenario
Click the Express radio button as shown in Figure 97 on page 122 to display the following screen.
Figure 98 VPN Express Wizard: Scenario
IKE (Internet Key Exchange) Version: IKEv1 and IKEv2
IKE (Internet Key Exchange) is a protocol used in security associations to send data securely. IKE uses
certificates or pre-shared keys for authentication and a Diffie–Hellman key exchange to set up a shared
session secret from which encryption keys are derived.
IKEv2 supports Extended Authentication Protocol (EAP) authentication, and IKEv1 supports X-Auth. EAP is
important when connecting to existing enterprise authentication systems.
Scenario
Rule Name: Enter the name used to identify this VPN connection (and VPN gateway). You may use 1-31
alphanumeric characters, underscores (_), or dashes (-), but the first character cannot be a number.
This value is case-sensitive.
Select the scenario that best describes your intended VPN connection. The figure on the left of the
screen changes to match the scenario you select.
• Site-to-site - The remote IPSec device has a static IP address or a domain name. This Zyxel Device can
initiate the VPN tunnel.
• Site-to-site with Dynamic Peer - The remote IPSec device has a dynamic IP address. Only the remote
IPSec device can initiate the VPN tunnel.
• Remote Access (Server Role) - Allow incoming connections from IPSec VPN clients. The clients have
dynamic IP addresses and are also known as dial-in users. Only the clients can initiate the VPN tunnel.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
124
• Remote Access (Client Role) - Connect to an IPSec server. This Zyxel Device is the client (dial-in user)
and can initiate the VPN tunnel.
5.4.4 VPN Express Wizard - Configuration
Figure 99 VPN Express Wizard: Configuration
• My Address (interface): Select an interface from the drop-down list box to use on your Zyxel Device.
• Secure Gateway: Any displays in this field if it is not configurable for the chosen scenario. Otherwise,
enter the WAN IP address or domain name of the remote IPSec device (secure gateway) to identify
the remote IPSec router by its IP address or a domain name. Use 0.0.0.0 if the remote IPSec router has
a dynamic WAN IP address.
• Pre-Shared Key: Enter the password. Both ends of the VPN tunnel must use the same password. Use 8
to 31 case-sensitive ASCII characters or 8 to 31 pairs of hexadecimal (“0-9”, “A-F”) characters.
Proceed a hexadecimal key with “0x”. You will receive a PYLD_MALFORMED (payload malformed)
packet if the same pre-shared key is not used on both ends.
• Local Policy (IP/Mask): Enter the IP address of a computer on your network that can use the tunnel.
You can also specify a subnet. This must match the remote IP address configured on the remote IPSec
device.
• Remote Policy (IP/Mask): Any displays in this field if it is not configurable for the chosen scenario.
Otherwise, enter the IP address of a computer behind the remote IPSec device. You can also specify
a subnet. This must match the local IP address configured on the remote IPSec device.
5.4.5 VPN Express Wizard - Summary
This screen provides a read-only summary of the VPN tunnel’s configuration and commands that you
can copy and paste into another ZLD-based Zyxel Device’s command line interface to configure it.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
125
Figure 100 VPN Express Wizard: Summary
• Rule Name: Identifies the VPN gateway policy.
• Secure Gateway: IP address or domain name of the remote IPSec device. If this field displays Any,
only the remote IPSec device can initiate the VPN connection.
• Pre-Shared Key: VPN tunnel password. It identifies a communicating party during a phase 1 IKE
negotiation.
• Local Policy: IP address and subnet mask of the computers on the network behind your Zyxel Device
that can use the tunnel.
• Remote Policy: IP address and subnet mask of the computers on the network behind the remote
IPSec device that can use the tunnel. If this field displays Any, only the remote IPSec device can
initiate the VPN connection.
• Copy and paste the Configuration for Secure Gateway commands into another ZLD-based Zyxel
Device’s command line interface to configure it to serve as the other end of this VPN tunnel. You can
also use a text editor to save these commands as a shell script file with a “.zysh” filename extension.
Use the file manager to run the script in order to configure the VPN connection. See the commands
reference guide for details on the commands displayed in this list.
5.4.6 VPN Express Wizard - Finish
Now the rule is configured on the Zyxel Device. The Phase 1 rule settings appear in the VPN > IPSec VPN
> VPN Gateway screen and the Phase 2 rule settings appear in the VPN > IPSec VPN > VPN Connection
screen.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
126
Figure 101 VPN Express Wizard: Finish
Click Close to exit the wizard.
5.4.7 VPN Advanced Wizard - Scenario
Click the Advanced radio button as shown in Figure 97 on page 122 to display the following screen.
Figure 102 VPN Advanced Wizard: Scenario
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
127
IKE (Internet Key Exchange) Version: IKEv1 and IKEv2
IKE (Internet Key Exchange) is a protocol used in security associations to send data securely. IKE uses
certificates or pre-shared keys for authentication and a Diffie–Hellman key exchange to set up a shared
session secret from which encryption keys are derived.
IKEv2 supports Extended Authentication Protocol (EAP) authentication, and IKEv1 supports X-Auth. EAP is
important when connecting to existing enterprise authentication systems.
Scenario
Rule Name: Enter the name used to identify this VPN connection (and VPN gateway). You may use 1-31
alphanumeric characters, underscores (_), or dashes (-), but the first character cannot be a number.
This value is case-sensitive.
Select the scenario that best describes your intended VPN connection. The figure on the left of the
screen changes to match the scenario you select.
• Site-to-site - The remote IPSec device has a static IP address or a domain name. This Zyxel Device can
initiate the VPN tunnel.
• Site-to-site with Dynamic Peer - The remote IPSec device has a dynamic IP address. Only the remote
IPSec device can initiate the VPN tunnel.
• Remote Access (Server Role) - Allow incoming connections from IPSec VPN clients. The clients have
dynamic IP addresses and are also known as dial-in users. Only the clients can initiate the VPN tunnel.
• Remote Access (Client Role) - Connect to an IPSec server. This Zyxel Device is the client (dial-in user)
and can initiate the VPN tunnel.
5.4.8 VPN Advanced Wizard - Phase 1 Settings
There are two phases to every IKE (Internet Key Exchange) negotiation – phase 1 (Authentication) and
phase 2 (Key Exchange). A phase 1 exchange establishes an IKE SA (Security Association).
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
128
Figure 103 VPN Advanced Wizard: Phase 1 Settings
• Secure Gateway: Any displays in this field if it is not configurable for the chosen scenario. Otherwise,
enter the WAN IP address or domain name of the remote IPSec device (secure gateway) to identify
the remote IPSec device by its IP address or a domain name. Use 0.0.0.0 if the remote IPSec device
has a dynamic WAN IP address.
• My Address (interface): Select an interface from the drop-down list box to use on your Zyxel Device.
• Negotiation Mode: This displays Main or Aggressive:
• Main encrypts the Zyxel Device’s and remote IPSec router’s identities but takes more time to
establish the IKE SA.
• Aggressive is faster but does not encrypt the identities.
The Zyxel Device and the remote IPSec router must use the same negotiation mode. Multiple SAs
connecting through a secure gateway must have the same negotiation mode.
• Encryption Algorithm: 3DES and AES use encryption. The longer the key, the higher the security (this
may affect throughput). Both sender and receiver must use the same secret key, which can be used
to encrypt and decrypt the message or to generate and verify a message authentication code. The
DES encryption algorithm uses a 56-bit key. Triple DES (3DES) is a variation on DES that uses a 168-bit
key. As a result, 3DES is more secure than DES. It also requires more processing power, resulting in
increased latency and decreased throughput. AES128 uses a 128-bit key and is faster than 3DES.
AES192 uses a 192-bit key, and AES256 uses a 256-bit key.
• Authentication Algorithm: MD5 gives minimal security and SHA512 gives the highest security. MD5
(Message Digest 5) and SHA (Secure Hash Algorithm) are hash algorithms used to authenticate
packet data. The stronger the algorithm the slower it is.
• Key Group: DH5 is more secure than DH1 or DH2 (although it may affect throughput). DH1 (default)
refers to Diffie-Hellman Group 1 a 768 bit random number. DH2 refers to Diffie-Hellman Group 2 a 1024
bit (1Kb) random number. DH5 refers to Diffie-Hellman Group 5 a 1536 bit random number.
• SA Life Time: Set how often the Zyxel Device renegotiates the IKE SA. A short SA life time increases
security, but renegotiation temporarily disconnects the VPN tunnel.
• NAT Traversal: Select this if the VPN tunnel must pass through NAT (there is a NAT router between the
IPSec devices).
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
129
Note: The remote IPSec device must also have NAT traversal enabled. See the help in the
main IPSec VPN screens for more information.
• Dead Peer Detection (DPD) has the Zyxel Device make sure the remote IPSec device is there before
transmitting data through the IKE SA. If there has been no traffic for at least 15 seconds, the Zyxel
Device sends a message to the remote IPSec device. If it responds, the Zyxel Device transmits the
data. If it does not respond, the Zyxel Device shuts down the IKE SA.
• Authentication Method: Select Pre-Shared Key to use a password or Certificate to use one of the Zyxel
Device’s certificates.
5.4.9 VPN Advanced Wizard - Phase 2
Phase 2 in an IKE uses the SA that was established in phase 1 to negotiate SAs for IPSec.
Figure 104 VPN Advanced Wizard: Phase 2 Settings
• Active Protocol: ESP is compatible with NAT, AH is not.
• Encapsulation: Tunnel is compatible with NAT, Transport is not.
• Encryption Algorithm: 3DES and AES use encryption. The longer the AES key, the higher the security
(this may affect throughput). Null uses no encryption.
• Authentication Algorithm: MD5 gives minimal security and SHA512 gives the highest security. MD5
(Message Digest 5) and SHA (Secure Hash Algorithm) are hash algorithms used to authenticate
packet data. The stronger the algorithm the slower it is.
• SA Life Time: Set how often the Zyxel Device renegotiates the IKE SA. A short SA life time increases
security, but renegotiation temporarily disconnects the VPN tunnel.
• Perfect Forward Secrecy (PFS): Disabling PFS allows faster IPSec setup, but is less secure. Select DH1,
DH2 or DH5 to enable PFS. DH5 is more secure than DH1 or DH2 (although it may affect throughput).
DH1 refers to Diffie-Hellman Group 1 a 768 bit random number. DH2 refers to Diffie-Hellman Group 2 a
1024 bit (1Kb) random number. DH5 refers to Diffie-Hellman Group 5 a 1536 bit random number (more
secure, yet slower).
• Local Policy (IP/Mask): Enter the IP address of a computer on your network. You can also specify a
subnet. This must match the remote IP address configured on the remote IPSec device.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
130
• Remote Policy (IP/Mask): Enter the IP address of a computer behind the remote IPSec device. You
can also specify a subnet. This must match the local IP address configured on the remote IPSec
device.
• Nailed-Up: This displays for the site-to-site and remote access client role scenarios. Select this to have
the Zyxel Device automatically renegotiate the IPSec SA when the SA life time expires.
5.4.10 VPN Advanced Wizard - Summary
This is a read-only summary of the VPN tunnel settings.
Figure 105 VPN Advanced Wizard: Summary
• Rule Name: Identifies the VPN connection (and the VPN gateway).
• Secure Gateway: IP address or domain name of the remote IPSec device.
• Pre-Shared Key: VPN tunnel password.
• Certificate: The certificate the Zyxel Device uses to identify itself when setting up the VPN tunnel.
• Local Policy: IP address and subnet mask of the computers on the network behind your Zyxel Device
that can use the tunnel.
• Remote Policy: IP address and subnet mask of the computers on the network behind the remote
IPSec device that can use the tunnel.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
131
Phase 1
• Negotiation Mode: This displays Main or Aggressive:
• Main encrypts the Zyxel Device’s and remote IPSec router’s identities but takes more time to
establish the IKE SA.
• Aggressive is faster but does not encrypt the identities.
The Zyxel Device and the remote IPSec router must use the same negotiation mode. Multiple SAs
connecting through a secure gateway must have the same negotiation mode.
• Encryption Algorithm: This displays the encryption method used. The longer the key, the higher the
security, the lower the throughput (possibly).
• DES uses a 56-bit key.
• 3DES uses a 168-bit key.
• AES128 uses a 128-bit key.
• AES192 uses a 192-bit key.
• AES256 uses a 256-bit key.
• Authentication Algorithm: This displays the authentication algorithm used. The stronger the algorithm,
the slower it is.
• MD5 gives minimal security.
• SHA1 gives higher security.
• SHA256 gives the highest security.
• Key Group: This displays the Diffie-Hellman (DH) key group used. DH5 is more secure than DH1 or DH2
(although it may affect throughput).
• DH1 uses a 768 bit random number.
• DH2 uses a 1024 bit (1Kb) random number.
• DH5 uses a 1536 bit random number.
Phase 2
• Active Protocol: This displays ESP (compatible with NAT) or AH.
• Encapsulation: This displays Tunnel (compatible with NAT) or Transport.
• Encryption Algorithm: This displays the encryption method used. The longer the key, the higher the
security, the lower the throughput (possibly).
• DES uses a 56-bit key.
• 3DES uses a 168-bit key.
• AES128 uses a 128-bit key.
• AES192 uses a 192-bit key.
• AES256 uses a 256-bit key.
• Null uses no encryption.
• Authentication Algorithm: This displays the authentication algorithm used. The stronger the algorithm,
the slower it is.
• MD5 gives minimal security.
• SHA1 gives higher security.
• SHA256 gives the highest security.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
132
Copy and paste the Configuration for Remote Gateway commands into another ZLD-based Zyxel
Device’s command line interface.
Click Save to save the VPN rule.
5.4.11 VPN Advanced Wizard - Finish
Now the rule is configured on the Zyxel Device. The Phase 1 rule settings appear in the VPN > IPSec VPN
> VPN Gateway screen and the Phase 2 rule settings appear in the VPN > IPSec VPN > VPN Connection
screen.
Figure 106 VPN Wizard: Finish
Click Close to exit the wizard.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
133
5.5 VPN Settings for Configuration Provisioning Wizard:
Wizard Type
Use VPN Settings for Configuration Provisioning to set up a VPN rule that can be retrieved with the Zyxel
Device IPSec VPN Client.
VPN rules for the Zyxel Device IPSec VPN Client have certain restrictions. They must not contain the
following settings:
• AH active protocol
• NULL encryption
• SHA512 authentication
• A subnet or range remote policy
Choose Express to create a VPN rule with the default phase 1 and phase 2 settings and to use a pre-
shared key.
Choose Advanced to change the default settings and/or use certificates instead of a pre-shared key in
the VPN rule.
Figure 107 VPN Settings for Configuration Provisioning Express Wizard: Wizard Type
5.5.1 Configuration Provisioning Express Wizard - VPN Settings
Click the Express radio button as shown in the previous screen to display the following screen.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
134
Figure 108 VPN for Configuration Provisioning Express Wizard: Settings Scenario
• IKE (Internet Key Exchange) is a protocol used in security associations to send data securely. IKE uses
certificates or pre-shared keys for authentication and a Diffie–Hellman key exchange to set up a
shared session secret from which encryption keys are derived.
• IKEv2 supports Extended Authentication Protocol (EAP) authentication, and IKEv1 supports X-Auth.
EAP is important when connecting to existing enterprise authentication systems.
• Rule Name: Enter the name used to identify this VPN connection (and VPN gateway). You may use 1-
31 alphanumeric characters, underscores (_), or dashes (-), but the first character cannot be a
number. This value is case-sensitive.
• Application Scenario: Only the Remote Access (Server Role) is allowed in this wizard. It allows
incoming connections from the Zyxel Device IPSec VPN Client.
5.5.2 Configuration Provisioning VPN Express Wizard - Configuration
Click Next to continue the wizard.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
135
Figure 109 VPN for Configuration Provisioning Express Wizard: Configuration
• My Address (interface): Select an interface from the drop-down list box to use on your Zyxel Device.
• Secure Gateway: Any displays in this field because it is not configurable in this wizard. It allows
incoming connections from the Zyxel Device IPSec VPN Client.
• Pre-Shared Key: Enter the password. Both ends of the VPN tunnel must use the same password. Use 8
to 31 case-sensitive ASCII characters or 8 to 31 pairs of hexadecimal (“0-9”, “A-F”) characters.
Proceed a hexadecimal key with “0x”. You will receive a PYLD_MALFORMED (payload malformed)
packet if the same pre-shared key is not used on both ends.
• Local Policy (IP/Mask): Enter the IP address of a computer on your network. You can also specify a
subnet. This must match the remote IP address configured on the remote IPSec device.
• Remote Policy (IP/Mask): Any displays in this field because it is not configurable in this wizard.
5.5.3 VPN Settings for Configuration Provisioning Express Wizard - Summary
This screen has a read-only summary of the VPN tunnel’s configuration and commands you can copy
and paste into another ZLD-based Zyxel Device’s command line interface to configure it.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
136
Figure 110 VPN for Configuration Provisioning Express Wizard: Summary
• Rule Name: Identifies the VPN gateway policy.
• Secure Gateway: Any displays in this field because it is not configurable in this wizard. It allows
incoming connections from the Zyxel Device IPSec VPN Client.
• Pre-Shared Key: VPN tunnel password. It identifies a communicating party during a phase 1 IKE
negotiation.
• Local Policy: (Static) IP address and subnet mask of the computers on the network behind your Zyxel
Device that can be accessed using the tunnel.
• Remote Policy: Any displays in this field because it is not configurable in this wizard.
• The Configuration for Secure Gateway displays the configuration that the Zyxel Device IPSec VPN
Client will get from the Zyxel Device.
• Click Save to save the VPN rule.
5.5.4 VPN Settings for Configuration Provisioning Express Wizard - Finish
The rule is now configured on the Zyxel Device. The Phase 1 rule settings appear in the Configuration >
VPN > IPSec VPN > VPN Gateway screen and the Phase 2 rule settings appear in the Configuration > VPN
> IPSec VPN > VPN Connection screen. Enter the IP address of the Zyxel Device in the Zyxel Device IPSec
VPN Client to get all these VPN settings automatically from the Zyxel Device.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
137
Figure 111 VPN for Configuration Provisioning Express Wizard: Finish
Click Close to exit the wizard.
5.5.5 VPN Settings for Configuration Provisioning Advanced Wizard -
Scenario
Click the Advanced radio button as shown in Figure 107 on page 133 to display the following screen.
Figure 112 VPN for Configuration Provisioning Advanced Wizard: Scenario Settings
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
138
• IKE (Internet Key Exchange) is a protocol used in security associations to send data securely. IKE uses
certificates or pre-shared keys for authentication and a Diffie–Hellman key exchange to set up a
shared session secret from which encryption keys are derived.
• IKEv2 supports Extended Authentication Protocol (EAP) authentication, and IKEv1 supports X-Auth.
EAP is important when connecting to existing enterprise authentication systems.
• Rule Name: Enter the name used to identify this VPN connection (and VPN gateway). You may use 1-
31 alphanumeric characters, underscores (_), or dashes (-), but the first character cannot be a
number. This value is case-sensitive.
• Application Scenario: Only the Remote Access (Server Role) is allowed in this wizard. It allows
incoming connections from the Zyxel Device IPSec VPN Client.
Click Next to continue the wizard.
5.5.6 VPN Settings for Configuration Provisioning Advanced Wizard - Phase
1 Settings
There are two phases to every IKE (Internet Key Exchange) negotiation – phase 1 (Authentication) and
phase 2 (Key Exchange). A phase 1 exchange establishes an IKE SA (Security Association).
Figure 113 VPN for Configuration Provisioning Advanced Wizard: Phase 1 Settings
• Secure Gateway: Any displays in this field because it is not configurable in this wizard. It allows
incoming connections from the Zyxel Device IPSec VPN Client.
• My Address (interface): Select an interface from the drop-down list box to use on your Zyxel Device.
• Negotiation Mode: This displays Main or Aggressive:
• Main encrypts the Zyxel Device’s and remote IPSec router’s identities but takes more time to
establish the IKE SA.
• Aggressive is faster but does not encrypt the identities.
The Zyxel Device and the remote IPSec router must use the same negotiation mode. Multiple SAs
connecting through a secure gateway must have the same negotiation mode.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
139
• Encryption Algorithm: 3DES and AES use encryption. The longer the key, the higher the security (this
may affect throughput). Both sender and receiver must know the same secret key, which can be
used to encrypt and decrypt the message or to generate and verify a message authentication code.
The DES encryption algorithm uses a 56-bit key. Triple DES (3DES) is a variation on DES that uses a 168-
bit key. As a result, 3DES is more secure than DES. It also requires more processing power, resulting in
increased latency and decreased throughput. AES128 uses a 128-bit key and is faster than 3DES.
AES192 uses a 192-bit key and AES256 uses a 256-bit key.
• Authentication Algorithm: MD5 (Message Digest 5) and SHA (Secure Hash Algorithm) are hash
algorithms used to authenticate packet data. MD5 gives minimal security. SHA1 gives higher security
and SHA256 gives the highest security. The stronger the algorithm, the slower it is.
• Key Group: DH5 is more secure than DH1 or DH2 (although it may affect throughput). DH1 (default)
refers to Diffie-Hellman Group 1 a 768 bit random number. DH2 refers to Diffie-Hellman Group 2 a 1024
bit (1Kb) random number. DH5 refers to Diffie-Hellman Group 5 a 1536 bit random number.
• SA Life Time: Set how often the Zyxel Device renegotiates the IKE SA. A short SA life time increases
security, but renegotiation temporarily disconnects the VPN tunnel.
• Authentication Method: Select Pre-Shared Key to use a password or Certificate to use one of the Zyxel
Device’s certificates.
5.5.7 VPN Settings for Configuration Provisioning Advanced Wizard - Phase
2
Phase 2 in an IKE uses the SA that was established in phase 1 to negotiate SAs for IPSec.
Figure 114 VPN for Configuration Provisioning Advanced Wizard: Phase 2 Settings
• Active Protocol: ESP is compatible with NAT. AH is not available in this wizard.
• Encapsulation: Tunnel is compatible with NAT, Transport is not.
• Encryption Algorithm: 3DES and AES use encryption. The longer the AES key, the higher the security
(this may affect throughput). Null uses no encryption.
• Authentication Algorithm: MD5 (Message Digest 5) and SHA (Secure Hash Algorithm) are hash
algorithms used to authenticate packet data. MD5 gives minimal security. SHA1 gives higher security
and SHA256 gives the highest security. The stronger the algorithm, the slower it is.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
140
• SA Life Time: Set how often the Zyxel Device renegotiates the IKE SA. A short SA life time increases
security, but renegotiation temporarily disconnects the VPN tunnel.
• Perfect Forward Secrecy (PFS): Disabling PFS allows faster IPSec setup, but is less secure. Select DH1,
DH2 or DH5 to enable PFS. DH5 is more secure than DH1 or DH2 (although it may affect throughput).
DH1 refers to Diffie-Hellman Group 1 a 768 bit random number. DH2 refers to Diffie-Hellman Group 2 a
1024 bit (1Kb) random number. DH5 refers to Diffie-Hellman Group 5 a 1536 bit random number (more
secure, yet slower).
• Local Policy (IP/Mask): Enter the IP address of a computer on your network. You can also specify a
subnet. This must match the remote IP address configured on the remote IPSec device.
• Remote Policy (IP/Mask): Any displays in this field because it is not configurable in this wizard.
• Nailed-Up: This displays for the site-to-site and remote access client role scenarios. Select this to have
the Zyxel Device automatically renegotiate the IPSec SA when the SA life time expires.
5.5.8 VPN Settings for Configuration Provisioning Advanced Wizard -
Summary
This is a read-only summary of the VPN tunnel settings.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
141
Figure 115 VPN for Configuration Provisioning Advanced Wizard: Summary
Summary
• Rule Name: Identifies the VPN connection (and the VPN gateway).
• Secure Gateway: Any displays in this field because it is not configurable in this wizard. It allows
incoming connections from the Zyxel Device IPSec VPN Client.
• Pre-Shared Key: VPN tunnel password.
• Local Policy: IP address and subnet mask of the computers on the network behind your Zyxel Device
that can use the tunnel.
• Remote Policy: Any displays in this field because it is not configurable in this wizard.
Phase 1
• Negotiation Mode: This displays Main or Aggressive:
• Main encrypts the Zyxel Device’s and remote IPSec router’s identities but takes more time to
establish the IKE SA.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
142
• Aggressive is faster but does not encrypt the identities.
The Zyxel Device and the remote IPSec router must use the same negotiation mode. Multiple SAs
connecting through a secure gateway must have the same negotiation mode.
• Encryption Algorithm: This displays the encryption method used. The longer the key, the higher the
security, the lower the throughput (possibly).
• DES uses a 56-bit key.
• 3DES uses a 168-bit key.
• AES128 uses a 128-bit key.
• AES192 uses a 192-bit key.
• AES256 uses a 256-bit key.
• Authentication Algorithm: This displays the authentication algorithm used. The stronger the algorithm,
the slower it is.
• MD5 gives minimal security.
• SHA1 gives higher security.
• SHA256 gives the highest security.
• Key Group: This displays the Diffie-Hellman (DH) key group used. DH5 is more secure than DH1 or DH2
(although it may affect throughput).
• DH1 uses a 768 bit random number.
• DH2 uses a 1024 bit (1Kb) random number.
• DH5 uses a 1536 bit random number.
Phase 2
• Active Protocol: This displays ESP (compatible with NAT) or AH.
• Encapsulation: This displays Tunnel (compatible with NAT) or Transport.
• Encryption Algorithm: This displays the encryption method used. The longer the key, the higher the
security, the lower the throughput (possibly).
• DES uses a 56-bit key.
• 3DES uses a 168-bit key.
• AES128 uses a 128-bit key.
• AES192 uses a 192-bit key.
• AES256 uses a 256-bit key.
• Null uses no encryption.
• Authentication Algorithm: This displays the authentication algorithm used. The stronger the algorithm,
the slower it is.
• MD5 gives minimal security.
• SHA1 gives higher security.
• SHA256 gives the highest security.
The Configuration for Secure Gateway displays the configuration that the Zyxel Device IPSec VPN Client
will get from the Zyxel Device.
Click Save to save the VPN rule.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
143
5.5.9 VPN Settings for Configuration Provisioning Advanced Wizard - Finish
The rule is now configured on the Zyxel Device. The Phase 1 rule settings appear in the VPN > IPSec VPN
> VPN Gateway screen and the Phase 2 rule settings appear in the VPN > IPSec VPN > VPN Connection
screen. Enter the IP address of the Zyxel Device in the Zyxel Device IPSec VPN Client to get all these VPN
settings automatically from the Zyxel Device.
Figure 116 VPN for Configuration Provisioning Advanced Wizard: Finish
Click Close to exit the wizard.
5.6 VPN Settings for L2TP VPN Settings Wizard
Use VPN Settings for L2TP VPN Settings to set up an L2TP VPN rule. Click Configuration > Quick Setup >
VPN Setup and select VPN Settings for L2TP VPN Settings to see the following screen.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
144
Figure 117 VPN Settings for L2TP VPN Settings Wizard: L2TP VPN Settings
Click Next to continue the wizard.
5.6.1 L2TP VPN Settings
Figure 118 VPN Settings for L2TP VPN Settings Wizard: L2TP VPN Settings
• Rule Name: Enter the name used to identify this L2TP VPN connection (and L2TP VPN gateway). You
may use 1-31 alphanumeric characters, underscores (_), or dashes (-), but the first character cannot
be a number. This value is case-sensitive.
• My Address (interface): Select one of the interfaces from the pull down menu to apply the L2TP VPN
rule.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
145
• Pre-Shared Key: Enter the password. Both ends of the VPN tunnel must use the same password. Use 8
to 31 case-sensitive ASCII characters or 8 to 31 pairs of hexadecimal (“0-9”, “A-F”) characters.
Proceed a hexadecimal key with “0x”. You will receive a PYLD_MALFORMED (payload malformed)
packet if the same pre-shared key is not used on both ends.
• Click Next to continue the wizard.
5.6.2 L2TP VPN Settings
Figure 119 VPN Settings for L2TP VPN Settings Wizard: L2TP VPN Settings
• IP Address Pool: Select RANGE or SUBNET from the pull down menu. This IP address pool is used to
assign to the L2TP VPN clients.
• Starting IP Address: Enter the starting IP address in the field.
• End IP Address: Enter the ending IP address in the field.
• Network: Enter the IPv4 IP address in this field if you selected SUBNET.
• Netmask: Enter the associated subnet mask of the subnet in this field.
• First DNS Server (Optional): Enter the first DNS server IP address in the field. Leave the field as 0.0.0.0 if
you do not want to configure DNS servers. If you do not configure a DNS server you must know the IP
address of a machine in order to access it.
• Second DNS Server (Optional): Enter the second DNS server IP address in the field. Leave the field as
0.0.0.0 if you do not want to configure DNS servers. If you do not configure a DNS server you must
know the IP address of a machine in order to access it.
• Allow L2TP traffic Through WAN: Select this check box to allow traffic from L2TP clients to go to the
Internet.
Click Next to continue the wizard.
Note: DNS (Domain Name System) is for mapping a domain name to its corresponding IP
address and vice versa. The DNS server is extremely important because without it, you
must know the IP address of a computer before you can access it. The Zyxel Device
uses a system DNS server (in the order you specify here) to resolve domain names for
VPN, DDNS and the time server.
5.6.3 VPN Settings for L2TP VPN Setting Wizard - Summary
This is a read-only summary of the L2TP VPN settings.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
146
Figure 120 VPN Settings for L2TP VPN Settings Advanced Settings Wizard: Summary
• Rule Name: Identifies the L2TP VPN connection (and the L2TP VPN gateway).
• Secure Gateway: Any displays in this field because it is not configurable in this wizard. It allows
incoming connections from the L2TP VPN Client.
• Pre-Shared Key: L2TP VPN tunnel password.
• My Address (Interface): This displays the interface to use on your Zyxel Device for the L2TP tunnel.
• IP Address Pool: This displays the IP address pool used to assign to the L2TP VPN clients.
Click Save to complete the L2TP VPN Setting and the following screen will show.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
147
5.6.4 VPN Settings for L2TP VPN Setting Wizard - Completed
Figure 121 VPN Settings for L2TP VPN Settings Wizard: Finish
Te rule is now configured on the Zyxel Device. The L2TP VPN rule settings appear in the Configuration >
VPN > L2TP VPN screen and also in the Configuration > VPN > IPSec VPN > VPN Connection and VPN
Gateway screen.
5.7 Wireless Setup Wizard
Click Wireless Setup in the main Quick Setup screen to begin the wireless setup wizard. Changes in the
wizard are not saved until you save them in the Summary screen.
Figure 122 Quick Setup Wizard
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
148
5.7.1 Management Mode
The Management Mode screen appears for Zyxel Devices that have a built-in AP.
Figure 123 Wireless Setup Wizard > Management Mode
Select Built-in AP if you want WiFi clients to access your Zyxel Device wirelessly. Select AP Controller to
allow the Zyxel Device to manage APs in the same network as the Zyxel Device. Both modes cannot
work simultaneously. Click Next to continue the wizard.
5.7.2 SSID
The next screen in the wireless wizard is SSID.
Figure 124 Wireless Setup Wizard > SSID - AP Controller
Use the SSID screen for AP Controller to manage APs connected to the Zyxel Device that are identified
by SSID. Select an AP, then click Edit to create or change AP settings.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
149
Figure 125 Wireless Setup Wizard > SSID - Built-in AP
Use the SSID screen for Built-in AP to manage internal WiFi networks in the Zyxel Device that are
identified by SSID. Select a WiFi network, then click Edit to create or change WiFi network settings.
Figure 126 Wireless Setup Wizard > SSID - Built-in AP > Edit SSID - Pre-Shared Key
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
150
Figure 127 Wireless Setup Wizard > SSID - Built-in AP > Edit SSID - 802.1x
•Select Activate to enable the WiFi network for users connected to the Zyxel Device.
• The Wireless Name (SSID) identifies the WiFi network. Enter a unique SSID for each WiFi network.
•Enter a VLAN ID, which is the VLAN identifier that external APs must use to communicate with the Zyxel
Device.
• Select the Band Mode according to the bands that APs or WiFi clients support. Select Dual Band if
both 2.4G or 5G are supported.
• Use Security Mode to authenticate WiFi clients using the local database on the Zyxel Device with a
pre-shared key or on a RADIUS external authentication database using 802.1x. Wi-Fi Protected Access
(WPA, IEEE 802.11i). WPA is a wireless security standard for encryption, authentication and key
management. Only WPA2 is supported in the wireless wizard. If you want to use WEP or WPA, then use
the Configuration > Wireless screens.
Select WPA2, then enter a Pre-Shared Key or select 802.1x and configure the RADIUS server IP
address, server port and secret (password). Select None if you do not want security for this WiFi
network (not recommended).
Click OK to save your settings and return to the wireless setup wizard. Click Cancel to not save your
settings and return to the wireless setup wizard. Click Next to continue the wireless setup wizard.
5.7.3 Radio
The next screen in the wireless setup wizard is Radio.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
151
Figure 128 Wireless Setup Wizard > Radio
•Select DCS (Dynamic Channel Selection) to allow the Zyxel Device to automatically select a less-used
channel in an environment where there are many WiFi devices and there may be interference. DCS
is not supported on a Zyxel Device which is in repeater mode. Alternatively, select Manual to choose
a specific channel that the Zyxel Device must use.
• Set the Output Power of the Zyxel Device. The greater the output power, the greater the WiFi
coverage of the Zyxel Device. Too great an output power may cause interference with other WiFi
devices.
• Select the WiFi channel bandwidth you want the Zyxel Device to use.
• 40 MHz (channel bonding or dual channel) bonds two adjacent radio channels to increase
throughput.
• An 80 MHz channel consists of two adjacent 40 MHz channels. The WiFi clients must also support 40
MHz or 80 MHz.
•Select 20 MHz if the Zyxel Device is in a location with WiFi signal obstructions, or if you want to lessen
radio interference with other WiFi clients in the coverage area, or the WiFi clients do not support
channel bonding.
•Select 40MHz, 80MHz, 160 MHz or 320 MHz to allow the Zyxel Device to adjust the channel
bandwidth automatically where not all its WiFi clients support 40 MHz, 80 MHz, 160 MHz and/or
320MHz channels.
Note: If the environment has poor signal-to-noise ratio (SNR), the Zyxel Device will switch to a
lower bandwidth automatically.
5.7.4 Summary
The next screen in the wireless setup wizard is Summary.
background
Chapter 5 Quick Setup Wizards
USG FLEX Series User’s Guide
152
Figure 129 Wireless Setup Wizard > Summary
Review your settings in the Summary screen, then click Save to save the changes to the Zyxel Device.
Click Back if you want to make more changes.
5.7.5 Wizard Completed
The next screen in the wireless wizard is Wizard Completed.
Figure 130 Wireless Setup Wizard > Wizard Completed
This screen shows that your changes have been successfully saved to the Zyxel Device. Click Close to
exit the wizard. Run the wizard again if you want to make changes.
background
USG FLEX Series User’s Guide
153
CHAPTER 6
Dashboard
6.1 Overview
Use the Dashboard screens to check status information about the Zyxel Device.
6.1.1 What You Can Do in this Chapter
Use the main Dashboard screen to see the Zyxel Device’s general device information, system status, and
system resource usage. You can also display other status screens for more information.
Use the Dashboard screens to view the following.
• Device Information Screen on page 155
• System Status Screen on page 156
• Tx/Rx Statistics on page 156
• The Latest Logs Screen on page 157
• System Resources Screen on page 157
• DHCP Table Screen on page 159
• Number of Login Users Screen on page 160
• Current Login User on page 161
• VPN Status on page 161
• SSL VPN Status on page 161
6.2 The General Screen
The Dashboard screen displays when you log into the Zyxel Device or click Dashboard in the navigation
panel. The dashboard displays general device information, system status, system resource usage,
licensed service status, and interface status in widgets that you can re-arrange to suit your needs. You
can also collapse, refresh, and close individual widgets.
Click on the icon to go to the OneSecurity website where there is guidance on configuration
walkthroughs, troubleshooting, and other information.
background
Chapter 6 Dashboard
USG FLEX Series User’s Guide
154
Figure 131 Dashboard USG FLEX
The following table describes the labels in this screen.
Table 23 Dashboard
LABEL DESCRIPTION
Refresh Now Click this to update the widget’s information immediately.
Virtual Device
Rear Panel Click this to view details about the Zyxel Device’s rear panel. Hover your cursor over a
connected interface or slot to display status details.
Front Panel Click this to view details about the status of the Zyxel Device’s front panel LEDs and
connections. See
Section 4.1.1 on page 94 for LED descriptions. An unconnected interface or
slot appears grayed out.
The following front and rear panel labels display when you hover your cursor over a connected
interface or slot.
Name This field displays the name of each interface.
background
Chapter 6 Dashboard
USG FLEX Series User’s Guide
155
6.2.1 Device Information Screen
The Device Information screen displays Zyxel Device’s system and model name, serial number, MAC
address and firmware version shown in the below screen.
Figure 132 Dashboard > Device Information (Example)
Figure 133
The table describes the fields in this screen.
Status This field displays the current status of each interface or device installed in a slot. The possible
values depend on what type of interface it is.
Inactive - The Ethernet interface is disabled.
Down - The Ethernet interface does not have any physical ports associated with it or the
Ethernet interface is enabled but not connected.
Speed / Duplex - The Ethernet interface is enabled and connected. This field displays the port
speed and duplex setting (Full or Half).
The status for a WLAN card is none.
For cellular (mobile broadband) interfaces, see Section 10.7 on page 357 for the status that
can appear.
For the auxiliary interface:
Inactive - The auxiliary interface is disabled.
Connected - The auxiliary interface is enabled and connected.
Disconnected - The auxiliary interface is not connected.
Zone This field displays the zone to which the interface is currently assigned.
IP Address/
Mask
This field displays the current IP address and subnet mask assigned to the interface. If the
interface is a member of an active virtual router, this field displays the IP address it is currently
using. This is either the static IP address of the interface (if it is the master) or the management
IP address (if it is a backup).
Table 23 Dashboard (continued)
LABEL DESCRIPTION
Table 24 Dashboard > Device Information
LABEL DESCRIPTION
System Name This field displays the name used to identify the Zyxel Device on any network. Click
the link and open the Host Name screen where you can edit and make changes to
the system and domain name.
Serial Number This field displays the serial number of this Zyxel Device. The serial number is used for
device tracking and control.
background
Chapter 6 Dashboard
USG FLEX Series User’s Guide
156
6.2.2 System Status Screen
Figure 134 Dashboard > System Status (Example)
The table describes the fields in the screen.
6.2.3 Tx/Rx Statistics
This screen displays a line graph of packet statistics for each physical port.
MAC Address Range This field displays the MAC addresses used by the Zyxel Device. Each physical port
has one MAC address. The first MAC address is assigned to physical port 1, the
second MAC address is assigned to physical port 2, and so on.
Firmware Version This field displays the version number and date of the firmware the Zyxel Device is
currently running. Click the link to open the Firmware Package screen where you
can upload firmware.
Table 24 Dashboard > Device Information
LABEL DESCRIPTION
Table 25 Dashboard > System Status
LABEL DESCRIPTION
Boot Status This field displays details about the Zyxel Device’s startup state.
OK - The Zyxel Device started up successfully.
Firmware update OK - A firmware update was successful.
Problematic configuration after firmware update - The application of the
configuration failed after a firmware upgrade.
System default configuration - The Zyxel Device successfully applied the system
default configuration. This occurs when the Zyxel Device starts for the first time or you
intentionally reset the Zyxel Device to the system default settings.
Fallback to lastgood configuration - The Zyxel Device was unable to apply the
startup-config.conf configuration file and fell back to the lastgood.conf
configuration file.
Fallback to system default configuration - The Zyxel Device was unable to apply the
lastgood.conf configuration file and fell back to the system default configuration file
(system-default.conf).
Booting in progress - The Zyxel Device is still applying the system configuration.
System Uptime This field displays how long the Zyxel Device has been running since it last restarted
or was turned on.
Current Date/Time This field displays the current date and time in the Zyxel Device. The format is yyyy-
mm-dd hh:mm:ss. Click on the link to see the Date/Time screen where you can make
edits and changes to the date, time and time zone information.
background
Chapter 6 Dashboard
USG FLEX Series User’s Guide
157
Figure 135 Dashboard > Tx/Rx Statistics
This table describes the fields in the above screen.
6.2.4 The Latest Logs Screen
Figure 136 Dashboard > The Latest Logs
The table describes the fields in the screen.
6.2.5 System Resources Screen
These fields display the percentage of system resources that are used.
Table 26 Dashboard > Tx/Rx Statistics
LABEL DESCRIPTION
Mbps The y-axis represents the speed of transmission or reception.
Time The x-axis shows the time period over which the transmission or reception occurred.
Table 27 Dashboard > The Latest Log
LABEL DESCRIPTION
# This is the entry’s rank in the list of alert logs.
Time This field displays the date and time the log was created.
Priority This field displays the severity of the log.
Category This field displays the type of log generated.
Message This field displays the actual log message.
Source This field displays the source address (if any) in the packet that generated the log.
Destination This field displays the destination address (if any) in the packet that generated the
log.
background
Chapter 6 Dashboard
USG FLEX Series User’s Guide
158
Figure 137 Dashboard > System Resources
The table describes the fields in the screen.
6.2.5.1 System Resources Chart
The following screen displays when you click the system resources bar.
Table 28 Dashboard > System Resources
LABEL DESCRIPTION
CPU Usage This field displays what percentage of the Zyxel Device’s processing capability is
currently being used. Hover your cursor over this field to display the Show CPU Usage
icon that takes you to a chart of the Zyxel Device’s recent CPU usage.
Memory Usage This field displays what percentage of the Zyxel Device’s RAM is currently being used.
Hover your cursor over this field to display the Show Memory Usage icon that takes
you to a chart of the Zyxel Device’s recent memory usage.
Flash Usage This field displays what percentage of the Zyxel Device’s onboard flash memory is
currently being used.
USB Storage Usage This field shows how much storage in the USB device connected to the Zyxel Device
is in use.
Active Sessions This field shows how many sessions, established and non-established, that pass
through/from/to/within the ZyWALL. Hover your cursor over this field to display icons.
Click the Detail icon to go to the Session Monitor screen to see details about the
active sessions. Click the Show Active Sessions icon to display a chart of Zyxel
Device’s recent session usage.
background
Chapter 6 Dashboard
USG FLEX Series User’s Guide
159
Figure 138 Dashboard > System Resources > Chart
The table describes the fields in the screen.
6.2.6 DHCP Table Screen
Click on the number to look at the IP addresses currently assigned to DHCP clients and the IP addresses
reserved for specific MAC addresses. The following screen will show.
Figure 139 Dashboard > DHCP Table
Table 29 Dashboard > System Resources > Chart
LABEL DESCRIPTION
Data Collecting Interval This field displays the time interval in minutes the Zyxel Device collects the system
resources data.
Chart Refresh Interval Select a time interval in minutes for renewing the system resources chart.
background
Chapter 6 Dashboard
USG FLEX Series User’s Guide
160
This table describes the fields in the above screen.
6.2.7 Number of Login Users Screen
Click the Number of Login Users link to see the following screen.
Figure 140 Dashboard > Number of Login Users
The table describes the fields in the screen.
Table 30 Dashboard > DHCP Table
LABEL DESCRIPTION
Refresh Interval Select how often you want this window to be updated automatically.
Refresh Now Click this to update the information in the window right away.
# This field is a sequential value, and it is not associated with a specific entry.
Interface This field identifies the interface that assigned an IP address to a DHCP client.
IP Address This field displays the IP address currently assigned to a DHCP client or reserved for a
specific MAC address. Click the column’s heading cell to sort the table entries by IP
address. Click the heading cell again to reverse the sort order.
Host Name This field displays the name used to identify this device on the network (the
computer name). The Zyxel Device learns these from the DHCP client requests.
“None” shows here for a static DHCP entry.
MAC Address This field displays the MAC address to which the IP address is currently assigned or for
which the IP address is reserved. Click the column’s heading cell to sort the table
entries by MAC address. Click the heading cell again to reverse the sort order.
Expiration Time This is the period of time DHCP-assigned addresses is used.
Description For a static DHCP entry, the host name or the description you configured shows
here. This field is blank for dynamic DHCP entries.
Reserve If this field is selected, this entry is a static DHCP entry. The IP address is reserved for
the MAC address.
If this field is clear, this entry is a dynamic DHCP entry. The IP address is assigned to a
DHCP client.
To create a static DHCP entry using an existing dynamic DHCP entry, select this field,
and then click Apply.
To remove a static DHCP entry, clear this field, and then click Apply.
Table 31 Dashboard > Number of Login Users
LABEL DESCRIPTION
# This field is a sequential value and is not associated with any entry.
User ID This field displays the user name of each user who is currently logged in to the Zyxel
Device.
Reauth/Lease Time This field displays the amount of reauthentication time remaining and the amount of
lease time remaining for each user.
Session Timeout This field displays the total account of time the account (authenticated by an
external server) can use to log into the UAG or access the Internet through the Zyxel
Device.
This shows unlimited for an administrator account.
background
Chapter 6 Dashboard
USG FLEX Series User’s Guide
161
6.2.8 Current Login User
This field displays the user name used to log in to the current session, the amount of reauthentication
time remaining, and the amount of lease time remaining.
Figure 141 Dashboard > Current Login User
6.2.9 VPN Status
Click on the link to look at the VPN tunnels that are currently established.
Figure 142 Dashboard > VPN Status
This table describes the fields in the above screen.
6.2.10 SSL VPN Status
The first number is the actual number of VPN tunnels up and the second number is the maximum
number of SSL VPN tunnels allowed.
Type This field displays the way the user logged in to the Zyxel Device.
IP address This field displays the IP address of the computer used to log in to the Zyxel Device.
User Info This field displays the types of user accounts the Zyxel Device uses. If the user type is
ext-user (external user), this field will show its external-group information when you
move your mouse over it.
If the external user matches two external-group objects, both external-group object
names will be shown.
Force Logout Click this icon to end a user’s session.
Table 31 Dashboard > Number of Login Users (continued)
LABEL DESCRIPTION
Table 32 Dashboard > VPN Status
LABEL DESCRIPTION
# This field is a sequential value and is not associated with any entry.
Name This field displays the name of the VPN tunnel.
Encapsulation This field displays the type of encapsulation the VPN tunnel uses.
Algorithm This field displays the hash algorithm that the VPN tunnel uses to authenticate
packet data.
Refresh Interval Select how often you want this window to be updated automatically.
Refresh Now Click this to update the information in the window right away.
background
Chapter 6 Dashboard
USG FLEX Series User’s Guide
162
Figure 143 Dashboard > SSL VPN Status
6.3 The Advanced Threat Protection Screen
Use the Advanced Threat Protection screen to check security status information about the Zyxel Device.
Figure 144 Dashboard > Advanced Threat Protection - USG FLEX Series
This screen gives the following information:
• The amount of scanned traffic
• The number of scanned connections for URL Threat filtering
• The number of scanned files for sandboxing
• The number of scanned files for anti-malware
• The number of scanned connections for IDP
• The number of scanned emails for email security
• The number of the scanned sites for content filtering
• Top 5 applications that are used the most
• Top 5 URLs that are detected the most
• Reputation filter reports
• URL Threat filter reports
• Sandboxing reports
• Threat statistics
Click the Refresh icon to update the information in the window right away.
background
163
PART II
Technical Reference
background
USG FLEX Series User’s Guide
164
CHAPTER 7
Monitor
7.1 Overview
Use the Monitor screens to check status and statistics information.
7.1.1 What You Can Do in this Chapter
Use the Monitor screens for the following.
• Use the Traffic Statistics > Port Statistics screen (see Section 7.2.1 on page 167) to look at packet
statistics for each physical port.
• Use the Traffic Statistics > Port Statistics > Graph View screen (see Section 7.2.1 on page 167) to look at
a line graph of packet statistics for each physical port.
• Use the Traffic Statistics > Interface Status screen (Section 7.3 on page 168) to see all of the Zyxel
Device’s interfaces and their packet statistics.
• Use the Traffic Statistics > Traffic Statistics screen (see Section 7.4 on page 172) to start or stop data
collection and view statistics.
• Use the Traffic Statistics > Session Monitor screen (see Section 7.5 on page 175) to view sessions by user
or service.
• Use the Network Status > DHCP Table screen (see Section 7.6 on page 177) to view a list of interfaces
and their DHCP-assigned IP addresses.
• Use the Network Status > Device Insight screen (see Section 7.7 on page 178) to view the status of the
clients connected to the Zyxel Device.
• Use the Network Status > Login Users screen (Section 7.6 on page 177) to look at a list of the users
currently logged into the Zyxel Device.
• Use the Network Status > Dynamic Guest screen (Section 7.9 on page 184) to look at a list of the
automatically created users allowed to access the Zyxel Device’s service.
• Use the Network Status > IGMP Statistics screen (see Section 7.10 on page 185) to view multicasting
details.
• Use the Network Status > DDNS Status screen (see Section 7.11 on page 186) to view the status of the
Zyxel Device’s DDNS domain names.
• Use the Network Status > IP/MAC Binding screen (Section 7.12 on page 187) to view a list of devices
that have received an IP address from Zyxel Device interfaces with IP/MAC binding enabled.
• Use the Network Status > Cellular Status screen (Section 7.13 on page 188) to check your mobile
broadband connection status.
• Use the Network Status > UPnP Port Status screen (see Section 7.14 on page 191) to look at a list of the
NAT port mapping rules that UPnP creates on the Zyxel Device.
• Use the Network Status > USB Storage screen (Section 7.15 on page 192) to view information about a
connected USB storage device.
• Use the Network Status > Ethernet Neighbor screen (Section 7.16 on page 193) to view and manage
the Zyxel Device’s neighboring devices through Layer Link Discovery Protocol (LLDP).
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
165
• Use the Network Status > FQDN Object screen (Section 7.17 on page 194) to display fully qualified
domain name (FQDN) object cache lists used in DNS queries.
• Use the Network Status > Virtual Server LB screen (Section 7.18 on page 196) to display distribution of
incoming connection requests to a virtual server between multiple real (physical) servers.
• Use the Wireless > AP Information > AP List screen (Section 7.19 on page 197) to display which APs are
currently connected to the Zyxel Device.
• Use the Wireless > AP Information > Radio List screen (Section 7.20 on page 208) to display statistics
about the wireless radio transmitters in each of the APs connected to the Zyxel Device.
• Use the Wireless > AP Information > Built-in AP screen (Section 7.21 on page 211) to display the
number of wireless clients connected to the Zyxel Device with built-in AP and their WiFi usage.
• Use the Wireless > AP Information > Top N APs screen (Section 7.22 on page 212) to view managed
APs with the most wireless traffic usage and most associated wireless stations.
• Use the Wireless > AP Information > Single AP screen (Section 7.23 on page 213) to view APs wireless
traffic usage and associated wireless stations for a managed AP.
• Use the Wireless > ZyMesh screen (Section 7.24 on page 214) to display statistics about the ZyMesh
wireless connections between the managed APs.
• Use the Wireless > SSID Info screen (Section 7.25 on page 215) to display the number of wireless clients
that are currently connected to an SSID and the SSID’s security mode.
• Use the Wireless > Station Info > Station List screen (Section 7.26 on page 216) to view information on
connected wireless stations.
• Use the Wireless > Station Info > Top N Stations screen (Section 7.27 on page 218) to view wireless
stations with the most wireless traffic usage.
• Use the Wireless > Station Info > Single Station screen (Section 7.28 on page 219) to view wireless traffic
usage for an associated wireless station.
• Use the Wireless > Detected Device screen (Section 7.29 on page 220) to view information about
suspected rogue APs.
• Use the Wireless > Wireless Health screen (Section 7.30 on page 222) to view information about health
of wireless networks for your APs and connected wireless clients.
• Use the Printer Status screen (see Section 7.31 on page 223) to view information about the connected
statement printers.
• Use the VPN Monitor > IPSec screen (Section 7.32 on page 223) to display and manage active IPSec
SAs.
• Use the VPN Monitor > SSL screen (see Section 7.33 on page 225) to list the users currently logged into
the VPN SSL client portal. You can also log out individual users and delete related session information.
• Use the VPN Monitor > L2TP over IPSec screen (see Section 7.34 on page 226) to display and manage
the Zyxel Device’s connected L2TP VPN sessions.
• Use the VPN Monitor > Remote AP VPN screen (see Section 7.35 on page 227) to display and manage
active remote AP radio.
• Use the Security Statistics > App Patrol screen (see Section 7.36 on page 228) to start or stop data
collection and view application statistics
• Use the Security Statistics > Content Filter screen (Section 7.37 on page 229) to start or stop data
collection and view content filter statistics.
• Use the Security Statistics > Anti-Malware screen (see Section 7.38 on page 232) to start or stop data
collection and view statistics.
• Use the Security Statistics > Reputation Filter screen (see Section 7.39 on page 234) to view statistics of
IP reputation and URL Threat filtering.
• Use the Security Statistics > IPS screen (Section 7.40 on page 238) to start or stop data collection and
view IPS statistics.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
166
• Use the Security Statistics > Email Security > Summary screen (Section 7.42 on page 242) to start or
stop data collection and view spam statistics.
• Use the Security Statistics > Email Security > Status screen (Section 7.42.2 on page 244) to see how
many mail sessions the Zyxel Device is currently checking and DNSBL statistics.
• Use the Security Statistics > CDR screen (Section 7.43 on page 246) to view devices blocked or
quarantined by Collaborative Detection & Response (CDR).
• Use the Security Statistics > SSL Inspection screen (Section 7.44 on page 248) to see a report on SSL
Inspection and a certificate cache list.
• Use the Log > View Log screen (see Section 7.45.1 on page 251) to view the Zyxel Device’s current log
messages. You can change the way the log is displayed, you can email the log, and you can also
clear the log in this screen.
• Use the Log > View AP Log screen (see Section 7.45.2 on page 252) to view the Zyxel Device’s current
wireless AP log messages.
• Use the Log > Dynamic Users Log screen (see Section 7.45.3 on page 254) to view the Zyxel Device’s
dynamic guest account log messages.
7.2 The Port Statistics Screen
Use this screen to look at packet statistics for each Gigabit Ethernet port. To access this screen, click
Monitor > Traffic Statistics > Port Statistics.
Figure 145 Monitor > Traffic Statistics > Port Statistics
The following table describes the labels in this screen.
Table 33 Monitor > Traffic Statistics > Port Statistics
LABEL DESCRIPTION
Poll Interval Enter how often you want this window to be updated automatically, and click Set Interval.
Set Interval Click this to set the Poll Interval the screen uses.
Stop Click this to stop the window from updating automatically. You can start it again by setting the
Poll Interval and clicking Set Interval.
Switch to Graphic
View
Click this to display the port statistics as a line graph.
# This field is a sequential value, and it is not associated with a specific port.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
167
7.2.1 The Port Statistics Graph Screen
Use this screen to look at a line graph of packet statistics for each physical port. To access this screen,
click Port Statistics on the Status screen and then the Switch to Graphic View Button.
Figure 146 Monitor > Traffic Statistics > Port Statistics > Switch to Graphic View
Port This field displays the physical port number.
Status This field displays the current status of the physical port.
Down - The physical port is not connected.
Speed / Duplex - The physical port is connected. This field displays the port speed and duplex
setting (Full or Half).
TxPkts This field displays the number of packets transmitted from the Zyxel Device on the physical port
since it was last connected.
RxPkts This field displays the number of packets received by the Zyxel Device on the physical port
since it was last connected.
Collisions This field displays the number of collisions on the physical port since it was last connected.
Tx B/s This field displays the transmission speed, in bytes per second, on the physical port in the one-
second interval before the screen updated.
Rx B/s This field displays the reception speed, in bytes per second, on the physical port in the one-
second interval before the screen updated.
Up Time This field displays how long the physical port has been connected.
System Up Time This field displays how long the Zyxel Device has been running since it last restarted or was
turned on.
Table 33 Monitor > Traffic Statistics > Port Statistics (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
168
The following table describes the labels in this screen.
7.3 Interface Status Screen
This screen lists all of the Zyxel Device’s interfaces and gives packet statistics for them. Click Monitor >
Traffic Statistics > Interface Summary to access this screen.
Table 34 Monitor > Traffic Statistics > Port Statistics > Switch to Graphic View
LABEL DESCRIPTION
Refresh Interval Enter how often you want this window to be automatically updated.
Refresh Now Click this to update the information in the window right away.
Port Selection Select the number of the physical port for which you want to display graphics.
Switch to Grid
View
Click this to display the port statistics as a table.
bps The y-axis represents the speed of transmission or reception.
time The x-axis shows the time period over which the transmission or reception occurred
TX This line represents traffic transmitted from the Zyxel Device on the physical port since it was last
connected.
RX This line represents the traffic received by the Zyxel Device on the physical port since it was last
connected.
Last Update This field displays the date and time the information in the window was last updated.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
169
Figure 147 Monitor > Traffic Statistics > Interface Summary
Each field is described in the following table.
Table 35 Monitor > Traffic Statistics > Interface Summary
LABEL DESCRIPTION
Interface Status
If an Ethernet interface does not have any physical ports associated with it, its entry is displayed in light gray text.
Name This field displays the name of each interface. If there is an Expand icon (plus-sign) next to the
name, click this to look at the status of virtual interfaces on top of this interface.
Port/Binding This field displays the physical port number.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
170
Status This field displays the current status of each interface. The possible values depend on what
type of interface it is.
For Ethernet interfaces:
• Inactive - The Ethernet interface is disabled.
• Down - The Ethernet interface does not have any physical ports associated with it or the
Ethernet interface is enabled but not connected.
• Speed / Duplex - The Ethernet interface is enabled and connected. This field displays the
port speed and duplex setting (Full or Half).
For cellular (mobile broadband) interfaces, see Section 7.15 on page 192 the Web Help for the
status that can appear.
For the auxiliary interface:
• Inactive - The auxiliary interface is disabled.
• Connected - The auxiliary interface is enabled and connected.
• Disconnected - The auxiliary interface is not connected.
For virtual interfaces, this field always displays Up. If the virtual interface is disabled, it does not
appear in the list.
For VLAN and bridge interfaces, this field always displays Up. If the VLAN or bridge interface is
disabled, it does not appear in the list.
For PPP interfaces:
• Connected - The PPP interface is connected.
• Disconnected - The PPP interface is not connected.
If the PPP interface is disabled, it does not appear in the list.
For WLAN interfaces:
• Up - The WLAN interface is enabled.
• Down - The WLAN interface is disabled.
Zone This field displays the zone to which the interface is assigned.
IP Addr/Netmask This field displays the current IP address and subnet mask assigned to the interface. If the IP
address and subnet mask are 0.0.0.0, the interface is disabled or did not receive an IP address
and subnet mask through DHCP.
If this interface is a member of an active virtual router, this field displays the IP address it is
currently using. This is either the static IP address of the interface (if it is the master) or the
management IP address (if it is a backup).
IP Assignment This field displays how the interface gets its IP address.
• Static - This interface has a static IP address.
• DHCP Client - This interface gets its IP address from a DHCP server.
Services This field lists which services the interface provides to the network. Examples include DHCP
relay, DHCP server, DDNS, RIP, and OSPF. This field displays n/a if the interface does not provide
any services to the network.
Action Use this field to get or to update the IP address for the interface. Click Renew to send a new
DHCP request to a DHCP server. Click Connect to try to connect a PPPoE/PPTP interface. If the
interface cannot use one of these ways to get or to update its IP address, this field displays n/a.
Tunnel Interface Status
This displays the details of the Zyxel Device’s configured tunnel interfaces.
Name This field displays the name of the interface.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
Table 35 Monitor > Traffic Statistics > Interface Summary
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
171
Zone This field displays the zone to which the interface is assigned.
IP Address This is the IP address of the interface. If the interface is active (and connected), the Zyxel
Device tunnels local traffic sent to this IP address to the Remote Gateway Address.
My Address This is the interface or IP address uses to identify itself to the remote gateway. The Zyxel Device
uses this as the source for the packets it tunnels to the remote gateway.
Remote
Gateway
Address
This is the IP address or domain name of the remote gateway to which this interface tunnels
traffic.
Mode This field displays the tunnel mode that you are using.
IPv6 Interface Status
If an Ethernet interface does not have any physical ports associated with it, its entry is displayed in light gray text.
Name This field displays the name of each interface. If there is an Expand icon (plus-sign) next to the
name, click this to look at the status of virtual interfaces on top of this interface.
Port This field displays the physical port number.
Status This field displays the current status of each interface. The possible values depend on what
type of interface it is.
For Ethernet interfaces:
• Inactive - The Ethernet interface is disabled.
• Down - The Ethernet interface does not have any physical ports associated with it or the
Ethernet interface is enabled but not connected.
• Speed / Duplex - The Ethernet interface is enabled and connected. This field displays the
port speed and duplex setting (Full or Half).
For cellular (mobile broadband) interfaces, see Section 7.15 on page 192 the Web Help for the
status that can appear.
For the auxiliary interface:
• Inactive - The auxiliary interface is disabled.
• Connected - The auxiliary interface is enabled and connected.
• Disconnected - The auxiliary interface is not connected.
For virtual interfaces, this field always displays Up. If the virtual interface is disabled, it does not
appear in the list.
For VLAN and bridge interfaces, this field always displays Up. If the VLAN or bridge interface is
disabled, it does not appear in the list.
For PPP interfaces:
• Connected - The PPP interface is connected.
• Disconnected - The PPP interface is not connected.
If the PPP interface is disabled, it does not appear in the list.
For WLAN interfaces:
• Up - The WLAN interface is enabled.
• Down - The WLAN interface is disabled.
Zone This field displays the zone to which the interface is assigned.
IP Address This field displays the current IPv6 address assigned to the interface. If the IPv6 address is ::, the
interface is disabled or did not receive an IPv6 address through DHCP.
If this interface is a member of an active virtual router, this field displays the IPv6 address it is
currently using. This is either the static IPv6 address of the interface (if it is the master) or the
management IPv6 address (if it is a backup).
Table 35 Monitor > Traffic Statistics > Interface Summary
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
172
7.4 The Traffic Statistics Screen
Click Monitor > Traffic Statistics > Traffic Statistics to display the Traffic Statistics screen. This screen
provides basic information about the following for example:
• Most-visited Web sites and the number of times each one was visited. This count may not be accurate
in some cases because the Zyxel Device counts HTTP GET packets. Please see Table 36 on page 173
for more information.
• Most-used protocols or service ports and the amount of traffic on each one
• LAN IP with heaviest traffic and how much traffic has been sent to and from each one
You use the Traffic Statistics screen to tell the Zyxel Device when to start and when to stop collecting
information for these reports. You cannot schedule data collection; you have to start and stop it
manually on the Traffic Statistics screen.
Services This field lists which services the interface provides to the network. Examples include DHCP
relay, DHCP server, DDNS, RIP, and OSPF. This field displays n/a if the interface does not provide
any services to the network.
Action Use this field to get or to update the IP address for the interface. Click Renew to send a new
DHCP request to a DHCP server. Click Connect to try to connect a PPPoE/PPTP interface. If the
interface cannot use one of these ways to get or to update its IP address, this field displays n/a.
Interface Statistics
This table provides packet statistics for each interface.
Refresh Click this button to update the information on the screen.
Name This field displays the name of each interface. If there is a Expand icon (plus-sign) next to the
name, click this to look at the statistics for virtual interfaces on top of this interface.
Status This field displays the current status of the interface.
• Down - The interface is not connected.
• Speed / Duplex - The interface is connected. This field displays the port speed and duplex
setting (Full or Half).
This field displays Connected and the accumulated connection time (hh:mm:ss) when the PPP
interface is connected.
TxPkts This field displays the number of packets transmitted from the Zyxel Device on the interface
since it was last connected.
RxPkts This field displays the number of packets received by the Zyxel Device on the interface since it
was last connected.
Tx B/s This field displays the transmission speed, in bytes per second, on the interface in the one-
second interval before the screen updated.
Rx B/s This field displays the reception speed, in bytes per second, on the interface in the one-second
interval before the screen updated.
Table 35 Monitor > Traffic Statistics > Interface Summary
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
173
Figure 148 Monitor > Traffic Statistics > Traffic Statistics
There is a limit on the number of records shown in the report. Please see Table 37 on page 174 for more
information. The following table describes the labels in this screen.
Table 36 Monitor > Traffic Statistics > Traffic Statistics
LABEL DESCRIPTION
Data Collection
Collect Statistics Select this to have the Zyxel Device collect data for the report. If the Zyxel Device has already
been collecting data, the collection period displays to the right. The progress is not tracked
here real-time, but you can click the Refresh button to update it.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Statistics
Interface Select the interface from which to collect information. You can collect information from
Ethernet, VLAN, bridge and PPPoE/PPTP interfaces.
Sort By Select the type of report to display. Choices are:
• Host IP Address/User - displays the IP addresses or users with the most traffic and how much
traffic has been sent to and from each one.
• Service/Port - displays the most-used protocols or service ports and the amount of traffic for
each one.
• Web Site Hits - displays the most-visited Web sites and how many times each one has been
visited.
• Country - displays the countries with the most traffic and the amount of traffic for each
one.
Each type of report has different information in the report (below).
Refresh Click this button to update the report display.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
These fields are available when the Traffic Type is Host IP Address/User.
# This field is the rank of each record. The IP addresses and users are sorted by the amount of
traffic.
Direction This field indicates whether the IP address or user is sending or receiving traffic.
• Ingress- traffic is coming from the IP address or user to the Zyxel Device.
• Egress - traffic is going from the Zyxel Device to the IP address or user.
IP Address/
User
This field displays the IP address or user in this record. The maximum number of IP addresses or
users in this report is indicated in
Table 37 on page 174.
Amount This field displays how much traffic was sent or received from the indicated IP address or user. If
the Direction is Ingress, a red bar is displayed; if the Direction is Egress, a blue bar is displayed.
The unit of measure is bytes, Kbytes, Mbytes or Gbytes, depending on the amount of traffic for
the particular IP address or user. The count starts over at zero if the number of bytes passes the
byte count limit. See
Table 37 on page 174.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
174
The following table displays the maximum number of records shown in the report, the byte count limit,
and the hit count limit.
These fields are available when the Traffic Type is Service/Port.
# This field is the rank of each record. The protocols and service ports are sorted by the amount
of traffic.
Service/Port This field displays the service and port in this record. The maximum number of services and
service ports in this report is indicated in
Table 37 on page 174.
Protocol This field indicates what protocol the service was using.
Direction This field indicates whether the indicated protocol or service port is sending or receiving traffic.
• Ingress - traffic is coming into the Zyxel Devicethrough the interface
• Egress - traffic is going out from the Zyxel Device through the interface
Amount This field displays how much traffic was sent or received from the indicated service / port. If the
Direction is Ingress, a red bar is displayed; if the Direction is Egress, a blue bar is displayed. The
unit of measure is bytes, Kbytes, Mbytes, Gbytes, or Tbytes, depending on the amount of traffic
for the particular protocol or service port. The count starts over at zero if the number of bytes
passes the byte count limit. See
Table 37 on page 174.
These fields are available when the Traffic Type is Web Site Hits.
# This field is the rank of each record. The domain names are sorted by the number of hits.
Web Site This field displays the domain names most often visited. The Zyxel Device counts each page
viewed on a Web site as another hit. The maximum number of domain names in this report is
indicated in
Table 37 on page 174.
Hits This field displays how many hits the Web site received. The Zyxel Device counts hits by
counting HTTP GET packets. Many Web sites have HTTP GET references to other Web sites, and
the Zyxel Device counts these as hits too. The count starts over at zero if the number of hits
passes the hit count limit. See
Table 37 on page 174.
These fields are available when the Traffic Type is Country.
# This field is the rank of each record. The country name is sorted by the amount of traffic.
Direction This field indicates whether the indicated protocol or service port is sending or receiving traffic.
• Ingress - traffic is coming into the Zyxel Devicethrough the interface
• Egress - traffic is going out from the Zyxel Device through the interface
Country
Name
This field displays the name of the country.
Country This field displays the country code.
Amount This field displays how much traffic was sent or received from the indicated country. If the
Direction is Ingress, a red bar is displayed; if the Direction is Egress, a blue bar is displayed. The
unit of measure is bytes, Kbytes, Mbytes, Gbytes, or Tbytes, depending on the amount of traffic
for the particular protocol or service port. The count starts over at zero if the number of bytes
passes the byte count limit. See
Table 37 on page 174.
• Ingress - traffic is coming into the Zyxel Device from the country.
• Egress - traffic is going from the Zyxel Device to the country.
Table 37 Maximum Values for Reports
LABEL DESCRIPTION
Maximum Number of Records 20
Byte Count Limit 2
64
bytes; this is just less than 17 million terabytes.
Hit Count Limit 2
64
hits; this is over 1.8 x 10
19
hits.
Table 36 Monitor > Traffic Statistics > Traffic Statistics (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
175
7.5 The Session Monitor Screen
The Session Monitor screen displays all established sessions that pass through the Zyxel Device for
debugging or statistical analysis. It is not possible to manage sessions in this screen. The following
information is displayed.
• User who started the session
• Protocol or service port used
• Source address
• Destination address
• Number of bytes received (so far)
• Number of bytes transmitted (so far)
• Duration (so far)
You can look at all established sessions that passed through the Zyxel Device by user, service, source IP
address, or destination IP address. You can also filter the information by user, protocol / service or service
group, source address, and/or destination address and view it by user.
Click Monitor > Traffic Statistics > Session Monitor to display the following screen.
Figure 149 Monitor > Traffic Statistics > Session Monitor
The following table describes the labels in this screen.
Table 38 Monitor > Traffic Statistics > Session Monitor
LABEL DESCRIPTION
View Select how you want the established sessions that passed through the Zyxel Device to be
displayed. Choices are:
• sessions by users - display all active sessions grouped by user
• sessions by services - display all active sessions grouped by service or protocol
• sessions by source IP - display all active sessions grouped by source IP address
• session by source region - display all active sessions grouped by where the traffic is coming
from by country
• sessions by destination IP - display all active sessions grouped by destination IP address
• sessions by destination region - display all active sessions grouped by where the traffic is
going to by country
• all sessions - filter the active sessions by the User, Service, Source Address, and Destination
Address, and display each session individually (sorted by user).
Refresh Click this button to update the information on the screen. The screen also refreshes
automatically when you open and close the screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
176
The User, Service, Source Address, Destination Address, Source Country and Destination
Country fields display if you view all sessions. Select your desired filter criteria and click the
Refresh button to filter the list of sessions.
User This field displays when View is set to all sessions. Enter the user whose sessions you want to
view. It is not possible to enter part of the user name or use wildcards in this field; you must enter
the whole user name.
Service This field displays when View is set to all sessions. Select the service or service group whose
sessions you want to view. The Zyxel Device identifies the service by comparing the protocol
and destination port of each packet to the protocol and port of each services that is defined.
Source
Address
This field displays when View is set to all sessions. Enter the source IP address whose sessions you
want to view. You cannot include the source port.
Source
Country
This field displays when View is set to all sessions. Select the country where the traffic is coming
from.
Destination
Address
This field displays when View is set to all sessions. Enter the destination IP address whose sessions
you want to view. You cannot include the destination port.
Destination
Country
This field displays when View is set to all sessions. Select the country where the traffic is going to.
Search Click this to display all sessions in the table below according to the criteria you defined above.
Clear
Clear All
Administrators can use these buttons to forcibly terminate selected TCP/UDP connections.
Select one or multiple connections and then click Clear; click Clear All to terminate all
connections displayed. Cleared sessions display on the Log > View Log screen.
# This field is the rank of each record. The names are sorted by the name of user in active session.
You can use the pull down menu on the right to choose sorting method.
User This field displays the user in each active session.
If you are looking at the sessions by users (or all sessions) report, click + or - to display or hide
details about a user’s sessions.
Service This field displays the protocol used in each active session.
If you are looking at the sessions by services report, click + or - to display or hide details about
a protocol’s sessions.
Source This field displays the source IP address and port in each active session.
If you are looking at the sessions by source IP report, click + or - to display or hide details about
a source IP address’s sessions.
Source
Country
This field displays the source country in each active session.
Destination This field displays the destination IP address and port in each active session.
If you are looking at the sessions by destination IP report, click + or - to display or hide details
about a destination IP address’s sessions.
Destination
Country
This field displays the destination country in each active session.
Rx This field displays the amount of information received by the source in the active session.
Tx This field displays the amount of information transmitted by the source in the active session.
Duration This field displays the length of the active session in seconds.
Table 38 Monitor > Traffic Statistics > Session Monitor (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
177
7.6 The DHCP Table Screen
Use this screen to look at a list of interfaces and their DHCP-assigned IP addresses. To access this screen,
click Monitor > Network Status >
DHCP Table.
Figure 150 Monitor > Network Status > DHCP Table
The following table describes the labels in this screen.
Table 39 Monitor > Network Status > DHCP Table
LABEL DESCRIPTION
Current DHCP List
Interface Select a Zyxel Device interface that has DHCP enabled to show to which devices it has
assigned DHCP IP addresses.
Keyword Enter a keyword to display the interfaces and their information, such as IP addresses,
MAC addresses and so on. The field is case-sensitive.
Search Click to update the list of interfaces shown in the table below based on the search
criteria.
Your search criteria is retained when navigating between screens.
Reset Click to return this search criteria to the factory defaults and display all interfaces with
DHCP enabled.
Release Select an entry and click on this button to let other devices use the dynamic DHCP that is
currently assigned to the selected entry.
Reserve Select an entry and click on this button to set the entry as a static DHCP entry. The IP
address will be reserved for the MAC address after you click this button.
Unreserve Select an entry and click on this button to set the entry from a static DHCP entry to a
dynamic DHCP entry. The IP address is assigned to a DHCP client.
Export To export as a csv file on your computer, select them and click Export. Click Save in the
file download dialogue box and then select a location and name for the file. You can
edit the file after it is saved on your computer.
To import the file you export here to recover the settings you configure now later on the
Zyxel Device, go to Configuration
> Network > Interface > Ethernet/VLAN > DCHP Setting.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
178
7.7 The Device Insight Screen
The Device Insight screen displays the status of the clients connected to the Zyxel Device, such as if a
client is sending traffic to the Zyxel Device or if a client’s MAC address is in the CDR block list. See
Chapter 40 on page 877 for more information on CDR.
It also displays the basic information and the status of the clients. The clients show in this screen may
include clients connected to the Zyxel Device:
• Using wired connections.
• Through access points (APs) using wired connections.
• Through access points (APs) using WiFi connections.
• Through bulit-in access points using WiFi connections.
• Using SecuExtender (IPSec VPN clients).
Use Device Insight to identify and monitor clients connected to the Zyxel Device internal LAN/VLAN DMZ
networks in the same IP subnet. This feature collects client information, including:
• Hostname
• IP address and MAC address
• Operating system
• Category, such as mobile phones or computers
• Connected interface
# This field is a sequential value, and it is not associated with a specific entry.
Interface This field identifies the interface that assigned an IP address to a DHCP client.
IP Address This field displays the IP address currently assigned to a DHCP client or reserved for a
specific MAC address. Click the column’s heading cell to sort the table entries by IP
address. Click the heading cell again to reverse the sort order.
Host Name This field displays the name used to identify this device on the network (the computer
name). The Zyxel Device learns these from the DHCP client requests. “None” shows here
for a static DHCP entry.
MAC Address This field displays the MAC address to which the IP address is currently assigned or for
which the IP address is reserved. Click the column’s heading cell to sort the table entries
by MAC address. Click the heading cell again to reverse the sort order.
Expiration Time This displays the date and time the DHCP-assigned address will be renewed.
Last Access This is when the last time any traffic pass through the interface.
Description For a static DHCP entry, the host name or the description you configured shows here. This
field is blank for dynamic DHCP entries.
Static This field displays if the address in the IP address field is reserved for the clients connected
to this interface.
Yes means that the clients connected to the interface will always get the IP address
shown in the table.
Table 39 Monitor > Network Status > DHCP Table (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
179
You can create a profile based on clients' categories and operating systems, and then apply the
created profile to the Zyxel Device security policies. See
Section 44.1 on page 922 for more information
on creating and using Device Insight profiles.
Note: To collect clients’ information using Device Insight, the clients must be in the same IP
subnet in the LAN/VLAN/DMZ networks behind the Zyxel Device. Information from
clients that are in different IP subnets in the LAN/VLAN/DMZ networks might not be
collected correctly as traffic must pass through another router or a layer-3 switch to the
Zyxel Device.
In the graphic below, A client connected to the Zyxel Device using a wired connection. A client
connected to the Zyxel Device through an AP using a wired connection. A client connected to the
Zyxel Device through an AP using a WiFi connection.
Figure 151 Clients’ Device Insight Example
Click Monitor> Device Inventory to show the following screen.
Figure 152 Monitor > Device Insight
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
180
The following table describes the labels in this screen.
Table 40 Monitor > Network Status > Device Insight
LABEL DESCRIPTION
Hide/Show Advanced
Settings
Click this button to display a greater or lesser number of configuration fields.
Edit Double-click an entry or select it and click Edit to modify the entry’s settings in the
Description field.
Remove Select an entry and click Remove to remove a client from the table that’s no longer
connected to your network.
For example, guest A visited your company over a month ago. Guest A used his
cellphone to connect to your Zyxel Device networks. His cellphone was identified
and shown in the Device Insight table. Guest A has left for over a month and you’re
sure he will not return in the near future. You can use the Remove button to remove
his device from this table. Guest A’s device will be identified and shown in the table
again if he connects to your Zyxel Device networks in the future.
Please note that clients that are blocked cannot be removed. Make sure to unblock
clients before you remove them.
Add to block list Select an entry and click Add to block list to stop the selected client from
connecting to the Zyxel Device.
Remove from block list Select an entry and click Remove from block list to allow the selected client to
connect to the Zyxel Device.
Feedback Select an entry and click Feedback to report on a client that is wrongly identified
regarding its Category, Operating System or Type.
# This field is a sequential value, and it is not associated with a specific service.
Status This field displays the status of the clients.
On line ( )- The VPN connection between the client and the Zyxel Device is up.
Off line ( )- The VPN connection between the client and the Zyxel Device is down.
Block ( )- The client is blocked from the connection to the Zyxel Device.
CDR Block ( )- The client’s MAC address is blocked by CDR.
MAC Address This field displays the MAC address of the client.
IP Address This field displays the IP address of the client.
Hostname This field displays the name used to identify this device on the network.
Manufacturer This field displays the manufacturer of the client, such as Apple or Samsung.
Category This field displays the type of the device of the client, such as printer or smart TV.
OS This field displays the operating system of the client.
OS Version This field displays the version of the operating system of the client.
Type This field displays the model names of the client.
First-seen This field displays the time when the client first sends traffic to the Zyxel Device.
Last-seen This field displays the time when the client last sends traffic to the Zyxel Device.
User This field displays the type of user account the client uses. See Section 44.3 on page
931 for more information the user account types.
Auth method This field displays the authentication method that is used to authenticate the client.
TX rate (Kbps) This field displays the transmission rate of the client to which the Zyxel Device is
connected.
RX rate (Kbps) This field displays the reception rate of the client to which the Zyxel Device is
connected.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
181
7.7.1 The Device Insight Edit Screen
Use this screen to edit the description for connected clients. Click Monitor > Network Status > Device
Insight > Edit to display the following screen.
Figure 153 Monitor > Network Status > Device Insight > Edit
The following table describes the labels in this screen.
7.7.2 The Device Insight Feedback Screen
Use this screen to report on clients that are wrongly identified. Click Monitor > Network Status > Device
Insight > Feedback to display the following screen.
Connected to This field displays if the client is connected directly to the Zyxel Device or to an AP
that is connected to the Zyxel Device.
Description This field displays the descriptive name of the client.
Table 40 Monitor > Network Status > Device Insight (continued)
LABEL DESCRIPTION
Table 41 Monitor > Network Status > Device Insight > Edit
LABEL DESCRIPTION
Description Enter a descriptive name for this client. You can use up to 31 characters, spaces and
underscores are allowed.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
182
Figure 154 Monitor > Network Status > Device Insight > Feedback
The following table describes the labels in this screen.
7.8 The Login Users Screen
Use this screen to see a list of users currently logged into the Zyxel Device. To access this screen, click
Monitor > Network Status > Login Users.
Table 42 Monitor > Network Status > Device Insight > Feedback
LABEL DESCRIPTION
Current Device Information
MAC address This field displays the MAC address of the client.
Category This field displays the type of the device of the client, such as printer or smart TV.
Operating System This field displays the operating system of the client.
Type This field displays the model names of the client.
Expect Device Information
Category This field will display the current type of the client device identified by the Zyxel
Device.
If you think it’s wrong, select the type of device you believe is correct from the drop-
down list box. If it is correct, leave it as it is.
Operating System This field will display the current operating system of the client identified by the Zyxel
Device.
If you think it’s wrong, select the operating system you believe is correct from the
drop-down list box. If it is correct, leave it as it is.
Type This field will display the current model name of the client identified by the Zyxel
Device.
If you think it’s wrong, enter the model name you believe is correct. If it is correct,
leave it as it is.
OK Click OK to send your feedback to the Zyxel database.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
183
Figure 155 Monitor > Network Status > Login Users
The following table describes the labels in this screen.
Table 43 Monitor > Network Status > Login Users
LABEL DESCRIPTION
Force Logout Select a user row and click this icon to end a user’s session.
# This field is a sequential value and is not associated with any entry.
User ID This field displays the user name of each user who is currently logged in to the Zyxel
Device.
Reauth/Lease Time This field displays the amount of reauthentication time remaining and the amount of
lease time remaining for each user. See
Section 44.14.1 on page 1052 for more
information on the reauthentication time and lease time.
Session Timeout This field displays the total account of time the account (authenticated by an external
server) can use to log into the Zyxel Device or access the Internet through the Zyxel
Device.
This shows unlimited for an administrator account.
Type This field displays the way the user logged into the Zyxel Device. The user can log into the
Zyxel Device using HTTP, HTTPS, Telnet, SSH, FTP and console.
IP Address This field displays the IP address of the computer used to log in to the Zyxel Device.
Country The Internet Assigned Numbers Authority (IANA) has reserved the following blocks of
Private IPv4 addresses:
• 10.0.0.0 - 10.255.255.255
• 172.16.0.0 - 172.31.255.255
• 192.168.0.0 - 192.168.255.255
• 224.0.0.0 - 239.255.255.255
The Zyxel Device cannot identify a user’s country if the user accessed the Zyxel Device
using one of the private IPv4 addresses listed above. This field will display a hyphen (-).
MAC This field displays the MAC address of the computer used to log into the Zyxel Device.
User Info This field displays the types of user accounts the Zyxel Device uses. If the user type is ext-
user (external user), this field will show its external-group information when you move your
mouse over it.
If the external user matches two external-group objects, both external-group object
names will be shown.
See Section 44.3.1 on page 932 for more information on the user accounts.
Created Date This field displays the date the account was created.
This field displays a hyphen (-) if the account was created on a Zyxel Device with firmware
version earlier than 5.10.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
184
7.9 Dynamic Guest
A dynamic guest account has a dynamically-created user name and password that allows a guest user
to access the Internet or the Zyxel Device’s services in a specified period of time. Multiple dynamic guest
accounts can be automatically generated at one time for guest users by using the web configurator
and the guest-manager account. Guest users can log in with the dynamic accounts when connecting
to an SSID for a specified time unit. Use this screen to look at a list of dynamic guest user accounts on the
Zyxel Device’s local database. To access this screen, click Monitor > Network Status > Dynamic Guest.
Figure 156 Monitor > Network Status > Dynamic Guest
The following table describes the labels in this screen.
Acct. Status For a captive portal login, this field displays the accounting status of the account used to
log into the Zyxel Device.
Accounting-on means accounting is being performed for the user login.
Accounting-off means accounting has stopped for this user login.
A “-” displays if accounting is not enabled for this login.
RADIUS Profile Name This field displays the name of the RADIUS profile used to authenticate the login through
the captive portal. N/A displays for logins that do not use the captive portal and RADIUS
server authentication.
Refresh Click this button to update the information on the screen.
Table 43 Monitor > Network Status > Login Users (continued)
LABEL DESCRIPTION
Table 44 Monitor > Network Status > Dynamic Guest
LABEL DESCRIPTION
Dynamic Guest List
Remove Select an entry and click this button to remove it from the list.
Note: If you delete a valid user account which is in use, the Zyxel Device
ends the user session.
# This field is a sequential value and is not associated with any entry.
Status This field displays whether the dynamic user account is active or not.
Username This field displays the user name of the dynamic user account.
Create Time This field displays when the dynamic user account was created.
Remaining Time This field displays the amount of Internet access time remaining for each dynamic
user account.
Time Period This field displays the duration of Internet access for the dynamic user account.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
185
The following table describes the icons in this screen.
7.10 IGMP Statistics
The Internet Group Management Protocol (IGMP) Statistics is used by Zyxel Device IP hosts to inform
adjacent router about multicast group memberships. It can also be used for one-to-many networking
applications such as online streaming video and gaming, distribution of company newsletters, updating
address book of mobile computer users in the field allowing more efficient use of resources when
supporting these types of applications. Click Monitor > Network Status > IGMP Statistics to open the
following screen.
Expiration Time This field displays the date and time the Internet access becomes invalid. Once the
time allocated to a dynamic account is used up or a dynamic account remains
unused after the expiration time, the account is deleted from the account list.
Quota (T/U/D) This field displays how much data in both directions (Total) or upstream data
(Upload) and downstream data (Download) can be transmitted through the WAN
interface before the Internet access expires.
Remaining Quota This field displays how much more data can be transmitted through the WAN
interface before the Internet access expires.
Bandwidth (U/D) This field displays the maximum upstream (Upload) and downstream (Download)
bandwidth allowed for the dynamic user account in kilobits per second.
Charge This field displays access price per time unit.
Payment Info This field displays the method of payment for each account.
Real Name This field displays the user’s name of the account.
Email This field displays the email address of the account.
Phone Number This displays the user’s phone number.
User Role This field displays the role of the account.
Table 45 Monitor > Network Status > Dynamic Guest Icons
This guest account is un-used.
This guest account is in use and online.
This guest account has been used but is offline now.
This guest account expired.
This guest account has been deleted.
Table 44 Monitor > Network Status > Dynamic Guest (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
186
Figure 157 Monitor > Network Status > IGMP Statistics
The following table describes the labels in this screen.
7.11 The DDNS Status Screen
The DDNS Status screen shows the status of the Zyxel Device’s DDNS domain names. Click Monitor >
Network Status > DDNS Status to open the following screen.
Figure 158 Monitor > Network Status > DDNS Status
Table 46 Monitor > Network Status > IGMP Statistics
LABEL DESCRIPTION
# This field is a sequential value, and it is not associated with a specific I GMP Statistics.
Group This field displays the group of devices in the IGMP.
Source IP This field displays the host source IP information of the IGMP.
Incoming Interface This field displays the incoming interface that’s connected on the IGMP.
Packet Count This field displays the packet size of the data being transferred.
Bytes This field displays the size of the data being transferred in Byes.
Outgoing Interface This field displays the outgoing interface that’s connected on the IGMP.
Refresh Click this button to update the information on the screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
187
The following table describes the labels in this screen.
7.12 IP/MAC Binding
Click Monitor > Network Status > IP/MAC Binding to open the IP/MAC Binding screen. This screen lists the
devices that have received an IP address from Zyxel Device interfaces with IP/MAC binding enabled
and have ever established a session with the Zyxel Device. Devices that have never established a
session with the Zyxel Device do not display in the list.
Figure 159 Monitor > Network Status > IP/MAC Binding
The following table describes the labels in this screen.
Table 47 Monitor > Network Status > DDNS Status
LABEL DESCRIPTION
Update Click this to have the Zyxel Device update the profile to the DDNS server. The Zyxel
Device attempts to resolve the IP address for the domain name.
# This field is a sequential value, and it is not associated with a specific DDNS server.
Profile Name This field displays the descriptive profile name for this entry.
Domain Name This field displays each domain name the Zyxel Device can route.
Effective IP This is the (resolved) IP address of the domain name.
Last Update This shows whether the last attempt to resolve the IP address for the domain name was
successful or not. Updating means the Zyxel Device is currently attempting to resolve the
IP address for the domain name.
Last Update Time This shows when the last attempt to resolve the IP address for the domain name
occurred (in year-month-day hour:minute:second format).
Refresh Click this button to update the information on the screen.
Table 48 Monitor > Network Status > IP/MAC Binding
LABEL DESCRIPTION
Interface Select a Zyxel Device interface that has IP/MAC binding enabled to show to which
devices it has assigned an IP address.
# This field is a sequential value, and it is not associated with a specific IP/MAC binding
entry.
IP Address This is the IP address that the Zyxel Device assigned to a device.
Host Name This field displays the name used to identify this device on the network (the computer
name). The Zyxel Device learns these from the DHCP client requests.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
188
7.13 Cellular Status Screen
This screen displays your mobile broadband connection status. Click Monitor > Network Status > Cellular
Status to display this screen.
Figure 160 Monitor > Network Status > Cellular Status
The following table describes the labels in this screen.
MAC Address This field displays the MAC address to which the IP address is currently assigned.
Last Access This is when the device last established a session with the Zyxel Device through this
interface.
Description This field displays the description of the IP/MAC binding.
Refresh Click this button to update the information on the screen.
Table 48 Monitor > Network Status > IP/MAC Binding (continued)
LABEL DESCRIPTION
Table 49 Monitor > Network Status > Cellular Status
LABEL DESCRIPTION
Refresh Click this button to update the information on the screen.
More Information Click this to display more information on your mobile broadband, such as the signal
strength, IMEA/ESN and IMSI. This is only available when the mobile broadband device
attached and activated on your Zyxel Device. Refer to
Section 7.13.1 on page 190.
# This field is a sequential value, and it is not associated with any interface.
Extension Slot This field displays where the entry’s cellular card is located.
Connected Device This field displays the model name of the cellular card.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
189
Status • No device - no mobile broadband device is connected to the Zyxel Device.
• No Service - no mobile broadband network is available in the area; you cannot
connect to the Internet.
• Limited Service - returned by the service provider in cases where the SIM card is
expired, the user failed to pay for the service and so on; you cannot connect to
the Internet.
• Device detected - displays when you connect a mobile broadband device.
• Device error - a mobile broadband device is connected but there is an error.
• Probe device fail - the Zyxel Device’s test of the mobile broadband device failed.
• Probe device ok - the Zyxel Device’s test of the mobile broadband device
succeeded.
• Init device fail - the Zyxel Device was not able to initialize the mobile broadband
device.
• Init device ok - the Zyxel Device initialized the mobile broadband card.
• Check lock fail - the Zyxel Device’s check of whether or not the mobile
broadband device is locked failed.
• Device locked - the mobile broadband device is locked.
• SIM error - there is a SIM card error on the mobile broadband device.
• SIM locked-PUK - the PUK is locked on the mobile broadband device’s SIM card.
• SIM locked-PIN - the PIN is locked on the mobile broadband device’s SIM card.
• Unlock PUK fail - Your attempt to unlock a WCDMA mobile broadband device’s
PUK failed because you entered an incorrect PUK.
• Unlock PIN fail - Your attempt to unlock a WCDMA mobile broadband device’s
PIN failed because you entered an incorrect PIN.
• Unlock device fail - Your attempt to unlock a CDMA2000 mobile broadband
device failed because you entered an incorrect device code.
• Device unlocked - You entered the correct device code and unlocked a
CDMA2000 mobile broadband device.
• Get dev-info fail - The Zyxel Device cannot get cellular device information.
• Get dev-info ok - The Zyxel Device succeeded in retrieving mobile broadband
device information.
• Searching network - The mobile broadband device is searching for a network.
• Get signal fail - The mobile broadband device cannot get a signal from a network.
• Network found - The mobile broadband device found a network.
• Apply config - The Zyxel Device is applying your configuration to the mobile
broadband device.
• Inactive - The mobile broadband interface is disabled.
• Active - The mobile broadband interface is enabled.
• Incorrect device - The connected mobile broadband device is not compatible
with the Zyxel Device.
• Correct device - The Zyxel Device detected a compatible mobile broadband
device.
• Set band fail - Applying your band selection was not successful.
• Set band ok - The Zyxel Device successfully applied your band selection.
• Set profile fail - Applying your ISP settings was not successful.
• Set profile ok - The Zyxel Device successfully applied your ISP settings.
• PPP fail - The Zyxel Device failed to create a PPP connection for the cellular
interface.
• Need auth-password - You need to enter the password for the mobile broadband
card on the cellular edit screen.
• Device ready - The Zyxel Device successfully applied all of your configuration and
you can use the mobile broadband connection.
Service Provider This displays the name of your network service provider. This shows Limited Service if
the service provider has stopped service to the mobile broadband card. For example
if the bill has not been paid or the account has expired.
Table 49 Monitor > Network Status > Cellular Status (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
190
7.13.1 More Information
This screen displays more information on your mobile broadband, such as the signal strength, IMEA/ESN
and IMSI that helps identify your mobile broadband device and SIM card. Click Monitor > Network Status
> Cellular Status > More Information to display this screen.
Note: This screen is only available when the mobile broadband device is attached to and
activated on the Zyxel Device.
Figure 161 Monitor > Network Status > Cellular Status > More Information
The following table describes the labels in this screen.
Cellular System This field displays what type of cellular network the mobile broadband connection is
using. The network type varies depending on the mobile broadband card you inserted
and could be UMTS, UMTS/HSDPA, GPRS or EDGE when you insert a GSM mobile
broadband card, or 1xRTT, EVDO Rev.0 or EVDO Rev.A when you insert a CDMA
mobile broadband card.
Signal Quality This displays the strength of the signal. The signal strength mainly depends on the
antenna output power and the distance between your Zyxel Device and the service
provider’s base station.
Table 49 Monitor > Network Status > Cellular Status (continued)
LABEL DESCRIPTION
Table 50 Monitor > Network Status > Cellular Status > More Information
LABEL DESCRIPTION
Extension Slot This field displays where the entry’s cellular card is located.
Service Provider This displays the name of your network service provider. This shows Limited Service if the
service provider has stopped service to the mobile broadband card. For example if the
bill has not been paid or the account has expired.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
191
7.14 The UPnP Port Status Screen
Use this screen to look at the NAT port mapping rules that UPnP creates on the Zyxel Device. To access
this screen, click Monitor > Network Status >
UPnP Port Status.
Figure 162 Monitor > Network Status > UPnP Port Status
The following table describes the labels in this screen.
Cellular System This field displays what type of cellular network the mobile broadband connection is
using. The network type varies depending on the mobile broadband card you inserted
and could be UMTS, UMTS/HSDPA, GPRS or EDGE when you insert a GSM mobile
broadband card, or 1xRTT, EVDO Rev.0 or EVDO Rev.A when you insert a CDMA mobile
broadband card.
Signal Strength This is the Signal Quality measured in dBm.
Signal Quality This displays the strength of the signal. The signal strength mainly depends on the
antenna output power and the distance between your Zyxel Device and the service
provider’s base station.
Device Manufacturer This shows the name of the company that produced the mobile broadband device.
Device Model This field displays the model name of the cellular card.
Device Firmware This shows the software version of the mobile broadband device.
Device IMEI/ESN IMEI (International Mobile Equipment Identity) is a 15-digit code in decimal format that
identifies the mobile broadband device.
ESN (Electronic Serial Number) is an 8-digit code in hexadecimal format that identifies
the mobile broadband device.
SIM Card IMSI IMSI (International Mobile Subscriber Identity) is a 15-digit code that identifies the SIM
card.
Table 50 Monitor > Network Status > Cellular Status > More Information (continued)
LABEL DESCRIPTION
Table 51 Monitor > Network Status > UPnP Port Status
LABEL DESCRIPTION
Remove Select an entry and click this button to remove it from the list.
# This is the index number of the UPnP-created NAT mapping rule entry.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
192
7.15 USB Storage Screen
This screen displays information about a connected USB storage device. Click Monitor > Network Status
> USB Storage to display this screen.
Figure 163 Monitor > Network Status > USB Storage
The following table describes the labels in this screen.
Remote Host This field displays the source IP address (on the WAN) of inbound IP packets. Since this is often
a wild-card, the field may be blank.
When the field is blank, the Zyxel Device forwards all traffic sent to the External Port on the
WAN interface to the Internal Client on the Internal Port.
When this field displays an external IP address, the NAT rule has the Zyxel Device forward
inbound packets to the Internal Client from that IP address only.
External Port This field displays the port number that the Zyxel Device “listens” non the WAN port) for
connection requests destined for the NAT rule’s Internal Port and Internal Client. The Zyxel
Device forwards incoming packets (from the WAN) with this port number to the Internal Client
on the Internal Port (on the LAN). If the field displays “0”, the Zyxel Device ignores the Internal
Port value and forwards requests on all external port numbers (that are otherwise unmapped)
to the Internal Client.
Protocol This field displays the protocol of the NAT mapping rule (TCP or UDP).
Internal Port This field displays the port number on the Internal Client to which the Zyxel Device should
forward incoming connection requests.
Internal Client This field displays the DNS host name or IP address of a client on the LAN. Multiple NAT clients
can use a single port simultaneously if the internal client field is set to 255.255.255.255 for UDP
mappings.
Internal Client Type This field displays the type of the client application on the LAN.
Description This field displays a text explanation of the NAT mapping rule.
Delete All Click this to remove all mapping rules from the NAT table.
Refresh Click this button to update the information on the screen.
Table 51 Monitor > Network Status > UPnP Port Status (continued)
LABEL DESCRIPTION
Table 52 Monitor > Network Status > USB Storage
LABEL DESCRIPTION
Device description This is a basic description of the type of USB device.
Usage This field displays how much of the USB storage device’s capacity is currently being
used out of its total capacity and what percentage that makes.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
193
7.16 Ethernet Neighbor Screen
The Ethernet Neighbor screen allows you to view the Zyxel Device’s neighboring devices in one place.
It uses Smart Connect, that is Link Layer Discovery Protocol (LLDP) for discovering and configuring LLDP-
aware devices in the same broadcast domain as the Zyxel Device that you’re logged into using the
web configurator.
LLDP is a layer-2 protocol that allows a network device to advertise its identity and capabilities on the
local network. It also allows the device to maintain and store information from adjacent devices which
are directly connected to the network device. This helps you discover network changes and perform
necessary network reconfiguration and management.
Note: Enable Smart Connect on the System > ZON screen.
See also System > ZON for more information on the Zyxel One Network (ZON) utility that uses the Zyxel
Discovery Protocol (ZDP) for discovering and configuring ZDP-aware Zyxel devices on the same network
as the computer on which the ZON utility is installed.
Click Monitor > Network Status > Ethernet Neighbor to see the following screen
Filesystem This field displays what file system the USB storage device is formatted with. This field
displays Unknown if the file system of the USB storage device is not supported by the
Zyxel Device, such as NTFS.
Speed This field displays the connection speed the USB storage device supports.
Status Ready - you can have the Zyxel Device use the USB storage device.
Click Remove Now to stop the Zyxel Device from using the USB storage device so you
can remove it.
Unused - the connected USB storage device was manually unmounted by using the
Remove Now button or for some reason the Zyxel Device cannot mount it.
Click Use It to have the Zyxel Device mount a connected USB storage device. This
button is grayed out if the file system is not supported (unknown) by the Zyxel Device.
none - no USB storage device is connected.
Detail This field displays any other information the Zyxel Device retrieves from the USB storage
device.
• Deactivated - the use of a USB storage device is disabled (turned off) on the Zyxel
Device.
• OutofSpace - the available disk space is less than the disk space full threshold.
• Mounting - the Zyxel Device is mounting the USB storage device.
• Removing - the Zyxel Device is unmounting the USB storage device.
• none - the USB device is operating normally or not connected.
Table 52 Monitor > Network Status > USB Storage (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
194
Figure 164 Monitor > Network Status > Ethernet Neighbor
The following table describes the fields on the previous screen.
7.17 FQDN Object Screen
Click Monitor > Network Status > FQDN Object to open the FQDN Object screen. View FQDN-to-IP
address mappings cached in this screen. An FQDN is resolved to its IP address using the DNS server
configured on the Zyxel Device. If the Zyxel Device receives a DNS query for an FQDN and the Zyxel
Device has an FQDN cache entry, the Zyxel Device can map the IP address in a DNS response without
having to query a DNS name server. The Zyxel Device updates FQDN-to-IP address mappings when the
TTL (Time To Live) setting expires.
You can configure FQDN objects in Configuration > Object > Address/Geo IP > Address or Configuration
> Object > Address/Geo IP > Address Group.
Table 53 Monitor > Network Status > Ethernet Neighbor
LABEL DESCRIPTION
Local Port (Description) This field displays the port of the Zyxel Device, on which the neighboring device is
discovered.
For Zyxel Devices that support Port Role, if ports 3 to 5 are grouped together and there
is a connection to P5 only, the Zyxel Device will display P3 as the interface port
number (even though there is no connection to that port).
Model Name This field displays the model name of the discovered device.
System Name This field displays the system name of the discovered device.
Firmware Version This field displays the firmware version of the discovered device.
Port (Description) This field displays the first internal port on the discovered device. Internal is an
interface type displayed on the Network > Interface > Ethernet > Edit screen. For
example, if P1 and P2 are WAN, P3 to P5 are LAN, and P6 is DMZ, then Zyxel Device will
display P3 as the first internal interface port number.
For Zyxel Devices that support Port Role, if ports 3 to 5 are grouped together and there
is a connection to P5 only, the Zyxel Device will display P3 as the first internal interface
port number (even though there is no connection to that port).
IP Address This field displays the IP address of the discovered device.
MAC Address This field displays the MAC address of the discovered device.
Refresh Click this button to update the information on the screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
195
FQDN can be used in Security Policy, Policy Route, BWM and Web Authentication profiles as source and
destination criteria. FQDN with a wildcard (for example, *.zyxel.com) can be used in these profiles as
destination criteria only.
Suppose you want to block certain users from going to a website with a dynamically updated IP address
using DDNS. Create an FQDN object for the website in Object > Address, and then create a Security
Policy in Security Policy > Policy Control > Add. Use the FQDN object to identify the website as a
destination, and configure specific users to block. When a user tries to connect to the forbidden
website, the Zyxel Device first checks the IP address - website mapping in response to the DNS query
and then finds the FQDN object match. The Security Policy that has this FQDN object match can then
block the configured users from accessing the website.
Figure 165 Monitor > Network Status > FQDN Object
The following table describes the fields on the previous screen.
Table 54 Monitor > Network Status > FQDN Object
LABEL DESCRIPTION
IPv4 FQDN Object Cache List
You must first configure IPv4 FQDN objects in Configuration > Object > Address/Geo IP in the IPv4 Address
Configuration field.
FQDN Object Select a previously created object from the drop-down list box to display related
FQDN object caches used in DNS queries.
# This is the index number of the FQDN entry.
Name This field displays the name of the selected FQDN object used in DNS queries.
FQDN This field displays a host’s fully qualified domain name.
IP Address This field displays the mapping of the FQDN to an IP address. This is the IP address of a
host.
TTL This field displays the number of seconds the Zyxel Device holds IP address - FQDN
object mapping in its cache. The mapping is updated when the TTL (Time To Live)
setting expires.
IPv6 FQDN Object Cache List
You must first configure IPv6 FQDN objects in Configuration > Object > Address/Geo IP in the IPv6 Address
Configuration field.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
196
7.18 Virtual Server Load Balancing
Virtual server load balancing allows you to distribute incoming connection requests to a virtual server
between multiple real (physical) servers. This helps reduce each server’s workload and to decrease
virtual server response times.
Use this screen to view traffic statistics between a client and a real server. You can then assess if loading
among real servers is balanced. If not, you may need to change the loading algorithm.
Please see Section 13.5 on page 472 for more information on virtual load balancing server.
Click Monitor > Network Status > Virtual Server LB to see the following screen
Figure 166 Monitor > Network Status >Virtual Server LB
FQDN Object Select an object from the drop-down list box to display related IPv6 FQDN object
caches used in DNS queries.
# This is the index number of the IPv6 FQDN entry.
Name This field displays the name of the selected IPv6 FQDN object used in DNS queries.
FQDN This field displays a host’s fully qualified domain name.
IP Address This field displays the mapping of the FQDN to an IPv6 address. This is the IPv6 address
of a host.
TTL This field displays the number of seconds the Zyxel Device holds IP address - FQDN
object mapping in its cache. The mapping is updated when the TTL (Time To Live)
setting expires.
Refresh Click this button to update the information on the screen.
Table 54 Monitor > Network Status > FQDN Object
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
197
The following table describes the labels in this screen.
7.19 AP Information: AP List
The AP Information menu contains AP List, Radio List, Top N APs and Single AP screens. Click Monitor >
Wireless > AP Information to display the AP List screen.
Table 55 Monitor > Network Status > Virtual Server LB
LABEL DESCRIPTION
View Select how to view the virtual server load balancing traffic.
• Traffic/Connections By Packets: This will display this number of connections and the
number of bytes to/from a specific server.
• Traffic/Connections By Rates: This will display this number of connections per second and
the number of bytes per second to/from a specific server.
# This is the index number of a table entry.
Server IP This field displays the IP address of the real server to which the virtual server load balancing
traffic is coming from/going to.
Server Port This field displays the port number on the real server that identifies the service the client
requested.
Status This field displays the result of the health check. If the health check fails, it will display Off-line,
if the health check is OK, it displays On-line.
The following fields display when you choose Traffic/Connections By Packets
Active Connection This field displays the number of active connections between the real server and clients for
the specified service.
Inactive
Connection
This field displays the number of once active, but now idle connections between the real
server and clients for the specified service.
Incoming Packets This field displays the number of packets going to the real server from clients for the specified
service.
Outgoing Packets This field displays the number of packets coming from the real server to clients for the
specified service.
Incoming Bytes This field displays the number of bytes going to the real server from clients for the specified
service.
Outgoing Bytes This field displays the number of bytes coming from the real server to clients for the specified
service.
The following fields display when you choose Traffic/Connections By Rates
Connections/s This field displays the number of connections per second between the real server and clients
for the specified service.
Incoming Packets/s This field displays the number of packets per second going to the real server from clients for
the specified service.
Outgoing Packets/s This field displays the number of packets per second coming from the real server to clients for
the specified service.
Incoming Bytes/s This field displays the number of bytes per second going to the real server from clients for the
specified service.
Outgoing Bytes/s This field displays the number of bytes per second coming from the real server to clients for
the specified service.
Refresh Click this button to update the information on the screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
198
Figure 167 Monitor > Wireless > AP Information > AP List
The following table describes the labels in this screen.
Table 56 Monitor > Wireless > AP Information > AP List
LABEL DESCRIPTION
Filter Click Show Advanced Settings to reveal Filter fields where you can display managed APs by
status, keyword or those managed by the Nebula portal.
AP List Select the type of APs you want to display.
Select All to show all kinds of APs that are currently or used to be connected to the Zyxel
Device.
Select NebulaFlexPRO to show the APs that can work in Nebula cloud management mode.
Status Select the status of APs you want to display.
You can display APs managed by the Zyxel Device according to the following:
• Online All: APs that are online now + APs with configuration conflict + APs with non-
supported features + APs that are now updating firmware
• Online: APs that are online now
• Conflict: APs with configurations in conflict with the Zyxel Device (see More Details)
• Non Support: APs with features not supported by the Zyxel Device (see More Details)
• Updating: APs that are have updated firmware and rebooted
• Offline All: Offline + Offline for Firmware Update
• Offline: The CAPWAP server did not receive keep-alive packets from these APs in the
last 2 minutes (Offline All - Offline for Firmware Update)
• Offline for Firmware Update: APs that were rebooted before updating firmware
• Un-Mgmt: APs that are not managed by the Zyxel Device
Keyword Enter a keyword to display the APs that include it in their AP information, such as model
number, firmware version, MAC address and so on. This field is case-sensitive.
Search Click this to update the list of APs based on the search criteria.
Your search criteria is retained when navigating between screens.
Reset Click this to return the search criteria to the factory defaults and display all currently or
previously connected APs without a filter.
Enable Column
Freeze
Select this to lock the index columns in place while scrolling to the right.
Edit the selected rule Select an AP and click this to change the selected AP’s properties, such as its group, radio,
VLAN and port settings.
Add to Mgmt AP List Select an AP and click this to add the selected AP to the managed AP list.
Reboot device Select one or multiple APs and click this button to force the AP(s) to restart.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
199
Remove the
selected rule
Select one or multiple APs and click this button to remove the AP(s) from the manged AP
list.
Note: If on the Configuration > Wireless > Controller screen you set the
Registration Type to Always Accept, then as soon as you remove an AP
from this list it reconnects.
DCS Now Select one or multiple APs and click this button to use DCS (Dynamic Channel Selection) to
allow the AP to automatically find a less-used channel in an environment where there are
many APs and there may be interference.
Note: You should have enabled DCS in the applied AP radio profile before the
APs can use DCS.
Note: DCS is not supported on the radio which is working in repeater AP mode.
More Information Select an AP and click this to view a daily station count about the selected AP. The count
records station activity on the AP over a consecutive 24 hour period.
Radio Information Select an online AP and click this button to go to the Monitor > Wireless > AP Information >
Radio List screen to view detailed information about the AP’s radios.
Query Controller Log Select one or multiple APs and click this button to go to the Monitor > Log > View Log screen
to view the selected AP’s current log messages.
Nebula Select an AP and click this to open a screen where you can set whether the AP’s IP address
and VLAN settings will be changed when it goes into Nebula cloud management mode.
Note: The AP will be set to Nebula cloud management mode and removed from
the managed AP list right after you click OK.
Upgrade Firmware
Now
Select one or more APs and click this button to update the APs’ firmware version.
Suppression On Select an AP and click this button to enable the AP’s LED suppression mode. All the LEDs of
the AP will turn off after the AP is ready. This button is not available if the selected AP
doesn’t support suppression mode.
Suppression Off Select an AP and click this button to disable the AP’s LED suppression mode. The AP LEDs
stay lit after the AP is ready. This button is not available if the selected AP doesn’t support
suppression mode.
Locator On Select an AP and click this button to run the locator feature. The AP’s Locator LED will start
to blink for 10 minutes by default. It will show the actual location of the AP between several
devices on the network.
# This field is a sequential value, and it is not associated with any entry.
Status This field displays the status of AP.
• Online All: APs that are online now + APs with configuration conflict + APs with non-
supported features + APs that are now updating firmware
• Online: APs that are online now
• Conflict: APs with configurations in conflict with the Zyxel Device (see More Details)
• Non Support: APs with features not supported by the Zyxel Device (see More Details)
• Updating: APs that are have updated firmware and rebooted
• Offline All: Offline + Offline for Firmware Update
• Offline: The CAPWAP server did not receive keep-alive packets from these APs in the
last 2 minutes (Offline All - Offline for Firmware Update)
• Offline for Firmware Update: APs that were rebooted before updating firmware
• Un-Mgmt: APs that are not managed by the Zyxel Device
Description This field displays the AP’s description, which you can configure by selecting the AP’s entry
and clicking the Edit button.
CPU Usage This field displays the CPU Usage of the AP.
Table 56 Monitor > Wireless > AP Information > AP List (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
200
IP Address This field displays the IP address of the AP.
MAC Address This field displays the MAC address of the AP.
Station 2.4G This field displays the number of 2.4G wireless clients connected to the AP.
Station 5G This field displays the number of 5G wireless clients connected to the AP.
Station 6G This field displays the number of 6G wireless clients connected to the AP.
Recent Online Time This displays the most recent time the AP came on-line. N/A displays if the AP has not come
on-line since the Zyxel Device last started up.
Power This field displays the AP’s power status.
Full - the AP receives power using a power adapter and/or through a PoE switch/injector
using IEEE 802.3at PoE plus. The PoE device that supports IEEE 802.3at PoE Plus can supply
power of up to 30W per Ethernet port.
Limited - the AP receives power through a PoE switch/injector using IEEE 802.3af PoE even
when it is also connected to a power source using a power adaptor. The PoE device that
supports IEEE 802.3af PoE can supply power of up to 15.4W per Ethernet port.
When the AP is in limited power mode, the AP throughput decreases and has just one
transmitting radio chain.
It always shows Full if the AP does not support power detection.
Type This indicates whether the AP is on the managed AP list (Mgmt) or not (Un-Mgmt).
This displays Limited when the AP is configured by conflicted or unsupported setting(s).
Model This field displays the AP’s hardware model information. It displays N/A (not applicable) only
when the AP disconnects from the Zyxel Device and the information is unavailable as a
result.
R1 Mode/ Profile/
ZyMesh Profile
This field displays the operating mode (AP, MON, rootap, or repeater), AP radio profile name
and ZyMesh profile name for Radio1. It displays - for the ZyMesh profile for a radio not using
a ZyMesh profile.
R2 Mode/ Profile/
ZyMesh Profile
This field displays the operating mode (AP, MON, rootap, or repeater), AP radio profile name
and ZyMesh profile name for Radio2. It displays - for the ZyMesh profile for a radio not using
a ZyMesh profile.
R3 Mode/ Profile/
ZyMesh Profile
This field displays the operating mode (AP, MON, rootap, or repeater), AP radio profile name
and ZyMesh profile name for Radio3. It displays - for the ZyMesh profile for a radio not using
a ZyMesh profile.
Version This field displays the AP’s current firmware version.
Group This displays the name of the AP group to which the AP belongs.
Mgnt. VLAN ID (AC/
AP)
This displays the Access Controller (the Zyxel Device) and runtime management VLAN ID
setting for the AP. VLAN Conflict displays if the AP’s management VLAN ID does not match
the Mgmnt. VLAN ID(AC). This field displays n/a if the Zyxel Device cannot get VLAN
information from the AP.
Last Off-line Time This field displays the date and time that the AP was last logged out.
Table 56 Monitor > Wireless > AP Information > AP List (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
201
The following table describes the icons in this screen.
LED Status This field displays the AP LED status.
N/A displays if the AP does not support LED suppression mode and/or have a locator LED to
show the actual location of the AP.
A gray LED icon signifies that the AP LED suppression mode is enabled. All the LEDs of the AP
will turn off after the AP is ready.
A green LED icon signifies that the AP LED suppression mode is disabled and the AP LEDs
stay lit after the AP is ready.
A sun icon signifies that the AP’s locator LED is blinking.
A circle signifies that the AP’s locator LED is extinguished.
Ethernet Uplink This field displays the AP’s uplink port speed and duplex mode (Full or Half).
Bluetooth This field displays the AP’s Bluetooth Low Energy (BLE) capability. Bluetooth Low Energy,
which is also known as Bluetooth Smart, transmits less data over a shorter distance and
consumes less power than classic Bluetooth. APs communicate with other BLE enabled
devices using advertisements.
N/A displays if the AP does not support BLE.
Unavailable displays if the AP supports Bluetooth, but there is no BLE USB dongle connected
to the USB port of the AP. Some APs, such as the WAC5302D-S, need to have a supported
BLE USB dongle attached to act as a beacon to broadcast packets.
Available displays if the AP supports Bluetooth, detects a BLE device and advertising is
inactive.
Advertising displays if the AP supports Bluetooth, detects a BLE device and advertising is
activated, which means the BLE device can broadcasts packets to every device around it.
Location This field displays the AP’s location you configured.
Roaming Group This field displays the name of roaming group to which the AP belongs.
Load Balancing
Group
This field displays the AP’s load balance status when load balancing is enabled on the Zyxel
Device. Otherwise, it shows nothing when load balancing is disabled or the radio is in
monitor mode.
S/N This field displays the serial number of the AP.
System Name This field displays the system name to identify the AP on a network.
Apply Click Apply to save your changes back to the Zyxel Device.
Refresh Click Refresh to update the AP list.
Table 57 Monitor > Wireless > AP Information > AP List Icons
LABEL DESCRIPTION
This AP is not on the management list.
This AP is on the management list and online.
This AP is in the process of having its firmware updated.
This AP is on the management list but offline.
This indicates one of the following cases:
• This AP has a runtime management VLAN ID setting that conflicts with the VLAN ID setting on the
Access Controller (the Zyxel Device).
• A setting the Zyxel Device assigns to this AP does not match the AP’s capability.
Table 56 Monitor > Wireless > AP Information > AP List (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
202
7.19.1 AP List: More Information
Use this screen to look at:
• Station statistics for the connected AP.
• Configuration information, port status and station statistics for the connected AP.
To access this screen, select an entry and click the More Information button on the AP List screen.
Figure 168 Monitor > Wireless > AP Information > AP List > More Information
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
203
The following table describes the labels in this screen.
Table 58 Monitor > Wireless > AP Information > AP List > More Information
LABEL DESCRIPTION
Configuration
Status
This displays whether or not any of the AP’s configuration is in conflict with the Zyxel Device’s
settings for the AP.
Conflict If any of the AP’s configuration conflicts with the ZyWALL’s settings for the AP, this field displays
which configuration conflicts. It displays n/a if none of the AP’s configuration conflicts with
the ZyWALL’s settings for the AP.
Non Support If any of the AP’s configuration conflicts with the Zyxel Device’s settings for the AP, this field
displays which configuration conflicts. It displays n/a if none of the AP’s configuration
conflicts with the Zyxel Device’s settings for the AP.
Port Status
Port This shows the name of the physical Ethernet port on the Zyxel Device.
Status This field displays the current status of each physical port on the AP.
Down - The port is not connected.
Speed / Duplex - The port is connected. This field displays the port speed and duplex setting
(Full or Half).
PVID This shows the port’s PVID.
A PVID (Port VLAN ID) is a tag that adds to incoming untagged frames received on a port so
that the frames are forwarded to the VLAN group that the tag defines.
Up Time This field displays how long the physical port has been connected.
Tx Bcast This field displays the number of broadcast packets transmitted on the port.
Rx Bcast This field displays the number of broadcast packets received on the port.
VLAN
Configuration
Name This shows the name of the VLAN.
Status This displays whether or not the VLAN is activated.
VID This shows the VLAN ID number.
Member This field displays the Ethernet port(s) that is a member of this VLAN.
Ethernet Neighbor
Local Port
(Description)
This field displays the port of the Zyxel Device, on which the neighboring device is discovered.
For Zyxel Devices that support Port Role, if ports 3 to 5 are grouped together and there is a
connection to P5 only, the Zyxel Device will display P3 as the interface port number (even
though there is no connection to that port).
Model Name This field displays the model name of the discovered device.
System Name This field displays the system name of the discovered device.
Firmware
Version
This field displays the firmware version of the discovered device.
Port
(Description)
This field displays the first internal port on the discovered device. Internal is an interface type
displayed on the Network > Interface > Ethernet > Edit screen. For example, if P1 and P2 are
WAN, P3 to P5 are LAN, and P6 is DMZ, then Zyxel Device will display P3 as the first internal
interface port number.
For Zyxel Devices that support Port Role, if ports 3 to 5 are grouped together and there is a
connection to P5 only, the Zyxel Device will display P3 as the first internal interface port
number (even though there is no connection to that port).
IP Address This field displays the IP address of the discovered device.
MAC Address This field displays the MAC address of the discovered device.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
204
7.19.2 AP List: Edit AP
Select an AP and click the Edit Selected Rule button in the Monitor > Wireless > AP Information > AP List
table to display this screen.
Figure 169 Monitor > Wireless > AP Information > AP List > Edit AP
Station Count
The y-axis represents the number of connected stations.
The x-axis shows the time over which a station was connected.
Last Update This field displays the date and time the information in the window was last updated.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 58 Monitor > Wireless > AP Information > AP List > More Information (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
205
Figure 170 Monitor > Wireless > AP Information > AP List > Edit AP (continued)
Each field is described in the following table.
Table 59 Monitor > Wireless > AP Information > AP List > Edit AP
LABEL DESCRIPTION
Create new Object Use this menu to create a new Radio Profile object to associate with this AP.
MAC This displays the MAC address of the selected AP.
Model This field displays the AP’s hardware model information. It displays N/A (not applicable) only
when the AP disconnects from the Zyxel Device and the information is unavailable as a
result.
Description Enter a description for this AP. You can use up to 31 characters, spaces and underscores
allowed.
Group Setting Select an AP group to which you want this AP to belong.
System Name Enter a name to identify the AP on a network. This is usually the AP’s fully qualified domain
name.
Location Specify the name of the place where the AP is located.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
206
Roaming Group Specify the name of the roaming group to which the AP belongs. You can use up to 31
alphanumeric and @# characters. Dashes and underscores are also allowed. The name
should start with a letter or digit.
The 802.11k neighbor list a client requests from the AP is generated according to the
roaming group and RCPI (Received Channel Power Indicator) value of its neighbor APs.
When a client wants to roam from the current AP to another, other APs in the same roaming
group or not in a roaming group will be candidates for roaming. Neighbor APs in a different
roaming group will be excluded from the 802.11k neighbor lists even when the neighbor AP
has the best signal strength.
If the AP’s roaming group is not configured, any neighbor APs can be candidates for
roaming.
Load Balancing
Group 1/2
Load balancing is only applied to APs within the same group. If a load balancing group is
not assigned to an AP, it will belong to a default group.
Each AP can belong to up to two groups.
Radio 1/2/3 Setting
Override Group
Radio Setting
Select this option to overwrite the AP radio settings with the settings you configure here.
Radio 1/2/3 OP
Mode
Select the operating mode for radio 1, radio 2 or radio 3.
AP Mode means the AP can receive connections from wireless clients and pass their data
traffic through to the Zyxel Device to be managed (or subsequently passed on to an
upstream gateway for managing).
MON Mode means the AP monitors the broadcast area for other APs, then passes their
information on to the Zyxel Device where it can be determined if those APs are friendly or
rogue. If an AP is set to this mode it cannot receive connections from wireless clients.
Radio 1/2/3 Profile Select a profile from the list. If no profile exists, you can create a new one through the
Create new Object menu.
Override Group
Output Power
Setting
Select this option to overwrite the AP output power setting with the setting you configure
here.
Output Power Set the output power of the AP.
Override Group SSID
Setting
Select this option to overwrite the AP SSID profile setting with the setting you configure here.
This section allows you to associate an SSID profile with the radio.
Edit Select an SSID and click this button to reassign it. The selected SSID becomes editable
immediately upon clicking.
# This is the index number of the SSID profile. You can associate up to eight SSID profiles with
an AP radio.
SSID Profile Indicates which SSID profile is associated with this radio profile.
IP Setting
Force Overwrite IP
Setting
Select this to change the AP’s IP address setting to match the configuration in this screen.
Get Automatically Select this to have the AP act as a DHCP client and automatically get the IP address,
subnet mask, and gateway address from a DHCP server.
Used Fixed IP
Address
Select this if you want to specify the IP address, subnet mask, gateway and DNS server
address manually.
IP Address Enter the IP address for the AP.
Subnet Mask Enter the subnet mask of the AP in dot decimal notation. The subnet mask indicates what
part of the IP address is the same for all devices in the network.
Table 59 Monitor > Wireless > AP Information > AP List > Edit AP (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
207
Gateway Enter the IP address of the gateway. The AP sends packets to the gateway when it does not
know how to route the packet to its destination. The gateway should be on the same
network as the AP.
DNS Server IP
Address
Enter the IP address of the DNS server.
VLAN Settings
Override Group
VLAN Setting
Select this option to overwrite the AP VLAN setting with the setting you configure here.
Force Overwrite
VLAN Config
Select this to have the Zyxel Device change the AP’s management VLAN to match the
configuration in this screen.
Management
VLAN ID
Enter a VLAN ID for this AP.
As Native VLAN Select this option to treat this VLAN ID as a VLAN created on the Zyxel Device and not one
assigned to it from outside the network.
Storm Control Setting Traffic storm control limits the number of broadcast and/or multicast packets the Zyxel
Device receives on the ports. When the maximum number of allowable broadcast and/or
multicast packets is reached, the subsequent packets are discarded.
Select Broadcast Storm Control to enable broadcast storm control on the Zyxel Device.
Enabling this will drop ingress broadcast traffic in the physical Ethernet port if it exceeds the
maximum traffic rate.
Select Multicast Storm Control to enable multicast storm control on the Zyxel Device.
Enabling this will drop ingress multicast traffic in the physical Ethernet port if it exceeds the
maximum traffic rate.
Rogue AP Detection
Setting
This feature allows the Zyxel Device to monitor the WiFi signals for other wireless APs. A rogue
AP is a wireless access point operating in a network’s coverage area that is not under the
control of the network administrator, and which can potentially open up holes in a
network’s security.
Select this check box to detect Rogue APs in the network.
Antenna Setting Select Wall if you mount the Zyxel Device to a wall. Select Ceiling if the Zyxel Device is
mounted on a ceiling. You can switch from Wall to Ceiling if there are still wireless dead
zones, and vice versa.
LED Suppression
Mode Configuration
If the Suppression On check box is checked, the LEDs of yourZyxel Device will turn off after
it’s ready.
If the check box is unchecked, the LEDs will stay lit after theZyxel Device is ready.
Power Setting Select this check box if you are using a PoE injector that does not support PoE negotiation.
Otherwise, the Zyxel Device cannot draw full power from the power sourcing equipment.
Enable this power mode to improve the Zyxel Device’s performance in this situation.
Note: Ensure that the power sourcing equipment can supply enough power to
the AP to avoid abnormal system reboots.
Note: Only enable this if you are using a passive PoE injector that is not IEEE
802.3at/bt compliant but can still provide full power.
Locator LED
Configuration
Click Turn On button to activate the locator. The Locator function will show the actual
location of the Zyxel Device between several devices in the network.
Otherwise, click Turn Off to disable the locator feature.
Automatically
Extinguish After
Enter a time interval between 1 and 60 minutes to stop the locator LED from blinking.
Default is 10 minutes.
Reset AP
Configuration
Click Apply Factory Default to reset all of the AP settings to the factory defaults.
Table 59 Monitor > Wireless > AP Information > AP List > Edit AP (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
208
7.20 AP Information: Radio List
Click Monitor > Wireless > AP Information > Radio List to display the Radio List screen.
Figure 171 Monitor > Wireless > AP Information > Radio List
Figure 172 Monitor > Wireless > AP Information > Radio List (Built-in AP Mode)
The following table describes the labels in this screen.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to close the window with changes unsaved.
Table 59 Monitor > Wireless > AP Information > AP List > Edit AP (continued)
LABEL DESCRIPTION
Table 60 Monitor > Wireless > AP Information > Radio List
LABEL DESCRIPTION
More Information Click this icon to see the traffic statistics, station count, SSID, Security Mode and
VLAN ID information on the AP.
Enable Column Freeze Select this to lock the index columns in place while scrolling to the right.
# This field is a sequential value, and it is not associated with a specific radio.
Loading This indicates the AP’s load balance status (UnderLoad or OverLoad) when load
balancing is enabled on the AP. Otherwise, it shows - when load balancing is
disabled or the radio is in monitor mode.
AP Description Enter a description for this AP. You can use up to 31 characters, spaces and
underscores allowed.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
209
Frequency Band This field displays the WLAN frequency band using the IEEE 802.11 a/b/g/n standard
of 2.4 or 5 GHz.
Channel ID This field displays the WLAN channels using the IEEE 802.11 protocols.
Tx Power This shows the radio’s output power (in dBm).
Station This field displays the station count information.
Rx This field displays the total number of bytes received by the radio.
Tx This field displays the total number of bytes transmitted by the radio.
Model This field displays the AP’s hardware model information. It displays N/A (not
applicable) only when the AP disconnects from the Zyxel Device and the
information is unavailable as a result.
MAC Address This field displays the MAC address of the AP.
Radio This field displays the Radio number. For example 1.
OP Mode This field displays the operating mode of the AP. It displays n/a for the profile for a
radio not using an AP profile.
AP Mode means the AP can receive connections from wireless clients and pass their
data traffic through to the Zyxel Device to be managed (or subsequently passed on
to an upstream gateway for managing).
Table 60 Monitor > Wireless > AP Information > Radio List
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
210
7.20.1 Radio List: More Information
This screen allows you to view detailed information about a selected radio’s SSID(s), wireless traffic and
wireless clients for the preceding 24 hours. To access this window, select an entry and click the More
Information button on the Radio List screen.
Figure 173 Monitor > Wireless > AP Information > Radio List > More Information
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
211
The following table describes the labels in this screen.
7.21 AP Information: Built-in AP
Use this screen to display the number of wireless clients connected to the built-in AP and their WiFi
usage. Click Monitor > Wireless > AP Information > Built-in AP to display this screen.
Table 61 Monitor > Wireless > AP Information > Radio List > More Information
LABEL DESCRIPTION
MBSSID Detail This list shows information about the SSID(s) that is associated with the radio over the
preceding 24 hours.
# This is the items sequential number in the list. It has no bearing on the actual data in
this list.
SSID Name This displays an SSID associated with this radio. There can be up to eight maximum.
BSSID This displays the MAC address associated with the SSID.
Security Mode This displays the security mode in which the SSID is operating.
Forwarding Mode This field indicates the forwarding mode (Local Bridge or Tunnel) associated with the
SSID profile.
VLAN This displays the VLAN ID associated with the SSID.
Traffic Statistics This graph displays the overall traffic information about the radio over the preceding
24 hours.
y-axis This axis represents the amount of data moved across this radio in megabytes per
second.
x-axis This axis represents the amount of time over which the data moved across this radio.
Station Count This graph displays information about all the wireless clients that have connected to
the radio over the preceding 24 hours.
y-axis The y-axis represents the number of connected wireless clients.
x-axis The x-axis shows the time over which a wireless client was connected.
Last Update This field displays the date and time the information in the window was last updated.
OK Click this to close this window.
Cancel Click this to close this window.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
212
Figure 174 Monitor > Wireless > AP Information > Built-in AP
The following table describes the labels in this screen.
7.22 AP Information: Top N APs
Use this screen to view the top five or top ten wireless traffic usage and associated wireless stations for
the preceding 24 hours. Click Monitor > Wireless > AP Information > Top N APs to display the Top N APs
screen.
Table 62 Monitor > Wireless > AP Information > Built-in AP
LABEL DESCRIPTION
Single Station Status
Usage by Select the measure unit in GB or MB to display the graph.
Traffic Usage This graph displays traffic in the preceding 24 hours.
y-axis The y-axis represents the amount of traffic in megabytes/gigabytes.
x-axis The x-axis represents the time over which wireless traffic flows transmitting from/to
the AP.
Station Count This graph displays the number of wireless stations that have connected to the AP in
the preceding 24 hours.
y-axis The y-axis represents the number of connected wireless stations.
x-axis The x-axis represents the time over which a wireless client was connected.
Refresh Click Refresh to update this screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
213
Figure 175 Monitor > Wireless > AP Information > Top N APs
The following table describes the labels in this screen.
7.23 AP Information: Single AP
Use this screen to view wireless traffic usage and wireless stations for a managed AP. Click Monitor >
Wireless > AP Information > Single AP to display the Single AP screen.
Table 63 Monitor > Wireless > AP Information > Top N APs
LABEL DESCRIPTION
View Select this to view the top five or top ten wireless traffic for the preceding 24 hours.
Usage by If you view the data usage by Usage, select the frequency band and the measure
unit in GB or MB to display the graph.
If you view the date usage by Station Number, select the measure unit in GB or MB to
display the graph.
Traffic Usage This graph displays the overall traffic information about the top five or top ten
wireless traffic for the preceding 24 hours.
y-axis The y-axis represents the amount of traffic in megabytes/gigabytes.
x-axis The x-axis represents the time over which wireless traffic flows transmitting from/to
the AP.
Station Count This graph displays information about all the wireless stations that have connected
to the AP for the preceding 24 hours.
y-axis The y-axis represents the number of connected wireless stations.
x-axis The x-axis represents the time over which a wireless client was connected.
Refresh Click Refresh to update this screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
214
Figure 176 Monitor > Wireless > AP Information > Single AP
The following table describes the labels in this screen.
7.24 ZyMesh
Use this screen to view the ZyMesh traffic statistics between the managed APs. Click Monitor > Wireless >
ZyMesh to display this screen.
Table 64 Monitor > Wireless > AP Information > Single AP
LABEL DESCRIPTION
AP Selection Select a managed AP from the drop-down list box to view its wireless traffic usage
and wireless stations.
Usage by Select the measure unit in GB or MB to display the graph.
Traffic Usage This graph displays the overall traffic information about the AP you specified for the
preceding 24 hours.
y-axis The y-axis represents the amount of traffic in megabytes/gigabytes.
x-axis The x-axis represents the time over which wireless traffic flows transmitting from/to
the AP.
Station Count This graph displays information about all the wireless stations that have connected
to the AP for the preceding 24 hours.
y-axis The y-axis represents the number of connected wireless stations.
x-axis The x-axis represents the time over which a wireless client was connected.
Refresh Click Refresh to update this screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
215
Figure 177 Monitor > Wireless > ZyMesh
The following table describes the labels in this screen.
7.25 SSID Info
Use this screen to view the number of wireless clients currently connected to an SSID and the security
type used by the SSID. Click Monitor > Wireless > SSID Info to display this screen.
Table 65 Monitor > Wireless > ZyMesh
LABEL DESCRIPTION
# This field displays the index number of the managed AP (in repeater mode) in this list.
Description This field displays the descriptive name of the managed AP (in repeater mode).
IP Address This field displays the IP address of the managed AP (in repeater mode).
Channel ID This field displays the number of the channel used by the managed AP (in repeater
mode).
Hop This is the hop count of the managed AP. For example, “1” means the managed AP
is connected to a root AP directly. “2” means there is another repeater AP between
the managed AP and the root AP.
Uplink AP Info This shows the role and descriptive name of the managed AP to which this
managed AP is connected wirelessly.
SSID Name This indicates the name of the wireless network (SSID) the managed AP uses to
associated with another managed AP.
Signal Strength Before the slash, this shows the signal strength the uplink AP (a root AP or a repeater)
receives from this managed AP (in repeater mode).
After the slash, this shows the signal strength this managed AP (in repeater mode)
receives from the uplink AP.
Link Up Time This field displays the time the managed AP first associated with the root AP or
repeater.
MAC Address This field displays the MAC address of the managed AP (in repeater mode).
Tx Power This field displays the output power of the managed AP (in repeater mode).
Root AP This field displays the descriptive name of the root AP to which the managed AP is
connected wirelessly.
Tx Rate This field displays the maximum transmission rate of the root AP or repeater to which
the managed AP is connected.
Rx Rate This field displays the maximum reception rate of the root AP or repeater to which
the managed AP is connected.
Refresh Click Refresh to update this screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
216
Figure 178 Monitor > Wireless > SSID Info
The following table describes the labels in this screen.
7.26 Station Info: Station List
The Station Info menu contains Station List, Top N Stations and Single Station screens. This screen displays
information about connected wireless stations. Click Monitor > Wireless > Station Info > Station List to
display this screen.
Table 66 Monitor > Wireless > SSID Info
LABEL DESCRIPTION
# This is the SSID’s index number in this list.
SSID This indicates the name of the wireless network to which the client is connected. A
single AP can have multiple SSIDs or networks.
2.4GHz This shows the number of wireless clients which are currently connected to the SSID
using the 2.4 GHz frequency band, Click the number to go to the Station Info >
Station List screen. See
Section 7.27 on page 218.
5GHz This shows the number of wireless clients which are currently connected to the SSID
using the 5 GHz frequency band, Click the number to go to the Station Info > Station
List screen. See
Section 7.27 on page 218.
6GHz This shows the number of wireless clients which are currently connected to the SSID
using the 6 GHz frequency band, Click the number to go to the Station Info > Station
List screen. See
Section 7.27 on page 218.
SSID Profile Name This indicates the name of the SSID profile in which the SSID is defined,
Security Mode This indicates which secure encryption methods is being used by the SSID.
Refresh Click Refresh to update this screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
217
Figure 179 Monitor > Wireless > Station Info > Station List
The following table describes the labels in this screen.
Table 67 Monitor > Wireless > Station Info > Station List
LABEL DESCRIPTION
Hide/Show Advanced
Settings
Click this button to display a greater or lesser number of configuration fields.
Show Filter/ Hide Filer Click this button to show or hide the filter settings.
Filter
IP Address Enter the IP address of the station you want to display. This field is case-sensitive.
Associated AP Select the AP(s) with which the stations you want to display associate.
SSID Name Select the SSID(s) to which the stations you want to display are connected.
MAC Address Enter the MAC address of the station you want to display. This field is case-sensitive.
Security Mode Select the security mode(s) used by the stations you want to display.
Account Enter the user account name of the station you want to display. This field is case-
sensitive.
Login Type Select the login method(s) used by the stations you want to display.
Band Select the frequency band used by the stations you want to display.
Search Click this to update the list of stations based on the search criteria.
Your search criteria is retained when navigating between screens.
Reset Click this to return the search criteria to the factory defaults and display all
connected stations without a filter.
Enable Column Freeze Select this to lock the index columns in place while scrolling to the right.
Station List
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
218
7.27 Station Info: Top N Stations
Use this screen to view the top five or top ten traffic statistics of the wireless stations. Click Monitor >
Wireless > Station Info > Top N Stations to display this screen.
# This field is a sequential value, and it is not associated with a specific station.
MAC Address This field displays the MAC address of the station.
SSID Name This field displays the SSID names of the station.
Associated AP This field displays the APs that are associated with the station.
IP Address This field displays the IP address of the station.
Channel This field displays the number of the channel used by the station to connect to the
network.
Rx Rate This field displays the receive data rate of the station.
Tx Rate This field displays the transmit data rate of the station.
Signal Strength This field displays the signal strength of the station.
Association Time This field displays the time duration the station was online and offline.
Enterprise This field displays the RADIUS server of the station.
Captive Portal This displays whether the station logged into the network through the captive portal
login page.
MAC Auth This displays whether the station logged into the network through MAC
authentication.
Band This field displays the frequency band which is currently being used by the station.
Capability This displays the supported standard currently being used by the station or the
standards supported by the station.
802.11 Features This displays whether the station supports IEEE802.11r, IEEE 802.11k, IEEE 802.11v or
none of the above (N/A).
Security Mode This field displays the security mode the station is using.
Download This field displays the number of bytes received by the station.
Upload This field displays the number of bytes transmitted from the station.
Refresh Click Refresh to update this screen.
Table 67 Monitor > Wireless > Station Info > Station List (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
219
Figure 180 Monitor > Wireless > Station Info > Top N Stations
The following table describes the labels in this screen.
7.28 Station Info: Single Station
Use this screen to view traffic statistics of the wireless station you specified. Click Monitor > Wireless >
Station Info > Single Station to display this screen.
Table 68 Monitor > Wireless > Station Info > Top N Stations
LABEL DESCRIPTION
View Select this to view the top five or top ten traffic statistics of the wireless stations.
Usage by Select the measure unit in GB or MB to display the graph.
Traffic Usage This graph displays the overall traffic information about the stations for the preceding
24 hours.
y-axis This axis represents the amount of data moved across stations in megabytes per
second.
Refresh Click Refresh to update this screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
220
Figure 181 Monitor > Wireless > Station Info > Single Station
The following table describes the labels in this screen.
7.29 Detected Device
Use this screen to view information about wireless devices detected by the AP. Click Monitor > Wireless >
Detected Device to access this screen.
Note: At least one radio of the APs connected to the Zyxel Device must be set to monitor
mode (on the Configuration > Wireless > AP Management screen) in order to detect
other wireless devices in its vicinity.
Table 69 Monitor > Wireless > Station Info > Single Station
LABEL DESCRIPTION
Station Selection Select this to view the traffic statistics of the wireless station.
Usage by Select the measure unit in GB or MB to display the graph.
Traffic Usage This graph displays the overall traffic information about the station over the
preceding 24 hours.
y-axis This axis represents the amount of data moved across this station in megabytes per
second.
Refresh Click Refresh to update this screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
221
Figure 182 Monitor > Wireless > Detected Device
The following table describes the labels in this screen.
Table 70 Monitor > Wireless > Detected Device
LABEL DESCRIPTION
Discovered APs
Rogue AP This shows how many devices are detected as rogue APs.
Suspected rogue AP This shows how many devices are detected as possible rogue APs.
Friendly AP This shows how many devices are detected as friendly APs.
Un-Classified AP This shows how many devices are detected, but have not been classified as either
Rogue or Friendly by the Zyxel Device.
Detect now Click this button for the Zyxel Device to scan for APs in the network.
Mark as Rogue AP Click this button to mark the selected AP as a rogue AP. A rogue AP can be
contained on the Configuration > Wireless > MON Mode screen.
Mark as Friendly AP Click this button to mark the selected AP as a friendly AP. For more on managing
friendly APs, see the Configuration > Wireless > MON Mode screen.
# This is the station’s index number in this list.
Role This indicates the detected device’s role (such as friendly or rogue).
Classified by This indicates the detected device’s classification rule.
MAC Address This indicates the detected device’s MAC address.
SSID Name This indicates the detected device’s SSID.
Channel ID This indicates the detected device’s channel ID.
802.11 Mode This indicates the 802.11 mode (a/b/g/n) transmitted by the detected device.
Security This indicates the encryption method (if any) used by the detected device.
Seen by This indicates which AP detects the device.
If an AP in monitor mode detected this AP, this column will show “N/A”.
If an AP using Rogue AP Detection detected this device, it will show the name of the
AP and the signal strength from the detected device. If the wireless device is
detected by more than one AP, only the top 5 APs with the highest signal strength
will be shown.
Group This indicates which group the detected device belongs.
Description This displays the detected device’s description. For more on managing friendly and
rogue APs, see the Configuration > Wireless > MON Mode screen.
Last Seen This indicates the last time the device was detected by the Zyxel Device.
Refresh Click this to refresh the items displayed on this page.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
222
7.30 Wireless Health
Use this screen to view the health or wireless networks for your APs and connected wireless clients. Click
Monitor > Wireless > Wireless Health to access this screen.
Figure 183 Monitor > Wireless > Wireless Health
The following table describes the labels in this screen.
Table 71 Monitor > Wireless > Wireless Health
LABEL DESCRIPTION
Top 10 Alert Count This chart shows the top 10 APs that are in poor states of wireless health for the most
times.
Date This field shows the current date in theZyxel Device.
Radio Alert Count Select 2.4G, 5G or 6G to view the APs 2.4G, 5G or 6G radios wireless health.
y-axis The y-axis represents the state of wireless health.
x-axis The x-axis shows the time period over which the APs health states are recorded.
Station Alert Count This chart shows how many times the client is in a poor state or wireless health.
y-axis The y-axis represents the state of wireless health.
x-axis The x-axis shows the time period over which the client health state is recorded.
Refresh Click this to refresh the items displayed on this page.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
223
7.31 The Printer Status Screen
This screen displays information about the connected statement printer. Click Monitor > Printer Status to
display this screen.
Figure 184 Monitor > Printer Status
The following table describes the labels in this screen.
7.32 The IPSec Screen
You can use the IPSec screen to display and to manage active IPSec SAs. To access this screen, click
Monitor > VPN Monitor > IPSec. The following screen appears. Click a column’s heading cell to sort the
table entries by that column’s criteria. Click the heading cell again to reverse the sort order.
Table 72 Monitor > Printer Status
LABEL DESCRIPTION
# This is the index number of the printer in the list.
IPv4 Address This field displays the IP address of the printer that you configured in the screen.
Update Time This field displays the date and time the Zyxel Device last synchronized with the printer.
This shows n/a when the printer status is sync fail.
Status This field displays whether the Zyxel Device can connect to the printer and update the printer
information.
Description This field displays the descriptive name of the printer that you configured in the screen.
Nickname This field displays the nickname of the printer that you configured in the Edit screen.
Firmware Version This field displays the model number and firmware version of the printer.
This shows n/a when the printer status is sync fail.
MAC This field displays the MAC address of the printer.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
224
Figure 185 Monitor > VPN Monitor > IPSec
Each field is described in the following table.
Table 73 Monitor > VPN Monitor > IPSec
LABEL DESCRIPTION
Name Enter the name of a IPSec SA here and click Search to find it (if it is associated). You
can use a keyword or regular expression. Use up to 30 alphanumeric and _+-
.()!$*^:?|{}[]<>/ characters. See
Section 7.32.1 on page 225 for more details.
Policy Enter the IP address(es) or names of the local and remote policies for an IPSec SA
and click Search to find it. You can use a keyword or regular expression. Use up to 30
alphanumeric and _+-.()!$*^:?|{}[]<>/ characters. See
Section 7.32.1 on page 225
for more details.
Search Click this button to search for an IPSec SA that matches the information you
specified above.
Disconnect Select an IPSec SA and click this button to disconnect it.
Connection Check Select an IPSec SA and click this button to check the connection.
# This field is a sequential value, and it is not associated with a specific SA.
User This field only displays the client names if they’re using EAP or X-auth for
authentication.
If a client is connected to the Zyxel Device without using Extended Authentication
Protocol (EAP) or X-Auth, this field will be empty.
Serial Number This field displays the serial number of this Zyxel Device.
System Name This field displays the name used to identify the Zyxel Device.
Name This field displays the name of the IPSec SA.
Policy This field displays the content of the local and remote policies for this IPSec SA. The IP
addresses, not the address objects, are displayed.
My Address This field displays the IP address of local computer.
Secure Gateway This field displays the secure gateway information.
Up Time This field displays how many seconds the IPSec SA has been active. This field displays
N/A if the IPSec SA uses manual keys.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
225
7.32.1 Regular Expressions in Searching IPSec SAs
A question mark (?) lets a single character in the VPN connection or policy name vary. For example, use
“a?c” (without the quotation marks) to specify abc, acc and so on.
Wildcards (*) let multiple VPN connection or policy names match the pattern. For example, use “*abc”
(without the quotation marks) to specify any VPN connection or policy name that ends with “abc”. A
VPN connection named “testabc” would match. There could be any number (of any type) of
characters in front of the “abc” at the end and the VPN connection or policy name would still match. A
VPN connection or policy name named “testacc” for example would not match.
A * in the middle of a VPN connection or policy name has the Zyxel Device check the beginning and
end and ignore the middle. For example, with “abc*123”, any VPN connection or policy name starting
with “abc” and ending in “123” matches, no matter how many characters are in between.
The whole VPN connection or policy name has to match if you do not use a question mark or asterisk.
7.33 The SSL Screen
The Zyxel Device keeps track of the users who are currently logged into the VPN SSL client. Click Monitor
> VPN Monitor > SSL to display the user list.
Use this screen to do the following:
• View a list of active SSL VPN connections.
• Log out individual users and delete related session information.
Once a user logs out, the corresponding entry is removed from the screen.
Figure 186 Monitor > VPN Monitor > SSL
Timeout This field displays how many seconds remain in the SA life time, before the Zyxel
Device automatically disconnects the IPSec SA. This field displays N/A if the IPSec SA
uses manual keys.
Inbound (Bytes) This field displays the amount of traffic that has gone through the IPSec SA from the
remote IPSec router to the Zyxel Device since the IPSec SA was established.
Outbound (Bytes) This field displays the amount of traffic that has gone through the IPSec SA from the
Zyxel Device to the remote IPSec router since the IPSec SA was established.
Table 73 Monitor > VPN Monitor > IPSec (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
226
The following table describes the labels in this screen.
7.34 The L2TP over IPSec Screen
Click Monitor > VPN Monitor > L2TP over IPSec to open the following screen. Use this screen to display
and manage the Zyxel Device’s connected L2TP VPN sessions.
Figure 187 Monitor > VPN Monitor > L2TP over IPSec
The following table describes the fields in this screen.
Table 74 Monitor > VPN Monitor > SSL
LABEL DESCRIPTION
Disconnect Select a connection and click this button to terminate the user’s connection and delete
corresponding session information from the Zyxel Device.
Refresh Click Refresh to update this screen.
# This field is a sequential value, and it is not associated with a specific SSL.
User This field displays the account user name used to establish this SSL VPN connection.
Access This field displays the name of the SSL VPN application the user is accessing.
Login Address This field displays the IP address the user used to establish this SSL VPN connection.
Connected Time This field displays the time this connection was established.
Inbound (Bytes) This field displays the number of bytes received by the Zyxel Device on this connection.
Outbound (Bytes) This field displays the number of bytes transmitted by the Zyxel Device on this
connection.
Table 75 Monitor > VPN Monitor > L2TP over IPSec
LABEL DESCRIPTION
Disconnect Select a connection and click this button to disconnect it.
Refresh Click Refresh to update this screen.
# This field is a sequential value, and it is not associated with a specific L2TP VPN session.
User Name This field displays the remote user’s user name.
Hostname This field displays the name of the computer that has this L2TP VPN connection with the
Zyxel Device.
Assigned IP This field displays the IP address that the Zyxel Device assigned for the remote user’s
computer to use within the L2TP VPN tunnel.
Public IP This field displays the public IP address that the remote user is using to connect to the
Internet.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
227
7.35 The Remote AP VPN Screen
You can use the Remote AP VPN Monitor screen to display and to manage active remote AP. Remote
AP enables the Zyxel Device to connect to an Access Point (AP) through a secure VPN tunnel. See
Chapter 23 on page 574 for more information. To access this screen, click Monitor > VPN Monitor >
Remote AP VPN. The following screen appears. Click a column’s heading cell to sort the table entries by
that column’s criteria. Click the heading cell again to reverse the sort order.
Figure 188 Monitor > VPN Monitor > Remote AP VPN
Each field is described in the following table.
Table 76 Monitor > VPN Monitor > Remote AP VPN
LABEL DESCRIPTION
Name Enter the name of a remote AP here and click Search to find it (if it is associated).
You can use a keyword or regular expression. Use up to 30 alphanumeric and _+-
.()!$*^:?|{}[]<>/ characters. See
Section 7.32.1 on page 225 for more details.
Policy Enter the IP address or name of the local and remote policies for a remote AP and
click Search to find it. You can use a keyword or regular expression. Use up to 30
alphanumeric and _+-.()!$*^:?|{}[]<>/ characters. See
Section 7.32.1 on page 225
for more details.
Search Click this button to search for a remote AP that matches the information you
specified above.
Disconnect Select a remote AP and click this button to disconnect it.
# This field is a sequential value, and it is not associated with a specific remote AP.
Remote AP Description This fields displays the remote AP description, which you can configure in
Configuration> Wireless> AP Management, see
Section 9.4 on page 283 for more
information.
Assigned IP This field displays the IP address the Zyxel Device assigns to the remote AP from the IP
address pool you set in Configuration> VPN> Remote AP VPN. See
Chapter 23 on
page 574 for more information.
Policy This field displays the content of the local and remote policies for this remote AP. The
IP addresses, not the address objects, are displayed.
My Address This field displays the IP address of the Zyxel Device.
Secure Gateway This field displays the IP address of the remote AP.
Up Time This field displays how many seconds the remote AP has been connected to the
Zyxel Device.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
228
7.36 The App Patrol Screen
Application patrol provides a convenient way to manage the use of various applications on the
network. It manages general protocols (for example, HTTP and FTP) and instant messenger (IM), peer-to-
peer (P2P), Voice over IP (VoIP), and streaming (RSTP) applications. You can even control the use of a
particular application’s individual features (like text messaging, voice, video conferencing, and file
transfers).
Click Monitor > Security Statistics > App Patrol > Summary to display the following screen. This screen
displays Application Patrol statistics based on the App Patrol profiles bound to Security Policy profiles.
Figure 189 Monitor > Security Statistics > App Patrol > Summary
The following table describes the labels in this screen.
Timeout This field displays how many seconds remain before the Zyxel Device disconnects
from the remote AP.
Inbound (Bytes) This field displays the amount of traffic that has gone through the IPSec tunnel from
the remote AP to the Zyxel Device since the remote AP was established.
Outbound (Bytes) This field displays the amount of traffic that has gone through the IPSec tunnel from
the Zyxel Device to the remote AP since the remote AP was established.
Table 76 Monitor > VPN Monitor > Remote AP VPN (continued)
LABEL DESCRIPTION
Table 77 Monitor > Security Statistics > App Patrol > Summary
LABEL DESCRIPTION
Collect Statistics Select this check box to have the Zyxel Device collect app patrol statistics.
The collection starting time displays after you click Apply. All of the statistics in this
screen are for the time period starting at the time displayed here. The format is year,
month, day and hour, minute, second. All of the statistics are erased if you restart the
Zyxel Device or click Flush Data. Collecting starts over and a new collection start
time displays.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Refresh Click this button to update the report display.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
App Patrol Statistics
# This field is a sequential value, and it is not associated with a specific App Patrol
session.
Application This is the protocol.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
229
7.37 The Content Filter Screen
Click Monitor > Security Statistics > Content Filter to display the following screens. These screens display
some basic statistics on web content filter and DNS content filer, such as the number of web pages and
FQDNs inspected.
7.37.1 Web Content Filter
This screens display web content filter statistics.
Figure 190 Monitor > Security Statistics > Content Filter > Web Content Filter
Forwarded Data (KB) This is how much of the application’s traffic the Zyxel Device has sent (in kilobytes).
Dropped Data (KB) This is how much of the application’s traffic the Zyxel Device has discarded without
notifying the client (in kilobytes). This traffic was dropped because it matched an
application policy set to “drop”.
Rejected Data (KB) This is how much of the application’s traffic the Zyxel Device has discarded and
notified the client that the traffic was rejected (in kilobytes). This traffic was rejected
because it matched an application policy set to “reject”.
Matched Auto
Connection
This is how much of the application’s traffic the Zyxel Device identified by examining
the IP payload.
Inbound Kbps This field displays the amount of the application’s traffic that has gone to the ZyWALL
(in kilo bits per second).
Outbound Kbps This field displays the amount of the application’s traffic that has gone from the
ZyWALL (in kilo bits per second).
Table 77 Monitor > Security Statistics > App Patrol > Summary
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
230
The following table describes the labels in this screen.
7.37.2 DNS Content Filter
This screens display DNS content filter statistics.
Table 78 Monitor > Security Statistics > Content Filter > Web Content Filter
LABEL DESCRIPTION
General Settings
Collect Statistics Select this check box to have the Zyxel Device collect web content filtering statistics.
The collection starting time displays after you click Apply. All of the statistics in this
screen are for the time period starting at the time displayed here. The format is year,
month, day and hour, minute, second. All of the statistics are erased if you restart the
Zyxel Device or click Flush Data. Collecting starts over and a new collection start time
displays.
Refresh Click this button to update the report display.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
Summary
Total Web Page
Inspected
This field displays the number of web pages that the Zyxel Device’s web content filter
feature has checked.
Blocked This is the number of web pages that the Zyxel Device blocked access.
Web Pages Blocked
by Category Service
This is the number of web pages that matched an external database web content
filtering category selected in the Zyxel Device and for which the Zyxel Device displayed
a warning before allowing users access.
Web Page Blocked
by Custom Service
This is the number of web pages to which the Zyxel Device did not allow access due to
the web content filtering custom service configuration.
Restricted Web
Features
This is the number of web pages to which the ZyWALL limited access or removed
cookies due to the content filtering custom service's restricted web features
configuration.
Forbidden Web Sites This is the number of web pages to which the Zyxel Device did not allow access
because they matched the content filtering custom service’s forbidden web sites list.
URL Keywords This is the number of web pages to which the Zyxel Device did not allow access
because they contained one of the content filtering custom service’s list of forbidden
keywords.
Warned This is the number of web pages for which the Zyxel Device displayed a warning
message to the access requesters.
Passed This is the number of web pages to which the Zyxel Device allowed access.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
231
Figure 191 Monitor > Security Statistics > Content Filter > DNS Content Filter
The following table describes the labels in this screen.
Table 79 Monitor > Security Statistics > Content Filter > DNS Content Filter
LABEL DESCRIPTION
General Settings
Collect Statistics Select this check box to have the Zyxel Device collect DNS content filtering statistics.
The collection starting time displays after you click Apply. All of the statistics in this
screen are for the time period starting at the time displayed here. The format is year,
month, day and hour, minute, second. All of the statistics are erased if you restart the
Zyxel Device or click Flush Data. Collecting starts over and a new collection start time
displays.
Refresh Click this button to update the report display.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
Summary
Total DNS Inspected This field displays the number of FQDNs that the Zyxel Device’s DNS content filter feature
has checked.
Redirected This is the number of FQDNs that the Zyxel Device redirects.
Passed This is the number of FQDNs to which the Zyxel Device allowed access.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
232
7.38 The Anti-Malware Screen
Click Monitor > Security Statistics > Anti-Malware > Summary to display the following screen. This screen
displays anti- statistics.
Figure 192 Monitor > Security Statistics > Anti-Malware > Summary: Virus Name
The following table describes the labels in this screen.
Table 80 Monitor > Security Statistics > Anti-Malware > Summary: Virus Name
LABEL DESCRIPTION
Collect Statistics Select this check box to have the Zyxel Device collect anti- statistics.
The collection starting time displays after you click Apply. All of the statistics in this screen
are for the time period starting at the time displayed here. The format is year, month, day
and hour, minute, second. All of the statistics are erased if you restart the Zyxel Device or
click Flush Data. Collecting starts over and a new collection start time displays.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Refresh Click this button to update the report display.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
Total Viruses Detected This field displays the number of different viruses that the Zyxel Device has detected.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
233
The statistics display as follows when you display the top entries by source IP.
Figure 193 Monitor > Security Statistics > Anti-Malware > Summary: Source IP
The statistics display as follows when you display the top entries by source IPv6.
Top Entries By Use this field to have the following (read-only) table display the top anti- log entries by
Virus Name, Source IP, and Destination IP, Source IPv6 and Destination IPv6. This table
displays the most common, recent virus logs. See the log screen for less common virus
logs or use a syslog server to record all virus logs.
Select Virus Name to list the most common viruses that the Zyxel Device has detected.
Select Source IP to list the source IP addresses from which the Zyxel Device has detected
the most virus-infected files.
Select Destination IP to list the most common destination IP addresses for virus-infected
files that Zyxel Device has detected.
Select Source IPv6 to list the source IPv6 addresses from which the Zyxel Device has
detected the most virus-infected files.
Select Destination IPv6 to list the most common destination IPv6 addresses for virus-
infected files that Zyxel Device has detected.
Add to allow list Select an entry and click this to add it to the anti-malware allow list.
Remove from allow list Select an entry and click this to remove it from the anti-malware allow list.
# This field displays the entry’s rank in the list of the top entries.
Virus name This column displays when you display the entries by Virus Name. This displays the name
of a detected virus.
Hash This column displays a hash value, MD5 (Message Digest 5) and SHA (Secure Hash
Algorithm), of the detected virus file.
MD5 and SHA are hash algorithms used to authenticate packet data.
Source IP This column displays when you display the entries by Source IP. It shows the source IP
address of virus-infected files that the Zyxel Device has detected.
Source IPv6 his column displays when you display the entries by Source IPv6. It shows the source IPv6
address of virus-infected files that the Zyxel Device has detected.
Destination IP This column displays when you display the entries by Destination IP. It shows the
destination IP address of virus-infected files that the Zyxel Device has detected.
Destination IPv6 This column displays when you display the entries by Destination IPv6. It shows the
destination IPv6 address of virus-infected files that the Zyxel Device has detected.
Occurrences This field displays how many times the Zyxel Device has detected the event described in
the entry.
Allow List Click this to add this signature to the anti-malware allow list.
Click this to remove this signature from the anti-malware allow list.
Table 80 Monitor > Security Statistics > Anti-Malware > Summary: Virus Name (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
234
Figure 194 Monitor > Security Statistics > Anti-Malware: Source IPv6
The statistics display as follows when you display the top entries by destination IP.
Figure 195 Monitor > Security Statistics > Anti-Malware > Summary: Destination IP
The statistics display as follows when you display the top entries by destination IPv6.
Figure 196 Monitor > Security Statistics > Anti-Malware: Destination IPv6
7.39 The Reputation Filter Screen
Click Monitor > Security Statistics > Reputation Filter to display the following screens. These screens
display IP reputation, DNS threat filter and URL threat filter statistics.
7.39.1 IP Reputation
This screen displays IP reputation statistics.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
235
Figure 197 Monitor > Security Statistics > Reputation Filter > IP Reputation
The following table describes the labels in this screen.
Table 81 Monitor > Security Statistics > Reputation Filter > IP Reputation
LABEL DESCRIPTION
Collect Statistics Select this check box to have the Zyxel Device collect anti- statistics.
The collection starting time displays after you click Apply. All of the statistics in this screen
are for the time period starting at the time displayed here. The format is year, month, day
and hour, minute, second. All of the statistics are erased if you restart the Zyxel Device or
click Flush Data. Collecting starts over and a new collection start time displays.
Refresh Click this button to update the report display.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
Summary
IP Scanned This field displays the total number of IPv4 addresses that have been scanned.
IP Hit Count This field displays the total number of the hit counts on the scanned IPv4 addresses.
Statistics
Add to allow list Select an entry and click this to add it to the IP reputation allow list.
Remove from allow list Select an entry and click this to remove it from the IP reputation allow list.
Time This field displays the date and time the entry was created.
Malicious IP This field displays the IPv4 address with bad reputation.
Infected/Victim Host This field displays the MAC address of the infected host.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
236
7.39.2 DNS Threat Filter
This screen displays DNS threat filter statistics.
Figure 198 Monitor > Security Statistics > Reputation Filter > DNS Threat Filter
The following table describes the labels in this screen.
Threat Category This field displays the category of the entry.
Threat Level This field displays the threat level of the entry.
Table 81 Monitor > Security Statistics > Reputation Filter > IP Reputation
LABEL DESCRIPTION
Table 82 Monitor > Security Statistics > Reputation Filter > DNS Threat Filter
LABEL DESCRIPTION
Collect Statistics Select this check box to have the Zyxel Device collect anti- statistics.
The collection starting time displays after you click Apply. All of the statistics in this screen
are for the time period starting at the time displayed here. The format is year, month, day
and hour, minute, second. All of the statistics are erased if you restart the Zyxel Device or
click Flush Data. Collecting starts over and a new collection start time displays.
Refresh Click this button to update the report display.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
Summary
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
237
7.39.3 URL Threat Filter
This screen displays URL threat filter statistics.
Figure 199 Monitor > Security Statistics > Reputation Filter > URL Threat Filter
DNS Filter Scanned This field displays the total number of FQDNs that have been scanned.
DNS Filter Hit Count This field displays the total number of the hit counts on the scanned FQDNs.
Statistics
Add to allow list Select an entry and click this to add it to the DNS filtering allow list.
Remove from allow list Select an entry and click this to remove it from the DNS filtering allow list.
Time This field displays the date and time the entry was created.
Source IP This field displays the source IP address of traffic that you want to trace.
FQDN This field displays the FQDN of an infected website.
Threat Category This field displays the category of the entry.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 82 Monitor > Security Statistics > Reputation Filter > DNS Threat Filter
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
238
The following table describes the labels in this screen.
7.40 The IPS Screen
Click Monitor > Security Statistics > IPS > Summary to display the following screen. This screen displays IPS
(Intrusion Prevention System) statistics.
Table 83 Monitor > Security Statistics > Reputation Filter > URL Threat Filter
LABEL DESCRIPTION
Collect Statistics Select this check box to have the Zyxel Device collect anti- statistics.
The collection starting time displays after you click Apply. All of the statistics in this screen
are for the time period starting at the time displayed here. The format is year, month, day
and hour, minute, second. All of the statistics are erased if you restart the Zyxel Device or
click Flush Data. Collecting starts over and a new collection start time displays.
Refresh Click this button to update the report display.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
Summary
URL Scanned This field displays the total number of URLs that have been scanned.
URL Hit Count This field displays the total number of the hit counts on the scanned URLs.
DNS Filter Scanned This field displays the total number of FQDNs that have been scanned.
DNS Filter Hit Count This field displays the total number of the hit counts on the scanned FQDNs.
Statistics
Add to allow list Select an entry and click this to add it to the URL Threat filtering allow list.
Remove from allow list Select an entry and click this to remove it from the URL Threat filtering allow list.
Time This field displays the date and time the entry was created.
Source IP This field displays the source IP address of traffic that you want to trace.
Destination IP This field displays the destination IP address of traffic.
Threat URL This field displays the URL of an infected website or a botnet C&C server.
IP reputation only blocks incoming and outgoing traffic coming from an IP address that is
defined as botnet. If an IP address is not defined as botnet, only incoming traffic is
blocked.
Threat Category This field displays the category of the entry.
DNS Filter FQDN Detected
Add to white list Select an entry and click this to add it to the DNS filtering white list.
Remove from white list Select an entry and click this to remove it from the DNS filtering white list.
Time This field displays the date and time the entry was created.
Source IP This field displays the source IP address of traffic that you want to trace.
FQDN This field displays the FQDN of an infected website.
Threat Category This field displays the category of the entry.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
239
Figure 200 Monitor > Security Statistics > IPS > Summary: Signature Name
The following table describes the labels in this screen.
Table 84 Monitor > Security Statistics > IPS > Summary
LABEL DESCRIPTION
Collect Statistics Select this check box to have the Zyxel Device collect IPS statistics.
The collection starting time displays after you click Apply. All of the statistics in this screen
are for the time period starting at the time displayed here. The format is year, month,
day and hour, minute, second. All of the statistics are erased if you restart the Zyxel
Device or click Flush Data. Collecting starts over and a new collection start time displays.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Refresh Click this button to update the report display.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
Total Session Scanned This field displays the number of sessions that the Zyxel Device has checked for intrusion
characteristics.
Total Packet Dropped The Zyxel Device can detect and drop malicious packets from network traffic. This field
displays the number of packets that the Zyxel Device has dropped.
Total Packet Reset The Zyxel Device can detect and drop malicious packets from network traffic. This field
displays the number of packets that the Zyxel Device has reset.
Top Entries By Use this field to have the following (read-only) table display the top IPS log entries by
Signature Name, Source IP or Destination IP. This table displays the most common, recent
IPS logs. See the log screen for less common IPS logs or use a syslog server to record all
IPS logs.
Select Signature Name to list the most common signatures that the Zyxel Device has
detected.
Select Source IP to list the source IP addresses from which the Zyxel Device has detected
the most intrusion attempts.
Select Destination IP to list the most common destination IP addresses for intrusion
attempts that the Zyxel Device has detected.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
240
The statistics display as follows when you display the top entries by source.
Figure 201 Monitor > Security Statistics > IPS > Summary: Source IP
The statistics display as follows when you display the top entries by destination.
Add to allow list Select a signature and click this to add the selected signature to the IPS allow list.
Remove from allow list Select a signature and click this to remove the selected signature from the IPS allow list.
Statistics
# This field displays the entry’s rank in the list of the top entries.
Signature Name This column displays when you display the entries by Signature Name. The signature
name identifies the type of intrusion pattern. Click the hyperlink for more detailed
information on the intrusion.
Signature ID This column displays when you display the entries by Signature Name. The signature ID is
a unique value given to each intrusion detected.
Type This column displays when you display the entries by Signature Name. It shows the
categories of intrusions.
Severity This column displays when you display the entries by Signature Name. It shows the level
of threat that the intrusions may pose.
Source IP This column displays when you display the entries by Source. It shows the source IP
address of the intrusion attempts.
Destination IP This column displays when you display the entries by Destination. It shows the destination
IP address at which intrusion attempts were targeted.
Occurrences This field displays how many times the Zyxel Device has detected the event described in
the entry.
Allow List Click this to add this signature to the IPS allow list.
Click this to remove this signature from the IPS allow list.
Rate Based Signatures
Statistics
This table displays the rate based signatures statistics.
IPS signatures identify traffic packets with suspicious malicious patterns. The Zyxel
Devicecan then respond instantaneously according to the action you define.
If you do not want the Zyxel Device to respond instantaneously for each suspicious
packet detected, use rate based signatures. See
Section 37.1.2 on page 827 for more
information on rate based signatures.
# This field displays the entry’s rank in the list of the top entries.
Time This column displays the date and time IPS blocked this IP address.
Signature ID This column displays when you display the entries by Signature Name. The signature ID is
a unique value given to each intrusion detected.
Signature Name This column displays when you display the entries by Signature Name. The signature
name identifies the type of intrusion pattern. Click the hyperlink for more detailed
information on the intrusion.
Blocked IP This field displays the IP address that is blocked by IPS.
Interactive/Victim Host This field displays the IP address of the infected host.
Time Remaining This field displays the amount of time left until the blocked IP address is released by IPS.
Table 84 Monitor > Security Statistics > IPS > Summary (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
241
Figure 202 Monitor > Security Statistics > IPS > Summary: Destination IP
7.41 Sandboxing
Click Monitor > Security Statistics > Sandboxing to display the following screen. This screen displays
sandboxing statistics.
Figure 203 Monitor > Security Statistics > Sandboxing
The following table describes the labels in this screen.
Table 85 Monitor > Security Statistics > Sandboxing
LABEL DESCRIPTION
Collect Statistics Select this check box to have the Zyxel Device collect sandboxing statistics.
The collection starting time displays after you click Apply. All of the statistics in this screen
are for the time period starting at the time displayed here. The format is year, month, day
and hour, minute, second. All of the statistics are erased if you restart the Zyxel Device or
click Flush Data. Collecting starts over and a new collection start time displays.
Refresh Click this button to update the report display.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
242
7.42 The Email Security Screens
The Email Security menu contains the Summary and Status screens.
7.42.1 Email Security Summary
Click Monitor > Security Statistics > Email Security > Summary to display the following screen. This screen
displays spam statistics.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
Submission Summary
Total This field displays the total number of files that the Zyxel Device sent to the Defend
Center for analysis.
Scanning This field displays the total number of files that the Zyxel Device is still scanning.
Scanned This field displays the total number of files that have been scanned.
Destroyed Files This shows the number of files that have been destroyed.
Scan Result
Malicious Files This shows the number of malicious files that have been detected. Malicious files are files
given a high score for characteristics by the Defend Center.
Suspicious Files This shows the number of suspicious files that have been detected. Suspicious files are
files given a medium score for characteristics by the Defend Center.
Safe File This shows the number of clean files that have been detected. Safe files are files given a
low score for characteristics by the Defend Center.
Other This shows the number of internal and external networks errors.
Statistics
# This is the entry’s index number in the list.
File Name This column displays the file name of the detected virus file.
Hash This column displays a hash value, MD5 (Message Digest 5) and SHA (Secure Hash
Algorithm), of the detected virus file.
MD5 and SHA are hash algorithms used to authenticate packet data.
Type This field displays the file type of the detected virus file.
Occurrence This field displays how many times the Zyxel Device has detected the event described in
the entry.
Update Time This field displays the last time the Zyxel Device updates the sandboxing statistics table.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 85 Monitor > Security Statistics > Sandboxing (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
243
Figure 204 Monitor > Security Statistics > Email Security > Summary
The following table describes the labels in this screen.
Table 86 Monitor > Security Statistics > Email Security > Summary
LABEL DESCRIPTION
Collect Statistics Select this check box to have the Zyxel Device collect email security statistics.
The collection starting time displays after you click Apply. All of the statistics in this
screen are for the time period starting at the time displayed here. The format is year,
month, day and hour, minute, second. All of the statistics are erased if you restart the
Zyxel Device or click Flush Data. Collecting starts over and a new collection start time
displays.
Refresh Click this button to update the report display.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
Summary
Total Mails Scanned This field displays the number of emails that the Zyxel Device’s email security feature has
checked.
Safe Mails This is the number of emails that the Zyxel Device has determined to not be spam.
Safe Mails Detected
by Allow list
This is the number of emails that matched an entry in the Zyxel Device’s email security
allow list.
Spam Mails This is the number of emails that the Zyxel Device has determined to be spam.
Spam Mails Detected
by Block List
This is the number of emails that matched an entry in the Zyxel Device’s email security
block list.
Spam Mails Detected
by Malicious Mail
This is the number of emails that the Zyxel Device has determined to have malicious
contents.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
244
7.42.2 The Email Security Status Screen
Click Monitor > Security Statistics > Email Security > Status to display the Email Security Status screen.
Use the Email Security Status screen to see how many email sessions the email security feature is
scanning and statistics for the DNSBLs.
Spam Mails Detected
by DNSBL
The Zyxel Device can check the sender and relay IP addresses in an email’s header
against DNS (Domain Name Service)-based spam Black Lists (DNSBLs). This is the
number of emails that had a sender or relay IP address in the header which matched
one of the DNSBLs that the Zyxel Device uses.
Query Timeout This is how many queries that were sent to the Zyxel Device’s configured list of DNSBL
domains or Mail Scan services and did not receive a response in time.
When mail session threshold is reached
Mail Sessions Forwarded This is how many email sessions the Zyxel Device allowed because they exceeded the
maximum number of email sessions that the email security feature can check at a time.
You can see the Zyxel Device’s threshold of concurrent email sessions on the Email
Security > Status screen.
Use the Email Security > Summary screen to set whether the Zyxel Device forwards or
drops sessions that exceed this threshold.
Mail Sessions Dropped This is how many email sessions the Zyxel Device dropped because they exceeded the
maximum number of email sessions that the email security feature can check at a time.
You can see the Zyxel Device’s threshold of concurrent email sessions on the Email
Security > Status screen.
Use the Email Security > Summary screen to set whether the Zyxel Device forwards or
drops sessions that exceed this threshold.
Statistics
Top Sender By Use this field to list the top email or IP addresses from which the Zyxel Device has
detected the most spam.
Select Sender IP to list the source IP addresses from which the Zyxel Device has
detected the most spam.
Select Sender Email Address to list the top email addresses from which the Zyxel Device
has detected the most spam.
# This field displays the entry’s rank in the list of the top entries.
Sender IP This column displays when you display the entries by Sender IP. It shows the source IP
address of spam emails that the Zyxel Device has detected.
Sender Email Address This column displays when you display the entries by Sender Email Address. This column
displays the email addresses from which the Zyxel Device has detected the most spam.
Occurrence This field displays how many spam emails the Zyxel Device detected from the sender.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 86 Monitor > Security Statistics > Email Security > Summary (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
245
Figure 205 Monitor > Security Statistics > Email Security > Status
The following table describes the labels in this screen.
Table 87 Monitor > Security Statistics > Email Security > Status
LABEL DESCRIPTION
Resource Status
Concurrent Mail Session
Scanning
The darker shaded part of the bar shows how much of the Zyxel Device’s total spam
checking capability is currently being used.
The lighter shaded part of the bar and the pop-up show the historical high.
The first number to the right of the bar is how many email sessions the Zyxel Device is
presently checking for spam. The second number is the maximum number of email
sessions that the Zyxel Device can check at once. An email session is when an email
client and email server (or two email servers) connect through the Zyxel Device.
Refresh Click this button to update the information displayed on this screen.
Flush Click this button to clear the DNSBL statistics. This also clears the concurrent mail
session scanning bar’s historical high.
Mail Scan Statistics These are the statistics for the service the Zyxel Device uses. These statistics are for
when the Zyxel Device actually queries the service servers.
# This is the entry’s index number in the list.
Service This displays the name of the service.
Total Queries This is the total number of queries the Zyxel Device has sent to this service.
Avg. Response Time (sec) This is the average for how long it takes to receive a reply from this service.
No Response This is how many queries the Zyxel Device sent to this service without receiving a reply.
DNSBL Statistics These are the statistics for the DNSBL the Zyxel Device uses. These statistics are for
when the Zyxel Device actually queries the DNSBL servers. Matches for DNSBL
responses stored in the cache do not affect these statistics.
# This is the entry’s index number in the list.
DNSBL Domain These are the DNSBLs the Zyxel Device uses to check sender and relay IP addresses in
emails.
Total Queries This is the total number of DNS queries the Zyxel Device has sent to this DNSBL.
Avg. Response Time (sec) This is the average for how long it takes to receive a reply from this DNSBL.
No Response This is how many DNS queries the Zyxel Device sent to this DNSBL without receiving a
reply.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
246
7.43 Collaborative Detection & Response (CDR)
Collaborative Detection & Response (CDR) allows you to detect wired and WiFi clients that are sending
malicious traffic in your network and then block or quarantine traffic coming from them. In this way,
malicious traffic is not spread throughout the network. Secure policies can block malicious traffic for
specific traffic flows, but CDR can block malicious traffic from the sender. Malicious traffic is identified
using a combination of Web Filtering, Anti-Malware and IPS (IDP) signatures.
Click Monitor > Security Statistics > CDR> Containment List to display a screen that shows what clients are
currently contained by CDR.
Figure 206 Monitor > Security Statistics > CDR > Containment List by IP
Figure 207 Monitor > Security Statistics > CDR > Containment List by MAC
The following table describes the labels in this screen.
Table 88 Monitor > Security Statistics > CDR > Containment List
LABEL DESCRIPTION
Containment List This table displays up to 512 devices that CDR is blocking or quarantining.
Containment list items remain even if the Zyxel Device or managed AP reboots.
Group by Choose to sort security events for contained devices by IP Address or MAC Address.
For example, if three security events occur for a client identified by IP address, then
under Time, the IP address of the client is shown with the times the security events
occurred beneath this IP address.
• Wired clients are blocked based on IP address by default. You can change that
to blocking based on MAC address using the cdr blocked-by mac command in
configuration mode in the Command Line Interface (CLI). Note that if you have a
switch between the client and the Zyxel Device, then blocking by MAC address
could block all traffic from the switch if the client MAC address is not forwarded
through the switch.
• WiFi clients are blocked or quarantined based on MAC address by default.
Add to exempt list Select a client and then click this to release this device from CDR containment and
also bypass this device from future CDR checking. This device is then removed from
this table and added to the History screen.
Release Select a client and then click this to release this device from CDR containment. This
device is then removed from this table and added to the History screen.
Time This field displays the date and time CDR contained this client
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
247
7.43.1 CDR History
Click Monitor > Security Statistics > CDR> History to display a screen that shows what clients were and
are contained by CDR.
Figure 208 Monitor > Security Statistics > CDR > History: Authenticated Users
Figure 209 Monitor > Security Statistics > CDR> History: Non-Authenticated Users
The following table describes the labels in this screen.
IP Address This field displays the IPv4 address of the client contained by CDR.
MAC Address This field displays the MAC address of the client contained by CDR.
User The field displays the user name of a client contained by CDR who has been
authenticated for Internet access. The field is blank if user authentication is not
required.
Security Events This field displays details on the category of signature that triggered CDR: Web
Filtering, Anti-Malware or IPS (IDP).
Containment This field displays if the client is blocked, quarantined or just triggers an alert.
Time Remaining (Seconds) This field displays the amount of time left until this client is released by CDR
Connect to This field displays the description of the AP or the interface of the Zyxel Device that the
contained client is connected to.
Refresh Click this button to update the information on the screen.
Table 88 Monitor > Security Statistics > CDR > Containment List (continued)
LABEL DESCRIPTION
Table 89 Monitor > Security Statistics > CDR> History
LABEL DESCRIPTION
History This table displays up to 1024 devices that CDR has blocked or quarantined
Time This field displays the date and time CDR contained this client
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
248
7.44 The SSL Inspection Screens
The Zyxel Device uses SSL Inspection to decrypt SSL traffic, sends it to the Security Service engines for
inspection, then encrypts traffic that passes inspection and forwards it. You must enable SSL Inspection if
you want to use Content Filtering 2.0 Safe Search.
Click Monitor > Security Statistics > SSL Inspection > Summary to display the following screen.
Figure 210 Monitor > Security Statistics > SSL Inspection > Summary
IP Address This field displays the IPv4 address of the client contained by CDR.
MAC Address This field displays the MAC address of the client contained by CDR.
User The field displays the user name of a client contained by CDR who has been
authenticated for Internet access. The field is blank if user authentication is not
required.
Security Events This field displays details on the category of signature that triggered CDR: Web
Filtering, Anti-Malware or IPS (IDP).
Containment This field displays if the client is blocked, quarantined or just triggers an alert.
Connect to This field displays the description of the AP or the interface of the Zyxel Device that the
contained client is connected to.
Refresh Click this button to update the information on the screen.
Table 89 Monitor > Security Statistics > CDR> History (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
249
The following table describes the labels in this screen.
7.44.1 Certificate Cache List
SSL traffic to a server to be excluded from SSL Inspection is identified by its certificate. Traffic in an
Exclude List is not intercepted by SSL Inspection.
Click Monitor > Security Statistics > SSL Inspection > Certificate Cache List to display a screen that shows
details on SSL traffic going to servers identified by its certificate and an option to add that traffic to the
Exclude List.
Table 90 Monitor > Security Statistics > SSL Inspection > Summary
LABEL DESCRIPTION
Collect Statistics Select this check box to have the Zyxel Device collect SSL Inspection statistics.
The collection starting time displays after you click Apply. All of the statistics in this
screen are for the time period starting at the time displayed here. The format is year,
month, day and hour, minute, second. All of the statistics are erased if you restart the
Zyxel Device or click Flush Data. Collecting starts over and a new collection start time
displays.
Refresh Click this button to update the report display.
Flush Data Click this button to discard all of the screen’s statistics and update the report display.
Status
Maximum Concurrent
Sessions
This shows the maximum number of simultaneous SSL Inspection sessions allowed for
your Zyxel Device model.
Concurrent Sessions This shows the actual number of simultaneous SSL Inspection sessions in progress.
Summary
Total SSL Sessions This is the total of SSL sessions inspected and number of sessions blocked and number
of sessions passed since data was last flushed or the Zyxel Device last rebooted after
Collect Statistics was enabled.
Sessions Inspected This shows the total number of SSL sessions inspected since data was last flushed or the
Zyxel Device last rebooted after Collect Statistics was enabled
Decrypted (Kbytes) This shows the number of kilobytes (KB) of data that was decrypted for Security
Service inspection.
Encrypted (Kbytes) This shows the number of kilobytes (KB) of data that was re-encrypted after Security
Service inspection and then forwarded.
Sessions Blocked This shows the number of SSL sessions blocked.
Sessions Passed This shows the number of SSL sessions passed.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
250
Figure 211 Monitor > Security Statistics > SSL Inspection > Certificate Cache List
The following table describes the labels in this screen.
7.45 Log Screens
Log messages are stored in two separate logs, one for regular log messages and one for debugging
messages. In the regular log, you can look at all the log messages by selecting All Logs, or you can
select a specific category of log messages (for example, security policy or user). You can also look at
the debugging log by selecting Debug Log. All debugging messages have the same priority.
Table 91 Monitor > Security Statistics > SSL Inspection > Certificate Cache List
LABEL DESCRIPTION
Certificate Cache List
Add to Exclude list Select and item in the list and click this icon to add the common name (CN) to the
Exclude List.
# This field is a sequential value, and it is not associated with a specific entry.
In Exclude List If any one of common name, DNS name, email address or IP address of the
certificate is in the Exclude List, then traffic to the server identified by the certificate is
excluded from inspection.
The icons here are defined as follows:
• Gray: The identity of the certificate is not in the Exclude List
• Green: The common name of the certificate is in the Exclude List
• Yellow: The common name of certificate is not in the Exclude List but one of the
DNS name, email address or IP address is.
Time This is the latest date (yyyy-mm-dd) and time (hh-mm-ss) that the record in the
certificate cache list was met.
Common Name This displays the common name in the certificate of the SSL traffic destination server.
Server Name Indication Server Name Indication (SNI) is the domain name entered in the browser, FTP client,
etc. to begin the SSL session with the server. It allows multiple SSL sessions to the same
IP address and port number with different certificates from different SNI. This field
displays the SNI for this SSL session.
SSL Version This field shows the SSL version. SSLv3/TLS1.0 is currently supported.
Destination This displays the IP address and port number of the SSL traffic destination server.
Valid Time This displays the cache item expiry time in seconds. The cache item is deleted when
the remaining time expires.
Refresh Click this button to update the information on the screen.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
251
7.45.1 View Log
To access this screen, click Monitor > Log. The log is displayed on the following screen.
Note: When a log reaches the maximum number of log messages, new log messages
automatically overwrite existing log messages, starting with the oldest existing log
message first.
• The maximum possible number of log messages in the Zyxel Device varies by model.
Events that generate an alert (as well as a log message) display in red. Regular logs display in black.
Click a column’s heading cell to sort the table entries by that column’s criteria. Click the heading cell
again to reverse the sort order. The Web Configurator saves the filter settings if you leave the View Log
screen and return to it later.
Figure 212 Monitor > Log > View Log
The following table describes the labels in this screen.
Table 92 Monitor > Log > View Log
LABEL DESCRIPTION
Show (Hide) Filter Click this button to show or hide criteria that allow you to filter logs that will be
displayed.
If the filter settings are hidden, the Category, Email Log Now, Refresh, and Clear fields
are available.
If the filter settings are shown, the Category, Priority, Source Address, Destination
Address, Source Interface, Destination Interface, Service, Keyword, Protocol and Search
fields are available.
Category Select the type of log message(s) you want to view. You can also view All Logs at one
time, or you can view the Debug Log.
Priority This displays when you show the filter. Select the priority of log messages to display. The
log displays the log messages with this priority or higher. Choices are: any, emerg, alert,
crit, error, warn, notice, and info, from highest priority to lowest priority. This field is
grayed out if the Category is Debug Log.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
252
7.45.2 View AP Log
Click on Monitor > Log > View AP Log to open the following screen.
Source Address This displays when you show the filter. Enter the source IP address of the incoming
packet that generated the log message. Do not include the port in this filter.
Destination Address This displays when you show the filter. Enter the IP address of the destination of the
incoming packet when the log message was generated. Do not include the port in this
filter.
Source Interface This displays when you show the filter. Enter the source interface of the incoming packet
that generated the log message.
Destination Interface This displays when you show the filter. Enter the interface of the destination of the
incoming packet when the log message was generated.
Service This displays when you show the filter. Select the service whose log messages you would
like to see. The Web Configurator uses the protocol and destination port number(s) of
the service to select which log messages you see.
Keyword This displays when you show the filter. Enter a keyword to look for in the Message,
Source, Destination and Note fields. If a match is found in any field, the log message is
displayed. You can use up to 63 alphanumeric characters and the underscore, as well
as punctuation marks ()’ ,:;?! +-*/= #$% @ ; the period, double quotes, and brackets are
not allowed.
Protocol This displays when you show the filter. Select a service protocol whose log messages
you would like to see.
Search This displays when you show the filter. Click this button to update the log using the
current filter settings.
Reset Click Reset to return the screen to its last-saved settings.
Email Log Now Click this button to send log messages to the Active email addresses specified in the
Send Log To field on the Log Settings page. Please note that only the following log
messages will be sent:
• Log messages that have not been sent before, and
• log messages that match the categories you selected in Configuration > Log &
Report > Log Settings > Edit > Active Log and Alert.
Refresh Click this button to update the information on the screen.
Clear Click this button to clear the whole log, regardless of what is currently displayed on the
screen.
# This field is a sequential value, and it is not associated with a specific log message.
Time This field displays the time the log message was recorded.
Priority This field displays the priority of the log message. It has the same range of values as the
Priority field above.
Category This field displays the log that generated the log message. It is the same value used in
the Category field above.
Message This field displays the reason the log message was generated. The text “[count=x]”,
where x is a number, appears at the end of the Message field if log consolidation is
turned on and multiple entries were aggregated to generate into this one.
Source This field displays the source IP address and the port number in the event that
generated the log message.
Destination This field displays the destination IP address and the port number of the event that
generated the log message.
Note This field displays any additional information about the log message.
Table 92 Monitor > Log > View Log (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
253
Figure 213 Monitor > Log > View AP Log
The following table describes the labels in this screen.
Table 93 Monitor > Log > View AP Log
LABEL DESCRIPTION
Show Filter Click this button to show or hide the filter settings.
If the filter settings are hidden, the Display, Email Log Now, Refresh, and Clear fields are
available.
If the filter settings are shown, the Display, Priority, Source Address, Destination Address,
Source Interface, Destination Interface, Service, Keyword, Protocol, and Search fields
are available.
Select an AP Click the pull down menu to choose an AP.
Query Click Query to create a Query log.
Log Query Status The field displays the
AP Information This field displays the AP information. N/A is displayed when
Log File Status This field displays how many logs are available. It will display Empty if there’s none.
Last Log Query Time This field displays the most recent time a log query was solicited.
Display Select the category of log message(s) you want to view. You can also view All Logs at
one time, or you can view the Debug Log.
Priority This displays when you show the filter. Select the priority of log messages to display. The
log displays the log messages with this priority or higher. Choices are: any, emerg, alert,
crit, error, warn, notice, and info, from highest priority to lowest priority. This field is read-
only if the Category is Debug Log.
Source Address Enter the IP address of the source AP.
Destination Address This displays when you show the filter. Enter the IP address of the destination of the
incoming packet when the log message was generated. Do not include the port in this
filter.
Source Interface This displays when you show the filter. Enter the source interface of the incoming packet
that generated the log message.
Destination Interface This displays when you show the filter. Enter the interface of the destination of the
incoming packet when the log message was generated.
Service Select a policy service available from Zyxel Device from the pull down menu.
Keyword Enter a keyword of the policy service available from Zyxel Device to search for a log.
Protocol Select the protocol of the AP from the pull down menu.
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
254
7.45.3 Dynamic Users Log
Use this screen to view the Zyxel Device’s dynamic guest account log messages. Click Monitor > Log >
Dynamic Users Log to access this screen.
Figure 214 Monitor > Log > Dynamic Users Log
Search Click this to start the search.
Email Log Now Click this button to send log messages to the Active email addresses specified in the
Send Log To field on the Log Settings page. Please note that only the following log
messages will be sent:
• Log messages that have not been sent before, and
• log messages that match the categories you selected in Configuration > Log &
Report > Log Settings > Edit > Active Log and Alert.
Refresh Click this button to update the information on the screen.
Clear Click this button to clear the whole log, regardless of what is currently displayed on the
screen.
# This field is a sequential value, and it is not associated with a specific log message.
Time This field displays the time the log message was recorded.
Priority This displays when you show the filter. Select the priority of log messages to display. The
log displays the log messages with this priority or higher. Choices are: any, emerg, alert,
crit, error, warn, notice, and info, from highest priority to lowest priority. This field is read-
only if the Category is Debug Log.
Category This field displays the log that generated the log message. It is the same value used in
the Display and (other) Category fields.
Message This field displays the message of the log.
Source This displays the source IP address of the selected log message.
Destination This displays the source IP address of the selected log message.
Note This field displays any additional information about the log message.
Table 93 Monitor > Log > View AP Log (continued)
LABEL DESCRIPTION
background
Chapter 7 Monitor
USG FLEX Series User’s Guide
255
The following table describes the labels in this screen.
Table 94 Monitor > Log > Dynamic Users Log
LABEL DESCRIPTION
Begin/End Date Select the first and last dates to specify a time period. The Zyxel Device displays log messages
only for the accounts created during the specified time period after you click Search.
Begin/End Time Select the begin time of the first date and the end time of the last date to specify a time
period. The Zyxel Device displays log messages only for the accounts created during the
specified time period after you click Search.
Search Click this button to update the information on the screen using the filter criteria in the date and
time fields.
Refresh Click this button to update the information in the screen.
Clear Click this button to delete the log messages for invalid accounts.
# This is the index number of the dynamic guest account in the list.
Status This field displays whether an account expires or not.
Username This field displays the user name of the account.
Create Time This field displays when the account was created.
Remaining Time This field displays the amount of Internet access time remaining for each account.
Time Period This field displays the total account of time the account can use to access the Internet through
the Zyxel Device.
Expiration Time This field displays the date and time the account becomes invalid.
Note: Once the time allocated to a dynamic account is used up or a dynamic
account remains un-used after the expiration time, the account is deleted
from the account list.
Quota (T/U/D) This field displays how much data in both directions (Total) or upstream data (Upload) and
downstream data (Download) can be transmitted through the WAN interface before the
account expires.
Remaining Quota
(T/U/D)
This field displays the remaining amount of data that can be transmitted or received by each
account. You can see the amount of either data in both directions (Total) or upstream data
(Upload) and downstream data (Download).
Bandwidth (U/D) This field displays the maximum upstream (Upload) and downstream (Download) bandwidth
allowed for the user account in kilobits per second.
Real Name This field displays the user’s name of the account.
Email This field displays the email of the account.
Charge This field displays the total cost of the account.
Payment Info This field displays the method of payment for each account.
Phone Num This field displays the telephone number for the user account.
background
USG FLEX Series User’s Guide
256
CHAPTER 8
Licensing
8.1 Registration Overview
Use the Configuration > Licensing > Registration screens to register your Zyxel Device and manage its
service subscriptions.
• Use the Registration screen (see Section 8.1.3 on page 259) to refresh Zyxel Device registration, go to
portal.myZyxel.com to register your Zyxel Device and activate a service, such as content filtering.
• Use the Service screen (see Section 8.1.4 on page 260) to display the status of your service
registrations and upgrade licenses.
• Use the Signature Update screen (see Section 8.2.2 on page 263) to download the latest signatures for
your licensed services.
8.1.1 What you Need to Know
This section introduces the topics covered in this chapter.
Subscription Services Available
See Configuration > Licensing > Registration > Service for the subscription services that your Zyxel Device
supports. Zyxel offers two types of security packs for your Zyxel Device. The subscription services you can
use on the Zyxel Device vary depending on the security pack license you purchase. See the table below
for services available in each pack.
You can purchase an iCard and enter its license key at myZyxel to extend a service.
License Update
Licenses are updated using port 443. Make sure TCP service port 443 is allowed on the router connected
to the Zyxel Device.
Features Available Without a License
You can use the following Zyxel Device features without a license:
Table 95 Features Available Without a License
MONITOR CONFIGURATION MAINTENANCE
Traffic Statistics Wireless File Manager
Wireless Network Diagnostics
VPN Monitor VPN Packet Flow Explore
Log BWM Shutdown/Reboot
Web Authentication
background
Chapter 8 Licensing
USG FLEX Series User’s Guide
257
Please note that you cannot use the security services if your Zyxel Device does not have a license. Your
Zyxel Device and network will be exposed to threats and attacks. We strongly recommend you to buy a
license to better protect your Zyxel Device and network.
8.1.2 Gold Security Pack License and UTM Bundled License
The UTM bundled license includes the UTM security services listed below:
• Web Filtering
•IPS
• Application Patrol
•Anti-Malware
• Email Security
• Collaborative Detection & Response
•SecuReporter
• Network Premium
• Security Profile Sync
Note: You can renew the Anti-Malware and SecuReporter service licenses individually.
If you renew a UTM license, the Expiration Date in Configuration > Licensing > Registration > Service is
extended by one, two or three years depending on the license or service you bought. See
Section
8.1.2.3 on page 259 for more information on the expiration date.
The Status for each service in the renewed UTM license displays Queued in portal.myzyxel.com. These
services will become active when the current UTM bundled license services expire. See Section 8.1.2.4
on page 259 for more information on the service status.
The Gold Security Pack license is the UTM license that comes with the Zyxel Device when you buy it and
is good for 1 year. The Gold Security Pack license includes all security services in the default UTM
bundled license, with the additional services listed below:
•Sandboxing
• DNS Threat Filter
• IP Reputation
•Secure WiFi
• Nebula Professional Pack
Note: You can renew the Secure WiFi and Nebula professional pack service licenses
individually.
Security Policy
Object
System
Log & Report
Table 95 Features Available Without a License
MONITOR CONFIGURATION MAINTENANCE
background
Chapter 8 Licensing
USG FLEX Series User’s Guide
258
If you buy a Gold Security Pack license and renew a UTM license, the Expiration Date is not extended in
Configuration > Licensing > Registration > Service as the Expiration Date of licenses with different services
cannot be added together. See
Section 8.1.2.3 on page 259 for more information on the expiration
date.
The Status for each service in the Gold Security Pack license displays Queued in portal.myzyxel.com. The
Status for each service in the renewed UTM license displays Deferred in portal.myzyxel.com. The Gold
Security Pack license services will become active when the current UTM bundled license services expire.
See
Section 8.1.2.4 on page 259 for more information on the service status.
8.1.2.1 Hospitality Pack License and Hotspot Management License
The hospitality pack license includes the licenses listed below:
• Hotspot management subscription service license
• Concurrent device upgrade license
The hotspot management license includes the license listed below:
• Hotspot management subscription service license
Hotspot management subscription service license is a license to manage hotspot functions such as
billing, printer manager, free time, IPnP, walled garden and advertisement; see
Chapter 26 on page 627
for more information.
Concurrent device upgrade license is a license to increase the number of devices (based on the MAC
addresses) that can log in and use the Zyxel Device hotspot at the same time.
Please note that:
• Not all Zyxel Devices support hospitality pack license or hotspot management license.
• A Zyxel Device cannot support hospitality pack license and hotspot management license at the
same time.
See Table 1 on page 30 for more information on the license each Zyxel Device supports.
8.1.2.2 License Priority
Please note that in On-Premises Mode, if you purchase a UTM license before a Gold Security Pack
license expires, the UTM license services will only be available after the Gold Security Pack license
expires.
Services within licenses become active in the following order:
1 Trial Gold Security Pack license
2 Default Gold Security Pack license
3 Gold Security Pack license
4 New UTM license
5 Individual service license
background
Chapter 8 Licensing
USG FLEX Series User’s Guide
259
If your Zyxel Device is managed by Nebula in On Cloud Mode, you can use the Gold Security Pack
security services, right after you purchase the Gold Security Pack license.
The hospitality pack license and hotspot management license will become active once you buy them.
They are independent and will not be affected by the priority of the licenses listed above.
Contact customer support if you have a problem using your licenses.
8.1.2.3 Expiration Date
Only the Expiration Date for services that are currently running on the Zyxel Device are displayed in
Configuration > Licensing > Registration > Service. The Expiration Date changes after you buy a new
license.
For example, if you are currently using the default Gold Security Pack license, with expiration date of
2024/4/1, and then you purchase a new 1-year Gold Security Pack license, the new Expiration Date will
be in 2025/4/1.
If you purchase a 1-year UTM license after purchasing a new Gold Security Pack license, a year will be
deducted from the Expiration Date because:
• The Expiration Date of licenses with different services cannot be added together.
• The services in the Gold Security Pack license take priority over the new UTM license.
Go to portal.myzyxel.com to view the actual Amount/Time and Status for all services.
8.1.2.4 Service Status
Your service may show one of the following states.
• Consuming: The license service is active.
• Queued: This displays when you bought a new UTM license. Services are queued as they will become
active when current UTM services expire.
• Deferred: This displays when you bought a Gold Security Pack license and a new UTM license. The
new UTM license services are deferred as the Gold Security Pack license has priority, so the new UTM
license services will not become active until the Gold Security Pack license services first become
active, then expire.
• Expired: The license service expiry date (and grace period) is over.
8.1.3 Registration Screen
Click the link in this screen to register your Zyxel Device at myZyxel. Then click Refresh in this screen and
wait a few moments for the registration information to update. If the page does not refresh, make sure
the Internet connection is working and click Refresh again. The Zyxel Device should already have
Internet access and be able to access myZyxel. Click Configuration > Licensing > Registration in the
navigation panel to open the screen as shown next.
Table 96 Expiration Date Example
Default Gold Security
Pack License
+1-Year Gold Security Pack
License
+1-Year UTM License
Expiration Date 2024/4/1 2025/4/1 2024/4/1
background
Chapter 8 Licensing
USG FLEX Series User’s Guide
260
Click on the icon to go to the OneSecurity website where there is guidance on configuration
walkthrough and other information.
Figure 215 Configuration > Licensing > Registration
8.1.4 Service Screen
Use this screen to display the status of your service registrations and upgrade licenses. To activate or
extend a standard service subscription, purchase an iCard and enter the iCard’s PIN number (license
key) at myZyxel.
Click Activate in this screen to enable both Trial and Standard services on this Zyxel Device. Click
Configuration > Licensing > Registration > Service to open the screen as shown next.
The Service screen may show different services depending on the licenses you purchase or activate.
• Managed AP Service will be replaced by Secure WiFi when it’s activated.
Note: Anti-Malware signatures contain Anti-Malware signatures and Threat Intelligence
Machine Learning (TIML) signatures for Sandboxing. Both sets of signatures are included
in the Gold Security Pack license, but only Anti-Malware signatures are included in the
UTM license. If your Gold Security Pack license expires and you replace it with a UTM
license, then your Sandboxing (TIML) signatures will not be updated and Sandboxing
will not work. If your Gold Security Pack license expires, you should replace it with
another Gold Security Pack license.
background
Chapter 8 Licensing
USG FLEX Series User’s Guide
261
Figure 216 Configuration > Licensing > Registration > Service - USG FLEX Series
The following table describes the labels in this screen.
Table 97 Configuration > Licensing > Registration > Service
LABEL DESCRIPTION
Service Status
# This is the entry’s position in the list.
Service This lists the name of services or service modules that are available on the Zyxel
Device.
Web Filtering This is a license to a database that can block websites by category, such as
Gambling.
IPS (IDP) This is a license to detect Intrusion Detection and Prevention attacks.
Application Patrol This is a license to use signatures for Application Patrol inspection to manage the
use of various applications on the network.
Anti-Malware This is a license for signatures to detect malware patterns in files.
Email Security This is a license to use anti-spam signatures to mark or discard spam (unsolicited
commercial or junk email).
Sandboxing This is a license to provide a safe environment to separate running programs from
your network and host devices.
Reputation Filter This is a license to recognize packets coming from suspect IPv4 addresses.
Collaborative Detection
& Response
This is a license to detect wired and wireless clients that have become infected in
your network and to block or isolate traffic coming from them.
SecuReporter This is a license that allows SecuReporter to collect and analyze logs from your Zyxel
Device in order to identify anomalies, notify you of potential internal or external
threats, and report on network usage. The Zyxel Device retains logs up to 1 year.
Managed AP Service This is a license to manage more APs than the default for your Zyxel Device when
the AP controller is enabled.
background
Chapter 8 Licensing
USG FLEX Series User’s Guide
262
8.2 Signature Update
This section shows you how to update the signature packages of the Zyxel Device.
Secure WiFi This is a license to:
• Manage more than 8 APs.
• Enable Remote AP to allow an IPSec VPN tunnel from a supported remote AP to
the Zyxel Device.
The Secure WiFi license replaces the Managed AP Service license. If the Secure WiFi
license expires, then the Managed AP Service license will reappear, but you
cannot renew it. You can only renew a Secure WiFi license.
Network Premium This is a license to use Single-Sign On (SSO) that allows the Zyxel Device to
communicate with an SSO agent.
Hotspot Management
Subscription Service
This is a license to manage hotspot functions such as Billing, Printer Manager, Free
Time, IPnP, Walled Garden and Advertisement.
Concurrent Device
Upgrade
This is a license to increase the number of devices (based on unique MAC address)
that can log in and use the Zyxel Device Hotspot at the same time.
Device HA Pro This is a license for professional High Availability (HA) that lets a backup Zyxel
Device automatically take over if the master Zyxel Device fails.
Firmware Upgrade
Service
This is a free license to get Cloud Helper notifications when new firmware is
available. You must register your Zyxel Device at myZyxel.
Status This field displays whether a service license is enabled at myZyxel (Activated) or not
(Not Activated) or expired (Expired). It displays the remaining Grace Period if your
license has Expired. It displays Not Licensed if there isn’t a license to be activated
for this service.
Default displays for quantity-based licenses when the Zyxel Device is currently using
the allowed free number without a license. For example, if a Zyxel Device is allowed
to manage x number of APs without a license and it is currently using that number,
then Managed AP Service Status displays Default.
Service Type This field displays whether you applied for a trial application (Trial) or registered a
service with your iCard’s PIN number (Standard). This field is blank when a service is
not activated.
Expiration Date This field displays the date your service license expires or the date the grace period
expires if the license has already expired.
You can continue to use IDP/AppPatrol, Anti-Malware, Content Filter, Email Security
during the grace period. After the grace period ends, all of these features are
disabled.
Count This field displays how many instances of a service you can use with your current
license. N/A means a count does not apply to this service.
Action If you need a license or a trial license has expired, click Buy to buy a new one. If a
Standard license has expired, click Renew to extend the license.
Then, click Activate to connect with the myZyxel server to activate the new license.
Service License Refresh Click this button to renew service license information (such as the registration status
and expiration day).
Note: It is recommended you use this button after you register for a new
service.
Table 97 Configuration > Licensing > Registration > Service (continued)
LABEL DESCRIPTION
background
Chapter 8 Licensing
USG FLEX Series User’s Guide
263
• Use the Configuration > Licensing > Signature Update screen (Section 8.2.2 on page 263) to update
the signatures used for a service, such as IDP and application patrol.
8.2.1 What you Need to Know
• You need a valid service registration to update the anti-malware signatures, the DNS Threat filter
signatures, the IPS signatures, the IP reputation signatures and the App-Patrol signatures.
• You do not need a service registration to update the system-protection signatures.
• Schedule signature updates for a day and time when your network is least busy to minimize disruption
to your network.
• Your custom signature configurations are not over-written when you download new signatures.
Note: The Zyxel Device does not have to reboot when you upload new signatures.
8.2.2 The Signature Screen
Click Configuration > Licensing > Signature Update to display the following screen.
Figure 217 Configuration > Licensing > Signature Update
The following table describes the labels in this screen.
Table 98 Configuration > Licensing > Signature Update
LABEL DESCRIPTION
Service Status The following fields display the status and information on the current signature set that
the Zyxel Device is using.
Feature This field displays the name of the services available on the Zyxel Device.
Type This field displays the type of service engine used by the Zyxel Device.
Current Version This field displays the signatures version number currently used by the Zyxel Device. This
number gets larger as new signatures are added.
Released Date This field displays the date and time the set was released.
Last Sync This field displays the date and time the Zyxel Device last checked for new signatures at
myZyxel.
Action Click the Update icon to have the Zyxel Device immediately check for new signatures
at myZyxel. If new signatures are found, they are then downloaded to the Zyxel Device.
Click the Schedule icon to have the Zyxel Device automatically check for new
signatures regularly at the time and day specified. You should select a time when your
network is not busy for minimal interruption.
background
Chapter 8 Licensing
USG FLEX Series User’s Guide
264
8.2.3 Auto Update
Click the Schedule icon of a service to display the following screen.
Figure 218 Configuration > Licensing > Signature Update: Schedule > Auto Update
The following table describes the labels in this screen.
Table 99 Configuration > Licensing > Signature Update: Schedule > Auto Update
LABEL DESCRIPTION
Auto Update Select this check box to have the Zyxel Device automatically check for new signatures
regularly at the time and day specified.
You should select a time when your network is not busy for minimal interruption.
Hourly Select this option to have the Zyxel Device check for new signatures every hour.
Daily Select this option to have the Zyxel Device check for new signatures every day at the
specified time. The time format is the 24 hour clock, so ‘23’ means 11 PM for example.
Weekly Select this option to have the Zyxel Device check for new signatures once a week on
the day and at the time specified.
OK Click this button to save your changes to the Zyxel Device.
background
USG FLEX Series User’s Guide
265
CHAPTER 9
Wireless
9.1 Overview
Use the Wireless screens to configure how the Zyxel Device manages supported Access Points (APs).
Supported APs should be in managed mode. See the product page Licenses tab for a list of supported
APs.
9.1.1 What You Can Do in this Chapter
• Use the Built-in AP screen (Section 9.2 on page 269) to allow WiFi clients to access your Zyxel Device
wirelessly to connect to the network.
• Use the Controller screen (Section 9.3 on page 280) to set how the Zyxel Device allows new APs to
connect to the network and set the country code of APs that are connected to the Zyxel Device.
• Use the AP Management screens (Section 9.4 on page 283) to manage all of the APs connected to
the Zyxel Device.
• Use the Rogue AP screen (Section 9.5 on page 308) to assign APs either to the rogue AP list or the
friendly AP list.
• Use the Wireless Health (Section 9.6 on page 311) screen to improve the APs wireless network
performance.
• Use the Auto Healing screen (Section 9.7 on page 312) to extend the wireless service coverage area
of the managed APs when one of the APs fails.
• Use the RTLS screen (Section 9.8 on page 313) to allow managed APs with battery-powered Wi-Fi tags
be part of Ekahau RTLS (Real Time Location Service). RTLS can track the location of APs managed by
the Zyxel Device to create maps, alerts, and reports.
9.1.2 What You Need to Know
The following table shows the APs that support each feature.
Table 100 AP Features Comparison Table
MODEL/FEATURE
AIRTIME
FAIRNESS
ETHERNET STORM
CONTROL
WIRELESS STORM
CONTROL
WIRELESS
HEALTH
WIFI
STANDARD
NWA5123AC-HD No Yes No No WiFi 5
WAC6303D-S No Yes No No WiFi 5
WAC5302-Sv2 No Yes No No WiFi 5
WAX630S Yes Yes Yes Yes WiFi 6
WAX650S Yes Yes Yes Yes WiFi 6
WAX510D Yes Yes Yes Yes WiFi 6
WAX610D Yes Yes Yes Yes WiFi 6
WAC500H No Yes Yes Yes WiFi 5
WAC500 No Yes Yes Yes WiFi 5
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
266
For more information on airtime fairness, see Section 9.4.1.1 on page 285.
For more information on storm control, see Section 9.4.1.1 on page 285.
For more information on wireless health, see Section 9.6 on page 311.
Note: Please see your AP product page at the Zyxel web site to see if it can be managed by
the Zyxel Device.
WiFi 6 (IEEE 802.11ax)
WiFi 6 (802.11ax) is a WiFi standard that supports both 2.4 GHz and 5 GHz frequency bands and brings
the following major improvements:
High Data Transmission Speed
WiFi 6 provides faster transmission data rate than its previous WiFi standards with the following features:
• 1024-QAM (Quadrature Amplitude Modulation)- enhances the data capacity of each transmission
unit.
• 160 MHz Channel Bandwidth- extends the supported channel bandwidth to 160 MHz, providing
higher data throughput.
Enhanced Air Time Utilization
WiFi 6 increases transmission performance in high-density environments that have multiple client devices
with the following features:
• OFDMA (Orthogonal Frequency-Division Multiple Access)- divides channels into sub-channels that
enables multiple transmissions in a single channel.
• BSS Coloring- tags traffic by BSS (Basic Server Set) and identifies traffic from overlapping BSSs. The AP
can ignore traffic of unrelated BSSs and transmit data when a channel is occupied.
• MU-MIMO (Multiple User-Multiple Input Multiple Output)- enables multiple users to connect to the AP
and download/upload traffic simultaneously.
Extended Signal Range
Beamforming forms the radiating signals into one direction. This enhances the signal strength and
extends the signal transmission range.
Extended Battery Life
Target Wake Time (TWT) allows the AP to negotiate with client devices so client devices only wakes up
and communicates with the AP in specific periods. This conserve client devices battery life.
WAX640S-6E Yes Yes Yes Yes WiFi 6E
WAX620D-6E Yes Yes Yes Yes WiFi 6E
WBE660S Yes Yes Yes Yes WiFi 7
Table 100 AP Features Comparison Table (continued)
MODEL/FEATURE
AIRTIME
FAIRNESS
ETHERNET STORM
CONTROL
WIRELESS STORM
CONTROL
WIRELESS
HEALTH
WIFI
STANDARD
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
267
WiFi 6E (IEEE 802.11ax - Extended Standard)
WiFi 6E is an extended standard of WiFi 6 (IEEE 802.11ax). WiFi 6E inherits all the WiFi 6 features and brings
with an additional 6 GHz band. The 6 GHz band allows you to avoid possible congested traffic in the
lower 2.4 GHz and 5 GHz bands. WiFi clients must support WiFi 6E
to connect to an AP using the 6 GHz
band.
You must use WPA3 for security with WiFi 6E.
Note: Check your client device’s product specification to see if your client device supports
the 6 GHz band (WiFi 6E). If not, you should still use the 2.4/5 GHz bands for connection.
WiFi 6E MBSSID Beacon Management
The AP supports MBSSID, which allows you to create multiple virtual WiFi networks (SSIDs) on the AP. With
the WiFi 6E (802.11ax-extended) standard, the AP divides SSIDs into groups, and includes information of
all SSIDs in a group in one SSID beacon. Therefore, the Zyxel Device doesn’t need to send beacons for
individual SSIDs, which improves air time efficiency.
Note: If you disable a virtual WiFi network (SSID) whose beacon contains the group SSID
information, WiFi clients of that group will be disconnected until the AP reselects
another SSID to send the beacon.
Out-of-Band Discovery
Out-of-band discovery allows the AP to include information of the 6 GHz band in management frames
sent over the 2.4 GHz /5 GHz bands. WiFi 6E clients only need to scan the lower bands (2.4 GHz/5 GHz) to
connect to the AP in the 6 GHz band, reducing the discovery time.
PSC Channel (In-Band Discovery)
PSCs (Preferred Scanning Channels) are dedicated channels for WiFi 6E clients to send probe requests
on to discover a compatible AP, instead of scanning the entire 6 GHz band. In this way, WiFi 6E clients
are able to efficiently discover and connect to the AP within the 6 GHz band.
Note: The available PSCs differ by country for the unlicensed use in the 6 GHz band.
Resource Unit
A resource unit is a portion of a channel bandwidth. For example, a 20 MHz channel can be divided into
several resource units. Each resource unit can be allocated to a specified WiFi client, allowing
simultaneous data transmission.
WiFi 7 (IEEE802.11be)
WiFi 7 (802.11be) is backward-s compatible with WiFi 6 and WiFi 6E. WiFi 7 is a WiFi standard that supports
2.4 GHz, 5 GHz and 6 GHz frequency bands with the following improvements over WiFi 6 and WiFi 6E.
Table 101 WiFi 6, WiFi 6E and WiFi 7 Comparison
FEATURES WIFI 6 WIFI 6E WIFI 7
Theoretical Maximum Speed (Up-to) The same (9.6 Gbps). 46 Gbps
Supported Frequency Bands 2.4 GHz/5 GHz 2.4 GHz/5 GHz/6 GHz 2.4 GHz/5 GHz/6 GHz
Supported Channel Bandwidth 20/40/80/160 MHz 20/40/80/160 MHz 20/40/80/160/320 MHz
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
268
Faster Data Transmission
WiFi 7 allows faster data transmission using:
• 4096 QAM (Quadrature Amplitude Modulation)- enhances the amount of data transmitted over the
available bandwidth.
• 320 MHz Channel Bandwidth- enlarges the supported channel bandwidth to 320 MHz, allowing higher
data throughput.
• Multiple Resource Units (RUs)- allows an AP to allocate multiple RUs to a WiFi client.
Multi-Link Operation (MLO)
An AP can support multiple frequency bands (2.4 GHz, 5 GHz and 6 GHz), but a WiFi client can only
connect to the AP using one of these frequency bands. The other frequency bands are unused. The
client's data transmission speed depends on the frequency band they are connected to.
Figure 219 Without Multi-Link Operation
WiFi 7 MLO allows a WiFi client to connect to the AP using multiple frequency bands simultaneously. This
increases speed and improves reliability of the WiFi connection. MLO makes WiFi 7 ideal for streaming
4K/8K videos, using augmented reality (AR), virtual reality (VR) applications and playing online games.
To use MLO, both the AP and the WiFi client have to support MLO.
Note: The Zyxel AP does not support MLO at the time of writing.
Figure 220 Multi-Link Operation Example
Preamble Puncturing
Total Spectrum (Up-to) 2.4 GHz 80 MHz 80 MHz
5 GHz 500 MHz 500 MHz
6 GHz Not supported. 1200 MHz 1200 MHz
Other Features (OFDMA/BSS
Coloring/TWT/Two-Way MU-MIMO/
Beamforming/1024-QAM)
The same (WiFi 6E inherits all the features from
WiFi 6).
WiFi 7 inherits all the
features from WiFi 6
and WiFi 6E, with the
addition of multi-link
operation and
preamble puncturing.
Table 101 WiFi 6, WiFi 6E and WiFi 7 Comparison
FEATURES WIFI 6 WIFI 6E WIFI 7
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
269
In WiFi 6 and earlier, any interference would cause the entire WiFi channel to become unavailable. In
the figure below, if part of the WiFi channel (B) experiences interference, the rest of the WiFi channel (C)
becomes unavailable.
Figure 221 Without Preamble Puncturing
WiFi 7 preamble puncturing allows you to block the specific portion of the channel that is experiencing
interference while continuing to use the rest of the WiFi channel. In the figure below, if part of the WiFi
channel (B) experiences interference, the rest of the WiFi channel (C) is still available.
Figure 222 Preamble Puncturing Example
9.2 Built-in AP
If your Zyxel Device has a built-in AP, then use this function to allow WiFi clients to access your Zyxel
Device wirelessly to connect to the network. If your Zyxel Device is in AP Controller Mode, go to
Configuration > Wireless > Built-in AP_ General and click Switch to Built-in AP Mode.
Figure 223 Configuration > Wireless > General (Switch to Built-in Mode)
To go to AP Controller Mode from Built-in AP Mode, go to Configuration > Controller and click Switch to
AP Controller Mode.
Your Zyxel Device configuration menu will look different in Built-in AP mode and AP Controller mode.
Figure 224 Configuration > Wireless > General (Switch to Built-in Mode)
The Configuration > Wireless > Built-in AP displays showing AP information in Built-in AP Mode.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
270
Figure 225 Configuration > Wireless > General
Each field is described in the following table.
9.2.1 Wireless > Built-in AP > General > Add/Edit SSID
This screen allows you to create a new SSID profile or edit an existing one. An SSID, or Service Set
IDentifier, is the name of the wireless network to which a wireless client can connect. To access this
screen, click the Add button or select an entry from the list in Configuration > Wireless > Built-in AP then
and click the Edit button.
Table 102 Configuration > Wireless > General
LABEL DESCRIPTION
SSID Summary
Quick Setup Click this to go to the Quick Setup Wireless Wizard to configure a wireless network.
Add Click this to configure a new wireless network.
You can configure up to 4 SSID profiles.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Activate/Inactivate To turn on an entry, select it and click Activate. To turn off an entry, select it and click
Inactivate.
# This is the wireless network’s index number in this list.
Status This displays whether or not the wireless network is activated.
SSID This shows the name of the wireless network.
Security Mode This shows the security used for this wireless network. No security allows any wireless client to
associate with this network without authentication.
Band Mode This shows the wireless band which this wireless network uses. 2.4 GHz is the frequency used
by IEEE 802.11b/g/n/ax wireless clients. 5 GHz is the frequency used by IEEE 802.11ax/ac/a/n
wireless clients.
Outgoing Interface This is the outgoing interface that the wireless network uses to transmit packets.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
271
Figure 226 Configuration > Wireless > General > Add/Edit SSID Profile
Each field is described in the following table.
Table 103 Configuration > Object > AP Profile > SSID > SSID List > Add/Edit SSID Profile
LABEL DESCRIPTION
Activate To turn on an entry, select Activate. To turn off an entry, select it and click Inactivate.
SSID Enter the SSID name for this profile. This is the name visible on the network to wireless clients.
Enter up to 32 characters, spaces and underscores are allowed.
Band Mode This shows the wireless band which this wireless network uses. 2.4 GHz is the frequency used by
IEEE 802.11b/g/n/ax wireless clients. 5 GHz is the frequency used by IEEE 802.11ax/ac/a/n
wireless clients.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
272
QoS Select a Quality of Service (QoS) access category to associate with this SSID. Access categories
minimize the delay of data packets across a wireless network. Certain categories, such as
video or voice, are given a higher priority due to the time sensitive nature of their data packets.
QoS access categories are as follows:
disable: Turns off QoS for this SSID. All data packets are treated equally and not tagged with
access categories.
WMM: Enables automatic tagging of data packets. The Zyxel Device assigns access categories
to the SSID by examining data as it passes through it and making a best guess effort. If
something looks like video traffic, for instance, it is tagged as such.
WMM_VOICE: All wireless traffic to the SSID is tagged as voice data. This is recommended if an
SSID is used for activities like placing and receiving VoIP phone calls.
WMM_VIDEO: All wireless traffic to the SSID is tagged as video data. This is recommended for
activities like video conferencing.
WMM_BEST_EFFORT: All wireless traffic to the SSID is tagged as “best effort,” meaning the data
travels the best route it can without displacing higher priority traffic. This is good for activities
that do not require the best bandwidth throughput, such as surfing the Internet.
WMM_BACKGROUND: All wireless traffic to the SSID is tagged as low priority or “background
traffic”, meaning all other access categories take precedence over this one. If traffic from an
SSID does not have strict throughput requirements, then this access category is recommended.
For example, an SSID that only has network printers connected to it.
Outgoing
Interface
Select the outgoing interface that the wireless network uses to transmit packets.
Authentication
Settings
Security Mode Select a security mode from the list: open, wep, wpa2, wpa2-mix or wpa3.
802.1x Select this to enable 802.1x secure authentication with a RADIUS server.
Auth. Method This field is available only when you select the RADIUS Server Type to Internal.
Select an authentication method if you have created any on the Configuration > Object >
Auth. Method screen.
Reauthentica
tion Timer
Enter the interval (in seconds) between authentication requests. Enter a 0 for unlimited
requests.
PSK Select this option to use a Pre-Shared Key with WPA encryption.
Pre-Shared
Key
Enter a pre-shared key of between 8 and 63 case-sensitive ASCII characters (including spaces
and symbols) or 64 hexadecimal characters.
Cipher Type Select an encryption cipher type from the list.
• auto - This automatically chooses the best available cipher based on the cipher in use by
the wireless client that is attempting to make a connection.
• aes - This is the Advanced Encryption Standard encryption method. It is a more recent
development over TKIP and considerably more robust. Not all wireless clients may support
this.
Idle Timeout Enter the idle interval (in seconds) that a client can be idle before authentication is
discontinued.
Group Key
Update Timer
Enter the interval (in seconds) at which the AP updates the group WPA encryption key.
Table 103 Configuration > Object > AP Profile > SSID > SSID List > Add/Edit SSID Profile (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
273
Pre-
Authentication
This field is available only when you set Security Mode to wpa2 or wpa2-mix and enable 802.1x
authentication.
Enable or Disable pre-authentication to allow the AP to send authentication information to
other APs on the network, allowing connected wireless clients to switch APs without having to
re-authenticate their network connection.
Management
Frame Protection
This field is available only when you select wpa2 in the Security Mode field and set Cipher Type
to aes.
Data frames in 802.11 WLANs can be encrypted and authenticated with WEP, WPA or WPA2.
But 802.11 management frames, such as beacon/probe response, association request,
association response, de-authentication and disassociation are always unauthenticated and
unencrypted. IEEE 802.11w Protected Management Frames allows APs to use the existing
security mechanisms (encryption and authentication methods defined in IEEE 802.11i WPA/
WPA2) to protect management frames. This helps prevent wireless DoS attacks.
Select the check box to enable management frame protection (MFP) to add security to 802.11
management frames.
Select Optional if you do not require the wireless clients to support MFP. Management frames
will be encrypted if the clients support MFP.
Select Required and wireless clients must support MFP in order to join the Zyxel Device’s wireless
network.
Hidden SSID Select this if you want to “hide” your SSID from wireless clients. This tells any wireless clients in the
vicinity of the AP using this SSID profile not to display its SSID name as a potential connection.
Not all wireless clients respect this flag and display it anyway.
When a SSID is “hidden” and a wireless client cannot see it, the only way you can connect to
the SSID is by manually entering the SSID name in your wireless connection setup screen(s)
(these vary by client, client connectivity software, and operating system).
Enable Intra-BSS
Traffic Blocking
Select this option to prevent crossover traffic from within the same SSID on the Zyxel Device.
Enable U-APSD Select this option to enable Unscheduled Automatic Power Save Delivery (U-APSD), which is
also known as WMM-Power Save. This helps increase battery life for battery-powered wireless
clients connected to the Zyxel Device using this SSID profile.
Enable ARP Proxy The Address Resolution Protocol (ARP) is a protocol for mapping an IP address to a MAC
address. An ARP broadcast is sent to all devices on the same Ethernet network to request the
MAC address of a target IP address.
Select this option to allow the Zyxel Device to answer ARP requests for an IP address on behalf
of a client associated with this SSID. This can reduce broadcast traffic and improve network
performance.
802.11k/v Assisted
Roaming
Select this option to enable IEEE 802.11k/v assisted roaming on the Zyxel Device. When the
connected clients request 802.11k neighbor lists, the Zyxel Device will response with a list of
neighbor APs that can be candidates for roaming.
Schedule SSID Select this option and set whether the SSID is enabled or disabled on each day of the week.
You also need to select the hour and minute (in 24-hour format) to specify the time period of
each day during which the SSID is enabled/enabled.
Radius Settings
Radius Server
Type
Select Internal to use the Zyxel Device’s internal authentication database, or External to use an
external RADIUS server for authentication.
Proxy by
controller directly
Select this to allow the Zyxel Device to answer authentication requests on behalf of an external
RADIUS server.
MAC Filter
Table 103 Configuration > Object > AP Profile > SSID > SSID List > Add/Edit SSID Profile (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
274
9.2.2 Wireless > Built-in AP > Radio
This screen allows you to create radio profiles for the Zyxel Device. A radio profile is a list of settings that a
Zyxel Device can use to configure its radio transmitter(s).To access this screen click Configuration >
Wireless > Built-in AP > Radio.
Filter Action Select allow to permit the wireless client with the MAC addresses in this profile to connect to the
network through the associated SSID; select deny to block the wireless clients with the specified
MAC addresses.
Add Click this to add a MAC address to the profile’s list.
Edit Click this to edit the selected MAC address in the profile’s list.
Remove Click this to remove the selected MAC address from the profile’s list.
# This field is a sequential value, and it is not associated with a specific user.
MAC This field specifies a MAC address associated with this profile. You can click the MAC address to
make it editable.
Description This field displays a description for the MAC address associated with this profile. You can click
the description to make it editable. Enter up to 60 characters, spaces and underscores
allowed.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 103 Configuration > Object > AP Profile > SSID > SSID List > Add/Edit SSID Profile (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
275
Figure 227 Wireless > Built-in AP > Radio
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
276
The following table describes the labels in this screen.
Table 104 Wireless > Built-in AP > Radio
LABEL DESCRIPTION
Hide / Show
Advanced Settings
Click this to hide or show the Advanced Settings in this window.
2.4GHz General
Settings
802.11 Band Select how to let wireless clients connect to the AP.
• 11b/g: allows either IEEE 802.11b or IEEE 802.11g compliant WLAN devices to associate
with the AP. The AP adjusts the transmission rate automatically according to the
wireless standard supported by the wireless devices.
• 11b/g/n: allows IEEE802.11b, IEEE802.11g and IEEE802.11n compliant WLAN devices to
associate with the AP. The transmission rate of your AP might be reduced.
• 11ax: allows IEEE802.11b, IEEE802.11g, IEEE802.11n, and IEEE802.11ax compliant WLAN
devices to associate with the Zyxel Device. If the WLAN device isn’t compatible with
802.11ax, the Zyxel Device will communicate with the WLAN device using 802.11n, and
so on.
Channel Width Select the wireless channel bandwidth you want the AP to use.
A standard 20 MHz channel offers transfer speeds of up to 144Mbps (2.4GHz) or 217Mbps
(5GHZ) whereas a 40MHz channel uses two standard channels and offers speeds of up to
300Mbps (2.4GHz) or 450Mbps (5GHZ).
40 MHz (channel bonding or dual channel) bonds two adjacent radio channels to increase
throughput. Because not all devices support all channels, select 20/40MHz to allow the AP
to adjust the channel bandwidth automatically.
Select 20MHz if you want to lessen radio interference with other wireless devices in your
neighborhood or the wireless clients do not support channel bonding.
Note: If the environment has poor signal-to-noise (SNR), the Zyxel Device will
switch to a lower bandwidth.
Channel
Selection
Select the wireless channel which this radio profile should use.
It is recommended that you choose the channel least in use by other APs in the region
where this profile will be implemented. This will reduce the amount of interference between
wireless clients and the AP to which this profile is assigned.
Select DCS to have the AP automatically select the radio channel upon which it
broadcasts by scanning the area around it and determining what channels are currently
being used by other devices.
Note: If you change the country code later, Channel Selection is set to Manual
automatically.
Select Manual and specify the channels the AP uses.
Output Power Enter the maximum output power of the Zyxel Device. If there is a high density of APs in an
area, decrease the output power of the Zyxel Device to reduce interference with other
APs. Reducing the output power also reduces the Zyxel Device’s effective broadcast
radius.
Enable DCS
Client Aware
This field is available when you set Channel Selection to DCS.
Select this to have the AP wait until all connected clients have disconnected before
switching channels.
If you disable this then the AP switches channels immediately regardless of any client
connections. In this instance, clients that are connected to the AP when it switches
channels are dropped.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
277
2.4 GHz Channel
Selection Method
This field is available when you set Channel Selection to DCS.
Select auto to have the AP search for available channels automatically in the 2.4 GHz
band. The available channels vary depending on what you select in the 2.4 GHz Channel
Deployment field.
Select manual and specify the channels the AP uses in the 2.4 GHz band.
Channel ID This field is available only when you set Channel Selection to DCS and set 2.4 GHz Channel
Selection Method to manual.
Select the check boxes of the channels that you want the AP to use.
2.4 GHz Channel
Deployment
This field is available only when you set Channel Selection to DCS and set 2.4 GHz Channel
Selection Method to auto.
Select Three-Channel Deployment to limit channel switching to channels 1,6, and 11, the
three channels that are sufficiently attenuated to have almost no impact on one another.
In other words, this allows you to minimize channel interference by limiting channel-
hopping to these three “safe” channels.
Select Four-Channel Deployment to limit channel switching to four channels. Depending
on the country domain, if the only allowable channels are 1-11 then the Zyxel Device uses
channels 1, 4, 7, 11 in this configuration; otherwise, the Zyxel Device uses channels 1, 5, 9, 13
in this configuration. Four channel deployment expands your pool of possible channels
while keeping the channel interference to a minimum.
Time Interval Select this option to have the Zyxel Device survey the other APs within its broadcast radius
at the end of the specified time interval.
DCS Time Interval This field is available when you set Channel Selection to DCS.
Enter a number of minutes. This regulates how often the AP surveys the other APs within its
broadcast radius. If the channel on which it is currently broadcasting suddenly comes into
use by another AP, the AP will then dynamically select the next available clean channel or
a channel with lower interference.
Schedule Select this option to have the Zyxel Device survey the other APs within its broadcast radius
at a specific time on selected days of the week.
Start Time Specify the time of the day (in 24-hour format) to have the Zyxel Device use DCS to
automatically scan and find a less-used channel.
Week Days Select each day of the week to have the Zyxel Device use DCS to automatically scan and
find a less-used channel.
Advanced Settings
Guard Interval This field is available only when the channel width is 20/40MHz or 20/40/80MHz.
Set the guard interval for this radio profile to either Short or Long.
The guard interval is the gap introduced between data transmission from users in order to
reduce interference. Reducing the interval increases data transfer rates but also increases
interference. Increasing the interval reduces data transfer rates but also reduces
interference.
Enable A-MPDU
Aggregation
Select this to enable A-MPDU aggregation.
Message Protocol Data Unit (MPDU) aggregation collects Ethernet frames along with their
802.11n headers and wraps them in a 802.11n MAC header. This method is useful for
increasing bandwidth throughput in environments that are prone to high error rates.
A-MPDU Limit Enter the maximum frame size to be aggregated.
A-MPDU
Subframe
Enter the maximum number of frames to be aggregated each time.
Table 104 Wireless > Built-in AP > Radio
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
278
Enable A-MSDU
Aggregation
Select this to enable A-MSDU aggregation.
Mac Service Data Unit (MSDU) aggregation collects Ethernet frames without any of their
802.11n headers and wraps the header-less payload in a single 802.11n MAC header. This
method is useful for increasing bandwidth throughput. It is also more efficient than A-MPDU
except in environments that are prone to high error rates.
A-MSDU Limit Enter the maximum frame size to be aggregated.
RTS/CTS Threshold Use RTS/CTS to reduce data collisions on the wireless network if you have wireless clients
that are associated with the same AP but out of range of one another. When enabled, a
wireless client sends an RTS (Request To Send) and then waits for a CTS (Clear To Send)
before it transmits. This stops wireless clients from transmitting packets at the same time
(and causing data collisions).
A wireless client sends an RTS for all packets larger than the number (of bytes) that you
enter here. Set the RTS/CTS equal to or higher than the fragmentation threshold to turn RTS/
CTS off.
Beacon Interval When a wirelessly networked device sends a beacon, it includes with it a beacon interval.
This specifies the time period before the device sends the beacon again. The interval tells
receiving devices on the network how long they can wait in low-power mode before
waking up to handle the beacon. A high value helps save current consumption of the
access point.
DTIM Delivery Traffic Indication Message (DTIM) is the time period after which broadcast and
multicast packets are transmitted to mobile clients in the Active Power Management
mode. A high DTIM value can cause clients to lose connectivity with the network. This value
can be set from 1 to 255.
Enable Signal
Threshold
Select the check box to use the signal threshold to ensure wireless clients receive good
throughput. This allows only wireless clients with a strong signal to connect to the AP.
Clear the check box to not require wireless clients to have a minimum signal strength to
connect to the AP.
Station Signal
Threshold
Set a minimum client signal strength. A wireless client is allowed to connect to the AP only
when its signal strength is stronger than the specified threshold.
-20 dBm is the strongest signal you can require and -76 is the weakest.
Disassociate
Station Threshold
Set a minimum kick-off signal strength. When a wireless client’s signal strength is lower than
the specified threshold, the Zyxel Device disconnects the wireless client from the AP.
-20 dBm is the strongest signal you can require and -90 is the weakest.
Allow Station
Connection after
Multiple Retries
Select this option to allow a wireless client to try to associate with the AP again after it is
disconnected due to weak signal strength.
Station Retry
Count
Set the maximum number of times a wireless client can attempt to re-connect to the AP.
Allow 802.11n/ac
stations only
Only select this if you want to deny 802.11b/g/n clients access to the radio.
Multicast Settings Use this section to set a transmission mode and maximum rate for multicast traffic.
Transmission
Mode
Set how the AP handles multicast traffic.
Select Multicast to Unicast to broadcast wireless multicast traffic to all of the wireless clients
as unicast traffic. Unicast traffic dynamically changes the data rate based on the
application’s bandwidth requirements. The retransmit mechanism of unicast traffic
provides more reliable transmission of the multicast traffic, although it also produces
duplicate packets.
Select Fixed Multicast Rate to send wireless multicast traffic at a single data rate. You must
know the multicast application’s bandwidth requirements and set it in the following field.
Table 104 Wireless > Built-in AP > Radio
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
279
Multicast Rate
(Mbps)
If you set the multicast transmission mode to fixed multicast rate, set the data rate for
multicast traffic here. For example, to deploy 4 Mbps video, select a fixed multicast rate
higher than 4 Mbps.
5GHz General
Settings
802.11 Band Select how to let wireless clients connect to the AP.
• 11a: allows only IEEE 802.11a compliant WLAN devices to associate with the Zyxel
Device.
• 11a/n: allows both IEEE802.11n and IEEE802.11a compliant WLAN devices to associate
with the Zyxel Device.
• 11ac: allows IEEE802.11n, IEEE802.11a, and IEEE802.11ac compliant WLAN devices to
associate with the Zyxel Device. If the WLAN device isn’t compatible with 802.11ac, the
Zyxel Device will communicate with the WLAN device using 802.11n, and so on.
• 11ax: allows IEEE802.11b, IEEE802.11g, IEEE802.11n, and IEEE802.11ax compliant WLAN
devices to associate with the Zyxel Device. If the WLAN device isn’t compatible with
802.11ax, the Zyxel Device will communicate with the WLAN device using 802.11n, and
so on.
Channel Width Select the channel bandwidth you want to use for your wireless network.
Select 20 MHz if you want to lessen radio interference with other wireless devices in your
neighborhood.
Select 20/40 MHz to allow the Zyxel Device to choose the channel bandwidth (20 or 40
MHz) that has least interference.
Select 20/40/80 MHz to allow the Zyxel Device to choose the channel bandwidth (20 or 40
or 80 MHz) that has least interference. This option is available only when you select 11ac or
11ax in the 802.11 Mode field.
Note: If the environment has poor signal-to-noise ratio (SNR), the Zyxel Device will
switch to a lower bandwidth.
Channel
Selection
Select the wireless channel which this radio profile should use.
It is recommended that you choose the channel least in use by other APs in the region
where this profile will be implemented. This will reduce the amount of interference between
wireless clients and the AP to which this profile is assigned.
Select DCS to have the AP automatically select the radio channel upon which it
broadcasts by scanning the area around it and determining what channels are currently
being used by other devices.
Note: If you change the country code later, Channel Selection is set to Manual
automatically.
Select Manual and specify the channels the AP uses.
Output Power Enter the maximum output power of the Zyxel Device. If there is a high density of APs in an
area, decrease the output power of the Zyxel Device to reduce interference with other
APs. Reducing the output power also reduces the Zyxel Device’s effective broadcast
radius.
Enable DCS
Client Aware
This field is available when you set Channel Selection to DCS.
Select this to have the AP wait until all connected clients have disconnected before
switching channels.
If you disable this then the AP switches channels immediately regardless of any client
connections. In this instance, clients that are connected to the AP when it switches
channels are dropped.
Table 104 Wireless > Built-in AP > Radio
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
280
9.3 Controller Screen
Use this screen to set how the Zyxel Device allows new APs to connect to the network. Click
Configuration > Wireless > Controller to access this screen.
Avoid 5 GHz DFS
Channel
This field is available only when you set 802.11 Band to 5G, Channel Selection to DCS and 5
GHz Channel Selection Method to auto.
Dynamic Frequency Selection (DFS) is a channel WiFi allocation scheme that allows APs to
use channels in the 5 Ghz band normally reserved for radar. Before using a DFS channel, an
AP must ensure there is no radar present by performing a Channel Availability Check
(CAC). This check takes 1-10 minutes, depending on the country in which the AP is located.
Select this if you don’t want to wait for the Zyxel Device to perform a CAC before using a
channel by forcing the Zyxel Device to only use the non-DFS channels.
Clear this to allow the Zyxel Device to use the DFS channels for more channel options.
5 GHz Channel
Selection Method
This field is available when you set Channel Selection to DCS.
Select auto to have the AP search for available channels automatically in the 5 GHz band.
The available channels vary depending on what you select in the 5 GHz Channel
Deployment field.
Select manual and specify the channels the AP uses in the 5 GHz band.
Channel ID This field is available only when you set Channel Selection to DCS and set 5 GHz Channel
Selection Method to manual.
Select the check boxes of the channels that you want the AP to use.
Time Interval Select this option to have the Zyxel Device survey the other APs within its broadcast radius
at the end of the specified time interval.
DCS Time Interval This field is available when you set Channel Selection to DCS.
Enter a number of minutes. This regulates how often the AP surveys the other APs within its
broadcast radius. If the channel on which it is currently broadcasting suddenly comes into
use by another AP, the AP will then dynamically select the next available clean channel or
a channel with lower interference.
Schedule Select this option to have the Zyxel Device survey the other APs within its broadcast radius
at a specific time on selected days of the week.
Start Time Specify the time of the day (in 24-hour format) to have the Zyxel Device use DCS to
automatically scan and find a less-used channel.
Week Days Select each day of the week to have the Zyxel Device use DCS to automatically scan and
find a less-used channel.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 104 Wireless > Built-in AP > Radio
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
281
Figure 228 Configuration > Wireless > Controller (without built-in AP)
Figure 229 Configuration > Wireless > Controller (with built-in AP)
Each field is described in the following table.
9.3.1 Connecting an AP to the Zyxel Device
• You can connect an AP directly to one of the Ethernet ports on the Zyxel Device. You can also
connect an AP indirectly to the Zyxel Device through the local network.
Table 105 Configuration > Wireless > Controller
LABEL DESCRIPTION
Country Code Select the country code of where the Zyxel Device is located/installed. The available channels
vary depending on the country you selected.
Please note that Zyxel Devices with built-in AP do not support country code, see Table 1.1.1 on
page 30 for more information.
Registration
Type
Select Manual to add each AP to the Zyxel Device for management, or Always Accept to
automatically add APs to the Zyxel Device for management.
If you select Manual, then go to Monitor > Wireless > AP Information > AP List, select an AP to be
managed and then click Add to Mgnt AP List. That AP will then appear in Configuration > Wireless
> Controller > Mgnt. AP List.
Note: Select the Manual option for managing a specific set of APs. This is
recommended as the registration mechanism cannot automatically differentiate
between friendly and rogue APs.
APs must be connected to the Zyxel Device by a wired connection or network.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
282
• If an AP and the Zyxel Device are on the same subnet, the AP will automatically detect and connect
to the Zyxel Device.
• If an AP and the Zyxel Device are on different subnets, then you can must configure the AP to
connect to the Zyxel Device. You can do this manually or by configuring DHCP Option 138 on the
AP’s DHCP server.
• After an AP has successfully connected to the Zyxel Device, the AP appears in the AP List on MONITOR
> Wireless > AP Information.
9.3.2 Connecting an AP to the Zyxel Device Manually
1 Ensure that the Zyxel Device has a static IP address.
2 Connect to and log on to the AP using a web browser.
3 On the AP, go to CONFIGURATION > Network > AC Discovery.
4 Under Discovery Setting, select Manual.
5 Under Primary static AC IP, enter the IP address of the Zyxel Device.
6 Click Apply.
The Zyxel Device can now manage the AP.
9.3.3 Connecting an AP to the Zyxel Device Using DHCP Option 138
1 Ensure that the Zyxel Device has a static IP address.
2 Log on to the DHCP server and configure settings for the network in which the AP is located.
3 Add a new DHCP option with the following values:
Name: Capwap AC
Code: 138
Type: IP Address
Value: <Zyxel Device IP address>
4 Restart the AP.
The AP picks up a new DCHP-assigned IP address. The Zyxel Device can now manage the AP.
Use the AP Management screens to manage all of the APs connected to the Zyxel Device.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
283
9.4 AP Management Screens
Use these screens to manage all of the APs connected to the Zyxel Device. Click Configuration >
Wireless > AP Management to access these screens.
Click on the icon to go to the OneSecurity website where there is guidance on configuration
walkthroughs and other information.
9.4.1 Mgnt. AP List
Figure 230 Configuration > Wireless > AP Management > Mgnt. AP List
Each field is described in the following table.
Table 106 Configuration > Wireless > AP Management > Mgnt. AP List
LABEL DESCRIPTION
Filter Click Show Advanced Settings to reveal Filter fields where you can display managed APs by
status, keyword or those managed by the Nebula portal.
AP List Select the type of APs you want to display.
Select All to show all kinds of APs that are currently or used to be connected to the Zyxel
Device.
Select NebulaFlexPRO to show the APs that can work in Nebula cloud management mode.
Status Select the status of APs you want to display.
Keyword Enter a keyword to display the APs that include it in their AP information, such as model
number, firmware version, MAC address and so on. This field is case-sensitive.
Search Click this to update the list of APs based on the search criteria.
Your search criteria is retained when navigating between screens.
Reset Click this to return the search criteria to the factory defaults and display all currently or
previously connected APs without a filter.
Enable Column
Freeze
Select this to lock the index columns in place while scrolling to the right.
Edit the selected rule Select an AP and click this to change the selected AP’s properties, such as its group, radio,
VLAN and port settings.
Add to Mgmt AP List Select an AP and click this to add the selected AP to the managed AP list.
Reboot device Select one or multiple APs and click this button to force the AP(s) to restart.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
284
Remove the
selected rule
Select one or multiple APs and click this button to remove the AP(s) from the manged AP
list.
Note: If on the Configuration > Wireless > Controller screen you set the
Registration Type to Always Accept, then as soon as you remove an AP
from this list it reconnects.
DCS Now Select one or multiple APs and click this button to use DCS (Dynamic Channel Selection) to
allow the AP to automatically find a less-used channel in an environment where there are
many APs and there may be interference.
Note: You should have enabled DCS in the applied AP radio profile before the
APs can use DCS.
Note: DCS is not supported on the radio which is working in repeater AP mode.
More Information Select an AP and click this to view a daily station count about the selected AP. The count
records station activity on the AP over a consecutive 24 hour period.
Radio Information Select an online AP and click this button to go to the Monitor > Wireless > AP Information >
Radio List screen to view detailed information about the AP’s radios.
Query Controller Log Select one or multiple APs and click this button to go to the Monitor > Log > View Log screen
to view the selected AP’s current log messages.
Nebula Select an AP and click this to open a screen where you can set whether the AP’s IP address
and VLAN settings will be changed when it goes into Nebula cloud management mode.
Note: The AP will be set to Nebula cloud management mode and removed from
the managed AP list right after you click OK.
Upgrade Firmware
Now
Select one or more APs and click this button to update the APs’ firmware version.
Suppression On Select an AP and click this button to enable the AP’s LED suppression mode. All the LEDs of
the AP will turn off after the AP is ready. This button is not available if the selected AP
doesn’t support suppression mode.
Suppression Off Select an AP and click this button to disable the AP’s LED suppression mode. The AP LEDs
stay lit after the AP is ready. This button is not available if the selected AP doesn’t support
suppression mode.
Locator On Select an AP and click this button to run the locator feature. The AP’s Locator LED will start
to blink for 10 minutes by default. It will show the actual location of the AP between several
devices on the network.
# This field is a sequential value, and it is not associated with any entry.
Status This field displays the status of AP.
• Online: The AP has a stable connection with the Zyxel Device.
• Conflict: Settings that are not supported are applied to the AP. The AP WiFi is disabled.
• Non Support: Settings that are not supported are applied to the AP. The AP has ignored
these settings.
• Updating: The Zyxel Device is sending the latest firmware to the AP.
• Offline: No traffic is sent from the AP to the Zyxel Device for over 120 seconds.
• Offline for Firmware Update: The AP has received the latest firmware from the Zyxel
Device and is upgrading the firmware.
• Un-Mgmt: The AP is requesting to be managed by the Zyxel Device.
Description This field displays the AP’s description, which you can configure by selecting the AP’s entry
and clicking the Edit button.
CPU Usage This field displays the CPU Usage of the AP.
IP Address This field displays the IP address of the AP.
MAC Address This field displays the MAC address of the AP.
Table 106 Configuration > Wireless > AP Management > Mgnt. AP List (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
285
9.4.1.1 Edit AP List
Select an AP and click the Edit button in the Configuration > Wireless > AP Management table to display
this screen.
Note: The settings in the screen will change when you select the Remote AP check box. See
Section 9.4.1.2 on page 293 for more information.
Storm Control
Storm control prevents broadcast/multicast storms on AP interfaces. A broadcast/multicast storm occurs
when broadcast/multicast packets flood devices in the same subnet, creating excessive traffic and
degrading network performance.
When storm control is enabled on the Zyxel Device, the AP monitors packets received on the its
interface and determines whether the packets are broadcast or multicast. The AP monitors the number
of broadcast packets received within a one-second time interval. When the interface maximum
packets per second threshold is met, incoming data traffic on the AP interface is dropped until the
maximum packets per second falls below the threshold.
Airtime Fairness
Airtime is the time it takes for a client to receive packets from the AP it is associated with. The amount of
time each client needs may vary depending on various reasons, such as the distance between the
client and the AP, the client’s operating system, or the IEEE standard the client is using.
Airtime fairness is a feature that makes sure all connected clients of an AP get the same amount of time
to receive packets. Without airtime fairness, a client that needs more airtime will take up more time and
bandwidth of an AP to receive packets. This will slow down your WiFi network overall.
Station 2.4G This field displays the number of 2.4G wireless clients connected to the AP.
Station 5G This field displays the number of 5G wireless clients connected to the AP.
Recent Online Time This displays the most recent time the AP came on-line. N/A displays if the AP has not come
on-line since the Zyxel Device last started up.
LED Status This displays the AP LED status.
N/A displays if the AP does not support LED suppression mode and/or have a locator LED to
show the actual location of the AP.
A gray LED icon signifies that the AP LED suppression mode is enabled. All the LEDs of the AP
will turn off after the AP is ready.
A green LED icon signifies that the AP LED suppression mode is disabled and the AP LEDs
stay lit after the AP is ready.
A sun icon signifies that the AP’s locator LED is blinking.
A circle signifies that the AP’s locator LED is extinguished.
Model This field displays the AP’s hardware model information. It displays N/A (not applicable) only
when the AP disconnects from the Zyxel Device and the information is unavailable as a
result.
Apply Click Apply to save your changes back to the Zyxel Device.
Refresh Click Refresh to update the AP list.
Table 106 Configuration > Wireless > AP Management > Mgnt. AP List (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
286
For example, you have computer A and computer B at your house. They’re both connected to the
same AP. Here are the conditions in the scenario examples below:
• The example time period is 60 milliseconds.
•Computer A needs 5 milliseconds to receive a packet from the AP.
•Computer B needs 10 milliseconds to receive a packet from the AP.
Airtime Fairness Disabled
Computer A and computer B will take turn to receive packets from the AP. With airtime fairness
disabled, the AP will not equally allocate the 60 milliseconds between A and B.
A has 20 milliseconds to receive packets. B has 40 milliseconds to receive packets. In total, they can
receive 8 packets in 60 milliseconds.
Figure 231 Airtime Fairness Example-Disabled
Table 107 Packets Received without Airtime Fairness
PACKETS RECEIVED A B
1 packet 10ms
1 packet 5ms
1 packet 10ms
1 packet 5ms
1 packet 10ms
1 packet 5ms
1 packet 10ms
1 packet 5ms
Total Packets Received: 8 Total Time Period: 60ms
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
287
Airtime Fairness Enabled
With airtime fairness enabled, the AP will equally allocate the 60 milliseconds between computer A and
computer B. After B uses 10 milliseconds to receive a packet, the AP will also allocate10 milliseconds to A
to receive packets.
A and B both have 30 milliseconds to receive packets. In total, they can receive 9 packets in 60
milliseconds.
Figure 232 Airtime Fairness Example-Enabled
Table 108 Packets Received without Airtime Fairness
PACKETS RECEIVED A B
1 packet 10ms
1 packet 5ms
1 packet 5ms
1 packet 10ms
1 packet 5ms
1 packet 5ms
1 packet 10ms
1 packet 5ms
1 packet 5ms
Total Packets Received: 9 Total Time Period: 60ms
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
288
Figure 233 Configuration > Wireless > AP Management > Mgnt. AP List > Edit AP List
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
289
Figure 234 Configuration > Wireless > AP Management > Mgnt. AP List > Edit AP List (continued)
Each field is described in the following table.
Table 109 Configuration > Wireless > AP Management > Mgnt. AP List > Edit AP List
LABEL DESCRIPTION
Create new Object Use this menu to create a new Radio Profile object to associate with this AP.
AP Role Select this to enable the remote AP feature.
MAC This displays the MAC address of the selected AP.
Model This field displays the AP’s hardware model information. It displays N/A (not applicable) only
when the AP disconnects from the Zyxel Device and the information is unavailable as a
result.
S/N This displays the serial number of the selected AP.
Description Enter a description for this AP. You can use up to 31 characters, spaces and underscores
allowed.
Group Setting Select an AP group to which you want this AP to belong.
System Name Enter a name to identify the AP on a network. This is usually the AP’s fully qualified domain
name.
Location Specify the name of the place where the AP is located.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
290
Roaming Group Specify the name of the roaming group to which the AP belongs. You can use up to 31
alphanumeric and @# characters. Dashes and underscores are also allowed. The name
should start with a letter or digit.
The 802.11k neighbor list a client requests from the AP is generated according to the
roaming group and RCPI (Received Channel Power Indicator) value of its neighbor APs.
When a client wants to roam from the current AP to another, other APs in the same roaming
group or not in a roaming group will be candidates for roaming. Neighbor APs in a different
roaming group will be excluded from the 802.11k neighbor lists even when the neighbor AP
has the best signal strength.
If the AP’s roaming group is not configured, any neighbor APs can be candidates for
roaming.
Load Balancing
Group 1/2
Load balancing is only applied to APs within the same group. If a load balancing group is
not assigned to an AP, it will belong to a default group.
Each AP can belong to up to two groups.
Radio 1/2/3 Setting
Override Group
Radio Setting
Select this option to overwrite the AP radio settings with the settings you configure here.
OP Mode Select the operating mode for radio 1, radio 2 or radio 3.
AP Mode means the AP can receive connections from wireless clients and pass their data
traffic through to the Zyxel Device to be managed (or subsequently passed on to an
upstream gateway for managing).
MON Mode means the AP monitors the broadcast area for other APs, then passes their
information on to the Zyxel Device where it can be determined if those APs are friendly or
rogue. If an AP is set to this mode it cannot receive connections from wireless clients.
Root AP means the radio acts as an AP and also supports the wireless connections with
other APs (in repeater mode) to form a ZyMesh to extend its wireless network.
Repeater AP means the radio can establish a wireless connection with other APs (in either
root AP or repeater mode).
Note: To prevent bridge loops, do NoT set both radios on a managed AP to
Repeater AP mode.
Note: The root AP and repeater AP(s) in a ZyMesh must use the same country
code and AP radio profile settings in order to communicate with each
other.
Note: Ensure you restart the managed AP after you change its operating mode.
Override Group
Output Power
Setting
Select this option to overwrite the AP output power setting with the setting you configure
here.
Output Power Set the output power of the AP.
Override Group SSID
Setting
Select this option to overwrite the AP SSID profile setting with the setting you configure here.
This section allows you to associate an SSID profile with the radio.
Radio 1/2/3 AP
Profile
Select an AP profile from the list. If no profile exists, you can create a new one through the
Create new Object menu.
Radio 1/2/3 Profile Select a monitor profile from the list. If no profile exists, you can create a new one through
the Create new Object menu.
Table 109 Configuration > Wireless > AP Management > Mgnt. AP List > Edit AP List (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
291
Radio 1/2/3 ZyMesh
Profile
This field is available only when the radio is in Root AP or Repeater AP mode.
Select the ZyMesh profile the radio uses to connect to a root AP or repeater.
Enable Wireless
Bridging
This field is available only when the radio is in Repeater AP mode.
Select this option to enable wireless bridging on the radio.
The managed AP must support LAN provision and the radio should be in repeater mode.
VLAN and bridge interfaces are created automatically according to the LAN port’s VLAN
settings. When wireless bridging is enabled, the managed repeater AP can still transmit
data through its Ethernet port(s) after the ZyMesh link is up. Be careful to avoid bridge loops.
The managed APs in the same ZyMesh must use the same static VLAN ID.
Edit Select an SSID and click this button to reassign it. The selected SSID becomes editable
immediately upon clicking.
# This is the index number of the SSID profile. You can associate up to eight SSID profiles with
an AP radio.
SSID Profile Indicates which SSID profile is associated with this radio profile.
IP Setting
Force Overwrite IP
Setting
Select this to have the Zyxel Device change the AP’s IP address setting to match the
configuration in this screen.
Get Automatically Select this to have the AP act as a DHCP client and automatically get the IP address,
subnet mask, and gateway address from a DHCP server.
Use Fixed IP Address Select this if you want to specify the IP address, subnet mask, gateway and DNS server
address manually.
IP Address Enter the IP address for the AP.
Subnet Mask Enter the subnet mask of the AP in dot decimal notation. The subnet mask indicates what
part of the IP address is the same for all devices in the network.
Gateway Enter the IP address of the gateway. The AP sends packets to the gateway when it does not
know how to route the packet to its destination. The gateway should be on the same
network as the AP.
DNS Server IP
Address
Enter the IP address of the DNS server.
VLAN Settings
Override Group
VLAN Setting
Select this option to overwrite the AP VLAN setting with the setting you configure here.
Force Overwrite
VLAN Config
Select this to have the Zyxel Device change the AP’s management VLAN to match the
configuration in this screen.
Management VLAN
ID
Enter a VLAN ID for this AP.
As Native VLAN Select this option to treat this VLAN ID as a VLAN created on the Zyxel Device and not one
assigned to it from outside the network.
Storm Control Setting
Broadcast Storm
Control
Enabling this will drop ingress broadcast traffic in the physical Ethernet port if it exceeds the
maximum traffic rate. The maximum traffic rate can be changed using the CLI (see CLI
Reference Guide).
Ethernet storm control prevents WiFi clients from receiving excessive broadcast traffic sent
from wired clients in the same subnet.
Wireless storm control prevents wired clients from receiving excessive broadcast traffic sent
from WiFi clients in the same subnet.
Table 109 Configuration > Wireless > AP Management > Mgnt. AP List > Edit AP List (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
292
Multicast Storm
Control
Enabling this will drop ingress multicast traffic in the physical Ethernet port if it exceeds the
maximum traffic rate. The maximum traffic rate can be changed using the CLI (see CLI
Reference Guide).
Ethernet storm control prevents WiFi clients from receiving excessive multicast traffic sent
from wired clients in the same subnet.
Wireless storm control prevents wired clients from receiving excessive multicast traffic sent
from WiFi clients in the same subnet.
Rogue AP Detection
Setting
Override Group
Rogue AP Detection
Setting
Select this option to overwrite the AP Rogue Detection Settings with the settings you
configure here
Enable Rogue AP
Detection
Select this option to detect Rogue APs in the network.
Antenna Setting This section is available only when the AP has an antenna switch. The screen varies
depending on whether the AP has a physical antenna switch or allows you to change
antenna orientation settings on a per-radio basis or on a per-AP basis.
Wall/ Ceiling This allows you to adjust coverage depending on the antenna orientation of the AP’s radios
for better coverage.
Select Wall if you mount the AP to a wall. Select Ceiling if the AP is mounted on a ceiling.
You can switch from Wall to Ceiling if there are still wireless dead zones, and vice versa.
LED Suppression
Mode Configuration
This section is available only when the AP supports LED suppression mode.
Suppression On Select this option to enable the AP’s LED suppression mode. All the LEDs of the AP will turn
off after the AP is ready.
Clear the check box to have the LEDs stay lit after the AP is ready.
Power Setting Enable Force override the power mode to full power if you are using a PoE injector that does
not support PoE negotiation. Otherwise, the AP cannot draw full power from the power
sourcing equipment. Enable this power mode to improve the AP’s performance in this
situation.
Note: Ensure that the power sourcing equipment can supply enough power to
the AP to avoid abnormal system reboots.
Note: Only enable this if you are using a passive PoE injector that is not IEEE
802.3at/bt compliant but can still provide full power.
Airtime Fairness Select Enabled Airtime Fairness Mode to have the AP allocate airtime equally between all
connected clients. Airtime fairness makes sure clients that can receive packets faster will
not be slowed down by clients that receive packets slower. Use this if clients that need less
airtime in your wireless networks need priority to receive packets, such as clients that use
real time traffic to stream videos or play games.
Note that if you enable this feature, clients that originally need more time to receive
packets will become slower than before. Clear the check box if you want better
performance on slower clients in your network, such as a gaming computer that’s far away
from the AP.
Note: When you disable or enable airtime fairness on an AP, all connected clients
of the AP will be disconnected.
Locator LED
Configuration
This section is available only when the AP has a locator LED. The locator LED will blink to
show the actual location of the AP between several devices in the network.
Table 109 Configuration > Wireless > AP Management > Mgnt. AP List > Edit AP List (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
293
9.4.1.2 Edit AP List (Remote AP Mode)
Select an AP and click the Edit button in the Configuration > Wireless > AP Management table, Select
the Remote AP check box to display this screen.
Remote AP
Remote AP enables the Zyxel Device to connect to an Access Point (AP) through a secure VPN tunnel.
This allows you to set up a VPN-enabled WiFi access points in remote locations, such as in a branch
office or at home, which remote WiFi clients can connect to in order to access your network.
You can associate up to four Secure Tunnel SSID profiles and two Local Bridge SSID profiles with a remote
AP radio.
Configure your AP using Secure Tunnel SSID profiles if you want to access the network behind the Zyxel
Device or to access the Internet. Network traffic from clients connected to these SSIDs is sent through
the RAP tunnel to the Zyxel Device. The Zyxel Device then sends the traffic out through the interface
defined in the SSID profile.
Configure your AP using Local Bridge SSID profiles if you only want to access the Internet. Network traffic
from clients connected to these SSIDs is sent directly to the network through the AP’s local gateway.
Turn On/ Turn Off When the locator LED is off, click the Turn On button to activate the locator function. It will
show the actual location of the AP between several devices in the network.
If the locator LED is blinking, click the Turn Off button to stop the locator LED from blinking
immediately.
Automatically
Extinguish After
Enter a time interval between 1 and 60 minutes to stop the locator LED from blinking. The
locator LED will start to blink for the number of minutes set here.
If you make changes to the time default setting, it will be stored as the default when the AP
restarts.
Reset AP
Configuration
This section is available only when the AP is online.
Apply Factory
Default
Click the button to reset all of the AP settings to the factory defaults.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to close the window with changes unsaved.
Table 109 Configuration > Wireless > AP Management > Mgnt. AP List > Edit AP List (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
294
Figure 235 AP Using Secure Tunnel SSID Profile
To enable the Remote AP role, the Zyxel Device needs 5.00 or later firmware and the managed AP
needs 6.20 or later firmware. Go to AP Management> Firmware to check if the AP has the correct
firmware.
To enable the Remote AP role, you need to have the Secure WiFi license. See Chapter 8 on page 256 for
more information.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
295
Figure 236 Configuration > Wireless > AP Management > Mgnt. AP List > Edit AP List (Remote AP Mode)
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
296
Each field is described in the following table.
Table 110 Configuration > Wireless > AP Management > Mgnt. AP List > Edit AP List (Remote AP Mode)
LABEL DESCRIPTION
Create new Object Use this menu to create a new Radio Profile object to associate with this AP.
AP Role Select this to enable the remote AP feature.
MAC This displays the MAC address of the selected AP.
Model This field displays the AP’s hardware model information. It displays N/A (not applicable) only
when the AP disconnects from the Zyxel Device and the information is unavailable as a
result.
S/N This displays the serial number of the selected AP.
Description Enter a description for this AP. You can use up to 31 characters, spaces and underscores
allowed.
Group Setting Select an AP group to which you want this AP to belong.
System Name Enter a name to identify the AP on a network. This is usually the AP’s fully qualified domain
name.
Location Specify the name of the place where the AP is located.
IP Setting
Get Automatically Select this to have the AP act as a DHCP client and automatically get the IP address,
subnet mask, and gateway address from a DHCP server.
Use Fixed IP Address Select this if you want to specify the IP address, subnet mask, gateway and DNS server
address manually.
IP Address Enter the IP address for the AP.
Subnet Mask Enter the subnet mask of the AP in dot decimal notation. The subnet mask indicates what
part of the IP address is the same for all devices in the network.
Gateway Enter the IP address of the gateway. The AP sends packets to the gateway when it does not
know how to route the packet to its destination. The gateway should be on the same
network as the AP.
DNS Server IP
Address
Enter the IP address of the DNS server.
VLAN Settings
Management VLAN
ID
Enter a VLAN ID for this AP.
As Native VLAN Select this option to treat this VLAN ID as a VLAN created on the Zyxel Device and not one
assigned to it from outside the network.
Radio 1/2 Setting
OP Mode AP Mode means the AP can receive connections from wireless clients and pass their data
traffic through to the Zyxel Device to be managed (or subsequently passed on to an
upstream gateway for managing).
Radio 1/2 AP Profile Select an AP profile from the list. If no profile exists, you can create a new one through the
Create new Object menu.
Output Power Set the output power of the AP.
Secure Tunnel SSID Configure your AP using Secure Tunnel SSID profiles if you want to access the network
behind the Zyxel Device or to access the Internet.
# This field is a sequential value, and it is not associated with a specific entry.
SSID Profile Click on the SSID profile to show the drop down list box. Select a pre-configured SSID profile
you want to configure as the Secure Tunnel SSID.
Interface Click on the interface to show the drop-down list box. Select an interface you want the AP
traffic to go through on the Zyxel Device. The interface you select here will override the
interface configured in the SSID profile.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
297
Band Mode Click on the band mode to show the drop-down list box. Select the frequency band you
want the AP to use.
Local Bridge SSID
# This field is a sequential value, and it is not associated with a specific
SSID Profile Click on the SSID profile name to show the drop down list box. Select a pre-configured SSID
profile you want to configure as the Local Bridge SSID.
VID Click on the interface to configure the VID number. The VID you set here will override the
VID configured in the SSID profile.
Band Mode Click on the band mode to show the drop-down list box. Select the frequency band you
want the AP to use.
Storm Control Setting
Broadcast Storm
Control
Enabling this will drop ingress broadcast traffic in the physical Ethernet port if it exceeds the
maximum traffic rate. The maximum traffic rate can be changed using the CLI (see CLI
Reference Guide).
Ethernet storm control prevents WiFi clients from receiving excessive broadcast traffic sent
from wired clients in the same subnet.
Wireless storm control prevents wired clients from receiving excessive broadcast traffic sent
from WiFi clients in the same subnet.
See Section 9.4.1.1 on page 285 for more information on storm control.
Multicast Storm
Control
Enabling this will drop ingress multicast traffic in the physical Ethernet port if it exceeds the
maximum traffic rate. The maximum traffic rate can be changed using the CLI (see CLI
Reference Guide).
Ethernet storm control prevents WiFi clients from receiving excessive multicast traffic sent
from wired clients in the same subnet.
Wireless storm control prevents wired clients from receiving excessive multicast traffic sent
from WiFi clients in the same subnet.
See Section 9.4.1.1 on page 285 for more information on storm control.
Antenna Setting This section is available only when the AP has an antenna switch. The screen varies
depending on whether the AP has a physical antenna switch or allows you to change
antenna orientation settings on a per-radio basis or on a per-AP basis.
Wall/ Ceiling This allows you to adjust coverage depending on the antenna orientation of the AP’s radios
for better coverage.
Select Wall if you mount the AP to a wall. Select Ceiling if the AP is mounted on a ceiling.
You can switch from Wall to Ceiling if there are still wireless dead zones, and vice versa.
LED Suppression
Mode Configuration
This section is available only when the AP supports LED suppression mode.
Suppression On Select this option to enable the AP’s LED suppression mode. All the LEDs of the AP will turn
off after the AP is ready.
If the check box is unchecked, it means the LEDs will stay lit after the AP is ready.
Table 110 Configuration > Wireless > AP Management > Mgnt. AP List > Edit AP List (Remote AP Mode)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
298
Power Setting Enable Force override the power mode to full power if you are using a PoE injector that does
not support PoE negotiation. Otherwise, the AP cannot draw full power from the power
sourcing equipment. Enable this power mode to improve the AP’s performance in this
situation.
Note: Ensure that the power sourcing equipment can supply enough power to
the AP to avoid abnormal system reboots.
Note: Only enable this if you are using a passive PoE injector that is not IEEE
802.3at/bt compliant but can still provide full power.
Locator LED
Configuration
This section is available only when the AP has a locator LED.
Turn On/ Turn Off When the locator LED is off, click the Turn On button to activate the locator function. It will
show the actual location of the AP between several devices in the network.
If the locator LED is blinking, click the Turn Off button to stop the locator LED from blinking
immediately.
Automatically
Extinguish After
Enter a time interval between 1 and 60 minutes to stop the locator LED from blinking. The
locator LED will start to blink for the number of minutes set here.
If you make changes to the time default setting, it will be stored as the default when the AP
restarts.
Reset AP
Configuration
This section is available only when the AP is online.
Apply Factory
Default
Click the button to reset all of the AP settings to the factory defaults.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to close the window with changes unsaved.
Table 110 Configuration > Wireless > AP Management > Mgnt. AP List > Edit AP List (Remote AP Mode)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
299
9.4.2 AP Policy
Use this screen to configure the AP controller’s IP address on the managed APs and determine the
action the managed APs take if the current AP controller fails. Click Configuration > Wireless > AP
Management > AP Policy to access this screen.
Figure 237 Configuration > Wireless > AP Management > AP Policy
Each field is described in the following table.
Table 111 Configuration > Wireless > AP Management > AP Policy
LABEL DESCRIPTION
Force Override AC IP
Config on AP
Select this to have the Zyxel Device change the AP controller’s IP address on the managed
AP(s) to match the configuration in this screen.
Override Type Select Auto to have the managed AP(s) automatically send broadcast packets to find any
other available AP controllers.
Select Manual to replace the AP controller’s IP address configured on the managed AP(s)
with the one(s) you specified below.
Primary Controller Specify the IP address of the primary AP controller if you set Override Type to Manual.
Secondary Controller Specify the IP address of the secondary AP controller if you set Override Type to Manual.
Fall back to Primary
Controller when
possible
Select this option to have the managed AP(s) change back to associate with the primary
AP controller as soon as the primary AP controller is available.
Fall Back Check
Interval
Set how often the managed AP(s) check whether the primary AP controller is available.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
300
9.4.3 AP Group
Use this screen to configure AP groups, which define the radio, port, VLAN and load balancing settings
and apply the settings to all APs in the group. An AP can belong to one AP group at a time. Click
Configuration > Wireless > AP Management > AP Group to access this screen.
Figure 238 Configuration > Wireless > AP Management > AP Group
Each field is described in the following table.
Table 112 Configuration > Wireless > AP Management > AP Group
LABEL DESCRIPTION
Group Setting
Default Group Select a group that is used as the default group.
Any AP that is not configured to associate with a specific AP group belongs to the default
group automatically.
Group Summary
Add Click this button to create a new AP group.
Edit Select an entry and click this button to edit its properties.
Remove Select an entry and click this button to remove it from the list.
Note: You cannot remove a group with which an AP is associated.
DCS Now Select one or multiple groups and click this button to use DCS (Dynamic Channel Selection)
to allow the APs in the group(s) to automatically find a less-used channel in an environment
where there are many APs and there may be interference.
Note: You should have enabled DCS in the applied AP radio profile before the
APs can use DCS.
Note: DCS is not supported on the radio which is working in repeater AP mode.
# This is the index number of the group in the list.
Group Name This is the name of the group.
Member Count This is the total number of APs which belong to this group.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
301
9.4.3.1 Add/Edit AP Group
Click Add or select an AP group and click the Edit button in the Configuration > Wireless > AP
Management > AP Group table to display this screen.
Figure 239 Configuration > Wireless > AP Management > AP Group > Add/Edit
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
302
Figure 240 Configuration > Wireless > AP Management > AP Group > Add/Edit (continued)
Each field is described in the following table.
Table 113 Configuration > Wireless > AP Management > AP Group > Add/Edit
LABEL DESCRIPTION
General Settings
Group Name Enter a name for this group. You can use up to 31 alphanumeric characters. Dashes and
underscores are also allowed. The name should start with a letter.
Description Enter a description for this group. You can use up to 31 characters, spaces and underscores
allowed.
Location Specify the name of the place where the AP group is located.
Radio 1/2/3 Setting Radio 1, radio 2 and radio 3 support different band modes.
• Radio 1 supports 2.4G.
• Radio 2 supports 5G and 6G.
• Radio 3 supports 6G.
Check the following settings if you can’t see 6G WiFi on the WiFi clients. Make sure:
• You have APs that support WiFi 6E in your Zyxel Device network; see Section 9.1.2 on
page 265 for more information.
• You have created an SSID profile with 802.11 Band set to 6G.
• You have applied the 6G SSID profile to radio 2 or radio 3 in AP Group.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
303
OP Mode Select the operating mode for radio 1, radio 2 or radio 3.
AP Mode means the AP can receive connections from wireless clients and pass their data
traffic through to the Zyxel Device to be managed (or subsequently passed on to an
upstream gateway for managing).
MON Mode means the AP monitors the broadcast area for other APs, then passes their
information on to the Zyxel Device where it can be determined if those APs are friendly or
rogue. If an AP is set to this mode it cannot receive connections from wireless clients.
Root AP means the radio acts as an AP and also supports the wireless connections with
other APs (in repeater mode) to form a ZyMesh to extend its wireless network.
Repeater AP means the radio can establish a wireless connection with other APs (in either
root AP or repeater mode).
Note: To prevent bridge loops, do NoT set both radios on a managed AP to
Repeater AP mode.
Note: The root AP and repeater AP(s) in a ZyMesh must use the same country
code and AP radio profile settings in order to communicate with each
other.
Note: Ensure you restart the managed AP after you change its operating mode.
Radio 1/2/3 AP
Profile
Select an AP profile from the list. If no profile exists, you can create a new one through the
Create new Object menu.
Radio 1/2/3 Profile Select a monitor profile from the list. If no profile exists, you can create a new one through
the Create new Object menu.
Radio 1/2/3 ZyMesh
Profile
This field is available only when the radio is in Root AP or Repeater AP mode.
Select the ZyMesh profile the radio uses to connect to a root AP or repeater.
Enable Wireless
Bridging
This field is available only when the radio is in Repeater AP mode.
Select this option to enable wireless bridging on the radio.
The managed AP must support LAN provision and the radio should be in repeater mode.
VLAN and bridge interfaces are created automatically according to the LAN port’s VLAN
settings. When wireless bridging is enabled, the managed repeater AP can still transmit
data through its Ethernet port(s) after the ZyMesh link is up. Be careful to avoid bridge loops.
The managed APs in the same ZyMesh must use the same static VLAN ID.
Output Power Set the maximum output power of the AP.
If there is a high density of APs in an area, decrease the output power of the managed AP
to reduce interference with other APs.
Note: Reducing the output power also reduces the Zyxel Device’s effective
broadcast radius.
Edit Select an SSID and click this button to reassign it. The selected SSID becomes editable
immediately upon clicking.
# This is the index number of the SSID profile. You can associate up to eight SSID profiles with
an AP radio.
SSID Profile Indicates which SSID profile is associated with this radio profile.
VLAN Settings
Force Overwrite
VLAN Config
Select this to have the Zyxel Device change the AP’s management VLAN to match the
configuration in this screen.
Table 113 Configuration > Wireless > AP Management > AP Group > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
304
Management VLAN
ID
Enter a VLAN ID for this AP.
As Native VLAN Select this option to treat this VLAN ID as a VLAN created on the Zyxel Device and not one
assigned to it from outside the network.
Port Settings
Model Specific
Setting
Select the model of the managed AP to display the model-specific port and VLAN settings
in the tables below.
Port Setting You can activate or deactivate a non-uplink port.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Activate/Inactivate To turn on an entry, select it and click Activate. To turn off an entry, select it and click
Inactivate.
# This is the port’s index number in this list.
Status This displays whether or not the port is activated.
Port This shows the name of the physical Ethernet port on the managed AP.
PVID This shows the port’s PVID.
A PVID (Port VLAN ID) is a tag that adds to incoming untagged frames received on a port
so that the frames are forwarded to the VLAN group that the tag defines.
VLAN Configuration Use Add to create a new VLAN Configuration. Select a VLAN Configuration first to use the
Edit, Remove, Activate and Inactivate buttons.
# This is the VLAN’s index number in this list.
Status This displays whether or not the VLAN is activated.
Name This shows the name of the VLAN.
VID This shows the VLAN ID number.
Member This field displays the Ethernet port(s) that is a member of this VLAN.
Load Balancing
Setting
Enable Load
Balancing
Select this to enable load balancing on the Zyxel Device.
Use this section to configure wireless network traffic load balancing between the managed
APs in this group.
Note: Load balancing is not supported on the radio which is working in root AP or
repeater AP mode.
Mode Select a mode by which load balancing is carried out.
Select By Station Number to balance network traffic based on the number of specified
stations connected to an AP.
Select By Traffic Level to balance network traffic based on the volume generated by the
stations connected to an AP.
Select By Smart Classroom to balance network traffic based on the number of specified
stations connected to an AP. The AP ignores association request and authentication
request packets from any new station when the maximum number of stations is reached.
If you select By Station Number or By Traffic Level, once the threshold is crossed (either the
maximum station numbers or with network traffic), the AP delays association request and
authentication request packets from any new station that attempts to make a connection.
This allows the station to automatically attempt to connect to another, less burdened AP if
one is available.
Table 113 Configuration > Wireless > AP Management > AP Group > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
305
Radio 1/2 Max
Station Number
Enter the threshold number of stations at which an AP begins load balancing its
connections.
Disassociate
station when
overloaded
This function is enabled by default and the disassociation priority is always Signal Strength
when you set Mode to By Station Number.
Select this option to disassociate wireless clients connected to the AP when it becomes
overloaded. If you do not enable this option, then the AP simply delays the connection until
it can afford the bandwidth it requires, or it transfers the connection to another AP within its
broadcast radius.
The disassociation priority is determined automatically by the Zyxel Device and is as follows:
• Idle Timeout - Devices that have been idle the longest will be disassociated first. If none
of the connected devices are idle, then the priority shifts to Signal Strength.
• Signal Strength - Devices with the weakest signal strength will be disassociated first.
Note: If you enable this function, you should ensure that there are multiple APs
within the broadcast radius that can accept any rejected or kicked wireless
clients; otherwise, a wireless client attempting to connect to an overloaded
AP will be kicked continuously and never be allowed to connect.
Radio 1/2 Traffic
Level
Select the threshold traffic level at which the AP begins load balancing its connections
(Low, Medium, High).
The maximum bandwidth allowed for each level is:
• Low - 11 Mbps,
• Medium - 23 Mbps
• High - 35M bps
Rogue AP Detection
Setting
Enable Rogue AP
Detection
Select this option to detect Rogue APs in the network.
AP List
Available This lists the APs that do not belong to this group. Select the APs that you want to add to the
group you are editing, and click the right arrow button to add them.
Member This lists the APs that belong to this group. Select any APs that you want to remove from the
group, and click the left arrow button to remove them.
AP List
Available This lists the APs that do not belong to this group. Select the APs that you want to add to the
group you are editing, and click the right arrow button to add them.
Member This lists the APs that belong to this group. Select any APs that you want to remove from the
group, and click the left arrow button to remove them.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to close the window with changes unsaved.
Override Member AP
Setting
Click this button to overwrite the settings of all managed APs in this group with the settings
you configure here. All Override Group check boxes on the AP Management > Mgnt. AP List
> Edit AP List screen for the APs in this group will be deselected.
Table 113 Configuration > Wireless > AP Management > AP Group > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
306
9.4.4 Firmware
The Zyxel Device stores an AP firmware in order to manage supported APs. This screen allows the Zyxel
Device to check for and download new AP firmware when it becomes available on the firmware server.
All APs managed by the Zyxel Device must have the same firmware version as the AP firmware on the
Zyxel Device.
When an AP connects to the Zyxel Device wireless controller, the Zyxel Device will check if the AP has
the same firmware version as the AP firmware on the Zyxel Device. If yes, then the Zyxel Device can
manage it. If no, then the AP must upgrade (or downgrade) its firmware to be the same version as the
AP firmware on the Zyxel Device (and reboot).
The Zyxel Device should always have the latest AP firmware so that:
• APs don’t have to downgrade firmware in order to be managed
• All new APs are supported.
Use Check to see if the Zyxel Device has the latest AP firmware. Use Apply to have the Zyxel Device
download the latest AP firmware (see More Details for more information on the firmware) from the
firmware server. If the Zyxel Device does not have enough space for the latest AP firmware, then the
Zyxel Device will delete an existing firmware that no AP is using before downloading the new AP
firmware.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
307
Click Configuration > Wireless > AP Management > Firmware to access this screen.
Figure 241 Configuration > Wireless > AP Management > Firmware
Each field is described in the following table.
Table 114 Configuration > Wireless > AP Management > Firmware
LABEL DESCRIPTION
AP Firmware
Runtime Firmware This displays the current AP firmware version on the Zyxel Device. The Zyxel Device must
have the latest AP firmware to manage all supported APs.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
308
9.5 Rogue AP
Use this screen to assign APs either to the rogue AP list or the friendly AP list. A rogue AP is a wireless
access point operating in a network’s coverage area that is not under the control of the network
administrator, and which can potentially open up holes in a network’s security.
Click Configuration > Wireless > Rogue AP to access this screen.
Available Firmware This field displays if there is a later AP firmware version available on the firmware server. It
displays N/A if the Zyxel Device cannot connect with the firmware server. Check that the
Zyxel Device has Internet access if N/A displays and then click the Check button below.
If a newer Zyxel Device AP firmware is available, its version number and a More Details icon
displays here.
Last Check Success This displays the date and time the last check for new firmware was made and whether the
check is in progress (checking), was successful (success), or has failed (fail).
Check Click this button to have the Zyxel Device display the latest AP firmware version available on
the firmware server.
Apply AP Firmware Due to space limitations, the Zyxel Device only downloads and keeps AP firmware for APs it
is currently managing. If you connect a new AP to the Zyxel Device, the Zyxel Device may
need to download a new AP firmware. Please wait while downloading new firmware as the
speed depends on your Internet connection speed. Make sure to maintain the Internet
connection while downloading new firmware.
Apply Click this to download newer Available Firmware from the firmware server and update the
Runtime Firmware version.
# This is an index number of a managed AP.
Model This displays the name of all manageable AP models.
Runtime Firmware This displays the firmware version that the managed AP must have in order to be managed
by the Zyxel Device. Firmware for APs that the Zyxel Device already has displays in bold;
firmware that the Zyxel Device doesn’t have or is still downloading is grayed out. Firmware
that is in the download queue will show To be downloaded.
Refresh Click this to update the model firmware table.
Table 114 Configuration > Wireless > AP Management > Firmware (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
309
Figure 242 Configuration > Wireless > Rogue AP
Each field is described in the following table.
Table 115 Configuration > Wireless > Rogue AP
LABEL DESCRIPTION
Suspected Rogue AP
Classification Rule
Click the check boxes (Weak Security (Open, WEP, WPA-PSK), Un-managed AP,
Hidden SSID, SSID Keyword) of the characteristics an AP should have for the Zyxel
Device to rule it as a rogue AP.
Add Click this to add an SSID Keyword.
Edit Select an SSID Keyword and click this button to modify it.
Remove Select an existing SSID keyword and click this button to delete it.
# This is the SSID Keyword’s index number in this list.
SSID Keyword This field displays the SSID Keyword.
Rogue/Friendly AP List
Add Click this button to add an AP to the list and assign it either friendly or rogue status.
Edit Select an AP in the list to edit and reassign its status.
Remove Select an AP in the list to remove.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
310
9.5.1 Add/Edit Rogue/Friendly List
Select an AP and click the Edit button in the Configuration > Wireless > Rogue AP table to display this
screen.
Figure 243 Configuration > Wireless > Rogue AP > Add/Edit Rogue/Friendly
Each field is described in the following table.
Containment Click this button to quarantine the selected AP.
A quarantined AP cannot grant access to any network services. Any stations that
attempt to connect to a quarantined AP are disconnected automatically.
Dis-Containment Click this button to take the selected AP out of quarantine.
An unquarantined AP has normal access to the network.
# This field is a sequential value, and it is not associated with any interface.
Containment This field indicates the selected AP’s containment status.
Role This field indicates whether the selected AP is a rogue-ap or a friendly-ap. To change
the AP’s role, click the Edit button.
MAC Address This field indicates the AP’s radio MAC address.
Description This field displays the AP’s description. You can modify this by clicking the Edit button.
Rogue/Friendly AP List
Importing/Exporting
These controls allow you to export the current list of rogue and friendly APs or import
existing lists.
File Path / Browse /
Importing
Enter the file name and path of the list you want to import or click the Browse button
to locate it. Once the File Path field has been populated, click Importing to bring the
list into the Zyxel Device.
Exporting Click this button to export the current list of either rogue APs or friendly APS.
Monitor Mode Settings
Enable Rogue AP
Containment
Select this to enable rogue AP containment.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 115 Configuration > Wireless > Rogue AP (continued)
LABEL DESCRIPTION
Table 116 Configuration > Wireless > Rogue AP > Add/Edit Rogue/Friendly
LABEL DESCRIPTION
MAC Enter the MAC address of the AP you want to add to the list. A MAC address is a unique hardware
identifier in the following hexadecimal format: xx:xx:xx:xx:xx:xx where xx is a hexadecimal number
separated by colons.
Description Enter up to 60 characters for the AP’s description. Spaces and underscores are allowed.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
311
9.6 Wireless Health
Wireless health is a way to measure the APs wireless network performance in Zyxel Device networks.
Wireless health is defined by the number of times APs have to resend packets before the packets are
sent out successfully. The more times an AP has to resend packets, the poorer the state of wireless health
the AP is in.
The Zyxel Device improves the wireless network performance by doing the following:
• Change the channel bandwidth from 80MHz to 20MHz to reduce radio interference from other
wireless devices.
• Select a radio channel with least interference (Dynamic Channel Selection).
• Direct clients to APs with a stronger WiFi signal.
Click Configuration > Wireless > Wireless Health to access this screen.
Figure 244 Configuration > Wireless > Wireless Health
Role Select either Rogue AP or Friendly AP for the AP’s role.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to close the window with changes unsaved.
Table 116 Configuration > Wireless > Rogue AP > Add/Edit Rogue/Friendly (continued)
LABEL DESCRIPTION
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
312
Each field is described in the following table.
9.7 Auto Healing
Use this screen to enable auto healing, which allows you to extend the wireless service coverage area
of the managed APs when one of the APs fails. Click Configuration > Wireless > Auto Healing to access
this screen.
Figure 245 Configuration > Wireless > Auto Healing
Table 117 Configuration > Wireless > Wireless Health
LABEL DESCRIPTION
2.4GHz/5GHz
Radio Auto
Optimization
Select this to have the AP change the channel bandwidth from 80MHz to 20 MHz to reduce
the radio interference with other APs. If the AP wireless performance has not improved, the
Zyxel Device will have the AP scan and choose a radio channel that has least interference.
Client Auto
Optimization
Select this to have the AP try to steer the wireless clients in poor health to an AP or SSID with a
strong signal every 30 minutes.
Optimization
Aggressiveness
High, Standard and Low stand for different traffic rate threshold levels. The level you select
here decides when the Zyxel Device takes actions to improve the APs wireless network
performance. The Zyxel Device will postpone the actions implemented on APs until your
network is less busy if the threshold is exceeded.
Select a suitable traffic rate threshold level for your network.
High: Select this if you want the Zyxel Device to postpone the action set when the AP network
traffic is heavy.
Standard: Select this if you want the Zyxel Device to postpone the action set when the AP
network traffic is medium.
Low: Select this if you want the Zyxel Device to postpone the action set when the AP network
traffic is low.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
313
Each field is described in the following table.
9.8 RTLS Overview
Ekahau RTLS (Real Time Location Service) tracks battery-powered Wi-Fi tags attached to APs managed
by the Zyxel Device to create maps, alerts, and reports.
The Ekahau RTLS Controller is the centerpiece of the RTLS system. This server software runs on a Windows
computer to track and locate Ekahau tags from Wi-Fi signal strength measurements. Use the Zyxel
Device with the Ekahau RTLS system to take signal strength measurements at the APs (Integrated
Approach / Blink Mode).
The following example shows the Ekahau RTLS Integrated Approach (Blink Mode).
1 The Wi-Fi tag sends blink packets at specified intervals (or triggered by something like motion or button
presses).
2 The APs pick up the blink packets, measure the signal strength, and send it to the Zyxel Device.
3 The Zyxel Device forwards the signal measurements to the Ekahau RTLS Controller.
4 The Ekahau RTLS Controller calculates the tag positions.
Figure 246 RTLS Example
Table 118 Configuration > Wireless > Auto Healing
LABEL DESCRIPTION
Enable Auto
Healing
Select this option to turn on the auto healing feature.
Save Current
State
Click this button to have all manged APs immediately scan their neighborhoods three times in
a row and update their neighbor lists to the AP controller (Zyxel Device).
Auto Healing
Interval
Set the time interval (in minutes) at which the managed APs scan their neighborhoods and
report the status of neighbor APs to the AP controller (Zyxel Device).
An AP is considered “failed” if the AP controller obtains the same scan result that the AP is
missing from the neighbor list of other APs three times.
Power Threshold Set the power level (in dBm) to which the neighbor APs of the failed AP increase their output
power in order to extend their wireless service coverage areas.
When the failed AP is working again, its neighbor APs return their output power to the original
level.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
314
9.8.1 What You Can Do in this Chapter
Use the RTLS screen (Section 9.8.3 on page 314) to use the managed APs as part of an Ekahau RTLS (Real
Time Location Service) to track the location of Ekahau Wi-Fi tags.
9.8.2 Before You Begin
You need:
• At least three APs managed by the Zyxel Device (the more APs the better since it increases the
amount of information the Ekahau RTLS Controller has for calculating the location of the tags)
• IP addresses for the Ekahau Wi-Fi tags
• A dedicated RTLS SSID is recommended
• Ekahau RTLS Controller in blink mode with TZSP Updater enabled
• Security policies to allow RTLS traffic if the Zyxel Device security policy control is enabled or the Ekahau
RTLS Controller is behind a firewall.
For example, if the Ekahau RTLS Controller is behind a firewall, open ports 8550, 8553, and 8569 to allow
traffic the APs send to reach the Ekahau RTLS Controller.
The following table lists default port numbers and types of packets RTLS uses.
9.8.3 Configuring RTLS
Click Configuration > Wireless > RTLS to open this screen. Use this screen to turn RTLS (Real Time Location
System) on or off and specify the IP address and server port of the Ekahau RTLS Controller.
Table 119 RTLS Traffic Port Numbers
PORT NUMBER TYPE DESCRIPTION
8548 TCP Ekahau T201 location update.
8549 UDP Ekahau T201 location update.
8550 TCP Ekahau T201 tag maintenance protocol and Ekahau RTLS Controller user interface.
8552 UDP Ekahau Location Protocol
8553 UDP Ekahau Maintenance Protocol
8554 UDP Ekahau T301 firmware update.
8560 TCP Ekahau Vision web interface
8562 UDP Ekahau T301W firmware update.
8569 UDP Ekahau TZSP Listener Port
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
315
Figure 247 Configuration > Wireless > RTLS
The following table describes the labels in this screen.
9.9 Technical Reference
The following section contains additional technical information about wireless features.
9.9.1 Dynamic Channel Selection
When numerous APs broadcast within a given area, they introduce the possibility of heightened radio
interference, especially if some or all of them are broadcasting on the same radio channel. If the
interference becomes too great, then the network administrator must open his AP configuration options
and manually change the channel to one that no other AP is using (or at least a channel that has a
lower level of interference) in order to give the connected stations a minimum degree of interference.
Dynamic channel selection frees the network administrator from this task by letting the AP do it
automatically. The AP can scan the area around it looking for the channel with the least amount of
interference.
In the 2.4 GHz spectrum, each channel from 1 to 13 is broken up into discrete 22 MHz segments that are
spaced 5 MHz apart. Channel 1 is centered on 2.412 GHz while channel 13 is centered on 2.472 GHz.
Table 120 Configuration > Wireless > RTLS
LABEL DESCRIPTION
Enable Select this to use Wi-Fi to track the location of Ekahau Wi-Fi tags.
IP Address Specify the IP address of the Ekahau RTLS Controller.
Server Port Specify the server port number of the Ekahau RTLS Controller.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
316
Figure 248 An Example Three-Channel Deployment
Three channels are situated in such a way as to create almost no interference with one another if used
exclusively: 1, 6 and 11. When an AP broadcasts on any of these three channels, it should not interfere
with neighboring APs as long as they are also limited to same trio.
Figure 249 An Example Four-Channel Deployment
However, some regions require the use of other channels and often use a safety scheme with the
following four channels: 1, 4, 7 and 11. While they are situated sufficiently close to both each other and
the three so-called “safe” channels (1,6 and 11) that interference becomes inevitable, the severity of it is
dependent upon other factors: proximity to the affected AP, signal strength, activity, and so on.
Finally, there is an alternative four channel scheme for ETSI, consisting of channels 1, 5, 9, 13. This offers
significantly less overlap that the other one.
Figure 250 An Alternative Four-Channel Deployment
9.9.2 Load Balancing
Because there is a hard upper limit on an AP’s wireless bandwidth, load balancing can be crucial in
areas crowded with wireless users. Rather than let every user connect and subsequently dilute the
available bandwidth to the point where each connecting device receives a meager trickle, the load
balanced AP instead limits the incoming connections as a means to maintain bandwidth integrity.
background
Chapter 9 Wireless
USG FLEX Series User’s Guide
317
There are two kinds of wireless load balancing available on the Zyxel Device:
Load balancing by station number limits the number of devices allowed to connect to your AP. If you
know exactly how many stations you want to let connect, choose this option.
For example, if your company’s graphic design team has their own AP and they have 10 computers,
you can load balance for 10. Later, if someone from the sales department visits the graphic design
team’s offices for a meeting and he tries to access the network, his computer’s connection is delayed,
giving it the opportunity to connect to a different, neighboring AP. If he still connects to the AP
regardless of the delay, then the AP may boot other people who are already connected in order to
associate with the new connection.
Load balancing by traffic level limits the number of connections to the AP based on maximum
bandwidth available. If you are uncertain as to the exact number of wireless connections you will have
then choose this option. By setting a maximum bandwidth cap, you allow any number of devices to
connect as long as their total bandwidth usage does not exceed the configured bandwidth cap
associated with this setting. Once the cap is hit, any new connections are rejected or delayed provided
that there are other APs in range.
Imagine a coffee shop in a crowded business district that offers free wireless connectivity to its
customers. The coffee shop owner can’t possibly know how many connections his AP will have at any
given moment. As such, he decides to put a limit on the bandwidth that is available to his customers but
not on the actual number of connections he allows. This means anyone can connect to his wireless
network as long as the AP has the bandwidth to spare. If too many people connect and the AP hits its
bandwidth cap then all new connections must basically wait for their turn or get shunted to the nearest
identical AP.
background
USG FLEX Series User’s Guide
318
CHAPTER 10
Interfaces
10.1 Interface Overview
Use the Interface screens to configure the Zyxel Device’s interfaces. You can also create interfaces on
top of other interfaces.
• Ports are the physical ports to which you connect cables.
• Interfaces are used within the system operationally. You use them in configuring various features. An
interface also describes a network that is directly connected to the Zyxel Device. For example, You
connect the LAN network to the LAN interface.
• Zones are groups of interfaces used to ease security policy configuration.
10.1.1 What You Can Do in this Chapter
• Use the Port Role screen (Section 10.2 on page 323) to set the Zyxel Device’s physical ports to ZONE
interfaces.
• Use the Port Group screen (Section 10.3 on page 324) to create port groups and to assign port groups
to Ethernet interfaces.
• Use the Port Configuration screen (Section 10.4 on page 325) to configure Zyxel Device port settings.
• Use the Ethernet screens (Section 10.5 on page 327) to configure the Ethernet interfaces. Ethernet
interfaces are the foundation for defining other interfaces and network policies. RIP and OSPF are also
configured in these interfaces.
• Use the PPP screens (Section 10.6 on page 351) for PPPoE, PPTP or L2TP Internet connections.
• Use the Cellular screens (Section 10.7 on page 357) to configure settings for interfaces for Internet
connections through an installed mobile broadband card.
• Use the Tunnel screens (Section 10.8 on page 366) to configure tunnel interfaces to be used in
Generic Routing Encapsulation (GRE), IPv6 in IPv4, and 6to4 tunnels.
• Use the VLAN screens (Section 10.9 on page 373) to divide the physical network into multiple logical
networks. VLAN interfaces receive and send tagged frames. The Zyxel Device automatically adds or
removes the tags as needed. Each VLAN can only be associated with one Ethernet interface.
• Use the Bridge screens (Section 10.10 on page 387) to combine two or more network segments into a
single network.
• Use the LAG screens (Section 10.11 on page 400) to combine multiple physical Ethernet interfaces
into a single logical interface.
• Use the VTI screens (Section 10.12 on page 412) to encrypt or decrypt IPv4 traffic from or to the
interface according to the IP routing table.
• Use the Trunk screens (Section 10.13 on page 417) to configure load balancing.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
319
10.1.2 What You Need to Know
Interface Characteristics
Interfaces generally have the following characteristics (although not all characteristics apply to each
type of interface).
• An interface is a logical entity through which (layer-3) packets pass.
• An interface is bound to a physical port or another interface.
• Many interfaces can share the same physical port.
• An interface belongs to at most one zone.
• Many interfaces can belong to the same zone.
• Layer-3 virtualization (IP alias, for example) is a kind of interface.
Types of Interfaces
You can create several types of interfaces in the Zyxel Device.
• Setting interfaces to the same port role forms a port group. Port groups creates a hardware
connection between physical ports at the layer-2 (data link, MAC address) level. Port groups are
created when you use the Interface > Port Roles or Interface > Port Groups screen to set multiple
physical ports to be part of the same interface.
• Ethernet interfaces are the foundation for defining other interfaces and network policies. RIP and
OSPF are also configured in these interfaces.
• Tunnel interfaces send IPv4 or IPv6 packets from one network to a specific network through the
Internet or a public network.
• VLAN interfaces receive and send tagged frames. The Zyxel Device automatically adds or removes
the tags as needed. Each VLAN can only be associated with one Ethernet interface.
• Bridge interfaces create a software connection between Ethernet or VLAN interfaces at the layer-2
(data link, MAC address) level. Unlike port groups, bridge interfaces can take advantage of some
security features in the Zyxel Device. You can also assign an IP address and subnet mask to the
bridge.
• PPP interfaces support Point-to-Point Protocols (PPP). ISP accounts are required for PPPoE/PPTP/L2TP
interfaces.
• Cellular interfaces are for mobile broadband WAN connections through a connected mobile
broadband device.
• Virtual interfaces provide additional routing information in the Zyxel Device. There are three types:
virtual Ethernet interfaces, virtual VLAN interfaces, and virtual bridge interfaces.
• Trunk interfaces manage load balancing between interfaces.
Port groups and trunks have a lot of characteristics that are specific to each type of interface. The other
types of interfaces--Ethernet, PPP, cellular, VLAN, bridge, and virtual--have a lot of similar characteristics.
These characteristics are listed in the following table and discussed in more detail below.
Table 121 Ethernet, PPP, Cellular, VLAN, Bridge, and Virtual Interface Characteristics
CHARACTERISTICS ETHERNET ETHERNET PPP CELLULAR VLAN BRIDGE VIRTUAL
Name* wan1, wan2 lan1, lan2,
dmz
pppx cellularx vlanx brx **
Configurable Zone No No Yes Yes Yes Yes No
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
320
Note: * The format of interface names other than the Ethernet and ppp interface names is
strict. Each name consists of 2-4 letters (interface type), followed by a number (x). For
most interfaces, x is limited by the maximum number of the type of interface. For VLAN
interfaces, x is defined by the number you enter in the VLAN name field. For example,
Ethernet interface names are wan1, wan2, lan1, lan2, dmz; VLAN interfaces are vlan0,
vlan1, vlan2...and so on.
** The names of virtual interfaces are derived from the interfaces on which they are
created. For example, virtual interfaces created on Ethernet interface wan1 are called
wan1:1, wan1:2, and so on. Virtual interfaces created on VLAN interface vlan2 are
called vlan2:1, vlan2:2, and so on. You cannot specify the number after the colon(:) in
the Web Configurator; it is a sequential number. You can specify the number after the
colon if you use the CLI to set up a virtual interface.
Relationships Between Interfaces
In the Zyxel Device, interfaces are usually created on top of other interfaces. Only Ethernet interfaces
are created directly on top of the physical ports or port groups. The relationships between interfaces are
explained in the following table.
IP Address
Assignment
Static IP address Yes Yes Yes Yes Yes Yes Yes
DHCP client Yes No Yes Yes Yes Yes No
Routing metric Yes Yes Yes Yes Yes Yes Yes
Interface
Parameters
Bandwidth
restrictions
Yes Yes Yes Yes Yes Yes Yes
Packet size
(MTU)
Yes Yes Yes Yes Yes Yes No
DHCP
DHCP server No Yes No No Yes Yes No
DHCP relay No Yes No No Yes Yes No
Connectivity Check Yes No Yes Yes Yes Yes No
Table 122 Relationships Between Different Types of Interfaces
INTERFACE REQUIRED PORT / INTERFACE
Ethernet interface physical port
VLAN interface Ethernet interface
bridge interface Ethernet interface*
VLAN interface*
PPP interface Ethernet interface*
VLAN interface*
bridge interface
WAN1, WAN2, OPT*
Table 121 Ethernet, PPP, Cellular, VLAN, Bridge, and Virtual Interface Characteristics (continued)
CHARACTERISTICS ETHERNET ETHERNET PPP CELLULAR VLAN BRIDGE VIRTUAL
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
321
Note: * You cannot set up a PPP interface, virtual Ethernet interface or virtual VLAN interface
if the underlying interface is a member of a bridge. You also cannot add an Ethernet
interface or VLAN interface to a bridge if the member interface has a virtual interface
or PPP interface on top of it.
IPv6 Overview
IPv6 (Internet Protocol version 6), is designed to enhance IP address size and features. The increase in
IPv6 address size to 128 bits (from the 32-bit IPv4 address) allows up to 3.4 x 10
38
IP addresses.
IPv6 Addressing
An 128-bit IPv6 address is written as eight 16-bit hexadecimal blocks separated by colons (:). This is an
example IPv6 address 2001:0db8:1a2b:0015:0000:0000:1a2f:0000.
IPv6 addresses can be abbreviated in two ways:
• Leading zeros in a block can be omitted. So 2001:0db8:1a2b:0015:0000:0000:1a2f:0000 can be
written as 2001:db8:1a2b:15:0:0:1a2f:0.
• Any number of consecutive blocks of zeros can be replaced by a double colon. A double colon can
only appear once in an IPv6 address. So 2001:0db8:0000:0000:1a2f:0000:0000:0015 can be
written as 2001:0db8::1a2f:0000:0000:0015, 2001:0db8:0000:0000:1a2f::0015,
2001:db8::1a2f:0:0:15 or 2001:db8:0:0:1a2f::15.
Prefix and Prefix Length
Similar to an IPv4 subnet mask, IPv6 uses an address prefix to represent the network address. An IPv6
prefix length specifies how many most significant bits (start from the left) in the address compose the
network address. The prefix length is written as “/x” where x is a number. For example,
2001:db8:1a2b:15::1a2f:0/32
means that the first 32 bits (2001:db8) from the left is the network prefix.
virtual interface
(virtual Ethernet interface)
(virtual VLAN interface)
(virtual bridge interface)
Ethernet interface*
VLAN interface*
bridge interface
trunk Ethernet interface
Cellular interface
VLAN interface
bridge interface
PPP interface
Table 122 Relationships Between Different Types of Interfaces (continued)
INTERFACE REQUIRED PORT / INTERFACE
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
322
Link-local Address
A link-local address uniquely identifies a device on the local network (the LAN). It is similar to a “private IP
address” in IPv4. You can have the same link-local address on multiple interfaces on a device. A link-
local unicast address has a predefined prefix of fe80::/10. The link-local unicast address format is as
follows.
Subnet Masking
Both an IPv6 address and IPv6 subnet mask compose of 128-bit binary digits, which are divided into
eight 16-bit blocks and written in hexadecimal notation. Hexadecimal uses four bits for each character
(1 ~ 10, A ~ F). Each block’s 16 bits are then represented by four hexadecimal characters. For example,
FFFF:FFFF:FFFF:FFFF:FC00:0000:0000:0000.
Stateless Autoconfiguration
With stateless autoconfiguration in IPv6, addresses can be uniquely and automatically generated.
Unlike DHCPv6 (Dynamic Host Configuration Protocol version six) which is used in IPv6 stateful
autoconfiguration, the owner and status of addresses don’t need to be maintained by a DHCP server.
Every IPv6 device is able to generate its own and unique IP address automatically when IPv6 is initiated
on its interface. It combines the prefix and the interface ID (generated from its own Ethernet MAC
address) to form a complete IPv6 address.
When IPv6 is enabled on a device, its interface automatically generates a link-local address (beginning
with fe80).
When the Zyxel Device’s WAN interface is connected to an ISP with a router and the Zyxel Device is set
to automatically obtain an IPv6 network prefix from the router for the interface, it generates another
address which combines its interface ID and global and subnet information advertised from the router.
(In IPv6, all network interfaces can be associated with several addresses.) This is a routable global IP
address.
Prefix Delegation
Prefix delegation enables an IPv6 router (the Zyxel Device) to use the IPv6 prefix (network address)
received from the ISP (or a connected uplink router) for its LAN. The Zyxel Device uses the received IPv6
prefix (for example, 2001:db2::/48) to generate its LAN IP address. Through sending Router
Advertisements (RAs) regularly by multicast, the router passes the IPv6 prefix information to its LAN hosts.
The hosts then can use the prefix to generate their IPv6 addresses.
IPv6 Router Advertisement
An IPv6 router sends router advertisement messages periodically to advertise its presence and other
parameters to the hosts on the same network.
Table 123 Link-local Unicast Address Format
1111 1110 10 0 Interface ID
10 bits 54 bits 64 bits
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
323
DHCPv6
The Dynamic Host Configuration Protocol for IPv6 (DHCPv6, RFC 3315) is a server-client protocol that
allows a DHCP server to assign and pass IPv6 network addresses, prefixes and other configuration
information to DHCP clients. DHCPv6 servers and clients exchange DHCP messages using UDP.
Each DHCP client and server has a unique DHCP Unique IDentifier (DUID), which is used for identification
when they are exchanging DHCPv6 messages. The DUID is generated from the MAC address, time,
vendor assigned ID and/or the vendor's private enterprise number registered with the IANA. It should not
change over time even after you reboot the device.
10.1.3 What You Need to Do First
For IPv6 settings, go to the Configuration > System > IPv6 screen to enable IPv6 support on the Zyxel
Device first.
10.2 Port Role
To access this screen, click Configuration > Network > Interface > Port Role. Use the Port Role screen to
set the Zyxel Device’s physical ports to ZONE interfaces. This creates a hardware connection between
the physical ports at the layer-2 (data link, MAC address) level. This provides wire-speed throughput but
no security.
Note the following if you are configuring from a computer connected to a lan1, lan2, ext-wlan, ext-lan
or dmz port and change the port's role:
• A port's IP address varies as its role changes, make sure your computer's IP address is on the same
subnet as the Zyxel Device's interface IP address.
• Use the appropriate interface IP address to access the Zyxel Device.
The physical Ethernet ports are shown at the top and the Ethernet interfaces and zones are shown at the
bottom of the screen. Use the radio buttons to select for which interface (network) you want to use
each physical port. For example, select a port’s LAN radio button to use the port as part of the LAN
interface. The port will use the Zyxel Device’s LAN IP address and MAC address.
Please note that not all Zyxel Device models support port role, see Section 1.1.1 on page 30 for more
information.
Click Apply to save your changes and apply them to the Zyxel Device.
Click Reset to change the port groups to their current configuration (last-saved values).
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
324
Figure 251 Configuration > Network > Interface > Port Role
10.3 Port Group
To access this screen, click Configuration > Network > Interface > Port Group. When you assign more
than one physical port to a network, you create a port group. Use the Port Group screen to create port
groups and to assign port groups to Ethernet interfaces. Port groups have the following characteristics:
• There is a layer-2 Ethernet switch between physical ports in the port group. This provides wire-speed
throughput but no security.
• It can increase the bandwidth between the port group and other interfaces.
• The port group uses a single MAC address.
Please note that not all Zyxel Device models support port role, see Section 1.1.1 on page 30 for more
information.
Click Apply to save your changes and apply them to the Zyxel Device.
Click Reset to change the port groups to their current configuration (last-saved values).
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
325
Figure 252 Configuration > Network > Interface > Port Group
10.4 Port Configuration
Use this screen to configure port settings. Click Configuration > Network > Interface > Port Configuration
in the navigation panel to display the configuration screen.
Note: You cannot configure the speed and duplex mode of fiber ports.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
326
Figure 253 Configuration > Network > Interface > Port Configuration
Each field is described in the following table.
Table 124 Configuration > Network > Interface > Port Configuration
LABEL DESCRIPTION
Edit Select an entry, and click this button to configure the speed and the duplex mode of the
Ethernet connection on this port.
Name This field displays the name of the port.
Interface This field displays the interface for the port.
Type This field displays the cable type that is used on the port.
Settings Select the speed and the duplex mode of the Ethernet connection on this port. Choices
are Auto Negotiate, 1000Mbps-Full Duplex, 100Mbps-Full Duplex, 100Mbps-Half Duplex,
10Mbps-Full Duplex, and 10Mbps-Half Duplex.
Selecting Auto Negotiate allows one port to negotiate with a peer port automatically to
obtain the connection speed (of up to 1000M) and duplex mode that both ends support.
When auto-negotiation is turned on, a port on the Zyxel Device negotiates with the peer
automatically to determine the connection speed and duplex mode. If the peer port does
not support auto-negotiation or turns off this feature, the Zyxel Device determines the
connection speed by detecting the signal on the cable and using half duplex mode. When
the Zyxel Device’s auto-negotiation is turned off, a port uses the pre-configured speed and
duplex mode when making a connection, thus requiring you to make sure that the settings
of the peer port are the same in order to connect.
Status This field displays the speed and the duplex mode of the Ethernet connection on the port.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
327
10.5 Ethernet Summary Screen
This screen lists every Ethernet interface and virtual interface created on top of Ethernet interfaces. If you
enabled IPv6 on the Configuration > System > IPv6 screen, you can also configure Ethernet interfaces
used for your IPv6 networks on this screen. To access this screen, click Configuration > Network >
Interface > Ethernet.
Unlike other types of interfaces, you cannot create new Ethernet interfaces nor can you delete any of
them. If an Ethernet interface does not have any physical ports assigned to it, the Ethernet interface is
effectively removed from the Zyxel Device, but you can still configure it.
Ethernet interfaces are similar to other types of interfaces in many ways. They have an IP address, subnet
mask, and gateway used to make routing decisions. They restrict the amount of bandwidth and packet
size. They can provide DHCP services, and they can verify the gateway is available.
Use Ethernet interfaces to control which physical ports exchange routing information with other routers
and how much information is exchanged through each one. The more routing information is
exchanged, the more efficient the routers should be. However, the routers also generate more network
traffic, and some routing protocols require a significant amount of configuration and management. The
Zyxel Device supports the following routing protocols: RIP, OSPF and BGP. See
Chapter 11 on page 442
for background information about these routing protocols.
The default IPv4 LAN subnet range starts from 192.168.1.0/24. If the Zyxel Device WAN IPv4 address
conflicts with the LAN IPv4 address, clients on the LAN will not be able to access the Internet.
Figure 254 IP Address Conflict
The following list shows some examples of what the IPv4 LAN subnet range will change to if it conflicts
with the WAN IPv4 address.
• 192.168.1.0/24 will change to 192.168.10.0/24.
• 192.168.2.0/24 will change to 192.168.11.0/24.
• 192.168.3.0/24 will change to 192.168.12.0/24.
• 192.168.4.0/24 will change to 192.168.13.0/24.
Figure 255 IP Address Change
If you upgrade the Zyxel Device firmware version from 4.29 to 5.31, and your Ethernet settings in the Zyxel
Device firmware version 4.29 meets the conditions listed below, the default LAN subnet will change
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
328
when the IPv4 address the WAN interface gets from the DHCP server conflicts with any IPv4 address in
the default LAN subnet:
• The WAN is using a static IPv4 address.
• The WAN is using a dynamically assigned IPv4 address.
• The WAN is using an IPv4 address assigned by the PPPoE server.
If the Zyxel Device is using firmware version 5.31, when the WAN IPv4 address conflicts with any IPv4
address in the default LAN subnet, the Zyxel Device will only change the default LAN subnet if it is in
default settings.
When you configure the WAN or the LAN IPv4 networks, please note that they must not conflict with
each other. The Zyxel Device will not automatically change the LAN IPv4 subnet if the WAN IPv4 address
conflicts with the LAN IPv4 networks you configure.
Figure 256 Configuration > Network > Interface > Ethernet
Each field is described in the following table.
Table 125 Configuration > Network > Interface > Ethernet
LABEL DESCRIPTION
Configuration / IPv6
Configuration
Use the Configuration section for IPv4 network settings. Use the IPv6 Configuration section
for IPv6 network settings if you connect your Zyxel Device to an IPv6 network. Both sections
have similar fields as described below.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove a virtual interface, select it and click Remove. The Zyxel Device confirms you
want to remove it before doing so.
Activate To turn on an interface, select it and click Activate.
Inactivate To turn off an interface, select it and click Inactivate.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
329
10.5.1 Ethernet Edit
The Ethernet Edit screen lets you configure IP address assignment, interface parameters, RIP settings,
OSPF settings, DHCP settings, connectivity check, and MAC address settings. To access this screen, click
an Edit icon on the Ethernet Summary screen. (See
Section 10.5 on page 327.)
The OPT interface’s Edit > Configuration screen is shown here as an example. The screens for other
interfaces are similar and contain a subset to the OPT interface screen’s fields.
Note: If you create IP address objects based on an interface’s IP address, subnet, or gateway,
the Zyxel Device automatically updates every rule or setting that uses the object
whenever the interface’s IP address settings change. For example, if you change the
VLAN's IP address, the Zyxel Device automatically updates the corresponding
interface-based, LAN subnet address object.
With RIP, you can use Ethernet interfaces to do the following things.
• Enable and disable RIP in the underlying physical port or port group.
• Select which direction(s) routing information is exchanged - The Zyxel Device can receive routing
information, send routing information, or do both.
• Select which version of RIP to support in each direction - The Zyxel Device supports RIP-1, RIP-2, and
both versions.
• Select the broadcasting method used by RIP-2 packets - The Zyxel Device can use subnet
broadcasting or multicasting.
With OSPF, you can use Ethernet interfaces to do the following things.
Create Virtual
Interface
To open the screen where you can create a virtual Ethernet interface, select an Ethernet
interface and click Create Virtual Interface.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any interface.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This field displays the name of the interface.
Description This field displays the description of the interface.
IP Address This field displays the current IP address of the interface. If the IP address is 0.0.0.0 (on the
IPv4 network) or :: (on the IPv6 network), the interface does not have an IP address yet.
On the IPv4 network, this screen also shows whether the IP address is a static IP address
(STATIC) or dynamically assigned (DHCP). IP addresses are always static in virtual interfaces.
On the IPv6 network, this screen also shows whether the IP address is a static IP address
(STATIC), link-local IP address (LINK LOCAL), dynamically assigned (DHCP), or an IPv6
StateLess Address AutoConfiguration IP address (SLAAC). See
Section 10.1.2 on page 319
for more information about IPv6.
Mask This field displays the interface’s subnet mask in dot decimal notation.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 125 Configuration > Network > Interface > Ethernet (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
330
• Enable and disable OSPF in the underlying physical port or port group.
• Select the area to which the interface belongs.
• Override the default link cost and authentication method for the selected area.
• Select in which direction(s) routing information is exchanged - The Zyxel Device can receive routing
information, send routing information, or do both.
Set the priority used to identify the DR or BDR if one does not exist.
10.5.1.1 IGMP Proxy
Internet Group Management Protocol (IGMP) proxy is used for multicast routing. IGMP proxy enables the
Zyxel Device to issue IGMP host messages on behalf of hosts that the Zyxel Device discovered on its
IGMP-enabled interfaces. The Zyxel Device acts as a proxy for its hosts. Refer to the following figure.
• DS: Downstream traffic
• US: Upstream traffic
• R: Router
• MS: Multicast Server
• Enable IGMP Upstream (US) on the Zyxel Device interface that connects to a router (R) running IGMP
that is closer to the multicast server (MS).
• Enable IGMP Downstream on the Zyxel Device interface which connects to the multicast hosts.
Figure 257 IGMP Proxy
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
331
Figure 258 Configuration > Network > Interface > Ethernet > Edit (External Type)
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
332
Configuration > Network > Interface > Ethernet > Edit (External Type
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
333
Figure 259 Configuration > Network > Interface > Ethernet > Edit (Internal Type)
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
334
Configuration > Network > In terface > Ethern et > Edit ( Internal Type)
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
335
Figure 260 Configuration > Network > Interface > Ethernet > Edit (OPT)
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
336
Configuration > Network > Interface > Ethernet > Edit (OPT)
These screen’s fields are described in the table below.
Table 126 Configuration > Network > Interface > Ethernet > Edit
LABEL DESCRIPTION
IPv4/IPv6 View / IPv4
View / IPv6 View
Use this button to display both IPv4 and IPv6, IPv4-only, or IPv6-only configuration fields.
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
Create New Object Click this button to create a DHCPv6 lease or DHCPv6 request object that you may use for
the DHCPv6 settings in this screen.
General Settings
Enable Interface Select this to enable this interface. Clear this to disable this interface.
General IPv6 Setting
Enable IPv6 Select this to enable IPv6 on this interface. Otherwise, clear this to disable it.
Interface Properties
Interface Type This field is configurable for the OPT interface only. Select to which type of network you will
connect this interface. When you select internal or external the rest of the screen’s options
automatically adjust to correspond. The Zyxel Device automatically adds default route and
SNAT settings for traffic it routes from internal interfaces to external interfaces; for example
LAN to WAN traffic.
internal is for connecting to a local network. Other corresponding configuration options:
DHCP server and DHCP relay. The Zyxel Device automatically adds default SNAT settings for
traffic flowing from this interface to an external interface.
external is for connecting to an external network (like the Internet). The Zyxel Device
automatically adds this interface to the default WAN trunk.
For general, the rest of the screen’s options do not automatically adjust and you must
manually configure a policy route to add routing and SNAT settings for the interface.
Interface Name Specify a name for the interface. It can use alphanumeric characters, hyphens, and
underscores, and it can be up to 11 characters long.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
337
Port This is the name of the Ethernet interface’s physical port.
Zone Select the zone to which this interface is to belong. You use zones to apply security settings
such as security policy, IDP, remote management, anti-malware, and application patrol.
Make sure to select the correct zone as otherwise traffic may be blocked by a security
policy.
MAC Address This field is read-only. This is the MAC address that the Ethernet interface uses.
Description Enter a description of this interface. You can use alphanumeric and ()+/:=?!*#@$_%-
characters, and it can be up to 60 characters long. Spaces are allowed, but the string
can’t start with a space.
IP Address
Assignment
These IP address fields configure an IPv4 IP address on the interface itself. If you change this
IP address on the interface, you may also need to change a related address object for the
network connected to the interface. For example, if you use this screen to change the IP
address of your LAN interface, you should also change the corresponding LAN subnet
address object.
Get
Automatically
This option appears when Interface Type is external or general. Select this to make the
interface a DHCP client and automatically get the IP address, subnet mask, and gateway
address from a DHCP server.
You should not select this if the interface is assigned to a VRRP group. See Chapter 45 on
page 1056.
DHCP Option 60 DHCP Option 60 is used by the Zyxel Device for identification to the DHCP server using the
VCI (Vendor Class Identifier) on the DHCP server. The Zyxel Device adds it in the initial DHCP
discovery message that a DHCP client broadcasts in search of an IP address. The DHCP
server can assign different IP addresses or options to clients with the specific VCI or reject
the request from clients without the specific VCI.
Enter a string using up to 63 of these characters [a-zA-Z0-9!\"#$%&\'()*+,-./
:;<=>?@\[\\\]^_`{}] to identify this Zyxel Device to the DHCP server. For example, Zyxel-TW.
Use Fixed IP
Address
This option appears when Interface Type is external or general. Select this if you want to
specify the IP address, subnet mask, and gateway manually.
IP Address Enter the IP address for this interface.
Subnet Mask Enter the subnet mask of this interface in dot decimal notation. The subnet mask indicates
what part of the IP address is the same for all computers on the network.
Gateway This option appears when Interface Type is external or general. Enter the IP address of the
gateway. The Zyxel Device sends packets to the gateway when it does not know how to
route the packet to its destination. The gateway should be on the same network as the
interface.
Metric This option appears when Interface Type is external or general. Enter the priority of the
gateway (if any) on this interface. The Zyxel Device decides which gateway to use based
on this priority. The lower the number, the higher the priority. If two or more gateways have
the same priority, the Zyxel Device uses the one that was configured first.
Enable IGMP Support Select this to allow the Zyxel Device to act as an IGMP proxy for hosts connected on the
IGMP downstream interface.
IGMP Upstream Enable IGMP Upstream on the interface which connects to a router running IGMP that is
closer to the multicast server.
IGMP
Downstream
Enable IGMP Downstream on the interface which connects to the multicast hosts.
IPv6 Address
Assignment
These IP address fields configure an IPv6 IP address on the interface itself.
Enable Stateless
Address Auto-
configuration
(SLAAC)
Select this to enable IPv6 stateless auto-configuration on this interface. The interface will
generate an IPv6 IP address itself from a prefix obtained from an IPv6 router on the network.
Table 126 Configuration > Network > Interface > Ethernet > Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
338
Link-Local
Address
This displays the IPv6 link-local address and the network prefix that the Zyxel Device
generates itself for the interface.
IPv6 Address/
Prefix Length
Enter the IPv6 address and the prefix length for this interface if you want to use a static IP
address. This field is optional.
The prefix length indicates what the left-most part of the IP address is the same for all
computers on the network, that is, the network address.
Gateway Enter the IPv6 address of the default outgoing gateway using colon (:) hexadecimal
notation.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
Address from
DHCPv6 Prefix
Delegation
Use this table to have the Zyxel Device obtain an IPv6 prefix from the ISP or a connected
uplink router for an internal network, such as the LAN or DMZ. You have to also enter a suffix
address which is appended to the delegated prefix to form an address for this interface.
See
Prefix Delegation on page 322 for more information.
To use prefix delegation, you must:
• Create at least one DHCPv6 request object before configuring this table.
• The external interface must be a DHCPv6 client. You must configure the DHCPv6
request options using a DHCPv6 request object with the type of prefix-delegation.
• Assign the prefix delegation to an internal interface and enable router advertisement
on that interface.
Add Click this to create an entry.
Edit Select an entry and click this to change the settings.
Remove Select an entry and click this to delete it from this table.
References Select an entry and click References to check which settings use the entry.
# This field is a sequential value, and it is not associated with any entry.
Delegated
Prefix
Select the DHCPv6 request object to use from the drop-down list.
Suffix
Address
Enter the ending part of the IPv6 address, a slash (/), and the prefix length. The Zyxel Device
will append it to the delegated prefix.
For example, you got a delegated prefix of 2003:1234:5678/48. You want to configure an IP
address of 2003:1234:5678:1111::1/128 for this interface, then enter ::1111:0:0:0:1/128 in this
field.
Address This field displays the combined IPv6 IP address for this interface.
Note: This field displays the combined address after you click OK and reopen this
screen.
DHCPv6 Setting
DHCPv6 Select N/A to not use DHCPv6.
Select Client to set this interface to act as a DHCPv6 client.
Select Server to set this interface to act as a DHCPv6 server which assigns IP addresses and
provides subnet mask, gateway, and DNS server information to clients.
Select Relay to set this interface to route DHCPv6 requests to the DHCPv6 relay server you
specify. The DHCPv6 server(s) may be on another network.
DUID This field displays the DHCP Unique IDentifier (DUID) of the interface, which is unique and
used for identification purposes when the interface is exchanging DHCPv6 messages with
others. See
DHCPv6 on page 323 for more information.
Table 126 Configuration > Network > Interface > Ethernet > Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
339
DUID as MAC Select this if you want the DUID is generated from the interface’s default MAC address.
Customized DUID If you want to use a customized DUID, enter it here for the interface.
Enable Rapid
Commit
Select this to shorten the DHCPv6 message exchange process from four to two steps. This
function helps reduce heavy network traffic load.
Note: Make sure you also enable this option in the DHCPv6 clients to make rapid
commit work.
Information
Refresh Time
Enter the number of seconds a DHCPv6 client should wait before refreshing information
retrieved from DHCPv6.
Request Address This field is available if you set this interface to DHCPv6 Client. Select this to get an IPv6 IP
address for this interface from the DHCP server. Clear this to not get any IP address
information through DHCPv6.
DHCPv6 Request
Options /
DHCPv6 Lease
Options
If this interface is a DHCPv6 client, use this section to configure DHCPv6 request settings that
determine what additional information to get from the DHCPv6 server. If the interface is a
DHCPv6 server, use this section to configure DHCPv6 lease settings that determine what
additional information to offer to the DHCPv6 clients.
Add Click this to create an entry in this table. See Section 10.5.5 on page 348 for more
information.
Remove Select an entry and click this to delete it from this table.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any entry.
Name This field displays the name of the DHCPv6 request or lease object.
Type This field displays the type of the object.
Value This field displays the IPv6 prefix that the Zyxel Device obtained from an uplink router (Server
is selected) or will advertise to its clients (Client is selected).
Interface When Relay is selected, select this check box and an interface from the drop-down list if
you want to use it as the relay server.
Relay Server When Relay is selected, select this check box and enter the IP address of a DHCPv6 server
as the relay server.
IPv6 Router
Advertisement
Setting
Enable Router
Advertisement
Select this to enable this interface to send router advertisement messages periodically. See
IPv6 Router Advertisement on page 322 for more information.
Advertised Hosts
Get Network
Configuration
From DHCPv6
Select this to have the Zyxel Device indicate to hosts to obtain network settings (such as
prefix and DNS settings) through DHCPv6.
Clear this to have the Zyxel Device indicate to hosts that DHCPv6 is not available and they
should use the prefix in the router advertisement message.
Advertised Hosts
Get Other
Configuration
From DHCPv6
Select this to have the Zyxel Device indicate to hosts to obtain DNS information through
DHCPv6.
Clear this to have the Zyxel Device indicate to hosts that DNS information is not available in
this network.
Router
Preference
Select the router preference (Low, Medium or High) for the interface. The interface sends
this preference in the router advertisements to tell hosts what preference they should use for
the Zyxel Device. This helps hosts to choose their default router especially when there are
multiple IPv6 router on the network.
Note: Make sure the hosts also support router preference to make this function
work.
Table 126 Configuration > Network > Interface > Ethernet > Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
340
MTU The Maximum Transmission Unit. Enter the maximum size of each IPv6 data packet, in bytes,
that can move through this interface. If a larger packet arrives, the Zyxel Device discards
the packet and sends an error message to the sender to inform this.
Hop Limit Enter the maximum number of network segments that a packet can cross before reaching
the destination. When forwarding an IPv6 packet, IPv6 routers are required to decrease the
Hop Limit by 1 and to discard the IPv6 packet when the Hop Limit is 0.
Advertised Prefix
Table
Configure this table only if you want the Zyxel Device to advertise a fixed prefix to the
network.
Add Click this to create an IPv6 prefix address.
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
# This field is a sequential value, and it is not associated with any entry.
IPv6
Address/
Prefix Length
Enter the IPv6 network prefix address and the prefix length.
The prefix length indicates what the left-most part of the IP address is the same for all
computers on the network, that is, the network address.
Advertised Prefix
from DHCPv6
Prefix Delegation
This table is available when the Interface Type is internal. Use this table to configure the
network prefix if you want to use a delegated prefix as the beginning part of the network
prefix.
Add Click this to create an entry in this table.
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
# This field is a sequential value, and it is not associated with any entry.
Delegated
Prefix
Select the DHCPv6 request object to use for generating the network prefix for the network.
Suffix
Address
Enter the ending part of the IPv6 network address plus a slash (/) and the prefix length. The
Zyxel Device will append it to the selected delegated prefix. The combined address is the
network prefix for the network.
For example, you got a delegated prefix of 2003:1234:5678/48. You want to divide it into
2003:1234:5678:1111/64 for this interface and 2003:1234:5678:2222/64 for another interface.
You can use ::1111/64 and ::2222/64 for the suffix address respectively. But if you do not
want to divide the delegated prefix into subnetworks, enter ::0/48 here, which keeps the
same prefix length (/48) as the delegated prefix.
Address This is the final network prefix combined by the delegated prefix and the suffix.
Note: This field displays the combined address after you click OK and reopen this
screen.
Interface Parameters
Egress Bandwidth Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can send
through the interface to the network. Allowed values are 0 - 1048576.
Ingress
Bandwidth
This is reserved for future use.
Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can receive
from the network through the interface. Allowed values are 0 - 1048576.
MTU Maximum Transmission Unit. Enter the maximum size of each data packet, in bytes, that can
move through this interface. If a larger packet arrives, the Zyxel Device divides it into smaller
fragments. Allowed values are 576 - 1500. Usually, this value is 1500.
Table 126 Configuration > Network > Interface > Ethernet > Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
341
Connectivity Check These fields appear when Interface Properties is External or General.
The interface can regularly check the connection to the gateway you specified to make
sure it is still available. You specify how often the interface checks the connection, how
long to wait for a response before the attempt is a failure, and how many consecutive
failures are required before the Zyxel Device stops routing to the gateway. The Zyxel Device
resumes routing to the gateway the first time the gateway passes the connectivity check.
Enable
Connectivity
Check
Select this to turn on the connection check.
Check Method Select the method that the gateway allows.
Select icmp to have the Zyxel Device regularly ping the gateway you specify to make sure
it is still available.
Select tcp to have the Zyxel Device regularly perform a TCP handshake with the gateway
you specify to make sure it is still available.
Check Period Enter the number of seconds between connection check attempts.
Check Timeout Enter the number of seconds to wait for a response before the attempt is a failure.
Check Fail
Tolerance
Enter the number of consecutive failures before the Zyxel Device stops routing through the
gateway.
Check Default
Gateway
Select this to use the default gateway for the connectivity check.
Check this
address
Select this to specify a domain name or IP address for the connectivity check. Enter that
domain name or IP address on the field next to it.
Check Port This field only displays when you set the Check Method to tcp. Specify the port number to
use for a TCP connectivity check.
Check these
addresses
Enter one or two domain names or IP addresses for the connectivity check.
Probe Succeeds
When
This field applies when you specify two domain names or IP addresses for the connectivity
check.
Select any one if you want the check to pass if at least one of the domain names or IP
addresses responds.
Select all if you want the check to pass only if both domain names or IP addresses respond.
DHCP Setting This section appears when Interface Type is internal or general.
DHCP Select what type of DHCP service the Zyxel Device provides to the network. Choices are:
None - the Zyxel Device does not provide any DHCP services. There is already a DHCP
server on the network.
DHCP Relay - the Zyxel Device routes DHCP requests to one or more DHCP servers you
specify. The DHCP server(s) may be on another network.
DHCP Server - the Zyxel Device assigns IP addresses and provides subnet mask, gateway,
and DNS server information to the network. The Zyxel Device is the DHCP server for the
network.
These fields appear if the Zyxel Device is a DHCP Relay.
Relay Server 1 Enter the IP address of a DHCP server for the network.
Relay Server 2 This field is optional. Enter the IP address of another DHCP server for the network.
These fields appear if the Zyxel Device is a DHCP Server.
Table 126 Configuration > Network > Interface > Ethernet > Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
342
IP Pool Start
Address
Enter the IP address from which the Zyxel Device begins allocating IP addresses. If you want
to assign a static IP address to a specific computer, use the Static DHCP Table.
If this field is blank, the Pool Size must also be blank. In this case, the Zyxel Device can assign
every IP address allowed by the interface’s IP address and subnet mask, except for the first
address (network address), last address (broadcast address) and the interface’s IP address.
Pool Size Enter the number of IP addresses to allocate. This number must be at least one and is limited
by the interface’s Subnet Mask. For example, if the Subnet Mask is 255.255.255.0 and IP Pool
Start Address is 10.10.10.10, the Zyxel Device can allocate 10.10.10.10 to 10.10.10.254, or 245
IP addresses.
If this field is blank, the IP Pool Start Address must also be blank. In this case, the Zyxel Device
can assign every IP address allowed by the interface’s IP address and subnet mask, except
for the first address (network address), last address (broadcast address) and the interface’s
IP address.
First DNS Server,
Second DNS
Server, Third DNS
Server
Specify the IP addresses up to three DNS servers for the DHCP clients to use. Use one of the
following ways to specify these IP addresses.
Custom Defined - enter a static IP address.
From ISP - select the DNS server that another interface received from its DHCP server.
Zyxel Device - the DHCP clients use the IP address of this interface and the Zyxel Device
works as a DNS relay.
First WINS Server,
Second WINS
Server
Enter the IP address of the WINS (Windows Internet Naming Service) server that you want to
send to the DHCP clients. The WINS server keeps a mapping table of the computer names
on your network and the IP addresses that they are currently using.
Default Router If you set this interface to DHCP Server, you can select to use either the interface’s IP
address or another IP address as the default router. This default router will become the
DHCP clients’ default gateway.
To use another IP address as the default router, select Custom Defined and enter the IP
address.
Lease time Specify how long each computer can use the information (especially the IP address)
before it has to request the information again. Choices are:
infinite - select this if IP addresses never expire.
days, hours, and minutes - select this to enter how long IP addresses are valid.
Extended
Options
This table is available if you selected DHCP server.
Configure this table if you want to send more information to DHCP clients through DHCP
packets.
Add Click this to create an entry in this table. See Section 10.5.6 on page 349.
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
# This field is a sequential value, and it is not associated with any entry.
Name This is the name of the DHCP option.
Code This is the code number of the DHCP option.
Type This is the type of the set value for the DHCP option.
Value This is the value set for the DHCP option.
Table 126 Configuration > Network > Interface > Ethernet > Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
343
PXE Server PXE (Preboot eXecution Environment) allows a client computer to use the network to boot
up and install an operating system through a PXE-capable Network Interface Card (NIC).
PXE is available for computers on internal interfaces to allow them to boot up using boot
software on a PXE server. The Zyxel Device acts as an intermediary between the PXE server
and the computers that need boot software.
The PXE server must have a public IPv4 address. You must enable DHCP Server on the Zyxel
Device so that it can receive information from the PXE server.
PXE Boot Loader
File
A boot loader is a computer program that loads the operating system for the computer.
Enter the exact file name of the boot loader software file, including filename extension, that
is on the PXE server. If the wrong filename is entered, then the client computers cannot
boot.
Enable IP/MAC
Binding
Select this option to have this interface enforce links between specific IP addresses and
specific MAC addresses. This stops anyone else from manually using a bound IP address on
another device connected to this interface. Use this to make use only the intended users
get to use specific IP addresses.
Enable Logs for
IP/MAC Binding
Violation
Select this option to have the Zyxel Device generate a log if a device connected to this
interface attempts to use an IP address that is bound to another device’s MAC address.
Static DHCP
Table
Configure a list of static IP addresses the Zyxel Device assigns to computers connected to
the interface. Otherwise, the Zyxel Device assigns an IP address dynamically using the
interface’s IP Pool Start Address and Pool Size.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Import Click this to import a previously saved file (.csv) to the Zyxel Device. The IP/MAC binding
settings and description to identify these settings in the file will be applied to the Zyxel
Device.
The previously saved csv file may be a file you configured, or a file you exported at
Monitor> System Status> DHCP Table if you want to recover settings configured before.
Configure your csv file in the order of IP address, MAC address and description. Spaces are
allowed. Separate each item with a comma, for example, 1.1.1.1,22:22:33:44:55:02,test.
Press enter to configure the next group in a new line.
Your currently configured IP/MAC binding settings and entries description will be
overwritten once you import the file. Make sure to click Export to export your settings as a
file for backup in Monitor > System Status > DHCP Table first.
File Path Enter the file path and name of the DHCP settings file you want to import in the text box (or
click Browse to find it on your computer) and then click Upload to transfer the file to the
Zyxel Device.
# This field is a sequential value, and it is not associated with a specific entry.
IP Address Enter the IP address to assign to a device with this entry’s MAC address.
MAC Enter the MAC address to which to assign this entry’s IP address.
Description Enter a description to help identify this static DHCP entry. You can use alphanumeric and
()+/:=?!*#@$_%- characters, and it can be up to 60 characters long.
RIP Setting See Section 11.6 on page 443 for more information about RIP.
Enable RIP Select this to enable RIP in this interface.
Table 126 Configuration > Network > Interface > Ethernet > Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
344
Direction This field is effective when RIP is enabled. Select the RIP direction from the drop-down list
box.
BiDir - This interface sends and receives routing information.
In-Only - This interface receives routing information.
Out-Only - This interface sends routing information.
Send Version This field is effective when RIP is enabled. Select the RIP version(s) used for sending RIP
packets. Choices are 1, 2, and 1 and 2.
Receive Version This field is effective when RIP is enabled. Select the RIP version(s) used for receiving RIP
packets. Choices are 1, 2, and 1 and 2.
V2-Broadcast This field is effective when RIP is enabled. Select this to send RIP-2 packets using subnet
broadcasting; otherwise, the Zyxel Device uses multicasting.
OSPF Setting See Section 11.7 on page 445 for more information about OSPF.
Area Select the area in which this interface belongs. Select None to disable OSPF in this interface.
Priority Enter the priority (between 0 and 255) of this interface when the area is looking for a
Designated Router (DR) or Backup Designated Router (BDR). The highest-priority interface
identifies the DR, and the second-highest-priority interface identifies the BDR. Set the priority
to zero if the interface can not be the DR or BDR.
Link Cost Enter the cost (between 1 and 65,535) to route packets through this interface.
Passive Interface Select this to stop forwarding OSPF routing information from the selected interface. As a
result, this interface only receives routing information.
Authentication Select an authentication method, or disable authentication. To exchange OSPF routing
information with peer border routers, you must use the same authentication method that
they use. Choices are:
Same-as-Area - use the default authentication method in the area
None - disable authentication
Text - authenticate OSPF routing information using a plain-text password
MD5 - authenticate OSPF routing information using MD5 encryption
Text
Authentication
Key
This field is available if the Authentication is Text. Enter the password for text authentication.
The key can consist of alphanumeric characters and the underscore, and it can be up to
16 characters long.
MD5
Authentication ID
This field is available if the Authentication is MD5. Enter the ID for MD5 authentication. The ID
can be between 1 and 255.
MD5
Authentication
Key
This field is available if the Authentication is MD5. Enter the password for MD5
authentication. The password can consist of alphanumeric characters and the underscore,
and it can be up to 16 characters long.
MAC Address Setting This section appears when Interface Properties is External or General. Have the interface
use either the factory assigned default MAC address, a manually specified MAC address,
or clone the MAC address of another device or computer.
Use Default MAC
Address
Select this option to have the interface use the factory assigned default MAC address. By
default, the Zyxel Device uses the factory assigned MAC address to identify itself.
Overwrite
Default MAC
Address
Select this option to have the interface use a different MAC address. Either enter the MAC
address in the fields or click Clone by host and enter the IP address of the device or
computer whose MAC you are cloning. Once it is successfully configured, the address will
be copied to the configuration file. It will not change unless you change the setting or
upload a different configuration file.
Proxy ARP Proxy ARP is available for external or general interfaces on the Zyxel Device. See Section
10.5.2 on page 345 for more information on Proxy ARP.
Table 126 Configuration > Network > Interface > Ethernet > Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
345
10.5.2 Proxy ARP
An Address Resolution Protocol (ARP) is a protocol for mapping an IP address to a MAC address. An ARP
broadcast is sent to all devices on the same Ethernet network to request the MAC address of a target IP
address.
In the following figure, a host in a WAN subnet (A) broadcasts an ARP request to all devices within its
network in order to find the MAC address of a target IP address (172.16.x.x). However, the target IP
address may be in another subnet (B) that has the same network IP address (172.16.x.x). A router, such
as the Zyxel Device, does not forward broadcasts, so the request will not reach its destination.
Enable Proxy ARP (RFC 1027) to allow the Zyxel Device to answer external interface ARP requests on
behalf of a device on its internal interface. Interfaces supported are:
• Ethernet
• VLAN
Enable Proxy ARP Select this to allow the Zyxel Device to answer external interface ARP requests on behalf of
a device on its internal interface. Interfaces supported are:
•Ethernet
•VLAN
• Bridge
See Section 10.5.2 on page 345 for more information.
Add Click Add to create an IPv4 Address, an IPv4 CIDR (for example, 192.168.1.1/24) or an IPv4
Range (for example, 192.168.1.2-192.168.1.100) as the target IP address. The Zyxel Device
answers external ARP requests only if they match one of these inputted target IP addresses.
For example, if the IPv4 Address is 192.168.1.5, then the Zyxel Device will answer ARP
requests coming from the WAN only if it contains 192.168.1.5 as the target IP address.
Select an existing entry and click Remove to delete that entry.
Related Setting
Configure
PPPoE/PPTP
Click PPPoE/PPTP if this interface’s Internet connection uses PPPoE or PPTP or L2TP.
Configure VLAN Click VLAN if you want to configure a VLAN interface for this Ethernet interface.
Configure WAN
TRUNK
Click WAN TRUNK to go to a screen where you can set this interface to be part of a WAN
trunk for load balancing.
Configure Policy
Route
Click Policy Route to go to the policy route summary screen where you can manually
associate traffic with this interface.
You must manually configure a policy route to add routing and SNAT settings for an
interface with the Interface Type set to general. You can also configure a policy route to
override the default routing and SNAT behavior for an interface with an Interface Type of
internal or external.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 126 Configuration > Network > Interface > Ethernet > Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
346
•Bridge
The Zyxel Device sends its external MAC address to the WAN sender as the destination for the target IP
address. From then on the sender will send packets containing that target IP address directly to the
external interface of the Zyxel Device. The Zyxel Device then forwards the packet to the correct target IP
address in its LAN.
Figure 261 Proxy ARP
To allow the Zyxel Device to answer external interface ARP requests on behalf of a device on a
supported interface, select the interface, click Add or Edit, then click Add in the Proxy ARP section of the
screen.
Figure 262 Interface > Edit > Add Proxy ARP
The following table describes labels that can appear in this screen.
10.5.3 Virtual Interfaces
Use virtual interfaces to tell the Zyxel Device where to route packets. Virtual interfaces can also be used
in VPN gateways (see
Chapter 20 on page 524) and VRRP groups (see Chapter 45 on page 1056).
Table 127 Interface > Edit > Add Proxy ARP
LABEL DESCRIPTION
Interface Name This identifies the interface for which the configuration settings that use it are displayed.
Address Type Choose IPv4 Address, or IPv4 CIDR (for example, 192.168.1.1/24) or an IPv4 Range (for
example, 192.168.1.2-192.168.1.100) and then enter the target IP address information. The
Zyxel Device answers external ARP requests only if they match one of these inputted target IP
addresses. For example, if the IPv4 Address is 192.168.1.5, then the Zyxel Device will answer
ARP requests coming from the WAN only if it contains 192.168.1.5 as the target IP address.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
347
Virtual interfaces can be created on top of Ethernet interfaces, VLAN interfaces, or bridge interfaces.
Virtual VLAN interfaces recognize and use the same VLAN ID. Otherwise, there is no difference between
each type of virtual interface. Network policies (for example, security policies) that apply to the
underlying interface automatically apply to the virtual interface as well.
Like other interfaces, virtual interfaces have an IP address, subnet mask, and gateway used to make
routing decisions. However, you have to manually specify the IP address and subnet mask; virtual
interfaces cannot be DHCP clients. The virtual interface uses the same MTU and bandwidth settings that
the underlying interface uses. Unlike other interfaces, virtual interfaces do not provide DHCP services,
and they do not verify that the gateway is available.
This screen lets you configure IP address assignment and interface parameters for virtual interfaces. To
access this screen, click the Create Virtual Interface icon on the Ethernet, VLAN, or bridge interface
summary screen.
Figure 263 Configuration > Network > Interface > Create Virtual Interface
Each field is described in the table below.
Table 128 Configuration > Network > Interface > Create Virtual Interface
LABEL DESCRIPTION
Interface Properties
Interface Name This field is read-only. It displays the name of the virtual interface, which is automatically
derived from the underlying Ethernet interface, VLAN interface, or bridge interface.
Description Enter a description of this interface. It is not used elsewhere. You can use alphanumeric and
()+/:=?!*#@$_%- characters, and it can be up to 60 characters long.
IP Address
Assignment
IP Address Enter the IP address for this interface.
Subnet Mask Enter the subnet mask of this interface in dot decimal notation. The subnet mask indicates
what part of the IP address is the same for all computers on the network.
Gateway Enter the IP address of the gateway. The Zyxel Device sends packets to the gateway when
it does not know how to route the packet to its destination. The gateway should be on the
same network as the interface.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
348
10.5.4 References
When a configuration screen includes an References icon, select a configuration object and click
References to open the References screen. This screen displays which configuration settings reference
the selected object. The fields shown vary with the type of object.
Figure 264 References
The following table describes labels that can appear in this screen.
10.5.5 Add/Edit DHCPv6 Request/Release Options
When you configure an interface as a DHCPv6 server or client, you can additionally add DHCPv6
request or lease options which have the Zyxel Device to add more information in the DHCPv6 packets.
To open the screen, click Configuration > Network > Interface > Ethernet > Edit, select DHCPv6 Server or
DHCPv6 Client in the DHCPv6 Setting section, and then click Add in the DHCPv6 Request Options or
DHCPv6 Lease Options table.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 128 Configuration > Network > Interface > Create Virtual Interface (continued)
LABEL DESCRIPTION
Table 129 References
LABEL DESCRIPTION
Name This identifies the object for which the configuration settings that use it are displayed. Click the
object’s name to display the object’s configuration screen in the main window.
# This field is a sequential value, and it is not associated with any entry.
Service This is the type of setting that references the selected object. Click a service’s name to display
the service’s configuration screen in the main window.
Priority If it is applicable, this field lists the referencing configuration item’s position in its list, otherwise
N/A displays.
Name This field identifies the configuration item that references the object.
Description If the referencing configuration item has a description configured, it displays here.
Refresh Click this to update the information in this screen.
Cancel Click Cancel to close the screen.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
349
Figure 265 Configuration > Network > Interface > Ethernet > Edit > Add DHCPv6 Request/Lease Options
Select a DHCPv6 request or lease object in the Select one object field and click OK to save it. Click
Cancel to exit without saving the setting.
10.5.6 Add/Edit DHCP Extended Options
When you configure an interface as a DHCPv4 server, you can additionally add DHCP extended
options which have the Zyxel Device to add more information in the DHCP packets. The available fields
vary depending on the DHCP option you select in this screen. To open the screen, click Configuration >
Network > Interface > Ethernet > Edit, select DHCP Server in the DHCP Setting section, and then click Add
or Edit in the Extended Options table.
Figure 266 Configuration > Network > Interface > Ethernet > Edit > Add/Edit Extended Options
The following table describes labels that can appear in this screen.
Table 130 Configuration > Network > Interface > Ethernet > Edit > Add/Edit Extended Options
LABEL DESCRIPTION
Option Select which DHCP option that you want to add in the DHCP packets sent through the
interface. See the next table for more information.
Name This field displays the name of the selected DHCP option. If you selected User Defined in the
Option field, enter a descriptive name to identify the DHCP option. You can enter up to 16
characters (“a-z”, “A-Z, “0-9”, “-”, and “_”) with no spaces allowed. The first character must be
alphabetical (a-z, A-Z).
Code This field displays the code number of the selected DHCP option. If you selected User Defined
in the Option field, enter a number for the option. This field is mandatory.
Type This is the type of the selected DHCP option. If you selected User Defined in the Option field,
select an appropriate type for the value that you will enter in the next field. Only advanced
users should configure User Defined. Misconfiguration could result in interface lockout.
Value Enter the value for the selected DHCP option. For example, if you selected TFTP Server Name
(66) and the type is TEXT, enter the DNS domain name of a TFTP server here. This field is
mandatory.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
350
The following table lists the available DHCP extended options (defined in RFCs) on the Zyxel Device. See
RFCs for more information.
First IP Address,
Second IP
Address, Third IP
Address
If you selected Time Server (4), NTP Server (41), SIP Server (120), CAPWAP AC (138), or TFTP
Server (150), you have to enter at least one IP address of the corresponding servers in these
fields. The servers should be listed in order of your preference.
First Enterprise ID,
Second Enterprise
ID
If you selected VIVC (124) or VIVS (125), you have to enter at least one vendor’s 32-bit
enterprise number in these fields. An enterprise number is a unique number that identifies a
company.
First Class, Second
Class
If you selected VIVC (124), enter the details of the hardware configuration of the host on which
the client is running, or of industry consortium compliance.
First Information,
Second
Information
If you selected VIVS (125), enter additional information for the corresponding enterprise
number in these fields.
OK Click this to close this screen and update the settings to the previous Edit screen.
Cancel Click Cancel to close the screen.
Table 131 DHCP Extended Options
OPTION NAME CODE DESCRIPTION
Time Offset 2 This option specifies the offset of the client's subnet in seconds from Coordinated
Universal Time (UTC).
Time Server 4 This option specifies a list of Time servers available to the client.
NTP Server 42 This option specifies a list of the NTP servers available to the client by IP address.
TFTP Server Name 66 This option is used to identify a TFTP server when the “sname” field in the DHCP
header has been used for DHCP options. The minimum length of the value is 1.
Bootfile 67 This option is used to identify a bootfile when the “file” field in the DHCP header
has been used for DHCP options. The minimum length of the value is 1.
SIP Server 120 This option carries either an IPv4 address or a DNS domain name to be used by
the SIP client to locate a SIP server.
VIVC 124 Vendor-Identifying Vendor Class option
A DHCP client may use this option to unambiguously identify the vendor that
manufactured the hardware on which the client is running, the software in use, or
an industry consortium to which the vendor belongs.
VIVS 125 Vendor-Identifying Vendor-Specific option
DHCP clients and servers may use this option to exchange vendor-specific
information.
CAPWAP AC 138 CAPWAP Access Controller addresses option
The Control And Provisioning of Wireless Access Points Protocol allows a Wireless
Termination Point (WTP) to use DHCP to discover the Access Controllers to which it
is to connect. This option carries a list of IPv4 addresses indicating one or more
CAPWAP ACs available to the WTP.
TFTP Server 150 The option contains one or more IPv4 addresses that the client may use. The
current use of this option is for downloading configuration from a VoIP server
through TFTP; however, the option may be used for purposes other than
contacting a VoIP configuration server.
Table 130 Configuration > Network > Interface > Ethernet > Edit > Add/Edit Extended Options
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
351
10.6 PPP Interfaces
Use PPPoE/PPTP/L2TP interfaces to connect to your ISP. This way, you do not have to install or manage
PPPoE/PPTP/L2TP software on each computer on the network.
Figure 267 Example: PPPoE/PPTP/L2TP Interfaces
PPPoE/PPTP/L2TP interfaces are similar to other interfaces in some ways. They have an IP address, subnet
mask, and gateway used to make routing decisions; they restrict bandwidth and packet size; and they
can verify the gateway is available. There are two main differences between PPPoE/PPTP/L2TP
interfaces and other interfaces.
• You must also configure an ISP account object for the PPPoE/PPTP/L2TP interface to use.
Each ISP account specifies the protocol (PPPoE or PPTP or L2TP), as well as your ISP account
information. If you change ISPs later, you only have to create a new ISP account, not a new PPPoE/
PPTP/L2TP interface. You should not have to change any network policies.
• You do not set up the subnet mask or gateway.
PPPoE/PPTP/L2TP interfaces are interfaces between the Zyxel Device and only one computer.
Therefore, the subnet mask is always 255.255.255.255. In addition, the Zyxel Device always treats the
ISP as a gateway.
10.6.1 PPP Interface Summary
This screen lists every PPPoE/PPTP/L2TP interface. To access this screen, click Configuration > Network >
Interface > PPP.
Figure 268 Configuration > Network > Interface > PPP
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
352
Each field is described in the table below.
10.6.2 PPP Interface Add or Edit
Note: You have to set up an ISP account before you create a PPPoE/PPTP/L2TP interface.
This screen lets you configure a PPPoE or PPTP or L2TP interface. If you enabled IPv6 on the Configuration
> System > IPv6 screen, you can also configure PPP interfaces used for your IPv6 networks on this screen.
To access this screen, click the Add icon or an Edit icon on the PPP Interface screen.
Table 132 Configuration > Network > Interface > PPP
LABEL DESCRIPTION
User Configuration /
System Default
The Zyxel Device comes with the (non-removable) System Default PPP interfaces pre-
configured. You can create (and delete) User Configuration PPP interfaces. System Default
PPP interfaces vary by model.
Add Click this to create a new user-configured PPP interface.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove a user-configured PPP interface, select it and click Remove. The Zyxel Device
confirms you want to remove it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Connect To connect an interface, select it and click Connect. You might use this in testing the
interface or to manually establish the connection for a Dial-on-Demand PPPoE/PPTP
interface.
Disconnect To disconnect an interface, select it and click Disconnect. You might use this in testing the
interface.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any interface.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
The connect icon is lit when the interface is connected and dimmed when it is
disconnected.
Name This field displays the name of the interface.
Description This field displays the description of the interface.
Base Interface This field displays the interface on the top of which the PPPoE/PPTP/L2TP interface is.
Account Profile This field displays the ISP account used by this PPPoE/PPTP interface.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
353
Figure 269 Configuration > Network > Interface > PPP > Add
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
354
Each field is explained in the following table.
Table 133 Configuration > Network > Interface > PPP > Add
LABEL DESCRIPTION
IPv4/IPv6 View / IPv4
View / IPv6 View
Use this button to display both IPv4 and IPv6, IPv4-only, or IPv6-only configuration fields.
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
Create New Object Click this button to create an ISP Account or a DHCPv6 request object that you may use for
the ISP or DHCPv6 settings in this screen.
General Settings
Enable Interface Select this to enable this interface. Clear this to disable this interface.
General IPv6 Setting
Enable IPv6 Select this to enable IPv6 on this interface. Otherwise, clear this to disable it.
Interface Properties
Interface Name Specify a name for the interface. It can use alphanumeric characters, hyphens, and
underscores, and it can be up to 11 characters long.
Base Interface Select the interface upon which this PPP interface is built.
Note: Multiple PPP interfaces can use the same base interface.
Zone Select the zone to which this PPP interface belongs. The zone determines the security
settings the Zyxel Device uses for the interface.
Description Enter a description of this interface. You can use alphanumeric and ()+/:=?!*#@$_%-
characters, and it can be up to 60 characters long. Spaces are allowed, but the string
can’t start with a space.
Connectivity
Nailed-Up Select this if the PPPoE/PPTP/L2TP connection should always be up. Clear this to have the
Zyxel Device establish the PPPoE/PPTP/L2TP connection only when there is traffic. You might
use this option if a lot of traffic needs to go through the interface or it does not cost extra to
keep the connection up all the time.
Dial-on-Demand Select this to have the Zyxel Device establish the PPPoE/PPTP/L2TP connection only when
there is traffic. You might use this option if there is little traffic through the interface or if it
costs money to keep the connection available.
ISP Setting
Account Profile Select the ISP account that this PPPoE/PPTP/L2TP interface uses. The drop-down box lists ISP
accounts by name. Use Create new Object if you need to configure a new ISP account
(see
Chapter 44 on page 1049 for details).
Protocol This field is read-only. It displays the protocol specified in the ISP account.
User Name This field is read-only. It displays the user name for the ISP account.
Service Name This field is read-only. It displays the PPPoE service name specified in the ISP account. This
field is blank if the ISP account uses PPTP.
IP Address
Assignment
Click Show Advanced Settings to display more settings. Click Hide Advanced Settings to
display fewer settings.
Get
Automatically
Select this if this interface is a DHCP client. In this case, the DHCP server configures the IP
address automatically. The subnet mask and gateway are always defined automatically in
PPPoE/PPTP/L2TP interfaces.
Use Fixed IP
Address
Select this if you want to specify the IP address manually.
IP Address This field is enabled if you select Use Fixed IP Address.
Enter the IP address for this interface.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
355
Gateway This field is enabled if you select Use Fixed IP Address.
Enter the IP address of the gateway. The Zyxel Device sends packets to the gateway when
it does not know how to route the packet to its destination. The gateway should be on the
same network as the interface.
Metric Enter the priority of the gateway (the ISP) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
IPv6 Address
Assignment
These IP address fields configure an IPv6 IP address on the interface itself.
Enable Stateless
Address Auto-
configuration
(SLAAC)
Select this to enable IPv6 stateless auto-configuration on this interface. The interface will
generate an IPv6 IP address itself from a prefix obtained from an IPv6 router on the network.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
Address from
DHCPv6 Prefix
Delegation
Use this table to have the Zyxel Device obtain an IPv6 prefix from the ISP or a connected
uplink router for an internal network, such as the LAN or DMZ. You have to also enter a suffix
address which is appended to the delegated prefix to form an address for this interface.
See
Prefix Delegation on page 322 for more information.
To use prefix delegation, you must:
• Create at least one DHCPv6 request object before configuring this table.
• The external interface must be a DHCPv6 client. You must configure the DHCPv6
request options using a DHCPv6 request object with the type of prefix-delegation.
• Assign the prefix delegation to an internal interface and enable router advertisement
on that interface.
Add Click this to create an entry.
Edit Select an entry and click this to change the settings.
Remove Select an entry and click this to delete it from this table.
References Select an entry and click References to open a screen that shows which settings use the
entry.
# This field is a sequential value, and it is not associated with any entry.
Delegated
Prefix
Select the DHCPv6 request object to use from the drop-down list.
Suffix
Address
Enter the ending part of the IPv6 address, a slash (/), and the prefix length. The Zyxel Device
will append it to the delegated prefix.
For example, you got a delegated prefix of 2003:1234:5678/48. You want to configure an IP
address of 2003:1234:5678:1111::1/128 for this interface, then enter ::1111:0:0:0:1/128 in this
field.
Address This field displays the combined IPv6 IP address for this interface.
Note: This field displays the combined address after you click OK and reopen this
screen.
DHCPv6 Setting
DHCPv6 Select Client to obtain an IP address and DNS information from the service provider for the
interface. Otherwise, select N/A to disable the function.
DUID This field displays the DHCP Unique IDentifier (DUID) of the interface, which is unique and
used for identification purposes when the interface is exchanging DHCPv6 messages with
others. See
DHCPv6 on page 323 for more information.
Table 133 Configuration > Network > Interface > PPP > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
356
DUID as MAC Select this if you want the DUID is generated from the interface’s default MAC address.
Customized DUID If you want to use a customized DUID, enter it here for the interface.
Enable Rapid
Commit
Select this to shorten the DHCPv6 message exchange process from four to two steps. This
function helps reduce heavy network traffic load.
Note: Make sure you also enable this option in the DHCPv6 clients to make rapid
commit work.
Request Address Select this to get an IPv6 IP address for this interface from the DHCP server. Clear this to not
get any IP address information through DHCPv6.
DHCPv6 Request
Options
Use this section to configure DHCPv6 request settings that determine what additional
information to get from the DHCPv6 server.
Add Click this to create an entry in this table. See Section 10.5.6 on page 349 for more
information.
Remove Select an entry and click this to delete it from this table.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
Name This field displays the name of the DHCPv6 request object.
Type This field displays the type of the object.
Value This field displays the IPv6 prefix that the Zyxel Device will advertise to its clients.
Interface Parameters
Egress Bandwidth Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can send
through the interface to the network. Allowed values are 0 - 1048576.
Ingress
Bandwidth
This is reserved for future use.
Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can receive
from the network through the interface. Allowed values are 0 - 1048576.
MTU Maximum Transmission Unit. Enter the maximum size of each data packet, in bytes, that can
move through this interface. If a larger packet arrives, the Zyxel Device divides it into smaller
fragments. Allowed values are 576 - 1492. Usually, this value is 1492.
Connectivity Check The interface can regularly check the connection to the gateway you specified to make
sure it is still available. You specify how often the interface checks the connection, how
long to wait for a response before the attempt is a failure, and how many consecutive
failures are required before the Zyxel Device stops routing to the gateway. The Zyxel Device
resumes routing to the gateway the first time the gateway passes the connectivity check.
Enable
Connectivity
Check
Select this to turn on the connection check.
Check Method Select the method that the gateway allows.
Select icmp to have the Zyxel Device regularly ping the gateway you specify to make sure
it is still available.
Select tcp to have the Zyxel Device regularly perform a TCP handshake with the gateway
you specify to make sure it is still available.
Check Period Enter the number of seconds between connection check attempts.
Check Timeout Enter the number of seconds to wait for a response before the attempt is a failure.
Check Fail
Tolerance
Enter the number of consecutive failures before the Zyxel Device stops routing through the
gateway.
Check Default
Gateway
Select this to use the default gateway for the connectivity check.
Table 133 Configuration > Network > Interface > PPP > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
357
10.7 Cellular Configuration Screen
Mobile broadband is a digital, packet-switched wireless technology. Bandwidth usage is optimized as
multiple users share the same channel and bandwidth is only allocated to users when they send data. It
allows fast transfer of voice and non-voice data and provides broadband Internet access to mobile
devices.
Note: The actual data rate you obtain varies depending on the mobile broadband device
you use, the signal strength to the service provider’s base station, and so on.
You can configure how the Zyxel Device’s mobile broadband device connects to a network (refer to
Section 10.7.1 on page 360):
• You can set the mobile broadband device to connect only to the home network, which is the
network to which you are originally subscribed.
• You can set the mobile broadband device to connect to other networks if the signal strength of the
home network is too low or it is unavailable.
3G
3G (Third Generation) is a digital, packet-switched wireless technology. Bandwidth usage is optimized as
multiple users share the same channel and bandwidth is only allocated to users when they send data. It
allows fast transfer of voice and non-voice data and provides broadband Internet access to mobile
devices.
4G
4G is the fourth generation of the mobile telecommunications technology and a successor of 3G. Both
the WiMAX and Long Term Evolution (LTE) standards are the 4G candidate systems. 4G only supports all-
IP-based packet-switched telephony services and is required to offer Gigabit speed access.
Note: The actual data rate you obtain varies depending on your mobile environment. The
environmental factors may include the number of mobile devices which are currently
connected to the mobile network, the signal strength to the mobile network, and so on.
Check this
address
Select this to specify a domain name or IP address for the connectivity check. Enter that
domain name or IP address in the field next to it.
Check Port This field only displays when you set the Check Method to tcp. Specify the port number to
use for a TCP connectivity check.
Related Setting
Configure WAN
TRUNK
Click WAN TRUNK to go to a screen where you can configure the interface as part of a
WAN trunk for load balancing.
Policy Route Click Policy Route to go to the screen where you can manually configure a policy route to
associate traffic with this interface.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 133 Configuration > Network > Interface > PPP > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
358
See the following table for a comparison between 2G, 2.5G, 2.75G, 3G and 4G wireless technologies.
To change your mobile broadband WAN settings, click Configuration > Network > Interface > Cellular.
Note: Install (or connect) a compatible mobile broadband USB device to use a cellular
connection.
Note: The WAN IP addresses of a Zyxel Device with multiple WAN interfaces must be on
different subnets.
Table 134 2G, 2.5G, 2.75G, 3G, 3.5G and 4G Wireless Technologies
NAME TYPE
MOBILE PHONE AND DATA STANDARDS
DATA
SPEED
GSM-BASED CDMA-BASED
2G Circuit-
switched
GSM (Global System for Mobile
Communications), Personal Handy-
phone System (PHS), etc.
Interim Standard 95 (IS-95), the first
CDMA-based digital cellular standard
pioneered by Qualcomm. The brand
name for IS-95 is cdmaOne. IS-95 is also
known as TIA-EIA-95.
Slow
Fast
2.5G Packet-
switched
GPRS (General Packet Radio Services),
High-Speed Circuit-Switched Data
(HSCSD), etc.
CDMA2000 is a hybrid 2.5G / 3G
protocol of mobile
telecommunications standards that
use CDMA, a multiple access scheme
for digital radio.
CDMA2000 1xRTT (1 times Radio
Transmission Technology) is the core
CDMA2000 wireless air interface
standard. It is also known as 1x, 1xRTT,
or IS-2000 and considered to be a 2.5G
or 2.75G technology.
2.75G Packet-
switched
Enhanced Data rates for GSM Evolution
(EDGE), Enhanced GPRS (EGPRS), etc.
3G Packet-
switched
UMTS (Universal Mobile
Telecommunications System), a third-
generation (3G) wireless standard
defined in ITU specification, is
sometimes marketed as 3GSM. The
UMTS uses GSM infrastructures and W-
CDMA (Wideband Code Division
Multiple Access) as the air interface.
The International Telecommunication
Union (ITU) is an international
organization within which governments
and the private sector coordinate
global telecom networks and services.
CDMA2000 EV-DO (Evolution-Data
Optimized, originally 1x Evolution-Data
Only), also referred to as EV-DO, EVDO,
or just EV, is an evolution of CDMA2000
1xRTT and enables high-speed wireless
connectivity. It is also denoted as IS-856
or High Data Rate (HDR).
3.5G Packet-
switched
HSDPA (High-Speed Downlink Packet
Access) is a mobile telephony protocol,
used for UMTS-based 3G networks and
allows for higher data transfer speeds.
4G/LTE Packet-
switched
The LTE (Long Term Evolution) standard
is based on the GSM and UMTS network
technologies.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
359
Figure 270 Configuration > Network > Interface > Cellular
The following table describes the labels in this screen.
Table 135 Configuration > Network > Interface > Cellular
LABEL DESCRIPTION
Add Click this to create a new cellular interface.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Connect To connect an interface, select it and click Connect. You might use this in testing the interface
or to manually establish the connection.
Disconnect To disconnect an interface, select it and click Disconnect. You might use this in testing the
interface.
References Select an entry and click References to open a screen that shows which settings use the entry.
See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any interface.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
The connect icon is lit when the interface is connected and dimmed when it is disconnected.
Name This field displays the name of the interface.
Description This field displays the description of the interface.
Extension Slot This field displays where the entry’s cellular card is located.
Connected
Device
This field displays the name of the cellular card.
ISP Settings This field displays the profile of ISP settings that this cellular interface is set to use.
Mobile
Broadband
Dongle Support
You should have registered your Zyxel Device at myZyxel. myZyxel hosts a list of supported
mobile broadband dongle devices. You should have an Internet connection to access this
website.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
360
10.7.1 Cellular Choose Slot
To change your mobile broadband settings, click Configuration > Network > Interface > Cellular > Add
(or Edit). In the pop-up window that displays, select the slot that contains the mobile broadband device,
then the Add Cellular configuration screen displays.
10.7.2 Add / Edit Cellular Configuration
This screen displays after you select the slot that contains the mobile broadband device in the previous
pop-up window.
Latest Version This displays the latest supported mobile broadband dongle list version number.
Current
Version
This displays the currently supported (by the Zyxel Device) mobile broadband dongle list
version number.
Update Now If the latest version number is greater than the current version number, then click this button to
download the latest list of supported mobile broadband dongle devices to the Zyxel Device.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 135 Configuration > Network > Interface > Cellular (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
361
Figure 271 Configuration > Network > Interface > Cellular > Add / Edit
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
362
The following table describes the labels in this screen.
Table 136 Configuration > Network > Interface > Cellular > Add / Edit
LABEL DESCRIPTION
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
General Settings
Enable Interface Select this option to turn on this interface.
Interface Properties
Interface Name Select a name for the interface.
Zone Select the zone to which you want the cellular interface to belong. The zone determines
the security settings the Zyxel Device uses for the interface.
Extension Slot This is the USB slot that you are configuring for use with a mobile broadband card.
Connected
Device
This displays the manufacturer and model name of your mobile broadband card if you
inserted one in the Zyxel Device. Otherwise, it displays none.
Description Enter a description of this interface. You can use alphanumeric and ()+/:=?!*#@$_%-
characters, and it can be up to 60 characters long. Spaces are allowed, but the string
can’t start with a space.
Connectivity
Nailed-Up Select this if the connection should always be up. Clear this to have the Zyxel Device to
establish the connection only when there is traffic. You might not nail up the connection if
there is little traffic through the interface or if it costs money to keep the connection
available.
Idle timeout This value specifies the time in seconds (0~360) that elapses before the Zyxel Device
automatically disconnects from the ISP’s server. Zero disables the idle timeout.
ISP Settings
Profile Selection Select Device to use one of the mobile broadband device’s profiles of device settings.
Then select the profile (use Profile 1 unless your ISP instructed you to do otherwise).
Select Custom to configure your device settings yourself.
APN This field is read-only if you selected Device in the profile selection. Select Custom in the
profile selection to be able to manually input the APN (Access Point Name) provided by
your service provider. This field applies with a GSM or HSDPA mobile broadband card. Enter
the APN from your service provider. Connections with different APNs may provide different
services (such as Internet access or MMS (Multi-Media Messaging Service)) and charge
method.
Enter 1 to 63 single-byte characters, including a-zA-Z0-9$-./@_
!”#%&’()*+,;:<=>?[\]^‘{|}~ and spaces are not allowed.
Dial String Enter the dial string if your ISP provides a string, which would include the APN, to initialize the
mobile broadband card.
Enter 1 to 31 single-byte characters, including a-zA-Z0-9!#$%&’()*+,-./;:<=>@\^_‘{|}~
“[]?and spaces are not allowed.
This field is available only when you insert a GSM mobile broadband card.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
363
Authentication
Type
The Zyxel Device supports PAP (Password Authentication Protocol) and CHAP (Challenge
Handshake Authentication Protocol). CHAP is more secure than PAP; however, PAP is
readily available on more platforms.
Use the drop-down list box to select an authentication protocol for outgoing calls. Options
are:
None: No authentication for outgoing calls.
CHAP - Your Zyxel Device accepts CHAP requests only.
PAP - Your Zyxel Device accepts PAP requests only.
User Name This field displays when you select an authentication type other than None. This field is read-
only if you selected Device in the profile selection. If this field is configurable, enter the user
name for this mobile broadband card exactly as the service provider gave it to you.
You can use 1 ~ 64 alphanumeric and #:%-_@$./ characters. The first character must be
alphanumeric or -_@$./. Spaces are not allowed.
Password This field displays when you select an authentication type other than None. This field is read-
only if you selected Device in the profile selection and the password is included in the
mobile broadband card’s profile. If this field is configurable, enter the password for this SIM
card exactly as the service provider gave it to you.
You can use 0 ~ 63 alphanumeric and ~!@#$%^&*()_-+={}|;:’<,>./ characters. Spaces are
not allowed.
Retype to
Confirm
This field displays when you select an authentication type other than None. This field is read-
only if you selected Device in the profile selection and the password is included in the
mobile broadband card’s profile. If this field is configurable, re-enter the password for this
SIM card exactly as the service provider gave it to you.
SIM Card Setting
PIN Code This field displays with a GSM or HSDPA mobile broadband card. A PIN (Personal
Identification Number) code is a key to a mobile broadband card. Without the PIN code,
you cannot use the mobile broadband card.
Enter the 4-digit PIN code (0000 for example) provided by your ISP. If you enter the PIN
code incorrectly, the mobile broadband card may be blocked by your ISP and you cannot
use the account to access the Internet.
If your ISP disabled PIN code authentication, enter an arbitrary number.
Retype to
Confirm
Enter the PIN code again to confirm it.
Interface Parameters
Egress Bandwidth Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can send
through the interface to the network. Allowed values are 0 - 1048576. This setting is used in
WAN load balancing and bandwidth management.
Ingress
Bandwidth
This is reserved for future use.
Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can receive
from the network through the interface. Allowed values are 0 - 1048576.
MTU Maximum Transmission Unit. Enter the maximum size of each data packet, in bytes, that can
move through this interface. If a larger packet arrives, the Zyxel Device divides it into smaller
fragments. Allowed values are 576 - 1492. Usually, this value is 1492.
Connectivity Check The interface can regularly check the connection to the gateway you specified to make
sure it is still available. You specify how often the interface checks the connection, how
long to wait for a response before the attempt is a failure, and how many consecutive
failures are required before the Zyxel Device stops routing to the gateway. The Zyxel Device
resumes routing to the gateway the first time the gateway passes the connectivity check.
Table 136 Configuration > Network > Interface > Cellular > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
364
Enable
Connectivity
Check
Select this to turn on the connection check.
Check Method Select the method that the gateway allows.
Select icmp to have the Zyxel Device regularly ping the gateway you specify to make sure
it is still available.
Select tcp to have the Zyxel Device regularly perform a TCP handshake with the gateway
you specify to make sure it is still available.
Check Period Enter the number of seconds between connection check attempts.
Check Timeout Enter the number of seconds to wait for a response before the attempt is a failure.
Check Fail
Tolerance
Enter the number of consecutive failures before the Zyxel Device stops routing through the
gateway.
Check Default
Gateway
Select this to use the default gateway for the connectivity check.
Check this
address
Select this to specify a domain name or IP address for the connectivity check. Enter that
domain name or IP address in the field next to it.
Check Port This field only displays when you set the Check Method to tcp. Specify the port number to
use for a TCP connectivity check.
Related Setting
Configure WAN
TRUNK
Click WAN TRUNK to go to a screen where you can configure the interface as part of a
WAN trunk for load balancing.
Configure Policy
Route
Click Policy Route to go to the policy route summary screen where you can configure a
policy route to override the default routing and SNAT behavior for the interface.
IP Address
Assignment
Get
Automatically
Select this option If your ISP did not assign you a fixed IP address. This is the default selection.
Use Fixed IP
Address
Select this option If the ISP assigned a fixed IP address.
IP Address
Assignment
Enter the cellular interface’s WAN IP address in this field if you selected Use Fixed IP Address.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
Device Settings
Table 136 Configuration > Network > Interface > Cellular > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
365
Band Selection This field appears if you selected a mobile broadband device that allows you to select the
type of network to use. Select the type of mobile broadband service for your mobile
broadband connection. If you are unsure what to select, check with your mobile
broadband service provider to find the mobile broadband service available to you in your
region.
Select auto to have the card connect to an available network. Choose this option if you do
not know what networks are available.
You may want to manually specify the type of network to use if you are charged differently
for different types of network or you only have one type of network available to you.
Select GPRS / EDGE (GSM) only to have this interface only use a 2.5G or 2.75G network
(respectively). If you only have a GSM network available to you, you may want to select this
so the Zyxel Device does not spend time looking for a WCDMA network.
Select UMTS / HSDPA (WCDMA) only to have this interface only use a 3G or 3.5G network
(respectively). You may want to do this if you want to make sure the interface does not use
the GSM network.
Select LTE only to have this interface only use a 4G LTE network. This option only appears
when a dongle for 4G technology is inserted.
Network
Selection
Home network is the network to which you are originally subscribed.
Select Home to have the mobile broadband device connect only to the home network. If
the home network is down, the Zyxel Device’s mobile broadband Internet connection is
also unavailable.
Select Auto (Default) to allow the mobile broadband device to connect to a network to
which you are not subscribed when necessary, for example when the home network is
down or another mobile broadband base station's signal is stronger. This is recommended if
you need continuous Internet connectivity. If you select this, you may be charged using the
rate of a different network.
Budget Setup
Enable Budget
Control
Select this to set a monthly limit for the user account of the installed mobile broadband
card. You can set a limit on the total traffic and/or call time. The Zyxel Device takes the
actions you specified when a limit is exceeded during the month.
Time Budget Select this and specify the amount of time (in hours) that the mobile broadband
connection can be used within one month. If you change the value after you configure
and enable budget control, the Zyxel Device resets the statistics.
Data Budget Select this and specify how much downstream and/or upstream data (in Mega bytes) can
be transmitted through the mobile broadband connection within one month.
Select Download to set a limit on the downstream traffic (from the ISP to the Zyxel Device).
Select Upload to set a limit on the upstream traffic (from the Zyxel Device to the ISP).
Select Download/Upload to set a limit on the total traffic in both directions.
If you change the value after you configure and enable budget control, the Zyxel Device
resets the statistics.
Reset time and
data budget
counters on
Select the date on which the Zyxel Device resets the budget every month. If the date you
selected is not available in a month, such as 30th or 31st, the Zyxel Device resets the budget
on the last day of the month.
Reset time and
data budget
counters
This button is available only when you enable budget control in this screen.
Click this button to reset the time and data budgets immediately. The count starts over with
the mobile broadband connection’s full configured monthly time and data budgets. This
does not affect the normal monthly budget restart; so if you configured the time and data
budget counters to reset on the second day of the month and you use this button on the
first, the time and data budget counters will still reset on the second.
Table 136 Configuration > Network > Interface > Cellular > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
366
10.8 Tunnel Interfaces
The Zyxel Device uses tunnel interfaces in Generic Routing Encapsulation (GRE), IPv6 in IPv4, and 6to4
tunnels.
GRE Tunneling
GRE tunnels encapsulate a wide variety of network layer protocol packet types inside IP tunnels. A GRE
tunnel serves as a virtual point-to-point link between the Zyxel Device and another router over an IPv4
network. At the time of writing, the Zyxel Device only supports GRE tunneling in IPv4 networks.
Figure 272 GRE Tunnel Example
Actions when
over budget
Specify the actions the Zyxel Device takes when the time or data limit is exceeded.
Log Select None to not create a log, Log to create a log, or Log-alert to create an alert log. If
you select Log or Log-alert you can also select recurring every to have the Zyxel Device
send a log or alert for this event periodically. Specify how often (from 1 to 65535 minutes) to
send the log or alert.
New connection Select Allow to permit new mobile broadband connections or Disallow to drop/block new
mobile broadband connections.
Current
connection
Select Keep to maintain an existing mobile broadband connection or Drop to disconnect
it. You cannot set New connection to Allow and Current connection to Drop at the same
time.
If you set New connection to Disallow and Current connection to Keep, the Zyxel Device
allows you to transmit data using the current connection, but you cannot build a new
connection if the existing connection is disconnected.
Actions when over %
of time budget or %
of data budget
Specify the actions the Zyxel Device takes when the specified percentage of time budget
or data limit is exceeded. Enter a number from 1 to 99 in the percentage fields. If you
change the value after you configure and enable budget control, the Zyxel Device resets
the statistics.
Log Select None to not create a log when the Zyxel Device takes this action, Log to create a
log, or Log-alert to create an alert log. If you select Log or Log-alert you can also select
recurring every to have the Zyxel Device send a log or alert for this event periodically.
Specify how often (from 1 to 65535 minutes) to send the log or alert.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 136 Configuration > Network > Interface > Cellular > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
367
IPv6 Over IPv4 Tunnels
To route traffic between two IPv6 networks over an IPv4 network, an IPv6 over IPv4 tunnel has to be
used.
Figure 273 IPv6 over IPv4 Network
On the Zyxel Device, you can either set up a manual IPv6-in-IPv4 tunnel or an automatic 6to4 tunnel. The
following describes each method:
IPv6-in-IPv4 Tunneling
Use this mode on the WAN of the Zyxel Device if
• your Zyxel Device has a public IPv4 IP address given from your ISP,
and
• you want to transmit your IPv6 packets to one and only one remote site whose LAN network is also an
IPv6 network.
With this mode, the Zyxel Device encapsulates IPv6 packets within IPv4 packets across the Internet. You
must know the WAN IP address of the remote gateway device. This mode is normally used for a site-to-
site application such as two branch offices.
Figure 274 IPv6-in-IPv4 Tunnel
In the Zyxel Device, you must also manually configure a policy route for an IPv6-in-IPv4 tunnel to make
the tunnel work.
6to4 Tunneling
This mode also enables IPv6 packets to cross IPv4 networks. Unlike IPv6-in-IPv4 tunneling, you do not
need to configure a policy route for a 6to4 tunnel. Through your properly pre-configuring the destination
router’s IP address in the IP address assignments to hosts, the Zyxel Device can automatically forward
6to4 packets to the destination they want to go. A 6to4 relay router is required to route 6to4 packets to
a native IPv6 network if the packet’s destination do not match your specified criteria.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
368
In this mode, the Zyxel Device should get a public IPv4 address for the WAN. The Zyxel Device adds an
IPv4 IP header to an IPv6 packet when transmitting the packet to the Internet. In reverse, the Zyxel
Device removes the IPv4 header from an IPv6 packet when receiving it from the Internet.
An IPv6 address using the 6to4 mode consists of an IPv4 address, the format is as the following:
2002:[a public IPv4 address in hexadecimal]::/48
For example, a public IPv4 address is 202.156.30.41. The converted hexadecimal IP string is ca.9c.1Ee.29.
The IPv6 address prefix becomes 2002:ca9c:1e29::/48.
Figure 275 6to4 Tunnel
10.8.1 Configuring a Tunnel
This screen lists the Zyxel Device’s configured tunnel interfaces. To access this screen, click Network >
Interface > Tunnel.
Figure 276 Network > Interface > Tunnel
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
369
Each field is explained in the following table.
10.8.2 Tunnel Add or Edit Screen
This screen lets you configure a tunnel interface. Click Configuration > Network > Interface > Tunnel >
Add (or Edit) to open the following screen.
Table 137 Network > Interface > Tunnel
LABEL DESCRIPTION
Add Click this to create a new GRE tunnel interface.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any interface.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
Name This field displays the name of the interface.
IP Address This is the IP address of the interface. If the interface is active (and connected), the Zyxel
Device tunnels local traffic sent to this IP address to the Remote Gateway Address.
Tunnel Mode This is the tunnel mode of the interface (GRE, IPv6-in-IPv4 or 6to4). This field also displays the
interface’s IPv4 IP address and subnet mask if it is a GRE tunnel. Otherwise, it displays the
interface’s IPv6 IP address and prefix length.
My Address This is the interface or IP address uses to identify itself to the remote gateway. The Zyxel
Device uses this as the source for the packets it tunnels to the remote gateway.
Remote Gateway
Address
This is the IP address or domain name of the remote gateway to which this interface tunnels
traffic.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to begin configuring this screen afresh.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
370
Figure 277 Network > Interface > Tunnel > Add/Edit
Each field is explained in the following table.
Table 138 Network > Interface > Tunnel > Add/Edit
LABEL DESCRIPTION
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
General Settings
Enable Select this to enable this interface. Clear this to disable this interface.
Interface Properties
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
371
Interface Name This field is read-only if you are editing an existing tunnel interface. Enter the name of the
tunnel interface. The format is tunnelx, where x is 0 - 3. For example, tunnel0.
Zone Use this field to select the zone to which this interface belongs. This controls what security
settings the Zyxel Device applies to this interface.
Tunnel Mode Select the tunneling protocol of the interface (GRE, IPv6-in-IPv4 or 6to4). See Section 10.8
on page 366 for more information.
IP Address
Assignment
This section is available if you are configuring a GRE tunnel.
IP Address Enter the IP address for this interface.
Subnet Mask Enter the subnet mask of this interface in dot decimal notation. The subnet mask indicates
what part of the IP address is the same for all computers on the network.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
IPv6 Address
Assignment
This section is available if you are configuring an IPv6-in-IPv4 or a 6to4 tunnel.
IPv6 Address/
Prefix Length
Enter the IPv6 address and the prefix length for this interface if you want to use a static IP
address. This field is optional.
The prefix length indicates what the left-most part of the IP address is the same for all
computers on the network, that is, the network address.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
6to4 Tunnel
Parameter
This section is available if you are configuring a 6to4 tunnel which encapsulates IPv6 to IPv4
packets.
6to4 Prefix Enter the IPv6 prefix of a destination network. The Zyxel Device forwards IPv6 packets to the
hosts on the matched network.
If you enter a prefix starting with 2002, the Zyxel Device will forward the matched packets to
the IPv4 IP address converted from the packets’ destination address. The IPv4 IP address
can be converted from the next 32 bits after the prefix you specified in this field. See
6to4
Tunneling on page 367 for an example. The Zyxel Device forwards the unmatched packets
to the specified Relay Router.
Relay Router Enter the IPv4 address of a 6to4 relay router which helps forward packets between 6to4
networks and native IPv6 networks.
Remote
Gateway Prefix
Enter the IPv4 network address and network bits of a remote 6to4 gateway, for example,
14.15.0.0/16.
This field works if you enter a 6to4 Prefix not starting with 2002 (2003 for example). The Zyxel
Device forwards the matched packets to a remote gateway with the network address you
specify here, and the bits converted after the 6to4 Prefix in the packets.
For example, you configure the 6to4 prefix to 2003:A0B::/32 and the remote gateway prefix
to 14.15.0.0/16. If a packet’s destination is 2003:A0B:1011:5::8, the Zyxel Device forwards the
packet to 14.15.16.17, where the network address is 14.15.0.0 and the host address is the
remain bits converted from 1011 after the packet’s 6to4 prefix (2003:A0B).
Gateway Settings
My Address Specify the interface or IP address to use as the source address for the packets this
interface tunnels to the remote gateway. The remote gateway sends traffic to this interface
or IP address.
Table 138 Network > Interface > Tunnel > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
372
Remote
Gateway
Address
Enter the IP address or domain name of the remote gateway to which this interface tunnels
traffic.
Automatic displays in this field if you are configuring a 6to4 tunnel. It means the 6to4 tunnel
will help forward packets to the corresponding remote gateway automatically by looking
at the packet’s destination address.
Interface Parameters
Egress Bandwidth Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can send
through the interface to the network. Allowed values are 0 - 1048576. This setting is used in
WAN load balancing and bandwidth management.
Ingress
Bandwidth
This is reserved for future use.
Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can receive
from the network through the interface. Allowed values are 0 - 1048576.
MTU Maximum Transmission Unit. Enter the maximum size of each data packet, in bytes, that can
move through this interface. If a larger packet arrives, the Zyxel Device divides it into smaller
fragments. Allowed values are 576 - 1500. Usually, this value is 1500.
Connectivity Check This section is available if you are configuring a GRE tunnel.
The interface can regularly check the connection to the gateway you specified to make
sure it is still available. You specify how often the interface checks the connection, how
long to wait for a response before the attempt is a failure, and how many consecutive
failures are required before the Zyxel Device stops routing to the gateway. The Zyxel Device
resumes routing to the gateway the first time the gateway passes the connectivity check.
Enable
Connectivity
Check
Select this to turn on the connection check.
Check Method Select the method that the gateway allows.
Select icmp to have the Zyxel Device regularly ping the gateway you specify to make sure
it is still available.
Select tcp to have the Zyxel Device regularly perform a TCP handshake with the gateway
you specify to make sure it is still available.
Check Period Enter the number of seconds between connection check attempts.
Check Timeout Enter the number of seconds to wait for a response before the attempt is a failure.
Check Fail
Tolerance
Enter the number of consecutive failures before the Zyxel Device stops routing through the
gateway.
Check Default
Gateway
Select this to use the default gateway for the connectivity check.
Check this
address
Select this to specify a domain name or IP address for the connectivity check. Enter that
domain name or IP address in the field next to it.
Check Port This field displays when you set the Check Method to tcp. Specify the port number to use for
a TCP connectivity check.
Related Setting
WAN TRUNK Click this link to go to a screen where you can configure WAN trunk load balancing.
Policy Route Click this link to go to the screen where you can manually configure a policy route to
associate traffic with this interface.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 138 Network > Interface > Tunnel > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
373
10.9 VLAN Interfaces
A Virtual Local Area Network (VLAN) divides a physical network into multiple logical networks. The
standard is defined in IEEE 802.1q.
Figure 278 Example: Before VLAN
In this example, there are two physical networks and three departments A, B, and C. The physical
networks are connected to hubs, and the hubs are connected to the router.
Alternatively, you can divide the physical networks into three VLANs.
Figure 279 Example: After VLAN
Each VLAN is a separate network with separate IP addresses, subnet masks, and gateways. Each VLAN
also has a unique identification number (ID). The ID is a 12-bit value that is stored in the MAC header. The
VLANs are connected to switches, and the switches are connected to the router. (If one switch has
enough connections for the entire network, the network does not need switches A and B.)
• Traffic inside each VLAN is layer-2 communication (data link layer, MAC addresses). It is handled by
the switches. As a result, the new switch is required to handle traffic inside VLAN 2. Traffic is only
broadcast inside each VLAN, not each physical network.
• Traffic between VLANs (or between a VLAN and another type of network) is layer-3 communication
(network layer, IP addresses). It is handled by the router.
This approach provides a few advantages.
• Increased performance - In VLAN 2, the extra switch should route traffic inside the sales department
faster than the router does. In addition, broadcasts are limited to smaller, more logical groups of users.
• Higher security - If each computer has a separate physical connection to the switch, then broadcast
traffic in each VLAN is never sent to computers in another VLAN.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
374
• Better manageability - You can align network policies more appropriately for users. For example, you
can create different content filtering rules for each VLAN (each department in the example above),
and you can set different bandwidth limits for each VLAN. These rules are also independent of the
physical network, so you can change the physical network without changing policies.
In this example, the new switch handles the following types of traffic:
• Inside VLAN 2.
• Between the router and VLAN 1.
• Between the router and VLAN 2.
• Between the router and VLAN 3.
VLAN Interfaces Overview
In the Zyxel Device, each VLAN is called a VLAN interface. As a router, the Zyxel Device routes traffic
between VLAN interfaces, but it does not route traffic within a VLAN interface. All traffic for each VLAN
interface can go through only one Ethernet interface, though each Ethernet interface can have one or
more VLAN interfaces.
Note: Each VLAN interface is created on top of only one Ethernet interface.
Otherwise, VLAN interfaces are similar to other interfaces in many ways. They have an IP address, subnet
mask, and gateway used to make routing decisions. They restrict bandwidth and packet size. They can
provide DHCP services, and they can verify the gateway is available.
10.9.1 VLAN Summary Screen
This screen lists every VLAN interface and virtual interface created on top of VLAN interfaces. If you
enabled IPv6 on the Configuration > System > IPv6 screen, you can also configure VLAN interfaces used
for your IPv6 networks on this screen. To access this screen, click Configuration > Network > Interface >
VLAN.
Figure 280 Configuration > Network > Interface > VLAN
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
375
Each field is explained in the following table.
10.9.2 VLAN Add/Edit
Select an existing entry on the previous screen and click Edit or click Add to create a new entry. The
following screen appears.
Table 139 Configuration > Network > Interface > VLAN
LABEL DESCRIPTION
Configuration
/ IPv6
Configuration
Use the Configuration section for IPv4 network settings. Use the IPv6 Configuration section for IPv6
network settings if you connect your Zyxel Device to an IPv6 network. Both sections have similar
fields as described below.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the entry’s
settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove it
before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Create Virtual
Interface
To open the screen where you can create a virtual interface, select an interface and click Create
Virtual Interface.
References Select an entry and click References to open a screen that shows which settings use the entry.
See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any interface.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This field displays the name of the interface.
Description This field displays the description of the interface.
Port/VID For VLAN interfaces, this field displays
• the Ethernet interface on which the VLAN interface is created
•the VLAN ID
For virtual interfaces, this field is blank.
IP Address This field displays the current IP address of the interface. If the IP address is 0.0.0.0, the interface
does not have an IP address yet.
This screen also shows whether the IP address is a static IP address (STATIC) or dynamically
assigned (DHCP). IP addresses are always static in virtual interfaces.
Mask This field displays the interface’s subnet mask in dot decimal notation.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
376
Figure 281 Configuration > Network > Interface > VLAN > Add /Edit
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
377
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
378
Each field is explained in the following table.
Table 140 Configuration > Network > Interface > VLAN > Add / Edit
LABEL DESCRIPTION
IPv4/IPv6 View / IPv4
View / IPv6 View
Use this button to display both IPv4 and IPv6, IPv4-only, or IPv6-only configuration fields.
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
Create New Object Click this button to create a DHCPv6 lease or DHCPv6 request object that you may use for
the DHCPv6 settings in this screen.
General Settings
Enable Interface Select this to turn this interface on. Clear this to disable this interface.
General IPv6 Setting
Enable IPv6 Select this to enable IPv6 on this interface. Otherwise, clear this to disable it.
Interface Properties
Interface Type Select one of the following option depending on the type of network to which the Zyxel
Device is connected or if you want to additionally manually configure some related
settings.
internal is for connecting to a local network. Other corresponding configuration options:
DHCP server and DHCP relay. The Zyxel Device automatically adds default SNAT settings for
traffic flowing from this interface to an external interface.
external is for connecting to an external network (like the Internet). The Zyxel Device
automatically adds this interface to the default WAN trunk.
For general, the rest of the screen’s options do not automatically adjust and you must
manually configure a policy route to add routing and SNAT settings for the interface.
Interface Name This field is read-only if you are editing an existing VLAN interface. Enter the number of the
VLAN interface. You can use a number from 0~4094. For example, use vlan0, vlan8, and so
on. The total number of VLANs you can configure on the Zyxel Device depends on the
model.
Zone Select the zone to which the VLAN interface belongs.
Base Port Select the Ethernet interface on which the VLAN interface runs.
VLAN ID Enter the VLAN ID. This 12-bit number uniquely identifies each VLAN. Allowed values are 1 -
4094. (0 and 4095 are reserved.)
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
379
Priority Code This is a 3-bit field within a 802.1Q VLAN tag that’s used to prioritize associated outgoing
VLAN traffic. “0” is the lowest priority level and “7” is the highest. See
Table 217 on page 587.
The setting configured in Configuration > BWM overwrites the priority setting here.
Description Enter a description of this interface. You can use alphanumeric and ()+/:=?!*#@$_%-
characters, and it can be up to 60 characters long. Spaces are allowed, but the string
can’t start with a space.
IP Address
Assignment
Get
Automatically
Select this if this interface is a DHCP client. In this case, the DHCP server configures the IP
address, subnet mask, and gateway automatically.
You should not select this if the interface is assigned to a VRRP group.
DHCP Option 60 DHCP Option 60 is used by the Zyxel Device for identification to the DHCP server using the
VCI (Vendor Class Identifier) on the DHCP server. The Zyxel Device adds it in the initial DHCP
discovery message that a DHCP client broadcasts in search of an IP address. The DHCP
server can assign different IP addresses or options to clients with the specific VCI or reject
the request from clients without the specific VCI.
Enter a string using up to 63 of these characters [a-zA-Z0-9!\"#$%&\'()*+,-./
:;<=>?@\[\\\]^_`{}] to identify this Zyxel Device to the DHCP server. For example, Zyxel-TW.
Use Fixed IP
Address
Select this if you want to specify the IP address, subnet mask, and gateway manually.
IP Address This field is enabled if you select Use Fixed IP Address.
Enter the IP address for this interface.
Subnet Mask This field is enabled if you select Use Fixed IP Address.
Enter the subnet mask of this interface in dot decimal notation. The subnet mask indicates
what part of the IP address is the same for all computers on the network.
Gateway This field is enabled if you select Use Fixed IP Address.
Enter the IP address of the gateway. The Zyxel Device sends packets to the gateway when
it does not know how to route the packet to its destination. The gateway should be on the
same network as the interface.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
Enable IGMP Support Select this to allow the Zyxel Device to act as an IGMP proxy for hosts connected on the
IGMP downstream interface.
IGMP Upstream Enable IGMP Upstream on the interface which connects to a router running IGMP that is
closer to the multicast server.
IGMP
Downstream
Enable IGMP Downstream on the interface which connects to the multicast hosts.
IPv6 Address
Assignment
These IP address fields configure an IPv6 IP address on the interface itself.
Enable Stateless
Address Auto-
configuration
(SLAAC)
Select this to enable IPv6 stateless auto-configuration on this interface. The interface will
generate an IPv6 IP address itself from a prefix obtained from an IPv6 router on the network.
Link-Local
address
This displays the IPv6 link-local address and the network prefix that the Zyxel Device
generates itself for the interface.
Table 140 Configuration > Network > Interface > VLAN > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
380
IPv6 Address/
Prefix Length
Enter the IPv6 address and the prefix length for this interface if you want to configure a
static IP address for this interface. This field is optional.
The prefix length indicates what the left-most part of the IP address is the same for all
computers on the network, that is, the network address.
Gateway Enter the IPv6 address of the default outgoing gateway using colon (:) hexadecimal
notation.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
Address from
DHCPv6 Prefix
Delegation
Use this table to have the Zyxel Device obtain an IPv6 prefix from the ISP or a connected
uplink router for an internal network, such as the LAN or DMZ. You have to also enter a suffix
address which is appended to the delegated prefix to form an address for this interface.
See
Prefix Delegation on page 322 for more information.
To use prefix delegation, you must:
• Create at least one DHCPv6 request object before configuring this table.
• The external interface must be a DHCPv6 client. You must configure the DHCPv6
request options using a DHCPv6 request object with the type of prefix-delegation.
• Assign the prefix delegation to an internal interface and enable router advertisement
on that interface.
Add Click this to create an entry.
Edit Select an entry and click this to change the settings.
Remove Select an entry and click this to delete it from this table.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any entry.
Delegated
Prefix
Select the DHCPv6 request object to use from the drop-down list.
Suffix
Address
Enter the ending part of the IPv6 address, a slash (/), and the prefix length. The Zyxel Device
will append it to the delegated prefix.
For example, you got a delegated prefix of 2003:1234:5678/48. You want to configure an IP
address of 2003:1234:5678:1111::1/128 for this interface, then enter ::1111:0:0:0:1/128 in this
field.
Address This field displays the combined IPv6 IP address for this interface.
Note: This field displays the combined address after you click OK and reopen this
screen.
DHCPv6 Setting
DHCPv6 Select N/A to not use DHCPv6.
Select Client to set this interface to act as a DHCPv6 client.
Select Server to set this interface to act as a DHCPv6 server which assigns IP addresses and
provides subnet mask, gateway, and DNS server information to clients.
Select Relay to set this interface to route DHCPv6 requests to the DHCPv6 relay server you
specify. The DHCPv6 server(s) may be on another network.
DUID This field displays the DHCP Unique IDentifier (DUID) of the interface, which is unique and
used for identification purposes when the interface is exchanging DHCPv6 messages with
others. See
DHCPv6 on page 323 for more information.
DUID as MAC Select this to have the DUID generated from the interface’s default MAC address.
Table 140 Configuration > Network > Interface > VLAN > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
381
Customized DUID If you want to use a customized DUID, enter it here for the interface.
Enable Rapid
Commit
Select this to shorten the DHCPv6 message exchange process from four to two steps. This
function helps reduce heavy network traffic load.
Note: Make sure you also enable this option in the DHCPv6 clients to make rapid
commit work.
Information
Refresh Time
Enter the number of seconds a DHCPv6 client should wait before refreshing information
retrieved from DHCPv6.
Request Address This field is available if you set this interface to DHCPv6 Client. Select this to get an IPv6 IP
address for this interface from the DHCP server. Clear this to not get any IP address
information through DHCPv6.
DHCPv6 Request
Options /
DHCPv6 Lease
Options
If this interface is a DHCPv6 client, use this section to configure DHCPv6 request settings that
determine what additional information to get from the DHCPv6 server.
If this interface is a DHCPv6 server, use this section to configure DHCPv6 lease settings that
determine what to offer to the DHCPv6 clients.
Add Click this to create an entry in this table. See Section 10.5.5 on page 348 for more
information.
Remove Select an entry and click this to delete it from this table.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any entry.
Name This field displays the name of the DHCPv6 request or lease object.
Type This field displays the type of the object.
Value This field displays the IPv6 prefix that the Zyxel Device obtained from an uplink router (Server
is selected) or will advertise to its clients (Client is selected).
Interface When Relay is selected, select this check box and an interface from the drop-down list if
you want to use it as the relay server.
Relay Server When Relay is selected, select this check box and enter the IP address of a DHCPv6 server
as the relay server.
IPv6 Router
Advertisement
Setting
Enable Router
Advertisement
Select this to enable this interface to send router advertisement messages periodically. See
IPv6 Router Advertisement on page 322 for more information.
Advertised Hosts
Get Network
Configuration
From DHCPv6
Select this to have the Zyxel Device indicate to hosts to obtain network settings (such as
prefix and DNS settings) through DHCPv6.
Clear this to have the Zyxel Device indicate to hosts that DHCPv6 is not available and they
should use the prefix in the router advertisement message.
Advertised Hosts
Get Other
Configuration
From DHCPv6
Select this to have the Zyxel Device indicate to hosts to obtain DNS information through
DHCPv6.
Clear this to have the Zyxel Device indicate to hosts that DNS information is not available in
this network.
Router
Preference
Select the router preference (Low, Medium or High) for the interface. The interface sends
this preference in the router advertisements to tell hosts what preference they should use
for the Zyxel Device. This helps hosts to choose their default router especially when there are
multiple IPv6 router on the network.
Note: Make sure the hosts also support router preference to make this function
work.
Table 140 Configuration > Network > Interface > VLAN > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
382
MTU The Maximum Transmission Unit. Enter the maximum size of each IPv6 data packet, in bytes,
that can move through this interface. If a larger packet arrives, the Zyxel Device divides it
into smaller fragments.
Hop Limit Enter the maximum number of network segments that a packet can cross before reaching
the destination. When forwarding an IPv6 packet, IPv6 routers are required to decrease the
Hop Limit by 1 and to discard the IPv6 packet when the Hop Limit is 0.
Advertised Prefix
Table
Configure this table only if you want the Zyxel Device to advertise a fixed prefix to the
network.
Add Click this to create an IPv6 prefix address.
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
# This field is a sequential value, and it is not associated with any entry.
IPv6
Address/
Prefix Length
Enter the IPv6 network prefix address and the prefix length.
The prefix length indicates what the left-most part of the IP address is the same for all
computers on the network, that is, the network address.
Advertised Prefix
from DHCPv6
Prefix Delegation
Use this table to configure the network prefix if you want to use a delegated prefix as the
beginning part of the network prefix.
Add Click this to create an entry in this table.
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any entry.
Delegated
Prefix
Select the DHCPv6 request object to use for generating the network prefix for the network.
Suffix
Address
Enter the ending part of the IPv6 network address plus a slash (/) and the prefix length. The
Zyxel Device will append it to the selected delegated prefix. The combined address is the
network prefix for the network.
For example, you got a delegated prefix of 2003:1234:5678/48. You want to divide it into
2003:1234:5678:1111/64 for this interface and 2003:1234:5678:2222/64 for another interface.
You can use ::1111/64 and ::2222/64 for the suffix address respectively. But if you do not
want to divide the delegated prefix into subnetworks, enter ::0/48 here, which keeps the
same prefix length (/48) as the delegated prefix.
Address This is the final network prefix combined by the delegated prefix and the suffix.
Note: This field displays the combined address after you click OK and reopen this
screen.
Interface Parameters
Egress Bandwidth Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can send
through the interface to the network. Allowed values are 0 - 1048576.
Ingress
Bandwidth
This is reserved for future use.
Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can receive
from the network through the interface. Allowed values are 0 - 1048576.
MTU Maximum Transmission Unit. Enter the maximum size of each data packet, in bytes, that can
move through this interface. If a larger packet arrives, the Zyxel Device divides it into smaller
fragments. Allowed values are 576 - 1500. Usually, this value is 1500.
Table 140 Configuration > Network > Interface > VLAN > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
383
Connectivity Check The Zyxel Device can regularly check the connection to the gateway you specified to
make sure it is still available. You specify how often to check the connection, how long to
wait for a response before the attempt is a failure, and how many consecutive failures are
required before the Zyxel Device stops routing to the gateway. The Zyxel Device resumes
routing to the gateway the first time the gateway passes the connectivity check.
Enable
Connectivity
Check
Select this to turn on the connection check.
Check Method Select the method that the gateway allows.
Select icmp to have the Zyxel Device regularly ping the gateway you specify to make sure
it is still available.
Select tcp to have the Zyxel Device regularly perform a TCP handshake with the gateway
you specify to make sure it is still available.
Check Period Enter the number of seconds between connection check attempts.
Check Timeout Enter the number of seconds to wait for a response before the attempt is a failure.
Check Fail
Tolerance
Enter the number of consecutive failures before the Zyxel Device stops routing through the
gateway.
Check Default
Gateway
Select this to use the default gateway for the connectivity check.
Check this
address
Select this to specify a domain name or IP address for the connectivity check. Enter that
domain name or IP address in the field next to it.
Check Port This field only displays when you set the Check Method to tcp. Specify the port number to
use for a TCP connectivity check.
Check these
addresses
Enter one or two domain names or IP addresses for the connectivity check.
Probe Succeeds
When
This field applies when you specify two domain names or IP addresses for the connectivity
check.
Select any one if you want the check to pass if at least one of the domain names or IP
addresses responds.
Select all if you want the check to pass only if both domain names or IP addresses respond.
DHCP Setting The DHCP settings are available for the OPT, LAN and DMZ interfaces.
DHCP Select what type of DHCP service the Zyxel Device provides to the network. Choices are:
None - the Zyxel Device does not provide any DHCP services. There is already a DHCP
server on the network.
DHCP Relay - the Zyxel Device routes DHCP requests to one or more DHCP servers you
specify. The DHCP server(s) may be on another network.
DHCP Server - the Zyxel Device assigns IP addresses and provides subnet mask, gateway,
and DNS server information to the network. The Zyxel Device is the DHCP server for the
network.
These fields appear if the Zyxel Device is a DHCP Relay.
Relay Server 1 Enter the IP address of a DHCP server for the network.
Relay Server 2 This field is optional. Enter the IP address of another DHCP server for the network.
These fields appear if the Zyxel Device is a DHCP Server.
IP Pool Start
Address
Enter the IP address from which the Zyxel Device begins allocating IP addresses. If you want
to assign a static IP address to a specific computer, click Add Static DHCP.
If this field is blank, the Pool Size must also be blank. In this case, the Zyxel Device can assign
every IP address allowed by the interface’s IP address and subnet mask, except for the first
address (network address), last address (broadcast address) and the interface’s IP address.
Table 140 Configuration > Network > Interface > VLAN > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
384
Pool Size Enter the number of IP addresses to allocate. This number must be at least one and is
limited by the interface’s Subnet Mask. For example, if the Subnet Mask is 255.255.255.0 and
IP Pool Start Address is 10.10.10.10, the Zyxel Device can allocate 10.10.10.10 to
10.10.10.254, or 245 IP addresses.
If this field is blank, the IP Pool Start Address must also be blank. In this case, the Zyxel Device
can assign every IP address allowed by the interface’s IP address and subnet mask, except
for the first address (network address), last address (broadcast address) and the interface’s
IP address.
First DNS Server
Second DNS
Server
Third DNS Server
Specify the IP addresses up to three DNS servers for the DHCP clients to use. Use one of the
following ways to specify these IP addresses.
Custom Defined - enter a static IP address.
From ISP - select the DNS server that another interface received from its DHCP server.
Zyxel Device - the DHCP clients use the IP address of this interface and the Zyxel Device
works as a DNS relay.
First WINS Server,
Second WINS
Server
Enter the IP address of the WINS (Windows Internet Naming Service) server that you want to
send to the DHCP clients. The WINS server keeps a mapping table of the computer names
on your network and the IP addresses that they are currently using.
Default Router If you set this interface to DHCP Server, you can select to use either the interface’s IP
address or another IP address as the default router. This default router will become the
DHCP clients’ default gateway.
To use another IP address as the default router, select Custom Defined and enter the IP
address.
Lease time Specify how long each computer can use the information (especially the IP address)
before it has to request the information again. Choices are:
infinite - select this if IP addresses never expire
days, hours, and minutes - select this to enter how long IP addresses are valid. The default is
2 days.
Extended
Options
This table is available if you selected DHCP server.
Configure this table if you want to send more information to DHCP clients through DHCP
packets.
Add Click this to create an entry in this table. See Section 10.5.6 on page 349.
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
# This field is a sequential value, and it is not associated with any entry.
Name This is the option’s name.
Code This is the option’s code number.
Type This is the option’s type.
Value This is the option’s value.
Enable IP/MAC
Binding
Select this option to have the Zyxel Device enforce links between specific IP addresses and
specific MAC addresses for this VLAN. This stops anyone else from manually using a bound
IP address on another device connected to this interface. Use this to make use only the
intended users get to use specific IP addresses.
Enable Logs for
IP/MAC Binding
Violation
Select this option to have the Zyxel Device generate a log if a device connected to this
VLAN attempts to use an IP address that is bound to another device’s MAC address.
Static DHCP
Table
Configure a list of static IP addresses the Zyxel Device assigns to computers connected to
the interface. Otherwise, the Zyxel Device assigns an IP address dynamically using the
interface’s IP Pool Start Address and Pool Size.
Table 140 Configuration > Network > Interface > VLAN > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
385
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Import Click this to import a previously saved file (.csv) to the Zyxel Device. The IP/MAC binding
settings and description to identify these settings in the file will be applied to the Zyxel
Device.
The previously saved csv file may be a file you configured, or a file you exported at
Monitor> System Status> DHCP Table if you want to recover settings configured before.
Configure your csv file in the order of IP address, MAC address and description. Spaces are
allowed. Separate each item with a comma, for example, 1.1.1.1,22:22:33:44:55:02,test.
Press enter to configure the next group in a new line.
Your currently configured IP/MAC binding settings and entries description will be
overwritten once you import the file. Make sure to click Export to export your settings as a
file for backup in Monitor> System Status> DHCP Table first.
File Path Enter the file path and name of the DHCP settings file you want to import in the text box (or
click Browse to find it on your computer) and then click Upload to transfer the file to the
Zyxel Device.
# This field is a sequential value, and it is not associated with a specific entry.
IP Address Enter the IP address to assign to a device with this entry’s MAC address.
MAC Enter the MAC address to which to assign this entry’s IP address.
Description Enter a description to help identify this static DHCP entry. You can use alphanumeric and
()+/:=?!*#@$_%- characters, and it can be up to 60 characters long.
RIP Setting See Section 11.6 on page 443 for more information about RIP.
Enable RIP Select this to enable RIP on this interface.
Direction This field is effective when RIP is enabled. Select the RIP direction from the drop-down list
box.
BiDir - This interface sends and receives routing information.
In-Only - This interface receives routing information.
Out-Only - This interface sends routing information.
Send Version This field is effective when RIP is enabled. Select the RIP version(s) used for sending RIP
packets. Choices are 1, 2, and 1 and 2.
Receive Version This field is effective when RIP is enabled. Select the RIP version(s) used for receiving RIP
packets. Choices are 1, 2, and 1 and 2.
V2-Broadcast This field is effective when RIP is enabled. Select this to send RIP-2 packets using subnet
broadcasting; otherwise, the Zyxel Device uses multicasting.
OSPF Setting See Section 11.7 on page 445 for more information about OSPF.
Area Select the area in which this interface belongs. Select None to disable OSPF in this interface.
Priority Enter the priority (between 0 and 255) of this interface when the area is looking for a
Designated Router (DR) or Backup Designated Router (BDR). The highest-priority interface
identifies the DR, and the second-highest-priority interface identifies the BDR. Set the priority
to zero if the interface can not be the DR or BDR.
Link Cost Enter the cost (between 1 and 65,535) to route packets through this interface.
Passive Interface Select this to stop forwarding OSPF routing information from the selected interface. As a
result, this interface only receives routing information.
Table 140 Configuration > Network > Interface > VLAN > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
386
Authentication Select an authentication method, or disable authentication. To exchange OSPF routing
information with peer border routers, you must use the same authentication method that
they use. Choices are:
Same-as-Area - use the default authentication method in the area
None - disable authentication
Text - authenticate OSPF routing information using a plain-text password
MD5 - authenticate OSPF routing information using MD5 encryption
Text
Authentication
Key
This field is available if the Authentication is Text. Enter the password for text authentication.
The key can consist of alphanumeric characters and the underscore, and it can be up to
16 characters long.
MD5
Authentication ID
This field is available if the Authentication is MD5. Enter the ID for MD5 authentication. The ID
can be between 1 and 255.
MD5
Authentication
Key
This field is available if the Authentication is MD5. Enter the password for MD5
authentication. The password can consist of alphanumeric characters and the underscore,
and it can be up to 16 characters long.
MAC Address Setting This section appears when Interface Properties is External or General. Have the interface
use either the factory assigned default MAC address, a manually specified MAC address,
or clone the MAC address of another device or computer.
Use Default MAC
Address
Select this option to have the interface use the factory assigned default MAC address. By
default, the Zyxel Device uses the factory assigned MAC address to identify itself.
Overwrite
Default MAC
Address
Select this option to have the interface use a different MAC address. Either the MAC
address in the field. Once it is successfully configured, the address will be copied to the
configuration file. It will not change unless you change the setting or upload a different
configuration file.
Proxy ARP Proxy ARP is available for external or general interfaces on the Zyxel Device. See Section on
page 336 for more information on Proxy ARP.
Enable Proxy ARP Select this to allow the Zyxel Device to answer external interface ARP requests on behalf of
a device on its internal interface. Interfaces supported are:
•Ethernet
•VLAN
• Bridge
See Section 10.5.2 on page 345 for more information.
Add Click Add to create an IPv4 Address, an IPv4 CIDR (for example, 192.168.1.1/24) or an IPv4
Range (for example, 192.168.1.2-192.168.1.100) as the target IP address. The Zyxel Device
answers external ARP requests only if they match one of these inputted target IP addresses.
For example, if the IPv4 Address is 192.168.1.5, then the Zyxel Device will answer ARP
requests coming from the WAN only if it contains 192.168.1.5 as the target IP address.
Select an existing entry and click Remove to delete that entry.
Related Setting
Configure WAN
TRUNK
Click WAN TRUNK to go to a screen where you can set this VLAN to be part of a WAN trunk
for load balancing.
Configure Policy
Route
Click Policy Route to go to the screen where you can manually configure a policy route to
associate traffic with this VLAN.
Table 140 Configuration > Network > Interface > VLAN > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
387
10.10 Bridge Interfaces
This section introduces bridges and bridge interfaces and then explains the screens for bridge interfaces.
Bridge Overview
A bridge creates a connection between two or more network segments at the layer-2 (MAC address)
level. In the following example, bridge X connects four network segments.
When the bridge receives a packet, the bridge records the source MAC address and the port on which
it was received in a table. It also looks up the destination MAC address in the table. If the bridge knows
on which port the destination MAC address is located, it sends the packet to that port. If the destination
MAC address is not in the table, the bridge broadcasts the packet on every port (except the one on
which it was received).
In the example above, computer A sends a packet to computer B. Bridge X records the source address
0A:0A:0A:0A:0A:0A and port 2 in the table. It also looks up 0B:0B:0B:0B:0B:0B in the table. There is no entry
yet, so the bridge broadcasts the packet on ports 1, 3, and 4.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 140 Configuration > Network > Interface > VLAN > Add / Edit (continued)
LABEL DESCRIPTION
Table 141 Example: Bridge Table After Computer A Sends a Packet to Computer B
MAC ADDRESS PORT
0A:0A:0A:0A:0A:0A 2
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
388
If computer B responds to computer A, bridge X records the source address 0B:0B:0B:0B:0B:0B and port 4
in the table. It also looks up 0A:0A:0A:0A:0A:0A in the table and sends the packet to port 2 accordingly.
Bridge Interface Overview
A bridge interface creates a software bridge between the members of the bridge interface. It also
becomes the Zyxel Device’s interface for the resulting network.
Unlike the device-wide bridge mode in ZyNoS-based Zyxel Devices, this Zyxel Device can bridge traffic
between some interfaces while it routes traffic for other interfaces. The bridge interfaces also support
more functions, like interface bandwidth parameters, DHCP settings, and connectivity check. To use the
whole Zyxel Device as a transparent bridge, add all of the Zyxel Device’s interfaces to a bridge
interface.
A bridge interface may consist of the following members:
• Zero or one VLAN interfaces (and any associated virtual VLAN interfaces)
• Any number of Ethernet interfaces (and any associated virtual Ethernet interfaces)
When you create a bridge interface, the Zyxel Device removes the members’ entries from the routing
table and adds the bridge interface’s entries to the routing table. For example, this table shows the
routing table before and after you create bridge interface br0 (250.250.250.0/23) between lan1 and
vlan1.
In this example, virtual Ethernet interface lan1:1 is also removed from the routing table when lan1 is
added to br0. Virtual interfaces are automatically added to or remove from a bridge interface when
the underlying interface is added or removed.
10.10.1 Bridge Summary
This screen lists every bridge interface and virtual interface created on top of bridge interfaces. If you
enabled IPv6 on the Configuration > System > IPv6 screen, you can also configure bridge interfaces
used for your IPv6 network on this screen. To access this screen, click Configuration > Network > Interface
> Bridge.
Table 142 Example: Bridge Table After Computer B Responds to Computer A
MAC ADDRESS PORT
0A:0A:0A:0A:0A:0A 2
0B:0B:0B:0B:0B:0B 4
Table 143 Example: Routing Table Before and After Bridge Interface br0 Is Created
IP ADDRESS(ES) DESTINATION IP ADDRESS(ES) DESTINATION
210.210.210.0/24 lan1 221.221.221.0/24 vlan0
210.211.1.0/24 lan1:1 230.230.230.192/26 wan2
221.221.221.0/24 vlan0 241.241.241.241/32 dmz
222.222.222.0/24 vlan1 242.242.242.242/32 dmz
230.230.230.192/26 wan2 250.250.250.0/23 br0
241.241.241.241/32 dmz
242.242.242.242/32 dmz
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
389
Figure 282 Configuration > Network > Interface > Bridge
Each field is described in the following table.
Table 144 Configuration > Network > Interface > Bridge
LABEL DESCRIPTION
Configuration / IPv6
Configuration
Use the Configuration section for IPv4 network settings. Use the IPv6 Configuration section
for IPv6 network settings if you connect your Zyxel Device to an IPv6 network. Both sections
have similar fields as described below.
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Create Virtual
Interface
To open the screen where you can create a virtual interface, select an interface and click
Create Virtual Interface.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any interface.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This field displays the name of the interface.
Description This field displays the description of the interface.
IP Address This field displays the current IP address of the interface. If the IP address is 0.0.0.0, the
interface does not have an IP address yet.
This screen also shows whether the IP address is a static IP address (STATIC) or dynamically
assigned (DHCP). IP addresses are always static in virtual interfaces.
Member This field displays the Ethernet interfaces and VLAN interfaces in the bridge interface. It is
blank for virtual interfaces.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
390
10.10.2 Bridge Add/Edit
This screen lets you configure IP address assignment, interface bandwidth parameters, DHCP settings,
and connectivity check for each bridge interface. To access this screen, click the Add or Edit icon on
the Bridge Summary screen. The following screen appears.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
391
Figure 283 Configuration > Network > Interface > Bridge > Add / Edit
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
392
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
393
Each field is described in the table below.
Table 145 Configuration > Network > Interface > Bridge > Add / Edit
LABEL DESCRIPTION
IPv4/IPv6 View / IPv4
View / IPv6 View
Use this button to display both IPv4 and IPv6, IPv4-only, or IPv6-only configuration fields.
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
Create New Object Click this button to create a DHCPv6 lease or DHCPv6 request object that you may use for
the DHCPv6 settings in this screen.
General Settings
Enable Interface Select this to enable this interface. Clear this to disable this interface.
General IPv6 Setting
Enable IPv6 Select this to enable IPv6 on this interface. Otherwise, clear this to disable it.
Interface Properties
Interface Type Select one of the following option depending on the type of network to which the Zyxel
Device is connected or if you want to additionally manually configure some related
settings.
internal is for connecting to a local network. Other corresponding configuration options:
DHCP server and DHCP relay. The Zyxel Device automatically adds default SNAT settings for
traffic flowing from this interface to an external interface.
external is for connecting to an external network (like the Internet). The Zyxel Device
automatically adds this interface to the default WAN trunk.
For general, the rest of the screen’s options do not automatically adjust and you must
manually configure a policy route to add routing and SNAT settings for the interface.
Interface Name This field is read-only if you are editing the interface. Enter the name of the bridge interface.
The format is brx, where x is 0 - 11. For example, br0, br3, and so on.
Zone Select the zone to which the interface is to belong. You use zones to apply security settings
such as security policy, IDP, remote management, anti-malware, and application patrol.
Description Enter a description of this interface. You can use alphanumeric and ()+/:=?!*#@$_%-
characters, and it can be up to 60 characters long. Spaces are allowed, but the string
can’t start with a space.
Member
Configuration
Available This field displays Ethernet interfaces and VLAN interfaces that can become part of the
bridge interface. An interface is not available in the following situations:
• There is a virtual interface on top of it
• It is already used in a different bridge interface
Select one, and click the >> arrow to add it to the bridge interface. Each bridge interface
can only have one VLAN interface.
Member This field displays the interfaces that are part of the bridge interface. Select one, and click
the << arrow to remove it from the bridge interface.
IP Address
Assignment
Get
Automatically
Select this if this interface is a DHCP client. In this case, the DHCP server configures the IP
address, subnet mask, and gateway automatically.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
394
DHCP Option 60 DHCP Option 60 is used by the Zyxel Device for identification to the DHCP server using the
VCI (Vendor Class Identifier) on the DHCP server. The Zyxel Device adds it in the initial DHCP
discovery message that a DHCP client broadcasts in search of an IP address. The DHCP
server can assign different IP addresses or options to clients with the specific VCI or reject
the request from clients without the specific VCI.
Enter a string using up to 63 of these characters [a-zA-Z0-9!\"#$%&\'()*+,-./
:;<=>?@\[\\\]^_`{}] to identify this Zyxel Device to the DHCP server. For example, Zyxel-TW.
Use Fixed IP
Address
Select this if you want to specify the IP address, subnet mask, and gateway manually.
IP Address This field is enabled if you select Use Fixed IP Address.
Enter the IP address for this interface.
Subnet Mask This field is enabled if you select Use Fixed IP Address.
Enter the subnet mask of this interface in dot decimal notation. The subnet mask indicates
what part of the IP address is the same for all computers on the network.
Gateway This field is enabled if you select Use Fixed IP Address.
Enter the IP address of the gateway. The Zyxel Device sends packets to the gateway when
it does not know how to route the packet to its destination. The gateway should be on the
same network as the interface.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
Enable IGMP Support Select this to allow the Zyxel Device to act as an IGMP proxy for hosts connected on the
IGMP downstream interface.
IGMP Upstream Enable IGMP Upstream on the interface which connects to a router running IGMP that is
closer to the multicast server.
IGMP
Downstream
Enable IGMP Downstream on the interface which connects to the multicast hosts.
IPv6 Address
Assignment
These IP address fields configure an IPv6 IP address on the interface itself.
Enable Stateless
Address Auto-
configuration
(SLAAC)
Select this to enable IPv6 stateless auto-configuration on this interface. The interface will
generate an IPv6 IP address itself from a prefix obtained from an IPv6 router on the network.
Link-Local
address
This displays the IPv6 link-local address and the network prefix that the Zyxel Device
generates itself for the interface.
IPv6 Address/
Prefix Length
Enter the IPv6 address and the prefix length for this interface if you want to use a static IP
address. This field is optional.
The prefix length indicates what the left-most part of the IP address is the same for all
computers on the network, that is, the network address.
Gateway Enter the IPv6 address of the default outgoing gateway using colon (:) hexadecimal
notation.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
Table 145 Configuration > Network > Interface > Bridge > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
395
Address from
DHCPv6 Prefix
Delegation
Use this table to have the Zyxel Device obtain an IPv6 prefix from the ISP or a connected
uplink router for an internal network, such as the LAN or DMZ. You have to also enter a suffix
address which is appended to the delegated prefix to form an address for this interface.
See
Prefix Delegation on page 322 for more information.
To use prefix delegation, you must:
• Create at least one DHCPv6 request object before configuring this table.
• The external interface must be a DHCPv6 client. You must configure the DHCPv6
request options using a DHCPv6 request object with the type of prefix-delegation.
• Assign the prefix delegation to an internal interface and enable router advertisement
on that interface.
Add Click this to create an entry.
Edit Select an entry and click this to change the settings.
Remove Select an entry and click this to delete it from this table.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any entry.
Delegated
Prefix
Select the DHCPv6 request object to use from the drop-down list.
Suffix
Address
Enter the ending part of the IPv6 address, a slash (/), and the prefix length. The Zyxel Device
will append it to the delegated prefix.
For example, you got a delegated prefix of 2003:1234:5678/48. You want to configure an IP
address of 2003:1234:5678:1111:1/128 for this interface, then enter ::1111:0:0:0:1/128 in this
field.
Address This field displays the combined IPv6 IP address for this interface.
Note: This field displays the combined address after you click OK and reopen this
screen.
DHCPv6 Setting
DHCPv6 Select N/A to not use DHCPv6.
Select Client to set this interface to act as a DHCPv6 client.
Select Server to set this interface to act as a DHCPv6 server which assigns IP addresses and
provides subnet mask, gateway, and DNS server information to clients.
Select Relay to set this interface to route DHCPv6 requests to the DHCPv6 relay server you
specify. The DHCPv6 server(s) may be on another network.
DUID This field displays the DHCP Unique IDentifier (DUID) of the interface, which is unique and
used for identification purposes when the interface is exchanging DHCPv6 messages with
others. See
DHCPv6 on page 323 for more information.
DUID as MAC Select this if you want the DUID is generated from the interface’s default MAC address.
Customized DUID If you want to use a customized DUID, enter it here for the interface.
Enable Rapid
Commit
Select this to shorten the DHCPv6 message exchange process from four to two steps. This
function helps reduce heavy network traffic load.
Note: Make sure you also enable this option in the DHCPv6 clients to make rapid
commit work.
Information
Refresh Time
Enter the number of seconds a DHCPv6 client should wait before refreshing information
retrieved from DHCPv6.
Request Address This field is available if you set this interface to DHCPv6 Client. Select this to get an IPv6 IP
address for this interface from the DHCP server. Clear this to not get any IP address
information through DHCPv6.
Table 145 Configuration > Network > Interface > Bridge > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
396
DHCPv6 Request
Options /
DHCPv6 Lease
Options
If this interface is a DHCPv6 client, use this section to configure DHCPv6 request settings that
determine what additional information to get from the DHCPv6 server.
If the interface is a DHCPv6 server, use this section to configure DHCPv6 lease settings that
determine what to offer to the DHCPv6 clients.
Add Click this to create an entry in this table. See Section 10.5.5 on page 348 for more
information.
Edit Select an entry and click this to change the settings.
Remove Select an entry and click this to delete it from this table.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any entry.
Name This field displays the name of the DHCPv6 request or lease object.
Type This field displays the type of the object.
Value This field displays the IPv6 prefix that the Zyxel Device obtained from an uplink router (Server
is selected) or will advertise to its clients (Client is selected).
Interface When Relay is selected, select this check box and an interface from the drop-down list if
you want to use it as the relay server.
Relay Server When Relay is selected, select this check box and enter the IP address of a DHCPv6 server
as the relay server.
IPv6 Router
Advertisement
Setting
Enable Router
Advertisement
Select this to enable this interface to send router advertisement messages periodically. See
IPv6 Router Advertisement on page 322 for more information.
Advertised Hosts
Get Network
Configuration
From DHCPv6
Select this to have the Zyxel Device indicate to hosts to obtain network settings (such as
prefix and DNS settings) through DHCPv6.
Clear this to have the Zyxel Device indicate to hosts that DHCPv6 is not available and they
should use the prefix in the router advertisement message.
Advertised Hosts
Get Other
Configuration
From DHCPv6
Select this to have the Zyxel Device indicate to hosts to obtain DNS information through
DHCPv6.
Clear this to have the Zyxel Device indicate to hosts that DNS information is not available in
this network.
Router
Preference
Select the router preference (Low, Medium or High) for the interface. The interface sends
this preference in the router advertisements to tell hosts what preference they should use
for the Zyxel Device. This helps hosts to choose their default router especially when there are
multiple IPv6 router on the network.
Note: Make sure the hosts also support router preference to make this function
work.
MTU The Maximum Transmission Unit. Enter the maximum size of each IPv6 data packet, in bytes,
that can move through this interface. If a larger packet arrives, the Zyxel Device divides it
into smaller fragments.
Hop Limit Enter the maximum number of network segments that a packet can cross before reaching
the destination. When forwarding an IPv6 packet, IPv6 routers are required to decrease the
Hop Limit by 1 and to discard the IPv6 packet when the Hop Limit is 0.
Advertised Prefix
Table
Configure this table only if you want the Zyxel Device to advertise a fixed prefix to the
network.
Add Click this to create an IPv6 prefix address.
Edit Select an entry in this table and click this to modify it.
Table 145 Configuration > Network > Interface > Bridge > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
397
Remove Select an entry in this table and click this to delete it.
# This field is a sequential value, and it is not associated with any entry.
IPv6
Address/
Prefix Length
Enter the IPv6 network prefix address and the prefix length.
The prefix length indicates what the left-most part of the IP address is the same for all
computers on the network, that is, the network address.
Advertised Prefix
from DHCPv6
Prefix Delegation
Use this table to configure the network prefix if you want to use a delegated prefix as the
beginning part of the network prefix.
Add Click this to create an entry in this table.
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any entry.
Delegated
Prefix
Select the DHCPv6 request object to use for generating the network prefix for the network.
Suffix
Address
Enter the ending part of the IPv6 network address plus a slash (/) and the prefix length. The
Zyxel Device will append it to the selected delegated prefix. The combined address is the
network prefix for the network.
For example, you got a delegated prefix of 2003:1234:5678/48. You want to divide it into
2003:1234:5678:1111/64 for this interface and 2003:1234:5678:2222/64 for another interface.
You can use ::1111/64 and ::2222/64 for the suffix address respectively. But if you do not
want to divide the delegated prefix into subnetworks, enter ::0/48 here, which keeps the
same prefix length (/48) as the delegated prefix.
Address This is the final network prefix combined by the selected delegated prefix and the suffix.
Note: This field displays the combined address after you click OK and reopen this
screen.
Interface Parameters
Egress Bandwidth Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can send
through the interface to the network. Allowed values are 0 - 1048576.
Ingress
Bandwidth
This is reserved for future use.
Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can receive
from the network through the interface. Allowed values are 0 - 1048576.
MTU Maximum Transmission Unit. Enter the maximum size of each data packet, in bytes, that can
move through this interface. If a larger packet arrives, the Zyxel Device divides it into smaller
fragments. Allowed values are 576 - 1500. Usually, this value is 1500.
DHCP Setting
DHCP Select what type of DHCP service the Zyxel Device provides to the network. Choices are:
None - the Zyxel Device does not provide any DHCP services. There is already a DHCP
server on the network.
DHCP Relay - the Zyxel Device routes DHCP requests to one or more DHCP servers you
specify. The DHCP server(s) may be on another network.
DHCP Server - the Zyxel Device assigns IP addresses and provides subnet mask, gateway,
and DNS server information to the network. The Zyxel Device is the DHCP server for the
network.
These fields appear if the Zyxel Device is a DHCP Relay.
Relay Server 1 Enter the IP address of a DHCP server for the network.
Table 145 Configuration > Network > Interface > Bridge > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
398
Relay Server 2 This field is optional. Enter the IP address of another DHCP server for the network.
These fields appear if the Zyxel Device is a DHCP Server.
IP Pool Start
Address
Enter the IP address from which the Zyxel Device begins allocating IP addresses. If you want
to assign a static IP address to a specific computer, click Add Static DHCP.
If this field is blank, the Pool Size must also be blank. In this case, the Zyxel Device can assign
every IP address allowed by the interface’s IP address and subnet mask, except for the first
address (network address), last address (broadcast address) and the interface’s IP address.
Pool Size Enter the number of IP addresses to allocate. This number must be at least one and is
limited by the interface’s Subnet Mask. For example, if the Subnet Mask is 255.255.255.0 and
IP Pool Start Address is 10.10.10.10, the Zyxel Device can allocate 10.10.10.10 to
10.10.10.254, or 245 IP addresses.
If this field is blank, the IP Pool Start Address must also be blank. In this case, the Zyxel Device
can assign every IP address allowed by the interface’s IP address and subnet mask, except
for the first address (network address), last address (broadcast address) and the interface’s
IP address.
First DNS Server
Second DNS
Server
Third DNS Server
Specify the IP addresses up to three DNS servers for the DHCP clients to use. Use one of the
following ways to specify these IP addresses.
Custom Defined - enter a static IP address.
From ISP - select the DNS server that another interface received from its DHCP server.
Zyxel Device - the DHCP clients use the IP address of this interface and the Zyxel Device
works as a DNS relay.
First WINS Server,
Second WINS
Server
Enter the IP address of the WINS (Windows Internet Naming Service) server that you want to
send to the DHCP clients. The WINS server keeps a mapping table of the computer names
on your network and the IP addresses that they are currently using.
Default Router If you set this interface to DHCP Server, you can select to use either the interface’s IP
address or another IP address as the default router. This default router will become the
DHCP clients’ default gateway.
To use another IP address as the default router, select Custom Defined and enter the IP
address.
Lease time Specify how long each computer can use the information (especially the IP address)
before it has to request the information again. Choices are:
infinite - select this if IP addresses never expire
days, hours, and minutes - select this to enter how long IP addresses are valid.
Extended
Options
This table is available if you selected DHCP server.
Configure this table if you want to send more information to DHCP clients through DHCP
packets.
Add Click this to create an entry in this table. See Section 10.5.6 on page 349.
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
# This field is a sequential value, and it is not associated with any entry.
Name This is the option’s name.
Code This is the option’s code number.
Type This is the option’s type.
Value This is the option’s value.
Table 145 Configuration > Network > Interface > Bridge > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
399
PXE Server PXE (Preboot eXecution Environment) allows a client computer to use the network to boot
up and install an operating system through a PXE-capable Network Interface Card (NIC).
PXE is available for computers on internal interfaces to allow them to boot up using boot
software on a PXE server. The Zyxel Device acts as an intermediary between the PXE server
and the computers that need boot software.
The PXE server must have a public IPv4 address. You must enable DHCP Server on the Zyxel
Device so that it can receive information from the PXE server.
PXE Boot Loader
File
A boot loader is a computer program that loads the operating system for the computer.
Enter the exact file name of the boot loader software file, including filename extension, that
is on the PXE server. If the wrong filename is entered, then the client computers cannot
boot.
Enable IP/MAC
Binding
Select this option to have this interface enforce links between specific IP addresses and
specific MAC addresses. This stops anyone else from manually using a bound IP address on
another device connected to this interface. Use this to make use only the intended users
get to use specific IP addresses.
Enable Logs for
IP/MAC Binding
Violation
Select this option to have the Zyxel Device generate a log if a device connected to this
interface attempts to use an IP address that is bound to another device’s MAC address.
Static DHCP
Table
Configure a list of static IP addresses the Zyxel Device assigns to computers connected to
the interface. Otherwise, the Zyxel Device assigns an IP address dynamically using the
interface’s IP Pool Start Address and Pool Size.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This field is a sequential value, and it is not associated with a specific entry.
IP Address Enter the IP address to assign to a device with this entry’s MAC address.
MAC Address Enter the MAC address to which to assign this entry’s IP address.
Description Enter a description to help identify this static DHCP entry. You can use alphanumeric and
()+/:=?!*#@$_%- characters, and it can be up to 60 characters long.
Connectivity Check The interface can regularly check the connection to the gateway you specified to make
sure it is still available. You specify how often the interface checks the connection, how
long to wait for a response before the attempt is a failure, and how many consecutive
failures are required before the Zyxel Device stops routing to the gateway. The Zyxel Device
resumes routing to the gateway the first time the gateway passes the connectivity check.
Enable
Connectivity
Check
Select this to turn on the connection check.
Check Method Select the method that the gateway allows.
Select icmp to have the Zyxel Device regularly ping the gateway you specify to make sure
it is still available.
Select tcp to have the Zyxel Device regularly perform a TCP handshake with the gateway
you specify to make sure it is still available.
Check Period Enter the number of seconds between connection check attempts.
Check Timeout Enter the number of seconds to wait for a response before the attempt is a failure.
Check Fail
Tolerance
Enter the number of consecutive failures before the Zyxel Device stops routing through the
gateway.
Check Default
Gateway
Select this to use the default gateway for the connectivity check.
Check this
address
Select this to specify a domain name or IP address for the connectivity check. Enter that
domain name or IP address in the field next to it.
Table 145 Configuration > Network > Interface > Bridge > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
400
10.11 LAG
Link Aggregation Group (LAG) is a way to combine multiple physical Ethernet interfaces into a single
logical interface. This increases uplink bandwidth. It also increases availability as even if a member link
goes down, LAG can continue to transmit and receive traffic over the remaining links.
To configure LAG, configure a link number and specify the member ports in the link. All ports must have
the same speed and be in full-duplex mode. You must configure the LAG on both sides of the link and
you must set the interfaces on either side of the link to be the same speed.
Check Port This field only displays when you set the Check Method to tcp. Specify the port number to
use for a TCP connectivity check.
Check these
addresses
Enter one or two domain names or IP addresses for the connectivity check.
Probe Succeeds
When
This field applies when you specify two domain names or IP addresses for the connectivity
check.
Select any one if you want the check to pass if at least one of the domain names or IP
addresses responds.
Select all if you want the check to pass only if both domain names or IP addresses respond.
Proxy ARP Proxy ARP is available for external or general interfaces on the Zyxel Device. See Section on
page 336 for more information on Proxy ARP.
Enable Proxy ARP Select this to allow the Zyxel Device to answer external interface ARP requests on behalf of
a device on its internal interface. Interfaces supported are:
•Ethernet
•VLAN
• Bridge
See Section 10.5.2 on page 345 for more information.
Add Click Add to create an IPv4 Address, an IPv4 CIDR (for example, 192.168.1.1/24) or an IPv4
Range (for example, 192.168.1.2-192.168.1.100) as the target IP address. The Zyxel Device
answers external ARP requests only if they match one of these inputted target IP addresses.
For example, if the IPv4 Address is 192.168.1.5, then the Zyxel Device will answer ARP
requests coming from the WAN only if it contains 192.168.1.5 as the target IP address.
Select an existing entry and click Remove to delete that entry.
Related Setting
Configure WAN
TRUNK
Click WAN TRUNK to go to a screen where you can configure the interface as part of a
WAN trunk for load balancing.
Configure Policy
Route
Click Policy Route to go to the screen where you can manually configure a policy route to
associate traffic with this bridge interface.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 145 Configuration > Network > Interface > Bridge > Add / Edit (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
401
At the time of writing, up to 4 LAG interfaces can be configured on a Zyxel Device.
10.11.1 Available Interfaces for LAG
Ethernet and VLAN interfaces available to join a LAG interface must fulfill the following criteria.
1 The interface cannot be in another LAG. If an interface is in another LAG, it is not available to join the
LAG interface until you remove the interface from the other LAG.
2 The port bound to the interface cannot be in a VLAN. If the port bound to an interface is in a VLAN, the
interface is not available to join the LAG interface until you remove the port from the VLAN.
3 The selected interface must be bound to only 1 physical port.
• If you select an interface that has no ports bound to it, you must bind a port to this interface
• If you select an interface that has more than one port bound to it, you must remove all ports but
one from this interface.
See Section 1.1.1 on page 30 to see which models support Link Aggregation Group (LAG).
10.11.2 LAG Summary Screen
This screen lists every LAG created on the Zyxel Device. To access this screen, click Configuration >
Network > Interface > LAG.
Figure 284 Configuration > Network > Interface > LAG
Each field is described in the following table.
Table 146 Configuration > Network > Interface > LAG
LABEL DESCRIPTION
Configuration
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
402
10.11.3 LAG Add/Edit
This screen lets you configure Interface and LAG parameters for each LAG interface. To access this
screen, click the Add or Edit icon in the LAG screen. The following screen appears.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Create Virtual
Interface
To open the screen where you can create a virtual interface, select an interface and click
Create Virtual Interface.
References Select an entry and click References to open a screen that shows which settings use the
entry.
# This field is a sequential value, and it is not associated with any interface.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This field displays the name of the LAG interface.
Description This field displays the description of the LAG interface.
Mode Mode refers to whether the LAG is acting as follows:
• active-backup where only one slave in the LAG interface is active and another slave
becomes active only if the active slave fails.
• 802.3ad (IEEE 802.3ad Dynamic link aggregation) where Link Aggregation Control
Protocol (LACP) negotiates automatic combining of links and balances the traffic load
across the LAG link by sending LACP packets to the directly connected device that
also implements LACP. The slaves must have the same speed and duplex settings.
• balance-alb (adaptive load balancing) where traffic is distributed according to the
current load on each slave by ARP negotiation. Incoming traffic is received by the
current slave. If the receiving slave fails, another slave takes over the MAC address of
the failed receiving slave.
IP Address This field displays the current IP address of the LAG interface. If the IP address is 0.0.0.0, the
interface does not have an IP address yet.
This screen also shows whether the IP address is a static IP address (STATIC) or dynamically
assigned (DHCP). IP addresses are always static in virtual interfaces.
Slaves A slave is a physical Ethernet interface that is a member of a LAG. Slaves do not have an IP
Address and in some cases share the same MAC address. This field displays the member
Ethernet interfaces and VLAN interfaces in the LAG.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 146 Configuration > Network > Interface > LAG (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
403
Figure 285 Configuration > Network > Interface > LAG > Add
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
404
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
405
Each field is described in the following table.
Table 147 Configuration > Network > Interface > LAG > Add
LABEL DESCRIPTION
General Settings
Enable Interface Select this to enable this interface. Clear this to disable this interface.
Interface Properties
Interface Type Select one of the following option depending on the type of network to which the Zyxel
Device is connected or if you want to additionally manually configure some related
settings.
internal is for connecting to a local network. Other corresponding configuration options:
DHCP server and DHCP relay. The Zyxel Device automatically adds default SNAT settings for
traffic flowing from this interface to an external interface.
external is for connecting to an external network (like the Internet). The Zyxel Device
automatically adds this interface to the default WAN trunk.
For general, the rest of the screen’s options do not automatically adjust and you must
manually configure a policy route to add routing and SNAT settings for the interface.
Interface Name This field is read-only if you are editing the interface. Enter the name of the LAG interface.
The format is lagx, where x is 0 - 3. For example, lag0, lag1, and so on.
Zone Select the zone to which the interface is to belong. You use zones to apply security settings
such as security policy, IDP, remote management, anti-virus, and application patrol.
Description Enter a description of this interface. You can use alphanumeric and ()+/:=?!*#@$_%-
characters, and it can be up to 60 characters long. Spaces are allowed, but the string
can’t start with a space.
LAG Configuration
Mode Select a Mode for this LAG interface. Choices are as follows:
• active-backup where only one slave in the LAG interface is active and another slave
becomes active only if the active slave fails.
• 802.3ad (IEEE 802.3ad Dynamic link aggregation) where Link Aggregation Control
Protocol (LACP) negotiates automatic combining of links and balances the traffic load
across the LAG link by sending LACP packets to the directly connected device that
also implements LACP. The slaves must have the same speed and duplex settings.
• balance-alb (adaptive load balancing) where traffic is distributed according to the
current load on each slave by ARP negotiation. Incoming traffic is received by the
current slave. If the receiving slave fails, another slave takes over the MAC address of
the failed receiving slave.
Link Monitoring Select from none, mii or arp. none means no link monitoring is done.
mii monitoring monitors the state of the local interface; it can’t tell if the link can transmit or
receive packets.
arp monitoring sends ARP queries and uses the reply to know if the link is up and that traffic
is flowing over the link.
Miimom This field displays for mii Link Monitoring. Set the link check interval in milliseconds that the
system polls the Media Independent Interface (MII) to get status.
Updelay This field displays for mii Link Monitoring. Set the waiting time in milliseconds to confirm the
slave interface status is up.
Downdelay This field displays for mii Link Monitoring. Set the waiting time in milliseconds to confirm the
slave interface status is down.
Xmit Hash Policy This field displays in 802.3ad Mode. This field sets the algorithm for slave selection according
to the selected TCP/IP layer.
LACP Rate This field displays in 802.3ad Mode. Select the preferred LACPDU packet transmission rate
(slow/fast) to request from 802.3ad partner.
ARP Interval This field displays for arp Link Monitoring. Select the frequency of ARP requests sent to
confirm a that slave interface is up.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
406
ARP IP Target This field displays for arp Link Monitoring. Set the IP address of the link to send ARP queries.
Available This field displays Ethernet interfaces and VLAN interfaces that can become part of the LAG
interface.
Please see Section 10.11.1 on page 401 for criteria on available interfaces.
Select one, and click the >> arrow to add it to the LAG interface.
Note: Each LAG interface can only have one VLAN interface. There cannot be a
virtual interface on top of a LAG interface.
Note: Up to 4 interfaces can be added to a LAG interface.
Slaves A slave is a physical Ethernet interface that is a member of a LAG. This field displays the
interfaces that are part of the LAG interface. Select one, and click the << arrow to remove
it from the LAG interface.
IP Address
Assignment
Get
Automatically
Select this if this interface is a DHCP client. In this case, the DHCP server configures the IP
address, subnet mask, and gateway automatically.
Use Fixed IP
Address
Select this if you want to specify the IP address, subnet mask, and gateway manually.
IP Address This field is enabled if you select Use Fixed IP Address.
Enter the IP address for this interface.
Subnet Mask This field is enabled if you select Use Fixed IP Address.
Enter the subnet mask of this interface in dot decimal notation. The subnet mask indicates
what part of the IP address is the same for all computers in the network.
Gateway This field is enabled if you select Use Fixed IP Address.
Enter the IP address of the gateway. The Zyxel Device sends packets to the gateway when
it does not know how to route the packet to its destination. The gateway should be on the
same network as the interface.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
Enable IGMP Support Select this to allow the Zyxel Device to act as an IGMP proxy for hosts connected on the
IGMP downstream interface.
IGMP Upstream Enable IGMP Upstream on the interface which connects to a router running IGMP that is
closer to the multicast server.
IGMP
Downstream
Enable IGMP Downstream on the interface which connects to the multicast hosts.
IPv6 Address
Assignment
These IP address fields configure an IPv6 IP address on the interface itself.
Enable Stateless
Address Auto-
configuration
(SLAAC)
Select this to enable IPv6 stateless auto-configuration on this interface. The interface will
generate an IPv6 IP address itself from a prefix obtained from an IPv6 router on the network.
Link-Local
address
This displays the IPv6 link-local address and the network prefix that the Zyxel Device
generates itself for the interface.
Table 147 Configuration > Network > Interface > LAG > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
407
IPv6 Address/
Prefix Length
Enter the IPv6 address and the prefix length for this interface if you want to use a static IP
address. This field is optional.
The prefix length indicates what the left-most part of the IP address is the same for all
computers on the network, that is, the network address.
Gateway Enter the IPv6 address of the default outgoing gateway using colon (:) hexadecimal
notation.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
Address from
DHCPv6 Prefix
Delegation
Use this table to have the Zyxel Device obtain an IPv6 prefix from the ISP or a connected
uplink router for an internal network, such as the LAN or DMZ. You have to also enter a suffix
address which is appended to the delegated prefix to form an address for this interface.
To use prefix delegation, you must:
• Create at least one DHCPv6 request object before configuring this table.
• The external interface must be a DHCPv6 client. You must configure the DHCPv6
request options using a DHCPv6 request object with the type of prefix-delegation.
• Assign the prefix delegation to an internal interface and enable router advertisement
on that interface.
Add Click this to create an entry.
Edit Select an entry and click this to change the settings.
Remove Select an entry and click this to delete it from this table.
References Select an entry and click References to open a screen that shows which settings use the
entry.
# This field is a sequential value, and it is not associated with any entry.
Delegated
Prefix
Select the DHCPv6 request object to use from the drop-down list.
Suffix
Address
Enter the ending part of the IPv6 address, a slash (/), and the prefix length. The Zyxel Device
will append it to the delegated prefix.
For example, you got a delegated prefix of 2003:1234:5678/48. You want to configure an IP
address of 2003:1234:5678:1111:1/128 for this interface, then enter ::1111:0:0:0:1/128 in this
field.
Address This field displays the combined IPv6 IP address for this interface.
Note: This field displays the combined address after you click OK and reopen this
screen.
DHCPv6 Setting
DHCPv6 Select N/A to not use DHCPv6.
Select Client to set this interface to act as a DHCPv6 client.
Select Server to set this interface to act as a DHCPv6 server which assigns IP addresses and
provides subnet mask, gateway, and DNS server information to clients.
Select Relay to set this interface to route DHCPv6 requests to the DHCPv6 relay server you
specify. The DHCPv6 server(s) may be on another network.
DUID This field displays the DHCP Unique IDentifier (DUID) of the interface, which is unique and
used for identification purposes when the interface is exchanging DHCPv6 messages with
others. See
DHCPv6 on page 323 for more information.
DUID as MAC Select this if you want the DUID is generated from the interface’s default MAC address.
Customized DUID If you want to use a customized DUID, enter it here for the interface.
Table 147 Configuration > Network > Interface > LAG > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
408
Enable Rapid
Commit
Select this to shorten the DHCPv6 message exchange process from four to two steps. This
function helps reduce heavy network traffic load.
Note: Make sure you also enable this option in the DHCPv6 clients to make rapid
commit work.
Information
Refresh Time
Enter the number of seconds a DHCPv6 client should wait before refreshing information
retrieved from DHCPv6.
Request Address This field is available if you set this interface to DHCPv6 Client. Select this to get an IPv6 IP
address for this interface from the DHCP server. Clear this to not get any IP address
information through DHCPv6.
DHCPv6 Request
Options /
DHCPv6 Lease
Options
If this interface is a DHCPv6 client, use this section to configure DHCPv6 request settings that
determine what additional information to get from the DHCPv6 server.
If the interface is a DHCPv6 server, use this section to configure DHCPv6 lease settings that
determine what to offer to the DHCPv6 clients.
Add Click this to create an entry in this table. See Section 10.5.5 on page 348 for more
information.
Edit Select an entry and click this to change the settings.
Remove Select an entry and click this to delete it from this table.
References Select an entry and click References to open a screen that shows which settings use the
entry.
# This field is a sequential value, and it is not associated with any entry.
Name This field displays the name of the DHCPv6 request or lease object.
Type This field displays the type of the object.
Value This field displays the IPv6 prefix that the Zyxel Device obtained from an uplink router (Server
is selected) or will advertise to its clients (Client is selected).
Interface When Relay is selected, select this check box and an interface from the drop-down list if
you want to use it as the relay server.
Relay Server When Relay is selected, select this check box and enter the IP address of a DHCPv6 server
as the relay server.
IPv6 Router
Advertisement
Setting
Enable Router
Advertisement
Select this to enable this interface to send router advertisement messages periodically.
Advertised Hosts
Get Network
Configuration
From DHCPv6
Select this to have the Zyxel Device indicate to hosts to obtain network settings (such as
prefix and DNS settings) through DHCPv6.
Clear this to have the Zyxel Device indicate to hosts that DHCPv6 is not available and they
should use the prefix in the router advertisement message.
Advertised Hosts
Get Other
Configuration
From DHCPv6
Select this to have the Zyxel Device indicate to hosts to obtain DNS information through
DHCPv6.
Clear this to have the Zyxel Device indicate to hosts that DNS information is not available in
this network.
Router
Preference
Select the router preference (Low, Medium or High) for the interface. The interface sends
this preference in the router advertisements to tell hosts what preference they should use
for the Zyxel Device. This helps hosts to choose their default router especially when there
are multiple IPv6 router on the network.
Note: Make sure the hosts also support router preference to make this function
work.
Table 147 Configuration > Network > Interface > LAG > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
409
MTU The Maximum Transmission Unit. Enter the maximum size of each IPv6 data packet, in bytes,
that can move through this interface. If a larger packet arrives, the Zyxel Device divides it
into smaller fragments.
Hop Limit Enter the maximum number of network segments that a packet can cross before reaching
the destination. When forwarding an IPv6 packet, IPv6 routers are required to decrease the
Hop Limit by 1 and to discard the IPv6 packet when the Hop Limit is 0.
Advertised Prefix
Table
Configure this table only if you want the Zyxel Device to advertise a fixed prefix to the
network.
Add Click this to create an IPv6 prefix address.
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
# This field is a sequential value, and it is not associated with any entry.
IPv6
Address/
Prefix Length
Enter the IPv6 network prefix address and the prefix length.
The prefix length indicates what the left-most part of the IP address is the same for all
computers on the network, that is, the network address.
Advertised Prefix
from DHCPv6
Prefix Delegation
Use this table to configure the network prefix if you want to use a delegated prefix as the
beginning part of the network prefix.
Add Click this to create an entry in this table.
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
References Select an entry and click References to open a screen that shows which settings use the
entry.
# This field is a sequential value, and it is not associated with any entry.
Delegated
Prefix
Select the DHCPv6 request object to use for generating the network prefix for the network.
Suffix
Address
Enter the ending part of the IPv6 network address plus a slash (/) and the prefix length. The
Zyxel Device will append it to the selected delegated prefix. The combined address is the
network prefix for the network.
For example, you got a delegated prefix of 2003:1234:5678/48. You want to divide it into
2003:1234:5678:1111/64 for this interface and 2003:1234:5678:2222/64 for another interface.
You can use ::1111/64 and ::2222/64 for the suffix address respectively. But if you do not
want to divide the delegated prefix into subnetworks, enter ::0/48 here, which keeps the
same prefix length (/48) as the delegated prefix.
Address This is the final network prefix combined by the selected delegated prefix and the suffix.
Note: This field displays the combined address after you click OK and reopen this
screen.
Interface Parameters
Egress Bandwidth Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can send
through the interface to the network. Allowed values are 0 - 1048576.
Ingress
Bandwidth
This is reserved for future use.
Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can receive
from the network through the interface. Allowed values are 0 - 1048576.
MTU Maximum Transmission Unit. Enter the maximum size of each data packet, in bytes, that can
move through this interface. If a larger packet arrives, the Zyxel Device divides it into smaller
fragments. Allowed values are 576 - 1500. Usually, this value is 1500.
DHCP Setting
Table 147 Configuration > Network > Interface > LAG > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
410
DHCP Select what type of DHCP service the Zyxel Device provides to the network. Choices are:
None - the Zyxel Device does not provide any DHCP services. There is already a DHCP
server on the network.
DHCP Relay - the Zyxel Device routes DHCP requests to one or more DHCP servers you
specify. The DHCP server(s) may be on another network.
DHCP Server - the Zyxel Device assigns IP addresses and provides subnet mask, gateway,
and DNS server information to the network. The Zyxel Device is the DHCP server for the
network.
These fields appear if the Zyxel Device is a DHCP Relay.
Relay Server 1 Enter the IP address of a DHCP server for the network.
Relay Server 2 This field is optional. Enter the IP address of another DHCP server for the network.
These fields appear if the Zyxel Device is a DHCP Server.
IP Pool Start
Address
Enter the IP address from which the Zyxel Device begins allocating IP addresses. If you want
to assign a static IP address to a specific computer, click Add Static DHCP.
If this field is blank, the Pool Size must also be blank. In this case, the Zyxel Device can assign
every IP address allowed by the interface’s IP address and subnet mask, except for the first
address (network address), last address (broadcast address) and the interface’s IP address.
Pool Size Enter the number of IP addresses to allocate. This number must be at least one and is
limited by the interface’s Subnet Mask. For example, if the Subnet Mask is 255.255.255.0 and
IP Pool Start Address is 10.10.10.10, the Zyxel Device can allocate 10.10.10.10 to
10.10.10.254, or 245 IP addresses.
If this field is blank, the IP Pool Start Address must also be blank. In this case, the Zyxel Device
can assign every IP address allowed by the interface’s IP address and subnet mask, except
for the first address (network address), last address (broadcast address) and the interface’s
IP address.
First DNS Server
Second DNS
Server
Third DNS Server
Specify the IP addresses up to three DNS servers for the DHCP clients to use. Use one of the
following ways to specify these IP addresses.
Custom Defined - enter a static IP address.
From ISP - select the DNS server that another interface received from its DHCP server.
Zyxel Device - the DHCP clients use the IP address of this interface and the Zyxel Device
works as a DNS relay.
First WINS Server,
Second WINS
Server
Enter the IP address of the WINS (Windows Internet Naming Service) server that you want to
send to the DHCP clients. The WINS server keeps a mapping table of the computer names
on your network and the IP addresses that they are currently using.
Default Router If you set this interface to DHCP Server, you can select to use either the interface’s IP
address or another IP address as the default router. This default router will become the
DHCP clients’ default gateway.
To use another IP address as the default router, select Custom Defined and enter the IP
address.
Lease time Specify how long each computer can use the information (especially the IP address)
before it has to request the information again. Choices are:
infinite - select this if IP addresses never expire
days, hours, and minutes - select this to enter how long IP addresses are valid.
Extended
Options
This table is available if you selected DHCP server.
Configure this table if you want to send more information to DHCP clients through DHCP
packets.
Add Click this to create an entry in this table.
Table 147 Configuration > Network > Interface > LAG > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
411
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
# This field is a sequential value, and it is not associated with any entry.
Name This is the option’s name.
Code This is the option’s code number.
Type This is the option’s type.
Value This is the option’s value.
Enable IP/MAC
Binding
Select this option to have this interface enforce links between specific IP addresses and
specific MAC addresses. This stops anyone else from manually using a bound IP address on
another device connected to this interface. Use this to make use only the intended users
get to use specific IP addresses.
Enable Logs for
IP/MAC Binding
Violation
Select this option to have the Zyxel Device generate a log if a device connected to this
interface attempts to use an IP address that is bound to another device’s MAC address.
Static DHCP
Table
Configure a list of static IP addresses the Zyxel Device assigns to computers connected to
the interface. Otherwise, the Zyxel Device assigns an IP address dynamically using the
interface’s IP Pool Start Address and Pool Size.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This field is a sequential value, and it is not associated with a specific entry.
IP Address Enter the IP address to assign to a device with this entry’s MAC address.
MAC Address Enter the MAC address to which to assign this entry’s IP address.
Description Enter a description to help identify this static DHCP entry. You can use alphanumeric and
()+/:=?!*#@$_%- characters, and it can be up to 60 characters long.
Connectivity Check The interface can regularly check the connection to the gateway you specified to make
sure it is still available. You specify how often the interface checks the connection, how
long to wait for a response before the attempt is a failure, and how many consecutive
failures are required before the Zyxel Device stops routing to the gateway. The Zyxel Device
resumes routing to the gateway the first time the gateway passes the connectivity check.
Enable
Connectivity
Check
Select this to turn on the connection check.
Check Method Select the method that the gateway allows.
Select icmp to have the Zyxel Device regularly ping the gateway you specify to make sure
it is still available.
Select tcp to have the Zyxel Device regularly perform a TCP handshake with the gateway
you specify to make sure it is still available.
Check Period Enter the number of seconds between connection check attempts.
Check Timeout Enter the number of seconds to wait for a response before the attempt is a failure.
Check Fail
Tolerance
Enter the number of consecutive failures before the Zyxel Device stops routing through the
gateway.
Check Default
Gateway
Select this to use the default gateway for the connectivity check.
Check this
address
Select this to specify a domain name or IP address for the connectivity check. Enter that
domain name or IP address in the field next to it.
Check Port This field only displays when you set the Check Method to tcp. Specify the port number to
use for a TCP connectivity check.
Table 147 Configuration > Network > Interface > LAG > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
412
10.12 VTI
IPSec VPN Tunnel Interface (VTI) encrypts or decrypts IPv4 traffic from or to the interface according to
the IP routing table.
VTI allows static routes to send traffic over the VPN. The IPSec tunnel endpoint is associated with an
actual (virtual) interface. Therefore many interface capabilities such as Policy Route, Static Route, Trunk,
and BWM can be applied to the IPSec tunnel as soon as the tunnel is active
IPSec VTI simplifies network management and load balancing. Create a trunk using VPN tunnel
interfaces for load balancing. In the following example configure VPN tunnels with static IP addresses or
DNS on both Zyxel Devices (or IPSec routers at the end of the tunnel). Also configure VTI and a trunk on
both Zyxel Devices.
Figure 286 VTI and Trunk for VPN Load Balancing
10.12.1 Restrictions for IPSec Virtual Tunnel Interface
• IPv4 traffic only
• IPSec tunnel mode only. A shared keyword must not be configured when using tunnel mode.
• With a VTI VPN you do not add local or remote LANs to your VPN configuration.
• For a VTI VPN you should only have one local and one remote WAN.
• A dynamic peer is not supported
• The IPSec VTI is limited to IP unicast and multicast traffic only.
10.12.2 VTI Screen
To access this screen, click Configuration > Network > Interface > VTI.
Related Setting
Configure WAN
TRUNK
Click WAN TRUNK to go to a screen where you can configure the interface as part of a
WAN trunk for load balancing.
Configure Policy
Route
Click Policy Route to go to the screen where you can manually configure a policy route to
associate traffic with this bridge interface.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 147 Configuration > Network > Interface > LAG > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
413
Figure 287 Configuration > Network > Interface > VTI
The following table describes the fields in this screen.
10.12.3 VTI Add/Edit
This screen lets you configure IP address assignment and interface parameters for VTI.
Note: You should have created a VPN tunnel for a VPN Tunnel Interface scenario first.
To access this screen, click the Add or Edit icon in Network > Interface > VTI. The following screen
appears.
Table 148 Configuration > Network > Interface > VTI
LABEL DESCRIPTION
Configuration
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
References Select an entry and click References to open a screen that shows which settings use the
entry.
# This field is a sequential value, and it is not associated with any interface.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This field displays the name of the VTI interface.
IP Address This field displays the current IP address of the virtual interface and subnet mask in bits. If the
IP address is 0.0.0.0, the interface does not have an IP address yet.
vpn-rule This shows the name of the associated IPSec VPN rule with VPN Tunnel Interface application
scenario.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
414
Figure 288 Configuration > Network > Interface > VTI > Add
Each field is described in the table below.
Table 149 Configuration > Network > Interface > VTI > Add
LABEL DESCRIPTION
General Settings
Enable Select this to enable VTI. Clear this to disable it.
Interface Properties
Interface Name This field is read-only if you are editing an existing VPN tunnel interface. For a new VPN
tunnel interface, enter the name of the VPN tunnel interface in vtix format, where x is a
number from 0 to the maximum number of VPN connections allowed for this model. For
example, enter vti10.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
415
Zone Select a zone. Make sure that the zone you select does not have traffic blocked by a
security feature such as a security policy.
vpn-rule You should have created a VPN tunnel first for a VPN Tunnel Interface scenario. Select one
of the VPN Tunnel Interface scenario rules that you created.
IP Address
Assignment
IP Address Enter the IP address for this interface. Please note that the IP address cannot conflict with
any IP addresses that are already used.
Subnet Mask Enter the subnet mask of this interface in dot decimal notation. The subnet mask indicates
what part of the IP address is the same for all computers on the network. Please note that
the subnet mask cannot conflict with any subnet masks that are already used.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
Enable IGMP Support Select this to allow the Zyxel Device to act as an IGMP proxy for hosts connected on the
IGMP downstream interface.
IGMP Upstream Enable IGMP Upstream on the interface which connects to a router running IGMP that is
closer to the multicast server.
IGMP
Downstream
Enable IGMP Downstream on the interface which connects to the multicast hosts.
Interface Parameters
Egress Bandwidth Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can send
through the interface to the network. Allowed values are 0 - 1048576.
Ingress
Bandwidth
This is reserved for future use.
Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can receive
from the network through the interface. Allowed values are 0 - 1048576.
Connectivity Check These fields appear when you select a vpn-rule.
The interface can regularly check the connection to the gateway you specified to make
sure it is still available. You specify how often the interface checks the connection, how long
to wait for a response before the attempt is a failure, and how many consecutive failures
are required before the Zyxel Device stops routing to the gateway. The Zyxel Device
resumes routing to the gateway the first time the gateway passes the connectivity check.
Enable
Connectivity
Check
Select this to turn on the connection check.
Check Method Select the method that the gateway allows.
Select icmp to have the Zyxel Device regularly ping the gateway you specify to make sure
it is still available.
Select tcp to have the Zyxel Device regularly perform a TCP handshake with the gateway
you specify to make sure it is still available.
Check Period Enter the number of seconds between connection check attempts.
Check Timeout Enter the number of seconds to wait for a response before the attempt is a failure.
Check Fail
Tolerance
Enter the number of consecutive failures before the Zyxel Device stops routing through the
gateway.
Check this
address
Select this to specify a domain name or IP address for the connectivity check. Enter that
domain name or IP address in the field next to it.
Check Port This field only displays when you set the Check Method to tcp. Specify the port number to
use for a TCP connectivity check.
Table 149 Configuration > Network > Interface > VTI > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
416
RIP Setting See Section 11.6 on page 443 for more information about RIP.
Enable RIP Select this to enable RIP in this interface.
Direction This field is effective when RIP is enabled. Select the RIP direction from the drop-down list
box.
BiDir - This interface sends and receives routing information.
In-Only - This interface receives routing information.
Out-Only - This interface sends routing information.
Send Version This field is effective when RIP is enabled. Select the RIP version(s) used for sending RIP
packets. Choices are 1, 2, and 1 and 2.
Receive Version This field is effective when RIP is enabled. Select the RIP version(s) used for receiving RIP
packets. Choices are 1, 2, and 1 and 2.
V2-Broadcast This field is effective when RIP is enabled. Select this to send RIP-2 packets using subnet
broadcasting; otherwise, the Zyxel Device uses multicasting.
OSPF Setting See Section 11.7 on page 445 for more information about OSPF.
Area Select the area in which this interface belongs. Select None to disable OSPF in this interface.
Priority Enter the priority (between 0 and 255) of this interface when the area is looking for a
Designated Router (DR) or Backup Designated Router (BDR). The highest-priority interface
identifies the DR, and the second-highest-priority interface identifies the BDR. Set the priority
to zero if the interface can not be the DR or BDR.
Link Cost Enter the cost (between 1 and 65,535) to route packets through this interface.
Passive Interface Select this to stop forwarding OSPF routing information from the selected interface. As a
result, this interface only receives routing information.
Authentication Select an authentication method, or disable authentication. To exchange OSPF routing
information with peer border routers, you must use the same authentication method that
they use. Choices are:
Same-as-Area - use the default authentication method in the area
None - disable authentication
Text - authenticate OSPF routing information using a plain-text password
MD5 - authenticate OSPF routing information using MD5 encryption
Text
Authentication
Key
This field is available if the Authentication is Text. Enter the password for text authentication.
The key can consist of alphanumeric characters and the underscore, and it can be up to 16
characters long.
MD5
Authentication ID
This field is available if the Authentication is MD5. Enter the ID for MD5 authentication. The ID
can be between 1 and 255.
MD5
Authentication
Key
This field is available if the Authentication is MD5. Enter the password for MD5 authentication.
The password can consist of alphanumeric characters and the underscore, and it can be
up to 16 characters long.
Related Setting
Configure WAN
TRUNK
Click WAN TRUNK to go to a screen where you can configure the interface as part of a WAN
trunk for load balancing.
Configure Policy
Route
Click Policy Route to go to the screen where you can manually configure a policy route to
associate traffic with this bridge interface.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 149 Configuration > Network > Interface > VTI > Add (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
417
10.13 Trunk Overview
Use trunks for WAN traffic load balancing to increase overall network throughput and reliability. Load
balancing divides traffic loads between multiple interfaces. This allows you to improve quality of service
and maximize bandwidth utilization for multiple ISP links.
Maybe you have two Internet connections with different bandwidths. You could set up a trunk that uses
spillover or weighted round robin load balancing so time-sensitive traffic (like video) usually goes
through the higher-bandwidth interface. For other traffic, you might want to use least load first load
balancing to even out the distribution of the traffic load.
Suppose ISP A has better connections to Europe while ISP B has better connections to Australia. You
could use policy routes and trunks to have traffic for your European branch office primarily use ISP A and
traffic for your Australian branch office primarily use ISP B.
Or maybe one of the Zyxel Device's interfaces is connected to an ISP that is also your Voice over IP
(VoIP) service provider. You can use policy routing to send the VoIP traffic through a trunk with the
interface connected to the VoIP service provider set to active and another interface (connected to
another ISP) set to passive. This way VoIP traffic goes through the interface connected to the VoIP
service provider whenever the interface’s connection is up.
• Use the Trunk summary screen (Section 10.14 on page 420) to view the list of configured trunks and
which load balancing algorithm each trunk uses.
• Use the Add Trunk screen (Section 10.14.1 on page 421) to configure the member interfaces for a
trunk and the load balancing algorithm the trunk uses.
• Use the Add System Default screen (Section 10.14.2 on page 423) to configure the load balancing
algorithm for the system default trunk.
10.13.1 What You Need to Know
• Add WAN interfaces to trunks to have multiple connections share the traffic load.
• If one WAN interface’s connection goes down, the Zyxel Device sends traffic through another
member of the trunk.
• For example, you connect one WAN interface to one ISP and connect a second WAN interface to a
second ISP. The Zyxel Device balances the WAN traffic load between the connections. If one
interface's connection goes down, the Zyxel Device can automatically send its traffic through
another interface.
You can also use trunks with policy routing to send specific traffic types through the best WAN interface
for that type of traffic.
• If that interface’s connection goes down, the Zyxel Device can still send its traffic through another
interface.
• You can define multiple trunks for the same physical interfaces.
1 LAN user A logs into server B on the Internet. The Zyxel Device uses wan1 to send the request to server B.
2 The Zyxel Device is using active/active load balancing. So when LAN user A tries to access something on
the server, the request goes out through wan2.
3 The server finds that the request comes from wan2’s IP address instead of wan1’s IP address and rejects
the request.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
418
If link sticking had been configured, the Zyxel Device would have still used wan1 to send LAN user A’s
request to the server and server would have given the user A access.
Load Balancing Algorithms
The following sections describe the load balancing algorithms the Zyxel Device can use to decide which
interface the traffic (from the LAN) should use for a session. In the load balancing section, a session may
refer to normal connection-oriented, UDP or SNMP2 traffic
. The available bandwidth you configure on
the Zyxel Device refers to the actual bandwidth provided by the ISP and the measured bandwidth refers
to the bandwidth an interface is currently using.
Least Load First
The least load first algorithm uses the current (or recent) outbound bandwidth utilization of each trunk
member interface as the load balancing index(es) when making decisions about to which interface a
new session is to be distributed. The outbound bandwidth utilization is defined as the measured
outbound throughput over the available outbound bandwidth.
Here the Zyxel Device has two WAN interfaces connected to the Internet. The configured available
outbound bandwidths for WAN 1 and WAN 2 are 512K and 256K respectively.
Figure 289 Load Balancing Least Load First Example
The outbound bandwidth utilization is used as the load balancing index. In this example, the measured
(current) outbound throughput of WAN 1 is 412K and WAN 2 is 198K. The Zyxel Device calculates the
load balancing index as shown in the table below.
Since WAN 2 has a smaller load balancing index (meaning that it is less utilized than WAN 1), the Zyxel
Device will send the subsequent new session traffic through WAN 2.
Weighted Round Robin
Round Robin scheduling services queues on a rotating basis and is activated only when an interface has
more traffic than it can handle. A queue is given an amount of bandwidth irrespective of the incoming
traffic on that interface. This queue then moves to the back of the list. The next queue is given an equal
amount of bandwidth, and then moves to the end of the list; and so on, depending on the number of
queues being used. This works in a looping fashion until a queue is empty.
Table 150 Least Load First Example
INTERFACE
OUTBOUND
LOAD BALANCING INDEX
(M/A)
AVAILABLE (A) MEASURED (M)
WAN 1 512 K 412 K 0.8
WAN 2 256 K 198 K 0.77
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
419
The Weighted Round Robin (WRR) algorithm is best suited for situations when the bandwidths set for the
two WAN interfaces are different. Similar to the Round Robin (RR) algorithm, the Weighted Round Robin
(WRR) algorithm sets the Zyxel Device to send traffic through each WAN interface in turn. In addition, the
WAN interfaces are assigned weights. An interface with a larger weight gets more chances to transmit
traffic than an interface with a smaller weight.
For example, in the figure below, the configured available bandwidth of WAN1 is 1M and WAN2 is 512K.
You can set the Zyxel Device to distribute the network traffic between the two interfaces by setting the
weight of wan1 and wan2 to 2 and 1 respectively. The Zyxel Device assigns the traffic of two sessions to
wan1 and one session's traffic to wan2 in each round of 3 new sessions.
Figure 290 Weighted Robin Algorithm Example
Spillover
The spillover load balancing algorithm sends network traffic to the first interface in the trunk member list
until the interface’s maximum allowable load is reached, then sends the excess network traffic of new
sessions to the next interface in the trunk member list. This continues as long as there are more member
interfaces and traffic to be sent through them.
Suppose the first trunk member interface uses an unlimited access Internet connection and the second
is billed by usage. Spillover load balancing only uses the second interface when the traffic load exceeds
the threshold on the first interface. This fully utilizes the bandwidth of the first interface to reduce Internet
usage fees and avoid overloading the interface.
In this example figure, the upper threshold of the first interface is set to 800K. The Zyxel Device sends
network traffic of new sessions that exceed this limit to the secondary WAN interface.
Figure 291 Spillover Algorithm Example
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
420
10.14 The Trunk Summary Screen
Click Configuration > Network > Interface > Trunk to open the Trunk screen. The Trunk Summary screen
lists the configured trunks and the load balancing algorithm that each is configured to use.
Figure 292 Configuration > Network > Interface > Trunk
The following table describes the items in this screen.
Table 151 Configuration > Network > Interface > Trunk
LABEL DESCRIPTION
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
Configuration Configure what to do with existing passive mode interface connections when an
interface set to active mode in the same trunk comes back up.
Disconnect
Connections Before
Falling Back
Select this to terminate existing connections on an interface which is set to passive mode
when any interface set to active mode in the same trunk comes back up.
Enable Default SNAT Select this to have the Zyxel Device use the IP address of the outgoing interface as the
source IP address of the packets it sends out through its WAN trunks. The Zyxel Device
automatically adds SNAT settings for traffic it routes from internal interfaces to external
interfaces.
Default Trunk Selection Select whether the Zyxel Device is to use the default system WAN trunk or one of the user
configured WAN trunks as the default trunk for routing traffic from internal interfaces to
external interfaces.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
421
10.14.1 Configuring a User-Defined Trunk
Click Configuration > Network > Interface > Trunk, in the User Configuration table click the Add (or Edit)
icon to open the following screen. Use this screen to create or edit a WAN trunk entry.
Figure 293 Configuration > Network > Interface > Trunk > Add (or Edit)
User Configuration /
System Default
The Zyxel Device automatically adds all external interfaces into the pre-configured
system default SYSTEM_DEFAULT_WAN_TRUNK. You cannot delete it. You can create your
own User Configuration trunks and customize the algorithm, member interfaces and the
active/passive mode.
Add Click this to create a new user-configured trunk.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
Remove To remove a user-configured trunk, select it and click Remove. The Zyxel Device confirms
you want to remove it before doing so.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with any interface.
Name This field displays the label that you specified to identify the trunk.
Algorithm This field displays the load balancing method the trunk is set to use.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 151 Configuration > Network > Interface > Trunk (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
422
Each field is described in the table below.
Table 152 Configuration > Network > Interface > Trunk > Add (or Edit)
LABEL DESCRIPTION
Name This is read-only if you are editing an existing trunk. When adding a new trunk, enter a
descriptive name for this trunk. You may use 1-31 alphanumeric characters, underscores
(
_), or dashes (-), but the first character cannot be a number. This value is case-sensitive.
Load Balancing
Algorithm
Select a load balancing method to use from the drop-down list box.
Select Weighted Round Robin to balance the traffic load between interfaces based on
their respective weights. An interface with a larger weight gets more chances to transmit
traffic than an interface with a smaller weight. For example, if the weight ratio of wan1 and
wan2 interfaces is 2:1, the Zyxel Device chooses wan1 for 2 sessions’ traffic and wan2 for 1
session’s traffic in each round of 3 new sessions.
Select Least Load First to send new session traffic through the least utilized trunk member.
Select Spillover to send network traffic through the first interface in the group member list
until there is enough traffic that the second interface needs to be used (and so on).
Load Balancing
Index(es)
This field is available if you selected to use the Least Load First or Spillover method.
Select Outbound, Inbound, or Outbound + Inbound to set the traffic to which the Zyxel
Device applies the load balancing method. Outbound means the traffic traveling from an
internal interface (ex. LAN) to an external interface (ex. WAN). Inbound means the
opposite.
The table lists the trunk’s member interfaces. You can add, edit, remove, or move entries for
user configured trunks.
Add Click this to add a member interface to the trunk. Select an interface and click Add to add
a new member interface after the selected member interface.
Edit Select an entry and click Edit to modify the entry’s settings.
Remove To remove a member interface, select it and click Remove. The Zyxel Device confirms you
want to remove it before doing so.
Move To move an interface to a different number in the list, click the Move icon. In the field that
appears, specify the number to which you want to move the interface.
# This column displays the priorities of the group’s interfaces. The order of the interfaces in the
list is important since they are used in the order they are listed.
Member Click this table cell and select an interface to be a group member.
If you select an interface that is part of another Ethernet interface, the Zyxel Device does
not send traffic through the interface as part of the trunk. For example, if you have physical
port 5 in the ge2 representative interface, you must select interface ge2 in order to send
traffic through port 5 as part of the trunk. If you select interface ge5 as a member here, the
Zyxel Device will not send traffic through port 5 as part of the trunk.
Mode Click this table cell and select Active to have the Zyxel Device always attempt to use this
connection.
Select Passive to have the Zyxel Device only use this connection when all of the
connections set to active are down. You can only set one of a group’s interfaces to passive
mode.
Weight This field displays with the weighted round robin load balancing algorithm. Specify the
weight (1~10) for the interface. The weights of the different member interfaces form a ratio.
This ratio determines how much traffic the Zyxel Device assigns to each member interface.
The higher an interface’s weight is (relative to the weights of the interfaces), the more
sessions that interface should handle.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
423
10.14.2 Configuring the System Default Trunk
on the Configuration > Network > Interface > Trunk screen and the System Default section, select the
default trunk entry and click Edit to open the following screen. Use this screen to change the load
balancing algorithm and view the bandwidth allocations for each member interface.
Note: The available bandwidth is allocated to each member interface equally and is not
allowed to be changed for the default trunk.
Figure 294 Configuration > Network > Interface > Trunk > Edit (System Default)
Ingress Bandwidth This is reserved for future use.
This field displays with the least load first load balancing algorithm. It displays the maximum
number of kilobits of data the Zyxel Device is to allow to come in through the interface per
second.
Note: You can configure the bandwidth of an interface on the corresponding
interface edit screen.
Egress Bandwidth This field displays with the least load first or spillover load balancing algorithm. It displays the
maximum number of kilobits of data the Zyxel Device is to send out through the interface
per second.
Note: You can configure the bandwidth of an interface on the corresponding
interface edit screen.
Spillover This field displays with the spillover load balancing algorithm. Specify the maximum
bandwidth of traffic in kilobits per second (1~1048576) to send out through the interface
before using another interface. When this spillover bandwidth limit is exceeded, the Zyxel
Device sends new session traffic through the next interface. The traffic of existing sessions
still goes through the interface on which they started.
The Zyxel Device uses the group member interfaces in the order that they are listed.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 152 Configuration > Network > Interface > Trunk > Add (or Edit) (continued)
LABEL DESCRIPTION
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
424
Each field is described in the table below.
10.15 Example: WAN Trunk Failover
In this example, you have two WAN connections: one fiber which is always active, and one DSL which
becomes active only if the fiber WAN1 connection fails.
1 First arrange a connectivity check for WAN1 (fiber). Set up the ICMP connectivity check (ping) in
Configuration > Network > Interface > Ethernet > WAN1 > Edit.
Table 153 Configuration > Network > Interface > Trunk > Edit (System Default)
LABEL DESCRIPTION
Name This field displays the name of the selected system default trunk.
Load Balancing
Algorithm
Select the load balancing method to use for the trunk.
Select Weighted Round Robin to balance the traffic load between interfaces based on
their respective weights. An interface with a larger weight gets more chances to transmit
traffic than an interface with a smaller weight. For example, if the weight ratio of wan1
and wan2 interfaces is 2:1, the Zyxel Device chooses wan1 for 2 sessions’ traffic and wan2
for 1 session’s traffic in each round of 3 new sessions.
Select Least Load First to send new session traffic through the least utilized trunk member.
Select Spillover to send network traffic through the first interface in the group member list
until there is enough traffic that the second interface needs to be used (and so on).
The table lists the trunk’s member interfaces. This table is read-only.
# This column displays the priorities of the group’s interfaces. The order of the interfaces in
the list is important since they are used in the order they are listed.
Member This column displays the name of the member interfaces.
Mode This field displays Active if the Zyxel Device always attempt to use this connection.
This field displays Passive if the Zyxel Device only use this connection when all of the
connections set to active are down. Only one of a group’s interfaces can be set to
passive mode.
Weight This field displays with the weighted round robin load balancing algorithm. Specify the
weight (1~10) for the interface. The weights of the different member interfaces form a
ratio. s
Ingress Bandwidth This is reserved for future use.
This field displays with the least load first load balancing algorithm. It displays the
maximum number of kilobits of data the Zyxel Device is to allow to come in through the
interface per second.
Egress Bandwidth This field displays with the least load first or spillover load balancing algorithm. It displays
the maximum number of kilobits of data the Zyxel Device is to send out through the
interface per second.
Spillover This field displays with the spillover load balancing algorithm. Specify the maximum
bandwidth of traffic in kilobits per second (1~1048576) to send out through the interface
before using another interface. When this spillover bandwidth limit is exceeded, the Zyxel
Device sends new session traffic through the next interface. The traffic of existing sessions
still goes through the interface on which they started.
The Zyxel Device uses the group member interfaces in the order that they are listed.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
425
2 Then go to Configuration > Network > Interface > Trunk > User Configuration > Add to configure your
own trunk connection. Add the WAN ports with one as Passive, then select Spillover in Load Balancing
Algorithm, Outbound for the Load Balancing Index.
If WAN1 fails, then the Zyxel Device automatically uses the WAN2 connection and an alert report will be
sent to the administer. When WAN1 is available again, the Zyxel Device returns to using WAN1.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
426
.
10.16 Example: Trunk Tagged VLAN Traffic to a Switch
Configure VLAN on the Zyxel Device and the connected VLAN switch so as a computer can access
VLAN10 as shown in the following example:
Zyxel Device
• LAN1 192.168.1.1/24
• VLAN10, ge3/10,192.168.10.1/24
• VLAN20, ge3/20, 192.168.20.2/24
Switch
• port 1 Tx VLAN10, VLAN20 PVID1 -> connect this port to Zyxel Device interface ge3
• port 2 Ux VLAN10 -> connect this port to a computer
10.17 Interface Technical Reference
Here is more detailed information about interfaces on the Zyxel Device.
IP Address Assignment
Most interfaces have an IP address and a subnet mask. This information is used to create an entry in the
routing table.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
427
Figure 295 Example: Entry in the Routing Table Derived from Interfaces
For example, if the Zyxel Device gets a packet with a destination address of 100.100.25.25, it routes the
packet to interface lan1. If the Zyxel Device gets a packet with a destination address of 200.200.200.200,
it routes the packet to interface wan1.
In most interfaces, you can enter the IP address and subnet mask manually. In PPPoE/PPTP/L2TP
interfaces, however, the subnet mask is always 255.255.255.255 because it is a point-to-point interface.
For these interfaces, you can only enter the IP address.
In many interfaces, you can also let the IP address and subnet mask be assigned by an external DHCP
server on the network. In this case, the interface is a DHCP client. Virtual interfaces, however, cannot be
DHCP clients. You have to assign the IP address and subnet mask manually.
In general, the IP address and subnet mask of each interface should not overlap, though it is possible for
this to happen with DHCP clients.
In the example above, if the Zyxel Device gets a packet with a destination address of 5.5.5.5, it might
not find any entries in the routing table. In this case, the packet is dropped. However, if there is a default
router to which the Zyxel Device should send this packet, you can specify it as a gateway in one of the
interfaces. For example, if there is a default router at 200.200.200.100, you can create a gateway at
200.200.200.100 on ge2. In this case, the Zyxel Device creates the following entry in the routing table.
The gateway is an optional setting for each interface. If there is more than one gateway, the Zyxel
Device uses the gateway with the lowest metric, or cost. If two or more gateways have the same metric,
the Zyxel Device uses the one that was set up first (the first entry in the routing table). In PPPoE/PPTP/L2TP
interfaces, the other computer is the gateway for the interface by default. In this case, you should
specify the metric.
If the interface gets its IP address and subnet mask from a DHCP server, the DHCP server also specifies
the gateway, if any.
Interface Parameters
The Zyxel Device restricts the amount of traffic into and out of the Zyxel Device through each interface.
Table 154 Example: Routing Table Entries for Interfaces
IP ADDRESS(ES) DESTINATION
100.100.1.1/16 lan1
200.200.200.1/24 wan1
Table 155 Example: Routing Table Entry for a Gateway
IP ADDRESS(ES) DESTINATION
0.0.0.0/0 200.200.200.100
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
428
• Egress bandwidth sets the amount of traffic the Zyxel Device sends out through the interface to the
network.
• Ingress bandwidth sets the amount of traffic the Zyxel Device allows in through the interface from the
network.At the time of writing, the Zyxel Device does not support ingress bandwidth management.
If you set the bandwidth restrictions very high, you effectively remove the restrictions.
The Zyxel Device also restricts the size of each data packet. The maximum number of bytes in each
packet is called the maximum transmission unit (MTU). If a packet is larger than the MTU, the Zyxel
Device divides it into smaller fragments. Each fragment is sent separately, and the original packet is re-
assembled later. The smaller the MTU, the more fragments sent, and the more work required to re-
assemble packets correctly. On the other hand, some communication channels, such as Ethernet over
ATM, might not be able to handle large data packets.
DHCP Settings
Dynamic Host Configuration Protocol (DHCP, RFC 2131, RFC 2132) provides a way to automatically set
up and maintain IP addresses, subnet masks, gateways, and some network information (such as the IP
addresses of DNS servers) on computers on the network. This reduces the amount of manual
configuration you have to do and usually uses available IP addresses more efficiently.
In DHCP, every network has at least one DHCP server. When a computer (a DHCP client) joins the
network, it submits a DHCP request. The DHCP servers get the request; assign an IP address; and provide
the IP address, subnet mask, gateway, and available network information to the DHCP client. When the
DHCP client leaves the network, the DHCP servers can assign its IP address to another DHCP client.
In the Zyxel Device, some interfaces can provide DHCP services to the network. In this case, the
interface can be a DHCP relay or a DHCP server.
As a DHCP relay, the interface routes DHCP requests to DHCP servers on different networks. You can
specify more than one DHCP server. If you do, the interface routes DHCP requests to all of them. It is
possible for an interface to be a DHCP relay and a DHCP client simultaneously.
As a DHCP server, the interface provides the following information to DHCP clients.
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
429
• IP address - If the DHCP client’s MAC address is in the Zyxel Device’s static DHCP table, the interface
assigns the corresponding IP address. If not, the interface assigns IP addresses from a pool, defined by
the starting address of the pool and the pool size.
The Zyxel Device cannot assign the first address (network address) or the last address (broadcast
address) on the subnet defined by the interface’s IP address and subnet mask. For example, in the first
entry, if the subnet mask is 255.255.255.0, the Zyxel Device cannot assign 50.50.50.0 or 50.50.50.255. If
the subnet mask is 255.255.0.0, the Zyxel Device cannot assign 50.50.0.0 or 50.50.255.255. Otherwise, it
can assign every IP address in the range, except the interface’s IP address.
If you do not specify the starting address or the pool size, the interface the maximum range of IP
addresses allowed by the interface’s IP address and subnet mask. For example, if the interface’s IP
address is 9.9.9.1 and subnet mask is 255.255.255.0, the starting IP address in the pool is 9.9.9.2, and the
pool size is 253.
• Subnet mask - The interface provides the same subnet mask you specify for the interface. See IP
Address Assignment on page 426.
• Gateway - The interface provides the same gateway you specify for the interface. See IP Address
Assignment on page 426.
• DNS servers - The interface provides IP addresses for up to three DNS servers that provide DNS services
for DHCP clients. You can specify each IP address manually (for example, a company’s own DNS
server), or you can refer to DNS servers that other interfaces received from DHCP servers (for example,
a DNS server at an ISP). These other interfaces have to be DHCP clients.
It is not possible for an interface to be the DHCP server and a DHCP client simultaneously.
WINS
WINS (Windows Internet Naming Service) is a Windows implementation of NetBIOS Name Server (NBNS)
on Windows. It keeps track of NetBIOS computer names. It stores a mapping table of your network’s
computer names and IP addresses. The table is dynamically updated for IP addresses assigned by
DHCP. This helps reduce broadcast traffic since computers can query the server instead of
broadcasting a request for a computer name’s IP address. In this way WINS is similar to DNS, although
WINS does not use a hierarchy (unlike DNS). A network can have more than one WINS server. Samba
can also serve as a WINS server.
PPPoE/PPTP/L2TP Overview
Point-to-Point Protocol over Ethernet (PPPoE, RFC 2516) and Point-to-Point Tunneling Protocol (PPTP, RFC
2637) are usually used to connect two computers over phone lines or broadband connections. PPPoE is
often used with cable modems and DSL connections. It provides the following advantages:
• The access and authentication method works with existing systems, including RADIUS.
• You can access one of several network services. This makes it easier for the service provider to offer
the service
• PPPoE does not usually require any special configuration of the modem.
Table 156 Example: Assigning IP Addresses from a Pool
START IP ADDRESS POOL SIZE RANGE OF ASSIGNED IP ADDRESS
50.50.50.33 5 50.50.50.33 - 50.50.50.37
75.75.75.1 200 75.75.75.1 - 75.75.75.200
99.99.1.1 1023 99.99.1.1 - 99.99.4.255
120.120.120.100 100 120.120.120.100 - 120.120.120.199
background
Chapter 10 Interfaces
USG FLEX Series User’s Guide
430
PPTP is used to set up virtual private networks (VPN) in unsecured TCP/IP environments. It sets up two
sessions.
1 The first one runs on TCP port 1723. It is used to start and manage the second one.
2 The second one uses Generic Routing Encapsulation (GRE, RFC 2890) to transfer information between
the computers.
PPTP is convenient and easy-to-use, but you have to make sure that firewalls support both PPTP sessions.
Layer 2 Tunneling Protocol (L2TP) was taken from PPTP of Microsoft and Cisco’s L2F (Layer 2 Forwarding
technology), so LT2P combines PPTP’s control and runs over a faster transport protocol, UDP, although it
may be a bit more complicated to set up.
It supports up to 256 bit session keys using the IPSec protocol. When security is a priority, L2TP is a good
option as it requires certificates unlike PPTP.
It uses the following ports: UDP 500, Protocol 50, UDP 1701 and UDP 4500.
background
USG FLEX Series User’s Guide
431
CHAPTER 11
Routing
11.1 Policy and Static Routes Overview
Use policy routes and static routes to override the Zyxel Device’s default routing behavior in order to
send packets through the appropriate interface or VPN tunnel.
For example, the next figure shows a computer (A) connected to the Zyxel Device’s LAN interface. The
Zyxel Device routes most traffic from A to the Internet through the Zyxel Device’s default gateway (R1).
You create one policy route to connect to services offered by your ISP behind router R2. You create
another policy route to communicate with a separate network behind another router (R3) connected
to the LAN.
Figure 296 Example of Policy Routing Topology
Note: You can generally just use policy routes. You only need to use static routes if you have a
large network with multiple routers where you use RIP or OSPF to propagate routing
information to other routers.
11.1.1 What You Can Do in this Chapter
• Use the Policy Route screens (see Section 11.2 on page 433) to list and configure policy routes.
• Use the Static Route screens (see Section 11.3 on page 440) to list and configure static routes.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
432
11.1.2 What You Need to Know
Policy Routing
Traditionally, routing is based on the destination address only and the Zyxel Device takes the shortest
path to forward a packet. IP Policy Routing (IPPR) provides a mechanism to override the default routing
behavior and alter the packet forwarding based on the policy defined by the network administrator.
Policy-based routing is applied to incoming packets on a per interface basis, prior to the normal routing.
How You Can Use Policy Routing
• Source-Based Routing – Network administrators can use policy-based routing to direct traffic from
different users through different connections.
• Bandwidth Shaping – You can allocate bandwidth to traffic that matches routing policies and
prioritize traffic (however the application patrol’s bandwidth management is more flexible and
recommended for TCP and UDP traffic). You can also use policy routes to manage other types of
traffic (like ICMP traffic) and send traffic through VPN tunnels.
Note: Bandwidth management in policy routes has priority over application patrol bandwidth
management.
• Cost Savings – IPPR allows organizations to distribute interactive traffic on high-bandwidth, high-cost
paths while using low-cost paths for batch traffic.
• Load Sharing – Network administrators can use IPPR to distribute traffic among multiple paths.
• NAT - The Zyxel Device performs NAT by default for traffic going to or from the WAN interfaces. A
routing policy’s SNAT allows network administrators to have traffic received on a specified interface
use a specified IP address as the source IP address.
Note: The Zyxel Device automatically uses SNAT for traffic it routes from internal interfaces to
external interfaces. For example LAN to WAN traffic.
Static Routes
The Zyxel Device usually uses the default gateway to route outbound traffic from computers on the LAN
to the Internet. To have the Zyxel Device send data to devices not reachable through the default
gateway, use static routes. Configure static routes if you need to use RIP or OSPF to propagate the
routing information to other routers. See
Chapter 11 on page 442 for more on RIP and OSPF.
Policy Routes Versus Static Routes
• Policy routes are more flexible than static routes. You can select more criteria for the traffic to match
and can also use schedules, NAT, and bandwidth management.
• Policy routes are only used within the Zyxel Device itself. Static routes can be propagated to other
routers using RIP or OSPF.
• Policy routes take priority over static routes. If you need to use a routing policy on the Zyxel Device
and propagate it to other routers, you could configure a policy route and an equivalent static route.
DiffServ
QoS is used to prioritize source-to-destination traffic flows. All packets in the same flow are given the
same priority. CoS (class of service) is a way of managing traffic in a network by grouping similar types of
background
Chapter 11 Routing
USG FLEX Series User’s Guide
433
traffic together and treating each type as a class. You can use CoS to give different priorities to different
packet types.
DiffServ (Differentiated Services) is a class of service (CoS) model that marks packets so that they
receive specific per-hop treatment at DiffServ-compliant network devices along the route based on the
application types and traffic flow. Packets are marked with DiffServ Code Points (DSCPs) indicating the
level of service desired. This allows the intermediary DiffServ-compliant network devices to handle the
packets differently depending on the code points without the need to negotiate paths or remember
state information for every flow. In addition, applications do not have to request a particular service or
give advanced notice of where the traffic is going.
DSCP Marking and Per-Hop Behavior
DiffServ defines a new DS (Differentiated Services) field to replace the Type of Service (TOS) field in the IP
header. The DS field contains a 2-bit unused field and a 6-bit DSCP field which can define up to 64
service levels. The following figure illustrates the DS field.
DSCP is backward compatible with the three precedence bits in the ToS octet so that non-DiffServ
compliant, ToS-enabled network device will not conflict with the DSCP mapping.
The DSCP value determines the forwarding behavior, the PHB (Per-Hop Behavior), that each packet
gets across the DiffServ network. Based on the marking rule, different kinds of traffic can be marked for
different kinds of forwarding. Resources can then be allocated according to the DSCP values and the
configured policies.
11.2 Policy Route Screen
Click Configuration > Network > Routing to open the Policy Route screen. Use this screen to see the
configured policy routes and turn policy routing based bandwidth management on or off.
A policy route defines the matching criteria and the action to take when a packet meets the criteria.
The action is taken only when all the criteria are met. The criteria can include the user name, source
address and incoming interface, destination address, schedule, IP protocol (ICMP, UDP, TCP, etc.) and
port.
The actions that can be taken include:
• Routing the packet to a different gateway, outgoing interface, VPN tunnel, or trunk.
• Limiting the amount of bandwidth available and setting a priority for traffic.
IPPR follows the existing packet filtering facility of RAS in style and in implementation.
If you enabled IPv6 in the Configuration > System > IPv6 screen, you can also configure policy routes
used for your IPv6 networks on this screen.
Click on the icons to go to the OneSecurity website where there is guidance on configuration
walkthroughs, troubleshooting, and other information.
DSCP (6 bits) Unused (2 bits)
background
Chapter 11 Routing
USG FLEX Series User’s Guide
434
Figure 297 Configuration > Network > Routing > Policy Route
The following table describes the labels in this screen.
Table 157 Configuration > Network > Routing > Policy Route
LABEL DESCRIPTION
Show Filter / Hide Filter Click this button to display a greater or lesser number of configuration fields.
IPv4 Configuration /
IPv6 Configuration
Use the IPv4 Configuration section for IPv4 network settings. Use the IPv6 Configuration
section for IPv6 network settings if you connect your Zyxel Device to an IPv6 network. Both
sections have similar fields as described below.
Use IPv4/IPv6 Policy
Route to Override
Direct Route
Select this to have the Zyxel Device forward packets that match a policy route according
to the policy route instead of sending the packets directly to a connected network.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after
the selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Move To change a rule’s position in the numbered list, select the rule and click Move to display
a field to type a number for where you want to put that rule and press [ENTER] to move
the rule to the number that you typed.
The ordering of your rules is important as they are applied in order of their numbering.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
435
11.2.1 Policy Route Edit Screen
Click Configuration > Network > Routing to open the Policy Route screen. Then click the Add or Edit icon
in the IPv4 Configuration or IPv6 Configuration section. The Add Policy Route or Policy Route Edit screen
opens. Use this screen to configure or edit a policy route. Both IPv4 and IPv6 policy route have similar
settings except the Address Translation (SNAT) settings.
# This is the number of an individual policy route.
Status This icon is lit when the entry is active, red when the next hop’s connection is down, and
dimmed when the entry is inactive.
User This is the name of the user (group) object from which the packets are sent. any means all
users.
Schedule This is the name of the schedule object. none means the route is active at all times if
enabled.
Incoming This is the interface on which the packets are received.
Source This is the name of the source IP address (group) object, including geographic address
and FQDN (group) objects. any means all IP addresses.
Destination This is the name of the destination IP address (group) object, including geographic and
FQDN (group) address objects. any means all IP addresses.
DSCP Code This is the DSCP value of incoming packets to which this policy route applies.
any means all DSCP values or no DSCP marker.
default means traffic with a DSCP value of 0. This is usually best effort traffic.
The “af” entries stand for Assured Forwarding. The number following the “af” identifies one
of four classes and one of three drop preferences. See
Assured Forwarding (AF) PHB for
DiffServ for more details.
Service This is the name of the service object. any means all services.
Source Port This is the name of a service object. The Zyxel Device applies the policy route to the
packets sent from the corresponding service port. any means all service ports.
Next-Hop This is the next hop to which packets are directed. It helps forward packets to their
destinations and can be a router, VPN tunnel, outgoing interface or trunk.
DSCP Marking This is how the Zyxel Device handles the DSCP value of the outgoing packets that match
this route. If this field displays a DSCP value, the Zyxel Device applies that DSCP value to
the route’s outgoing packets.
preserve means the Zyxel Device does not modify the DSCP value of the route’s outgoing
packets.
default means the Zyxel Device sets the DSCP value of the route’s outgoing packets to 0.
The “af” choices stand for Assured Forwarding. The number following the “af” identifies
one of four classes and one of three drop preferences. See
Assured Forwarding (AF) PHB
for DiffServ for more details.
SNAT This is the source IP address that the route uses.
It displays none if the Zyxel Device does not perform NAT for this route.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 157 Configuration > Network > Routing > Policy Route (continued)
LABEL DESCRIPTION
background
Chapter 11 Routing
USG FLEX Series User’s Guide
436
Figure 298 Configuration > Network > Routing > Policy Route > Add/Edit (IPv4 Configuration)
background
Chapter 11 Routing
USG FLEX Series User’s Guide
437
Figure 299 Configuration > Network > Routing > Policy Route > Add/Edit (IPv6 Configuration)
The following table describes the labels in this screen.
Table 158 Configuration > Network > Routing > Policy Route > Add/Edit
LABEL DESCRIPTION
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
Create new Object Use this to configure any new settings objects that you need to use in this screen.
Configuration
Enable Select this to activate the policy.
Description Enter a descriptive name consists of 1 to 60 single-byte characters, including a-zA-Z0-
9!”#$%’()*+,-/;:=?@_&[.]<>\^‘{|} are not allowed.
Criteria
User Select a user name or user group from which the packets are sent.
Incoming Select where the packets are coming from; any, an interface, a tunnel, an SSL VPN, or the
Zyxel Device itself. For an interface, a tunnel, or an SSL VPN, you also need to select the
individual interface, VPN tunnel, or SSL VPN connection.
Source Address Select a source IP address object, including geographic address and FQDN (group)
objects, from which the packets are sent.
Destination Address Select a destination IP address object, including geographic address and FQDN (group)
objects, to which the traffic is being sent. If the next hop is a dynamic VPN tunnel and you
enable Auto Destination Address, the Zyxel Device uses the local network of the peer
router that initiated an incoming dynamic IPSec tunnel as the destination address of the
policy instead of your configuration here.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
438
DSCP Code Select a DSCP code point value of incoming packets to which this policy route applies or
select User Define to specify another DSCP code point. The lower the number the higher
the priority with the exception of 0 which is usually given only best-effort treatment.
any means all DSCP value or no DSCP marker.
default means traffic with a DSCP value of 0. This is usually best effort traffic
The “af” choices stand for Assured Forwarding. The number following the “af” identifies one
of four classes and one of three drop preferences. See
Assured Forwarding (AF) PHB for
DiffServ for more details.
User-Defined
DSCP Code
Use this field to specify a custom DSCP code point when you select User Define in the
previous field.
Schedule Select a schedule to control when the policy route is active. none means the route is active
at all times if enabled.
Service Select a service or service group to identify the type of traffic to which this policy route
applies.
Source Port Select a service or service group to identify the source port of packets to which the policy
route applies.
Next-Hop
Type Select Auto to have the Zyxel Device use the routing table to find a next-hop and forward
the matched packets automatically.
Select Gateway to route the matched packets to the next-hop router or switch you
specified in the Gateway field. You have to set up the next-hop router or switch as a HOST
address object first.
Select VPN Tunnel to route the matched packets through the specified VPN tunnel.
Select Trunk to route the matched packets through the interfaces in the trunk group based
on the load balancing algorithm.
Select Interface to route the matched packets through the specified outgoing interface to
a gateway (which is connected to the interface).
Gateway This field displays when you select Gateway in the Type field. Select a HOST address object.
The gateway is an immediate neighbor of your Zyxel Device that will forward the packet to
the destination. The gateway must be a router or switch on the same segment as your Zyxel
Device's interface(s).
VPN Tunnel This field displays when you select VPN Tunnel in the Type field. Select a VPN tunnel through
which the packets are sent to the remote network that is connected to the Zyxel Device
directly.
Auto Destination
Address
This field displays when you select VPN Tunnel in the Type field. Select this to have the Zyxel
Device use the local network of the peer router that initiated an incoming dynamic IPSec
tunnel as the destination address of the policy.
Leave this cleared if you want to manually specify the destination address.
Trunk This field displays when you select Trunk in the Type field. Select a trunk group to have the
Zyxel Device send the packets through the interfaces in the group.
Interface This field displays when you select Interface in the Type field. Select an interface to have
the Zyxel Device send traffic that matches the policy route through the specified interface.
Table 158 Configuration > Network > Routing > Policy Route > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 11 Routing
USG FLEX Series User’s Guide
439
DSCP Marking Set how the Zyxel Device handles the DSCP value of the outgoing packets that match this
route.
Select one of the pre-defined DSCP values to apply or select User Define to specify another
DSCP value. The “af” choices stand for Assured Forwarding. The number following the “af”
identifies one of four classes and one of three drop preferences. See
Assured Forwarding
(AF) PHB for DiffServ for more details.
Select preserve to have the Zyxel Device keep the packets’ original DSCP value.
Select default to have the Zyxel Device set the DSCP value of the packets to 0.
User-Defined
DSCP Marking
Use this field to specify a custom DSCP value.
Address Translation Use this section to configure NAT for the policy route. This section does not apply to policy
routes that use a VPN tunnel as the next hop.
Source Network
Address Translation
Select none to not use NAT for the route.
Select outgoing-interface to use the IP address of the outgoing interface as the source IP
address of the packets that matches this route.
To use SNAT for a virtual interface that is in the same WAN trunk as the physical interface to
which the virtual interface is bound, the virtual interface and physical interface must be in
different subnets.
Otherwise, select a pre-defined address (group) to use as the source IP address(es) of the
packets that match this route.
Use Create new Object if you need to configure a new address (group) to use as the
source IP address(es) of the packets that match this route.
Healthy Check Use this part of the screen to configure a route connectivity check and disable the policy if
the interface is down.
Disable policy route
automatically while
Interface link down
Select this to disable the policy if the interface is down or disabled. This is available for
Interface and Trunk in the Type field above.
Enable Connectivity
Check
Select this to turn on the connection check. This is available for Interface and Gateway in
the Type field above.
Check Method: Select the method that the gateway allows.
Select icmp to have the Zyxel Device regularly ping the gateway you specify to make sure
it is still available.
Select tcp to have the Zyxel Device regularly perform a TCP handshake with the gateway
you specify to make sure it is still available.
Check Period: Enter the number of seconds between connection check attempts (5-600 seconds).
Check Timeout: Enter the number of seconds to wait for a response before the attempt is a failure (1-10
seconds).
Check Fail Tolerance: Enter the number of consecutive failures before the Zyxel Device stops routing using this
policy (1-10).
Check Port: This field only displays when you set the Check Method to tcp. Specify the port number to
use for a TCP connectivity check (1-65535).
Check this address: Select this to specify a domain name or IP address for the connectivity check. Enter that
domain name or IP address in the field next to it.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 158 Configuration > Network > Routing > Policy Route > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 11 Routing
USG FLEX Series User’s Guide
440
11.3 IP Static Route Screen
Click Configuration > Network > Routing > Static Route to open the Static Route screen. This screen
displays the configured static routes. Configure static routes to be able to use RIP or OSPF to propagate
the routing information to other routers. If you enabled IPv6 in the Configuration > System > IPv6 screen,
you can also configure static routes used for your IPv6 networks on this screen.
Figure 300 Configuration > Network > Routing > Static Route
The following table describes the labels in this screen.
11.3.1 Static Route Add/Edit Screen
Select a static route index number and click Add or Edit. The screen shown next appears. Use this screen
to configure the required information for a static route.
Table 159 Configuration > Network > Routing > Static Route
LABEL DESCRIPTION
IPv4 Configuration /
IPv6 Configuration
Use the IPv4 Configuration section for IPv4 network settings. Use the IPv6 Configuration
section for IPv6 network settings if you connect your Zyxel Device to an IPv6 network. Both
sections have similar fields as described below.
Add Click this to create a new static route.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
# This is the number of an individual static route.
Destination This is the destination IP address.
Subnet Mask This is the IP subnet mask.
Prefix This is the IPv6 prefix for the destination IP address.
Next-Hop This is the IP address of the next-hop gateway or the interface through which the traffic is
routed. The gateway is a router or switch on the same segment as your Zyxel Device's
interface(s). The gateway helps forward packets to their destinations.
Metric This is the route’s priority among the Zyxel Device’s routes. The smaller the number, the
higher priority the route has.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
441
Figure 301 Configuration > Network > Routing > Static Route > Add (IPv4 Configuration)
Figure 302 Configuration > Network > Routing > Static Route > Add (IPv6 Configuration)
The following table describes the labels in this screen.
Table 160 Configuration > Network > Routing > Static Route > Add
LABEL DESCRIPTION
Destination IP This parameter specifies the IP network address of the final destination. Routing is always
based on network number.
If you need to specify a route to a single host, enter the specific IP address here and use a
subnet mask of 255.255.255.255 (for IPv4) in the Subnet Mask field or a prefix of 128 (for IPv6) in
the Prefix Length field to force the network number to be identical to the host ID.
For IPv6, if you want to send all traffic to the gateway or interface specified in the Gateway IP
or Interface field, enter :: in this field and 0 in the Prefix Length field.
Subnet Mask Enter the IP subnet mask here.
Prefix Length Enter the number of left-most digits in the destination IP address, which indicates the network
prefix. Enter :: in the Destination IP field and 0 in this field if you want to send all traffic to the
gateway or interface specified in the Gateway IP or Interface field.
Gateway IP Select the radio button and enter the IP address of the next-hop gateway. The gateway is a
router or switch on the same segment as your Zyxel Device's interface(s). The gateway helps
forward packets to their destinations.
Interface Select the radio button and a predefined interface through which the traffic is sent.
Metric Metric represents the “cost” of transmission for routing purposes. IP routing uses hop count as
the measurement of cost, with a minimum of 1 for directly connected networks. Enter a
number that approximates the cost for this link. The number need not be precise, but it must
be 0~127. In practice, 2 or 3 is usually a good number.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
442
11.4 Policy Routing Technical Reference
Here is more detailed information about some of the features you can configure in policy routing.
NAT and SNAT
NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address in a packet in one
network to a different IP address in another network. Use SNAT (Source NAT) to change the source IP
address in one network to a different IP address in another network.
Assured Forwarding (AF) PHB for DiffServ
Assured Forwarding (AF) behavior is defined in RFC 2597. The AF behavior group defines four AF classes.
Inside each class, packets are given a high, medium or low drop precedence. The drop precedence
determines the probability that routers on the network will drop packets when congestion occurs. If
congestion occurs between classes, the traffic in the higher class (smaller numbered class) is generally
given priority. Combining the classes and drop precedence produces the following twelve DSCP
encodings from AF11 through AF43. The decimal equivalent is listed in brackets.
Maximize Bandwidth Usage
The maximize bandwidth usage option allows the Zyxel Device to divide up any available bandwidth on
the interface (including unallocated bandwidth and any allocated bandwidth that a policy route is not
using) among the policy routes that require more bandwidth.
When you enable maximize bandwidth usage, the Zyxel Device first makes sure that each policy route
gets up to its bandwidth allotment. Next, the Zyxel Device divides up an interface’s available bandwidth
(bandwidth that is unbudgeted or unused by the policy routes) depending on how many policy routes
require more bandwidth and on their priority levels. When only one policy route requires more
bandwidth, the Zyxel Device gives the extra bandwidth to that policy route.
When multiple policy routes require more bandwidth, the Zyxel Device gives the highest priority policy
routes the available bandwidth first (as much as they require, if there is enough available bandwidth),
and then to lower priority policy routes if there is still bandwidth available. The Zyxel Device distributes
the available bandwidth equally among policy routes with the same priority level.
11.5 Routing Protocols Overview
Routing protocols give the Zyxel Device routing information about the network from other routers. The
Zyxel Device stores this routing information in the routing table it uses to make routing decisions. In turn,
the Zyxel Device can also use routing protocols to propagate routing information to other routers.
Table 161 Assured Forwarding (AF) Behavior Group
CLASS 1 CLASS 2 CLASS 3 CLASS 4
Low Drop Precedence AF11 (10) AF21 (18) AF31 (26) AF41 (34)
Medium Drop Precedence AF12 (12) AF22 (20) AF32 (28) AF42 (36)
High Drop Precedence AF13 (14) AF23 (22) AF33 (30) AF43 (38)
background
Chapter 11 Routing
USG FLEX Series User’s Guide
443
Routing protocols are usually only used in networks using multiple routers like campuses or large
enterprises.
• Use the RIP screen (see Section 11.6 on page 443) to configure the Zyxel Device to use RIP to receive
and/or send routing information.
• Use the OSPF screen (see Section 11.7 on page 445) to configure general OSPF settings and manage
OSPF areas.
• Use the OSPF Area Add/Edit screen (see Section 11.7.2 on page 449) to create or edit an OSPF area.
• Use the BGP screen (see Section 11.8 on page 452) to configure eBGP (exterior Border Gate Protocol).
11.5.1 What You Need to Know
The Zyxel Device supports two standards, RIP and OSPF, for routing protocols. RIP and OSPF are
compared here and discussed further in the rest of the chapter.
11.6 The RIP Screen
RIP (Routing Information Protocol, RFC 1058 and RFC 1389) allows a device to exchange routing
information with other routers. RIP is a vector-space routing protocol, and, like most such protocols, it
uses hop count to decide which route is the shortest. Unfortunately, it also broadcasts its routes
asynchronously to the network and converges slowly. Therefore, RIP is more suitable for small networks
(up to 15 routers).
• In the Zyxel Device, you can configure two sets of RIP settings before you can use it in an interface.
•First, the Authentication field specifies how to verify that the routing information that is received is the
same routing information that is sent.
• Second, the Zyxel Device can also redistribute routing information from non-RIP networks, specifically
OSPF networks and static routes, to the RIP network. Costs might be calculated differently, however,
so you use the Metric field to specify the cost in RIP terms.
• RIP uses UDP port 520.
Use the RIP screen to specify the authentication method and maintain the policies for redistribution.
Click Configuration > Network > Routing > RIP to open the following screen.
Table 162 RIP vs. OSPF
RIP OSPF
Network Size Small (with up to 15 routers) Large
Metric Hop count Bandwidth, hop count, throughput, round trip time and
reliability.
Convergence Slow Fast
background
Chapter 11 Routing
USG FLEX Series User’s Guide
444
Figure 303 Configuration > Network > Routing > RIP
The following table describes the labels in this screen.
Table 163 Configuration > Network > Routing Protocol > RIP
LABEL DESCRIPTION
Authentication The transmitting and receiving routers must have the same key.
For RIP, authentication is not available in RIP version 1. In RIP version 2, you can only
select one authentication type for all interfaces.
Authentication Select the authentication method used in the RIP network. This authentication protects
the integrity, but not the confidentiality, of routing updates.
• None uses no authentication.
• Text uses a plain text password that is sent over the network (not very secure).
• MD5 uses an MD5 password and authentication ID (most secure).
Text Authentication
Key
This field is available if the Authentication is Text. Type the password for text
authentication. The key can consist of alphanumeric characters and the underscore,
and it can be up to 16 characters long.
MD5
Authentication ID
This field is available if the Authentication is MD5. Type the ID for MD5 authentication. The
ID can be between 1 and 255.
MD5
Authentication Key
This field is available if the Authentication is MD5. Type the password for MD5
authentication. The password can consist of alphanumeric characters and the
underscore, and it can be up to 16 characters long.
Redistribute
Active OSPF Select this to use RIP to advertise routes that were learned through OSPF.
Metric Type the cost for routes provided by OSPF. The metric represents the “cost” of
transmission for routing purposes. RIP routing uses hop count as the measurement of cost,
with 1 usually used for directly connected networks. The number does not have to be
precise, but it must be between 0 and 16. In practice, 2 or 3 is usually used.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
445
11.7 The OSPF Screen
OSPF (Open Shortest Path First, RFC 2328) is a link-state protocol designed to distribute routing
information within a group of networks, called an Autonomous System (AS). OSPF offers some
advantages over vector-space routing protocols like RIP.
• OSPF supports variable-length subnet masks, which can be set up to use available IP addresses more
efficiently.
• OSPF filters and summarizes routing information, which reduces the size of routing tables throughout
the network.
• OSPF responds to changes on the network, such as the loss of a router, more quickly.
• OSPF considers several factors, including bandwidth, hop count, throughput, round trip time, and
reliability, when it calculates the shortest path.
• OSPF converges more quickly than RIP.
Naturally, OSPF is also more complicated than RIP, so OSPF is usually more suitable for large networks.
OSPF uses IP protocol 89.
OSPF Areas
An OSPF Autonomous System (AS) is divided into one or more areas. Each area represents a group of
adjacent networks and is identified by a 32-bit ID. In OSPF, this number may be expressed as an integer
or as an IP address.
There are several types of areas.
• The backbone is the transit area that routes packets between other areas. All other areas are
connected to the backbone.
• A normal area is a group of adjacent networks. A normal area has routing information about the
OSPF AS, any networks outside the OSPF AS to which it is directly connected, and any networks
outside the OSPF AS that provide routing information to any area in the OSPF AS.
• A stub area has routing information about the OSPF AS. It does not have any routing information
about any networks outside the OSPF AS, including networks to which it is directly connected. It relies
on a default route to send information outside the OSPF AS.
• A Not So Stubby Area (NSSA, RFC 1587) has routing information about the OSPF AS and networks
outside the OSPF AS to which the NSSA is directly connected. It does not have any routing information
about other networks outside the OSPF AS.
Each type of area is illustrated in the following figure.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
446
Figure 304 OSPF: Types of Areas
This OSPF AS consists of four areas, areas 0-3. Area 0 is always the backbone. In this example, areas 1, 2,
and 3 are all connected to it. Area 1 is a normal area. It has routing information about the OSPF AS and
networks X and Y. Area 2 is a stub area. It has routing information about the OSPF AS, but it depends on
a default route to send information to networks X and Y. Area 3 is a NSSA. It has routing information
about the OSPF AS and network Y but not about network X.
OSPF Routers
Every router in the same area has the same routing information. They do this by exchanging Hello
messages to confirm which neighbor (layer-3) devices exist, and then they exchange database
descriptions (DDs) to create a synchronized link-state database. The link-state database contains
records of router IDs, their associated links and path costs. The link-state database is then constantly
updated through Link State Advertisements (LSA). Each router uses the link state database and the
Dijkstra algorithm to compute the least cost paths to network destinations.
Like areas, each router has a unique 32-bit ID in the OSPF AS, and there are several types of routers.
Each type is really just a different role, and it is possible for one router to play multiple roles at one time.
• An internal router (IR) only exchanges routing information with other routers in the same area.
• An Area Border Router (ABR) connects two or more areas. It is a member of all the areas to which it is
connected, and it filters, summarizes, and exchanges routing information between them.
• An Autonomous System Boundary Router (ASBR) exchanges routing information with routers in
networks outside the OSPF AS. This is called redistribution in OSPF.
• A backbone router (BR) has at least one interface with area 0. By default, every router in area 0 is a
backbone router, and so is every ABR.
Each type of router is illustrated in the following example.
Table 164 OSPF: Redistribution from Other Sources to Each Type of Area
SOURCE \ TYPE OF AREA NORMAL NSSA STUB
Static routes Yes Yes No
RIP Yes Yes Yes
background
Chapter 11 Routing
USG FLEX Series User’s Guide
447
Figure 305 OSPF: Types of Routers
In order to reduce the amount of traffic between routers, a group of routers that are directly connected
to each other selects a designated router (DR) and a backup designated router (BDR). All of the routers
only exchange information with the DR and the BDR, instead of exchanging information with all of the
other routers in the group. The DR and BDR are selected by priority; if two routers have the same priority,
the highest router ID is used.
The DR and BDR are selected in each group of routers that are directly connected to each other. If a
router is directly connected to several groups, it might be a DR in one group, a BDR in another group,
and neither in a third group all at the same time.
Virtual Links
In some OSPF AS, it is not possible for an area to be directly connected to the backbone. In this case,
you can create a virtual link through an intermediate area to logically connect the area to the
backbone. This is illustrated in the following example.
Figure 306 OSPF: Virtual Link
In this example, area 100 does not have a direct connection to the backbone. As a result, you should
set up a virtual link on both ABR in area 10. The virtual link becomes the connection between area 100
and the backbone.
You cannot create a virtual link to a router in a different area.
OSPF Configuration
Follow these steps when you configure OSPF on the Zyxel Device.
1 Enable OSPF.
2 Set up the OSPF areas.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
448
3 Configure the appropriate interfaces. See Section 10.5.1 on page 329.
4 Set up virtual links, as needed.
11.7.1 Configuring the OSPF Screen
Use the first OSPF screen to specify the OSPF router the Zyxel Device uses in the OSPF AS and maintain
the policies for redistribution. In addition, it provides a summary of OSPF areas, allows you to remove
them, and opens the OSPF Add/Edit screen to add or edit them.
Click Configuration > Network > Routing > OSPF to open the following screen.
Figure 307 Configuration > Network > Routing > OSPF
The following table describes the labels in this screen. See Section 11.7.2 on page 449 for more
information as well.
Table 165 Configuration > Network > Routing Protocol > OSPF
LABEL DESCRIPTION
OSPF Router ID Select the 32-bit ID the Zyxel Device uses in the OSPF AS.
Default - the first available interface IP address is the Zyxel Device’s ID.
User Defined - enter the ID (in IP address format) in the field that appears when you select
User Define.
Redistribute
Active RIP Select this to advertise routes that were learned from RIP. The Zyxel Device advertises
routes learned from RIP to Normal and NSSA areas but not to Stub areas.
Type Select how OSPF calculates the cost associated with routing information from RIP.
Choices are: Type 1 and Type 2.
Type 1 - cost = OSPF AS cost + external cost (Metric)
Type 2 - cost = external cost (Metric); the OSPF AS cost is ignored.
Metric Type the external cost for routes provided by RIP. The metric represents the “cost” of
transmission for routing purposes. The way this is used depends on the Type field. This
value is usually the average cost in the OSPF AS, and it can be between 1 and 16777214.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
449
11.7.2 OSPF Area Add/Edit Screen
The OSPF Area Add/Edit screen allows you to create a new area or edit an existing one. To access this
screen, go to the OSPF summary screen (see
Section 11.7 on page 445), and click either the Add icon or
an Edit icon.
Figure 308 Configuration > Network > Routing > OSPF > Add
Area This section displays information about OSPF areas in the Zyxel Device.
Add Click this to create a new OSPF area.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
References Select an entry and click References to open a screen that shows which settings use the
entry. Click Refresh to update information on this screen.
# This field is a sequential value, and it is not associated with a specific area.
Area This field displays the 32-bit ID for each area in IP address format.
Type This field displays the type of area. This type is different from the Type field above.
Authentication This field displays the default authentication method in the area.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 165 Configuration > Network > Routing Protocol > OSPF (continued)
LABEL DESCRIPTION
background
Chapter 11 Routing
USG FLEX Series User’s Guide
450
The following table describes the labels in this screen.
Table 166 Configuration > Network > Routing > OSPF > Add
LABEL DESCRIPTION
Area ID Type the unique, 32-bit identifier for the area in IP address format.
Type Select the type of OSPF area.
Normal - This area is a normal area. It has routing information about the OSPF AS and about
networks outside the OSPF AS.
Stub - This area is an stub area. It has routing information about the OSPF AS but not about
networks outside the OSPF AS. It depends on a default route to send information outside
the OSPF AS.
NSSA - This area is a Not So Stubby Area (NSSA), per RFC 1587. It has routing information
about the OSPF AS and networks that are outside the OSPF AS and are directly connected
to the NSSA. It does not have information about other networks outside the OSPF AS.
Authentication Select the default authentication method used in the area. This authentication protects the
integrity, but not the confidentiality, of routing updates.
None uses no authentication.
Text uses a plain text password that is sent over the network (not very secure).
MD5 uses an MD5 password and authentication ID (most secure).
Text Authentication
Key
This field is available if the Authentication is Text. Type the password for text authentication.
The key can consist of alphanumeric characters and the underscore, and it can be up to
16 characters long.
MD5 Authentication
ID
This field is available if the Authentication is MD5. Type the default ID for MD5 authentication
in the area. The ID can be between 1 and 255.
MD5 Authentication
Key
This field is available if the Authentication is MD5. Type the default password for MD5
authentication in the area. The password can consist of alphanumeric characters and the
underscore, and it can be up to 16 characters long.
Virtual Link This section is displayed if the Type is Normal. Create a virtual link if you want to connect a
different area (that does not have a direct connection to the backbone) to the backbone.
You should set up the virtual link on the ABR that is connected to the other area and on the
ABR that is connected to the backbone.
Add Click this to create a new virtual link.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
# This field is a sequential value, and it is not associated with a specific area.
Peer Router ID This is the 32-bit ID (in IP address format) of the other ABR in the virtual link.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
451
11.7.3 Virtual Link Add/Edit Screen
The Virtual Link Add/Edit screen allows you to create a new virtual link or edit an existing one. When the
OSPF add or edit screen (see
Section 11.7.2 on page 449) has the Type set to Normal, a Virtual Link table
displays. Click either the Add icon or an entry and the Edit icon to display a screen like the following.
Figure 309 Configuration > Network > Routing > OSPF > Add > Add
Authentication This is the authentication method the virtual link uses. This authentication protects the
integrity, but not the confidentiality, of routing updates.
For OSPF, the Zyxel Device supports a default authentication type by area. If you want to
use this default in an interface or virtual link, you set the associated Authentication Type
field to Same as Area. As a result, you only have to update the authentication information
for the area to update the authentication type used by these interfaces and virtual links.
Alternatively, you can override the default in any interface or virtual link by selecting a
specific authentication method. Please see the respective interface sections for more
information.
None uses no authentication.
Text uses a plain text password that is sent over the network (not very secure). Hover your
cursor over this label to display the password.
MD5 uses an MD5 password and authentication ID (most secure). Hover your cursor over
this label to display the authentication ID and key.
Same as Area has the virtual link also use the Authentication settings above.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 166 Configuration > Network > Routing > OSPF > Add (continued)
LABEL DESCRIPTION
background
Chapter 11 Routing
USG FLEX Series User’s Guide
452
The following table describes the labels in this screen.
11.8 BGP (Border Gateway Protocol)
The Zyxel Device supports eBGP (exterior Border Gate Protocol) to route IPv4 traffic between routers in
different Autonomous Systems (AS). An AS number is a number from 1 to 4294967295), that identifies an
autonomous system. 4200000000 – 4294967294 are private AS numbers.
See Section 11.7 on page 445 for more information on autonomous systems.
Figure 310 eBGP Concept
11.8.1 Allow BGP Packets to Enter the Zyxel Device
You must first allow BGP packets to enter the Zyxel Device from the WAN.
Table 167 Configuration > Network > Routing > OSPF > Add > Add
LABEL DESCRIPTION
Peer Router ID Enter the 32-bit ID (in IP address format) of the other ABR in the virtual link.
Authentication Select the authentication method the virtual link uses. This authentication protects the
integrity, but not the confidentiality, of routing updates.
For OSPF, the Zyxel Device supports a default authentication type by area. If you want to
use this default in an interface or virtual link, you set the associated Authentication Type
field to Same as Area. As a result, you only have to update the authentication information
for the area to update the authentication type used by these interfaces and virtual links.
Alternatively, you can override the default in any interface or virtual link by selecting a
specific authentication method. Please see the respective interface sections for more
information.
None uses no authentication.
Text uses a plain text password that is sent over the network (not very secure).
MD5 uses an MD5 password and authentication ID (most secure).
Same as Area has the virtual link also use the Authentication settings above.
Text Authentication
Key
This field is available if the Authentication is Text. Type the password for text authentication.
The key can consist of alphanumeric characters and the underscore, and it can be up to
16 characters long.
MD5 Authentication
ID
This field is available if the Authentication is MD5. Type the default ID for MD5
authentication in the area. The ID can be between 1 and 255.
MD5 Authentication
Key
This field is available if the Authentication is MD5. Type the default password for MD5
authentication in the area. The password can consist of alphanumeric characters and the
underscore, and it can be up to 16 characters long.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
453
1 Go to Configuration > Object > Service > Service Group
2 Select the Default_Allow_WAN_To_ZyWALL rule and click Edit.
3 Move BGP from Available to Member.
4 Click OK.
Figure 311 Allow BGP to the Zyxel Device
11.8.2 Configuring the BGP Screen
Use this screen to configure BGP information about the Zyxel Device and its peer BGP routers.
Click Configuration > Network > Routing > BGP to open the following screen.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
454
Figure 312 Configuration > Network > Routing > BGP
The following table describes the labels in this screen.
Table 168 Configuration > Network > Routing Protocol > BGP
LABEL DESCRIPTION
AS Number Type a number from 1 to 4294967295 in this field.
Note: The Zyxel Device can only belong to one AS at a time.
Router ID Type the IP address of the interface on the Zyxel Device. This field is optional.
Redistribute Select Connected to redistribute routes of directly attached devices to the Zyxel Device
into the BGP Routing Information Base (RIB).
Neighbors This section displays information about peer BGP routers in neighboring AS’.
Note: The maximum number of neighboring BGP routers supported by the Zyxel
Device is 5.
Add Click this to configure BGP criteria for a new peer BGP router.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
# This field is a sequential value, and it is not associated with a specific area.
IP Address This displays the IPv4 address of the peer BGP router in a neighboring AS.
AS Number This displays the AS Number of the peer BGP router in a neighboring AS.
Network Use this section to add routes that will be announced to all BGP neighbors.
Note: You may configure up to 16 network routes.
Add Click this to configure network information for a new route.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
455
11.8.3 The BGP Neighbors Screen
Use this screen to configure BGP information about a peer BGP router.
Click Configuration > Network > Routing > BGP > Add Neighbors to open the following screen.
Figure 313 Configuration > Network > Routing > BGP > Add Neighbors
The following table describes the labels in this screen.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
# This field is a sequential value, and it is not associated with a specific area.
Network This displays the IP address and the number of subnet mask bits for the peer BGP route.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 168 Configuration > Network > Routing Protocol > BGP (continued)
LABEL DESCRIPTION
Table 169 Configuration > Network > Routing Protocol > BGP
LABEL DESCRIPTION
IP Address Type the IP address of the interface on the peer BGP router.
AS Number Type a number from 1 to 4294967295 in this field. Get the number from your service
provider.
Enable EBGP Multihop Select this to allow the Zyxel Device to attempt BGP connections to external peers on
indirectly connected networks. eBGP neighbors must also perform multihop. Multihop is
not established if the only route to the multihop peer is a default route. This avoids loop
formation.
EBGP Maximum
Hops
Enter a maximum hop count from <1-255>. The default is 255.
background
Chapter 11 Routing
USG FLEX Series User’s Guide
456
11.8.4 Example Scenario
This is an example scenario for using BGP on the Zyxel Device.
11.8.4.1 Scenario: CE - PE (MLPS)
In this scenario, you want to transmit BGP packets from a CE router (Zyxel Device) to a peer BGP PE
router in an MPLS network.
• CE: The Zyxel Device is the customer edge router located on the customer premises and connects to
a PE router in the service provider MPLS network.
• PE: The provider edge router is located at the edge of the service provider MPLS network.
• MPLS: MultiProtocol Label Switching (MPLS) forwards data from one network node to the next based
on path labels rather than network addresses.
Update Source Use this to allow BGP sessions use the selected interface for TCP connections.
•Choose Gateway and then enter the gateway IP address
•Choose Interface and then select a Zyxel Device interface.
•Choose None to use the closest interface.
MD5 authentication
key
Type the default password for MD5 authentication of communication between the Zyxel
Device and the peer BGP router. The password can consist of alphanumeric characters
and the underscore, and it can be up to 63 characters long.
Weight Specify a weight value for all routes learned from this peer BGP router in the specified
network. The route with the highest weight gets preference.
Keepalive Time Keepalive messages are sent by the Zyxel Device to a peer BGP router to inform it that
the BGP connection between the two is still active. The Keepalive Time is the interval
between each Keepalive message sent by the Zyxel Device. We recommend Keepalive
Time is 1/3 of the Hold Time time.
Hold Time This is the maximum time the Zyxel Device waits to receive a Keepalive message from a
peer BGP router before it declares that the peer BGP router is dead. Hold Time must be
greater than the Keepalive Time.
Maximum Prefix A prefix is a network address (IP/subnet mask) that a BGP router can reach and that it
shares with its neighbors. Set the maximum number, from 1 to 4294967295, of prefixes that
can be received from a neighbor. This limits the number of prefixes that the Zyxel Device
is allowed to receive from a neighbor. If extra prefixes are received, the Zyxel Device
ends the connection with the peer BGP router. You need to edit the peer BGP router
configuration to bring the connection back.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 169 Configuration > Network > Routing Protocol > BGP (continued)
LABEL DESCRIPTION
background
Chapter 11 Routing
USG FLEX Series User’s Guide
457
Figure 314 Scenario 1: CE Router - to - MPLS
11.8.4.2 CE - PE Configuration Process
The process for configuring BGP in this scenario is:
1 Configure the AS number for BGP on the Zyxel Device (CE) in Configuration > Network > Routing > BGP.
Note: The Zyxel Device can only belong to one AS at a time.
2 Configure the AS number and BGP criteria of the peer BGP routers (PE) in the neighboring AS in
Configuration > Network > Routing > BGP > Add Neighbors.
Note: The maximum number of neighboring BGP routers supported by the Zyxel Device is 5.
3 Configure the network for BGP routes in the neighboring AS.
Note: You may configure up to 16 network routes.
background
USG FLEX Series User’s Guide
458
CHAPTER 12
DDNS
12.1 DDNS Overview
Dynamic DNS (DDNS) services let you use a domain name with a dynamic IP address.
12.1.1 What You Can Do in this Chapter
• Use the DDNS screen (see Section 12.2 on page 459) to view a list of the configured DDNS domain
names and their details.
• Use the DDNS Add/Edit screen (see Section 12.2.1 on page 460) to add a domain name to the Zyxel
Device or to edit the configuration of an existing domain name.
12.1.2 What You Need to Know
DNS maps an FQDN (Fully Qualified Domain Name) to a corresponding IP address and vice versa.
Similarly, Dynamic DNS (DDNS) maps a domain name to a dynamic IP address. As a result, anyone can
use the domain name to contact you (in NetMeeting, CU-SeeMe, etc.) or to access your FTP server or
Web site, regardless of the current (dynamic) IP address.
Note: You must have a public WAN IP address to use Dynamic DNS.
You must set up a dynamic DNS account with a supported DNS service provider before you can use
Dynamic DNS services with the Zyxel Device. When registration is complete, the DNS service provider
gives you a password or key. At the time of writing, the Zyxel Device supports the following DNS service
providers. See the listed websites for details about the DNS services offered by each.
Note: Record your DDNS account’s user name, password, and domain name to use to
configure the Zyxel Device.
After you configure the Zyxel Device, it automatically sends updated IP addresses to the DDNS service
provider, which helps redirect traffic accordingly.
Table 170 DDNS Service Providers
PROVIDER SERVICE TYPES SUPPORTED WEBSITE
DynDNS Dynamic DNS, Static DNS, and Custom DNS www.dyndns.com
Dynu Basic, Premium www.dynu.com
No-IP No-IP www.no-ip.com
Peanut Hull Peanut Hull www.oray.cn
3322 3322 Dynamic DNS, 3322 Static DNS www.3322.org
Selfhost Selfhost selfhost.de
background
Chapter 12 DDNS
USG FLEX Series User’s Guide
459
12.2 The DDNS Screen
The DDNS screen provides a summary of all DDNS domain names and their configuration. In addition,
this screen allows you to add new domain names, edit the configuration for existing domain names, and
delete domain names. Click Configuration > Network > DDNS to open the following screen.
Figure 315 Configuration > Network > DDNS
The following table describes the labels in this screen.
Table 171 Configuration > Network > DDNS
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This is the number of an individual DDNS profile.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Profile Name This field displays the descriptive profile name for this entry.
DDNS Type This field displays which DDNS service you are using.
Domain Name This field displays each domain name the Zyxel Device can route.
Primary Interface/IP This field displays the interface to use for updating the IP address mapped to the domain
name followed by how the Zyxel Device determines the IP address for the domain name.
from interface - The IP address comes from the specified interface.
auto detected -The DDNS server checks the source IP address of the packets from the
Zyxel Device for the IP address to use for the domain name.
custom - The IP address is static.
Backup Interface/IP This field displays the alternate interface to use for updating the IP address mapped to the
domain name followed by how the Zyxel Device determines the IP address for the domain
name. The Zyxel Device uses the backup interface and IP address when the primary
interface is disabled, its link is down or its connectivity check fails.
from interface - The IP address comes from the specified interface.
auto detected -The DDNS server checks the source IP address of the packets from the
Zyxel Device for the IP address to use for the domain name.
custom - The IP address is static.
background
Chapter 12 DDNS
USG FLEX Series User’s Guide
460
12.2.1 The Dynamic DNS Add/Edit Screen
The DDNS Add/Edit screen allows you to add a domain name to the Zyxel Device or to edit the
configuration of an existing domain name. Click Configuration > Network > DDNS and then an Add or
Edit icon to open this screen.
Figure 316 Configuration > Network > DDNS > Add
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 171 Configuration > Network > DDNS (continued)
LABEL DESCRIPTION
background
Chapter 12 DDNS
USG FLEX Series User’s Guide
461
Figure 317 Configuration > Network > DDNS > Add - Custom
The following table describes the labels in this screen.
Table 172 Configuration > Network > DDNS > Add
LABEL DESCRIPTION
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
Enable DDNS Profile Select this check box to use this DDNS entry.
Profile Name When you are adding a DDNS entry, type a descriptive name for this DDNS entry in the
Zyxel Device. You may use 1-31 alphanumeric characters, underscores(
_), or dashes (-),
but the first character cannot be a number. This value is case-sensitive.
This field is read-only when you are editing an entry.
DDNS Type Select the type of DDNS service you are using.
Select User custom to create your own DDNS service and configure the DYNDNS Server,
URL, and Additional DDNS Options fields below.
HTTPS Select this to encrypt traffic using SSL (port 443), including traffic with username and
password, to the DDNS server. Not all DDNS providers support this option.
Username Type the user name used when you registered your domain name. You can use up to 31
alphanumeric characters and the underscore. Spaces are not allowed.
For a Dynu DDNS entry, this user name is the one you use for logging into the service, not
the name recorded in your personal information in the Dynu website.
background
Chapter 12 DDNS
USG FLEX Series User’s Guide
462
Password Type the password provided by the DDNS provider. You can use up to 64 alphanumeric
characters and the underscore. Spaces are not allowed.
Your password will be encrypted when you configure this field.
Retype to Confirm Type the password again to confirm it.
DDNS Settings
Domain name Type the domain name you registered. You can use up to 255 characters.
Primary Binding
Address
Use these fields to set how the Zyxel Device determines the IP address that is mapped to
your domain name in the DDNS server. The Zyxel Device uses the Backup Binding Address if
the interface specified by these settings is not available.
Interface Select the interface to use for updating the IP address mapped to the domain name.
Select Any to let the domain name be used with any interface.
IP Address The options available in this field vary by DDNS provider.
Interface -The Zyxel Device uses the IP address of the specified interface. This option
appears when you select a specific interface in the Primary Binding Address Interface
field.
Auto - If the interface has a dynamic IP address, the DDNS server checks the source IP
address of the packets from the Zyxel Device for the IP address to use for the domain
name. You may want to use this if there are one or more NAT routers between the Zyxel
Device and the DDNS server.
Note: The Zyxel Device may not determine the proper IP address if there is an
HTTP proxy server between the Zyxel Device and the DDNS server.
Custom - If you have a static IP address, you can select this to use it for the domain name.
The Zyxel Device still sends the static IP address to the DDNS server.
Custom IP This field is only available when the IP Address is Custom. Type the IP address to use for the
domain name.
Backup Binding
Address
Use these fields to set an alternate interface to map the domain name to when the
interface specified by the Primary Binding Interface settings is not available.
Interface Select the interface to use for updating the IP address mapped to the domain name.
Select Any to let the domain name be used with any interface. Select None to not use a
backup address.
IP Address The options available in this field vary by DDNS provider.
Interface -The Zyxel Device uses the IP address of the specified interface. This option
appears when you select a specific interface in the Backup Binding Address Interface
field.
Auto -The DDNS server checks the source IP address of the packets from the Zyxel Device
for the IP address to use for the domain name. You may want to use this if there are one or
more NAT routers between the Zyxel Device and the DDNS server.
Note: The Zyxel Device may not determine the proper IP address if there is an
HTTP proxy server between the Zyxel Device and the DDNS server.
Custom - If you have a static IP address, you can select this to use it for the domain name.
The Zyxel Device still sends the static IP address to the DDNS server.
Custom IP This field is only available when the IP Address is Custom. Type the IP address to use for the
domain name.
Table 172 Configuration > Network > DDNS > Add (continued)
LABEL DESCRIPTION
background
Chapter 12 DDNS
USG FLEX Series User’s Guide
463
Enable Wildcard This option is only available with a DynDNS account.
Enable the wildcard feature to alias subdomains to be aliased to the same IP address as
your (dynamic) domain name. This feature is useful if you want to be able to use, for
example, www.yourhost.dyndns.org and still reach your hostname.
Mail Exchanger This option is only available with a DynDNS account.
DynDNS can route email for your domain name to a mail server (called a mail exchanger).
For example, DynDNS routes email for [email protected]g to the host record
specified as the mail exchanger.
If you are using this service, type the host record of your mail server here. Otherwise leave
the field blank.
See www.dyndns.org for more information about mail exchangers.
Backup Mail
Exchanger
This option is only available with a DynDNS account.
Select this check box if you are using DynDNS’s backup service for email. With this service,
DynDNS holds onto your email if your mail server is not available. Once your mail server is
available again, the DynDNS server delivers the mail to you. See www.dyndns.org for more
information about this service.
DYNDNS Server This field displays when you select User custom from the DDNS Type field above. Type the IP
address of the server that will host the DDSN service.
URL This field displays when you select User custom from the DDNS Type field above. Type the
URL that can be used to access the server that will host the DDSN service.
Additional DDNS
Options
This field displays when you select User custom from the DDNS Type field above. These are
the options supported at the time of writing:
• dyndns_system to specify the DYNDNS Server type - for example, [email protected]
• ip_server_name which should be the URL to get the server’s public IP address - for
example, http://myip.easylife.tw/
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 172 Configuration > Network > DDNS > Add (continued)
LABEL DESCRIPTION
background
USG FLEX Series User’s Guide
464
CHAPTER 13
NAT
13.1 Overview
• Use the Network > NAT screen (Section 13.2 on page 464) to enable and configure network address
translation.
• Use the Network > NAT > Virtual Server Load Balancing screen (Section 13.5 on page 472) to distribute
local user connections over multiple servers, in order to reduce each server’s workload and to
decrease overall response times.
13.2 NAT Overview
NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a
packet. For example, the source address of an outgoing packet, used within one network is changed to
a different IP address known within another network. Use Network Address Translation (NAT) to make
computers on a private network behind the Zyxel Device available outside the private network. If the
Zyxel Device has only one public IP address, you can make the computers in the private network
available by using ports to forward packets to the appropriate private IP address.
Suppose you want to assign ports 21-25 to one FTP, Telnet and SMTP server (A in the example), port 80 to
another (B in the example) and assign a default server IP address of 192.168.1.35 to a third (C in the
example). You assign the LAN IP addresses and the ISP assigns the WAN IP address. The NAT network
appears as a single host on the Internet.
Figure 318 Multiple Servers Behind NAT Example
background
Chapter 13 NAT
USG FLEX Series User’s Guide
465
13.2.1 What You Can Do in this Chapter
Use the NAT screens (see Section 13.3 on page 466) to view and manage the list of NAT rules and see
their configuration details. You can also create new NAT rules and edit or delete existing ones.
13.2.2 What You Need to Know
NAT is also known as virtual server, port forwarding, or port translation.
Well-known Ports
Port numbers range from 0 to 65535, but only port numbers 0 to 1023 are reserved for privileged services
and designated as well-known ports. The following list specifies the ports used by the server process as its
contact ports. See
Section 44.8 on page 1003 (Configuration > Object > Service) for more information
about service objects.
• Well-known ports range from 0 to 1023.
• Registered ports range from 1024 to 49151.
• Dynamic ports (also called private ports) range from 49152 to 65535.
Table 173 Well-known Ports
PORT TCP/UDP DESCRIPTION
1 TCP TCP Port Service Multiplexer (TCPMUX)
20 TCP FTP- Data
21 TCP FTP - Control
22 TCP SSH Remote Login Protocol
23 TCP Telnet
25 TCP Simple Mail Transfer Protocol (SMTP)
42 UDP Host Name Server (Nameserv)
43 TCP WhoIs
53 TCP/UDP Domain Name System (DNS)
67 UDP BOOTP/DHCP server
68 UDP BOOTP/DHCP client
69 UDP Trivial File Transfer Protocol (TFTP)
79 TCP Finger
80 TCP HTTP
110 TCP POP3
119 TCP Newsgroup (NNTP)
123 UDP Network Time Protocol (NTP)
135 TCP/UDP RPC Locator service
137 TCP/UDP NetBIOS Name Service
138 UDP NetBIOS Datagram Service
139 TCP NetBIOS Datagram Service
143 TCP Interim Mail Access Protocol (IMAP)
161 UDP SNMP
179 TCP Border Gateway Protocol (BGP)
background
Chapter 13 NAT
USG FLEX Series User’s Guide
466
13.3 The NAT Screen
The NAT summary screen provides a summary of all NAT rules and their configuration. In addition, this
screen allows you to create new NAT rules and edit and delete existing NAT rules. To access this screen,
login to the Web Configurator and click Configuration > Network > NAT. The following screen appears,
providing a summary of the existing NAT rules.
Click on the icons to go to the OneSecurity website where there is guidance on configuration
walkthroughs, troubleshooting, and other information.
Figure 319 Configuration > Network > NAT
The following table describes the labels in this screen.
389 TCP/UDP Lightweight Directory Access Protocol (LDAP)
443 TCP HTTPS
445 TCP Microsoft - DS
636 TCP LDAP over TLS/SSL (LDAPS)
953 TCP BIND DNS
990 TCP FTP over TLS/SSL (FTPS)
995 TCP POP3 over TLS/SSL (POP3S)
Table 173 Well-known Ports
PORT TCP/UDP DESCRIPTION
Table 174 Configuration > Network > NAT
LABEL DESCRIPTION
Use Static-Dynamic
Route to Control 1-1
NAT Route
If you are using SiteToSite VPN and 1-1 SNAT, it’s recommended that you select this check
box. Otherwise, you’ll need to create policy route rules for VPN and Destination NAT traffic.
Note that the selection of this check box will change the priority of the routing flow
(SiteToSite VPN, Static-Dynamic Route, and 1-1 SNAT). See
Chapter 51 on page 1196 for
more information about the routing flow.
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
Activate To turn on an entry, select it and click Activate.
background
Chapter 13 NAT
USG FLEX Series User’s Guide
467
13.3.1 The NAT Add/Edit Screen
The NAT Add/Edit screen lets you create new NAT rules and edit existing ones. To open this window,
open the NAT summary screen. (See
Section 13.3 on page 466.) Then, click on an Add icon or Edit icon
to open the following screen.
Inactivate To turn off an entry, select it and click Inactivate.
Move To change a rule’s position in the numbered list, select the rule and click Move to display a
field to type a number for where you want to put that rule and press [ENTER] to move the
rule to the number that you typed.
The ordering of your rules is important as they are applied in order of their numbering.
# This field is a sequential value, and it is not associated with a specific entry.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Priority This field displays the priority for the entry. The smaller the number, the higher the priority.
Name This field displays the name of the entry.
Mapping Type This field displays what kind of NAT this entry performs: Virtual Server, 1:1 NAT, or Many 1:1
NAT.
Interface This field displays the interface on which packets for the NAT entry are received.
Source IP This field displays the source IP address (or address object) of traffic that matches this NAT
entry. It displays any if there is no restriction on the source IP address.
External IP This field displays the original destination IP address (or address object) of traffic that
matches this NAT entry. It displays any if there is no restriction on the original destination IP
address.
Internal IP This field displays the new destination IP address for the packet.
Protocol This field displays the service used by the packets for this NAT entry. It displays any if there is
no restriction on the services.
External Port This field displays the original destination port(s) of packets for the NAT entry. This field is
blank if there is no restriction on the original destination port.
Internal Port This field displays the new destination port(s) for the packet. This field is blank if there is no
restriction on the original destination port.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 174 Configuration > Network > NAT (continued)
LABEL DESCRIPTION
background
Chapter 13 NAT
USG FLEX Series User’s Guide
468
Figure 320 Configuration > Network > NAT > Add
The following table describes the labels in this screen.
Table 175 Configuration > Network > NAT > Add
LABEL DESCRIPTION
Create new Object Use to configure any new settings objects that you need to use in this screen.
Enable Rule Use this option to turn the NAT rule on or off.
Rule Name Type in the name of the NAT rule. The name is used to refer to the NAT rule. You may use 1-
31 alphanumeric characters, underscores(
_), or dashes (-), but the first character cannot
be a number. This value is case-sensitive.
Classification Select what kind of NAT this rule is to perform.
Virtual Server - This makes computers on a private network behind the Zyxel Device
available to a public network outside the Zyxel Device (like the Internet).
1:1 NAT - If the private network server will initiate sessions to the outside clients, select this to
have the Zyxel Device translate the source IP address of the server’s outgoing traffic to the
same public IP address that the outside clients use to access the server.
Many 1:1 NAT - If you have a range of private network servers that will initiate sessions to
the outside clients and a range of public IP addresses, select this to have the Zyxel Device
translate the source IP address of each server’s outgoing traffic to the same one of the
public IP addresses that the outside clients use to access the server. The private and public
ranges must have the same number of IP addresses.
One many 1:1 NAT rule works like multiple 1:1 NAT rules, but it eases configuration effort
since you only create one rule.
Incoming Interface Select the interface on which packets for the NAT rule must be received. It can be an
Ethernet, VLAN, bridge, or PPPoE/PPTP interface.
background
Chapter 13 NAT
USG FLEX Series User’s Guide
469
Source IP Specify the source IP address of the packets received by this NAT rule’s specified incoming
interface.
any - Select this to use all of the incoming interface’s IP addresses including dynamic
addresses or those of any virtual interfaces built upon the selected incoming interface.
User Defined - Select this to manually enter an IP address in the User Defined field. For
example, you could enter a static IP address.
Host address - select a address object to use the IP address it specifies.
External IP Specify the destination IP address of the packets received by this NAT rule’s specified
incoming interface. The specified IP address will be translated to the Internal IP address.
any - Select this to use all of the incoming interface’s IP addresses including dynamic
addresses or those of any virtual interfaces built upon the selected incoming interface.
User Defined - Select this to manually enter an IP address in the User Defined field. For
example, you could enter a static public IP assigned by the ISP without having to create a
virtual interface for it.
Host address - select a host address object to use the IP address it specifies. The list also
includes address objects based on interface IPs. So for example you could select an
address object based on a WAN interface even if it has a dynamic IP address.
User Defined External
IP
This field is available if External IP is User Defined. Type the destination IP address that this
NAT rule supports.
External IP Subnet/
Range
This field displays for Many 1:1 NAT. Select the destination IP address subnet or IP address
range that this NAT rule supports. The original and mapped IP address subnets or ranges
must have the same number of IP addresses.
Internal IP Select to which translated destination IP address this NAT rule forwards packets.
User Defined - this NAT rule supports a specific IP address, specified in the User Defined field.
HOST address - the drop-down box lists all the HOST address objects in the Zyxel Device. If
you select one of them, this NAT rule supports the IP address specified by the address
object.
User Defined Internal
IP
This field is available if Internal IP is User Defined. Type the translated destination IP address
that this NAT rule supports.
Internal IP Subnet/
Range
This field displays for Many 1:1 NAT. Select to which translated destination IP address subnet
or IP address range this NAT rule forwards packets. The original and mapped IP address
subnets or ranges must have the same number of IP addresses.
Port Mapping Type Use the drop-down list box to select how many original destination ports this NAT rule
supports for the selected destination IP address (Original IP). Choices are:
Any - this NAT rule supports all the destination ports.
Port - this NAT rule supports one destination port.
Ports - this NAT rule supports a range of destination ports. You might use a range of
destination ports for unknown services or when one server supports more than one service.
Service - this NAT rule supports a service such as FTP (see Object > Service > Service)
Service-Group - this NAT rule supports a group of services such as all service objects related
to DNS (see Object > Service > Service Group)
Protocol Type This field is available if Mapping Type is Port or Ports. Select the protocol (TCP, UDP, or Any)
used by the service requesting the connection.
External Port This field is available if Mapping Type is Port. Enter the external destination port this NAT rule
supports.
Internal Port This field is available if Mapping Type is Port. Enter the translated destination port if this NAT
rule forwards the packet.
Table 175 Configuration > Network > NAT > Add (continued)
LABEL DESCRIPTION
background
Chapter 13 NAT
USG FLEX Series User’s Guide
470
Note: If you set the User-Defined External IP to the IP address of the web configurator and set
the External Port to 80 or 443, this rule will conflict with the Zyxel Device’s default HTTP
server port.
A warning message will pop out when you click OK. If you click No in the warning
message, the rule will apply to the Zyxel Device. You will not be able to access the web
configurator through this interface.
13.4 NAT Technical Reference
Here is more detailed information about NAT on the Zyxel Device.
External Start Port This field is available if Mapping Type is Ports. Enter the beginning of the range of original
destination ports this NAT rule supports.
External End Port This field is available if Mapping Type is Ports. Enter the end of the range of original
destination ports this NAT rule supports.
Internal Start Port This field is available if Mapping Type is Ports. Enter the beginning of the range of translated
destination ports if this NAT rule forwards the packet.
Internal End Port This field is available if Mapping Type is Ports. Enter the end of the range of translated
destination ports if this NAT rule forwards the packet. The original port range and the
mapped port range must be the same size.
Enable NAT
Loopback
Enable NAT loopback to allow users connected to any interface (instead of just the
specified Incoming Interface) to use the NAT rule’s specified External IP address to access
the Internal IP device. For users connected to the same interface as the Internal IP device,
the Zyxel Device uses that interface’s IP address as the source address for the traffic it
sends from the users to the Internal IP device.
For example, if you configure a NAT rule to forward traffic from the WAN to a LAN server,
enabling NAT loopback allows users connected to other interfaces to also access the
server. For LAN users, the Zyxel Device uses the LAN interface’s IP address as the source
address for the traffic it sends to the LAN server. See
NAT Loopback on page 471 for more
details.
If you do not enable NAT loopback, this NAT rule only applies to packets received on the
rule’s specified incoming interface.
Security Policy By default the security policy blocks incoming connections from external addresses. After
you configure your NAT rule settings, click the Security Policy link to configure a security
policy to allow the NAT rule’s traffic to come in.
The Zyxel Device checks NAT rules before it applies To-Zyxel Device security policies, so To-
Zyxel Device security policies, do not apply to traffic that is forwarded by NAT rules. The
Zyxel Device still checks other security policies, according to the source IP address and
mapped IP address.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to return to the NAT summary screen without creating the NAT rule (if it is new)
or saving any changes (if it already exists).
Table 175 Configuration > Network > NAT > Add (continued)
LABEL DESCRIPTION
background
Chapter 13 NAT
USG FLEX Series User’s Guide
471
NAT Loopback
Suppose an NAT 1:1 rule maps a public IP address to the private IP address of a LAN SMTP email server to
give WAN users access. NAT loopback allows other users to also use the rule’s original IP to access the
mail server.
For example, a LAN user’s computer at IP address 192.168.1.89 queries a public DNS server to resolve the
SMTP server’s domain name (xxx.LAN-SMTP.com in this example) and gets the SMTP server’s mapped
public IP address of 1.1.1.1.
Figure 321 LAN Computer Queries a Public DNS Server
The LAN user’s computer then sends traffic to IP address 1.1.1.1. NAT loopback uses the IP address of the
Zyxel Device’s LAN interface (S2: 192.168.1.1) as the source address of the traffic going from the LAN
users to the LAN SMTP server.
Figure 322 LAN to LAN Traffic
The LAN SMTP server replies to the Zyxel Device’s LAN IP address and the Zyxel Device changes the
source address to 1.1.1.1 before sending it to the LAN user. The return traffic’s source matches the
original destination address (S1: 1.1.1.1). If the SMTP server replied directly to the LAN user without the
background
Chapter 13 NAT
USG FLEX Series User’s Guide
472
traffic going through NAT, the source would not match the original destination address which would
cause the LAN user’s computer to shut down the session.
Figure 323 LAN to LAN Return Traffic
13.5 Virtual Server Load Balancing
Virtual Server Load balancing allows you to distribute incoming connection requests to a virtual server
between multiple real (physical) servers. This helps reduce each server’s workload and to decrease
virtual server response times.
13.5.1 Load Balancing Example 1
You are hosting a very popular website on your network, which attracts a lot of traffic and causes
problems with your HTTP web server. To resolve this, you set up three identical web servers on the DMZ
behind the Zyxel Device (
Figure 326 on page 473). The Zyxel Device device then distributes incoming
HTTP requests between the three servers. External users only see one virtual web server with IP address
1.1.1.2.
Figure 324 Virtual Server on the WAN- Example 1
background
Chapter 13 NAT
USG FLEX Series User’s Guide
473
13.5.2 Load Balancing Example 2
You have two internal networks, LAN 1 and LAN 2, that are restricted from accessing each other (Figure
325 on page 473). The LAN 2 network hosts two duplicate SMTP mail servers. You want clients on LAN 1 to
be able to access the SMTP servers on LAN 2.
You create a virtual server load balancing rule using IP address 10.0.1.100 and port 25, and add two
SMTP servers from LAN 2 to the rule. Now clients on LAN 1 can access the virtual server’s SMTP service by
connecting to 10.0.1.100 port 25. Clients see a single mail server.
Figure 325 Virtual Server on the LAN - Example 2
13.5.3 Virtual Server Load Balancing Process
The following is an overview of how the Virtual Server Load Balancing process works.
Figure 326 Load Balancing Process
1 A client initiates a connection to the virtual server on a specific port.
2 The Zyxel Device matches the request to a set of servers (1, 2, and 3 in Figure 326 on page 473), and
then determines which server will handle the request using a user-specified load balancing algorithm.
3 The Zyxel Device forwards the request to the chosen server using NAT.
4 The server processes the request, and then replies to the Zyxel Device.
background
Chapter 13 NAT
USG FLEX Series User’s Guide
474
5 The Zyxel Device forwards the reply to the client using SNAT.
13.5.4 Load Balancing Rules
In order to use load balancing, you must create a load balancing rule. Each load balancing rule
consists of an incoming interface, an external IP address, a service type, a load balancing algorithm,
and a list of real servers.
Note: One real server can belong to multiple load-balancing rules.
Note: You can only add one interface, IP address, and port to each load balancing rule.
Note: Virtual servers and real servers only support IPv4 addresses.
Only certain Zyxel Device models support virtual server load balancing. There are also limits on the
maximum number of rules and real servers per Zyxel Device.
Table 176 Virtual Service Load Balancing Limits
PARAMETER MODEL LIMIT
Maximum Number of Load
Balancing Rules per Zyxel Device
USG FLEX 100, USG FLEX 100W 5
USG FLEX 200 10
USG FLEX 500,USG FLEX 700 20
Maximum Number of Real Servers
Per Load Balancing Rule
All of the above models 4
background
Chapter 13 NAT
USG FLEX Series User’s Guide
475
13.5.5 Virtual Server Load Balancing Algorithms
A rule’s load balancing algorithm determines which real server is assigned to an incoming connection
request. When creating a load balancing rule, you can assign each server a weight, which indicates the
server’s processing capacity compared to other servers.
Table 177 Virtual Server Load Balancing Algorithms
ALGORITHM DESCRIPTION
Round-Robin The Zyxel Device assigns servers in the reverse order they were added to the rule
(Last In First Out). All servers are considered equal, regardless of their weight and
current number of connections.
For example, if you have three servers, A, B, C and nine requests, the servers are
assigned in the following order: CBACBACBA.
Weighted Round-Robin The Zyxel Device assigns servers based on a user-specified weight. Servers with a
higher weight are assigned before servers with a lower weight. Each time a server is
assigned a request, the server’s weight decreases by one point until it finishes
processing the request.
The Zyxel Device assigns servers with equal weight in the reverse order they were
added to the rule (Last In First Out). Servers with zero connections are given priority
over all other servers.
For example, if you have three servers A, B, C with weights 4, 3, 2 and nine requests,
the servers are assigned in the following order: CBAABACBA.
C (Weights: A4, B3, C2)
CB (Weights: A4, B3, C1)
CBA (Weights: A3, B2, C1)
CBAA (Weights: A2, B2, C1)
CBAAB (Weights: A2, B1, C1)
CBAABA (Weights: A1, B1, C1)
CBAABAC (Weights: A1, B1, C0)
CBAABACB (Weights: A1, B0, C0)
CBAABACBA (Weights: A0, B0, C0)
Least-Connection The Zyxel Device assigns the server with the least number of current connections.
Source Hashing The Zyxel Device assigns a server by checking a static hash table, which
permanently maps each client IP address to a specific real server.
Servers are mapped to new client IP addresses in the reverse order the servers were
added to the rule (Last In First Out). Each server is added N times during each
sequence, where N is equal to the server’s weight.
For example, if you have two servers A, and B, with weights 1 and 2, the servers are
mapped to new client IP addresses in the hash table in the following order:
Source_IP_Hash1 = Server B
Source_IP_Hash2 = Server B
Source_IP_Hash3 = Server A
Source_IP_Hash4 = Server B
Source_IP_Hash5 = Server B
Source_IP_Hash6 = Server A
background
Chapter 13 NAT
USG FLEX Series User’s Guide
476
13.6 The Virtual Server Load Balancer Screen
Use this screen to view the summary of your virtual server load balancer rules. Click Configuration >
Network > NAT > Virtual Server Load Balancer to open the following screen.
Figure 327 Configuration > Network > NAT > Virtual Server Load Balancing
The following table describes the labels in this screen.
13.6.1 Adding/Editing a Virtual Server Load Balancing Rule
Use this screen to configure settings for you virtual server load balancer rules. This screen’s option
change based on the Healthy Check Method selected. Only the PING method screen is displayed here.
Click Configuration > Network > NAT > Virtual Server Load Balancer > Add/Edit to open the following
screen.
Table 178 Configuration > Network > NAT > Virtual Server Load Balancer
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This field is a sequential value, and it is not associated with a specific entry.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Health Status This field displays whether the real server is reachable for a particular service.
Name This field displays the name of the entry.
External IP This field displays the external destination IP address (or address object) of traffic that
matches this entry.
Protocol This field displays the protocol used by the packets for this entry.
External Port This field displays the external destination port(s) of packets for the entry.
Load Balancing
Algorithm
This field displays the load balancing algorithm for the entry. See Section 13.5.5 on page
475 for more information on load balancing algorithm.
Virtual Server(s) This displays the number of real servers. Use MouseOver to see each real server IP.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
background
Chapter 13 NAT
USG FLEX Series User’s Guide
477
Figure 328 Configuration > Network > NAT > Virtual Server Load Balancing > Add/Edit
The following table describes the labels in this screen.
Table 179 Configuration > Network > NAT > Virtual Server Load Balancer > Add/Edit
LABEL DESCRIPTION
General Settings
Create new Object Use to configure any new settings objects that you need to use in this screen.
Enable Rule Use this option to turn the virtual server load balancer rule on or off.
Rule Name Type in the name of the virtual server load balancer rule. The name is used to refer to the
virtual server load balancer rule. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is
case-sensitive.
Virtual Server Rule
Incoming Interface Select the interface on which packets from the client to the virtual server load balancer
rule must be received. It can be an Ethernet, VLAN, bridge, or PPPoE/PPTP interface.
External IP This is the IP address of the virtual server. It may be different to the incoming interface IP
address. Select a Host, Interface IP or Interface Gateway object already configured in
Object > Address/Geo IP > Address > IPv4 Address. or enter a User Defined IPv4 address for
the virtual server.
User Defined External
IP
This field is available if External IP is User Defined. Type the IPv4 address of the virtual server.
background
Chapter 13 NAT
USG FLEX Series User’s Guide
478
Port Mapping Type Use the drop-down list box to select how many external destination ports this virtual server
load balancer rule supports for the selected destination IP address (External IP). Choices
are:
Service - this virtual server load balancer rule supports a service such as FTP (see Object >
Service > Service). For this type, you need to fill in External Service.
External Service: Select a service from the drop down list box.
Port - this virtual server load balancer rule supports one destination port. For this type, you
need to fill in these fields.
• Protocol Type: TCP or UDP
• External Port: specify a port number for this rule
The type of service or port selected automatically updates Healthy Check Method as
follows:
• HTTP Request: 80, 8080
• HTTPS Request: 443
• SMTP Helo: 25
• DNS Query: 53(TCP/UDP)
• Default TCP if protocol is TCP, PING if protocol is UDP
You can still change the Healthy Check Method in the next field.
Healthy Check
Method
Select this to periodically check if the real server is still online. The Zyxel Device periodically
sends a request to each real server. This request ensures that the server is available, and
optionally ensures that a specific service on the server is running.
Use the drop-down list box to set the type of status request to send to each real server.
For example, select HTTP and the Zyxel Device periodically sends an HTTP request to each
real server, ensuring that the server is available and that its HTTP service is running.
• HTTP: Web service
• HTTPS: Secure web service
• TCP: A general network protocol that shows the server is accepting TCP connections
• SMTP: Mail service
• DNS: Dynamic Name Service
• PING: A general network protocol that shows the server is reachable
PING Check Period- Sets the health check time interval, in seconds. The default is 60.
Connect Timeout- Sets the period of time in seconds that the Zyxel Device waits after
sending a health check request before marking the health check as failed. The default is 5.
Retry- Sets the number of times the Zyxel Device resends a health check request before
marking the server as unavailable. The default is 1.
Table 179 Configuration > Network > NAT > Virtual Server Load Balancer > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 13 NAT
USG FLEX Series User’s Guide
479
HTTP Request Path- Sets the URL to request when the health check type is set to HTTP or HTTPS.
Note: the Zyxel Device uses this checksum to verify that each HTTP health check
request returns the correct webpage, and not an error page.
Host- Sets the SNI to send to the real server when the health check type is set to HTTPS. A
client sends a Server Name Indication (SNI) when they start an HTTPS session with the server.
It allows multiple HTTPS sessions to the same IP address and port number with different
certificates with different SNIs.
Enable Hash Check- Enables or disables auto-hashing. When enabled, the Zyxel Device
sends a HTTP request to each real server, and then calculates and stores the MD5
checksum of the returned webpage. The Zyxel Device uses this checksum to verify that
each HTTP health check request returns the correct webpage, and not an error page.
Status Code- Sets which status code indicates a successful reply when the health check
type is set to HTTP or HTTPS. The default value is range
200-299.
Check Period- Sets the health check time interval, in seconds. The default is 60.
Connect Timeout- Sets the period of time in seconds that the Zyxel Device waits after
sending a health check request before marking the health check as failed. The default is 5.
Retry- Sets the number of times the Zyxel Device resends a health check request before
marking the server as unavailable. The default is 1.
HTTPS Request Path- Sets the URL to request when the health check type is set to HTTP or HTTPS.
Note: the Zyxel Device uses this checksum to verify that each HTTPS health check
request returns the correct webpage, and not an error page.
Host- Sets the SNI to send to the real server when the health check type is set to HTTPS. A
client sends a Server Name Indication (SNI) when they start an HTTPS session with the server.
It allows multiple HTTPS sessions to the same IP address and port number with different
certificates with different SNIs.
Enable Hash Check- Enables or disables auto-hashing. When enabled, the Zyxel Device
sends a HTTP request to each real server, and then calculates and stores the MD5
checksum of the returned webpage. The Zyxel Device uses this checksum to verify that
each HTTP health check request returns the correct webpage, and not an error page.
Status Code- Sets which status code indicates a successful reply when the health check
type is set to HTTP or HTTPS. The default value is range
200-299.
Enable SNI- Enables or disables sending a Server_Name Indication (SNI) as part of the
health check request when health check type is set to HTTPS.
Check Period- Sets the health check time interval, in seconds. The default is 60.
Connect Timeout- Sets the period of time in seconds that the Zyxel Device waits after
sending a health check request before marking the health check as failed. The default is 5.
Retry- Sets the number of times the Zyxel Device resends a health check request before
marking the server as unavailable. The default is 1.
SMTP Helo Helo Name- Sets the HELO string to send to the real server, when the health check type is
set to SMTP. Typically, the HELO string should contain the fully qualified domain name
(FQDN) of the mail server.
Check Period- Sets the health check time interval, in seconds. The default is 60.
Connect Timeout- Sets the period of time in seconds that the Zyxel Device waits after
sending a health check request before marking the health check as failed. The default is 5.
Retry- Sets the number of times the Zyxel Device resends a health check request before
marking the server as unavailable. The default is 1.
Table 179 Configuration > Network > NAT > Virtual Server Load Balancer > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 13 NAT
USG FLEX Series User’s Guide
480
DNS Query Query- Sets the fully qualified domain name (FQDN) to send to the real server when health
check type is set to DNS.
Check Period- Sets the health check time interval, in seconds. The default is 60.
Connect Timeout- Sets the period of time in seconds that the Zyxel Device waits after
sending a health check request before marking the health check as failed. The default is 5.
Retry- Sets the number of times the Zyxel Device resends a health check request before
marking the server as unavailable. The default is 1.
TCP Connection Check Period- Sets the health check time interval, in seconds. The default is 60.
Connect Timeout- Sets the period of time in seconds that the Zyxel Device waits after
sending a health check request before marking the health check as failed. The default is 5.
Retry- Sets the number of times the Zyxel Device resends a health check request before
marking the server as unavailable. The default is 1.
Advance
Check Period Use this to set the health check time interval in seconds. The default is 60.
Connect Timeout Use this to set the period of time in seconds that the Zyxel Device waits after sending a
health check request before marking the health check as failed. The default is 5.
Retry Use this to set the number of times the Zyxel Device resend a health check request before
marking the server as unavailable. The default is 1.
Load Balancing
Algorithm
Sets the load balancing algorithm for this rule. For information about each algorithm, see
Section 13.5.5 on page 475.
Persistence Timeout Sets how long a client/server session with no activity stays open. Timeout is measured in
seconds, and the default value is 360.
Multiple requests from a client within a short time period are directed to the same real
server, as part of a persistent client/server session.
If there are no incoming requests from a client within the specified timeout period, then the
persistent client/server session is closed. Further requests from the client might be assigned
to a different real server, determined by the load balancing algorithm.
Real Server
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
# This field is a sequential value, and it is not associated with a specific entry.
Server IP This field displays the IPv4 address of a server on the LAN.
Port This field displays the External Port or the port based on the External Service selected
above. You may change the port here.
Weight The weight represents the processing power of this server compared to other servers. A
server with a weight of 2 is considered to be able to handle two times more requests than
a server with a weight of 1. See
Section 13.5.5 on page 475 for more information on weight
in each load balancing algorithm.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to return to the Virtual Server Load Balancer summary screen without
creating the virtual server load balancer rule (if it is new) or saving any changes (if it
already exists).
Table 179 Configuration > Network > NAT > Virtual Server Load Balancer > Add/Edit (continued)
LABEL DESCRIPTION
background
USG FLEX Series User’s Guide
481
CHAPTER 14
Redirect Service
14.1 Overview
Redirect Service redirects HTTP and SMTP traffic.
14.1.1 HTTP Redirect
HTTP redirect forwards the client’s HTTP request (except HTTP traffic destined for the Zyxel Device) to a
web proxy server. In the following example, proxy server A is connected to the DMZ interface. When a
client connected to the LAN1 zone wants to open a web page, its HTTP request is redirected to proxy
server A first. If proxy server A cannot find the web page in its cache, a policy route allows it to access
the Internet to get them from a server. Proxy server A then forwards the response to the client.
Figure 329 HTTP Redirect Example
14.1.2 SMTP Redirect
SMTP redirect forwards the authenticated client’s SMTP message to a SMTP server, that handles all
outgoing email messages. In the following example, SMTP server A is connected to the lan2 interface in
the LAN2 zone. When a client connected to the lan1 interface in the LAN1 zone logs into the Zyxel
Device and wants to send an email, its SMTP message is redirected to SMTP server A. SMTP server A then
sends it to a mail server, where the message will be delivered to the recipient.
The Zyxel Device forwards SMTP traffic using TCP port 25.
background
Chapter 14 Redirect Service
USG FLEX Series User’s Guide
482
Figure 330 SMTP Redirect Example
14.1.3 What You Can Do in this Chapter
Use the Redirect Service screens (see Section 14.2 on page 484) to display and edit the HTTP and SMTP
redirect rules.
14.1.4 What You Need to Know
Web Proxy Server
A proxy server helps client devices make indirect requests to access the Internet or outside network
resources/services. A proxy server can act as a security policy or an ALG (application layer gateway)
between the private network and the Internet or other networks. It also keeps hackers from knowing
internal IP addresses.
A client connects to a web proxy server each time he/she wants to access the Internet. The web proxy
provides caching service to allow quick access and reduce network usage. The proxy checks its local
cache for the requested web resource first. If it is not found, the proxy gets it from the specified server
and forwards the response to the client.
HTTP Redirect, Security Policy and Policy Route
With HTTP redirect, the relevant packet flow for HTTP traffic is:
1 Security Policy
2 Application Patrol
3 HTTP Redirect
4 Policy Route
Even if you set a policy route to the same incoming interface and service as a HTTP redirect rule, the
Zyxel Device checks the HTTP redirect rules first and forwards HTTP traffic to a proxy server if matched.
You need to make sure there is no security policy blocking the HTTP requests from the client to the proxy
server.
background
Chapter 14 Redirect Service
USG FLEX Series User’s Guide
483
You also need to manually configure a policy route to forward the HTTP traffic from the proxy server to
the Internet. To make the example in
Figure 329 on page 481 work, make sure you have the following
settings.
For HTTP traffic between lan1 and dmz:
• a from LAN1 to DMZ security policy (default) to allow HTTP requests from lan1 to dmz. Responses to this
request are allowed automatically.
• a application patrol rule to allow HTTP traffic between lan1 and dmz.
• a HTTP redirect rule to forward HTTP traffic from lan1 to proxy server A.
For HTTP traffic between dmz and wan1:
• a from DMZ to WAN security policy (default) to allow HTTP requests from dmz to wan1. Responses to
these requests are allowed automatically.
• a application patrol rule to allow HTTP traffic between dmz and wan1.
• a policy route to forward HTTP traffic from proxy server A to the Internet.
SMTP
Simple Mail Transfer Protocol (SMTP) is the Internet’s message transport standard. It controls the sending
of email messages between servers. Email clients (also called email applications) then use mail server
protocols such as POP (Post Office Protocol) or IMAP (Internet Message Access Protocol) to retrieve
email. Email clients also generally use SMTP to send messages to a mail server. The older POP2 requires
SMTP for sending messages while the newer POP3 can be used with or without it. This is why many email
applications require you to specify both the SMTP server and the POP or IMAP server (even though they
may actually be the same server).
SMTP Redirect, Firewall and Policy Route
With SMTP redirect, the relevant packet flow for SMTP traffic is:
1 Firewall
2 SMTP Redirect
3 Policy Route
Even if you set a policy route to the same incoming interface and service as a SMTP redirect rule, the
Zyxel Device checks the SMTP redirect rules first and forwards SMTP traffic to a SMTP server if matched.
You need to make sure there is no firewall rule(s) blocking the SMTP traffic from the client to the SMTP
server.
You also need to manually configure a policy route to forward the SMTP traffic from the SMTP server to
the Internet. To make the example in
Figure 330 on page 482 work, make sure you have the following
settings.
For SMTP traffic between lan1 and lan2:
• a from LAN1 to LAN2 firewall rule to allow SMTP messages from lan1 to lan2. Responses to this request
are allowed automatically.
• a SMTP redirect rule to forward SMTP traffic from lan1 to SMTP server A.
background
Chapter 14 Redirect Service
USG FLEX Series User’s Guide
484
For SMTP traffic between lan2 and wan1:
• a from LAN2 to WAN firewall rule (default) to allow SMTP messages from lan2 to wan1. Responses to
these requests are allowed automatically.
• a policy route to forward SMTP messages from SMTP server A to the Internet.
14.2 The Redirect Service Screen
To configure redirection of a HTTP or SMTP request, click Configuration > Network > HTTP Redirect. This
screen displays the summary of the redirect rules.
Note: You can configure up to one HTTP redirect rule and one SMTP redirect rule for each
(incoming) interface.
Figure 331 Configuration > Network > Redirect Service
The following table describes the labels in this screen.
Table 180 Configuration > Network > Redirect Service
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Move To change a rule’s position in the numbered list, select the rule and click Move to display a
field to type a number for where you want to put that rule and press [ENTER] to move the
rule to the number that you typed.
The ordering of your rules is important as they are applied in order of their numbering.
# This field is a sequential value, and it is not associated with a specific entry.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Service This is the name of the service: HTTP or SMTP.
Name This is the descriptive name of a rule.
User/Group This is the user account or user group name to which this rule is applied.
Interface This is the interface on which the request must be received.
background
Chapter 14 Redirect Service
USG FLEX Series User’s Guide
485
14.2.1 The Redirect Service Edit Screen
Click Network > Redirect Service to open the Redirect Service screen. Then click the Add or Edit icon to
open the Redirect Service Edit screen where you can configure the rule.
Figure 332 Network > Redirect Service > Edit
The following table describes the labels in this screen.
Source Address This is the name of the source IP address object from which the traffic should be sent. If any
displays, the rule is effective for every source.
Server This is the IP address of the HTTP proxy server or the SMTP server to which the matched traffic
is forwarded.
Port This is the service port number used by the HTTP proxy server or SMTP server.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 180 Configuration > Network > Redirect Service (continued)
LABEL DESCRIPTION
Table 181 Network > Redirect Service > Edit
LABEL DESCRIPTION
Enable Use this option to turn the Redirect Service rule on or off.
Service Select the service to be redirected: HTTP Redirect or SMTP redirect.
Name Enter a name to identify this rule. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value
is case-sensitive.
Criteria
background
Chapter 14 Redirect Service
USG FLEX Series User’s Guide
486
User Select the user account or user group name to which this rule is applied.
Interface Select the interface on which the request must be received for the Zyxel Device to
forward it to the specified server.
Source Address Select the name of the source IP address object from which the traffic should be
sent. Select any for the rule to be effective for every source.
Redirect Settings
Server Enter the IP address of the HTTP proxy or SMTP server.
Port Enter the port number that the HTTP proxy or SMTP server uses.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 181 Network > Redirect Service > Edit (continued)
LABEL DESCRIPTION
background
USG FLEX Series User’s Guide
487
CHAPTER 15
ALG
15.1 ALG Overview
Application Layer Gateway (ALG) allows the following applications to operate properly through the
Zyxel Device’s NAT.
• SIP - Session Initiation Protocol (SIP) - An application-layer protocol that can be used to create voice
and multimedia sessions over Internet.
• H.323 - A teleconferencing protocol suite that provides audio, data and video conferencing.
• FTP - File Transfer Protocol - an Internet file transfer service.
The following example shows SIP signaling (1) and audio (2) sessions between SIP clients A and B and the
SIP server.
Figure 333 SIP ALG Example
The ALG feature is only needed for traffic that goes through the Zyxel Device’s NAT.
15.1.1 What You Need to Know
Application Layer Gateway (ALG), NAT and Security Policy
The Zyxel Device can function as an Application Layer Gateway (ALG) to allow certain NAT un-friendly
applications (such as SIP) to operate properly through the Zyxel Device’s NAT and security policy. The
Zyxel Device dynamically creates an implicit NAT session and security policy session for the application’s
traffic from the WAN to the LAN. The ALG on the Zyxel Device supports all of the Zyxel Device’s NAT
mapping types.
background
Chapter 15 ALG
USG FLEX Series User’s Guide
488
FTP ALG
The FTP ALG allows TCP packets with a specified port destination to pass through. If the FTP server is
located on the LAN, you must also configure NAT (port forwarding) and security policies if you want to
allow access to the server from the WAN. Bandwidth management can be applied to FTP ALG traffic.
H.323 ALG
• The H.323 ALG supports peer-to-peer H.323 calls.
• The H.323 ALG handles H.323 calls that go through NAT or that the Zyxel Device routes. You can also
make other H.323 calls that do not go through NAT or routing. Examples would be calls between LAN
IP addresses that are on the same subnet.
• The H.323 ALG allows calls to go out through NAT. For example, you could make a call from a private
IP address on the LAN to a peer device on the WAN.
• The H.323 ALG operates on TCP packets with a specified port destination.
• Bandwidth management can be applied to H.323 ALG traffic.
• The Zyxel Device allows H.323 audio connections.
• The Zyxel Device can also apply bandwidth management to traffic that goes through the H.323 ALG.
The following example shows H.323 signaling (1) and audio (2) sessions between H.323 devices A and B.
Figure 334 H.323 ALG Example
SIP ALG
• SIP phones can be in any zone (including LAN, DMZ, WAN), and the SIP server and SIP clients can be in
the same network or different networks. The SIP server cannot be on the LAN. It must be on the WAN
or the DMZ.
• There should be only one SIP server (total) on the Zyxel Device’s private networks. Any other SIP servers
must be on the WAN. So for example you could have a Back-to-Back User Agent such as the IPPBX
x6004 or an asterisk PBX on the DMZ or on the LAN but not on both.
• Using the SIP ALG allows you to use bandwidth management on SIP traffic. Bandwidth management
can be applied to FTP ALG traffic. Use the option in the Configuration > BWM screen to configure the
highest bandwidth available for SIP traffic.
• The SIP ALG handles SIP calls that go through NAT or that the Zyxel Device routes. You can also make
other SIP calls that do not go through NAT or routing. Examples would be calls between LAN IP
addresses that are on the same subnet.
• The SIP ALG supports peer-to-peer SIP calls. The security policy (by default) allows peer to peer calls
from the LAN zone to go to the WAN zone and blocks peer to peer calls from the WAN zone to the
LAN zone.
• The SIP ALG allows UDP packets with a specified port destination to pass through.
• The Zyxel Device allows SIP audio connections.
background
Chapter 15 ALG
USG FLEX Series User’s Guide
489
• You do not need to use TURN (Traversal Using Relay NAT) for VoIP devices behind the Zyxel Device
when you enable the SIP ALG.
• Configuring the SIP ALG to use custom port numbers for SIP traffic also configures the application
patrol (see Chapter 33 on page 707) to use the same port numbers for SIP traffic. Likewise, configuring
the application patrol to use custom port numbers for SIP traffic also configures SIP ALG to use the
same port numbers for SIP traffic.
Peer-to-Peer Calls and the Zyxel Device
The Zyxel Device ALG can allow peer-to-peer VoIP calls for both H.323 and SIP. You must configure the
security policy and NAT (port forwarding) to allow incoming (peer-to-peer) calls from the WAN to a
private IP address on the LAN (or DMZ).
VoIP Calls from the WAN with Multiple Outgoing Calls
When you configure the security policy and NAT (port forwarding) to allow calls from the WAN to a
specific IP address on the LAN, you can also use policy routing to have H.323 (or SIP) calls from other LAN
or DMZ IP addresses go out through a different WAN IP address. The policy routing lets the Zyxel Device
correctly forward the return traffic for the calls initiated from the LAN IP addresses.
For example, you configure the security policy and NAT to allow LAN IP address A to receive calls from
the Internet through WAN IP address 1. You also use a policy route to have LAN IP address A make calls
out through WAN IP address 1. Configure another policy route to have H.323 (or SIP) calls from LAN IP
addresses B and C go out through WAN IP address 2. Even though only LAN IP address A can receive
incoming calls from the Internet, LAN IP addresses B and C can still make calls out to the Internet.
Figure 335 VoIP Calls from the WAN with Multiple Outgoing Calls
VoIP with Multiple WAN IP Addresses
With multiple WAN IP addresses on the Zyxel Device, you can configure different security policy and NAT
(port forwarding) rules to allow incoming calls from each WAN IP address to go to a specific IP address
on the LAN (or DMZ). Use policy routing to have the H.323 (or SIP) calls from each of those LAN or DMZ IP
addresses go out through the same WAN IP address that calls come in on. The policy routing lets the
Zyxel Device correctly forward the return traffic for the calls initiated from the LAN IP addresses.
For example, you configure security policy and NAT rules to allow LAN IP address A to receive calls
through public WAN IP address 1. You configure different security policy and port forwarding rules to
allow LAN IP address B to receive calls through public WAN IP address 2. You configure corresponding
policy routes to have calls from LAN IP address A go out through WAN IP address
1 and calls from LAN IP
address B go out through WAN IP address 2.
background
Chapter 15 ALG
USG FLEX Series User’s Guide
490
Figure 336 VoIP with Multiple WAN IP Addresses
15.1.2 Before You Begin
You must also configure the security policy and enable NAT in the Zyxel Device to allow sessions initiated
from the WAN.
15.2 The ALG Screen
Click Configuration > Network > ALG to open the ALG screen. Use this screen to turn ALGs off or on,
configure the port numbers to which they apply, and configure SIP ALG time outs.
Note: If the Zyxel Device provides an ALG for a service, you must enable the ALG in order to
use the application patrol on that service’s traffic.
background
Chapter 15 ALG
USG FLEX Series User’s Guide
491
Figure 337 Configuration > Network > ALG
The following table describes the labels in this screen.
Table 182 Configuration > Network > ALG
LABEL DESCRIPTION
Enable SIP ALG Turn on the SIP ALG to detect SIP traffic and help build SIP sessions through the Zyxel
Device’s NAT. Enabling the SIP ALG also allows you to use the application patrol to
detect SIP traffic and manage the SIP traffic’s bandwidth (see
Chapter 33 on page
707).
Enable SIP
Transformations
Select this to have the Zyxel Device modify IP addresses and port numbers embedded
in the SIP data payload.
You do not need to use this if you have a SIP device or server that will modify IP
addresses and port numbers embedded in the SIP data payload.
Enable Configure SIP
Inactivity Timeout
Select this option to have the Zyxel Device apply SIP media and signaling inactivity time
out limits. These timeouts will take priority over the SIP session time out “Expires” value in
a SIP registration response packet.
SIP Media Inactivity
Timeout
Use this field to set how many seconds (1~86400) the Zyxel Device will allow a SIP session
to remain idle (without voice traffic) before dropping it.
If no voice packets go through the SIP ALG before the timeout period expires, the Zyxel
Device deletes the audio session. You cannot hear anything and you will need to make
a new call to continue your conversation.
background
Chapter 15 ALG
USG FLEX Series User’s Guide
492
15.3 ALG Technical Reference
Here is more detailed information about the Application Layer Gateway.
SIP Signaling Inactivity
Timeout
Most SIP clients have an “expire” mechanism indicating the lifetime of signaling
sessions. The SIP user agent sends registration packets to the SIP server periodically and
keeps the session alive in the Zyxel Device.
If the SIP client does not have this mechanism and makes no calls during the Zyxel
Device SIP timeout, the Zyxel Device deletes the signaling session after the timeout
period. Enter the SIP signaling session timeout value (1~86400).
Restrict Peer to Peer
Signaling Connection
A signaling connection is used to set up the SIP connection.
Enable this if you want signaling connections to only arrive from the IP address(es) you
registered with. Signaling connections from other IP addresses will be dropped.
Restrict Peer to Peer
Media Connection
A media connection is the audio transfer in a SIP connection.
Enable this if you want media connections to only arrive from the IP address(es) you
registered with. Media connections from other IP addresses will be dropped.
You should disable this if have registered for cloud VoIP services.
SIP Signaling Port If you are using a custom UDP port number (not 5060) for SIP traffic, enter it here. Use the
Add icon to add fields if you are also using SIP on additional UDP port numbers.
Enable H.323 ALG Turn on the H.323 ALG to detect H.323 traffic (used for audio communications) and
help build H.323 sessions through the Zyxel Device’s NAT. Enabling the H.323 ALG also
allows you to use the application patrol to detect H.323 traffic and manage the H.323
traffic’s bandwidth (see
Chapter 33 on page 707).
Enable H.323
Transformations
Select this to have the Zyxel Device modify IP addresses and port numbers embedded
in the H.323 data payload.
You do not need to use this if you have a H.323 device or server that will modify IP
addresses and port numbers embedded in the H.323 data payload.
H.323 Signaling Port If you are using a custom TCP port number (not 1720) for H.323 traffic, enter it here.
Additional H.323
Signaling Port for
Transformations
If you are also using H.323 on an additional TCP port number, enter it here.
Enable FTP ALG Turn on the FTP ALG to detect FTP (File Transfer Program) traffic and help build FTP
sessions through the Zyxel Device’s NAT. Enabling the FTP ALG also allows you to use the
application patrol to detect FTP traffic and manage the FTP traffic’s bandwidth (see
Chapter 33 on page 707).
Enable FTP
Transformations
Select this option to have the Zyxel Device modify IP addresses and port numbers
embedded in the FTP data payload to match the Zyxel Device’s NAT environment.
Clear this option if you have an FTP device or server that will modify IP addresses and
port numbers embedded in the FTP data payload to match the Zyxel Device’s NAT
environment.
FTP Signaling Port If you are using a custom TCP port number (not 21) for FTP traffic, enter it here.
Additional FTP Signaling
Port for Transformations
If you are also using FTP on an additional TCP port number, enter it here.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 182 Configuration > Network > ALG (continued)
LABEL DESCRIPTION
background
Chapter 15 ALG
USG FLEX Series User’s Guide
493
ALG
Some applications cannot operate through NAT (are NAT unfriendly) because they embed IP addresses
and port numbers in their packets’ data payload. The Zyxel Device examines and uses IP address and
port number information embedded in the VoIP traffic’s data stream. When a device behind the Zyxel
Device uses an application for which the Zyxel Device has VoIP pass through enabled, the Zyxel Device
translates the device’s private IP address inside the data stream to a public IP address. It also records
session port numbers and allows the related sessions to go through the security policy so the
application’s traffic can come in from the WAN to the LAN.
ALG and Trunks
If you send your ALG-managed traffic through an interface trunk and all of the interfaces are set to
active, you can configure routing policies to specify which interface the ALG-managed traffic uses.
You could also have a trunk with one interface set to active and a second interface set to passive. The
Zyxel Device does not automatically change ALG-managed connections to the second (passive)
interface when the active interface’s connection goes down. When the active interface’s connection
fails, the client needs to re-initialize the connection through the second interface (that was set to
passive) in order to have the connection go through the second interface. VoIP clients usually re-register
automatically at set intervals or the users can manually force them to re-register.
FTP
File Transfer Protocol (FTP) is an Internet file transfer service that operates on the Internet and over TCP/IP
networks. A system running the FTP server accepts commands from a system running an FTP client. The
service allows users to send commands to the server for uploading and downloading files.
H.323
H.323 is a standard teleconferencing protocol suite that provides audio, data and video conferencing.
It allows for real-time point-to-point and multipoint communication between client computers over a
packet-based network that does not provide a guaranteed quality of service. NetMeeting uses H.323.
SIP
The Session Initiation Protocol (SIP) is an application-layer control (signaling) protocol that handles the
setting up, altering and tearing down of voice and multimedia sessions over the Internet. SIP is used in
VoIP (Voice over IP), the sending of voice signals over the Internet Protocol.
SIP signaling is separate from the media for which it handles sessions. The media that is exchanged
during the session can use a different path from that of the signaling. SIP handles telephone calls and
can interface with traditional circuit-switched telephone networks.
RTP
When you make a VoIP call using H.323 or SIP, the RTP (Real time Transport Protocol) is used to handle
voice data transfer. See RFC 1889 for details on RTP.
background
USG FLEX Series User’s Guide
494
CHAPTER 16
UPnP
16.1 UPnP and NAT-PMP Overview
The Zyxel Device supports both UPnP and NAT-PMP to permit networking devices to discover each other
and connect seamlessly.
Universal Plug and Play (UPnP) is a distributed, open networking standard that uses TCP/IP for simple
peer-to-peer network connectivity between devices. A UPnP device can dynamically join a network,
obtain an IP address, convey its capabilities and learn about other devices on the network. In turn, a
device can leave a network smoothly and automatically when it is no longer in use. A gateway that
supports UPnP is called Internet Gateway Device (IGD). The standardized Device Control Protocol (DCP)
is defined by the UPnP Forum for IGDs to configure port mapping automatically.
NAT Port Mapping Protocol (NAT-PMP), introduced by Apple and implemented in current Apple
products, is used as an alternative NAT traversal solution to the UPnP IGD protocol. NAT-PMP runs over
UDP port 5351. NAT-PMP is much simpler than UPnP IGD and mainly designed for small home networks. It
allows a client behind a NAT router to retrieve the router’s public IP address and port number and make
them known to the peer device with which it wants to communicate. The client can automatically
configure the NAT router to create a port mapping to allow the peer to contact it.
16.2 What You Need to Know
UPnP hardware is identified as an icon on the network folder (Windows 7). Each UPnP compatible
device installed on your network will appear as a separate icon. Selecting the icon of a UPnP device will
allow you to access the information and properties of that device.
16.2.1 NAT Traversal
UPnP NAT traversal automates the process of allowing an application to operate through NAT. UPnP
network devices can automatically configure network addressing, announce their presence on the
network to other UPnP devices and enable exchange of simple product and service descriptions. NAT
traversal allows the following:
• Dynamic port mapping
• Learning public IP addresses
• Assigning lease times to mappings
Windows Messenger is an example of an application that supports NAT traversal and UPnP.
See the NAT chapter for more information on NAT.
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
495
16.2.2 Cautions with UPnP and NAT-PMP
The automated nature of NAT traversal applications in establishing their own services and opening
security policy ports may present network security issues. Network information and configuration may
also be obtained and modified by users in some network environments.
When a UPnP or NAT-PMP device joins a network, it announces its presence with a multicast message.
For security reasons, the Zyxel Device allows multicast messages on the LAN only.
All UPnP-enabled or NAT-PMP-enabled devices may communicate freely with each other without
additional configuration. Disable UPnP or NAT-PMP if this is not your intention.
16.3 UPnP Screen
Use this screen to enable UPnP and NAT-PMP on your Zyxel Device.
Click Configuration > Network > UPnP to display the screen shown next.
Figure 338 Configuration > Network > UPnP
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
496
The following table describes the fields in this screen.
16.4 Technical Reference
The sections show examples of using UPnP.
16.4.1 Turning on UPnP in Windows 7 Example
This section shows you how to use the UPnP feature in Windows 7. UPnP server is installed in Windows 7.
Activate UPnP on the Zyxel Device.
Make sure the computer is connected to a LAN port of the Zyxel Device. Turn on your computer and the
Zyxel Device.
1 Click the start icon, Control Panel and then the Network and Sharing Center.
Table 183 Configuration > Network > UPnP
LABEL DESCRIPTION
Enable UPnP Select this check box to activate UPnP on the Zyxel Device. Be aware that anyone could use
a UPnP application to open the web configurator's login screen without entering the Zyxel
Device's IP address (although you must still enter the password to access the web
configurator).
Enable NAT-PMP NAT Port Mapping Protocol (NAT-PMP) automates port forwarding to allow a computer in a
private network (behind the Zyxel Device) to automatically configure the Zyxel Device to
allow computers outside the private network to contact it.
Select this check box to activate NAT-PMP on the Zyxel Device. Be aware that anyone could
use a NAT-PMP application to open the web configurator's login screen without entering the
Zyxel Device's IP address (although you must still enter the password to access the web
configurator).
Allow UPnP or
NAT-PMP to pass
through Firewall
Select this check box to allow traffic from UPnP-enabled or NAT-PMP-enabled applications
to bypass the security policy.
Clear this check box to have the security policy block all UPnP or NAT-PMP application
packets (for example, MSN packets).
Outgoing WAN
Interface
Select through which WAN interface(s) you want to send out traffic from UPnP-enabled or
NAT-PMP-enabled applications. If the WAN interface you select loses its connection, the
Zyxel Device attempts to use the other WAN interface. If the other WAN interface also does
not work, the Zyxel Device drops outgoing packets from UPnP-enabled or NAT-PMP-enabled
applications.
Support LAN List The Available list displays the name(s) of the internal interface(s) on which the Zyxel Device
supports UPnP and/or NAT-PMP.
To enable UPnP and/or NAT-PMP on an interface, you can double-click a single entry to
move it or use the [Shift] or [Ctrl] key to select multiple entries and click the right arrow button
to add to the Member list. To remove an interface, select the name(s) in the Member list and
click the left arrow button.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
497
2 Click Change Advanced Sharing Settings.
3 Select Turn on network discovery and click Save Changes. Network discovery allows your computer to
find other computers and devices on the network and other computers on the network to find your
computer. This makes it easier to share files and printers.
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
498
16.4.1.1 Auto-discover Your UPnP-enabled Network Device
Before you follow these steps, make sure you already have UPnP activated on the Zyxel Device and in
your computer.
Make sure your computer is connected to a LAN port of the Zyxel Device.
1 Open the Windows Explorer and click Network.
2 Right-click the device icon and select Properties.
Figure 339 Network Connections
3 In the Internet Connection Properties window, click Settings to see port mappings.
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
499
Figure 340 Internet Connection Properties
4 You may edit or delete the port mappings or click Add to manually add port mappings.
Figure 341 Internet Connection Properties: Advanced Settings
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
500
Figure 342 Internet Connection Properties: Advanced Settings: Add
Note: When the UPnP-enabled device is disconnected from your computer, all port
mappings will be deleted automatically.
5 Click OK. Check the network icon on the system tray to see your Internet connection status.
Figure 343 System Tray Icon
6 To see more details about your current Internet connection status, right click on the network icon in the
system tray and click Open Network and Sharing Center. Click Local Area Network.
Figure 344 Internet Connection Status
16.4.2 Turn on UPnP in Windows 10 Example
This section shows you how to use the UPnP feature in Windows 10. UPnP server is installed in Windows 10.
Activate UPnP on the Zyxel Device by clicking Network Setting > Home Networking > UPnP.
Make sure the computer is connected to the LAN port of the Zyxel Device. Turn on your computer and
the Zyxel Device.
1 Click the start icon, Settings and then Network & Internet.
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
501
2 Click Network and Sharing Center.
3 Click Change advanced sharing settings.
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
502
4 Under Domain, select Turn on network discovery and click Save Changes. Network discovery allows your
computer to find other computers and devices on the network and other computers on the network to
find your computer. This makes it easier to share files and printers.
16.4.3 Auto-discover Your UPnP-enabled Network Device
Before you follow these steps, make sure you already have UPnP activated on the Zyxel Device and in
your computer.
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
503
Make sure your computer is connected to the LAN port of the Zyxel Device.
1 Open File Explorer and click Network.
2 Right-click the Zyxel Device icon and select Properties.
Figure 345 Network Connections
3 In the Internet Connection Properties window, click Settings to see port mappings.
Figure 346 Internet Connection Properties
4 You may edit or delete the port mappings or click Add to manually add port mappings.
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
504
Figure 347 Internet Connection Properties: Advanced Settings
Figure 348 Internet Connection Properties: Advanced Settings: Add
Note: When the UPnP-enabled device is disconnected from your computer, all port
mappings will be deleted automatically.
5 Click OK. Check the network icon on the system tray to see your Internet connection status.
Figure 349 System Tray Icon
6 To see more details about your current Internet connection status, right click the network icon in the
system tray and click Open Network & Internet settings. Click Network and Sharing Center and click the
Connections.
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
505
Figure 350 Internet Connection Status
16.4.4 Web Configurator Easy Access in Windows 7
With UPnP, you can access the web-based configurator on the Zyxel Device without finding out the IP
address of the Zyxel Device first. This comes helpful if you do not know the IP address of the Zyxel Device.
Follow the steps below to access the web configurator.
1 Open Windows Explorer.
2 Click Network.
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
506
Figure 351 Network Connections
3 An icon with the description for each UPnP-enabled device displays under Network Infrastructure.
4 Right-click on the icon for your Zyxel Device and select View device webpage. The web configurator
login screen displays.
Figure 352 Network Connections: My Network Places
5 Right-click on the icon for your Zyxel Device and select Properties. Click the Network Device tab. A
window displays with information about the Zyxel Device.
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
507
Figure 353 Network Connections: My Network Places: Properties: Example
16.4.5 Web Configurator Easy Access in Windows 10
Follow the steps below to access the Web Configurator.
1 Open File Explorer.
2 Click Network.
Figure 354 Network Connections
background
Chapter 16 UPnP
USG FLEX Series User’s Guide
508
3 An icon with the description for each UPnP-enabled device displays under Network Infrastructure.
4 Right-click the icon for your Zyxel Device and select View device webpage. The Web Configurator login
screen displays.
Figure 355 Network Connections: Network Infrastructure
5 Right-click the icon for your Zyxel Device and select Properties. Click the Network Device tab. A window
displays information about the Zyxel Device.
Figure 356 Network Connections: Network Infrastructure: Properties: Example
background
USG FLEX Series User’s Guide
509
CHAPTER 17
IP/MAC Binding
17.1 IP/MAC Binding Overview
IP address to MAC address binding helps ensure that only the intended devices get to use privileged IP
addresses. The Zyxel Device uses DHCP to assign IP addresses and records the MAC address it assigned
to each IP address. The Zyxel Device then checks incoming connection attempts against this list. A user
cannot manually assign another IP to his computer and use it to connect to the Zyxel Device.
Suppose you configure access privileges for IP address 192.168.1.27 and use static DHCP to assign it to
Tim’s computer’s MAC address of 12:34:56:78:90:AB. IP/MAC binding drops traffic from any computer
trying to use IP address 192.168.1.27 with another MAC address.
Figure 357 IP/MAC Binding Example
17.1.1 What You Can Do in this Chapter
• Use the Summary and Edit screens (Section 17.2 on page 510) to bind IP addresses to MAC addresses.
• Use the Exempt List screen (Section 17.3 on page 513) to configure ranges of IP addresses to which
the Zyxel Device does not apply IP/MAC binding.
17.1.2 What You Need to Know
DHCP
IP/MAC address bindings are based on the Zyxel Device’s dynamic and static DHCP entries.
background
Chapter 17 IP/MAC Binding
USG FLEX Series User’s Guide
510
Interfaces Used With IP/MAC Binding
IP/MAC address bindings are grouped by interface. You can use IP/MAC binding with Ethernet, bridge,
VLAN, and WLAN interfaces. You can also enable or disable IP/MAC binding and logging in an
interface’s configuration screen.
17.2 IP/MAC Binding Summary
Click Configuration > Network > IP/MAC Binding to open the IP/MAC Binding Summary screen. This
screen lists the total number of IP to MAC address bindings for devices connected to each supported
interface.
Figure 358 Configuration > Network > IP/MAC Binding > Summary
The following table describes the labels in this screen.
Table 184 Configuration > Network > IP/MAC Binding > Summary
LABEL DESCRIPTION
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This field is a sequential value, and it is not associated with a specific entry.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Interface This is the name of an interface that supports IP/MAC binding.
Number of
Binding
This field displays the interface’s total number of IP/MAC bindings and IP addresses that the
interface has assigned by DHCP.
background
Chapter 17 IP/MAC Binding
USG FLEX Series User’s Guide
511
17.2.1 IP/MAC Binding Edit
Click Configuration > Network > IP/MAC Binding > Edit to open the IP/MAC Binding Edit screen. Use this
screen to configure an interface’s IP to MAC address binding settings.
Figure 359 Configuration > Network > IP/MAC Binding > Edit
The following table describes the labels in this screen.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 184 Configuration > Network > IP/MAC Binding > Summary (continued)
LABEL DESCRIPTION
Table 185 Configuration > Network > IP/MAC Binding > Edit
LABEL DESCRIPTION
IP/MAC Binding Settings
Interface Name This field displays the name of the interface within the Zyxel Device and the interface’s
IP address and subnet mask.
Enable IP/MAC
Binding
Select this option to have this interface enforce links between specific IP addresses
and specific MAC addresses. This stops anyone else from manually using a bound IP
address on another device connected to this interface. Use this to make use only the
intended users get to use specific IP addresses.
Enable Logs for IP/
MAC Binding Violation
Select this option to have the Zyxel Device generate a log if a device connected to
this interface attempts to use an IP address not assigned by the Zyxel Device.
Static DHCP Bindings This table lists the bound IP and MAC addresses. The Zyxel Device checks this table
when it assigns IP addresses. If the computer’s MAC address is in the table, the Zyxel
Device assigns the corresponding IP address. You can also access this table from the
interface’s edit screen.
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can
modify the entry’s settings.
background
Chapter 17 IP/MAC Binding
USG FLEX Series User’s Guide
512
17.2.2 Static DHCP Edit
Click Configuration > Network > IP/MAC Binding > Edit to open the IP/MAC Binding Edit screen. Click the
Add or Edit icon to open the following screen. Use this screen to configure an interface’s IP to MAC
address binding settings.
Figure 360 Configuration > Network > IP/MAC Binding > Edit > Add
The following table describes the labels in this screen.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
# This is the index number of the static DHCP entry.
IP Address This is the IP address that the Zyxel Device assigns to a device with the entry’s MAC
address.
MAC Address This is the MAC address of the device to which the Zyxel Device assigns the entry’s IP
address.
Description This helps identify the entry.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 185 Configuration > Network > IP/MAC Binding > Edit (continued)
LABEL DESCRIPTION
Table 186 Configuration > Network > IP/MAC Binding > Edit > Add
LABEL DESCRIPTION
Interface Name This field displays the name of the interface within the Zyxel Device and the interface’s IP
address and subnet mask.
IP Address Enter the IP address that the Zyxel Device is to assign to a device with the entry’s MAC
address.
MAC Address Enter the MAC address of the device to which the Zyxel Device assigns the entry’s IP
address.
Description Enter a descriptive name consists of 1 to 60 single-byte characters, including a-zA-Z0-
9!”#$%’()*+,-/;:=?@_
&[.]<>\^‘{|} are not allowed.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 17 IP/MAC Binding
USG FLEX Series User’s Guide
513
17.3 IP/MAC Binding Exempt List
Click Configuration > Network > IP/MAC Binding > Exempt List to open the IP/MAC Binding Exempt List
screen. Use this screen to configure ranges of IP addresses to which the Zyxel Device does not apply IP/
MAC binding.
Figure 361 Configuration > Network > IP/MAC Binding > Exempt List
The following table describes the labels in this screen.
Table 187 Configuration > Network > IP/MAC Binding > Exempt List
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Click an entry or select it and click Edit to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove it
before doing so.
# This is the index number of the IP/MAC binding list entry.
Name Enter a name to help identify this entry.
Start IP Enter the first IP address in a range of IP addresses for which the Zyxel Device does not apply IP/
MAC binding.
End IP Enter the last IP address in a range of IP addresses for which the Zyxel Device does not apply IP/
MAC binding.
Add icon Click the Add icon to add a new entry.
Click the Remove icon to delete an entry. A window displays asking you to confirm that you want
to delete it.
Apply Click Apply to save your changes back to the Zyxel Device.
background
USG FLEX Series User’s Guide
514
CHAPTER 18
Layer 2 Isolation
18.1 Overview
Layer-2 isolation is used to prevent connected devices from communicating with each other in the Zyxel
Device’s local network(s), except for the devices in the white list, when layer-2 isolation is enabled on
the Zyxel Device and the local interface(s).
Note: The security policy control must be enabled before you can use layer-2 isolation.
In the following example, layer-2 isolation is enabled on the Zyxel Device’s interface Vlan1. A printer, PC
and AP are in the Vlan1. The IP address of network printer (C) is added to the white list. With this setting,
the connected AP then cannot communicate with the PC (D), but can access the network printer (C),
server (B), wireless client (A) and the Internet.
Figure 362 Layer-2 Isolation Application
18.1.1 What You Can Do in this Chapter
• Use the General screen (Section 18.2 on page 515) to enable layer-2 isolation on the Zyxel Device
and the internal interface(s).
• Use the Allow List screen (Section 18.3 on page 516) to enable and configures the allow list.
background
Chapter 18 Layer 2 Isolation
USG FLEX Series User’s Guide
515
18.2 Layer-2 Isolation General Screen
This screen allows you to enable Layer-2 isolation on the Zyxel Device and specific internal interface(s).
To access this screen click Configuration > Network > Layer 2 Isolation.
Figure 363 Configuration > Network > Layer 2 Isolation
The following table describes the labels in this screen.
Table 188 Configuration > Network > Layer 2 Isolation
LABEL DESCRIPTION
Enable Layer2
Isolation
Select this option to turn on the layer-2 isolation feature on the Zyxel Device.
Note: You can enable this feature only when the security policy is enabled.
Member List The Available list displays the name(s) of the internal interface(s) on which you can enable
layer-2 isolation.
To enable layer-2 isolation on an interface, you can double-click a single entry to move it or use
the [Shift] or [Ctrl] key to select multiple entries and click the right arrow button to add to the
Member list. To remove an interface, select the name(s) in the Member list and click the left
arrow button.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 18 Layer 2 Isolation
USG FLEX Series User’s Guide
516
18.3 Allow List Screen
IP addresses that are not listed in the allow list are blocked from communicating with other devices in
the layer-2-isolation-enabled internal interface(s) except for broadcast packets.
To access this screen click Configuration > Network > Layer 2 Isolation > Allow List.
Figure 364 Configuration > Network > Layer 2 Isolation > Allow List
The following table describes the labels in this screen.
Table 189 Configuration > Network > Layer 2 Isolation > Allow List
LABEL DESCRIPTION
Enable Allow List Select this option to turn on the white list on the Zyxel Device.
Note: You can enable this feature only when the security policy is enabled.
Add Click this to add a new rule.
Edit Click this to edit the selected rule.
Remove Click this to remove the selected rule.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This field is a sequential value, and it is not associated with a specific rule.
Status This icon is lit when the rule is active and dimmed when the rule is inactive.
IP Address This field displays the IP address of device that can be accessed by the devices connected to
an internal interface on which layer-2 isolation is enabled.
Description This field displays the description for the IP address in this rule.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 18 Layer 2 Isolation
USG FLEX Series User’s Guide
517
18.3.1 Add/Edit Allow List Rule
This screen allows you to create a new rule in the allow list or edit an existing one. To access this screen,
click the Add button or select an entry from the list and click the Edit button.
Note: You can configure up to 100 allow list rules on the Zyxel Device.
Note: You need to know the IP address of each connected device that you want to allow to
be accessed by other devices when layer-2 isolation is enabled.
Figure 365 Configuration > Network > Layer 2 Isolation > White List > Add/Edit
The following table describes the labels in this screen.
Table 190 Configuration > Network > Layer 2 Isolation > Allow List > Add/Edit
LABEL DESCRIPTION
Enable Select this option to turn on the rule.
Host IP Address Enter an IPv4 address associated with this rule.
Description Specify a description for the IP address associated with this rule. Enter up to 60 characters,
spaces and underscores allowed.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
USG FLEX Series User’s Guide
518
CHAPTER 19
DNS Inbound LB
19.1 DNS Inbound Load Balancing Overview
Inbound load balancing enables the Zyxel Device to respond to a DNS query message with a different IP
address for DNS name resolution. The Zyxel Device checks which member interface has the least load
and responds to the DNS query message with the interface’s IP address.
In the following figure, an Internet host (A) sends a DNS query message to the DNS server (D) in order to
resolve a domain name of www.example.com. DNS server D redirects it to the Zyxel Device (Z)’s WAN1
with an IP address of 1.1.1.1. The Zyxel Device receives the DNS query message and responds to it with
the WAN2’s IP address, 2.2.2.2, because the WAN2 has the least load at that moment.
Another Internet host (B) also sends a DNS query message to ask where www.example.com is. The Zyxel
Device responds to it with the WAN1’s IP address, 1.1.1.1, since WAN1 has the least load this time.
Figure 366 DNS Load Balancing Example
19.1.1 What You Can Do in this Chapter
• Use the Inbound LB screen (see Section 19.2 on page 519) to view a list of the configured DNS load
balancing rules.
background
Chapter 19 DNS Inbound LB
USG FLEX Series User’s Guide
519
• Use the Inbound LB Add/Edit screen (see Section 19.2.1 on page 520) to add or edit a DNS load
balancing rule.
19.2 The DNS Inbound LB Screen
The Inbound LB screen provides a summary of all DNS load balancing rules and the details. You can also
use this screen to add, edit, or remove the rules. Click Configuration > Network > Inbound LB to open the
following screen.
Note: After you finish the inbound load balancing settings, go to security policy and NAT
screens to configure the corresponding rule and virtual server to allow the Internet users
to access your internal servers.
Figure 367 Configuration > Network > DNS Inbound LB
The following table describes the labels in this screen.
Table 191 Configuration > Network > DNS Inbound LB
LABEL DESCRIPTION
Global Setting
Enable DNS Load
Balancing
Select this to enable DNS load balancing.
Configuration
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Move To move an entry to a different number in the list, click the Move icon. In the field that
appears, specify the number to which you want to move the entry.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
background
Chapter 19 DNS Inbound LB
USG FLEX Series User’s Guide
520
19.2.1 The DNS Inbound LB Add/Edit Screen
The Add DNS Load Balancing screen allows you to add a domain name for which the Zyxel Device
manages load balancing between the specified interfaces. You can configure the Zyxel Device to
apply DNS load balancing to some specific hosts only by configuring the Query From settings. Click
Configuration > Network > Inbound LB and then the Add or Edit icon to open this screen.
Priority This field displays the order in which the Zyxel Device checks the member interfaces of
this DNS load balancing rule.
Query Domain Name This field displays the domain name for which the Zyxel Device manages load
balancing between the specified interfaces.
Query From Address This field displays the source IP address of the DNS query messages to which the Zyxel
Device applies the DNS load balancing rule.
Query From Zone The Zyxel Device applies the DNS load balancing rule to the query messages received
from this zone.
Load Balancing
Member
This field displays the member interfaces which the Zyxel Device manages for load
balancing.
Algorithm This field displays the load balancing method the Zyxel Device uses for this DNS load
balancing rule.
Weighted Round Robin - Each member interface is assigned a weight. An interface with
a larger weight gets more chances to transmit traffic than an interface with a smaller
weight. For example, if the weight ratio of wan1 and wan2 interfaces is 2:1, the Zyxel
Device chooses wan1 for 2 sessions’ traffic and wan2 for 1 session’s traffic in each round
of 3 new sessions.
Least Connection - The Zyxel Device chooses choose a member interface which is
handling the least number of sessions.
Least Load - Outbound - The Zyxel Device chooses a member interface which is
handling the least amount of outgoing traffic.
Least Load - Inbound - The Zyxel Device chooses a member interface which is handling
the least amount of incoming traffic.
Least Load - Total - The Zyxel Device chooses a member interface which is handling the
least amount of outgoing and incoming traffic.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 191 Configuration > Network > DNS Inbound LB (continued)
LABEL DESCRIPTION
background
Chapter 19 DNS Inbound LB
USG FLEX Series User’s Guide
521
Figure 368 Configuration > Network > DNS Inbound LB > Add
The following table describes the labels in this screen.
Table 192 Configuration > Network > DNS Inbound LB > Add/Edit
LABEL DESCRIPTION
Create New Object Use this to configure any new setting objects that you need to use in this screen.
General Settings
Enable Select this to enable this DNS load balancing rule.
DNS Settings
Query Domain Name Type up to 255 characters for a domain name for which you want the Zyxel Device to
manage DNS load balancing. You can use a wildcard (*) to let multiple domains match
the name. For example, use *.example.com to specify any domain name that ends with
“example.com” would match.
Time to Live Enter the number of seconds the Zyxel Device recommends DNS request hosts to keep
the DNS entry in their caches before removing it. Enter 0 to have the Zyxel Device not
recommend this so the DNS request hosts will follow their DNS server’s TTL setting.
Query From Setting
IP Address Select the name of an P address object, including geographic address object, of a
computer or a DNS server which makes the DNS queries upon which to apply this rule.
DNS servers process client queries using recursion or iteration:
• In recursion, DNS servers make recursive queries on behalf of clients. So you have to
configure this field to the DNS server’s IP address when recursion is used.
• In iteration, a client asks the DNS server and expects the best and immediate answer
without the DNS server contacting other DNS servers. If the primary DNS server cannot
provide the best answer, the client makes iteration queries to other configured DNS
servers to resolve the name. You have to configure this field to the client’s IP address
when iteration is used.
background
Chapter 19 DNS Inbound LB
USG FLEX Series User’s Guide
522
19.2.2 The DNS Inbound LB Add/Edit Member Screen
The Add Load Balancing Member screen allows you to add a member interface for the DNS load
balancing rule. Click Configuration > Network > DNS Inbound LB > Add or Edit and then an Add or Edit
icon to open this screen.
Zone Select the zone of DNS query messages upon which to apply this rule.
Load Balancing
Member
Load Balancing
Algorithm
Select a load balancing method to use from the drop-down list box.
Select Weighted Round Robin to balance the traffic load between interfaces based on
their respective weights. An interface with a larger weight gets more chances to transmit
traffic than an interface with a smaller weight. For example, if the weight ratio of wan1
and wan2 interfaces is 2:1, the Zyxel Device chooses wan1 for 2 sessions’ traffic and
wan2 for every session’s traffic in each round of 3 new sessions.
Select Least Connection to have the Zyxel Device choose the member interface which is
handling the least number of sessions.
Select Least Load - Outbound to have the Zyxel Device choose the member interface
which is handling the least amount of outgoing traffic.
Select Least Load - Inbound to have the Zyxel Device choose the member interface
which is handling the least amount of incoming traffic.
Select Least Load - Total to have the Zyxel Device choose the member interface which is
handling the least amount of outgoing and incoming traffic.
Failover IP Address Enter an alternate IP address with which the Zyxel Device will respond to a DNS query
message when the load balancing algorithm cannot find any available interface.
Add Click this to create a new member interface for this rule.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
# This field displays the order in which the Zyxel Device checks this rule’s member
interfaces.
IP Address This field displays the IP address of the member interface.
Monitor Interface This field displays the name of the member interface. The Zyxel Device manages load
balancing between the member interfaces.
Weight This field is available if you selected Weighted Round Robin as the load balancing
algorithm. This field displays the weight of the member interface. An interface with a
larger weight gets more chances to transmit traffic than an interface with a smaller
weight.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 192 Configuration > Network > DNS Inbound LB > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 19 DNS Inbound LB
USG FLEX Series User’s Guide
523
Figure 369 Configuration > Network > DNS Inbound LB > Add/Edit > Add
The following table describes the labels in this screen.
Table 193 Configuration > Network > DNS Inbound LB > Add/Edit > Add/Edit
LABEL DESCRIPTION
Member The Zyxel Device checks each member interface’s loading in the order displayed here.
Monitor Interface Select an interface to associate it with the DNS load balancing rule. This field also displays
whether the IP address is a static IP address (Static), dynamically assigned (Dynamic) or
obtained from a DHCP server (DHCP Client), as well as the IP address and subnet mask.
Weight This field is available if you selected Weighted Round Robin for the load balancing
algorithm.
Specify the weight of the member interface. An interface with a larger weight gets more
chances to transmit traffic than an interface with a smaller weight.
IP Address
Same as Monitor
Interface
Select this to send the IP address displayed in the Monitor Interface field to the DNS query
senders.
Custom Select this and enter another IP address to send to the DNS query senders.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
USG FLEX Series User’s Guide
524
CHAPTER 20
IPSec VPN
20.1 Virtual Private Networks (VPN) Overview
A virtual private network (VPN) provides secure communications between sites without the expense of
leased site-to-site lines. A secure VPN is a combination of tunneling, encryption, authentication, access
control and auditing. It is used to transport traffic over the Internet or any insecure network that uses
TCP/IP for communication.
IPSec VPN
Internet Protocol Security (IPSec) VPN connects IPSec routers or remote users using IPSec client software.
This standards-based VPN offers flexible solutions for secure data communications across a public
network. IPSec is built around a number of standardized cryptographic techniques to provide
confidentiality, data integrity and authentication at the IP layer. The Zyxel Device can also combine
multiple IPSec VPN connections into one secure network. Here local Zyxel Device X uses an IPSec VPN
tunnel to remote (peer) Zyxel Device Y to connect the local (A) and remote (B) networks.
Figure 370 IPSec VPN Example
Internet Key Exchange (IKE): IKEv1 and IKEv2
The Zyxel Device supports IKEv1 and IKEv2 for IPv4 and IPv6 traffic. IKE (Internet Key Exchange) is a
protocol used in setting up security associations that allows two parties to send data securely.
IKE uses certificates or pre-shared keys for authentication and a Diffie–Hellman key exchange to set up
a shared session secret from which encryption keys are derived. A security policy for each peer must be
manually created.
IPSec VPN consists of two phases: Phase 1 and Phase 2. Phase 1's purpose is to establish a secure
authenticated communication channel by using the Diffie–Hellman key exchange algorithm to
generate a shared secret key to encrypt IKE communications. This negotiation results in one single bi-
directional ISAKMP Security Association (SA). The authentication can be performed using either pre-
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
525
shared key (shared secret), signatures, or public key encryption. Phase 1 operates in either Main Mode
or Aggressive Mode. Main Mode protects the identity of the peers, but Aggressive Mode does not.
During Phase 2, the remote IPSec routers use the secure channel established in Phase 1 to negotiate
Security Associations for IPSec. The negotiation results in a minimum of two unidirectional security
associations (one inbound and one outbound). Phase 2 uses Quick Mode (only). Quick mode occurs
after IKE has established the secure tunnel in Phase 1. It negotiates a shared IPSec policy, derives shared
secret keys used for the IPSec security algorithms, and establishes IPSec SAs. Quick mode is also used to
renegotiate a new IPSec SA when the IPSec SA lifetime expires.
In the Zyxel Device, use the VPN Connection tab to set up Phase 2 and the VPN Gateway tab to set up
Phase 1.
Some differences between IKEv1 and IKEv2 include:
• IKEv2 uses less bandwidth than IKEv1. IKEv2 uses one exchange procedure with 4 messages. IKEv1 uses
two phases with Main Mode (9 messages) or Aggressive Mode (6 messages) in phase 1.
• IKEv2 supports Extended Authentication Protocol (EAP) authentication, and IKEv1 supports X-Auth.
EAP is important when connecting to existing enterprise authentication systems.
• IKEv2 always uses NAT traversal and Dead Peer Detection (DPD), but they can be disabled in IKEv1
using Zyxel Device firmware (the default is on).
• Configuration payload (includes the IP address pool in the VPN setup data) is supported in IKEv2 (off
by default), but not in IKEv1.
• Narrowed is supported in IKEv2, but not in IKEv1. Narrowed has the SA apply only to IP addresses in
common between the Zyxel Device and the remote IPSec router.
• The IKEv2 protocol supports connectivity checks which is used to detect whether the tunnel is still up
or not. If the check fails (the tunnel is down), IKEv2 can re-establish the connection automatically. The
Zyxel Device uses firmware to perform connectivity checks when using IKEv1.
SSL VPN
SSL VPN uses remote users’ web browsers to provide the easiest-to-use of the Zyxel Device’s VPN
solutions. A user just browses to the Zyxel Device’s web address and enters his user name and password
to securely connect to the Zyxel Device’s network. Remote users do not need to configure security
settings. Here a user uses his browser to securely connect to network resources in the same way as if he
were part of the internal network. See
Chapter 21 on page 562 for more on SSL VPN.
Figure 371 SSL VPN
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
526
L2TP VPN
L2TP VPN uses the L2TP and IPSec client software included in remote users’ Android, iOS, or Windows
operating systems for secure connections to the network behind the Zyxel Device. The remote users do
not need their own IPSec gateways or third-party VPN client software. For example, configure sales
representatives’ laptops, tablets, or smartphones to securely connect to the Zyxel Device’s network. See
Chapter 22 on page 568 for more on L2TP over IPSec.
Figure 372 L2TP VPN
20.1.1 What You Can Do in this Chapter
• Use the VPN Connection screens (see Section 20.2 on page 529) to specify which IPSec VPN gateway
an IPSec VPN connection policy uses, which devices behind the IPSec routers can use the VPN tunnel,
and the IPSec SA settings (phase 2 settings). You can also activate or deactivate and connect or
disconnect each VPN connection (each IPSec SA).
• Use the VPN Gateway screens (see Section 20.2.1 on page 531) to manage the Zyxel Device’s VPN
gateways. A VPN gateway specifies the IPSec routers at either end of a VPN tunnel and the IKE SA
settings (phase 1 settings). You can also activate and deactivate each VPN gateway.
• Use the VPN Concentrator screens (see Section 20.4 on page 546) to combine several IPSec VPN
connections into a single secure network.
• Use the Configuration Provisioning screen (see Section 20.5 on page 548) to set who can retrieve VPN
rule settings from the Zyxel Device using the Zyxel Device IPSec VPN Client.
20.1.2 What You Need to Know
An IPSec VPN tunnel is usually established in two phases. Each phase establishes a security association
(SA), a contract indicating what security parameters the Zyxel Device and the remote IPSec router will
use. The first phase establishes an Internet Key Exchange (IKE) SA between the Zyxel Device and remote
IPSec router. The second phase uses the IKE SA to securely establish an IPSec SA through which the Zyxel
Device and remote IPSec router can send data between computers on the local network and remote
network. This is illustrated in the following figure.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
527
Figure 373 VPN: IKE SA and IPSec SA
In this example, a computer in network A is exchanging data with a computer in network B. Inside
networks A and B, the data is transmitted the same way data is normally transmitted in the networks.
Between routers X and Y, the data is protected by tunneling, encryption, authentication, and other
security features of the IPSec SA. The IPSec SA is secure because routers X and Y established the IKE SA
first.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
528
Application Scenarios
The Zyxel Device’s application scenarios make it easier to configure your VPN connection settings.
Finding Out More
•See Section 20.7 on page 552 for IPSec VPN background information.
• See the help in the IPSec VPN quick setup wizard screens.
Table 194 IPSec VPN Application Scenarios
SITE-TO-SITE
SITE-TO-SITE WITH
DYNAMIC PEER
REMOTE ACCESS
(SERVER ROLE)
REMOTE ACCESS
(CLIENT ROLE)
VPN TUNNEL
INTERFACE
Choose this if the
remote IPSec router
has a static IP
address or a domain
name.
This Zyxel Device
can initiate the VPN
tunnel.
The remote IPSec
router can also
initiate the VPN
tunnel if this Zyxel
Device has a static
IP address or a
domain name.
Choose this if the
remote IPSec router
has a dynamic IP
address.
You don’t specify the
remote IPSec router’s
address, but you
specify the remote
policy (the addresses
of the devices behind
the remote IPSec
router).
This Zyxel Device must
have a static IP
address or a domain
name.
Only the remote IPSec
router can initiate the
VPN tunnel.
Choose this to allow
incoming
connections from
IPSec VPN clients.
The clients have
dynamic IP
addresses and are
also known as dial-in
users.
You don’t specify the
addresses of the
client IPSec routers or
the remote policy.
This creates a
dynamic IPSec VPN
rule that can let
multiple clients
connect.
Only the clients can
initiate the VPN
tunnel.
Choose this to
connect to an
IPSec server.
This Zyxel Device is
the client (dial-in
user).
Client role Zyxel
Devices initiate
IPSec VPN
connections to a
server role Zyxel
Device.
This Zyxel Device
can have a
dynamic IP
address.
The IPSec server
doesn’t configure
this Zyxel Device’s
IP address or the
addresses of the
devices behind it.
Only this Zyxel
Device can initiate
the VPN tunnel.
Choose this to set up
a VPN tunnel
interface to bind with
a VPN connection.
The Zyxel Device can
use the interface to
do load balancing
using a specific Trunk.
The remote IPSec
router should have a
static IP address or a
domain name.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
529
20.1.3 Before You Begin
This section briefly explains the relationship between VPN tunnels and other features. It also gives some
basic suggestions for troubleshooting.
You should set up the following features before you set up the VPN tunnel.
• In any VPN connection, you have to select address objects to specify the local policy and remote
policy. You should set up the address objects first.
• In a VPN gateway, you can select an Ethernet interface, virtual Ethernet interface, VLAN interface, or
virtual VLAN interface to specify what address the Zyxel Device uses as its IP address when it
establishes the IKE SA. You should set up the interface first.
• In a VPN gateway, you can enable extended authentication. If the Zyxel Device is in server mode,
you should set up the authentication method (AAA server) first. The authentication method specifies
how the Zyxel Device authenticates the remote IPSec router.
• In a VPN gateway, the Zyxel Device and remote IPSec router can use certificates to authenticate
each other. Make sure the Zyxel Device and the remote IPSec router will trust each other’s
certificates.
20.2 The VPN Connection Screen
Click Configuration > VPN > IPSec VPN to open the VPN Connection screen. The VPN Connection screen
lists the VPN connection policies and their associated VPN gateway(s), and various settings. In addition,
it also lets you activate or deactivate and connect or disconnect each VPN connection (each IPSec
SA). Click a column’s heading cell to sort the table entries by that column’s criteria. Click the heading
cell again to reverse the sort order.
Click on the icons to go to the OneSecurity website where there is guidance on configuration
walkthroughs, troubleshooting and other information.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
530
Figure 374 Configuration > VPN > IPSec VPN > VPN Connection
Each field is discussed in the following table.
Table 195 Configuration > VPN > IPSec VPN > VPN Connection
LABEL DESCRIPTION
Enable VPN
Service
Select this to enable IPSec VPN on the Zyxel Device.
Auto disable
VPN service
Select this to disable UDP ports 500 and 4500 when no IPSec VPN rules are configured on the
Zyxel Device. Use this to prevent hackers from attacking the Zyxel Device through UDP 500 and
4500 when you’re not using IPSec VPN.
Use Policy
Route to
control
dynamic
IPSec rules
Select this to be able to use policy routes to manually specify the destination addresses of
dynamic IPSec rules. You must manually create these policy routes. The Zyxel Device
automatically obtains source and destination addresses for dynamic IPSec rules that do not
match any of the policy routes.
Clear this to have the Zyxel Device automatically obtain source and destination addresses for all
dynamic IPSec rules.
Ignore
“Don't
Fragment”
setting in
packet
header
Select this to fragment packets larger than the MTU (Maximum Transmission Unit) that have the
“Don't Fragment” bit in the IP header turned on. When you clear this the Zyxel Device drops
packets larger than the MTU that have the “Don't Fragment” bit in the header turned on.
IPv4 / IPv6
Configuration
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove it
before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
531
20.2.1 The VPN Connection Add/Edit Screen
The VPN Connection Add/Edit Gateway screen allows you to create a new VPN connection policy or
edit an existing one. To access this screen, go to the Configuration > VPN Connection screen (see
Section 20.2 on page 529), and click either the Add icon or an Edit icon.
Connect To connect an IPSec SA, select it and click Connect.
Disconnect To disconnect an IPSec SA, select it and click Disconnect.
References Select an entry and click References to open a screen that shows which settings use the entry.
See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with a specific connection.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
The connect icon is lit when the interface is connected and dimmed when it is disconnected.
Name This field displays the name of the IPSec SA.
VPN Gateway This field displays the VPN gateway in use for this VPN connection.
Gateway IP
Version
This field displays what IP version the associated VPN gateway(s) is using. An IPv4 gateway may
use an IKEv1 or IKEv2 SA. An IPv6 gateway may use IKEv2 only.
Policy This field displays the local policy and the remote policy, respectively.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 195 Configuration > VPN > IPSec VPN > VPN Connection (continued)
LABEL DESCRIPTION
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
532
Figure 375 Configuration > VPN > IPSec VPN > VPN Connection > Add/Edit
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
533
Each field is described in the following table.
Table 196 Configuration > VPN > IPSec VPN > VPN Connection > Add/Edit
LABEL DESCRIPTION
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
Create new Object Use to configure any new settings objects that you need to use in this screen.
General Settings
Enable Select this check box to activate this VPN connection.
Connection Name Type the name used to identify this IPSec SA. You may use 1-31 alphanumeric characters,
underscores (
_), or dashes (-), but the first character cannot be a number. This value is
case-sensitive.
Nailed-Up Select this if you want the Zyxel Device to automatically renegotiate the IPSec SA when
the SA life time expires.
Enable Replay
Detection
Select this check box to detect and reject old or duplicate packets to protect against
Denial-of-Service attacks.
Enable NetBIOS
Broadcast over
IPSec
Select this check box if you the Zyxel Device to send NetBIOS (Network Basic Input/
Output System) packets through the IPSec SA.
NetBIOS packets are TCP or UDP packets that enable a computer to connect to and
communicate with a LAN. It may sometimes be necessary to allow NetBIOS packets to
pass through IPSec SAs in order to allow local computers to find computers on the remote
network and vice versa.
MSS Adjustment Select Custom Size to set a specific number of bytes for the Maximum Segment Size (MSS)
meaning the largest amount of data in a single TCP segment or IP datagram for this VPN
connection.
Some VPN clients may not be able to use a custom MSS size if it is set too small. In that
case those VPN clients will ignore the size set here and use the minimum size that they
can use.
Select Auto to have the Zyxel Device automatically set the MSS for this VPN connection.
Narrowed This is visible when you select any options in the VPN Gateway section except for VPN
Tunnel Interface.
If the IP range on the Zyxel Device (local policy) and the local IP range on the remote
IPSec router overlap in an IKEv2 SA, then you may select Narrowed to have the SA only
apply to the IP addresses in common.
Here are some examples.
Zyxel Device (local policy) Remote IPSec router
IKEv2 SA-1 192.168.20.0/24 192.168.20.1 ~ 192.168.20.20
Narrowed 192.168.20.1 ~ 192.168.20.20
IKEv2 SA- 2 192.168.30.50 ~ 192.168.30.70 192.168.30.60 ~ 192.168.30.80
Narrowed 192.168.30.60 ~ 192.168.30.70
VPN Gateway
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
534
Application
Scenario
Select the scenario that best describes your intended VPN connection.
Site-to-site - Choose this if the remote IPSec router has a static IP address or a domain
name. This Zyxel Device can initiate the VPN tunnel.
Site-to-site with Dynamic Peer - Choose this if the remote IPSec router has a dynamic IP
address. Only the remote IPSec router can initiate the VPN tunnel.
Remote Access (Server Role) - Choose this to allow incoming connections from IPSec VPN
clients. The clients have dynamic IP addresses and are also known as dial-in users. Only
the clients can initiate the VPN tunnel.
Remote Access (Client Role) - Choose this to connect to an IPSec server. This Zyxel Device
is the client (dial-in user) and can initiate the VPN tunnel.
VPN Tunnel Interface - Choose this to set up a VPN tunnel interface to bind with a VPN
connection. The Zyxel Device can use the interface to do load balancing using a specific
Trunk. The remote IPSec router should have a static IP address or a domain name. See
Configuration > Network > Interface > VTI.
VPN Gateway Select the VPN gateway this VPN connection is to use or select Create Object to add
another VPN gateway for this VPN connection to use.
Policy
Local Policy Select the address corresponding to the local network. Use Create new Object if you
need to configure a new one.
Remote Policy Select the address corresponding to the remote network. Use Create new Object if you
need to configure a new one.
Enable GRE over
IPSec
Select this to allow traffic using the Generic Routing Encapsulation (GRE) tunneling
protocol through an IPSec tunnel.
Policy Enforcement Clear this to allow traffic with source and destination IP addresses that do not match the
local and remote policy to use the VPN tunnel. Leave this cleared for free access
between the local and remote networks.
Selecting this restricts who can use the VPN tunnel. The Zyxel Device drops traffic with
source and destination IP addresses that do not match the local and remote policy.
Mode Config This is visible when you select Remote Access (Server Role) and a VPN Gateway.
Enable Mode
Config
Select this to have the IPSec VPN client receive an IP address, DNS and WINS information
from the Zyxel Device.
IP Address Pool Select an address object from the drop-down list box.
First DNS Server
(Optional)
The Domain Name System (DNS) maps a domain name to an IP address and vice versa.
The Zyxel Device uses these (in the order you specify here) to resolve domain names for
VPN. Enter a DNS server's IP address.
Second DNS Server
(Optional)
Enter a secondary DNS server's IP address that is checked if the first one is unavailable.
First WINS Server
(Optional)
Type the IP address of the WINS (Windows Internet Naming Service) server that you want
to send to the DHCP clients. The WINS server keeps a mapping table of the computer
names on your network and the IP addresses that they are currently using.
Second WINS
Server (Optional)
Enter a secondary WINS server's IP address that is checked if the first one is unavailable.
Configuration Payload This is only available when you have created an IKEv2 Gateway and are using Remote
Access (Server Role).
Enable Configuration
Payload
Select this to have at least have the IP address pool included in the VPN setup data.
IP Address Pool: Select an address object from the drop-down list box.
Table 196 Configuration > VPN > IPSec VPN > VPN Connection > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
535
First DNS Server
(optional)
The Domain Name System (DNS) maps a domain name to an IP address and vice versa.
The Zyxel Device uses these (in the order you specify here) to resolve domain names for
VPN. Enter a DNS server's IP address.
Second DNS Server
(Optional)
Enter a secondary DNS server's IP address that is checked if the first one is unavailable.
First WINS Server
(Optional)
Type the IP address of the WINS (Windows Internet Naming Service) server that you want
to send to the DHCP clients. The WINS server keeps a mapping table of the computer
names on your network and the IP addresses that they are currently using.
Second WINS
Server (Optional)
Enter a secondary WINS server's IP address that is checked if the first one is unavailable.
Phase 2 Settings
SA Life Time Type the maximum number of seconds the IPSec SA can last. Shorter life times provide
better security. The Zyxel Device automatically negotiates a new IPSec SA before the
current one expires, if there are users who are accessing remote resources.
Active Protocol Select which protocol you want to use in the IPSec SA. Choices are:
AH (RFC 2402) - provides integrity, authentication, sequence integrity (replay resistance),
and non-repudiation but not encryption. If you select AH, you must select an
Authentication algorithm.
ESP (RFC 2406) - provides encryption and the same services offered by AH, but its
authentication is weaker. If you select ESP, you must select an Encryption algorithm and
Authentication algorithm.
Both AH and ESP increase processing requirements and latency (delay).
The Zyxel Device and remote IPSec router must use the same active protocol.
Encapsulation Select which type of encapsulation the IPSec SA uses. Choices are
Tunnel - this mode encrypts the IP header information and the data.
Transport - this mode only encrypts the data.
The Zyxel Device and remote IPSec router must use the same encapsulation.
Proposal Use this section to manage the encryption algorithm and authentication algorithm pairs
the Zyxel Device accepts from the remote IPSec router for negotiating the IPSec SA.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This field is a sequential value, and it is not associated with a specific proposal. The
sequence of proposals should not affect performance significantly.
Table 196 Configuration > VPN > IPSec VPN > VPN Connection > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
536
Encryption This field is applicable when the Active Protocol is ESP. Select which key size and
encryption algorithm to use in the IPSec SA. Choices are:
NULL - no encryption key or algorithm
DES - a 56-bit key with the DES encryption algorithm
3DES - a 168-bit key with the DES encryption algorithm
AES128 - a 128-bit key with the AES encryption algorithm
AES192 - a 192-bit key with the AES encryption algorithm
AES256 - a 256-bit key with the AES encryption algorithm
The Zyxel Device and the remote IPSec router must both have at least one proposal that
uses use the same encryption and the same key.
Longer keys are more secure, but require more processing power, resulting in increased
latency and decreased throughput.
Authentication Select which hash algorithm to use to authenticate packet data in the IPSec SA. Choices
are SHA1, SHA256, SHA512 and MD5. SHA is generally considered stronger than MD5, but
it is also slower.
The Zyxel Device and the remote IPSec router must both have a proposal that uses the
same authentication algorithm.
Perfect Forward
Secrecy (PFS)
Select whether or not you want to enable Perfect Forward Secrecy (PFS) and, if you do,
which Diffie-Hellman key group to use for encryption. Choices are:
none - disable PFS
DH1 - enable PFS and use a 768-bit random number
DH2 - enable PFS and use a 1024-bit random number
DH5 - enable PFS and use a 1536-bit random number
DH14 - enable PFS and use a 2048 bit random number
PFS changes the root key that is used to generate encryption keys for each IPSec SA. The
longer the key, the more secure the encryption, but also the longer it takes to encrypt
and decrypt information. Both routers must use the same DH key group.
PFS is ignored in initial IKEv2 authentication but is used when re-authenticating.
Related Settings
Zone Select the security zone into which to add this VPN connection policy. Any security rules
or settings configured for the selected zone apply to this VPN connection policy.
Connectivity Check The Zyxel Device can regularly check the VPN connection to the gateway you specified
to make sure it is still available.
Enable
Connectivity
Check
Select this to turn on the VPN connection check.
Check Method Select how the Zyxel Device checks the connection. The peer must be configured to
respond to the method you select.
Select icmp to have the Zyxel Device regularly ping the address you specify to make sure
traffic can still go through the connection. You may need to configure the peer to
respond to pings.
Select tcp to have the Zyxel Device regularly perform a TCP handshake with the address
you specify to make sure traffic can still go through the connection. You may need to
configure the peer to accept the TCP connection.
Table 196 Configuration > VPN > IPSec VPN > VPN Connection > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
537
Check Port This field displays when you set the Check Method to tcp. Specify the port number to use
for a TCP connectivity check.
Check Period Enter the number of seconds between connection check attempts.
Check Timeout Enter the number of seconds to wait for a response before the attempt is a failure.
Check Fail
Tolerance
Enter the number of consecutive failures allowed before the Zyxel Device disconnects
the VPN tunnel. The Zyxel Device resumes using the first peer gateway address when the
VPN connection passes the connectivity check.
Check These
Addresses
Type one or two domain names or IPv4 addresses for the connectivity check.
You can type an IPv4 address in one field and a domain name in the other. For example,
type “192.168.1.2” in the top field and “www.zyxel.com” in the bottom field.
Probe Succeeds
When
This field applies when you specify two domain names or IP addresses for the connectivity
check.
Select any one if you want the check to pass if at least one of the domain names or IP
addresses responds.
Select all if you want the check to pass only if both domain names or IP addresses
respond.
Check the First and
Last IP Address in
the Remote Policy
Select this to have the Zyxel Device check the connection to the first and last IP
addresses in the connection’s remote policy. Make sure one of these is the peer
gateway’s LAN IP address.
Log Select this to have the Zyxel Device generate a log every time it checks this VPN
connection.
Inbound/Outbound
traffic NAT
Outbound Traffic
Source NAT This translation hides the source address of computers in the local network. It may also be
necessary if you want the Zyxel Device to route packets from computers outside the local
network through the IPSec SA.
Source Select the address object that represents the original source address (or select Create
Object to configure a new one). This is the address object for the computer or network
outside the local network.
Destination Select the address object that represents the original destination address (or select
Create Object to configure a new one). This is the address object for the remote network.
SNAT Select the address object that represents the translated source address (or select Create
Object to configure a new one). This is the address object for the local network. The size
of the original source address range (Source) must be equal to the size of the translated
source address range (SNAT).
Inbound Traffic
Source NAT This translation hides the source address of computers in the remote network.
Source Select the address object that represents the original source address (or select Create
Object to configure a new one). This is the address object for the remote network. The size
of the original source address range (Source) must be equal to the size of the translated
source address range (SNAT).
Destination Select the address object that represents the original destination address (or select
Create Object to configure a new one). This is the address object for the local network.
SNAT Select the address object that represents the translated source address (or select Create
Object to configure a new one). This is the address that hides the original source address.
The size of the original source address range (Source) must be equal to the size of the
translated source address range (SNAT).
Destination NAT This translation forwards packets (for example, mail) from the remote network to a
specific computer (for example, the mail server) in the local network.
Table 196 Configuration > VPN > IPSec VPN > VPN Connection > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
538
20.3 The VPN Gateway Screen
The VPN Gateway summary screen displays the IPSec VPN gateway policies in the Zyxel Device, as well
as the Zyxel Device’s address, remote IPSec router’s address, and associated VPN connections for each
one. In addition, it also lets you activate and deactivate each VPN gateway. To access this screen, click
Configuration > VPN > Network > IPSec VPN > VPN Gateway. The following screen appears.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after
the selected entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Move To change an entry’s position in the numbered list, select it and click Move to display a
field to type a number for where you want to put that entry and press [ENTER] to move
the entry to the number that you typed.
# This field is a sequential value, and it is not associated with a specific NAT record.
However, the order of records is the sequence in which conditions are checked and
executed.
Original IP Select the address object that represents the original destination address. This is the
address object for the remote network.
Mapped IP Select the address object that represents the desired destination address. For example,
this is the address object for the mail server.
Protocol Select the protocol required to use this translation. Choices are: TCP, UDP, or All.
Original Port Start /
Original Port End
These fields are available if the protocol is TCP or UDP. Enter the original destination port or
range of original destination ports. The size of the original port range must be the same
size as the size of the mapped port range.
Mapped Port Start /
Mapped Port End
These fields are available if the protocol is TCP or UDP. Enter the translated destination
port or range of translated destination ports. The size of the original port range must be
the same size as the size of the mapped port range.
OK Click OK to save the changes.
Cancel Click Cancel to discard all changes and return to the main VPN screen.
Table 196 Configuration > VPN > IPSec VPN > VPN Connection > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
539
Figure 376 Configuration > VPN > IPSec VPN > VPN Gateway
Each field is discussed in the following table. See Section 20.3.1 on page 540 for more information.
Table 197 Configuration > VPN > IPSec VPN > VPN Gateway
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
References Select an entry and click References to open a screen that shows which settings use the
entry. See
Section 10.5.4 on page 348 for an example.
# This field is a sequential value, and it is not associated with a specific VPN gateway.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
Name This field displays the name of the VPN gateway
My address This field displays the interface or a domain name the Zyxel Device uses for the VPN gateway.
Secure Gateway This field displays the IP address(es) of the remote IPSec routers.
VPN Connection This field displays VPN connections that use this VPN gateway.
IKE Version This field displays whether the gateway is using IKEv1 or IKEv2. IKEv1 applies to IPv4 traffic only.
IKEv2 applies to both IPv4 and IPv6 traffic. IKE (Internet Key Exchange) is a protocol used in
setting up security associations that allows two parties to send data securely. See
Section 20.1
on page 524 for more information on IKEv1 and IKEv2.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
540
20.3.1 The VPN Gateway Add/Edit Screen
The VPN Gateway Add/Edit screen allows you to create a new VPN gateway policy or edit an existing
one. To access this screen, go to the VPN Gateway summary screen (see
Section 20.3 on page 538),
and click either the Add icon or an Edit icon.
Figure 377 Configuration > VPN > IPSec VPN > VPN Gateway > Add/Edit
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
541
Each field is described in the following table.
Table 198 Configuration > VPN > IPSec VPN > VPN Gateway > Add/Edit
LABEL DESCRIPTION
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
Create New Object Use to configure any new settings objects that you need to use in this screen.
General Settings
Enable Select this to activate the VPN Gateway policy.
VPN Gateway
Name
Type the name used to identify this VPN gateway. You may use 1-31 alphanumeric
characters, underscores(
_), or dashes (-), but the first character cannot be a number. This
value is case-sensitive.
IKE Version
IKEv1 / IKEv2 Select IKEv1 or IKEv2. IKEv1 applies to IPv4 traffic only. IKEv2 applies to both IPv4 and IPv6
traffic. IKE (Internet Key Exchange) is a protocol used in setting up security associations that
allows two parties to send data securely. See
Section 20.1 on page 524 for more information
on IKEv1 and IKEv2.
Gateway Settings
My Address Select how the IP address of the Zyxel Device in the IKE SA is defined.
If you select Interface, select the Ethernet interface, VLAN interface, virtual Ethernet
interface, virtual VLAN interface or PPPoE/PPTP interface. The IP address of the Zyxel Device
in the IKE SA is the IP address of the interface.
If you select Domain Name / IP, enter the domain name or the IP address of the Zyxel
Device. The IP address of the Zyxel Device in the IKE SA is the specified IP address or the IP
address corresponding to the domain name. 0.0.0.0 is not generally recommended as it
has the Zyxel Device accept IPSec requests destined for any interface address on the Zyxel
Device.
Peer Gateway
Address
Select how the IP address of the remote IPSec router in the IKE SA is defined.
Select Static Address to enter the domain name or the IP address of the remote IPSec
router. You can provide a second IP address or domain name for the Zyxel Device to try if it
cannot establish an IKE SA with the first one.
Fall back to Primary Peer Gateway when possible: When you select this, if the
connection to the primary address goes down and the Zyxel Device changes to using
the secondary connection, the Zyxel Device will reconnect to the primary address
when it becomes available again and stop using the secondary connection. Users will
lose their VPN connection briefly while the Zyxel Device changes back to the primary
connection. To use this, the peer device at the secondary address cannot be set to use
a nailed-up VPN connection. In the Fallback Check Interval field, set how often to
check if the primary address is available.
Select Dynamic Address if the remote IPSec router has a dynamic IP address (and does not
use DDNS).
Authentication
Note: The Zyxel Device and remote IPSec router must use the same
authentication method to establish the IKE SA.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
542
Pre-Shared Key Select this to have the Zyxel Device and remote IPSec router use a pre-shared key
(password) of up to 128 characters to identify each other when they negotiate the IKE SA.
Type the pre-shared key in the field to the right. The pre-shared key can be:
• 8 to 128 single-byte characters, including a-zA-Z0-9,;.|`~!?@#$%^&*()_^+\{}':./<>= -"[]
are not allowed.
• pairs of hexadecimal (a-zA-Z0-9) characters, preceded by “0x”.
Type “0x” at the beginning of a hexadecimal key. For example, "0x0123456789ABCDEF" is in
hexadecimal format; “0123456789ABCDEF” is in ASCII format. If you use hexadecimal, you
must enter twice as many characters since you need to enter pairs.
The Zyxel Device and remote IPSec router must use the same pre-shared key.
Select unmasked to see the pre-shared key in readable plain text.
Certificate Select this to have the Zyxel Device and remote IPSec router use certificates to
authenticate each other when they negotiate the IKE SA. Then select the certificate the
Zyxel Device uses to identify itself to the remote IPSec router.
This certificate is one of the certificates in My Certificates. If this certificate is self-signed,
import it into the remote IPSec router. If this certificate is signed by a CA, the remote IPSec
router must trust that CA.
Note: The IPSec routers must trust each other’s certificates.
The Zyxel Device uses one of its Trusted Certificates to authenticate the remote IPSec
router’s certificate. The trusted certificate can be a self-signed certificate or that of a
trusted CA that signed the remote IPSec router’s certificate.
User-based PSK User-based PSK (IKEv1 only) generates and manages separate pre-shared keys for every
user. This enables multiple users, each with a unique key, to access the same VPN gateway
policy with one-to-one authentication and strong encryption. Access can be denied on a
per-user basis thus allowing VPN SA user-based policies. Click User-Based PSK then select a
user or group object who is allowed VPN SA access using this VPN gateway policy. This is for
IKEv1 only.
Local ID Type This field is read-only if the Zyxel Device and remote IPSec router use certificates to identify
each other. Select which type of identification is used to identify the Zyxel Device during
authentication. Choices are:
IPv4 or IPv6 - the Zyxel Device is identified by an IP address
DNS - the Zyxel Device is identified by a domain name
E-mail - the Zyxel Device is identified by the string specified in this field
Content This field is read-only if the Zyxel Device and remote IPSec router use certificates to identify
each other. Type the identity of the Zyxel Device during authentication. The identity
depends on the Local ID Type.
IP - type an IP address; if you type 0.0.0.0, the Zyxel Device uses the IP address specified in
the My Address field. This is not recommended in the following situations:
• There is a NAT router between the Zyxel Device and remote IPSec router.
• You want the remote IPSec router to be able to distinguish between IPSec SA requests
that come from IPSec routers with dynamic WAN IP addresses.
• In these situations, use a different IP address, or use a different Local ID Type.
• DNS - type the fully qualified domain name (FQDN). This value is only used for
identification and can be any string that matches the peer ID string.
• E-mail - the Zyxel Device is identified by the string you specify here; you can use 1 to 63
single-byte characters, including a-zA-Z0-9_.-
• !”#$%&’()*+,/;:<=>?[\]^‘{|} are not allowed. This value is only used for identification and
can be any string.
Table 198 Configuration > VPN > IPSec VPN > VPN Gateway > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
543
Peer ID Type Select which type of identification is used to identify the remote IPSec router during
authentication. Choices are:
IP - the remote IPSec router is identified by an IP address
DNS - the remote IPSec router is identified by a domain name
E-mail - the remote IPSec router is identified by the string specified in this field
Any - the Zyxel Device does not check the identity of the remote IPSec router
If the Zyxel Device and remote IPSec router use certificates, there is one more choice.
Subject Name - the remote IPSec router is identified by the subject name in the certificate
Content This field is disabled if the Peer ID Type is Any. Type the identity of the remote IPSec router
during authentication. The identity depends on the Peer ID Type.
If the Zyxel Device and remote IPSec router do not use certificates,
IP - type an IP address; see the note at the end of this description.
DNS - type the fully qualified domain name (FQDN). This value is only used for identification
and can be any string that matches the peer ID string.
E-mail - the remote IPSec router is identified by the string you specify here; you can use up
to 31 ASCII characters including spaces, although trailing spaces are truncated. This value is
only used for identification and can be any string.
If the Zyxel Device and remote IPSec router use certificates, type the following fields from
the certificate used by the remote IPSec router.
IP - subject alternative name field; see the note at the end of this description.
DNS - subject alternative name field
E-mail - subject alternative name field.
Subject Name - subject name (maximum 255 ASCII characters, including spaces)
Note: If Peer ID Type is IP, please read the rest of this section.
If you type 0.0.0.0, the Zyxel Device uses the IP address specified in the Secure Gateway
Address field. This is not recommended in the following situations:
• There is a NAT router between the Zyxel Device and remote IPSec router.
• You want the remote IPSec router to be able to distinguish between IPSec SA requests
that come from IPSec routers with dynamic WAN IP addresses.
In these situations, use a different IP address, or use a different Peer ID Type.
Phase 1 Settings
SA Life Time
(Seconds)
Type the maximum number of seconds the IKE SA can last. When this time has passed, the
Zyxel Device and remote IPSec router have to update the encryption and authentication
keys and re-negotiate the IKE SA. This does not affect any existing IPSec SAs, however.
Negotiation
Mode
Select the negotiation mode to use to negotiate the IKE SA. Choices are
Main - this encrypts the Zyxel Device’s and remote IPSec router’s identities but takes more
time to establish the IKE SA
Aggressive - this is faster but does not encrypt the identities
The Zyxel Device and the remote IPSec router must use the same negotiation mode.
Proposal Use this section to manage the encryption algorithm and authentication algorithm pairs the
Zyxel Device accepts from the remote IPSec router for negotiating the IKE SA.
Add Click this to create a new entry.
Table 198 Configuration > VPN > IPSec VPN > VPN Gateway > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
544
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This field is a sequential value, and it is not associated with a specific proposal. The
sequence of proposals should not affect performance significantly.
Encryption Select which key size and encryption algorithm to use in the IKE SA. Choices are:
DES - a 56-bit key with the DES encryption algorithm
3DES - a 168-bit key with the DES encryption algorithm
AES128 - a 128-bit key with the AES encryption algorithm
AES192 - a 192-bit key with the AES encryption algorithm
AES256 - a 256-bit key with the AES encryption algorithm
The Zyxel Device and the remote IPSec router must use the same key size and encryption
algorithm. Longer keys require more processing power, resulting in increased latency and
decreased throughput.
Authentication Select which hash algorithm to use to authenticate packet data in the IPSec SA. Choices
are SHA1, SHA256, SHA512 and MD5. SHA is generally considered stronger than MD5, but it is
also slower.
The remote IPSec router must use the same authentication algorithm.
Key Group Select which Diffie-Hellman key group (DHx) you want to use to create encryption keys. See
Diffie-Hellman (DH) Key Exchange for more information on which to select.
NAT Traversal Select this if any of these conditions are satisfied.
• This IKE SA might be used to negotiate IPSec SAs that use ESP as the active protocol.
• There are one or more NAT routers between the Zyxel Device and remote IPSec router,
and these routers do not support IPSec pass-thru or a similar feature.
The remote IPSec router must also enable NAT traversal, and the NAT routers have to
forward packets with UDP port 500 and UDP 4500 headers unchanged.
This field applies for IKEv1 only. NAT Traversal is always performed when you use IKEv2.
Dead Peer
Detection (DPD)
Select this check box if you want the Zyxel Device to make sure the remote IPSec router is
there before it transmits data through the IKE SA. The remote IPSec router must support DPD.
If there has been no traffic for at least 15 seconds, the Zyxel Device sends a message to the
remote IPSec router. If the remote IPSec router responds, the Zyxel Device transmits the
data. If the remote IPSec router does not respond, the Zyxel Device shuts down the IKE SA.
If the remote IPSec router does not support DPD, see if you can use the VPN connection
connectivity check (see
Section 20.2.1 on page 531).
This field applies for IKEv1 only. Dead Peer Detection (DPD) is always performed when you
use IKEv2.
X Auth / Extended
Authentication
Protocol
This part of the screen displays X-Auth when using IKEv1 and Extended Authentication
Protocol when using IKEv2.
X-Auth This displays when using IKEv1. When different users use the same VPN tunnel to connect to
the Zyxel Device (telecommuters sharing a tunnel for example), use X-auth to enforce a
user name and password check. This way even though telecommuters all know the VPN
tunnel’s security settings, each still has to provide a unique user name and password.
Enable Extended
Authentication
Select this if one of the routers (the Zyxel Device or the remote IPSec router) verifies a user
name and password from the other router using the local user database and/or an external
server.
Server Mode Select this if the Zyxel Device authenticates the user name and password from the remote
IPSec router. You also have to select the authentication method, which specifies how the
Zyxel Device authenticates this information.
Table 198 Configuration > VPN > IPSec VPN > VPN Gateway > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
545
AAA Method Select the authentication method, which specifies how the Zyxel Device authenticates this
information.
Allowed User Extended authentication now supports an allowed user. Select what users should be
authenticated.
Client Mode Select this radio button if the Zyxel Device provides a username and password to the
remote IPSec router for authentication. You also have to provide the User Name and the
Password.
User Name This field is required if the Zyxel Device is in Client Mode for extended authentication. Type
the user name the Zyxel Device sends to the remote IPSec router. This is case-sensitive. Enter
1-31 single-byte characters, including a-zA-Z.-
0-9!”#$%&’()*+/:;<>?[\]^‘{|} and spaces are not allowed.
Password This field is required if the Zyxel Device is in Client Mode for extended authentication. Type
the password the Zyxel Device sends to the remote IPSec router. Enter 1 to 63 single-byte
characters, including 0-9a-zA-Z!”#$%&’()*+,-./:;<=>@\^_‘{|}
?[] and spaces are not allowed.
Retype to
Confirm
Type the exact same password again here to make sure an error was not made when
typing it originally.
Extended
Authentication
Protocol
This displays when using IKEv2. EAP uses a certificate for authentication.
Enable Extended
Authentication
Protocol
Select this if one of the routers (the Zyxel Device or the remote IPSec router) verifies a user
name and password from the other router using the local user database and/or an external
server or a certificate.
Allowed Auth
Method
This field displays the authentication method that is used to authenticate the users.
Server Mode Select this if the Zyxel Device authenticates the user name and password from the remote
IPSec router. You also have to select an AAA method, which specifies how the Zyxel Device
authenticates this information and who may be authenticated (Allowed User).
Client Mode Select this radio button if the Zyxel Device provides a username and password to the
remote IPSec router for authentication. You also have to provide the User Name and the
Password.
User Name This field is required if the Zyxel Device is in Client Mode for extended authentication. Type
the user name the Zyxel Device sends to the remote IPSec router. The user name can be 1-
31 ASCII characters. It is case-sensitive, but spaces are not allowed.
Password This field is required if the Zyxel Device is in Client Mode for extended authentication. Type
the password the Zyxel Device sends to the remote IPSec router. The password can be 1-31
ASCII characters. It is case-sensitive, but spaces are not allowed.
Retype to
Confirm
Type the exact same password again here to make sure an error was not made when
typing it originally.
Enable Two-Factor
Authentication
Select this to enable two-factor authentication for this VPN gateway policy. Make sure to
enable two-factor authentication in Object > Auth. Method > Two-factor Authentication >
VPN Access. You will also need to do one of the following:
•Click Show Advanced Settings. If you select IKEv1 in IKE Version, enable X-Auth in IPSec
VPN > Add VPN Gateway. Enable Mode Config in IPSec VPN > Add VPN Connection.
•Click Show Advanced Settings. If you select IKEv2 in IKE Version, enable Extended
Authentication Protocol in IPSec VPN > Add VPN Gateway. Enable Configuration
Payload in IPSec VPN > Add VPN Connection.
• Enable L2TP over IPSec VPN in Configuration > VPN > L2TP VPN.
See Section 44.11.4 on page 1025 for more information on two-factor authentication.
OK Click OK to save your settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
Table 198 Configuration > VPN > IPSec VPN > VPN Gateway > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
546
20.4 VPN Concentrator
A VPN concentrator combines several IPSec VPN connections into one secure network.

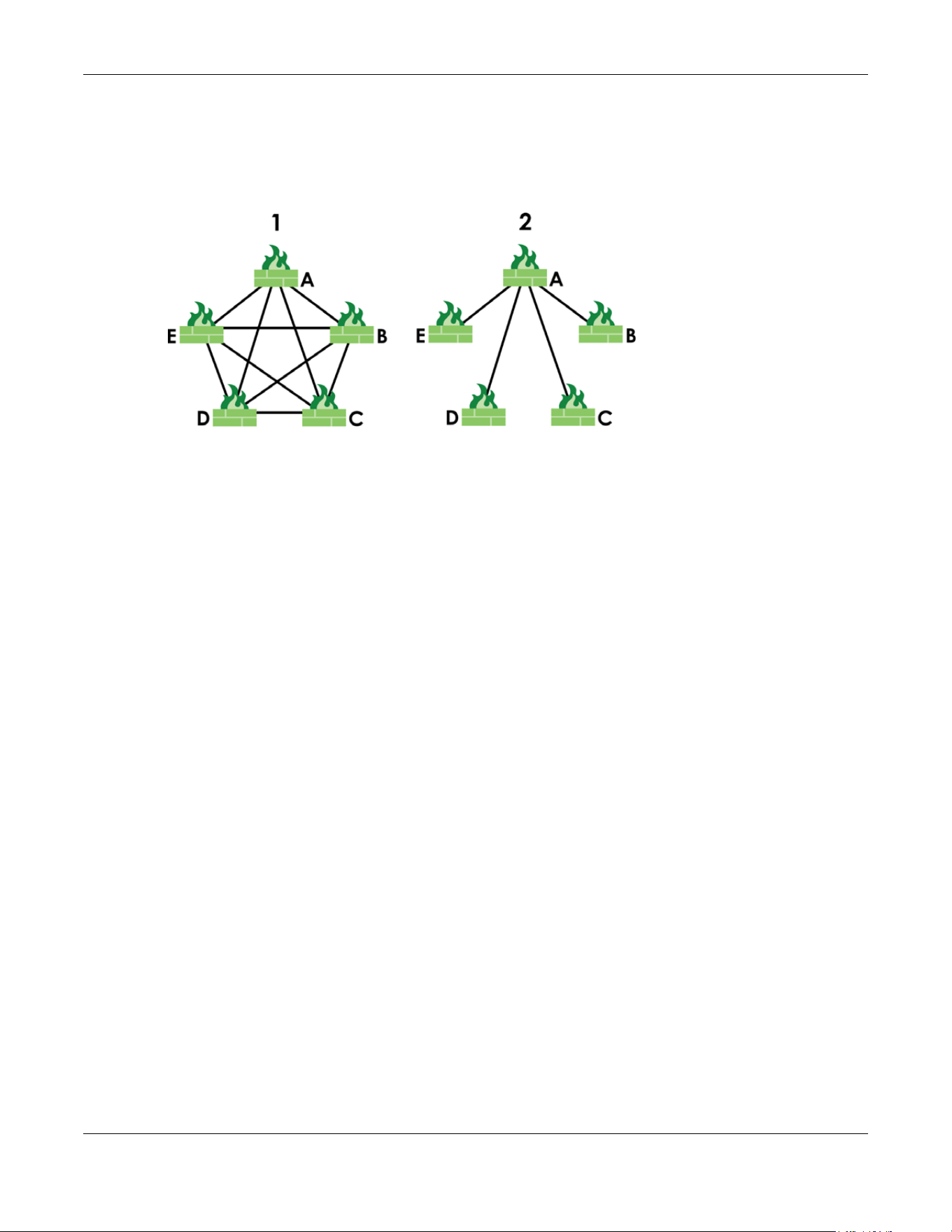

Figure 378 VPN Topologies (Fully Meshed and Hub and Spoke)
In a fully-meshed VPN topology (1 in the figure), there is a VPN connection between every pair of
routers. In a hub-and-spoke VPN topology (2 in the figure), there is a VPN connection between each
spoke router (B, C, D, and E) and the hub router (A), which uses the VPN concentrator. The VPN
concentrator routes VPN traffic between the spoke routers and itself.
A VPN concentrator reduces the number of VPN connections that you have to set up and maintain on
the network. You might also be able to consolidate the policy routes in each spoke router, depending
on the IP addresses and subnets of each spoke.
However a VPN concentrator is not for every situation. The hub router is a single failure point, so a VPN
concentrator is not as appropriate if the connection between spoke routers cannot be down
occasionally (maintenance, for example). There is also more burden on the hub router. It receives VPN
traffic from one spoke, decrypts it, inspects it to find out to which spoke to route it, encrypts it, and sends
it to the appropriate spoke. Therefore, a VPN concentrator is more suitable when there is a minimum
amount of traffic between spoke routers.
20.4.1 VPN Concentrator Requirements and Suggestions
Consider the following when using the VPN concentrator.
• The local IP addresses configured in the VPN rules should not overlap.
• The concentrator must have at least one separate VPN rule for each spoke. In the local policy,
specify the IP addresses of the networks with which the spoke is to be able to have a VPN tunnel. This
may require you to use more than one VPN rule for each spoke.
• To have all Internet access from the spoke routers go through the VPN tunnel, set the VPN rules in the
spoke routers to use 0.0.0.0 (any) as the remote IP address.
• Your security policies can still block VPN packets.
20.4.2 VPN Concentrator Screen
The VPN Concentrator summary screen displays the VPN concentrators in the Zyxel Device. To access
this screen, click Configuration > VPN > IPSec VPN > Concentrator.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
547
Figure 379 Configuration > VPN > IPSec VPN > Concentrator
Each field is discussed in the following table. See Section 20.4.3 on page 547 for more information.
20.4.3 The VPN Concentrator Add/Edit Screen
Use the VPN Concentrator Add/Edit screen to create or edit a VPN concentrator. To access this screen,
go to the VPN Concentrator summary screen (see
Section 20.4 on page 546), and click either the Add
icon or an Edit icon.
Figure 380 Configuration > VPN > IPSec VPN > Concentrator > Add/Edit
Table 199 Configuration > VPN > IPSec VPN > Concentrator
LABEL DESCRIPTION
IPv4/IPv6
Configuration
Choose to configure for IPv4 or IPv6 traffic.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This field is a sequential value, and it is not associated with a specific concentrator.
Name This field displays the name of the VPN concentrator.
Group Members These are the VPN connection policies that are part of the VPN concentrator.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
548
Each field is described in the following table.
20.5 Zyxel Device IPSec VPN Client Configuration
Provisioning
Use the Configuration > VPN > IPSec VPN > Configuration Provisioning screen to configure who can
retrieve VPN rule settings from the Zyxel Device using the Zyxel Device IPSec VPN Client. In the Zyxel
Device IPSec VPN Client, you just need to enter the IP address of the
Zyxel Device to get all the VPN rule
settings automatically. You do not need to manually configure all rule settings in the Zyxel Device IPSec
VPN client.
VPN rules for the Zyxel Device IPSec VPN Client have certain restrictions. They must not contain the
following settings:
• AH active protocol
• NULL encryption
• SHA512 authentication
• A subnet or range remote policy
The following VPN Gateway rules configured on the Zyxel Device cannot be provisioned to the IPSec
VPN Client:
• IPv4 rules with IKEv2 version
• IPv4 rules with User-based PSK authentication
Note: You must enable IPv6 in System > IPv6 to activate IPv6 VPN tunneling rules.
In the Zyxel Device Quick Setup wizard, you can use the VPN Settings for Configuration Provisioning
wizard to create a VPN rule that will not violate these restrictions.
Table 200 VPN > IPSec VPN > Concentrator > Add/Edit
LABEL DESCRIPTION
Name Enter the name of the concentrator. You may use 1-31 alphanumeric characters, underscores(_), or
dashes (-), but the first character cannot be a number. This value is case-sensitive.
Member Select the concentrator’s IPSec VPN connection policies.
Note: You must disable policy enforcement in each member. See Section 20.2.1 on page
531.
IPSec VPN connection policies that do not belong to a VPN concentrator appear under Available.
Select any VPN connection policies that you want to add to the VPN concentrator and click the right
arrow button to add them.
The VPN concentrator’s member VPN connections appear under Member. Select any VPN
connections that you want to remove from the VPN concentrator, and click the left arrow button to
remove them.
OK Click OK to save your changes in the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
549
Figure 381 Configuration > VPN > IPSec VPN > Configuration Provisioning
Each field is discussed in the following table.
Table 201 Configuration > VPN > IPSec VPN > Configuration Provisioning
LABEL DESCRIPTION
Enable
Configuration
Provisioning
Select this for users to be able to retrieve VPN rule settings using the Zyxel Device IPSec VPN
client.
VPN Provisioning
Port
Change the default port that IPSec VPN clients use to retrieve VPN rule settings from the Zyxel
Device. The default is 443 which is already in use for remote management by default. If you
change the default IPSec VPN port on the Zyxel Device, make sure to make the same change
to the Zyxel IPSec VPN client. See
Section 32.3.2 on page 680 for more information.
Configure a new port between 1024 to 65535 that is not in use by other services.
Client
Authentication
Method
Choose how users should be authenticated. They can be authenticated using the local
database on the Zyxel Device or an external authentication database such as LDAP, Active
Directory or RADIUS. default is a method you configured in Object > Auth Method. You may
configure multiple methods there. If you choose the local database on the Zyxel Device, then
configure users using the Object > User/Group screen. If you choose LDAP, Active Directory or
RADIUS authentication servers, then configure users on the respective server.
Configuration When you add or edit a configuration provisioning entry, you are allowed to set the VPN
Connection and Allowed User fields.
Duplicate entries are not allowed. You cannot select the same VPN Connection and Allowed
User pair in a new entry if the same pair exists in a previous entry.
You can bind different rules to the same user, but the Zyxel Device will only allow VPN rule setting
retrieval for the first match found.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
550
20.6 Example: IPSec VPN with IKEv2 on a Mobile Phone
This section shows you how to connect your mobile phone to the Zyxel Device using IPSec VPN with and
a pre-shared key.
Add Click Add to bind a configured VPN rule to a user or group. Only that user or group may then
retrieve the specified VPN rule settings.
If you click Add without selecting an entry in advance then the new entry appears as the first
entry. Entry order is important as the Zyxel Device searches entries in the order listed here to find
a match. After a match is found, the Zyxel Device stops searching. If you want to add an entry
as number three for example, then first select entry 2 and click Add. To reorder an entry, use
Move.
Edit Select an existing entry and click Edit to change its settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove it
before doing so.
Activate To turn on an entry, select it and click Activate. Make sure that Enable Configuration Provisioning
is also selected.
Inactivate To turn off an entry, select it and click Inactivate.
Move Use Move to reorder a selected entry. Select an entry, click Move, type the number where the
entry should be moved, press <ENTER>, then click Apply.
Status This icon shows if the entry is active (yellow) or not (gray). VPN rule settings can only be retrieved
when the entry is activated (and Enable Configuration Provisioning is also selected).
Priority Priority shows the order of the entry in the list. Entry order is important as the Zyxel Device
searches entries in the order listed here to find a match. After a match is found the Zyxel Device
stops searching.
VPN
Connection
This field shows all configured VPN rules that match the rule criteria for the Zyxel Device IPSec
VPN client. Select a rule to bind to the associated user or group.
Upload
Bandwidth Limit
Upload Bandwidth Limit is only available for Zyxel subscription-based SecuExtender IPSec VPN
clients. Windows VPN clients support Zyxel SecuExtender versions 5.6.80.007 or later. macOS VPN
clients support Zyxel SecuExtender versions 1.2.0.7 or later.
Use Upload Bandwidth Limit to set the maximum bandwidth for uploading traffic from Zyxel IPSec
VPN clients over IPSec VPN tunnels.
Allowed User Select which user or group of users is allowed to retrieve the associated VPN rule settings using
the Zyxel Device
IPSec VPN client. A user may belong to a number of groups. If entries are
configured for different groups, the Zyxel Device will allow VPN rule setting retrieval based on the
first match found.
Users of type admin or limited-admin are not allowed.
Type This field shows how traffic is tunneled from the Zyxel Device to the Zyxel VPN client:
• 6in4 (tunnel IPv6 traffic from the Zyxel Device to the Zyxel client in an IPv4 network);
• 4in6 (tunnel IPv4 traffic from the Zyxel Device to the Zyxel VPN client in an IPv6 network);
• 4in4 (tunnel IPv4 traffic from the Zyxel Device to the Zyxel VPN client in an IPv4 network).
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 201 Configuration > VPN > IPSec VPN > Configuration Provisioning (continued)
LABEL DESCRIPTION
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
551
20.6.1 Configuration on Android
This example uses Android software version 13.
1 Go to Settings, search for “VPN”, open the VPN settings screen, and then tap Add.
2 Enter a name for the VPN rule in the Name field.
3 Select IKEv2 as Type.
4 Enter the WAN IP address your Zyxel Device is currently using in the Server address field.
5 Enter the IPSec identifier. By default, it is 0.0.0.0.
6 Enter the pre-shared key in the IPSec pre-shared key field. You can find the pre-shared key on the VPN
Gateway screen in the Web Configurator.
7 Tap Save to create the VPN rule.
8 Select the VPN rule you created and tap Connect.
9 To check the connection status, go to Configuration > VPN > IPSec VPN in the Web Configurator.
20.6.2 Configuration on iOS
This example uses iOS software version 17.
1 Go to Settings, search for “VPN”, open the VPN & Device Management screen, and then tap Add VPN
Configuration.
2 Select IKEv2 as Type.
3 Enter a name for the VPN rule in the Name field.
4 Enter the WAN IP address your Zyxel Device is currently using in the Server field.
5 Enter the Remote ID. By default, it is 0.0.0.0.
6 Select None as User Authentication.
7 Disable Use Certificate.
8 Enter the pre-shared key in the Password field. You can find the pre-shared key on the VPN Gateway
screen in the Web Configurator.
9 Tap Done to create the VPN rule.
10 Select the VPN rule you created and tap Connect.
11 To check the connection status, go to Configuration > VPN > IPSec VPN in the Web Configurator.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
552
20.7 IPSec VPN Background Information
Here is some more detailed IPSec VPN background information.
IKE SA Overview
The IKE SA provides a secure connection between the Zyxel Device and remote IPSec router.
It takes several steps to establish an IKE SA. The negotiation mode determines how many. There are two
negotiation modes--main mode and aggressive mode. Main mode provides better security, while
aggressive mode is faster.
Note: Both routers must use the same negotiation mode.
These modes are discussed in more detail in Negotiation Mode. Main mode is used in various examples
in the rest of this section.
The Zyxel Device supports IKEv1 and IKEv2. See Section 20.1 on page 524 for more information.
IP Addresses of the Zyxel Device and Remote IPSec Router
To set up an IKE SA, you have to specify the IP addresses of the Zyxel Device and remote IPSec router.
You can usually enter a static IP address or a domain name for either or both IP addresses. Sometimes,
your Zyxel Device might offer another alternative, such as using the IP address of a port or interface, as
well.
You can also specify the IP address of the remote IPSec router as 0.0.0.0. This means that the remote
IPSec router can have any IP address. In this case, only the remote IPSec router can initiate an IKE SA
because the Zyxel Device does not know the IP address of the remote IPSec router. This is often used for
telecommuters.
IKE SA Proposal
The IKE SA proposal is used to identify the encryption algorithm, authentication algorithm, and Diffie-
Hellman (DH) key group that the Zyxel Device and remote IPSec router use in the IKE SA. In main mode,
this is done in steps 1 and 2, as illustrated next.
Figure 382 IKE SA: Main Negotiation Mode, Steps 1 - 2: IKE SA Proposal
One or more proposals, each one consisting of:
- encryption algorithm
- authentication algorithm
- Diffie-Hellman key group
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
553
The Zyxel Device sends one or more proposals to the remote IPSec router. (In some devices, you can
only set up one proposal.) Each proposal consists of an encryption algorithm, authentication algorithm,
and DH key group that the Zyxel Device wants to use in the IKE SA. The remote IPSec router selects an
acceptable proposal and sends the accepted proposal back to the Zyxel Device. If the remote IPSec
router rejects all of the proposals, the Zyxel Device and remote IPSec router cannot establish an IKE SA.
Note: Both routers must use the same encryption algorithm, authentication algorithm, and DH
key group.
In most Zyxel Devices, you can select one of the following encryption algorithms for each proposal. The
algorithms are listed in order from weakest to strongest.
• Data Encryption Standard (DES) is a widely used method of data encryption. It applies a 56-bit key to
each 64-bit block of data.
• Triple DES (3DES) is a variant of DES. It iterates three times with three separate keys, effectively tripling
the strength of DES.
• Advanced Encryption Standard (AES) is a newer method of data encryption that also uses a secret
key. AES applies a 128-bit key to 128-bit blocks of data. It is faster than 3DES.
Some Zyxel Devices also offer stronger forms of AES that apply 192-bit or 256-bit keys to 128-bit blocks of
data.
In most Zyxel Devices, you can select one of the following authentication algorithms for each proposal.
The algorithms are listed in order from weakest to strongest.
• MD5 (Message Digest 5) produces a 128-bit digest to authenticate packet data.
• SHA1 (Secure Hash Algorithm) produces a 160-bit digest to authenticate packet data.
• SHA256 (Secure Hash Algorithm) produces a 256-bit digest to authenticate packet data.
• SHA512 (Secure Hash Algorithm) produces a 512-bit digest to authenticate packet data.
See Diffie-Hellman (DH) Key Exchange on page 553 for more information about DH key groups.
Diffie-Hellman (DH) Key Exchange
The Zyxel Device and the remote IPSec router use DH public-key cryptography to establish a shared
secret. The shared secret is then used to generate encryption keys for the IKE SA and IPSec SA. In main
mode, this is done in steps 3 and 4, as illustrated next.
Figure 383 IKE SA: Main Negotiation Mode, Steps 3 - 4: DH Key Exchange
DH public-key cryptography is based on DH key groups. Each key group is a fixed number of bits long.
The longer the key, the more secure the encryption, but also the longer it takes to encrypt and decrypt
Diffie-Hellman key exchange
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
554
information. For example, DH2 keys (1024 bits) are more secure than DH1 keys (768 bits), but DH2 keys
take longer to encrypt and decrypt.
Note: Ensure both The Zyxel Device and the remote IPSec router use the same DH key group.
The available DHx options on the Zyxel Device are:
• DH1 - uses a 768-bit random number to create an encryption key.
• DH2 - uses a 1024-bit random number to create an encryption key.
• DH5 - uses a 1536-bit random number to create an encryption key.
• DH14 - uses a 2048-bit random number to create an encryption key.
• DH15 - uses a 3072-bit random number to create an encryption key.
• DH16 - uses a 4096-bit random number to create an encryption key.
• DH17 - uses a 6144-bit random number to create an encryption key.
• DH18 - uses a 8192-bit random number to create an encryption key.
• DH19 - uses a 256-bit elliptic curve to create an encryption key, offering stronger security than the
random number-based method.
• DH20 - uses a 384-bit elliptic curve to create an encryption key, offering stronger security than the
random number-based method.
• DH21 - uses a 521-bit elliptic curve to create an encryption key, offering stronger security than the
random number-based method.
Elliptic Curve Diffie-Hellman provides a higher level of protection using elliptic curve mathematical
principles (recommeded).
Different operating systems may support different DH key groups. Check your operating system
documentation.
• For Windows VPN clients, Zyxel SecuExtender perpetual VPN clients versions 3.8.203.61.32 and earlier
support DH1 to DH14.
• For macOS VPN clients, Zyxel SecuExtender subscription VPN clients versions 1.2.0.7 and later support
DH14 to DH21. For Windows VPN clients, Zyxel SecuExtender subscription VPN clients versions
5.6.80.007 and later support DH14 to DH21.
• Windows versions 7, 10, 11 built-in IKEv2 VPN clients support DH2 by default.
• macOS versions 14.2 and later built-in IKEv2 VPN clients support DH14 by default.
• iOS versions 10.15 and later built-in IKEv2 VPN clients support DH14 by default.
Authentication
Before the Zyxel Device and remote IPSec router establish an IKE SA, they have to verify each other’s
identity. This process is based on pre-shared keys and router identities.
In main mode, the Zyxel Device and remote IPSec router authenticate each other in steps 5 and 6, as
illustrated below. The identities are also encrypted using the encryption algorithm and encryption key
the Zyxel Device and remote IPSec router selected in previous steps.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
555
Figure 384 IKE SA: Main Negotiation Mode, Steps 5 - 6: Authentication (continued)
You have to create (and distribute) a pre-shared key. The Zyxel Device and remote IPSec router use it in
the authentication process, though it is not actually transmitted or exchanged.
Note: The Zyxel Device and the remote IPSec router must use the same pre-shared key.
Router identity consists of ID type and content. The ID type can be domain name, IP address, or email
address, and the content is a (properly-formatted) domain name, IP address, or email address. The
content is only used for identification. Any domain name or email address that you enter does not have
to actually exist. Similarly, any domain name or IP address that you enter does not have to correspond
to the Zyxel Device’s or remote IPSec router’s properties.
The Zyxel Device and the remote IPSec router have their own identities, so both of them must store two
sets of information, one for themselves and one for the other router. Local ID type and content refers to
the ID type and content that applies to the router itself, and peer ID type and content refers to the ID
type and content that applies to the other router.
Note: The Zyxel Device’s local and peer ID type and content must match the remote IPSec
router’s peer and local ID type and content, respectively.
For example, in the next table, the Zyxel Device and the remote IPSec router authenticate each other
successfully. In contrast, in the following table, the Zyxel Device and the remote IPSec router cannot
authenticate each other and, therefore, cannot establish an IKE SA.
Step 5:
pre-shared key
Zyxel Device identity, consisting of
- ID type
- content
Step 6:
pre-shared key
Remote IPSec router identity, consisting of
- ID type
- content
Table 202 VPN Example: Matching ID Type and Content
ZYXEL DEVICE REMOTE IPSEC ROUTER
Local ID type: E-mail Local ID type: IP
Local ID content: tom@yourcompany.com Local ID content: 1.1.1.2
Peer ID type: IP Peer ID type: E-mail
Peer ID content: 1.1.1.2 Peer ID content: [email protected]
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
556
It is also possible to configure the Zyxel Device to ignore the identity of the remote IPSec router. In this
case, you usually set the peer ID type to Any. This is less secure, so you should only use this if your Zyxel
Device provides another way to check the identity of the remote IPSec router (for example, extended
authentication) or if you are troubleshooting a VPN tunnel.
Additional Topics for IKE SA
This section provides more information about IKE SA.
Negotiation Mode
There are two negotiation modes--main mode and aggressive mode. Main mode provides better
security, while aggressive mode is faster.
Main mode takes six steps to establish an IKE SA.
Steps 1 - 2: The Zyxel Device sends its proposals to the remote IPSec router. The remote IPSec router
selects an acceptable proposal and sends it back to the Zyxel Device.
Steps 3 - 4: The Zyxel Device and the remote IPSec router exchange pre-shared keys for authentication
and participate in a Diffie-Hellman key exchange, based on the accepted DH key group, to establish a
shared secret.
Steps 5 - 6: Finally, the Zyxel Device and the remote IPSec router generate an encryption key (from the
shared secret), encrypt their identities, and exchange their encrypted identity information for
authentication.
In contrast, aggressive mode only takes three steps to establish an IKE SA. Aggressive mode does not
provide as much security because the identity of the Zyxel Device and the identity of the remote IPSec
router are not encrypted. It is usually used in remote-access situations, where the address of the initiator
is not known by the responder and both parties want to use pre-shared keys for authentication. For
example, the remote IPSec router may be a telecommuter who does not have a static IP address.
VPN, NAT, and NAT Traversal
In the following example, there is another router (A) between router X and router Y.
Figure 385 VPN/NAT Example
Table 203 VPN Example: Mismatching ID Type and Content
ZYXEL DEVICE REMOTE IPSEC ROUTER
Local ID type: E-mail Local ID type: IP
Local ID content: tom@yourcompany.com Local ID content: 1.1.1.2
Peer ID type: IP Peer ID type: E-mail
Peer ID content: 1.1.1.20 Peer ID content: [email protected]
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
557
If router A does NAT, it might change the IP addresses, port numbers, or both. If router X and router Y try
to establish a VPN tunnel, the authentication fails because it depends on this information. The routers
cannot establish a VPN tunnel.
Most routers like router A now have an IPSec pass-thru feature. This feature helps router A recognize VPN
packets and route them appropriately. If router A has this feature, router X and router Y can establish a
VPN tunnel as long as the active protocol is ESP. (See
Active Protocol on page 558 for more information
about active protocols.)
If router A does not have an IPSec pass-thru or if the active protocol is AH, you can solve this problem by
enabling NAT traversal. In NAT traversal, router X and router Y add an extra header to the IKE SA and
IPSec SA packets. If you configure router A to forward these packets unchanged, router X and router Y
can establish a VPN tunnel.
You have to do the following things to set up NAT traversal.
• Enable NAT traversal on the Zyxel Device and remote IPSec router.
• Configure the NAT router to forward packets with the extra header unchanged. (See the field
description for detailed information about the extra header.)
The extra header may be UDP port 500 or UDP port 4500, depending on the standard(s) the Zyxel Device
and remote IPSec router support.
X-Auth / Extended Authentication
X-Auth / Extended authentication is often used when multiple IPSec routers use the same VPN tunnel to
connect to a single IPSec router. For example, this might be used with telecommuters.
In extended authentication, one of the routers (the Zyxel Device or the remote IPSec router) provides a
user name and password to the other router, which uses a local user database and/or an external
server to verify the user name and password. If the user name or password is wrong, the routers do not
establish an IKE SA.
You can set up the Zyxel Device to provide a user name and password to the remote IPSec router, or
you can set up the Zyxel Device to check a user name and password that is provided by the remote
IPSec router.
If you use extended authentication, it takes four more steps to establish an IKE SA. These steps occur at
the end, regardless of the negotiation mode (steps 7-10 in main mode, steps 4-7 in aggressive mode).
Certificates
It is possible for the Zyxel Device and remote IPSec router to authenticate each other with certificates. In
this case, you do not have to set up the pre-shared key, local identity, or remote identity because the
certificates provide this information instead.
• Instead of using the pre-shared key, the Zyxel Device and remote IPSec router check the signatures
on each other’s certificates. Unlike pre-shared keys, the signatures do not have to match.
• The local and peer ID type and content come from the certificates.
Note: You must set up the certificates for the Zyxel Device and remote IPSec router first.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
558
IPSec SA Overview
Once the Zyxel Device and remote IPSec router have established the IKE SA, they can securely
negotiate an IPSec SA through which to send data between computers on the networks.
Note: The IPSec SA stays connected even if the underlying IKE SA is not available anymore.
This section introduces the key components of an IPSec SA.
Local Network and Remote Network
In an IPSec SA, the local network, the one(s) connected to the Zyxel Device, may be called the local
policy. Similarly, the remote network, the one(s) connected to the remote IPSec router, may be called
the remote policy.
Active Protocol
The active protocol controls the format of each packet. It also specifies how much of each packet is
protected by the encryption and authentication algorithms. IPSec VPN includes two active protocols,
AH (Authentication Header, RFC 2402) and ESP (Encapsulating Security Payload, RFC 2406).
Note: The Zyxel Device and remote IPSec router must use the same active protocol.
Usually, you should select ESP. AH does not support encryption, and ESP is more suitable with NAT.
Encapsulation
There are two ways to encapsulate packets. Usually, you should use tunnel mode because it is more
secure. Transport mode is only used when the IPSec SA is used for communication between the Zyxel
Device and remote IPSec router (for example, for remote management), not between computers on
the local and remote networks.
Note: The Zyxel Device and remote IPSec router must use the same encapsulation.
These modes are illustrated below.
In tunnel mode, the Zyxel Device uses the active protocol to encapsulate the entire IP packet. As a
result, there are two IP headers:
• Outside header: The outside IP header contains the IP address of the Zyxel Device or remote IPSec
router, whichever is the destination.
Figure 386 VPN: Transport and Tunnel Mode Encapsulation
Original Packet IP Header TCP Header Data
Transport Mode Packet IP Header AH/ESP
Header
TCP Header Data
Tunnel Mode Packet IP Header AH/ESP
Header
IP Header TCP Header Data
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
559
• Inside header: The inside IP header contains the IP address of the computer behind the Zyxel Device
or remote IPSec router. The header for the active protocol (AH or ESP) appears between the IP
headers.
In transport mode, the encapsulation depends on the active protocol. With AH, the Zyxel Device
includes part of the original IP header when it encapsulates the packet. With ESP, however, the Zyxel
Device does not include the IP header when it encapsulates the packet, so it is not possible to verify the
integrity of the source IP address.
IPSec SA Proposal and Perfect Forward Secrecy
An IPSec SA proposal is similar to an IKE SA proposal (see IKE SA Proposal), except that you also have the
choice whether or not the Zyxel Device and remote IPSec router perform a new DH key exchange every
time an IPSec SA is established. This is called Perfect Forward Secrecy (PFS).
If you enable PFS, the Zyxel Device and remote IPSec router perform a DH key exchange every time an
IPSec SA is established, changing the root key from which encryption keys are generated. As a result, if
one encryption key is compromised, other encryption keys remain secure.
If you do not enable PFS, the Zyxel Device and remote IPSec router use the same root key that was
generated when the IKE SA was established to generate encryption keys.
The DH key exchange is time-consuming and may be unnecessary for data that does not require such
security.
PFS is ignored in initial IKEv2 authentication but is used when re-authenticating.
Additional Topics for IPSec SA
This section provides more information about IPSec SA in your Zyxel Device.
Authentication and the Security Parameter Index (SPI)
For authentication, the Zyxel Device and remote IPSec router use the SPI, instead of pre-shared keys, ID
type and content. The SPI is an identification number.
Note: The Zyxel Device and remote IPSec router must use the same SPI.
NAT for Inbound and Outbound Traffic
The Zyxel Device can translate the following types of network addresses in IPSec SA.
• Source address in outbound packets - this translation is necessary if you want the Zyxel Device to
route packets from computers outside the local network through the IPSec SA.
• Source address in inbound packets - this translation hides the source address of computers in the
remote network.
• Destination address in inbound packets - this translation is used if you want to forward packets (for
example, mail) from the remote network to a specific computer (like the mail server) in the local
network.
Each kind of translation is explained below. The following example is used to help explain each one.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
560
Figure 387 VPN Example: NAT for Inbound and Outbound Traffic
Source Address in Outbound Packets (Outbound Traffic, Source NAT)
This translation lets the Zyxel Device route packets from computers that are not part of the specified
local network (local policy) through the IPSec SA. For example, in
Figure 387 on page 560, you have to
configure this kind of translation if you want computer M to establish a connection with any computer in
the remote network (B). If you do not configure it, the remote IPSec router may not route messages for
computer M through the IPSec SA because computer M’s IP address is not part of its local policy.
To set up this NAT, you have to specify the following information:
• Source - the original source address; most likely, computer M’s network.
• Destination - the original destination address; the remote network (B).
• SNAT - the translated source address; the local network (A).
Source Address in Inbound Packets (Inbound Traffic, Source NAT)
You can set up this translation if you want to change the source address of computers in the remote
network. To set up this NAT, you have to specify the following information:
• Source - the original source address; the remote network (B).
• Destination - the original destination address; the local network (A).
• SNAT - the translated source address; a different IP address (range of addresses) to hide the original
source address.
Destination Address in Inbound Packets (Inbound Traffic, Destination NAT)
You can set up this translation if you want the Zyxel Device to forward some packets from the remote
network to a specific computer in the local network. For example, in
Figure 387 on page 560, you can
configure this kind of translation if you want to forward mail from the remote network to the mail server in
the local network (A).
You have to specify one or more rules when you set up this kind of NAT. The Zyxel Device checks these
rules similar to the way it checks rules for a security policy. The first part of these rules define the
conditions in which the rule apply.
• Original IP - the original destination address; the remote network (B).
• Protocol - the protocol [TCP, UDP, or both] used by the service requesting the connection.
background
Chapter 20 IPSec VPN
USG FLEX Series User’s Guide
561
• Original Port - the original destination port or range of destination ports; in Figure 387 on page 560, it
might be port 25 for SMTP.
The second part of these rules controls the translation when the condition is satisfied.
• Mapped IP - the translated destination address; in Figure 387 on page 560, the IP address of the mail
server in the local network (A).
• Mapped Port - the translated destination port or range of destination ports.
The original port range and the mapped port range must be the same size.
IPSec VPN Example Scenario
Here is an example site-to-site IPSec VPN scenario.
Figure 388 Site-to-site IPSec VPN Example
background
USG FLEX Series User’s Guide
562
CHAPTER 21
SSL VPN
21.1 Overview
Use SSL VPN to allow users to use a web browser for secure remote user login. The remote users do not
need a VPN router or VPN client software.
21.1.1 What You Can Do in this Chapter
• Use the VPN > SSL VPN > Access Privilege screens (see Section 21.2 on page 563) to configure SSL
access policies.
• Use the Click VPN > SSL VPN > Global Setting screen (see Section 21.3 on page 567) to set the IP
address of the Zyxel Device (or a gateway device) on your network for full tunnel mode access, enter
access messages or upload a custom logo to be displayed on the remote user screen.
21.1.2 What You Need to Know
Full Tunnel Mode
In full tunnel mode, a virtual connection is created for remote users with private IP addresses in the same
subnet as the local network. This allows them to access network resources in the same way as if they
were part of the internal network.
Figure 389 Network Access Mode: Full Tunnel Mode
SSL Access Policy
An SSL access policy allows the Zyxel Device to perform the following tasks:
• limit user access to specific applications or file sharing server on the network.
• allow user access to specific networks.
• assign private IP addresses and provide DNS/WINS server information to remote users to access
internal networks.
background
Chapter 21 SSL VPN
USG FLEX Series User’s Guide
563
SSL Access Policy Objects
The SSL access policies reference the following objects. If you update this information, in response to
changes, the Zyxel Device automatically propagates the changes through the SSL policies that use the
object(s). When you delete an SSL policy, the objects are not removed.
You cannot delete an object that is referenced by an SSL access policy. To delete the object, you must
first unassociate the object from the SSL access policy.
Multiple WAN Connections
You can connect VPN for different ports (wan1, wan2) after you enable SSL VPN.
21.2 The SSL Access Privilege Screen
Click VPN > SSL VPN to open the Access Privilege screen. This screen lists the configured SSL access
policies.
Click on the icons to go to the OneSecurity website where there is guidance on configuration
walkthroughs, troubleshooting and other information.
Table 204 Objects
OBJECT TYPE
OBJECT
SCREEN
DESCRIPTION
User Accounts User Account/
User Group
Configure a user account or user group to which you want to apply this SSL
access policy.
Application SSL
Application
Configure an SSL application object to specify the type of application and the
address of the local computer, server, or web site SSL users are to be able to
access.
IP Pool Address Configure an address object that defines a range of private IP addresses to
assign to user computers so they can access the internal network through a
VPN connection.
Server
Addresses
Address Configure address objects for the IP addresses of the DNS and WINS servers that
the Zyxel Device sends to the VPN connection users.
VPN Network Address Configure an address object to specify which network segment users are
allowed to access through a VPN connection.
background
Chapter 21 SSL VPN
USG FLEX Series User’s Guide
564
Figure 390 VPN > SSL VPN > Access Privilege
The following table describes the labels in this screen.
Table 205 VPN > SSL VPN > Access Privilege
LABEL DESCRIPTION
Access Policy
Summary
This screen shows a summary of SSL VPN policies created.
Click on the VPN icon to go to the Zyxel VPN Client product page at the Zyxel website.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the entry’s
settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove it
before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Move To move an entry to a different number in the list, click the Move icon. In the field that appears,
specify the number to which you want to move the interface.
References Select an entry and click References to open a screen that shows which settings use the entry.
Click Refresh to update information on this screen.
# This field displays the index number of the entry.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This field displays the descriptive name of the SSL access policy for identification purposes.
User/Group This field displays the user account or user group name(s) associated to an SSL access policy.
This field displays up to three names.
Access Policy
Summary
This field displays details about the SSL application object this policy uses including its name, type,
and address.
Apply Click Apply to save the settings.
Reset Click Reset to discard all changes.
background
Chapter 21 SSL VPN
USG FLEX Series User’s Guide
565
21.2.1 The SSL Access Privilege Policy Add/Edit Screen
To create a new or edit an existing SSL access policy, click the Add or Edit icon in the Access Privilege
screen.
Figure 391 VPN > SSL VPN > Add/Edit
The following table describes the labels in this screen.
Table 206 VPN > SSL VPN > Access Privilege > Add/Edit
LABEL DESCRIPTION
Create new
Object
Use to configure any new settings objects that you need to use in this screen.
Configuration
Enable Policy Select this option to activate this SSL access policy.
Name Enter a descriptive name to identify this policy. You can enter up to 31 characters (“a-z”, A-Z”,
“0-9”) with no spaces allowed.
background
Chapter 21 SSL VPN
USG FLEX Series User’s Guide
566
Zone Select the zone to which to add this SSL access policy. You use zones to apply security settings
such as security policy and remote management.
Description Enter additional information about this SSL access policy. You can enter up to 60 characters
("0-9", "a-z", "A-Z", "-" and "_").
User/Group The Selectable User/Group Objects list displays the name(s) of the user account and/or user
group(s) to which you have not applied an SSL access policy yet.
To associate a user or user group to this SSL access policy, select a user account or user group
and click the right arrow button to add to the Selected User/Group Objects list. You can
select more than one name.
To remove a user or user group, select the name(s) in the Selected User/Group Objects list and
click the left arrow button.
Note: Although you can select admin and limited-admin accounts in this screen,
they are reserved for device configuration only. You cannot use them to
access the SSL VPN portal.
Network Extension (Optional)
Enable Network
Extension
Select this option to create a VPN tunnel between the authenticated users and the internal
network. This allows the users to access the resources on the network as if they were on the
same local network. This includes access to resources not supported by SSL application
objects. For example this lets users Telnet to the internal network even though the Zyxel Device
does not have SSL application objects for Telnet.
Clear this option to disable this feature. Users can only access the applications as defined by
the VPN tunnel’s selected SSL application settings and the remote user computers are not
made to be a part of the local network.
Force all client
traffic to SSL VPN
tunnel
Select this to send all traffic from the SSL VPN clients through the SSL VPN tunnel. This replaces
the default gateway of the SSL VPN clients with the SSL VPN gateway.
NetBIOS
broadcast over
SSL VPN Tunnel
Select this to search for a remote computer and access its applications as if it was in a Local
Area Network. The user can find a computer not only by its IP address but also by computer
name.
Assign IP Pool Define a separate pool of IP addresses to assign to the SSL users. Select it here.
The SSL VPN IP pool should not overlap with IP addresses on the Zyxel Device's local networks
(LAN and DMZ for example), the SSL user's network, or the networks you specify in the SSL VPN
Network List.
DNS/WINS Server
1..2
Select the name of the DNS or WINS server whose information the Zyxel Device sends to the
remote users. This allows them to access devices on the local network using domain names
instead of IP addresses.
Network List To allow user access to local network(s), select a network name in the Selectable Address
Objects list and click the right arrow button to add to the Selected Address Objects list. You
can select more than one network.
To block access to a network, select the network name in the Selected Address Objects list
and click the left arrow button.
OK Click OK to save the changes and return to the main Access Privilege screen.
Cancel Click Cancel to discard all changes and return to the main Access Privilege screen.
Table 206 VPN > SSL VPN > Access Privilege > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 21 SSL VPN
USG FLEX Series User’s Guide
567
21.3 The SSL Global Setting Screen
Click VPN > SSL VPN and click the Global Setting tab to display the following screen. Use this screen to
set the IP address of the Zyxel Device (or a gateway device) on your network for full tunnel mode
access.
Figure 392 VPN > SSL VPN > Global Setting
The following table describes the labels in this screen.
Table 207 VPN > SSL VPN > Global Setting
LABEL DESCRIPTION
Global Setting
Network Extension
Local IP
Specify the IP address of the Zyxel Device (or a gateway device) for full tunnel mode SSL VPN
access.
Leave this field to the default settings unless it conflicts with another interface.
SSL VPN Server
Port
Specify the SSL VPN server port of the Zyxel Device for full tunnel mode SLL VPN access.
Leave this field to default settings unless it conflicts with another interface.
Apply Click Apply to save the changes and/or start the logo file upload process.
Reset Click Reset to return the screen to its last-saved settings.
background
USG FLEX Series User’s Guide
568
CHAPTER 22
L2TP VPN
22.1 Overview
L2TP VPN uses the L2TP and IPSec client software included in remote users’ Android, iOS, Windows or
Mac OS X operating systems for secure connections to the network behind the Zyxel Device. The remote
users do not need their own IPSec gateways or third-party VPN client software.
Figure 393 L2TP VPN Overview
22.1.1 What You Can Do in this Chapter
• Use the L2TP VPN screen (see Section 22.2 on page 569) to configure the Zyxel Device’s L2TP VPN
settings.
• Use the VPN Setup Wizard screen in Quick Setup (Chapter 5 on page 106) to configure the Zyxel
Device’s L2TP VPN settings.
22.1.2 What You Need to Know
The Layer 2 Tunneling Protocol (L2TP) works at layer 2 (the data link layer) to tunnel network traffic
between two peers over another network (like the Internet). In L2TP VPN, an IPSec VPN tunnel is
established first and then an L2TP tunnel is built inside it. See
Chapter 20 on page 524 for information on
IPSec VPN.
IPSec Configuration Required for L2TP VPN
You must configure an IPSec VPN connection prior to proper L2TP VPN usage(see Chapter 22 on page
568 for details). The IPSec VPN connection must meet the following requirements:
• VPN Connection is enabled.
• VPN Gateway is enabled.
•Set VPN Connection > VPN Gateway to Remote Access (Server Role).
•Set VPN Connection > Encapsulation to Transport mode.
• Configuration Payload is disabled in the VPN Gateway settings.
• X-Auth is disabled in the VPN Gateway settings.
background
Chapter 22 L2TP VPN
USG FLEX Series User’s Guide
569
• VPN Gateway authentication method is using Pre-Shared Key.
Using the Quick Setup VPN Setup Wizard
The VPN Setup Wizard is an easy and convenient way to configure the L2TP VPN settings. Click
Configuration > Quick Setup > VPN Setup > VPN Settings for L2TP VPN Settings to get started.
Policy Route
The Policy Route for return traffic (from LAN to L2TP clients) is automatically created when Zyxel Device
adds a new L2TP connection, allowing users access the resources on a network without additional
configuration. However, if some of the traffic from the L2TP clients needs to go to the Internet, you will
need to create a policy route to send that traffic from the L2TP tunnels out through a WAN trunk. This task
can be easily performed by clicking the Allow L2TP traffic through WAN checkbox at Quick Setup > VPN
Setup > Allow L2TP traffic through WAN.
Figure 394 Policy Route for L2TP VPN
22.2 L2TP VPN Screen
Click Configuration > VPN > L2TP VPN to open the following screen. Use this screen to configure the Zyxel
Device’s L2TP VPN settings.
Note: Disconnect any existing L2TP VPN sessions before modifying L2TP VPN settings. The
remote users must make any needed matching configuration changes and re-establish
the sessions using the new settings.
Click on the icons to go to the OneSecurity website where there is guidance on configuration
walkthroughs, troubleshooting, and other information.
background
Chapter 22 L2TP VPN
USG FLEX Series User’s Guide
570
Figure 395 Configuration > VPN > L2TP VPN
The following table describes the fields in this screen.
Table 208 Configuration > VPN > L2TP VPN
LABEL DESCRIPTION
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
Create new
Object
Use to configure any new settings objects that you need to use in this screen.
Enable L2TP Over
IPSec
Use this field to turn the Zyxel Device’s L2TP VPN function on or off.
VPN Connection Select the IPSec VPN connection the Zyxel Device uses for L2TP VPN. Only the configured VPN
connections in Configuration > VPN > IPSec VPN > VPN Connection that meet the following
requirements are displayed here.
• Remote Access (Server Role)
• Use transport mode
• Configuration Payload is disabled
• X-Auth is disabled
Your VPN settings must also meet the requirements listed in IPSec Configuration Required for
L2TP VPN.
Note: Selecting a different VPN connection (or modifying the VPN gateway that it
uses) disconnects any existing L2TP VPN sessions.
IP Address Pool Select the pool of IP addresses that the Zyxel Device uses to assign to the L2TP VPN clients. Use
Create new Object if you need to configure a new pool of IP addresses.
This should not conflict with any WAN, LAN, DMZ or WLAN subnet even if they are not in use.
background
Chapter 22 L2TP VPN
USG FLEX Series User’s Guide
571
22.2.1 Example: L2TP and Zyxel Device Behind a NAT Router
If the Zyxel Device (Z) is behind a NAT router (N), then do the following for remote clients (C) to access
the network behind the Zyxel Device (Z) using L2TP over IPv4.
Figure 396 L2TP and Zyxel Device Behind a NAT Router
1 Create an address object in Configuration > Object > Address/GEO IP > Address for the WAN IP address
of the NAT router.
Authentication
Method
Select how the Zyxel Device authenticates a remote user before allowing access to the L2TP
VPN tunnel.
The authentication method has the Zyxel Device check a user’s user name and password
against the Zyxel Device’s local database, a remote LDAP, RADIUS, a Active Directory server,
or more than one of these.
Authentication
Server Certificate
Select the certificate to use to identify the Zyxel Device for L2TP VPN connections. You must
have certificates already configured in the My Certificates screen. The certificate is used with
the EAP, PEAP, and MSCHAPv2 authentication protocols.
Allowed User The remote user must log into the Zyxel Device to use the L2TP VPN tunnel.
Select a user or user group that can use the L2TP VPN tunnel. Use Create new Object if you
need to configure a new user account. Otherwise, select any to allow any user with a valid
account and password on the Zyxel Device to log in.
Keep Alive Timer The Zyxel Device sends a Hello message after waiting this long without receiving any traffic
from the remote user. The Zyxel Device disconnects the VPN tunnel if the remote user does
not respond.
First DNS Server,
Second DNS Server
Specify the IP addresses of DNS servers to assign to the remote users. You can specify these IP
addresses two ways.
Custom Defined - enter a static IP address.
From ISP - use the IP address of a DNS server that another interface received from its DHCP
server.
First WINS Server,
Second WINS
Server
The WINS (Windows Internet Naming Service) server keeps a mapping table of the computer
names on your network and the IP addresses that they are currently using.
Type the IP addresses of up to two WINS servers to assign to the remote users. You can specify
these IP addresses two ways.
Apply Click Apply to save your changes in the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 208 Configuration > VPN > L2TP VPN (continued)
LABEL DESCRIPTION
background
Chapter 22 L2TP VPN
USG FLEX Series User’s Guide
572
2 Go to Configuration > VPN > IPSec VPN > VPN Connection and click Add for IPv4 Configuration to create
a new VPN connection.
3 Select Remote Access (Server Role) as the VPN scenario for the remote client.
4 Select the NAT router WAN IP address object as the Local Policy.
5 Go to Configuration > VPN > L2TP VPN and select the VPN Connection just configured.
background
Chapter 22 L2TP VPN
USG FLEX Series User’s Guide
573
background
USG FLEX Series User’s Guide
574
CHAPTER 23
Remote AP VPN
23.1 Overview
Remote AP allows users connected to an off-site (remote) AP to connect to on-site resources behind the
Zyxel Device through a secure IPSec VPN tunnel.
• With a IPSec VPN tunnel, the encrypted IPSec tunnel is from the Zyxel Device to another Zyxel Device
or the Zyxel Device to a client with IPSec client software installed.
• With a Managed AP license, the connection is from the Zyxel Device to a managed AP using GRE
which encapsulates traffic, but does not encrypt it.
• With the Remote AP feature (in the Secure WiFi license) the connection is from the Zyxel Device to a
managed AP using NVGRE (Network Virtualization using Generic Routing Encapsulation) over IPSec
tunnel. This encapsulates and encrypts traffic from the remote AP to the Zyxel Device. The clients
connected to the remote AP don’t need IPSec client software installed.
You can associate Secure Tunnel SSID profiles and Local Bridge SSID profiles with a remote AP.
Configure your AP using a Secure Tunnel SSID profiles if you want to access the network behind the Zyxel
Device or to access the Internet. Network traffic from clients connected to these SSIDs is sent through
the RAP tunnel to the Zyxel Device. The Zyxel Device then sends the traffic out through the interface
defined in the SSID profile.
Configure your AP using Local Bridge SSID profiles if you only want to access the Internet. Network traffic
from clients connected to these SSIDs is sent directly to the network through the AP’s local gateway.
When you have multiple clients connected to the AP with different purposes, set the Secure Tunnel SSIDs
for clients that want to access the network behind the Zyxel Device. Set the Local Bridge SSIDs for clients
that want to access the Internet, but you don’t want them to access the network behind the Zyxel
Device.
background
Chapter 23 Remote AP VPN
USG FLEX Series User’s Guide
575
Figure 397 AP Using Secure Tunnel SSID Profile
23.2 Configuring a Remote AP
Follow the steps below to access your company network from home through a remote AP.
1 Go to Configuration> Wireless> AP Management. In the Mgnt. AP List screen, click Show Advanced
Settings.
background
Chapter 23 Remote AP VPN
USG FLEX Series User’s Guide
576
2 Remote AP is only supported on certain AP models. Make sure the AP you want to configure as remote
AP shows Remote AP under the AP Role Capability column in the table.
3 Double click on the AP you want to configure to show the Edit AP List screen. Select a pre-configured
SSID Profile under Secure Tunnel SSID to access the company network behind the Zyxel Device.
background
Chapter 23 Remote AP VPN
USG FLEX Series User’s Guide
577
4 Click on the interface to show the drop-down list box. Select an interface you want the AP traffic to go
through on the Zyxel Device. The interface you select here will override the interface configured in the
SSID Profile.
background
Chapter 23 Remote AP VPN
USG FLEX Series User’s Guide
578
5 Click OK to save your settings. A secure NVGRE over IPSec tunnel is now created between the Zyxel
Device and the AP. Users connected to the off-site AP can access the company network through this
tunnel.
background
Chapter 23 Remote AP VPN
USG FLEX Series User’s Guide
579
23.3 Remote AP VPN Screen
Click Configuration> VPN> Remote AP VPN to open the following screen. Use this screen to assign an IP
address to the outgoing interface of each RAP IPSec tunnel from this pool so each RAP IPSec tunnel
interface IP address doesn’t conflict with each other.
Note: Clients connected to the remote AP use the destination IP address of the network
behind the Zyxel Device. The Zyxel Device uses the IP address of the AP as the IPSec
tunnel destination address.
Figure 398 Configuration > VPN > Remote AP VPN
The following table describes the fields in this screen.
Table 209 Configuration > VPN > Remote AP VPN
LABEL DESCRIPTION
VPN Connection This field shows the default VPN profile the Zyxel Device uses to create a secure tunnel
between itself and the AP.
IP Address Pool Enter the start and end IPv4 addresses for the shared Remote AP IP address pool.
The outgoing interface of each RAP IPSec tunnel is assigned an IP address from this pool. Also,
WiFi clients are assigned addresses from the pool if the SSID is set to Local Bridge mode.
Apply Click Apply to save your changes in the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
USG FLEX Series User’s Guide
580
CHAPTER 24
BWM (Bandwidth
Management)
24.1 Overview
Bandwidth management provides a convenient way to manage the use of various services on the
network. It manages general protocols (for example, HTTP and FTP) and applies traffic prioritization to
enhance the performance of delay-sensitive applications like voice and video.
24.1.1 What You Can Do in this Chapter
Use the BWM screens (see Section 24.2 on page 584) to control bandwidth for services passing through
the Zyxel Device, and to identify the conditions that define the bandwidth control.
24.1.2 What You Need to Know
When you allow a service, you can restrict the bandwidth it uses. It controls TCP and UDP traffic. Use
policy routes to manage other types of traffic (like ICMP).
Note: Bandwidth management in policy routes has priority over TCP and UDP traffic policies.
If you want to use a service, make sure both the security policy allow the service’s packets to go through
the Zyxel Device.
Note: The Zyxel Device checks security policies before it checks bandwidth management
rules for traffic going through the Zyxel Device.
Bandwidth management examines every TCP and UDP connection passing through the Zyxel Device.
Then, you can specify, by port, whether or not the Zyxel Device continues to route the connection.
BWM Type
The Zyxel Device supports three types of bandwidth management: Shared, Per user and Per-Source-IP.
The Shared BWM type is selected by default in a bandwidth management rule. All matched traffic
shares the bandwidth configured in the rule.
If the BWM type is set to Per user in a rule, each user that matches the rule can use up to the configured
bandwidth by his/her own.
Select the Per-Source-IP type when you want to set the maximum bandwidth for traffic from an
individual source IP address.
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
581
In the following example, you configure a Per user bandwidth management rule for radius-users to limit
outgoing traffic to 300 kbs. Then all radius-users (A, B and C) can send 300 kbps of traffic.
Figure 399 Bandwidth Management Per User Type
DiffServ and DSCP Marking
QoS is used to prioritize source-to-destination traffic flows. All packets in the same flow are given the
same priority. CoS (class of service) is a way of managing traffic in a network by grouping similar types of
traffic together and treating each type as a class. You can use CoS to give different priorities to different
packet types.
DiffServ (Differentiated Services) is a class of service (CoS) model that marks packets so that they
receive specific per-hop treatment at DiffServ-compliant network devices along the route based on the
application types and traffic flow. Packets are marked with DiffServ Code Points (DSCPs) indicating the
level of service desired. This allows the intermediary DiffServ-compliant network devices to handle the
packets differently depending on the code points without the need to negotiate paths or remember
state information for every flow. In addition, applications do not have to request a particular service or
give advanced notice of where the traffic is going.
Connection and Packet Directions
Bandwidth management looks at the connection direction, that is, from which interface the connection
was initiated and to which interface the connection is going.
A connection has outbound and inbound packet flows. The Zyxel Device controls the bandwidth of
traffic of each flow as it is going out through an interface or VPN tunnel.
• The outbound traffic flows from the connection initiator to the connection responder.
• The inbound traffic flows from the connection responder to the connection initiator.
For example, a LAN1 to WAN connection is initiated from LAN1 and goes to the WAN.
• Outbound traffic goes from a LAN1 device to a WAN device. Bandwidth management is applied
before sending the packets out a WAN interface on the Zyxel Device.
• Inbound traffic comes back from the WAN device to the LAN1 device. Bandwidth management is
applied before sending the traffic out a LAN1 interface.
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
582
Figure 400 LAN1 to WAN Connection and Packet Directions
Outbound and Inbound Bandwidth Limits
You can limit an application’s outbound or inbound bandwidth. This limit keeps the traffic from using up
too much of the out-going interface’s bandwidth. This way you can make sure there is bandwidth for
other applications. When you apply a bandwidth limit to outbound or inbound traffic, each member of
the out-going zone can send up to the limit. Take a LAN1 to WAN policy for example.
• Outbound traffic is limited to 200 kbps. The connection initiator is on the LAN1 so outbound means the
traffic traveling from the LAN1 to the WAN. Each of the WAN zone’s two interfaces can send the limit
of 200 kbps of traffic.
• Inbound traffic is limited to 500 kbs. The connection initiator is on the LAN1 so inbound means the
traffic traveling from the WAN to the LAN1.
Figure 401 LAN1 to WAN, Outbound 200 kbps, Inbound 500 kbps
Bandwidth Management Priority
• The Zyxel Device gives bandwidth to higher-priority traffic first, until it reaches its configured
bandwidth rate.
• Then lower-priority traffic gets bandwidth.
• The Zyxel Device uses a fairness-based (round-robin) scheduler to divide bandwidth among traffic
flows with the same priority.
• The Zyxel Device automatically treats traffic with bandwidth management disabled as priority 7 (the
lowest priority).
Inbound
Outbound
500 kbps
200 kbps
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
583
Maximize Bandwidth Usage
Maximize bandwidth usage allows applications with maximize bandwidth usage enabled to “borrow”
any unused bandwidth on the out-going interface.
After each application gets its configured bandwidth rate, the Zyxel Device uses the fairness- based
scheduler to divide any unused bandwidth on the out-going interface amongst applications that need
more bandwidth and have maximize bandwidth usage enabled.
Unused bandwidth is divided equally. Higher priority traffic does not get a larger portion of the unused
bandwidth.
Bandwidth Management Behavior
The following sections show how bandwidth management behaves with various settings. For example,
you configure DMZ to WAN policies for FTP servers A and B. Each server tries to send 1000 kbps, but the
WAN is set to a maximum outgoing speed of 1000 kbps. You configure policy A for server A’s traffic and
policy B for server B’s traffic.
Figure 402 Bandwidth Management Behavior
Configured Rate Effect
In the following table the configured rates total less than the available bandwidth and maximize
bandwidth usage is disabled, both servers get their configured rate.
Priority Effect
Here the configured rates total more than the available bandwidth. Because server A has higher priority,
it gets up to it’s configured rate (800 kbps), leaving only 200 kbps for server B.
Table 210 Configured Rate Effect
POLICY CONFIGURED RATE MAX. B. U. PRIORITY ACTUAL RATE
A 300 kbps No 1 300 kbps
B 200 kbps No 1 200 kbps
Table 211 Priority Effect
POLICY CONFIGURED RATE MAX. B. U. PRIORITY ACTUAL RATE
A 800 kbps Yes 1 800 kbps
B 1000 kbps Yes 2 200 kbps
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
584
Maximize Bandwidth Usage Effect
With maximize bandwidth usage enabled, after each server gets its configured rate, the rest of the
available bandwidth is divided equally between the two. So server A gets its configured rate of 300 kbps
and server B gets its configured rate of 200 kbps. Then the Zyxel Device divides the remaining bandwidth
(1000 - 500 = 500) equally between the two (500 / 2 = 250 kbps for each). The priority has no effect on
how much of the unused bandwidth each server gets.
So server A gets its configured rate of 300 kbps plus 250 kbps for a total of 550 kbps. Server B gets its
configured rate of 200 kbps plus 250 kbps for a total of 450 kbps.
Priority and Over Allotment of Bandwidth Effect
Server A has a configured rate that equals the total amount of available bandwidth and a higher
priority. You should regard extreme over allotment of traffic with different priorities (as shown here) as a
configuration error. Even though the Zyxel Device still attempts to let all traffic get through and not be
lost, regardless of its priority, server B gets almost no bandwidth with this configuration.
Limit the Bandwidth for a Specific VLAN
If you want to limit the bandwidth for a specific VLAN, set the VLAN as the incoming interface and VPN
as the outgoing interface. Then, set the bandwidth limit for this BWM rule.
24.2 The Bandwidth Management Configuration
The Bandwidth management screens control the bandwidth allocation for TCP and UDP traffic. You can
use source interface, destination interface, destination port, schedule, user, source, destination
information, DSCP code and service type as criteria to create a sequence of specific conditions, similar
to the sequence of rules used by firewalls, to specify how the Zyxel Device handles the DSCP value and
allocate bandwidth for the matching packets.
Click Configuration > BWM to open the following screen. This screen allows you to enable/disable
bandwidth management and add, edit, and remove user-defined bandwidth management policies.
The default bandwidth management policy is the one with the priority of “default”. It is the last policy
the Zyxel Device checks if traffic does not match any other bandwidth management policies you have
configured. You cannot remove, activate, deactivate or move the default bandwidth management
policy.
Table 212 Maximize Bandwidth Usage Effect
POLICY CONFIGURED RATE MAX. B. U. PRIORITY ACTUAL RATE
A 300 kbps Yes 1 550 kbps
B 200 kbps Yes 2 450 kbps
Table 213 Priority and Over Allotment of Bandwidth Effect
POLICY CONFIGURED RATE MAX. B. U. PRIORITY ACTUAL RATE
A 1000 kbps Yes 1 999 kbps
B 1000 kbps Yes 2 1 kbps
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
585
Figure 403 Configuration > Bandwidth Management
The following table describes the labels in this screen. See Section 24.2.1 on page 587 for more
information as well.
Table 214 Configuration > Bandwidth Management
LABEL DESCRIPTION
Enable BWM Select this check box to activate management bandwidth.
Enable Highest
Bandwidth Priority
for SIP Traffic
Select this to maximize the throughput of SIP traffic to improve SIP-based VoIP call sound
quality. This has the Zyxel Device immediately send SIP traffic upon identifying it. When
this option is enabled the Zyxel Device ignores any other application patrol rules for SIP
traffic (so there is no bandwidth control for SIP traffic) and does not record SIP traffic
bandwidth usage statistics.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after
the selected entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Move To change an entry’s position in the numbered list, select it and click Move to display a
field to type a number for where you want to put that entry and press [ENTER] to move
the entry to the number that you typed.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive. The status icon is not available for the default bandwidth management policy.
Priority This field displays a sequential value for each bandwidth management policy and it is
not associated with a specific setting.
This field displays default for the default bandwidth management policy.
Description This field displays additional information about this policy.
BWM Type This field displays the below types of BWM:
• Shared, when the policy is set for all matched traffic
• Per User, when the policy is set for an individual user or a user group
• Per-Source-IP, when the policy is set for a source IP
User This is the type of user account to which the policy applies. If any displays, the policy
applies to all user accounts.
Schedule This is the schedule that defines when the policy applies. none means the policy always
applies.
Incoming Interface This is the source interface of the traffic to which this policy applies.
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
586
Outgoing Interface This is the destination interface of the traffic to which this policy applies.
Source This is the source address or address group, including geographic address and FQDN
(group) objects, for whom this policy applies. If any displays, the policy is effective for
every source.
Destination This is the destination address or address group, including geographic address and FQDN
(group) objects, for whom this policy applies. If any displays, the policy is effective for
every destination.
DSCP Code These are the DSCP code point values of incoming and outgoing packets to which this
policy applies. The lower the number the higher the priority with the exception of 0 which
is usually given only best-effort treatment.
any means all DSCP value or no DSCP marker.
default means traffic with a DSCP value of 0. This is usually best effort traffic
The “af” options stand for Assured Forwarding. The number following the “af” identifies
one of four classes and one of three drop preferences.
Service App and the service name displays if you selected Application Object for the service
type. An Application Object is a pre-defined service.
Obj and the service name displays if you selected Service Object for the service type. A
Service Object is a customized pre-defined service or another service. Mouse over the
service object name to view the corresponding IP protocol number.
BWM In/Pri/Out/Pri This field shows the inbound/outbound bandwidth and traffic priority.
In - This is how much inbound bandwidth, in kilobits per second, this policy allows the
matching traffic to use. Inbound refers to the traffic that the Zyxel Device sends to a
connection’s initiator. If no displays here, this policy does not apply bandwidth
management for the inbound traffic.
Out - This is how much outbound bandwidth, in kilobits per second, this policy allows the
matching traffic to use. Outbound refers to the traffic the Zyxel Device sends out from a
connection’s initiator. If no displays here, this policy does not apply bandwidth
management for the outbound traffic.
Pri - This is the priority for the inbound (the first Pri value) or outbound (the second Pri
value) traffic that matches this policy. The smaller the number, the higher the priority.
Traffic with a higher priority is given bandwidth before traffic with a lower priority. If the
inbound or outbound limit is set to 0, the traffic is assigned to the lowest priority (7)
regardless of this field’s configuration.
DSCP Marking This is how the Zyxel Device handles the DSCP value of the incoming and outgoing
packets that match this policy.
In - Inbound, the traffic the Zyxel Device sends to a connection’s initiator.
Out - Outbound, the traffic the Zyxel Device sends out from a connection’s initiator.
If this field displays a DSCP value, the Zyxel Device applies that DSCP value to the route’s
outgoing packets.
preserve means the Zyxel Device does not modify the DSCP value of the route’s
outgoing packets.
default means the Zyxel Device sets the DSCP value of the route’s outgoing packets to 0.
The “af” choices stand for Assured Forwarding. The number following the “af” identifies
one of four classes and one of three drop preferences.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 214 Configuration > Bandwidth Management
LABEL DESCRIPTION
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
587
24.2.1 The Bandwidth Management Add/Edit Screen
The Configuration > Bandwidth Management Add/Edit screen allows you to create a new condition or
edit an existing one.
802.1P Marking
Use 802.1P to prioritize outgoing traffic from a VLAN interface. The Priority Code is a 3-bit field within a
802.1Q VLAN tag that’s used to prioritize associated outgoing VLAN traffic. "0" is the lowest priority level
and "7" is the highest.
The following table is a guide to types of traffic for the priority code.
To access this screen, go to the Configuration > Bandwidth Management screen (see Section 24.2 on
page 584), and click either the Add icon or an Edit icon.
Table 215 Single Tagged 802.1Q Frame Format
DA SA TPID Priority VID Len/Etype Data FCS IEEE 802.1Q customer
tagged frame
Table 216 802.1Q Frame
DA Destination Address Priority 802.1p Priority
SA Source Address Len/Etype Length and type of Ethernet frame
TPID Tag Protocol IDentifier Data Frame data
VID VLAN ID FCS Frame Check Sequence
Table 217 Priority Code and Types of Traffic
PRIORITY TRAFFIC TYPES
0 (lowest) Background
1 Best Effort
2 Excellent Effort
3 Critical Applications
4 Video, less than 100 ms latency and jitter
5 Voice, less than 10 ms latency and jitter
6 Internetwork Control
7 (highest) Network Control
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
588
Figure 404 Configuration > Bandwidth Management > Edit (For the Default Policy)
Figure 405 Configuration > Bandwidth Management > Add/Edit
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
589
The following table describes the labels in this screen.
Table 218 Configuration > Bandwidth Management > Add/Edit
LABEL DESCRIPTION
Create new Object Use to configure any new settings objects that you need to use in this screen.
Configuration
Enable Select this check box to turn on this policy.
Description Enter a description of this policy. It is not used elsewhere. You can use alphanumeric and
()+/:+?!*#@$_%- characters, and it can be up to 60 characters long.
Criteria Use this section to configure the conditions of traffic to which this policy applies.
BWM Type This field displays the below types of BWM rule:
• Shared, when the policy is set for all users
• Per User, when the policy is set for an individual user or a user group
• Per Source IP, when the policy is set for a source IP
User Select a user name or user group to which to apply the policy. Use Create new Object if
you need to configure a new user account. Select any to apply the policy for every user.
Schedule Select a schedule that defines when the policy applies or select Create Object to
configure a new one. Otherwise, select none to make the policy always effective.
Incoming Interface Select the source interface of the traffic to which this policy applies.
Outgoing Interface Select the destination interface of the traffic to which this policy applies.
Source Select a source address or address group, including geographic address and FQDN
(group) objects, for whom this policy applies. Use Create new Object if you need to
configure a new one. Select any if the policy is effective for every source.
Destination Select a destination address or address group, including geographic address and FQDN
(group) objects, for whom this policy applies. Use Create new Object if you need to
configure a new one. Select any if the policy is effective for every destination.
DSCP Code Select a DSCP code point value of incoming packets to which this policy
route applies or select User Defined to specify another DSCP code point. The lower the
number the higher the priority with the exception of 0 which is usually given only best-effort
treatment.
any means all DSCP value or no DSCP marker.
default means traffic with a DSCP value of 0. This is usually best effort traffic
The “af” choices stand for Assured Forwarding. The number following the “af” identifies
one of four classes and one of three drop preferences.
User-Defined DSCP
Code
Use this field to specify a custom DSCP code point.
Service Type Select Service Object or Application Object if you want a specific service (defined in a
service object) or application patrol service to which the policy applies.
Service Object This field is available if you selected Service Object as the service type.
Select a service or service group to identify the type of traffic to which this policy applies.
any means all services.
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
590
Application Object This field is available if you selected Application Object as the service type.
Click on the blank field to show the available options.
Select application patrol services to identify the specific traffic to which this policy applies.
If you select BitTorrent, it includes the services listed below at the time of writing:
• BitTorrent
• BitTorrent_FileTransfer
• BitTorrent_Application
• BitTorrent_Bundle
DSCP Marking Set how the Zyxel Device handles the DSCP value of the incoming and outgoing packets
that match this policy. Inbound refers to the traffic the Zyxel Device sends to a
connection’s initiator. Outbound refers to the traffic the Zyxel Device sends out from a
connection’s initiator.
Select one of the pre-defined DSCP values to apply or select User Defined to specify
another DSCP value. The “af” choices stand for Assured Forwarding. The number following
the “af” identifies one of four classes and one of three drop preferences.
Select preserve to have the Zyxel Device keep the packets’ original DSCP value.
Select default to have the Zyxel Device set the DSCP value of the packets to 0.
Bandwidth Shaping Configure these fields to set the amount of bandwidth the matching traffic can use.
Inbound kbps Type how much inbound bandwidth, in kilobits per second, this policy allows the traffic to
use. Inbound refers to the traffic the Zyxel Device sends to a connection’s initiator.
If you enter 0 here, this policy does not apply bandwidth management for the matching
traffic that the Zyxel Device sends to the initiator. Traffic with bandwidth management
disabled (inbound and outbound are both set to 0) is automatically treated as the lowest
priority (7).
If the sum of the bandwidths for routes using the same next hop is higher than the actual
transmission speed, lower priority traffic may not be sent if higher priority traffic uses all of
the actual bandwidth.
Outbound kbps Type how much outbound bandwidth, in kilobits per second, this policy allows the traffic to
use. Outbound refers to the traffic the Zyxel Device sends out from a connection’s initiator.
If you enter 0 here, this policy does not apply bandwidth management for the matching
traffic that the Zyxel Device sends out from the initiator. Traffic with bandwidth
management disabled (inbound and outbound are both set to 0) is automatically treated
as the lowest priority (7).
If the sum of the bandwidths for routes using the same next hop is higher than the actual
transmission speed, lower priority traffic may not be sent if higher priority traffic uses all of
the actual bandwidth.
Table 218 Configuration > Bandwidth Management > Add/Edit
LABEL DESCRIPTION
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
591
24.2.1.1 Adding Objects for the BWM Policy
Objects are parameters to which the Policy rules are built upon. There are three kinds of objects you can
add/edit for the BWM policy, they are User, Schedule and Address objects. Click Configuration > BWM >
Add > Create New Object > Add User to see the following screen.
Priority This field displays when the inbound or outbound bandwidth management is not set to 0.
Enter a number between 1 and 7 to set the priority for traffic that matches this policy. The
smaller the number, the higher the priority.
Traffic with a higher priority is given bandwidth before traffic with a lower priority. When
traffic with higher priority has reached the full bandwidth, the traffic with lower priority can
use the remaining bandwidth.
The Zyxel Device uses a fairness-based (round-robin) scheduler to divide bandwidth
between traffic flows with the same priority.
If the inbound or outbound limit is set to 0, the traffic is assigned to the lowest priority (7)
regardless of this field’s configuration.
Maximize
Bandwidth Usage
This field displays when the inbound or outbound bandwidth management is not set to 0
and the BWM Type is set to Shared. Enable maximize bandwidth usage to let the traffic
matching this policy “borrow” all unused bandwidth on the out-going interface.
After each application or type of traffic gets its configured bandwidth rate, the Zyxel
Device uses the fairness-based scheduler to divide any unused bandwidth on the out-
going interface among applications and traffic types that need more bandwidth and
have maximize bandwidth usage enabled.
Maximum If you did not enable Maximize Bandwidth Usage, then type the maximum unused
bandwidth that traffic matching this policy is allowed to “borrow” on the out-going
interface (in Kbps), here.
802.1P Marking Use 802.1P to prioritize outgoing traffic from a VLAN interface.
Priority Code This is a 3-bit field within a 802.1Q VLAN tag that’s used to prioritize associated outgoing
VLAN traffic. "0" is the lowest priority level and "7" is the highest. See
Table 217 on page 587.
The setting configured here overwrites existing priority settings.
Interface Choose a VLAN interface to which to apply the priority level for matching frames.
Related Setting
Log Select whether to have the Zyxel Device generate a log (log), log and alert (log alert) or
neither (no) when any traffic matches this policy.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 218 Configuration > Bandwidth Management > Add/Edit
LABEL DESCRIPTION
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
592
Figure 406 Configuration >BWM > Create New Object > Add User
The following table describes the fields in the above screen.
Table 219 Configuration > BWM > Create New Object > Add User
LABEL DESCRIPTION
User Name Type a user or user group object name of the rule.
User Type Select a user type from the drop down menu. The user types are Admin, Limited admin,
User, Guest, Ext-user, Ext-group-user.
Password Type a password for the user object. The password can consist of alphanumeric
characters, the underscore, and some punctuation marks (+-/*= :; .! @$&%#~ ‘ \ () ), and it
can be up to eight characters long.
Retype Retype the password to confirm.
Description Enter a description of this policy. It is not used elsewhere. You can use alphanumeric and
()+/:+?!*#@$_%- characters, and it can be up to 60 characters long.
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
593
Figure 407 Configuration > BWM > Create New Object > Add Schedule
Authentication
Timeout Settings
Choose either Use Default setting option, which shows the default Lease Time of 1,440
minutes and Reauthentication Time of 1,440 minutes or you can enter them manually by
choosing Use Manual Settings option.
Lease Time This shows the Lease Time setting for the user, by default it is 1,440 minutes.
Reauthentication Time This shows the Reauthentication Time for the user, by default it is 1,440 minutes.
OK Click OK to save the setting.
Cancel Click Cancel to abandon this screen.
Table 219 Configuration > BWM > Create New Object > Add User
LABEL DESCRIPTION
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
594
The following table describes the fields in the above screen.
Figure 408 Configuration > BWM > Create New Object > Add Address
Table 220 Configuration > BWM > Create New Object > Add Schedule
LABEL DESCRIPTION
Name Enter a name for the schedule object of the rule.
Type Select an option from the drop down menu for the schedule object. It will show One Time
or Recurring.
Start Date Click the icon menu on the right to choose a Start Date for the schedule object.
Start Time Click the icon menu on the right to choose a Start Time for the schedule object.
Stop Date Click the icon menu on the right to choose a Stop Date for schedule object.
Stop Time Click the icon menu on the right to choose a Stop Time for the schedule object.
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
595
The following table describes the fields in the above screen.
24.3 Example: Prioritize a Specific Application
You are a client on the Zyxel Device LAN1. You use Teams to communicate with your colleagues and
have video meetings often at work. You want to create a bandwidth management rule to prioritize
traffic for Teams so that you can always use Teams without any delay.
Set the BWM Type to Shared to apply the BWM rule to all matched traffic.
This example uses the parameters given below.
1 Go to Configuration > BWM. Click Add to create a bandwidth management rule using the parameters
given in
Table 222 on page 595.
2 Select Maximize Bandwidth Usage to allow the traffic that matches this rule borrow all unused
bandwidth on the outgoing interface.
3 Select Teams under Application Group.
4 Click OK to save your changes.
Table 221 Configuration > BWM > Create New Object > Add Address
LABEL DESCRIPTION
Name Enter a name for the Address object of the rule.
Address Type Select an Address Type from the drop down menu on the right. The Address Types are
Host, Range, Subnet, Interface IP, Interface Subnet, and Interface Gateway.
IP Address Enter an IP address for the Address object.
OK Click OK to save the setting.
Cancel Click Cancel to abandon the setting.
Table 222 BWM Example
DESCRIPTION BWM TYPE SERVICE TYPE SERVICE OBJECT GUARANTEED BANDWIDTH
Teams Shared Service Object Teams Inbound: 20000 kbps/ Priority: 1
Outbound: 20000 kbps/ Priority: 1
background
Chapter 24 BWM (Bandwidth Management)
USG FLEX Series User’s Guide
596
5 The traffic for Teams is now at the highest priority to use the Zyxel Device bandwidth.
background
USG FLEX Series User’s Guide
597
CHAPTER 25
Web Authentication
25.1 Web Auth Overview
Web authentication can intercept network traffic, according to the authentication policies, until the
user authenticates his or her connection, usually through a specifically designated login web page. This
means all web page requests can initially be redirected to a special web page that requires users to
authenticate their sessions. Once authentication is successful, they can then connect to the rest of the
network or Internet.
As soon as a user attempt to open a web page, the Zyxel Device reroutes his/her browser to a web
portal page that prompts him/her to log in.

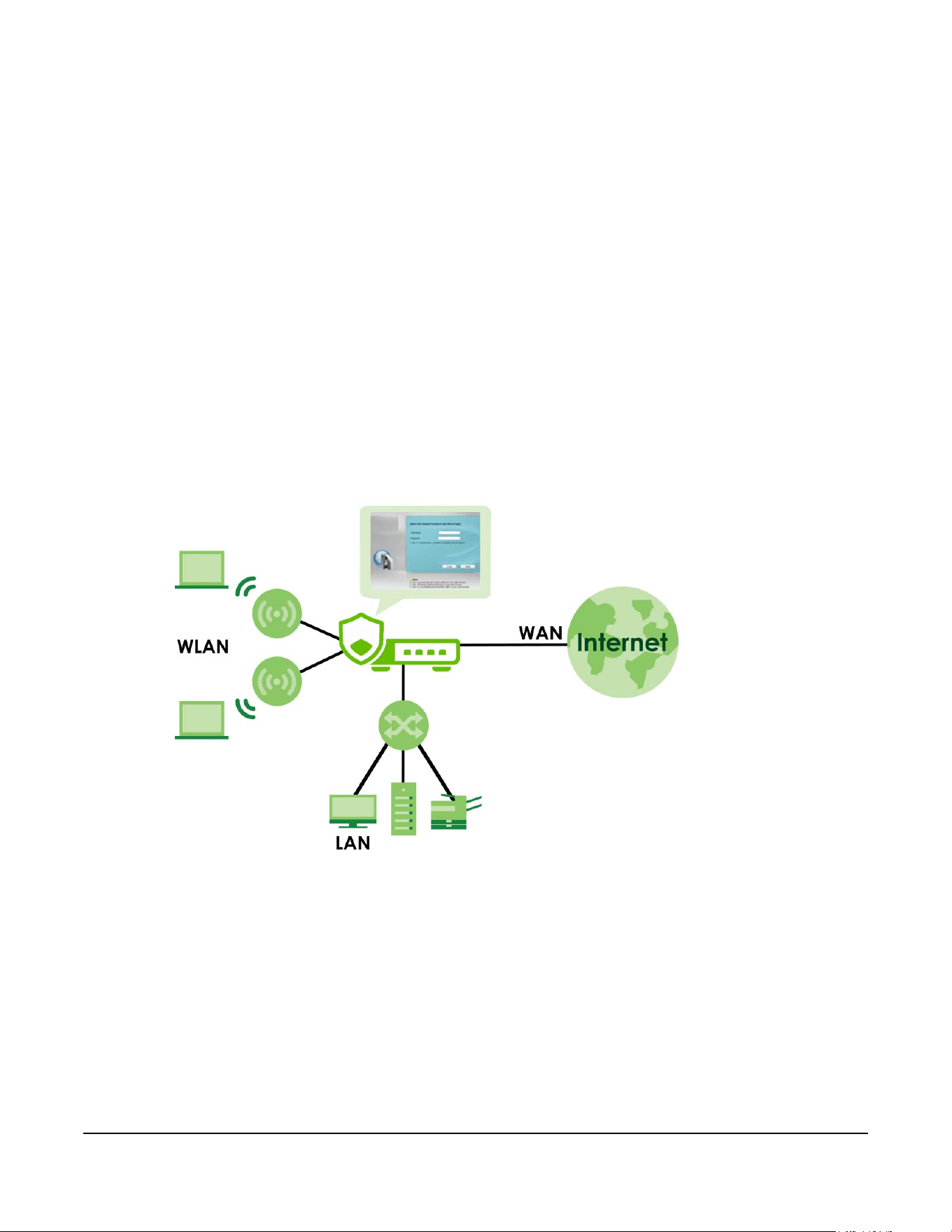

Figure 409 Web Authentication Example
The web authentication page only appears once per authentication session. Unless a user session times
out or he/she closes the connection, he or she generally will not see it again during the same session.
25.1.1 What You Can Do in this Chapter
• Use the Configuration > Web Authentication screens (Section 25.2 on page 599) to create and
manage web authentication policies.
• Use the Configuration > Web Authentication > SSO screen (Section 25.3 on page 615) to configure
how the Zyxel Device communicates with a Single Sign-On agent.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
598
25.1.2 What You Need to Know
Single Sign-On
A SSO (Single Sign On) agent integrates Domain Controller and Zyxel Device authentication
mechanisms, so that users just need to log in once (single) to get access to permitted resources.
Forced User Authentication
Instead of making users for which User-Authentication policies have been configured go to the Zyxel
Device Login screen manually, you can configure the Zyxel Device to display the Login screen
automatically whenever it routes HTTP traffic for anyone who has not logged in yet.
Note: This works with HTTP traffic only. The Zyxel Device does not display the Login screen
when users attempt to send other kinds of traffic.
The Zyxel Device does not automatically route the request that prompted the login, however, so users
have to make this request again.
Google Authentication
Please see authentication method objects in Section 44.11.3 on page 1023.
Summary of User Authentication Methods
The following table summarizes how users authenticate with the Zyxel Device when web authentication
is enabled.
Table 223 User Authentication Methods
CLIENT
GOOGLE
AUTHENTICATOR
USER AUTHENTICATION STEPS
802.1X No 1. 802.1X - Username/password
2. Web Authentication Portal - Username/password
Yes 1. 802.1X - Username/password
2. Web Authentication Portal - Username/password
3. Web Authentication Portal - Google Authenticator code
No 1. 802.1X - Username/password
Yes 1. 802.1X - Username/password
2. Web Authentication Portal - Google Authenticator code
Non-802.1X No 1. Web Authentication Portal - Username/password
Yes 1. Web Authentication Portal - Username/password
2. Web Authentication Portal - Google Authenticator code
No None needed (if user is using Windows)
Yes None needed (if user is using Windows)
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
599
25.2 Web Authentication General Screen
The Web Authentication General screen displays the general web portal settings and web
authentication policies you have configured on the Zyxel Device. Use this screen to enable web
authentication on the Zyxel Device.
Figure 410 Configuration > Web Authentication > General
The following table gives an overview of the objects you can configure.
Table 224 Configuration > Web Authentication > General
LABEL DESCRIPTION
Global Setting
Enable Web
Authentication
Select the check box to turn on the web authentication feature. Otherwise, clear the check
box to turn it off.
Once enabled, all network traffic is blocked until a client authenticates with the Zyxel Device
through the specifically designated web portal or user agreement page.
Web Portal General Setting
Enable Session
Page
Select this to display a page showing information on the user session after s/he logs in. It
displays remaining time with an option to renew or log out immediately.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
600
Logout IP Specify an IP address that users can use to terminate their sessions manually by entering the IP
address in the address bar of the web browser.
User Agreement
General Setting
Enforce data
collection
Select this to require users to fill in their registration information (name, telephone number,
address and email address) on the User Agreement (PC or mobile) page.
Google
Authentication
Setting
Web authentication supports two-factor authentication using Google Authenticator. When
enabled, the web authentication page first prompts the user to enter their username and
password (factor 1), and then prompts them to enter a time-limited code from the Google
Authenticator app (factor 2).
It is also possible to configure two-factor authentication for VPN and admin users.
The admin two-factor authentication settings override the web authentication two-factor
authentication settings if both are configured.
Valid Time Enter the time limit (1-5 minutes) for the code from the Google Authenticator app to be used
for login.
Exceptional
Services
Use this table to list services that users can access without logging in.
Click Add to change the list’s membership. A screen appears. Available services appear on
the left. Select any services you want users to be able to access without logging in and click
the right arrow button to add them. The member services are on the right. Select any service
that you want to remove from the member list, and click the left arrow button to remove them.
Keeping DNS as a member allows users’ computers to resolve domain names into IP addresses.
Figure 411 Configuration > Web Authentication > Add Exceptional Service
In the table, select one or more entries and click Remove to delete it or them.
Web
Authentication
Policy Summary
Use this table to manage the Zyxel Device’s list of web authentication policies.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Move To move an entry to a different number in the list, click the Move icon. In the field that appears,
specify the number to which you want to move the interface.
Table 224 Configuration > Web Authentication > General (continued)
LABEL DESCRIPTION
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
601
Creating Exceptional Services
This screen lists services that users can access without logging in. Click Add under Exceptional Services in
the previous screen to display this screen. You can change the list’s membership here. Available
services appear on the left. Select any services you want users to be able to access without logging in
and click the right arrow button -> to add them. The member services are on the right. Select any
service that you want to remove from the member list, and click the left arrow <- button to remove
them. Then click OK to apply the changes and return to the main Web Authentication screen.
Alternatively, click Cancel to discard the changes and return to the main Web Authentication screen.
# This field is a sequential value showing the number of the profile. The profile order is not
important.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Priority This is the position of the authentication policy in the list. The priority is important as the policies
are applied in order of priority. Default displays for the default authentication policy that the
Zyxel Device uses on traffic that does not match any exceptional service or other
authentication policy. You can edit the default rule but not delete it.
Incoming
Interface
This field displays the interface on which packets for this policy are received.
Source This displays the source address object, including geographic address and FQDN (group)
objects, to which this policy applies.
Destination This displays the destination address object, including geographic address and FQDN (group)
objects, to which this policy applies.
Schedule This field displays the schedule object that dictates when the policy applies. none means the
policy is active at all times if enabled.
Authentication This field displays the authentication requirement for users when their traffic matches this policy.
unnecessary - Users do not need to be authenticated.
required - Users need to be authenticated. They must manually go to the login screen or user
agreement page. The Zyxel Device will not redirect them to the login screen.
force - Users need to be authenticated. The Zyxel Device automatically displays the login
screen or user agreement page whenever it routes HTTP traffic for users who have not logged
in yet.
Authentication
Type
This field displays the name of the authentication type profile used in this policy to define how
users authenticate their sessions. It shows n/a if Authentication is set to unnecessary.
Description If the entry has a description configured, it displays here. This is n/a for the default policy.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 224 Configuration > Web Authentication > General (continued)
LABEL DESCRIPTION
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
602
Figure 412 Configuration > Web Authentication > General > Add Exceptional Service
Creating/Editing an Authentication Policy
Open the Configuration > Web Authentication > General screen, then click the Add icon or select an
entry and click the Edit icon in the Web Authentication Policy Summary section to open the Auth. Policy
Add/Edit screen. Use this screen to configure an authentication policy.
Figure 413 Configuration > Web Authentication > General > Add Authentication Policy
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
603
The following table gives an overview of the objects you can configure.
Table 225 Configuration > Web Authentication > General > Add Authentication Policy
LABEL DESCRIPTION
Create new
Object
Use to configure any new settings objects that you need to use in this screen. Select Address or
Schedule.
Enable Policy Select this check box to activate the authentication policy. This field is available for user-
configured policies.
Description Enter a descriptive name with 1 to 63 single-byte characters, including a-zA-Z0-9!”#$%&’()*+,-/
:;=?@_ and spaces.
.<>[\]^‘{|} are not allowed. This field is available for user-configured policies.
User
Authentication
Policy
Use this section of the screen to determine which traffic requires (or does not require) the
senders to be authenticated in order to be routed.
Incoming
Interface
Select the interface on which packets for this policy are received.
Source Address Select a source address or address group, including geographic address and FQDN (group)
objects, for whom this policy applies. Select any if the policy is effective for every source. This is
any and not configurable for the default policy.
Destination
Address
Select a destination address or address group, including geographic address and FQDN
(group) objects, for whom this policy applies. Select any if the policy is effective for every
destination. This is any and not configurable for the default policy.
Schedule Select a schedule that defines when the policy applies. Otherwise, select none and the rule is
always effective. This is none and not configurable for the default policy.
Authentication Select the authentication requirement for users when their traffic matches this policy.
unnecessary - Users do not need to be authenticated.
required - Users need to be authenticated. If Force User Authentication is selected, all HTTP
traffic from unauthenticated users is redirected to a default or user-defined login page.
Otherwise, they must manually go to the login screen. The Zyxel Device will not redirect them to
the login screen.
Force User
Authentication
This field is available for user-configured policies that require authentication. Select this to have
the Zyxel Device automatically display the login screen when users who have not logged in yet
try to send HTTP traffic.
Authentication
Type
Select an authentication method.
default-web-portal: the default login page built into the Zyxel Device.
default-user-agreement: the default user agreement page built into the Zyxel Device.
Single Sign-On
using 802.1X
802.1X Single Sign-On allows the Zyxel Device to use the same username and password for
802.1X WiFi authentication and web authentication. When enabled, a user logs into a WiFi
network on the Zyxel Device that has 802.1X (WPA Enterprise) enabled. The Zyxel Device then
reuses the 802.1X username and password for web authentication, preventing the user from
having to log in twice.
Active Directory Single Sign-On takes priority over 802.1X Single Sign-On, if both are enabled.
Google
Authenticator
Select Google Authenticator to first prompt a user to enter their username and password
(factor 1), and then prompt the user to enter a time-limited code from the Google
Authenticator app (factor 2).
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
604
25.2.1 User-Authentication Access Control Example
You can configure many policies and security settings for specific users or groups of users. Users can be
authenticated locally by the Zyxel Device or by an external (RADIUS) authentication server.
In this example the users are authenticated by an external RADIUS server at 172.16.1.200. First, set up the
user accounts and user groups in the Zyxel Device. Then, set up user authentication using the RADIUS
server. Finally, set up the policies in the table above.
25.2.1.1 Set Up User Accounts
Set up user accounts in the RADIUS server. This example uses the Web Configurator. If you can export
user names from the RADIUS server to a text file, then you might configure a script to create the user
accounts instead.
1 Click Configuration > Object > User/Group > User. Click the Add icon.
2 Enter the same user name that is used in the RADIUS server, and set the User Type to ext-user because
this user account is authenticated by an external server. Click OK.
Figure 414 Configuration > Object > User/Group > User > Add
3 Repeat this process to set up the remaining user accounts.
25.2.1.2 Set Up User Groups
Set up the user groups and assign the users to the user groups.
1 Click Configuration > Object > User/Group > Group. Click the Add icon.
2 Enter the name of the group. In this example, it is “Finance”. Then, select Object/Leo and click the right
arrow to move him to the Member list. This example only has one member in this group, so click OK. Of
course you could add more members later.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
605
Figure 415 Configuration > Object > User/Group > Group > Add
3 Repeat this process to set up the remaining user groups.
25.2.1.3 Set Up User Authentication Using the RADIUS Server
This step sets up user authentication using the RADIUS server. First, configure the settings for the RADIUS
server. Then, set up the authentication method, and configure the Zyxel Device to use the
authentication method. Finally, force users to log into the Zyxel Device before it routes traffic for them.
1 Click Configuration > Object > AAA Server > RADIUS. Double-click the radius entry. Configure the RADIUS
server’s address, authentication port (1812 if you were not told otherwise), and key. Click OK.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
606
Figure 416 Configuration > Object > AAA Server > RADIUS > Add
2 Click Configuration > Object > Auth. Method. Double-click the default entry. Click the Add icon. Select
group radius because the Zyxel Device should use the specified RADIUS server for authentication. Click
OK.
Figure 417 Configuration > Object > Auth. method > Edit
3 Click Configuration > Web Authentication. In the Web Authentication > General screen, select Enable
Web Authentication to turn on the web authentication feature and click Apply.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
607
Figure 418 Configuration > Web Authentication
4 In the Web Authentication Policy Summary section, click the Add icon to set up a default policy that has
priority over other policies and forces every user to log into the Zyxel Device before the Zyxel Device
routes traffic for them.
5 Select Enable Policy. Enter a descriptive name, “default_policy” for example. Set the Authentication
field to required, and make sure Force User Authentication is selected. Select an authentication type
profile (“default-web-portal” in this example). Keep the rest of the default settings, and click OK.
Note: The users must log in at the Web Configurator login screen before they can use HTTP or
MSN.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
608
Figure 419 Configuration > Web Authentication: General: Add
When the users try to browse the web (or use any HTTP application), the login screen appears. They
have to log in using the user name and password in the RADIUS server.
25.2.1.4 User Group Authentication Using the RADIUS Server
The previous example showed how to have a RADIUS server authenticate individual user accounts. If
the RADIUS server has different user groups distinguished by the value of a specific attribute, you can
make a couple of slight changes in the configuration to have the RADIUS server authenticate groups of
user accounts defined in the RADIUS server.
1 Click Configuration > Object > AAA Server > RADIUS. Double-click the radius entry. Besides configuring
the RADIUS server’s address, authentication port, and key; set the Group Membership Attribute field to
the attribute that the Zyxel Device is to check to determine to which group a user belongs. This example
uses Class. This attribute’s value is called a group identifier; it determines to which group a user belongs.
In this example the values are Finance, Engineer, Sales, and Boss.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
609
Figure 420 Configuration > Object > AAA Server > RADIUS > Add
2 Now you add ext-group-user objects to identify groups based on the group identifier values. Set up one
user account for each group of user accounts in the RADIUS server. Click Configuration > Object > User/
Group > User. Click the Add icon.
3 Enter a user name and set the User Type to ext-group-user. In the Group Identifier field, enter Finance,
Engineer, Sales, or Boss and set the Associated AAA Server Object to radius.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
610
Figure 421 Configuration > Object > User/Group > User > Add
4 Repeat this process to set up the remaining groups of user accounts.
25.2.2 Authentication Type Screen
Use this screen to view, create and manage the authentication type profiles on the Zyxel Device. An
authentication type profile decides which type of web authentication pages to be used for user
authentication. Go to Configuration > Web Authentication and then select the Authentication Type tab
to display the screen.
Figure 422 Configuration > Web Authentication > Authentication Type
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
611
The following table describes the labels in this screen.
Add/Edit an Authentication Type Profile
Click the Add icon or select an entry in the Web Authentication > Authentication Type screen and click
the Edit icon to display the screen. The screen differs depending on what you select in the Type field.
Figure 423 Configuration > Web Authentication > Authentication Type: Add/Edit (Web Portal)
Table 226 Configuration > Web Authentication > Authentication Type
LABEL DESCRIPTION
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
# This field is a sequential value, and it is not associated with a specific entry.
Name This field displays the name of the profile.
default-web-portal: the default login page built into the Zyxel Device.
Note: You can also customize the default login page built into the Zyxel Device in
the System > WWW > Login Page screen.
default-user-agreement: the default user agreement page built into the Zyxel Device.
Type This field displays the type of the web authentication page used by this profile.
Web Page This field displays whether this profile uses the default web authentication page built into the
Zyxel Device (System Default Page) or custom web authentication pages from an external web
server (External Page).
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
612
Figure 424 Configuration > Web Authentication > Authentication Type: Add/Edit (User Agreement)
The following table describes the labels in this screen.
Table 227 Configuration > Web Authentication > Authentication Type: Add/Edit
LABEL DESCRIPTION
Type Select the type of the web authentication page through which users authenticate their
connections.
If you select User Agreement, by agreeing to the policy of user agreement, users can access
the Internet without a guest account.
Profile Name Enter a name for the profile.
You can use up to 31 alphanumeric characters (A-Z, a-z, 0-9) and underscores (_). Spaces are
not allowed. The first character must be a letter.
The following fields are available if you set Type to Web Portal.
Internal Web
Portal
Select this to use the web portal pages uploaded to the Zyxel Device.
The login page appears whenever the web portal intercepts network traffic, preventing
unauthorized users from gaining access to the network.
Preview Select to display the page you uploaded to the Zyxel Device in a new frame.
Note: You must select a custom file uploaded to the Zyxel Device before you can
preview the pages.
Customize file Select the file name of the web portal file in the Zyxel Device.
Note: You can upload zipped custom web portal files to the Zyxel Device using the
Configuration > Web Authentication > Web Portal Customize File screen.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
613
External Web
Portal
Select this to use a custom login page from an external web portal instead of the one
uploaded to the Zyxel Device. You can configure the look and feel of the web portal page.
Login URL Specify the login page’s URL; for example, http://IIS server IP Address/login.html.
The Internet Information Server (IIS) is the web server on which the web portal files are installed.
Logout URL Specify the logout page’s URL; for example, http://IIS server IP Address/logout.html.
The Internet Information Server (IIS) is the web server on which the web portal files are installed.
Welcome URL Specify the welcome page’s URL; for example, http://IIS server IP Address/welcome.html.
Users will be redirected to the welcome page after authentication. This field is optional.
The Internet Information Server (IIS) is the web server on which the web portal files are installed.
Session URL Specify the session page’s URL; for example, http://IIS server IP Address/session.html.
The Internet Information Server (IIS) is the web server on which the web portal files are installed.
Error URL Specify the error page’s URL; for example, http://IIS server IP Address/error.html.
The Internet Information Server (IIS) is the web server on which the web portal files are installed.
Download Click this to download an example external web portal file for your reference.
The following fields are available if you set Type to User Agreement.
Enable Idle
Detection
This is applicable for access users.
Select this check box if you want the Zyxel Device to monitor how long each access user is
logged in and idle (in other words, there is no traffic for this access user). The Zyxel Device
automatically logs out the access user once the Idle timeout has been reached.
Idle timeout This is applicable for access users.
This field is effective when Enable Idle Detection is checked. Type the number of minutes each
access user can be logged in and idle before the Zyxel Device automatically logs out the
access user.
Reauthentication
Time
Enter the number of minutes the user can be logged into the Zyxel Device in one session before
having to log in again.
Internal User
Agreement
Select this to use the user agreement pages in the Zyxel Device. The user agreement page
appears whenever the Zyxel Device intercepts network traffic, preventing unauthorized users
from gaining access to the network.
Preview Select to display the page you uploaded to the Zyxel Device in a new frame.
Note: You must select a custom file uploaded to the Zyxel Device before you can
preview the pages.
Customize file Select the file name of the user agreement file in the Zyxel Device.
Note: You can upload zipped custom user agreement files to the Zyxel Device using
the Configuration > Web Authentication > User Agreement Customize File
screen.
External User
Agreement
Select this to use custom user agreement pages from an external web server instead of the
default one built into the Zyxel Device. You can configure the look and feel of the user
agreement page.
Agreement
URL
Specify the user agreement page’s URL; for example, http://IIS server IP Address/logout.html.
The Internet Information Server (IIS) is the web server on which the user agreement files are
installed.
Table 227 Configuration > Web Authentication > Authentication Type: Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
614
25.2.3 Custom Web Portal / User Agreement File Screen
Use this screen to upload the zipped custom web portal or user agreement files to the Zyxel Device. You
can also download the custom files to your computer.
Click Configuration > Web Authentication and then select the Custom Web Portal File or Custom User
Agreement File tab to display the screen.
Figure 425 Configuration > Web Authentication > Custom Web Portal File
Welcome URL Specify the welcome page’s URL; for example, http://IIS server IP Address/welcome.html.
The Internet Information Server (IIS) is the web server on which the user agreement files are
installed.
If you leave this field blank, the Zyxel Device will use the welcome page of internal user
agreement file.
Download Click this to download an example external user agreement file for your reference.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 227 Configuration > Web Authentication > Authentication Type: Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
615
Figure 426 Configuration > Web Authentication > Custom User Agreement File
The following table describes the labels in this screen.
25.3 SSO Overview
The SSO (Single Sign-On) function integrates Domain Controller and Zyxel Device authentication
mechanisms, so that users just need to log in once (single login) to get access to permitted resources.
In the following figure, U user logs into a Domain Controller (DC) which passes the user’s login credentials
to the SSO agent. The SSO agent checks that these credentials are correct with the AD server, and if the
AD server confirms so, the SSO then notifies the Zyxel Device to allow access for the user to the permitted
resource (Internet access, for example).
Table 228 Configuration > Web Authentication > Custom Web Portal / User Agreement File
LABEL DESCRIPTION
Remove Click a file’s row to select it and click Remove to delete it from the Zyxel Device.
Download Click a file’s row to select it and click Download to save the zipped file to your computer.
# This column displays the index number for each file entry. This field is a sequential value, and it is
not associated with a specific entry.
File Name This column displays the label that identifies a web portal or user agreement file.
Size This column displays the size (in KB) of a file.
Last Modified This column displays the date and time that the individual files were last changed or saved.
Browse / Upload Click Browse... to find the zipped file you want to upload, then click the Upload button to put it
on the Zyxel Device.
Download Click this to download an example external web portal or user agreement file for your
reference.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
616
Note: The Zyxel Device, the DC, the SSO agent and the AD server must all be in the same
domain and be able to communicate with each other.
SSO does not support IPv6, LDAP or RADIUS; you must use it in an IPv4 network
environment with Windows AD (Active Directory) authentication database.
You must enable Web Authentication in the Configuration > Web Authentication
screen.
Figure 427 SSO Overview
Install the SSO Agent on one of the following platforms:
• Windows 7 Professional (32-bit and 64-bit)
• Windows Server 2008 Enterprise (32-bit and 64-bit)
• Windows 2008 R2 (64-bit)
• Windows Server 2012 (64-bit)
U User
DC Domain Controller
SSO Single Sign-On agent
AD Active Directory
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
617
25.4 SSO - Zyxel Device Configuration
This section shows what you have to do on the Zyxel Device in order to use SSO.
25.4.1 Configuration Overview
These are the screens you need to configure:
• Configure the Zyxel Device to Communicate with SSO on page 617
• Enable Web Authentication on page 618
• Create a Security Policy on page 620
• Configure User Information on page 621
• Configure an Authentication Method on page 622
• Configure Active Directory on page 623
25.4.2 Configure the Zyxel Device to Communicate with SSO
Use Configuration > Web Authentication > SSO to configure how the Zyxel Device communicates with
the Single Sign-On (SSO) agent.
Table 229 Zyxel Device - SSO Agent Field Mapping
ZYXEL DEVICE SSO
SCREEN FIELD SCREEN FIELD
Web Authentication > SSO Listen Port Agent Configuration Page
> Gateway Setting
Gateway Port
Web Authentication > SSO Primary Agent Port Agent Configuration Page Agent Listening Port
Object > User/Group >
User > Add
Group Identifier Agent Configuration Page
> Configure LDAP/AD
Server
Group Membership
Object > AAA Server >
Active Directory > Add
Base DN Agent Configuration Page
> Configure LDAP/AD
Server
Base DN
Object > AAA Server >
Active Directory > Add
Bind DN Agent Configuration Page
> Configure LDAP/AD
Server
Bind DN
Object > User/Group >
User > Add
User Name Agent Configuration Page
> Configure LDAP/AD
Server
Login Name Attribute
Object > AAA Server >
Active Directory > Add
Server Address Agent Configuration Page
> Configure LDAP/AD
Server
Server Address
Network > Interface >
Ethernet > wan (IPv4)
IP address Agent Configuration Page
> Gateway Setting
Gateway IP
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
618
Figure 428 Configuration > Web Authentication > SSO
The following table gives an overview of the objects you can configure.
25.4.3 Enable Web Authentication
Enable Web Authentication and add a web authentication policy.
Table 230 Configuration > Web Authentication > SSO
LABEL DESCRIPTION
Listen Port The default agent listening port is 2158. If you change it on the Zyxel Device, then
change it to the same number in the Gateway Port field on the SSO agent too. Type
a number ranging from 1025 to 65535.
Agent PreShareKey Type 8-32 single-byte characters, including 0-9a-zA_Z!”#$%&’()*+,-./:;<=>?@\^_‘
[] are not allowed. The Agent PreShareKey is used to encrypt communications
between the Zyxel Device and the SSO agent.
Primary Agent Type the IPv4 address of the SSO agent. The Zyxel Device and the SSO agent must
be in the same domain and be able to communicate with each other.
Primary Agent Port Type the same port number here as in the Agent Listening Port field on the SSO
agent. Type a number ranging from 1025 to 65535.
Secondary Agent Address
(Optional)
Type the IPv4 address of the backup SSO agent if there is one. The Zyxel Device and
the backup SSO agent must be in the same domain and be able to communicate
with each other.
Secondary Agent Port
(Optional)
Type the same port number here as in the Agent Listening Port field on the backup
SSO agent if there is one. Type a number ranging from 1025 to 65535.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
619
Make sure you select Enable Policy, Single Sign-On and choose required in Authentication.
Do NoT select any as the source address unless you want all incoming connections to be
authenticated!
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
620
See Table 224 on page 599 and Table 225 on page 603 for more information on configuring these
screens.
25.4.4 Create a Security Policy
Configure a Security Policy for SSO traffic source and destination direction in order to prevent the
security policy from blocking this traffic. Go to Configuration > Security Policy > Policy Control and add a
new policy if a default one does not cover the SSO web authentication traffic direction.
Configure the fields as shown in the following screen. Configure the source and destination addresses
according to the SSO web authentication traffic in your network.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
621
25.4.5 Configure User Information
Configure a User account of the ext-group-user type.
Configure Group Identifier to be the same as Group Membership on the SSO agent.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
622
25.4.6 Configure an Authentication Method
Configure Active Directory (AD) for authentication with SSO.
Choose group ad as the authentication server for SSO.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
623
25.4.7 Configure Active Directory
You must configure an Active Directory (AD) server in AAA Setup to be the same as AD configured on
the SSO agent.
The default AD server port is 389. If you change this, make sure you make the same changes on the SSO.
Configure the Base DN exactly the same as on the Domain Controller and SSO. Bind DN is a user name
and password that allows the Zyxel Device to join the domain with administrative privileges. It is a
required field.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
624
25.5 SSO Agent Configuration
This section shows what you have to do on the SSO agent in order to work with the Zyxel Device.
After you install the SSO agent, you will see an icon in the system tray (bottom right of the screen)
Right-click the SSO icon and select Configure Zyxel SSO Agent.
Configure the Agent Listening Port, AD server exactly as you have done on the Zyxel Device. Add the
Zyxel Device IP address as the Gateway. Make sure the Zyxel Device and SSO agent are able to
communicate with each other.
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
625
Configure the Server Address, Port, Base DN, Bind DN, Login Name Attribute and Group Membership for
the AD server settings exactly as you have done on the Zyxel Device. Group Membership is called Group
Identifier on the Zyxel Device.
LDAP/AD Server Configuration
background
Chapter 25 Web Authentication
USG FLEX Series User’s Guide
626
Configure the Gateway IP address, Gateway Port and PreShareKey exactly as you have done in the
Zyxel Device Configuration > Web Authentication > SSO screen. If you want to use Generate Key to have
the SSO create a random password, select Check to show PreShareKey as clear Text so as to see the
password, then copy and paste it to the Zyxel Device.
After all SSO agent configurations are done, right-click the SSO icon in the system tray and select Enable
Zyxel SSO Agent.
background
USG FLEX Series User’s Guide
627
CHAPTER 26
Hotspot
26.1 Overview
See Section 1.1.1 on page 30 to see which models support Hotspot management.
26.2 Billing Overview
You can use the built-in billing function to setup billing profiles. A billing profile describes how to charge
users. This chapter also shows you how to select an accounting method, configure a discount price plan
or use an online payment service by credit card.
• Use the General screen (see Section 26.3 on page 628) to configure the general billing settings, such
as the accounting method, currency unit and the SSID profiles to which the settings are applied.
• Use the Billing Profile screen (see Section 26.4 on page 630) to configure the billing profiles for the
web-based account generator and each button on the connected statement printer.
• Use the Discount screen (see Section 26.5 on page 637) to enable and configure discount price plans.
• Use the Payment Service screen (see Section 26.6 on page 639) to enable online payment service
and configure the service pages.
26.2.1 What You Need to Know
Accumulation Accounting Method
The accumulation accounting method allows multiple re-logins until the allocated time period or until
the user account is expired. The Zyxel Device accounts the time that the user is logged in for Internet
access.
Time-to-finish Accounting Method
The time-to-finish accounting method is good for one-time logins. Once a user logs in, the Zyxel Device
stores the IP address of the user’s computer for the duration of the time allocated. Thus the user does not
have to enter the user name and password again for re-login within the allocated time. Once
activated, the user account is valid until the allocated time is reached even if the user disconnects
Internet access for a certain period within the allocated time. For example, Joe purchases a one-hour
time-to-finish account. He starts using the Internet for the first 20 minutes and then disconnects his
Internet access to go to a 20-minute meeting. After the meeting, he only has 20 minutes left on his
account.
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
628
26.3 The Billing > General Screen
Use this screen to configure the general billing settings, such as the accounting method, currency unit
and the SSID profiles to which the settings are applied. Click Configuration > Hotspot > Billing > General
to open the following screen.
Figure 429 Configuration > Hotspot > Billing > General
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
629
The following table describes the labels in this screen.
Table 231 Configuration > Hotspot > Billing > General
LABEL DESCRIPTION
General Settings
Unused account
will be deleted
after the time:
Enter the number and select a time unit from the drop-down list box to specify how long to wait
before the Zyxel Device deletes an account that has not been used.
Accounting
Method
Select Time to Finish to allow each user a one-time login. Once the user logs in, the system starts
counting down the pre-defined usage even if the user stops the Internet access before the
time period is finished. If a user disconnects and reconnects before the allocated time expires,
the user does not have to enter the user name and password to access the Internet again.
Select Accumulation to allow each user multiple re-login until the time allocated is used up. The
Zyxel Device accounts the time that the user is logged in for Internet access.
User idle
timeout
The Zyxel Device automatically disconnects a computer from the network after a period of
inactivity. The user may need to enter the username and password again before access to the
network is allowed.
If you select Accumulation, specify the idle timeout between 1 and 60 minutes.
Accumulatio
n account will
be deleted
after the time:
Enter the number and select a time unit from the drop-down list box to specify how long to wait
before the Zyxel Device deletes the account.
This is for use with accumulation accounting.
Billing User Logon
Settings
Maximum
number per
billing account
Enter the maximum number of the users that are allowed to log in with the same account.
Reach maximum
number per
billing account
Select Block to stop new users from logging in when the Maximum number per billing account
is reached.
Select Remove previous user and login to disassociate the first user that logged in and allow
new user to log in when the Maximum number per billing account is reached.
Username &
Password length
Select to specify how many characters the username and password of a newly-created
dynamic guest account will have after you click Apply.
Keep user logged
in
Select to let the users automatically log in without entering their user name and password if the
Zyxel Device restarts.
Note: This works only for free guest accounts or when the accounting method is Time
to Finish.
Currency Select the appropriate currency symbol or currency unit.
If you set Currency code to User-Define, enter a three-letter alphabetic code manually.
Number of
decimals places
This shows the number of decimal places to be used for billing.
Decimal symbol Select whether you would like to use a dot (.) or a comma (,) for the decimal point.
Tax Select this option to charge sales tax for the account. Enter the tax rate (a 6% sales tax is
entered as 6).
SSID Profile
Settings
The Selectable SSID Profiles list displays the name(s) of the SSID profile(s) to which you can
apply the general billing settings.
To apply settings to an SSID profile, you can double-click a single entry to move it or use the
[Shift] or [Ctrl] key to select multiple entries and click the right arrow button to add to the
Selected SSID Profiles list. To remove an SSID profile, select the name(s) in the Selected SSID
Profiles list and click the left arrow button.
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
630
26.4 The Billing > Billing Profile Screen
Use this screen to configure the billing profiles that defines the maximum Internet access time and
charge per time unit. Click Configuration > Hotspot > Billing > Billing Profile to open the following screen.
Figure 430 Configuration > Hotspot > Billing > Billing Profile
The following table describes the labels in this screen.
Hotspot Service
Status
Service Status This field displays whether a service license is enabled at myZyxel (Activated) or not (Not
Activated) or expired (Expired). It displays the remaining Grace Period if your license has
Expired. It displays Not Licensed if there isn’t a license to be activated for this service.
If you need a license or a trial license has expired, click Buy to buy a new one. If a Standard
license has expired, click Renew to extend the license.
Then, click Activate to connect with the myZyxel server to activate the new license.
Service Type This shows whether you have a trial or standard license or none (Trial, Standard, None).
Expiration
Date
This shows when your hotspot license will expire.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 231 Configuration > Hotspot > Billing > General (continued)
LABEL DESCRIPTION
Table 232 Configuration > Hotspot > Billing > Billing Profile
LABEL DESCRIPTION
Account
Generator
Settings
Button A ~ C Select a billing profile for each button of the web-based account generator. The buttons
correspond to the buttons on a connected statement printer.
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
631
26.4.1 The Account Generator Screen
The Account Generator screen allows you to automatically create dynamic guest accounts (see
Dynamic-Guest Accounts for more information on dynamic guest accounts).
Click Configuration > Hotspot > Billing > Billing Profile and then the Preview button to open this screen.
You can also open this screen by logging into the Web Configurator with the guest-manager account.
Preview Click this button to open the Account Generator screen, where you can generate a dynamic
guest account and print the account information using a statement printer connected to the
Zyxel Device (see
Section 26.4.1 on page 631 for more information).
Billing Profile
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This field is a sequential value, and it is not associated with a specific entry.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This field displays the descriptive profile name for this entry.
Time Period This field displays the duration of the billing period.
Quota (T/U/D) This field is NoT available when you set Accounting Method to Time to Finish in the Billing >
General screen.
This field displays how much data in both directions (Total) or upstream data (Upload) and
downstream data (Download) can be transmitted through the WAN interface before the
account expires.
Bandwidth (U/D) This field displays the maximum upstream (Upload) and downstream (Download) bandwidth
allowed for the user account in kilobits per second.
Price This field displays each profile’s price per time unit.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 232 Configuration > Hotspot > Billing > Billing Profile (continued)
LABEL DESCRIPTION
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
632
Figure 431 Account Generator
The following table describes the labels in this screen.
Table 233 Account Generator
LABEL DESCRIPTION
Account
Generator
Settings
Select a button and specify how many units of billing period to be charged for new account in
the Button x Unit field.
Discount plan for
Button x
This section displays only when you enable the discount price plan in the Billing > Discount
screen.
# This is the number of each discount level.
The default (first) level cannot be edited or deleted. It is created automatically according to
the billing profile of the button you select.
Name This field displays the conditions of each discount level.
Unit This field displays the duration of the billing period that should be reached before the Zyxel
Device charges users at this level.
Price This field displays the price per time unit for each level.
Customer
Information
Real Name Enter the user’s name.
Email Enter the user’s email address.
Phone
Number
Enter the user’s phone number.
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
633
The following figure shows an example SMS message with account information. The SMS screen displays
only when you enable SMS in the Configuration > System > Notification > SMS screen. You can enter the
user’s mobile phone number and click Send SMS to send the account information in an SMS text
message to the user’s mobile phone. Click Cancel to close this window when you are finished viewing it.
Default Thermal
Printer
Select a statement printer that is attached to the Zyxel Device. It displays n/a if there is no
printer attached.
Summary
Total This shows the total price for the account before sales tax is added.
Tax This shows the tax rate.
Grand Total This shows the total price including tax.
Quantity Specify the number of account to be created.
Generate Click Generate to generate an account based on the billing settings you configure for the
selected button in the Billing Profile screen. A window displays showing the SMS message and/
or a printout preview of the account generated.
Cancel Click Cancel to exit this screen without saving.
Logout Click Logout to log out of the web configurator. This button is available only when you open this
screen by logging in with the guest-manager account.
Table 233 Account Generator (continued)
LABEL DESCRIPTION
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
634
The Printer screen shows a printout preview example. Click Printer to print this subscriber statement. Click
Cancel to close this window when you are finished viewing it.
26.4.2 The Account Redeem Screen
The Account Redeem screen allows you to send SMS messages for certain accounts. Click the Account
Redeem tab in the Account Generator screen to open this screen.
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
635
Figure 432 Account Redeem
The following table describes the labels in this screen.
Table 234 Account Redeem
LABEL DESCRIPTION
Query Account
Information
Phone Number Enter the country code and mobile phone number and click Query to display only the
account(s) that has the specified phone number.
SMS Click this button to send text messages for the accounts in the list below.
You can use this button only when SMS is enabled and there is at least one account in the list.
# This is the index number of the dynamic guest account in the list.
Status This field displays whether an account expires or not.
Username This field displays the user name of the account.
Create Time This field displays when the account was created.
Remaining Time This field displays the amount of Internet access time remaining for each account.
Time Period This field displays the total account of time the account can use to access the Internet through
the Zyxel Device.
Expiration Time This field displays the date and time the account becomes invalid.
Note: Once the time allocated to a dynamic account is used up or a dynamic
account remains unused after the expiration time, the account is deleted from
the account list.
Charge This field displays the total cost of the account.
Payment Info This field displays the method of payment for each account.
Phone Num This field displays the mobile phone number for the account.
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
636
26.4.3 The Billing Profile Add/Edit Screen
The Billing Profile Add/Edit screen allows you to create a new billing profile or edit an existing one. Click
Configuration > Hotspot > Billing > Billing Profile and then an Add or Edit icon to open this screen.
Figure 433 Configuration > Hotspot > Billing > Billing Profile > Add/Edit
The following table describes the labels in this screen.
Cancel Click Cancel to exit this screen without saving.
Logout Click Logout to log out of the web configurator. This button is available only when you open this
screen by logging in with the guest-manager account.
Table 234 Account Redeem (continued)
LABEL DESCRIPTION
Table 235 Configuration > Hotspot > Billing > Billing Profile > Add/Edit
LABEL DESCRIPTION
Enable billing
profile
Select this option to activate the profile.
Name Enter a name for the billing profile.
You can use up to 31 alphanumeric characters (A-Z, a-z, 0-9) and underscores (_). Spaces are
not allowed. The first character must be a letter.
Price Define each profile’s price, up to 999999.99, per time unit.
Time Period Set the duration of the billing period (minute, hour, or day). When this period expires, the user’s
access will be stopped. The allowed time period ranges are 10 to 60 minutes, 0 to 24 hours, or 0
to 365 days.
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
637
26.5 The Billing > Discount Screen
Use this screen to configure a custom discount pricing plan. This is useful for providing reduced rates for
purchases of longer periods of time. You can charge higher rates per unit at lower levels (fewer units
purchased) and lower rates per unit at higher levels (more units purchased). Click Configuration >
Hotspot > Billing > Discount to open the following screen.
Note: The discount price plan does not apply to users who purchase access time online with a
credit card.
Quota Type The quota settings section is NoT available when you set Accounting Method to Time to Finish in
the Billing > General screen.
Set a limit for the user accounts. This only applies to user’s traffic that is received or transmitted
through the WAN interface.
Note: When the limit is exceeded, the user is not allowed to access the Internet
through the Zyxel Device.
Select Total to set a limit on the total traffic in both directions.
Select Upload/Download to set a limit on the upstream traffic and downstream traffic
respectively.
Total Quota If you select Total, specify how much downstream and/or upstream data (in MB (Megabytes)
or GB (Gigabytes)) can be transmitted through the WAN interface before the account expires.
0 means there is no data limit for the user account.
Upload Quota If you select Upload/Download, specify how much upstream data (in MB (Megabytes) or GB
(Gigabytes)) can be transmitted through the WAN interface before the account expires.
0 means there is no data limit for the user account.
Download Quota If you select Upload/Download, specify how much downstream data (in MB (Megabytes) or GB
(Gigabytes)) can be transmitted through the WAN interface before the account expires.
0 means there is no data limit for the user account.
Enable
Bandwidth
Select this option to turn on bandwidth management for the user accounts.
Upload Specify the maximum outgoing bandwidth allowed for the user account in kilobits per second.
Upload refers to the traffic the Zyxel Device sends out from a user.
Download Specify the maximum incoming bandwidth allowed for the user account in kilobits per second.
Download refers to the traffic the Zyxel Device sends to a user.
Priority Enter a number between 1 and 7 to set the priority for the user’s traffic. The smaller the number,
the higher the priority.
Traffic with a higher priority is given bandwidth before traffic with a lower priority.
Note: The priority setting here has priority over the priority setting in a bandwidth
management rule.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 235 Configuration > Hotspot > Billing > Billing Profile > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
638
Figure 434 Configuration > Hotspot > Billing > Discount
The following table describes the labels in this screen.
Table 236 Configuration > Hotspot > Billing > Discount
LABEL DESCRIPTION
Discount Settings
Enable Discount Select the check box to activate the discount price plan.
Button Select Select a button from the drop-down list box to assign the base charge.
Charge by levels Select this to charge the rate at each successive level from the first level (most expensive per
unit) to the highest level (least expensive per unit) that the total purchase reaches.
Otherwise, clear this to charge all of the user’s time units only at the highest level (least
expensive) that their total purchase reaches.
Discount Price
Plan
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
# This is the number of each discount level.
The default (first) level cannot be edited or deleted. It is created automatically according to
the billing profile of the button you select.
Name This field displays the conditions of each discount level.
Unit This field displays the duration of the billing period that should be reached before the Zyxel
Device charges users at this level.
Price This field displays the price per time unit for each level.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
639
26.5.1 The Discount Add/Edit Screen
The Discount Add/Edit screen allows you to create a new discount level or edit an existing one. Click
Configuration > Hotspot > Billing > Discount and then an Add or Edit icon to open this screen.
Figure 435 Configuration > Hotspot > Billing > Discount > Add/Edit
The following table describes the labels in this screen.
26.6 The Billing > Payment Service Screen
Use this screen to use a credit card service to authorize, process, and manage credit card transactions
directly through the Internet. You must register with the supported credit card service before you can
configure the Zyxel Device to handle credit card transactions. Click Configuration > Hotspot > Billing >
Payment Service to open the following screen.
Table 237 Configuration > Hotspot > Billing > Discount > Add/Edit
LABEL DESCRIPTION
Name This field displays the conditions of each discount level.
Unit Set the duration of the billing period that should be reached before the Zyxel Device charges
users at this level.
Price Define this level’s charge per time unit.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
640
Figure 436 Configuration > Hotspot > Billing > Payment Service > General
The following table describes the labels in this screen.
Table 238 Configuration > Hotspot > Billing > Payment Service > General
LABEL DESCRIPTION
General Setting
Enable Payment
Service
Select the check box to use PayPal to authorize credit card payments.
Note: After you set up web authentication policies and enable the online payment
service on the Zyxel Device, a link displays in the login screen when users try to
access the Internet. The link redirects users to a screen where they can make
online payments by credit card to purchase access time and get dynamic
guest account information.
Payment Provider
Selection
Account You should already have a PayPal account to receive credit card payments.
Enter your PayPal account name.
Currency Select the currency in which payments are made. The available options depend on currencies
that PayPal supports.
Identity Token Enter the ID token provided to you by PayPal after successfully applying for your PayPal
account.
Payment
Gateway
Enter the address of the PayPal gateway provided to you by PayPal after applying for your
PayPal account.
Account Delivery
Method
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
641
26.6.1 The Payment Service > Desktop / Mobile View Screen
Use this screen to customize the online payment service pages that displays after an unauthorized user
clicks the link in the Web Configurator login screen to purchase access time. You can configure both
the desktop and mobile versions of the service pages. Users click a link in the pages to switch between
the two versions.
Click Configuration > Hotspot > Billing > Payment Service > Desktop View or Mobile View to open the
following screen.
Delivery Method Specify how the Zyxel Device provides dynamic guest account information after the user’s
online payment is done.
Select On-Screen to display the user account information in the web screen.
Select SMS to use Short Message Service (SMS) to send account information in a text message
to the user’s mobile device.
Select On-Screen and SMS to provide the account information both in the web screen and
through SMS text messages.
Note: You should have enabled SMS in the Configuration > System > Notification >
SMS screen to send text messages to the user’s mobile device.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 238 Configuration > Hotspot > Billing > Payment Service > General (continued)
LABEL DESCRIPTION
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
642

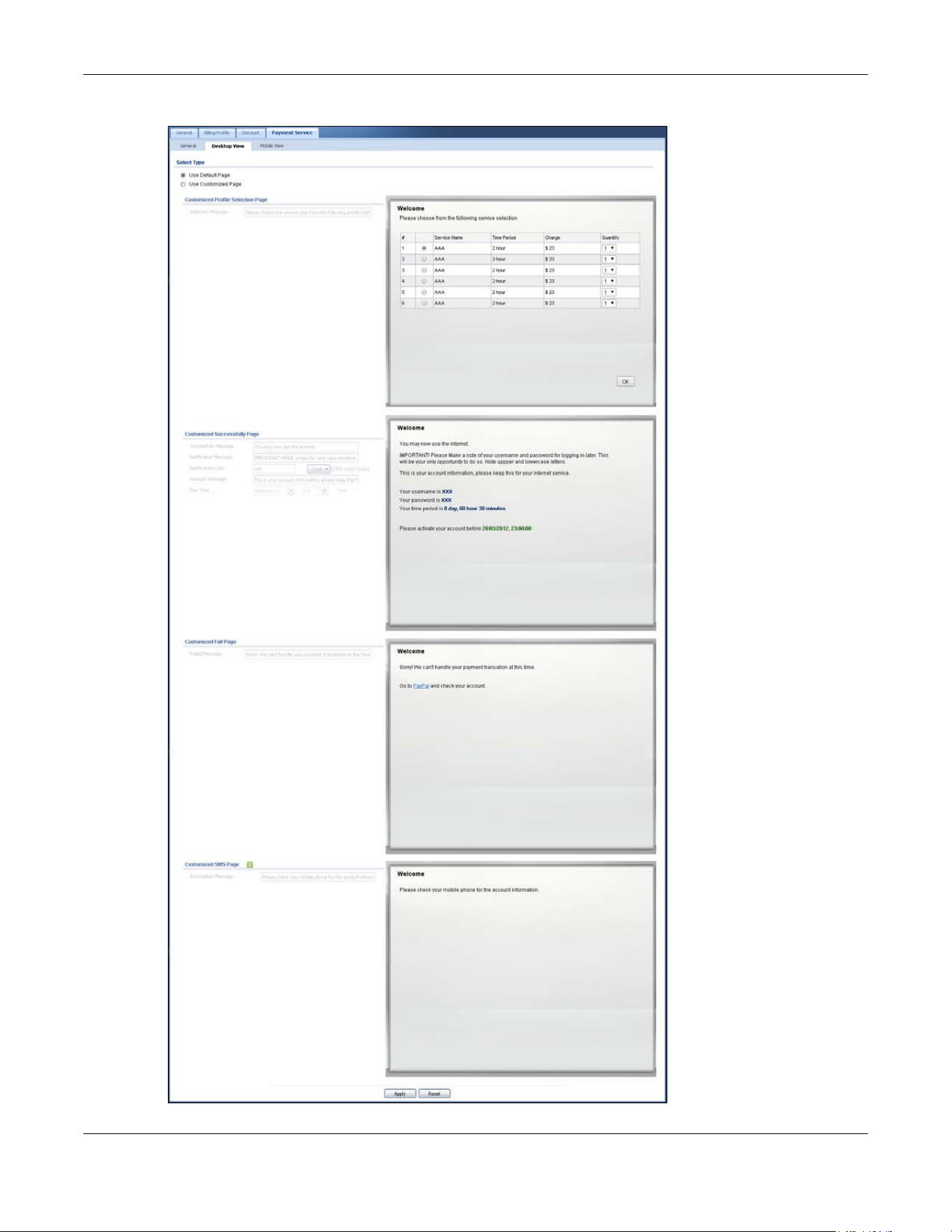

Figure 437 Configuration > Hotspot > Billing > Payment Service > Desktop View
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
643
Figure 438 Configuration > Hotspot > Billing > Payment Service > Mobile View
background
Chapter 26 Hotspot
USG FLEX Series User’s Guide
644
The following table describes the labels in this screen.
Table 239 Configuration > Hotspot > Billing > Payment Service > Desktop View or Mobile View
LABEL DESCRIPTION
Select Type
Use Default Page Select this to use the default online payment service page built into the device. If you later
create a custom online payment service page, you can still return to the Zyxel Device’s default
page as it is saved indefinitely.
Use Customized
Page
Select this to use a custom online payment service page instead of the default one built into
the Zyxel Device. Once this option is selected, the custom page controls below become
active.
Customized
Profile Selection
Page
Selection
Message
Enter a note to display in the first welcome page that allows users to choose a billing period
they want. Use up to 256 printable ASCII characters. Spaces are allowed.
Customized
Successfully Page
Successfully
Message
Enter a note to display in the second page after the user’s online payment is made
successfully. Use up to 256 printable ASCII characters. Spaces are allowed.
Notification
Message
Enter the important information you want to display. Use up to 256 printable ASCII characters.
Spaces are allowed.
Notification Color Specify the font color of the important information. You can use the color palette chooser, or
enter a color value of your own.
Account
Message
Enter a note to display above the user account information. Use up to 256 printable ASCII
characters. Spaces are allowed.
Day Time Select the format in which you want to display the date and how long an account is allowed
to stay unused before it expires.
Customized Fail
Page
Failed Message Enter a note to display when the user’s online payment failed. Use up to 256 printable ASCII
characters. Spaces are allowed.
Customized SMS
Page
Information
Message
Enter a note to display when you set the Zyxel Device to send account information through SMS
text messages. Use up to 256 printable ASCII characters. Spaces are allowed.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
background
USG FLEX Series User’s Guide
645
CHAPTER 27
Printer Manager
27.1 Printer Manager Overview
You can create dynamic guest accounts and print guest account information by pressing the button on
an external statement printer, such as SP350E.
Make sure that the printer is connected to the appropriate power and the Zyxel Device, and that there
is printing paper in the printer. Refer to the printer’s documentation for details.
27.1.1 What You Can Do in this Chapter
• Use the Printer Manager > General screen (see Section 26.3 on page 628) to configure the printer list
and enable printer management.
• Use the Printer Manager > Printout Configuration screen (see Section 27.3 on page 652) to customize
the account printout.
27.2 The Printer Manager > General Screen
Use this screen to configure a printer list and allow the Zyxel Device to monitor the printer status. Click
Configuration > Hotspot > Printer Manager > General to open the following screen.
background
Chapter 27 Printer Manager
USG FLEX Series User’s Guide
646
Figure 439 Configuration > Hotspot > Printer Manager > General
The following table describes the labels in this screen.
Table 240 Configuration > Hotspot > Printer Manager > General
LABEL DESCRIPTION
General Setting
Enable Printer
Manager
Select the check box to allow the Zyxel Device to manage and monitor the printer status.
Printer Settings
Encryption Select the check box to turn on data encryption. Data transmitted between the Zyxel Device
and the printer will be encrypted with a secret key
Secret Key Enter four alphanumeric characters (A-Z, a-z, 0-9) to specify a key for data encryption.
Printer List Use this section to add the printer(s) that can be managed by the Zyxel Device.
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
background
Chapter 27 Printer Manager
USG FLEX Series User’s Guide
647
Discover
Printer
Click this to discover the printer(s) that is connected to the Zyxel Device and display the printer
information in a pop-up window. IPnP is enabled while discovering the printer and disabled
when the discovering process has finished.
Note: You need a Hotspot license to use this feature.
Use Printer Manager > General > Add to manually configure a printer’s IP address
and add it to the managed printer list when the printer is not detected or
connected to the Zyxel Device.
Refresh Click this to update the printer list table.
# This field is a sequential value, and it is not associated with any entry.
Status This icon is lit when the entry is active and dimmed when the entry is inactive. Click the
Connection icon for the Zyxel Device connect to the printer.
IPv4 Address This field displays the IP address of the printer.
Update Time This field displays the date and time the Zyxel Device last synchronized with the printer.
This shows n/a when the printer is not in the managed printer list or the printer status is sync fail
or sync progressing.
Status This field is hidden by default. It displays whether the Zyxel Device can connect to the printer
and update the printer information.
This shows n/a when the printer is not in the managed printer list.
Nickname This shows an optional friendly name for the printer that you configured.
Firmware Version This field displays the model number and firmware version of the printer.
This shows n/a when the printer is not in the managed printer list or the printer status is sync fail.
MAC This shows the hardware MAC address of the printer.
Description This field displays the descriptive name for the printer that you configured.
Printer Firmware
Information
Current Version This is the version of the printer firmware currently uploaded to the Zyxel Device. The Zyxel
Device automatically installs it in the connected printers to make sure the printers are
upgraded to the same version.
Hotspot Service
Status
The hotspot license must be registered in order to be activated.
Service Status This field displays whether a service license is enabled at myZyxel (Activated) or not (Not
Activated) or expired (Expired). It displays the remaining Grace Period if your license has
Expired. It displays Not Licensed if there isn’t a license to be activated for this service.
If you need a license or a trial license has expired, click Buy to buy a new one. If a Standard
license has expired, click Renew to extend the license.
Then, click Activate to connect with the myZyxel server to activate the new license.
Service Type This shows whether you have a trial or standard license or none (Trial, Standard, None).
Expiration
Date
This shows when your hotspot license will expire.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 240 Configuration > Hotspot > Printer Manager > General (continued)
LABEL DESCRIPTION
background
Chapter 27 Printer Manager
USG FLEX Series User’s Guide
648
27.2.1 Add Printer Rule
Click the Add icon to open the following screen. Use this screen to add a new printer.
Figure 440 Configuration > Hotspot > Printer Manager > General: Add
The following table describes the labels in this screen.
27.2.2 Edit Printer Rule
Select an entry in the Printer Manager > General screen and click the Edit icon to open the following
screen. Use this screen to modify the printer’s settings. You can't click the Edit icon when the printer
status is sync fail or sync progressing.
Figure 441 Configuration > Hotspot > Printer Manager > General: Edit
Table 241 Configuration > Hotspot > Printer Manager > General: Add
LABEL DESCRIPTION
Enable Printer
Manager
Select this option to turn on this entry in order to allow the Zyxel Device to manage this printer.
IPv4 Address Enter an IPv4 address for the printer.
Description Enter a description of this printer. You can use alphanumeric and ()+,/:=?!*#@$_%-”
characters, and it can be up to 60 characters long.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 27 Printer Manager
USG FLEX Series User’s Guide
649
The following table describes the labels in this screen.
27.2.3 Discover Printer
Click the Discover Printer icon in the Printer Manager > General screen to open the following screen. Use
this screen to find connected printers or edit a connected printer’s settings. Use Printer Manager >
General > Add to manually configure a printer’s IP address and add it to the managed printer list when
the printer is not detected or connected to the Zyxel Device.
Table 242 Configuration > Hotspot > Printer Manager > General: Edit
LABEL DESCRIPTION
Enable Printer
Manager
Select this option to turn on this entry in order to allow the Zyxel Device to manage this printer.
Nickname Type an optional friendly name for the printer. A nickname must begin with a letter and cannot
exceed 15 characters. Valid characters are [a-zA-Z0-9_-].
Description Enter a description of this printer. You can use alphanumeric and ()+,/:=?!*#@$_%-”
characters, and it can be up to 60 characters long.
IP Address
Assignment
Get
Automatically
Select this to make the printer a DHCP client and automatically get the IP address, subnet
mask, and gateway address from a DHCP server.
Use Fixed IP
Address
Select this if you want to specify the IP address, subnet mask, and gateway manually.
IP Address This field is enabled if you select Use Fixed IP Address.
Enter the IP address for the printer.
Subnet Mask This field is enabled if you select Use Fixed IP Address.
Enter the subnet mask of the printer in dot decimal notation. The subnet mask indicates what
part of the IP address is the same for all computers on the network.
Gateway This field is enabled if you select Use Fixed IP Address.
Enter the IP address of the gateway. The Zyxel Device sends packets to the gateway when it
does not know how to route the packet to its destination. The gateway should be on the same
network as the printer.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 27 Printer Manager
USG FLEX Series User’s Guide
650
Figure 442 Configuration > Hotspot > Printer Manager > General: Discover Printer
The following table describes the labels in this screen.
Table 243 Configuration > Hotspot > Printer Manager > General > Discover Printer
LABEL DESCRIPTION
Un-Mgnt Printer
List / Mgnt Printer
List
The tables displays according to whether the printer is in the unmanaged printer list (Un-Mgnt
Printer List) or the managed printer list (Mgnt Printer List).
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Note: You cannot edit an entry’s settings when the printer status is sync fail or sync
progressing.
Add to Mgnt
Printer List
Click this to add the selected printer to the managed printer list.
# This is the index number of the printer in the list.
Registration This field displays whether the printer is added to the managed printer list (Mgnt Printer) or not
(Un-Mgnt Printer).
IPv4 Address This field displays the IP address of the printer.
Update Time This field displays the date and time the Zyxel Device last synchronized with the printer.
This shows n/a when the printer is not in the managed printer list or the printer status is sync fail
or sync progressing.
Status This field displays whether the Zyxel Device can connect to the printer and update the printer
information.
This shows n/a when the printer is not in the managed printer list.
Nickname This field displays the optional friendly name of the printer that you configured.
Firmware Version This field displays the model number and firmware version of the printer.
This shows n/a when the printer is not in the managed printer list or the printer status is sync fail.
MAC This field displays the MAC address of the printer.
background
Chapter 27 Printer Manager
USG FLEX Series User’s Guide
651
27.2.4 Edit Printer Manager (Discover Printer)
Select an entry in the Printer Manager > General > Discover Printer screen and click the Edit icon to open
the following screen. Use this screen to modify the printer’s nickname and IP address.
Figure 443 Configuration > Hotspot > Printer Manager > General > Discover Printer: Edit
The following table describes the labels in this screen.
Table 244 Configuration > Hotspot > Printer Manager > General > Discover Printer: Edit
LABEL DESCRIPTION
General Settings
Nickname Type an optional friendly name for the printer. A nickname must begin with a letter and cannot
exceed 15 characters. Valid characters are [a-zA-Z0-9_-].
IP Address Assignment
Get
Automatically
Select this to make the printer a DHCP client and automatically get the IP address, subnet
mask, and gateway address from a DHCP server.
Use Fixed IP
Address
Select this if you want to specify the IP address, subnet mask, and gateway manually.
IP Address This field is enabled if you select Use Fixed IP Address.
Enter the IP address for the printer.
Subnet Mask This field is enabled if you select Use Fixed IP Address.
Enter the subnet mask of the printer in dot decimal notation. The subnet mask indicates what
part of the IP address is the same for all computers on the network.
Gateway This field is enabled if you select Use Fixed IP Address.
Enter the IP address of the gateway. The Zyxel Device sends packets to the gateway when it
does not know how to route the packet to its destination. The gateway should be on the same
network as the printer.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 27 Printer Manager
USG FLEX Series User’s Guide
652
27.3 The Printout Configuration Screen
Use this screen to customize the account printout. Click Configuration > Hotspot > Printer Manager >
Printout Configuration to open the following screen.
Figure 444 Configuration > Hotspot > Printer Manager > Printout Configuration
The following table describes the labels in this screen.
Table 245 Configuration > Hotspot > Printer Manager > Printout Configuration
LABEL DESCRIPTION
Use Default
Printout
Configuration
Select this to use the default account printout format built into the device. If you later create a
custom account printout format, you can still return to the Zyxel Device’s default format as it is
saved indefinitely.
Use Customized
Printout
Configuration
Select this to use a custom account printout format instead of the default one built into the
Zyxel Device. Once this option is selected, the custom format controls below become active.
Preview Click the button to display a preview of account printout format you uploaded to the Zyxel
Device.
File Name This shows the file name of account printout format file in the Zyxel Device.
Click Download to download the account printout format file from the Zyxel Device to your
computer.
File Path /
Browse /
Upload
Browse for the account printout format file or enter the file path in the available input box, then
click the Upload button to put it on the Zyxel Device.
Restore
Customized
File to Default
Click Restore to set the Zyxel Device back to use the default built-in account printout format.
Download Click this to download an example account printout format file from the Zyxel Device for your
reference.
Printout
Number of
Copies
Select how many copies of subscriber statements you want to print (1 is the default).
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
background
Chapter 27 Printer Manager
USG FLEX Series User’s Guide
653
27.4 Printer Reports Overview
The SP350E allows you to print status reports about the guest accounts and general Zyxel Device system
information. Simply press a key combination on the SP350E to print a report instantly without accessing
the web configurator.
The following lists the reports that you can print using the SP300E.
• Daily account summary
• Monthly account summary
• Last month account summary
•System status
27.4.1 Key Combinations
The following table lists the key combination to print each report.
Note: You must press the key combination on the SP350E within five seconds to print.
The following sections describe each report printout in detail.
27.4.2 Daily Account Summary
The daily account report lists the accounts printed during the current day, the current day’s total
number of accounts and the total charge. It covers the accounts that have been printed during the
current day starting from midnight (not the past 24 hours). For example, if you press the daily account
key combination on 2013/05/10 at 20:00:00, the daily account report includes the accounts created on
2013/05/10 between 00:00:01 and 19:59:59.
Key combination: A B C A A
The following figure shows an example.
Table 246 Report Printing Key Combinations
REPORT TYPE KEY COMBINATION
Daily Account Summary A B C A A
Monthly Account Summary A B C B A
Last Month Account Summary A B C B B
System Status A B C C A
background
Chapter 27 Printer Manager
USG FLEX Series User’s Guide
654
Figure 445 Daily Account Example
27.4.3 Monthly Account Summary
The monthly account report lists the accounts printed during the current month, the current month’s
total number of accounts and the total charge. It covers the accounts that have been printed during
the current month starting from midnight of the first day of the current month (not the past one month
period). For example, if you press the monthly account key combination on 2013/05/17 at 20:00:00, the
monthly account report includes the accounts created from 2013/05/01 at 00:00:01 to 2013/05/17 at
19:59:59.
Key combination: A B C B A
The following figure shows an example.
Figure 446 Monthly Account Example
27.4.4 Account Report Notes
The daily, monthly or last month account report holds up to 2000 entries. If there are more than 2000
accounts created in the same month or same day, the account report’s calculations only include the
latest 2000.
Daily Account
----------------------------
2013/05/10
Username Price
----------------------------
p2m6pf52 1.00
s4pcms28 2.00
----------------------------
TOTAL ACCOUNTS: 2
TOTAL PRICE: $ 3.00
----------------------------
2013/05/10 20:00:00
---End---
Monthly Account
----------------------------
2013/05
Username Price
----------------------------
p2m6pf52 1.00
s4pcms28 2.00
7ufm7z22 2.00
qm5fxn95 6.00
----------------------------
TOTAL ACCOUNTS: 4
TOTAL PRICE: $ 11.00
----------------------------
2013/05/17 20:00:11
---End---
background
Chapter 27 Printer Manager
USG FLEX Series User’s Guide
655
For example, if 2030 accounts (each priced at $1) have been created from 2013/05/01 00:00:00 to 2013/
05/31 19:59:59, the monthly account report includes the latest 2000 accounts, so the total would be
$2,000 instead of $2,030.
Use the Monitor > System Status > Dynamic Guest screen to see the accounts generated on another
day or month (up to 2000 entries total).
27.4.5 System Status
This report shows the current system information such as the host name and WAN IP address.
Key combination: A B C C A
The following figure shows an example.
Figure 447 System Status Example
The following table describes the labels in this report.
System Status
--------------------------------------
Item Description
--------------------------------------
SYST 02:02:35
WAST Link up
WLST Activate
FWVR 2.50(AACG.0)
BTVR 1.22
WAMA 00-90-0E-00-4A-29
LAMA 00-90-0E-00-4A-30
WAIP 10.21.2.267
LAIP 172.16.0.1
WLIP 10.59.1.1
DHSP 10.59.1.33
DHEP 10.59.1.254
--------------------------------------
CPUS 5%
MEMS 40%
DKST 5%
--------------------------------------
2012/04/12 17:10:22
---End---
Table 247 System Status
LABEL DESCRIPTION
SYST This field displays the time since the system was last restarted.
WAST This field displays the WAN connection status.
WLST This field displays the status of the Zyxel Device’s wireless LAN.
FWVR This field displays the version of the firmware on the Zyxel Device.
BTVR This field displays the version of the bootrom.
WAMA This field displays the MAC address of the Zyxel Device on the WAN.
LAMA This field displays the MAC address of the Zyxel Device on the LAN.
background
Chapter 27 Printer Manager
USG FLEX Series User’s Guide
656
WAIP This field displays the IP address of the WAN port on the Zyxel Device.
LAIP This field displays the IP address of the LAN port on the Zyxel Device.
WLIP This field displays the IP address of the wireless LAN interface on the Zyxel Device.
DHSP This field displays the first of the continuous addresses in the IP address pool.
DHEP This field displays the end of the continuous addresses in the IP address pool.
CPUS This field displays the Zyxel Device’s recent CPU usage.
MEMS This field displays the Zyxel Device’s recent memory usage.
DKST This field displays what percentage of the Zyxel Device’s on-board flash memory is currently
being used.
Table 247 System Status (continued)
LABEL DESCRIPTION
background
USG FLEX Series User’s Guide
657
CHAPTER 28
Free Time
28.1 Free Time Overview
With Free Time, the Zyxel Device can create dynamic guest accounts that allow users to browse the
Internet free of charge for a specified period of time.
28.1.1 What You Can Do in this Chapter
Use the Free Time screen (see Section 28.2 on page 657) to turn on this feature to allow users to get a
free account for Internet surfing during the specified time period.
28.2 The Free Time Screen
Use this screen to enable and configure the free time settings.. Click Configuration > Hotspot > Free Time
to open the following screen.
Figure 448 Configuration > Hotspot > Free Time
background
Chapter 28 Free Time
USG FLEX Series User’s Guide
658
The following table describes the labels in this screen.
Table 248 Configuration > Hotspot > Free Time
LABEL DESCRIPTION
Enable Free Time Select the check box to turn on the free time feature.
Note: After you set up web authentication policies and enable the free time feature
on the Zyxel Device, a link displays in the login screen when users try to access
the Internet. The link redirects users to a screen where they can get a free
account.
Free Time Period Select the duration of time period for which the free time account is allowed to access the
Internet.
Reset Time Select Daily to have the Zyxel Device allow free account access every day at the specified
time.
Select Weekly to have the Zyxel Device allow free account access once a week on the day
you select.
Select Monthly to have the Zyxel Device allow free account access once a month on a set
date.
When your free period ends, you will see a message telling you when you can use free time
again. This depends on the Reset Time period chosen.
Time If you select Daily, select the time in 24-hour format at which the new free time account is
allowed to access the Internet.
Day If you select Weekly, select the day on which the new free time account is allowed to access
the Internet.
If you select Monthly, enter the date on which the new free time account is allowed to access
the Internet. If the date you selected is not available in a month, such as 30th or 31th, the Zyxel
Device allows the free account access on the last day of the month.
Maximum
Registration
Number Before
Reset Time
Enter the maximum number of users that are allowed to log in for Internet access with a free
guest account before the time specified in the Reset Time field. This also sets how many free
guest accounts a user can get.
For example, if you set the Maximum Registration Number Before Reset Time to 1, the Reset
Time to Daily and the Reset Time to 13:00, even the first free guest account has expired at
11:30, the user cannot get a second account and/or access the Internet until 13:00.
Delivery Method Specify how the Zyxel Device provides dynamic guest account information.
Select On-Screen to display the user account information in the web screen.
Select SMS to use Short Message Service (SMS) to send account information in a text message
to the user’s mobile device.
Select On-Screen and SMS to provide the account information both in the web screen and
through SMS text messages.
Note: You should have enabled SMS in the Configuration > System > Notification >
SMS screen to send text messages to the user’s mobile device.
Auto Login Select this to allow users to log into their free account directly without having to enter their user
name and password.
Clearing this requires users to enter their user name and password, and click login to access
their free account.
Hotspot Service
Status
background
Chapter 28 Free Time
USG FLEX Series User’s Guide
659
The following figure shows an example login screen with a link to create a free guest account.
Service Status This field displays whether a service license is enabled at myZyxel (Activated) or not (Not
Activated) or expired (Expired). It displays the remaining Grace Period if your license has
Expired. It displays Not Licensed if there isn’t a license to be activated for this service.
If you need a license or a trial license has expired, click Buy to buy a new one. If a Standard
license has expired, click Renew to extend the license.
Then, click Activate to connect with the myZyxel server to activate the new license.
Service Type This shows whether you have a trial or standard license or none (Trial, Standard, None).
Expiration
Date
This shows when your hotspot license will expire.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 248 Configuration > Hotspot > Free Time (continued)
LABEL DESCRIPTION
background
Chapter 28 Free Time
USG FLEX Series User’s Guide
660
If you enable both online payment service and free time feature on the Zyxel Device, the link description
in the login screen will be mainly for online payment service. You can still click the link to get a free
account.
If SMS is enabled on the Zyxel Device, you have to enter your mobile phone number before clicking OK
to get a free guest account.
background
Chapter 28 Free Time
USG FLEX Series User’s Guide
661
The guest account information then displays on the screen and/or is sent to the configured mobile
phone number.
E
X
A
M
P
L
E
background
USG FLEX Series User’s Guide
662
CHAPTER 29
IPnP
29.1 IPnP Overview
IP Plug and Play (IPnP) allows a computer to access the Internet without changing the network settings
(such as IP address and subnet mask) of the computer, even when the IP addresses of the computer
and the Zyxel Device are not in the same subnet.
When you disable the IPnP feature, only computers with dynamic IP addresses or static IP addresses in
the same subnet as the Zyxel Device’s LAN IP address can connect to the Zyxel Device or access the
Internet through the Zyxel Device.
The IPnP feature does not apply to a computer using either a dynamic IP address or a static IP address
that is in the same subnet as the Zyxel Device's IP address.
Note: You must enable NAT to use the IPnP feature.
The following figure depicts a scenario where a computer is set to use a static private IP address in the
corporate environment. In a residential house where a Zyxel Device is installed, you can still use the
computer to access the Internet without changing the network settings, even when the IP addresses of
the computer and the Zyxel Device are not in the same subnet.
Figure 449 IPnP Application
29.1.1 What You Can Do in this Chapter
Use the IP screen (Section 29.1.2 on page 663) to enable IPnP on the Zyxel Device and the internal
interface(s).
background
Chapter 29 IPnP
USG FLEX Series User’s Guide
663
29.1.2 IPnP Screen
This screen allows you to enable IPnP on the Zyxel Device and specific internal interface(s). To access
this screen click Configuration > Hotspot > IPnP.
Figure 450 Configuration > Hotspot > IPnP
The following table describes the labels in this screen.
Table 249 Configuration > Hotspot > IPnP
LABEL DESCRIPTION
Enable IPnP Select this option to turn on the IPnP feature on the Zyxel Device.
Note: You can enable this feature only when the security policy is enabled.
Member List The Available list displays the name(s) of the internal interface(s) on which you can enable
IPnP.
To enable IPnP on an interface, you can double-click a single entry to move it or use the [Shift]
or [Ctrl] key to select multiple entries and click the right arrow button to add to the Member list.
To remove an interface, select the name(s) in the Member list and click the left arrow button.
Hotspot Service
Status
Service Status This field displays whether a service license is enabled at myZyxel (Activated) or not (Not
Activated) or expired (Expired). It displays the remaining Grace Period if your license has
Expired. It displays Not Licensed if there isn’t a license to be activated for this service.
If you need a license or a trial license has expired, click Buy to buy a new one. If a Standard
license has expired, click Renew to extend the license.
Then, click Activate to connect with the myZyxel server to activate the new license.
Service Type This shows whether you have a trial or standard license or none (Trial, Standard, None).
Expiration
Date
This shows when your hotspot license will expire.
background
Chapter 29 IPnP
USG FLEX Series User’s Guide
664
Register Now Click the link to go to myZyxel where you can register your Zyxel Device and activate the
service.
This link is available only when the service is not activated yet.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 249 Configuration > Hotspot > IPnP (continued)
LABEL DESCRIPTION
background
USG FLEX Series User’s Guide
665
CHAPTER 30
Walled Garden
30.1 Walled Garden Overview
A user must log in before the Zyxel Device allows the user’s access to the Internet. However, with a
walled garden, you can define one or more web site addresses that all users can access without
logging in. These can be used for advertisements for example.
30.2 Walled Garden > General Screen
Use this screen to turn on the walled garden feature.
Note: You must enable web authentication before you can access the Walled Garden
screens.
Note: You can configure up to 50 walled garden web site links.
Click Configuration > Hotspot > Walled Garden to display the screen.
Figure 451 Configuration > Hotspot > Walled Garden: General
The following table describes the labels in this screen.
Table 250 Configuration > Hotspot > Walled Garden: General
LABEL DESCRIPTION
Enable Walled
Garden
Select this to turn on the walled garden feature.
Note: This feature works only with the web portal authentication type.
Hotspot Service
Status
background
Chapter 30 Walled Garden
USG FLEX Series User’s Guide
666
30.3 Walled Garden > URL Base Screen
Use this screen to configure the walled garden web addresses (URLs that use the HTTP or HTTPS protocol)
for web sites that all users are allowed to access without logging in. The web site link(s) displays in the
user login screen by default.
Click Configuration > Hotspot > Walled Garden and then select the URL Base tab to display the screen.
Figure 452 Configuration > Hotspot > Walled Garden: URL Base
The following table describes the labels in this screen.
Service Status This field displays whether a service license is enabled at myZyxel (Activated) or not (Not
Activated) or expired (Expired). It displays the remaining Grace Period if your license has
Expired. It displays Not Licensed if there isn’t a license to be activated for this service.
If you need a license or a trial license has expired, click Buy to buy a new one. If a Standard
license has expired, click Renew to extend the license.
Then, click Activate to connect with the myZyxel server to activate the new license.
Service Type This shows whether you have a trial or standard license or none (Trial, Standard, None).
Expiration
Date
This shows when your hotspot license will expire.
Register Now Click the link to go to myZyxel where you can register your Zyxel Device and activate the
service.
This link is available only when the service is not activated yet.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 250 Configuration > Hotspot > Walled Garden: General (continued)
LABEL DESCRIPTION
Table 251 Configuration > Hotspot > Walled Garden: URL Based
LABEL DESCRIPTION
Walled Garden
URL List
Use this table to manage the list of walled garden web site links.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
background
Chapter 30 Walled Garden
USG FLEX Series User’s Guide
667
30.3.1 Adding/Editing a Walled Garden URL
Go to the Configuration > Web Authentication > Walled Garden > URL Base screen. Click Add or select
an entry and click the Edit to open the Add/Edit Walled Garden URL screen. Use this screen to configure
a walled garden web site URL entry.
Figure 453 Configuration > Hotspot > Walled Garden: URL Base: Add/Edit
The following table describes the labels in this screen.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Move To move an entry to a different number in the list, click the Move icon. In the field that appears,
specify the number to which you want to move the interface.
# This field is a sequential value, and it is not associated with any entry.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Display This icon is lit when the web site link is set to display in the user login screen.
Name This field displays the descriptive name of the web site.
URL This field displays the URL of the web site.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 251 Configuration > Hotspot > Walled Garden: URL Based (continued)
LABEL DESCRIPTION
Table 252 Configuration > Hotspot > Walled Garden: URL Base: Add/Edit
LABEL DESCRIPTION
Enable Select this to activate the entry.
Hide in login
page
Select this to not display the web site link in the user login screen.
This is helpful if a user’s access to a specific web site is required to stay connected but he or she
doesn’t need to visit that web site.
Name Enter a descriptive name for the walled garden link to be displayed in the login screen.
You can use up to 31 alphanumeric characters (A-Z, a-z, 0-9) and underscores (_). Spaces are
also allowed. The first character must be a letter.
background
Chapter 30 Walled Garden
USG FLEX Series User’s Guide
668
30.4 Walled Garden > Domain/IP Base Screen
Use this screen to configure walled garden web site links, which use a (wildcard) domain name or an IP
address. These links will not display in the login page.
Click Configuration > Hotspot > Walled Garden and then select the Domain/IP Base tab to display the
screen.
Figure 454 Configuration > Hotspot > Walled Garden: Domain/IP Base
The following table describes the labels in this screen.
URL Enter the URL of the web site.
Use “http://” or “https://” followed by up to 262 characters (0-9a-zA-Z;/?:@&=+$\.-_!~*'()%). For
example, http://www.example.com or http://172.16.1.35.
Preview Click this button to open the specified web site in a new frame.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 252 Configuration > Hotspot > Walled Garden: URL Base: Add/Edit (continued)
LABEL DESCRIPTION
Table 253 Configuration > Hotspot > Walled Garden: Domain/IP Based
LABEL DESCRIPTION
Walled Garden
Domain/IP List
Use this table to manage the list of walled garden web site links.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This field is a sequential value, and it is not associated with any entry.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This field displays the descriptive name of the web site.
background
Chapter 30 Walled Garden
USG FLEX Series User’s Guide
669
30.4.1 Adding/Editing a Walled Garden Domain or IP
Go to the Configuration > Hotspot > Walled Garden > Domain/IP Base screen. Click Add or select an
entry and click the Edit to open the Add/Edit Walled Garden Domain/IP screen. Use this screen to
configure the domain name or IP address entry for a walled garden web site.
Figure 455 Configuration > Hotspot > Walled Garden: Domain/IP Base: Add/Edit
The following table describes the labels in this screen.
30.4.2 Walled Garden Login Example
The following figure shows the user login screen with two walled garden links. The links are named
WalledGardenLink1 through 2 for demonstration purposes.
Domain Name/IP
Address
This field displays the domain name or IP address and subnet mask of the web site.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 253 Configuration > Hotspot > Walled Garden: Domain/IP Based (continued)
LABEL DESCRIPTION
Table 254 Configuration > Hotspot > Walled Garden: Domain/IP Base: Add/Edit
LABEL DESCRIPTION
Enable Select this to activate the entry.
Name Enter a descriptive name for the walled garden link.
You can use up to 31 alphanumeric characters (A-Z, a-z, 0-9) and underscores (_). Spaces are
also allowed. The first character must be a letter.
Type Select whether you want to create the link by entering a domain name or an IP address.
Domain Name /
IP Address
If you select Domain, type a Fully-Qualified Domain Name (FQDN) of a web site. An FQDN starts
with a host name and continues all the way up to the top-level domain name. For example,
www.zyxel.com.tw is a fully qualified domain name, where “www” is the host, “zyxel” is the
third-level domain, “com” is the second-level domain, and “tw” is the top level domain.
Underscores are not allowed. Use "*." as a prefix in the FQDN for a wildcard domain name (for
example, *.example.com).
If you select IP, enter the IP address and subnet mask of the web site.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 30 Walled Garden
USG FLEX Series User’s Guide
670
Figure 456 Walled Garden Login Example
background
USG FLEX Series User’s Guide
671
CHAPTER 31
Advertisement Screen
31.1 Advertisement Overview
Use this screen to set the Zyxel Device to display an advertisement web page as the first web page
whenever the user connects to the Internet.
Click Configuration > Hotspot > Advertisement to display the screen.
Figure 457 Configuration > Hotspot > Advertisement
The following table gives an overview of the objects you can configure.
Table 255 Configuration > Hotspot > Advertisement
LABEL DESCRIPTION
Enable
Advertisement
Select this to turn on the advertisement feature.
Note: This feature works only when you enable web authentication.
Advertisement
Summary
Use this table to manage the list of advertisement web pages.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
# This field is a sequential value, and it is not associated with any entry.
background
Chapter 31 Advertisement Screen
USG FLEX Series User’s Guide
672
31.1.1 Adding/Editing an Advertisement URL
Click Configuration > Hotspot > Advertisement and then the Add (or Edit) icon in the Advertisement
Summary section to open the Add/Edit Advertisement URL screen. Use this screen to configure an
advertisement address entry.
Note: You can create up to 20 advertisement URL entries. The Zyxel Device randomly picks
one and open the specified web site in a new frame when an authenticated user is
attempts to access the Internet.
Figure 458 Configuration > Hotspot > Advertisement > Add/Edit
Name This field displays the descriptive name of web site.
URL This field displays the address of web site.
Hotspot Service
Status
Service Status This field displays whether a service license is enabled at myZyxel (Activated) or not (Not
Activated) or expired (Expired). It displays the remaining Grace Period if your license has
Expired. It displays Not Licensed if there isn’t a license to be activated for this service.
If you need a license or a trial license has expired, click Buy to buy a new one. If a Standard
license has expired, click Renew to extend the license.
Then, click Activate to connect with the myZyxel server to activate the new license.
Service Type This shows whether you have a trial or standard license or none (Trial, Standard, None).
Expiration
Date
This shows when your hotspot license will expire.
Register Now Click the link to go to myZyxel where you can register your Zyxel Device and activate the
service.
This link is available only when the service is not activated yet.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
Table 255 Configuration > Hotspot > Advertisement (continued)
LABEL DESCRIPTION
background
Chapter 31 Advertisement Screen
USG FLEX Series User’s Guide
673
The following table gives an overview of the objects you can configure.
Table 256 Configuration > Hotspot > Advertisement > Add/Edit
LABEL DESCRIPTION
Name Enter a descriptive name for the advertisement web site.
You can use up to 31 alphanumeric characters (A-Z, a-z, 0-9) and underscores (_). Spaces are
not allowed. The first character must be a letter.
URL Enter the URL or IP address of the web site.
Use “http://” followed by up to 262 characters (0-9a-zA-Z;/?:@&=+$\.-_!~*'()%). For example,
http://www.example.com or http://172.16.1.35.
Preview Click this button to open the specified web site in a new frame.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
USG FLEX Series User’s Guide
674
CHAPTER 32
Security Policy
32.1 Overview
A security policy is a template of security settings that can be applied to specific traffic at specific times.
The policy can be applied:
• to a specific direction of travel of packets (from / to)
• to a specific source and destination address objects
• to a specific type of traffic (services)
• to a specific user or group of users
• at a specific schedule
Note: Make sure to choose the correct direction of traffic for the security policy.
The policy can be configured:
• to allow or deny traffic that matches the criteria above
• send a log or alert for traffic that matches the criteria above
• to apply the actions configured in the profiles (application patrol, content filter, IPS, anti-malware,
email security) to traffic that matches the criteria above
Note: Security policies can be applied to both IPv4 and IPv6 traffic.
The security policies can also limit the number of user sessions.
The following example shows the Zyxel Device’s default security policies behavior for a specific direction
of travel of packets. WAN to LAN traffic and how stateful inspection works. A LAN user can initiate a
Telnet session from within the LAN zone and the Zyxel Device allows the response. However, the Zyxel
Device blocks incoming Telnet traffic initiated from the WAN zone and destined for the LAN zone.
Figure 459 Default Directional Security Policy Example
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
675
32.2 What You Can Do in this Chapter
• Use the Security Policy Control screens (Section 32.3 on page 676) to enable or disable policies,
asymmetrical routes, and manage and configure policies.
• Use the Anomaly Detection and Prevention (ADP) screens (Section 32.4 on page 691) to detect traffic
with protocol anomalies and take appropriate action.
• Use the Session Control screens (see Section 32.5 on page 701) to limit the number of concurrent NAT/
security policies traffic sessions a client can use.
32.2.1 What You Need to Know
Stateful Inspection
The Zyxel Device uses stateful inspection in its security policies. The Zyxel Device restricts access by
screening data packets against defined access rules. It also inspects sessions. For example, traffic from
one zone is not allowed unless it is initiated by a computer in another zone first.
Zones
A zone is a group of interfaces. Group the Zyxel Device’s interfaces into different zones based on your
needs. You can configure security policies for data passing between zones or even between interfaces.
Default Directional Security Policy Behavior
Security Policies can be grouped based on the direction of travel of packets to which they apply. Here
is the The Zyxel Device has default Security Policy behavior for traffic going through the Zyxel Device in
various directions.
To-Device Policies
Policies with Device as the To Zone apply to traffic going to the Zyxel Device itself. By default:
• The Security Policy allows only LAN, or WAN computers to access or manage the Zyxel Device.
Table 257 Directional Security Policy Behavior
FROM ZONE TO ZONE BEHAVIOR
From any to Device DHCP traffic from any interface to the Zyxel Device is allowed.
From LAN1 to any (other than
the Zyxel Device)
Traffic from the LAN1 to any of the networks connected to the Zyxel Device is
allowed.
From LAN2 to any (other than
the Zyxel Device)
Traffic from the LAN2 to any of the networks connected to the Zyxel Device is
allowed.
From LAN1 to Device Traffic from the LAN1 to the Zyxel Device itself is allowed.
From LAN2 to Device Traffic from the LAN2 to the Zyxel Device itself is allowed.
From WAN to Device The default services listed in To-Device Policies are allowed from the WAN to the
Zyxel Device itself. All other WAN to Zyxel Device traffic is dropped.
From any to any Traffic that does not match any Security policy is dropped. This includes traffic
from the WAN to any of the networks behind the Zyxel Device.
This also includes traffic to or from interfaces that are not assigned to a zone
(extra-zone traffic).
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
676
• The Zyxel Device allows DHCP traffic from any interface to the Zyxel Device.
• The Zyxel Device drops most packets from the WAN zone to the Zyxel Device itself and generates a
log except for AH, ESP, GRE, HTTPS, IKE, NATT.
When you configure a Security Policy rule for packets destined for the Zyxel Device itself, make sure it
does not conflict with your service control rule. The Zyxel Device checks the security policy before the
service control rules for traffic destined for the Zyxel Device.
A From Any To Device direction policy applies to traffic from an interface which is not in a zone.
Global Security Policies
Security Policies with from any and/or to any as the packet direction are called global Security Policies.
The global Security Policies are the only Security Policies that apply to an interface that is not included in
a zone. The from any policies apply to traffic coming from the interface and the to any policies apply to
traffic going to the interface.
Security Policy Rule Criteria
The Zyxel Device checks the schedule, user name (user’s login name on the Zyxel Device), source IP
address and object, destination IP address and object, IP protocol type of network traffic (service) and
Security Service profile criteria against the Security Policies (in the order you list them). When the traffic
matches a policy, the Zyxel Device takes the action specified in the policy.
User Specific Security Policies
You can specify users or user groups in Security Policies. For example, to allow a specific user from any
computer to access a zone by logging in to the Zyxel Device, you can set up a policy based on the user
name only. If you also apply a schedule to the Security Policy, the user can only access the network at
the scheduled time. A user-authentication Security Policy is activated whenever the user logs in to the
Zyxel Device and will be disabled after the user logs out of the Zyxel Device.
Session Limits
Accessing the Zyxel Device or network resources through the Zyxel Device requires a NAT session and
corresponding Security Policy session. Peer to peer applications, such as file sharing applications, may
use a large number of NAT sessions. A single client could use all of the available NAT sessions and
prevent others from connecting to or through the Zyxel Device. The Zyxel Device lets you limit the
number of concurrent NAT/Security Policy sessions a client can use.
32.3 The Security Policy Screen
Asymmetrical Routes
If an alternate gateway on the LAN has an IP address in the same subnet as the Zyxel Device’s LAN IP
address, return traffic may not go through the Zyxel Device. This is called an asymmetrical or “triangle”
route. This causes the Zyxel Device to reset the connection, as the connection has not been
acknowledged.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
677
You can have the Zyxel Device permit the use of asymmetrical route topology on the network (not reset
the connection). However, allowing asymmetrical routes may let traffic from the WAN go directly to the
LAN without passing through the Zyxel Device. A better solution is to use virtual interfaces to put the Zyxel
Device and the backup gateway on separate subnets. Virtual interfaces allow you to partition your
network into logical sections over the same interface. See the chapter about interfaces for more
information.
By putting LAN 1 and the alternate gateway (A in the figure) in different subnets, all returning network
traffic must pass through the Zyxel Device to the LAN. The following steps and figure describe such a
scenario.
1 A computer on the LAN1 initiates a connection by sending a SYN packet to a receiving server on the
WAN.
2 The Zyxel Device reroutes the packet to gateway A, which is in Subnet 2.
3 The reply from the WAN goes to the Zyxel Device.
4 The Zyxel Device then sends it to the computer on the LAN1 in Subnet 1.
Figure 460 Using Virtual Interfaces to Avoid Asymmetrical Routes
32.3.1 Configuring the Security Policy Control Screen
Click Configuration > Security Policy > Policy Control to open the Security Policy screen. Use this screen
to enable or disable the Security Policy and asymmetrical routes, set a maximum number of sessions per
host, and display the configured Security Policies. Specify from which zone packets come and to which
zone packets travel to display only the policies specific to the selected direction. Note the following.
• Besides configuring the Security Policy, you also need to configure NAT rules to allow computers on
the WAN to access LAN devices.
• The Zyxel Device applies NAT (Destination NAT) settings before applying the Security Policies. So for
example, if you configure a NAT entry that sends WAN traffic to a LAN IP address, when you configure
a corresponding Security Policy to allow the traffic, you need to set the LAN IP address as the
destination.
• The ordering of your policies is very important as policies are applied in sequence.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
678
The following screen shows the Security Policy summary screen.
Figure 461 Configuration > Security Policy > Policy Control
The following table describes the labels in this screen.
Table 258 Configuration > Security Policy > Policy Control
LABEL DESCRIPTION
Show Filter/Hide
Filter
Click Show Filter to display IPv4 and IPv6 (if enabled) security policy search filters.
General Settings Enable or disable the Security Policy feature on the Zyxel Device.
Enable Policy
Control
Select this to activate Security Policy on the Zyxel Device to perform access control.
Secure it You have a WAN_to_Device rule that allows traffic such as HTTP, HTTPS, SSL and so on to access
to your Zyxel Device from any IPv4 source on the WAN. Click this button to secure
WAN_to_Device traffic. See
Section 32.3.2 on page 680 for more information.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
679
IPv4 / IPv6
Configuration
Use IPv4 / IPv6 search filters to find specific IPv4 and IPv6 (if enabled) security policies based on
direction, application, user, source, destination and/or schedule.
From / To Select a zone to view all security policies from a particular zone and/or to a particular zone.
any means all zones.
IPv4 / IPv6
Source
Type an IPv4 or IPv6 IP address to view all security policies based on the IPv4 / IPv6 source
address object used.
• An IPv4 IP address is written as four integer blocks separated by periods. This is an example
IPv4 address: 172.16.6.7.
• An 128-bit IPv6 address is written as eight 16-bit hexadecimal blocks separated by colons
(:). This is an example IPv6 address: 2001:0db8:1a2b:0015:0000:0000:1a2f:0000.
IPv4 / IPv6
Destination
Type an IPv4 or IPv6 IP address to view all security policies based on the IPv4 / IPv6 destination
address object used.
• An IPv4 IP address is written as four integer blocks separated by periods. This is an example
IPv4 address: 172.16.6.7.
• An 128-bit IPv6 address is written as eight 16-bit hexadecimal blocks separated by colons
(:). This is an example IPv6 address: 2001:0db8:1a2b:0015:0000:0000:1a2f:0000.
Service View all security policies based the service object used.
User View all security policies based on user or user group object used.
Schedule View all security policies based on the schedule object used.
IPv4/IPv6 Policy
Management
Use the following items to manage IPv4 and IPv6 policies.
Allow
Asymmetrical
Route
If an alternate gateway on the LAN has an IP address in the same subnet as the Zyxel Device’s
LAN IP address, return traffic may not go through the Zyxel Device. This is called an
asymmetrical or “triangle” route. This causes the Zyxel Device to reset the connection, as the
connection has not been acknowledged.
Select this check box to have the Zyxel Device permit the use of asymmetrical route topology
on the network (not reset the connection).
Note: Allowing asymmetrical routes may let traffic from the WAN go directly to the
LAN without passing through the Zyxel Device. A better solution is to use virtual
interfaces to put the Zyxel Device and the backup gateway on separate
subnets.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Move To change a policy’s position in the numbered list, select the policy and click Move to display a
field to type a number for where you want to put that policy and press [ENTER] to move the
policy to the number that you typed.
The ordering of your policies is important as they are applied in order of their numbering.
Clone Use Clone to create a new entry by modifying an existing one.
• Select an existing entry.
•Click Clone, type a number where the new entry should go and then press [ENTER].
• A configuration copy of the selected entry pops up. You must at least change the name as
duplicate entry names are not allowed.
Table 258 Configuration > Security Policy > Policy Control (continued)
LABEL DESCRIPTION
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
680
32.3.2 The Security Check for Web Interface Screen
Use this screen to configure settings to secure your Zyxel Device. You can configure:
• Secure SSL access from the Internet to the Zyxel Device.
• Secure SSL access from the Internet to the network behind the Zyxel Device.
• The default port that IPSec VPN clients use to retrieve VPN rule settings from the Zyxel Device.
• The default port for two-factor authentication for VPN clients to access the network behind the Zyxel
Device.
The following read-only fields summarize the policies you have created that apply to traffic traveling in the
selected packet direction.
Priority This is the position of your Security Policy in the global policy list (including all through-Zyxel
Device and to-Zyxel Device policies). The ordering of your policies is important as policies are
applied in sequence. Default displays for the default Security Policy behavior that the Zyxel
Device performs on traffic that does not match any other Security Policy.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This is the name of the Security policy.
From / To This is the direction of travel of packets. Select from which zone the packets come and to
which zone they go.
Security Policies are grouped based on the direction of travel of packets to which they apply.
For example, from LAN to LAN means packets traveling from a computer or subnet on the LAN
to either another computer or subnet on the LAN.
From any displays all the Security Policies for traffic going to the selected To Zone.
To any displays all the Security Policies for traffic coming from the selected From Zone.
From any to any displays all of the Security Policies.
To ZyWALL policies are for traffic that is destined for the Zyxel Device and control which
computers can manage the Zyxel Device.
IPv4 / IPv6 Source This displays the IPv4 / IPv6 source address object, including geographic address and FQDN
(group) objects, to which this Security Policy applies.
IPv4 / IPv6
Destination
This displays the IPv4 / IPv6 destination address object, including geographic address and
FQDN (group) objects, to which this Security Policy applies.
Service This displays the service object to which this Security Policy applies.
User This is the user name or user group name to which this Security Policy applies.
Schedule This field tells you the schedule object that the policy uses. none means the policy is active at all
times if enabled.
Action This field displays whether the Security Policy silently discards packets without notification
(deny), permits the passage of packets (allow) or drops packets with notification (reject)
Log Select whether to have the Zyxel Device generate a log (log), log and alert (log alert) or not
(no) when the policy is matched to the criteria listed above.
Profile This field shows you which Security Service profiles (application patrol, content filter, IPS, anti-
malware, email security) apply to this Security policy. Click an applied Security Service profile
icon to edit the profile directly.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 258 Configuration > Security Policy > Policy Control (continued)
LABEL DESCRIPTION
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
681
Secure SSL Access from the Internet to the Zyxel Device
You can configure up to 3 trusted computers to access the Zyxel Device using secure SSL. The default
HTTPS SSL port is 443. If you change this, remote connections from the Internet must use this port. For
example, if you change this to port 8800 and the Zyxel Device is using IP address 1.1.1.1, then remote
users must use https://1.1.1.1:8800.
The following figure shows that A, B and C can connect to the Zyxel Device to access the Zyxel Device
web configurator for remote management.
Configure a new port between 1024 to 65535 that is not in use by other services.
Figure 462 Secure SSL Access Example
Secure SSL VPN Access from the Internet to the Network Behind the Zyxel
Device
The default SSL VPN port is 443. If you change the default SSL VPN port on the Zyxel Device, make sure to
make the same change to SecuExtender, the SSL VPN client software. Configure a new port between
1024 to 65535 that is not in use by other services.
You can also restrict SSL VPN access to up to 3 locations on the Internet.
Figure 463 Secure SSL VPN Access Example
The table below describes the abbreviations used in the figure.
Table 259 Countries Abbreviations
ABBREVIATION COUNTRY
JP Japan
KR Korea
FR France
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
682
Change the Default IPSec VPN Provisioning Port
Change the default port that IPSec VPN clients use to retrieve VPN rule settings from the Zyxel Device.
The default is 443 which is already in use for remote management by default. If you change the default
IPSec VPN port on the Zyxel Device, make sure to make the same change to the Zyxel IPSec VPN client.
Configure a new port between 1024 to 65535 that is not in use by other services.
Figure 464 IPSec VPN Provisioning Example
Note: The remote management port, the SSL VPN port and the IPSec VPN port all use 443 by
default. If you do not change the default ports, then only 3 connections of the remote
management and SSL VPN will be allowed at one time.
Change the Default Port for Two-Factor VPN Access Authentication
Change the default port for two-factor authentication for VPN clients to access the network behind the
Zyxel Device. VPN clients do not need to change the port number on their devices, because the link to
access the network behind the Zyxel Devices will contain the new port number. For example, if you
change this to port 8008 and the link is using a.b.c.d, then VPN clients will see this link in their email or SMS
to retrieve settings: https://a.b.c.d:8008.
You can also change this port in Object > Auth. Method > Two-factor Authentication > VPN Access. See
Section 44.11.4 on page 1025 for more information on two-factor authentication.
Configure a new port between 1024 to 65535 that is not in use by other services.
Figure 465 Two-Factor Authentication Example
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
683
Overall Port Configuration Example
Below is an example of configuring these ports to avoid port conflict.
Click the Secure It button to show the following screen.
Figure 466 Configuration > Security Policy > Policy Control > Secure It > Security Check for Web
Interface
The following table describes the labels in this screen.
Table 260 Port Configuration Example
REMOTE
MANAGEMENT
SSL VPN
IPSEC VPN
PROVISIONING
TWO-FACTOR VPN
ACCESS
AUTHENTICATION
8800 8080 443 (default) 8008
Table 261 Security Check for Web Interface
LABEL DESCRIPTION
Allow secure remote management
from WAN
Select this to allow access to the Zyxel Device remotely only from
specified IP addresses or Fully Qualified Domain Names (FQDNs), such as
1.1.1.1 or www.zyxel.com. See
Section on page 681 for more information.
Port Configure a new port between 1024 to 65535 to use it to access the web
configurator. Do not use a port number that has been used.
For example, use https://1.1.1.1:8800 if you changed the default HTTPS
port to 8800.
Trusted Host 1-3 Configure the IP addresses or FQDNs that are allowed to access the Zyxel
Device.
Allow SSL VPN access from WAN Select this to allow SSL VPN clients to access the Zyxel Device only from
specified regions. See
Section on page 681 for more information.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
684
32.3.3 The Security Policy Control Add/Edit Screen
In the Security Policy Control screen, click the Edit or Add icon to display the Security Policy Edit or Add
screen.
Port Configure a new port between 1024 to 65535 to use it to access the web
configurator using SSL VPN. Do not use a port number that has been used.
The port you configure here must be the same as the port you use in
SecuExtender. See
Section on page 681 for more information on
SecuExtender.
Trusted Geolocation 1-3 Select the regions that are allowed to access the Zyxel Device from the
drop-down list box.
Change Two-Factor Authentication
Port
Select this to change the port VPN clients use to access the Zyxel Device
LAN with two-factor authentication. See
Section on page 682 for more
information.
Configure a new port between 1024 to 65535. Do not use a port number
that has been used.
Change Zyxel IPSec VPN Client
Provisioning Port
Select this to change the port IPSec VPN clients use to retrieve VPN rule
settings from the Zyxel Device. See
Section on page 682 for more
information.
Configure a new port between 1024 to 65535. Do not use a port number
that has been used.
The port you configure here must be the same as the port you use when
logging in as a Zyxel IPSec VPN client.
Please remind me Select how often to display the screen from the drop-down list box.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 261 Security Check for Web Interface (continued)
LABEL DESCRIPTION
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
685
Figure 467 Configuration > Security Policy > Policy Control > Add
The following table describes the labels in this screen.
Table 262 Configuration > Security Policy > Policy Control > Add
LABEL DESCRIPTION
Create new
Object
Use to configure any new settings objects that you need to use in this screen.
Enable Select this check box to activate the Security policy.
Name Type a name with 1 to 30 single-byte characters to identify the policy, including a-zA-Z.
0-9!”#$%&’()*+,-./:;<=>?@[\]^_‘{|} and spaces are not allowed.
Description Enter a descriptive name of 1 to 63 single-byte characters for the Policy, including spaces and 0-
9a-zA-Z!”#$%()*+,-/:;=?@_
&.<>[\]^‘{|} are not allowed.
From
To
For through-Zyxel Device policies, select the direction of travel of packets to which the policy
applies.
any means all interfaces.
Device means packets destined for the Zyxel Device itself.
Source Select an IPv4 / IPv6 address or address group object, including geographic address and FQDN
(group) objects, to apply the policy to traffic coming from it. Select any to apply the policy to all
traffic coming from IPv4 / IPv6 addresses.
Destination Select an IPv4 / IPv6 address or address group, including geographic address and FQDN (group)
objects, to apply the policy to traffic going to it. Select any to apply the policy to all traffic going
to IPv4 / IPv6 addresses.
Service Select a service or service group from the drop-down list box.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
686
32.3.4 Example: Allow a Server to Ping the Zyxel Device Without Creating
Logs
A server on the LAN pings the Zyxel Device every 15 seconds to check if the Zyxel Device is connected
to the Internet. The Zyxel Device creates a log every time the server pings it. You want to allow the server
to ping the Zyxel Device without creating so many logs.
Device Select a profile you created in Configuration > Object > Device Insight to apply the policy to
clients specified in the Device Insight profile from the drop-down list box. Select any to apply the
policy to all clients.
User This field is not available when you are configuring a to-Zyxel Device policy.
Select a user name or user group to which to apply the policy. The Security Policy is activated
only when the specified user logs into the system and the policy will be disabled when the user
logs out.
Otherwise, select any and there is no need for user logging.
Note: If you specified a source IP address (group) instead of any in the field below, the
user’s IP address should be within the IP address range.
Schedule Select a schedule that defines when the policy applies. Otherwise, select none and the policy is
always effective.
Action Use the drop-down list box to select what the Security Policy is to do with packets that match this
policy.
Select deny to silently discard the packets without sending a TCP reset packet or an ICMP
destination-unreachable message to the sender.
Select reject to discard the packets and send a TCP reset packet or an ICMP destination-
unreachable message to the sender.
Select allow to permit the passage of the packets.
Log matched
traffic
Select whether to have the Zyxel Device generate a log (log), log and alert (log alert) or not (no)
when the policy is matched to the criteria listed above.
Profile Use this section to apply anti- x profiles (created in the Configuration > Security Service screens)
to traffic that matches the criteria above. You must have created a profile first; otherwise none
displays.
Use Log to generate a log (log), log and alert (log alert) or not (no) for all traffic that matches
criteria in the profile.
Application
Patrol
Select an Application Patrol profile from the list box; none displays if no profiles have been
created in the Configuration > Security Service > App Patrol screen.
Content
Filter
Select a Content Filter profile from the list box; none displays if no profiles have been created in
the Configuration > Security Service > Content Filter screen.
SSL
Inspection
Select an SSL Inspection profile from the list box; none displays if no profiles have been created in
the Configuration > Security Service > SSL Inspection screen.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
Table 262 Configuration > Security Policy > Policy Control > Add (continued)
LABEL DESCRIPTION
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
687
This example uses the parameters given below.
1 Go to Configuration > Object > Address/Geo IP > Address and click Add.
2 Configure the settings using the parameters given in Table 263 on page 687. Click OK to save your
changes.
3 Go to Configuration > Security Policy > Policy Control. Select LAN1_to_Device then click Edit.
4 Configure the settings using the parameters given in Table 264 on page 687. Set Log to no so when the
server pings the Zyxel Device, the Zyxel Device will not create logs. Click OK to save your changes.
Table 263 Address Object Configuration Example
NAME ADDRESS TYPE IP ADDRESS
Server Host 2.2.2.2
Table 264 Security Policy Configuration Example
NAME SOURCE SERVICE ACTION LOG
LAN1_to_Device Server Ping Allow No
LAN2_to_Device Server Ping Allow No
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
688
5 Repeat Step 3 and Step 4 to configure the LAN2_to_Device policy so that when the sever pings the Zyxel
Device, the Zyxel Device will not create logs.
32.3.5 Example: Create a Guest Network with Internet Access Only
The Zyxel Device LAN1 is your private network. LAN1 clients have access to all resources in the network,
such as private servers, as well as access to the Internet. You want to create a guest network on LAN2
where clients can connect to only the Internet through the Zyxel Device. Clients on LAN2 cannot access
your private network on LAN1.
This example uses the parameters given below.
1 Go to Configuration > Network > Interface > Port > Port Role. Set lan2 (LAN2) to use P5. Click Apply to
save your changes. Connect LAN1 clients to P3 and guest clients to P5.
Table 265 Guest Network Policy Example
NAME FROM TO ACTION
LAN2_To_LAN1 ALN2 LAN1 reject
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
689
2 In Configuration > Security Policy > Policy Control, select LAN2_Outgoing and click Edit. Set To to WAN to
allow LAN2 clients to access the Internet. Click OK to save your changes.
3 In Configuration > Security Policy > Policy Control, click Add to add a new rule. Configure the settings
using the parameters given in
Table 265 on page 688 to block LAN2 clients from accessing LAN1 and it
resources. Click OK to save your changes.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
690
4 You can check the result in the Policy Control screen. Clients on LAN2 can now access the Internet
through the Zyxel Device without accessing the private network on LAN1.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
691
32.4 Anomaly Detection and Prevention Overview
Anomaly Detection and Prevention (ADP) protects against anomalies based on violations of protocol
standards (RFCs – Requests for Comments) and abnormal flows such as port scans. This section
introduces ADP, anomaly profiles and applying an ADP profile to a traffic direction.
Traffic Anomalies
Traffic anomaly policies look for abnormal behavior or events such as port scanning, sweeping or
network flooding. They operate at OSI layer-2 and layer-3. Traffic anomaly policies may be updated
when you upload new firmware.
Protocol Anomalies
Protocol anomalies are packets that do not comply with the relevant RFC (Request For Comments).
Protocol anomaly detection includes:
•TCP Decoder
• UDP Decoder
•ICMP Decoder
Protocol anomaly policies may be updated when you upload new firmware.
Note: First, create an ADP profile in the In the Configuration > Security Policy > ADP > Profile
screen. Then, apply the profile to traffic originating from a specific zone in the
Configuration > Security Policy > ADP > General screen.
32.4.1 The Anomaly Detection and Prevention General Screen
Click Configuration > Security Policy > ADP > General to display the next screen.
Figure 468 Configuration > Security Policy > ADP > General
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
692
The following table describes the labels in this screen.
32.4.2 Creating New ADP Profiles
Create new ADP profiles in the Configuration > Security Policy > ADP > Profile screens.
When creating ADP profiles. you may find that certain policies are triggering too many false positives or
false negatives. A false positive is when valid traffic is flagged as an attack. A false negative is when
invalid traffic is wrongly allowed to pass through the Zyxel Device. As each network is different, false
positives and false negatives are common on initial ADP deployment.
To counter this, you could create a ‘monitor profile’ that creates logs, but all actions are disabled.
Observe the logs over time and try to eliminate the causes of the false alarms. When you’re satisfied that
Table 266 Configuration > Security Policy > ADP > General
LABEL DESCRIPTION
General Settings
Enable Anomaly Detection
and Prevention
Select this to enable traffic anomaly and protocol anomaly detection and
prevention.
Add Select an entry and click Add to append a new row beneath the one selected. ADP
policies are applied in order (Priority) shown in this screen
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Move To change an entry’s position in the numbered list, select it and click Move to display
a field to type a number for where you want to put that entry and press [ENTER] to
move the entry to the number that you typed.
# This is the entry’s index number in the list.
Priority This is the rank in the list of anomaly profile policies. The list is applied in order of
priority.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the
entry is inactive.
From This is the direction of travel of packets to which an anomaly profile is bound. Traffic
direction is defined by the zone the traffic is coming from.
Use the From field to specify the zone from which the traffic is coming. Select ZyWALL
to specify traffic coming from the Zyxel Device itself.
From LAN means packets traveling from a computer on one LAN subnet to a
computer on another subnet through the Zyxel Device’s LAN1 zone interfaces. The
Zyxel Device does not check packets traveling from a LAN computer to another LAN
computer on the same subnet.
From WAN means packets that come in from the WAN zone and the Zyxel Device
routes back out through the WAN zone.
Note: Depending on your network topology and traffic load, applying
every packet direction to an anomaly profile may affect the Zyxel
Device’s performance.
Anomaly Profile An anomaly profile is a set of anomaly policies with configured activation, log and
action settings. This field shows which anomaly profile is bound to which traffic
direction. Select an ADP profile to apply to the entry’s traffic direction. Configure the
ADP profiles in the ADP profile screens.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
693
they have been reduced to an acceptable level, you could then create an ‘in-line profile’ whereby you
configure appropriate actions to be taken when a packet matches a policy.
ADP profiles consist of traffic anomaly profiles and protocol anomaly profiles. To create a new profile,
select a base profile and then click OK to go to the profile details screen. Type a new profile name,
enable or disable individual policies and then edit the default log options and actions.
Click Configuration > Security Policy > ADP > Profile to view the following screen.
Figure 469 Configuration > Security Policy > ADP > Profile
The following table describes the labels in this screen.
Table 267 Configuration > Security Policy > ADP > Profile
LABEL DESCRIPTION
Profile Management Create ADP profiles here and then apply them in the Configuration > Security Policy
> ADP > Profile screen.
Add Click Add and first choose a none or all Base Profile.
• none base profile sets all ADP entries to have Log set to no and Action set to
none by default.
• all base profile sets all ADP entries to have Log set to log and Action set to block
by default.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
References Select an entry and click References to open a screen that shows which settings use
the entry. Click Refresh to update information on this screen.
Clone Use Clone to create a new entry by modifying an existing one.
• Select an existing entry.
•Click Clone.
• A configuration copy of the selected entry pops up. You must at least change
the name as duplicate entry names are not allowed.
# This is the entry’s index number in the list.
Name This is the name of the profile you created.
Description This is the description of the profile you created.
Base Profile This is the name of the base profile used to create this profile.
Reference This is the number of object references used to create this profile.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
694
32.4.3 Traffic Anomaly Profiles
Traffic anomaly detection looks for abnormal behavior such as scan or flooding attempts. In the
Table 268 Configuration > Security Policy > ADP > Profile > Add-Traffic-Anomaly
LABEL DESCRIPTION
Name A name is automatically generated that you can edit. The name must be the same
in the Traffic Anomaly and Protocol Anomaly screens for the same ADP profile. You
may use 1-31 alphanumeric characters, underscores(
_), or dashes (-), but the first
character cannot be a number. This value is case-sensitive. These are valid, unique
profile names:
•MyProfile
• mYProfile
• Mymy12_3-4
These are invalid profile names:
•1mYProfile
•My Profile
• MyProfile?
• Whatalongprofilename123456789012
Description In addition to the name, type additional information to help you identify this ADP
profile.
Scan/Flood Detection Scan detection, such as port scanning, tries to find attacks where an attacker scans
device(s) to determine what types of network protocols or services a device
supports.
Flood detection tries to find attacks that saturate a network with useless data, use up
all available bandwidth, and so aim to make communications on the network
impossible.
Sensitivity (Scan detection only.) Select a sensitivity level so as to reduce false positives in your
network. If you choose low sensitivity, then scan thresholds and sample times are set
low, so you will have fewer logs and false positives; however some traffic anomaly
attacks may not be detected.
If you choose high sensitivity, then scan thresholds and sample times are set high, so
most traffic anomaly attacks will be detected; however you will have more logs and
false positives.
Block Period Specify for how many seconds the Zyxel Device blocks all packets from being sent
to the victim (destination) of a detected anomaly attack. Flood Detection applies
blocking to the destination IP address and Scan Detection applies blocking to the
source IP address.
Edit (Flood Detection
only)
Select an entry and click this to be able to modify it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Log To edit an item’s log option, select it and use the Log icon. Select whether to have
the Zyxel Device generate a log (log), log and alert (log alert) or neither (no) when
traffic matches this anomaly policy.
Action To edit what action the Zyxel Device takes when a packet matches a policy, select
the policy and use the Action icon.
none: The Zyxel Device takes no action when a packet matches the policy.
block: The Zyxel Device silently drops packets that matches the policy. Neither
sender nor receiver are notified.
# This is the entry’s index number in the list.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
695
Configuration > Security Policy > ADP > Profile screen, click the Edit or Add icon and choose a base
profile. Traffic Anomaly is the first tab in the profile.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the
entry is inactive.
Name This is the name of the anomaly policy. Click the Name column heading to sort in
ascending or descending order according to the protocol anomaly policy name.
Log These are the log options. To edit this, select an item and use the Log icon.
Action This is the action the Zyxel Device should take when a packet matches a policy. To
edit this, select an item and use the Action icon.
Threshold (pkt/sec) (Flood detection only.) Select a suitable threshold level (the number of packets per
second that match the flood detection criteria) for your network. If you choose a
low threshold, most traffic anomaly attacks will be detected, but you may have
more logs and false positives.
If you choose a high threshold, some traffic anomaly attacks may not be detected,
but you will have fewer logs and false positives.
OK Click OK to save your settings to the Zyxel Device, complete the profile and return to
the profile summary page.
Cancel Click Cancel to return to the profile summary page without saving any changes.
Save Click Save to save the configuration to the Zyxel Device but remain in the same
page. You may then go to the another profile screen (tab) in order to complete the
profile. Click OK in the final profile screen to complete the profile.
Table 268 Configuration > Security Policy > ADP > Profile > Add-Traffic-Anomaly (continued)
LABEL DESCRIPTION
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
696
Figure 470 Configuration > Security Policy > ADP > Profile > Add-Traffic-Anomaly
The following table describes the labels in this screen.
32.4.4 Protocol Anomaly Profiles
Protocol anomalies are packets that do not comply with the relevant RFC (Request For Comments).
Protocol anomaly detection includes:
•TCP Decoder
• UDP Decoder
•ICMP Decoder
• IP Decoder
Teardrop
When an IP packet is larger than the Maximum Transmission Unit (MTU) configured in the Zyxel Device, it
is fragmented using the TCP or ICMP protocol.
A Teardrop attack falsifies the offset which defines the size of the fragment and the original packet. A
series of IP fragments with overlapping offset fields can cause some systems to crash, hang, or reboot
when fragment reassembling is attempted at the destination.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
697
IP Spoofing
IP Spoofing is used to gain unauthorized access to network devices by modifying packet headers so
that it appears that the packets originate from a host within a trusted network.
• In an IP Spoof from the WAN, the source address appears to be in the same subnet as a Zyxel Device
LAN interface.
• In an IP Spoof from a LAN interface, the source address appears to be in a different subnet from that
Zyxel Device LAN interface.
Table 269 Configuration > Security Policy > ADP > Profile > Add-Protocol-Anomaly
LABEL DESCIRPTION
Name A name is automatically generated that you can edit. The name must be the same
in the Traffic Anomaly and Protocol Anomaly screens for the same ADP profile. You
may use 1-31 alphanumeric characters, underscores(
_), or dashes (-), but the first
character cannot be a number. This value is case-sensitive. These are valid, unique
profile names:
•MyProfile
• mYProfile
• Mymy12_3-4
• These are invalid profile names:
•1mYProfile
•My Profile
• MyProfile?
• Whatalongprofilename123456789012
Description In addition to the name, type additional information to help you identify this ADP
profile.
TCP Decoder/UDP
Decoder/ICMP Decoder/IP
Decoder
Perform the following actions for each type of encoder.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Log To edit an item’s log option, select it and use the Log icon. Select whether to have
the Zyxel Device generate a log (log), log and alert (log alert) or neither (no) when
traffic matches this anomaly policy.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
698
Action To edit what action the Zyxel Device takes when a packet matches a policy, select
the policy and use the Action icon.
original setting: Select this action to return each rule in a service group to its
previously saved configuration.
none: Select this action to have the Zyxel Device take no action when a packet
matches a policy.
drop: Select this action to have the Zyxel Device silently drop a packet that matches
a policy. Neither sender nor receiver are notified.
reject-sender: Select this action to have the Zyxel Device send a reset to the sender
when a packet matches the policy. If it is a TCP attack packet, the Zyxel Device will
send a packet with a ‘RST’ flag. If it is an ICMP or UDP attack packet, the Zyxel
Device will send an ICMP unreachable packet.
reject-receiver: Select this action to have the Zyxel Device send a reset to the
receiver when a packet matches the policy. If it is a TCP attack packet, the Zyxel
Device will send a packet with an a ‘RST’ flag. If it is an ICMP or UDP attack packet,
the Zyxel Device will do nothing.
reject-both: Select this action to have the Zyxel Device send a reset to both the
sender and receiver when a packet matches the policy. If it is a TCP attack packet,
the Zyxel Device will send a packet with a ‘RST’ flag to the receiver and sender. If it is
an ICMP or UDP attack packet, the Zyxel Device will send an ICMP unreachable
packet.
# This is the entry’s index number in the list.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the
entry is inactive.
Name This is the name of the anomaly policy. Click the Name column heading to sort in
ascending or descending order according to the protocol anomaly policy name.
Log These are the log options. To edit this, select an item and use the Log icon.
Action This is the action the Zyxel Device should take when a packet matches a policy. To
edit this, select an item and use the Action icon.
OK Click OK to save your settings to the Zyxel Device, complete the profile and return to
the profile summary page.
Cancel Click Cancel to return to the profile summary page without saving any changes.
Save Click Save to save the configuration to the Zyxel Device but remain in the same
page. You may then go to the another profile screen (tab) in order to complete the
profile. Click OK in the final profile screen to complete the profile.
Table 269 Configuration > Security Policy > ADP > Profile > Add-Protocol-Anomaly (continued)
LABEL DESCIRPTION
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
699
Figure 471 Configuration > Security Policy > ADP > Profile > Add-Protocol-Anomaly
The following table describes the labels in this screen.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
700
32.4.5 The ADP Allow List Screen
Click Configuration> Security Policy> ADP> Allow List to display the following screen. Use this screen to
configure allow list rules to let certain IP addresses or services bypass port scanning, port sweeping and
flood detection.
Figure 472 Configuration > Security Policy > ADP> Allow List
The following table describes the labels in this screen.
Table 270 Configuration > Security Policy > ADP> Allow List
LABEL DESCRIPTION
General Settings
Enable allow list for all traffic
anomaly detection
Select this to allow certain IP addresses or services bypass port scanning, port
sweeping and flood detection.
Rule Summary
Add Click this to create a new entry. Select an entry and click Add to create a new entry
after the selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can
modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want
to remove it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This field is a sequential value showing the number of the profile. The profile order is
not important.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This field displays the name of the rule.
IPv4 Source This field displays the IPv4 source address object to which the ADP white list rule
applies.
IPv4 Destination This field displays the IPv4 destination address object to which the ADP white list rule
applies.
Service This displays the service object to which the ADP white list rule applies.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
701
32.4.6 Creating New ADP Allow List Rule
Create new ADP allow list rules in this screen. Click Configuration > Security Policy > ADP > Allow List to
view the following screen.
Figure 473 Configuration > Security Policy > ADP > Allow List
The following table describes the labels in this screen.
32.5 The Session Control Screen
Click Configuration > Security Policy > Session Control to display the Security Policy Session Control
screen. Use this screen to limit the number of concurrent NAT/Security Policy sessions a client can use.
You can apply a default limit for all users and individual limits for specific users, addresses, or both. The
individual limit takes priority if you apply both.
Table 271 Configuration > Security Policy > ADP > Allow List > Add
LABEL DESCRIPTION
Enable Select this to enable this allow list rule.
Name Enter a name to help you identify this rule. Use up to 60 printable ASCII characters.
Spaces are allowed.
Source Select a source address or address group, including geographic address and FQDN
(group) objects, to which this rule applies. Select any to make the rule apply to every
source address.
Destination Select a destination address or address group, including geographic address and
FQDN (group) objects, for whom this rule applies. Select any to make the rule apply
to every destination address.
Service Select the service or service group to which this rule applies. Select any to white list
all traffic between the source and destination addresses.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
702
Figure 474 Configuration > Security Policy > Session Control
The following table describes the labels in this screen.
Table 272 Configuration > Security Policy > Session Control
LABEL DESCRIPTION
General Settings
UDP Session Time
Out
Set how many seconds the Zyxel Device will allow a UDP session to remain idle (without UDP
traffic) before closing it.
Session Limit
Settings
Enable Session
limit
Select this check box to control the number of concurrent sessions hosts can have.
IPv4 / IPv6
Configuration
This table lists the rules for limiting the number of concurrent sessions hosts can have.
Default
Session per
Host
This field is configurable only when you enable session limit.
Use this field to set a common limit to the number of concurrent NAT/Security Policy sessions
each client computer can have.
If only a few clients use peer to peer applications, you can raise this number to improve their
performance. With heavy peer to peer application use, lower this number to ensure no single
client uses too many of the available NAT sessions.
Create rules below to apply other limits for specific users or addresses.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
703
32.5.1 The Session Control Add/Edit Screen
Click Configuration > Security Policy > Session Control and the Add or Edit icon to display the Add or Edit
screen. Use this screen to configure rules that define a session limit for specific users or addresses.
Figure 475 Configuration > Security Policy > Session Control > Edit
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Move To change a rule’s position in the numbered list, select the rule and click Move to display a field
to type a number for where you want to put that rule and press [ENTER] to move the rule to the
number that you typed.
The ordering of your rules is important as they are applied in order of their numbering.
# This field is a sequential value showing the number of the profile. The profile order is not
important.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
# This is the index number of a session limit rule. It is not associated with a specific rule.
User This is the user name or user group name to which this session limit rule applies.
IPv4 / IPv6 Address This is the IPv4 / IPv6 address object, including geographic address (group) objects to which
this session limit rule applies.
Description This is the information configured to help you identify the rule.
Limit This is how many concurrent sessions this user or address is allowed to have.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 272 Configuration > Security Policy > Session Control (continued)
LABEL DESCRIPTION
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
704
The following table describes the labels in this screen.
32.6 Security Policy Example Applications
Suppose you decide to block LAN users from using IRC (Internet Relay Chat) through the Internet. To do
this, you would configure a LAN to WAN Security Policy that blocks IRC traffic from any source IP address
from going to any destination address. You do not need to specify a schedule since you need the
Security Policy to always be in effect. The following figure shows the results of this policy.
Figure 476 Blocking All LAN to WAN IRC Traffic Example
Table 273 Configuration > Security Policy > Session Control > Add / Edit
LABEL DESCRIPTION
Create new
Object
Use to configure new settings for User or Address objects that you need to use in this
screen.Click on the down arrow to see the menu.
Enable Rule Select this check box to turn on this session limit rule.
Description Enter information to help you identify this rule. Use up to 60 printable ASCII characters. Spaces
are allowed.
User Select a user name or user group to which to apply the rule. The rule is activated only when the
specified user logs into the system and the rule will be disabled when the user logs out.
Otherwise, select any and there is no need for user logging.
Note: If you specified an IP address (or address group) instead of any in the field
below, the user’s IP address should be within the IP address range.
Address Select the IPv4 source address or address group, including geographic address (group)
object, to which this rule applies. Select any to apply the rule to all IPv4 source addresses.
IPv6 Address Select the IPv6 source address or address group, including geographic address (group)
object, to which this rule applies. Select any to apply the rule to all IPv6 source addresses.
Session Limit per
Host
Use this field to set a limit to the number of concurrent NAT/Security Policy sessions this rule’s
users or addresses can have.
For this rule’s users and addresses, this setting overrides the Default Session per Host setting in
the general Security Policy Session Control screen.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
705
Your Security Policy would have the following settings.
• The first row blocks LAN access to the IRC service on the WAN.
• The second row is the Security Policy’s default policy that allows all LAN1 to WAN traffic.
The Zyxel Device applies the security policies in order. So for this example, when the Zyxel Device
receives traffic from the LAN, it checks it against the first policy. If the traffic matches (if it is IRC traffic)
the security policy takes the action in the policy (drop) and stops checking the subsequent security
policies. Any traffic that does not match the first security policy will match the second security policy
and the Zyxel Device forwards it.
Now suppose you need to let the CEO use IRC. You configure a LAN1 to WAN security policy that allows
IRC traffic from the IP address of the CEO’s computer. You can also configure a LAN to WAN policy that
allows IRC traffic from any computer through which the CEO logs into the Zyxel Device with his/her user
name. In order to make sure that the CEO’s computer always uses the same IP address, make sure it
either:
• Has a static IP address,
or
• You configure a static DHCP entry for it so the Zyxel Device always assigns it the same IP address.
Now you configure a LAN1 to WAN security policy that allows IRC traffic from the IP address of the CEO’s
computer (172.16.1.7 for example) to go to any destination address. You do not need to specify a
schedule since you want the security policy to always be in effect. The following figure shows the results
of your two custom policies.
Figure 477 Limited LAN to WAN IRC Traffic Example
Your security policy would have the following configuration.
Table 274 Blocking All LAN to WAN IRC Traffic Example
# USER SOURCE DESTINATION SCHEDULE SERVICE ACTION
1 Any Any Any Any IRC Deny
2 Any Any Any Any Any Allow
Table 275 Limited LAN1 to WAN IRC Traffic Example 1
# USER SOURCE DESTINATION SCHEDULE SERVICE ACTION
1 Any 172.16.1.7 Any Any IRC Allow
2 Any Any Any Any IRC Deny
3 Any Any Any Any Any Allow
background
Chapter 32 Security Policy
USG FLEX Series User’s Guide
706
• The first row allows the LAN1 computer at IP address 172.16.1.7 to access the IRC service on the WAN.
• The second row blocks LAN1 access to the IRC service on the WAN.
• The third row is the default policy of allowing all traffic from the LAN1 to go to the WAN.
Alternatively, you configure a LAN1 to WAN policy with the CEO’s user name (say CEO) to allow IRC
traffic from any source IP address to go to any destination address.
Your Security Policy would have the following settings.
• The first row allows any LAN1 computer to access the IRC service on the WAN by logging into the Zyxel
Device with the CEO’s user name.
• The second row blocks LAN1 access to the IRC service on the WAN.
• The third row is the default policy of allowing allows all traffic from the LAN1 to go to the WAN.
The policy for the CEO must come before the policy that blocks all LAN1 to WAN IRC traffic. If the policy
that blocks all LAN1 to WAN IRC traffic came first, the CEO’s IRC traffic would match that policy and the
Zyxel Device would drop it and not check any other security policies.
Table 276 Limited LAN1 to WAN IRC Traffic Example 2
# USER SOURCE DESTINATION SCHEDULE SERVICE ACTION
1 CEO Any Any Any IRC Allow
2 Any Any Any Any IRC Deny
3 Any Any Any Any Any Allow
background
USG FLEX Series User’s Guide
707
CHAPTER 33
Application Patrol
33.1 Overview
Application patrol provides a convenient way to manage the use of various applications on the
network. It manages general protocols (for example, HTTP and FTP) and instant messenger (IM), peer-to-
peer (P2P), Voice over IP (VoIP), and streaming (RSTP) applications. You can even control the use of a
particular application’s individual features (like text messaging, voice, video conferencing, and file
transfers).
33.1.1 What You Can Do in this Chapter
• Use the App Patrol summary screen (see Section 33.2 on page 708) to manage the application patrol
profiles. You can also view license registration and signature information.
• Use the App Patrol Add/Edit screens (see Section 33.2.2 on page 712 & Section 33.2.3 on page 713) to
set actions for application categories and for specific applications within the category.
33.1.2 What You Need to Know
If you want to use a service, make sure both the Security Policy and application patrol allow the
service’s packets to go through the Zyxel Device.
Note: The Zyxel Device checks secure policies before it checks application patrol rules for
traffic going through the Zyxel Device.
Application patrol examines every TCP and UDP connection passing through the Zyxel Device and
identifies what application is using the connection. Then, you can specify whether or not the Zyxel
Device continues to route the connection. Traffic not recognized by the application patrol signatures is
ignored.
Application Profiles & Policies
An application patrol profile is a group of categories of application patrol signatures. For each profile,
you can specify the default action the Zyxel Device takes once a packet matches a signature (forward,
drop, or reject a service’s connections and/or create a log alert).
Use policies to link profiles to traffic flows based on criteria such as source zone, destination zone, source
address, destination address, schedule, user.
Classification of Applications
There are two ways the Zyxel Device can identify the application. The first is called auto. The Zyxel
Device looks at the IP payload (OSI level-7 inspection) and attempts to match it with known patterns for
specific applications. Usually, this occurs at the beginning of a connection, when the payload is more
consistent across connections, and the Zyxel Device examines several packets to make sure the match
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
708
is correct. Before confirmation, packets are forwarded by App Patrol with no action taken. The number
of packets inspected before confirmation varies by signature.
Note: The Zyxel Device allows the first eight packets to go through the security policy,
regardless of the application patrol policy for the application. The Zyxel Device
examines these first eight packets to identify the application.
The second approach is called service ports. The Zyxel Device uses only OSI level-4 information, such as
ports, to identify what application is using the connection. This approach is available in case the Zyxel
Device identifies a lot of “false positives” for a particular application.
Custom Ports for SIP and the SIP ALG
Configuring application patrol to use custom port numbers for SIP traffic also configures the SIP ALG to
use the same port numbers for SIP traffic. Likewise, configuring the SIP ALG to use custom port numbers
for SIP traffic also configures application patrol to use the same port numbers for SIP traffic.
33.2 Application Patrol Profile
Use the application patrol screens to customize action and log settings for a group of application patrol
signatures. You then link a profile to a policy. Use this screen to create an application patrol profile, and
view signature information. It also lists the registration status and details about the signature set the Zyxel
Device is using.
Note: You must register for the AppPatrol signature service (at least the trial) before you can
use it.
A profile is an application object(s) or application group(s) that has customized action and log settings.
Click Configuration > Security Service > App Patrol to open the following screen.
Click the Application Patrol icon for more information on the Zyxel Device’s security features.
Figure 478 Configuration > Security Service > App Patrol
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
709
The following table describes the labels in this screen.
33.2.1 Profile Action: Apply to a Security Policy
Click the icon in the Action field of an existing application patrol file to apply the profile to a security
policy.
Go to the Configuration > Security Policy > Policy Control screen to check the result.
Table 277 Configuration > Security Service > App Patrol
LABEL DESCRIPTION
Add Click this to create a new entry. Select an entry and click Add to create a new entry after
the selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove Select an entry and click Remove to delete the selected entry.
References Select an entry and click References to open a screen that shows which settings use the
entry. Click Refresh to update information on this screen.
# This field is a sequential value showing the number of the profile. The profile order is not
important.
Name This displays the name of the profile created.
Description This displays the description of the App Patrol Profile.
Scan Option This field displays the scan options from the App Patrol profile.
Reference This displays the number of times an object reference is used in a profile.
Action Click this icon to apply the entry to a security policy.
Go to the Configuration > Security Policy > Policy Control screen to check the result.
Signature Information The following fields display information on the current signature set that the Zyxel Device is
using.
Current Version This field displays the App Patrol signature set version number. This number gets larger as
the set is enhanced.
Signature Number This field displays the number of IPS signatures in this set. This number usually gets larger as
the set is enhanced. Older signatures and rules may be removed if they are no longer
applicable or have been supplanted by newer ones.
Released Date This field displays the date and time the set was released.
Update Signatures Click this link to go to the screen you can use to download signatures from the update
server.
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
710
Figure 479 Configuration > Security Service > App Patrol > Action
The following table describes the labels in this screen.
Table 278 Configuration > Security Service > App Patrol > Action
LABEL DESCRIPTION
Show Filter/Hide Filter Click Show Filter to display IPv4 and IPv6 (if enabled) security policy search filters.
IPv4 / IPv6
Configuration
Use IPv4 / IPv6 search filters to find specific IPv4 and IPv6 (if enabled) security policies
based on direction, application, user, source, destination and/or schedule.
From / To Select a zone to view all security policies from a particular zone and/or to a particular
zone. any means all zones.
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
711
IPv4 / IPv6 Source Type an IPv4 or IPv6 IP address to view all security policies based on the IPv4 / IPv6 source
address object used.
• An IPv4 IP address is written as four integer blocks separated by periods. This is an
example IPv4 address: 172.16.6.7.
• An 128-bit IPv6 address is written as eight 16-bit hexadecimal blocks separated by
colons (:). This is an example IPv6 address: 2001:0db8:1a2b:0015:0000:0000:1a2f:0000.
IPv4 / IPv6
Destination
Type an IPv4 or IPv6 IP address to view all security policies based on the IPv4 / IPv6
destination address object used.
• An IPv4 IP address is written as four integer blocks separated by periods. This is an
example IPv4 address: 172.16.6.7.
• An 128-bit IPv6 address is written as eight 16-bit hexadecimal blocks separated by
colons (:). This is an example IPv6 address: 2001:0db8:1a2b:0015:0000:0000:1a2f:0000.
Service View all security policies based the service object used.
User View all security policies based on user or user group object used.
Schedule View all security policies based on the schedule object used.
Priority This is the position of your Security Policy in the global policy list (including all through-Zyxel
Device and to-Zyxel Device policies). The ordering of your policies is important as policies
are applied in sequence. Default displays for the default Security Policy behavior that the
Zyxel Device performs on traffic that does not match any other Security Policy.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This is the name of the Security policy.
From / To This is the direction of travel of packets. Select from which zone the packets come and to
which zone they go.
Security Policies are grouped based on the direction of travel of packets to which they
apply. For example, from LAN to LAN means packets traveling from a computer or subnet
on the LAN to either another computer or subnet on the LAN.
From any displays all the Security Policies for traffic going to the selected To Zone.
To any displays all the Security Policies for traffic coming from the selected From Zone.
From any to any displays all of the Security Policies.
To ZyWALL policies are for traffic that is destined for the Zyxel Device and control which
computers can manage the Zyxel Device.
IPv4 / IPv6 Source This displays the IPv4 / IPv6 source address object, including geographic address and
FQDN (group) objects, to which this Security Policy applies.
IPv4 / IPv6 Destination This displays the IPv4 / IPv6 destination address object, including geographic address and
FQDN (group) objects, to which this Security Policy applies.
Service This displays the service object to which this Security Policy applies.
User This is the user name or user group name to which this Security Policy applies.
Schedule This field tells you the schedule object that the policy uses. none means the policy is active
at all times if enabled.
Action This field displays whether the Security Policy silently discards packets without notification
(deny), permits the passage of packets (allow) or drops packets with notification (reject)
Log Select whether to have the Zyxel Device generate a log (log), log and alert (log alert) or
not (no) when the policy is matched to the criteria listed above.
Profile This field shows you which Security Service profiles apply to this security policy. Click an
applied Security Service profile icon to edit the profile directly.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 278 Configuration > Security Service > App Patrol > Action
LABEL DESCRIPTION
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
712
33.2.2 Application Patrol Profile > Add/Edit - My Application
Use this screen to configure profile settings. Click Configuration > Security Service > App Patrol > Add/
Edit, then click My Application to open the following screen.
Figure 480 Configuration > Security Service > App Patrol > Add/Edit > My Application
The following table describes the labels in this screen.
Table 279 Configuration > Security Service > App Patrol > Add/Edit > My Application
LABEL DESCRIPTION
General Settings
Name Type the name of the profile. You may use 1-31 alphanumeric characters, underscores(_),
or dashes (-), but the first character cannot be a number. This value is case-sensitive. These
are valid, unique profile names:
•MyProfile
•mYProfile
•Mymy12_3-4
These are invalid profile names:
• 1mYProfile
• My Profile
• MyProfile?
• Whatalongprofilename123456789012
Description Type a description for the profile rule to help identify the purpose of rule. You may use 1-31
alphanumeric characters, underscores (
_), or dashes (-), but the first character cannot be
a number. This value is case-sensitive. This field is optional.
Total Category(s) This field displays the total number of the selected category(ies) in the Query Result screen.
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
713
33.2.3 Application Patrol Profile > Add/Edit - Query Result
Click Configuration > Security Service > App Patrol > Add, then click Query Result to search for certain
applications within a specific category, and the selected applications will be added to My Application
screen. You can also click an existing profile, click Edit (or double-click it), then click Query Result to
open the following screen.
Total Application(s) This field displays the total number of the selected applications in the Query Result screen.
Remove Select an entry and click Remove to delete the selected entry.
Log Select whether to have the Zyxel Device generate a log (log), log and alert (log alert) or
neither (no) by default when traffic matches a signature in this category.
Action Select the default action for all signatures in this category.
forward - the Zyxel Device routes packets that matches these signatures.
drop - the Zyxel Device silently drops packets that matches these signatures without
notification.
reject - the Zyxel Device drops packets that matches these signatures and sends
notification.
# This field is a sequential value showing the number of the profile. The profile order is not
important.
Application This field displays the application name of the policy.
Category This field displays the category type of the application.
Tag This field displays the tag information of the application.
Action Select the default action for all signatures in this category.
forward - the Zyxel Device routes packets that matches these signatures.
drop - the Zyxel Device silently drops packets that matches these signatures without
notification.
reject - the Zyxel Device drops packets that matches these signatures and sends
notification.
Log Select whether to have the Zyxel Device generate a log (log), log and alert (log alert) or
neither (no) by default when traffic matches a signature in this category.
Save & Exit A profile consists of separate category editing screens. If you want to configure just one
category for a profile, click OK to save your settings to the Zyxel Device, complete the
profile and return to the profile summary page.
Cancel Click Cancel to return to the profile summary page without saving any changes.
Save If you want to configure more than one category for a profile, click Save to save your
settings to the Zyxel Device without leaving this page.
Table 279 Configuration > Security Service > App Patrol > Add/Edit > My Application
LABEL DESCRIPTION
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
714
Figure 481 Configuration > Security Service > App Patrol > Add/Edit > Query Result
The following table describes the labels in this screen.
Table 280 Configuration > Security Service > App Patrol > Add/Edit > Query Result
LABEL DESCRIPTION
General Settings
Name Type the name of the profile. You may use 1-31 alphanumeric characters, underscores(_),
or dashes (-), but the first character cannot be a number. This value is case-sensitive. These
are valid, unique profile names:
•MyProfile
•mYProfile
•Mymy12_3-4
These are invalid profile names:
• 1mYProfile
• My Profile
• MyProfile?
• Whatalongprofilename123456789012
Description Type a description for the profile rule to help identify the purpose of rule. You may use 1-31
alphanumeric characters, underscores (
_), or dashes (-), but the first character cannot be
a number. This value is case-sensitive. This field is optional.
Search Application(s)
By Name
Enter a name to search for relevant applications.
Search Application(s)
By Category
Select a category(ies) below to search for relevant applications.
Filter by Tags Add or delete a tag(s) to display or not display an application(s).
# This field is a sequential value showing the number of the profile. The profile order is not
important.
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
715
33.3 Example: Block an Application
To block an application, you need to:
1 Create an app patrol profile of applications to block.
2 Apply the profile to a traffic flow in a security policy.
3 Create a schedule profile, and apply the profile to a traffic flow in a security policy.
In this example, you want to block clients on the Zyxel Device LAN from accessing a specific application
(for example, TikTok). You also want to receive a log and an alert when traffic going out from the LAN
tries to access TikTok.
Create an App Patrol profile that includes TikTok. Then apply it to the LAN1_Outgoing and
LAN2_Outgoing security policy. Clients on the Zyxel Device LAN will be blocked from accessing TikTok.
Figure 482 App Patrol Tutorial Example
Application This field displays the application name of the policy.
Category This field displays the category type of the application.
Tag This field displays the tag information of the policy.
Action Select the default action for all signatures in this category.
forward - the Zyxel Device routes packets that matches these signatures.
drop - the Zyxel Device silently drops packets that matches these signatures without
notification.
reject - the Zyxel Device drops packets that matches these signatures and sends
notification.
Log Select whether to have the Zyxel Device generate a log (log), log and alert (log alert) or
neither (no) by default when traffic matches a signature in this category.
Add to My
Application
Select an application(s) to show in the My Application profile screen.
Reset Click this button to reset the fields to default settings.
Cancel Click Cancel to return to the profile summary page without saving any changes.
Table 280 Configuration > Security Service > App Patrol > Add/Edit > Query Result
LABEL DESCRIPTION
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
716
This example uses the parameters listed below.
1 Go to Configuration > Security Service > App Patrol and click Add.
2 In the following screen, enter the profile name using the parameter given in Table 281 on page 716.
3 Search for TikTok in Search Application(s) by Name.
4 The search result will display in Query Result. Select the result check box and click Add To My
Application.
5 In My Application, set Action to reject and Log to log alert. Click Save & Exit to save your changes.
Table 281 App Patrol Profile Configuration Example
PROFILE NAME APPLICATION ACTION LOG
BlockMedia TikTok Reject Log Alert
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
717
6 A pop-up message displays after you click Save & Exit. Click Yes to open the Apply BlockMedia to a
security policy screen to apply the app patrol profile to the security policies you selected.
7 Select LAN1_Outgoing and LAN2_Outgoing. Click OK to save your changes.
8 You can check the result in the Policy Control screen. Mouse-over the icon under the Profile column to
check that the BlockMedia profile has been applied to the LAN1_Outgoing and LAN2_Outgoing security
policy. You can also check the logs in Monitor > Log > View Log. The Zyxel Device will create logs if the
clients on the Zyxel Device LAN try to access TikTok.
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
718
33.3.1 Block an Application At a Specified Time
In this example, you want to apply the app patrol profile you created in Section 33.3 on page 715 only
during work time using a recurring schedule.
This example uses the parameters listed below.
1 Go to Configuration > Object > Schedule. Create a recurring schedule rule using the parameters given
in
Table 282 on page 718.
2 Go to Configuration > Security Policy > Policy Control and select LAN1_Outgoing. Click Edit to edit the
policy control rule. Set Schedule to Work to apply the BlockMedia profile during the time you set in the
recurring schedule. Click OK to save your changes.
Table 282 Schedule Example
SCHEDULE NAME START TIME STOP TIME WEEK DAYS
Work 8:00 17:00 Monday, Tuesday, Wednesday,
Thursday, Friday
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
719
3 Select LAN2_Outgoing and click Edit to edit the policy control rule. Set Schedule to Work to block the
BlockMedia profile during the time you set in the recurring schedule. Click OK to save your changes.
4 You can check the result in the Policy Control screen.
background
Chapter 33 Application Patrol
USG FLEX Series User’s Guide
720
33.3.2 Block YouTube
App patrol is mainly for application performance using TCP. YouTube uses the QUIC UDP protocol.
Configure a security policy to block UDP 443 protocol and move the YouTube rule up before other rules
that may conflict with this rule.
background
USG FLEX Series User’s Guide
721
CHAPTER 34
Content Filter
34.1 Overview
Use the content filtering feature to control access to specific web sites or web content.
34.1.1 What You Can Do in this Chapter
• Use the Web Content Filter General screens (Section 34.2 on page 724) to set up web content filtering
profiles.
• Use the Web Content Filter Trusted Web Sites screens (Section 34.3 on page 744) to create a common
list of good (allowed) web site addresses.
• Use the Web Content Filter Forbidden Web Sites screens (Section 34.4 on page 745) to create a
common list of bad (blocked) web site addresses.
• Use the DNS Content Filter General screens (Section 34.5 on page 746) to set up DNS content filtering
profiles.
• Use the DNS Content Filter Allow List screen (Section 34.6 on page 761) to create a list of good
(allowed) web site addresses.
• Use the DNS Content Filter Block List screen (Section 34.7 on page 762) to create a list of bad
(blocked) web site addresses.
34.1.2 What You Need to Know
Web Content Filter
The Web Content Filter allows the Zyxel Device to block specific web features, such as cookies or
ActiveX, by inspecting the web pages that users are visiting. The Zyxel Device can also block access to
specific websites, by inspecting the URL or Server Name Indication (SNI) that the user’s web browser
sends to the web server.
Web Content Filtering Process
1 A user enters a URL into their web browser.
2 The user’s computer sends a DNS query for the URL.
3 The DNS server returns an IP address for the URL.
4 The user’s web browser connects to the IP address.
5 The Web Content Filter detects an HTTP connection, and inspects the website send using Server Name
Indication (SNI).
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
722
6 If the website contains prohibited material, the HTTP request is redirected to a block page.
Note: If the user’s web browser is using encryption, then you must enable SSL Inspection for
Web Content Filter to work.
If the user’s web browser is using Encrypted Server Name Indication (ESNI), DNS Content
Filter will not work.
Web Content Filtering Policies
A web content filtering policy allows you to do the following.
• Use schedule objects to define when to apply a content filter profile.
• Use address and/or user/group objects to define to whose web access to apply the content filter
profile.
• Apply a content filter profile that you have custom-tailored.
Web Content Filtering Profiles
A web content filtering profile conveniently stores your custom settings for the following features.
• Category-based Blocking
The Zyxel Device can block access to particular categories of web site content, such as pornography
or racial intolerance.
• Restrict Web Features
The Zyxel Device can disable web proxies and block web features such as ActiveX controls, Java
applets and cookies.
• Customize Web Site Access
You can specify URLs to which the Zyxel Device blocks access. You can alternatively block access to
all URLs except ones that you specify. You can also have the Zyxel Device block access to URLs that
contain particular keywords.
Web Content Filtering Configuration Guidelines
When the Zyxel Device receives an HTTP request, the content filter searches for a policy that matches
the source address and time (schedule). The content filter checks the policies in order (based on the
policy numbers). When a matching policy is found, the content filter allows or blocks the request
depending on the settings of the filtering profile specified by the policy. Some requests may not match
any policy. The Zyxel Device allows the request if the default policy is not set to block. The Zyxel Device
blocks the request if the default policy is set to block.
External Web Filtering Service
When you register for and enable the external web filtering service, your Zyxel Device accesses an
external database that has millions of web sites categorized based on content. You can have the Zyxel
Device block, block and/or log access to web sites based on these categories.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
723
HTTPS Domain Filter
HTTPS Domain Filter works with the Content Filter category feature to identify HTTPS traffic and take
appropriate action. SSL Inspection identifies HTTPS traffic for all Security Service traffic and has higher
priority than HTTPS Domain Filter. HTTPS Domain Filter only identifies keywords in the domain name of an
URL and matches it to a category. For example, if the keyword is 'picture' and the URL is http://
www.google.com/picture/index.htm, then HTTPS Domain Filter cannot identify 'picture' because that
keyword in not in the domain name 'www.google.com'. However, SSL Inspection can identify 'picture' in
the URL http://www.google.com/picture/index.htm.
Keyword Blocking URL Checking
The Zyxel Device checks the URL’s domain name (or IP address) and file path separately when
performing keyword blocking.
The URL’s domain name or IP address is the characters that come before the first slash in the URL. For
example, with the URL
www.zyxel.com.tw/news/pressroom.php, the domain name is
www.zyxel.com.tw.
The file path is the characters that come after the first slash in the URL. For example, with the URL
www.zyxel.com.tw/news/pressroom.php, the file path is news/pressroom.php.
Since the Zyxel Device checks the URL’s domain name (or IP address) and file path separately, it will not
find items that go across the two. For example, with the URL
www.zyxel.com.tw/news/pressroom.php,
the Zyxel Device would find “tw” in the domain name (
www.zyxel.com.tw). It would also find “news” in
the file path (
news/pressroom.php) but it would not find “tw/news”.
DNS Content Filter
The DNS Content Filter allows the Zyxel Device to block access to specific websites by inspecting DNS
queries made by users on your network. If the website in the DNS query contains prohibited material,
then the Zyxel Device replies to the DNS query with a IP address that points to the block page. Unlike the
Web Content Filter, the DNS Content Filter works if the user is using TLS 1.3 with ESNI.
DNS Content Filter Process
1 A user enters a URL into their web browser.
2 The user’s computer sends a DNS query for the URL.
3 The DNS Content Filter inspects the website in the DNS query packet.
4 If the website contains prohibited material, the DNS reply is redirected to a block page.
Finding Out More
•See Section 34.9 on page 764 for content filtering background/technical information.
34.1.3 Before You Begin
• You must configure an address object, a schedule object and a filtering profile before you can set up
a content security policy.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
724
• You must have Content Filtering license in order to use the function. Subscribe to use the external
database content filtering (see the Licensing > Registration screens).
34.2 Web Content Filter General Screen
Click Configuration > Security Service> Content Filter > Web Content Filter > General to open the Web
Content Filter General screen. Use this screen to enable content filtering, view and order your list of
content filter policies, create a denial of access message or specify a redirect URL and check your
external web filtering service registration status.
Click the Content Filter icon for more information on the Zyxel Device’s security features.
Figure 483 Configuration > Security Service > Content Filter > Web Content Filter > General
The following table describes the labels in this screen.
Table 283 Configuration > Security Service > Content Filter > Web Content Filter > General
LABEL DESCRIPTION
General Settings
Enable HTTPS Domain Filter
for HTTPS traffic
Select this check box to have the Zyxel Device block HTTPS web pages using the
cloud category service.
In an HTTPS connection, the Zyxel Device can extract the Server Name Indication
(SNI) from a client request, check if it matches a category in the cloud content filter
and then take appropriate action. The keyword match is for the domain name only.
Enable Content Filter HTTPS
Domain Filter Block/Warn
Page
Use this field to have the Zyxel Device display a warning page instead of a blank
page when an HTPPS connection is redirected.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
725
Block/Warn Page Port Use the default port number as displayed for the warning page. If you change it, the
new port number should be unique.
Drop connection when
HTTPS connection with SSL
V3 or previous version
Select this check box to have the Zyxel Device block HTTPS web pages using SSL V3 or
a previous version.
Content Filter Category
Service Timeout
Specify the allowable time period in seconds for accessing the external web filtering
service’s server.
Denied Access Message Enter a message to be displayed when content filter blocks access to a web page.
Use up to 127 characters (0-9a-zA-Z;/?:@&=+$\.-_!~*'()%,”). For example, “Access to
this web page is not allowed. Please contact the network administrator”.
It is also possible to leave this field blank if you have a URL specified in the Redirect URL
field. In this case if the content filter blocks access to a web page, the Zyxel Device
just opens the web page you specified without showing a denied access message.
Redirect URL Enter the URL of the web page to which you want to send users when their web
access is blocked by content filter. The web page you specify here opens in a new
frame below the denied access message.
Use “http://” or “https://” followed by up to 262 characters (0-9a-zA-Z;/?:@&=+$\.-
_!~*'()%). For example, http://192.168.1.17/blocked access.
Test Web Site Category
URL to test You can check which category a web page belongs to. Enter a web site URL in the
text box.
When the content filter is active, you should see the web page’s category. The query
fails if the content filter is not active.
Content Filtering can query a category by full URL string (for example, http://
www.google.com/picture/index.htm), but HTTPS Domain Filter can only query a
category by domain name ('www.google.com'), so the category may be different in
the query result. URL to test displays both results in the test.
If you think the
category is incorrect,
click this link to submit
a request to review it
Click this link to see the category recorded in the Zyxel Device’s content filtering
database for the web page you specified (if the database has an entry for it).
Profile Management
Add Click Add to create a new content filter rule.
Edit Click Edit to make changes to a content filter rule.
Remove Click Remove the delete a content filter rule.
References Select an entry and click References to open a screen that shows which settings use
the entry. . Click Refresh to update information on this screen.
# This column lists the index numbers of the content filter profile.
Name This column lists the names of the content filter profile rule.
Description This column lists the description of the content filter profile rule.
Reference This displays the number of times an Object Reference is used in a rule.
Action Click this icon to apply the content filter profile with a security policy.
Go to the Configuration > Security Policy > Policy Control screen to check the result.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 283 Configuration > Security Service > Content Filter > Web Content Filter > General (continued)
LABEL DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
726
34.2.1 Apply to a Security Policy
Click the icon in the Action field to apply the entry to a security policy.
Go to the Configuration > Security Policy > Policy Control screen to check the result.
Figure 484 Configuration > Security Service > Content Filter > Action
The following table describes the labels in this screen.
Table 284 Configuration > Security Service > Content Filter > Action
LABEL DESCRIPTION
Show Filter/Hide Filter Click Show Filter to display IPv4 and IPv6 (if enabled) security policy search filters.
IPv4 / IPv6 Configuration Use IPv4 / IPv6 search filters to find specific IPv4 and IPv6 (if enabled) security policies
based on direction, application, user, source, destination and/or schedule.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
727
From / To Select a zone to view all security policies from a particular zone and/or to a particular
zone. any means all zones.
IPv4 / IPv6 Source Type an IPv4 or IPv6 IP address to view all security policies based on the IPv4 / IPv6
source address object used.
• An IPv4 IP address is written as four integer blocks separated by periods. This is an
example IPv4 address: 172.16.6.7.
• An 128-bit IPv6 address is written as eight 16-bit hexadecimal blocks separated by
colons (:). This is an example IPv6 address:
2001:0db8:1a2b:0015:0000:0000:1a2f:0000.
IPv4 / IPv6 Destination Type an IPv4 or IPv6 IP address to view all security policies based on the IPv4 / IPv6
destination address object used.
• An IPv4 IP address is written as four integer blocks separated by periods. This is an
example IPv4 address: 172.16.6.7.
• An 128-bit IPv6 address is written as eight 16-bit hexadecimal blocks separated by
colons (:). This is an example IPv6 address:
2001:0db8:1a2b:0015:0000:0000:1a2f:0000.
Service View all security policies based the service object used.
User View all security policies based on user or user group object used.
Schedule View all security policies based on the schedule object used.
Priority This is the position of your Security Policy in the global policy list (including all through-
Zyxel Device and to-Zyxel Device policies). The ordering of your policies is important as
policies are applied in sequence. Default displays for the default Security Policy
behavior that the Zyxel Device performs on traffic that does not match any other
Security Policy.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This is the name of the Security policy.
From / To This is the direction of travel of packets. Select from which zone the packets come
and to which zone they go.
Security Policies are grouped based on the direction of travel of packets to which
they apply. For example, from LAN to LAN means packets traveling from a computer
or subnet on the LAN to either another computer or subnet on the LAN.
From any displays all the Security Policies for traffic going to the selected To Zone.
To any displays all the Security Policies for traffic coming from the selected From Zone.
From any to any displays all of the Security Policies.
To ZyWALL policies are for traffic that is destined for the Zyxel Device and control
which computers can manage the Zyxel Device.
IPv4 / IPv6 Source This displays the IPv4 / IPv6 source address object, including geographic address and
FQDN (group) objects, to which this Security Policy applies.
IPv4 / IPv6 Destination This displays the IPv4 / IPv6 destination address object, including geographic address
and FQDN (group) objects, to which this Security Policy applies.
Service This displays the service object to which this Security Policy applies.
User This is the user name or user group name to which this Security Policy applies.
Schedule This field tells you the schedule object that the policy uses. none means the policy is
active at all times if enabled.
Action This field displays whether the Security Policy silently discards packets without
notification (deny), permits the passage of packets (allow) or drops packets with
notification (reject)
Log Select whether to have the Zyxel Device generate a log (log), log and alert (log alert)
or not (no) when the policy is matched to the criteria listed above.
Table 284 Configuration > Security Service > Content Filter > Action
LABEL DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
728
34.2.2 Web Content Filter Add Category Service
Click Configuration > Security Service > Content Filter > Web Content Filter > General > Add or Edit to
open the Add screen.
Figure 485 Configuration > Security Service > Content Filter > Web Content Filter > General > Add >
Category Service
Profile This field shows you which Security Service profiles apply to this security policy. Click an
applied Security Service profile icon to edit the profile directly.
OK Click OK to save your changes back to the Zyxel Device.
Table 284 Configuration > Security Service > Content Filter > Action
LABEL DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
729
The following table describes the labels in this screen.
Table 285 Configuration > Security Service > Content Filter > Web Content Filter > General > Add >
Category Service
LABEL DESCRIPTION
Name Enter a descriptive name for this content filtering profile name. You may use 1-31
alphanumeric characters, underscores(
_), or dashes (-), but the first character
cannot be a number. This value is case-sensitive.
Description Enter a description for the content filtering profile rule to help identify the purpose
of rule. You may use 1-31 alphanumeric characters, underscores(
_), or dashes (-),
but the first character cannot be a number. This value is case-sensitive.
This field is optional.
Enable SafeSearch SafeSearch is a search engine that can automatically filter sexually explicit videos
and images from the search result without overloading the Zyxel Device.
Supported search engines at the time of writing are:
Yahoo, Google, MSN Live Bing, Yandex
Enable Content Filter
Category Service
Enable external database content filtering to have the Zyxel Device check an
external database to find to which category a requested web page belongs. The
Zyxel Device then blocks or forwards access to the web page depending on the
configuration of the rest of this page.
Log all web pages Select this to record attempts to access web pages when:
• They match the other categories that you select below.
• They are not categorized.
• The external content filtering database is unavailable.
Action for Managed Web
Pages
Select Pass to allow users to access web pages that match the other categories
that you select below.
Select Block to prevent users from accessing web pages that match the other
categories that you select below. When external database content filtering
blocks access to a web page, it displays the denied access message that you
configured in the Content Filter General screen along with the category of the
blocked web page.
If a web page matches multiple categories, and at least one of those categories
is blocked, that web page will be blocked.
If a web page matches multiple categories, and at least one of those categories
is blocked, that web page will be blocked.
If a web page matches multiple categories, and at least one of those categories
is blocked, that web page will be blocked.
Select Log to record attempts to access web pages that match the other
categories that you select below.
Action for Unrated Web
Pages
Select Pass to allow users to access web pages that the external web filtering
service has not categorized.
Select Block to prevent users from accessing web pages that the external web
filtering service has not categorized. When the external database content filtering
blocks access to a web page, it displays the denied access message that you
configured in the Content Filter General screen along with the category of the
blocked web page.
Select Warn to display a warning message before allowing users to access web
pages that the external web filtering service has not categorized.
Select Log to record attempts to access web pages that are not categorized.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
730
Action When Category
Server Is Unavailable
Select Pass to allow users to access any requested web page if the external
content filtering database is unavailable.
Select Block to block access to any requested web page if the external content
filtering database is unavailable.
Select Warn to display a warning message before allowing users to access any
requested web page if the external content filtering database is unavailable.
The following are possible causes for the external content filtering server not being
available:
• There is no response from the external content filtering server within the time
period specified in the Content Filter Server Unavailable Timeout field.
• The Zyxel Device is not able to resolve the domain name of the external
content filtering database.
• There is an error response from the external content filtering database. This can
be caused by an expired content filtering registration (External content
filtering’s license key is invalid”).
Select Log to record attempts to access web pages that occur when the external
content filtering database is unavailable.
Log-alert for Block/Warn
action
A log at the alert level is a log for serious events that may need more immediate
attention. For example, you may want to know right away if there are clients in
your networks that try to access adult topics or drugs related web pages.
Set the action to Block or Warn and select Log for Action for Managed Web
Pages, Action for Unrated Web Pages or Action When Category Server is
Unavailable. Then enable this to have the Zyxel Device generate logs at the alert
level instead of the info level. You can check the priority of log messages in
Monitor > Log > View Log > Priority.
Select Categories
Select All Categories Select this check box to restrict access to all site categories listed below.
Clear All Categories Select this check box to clear the selected categories below.
Managed Categories These are categories of web pages based on their content. Select categories in
this section to control access to specific types of Internet content.
You must have the Category Service content filtering license to filter these
categories. See the next table for category details.
Test Web Site Category
URL to test You can check which category a web page belongs to. Enter a web site URL in
the text box.
When the content filter is active, you should see the web page’s category. The
query fails if the content filter is not active.
Content Filtering can query a category by full URL string (for example, http://
www.google.com/picture/index.htm), but HTTPS Domain Filter can only query a
category by domain name ('www.google.com'), so the category may be
different in the query result. URL to test displays both results in the test.
If you think the category is
incorrect
Click this link to see the category recorded in the Zyxel Device’s content filtering
database for the web page you specified (if the database has an entry for it).
Test Against Content Filter
Category Server
Click this button to see the category recorded in the external content filter server’s
database for the web page you specified.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 285 Configuration > Security Service > Content Filter > Web Content Filter > General > Add >
Category Service (continued)
LABEL DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
731
The following table describes the managed categories.
Table 286 Managed Category Descriptions
CATEGORY DESCRIPTION
Adult Topics Web pages that contain content or themes that are generally considered
unsuitable for children.
Alcohol Web pages that mainly sell, promote, or advocate the use of alcohol, such as beer,
wine, and liquor.
This category also includes cocktail recipes and home-brewing instructions.
Anonymizing Utilities Web pages that result in anonymous web browsing without the explicit intent to
provide such a service.
This category includes URL translators, web-page caching, and other utilities that
might function as anonymizers, but without the express purpose of bypassing filtering
software.
This category does not include text translation.
Art Culture Heritage Web pages that contain virtual art galleries, artist sites (including sculpture and
photography), museums, ethnic customs, and country customs.
This category does not include online photograph albums.
Auctions Classifieds Web pages that provide online bidding and selling of items or services.
This category includes web pages that focus on bidding and sales.
This category does not include classified advertisements such as real estate postings,
personal ads, or companies marketing their auctions.
Blogs/Wiki Web pages containing dynamic content, which often changes because users can
post or edit content at any time.
This category covers the risks with dynamic content that might range from harmless
to offensive.
Business Web pages that provide business-related information, such as corporate overviews
or business planning and strategies.
This category also includes information, services, or products that help other
businesses plan, manage, and market their enterprises, and multi-level marketing.
This category does not include personal pages and web-hosting web pages.
Chat Web pages that provide web-based, real-time social messaging in public and
private chat rooms. This category includes IRC.
This category does not include instant messaging.
Computing Internet Web pages containing reviews, information, buyer's guides of computers, computer
parts and accessories, computer software and internet companies, industry news
and magazines, and pay-to-surf sites.
Consumer Protection Websites that try to rob or cheat consumers.
Some examples of their activities include selling counterfeit products, selling
products that were originally provided for free, or improperly using the brand of
another company. This category also includes sites where many consumers
reported being cheated or not receiving services.
This category does not include phishing, which tries to perpetrate fraud or theft by
stealing account information. To check for phishing, go to Security Service >
Reputation Filter > IP Reputation and select Phishing.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
732
Content Server URLs for servers that host images, media files, or JavaScript for one or more sites and
are intended to speed up content retrieval for existing web servers, such as Apache.
This category includes domain-level and sub-domain-level URLs that function as
content servers.
This category does not include:
• Web pages for businesses that provide the content servers
• Web pages that allow users to browse photographs. See the Media Sharing
category.
• URLs for servers that serve only advertisements. See the Web Ads category.
Controversial Opinions Web pages that contain opinions that are likely to offend political or social
sensibilities and incite controversy. Much of this content is at the extremes of public
opinion.
This category does not include opinion or language clearly intended to promote
hate or discrimination.
Cult Occult Sites relating to non-traditional religious practices considered to be false,
unorthodox, extremist, or coercive.
Dating Personals Web pages that provide networking for online dating, matchmaking, escort
services, or introductions to potential spouses.
This category does not include sites that provide social networking that might
include dating, but are not specific to dating.
Dating Social Networking Web pages that focus on social interaction such as online dating, friendship, school
reunions, pen-pals, escort services, or introductions to potential spouses.
This category does not include wedding-related content, dating tips, or related
marketing.
Digital Postcards Web pages that allow people to send and receive digital postcards and greeting
cards through the Internet.
Discrimination Web pages, which provide information that explicitly encourages the oppression or
discrimination of a specific group of individuals.
This category does not include jokes and humor, unless the focus of the entire site is
considered discriminatory.
Drugs Websites that provide information on the purchase, manufacture, and use of illegal
or recreational drugs.
This category does not include sites with exclusive health or political themes.
Education Reference Web pages devoted to academic-related content such as academic subjects
(mathematics, history), school or university web pages, and education
administration pages (school boards, teacher curriculum).
Entertainment Web pages that provide information about cinema, theater, music, television,
infotainment, entertainment industry gossip-news, and sites about celebrities such as
actors and musicians.
This category also includes sites where the content is devoted to providing
entertainment on the web, such as horoscopes or fan clubs.
Extreme Web pages that provide content considered gory, perverse, or horrific.
Table 286 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
733
Fashion Beauty Web pages that market clothing, cosmetics, jewelry, and other fashion-oriented
products, accessories, or services.
This category also includes product reviews, comparisons, and general consumer
information, and services such as hair salons, tanning salons, tattoo studios, and
body-piercing studios.
This category does not include fashion-related content such as modeling or
celebrity fashion unless the site focuses on marketing the product line.
Finance Banking Web pages that provide financial information or access to online financial
accounts.
This category includes stock information (but not stock trading), home finance, and
government-related financial information.
For Kids Web pages that are family-safe, specifically for children of approximate ages ten
and under.
This category can also be used as an exception to allow web pages that do not
pose a risk to children, or to access sites that have a primary educational or
recreational focus for children, but are in other categories such as Games, Humor/
Comics, Recreation/Hobbies, or Entertainment.
Forum Bulletin Boards Web pages that provide access (http://) to Usenet newsgroups or hold discussions
and post user-generated content, such as real-time message posting for an interest
group. This category also includes archives of files uploaded to newsgroups.
This category does not include message forums with a business or technical support
focus.
Gambling Web pages that allow users to wager or place bets online, or provide gambling
software that allows online betting, such as casino games, betting pools, sports
betting, and lotteries.
This category does not include web pages related to gambling that do not allow
betting online.
Gambling Related Web pages that offer information about gambling, without providing the means to
gamble.
This category includes casino-related web pages that do not offer online gambling,
gambling links, tips, sports picks, lottery results, and horse, car, or boat racing.
Game Cartoon Violence Web pages that provide fantasy or fictitious representations of violence within the
context of games, comics, cartoons, or graphic novels.
This category includes images and textual descriptions of physical assaults or hand-
to-hand combat, and grave injury and destruction caused by weapons or
explosives.
Games Web pages that offer online games and related information such as cheats, codes,
demos, emulators, online contests or role-playing games, gaming clans, game
manufacturer sites, fantasy or virtual sports leagues, and other gaming sites without
chances of profit.
This category includes gaming consoles.
General News Web pages that provide online news media, such as international or regional news
broadcasting and publication.
This category includes portal sites that provide news content.
Government Military Web pages that contain content maintained by governmental or military
organizations, such as government branches or agencies, police departments, fire
departments, civil defense, counter-terrorism organizations, or supranational
organizations, such as the United Nations or the European Union.
This category includes military and veterans’ medical facilities.
Table 286 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
734
Gruesome Content Web pages with content that can be considered tasteless, gross, shocking, or
gruesome.
This category does not include web pages with content pertaining to physical
assault.
Health Web pages that cover all health-related information and health care services.
This category does not include cosmetic surgery, marketing/selling
pharmaceuticals, or animal-related medical services.
Historical Revisionism Web pages that denounce, or offer different interpretations of, significant historical
facts, such as holocaust denial.
This category does not include all re-examination of historical facts, only historical
events that are highly sensitive.
History Web pages that provide content about historical facts.
This category includes content suitable for higher education, but the Education
category includes content for primary education. For example, a site with Holocaust
photographs might be offensive, but have academic value.
Humor Comics Web pages that provide comical or funny content.
This category includes sites with jokes, sketches, comics, and satire pages. This
category might also include graphic novel content, which is often associated with
comics.
Illegal UK Web pages that contain child sexual abuse content hosted anywhere in the world,
and criminally obscene and incitement to racial hatred content hosted in the UK.
Incidental Nudity Web pages that contain non-pornographic images of the bare human body like
those in classic sculpture and paintings, or medical images.
This category enables you to allow or block sites in order to address cultural or
geographic differences in opinion about nudity. For example, you can use this
category to block access to nudity, but allow access when nudity is not the primary
focus of a site, such as news sites or major portals.
Information Security Web pages that legitimately provide information about data protection. This
category includes detailed information for safeguarding business or personal data,
intellectual property, privacy, and infrastructure on the Internet, private networks, or
in other bandwidth services such as telecommunications.
This category does not include:
• Legitimate information security companies and security software providers, such
as virus protection companies.
• Sites that intend to exploit security or teach how to bypass security.
Information Security New Web pages that legitimately provide information about data protection. This
category includes detailed information for safeguarding business or personal data,
intellectual property, privacy, and infrastructure on the Internet, private networks, or
in other bandwidth services such as telecommunications.
This category does not include:
• Legitimate information security companies and security software providers, such
as virus protection companies.
• Sites that intend to exploit security or teach how to bypass security.
Instant Messaging Web pages that provide software for real-time communication over a network
exclusively for users who joined a member’s contact list or an instant-messaging
session.
Most instant-messaging software includes features such as file transfer, PC-to-PC
phone calls, and can track when other people log on and off.
Table 286 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
735
Interactive Web
Applications
Web pages that provide access to live or interactive web applications, such as
browser-based office suites and groupware. This category includes sites with
business, academic, or individual focus.
This category does not include sites providing access to interactive web
applications that do not take critical user data or offer security risks, such as Google
Maps.
Internet Radio TV Web pages that provide software or access to continuous audio or video
broadcasting, such as Internet radio, TV programming, or podcasting.
Quick downloads and shorter streams that consume less bandwidth are in the
Streaming Media or Media Downloads categories.
Internet Services Web pages that provide services for publication and maintenance of Internet sites
such as web design, domain registration, Internet Service Providers, and broadband
and telecommunications companies that provide web services.
This category includes web utilities such as statistics and access logs, and web
graphics like clip art.
Job Search Web pages related to a job search including sites concerned with resume writing,
interviewing, changing careers, classified advertising, and large job databases. This
category also includes corporate web pages that list job openings, salary
comparison sites, temporary employment, and company job-posting sites.
This category does not include make-money-at-home sites.
Major Global Religions Web pages with content about religious topics and information related to major
religions. This category includes sites that cover religious content such as discussion,
beliefs, non-controversial commentary, articles, and information for local
congregations such as a church or synagogue homepage.
The religions in this category are Baha'i, Buddhism, Chinese Traditional, Christianity,
Hinduism, Islam, Jainism, Judaism, Shinto, Sikhism, Tenrikyo, Zoroastrianism.
Marketing Merchandising Web pages that promote individual or business products or services on the web, but
do not sell their products or services online.
This category includes websites that are generally a company overview, describing
services or products that cannot be purchased directly from these sites. Examples
include automobile manufacturer sites, wedding photography services, or graphic
design services.
This category does not include:
• Other categories that imply marketing such as Alcohol, Auctions/Classifieds,
Drugs, Finance/Banking, Mobile Phone, Online Shopping, Real Estate, School
Cheating Information, Software/Hardware, Stock Trading, Tobacco, Travel, and
Weapons.
• Sites that market their services only to other businesses. See the Business
category.
• Sites that rob or cheat consumers. See the Consumer Protection category.
Media Downloads Web pages that provide audio or video files for download such as MP3, WAV, AVI,
and MPEG formats. The files are saved to, and played from, the user’s computer.
This category does not include audio or video files that are played directly through a
browser window. See the Streaming Media category.
Media Sharing Web pages that allow users to upload, search for, and share media files and
photographs, such as online photograph albums.
Messaging Examples include text messaging to mobile phones, PDAs, fax machines, and
internal website user-to-user messaging or site-to-site messaging.
This category does not include real-time chat or instant messaging, or message
posts that can be viewed by anyone but the intended recipient.
Table 286 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
736
Mobile Phone Web pages that sell media, software, or utilities for mobile phones that can be
downloaded and delivered to mobile phones.
Examples include ringtones, logos/skins, games, screen-savers, text-based tunes,
and software for SMS, MMS, WAP, and other mobile phone protocols.
Moderated Bulletin boards, chat rooms, search engines, or web mail sites that are monitored by
an individual or group who has the authority to block messages or content
considered inappropriate.
This category does not include sites with posted rules against offensive content. See
the Forum/Bulletin Boards category.
Motor Vehicles Websites for manufacturers and dealerships of consumer transportation vehicles,
such as cars, vans, trucks, SUVs, motorcycles, and scooters. This category also
includes sites that provide product marketing, reviews, comparisons, pricing
information, auto fairs, auto expos, and general consumer information about motor
vehicles.
This category does not include automotive accessories, mechanics, auto-body
shops, and recreational hobby pages. This category does not include sites that
provide business-to-business-only content regarding motor vehicles.
Non Profit Advocacy NGO Web pages from charitable or educational groups that fulfill a stated mission,
benefiting the larger community, such as clubs, lobbies, communities, non-profit
organizations, labor unions, and advocacy groups.
Examples are Masons, Elks, Boy and Girl Scouts, or Big Brothers.
Nudity Web pages that have non-pornographic images of the bare human body. This
category includes classic sculpture and paintings, artistic nude photographs, some
naturism pictures, and detailed medical illustrations.
This category does not include high-profile sites where nudity is not a concern for
visitors. See the Incidental Nudity category.
Online Shopping Web pages that sell products or services online.
Web pages selling a broad range of products might pose a risk to users by offering
access to items that are normally in other categories such as Pornography,
Weapons, Nudity, or Violence. Web pages selling such content exclusively are in
their respective categories.
P2P File Sharing Web pages that allow the exchange of files between computers and users for
business or personal use, such as downloadable music.
P2P clients allow users to search for and exchange files from a peer-user network.
They often include spyware or real-time chat capabilities. This category includes
BitTorrent web pages.
Parked Domain Web pages that once served content, but their domains have been sold or
abandoned and are no longer registered.
Parked domains do not host their own content, but usually redirect users to a
generic page that states the domain name is for sale, or redirect users to a generic
search engine and portal page, some of which provide valid search engine results.
Personal Network Storage Web pages that allow users to upload folders and files to an online network server in
order to backup, share, edit, or retrieve files or folders from any web browser.
Personal Pages Personal home pages that share a common domain such as those hosted by ISPs,
university/education servers, or free web page hosts.
This category also includes unique domains that contain personal information, such
as a personal home page. This category does not include home pages of public
figures.
Pharmacy Web pages that provide reviews, descriptions, and market or sell prescription-based
drugs, over-the-counter drugs, birth control, or dietary supplements.
Table 286 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
737
Politics Opinion Web pages covering political parties, individuals in political life, and opinion on
various topics.
This category might also cover laws and political opinion about drugs. This category
includes URLs for political parties, political campaigning, and opinions on various
topics, including political debates.
Pornography Web pages that contain materials intended to be sexually arousing or erotic.
This category includes fetish pages, animation, cartoons, stories, and illegal
pornography.
Portal Sites Web pages that serve as major gateways or directories to content on the web.
Many portal sites also provide a variety of internal site features or services such as
search engines, email, news, and entertainment. Mailing list sites with a variety of
content are in this category.
This category does not include sites with topic-specific content.
Potential Criminal Activities Web pages that provide instructions to commit illegal or criminal activities.
Instructions include committing murder or suicide, sabotage, bomb-making, lock-
picking, service theft, evading law enforcement, or spoofing drug tests. This
category might also include information on how to distribute illegal content,
perpetrate fraud, or consumer scams.
This category does not include computer-related fraud.
Potential Hacking
Computer Crime
Web pages that provide instructions, or otherwise enable, fraud, crime, or malicious
activity that is computer-oriented.
This category includes web pages related to computer crime include malicious
hacking information or tools that help individuals gain unauthorized access to
computers and networks (root kits, kiddy scripts). This category also includes other
areas of electronic fraud such as dialer scams and illegal manipulation of electronic
devices.
This category does not include illegal software.
Potential Illegal Software Web pages, which the filter believes offer information to potentially ‘pirated’ or
illegally distribute software or electronic media, such as copyrighted music or film,
distribution of illegal license key generators, software cracks, and serial numbers.
This category does not include peer-to-peer web pages.
Private IP Addresses Sites that are private IP addresses as defined in RFC 1918, that is, hosts that do not
require access to hosts in other enterprises (or require just limited access) and whose
IP address may be ambiguous between enterprises but are well defined within a
certain enterprise.
Profanity Web pages that contain crude, vulgar, or obscene language or gestures.
Professional Networking Web pages that provide social networking exclusively for professional or business
purposes.
This category includes sites that provide personal or group profiles, and enable their
members to interact through real-time communication, message posting, public
bulletins, and media sharing. This category also contains alumni sites that have a
networking function.
This category does not include social networking sites where the focus might vary,
but include friendship, dating, or professional focuses.
Table 286 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
738
Provocative Attire Web pages with pictures that include alluring or revealing attire, lingerie and
swimsuits, or supermodel or celebrity photograph collections, but do not involve
nudity.
This category does not include sites with swimwear or similar attire that is not
intended to be provocative. For example, Olympic swimming sites are not in this
category.
Public Information Web pages that provide general reference information such as public service
providers, regional information, transportation schedules, maps, or weather reports.
PUPs Web pages that contain Potentially Unwanted Programs (PUPs).
PUPs are often made for a beneficial purpose but they alter the security of a
computer or the computer user’s privacy. Computer users who are concerned
about security or privacy might want to be informed about this software, and in
some cases, they might want to remove this software from their computers.
Real Estate Web pages that provide commercial or residential real estate services and
information.
Service and information includes sales and rental of living space or retail space and
guides for apartments, housing, and property, and information on appraisal and
brokerage. This category includes sites that allow you to browse model homes.
This category does not include content related to personal finance, such as credit
applications.
Recreation Hobbies Web pages for recreational organizations and facilities that include content
devoted to recreational activities and hobbies.
This category includes information about public swimming pools, zoos, fairs, festivals,
amusement parks, recreation guides, hiking, fishing, bird watching, or stamp
collecting.
This category does not include activities that need no active participation, such as
watching a movie or reading celebrity gossip.
Religion Ideology Web pages with content related to religious topics and beliefs in human spirituality
that are not within the major religions.
This category includes religious discussion, beliefs, articles, and information for local
congregations or groups such as a church homepage, unless the site is already in
the Major Global Religions category. This category also includes comparative
religion, or sites that include religions and ideologies.
This category does not include astrology and horoscope sites
Remote Access Web pages that provide remote access to a program, online service, or an entire
computer system.
Although remote access is often used legitimately to run a computer from a remote
location, it creates a security risk, such as backdoor access. Backdoor access,
written by the original programmer, allows the system to be controlled by another
party without the user's knowledge.
Reserved This category is reserved for future use.
Residential IP Addresses IP addresses (and any domains associated with them) that access the Internet by
DSL modems or cable modems.
Because this content is not generally intended for Internet access through HTTP,
access to the Internet through these IP addresses can indicate suspicious behavior.
This behavior might be related to malware located on the home computer or
homegrown gateways set up to allow anonymous Internet access.
Table 286 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
739
Resource Sharing Web pages that harness idle or unused computer resources to focus on a common
task.
The task can be on a company or an international basis. Well known examples are
the SETI program and the Human Genome Project, which use the idle time of
thousands of volunteered computers to analyze data.
Restaurants Web pages that provide information about restaurants, bars, catering, take-out and
delivery, including online ordering.
This category includes sites that provide information about location, hours, prices,
menus and related dietary information. This category also includes restaurant guides
and reviews, and cafes and coffee shops.
This category does not include groceries, wholesale food, non-profit and charitable
food organizations, or bars that do not focus on serving food.
School Cheating
Information
Web pages that promote plagiarism or cheating by providing free or fee-based
term papers, written essays, or exam answers.
This category does not include sites that offer student help, discuss literature, films, or
books, or other content that is often the subject of research papers.
Search Engines Web pages that provide search results that enable users to find information on the
Internet based on key words.
This category does not include site-specific search engines.
Sexual Materials Web pages that describe or depict sexual acts, but are not intended to be arousing
or erotic.
Examples of sexual materials include sex education, sexual innuendo, humor, or sex
related merchandise.
This category does not include web pages with content intended to arouse.
Shareware Freeware Web pages that are repositories of downloadable copies of shareware and
freeware.
This category does not include subscription-based software.
Social Networking Web pages that enable social networking for a variety of purposes, such as
friendship, dating, professional, or topics of interest.
These sites provide personal or group profiles and enable interaction among their
members through real-time communication, message posting, public bulletins, and
media sharing.
This category does not include sites that are exclusive to dating, matchmaking, or a
specific professional networking focus.
Software Hardware Web pages related to computing software and hardware, including vendors,
product marketing and reviews, deployment and maintenance of software and
hardware, and software updates and add-ons such as scripts, plug-ins, or drivers.
Hardware includes computer parts, accessories, and electronic equipment used
with computers and networks.
This category includes the marketing of software and hardware, and magazines
focused on software or hardware product reviews or industry trends.
Sports Web pages related to professional or organized recreational sports.
This category includes sporting news, events, and information such as playing tips,
strategies, game scores, or player trades.
This category does not include fantasy leagues, sports centers, athletic clubs, fitness
or martial arts clubs, and non-league billiards, darts, or other such activities.
Table 286 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
740
Stock Trading Web pages that offer purchasing, selling, or trading of shares online.
This category also includes ticker-tape information that enables viewing of real-time
stock prices and financial spread betting in the stock market. Other betting is in the
Gambling category.
This category does not include sites that offer information about stocks, but do not
offer purchasing, selling, or trading of shares.
Streaming Media Web pages that provide streaming media, or contain software plug-ins for
displaying audio and visual data before the entire file has been transmitted.
This category does not include audio or video files that are downloaded to a user’s
computer before being played.
Technical Business Forums Web pages with a technical or business focus that provide online message posting
or real-time chatting, such as technical support or interactive business
communication.
Although users can post any type of content, these forums tend to present less risk of
containing offensive content.
Sites that offer a variety of forums with themes, including technical and business
content, are only in the categories of Forum/Bulletin Boards or Chat.
Technical Information Web pages that provide computing information with an educational focus in areas
such as Information Technology, computer programming, and certification.
Examples include Linux user groups, UNIX commands, software tutorials, or
dictionaries of technical terms. Most sites in this category might be subdirectories of
larger domains. For example, a software site with a tutorial page is in this category
only at the tutorial page URL.
This category does not include content about information security.
Text Spoken Only Content that is text or audio only, and does not contain pictures.
This category can be used as an exception to allow explicit text and recorded
material to be accessed when you want pictures blocked using the Pornography,
Violence, or Sexual Materials categories. Libraries or universities can use this
category to prevent the display of offensive graphics in their public facilities.
Text Translators Web pages that allow users to type phrases or a block of text to translate it from one
language into another.
This category also includes language identifier web pages. URL translation is in the
Anonymizing Utilities category.
Tobacco Web pages that sell, promote, or advocate the use of tobacco products, tobacco
paraphernalia, including cigarettes, cigars, pipes, snuff and chewing tobacco.
Travel Web pages that promote personal or business travel, such as hotels, resorts, airlines,
ground transportation, car rentals, travel agencies, and general tourist and travel
information.
This category also includes sites for buying tickets or accommodation.
This category does not include personal vacation photographs.
Usenet News Web pages that provide access (http://) to Usenet newsgroups and archives of files
uploaded to newsgroups.
This category also includes online groups that offer similar community-oriented
content posting.
Violence Web pages that contain real or lifelike images or text that portray, describe, or
advocate physical assaults against people, animals, or institutions, such as
depictions of war, suicide, mutilation, or dismemberment.
Table 286 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
741
34.2.3 Content Filter Add Filter Profile Custom Service
Click Configuration > Security Service > Content Filter > Web Content Filter > General > Add or Edit >
Custom Service to open the Custom Service screen. You can create a list of good (allowed) web site
addresses and a list of bad (blocked) web site addresses. You can also block web sites based on
whether the web site’s address contains a keyword. Use this screen to add or remove specific sites or
keywords from the filter list.
Visual Search Engine Web pages that provide image-specific search results such as thumbnail pictures.
This category does not include sites that offer site-specific visual search engines.
Weapons Web pages that provide information about buying, making, modifying, or using
weapons, such as guns, knives, swords, paintball guns, and ammunition, explosives,
and weapon accessories.
This category also includes sites that contain content for: weapons for personal or
military use, homemade weapons, non-lethal weapons such as mace, pepper
spray, or Taser guns, weapons facilities, such as shooting ranges, and government or
military oriented weapons.
This category does not include political action groups, such as the NRA.
Web Ads Web pages that provide advertisement-hosting or programs that create
advertisements.
Examples include links, source code or applets for banners, popups, and other kinds
of static or dynamically generated advertisements that appear on web pages. This
category is intended to block advertisements on web pages, not the companies
that provide the advertisements or advertising services.
This category does not include aggressive advertising adware. See the Spyware/
Adware category.
Web Mail Web pages that enable users to send or receive email through the Internet.
Web Meetings Web pages that host live meetings, video conferences, and interactive
presentations mainly for businesses.
Web meetings generally include streaming audio and video, and allow data
transfer or office-oriented application sharing, such as online presentations.
Web Phone Web pages that enable users to make telephone calls through the Internet or obtain
information or software for this purpose.
Web Phone service is also called Internet Telephony, or VoIP. Web phone service
includes PC-to-PC, PC-to-phone, and phone-to-phone services connecting through
TCP/IP networks.
Table 286 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
742
Figure 486 Configuration > Security Service > Content Filter > Web Content Filter > General > Custom
Service
The following table describes the labels in this screen.
Table 287 Configuration > Security Service > Content Filter > Web Content Filter > General > Custom
Service
LABEL DESCRIPTION
Name Enter a descriptive name for this content filtering profile name. You may use 1-31
alphanumeric characters, underscores(
_), or dashes (-), but the first character
cannot be a number. This value is case-sensitive.
Description Enter a description for the content filtering profile rule to help identify the
purpose of rule. You may use 1-31 alphanumeric characters, underscores(
_), or
dashes (-), but the first character cannot be a number. This value is case-
sensitive.
This field is optional.
Enable Custom Service Select this check box to allow trusted web sites and block forbidden web sites.
Content filter list customization may be enabled and disabled without re-
entering these site names.
Allow Web traffic for trusted web
sites only
When this box is selected, the Zyxel Device blocks Web access to sites that are
not on the Trusted Web Sites list. If they are chosen carefully, this is the most
effective way to block objectionable material.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
743
Check Common Trusted/
Forbidden List
Select this check box to check the common trusted and forbidden web sites
lists. See
Section 34.3 on page 744 and Section 34.4 on page 745 for information
on configuring these lists.
Restricted Web Features Select the check box(es) to restrict a feature. Select the check box(es) to
restrict a feature.
• When you download a page containing ActiveX or Java, that part of the
web page will be blocked with an X.
• When you download a page coming from a Web Proxy, the whole web
page will be blocked.
• When you download a page containing cookies, the cookies will be
removed, but the page will not be blocked.
Block
ActiveX
ActiveX is a tool for building dynamic and active web pages and distributed
object applications. When you visit an ActiveX web site, ActiveX controls are
downloaded to your browser, where they remain in case you visit the site again.
Java Java is a programming language and development environment for building
downloadable Web components or Internet and intranet business applications
of all kinds.
Cookies Cookies are files stored on a computer’s hard drive. Some web servers use them
to track usage and provide service based on ID.
Web Proxy A server that acts as an intermediary between a user and the Internet to
provide security, administrative control, and caching service. When a proxy
server is located on the WAN it is possible for LAN users to circumvent content
filtering by pointing to this proxy server.
Allow Java/ActiveX/Cookies/
Web proxy to trusted web sites
When this box is selected, the Zyxel Device will permit Java, ActiveX and
Cookies from sites on the Trusted Web Sites list to the LAN. In certain cases, it
may be desirable to allow Java, ActiveX or Cookies from sites that are known
and trusted.
Trusted Web Sites These are sites that you want to allow access to, regardless of their content
rating, can be allowed by adding them to this list.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This displays the index number of the trusted web sites.
Trusted Web Site This column displays the trusted web sites already added.
Enter host names such as www.good-site.com into this text field. Do not enter
the complete URL of the site – that is, do not include “http://”. All subdomains
are allowed. For example, entering “*.zyxel.com” also allows “www.zyxel.com”,
“partner.zyxel.com”, “press.zyxel.com”, and so on. You can also enter just a top
level domain. For example, enter “*.com” to allow all .com domains.
Use up to 127 characters (0-9a-z-). The casing does not matter. “*” can be used
as a wildcard to match any string. The entry must contain at least one “.” or it
will be invalid.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This displays the index number of the forbidden web sites.
Table 287 Configuration > Security Service > Content Filter > Web Content Filter > General > Custom
Service (continued)
LABEL DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
744
34.3 Web Content Filter Trusted Web Sites Screen
Click Configuration > Security Service > Content Filter > Web Content Filter > Trusted/Forbidden Web
Sites> Trusted Web Sites to open the Trusted Web Sites screen. You can create a common list of good
(allowed) web site addresses. When you configure Web Content Filter Profiles, you can select the option
to check the Common Trusted Web Sites list. Use this screen to add or remove specific sites from the filter
list.
Forbidden Web Sites This list displays the forbidden web sites already added.
Enter host names such as www.bad-site.com into this text field. Do not enter the
complete URL of the site – that is, do not include “http://”. All subdomains are
also blocked. For example, entering “*bad-site.com” also blocks “www.bad-
site.com”, “partner.bad-site.com”, “press.bad-site.com”, and do on. You can
also enter just a top level domain. For example, enter “*.com” to block all .com
domains.
Use up to 127 characters (0-9a-z-). The casing does not matter. “*” can be used
as a wildcard to match any string. The entry must contain at least one “.” or it
will be invalid.
Blocked URL Keywords This section allows you to block Web sites with URLs that contain certain
keywords in the domain name or IP address.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This displays the index number of the blocked URL keywords.
Blocked URL Keywords This list displays the keywords already added.
Enter a keyword or a numerical IP address to block. You can also enter a
numerical IP address.
Use up to 127 case-insensitive characters (0-9a-zA-Z;/?:@&=+$\.-_!~*()%). “*”
can be used as a wildcard to match any string. Use “|*” to indicate a single
wildcard character.
For example enter *Bad_Site* to block access to any web page that includes
the exact phrase Bad_Site. This does not block access to web pages that only
include part of the phrase (such as Bad for example).
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 287 Configuration > Security Service > Content Filter > Web Content Filter > General > Custom
Service (continued)
LABEL DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
745
Figure 487 Configuration > Security Service > Content Filter > Web Content Filter > Trusted/Forbidden
Web Sites> Trusted Web Sites
The following table describes the labels in this screen.
34.4 Web Content Filter Forbidden Web Sites Screen
Click Configuration > Security Service > Content Filter > Web Content Filter > Trusted/Forbidden Web
Sites> Forbidden Web Sites to open the Forbidden Web Sites screen. You can create a common list of
bad (blocked) web site addresses. When you configure Filter Profiles, you can select the option to
check the Common Forbidden Web Sites list. Use this screen to add or remove specific sites from the filter
list.
Table 288 Configuration > Security Service > Content Filter > Web Content Filter > Trusted/Forbidden
Web Sites> Trusted Web Sites
LABEL DESCRIPTION
Common Trusted Web Sites These are sites that you want to allow access to, regardless of their content
rating, can be allowed by adding them to this list.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This displays the index number of the trusted web sites.
Trusted Web Site This column displays the trusted web sites already added.
Enter host names such as www.good-site.com into this text field. Do not enter
the complete URL of the site – that is, do not include “http://”. All subdomains
are allowed. For example, entering “*.zyxel.com” also allows “www.zyxel.com”,
“partner.zyxel.com”, “press.zyxel.com”, and so on. You can also enter just a top
level domain. For example, enter .com to allow all .com domains.
Use up to 127 characters (0-9a-z-). The casing does not matter.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
746
Figure 488 Configuration > Security Service > Content Filter > Web Content Filter > Trusted/Forbidden
Web Sites> Forbidden Web Sites
The following table describes the labels in this screen.
34.5 DNS Content Filter General Screen
Click Configuration > Security Service> Content Filter > DNS Content Filter > General to open the DNS
Content Filter General screen. Use this screen to view and order your list of DNS content filter policies,
specify a redirect URL and check your external web filtering service registration status. See
Section 34.1.2
on page 721 for more information on DNS content filter.
Table 289 Configuration > Security Service > Content Filter > Web Content Filter > Trusted/Forbidden
Web Sites> Forbidden Web Sites
LABEL DESCRIPTION
Forbidden Web Site List Sites that you want to block access to, regardless of their content rating, can be
allowed by adding them to this list.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This displays the index number of the forbidden web sites.
Forbidden Web Sites This list displays the forbidden web sites already added.
Enter host names such as www.bad-site.com into this text field. Do not enter the
complete URL of the site – that is, do not include “http://”. All subdomains are
also blocked. For example, entering “bad-site.com” also blocks “www.bad-
site.com”, “partner.bad-site.com”, “press.bad-site.com”, and do on. You can
also enter just a top level domain. For example, enter .com to block all .com
domains.
Use up to 127 characters (0-9a-z-). The casing does not matter.
Apply Click Apply to save your changes back to the Zyxel Device.
Cancel Click Reset to return the screen to its last-saved settings.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
747
Click the Content Filter icon for more information on the Zyxel Device’s security features.
Figure 489 Configuration > Security Service > Content Filter > DNS Content Filter > General
The following table describes the labels in this screen.
Table 290 Configuration > Security Service > Content Filter > DNS Content Filter > General
LABEL DESCRIPTION
General Settings
Redirect IP The URL of the web page to which you want to send users when their web access is
blocked by DNS content filtering. The web page you specify here opens in a new
frame below the denied access message.
Select default to send users to the default web page when their web access is
blocked by DNS content filter.
Select custom defined to send users to the web page you set when their web access
is blocked by DNS content filter. Use “http://” followed by up to 255 characters (0-9 a-
z A-Z;/?:@&=+$\.-_!~*'()%) in quotes. For example, “http://192.168.2.17/blocked
access”.
IPv6 format support:
http://[2001::1]/blocked_access
Test Web Site Category
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
748
34.5.1 DNS Content Filter Add Profile
Click Configuration > Security Service > Content Filter > DNS Content Filter > General > Add or Edit to
open the Add screen.
URL to test You can check which category a web page belongs to. Enter a web site URL in the
text box.
When the content filter is active, you should see the web page’s category. The query
fails if the content filter is not active.
Content Filtering can query a category by full URL string (for example, http://
www.google.com/picture/index.htm), but HTTPS Domain Filter can only query a
category by domain name ('www.google.com'), so the category may be different in
the query result. URL to test displays both results in the test.
If you think the
category is incorrect,
click this link to submit
a request to review it
Click this link to see the category recorded in the Zyxel Device’s content filtering
database for the web page you specified (if the database has an entry for it).
Profile Management
Add Click Add to create a new content filter profile.
Edit Click Edit to make changes to a content filter profile.
Remove Click Remove the delete a content filter profile.
References Select an entry and click References to open a screen that shows which settings use
the entry. . Click Refresh to update information on this screen.
# This column lists the index numbers of the content filter profile.
Name This column lists the names of the content filter profile.
Description This column lists the description of the content filter profile.
Reference This displays the number of times an Object Reference is used in a rule.
Action Click this icon to apply the content filter profile with a security policy.
Go to the Configuration > Security Policy > Policy Control screen to check the result.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 290 Configuration > Security Service > Content Filter > DNS Content Filter > General (continued)
LABEL DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
749
Figure 490 Configuration > Security Service > Content Filter > DNS Content Filter > General > Add
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
750
The following table describes the labels in this screen.
Table 291 Configuration > Security Service > Content Filter > DNS Content Filter > General > Add
LABEL DESCRIPTION
Name Enter a descriptive name for this content filtering profile name. You may use 1-31
alphanumeric characters, underscores(
_), or dashes (-), but the first character
cannot be a number. This value is case-sensitive.
Description Enter a description for the content filtering profile rule to help identify the purpose
of rule. You may use 1-31 alphanumeric characters, underscores(
_), or dashes (-),
but the first character cannot be a number. This value is case-sensitive.
This field is optional.
Action Select pass to allow users to access web pages that match the other categories
that you select below.
Select redirect to send users to the default redirect web page or the web page
you set
Log Select log if you want the Zyxel Deviceto create a log recording the attempts to
access web pages that match the categories you select below.
Select alert if you want the Zyxel Device to create an alert log recording the
attempts to access web pages that match the categories you select below.
Select none if you don’t want the Zyxel Device to create a log.
Enable SafeSearch SafeSearch is a search engine that can automatically filter sexually explicit videos
and images from the search result without overloading the Zyxel Device.
Supported search engines at the time of writing are:
•YouTube
•Google
•MSN Live Bing
Restrict YouTube Access Select Strict to better protect the Zyxel Device clients from seeing pornography,
potentially offensive and inappropriate videos.
Select Moderate to allow YouTube to display more videos in the search result.
Scan Option
Check White List Select this to check if the IP addresses of the web pages users try to access are
listed in the DNS content filter white list.
Check Black List Select this to check if the IP addresses of the web pages users try to access are
listed in the DNS content filter black list.
Select Categories
Select All Categories Select this check box to restrict access to all site categories listed below.
Clear All Categories Select this check box to clear the selected categories below.
Clone Categories Setting
From Profile
Choose an existing profile from the drop down list if you want the profile you are
currently configuring to use the same categories setting as one of the existing
profile.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
751
The following table describes the managed categories.
Table 292 Managed Category Descriptions
CATEGORY DESCRIPTION
Adult Topics Web pages that contain content or themes that are generally considered
unsuitable for children.
Alcohol Web pages that mainly sell, promote, or advocate the use of alcohol, such as beer,
wine, and liquor.
This category also includes cocktail recipes and home-brewing instructions.
Anonymizing Utilities Web pages that result in anonymous web browsing without the explicit intent to
provide such a service.
This category includes URL translators, web-page caching, and other utilities that
might function as anonymizers, but without the express purpose of bypassing filtering
software.
This category does not include text translation.
Art Culture Heritage Web pages that contain virtual art galleries, artist sites (including sculpture and
photography), museums, ethnic customs, and country customs.
This category does not include online photograph albums.
Auctions Classifieds Web pages that provide online bidding and selling of items or services.
This category includes web pages that focus on bidding and sales.
This category does not include classified advertisements such as real estate postings,
personal ads, or companies marketing their auctions.
Blogs/Wiki Web pages containing dynamic content, which often changes because users can
post or edit content at any time.
This category covers the risks with dynamic content that might range from harmless
to offensive.
Business Web pages that provide business-related information, such as corporate overviews
or business planning and strategies.
This category also includes information, services, or products that help other
businesses plan, manage, and market their enterprises, and multi-level marketing.
This category does not include personal pages and web-hosting web pages.
Chat Web pages that provide web-based, real-time social messaging in public and
private chat rooms. This category includes IRC.
This category does not include instant messaging.
Computing Internet Web pages containing reviews, information, buyer's guides of computers, computer
parts and accessories, computer software and internet companies, industry news
and magazines, and pay-to-surf sites.
Consumer Protection Websites that try to rob or cheat consumers.
Some examples of their activities include selling counterfeit products, selling
products that were originally provided for free, or improperly using the brand of
another company. This category also includes sites where many consumers
reported being cheated or not receiving services.
This category does not include phishing, which tries to perpetrate fraud or theft by
stealing account information. To check for phishing, go to Security Service >
Reputation Filter > IP Reputation and select Phishing.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
752
Content Server URLs for servers that host images, media files, or JavaScript for one or more sites and
are intended to speed up content retrieval for existing web servers, such as Apache.
This category includes domain-level and sub-domain-level URLs that function as
content servers.
This category does not include:
• Web pages for businesses that provide the content servers
• Web pages that allow users to browse photographs. See the Media Sharing
category.
• URLs for servers that serve only advertisements. See the Web Ads category.
Controversial Opinions Web pages that contain opinions that are likely to offend political or social
sensibilities and incite controversy. Much of this content is at the extremes of public
opinion.
This category does not include opinion or language clearly intended to promote
hate or discrimination.
Cult Occult Sites relating to non-traditional religious practices considered to be false,
unorthodox, extremist, or coercive.
Dating Personals Web pages that provide networking for online dating, matchmaking, escort
services, or introductions to potential spouses.
This category does not include sites that provide social networking that might
include dating, but are not specific to dating.
Dating Social Networking Web pages that focus on social interaction such as online dating, friendship, school
reunions, pen-pals, escort services, or introductions to potential spouses.
This category does not include wedding-related content, dating tips, or related
marketing.
Digital Postcards Web pages that allow people to send and receive digital postcards and greeting
cards through the Internet.
Discrimination Web pages, which provide information that explicitly encourages the oppression or
discrimination of a specific group of individuals.
This category does not include jokes and humor, unless the focus of the entire site is
considered discriminatory.
Drugs Websites that provide information on the purchase, manufacture, and use of illegal
or recreational drugs.
This category does not include sites with exclusive health or political themes.
Education Reference Web pages devoted to academic-related content such as academic subjects
(mathematics, history), school or university web pages, and education
administration pages (school boards, teacher curriculum).
Entertainment Web pages that provide information about cinema, theater, music, television,
infotainment, entertainment industry gossip-news, and sites about celebrities such as
actors and musicians.
This category also includes sites where the content is devoted to providing
entertainment on the web, such as horoscopes or fan clubs.
Extreme Web pages that provide content considered gory, perverse, or horrific.
Table 292 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
753
Fashion Beauty Web pages that market clothing, cosmetics, jewelry, and other fashion-oriented
products, accessories, or services.
This category also includes product reviews, comparisons, and general consumer
information, and services such as hair salons, tanning salons, tattoo studios, and
body-piercing studios.
This category does not include fashion-related content such as modeling or
celebrity fashion unless the site focuses on marketing the product line.
Finance Banking Web pages that provide financial information or access to online financial
accounts.
This category includes stock information (but not stock trading), home finance, and
government-related financial information.
For Kids Web pages that are family-safe, specifically for children of approximate ages ten
and under.
This category can also be used as an exception to allow web pages that do not
pose a risk to children, or to access sites that have a primary educational or
recreational focus for children, but are in other categories such as Games, Humor/
Comics, Recreation/Hobbies, or Entertainment.
Forum Bulletin Boards Web pages that provide access (http://) to Usenet newsgroups or hold discussions
and post user-generated content, such as real-time message posting for an interest
group. This category also includes archives of files uploaded to newsgroups.
This category does not include message forums with a business or technical support
focus.
Gambling Web pages that allow users to wager or place bets online, or provide gambling
software that allows online betting, such as casino games, betting pools, sports
betting, and lotteries.
This category does not include web pages related to gambling that do not allow
betting online.
Gambling Related Web pages that offer information about gambling, without providing the means to
gamble.
This category includes casino-related web pages that do not offer online gambling,
gambling links, tips, sports picks, lottery results, and horse, car, or boat racing.
Game Cartoon Violence Web pages that provide fantasy or fictitious representations of violence within the
context of games, comics, cartoons, or graphic novels.
This category includes images and textual descriptions of physical assaults or hand-
to-hand combat, and grave injury and destruction caused by weapons or
explosives.
Games Web pages that offer online games and related information such as cheats, codes,
demos, emulators, online contests or role-playing games, gaming clans, game
manufacturer sites, fantasy or virtual sports leagues, and other gaming sites without
chances of profit.
This category includes gaming consoles.
General News Web pages that provide online news media, such as international or regional news
broadcasting and publication.
This category includes portal sites that provide news content.
Government Military Web pages that contain content maintained by governmental or military
organizations, such as government branches or agencies, police departments, fire
departments, civil defense, counter-terrorism organizations, or supranational
organizations, such as the United Nations or the European Union.
This category includes military and veterans’ medical facilities.
Table 292 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
754
Gruesome Content Web pages with content that can be considered tasteless, gross, shocking, or
gruesome.
This category does not include web pages with content pertaining to physical
assault.
Health Web pages that cover all health-related information and health care services.
This category does not include cosmetic surgery, marketing/selling
pharmaceuticals, or animal-related medical services.
Historical Revisionism Web pages that denounce, or offer different interpretations of, significant historical
facts, such as holocaust denial.
This category does not include all re-examination of historical facts, only historical
events that are highly sensitive.
History Web pages that provide content about historical facts.
This category includes content suitable for higher education, but the Education
category includes content for primary education. For example, a site with Holocaust
photographs might be offensive, but have academic value.
Humor Comics Web pages that provide comical or funny content.
This category includes sites with jokes, sketches, comics, and satire pages. This
category might also include graphic novel content, which is often associated with
comics.
Illegal UK Web pages that contain child sexual abuse content hosted anywhere in the world,
and criminally obscene and incitement to racial hatred content hosted in the UK.
Incidental Nudity Web pages that contain non-pornographic images of the bare human body like
those in classic sculpture and paintings, or medical images.
This category enables you to allow or block sites in order to address cultural or
geographic differences in opinion about nudity. For example, you can use this
category to block access to nudity, but allow access when nudity is not the primary
focus of a site, such as news sites or major portals.
Information Security Web pages that legitimately provide information about data protection. This
category includes detailed information for safeguarding business or personal data,
intellectual property, privacy, and infrastructure on the Internet, private networks, or
in other bandwidth services such as telecommunications.
This category does not include:
• Legitimate information security companies and security software providers, such
as virus protection companies.
• Sites that intend to exploit security or teach how to bypass security.
Information Security New Web pages that legitimately provide information about data protection. This
category includes detailed information for safeguarding business or personal data,
intellectual property, privacy, and infrastructure on the Internet, private networks, or
in other bandwidth services such as telecommunications.
This category does not include:
• Legitimate information security companies and security software providers, such
as virus protection companies.
• Sites that intend to exploit security or teach how to bypass security.
Instant Messaging Web pages that provide software for real-time communication over a network
exclusively for users who joined a member’s contact list or an instant-messaging
session.
Most instant-messaging software includes features such as file transfer, PC-to-PC
phone calls, and can track when other people log on and off.
Table 292 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
755
Interactive Web
Applications
Web pages that provide access to live or interactive web applications, such as
browser-based office suites and groupware. This category includes sites with
business, academic, or individual focus.
This category does not include sites providing access to interactive web
applications that do not take critical user data or offer security risks, such as Google
Maps.
Internet Radio TV Web pages that provide software or access to continuous audio or video
broadcasting, such as Internet radio, TV programming, or podcasting.
Quick downloads and shorter streams that consume less bandwidth are in the
Streaming Media or Media Downloads categories.
Internet Services Web pages that provide services for publication and maintenance of Internet sites
such as web design, domain registration, Internet Service Providers, and broadband
and telecommunications companies that provide web services.
This category includes web utilities such as statistics and access logs, and web
graphics like clip art.
Job Search Web pages related to a job search including sites concerned with resume writing,
interviewing, changing careers, classified advertising, and large job databases. This
category also includes corporate web pages that list job openings, salary
comparison sites, temporary employment, and company job-posting sites.
This category does not include make-money-at-home sites.
Major Global Religions Web pages with content about religious topics and information related to major
religions. This category includes sites that cover religious content such as discussion,
beliefs, non-controversial commentary, articles, and information for local
congregations such as a church or synagogue homepage.
The religions in this category are Baha'i, Buddhism, Chinese Traditional, Christianity,
Hinduism, Islam, Jainism, Judaism, Shinto, Sikhism, Tenrikyo, Zoroastrianism.
Marketing Merchandising Web pages that promote individual or business products or services on the web, but
do not sell their products or services online.
This category includes websites that are generally a company overview, describing
services or products that cannot be purchased directly from these sites. Examples
include automobile manufacturer sites, wedding photography services, or graphic
design services.
This category does not include:
• Other categories that imply marketing such as Alcohol, Auctions/Classifieds,
Drugs, Finance/Banking, Mobile Phone, Online Shopping, Real Estate, School
Cheating Information, Software/Hardware, Stock Trading, Tobacco, Travel, and
Weapons.
• Sites that market their services only to other businesses. See the Business
category.
• Sites that rob or cheat consumers. See the Consumer Protection category.
Media Downloads Web pages that provide audio or video files for download such as MP3, WAV, AVI,
and MPEG formats. The files are saved to, and played from, the user’s computer.
This category does not include audio or video files that are played directly through a
browser window. See the Streaming Media category.
Media Sharing Web pages that allow users to upload, search for, and share media files and
photographs, such as online photograph albums.
Messaging Examples include text messaging to mobile phones, PDAs, fax machines, and
internal website user-to-user messaging or site-to-site messaging.
This category does not include real-time chat or instant messaging, or message
posts that can be viewed by anyone but the intended recipient.
Table 292 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
756
Mobile Phone Web pages that sell media, software, or utilities for mobile phones that can be
downloaded and delivered to mobile phones.
Examples include ringtones, logos/skins, games, screen-savers, text-based tunes,
and software for SMS, MMS, WAP, and other mobile phone protocols.
Moderated Bulletin boards, chat rooms, search engines, or web mail sites that are monitored by
an individual or group who has the authority to block messages or content
considered inappropriate.
This category does not include sites with posted rules against offensive content. See
the Forum/Bulletin Boards category.
Motor Vehicles Websites for manufacturers and dealerships of consumer transportation vehicles,
such as cars, vans, trucks, SUVs, motorcycles, and scooters. This category also
includes sites that provide product marketing, reviews, comparisons, pricing
information, auto fairs, auto expos, and general consumer information about motor
vehicles.
This category does not include automotive accessories, mechanics, auto-body
shops, and recreational hobby pages. This category does not include sites that
provide business-to-business-only content regarding motor vehicles.
Non Profit Advocacy NGO Web pages from charitable or educational groups that fulfill a stated mission,
benefiting the larger community, such as clubs, lobbies, communities, non-profit
organizations, labor unions, and advocacy groups.
Examples are Masons, Elks, Boy and Girl Scouts, or Big Brothers.
Nudity Web pages that have non-pornographic images of the bare human body. This
category includes classic sculpture and paintings, artistic nude photographs, some
naturism pictures, and detailed medical illustrations.
This category does not include high-profile sites where nudity is not a concern for
visitors. See the Incidental Nudity category.
Online Shopping Web pages that sell products or services online.
Web pages selling a broad range of products might pose a risk to users by offering
access to items that are normally in other categories such as Pornography,
Weapons, Nudity, or Violence. Web pages selling such content exclusively are in
their respective categories.
P2P File Sharing Web pages that allow the exchange of files between computers and users for
business or personal use, such as downloadable music.
P2P clients allow users to search for and exchange files from a peer-user network.
They often include spyware or real-time chat capabilities. This category includes
BitTorrent web pages.
Parked Domain Web pages that once served content, but their domains have been sold or
abandoned and are no longer registered.
Parked domains do not host their own content, but usually redirect users to a
generic page that states the domain name is for sale, or redirect users to a generic
search engine and portal page, some of which provide valid search engine results.
Personal Network Storage Web pages that allow users to upload folders and files to an online network server in
order to backup, share, edit, or retrieve files or folders from any web browser.
Personal Pages Personal home pages that share a common domain such as those hosted by ISPs,
university/education servers, or free web page hosts.
This category also includes unique domains that contain personal information, such
as a personal home page. This category does not include home pages of public
figures.
Pharmacy Web pages that provide reviews, descriptions, and market or sell prescription-based
drugs, over-the-counter drugs, birth control, or dietary supplements.
Table 292 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
757
Politics Opinion Web pages covering political parties, individuals in political life, and opinion on
various topics.
This category might also cover laws and political opinion about drugs. This category
includes URLs for political parties, political campaigning, and opinions on various
topics, including political debates.
Pornography Web pages that contain materials intended to be sexually arousing or erotic.
This category includes fetish pages, animation, cartoons, stories, and illegal
pornography.
Portal Sites Web pages that serve as major gateways or directories to content on the web.
Many portal sites also provide a variety of internal site features or services such as
search engines, email, news, and entertainment. Mailing list sites with a variety of
content are in this category.
This category does not include sites with topic-specific content.
Potential Criminal Activities Web pages that provide instructions to commit illegal or criminal activities.
Instructions include committing murder or suicide, sabotage, bomb-making, lock-
picking, service theft, evading law enforcement, or spoofing drug tests. This
category might also include information on how to distribute illegal content,
perpetrate fraud, or consumer scams.
This category does not include computer-related fraud.
Potential Hacking
Computer Crime
Web pages that provide instructions, or otherwise enable, fraud, crime, or malicious
activity that is computer-oriented.
This category includes web pages related to computer crime include malicious
hacking information or tools that help individuals gain unauthorized access to
computers and networks (root kits, kiddy scripts). This category also includes other
areas of electronic fraud such as dialer scams and illegal manipulation of electronic
devices.
This category does not include illegal software.
Potential Illegal Software Web pages, which the filter believes offer information to potentially ‘pirated’ or
illegally distribute software or electronic media, such as copyrighted music or film,
distribution of illegal license key generators, software cracks, and serial numbers.
This category does not include peer-to-peer web pages.
Private IP Addresses Sites that are private IP addresses as defined in RFC 1918, that is, hosts that do not
require access to hosts in other enterprises (or require just limited access) and whose
IP address may be ambiguous between enterprises but are well defined within a
certain enterprise.
Profanity Web pages that contain crude, vulgar, or obscene language or gestures.
Professional Networking Web pages that provide social networking exclusively for professional or business
purposes.
This category includes sites that provide personal or group profiles, and enable their
members to interact through real-time communication, message posting, public
bulletins, and media sharing. This category also contains alumni sites that have a
networking function.
This category does not include social networking sites where the focus might vary,
but include friendship, dating, or professional focuses.
Table 292 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
758
Provocative Attire Web pages with pictures that include alluring or revealing attire, lingerie and
swimsuits, or supermodel or celebrity photograph collections, but do not involve
nudity.
This category does not include sites with swimwear or similar attire that is not
intended to be provocative. For example, Olympic swimming sites are not in this
category.
Public Information Web pages that provide general reference information such as public service
providers, regional information, transportation schedules, maps, or weather reports.
PUPs Web pages that contain Potentially Unwanted Programs (PUPs).
PUPs are often made for a beneficial purpose but they alter the security of a
computer or the computer user’s privacy. Computer users who are concerned
about security or privacy might want to be informed about this software, and in
some cases, they might want to remove this software from their computers.
Real Estate Web pages that provide commercial or residential real estate services and
information.
Service and information includes sales and rental of living space or retail space and
guides for apartments, housing, and property, and information on appraisal and
brokerage. This category includes sites that allow you to browse model homes.
This category does not include content related to personal finance, such as credit
applications.
Recreation Hobbies Web pages for recreational organizations and facilities that include content
devoted to recreational activities and hobbies.
This category includes information about public swimming pools, zoos, fairs, festivals,
amusement parks, recreation guides, hiking, fishing, bird watching, or stamp
collecting.
This category does not include activities that need no active participation, such as
watching a movie or reading celebrity gossip.
Religion Ideology Web pages with content related to religious topics and beliefs in human spirituality
that are not within the major religions.
This category includes religious discussion, beliefs, articles, and information for local
congregations or groups such as a church homepage, unless the site is already in
the Major Global Religions category. This category also includes comparative
religion, or sites that include religions and ideologies.
This category does not include astrology and horoscope sites
Remote Access Web pages that provide remote access to a program, online service, or an entire
computer system.
Although remote access is often used legitimately to run a computer from a remote
location, it creates a security risk, such as backdoor access. Backdoor access,
written by the original programmer, allows the system to be controlled by another
party without the user's knowledge.
Reserved This category is reserved for future use.
Residential IP Addresses IP addresses (and any domains associated with them) that access the Internet by
DSL modems or cable modems.
Because this content is not generally intended for Internet access through HTTP,
access to the Internet through these IP addresses can indicate suspicious behavior.
This behavior might be related to malware located on the home computer or
homegrown gateways set up to allow anonymous Internet access.
Table 292 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
759
Resource Sharing Web pages that harness idle or unused computer resources to focus on a common
task.
The task can be on a company or an international basis. Well known examples are
the SETI program and the Human Genome Project, which use the idle time of
thousands of volunteered computers to analyze data.
Restaurants Web pages that provide information about restaurants, bars, catering, take-out and
delivery, including online ordering.
This category includes sites that provide information about location, hours, prices,
menus and related dietary information. This category also includes restaurant guides
and reviews, and cafes and coffee shops.
This category does not include groceries, wholesale food, non-profit and charitable
food organizations, or bars that do not focus on serving food.
School Cheating
Information
Web pages that promote plagiarism or cheating by providing free or fee-based
term papers, written essays, or exam answers.
This category does not include sites that offer student help, discuss literature, films, or
books, or other content that is often the subject of research papers.
Search Engines Web pages that provide search results that enable users to find information on the
Internet based on key words.
This category does not include site-specific search engines.
Sexual Materials Web pages that describe or depict sexual acts, but are not intended to be arousing
or erotic.
Examples of sexual materials include sex education, sexual innuendo, humor, or sex
related merchandise.
This category does not include web pages with content intended to arouse.
Shareware Freeware Web pages that are repositories of downloadable copies of shareware and
freeware.
This category does not include subscription-based software.
Social Networking Web pages that enable social networking for a variety of purposes, such as
friendship, dating, professional, or topics of interest.
These sites provide personal or group profiles and enable interaction among their
members through real-time communication, message posting, public bulletins, and
media sharing.
This category does not include sites that are exclusive to dating, matchmaking, or a
specific professional networking focus.
Software Hardware Web pages related to computing software and hardware, including vendors,
product marketing and reviews, deployment and maintenance of software and
hardware, and software updates and add-ons such as scripts, plug-ins, or drivers.
Hardware includes computer parts, accessories, and electronic equipment used
with computers and networks.
This category includes the marketing of software and hardware, and magazines
focused on software or hardware product reviews or industry trends.
Sports Web pages related to professional or organized recreational sports.
This category includes sporting news, events, and information such as playing tips,
strategies, game scores, or player trades.
This category does not include fantasy leagues, sports centers, athletic clubs, fitness
or martial arts clubs, and non-league billiards, darts, or other such activities.
Table 292 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
760
Stock Trading Web pages that offer purchasing, selling, or trading of shares online.
This category also includes ticker-tape information that enables viewing of real-time
stock prices and financial spread betting in the stock market. Other betting is in the
Gambling category.
This category does not include sites that offer information about stocks, but do not
offer purchasing, selling, or trading of shares.
Streaming Media Web pages that provide streaming media, or contain software plug-ins for
displaying audio and visual data before the entire file has been transmitted.
This category does not include audio or video files that are downloaded to a user’s
computer before being played.
Technical Business Forums Web pages with a technical or business focus that provide online message posting
or real-time chatting, such as technical support or interactive business
communication.
Although users can post any type of content, these forums tend to present less risk of
containing offensive content.
Sites that offer a variety of forums with themes, including technical and business
content, are only in the categories of Forum/Bulletin Boards or Chat.
Technical Information Web pages that provide computing information with an educational focus in areas
such as Information Technology, computer programming, and certification.
Examples include Linux user groups, UNIX commands, software tutorials, or
dictionaries of technical terms. Most sites in this category might be subdirectories of
larger domains. For example, a software site with a tutorial page is in this category
only at the tutorial page URL.
This category does not include content about information security.
Text Spoken Only Content that is text or audio only, and does not contain pictures.
This category can be used as an exception to allow explicit text and recorded
material to be accessed when you want pictures blocked using the Pornography,
Violence, or Sexual Materials categories. Libraries or universities can use this
category to prevent the display of offensive graphics in their public facilities.
Text Translators Web pages that allow users to type phrases or a block of text to translate it from one
language into another.
This category also includes language identifier web pages. URL translation is in the
Anonymizing Utilities category.
Tobacco Web pages that sell, promote, or advocate the use of tobacco products, tobacco
paraphernalia, including cigarettes, cigars, pipes, snuff and chewing tobacco.
Travel Web pages that promote personal or business travel, such as hotels, resorts, airlines,
ground transportation, car rentals, travel agencies, and general tourist and travel
information.
This category also includes sites for buying tickets or accommodation.
This category does not include personal vacation photographs.
Usenet News Web pages that provide access (http://) to Usenet newsgroups and archives of files
uploaded to newsgroups.
This category also includes online groups that offer similar community-oriented
content posting.
Violence Web pages that contain real or lifelike images or text that portray, describe, or
advocate physical assaults against people, animals, or institutions, such as
depictions of war, suicide, mutilation, or dismemberment.
Table 292 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
761
34.6 DNS Content Filter Allow List Screen
Click Configuration > Security Service > Content Filter > DNS Content Filter > Allow List to open the Allow
List screen. You can create a list of good (allowed) web site addresses. When you configure DNS
Content Filter Profiles, you can select the option to check the allow list. Use this screen to add or remove
specific sites from the allow list.
Visual Search Engine Web pages that provide image-specific search results such as thumbnail pictures.
This category does not include sites that offer site-specific visual search engines.
Weapons Web pages that provide information about buying, making, modifying, or using
weapons, such as guns, knives, swords, paintball guns, and ammunition, explosives,
and weapon accessories.
This category also includes sites that contain content for: weapons for personal or
military use, homemade weapons, non-lethal weapons such as mace, pepper
spray, or Taser guns, weapons facilities, such as shooting ranges, and government or
military oriented weapons.
This category does not include political action groups, such as the NRA.
Web Ads Web pages that provide advertisement-hosting or programs that create
advertisements.
Examples include links, source code or applets for banners, popups, and other kinds
of static or dynamically generated advertisements that appear on web pages. This
category is intended to block advertisements on web pages, not the companies
that provide the advertisements or advertising services.
This category does not include aggressive advertising adware. See the Spyware/
Adware category.
Web Mail Web pages that enable users to send or receive email through the Internet.
Web Meetings Web pages that host live meetings, video conferences, and interactive
presentations mainly for businesses.
Web meetings generally include streaming audio and video, and allow data
transfer or office-oriented application sharing, such as online presentations.
Web Phone Web pages that enable users to make telephone calls through the Internet or obtain
information or software for this purpose.
Web Phone service is also called Internet Telephony, or VoIP. Web phone service
includes PC-to-PC, PC-to-phone, and phone-to-phone services connecting through
TCP/IP networks.
Table 292 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
762
Figure 491 Configuration > Security Service > Content Filter > DNS Content Filter > Allow List
The following table describes the labels in this screen.
34.7 DNS Content Filter Block List Screen
Click Configuration > Security Service > Content Filter > DNS Content Filter > Block List to open the Block
List screen. You can create a list of bad (blocked) web site addresses. When you configure DNS Content
Filter Profiles, you can select the option to check the block list. Use this screen to add or remove specific
sites from the block list.
Table 293 Configuration > Security Service > Content Filter > DNS Content Filter > Allow List
LABEL DESCRIPTION
Add Click this to add a new rule. Enter an IPv4 address associated with this rule.
Edit Click this to edit the selected rule.
Remove Click this to remove the selected rule.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This field is a sequential value, and it is not associated with a specific rule.
Status This icon is lit when the rule is active and dimmed when the rule inactive
White List This field displays the IP address associated with this rule.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
763
Figure 492 Configuration > Security Service > Content Filter > DNS Content Filter > Block List
The following table describes the labels in this screen.
34.8 Content Filter Technical Reference
This section provides content filtering background information.
External Content Filter Server Lookup Procedure
The content filter lookup process is described below.
Figure 493 Content Filter Lookup Procedure
Table 294 Configuration > Security Service > Content Filter > DNS Content Filter > Block List
LABEL DESCRIPTION
Add Click this to add a new rule. Enter an IPv4 address associated with this rule.
Edit Click this to edit the selected rule.
Remove Click this to remove the selected rule.
Activate To turn on an entry, select it and click Activate.
The Zyxel Device treats all FQDNs in the blacklist as prohibited, and applies DNS
Content Filter rules when they are queried.
Inactivate To turn off an entry, select it and click Inactivate.
# This field is a sequential value, and it is not associated with a specific rule.
Status This icon is lit when the rule is active and dimmed when the rule inactive
White List This field displays the IP address associated with this rule.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
764
1 A computer behind the Zyxel Device tries to access a web site.
2 The Zyxel Device looks up the web site in its cache. If an attempt to access the web site was made in the
past, a record of that web site’s category will be in the Zyxel Device’s cache. The Zyxel Device blocks,
blocks and logs or just logs the request based on your configuration.
3 Use the Content Filter Cache screen to configure how long a web site address remains in the cache as
well as view those web site addresses. All of the web site address records are also cleared from the local
cache when the Zyxel Device restarts.
4 If the Zyxel Device has no record of the web site, it queries the external content filter database and
simultaneously sends the request to the web server.
5 The external content filter server sends the category information back to the Zyxel Device, which then
blocks and/or logs access to the web site based on the settings in the content filter profile. The web
site’s address and category are then stored in the Zyxel Device’s content filter cache.
34.9 Example: Block LAN Users From Using a Remote WAN
Application
This example shows you how to block LAN users from using a remote WAN application such as
TeamViewer.
Client C1 on the Zyxel Device LAN uses computer A. Client C2 on the WAN uses computer B. Computer
A and computer B are connected to the TeamViewer server (S). Client C1 could access computer B
using TeamViewer. Client C2 could access computer A using TeamViewer. TeamViewer only works if
computer A and computer B are both connected to the TeamViewer server (S).
Figure 494 Content Filter Tutorial Example
You want to block all LAN clients from using TeamViewer. Create a Content Filtering profile that includes
the remote access category. Create a Forbidden Web Sites rule with TeamViewer as the keyword. Then
apply the profile to the LAN_Outgoing security policy.
All LAN clients are now blocked from using TeamViewer.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
765
This example uses the parameters listed below.
1 Go to Configuration > Security Service > Content Filter > Web Content Filter > General and click Add.
2 Configure the profile settings using the parameters given in Table 295 on page 765.
3 Select the Remote Access checkbox under Managed Categories.
Table 295 Content Filtering Profile Configuration Example
PROFILE NAME
ENABLE CONTENT
FILTER CATEGORY
SERVICE
ACTION LOG
MANAGED
CATEGORIES
LOG-ALERT FOR
BLOCK/WARN
ACTION
NoRemoteAccess Enabled Block Log Remote Access Enabled
Table 296 Forbidden Web Sites Configuration Example
ENABLE CUSTOM
SERVICE
FORBIDDEN WEB SITES
KEYWORD
Enabled *.*teamviewer*.*
Table 297 Security Policy Configuration Example
TO FROM LOG CONTENT FILTERING PROFILE
WAN LAN1/LAN2 By Profile NoRemoteAccess
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
766
4 Go to Custom Service. Select Enable Custom Service.
5 Click Add under Forbidden Web Sites to add a rule using the parameters given in Table 296 on page
765.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
767
6 Click OK to save your changes.
7 Go to Configuration > Security Policy > Policy Control. Select LAN1_Outgoing then click Edit.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
768
8 Set Web Content Filter to NoRemoteAccess and Log to by profile. Click OK to save your changes.
9 Repeat Step 7 and Step 8 to apply the NoRemoteAccess web content filter profile to LAN2_Outgoing.
background
Chapter 34 Content Filter
USG FLEX Series User’s Guide
769
10 You can check the result in the Policy Control screen. Mouse-over the icon under the UTM Profile column
to check that the NoRemoteAccess profile has been applied to the LAN1_Outgoing and
LAN2_Outgoing security policies. You can also check the logs in Monitor > Log > View Log. The Zyxel
Device will create logs if the clients on the Zyxel Device LAN try to access TeamViewer.
background
USG FLEX Series User’s Guide
770
CHAPTER 35
Anti-Malware
35.1 Overview
Use the Zyxel Device’s anti-malware feature to protect your connected network from malware
(malicious software) infection, such as computer virus, worms, and spyware. The Zyxel Device scans
traffic going in both directions for malware signature matches. In the following figure, the Zyxel Device
scans traffic coming from the WAN zone (which includes two interfaces) to the LAN zone.
Figure 495 Zyxel Device Anti-Malware Example
The anti-malware matches a file with those in a malware database. This is done as files go through the
Zyxel Device.
Virus, Worm, and Spyware
A computer virus is a type of malicious software designed to corrupt and/or alter the operation of other
legitimate programs. A worm is a self-replicating virus that resides in active memory and duplicates itself.
The effect of a virus attack varies from doing so little damage that you are unaware your computer is
infected to wiping out the entire contents of a hard drive to rendering your computer inoperable.
Spyware infiltrate your device and secretly gathers information about you, such as your network activity,
passwords, bank details, and so on.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
771
Hash Value
A hash function is an algorithm that maps data of arbitrary size to data of fixed size. The value returned
by a hash function is a hash value. Hash values can be used to identify if the contents of a file have
changed. At the time of writing, the MD5 (Message Digest 5) hash algorithm is supported.
Local Signature Databases
The Zyxel Device downloads the signature(s) after it is registered and the anti- license is activated at
myZyxel. A signature is a unique string of bits, or binary pattern, of a malware. A signature acts as a
fingerprint that can be used to detect and identify specific malware. The Zyxel Device downloads the
following signatures:
• Anti-malware signature
These signatures are periodically updated if you have a valid license. See Section 35.2 on page 775 for
how the Zyxel Device updates these signatures for the anti-malware license.
Cloud Query
Another method of malware protection is through cloud query. This process is illustrated in the next
figure. With Cloud Query, the Zyxel Device queries the Defend Center database by sending the file’s
hash value (A) and receiving the scan results (B) through the Defend Center (DC).

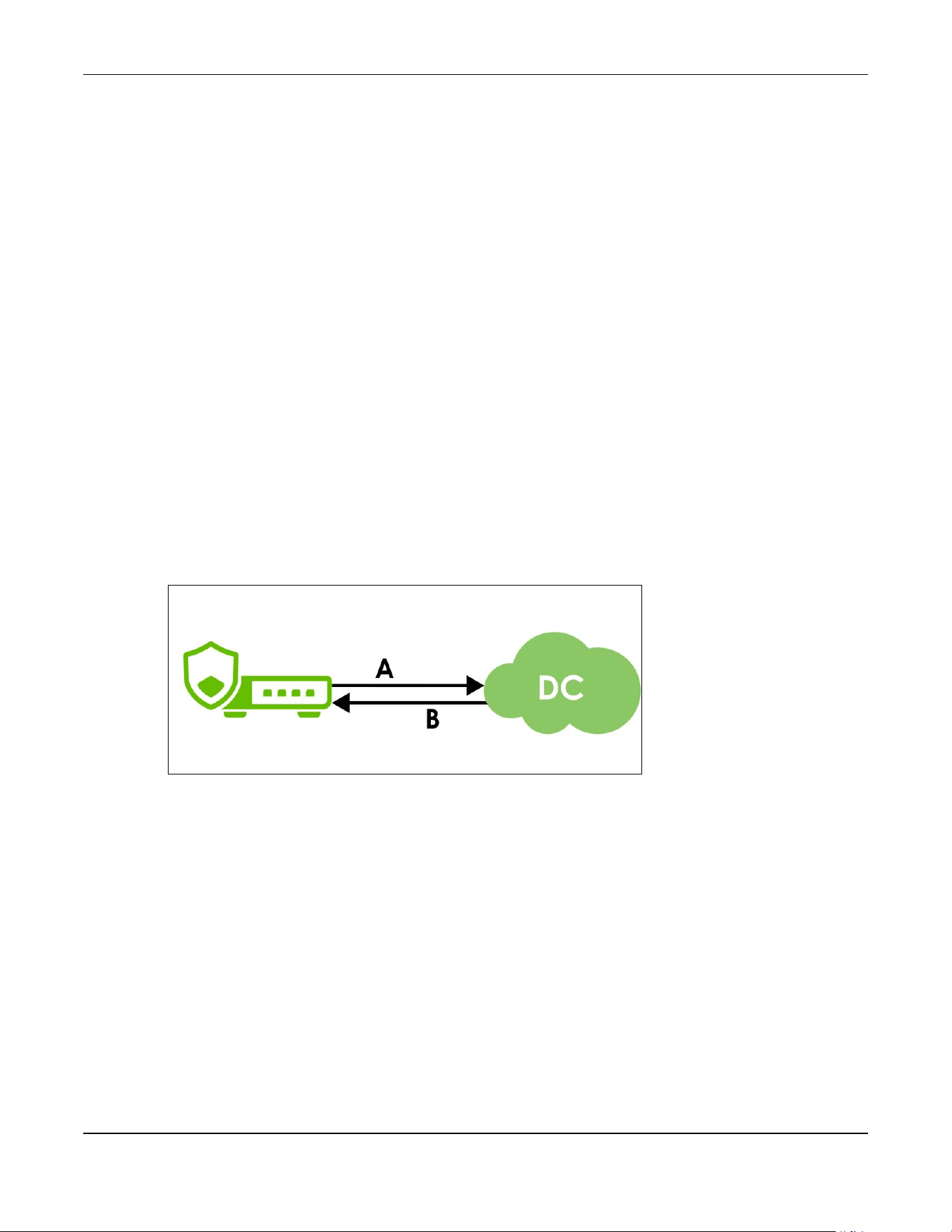

Figure 496 Cloud Query
Threat Intelligence Machine Learning
Threat Intelligence Machine Learning is a master cloud database containing malware patterns learned
from all Zyxel Devices. This allows Zyxel Devices to learn from each other in order to better defend
against malware using patterns previously unknown to a single Zyxel Device.
Please note that your Zyxel Device does not support IP reputation and DNS threat filter by default. You
need to purchase a Gold Security Pack license; see
Section 8.1.2 on page 257 for more information.
Anti-Malware Licensing
Having extensive, up-to-date signatures with the most common malware is critical to making the anti-
malware service work effectively. Section 8.2 on page 262 shows licensing information for the different
signature databases that can be used by the Zyxel Device.
After the anti-malware license expires, you need to purchase an iCard to update your local signature
database and use cloud query. Extend your license in the Registration > Service screen.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
772
Anti-Malware Scan Process
Before going through the Anti-Malware scan, the Zyxel Device first identifies the packets sent by the
following four major protocols with corresponding standard ports:
• FTP (File Transfer Protocol)
• HTTP (Hyper Text Transfer Protocol)
• SMTP (Simple Mail Transfer Protocol)
• POP3 (Post Office Protocol version 3)
The Zyxel Device records the order of packets in TCP connection-oriented sessions to check for
matching malware signatures. The order of non-setup packets such as SYN, ACK and FIN is ignored.
Anti-Malware Scanning Procedure:
1 The Zyxel Device checks every packet of the file for matches with the local signature databases.
If a malware pattern signature is matched, the actions you specify for identified malware will be
applied. If Destroy infected file is enabled, the file will be modified. Logs/alerts will be sent according to
your settings.
Note: The receiver is not notified if a file is modified by the Zyxel Device. If the file cannot be
used, the receiver should contact the Zyxel Device administrator to confirm if the Zyxel
Device modified the file by checking the logs.
2 If no match is found with the local databases, the Zyxel Device uses Cloud Query to forward the file’s
hash value to Defend Center.
3 Defend Center checks its database for malware signature matches and sends the results back to the
Zyxel Device.
If a malware signature is matched, the actions you specify for identified malware will be applied. If
Destroy infected file is enabled, the file will be modified. Logs/alerts will be sent according to your
settings.
The next figure shows a flow chart detailing the anti-malware scan.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
773
Figure 497 Anti-Malware Flowchart
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
774
File Scanning Cloud Query Supported File Types
At the time of writing, the following file types are supported:
Notes About the Zyxel Device Anti-Malware
The following lists important notes about the Zyxel Device’s anti-malware feature:
1 Zyxel’s anti-malware feature can detect polymorphic malware (see Section 35.5 on page 781).
2 When malware is detected, a log is created or an alert message is sent to the administrator depending
on your log settings.
3 Changes to the Zyxel Device’s anti-malware settings only affect new sessions, not sessions that already
existed before you applied the changed settings.
4 Enabling Cloud Query may affect file transfer speeds.
5 The Zyxel Device does not scan the following file/traffic types:
• Simultaneous downloads of a file using multiple connections. For example, when you use FlashGet
to download sections of a file simultaneously.
• Encrypted traffic. This could be password-protected files or VPN traffic where the Zyxel Device is not
the endpoint (pass-through VPN traffic).
• Traffic through custom (non-standard) ports. The Zyxel Device scans whatever port number is
specified for FTP in the ALG screen.
• All compressed files within a compressed file. Note that a single file can still be decompressed and
scanned if you select Enable file decompression (ZIP and RAR).
• Traffic compressed or encoded using a method the Zyxel Device does not support.
Finding Out More
•See Section 35.7 on page 789 for anti-malware background information.
35.1.1 What You Can Do in this Chapter
• Use the Anti-Malware screen (Section 35.2 on page 775) to turn anti-malware on or off, and check
the anti-malware signature status. In addition, you can set up anti-malware black (blocked) and
white (allowed) lists of malware patterns.
Table 298 File Scanning Cloud Query Supported File Types
• 7z Archive (7z) • AVI Video (avi) •BMP Image (bmp) • BZ2 Archive (bz2)
• Executables (exe) • Macromedia Flash
Data (swf)
• GIF Image (gif) •GZ Archive (gz)
•JPG Image (jpg) •MOV Video (mov) • MP3 Audio (mp3) • MPG Video (mpg)
• MS Office
Document (doc...)
• PDF Document
(pdf)
•PNG Image (png) • RAR Archive (rar)
•RM Video (rm) •RTF Document (rtf) •TIFF Image (tif) •WAV Audio (wav)
• ZIP Archive (zip)
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
775
• Use the White List screen (Section 35.3 on page 779) to specify the file or encryption pattern to allow in
order to avoid false positives. False positives occur when a non-infected file matches a malware
signature.
• Use the Black List screen (Section 35.4 on page 780) to specify the file or encryption pattern that you
want to block.
• Use the Signature screen (Section 35.5 on page 781) to search for particular signatures and get more
information about them.
35.2 Anti-Malware Screen
Click Configuration > Security Service > Anti-Malware to display the configuration screen as shown next.
Click the Anti-Malware icon for more information on the Zyxel Device’s security features.
Note: Threat Intelligence Machine Learning (TIML) is not available if the Gold Security Pack
has expired.
See Subscription Services Available on page 256 for more information on the
subscription services for the two types of security packs.
Note: If Destroy infected file is disabled and log is set to no, the Zyxel Device will still perform
the scan but will not do anything else. It is recommended to enable at least one of the
two functions.
If Destroy infected file is disabled, any malicious file found can still be
executed by the end user after it is forwarded. The administrator would
have to inform the user if there is an infected file.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
776
Figure 498 Configuration > Security Service > Anti-Malware
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
777
The following table describes the labels in this screen.
Table 299 Configuration > Security Service > Anti-Malware
LABEL DESCRIPTION
General Setting
Enable Select this checkbox to activate the anti-malware feature to protect your connected
network from infection and the installation of malicious software.
Selecting this checkbox also activates Threat Intelligence Machine Learning (TIML). TIML
signatures come from the sandboxing inspection results and helps the Zyxel Device block
possible malicious or suspicious files.
Scan and detect
EICAR test virus
Select this option to have the Zyxel Device check for an EICAR test file and treat it in the
same way as a real malware file.
The EICAR test file is a standardized test file for signature based anti-malware scanners.
When the scanner detects the EICAR file, it responds in the same way as if it found real
malware. The EICAR file can also be compressed to test whether the anti-malware software
can detect it in a compressed file. The EICAR test string consists of the following human-
readable ASCII characters.
X5O!P%@AP[4\PZX54(P^)7CC)7}$EICAR-STANDARD-ANTIVIRUS-TEST-FILE!$H+H*
Scan Mode
Express Mode In this mode you can define which types of files are scanned using the File Type For Scan
fields. The Zyxel Device then scans files by sending each file’s hash value to a cloud
database using cloud query. This is the fastest scan mode.
Stream Mode In this mode the Zyxel Device scans all files for viruses using anti-malware signatures to
detect known virus pattens, and Threat Intelligence Machine Learning. Threat Intelligence
Machine Learning is a master cloud database containing malware patterns learned from
all Zyxel Devices. This is the deepest scan mode.
File Type For Scan
Available File Types File types that can be checked by the Zyxel Device are listed here. Note that the files on this
list are currently bypassed. To use this feature on a specific file type, click this file type and
then click the right arrow button.
See available file types in Table 298 on page 774.
Applied File Types File types that will be checked are listed here. If you don’t want a file type to be checked,
click this file type and then click the left arrow button.
Destroy infected file When you select this check box, if a malware signature is matched, the Zyxel Device
overwrites the infected portion of the file with zeros before being forwarded to the user. The
uninfected portion of the file will pass through unmodified.
Log These are the log options:
• no: Do not create a log when a packet matches a signature.
• log: Create a log on the Zyxel Device when a packet matches a signature.
• log alert: An alert is an emailed log for more serious events that may need more
immediate attention. Select this option to have the Zyxel Device send an alert when a
packet matches a signature(s).
Check White List Select this check box to have the Zyxel Device not perform the anti-malware check on files
with names that match the white list patterns.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
778
# This is the entry’s index number in the list.
File Pattern This is the file name pattern. If a file’s name matches this pattern, the Zyxel Device does not
check the file for malware.
Check Black List Select this check box to log and delete files with names that match the black list patterns.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
# This is the entry’s index number in the list.
File Pattern This is the file name pattern. If a file’s name that matches this pattern, the Zyxel Device logs
and then destroys the file.
File decompression
Enable file
decompression (ZIP
and RAR)
Select this check box to have the Zyxel Device scan a compressed file (the file does not
need to have a “zip” or “rar” file extension). The Zyxel Device first decompresses the file and
then scans the contents for malware.
Note: The Zyxel Device decompresses a compressed file once. The Zyxel Device
does NoT decompress any file(s) within a compressed file.
Destroy
compressed files
that could not
be
decompressed
When you select this check box, the Zyxel Device deletes compressed files that use
password encryption.
Select this check box to have the Zyxel Device delete any compressed files that it cannot
decompress. The Zyxel Device cannot decompress password protected files or a file within
another compressed file. There are also limits to the number of compressed files that the
Zyxel Device can concurrently decompress.
Note: The Zyxel Device’s firmware package cannot go through the Zyxel Device
with this check box enabled. The Zyxel Device classifies the firmware
package as a file that cannot be decompressed and then deletes it. Clear
this check box when you download a firmware package from the Zyxel
website. It’s OK to upload a firmware package to the Zyxel Device with the
check box selected.
Signature
Information
The following fields display information on the current signature set that the Zyxel Device is
using.
Current Version This field displays the signature set version number currently used by the Zyxel Device. This
number gets larger as the set is enhanced.
Released Date This field displays the date and time the set was released.
Threat Intelligence
Machine Learning
The following fields display information on the Threat Intelligence Machine Learning
signatures that the Zyxel Device is using.
Current Version This field displays the TIML version number currently used by the Zyxel Device.
Released Date This field displays the date and time this version was released.
Update Signatures Click this link to go to the screen you can use to download signatures from the update
server.
Apply Click Apply to save your changes.
Reset Click Reset to return the screen to its last-saved settings.
Table 299 Configuration > Security Service > Anti-Malware (continued)
LABEL DESCRIPTION
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
779
35.3 The Allow List Screen
A allow list allows you to specify the file or encryption pattern to allow in order to avoid false positives.
False positives occur when a non-infected file matches a malware signature.
Enter a file or encryption pattern that would cause the Zyxel Device to allow this file.
Click Configuration > Security Service > Anti-Malware > Block/Allow List > Allow List to display the
following screen. Use Add to put a new entry in the list or Edit to change an existing one or Remove to
delete an existing entry.
Figure 499 Configuration > Security Service > Anti-Malware > Block/Allow List > Allow List
The following table describes the fields in this screen.
Table 300 Configuration > Security Service > Anti-Malware > Block/Allow List > Allow List
LABEL DESCRIPTION
Enable Allow List Select this to bypass checking by this feature (if enabled) and automatically allow incoming
files with names or algorithm (MD5 Hash) that match the white list patterns.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This is the entry’s index number in the list.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
Type This field displays the type (MD5 Hash or File Pattern) used to distinguish whether a file should
be allowed.
Select the type (MD5 Hash or File Pattern) that you want to use to distinguish whether a file
should be allowed.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
780
35.4 The Block List Screen
A block list allows you to specify the file or encryption pattern that you want to block.
Enter a file or encryption pattern that would cause the Zyxel Device to log and then destroy this file.
Click Configuration > Security Service > Anti-Malware > Block/Allow List > Block List to display the
following screen. Use Add to put a new entry in the list or Edit to change an existing one or Remove to
delete an existing entry.
Figure 500 Configuration > Security Service > Anti-Malware > Block/Allow List > Block List
Value This field displays the file or encryption pattern of the entry.
Enter the file or encryption pattern for this entry. Specify a pattern to identify the names of files
that the Zyxel Device should not scan for viruses.
• Use up to 80 characters. Alphanumeric characters, underscores (_), dashes (-), question
marks (?) and asterisks (*) are allowed.
• A question mark (?) lets a single character in the file name vary. For example, use “a?.zip”
(without the quotation marks) to specify aa.zip, ab.zip and so on.
• Wildcards (*) let multiple files match the pattern. For example, use “*a.zip” (without the
quotation marks) to specify any file that ends with “a.zip”. A file named “testa.zip would
match. There could be any number (of any type) of characters in front of the “a.zip” at
the end and the file name would still match. A file named “test.zipa” for example would
not match.
• A * in the middle of a pattern has the Zyxel Device check the beginning and end of the
file name and ignore the middle. For example, with “abc*.zip”, any file starting with “abc”
and ending in “.zip” matches, no matter how many characters are in between.
• The whole file name has to match if you do not use a question mark or asterisk.
• If you do not use a wildcard, the Zyxel Device checks up to the first 80 characters of a file
name.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 300 Configuration > Security Service > Anti-Malware > Block/Allow List > Allow List
LABEL DESCRIPTION
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
781
The following table describes the fields in this screen.
35.5 Anti-Malware Signature Searching
Click Configuration > Security Service > Anti-Malware > Signature to display this screen. Use this screen
to locate signatures and display details about them.
If your web browser opens a warning screen about a script making the web browser run slowly and the
computer unresponsive, just click No to continue.
Click a column’s heading cell to sort the table entries by that column’s criteria. Click the heading cell
again to reverse the sort order.
Table 301 Configuration > Security Service > Anti-Malware > Block/Allow List > Block List
LABEL DESCRIPTION
Enable Block List Select this to bypass checking by this feature (if enabled) and automatically block incoming
files with names or encryption algorithm (MD5 Hash) that match the black list patterns.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This is the entry’s index number in the list.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
Type This field displays the type (MD5 Hash or File Pattern) used to distinguish whether a file should
be blocked.
Select the type (MD5 Hash or File Pattern) that you want to use to distinguish whether a file
should be blocked.
Value This field displays the file or encryption pattern of the entry. Enter a file pattern that would
cause the Zyxel Device to log and modify this file.
• Use up to 80 characters. Alphanumeric characters, underscores (_), dashes (-), question
marks (?) and asterisks (*) are allowed.
• A question mark (?) lets a single character in the file name vary. For example, use “a?.zip”
(without the quotation marks) to specify aa.zip, ab.zip and so on.
• Wildcards (*) let multiple files match the pattern. For example, use “*a.zip” (without the
quotation marks) to specify any file that ends with “a.zip”. A file named “testa.zip would
match. There could be any number (of any type) of characters in front of the “a.zip” at
the end and the file name would still match. A file named “test.zipa” for example would
not match.
• A * in the middle of a pattern has the Zyxel Device check the beginning and end of the
file name and ignore the middle. For example, with “abc*.zip”, any file starting with “abc”
and ending in “.zip” matches, no matter how many characters are in between.
• The whole file name has to match if you do not use a question mark or asterisk.
• If you do not use a wildcard, the Zyxel Device checks up to the first 80 characters of a file
name.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
782
Figure 501 Configuration > Security Service > Anti-Malware > Signature
The following table describes the labels in this screen.
35.6 Anti-Malware Profile
To use multiple profiles for this feature, run the following commands in the Zyxel Device Command Line
Interface (CLI).
After you run these command, go to the feature screen again in the web configurator. You will be
prompted to log out and then log in again.
Figure 502 Logout Prompt
After you log in again, you will see the new profile screen for this feature.
Table 302 Configuration > Security Service > Anti-Malware > Signature
LABEL DESCRIPTION
Signatures Search Enter the name, part of the name or keyword of the signature(s) you want to find and click
Search. This search is not case-sensitive and accepts numerical strings.
Query Result
# This is the entry’s index number in the list.
Name This is the name of the anti-malware signature. Click the Name column heading to sort your
search results in ascending or descending order according to the signature name.
Router# configure terminal
Router(config)# secure-policy-style advance
Router(config)# show secure-policy-style status
secure-policy-style: advance
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
783
Figure 503 Configuration > Security Service > Anti-Malware > Profile
The following table describes the labels in this screen.
35.6.1 Add or Edit an Anti-Malware Profile
Click Add to create a new entry or select an existing entry and click Edit to open the following screen
where you can create or modify the entry’s settings.
Figure 504 Configuration > Security Service > Anti-Malware > Profile > Add/Edit
Table 303 Configuration > Security Service > Anti-Malware > Profile
LABEL DESCRIPTION
Add Click this to create a new entry. Select an entry and click Add to create a new entry after
the selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove Select an entry and click Remove to delete the selected entry.
# This field is a sequential value showing the number of the profile. The profile order is not
important.
Name This displays the name of the profile created.
Description This displays the description of the profile.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
784
The following table describes the labels in this screen.
Table 304 Configuration > Security Service > Anti-Malware > Profile > Add/Edit
LABEL DESCRIPTION
General Setting
Name Type the name of the profile. You may use 1-31 alphanumeric characters, underscores(_),
or dashes (-), but the first character cannot be a number. This value is case-sensitive. These
are valid, unique profile names:
•MyProfile
•mYProfile
• Mymy12_3-4
These are invalid profile names:
• 1mYProfile
•My Profile
•MyProfile?
• Whatalongprofilename123456789012
Description Type a description for the profile rule to help identify the purpose of rule. You may use 1-31
alphanumeric characters, underscores (
_), or dashes (-), but the first character cannot be
a number. This value is case-sensitive. This field is optional.
Actions When
Matched
Destroy infected file When you select this check box, if a malware signature is matched, the Zyxel Device
overwrites the infected portion of the file with zeros before being forwarded to the user. The
uninfected portion of the file will pass through unmodified.
Log These are the log options:
• no: Do not create a log when a packet matches a signature.
• log: Create a log on the Zyxel Device when a packet matches a signature.
• log alert: An alert is an emailed log for more serious events that may need more
immediate attention. Select this option to have the Zyxel Device send an alert when a
packet matches a signature(s).
Scan Options
Check White List Select this check box to have the Zyxel Device not perform the anti-malware check on files
with names that match the white list patterns.
Check Black List Select this check box to log and delete files with names that match the black list patterns.
File decompression
Enable file
decompression (ZIP
and RAR)
Select this check box to have the Zyxel Device scan a compressed file (the file does not
need to have a “zip” or “rar” file extension). The Zyxel Device first decompresses the file and
then scans the contents for malware.
Note: The Zyxel Device decompresses a compressed file once. The Zyxel Device
does NoT decompress any file(s) within a compressed file.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
785
35.6.2 Link a Profile
To link a profile to a policy, go to the Configuration > Security Policy > Policy Control screen, select a pol-
icy, and then click Edit. In the Edit Policy screen under Profile, select which profile you want to use for
each security service.
Destroy
compressed files
that could not
be
decompressed
When you select this check box, the Zyxel Device deletes compressed files that use
password encryption.
Select this check box to have the Zyxel Device delete any compressed files that it cannot
decompress. The Zyxel Device cannot decompress password protected files or a file within
another compressed file. There are also limits to the number of compressed files that the
Zyxel Device can concurrently decompress.
Note: The Zyxel Device’s firmware package cannot go through the Zyxel Device
with this check box enabled. The Zyxel Device classifies the firmware
package as a file that cannot be decompressed and then deletes it. Clear
this check box when you download a firmware package from the Zyxel
website. It’s OK to upload a firmware package to the Zyxel Device with the
check box selected.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 304 Configuration > Security Service > Anti-Malware > Profile > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
786
Figure 505 Configuration > Security Service > Policy Control > Profile
35.6.3 Anti-Malware Advance Screen
The Security Service > Anti-Malware > Anti-Malware screen changes when using profiles.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
787
Figure 506 Configuration > Security Service > Anti-Malware Advance
The following table describes the labels in this screen.
Table 305 Configuration > Security Service > Anti-Malware Advance
LABEL DESCRIPTION
General Setting
Enable Select this checkbox to activate the anti-malware feature to protect your connected
network from infection and the installation of malicious software.
Selecting this checkbox also activates Threat Intelligence Machine Learning (TIML). TIML
signatures come from the sandboxing inspection results and helps the Zyxel Device block
possible malicious or suspicious files.
Inspect all traffic,
setting:
Select this to have all traffic inspected by the default_profile. You cannot rename or delete
the default_profile profile, but you can edit it by clicking the link here.
Inspect by policy If you configured a specific profile in the Profile tab for this service, select this to have
specific traffic inspected by that profile. You must bind the profile to a policy in Security
Policy > Policy Control.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
788
35.6.4 Remove Profiles
To remove profiles and revert to the default general security policy style, you must first make sure to
change Inspect by policy to Inspect all traffic in the following security services: Anti-Malware, DNS Threat
Filter, IPS, Email Security.
Note: All profiles that you created will be removed from Security Policy > Policy Control.
Scan and detect
EICAR test virus
Select this option to have the Zyxel Device check for an EICAR test file and treat it in the
same way as a real malware file.
The EICAR test file is a standardized test file for signature based anti-malware scanners.
When the scanner detects the EICAR file, it responds in the same way as if it found real
malware. The EICAR file can also be compressed to test whether the anti-malware software
can detect it in a compressed file. The EICAR test string consists of the following human-
readable ASCII characters.
X5O!P%@AP[4\PZX54(P^)7CC)7}$EICAR-STANDARD-ANTIVIRUS-TEST-FILE!$H+H*
Scan Mode
Express Mode In this mode you can define which types of files are scanned using the File Type For Scan
fields. The Zyxel Device then scans files by sending each file’s hash value to a cloud
database using cloud query. This is the fastest scan mode.
Stream Mode In this mode the Zyxel Device scans all files for viruses using anti-malware signatures to
detect known virus pattens, and Threat Intelligence Machine Learning. Threat Intelligence
Machine Learning is a master cloud database containing malware patterns learned from
all Zyxel Devices. This is the deepest scan mode.
File Type For Scan
Available File Types File types that can be checked by the Zyxel Device are listed here. Note that the files on this
list are currently bypassed. To use this feature on a specific file type, click this file type and
then click the right arrow button.
See available file types in Table 298 on page 774.
Applied File Types File types that will be checked are listed here. If you don’t want a file type to be checked,
click this file type and then click the left arrow button.
Signature
Information
The following fields display information on the current signature set that the Zyxel Device is
using.
Current Version This field displays the signature set version number currently used by the Zyxel Device. This
number gets larger as the set is enhanced.
Released Date This field displays the date and time the set was released.
Threat Intelligence
Machine Learning
The following fields display information on the Threat Intelligence Machine Learning
signatures that the Zyxel Device is using.
Current Version This field displays the TIML version number currently used by the Zyxel Device.
Released Date This field displays the date and time this version was released.
Update Signatures Click this link to go to the screen you can use to download signatures from the update
server.
Apply Click Apply to save your changes.
Reset Click Reset to return the screen to its last-saved settings.
Table 305 Configuration > Security Service > Anti-Malware Advance (continued)
LABEL DESCRIPTION
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
789
Run the following commands in the Zyxel Device Command Line Interface (CLI).
Wait a minute and then go to the feature screen again in the web configurator. You will be prompted
to log out and then log in again.
Figure 507 Logout Prompt
After you log in again, you will not see the profile screen for this feature.
35.7 Anti-Malware Technical Reference
Types of Malware
The following table describes some of the common malware.
Malware Infection and Prevention
The following describes a simple life cycle of malware.
1 A computer gets a copy of malware from a source such as the Internet, email, file sharing or any
removable storage media. The malware is harmless until the execution of an infected program.
2 The malware spreads to other files and programs on the computer.
Router# configure terminal
Router(config)# secure-policy-style general
Router(config)# show secure-policy-style status
secure-policy-style: general
Table 306 Common Malware Types
TYPE DESCRIPTION
File Infector This is a small program that embeds itself in a legitimate program. A file infector is able to
copy and attach itself to other programs that are executed on an infected computer.
Boot Sector Virus This type of virus infects the area of a hard drive that a computer reads and executes
during startup. The virus causes computer crashes and to some extend renders the infected
computer inoperable.
Macro Virus Macro viruses or Macros are small programs that are created to perform repetitive actions.
Macros run automatically when a file to which they are attached is opened. Macros
spread more rapidly than other types of viruses as data files are often shared on a network.
Email Virus Email viruses are malicious programs that spread through email.
Polymorphic Virus A polymorphic virus (also known as a mutation virus) tries to evade detection by changing
a portion of its code structure after each execution or self replication. This makes it harder
for an anti-malware scanner to detect or intercept it.
A polymorphic virus can also belong to any of the virus types discussed above.
background
Chapter 35 Anti-Malware
USG FLEX Series User’s Guide
790
3 The infected files are unintentionally sent to another computer thus starting the spread of the malware.
4 Once the malware is spread through the network, the number of infected networked computers can
grow exponentially.
Types of Anti-Malware Scanner
The section describes two types of anti-malware scanner: host-based and network-based.
A host-based anti-malware (HAM) scanner is often software installed on computers and/or servers on
the network. It inspects files for malware patterns as they are moved in and out of the drive. However,
host-based anti-malware scanners cannot eliminate all malware for a number of reasons:
• HAM scanners are slow in stopping malware threats through real-time traffic (such as from the
Internet).
• HAM scanners may reduce computing performance as they also share resources (such as CPU time)
on the computer for file inspection.
• You have to update the malware signatures and/or perform malware scans on all computers on the
network regularly.
A network-based anti-malware (NAM) scanner is often deployed as a dedicated security device (such
as your Zyxel Device) on the network edge. NAM scanners inspect real-time data traffic (such as email
messages or web) that tends to bypass HAM scanners. The following lists some of the benefits of NAM
scanners.
• NAM scanners stop malware threats at the network edge before they enter or exit a network.
• NAM scanners reduce computing loading on computers as the read-time data traffic inspection is
done on a dedicated security device.
background
USG FLEX Series User’s Guide
791
CHAPTER 36
Reputation Filter
36.1 Overview
Use the Reputation Filter screens to configure settings for IP Reputation, DNS Threat Filter and URL Threat
filtering.
Please note that your Zyxel Device does not support IP reputation and DNS threat filter by default. You
need to purchase a Gold Security Pack license; see
Section 8.1.2 on page 257 for more information.
36.1.1 What You Need to Know
IP Reputation
IP reputation checks the reputation of an IP address from a database. An IP address with bad
reputation associates with suspicious activities, such as spam, virus, and/or phishing. The Zyxel Device will
respond when there are packets coming from an IPv4 address with bad reputation.
DNS Threat Filter
DNS threat filtering inspects DNS queries made by clients on your network and compares the queries
against a database of blocked or allowed Fully Qualified Domain Names (FQDNs). The Zyxel Device DNS
Threat Filter will either drop the DNS query or reply to the user with a fake DNS response.
URL Threat Filter
URL filtering compares access to specific URLs against a database of blocked or allowed sites. Sites on
the database are sorted into categories such as:
36.1.2 What You Can Do in this Chapter
• Use the IP Reputation screen (Section 36.2 on page 792) to enable IP reputation and specify what
action the Zyxel Device takes when any IP address with bad reputation is detected.
• Use the DNS Threat Filter screen (Section 36.3 on page 800) to allow the Zyxel Device to inspect DNS
queries made by clients on your network and specify what action the Zyxel Device takes when a DNS
query packet contains an FQDN with a bad reputation.
• Use the URL Threat Filter screen (Section 36.5 on page 814) to enable URL Threat filtering and specify
what action the Zyxel Device takes when any suspicious activity is detected.
•Anonymizers •Browser Exploits • Malicious Downloads
• Malicious Sites • Phishing •Spam URLs
• Spyware Adware Keyloggers
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
792
36.2 IP Reputation Screen
When you register for and enable the IP reputation service, your Zyxel Device downloads signature files
that identifies reputation of IPv4 addresses. You can have the Zyxel Device forward, block, and/or log
packets from IPv4 addresses based on these signatures and categories.
Use this screen to enable IP reputation and specify the action the Zyxel Device takes when it detects a
suspicious activity or a connection attempt to or from an IPv4 address with bad reputation.
The priority for IP Reputation checking is as follows:
1 Allow List
2 Block List
3 External Block List
4 Local Zyxel Device Signatures
Click Configuration > Security Service > Reputation Filter > IP Reputation > General to display the
configuration screen as shown next.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
793
Figure 508 Configuration > Security Service > Reputation Filter > IP Reputation > General
The following table describes the labels in this screen.
Table 307 Configuration > Security Service > Reputation Filter > IP Reputation > General
LABEL DESCRIPTION
IP Blocking
Enable Select this option to turn on IP blocking on the Zyxel Device. Otherwise, clear it.
Action Set what action the Zyxel Device takes when packets come from an IPv4 address with bad
reputation.
forward: Select this action to have the Zyxel Device allow the packet to go through.
block: Select this action to have the Zyxel Device deny the packets and send a TCP RST to
both the sender and receiver when a packet comes from an IPv4 address with bad
reputation.
Threat Level
Threshold
Select the threshold threat level to which the Zyxel Device will take action (high, medium
and above, Low and above).
The threat level is determined by the IP reputation engine. It grades IPv4 addresses.
• high: An IPv4 address that scores 0 to 20 points.
• medium and above: An IPv4 address that scores 0-60 points.
• Low and above: An IPv4 address that scores 0-80 points.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
794
Log These are the log options:
no: Do not create a log when the packet comes from an IPv4 address with bad reputation.
log: Create a log on the Zyxel Device when the packet comes from an IPv4 address with
bad reputation.
log alert: An alert is an emailed log for more serious events that may need more immediate
attention. Select this option to have the Zyxel Device send an alert when the packet comes
from an IPv4 address with bad reputation.
Types of Cyber
Threats Coming From
The Internet
Select the categories of packets that come from the Internet and are known to pose a
security threat to users or their computers. Otherwise, deselect it.
Anonymous
Proxies
These are sites and proxies that act as an intermediary for surfing to other websites in an
anonymous fashion, whether to circumvent Web filtering or for other reasons.
Denial of Service These are sites that issue Denial of Service (DoS) attacks, such as DoS, DDoS, SYN flood, and
anomalous traffic detection.
DoS attacks can flood your Internet connection with invalid packets and connection
requests, using so much bandwidth and so many resources that Internet access becomes
unavailable. The goal of DoS attacks is not to steal information, but to disable a device or
network on the Internet.
A Distributed Denial of Service (DDoS) attack is one in which multiple compromised systems
attack a single target, thereby causing denial of service for users of the targeted system.
SYN flood is an attack that attackers flood SYN packets to a server in TCP handshakes, and
not respond with ACK packets on purpose. This keeps the server waiting for attackers’
responses to establish TCP connections, and make the server unavailable.
Anomalous traffic detection could be malicious activities, such as malware outbreaks or
hacking attempts.
Exploits These are sites that distribute exploits or exploit kits to infect website visitors’ devices. Exploits
include shellcode, root kits, worms, or viruses that download additional malware to infect
devices. An exploit kit consists of different exploits.
Negative
Reputation
These are sites that have bad reputation and associate with suspicious activities, such as
spam, virus, and/or phishing.
Scanners These are sites that run unauthorized system vulnerabilities scan to look for vulnerabilities in
website visitors’ devices.
Spam Sources These are sites that have been promoted through spam techniques.
TOR Proxies These are sites that act as the exit nodes in a Tor (The Onion Router) network.
Tor is a service that keep users anonymous in the Internet and make users’ Internet activities
untraceable. Tor hides user’s real IP addresses by encrypting data and transmitting the
encrypted data in a chain of selected nodes acting as intermediaries. Each node can only
decrypt the data sent from the node before it. The first node that receives the encrypted
data is called the entry node. The last node is the last intermediary that the encrypted data
will go through before it arrives at the destination.
Table 307 Configuration > Security Service > Reputation Filter > IP Reputation > General (continued)
LABEL DESCRIPTION
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
795
Web Attacks These are sites that launch web attacks, such as SQL injection, cross site scripting, iframe
injection, and brute force attack.
SQL injection (SQLI) is an attack that attackers insert malicious SQL (Structured Query
Language) code into a web application database query. Attackers can then access, add,
modify, or delete data in users’ databases.
Cross site scripting (XSS) is an attack that attackers injects malicious scripts to websites or
web applications in the form of HTML or JavaScript code. The scripts execute when users
visit the infected web page or perform the infected web applications. XSS will cause failures
to encrypt traffic, cookie stealing, identity impersonation, and phishing.
Iframe injection is an attack that attackers injects malicious iframe (inline frame) tags to
websites. The malicious iframe tag downloads malware to the devices of the infected
websites’ visitors, and steal users’ sensitive information. An iframe tag is an HTML tag that is
used to embed contents from another source in a website, but attackers misuse this feature.
Brute force attack is an attack that attackers attempt to gain access to websites or device
through a succession of different passwords.
Phishing These are sites that are used for deceptive or fraudulent purposes (e.g. phishing), such as
stealing financial or other user account information. These sites are most often designed to
appear as legitimate sites in order to mislead users into entering their credentials.
Types of Cyber
Threats Coming From
The Internet And
Local Networks
Select the categories of packets that come from the Internet and local network. The
categories of packets are known to pose a security threat to users or their computers.
Otherwise, clear it.
Botnets A botnet is a network consisting of computers that are infected with malware and remotely
controlled. The infected computers will contact and wait for instructions from a command
and control (C&C) server. An attacker can control the botnet by setting up a C&C server
and then sending commands to the infected computers. Alternatively, a peer-to-peer
network approach is used. The infected computer scans and communicates with the peer
devices in the same botnet to share commands or malware sent by the C&C server. These
are botnet sites including command-and-control (C&C) servers.
IP reputation only blocks incoming and outgoing traffic coming from an IP address that is
defined as botnet. If an IP address is not defined as botnet, only incoming traffic is blocked.
Test IP Threat Category
IP to test Enter an IPv4 address of a website, and click the Query button to check if the website
associates with suspicious activities that could pose a security threat to users or their
computers.
Signature
Information
The Zyxel Device comes with signatures for IP reputation. These signatures are continually
updated as new malware evolves. New signatures can be downloaded to the Zyxel Device
periodically if you have subscribed for the IP reputation signatures service.
You need to create an account at myZyxel, register your Zyxel Device and then subscribe
for IP reputation service in order to be able to download new signatures from myZyxel (see
the Registration screens).
The following fields display information on the current signature set that the Zyxel Device is
using.
Current Version This field displays the signature set version number currently used by the Zyxel Device. This
number gets larger as new signatures are added.
Released Date This field displays the date and time the set was released.
Update Signatures Click this to go to the Configuration > Licensing > Signature Update screen to check for new
signatures at myZyxel. You can schedule or immediately download signatures.
Apply Click Apply to save your changes.
Reset Click Reset to return the screen to its last-saved settings.
Table 307 Configuration > Security Service > Reputation Filter > IP Reputation > General (continued)
LABEL DESCRIPTION
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
796
36.2.1 IP Reputation Allow List Screen
Use this screen to create allow list entries. The Zyxel Device will allow the incoming and outgoing packets
from the listed IPv4 addresses.
You can add up to 256 entries in the IP reputation white list.
Figure 509 Configuration > Security Service > Reputation Filter > IP Reputation > Allow List
The following table describes the labels in this screen.
Table 308 Configuration > Security Service > Reputation Filter > IP Reputation > Allow List
LABEL DESCRIPTION
Enable Allow List Select this to bypass checking by this feature (if enabled) and automatically allow
incoming packets from the listed IPv4 addresses.
Rule Summary
Add Click this to create a new IP reputation allow list entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This is the entry’s index number in the list.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
IPv4 Address This field displays the IPv4 address of this entry.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
797
36.2.2 IP Reputation Block List Screen
Use this screen to create block list entries. The Zyxel Device will block the incoming and outgoing
packets from the listed IPv4 addresses.
You can add up to 256 entries in the IP reputation block list.
Figure 510 Configuration > Security Service > Reputation Filter > IP Reputation > Block List
The following table describes the labels in this screen.
SecuReporter Allow
List
This table displays the IP reputation allow list you set in SecuReporter. Please note that this
table is read-only. If you want to change the SecuReporter IP reputation allow list settings,
go to SecuReporter.
For example, if you add 1.1.1.1 to the SecuReporter IP reputation allow list, the Zyxel
Device IP reputation will allow incoming packets from 1.1.1.1 and outgoing packets to
1.1.1.1.
# This is the entry’s index number in the list.
IPv4 Address This field displays the IPv4 address of the SecuReporter IP reputation allow list entry.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 308 Configuration > Security Service > Reputation Filter > IP Reputation > Allow List (continued)
LABEL DESCRIPTION
Table 309 Configuration > Security Service > Reputation Filter > IP Reputation > Block List
LABEL DESCRIPTION
Enable Block List Select this to bypass checking by this feature (if enabled) and automatically block
incoming packets from the listed IPv4 addresses.
Add Click this to create a new IP reputation block list entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This is the entry’s index number in the list.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
798
36.2.3 IP Reputation External Block List Screen
Use this screen to use block list entries stored in a file on a web server that supports HTTP or HTTPS and is
reachable from the Zyxel Device. The Zyxel Device will bypass checking by this feature (if enabled) and
block incoming and outgoing packets from the black list entries in this file. In this way, different Zyxel
Devices can use the same black list.
• The external block list file must be in text format (*.txt) with each entry separated by a new line.
• External block list entries can consist of single IPv4 / IPv6 IP addresses, IP address ranges, CIDR
(Classless Inter-Domain Routing entries such as 192.168.1.1/24, 2001:7300:3500::1/64. These are some
examples for your reference only:
• 4.4.4.4
• 192.168.1.0/32
• If the external block list file contains any invalid entries, the Zyxel Device will not use the file.
• The external block list file can contain up to 50,000 entries. A warning message displays when the
maximum is reached.
Figure 511 Configuration > Security Service > Reputation Filter > IP Reputation > External Block List
IPv4 Address This field displays the IPv4 address of this entry.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 309 Configuration > Security Service > Reputation Filter > IP Reputation > Block List (continued)
LABEL DESCRIPTION
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
799
The following table describes the labels in this screen.
36.2.4 IP Reputation External Block List Screen Add/Edit
Use this screen to define a black list file on a web server that supports HTTP or HTTPS.Go to Configuration
> Security Service > Reputation Filter > IP Reputation > External Block List > Add to display the following
screen.
Table 310 Configuration > Security Service > Reputation Filter > IP Reputation > External Block List
LABEL DESCRIPTION
URL Blocking For External DB
Enable URL Blocking
For External DB
Select this to have the Zyxel Device bypass checking by this feature (if enabled) and
block packets that come from the listed addresses in the black list file on the server.
Note: Select Enable under IP Blocking in the Configuration > Security Service >
Reputation Filter > IP Reputation > General screen for the black list to take
effect.
Add Click this to create a new IP reputation external block list entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This is the entry’s index number in the list.
Name This displays the identifying name for the black list file. You can use alphanumeric and
()+/:=?!*#@$_%- characters, and it can be up to 60 characters long.
Source This displays the file name, path and IP address of the server containing the black list file.
For example, http://172.16.107.20/blacklist-files/myip-ebl.txt
Description This displays the a description of the black list file. You can use alphanumeric and ()+/
:=?!*#@$_%-
characters, and it can be up to 60 characters long.
New IP reputation signatures can be downloaded to the Zyxel Device periodically if you
have subscribed for the IP reputation signatures service.
You need to create an account at myZyxel, register your Zyxel Device and then subscribe
for IP reputation service in order to be able to download new signatures from myZyxel
(see the Registration screens).
Schedule signature updates for a day and time when your network is least busy to
minimize disruption to your network.
Update Now Click this to have the Zyxel Device immediately check for new signatures at myZyxel. If
new signatures are found, they are then downloaded to the Zyxel Device.
Auto Update Click this to have the Zyxel Device automatically check for new signatures regularly at the
time and day specified. You should select a time when your network is not busy for
minimal interruption.
Daily Select this to have the Zyxel Device check for new signatures every day at the specified
time. The time format is the 24 hour clock, so ‘23’ means 11 PM for example.
Weekly Select this option to have the Zyxel Device check for new signatures once a week on the
day and at the time specified.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
800
Figure 512 Configuration > Security Service > Reputation Filter > IP Reputation > External Block List > Add
The following table describes the labels in this screen.
36.3 DNS Threat Filter Screen
A Domain Name System (DNS) server records mappings of FQDN (Fully Qualified Domain Names) to IP
addresses. A FQDN consists of a host and domain name. For example, www.zyxel.com is a fully qualified
domain name, where “www” is the host, “zyxel” is the second-level domain, and “com” is the top level
domain.
DNS threat filtering inspects DNS queries made by clients on your network and compares the queries
against a database of blocked or allowed Fully Qualified Domain Names (FQDNs).
If a user attempts to connect to a suspect site, where the DNS query packet contains an FQDN with a
bad reputation, then a DSN query is sent from the user’s computer and detected by the DNS Threat
Filter.
The Zyxel Device DNS Threat Filter will either drop the DNS query or reply to the user with a fake DNS
response using the default dnsft.cloud.zyxel.com IP address (where the user will see a “Web Page
Blocked!” page) or a custom IP address.
The following types of DNS queries are allowed by the Zyxel Device:
• Type “A” for IPv4 addresses
Table 311 Configuration > Security Service > Reputation Filter > IP Reputation > External Block List > Add
LABEL DESCRIPTION
Name Enter an identifying name for the black list file. You can use alphanumeric and ()+/
:=?!*#@$_%-
characters, and it can be up to 60 characters long.
Source Enter the exact file name, path and IP address of the server containing the black list file.
For example, http://172.16.107.20/blacklist-files/myip-ebl.txt
The server must be reachable from the Zyxel Device.
Description Enter a description of the black list file. You can use alphanumeric and ()+/
:=?!*#@$_%-
characters, and it can be up to 60 characters long.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
801
The Zyxel Device replies with a DNS server error for the following types of DNS queries:
• Type “AAAA” for IPv6 addresses
• Type “NS” (Name Server) to get information about the authoritative name server
• Type “MX” (Mail eXchange) to request information about the mail exchange server for a specific DNS
domain name.
• Type “CNAME” (Canonical Names) that specifies a domain name that has to be queried in order to
resolve the original DNS query
• Type “PTR” (Pointer) that specifies a reverse query (requesting the FQDN corresponding to the IP
address you provided)
• Type “SOA” (Start Of zone Authority) used when transferring zones
The priority for DNS Threat Filter checking is as follows:
1 Allow List
2 Block List
3 Local Zyxel Device Signatures
4 Cloud Query Cache
5 Cloud Query
Click Configuration > Security Service > Reputation Filter > DNS Threat Filter > General to display the
configuration screen as shown next.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
802
Figure 513 Configuration > Security Service > Reputation Filter > DNS Threat Filter > General
The following table describes the labels in this screen.
Table 312 Configuration > Security Service > Reputation Filter > DNS Threat Filter > General
LABEL DESCRIPTION
DNS Threat Filter
Enable Select this option to turn on DNS threat filtering on the Zyxel Device. Otherwise, clear it.
Action and Log settings apply to DNS query packets triggered by the security threat
categories.
Action Set what action the Zyxel Device takes when there is a DNS query packet containing an
FQDN with a bad reputation.
redirect: Select this action to have the Zyxel Device reply with a DNS reply packet
containing a default or custom-defined IP address.
pass: Select this action to have the Zyxel Device allow the DNS query packet and not reply
with a DNS reply packet containing a default or custom-defined IP address.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
803
Log These are the log options:
no: Do not create a log when there is a DNS query packet containing an FQDN with a bad
reputation.
log: Create a log on the Zyxel Device when there is a DNS query packet containing an
FQDN with a bad reputation.
log alert: An alert is an emailed log for more serious events that may need more immediate
attention. Select this to have the Zyxel Device send an alert when there is a DNS query
packet containing an FQDN with a bad reputation.
Redirect IP Select this action to have the Zyxel Device reply with a DNS reply packet containing a
default or custom-defined IP address when a DNS query packet contains an FQDN with a
bad reputation. The default IP is the dnsft.cloud.zyxel.com IP address. If you select custom-
defined IP, then enter a valid IPv4 address in the text box.
Advanced Inspection
Action When
detecting
malform DNS
packets
Set what action the Zyxel Device takes when there is an abnormal DNS query packet. A DNS
packet is defined as malformed when:
• The number of entries in the question count field in the DNS header is 0
• An error occurs when parsing the domain name in the question field
• The length of the domain name exceeds 255 characters.
pass: Select this action to have the Zyxel Device allow the DNS query packet through the
Zyxel Device.
drop: Select this action to have the Zyxel Device discard the abnormal DNS query packet
Select Log to create a log on the Zyxel Device when there is an abnormal DNS query
packet.
Action When
detecting DNS
over HTTPS/TLS
packets
Set what action the Zyxel Device takes when there is an encrypted DNS query packet. An
encrypted DNS query packet might endanger your network because the Zyxel Device
cannot inspect it to check if a user on your network is trying to access a suspect site.
pass: Select this action to have the Zyxel Device allow the DNS query packet through the
Zyxel Device.
drop: Select this action to have the Zyxel Device discard the encrypted DNS query packet.
If you try to access the site after the Zyxel Device discards the associated DNS query
packet, your browser will show that you do not have access to the site.
Select Log to create a log on the Zyxel Device when there is an encrypted DNS query
packet.
Security Threat
Categories
Select the categories of FQDNs that may pose a security threat to network devices behind
the Zyxel Device.
Anonymizers Sites and proxies that act as an intermediary for surfing to other Web sites in an anonymous
fashion, whether to circumvent Web filtering or for other reasons.
Browser Exploits Sites that contain browser exploits. A browser exploit is any content that forces a web
browser to perform operations that you do not explicitly intend.
Malicious
Downloads
Sites that have been identified as containing malicious downloads or malware harmful to a
user's computer.
Malicious Sites Sites that install unwanted software on a user's computer with the intent to enable third-
party monitoring or make system changes without the user's consent.
Phishing Sites that are used for deceptive or fraudulent purposes, such as stealing financial or other
user account information. These sites are most often designed to appear as legitimate sites
in order to mislead users into entering their credentials.
Spam URLs Sites that have been promoted through spam techniques.
Table 312 Configuration > Security Service > Reputation Filter > DNS Threat Filter > General (continued)
LABEL DESCRIPTION
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
804
36.3.1 DNS Threat Filter Allow List Screen
Use this screen to create allow list entries. The Zyxel Device will not reply with a DNS reply packet
containing a default or custom-defined IP address when a DNS query packet contains an FQDN in the
white list.
You can add up to 1,024 entries in this allow list.
Spyware Adware
Keyloggers
Sites that contain spyware, adware or keyloggers.
• Spyware is a program installed on your computer, usually without your explicit
knowledge, that captures and transmits personal information or Internet browsing habits
and details to companies. Companies use this information to analyze browsing habits,
to gather marketing data, and to sell your information to others.
• Key logger programs try to capture and steal your passwords and watch and record
everything you do on your computer.
• Adware programs typically display blinking advertisements or pop-up windows when
you perform a certain action. Adware programs are often installed in exchange for
another service, such as the right to use a program without paying for it.
Test Domain Name Category
Domain name to
test
Enter an FQDN and click the Query button to check if the domain name is associated with
suspicious activities that could pose a security threat to users or their computers.
Signature
Information
The signatures for DNS Threat Filter and URL Threat Filter are the same. These signatures are
continually updated as new malware evolves. New signatures can be downloaded to the
Zyxel Device periodically if you have subscribed for the IP reputation signatures service.
You need to create an account at myZyxel, register your Zyxel Device and then subscribe
for IP reputation service in order to be able to download new signatures from myZyxel (see
the Registration screens).
The following fields display information on the current signature set that the Zyxel Device is
using.
Current Version This field displays the signature set version number currently used by the Zyxel Device. This
number gets larger as new signatures are added.
Released Date This field displays the date and time the set was released.
Update
Signatures
Click this to go to the Configuration > Licensing > Signature Update screen to check for new
signatures at myZyxel. You can schedule or immediately download signatures.
Apply Click Apply to save your changes.
Reset Click Reset to return the screen to its last-saved settings.
Table 312 Configuration > Security Service > Reputation Filter > DNS Threat Filter > General (continued)
LABEL DESCRIPTION
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
805
Figure 514 Configuration > Security Service > Reputation Filter > DNS Threat Filter > Allow List
The following table describes the labels in this screen.
Table 313 Configuration > Security Service > Reputation Filter > DNS Threat Filter > Allow List
LABEL DESCRIPTION
Enable Allow List Select this check box and the Zyxel Device will not reply with a DNS reply packet
containing a default or custom-defined IP address when a DNS query packet contains an
FQDN in the white list.
Note: Select Enable under DNS Threat Filter in the Configuration > Security
Service > Reputation Filter > DNS Threat Filter > General screen for the
allow list to take effect.
Rule Summary
Add Click this to create a new DNS threat filter allow list entry. To add an FQDN, type a Fully-
Qualified Domain Name (FQDN) of a web site. An FQDN starts with a host name and
continues all the way up to the top-level domain name. For example, www.zyxel.com.tw
is a fully qualified domain name, where “www” is the host, “zyxel” is the third-level
domain, “com” is the second-level domain, and “tw” is the top level domain.
Underscores are not allowed. Use "*." as a prefix in the FQDN for a wildcard domain name
(for example, *.example.com).
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
806
36.3.2 DNS Threat Filter Block List Screen
Use this screen to create block list entries. The Zyxel Device will reply with a DNS reply packet containing
a default or custom-defined IP address when a DNS query packet contains an FQDN in the black list. For
matched items in the black list, the action is always Redirect IP and log is always log alert.
You can add up to 1,024 entries in this block list.
Figure 515 Configuration > Security Service > Reputation Filter > DNS Threat Filter > Block List
# This is the entry’s index number in the list.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
FQDN This field displays the FQDN of this entry.
SecuReporter Allow
List
This table displays the DNS threat filter allow list you set in SecuReporter. Please note that
this table is read-only. If you want to change the SecuReporter DNS threat filter allow list
settings, go to SecuReporter.
For example, if you add www.zyxel.com.tw to the SecuReporter DNS threat filter allow list,
the Zyxel Device DNS threat filter will allow incoming packets from www.zyxel.com.tw and
outgoing packets to www.zyxel.com.tw.
# This is the entry’s index number in the list.
FQDN This field displays the FQDN of the SecuReporter DNS threat filter allow list entry.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 313 Configuration > Security Service > Reputation Filter > DNS Threat Filter > Allow List (continued)
LABEL DESCRIPTION
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
807
The following table describes the labels in this screen.
36.4 DNS Threat Filter Profile
To use multiple profiles for this feature, run the following commands in the Zyxel Device Command Line
Interface (CLI).
After you run these command, go to the feature screen again in the web configurator. You will be
prompted to log out and then log in again.
Figure 516 Logout Prompt
Table 314 Configuration > Security Service > Reputation Filter > DNS Threat Filter > Block List
LABEL DESCRIPTION
Block List
Enable Block List Select this check box and the Zyxel Device will reply with a DNS reply packet containing a
default or custom-defined IP address when a DNS query packet contains an FQDN in the
black list.
Note: Select Enable under DNS Threat Filter in the Configuration > Security
Service > Reputation Filter > DNS Threat Filter > General screen for the
block list to take effect.
Add Click this to create a new DNS threat filter block list entry. To add an FQDN, type a Fully-
Qualified Domain Name (FQDN) of a web site. An FQDN starts with a host name and
continues all the way up to the top-level domain name. For example, www.zyxel.com.tw
is a fully qualified domain name, where “www” is the host, “zyxel” is the third-level
domain, “com” is the second-level domain, and “tw” is the top level domain.
Underscores are not allowed. Use "*." as a prefix in the FQDN for a wildcard domain name
(for example, *.example.com).
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This is the entry’s index number in the list.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
FQDN This field displays the FQDN of this entry.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Router# configure terminal
Router(config)# secure-policy-style advance
Router(config)# show secure-policy-style status
secure-policy-style: advance
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
808
After you log in again, you will see the new profile screen for this feature.
Figure 517 Configuration > Security Service > Reputation Filter > DNS Threat Filter > Profile
The following table describes the labels in this screen.
36.4.1 Add or Edit a DNS Threat Filter Profile
Click Add to create a new entry or select an existing entry and click Edit to open the following screen
where you can create or modify the entry’s settings.
Table 315 Configuration > Security Service > Reputation Filter > DNS Threat Filter > Profile
LABEL DESCRIPTION
Add Click this to create a new entry. Select an entry and click Add to create a new entry after
the selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
Remove Select an entry and click Remove to delete the selected entry.
# This field is a sequential value showing the number of the profile. The profile order is not
important.
Name This displays the name of the profile created.
Description This displays the description of the profile.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
809
Figure 518 Configuration > Security Service > Reputation Filter > DNS Threat Filter > Profile > Add/Edit
The following table describes the labels in this screen.
Table 316 Configuration > Security Service > Reputation Filter > DNS Threat Filter > Profile > Add/Edit
LABEL DESCRIPTION
Configuration
Profile Name Type the name of the profile. You may use 1-31 alphanumeric characters, underscores(_),
or dashes (-), but the first character cannot be a number. This value is case-sensitive. These
are valid, unique profile names:
•MyProfile
•mYProfile
• Mymy12_3-4
These are invalid profile names:
• 1mYProfile
•My Profile
•MyProfile?
• Whatalongprofilename123456789012
Description Type a description for the profile rule to help identify the purpose of rule. You may use 1-31
alphanumeric characters, underscores (
_), or dashes (-), but the first character cannot be
a number. This value is case-sensitive. This field is optional.
Action Set what action the Zyxel Device takes when there is a DNS query packet containing an
FQDN with a bad reputation.
redirect: Select this action to have the Zyxel Device reply with a DNS reply packet
containing a default or custom-defined IP address when a DNS query packet contains an
FQDN with a bad reputation.
pass: Select this action to have the Zyxel Device not reply with a DNS reply packet
containing a default or custom-defined IP address.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
810
36.4.2 Link a Profile
To link a profile to a policy, go to the Configuration > Security Policy > Policy Control screen, select a pol-
icy, and then click Edit. In the Edit Policy screen under Profile, select which profile you want to use for
each security service.
Log These are the log options:
no: Do not create a log when there is a DNS query packet containing an FQDN with a bad
reputation.
log: Create a log on the Zyxel Device when there is a DNS query packet containing an
FQDN with a bad reputation.
log alert: An alert is an emailed log for more serious events that may need more immediate
attention. Select this to have the Zyxel Device send an alert when there is a DNS query
packet containing an FQDN with a bad reputation.
Scan Options
Check White List Select this check box to have the Zyxel Device not perform the DNS Threat Filter check on
DNS query packets that match the white list entries.
Check Black List Select this check box to have the Zyxel Device perform the DNS Threat Filter check on DNS
query packets that match the black list entries.
Check Black List Select this check box to log and delete files with names that match the black list patterns.
Security Threat
Categories
Select the categories of FQDNs that may pose a security threat to network devices behind
the Zyxel Device.
Anonymizers Sites and proxies that act as an intermediary for surfing to other Web sites in an anonymous
fashion, whether to circumvent Web filtering or for other reasons.
Browser Exploits Sites that contain browser exploits. A browser exploit is any content that forces a web
browser to perform operations that you do not explicitly intend.
Malicious
Downloads
Sites that have been identified as containing malicious downloads or malware harmful to a
user's computer.
Malicious Sites Sites that install unwanted software on a user's computer with the intent to enable third-
party monitoring or make system changes without the user's consent.
Phishing Sites that are used for deceptive or fraudulent purposes, such as stealing financial or other
user account information. These sites are most often designed to appear as legitimate sites
in order to mislead users into entering their credentials.
Spam URLs Sites that have been promoted through spam techniques.
Spyware Adware
Keyloggers
Sites that contain spyware, adware or keyloggers.
• Spyware is a program installed on your computer, usually without your explicit
knowledge, that captures and transmits personal information or Internet browsing habits
and details to companies. Companies use this information to analyze browsing habits,
to gather marketing data, and to sell your information to others.
• Key logger programs try to capture and steal your passwords and watch and record
everything you do on your computer.
• Adware programs typically display blinking advertisements or pop-up windows when
you perform a certain action. Adware programs are often installed in exchange for
another service, such as the right to use a program without paying for it.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 316 Configuration > Security Service > Reputation Filter > DNS Threat Filter > Profile > Add/Edit
LABEL DESCRIPTION
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
811
Figure 519 Configuration > Security Service > Policy Control > Profile
36.4.3 DNS Threat Filter Advance Screen
The Configuration > Security Service > Reputation Filter > DNS Threat Filter > General screen also changes
when using profiles.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
812
Figure 520 Configuration > Security Service > Reputation Filter > DNS Threat Filter > General Advance
The following table describes the labels in this screen.
Table 317 Configuration > Security Service > Reputation Filter > DNS Threat Filter > General Advance
LABEL DESCRIPTION
DNS Threat Filter
Enable Select this option to turn on DNS threat filtering on the Zyxel Device. Otherwise, clear it.
Action and Log settings apply to DNS query packets triggered by the security threat
categories.
Inspect all traffic,
setting:
Select this to have all traffic inspected by the default_profile. You cannot rename or delete
the default_profile profile, but you can edit it by clicking the link here.
Inspect by policy If you configured a specific profile in the Profile tab for this service, select this to have
specific traffic inspected by that profile. You must bind the profile to a policy in Security
Policy > Policy Control.
Redirect IP Select this action to have the Zyxel Device reply with a DNS reply packet containing a
default or custom-defined IP address when a DNS query packet contains an FQDN with a
bad reputation. The default IP is the dnsft.cloud.zyxel.com IP address. If you select custom-
defined IP, then enter a valid IPv4 address in the text box.
Advanced Inspection
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
813
36.4.4 Remove Profiles
To remove profiles and revert to the default general security policy style, you must first make sure to
change Inspect by policy to Inspect all traffic in the following security services: Anti-Malware, DNS Threat
Filter, URL Threat Filter, IPS, Email Security.
Note: All profiles that you created will be removed from Security Policy > Policy Control.
Action When
detecting
malform DNS
packets
Set what action the Zyxel Device takes when there is an abnormal DNS query packet. A DNS
packet is defined as malformed when:
• The number of entries in the question count field in the DNS header is 0
• An error occurs when parsing the domain name in the question field
• The length of the domain name exceeds 255 characters.
pass: Select this action to have the Zyxel Device allow the DNS query packet through the
Zyxel Device.
drop: Select this action to have the Zyxel Device discard the abnormal DNS query packet
Select Log to create a log on the Zyxel Device when there is an abnormal DNS query
packet.
Action When
detecting DNS
over HTTPS/TLS
packets
Set what action the Zyxel Device takes when there is an encrypted DNS query packet. An
encrypted DNS query packet might endanger your network because the Zyxel Device
cannot inspect it to check if a user on your network tries to access a suspect site.
pass: Select this action to have the Zyxel Device allow the DNS query packet through the
Zyxel Device.
drop: Select this action to have the Zyxel Device discard the abnormal DNS query packet
Select Log to create a log on the Zyxel Device when there is an encrypted DNS query
packet.
Test Domain Name Category
Domain name to
test
Enter an FQDN and click the Query button to check if the domain name is associated with
suspicious activities that could pose a security threat to users or their computers.
Signature
Information
The signatures for DNS Threat Filter and URL Threat Filter are the same. These signatures are
continually updated as new malware evolves. New signatures can be downloaded to the
Zyxel Device periodically if you have subscribed for the IP reputation signatures service.
You need to create an account at myZyxel, register your Zyxel Device and then subscribe
for IP reputation service in order to be able to download new signatures from myZyxel (see
the Registration screens).
The following fields display information on the current signature set that the Zyxel Device is
using.
Current Version This field displays the signature set version number currently used by the Zyxel Device. This
number gets larger as new signatures are added.
Signature
Number
This field displays the number of signatures in this set.
Released Date This field displays the date and time the set was released.
Update
Signatures
Click this to go to the Configuration > Licensing > Signature Update screen to check for new
signatures at myZyxel. You can schedule or immediately download signatures.
Apply Click Apply to save your changes.
Reset Click Reset to return the screen to its last-saved settings.
Table 317 Configuration > Security Service > Reputation Filter > DNS Threat Filter > General Advance
LABEL DESCRIPTION
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
814
Run the following commands in the Zyxel Device Command Line Interface (CLI).
Wait a minute and then go to the feature screen again in the web configurator. You will be prompted
to log out and then log in again.
Figure 521 Logout Prompt
After you log in again, you will not see the profile screen for this feature.
36.5 URL Threat Filter Screen
When you enable the URL Threat filtering service, your Zyxel Device downloads signature files that
contain known URL Threat domain names and IP addresses. The Zyxel Device will also access an external
database, Cloud Query, that has millions of web sites categorized based on content. You can have the
Zyxel Device allow, block, warn and/or log access to web sites or hosts based on these signatures and
categories.
The priority for URL Threat checking is as follows:
1 Allow List
2 Block List
3 External Block List
4 Local Zyxel Device Signatures
5 Cloud Query Cache
6 Cloud Query
Use this screen to enable URL Threat filtering and specify the action the Zyxel Device takes when it
detects a suspicious activity or a connection attempt to or from a site in a selected category.
Click the URL Threat Filter icon for more information on the Zyxel Device’s security features.
Click Configuration > Security Service > Reputation Filter > URL Threat Filter to display the configuration
screen as shown next.
Router# configure terminal
Router(config)# secure-policy-style general
Router(config)# show secure-policy-style status
secure-policy-style: general
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
815
Figure 522 Configuration > Security Service > Reputation Filter > URL Threat Filter > General
The following table describes the labels in this screen.
Table 318 Configuration > Security Service > Reputation Filter > URL Threat Filter > General
LABEL DESCRIPTION
URL Blocking
Enable Select this option to turn on URL blocking on the Zyxel Device.
Action Set what action the Zyxel Device takes when it detects a connection attempt to or from the
web pages of the specified categories.
block: Select this action to have the Zyxel Device block access to the web pages that
match the categories that you select above.
warn: Select this action to have the Zyxel Device display a warning message to the access
requesters for the web pages before allowing users to access web pages that match the
categories that you select above.
pass: Select this action to have the Zyxel Device allow access to the web pages that match
the categories that you select above.
Log These are the log options:
• no: Do not create a log when it detects a connection attempt to or from the web
pages of the specified categories.
• log: Create a log on the Zyxel Device when it detects a connection attempt to or from
the web pages of the specified categories.
• log alert: An alert is an emailed log for more serious events that may need more
immediate attention. Select this option to have the Zyxel Device send an alert when a
connection matches web pages of the specified categories.
Message to display when a site is blocked
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
816
36.5.1 URL Threat Filter Allow List Screen
Use this screen to create white list entries. The Zyxel Device will allow incoming packets from the listed
IPv4 addresses and URLs.
Denied Access
Message
Enter a message to be displayed when the URL Threat filter blocks access to a web page.
Use up to 127 characters (0-9a-zA-Z;/?:@&=+$\.-_!~*'()%,”). For example, “Access to this
web page is not allowed. Please contact the network administrator”.
It is also possible to leave this field blank if you have a URL specified in the Redirect URL field.
In this case if the URL Threat filter blocks access to a web page, the Zyxel Device just opens
the web page you specified without showing a denied access message.
Redirect URL Enter the URL of the web page to which you want to send users when their web access is
blocked by the URL Threat filter. The web page you specify here opens in a new frame
below the denied access message.
Use “http://” or “https://” followed by up to 262 characters (0-9a-zA-Z;/?:@&=+$\.-_!~*'()%).
For example, http://192.168.1.17/blocked access.
Security Threat
Categories
Select the categories of web pages that may pose a security threat to network devices
behind the Zyxel Device.
Anonymizers Sites and proxies that act as an intermediary for surfing to other Web sites in an anonymous
fashion, whether to circumvent Web filtering or for other reasons.
Browser Exploits Sites that contain browser exploits. A browser exploit is any content that forces a web
browser to perform operations that you do not explicitly intend.
Malicious
Downloads
Sites that have been identified as containing malicious downloads or malware harmful to a
user's computer.
Malicious Sites Sites that install unwanted software on a user's computer with the intent to enable third-
party monitoring or make system changes without the user's consent.
Phishing Sites that are used for deceptive or fraudulent purposes, such as stealing financial or other
user account information. These sites are most often designed to appear as legitimate sites
in order to mislead users into entering their credentials.
Spam URLs Sites that have been promoted through spam techniques.
Spyware Adware
Keyloggers
Sites that contain spyware, adware or keyloggers.
• Spyware is a program installed on your computer, usually without your explicit
knowledge, that captures and transmits personal information or Internet browsing habits
and details to companies. Companies use this information to analyze browsing habits,
to gather marketing data, and to sell your information to others.
• Key logger programs try to capture and steal your passwords and watch and record
everything you do on your computer.
• Adware programs typically display blinking advertisements or pop-up windows when
you perform a certain action. Adware programs are often installed in exchange for
another service, such as the right to use a program without paying for it.
Test URL Threat Category
URL to test Enter a URL using http://domain or https://domain and click the Query button to check if
the domain belongs to a URL threat category.
Apply Click Apply to save your changes.
Reset Click Reset to return the screen to its last-saved settings.
Table 318 Configuration > Security Service > Reputation Filter > URL Threat Filter > General (continued)
LABEL DESCRIPTION
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
817
Figure 523 Configuration > Security Service > Reputation Filter > URL Threat Filter > Allow List
The following table describes the labels in this screen.
36.5.2 URL Threat Filter Block List Screen
Use this screen to create block list entries. The Zyxel Device will block incoming packets from the listed
IPv4 addresses and URLs.
Table 319 Configuration > Security Service > Reputation Filter > URL Threat Filter > Allow List
LABEL DESCRIPTION
Enable Allow List Select this to bypass checking by this feature (if enabled) and automatically allow
packets from the listed IPv4 addresses and URLs.
Rule Summary
Add Click this to create a new URL threat filter allow list entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This is the entry’s index number in the list.
Allow List This field displays the URL of this entry.
SecuReporter Allow
List
This table displays the URL threat filter allow list you set in SecuReporter. Please note that
this table is read-only. If you want to change the SecuReporter URL threat filter allow list
settings, go to SecuReporter.
For example, if you add http://www.example.com to the SecuReporter URL threat filter
allow list, the Zyxel Device URL threat filter will allow incoming packets from http://
www.example.com and outgoing packets to http://www.example.com.
# This is the entry’s index number in the list.
Allow List This field displays the URL of the SecuReporter URL threat filter allow list entry.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
818
Figure 524 Configuration > Security Service > Reputation Filter > URL Threat Filter > Block List
The following table describes the labels in this screen.
36.5.3 URL Threat Filter External Block List Screen
Use this screen to use block list entries stored in a file on a web server that supports HTTP or HTTPS. The
Zyxel Device will block incoming and outgoing packets from the black list entries in this file.
• The external block list file must be in text format (*.txt) with each entry separated by a new
line.External block list entries can consist of a complete URL or a hostname and may contain
wildcards. There are some examples for your reference only:
• https://www.zyxel.com/products_services/smb.shtml?t=s (complete URL)
• www.zyxel.com (hostname)
• *.zyxel.* (hostname with wildcards)
• If the external block list file contains any invalid entries, the Zyxel Device will not use the file.
• The external block list file can contain up to 50,000 entries. A warning message displays when the
maximum is reached.
Table 320 Configuration > Security Service > Reputation Filter > URL Threat Filter > Block List
LABEL DESCRIPTION
Enable Block List Select this to bypass checking by this feature (if enabled) and automatically block
packets from the listed IPv4 addresses and URLs.
Add Click this to create a new URL threat filter block list entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This is the entry’s index number in the list.
Black List This field displays the URL of this entry.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
819
Figure 525 Configuration > Security Service > Reputation Filter > URL Threat Filter > External Block List
The following table describes the labels in this screen.
Table 321 Configuration > Security Service > Reputation Filter > URL Threat Filter > External Block List
LABEL DESCRIPTION
URL Blocking For External DB
Enable URL Blocking
For External DB
Select this check box to have the Zyxel Device bypass checking by this feature (if
enabled) and automatically block packets that come from the listed addresses in the
black list file on the server.
Note: Select Enable under URL Blocking in the Configuration > Security Service >
Reputation Filter > URL Threat Filter > General screen for the black list to
take effect.
Add Click this to create a new URL threat filter external block list entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This is the entry’s index number in the list.
Name Enter an identifying name for the black list file. You can use alphanumeric and ()+/
:=?!*#@$_%- characters, and it can be up to 60 characters long.
Source Enter the exact file name, path and IP address of the server containing the black list file.
For example, http://172.16.107.20/blacklist-files/myip-ebl.txt
The server must be reachable from the Zyxel Device.
Description Enter a description of the black list file. You can use alphanumeric and ()+/
:=?!*#@$_%-
characters, and it can be up to 60 characters long.
New IP reputation signatures can be downloaded to the Zyxel Device periodically if you
have subscribed for the IP reputation signatures service.
You need to create an account at myZyxel, register your Zyxel Device and then subscribe
for IP reputation service in order to be able to download new signatures from myZyxel
(see the Registration screens).
Schedule signature updates for a day and time when your network is least busy to
minimize disruption to your network.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
820
36.6 URL Threat Filter Profile
To use multiple profiles for this feature, run the following commands in the Zyxel Device Command Line
Interface (CLI).
After you run these command, go to the feature screen again in the web configurator. You will be
prompted to log out and then log in again.
Figure 526 Logout Prompt
After you log in again, you will see the new profile screen for this feature.
Figure 527 Configuration > Security Service > Reputation Filter > URL Threat Filter > Profile
Update Now Click this to have the Zyxel Device immediately check for new signatures at myZyxel. If
new signatures are found, they are then downloaded to the Zyxel Device.
Auto Update Click this to have the Zyxel Device automatically check for new signatures regularly at the
time and day specified. You should select a time when your network is not busy for
minimal interruption.
Daily Select this to have the Zyxel Device check for new signatures every day at the specified
time. The time format is the 24 hour clock, so ‘23’ means 11 PM for example.
Weekly Select this option to have the Zyxel Device check for new signatures once a week on the
day and at the time specified.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 321 Configuration > Security Service > Reputation Filter > URL Threat Filter > External Block List
LABEL DESCRIPTION
Router# configure terminal
Router(config)# secure-policy-style advance
Router(config)# show secure-policy-style status
secure-policy-style: advance
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
821
The following table describes the labels in this screen.
36.6.1 Add or Edit a URL Threat Filter Profile
Click Add to create a new entry or select an existing entry and click Edit to open the following screen
where you can create or modify the entry’s settings.
Figure 528 Configuration > Security Service > Reputation Filter > URL Threat Filter > Profile > Add/Edit
Table 322 Configuration > Security Service > Reputation Filter > URL Threat Filter > Profile
LABEL DESCRIPTION
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove Select an entry and click Remove to delete the selected entry.
# This field is a sequential value showing the number of the profile. The profile order is not
important.
Name This displays the name of the profile created.
Description This displays the description of the profile.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
822
The following table describes the labels in this screen.
Table 323 Configuration > Security Service > Reputation Filter > URL Threat Filter > Profile > Add/Edit
LABEL DESCRIPTION
Configuration
Profile Name Type the name of the profile. You may use 1-31 alphanumeric characters, underscores(_),
or dashes (-), but the first character cannot be a number. This value is case-sensitive. These
are valid, unique profile names:
•MyProfile
•mYProfile
• Mymy12_3-4
These are invalid profile names:
• 1mYProfile
•My Profile
•MyProfile?
• Whatalongprofilename123456789012
Description Type a description for the profile rule to help identify the purpose of rule. You may use 1-31
alphanumeric characters, underscores (
_), or dashes (-), but the first character cannot be
a number. This value is case-sensitive. This field is optional.
Action Set what action the Zyxel Device takes when it detects a connection attempt to or from the
web pages of the specified categories.
block: Select this action to have the Zyxel Device block access to the web pages that
match the categories that you select above.
warn: Select this action to have the Zyxel Device display a warning message to the access
requesters for the web pages before allowing users to access web pages that match the
categories that you select above.
pass: Select this action to have the Zyxel Device allow access to the web pages that match
the categories that you select above.
Log These are the log options:
• no: Do not create a log when it detects a connection attempt to or from the web
pages of the specified categories.
• log: Create a log on the Zyxel Device when it detects a connection attempt to or from
the web pages of the specified categories.
• log alert: An alert is an emailed log for more serious events that may need more
immediate attention. Select this option to have the Zyxel Device send an alert when a
connection matches web pages of the specified categories.
Scan Options
Check White List Select this check box to have the Zyxel Device not perform the URL Threat filter check on
URLs that match the white list entries.
Check Black List Select this check box to have the Zyxel Device perform the URL Threat filter check on URLs
that match the black list entries.
Check External
Black List
Select this check box to have the Zyxel Device perform the URL Threat filter check on URLs
that match the external black list entries.
Security Threat
Categories
Select the categories of FQDNs that may pose a security threat to network devices behind
the Zyxel Device.
Anonymizers Sites and proxies that act as an intermediary for surfing to other Web sites in an anonymous
fashion, whether to circumvent Web filtering or for other reasons.
Browser Exploits Sites that contain browser exploits. A browser exploit is any content that forces a web
browser to perform operations that you do not explicitly intend.
Malicious
Downloads
Sites that have been identified as containing malicious downloads or malware harmful to a
user's computer.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
823
36.6.2 Link a Profile
To link a profile to a policy, go to the Configuration > Security Policy > Policy Control screen, select a pol-
icy, and then click Edit. In the Edit Policy screen under Profile, select which profile you want to use for
each security service.
Malicious Sites Sites that install unwanted software on a user's computer with the intent to enable third-
party monitoring or make system changes without the user's consent.
Phishing Sites that are used for deceptive or fraudulent purposes, such as stealing financial or other
user account information. These sites are most often designed to appear as legitimate sites
in order to mislead users into entering their credentials.
Spam URLs Sites that have been promoted through spam techniques.
Spyware Adware
Keyloggers
Sites that contain spyware, adware or keyloggers.
• Spyware is a program installed on your computer, usually without your explicit
knowledge, that captures and transmits personal information or Internet browsing habits
and details to companies. Companies use this information to analyze browsing habits,
to gather marketing data, and to sell your information to others.
• Key logger programs try to capture and steal your passwords and watch and record
everything you do on your computer.
• Adware programs typically display blinking advertisements or pop-up windows when
you perform a certain action. Adware programs are often installed in exchange for
another service, such as the right to use a program without paying for it.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 323 Configuration > Security Service > Reputation Filter > URL Threat Filter > Profile > Add/Edit
LABEL DESCRIPTION
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
824
Figure 529 Configuration > Security Service > Policy Control > Profile
36.6.3 URL Threat Filter Advance Screen
The Configuration > Security Service > Reputation Filter > URL Threat Filter screen also changes when
using profiles.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
825
Figure 530 Configuration > Security Service > Reputation Filter > URL Threat Filter > General
The following table describes the labels in this screen.
Table 324 Configuration > Security Service > Reputation Filter > URL Threat Filter > General
LABEL DESCRIPTION
URL Blocking
Enable Select this option to turn on URL blocking on the Zyxel Device.
Inspect all traffic,
setting:
Select this to have all traffic inspected by the default_profile. You cannot rename or delete
the default_profile profile, but you can edit it by clicking the link here.
Inspect by policy If you configured a specific profile in the Profile tab for this service, select this to have
specific traffic inspected by that profile. You must bind the profile to a policy in Security
Policy > Policy Control.
Message to display when a site is blocked
Denied Access
Message
Enter a message to be displayed when the URL Threat filter blocks access to a web page.
Use up to 127 characters (0-9a-zA-Z;/?:@&=+$\.-_!~*'()%,”). For example, “Access to this
web page is not allowed. Please contact the network administrator”.
It is also possible to leave this field blank if you have a URL specified in the Redirect URL field.
In this case if the URL Threat filter blocks access to a web page, the Zyxel Device just opens
the web page you specified without showing a denied access message.
Redirect URL Enter the URL of the web page to which you want to send users when their web access is
blocked by the URL Threat filter. The web page you specify here opens in a new frame
below the denied access message.
Use “http://” or “https://” followed by up to 262 characters (0-9a-zA-Z;/?:@&=+$\.-_!~*'()%).
For example, http://192.168.1.17/blocked access.
Test URL Threat
Category
URL to test Enter a URL using http://domain or https://domain and click the Query button to check if
the domain belongs to a URL threat category.
background
Chapter 36 Reputation Filter
USG FLEX Series User’s Guide
826
36.6.4 Remove Profiles
To remove profiles and revert to the default general security policy style, you must first make sure to
change Inspect by policy to Inspect all traffic in the following security services: Anti-Malware, DNS Threat
Filter, URL Threat Filter, IPS, Email Security.
Note: All profiles that you created will be removed from Security Policy > Policy Control.
Run the following commands in the Zyxel Device Command Line Interface (CLI).
Wait a minute and then go to the feature screen again in the web configurator. You will be prompted
to log out and then log in again.
Figure 531 Logout Prompt
After you log in again, you will not see the profile screen for this feature.
Apply Click Apply to save your changes.
Reset Click Reset to return the screen to its last-saved settings.
Table 324 Configuration > Security Service > Reputation Filter > URL Threat Filter > General (continued)
LABEL DESCRIPTION
Router# configure terminal
Router(config)# secure-policy-style general
Router(config)# show secure-policy-style status
secure-policy-style: general
background
USG FLEX Series User’s Guide
827
CHAPTER 37
IPS
37.1 Overview
This chapter introduces packet inspection IPS (Intrusion Prevention System), custom signatures, and
updating signatures. An IPS system can detect malicious or suspicious packets and respond
instantaneously. IPS on the Zyxel Device protects against network-based intrusions.
37.1.1 What You Can Do in this Chapter
• Use the Security Service > IPS screen (Section 37.2 on page 828) to view registration and signature
information.
• Use the Security Service > IPS > Custom Signature > Add screens (Section 37.3 on page 836) to create
a new custom signature, edit an existing signature, delete existing signatures or save signatures to
your computer.
• Use the Security Service > IPS > Allow List screen (Section 37.4 on page 844) to list signatures that will
be exempted from IPS inspection.
37.1.2 What You Need To Know
Packet Inspection Signatures
A signature is a pattern of malicious or suspicious packet activity. You can specify an action to be taken
if the system matches a stream of data to a malicious signature. You can change the action in the
profile screens. Packet inspection examine OSI (Open System Interconnection) layer-4 to layer-7 packet
contents for malicious data. Generally, packet inspection signatures are created for known attacks
while anomaly detection looks for abnormal behavior.
Rate Based Signatures
Rate based signatures are IPS signatures that allow the Zyxel Device to just respond when a certain
number of malicious packets are identified within a specific time, by the IPS signatures specified in the
Rate Based Signature table.
Figure 532 IPS Signatures Example
background
Chapter 37 IPS
USG FLEX Series User’s Guide
828
Figure 533 Rate Based Signatures Example
Applying Your IPS Configuration
Changes to the Zyxel Device’s IPS settings affect new sessions, but not the sessions that already existed
before you applied the new settings.
37.1.3 Before You Begin
• Register for a trial IPS subscription in the Registration screen. This gives you access to free signature
updates. This is important as new signatures are created as new attacks evolve. When the trial
subscription expires, purchase and enter a license key using the same screens to continue the
subscription.
37.2 The IPS Screen
An IPS profile is a set of packet inspection signatures.
Click Configuration > Security Service > IPS to open this screen. Use this screen to view registration and
signature information.
Note: You must register in order to update packet inspection signatures. See the Registration
screens.
If you try to enable IPS when the IPS service has not yet been registered, a warning screen displays and
IPS is not enabled.
Click the IPS icon for more information on the Zyxel Device’s security features.
background
Chapter 37 IPS
USG FLEX Series User’s Guide
829
Figure 534 Configuration > Security Service > IPS
The following table describes the fields in this screen.
Table 325 Configuration > Security Service > IPS
LABEL DESCRIPTION
General Settings
Enable Select this check box to activate the IPS feature which detects and prevents malicious
or suspicious packets and responds instantaneously.
Scan Mode
Prevention Select this to have the Zyxel Device perform a user-specified action when a stream of
data matches a malicious signature.
background
Chapter 37 IPS
USG FLEX Series User’s Guide
830
Detection Select this to have the Zyxel Device only create a log message when a stream of data
matches a malicious signature.
Query Signatures
Name Type the name or part of the name of the signature(s) you want to find.
Signature ID Type the ID or part of the ID of the signature(s) you want to find.
Search all custom
signatures
Select this check box to include signatures you created or imported in the Custom
Signatures screen in the search. You can search for specific signatures by name or ID. If
the name and ID fields are left blank, then all signatures are searched according to the
criteria you select.
Severity Search for signatures by severity level(s). Hold down the [Ctrl] key if you want to make
multiple selections.
These are the severities as defined in the Zyxel Device. The number in brackets is the
number you use if using commands.
Severe (5): These denote attacks that try to run arbitrary code or gain system privileges.
High (4): These denote known serious vulnerabilities or attacks that are probably not
false alarms.
Medium (3): These denote medium threats, access control attacks or attacks that could
be false alarms.
Low (2): These denote mild threats or attacks that could be false alarms.
Very-Low (1): These denote possible attacks caused by traffic such as Ping, trace route,
ICMP queries etc.
Classification Type Search for signatures by attack type(s)(see Table 326 on page 833). Attack types are
known as policy types in the group view screen. Hold down the [Ctrl] key if you want to
make multiple selections.
Platform Search for signatures created to prevent intrusions targeting specific operating
system(s). Hold down the [Ctrl] key if you want to make multiple selections.
Service Search for signatures by IPS service group(s). See Table 326 on page 833 for group
details.Hold down the [Ctrl] key if you want to make multiple selections.
Action Search for signatures by the response the Zyxel Device takes when a packet matches a
signature.Hold down the [Ctrl] key if you want to make multiple selections.
Activation Search for activated and/or inactivated signatures here.
Log Search for signatures by log option here.
Query Result The results are displayed in a table showing the SID, Name, Severity, Classification Type,
Platform, Service, Log, and Action criteria as selected in the search. Click the SID column
header to sort search results by signature ID.
Custom Signature Rules Use this part of the screen to create, edit, delete or export (save to your computer)
custom signatures.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Export To save an entry or entries as a file on your computer, select them and click Export. Click
Save in the file download dialog box and then select a location and name for the file.
Custom signatures must end with the ‘rules’ file name extension, for example,
MySig.rules.
# This is the entry’s index number in the list.
Table 325 Configuration > Security Service > IPS (continued)
LABEL DESCRIPTION
background
Chapter 37 IPS
USG FLEX Series User’s Guide
831
SID SID is the signature ID that uniquely identifies a signature. Click the SID header to sort
signatures in ascending or descending order. It is automatically created when you click
the Add icon to create a new signature. You can edit the ID, but it cannot already exist
and it must be in the 9000000 to 9999999 range.
Name This is the name of your custom signature. Duplicate names can exist, but it is advisable
to use unique signature names that give some hint as to intent of the signature and the
type of attack it is supposed to prevent.
Customer Signature Rule
Importing
Use this part of the screen to import custom signatures (previously saved to your
computer) to the Zyxel Device.
Note: The name of the complete custom signature file on the Zyxel Device is
‘custom.rules’. If you import a file named ‘custom.rules’, then all custom
signatures on the Zyxel Device are overwritten with the new file. If this is
not your intention, make sure that the files you import are not named
‘custom.rules’.
File Path Type the file path and name of the custom signature file you want to import in the text
box (or click Browse to find it on your computer) and then click Importing to transfer the
file to the Zyxel Device.
New signatures then display in the Zyxel Device IPS > Custom Signatures screen.
Rate Based Signature IPS signatures identify traffic packets with suspicious malicious patterns. The Zyxel
Devicecan then respond instantaneously according to the action you define.
If you do not want the Zyxel Device to respond instantaneously for each suspicious
packet detected, use rate based signatures. See
Section 37.1.2 on page 827 for more
information on rate based signatures.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Log To edit an item’s log option, select it and use the Log icon. Select whether to have the
Zyxel Device generate a log (log), log and alert (log alert) or neither (no) when a packet
matches a signature.
Action To edit what action the Zyxel Device takes when a packet matches a signature, select
the entry and use the Action icon.
none: Select this action to have the Zyxel Device take no action when a packet
matches a signature.
drop: Select this action to have the Zyxel Device silently drop a packet that matches a
signature. Neither sender nor receiver are notified.
reject-sender: Select this action to have the Zyxel Device send a reset to the sender
when a packet matches the signature. If it is a TCP attack packet, the Zyxel Device will
send a packet with a ‘RST’ flag. If it is an ICMP or UDP attack packet, the Zyxel Device
will send an ICMP unreachable packet.
reject-receiver: Select this action to have the Zyxel Device send a reset to the receiver
when a packet matches the signature. If it is a TCP attack packet, the Zyxel Device will
send a packet with an a ‘RST’ flag. If it is an ICMP or UDP attack packet, the Zyxel Device
will do nothing.
reject-both: Select this action to have the Zyxel Device send a reset to both the sender
and receiver when a packet matches the signature. If it is a TCP attack packet, the
Zyxel Device will send a packet with a ‘RST’ flag to the receiver and sender. If it is an
ICMP or UDP attack packet, the Zyxel Device will send an ICMP unreachable packet.
# This is the entry’s index number in the list.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
Table 325 Configuration > Security Service > IPS (continued)
LABEL DESCRIPTION
background
Chapter 37 IPS
USG FLEX Series User’s Guide
832
SID SID is the signature ID that uniquely identifies a signature. Click the SID header to sort
signatures in ascending or descending order.
Name This is the name of your rate-based signature. The name is the type of attack the Zyxel
Device can identify.
Severity This field displays signatures by severity level(s). Hold down the [Ctrl] key if you want to
make multiple selections.
These are the severities as defined in the Zyxel Device. The number in brackets is the
number you use if using commands.
Severe (5): These denote attacks that try to run arbitrary code or gain system privileges.
High (4): These denote known serious vulnerabilities or attacks that are probably not
false alarms.
Medium (3): These denote medium threats, access control attacks or attacks that could
be false alarms.
Low (2): These denote mild threats or attacks that could be false alarms.
Very-Low (1): These denote possible attacks caused by traffic such as Ping, trace route,
ICMP queries etc.
Classification This field displays signatures by attack type(s)(see Table 326 on page 833). Attack types
are known as policy types in the group view screen. Hold down the [Ctrl] key if you want
to make multiple selections.
Platform This field displays signatures created to prevent intrusions targeting specific operating
system(s). Hold down the [Ctrl] key if you want to make multiple selections.
Service This field displays signatures by IPS service group(s). See Table 326 on page 833 for group
details.Hold down the [Ctrl] key if you want to make multiple selections.
Period (1-120) Type the length of time in seconds the event should occur from a client the Count
number of times to trigger an IPS Action.
For example, Count is set to 5, and Period is set to 60. If the Zyxel Device detects more
than 5 occurrences of malicious traffic in less than 60 seconds, then IPS Action is
triggered.
Count (1-300) Type the number of security events that need to occur within the defined Period to
trigger an IPS Action.
Block Period (0-
86400)
This field displays the time period the attacker’s IP will be blocked.
Click on the number in this column to set the value from 0 to 86400 seconds. 0 means
that the IP will not be blocked.
Log This fields displays the log action the Zyxel Device takes when a packet matches a
signature.
log- The Zyxel Device generates a log.
log an alert- The Zyxel Device generates a log and alerts the users.
no- The Zyxel Device will neither generate a log nor alert the users.
Table 325 Configuration > Security Service > IPS (continued)
LABEL DESCRIPTION
background
Chapter 37 IPS
USG FLEX Series User’s Guide
833
Policy Types
This table describes Policy Types as categorized in the Zyxel Device.
Action This field displays the response the Zyxel Device takes when a packet matches a
signature. Hold down the [Ctrl] key if you want to make multiple selections.
none: Select this action to have the Zyxel Device take no action when a packet
matches a signature.
drop: Select this action to have the Zyxel Device silently drop a packet that matches a
signature. Neither sender nor receiver are notified.
reject-sender: Select this action to have the Zyxel Device send a reset to the sender
when a packet matches the signature. If it is a TCP attack packet, the Zyxel Device will
send a packet with a ‘RST’ flag. If it is an ICMP or UDP attack packet, the Zyxel Device
will send an ICMP unreachable packet.
reject-receiver: Select this action to have the Zyxel Device send a reset to the receiver
when a packet matches the signature. If it is a TCP attack packet, the Zyxel Device will
send a packet with an a ‘RST’ flag. If it is an ICMP or UDP attack packet, the Zyxel Device
will do nothing.
reject-both: Select this action to have the Zyxel Device send a reset to both the sender
and receiver when a packet matches the signature. If it is a TCP attack packet, the
Zyxel Device will send a packet with a ‘RST’ flag to the receiver and sender. If it is an
ICMP or UDP attack packet, the Zyxel Device will send an ICMP unreachable packet.
Signature Information The following fields display information on the current signature set that the Zyxel Device
is using.
Current Version This field displays the IPS signature set version number. This number gets larger as the set
is enhanced.
Signature Number This field displays the number of IPS signatures in this set. This number usually gets larger
as the set is enhanced. Older signatures and rules may be removed if they are no longer
applicable or have been supplanted by newer ones.
Released Date This field displays the date and time the set was released.
Update Signatures Click this link to go to the screen you can use to download signatures from the update
server.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 326 Policy Types
POLICY TYPE DESCRIPTION
Access Control Access control refers to procedures and controls that limit or detect access. Access
control attacks try to bypass validation checks in order to access network resources such
as servers, directories, and files.
Any Any attack includes all other kinds of attacks that are not specified in the policy such as
password, spoof, hijack, phishing, and close-in.
Backdoor/Trojan Horse A backdoor (also called a trapdoor) is hidden software or a hardware mechanism that
can be triggered to gain access to a program, online service or an entire computer
system. A Trojan horse is a harmful program that is hidden inside apparently harmless
programs or data.
Although a virus, a worm and a Trojan are different types of attacks, they can be
blended into one attack. For example, W32/Blaster and W32/Sasser are blended attacks
that feature a combination of a worm and a Trojan.
Table 325 Configuration > Security Service > IPS (continued)
LABEL DESCRIPTION
background
Chapter 37 IPS
USG FLEX Series User’s Guide
834
BotNet A Botnet is a number of Internet computers that have been set up to forward
transmissions including spam or viruses to other computers on the Internet though their
owners are unaware of it. It is also a collection of Internet-connected programs
communicating with other similar programs in order to perform tasks and participate in
distributed Denial-Of-Service attacks.
Buffer Overflow A buffer overflow occurs when a program or process tries to store more data in a buffer
(temporary data storage area) than it was intended to hold. The excess information can
overflow into adjacent buffers, corrupting or overwriting the valid data held in them.
Intruders could run codes in the overflow buffer region to obtain control of the system,
install a backdoor or use the victim to launch attacks on other devices.
DoS/DDoS The goal of Denial of Service (DoS) attacks is not to steal information, but to disable a
device or network on the Internet.
A Distributed Denial of Service (DDoS) attack is one in which multiple compromised
systems attack a single target, thereby causing denial of service for users of the targeted
system.
Instant Messenger IM (Instant Messenger) refers to chat applications. Chat is real-time, text-based
communication between two or more users through networks-connected computers.
After you enter a chat (or chat room), any room member can type a message that will
appear on the monitors of all the other participants.
Mail A Mail or email bombing attack involves sending several thousand identical messages to
an electronic mailbox in order to overflow it, making it unusable.
Misc Miscellaneous attacks takes advantage of vulnerable computer networks and web
servers by forcing cache servers or web browsers into disclosing user-specific information
that might be sensitive and confidential. The most common type of Misc. attacks are
HTTP Response Smuggling, HTTP Response Splitting and JSON Hijacking.
P2P Peer-to-peer (P2P) is where computing devices link directly to each other and can
directly initiate communication with each other; they do not need an intermediary. A
device can be both the client and the server. In the Zyxel Device, P2P refers to peer-to-
peer applications such as e-Mule, e-Donkey, BitTorrent, iMesh, etc.
Scan A scan describes the action of searching a network for an exposed service. An attack
may then occur once a vulnerability has been found. Scans occur on several network
levels.
A network scan occurs at layer-3. For example, an attacker looks for network devices
such as a router or server running in an IP network.
A scan on a protocol is commonly referred to as a layer-4 scan. For example, once an
attacker has found a live end system, he looks for open ports.
A scan on a service is commonly referred to a layer-7 scan. For example, once an
attacker has found an open port, say port 80 on a server, he determines that it is a HTTP
service run by some web server application. He then uses a web vulnerability scanner (for
example, Nikto) to look for documented vulnerabilities.
SPAM Spam is unsolicited “junk” email sent to large numbers of people to promote products or
services.
Stream Media A Stream Media attack occurs when a malicious network node downloads an
overwhelming amount of media stream data that could potentially exhaust the entire
system. This method allows users to send small requests messages that result in the
streaming of large media objects, providing an opportunity for malicious users to exhaust
resources in the system with little effort expended on their part.
Tunnel A Tunneling attack involves sending IPv6 traffic over IPv4, slipping viruses, worms and
spyware through the network using secret tunnels. This method infiltrates standard
security measures through IPv6 tunnels, passing through IPv4 undetected. An external
signal then triggers the malware to spring to life and wreak havoc from inside the
network.
Table 326 Policy Types (continued)
POLICY TYPE DESCRIPTION
background
Chapter 37 IPS
USG FLEX Series User’s Guide
835
IPS Service Groups
An IPS service group is a set of related packet inspection signatures.
37.2.1 Query Example
This example shows a search with these criteria:
•Severity: Severe
• Classification Type: Misc
• Platform: Windows
•Service: Any
•Actions: Any
Virus/Worm A computer virus is a small program designed to corrupt and/or alter the operation of
other legitimate programs. A worm is a program that is designed to copy itself from one
computer to another on a network. A worm’s uncontrolled replication consumes system
resources, thus slowing or stopping other tasks.
Web Attack Web attacks refer to attacks on web servers such as IIS (Internet Information Services).
Table 327 IPS Service Groups
WEB_PHP WEB_MISC WEB_IIS WEB_FRONTPAGE
WEB_CGI WEB_ATTACKS TFTP TELNET
SQL SNMP SMTP RSERVICES
RPC POP3 POP2 P2P
ORACLE NNTP NETBIOS MYSQL
MISC_EXPLOIT MISC_DDOS MISC_BACKDOOR MISC
IMAP IM ICMP FTP
FINGER DNS n/a
Table 326 Policy Types (continued)
POLICY TYPE DESCRIPTION
background
Chapter 37 IPS
USG FLEX Series User’s Guide
836
Figure 535 Query Example Search
37.3 IPS Custom Signatures
Create custom signatures for new attacks or attacks peculiar to your network. Custom signatures can
also be saved to/from your computer so as to share with others.
You need some knowledge of packet headers and attack types to create your own custom signatures.
IP Packet Header
These are the fields in an Internet Protocol (IP) version 4 packet header.
Figure 536 IP v4 Packet Headers
background
Chapter 37 IPS
USG FLEX Series User’s Guide
837
The header fields are discussed in the following table.
Select Configuration > Security Service. The Custom Signature Rules section shows a summary of all
custom signatures created. Click the SID or Name heading to sort. Click the Add icon to create a new
signature or click the Edit icon to edit an existing signature. You can also delete custom signatures here
or save them to your computer.
Note: The Zyxel Device checks all signatures and continues searching even after a match is
found. If two or more rules have conflicting actions for the same packet, then the Zyxel
Device applies the more restrictive action (reject-both, reject-receiver or reject-sender,
drop, none in this order). If a packet matches a rule for reject-receiver and it also
matches a rule for reject-sender, then the Zyxel Device will reject-both.
37.3.1 Add / Edit Custom Signatures
Click the Add icon to create a new signature or click the Edit icon to edit an existing signature on the
screen as shown in
Figure 534 on page 829.
Table 328 IP v4 Packet Headers
HEADER DESCRIPTION
Version The value 4 indicates IP version 4.
IHL IP Header Length is the number of 32 bit words forming the total length of the header
(usually five).
Type of Service The Type of Service, (also known as Differentiated Services Code Point (DSCP)) is
usually set to 0, but may indicate particular quality of service needs from the network.
Total Length This is the size of the datagram in bytes. It is the combined length of the header and
the data.
Identification This is a 16-bit number, which together with the source address, uniquely identifies this
packet. It is used during reassembly of fragmented datagrams.
Flags Flags are used to control whether routers are allowed to fragment a packet and to
indicate the parts of a packet to the receiver.
Fragment Offset This is a byte count from the start of the original sent packet.
Time To Live This is a counter that decrements every time it passes through a router. When it
reaches zero, the datagram is discarded. It is used to prevent accidental routing
loops.
Protocol The protocol indicates the type of transport packet being carried, for example, 1 =
ICMP; 2= IGMP; 6 = TCP; 17= UDP.
Header Checksum This is used to detect processing errors introduced into the packet inside a router or
bridge where the packet is not protected by a link layer cyclic redundancy check.
Packets with an invalid checksum are discarded by all nodes in an IP network.
Source IP Address This is the IP address of the original sender of the packet.
Destination IP Address This is the IP address of the final destination of the packet.
Options IP options is a variable-length list of IP options for a datagram that define IP Security
Option, IP Stream Identifier, (security and handling restrictions for the military), Record
Route (have each router record its IP address), Loose Source Routing (specifies a list of
IP addresses that must be traversed by the datagram), Strict Source Routing (specifies
a list of IP addresses that must ONLY be traversed by the datagram), Timestamp (have
each router record its IP address and time), End of IP List and No IP Options.
Padding Padding is used as a filler to ensure that the IP packet is a multiple of 32 bits.
background
Chapter 37 IPS
USG FLEX Series User’s Guide
838
A packet must match all items you configure in this screen before it matches the signature. The more
specific your signature (including packet contents), then the fewer false positives the signature will
trigger.
Try to write signatures that target a vulnerability, for example a certain type of traffic on certain
operating systems, instead of a specific exploit.
Figure 537 Configuration > Security Service > IPS > Custom Signatures > Add/Edit
background
Chapter 37 IPS
USG FLEX Series User’s Guide
839
The following table describes the fields in this screen.
Table 329 Configuration > Security Service > IPS > Custom Signatures > Add/Edit
LABEL DESCRIPTION
Name Type the name of this custom signature. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is
case-sensitive.
Duplicate names can exist but it is advisable to use unique signature names that give
some hint as to intent of the signature and the type of attack it is supposed to prevent.
Refer to (but do not copy) the packet inspection signature names for hints on creating a
naming convention.
Signature ID A signature ID is automatically created when you click the Add icon to create a new
signature. You can edit the ID to create a new one (in the 9000000 to 9999999 range),
but you cannot use one that already exists. You may want to do that if you want to order
custom signatures by SID.
Information Use the following fields to set general information about the signature as denoted below.
Severity The severity level denotes how serious the intrusion is. Categorize the seriousness of the
intrusion here.
Platform Some intrusions target specific operating systems only. Select the operating systems that
the intrusion targets, that is, the operating systems you want to protect from this intrusion.
SGI refers to Silicon Graphics Incorporated, who manufactures multi-user Unix
workstations that run the IRIX operating system (SGI's version of UNIX). A router is an
example of a network device.
Classification Type Categorize the attack type here. See Table 326 on page 833 as a reference.
Frequency Recurring packets of the same type may indicate an attack. Use the following field to
indicate how many packets per how many seconds constitute an intrusion
Threshold Select Threshold and then type how many packets (that meet the criteria in this
signature) per how many seconds constitute an intrusion.
Header Options
Network Protocol Configure signatures for IP version 4.
Type Of Service Type of service in an IP header is used to specify levels of speed and/or reliability. Some
intrusions use an invalid Type Of Service number. Select the check box, then select Equal
or Not-Equal and then type in a number.
Identification The identification field in a datagram uniquely identifies the datagram. If a datagram is
fragmented, it contains a value that identifies the datagram to which the fragment
belongs. Some intrusions use an invalid Identification number. Select the check box and
then type in the invalid number that the intrusion uses.
Fragmentation A fragmentation flag identifies whether the IP datagram should be fragmented, not
fragmented or is a reserved bit. Some intrusions can be identified by this flag. Select the
check box and then select the flag that the intrusion uses.
Fragment Offset When an IP datagram is fragmented, it is reassembled at the final destination. The
fragmentation offset identifies where the fragment belongs in a set of fragments. Some
intrusions use an invalid Fragment Offset number. Select the check box, select Equal,
Smaller or Greater and then type in a number
Time to Live Time to Live is a counter that decrements every time it passes through a router. When it
reaches zero, the datagram is discarded. Usually it’s used to set an upper limit on the
number of routers a datagram can pass through. Some intrusions can be identified by
the number in this field. Select the check box, select Equal, Smaller or Greater and then
type in a number.
background
Chapter 37 IPS
USG FLEX Series User’s Guide
840
IP Options IP options is a variable-length list of IP options for a datagram that define IP Security
Option, IP Stream Identifier, (security and handling restrictions for the military), Record
Route (have each router record its IP address), Loose Source Routing (specifies a list of IP
addresses that must be traversed by the datagram), Strict Source Routing (specifies a list
of IP addresses that must ONLY be traversed by the datagram), Timestamp (have each
router record its IP address and time), End of IP List and No IP Options. IP Options can help
identify some intrusions. Select the check box, then select an item from the list box that
the intrusion uses
Same IP Select the check box for the signature to check for packets that have the same source
and destination IP addresses.
Transport Protocol The following fields vary depending on whether you choose TCP, UDP or ICMP.
Transport Protocol: TCP
Port Select the check box and then enter the source and destination TCP port numbers that
will trigger this signature.
Flow The selected keyword sets the criteria as to which traffic is matched. You can match
traffic based on direction or whether the connection is established or not. You can also
specify whether you want to match signatures per packet or in a stream of packets.
Established: Match established connections.
Stateless: Match packets that are not part of an established connection.
To Client: Match packets that flow from server to client.
To Server: Match packets that flow from client to server.
From Client: Match packets that flow from client to server.
From Servers: Match packets that flow from server to client.
No Stream: Match packets that have not been reassembled by the stream engine. It will
not match packets that have been reassembled.
Only Stream: Match packets that have been reassembled.
Flags Select what TCP flag bits the signature should check.
Sequence Number Use this field to check for a specific TCP sequence number.
Ack Number Use this field to check for a specific TCP acknowledgment number.
Window Size Use this field to check for a specific TCP window size.
Transport Protocol: UDP
Port Select the check box and then enter the source and destination UDP port numbers that
will trigger this signature.
Transport Protocol:
ICMP
Type Use this field to check for a specific ICMP type value.
Code Use this field to check for a specific ICMP code value.
ID Use this field to check for a specific ICMP ID value. This is useful for covert channel
programs that use static ICMP fields when they communicate.
Sequence Number Use this field to check for a specific ICMP sequence number. This is useful for covert
channel programs that use static ICMP fields when they communicate.
Payload Options The longer a payload option is, the more exact the match, the faster the signature
processing. Therefore, if possible, it is recommended to have at least one payload option
in your signature.
Table 329 Configuration > Security Service > IPS > Custom Signatures > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 37 IPS
USG FLEX Series User’s Guide
841
37.3.2 Custom Signature Example
Before creating a custom signature, you must first clearly understand the vulnerability.
Payload Size This field may be used to check for abnormally sized packets or for detecting buffer
overflows
.
Select the check box, then select Equal, Smaller or Greater and then type the payload
size.
Stream rebuilt packets are not checked regardless of the size of the payload.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This is the entry’s index number in the list.
Offset This field specifies where to start searching for a pattern within a packet. For example, an
offset of 5 would start looking for the specified pattern after the first five bytes of the
payload.
Content Type the content that the signature should search for in the packet payload.
Hexadecimal code entered between pipes is converted to ASCII. For example, you
could represent the ampersand as either & or |26| (26 is the hexadecimal code for the
ampersand).
Use 1 to 63 single-byte characters, including 0-9a-zA-Z!#$%&’()*+,-./<=>?@[]^_{|}
“:;\‘are not allowed.
Case-insensitive Select Yes if content casing does NoT matter.
Decode as URI A Uniform Resource Identifier (URI) is a string of characters for identifying an abstract or
physical resource (RFC 2396). A resource can be anything that has identity, for example,
an electronic document, an image, a service (“today's weather report for Taiwan”), a
collection of other resources. An identifier is an object that can act as a reference to
something that has identity. Example URLs are:
ftp://ftp.is.co.za/rfc/rfc1808.txt; ftp scheme for File Transfer Protocol services
http://www.math.uio.no/faq/compression-faq/part1.html; http scheme for Hypertext
Transfer Protocol services
mailto:[email protected]; mailto scheme for electronic mail addresses
telnet://melvyl.ucop.edu/; telnet scheme for interactive services through the TELNET
Protocol
Select Yes for the signature to search for normalized URI fields. This means that if you are
writing signatures that includes normalized content, such as %2 for directory traversals,
these signatures will not be triggered because the content is normalized out of the URI
buffer.
For example, the URI:
/scripts/..%c0%af../winnt/system32/cmd.exe?/c+ver
will get normalized into:
/winnt/system32/cmd.exe?/c+ver
OK Click this button to save your changes to the Zyxel Device and return to the summary
screen.
Cancel Click this button to return to the summary screen without saving any changes.
Table 329 Configuration > Security Service > IPS > Custom Signatures > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 37 IPS
USG FLEX Series User’s Guide
842
37.3.2.1 Understand the Vulnerability
Check the Zyxel Device logs when the attack occurs. Use web sites such as Google or Security Focus to
get as much information about the attack as you can. The more specific your signature, the less chance
it will cause false positives.
As an example, say you want to check if your router is being overloaded with DNS queries so you create
a signature to detect DNS query traffic.
37.3.2.2 Analyze Packets
Use the packet capture screen and a packet analyzer (also known as a network or protocol analyzer)
such as Wireshark or Ethereal to investigate some more.
Figure 538 DNS Query Packet Details
background
Chapter 37 IPS
USG FLEX Series User’s Guide
843
From the details about DNS query you see that the protocol is UDP and the port is 53. The type of DNS
packet is standard query and the Flag is 0x0100 with an offset of 2. Therefore enter |010| as the first
pattern.
The final custom signature should look like as shown in the following figure.
Figure 539 Example Custom Signature
37.3.3 Applying Custom Signatures
After you create your custom signature, it becomes available in an IPS profile (Configuration > Security
Service > IPS > Profile > Edit screen). Custom signatures have an SID from 9000000 to 9999999.
background
Chapter 37 IPS
USG FLEX Series User’s Guide
844
Search for, then activate the signature, configure what action to take when a packet matches it and if
it should generate a log or alert in a profile. Then bind the profile to a zone.
37.3.4 Verifying Custom Signatures
Configure the signature to create a log when traffic matches the signature. (You may also want to
configure an alert if it is for a serious attack and needs immediate attention.) After you apply the
signature to a zone, you can see if it works by checking the logs (Monitor > Log).
The Priority column shows warn for signatures that are configured to generate a log only. It shows critical
for signatures that are configured to generate a log and alert. All IPS signatures come under the IPS
category. The Note column displays ACCESS FORWARD when no action is configured for the signature. It
displays ACCESS DENIED if you configure the signature action to drop the packet. The destination port is
the service port (53 for DNS in this case) that the attack tries to exploit.
Figure 540 Custom Signature Log
37.4 The Allow List Screen
Use this screen to list signatures that will be exempted from IPS inspection. The Zyxel Device will exclude
incoming packets with the listed signature(s) from being intercepted and inspected.
Click Configuration > Security Service > IPS > Allow List to display the following screen. Use Add to put a
new item in the list or Edit to change an existing one or Remove to delete an existing entry.
Figure 541 Configuration > Security Service > IPS > Allow List
background
Chapter 37 IPS
USG FLEX Series User’s Guide
845
The following table describes the fields in this screen.
37.5 IPS Profile
To use multiple profiles for this feature, run the following commands in the Zyxel Device Command Line
Interface (CLI).
After you run these command, go to the feature screen again in the web configurator. You will be
prompted to log out and then log in again.
Figure 542 Logout Prompt
After you log in again, you will see the new profile screen for this feature.
Figure 543 Configuration > Security Service > IPS> Profile
Table 330 Configuration > Security Service > IPS > Allow List
LABEL DESCRIPTION
Rule Summary
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This is the entry’s index number in the list.
Signature ID This field displays the signature ID of this entry.
Signature Name This field displays the signature name of this entry.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Router# configure terminal
Router(config)# secure-policy-style advance
Router(config)# show secure-policy-style status
secure-policy-style: advance
background
Chapter 37 IPS
USG FLEX Series User’s Guide
846
The following table describes the labels in this screen.
37.5.1 Add or Edit an IPS Profile
Click Add to create a new entry or select an existing entry and click Edit to open the following screen
where you can create or modify the entry’s settings.
Figure 544 Configuration > Security Service > IPS > Profile > Add/Edit
Table 331 Configuration > Security Service > IPS > Profile
LABEL DESCRIPTION
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove Select an entry and click Remove to delete the selected entry.
# This field is a sequential value showing the number of the profile. The profile order is not
important.
Name This displays the name of the profile created.
Description This displays the description of the profile.
background
Chapter 37 IPS
USG FLEX Series User’s Guide
847
The following table describes the labels in this screen.
Table 332 Configuration > Security Service > IPS
LABEL DESCRIPTION
Configuration
Profile Name Type the name of the profile. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is
case-sensitive. These are valid, unique profile names:
•MyProfile
• mYProfile
• Mymy12_3-4
These are invalid profile names:
• 1mYProfile
•My Profile
• MyProfile?
• Whatalongprofilename123456789012
Description Type a description for the profile rule to help identify the purpose of rule. You may use 1-
31 alphanumeric characters, underscores (
_), or dashes (-), but the first character
cannot be a number. This value is case-sensitive. This field is optional.
Query Signatures
Name Type the name or part of the name of the signature(s) you want to find.
Signature ID Type the ID or part of the ID of the signature(s) you want to find.
Search all custom
signatures
Select this check box to include signatures you created or imported in the Custom
Signatures screen in the search. You can search for specific signatures by name or ID. If
the name and ID fields are left blank, then all signatures are searched according to the
criteria you select.
Severity Search for signatures by severity level(s). Hold down the [Ctrl] key if you want to make
multiple selections.
These are the severities as defined in the Zyxel Device. The number in brackets is the
number you use if using commands.
Severe (5): These denote attacks that try to run arbitrary code or gain system privileges.
High (4): These denote known serious vulnerabilities or attacks that are probably not
false alarms.
Medium (3): These denote medium threats, access control attacks or attacks that could
be false alarms.
Low (2): These denote mild threats or attacks that could be false alarms.
Very-Low (1): These denote possible attacks caused by traffic such as Ping, trace route,
ICMP queries etc.
Classification Type Search for signatures by attack type(s)(see Table 326 on page 833). Attack types are
known as policy types in the group view screen. Hold down the [Ctrl] key if you want to
make multiple selections.
Platform Search for signatures created to prevent intrusions targeting specific operating
system(s). Hold down the [Ctrl] key if you want to make multiple selections.
Service Search for signatures by IPS service group(s). See Table 326 on page 833 for group
details.Hold down the [Ctrl] key if you want to make multiple selections.
Action Search for signatures by the response the Zyxel Device takes when a packet matches a
signature.Hold down the [Ctrl] key if you want to make multiple selections.
Activation Search for activated and/or inactivated signatures here.
Log Search for signatures by log option here.
background
Chapter 37 IPS
USG FLEX Series User’s Guide
848
37.5.2 Link a Profile
To link a profile to a policy, go to the Configuration > Security Policy > Policy Control screen, select a pol-
icy, and then click Edit. In the Edit Policy screen under Profile, select which profile you want to use for
each security service.
Figure 545 Configuration > Security Service > Policy Control > Profile
Query Result The results are displayed in a table showing the SID, Name, Severity, Classification Type,
Platform, Service, Log, and Action criteria as selected in the search. Click the SID column
header to sort search results by signature ID.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 332 Configuration > Security Service > IPS (continued)
LABEL DESCRIPTION
background
Chapter 37 IPS
USG FLEX Series User’s Guide
849
37.5.3 The IPS Advance Screen
The Configuration > Security Service > IPS screen changes when using profiles.
Figure 546 Configuration > Security Service > IPS Advance
The following table describes the fields in this screen.
Table 333 Configuration > Security Service > IPS Advance
LABEL DESCRIPTION
General Settings
Enable Select this check box to activate the IPS feature which detects and prevents malicious
or suspicious packets and responds instantaneously.
Inspect all traffic,
setting:
Select this to have all traffic inspected by the default_profile or default_detect_only.
Use the default_profile profile to set the Zyxel Device to IPS prevention mode. Use the
default_detect_only profile to set the Zyxel Device to IPS detection mode. For more
information on IPS prevention and detection mode, see
Table 325 on page 829.
You cannot rename or delete the default_profile or default_detect_only profile, but you
can edit it by clicking on the profile name.
Inspect by policy If you configured a specific profile in the Profile tab for this service, select this to have
specific traffic inspected by that profile. You must bind the profile to a policy in Security
Policy > Policy Control.
Custom Signature Rules Use this part of the screen to create, edit, delete or export (save to your computer)
custom signatures.
Add Click this to create a new entry.
background
Chapter 37 IPS
USG FLEX Series User’s Guide
850
37.5.4 Remove Profiles
To remove profiles and revert to the default general security policy style, you must first make sure to
change Inspect by policy to Inspect all traffic in the following security services: Anti-Malware, DNS Threat
Filter, IPS, Email Security.
Note: All profiles that you created will be removed from Security Policy > Policy Control.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Export To save an entry or entries as a file on your computer, select them and click Export. Click
Save in the file download dialog box and then select a location and name for the file.
Custom signatures must end with the ‘rules’ file name extension, for example,
MySig.rules.
# This is the entry’s index number in the list.
SID SID is the signature ID that uniquely identifies a signature. Click the SID header to sort
signatures in ascending or descending order. It is automatically created when you click
the Add icon to create a new signature. You can edit the ID, but it cannot already exist
and it must be in the 9000000 to 9999999 range.
Name This is the name of your custom signature. Duplicate names can exist, but it is advisable
to use unique signature names that give some hint as to intent of the signature and the
type of attack it is supposed to prevent.
Customer Signature Rule
Importing
Use this part of the screen to import custom signatures (previously saved to your
computer) to the Zyxel Device.
Note: The name of the complete custom signature file on the Zyxel Device is
‘custom.rules’. If you import a file named ‘custom.rules’, then all custom
signatures on the Zyxel Device are overwritten with the new file. If this is
not your intention, make sure that the files you import are not named
‘custom.rules’.
File Path Type the file path and name of the custom signature file you want to import in the text
box (or click Browse to find it on your computer) and then click Importing to transfer the
file to the Zyxel Device.
New signatures then display in the Zyxel Device IPS > Custom Signatures screen.
Signature Information The following fields display information on the current signature set that the Zyxel Device
is using.
Current Version This field displays the IPS signature set version number. This number gets larger as the set
is enhanced.
Signature Number This field displays the number of IPS signatures in this set. This number usually gets larger
as the set is enhanced. Older signatures and rules may be removed if they are no longer
applicable or have been supplanted by newer ones.
Released Date This field displays the date and time the set was released.
Update Signatures Click this link to go to the screen you can use to download signatures from the update
server.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 333 Configuration > Security Service > IPS Advance (continued)
LABEL DESCRIPTION
background
Chapter 37 IPS
USG FLEX Series User’s Guide
851
Run the following commands in the Zyxel Device Command Line Interface (CLI).
Wait a minute and then go to the feature screen again in the web configurator. You will be prompted
to log out and then log in again.
Figure 547 Logout Prompt
After you log in again, you will not see the profile screen for this feature.
37.6 IPS Technical Reference
This section contains some background information on IPS.
Host Intrusions
The goal of host-based intrusions is to infiltrate files on an individual computer or server in with the goal of
accessing confidential information or destroying information on a computer.
You must install a host IPS directly on the system being protected. It works closely with the operating
system, monitoring and intercepting system calls to the kernel or APIs in order to prevent attacks as well
as log them.
Disadvantages of host IPSs are that you have to install them on each device (that you want to protect)
in your network and due to the necessarily tight integration with the host operating system, future
operating system upgrades could cause problems.
Network Intrusions
Network-based intrusions have the goal of bringing down a network or networks by attacking
computer(s), switch(es), router(s) or modem(s). If a LAN switch is compromised for example, then the
whole LAN is compromised. Host-based intrusions may be used to cause network-based intrusions when
the goal of the host virus is to propagate attacks on the network, or attack computer/server operating
system vulnerabilities with the goal of bringing down the computer/server. Typical “network-based
intrusions” are SQL slammer, Blaster, Nimda MyDoom etc.
Snort Signatures
You may want to refer to open source Snort signatures when creating custom Zyxel Device ones. Most
Snort rules are written in a single line. Snort rules are divided into two logical sections, the rule header
and the rule options as shown in the following example:
Router# configure terminal
Router(config)# secure-policy-style general
Router(config)# show secure-policy-style status
secure-policy-style: general
background
Chapter 37 IPS
USG FLEX Series User’s Guide
852
alert tcp any any -> 192.168.1.0/24 111 (content:”|00 01 a5|”; msg:”mountd access”;)
The text up to the first parenthesis is the rule header and the section enclosed in parenthesis contains the
rule options. The words before the colons in the rule options section are the option keywords.
The rule header contains the rule's:
•Action
•Protocol
• Source and destination IP addresses and netmasks
• Source and destination ports information.
The rule option section contains alert messages and information on which parts of the packet should be
inspected to determine if the rule action should be taken.
These are some equivalent Snort terms in the Zyxel Device.
Table 334 Zyxel Device - Snort Equivalent Terms
ZYXEL DEVICE TERM SNORT EQUIVALENT TERM
Type Of Service tos
Identification id
Fragmentation fragbits
Fragmentation Offset fragoffset
Time to Live ttl
IP Options ipopts
Same IP sameip
Transport Protocol
Transport Protocol: TCP
Port (In Snort rule header)
Flow flow
Flags flags
Sequence Number seq
Ack Number ack
Window Size window
Transport Protocol: UDP (In Snort rule header)
Port (In Snort rule header)
Transport Protocol: ICMP
Type itype
Code icode
ID icmp_id
Sequence Number icmp_seq
Payload Options (Snort rule options)
Payload Size dsize
Offset (relative to start of payload) offset
Relative to end of last match distance
Content content
background
Chapter 37 IPS
USG FLEX Series User’s Guide
853
Note: Not all Snort functionality is supported in the Zyxel Device.
Case-insensitive nocase
Decode as URI uricontent
Table 334 Zyxel Device - Snort Equivalent Terms (continued)
ZYXEL DEVICE TERM SNORT EQUIVALENT TERM
background
USG FLEX Series User’s Guide
854
CHAPTER 38
Sandboxing
38.1 Overview
Zyxel cloud sandboxing is a security mechanism which provides a safe environment to separate running
programs from your network and host devices. Unknown or untrusted programs/codes are uploaded to
the Defend Center and executed within an isolated virtual machine (VM) to monitor and analyze the
zero-day malware and advanced persistent threats (APTs) that may evade the Zyxel Device’s
detection, such as anti-malware. Results of cloud sandboxing are sent from the server to the Zyxel
Device.
By default, the Zyxel Device sandbox forwards all unknown files and uploads a copy of the files for
inspection after checking the received files against its local cache. The scan result from the Defend
Center (DC) is added to the Zyxel Device cache and used for future inspection. When a file with
malicious or suspicious codes is detected, the Zyxel Device can take specific actions on the threats.
Note: The scan result will be removed from the Zyxel Device cache after the Zyxel Device
restarts.
Figure 548 General Zyxel Sandbox Inspection
Alternatively, you can select to hold and inspect the downloaded files for up to two seconds if the
downloaded files have never been inspected before.
Figure 549 Advanced Zyxel Sandbox Inspection
Please note that your Zyxel Device does not support sandboxing by default. You need to purchase a
Gold Security Pack license; see
Section 8.1.2 on page 257 for more information.
background
Chapter 38 Sandboxing
USG FLEX Series User’s Guide
855
38.1.1 What You Need to Know
The Zyxel Device may forward files with attachments before Sandbox has completed checking. If
Sandbox discovers a suspect file, please contact the receiver of the suspect file and advise him/her not
to open it. If he/she already opened it, then please urge him/her to run an up-to-date anti-malware
scanner.
If the receiver of a suspect file cannot open a file, Sandbox may have already modified the file by
deleting the infected portion. Please check the logs and let the receiver know if this is so.
Sandbox can only check the types of files listed under File Submission Options in the Sandboxing screen.
If you disabled Scan and detect EICAR test virus in the Anti-Malware screen, then EICAR test files will be
sent to Sandbox.
To use the sandbox, you need to register your Zyxel Device and activate the service license at myZyxel,
and then turn on the sandboxing function on the Zyxel Device. See Licensing for more information about
registration and service licenses.
38.2 Sandboxing Screen
Click Configuration > Security Service > Sandboxing to display the configuration screen as shown next.
Use this screen to enable sandboxing and specify the actions the Zyxel Device takes when malicious or
suspicious files are detected.
Click the Sandboxing icon for more information on the Zyxel Device’s security features.
background
Chapter 38 Sandboxing
USG FLEX Series User’s Guide
856
Figure 550 Configuration > Security Service > Sandboxing
The following table describes the labels in this screen.
Table 335 Configuration > Security Service > Sandboxing
LABEL DESCRIPTION
General
Enable Sandboxing Select this option to turn on sandboxing on the Zyxel Device. Otherwise, deselect it.
Action For Malicious
File
Specify whether the Zyxel Device deletes (destroy) or forwards (allow) malicious files.
Malicious files are files given a high score for malware characteristics by the Defend Center.
Log For Malicious File These are the log options for malicious files:
no: Do not create a log when a malicious file is detected.
log: Create a log on the Zyxel Device when a malicious file is detected.
log alert: An alert is an emailed log for more serious events that may need more immediate
attention. Select this option to have the Zyxel Device send an alert when a malicious file is
detected.
Action For Suspicious
File
Specify whether the Zyxel Device deletes (destroy) or forwards (allow) suspicious files.
Suspicious files are files given a medium score for malware characteristics by the Defend
Center.
background
Chapter 38 Sandboxing
USG FLEX Series User’s Guide
857
Log For Suspicious
File
These are the log options for suspicious files:
no: Do not create a log when a suspicious file is detected.
log: Create a log on the Zyxel Device when a suspicious file is detected.
log alert: An alert is an emailed log for more serious events that may need more immediate
attention. Select this option to have the Zyxel Device send an alert when a suspicious file is
detected.
Advanced
Inspection
Inspect Selected
Downloaded Files
Select the check box to have the Zyxel Device hold the downloaded file for up to two
seconds if the downloaded file has never been inspected before. The Zyxel Device will wait
for the Defend Center’s result and forward the file in two seconds. Sandbox detection may
take longer than two seconds, so infected files could still possibly be forwarded to the user.
Note: The Zyxel Device only checks the file types you selected for sandbox
inspection.
The scan result will be removed from the Zyxel Device cache after the Zyxel
Device restarts.
File Submission
Options
Specify the type of files to be sent for sandbox inspection.
Terms of Use Click this link to see what data Zyxel collects from you and how it is used.
Apply Click Apply to save your changes.
Reset Click Reset to return the screen to its last-saved settings.
Table 335 Configuration > Security Service > Sandboxing (continued)
LABEL DESCRIPTION
background
USG FLEX Series User’s Guide
858
CHAPTER 39
Email Security
39.1 Overview
The email security feature can mark or discard spam (unsolicited commercial or junk email). Use the
white list to identify legitimate email. Use the black list to identify spam email. The Zyxel Device can also
check email against a DNS black list (DNSBL) of IP addresses of servers that are suspected of being used
by spammers. Email Security scans SMTP/POP3 email headers to see if the sender is in the DNSBL block
list, and blocks the sender if yes. If an incoming mail is encrypted or includes unsafe content, outgoing
attempts trying to access the unsafe content are blocked.
39.1.1 What You Can Do in this Chapter
• Use the Email Security screens (Section 39.3 on page 860) to turn email security on or off and manage
email security policies. Also, you can enable and configure the mail scan functions and have the
Zyxel Device check email against DNS Black Lists.
• Use the Block/Allow List screens (Section 39.4 on page 862) to set up a block list to identify spam and
a allow list to identify legitimate email.
39.1.2 What You Need to Know
Allow List
Configure allow list entries to identify legitimate email. The allow list entries have the Zyxel Device classify
any email that is from a specified sender or uses a specified header field and header value as being
legitimate (see
Email Headers for more on mail headers). The email security feature checks an email
against the allow list entries before doing any other email security checking. If the email matches a
allow list entry, the Zyxel Device classifies the email as legitimate and does not perform any more email
security checking on that individual email. A properly configured allow list helps keep important email
from being incorrectly classified as spam. The allow list can also increases the Zyxel Device’s email
security speed and efficiency by not having the Zyxel Device perform the full email security checking
process on legitimate email.
Block List
Configure block list entries to identify spam. The block list entries have the Zyxel Device classify any email
that is from or forwarded by a specified IP address or uses a specified header field and header value as
being spam. If an email does not match any of the allow list entries, the Zyxel Device checks it against
the block list entries. The Zyxel Device classifies an email that matches a block list entry as spam and
immediately takes the configured action for dealing with spam. If an email matches a block list entry,
the Zyxel Device does not perform any more email security checking on that individual email. A properly
configured block list helps catch spam email and increases the Zyxel Device’s email security speed and
efficiency.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
859
SMTP and POP3
Simple Mail Transfer Protocol (SMTP) is the Internet’s message transport standard. It controls the sending
of email messages between servers. Email clients (also called email applications) then use mail server
protocols such as POP (Post Office Protocol) or IMAP (Internet Message Access Protocol) to retrieve
email. Email clients also generally use SMTP to send messages to a mail server. The older POP2 requires
SMTP for sending messages while the newer POP3 can be used with or without it. This is why many email
applications require you to specify both the SMTP server and the POP or IMAP server (even though they
may actually be the same server).
The Zyxel Device’s email security feature checks SMTP (TCP port 25) and POP3 (TCP port 110) emails by
default. You can also specify custom SMTP and POP3 ports for the Zyxel Device to check.
Email Headers
Every email has a header and a body. The header is structured into fields and includes the addresses of
the recipient and sender, the subject, and other information about the email and its journey. The body is
the actual message text and any attachments. You can have the Zyxel Device check for specific
header fields with specific values.
Email programs usually only show you the To:, From:, Subject:, and Date: header fields but there are
others such as Received: and Content-Type:. To see all of an email’s header, you can select an email in
your email program and look at its properties or details. For example, in Microsoft’s Outlook Express,
select a mail and click File > Properties > Details. This displays the email’s header. Click Message Source
to see the source for the entire mail including both the header and the body.
Email Header Buffer Size
The Zyxel Device has a 5 K buffer for an individual email header. If an email’s header is longer than 5 K,
the Zyxel Device only checks up to the first 5 K.
DNSBL
A DNS Black List (DNSBL) is a server that hosts a list of IP addresses known or suspected of having sent or
forwarded spam. A DNSBL is also known as a DNS spam blocking list. The Zyxel Device can check the
routing addresses of email against DNSBLs and classify an email as spam if it was sent or forwarded by a
computer with an IP address in the DNSBL.
Finding Out More
See Section 39.7 on page 873 for more background information on email security.
39.2 Before You Begin
• Before using the email security features (IP Reputation, Mail Content Analysis and Virus Outbreak
Detection) you must activate your email security Service license.
• Configure your zones before you configure email security.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
860
39.3 The Email Security Screen
Click Configuration > Security Service > Email Security to open the Email Security screen. Use this screen
to turn the email security feature on or off and manage email security policies. You can also select the
action the Zyxel Device takes when the mail sessions threshold is reached.
Figure 551 Configuration > Security Service > Email Security
The following table describes the labels in this screen.
Table 336 Configuration > Security Service > Email Security
LABEL DESCRIPTION
General Settings
Enable Select this check box to activate the settings in this section.
Enable Malicious Mail Select this to identify spam email by content, such as malicious content.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
861
Malicious Mail Tag Enter a message or label using up to 15 single-byte characters to add to the beginning of
the mail subject of emails that are determined to spam based on the mail content
analysis. Accepted characters are 0-9a-zA-Z-.[]_
!”#$%&’()*+,/;<=>?@\^‘{|} are not allowed. This tag is only added if the email security
policy is configured to forward spam mail with a spam tag.
Enable DNSBL Select this check box to check email against the Zyxel Device’s configured DNSBL
domains. The Zyxel Device classifies email that matches a DNS black list as spam.
DNSBL Spam Tag Enter a message or label using up to 15 single-byte characters to add to the beginning of
the mail subject of emails that have a sender or relay IP address in the header that
matches a black list maintained by one of the DNSBL domains listed in the Zyxel Device.
Accepted characters are 0-9a-zA-Z-.[]_
!”#$%&’()*+,/;<=>?@\^‘{|} are not allowed. This tag is only added if the email security
policy is configured to forward spam mail with a spam tag.
DNSBL Domain List
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
# This is the entry’s index number in the list.
DNSBL Domain This is the name of a domain that maintains DNSBL servers. Enter the domain that is
maintaining a DNSBL.
Actions for Spam Mail Use this section to set how the Zyxel Device is to handle spam mail.
SMTP Select how the Zyxel Device is to handle spam SMTP mail.
Select drop to discard spam SMTP mail.
Select forward to allow spam SMTP mail to go through.
Select forward with tag to add a spam tag to an SMTP spam mail’s mail subject and send
it on to the destination.
POP3 Select how the Zyxel Device is to handle spam POP3 mail.
Select forward to allow spam POP3 mail to go through.
Select forward with tag to add a spam tag to an POP3 spam mail’s mail subject and send
it on to the destination.
Log Select whether to have the ZyXEL device generate a log (log), log and alert (log alert) or
neither (no) by default when traffic matches a signature in this category.
Action taken when
mail sessions threshold
is reached
An email session is when an email client and email server (or two email servers) connect
through the Zyxel Device. Select how to handle concurrent email sessions that exceed
the maximum number of concurrent email sessions that the email security feature can
handle. See the chapter of product specifications for the threshold.
Select Forward Session to have the Zyxel Device allow the excess email sessions without
any spam filtering.
Select Drop Session to have the Zyxel Device drop mail connections to stop the excess
email sessions. The email client or server will have to re-attempt to send or receive email
later when the number of email sessions is under the threshold.
Query Timeout Settings
Table 336 Configuration > Security Service > Email Security (continued)
LABEL DESCRIPTION
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
862
39.4 The Allow List Screen
Use this screen to create white list entries. Click Configuration > Security Service > Email Security > Block
/Allow List> Allow List to display the Allow List screen.
SMTP Select how the Zyxel Device is to handle SMTP mail query timeout.
Select drop to discard SMTP mail.
Select forward to allow SMTP mail to go through.
Select forward with tag to add a tag to an SMTP query timeout mail’s mail subject and
send it on to the destination.
POP3 Select how the Zyxel Device is to handle POP3 mail query timeout.
Select forward to allow POP3 mail to go through.
Select forward with tag to add a tag to an POP3 query timeout mail’s mail subject and
send it on to the destination.
Timeout Value Set how long the Zyxel Device waits for a reply from the mail scan server. If there is no
reply before this time period expires, the Zyxel Device takes the action defined in the
relevant Actions when Query Timeout field.
Timeout Tag Enter a message or label using up to 15 single-byte characters to add to the mail subject
of emails that the Zyxel Device forwards if queries to the mail scan servers time out.
Accepted characters are 0-9a-zA-Z-.[]_
!”#$%&’()*+,/;<=>?@\^‘{|} are not allowed.
Timeout X-Header Specify the name and value for the X-Header to be added when queries to the mail scan
servers time out.
DNSBL Settings
Max. IPs Checking Per
Mail
Set the maximum number of sender and relay server IP addresses in the mail header to
check against the DNSBL domain servers.
IP Selection Per Mail Select first N IPs to have the Zyxel Device start checking from the first IP address in the mail
header. This is the IP of the sender or the first server that forwarded the mail.
Select last N IPs to have the Zyxel Device start checking from the last IP address in the
mail header. This is the IP of the last server that forwarded the mail.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 336 Configuration > Security Service > Email Security (continued)
LABEL DESCRIPTION
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
863
Figure 552 Configuration > Security Service > Email Security > Block/Allow List > Allow List
The following table describes the labels in this screen.
39.5 The Block List Screen
Configure the block list to identify spam email. You can create block list entries based on the sender’s or
relay server’s IP address or email address. You can also create entries that check for particular email
header fields with specific values or specific subject text. Click a column’s heading cell to sort the table
entries by that column’s criteria. Click the heading cell again to reverse the sort order.
Click Configuration > Security Service > Email Security > Block /Allow List> Black List to display the Block
List screen.
Table 337 Configuration > Security Service > Email Security > Block/Allow List > Allow List
LABEL DESCRIPTION
Enable Allow List Select this to bypass checking by this feature (if enabled) and automatically classifies
email that matches a white list entry as legitimate (not spam).
Rule Summary
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
# This is the entry’s index number in the list.
Type This field displays whether the entry is based on the email’s subject, source or relay IP
address, source email address, or header.
Content This field displays the subject content, source or relay IP address, source email address, or
header value for which the entry checks.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
864
Figure 553 Configuration > Security Service > Email Security >Block/Allow List> Block List
The following table describes the labels in this screen.
39.5.1 The Block or Allow List Add/Edit Screen
In the Block List or Allow List screen, click the Add icon or an Edit icon to display the following screen.
Use this screen to configure an email security block list entry to identify spam email. You can create
entries based on specific subject text, or the sender’s or relay’s IP address or email address. You can also
create entries that check for particular header fields and values.
Table 338 Configuration > Security Service > Email Security > Block/Allow List> Block List
LABEL DESCRIPTION
Enable Block List Select this to bypass checking by this feature (if enabled) and automatically classifies
email that matches a block list entry as spam.
Block List Spam Tag Enter a message or label using up to 15 single-byte characters to add to the mail subject
of emails that match the Zyxel Device’s spam block list.
Accepted characters are 0-9a-zA-Z-.[]_
!”#$%&’()*+,/;<=>?@\^‘{|} are not allowed.
Rule Summary
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
# This is the entry’s index number in the list.
Type This field displays whether the entry is based on the email’s subject, source or relay IP
address, source email address, or header.
Content This field displays the subject content, source or relay IP address, source email address, or
header value for which the entry checks.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
865
Figure 554 Configuration > Security Service > Email Security > Block/Allow List > Block List (or Allow List) >
Add
The following table describes the labels in this screen.
Table 339 Configuration > Security Service > Email Security > Block/Allow List > Block (or Allow) List >
Add
LABEL DESCRIPTION
Enable Rule Select this to have the Zyxel Device use this entry as part of the block or allowed list.
To actually use the entry, you must also turn on the use of the list in the corresponding list
screen, enable the email security feature in the email security general screen, and configure
an email security policy to use the list.
Type Use this field to base the entry on the email’s subject, source or relay IP address, source email
address, or header.
Select Subject to have the Zyxel Device check email for specific content in the subject line.
Select IP Address to have the Zyxel Device check email for a specific source or relay IP
address.
Select IPv6 Address to have the Zyxel Device check email for a specific source or relay IPv6
address.
Select E-Mail Address to have the Zyxel Device check email for a specific source email
address or domain name.
Select Mail Header to have the Zyxel Device check email for specific header fields and
values. Configure black list header entries to check for email from bulk mail programs or with
content commonly used in spam. Configure white list header entries to allow certain header
values that identify the email as being from a trusted source.
Mail Subject
Keyword
This field displays when you select the Subject type. Enter 1 to 63 single-byte characters of
text to check for in email headers. 0-9a-zA-Z!#$%’()*+,-./:;=?@_
“&<>[\]^‘{|} and spaces are not allowed, although you could substitute a question mark
(?). See
Section 39.5.2 on page 866 for more details.
Sender or Mail Relay
IP Address
This field displays when you select the IP Address type. Enter an IP address in dotted decimal
notation.
Sender or Mail Relay
IPv6 Address
This field displays when you select the IPv6 Address type. Enter an IPv6 address with prefix.
Netmask This field displays when you select the IP type. Enter the subnet mask here, if applicable.
Sender E-Mail
Address
This field displays when you select the E-Mail type. Enter a keyword with 1 to 63 single-byte
characters. Accepted characters are 0-9a-zA-Z*-./?@_
!”#$%&’()+:;,<=>[\]^‘{|} and spaces are not allowed.
See Section 39.5.2 on page 866 for more details.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
866
39.5.2 Regular Expressions in Block or Allow List Entries
The following applies for a block or allow list entry based on an email subject, email address, or email
header value.
• Use a question mark (?) to let a single character vary. For example, use “a?c” (without the quotation
marks) to specify abc, acc and so on.
• You can also use a wildcard (*). For example, if you configure *def.com, any email address that ends
in def.com matches. So “mail.def.com” matches.
• The wildcard can be anywhere in the text string and you can use more than one wildcard. You
cannot use two wildcards side by side, there must be other characters between them.
• The Zyxel Device checks the first header with the name you specified in the entry. So if the email has
more than one “Received” header, the Zyxel Device checks the first one.
39.6 Email Security Profile
To use multiple profiles for this feature, run the following commands in the Zyxel Device Command Line
Interface (CLI).
After you run these command, go to the feature screen again in the web configurator. You will be
prompted to log out and then log in again.
Mail Header Field
Name
This field displays when you select the Mail Header type.
Type the name part of an email header (the part that comes before the colon). Use 1 to 63
single-byte characters, including 0-9a-zA-Z-._
!”#$%&’()*+,/:;<=>?@[\]^‘{|} and spaces are not allowed.
For example, if you want the entry to check the “Received:” header for a specific mail
server’s domain, enter “Received” here.
Field Value
Keyword
This field displays when you select the Mail Header type.
Type the value part of an email header (the part that comes after the colon). Use 1 to 63
single-byte characters, including 0-9a-zA-Z!#$%’()*+,-./:;=?@_
“&<>[\]^‘{|} and spaces are not allowed.
For example, if you want the entry to check the “Received:” header for a specific mail
server’s domain, enter the mail server’s domain here.
See Section 39.5.2 on page 866 for more details.
OK Click OK to save your changes.
Cancel Click Cancel to exit this screen without saving your changes.
Table 339 Configuration > Security Service > Email Security > Block/Allow List > Block (or Allow) List > Add
(continued)
LABEL DESCRIPTION
Router# configure terminal
Router(config)# secure-policy-style advance
Router(config)# show secure-policy-style status
secure-policy-style: advance
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
867
Figure 555 Logout Prompt
After you log in again, you will see the new profile screen for this feature.
Figure 556 Configuration > Security Service > Email Security > Profile
The following table describes the labels in this screen.
39.6.1 Add or Edit Email Security Profile
Click Add to create a new entry or select an existing entry and click Edit to open the following screen
where you can create or modify the entry’s settings.
Table 340 Configuration > Security Service > Email Security > Profile
LABEL DESCRIPTION
Add Click this to create a new entry. Select an entry and click Add to create a new entry after
the selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
Remove Select an entry and click Remove to delete the selected entry.
# This field is a sequential value showing the number of the profile. The profile order is not
important.
Name This displays the name of the profile created.
Description This displays the description of the profile.
Scan Options This displays which lists are checked for email security: White List (WL), Black List (BL),
Malicious Mail, DNSBL.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
868
Figure 557 Configuration > Security Service > Email Security > Profile > Add/Edit
The following table describes the labels in this screen.
Table 341 Configuration > Security Service > Email Security Profile > Add/Edit
LABEL DESCRIPTION
General Settings
Name Type the name of the profile. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is
case-sensitive. These are valid, unique profile names:
•MyProfile
• mYProfile
• Mymy12_3-4
These are invalid profile names:
• 1mYProfile
•My Profile
• MyProfile?
• Whatalongprofilename123456789012
Description Type a description for the profile rule to help identify the purpose of rule. You may use 1-
31 alphanumeric characters, underscores (
_), or dashes (-), but the first character cannot
be a number. This value is case-sensitive. This field is optional.
Log Select whether to have the ZyXEL device generate a log (log), log and alert (log alert) or
neither (no) by default when traffic matches a signature in this category.
Scan Options
Check White List Select this check box to check email against the white list. The Zyxel Device classifies
email that matches a white list entry as legitimate (not spam).
Check Black List Select this check box to check email against the black list. The Zyxel Device classifies
email that matches a black list entry as spam.
Check Malicious Mail Select this to identify spam email by content, such as malicious content.
Check DNSBL Select this check box to check email against the Zyxel Device’s configured DNSBL
domains. The Zyxel Device classifies email that matches a DNS black list as spam.
Actions for Spam Mail Use this section to set how the Zyxel Device is to handle spam mail.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
869
39.6.2 Link a Profile
To link a profile to a policy, go to the Configuration > Security Policy > Policy Control screen, select a pol-
icy, and then click Edit. In the Edit Policy screen under Profile, select which profile you want to use for
each security service.
SMTP Select how the Zyxel Device is to handle spam SMTP mail.
Select drop to discard spam SMTP mail.
Select forward to allow spam SMTP mail to go through.
Select forward with tag to add a spam tag to an SMTP spam mail’s mail subject and send
it on to the destination.
POP3 Select how the Zyxel Device is to handle spam POP3 mail.
Select forward to allow spam POP3 mail to go through.
Select forward with tag to add a spam tag to an POP3 spam mail’s mail subject and send
it on to the destination.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after
the selected entry.
Table 341 Configuration > Security Service > Email Security Profile (continued)> Add/Edit
LABEL DESCRIPTION
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
870
Figure 558 Configuration > Security Service > Policy Control > Profile
39.6.3 The Email Security Advance Screen
The Configuration > Security Service > Email Security screen changes when using profiles.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
871
Figure 559 Configuration > Security Service > Email Security Advance
The following table describes the labels in this screen.
Table 342 Configuration > Security Service > Email Security Advanced
LABEL DESCRIPTION
General Settings
Enable Select this check box to activate the settings in this section.
Inspect all traffic,
setting:
Select this to have all traffic inspected by the default_profile. You cannot rename or
delete the default_profile profile, but you can edit it by clicking the link here.
Inspect by policy If you configured a specific profile in the Profile tab for this service, select this to have
specific traffic inspected by that profile. You must bind the profile to a policy in Security
Policy > Policy Control.
Enable Malicious Mail Select this to identify spam email by content, such as malicious content.
Malicious Mail Tag Enter a message or label using up to 15 single-byte characters to add to the beginning of
the mail subject of emails that are determined to spam based on the mail content
analysis. Accepted characters are 0-9a-zA-Z-.[]_
!”#$%&’()*+,/;<=>?@\^‘{|} are not allowed. This tag is only added if the email security
policy is configured to forward spam mail with a spam tag.
Enable DNSBL Select this check box to check email against the Zyxel Device’s configured DNSBL
domains. The Zyxel Device classifies email that matches a DNS black list as spam.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
872
DNSBL Spam Tag Enter a message or label using up to 15 single-byte characters to add to the beginning of
the mail subject of emails that have a sender or relay IP address in the header that
matches a black list maintained by one of the DNSBL domains listed in the Zyxel Device.
Accepted characters are 0-9a-zA-Z-.[]_
!”#$%&’()*+,/;<=>?@\^‘{|} are not allowed. This tag is only added if the email security
policy is configured to forward spam mail with a spam tag.
DNSBL Domain List
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is
inactive.
# This is the entry’s index number in the list.
DNSBL Domain This is the name of a domain that maintains DNSBL servers. Enter the domain that is
maintaining a DNSBL.
Action
Action taken when
mail sessions threshold
is reached
An email session is when an email client and email server (or two email servers) connect
through the Zyxel Device. Select how to handle concurrent email sessions that exceed
the maximum number of concurrent email sessions that the email security feature can
handle. See the chapter of product specifications for the threshold.
Select Forward Session to have the Zyxel Device allow the excess email sessions without
any spam filtering.
Select Drop Session to have the Zyxel Device drop mail connections to stop the excess
email sessions. The email client or server will have to re-attempt to send or receive email
later when the number of email sessions is under the threshold.
Query Timeout Settings
SMTP Select how the Zyxel Device is to handle SMTP mail query timeout.
Select drop to discard SMTP mail.
Select forward to allow SMTP mail to go through.
Select forward with tag to add a tag to an SMTP query timeout mail’s mail subject and
send it on to the destination.
POP3 Select how the Zyxel Device is to handle POP3 mail query timeout.
Select forward to allow POP3 mail to go through.
Select forward with tag to add a tag to an POP3 query timeout mail’s mail subject and
send it on to the destination.
Timeout Value Set how long the Zyxel Device waits for a reply from the mail scan server. If there is no
reply before this time period expires, the Zyxel Device takes the action defined in the
relevant Actions when Query Timeout field.
Timeout Tag Enter a message or label using up to 15 single-byte characters to add to the mail subject
of emails that the Zyxel Device forwards if queries to the mail scan servers time out.
Accepted characters are 0-9a-zA-Z-.[]_
!”#$%&’()*+,/;<=>?@\^‘{|} are not allowed.
Timeout X-Header Specify the name and value for the X-Header to be added when queries to the mail scan
servers time out.
Table 342 Configuration > Security Service > Email Security Advanced
LABEL DESCRIPTION
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
873
39.6.4 Remove Profiles
To remove profiles and revert to the default general security policy style, you must first make sure to
change Inspect by policy to Inspect all traffic in the following security services: Anti-Malware, DNS Threat
Filter, IPS, Email Security.
Note: All profiles that you created will be removed from Security Policy > Policy Control.
Run the following commands in the Zyxel Device Command Line Interface (CLI).
Wait a minute and then go to the feature screen again in the web configurator. You will be prompted
to log out and then log in again.
Figure 560 Logout Prompt
After you log in again, you will not see the profile screen for this feature.
39.7 Email Security Technical Reference
Here is more detailed email security information.
DNSBL
• The Zyxel Device checks only public sender and relay IP addresses, it does not check private IP
addresses.
• The Zyxel Device sends a separate query (DNS lookup) for each sender or relay IP address in the
email’s header to each of the Zyxel Device’s DNSBL domains at the same time.
DNSBL Settings
Max. IPs Checking Per
Mail
Set the maximum number of sender and relay server IP addresses in the mail header to
check against the DNSBL domain servers.
IP Selection Per Mail Select first N IPs to have the Zyxel Device start checking from the first IP address in the mail
header. This is the IP of the sender or the first server that forwarded the mail.
Select last N IPs to have the Zyxel Device start checking from the last IP address in the
mail header. This is the IP of the last server that forwarded the mail.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 342 Configuration > Security Service > Email Security Advanced
LABEL DESCRIPTION
Router# configure terminal
Router(config)# secure-policy-style general
Router(config)# show secure-policy-style status
secure-policy-style: general
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
874
• The DNSBL servers send replies as to whether or not each IP address matches an entry in their list. Each
IP address has a separate reply.
• As long as the replies are indicating the IP addresses do not match entries on the DNSBL lists, the Zyxel
Device waits until it receives at least one reply for each IP address.
• If the Zyxel Device receives a DNSBL reply that one of the IP addresses is in the DNSBL list, the Zyxel
Device immediately classifies the email as spam and takes the email security policy’s configured
action for spam. The Zyxel Device does not wait for any more DNSBL replies.
• If the Zyxel Device receives at least one non-spam reply for each of an email’s routing IP addresses,
the Zyxel Device immediately classifies the email as legitimate and forwards it.
• Any further DNSBL replies that come after the Zyxel Device classifies an email as spam or legitimate
have no effect.
• The Zyxel Device records DNSBL responses for IP addresses in a cache for up to 72 hours. The Zyxel
Device checks an email’s sender and relay IP addresses against the cache first and only sends DNSBL
queries for IP addresses that are not in the cache.
Here is an example of an email classified as spam based on DNSBL replies.
Figure 561 DNSBL Spam Detection Example
1 The Zyxel Device receives an email that was sent from IP address a.a.a.a and relayed by an email server
at IP address b.b.b.b. The Zyxel Device sends a separate query to each of its DNSBL domains for IP
address a.a.a.a. The Zyxel Device sends another separate query to each of its DNSBL domains for IP
address b.b.b.b.
2 DNSBL A replies that IP address a.a.a.a does not match any entries in its list (not spam).
3 DNSBL C replies that IP address b.b.b.b matches an entry in its list.
4 The Zyxel Device immediately classifies the email as spam and takes the action for spam that you
defined in the email security policy. In this example it was an SMTP mail and the defined action was to
drop the mail. The Zyxel Device does not wait for any more DNSBL replies.
Here is an example of an email classified as legitimate based on DNSBL replies.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
875
Figure 562 DNSBL Legitimate Email Detection Example
1 The Zyxel Device receives an email that was sent from IP address c.c.c.c and relayed by an email server
at IP address d.d.d.d. The Zyxel Device sends a separate query to each of its DNSBL domains for IP
address c.c.c.c. The Zyxel Device sends another separate query to each of its DNSBL domains for IP
address d.d.d.d.
2 DNSBL B replies that IP address d.d.d.d does not match any entries in its list (not spam).
3 DNSBL C replies that IP address c.c.c.c does not match any entries in its list (not spam).
4 Now that the Zyxel Device has received at least one non-spam reply for each of the email’s routing IP
addresses, the Zyxel Device immediately classifies the email as legitimate and forwards it. The Zyxel
Device does not wait for any more DNSBL replies.
If the Zyxel Device receives conflicting DNSBL replies for an email routing IP address, the Zyxel Device
classifies the email as spam. Here is an example.
background
Chapter 39 Email Security
USG FLEX Series User’s Guide
876
Figure 563 Conflicting DNSBL Replies Example
1 The Zyxel Device receives an email that was sent from IP address a.b.c.d and relayed by an email server
at IP address w.x.y.z. The Zyxel Device sends a separate query to each of its DNSBL domains for IP
address a.b.c.d. The Zyxel Device sends another separate query to each of its DNSBL domains for IP
address w.x.y.z.
2 DNSBL A replies that IP address a.b.c.d does not match any entries in its list (not spam).
3 While waiting for a DNSBL reply about IP address w.x.y.z, the Zyxel Device receives a reply from DNSBL B
saying IP address a.b.c.d is in its list.
4 The Zyxel Device immediately classifies the email as spam and takes the action for spam that you
defined in the email security policy. In this example it was an SMTP mail and the defined action was to
drop the mail. The Zyxel Device does not wait for any more DNSBL replies.
background
USG FLEX Series User’s Guide
877
CHAPTER 40
Collaborative Detection &
Response
40.1 Overview
Collaborative Detection & Response (CDR) allows you to detect wired and WiFi clients that are sending
malicious traffic in your network and then block or quarantine traffic coming from them. In this way,
malicious traffic is not spread throughout the network. Secure policies can block malicious traffic for
specific traffic flows, but CDR can block malicious traffic from the sender. Malicious traffic is identified
using a combination of Web Filtering, Anti-Malware and IPS (IDP) signatures.
In the following example scenario, clients C1 to C6 are connected to the network. Intrusion Prevention
(IPS) or Anti-Malware signatures have identified malicious traffic coming from clients C1, C2, C4 and C5.
You have configured CDR to take the following actions.
Table 343 CDR Example Settings
KEY CDR SETTING RESULT
Block wireless client is selected in
Configuration > Security Service > CDR >
Collaborative Detection & Response.
Traffic from WiFi client C1 is blocked at the AP.
Block wireless client is not selected in
Configuration > Security Service > CDR >
Collaborative Detection & Response.
Traffic from WiFi client C2 is blocked at the Zyxel Device.
Block wireless client is not selected in
Configuration > Security Service > CDR >
Collaborative Detection & Response.
Traffic from wired client C5 is blocked at the Zyxel Device. This traffic
can still be broadcast to other clients in the same subnet, such as
C6.
Quarantine VLAN ID is selected in
Configuration > Security Service > CDR >
Collaborative Detection & Response.
Traffic from WiFi client C4 is isolated from the network through a
quarantine VLAN. Quarantined traffic in a VLAN isolates traffic from
other clients in the same subnet, and only broadcasts to other clients
in that same VLAN.
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
878
Figure 564 CDR Example Scenario
This the graphic key.
40.1.1 What You Can Do in this Chapter
• Use the Collaborative Detection & Response screen (Section 40.3 on page 880) to configure CDR
triggering policies and containment actions.
• Use the Exempt List screens (Section 40.4 on page 889) to set up a list of devices that are exempt from
Collaborative Detection & Response checking.
40.2 Before You Begin
• You must have active and up-to-date Web Filtering, Anti-Malware, IPS (Intrusion Prevention System),
and CDR (Collaborative Detection & Response) licenses.
• Malicious traffic is detected in two phases.
• Web Filtering (ing), Anti-Malware (Anti-Virus) and IPS (IDP) signatures first identify malicious traffic
and inform the CDR daemon. If these licenses have expired or are not active, then no checking for
malicious traffic is done.
Table 344 CDR Example Scenario Graphic Key
LABEL DEFINITION
C1 to C4 WiFi clients
C5 to C6 Wired clients
VLAN VLAN configured to isolate traffic from a quarantined client
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
879
• CDR signatures are a subset of the above license signatures. If a specific number of signature
matches are detected within a defined time period, then the CDR containment policy is triggered.
These are the signatures that apply to CDR at the time of writing:
• Blocking traffic from an infected client causes the Zyxel Device to drop all traffic received from the
client. This traffic can still be broadcast to other clients in the same subnet as the infected client.
• Blocking traffic from an infected WiFi client causes the AP it is connected with to drop all traffic
received from the client if Block wireless client is selected in Configuration > Security Service > CDR >
Collaborative Detection & Response.
• The Zyxel Device can only block traffic from Nebula-managed APs in your network using CDR.
• Quarantining traffic from an infected WiFi client blocks traffic at the Zyxel Device or AP and also
isolates traffic from other clients in the same subnet. Traffic from the infected WiFi is only broadcast to
other clients in the quarantine VLAN. You must configure the quarantine VLAN on the Zyxel Device
and any switches or routers in your network through which you want to route the VLAN traffic.
• There are 2 requirements to block or quarantine WiFi clients:
• The AP must be managed by the Zyxel Device.
• The AP must be in the Zyxel Device's supported list. At the time of writing, there are 5 supported AP
models:
Note: Please see your AP product page at the Zyxel web site to see if it can be managed by
the Zyxel Device.
• You must decide how long to contain (block or quarantine) a suspect client, before allowing traffic to
be sent from it again. This will depend on how quickly you can contact the owner of the suspect
client and how long they need to remove the malicious software from their device.
• You must also decide if there are trusted clients in your network that are exempt from CDR and never
have their traffic blocked or quarantined.
•You can use the Monitor > CDR > Containment List screen to prematurely release a blocked or
quarantined client, or add a client to a list exempted from CDR checking.
• If you disable CDR or your CDR license expires, then all blocked and quarantined clients are released.
Table 345 Security Signatures Applied to CDR
SECURITY SIGNATURES SIGNATURES APPLIED TO CDR
Web Filtering Categories: Browser Exploits, Malicious Downloads, Malicious Sites, Phishing
IPS (IDP) IPS (IDP) Signatures:
• CVE-2019-0708 (117760, 130797, 130801)
• CVE-2020-0796 (130822, 130823, 130824, 130825)
• 117723, 117724, 117726
Anti-Malware All signatures
Table 346 Zyxel Device Manged APs
MANAGED AP MODELS
WAX630S
WAX650S
WAX610D
WAX510D
WAC500
WAC500H
WAX640S-AE
WAX620D-6E
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
880
• If you restart the Zyxel Device or restart an AP connected to the Zyxel Device, blocked and
quarantined clients are still blocked until the Containment Period expires.
• Wired clients are blocked based on IP address by default. You can change that to blocking based on
MAC address using the cdr blocked-by mac command in configuration mode in the Command
Line Interface (CLI). Note that if you have a switch between the client and the Zyxel Device, then
blocking by MAC address could block all traffic from the switch if the client MAC address is not
forwarded through the switch.
• WiFi clients are blocked or quarantined based on MAC address by default.
40.3 The Collaborative Detection & Response Screen
Click Configuration > Security Service > Collaborative Detection & Response to open the following
screen. Use this screen to turn CDR on or off, manage CDR policies, and select the containment action
the Zyxel Device takes when an event occurs more than the threshold within a defined duration.
Figure 565 Configuration > Security Service > CDR > Collaborative Detection & Response
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
881
The following table describes the labels in this screen.
Table 347 Configuration > Security Service > CDR > Collaborative Detection & Response
LABEL DESCRIPTION
General Settings
Enable Select this check box to activate Collaborative Detection & Response. Make sure you
have active Web Filtering, Anti-Malware, IPS (Intrusion Prevention System), and CDR
(Collaborative Detection & Response) licenses.
Policy Select a heading to order entries by the heading type.
Edit Select a policy and then click this button to change the Occurrence, Duration or
Containment settings.
Category Category refers to the signature type that identified the malicious traffic: Web Threat
(ing), Malware (Anti-Malware, Anti-Virus) and IDP (IPS).
Event Type This displays some details on the category of malicious traffic detected.
Occurrence (1-
100)
Type the number of security events that need to occur within the defined Duration to
trigger a CDR Containment action.
Duration (1-1440) Type the length of time in minutes the event should occur from a client the Occurrence
number of times to trigger a CDR Containment action.
For example, Occurrence is set to 10, and Duration is set to 100. If the Zyxel Device detects
10 or more occurrences of malicious traffic in less than 100 minutes, then CDR
Containment is triggered.
Containment A suspect client is the wired or WiFi device that is sending malicious traffic in your network.
A suspect client owner is the person who owns the wired or WiFi device that is sending
malicious traffic in your network.
Select the action to be taken when the number of security events exceed the threshold
within the defined duration.
Alert: Select this if you just want to send an email to a suspect client owner with a
registered email or a Zyxel Device admin. Please note that traffic from the suspect client
will not be blocked when this action is triggered.
The alert email includes the name of the security event triggered, hit count and client
device information. Go to Monitor > Log > View Log to see more details on the security
event that triggered the alert.
Block: Select this if you want to block traffic from a suspect client at the Zyxel Device, or
from a suspect WiFi client at the AP connected to the Zyxel Device. Please note that no
alert will be sent to the suspect client owner when the suspect client is blocked. Traffic is
still broadcast to other clients in the same subnet. A ‘notification’ web page is displayed
when this action is triggered.
Quarantine: Select this if you want to isolate traffic from a suspect client at the Zyxel
Device in a quarantine VLAN. Please note that no alert will be sent to the suspect client
owner when the suspect client is blocked. Traffic is not broadcast to other clients in the
same subnet. A ‘notification’ web page is displayed to the client when this action is
triggered.
Block & Alert: Select this if you want to both Block and Alert.
Quarantine & Alert: Select this if you want to both Quarantine and Alert.
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
882
40.3.1 Add VLAN
Click Add VLAN to create a new entry. The following screen appears.
Note: Only IPv4 addresses can be used in quarantine VLANs.
Counter Reset Enable this to automatically reset the number of security even occurrences within the
defined duration when it reaches the threshold value.
For example, if you set the CDR settings for a security event as below:
• Occurrence: 10
• Duration: 60
•Containment: Alert
• Counter Reset: Enable
You will only receive one alert email every hour if the security event hit count reaches ten
times within 60 minutes.
Containment Use this section to configure the selection containment action.
Alert
Email Type a valid email address in the user@domain.com format of the owner of the suspect
client or another person who should be informed that CDR was triggered.
Block & Quarantine
Notification Page This is the notification web page that is displayed when a Block or Quarantine action is
triggered.
Denied access message: Type the message that is displayed on the default Zyxel Device
notification page. The client is redirected here when a Block or Quarantine action is
triggered. For example, “Malicious traffic is coming from your device so traffic is
temporarily stopped. Please contact the network administrator.”
Redirect external URL: Type a URL in “http://domain” or “https://domain” format to an
external notification page. The client is redirected here when a Block or Quarantine
action is triggered. Make sure the external notification page is accessible from the Zyxel
Device.
Containment
Period
Enter how long the client should be blocked or quarantined. This should be at least twice
the DHCP server lease time in order to prevent false positives.
Block Type how long a suspect client should be blocked or quarantined. You can type from 1
minute to 1 day (1,440 minutes). 0 means the suspect is blocked forever until released in
Monitor > CDR > Containment List.
Block wireless client Select this to have traffic from the suspect client blocked at the AP. Clear this to have
traffic from the suspect client blocked at the Zyxel Device.
Quarantine
Quarantine VLAN
ID
Select a previously configured VLAN that was created to isolate traffic from suspect
clients. Traffic from a suspect client is broadcast to all members in the VLAN.
Add VLAN Click this to create a quarantine VLAN to specifically isolate traffic from suspect clients.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 347 Configuration > Security Service > CDR > Collaborative Detection & Response
LABEL DESCRIPTION
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
883
Figure 566 Configuration > Security Service > CDR > Add VLAN
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
884
Each field is explained in the following table.
Table 348 Configuration > Security Service > CDR > Add VLAN
LABEL DESCRIPTION
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
General Settings
Enable Interface Select this to turn this interface on. Clear this to disable this interface.
Interface Properties
Interface Type Select one of the following options depending on the type of network to which the Zyxel
Device is connected.
internal is for connecting to a local network. Other corresponding configuration options:
DHCP server and DHCP relay. The Zyxel Device automatically adds default SNAT settings for
traffic flowing from this interface to an external interface.
external is for connecting to an external network (like the Internet). The Zyxel Device
automatically adds this interface to the default WAN trunk.
For general, the rest of the screen’s options do not automatically adjust and you must
manually configure a policy route to add routing and SNAT settings for the interface.
Interface Name This field is read-only if you are editing an existing VLAN interface. Enter the number of the
VLAN interface. You can use a number from 0~4094. For example, use vlan0, vlan8, and so
on. The total number of VLANs you can configure on the Zyxel Device depends on the
model.
Zone Select the zone to which the VLAN interface belongs.
Base Port Select the Ethernet interface on which the VLAN interface runs.
VLAN ID Enter the VLAN ID. This 12-bit number uniquely identifies each VLAN. Allowed values are 1 -
4094. (0 and 4095 are reserved.)
Priority Code This is a 3-bit field within a 802.1Q VLAN tag that’s used to prioritize associated outgoing
VLAN traffic. “0” is the lowest priority level and “7” is the highest. See
Table 217 on page
587The setting configured in Configuration > BWM overwrites the priority setting here.
Description Enter a description of this interface. You can use alphanumeric and ()+/:=?!*#@$_%-
characters, and it can be up to 60 characters long. Spaces are allowed, but the string
can’t start with a space.
IP Address
Assignment
Get Automatically Select this if this interface is a DHCP client. In this case, the DHCP server configures the IP
address, subnet mask, and gateway automatically.
You should not select this if the interface is assigned to a VRRP group.
DHCP Option 60 DHCP Option 60 is used by the Zyxel Device for identification to the DHCP server using the
VCI (Vendor Class Identifier) on the DHCP server. The Zyxel Device adds it in the initial DHCP
discovery message that a DHCP client broadcasts in search of an IP address. The DHCP
server can assign different IP addresses or options to clients with the specific VCI or reject
the request from clients without the specific VCI.
Type a string using up to 63 of these characters [a-zA-Z0-9!\"#$%&\'()*+,-./
:;<=>?@\[\\\]^_`{}] to identify this Zyxel Device to the DHCP server. For example, Zyxel-TW.
Use Fixed IP Address Select this if you want to specify the IP address, subnet mask, and gateway manually.
IP Address This field is enabled if you select Use Fixed IP Address.
Enter the IP address for this interface.
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
885
Subnet Mask This field is enabled if you select Use Fixed IP Address.
Enter the subnet mask of this interface in dot decimal notation. The subnet mask indicates
what part of the IP address is the same for all computers on the network.
Gateway This field is enabled if you select Use Fixed IP Address.
Enter the IP address of the gateway. The Zyxel Device sends packets to the gateway when
it does not know how to route the packet to its destination. The gateway should be on the
same network as the interface.
Metric Enter the priority of the gateway (if any) on this interface. The Zyxel Device decides which
gateway to use based on this priority. The lower the number, the higher the priority. If two or
more gateways have the same priority, the Zyxel Device uses the one that was configured
first.
Enable IGMP Support Select this to allow the Zyxel Device to act as an IGMP proxy for hosts connected on the
IGMP downstream interface.
IGMP Upstream Enable IGMP Upstream on the interface which connects to a router running IGMP that is
closer to the multicast server.
IGMP
Downstream
Enable IGMP Downstream on the interface which connects to the multicast hosts.
Interface Parameters
Egress Bandwidth Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can send
through the interface to the network. Allowed values are 0 - 1048576.
Ingress
Bandwidth
This is reserved for future use.
Enter the maximum amount of traffic, in kilobits per second, the Zyxel Device can receive
from the network through the interface. Allowed values are 0 - 1048576.
MTU Maximum Transmission Unit. Type the maximum size of each data packet, in bytes, that can
move through this interface. If a larger packet arrives, the Zyxel Device divides it into smaller
fragments. Allowed values are 576 - 1500. Usually, this value is 1500.
Connectivity Check The Zyxel Device can regularly check the connection to the gateway you specified to
make sure it is still available. You specify how often to check the connection, how long to
wait for a response before the attempt is a failure, and how many consecutive failures are
required before the Zyxel Device stops routing to the gateway. The Zyxel Device resumes
routing to the gateway the first time the gateway passes the connectivity check.
Enable Connectivity
Check
Select this to turn on the connection check.
Check Method Select the method that the gateway allows.
Select icmp to have the Zyxel Device regularly ping the gateway you specify to make sure
it is still available.
Select tcp to have the Zyxel Device regularly perform a TCP handshake with the gateway
you specify to make sure it is still available.
Check Period Enter the number of seconds between connection check attempts.
Check Timeout Enter the number of seconds to wait for a response before the attempt is a failure.
Check Fail
Tolerance
Enter the number of consecutive failures before the Zyxel Device stops routing through the
gateway.
Check Default
Gateway
Select this to use the default gateway for the connectivity check.
Check these
addresses
Select this to specify one or two domain names or IP addresses for the connectivity check.
Enter that domain name or IP address in the field next to it.
Check Port This field only is displayed when you set the Check Method to tcp. Specify the port number
to use for a TCP connectivity check.
Table 348 Configuration > Security Service > CDR > Add VLAN (continued)
LABEL DESCRIPTION
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
886
Probe Succeeds
When
This field applies when you specify two domain names or IP addresses for the connectivity
check.
Select any one if you want the check to pass if at least one of the domain names or IP
addresses responds.
Select all if you want the check to pass only if both domain names or IP addresses respond.
DHCP Setting The DHCP settings are available for the OPT, LAN and DMZ interfaces.
DHCP Select what type of DHCP service the Zyxel Device provides to the network. Choices are:
None - the Zyxel Device does not provide any DHCP services. There is already a DHCP
server on the network.
DHCP Relay - the Zyxel Device routes DHCP requests to one or more DHCP servers you
specify. The DHCP server(s) may be on another network.
DHCP Server - the Zyxel Device assigns IP addresses and provides subnet mask, gateway,
and DNS server information to the network. The Zyxel Device is the DHCP server for the
network.
These fields appear if the Zyxel Device is a DHCP Relay.
Relay Server 1 Enter the IP address of a DHCP server for the network.
Relay Server 2 This field is optional. Enter the IP address of another DHCP server for the network.
These fields appear if the Zyxel Device is a DHCP Server.
IP Pool Start
Address
Enter the IP address from which the Zyxel Device begins allocating IP addresses. If you want
to assign a static IP address to a specific computer, click Add Static DHCP.
If this field is blank, the Pool Size must also be blank. In this case, the Zyxel Device can assign
every IP address allowed by the interface’s IP address and subnet mask, except for the first
address (network address), last address (broadcast address) and the interface’s IP address.
Pool Size Enter the number of IP addresses to allocate. This number must be at least one and is
limited by the interface’s Subnet Mask. For example, if the Subnet Mask is 255.255.255.0 and
IP Pool Start Address is 10.10.10.10, the Zyxel Device can allocate 10.10.10.10 to
10.10.10.254, or 245 IP addresses.
If this field is blank, the IP Pool Start Address must also be blank. In this case, the Zyxel Device
can assign every IP address allowed by the interface’s IP address and subnet mask, except
for the first address (network address), last address (broadcast address) and the interface’s
IP address.
First DNS Server
Second DNS
Server
Third DNS Server
Specify the IP addresses up to three DNS servers for the DHCP clients to use. Use one of the
following ways to specify these IP addresses.
Custom Defined - enter a static IP address.
From ISP - select the DNS server that another interface received from its DHCP server.
Zyxel Device - the DHCP clients use the IP address of this interface and the Zyxel Device
works as a DNS relay.
First WINS Server,
Second WINS
Server
Type the IP address of the WINS (Windows Internet Naming Service) server that you want to
send to the DHCP clients. The WINS server keeps a mapping table of the computer names
on your network and the IP addresses that they are currently using.
Default Router If you set this interface to DHCP Server, you can select to use either the interface’s IP
address or another IP address as the default router. This default router will become the
DHCP clients’ default gateway.
To use another IP address as the default router, select Custom Defined and enter the IP
address.
Table 348 Configuration > Security Service > CDR > Add VLAN (continued)
LABEL DESCRIPTION
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
887
Lease time Specify how long each computer can use the information (especially the IP address)
before it has to request the information again. Choices are:
infinite - select this if IP addresses never expire
days, hours, and minutes - select this to enter how long IP addresses are valid. The default is
2 days.
Extended Options This table is available if you selected DHCP server.
Configure this table if you want to send more information to DHCP clients through DHCP
packets.
Add Click this to create an entry in this table. See Section 10.5.6 on page 349.
Edit Select an entry in this table and click this to modify it.
Remove Select an entry in this table and click this to delete it.
# This field is a sequential value, and it is not associated with any entry.
Name This is the option’s name.
Code This is the option’s code number.
Type This is the option’s type.
Value This is the option’s value.
PXE Server PXE (Preboot eXecution Environment) allows a client computer to use the network to boot
up and install an operating system through a PXE-capable Network Interface Card (NIC).
PXE is available for computers on internal interfaces to allow them to boot up using boot
software on a PXE server. The Zyxel Device acts as an intermediary between the PXE server
and the computers that need boot software.
The PXE server must have a public IPv4 address. You must enable DHCP Server on the Zyxel
Device so that it can receive information from the PXE server.
PXE Boot Loader File A boot loader is a computer program that loads the operating system for the computer.
Type the exact file name of the boot loader software file, including filename extension, that
is on the PXE server. If the wrong filename is typed, then the client computers cannot boot.
Enable IP/MAC
Binding
Select this option to have the Zyxel Device enforce links between specific IP addresses and
specific MAC addresses for this VLAN. This stops anyone else from manually using a bound
IP address on another device connected to this interface. Use this to make use only the
intended users get to use specific IP addresses.
Enable Logs for IP/
MAC Binding
Violation
Select this option to have the Zyxel Device generate a log if a device connected to this
VLAN attempts to use an IP address that is bound to another device’s MAC address.
Static DHCP Table Configure a list of static IP addresses the Zyxel Device assigns to computers connected to
the interface. Otherwise, the Zyxel Device assigns an IP address dynamically using the
interface’s IP Pool Start Address and Pool Size.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This field is a sequential value, and it is not associated with a specific entry.
IP Address Enter the IP address to assign to a device with this entry’s MAC address.
MAC Address Enter the MAC address to which to assign this entry’s IP address.
Description Enter a description to help identify this static DHCP entry. You can use alphanumeric and
()+/:=?!*#@$_%- characters, and it can be up to 60 characters long.
RIP Setting See Section 11.6 on page 443 for more information about RIP.
Enable RIP Select this to enable RIP on this interface.
Table 348 Configuration > Security Service > CDR > Add VLAN (continued)
LABEL DESCRIPTION
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
888
Direction This field is effective when RIP is enabled. Select the RIP direction from the drop-down list
box.
BiDir - This interface sends and receives routing information.
In-Only - This interface receives routing information.
Out-Only - This interface sends routing information.
Send Version This field is effective when RIP is enabled. Select the RIP version(s) used for sending RIP
packets. Choices are 1, 2, and 1 and 2.
Receive Version This field is effective when RIP is enabled. Select the RIP version(s) used for receiving RIP
packets. Choices are 1, 2, and 1 and 2.
V2-Broadcast This field is effective when RIP is enabled. Select this to send RIP-2 packets using subnet
broadcasting; otherwise, the Zyxel Device uses multicasting.
OSPF Setting See Section 11.7 on page 445 for more information about OSPF.
Area Select the area in which this interface belongs. Select None to disable OSPF in this interface.
Priority Enter the priority (between 0 and 255) of this interface when the area is looking for a
Designated Router (DR) or Backup Designated Router (BDR). The highest-priority interface
identifies the DR, and the second-highest-priority interface identifies the BDR. Set the priority
to zero if the interface can not be the DR or BDR.
Link Cost Enter the cost (between 1 and 65,535) to route packets through this interface.
Passive Interface Select this to stop forwarding OSPF routing information from the selected interface. As a
result, this interface only receives routing information.
Authentication Select an authentication method, or disable authentication. To exchange OSPF routing
information with peer border routers, you must use the same authentication method that
they use. Choices are:
Same-as-Area - use the default authentication method in the area
None - disable authentication
Text - authenticate OSPF routing information using a plain-text password
MD5 - authenticate OSPF routing information using MD5 encryption
Text
Authentication
Key
This field is available if the Authentication is Text. Type the password for text authentication.
The key can consist of alphanumeric characters and the underscore, and it can be up to
16 characters long.
MD5
Authentication ID
This field is available if the Authentication is MD5. Type the ID for MD5 authentication. The ID
can be between 1 and 255.
MD5
Authentication
Key
This field is available if the Authentication is MD5. Type the password for MD5 authentication.
The password can consist of alphanumeric characters and the underscore, and it can be
up to 16 characters long.
MAC Address Setting This section appears when Interface Properties is External or General. Have the interface
use either the factory assigned default MAC address, a manually specified MAC address,
or clone the MAC address of another device or computer.
Use Default MAC
Address
Select this option to have the interface use the factory assigned default MAC address. By
default, the Zyxel Device uses the factory assigned MAC address to identify itself.
Overwrite
Default MAC
Address
Select this option to have the interface use a different MAC address. Either the MAC
address in the field. Once it is successfully configured, the address will be copied to the
configuration file. It will not change unless you change the setting or upload a different
configuration file.
Proxy ARP Proxy ARP is available for external or general interfaces on the Zyxel Device. See Section
10.5.2 on page 345 for more information on Proxy ARP.
Table 348 Configuration > Security Service > CDR > Add VLAN (continued)
LABEL DESCRIPTION
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
889
40.4 The Exempt List Screen
Click Configuration > Security Service > CDR > Exempt List to display IPv4 and /or MAC addresses of
devices that are exempt from CDR checking.
Click a column’s heading cell to sort the table entries by that column’s criteria. Click the heading cell
again to reverse the sort order.
Figure 567 Configuration > Security Service > CDR > Exempt List
Enable Proxy ARP Select this to allow the Zyxel Device to answer external interface ARP requests on behalf of
a device on its internal interface. Interfaces supported are:
•Ethernet
•VLAN
• Bridge
See Section 10.5.2 on page 345 for more information.
Add Click Add to create an IPv4 Address, an IPv4 CIDR (for example, 192.168.1.1/24) or an IPv4
Range (for example, 192.168.1.2-192.168.1.100) as the target IP address. The Zyxel Device
answers external ARP requests only if they match one of these inputted target IP addresses.
For example, if the IPv4 Address is 192.168.1.5, then the Zyxel Device will answer ARP
requests coming from the WAN only if it contains 192.168.1.5 as the target IP address.
Select an existing entry and click Remove to delete that entry.
Related Setting
Configure WAN
TRUNK
Click WAN TRUNK to go to a screen where you can set this VLAN to be part of a WAN trunk
for load balancing.
Configure Policy
Route
Click Policy Route to go to the screen where you can manually configure a policy route to
associate traffic with this VLAN.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 348 Configuration > Security Service > CDR > Add VLAN (continued)
LABEL DESCRIPTION
background
Chapter 40 Collaborative Detection & Response
USG FLEX Series User’s Guide
890
The following table describes the labels in this screen.
Table 349 Configuration > Security Service > CDR > Exempt List
LABEL DESCRIPTION
Exempt List This is a list of trusted clients in your network that are not subject to CDR checking and
never have their traffic blocked or isolated.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This is the entry’s index number in the list.
IP/MAC Click Add to create a new entry or select an existing entry, and then click Edit to modify it.
Type a valid IPv4 Address, such as 192.168.1.5, or a valid MAC address of an IPv4 client,
such as 0A:0A:0A:0A:0A:0A.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
USG FLEX Series User’s Guide
891
CHAPTER 41
SSL Inspection
41.1 Overview
Secure Socket Layer (SSL) traffic, such as https://www.google.com/HTTPS, FTPs, POP3s, SMTPs, etc. is
encrypted, and cannot be inspected using Security Service profiles such as App Patrol (AP), Content
Filter (CF), Intrusion Prevention System (IPS), or Anti-Malware. The Zyxel Device uses SSL Inspection to
decrypt SSL traffic, sends it to the Security Service engines for inspection, then encrypts traffic that
passes inspection and forwards it to the destination server, such as Google.
An example process is shown in the following figure. User U sends a HTTPS request (SSL) to destination
server D, through the Zyxel Device, Z. The traffic matches an SSL Inspection profile in a security policy, so
the Zyxel Device decrypts the traffic using SSL Inspection. The decrypted traffic is then inspected by the
Security Service profiles in the same security profile that matched the SSL Inspection profile. If all is OK,
then the Zyxel Device re-encrypts the traffic using SSL Inspection and forwards it to the destination server
D. SSL traffic could be in the opposite direction for other examples.
Figure 568 SSL Inspection Overview
Note: Email security cannot be applied to traffic decrypted by SSL Inspection.
41.1.1 What You Can Do in this Chapter
• Use the Security Service > SSL Inspection > Profile screen (Section 41.2 on page 892) to view SSL
Inspection profiles. Click the Add or Edit icon in this screen to configure the CA certificate, action and
log in an SSL Inspection profile.
• Use the Security Service > SSL Inspection > Exclude List screens (Section 41.3 on page 898) to create a
whitelist of destination servers to which traffic is passed through uninspected.
• Use the Security Service > SSL Inspection > Certificate Update screens (Section 41.4 on page 911) to
update the latest certificates of servers using SSL connections to the Zyxel Device network
41.1.2 What You Need To Know
SSL Inspection supports the following TLS protocols and encryption algorithms
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
892
• SSLv3 AES-CBC
• TLS1.0 AES-CBC
• TLS1.2 AES-CBC/AES-GCM
• TLS1.3 AES-GCM (no key update support nor 0-RTT)
• SSL Inspection does not support the following:
• Compression Support
• Client Authentication
41.1.3 What You Can Do in this Chapter
•See Configuration > Object > Certificate > My Certificates for information on creating certificates
on the Zyxel Device.
•See Monitor > Security Statistics > SSL Inspection to get usage data and easily add a destination
server to the whitelist of exclusion servers.
•See Configuration > Security Policy > Policy Control > Policy to bind an SSL Inspection profile to a
traffic flow(s).
41.1.4 Before You Begin
• If you don’t want to use the default Zyxel Device certificate, then create a new certificate in Object >
Certificate > My Certificates.
• Decide what destination servers to which traffic is sent directly without inspection. This may be a
matter of privacy and legality regarding inspecting an individual’s encrypted session, such as
financial websites. This may vary by locale.
41.2 The SSL Inspection Profile Screen
An SSL Inspection profile is a template with pre-configured certificate, action and log.
Click Configuration > Security Service > SSL Inspection > Profile to open this screen.
Figure 569 Configuration > Security Service > SSL Inspection > Profile
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
893
The following table describes the fields in this screen.
Table 350 Configuration > Security Service > SSL Inspection > Profile
LABEL DESCRIPTION
General Settings
Server Signed
Certificate Key
Mode
With SSL inspection, the Zyxel Device acts as a 'man-in-the-middle' between a client and
a remote server, when the client and server are communicating using an SSL-encrypted
session. Every time the client and server send data to each other, the Zyxel Device
decrypts the sender’s encrypted data, scans the plain data for threats, re-encrypts the
data, and then sends the encrypted data to the receiver.
• For outgoing sessions from the client to the remote server, the Zyxel Device creates a
virtual server to decrypt data and a virtual client to re-encrypt data.
• For incoming sessions from the remote server to the client, the Zyxel Device creates a
virtual client to decrypt data, and a virtual server to re-encrypt data.
To perform SSL Inspection for clients using SSL (HTTPS, SSH, SMTP) through the Zyxel
Device, the Zyxel Device must check that the server’s certificate with corresponding
public key are valid and were issued by a Certificate Authority (CA) listed in the Zyxel
Device's list of trusted CAs. According to the selected key mode RSA 1024, RSA 2048,
ECDSA-RSA-1024 or ECDSA-RSA-2048, the Zyxel Device will construct the corresponding
self-signed certificate for the virtual server.
RSA is a public-key cryptosystem used for data encryption or signing messages. For data
encryption, the encryption key is public and the decryption key is private. For signing
messages, the signing key is private and the verification key is public. Elliptic Curve
Cryptography (ECC) is a public-key cryptosystem based on elliptic curve theory, and
more efficient than RSA. ECC allows smaller keys compared to RSA to provide
equivalent security. For example, a 224-bit elliptic curve public key should provide
comparable security to a 2048-bit RSA public key.
• ECDSA-RSA-1024 indicates Zyxel Device support for clients that support both ECDSA-
256 and RSA-1024 with ECDSA-256 having higher priority, that is ECDSA-256 is used by
the virtual server, if a client supports both ECDSA-256 and RSA-1024.
• ECDSA-RSA-2048 indicates Zyxel Device support for clients that support both ECDSA-
256 and RSA-2048 with ECDSA-256 having higher priority, that is ECDSA-256 is used by
the virtual server, if a client supports both ECDSA-256 and RSA-2048.
Select a mode that the client’s browser, FTP client, or mail client supports. The Zyxel
Device will use different keys (cryptosystems) for each client according to the client’s
support list.
For example, if there are three clients behind a Zyxel Device with the following key
mode support:
• Client 1 - RSA-1024
• Client 2 - RSA-2048 and RSA-1024
• Client 3 - ECDSA-256 and RSA-2048.
If you set the key mode to ECDSA-RSA-1024, then the following will be used by each
client:
• Client 1 - RSA-1024
• Client 2 - RSA-1024
• Client 3 - ECDSA-256.
If you set the key mode to ECDSA-RSA-2048, then the following will be used by each
client:
• Client 1 - sessions will not be processed (pass) by SSL inspection
• Client 2 - RSA-2048
• Client 3 - ECDSA-256.
Profile Management
Add Click Add to create a new profile.
Edit Select an entry and click this to be able to modify it.
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
894
41.2.1 Apply to a Security Policy
Click the icon in the Action field to apply the entry to a security policy.
Go to the Configuration > Security Policy > Policy Control screen to check the result.
Remove Select an entry and click this to delete it.
References Select an entry and click References to open a screen that shows which settings use the
entry. Click Refresh to update information on this screen.
# This is the entry’s index number in the list.
Name This displays the name of the profile.
Description This displays the description of the profile.
CA Certificate This displays the CA certificate being used in this profile.
Reference This displays the number of times an object reference is used in a profile.
Action Click this icon to apply the entry to a security policy.
Go to the Configuration > Security Policy > Policy Control screen to check the result.
Table 350 Configuration > Security Service > SSL Inspection > Profile (continued)
LABEL DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
895
Figure 570 Configuration > Security Service > SSL Inspection > Action
The following table describes the labels in this screen.
Table 351 Configuration > Security Service > SSL Inspection > Action
LABEL DESCRIPTION
Show Filter/Hide
Filter
Click Show Filter to display IPv4 and IPv6 (if enabled) security policy search filters.
IPv4 / IPv6
Configuration
Use IPv4 / IPv6 search filters to find specific IPv4 and IPv6 (if enabled) security policies based on
direction, application, user, source, destination and/or schedule.
From / To Select a zone to view all security policies from a particular zone and/or to a particular zone.
any means all zones.
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
896
IPv4 / IPv6
Source
Type an IPv4 or IPv6 IP address to view all security policies based on the IPv4 / IPv6 source
address object used.
• An IPv4 IP address is written as four integer blocks separated by periods. This is an example
IPv4 address: 172.16.6.7.
• An 128-bit IPv6 address is written as eight 16-bit hexadecimal blocks separated by colons
(:). This is an example IPv6 address: 2001:0db8:1a2b:0015:0000:0000:1a2f:0000.
IPv4 / IPv6
Destination
Type an IPv4 or IPv6 IP address to view all security policies based on the IPv4 / IPv6 destination
address object used.
• An IPv4 IP address is written as four integer blocks separated by periods. This is an example
IPv4 address: 172.16.6.7.
• An 128-bit IPv6 address is written as eight 16-bit hexadecimal blocks separated by colons
(:). This is an example IPv6 address: 2001:0db8:1a2b:0015:0000:0000:1a2f:0000.
Service View all security policies based the service object used.
User View all security policies based on user or user group object used.
Schedule View all security policies based on the schedule object used.
Priority This is the position of your Security Policy in the global policy list (including all through-Zyxel
Device and to-Zyxel Device policies). The ordering of your policies is important as policies are
applied in sequence. Default displays for the default Security Policy behavior that the Zyxel
Device performs on traffic that does not match any other Security Policy.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Name This is the name of the Security policy.
From / To This is the direction of travel of packets. Select from which zone the packets come and to
which zone they go.
Security Policies are grouped based on the direction of travel of packets to which they apply.
For example, from LAN to LAN means packets traveling from a computer or subnet on the LAN
to either another computer or subnet on the LAN.
From any displays all the Security Policies for traffic going to the selected To Zone.
To any displays all the Security Policies for traffic coming from the selected From Zone.
From any to any displays all of the Security Policies.
To ZyWALL policies are for traffic that is destined for the Zyxel Device and control which
computers can manage the Zyxel Device.
IPv4 / IPv6 Source This displays the IPv4 / IPv6 source address object, including geographic address and FQDN
(group) objects, to which this Security Policy applies.
IPv4 / IPv6
Destination
This displays the IPv4 / IPv6 destination address object, including geographic address and
FQDN (group) objects, to which this Security Policy applies.
Service This displays the service object to which this Security Policy applies.
User This is the user name or user group name to which this Security Policy applies.
Schedule This field tells you the schedule object that the policy uses. none means the policy is active at all
times if enabled.
Action This field displays whether the Security Policy silently discards packets without notification
(deny), permits the passage of packets (allow) or drops packets with notification (reject)
Log Select whether to have the Zyxel Device generate a log (log), log and alert (log alert) or not
(no) when the policy is matched to the criteria listed above.
Profile This field shows you which Security Service profiles (application patrol, content filter, IPS, anti-
malware, email security) apply to this Security policy. Click an applied Security Service profile
icon to edit the profile directly.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving.
Table 351 Configuration > Security Service > SSL Inspection > Action
LABEL DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
897
41.2.2 Add / Edit SSL Inspection Profiles
Click Configuration > Security Service > SSL Inspection > Profile > Add to create a new profile or select
an existing profile and click Edit to change its settings.
Figure 571 Configuration > Security Service > SSL Inspection > Profile > Add/Edit
The following table describes the fields in this screen.
Table 352 Configuration > Security Service > SSL Inspection > Profile > Add/Edit
LABEL DESCRIPTION
Name This is the name of the profile. You may use 1-31 alphanumeric characters, underscores(_), or
dashes (-), but the first character cannot be a number. This value is case-sensitive. These are
valid, unique profile names:
• MyProfile
• mYProfile
• Mymy12_3-4
These are invalid profile names:
• 1mYProfile
• My Profile
• MyProfile?
• Whatalongprofilename123456789012
Description Enter additional information about this SSL Inspection entry. You can enter up to 60 characters
("0-9", "a-z", "A-Z", "-" and "_").
CA Certificate This contains the default certificate and the certificates created in Object > Certificate > My
Certificates. Choose the certificate for this profile.
SSL/TLS version
supported
minimum
SSL / TLS connections using versions lower than this setting are blocked.
Log These are the log options for unsupported traffic that matches traffic bound to this policy:
• no: Select this option to have the Zyxel Device create no log for unsupported traffic that
matches traffic bound to this policy.
• log: Select this option to have the Zyxel Device create a log for unsupported traffic that
matches traffic bound to this policy
• log alert: An alert is an emailed log for more serious events that may need more immediate
attention. They also appear in red in the Monitor > Log screen. Select this option to have the
Zyxel Device send an alert for unsupported traffic that matches traffic bound to this policy.
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
898
41.3 Exclude List Screen
There may be privacy and legality issues regarding inspecting a user's encrypted session. The legal issues
may vary by locale, so it's important to check with your legal department to make sure that it’s OK to
intercept SSL traffic from your Zyxel Device users.
To ensure individual privacy and meet legal requirements, you can configure an exclusion list to exclude
matching sessions to destination servers. This traffic is not intercepted and is passed through
uninspected.
Click Configuration > Security Service > SSL Inspection > Exclude List to display the following screen. Use
Add to put a new item in the list or Edit to change an existing one or Remove to delete an existing entry.
Action for
Connection with
unsupported suit
SSL Inspection supports these cipher suites:
•DES
•3DES
•AES
Select to pass or block unsupported traffic (such as other cipher suites, compressed traffic,
client authentication requests, and so on) that matches traffic bound to this policy here.
Log These are the log options for unsupported traffic that matches traffic bound to this policy:
• no: Select this option to have the Zyxel Device create no log for unsupported traffic that
matches traffic bound to this policy.
• log: Select this option to have the Zyxel Device create a log for unsupported traffic that
matches traffic bound to this policy
• log alert: An alert is an emailed log for more serious events that may need more immediate
attention. They also appear in red in the Monitor > Log screen. Select this option to have the
Zyxel Device send an alert for unsupported traffic that matches traffic bound to this policy.
Action for
connection with
untrusted cert
chain
A certificate chain is a certification process that involves the following certificates between the
SSL/TLS server and a client. A certificate chain will fail if one of the following certificates is not
correct.
• A certificate owned by a user
• The certificate signed by a certification authority
• A root certificate
Select to pass, inspect, or block an untrusted certification chain.
Log These are the log options for unsupported traffic that matches traffic bound to this policy:
• no: Select this option to have the Zyxel Device create no log for unsupported traffic that
matches traffic bound to this policy.
• log: Select this option to have the Zyxel Device create a log for unsupported traffic that
matches traffic bound to this policy
• log alert: An alert is an emailed log for more serious events that may need more immediate
attention. They also appear in red in the Monitor > Log screen. Select this option to have the
Zyxel Device send an alert for unsupported traffic that matches traffic bound to this policy.
OK Click OK to save your settings to the Zyxel Device, and return to the profile summary page.
Cancel Click Cancel to return to the profile summary page without saving any changes.
Table 352 Configuration > Security Service > SSL Inspection > Profile > Add/Edit (continued)
LABEL DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
899
Figure 572 Configuration > Security Service > SSL Inspection > Exclude List (Add/Edit)
The following table describes the fields in this screen.
Table 353 Configuration > Security Service > SSL Inspection > Exclude List
LABEL DESCRIPTION
General Settings
Enable Logs for
Exclude List
Click this to create a log for traffic that bypasses SSL Inspection.
Exclude List
Address Settings
Use this part of the screen to create, edit, or delete items in the SSL Inspection exclusion list.
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This is the entry’s index number in the list.
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
900
The following table describes the managed categories.
Exclude List of
Certificate
Identity
SSL traffic to a server to be excluded from SSL Inspection is identified by its certificate. Identify
the certificate in one of the following ways:
• The Common Name (CN) of the certificate. The common name of the certificate can be
created in the Object > Certificate > My Certificates screen.
• Type an IPv4 or IPv6 address. For example, type 192.168.1.35, or 2001:7300:3500::1
• Type an IPv4/IPv6 in CIDR notation. For example, type 192.168.1.1/24, or 2001:7300:3500::1/
64
• Type an IPv4/IPv6 address range. For example, type 192.168.1.1-192.168.1.35, or
2001:7300:3500::1-2001:7300:3500::35
• Type an email address. For example, type [email protected]
• Type a DNS name or a common name (wildcard char: '*', escape char: '\'). Use up to 127
case-insensitive characters (0-9a-zA-Z`~!@#$%^&*()-_=+[]{}\|;:',.<>/?). ‘*’ can be used as
a wildcard to match any string. Use ‘\*’ to indicate a single wildcard character.
Alternatively, to automatically add an entry for existing SSL traffic to a destination server, go to
Monitor > Security Statistics > SSL Inspection > Certificate Cache List, select an item and then
click Add to Exclude List. The item will then appear here.
Exclude List Web
Category Settings
Use this section to let SSL traffic destined for websites in the selected web categories to pass
through the Zyxel Device without been inspected.
Select All
Categories
Select this to allow SSL traffic to all sites belonging to the categories below pass through
without been inspected.
Clear All
Categories
Select this to clear the selected categories below. The Zyxel Device will inspect SSL traffic
going to all web pages unless the destination servers are excluded in Exclude List Address
Settings.
Managed
Categories
These are categories of web pages based on their content. For example, a web page that
sells wine will be classified as the Alcohol category.
Select categories in this section to allow traffic to specific types of Internet content pass
through without been intercepted.
You must have the Category Service Web Filtering license to filter these categories. See the
next table for category details.
Apply Click Apply to save your settings to the Zyxel Device.
Reset Click Reset to return to the profile summary page without saving any changes.
Table 354 Managed Category Descriptions
CATEGORY DESCRIPTION
Adult Topics Web pages that contain content or themes that are generally considered
unsuitable for children.
Alcohol Web pages that mainly sell, promote, or advocate the use of alcohol, such as beer,
wine, and liquor.
This category also includes cocktail recipes and home-brewing instructions.
Anonymizing Utilities Web pages that result in anonymous web browsing without the explicit intent to
provide such a service.
This category includes URL translators, web-page caching, and other utilities that
might function as anonymizers, but without the express purpose of bypassing filtering
software.
This category does not include text translation.
Art Culture Heritage Web pages that contain virtual art galleries, artist sites (including sculpture and
photography), museums, ethnic customs, and country customs.
This category does not include online photograph albums.
Table 353 Configuration > Security Service > SSL Inspection > Exclude List (continued)
LABEL DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
901
Auctions Classifieds Web pages that provide online bidding and selling of items or services.
This category includes web pages that focus on bidding and sales.
This category does not include classified advertisements such as real estate postings,
personal ads, or companies marketing their auctions.
Blogs/Wiki Web pages containing dynamic content, which often changes because users can
post or edit content at any time.
This category covers the risks with dynamic content that might range from harmless
to offensive.
Business Web pages that provide business-related information, such as corporate overviews
or business planning and strategies.
This category also includes information, services, or products that help other
businesses plan, manage, and market their enterprises, and multi-level marketing.
This category does not include personal pages and web-hosting web pages.
Chat Web pages that provide web-based, real-time social messaging in public and
private chat rooms. This category includes IRC.
This category does not include instant messaging.
Computing Internet Web pages containing reviews, information, buyer's guides of computers, computer
parts and accessories, computer software and internet companies, industry news
and magazines, and pay-to-surf sites.
Consumer Protection Websites that try to rob or cheat consumers.
Some examples of their activities include selling counterfeit products, selling
products that were originally provided for free, or improperly using the brand of
another company. This category also includes sites where many consumers
reported being cheated or not receiving services.
This category does not include phishing, which tries to perpetrate fraud or theft by
stealing account information. To check for phishing, go to Security Service >
Reputation Filter > IP Reputation and select Phishing.
Content Server URLs for servers that host images, media files, or JavaScript for one or more sites and
are intended to speed up content retrieval for existing web servers, such as Apache.
This category includes domain-level and sub-domain-level URLs that function as
content servers.
This category does not include:
• Web pages for businesses that provide the content servers
• Web pages that allow users to browse photographs. See the Media Sharing
category.
• URLs for servers that serve only advertisements. See the Web Ads category.
Controversial Opinions Web pages that contain opinions that are likely to offend political or social
sensibilities and incite controversy. Much of this content is at the extremes of public
opinion.
This category does not include opinion or language clearly intended to promote
hate or discrimination.
Cult Occult Sites relating to non-traditional religious practices considered to be false,
unorthodox, extremist, or coercive.
Dating Personals Web pages that provide networking for online dating, matchmaking, escort
services, or introductions to potential spouses.
This category does not include sites that provide social networking that might
include dating, but are not specific to dating.
Table 354 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
902
Dating Social Networking Web pages that focus on social interaction such as online dating, friendship, school
reunions, pen-pals, escort services, or introductions to potential spouses.
This category does not include wedding-related content, dating tips, or related
marketing.
Digital Postcards Web pages that allow people to send and receive digital postcards and greeting
cards through the Internet.
Discrimination Web pages, which provide information that explicitly encourages the oppression or
discrimination of a specific group of individuals.
This category does not include jokes and humor, unless the focus of the entire site is
considered discriminatory.
Drugs Websites that provide information on the purchase, manufacture, and use of illegal
or recreational drugs.
This category does not include sites with exclusive health or political themes.
Education Reference Web pages devoted to academic-related content such as academic subjects
(mathematics, history), school or university web pages, and education
administration pages (school boards, teacher curriculum).
Entertainment Web pages that provide information about cinema, theater, music, television,
infotainment, entertainment industry gossip-news, and sites about celebrities such as
actors and musicians.
This category also includes sites where the content is devoted to providing
entertainment on the web, such as horoscopes or fan clubs.
Extreme Web pages that provide content considered gory, perverse, or horrific.
Fashion Beauty Web pages that market clothing, cosmetics, jewelry, and other fashion-oriented
products, accessories, or services.
This category also includes product reviews, comparisons, and general consumer
information, and services such as hair salons, tanning salons, tattoo studios, and
body-piercing studios.
This category does not include fashion-related content such as modeling or
celebrity fashion unless the site focuses on marketing the product line.
Finance Banking Web pages that provide financial information or access to online financial
accounts.
This category includes stock information (but not stock trading), home finance, and
government-related financial information.
For Kids Web pages that are family-safe, specifically for children of approximate ages ten
and under.
This category can also be used as an exception to allow web pages that do not
pose a risk to children, or to access sites that have a primary educational or
recreational focus for children, but are in other categories such as Games, Humor/
Comics, Recreation/Hobbies, or Entertainment.
Forum Bulletin Boards Web pages that provide access (http://) to Usenet newsgroups or hold discussions
and post user-generated content, such as real-time message posting for an interest
group. This category also includes archives of files uploaded to newsgroups.
This category does not include message forums with a business or technical support
focus.
Gambling Web pages that allow users to wager or place bets online, or provide gambling
software that allows online betting, such as casino games, betting pools, sports
betting, and lotteries.
This category does not include web pages related to gambling that do not allow
betting online.
Table 354 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
903
Gambling Related Web pages that offer information about gambling, without providing the means to
gamble.
This category includes casino-related web pages that do not offer online gambling,
gambling links, tips, sports picks, lottery results, and horse, car, or boat racing.
Game Cartoon Violence Web pages that provide fantasy or fictitious representations of violence within the
context of games, comics, cartoons, or graphic novels.
This category includes images and textual descriptions of physical assaults or hand-
to-hand combat, and grave injury and destruction caused by weapons or
explosives.
Games Web pages that offer online games and related information such as cheats, codes,
demos, emulators, online contests or role-playing games, gaming clans, game
manufacturer sites, fantasy or virtual sports leagues, and other gaming sites without
chances of profit.
This category includes gaming consoles.
General News Web pages that provide online news media, such as international or regional news
broadcasting and publication.
This category includes portal sites that provide news content.
Government Military Web pages that contain content maintained by governmental or military
organizations, such as government branches or agencies, police departments, fire
departments, civil defense, counter-terrorism organizations, or supranational
organizations, such as the United Nations or the European Union.
This category includes military and veterans’ medical facilities.
Gruesome Content Web pages with content that can be considered tasteless, gross, shocking, or
gruesome.
This category does not include web pages with content pertaining to physical
assault.
Health Web pages that cover all health-related information and health care services.
This category does not include cosmetic surgery, marketing/selling
pharmaceuticals, or animal-related medical services.
Historical Revisionism Web pages that denounce, or offer different interpretations of, significant historical
facts, such as holocaust denial.
This category does not include all re-examination of historical facts, only historical
events that are highly sensitive.
History Web pages that provide content about historical facts.
This category includes content suitable for higher education, but the Education
category includes content for primary education. For example, a site with Holocaust
photographs might be offensive, but have academic value.
Humor Comics Web pages that provide comical or funny content.
This category includes sites with jokes, sketches, comics, and satire pages. This
category might also include graphic novel content, which is often associated with
comics.
Illegal UK Web pages that contain child sexual abuse content hosted anywhere in the world,
and criminally obscene and incitement to racial hatred content hosted in the UK.
Table 354 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
904
Incidental Nudity Web pages that contain non-pornographic images of the bare human body like
those in classic sculpture and paintings, or medical images.
This category enables you to allow or block sites in order to address cultural or
geographic differences in opinion about nudity. For example, you can use this
category to block access to nudity, but allow access when nudity is not the primary
focus of a site, such as news sites or major portals.
Information Security Web pages that legitimately provide information about data protection. This
category includes detailed information for safeguarding business or personal data,
intellectual property, privacy, and infrastructure on the Internet, private networks, or
in other bandwidth services such as telecommunications.
This category does not include:
• Legitimate information security companies and security software providers, such
as virus protection companies.
• Sites that intend to exploit security or teach how to bypass security.
Information Security New Web pages that legitimately provide information about data protection. This
category includes detailed information for safeguarding business or personal data,
intellectual property, privacy, and infrastructure on the Internet, private networks, or
in other bandwidth services such as telecommunications.
This category does not include:
• Legitimate information security companies and security software providers, such
as virus protection companies.
• Sites that intend to exploit security or teach how to bypass security.
Instant Messaging Web pages that provide software for real-time communication over a network
exclusively for users who joined a member’s contact list or an instant-messaging
session.
Most instant-messaging software includes features such as file transfer, PC-to-PC
phone calls, and can track when other people log on and off.
Interactive Web
Applications
Web pages that provide access to live or interactive web applications, such as
browser-based office suites and groupware. This category includes sites with
business, academic, or individual focus.
This category does not include sites providing access to interactive web
applications that do not take critical user data or offer security risks, such as Google
Maps.
Internet Radio TV Web pages that provide software or access to continuous audio or video
broadcasting, such as Internet radio, TV programming, or podcasting.
Quick downloads and shorter streams that consume less bandwidth are in the
Streaming Media or Media Downloads categories.
Internet Services Web pages that provide services for publication and maintenance of Internet sites
such as web design, domain registration, Internet Service Providers, and broadband
and telecommunications companies that provide web services.
This category includes web utilities such as statistics and access logs, and web
graphics like clip art.
Job Search Web pages related to a job search including sites concerned with resume writing,
interviewing, changing careers, classified advertising, and large job databases. This
category also includes corporate web pages that list job openings, salary
comparison sites, temporary employment, and company job-posting sites.
This category does not include make-money-at-home sites.
Table 354 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
905
Major Global Religions Web pages with content about religious topics and information related to major
religions. This category includes sites that cover religious content such as discussion,
beliefs, non-controversial commentary, articles, and information for local
congregations such as a church or synagogue homepage.
The religions in this category are Baha'i, Buddhism, Chinese Traditional, Christianity,
Hinduism, Islam, Jainism, Judaism, Shinto, Sikhism, Tenrikyo, Zoroastrianism.
Marketing Merchandising Web pages that promote individual or business products or services on the web, but
do not sell their products or services online.
This category includes websites that are generally a company overview, describing
services or products that cannot be purchased directly from these sites. Examples
include automobile manufacturer sites, wedding photography services, or graphic
design services.
This category does not include:
• Other categories that imply marketing such as Alcohol, Auctions/Classifieds,
Drugs, Finance/Banking, Mobile Phone, Online Shopping, Real Estate, School
Cheating Information, Software/Hardware, Stock Trading, Tobacco, Travel, and
Weapons.
• Sites that market their services only to other businesses. See the Business
category.
• Sites that rob or cheat consumers. See the Consumer Protection category.
Media Downloads Web pages that provide audio or video files for download such as MP3, WAV, AVI,
and MPEG formats. The files are saved to, and played from, the user’s computer.
This category does not include audio or video files that are played directly through a
browser window. See the Streaming Media category.
Media Sharing Web pages that allow users to upload, search for, and share media files and
photographs, such as online photograph albums.
Messaging Examples include text messaging to mobile phones, PDAs, fax machines, and
internal website user-to-user messaging or site-to-site messaging.
This category does not include real-time chat or instant messaging, or message
posts that can be viewed by anyone but the intended recipient.
Mobile Phone Web pages that sell media, software, or utilities for mobile phones that can be
downloaded and delivered to mobile phones.
Examples include ringtones, logos/skins, games, screen-savers, text-based tunes,
and software for SMS, MMS, WAP, and other mobile phone protocols.
Moderated Bulletin boards, chat rooms, search engines, or web mail sites that are monitored by
an individual or group who has the authority to block messages or content
considered inappropriate.
This category does not include sites with posted rules against offensive content. See
the Forum/Bulletin Boards category.
Motor Vehicles Websites for manufacturers and dealerships of consumer transportation vehicles,
such as cars, vans, trucks, SUVs, motorcycles, and scooters. This category also
includes sites that provide product marketing, reviews, comparisons, pricing
information, auto fairs, auto expos, and general consumer information about motor
vehicles.
This category does not include automotive accessories, mechanics, auto-body
shops, and recreational hobby pages. This category does not include sites that
provide business-to-business-only content regarding motor vehicles.
Non Profit Advocacy NGO Web pages from charitable or educational groups that fulfill a stated mission,
benefiting the larger community, such as clubs, lobbies, communities, non-profit
organizations, labor unions, and advocacy groups.
Examples are Masons, Elks, Boy and Girl Scouts, or Big Brothers.
Table 354 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
906
Nudity Web pages that have non-pornographic images of the bare human body. This
category includes classic sculpture and paintings, artistic nude photographs, some
naturism pictures, and detailed medical illustrations.
This category does not include high-profile sites where nudity is not a concern for
visitors. See the Incidental Nudity category.
Online Shopping Web pages that sell products or services online.
Web pages selling a broad range of products might pose a risk to users by offering
access to items that are normally in other categories such as Pornography,
Weapons, Nudity, or Violence. Web pages selling such content exclusively are in
their respective categories.
P2P File Sharing Web pages that allow the exchange of files between computers and users for
business or personal use, such as downloadable music.
P2P clients allow users to search for and exchange files from a peer-user network.
They often include spyware or real-time chat capabilities. This category includes
BitTorrent web pages.
Parked Domain Web pages that once served content, but their domains have been sold or
abandoned and are no longer registered.
Parked domains do not host their own content, but usually redirect users to a
generic page that states the domain name is for sale, or redirect users to a generic
search engine and portal page, some of which provide valid search engine results.
Personal Network Storage Web pages that allow users to upload folders and files to an online network server in
order to backup, share, edit, or retrieve files or folders from any web browser.
Personal Pages Personal home pages that share a common domain such as those hosted by ISPs,
university/education servers, or free web page hosts.
This category also includes unique domains that contain personal information, such
as a personal home page. This category does not include home pages of public
figures.
Pharmacy Web pages that provide reviews, descriptions, and market or sell prescription-based
drugs, over-the-counter drugs, birth control, or dietary supplements.
Politics Opinion Web pages covering political parties, individuals in political life, and opinion on
various topics.
This category might also cover laws and political opinion about drugs. This category
includes URLs for political parties, political campaigning, and opinions on various
topics, including political debates.
Pornography Web pages that contain materials intended to be sexually arousing or erotic.
This category includes fetish pages, animation, cartoons, stories, and illegal
pornography.
Portal Sites Web pages that serve as major gateways or directories to content on the web.
Many portal sites also provide a variety of internal site features or services such as
search engines, email, news, and entertainment. Mailing list sites with a variety of
content are in this category.
This category does not include sites with topic-specific content.
Potential Criminal Activities Web pages that provide instructions to commit illegal or criminal activities.
Instructions include committing murder or suicide, sabotage, bomb-making, lock-
picking, service theft, evading law enforcement, or spoofing drug tests. This
category might also include information on how to distribute illegal content,
perpetrate fraud, or consumer scams.
This category does not include computer-related fraud.
Table 354 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
907
Potential Hacking
Computer Crime
Web pages that provide instructions, or otherwise enable, fraud, crime, or malicious
activity that is computer-oriented.
This category includes web pages related to computer crime include malicious
hacking information or tools that help individuals gain unauthorized access to
computers and networks (root kits, kiddy scripts). This category also includes other
areas of electronic fraud such as dialer scams and illegal manipulation of electronic
devices.
This category does not include illegal software.
Potential Illegal Software Web pages, which the filter believes offer information to potentially ‘pirated’ or
illegally distribute software or electronic media, such as copyrighted music or film,
distribution of illegal license key generators, software cracks, and serial numbers.
This category does not include peer-to-peer web pages.
Private IP Addresses Sites that are private IP addresses as defined in RFC 1918, that is, hosts that do not
require access to hosts in other enterprises (or require just limited access) and whose
IP address may be ambiguous between enterprises but are well defined within a
certain enterprise.
Profanity Web pages that contain crude, vulgar, or obscene language or gestures.
Professional Networking Web pages that provide social networking exclusively for professional or business
purposes.
This category includes sites that provide personal or group profiles, and enable their
members to interact through real-time communication, message posting, public
bulletins, and media sharing. This category also contains alumni sites that have a
networking function.
This category does not include social networking sites where the focus might vary,
but include friendship, dating, or professional focuses.
Provocative Attire Web pages with pictures that include alluring or revealing attire, lingerie and
swimsuits, or supermodel or celebrity photograph collections, but do not involve
nudity.
This category does not include sites with swimwear or similar attire that is not
intended to be provocative. For example, Olympic swimming sites are not in this
category.
Public Information Web pages that provide general reference information such as public service
providers, regional information, transportation schedules, maps, or weather reports.
PUPs Web pages that contain Potentially Unwanted Programs (PUPs).
PUPs are often made for a beneficial purpose but they alter the security of a
computer or the computer user’s privacy. Computer users who are concerned
about security or privacy might want to be informed about this software, and in
some cases, they might want to remove this software from their computers.
Real Estate Web pages that provide commercial or residential real estate services and
information.
Service and information includes sales and rental of living space or retail space and
guides for apartments, housing, and property, and information on appraisal and
brokerage. This category includes sites that allow you to browse model homes.
This category does not include content related to personal finance, such as credit
applications.
Table 354 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
908
Recreation Hobbies Web pages for recreational organizations and facilities that include content
devoted to recreational activities and hobbies.
This category includes information about public swimming pools, zoos, fairs, festivals,
amusement parks, recreation guides, hiking, fishing, bird watching, or stamp
collecting.
This category does not include activities that need no active participation, such as
watching a movie or reading celebrity gossip.
Religion Ideology Web pages with content related to religious topics and beliefs in human spirituality
that are not within the major religions.
This category includes religious discussion, beliefs, articles, and information for local
congregations or groups such as a church homepage, unless the site is already in
the Major Global Religions category. This category also includes comparative
religion, or sites that include religions and ideologies.
This category does not include astrology and horoscope sites
Remote Access Web pages that provide remote access to a program, online service, or an entire
computer system.
Although remote access is often used legitimately to run a computer from a remote
location, it creates a security risk, such as backdoor access. Backdoor access,
written by the original programmer, allows the system to be controlled by another
party without the user's knowledge.
Reserved This category is reserved for future use.
Residential IP Addresses IP addresses (and any domains associated with them) that access the Internet by
DSL modems or cable modems.
Because this content is not generally intended for Internet access through HTTP,
access to the Internet through these IP addresses can indicate suspicious behavior.
This behavior might be related to malware located on the home computer or
homegrown gateways set up to allow anonymous Internet access.
Resource Sharing Web pages that harness idle or unused computer resources to focus on a common
task.
The task can be on a company or an international basis. Well known examples are
the SETI program and the Human Genome Project, which use the idle time of
thousands of volunteered computers to analyze data.
Restaurants Web pages that provide information about restaurants, bars, catering, take-out and
delivery, including online ordering.
This category includes sites that provide information about location, hours, prices,
menus and related dietary information. This category also includes restaurant guides
and reviews, and cafes and coffee shops.
This category does not include groceries, wholesale food, non-profit and charitable
food organizations, or bars that do not focus on serving food.
School Cheating
Information
Web pages that promote plagiarism or cheating by providing free or fee-based
term papers, written essays, or exam answers.
This category does not include sites that offer student help, discuss literature, films, or
books, or other content that is often the subject of research papers.
Search Engines Web pages that provide search results that enable users to find information on the
Internet based on key words.
This category does not include site-specific search engines.
Table 354 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
909
Sexual Materials Web pages that describe or depict sexual acts, but are not intended to be arousing
or erotic.
Examples of sexual materials include sex education, sexual innuendo, humor, or sex
related merchandise.
This category does not include web pages with content intended to arouse.
Shareware Freeware Web pages that are repositories of downloadable copies of shareware and
freeware.
This category does not include subscription-based software.
Social Networking Web pages that enable social networking for a variety of purposes, such as
friendship, dating, professional, or topics of interest.
These sites provide personal or group profiles and enable interaction among their
members through real-time communication, message posting, public bulletins, and
media sharing.
This category does not include sites that are exclusive to dating, matchmaking, or a
specific professional networking focus.
Software Hardware Web pages related to computing software and hardware, including vendors,
product marketing and reviews, deployment and maintenance of software and
hardware, and software updates and add-ons such as scripts, plug-ins, or drivers.
Hardware includes computer parts, accessories, and electronic equipment used
with computers and networks.
This category includes the marketing of software and hardware, and magazines
focused on software or hardware product reviews or industry trends.
Sports Web pages related to professional or organized recreational sports.
This category includes sporting news, events, and information such as playing tips,
strategies, game scores, or player trades.
This category does not include fantasy leagues, sports centers, athletic clubs, fitness
or martial arts clubs, and non-league billiards, darts, or other such activities.
Stock Trading Web pages that offer purchasing, selling, or trading of shares online.
This category also includes ticker-tape information that enables viewing of real-time
stock prices and financial spread betting in the stock market. Other betting is in the
Gambling category.
This category does not include sites that offer information about stocks, but do not
offer purchasing, selling, or trading of shares.
Streaming Media Web pages that provide streaming media, or contain software plug-ins for
displaying audio and visual data before the entire file has been transmitted.
This category does not include audio or video files that are downloaded to a user’s
computer before being played.
Technical Business Forums Web pages with a technical or business focus that provide online message posting
or real-time chatting, such as technical support or interactive business
communication.
Although users can post any type of content, these forums tend to present less risk of
containing offensive content.
Sites that offer a variety of forums with themes, including technical and business
content, are only in the categories of Forum/Bulletin Boards or Chat.
Table 354 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
910
Technical Information Web pages that provide computing information with an educational focus in areas
such as Information Technology, computer programming, and certification.
Examples include Linux user groups, UNIX commands, software tutorials, or
dictionaries of technical terms. Most sites in this category might be subdirectories of
larger domains. For example, a software site with a tutorial page is in this category
only at the tutorial page URL.
This category does not include content about information security.
Text Spoken Only Content that is text or audio only, and does not contain pictures.
This category can be used as an exception to allow explicit text and recorded
material to be accessed when you want pictures blocked using the Pornography,
Violence, or Sexual Materials categories. Libraries or universities can use this
category to prevent the display of offensive graphics in their public facilities.
Text Translators Web pages that allow users to type phrases or a block of text to translate it from one
language into another.
This category also includes language identifier web pages. URL translation is in the
Anonymizing Utilities category.
Tobacco Web pages that sell, promote, or advocate the use of tobacco products, tobacco
paraphernalia, including cigarettes, cigars, pipes, snuff and chewing tobacco.
Travel Web pages that promote personal or business travel, such as hotels, resorts, airlines,
ground transportation, car rentals, travel agencies, and general tourist and travel
information.
This category also includes sites for buying tickets or accommodation.
This category does not include personal vacation photographs.
Usenet News Web pages that provide access (http://) to Usenet newsgroups and archives of files
uploaded to newsgroups.
This category also includes online groups that offer similar community-oriented
content posting.
Violence Web pages that contain real or lifelike images or text that portray, describe, or
advocate physical assaults against people, animals, or institutions, such as
depictions of war, suicide, mutilation, or dismemberment.
Visual Search Engine Web pages that provide image-specific search results such as thumbnail pictures.
This category does not include sites that offer site-specific visual search engines.
Weapons Web pages that provide information about buying, making, modifying, or using
weapons, such as guns, knives, swords, paintball guns, and ammunition, explosives,
and weapon accessories.
This category also includes sites that contain content for: weapons for personal or
military use, homemade weapons, non-lethal weapons such as mace, pepper
spray, or Taser guns, weapons facilities, such as shooting ranges, and government or
military oriented weapons.
This category does not include political action groups, such as the NRA.
Web Ads Web pages that provide advertisement-hosting or programs that create
advertisements.
Examples include links, source code or applets for banners, popups, and other kinds
of static or dynamically generated advertisements that appear on web pages. This
category is intended to block advertisements on web pages, not the companies
that provide the advertisements or advertising services.
This category does not include aggressive advertising adware. See the Spyware/
Adware category.
Table 354 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
911
41.4 Certificate Update Screen
Use this screen to update the latest certificates of servers using SSL connections to the Zyxel Device
network. User U sends an SSL request to destination server D (1), through the Zyxel Device, Z. D replies (2);
Z intercepts the response from D and checks if the certificate has been previously signed. Z then replies
to D (3) and also to U (4). D’s latest certificate is stored at myZyxel (M) along with other server certificates
and can be downloaded to the Zyxel Device.
Figure 573 SSL Inspection Certificate Update Overview
Click Configuration > Security Service > SSL Inspection > Certificate Update to display the following
screen.
Web Mail Web pages that enable users to send or receive email through the Internet.
Web Meetings Web pages that host live meetings, video conferences, and interactive
presentations mainly for businesses.
Web meetings generally include streaming audio and video, and allow data
transfer or office-oriented application sharing, such as online presentations.
Web Phone Web pages that enable users to make telephone calls through the Internet or obtain
information or software for this purpose.
Web Phone service is also called Internet Telephony, or VoIP. Web phone service
includes PC-to-PC, PC-to-phone, and phone-to-phone services connecting through
TCP/IP networks.
Table 354 Managed Category Descriptions (continued)
CATEGORY DESCRIPTION
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
912
Figure 574 Configuration > Security Service > SSL Inspection > Certificate Update
The following table describes the fields in this screen.
41.5 Install a CA Certificate in a Browser
Certificates used in SSL Inspection profiles should be installed in user web browsers. Do the following
steps to install a certificate in a computer with a Windows operating system (PC). First, save the
certificate to your computer.
1 Run the certificate manager using certmgr.msc.
2 Go to Trusted Root Certification Authorities > Certificates.
Table 355 Configuration > Security Service > SSL Inspection > Certificate Update
LABEL DESCRIPTION
Certificate Information
Current Version This displays the current certificate set version.
Released Date This field displays the date and time the current certificate set was released.
Certificate Update You should have Internet access and have activated SSL Inspection on the Zyxel
Device at myZyxel.
Update Now Click this button to download the latest certificate set (Windows, MAC OS X, and
Android) from the Zyxel cloud server and update it on the Zyxel Device.
Auto Update Select this to automatically have the Zyxel Device update the certificate set when a
new one becomes available on the Zyxel cloud sever.
Apply Click Apply to save your settings to the Zyxel Device.
Reset Click Reset to return to the profile summary page without saving any changes.
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
913
3 From the main menu, select Action > All Tasks > Import and run the Certificate Import Wizard to install
the certificate on the PC.
background
Chapter 41 SSL Inspection
USG FLEX Series User’s Guide
914
41.5.0.1 Firefox Browser
If you’re using a Firefox browser, in addition to the above you need to do the following to import a
certificate into the browser.
Click Tools > Options > Advanced > Encryption > View Certificates, click Import and enter the filename
of the certificate you want to import. See the browser's help for further information.
background
USG FLEX Series User’s Guide
915
CHAPTER 42
IP Exception
42.1 Overview
IP Exception allows incoming IP packets to bypass specific security services based on the packet’s
source or destination address. Bypassing a security service means the security service does not intercept
nor inspect the packet. IP Exception supports bypassing the following security services:
• Anti-Malware (including sandboxing)
• URL Threat Filter
• IPS (Intrusion Prevention System)
• IP Reputation.
• DNS Threat Filter
Please note that your Zyxel Device does not support sandboxing and IP reputation by default. You need
to purchase a Gold Security Pack license; see
Section 8.1.2 on page 257 for more information.
42.2 The IP Exception Screen
Use this screen to view the IP exception list for the specified services. The Zyxel Device will not inspect
incoming packets that match the listed source and destination IP address(es) wit h the specified
services.
Click Configuration > Security Service > IP Exception to display the following screen. Use Add to put a
new entry in the list or Edit to change an existing one or Remove to delete an existing entry.
background
Chapter 42 IP Exception
USG FLEX Series User’s Guide
916
Figure 575 Configuration > Security Service > IP Exception
The following table describes the fields in this screen.
42.2.1 The IP Exception Add/Edit Screen
Use this screen to add or edit entries of IPv4 or IPv6 address in the IP exception list.
Click Configuration > Security Service > IP Exception > Add/Edit to display the following screen.
Table 356 Configuration > Security Service > IP Exception
LABEL DESCRIPTION
IPv4/IPv6 Exception List Settings
Add Click this to create a new entry.
Edit Select an entry and click this to be able to modify it.
Remove Select an entry and click this to delete it.
# This is the entry’s index number in the list.
Name This field displays the descriptive name of this entry.
IPv4/IPv6 Source This field displays the source IP address (or address object) of incoming traffic. It displays any if
there is no restriction on the source IP address.
IPv4/IPv6
Destination
This field displays the destination IP address (or address object) of incoming traffic. It displays
any if there is no restriction on the destination IP address.
Service to Bypass This field displays which services will not inspect matched packets.
Log This field displays if the Zyxel Device will generate a log when the incoming traffic is in the
exception list.
background
Chapter 42 IP Exception
USG FLEX Series User’s Guide
917
Figure 576 Configuration > Security Service > IP Exception > Add/Edit
The following table describes the fields in this screen.
42.3 Example: Bypass a Website
You often access a website 1.1.1.1 that you are sure is safe. Every time you access the website, the
packets sent by the website will be inspected by the Zyxel Device security services, such as anti-
malware, reputation filter and IPS.
Table 357 Configuration > Security Service > IP Exception > Add/Edit
LABEL DESCRIPTION
Create New
Object
Use this to configure any new settings objects that you need to use in this screen.
Name Enter a descriptive name of this entry.
Description Enter the description for this entry. You can use 1 to 63 single-byte characters, including 0-9a-
zA-Z!”#$%’()*+,-/:;=?@_
&.<>[\]^‘{|} are not allowed.
Source Select any or an address object of the source IP address for this entry. Select any so there’s no
restriction on the source IP address.
Destination Select any or an address object of the destination IP address for this entry. Select any so
there’s no restriction on the destination IP address.
Log Select Yes to have the Zyxel Device generate a log when the incoming traffic is in the
exception list. Otherwise, select No.
Service to Bypass Selected services do not inspect packets that match source/destination criteria above. Non-
selected services do inspect packets that match source/destination criteria above.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 42 IP Exception
USG FLEX Series User’s Guide
918
This not only causes your web browser to take more time to load the website, but also takes up more
Zyxel Device resources than necessary.
In the figure below, you create an IP Exception profile for the website 1.1.1.1. IP exception allows
incoming IP packets from the website 1.1.1.1 (A) to bypass specific security services. Bypassing a security
service means the security service does not intercept nor inspect the packet.
Figure 577 Bypass Security Services Flow
This example uses the parameters given below.
1 Go to Configuration > Object > Address/Geo IP > Address and click Add.
2 Configure the settings using the parameters given in Table 358 on page 918. Click OK to save your
changes.
Table 358 Address Object Configuration Example
NAME ADDRESS TYPE IP ADDRESS
TrustedWebsite Host 1.1.1.1
Table 359 IP Exception Configuration Example
NAME SOURCE DESTINATION LOG SERVICES TO BYPASS
ForTrustedWebsite TrustedWebsite Any No Anti-Malware
URL Threat filter
IPS
background
Chapter 42 IP Exception
USG FLEX Series User’s Guide
919
3 Go to Configuration > Security Service > IP Exception and click Add.
4 Configure the settings using the parameters given in Table 359 on page 918. Click OK to save your
changes.
background
USG FLEX Series User’s Guide
920
CHAPTER 43
Astra Cloud Security
43.1 Overview
The Astra web portal is a platform that provides security services to mobile devices. It is managed by an
admin. You can configure security services such as content filter and URL blocking to protect mobile
devices that install the Astra app.
See the Astra web portal online help at http://www.zyxel.com/web-help-compact/AstraPortal/
index.html for more information.
The Astra app protects traffic on the members mobile devices that install this app. A member is a person
whose mobile device the admin wishes to protect. You can also enable email leakage detection to
receive an email from the Astra app if your email address was illegally or unknowingly used to access
certain websites.
Please note that only two mobile devices can use the same account to log into the Astra app at a time.
You need to contact your admin to remove one of your device first if you wish to log into the Astra app
on a third mobile device.
See the Astra app online help at http://www.zyxel.com/web-help-app/Astra/index.html for more
information.
Figure 578 Astra Network Overview
43.2 Astra Cloud Security Screen
Click Security Service > Astra Cloud Security to open the following screen.
Click Learn More to go to the Astra product page.
If you are an admin, click https://console.astra.cloud.zyxel.com to go to the Astra web portal.
background
Chapter 43 Astra Cloud Security
USG FLEX Series User’s Guide
921
If you are a member, scan one of the QR codes to download the Astra app from Google Play (Android)
or Apple App Store (iOS).
Figure 579 Astra Cloud Security
background
USG FLEX Series User’s Guide
922
CHAPTER 44
Object
44.1 The Device Insight Screen
Use this screen to configure profiles to block specified clients from accessing the Internet or the Zyxel
Device in Configuration > Security Policy > Policy Control. Configure profiles for WiFi and wired clients
connected to the Zyxel Device according to the types of devices they use or operating systems their
devices use.
Note: To collect clients’ information using Device Insight, the clients must be in the same IP
subnet in the LAN/VLAN/DMZ networks behind the Zyxel Device. Information from
clients that are in different IP subnets in the LAN/VLAN/DMZ networks might not be
collected correctly as traffic must pass through another router or a layer-2 switch to the
Zyxel Device.
Here’s the process for the Zyxel Device to block a profile in this screen:
1 Create a profile in the Device Insight screen to block specific clients.
2 Add the created device insight profile to one of the rules in Policy Control.
3 The Zyxel Device will block clients if they match the settings you configure in the Device Insight profile.
To access this screen, go to Configuration > Object > Device Insight.
background
Chapter 44 Object
USG FLEX Series User’s Guide
923
Figure 580 Configuration > Object > Device Insight
The following table describes the labels in this screen.
44.1.1 Device Insight Add/Edit Screen
The Device Insight Add/Edit screen allows you to add a new device insight profile or edit and existing
one. To access this screen, go to Configuration > Object > Device Insight > Add/Edit.
Table 360 Configuration > Object > Device Insight
LABEL DESCRIPTION
General Settings
Enable Select this to enable device insight. Clear this to disable it.
Add Click this to create a new, user-configured zone.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
Remove To remove a user-configured trunk, select it and click Remove. The Zyxel Device
confirms you want to remove it before doing so.
References Select an entry and click References to open a screen that shows which settings use the
entry. Click Refresh to update information in this screen.
# This field is a sequential value, and it is not associated with any interface.
Name This field displays the name of the device.
Description If the device insight profile has a description configured, it displays here.
Reference This field displays the number of times an Object Reference is used in a policy.
background
Chapter 44 Object
USG FLEX Series User’s Guide
924
Figure 581 Configuration > Object > Device Insight > Add/Edit
The following table describes the labels in this screen.
44.1.2 Example: Block a Profile
In this example, company A on the Zyxel Device LAN1 wants to block its subsidiary employees on LAN2
from accessing the company A local networks with their mobile phones. Company A can create a
profile that includes all operating systems mobile phones, and then apply it to the LAN2_To_LAN1 policy
you created. Clients using mobile phones on the Zyxel Device LAN2 will be blocked from accessing the
Zyxel Device LAN1.
Table 361 Configuration > Object > Device Insight > Add/Edit
LABEL DESCRIPTION
Profile Name Type a name for this device insight profile. You may use 1-31 alphanumeric character,
underscores (_), or dashes (-), but the first character cannot be a number. Spaces and
duplicate names are not allowed. This value is case-sensitive.
Description Enter the description of each device insight profile. You can use 1 to 63 single-byte
characters, including 0-9a-zA-Z!”#$%’()*+,-/:;=?@_
&.<>[\]^‘{|} are not allowed.
Category Select the type of device used by the connected client for this profile.
IoT (Internet of Things) is a device with sensors and software that collects and analyzes
data. It exchanges the data it collects with other devices over the Internet. IoT is used in
many places, such as home assistant, personal care or toys.
For example, a smart watch that your grandparents wear is an IoT. It can detects the
heart rate and blood pressure of the person wearing it. It sends out warning to other
devices, such as your parents phones, if it detects something wrong.
Operating System Select the device operating system used by the connected client for this profile.
OK Click this button to save your changes to the Zyxel Device and return to the summary
screen.
Cancel Click this button to return to the summary screen without saving any changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
925
Here’s the process to use a Device Insight profile in a Zyxel Device security policy. The example below
uses the parameters in this table.
The security policy LAN2_To_LAN1 uses the parameters in this table
1 Go to Object > Device Insight and click Add. Follow the parameters in the table above to configure a
profile for clients using mobile phones. Click OK to save your changes.
t
2 Go to Configuration > Security Policy > Policy Control. Click Add to create a rule and name it as
LAN2_To_LAN1.
Table 362 Device Insight Profile Configurations Example
PROFILE NAME DESCRIPTION CATEGORY
OPERATING
SYSTEM
APPLIED POLICY
MobilePhone profile for mobile
clients
Mobile Phone/Tablet •Windows
•macOS
•Linux
•OS
•Android
•Others
LAN2_To_LAN1
Table 363 Device Insight Profile Configurations Example
TO FROM ACTION DEVICE INSIGHT PROFILE
LAN1 LAN2 deny MobilePhone
background
Chapter 44 Object
USG FLEX Series User’s Guide
926
t
3 In the Add Policy screen, set From to LAN2 and To to LAN1 to configure the traffic direction for the
security policy. Add the created Device Insight (MobilePhone) profile to the security policy.
background
Chapter 44 Object
USG FLEX Series User’s Guide
927
t
4 Set the Action to deny then click OK to save your changes. Check that the Device Insight profile name
(MobilePhone) shows under the Device column to make sure clients using mobile phones are blocked
from accessing the Zyxel Device LAN1 from LAN2.
Note: Make sure to configure a security policy to ensure your access to the Zyxel Device
before blocking a Device Insight profile. Reset the Zyxel Device if you’re blocked from
accessing the Zyxel Device.
background
Chapter 44 Object
USG FLEX Series User’s Guide
928
t
44.2 Zones Overview
Set up zones to configure network security and network policies in the Zyxel Device. A zone is a group of
interfaces and/or VPN tunnels. The Zyxel Device uses zones instead of interfaces in many security and
policy settings, such as Secure Policies rules, Security Service, and remote management.
Zones cannot overlap. Each Ethernet interface, VLAN interface, bridge interface, PPPoE/PPTP interface
and VPN tunnel can be assigned to at most one zone. Virtual interfaces are automatically assigned to
the same zone as the interface on which they run.
background
Chapter 44 Object
USG FLEX Series User’s Guide
929
Figure 582 Example: Zones
Use the Zone screens (see Section 44.9.2 on page 1008) to manage the Zyxel Device’s zones.
44.2.1 What You Need to Know
Zones effectively divide traffic into three types--intra-zone traffic, inter-zone traffic, and extra-zone
traffic.
Intra-zone Traffic
• Intra-zone traffic is traffic between interfaces or VPN tunnels in the same zone. For example, in Figure
582 on page 929, traffic between VLAN 2 and the Ethernet is intra-zone traffic.
Inter-zone Traffic
Inter-zone traffic is traffic between interfaces or VPN tunnels in different zones. For example, in Figure 582
on page 929, traffic between VLAN 1 and the Internet is inter-zone traffic. This is the normal case when
zone-based security and policy settings apply.
Extra-zone Traffic
• Extra-zone traffic is traffic to or from any interface or VPN tunnel that is not assigned to a zone. For
example, in
Figure 582 on page 929, traffic to or from computer C is extra-zone traffic.
• Some zone-based security and policy settings may apply to extra-zone traffic, especially if you can
set the zone attribute in them to Any or All. See the specific feature for more information.
background
Chapter 44 Object
USG FLEX Series User’s Guide
930
44.2.2 The Zone Screen
The Zone screen provides a summary of all zones. In addition, this screen allows you to add, edit, and
remove zones. To access this screen, click Configuration > Object > Zone.
Figure 583 Configuration > Object > Zone
The following table describes the labels in this screen.
44.2.2.1 Zone Edit
The Zone Edit screen allows you to add or edit a zone. To access this screen, go to the Zone screen (see
Section 44.9.2 on page 1008), and click the Add icon or an Edit icon.
Table 364 Configuration > Object > Zone
LABEL DESCRIPTION
User Configuration /
System Default
The Zyxel Device comes with pre-configured System Default zones that you cannot
delete. You can create your own User Configuration zones
Add Click this to create a new, user-configured zone.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify
the entry’s settings.
Remove To remove a user-configured trunk, select it and click Remove. The Zyxel Device
confirms you want to remove it before doing so.
References Select an entry and click References to open a screen that shows which settings use the
entry. Click Refresh to update information in this screen.
# This field is a sequential value, and it is not associated with any interface.
Name This field displays the name of the zone.
Member This field displays the names of the interfaces that belong to each zone.
Reference This field displays the number of times an Object Reference is used in a policy.
background
Chapter 44 Object
USG FLEX Series User’s Guide
931
Figure 584 Configuration > Object > Zone > Add
The following table describes the labels in this screen.
44.3 User/Group Overview
This section describes how to set up user accounts, user groups, and user settings for the Zyxel Device.
You can also set up rules that control when users have to log in to the Zyxel Device before the Zyxel
Device routes traffic for them.
• The User screen (see Section 44.14.1 on page 1052) provides a summary of all user accounts.
• The Group screen (see Section 44.3.5 on page 950) provides a summary of all user groups. In addition,
this screen allows you to add, edit, and remove user groups. User groups may consist of access users
and other user groups. You cannot put admin users in user groups.
•The Setting screen (see Section 44.3.6 on page 952) controls default settings, login settings, lockout
settings, and other user settings for the Zyxel Device. You can also use this screen to specify when
users must log in to the Zyxel Device before it routes traffic for them.
Table 365 Configuration > Object > Zone > Add/Edit
LABEL DESCRIPTION
Name For a system default zone, the name is read only.
For a user-configured zone, type the name used to refer to the zone. You may use 1-31
alphanumeric characters, underscores (
_), or dashes (-), but the first character cannot be
a number. This value is case-sensitive.
Member List Available lists the interfaces and VPN tunnels that do not belong to any zone. Select the
interfaces and VPN tunnels that you want to add to the zone you are editing, and click the
right arrow button to add them.
Member lists the interfaces and VPN tunnels that belong to the zone. Select any interfaces
that you want to remove from the zone, and click the left arrow button to remove them.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 44 Object
USG FLEX Series User’s Guide
932
•The MAC Address screen (see Section 44.3.7 on page 956) allows you to configure the MAC
addresses or OUI (Organizationally Unique Identifier) of wireless clients for MAC authentication using
the local user database. The OUI is the first three octets in a MAC address and uniquely identifies the
manufacturer of a network device
.
44.3.1 What You Need To Know
User Account
A user account defines the privileges of a user logged into the Zyxel Device. User accounts are used in
security policies and application patrol, in addition to controlling access to configuration and services in
the Zyxel Device.
User Types
These are the types of user accounts the Zyxel Device uses.
Note: The default admin account is always authenticated locally, regardless of the
authentication method setting. (See Chapter 44 on page 1022 for more information
about authentication methods.)
Ext-User Accounts
Set up an ext-user account if the user is authenticated by an external server and you want to set up
specific policies for this user in the Zyxel Device. If you do not want to set up policies for this user, you do
not have to set up an ext-user account.
All ext-user users should be authenticated by an external server, such as AD, LDAP or RADIUS. If the Zyxel
Device tries to use the local database to authenticate an ext-user, the authentication attempt always
fails. (This is related to AAA servers and authentication methods, which are discussed in those chapters in
this guide.)
Table 366 Types of User Accounts
TYPE ABILITIES LOGIN METHOD(S)
Admin Users
admin Change Zyxel Device configuration (web, CLI) WWW, TELNET, SSH, FTP, Console
Access Users
limited-admin Look at Zyxel Device configuration (web, CLI)
Perform basic diagnostics (CLI)
Cannot execute commands such as 'show
running-config'
WWW, TELNET, SSH, Console
user Access network services
Browse user-mode commands (CLI)
WWW, TELNET, SSH
guest Access network services WWW
ext-user External user account WWW
ext-group-user External group user account WWW
guest-manager Create dynamic guest accounts WWW
dynamic-guest Access network services Hotspot Portal
background
Chapter 44 Object
USG FLEX Series User’s Guide
933
Note: If the Zyxel Device tries to authenticate an ext-user using the local database, the
attempt always fails.
Once an ext-user user has been authenticated, the Zyxel Device tries to get the user type (see Table 366
on page 932) from the external server. If the external server does not have the information, the Zyxel
Device sets the user type for this session to User.
For the rest of the user attributes, such as reauthentication time, the Zyxel Device checks the following
places, in order.
1 User account in the remote server.
2 User account (Ext-User) in the Zyxel Device.
3 Default user account for AD users (ad-users), LDAP users (ldap-users) or RADIUS users (radius-users) in
the Zyxel Device.
See Setting up User Attributes in an External Server for a list of attributes and how to set up the attributes
in an external server.
Ext-Group-User Accounts
Ext-Group-User accounts work are similar to ext-user accounts but allow you to group users by the value
of the group membership attribute configured for the AD or LDAP server. See
Section 44.10.5.1 on page
1017 for more on the group membership attribute.
Dynamic-Guest Accounts
Dynamic guest accounts are guest accounts, but are created dynamically and stored in the Zyxel
Device’s local user database. A dynamic guest account has a dynamically-created user name and
password. A dynamic guest account user can access the Zyxel Device’s services only within a given
period of time and will become invalid after the expiration date/time.
There are three types of dynamic guest accounts depending on how they are created or
authenticated: billing-users, ua-users and trial-users.
billing-users are guest account created with the guest manager account or an external printer and
paid by cash or created and paid through the on-line payment service. ua-users are users that log in
from the user agreement page. trial-users are free guest accounts that are created with the Free Time
function.
User Groups
User groups may consist of user accounts or other user groups. Use user groups when you want to create
the same rule for several user accounts, instead of creating separate rules for each one.
Note: You cannot put access users and admin users in the same user group.
Note: You cannot put the default admin account into any user group.
The sequence of members in a user group is not important.
background
Chapter 44 Object
USG FLEX Series User’s Guide
934
User Awareness
By default, users do not have to log into the Zyxel Device to use the network services it provides. The
Zyxel Device automatically routes packets for everyone. If you want to restrict network services that
certain users can use through the Zyxel Device, you can require them to log in to the Zyxel Device first.
The Zyxel Device is then ‘aware’ of the user who is logged in and you can create ‘user-aware policies’
that define what services they can use. See
Section 44.3.8 on page 958 for a user-aware login example.
Finding Out More
•See Section 44.3.8 on page 958 for some information on users who use an external authentication
server in order to log in.
• The Zyxel Device supports TTLS using PAP so you can use the Zyxel Device’s local user database to
authenticate users with WPA or WPA2 instead of needing an external RADIUS server.
44.3.2 User/Group User Summary Screen
The User screen provides a summary of all user accounts. To access this screen, login to the Web
Configurator, and click Configuration > Object > User/Group.
Figure 585 Configuration > Object > User/Group > User
The following table describes the labels in this screen.
Table 367 Configuration > Object > User/Group > User
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
Local
Administrator
Use this table to view and configure the Zyxel Device admin accounts.
# This field is a sequential value, and it is not associated with a specific user.
background
Chapter 44 Object
USG FLEX Series User’s Guide
935
44.3.3 User Add/Edit General Screen
The User Add/Edit General screen allows you to create a new user account or edit an existing one.
44.3.3.1 Rules for User Names
Enter a user name from 1 to 31 characters.
The user name can only contain the following characters:
User Name This field displays the user name of each user.
User Type This field displays the admin accounts the Zyxel Device uses. Admin accounts are users that
can look at and change the configuration of the Zyxel Device
Description This field displays the description for each user.
Created Date This field displays the date the account is created.
This field displays - if the account is created before the Zyxel Device upgrades firmware to
version 5.10 or later.
Password Last
Change
This field displays the last time the user changed the account password.
Password
Expired Date
This field displays the account password expiry date. The user should change the password
before it expires.
Reference This displays the number of times an object reference is used in a profile.
User Use this table to configure the Zyxel Device:
• Limited-admin accounts.
• User accounts.
• Guest accounts.
• Ext-user accounts.
• Ext-group-user accounts.
# This field is a sequential value, and it is not associated with a specific user.
User Name This field displays the user name of each user.
User Type This field displays the types of user accounts the Zyxel Device uses:
• limited-admin - this user can look at the configuration of the Zyxel Device but not to
change it
• dynamic-guest - this user has access to the Zyxel Device’s services but cannot look at the
configuration.
• user - this user has access to the Zyxel Device’s services and can also browse user-mode
commands (CLI).
• guest - this user has access to the Zyxel Device’s services but cannot look at the
configuration
• ext-user - this user account is maintained in a remote server, such as RADIUS or LDAP. See
Ext-User Accounts on page 932 for more information about this type.
• ext-group-user - this user account is maintained in a remote server, such as RADIUS or
LDAP. See Ext-Group-User Accounts on page 933 for more information about this type.
• guest-manager - this user can log in through the web configurator login screen and create
dynamic guest accounts using the Account Generator screen that pops up.
Description This field displays the description for each user.
Create Date This field displays the date the account is created.
Password Last
Change
This field displays the last time the user changes the account password.
Reference This displays the number of times an object reference is used in a profile.
Table 367 Configuration > Object > User/Group > User (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
936
• Alphanumeric A-z 0-9 (there is no unicode support)
• _ [underscores]
• - [dashes]
The first character must be alphabetical (A-Z a-z), an underscore (_), or a dash (-). Other limitations on
user names are:
• User names are case-sensitive. If you enter a user 'bob' but use 'BOB' when connecting through CIFS or
FTP, it will use the account settings used for 'BOB' not ‘bob’.
• User names have to be different than user group names.
• Here are the reserved user names:
To access this screen, go to the User screen (see Section 44.14.1 on page 1052), and click either the Add
icon or an Edit icon.
Figure 586 Configuration > Object > User/Group > User > Add/Edit_General (Local Administrator)
•adm •admin •any •bin •daemon
•debug • devicehaecived •ftp •games •halt
•ldap-users •lp •mail •news •nobody
• operator • radius-users •root •shutdown •sshd
•sync • uucp •zyxel
background
Chapter 44 Object
USG FLEX Series User’s Guide
937
Figure 587 Configuration > Object > User/Group > User > Add/Edit_General (User)
The following table describes the labels in this screen.
Table 368 Configuration > Object > User/Group > User > Add/Edit_General
LABEL DESCRIPTION
User Name Type the user name for this user account. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is case-
sensitive. User names have to be different than user group names, and some words are
reserved. See
Section 44.3.3.1 on page 935.
User Type This field is not available if you’re adding an account to the Local Administrator table.
Select the types of user accounts the Zyxel Device uses from the drop-down list box:
• limited-admin - this user can look at the configuration of the Zyxel Device but not to
change it
• user - this user has access to the Zyxel Device’s services and can also browse user-mode
commands (CLI).
• guest - this user has access to the Zyxel Device’s services but cannot look at the
configuration.
• ext-user - this user account is maintained in a remote server, such as RADIUS or LDAP.
See
Ext-User Accounts on page 932 for more information about this type.
• ext-group-user - this user account is maintained in a remote server, such as RADIUS or
LDAP. See Ext-Group-User Accounts on page 933 for more information about this type.
Password This field is not available if you select the ext-user or ext-group-user type.
Enter a password of from 1 to 64 characters for this user account. If you selected Enable
Password Complexity in Configuration > Object > User/Group > Setting, it must consist of at
least 8 characters and at most 64. At least 1 character must be a number, at least 1 a lower
case letter, at least 1 an upper case letter and at least 1 a special character from the
keyboard, such as !@#$%^&*()_+.
Note: After the first login, you are not allowed to set the password to 1234.
background
Chapter 44 Object
USG FLEX Series User’s Guide
938
Retype This field is not available if you select the ext-user or ext-group-user type.
Group Identifier This field is available for a ext-group-user type user account.
Specify the value of the AD or LDAP server’s Group Membership Attribute that identifies the
group to which this user belongs.
Associated AAA
Server Object
This field is available for a ext-group-user type user account. Select the AAA server to use to
authenticate this account’s users.
Description Enter the description of each user, if any. You can use 1 to 63 single-byte characters,
including 0-9a-zA-Z!”#$%’()*+,-/:;=?@_
&.<>[\]{|}^‘are not allowed. Default descriptions are provided.
Email Type one or more valid email addresses for this user so that email messages can be sent to
this user if required. A valid email address must contain the @ character. For example, this is
a valid email address: [email protected].
Mobile Number Type a valid mobile telephone number for this user so that SMS messages can be sent to this
user if required. A valid mobile telephone number can be up to 20 characters in length,
including the numbers 1~9 and the following characters in the square brackets [+*#()-].
Send Code This button is available when the user type is admin or limited-admin.
Click this and an authorization email or SMS message with a code of six digits will be sent to
the email addresses or mobile telephone number you put in.
Enter the verification code to verify your email addresses or mobile telephone number.
Figure 588 Verification Code for Email
Figure 589 Verification Code for Mobile Telephone Number
Authentication
Timeout Settings
If you want the system to use default settings, select Use Default Settings. If you want to set
authentication timeout to a value other than the default settings, select Use Manual Settings
then fill your preferred values in the fields that follow.
Table 368 Configuration > Object > User/Group > User > Add/Edit_General (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
939
44.3.4 User Add/Edit Two-factor Authentication Screen
The User Add/Edit Two-factor Authentication screen allows you to create two-factor security for VPN
access or admin access for this user to the Zyxel Device.
Two-factor authentication adds an extra layer of security for users logging into the Zyxel Device. When
two-factor authentication is enabled, a user has to first enter their username and password, and then
click on a temporary link or enter a one-time password when logging in.
You can enable two-factor authentication for users who are logging into the Zyxel Device to create a
VPN tunnel (VPN access), and for administrator and limited admin users who are logging into the Web
Configurator or CLI (admin access) to configure the Zyxel Device.
Lease Time If you select Use Default Settings in the Authentication Timeout Settings field, the default
lease time is shown.
If you select Use Manual Settings, you need to enter the number of minutes this user has to
renew the current session before the user is logged out. You can specify 1 to 1440 minutes.
You can enter 0 to make the number of minutes unlimited. Admin users renew the session
every time the main screen refreshes in the Web Configurator. Access users can renew the
session by clicking the Renew button on their screen. If you allow access users to renew time
automatically (see
Section 44.3.6 on page 952), the users can select this check box on their
screen as well. In this case, the session is automatically renewed before the lease time
expires.
Reauthentication
Time
If you select Use Default Settings in the Authentication Timeout Settings field, the default
reauthentication time is shown.
If you select Use Manual Settings, you need to type the number of minutes this user can be
logged into the Zyxel Device in one session before the user has to log in again. You can
specify 1 to 1440 minutes. You can enter 0 to make the number of minutes unlimited. Unlike
Lease Time, the user has no opportunity to renew the session without logging out.
User VLAN ID This field is available for a ext-group-user type user account.
Select this option to enable dynamic VLAN assignment on the Zyxel Device. When a user is
authenticated successfully, all data traffic from this user is tagged with the VLAN ID number
you specify here.
This allows you to assign a user of the ext-group-user type to a specific VLAN based on the
user credentials instead of using an AAA server.
Configuration
Validation
Use a user account from the group specified above to test if the configuration is correct.
Enter the account’s user name in the User Name field and click Test.
OK Click OK to save your changes back to the Zyxel Device and close the screen.
Cancel Click Cancel to exit this screen without saving your changes.
Save This button is only available when adding a new user. Click Save to save your changes back
to the Zyxel Device and then go to the Two-factor Authentication screen.
Table 368 Configuration > Object > User/Group > User > Add/Edit_General (continued)
LABEL DESCRIPTION
Table 369 Two Factor Authentication Methods
ACCESS TYPE TWO-FACTOR AUTHENTICATION METHODS FACTOR 2 PASSWORD
VPN SMS Code
VPN Email Link
VPN Google Authenticator app Code
Admin SMS Code
background
Chapter 44 Object
USG FLEX Series User’s Guide
940
You must first enable two-factor authentication on the Zyxel Device in Object > Auth. Method > Two-
factor Authentication > VPN Access and Object > Auth. Method > Two-factor Authentication > Admin
Access. See
Section 44.11.4 on page 1025 and Section 44.11.6 on page 1030 for more prerequisites and
other information.
In Object > User/Group > User, click Add to create a new entry or select an entry and click Edit to modify
the entry. You must create a user account first before you can edit the two-factor authentication
settings.
You can configure two-factor authentication for non-VPN and non-admin users in web authentication.
Note: The admin two-factor authentication settings override the web authentication two-
factor authentication settings.
Figure 590 Configuration > Object > User/Group > User > Add/Edit_Two-factor Authentication
Admin Email Link
Admin Google Authenticator app Code
Table 369 Two Factor Authentication Methods (continued)
ACCESS TYPE TWO-FACTOR AUTHENTICATION METHODS FACTOR 2 PASSWORD
background
Chapter 44 Object
USG FLEX Series User’s Guide
941
Figure 591 Configuration > Object > User/Group > User > Add/Edit_Two-factor Authentication_Verified
The following table describes the labels in this screen.
Table 370 Configuration > Object > User/Group > User > Add_Two-factor Authentication
LABEL DESCRIPTION
Enable Two-factor
Authentication for VPN
Access
Select this to require two-factor authentication for this user to use a pre-configured
VPN tunnel for secure access to a network behind the Zyxel Device. Select the types
of VPN allowed in Object > Auth. Method > Two-factor Authentication > VPN Access.
You may choose from:
• SSL VPN Access
• IPSec VPN Access
• L2TP/IPSec VPN Access
Enable Two-factor
Authentication for Admin
Access
Select this to require two-factor authentication for an admin user to access the Zyxel
Device. Select the types of access allowed in Object > Auth. Method > Two-factor
Authentication > Admin Access. You may choose from:
•Web
•SSH
•TELNET
Two-factor Auth. Method Select Default or User Defined and select from PIN code by SMS/Email or Google
Authenticator
Set up Google
Authenticator
If you chose Google Authenticator for offline two-factor authentication, on your
mobile device, go to an app store to download Google Authenticator. To add your
account to Google Authenticator, press the plus (+) icon, select Scan Barcode, then
use your mobile device's camera to scan the barcode. Finally enter the verification
code you receive on your mobile device in Verify your device.
View your backup codes You see this after successful Google authentication. In the event that you do not have
access to email or your mobile device, click Download to create backup codes as
second-factor authentication. Make sure to put them in a safe place.
background
Chapter 44 Object
USG FLEX Series User’s Guide
942
44.3.4.1 Google Two-Factor Authentication Setup Example
You can use two-factor authentication through SMS, email or Google Authenticator (more secure).
Google Authenticator is more secure as it generates a new code every 30 seconds, and each code
expires in 30 seconds.
Two-Factor with Google Authenticator Overview
1 Enable Google Authentication for a User
2 Set Up Google Authenticator
3 Configure Two-Factor Authentication for a Remote VPN User
Enable Google Authentication for a User
Go to Configuration > Object > User/Group > User , select a user, and click Edit. The following screen
appears. Click Set up Google Authenticator.
Verify your device In the event that you do not have access to email or your mobile device, enter a
backup code here as second factor authentication. You can use each code only
once. If you generate a new set of backup codes (Regenerate backup codes), the
old set become obsolete.
Revoke Click this to cancel Google authentication as second-factor authentication for Admin
Access. You must then use a PIN code by SMS or email as second-factor
authentication instead.
OK Click OK to save your changes back to the Zyxel Device and close the screen.
Cancel Click Cancel to exit this screen without saving your changes.
Table 370 Configuration > Object > User/Group > User > Add_Two-factor Authentication (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
943
Figure 592 Configuration > Object > User/Group > User > Edit User > Two-Factor Authentication
Set Up Google Authenticator
Follow the instructions on the Configuration > Object > User/Group > User > Edit User > Two-Factor
Authentication screen to set up Google Authenticator.
background
Chapter 44 Object
USG FLEX Series User’s Guide
944
Figure 593 Configuration > Object > User/Group > User > Edit User > Two-Factor Authentication
1 Download and install Google Authenticator from Google Play or the App Store on your mobile device.
background
Chapter 44 Object
USG FLEX Series User’s Guide
945
2 Open the Google Authenticator app and scan the QR code on the screen.
background
Chapter 44 Object
USG FLEX Series User’s Guide
946
3 Enter the code displayed in Google Authenticator from Step 3 in the Web Configurator, then click Verify
Code and finish to complete the verification.
4 If two-factor verification is successful, the following message appears. If it fails, an error message will be
displayed. Try again when the next code appears and ensure you enter the correct code within the
time limit.
5 After 2FA registration is successfully set up, backup codes will be available in Configuration > Object >
User/Group > User > Edit User > Two-Factor Authentication. These codes can be used for device login if
you don't have access to the application on your mobile device. Download the backup codes and
store them in a safe place.
Note: If you click Regenerate backup codes or revoke the Google Authenticator registration
and re-register, the backup codes will change.
background
Chapter 44 Object
USG FLEX Series User’s Guide
947
Configure Two-Factor Authentication for a Remote VPN User
Follow these steps to set a valid time and allowed login method for a remote user who connects
securely to the network behind the Zyxel Device through a Virtual Private Network (VPN):
1 Go to Configuration > Object > Auth. Method > Two-factor Authentication > VPN Access and configure
the following fields:
• Valid time (optional): Enter the maximum time (in minutes) that you must enter the code in Google
Authenticator in order to get authorization for the VPN connection.
• Two-factor Authentication for Services: Select which kinds of VPN tunnels require Two-Factor
Authentication. You should have configured the VPN tunnel first.
• Deliver Authorize Link Method: Select Google Authenticator. You will receive an authentication code
in Google Authenticator. Log in to the Zyxel Device by entering the authentication code from Google
Authenticator.
• Authorized Port: Configure a new port between 1024 to 65535 that is not in use by other services. Use
this port for two-factor authentication of VPN clients to access the network behind the Zyxel Device.
VPN clients do not need to change the port number on their devices, because the link to access the
network behind the Zyxel Device will contain the new port number.
background
Chapter 44 Object
USG FLEX Series User’s Guide
948
2 Click Apply to save the changes to the Zyxel Device.
Test the Remote VPN Two-Factor Authentication
To verify whether the remote VPN user can successfully use two-factor authentication to access the
Zyxel Device, follow these steps:
1 The remote user should establish a VPN connection using a VPN client application. See Section 20.2 on
page 529 for more information about establishing a VPN connection.
background
Chapter 44 Object
USG FLEX Series User’s Guide
949
2 The Web Configurator displays the following screen. Enter the code shown in Google Authenticator and
click Authorize.
Note: If you don’t have a mobile device on hand, you can find a backup code in
Configuration > Object > User/Group > User > Edit User > Two-Factor Authentication and
enter it.
background
Chapter 44 Object
USG FLEX Series User’s Guide
950
3 The remote VPN user can now access the Zyxel Device.
44.3.5 User/Group Group Summary Screen
User groups consist of access users and other user groups. You cannot put admin users in user groups.
The Group screen provides a summary of all user groups. In addition, this screen allows you to add, edit,
and remove user groups. To access this screen, login to the Web Configurator, and click Configuration >
Object > User/Group > Group.
Figure 594 Configuration > Object > User/Group > Group
The following table describes the labels in this screen. See Section 44.3.5.1 on page 951 for more
information as well.
Table 371 Configuration > Object > User/Group > Group
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so. Removing a group does not remove the user accounts in the group.
References Select an entry and click References to open a screen that shows which settings use the entry.
background
Chapter 44 Object
USG FLEX Series User’s Guide
951
44.3.5.1 Group Add/Edit Screen
The Group Add/Edit screen allows you to create a new user group or edit an existing one. To access this
screen, go to the Group screen (see
Section 44.3.5 on page 950), and click either the Add icon or an
Edit icon.
Figure 595 Configuration > Object > User/Group > Group > Add
The following table describes the labels in this screen.
# This field is a sequential value, and it is not associated with a specific user group.
Group Name This field displays the name of each user group.
Description This field displays the description for each user group.
Member This field lists the members in the user group. Each member is separated by a comma.
Reference This displays the number of times an object reference is used in a profile.
Table 371 Configuration > Object > User/Group > Group (continued)
LABEL DESCRIPTION
Table 372 Configuration > Object > User/Group > Group > Add
LABEL DESCRIPTION
Name Type the name for this user group. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is case-
sensitive. User group names have to be different than user names.
Description Enter the description of the user group, if any. You can use up to 60 characters, punctuation
marks, and spaces.
Member List The Member list displays the names of the users and user groups that have been added to the
user group. The order of members is not important. Select users and groups from the Available
list that you want to be members of this group and move them to the Member list. You can
double-click a single entry to move it or use the [Shift] or [Ctrl] key to select multiple entries and
use the arrow button to move them.
Move any members you do not want included to the Available list.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
952
44.3.6 User/Group Setting Screen
The Setting screen controls default settings, login settings, lockout settings, and other user settings for the
Zyxel Device. You can also use this screen to specify when users must log in to the Zyxel Device before it
routes traffic for them.
To access this screen, login to the Web Configurator, and click Configuration > Object > User/Group >
Setting.
Figure 596 Configuration > Object > User/Group > Setting
background
Chapter 44 Object
USG FLEX Series User’s Guide
953
The following table describes the labels in this screen.
Table 373 Configuration > Object > User/Group > Setting
LABEL DESCRIPTION
User Authentication Timeout Settings
Default Authentication Timeout
Settings
These authentication timeout settings are used by default when you create a
new user account. They also control the settings for any existing user accounts
that are set to use the default settings. You can still manually configure any user
account’s authentication timeout settings.
Edit Double-click an entry or select it and click Edit to open a screen where you can
modify the entry’s settings.
# This field is a sequential value, and it is not associated with a specific entry.
User Type These are the kinds of user account the Zyxel Device supports.
• admin - this user can look at and change the configuration of the Zyxel
Device
• limited-admin - this user can look at the configuration of the Zyxel Device
but not to change it
• user - this user has access to the Zyxel Device’s services but cannot look at
the configuration
• guest - this user has access to the Zyxel Device’s services but cannot look
at the configuration
• ext-user - this user account is maintained in a remote server, such as RADIUS
or LDAP. See
Ext-User Accounts on page 932 for more information about this
type.
• ext-group-user - this user account is maintained in a remote server, such as
RADIUS or LDAP. See Ext-Group-User Accounts on page 933 for more
information about this type.
Lease Time This is the default lease time in minutes for each type of user account. It defines
the number of minutes the user has to renew the current session before the user
is logged out.
Admin users renew the session every time the main screen refreshes in the Web
Configurator. Access users can renew the session by clicking the Renew button
on their screen. If you allow access users to renew time automatically (see
Section 44.3.6 on page 952), the users can select this check box on their screen
as well. In this case, the session is automatically renewed before the lease time
expires.
Reauthentication Time This is the default reauthentication time in minutes for each type of user
account. It defines the number of minutes the user can be logged into the Zyxel
Device in one session before having to log in again. Unlike Lease Time, the user
has no opportunity to renew the session without logging out.
Miscellaneous Settings
Allow renewing lease time
automatically
Select this check box if access users can renew lease time automatically, as well
as manually, simply by selecting the Updating lease time automatically check
box on their screen.
Enable user idle detection This is applicable for access users.
Select this check box if you want the Zyxel Device to monitor how long each
access user is logged in and idle (in other words, there is no traffic for this access
user). The Zyxel Device automatically logs out the access user once the User idle
timeout has been reached.
User idle timeout This is applicable for access users.
This field is effective when Enable user idle detection is checked. Type the
number of minutes each access user can be logged in and idle before the Zyxel
Device automatically logs out the access user.
Login Security
background
Chapter 44 Object
USG FLEX Series User’s Guide
954
44.3.6.1 Default User Authentication Timeout Settings Edit Screens
The Default Authentication Timeout Settings Edit screen allows you to set the default authentication
timeout settings for the selected type of user account. These default authentication timeout settings
also control the settings for any existing user accounts that are set to use the default settings. You can
still manually configure any user account’s authentication timeout settings.
To access this screen, go to the Configuration > Object > User/Group > Setting screen (see Section 44.3.6
on page 952), and click one of the Default Authentication Timeout Settings section’s Edit icons.
Password must changed
every (days):
Enter how often local users of User Type ‘admin’ must change their login
passwords. You can choose from once a day to once a year.
Password reset link (FQDN/
IP):
Associate the password expiration to a specific Zyxel Device. Default is this Zyxel
Device (myrouter) or select Custom and enter the IP address or Fully Qualified
Domain Name (FQDN).
Enable Password
Complexity
Select this to enforce the following conditions in a user password. Requiring a
strong password is good for security. The conditions are that the password must
consist of at least 8 characters and at most 64. At least 1 character must be a
number, at least 1 a lower case letter, at least 1 an upper case letter and at
least 1 a special character from the keyboard, such as !@#$%^&*()_+.
User Logon Settings
Limit the number of
simultaneous logons for
administration account
Select this check box if you want to set a limit on the number of simultaneous
logins by admin users. If you do not select this, admin users can login as many
times as they want at the same time using the same or different IP addresses.
Maximum number per
administration account
This field is effective when Limit ... for administration account is checked. Type
the maximum number of simultaneous logins by each admin user.
Limit the number of
simultaneous logons for
access account
Select this check box if you want to set a limit on the number of simultaneous
logins by non-admin users. If you do not select this, access users can login as
many times as they want as long as they use different IP addresses.
Maximum number per
access account
This field is effective when Limit ... for access account is checked. Type the
maximum number of simultaneous logins by each access user.
User IP Lockout Settings
Enable logon retry limit Select this check box to set a limit on the number of times each user can login
unsuccessfully (for example, wrong password) before the IP address is locked
out for a specified amount of time.
Maximum retry count This field is effective when Enable logon retry limit is checked. Type the
maximum number of times each user can login unsuccessfully before the IP
address is locked out for the specified lockout period. The number must be
between 1 and 99.
Lockout period This field is effective when Enable logon retry limit is checked. Type the number
of minutes the user must wait to try to login again, if logon retry limit is enabled
and the maximum retry count is reached. This number must be between 1 and
65,535 (about 45.5 days).
Apply Click Apply to save the changes.
Reset Click Reset to return the screen to its last-saved settings.
Table 373 Configuration > Object > User/Group > Setting (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
955
Figure 597 Configuration > Object > User/Group > Setting > Edit
The following table describes the labels in this screen.
44.3.6.2 User Aware Login Example
Access users cannot use the Web Configurator to browse the configuration of the Zyxel Device. Instead,
after access users log into the Zyxel Device, the following screen appears.
Table 374 Configuration > Object > User/Group > Setting > Edit
LABEL DESCRIPTION
User Type This read-only field identifies the type of user account for which you are configuring the
default settings.
• admin - this user can look at and change the configuration of the Zyxel Device
• limited-admin - this user can look at the configuration of the Zyxel Device but not to
change it.
• dynamic-guest - this user has access to the Zyxel Device’s services but cannot look at
the configuration.
• user - this user has access to the Zyxel Device’s services but cannot look at the
configuration.
• guest - this user has access to the Zyxel Device’s services but cannot look at the
configuration.
• ext-user - this user account is maintained in a remote server, such as RADIUS or LDAP.
See Ext-User Accounts on page 932 for more information about this type.
• ext-group-user - this user account is maintained in a remote server, such as RADIUS or
LDAP. See Ext-Group-User Accounts on page 933 for more information about this type.
• guest-manager - this user can log in through the web configurator login screen and
create dynamic guest accounts using the Account Generator screen that pops up.
Lease Time Enter the number of minutes this type of user account has to renew the current session
before the user is logged out. You can specify 1 to 1440 minutes. You can enter 0 to make
the number of minutes unlimited.
Admin users renew the session every time the main screen refreshes in the Web
Configurator. Access users can renew the session by clicking the Renew button on their
screen. If you allow access users to renew time automatically (see
Section 44.3.6 on page
952), the users can select this check box on their screen as well. In this case, the session is
automatically renewed before the lease time expires.
Reauthentication
Time
Type the number of minutes this type of user account can be logged into the Zyxel Device in
one session before the user has to log in again. You can specify 1 to 1440 minutes. You can
enter 0 to make the number of minutes unlimited. Unlike Lease Time, the user has no
opportunity to renew the session without logging out.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
956
Figure 598 Web Configurator for Non-Admin Users
The following table describes the labels in this screen.
44.3.7 User/Group MAC Address Summary Screen
This screen shows the MAC addresses of wireless clients, which can be authenticated by their
MAC addresses using the local user database.
Click Configuration > Object > User/Group > MAC
Address to open this screen.
Note: You need to configure an SSID security profile’s MAC authentication settings to have
the AP use the Zyxel Device’s local database to authenticate wireless clients by their
MAC addresses.
Table 375 Web Configurator for Non-Admin Users
LABEL DESCRIPTION
User-defined
lease time (max
... minutes)
Access users can specify a lease time shorter than or equal to the one that you specified. The
default value is the lease time that you specified.
Renew Access users can click this button to reset the lease time, the amount of time remaining before
the Zyxel Device automatically logs them out. The Zyxel Device sets this amount of time
according to the:
• User-defined lease time field in this screen
• Lease time field in the User Add/Edit screen (see Section 44.14.1.1 on page 1053)
• Lease time field in the Setting screen (see Section 44.3.6 on page 952).
Updating lease
time
automatically
This box appears if you checked the Allow renewing lease time automatically box in the
Setting screen. (See
Section 44.3.6 on page 952.) Access users can select this check box to
reset the lease time automatically 30 seconds before it expires. Otherwise, access users have
to click the Renew button to reset the lease time.
Remaining time
before lease
timeout
This field displays the amount of lease time that remains, though the user might be able to reset
it.
Remaining time
before auth.
timeout
This field displays the amount of time that remains before the Zyxel Device automatically logs
the access user out, regardless of the lease time.
background
Chapter 44 Object
USG FLEX Series User’s Guide
957
Figure 599 Configuration > Object > User/Group > MAC Address
The following table describes the labels in this screen.
44.3.7.1 MAC Address Add/Edit Screen
This screen allows you to create a new allowed device or edit an existing one. To access this screen, go
to the MAC Address screen (see
Section 44.3.7 on page 956), and click either the Add icon or an Edit
icon.
Figure 600 Configuration > Object > User/Group > MAC Address > Add
The following table describes the labels in this screen.
Table 376 Configuration > Object > User/Group > MAC Address
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
MAC Address/
OUI
This field displays the MAC address or OUI (Organizationally Unique Identifier of computer
hardware manufacturers) of wireless clients using MAC authentication with the Zyxel Device
local user database.
Description This field displays a description of the device identified by the MAC address or OUI.
Table 377 Configuration > Object > User/Group > MAC Address > Add
LABEL DESCRIPTION
MAC Address/
OUI
Type the MAC address (six hexadecimal number pairs separated by colons or hyphens) or OUI
(three hexadecimal number pairs separated by colons or hyphens) to identify specific wireless
clients for MAC authentication using the Zyxel Device local user database. The OUI is the first
three octets in a MAC address and uniquely identifies the manufacturer of a network device.
Description Enter an optional description of the wireless device(s) identified by the MAC or OUI. You can
use up to 60 characters, punctuation marks, and spaces.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
958
44.3.8 User /Group Technical Reference
This section provides some information on users who use an external authentication server in order to log
in.
Setting up User Attributes in an External Server
To set up user attributes, such as reauthentication time, in LDAP or RADIUS servers, use the following
keywords in the user configuration file.
The following examples show you how you might set up user attributes in LDAP and RADIUS servers.
Creating a Large Number of Ext-User Accounts
If you plan to create a large number of Ext-User accounts, you might use CLI commands, instead of the
Web Configurator, to create the accounts. Extract the user names from the LDAP or RADIUS server, and
create a shell script that creates the user accounts.
Table 378 LDAP/RADIUS: Keywords for User Attributes
KEYWORD CORRESPONDING ATTRIBUTE IN WEB CONFIGURATOR
type User Type. Possible Values: admin, limited-admin, dynamic-guest, user, guest.
leaseTime Lease Time. Possible Values: 1-1440 (minutes).
reauthTime Reauthentication Time. Possible Values: 1-1440 (minutes).
Figure 601 LDAP Example: Keywords for User Attributes
type: admin
leaseTime: 99
reauthTime: 199
Figure 602 RADIUS Example: Keywords for User Attributes
type=user;leaseTime=222;reauthTime=222
background
Chapter 44 Object
USG FLEX Series User’s Guide
959
Built-in System Accounts
The following built-in system accounts are disabled by default.
44.4 AP Profile Overview
This section shows you how to configure preset profiles for the Access Points (APs) connected to your
Zyxel Device’s wireless network. This screen is not available when your Zyxel Device is in Built-in AP mode.
• The Radio screen (Section 44.4.1 on page 961) creates radio configurations that can be used by the
APs.
• The SSID screen (Section 44.4.2 on page 967) configures three different types of profiles for your
networked APs.
44.4.0.1 What You Need To Know
The following terms and concepts may help as you read this section.
Table 379 Built-in System Accounts
ACCOUNT NAME ACTIVATION PURPOSE SUPPORTED MODELS USER NAME / PASSWORD
debug The Zyxel Device owner
must create an account
with admin privileges to
allow access to the Zyxel
Device using CLI remotely
(Telnet or SSH).
The debug account
cannot be used to log
into the Zyxel Device
using WWW or FTP.
RD can use this account
to collect information for
troubleshooting.
ZyWALL ATP, USG Flex
(On-Premise / On-Cloud
mode), VPN (standalone
and Nebula Orchestrator
managed)
debug / Authentication
Phrase
The Authentication
Phrase is generated
internally in Zyxel.
It must be used within 10
minutes of being
generated.
Each generated
Authentication Phrase
can be used just once.
devicehaecived This account is activated
when Device HA is
enabled. This account
cannot be used to log
into the Zyxel Device
using WWW, SSH, or FTP.
The Zyxel Device can use
this account to
synchronize
configuration, firmware
and licenses on a backup
Device HA Zyxel Device.
ZyWALL ATP, USG Flex
(On-Premise mode), and
VPN models that support
Device HA.
devicehaecived / Zyxel
Device HA Pro Password
The Device HA password
is configured in the Web
Configurator
(Configuration > Device
HA> Device HA Pro >
Password) or CLI
(device-ha2 sync
password <password>).
support This account is activated
when you configure a
Zyxel Device from factory
default using Nebula
Cloud Center ZTP.
An administrator can use
this account to access a
managed Zyxel Device
using WWW, SSH or FTP for
troubleshooting.
ZyWALL USG Flex (On-
Cloud mode)
support / Zyxel Device
serial number
The default password
(serial number) is
automatically changed
when the Zyxel Device is
managed by Nebula
Control Center (NCC).
You can change the
password using NCC.
sdwan This account is activated
when the Zyxel Device is
managed by Nebula
Orchestrator.
An administrator can use
this account to access a
managed Zyxel Device
using WWW, SSH or FTP for
troubleshooting.
ZyWALL VPN (Nebula
Orchestrator managed)
sdwan / Zyxel Device
serial number
You can change the
password using Nebula
Orchestrator.
background
Chapter 44 Object
USG FLEX Series User’s Guide
960
Wireless Profiles
At the heart of all wireless AP configurations on the Zyxel Device are profiles. A profile represents a group
of saved settings that you can use across any number of connected APs. You can set up the following
wireless profile types:
• Radio - This profile type defines the properties of an AP’s radio transmitter. You can have a maximum
of 32 radio profiles on the Zyxel Device.
• SSID - This profile type defines the properties of a single wireless network signal broadcast by an AP.
Each radio on a single AP can broadcast up to 8 SSIDs. You can have a maximum of 32 SSID profiles
on the Zyxel Device.
• Security - This profile type defines the security settings used by a single SSID. It controls the encryption
method required for a wireless client to associate itself with the SSID. You can have a maximum of 32
security profiles on the Zyxel Device.
• MAC Filtering - This profile provides an additional layer of security for an SSID, allowing you to block
access or allow access to that SSID based on wireless client MAC addresses. If a client’s MAC address
is on the list, then it is either allowed or denied, depending on how you set up the MAC Filter profile.
You can have a maximum of 32 MAC filtering profiles on the Zyxel Device.
SSID
The SSID (Service Set IDentifier) is the name that identifies the Service Set with which a wireless station is
associated. Wireless stations associating to the access point (AP) must have the same SSID. In other
words, it is the name of the wireless network that clients use to connect to it.
WEP
WEP (Wired Equivalent Privacy) encryption scrambles all data packets transmitted between the AP and
the wireless stations associated with it in order to keep network communications private. Both the
wireless stations and the access points must use the same WEP key for data encryption and decryption.
WPA and WPA2
Wi-Fi Protected Access (WPA) is a subset of the IEEE 802.11i standard. WPA2 (IEEE 802.11i) is a wireless
security standard that defines stronger encryption, authentication and key management than WPA.
Key differences between WPA(2) and WEP are improved data encryption and user authentication.
IEEE 802.1x
The IEEE 802.1x standard outlines enhanced security methods for both the authentication of wireless
stations and encryption key management. Authentication is done using an external RADIUS server.
WiFi6 / IEEE 802.11ax
WiFi6 is backwards compatible with IEEE 802.11a/b/g/n/ac and is most suitable in areas with a high
concentration of users. WiFi6 devices support Target Wakeup Time (TWT) allowing them to automatically
power down when they are inactive.
background
Chapter 44 Object
USG FLEX Series User’s Guide
961
The following table displays the comparison of the different WiFi standards. The maximum link rate is for
reference under ideal conditions only.
44.4.1 Radio Screen
This screen allows you to create radio profiles for the APs on your network. A radio profile is a list of
settings that a supported managed AP (NWA5121-N for example) can use to configure either one of its
two radio transmitters. To access this screen click Configuration > Object > AP Profile.
Note: You can have a maximum of 32 radio profiles on the Zyxel Device.
Figure 603 Configuration > Object > AP Profile > Radio
The following table describes the labels in this screen.
Table 380 WiFi Standards Comparison
WIFI STANDARD MAXIMUM LINK RATE BAND SIMULTANEOUS CONNECTIONS
802.11b 11 Mbps 2.4 GHz 1
802.11a/g 54 Mbps 2.4 GHz and 5 GHz 1
802.11n 600 Mbps 2.4 GHz and 5 GHz 1
802.11ac 6.93 Gbps 5 GHz 4
802.11ax 2.4 Gbps 2.4 GHz 128
Table 381 Configuration > Object > AP Profile > Radio
LABEL DESCRIPTION
Add Click this to add a new radio profile.
Edit Click this to edit the selected radio profile.
Remove Click this to remove the selected radio profile.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
References Click this to view which other objects are linked to the selected radio profile.
# This field is a sequential value, and it is not associated with a specific profile.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Profile Name This field indicates the name assigned to the radio profile.
Frequency Band This field indicates the frequency band which this radio profile is configured to use.
background
Chapter 44 Object
USG FLEX Series User’s Guide
962
44.4.1.1 Add/Edit Radio Profile
This screen allows you to create a new radio profile or edit an existing one. Your screen may differ from
your product due to differences in product features. To access this screen, click the Add button or select
a radio profile from the list and click the Edit button.
Figure 604 Configuration > Object > AP Profile > Add/Edit Radio Profile
Schedule This field displays the schedule object which defines when this radio profile can be used.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 381 Configuration > Object > AP Profile > Radio (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
963
The following table describes the labels in this screen.
Table 382 Configuration > Object > AP Profile > Add/Edit Radio Profile
LABEL DESCRIPTION
Hide / Show
Advanced Settings
Click this to hide or show the Advanced Settings in this window.
Create New Object Use this to configure any new settings objects that you need to use in this screen.
General Settings
Activate Select this option to make this profile active.
Profile Name Enter up to 31 alphanumeric characters to be used as this profile’s name. Spaces and
underscores are allowed.
Schedule This field displays the schedule object which defines when this radio profile can be used.
802.11 Band Select how to let wireless clients connect to the AP.
If 802.11 Band is set to 2.4G:
• 11b/g: allows either IEEE 802.11b or IEEE 802.11g compliant WLAN devices to associate
with the AP. The AP adjusts the transmission rate automatically according to the
wireless standard supported by the wireless devices.
• 11n: allows IEEE802.11b, IEEE802.11g and IEEE802.11n compliant WLAN devices to
associate with the AP.
If 802.11 Band is set to 5G:
• 11a: allows only IEEE 802.11a compliant WLAN devices to associate with the AP.
• 11a/n: allows both IEEE802.11n and IEEE802.11a compliant WLAN devices to associate
with the AP. The transmission rate of your AP might be reduced.
• 11ac: allows only IEEE802.11ac compliant WLAN devices to associate with the AP.
• 11ax: allows IEEE802.11n, IEEE802.11a, IEEE802.11ac, and IEEE802.11ax compliant WLAN
devices to associate with the AP. If the WLAN device isn’t compatible with 802.11ax,
the AP will communicate with the WLAN device using 802.11ac, and so on
If 802.11 Band is set to 6G:
• 11ax: allows only IEEE 802.11ax compliant WLAN devices to associate with the AP.
Note: If you select 11ac but the WLAN devices in the network do not support IEEE
802.11ac, the Zyxel Device automatically sets the AP to use 11a/n.
Channel Width Select the wireless channel bandwidth you want the AP to use.
A standard 20 MHz channel offers transfer speeds of up to 144Mbps (2.4GHz) or 217Mbps
(5GHZ) whereas a 40MHz channel uses two standard channels and offers speeds of up to
300Mbps (2.4GHz) or 450Mbps (5GHZ). An IEEE 802.11ac-specific 80MHz channel offers
speeds of up to 1.3Gbps.
40 MHz (channel bonding or dual channel) bonds two adjacent radio channels to increase
throughput. A 80 MHz channel consists of two adjacent 40 MHz channels. The wireless
clients must also support 40 MHz or 80 MHz. It is often better to use the 20 MHz setting in a
location where the environment hinders the wireless signal.
Select 20MHz if you want to lessen radio interference with other wireless devices in your
neighborhood or the wireless clients do not support channel bonding.
Select 20/40MHz or 20/40/80MHz to allow the AP to adjust the channel bandwidth
automatically. This option is available only when you set 802.11 Mode to 11ac or 11ax.
Select 20/40/80/160MHz to allow the AP to adjust the channel bandwidth automatically.
This option is available only when you set 802.11 Band to 5G or 6G and 802.11 Mode to
11ax.
Note: If the environment has poor signal-to-noise (SNR), the Zyxel Device will
switch to a lower bandwidth.
background
Chapter 44 Object
USG FLEX Series User’s Guide
964
Channel
Selection
Select the wireless channel which this radio profile should use.
It is recommended that you choose the channel least in use by other APs in the region
where this profile will be implemented. This will reduce the amount of interference between
wireless clients and the AP to which this profile is assigned.
Select DCS to have the AP automatically select the radio channel upon which it
broadcasts by scanning the area around it and determining what channels are currently
being used by other devices.
Select Manual and specify the channels the AP uses.
Blacklist DFS
channels in
presence of radar
This field is available if 802.11 Band is set to 5G and Channel Selection is set to DCS.
Enable this to temporarily blacklist the wireless channels in the Dynamic Frequency
Selection (DFS) range whenever a radar signal is detected by the AP.
Enable DCS
Client Aware
This field is available when you set Channel Selection to DCS.
Select this to have the AP wait until all connected clients have disconnected before
switching channels.
If you disable this then the AP switches channels immediately regardless of any client
connections. In this instance, clients that are connected to the AP when it switches
channels are dropped.
2.4 GHz Channel
Selection Method
This field is available when you set Channel Selection to DCS.
Select auto to have the AP search for available channels automatically in the 2.4 GHz
band. The available channels vary depending on what you select in the 2.4 GHz Channel
Deployment field.
Select manual and specify the channels the AP uses in the 2.4 GHz band.
Channel ID This field is available only when you set Channel Selection to DCS and set 2.4 GHz Channel
Selection Method to manual.
Select the check boxes of the channels that you want the AP to use.
Time Interval Select this option to have the AP survey the other APs within its broadcast radius at the end
of the specified time interval.
2.4 GHz Channel
Deployment
This field is available only when you set Channel Selection to DCS and set 2.4 GHz Channel
Selection Method to auto.
Select Three-Channel Deployment to limit channel switching to channels 1,6, and 11, the
three channels that are sufficiently attenuated to have almost no impact on one another.
In other words, this allows you to minimize channel interference by limiting channel-
hopping to these three “safe” channels.
Select Four-Channel Deployment to limit channel switching to four channels. Depending
on the country domain, if the only allowable channels are 1-11 then the Zyxel Device uses
channels 1, 4, 7, 11 in this configuration; otherwise, the Zyxel Device uses channels 1, 5, 9, 13
in this configuration. Four channel deployment expands your pool of possible channels
while keeping the channel interference to a minimum.
Note: For US and Canada models, country code is fixed to US or Canada
respectively and is not user selectable.
DCS Time Interval This field is available when you set Channel Selection to DCS.
Enter a number of minutes. This regulates how often the AP surveys the other APs within its
broadcast radius. If the channel on which it is currently broadcasting suddenly comes into
use by another AP, the AP will then dynamically select the next available clean channel or
a channel with lower interference.
Table 382 Configuration > Object > AP Profile > Add/Edit Radio Profile (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
965
Channel ID This field is available only when you set Channel Selection to DCS and set 2.4 GHz Channel
Selection Method to manual.
Select the check boxes of the channels that you want the AP to use.
Schedule Select this option to have the AP survey the other APs within its broadcast radius at a
specific time on selected days of the week.
Start Time Specify the time of the day (in 24-hour format) to have the AP use DCS to automatically
scan and find a less-used channel.
Week Days Select each day of the week to have the AP use DCS to automatically scan and find a less-
used channel.
Enable 5 GHz DFS
Aware
This field is available only when you select 11a, 11a/n or 11ac in the 802.11 Band field.
Select this if your APs are operating in an area known to have RADAR devices. This allows
the device to downgrade its frequency to below 5 GHz in the event a RADAR signal is
detected, thus preventing it from interfering with that signal.
Enabling this forces the AP to select a non-DFS channel.
5 GHz Channel
Selection Method
This shows auto and allows the AP to search for available channels automatically in the 5
GHz band.
Advanced Settings
Country Code Select the country code of where the Zyxel Device is located/installed.
The available channels vary depending on the country you select. Be sure to select the
correct/same country for both radios on an AP and all connected APs, in order to prevent
roaming failure and interference to other systems.
Note: For US and Canada models, country code is fixed to US or Canada
respectively and is not user selectable.
Guard Interval This field is available only when the 802.11 Band is set to 5G and 802.11 Mode is set to 11n or
11ac.
Set the guard interval for this radio profile to either Short or Long.
The guard interval is the gap introduced between data transmission from users in order to
reduce interference. Reducing the interval increases data transfer rates but also increases
interference. Increasing the interval reduces data transfer rates but also reduces
interference.
Enable A-MPDU
Aggregation
Select this to enable A-MPDU aggregation.
Message Protocol Data Unit (MPDU) aggregation collects Ethernet frames along with their
802.11n headers and wraps them in a 802.11n MAC header. This method is useful for
increasing bandwidth throughput in environments that are prone to high error rates.
A-MPDU Limit Enter the maximum frame size to be aggregated.
A-MPDU
Subframe
Enter the maximum number of frames to be aggregated each time.
Enable A-MSDU
Aggregation
Select this to enable A-MSDU aggregation.
Mac Service Data Unit (MSDU) aggregation collects Ethernet frames without any of their
802.11n headers and wraps the header-less payload in a single 802.11n MAC header. This
method is useful for increasing bandwidth throughput. It is also more efficient than A-MPDU
except in environments that are prone to high error rates.
A-MSDU Limit Enter the maximum frame size to be aggregated.
Table 382 Configuration > Object > AP Profile > Add/Edit Radio Profile (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
966
RTS/CTS Threshold Use RTS/CTS to reduce data collisions on the wireless network if you have wireless clients
that are associated with the same AP but out of range of one another. When enabled, a
wireless client sends an RTS (Request To Send) and then waits for a CTS (Clear To Send)
before it transmits. This stops wireless clients from transmitting packets at the same time
(and causing data collisions).
A wireless client sends an RTS for all packets larger than the number (of bytes) that you
enter here. Set the RTS/CTS equal to or higher than the fragmentation threshold to turn RTS/
CTS off.
Beacon Interval When a wirelessly networked device sends a beacon, it includes with it a beacon interval.
This specifies the time period before the device sends the beacon again. The interval tells
receiving devices on the network how long they can wait in low-power mode before
waking up to handle the beacon. A high value helps save current consumption of the
access point.
DTIM Delivery Traffic Indication Message (DTIM) is the time period after which broadcast and
multicast packets are transmitted to mobile clients in the Active Power Management
mode. A high DTIM value can cause clients to lose connectivity with the network. This value
can be set from 1 to 255.
Enable Signal
Threshold
Select the check box to use the signal threshold to ensure wireless clients receive good
throughput. This allows only wireless clients with a strong signal to connect to the AP.
Clear the check box to not require wireless clients to have a minimum signal strength to
connect to the AP.
Station Signal
Threshold
Set a minimum client signal strength. A wireless client is allowed to connect to the AP only
when its signal strength is stronger than the specified threshold.
-20 dBm is the strongest signal you can require and -76 is the weakest.
Disassociate
Station Threshold
Set a minimum kick-off signal strength. When a wireless client’s signal strength is lower than
the specified threshold, the Zyxel Device disconnects the wireless client from the AP.
-20 dBm is the strongest signal you can require and -90 is the weakest.
Allow Station
Connection after
Multiple Retries
Select this option to allow a wireless client to try to associate with the AP again after it is
disconnected due to weak signal strength.
Station Retry
Count
Set the maximum number of times a wireless client can attempt to re-connect to the AP
Allow 802.11n/
ac/ax stations
only
Select this option to allow only 802.11 n/ac/ax stations to connect, and reject 802.11a/b/g
stations.
Blacklist DFS
channels in the
presence of radar
This field is available if 802.11 Band is set to 5G and Channel Selection is set to DCS.
Enable this to temporarily blacklist the wireless channels in the Dynamic Frequency
Selection (DFS) range whenever a radar signal is detected by the Zyxel Device.
Zero-Wait DFS Select this option to enable zero-wait DFS (Dynamic Frequency Selection) o the AP.
Zero-wait DFS is only supported on certain AP models, such as the WAX650S.
DFS is a channel WiFi allocation scheme that allows APs to use channels in the 5Ghz band
normally reserved for radar. Before using a DFS channel, an AP must ensure there is no
radar present by performing a Channel Availability Check (CAC). This check takes 1-10
minutes, depending on the country in which the AP is located.
Zero-Wait DFS allows an AP to provide network services to WiFi clients using a primary 5Ghz
radio, while simultaneously checking DFS channels for the presence of radar using a
secondary 5Ghz radio. If no radar is detected on a DFS channel, the AP adds it to a list of
cleared channels. The AP can then switch the primary radio to any cleared DFS channel
without having to wait 1-10 minutes for a Channel Availability Check.
When zero-wait DFS is enabled, 5Ghz Aware and Blacklist DFS Channels are qutomatically
disabled on the AP.
Table 382 Configuration > Object > AP Profile > Add/Edit Radio Profile (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
967
44.4.2 SSID Screen
The SSID screens allow you to configure three different types of profiles for your networked APs: an SSID
list, which can assign specific SSID configurations to your APs; a security list, which can assign specific
encryption methods to the APs when allowing wireless clients to connect to them; and a MAC filter list,
which can limit connections to an AP based on wireless clients MAC addresses.
44.4.2.1 SSID List
This screen allows you to create and manage SSID configurations that can be used by the APs. An SSID,
or Service Set IDentifier, is basically the name of the wireless network to which a wireless client can
connect. The SSID appears as readable text to any device capable of scanning for wireless frequencies
(such as the WiFi adapter in a laptop), and is displayed as the wireless network name when a person
makes a connection to it.
To access this screen click Configuration > Object > AP Profile > SSID.
Enable 802.11d Clear the checkbox to prevent the AP from broadcasting a country code, also called a
country Information Element (IE), in beacon frames. This makes the AP incompatible with
802.11d networks and devices.
802.11d is a 2.4 GHz WiFi network specification that allows the AP to broadcast a country
code to WiFi client. The country code indicates where the AP is located. If WiFi clients are
unable to connect to the AP due to an incompatible country code, you should disable
802.11d.
Multicast Settings Use this section to set a transmission mode and maximum rate for multicast traffic.
Transmission
Mode
Set how the AP handles multicast traffic.
Select Multicast to Unicast to broadcast wireless multicast traffic to all of the wireless clients
as unicast traffic. Unicast traffic dynamically changes the data rate based on the
application’s bandwidth requirements. The retransmit mechanism of unicast traffic
provides more reliable transmission of the multicast traffic, although it also produces
duplicate packets.
Select Fixed Multicast Rate to send wireless multicast traffic at a single data rate. You must
know the multicast application’s bandwidth requirements and set it in the following field.
Multicast Rate
(Mbps)
If you set the multicast transmission mode to fixed multicast rate, set the data rate for
multicast traffic here. For example, to deploy 4 Mbps video, select a fixed multicast rate
higher than 4 Mbps.
Minimum WLAN Rate
Control Setting
Sets the minimum data rate that 2.4Ghz WiFi clients can connect at, in Mbps. At the time of
write, allowed values are: 1, 2,5. 5, 6, 9, 11, 12, 18, 24, 36, 48, 54.
Sets the minimum data rate that 5Ghz WiFi clients can connect at, in Mbps. At the time of
write, allowed values are: 6,9, 12, 18, 24, 36, 48, 54.
Increasing the minimum data rate can reduce network overhead and improve WiFi
network performance in high density environments. However, WiFi clients that do not
support the minimum data rate will not be able to connect to the AP.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 382 Configuration > Object > AP Profile > Add/Edit Radio Profile (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
968
Note: You can have a maximum of 32 SSID profiles on the Zyxel Device.
Figure 605 Configuration > Object > AP Profile > SSID List
The following table describes the labels in this screen.
Table 383 Configuration > Object > AP Profile > SSID List
LABEL DESCRIPTION
Add Click this to add a new SSID profile.
Edit Click this to edit the selected SSID profile.
Remove Click this to remove the selected SSID profile.
References Click this to view which other objects are linked to the selected SSID profile (for example, radio
profile).
# This field is a sequential value, and it is not associated with a specific profile.
Profile Name This field indicates the name assigned to the SSID profile.
SSID This field indicates the SSID name as it appears to wireless clients.
Security Profile This field indicates which (if any) security profile is associated with the SSID profile.
QoS This field indicates the QoS type associated with the SSID profile.
MAC Filtering
Profile
This field indicates which (if any) MAC Filter Profile is associated with the SSID profile.
VLAN ID This field indicates the VLAN ID associated with the SSID profile.
background
Chapter 44 Object
USG FLEX Series User’s Guide
969
44.4.2.2 Add/Edit SSID Profile
This screen allows you to create a new SSID profile or edit an existing one. To access this screen, click the
Add button or select an SSID profile from the list and click the Edit button.
Figure 606 Configuration > Object > AP Profile > SSID > Add/Edit SSID Profile
The following table describes the labels in this screen.
Table 384 Configuration > Object > AP Profile > SSID > Add/Edit SSID Profile
LABEL DESCRIPTION
Create new
Object
Select an object type from the list to create a new one associated with this SSID profile.
Profile Name Enter up to 31 alphanumeric characters for the profile name. This name is only visible in the
Web Configurator and is only for management purposes. Spaces and underscores are
allowed.
Band Select the band according to the bands that APs or WiFi clients support.
SSID Enter the SSID name for this profile. This is the name visible on the network to wireless clients.
Enter up to 32 characters, spaces and underscores are allowed.
Security Profile Select a security profile from this list to associate with this SSID. If none exist, you can use the
Create new Object menu to create one.
Note: It is highly recommended that you create security profiles for all of your SSIDs to
enhance your network security.
background
Chapter 44 Object
USG FLEX Series User’s Guide
970
MAC Filtering
Profile
Select a MAC filtering profile from the list to associate with this SSID. If none exist, you can use
the Create new Object menu to create one.
MAC filtering allows you to limit the wireless clients connecting to your network through a
particular SSID by wireless client MAC addresses. Any clients that have MAC addresses not in
the MAC filtering profile of allowed addresses are denied connections.
The disable setting means no MAC filtering is used.
QoS Select a Quality of Service (QoS) access category to associate with this SSID. Access categories
minimize the delay of data packets across a wireless network. Certain categories, such as
video or voice, are given a higher priority due to the time sensitive nature of their data packets.
QoS access categories are as follows:
disable: Turns off QoS for this SSID. All data packets are treated equally and not tagged with
access categories.
WMM: Enables automatic tagging of data packets. The Zyxel Device assigns access categories
to the SSID by examining data as it passes through it and making a best guess effort. If
something looks like video traffic, for instance, it is tagged as such.
WMM_VOICE: All wireless traffic to the SSID is tagged as voice data. This is recommended if an
SSID is used for activities like placing and receiving VoIP phone calls.
WMM_VIDEO: All wireless traffic to the SSID is tagged as video data. This is recommended for
activities like video conferencing.
WMM_BEST_EFFORT: All wireless traffic to the SSID is tagged as “best effort,” meaning the data
travels the best route it can without displacing higher priority traffic. This is good for activities
that do not require the best bandwidth throughput, such as surfing the Internet.
WMM_BACKGROUND: All wireless traffic to the SSID is tagged as low priority or “background
traffic”, meaning all other access categories take precedence over this one. If traffic from an
SSID does not have strict throughput requirements, then this access category is recommended.
For example, an SSID that only has network printers connected to it.
Rate Limiting (Per
Station Traffic
Rate)
Define the maximum incoming and outgoing transmission data rate per wireless station
Downlink: Define the maximum incoming transmission data rate (either in Mbps or Kbps) on a per-station
basis.
Uplink: Define the maximum outgoing transmission data rate (either in Mbps or Kbps) on a per-station
basis.
Band Select: To improve network performance and avoid interference in the 2.4 GHz frequency band, you
can enable this feature to use the 5 GHz band first. You should set 2.4GHz and 5 GHz radio
profiles to use the same SSID and security settings.
Select the checkbox to have the AP try to connect the wireless clients to the same SSID using
the 5 GHZ band. Connections to an SSID using the 2.4GHz band are still allowed.
Otherwise, clear the checkbox to turn off this feature.
Stop
Threshold
This field is not available when you disable Band Select.
Select this option and set the threshold number of the connected wireless clients at which the
Zyxel Device disables the band select feature.
Balance Ratio This field is not available when you disable Band Select.
Select this option and set a ratio of the wireless clients using the 5 GHz band to the wireless
clients using the 2.4 GHz band.
Table 384 Configuration > Object > AP Profile > SSID > Add/Edit SSID Profile (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
971
44.4.2.3 Security List
This screen allows you to manage wireless security configurations that can be used by your SSIDs.
Wireless security is implemented strictly between the AP broadcasting the SSID and the stations that are
connected to it.
To access this screen click Configuration > Object > AP Profile > SSID > Security List.
Forwarding Mode Select a forwarding mode (Tunnel or Local bridge) for traffic from wireless stations in this wireless
network (SSID). In earlier firmware, you could only forward traffic from this wireless network with
a tunnel using an existing VLAN interface in Network > Interface > VLAN > Add.
From firmware version 4.60, you can select an existing VLAN interface or a local Ethernet
interface (lan1, lan2) for forwarding traffic from wireless stations in this wireless network using a
tunnel. These interfaces cannot be bridge members (Network > Interface > Bridge).
VLAN ID If you selected Local Bridge forwarding mode, enter the VLAN ID that will be used to tag all
traffic originating from this SSID if the VLAN is different from the native VLAN. All the wireless
station’s traffic goes through the associated AP’s gateway.
VLAN Interface
If you selected the Tunnel forwarding mode, select a VLAN interface. All the wireless station’s
traffic is forwarded to the Zyxel Device first.
Hidden SSID Select this if you want to “hide” your SSID from wireless clients. This tells any wireless clients in the
vicinity of the AP using this SSID profile not to display its SSID name as a potential connection.
Not all wireless clients respect this flag and display it anyway.
When an SSID is “hidden” and a wireless client cannot see it, the only way you can connect to
the SSID is by manually entering the SSID name in your wireless connection setup screen(s)
(these vary by client, client connectivity software, and operating system).
Enable Intra-BSS
Traffic Blocking
Select this option to prevent crossover traffic from within the same SSID.
Enable U-APSD Select this option to enable Unscheduled Automatic Power Save Delivery (U-APSD), which is
also known as WMM-Power Save. This helps increase battery life for battery-powered wireless
clients connected to the Zyxel Device using this SSID profile.
Enable ARP Proxy The Address Resolution Protocol (ARP) is a protocol for mapping an IP address to a MAC
address. An ARP broadcast is sent to all devices on the same Ethernet network to request the
MAC address of a target IP address.
Select this option to allow the Zyxel Deviceto answer ARP requests for an IP address on behalf of a
client associated with this SSID. This can reduce broadcast traffic and improve network
performance.
802.11 k/v
Assisted Roaming
Select this option to enable IEEE 802.11k/v assisted roaming on the Zyxel Device. When the
connected clients request 802.11k neighbor lists, the Zyxel Device will response with a list of
neighbor APs that can be candidates for roaming.
Schedule SSID Select this option and set whether the SSID is enabled or disabled on each day of the week.
You also need to select the hour and minute (in 24-hour format) to specify the time period of
each day during which the SSID is enabled/enabled.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 384 Configuration > Object > AP Profile > SSID > Add/Edit SSID Profile (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
972
Note: You can have a maximum of 32 security profiles on the Zyxel Device.
Figure 607 Configuration > Object > AP Profile > SSID > Security List
The following table describes the labels in this screen.
Table 385 Configuration > Object > AP Profile > SSID > Security List
LABEL DESCRIPTION
Add Click this to add a new security profile.
Edit Click this to edit the selected security profile.
Remove Click this to remove the selected security profile.
References Click this to view which other objects are linked to the selected security profile (for example,
SSID profile).
# This field is a sequential value, and it is not associated with a specific profile.
Profile Name This field indicates the name assigned to the security profile.
Security Mode This field indicates this profile’s security mode (if any).
background
Chapter 44 Object
USG FLEX Series User’s Guide
973
44.4.2.4 Add/Edit Security Profile
This screen allows you to create a new security profile or edit an existing one. To access this screen, click
the Add button or select a security profile from the list and click the Edit button.
Note: This screen’s options change based on the Security Mode selected.
Figure 608 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: open
background
Chapter 44 Object
USG FLEX Series User’s Guide
974
The following table describes the labels in this screen.
Table 386 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: open
LABEL DESCRIPTION
Profile Name Enter up to 31 alphanumeric characters for the profile name. This name is only visible in the
Web Configurator and is only for management purposes. Spaces and underscores are
allowed.
Security Mode Select a security mode from the list: open, enhanced open, wep, wpa2, or wpa2-mix, wpa3.
Authentication Settings
Enterprise Select this to enable 802.1x secure authentication with a RADIUS server.
Reauthenticatio
n Timer
Enter the interval (in seconds) between authentication requests. Enter a 0 for unlimited time.
Idle Timeout Enter the idle interval (in seconds) that a client can be idle before authentication is
discontinued.
Radius Settings
Primary / Secondary
Radius Server
Activate
Select this to have the Zyxel Device use the specified RADIUS server.
Radius Server IP
Address
Enter the IP address of the RADIUS server to be used for authentication.
Radius Server
Port
Enter the port number of the RADIUS server to be used for authentication.
Radius Server
Secret
Enter the shared secret password of the RADIUS server to be used for authentication.
Primary / Secondary
Accounting Server
Activate
Select the check box to enable user accounting through an external authentication server.
Accounting
Server IP Address
Enter the IP address of the external accounting server in dotted decimal notation.
Accounting
Server Port
Enter the port number of the external accounting server. The default port number is 1813.
You need not change this value unless your network administrator instructs you to do so with
additional information.
Accounting
Share Secret
Enter a password (up to 128 alphanumeric characters) as the key to be shared between the
external accounting server and the Zyxel Device. The key must be the same on the external
accounting server and your Zyxel Device. The key is not sent over the network.
Accounting Interim
Update
This field is available only when you enable user accounting through an external
authentication server.
Select this to have the Zyxel Device send subscriber status updates to the accounting server
at the interval you specify.
Interim Update
Interval
Specify the time interval for how often the Zyxel Device is to send a subscriber status update
to the accounting server.
MAC Authentication Select this to use an external server or the Zyxel Device’s local database to authenticate
wireless clients by their MAC addresses. Users cannot get an IP address if the MAC
authentication fails.
An external server can use the wireless client’s account (username/password) or Calling
Station ID for MAC authentication. Configure the ones the external server uses.
Delimiter
(Account)
Select the separator the external server uses for the two-character pairs within account
MAC addresses.
Case (Account) Select the case (upper or lower) the external server requires for letters in the account MAC
addresses.
background
Chapter 44 Object
USG FLEX Series User’s Guide
975
Figure 609 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: enhanced-open
Delimiter (Calling
Station ID)
RADIUS servers can require the MAC address in the Calling Station ID RADIUS attribute.
Select the separator the external server uses for the pairs in calling station MAC addresses.
Case (Calling
Station ID)
Select the case (upper or lower) the external server requires for letters in the calling station
MAC addresses.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 386 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: open (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
976
The following table describes the labels in this screen.
Table 387 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: enhanced-open
LABEL DESCRIPTION
Profile Name Enter up to 31 alphanumeric characters for the profile name. This name is only visible in the
Web Configurator and is only for management purposes. Spaces and underscores are
allowed.
Security Mode Select a security mode from the list: open, enhanced open, wep, wpa2, or wpa2-mix, wpa3.
Authentication Settings
Transition Mode Enable this for backwards compatibility. This option is only available if the Security Mode is
wpa3 or enhanced-open. This creates two virtual APs (VAPs) with a primary (wpa3 or
enhanced-open) and fallback (wpa2 or none) security method.
If the Security Mode is wpa3, enabling this will force Management Frame Protection to be set
to Optional. If this is disabled or if the Security Mode is enhanced-open, Management Frame
Protection will be set to Required.
Idle Timeout Enter the idle interval (in seconds) that a client can be idle before authentication is
discontinued.
Radius Settings
Primary / Secondary
Radius Server
Activate
Select this to have the Zyxel Device use the specified RADIUS server.
Radius Server IP
Address
Enter the IP address of the RADIUS server to be used for authentication.
Radius Server
Port
Enter the port number of the RADIUS server to be used for authentication.
Radius Server
Secret
Enter the shared secret password of the RADIUS server to be used for authentication.
Primary / Secondary
Accounting Server
Activate
Select the check box to enable user accounting through an external authentication server.
Accounting
Server IP Address
Enter the IP address of the external accounting server in dotted decimal notation.
Accounting
Server Port
Enter the port number of the external accounting server. The default port number is 1813.
You need not change this value unless your network administrator instructs you to do so with
additional information.
Accounting
Share Secret
Enter a password (up to 128 alphanumeric characters) as the key to be shared between the
external accounting server and the Zyxel Device. The key must be the same on the external
accounting server and your Zyxel Device. The key is not sent over the network.
Accounting Interim
Update
This field is available only when you enable user accounting through an external
authentication server.
Select this to have the Zyxel Device send subscriber status updates to the accounting server
at the interval you specify.
Interim Update
Interval
Specify the time interval for how often the Zyxel Device is to send a subscriber status update
to the accounting server.
MAC Authentication Select this to use an external server or the Zyxel Device’s local database to authenticate
wireless clients by their MAC addresses. Users cannot get an IP address if the MAC
authentication fails.
An external server can use the wireless client’s account (username/password) or Calling
Station ID for MAC authentication. Configure the ones the external server uses.
Delimiter
(Account)
Select the separator the external server uses for the two-character pairs within account
MAC addresses.
background
Chapter 44 Object
USG FLEX Series User’s Guide
977
Figure 610 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: wep
Case (Account) Select the case (upper or lower) the external server requires for letters in the account MAC
addresses.
Delimiter (Calling
Station ID)
RADIUS servers can require the MAC address in the Calling Station ID RADIUS attribute.
Select the separator the external server uses for the pairs in calling station MAC addresses.
Case (Calling
Station ID)
Select the case (upper or lower) the external server requires for letters in the calling station
MAC addresses.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 387 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: enhanced-open (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
978
The following table describes the labels in this screen.
Table 388 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: wep
LABEL DESCRIPTION
Profile Name Enter up to 31 alphanumeric characters for the profile name. This name is only visible in the
Web Configurator and is only for management purposes. Spaces and underscores are
allowed.
Security Mode Select a security mode from the list: open, enhanced open, wep, wpa2, or wpa2-mix, wpa3.
Authentication Settings
Enterprise Select this to enable 802.1x secure authentication with a RADIUS server.
Reauthenticatio
n Timer
Enter the interval (in seconds) between authentication requests. Enter a 0 for unlimited time.
Idle Timeout Enter the idle interval (in seconds) that a client can be idle before authentication is
discontinued.
Authentication Type Select a WEP authentication method. Choices are Open or Share key.
Key Length Select the bit-length of the encryption key to be used in WEP connections.
If you select WEP-64:
• Enter 10 hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (for example,
0x11AA22BB33) for each Key used.
or
• Enter 5 ASCII characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9” (for
example, MyKey) for each Key used.
If you select WEP-128:
• Enter 26 hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (for example,
0x00112233445566778899AABBCC) for each Key used.
or
• Enter 13 ASCII characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9” (for
example, MyKey12345678) for each Key used.
Key 1~4 Based on your Key Length selection, enter the appropriate length hexadecimal or ASCII key.
Radius Settings
Primary / Secondary
Radius Server
Activate
Select this to have the Zyxel Device use the specified RADIUS server.
Radius Server IP
Address
Enter the IP address of the RADIUS server to be used for authentication.
Radius Server
Port
Enter the port number of the RADIUS server to be used for authentication.
Radius Server
Secret
Enter the shared secret password of the RADIUS server to be used for authentication.
Primary / Secondary
Accounting Server
Activate
Select the check box to enable user accounting through an external authentication server.
Accounting
Server IP Address
Enter the IP address of the external accounting server in dotted decimal notation.
Accounting
Server Port
Enter the port number of the external accounting server. The default port number is 1813.
You need not change this value unless your network administrator instructs you to do so with
additional information.
Accounting
Share Secret
Enter a password (up to 128 alphanumeric characters) as the key to be shared between the
external accounting server and the Zyxel Device. The key must be the same on the external
accounting server and your Zyxel Device. The key is not sent over the network.
background
Chapter 44 Object
USG FLEX Series User’s Guide
979
Accounting Interim
Update
This field is available only when you enable user accounting through an external
authentication server.
Select this to have the Zyxel Device send subscriber status updates to the accounting server
at the interval you specify.
Interim Update
Interval
Specify the time interval for how often the Zyxel Device is to send a subscriber status update
to the accounting server.
MAC Authentication Select this to use an external server or the Zyxel Device’s local database to authenticate
wireless clients by their MAC addresses. Users cannot get an IP address if the MAC
authentication fails.
An external server can use the wireless client’s account (username/password) or Calling
Station ID for MAC authentication. Configure the ones the external server uses.
Delimiter
(Account)
Select the separator the external server uses for the two-character pairs within account
MAC addresses.
Case (Account) Select the case (upper or lower) the external server requires for letters in the account MAC
addresses.
Delimiter (Calling
Station ID)
RADIUS servers can require the MAC address in the Calling Station ID RADIUS attribute.
Select the separator the external server uses for the pairs in calling station MAC addresses.
Case (Calling
Station ID)
Select the case (upper or lower) the external server requires for letters in the calling station
MAC addresses.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 388 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: wep (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
980
Figure 611 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: wpa2/ wpa2-mix
background
Chapter 44 Object
USG FLEX Series User’s Guide
981
The following table describes the labels in this screen.
Table 389 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: wpa2/ wpa2-mix
LABEL DESCRIPTION
Profile Name Enter up to 31 alphanumeric characters for the profile name. This name is only visible in the
Web Configurator and is only for management purposes. Spaces and underscores are
allowed.
Security Mode Select a security mode from the list: open, enhanced open, wep, wpa2, or wpa2-mix, wpa3.
Authentication Settings
Enterprise Select this to enable 802.1x secure authentication with a RADIUS server.
Reauthenticatio
n Timer
Enter the interval (in seconds) between authentication requests. Enter a 0 for unlimited time.
Personal This field is available when you select the wpa2, wpa2-mix or wpa3 security mode.
Select this option to use a Pre-Shared Key (PSK) with WPA2 encryption or Simultaneous
Authentication of Equals (SAE) with WPA3 encryption.
Pre-Shared Key Enter a pre-shared key of between 8 and 63 case-sensitive ASCII characters (including
spaces and symbols) or 64 hexadecimal characters.
Cipher Type Select an encryption cipher type from the list.
• auto - This automatically chooses the best available cipher based on the cipher in use
by the wireless client that is attempting to make a connection.
• aes - This is the Advanced Encryption Standard encryption method. It is a more recent
development over TKIP and considerably more robust. Not all wireless clients may
support this.
Idle Timeout Enter the idle interval (in seconds) that a client can be idle before authentication is
discontinued.
Group Key Update
Timer
Enter the interval (in seconds) at which the AP updates the group WPA2 encryption key.
Management
Frame Protection
This field is available only when you select wpa2 in the Security Mode field and set Cipher
Type to aes.
Data frames in 802.11 WLANs can be encrypted and authenticated with WEP, WPA or
WPA2. But 802.11 management frames, such as beacon/probe response, association
request, association response, de-authentication and disassociation are always
unauthenticated and unencrypted. IEEE 802.11w Protected Management Frames allows
APs to use the existing security mechanisms (encryption and authentication methods
defined in IEEE 802.11i WPA/WPA2) to protect management frames. This helps prevent
wireless DoS attacks.
Select the check box to enable management frame protection (MFP) to add security to
802.11 management frames.
Select Optional if you do not require the wireless clients to support MFP. Management
frames will be encrypted if the clients support MFP.
Select Required and wireless clients must support MFP in order to join the Zyxel Device’s
wireless network.
Fast Roaming
Settings
IEEE 802.11r fast roaming, which is also known as Fast BSS Transition (FT), allows wireless clients
to quickly move from one AP to another in a WiFi network that uses WPA2 with 802.1x
authentication. Information from the original association is passed to the target AP when the
client roams. The client doesn’t need to perform the whole 802.1x authentication process.
Messages exchanged between the target AP and client are reduced and performed using
one of the two methods:
• Over-the-DS: The wireless client communicates with the target AP through the current
AP. The communication is sent to the target AP through the wired Ethernet connection.
• Over-the-Air: The wireless client communicates directly with the target AP.
background
Chapter 44 Object
USG FLEX Series User’s Guide
982
802.11r Select this to turn on IEEE 802.11r fast roaming on the AP (Zyxel Device). This is good for
wireless clients that transport a lot of real-time interactive traffic, such as voice and video.
Wireless clients should also support WPA2 and fast roaming to associate with the AP (Zyxel
Device) and roam seamlessly.
Radius Settings
Primary / Secondary
Radius Server
Activate
Select this to have the Zyxel Device use the specified RADIUS server.
Radius Server IP
Address
Enter the IP address of the RADIUS server to be used for authentication.
Radius Server
Port
Enter the port number of the RADIUS server to be used for authentication.
Radius Server
Secret
Enter the shared secret password of the RADIUS server to be used for authentication.
Primary / Secondary
Accounting Server
Activate
Select the check box to enable user accounting through an external authentication server.
Accounting
Server IP Address
Enter the IP address of the external accounting server in dotted decimal notation.
Accounting
Server Port
Enter the port number of the external accounting server. The default port number is 1813.
You need not change this value unless your network administrator instructs you to do so with
additional information.
Accounting
Share Secret
Enter a password (up to 128 alphanumeric characters) as the key to be shared between the
external accounting server and the Zyxel Device. The key must be the same on the external
accounting server and your Zyxel Device. The key is not sent over the network.
Accounting Interim
Update
This field is available only when you enable user accounting through an external
authentication server.
Select this to have the Zyxel Device send subscriber status updates to the accounting server
at the interval you specify.
Interim Update
Interval
Specify the time interval for how often the Zyxel Device is to send a subscriber status update
to the accounting server.
MAC Authentication Select this to use an external server or the Zyxel Device’s local database to authenticate
wireless clients by their MAC addresses. Users cannot get an IP address if the MAC
authentication fails.
An external server can use the wireless client’s account (username/password) or Calling
Station ID for MAC authentication. Configure the ones the external server uses.
Delimiter
(Account)
Select the separator the external server uses for the two-character pairs within account
MAC addresses.
Case (Account) Select the case (upper or lower) the external server requires for letters in the account MAC
addresses.
Delimiter (Calling
Station ID)
RADIUS servers can require the MAC address in the Calling Station ID RADIUS attribute.
Select the separator the external server uses for the pairs in calling station MAC addresses.
Case (Calling
Station ID)
Select the case (upper or lower) the external server requires for letters in the calling station
MAC addresses.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 389 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: wpa2/ wpa2-mix (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
983
Figure 612 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: wpa3
The following table describes the labels in this screen.
Table 390 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: wpa3
LABEL DESCRIPTION
Profile Name Enter up to 31 alphanumeric characters for the profile name. This name is only visible in the
Web Configurator and is only for management purposes. Spaces and underscores are
allowed.
Security Mode Select a security mode from the list: open, enhanced open, wep, wpa2, or wpa2-mix, wpa3.
Authentication Settings
Enterprise Select this to enable 802.1x secure authentication with a RADIUS server.
Reauthenticatio
n Timer
Enter the interval (in seconds) between authentication requests. Enter a 0 for unlimited time.
Personal This field is available when you select the wpa2, wpa2-mix or wpa3 security mode.
Select this option to use a Pre-Shared Key (PSK) with WPA2 encryption or Simultaneous
Authentication of Equals (SAE) with WPA3 encryption.
Pre-Shared Key Enter a pre-shared key of between 8 and 63 case-sensitive ASCII characters (including
spaces and symbols) or 64 hexadecimal characters.
background
Chapter 44 Object
USG FLEX Series User’s Guide
984
Transition Mode Enable this for backwards compatibility. This option is only available if the Security Mode is
wpa3 or enhanced-open. This creates two virtual APs (VAPs) with a primary (wpa3 or
enhanced-open) and fallback (wpa2 or none) security method.
If the Security Mode is wpa3, enabling this will force Management Frame Protection to be set
to Optional. If this is disabled or if the Security Mode is enhanced-open, Management Frame
Protection will be set to Required.
Idle Timeout Enter the idle interval (in seconds) that a client can be idle before authentication is
discontinued.
Group Key Update
Timer
Enter the interval (in seconds) at which the AP updates the group WPA2 encryption key.
Management
Frame Protection
This field is available only when you select wpa2 in the Security Mode field and set Cipher
Type to aes.
Data frames in 802.11 WLANs can be encrypted and authenticated with WEP, WPA or
WPA2. But 802.11 management frames, such as beacon/probe response, association
request, association response, de-authentication and disassociation are always
unauthenticated and unencrypted. IEEE 802.11w Protected Management Frames allows
APs to use the existing security mechanisms (encryption and authentication methods
defined in IEEE 802.11i WPA/WPA2) to protect management frames. This helps prevent
wireless DoS attacks.
Select the check box to enable management frame protection (MFP) to add security to
802.11 management frames.
Select Optional if you do not require the wireless clients to support MFP. Management
frames will be encrypted if the clients support MFP.
Select Required and wireless clients must support MFP in order to join the Zyxel Device’s
wireless network.
Radius Settings
Primary / Secondary
Radius Server
Activate
Select this to have the Zyxel Device use the specified RADIUS server.
Radius Server IP
Address
Enter the IP address of the RADIUS server to be used for authentication.
Radius Server
Port
Enter the port number of the RADIUS server to be used for authentication.
Radius Server
Secret
Enter the shared secret password of the RADIUS server to be used for authentication.
Primary / Secondary
Accounting Server
Activate
Select the check box to enable user accounting through an external authentication server.
Accounting
Server IP Address
Enter the IP address of the external accounting server in dotted decimal notation.
Accounting
Server Port
Enter the port number of the external accounting server. The default port number is 1813.
You need not change this value unless your network administrator instructs you to do so with
additional information.
Accounting
Share Secret
Enter a password (up to 128 alphanumeric characters) as the key to be shared between the
external accounting server and the Zyxel Device. The key must be the same on the external
accounting server and your Zyxel Device. The key is not sent over the network.
Accounting Interim
Update
This field is available only when you enable user accounting through an external
authentication server.
Select this to have the Zyxel Device send subscriber status updates to the accounting server
at the interval you specify.
Table 390 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: wpa3 (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
985
44.4.2.5 MAC Filter List
This screen allows you to create and manage security configurations that can be used by your SSIDs. To
access this screen click Configuration > Object > AP Profile > SSID > MAC Filter List.
Note: You can have a maximum of 32 MAC filtering profiles on the Zyxel Device.
Figure 613 Configuration > Object > AP Profile > SSID > MAC Filter List
The following table describes the labels in this screen.
Interim Update
Interval
Specify the time interval for how often the Zyxel Device is to send a subscriber status update
to the accounting server.
MAC Authentication Select this to use an external server or the Zyxel Device’s local database to authenticate
wireless clients by their MAC addresses. Users cannot get an IP address if the MAC
authentication fails.
An external server can use the wireless client’s account (username/password) or Calling
Station ID for MAC authentication. Configure the ones the external server uses.
Delimiter
(Account)
Select the separator the external server uses for the two-character pairs within account
MAC addresses.
Case (Account) Select the case (upper or lower) the external server requires for letters in the account MAC
addresses.
Delimiter (Calling
Station ID)
RADIUS servers can require the MAC address in the Calling Station ID RADIUS attribute.
Select the separator the external server uses for the pairs in calling station MAC addresses.
Case (Calling
Station ID)
Select the case (upper or lower) the external server requires for letters in the calling station
MAC addresses.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 390 Configuration > Object > AP Profile > SSID > Security Profile > Add/Edit Security Profile >
Security Mode: wpa3 (continued)
LABEL DESCRIPTION
Table 391 Configuration > Object > AP Profile > SSID > MAC Filter List
LABEL DESCRIPTION
Add Click this to add a new MAC filtering profile.
Edit Click this to edit the selected MAC filtering profile.
Remove Click this to remove the selected MAC filtering profile.
References Click this to view which other objects are linked to the selected MAC filtering profile (for
example, SSID profile).
# This field is a sequential value, and it is not associated with a specific profile.
Profile Name This field indicates the name assigned to the MAC filtering profile.
Filter Action This field indicates this profile’s filter action (if any).
background
Chapter 44 Object
USG FLEX Series User’s Guide
986
44.4.2.6 Add/Edit MAC Filter Profile
This screen allows you to create a new MAC filtering profile or edit an existing one. To access this screen,
click the Add button or select a MAC filter profile from the list and click the Edit button.
Figure 614 SSID > MAC Filter List > Add/Edit MAC Filter Profile
The following table describes the labels in this screen.
44.5 MON Profile
This screen allows you to set up monitor mode configurations that allow your connected APs to scan for
other wireless devices in the vicinity. Once detected, you can use the Rogue AP screen (
Section 9.5 on
page 308) to classify them as either rogue or friendly and then manage them accordingly.
The MON Profile screen (Section 44.5.1 on page 987) creates preset monitor mode configurations that
can be used by the APs.
Table 392 SSID > MAC Filter List > Add/Edit MAC Filter Profile
LABEL DESCRIPTION
Profile Name Enter up to 31 alphanumeric characters for the profile name. This name is only visible in the Web
Configurator and is only for management purposes. Spaces and underscores are allowed.
Filter Action Select allow to permit the wireless client with the MAC addresses in this profile to connect to the
network through the associated SSID; select deny to block the wireless clients with the specified
MAC addresses.
Add Click this to add a MAC address to the profile’s list.
Edit Click this to edit the selected MAC address in the profile’s list.
Remove Click this to remove the selected MAC address from the profile’s list.
# This field is a sequential value, and it is not associated with a specific profile.
MAC This field specifies a MAC address associated with this profile.
Description This field displays a description for the MAC address associated with this profile. You can click the
description to make it editable. Enter up to 60 characters, spaces and underscores allowed.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
987
44.5.0.1 What You Need To Know
The following terms and concepts may help as you read this chapter.
Active Scan
An active scan is performed when an 802.11-compatible wireless monitoring device is explicitly
triggered to scan a specified channel or number of channels for other wireless devices broadcasting on
the 802.11 frequencies by sending probe request frames.
Passive Scan
A passive scan is performed when an 802.11-compatible monitoring device is set to periodically listen to
a specified channel or number of channels for other wireless devices broadcasting on the 802.11
frequencies.
44.5.1 Configuring MON Profile
This screen allows you to create monitor mode configurations that can be used by the APs. To access
this screen, login to the Web Configurator, and click Configuration > Object > MON Profile.
Figure 615 Configuration > Object > MON Profile
The following table describes the labels in this screen.
Table 393 Configuration > Object > MON Profile
LABEL DESCRIPTION
Add Click this to add a new monitor mode profile.
Edit Click this to edit the selected monitor mode profile.
Remove Click this to remove the selected monitor mode profile.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
References Click this to view which other objects are linked to the selected monitor mode profile (for
example, an AP management profile).
# This field is a sequential value, and it is not associated with a specific user.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Profile Name This field indicates the name assigned to the monitor profile.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 44 Object
USG FLEX Series User’s Guide
988
44.5.2 Add/Edit MON Profile
This screen allows you to create a new monitor mode profile or edit an existing one. To access this
screen, click the Add button or select and existing monitor mode profile and click the Edit button.
Figure 616 Configuration > Object > MON Profile > Add/Edit MON Profile
The following table describes the labels in this screen.
Table 394 Configuration > Object > MON Profile > Add/Edit MON Profile
LABEL DESCRIPTION
Activate Select this to activate this monitor mode profile.
Profile Name This field indicates the name assigned to the monitor mode profile.
Channel dwell time Enter the interval (in milliseconds) before the AP switches to another channel for
monitoring.
Scan Channel Mode Select auto to have the AP switch to the next sequential channel once the Channel dwell
time expires.
Select manual to set specific channels through which to cycle sequentially when the
Channel dwell time expires. Selecting this options makes the Scan Channel List options
available.
background
Chapter 44 Object
USG FLEX Series User’s Guide
989
44.5.3 Technical Reference
The following section contains additional technical information about the features described in this
chapter.
Rogue APs
Rogue APs are wireless access points operating in a network’s coverage area that are not under the
control of the network’s administrators, and can open up holes in a network’s security. Attackers can
take advantage of a rogue AP’s weaker (or non-existent) security to gain access to the network, or set
up their own rogue APs in order to capture information from wireless clients. If a scan reveals a rogue AP,
you can use commercially-available software to physically locate it.
Country Code Select the country code of where the Zyxel Device is located/installed.
The available channels vary depending on the country you selected. Be sure to select the
correct/same country for both radios on an AP and all connected APs, in order to prevent
roaming failure and interference to other systems.
Note: For US and Canada models, country code is fixed to US or Canada
respectively and is not user selectable.
Set Scan Channel List
(2.4 GHz)
Move a channel from the Available channels column to the Channels selected column to
have the APs using this profile scan that channel when Scan Channel Mode is set to
manual.
These channels are limited to the 2 GHz range (802.11 b/g/n).
Set Scan Channel List
(5 GHz)
Move a channel from the Available channels column to the Channels selected column to
have the APs using this profile scan that channel when Scan Channel Mode is set to
manual.
These channels are limited to the 5 GHz range (802.11 a/n).
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 394 Configuration > Object > MON Profile > Add/Edit MON Profile (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
990
Figure 617 Rogue AP Example
In the example above, a corporate network’s security is compromised by a rogue AP (RG) set up by an
employee at his workstation in order to allow him to connect his notebook computer wirelessly (A). The
company’s legitimate wireless network (the dashed ellipse B) is well-secured, but the rogue AP uses
inferior security that is easily broken by an attacker (X) running readily available encryption-cracking
software. In this example, the attacker now has access to the company network, including sensitive
data stored on the file server (C).
Friendly APs
If you have more than one AP in your wireless network, you should also configure a list of “friendly” APs.
Friendly APs are other wireless access points that are detected in your network, as well as any others that
you know are not a threat (those from recognized networks, for example). It is recommended that you
export (save) your list of friendly APs often, especially if you have a network with a large number of
access points.
44.6 ZyMesh Overview
This section shows you how to configure ZyMesh profiles for the Zyxel Device to apply to the managed
APs.
ZyMesh is a Zyxel proprietary protocol that creates wireless mesh links between managed APs to expand
the wireless network. Managed APs can provide services or forward traffic between the Zyxel Device
and wireless clients. ZyMesh also allows the Zyxel Device to use CAPWAP to automatically update the
configuration settings on the managed APs (in repeater mode) through wireless connections. The
managed APs (in repeater mode) are provisioned hop by hop.
background
Chapter 44 Object
USG FLEX Series User’s Guide
991
The managed APs in a ZyMesh must use the same SSID, channel number and pre-shared key. A manged
AP can be either a root AP or repeater in a ZyMesh.
Note: All managed APs should be connected to the Zyxel Device directly to get the
configuration file before being deployed to build a ZyMesh. Ensure you restart the
managed AP after you change its operating mode using the Configuration > Wireless >
AP Management screen (see
Section 9.4 on page 283).
• Root AP: a managed AP that can transmit and receive data from the Zyxel Device through a wired
Ethernet connection.
• Repeater: a managed AP that transmits and/or receives data from the Zyxel Device through a
wireless connection through a root AP.
Note: When managed APs are deployed to form a ZyMesh for the first time, the root AP must
be connected to an AP controller (the Zyxel Device).
In the following example, managed APs 1 and 2 act as a root AP and managed APs A, B and C are
repeaters.
The maximum number of hops (the repeaters between a wireless client and the root AP) you can have
in a ZyMesh varies according to how many wireless clients a managed AP can support.
Note: A ZyMesh link with more hops has lower throughput.
Note: When the wireless connection between the root AP and the repeater is up, in order to
prevent bridge loops, the repeater would not be able to transmit data through its
Ethernet port(s). The repeater then could only receive power from a PoE device if you
use PoE to provide power to the managed AP through an 8-ping Ethernet cable.
44.6.1 ZyMesh Profile
This screen allows you to manage and create ZyMesh profiles that can be used by the APs. To access
this screen, click Configuration > Object > ZyMesh Profile.
background
Chapter 44 Object
USG FLEX Series User’s Guide
992
Figure 618 Configuration > Object > ZyMesh Profile
The following table describes the labels in this screen.
Table 395 Configuration > Object > ZyMesh Profile
LABEL DESCRIPTION
Hide / Show
Advanced
Settings
Click this to display a greater or lesser number of configuration fields.
ZyMesh Provision
Group
By default, this shows the MAC address used by the Zyxel Device’s first Ethernet port.
Say you have two AP controllers (Zyxel Devices) in your network and the primary AP controller is
not reachable. You may want to deploy the second/backup AP controller in your network to
replace the primary AP controller. In this case, it is recommended that you enter the primary AP
controller’s ZyMesh Provision Group MAC address in the second AP controller’s ZyMesh
Provision Group field.
If you didn’t change the second AP controller’s MAC address, managed APs in an existing
ZyMesh can still access the networks through the second AP controller and communicate with
each other. But new managed APs will not be able to communicate with the managed APs in
the existing ZyMesh, which is set up with the primary AP controller’s MAC address.
To allow all managed APs to communicate in the same ZyMesh, you can just set the second AP
controller to use the primary AP controller’s MAC address. Otherwise, reset all managed APs to
the factory defaults and set up a new ZyMesh with the second AP controller’s MAC address.
Next Click this button and follow the on-screen instructions to update the AP controller’s MAC
address.
Add Click this to add a new profile.
Edit Click this to edit the selected profile.
Remove Click this to remove the selected profile.
# This field is a sequential value, and it is not associated with a specific profile.
Profile Name This field indicates the name assigned to the profile.
ZyMesh SSID This field shows the SSID specified in this ZyMesh profile.
background
Chapter 44 Object
USG FLEX Series User’s Guide
993
44.6.2 Add/Edit ZyMesh Profile
This screen allows you to create a new ZyMesh profile or edit an existing one. To access this screen, click
the Add button or select and existing profile and click the Edit button.
Figure 619 Configuration > Object > ZyMesh Profile > Add/Edit ZyMesh Profile
The following table describes the labels in this screen.
44.7 Address/Geo IP Overview
Address objects can represent a single IP address or a range of IP addresses. Address groups are
composed of address objects and other address groups.
• The Address screen (Section 44.7.2 on page 994) provides a summary of all addresses in the Zyxel
Device. Use the Address Add/Edit screen to create a new address or edit an existing one.
• Use the Address Group summary screen (Section 44.7.3 on page 998) and the Address Group Add/
Edit screen, to maintain address groups in the Zyxel Device.
• Use the Geo IP screen (Section 44.7.4 on page 1000) to update the database of country-to-IP address
mappings and to manually configure country-to-IP address mappings.
44.7.1 What You Need To Know
Address objects and address groups are used in dynamic routes, security policies, application patrol,
content filtering, and VPN connection policies. For example, addresses are used to specify where
Table 396 Configuration > Object > ZyMesh Profile > Add/Edit ZyMesh Profile
LABEL DESCRIPTION
Profile Name Enter up to 31 alphanumeric characters for the profile name.
ZyMesh SSID Enter the SSID with which you want the managed AP to connect to a root AP or repeater to
build a ZyMesh link.
Note: The ZyMesh SSID is hidden in the outgoing beacon frame so a wireless
device cannot obtain the SSID through scanning using a site survey tool.
Pre-Shared Key Enter a pre-shared key of between 8 and 63 case-sensitive single-byte characters or 64
hexadecimal characters. Accepted characters are 0-9a-zA-Z!”#$%&’()*+,-./
:;<=>?@[\]^_{|} and spaces. ‘ is not allowed.
The key is used to encrypt the wireless traffic between the APs.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
994
content restrictions apply in content filtering. Please see the respective sections for more information
about how address objects and address groups are used in each one.
Address groups are composed of address objects and address groups. The sequence of members in the
address group is not important.
44.7.2 Address Summary Screen
The address screens are used to create, maintain, and remove addresses. There are the types of
address objects:
• HOST - the object uses an IP Address to define a host address
• RANGE - the object uses a range address defined by a Starting IP Address and an Ending IP Address
• SUBNET - the object uses a network address defined by a Network IP address and Netmask subnet
mask
• INTERFACE IP - the object uses the IP address of one of the Zyxel Device’s interfaces
• INTERFACE SUBNET - the object uses the subnet mask of one of the Zyxel Device’s interfaces
• INTERFACE GATEWAY - the object uses the gateway IP address of one of the Zyxel Device’s interfaces
• GEOGRAPHY - the object uses the IP addresses of a country to represent a country
FQDN - the object uses a FQDN (Fully Qualified Domain Name). An FQDN consists of a host and domain
name. For example, www.zyxel.com is a fully qualified domain name, where “www” is the host, “zyxel” is
the second-level domain, and “com” is the top level domain. mail.myZyxel.com.tw is also an FQDN,
where “mail” is the host, “myZyxel” is the third-level domain, “com” is the second-level domain, and
“tw” is the top level domain.
In an address FQDN object, you can also use one wildcard. For example, *.zyxel.com. An FQDN is
resolved to its IP address using the DNS server configured on the Zyxel Device.
The Address screen provides a summary of all addresses in the Zyxel Device. To access this screen, click
Configuration > Object > Address > Address. Click a column’s heading cell to sort the table entries by
that column’s criteria. Click the heading cell again to reverse the sort order.
Table 397 FQDN Example
HTTP:// WWW. ZYXEL. COM
host name second-level domain
name
top-level domain name
FQDN
Uniform Resource Locator (URL)
background
Chapter 44 Object
USG FLEX Series User’s Guide
995
Figure 620 Configuration > Object > Address/Geo IP > Address
The following table describes the labels in this screen. See Section 44.7.2.1 on page 996 for more
information as well.
Table 398 Configuration > Object > Address/Geo IP > Address
LABEL DESCRIPTION
IPv4 Address Configuration
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific address.
Name This field displays the configured name of each address object.
Type This field displays the type of each address object. “INTERFACE” means the object uses the
settings of one of the Zyxel Device’s interfaces.
IPv4 Address This field displays the IPv4 addresses represented by each address object. If the object’s
settings are based on one of the Zyxel Device’s interfaces, the name of the interface displays
first followed by the object’s current address settings.
background
Chapter 44 Object
USG FLEX Series User’s Guide
996
44.7.2.1 IPv4 Address Add/Edit Screen
The Configuration > Object > Address/GeoIP > Address > Add/Edit (IPv4) screen allows you to create a
new address or edit an existing one. To access this screen, go to the Address screen (see
Section 44.7.2
on page 994), and click either the Add icon or an Edit icon in the IPv4 Address Configuration section.
Figure 621 Configuration > Object > Address/GeoIP > Address > Add/Edit (IPv4)
The following table describes the labels in this screen.
Reference This displays the number of times an object reference is used in a profile.
IPv6 Address Configuration
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific address.
Name This field displays the configured name of each address object.
Type This field displays the type of each address object. “INTERFACE” means the object uses the
settings of one of the Zyxel Device’s interfaces.
IPv6 Address This field displays the IPv6 addresses represented by each address object. If the object’s
settings are based on one of the Zyxel Device’s interfaces, the name of the interface displays
first followed by the object’s current address settings.
Reference This displays the number of times an object reference is used in a profile.
Table 398 Configuration > Object > Address/Geo IP > Address (continued)
LABEL DESCRIPTION
Table 399 Configuration > Object > Address/GeoIP > Address > Add/Edit (IPv4)
LABEL DESCRIPTION
Name Type the name used to refer to the address. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is case-
sensitive.
Address Type Select the type of address you want to create.
Note: The Zyxel Device automatically updates address objects that are based on an
interface’s IP address, subnet, or gateway if the interface’s IP address settings
change. For example, if you change 1’s IP address, the Zyxel Device
automatically updates the corresponding interface-based, LAN subnet
address object.
IP Address This field is only available if the Address Type is HOST. This field cannot be blank. Enter the IP
address that this address object represents.
Starting IP
Address
This field is only available if the Address Type is RANGE. This field cannot be blank. Enter the
beginning of the range of IP addresses that this address object represents.
background
Chapter 44 Object
USG FLEX Series User’s Guide
997
44.7.2.2 IPv6 Address Add/Edit Screen
The Configuration > Object > Address/GeoIP > Address > Add/Edit (IPv6) screen allows you to create a
new address or edit an existing one. To access this screen, go to the Address screen (see
Section 44.7.2
on page 994), and click either the Add icon or an Edit icon in the IPv6 Address Configuration section.
Figure 622 Configuration > Object > Address/GeoIP > Address > Add/Edit (IPv6)
The following table describes the labels in this screen.
Ending IP Address This field is only available if the Address Type is RANGE. This field cannot be blank. Enter the end
of the range of IP address that this address object represents.
Network This field is only available if the Address Type is SUBNET, in which case this field cannot be blank.
Enter the IP address of the network that this address object represents.
Netmask This field is only available if the Address Type is SUBNET, in which case this field cannot be blank.
Enter the subnet mask of the network that this address object represents. Use dotted decimal
format.
Interface If you selected INTERFACE IP, INTERFACE SUBNET, or INTERFACE GATEWAY as the Address Type,
use this field to select the interface of the network that this address object represents.
Region If you selected GEOGRAPHY as the Address Type, use this field to select a country or continent.
A GEOGRAPHY object uses the data from the country-to-IP/continent-to-IP address database.
Go to the Configuration > Object > Address/Geo IP > Geo IP screen to configure the custom
country-to-IP/continent-to-IP address mappings for a GEOGRAPHY object.
Country If you selected Geography as the Address Type, use this field to select a country.
FQDN If you selected FQDN as the Address Type, use this field to enter a fully qualified domain name.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 399 Configuration > Object > Address/GeoIP > Address > Add/Edit (IPv4)
LABEL DESCRIPTION
Table 400 Configuration > Object > Address/GeoIP > Address > Add/Edit (IPv6)
LABEL DESCRIPTION
Name Type the name used to refer to the address. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is case-
sensitive.
Object Type Select the type of address you want to create.
Note: The Zyxel Device automatically updates address objects that are based on an
interface’s IP address, subnet, or gateway if the interface’s IP address settings
change. For example, if you change 1’s IP address, the Zyxel Device
automatically updates the corresponding interface-based, LAN subnet
address object.
IPv6 Address This field is only available if the Address Type is HOST. This field cannot be blank. Enter the IP
address that this address object represents.
background
Chapter 44 Object
USG FLEX Series User’s Guide
998
44.7.3 Address Group Summary Screen
The Address Group screen provides a summary of all address groups. To access this screen, click
Configuration > Object > Address/Geo IP > Address Group. Click a column’s heading cell to sort the
table entries by that column’s criteria. Click the heading cell again to reverse the sort order.
Figure 623 Configuration > Object > Address/Geo IP > Address Group
The following table describes the labels in this screen. See Section 44.7.3.1 on page 999 for more
information as well.
IPv6 Starting
Address
This field is only available if the Address Type is RANGE. This field cannot be blank. Enter the
beginning of the range of IP addresses that this address object represents.
IPv6 Ending
Address
This field is only available if the Address Type is RANGE. This field cannot be blank. Enter the end
of the range of IP address that this address object represents.
IPv6 Address
Prefix
This field is only available if the Address Type is SUBNET. This field cannot be blank. Enter the IPv6
address prefix that the Zyxel Device uses for the LAN IPv6 address.
Interface If you selected INTERFACE IP, INTERFACE SUBNET, or INTERFACE GATEWAY as the Address Type,
use this field to select the interface of the network that this address object represents.
IPv6 Address Type Select whether the IPv6 address is a link-local IP address (LINK LOCAL), static IP address
(STATIC), an IPv6 StateLess Address Auto Configuration IP address (SLAAC), or is obtained from
a DHCPv6 server (DHCPv6).
Region If you selected Geography as the Address Type, use this field to select a country or continent.
FQDN If you selected FQDN as the Address Type, use this field to enter a fully qualified domain name.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 400 Configuration > Object > Address/GeoIP > Address > Add/Edit (IPv6)
LABEL DESCRIPTION
Table 401 Configuration > Object > Address/Geo IP > Address Group
LABEL DESCRIPTION
IPv4 Address Group Configuration
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific address group.
Name This field displays the name of each address group.
background
Chapter 44 Object
USG FLEX Series User’s Guide
999
44.7.3.1 Address Group Add/Edit Screen
The Address Group Add/Edit screen allows you to create a new address group or edit an existing one. To
access this screen, go to the Address Group screen (see
Section 44.7.3 on page 998), and click either
the Add icon or an Edit icon in the IPv4 Address Group Configuration or IPv6 Address Group
Configuration section.
Figure 624 IPv4/IPv6 Address Group Configuration > Add
The following table describes the labels in this screen.
Description This field displays the description of each address group, if any.
Reference This displays the number of times an object reference is used in a profile.
IPv6 Address Group Configuration
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific address group.
Name This field displays the name of each address group.
Description This field displays the description of each address group, if any.
Reference This displays the number of times an object reference is used in a profile.
Table 401 Configuration > Object > Address/Geo IP > Address Group (continued)
LABEL DESCRIPTION
Table 402 IPv4/IPv6 Address Group Configuration > Add
LABEL DESCRIPTION
Name Enter a name for the address group. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is case-
sensitive.
Description This field displays the description of each address group, if any. You can use up to 60
characters, punctuation marks, and spaces.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1000
44.7.4 Geo IP Summary Screen
Use this screen to update the database of country-to-IP and continent-to-IP address mappings and
manually configure custom country-to-IP and continent-to-IP address mappings in geographic address
objects. You can then use geographic address objects in security policies to forward or deny traffic to
whole countries or regions.
Click a column’s heading cell to sort the table entries by that column’s criteria. Click the heading cell
again to reverse the sort order.
Address Type Select the type of address you want to create.
Note: The Zyxel Device automatically updates address objects that are based on an
interface’s IP address, subnet, or gateway if the interface’s IP address settings
change. For example, if you change 1’s IP address, the Zyxel Device
automatically updates the corresponding interface-based, LAN subnet
address object.
Member List The Member list displays the names of the address and address group objects that have been
added to the address group. The order of members is not important.
Select items from the Available list that you want to be members and move them to the
Member list. You can double-click a single entry to move it or use the [Shift] or [Ctrl] key to
select multiple entries and use the arrow button to move them.
Move any members you do not want included to the Available list.
Note: Only objects of the same address type can be added to a address group.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 402 IPv4/IPv6 Address Group Configuration > Add (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1001
Figure 625 Configuration > Object > Address/Geo IP > Geo IP
The following table describes the labels in this screen.
Table 403 Configuration > Object > Address/Geo IP > Geo IP
LABEL DESCRIPTION
Country Database Update
Latest Version This is the latest country-to-IP address database version on myZyxel.
Current Version This is the country-to-IP address database version currently on the Zyxel Device.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1002
44.7.4.1 Add Custom IPv4/IPv6 Address to Geography Screen
This screen allows you to create a new geography-to-IP address mapping. To access this screen, go to
the Geo IP screen (see
Section 44.7.4 on page 1000), and click the Add icon in the Custom IPv4 to
Geography Rules or Custom IPv6 to Geography Rules section.
Figure 626 Geo IP > Add
The following table describes the labels in this screen.
Update Now Click this to check for the latest country-to-IP address database version on myZyxel. The latest
version is downloaded to the Zyxel Device and replaces the current version if it is newer. There
are logs to show the update status.
Auto Update If you want the Zyxel Device to check weekly for the latest country-to-IP address database
version on myZyxel, select the checkbox, choose a day and time each week and then click
Apply. The default day and time displayed is the Zyxel Device current day and time.
Custom IPv4/IPv6 to Geography Rules
IPv4/IPv6 to
Geography
Enter an IP address, then click this button to query which country this IP address belongs to.
Add Click this to create a new entry.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
# This field is a sequential value, and it is not associated with a specific entry.
Geolocation This field displays the name of the country or region that is associated with this IP address.
Type This field displays whether this address object is HOST, RANGE or SUBNET.
IPv4/IPv6 Address This field displays the IPv4/IPv6 addresses represented by the type of address object.
Region vs. Continent
Region Enter a country name, then click the Region to Continent button to query which continent this
country belongs to.
Continent Select a continent, then click the Region List button to query which countries belong to the
continent.
Apply Click Apply to save the changes.
Reset Click Reset to return the screen to its last-saved settings.
Table 403 Configuration > Object > Address/Geo IP > Geo IP (continued)
LABEL DESCRIPTION
Table 404 Geo IP > Add
LABEL DESCRIPTION
Region Select the country or continent that maps to this IP address.
Address Type Select the type of address you want to create. Choices are: HOST, RANGE, SUBNET.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1003
44.8 Service Overview
Use service objects to define TCP applications, UDP applications, and ICMP messages. You can also
create service groups to refer to multiple service objects in other features.
• Use the Service screens (Section 44.8.2 on page 1004) to view and configure the Zyxel Device’s list of
services and their definitions.
• Use the Service Group screens (Section 44.8.2 on page 1004) to view and configure the Zyxel Device’s
list of service groups.
44.8.1 What You Need to Know
IP Protocols
IP protocols are based on the eight-bit protocol field in the IP header. This field represents the next-level
protocol that is sent in this packet. This section discusses three of the most common IP protocols.
Computers use Transmission Control Protocol (TCP, IP protocol 6) and User Datagram Protocol (UDP, IP
protocol 17) to exchange data with each other. TCP guarantees reliable delivery but is slower and more
complex. Some uses are FTP, HTTP, SMTP, and TELNET. UDP is simpler and faster but is less reliable. Some
uses are DHCP, DNS, RIP, and SNMP.
TCP creates connections between computers to exchange data. Once the connection is established,
the computers exchange data. If data arrives out of sequence or is missing, TCP puts it in sequence or
waits for the data to be re-transmitted. Then, the connection is terminated.
In contrast, computers use UDP to send short messages to each other. There is no guarantee that the
messages arrive in sequence or that the messages arrive at all.
Both TCP and UDP use ports to identify the source and destination. Each port is a 16-bit number. Some
port numbers have been standardized and are used by low-level system processes; many others have
no particular meaning.
IP Address This field is only available if the Address Type is HOST. This field cannot be blank. Enter the IP
address that this address object represents.
IP Starting
Address
This field is only available if the Address Type is RANGE. This field cannot be blank. Enter the
beginning of the range of IP addresses that this address object represents.
IP Ending Address This field is only available if the Address Type is RANGE. This field cannot be blank. Enter the end
of the range of IP address that this address object represents.
Network /
Netmask
These fields are only available if the IPv4 Address Type is SUBNET. They cannot be blank. Enter
the network IP and subnet mask that defines the IPv4 subnet.
IPv6 Address
Prefix
This field is only available if the IPv6 Address Type is SUBNET. This field cannot be blank. Enter the
IPv6 address prefix that the Zyxel Device uses for the LAN IPv6 address.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
Table 404 Geo IP > Add (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1004
Unlike TCP and UDP, Internet Control Message Protocol (ICMP, IP protocol 1) is mainly used to send error
messages or to investigate problems. For example, ICMP is used to send the response if a computer
cannot be reached. Another use is ping. ICMP does not guarantee delivery, but networks often treat
ICMP messages differently, sometimes looking at the message itself to decide where to send it.
Service Objects and Service Groups
Use service objects to define IP protocols.
• TCP applications
• UDP applications
• ICMP messages
• user-defined services (for other types of IP protocols)
These objects are used in policy routes, security policies, and IPS profiles.
Use service groups when you want to create the same rule for several services, instead of creating
separate rules for each service. Service groups may consist of services and other service groups. The
sequence of members in the service group is not important.
44.8.2 The Service Summary Screen
The Service summary screen provides a summary of all services and their definitions. In addition, this
screen allows you to add, edit, and remove services.
To access this screen, log in to the Web Configurator, and click Configuration > Object > Service >
Service. Click a column’s heading cell to sort the table entries by that column’s criteria. Click the
heading cell again to reverse the sort order.
Figure 627 Configuration > Object > Service > Service
background
Chapter 44 Object
USG FLEX Series User’s Guide
1005
The following table describes the labels in this screen.
44.8.2.1 The Service Add/Edit Screen
The Service Add/Edit screen allows you to create a new service or edit an existing one. To access this
screen, go to the Service screen (see
Section 44.8.2 on page 1004), and click either the Add icon or an
Edit icon.
Figure 628 Configuration > Object > Service > Service > Edit
The following table describes the labels in this screen.
Table 405 Configuration > Object > Service > Service
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific service.
Name This field displays the name of each service.
Content This field displays a description of each service.
Reference This displays the number of times an object reference is used in a profile.
Table 406 Configuration > Object > Service > Service > Edit
LABEL DESCRIPTION
Name Type the name used to refer to the service. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is case-
sensitive.
IP Protocol Select the protocol the service uses. Choices are: TCP, UDP, ICMP, ICMPv6, and User Defined.
Starting Port
Ending Port
This field appears if the IP Protocol is TCP or UDP. Specify the port number(s) used by this service.
If you fill in one of these fields, the service uses that port. If you fill in both fields, the service uses
the range of ports.
ICMP Type This field appears if the IP Protocol is ICMP or ICMPv6.
Select the ICMP message used by this service. This field displays the message text, not the
message number.
IP Protocol
Number
This field appears if the IP Protocol is User Defined.
Enter the number of the next-level protocol (IP protocol). Allowed values are 1 - 255.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1006
44.8.3 The Service Group Summary Screen
The Service Group summary screen provides a summary of all service groups. In addition, this screen
allows you to add, edit, and remove service groups.
Note: If you want to access the Zyxel Device using HTTP, HTTPS, SSH, and/or, TELNET, you must
add them in the Object > Service > Service Group > Default_Allow_WAN_To_ZyWALL
service group, which is used in the WAN_to_Device security policy.
To access this screen, log in to the Web Configurator, and click Configuration > Object > Service >
Service Group.
Figure 629 Configuration > Object > Service > Service Group
The following table describes the labels in this screen. See Section 44.8.3.1 on page 1007 for more
information as well.
Table 407 Configuration > Object > Service > Service Group
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific service group.
Family This field displays the Server Group supported type, which is according to your configurations in
the Service Group Add/Edit screen.
There are 3 types of families:
• : Supports IPv4 only
• : Supports IPv6 only
• : Supports both IPv4 and IPv6
Name This field displays the name of each service group.
By default, the Zyxel Device uses services starting with “Default_Allow_” in the security policies
to allow certain services to connect to the Zyxel Device.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1007
44.8.3.1 The Service Group Add/Edit Screen
The Service Group Add/Edit screen allows you to create a new service group or edit an existing one. To
access this screen, go to the Service Group screen (see
Section 44.8.3 on page 1006), and click either
the Add icon or an Edit icon.
Figure 630 Configuration > Object > Service > Service Group > Edit
The following table describes the labels in this screen.
Description This field displays the description of each service group, if any.
Reference This displays the number of times an object reference is used in a profile.
Table 407 Configuration > Object > Service > Service Group (continued)
LABEL DESCRIPTION
Table 408 Configuration > Object > Service > Service Group > Edit
LABEL DESCRIPTION
Name Enter the name of the service group. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is case-
sensitive.
Description Enter a description of the service group, if any. You can use 1 to 60 single-byte characters,
including 0-9a-zA-Z!”#$%’()*+,-/:;=?@_
&.<>[\]^‘{|} are not allowed.
Configuration The Member list displays the names of the service and service group objects that have been
added to the service group. The order of members is not important.
Select items from the Available list that you want to be members and move them to the
Member list. You can double-click a single entry to move it or use the [Shift] or [Ctrl] key to
select multiple entries and use the arrow button to move them.
Move any members you do not want included to the Available list.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1008
44.9 Schedule Overview
Use schedules to set up one-time and recurring schedules for policy routes, security policies, application
patrol, and content filtering. The Zyxel Device supports one-time and recurring schedules. One-time
schedules are effective only once, while recurring schedules usually repeat. Both types of schedules are
based on the current date and time in the Zyxel Device.
Note: Schedules are based on the Zyxel Device’s current date and time.
• Use the Schedule summary screen (Section 44.9.2 on page 1008) to see a list of all schedules in the
Zyxel Device.
• Use the One-Time Schedule Add/Edit screen (Section 44.9.2.1 on page 1009) to create or edit a one-
time schedule.
• Use the Recurring Schedule Add/Edit screen (Section 44.9.2.2 on page 1010) to create or edit a
recurring schedule.
• Use the Schedule Group screen (Section 44.9.3 on page 1011) to merge individual schedule objects
as one object.
44.9.1 What You Need to Know
One-time Schedules
One-time schedules begin on a specific start date and time and end on a specific stop date and time.
One-time schedules are useful for long holidays and vacation periods.
Recurring Schedules
Recurring schedules begin at a specific start time and end at a specific stop time on selected days of
the week (Sunday, Monday, Tuesday, Wednesday, Thursday, Friday, and Saturday). Recurring schedules
always begin and end in the same day. Recurring schedules are useful for defining the workday and off-
work hours.
44.9.2 The Schedule Screen
The Schedule screen provides a summary of all schedules in the Zyxel Device. To access this screen, click
Configuration > Object > Schedule.
Figure 631 Configuration > Object > Schedule
background
Chapter 44 Object
USG FLEX Series User’s Guide
1009
The following table describes the labels in this screen. See Section 44.9.2.1 on page 1009 and Section
44.9.2.2 on page 1010 for more information as well.
44.9.2.1 The One-Time Schedule Add/Edit Screen
The One-Time Schedule Add/Edit screen allows you to define a one-time schedule or edit an existing
one. To access this screen, go to the Schedule screen (see
Section 44.9.2 on page 1008), and click
either the Add icon or an Edit icon in the One Time section.
Table 409 Configuration > Object > Schedule
LABEL DESCRIPTION
One Time
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific schedule.
Name This field displays the name of the schedule, which is used to refer to the schedule.
Start Day /
Time
This field displays the date and time at which the schedule begins.
Stop Day /
Time
This field displays the date and time at which the schedule ends.
Reference This displays the number of times an object reference is used in a profile.
Recurring
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific schedule.
Name This field displays the name of the schedule, which is used to refer to the schedule.
Start Time This field displays the time at which the schedule begins.
Stop Time This field displays the time at which the schedule ends.
Reference This displays the number of times an object reference is used in a profile.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1010
Figure 632 Configuration > Object > Schedule > Edit (One Time)
The following table describes the labels in this screen.
44.9.2.2 The Recurring Schedule Add/Edit Screen
The Recurring Schedule Add/Edit screen allows you to define a recurring schedule or edit an existing
one. To access this screen, go to the Schedule screen (see
Section 44.9.2 on page 1008), and click
either the Add icon or an Edit icon in the Recurring section.
Table 410 Configuration > Object > Schedule > Edit (One Time)
LABEL DESCRIPTION
Configuration
Name Type the name used to refer to the one-time schedule. You may use 1-31 alphanumeric
characters, underscores(
_), or dashes (-), but the first character cannot be a number. This
value is case-sensitive.
Day Time
StartDate Specify the year, month, and day when the schedule begins.
• Year - 1900 - 2999
• Month - 1 - 12
• Day - 1 - 31 (it is not possible to specify illegal dates, such as February 31.)
StartTime Specify the hour and minute when the schedule begins.
• Hour - 0 - 23
• Minute - 0 - 59
StopDate Specify the year, month, and day when the schedule ends.
• Year - 1900 - 2999
• Month - 1 - 12
• Day - 1 - 31 (it is not possible to specify illegal dates, such as February 31.)
StopTime Specify the hour and minute when the schedule ends.
• Hour - 0 - 23
• Minute - 0 - 59
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1011
Figure 633 Configuration > Object > Schedule > Edit (Recurring)
The Year, Month, and Day columns are not used in recurring schedules and are disabled in this screen.
The following table describes the remaining labels in this screen.
44.9.3 The Schedule Group Screen
The Schedule Group screen provides a summary of all groups of schedules in the Zyxel Device. To
access this screen, click Configuration > Object > Schedule > Group.
Table 411 Configuration > Object > Schedule > Edit (Recurring)
LABEL DESCRIPTION
Configuration
Name Type the name used to refer to the recurring schedule. You may use 1-31 alphanumeric
characters, underscores(
_), or dashes (-), but the first character cannot be a number. This
value is case-sensitive.
Date Time
StartTime Specify the hour and minute when the schedule begins each day.
• Hour - 0 - 23
• Minute - 0 - 59
StopTime Specify the hour and minute when the schedule ends each day.
• Hour - 0 - 23
• Minute - 0 - 59
Weekly
Week Days Select each day of the week the recurring schedule is effective.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1012
Figure 634 Configuration > Object > Schedule > Schedule Group
The following table describes the fields in the above screen.
44.9.3.1 The Schedule Group Add/Edit Screen
The Schedule Group Add/Edit screen allows you to define a schedule group or edit an existing one. To
access this screen, go to the Schedule screen (see
Section 44.9.2 on page 1008), and click either the
Add icon or an Edit icon in the Schedule Group section.
Figure 635 Configuration > Schedule > Schedule Group > Add
Table 412 Configuration > Object > Schedule > Schedule Group
LABEL DESCRIPTION
Configuration
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific schedule.
Name This field displays the name of the schedule group, which is used to refer to the schedule.
Description This field displays the description of the schedule group.
Members This field lists the members in the schedule group. Each member is separated by a comma.
Reference This displays the number of times an object reference is used in a profile.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1013
The following table describes the fields in the above screen.
44.10 AAA Server Overview
You can use a AAA (Authentication, Authorization, Accounting) server to provide access control to your
network. The AAA server can be a Active Directory, LDAP, or RADIUS server. Use the AAA Server screens
to create and manage objects that contain settings for using AAA servers. You use AAA server objects in
configuring ext-group-user user objects and authentication method objects (see
Chapter 44 on page
1022).
44.10.1 Directory Service (AD/LDAP)
LDAP/AD allows a client (the Zyxel Device) to connect to a server to retrieve information from a
directory. A network example is shown next.
Figure 636 Example: Directory Service Client and Server
The following describes the user authentication procedure through an LDAP/AD server.
1 A user logs in with a user name and password pair.
Table 413 Configuration > Object > Schedule > Schedule Group > Add
LABEL DESCRIPTION
Group
Members
Name Type the name used to refer to the recurring schedule. You may use 1-31 alphanumeric
characters, underscores(
_), or dashes (-), but the first character cannot be a number. This
value is case-sensitive.
Description Enter a description of the service group, if any. You can use 1 to 60 single-byte characters,
including 0-9a-zA-Z!”#$%’()*+,-/:;=?@_
&.<>[\]^‘{|} are not allowed.
Member List
The Member list displays the names of the service and service group objects that have been
added to the service group. The order of members is not important.
Select items from the Available list that you want to be members and move them to the
Member list. You can double-click a single entry to move it or use the [Shift] or [Ctrl] key to
select multiple entries and use the arrow button to move them.
Move any members you do not want included to the Available list.
OK
Click OK to save your changes back to the Zyxel Device.
Cancel
Click Cancel to exit this screen without saving your changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1014
2 The Zyxel Device tries to bind (or log in) to the LDAP/AD server.
3 When the binding process is successful, the Zyxel Device checks the user information in the directory
against the user name and password pair.
4 If it matches, the user is allowed access. Otherwise, access is blocked.
44.10.2 RADIUS Server
RADIUS (Remote Authentication Dial-In User Service) authentication is a popular protocol used to
authenticate users by means of an external server instead of (or in addition to) an internal device user
database that is limited to the memory capacity of the device. In essence, RADIUS authentication
allows you to validate a large number of users from a central location.
Figure 637 RADIUS Server Network Example
44.10.3 ASAS
ASAS (Authenex Strong Authentication System) is a RADIUS server that works with the One-Time Password
(OTP) feature. Purchase a Zyxel Device OTP package in order to use this feature. The package contains
server software and physical OTP tokens (PIN generators). Do the following to use OTP. See the
documentation included on the ASAS’ CD for details.
1 Install the ASAS server software on a computer.
2 Create user accounts on the Zyxel Device and in the ASAS server.
3 Import each token’s database file (located on the included CD) into the server.
4 Assign users to OTP tokens (on the ASAS server).
5 Configure the ASAS as a RADIUS server in the Zyxel Device’s Configuration > Object > AAA Server
screens.
6 Give the OTP tokens to (local or remote) users.
• Use the Configuration > Object > AAA Server > Active Directory (or LDAP) screens (Section 44.10.5 on
page 1016) to configure Active Directory or LDAP server objects.
• Use the Configuration > Object > AAA Server > RADIUS screen (Section 44.10.2 on page 1014) to
configure the default external RADIUS server to use for user authentication.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1015
44.10.4 What You Need To Know
AAA Servers Supported by the Zyxel Device
The following lists the types of authentication server the Zyxel Device supports.
•Local user database
The Zyxel Device uses the built-in local user database to authenticate administrative users logging into
the Zyxel Device’s Web Configurator or network access users logging into the network through the
Zyxel Device. You can also use the local user database to authenticate VPN users.
• Directory Service (LDAP/AD)
LDAP (Lightweight Directory Access Protocol)/AD (Active Directory) is a directory service that is both
a directory and a protocol for controlling access to a network. The directory consists of a database
specialized for fast information retrieval and filtering activities. You create and store user profile and
login information on the external server.
•RADIUS
RADIUS (Remote Authentication Dial-In User Service) authentication is a popular protocol used to
authenticate users by means of an external or built-in RADIUS server. RADIUS authentication allows
you to validate a large number of users from a central location.
Directory Structure
The directory entries are arranged in a hierarchical order much like a tree structure. Normally, the
directory structure reflects the geographical or organizational boundaries. The following figure shows a
basic directory structure branching from countries to organizations to organizational units to individuals.
Figure 638 Basic Directory Structure
Distinguished Name (DN)
A DN uniquely identifies an entry in a directory. A DN consists of attribute-value pairs separated by
commas. The leftmost attribute is the Relative Distinguished Name (RDN). This provides a unique name
Root
US
Japan
Sprint
UPS
NEC
Sales
RD3
QA
CSO
Sales
RD
Countries (c)
Organizations (o)
Organization Units (ou)
Unique
Common Name
(cn)
background
Chapter 44 Object
USG FLEX Series User’s Guide
1016
for entries that have the same “parent DN” (“cn=domain1.com, ou=Sales, o=MyCompany” in the
following examples).
cn=domain1.com, ou = Sales, o=MyCompany, c=US
cn=domain1.com, ou = Sales, o=MyCompany, c=JP
Base DN
A base DN specifies a directory. A base DN usually contains information such as the name of an
organization, a domain name and/or country. For example, o=MyCompany, c=UK where o means
organization and c means country.
Bind DN
A bind DN is used to authenticate with an LDAP/AD server. For example a bind DN of cn=zywallAdmin
allows the Zyxel Device to log into the LDAP/AD server using the user name of zywallAdmin. The bind
DN is used in conjunction with a bind password. When a bind DN is not specified, the Zyxel Device will try
to log in as an anonymous user. If the bind password is incorrect, the login will fail.
44.10.5 Active Directory or LDAP Server Summary
Use the Active Directory or LDAP screen to manage the list of AD or LDAP servers the Zyxel Device can
use in authenticating users.
Click Configuration > Object > AAA Server > Active Directory (or LDAP) to display the Active Directory (or
LDAP) screen.
Figure 639 Configuration > Object > AAA Server > Active Directory (or LDAP)
The following table describes the labels in this screen.
Table 414 Configuration > Object > AAA Server > Active Directory (or LDAP)
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific AD or LDAP server.
Name This field displays the name of the Active Directory.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1017
44.10.5.1 Adding an Active Directory or LDAP Server
Click Object > AAA Server > Active Directory (or LDAP) to display the Active Directory (or LDAP) screen.
Click the Add icon or an Edit icon to display the following screen. Use this screen to create a new AD or
LDAP entry or edit an existing one.
Figure 640 Configuration > Object > AAA Server > Active Directory (or LDAP) > Add
Server Address This is the address of the AD or LDAP server.
Base DN This specifies a directory. For example, o=Zyxel, c=US.
Table 414 Configuration > Object > AAA Server > Active Directory (or LDAP) (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1018
The following table describes the labels in this screen.
Table 415 Configuration > Object > AAA Server > Active Directory (or LDAP) > Add
LABEL DESCRIPTION
Name Enter a descriptive name (up to 63 alphanumerical characters) for identification purposes.
Description Enter the description of each server, if any. ou can use 1 to 60 single-byte characters,
including 0-9a-zA-Z!”#$%’()*+,-/:;=?@_
&.<>[\]^‘{|} are not allowed.
Server Address Enter the address of the AD or LDAP server.
Backup Server
Address
If the AD or LDAP server has a backup server, enter its address here.
Port Specify the port number on the AD or LDAP server to which the Zyxel Device sends
authentication requests. Enter a number between 1 and 65535.
This port number should be the same on all AD or LDAP server(s) in this group.
Base DN Specify the directory (up to 127 alphanumerical characters). For example, o=Zyxel,
c=US
.
This is only for LDAP.
Use SSL Select Use SSL to establish a secure connection to the AD or LDAP server(s).
Search time limit Specify the timeout period (between 1 and 300 seconds) before the Zyxel Device
disconnects from the AD or LDAP server. In this case, user authentication fails.
Search timeout occurs when either the user information is not in the AD or LDAP server(s) or
the AD or LDAP server(s) is down.
Case-sensitive User
Names
Select this if the server checks the case of the usernames.
Bind DN Specify the bind DN for logging into the AD or LDAP server. Enter up to 127 alphanumerical
characters.
For example, cn=zywallAdmin specifies zywallAdmin as the user name.
Password If required, enter the password (up to 15 alphanumerical characters) for the Zyxel Device to
bind (or log in) to the AD or LDAP server.
Your password will be encrypted when you configure this field.
Retype to Confirm Retype your new password for confirmation.
Login Name
Attribute
Enter the type of identifier the users are to use to log in. For example “name” or “email
address”.
Alternative Login
Name Attribute
If there is a second type of identifier that the users can use to log in, enter it here. For example
“name” or “email address”.
Group
Membership
Attribute
An AD or LDAP server defines attributes for its accounts. Enter the name of the attribute that
the Zyxel Device is to check to determine to which group a user belongs. The value for this
attribute is called a group identifier; it determines to which group a user belongs. You can
add ext-group-user user objects to identify groups based on these group identifier values.
For example you could have an attribute named “memberOf” with values like “sales”, “RD”,
and “management”. Then you could also create a ext-group-user user object for each
group. One with “sales” as the group identifier, another for “RD” and a third for
“management”.
Domain
Authentication for
MSChap
Select the Enable checkbox to enable domain authentication for MSChap.
This is only for Active Directory.
User Name Enter the user name for the user who has rights to add a machine to the domain.
This is only for Active Directory.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1019
44.10.6 RADIUS Server Summary
Use the RADIUS screen to manage the list of RADIUS servers the Zyxel Device can use in authenticating
users.
Click Configuration > Object > AAA Server > RADIUS to display the RADIUS screen.
Figure 641 Configuration > Object > AAA Server > RADIUS
The following table describes the labels in this screen.
User Password Enter the password for the associated user name.
This is only for Active Directory.
Retype to Confirm Retype your new password for confirmation.
This is only for Active Directory.
Realm Enter the realm FQDN.
This is only for Active Directory.
NetBIOS Name Type the NetBIOS name. This field is optional. NetBIOS packets are TCP or UDP packets that
enable a computer to connect to and communicate with a LAN which allows local
computers to find computers on the remote network and vice versa.
Configuration
Validation
Use a user account from the server specified above to test if the configuration is correct. Enter
the account’s user name in the Username field and click Test.
OK Click OK to save the changes.
Cancel Click Cancel to discard the changes.
Table 415 Configuration > Object > AAA Server > Active Directory (or LDAP) > Add (continued)
LABEL DESCRIPTION
Table 416 Configuration > Object > AAA Server > RADIUS
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field displays the index number.
Name This is the name of the RADIUS server entry.
Server Address This is the address of the AD or LDAP server.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1020
44.10.6.1 Adding a RADIUS Server
Click Configuration > Object > AAA Server > RADIUS to display the RADIUS screen. Click the Add icon or
an Edit icon to display the following screen. Use this screen to create a new AD or LDAP entry or edit an
existing one.
Figure 642 Configuration > Object > AAA Server > RADIUS > Add
The following table describes the labels in this screen.
Table 417 Configuration > Object > AAA Server > RADIUS > Add
LABEL DESCRIPTION
Name Enter a descriptive name (up to 63 alphanumerical characters) for identification purposes.
Description Enter the description of each server, if any. ou can use 1 to 60 single-byte characters, including
0-9a-zA-Z!”#$%’()*+,-/:;=?@_
&.<>[\]^‘{|} are not allowed.
Server Address Enter the address of the RADIUS server.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1021
Authentication
Port
Specify the port number on the RADIUS server to which the Zyxel Device sends authentication
requests. Enter a number between 1 and 65535.
Backup Server
Address
If the RADIUS server has a backup server, enter its address here.
Backup
Authentication
Port
Specify the port number on the RADIUS server to which the Zyxel Device sends authentication
requests. Enter a number between 1 and 65535.
Key Enter a password (up to 15 alphanumeric characters) as the key to be shared between the
external authentication server and the Zyxel Device. Your password will be encrypted when
you configure this field.
The key is not sent over the network. This key must be the same on the external authentication
server and the Zyxel Device.
Change of
Authorization
The external RADIUS server can change its authentication policy and send CoA (Change of
Authorization) or RADIUS Disconnect messages in order to terminate the subscriber’s service.
Select this option to allow the Zyxel Device to disconnect wireless clients based on the
information (such as client’s user name and MAC address) specified in CoA or RADIUS
Disconnect messages sent by the RADIUS server.
Server Address Enter the IP address or Fully-Qualified Domain Name (FQDN) of the RADIUS accounting server.
Accounting Port Specify the port number on the RADIUS server to which the Zyxel Device sends accounting
information. Enter a number between 1 and 65535.
Backup Server
Address
If the RADIUS server has a backup accounting server, enter its address here.
Backup
Accounting Port
Specify the port number on the RADIUS server to which the Zyxel Device sends accounting
information. Enter a number between 1 and 65535.
Key Enter a password (up to 15 alphanumeric characters) as the key to be shared between the
external authentication server and the Zyxel Device.
The key is not sent over the network. This key must be the same on the external authentication
server and the Zyxel Device.
Maximum Retry
Count
At times the Zyxel Device may not be able to use the primary RADIUS accounting server.
Specify the number of times the Zyxel Device should reattempt to use the primary RADIUS
server before attempting to use the secondary RADIUS server. This also sets how many times the
Zyxel Device will attempt to use the secondary RADIUS server.
For example, you set this field to 3. If the Zyxel Device does not get a response from the primary
RADIUS server, it tries again up to three times. If there is no response, the Zyxel Device tries the
secondary RADIUS server up to three times.
If there is also no response from the secondary RADIUS server, the Zyxel Device stops
attempting to authenticate the subscriber. The subscriber will see a message that says the
RADIUS server was not found.
Enable
Accounting
Interim Update
This field is configurable only after you configure a RADIUS accounting server address. Select
this to have the Zyxel Device send subscriber status updates to the RADIUS server at the interval
you specify.
Interim Interval Specify the time interval for how often the Zyxel Device is to send a subscriber status update to
the RADIUS server.
Timeout Specify the timeout period (between 1 and 300 seconds) before the Zyxel Device disconnects
from the RADIUS server. In this case, user authentication fails.
Search timeout occurs when either the user information is not in the RADIUS server or the
RADIUS server is down.
NAS IP Address Type the IP address of the NAS (Network Access Server).
Table 417 Configuration > Object > AAA Server > RADIUS > Add (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1022
44.11 Auth. Method Overview
Authentication method objects set how the Zyxel Device authenticates wireless, HTTP/HTTPS clients, and
peer IPSec routers (extended authentication) clients. Configure authentication method objects to have
the Zyxel Device use the local user database, and/or the authentication servers and authentication
server groups specified by AAA server objects. By default, user accounts created and stored on the
Zyxel Device are authenticated locally.
• Use the Configuration > Object > Auth. Method screens (Section 44.11.3 on page 1023) to create and
manage authentication method objects.
• Use the Configuration > Object > Auth. Method > Two-Factor Authentication screen (Section 44.11.4
on page 1025) to configure double-layer security to access the Zyxel Device through a VPN tunnel, or
access the Zyxel Device using Web Configurator, SSH, or Telnet.
44.11.1 Before You Begin
Configure AAA server objects before you configure authentication method objects.
44.11.2 Example: Selecting a VPN Authentication Method
After you set up an authentication method object in the Auth. Method screens, you can use it in the VPN
Gateway screen to authenticate VPN users for establishing a VPN connection. Refer to the chapter on
VPN for more information.
Follow the steps below to specify the authentication method for a VPN connection.
1 Access the Configuration > VPN > IPSec VPN > VPN Gateway > Edit screen.
2 Click Show Advance Setting and select Enable Extended Authentication.
NAS Identifier If the RADIUS server requires the Zyxel Device to provide the Network Access Server identifier
attribute with a specific value, enter it here.
Case-sensitive
User Names
Select this if you want configure your username as case-sensitive.
Group
Membership
Attribute
A RADIUS server defines attributes for its accounts. Select the name and number of the
attribute that the Zyxel Device is to check to determine to which group a user belongs. If it does
not display, select user-defined and specify the attribute’s number.
This attribute’s value is called a group identifier; it determines to which group a user belongs.
You can add ext-group-user user objects to identify groups based on these group identifier
values.
For example you could have an attribute named “memberOf” with values like “sales”, “RD”,
and “management”. Then you could also create a ext-group-user user object for each group.
One with “sales” as the group identifier, another for “RD” and a third for “management”.
OK Click OK to save the changes.
Cancel Click Cancel to discard the changes.
Table 417 Configuration > Object > AAA Server > RADIUS > Add (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1023
3 Select Server Mode and select an authentication method object from the drop-down list box.
4 Click OK to save the settings.
Figure 643 Example: Using Authentication Method in VPN
44.11.3 Authentication Method Objects
Click Configuration > Object > Auth. Method to display the screen as shown.
Note: You can create up to 16 authentication method objects.
Figure 644 Configuration > Object > Auth. Method
The following table describes the labels in this screen.
Table 418 Configuration > Object > Auth. Method
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove it
before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field displays the index number.
Method Name This field displays a descriptive name for identification purposes.
Server Profile/
Server Type
This field displays the authentication method(s) for this entry.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1024
44.11.3.1 Creating an Authentication Method Object
Follow the steps below to create an authentication method object.
1 Click Configuration > Object > Auth. Method.
2 Click Add.
3 Specify a descriptive name for identification purposes in the Name field. You may use 1-31
alphanumeric characters, underscores(_), or dashes (-), but the first character cannot be a number. This
value is case-sensitive. For example, “My_Device”.
4 Click Add to insert an authentication method in the table.
5 Select a server object from the Method List drop-down list box.
6 You can add up to four server objects to the table. The ordering of the Method List column is important.
The Zyxel Device authenticates the users using the databases (in the local user database or the external
authentication server) in the order they appear in this screen.
If two accounts with the same username exist on two authentication servers you specify, the Zyxel
Device does not continue the search on the second authentication server when you enter the
username and password that doesn’t match the one on the first authentication server.
Note: You can NoT select two server objects of the same type.
7 Click OK to save the settings or click Cancel to discard all changes and return to the previous screen.
Figure 645 Configuration > Object > Auth. Method > Add
The following table describes the labels in this screen.
Table 419 Configuration > Object > Auth. Method > Add
LABEL DESCRIPTION
Name Specify a descriptive name for identification purposes.
You may use 1-31 alphanumeric characters, underscores(_), or dashes (-), but the first
character cannot be a number. This value is case-sensitive. For example, “My_Device”.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1025
44.11.4 Two-Factor Authentication
Use two-factor authentication to have double-layer security to access the Zyxel Device through a VPN
tunnel, Web Configurator, SSH, or Telnet.
The first layer is the VPN client/Zyxel Device’s login user name / password and the second layer is an
authorized SMS (through mobile phone number) or email address.
44.11.4.1 Overview
This section introduces how two-factor authentication works.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
Move To change a method’s position in the numbered list, select the method and click Move to
display a field to type a number for where you want to put it and press [ENTER] to move the rule
to the number that you typed.
The ordering of your methods is important as Zyxel Device authenticates the users using the
authentication methods in the order they appear in this screen.
# This field displays the index number.
Method List Select a server object from the drop-down list box. You can create a server object in the AAA
Server screen.
The Zyxel Device authenticates the users using the databases (in the local user database or the
external authentication server) in the order they appear in this screen.
If two accounts with the same username exist on two authentication servers you specify, the
Zyxel Device does not continue the search on the second authentication server when you
enter the username and password that doesn’t match the one on the first authentication
server.
OK Click OK to save the changes.
Cancel Click Cancel to discard the changes.
Table 419 Configuration > Object > Auth. Method > Add (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1026
Figure 646 Two-Factor Authentication
VPN Access Through a VPN Tunnel
1 A user runs a VPN client and logs in with the user name and password for this VPN tunnel.
2 The VPN client connects to the Zyxel Device and authenticates using the specified username and
password.
3 The Zyxel Device requests the user’s user-name, password and mobile phone number or email address
from the Active Directory (AD), RADIUS server or local Zyxel Device database in order to authenticate
this user (factor 1). If they are not found, then the Zyxel Device terminates the connection.
4 If all correct credentials are found, then the Zyxel Device performs one of the following actions:
• Emails an authorization link to the admin user
• Requests that the Email-to-SMS cloud system send an SMS with the authorization link
5 The client must open the authorization link or enter the authorization code within a specified deadline
(Valid Time).
6 If the authorization is correct and received on time, then the client can access the secured network (SN)
through the VPN tunnel. If the authorization deadline has expired, then the client has to log into the Zyxel
Device again. If authorization credentials are incorrect or if the SMS/email was not received, then the
client should contact the network administrator.
Admin Access Through the Web Configurator, SSH, or Telnet
1 An admin user connects to the Zyxel Device through the Web Configurator, SSH, or Telnet.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1027
2 The Zyxel Device requests the admin user’s user-name, password and mobile phone number or email
address from the Active Directory (AD), RADIUS server or local Zyxel Device database in order to
authenticate this admin user.
3 If all correct credentials are found, then the Zyxel Device performs one of the following actions:
• Requests the Google Authenticator code
• Emails an authorization link or code to the admin user
• Requests that the Email-to-SMS cloud system send an SMS with an authorization link or code
4 The admin user must open the authorization link or enter the authorization code within a specified
deadline (Valid Time).
5 If the authorization is correct and received on time, then the admin user can log into Zyxel Device. If the
authorization deadline has expired, then the admin user has to log in again. If authorization credentials
are incorrect code was received, then the admin user should contact the network administrator.
44.11.4.2 Pre-configuration
Before configuration, you must:
• Set up the user’s user-name, password and email address or mobile number in the Active Directory,
RADIUS server or local Zyxel Device database
• Enable Two-factor Authentication in Object > User/Group > User > Edit > Two-factor Authentication for
a specific user
• Enable Two-factor Authentication in Object > Auth. Method > Two-factor Authentication for the Zyxel
Device
• Enable HTTP and/or HTTPS in System > WWW > Service Control
• Enable SSH and/or Telnet in System > SSH and/or System > TELNET
•Add HTTP, HTTPS, SSH, and/or, TELNET in the Object > Service > Service Group >
Default_Allow_WAN_To_ZyWALL service group. This service group defines the default services allowed
in the WAN_to_Device security policy.
• For VPN access, configure the VPN tunnel for this user on the Zyxel Device
Email Authentication
•Configure Mail Server in System > Notification > Mail Server.
SMS Authentication
•Configure Mail Server in System > Notification > Mail Server.
•Configure SMS in System > Notification > SMS.
• Have an account with an Email-to-SMS cloud provider to be able to send SMS authorization requests
Google Authentication
• Install Google Authenticator
Two-Factor authentication will fail under the following conditions:
• You omit any of the pre-configuration items. Make sure to perform all pre-configuration items.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1028
• The user cannot receive the authorization SMS or email. Make sure the mobile telephone number or
email address of the user in the Active Directory, RADIUS Server or local Zyxel Device database is
configured correctly.
• Email-to-SMS cloud system authentication fails. Make sure that SMS is enabled and credentials are
correct in System > Notification > SMS.
• Mail server authentication fails. Make sure the System > Notification > Mail Server settings are correct.
• Authorization times out. Extend the Valid Time in Configuration > Object > Auth. Method > Two-factor
Authentication > VPN Access.
• You are unable to access Google Authenticator (you lost your phone or uninstalled the app). Log in
using one of the backup codes.
• You get a Google Authenticator verification error. You must enter the code within the time displayed
in Google Authenticator. The time on your cellphone and the time on the Zyxel Device must be the
same.
Google Authenticator Settings
The following is a list of specifications and limitations on using Google Authenticator for two-factor
authentication.
• Ext-users (authenticated by external servers) are not supported.
• A user must setup Google Authenticator on their mobile device before they can successfully
authenticate with the Zyxel Device.
• Verification code length: 6 digits.
• Maximum verification code failed attempts: 3
• Backup code length: 8 digits
• Google authenticator is supported in device High Availability (HA) mode. The secret keys are
synchronized between all Zyxel Devices.
You can configure two-factor authentication for non-VPN and non-admin users in web authentication.
Note: The admin two-factor authentication settings override the web authentication two-
factor authentication settings if both are configured.
44.11.5 Two-Factor Authentication VPN Access
Use this screen to select the users and VPN services that requires two-factor authentication.
Go to Configuration > Object > Auth. Method > Two-factor Authentication > VPN Access and configure
the following screen as shown.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1029
Figure 647 Configuration > Object > Auth. Method > Two-factor Authentication > VPN Access
The following table describes the labels in this screen.
Table 420 Configuration > Object > Auth. Method > Two-factor Authentication > VPN Access
LABEL DESCRIPTION
General Settings
Enable Select the check box to require double-layer security to access the Zyxel Device through a
VPN tunnel.
Valid Time Enter the maximum time (in minutes) that the user must tap or click the authorization link in the
SMS or email in order to get authorization for the VPN connection.
Two-factor
Authentication
for Services:
Select which kinds of VPN tunnels require Two-Factor Authentication. You should have
configured the VPN tunnel first.
• SSL VPN Access
• IPSec VPN Access
• L2TP/IPSec VPN Access
background
Chapter 44 Object
USG FLEX Series User’s Guide
1030
44.11.6 Two-Factor Authentication Admin Access
Use this screen to select the service (Web, SSH, and TELNET) that requires two-factor authentication for
the admin user.
User/Group This list displays the names of the users and user groups that can be selected for two-factor
authentication. The order of members is not important. Select users and groups from the
Selectable User/Group Objects list that require two-factor authentication for VPN access to a
secured network behind the Zyxel Device and move them to the Selected User/Group Objects
list. You can double-click a single entry to move it or use the [Shift] or [Ctrl] key to select multiple
entries and use the arrow button to move them.
Similarly, move user/groups that do not you do not require two-factor authentication back to
the Selectable User/Group Objects list.
Delivery Settings Use this section to configure how to send an SMS or email for authorization.
Deliver Authorize
Link Method:
The second factor authentication is done by sending a URL link by text (SMS) or email, or using
Google Authenticator. Select one or up to three methods. You will get a URL link by text and
email, and a authentication code for Google Authenticator if you select all three methods. Log
in to the Zyxel Device by either clicking the URL in the text or email you received, or enter the
authentication code in Google Authenticator.
•SMS: Object > User/Group > User must contain a valid mobile telephone number. A valid
mobile telephone number can be up to 20 characters in length, including the numbers 1~9
and the following characters in the square brackets [+*#()-].
•Email: Object > User/Group > User must contain a valid email address. A valid email address
must contain the @ character. For example, this is a valid email address:
[email protected]
• Google Authenticator: You must first set up your Zyxel Device on the Google Authenticator
app in Configuration > Object > User/Group > User > Add > Two-factor Authentication; see
Section 44.3.4 on page 939 for more information. Then enter a time-limited code from the
Google Authenticator app.
Authorize Link
URL Address:
Configure the link that the user will receive in the SMS or email. The user must be able to access
the link.
• http/https: you must enable HTTP or HTTPS in System > WWW > Service Control
• From Interface/User-Defined: select the Zyxel Device WAN interface (wan1/2) or select
User-Defined and then enter an IP address.
Authorized Port Configure a new port between 1024 to 65535 that is not in use by other services.
Use this port for two-factor authentication of VPN clients to access the network behind the Zyxel
Device. VPN clients do not need to change the port number on their devices, because the link
to access the network behind the Zyxel Devices will contain the new port number.
For example, if you change this to port 8008 and the link is using a.b.c.d, then VPN clients will
see this link in their email or SMS to retrieve settings: https://a.b.c.d:8008.
Message You can either create a default message in the text box or upload a message file (Use
Multilingual file) from your computer. The message file must be named '2FA-msg.txt' and be in
UTF-8 format. To create the file, click Download the default 2FA-msg.txt example and edit the
file for your needs. (If you make a mistake, use Restore Customized File to Default to restore your
customized file to the default.) Use Select a File Path to locate the final file on your computer
and then click Upload to transfer it to the Zyxel Device.
The message in either the text box or the file must contain the <url> variable within angle
brackets, while the <user>, <host>, and <time> variables are optional.
Apply Click Apply to save the changes.
Reset Click Reset to return the screen to its last-saved settings.
Table 420 Configuration > Object > Auth. Method > Two-factor Authentication > VPN
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1031
Go to Configuration > Object > Auth. Method > Two-factor Authentication > Admin Access and
configure the following screen as shown.
Figure 648 Configuration > Object > Auth. Method > Two-factor Authentication > Admin Access
The following table describes the labels in this screen.
44.11.7 Example: Admin Login with Two-factor Authentication by SMS
Email-to-SMS service allows you to convert an email to a SMS message with an authentication code that
is used for two-factor authentication login to the Zyxel Device. The user can receive an SMS message
even if he has no Internet connection.
Table 421 Configuration > Object > Auth. Method > Two-factor Authentication > Admin Access
LABEL DESCRIPTION
General Settings
Enable Select the check box to require double-layer security to access the Zyxel Device through the
Web Configurator, SSH, or Telnet.
Valid Time Enter the maximum time (in minutes) that the user must click or tap the authorization link in the
SMS or email in order to get authorization for logins through the Web Configurator, SSH, or
Telnet.
Two-factor
Authentication
for Services:
Select which services require Two-Factor Authentication for the admin user.
•Web
•SSH
•TELNET
Delivery Settings Use this section to configure how to send an SMS or email for authorization.
Verification
Code Delivery
Method
Select one or both (All) methods:
• SMS: Object > User/Group > User must contain a valid mobile telephone number. A valid
mobile telephone number can be up to 20 characters in length, including the numbers 1~9
and the following characters in the square brackets [+*#()-].
• Email: Object > User/Group > User must contain a valid email address. A valid email address
must contain the @ character. For example, this is a valid email address:
[email protected]
Apply Click Apply to save the changes.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1032
1 First subscribe for an Email-to-SMS service. Enter the email address which will send email to the Email-to-
SMS service.
2 Then, in the Zyxel Device web configurator, go to CONFIGURATION > System > Notification > SMS and
enter the SMS Provider Email server domain name in Provider Domain, and the sender’s email address in
Mail From.
3 Next, go to CONFIGURATION > System > Notification > Mail to set up the following fields for the mail
server:
• Mail server
• Mail server ports
• Mail From
• SMTP Authentication
4 Then go to Configuration > Object > User/Group > User > Add to create an admin type user. Enter the
phone number for this user to receive SMS messages.
5 Next, set up two-factor authentication for this user in CONFIGURATION > Object > Auth Method > Two-
Factor Authentication > Admin Access. Select which services, HTTPS (web), SSH and/or Telnet which
requires Two-Factor authentication, and the user. Select SMS to send the verification code by SMS.
When this user logs into the Zyxel Device he will be asked to enter the verification code that was sent by
SMS to his mobile phone.
44.12 Certificate Overview
The Zyxel Device can use certificates (also called digital IDs) to authenticate users. Certificates are
based on public-private key pairs. A certificate contains the certificate owner’s identity and public key.
Certificates provide a way to exchange public keys for use in authentication.
• Use the My Certificates screens (see Section 44.12.3 on page 1035 to Section 44.12.3.3 on page 1043)
to generate and export self-signed certificates or certification requests and import the CA-signed
certificates.
• Use the Trusted Certificates screens (see Section 44.12.4 on page 1044 to Section 44.12.4.2 on page
1048) to save CA certificates and trusted remote host certificates to the Zyxel Device. The Zyxel
Device trusts any valid certificate that you have imported as a trusted certificate. It also trusts any
valid certificate signed by any of the certificates that you have imported as a trusted certificate.
44.12.1 What You Need to Know
When using public-key cryptology for authentication, each host has two keys. One key is public and can
be made openly available. The other key is private and must be kept secure.
These keys work like a handwritten signature (in fact, certificates are often referred to as “digital
signatures”). Only you can write your signature exactly as it should look. When people know what your
signature looks like, they can verify whether something was signed by you, or by someone else. In the
same way, your private key “writes” your digital signature and your public key allows people to verify
whether data was signed by you, or by someone else. This process works as follows.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1033
1 Tim wants to send a message to Jenny. He needs her to be sure that it comes from him, and that the
message content has not been altered by anyone else along the way. Tim generates a public key pair
(one public key and one private key).
2 Tim keeps the private key and makes the public key openly available. This means that anyone who
receives a message seeming to come from Tim can read it and verify whether it is really from him or not.
3 Tim uses his private key to sign the message and sends it to Jenny.
4 Jenny receives the message and uses Tim’s public key to verify it. Jenny knows that the message is from
Tim, and that although other people may have been able to read the message, no-one can have
altered it (because they cannot re-sign the message with Tim’s private key).
5 Additionally, Jenny uses her own private key to sign a message and Tim uses Jenny’s public key to verify
the message.
The Zyxel Device uses certificates based on public-key cryptology to authenticate users attempting to
establish a connection, not to encrypt the data that you send after establishing a connection. The
method used to secure the data that you send through an established connection depends on the
type of connection. For example, a VPN tunnel might use the triple DES encryption algorithm.
The certification authority uses its private key to sign certificates. Anyone can then use the certification
authority’s public key to verify the certificates.
A certification path is the hierarchy of certification authority certificates that validate a certificate. The
Zyxel Device does not trust a certificate if any certificate on its path has expired or been revoked.
Certification authorities maintain directory servers with databases of valid and revoked certificates. A
directory of certificates that have been revoked before the scheduled expiration is called a CRL
(Certificate Revocation List). The Zyxel Device can check a peer’s certificate against a directory server’s
list of revoked certificates. The framework of servers, software, procedures and policies that handles keys
is called PKI (public-key infrastructure).
Advantages of Certificates
Certificates offer the following benefits.
• The Zyxel Device only has to store the certificates of the certification authorities that you decide to
trust, no matter how many devices you need to authenticate.
• Key distribution is simple and very secure since you can freely distribute public keys and you never
need to transmit private keys.
Self-signed Certificates
You can have the Zyxel Device act as a certification authority and sign its own certificates.
Factory Default Certificate
The Zyxel Device generates its own unique self-signed certificate when you first turn it on. This certificate
is referred to in the GUI as the factory default certificate.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1034
Certificate File Formats
Any certificate that you want to import has to be in one of these file formats:
• Binary X.509: This is an ITU-T recommendation that defines the formats for X.509 certificates.
• PEM (Base-64) encoded X.509: This Privacy Enhanced Mail format uses lowercase letters, uppercase
letters and numerals to convert a binary X.509 certificate into a printable form.
• Binary PKCS#7: This is a standard that defines the general syntax for data (including digital signatures)
that may be encrypted. A PKCS #7 file is used to transfer a public key certificate. The private key is not
included. The Zyxel Device currently allows the importation of a PKS#7 file that contains a single
certificate.
• PEM (Base-64) encoded PKCS#7: This Privacy Enhanced Mail (PEM) format uses lowercase letters,
uppercase letters and numerals to convert a binary PKCS#7 certificate into a printable form.
• Binary PKCS#12: This is a format for transferring public key and private key certificates. The private key
in a PKCS #12 file is within a password-encrypted envelope. The file’s password is not connected to
your certificate’s public or private passwords. Exporting a PKCS #12 file creates this and you must
provide it to decrypt the contents when you import the file into the Zyxel Device.
Note: Be careful not to convert a binary file to text during the transfer process. It is easy for this
to occur since many programs use text files by default.
44.12.2 Verifying a Certificate
Before you import a trusted certificate into the Zyxel Device, you should verify that you have the correct
certificate. You can do this using the certificate’s fingerprint. A certificate’s fingerprint is a message
digest calculated using the MD5 or SHA1 algorithm. The following procedure describes how to check a
certificate’s fingerprint to verify that you have the actual certificate.
1 Browse to where you have the certificate saved on your computer.
2 Make sure that the certificate has a “.cer” or “.crt” file name extension.
Figure 649 Remote Host Certificates
3 Double-click the certificate’s icon to open the Certificate window. Click the Details tab and scroll down
to the Thumbprint Algorithm and Thumbprint fields.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1035
Figure 650 Certificate Details
4 Use a secure method to verify that the certificate owner has the same information in the Thumbprint
Algorithm and Thumbprint fields. The secure method may very based on your situation. Possible
examples would be over the telephone or through an HTTPS connection.
44.12.3 The My Certificates Screen
Click Configuration > Object > Certificate > My Certificates to open the My Certificates screen. This is the
Zyxel Device’s summary list of certificates and certification requests.
Figure 651 Configuration > Object > Certificate > My Certificates
background
Chapter 44 Object
USG FLEX Series User’s Guide
1036
The following table describes the labels in this screen.
Table 422 Configuration > Object > Certificate > My Certificates
LABEL DESCRIPTION
PKI Storage Space
in Use
This bar displays the percentage of the Zyxel Device’s PKI storage space that is currently in
use. When the storage space is almost full, you should consider deleting expired or
unnecessary certificates before adding more certificates.
Add Click this to go to the screen where you can have the Zyxel Device generate a certificate or
a certification request.
Edit Double-click an entry or select it and click Edit to open a screen with an in-depth list of
information about the certificate.
Remove The Zyxel Device keeps all of your certificates unless you specifically delete them. Uploading
a new firmware or default configuration file does not delete your certificates. To remove an
entry, select it and click Remove. The Zyxel Device confirms you want to remove it before
doing so. Subsequent certificates move up by one when you take this action.
References You cannot delete certificates that any of the Zyxel Device’s features are configured to use.
Select an entry and click References to open a screen that shows which settings use the
entry.
Download Click this and the following screen will appear.
Type the selected certificate’s password and save the selected certificate to your computer.
Figure 652 Download a Certificate
background
Chapter 44 Object
USG FLEX Series User’s Guide
1037
Email Click this to email the selected certificate to the configured email address(es) for SSL
connection establishment. This enables you to establish an SSL connection on your laptops,
tablets, or smartphones.
Click this and the following screen will appear.
Here are the field descriptions:
• Mail Subject: Type the subject line for outgoing email from the Zyxel Device.
• Mail To: Type the email address (or addresses) to which the outgoing email is
delivered.
• Send Certificate with Private Key: Select the check box to send the selected
certificate with a private key.
• Password: Enter a private key of up to 31 keyboard characters for the certificate.
The special characters listed in the brackets [;\|`~!@#$%^&*()_+\\{}':,./<>=-"]
are allowed.
• E-mail Content: Create the email content in English, and use up to 250 keyboard
characters. The special characters listed in the brackets
[;\|`~!@#$%^&*()_+\\{}':,./<>=-"] are allowed.
• Compress as a ZIP File: Select the check box to compress the selected
certificate.
Make sure the endpoint devices can decompress ZIP files before sending the
compressed certificate.
It's recommended to compress the certificate with a private key. Some email
servers block PKCS #12 files.
• Send Email: Click this to send the selected certificate.
• Cancel: Click this to return to the previous screen without saving your changes.
Figure 653 Email My Certificate
# This field displays the certificate index number. The certificates are listed in alphabetical order.
Name This field displays the name used to identify this certificate. It is recommended that you give
each certificate a unique name.
Table 422 Configuration > Object > Certificate > My Certificates (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1038
44.12.3.1 The My Certificates Add Screen
Click Configuration > Object > Certificate > My Certificates and then the Add icon to open the My
Certificates Add screen. Use this screen to have the Zyxel Device create a self-signed certificate, enroll a
certificate with a certification authority or generate a certification request.
Type This field displays what kind of certificate this is.
REQ represents a certification request and is not yet a valid certificate. Send a certification
request to a certification authority, which then issues a certificate. Use the My Certificate
Import screen to import the certificate and replace the request.
SELF represents a self-signed certificate.
CERT represents a certificate issued by a certification authority.
Subject This field displays identifying information about the certificate’s owner, such as CN (Common
Name), OU (Organizational Unit or department), O (Organization or company) and C
(Country). It is recommended that each certificate have unique subject information.
Issuer This field displays identifying information about the certificate’s issuing certification authority,
such as a common name, organizational unit or department, organization or company and
country. With self-signed certificates, this is the same information as in the Subject field.
Valid From This field displays the date that the certificate becomes applicable.
Valid To This field displays the date that the certificate expires. The text displays in red and includes an
Expired! message if the certificate has expired.
Import Click Import to open a screen where you can save a certificate to the Zyxel Device.
Refresh Click Refresh to display the current validity status of the certificates.
Table 422 Configuration > Object > Certificate > My Certificates (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1039
Figure 654 Configuration > Object > Certificate > My Certificates > Add
The following table describes the labels in this screen.
Table 423 Configuration > Object > Certificate > My Certificates > Add
LABEL DESCRIPTION
Name Type a name to identify this certificate. You can use up to 31 alphanumeric and
;‘~!@#$%^&()_+[]{}’,.=-
characters.
Subject Information Use these fields to record information that identifies the owner of the certificate. You do
not have to fill in every field, although you must specify a Host IP Address, Host IPv6
Address, Host Domain Name, or E-Mail. The certification authority may add fields (such as
a serial number) to the subject information when it issues a certificate. It is recommended
that each certificate have unique subject information.
Select a radio button to identify the certificate’s owner by IP address, domain name or
email address. Type the IP address (in dotted decimal notation), domain name or email
address in the field provided. The domain name or email address is for identification
purposes only and can be any string.
A domain name can be up to 255 characters. You can use alphanumeric characters, the
hyphen and periods.
An email address can be up to 63 characters. You can use alphanumeric characters, the
hyphen, the @ symbol, periods and the underscore.
Organizational Unit Identify the organizational unit or department to which the certificate owner belongs. You
can use up to 31 characters. You can use alphanumeric characters, the hyphen and the
underscore.
Organization Identify the company or group to which the certificate owner belongs. You can use up to
31 characters. You can use alphanumeric characters, the hyphen and the underscore.
Town (City) Identify the town or city where the certificate owner is located. You can use up to 31
characters. You can use alphanumeric characters, the hyphen and the underscore.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1040
If you configured the My Certificate Create screen to have the Zyxel Device enroll a certificate and the
certificate enrollment is not successful, you see a screen with a Return button that takes you back to the
My Certificate Create screen. Click Return and check your information in the My Certificate Create
screen. Make sure that the certification authority information is correct and that your Internet
connection is working properly if you want the Zyxel Device to enroll a certificate online.
44.12.3.2 The My Certificates Edit Screen
Click Configuration > Object > Certificate > My Certificates and then the Edit icon to open the My
Certificate Edit screen. You can use this screen to view in-depth certificate information and change the
certificate’s name.
State, (Province) Identify the state or province where the certificate owner is located. You can use up to 31
characters. You can use alphanumeric characters, the hyphen and the underscore.
Country Enter a two-letter country code to Identify the nation where the certificate owner is
located.
Key Type This sets the certificate’s encryption algorithm and signature hash algorithm.
Encryption algorithms:
• RSA: Rivest, Shamir and Adleman public-key algorithm.
• DSA: Digital Signature Algorithm public-key algorithm.
• ECDSA: Elliptic Curve Digital Signature Algorithm.
Signature hash algorithms:
• SHA256
• SHA384
• SHA512
RSA and SHA256 are less secure but more compatible with different clients and
applications. ECDSA and SHA512 are the more secure but less compatible.
Key Length Select a number from the drop-down list box to determine how many bits the key should
use (1024 to 2048). The longer the key, the more secure it is. A longer key also uses more
PKI storage space. ECDSA keys are significant shorter than RSA and DSA keys, while
offering equal or higher security.
LifeTimes Select how long the certificate is valid. It can be valid from 2 to 10 years.
Extended Key Usage
Server Authentication Select this to have Zyxel Device generate and store a request for server authentication
certificate.
Client Authentication Select this to have Zyxel Device generate and store a request for client authentication
certificate.
IKE Intermediate Select this to have Zyxel Device generate and store a request for IKE Intermediate
authentication certificate.
Create a self-signed
certificate
Select this to have the Zyxel Device generate the certificate and act as the Certification
Authority (CA) itself. This way you do not need to apply to a certification authority for
certificates.
Create a certification
request and save it
locally for later
manual enrollment
Select this to have the Zyxel Device generate and store a request for a certificate. Use the
My Certificate Details screen to view the certification request and copy it to send to the
certification authority.
Copy the certification request from the My Certificate Details screen (see Section 44.12.3.2
on page 1040) and then send it to the certification authority.
OK Click OK to begin certificate or certification request generation.
Cancel Click Cancel to quit and return to the My Certificates screen.
Table 423 Configuration > Object > Certificate > My Certificates > Add (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1041
Figure 655 Configuration > Object > Certificate > My Certificates > Edit
The following table describes the labels in this screen.
Table 424 Configuration > Object > Certificate > My Certificates > Edit
LABEL DESCRIPTION
Name This field displays the identifying name of this certificate. You can use up to 31 alphanumeric
and ;‘~!@#$%^&()_+[]{}’,.=-
characters.
Certification Path This field displays for a certificate, not a certification request.
Click the Refresh button to have this read-only text box display the hierarchy of certification
authorities that validate the certificate (and the certificate itself).
If the issuing certification authority is one that you have imported as a trusted certification
authority, it may be the only certification authority in the list (along with the certificate itself).
If the certificate is a self-signed certificate, the certificate itself is the only one in the list. The
Zyxel Device does not trust the certificate and displays “Not trusted” in this field if any
certificate on the path has expired or been revoked.
Refresh Click Refresh to display the certification path.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1042
Certificate
Information
These read-only fields display detailed information about the certificate.
Type This field displays general information about the certificate. CA-signed means that a
Certification Authority signed the certificate. Self-signed means that the certificate’s owner
signed the certificate (not a certification authority). “X.509” means that this certificate was
created and signed according to the ITU-T X.509 recommendation that defines the formats
for public-key certificates.
Version This field displays the X.509 version number.
Serial Number This field displays the certificate’s identification number given by the certification authority
or generated by the Zyxel Device.
Subject This field displays information that identifies the owner of the certificate, such as Common
Name (CN), Organizational Unit (OU), Organization (O), State (ST), and Country (C).
Issuer This field displays identifying information about the certificate’s issuing certification
authority, such as Common Name, Organizational Unit, Organization and Country.
With self-signed certificates, this is the same as the Subject Name field.
“none” displays for a certification request.
Signature Algorithm This field displays the type of algorithm that was used to sign the certificate. The Zyxel
Device uses rsa-pkcs1-sha1 (RSA public-private key encryption algorithm and the SHA1
hash algorithm). Some certification authorities may use rsa-pkcs1-md5 (RSA public-private
key encryption algorithm and the MD5 hash algorithm).
Valid From This field displays the date that the certificate becomes applicable. “none” displays for a
certification request.
Valid To This field displays the date that the certificate expires. The text displays in red and includes
an Expired! message if the certificate has expired. “none” displays for a certification
request.
Key Algorithm This field displays the type of algorithm that was used to generate the certificate’s key pair
(the Zyxel Device uses RSA encryption) and the length of the key set in bits (1024 bits for
example).
Subject Alternative
Name
This field displays the certificate owner‘s IP address (IP), domain name (DNS) or email
address (EMAIL).
Key Usage This field displays for what functions the certificate’s key can be used. For example,
“DigitalSignature” means that the key can be used to sign certificates and
“KeyEncipherment” means that the key can be used to encrypt text.
Extended Key Usage This field displays how the Zyxel Device generates and stores a request for server
authentication, client authentication, or IKE Intermediate authentication certificate.
Basic Constraint This field displays general information about the certificate. For example, Subject Type=CA
means that this is a certification authority’s certificate and “Path Length Constraint=1”
means that there can only be one certification authority in the certificate’s path. This field
does not display for a certification request.
MD5 Fingerprint This is the certificate’s message digest that the Zyxel Device calculated using the MD5
algorithm.
SHA1 Fingerprint This is the certificate’s message digest that the Zyxel Device calculated using the SHA1
algorithm.
Table 424 Configuration > Object > Certificate > My Certificates > Edit (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1043
44.12.3.3 The My Certificates Import Screen
Click Configuration > Object > Certificate > My Certificates > Import to open the My Certificate Import
screen. Follow the instructions in this screen to save an existing certificate to the Zyxel Device.
Note: You can import a certificate that matches a corresponding certification request that
was generated by the Zyxel Device. You can also import a certificate in PKCS#12
format, including the certificate’s public and private keys.
The certificate you import replaces the corresponding request in the My Certificates screen.
You must remove any spaces from the certificate’s filename before you can import it.
Figure 656 Configuration > Object > Certificate > My Certificates > Import
Certificate in PEM
(Base-64) Encoded
Format
This read-only text box displays the certificate or certification request in Privacy Enhanced
Mail (PEM) format. PEM uses lowercase letters, uppercase letters and numerals to convert a
binary certificate into a printable form.
You can copy and paste a certification request into a certification authority’s web page,
an email that you send to the certification authority or a text editor and save the file on a
management computer for later manual enrollment.
You can copy and paste a certificate into an email to send to friends or colleagues or you
can copy and paste a certificate into a text editor and save the file on a management
computer for later distribution (through external storage device for example).
Export Certificate
Only
Use this button to save a copy of the certificate without its private key. Click this button and
then Save in the File Download screen. The Save As screen opens, browse to the location
that you want to use and click Save.
Password If you want to export the certificate with its private key, create a password and type it here.
Make sure you keep this password in a safe place. You will need to use it if you import the
certificate to another device.
Export Certificate
with Private Key
Use this button to save a copy of the certificate with its private key. Type the certificate’s
password and click this button. Click Save in the File Download screen. The Save As screen
opens, browse to the location that you want to use and click Save.
OK Click OK to save your changes back to the Zyxel Device. You can only change the name.
Cancel Click Cancel to quit and return to the My Certificates screen.
Table 424 Configuration > Object > Certificate > My Certificates > Edit (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1044
The following table describes the labels in this screen.
44.12.4 The Trusted Certificates Screen
Click Configuration > Object > Certificate > Trusted Certificates to open the Trusted Certificates screen.
This screen displays a summary list of certificates that you have set the Zyxel Device to accept as trusted.
The Zyxel Device also accepts any valid certificate signed by a certificate on this list as being
trustworthy; thus you do not need to import any certificate that is signed by one of these certificates.
Figure 657 Configuration > Object > Certificate > Trusted Certificates
The following table describes the labels in this screen.
Table 425 Configuration > Object > Certificate > My Certificates > Import
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click Browse to find it.
You cannot import a certificate with the same name as a certificate that is already in the Zyxel
Device.
Browse Click Browse to find the certificate file you want to upload.
Password This field only applies when you import a binary PKCS#12 format file. Type the file’s password that was
created when the PKCS #12 file was exported.
OK Click OK to save the certificate on the Zyxel Device.
Cancel Click Cancel to quit and return to the My Certificates screen.
Table 426 Configuration > Object > Certificate > Trusted Certificates
LABEL DESCRIPTION
PKI Storage Space
in Use
This bar displays the percentage of the Zyxel Device’s PKI storage space that is currently in
use. When the storage space is almost full, you should consider deleting expired or
unnecessary certificates before adding more certificates.
Edit Double-click an entry or select it and click Edit to open a screen with an in-depth list of
information about the certificate.
Remove The Zyxel Device keeps all of your certificates unless you specifically delete them. Uploading a
new firmware or default configuration file does not delete your certificates. To remove an
entry, select it and click Remove. The Zyxel Device confirms you want to remove it before
doing so. Subsequent certificates move up by one when you take this action.
References You cannot delete certificates that any of the Zyxel Device’s features are configured to use.
Select an entry and click References to open a screen that shows which settings use the entry.
# This field displays the certificate index number. The certificates are listed in alphabetical order.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1045
44.12.4.1 The Trusted Certificates Edit Screen
Click Configuration > Object > Certificate > Trusted Certificates and then a certificate’s Edit icon to open
the Trusted Certificates Edit screen. Use this screen to view in-depth information about the certificate,
change the certificate’s name and set whether or not you want the Zyxel Device to check a
certification authority’s list of revoked certificates before trusting a certificate issued by the certification
authority.
Name This field displays the name used to identify this certificate.
Subject This field displays identifying information about the certificate’s owner, such as CN (Common
Name), OU (Organizational Unit or department), O (Organization or company) and C
(Country). It is recommended that each certificate have unique subject information.
Issuer This field displays identifying information about the certificate’s issuing certification authority,
such as a common name, organizational unit or department, organization or company and
country. With self-signed certificates, this is the same information as in the Subject field.
Valid From This field displays the date that the certificate becomes applicable.
Valid To This field displays the date that the certificate expires. The text displays in red and includes an
Expired! message if the certificate has expired.
Import Click Import to open a screen where you can save the certificate of a certification authority
that you trust, from your computer to the Zyxel Device.
Refresh Click this button to display the current validity status of the certificates.
Table 426 Configuration > Object > Certificate > Trusted Certificates (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1046
Figure 658 Configuration > Object > Certificate > Trusted Certificates > Edit
background
Chapter 44 Object
USG FLEX Series User’s Guide
1047
The following table describes the labels in this screen.
Table 427 Configuration > Object > Certificate > Trusted Certificates > Edit
LABEL DESCRIPTION
Name This field displays the identifying name of this certificate. You can change the name. You
can use up to 31 alphanumeric and ;‘~!@#$%^&()_+[]{}’,.=-
characters.
Certification Path Click the Refresh button to have this read-only text box display the end entity’s certificate
and a list of certification authority certificates that shows the hierarchy of certification
authorities that validate the end entity’s certificate. If the issuing certification authority is
one that you have imported as a trusted certificate, it may be the only certification
authority in the list (along with the end entity’s own certificate). The Zyxel Device does not
trust the end entity’s certificate and displays “Not trusted” in this field if any certificate on
the path has expired or been revoked.
Refresh Click Refresh to display the certification path.
Enable X.509v3 CRL
Distribution Points
and OCSP checking
Select this check box to turn on/off certificate revocation. When it is turned on, the Zyxel
Device validates a certificate by getting Certificate Revocation List (CRL) through HTTP or
LDAP (can be configured after selecting the LDAP Server check box) and online responder
(can be configured after selecting the OCSP Server check box).
OCSP Server Select this check box if the directory server uses OCSP (Online Certificate Status Protocol).
URL Type the protocol, IP address and path name of the OCSP server.
ID The Zyxel Device may need to authenticate itself in order to assess the OCSP server. Type
the login name (up to 31 ASCII characters) from the entity maintaining the server (usually a
certification authority).
Password Type the password (up to 31 ASCII characters) from the entity maintaining the OCSP server
(usually a certification authority).
LDAP Server Select this check box if the directory server uses LDAP (Lightweight Directory Access
Protocol). LDAP is a protocol over TCP that specifies how clients access directories of
certificates and lists of revoked certificates.
Address Type the IP address (in dotted decimal notation) of the directory server.
Port Use this field to specify the LDAP server port number. You must use the same server port
number that the directory server uses. 389 is the default server port number for LDAP.
ID The Zyxel Device may need to authenticate itself in order to assess the CRL directory server.
Type the login name (up to 31 ASCII characters) from the entity maintaining the server
(usually a certification authority).
Password Type the password (up to 31 ASCII characters) from the entity maintaining the CRL directory
server (usually a certification authority).
Certificate
Information
These read-only fields display detailed information about the certificate.
Type This field displays general information about the certificate. CA-signed means that a
Certification Authority signed the certificate. Self-signed means that the certificate’s owner
signed the certificate (not a certification authority). X.509 means that this certificate was
created and signed according to the ITU-T X.509 recommendation that defines the formats
for public-key certificates.
Version This field displays the X.509 version number.
Serial Number This field displays the certificate’s identification number given by the certification authority.
Subject This field displays information that identifies the owner of the certificate, such as Common
Name (CN), Organizational Unit (OU), Organization (O) and Country (C).
Issuer This field displays identifying information about the certificate’s issuing certification
authority, such as Common Name, Organizational Unit, Organization and Country.
With self-signed certificates, this is the same information as in the Subject Name field.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1048
44.12.4.2 The Trusted Certificates Import Screen
Click Configuration > Object > Certificate > Trusted Certificates > Import to open the Trusted Certificates
Import screen. Follow the instructions in this screen to save a trusted certificate to the Zyxel Device.
Note: You must remove any spaces from the certificate’s filename before you can import the
certificate.
Signature Algorithm This field displays the type of algorithm that was used to sign the certificate. Some
certification authorities use rsa-pkcs1-sha1 (RSA public-private key encryption algorithm
and the SHA1 hash algorithm). Other certification authorities may use rsa-pkcs1-md5 (RSA
public-private key encryption algorithm and the MD5 hash algorithm).
Valid From This field displays the date that the certificate becomes applicable. The text displays in red
and includes a Not Yet Valid! message if the certificate has not yet become applicable.
Valid To This field displays the date that the certificate expires. The text displays in red and includes
an Expiring! or Expired! message if the certificate is about to expire or has already expired.
Key Algorithm This field displays the type of algorithm that was used to generate the certificate’s key pair
(the Zyxel Device uses RSA encryption) and the length of the key set in bits (1024 bits for
example).
Subject Alternative
Name
This field displays the certificate’s owner‘s IP address (IP), domain name (DNS) or email
address (EMAIL).
Key Usage This field displays for what functions the certificate’s key can be used. For example,
“DigitalSignature” means that the key can be used to sign certificates and
“KeyEncipherment” means that the key can be used to encrypt text.
Extended Key Usage This field displays the method that the Zyxel Device generates and stores a request for server
authentication, client authentication, or IKE Intermediate authentication certificate.
Zyxel
Device
Basic Constraint This field displays general information about the certificate. For example, Subject Type=CA
means that this is a certification authority’s certificate and “Path Length Constraint=1”
means that there can only be one certification authority in the certificate’s path.
MD5 Fingerprint This is the certificate’s message digest that the Zyxel Device calculated using the MD5
algorithm. You can use this value to verify with the certification authority (over the phone for
example) that this is actually their certificate.
SHA1 Fingerprint This is the certificate’s message digest that the Zyxel Device calculated using the SHA1
algorithm. You can use this value to verify with the certification authority (over the phone for
example) that this is actually their certificate.
Certificate This read-only text box displays the certificate or certification request in Privacy Enhanced
Mail (PEM) format. PEM uses lowercase letters, uppercase letters and numerals to convert a
binary certificate into a printable form.
You can copy and paste the certificate into an email to send to friends or colleagues or
you can copy and paste the certificate into a text editor and save the file on a
management computer for later distribution (through external storage device for
example).
Export Certificate Click this button and then Save in the File Download screen. The Save As screen opens,
browse to the location that you want to use and click Save.
OK Click OK to save your changes back to the Zyxel Device. You can only change the name.
Cancel Click Cancel to quit and return to the Trusted Certificates screen.
Table 427 Configuration > Object > Certificate > Trusted Certificates > Edit (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1049
Figure 659 Configuration > Object > Certificate > Trusted Certificates > Import
The following table describes the labels in this screen.
44.12.5 Certificates Technical Reference
OCSP
OCSP (Online Certificate Status Protocol) allows an application or device to check whether a certificate
is valid. With OCSP the Zyxel Device checks the status of individual certificates instead of downloading a
Certificate Revocation List (CRL). OCSP has two main advantages over a CRL. The first is real-time status
information. The second is a reduction in network traffic since the Zyxel Device only gets information on
the certificates that it needs to verify, not a huge list. When the Zyxel Device requests certificate status
information, the OCSP server returns a “expired”, “current” or “unknown” response.
44.13 ISP Account Overview
Use ISP accounts to manage Internet Service Provider (ISP) account information for PPPoE/PPTP/L2TP
interfaces. An ISP account is a profile of settings for Internet access using PPPoE, PPTP or L2TP.
Use the Object > ISP Account screens (Section 44.13.1 on page 1049) to create and manage ISP
accounts in the Zyxel Device.
44.13.1 ISP Account Summary
This screen provides a summary of ISP accounts in the Zyxel Device. To access this screen, click
Configuration > Object > ISP Account.
Table 428 Configuration > Object > Certificate > Trusted Certificates > Import
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click Browse to find it.
You cannot import a certificate with the same name as a certificate that is already in the Zyxel
Device.
Browse Click Browse to find the certificate file you want to upload.
OK Click OK to save the certificate on the Zyxel Device.
Cancel Click Cancel to quit and return to the previous screen.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1050
Figure 660 Configuration > Object > ISP Account
The following table describes the labels in this screen. See the ISP Account Add/Edit section below for
more information as well.
44.13.1.1 ISP Account Add/Edit
The ISP Account Add/Edit screen lets you add information about new accounts and edit information
about existing accounts. To open this window, open the ISP Account screen. (See
Section 44.13.1 on
page 1049.) Then, click on an Add icon or Edit icon to open the ISP Account Edit screen below.
Table 429 Configuration > Object > ISP Account
LABEL DESCRIPTION
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific entry.
Profile Name This field displays the profile name of the ISP account. This name is used to identify the ISP
account.
Protocol This field displays the protocol used by the ISP account.
Authentication
Type
This field displays the authentication type used by the ISP account.
User Name This field displays the user name of the ISP account.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1051
Figure 661 Configuration > Object > ISP Account > Edit
The following table describes the labels in this screen.
Table 430 Configuration > Object > ISP Account > Edit
LABEL DESCRIPTION
Profile Name This field is read-only if you are editing an existing account. Type in the profile name of the ISP
account. The profile name is used to refer to the ISP account. You may use 1-31 alphanumeric
characters, underscores(
_), or dashes (-), but the first character cannot be a number. This
value is case-sensitive.
Protocol This field is read-only if you are editing an existing account. Select the protocol used by the ISP
account. Your ISP will provide you with a related username, password and IP (server)
information. Options are:
pppoe - This ISP account uses the PPPoE protocol.
pptp - This ISP account uses the PPTP protocol.
l2tp - This ISP account uses the L2TP protocol.
Authentication
Type
Use the drop-down list box to select an authentication protocol for outgoing calls. Options are:
CHAP/PAP - Your Zyxel Device accepts either CHAP or PAP when requested by this remote
node.
Chap - Your Zyxel Device accepts CHAP only.
PAP - Your Zyxel Device accepts PAP only.
MSCHAP - Your Zyxel Device accepts MSCHAP only.
MSCHAP-V2 - Your Zyxel Device accepts MSCHAP-V2 only.
Encryption
Method
This field is available if this ISP account uses the PPTP protocol. Use the drop-down list box to
select the type of Microsoft Point-to-Point Encryption (MPPE). Options are:
nomppe - This ISP account does not use MPPE.
mppe-40 - This ISP account uses 40-bit MPPE.
mppe-128 - This ISP account uses 128-bit MMPE.
User Name Type the user name given to you by your ISP.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1052
44.14 DHCPv6 Overview
This section describes how to configure DHCPv6 request type and lease type objects.
• The Request screen (see Section 44.14.1 on page 1052) allows you to configure DHCPv6 request type
objects.
• The Lease screen (see Section 44.3.5 on page 950) allows you to configure DHCPv6 lease type
objects.
44.14.1 The DHCPv6 Request Screen
The Request screen allows you to add, edit, and remove DHCPv6 request type objects. To access this
screen, login to the Web Configurator, and click Configuration > Object > DHCPv6 > Request.
Figure 662 Configuration > Object > DHCPv6 > Request
Password Type the password associated with the user name above. The password can only consist of
alphanumeric characters (A-Z, a-z, 0-9). This field can be blank.
Your password will be encrypted when you configure this field.
Retype to
Confirm
Type your password again to make sure that you have entered is correctly.
IP Address/FQDN Enter the IP address or Fully-Qualified Domain Name (FQDN) of the PPTP or L2TP server.
Connection ID This field is available if this ISP account uses the PPTP protocol. Type your identification name for
the PPTP server. This field can be blank.
Service Name If this ISP account uses the PPPoE protocol, type the PPPoE service name to access. PPPoE uses
the specified service name to identify and reach the PPPoE server. This field can be blank.
If this ISP account uses the PPTP protocol, this field is not displayed.
Compression Select On button to turn on stac compression, and select Off to turn off stac compression. Stac
compression is a data compression technique capable of compressing data by a factor of
about four.
Idle Timeout This value specifies the number of seconds that must elapse without outbound traffic before
the Zyxel Device automatically disconnects from the PPPoE/PPTP server. This value must be an
integer between 0 and 360. If this value is zero, this timeout is disabled.
OK Click OK to save your changes back to the Zyxel Device. If there are no errors, the program
returns to the ISP Account screen. If there are errors, a message box explains the error, and the
program stays in the ISP Account Edit screen.
Cancel Click Cancel to return to the ISP Account screen without creating the profile (if it is new) or
saving any changes to the profile (if it already exists).
Table 430 Configuration > Object > ISP Account > Edit (continued)
LABEL DESCRIPTION
background
Chapter 44 Object
USG FLEX Series User’s Guide
1053
The following table describes the labels in this screen.
44.14.1.1 DHCPv6 Request Add/Edit Screen
The Request Add/Edit screen allows you to create a new request object or edit an existing one.
To access this screen, go to the Request screen (see Section 44.14.1 on page 1052), and click either the
Add icon or an Edit icon.
Figure 663 Configuration > DHCPv6 > Request > Add
The following table describes the labels in this screen.
Table 431 Configuration > Object > DHCPv6 > Request
LABEL DESCRIPTION
Configuration
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific object.
Name This field displays the name of each request object.
Type This field displays the request type of each request object.
Interface This field displays the interface used for each request object.
Value This field displays the value for each request object.
Table 432 Configuration > DHCPv6 > Request > Add
LABEL DESCRIPTION
Name Type the name for this request object. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is case-
sensitive.
Request Type Select the request type for this request object. You can choose from Prefix Delegation, DNS
Server, NTP Server, or SIP Server.
Interface Select the interface for this request object.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1054
44.14.2 DHCPv6 Lease Screen
The Lease screen allows you to add, edit, and remove DHCPv6 lease type objects. To access this screen,
login to the Web Configurator, and click Configuration > Object > DHCPv6 > Lease.
Figure 664 Configuration > Object > DHCPv6 > Lease
The following table describes the labels in this screen.
44.14.2.1 DHCPv6 Lease Add/Edit Screen
The Lease Add/Edit screen allows you to create a new lease object or edit an existing one.
To access this screen, go to the Lease screen (see Section 44.14.2 on page 1054), and click either the
Add icon or an Edit icon.
Figure 665 Configuration > DHCPv6 > Lease > Add
Table 433 Configuration > Object > DHCPv6 > Lease
LABEL DESCRIPTION
Configuration
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the
entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so.
References Select an entry and click References to open a screen that shows which settings use the entry.
# This field is a sequential value, and it is not associated with a specific object.
Name This field displays the name of each lease object.
Type This field displays the request type of each lease object.
Interface This field displays the interface used for each lease object.
Value This field displays the value for each lease object.
background
Chapter 44 Object
USG FLEX Series User’s Guide
1055
The following table describes the labels in this screen.
Table 434 Configuration > DHCPv6 > Lease > Add/Edit
LABEL DESCRIPTION
Name Type the name for this lease object. You may use 1-31 alphanumeric characters,
underscores(
_), or dashes (-), but the first character cannot be a number. This value is case-
sensitive.
Lease Type Select the lease type for this lease object. You can choose from Prefix Delegation, DNS
Server, Address, Address Pool, NTP Server, or SIP Server.
Interface Select the interface for this lease object.
DUID If you select Prefix Delegation or Address in the Lease Type field, enter the DUID of the
interface.
Address If you select Address in the Lease Type field, enter the IP address of the DHCPv6 server.
Prefix If you select Prefix Delegation or Address in the Lease Type field, enter the IPv6 prefix of the
interface.
DNS Server If you select DNS Server in the Lease Type field, select a request object or User Defined in the
DNS Server field and enter the IP address of the DNS server in the User Defined Address field
below.
Starting IP Address If you select Address Pool in the Lease Type field, enter the first of the contiguous addresses
in the IP address pool.
End IP Address If you select Address Pool in the Lease Type field, enter the last of the contiguous addresses
in the IP address pool.
NTP Server If you select NTP Server in the Lease Type field, select a request object or User Defined in the
NTP Server field and enter the IP address of the NTP server in the User Defined Address field
below.
SIP Server If you select SIP Server in the Lease Type field, select a request object or User Defined in the
SIP field and enter the IP address of the SIP server in the User Defined Address field below.
User Defined
Address
If you select DNS Server, NTP Server, or SIP Server as your lease type, you must enter the IP
address of the server your selected.
OK Click OK to save your changes back to the Zyxel Device.
Cancel Click Cancel to exit this screen without saving your changes.
background
USG FLEX Series User’s Guide
1056
CHAPTER 45
Device HA
45.1 Device HA Overview
Device HA lets a backup (or passive) Zyxel Device (B) automatically take over if the master (or active)
Zyxel Device (A) fails.
Figure 666 Device HA Backup Taking Over for the Master
45.1.1 What You Can Do in These Screens
• Use the Device HA Status screen (Section 45.2 on page 1056) to see the license status for Device HA
Pro, and see the status of the active and passive devices.
• Use the Device HA Pro screen (Section 45.3 on page 1058) to configure Device HA Pro global settings,
monitored interfaces and synchronization settings.
• Use the View Log screen (Section 45.4 on page 1061) to see logs of the active and passive devices.
45.2 Device HA Status
Use this screen to view Device HA Pro license status and details on the active and passive Zyxel Devices.
Go to Configuration > Device HA > Device HA Status to view the following screen.
background
Chapter 45 Device HA
USG FLEX Series User’s Guide
1057
Figure 667 Configuration > Device HA > Device HA Status
The following table describes the labels in this screen.
Table 435 Configuration > Device HA > Device HA Status
LABEL DESCRIPTION
Active Device Status This section displays information on the active Zyxel Device with an activated Device
HA Pro license.
Health Status This displays Off or On depending on whether Device HA Pro is disabled or enabled
on the active Zyxel Device.
S/N This displays the serial number of the active Zyxel Device.
Virtual MAC This displays the hardware MAC address of the active Zyxel Device with an
activated Device HA Pro license.
Sync Status For the active Zyxel Device with an activated Device HA Pro license, this field always
displays n/a.
For the passive Zyxel Device, this displays the synchronization progress between the
active Zyxel Device with an activated Device HA Pro license and the passive Zyxel
Device. The possible values are No Progress, Fail, Abort, Success or In Progress.
Passive Device Status This section displays information on the passive Zyxel Device with an activated
Device HA Pro license.
Health Status This displays Off or On depending on whether Device HA Pro is disabled or enabled
on the passive Zyxel Device.
S/N This displays the serial number of the passive Zyxel Device.
Virtual MAC This displays the hardware MAC address of the passive Zyxel Device.
Sync Status For the active Zyxel Device with an activated Device HA Pro license, this field always
displays n/a.
For the passive Zyxel Device, this displays the synchronization progress between the
active Zyxel Device with an activated Device HA Pro license and the passive Zyxel
Device. The possible values are No Progress, Fail, Abort, Success or In Progress.
Device HA Pro License These are the steps to activate a Device HA Pro license on your active and passive
Zyxel Devices.
1. See your Device HA Pro iCard. The card contains two keys.
2. Register your active and passive Zyxel Devices at myZyxel.
3. Activate the license by entering one key on the active Zyxel Device and the
other key on the passive Zyxel Device. It doesn’t matter which Zyxel Device is
actually active or passive as this is dynamic in Device HA Pro.
background
Chapter 45 Device HA
USG FLEX Series User’s Guide
1058
45.3 Device HA Pro
You need a license to use Device HA Pro. Device HA Pro is easier to deploy than Device HA, is more
reliable (no risk of overloading), and faster (Device HA causes a connection break of 10~30 seconds
while Device HA Pro just has 1~2 seconds). In addition to configuration file backup in Device HA, device
time, TCP sessions (IPv4/IPv6), IPSec VPN sessions, login/logout information, DHCP table, IP/MAC binding
table and license status can also be backed up using Device HA Pro.
Active and Passive Devices
Device HA Pro uses a dedicated heartbeat link between an active device (‘master’) and a passive
device (‘backup’) for status syncing and backup to the passive device. On the passive device, all ports
are disabled except for the port with the heartbeat link.
In the following example, Zyxel Device A is the active device that is connected to passive device Zyxel
Device B through a dedicated link that is used for heartbeat control, configuration synchronization and
troubleshooting. All links on Zyxel Device B are down except for the dedicated heartbeat link.
Note: The dedicated heartbeat link port must be the highest-numbered copper Ethernet port
on each
Zyxel Device for Device HA Pro to work.
Figure 668 Device HA Pro
Failover from the active Zyxel Device to the passive Zyxel Device is activated when:
• A monitored interface is down.
• A monitored service (daemon) is down.
• The heartbeat link exceeds the failure tolerance.
Service Status This field displays whether a service license is enabled at myZyxel (Activated) or not
(Not Activated) or expired (Expired). It displays the remaining Grace Period if your
license has Expired. It displays Not Licensed if there isn’t a license to be activated for
this service.
If you need a license or a trial license has expired, click Buy to buy a new one. If a
Standard license has expired, click Renew to extend the license.
Then, click Activate to connect with the myZyxel server to activate the new license.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 435 Configuration > Device HA > Device HA Status (continued)
LABEL DESCRIPTION
background
Chapter 45 Device HA
USG FLEX Series User’s Guide
1059
After failover, the initial active Zyxel Device becomes the passive Zyxel Device after it recovers.
45.3.1 Deploying Device HA Pro
1 Register either the active or passive Zyxel Device with a Device HA Pro license at myZyxel. Check that it’s
properly licensed in Licensing > Registration > Service in the active Zyxel Device.
2 Make sure the passive Zyxel Device is offline, then enable Device HA in Device HA > General in the
passive Zyxel Device.
3 Must make sure the FTP port in System > FTP (default 21) is the same on both Zyxel Devices. FTP is used for
transferring files in the event of failover from active to passive Zyxel Device.
4 Connect the passive Zyxel Device to the active Zyxel Device using the highest-numbered copper
Ethernet ports on both Zyxel Devices. This is the heartbeat interface. Make sure that this interface is not
already configured for other features such as LAG, VLAN, Bridge.
5 If both Zyxel Devices are turned on at the same time with Device HA enabled, then they may send the
heartbeat at the same time. In this case, the Zyxel Device with the bigger MAC address becomes the
passive Zyxel Device.
6 When using Device HA Pro to synchronize firmware, the location of the running firmware must be the
same in both active and passive Zyxel Devices. For example, if the running firmware is in partition 1 in the
active Zyxel Device (standby firmware in partition 2), then the running firmware must also be in partition
1 in the passive Zyxel Device (standby firmware in partition 2).
45.3.2 Configuring Device HA Pro
Go to Configuration > Device HA > Device HA Pro and configure the following screen.
background
Chapter 45 Device HA
USG FLEX Series User’s Guide
1060
Figure 669 Configuration > Device HA > Device HA Pro
The following table describes the labels in this screen.
Table 436 Configuration > Device HA > Device HA Pro
LABEL DESCRIPTION
Enable Device HA Select this to turn the Zyxel Device’s Device HA Pro feature on.
Enable Configuration
Provisioning From Active
Device.
Select this to have a passive Zyxel Device copy the active Zyxel Device’s
configuration, signatures (anti-malware, IPS, application patrol, URL Threat filter, and
IP reputation), and certificates.
Disconnect all cables and turn off the passive Zyxel Device when you disable Device
HA.
Note: Only Zyxel Devices of the same model and firmware version can
synchronize.
Serial Number of Licensed
Device for License
Synchronization
Type the serial number of the Zyxel Device (active or passive) with the Device HA Pro
subscribed license.
Active Device
Management IP
Type the IPv4 address of the highest-numbered copper Ethernet port on the active
Zyxel Device (the heartbeat dedicated link port).
Passive Device
Management IP
Type the IPv4 address of the highest-numbered copper Ethernet port on the passive
Zyxel Device (the heartbeat dedicated link port).
Note: The active and passive Zyxel Device Management IP addresses must
be in the same subnet.
Subnet Mask Type the subnet mask for the management IP addresses.
background
Chapter 45 Device HA
USG FLEX Series User’s Guide
1061
45.4 View Log
Use this screen to see Device HA Pro logs on the active and passive Zyxel Devices.
Go to Configuration > Device HA > View Log to display the following screen.
Password Type a synchronization password of between 1 and 32 single-byte printable
characters. You will be prompted for the password before synchronization takes
place.
Retype to Confirm Type the exact same synchronization password as typed above.
Heartbeat Interval Type the number of seconds (1-10) allowed for absence of a heartbeat signal
before a failure of the active Zyxel Device is recorded.
Heartbeat Lost Tolerance Type the number of heartbeat failures allowed before failover is activated on the
passive Zyxel Device.
Monitor Interface Select an interface in Available Interfaces and click the right-arrow button to move
it to Monitor Interface to become a Device HA pro monitored interface. To remove
a Device HA pro monitored interface, select it in Monitor Interface and click the left-
arrow button to move it to Available Interfaces.
Failover Detection
Enable Failover When
Interface Failure
(Option)
Select this to have the passive Zyxel Device take over when a monitored interface
fails.
Enable Failover When
Device Service Fails
(Option)
Select this to have the passive Zyxel Device take over when a monitored service
daemon on the active Zyxel Device fails.
Apply Click Apply to save your Device HA Pro configurations back to the Zyxel Device but
keep the Zyxel Device using Device HA (general).
Reset Click Reset to return the screen to its last-saved settings.
Table 436 Configuration > Device HA > Device HA Pro (continued)
LABEL DESCRIPTION
background
Chapter 45 Device HA
USG FLEX Series User’s Guide
1062
Figure 670 Configuration > Device HA > View Log
The following table describes the labels in this screen.
Table 437 Configuration > Device HA > View Log
LABEL DESCRIPTION
Logs
Active Device This displays Device HA Pro logs on the active Zyxel Device.
Passive Device This displays Device HA Pro logs on the passive Zyxel Device.
Refresh Click Refresh to update information in this screen.
background
USG FLEX Series User’s Guide
1063
CHAPTER 46
Mgmt. & Analytics
46.1 Mgmt. & Analytics Overview
You need licenses to use Cloud CNM SecuManager and Cloud CNM SecuReporter. You need the
SecuManager license to get a CNM ID with which you can access the SecuManager server. It is
independent from the Zyxel Devices. The SecuReporter license must be activated on each Zyxel Device.
Follow the instructions on the Nebula screen to pass your Zyxel Device management to Nebula. The
screen you see may vary depending on the device you’re using or the WAN settings you configured.
46.1.1 What You Can Do in this Chapter
• Use the Mgmt. & Analytics > SecuManager screen (Section 46.2 on page 1063) to enable and
configure management of the Zyxel Device by a Central Network Management system.
• Use the Mgmt. & Analytics > SecuReporter screen (Section 46.3 on page 1066) to enable
SecuReporter logging on your Zyxel Device, see license status, type, expiration date and access a link
to the SecuReporter web portal. The SecuReporter web portal collects and analyzes logs from your
Zyxel Device in order to identify anomalies, alert on potential internal / external threats, and report on
network usage.
• Use Mgmt. & Analytics > Nebula screen (Section 46.4 on page 1070)to let Nebula manage your Zyxel
Device remotely.
46.2 Cloud CNM SecuManager
Cloud CNM SecuManager is a Virtual Machine-based (VM) management system that uses the TR-069
protocol to encapsulate commands to the Zyxel Device devices for management and monitoring;
these devices must have firmware that supports the TR-069 protocol.
In the following figure, SP is the management service provider, while A and B are sites with devices being
managed by SP.
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1064
Figure 671 Cloud CNM SecuManager Example Network Topology
Cloud CNM SecuManager features include:
• Batch import of managed devices at one time using one CSV file
• See an overview of all managed devices and system information in one place
• Monitor and manage devices
• Install firmware to multiple devices of the same model at one time
• Backup and restore device configuration
• View the location of managed devices on a map
• Receive notification for events and alarms, such as when a device goes down
• Graphically monitor individual devices and see related statistics
• Directly access a device for remote configuration
• Create four types of administrators with different privileges
• Perform Site-to-Site, Hub & Spoke, Fully-meshed and Remote Access VPN provisioning.
To allow Cloud CNM SecuManager management of your Zyxel Device:
• You must have a Cloud CNM SecuManager license with CNM ID number or a Cloud CNM
SecuManager server URL.
• The Zyxel Device must be able to communicate with the Cloud CNM SecuManager server.
You must configure Configuration > Cloud CNM > SecuManager to allow the Zyxel Device to find the
Cloud CNM SecuManager server.
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1065
Figure 672 Configuration > Cloud CNM > SecuManager
The following table describes the labels in this screen.
Table 438 Configuration > Cloud CNM > SecuManager
LABEL DESCRIPTION
Show Advanced
Settings / Hide
Advanced Settings
Click this button to display a greater or lesser number of configuration fields.
Enable Select this to allow management of the Zyxel Device by Cloud CNM SecuManager.
Auto Select this if your Cloud CNM SecuManager server can access myZyxel to automatically
get the VM server URL from myZyxel. You also need CNM ID from the Cloud CNM
SecuManager license.
CNM URL myZyxel associates the CNM ID with the CNM URL which identifies the server on which
Cloud CNM SecuManager is installed. Therefore you don’t need to enter the CNM URL
when you select Auto.
Custom Select this if your Cloud CNM SecuManager server cannot access myZyxel.
CNM URL Select this if your VM server or Zyxel Device are in a private network, or if the VM server is
behind a NAT router. You then need to manually enter the VM server URL into the Zyxel
Device. Enter the IPv4 IP address of the Cloud CNM SecuManager server followed by the
port number (default 7547 for HTTPS or 7549 for HTPP) followed by the CNM ID from the
license in CNM URL. For example, if you installed Cloud CNM SecuManager on a server
with IP address 1.1.1.1 and CNM ID V6ABQNTPYGD, then type 1.1.1.1:7547/
V6ABQNTPYG or 1.1.1.1:7549/V6ABQNTPYG as the CNM URL.
Transfer Protocol Choose the CNM URL protocol: HTTP or HTTPS. If you enter 1.1.1.1:7547 as the CNM URL,
you must choose HTTPS as the Transfer Protocol, and then the whole CNM URL is https://
1.1.1.1:7547. If you enter 1.1.1.1:7549 as the CNM URL, you must choose HTTP as the
Transfer Protocol, and then the whole CNM URL is http://1.1.1.1:7549.
Periodic Inform Enable this to have the Zyxel Device inform the Cloud CNM SecuManager server of its
presence at regular intervals.
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1066
Note: See the Cloud CNM SecuManager User’s Guide for more information on Cloud CNM
SecuManager.
46.3 Cloud CNM SecuReporter
Cloud CNM SecuReporter is a security analytics portal that collects and analyzes logs from
SecuReporter-licensed Zyxel Devices in order to identify anomalies, alert on potential internal / external
threats, and report on network usage. You need to buy a license for SecuReporter for your Zyxel Device
and register it at myZyxel. You must be a registered user at myZyxel.
You can access the portal from a web browser and also get notifications sent to an app on your mobile
phone.
Figure 673 Cloud CNM SecuReporter Application Scenario
Interval Type how often the Zyxel Device should inform Cloud CNM SecuManager server of its
presence.
HTTPS Authentication Select the check box if you have a HTTPS server certificate.
Server Certificate Select a certificate the HTTPS server (the Zyxel Device) uses to authenticate itself to the
HTTPS client.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 438 Configuration > Cloud CNM > SecuManager (continued)
LABEL DESCRIPTION
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1067
How to activate and enable SecuReporter
1 Does Service Status displays Activated in the Configuration > Cloud CNM > SecuReporter screen? If not,
you have to log in to myZyxel.com and activate the SecuReporter license for this Zyxel Device. The Zyxel
Device must be able to communicate with the myZyxel server.
Your SecuReporter license displays in Configuration > Licensing > Registration > Service after you
activate the SecuReporter license at myZyxel.
Figure 674 Configuration > Licensing > Registration > Service
2 After the SecuReporter license is activated, go back to the Configuration > Cloud CNM > SecuReporter
screen, and select the categories of logs that you want this Zyxel Device to send to the SecuReporter
portal.
3 Select Enable SecuReporter. Do not go to the SecuReporter portal until after you have enabled
SecuReporter on this Zyxel Device and applied the settings. You can also see license status, type,
expiration date.
4 Click Apply and wait.
How to add this Zyxel Device to SecuReporter
1 Log in to the SecuReporter portal.
2 Go to Settings > Organization & Devices > Add to create an organization.
3 Add this Zyxel Device to an Organization using the hyper link under Unclaimed Device.
SecuReporter Banner
The SecuReporter banner appears when:
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1068
1 SecuReporter hasn’t been enabled before.
2 The Zyxel Device is not added to an organization yet.
Figure 675 SecuReporter Banner
Click the Continue button in the SecuReporter banner to configure the SecuReporter settings.
• Server Status: This is the connection status between the Zyxel Device and the SecuReporter server. This
field shows Connected when the Zyxel Device can synchronize with the SecuReporter server. This field
shows Timeout when the Zyxel Device can’t synchronize with the SecuReporter server. This field shows
Fail when the connection between the Zyxel Device and the SecuReporter server is down.
• Device Name: Enter the name of the Zyxel Device. This Zyxel Device will be added to a new or existing
organization.
• Organization: This field appears if you haven’t created an organization in the SecuReporter server.
Type a name of up to 255 characters and description to create a new organization.
• Select from existing organization: Select an existing organization from the drop-down list box to add
the Zyxel Device to the selected organization.
• Create new organization: Type a name of up to 255 characters and description to create a new
organization.
• Partially Anonymous: Select this and personal data, such as user names, MAC addresses, email
addresses, and host names, will be replaced with artificial identifiers in downloaded logs.
• Fully Anonymous: Select this and personal data, such as user names, MAC addresses, email
addresses, and host names, will be replaced with anonymized information in downloaded logs.
• Non-Anonymous: Select this and personal data, such as user names, MAC addresses, email
addresses, and host names, will be identifiable in downloaded logs.
Figure 676 SecuReporter Banner Settings
Click Configuration > Cloud CNM > SecuReporter to open the following screen.
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1069
Figure 677 Configuration > Cloud CNM > SecuReporter
The following table describes the labels in this screen.
Table 439 Configuration > Cloud CNM > SecuReporter
LABEL DESCRIPTION
Enable SecuReporter Security-related logs are sent to the SecuReporter portal. Click the General Data
Protection Regulation (GDPR) privacy link below to see the Zyxel privacy policy.
This must be selected to have SecuReporter collect and analyze logs from this Zyxel
Device.
• It’s selected by default if you have activated a SecuReporter Standard license,
• You need to select this if you have a SecuReporter Trial license.
• This field is not available if you do not have a SecuReporter license.
Categories Select the categories of logs that you want this Zyxel Device to send to SecuReporter for
analysis and trend spotting.
SecuReporter Service License Status
Service Status This field displays whether a service license is enabled at myZyxel (Activated) or not (Not
Activated) or expired (Expired). It displays the remaining Grace Period if your license has
Expired. It displays Not Licensed if there isn’t a license to be activated for this service.
Service Type This field displays whether you applied for a trial application (Trial) or registered this
service with your iCard’s PIN number (Standard). This field is blank when the service is not
activated.
Expiration Date This field displays the date your service expires.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1070
46.4 Nebula
Select Cloud Monitoring Mode to monitor your Zyxel Device using Nebula Control Center (NCC) but
configure your Zyxel Device in On Premises Mode using the web configurator/CLI at the same time. You
can allow remote access to the web configurator remotely using reverse SSH or HTTPS tunnel.
Note: You cannot set the Zyxel Device to Cloud Monitoring Mode if Device HA is enabled on
the Zyxel Device.
Select Cloud Mode to manage your Zyxel Device using Nebula only. Use this mode to manage your
Zyxel Device with accounts at different privilege levels. You can also manage your Zyxel Device licenses
and check status through Nebula.
Your Zyxel Device uses Native Mode to register with Nebula. See Section 46.4.2 on page 1072 for more
information on registering your Zyxel Device with Nebula using Native Mode.
46.4.1 Cloud Monitoring Mode
You must have created an organization and a site on Nebula first. Follow the steps below to set the Zyxel
Device to Cloud Monitoring Mode.
Figure 678 Cloud Monitoring Mode Example
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1071
Figure 679 Configuration > Mgmt. & Analytics > Nebula > Cloud Monitoring Mode
On Premises Mode to Cloud Monitoring Mode
1 Back up the Zyxel Device configurations.
2 Select Cloud Monitoring Mode in Configuration > Mgmt. & Analytics > Nebula, then select Enable.
3 Enter the Monitor mode ID of an organization you created on Nebula. See the organization Monitor
mode ID on Nebula in Organization-wide > Organization-wide manage > Organization settings.
4 Click Apply. Check the result in the Status field.
The following table explains the possible results that might display in the Status field.
Table 440 Cloud Monitoring Mode Status
N/A You’ve not entered a Monitor mode ID on the Zyxel Device.
Connected The Zyxel Device is connected to Nebula. Check the Zyxel Device Device Type on
Nebula in Organization-wide > License & inventory.
Disconnected - Server is not
reachable
The Zyxel Device cannot connect to Nebula. Please make sure the Zyxel Device can
access Nebula at *.nebula.zyxel.com and ports 443, 4335 and 6667 are enabled.
Disconnected - Connection
failure
The Zyxel Device failed to connect to Nebula. Make sure the Zyxel Device settings
match the Nebula settings.
Disconnected - Registration
failure
The email registered on myZyxel and the email registered on the Nebula
organization to which you want to add the Zyxel Device are different.
Disconnected - Operation
modes mismatch
Remove the Zyxel Device from the Nebula organization and site.
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1072
Nebula Mode to Cloud Monitoring Mode
1 Remove the Zyxel Device from the organization and site.
2 If the Zyxel Device is connected to Nebula, the Zyxel Device will automatically reset after you remove
the Zyxel Device from the organization and site. If the Zyxel Device is not connected to Nebula, press the
reset button.
3 After the PWR LED turns steady green, log into the Zyxel Device, select On Premises Mode, go to
Configuration > Mgmt. & Analytics > Nebula, select Cloud Monitoring Mode and then follow the screen
prompts.
Cloud Monitoring Mode to Nebula Mode
1 Remove the Zyxel Device in cloud monitoring mode from the organization and site.
2 Back up your current configuration in Maintenance > File Manager > Configuration File.
3 Reset the Zyxel Device to the factory default by pushing the Reset button until the port connection LEDs
turn off (after about 5 seconds). Your Zyxel Device will reboot to the factory defaults.
4 Log into the Zyxel Device. Run the wizard and choose Nebula Mode.
46.4.2 Cloud Management Scenario A - Native Mode
You will see the following screen if:
• Your Zyxel Device supports Native Mode and you can connect to Nebula with your current WAN
settings.
If the Zyxel Device meets these criteria, Nebula can use the Zyxel Device’s current WAN settings. Other
settings are reset to factory defaults.
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1073
Please note that only the WAN settings that meet the criteria below will show in the Nebula Internet
Access table:
• External interface - Interface that connects to an external network, such as the Internet or PPPoE. The
Zyxel Device automatically adds this interface to the default WAN trunk.
• Base port - Ethernet interface on which the VLAN interface runs.
• Ethernet, VLAN or Ethernet/VLAN interface on which PPPoE interface runs.
Follow the steps below to let Nebula manage your Zyxel Device:
1 You cans select up to two WAN interfaces on the physical ports, but you cannot select two interfaces on
the same port. Nebula will use one of the WAN interfaces you selected to connect to your Zyxel Device.
2 Click Test to test the connections to make sure you can access Nebula through these ports.
Note: If you cannot access Nebula through the ports after you click Apply & Go To Nebula,
you will need to access the local GUI with your support account by connecting to the
LAN.
3 Click Apply & Go to Nebula. The Zyxel Device will:
• Back up its current configuration (for future reference).
• Reset its configuration to factory defaults except for the WAN configuration.
• Automatically restart.
Note: You will no longer be able to access the Zyxel Device through the WAN. You must use
Nebula to manage it.
4 Use the Nebula web portal or the Nebula app to create an organization and site, then add the Zyxel
Device to it.
Note: You will not see Nebula app in Register Zyxel Device on Nebula if you log into the Zyxel
Device as a limited admin.
Click Configuration > Mgmt. & Analytics > Nebula to open the following screen.
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1074
Figure 680 Configuration > Mgmt. & Analytics > Nebula > Cloud Management
The following table describes the labels in this screen.
Table 441 Configuration > Mgmt. & Analytics > Nebula > Cloud Management
LABEL DESCRIPTION
Select the WAN interfaces for Nebula to connect to your Zyxel Device. You can select up
to two physical ports, but you cannot select two interfaces on the same port. For
example, P2 and P3 stand for Port 2 and Port 3 on your Zyxel Device. You can only select
one interface for each port.
Nebula will use one of the WAN interfaces you selected to connect to your Zyxel Device.
The settings of the WAN interfaces, including IP addresses, IP assignment and DNS servers,
will be kept on Nebula.
# This field is a sequential value.
Name This field displays the name of the interface.
background
Chapter 46 Mgmt. & Analytics
USG FLEX Series User’s Guide
1075
Status This field displays the current status of each interface. The possible values depend on
what type of interface it is.
For Ethernet interfaces:
• Inactive - The Ethernet interface is disabled.
• Down - The Ethernet interface does not have any physical ports associated with it or
the Ethernet interface is enabled but not connected.
• Speed/Duplex - The Ethernet interface is enabled and connected. This field displays
the port speed and duplex setting (Full or Half).
For VLAN interfaces:
• Up - The VLAN interface is enabled.
• Down - The VLAN interface is disabled.
For PPPoE interfaces:
• Connected - The PPPoE interface is connected.
• Disconnected - The PPPoE interface is disconnected.
IP Addr/Netmask This field displays the current IP address and subnet mask assigned to the interface.
If this interface is a member of an active virtual router, this field displays the IP address it is
currently using. This is either the static IP address of the interface (if it is the master) or the
management IP address (if it is a backup).
Note: If you set an interface static IP to 0.0.0.0, the interface will not show in the
table.
IP Assignment This field displays how the interface gets its IP address.
• Static- This interface has a static IP address.
• Dynamic- This interface has a dynamic IP address.
• DHCP Client- This interface gets its IP address from a DHCP server.
DNS Server The field displays the Domain Name System (DNS) server IP address. The DNS server maps
a domain name to an IP address and vice versa. The DNS server is important because
without it, you must know the IP address of a computer before you can access it.
Connection Click Test to check if the interface you select can access Nebula.
Apply & Go to Nebula Click this button to pass your Zyxel Device management to Nebula. Your Zyxel Device will
automatically reset to factory defaults (except for the WAN settings) and restart.
Table 441 Configuration > Mgmt. & Analytics > Nebula > Cloud Management (continued)
LABEL DESCRIPTION
background
USG FLEX Series User’s Guide
1076
CHAPTER 47
System
47.1 Overview
Use the system screens to configure general Zyxel Device settings.
47.1.1 What You Can Do in this Chapter
• Use the System > Host Name screen (see Section 47.2 on page 1077) to configure a unique name for
the Zyxel Device in your network.
• Use the System > USB Storage screen (see Section 47.3 on page 1077) to configure the settings for the
connected USB devices.
• Use the System > Date/Time screen (see Section 47.4 on page 1079) to configure the date and time
for the Zyxel Device.
• Use the System > Console Speed screen (see Section 47.5 on page 1083) to configure the console
port speed when you connect to the Zyxel Device through the console port using a terminal
emulation program.
• Use the System > DNS screen (see Section 47.6 on page 1084) to configure the DNS (Domain Name
System) server used for mapping a domain name to its corresponding IP address and vice versa.
• Use the System > WWW screens (see Section 47.7 on page 1094) to configure settings for HTTP or HTTPS
access to the Zyxel Device and how the login and access user screens look.
• Use the System > SSH screen (see Section 47.8 on page 1111) to configure SSH (Secure SHell) used to
securely access the Zyxel Device’s command line interface. You can specify which zones allow SSH
access and from which IP address the access can come.
• Use the System > TELNET screen (see Section 47.9 on page 1115) to configure Telnet to access the
Zyxel Device’s command line interface. Specify which zones allow Telnet access and from which IP
address the access can come.
• Use the System > FTP screen (see Section 47.10 on page 1117) to specify from which zones FTP can be
used to access the Zyxel Device. You can also specify from which IP addresses the access can come.
You can upload and download the Zyxel Device’s firmware and configuration files using FTP.
• Your Zyxel Device can act as an SNMP agent, which allows a manager station to manage and
monitor the Zyxel Device through the network. Use the System > SNMP screen (see Section 47.11 on
page 1119) to configure SNMP settings, including from which zones SNMP can be used to access the
Zyxel Device. You can also specify from which IP addresses the access can come.
• Use the Auth. Server screen (Section 47.12 on page 1125) to configure the Zyxel Device to operate as
a RADIUS server.
• Use the Notification > Mail Server screen (Section 47.13 on page 1128) to configure the Zyxel Device
to operate as a RADIUS server.
• Use the Notification > SMS screen (Section 47.14 on page 1129) to turn on the SMS service on the Zyxel
Device in order to send dynamic guest account information in text messages and authorization for
VPN tunnel access to a secured network.
• Use the Notification > Response Message screen (Section 47.15 on page 1131) to create a web page
when access to a website is restricted due to a security service.
background
Chapter 47 System
USG FLEX Series User’s Guide
1077
• Use the System > Language screen (see Section 47.16 on page 1131) to set a language for the Zyxel
Device’s Web Configurator screens.
• Use the System > IPv6 screen (see Section 47.17 on page 1132) to enable or disable IPv6 support on
the Zyxel Device.
• Use the System > ZON screen (see Section 47.18 on page 1133) to enable or disable the Zyxel One
Network (ZON) utility that uses Zyxel Discovery Protocol (ZDP) for discovering and configuring ZDP-
aware Zyxel devices in the same network as the computer on which ZON is installed.
Note: See each section for related background information and term definitions.
47.2 Host Name
A host name is the unique name by which a device is known on a network. Click Configuration > System
> Host Name to open the Host Name screen.
Figure 681 Configuration > System > Host Name
The following table describes the labels in this screen.
47.3 USB Storage
The Zyxel Device can use a connected USB device to store the system log and other diagnostic
information. Use this screen to turn on this feature and set a disk full warning limit.
Table 442 Configuration > System > Host Name
LABEL DESCRIPTION
System Name Enter a descriptive name to identify your Zyxel Device device. This name can be up to 64
alphanumeric characters long. Spaces are not allowed, but dashes (-) underscores (_) and
periods (.) are accepted.
Domain Name Enter the domain name (if you know it) here. This name is propagated to DHCP clients
connected to interfaces with the DHCP server enabled. This name can be up to 254
alphanumeric characters long. Spaces are not allowed, but dashes “-” are accepted.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 47 System
USG FLEX Series User’s Guide
1078
Note: Only connect one USB device. It must allow writing (it cannot be read-only) and use the
FAT16, FAT32, EXT2, or EXT3 file system.
Click Configuration > System > USB Storage to open the screen as shown next.
Figure 682 Configuration > System > USB Storage
The following table describes the labels in this screen.
The Zyxel Device will generate logs at the alert level when:
• The remaining USB storage space is less the values you set.
• The Zyxel Device overwrites the oldest log files in your USB device.
A log at the alert level is a log for serious events that may need more immediate attention. You can
check the priority of log messages in Monitor > Log > View Log > Priority.
Table 443 Configuration > System > USB Storage
LABEL DESCRIPTION
Activate USB
storage service
Select this if you want to use the connected USB device(s).
Disk full warning
when remaining
space is less than
Set a number and select a unit (MB or %) to have the Zyxel Device generate a log at the alert
level when the remaining USB storage space is less than the value you set here.
Overwrite the
oldest log file
Select this to have the Zyxel Device overwrite the oldest log file when the remaining USB storage
space is less than the value you set above.
Note: Make sure to save the log files to your computer.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 47 System
USG FLEX Series User’s Guide
1079
Figure 683 USB Storage Space Alert Logs
Figure 684 Overwrite Oldest Log Files Alert Logs
47.4 Date and Time
For effective scheduling and logging, the Zyxel Device system time must be accurate. The Zyxel
Device’s Real Time Chip (RTC) keeps track of the time and date. There is also a software mechanism to
set the time manually or get the current time and date from an external server.
To change your Zyxel Device’s time based on your local time zone and date, click Configuration >
System > Date/Time. The screen displays as shown. You can manually set the Zyxel Device’s time and
date or have the Zyxel Device get the date and time from a time server.
background
Chapter 47 System
USG FLEX Series User’s Guide
1080
Figure 685 Configuration > System > Date and Time
The following table describes the labels in this screen.
Table 444 Configuration > System > Date and Time
LABEL DESCRIPTION
Current Time and
Date
Current Time This field displays the present time of your Zyxel Device.
Current Date This field displays the present date of your Zyxel Device.
Time and Date
Setup
Manual Select this radio button to enter the time and date manually. If you configure a new time
and date, time zone and daylight saving at the same time, the time zone and daylight
saving will affect the new time and date you entered. When you enter the time settings
manually, the Zyxel Device uses the new setting once you click Apply.
New Time (hh-mm-
ss)
This field displays the last updated time from the time server or the last time configured
manually.
When you set Time and Date Setup to Manual, enter the new time in this field and then click
Apply.
background
Chapter 47 System
USG FLEX Series User’s Guide
1081
New Date (yyyy-
mm-dd)
This field displays the last updated date from the time server or the last date configured
manually.
When you set Time and Date Setup to Manual, enter the new date in this field and then click
Apply.
Get from Time
Server
Select this radio button to have the Zyxel Device get the time and date from the time server
you specify below. The Zyxel Device requests time and date settings from the time server
under the following circumstances.
• When the Zyxel Device starts up.
• When you click Apply or Synchronize Now in this screen.
• 24-hour intervals after starting up.
Time Server Address Enter the IP address or URL of your time server. Check with your ISP/network administrator if
you are unsure of this information.
Sync. Now Click this button to have the Zyxel Device get the time and date from a time server (see the
Time Server Address field). This also saves your changes (except the daylight saving
settings).
Time Zone Setup
Time Zone Choose the time zone of your location. This will set the time difference between your time
zone and Greenwich Mean Time (GMT).
Automatically Sync
Time Zone
Select this for the Zyxel Device to automatically get its time zone.
Daylight Saving
Enable Daylight
Savings
Daylight savings is a period from late spring to early fall when many countries set their clocks
ahead of normal local time by one hour to give more daytime light in the evening.
Select this option if you use Daylight Saving Time.
Automatically
adjust clock for
Daylight Saving
Time
Select this for the Zyxel Device to automatically adjust the time if daylight savings is
implemented in its time zone.
Start Date Configure the day and time when Daylight Saving Time starts if you selected Enable Daylight
Saving. The at field uses the 24 hour format. Here are a couple of examples:
Daylight Saving Time starts in most parts of the United States on the second Sunday of
March. Each time zone in the United States starts using Daylight Saving Time at 2 A.M. local
time. So in the United States you would select Second, Sunday, March and type 2 in the at
field.
Daylight Saving Time starts in the European Union on the last Sunday of March. All of the time
zones in the European Union start using Daylight Saving Time at the same moment (1 A.M.
GMT or UTC). So in the European Union you would select Last, Sunday, March. The time you
type in the at field depends on your time zone. In Germany for instance, you would type 2
because Germany's time zone is one hour ahead of GMT or UTC (GMT+1).
End Date Configure the day and time when Daylight Saving Time ends if you selected Enable Daylight
Saving. The at field uses the 24 hour format. Here are a couple of examples:
Daylight Saving Time ends in the United States on the first Sunday of November. Each time
zone in the United States stops using Daylight Saving Time at 2 A.M. local time. So in the
United States you would select First, Sunday, November and type 2 in the at field.
Daylight Saving Time ends in the European Union on the last Sunday of October. All of the
time zones in the European Union stop using Daylight Saving Time at the same moment (1
A.M. GMT or UTC). So in the European Union you would select Last, Sunday, October. The
time you type in the at field depends on your time zone. In Germany for instance, you would
type 2 because Germany's time zone is one hour ahead of GMT or UTC (GMT+1).
Table 444 Configuration > System > Date and Time (continued)
LABEL DESCRIPTION
background
Chapter 47 System
USG FLEX Series User’s Guide
1082
47.4.1 Pre-defined NTP Time Servers List
When you turn on the Zyxel Device for the first time, the date and time start at 2003-01-01 00:00:00. The
Zyxel Device then attempts to synchronize with one of the following pre-defined list of Network Time
Protocol (NTP) time servers.
The Zyxel Device continues to use the following pre-defined list of NTP time servers if you do not specify a
time server or it cannot synchronize with the time server you specified.
When the Zyxel Device uses the pre-defined list of NTP time servers, it randomly selects one server and
tries to synchronize with it. If the synchronization fails, then the Zyxel Device goes through the rest of the
list in order from the first one tried until either it is successful or all the pre-defined NTP time servers have
been tried.
47.4.2 Time Server Synchronization
Click the Synchronize Now button to get the time and date from the time server you specified in the
Time Server Address field.
When the Loading screen appears, you may have to wait up to one minute.
Figure 686 Synchronization in Process
The Current Time and Current Date fields will display the appropriate settings if the synchronization is
successful.
If the synchronization was not successful, a log displays in the View Log screen. Try re-configuring the
Date/Time screen.
To manually set the Zyxel Device date and time.
1 Click System > Date/Time.
2 Select Manual under Time and Date Setup.
Offset Specify how much the clock changes when daylight saving begins and ends.
Enter a number from 1 to 5.5 (by 0.5 increments).
For example, if you set this field to 3.5, a log occurred at 6 P.M. in local official time will
appear as if it had occurred at 10:30 P.M.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 444 Configuration > System > Date and Time (continued)
LABEL DESCRIPTION
Table 445 Default Time Servers
0.pool.ntp.org
1.pool.ntp.org
2.pool.ntp.org
background
Chapter 47 System
USG FLEX Series User’s Guide
1083
3 Enter the Zyxel Device’s time in the New Time field.
4 Enter the Zyxel Device’s date in the New Date field.
5 Under Time Zone Setup, select your Time Zone from the list.
6 As an option you can select the Enable Daylight Saving check box to adjust the Zyxel Device clock for
daylight savings.
7 Click Apply.
To get the Zyxel Device date and time from a time server
1 Click System > Date/Time.
2 Select Get from Time Server under Time and Date Setup.
3 Under Time Zone Setup, select your Time Zone from the list.
4 As an option you can select the Enable Daylight Saving check box to adjust the Zyxel Device clock for
daylight savings.
5 Under Time and Date Setup, enter a Time Server Address (Table 445 on page 1082).
6 Click Apply.
47.5 Console Port Speed
This section shows you how to set the console port speed when you connect to the Zyxel Device through
the console port using a terminal emulation program.
Click Configuration > System > Console Speed to open the Console Speed screen.
Figure 687 Configuration > System > Console Speed
background
Chapter 47 System
USG FLEX Series User’s Guide
1084
The following table describes the labels in this screen.
47.6 DNS Overview
DNS (Domain Name System) is for mapping a domain name to its corresponding IP address and vice
versa. The DNS server is extremely important because without it, you must know the IP address of a
machine before you can access it.
47.6.1 DNS Server Address Assignment
The Zyxel Device can get the DNS server addresses in the following ways.
• The ISP tells you the DNS server addresses, usually in the form of an information sheet, when you sign
up. If your ISP gives you DNS server addresses, manually enter them in the DNS server fields.
• If your ISP dynamically assigns the DNS server IP addresses (along with the Zyxel Device’s WAN IP
address), set the DNS server fields to get the DNS server address from the ISP.
• You can manually enter the IP addresses of other DNS servers.
47.6.2 Configuring the DNS Screen
Click Configuration > System > DNS to change your Zyxel Device’s DNS settings. Use the DNS screen to
configure the Zyxel Device to use a DNS server to resolve domain names for Zyxel Device system
features like VPN, DDNS and the time server. You can also configure the Zyxel Device to accept or
discard DNS queries. Use the Network > Interface screens to configure the DNS server information that
the Zyxel Device sends to the specified DHCP client devices.
A name query begins at a client computer and is passed to a resolver, a DNS client service, for
resolution. The Zyxel Device can be a DNS client service. The Zyxel Device can resolve a DNS query
locally using cached Resource Records (RR) obtained from a previous query (and kept for a period of
time). If the Zyxel Device does not have the requested information, it can forward the request to DNS
servers. This is known as recursion.
The Zyxel Device can ask a DNS server to use recursion to resolve its DNS client requests. If recursion on
the Zyxel Device or a DNS server is disabled, they cannot forward DNS requests for resolution.
A Domain Name Server (DNS) amplification attack is a kind of Distributed Denial of Service (DDoS)
attack that uses publicly accessible open DNS servers to flood a victim with DNS response traffic. An
open DNS server is a DNS server which is willing to resolve recursive DNS queries from anyone on the
Internet.
Table 446 Configuration > System > Console Speed
LABEL DESCRIPTION
Console Port Speed Use the drop-down list box to change the speed of the console port. Your Zyxel Device
supports 9600, 19200, 38400, 57600, and 115200 bps (default) for the console port.
The Console Port Speed applies to a console port connection using terminal emulation
software and NoT the Console in the Zyxel Device Web Configurator Status screen.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 47 System
USG FLEX Series User’s Guide
1085
In a DNS amplification attack, an attacker sends a DNS name lookup request to an open DNS server
with the source address spoofed as the victim’s address. When the DNS server sends the DNS record
response, it is sent to the victim. Attackers can request as much information as possible to maximize the
amplification effect.
Configure the Security Option Control section in the Configuration > System > DNS screen (click Show
Advanced Settings to display it) if you suspect the Zyxel Device is being used (either by hackers or by a
corrupted open DNS server) in a DNS amplification attack.
Figure 688 Configuration > System > DNS
background
Chapter 47 System
USG FLEX Series User’s Guide
1086
The following table describes the labels in this screen.
Table 447 Configuration > System > DNS
LABEL DESCRIPTION
Address/PTR
Record
This record specifies the mapping of a Fully-Qualified Domain Name (FQDN) to an IP address.
An FQDN consists of a host and domain name. For example, www.zyxel.com.tw is a fully
qualified domain name, where “www” is the host, “zyxel” is the third-level domain, “com” is
the second-level domain, and “tw” is the top level domain.
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so. Note that subsequent entries move up by one when you take this
action.
# This is the index number of the address/PTR record.
FQDN This is a host’s fully qualified domain name.
IP Address This is the IP address of a host.
CNAME Record This record specifies an alias for a FQDN. Use this record to bind all subdomains with the same
IP address as the FQDN without having to update each one individually, which increases
chance for errors. See CNAME Record (
Section 47.6.6 on page 1089) for more details.
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so. Note that subsequent entries move up by one when you take this
action.
# This is the index number of the domain zone forwarder record. The ordering of your rules is
important as rules are applied in sequence.
A hyphen (-) displays for the default domain zone forwarder record. The default record is not
configurable. The Zyxel Device uses this default record if the domain zone that needs to be
resolved does not match any of the other domain zone forwarder records.
Alias Name Enter an Alias name. Use “*.” as prefix for a wildcard domain name. For example,
*.example.com.
FQDN Enter the Fully Qualified Domain Name (FQDN).
Domain Zone
Forwarder
This specifies a DNS server’s IP address. The Zyxel Device can query the DNS server to resolve
domain zones for features like VPN, DDNS and the time server.
When the Zyxel Device needs to resolve a domain zone, it checks it against the domain zone
forwarder entries in the order that they appear in this list.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so. Note that subsequent entries move up by one when you take this
action.
Move To change an entry’s position in the numbered list, select the method and click Move to
display a field to type a number for where you want to put it and press [ENTER] to move the
rule to the number that you typed.
# This is the index number of the domain zone forwarder record. The ordering of your rules is
important as rules are applied in sequence.
A hyphen (-) displays for the default domain zone forwarder record. The default record is not
configurable. The Zyxel Device uses this default record if the domain zone that needs to be
resolved does not match any of the other domain zone forwarder records.
background
Chapter 47 System
USG FLEX Series User’s Guide
1087
Domain Zone A domain zone is a fully qualified domain name without the host. For example, zyxel.com.tw
is the domain zone for the www.zyxel.com.tw fully qualified domain name.
A “*” means all domain zones.
Type This displays whether the DNS server IP address is assigned by the ISP dynamically through a
specified interface or configured manually (User-Defined).
DNS Server This is the IP address of a DNS server. This field displays N/A if you have the Zyxel Device get a
DNS server IP address from the ISP dynamically but the specified interface is not active.
Query Via This is the interface through which the Zyxel Device sends DNS queries to the entry’s DNS
server. If the Zyxel Device connects through a VPN tunnel, tunnel displays.
MX Record (for My
FQDN)
A MX (Mail eXchange) record identifies a mail server that handles the mail for a particular
domain.
Add Click this to create a new entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so. Note that subsequent entries move up by one when you take this
action.
# This is the index number of the MX record.
Domain Name This is the domain name where the mail is destined for.
IP/FQDN This is the IP address or Fully-Qualified Domain Name (FQDN) of a mail server that handles the
mail for the domain specified in the field above.
Security Option
Control
Click Show Advanced Settings to display this part of the screen. There are two control
policies: Default and Customize.
Edit Click either control policy and then click this button to change allow or deny actions for
Query Recursion and Additional Info from Cache.
Priority The Customize control policy is checked first and if an address object match is not found, the
Default control policy is checked.
Name You may change the name of the Customize control policy.
Address These are the object addresses used in the control policy. RFC1918 refers to private IP address
ranges. It can be modified in Object > Address.
Additional Info
from Cache
This displays if the Zyxel Device is allowed or denied to cache Resource Records (RR)
obtained from previous DNS queries.
Query
Recursion
This displays if the Zyxel Device is allowed or denied to forward DNS client requests to DNS
servers for resolution.
Service Control This specifies from which computers and zones you can send DNS queries to the Zyxel Device.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so. Note that subsequent entries move up by one when you take this
action.
Move To change an entry’s position in the numbered list, select the method and click Move to
display a field to type a number for where you want to put it and press [ENTER] to move the
rule to the number that you typed.
Table 447 Configuration > System > DNS (continued)
LABEL DESCRIPTION
background
Chapter 47 System
USG FLEX Series User’s Guide
1088
47.6.3 (IPv6) Address Record
An address record contains the mapping of a Fully-Qualified Domain Name (FQDN) to an IP address.
The Zyxel Device allows you to configure address records about the Zyxel Device itself or another
device. This way you can keep a record of DNS names and addresses that people on your network may
use frequently. If the Zyxel Device receives a DNS query for an FQDN for which the Zyxel Device has an
address record, the Zyxel Device can send the IP address in a DNS response without having to query a
DNS name server.
47.6.4 PTR Record
A PTR (pointer) record is also called a reverse record or a reverse lookup record. It is a mapping of an IP
address to a domain name.
47.6.5 Adding an (IPv6) Address/PTR Record
Click the Add icon in the Address/PTR Record or IPv6 Address/PTR Record table to add an IPv4 or IPv6
address/PTR record.
Figure 689 Configuration > System > DNS > Address/PTR Record Edit
# This the index number of the service control rule. The ordering of your rules is important as
rules are applied in sequence.
The entry with a hyphen (-) instead of a number is the Zyxel Device’s (non-configurable)
default policy. The Zyxel Device applies this to traffic that does not match any other
configured rule. It is not an editable rule. To apply other behavior, configure a rule that traffic
will match so the Zyxel Device will not have to use the default policy.
Zone This is the zone on the Zyxel Device the user is allowed or denied to access.
Address This is the object name of the IP address(es) with which the computer is allowed or denied to
send DNS queries.
Action This displays whether the Zyxel Device accepts DNS queries from the computer with the IP
address specified above through the specified zone (Accept) or discards them (Deny).
Table 447 Configuration > System > DNS (continued)
LABEL DESCRIPTION
background
Chapter 47 System
USG FLEX Series User’s Guide
1089
The following table describes the labels in this screen.
47.6.6 CNAME Record
A Canonical Name Record or CNAME record is a type of resource record in the Domain Name System
(DNS) that specifies that the domain name is an alias of another, canonical domain name. This allows
users to set up a record for a domain name which translates to an IP address, in other words, the domain
name is an alias of another. This record also binds all the subdomains to the same IP address without
having to create a record for each, so when the IP address is changed, all subdomain’s IP address is
updated as well, with one edit to the record.
For example, the domain name zyxel.com is hooked up to a record named A which translates it to
11.22.33.44. You also have several subdomains, like mail.zyxel.com, ftp.zyxel.com and you want this
subdomain to point to your main domain zyxel.com. Edit the IP Address in record A and all subdomains
will follow automatically. This eliminates chances for errors and increases efficiency in DNS
management.
47.6.7 Adding a CNAME Record
Click the Add icon in the CNAME Record table to add a record. Use “*.” as a prefix for a wildcard
domain name. For example *.zyxel.com.
Figure 690 Configuration > System > DNS > CNAME Record > Add
Table 448 Configuration > System > DNS > (IPv6) Address/PTR Record Edit
LABEL DESCRIPTION
FQDN Type a Fully-Qualified Domain Name (FQDN) of a server. An FQDN starts with a host name and
continues all the way up to the top-level domain name. For example, www.zyxel.com.tw is a
fully qualified domain name, where “www” is the host, “zyxel” is the third-level domain, “com”
is the second-level domain, and “tw” is the top level domain. Underscores are not allowed.
Use "*." as a prefix in the FQDN for a wildcard domain name (for example, *.example.com).
IP Address Enter the IP address of the host in dotted decimal notation.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 47 System
USG FLEX Series User’s Guide
1090
The following table describes the labels in this screen.
47.6.8 Domain Zone Forwarder
A domain zone forwarder contains a DNS server’s IP address. The Zyxel Device can query the DNS server
to resolve domain zones for features like VPN, DDNS and the time server. A domain zone is a fully
qualified domain name without the host. For example, zyxel.com.tw is the domain zone for the
www.zyxel.com.tw fully qualified domain name.
47.6.9 Adding a Domain Zone Forwarder
Click the Add icon in the Domain Zone Forwarder table to add a domain zone forwarder record.
Figure 691 Configuration > System > DNS > Domain Zone Forwarder Add
Table 449 Configuration > System > DNS > CNAME Record > Add
LABEL DESCRIPTION
Alias name Enter an Alias Name. Use "*." as a prefix in the Alias name for a wildcard domain
name (for example, *.example.com).
FQDN Type a Fully-Qualified Domain Name (FQDN) of a server. An FQDN starts with a host
name and continues all the way up to the top-level domain name. For example,
www.zyxel.com.tw is a fully qualified domain name, where “www” is the host, “zyxel”
is the third-level domain, “com” is the second-level domain, and “tw” is the top level
domain. Underscores are not allowed.
Use "*." as a prefix in the FQDN for a wildcard domain name (for example,
*.example.com).
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 47 System
USG FLEX Series User’s Guide
1091
The following table describes the labels in this screen.
47.6.10 MX Record
A MX (Mail eXchange) record indicates which host is responsible for the mail for a particular domain,
that is, controls where mail is sent for that domain. If you do not configure proper MX records for your
domain or other domain, external email from other mail servers will not be able to be delivered to your
mail server and vice versa. Each host or domain can have only one MX record, that is, one domain is
mapping to one host.
47.6.11 Adding a MX Record
Click the Add icon in the MX Record table to add a MX record.
Figure 692 Configuration > System > DNS > MX Record Add
Table 450 Configuration > System > DNS > Domain Zone Forwarder Add
LABEL DESCRIPTION
Domain Zone A domain zone is a fully qualified domain name without the host. For example, zyxel.com.tw is
the domain zone for the www.zyxel.com.tw fully qualified domain name. For example,
whenever the Zyxel Device receives needs to resolve a zyxel.com.tw domain name, it can
send a query to the recorded name server IP address.
Enter * if all domain zones are served by the specified DNS server(s).
DNS Server Select DNS Server(s) from ISP if your ISP dynamically assigns DNS server information. You also
need to select an interface through which the ISP provides the DNS server IP address(es). The
interface should be activated and set to be a DHCP client. The fields below display the (read-
only) DNS server IP address(es) that the ISP assigns. N/A displays for any DNS server IP address
fields for which the ISP does not assign an IP address.
Select Public DNS Server if you have the IP address of a DNS server. Enter the DNS server's IP
address in the field to the right. The Zyxel Device must be able to connect to the DNS server
without using a VPN tunnel. The DNS server could be on the Internet or one of the Zyxel
Device’s local networks. You cannot use 0.0.0.0. Use the Query via field to select the interface
through which the Zyxel Device sends DNS queries to a DNS server.
Select Private DNS Server if you have the IP address of a DNS server to which the Zyxel Device
connects through a VPN tunnel. Enter the DNS server's IP address in the field to the right. You
cannot use 0.0.0.0.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 47 System
USG FLEX Series User’s Guide
1092
The following table describes the labels in this screen.
47.6.12 Security Option Control
Configure the Security Option Control section in the Configuration > System > DNS screen (click Show
Advanced Settings to display it) if you suspect the Zyxel Device is being used by hackers in a DNS
amplification attack.
One possible strategy would be to deny Query Recursion and Additional Info from Cache in the default
policy and allow Query Recursion and Additional Info from Cache only from trusted DNS servers
identified by address objects and added as members in the customized policy.
47.6.13 Editing a Security Option Control
Click a control policy and then click Edit to change allow or deny actions for Query Recursion and
Additional Info from Cache.
Figure 693 Configuration > System > DNS > Security Option Control Edit (Customize)
Table 451 Configuration > System > DNS > MX Record Add
LABEL DESCRIPTION
Domain Name Enter the domain name where the mail is destined for.
IP Address/FQDN Enter the IP address or Fully-Qualified Domain Name (FQDN) of a mail server that handles the
mail for the domain specified in the field above.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 47 System
USG FLEX Series User’s Guide
1093
The following table describes the labels in this screen.
47.6.14 Adding a DNS Service Control Rule
Click the Add icon in the Service Control table to add a service control rule.
Figure 694 Configuration > System > DNS > Service Control Rule Add
The following table describes the labels in this screen.
Table 452 Configuration > System > DNS > Security Option Control Edit (Customize)
LABEL DESCRIPTION
Name You may change the name for the customized security option control policy. The customized
security option control policy is checked first and if an address object match is not found, the
Default control policy is checked.
Query Recursion Choose if the Zyxel Device is allowed or denied to forward DNS client requests to DNS servers
for resolution. This can apply to specific open DNS servers using the address objects in a
customized rule.
Additional Info
from Cache
Choose if the Zyxel Device is allowed or denied to cache Resource Records (RR) obtained
from previous DNS queries.
Address List Specifying address objects is not available in the default policy as all addresses are included.
Available This box displays address objects created in Object > Address. Select one (or more), and click
the > arrow to have it (them) join the Member list of address objects that will apply to this rule.
For example, you could specify an open DNS server suspect of sending compromised
resource records by adding an address object for that server to the member list.
Member This box displays address objects that will apply to this rule.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
Table 453 Configuration > System > DNS > Service Control Rule Add
LABEL DESCRIPTION
Create new
Object
Use this to configure any new settings objects that you need to use in this screen.
Address Object Select ALL to allow or deny any computer to send DNS queries to the Zyxel Device.
Select a predefined address object to just allow or deny the computer with the IP address that
you specified to send DNS queries to the Zyxel Device.
Zone Select ALL to allow or prevent DNS queries through any zones.
Select a predefined zone on which a DNS query to the Zyxel Device is allowed or denied.
background
Chapter 47 System
USG FLEX Series User’s Guide
1094
47.7 WWW Overview
The following figure shows secure and insecure management of the Zyxel Device coming in from the
WAN. HTTPS and SSH access are secure. HTTP and Telnet access are not secure.
Note: To allow the Zyxel Device to be accessed from a specified computer using a service,
make sure you do not have a service control rule or to-Zyxel Device security policy rule
to block that traffic.
To stop a service from accessing the Zyxel Device, clear Enable in the corresponding service screen.
47.7.1 Service Access Limitations
A service cannot be used to access the Zyxel Device when:
1 You have disabled that service in the corresponding screen.
2 The allowed IP address (address object) in the Service Control table does not match the client IP
address (the Zyxel Device disallows the session).
3 The IP address (address object) in the Service Control table is not in the allowed zone or the action is set
to Deny.
4 There is a security policy rule that blocks it.
47.7.2 System Timeout
There is a lease timeout for administrators. The Zyxel Device automatically logs you out if the
management session remains idle for longer than this timeout period. The management session does
not time out when a statistics screen is polling.
Each user is also forced to log in the Zyxel Device for authentication again when the reauthentication
time expires.
You can change the timeout settings in the User/Group screens.
47.7.3 HTTPS
You can set the Zyxel Device to use HTTP or HTTPS (HTTPS adds security) for Web Configurator sessions.
Specify which zones allow Web Configurator access and from which IP address the access can come.
Action Select Accept to have the Zyxel Device allow the DNS queries from the specified computer.
Select Deny to have the Zyxel Device reject the DNS queries from the specified computer.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
Table 453 Configuration > System > DNS > Service Control Rule Add (continued)
LABEL DESCRIPTION
background
Chapter 47 System
USG FLEX Series User’s Guide
1095
HTTPS (HyperText Transfer Protocol over Secure Socket Layer, or HTTP over SSL) is a web protocol that
encrypts and decrypts web pages. Secure Socket Layer (SSL) is an application-level protocol that
enables secure transactions of data by ensuring confidentiality (an unauthorized party cannot read the
transferred data), authentication (one party can identify the other party) and data integrity (you know if
data has been changed).
It relies upon certificates, public keys, and private keys.
HTTPS on the Zyxel Device is used so that you can securely access the Zyxel Device using the Web
Configurator. The SSL protocol specifies that the HTTPS server (the Zyxel Device) must always
authenticate itself to the HTTPS client (the computer which requests the HTTPS connection with the Zyxel
Device), whereas the HTTPS client only should authenticate itself when the HTTPS server requires it to do
so (select Authenticate Client Certificates in the WWW screen). Authenticate Client Certificates is
optional and if selected means the HTTPS client must send the Zyxel Device a certificate. You must apply
for a certificate for the browser from a CA that is a trusted CA on the Zyxel Device.
Please refer to the following figure.
1 HTTPS connection requests from an SSL-aware web browser go to port 443 (by default) on the Zyxel
Device’s web server.
2 HTTP connection requests from a web browser go to port 80 (by default) on the Zyxel Device’s web
server.
Figure 695 HTTP/HTTPS Implementation
Note: If you disable HTTP in the WWW screen, then the Zyxel Device blocks all HTTP connection
attempts.
47.7.4 Configuring WWW Service Control
Click Configuration > System > WWW to open the WWW screen. Use this screen to specify from which
zones you can access the Zyxel Device using HTTP or HTTPS. You can also specify which IP addresses the
access can come from.
Admin Service Control deals with management access (to the Web Configurator). User Service Control
deals with user access to the Zyxel Device.
Note: You can specify the IP address a user can use to access the Zyxel Device using HTTPS or
the network behind the Zyxel Device using SSL VPN if the SSL VPN port and the HTTPS
port are the same in System > WWW > Service Control > HTTPS > User Service. Please
note that if you change the SSL VPN port in VPN > SSL VPN > Global Setting to a port
different from the HTTPS port, the settings you configure in HTTPS User Service Control
can only be used for users that access the Zyxel Device using HTTPS.
background
Chapter 47 System
USG FLEX Series User’s Guide
1096
Figure 696 Configuration > System > WWW > Service Control
The following table describes the labels in this screen.
Table 454 Configuration > System > WWW > Service Control
LABEL DESCRIPTION
HTTPS
Enable Select the check box to allow or disallow the computer with the IP address that matches
the IP address(es) in the HTTPS Admin Service Control and User Service Control table to
access the Zyxel Device Web Configurator using secure HTTPS connections.
Server Port The HTTPS server listens on port 443 by default. If you change the HTTPS server port to a
different number on the Zyxel Device, for example 8443, then you must notify people who
need to access the Zyxel Device Web Configurator to use “https://Zyxel Device IP
Address:8443” as the URL.
background
Chapter 47 System
USG FLEX Series User’s Guide
1097
Authenticate Client
Certificates
Select Authenticate Client Certificates (optional) to require the SSL client to authenticate
itself to the Zyxel Device by sending the Zyxel Device a certificate. To do that the SSL client
must have a CA-signed certificate from a CA that has been imported as a trusted CA on
the Zyxel Device(see
Section 47.7.7.5 on page 1106 on importing certificates for details).
If you enabled Authenticate Client Certificates, but you do not have a trusted certificate,
then the client device will not be able to access the Zyxel Device web configurator. To
disable Authenticate Client Certificates, log in through the console port and use the
following commands to disable Authenticate Client Certificates.
Router > configure terminal
Router(config)# no ip http secure-server auth-client
Router(config)# write
Router(config)# exit
Server Certificate Select a certificate the HTTPS server (the Zyxel Device) uses to authenticate itself to the
HTTPS client. You must have certificates already configured in the My Certificates screen.
Redirect HTTP to HTTPS To allow only secure Web Configurator access, select this to redirect all HTTP connection
requests to the HTTPS server.
Admin/User Service
Control
Admin Service Control specifies from which zones an administrator can use HTTPS to
manage the Zyxel Device (using the Web Configurator). You can also specify the IP
addresses from which the administrators can manage the Zyxel Device.
User Service Control specifies from which zones a user can use HTTPS to log into the Zyxel
Device. You can also specify the IP addresses from which the users can access the Zyxel
Device.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after
the selected entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so. Note that subsequent entries move up by one when you take
this action.
Move To change an entry’s position in the numbered list, select the method and click Move to
display a field to type a number for where you want to put it and press [ENTER] to move
the rule to the number that you typed.
# This is the index number of the service control rule.
The entry with a hyphen (-) instead of a number is the Zyxel Device’s (non-configurable)
default policy. The Zyxel Device applies this to traffic that does not match any other
configured rule. It is not an editable rule. To apply other behavior, configure a rule that
traffic will match so the Zyxel Device will not have to use the default policy.
Zone This is the zone on the Zyxel Device the user is allowed or denied to access.
Address This is the object name of the IP address(es) with which the computer is allowed or denied
to access.
Action This displays whether the computer with the IP address specified above can access the
Zyxel Device zone(s) configured in the Zone field (Accept) or not (Deny).
HTTP
Enable Select the check box to allow or disallow the computer with the IP address that matches
the IP address(es) in the HTTP Admin Service Control and User Service Control table to
access the Zyxel Device Web Configurator using HTTP connections.
Server Port You may change the server port number for a service if needed, however you must use
the same port number in order to use that service to access the Zyxel Device.
Table 454 Configuration > System > WWW > Service Control (continued)
LABEL DESCRIPTION
background
Chapter 47 System
USG FLEX Series User’s Guide
1098
47.7.5 Service Control Rules
Click Add or Edit in the Service Control table in a WWW, SSH, Telnet, FTP or SNMP screen to add a service
control rule.
Figure 697 Configuration > System > Service Control Rule > Edit
Admin/User Service
Control
Admin Service Control specifies from which zones an administrator can use HTTP to
manage the Zyxel Device (using the Web Configurator). You can also specify the IP
addresses from which the administrators can manage the Zyxel Device.
User Service Control specifies from which zones a user can use HTTP to log into the Zyxel
Device. You can also specify the IP addresses from which the users can access the Zyxel
Device. Please note that if you want to access the Zyxel Device through SSL VPN using the
same port as the HTTP port, the SSL VPN port and the HTTP port have to be the same.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after
the selected entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to
remove it before doing so. Note that subsequent entries move up by one when you take
this action.
Move To change an entry’s position in the numbered list, select the method and click Move to
display a field to type a number for where you want to put it and press [ENTER] to move
the rule to the number that you typed.
# This is the index number of the service control rule.
The entry with a hyphen (-) instead of a number is the Zyxel Device’s (non-configurable)
default policy. The Zyxel Device applies this to traffic that does not match any other
configured rule. It is not an editable rule. To apply other behavior, configure a rule that
traffic will match so the Zyxel Device will not have to use the default policy.
Zone This is the zone on the Zyxel Device the user is allowed or denied to access.
Address This is the object name of the IP address(es) with which the computer is allowed or denied
to access.
Action This displays whether the computer with the IP address specified above can access the
Zyxel Device zone(s) configured in the Zone field (Accept) or not (Deny).
Authentication
Client Authentication
Method
Select a method the HTTPS or HTTP server uses to authenticate a client.
You must have configured the authentication methods in the Object > Auth. method
screen.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 454 Configuration > System > WWW > Service Control (continued)
LABEL DESCRIPTION
background
Chapter 47 System
USG FLEX Series User’s Guide
1099
The following table describes the labels in this screen.
47.7.6 Customizing the WWW Login Page
Click Configuration > System > WWW > Login Page to open the Login Page screen. Use this screen to
customize the Web Configurator login screen. You can also customize the page that displays after an
access user logs into the Web Configurator to access network services like the Internet.
Table 455 Configuration > System > Service Control Rule > Edit
LABEL DESCRIPTION
Create new
Object
Use this to configure any new settings objects that you need to use in this screen.
Address Object Select ALL to allow or deny any computer to communicate with the Zyxel Device using this
service.
Select a predefined address object to just allow or deny the computer with the IP address that
you specified to access the Zyxel Device using this service.
Zone Select ALL to allow or prevent any Zyxel Device zones from being accessed using this service.
Select a predefined Zyxel Device zone on which a incoming service is allowed or denied.
Action Select Accept to allow the user to access the Zyxel Device from the specified computers.
Select Deny to block the user’s access to the Zyxel Device from the specified computers.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 47 System
USG FLEX Series User’s Guide
1100
Figure 698 Configuration > System > WWW > Login Page (Desktop View)
background
Chapter 47 System
USG FLEX Series User’s Guide
1101
Figure 699 Configuration > System > WWW > Login Page (Mobile View)
The following figures identify the parts you can customize in the login and access pages.
background
Chapter 47 System
USG FLEX Series User’s Guide
1102
Figure 700 Login Page Customization
Figure 701 Access Page Customization
You can specify colors in one of the following ways:
• Click Color to display a screen of web-safe colors from which to choose.
• Enter the name of the desired color.
• Enter a pound sign (#) followed by the six-digit hexadecimal number that represents the desired
color. For example, use “#000000” for black.
• Enter “rgb” followed by red, green, and blue values in parenthesis and separate by commas. For
example, use “rgb(0,0,0)” for black.
Logo
Title
Message
Note Message
Background
(last line of text)
(color of all text)
Logo
Title
Message
Note Message
Window
(last line of text)
(color of all text)
Background
background
Chapter 47 System
USG FLEX Series User’s Guide
1103
Your desired color should display in the preview screen on the right after you click in another field, click
Apply, or press [ENTER]. If your desired color does not display, your browser may not support it. Try
selecting another color.
The following table describes the labels on the screen.
Table 456 Configuration > System > WWW > Login Page
LABEL DESCRIPTION
Select Type Select whether the Web Configurator uses the default login screen or one that you customize in
the rest of this screen.
Logo File You can upload a graphic logo to be displayed on the upper left corner of the Web
Configurator login screen and access page.
Specify the location and file name of the logo graphic or click Browse to locate it.
Note: Use a GIF, JPG, or PNG of 100 kilobytes or less.
Click Upload to transfer the specified graphic file from your computer to the Zyxel Device.
Customized
Login Page
Use this section to set how the Web Configurator login screen looks.
Title Enter the title for the top of the screen. Use 1 to 64 single-byte characters, including 0-9a-zA-
Z!”#$%&’()*+,-./:;=?@[\]^_‘. Spaces are allowed.
<> are not allowed.
Title Color Specify the color of the screen’s title text.
Message Color Specify the color of the screen’s text.
Note Message Enter a note to display at the bottom of the screen. Use up to 64 single-byte characters,
including0-9a-zA-Z!”#$%’()+,-./:;<=>?@[\]^_‘{|}. Spaces are allowed.
Background Set how the screen background looks.
To use a graphic, select Picture and upload a graphic. Specify the location and file name of
the logo graphic or click Browse to locate it. The picture’s size cannot be over 438 x 337 pixels.
Note: Use a GIF, JPG, or PNG of 100 kilobytes or less.
To use a color, select Color and specify the color.
Customized
Access Page
Use this section to customize the page that displays after an access user logs into the Web
Configurator to access network services like the Internet.
Title Enter the title for the top of the screen. Use up to 64 printable ASCII characters. Spaces are
allowed.
Message Color Specify the color of the screen’s text.
Note Message Enter a note to display below the title. Use up to 64 printable ASCII characters. Spaces are
allowed.
Background Set how the window’s background looks.
To use a graphic, select Picture and upload a graphic. Specify the location and file name of
the logo graphic or click Browse to locate it. The picture’s size cannot be over 438 x 337 pixels.
Note: Use a GIF, JPG, or PNG of 100 kilobytes or less.
To use a color, select Color and specify the color.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 47 System
USG FLEX Series User’s Guide
1104
47.7.7 HTTPS Example
If you haven’t changed the default HTTPS port on the Zyxel Device, then in your browser enter “https://
Zyxel Device IP Address/” as the web site address where “Zyxel Device IP Address” is the IP address or
domain name of the Zyxel Device you wish to access.
47.7.7.1 Internet Explorer Warning Messages
When you attempt to access the Zyxel Device HTTPS server, you will see the error message shown in the
following screen.
Figure 702 Security Alert Dialog Box (Internet Explorer)
Select Continue to this website to proceed to the Web Configurator login screen. Otherwise, select Click
here to close this web page to block the access.
47.7.7.2 Mozilla Firefox Warning Messages
When you attempt to access the Zyxel Device HTTPS server, a The Connection is Untrusted screen
appears as shown in the following screen. Click Technical Details if you want to verify more information
about the certificate from the Zyxel Device.
Select I Understand the Risks and then click Add Exception to add the Zyxel Device to the security
exception list. Click Confirm Security Exception.
Figure 703 Security Certificate 1 (Firefox)
background
Chapter 47 System
USG FLEX Series User’s Guide
1105
Figure 704 Security Certificate 2 (Firefox)
47.7.7.3 Avoiding Browser Warning Messages
Here are the main reasons your browser displays warnings about the Zyxel Device’s HTTPS server
certificate and what you can do to avoid seeing the warnings:
• The issuing certificate authority of the Zyxel Device’s HTTPS server certificate is not one of the browser’s
trusted certificate authorities. The issuing certificate authority of the Zyxel Device's factory default
certificate is the Zyxel Device itself since the certificate is a self-signed certificate.
• For the browser to trust a self-signed certificate, import the self-signed certificate into your operating
system as a trusted certificate.
• To have the browser trust the certificates issued by a certificate authority, import the certificate
authority’s certificate into your operating system as a trusted certificate.
47.7.7.4 Login Screen
After you accept the certificate, the Zyxel Device login screen appears. The lock displayed in the
bottom of the browser status bar denotes a secure connection.
background
Chapter 47 System
USG FLEX Series User’s Guide
1106
Figure 705 Login Screen (Internet Explorer)
47.7.7.5 Enrolling and Importing SSL Client Certificates
The SSL client needs a certificate if Authenticate Client Certificates is selected on the Zyxel Device.
You must have imported at least one trusted CA to the Zyxel Device in order for the Authenticate Client
Certificates to be active (see the Certificates chapter for details).
Apply for a certificate from a Certification Authority (CA) that is trusted by the Zyxel Device (see the
Zyxel Device’s Trusted CA Web Configurator screen).
Figure 706 Zyxel Device Trusted CA Screen
The CA sends you a package containing the CA’s trusted certificate(s), your personal certificate(s) and
a password to install the personal certificate(s).
47.7.7.5.1 Installing the CA’s Certificate
1 Double click the CA’s trusted certificate to produce a screen similar to the one shown next.
background
Chapter 47 System
USG FLEX Series User’s Guide
1107
Figure 707 CA Certificate Example
2 Click Install Certificate and follow the wizard as shown earlier in this appendix.
47.7.7.5.2 Installing Your Personal Certificate(s)
You need a password in advance. The CA may issue the password or you may have to specify it during
the enrollment. Double-click the personal certificate given to you by the CA to produce a screen similar
to the one shown next
1 Click Next to begin the wizard.
background
Chapter 47 System
USG FLEX Series User’s Guide
1108
Figure 708 Personal Certificate Import Wizard 1
2 The file name and path of the certificate you double-clicked should automatically appear in the File
name text box. Click Browse if you wish to import a different certificate.
Figure 709 Personal Certificate Import Wizard 2
3 Enter the password given to you by the CA.
background
Chapter 47 System
USG FLEX Series User’s Guide
1109
Figure 710 Personal Certificate Import Wizard 3
4 Have the wizard determine where the certificate should be saved on your computer or select Place all
certificates in the following store and choose a different location.
Figure 711 Personal Certificate Import Wizard 4
5 Click Finish to complete the wizard and begin the import process.
background
Chapter 47 System
USG FLEX Series User’s Guide
1110
Figure 712 Personal Certificate Import Wizard 5
6 You should see the following screen when the certificate is correctly installed on your computer.
Figure 713 Personal Certificate Import Wizard 6
47.7.7.6 Using a Certificate When Accessing the Zyxel Device Example
Use the following procedure to access the Zyxel Device with HTTPS.
1 Enter ‘https://Zyxel Device IP Address/ in your browser’s web address field.
Figure 714 Access the Zyxel Device with HTTPS
2 When Authenticate Client Certificates is selected on the Zyxel Device, the following screen asks you to
select a personal certificate to send to the Zyxel Device. This screen displays even if you only have a
single certificate as in the example.
background
Chapter 47 System
USG FLEX Series User’s Guide
1111
Figure 715 SSL Client Authentication
3 You next see the Web Configurator login screen.
Figure 716 Secure Web Configurator Login Screen
47.8 SSH
You can use SSH (Secure SHell) to securely access the Zyxel Device’s command line interface. Specify
which zones allow SSH access and from which IP address the access can come.
SSH is a secure communication protocol that combines authentication and data encryption to provide
secure encrypted communication between two hosts over an unsecured network. In the following
figure, computer A on the Internet uses SSH to securely connect (SC) to the WAN port of the Zyxel
Device for a management session.
background
Chapter 47 System
USG FLEX Series User’s Guide
1112
Note: To allow an SSH connection to the Zyxel Device, add SSH in the Object > Service >
Service Group > Default_Allow_WAN_To_ZyWALL service group which defines the
default services allowed in the WAN_to_Device security policy.
Figure 717 SSH Communication Over the WAN Example
47.8.1 SSH Implementation on the Zyxel Device
Your Zyxel Device supports SSH version 2 using RSA authentication and four encryption methods (AES,
3DES, Archfour, and Blowfish). The SSH server is implemented on the Zyxel Device for management using
port 22 (by default).
47.8.2 Requirements for Using SSH
You must install an SSH client program on a client computer (Windows or Linux operating system) that is
used to connect to the Zyxel Device over SSH.
47.8.3 Configuring SSH
Click Configuration > System > SSH to change your Zyxel Device’s Secure Shell settings. Use this screen to
specify from which zones SSH can be used to manage the Zyxel Device. You can also specify from
which IP addresses the access can come.
Figure 718 Configuration > System > SSH
background
Chapter 47 System
USG FLEX Series User’s Guide
1113
The following table describes the labels in this screen.
47.8.4 Service Control Rules
Click the Add or Edit icon in the Service Control table to add a service control rule.
Figure 719 Configuration > System > SSH > Service Control Rule Add/Edit
Table 457 Configuration > System > SSH
LABEL DESCRIPTION
Enable Select the check box to allow or disallow the computer with the IP address that matches the IP
address(es) in the Service Control table to access the Zyxel Device CLI using this service.
Server Port You may change the server port number for a service if needed, however you must use the
same port number in order to use that service for remote management.
Server Certificate Select the certificate whose corresponding private key is to be used to identify the Zyxel
Device for SSH connections. You must have certificates already configured in the My
Certificates screen.
Service Control This specifies from which computers you can access which Zyxel Device zones.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry. Refer to
Table 455 on page 1099 for details on the screen that opens.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so. Note that subsequent entries move up by one when you take this action.
Move To change an entry’s position in the numbered list, select the method and click Move to
display a field to type a number for where you want to put it and press [ENTER] to move the rule
to the number that you typed.
# This the index number of the service control rule.
Zone This is the zone on the Zyxel Device the user is allowed or denied to access.
Address This is the object name of the IP address(es) with which the computer is allowed or denied to
access.
Action This displays whether the computer with the IP address specified above can access the Zyxel
Device zone(s) configured in the Zone field (Accept) or not (Deny).
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 47 System
USG FLEX Series User’s Guide
1114
The following table describes the labels in this screen.
47.8.5 SSH Example
This section shows using a PuTTY SSH client to remotely access the Zyxel Device. The configuration and
connection steps are similar for most SSH client programs. Refer to your SSH client program user’s guide.
1 Launch the SSH client and configure the SSH client to use SSH version 2.
2 Specify the connection information (IP address, port number) for the Zyxel Device.
Table 458 Configuration > System > SSH > Service Control Rule Add/Edit
LABEL DESCRIPTION
Create new
Object
Use this to configure any new settings objects that you need to use in this screen.
Address Object Select ALL to allow or deny any computer to communicate with the Zyxel Device using SSH.
Select a predefined address object to just allow or deny the computer with the IP address that
you specified to access the Zyxel Device using SSH.
Zone Select ALL to allow or prevent any Zyxel Device zones from being accessed using SSH.
Select a predefined Zyxel Device zone on which a incoming service is allowed or denied.
Action Select Accept to allow the user to access the Zyxel Device from the specified computers.
Select Deny to block the user’s access to the Zyxel Device from the specified computers.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 47 System
USG FLEX Series User’s Guide
1115
3 A command window displays. Enter the password to log in to the Zyxel Device.
47.9 Telnet
You can use Telnet to access the Zyxel Device’s command line interface. Specify which zones allow
Telnet access and from which IP address the access can come.
47.9.1 Configuring Telnet
Click Configuration > System > TELNET to configure your Zyxel Device for remote Telnet access. Use this
screen to specify from which zones Telnet can be used to manage the Zyxel Device. You can also
specify from which IP addresses the access can come.
Note: To allow a Telnet connection to the Zyxel Device, add Telnet in the Object > Service >
Service Group > Default_Allow_WAN_To_ZyWALL service group which defines the
default services allowed in the WAN_to_Device security policy.
login as: admin
Using keyboard-interactive authentication.
Password:
% session is not found
Bad terminal type: "xterm". Will assume vt100.
Router> enable
Router#
background
Chapter 47 System
USG FLEX Series User’s Guide
1116
Figure 720 Configuration > System > TELNET
The following table describes the labels in this screen.
Table 459 Configuration > System > TELNET
LABEL DESCRIPTION
Enable Select the check box to allow or disallow the computer with the IP address that matches the IP
address(es) in the Service Control table to access the Zyxel Device CLI using this service.
Server Port You may change the server port number for a service if needed, however you must use the
same port number in order to use that service for remote management.
Service Control This specifies from which computers you can access which Zyxel Device zones.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry. Refer to
Table 455 on page 1099 for details on the screen that opens.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so. Note that subsequent entries move up by one when you take this action.
Move To change an entry’s position in the numbered list, select the method and click Move to display
a field to type a number for where you want to put it and press [ENTER] to move the rule to the
number that you typed.
# This the index number of the service control rule.
The entry with a hyphen (-) instead of a number is the Zyxel Device’s (non-configurable) default
policy. The Zyxel Device applies this to traffic that does not match any other configured rule. It
is not an editable rule. To apply other behavior, configure a rule that traffic will match so the
Zyxel Device will not have to use the default policy.
Zone This is the zone on the Zyxel Device the user is allowed or denied to access.
Address This is the object name of the IP address(es) with which the computer is allowed or denied to
access.
Action This displays whether the computer with the IP address specified above can access the Zyxel
Device zone(s) configured in the Zone field (Accept) or not (Deny).
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 47 System
USG FLEX Series User’s Guide
1117
47.9.2 Service Control Rules
Click the Add or Edit icon in the Service Control table to add a service control rule.
Figure 721 Configuration > System > TELNET > Service Control Rule Add/Edit
The following table describes the labels in this screen.
47.10 FTP
You can upload and download the Zyxel Device’s firmware and configuration files using FTP. To use this
feature, your computer must have an FTP client.
47.10.1 Configuring FTP
To change your Zyxel Device’s FTP settings, click Configuration > System > FTP tab. The screen appears
as shown. Use this screen to specify from which zones FTP can be used to access the Zyxel Device. You
can also specify from which IP addresses the access can come.
Table 460 Configuration > System > TELNET > Service Control Rule Add/Edit
LABEL DESCRIPTION
Create new
Object
Use this to configure any new settings objects that you need to use in this screen.
Address Object Select ALL to allow or deny any computer to communicate with the Zyxel Device using Telnet.
Select a predefined address object to just allow or deny the computer with the IP address that
you specified to access the Zyxel Device using Telnet.
Zone Select ALL to allow or prevent any Zyxel Device zones from being accessed using Telnet.
Select a predefined Zyxel Device zone on which a incoming service is allowed or denied.
Action Select Accept to allow the user to access the Zyxel Device from the specified computers.
Select Deny to block the user’s access to the Zyxel Device from the specified computers.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 47 System
USG FLEX Series User’s Guide
1118
Figure 722 Configuration > System > FTP
The following table describes the labels in this screen.
Table 461 Configuration > System > FTP
LABEL DESCRIPTION
Enable Select the check box to allow or disallow the computer with the IP address that matches the IP
address(es) in the Service Control table to access the Zyxel Device using this service.
TLS required Select the check box to use FTP over TLS (Transport Layer Security) to encrypt communication.
This implements TLS as a security mechanism to secure FTP clients and/or servers.
Server Port You may change the server port number for a service if needed, however you must use the
same port number in order to use that service for remote management.
Server Certificate Select the certificate whose corresponding private key is to be used to identify the Zyxel Device
for FTP connections. You must have certificates already configured in the My Certificates
screen.
Service Control This specifies from which computers you can access which Zyxel Device zones.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry. Refer to
Table 455 on page 1099 for details on the screen that opens.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so. Note that subsequent entries move up by one when you take this action.
Move To change an entry’s position in the numbered list, select the method and click Move to display
a field to type a number for where you want to put it and press [ENTER] to move the rule to the
number that you typed.
# This the index number of the service control rule.
The entry with a hyphen (-) instead of a number is the Zyxel Device’s (non-configurable) default
policy. The Zyxel Device applies this to traffic that does not match any other configured rule. It
is not an editable rule. To apply other behavior, configure a rule that traffic will match so the
Zyxel Device will not have to use the default policy.
Zone This is the zone on the Zyxel Device the user is allowed or denied to access.
Address This is the object name of the IP address(es) with which the computer is allowed or denied to
access.
Action This displays whether the computer with the IP address specified above can access the Zyxel
Device zone(s) configured in the Zone field (Accept) or not (Deny).
background
Chapter 47 System
USG FLEX Series User’s Guide
1119
47.10.2 Service Control Rules
Click the Add or Edit icon in the Service Control table to add a service control rule.
Figure 723 Configuration > System > FTP > Service Control Rule Add/Edit
The following table describes the labels in this screen.
47.11 SNMP
Simple Network Management Protocol is a protocol used for exchanging management information
between network devices. Your Zyxel Device supports SNMP agent functionality, which allows a
manager station to manage and monitor the Zyxel Device through the network. The Zyxel Device
supports SNMP version one (SNMPv1), version two (SNMPv2c) and version 3 (SNMPv3). The next figure
illustrates an SNMP management operation.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 461 Configuration > System > FTP (continued)
LABEL DESCRIPTION
Table 462 Configuration > System > FTP > Service Control Rule Add/Edit
LABEL DESCRIPTION
Create new
Object
Use this to configure any new settings objects that you need to use in this screen.
Address Object Select ALL to allow or deny any computer to communicate with the Zyxel Device using FTP.
Select a predefined address object to just allow or deny the computer with the IP address that
you specified to access the Zyxel Device using FTP.
Zone Select ALL to allow or prevent any Zyxel Device zones from being accessed using FTP.
Select a predefined Zyxel Device zone on which a incoming service is allowed or denied.
Action Select Accept to allow the user to access the Zyxel Device from the specified computers.
Select Deny to block the user’s access to the Zyxel Device from the specified computers.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 47 System
USG FLEX Series User’s Guide
1120
Figure 724 SNMP Management Model
An SNMP managed network consists of two main types of component: agents (A) and a manager (M).
An agent is a management software module that resides in a managed device (MD, the Zyxel Device).
An agent translates the local management information from the managed device into a form
compatible with SNMP. The manager is the console through which network administrators perform
network management functions. It executes applications that control and monitor managed devices.
The managed devices contain object variables/managed objects that define each piece of
information to be collected about a device. Examples of variables include such as number of packets
received, node port status etc. A Management Information Base (MIB) is a collection of managed
objects. SNMP allows a manager and agents to communicate for the purpose of accessing these
objects.
SNMP itself is a simple request/response protocol based on the manager/agent model. The manager
issues a request and the agent returns responses using the following protocol operations:
• Get - Allows the manager to retrieve an object variable from the agent.
• GetNext - Allows the manager to retrieve the next object variable from a table or list within an agent.
In SNMPv1, when a manager wants to retrieve all elements of a table from an agent, it initiates a Get
operation, followed by a series of GetNext operations.
• Set - Allows the manager to set values for object variables within an agent.
• Trap - Used by the agent to inform the manager of some events.
47.11.1 SNMPv3 and Security
SNMPv3 enhances security for SNMP management using authentication and encryption. SNMP
managers can be required to authenticate with agents before conducting SNMP management
sessions.
Security can be further enhanced by encrypting the SNMP messages sent from the managers.
Encryption protects the contents of the SNMP messages. When the contents of the SNMP messages are
encrypted, only the intended recipients can read them.
background
Chapter 47 System
USG FLEX Series User’s Guide
1121
47.11.2 Supported MIBs
The Zyxel Device supports MIB II that is defined in RFC-1213 and RFC-1215. The Zyxel Device also supports
private MIBs to collect information about CPU and memory usage and VPN total throughput. The focus
of the MIBs is to let administrators collect statistical data and monitor status and performance. You can
download the Zyxel Device’s MIBs from www.zyxel.com.
47.11.3 SNMP Traps
The Zyxel Device will send traps to the SNMP manager when any one of the following events occurs.
47.11.4 Configuring SNMP
To change your Zyxel Device’s SNMP settings, click Configuration > System > SNMP tab. The screen
appears as shown. Use this screen to configure your SNMP settings, including from which zones SNMP
can be used to access the Zyxel Device. You can also specify from which IP addresses the access can
come.
Table 463 SNMP Traps
OBJECT LABEL OBJECT ID DESCRIPTION
Cold Start 1.3.6.1.6.3.1.1.5.1 This trap is sent when the Zyxel Device is turned on or
an agent restarts.
linkDown 1.3.6.1.6.3.1.1.5.3 This trap is sent when the Ethernet link is down.
linkUp 1.3.6.1.6.3.1.1.5.4 This trap is sent when the Ethernet link is up.
authenticationFailure 1.3.6.1.6.3.1.1.5.5 This trap is sent when an SNMP request comes from
non-authenticated hosts.
vpnTunnelDisconnected 1.3.6.1.4.1.890.1.6.22.2.3 This trap is sent when an IPSec VPN tunnel is
disconnected.
vpnTunnelName 1.3.6.1.4.1.890.1.6.22.2.2.1.1 This trap is sent along with the
vpnTunnelDisconnected trap. This trap carries the
disconnected tunnel’s IPSec SA name.
vpnIKEName 1.3.6.1.4.1.890.1.6.22.2.2.1.2 This trap is sent along with the
vpnTunnelDisconnected trap. This trap carries the
disconnected tunnel’s IKE SA name.
vpnTunnelSPI 1.3.6.1.4.1.890.1.6.22.2.2.1.3 This trap is sent along with the
vpnTunnelDisconnected trap. This trap carries the
security parameter index (SPI) of the disconnected
VPN tunnel.
background
Chapter 47 System
USG FLEX Series User’s Guide
1122
Figure 725 Configuration > System > SNMP
The following table describes the labels in this screen.
Table 464 Configuration > System > SNMP
LABEL DESCRIPTION
Enable Select the check box to allow or disallow the computer with the IP address that matches the IP
address(es) in the Service Control table to access the Zyxel Device using this service.
Server Port You may change the server port number for a service if needed, however you must use the
same port number in order to use that service for remote management.
Trap
Community Type the trap community, which is the password sent with each trap to the SNMP manager. The
default is public and allows all requests. You can use up to 64 single-byte characters, including
0-9a-zA-Z_.-. The first character cannot be a period (.).
Destination Type the IP address of the station to send your SNMP traps to.
Trap CAPWAP
Event
Select this option to have the Zyxel Device send a trap to the SNMP manager when a
managed AP is connected to or disconnected from the Zyxel Device.
SNMPv2c Select the SNMP version for the Zyxel Device. The SNMP version on the Zyxel Device must match
the version on the SNMP manager.
Get
Community
Enter the Get Community, which is the password for the incoming Get and GetNext requests
from the management station. The default is public and allows all requests. You can use up to
64 single-byte characters, including 0-9a-zA-Z_.-. The first character cannot be a period (.).
Set
Community
Enter the Set community, which is the password for incoming Set requests from the
management station. The default is private and allows all requests.
background
Chapter 47 System
USG FLEX Series User’s Guide
1123
SNMPv3 Select the SNMP version for the Zyxel Device. The SNMP version on the Zyxel Device must match
the version on the SNMP manager. SNMPv3 (RFCs 3413 to 3415) provides secure access by
authenticating and encrypting data packets over the network. The Zyxel Device uses your login
password as the SNMPv3 authentication and encryption passphrase.
Note: Your login password must consist of at least 8 printable characters for SNMPv3.
An error message will display if your login password has fewer characters.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so. Note that subsequent entries move up by one when you take this action.
# This is the index number of the entry.
User This displays the name of the user object to be sent to the SNMP manager along with the SNMP
v3 trap.
Authenticati
on
This displays the authentication algorithm used for this entry. MD5 (Message Digest 5) and SHA
(Secure Hash Algorithm) are hash algorithms used to authenticate SNMP data. SHA
authentication is generally considered stronger than MD5, but is slower.
Privacy This displays the encryption method for SNMP communication from this user. Methods available
are:
• DES - Data Encryption Standard is a widely used (but breakable) method of data
encryption. It applies a 56-bit key to each 64-bit block of data.
• AES - Advanced Encryption Standard is another method for data encryption that also uses
a secret key. AES applies a 128-bit key to 128-bit blocks of data.
Privilege This displays the access rights to MIBs.
• Read-Write - The associated user can create and edit the MIBs on the Zyxel Device, except
the user account.
• Read-Only - The associated user can only collect information from the Zyxel Device MIBs.
Service Control This specifies from which computers you can access which Zyxel Device zones.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry. Refer to
Table 455 on page 1099 for details on the screen that opens.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so. Note that subsequent entries move up by one when you take this action.
Move To change an entry’s position in the numbered list, select the method and click Move to display
a field to type a number for where you want to put it and press [ENTER] to move the rule to the
number that you typed.
# This the index number of the service control rule.
The entry with a hyphen (-) instead of a number is the Zyxel Device’s (non-configurable) default
policy. The Zyxel Device applies this to traffic that does not match any other configured rule. It is
not an editable rule. To apply other behavior, configure a rule that traffic will match so the Zyxel
Device will not have to use the default policy.
Zone This is the zone on the Zyxel Device the user is allowed or denied to access.
Address This is the object name of the IP address(es) with which the computer is allowed or denied to
access.
Action This displays whether the computer with the IP address specified above can access the Zyxel
Device zone(s) configured in the Zone field (Accept) or not (Deny).
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 464 Configuration > System > SNMP (continued)
LABEL DESCRIPTION
background
Chapter 47 System
USG FLEX Series User’s Guide
1124
47.11.5 Add SNMPv3 User
Click Add under SNMPv3 in Configuration > System > SNMP to create an SNMPv3 user for authentication
with managers using SNMP v3. Use the username and password of the login accounts you specify in this
screen to create accounts on the SNMP v3 manager.
Figure 726 Configuration > System > SNMP(v3) > Add
The following table describes the labels in this screen.
47.11.6 Service Control Rules
Click the Add or Edit icon in the Service Control table to add a service control rule.
Table 465 Configuration > System > SNMP(v3) > Add
LABEL DESCRIPTION
User Specify the username of a login account on the Zyxel Device. The associated password is
used in authentication algorithms and encryption methods.
Authentication Select an authentication algorithm. MD5 (Message Digest 5) and SHA (Secure Hash
Algorithm) are hash algorithms used to authenticate SNMP data. SHA authentication is
generally considered stronger than MD5, but is slower.
Privacy Specify the encryption method for SNMP communication from this user. You can choose one
of the following:
• DES - Data Encryption Standard is a widely used (but breakable) method of data
encryption. It applies a 56-bit key to each 64-bit block of data.
• AES - Advanced Encryption Standard is another method for data encryption that also
uses a secret key. AES applies a 128-bit key to 128-bit blocks of data.
Privilege Select the access rights to MIBs.
• Read-Write - The associated user can create and edit the MIBs on the Zyxel Device,
except the user account.
• Read-Only - The associated user can only collect information from the Zyxel Device MIBs.
OK Click OK to save the changes.
Cancel Click Cancel to begin configuring this screen afresh.
background
Chapter 47 System
USG FLEX Series User’s Guide
1125
Figure 727 Configuration > System > SNMP > Service Control Rule Add/Edit
The following table describes the labels in this screen.
47.12 Authentication Server
You can set the Zyxel Device to work as a RADIUS server to exchange messages with a RADIUS client,
such as an AP for user authentication and authorization. Click Configuration > System > Auth. Server tab.
The screen appears as shown. Use this screen to enable the authentication server feature of the Zyxel
Device and specify the RADIUS client’s IP address.
Table 466 Configuration > System > SNMP > Service Control Rule Add/Edit
LABEL DESCRIPTION
Create new
Object
Use this to configure any new settings objects that you need to use in this screen.
Address Object Select ALL to allow or deny any computer to communicate with the Zyxel Device using SNMP.
Select a predefined address object to just allow or deny the computer with the IP address that
you specified to access the Zyxel Device using SNMP.
Zone Select ALL to allow or prevent any Zyxel Device zones from being accessed using SNMP.
Select a predefined Zyxel Device zone on which a incoming service is allowed or denied.
Action Select Accept to allow the user to access the Zyxel Device from the specified computers.
Select Deny to block the user’s access to the Zyxel Device from the specified computers.
OK Click OK to save your customized settings and exit this screen.
Cancel Click Cancel to exit this screen without saving.
background
Chapter 47 System
USG FLEX Series User’s Guide
1126
Figure 728 Configuration > System > Auth. Server
The following table describes the labels in this screen.
Table 467 Configuration > System > Auth. Server
LABEL DESCRIPTION
Enable
Authentication
Server
Select the check box to have the Zyxel Device act as a RADIUS server.
Authentication
Server Certificate
Select the certificate whose corresponding private key is to be used to identify the Zyxel Device
to the RADIUS client. You must have certificates already configured in the My Certificates
screen.
Authentication
Method
Select an authentication method if you have created any in the Configuration > Object > Auth.
Method screen.
Managed AP
Share Secret
Enter a shared key used by APs to authenticate with an Access Point Controller (APC)
authentication server.
The key is encrypted before being saved to the Zyxel Device.
You can use the following characters: 0-9a-zA-Z`~!@#$%^&*()_\-+={}\|\\;:'<,>\?.\ for your
password.
Trusted Client Use this section to configure trusted clients in the Zyxel Device RADIUS server database.
Add Click this to create a new entry. Select an entry and click Add to create a new entry after the
selected entry.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove
it before doing so. Note that subsequent entries move up by one when you take this action.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
background
Chapter 47 System
USG FLEX Series User’s Guide
1127
47.12.1 Add/Edit Trusted RADIUS Client
Click Configuration > System > Auth. Server to display the Auth. Server screen. Click the Add icon or an
Edit icon to display the following screen. Use this screen to create a new entry or edit an existing one.
Figure 729 Configuration > System > Auth. Server > Add/Edit
The following table describes the labels in this screen.
# This is the index number of the entry.
Status This icon is lit when the entry is active and dimmed when the entry is inactive.
Profile Name This field indicates the name assigned to the profile.
IP Address This is the IP address of the RADIUS client that is allowed to exchange messages with the Zyxel
Device.
Netmask This is the subnet mask of the RADIUS client.
Secret Enter a shared key used to authenticate the managed AP.
The key is encrypted before being saved to the Zyxel Device.
You can use the following characters: 0-9a-zA-Z`~!@#$%^&*()_\-+={}\|\\;:'<,>\?.\ for your
password.
Description This is the description of the RADIUS client.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 467 Configuration > System > Auth. Server (continued)
LABEL DESCRIPTION
Table 468 Configuration > System > Auth. Server > Add/Edit
LABEL DESCRIPTION
Activate Select this check box to make this profile active.
Profile Name Enter a descriptive name (up to 31 alphanumerical characters) for identification purposes.
IP Address Enter the IP address of the RADIUS client that is allowed to exchange messages with the Zyxel
Device.
Netmask Enter the subnet mask of the RADIUS client.
Secret Enter a password (up to 64 alphanumeric characters) as the key to be shared between the
Zyxel Device and the RADIUS client.
The key is not sent over the network. This key must be the same on the external authentication
server and the Zyxel Device.
background
Chapter 47 System
USG FLEX Series User’s Guide
1128
47.13 Notification > Mail Server
Use this screen to configure a mail server so you can receive reports and notification emails such as
when your password is about to expire. After you configure the screen, you can test the settings in
Maintenance > Diagnostics > Network Tool and then select Test Email Server. See Configuration > Log &
Report > Email Daily Report to configure what reports to send and to whom.
Click Configuration > System > Notification to display the Mail Server screen.
Figure 730 Configuration > System > Notification
The following table describes the labels in this screen.
Description Enter the description of each server, if any. You can use 1 to 60 single-byte characters,
including 0-9a-zA-Z!”#$%’()*+,-/:;=?@_
&.<>[\]^‘{|} are not allowed.
OK Click OK to save the changes.
Cancel Click Cancel to discard the changes.
Table 468 Configuration > System > Auth. Server > Add/Edit (continued)
LABEL DESCRIPTION
Table 469 Configuration > System > Notification
LABEL DESCRIPTION
Mail Server Type the name or IP address of the outgoing SMTP server.
Mail Subject Go to Configuration > Log & Report > Email Daily Report to type a subject line for outgoing
email from the Zyxel Device.
Append
system name
Select Append system name to add the Zyxel Device’s system name to the subject.
Append date
time
Select Append date time to add the Zyxel Device’s system date and time to the subject.
Mail Server Port Enter the same port number here as is on the mail server for mail traffic.
background
Chapter 47 System
USG FLEX Series User’s Guide
1129
47.14 Notification > SMS
The Zyxel Device supports Short Message Service (SMS) to send short text messages to mobile phone
devices.
Click Configuration > System > Notification > SMS to open the following screen.
TLS Security Select this option if the mail server uses Transport Layer Security (TLS) for encrypted
communications between the mail server and the Zyxel Device.
STARTTLS Select this option if the mail server uses SSL or TLS for encrypted communications between the
mail server and the Zyxel Device.
Authenticate
Server
Select this if the Zyxel Device authenticates the mail server in the TLS handshake.
Mail From Type the email address from which the outgoing email is delivered. This address is used in
replies.
SMTP
Authentication
Select this check box if it is necessary to provide a user name and password to the SMTP server.
User Name This box is effective when you select the SMTP Authentication check box. Type the user name
to provide to the SMTP server when the log is emailed.
Note: Make sure this User Name and Mail From email addressess are the same.
Password This box is effective when you select the SMTP Authentication check box. Type a password to
provide to the SMTP server when the log is emailed. Use up to 63 characters, including 0-9a-zA-
Z‘~!@#$%^&*()_+={}|\;:”<>’./
Retype to
Confirm
Type the password again to make sure that you have entered is correctly.
Time for sending
report
Select the time of day (hours and minutes) when the log is emailed. Use 24-hour notation.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 469 Configuration > System > Notification (continued)
LABEL DESCRIPTION
background
Chapter 47 System
USG FLEX Series User’s Guide
1130
Figure 731 Configuration > System > Notification > SMS
The following table describes the labels in this screen.
Table 470 Configuration > System > Notification > SMS
LABEL DESCRIPTION
General Settings
Enable SMS Select the check box to turn on the SMS service.
Default country
code for phone
number
Enter the default country code for the mobile phone number to which you want to send SMS
messages.
SMS Provider The Zyxel Device uses Email-to-SMS Provider to forward SMS messages.
Note: Go to the Configuration > System > Notification > Mail Server screen to
configure a mail server to allow the Zyxel Device to send SMS messages to the
SMS service provider using emails.
Provider
Domain
Enter the domain name of your SMS service provider. The domain name can be of up to 252
characters.
Select auto append to "Mail to" to add the domain name of your SMS service provider after the
mobile phone number in the Mail To field.
Mail Subject Type the subject line of up to 128 characters for outgoing e-mail from the Zyxel Device.
Mail From Enter the sender’s email address of up to 64 characters. This email address needs to be in your
SMS provider’s allowed sender address list.
If you leave this field blank, the Zyxel Device will use the IP address or domain name of the Mail
Server field in the Configuration > System > Notification > Mail Server screen.
Mail To Enter the mobile phone number of up to 80 characters. You can only have one receiver.
Use this variable in brackets [$mobile_number$], and the Zyxel Device will use the mobile
phone number of the user logging in. Go to the Configuration > Object > User/Group > User
screen to add a valid mobile telephone number for a user.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
background
Chapter 47 System
USG FLEX Series User’s Guide
1131
47.15 Notification > Response Message
Use this screen to create a web page when access to a website is restricted due to a security service.
Click Configuration > System > Notification > Response Message to open the following screen.
Figure 732 Configuration > System > Notification > Response Message
The following table describes the labels in this screen.
47.16 Language Screen
Click Configuration > System > Language to open the following screen. Use this screen to select a
display language for the Zyxel Device’s Web Configurator screens.
Table 471 Configuration > System > Notification > Response Message
LABEL DESCRIPTION
Message Use this part of the screen to create a message to display when access to a website is blocked
due to a security service.
Edit Double-click an entry or select it and click Edit to be able to modify the entry’s settings.
# This is the index number of the entry.
Service This is the security service that may restrict access to a website.
Denied Access
Message
Type a message to display when access to a website is blocked due to this security service.
You may type up to 127 characters.
Apply Click this button to save your changes to the Zyxel Device.
Reset Click this button to return the screen to its last-saved settings.
background
Chapter 47 System
USG FLEX Series User’s Guide
1132
Figure 733 Configuration > System > Language
The following table describes the labels in this screen.
47.17 IPv6 Screen
Click Configuration > System > IPv6 to open the following screen. Use this screen to enable IPv6 support
for the Zyxel Device’s Web Configurator screens.
Table 472 Configuration > System > Language
LABEL DESCRIPTION
Language Setting Select a display language for the Zyxel Device’s Web Configurator screens. You also
need to open a new browser session to display the screens in the new language.
Current Version This shows the current language package version of the Zyxel Device.
Status This shows whether the language package of the Zyxel Device is up-to-date or not.
Auto Update Select this to have the Zyxel Device regularly check for and download the latest
language package.
Update Now If the Status of the Language Package Information is not up-to-date, click this button to
download the latest language package.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 47 System
USG FLEX Series User’s Guide
1133
Figure 734 Configuration > System > IPv6
The following table describes the labels in this screen.
47.18 Zyxel One Network (ZON) Utility
The Zyxel One Network (ZON) utility uses the Zyxel Discovery Protocol (ZDP) for discovering and
configuring ZDP-aware Zyxel devices in the same broadcast domain as the computer on which ZON is
installed.
The ZON Utility issues requests through ZDP and in response to the query, the Zyxel device responds with
basic information including IP address, firmware version, location, system and model name. The
information is then displayed in the ZON Utility screen and you can perform tasks like basic configuration
of the devices and batch firmware upgrade in it. You can download the ZON Utility at www.zyxel.com
and install it on a computer.
47.18.1 Requirements
Before installing the ZON Utility on your computer, please make sure it meets the requirements listed
below.
Operating System
At the time of writing, the ZON Utility is compatible with:
• Windows 7 (both 32-bit / 64-bit versions)
• Windows 8 (both 32-bit / 64-bit versions)
• Windows 8.1 (both 32-bit / 64-bit versions)
Table 473 Configuration > System > IPv6
LABEL DESCRIPTION
Enable IPv6 Select this to have the Zyxel Device support IPv6 and make IPv6 settings be available on
the screens that the functions support, such as the Configuration > Network > Interface >
Ethernet, VLAN, and Bridge screens. The Zyxel Device discards all IPv6 packets if you clear
this check box.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
Chapter 47 System
USG FLEX Series User’s Guide
1134
• Window 10 (both 32-bit / 64-bit versions)
Note: To check for your Windows operating system version, right-click on My Computer >
Properties. You should see this information in the General tab.
Hardware
Here are the minimum hardware requirements to use the ZON Utility on your computer.
• Core i3 processor
•2GB RAM
• 100MB free hard disk
• WXGA (Wide XGA 1280x800)
47.18.2 Run the ZON Utility
1 Double-click the ZON Utility to run it.
2 The first time you run the ZON Utility you will see if your Zyxel Device and firmware version support the ZON
Utility. Click the OK button to close this screen.
Figure 735 Supported Devices and Versions
If you want to check the supported models and firmware versions later, you can click the Show
information about ZON icon in the upper right hand corner of the screen. Then select the Supported
background
Chapter 47 System
USG FLEX Series User’s Guide
1135
model and firmware version link. If your device is not listed here, see the device release notes for ZON
utility support. The release notes are in the firmware zip file on the Zyxel web site.
Figure 736 ZON Utility Screen
3 Select a network adapter to which your supported devices are connected.
Figure 737 Network Adapter
4 Click the Go button for the ZON Utility to discover all supported devices in your network.
Figure 738 Discovery
5 The ZON Utility screen shows the devices discovered.
background
Chapter 47 System
USG FLEX Series User’s Guide
1136
Figure 739 ZON Utility Screen
6 Select a device and then use the icons to perform actions. Some functions may not be available for
your devices.
The following table describes the icons numbered from left to right in the ZON Utility screen.
Table 474 ZON Utility Icons
ICON DESCRIPTION
1 IP configuration Change the selected device’s IP address.
2 Renew IP Address Update a DHCP-assigned dynamic IP address.
3 Reboot Device Use this icon to restart the selected device(s). This may be useful when troubleshooting
or upgrading new firmware.
4 Reset Configuration to
Default
If you forget your password or cannot access the Web Configurator, you can use this
icon to reload the factory-default configuration file. This means that you will lose all
configurations that you had previously.
5 Locator LED Use this icon to locate the selected device by causing its Locator LED to blink.
6 Web GUI Use this to access the selected device web configurator from your browser. You will
need a username and password to log in.
7 Firmware Upgrade Use this icon to upgrade new firmware to selected device(s) of the same model. Make
sure you have downloaded the firmware from the Zyxel website to your computer and
unzipped it in advance.
If your Zyxel Device supports dual firmware images, the standby image will be
upgraded. After the new firmware is uploaded, you Zyxel Device will reboot, and the
new firmware will be the running firmware.
8 Change Password Use this icon to change the admin password of the selected device. You must know
the current admin password before changing to a new one.
9 Configure NCC
Discovery
You must have Internet access to use this feature. Use this icon to enable or disable
the Nebula Control Center (NCC) discovery feature on the selected device. If it’s
enabled, the selected device will try to connect to the NCC. Once the selected
device is connected to and has registered in the NCC, it’ll go into the cloud
management mode.
10 ZAC Use this icon to run the Zyxel AP Configurator of the selected AP.
11 Clear and Rescan Use this icon to clear the list and discover all devices on the connected network
again.
12 Save Configuration Use this icon to save configuration changes to permanent memory on a selected
device.
13 Settings Use this icon to select a network adaptor for the computer on which the ZON utility is
installed, and the utility language.
background
Chapter 47 System
USG FLEX Series User’s Guide
1137
The following table describes the fields in the ZON Utility main screen.
47.18.3 Zyxel One Network (ZON) System Screen
Enable ZDP (ZON) and Smart Connect (Ethernet Neighbor) in the System > ZON screen.
See Monitor > System Status > Ethernet Neighbor for information on using Smart Connect (Link Layer
Discovery Protocol (LLDP)) for discovering and configuring LLDP-aware devices in the same broadcast
domain as the Zyxel Device that you’re logged into using the web configurator.
The following figure shows the System > ZON screen.
Figure 740 Configuration > System > ZON
Table 475 ZON Utility Fields
LABEL DESCRIPTION
Type This field displays an icon of the kind of device discovered.
Model This field displays the model name of the discovered device.
Firmware Version This field displays the firmware version of the discovered device.
MAC Address This field displays the MAC address of the discovered device.
IP Address This field displays the IP address of an internal interface on the discovered device that
first received an ZDP discovery request from the ZON utility.
System Name This field displays the system name of the discovered device.
Location This field displays where the discovered device is.
Status This field displays whether changes to the discovered device have been done
successfully. As the Zyxel Device does not support IP Configuration, Renew IP address
and Flash Locator LED, this field displays “Update failed”, “Not support Renew IP
address” and “Not support Flash Locator LED” respectively.
NCC Discovery This field displays if the discovered device supports the Nebula Control Center (NCC)
discovery feature. If it’s enabled, the selected device will try to connect to the NCC.
Once the selected device is connected to and has registered in the NCC, it’ll go into
the cloud management mode.
Serial Number Enter the admin password of the discovered device to display its serial number.
Hardware Version This field displays the hardware version of the discovered device.
background
Chapter 47 System
USG FLEX Series User’s Guide
1138
The following table describes the labels in this screen.
Table 476 Configuration > System > ZON
LABEL DESCRIPTION
ZDP Zyxel Discovery Protocol (ZDP) is the protocol that the Zyxel One Network (ZON) utility uses
for discovering and configuring ZDP-aware Zyxel devices in the same broadcast domain
as the computer on which ZON is installed.
Enable Select to activate ZDP discovery on the Zyxel Device.
Smart Connect Smart Connect uses Link Layer Discovery Protocol (LLDP) for discovering and configuring
LLDP-aware devices in the same broadcast domain as the Zyxel Device that you’re
logged into using the web configurator.
Enable Select to activate LLDP discovery on the Zyxel Device. See also Monitor > System Status >
Ethernet Discovery.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
USG FLEX Series User’s Guide
1139
CHAPTER 48
Log and Report
48.1 Overview
Use these screens to configure daily reporting and log settings.
48.1.1 What You Can Do In this Chapter
• Use the Email Daily Report screen (Section 48.2 on page 1139) to configure where and how to send
daily reports and what reports to send.
• Use the Log Setting screens (Section 48.3 on page 1141) to specify settings for recording log messages
and alerts, e-mailing them, storing them on a connected USB storage device, and sending them to
remote syslog servers.
48.2 Email Daily Report
Use the Email Daily Report screen to start or stop data collection and view various statistics about traffic
passing through your Zyxel Device. Click the Mail Server link under Note to set up the mail server in the
Notification screen.
Note: Data collection may decrease the Zyxel Device’s traffic throughput rate.
Click Configuration > Log & Report > Email Daily Report to display the following screen. Configure this
screen to have the Zyxel Device email you system statistics every day.
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1140
Figure 741 Configuration > Log & Report > Email Daily Report
The following table describes the labels in this screen.
Table 477 Configuration > Log & Report > Email Daily Report
LABEL DESCRIPTION
Enable Email Daily
Report
Select this to send reports by email every day.
Mail Subject Type the subject line for outgoing email from the Zyxel Device.
Type a string using up to 60 of these characters [a-zA-Z0-9’()+,./:=?;!#@$_%-].
Mail To Type the email address (or addresses) to which the outgoing email is delivered.
Send Report Now Click this button to have the Zyxel Device send the daily email report immediately.
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1141
48.3 Log Setting Screens
The Log Setting screens control log messages and alerts. A log message stores the information for
viewing or regular emailing later, and an alert is emailed immediately. Usually, alerts are used for events
that require more serious attention, such as system errors and attacks.
The Zyxel Device provides a system log and supports email profiles and remote syslog servers. View the
system log in the MONITOR > Log screen. Use the email profiles to mail log messages to the specific
destinations. You can also have the Zyxel Device store system logs on a connected USB storage device.
The other four logs are stored on specified syslog servers.
The Log Setting screens control what information the Zyxel Device saves in each log. You can also
specify which log messages to email for the system log, and where and how often to email them. These
screens also set for which events to generate alerts and where to email the alerts.
The first Log Setting screen provides a settings summary. Use the Edit screens to configure settings such as
log categories, email addresses, and server names for any log. Use the Log Category Settings screen to
edit what information is included in the system log, USB storage, email profiles, and remote servers.
48.3.1 Log Setting Summary
To access this screen, click Configuration > Log & Report > Log Settings.
Report Items Select the information to include in the report. Types of information include System Resource
Usage, Wireless Report, Security Service, Interface Traffic Statistics and DHCP Table.
Select Reset counters after sending report successfully if you only want to see statistics for a 24
hour period.
Reset All Counters Click this to discard all report data and start all of the counters over at zero.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 477 Configuration > Log & Report > Email Daily Report (continued)
LABEL DESCRIPTION
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1142
Figure 742 Configuration > Log & Report > Log Settings
The following table describes the labels in this screen.
Table 478 Configuration > Log & Report > Log Settings
LABEL DESCRIPTION
Edit Double-click an entry or select it and click Edit to open a screen where you can modify it.
Activate To turn on an entry, select it and click Activate.
Inactivate To turn off an entry, select it and click Inactivate.
# This field is a sequential value, and it is not associated with a specific log.
Status The activate (light bulb) icon is lit when the entry is active and dimmed when the entry is inactive.
Name This field displays the type of log setting entry (system log, logs stored on a USB storage device
connected to the Zyxel Device, or one of the remote servers).
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1143
48.3.2 Edit System Log Settings
The Log Settings Edit screen controls the detailed settings for each log in the system log (which includes
the email profiles). Go to the Log Settings Summary screen (see
Section 48.3.1 on page 1141), and click
the system log Edit icon.
Log Format This field displays the format of the log.
Internal - System logs only;
VRPT - Syslog-compatible format.
CEF/Syslog - Common Event Format, syslog-compatible format. The CEF log format is as follows:
Version|Device Vendor|Device Product|Device Version|Signature ID|Name|Severity|Extension
Features that use the CEF log format at the time of writing are:
•ADP
•IDP
•Security Policy
•Content Filter
• URL Threat Filter
•Anti-Malware
• App Patrol
•Email Security
• Traffic Log
• System Monitoring
•User
•DHCP
• DNS Threat Filter
(Your model may not support all features.)
Summary This field is a summary of the settings for each log. Please see Section 48.3.2 on page 1143 for more
information.
Log Category
Settings
Click this button to open the Log Category Settings Edit screen.
Apply Click this button to save your changes (activate and deactivate logs) and make them take effect.
Table 478 Configuration > Log & Report > Log Settings (continued)
LABEL DESCRIPTION
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1144
Figure 743 Configuration > Log & Report > Log Setting > Edit (System Log - E-mail Servers)
Figure 744 Configuration > Log & Report > Log Setting > Edit (System Log )
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1145
Figure 745 Configuration > Log & Report > Log Setting > Edit (System Log - AP)
The following table describes the labels in this screen.
Table 479 Configuration > Log & Report > Log Setting > Edit (System Log)
LABEL DESCRIPTION
E-Mail Server 1/2
Active Select this to send log messages and alerts according to the information in this section.
You specify what kinds of log messages are included in log information and what kinds of
log messages are included in alerts in the Active Log and Alert section.
Mail Server Type the name or IP address of the outgoing SMTP server.
Mail Server Port Enter the same port number here as is on the mail server for mail traffic.
Mail Subject Type the subject line for the outgoing email.
Send From Type the email address from which the outgoing email is delivered. This address is used in
replies.
Send Log To Type the email address to which the outgoing email is delivered.
Send Alerts To Type the email address to which alerts are delivered.
Sending Log Select how often log information is emailed. Choices are: When Full, Hourly and When Full,
Daily and When Full, and Weekly and When Full.
Day for Sending
Log
This field is available if the log is emailed weekly. Select the day of the week the log is
emailed.
Time for Sending
Log
This field is available if the log is emailed weekly or daily. Select the time of day (hours and
minutes) when the log is emailed. Use 24-hour notation.
SMTP
Authentication
Select this check box if it is necessary to provide a user name and password to the SMTP
server.
User Name This box is effective when you select the SMTP Authentication check box. Type the user
name to provide to the SMTP server when the log is emailed.
Password This box is effective when you select the SMTP Authentication check box. Type the
password of up to 63 characters to provide to the SMTP server when the log is emailed.
Retype to Confirm Type the password again to make sure that you have entered is correctly.
Active Log and Alert
System Log Use the System Log drop-down list to change the log settings for all of the log categories.
disable all logs (red X) - do not log any information for any category for the system log or
email any logs to email server 1 or 2.
enable normal logs (green check mark) - create log messages and alerts for all
categories for the system log. If email server 1 or 2 also has normal logs enabled, the Zyxel
Device will email logs to them.
enable normal logs and debug logs (yellow check mark) - create log messages, alerts,
and debugging information for all categories. The Zyxel Device does not email
debugging information, even if this setting is selected.
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1146
E-mail Server 1 Use the E-Mail Server 1 drop-down list to change the settings for emailing logs to email
server 1 for all log categories.
Using the System Log drop-down list to disable all logs overrides your email server 1
settings.
enable normal logs (green check mark) - email log messages for all categories to email
server 1.
enable alert logs (red exclamation point) - email alerts for all categories to email server 1.
E-mail Server 2 Use the E-Mail Server 2 drop-down list to change the settings for emailing logs to email
server 2 for all log categories.
Using the System Log drop-down list to disable all logs overrides your email server 2
settings.
enable normal logs (green check mark) - email log messages for all categories to email
server 2.
enable alert logs (red exclamation point) - email alerts for all categories to email server 2.
Log Category This field displays each category of messages. It is the same value used in the Display and
Category fields in the View Log tab. The Default category includes debugging messages
generated by open source software.
System log Select which events you want to log by Log Category. There are three choices:
disable all logs (red X) - do not log any information from this category
enable normal logs (green check mark) - create log messages and alerts from this
category
enable normal logs and debug logs (yellow check mark) - create log messages, alerts,
and debugging information from this category; the Zyxel Device does not email
debugging information, however, even if this setting is selected.
E-mail Server 1 Select whether each category of events should be included in the log messages when it
is emailed (green check mark) and/or in alerts (red exclamation point) for the email
settings specified in E-Mail Server 1. The Zyxel Device does not email debugging
information, even if it is recorded in the System log.
E-mail Server 2 Select whether each category of events should be included in log messages when it is
emailed (green check mark) and/or in alerts (red exclamation point) for the email
settings specified in E-Mail Server 2. The Zyxel Device does not email debugging
information, even if it is recorded in the System log.
Log Consolidation
Active Select this to activate log consolidation. Log consolidation aggregates multiple log
messages that arrive within the specified Log Consolidation Interval. In the View Log tab,
the text “[count=x]”, where x is the number of original log messages, is appended at the
end of the Message field, when multiple log messages were aggregated.
Log Consolidation
Interval
Type how often, in seconds, to consolidate log information. If the same log message
appears multiple times, it is aggregated into one log message with the text “[count=x]”,
where x is the number of original log messages, appended at the end of the Message
field.
OK Click this to save your changes and return to the previous screen.
Cancel Click this to return to the previous screen without saving your changes.
Table 479 Configuration > Log & Report > Log Setting > Edit (System Log) (continued)
LABEL DESCRIPTION
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1147
48.3.3 Edit Log on USB Storage Setting
The Edit Log on USB Storage Setting screen controls the detailed settings for saving logs to a connected
USB storage device. Go to the Log Setting Summary screen (see
Section 48.3.1 on page 1141), and click
the USB storage Edit icon.
Figure 746 Configuration > Log & Report > Log Setting > Edit (USB Storage)
The following table describes the labels in this screen.
Table 480 Configuration > Log & Report > Log Setting > Edit (USB Storage)
LABEL DESCRIPTION
Duplicate logs to
USB storage (if
ready)
Select this to have the Zyxel Device save a copy of its system logs to a connected USB storage
device. Use the Active Log section to specify what kinds of messages to include.
Enable log keep
duration
Select this checkbox to enter a value in the Keep Duration field.
Keep Duration Enter a number of days that the Zyxel Device keeps this log.
Active Log
Selection Use the Selection drop-down list to change the log settings for all of the log categories.
disable all logs (red X) - do not send the remote server logs for any log category.
enable normal logs (green check mark) - send the remote server log messages and alerts for
all log categories.
enable normal logs and debug logs (yellow check mark) - send the remote server log
messages, alerts, and debugging information for all log categories.
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1148
48.3.4 Edit Remote Server Log Settings
The Log Settings Edit screen controls the detailed settings for each log in the remote server (syslog). Go
to the Log Settings Summary screen (see
Section 48.3.1 on page 1141), and click a remote server Edit
icon.
Figure 747 Configuration > Log & Report > Log Setting > Edit (Remote Server - AC)
Log Category This field displays each category of messages. The Default category includes debugging
messages generated by open source software.
Selection Select what information you want to log from each Log Category (except All Logs; see below).
Choices are:
disable all logs (red X) - do not log any information from this category
enable normal logs (green check mark) - log regular information and alerts from this category
enable normal logs and debug logs (yellow check mark) - log regular information, alerts, and
debugging information from this category
OK Click this to save your changes and return to the previous screen.
Cancel Click this to return to the previous screen without saving your changes.
Table 480 Configuration > Log & Report > Log Setting > Edit (USB Storage) (continued)
LABEL DESCRIPTION
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1149
Configuration > Log & Report > Log Setting > Edit (Remote Server - AP)
The following table describes the labels in this screen.
Table 481 Configuration > Log & Report > Log Setting > Edit (Remote Server)
LABEL DESCRIPTION
Log Settings for
Remote Server
Active Select this check box to send log information according to the information in this section. You
specify what kinds of messages are included in log information in the Active Log section.
Log Format This field displays the format of the log information. It is read-only.
VRPT/Syslog - Zyxel’s Vantage Report, syslog-compatible format.
CEF/Syslog - Common Event Format, syslog-compatible format.
Server
Address
Type the server name or the IP address of the syslog server to which to send log information.
Server Port Type the service port number used by the remote server.
Log Facility Select a log facility. The log facility allows you to log the messages to different files in the syslog
server. Please see the documentation for your syslog program for more information.
Active Log
Selection Use the Selection drop-down list to change the log settings for all of the log categories.
disable all logs (red X) - do not send the remote server logs for any log category.
enable normal logs (green check mark) - send the remote server log messages and alerts for all
log categories.
enable normal logs and debug logs (yellow check mark) - send the remote server log messages,
alerts, and debugging information for all log categories.
Log
Category
This field displays each category of messages. It is the same value used in the Display and
Category fields in the View Log tab. The Default category includes debugging messages
generated by open source software.
Selection Select what information you want to log from each Log Category (except All Logs; see below).
Choices are:
disable all logs (red X) - do not log any information from this category
enable normal logs (green check mark) - log regular information and alerts from this category
enable normal logs and debug logs (yellow check mark) - log regular information, alerts, and
debugging information from this category
OK Click this to save your changes and return to the previous screen.
Cancel Click this to return to the previous screen without saving your changes.
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1150
48.3.5 Log Category Settings Screen
The Log Category Settings screen allows you to view and to edit what information is included in the
system log, USB storage, email profiles, and remote servers at the same time. It does not let you change
other log settings (for example, where and how often log information is emailed or remote server
names). To access this screen, go to the Log Settings Summary screen (see
Section 48.3.1 on page
1141), and click the Log Category Settings button.
Figure 748 Log Category Settings AC
Figure 749 Log Category Settings AP
This screen provides a different view and a different way of indicating which messages are included in
each log and each alert. Please see
Section 48.3.2 on page 1143, where this process is discussed. (The
Default category includes debugging messages generated by open source software.)
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1151
The following table describes the fields in this screen.
Table 482 Configuration > Log & Report > Log Setting > Log Category Settings
LABEL DESCRIPTION
System Log Use the System Log drop-down list to change the log settings for all of the log categories.
disable all logs (red X) - do not log any information for any category for the system log or email
any logs to email server 1 or 2.
enable normal logs (green check mark) - create log messages and alerts for all categories for
the system log. If email server 1 or 2 also has normal logs enabled, the Zyxel Device will email logs
to them.
enable normal logs and debug logs (yellow check mark) - create log messages, alerts, and
debugging information for all categories. The Zyxel Device does not email debugging
information, even if this setting is selected.
USB Storage Use the USB Storage drop-down list to change the log settings for saving logs to a connected
USB storage device.
disable all logs (red X) - do not log any information for any category to a connected USB
storage device.
enable normal logs (green check mark) - create log messages and alerts for all categories and
save them to a connected USB storage device.
enable normal logs and debug logs (yellow check mark) - create log messages, alerts, and
debugging information for all categories and save them to a connected USB storage device.
E-mail Server 1 E-
mail
Use the E-Mail Server 1 drop-down list to change the settings for emailing logs to email server 1
for all log categories.
Using the System Log drop-down list to disable all logs overrides your email server 1 settings.
enable normal logs (green check mark) - email log messages for all categories to email server 1.
enable alert logs (red exclamation point) - email alerts for all categories to email server 1.
E-mail Server 2 E-
mail
Use the E-Mail Server 2 drop-down list to change the settings for emailing logs to email server 2
for all log categories.
Using the System Log drop-down list to disable all logs overrides your email server 2 settings.
enable normal logs (green check mark) - email log messages for all categories to email server 2.
enable alert logs (red exclamation point) - email alerts for all categories to email server 2.
Remote Server
1~4 Syslog
For each remote server, use the Selection drop-down list to change the log settings for all of the
log categories.
disable all logs (red X) - do not send the remote server logs for any log category.
enable normal logs (green check mark) - send the remote server log messages and alerts for all
log categories.
enable normal logs and debug logs (yellow check mark) - send the remote server log messages,
alerts, and debugging information for all log categories.
Log Category This field displays each category of messages. It is the same value used in the Display and
Category fields in the View Log tab. The Default category includes debugging messages
generated by open source software.
System Log Select which events you want to log by Log Category. There are three choices:
disable all logs (red X) - do not log any information from this category
enable normal logs (green check mark) - create log messages and alerts from this category
enable normal logs and debug logs (yellow check mark) - create log messages, alerts, and
debugging information from this category; the Zyxel Device does not email debugging
information, however, even if this setting is selected.
background
Chapter 48 Log and Report
USG FLEX Series User’s Guide
1152
USB Storage Select which event log categories to save to a connected USB storage device. There are three
choices:
disable all logs (red X) - do not log any information from this category
enable normal logs (green check mark) - save log messages and alerts from this category
enable normal logs and debug logs (yellow check mark) - save log messages, alerts, and
debugging information from this category.
E-mail Server 1 E-
mail
Select whether each category of events should be included in the log messages when it is
emailed (green check mark) and/or in alerts (red exclamation point) for the email settings
specified in E-Mail Server 1. The Zyxel Device does not email debugging information, even if it is
recorded in the System log.
E-mail Server 2 E-
mail
Select whether each category of events should be included in log messages when it is emailed
(green check mark) and/or in alerts (red exclamation point) for the email settings specified in E-
Mail Server 2. The Zyxel Device does not email debugging information, even if it is recorded in
the System log.
Remote Server
1~4 Syslog
For each remote server, select what information you want to log from each Log Category
(except All Logs; see below). Choices are:
disable all logs (red X) - do not log any information from this category
enable normal logs (green check mark) - log regular information and alerts from this category
enable normal logs and debug logs (yellow check mark) - log regular information, alerts, and
debugging information from this category
OK Click this to save your changes and return to the previous screen.
Cancel Click this to return to the previous screen without saving your changes.
Table 482 Configuration > Log & Report > Log Setting > Log Category Settings (continued)
LABEL DESCRIPTION
background
USG FLEX Series User’s Guide
1153
CHAPTER 49
File Manager
49.1 Overview
Configuration files define the Zyxel Device’s settings. Shell scripts are files of commands that you can
store on the Zyxel Device and run when you need them. You can apply a configuration file or run a shell
script without the Zyxel Device restarting. You can store multiple configuration files and shell script files
on the Zyxel Device. You can edit configuration files or shell scripts in a text editor and upload them to
the Zyxel Device. Configuration files use a .conf extension and shell scripts use a .zysh extension.
49.1.1 What You Can Do in this Chapter
• Use the Configuration File screen (see Section 49.2 on page 1157) to store and name configuration
files. You can also download configuration files from the Zyxel Device to your computer and upload
configuration files from your computer to the Zyxel Device.
• Use the Firmware Package screen (see Section 49.3 on page 1163) to check your current firmware
version and upload firmware to the Zyxel Device.
• Use the Shell Script screen (see Section 49.4 on page 1171) to store, name, download, upload and
run shell script files.
49.1.2 What you Need to Know
Configuration Files and Shell Scripts
When you apply a configuration file, the Zyxel Device uses the factory default settings for any features
that the configuration file does not include. When you run a shell script, the Zyxel Device only applies the
commands that it contains. Other settings do not change.
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1154
These files have the same syntax, which is also identical to the way you run CLI commands manually. An
example is shown below.
While configuration files and shell scripts have the same syntax, the Zyxel Device applies configuration
files differently than it runs shell scripts. This is explained below.
You have to run the example in Figure 750 on page 1154 as a shell script because the first command is
run in Privilege mode. If you remove the first command, you have to run the example as a configuration
file because the rest of the commands are executed in Configuration mode.
Comments in Configuration Files or Shell Scripts
In a configuration file or shell script, use “#” or “!” as the first character of a command line to have the
Zyxel Device treat the line as a comment.
Your configuration files or shell scripts can use “exit” or a command line consisting of a single “!” to have
the Zyxel Device exit sub command mode.
Note: “exit” or “!” must follow sub commands if it is to make the Zyxel Device exit sub
command mode.
Figure 750 Configuration File / Shell Script: Example
# enter configuration mode
configure terminal
# change administrator password
username admin password 4321 user-type admin
# configure ge3
interface ge3
ip address 172.23.37.240 255.255.255.0
ip gateway 172.23.37.254 metric 1
exit
# create address objects for remote management / to-ZyWALL firewall rules
# use the address group in case we want to open up remote management later
address-object TW_SUBNET 172.23.37.0/24
object-group address TW_TEAM
address-object TW_SUBNET
exit
# enable Telnet access (not enabled by default, unlike other services)
ip telnet server
# open WAN-to-ZyWALL firewall for TW_TEAM for remote management
firewall WAN ZyWALL insert 4
sourceip TW_TEAM
service TELNET
action allow
exit
write
Table 483 Configuration Files and Shell Scripts in the Zyxel Device
Configuration Files (.conf) Shell Scripts (.zysh)
• Resets to default configuration.
•Goes into CLI Configuration mode.
• Runs the commands in the configuration file.
•Goes into CLI Privilege mode.
• Runs the commands in the shell script.
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1155
Line 3 in the following example exits sub command mode.
Lines 1 and 3 in the following example are comments and line 4 exits sub command mode.
Lines 1 and 2 are comments. Line 5 exits sub command mode.
Errors in Configuration Files or Shell Scripts
When you apply a configuration file or run a shell script, the Zyxel Device processes the file line-by-line.
The Zyxel Device checks the first line and applies the line if no errors are detected. Then it continues with
the next line. If the Zyxel Device finds an error, it stops applying the configuration file or shell script and
generates a log.
You can change the way a configuration file or shell script is applied. Include setenv stop-on-error
off in the configuration file or shell script. The Zyxel Device ignores any errors in the configuration file or
shell script and applies all of the valid commands. The Zyxel Device still generates a log for any errors.
Sensitive Data Protection
The Zyxel Device by default encrypts local admin and user account passwords for web configurator
and CLI.
Enable Sensitive Data Protection to better protect local admin and user account passwords for web
configurator and CLI.
When you change the private key, the date and time shown in Maintenance > File Manager >
Configuration File > Configuration > Last Modified for all configuration files will change to the date and
time you changed the private key.
interface ge1
ip address dhcp
!
!
interface ge1
# this interface is a DHCP client
!
! this is from Joe
# on 2008/04/05
interface ge1
ip address dhcp
!
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1156
Figure 751 Last Modified Date and Time
Note: You can only upload configuration files using FTP that are using the current private key
of the Zyxel Device.
The following examples describe the situations you might come across using Sensitive Data Protection.
Example 1:
1 Download a configuration file (file1).
2 Enable Sensitive Data Protection.
3 Create a private key (key1).
4 When you upload file1 to the Zyxel Device through the Zyxel Device web configurator, you do not need
to enter the private key (key1). Configuration file1 is not encrypted by the private key (key1).
Example 2:
1 Enable Sensitive Data Protection.
2 Create a private key (key1).
3 Download a configuration file (file2).
4 You must use key1 to upload file2 to the Zyxel Device because file2 is encrypted by key1.
Example 3:
1 Change the private key from key1 to key2.
2 Download another configuration file (file3).
3 You must use key2 to upload file3 to the Zyxel Device.
Note: You must still use key1 to upload file2 to the Zyxel Device. Make a note of the key to use
when you change the private key and then download a configuration file.
Example 4:
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1157
1 Enable Sensitive Data Protection on Zyxel Device1 and create a private key.
2 Download a configuration file from Zyxel Device1.
3 You must upload this configuration file using the private key you created on Zyxel Device1 to Zyxel
Device2 even if Sensitive Data Protection is not enabled on Zyxel Device2.
49.2 The Configuration Screen
Click Maintenance > File Manager > Configuration File > Configuration to open the Configuration
screen. Use the Configuration screen to store, run, and name configuration files. You can also download
configuration files from the Zyxel Device to your computer and upload configuration files from your
computer to the Zyxel Device.
Once your Zyxel Device is configured and functioning properly, it is highly recommended that you back
up your configuration file before making further configuration changes. The backup configuration file
will be useful in case you need to return to your previous settings.
Filenames beginning with autoback are automatic configuration files created when new firmware is
uploaded. backup-yyyy-mm-dd-hh-mm-ss.conf is the name of the automatic backup when a secure
policy is added or changed. Select a configuration file, then click Apply to apply the file to the Zyxel
Device .
Configuration File Flow at Restart
• If there is not a startup-config.conf when you restart the Zyxel Device (whether through a
management interface or by physically turning the power off and back on), the Zyxel Device uses the
system-default.conf configuration file with the Zyxel Device’s default settings.
•If there is a startup-config.conf, the Zyxel Device checks it for errors and applies it. If there are no
errors, the Zyxel Device uses it and copies it to the lastgood.conf configuration file as a back up file. If
there is an error, the Zyxel Device generates a log and copies the startup-config.conf configuration
file to the startup-config-bad.conf configuration file and tries the existing lastgood.conf configuration
file. If there isn’t a lastgood.conf configuration file or it also has an error, the Zyxel Device applies the
system-default.conf configuration file.
• You can change the way the startup-config.conf file is applied. Include the setenv-startup stop-
on-error off command. The Zyxel Device ignores any errors in the startup-config.conf file and
applies all of the valid commands. The Zyxel Device still generates a log for any errors.
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1158
Figure 752 Maintenance > File Manager > Configuration File
Do not turn off the Zyxel Device while configuration file upload is in
progress.
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1159
The following table describes the labels in this screen.
Table 484 Maintenance > File Manager > Configuration File
LABEL DESCRIPTION
Rename Use this button to change the label of a configuration file on the Zyxel Device. You can only
rename manually saved configuration files. You cannot rename the lastgood.conf, system-
default.conf and startup-config.conf files.
You cannot rename a configuration file to the name of another configuration file in the Zyxel
Device.
Click a configuration file’s row to select it and click Rename to open the Rename File screen.
Figure 753 Maintenance > File Manager > Configuration File > Rename
Specify the new name for the configuration file. Use up to 63 characters (including a-zA-Z0-
9;‘~!@#$%^&()_+[]{}’,.=-).
Click OK to save the duplicate or click Cancel to close the screen without saving a duplicate
of the configuration file.
Remove Click a configuration file’s row to select it and click Remove to delete it from the Zyxel Device.
You can only delete manually saved configuration files. You cannot delete the system-
default.conf, startup-config.conf and lastgood.conf files.
A pop-up window asks you to confirm that you want to delete the configuration file. Click OK
to delete the configuration file or click Cancel to close the screen without deleting the
configuration file.
Download Click a configuration file’s row to select it and click Download to save the configuration to your
computer. Select Encryption if you want to add an encryption password to the downloaded
zipped configuration file. Enter a password consists of 1 to 31 single-bye characters, with the
following special characters !”#$%&’()*+,-./;:<=>@\^_‘{|}~
This field is case sensitive. []?and spaces are not allowed. You or another admin must use the
same password to unzip the file.
Figure 754 Configuration File > Download > Encryption
Figure 755 Unzip the Configuration File Password
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1160
Copy Use this button to save a duplicate of a configuration file on the Zyxel Device.
Click a configuration file’s row to select it and click Copy to open the Copy File screen.
Figure 756 Maintenance > File Manager > Configuration File > Copy
Specify a name for the duplicate configuration file. Use up to 63 characters (including a-zA-Z0-
9;‘~!@#$%^&()_+[]{}’,.=-).
Click OK to save the duplicate or click Cancel to close the screen without saving a duplicate
of the configuration file.
Apply Use this button to have the Zyxel Device use a specific configuration file.
Click a configuration file’s row to select it and click Apply to have the Zyxel Device use that
configuration file. The Zyxel Device does not have to restart in order to use a different
configuration file, although you will need to wait for a few minutes while the system
reconfigures.
The following screen gives you option for what the Zyxel Device is to do if it encounters an error
in the configuration file.
Immediately stop applying the configuration file- this is not recommended because it would
leave the rest of the configuration blank. If the interfaces were not configured before the first
error, the console port may be the only way to access the device.
Immediately stop applying the configuration file and roll back to the previous configuration -
this gets the Zyxel Device started with a fully valid configuration file as quickly as possible.
Ignore errors and finish applying the configuration file - this applies the valid parts of the
configuration file and generates error logs for all of the configuration file’s errors. This lets the
Zyxel Device apply most of your configuration and you can refer to the logs for what to fix.
Ignore errors and finish applying the configuration file and then roll back to the previous
configuration - this applies the valid parts of the configuration file, generates error logs for all of
the configuration file’s errors, and starts the Zyxel Device with a fully valid configuration file.
Click OK to have the Zyxel Device start applying the configuration file or click Cancel to close
the screen
# This column displays the number for each configuration file entry. This field is a sequential value,
and it is not associated with a specific address. The total number of configuration files that you
can save depends on the sizes of the configuration files and the available flash storage space.
Table 484 Maintenance > File Manager > Configuration File (continued)
LABEL DESCRIPTION
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1161
File Name This column displays the label that identifies a configuration file.
You cannot delete the following configuration files or change their file names.
The system-default.conf file contains the Zyxel Device’s default settings. Select this file and click
Apply to reset all of the Zyxel Device settings to the factory defaults. This configuration file is
included when you upload a firmware package.
The startup-config.conf file is the configuration file that the Zyxel Device is currently using. If you
make and save changes during your management session, the changes are applied to this
configuration file. The Zyxel Device applies configuration changes made in the Web
Configurator to the configuration file when you click Apply or OK. It applies configuration
changes made through commands when you use the write command.
The lastgood.conf is the most recently used (valid) configuration file that was saved when the
device last restarted. If you upload and apply a configuration file with an error, you can apply
lastgood.conf to return to a valid configuration.
Size This column displays the size (in KB) of a configuration file.
Last Modified This column displays the date and time that the individual configuration files were last
changed or saved.
Upload
Configuration File
The bottom part of the screen allows you to upload a new or previously saved configuration
file from your computer to your Zyxel Device
You cannot upload a configuration file named system-default.conf or lastgood.conf.
If you upload startup-config.conf, it will replace the current configuration and immediately
apply the new settings.
File Path Type in the location of the file you want to upload in this field or click Browse ... to find it.
Browse... Click Browse... to find the .conf file you want to upload. The configuration file must use a
“.conf” filename extension. You will receive an error message if you try to upload a fie of a
different format. Remember that you must decompress compressed (.zip) files before you can
upload them.
Upload Click Upload to begin the upload process. This process may take up to two minutes.
Advance
Add Private
Encryption Key
Select the checkbox to enable Sensitive Data Protection; see Section 49.1.2 on page 1153 for
more information.
You need this key to upload configuration files. Write down the key you set and keep it in a
safe place.
Upload Configuration File
Clear the checkbox to disable Sensitive Data Encryption.
Enter Private
Encryption Key
Enter the encryption key in this field. The encryption key should be 4 to 8 single-byte printable
characters, including 0-9a-zA-Z‘~!@#$%^&*()_\-=+{}|;:’<,>./”
Re-enter Private
Encryption Key
Enter the encryption key again in this field.
Table 484 Maintenance > File Manager > Configuration File (continued)
LABEL DESCRIPTION
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1162
49.2.1 The Configuration Schedule Backup Screen
Use the Schedule Backup screen to automatically back up the current Zyxel Device configuration file
according to a schedule, and then send it to the configured email addresses.
Figure 757 Maintenance > File Manager > Configuration File > Schedule Backup
The following table describes the labels in this screen.
Table 485 Maintenance > File Manager > Configuration File > Schedule Backup
LABEL DESCRIPTION
Configure Backup Schedule
Mail Subject Enter a email subject text with 1-60 characters. It may consist of letters, numbers, and the
following special characters: ‘()+,./:=?;!*#@$%-
Mail To Enter the receiving email address. You and send the configuration file to a maximum of five
email addresses.
E-mail Content Enter the backup email body text using 1 to 251 single-byte characters, including 0-9a-zA-
Z!”#$%&’()*+,-./:;<=>@[\]^_‘{|} and spaces are allowed.
? is not allowed.
Enable Auto
Backup
Select the check box to back up the configuration file at a user defined schedule.
Note: After the first backup, the back up only occurs if the configuration file is
different from the previous backed up configuration file.
Daily Set the Zyxel Device to back up its configuration file once a day at the specified hour and
minute.
Weekly Set the Zyxel Device to back up its configuration file once a week on the specified day, at the
specified hour and minute.
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1163
49.3 Firmware Management
Use the Firmware Management screen to check your current firmware version and upload firmware to
the Zyxel Device. You can upload firmware to be the Running firmware or Standby firmware.
Note: The Web Configurator is the recommended method for uploading firmware. You only
need to use the command line interface if you need to recover the firmware. See the
CLI Reference Guide for how to determine if you need to recover the firmware and
how to recover it.
Find the firmware file in a folder that (usually) uses the system model name with the model code and a
bin extension. For example, a firmware for ZyWALL VPN100 is “430ABFV0b2s1.bin”.
The Zyxel Device’s firmware package cannot go through the Zyxel Device when you enable the anti-
malware Destroy compressed files that could not be decompressed option. The Zyxel Device classifies
the firmware package as not being able to be decompressed and deletes it. You can upload the
firmware package to the Zyxel Device with the option enabled, so you only need to clear the Destroy
compressed files that could not be decompressed option while you download the firmware package.
See
Section 35.2 on page 775 for more on the anti-malware Destroy compressed files that could not be
decompressed option.
The firmware update can take up to five minutes. Do not turn off or reset
the Zyxel Device while the firmware update is in progress!
If your Zyxel Device has two firmware images installed, and one fails to boot (kernel crash, kernel panic,
out-of-memory etc.), then the Zyxel Device will automatically use the (good) backup image to boot.
49.3.1 Cloud Helper
Cloud Helper lets you know if there is a later firmware available on the Cloud Helper server and lets you
download it if there is.
Monthly Set the Zyxel Device to back up its configuration file once a month on the specified day, at the
a specified hour and minute.
Note: If the date you select is greater than the number of days in a month, the Zyxel
Device automatically backs up its configuration file on the last day of the
month. For example, if you select 31 and the month is February, the Zyxel
Device backs up its configuration file on day 28 or 29.
Send Email Select the check box to have the Zyxel Device sends the current configuration file to the
configured email addresses.
Encryption
password
Enter a password consists of 1 to 31 single-byte characters, with the following special characters
!”#$%&’()*+,-./;:<=>@\^_‘{|}~
This field is case sensitive. []?and spaces are not allowed.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
Table 485 Maintenance > File Manager > Configuration File > Schedule Backup (continued)
LABEL DESCRIPTION
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1164
Note: Go to myZyxel, create an account and register your Zyxel Device first. Then you will be
able to see notification for new firmware available when you log into the Zyxel Device.
At the time of writing, the Firmware Upgrade license providing Cloud Helper new firmware notifications is
free when you register your Zyxel Device. The license does not expire if you have firmware version 4.32
patch 1 and later.
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1165
The following table explains the Upgrade icons in the web configurator.
Table 486 Cloud Helper Firmware Icons
Cloud Helper New A later firmware is available on the Cloud Helper Server. Click this icon to display a
What’s New pop-up screen. You need a Firmware Upgrade license to upgrade the
firmware. If you do not have a license, Upgrade Now is grayed out. If you have a
license, click Upgrade Now to directly upgrade firmware to the standby partition and
have the Zyxel Device reboot automatically so that the new standby firmware
becomes the running firmware. The previous running firmware becomes the standby
firmware.
If you haven’t registered the Zyxel Device, a message will appear and remind you to
register it. Also, Upgrade Now is grayed out.
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1166
49.3.2 The Firmware Management Screen
Click Maintenance > File Manager > Firmware Management to open the Firmware Management screen.
Cloud Helper
Downloading
Cloud firmware is being downloaded from the Cloud Helper Server. If you select
another partition or the local firmware upgrade icon, you will see the following warning
message.
When firmware is downloading, you can pause, resume, stop or retry the firmware
download.
Local Firmware Use this if you have already downloaded the latest firmware from the Zyxel website to
your computer and unzipped it.
Click the icon and then browse to the location of the unzipped files.
If you upload the latest firmware to the running partition, the Zyxel Device will reboot
automatically when it finishes uploading.
If you upload the latest firmware to the standby partition, a message will appear to ask
if you want to reboot the Zyxel Device.
Table 486 Cloud Helper Firmware Icons
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1167
Figure 758 Maintenance > File Manager > Firmware Management
The following table describes the labels in this screen.
Table 487 Maintenance > File Manager > Firmware Management
LABEL DESCRIPTION
Firmware Status
Reboot Click the Reboot icon to restart the Zyxel Device. If you applied changes in the web
configurator, these were saved automatically and do not change when you reboot. If you
made changes in the CLI, however, you have to use the write command to save the
configuration before you reboot. Otherwise, the changes are lost when you reboot.
If you want the Standby firmware to be the Running firmware, then select the Standby
firmware row and click Reboot. Wait a few minutes until the login screen appears. If the login
screen does not appear, clear your browser cache and refresh the screen or type the IP
address of the Zyxel Device in your web browser again.
You can also use the CLI command reboot to restart the Zyxel Device.
# This displays the system space (partition) index number where the firmware is located. The
firmware can be either Standby or Running; only one firmware can be running at any one
time.
Status This indicates whether the firmware is Running, or not running but already uploaded to the
Zyxel Device and is on Standby. It displays N/A if there is no firmware uploaded to that system
space.
Model This is the model name of the device which the firmware is running on.
Version This is the firmware version and the date created.
Released Date This is the date that the version of the firmware was created.
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1168
Click Yes to upload the firmware as the running firmware after the Zyxel Device reboots. Your current
configuration settings will be saved and applied after reboot.
The following steps describe procedures to upload firmware and reboot the Zyxel Device.
1 Upload firmware to the standby partition.
2 Click Yes to reboot the Zyxel Device.
3 The firmware you uploaded is copied from the standby partition to the running partition.
4 Your current configuration settings are saved.
5 The Zyxel Device reboots. The firmware you uploaded becomes the running firmware. Your current
configuration settings are applied.
Click No to upload the firmware and current configuration settings to the standby partition. If you reboot
the Zyxel Device later, the standby firmware and standby configuration will become the running
firmware and new configuration.
Upgrade A cloud helper icon displays if there is a later firmware on the Cloud Server than the firmware
in the partition. Click the cloud helper icon to download a later firmware from the Cloud
Helper Server.
Use the local firmware icon if you have already downloaded the latest firmware from the
Zyxel website to your computer and unzipped it.
Cloud Firmware
Information
You must register your Zyxel Device at myZyxel first to use cloud firmware.
Latest Version This displays the latest firmware version at the Cloud Helper Server. Click Check Now to see if
there is a later firmware at the Cloud Server.
Release Date This displays the date the latest firmware version was made available.
Release Note The release note contains details of latest firmware version such as new features and bug
fixes.
Auto Update Select this check box to have the Zyxel Device automatically check for and download new
firmware to the standby partition at the time and day specified.
You should select a time when your network is not busy for minimal interruption. The firmware
will upgrade within an hour from the time you selected.
Note: You cannot enable Auto Update in File Manager > Firmware Management
and Schedule Reboot in Maintenance > Shutdown-Reboot at the same time.
Daily Select this option to have the Zyxel Device check for new firmware every day at the specified
time. The time format is the 24 hour clock, so ‘0’ means midnight for example.
Weekly Select this option to have the Zyxel Device check for new firmware once a week on the day
and at the time specified.
Auto Reboot Select this to have the newly downloaded firmware in the standby partition become the
running firmware after the Zyxel Device automatically restarts.
Firmware Upgrade
Service Status
Service Status This field displays whether the firmware license service is activated at myZyxel (Activated) or
not (Not Activated).
Table 487 Maintenance > File Manager > Firmware Management (continued)
LABEL DESCRIPTION
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1169
Please note that configurations made after you upload the firmware will not be saved to the standby
partition. These configurations will be lost after you reboot the Zyxel Device. You should back up your
current configuration before you reboot the Zyxel Device.
The following steps describe the procedures to upload firmware without rebooting the Zyxel Device.
1 Upload firmware to the standby partition.
2 Click No to have the Zyxel Device upload firmware without rebooting.
3 Your current configuration settings are saved.
The following steps describe the procedures if you decide to reboot the Zyxel Device later.
1 Back up your current configuration settings.
2 Go to Maintenance > File Manager > Firmware Management. Click the Standby firmware then click
Reboot.
3 The firmware in the standby partition is copied to the running partition.
4 The Zyxel Device reboots.
5 The Standby firmware becomes the Running firmware. The configuration settings saved at the time you
uploaded the firmware will be applied.
6 If you want to apply the configuration settings you saved at step1, go to Maintenance > File Manager >
Configuration File > Configuration > Upload Configuration File to upload the configuration settings file
you just saved.
After you see the Firmware Upload in Process screen, wait a few minutes before logging into the Zyxel
Device again.
Figure 759 Firmware Upload In Process
Note: The Zyxel Device automatically reboots after a successful upload.
The Zyxel Device automatically restarts causing a temporary network disconnect. In some operating
systems, you may see the following icon on your desktop.
Figure 760 Network
After five minutes, log in again and check your new firmware version in the Dashboard screen.
If the upload was not successful, the following message appears in the status bar at the bottom of the
screen.
background
USG FLEX Series User’s Guide
1170
Figure 761 Firmware Upload Error
49.3.3 Firmware Upgrade through USB Stick
In addition to uploading firmware through the web configurator or console port (see the CLI Reference
Guide), you can also upload firmware directly from a USB stick connected to the Zyxel Device.
1 Create a folder on the USB stick called ‘/[ProductName_dir]/firmware’. For example, if your Zyxel Device
is USG110, then create a ‘/usg110_dir/firmware/’ folder on the stick.
2 Put one firmware ‘bin’ file into the firmware folder. Make sure the firmware ID and version number are
correct for your model (the firmware ID is in brackets after the firmware version number - for USG100 it is
AAPH).
Note: Do not put more than one firmware ‘bin’ file into the firmware folder.
The firmware version in the USB stick must be different to the currently running firmware.
If the firmware on the USB stick is older, then the Zyxel Device will ‘upgrade’ to the older
version. It is recommended that the firmware on the USB stick be the latest firmware
version.
3 Insert the USB stick into the Zyxel Device. The firmware uploads to the standby system space.
4 The SYS LED blinks when the Zyxel Device automatically reboots making the upgraded firmware in
standby become the running firmware.
Note: If the startup-config.conf configuration file has problems and you are upgrading to 4.25
or later firmware, then the Zyxel Device will revert (failover) to the previously running
firmware.
If the startup-config.conf configuration file has problems and you are upgrading to
earlier than 4.25 firmware, then the Zyxel Device uses the new earlier firmware, but
generates a log and tries the existing lastgood.conf configuration file. If there isn’t a
lastgood.conf configuration file or it also has an error, the Zyxel Device applies the
system-default.conf configuration file.
49.3.4 Firmware Integrity Check
The Zyxel Device will conduct a firmware integrity check every time you restart the Zyxel Device.
A firmware integrity check is a feature to check if the firmware currently running on the Zyxel Device is
verified. A verified firmware is a firmware that has integrity and is genuine.
• To have integrity, the firmware certificate must pass the digital signature verification.
• To be genuine, the firmware must be officially released by Zyxel and signed by the Zyxel firmware
release server.
A firmware may have one of the following status:
• The firmware has integrity and is genuine.
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1171
• The firmware certificate has expired, but it is genuine.
• The firmware has integrity, but it is not genuine.
• The firmware has no integrity.
At the time of writing, a firmware that has no integrity or is not genuine is considered unverified.
Using an unverified firmware may cause security leaks. Click Yes and Restart to upload the latest official
firmware available on the Cloud Helper Server to your Zyxel Device.
Figure 762 Firmware Integrity Check Warning
If you click No, the Zyxel Device will continue to use the unverified firmware, but Zyxel will not be
responsible for any security leaks caused by this firmware. A warning icon (
) will also show in
Dashboard > General > Device Information and Maintenance > Firmware Management > Firmware
Status.
49.4 The Shell Script Screen
Use shell script files to have the Zyxel Device execute commands that you specify. Use a text editor to
create the shell script files. They must use a “.zysh” filename extension.
Click Maintenance > File Manager > Shell Script to open the Shell Script screen. Use the Shell Script
screen to store, name, download, upload and run shell script files. You can store multiple shell script files
on the Zyxel Device at the same time.
Note: You should include write commands in your scripts. If you do not use the write
command, the changes will be lost when the Zyxel Device restarts. You could use
multiple write commands in a long script.
See Section 50.2.1 on page 1174 for more information on scripts.
Figure 763 Maintenance > File Manager > Shell Script
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1172
Each field is described in the following table.
Table 488 Maintenance > File Manager > Shell Script
LABEL DESCRIPTION
Rename Use this button to change the label of a shell script file on the Zyxel Device.
You cannot rename a shell script to the name of another shell script in the Zyxel Device.
Click a shell script’s row to select it and click Rename to open the Rename File screen.
Figure 764 Maintenance > File Manager > Shell Script > Rename
Specify the new name for the shell script file. Use up to 63 characters (including a-zA-Z0-
9;‘~!@#$%^&()_+[]{}’,.=-).
Click OK to save the duplicate or click Cancel to close the screen without saving a duplicate of
the configuration file.
Remove Click a shell script file’s row to select it and click Remove to delete the shell script file from the
Zyxel Device.
A pop-up window asks you to confirm that you want to delete the shell script file. Click OK to
delete the shell script file or click Cancel to close the screen without deleting the shell script file.
Download Click a shell script file’s row to select it and click Download to save the configuration to your
computer.
Copy Use this button to save a duplicate of a shell script file on the Zyxel Device.
Click a shell script file’s row to select it and click Copy to open the Copy File screen.
Figure 765 Maintenance > File Manager > Shell Script > Copy
Specify a name for the duplicate file. Use up to 63 characters (including a-zA-Z0-
9;‘~!@#$%^&()_+[]{}’,.=-).
Click OK to save the duplicate or click Cancel to close the screen without saving a duplicate of
the configuration file.
Apply Use this button to have the Zyxel Device use a specific shell script file.
Click a shell script file’s row to select it and click Apply to have the Zyxel Device use that shell
script file. You may need to wait awhile for the Zyxel Device to finish applying the commands.
File Name This column displays the label that identifies a shell script file.
Size This column displays the size (in KB) of a shell script file.
Last Modified This column displays the date and time that the individual shell script files were last changed or
saved.
Upload Shell
Script
The bottom part of the screen allows you to upload a new or previously saved shell script file
from your computer to your Zyxel Device.
background
Chapter 49 File Manager
USG FLEX Series User’s Guide
1173
File Path Type in the location of the file you want to upload in this field or click Browse ... to find it.
Browse... Click Browse... to find the .zysh file you want to upload.
Upload Click Upload to begin the upload process. This process may take up to several minutes.
Table 488 Maintenance > File Manager > Shell Script (continued)
LABEL DESCRIPTION
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1174
CHAPTER 50
Diagnostics
50.1 Overview
Use the diagnostics screens for troubleshooting.
50.1.1 What You Can Do in this Chapter
• Use the Diagnostics screens (see Section 50.2 on page 1174) to generate a file containing the Zyxel
Device’s configuration and diagnostic information if you need to provide it to customer support
during troubleshooting.
• Use the Packet Capture screens (see Section 50.3 on page 1180) to capture packets going through
the Zyxel Device.
• Use the CPU / Memory Status screens (see Section 50.4 on page 1187) to view the CPU and memory
performance of various applications on the Zyxel Device.
• Use the System Logs screen (see Section 50.5 on page 1189) to see system logs stored on a
connected USB storage device on the Zyxel Device.
• Use the Network Tool screen (see Section 50.6 on page 1189) to ping an IP address or trace the route
packets take to a host.
• Use the Routing Traces screens (see Section 50.7 on page 1193) to configure traceroute to identify
where packets are dropped for troubleshooting.
• Use the Wireless Frame Capture screens (see Section 50.8 on page 1194) to capture network traffic
going through the AP interfaces connected to your Zyxel Device.
50.2 The Diagnostics Screens
The Diagnostics screens provide an easy way for you to generate a file containing the Zyxel Device’s
configuration and diagnostic information. You may need to send this file to customer support for
troubleshooting.
50.2.1 Scripts
Use scripts to gather information on the Zyxel Device or on external APs connected to the Zyxel Device.
Use a notepad editor that supports Unicode, such as Notepad to create a script. Each command in a
script must be on its own line and the file must end with an empty line. The script must be saved in
Unicode format (UTF-8).
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1175
This is an example of a script to display information about the Zyxel Device.
This is an example of a default script with interface diagnostic commands.
Script Name
The script name must use a “.zysh” filename extension with a file name of up to 25 characters (including
a-z, A-Z, 0-9 and ;‘~!@#$%^&()_+[]{}’,.=-). Spaces are allowed
Script Uploads to the Zyxel Device
You can upload scripts in File Manager > Shell Script to run commands on the Zyxel Device. You can
also copy, and download scripts here.
Upload a script in Diagnostics > Controller to generate information about the Zyxel Device own
configuration and diagnostics.
Upload a script in Diagnostics > AP to generate information about the selected managed AP in
Diagnostics > AP.
Script Output
The results of generating a script are shown in Diagnostics > Files in bz2 format. You need to decompress
the bz2 file to tar, and then unwrap the tar file to display a debug folder that contains other folders
containing debug dbg text files. Customer support may request the bz2 file for troubleshooting.
50.2.2 The Diagnostics Controller Screen
Click Maintenance > Diagnostics > Controller to open the following screen. When you click Collect Now,
a series of commands are run to display information about the Zyxel Device.
show service-register status all
show myzyxel-service get-cloud-timezone
show cloud-helper firmware
show cloud-helper remind
debug interface ifconfig
debug interface show event_sink
debug interface show interface_obj
debug switch table
debug switch port_groupping
show ping-check status
debug system netstat interface
show interface all
show port status
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1176
Figure 766 Maintenance > Diagnostics > Controller
The following table describes the labels in this screen.
Table 489 Maintenance > Diagnostics > Controller
LABEL DESCRIPTION
Diagnostics Collect Status
Status This field displays the following states the Zyxel Device is in when collecting
diagnostic data.
• Standby: The Zyxel Device is ready to generate a diagnostic file or has just
finished generating a diagnostic file.
• Busy on AP: The Zyxel Device is generating a diagnostic file for the selected
managed AP in Diagnostics > AP.
• Busy on ZyWall: The Zyxel Device is generating a diagnostic file containing its
own configuration and diagnostic information.
General Setting
Filename This is the name of the most recently created diagnostic file.
Last modified This is the date and time that the last diagnostic file was created. The format is yyyy-
mm-dd hh:mm:ss.
Size This is the size of the most recently created diagnostic file.
Copy the diagnostic file to
USB storage (if ready)
Select this to have the Zyxel Device create an extra copy of the diagnostic file to a
connected USB storage device.
Diagnostic Collect by Script
files
Script File Select a script here to generate information about configuration and diagnostics of
managed APs. See
Section 50.2.1 on page 1174 for more information on scripts.
Upload Shell Script
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1177
50.2.3 The Diagnostics AP Screen
This screen provides an easy way for you to generate a file containing the selected managed AP’s
configuration and diagnostic information. You may need to generate this file and send it to customer
support during troubleshooting. Click Maintenance > Diagnostics > Collect on AP to open the Collect on
AP screen.
File Upload a script here to generate information about the Zyxel Device’s own
configuration and diagnostics. Click Browse to find the location of the file you want
to upload in this field. Click Upload to begin the upload process. This process may
take a few minutes.
Collect Now Click this to have the Zyxel Device run the uploaded script and create a new
diagnostic file.
Wait while information is collected.
Table 489 Maintenance > Diagnostics > Controller (continued)
LABEL DESCRIPTION
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1178
Figure 767 Maintenance > Diagnostics > AP
The following table describes the labels in this screen.
Table 490 Maintenance > Diagnostics > AP
LABEL DESCRIPTION
Diagnostics Collect Status
Status This field displays the following states the Zyxel Device is in when collecting
diagnostic data.
• Standby: The Zyxel Device is ready to generate a diagnostic file or has just
finished generating a diagnostic file.
• Busy on AP: The Zyxel Device is generating a diagnostic file for the selected
managed AP in Diagnostics > AP.
• Busy on ZyWall: The Zyxel Device is generating a diagnostic file containing its
own configuration and diagnostic information.
Progress This field displays the number of APs processed compared to the number of APs
selected for processing.
Latest AP Result This field displays the latest AP description and status
AP General Setting
Available APs This text box lists the managed APs that are connected and available. Select the
managed APs that you want the Zyxel Device to generate a diagnostic file
containing their configuration, and click the right arrow button to add them.
Collected APs This text box lists the managed APs that you allow the Zyxel Device to generate a
diagnostic file containing their configuration. Select any managed APs that you
want to prevent the Zyxel Device from generating a diagnostic file for them, and
click the left arrow button to remove them.
Copy the diagnostic file to
USB storage (if ready)
Select this to have the Zyxel Device create an extra copy of the diagnostic file to a
connected USB storage device.
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1179
50.2.4 The Diagnostics Files Screen
Click Maintenance > Diagnostics > Files to open the diagnostic files screen. This screen lists the files of
diagnostic information the Zyxel Device has collected and stored on the Zyxel Device or in a connected
USB storage device. You may need to send these files to customer support for troubleshooting.
Figure 768 Maintenance > Diagnostics > Files
The following table describes the labels in this screen.
Diagnostic Collect by Script
files
Script File Select a script here to generate information about configuration and diagnostics of
managed APs. See
Section 50.2.1 on page 1174 for more information on scripts.
Upload Shell Script
File Upload a script hereto generate information about configuration and diagnostics
of managed APs. Click Browse to find the location of the script you want to upload
in this field. Click Upload to begin the upload process. This process may take a few
minutes.
Collect Now Click this to have the Zyxel Device create a new diagnostic file
Table 490 Maintenance > Diagnostics > AP
LABEL DESCRIPTION
Table 491 Maintenance > Diagnostics > Files
LABEL DESCRIPTION
Diagnostic
files
This lists the files of generated diagnostic information stored on the Zyxel Device.
Diagnostic
files in USB
storage
This lists the files of generated diagnostic information stored in a connected USB storage device.
Remove Select files and click Remove to delete them from the Zyxel Device or the USB storage device. Use
the [Shift] and/or [Ctrl] key to select multiple files. A pop-up window asks you to confirm that you
want to delete.
Download Click a file to select it and click Download to save it to your computer.
# This column displays the number for each file entry. The total number of files that you can save
depends on the file sizes and the available storage space.
File Name This column displays the label that identifies the file.
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1180
50.3 The Packet Capture Screen
Use this screen to capture network traffic going through the Zyxel Device’s interfaces. Studying these
packet captures may help you identify network problems. Click Maintenance > Diagnostics > Packet
Capture to open the packet capture screen.
Note: New capture files overwrite existing files of the same name. Change the File Suffix field’s
setting to avoid this.
Figure 769 Maintenance > Diagnostics > Packet Capture
Size This column displays the size (in bytes) of a file.
Last Modified This column displays the date and time that the individual files were saved.
Table 491 Maintenance > Diagnostics > Files (continued)
LABEL DESCRIPTION
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1181
The following table describes the labels in this screen.
Table 492 Maintenance > Diagnostics > Packet Capture
LABEL DESCRIPTION
Interfaces Enabled interfaces (except for virtual interfaces) appear under Available Interfaces.
Select interfaces for which to capture packets and click the right arrow button to move
them to the Capture Interfaces list. Use the [Shift] and/or [Ctrl] key to select multiple
objects.
IP Version Select the version of IP for which to capture packets. Select any to capture packets for
all IP versions.
Protocol Type Select the protocol of traffic for which to capture packets. Select any to capture
packets for all types of traffic.
Host IP Select a host IP address object for which to capture packets. Select any to capture
packets for all hosts. Select User Defined to be able to enter an IP address.
Host Port This field is configurable when you set the IP Type to any, tcp, or udp. Specify the port
number of traffic to capture.
Continuously capture
and overwrite old ones
Select this to have the Zyxel Device keep capturing traffic and overwriting old packet
capture entries when the available storage space runs out.
Captured Packet Files When saving packet captures only to the Zyxel Device’s on board storage, specify a
maximum limit in megabytes for the total combined size of all the capture files on the
Zyxel Device.
When saving packet captures to a connected USB storage device, specify a maximum
limit in megabytes for each capture file.
Note: If you have existing capture files and have not selected the
Continuously capture and overwrite old ones option, you may need to
set this size larger or delete existing capture files.
The valid range depends on the available on board/USB storage size. The Zyxel Device
stops the capture and generates the capture file when either the file reaches this size or
the time period specified in the Duration field expires.
Split threshold Specify a maximum size limit in megabytes for individual packet capture files. After a
packet capture file reaches this size, the Zyxel Device starts another packet capture file.
Duration Set a time limit in seconds for the capture. The Zyxel Device stops the capture and
generates the capture file when either this period of time has passed or the file reaches
the size specified in the File Size field. 0 means there is no time limit.
File Suffix Specify text to add to the end of the file name (before the dot and filename extension)
to help you identify the packet capture files. Modifying the file suffix also avoids making
new capture files that overwrite existing files of the same name.
The file name format is “interface name-file suffix.cap”, for example “vlan2-packet-
capture.cap”.
Number Of Bytes To
Capture (Per Packet)
Specify the maximum number of bytes to capture per packet. The Zyxel Device
automatically truncates packets that exceed this size. As a result, when you view the
packet capture files in a packet analyzer, the actual size of the packets may be larger
than the size of captured packets.
Save data to onboard
storage only
Select this to have the Zyxel Device only store packet capture entries on the Zyxel
Device. The available storage size is displayed as well.
Note: The Zyxel Device reserves some on board storage space as a buffer.
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1182
50.3.1 The Packet Capture on AP Screen
Use this screen to capture network traffic going through the connected APs’ interfaces. Studying these
packet captures may help you identify network problems. Click Maintenance > Diagnostics > Packet
Capture > Capture on AP to open the packet capture screen.
Note: New capture files overwrite existing files of the same name. Change the File Suffix field’s
setting to avoid this.
Save data to USB
storage
Select this to have the Zyxel Device store packet capture entries only on a USB storage
device connected to the Zyxel Device if the Zyxel Device allows this.
Status:
Unused - the connected USB storage device was manually unmounted by using the
Remove Now button or for some reason the Zyxel Device cannot mount it.
none - no USB storage device is connected.
service deactivated - USB storage feature is disabled (in Configuration > System > USB
Storage), so the Zyxel Device cannot use a connected USB device to store system logs
and other diagnostic information.
available - you can have the Zyxel Device use the USB storage device. The available
storage capacity also displays.
Note: The Zyxel Device reserves some USB storage space as a buffer.
Save data to ftp server
(available: xx MB)
Select this to have the Zyxel Device store packet capture entries on the defined FTP site.
The available storage size is displayed as well.
Server Address Type the IP address of the FTP server.
Server Port Type the port this server uses for FTP traffic. The default FTP port is 21.
Name Type the login username to access the FTP server.
Password Type the associated login password to access the FTP server.
Capture Click this button to have the Zyxel Device capture packets according to the settings
configured in this screen.
You can configure the Zyxel Device while a packet capture is in progress although you
cannot modify the packet capture settings.
The Zyxel Device’s throughput or performance may be affected while a packet capture
is in progress.
After the Zyxel Device finishes the capture it saves a separate capture file for each
selected interface. The total number of packet capture files that you can save depends
on the file sizes and the available flash storage space. Once the flash storage space is
full, adding more packet captures will fail.
Stop Click this button to stop a currently running packet capture and generate a separate
capture file for each selected interface.
Reset Click this button to return the screen to its last-saved settings.
Table 492 Maintenance > Diagnostics > Packet Capture (continued)
LABEL DESCRIPTION
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1183
Figure 770 Maintenance > Diagnostics > Packet Capture > Capture on AP
The following table describes the labels in this screen.
Table 493 Maintenance > Diagnostics > Packet Capture > Capture on AP
LABEL DESCRIPTION
Select on AP This lists the managed APs that are connected and available. Select the managed AP
that you want the Zyxel Device to capture network traffic going through it.
Query After you select an AP, click this button to update and display the interfaces, filter
configuration and storage size available for the selected AP on the screen.
Note: If you reboot the AP or change the AP Profile object applied to
this AP, you need to select the AP and click Query again.
Capture Status This shows Standby when the Zyxel Device is ready to or have finished capturing network
traffic going through the selected AP’s interface(s).
This shows Preparing when the Zyxel Device is sending the capture command to the
AP’s interface(s).
This shows Capturing when the AP is capturing network traffic going through the
selected AP’s interface(s).
This shows File Receiving when the Zyxel Device starts to receive capture files from the
AP’s interface(s) after you press the Stop button.
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1184
Interfaces Enabled interfaces (except for virtual interfaces) appear under Available Interfaces.
Select interfaces for which to capture packets and click the right arrow button to move
them to the Capture Interfaces list. Use the [Shift] and/or [Ctrl] key to select multiple
objects.
IP Version Select the version of IP for which to capture packets. Select any to capture packets for
all IP versions.
Protocol Type Select the protocol of traffic for which to capture packets. Select any to capture
packets for all types of traffic.
Host IP Select a host IP address object for which to capture packets. Select any to capture
packets for all hosts. Select User Defined to be able to enter an IP address.
Host Port This field is configurable when you set the IP Type to any, tcp, or udp. Specify the port
number of traffic to capture.
Continuously capture
and overwrite old ones
Select this to have the Zyxel Device keep capturing traffic and overwriting old packet
capture entries when the available storage space runs out.
Captured Packet Files When saving packet captures only to the Zyxel Device’s on board storage, specify a
maximum limit in megabytes for the total combined size of all the capture files on the
Zyxel Device.
When saving packet captures to a connected USB storage device, specify a maximum
limit in megabytes for each capture file.
Note: If you have existing capture files and have not selected the
Continuously capture and overwrite old ones option, you may need to
set this size larger or delete existing capture files.
The valid range depends on the available on board/USB storage size. The Zyxel Device
stops the capture and generates the capture file when either the file reaches this size or
the time period specified in the Duration field expires.
Split threshold Specify a maximum size limit in megabytes for individual packet capture files. After a
packet capture file reaches this size, the Zyxel Device starts another packet capture file.
Duration Set a time limit in seconds for the capture. The Zyxel Device stops the capture and
generates the capture file when either this period of time has passed or the file reaches
the size specified in the File Size field. 0 means there is no time limit.
File Suffix Specify text to add to the end of the file name (before the dot and filename extension)
to help you identify the packet capture files. Modifying the file suffix also avoids making
new capture files that overwrite existing files of the same name.
The file name format is “interface name-file suffix.cap”, for example “vlan2-packet-
capture.cap”.
Number Of Bytes To
Capture (Per Packet)
Specify the maximum number of bytes to capture per packet. The Zyxel Device
automatically truncates packets that exceed this size. As a result, when you view the
packet capture files in a packet analyzer, the actual size of the packets may be larger
than the size of captured packets.
Save data to onboard
storage only
Select this to have the Zyxel Device only store packet capture entries on the Zyxel
Device. The available storage size is displayed as well.
Note: The Zyxel Device reserves some on board storage space as a buffer.
Table 493 Maintenance > Diagnostics > Packet Capture > Capture on AP (continued)
LABEL DESCRIPTION
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1185
50.3.2 The Packet Capture Files Screen
Click Maintenance > Diagnostics > Packet Capture > Files to open the packet capture files screen. This
screen lists the files of packet captures stored on the Zyxel Device or a connected USB storage device.
You can download the files to your computer where you can study them using a packet analyzer (also
known as a network or protocol analyzer) such as Wireshark.
Save data to USB
storage
Select this to have the Zyxel Device store packet capture entries only on a USB storage
device connected to the Zyxel Device if the Zyxel Device allows this.
Status:
Unused - the connected USB storage device was manually unmounted by using the
Remove Now button or for some reason the Zyxel Device cannot mount it.
none - no USB storage device is connected.
service deactivated - USB storage feature is disabled (in Configuration > System > USB
Storage), so the Zyxel Device cannot use a connected USB device to store system logs
and other diagnostic information.
available - you can have the Zyxel Device use the USB storage device. The available
storage capacity also displays.
Note: The Zyxel Device reserves some USB storage space as a buffer.
Save data to ftp server
(available: xx MB)
Select this to have the Zyxel Device store packet capture entries on the defined FTP site.
The available storage size is displayed as well.
Server Address Type the IP address of the FTP server.
Server Port Type the port this server uses for FTP traffic. The default FTP port is 21.
Name Type the login username to access the FTP server.
Password Type the associated login password to access the FTP server.
Capture Click this button to have the Zyxel Device capture packets according to the settings
configured in this screen.
You can configure the Zyxel Device while a packet capture is in progress although you
cannot modify the packet capture settings.
The Zyxel Device’s throughput or performance may be affected while a packet capture
is in progress.
After the Zyxel Device finishes the capture it saves a separate capture file for each
selected interface. The total number of packet capture files that you can save depends
on the file sizes and the available flash storage space. Once the flash storage space is
full, adding more packet captures will fail.
Stop Click this button to stop a currently running packet capture and generate a separate
capture file for each selected interface.
Reset Click this button to return the screen to its last-saved settings.
Table 493 Maintenance > Diagnostics > Packet Capture > Capture on AP (continued)
LABEL DESCRIPTION
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1186
Figure 771 Maintenance > Diagnostics > Packet Capture > Files
The following table describes the labels in this screen.
50.3.3 The Packet Capture Remote Capture Screen
Click Maintenance > Diagnostics > Packet Capture > Remote Capture to open the packet capture
remote capture screen. Use this screen to capture network traffic going through an AP. The captured
packets is sent to a packet analyzer (also known as network or protocol analyzer) such as Wireshark.
Table 494 Maintenance > Diagnostics > Packet Capture > Files
LABEL DESCRIPTION
Remove Select files and click Remove to delete them from the Zyxel Device or the connected USB
storage device. Use the [Shift] and/or [Ctrl] key to select multiple files. A pop-up window asks
you to confirm that you want to delete.
Download Click a file to select it and click Download to save it to your computer.
# This column displays the number for each packet capture file entry. The total number of packet
capture files that you can save depends on the file sizes and the available flash storage space.
File Name This column displays the label that identifies the file. The file name format is interface name-file
suffix.cap.
Size This column displays the size (in bytes) of a configuration file.
Last Modified This column displays the date and time that the individual files were saved.
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1187
Figure 772 Maintenance > Diagnostics > Packet Capture > Remote Capture
The following table describes the labels in this screen.
50.4 The CPU / Memory Status Screen
Click Maintenance > Diagnostics > CPU / Memory Status to open the CPU/Memory Status screen. Use
this screen to view the CPU and memory performance of various applications on the Zyxel Device.
Table 495 Maintenance > Diagnostics > Packet Capture > Remote Capture
LABEL DESCRIPTION
Select on AP Select a managed AP that is on and connected to the Zyxel Device.
Query After you select an AP, click this button to show the IP address and server port of the selected
AP.
Note: If you reboot the AP or change the AP Profile object applied to this
AP, you need to select the AP and click Query again.
Start Click Start to enable packets to be captured going from the AP to the Zyxel Device.
Stop Click Stop to stop packets from been captured going from the AP to the Zyxel Device.
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1188
Figure 773 Maintenance > Diagnostics > CPU / Memory Status
The following table describes the labels in this screen.
Table 496 Maintenance > Diagnostics > CPU / Memory Status
LABEL DESCRIPTION
CPU Status
This table displays the applications that use the most Zyxel Device CPU processing.
CPUn Usage CPU usage shows how much processing power the Zyxel Device is using. This field displays the
current percentage usage of a CPU (where n is the number of the CPU) as a percentage of
total processing power.
Network Traffic This field displays the current percentage of network traffic through the Zyxel Device.
# This field is a sequential value, and it is not associated with any entry.
CPU This field displays the current CPU utilization percentage for each application used on the Zyxel
Device.
Application This field displays the name of the application consuming the related processing power on the
Zyxel Device.
Memory This field displays the current DRAM memory utilization percentage for each application used
on the Zyxel Device.
Time This field displays each application’s running time in hours - minutes - seconds.
Memory Status
This table displays the applications that use the most Zyxel Device DRAM memory.
Memory Usage Memory usage shows how much DRAM memory the Zyxel Device is using. This field displays the
current percentage of memory utilization.
# This field is a sequential value, and it is not associated with any entry.
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1189
50.5 The System Log Screen
Click Maintenance > Diagnostics > System Log to open the System Log screen. This screen lists the files of
Zyxel Device system logs stored on a connected USB storage device. The files are in comma separated
value (csv) format. You can download them to your computer and open them in a tool like Microsoft’s
Excel.
Figure 774 Maintenance > Diagnostics > System Log
The following table describes the labels in this screen.
50.6 The Network Tool Screen
Use this screen to perform various network tests.
Click Maintenance > Diagnostics > Network Tool to display this screen.
Memory This field displays the current DRAM memory utilization percentage for each application used
on the Zyxel Device.
Application This field displays the name of the application consuming the related memory on the Zyxel
Device.
CPU This field displays the current CPU utilization percentage for each application used on the Zyxel
Device.
Time This field displays each application’s running time.
Refresh Click this to update the information in this screen.
Table 496 Maintenance > Diagnostics > CPU / Memory Status
LABEL DESCRIPTION
Table 497 Maintenance > Diagnostics > System Log
LABEL DESCRIPTION
Remove Select files and click Remove to delete them from the Zyxel Device. Use the [Shift] and/or [Ctrl]
key to select multiple files. A pop-up window asks you to confirm that you want to delete.
Download Click a file to select it and click Download to save it to your computer.
# This column displays the number for each file entry. The total number of files that you can save
depends on the file sizes and the available storage space.
File Name This column displays the label that identifies the file.
Size This column displays the size (in bytes) of a file.
Last Modified This column displays the date and time that the individual files were saved.
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1190
Figure 775 Maintenance > Diagnostics > Network Tool
Figure 776 Maintenance > Diagnostics > Network Tool - Test Email Server
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1191
Figure 777 Maintenance > Diagnostics > Network Tool - Speed Test
The following table describes the labels in this screen.
Table 498 Maintenance > Diagnostics > Network Tool
LABEL DESCRIPTION
Network Tool Select a network tool:
•Select NSLOOKUP IPv4 or NSLOOKUP IPv6 to perform name server lookup for querying
the Domain Name System (DNS) to get the domain name or IP address mapping.
•Select PING IPv4 or PING IPv6 to ping the IP address that you entered.
•Select TRACEROUTE IPv4 or TRACEROUTE IPv6 to run the traceroute function. This
determines the path a packet takes to the specified computer.
•Select Test Email Server to test access to an SMTP email server.
•Select Speed Test to test the connection speed and quality between the Zyxel
Device and a test server on the Internet.
Domain Name or IP
Address
Type the IP address that you want to use to for the selected network tool.
Advance
Click this to display the following fields.
Query Server Enter the IP address of a server to which the Zyxel Device sends queries for NSLOOKUP.
background
USG FLEX Series User’s Guide
1192
Interface Select the interface through which the Zyxel Device sends queries for PING or
TRACEROUTE.
Extension Option Enter the extended option if you want to use an extended ping or traceroute
command. For example, enter “-c count” (where count is the number of ping
requests) to set how many times the Zyxel Device pings the destination IP address, or
enter “-w waittime” (where waittime is a time period in seconds) to set how long the
Zyxel Device waits for a response to a probe before running another traceroute.
The following fields display when you select Test Email Server in Network Tool.
Mail Server Type the name or IP address of the outgoing SMTP server.
Mail Subject Type the subject line for the outgoing email.
•Select Append system name to add the Zyxel Device system name to the subject.
•Select Append date time to add the Zyxel Device date and time to the subject.
Mail Server Port Enter the same port number here as is on the mail server for mail traffic.
TLS Security Select this option if the mail server uses Transport Layer Security (TLS) for encrypted
communications between the mail server and the Zyxel Device.
STARTTLS Select this option if the mail server uses SSL or TLS for encrypted communications
between the mail server and the Zyxel Device.
Authenticate Server Select this if the Zyxel Device authenticates the mail server in the TLS handshake.
Mail From Type the email address from which the outgoing email is delivered. This address is used in
replies.
Mail To Type the email address to which the outgoing email is delivered.
SMTP Authentication Select this check box if it is necessary to provide a user name and password to the SMTP
server.
User Name This box is effective when you select the SMTP Authentication check box. Type the user
name to provide to the SMTP server when the log is emailed.
Password This box is effective when you select the SMTP Authentication check box. Type a
password of up to 63 characters to provide to the SMTP server when the log is emailed.
Retype to Confirm Retype your new password for confirmation.
The following fields display when you select Speed Test in Network Tool.
Speed Test Server Select Auto to have the Zyxel Device test the connection speed and quality between
the Zyxel Device and a server nearest to the on Zyxel Device the Internet.
Select a specified test server to have the Zyxel Device test the connection speed and
quality between the Zyxel Device and the server you selected.
Please note that this field is read-only if you selected a specified interface in Interface.
Interface Select Auto to have the Zyxel Device test the connection speed and quality on one of
the interface in Configuration > Network > Interface > Trunk > System Default >
SYSTEM_DEFAULT_WAN_TRUNK.
Select WAN to have the Zyxel Device test the connection speed and quality on the
WAN.
Please note that this field is read-only if you selected a specified server in Speed Test
Server.
Test Click this button to start the test.
Stop Click this button to stop the test.
Reset Click this button to return the screen to its last-saved settings.
Table 498 Maintenance > Diagnostics > Network Tool (continued)
LABEL DESCRIPTION
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1193
50.7 The Routing Traces Screen
Click Maintenance > Diagnostics > Routing Traces to display this screen. Use this screen to configure a
traceroute to identify where packets are dropped for troubleshooting.
Figure 778 Maintenance > Diagnostics > Routing Traces
The following table describes the labels in this screen.
Table 499 Maintenance > Diagnostics > Routing Traces
LABEL DESCRIPTION
IP Address You can trace traffic through the Zyxel Device from a specific source-to-destination stream or just
from/to a specific host (source or destination).
Source Enter the source IP address of traffic that you want to trace.
Port Enter the source port number of traffic that you want to trace.
Destinatio
n
Enter the destination IP address of traffic that you want to trace.
Port Enter the destination port number of traffic that you want to trace.
Host Enter the IP address of a specific source or destination host whose traffic you want to trace.
Port Enter the port number for particular source traffic on the host that you want to trace.
Protocol Select the protocol of traffic that you want to trace. any means any protocol.
Interval Enter a time interval in seconds for renewing a route trace. The default time interval is 5 seconds.
Capture Click this button to have the Zyxel Device capture frames according to the settings configured in
this screen.
You can configure the Zyxel Device while a frame capture is in progress although you cannot
modify the frame capture settings.
Flush Data Click this to clear all data on the screen.
Session This field displays established sessions that passed through the Zyxel Device which matched the
capture criteria.
ID This field displays the packet ID for each active session.
Protocol This field displays the protocol used in each active session.
from VPN ID This field displays the identifier for incoming VPN connections on the Zyxel Device.
to VPN ID This field displays the identifier for outgoing VPN connections on the Zyxel Device.
Incoming
Interface
This is the source interface of packets to which this active session applies.
Message This field displays traceroute information.
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1194
50.8 The Wireless Frame Capture Screen
Use this screen to capture wireless network traffic going through the AP interfaces connected to your
Zyxel Device. Studying these frame captures may help you identify network problems.
Click Maintenance > Diagnostics > Wireless Frame Capture to display this screen.
Note: New capture files overwrite existing files of the same name. Change the File Prefix
field’s setting to avoid this.
Figure 779 Maintenance > Diagnostics > Wireless Frame Capture > Capture
The following table describes the labels in this screen.
Table 500 Maintenance > Diagnostics > Wireless Frame Capture > Capture
LABEL DESCRIPTION
MON Mode APs
Configure AP to
MON Mode
Click this to go the Configuration > Wireless > AP Management screen, where you can
set one or more APs to monitor mode.
Available MON
Mode APs
This column displays which APs on your wireless network are currently configured for
monitor mode.
Use the arrow buttons to move APs off this list and onto the Captured MON Mode APs
list.
Capture MON Mode
APs
This column displays the monitor-mode configured APs selected to for wireless frame
capture.
Misc Setting
File Size Specify a maximum size limit in kilobytes for the total combined size of all the capture
files on the Zyxel Device, including any existing capture files and any new capture files
you generate.
Note: If you have existing capture files you may need to set this size larger or
delete existing capture files.
The valid range is 1 to 50000. The Zyxel Device stops the capture and generates the
capture file when either the file reaches this size.
background
Chapter 50 Diagnostics
USG FLEX Series User’s Guide
1195
50.8.1 The Wireless Frame Capture Files Screen
Click Maintenance > Diagnostics > Wireless Frame Capture > Files to open this screen. This screen lists the
files of wireless frame captures the Zyxel Device has performed. You can download the files to your
computer where you can study them using a packet analyzer (also known as a network or protocol
analyzer) such as Wireshark.
Figure 780 Maintenance > Diagnostics > Wireless Frame Capture > Files
The following table describes the labels in this screen.
File Prefix Specify text to add to the front of the file name in order to help you identify frame
capture files.
You can modify the prefix to also create new frame capture files each time you perform
a frame capture operation. Doing this does no overwrite existing frame capture files.
The file format is: [file prefix].cap. For example, “monitor.cap”.
Capture Click this button to have the Zyxel Device capture frames according to the settings
configured in this screen.
You can configure the Zyxel Device while a frame capture is in progress although you
cannot modify the frame capture settings.
The Zyxel Device’s throughput or performance may be affected while a frame capture
is in progress.
After the Zyxel Device finishes the capture it saves a combined capture file for all APs.
The total number of frame capture files that you can save depends on the file sizes and
the available flash storage space. Once the flash storage space is full, adding more
frame captures will fail.
Stop Click this button to stop a currently running frame capture and generate a combined
capture file for all APs.
Reset Click this button to return the screen to its last-saved settings.
Table 500 Maintenance > Diagnostics > Wireless Frame Capture > Capture (continued)
LABEL DESCRIPTION
Table 501 Maintenance > Diagnostics > Wireless Frame Capture > Files
LABEL DESCRIPTION
Remove Select files and click Remove to delete them from the Zyxel Device. Use the [Shift] and/or [Ctrl] key
to select multiple files. A pop-up window asks you to confirm that you want to delete.
Download Click a file to select it and click Download to save it to your computer.
# This column displays the number for each packet capture file entry. The total number of packet
capture files that you can save depends on the file sizes and the available flash storage space.
File Name This column displays the label that identifies the file. The file name format is interface name-file
suffix.cap.
Size This column displays the size (in bytes) of a configuration file.
Last Modified This column displays the date and time that the individual files were saved.
background
Chapter 51 Packet Flow Explore
USG FLEX Series User’s Guide
1196
CHAPTER 51
Packet Flow Explore
51.1 Overview
Use this to get a clear picture on how the Zyxel Device determines where to forward a packet and how
to change the source IP address of the packet according to your current settings. This function provides
you a summary of all your routing and SNAT settings and helps troubleshoot any related problems.
51.1.1 What You Can Do in this Chapter
• Use the Routing Status screen (see Section 51.2 on page 1196) to view the overall routing flow and
each routing function’s settings.
• Use the SNAT Status screen (see Section 51.3 on page 1200) to view the overall source IP address
conversion (SNAT) flow and each SNAT function’s settings.
51.2 Routing Status
The Routing Status screen allows you to view the current routing flow and quickly link to specific routing
settings. Click a function box in the Routing Flow section, the related routes (activated) will display in the
Routing Table section. To access this screen, click Maintenance > Packet Flow Explore > Routing Status.
The order of the routing flow may vary depending on whether you:
•Select use policy route to override direct route in the CONFIGURATION > Network > Routing > Policy
Route screen.
• Use policy routes to control 1-1 NAT by using the policy control-virtual-server-rules
activate command.
•Select use policy routes to control dynamic IPSec rules in the CONFIGURATION > VPN > IPSec VPN >
VPN Connection screen.
Note: Once a packet matches the criteria of a routing rule, the Zyxel Device takes the
corresponding action and does not perform any further flow checking.
background
Chapter 51 Packet Flow Explore
USG FLEX Series User’s Guide
1197
Figure 781 Maintenance > Packet Flow Explore > Routing Status (Direct Route)
Figure 782 Maintenance > Packet Flow Explore > Routing Status (Dynamic VPN)
Figure 783 Maintenance > Packet Flow Explore > Routing Status (Policy Route)
Figure 784 Maintenance > Packet Flow Explore > Routing Status (1-1 SNAT)
background
Chapter 51 Packet Flow Explore
USG FLEX Series User’s Guide
1198
Figure 785 Maintenance > Packet Flow Explore > Routing Status (SiteToSite VPN)
Figure 786 Maintenance > Packet Flow Explore > Routing Status (Static-Dynamic Route)
Figure 787 Maintenance > Packet Flow Explore > Routing Status (Default WAN Trunk)
Figure 788 Maintenance > Packet Flow Explore > Routing Status (Main Route)
background
USG FLEX Series User’s Guide
1199
The following table describes the labels in this screen.
Table 502 Maintenance > Packet Flow Explore > Routing Status
LABEL DESCRIPTION
Routing Flow This section shows you the flow of how the Zyxel Device determines where to route a packet.
Click a function box to display the related settings in the Routing Table section.
Routing Table This section shows the corresponding settings according to the function box you click in the
Routing Flow section.
The following fields are available if you click Direct Route, Static-Dynamic Route, or Main Route in the Routing Flow
section.
# This field is a sequential value, and it is not associated with any entry.
Destination This is the destination IP address of a route.
Gateway This is the IP address of the next-hop gateway or the interface through which the traffic is
routed.
Interface This is the name of an interface associated with the route.
Metric This is the route’s priority among the displayed routes.
Flags This indicates additional information for the route. The possible flags are:
• A - this route is currently activated.
• S - this is a static route.
• C - this is a direct connected route.
• O - this is a dynamic route learned through OSPF.
• R - this is a dynamic route learned through RIP.
• B - this is a dynamic route learned through BGP.
• G - the route is to a gateway (router) in the same network.
• ! - this is a route which forces a route lookup to fail.
• B - this is a route which discards packets.
• L - this is a recursive route.
Persist This is the remaining time of a dynamically learned route. The Zyxel Device removes the route
after this time period is counted down to zero.
The following fields are available if you click Policy Route in the Routing Flow section.
# This field is a sequential value, and it is not associated with any entry.
Incoming This is the interface on which the packets are received.
Source This is the source IP address(es) from which the packets are sent.
Destination This is the destination IP address(es) to which the packets are transmitted.
Service This is the name of the service object. any means all services.
Source Port This is the source port(s) from which the packets are sent.
DSCP Code This is the DSCP value of incoming packets to which this policy route applies. See Section 11.2
on page 433 for more information.
Next Hop Type This is the type of the next hop to which packets are directed.
Next Hop Info • This is the main route if the next hop type is Auto.
• This is the interface name and gateway IP address if the next hop type is Interface /GW.
• This is the tunnel name if the next hop type is VPN Tunnel.
• This is the trunk name if the next hop type is Trunk.
The following fields are available if you click 1-1 SNAT in the Routing Flow section.
# This field is a sequential value, and it is not associated with any entry.
NAT Rule This is the name of an activated 1:1 or Many 1:1 NAT rule in the NAT table.
Source This is the external source IP address(es).
Protocol This is the transport layer protocol.
Source Port This is the source port number.
Destination This is the external destination IP address(es).
background
Chapter 51 Packet Flow Explore
USG FLEX Series User’s Guide
1200
51.3 The SNAT Status Screen
The SNAT Status screen allows you to view and quickly link to specific source NAT (SNAT) settings. Click a
function box in the SNAT Flow section, the related SNAT rules (activated) will display in the SNAT Table
section. To access this screen, click Maintenance > Packet Flow Explore > SNAT Status.
The order of the SNAT flow may vary depending on whether you:
•select use default SNAT in the CONFIGURATION > Network > Interface > Trunk screen.
• use policy routes to control 1-1 NAT by using the policy control-virtual-server-rules
activate command.
Note: Once a packet matches the criteria of an SNAT rule, the Zyxel Device takes the
corresponding action and does not perform any further flow checking.
Figure 789 Maintenance > Packet Flow Explore > SNAT Status (Policy Route SNAT)
Outgoing This is the outgoing interface that the SNAT rule uses to transmit packets.
Gateway This is the IP address of the gateway in the same network of the outgoing interface.
The following fields are available if you click Dynamic VPN or SiteToSite VPN in the Routing Flow section.
# This field is a sequential value, and it is not associated with any entry.
Source This is the IP address(es) of the local VPN network.
Destination This is the IP address(es) for the remote VPN network.
VPN Tunnel This is the name of the VPN tunnel.
The following fields are available if you click Default WAN Trunk in the Routing Flow section.
# This field is a sequential value, and it is not associated with any entry.
Source This is the source IP address(es) from which the packets are sent. any means any IP address.
Destination This is the destination IP address(es) to which the packets are transmitted. any means any IP
address.
Trunk This is the name of the WAN trunk through which the matched packets are transmitted.
Table 502 Maintenance > Packet Flow Explore > Routing Status (continued)
LABEL DESCRIPTION
background
Chapter 51 Packet Flow Explore
USG FLEX Series User’s Guide
1201
Figure 790 Maintenance > Packet Flow Explore > SNAT Status (1-1 SNAT)
Figure 791 Maintenance > Packet Flow Explore > SNAT Status (Loopback SNAT)
Figure 792 Maintenance > Packet Flow Explore > SNAT Status (Default SNAT)
The following table describes the labels in this screen.
Table 503 Maintenance > Packet Flow Explore > SNAT Status
LABEL DESCRIPTION
SNAT Flow This section shows you the flow of how the Zyxel Device changes the source IP address for a
packet according to the rules you have configured in the Zyxel Device. Click a function box to
display the related settings in the SNAT Table section.
SNAT Table The table fields in this section vary depending on the function box you select in the SNAT Flow
section.
The following fields are available if you click Policy Route SNAT in the SNAT Flow section.
# This field is a sequential value, and it is not associated with any entry.
background
Chapter 51 Packet Flow Explore
USG FLEX Series User’s Guide
1202
Outgoing This is the outgoing interface that the route uses to transmit packets.
SNAT This is the source IP address(es) that the SNAT rule uses finally.
The following fields are available if you click 1-1 SNAT in the SNAT Flow section.
# This field is a sequential value, and it is not associated with any entry.
NAT Rule This is the name of an activated NAT rule which uses SNAT.
Source This is the external source IP address(es).
Protocol This is the transport layer protocol.
Source Port This is the source port number.
Destination This is the external destination IP address(es).
Outgoing This is the outgoing interface that the SNAT rule uses to transmit packets.
SNAT This is the source IP address(es) that the SNAT rule uses finally.
The following fields are available if you click Loopback SNAT in the SNAT Flow section.
# This field is a sequential value, and it is not associated with any entry.
NAT Rule This is the name of an activated NAT rule which uses SNAT and enables NAT loopback.
Source This is the original source IP address(es). any means any IP address.
Destination This is the original destination IP address(es). any means any IP address.
SNAT This indicates which source IP address the SNAT rule uses finally. For example, Outgoing
Interface IP means that the Zyxel Device uses the IP address of the outgoing interface as the
source IP address for the matched packets it sends out through this rule.
The following fields are available if you click Default SNAT in the SNAT Flow section.
# This field is a sequential value, and it is not associated with any entry.
Incoming This indicates internal interface(s) on which the packets are received.
Outgoing This indicates external interface(s) from which the packets are transmitted.
SNAT This indicates which source IP address the SNAT rule uses finally. For example, Outgoing
Interface IP means that the Zyxel Device uses the IP address of the outgoing interface as the
source IP address for the matched packets it sends out through this rule.
Table 503 Maintenance > Packet Flow Explore > SNAT Status (continued)
LABEL DESCRIPTION
background
Chapter 52 Shutdown
USG FLEX Series User’s Guide
1203
Chapter 52
Shutdown
52.1 Overview
Use this to shutdown the device in preparation for disconnecting the power.
Always use the Maintenance > Shutdown > Shutdown screen or the
“shutdown” command before you turn off the Zyxel Device or remove
the power. Not doing so can cause the firmware to become corrupt.
52.1.1 What You Need To Know
Shutdown writes all cached data to the local storage and stops the system processes.
52.2 The Shutdown / Reboot Screen
To access this screen, click Maintenance > Shutdown/Reboot.
Figure 793 Maintenance > Shutdown/Reboot
background
Chapter 52 Shutdown
USG FLEX Series User’s Guide
1204
The following table describes the labels in this screen.
You can also use the CLI command shutdown to close down the Zyxel Device.
Table 504 Maintenance > Shutdown/Reboot
LABEL DESCRIPTION
Shutdown Click the Shutdown button to shut down the Zyxel Device. Wait for the device to shut
down before you manually turn off or remove the power. It does not turn off the
power.
Reboot Click Reboot to reboot the Zyxel Device immediately without turning the power off.
Schedule Reboot Select this check box to schedule a periodic reboot of the Zyxel Device.
You should select a time when your network is not busy for minimal interruption.
Note: You cannot enable Auto Update in File Manager > Firmware
Management and Schedule Reboot in Maintenance > Shutdown-
Reboot at the same time.
Daily Set the Zyxel Device to reboot every day at the specified time. The time format is the
24 hour clock, so ‘0’ means midnight for example.
Weekly Set the Zyxel Device to reboot once a week on the day and at the time specified.
Monthly Set the Zyxel Device to reboot once a month on the specified day, at the a
specified hour and minute.
If the date you select is greater than the number of days in a month, the Zyxel
Device automatically reboots on the last day of the month. For example, if you
select 31 and the month is February, the Zyxel Device reboots on day 28 or 29.
Apply Click Apply to save your changes back to the Zyxel Device.
Reset Click Reset to return the screen to its last-saved settings.
background
1205
PART III
Appendices and
Troubleshooting
background
USG FLEX Series User’s Guide
1206
CHAPTER 53
Troubleshooting
This chapter offers some suggestions to solve problems you might encounter.
• You can also refer to the logs (see Section 7.45 on page 250).
• For the order in which the Zyxel Device applies its features and checks, see Chapter 51 on page 1196.
None of the LEDs turn on.
Make sure that you have the power cord connected to the Zyxel Device and plugged in to an
appropriate power source. Make sure you have the Zyxel Device turned on. Check all cable
connections.
If the LEDs still do not turn on, you may have a hardware problem. In this case, you should contact your
local vendor.
I cannot finish Nebula registration because I did not connect a computer to the Zyxel Device
LAN.
Follow the steps if you did not connect a computer to the LAN port of the Zyxel Device.
1 Connect a USB disk drive in FAT32 format to a USB port on your computer.
2 Go to your mailbox and find the email from Nebula. Save the JSON file in the email attachment to the
root folder of the USB drive.
3 Connect the USB drive to the Zyxel Device. The SYS LED will blink. Please wait until the SYS LED is solid
green again. The Nebula administrator should now check if the Zyxel Device is online indicating Nebula
registration has succeeded.
Cannot access the Zyxel Device from the LAN.
• Check the cable connection between the Zyxel Device and your computer or switch.
• Ping the Zyxel Device from a LAN computer. Make sure your computer’s Ethernet card is installed and
functioning properly. Also make sure that its IP address is in the same subnet as the Zyxel Device’s.
• In the computer, click Start, (All) Programs, Accessories and then Command Prompt. In the
Command Prompt window, type “ping” followed by the Zyxel Device’s LAN IP address (192.168.1.1 is
the default) and then press [ENTER]. The Zyxel Device should reply.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1207
• If you’ve forgotten the Zyxel Device’s password, use the RESET button. Press the button in for about 5
seconds (or until the SYS LED starts to blink), then release it. It returns the Zyxel Device to the factory
defaults (password is 1234, LAN IP address 192.168.1.1, etc).
• If you’ve forgotten the Zyxel Device’s IP address, you can use the commands through the CONSOLE
port to check it. Connect your computer to the CONSOLE port using a console cable. Your computer
should have a terminal emulation communications program (such as HyperTerminal) set to VT100
terminal emulation, no parity, 8 data bits, 1 stop bit, no flow control and 115200 bps port speed.
I cannot access the Internet.
• Check the Zyxel Device’s connection to the Ethernet jack with Internet access. Make sure the Internet
gateway device (such as a DSL modem) is working properly.
• Check the WAN interface's status in the Dashboard. Use the installation setup wizard again and make
sure that you enter the correct settings. Use the same case as provided by your ISP.
I cannot update the anti-malware/IPS (IDP)/application patrol/URL Threat filter/IP reputation
signatures.
• Make sure your Zyxel Device has the anti-malware/IPS (IDP)/application patrol service registered and
that the license is not expired. Purchase a new license if the license is expired.
• Make sure your Zyxel Device is connected to the Internet.
I cannot update the threat intelligence machine learning (TIML) signatures.
• Make sure your Zyxel Device has the anti-malware service registered and that the Gold Security Pack
license is not expired. Purchase a new license if the license is expired.
• Make sure your Zyxel Device is connected to the Internet.
I downloaded updated anti-malware/IPS (IDP)/application patrol/URL Threat filter/IP reputation
signatures. Why has the Zyxel Device not re-booted yet?
The Zyxel Device does not have to reboot when you upload new signatures.
My Zyxel Device is not performing the action I set in Security Service > IPS (IDP) when a stream of
data matches a malicious signature.
Make sure you set the Zyxel Device to Prevention mode. The Zyxel Device can only create log messages
in Detection mode.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1208
The content filter category service is not working.
• Make sure your Zyxel Device has the content filter category service registered and that the license is
not expired. Purchase a new license if the license is expired.
• Make sure your Zyxel Device is connected to the Internet.
• Make sure you select Enable Content Filter Category Service when you add a filter profile in the
Configuration > Security Service > Content Filter > Profile > Add or Edit screen.
• Block QUIC UDP ports 80 and 443. QUIC (Quick UDP Internet Connections) is a UDP protocol used by
Google Chrome and Chromium web browsers.
I configured security settings but the Zyxel Device is not applying them for certain interfaces.
Many security settings are usually applied to zones. Make sure you assign the interfaces to the
appropriate zones. When you create an interface, there is no security applied on it until you assign it to
a zone.
The Zyxel Device is not applying the custom policy route I configured.
The Zyxel Device checks the policy routes in the order that they are listed. So make sure that your
custom policy route comes before any other routes that the traffic would also match.
The Zyxel Device is not applying the custom security policy I configured.
The Zyxel Device checks the security policies in the order that they are listed. So make sure that your
custom security policy comes before any other rules that the traffic would also match.
I cannot enter the interface name I want.
• The format of interface names other than the Ethernet interface names is very strict. Each name
consists of 2-4 letters (interface type), followed by a number (x, limited by the maximum number of
each type of interface). For example, VLAN interfaces are vlan0, vlan1, vlan2,...; and so on.
• The names of virtual interfaces are derived from the interfaces on which they are created. For
example, virtual interfaces created on Ethernet interface wan1 are called wan1:1, wan1:2, and so
on. Virtual interfaces created on VLAN interface vlan2 are called vlan2:1, vlan2:2, and so on. You
cannot specify the number after the colon(:) in the Web Configurator; it is a sequential number. You
can specify the number after the colon if you use the CLI to set up a virtual interface.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1209
I cannot set up a PPP interface, virtual Ethernet interface or virtual VLAN interface on an Ethernet
interface.
You cannot set up a PPP interface, virtual Ethernet interface or virtual VLAN interface if the underlying
interface is a member of a bridge. You also cannot add an Ethernet interface or VLAN interface to a
bridge if the member interface has a virtual interface or PPP interface on top of it.
My rules and settings that apply to a particular interface no longer work.
The interface’s IP address may have changed. To avoid this, create an IP address object based on the
interface. This way the Zyxel Device automatically updates every rule or setting that uses the object
whenever the interface’s IP address settings change. For example, if you change LAN1’s IP address, the
Zyxel Device automatically updates the corresponding interface-based, LAN1 subnet address object.
I cannot set up a PPP interface.
You have to set up an ISP account before you create a PPPoE or PPTP interface.
The data rates through my cellular connection are no-where near the rates I expected.
The actual cellular data rate you obtain varies depending on the cellular device you use, the signal
strength to the service provider’s base station, and so on.
I created a cellular interface but cannot connect through it.
• Make sure you have a compatible mobile broadband device installed or connected. See
www.zyxel.com for details.
• Make sure you have the cellular interface enabled.
• Make sure the cellular interface has the correct user name, password, and PIN code configured with
the correct casing.
• If the Zyxel Device has multiple WAN interfaces, make sure their IP addresses are on different subnets.
Hackers have accessed my WEP-encrypted wireless LAN.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1210
WEP is extremely insecure. Its encryption can be broken by an attacker, using widely-available software.
It is strongly recommended that you use a more effective security mechanism. Use the strongest security
mechanism that all the wireless devices in your network support. WPA2 or WPA2-PSK is recommended.
The wireless security is not following the re-authentication timer setting I specified.
If a RADIUS server authenticates wireless stations, the re-authentication timer on the RADIUS server has
priority. Change the RADIUS server’s configuration if you need to use a different re-authentication timer
setting.
I cannot configure a particular VLAN interface on top of an Ethernet interface even though I
have it configured it on top of another Ethernet interface.
Each VLAN interface is created on top of only one Ethernet interface.
The Zyxel Device is not applying an interface’s configured ingress bandwidth limit.
At the time of writing, the Zyxel Device does not support ingress bandwidth management.
The Zyxel Device is not applying my application patrol bandwidth management settings.
Bandwidth management in policy routes has priority over application patrol bandwidth management.
The Zyxel Device’s performance slowed down after I configured many new application patrol
entries.
The Zyxel Device checks the ports and conditions configured in application patrol entries in the order
they appear in the list. While this sequence does not affect the functionality, you might improve the
performance of the Zyxel Device by putting more commonly used ports at the top of the list.
The Zyxel Device’s anti-malware scanner cleaned an infected file but now I cannot use the file.
The scanning engine checks the contents of the packets for malware. If a malware pattern is matched,
the Zyxel Device removes a portion of the file, while the rest goes through. Since the Zyxel Device erases
a portion of the file before sending it, you may not be able to open the file.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1211
The Zyxel Device sent an alert that a malware-infected file has been found, but the file was still
forwarded to the user and could still be executed.
Make sure you enable Destroy Infected File in the Configuration > Security Service > Anti-Malware
screen to modify infected files before forwarding the files to the user, preventing them from being
executed.
I added a file pattern in the anti-malware white list, but the Zyxel Device still checks and modifies
files that match this pattern.
Make sure you select the Check White List check box above the white list table. If it is already selected,
make sure that the white list entry corresponding to this file pattern is activated.
The Zyxel Device is not scanning some zipped files.
The Zyxel Device cannot unzip password protected ZIP files or a ZIP file within another ZIP file. There are
also limits to the number of ZIP files that the Zyxel Device can concurrently unzip.
The Zyxel Device is deleting some zipped files.
The anti-malware policy may be set to delete zipped files that the Zyxel Device cannot unzip. The Zyxel
Device cannot unzip password protected ZIP files or a ZIP file within another ZIP file. There are also limits
to the number of ZIP files that the Zyxel Device can concurrently unzip.
The threat intelligence machine learning (TIML) feature is not working.
1 Make sure you purchase the gold security pack.
• Make sure you’ve registered the Zyxel Device and activated the anti-malware service on
portal.myZyxel.com.
• Go to the screen, and select the Enable check box in the Configuration > Security Service > Anti-
Malware to activate the TIML feature.
2 Make sure the gold security pack is not expired. If it is, renew the license.
The Zyxel Device won’t scan the TIML signatures that were downloaded when the gold security pack
expired.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1212
The Zyxel Device’s performance seems slower after configuring IPS (IDP).
Depending on your network topology and traffic load, binding every packet direction to an IPS (IDP)
profile may affect the Zyxel Device’s performance. You may want to focus IPS (IDP) scanning on certain
traffic directions such as incoming traffic.
IPS (IDP) is dropping traffic that matches a rule that says no action should be taken.
The Zyxel Device checks all signatures and continues searching even after a match is found. If two or
more rules have conflicting actions for the same packet, then the Zyxel Device applies the more
restrictive action (reject-both, reject-receiver or reject-sender, drop, none in this order). If a packet
matches a rule for reject-receiver and it also matches a rule for reject-sender, then the Zyxel Device will
reject-both.
I uploaded a custom signature file and now all of my earlier custom signatures are gone.
The name of the complete custom signature file on the Zyxel Device is ‘custom.rules’. If you import a file
named ‘custom.rules’, then all custom signatures on the Zyxel Device are overwritten with the new file. If
this is not your intention, make sure that the files you import are not named ‘custom.rules’.
I cannot configure some items in IPS (IDP) that I can configure in Snort.
Not all Snort functionality is supported in the Zyxel Device.
I cannot change between detection mode and prevention mode in IPS (IDP).
You need to switch to advance-style GUI using the commands to change between detection mode
and prevention mode in IPS (IDP).
The Zyxel Device’s performance seems slower after configuring ADP.
Depending on your network topology and traffic load, applying an anomaly profile to each and every
packet direction may affect the Zyxel Device’s performance.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1213
Some of the files I download don’t go through Sandboxing even though it is enabled.
The Sandboxing feature only applies to certain file types. Check the list in File Submission Options to see
if the file types you use are included. If they are, make sure you select their corresponding check box.
The Zyxel Device detected a malicious file from Sandboxing, but the file still went through the
Zyxel Device and is still usable.
Make sure you set your Sandboxing settings to destroy malicious files in the Configuration > Security
Service > Sandboxing: Action For Malicious File drop-down list box.
The Zyxel Device destroyed/dropped a file/email without notifying me.
Make sure you enable logs for your security features, such as in the following screens:
• Configuration > Security Service > IPS (IDP)
• Configuration > Security Service > Anti-Malware
• Configuration > Security Service > Sandboxing
• Configuration > Security Service > Email Security
My Collaborative Detection& Response (CDR) is not working.
CDR signature are a subset of Web Filtering (ing), Anti-Malware (Anti-Virus) and IPS (IDP) license
signatures. No checking for malicious traffic is done if these licenses have expired or are note active.
Make sure these licenses are activated and not expired. Purchase new licenses if the license are
expired.
I cannot block traffic from an AP using CDR.
The Zyxel Device can only blocked traffic from Nebula-managed APs in your network using CDR.
Make sure:
• The AP is managed by the Zyxel Device.
• The AP must be in the Zyxel Device’s supported list
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1214
The quarantined/blocked clients are released before I want them to.
Check if your CDR license is expired or disabled. Check if the Containment Period is expired in
Configuration> Security Service> Collaborative Detection& Response screen.
The Zyxel Device routes and applies SNAT for traffic from some interfaces but not from others.
The Zyxel Device automatically uses SNAT for traffic it routes from internal interfaces to external
interfaces. For example LAN to WAN traffic. You must manually configure a policy route to add routing
and SNAT settings for an interface with the Interface Type set to General. You can also configure a
policy route to override the default routing and SNAT behavior for an interface with the Interface Type
set to Internal or External.
I cannot get Dynamic DNS to work.
• You must have a public WAN IP address to use Dynamic DNS.
• Make sure you recorded your DDNS account’s user name, password, and domain name and have
entered them properly in the Zyxel Device.
• You may need to configure the DDNS entry’s IP Address setting to Auto if the interface has a dynamic
IP address or there are one or more NAT routers between the Zyxel Device and the DDNS server.
• The Zyxel Device may not determine the proper IP address if there is an HTTP proxy server between the
Zyxel Device and the DDNS server.
I cannot create a second HTTP redirect rule for an incoming interface.
You can configure up to one HTTP redirect rule for each (incoming) interface.
I cannot get the application patrol to manage SIP traffic.
Make sure you have the SIP ALG enabled.
I cannot get the application patrol to manage H.323 traffic.
Make sure you have the H.323 ALG enabled.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1215
I cannot get the application patrol to manage FTP traffic.
Make sure you have the FTP ALG enabled.
The Zyxel Device keeps resetting the connection.
If an alternate gateway on the LAN has an IP address in the same subnet as the Zyxel Device’s LAN IP
address, return traffic may not go through the Zyxel Device. This is called an asymmetrical or “triangle”
route. This causes the Zyxel Device to reset the connection, as the connection has not been
acknowledged.
You can set the Zyxel Device’s security policy to permit the use of asymmetrical route topology on the
network (so it does not reset the connection) although this is not recommended since allowing
asymmetrical routes may let traffic from the WAN go directly to the LAN without passing through the
Zyxel Device. A better solution is to use virtual interfaces to put the Zyxel Device and the backup
gateway on separate subnets. See
Asymmetrical Routes on page 676 and the chapter about interfaces
for more information.
I cannot set up an IPSec VPN tunnel to another device.
If the IPSec tunnel does not build properly, the problem is likely a configuration error at one of the IPSec
routers. Log into both Zyxel IPSec routers and check the settings in each field methodically and slowly.
Make sure both the Zyxel Device and remote IPSec router have the same security settings for the VPN
tunnel. It may help to display the settings for both routers side-by-side.
Here are some general suggestions. See also Chapter 20 on page 524.
• The system log can often help to identify a configuration problem.
• If you enable NAT traversal, the remote IPSec device must also have NAT traversal enabled.
• The Zyxel Device and remote IPSec router must use the same authentication method to establish the
IKE SA.
• Both routers must use the same negotiation mode.
• Both routers must use the same encryption algorithm, authentication algorithm, and DH key group.
• When using pre-shared keys, the Zyxel Device and the remote IPSec router must use the same pre-
shared key.
• The Zyxel Device’s local and peer ID type and content must match the remote IPSec router’s peer
and local ID type and content, respectively.
• The Zyxel Device and remote IPSec router must use the same active protocol.
• The Zyxel Device and remote IPSec router must use the same encapsulation.
• The Zyxel Device and remote IPSec router must use the same SPI.
• If the sites are/were previously connected using a leased line or ISDN router, physically disconnect
these devices from the network before testing your new VPN connection. The old route may have
been learned by RIP and would take priority over the new VPN connection.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1216
• To test whether or not a tunnel is working, ping from a computer at one site to a computer at the
other.
Before doing so, ensure that both computers have Internet access (through the IPSec routers).
• It is also helpful to have a way to look at the packets that are being sent and received by the Zyxel
Device and remote IPSec router (for example, by using a packet sniffer).
Check the configuration for the following Zyxel Device features.
• The Zyxel Device does not put IPSec SAs in the routing table. You must create a policy route for each
VPN tunnel. See Chapter 11 on page 431.
• Make sure the To-Zyxel Device security policies allow IPSec VPN traffic to the Zyxel Device. IKE uses
UDP port 500, AH uses IP protocol 51, and ESP uses IP protocol 50.
• The Zyxel Device supports UDP port 500 and UDP port 4500 for NAT traversal. If you enable this, make
sure the To-Zyxel Device security policies allow UDP port 4500 too.
• Make sure regular security policies allow traffic between the VPN tunnel and the rest of the network.
Regular security policies check packets the Zyxel Device sends before the Zyxel Device encrypts
them and check packets the Zyxel Device receives after the Zyxel Device decrypts them. This
depends on the zone to which you assign the VPN tunnel and the zone from which and to which
traffic may be routed.
• If you set up a VPN tunnel across the Internet, make sure your ISP supports AH or ESP (whichever you
are using).
• If you have the Zyxel Device and remote IPSec router use certificates to authenticate each other, You
must set up the certificates for the Zyxel Device and remote IPSec router first and make sure they trust
each other’s certificates. If the Zyxel Device’s certificate is self-signed, import it into the remote IPSec
router. If it is signed by a CA, make sure the remote IPSec router trusts that CA. The Zyxel Device uses
one of its Trusted Certificates to authenticate the remote IPSec router’s certificate. The trusted
certificate can be the remote IPSec router’s self-signed certificate or that of a trusted CA that signed
the remote IPSec router’s certificate.
• Multiple SAs connecting through a secure gateway must have the same negotiation mode.
The VPN connection is up but VPN traffic cannot be transmitted through the VPN tunnel.
If you have the Configuration > VPN > IPSec VPN > VPN Connection screen’s Use Policy Route to control
dynamic IPSec rules option enabled, check the routing policies to see if they are sending traffic
elsewhere instead of through the VPN tunnels.
I uploaded a logo to show in the SSL VPN user screens but it does not display properly.
The logo graphic must be GIF, JPG, or PNG format. The graphic should use a resolution of 103 x 29 pixels
to avoid distortion when displayed. The Zyxel Device automatically resizes a graphic of a different
resolution to 103 x 29 pixels. The file size must be 100 kilobytes or less. Transparent background is
recommended.
I logged into the SSL VPN but cannot see some of the resource links.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1217
Available resource links vary depending on the SSL application object’s configuration.
I cannot set up a Remote AP VPN tunnel.
Check the settings in each field methodically and slowly.
Make sure:
• Your AP supports remote AP VPN. Check the AP Role Capability in the Mgnt. AP List screen.
• The Zyxel Device has 5.00 or later firmware and the managed AP has 6.20 or later firmware.
•Your Secure WiFi license is activated and not expired. Purchase a new license if the license is expired.
• You’ve selected the Remote AP check box in Configuration> Wireless> AP Management on the AP
you want to set up as a remote AP.
• You’ve configured your AP using a Secure Tunnel SSID profile.
I cannot download the Zyxel Device’s firmware package.
The Zyxel Device’s firmware package cannot go through the Zyxel Device when you enable the anti-
malware Destroy compressed files that could not be decompressed option. The Zyxel Device classifies
the firmware package as not being able to be decompressed and deletes it.
You can upload the firmware package to the Zyxel Device with the option enabled, so you only need
to clear the Destroy compressed files that could not be decompressed option while you download the
firmware package. See
Section 35.2 on page 775 for more on the anti-malware Destroy compressed
files that could not be decompressed option.
I changed the LAN IP address and can no longer access the Internet.
The Zyxel Device automatically updates address objects based on an interface’s IP address, subnet, or
gateway if the interface’s IP address settings change. However, you need to manually edit any address
objects for your LAN that are not based on the interface.
I configured application patrol to allow and manage access to a specific service but access is
blocked.
• If you want to use a service, make sure the security policy allows Security Service application patrol to
go through the Zyxel Device.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1218
I configured policy routes to manage the bandwidth of TCP and UDP traffic but the bandwidth
management is not being applied properly.
It is recommended to use application patrol instead of policy routes to manage the bandwidth of TCP
and UDP traffic.
I cannot get the RADIUS server to authenticate the Zyxel Device‘s default admin account.
The default admin account is always authenticated locally, regardless of the authentication method
setting.
The Zyxel Device fails to authentication the ext-user user accounts I configured.
An external server such as AD, LDAP or RADIUS must authenticate the ext-user accounts. If the Zyxel
Device tries to use the local database to authenticate an ext-user, the authentication attempt will
always fail. (This is related to AAA servers and authentication methods, which are discussed in other
chapters in this guide.)
I cannot add the admin users to a user group with access users.
You cannot put access users and admin users in the same user group.
I cannot add the default admin account to a user group.
You cannot put the default admin account into any user group.
My two-factor authentication is not working.
Check that match the specifications and limitation in the following list:
• Ext-users (authenticated by external servers) are not supported.
• You must setup Google Authenticator on their mobile device before you can successfully
authenticate with the Zyxel Device.
• Click or tap the authorization link in the SMS or email within the valid time. You can extend the time in
Configuration > Object > Auth. Method > Two-factor Authentication > VPN Access.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1219
I cannot receive the authorization SMS or email for two factor authentication.
• Make sure the mobile telephone number or email address of the user in the Active Directory, RADIUS
Server or local Zyxel Device database is configured correctly.
• Email-to-SMS cloud system authentication fails. Make sure that SMS is enabled and credentials are
correct in System> Notification> SMS.
• Mail server authentication fails. Make sure the System> Notification> Mail Server settings are correct if
you’re using email for authentication.
I get a Google Authenticator verification error.
• Check that you enter the right verification code. The verification code should be 6 digits.
• You must enter the code within the time displayed in Google Authenticator.
• You’ve exceeded the maximum verification code failed attempts.
The schedule I configured is not being applied at the configured times.
Make sure the Zyxel Device’s current date and time are correct.
I cannot get a certificate to import into the Zyxel Device.
1 For My Certificates, you can import a certificate that matches a corresponding certification request that
was generated by the Zyxel Device. You can also import a certificate in PKCS#12 format, including the
certificate’s public and private keys.
2 You must remove any spaces from the certificate’s filename before you can import the certificate.
3 Any certificate that you want to import has to be in one of these file formats:
• Binary X.509: This is an ITU-T recommendation that defines the formats for X.509 certificates.
• PEM (Base-64) encoded X.509: This Privacy Enhanced Mail format uses lowercase letters, uppercase
letters and numerals to convert a binary X.509 certificate into a printable form.
• Binary PKCS#7: This is a standard that defines the general syntax for data (including digital signatures)
that may be encrypted. A PKCS #7 file is used to transfer a public key certificate. The private key is not
included. The Zyxel Device currently allows the importation of a PKS#7 file that contains a single
certificate.
• PEM (Base-64) encoded PKCS#7: This Privacy Enhanced Mail (PEM) format uses lowercase letters,
uppercase letters and numerals to convert a binary PKCS#7 certificate into a printable form.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1220
• Binary PKCS#12: This is a format for transferring public key and private key certificates.The private key
in a PKCS #12 file is within a password-encrypted envelope. The file’s password is not connected to
your certificate’s public or private passwords. Exporting a PKCS #12 file creates this and you must
provide it to decrypt the contents when you import the file into the Zyxel Device.
Note: Be careful not to convert a binary file to text during the transfer process. It is easy for this
to occur since many programs use text files by default.
I cannot access the Zyxel Device from a computer connected to the Internet.
Check the service control rules and to-Zyxel Device security policies.
I uploaded a logo to display on the upper left corner of the Web Configurator login screen and
access page but it does not display properly.
Make sure the logo file is a GIF, JPG, or PNG of 100 kilobytes or less.
I uploaded a logo to use as the screen or window background but it does not display properly.
Make sure the logo file is a GIF, JPG, or PNG of 100 kilobytes or less.
The Zyxel Device’s traffic throughput rate decreased after I started collecting traffic statistics.
Data collection may decrease the Zyxel Device’s traffic throughput rate.
I can only see newer logs. Older logs are missing.
When a log reaches the maximum number of log messages, new log messages automatically overwrite
existing log messages, starting with the oldest existing log message first.
The commands in my configuration file or shell script are not working properly.
• In a configuration file or shell script, use “#” or “!” as the first character of a command line to have the
Zyxel Device treat the line as a comment.
• Your configuration files or shell scripts can use “exit” or a command line consisting of a single “!” to
have the Zyxel Device exit sub command mode.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1221
•Include write commands in your scripts. Otherwise the changes will be lost when the Zyxel Device
restarts. You could use multiple write commands in a long script.
Note: “exit” or “!'” must follow sub commands if it is to make the Zyxel Device exit sub
command mode.
See Chapter 49 on page 1153 for more on configuration files and shell scripts.
I cannot get the firmware uploaded using the commands.
The Web Configurator is the recommended method for uploading firmware. You only need to use the
command line interface if you need to recover the firmware. See the CLI Reference Guide for how to
determine if you need to recover the firmware and how to recover it.
My packet capture captured less than I wanted or failed.
The packet capture screen’s File Size sets a maximum size limit for the total combined size of all the
capture files on the Zyxel Device, including any existing capture files and any new capture files you
generate. If you have existing capture files you may need to set this size larger or delete existing capture
files.
The Zyxel Device stops the capture and generates the capture file when either the capture files reach
the File Size or the time period specified in the Duration field expires.
My earlier packet capture files are missing.
New capture files overwrite existing files of the same name. Change the File Suffix field’s setting to avoid
this.
IP reputation doesn’t work on IPv6 addresses.
At the time of writing, IP reputation is only for IPv4 addresses. See Chapter 36 Reputation Filter for more
information.
The SecuReporter banner keeps showing up.
See SecuReporter Banner on page 1067 for more information.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1222
The clients’ information I collected using device insight is not correct.
Make sure your clients are in the same IP subnet in the LAN/VLAN/DMZ networks behind the Zyxel
Device. Information from clients that are in different IP subnets in the LAN/VLAN/DMZ networks might not
be collected correctly.
To report on clients that are wrongly identified, go to Monitor > Network Status > Device Insight >
Feedback.
I cannot remove a client in Monitor > Device Insight.
Clients that are blocked cannot be removed. Please make sure to unblock the client you want to
remove first.
I cannot block clients using device insight profiles.
Make sure you select the correct device types and operating systems in device insight profiles.
Make sure you’ve applied the device insight profiles to the right policy in Security Policy and set the
action to deny.
I cannot set the upload bandwidth limit for IPSec VPN configuration provisioning.
Upload bandwidth limit is only available for Zyxel subscription-based SecuExtender IPSec VPN clients for
Windows and macOS clients. Make sure the VPN clients are using SecuExtender with supported
operating system versions. See
Section 20.5 on page 548 for more information.
I cannot access the Zyxel Device from the WAN after I configure settings in Security Check for
Web Interface.
If you change the default HTTPS SSL port (443), make sure to use the new port to access the Zyxel
Device.
Make sure to access the Zyxel Device from the specified IP address or FQDNs you set.
Reset the Zyxel Device if none of the above works.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1223
I cannot access the Zyxel Device from the SSL VPN port after I configure settings in Security Check
for Web Interface.
If you change the default SSL VPN port (443), make sure to use the new port to access the Zyxel Device.
Make sure to make the same change to SecuExtender.
Make sure to access the Zyxel Device from the specified regions you set.
Reset the Zyxel Device if none of the above works.
I cannot retrieve VPN rule settings from the Zyxel Device after I configure settings in Security
Check for Web Interface.
If you change the default port that IPSec VPN clients use to retrieve VPN rule settings from the Zyxel
Device, make sure to make the same change to the Zyxel IPSec VPN clients.
Reset the Zyxel Device if none of the above works.
Someone attempted to log into my Zyxel Device Web Configurator.
An attacker may attempt to log in through the Web Configurator using brute force or password
guessing. Use the following ways reduce the risk of login attempts from unknown sources.
• Limit Access to the Zyxel Device: If you set the allowed IP address to any, the Security Check for Web
Interface screen pops up when you log in, enable Restrict Device management from the WAN and
configure access to allow only trusted IP addresses or FQDNs.
• Enable Two-Factor Authentication: With two-factor authentication enabled, users must first enter their
username and password, and then click on a temporary link or enter a one-time password when
logging in. See
Section 44.3.4 on page 939 for more information on setup instructions.
My Zyxel Device CPU usage is too high.
The Zyxel Device may receive too many HTTPS connection requests when Web Authentication is
enabled. Do the following to reduce the number of HTTPS connection requests:
•Go to Configuration > Object > User/Group > Setting and select Limit the number of simultaneous
logons for administration account. Set a number in Maximum number per administration account to
limit the number of simultaneous logins for each admin.
•Go to Configuration > Web Authentication > Exceptional Services to select services you want users to
access without logging in.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1224
I want the Zyxel Device to take action to improve the APs wireless network performance even
when there is traffic in my network.
Set the Optimization Aggressiveness to High in Wireless > Wireless Health to have the Zyxel Device only
postpone the action set when the AP network traffic is heavy. See
Section 9.6 on page 311 for more
information.
I want the Zyxel Device to take actions to improve the APs wireless network performance only
when there is no traffic in my network.
Set the Optimization Aggressiveness to Low in Wireless > Wireless Health to have the Zyxel Device
postpone the action set even when the AP network traffic is low. See
Section 9.6 on page 311 for more
information.
I’ve enabled airtime fairness on the Zyxel Device, but it’s not working.
Both the Zyxel Device and the APs connected to the Zyxel Device have to support airtime fairness for this
feature to work. See
Section 9.1.2 on page 265 for a list of Zyxel APs that support airtime fairness at the
time of writing.
I cannot see my WAN settings in Mgmt. & Analytics > Nebula.
Make sure your Zyxel Device supports Native Mode or you’ve managed your Zyxel Device with Nebula
before.
Make sure you can connect to Nebula with your current WAN settings. See Section 46.4.2 on page 1072
for more information.
I’ve passed the Zyxel Device management to Nebula, but I cannot access Nebula.
You can no longer access the Zyxel Device through the WAN after you let Nebula manage your Zyxel
Device.
Connect your computer to the Zyxel Device LAN port to access the local GUI with your support account
for troubleshooting. See the ZyWALL Series Local GUI User’s Guide for more information.
background
Chapter 53 Troubleshooting
USG FLEX Series User’s Guide
1225
53.1 Resetting the Zyxel Device
If you cannot access the Zyxel Device by any method, try restarting it by turning the power off and then
on again. If you still cannot access the Zyxel Device by any method or you forget the administrator
password(s), you can reset the Zyxel Device to its factory-default settings. Any configuration files or shell
scripts that you saved on the Zyxel Device should still be available afterwards.
Use the following procedure to reset the Zyxel Device to its factory-default settings. This overwrites the
settings in the startup-config.conf file with the settings in the system-default.conf file.
Note: This procedure removes the current configuration.
1 Make sure the SYS LED is on and not blinking.
2 Press the RESET button and hold it until the SYS LED begins to blink. (This usually takes about five seconds.)
3 Release the RESET button, and wait for the Zyxel Device to restart.
You should be able to access the Zyxel Device using the default settings.
53.2 Getting More Troubleshooting Help
Search for support information for your model at www.zyxel.com for more troubleshooting suggestions.
background
USG FLEX Series User’s Guide
1226
APPENDIX A
Customer Support
In the event of problems that cannot be solved by using this manual, you should contact your vendor. If
you cannot contact your vendor, then contact a Zyxel office for the region in which you bought the
device.
See http://www.zyxel.com/homepage.shtml and also
http://www.zyxel.com/about_zyxel/zyxel_worldwide.shtml for the latest information.
Please have the following information ready when you contact an office.
Required Information
• Product model and serial number.
• Warranty Information.
• Date that you received your device.
• Brief description of the problem and the steps you took to solve it.
Corporate Headquarters (Worldwide)
Taiwan
• Zyxel Communications Corporation
• http://www.zyxel.com
Asia
China
• Zyxel Communications (Shanghai) Corp.
Zyxel Communications (Beijing) Corp.
Zyxel Communications (Tianjin) Corp.
• http://www.zyxel.cn
India
•Zyxel Technology India Pvt Ltd
• http://www.zyxel.in
Kazakhstan
•Zyxel Kazakhstan
• http://www.zyxel.kz
background
Appendix A Customer Support
USG FLEX Series User’s Guide
1227
Korea
• Zyxel Korea Corp.
• http://www.zyxel.kr
Malaysia
• Zyxel Malaysia Sdn Bhd.
• http://www.zyxel.com.my
Pakistan
• Zyxel Pakistan (Pvt.) Ltd.
• http://www.zyxel.com.pk
Philippines
• Zyxel Philippines
• http://www.zyxel.com.ph
Singapore
• Zyxel Singapore Pte Ltd.
• http://www.zyxel.com.sg
Taiwan
• Zyxel Communications Corporation
• https://www.zyxel.com/tw/zh/
Thailand
• Zyxel Thailand Co., Ltd
• http://www.zyxel.co.th
Vietnam
• Zyxel Communications Corporation-Vietnam Office
• http://www.zyxel.com/vn/vi
Europe
Austria
•Zyxel Deutschland GmbH
• http://www.zyxel.de
Belarus
•Zyxel BY
• http://www.zyxel.by
background
Appendix A Customer Support
USG FLEX Series User’s Guide
1228
Belgium
• Zyxel Communications B.V.
• http://www.zyxel.com/be/nl/
• http://www.zyxel.com/be/fr/
Bulgaria
•Zyxel България
• http://www.zyxel.com/bg/bg/
Czech Republic
• Zyxel Communications Czech s.r.o
• http://www.zyxel.cz
Denmark
• Zyxel Communications A/S
• http://www.zyxel.dk
Estonia
• Zyxel Estonia
• http://www.zyxel.com/ee/et/
Finland
• Zyxel Communications
• http://www.zyxel.fi
France
•Zyxel France
• http://www.zyxel.fr
Germany
•Zyxel Deutschland GmbH
• http://www.zyxel.de
Hungary
• Zyxel Hungary & SEE
• http://www.zyxel.hu
Italy
• Zyxel Communications Italy
• http://www.zyxel.it/
background
Appendix A Customer Support
USG FLEX Series User’s Guide
1229
Latvia
•Zyxel Latvia
• http://www.zyxel.com/lv/lv/homepage.shtml
Lithuania
•Zyxel Lithuania
• http://www.zyxel.com/lt/lt/homepage.shtml
Netherlands
• Zyxel Benelux
• http://www.zyxel.nl
Norway
• Zyxel Communications
• http://www.zyxel.no
Poland
• Zyxel Communications Poland
• http://www.zyxel.pl
Romania
• Zyxel Romania
• http://www.zyxel.com/ro/ro
Russia
• Zyxel Russia
• http://www.zyxel.ru
Slovakia
• Zyxel Communications Czech s.r.o. organizacna zlozka
• http://www.zyxel.sk
Spain
• Zyxel Communications ES Ltd
• http://www.zyxel.es
Sweden
• Zyxel Communications
• http://www.zyxel.se
Switzerland
•Studerus AG
background
Appendix A Customer Support
USG FLEX Series User’s Guide
1230
• http://www.zyxel.ch/
Turkey
• Zyxel Turkey A.S.
• http://www.zyxel.com.tr
UK
• Zyxel Communications UK Ltd.
• http://www.zyxel.co.uk
Ukraine
•Zyxel Ukraine
• http://www.ua.zyxel.com
Latin America
Argentina
• Zyxel Communication Corporation
• http://www.zyxel.com/ec/es/
Brazil
• Zyxel Communications Brasil Ltda.
• https://www.zyxel.com/br/pt/
Ecuador
• Zyxel Communication Corporation
• http://www.zyxel.com/ec/es/
Middle East
Israel
• Zyxel Communication Corporation
• http://il.zyxel.com/homepage.shtml
Middle East
• Zyxel Communication Corporation
• http://www.zyxel.com/me/en/
background
Appendix A Customer Support
USG FLEX Series User’s Guide
1231
North America
USA
• Zyxel Communications, Inc. - North America Headquarters
• http://www.zyxel.com/us/en/
Oceania
Australia
• Zyxel Communications Corporation
• http://www.zyxel.com/au/en/
Africa
South Africa
• Nology (Pty) Ltd.
• http://www.zyxel.co.za
background
USG FLEX Series User’s Guide
1232
APPENDIX B
Product Features
Please refer to the product datasheet for the latest product features.
VERSION 5.40 5.40 5.40 5.40 5.40 5.40
MODEL NAME USG FLEX 100 USG FLEX 100W USG FLEX 100AXUSG FLEX 200 USG FLEX 500 USG FLEX 700
# of MAC 6 6 5 7 7 14
Interface
VLAN 8 8 8 16 64 128
Virtual (Alias) 4 per interface 4 per interface 4 per interface 4 per interface 4 per interface 4 per interface
PPP (System Default) 3 3 3 3 8 14
PPP (User Created) 2 2 2 4 16 32
Bridge 2 2 2 8 16 16
Tunnel (GRE/IPv6 Transition) 4 4 4 4 4 4
Routing
Static Route 64 64 64 128 256 512
Policy Route 100 100 100 500 500 1000
Reserved Sessions For Managed Devices 500 500 500 500 500 500
Maximum OSPF Areas 10 10 10 10 10 10
Maximum BGP Neighbor 5 5 5 5 5 5
BGP Maximum Network 16 16 16 16 16 16
Sessions
Maximum TCP Concurrent Sessions
(Forwarding, NAT/Firewall)
300,000 300,000 300,000 600,000 1,000,000 1,600,000
Session Rate 8,000 8,000 8,000 12,000 20,000 30,000
NAT
Maximum Virtual Server Number 128 128 128 256 1024 1024
Maximum Trigger Port Rule Number 8 per PR rule 8 per PR rule 8 per PR rule 8 per PR rule 8 per PR rule 8 per PR rule
Maximum Redirect Service 20 20 20 20 20 20
Maximum Virtual Server Load Balancer
Rule Number
5 5 5 10 20 20
Maximum Real Server Number per Rule 4 4 4 4 4 4
Firewall (Secure Policy)
Maximum Firewall ACL Rule Number =
Secure Policy Number
500 500 500 500 2000 5000
Maximum Session Limit per Host Rules 1000 1000 1000 1000 1000 1000
ADP
Maximum ADP Profile Number 8 8 8 32 32 32
Maximum ADP Rule Number 32 32 32 32 32 32
User Profile
Maximum Local User 64 64 64 128 128 512
Maximum Admin User 5 5 5 5 5 10
Maximum User Group 16 16 16 32 32 128
Maximum User In One User Group 64 64 64 128 128 512
Default Concurrent Device Login 64 64 64 200 200 500
Maximum Concurrent Device Upgrade
(License)
64 64 64 200 500 (Extend by
license)
2000 (Extend
by license)
On-Cloud Maximum Concurrent Device
Upgrade
64 64 64 200 300 2000
HTTPd
Max HTTPd Number 128 128 128 256 512 512
Objects
Address Object 300 300 300 300 1000 2000
Address Group 50 50 50 50 200 400
background
Appendix B Product Features
USG FLEX Series User’s Guide
1233
Maximum Address Object In One Group 128 128 128 128 128 256
Service Object 200 200 200 500 1000 1000
Service Group 50 50 50 100 200 200
Maximum Service Object In One Group 64 64 64 128 128 256
Schedule Object 32 32 32 32 32 32
Schedule Group 16 16 16 16 16 16
Maximum Schedule Object In One Group24 24 24 24 24 24
Application Object 500 500 500 500 1000 1000
Application Group 100 100 100 100 200 200
Maximum Application Object In One
Group
128 128 128 128 128 256
ISP Account 16 (PPP+3G) 16 (PPP+3G) 16 (PPP+3G) 16 (PPP+3G) 32 (PPP+3G) 32
Maximum LDAP Server Object # 2 2 2 8 16 16
Maximum RADIUS Server Object # 2 2 2 8 16 16
Maximum Ad Server Object # 4 4 4 8 16 16
Max. auth. method 4 4 4 4 4 4
Maximum Zone Number (System Default) 8 8 8 8 9 8
Maximum Zone Number (User Defined) 8 8 8 16 16 32
Trunk
Maximum Trunk Number (System Default) 1 1 1 1 1 1
Maximum Trunk Number (User Defined) 4 4 4 8 16 32
Maximum Member Number Per Trunk 4+8 4+8 4+8 4+8 16+8 32+8
VPN
Maximum VTI / VPN Tunnels Number 50 50 50 100 300 500
Maximum VPN Concentrator Number 2 2 2 2 16 16
Maximum VPN Configuration Provision
Rule Number
50 50 50 100 300 500
SSL VPN
Default SSL VPN Connections 30 30 30 60 150 150
Maximum SSL VPN Connections 30 30 30 60 150 150
Maximum SSL VPN Network List 8 8 8 8 8 8
SSL VPN Max Policy 32 32 32 32 64 128
Certificate
Certificate Buffer Size 128k 128k 128k 256k 512k 512k
Built-In Service
A Record 64 64 64 64 128 128
NS Record (DNS Domain Zone Forward) 8 8 8 16 16 16
MX Record 8 8 8 8 16 16
Maximum Service Control Entries 16 per service 16 per service 16 per service 16 per service 32 per service 32 per service
Maximum DHCP Network Pool (VLAN +
brg + Ethernet)
15 15 15 29 88 158
Maximum DHCP Host Pool (Static DHCP) 96 96 96 256 512 1024
Maximum DHCP Extended Options 10 10 10 15 30 30
Maximum DDNS Profiles 10 10 10 10 10 10
DHCP Relay 2 per interface 2 per interface 2 per interface 2 per interface 2 per interface 2 per interface
USB Storage
Device Number 1 1 1 1 1 1
Centralized Log
Log Entries 512 512 512 1024 1024 2048
Debug Log Entries 1024 1024 1024 1024 1024 1024
Admin Email Address 2 2 2 2 2 2
Syslog Server 4 4 4 4 4 4
Application Patrol
Maximum App Patrol Number 32 32 32 32 64 96
Maximum Application Object In Each
Profile (Object + Object Group)
32 32 32 32 64 96
IDP
Maximum IDP Profile Number 8 8 8 8 16 16
Maximum Custom Signatures 32 32 32 32 256 512
SSL Inspection
Maximum SSL Inspection Profile 6 6 6 8 16 16
VERSION 5.40 5.40 5.40 5.40 5.40 5.40
MODEL NAME USG FLEX 100 USG FLEX 100W USG FLEX 100AXUSG FLEX 200 USG FLEX 500 USG FLEX 700
background
Appendix B Product Features
USG FLEX Series User’s Guide
1234
Maximum Exclude List 128 128 128 256 256 256
Content Filtering
Maximum Number Of Content Filter
Policies
16 16 16 16 32 64
Forbidden Domain Entry Number 256 per profiles 256 per profiles 256 per profiles 256 per profiles 512 per profiles 512 per profiles
Trusted Domain Entry Number 256 per profiles 256 per profiles 256 per profiles 256 per profiles 512 per profiles 512 per profiles
Keyword Blocking Number 128 per profiles 128 per profiles 128 per profiles 128 per profiles 256 per profiles 256 per profiles
Common Forbidden Domain Entry
Number
1024 1024 1024 1024 1024 1024
Common Trusted Domain Entry Number 1024 1024 1024 1024 1024 1024
URL Threat Filter
Maximum Statistics Number 1024 1024 1024 1024 1024 1024
Maximum White List Rule 1024 1024 1024 1024 1024 1024
Maximum Black List Rule 1024 1024 1024 1024 1024 1024
IP Reputation
Maximum Statistics Number 1024 1024 1024 1024 1024 1024
Maximum White List Rule 256 256 256 256 256 256
Maximum Black List Rule 256 256 256 256 256 256
Email Security
Maximum AS Rule Number (Profile) 16 16 16 16 32 32
Maximum White List Rule Support 128 128 128 128 128 256
Maximum Black List Rule Support 128 128 128 128 128 256
Maximum DNSBL Domain Support 5 5 5 5 5 10
Concurrent Mail Session Scanning 200 200 200 200 200 200
Maximum Statistics Number 500 500 500 500 500 500
Maximum Statistics Ranking 10 10 10 10 10 10
Anti-Malware
Maximum AV Rule (Profile) 16 16 16 16 16 32
Maximum Statistics Number 500 500 500 500 500 500
Maximum Statistics Ranking 10 10 10 10 10 10
SandBoxing
Support Protocol HTTP/SMTP/
POP3/FTP
HTTP/SMTP/
POP3/FTP
HTTP/SMTP/
POP3/FTP
HTTP/SMTP/POP3/
FTP
HTTP/SMTP/
POP3/FTP
HTTP/SMTP/
POP3/FTP
Concurrent File Collect Capability 64 64 64 64 64 64
upload File Size Up to 10MB Up to 10MB Up to 10MB Up to 10MB Up to 10MB Up to 10MB
AP Controller
Default # of Control AP 8 8 8 8 8 8
Maximum # of Control AP 24 24 24 40 72 520
Maximum Number of Tunnel-Mode AP 6 6 6 10 18 130
AP Group 8 8 8 8 16 32
Maximum Radio Profile 34 34 34 34 66 130
Maximum SSID Profile 128 128 128 128 1024 1024
Maximum Security Profile 128 128 128 128 1024 1024
Maximum MAC Filter Profile 32 32 32 32 32 64
Maximum MAC Entry Per MAC Filter Profile512 512 512 512 512 2048
Maximum MAC Address for MAC
Authentication
256 256 256 256 256 2048
Zymesh 32 32 32 32 32 32
BWM
Maximum BWM Rule Number 128 128 128 256 512 1024
BWM Per Source IP (Maximum) 256 256 256 1024 1024 2048
SIP
Maximum SIP Concurrent Call 50 50 50 100 100 200
Custom Web Portal Page
Maximum Internal Web Portal Customize
File
4 4 4 4 4 4
Upload Zip File Size Up to 2 MB Up to 2 MB Up to 2 MB Up to 2 MB Up to 2 MB Up to 2 MB
Unzip File Size Up to 5 MB Up to 5 MB Up to 5 MB Up to 5 MB Up to 5 MB Up to 5 MB
Hotspot Management
Max Dynamic Account List N/A N/A N/A 1000 2000 4000
Max Free Time Account Limit N/A N/A N/A 800 1600 3200
Hotspot Support N/A N/A N/A Yes Yes Yes
VERSION 5.40 5.40 5.40 5.40 5.40 5.40
MODEL NAME USG FLEX 100 USG FLEX 100W USG FLEX 100AXUSG FLEX 200 USG FLEX 500 USG FLEX 700
background
Appendix B Product Features
USG FLEX Series User’s Guide
1235
Walled Garden – URL Base N/A N/A N/A 50 50 50
Walled Garden – Domain/IP Base N/A N/A N/A 50 50 50
Advertisement N/A N/A N/A 20 20 20
Ticket Printer Support N/A N/A N/A SP350E (Ethernet)
Up to 10
SP350E
(Ethernet)
Up to 10
SP350E
(Ethernet)
Up to 10
VERSION 5.40 5.40 5.40 5.40 5.40 5.40
MODEL NAME USG FLEX 100 USG FLEX 100W USG FLEX 100AXUSG FLEX 200 USG FLEX 500 USG FLEX 700
background
USG FLEX Series User’s Guide
1236
APPENDIX C
Legal Information
Copyright
Copyright © 2025 by Zyxel and/or its affiliates
The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any
language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or
otherwise, without the prior written permission of Zyxel and/ or its affiliates.
Published by Zyxel and/or its affiliates. All rights reserved.
Disclaimer
Zyxel does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any
license under its patent rights nor the patent rights of others. Zyxel further reserves the right to make changes in any products described herein
without notice. This publication is subject to change without notice.
Regulatory Notice and Statement (Class B)
Model List: USG FLEX 100, USGFLEX 100AX, USG FLEX 100W, USG FLEX 200
United States of America
The following information applies if you use the product within USA area.
Federal Communications Commission (FCC) EMC Statement
• This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operations.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation.
• This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
• If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for assistance
The following information applies to products with wireless functions.
• For 2.4G WLAN, only channels 1~11 are operational. Selection of other channels is not possible.
• Operation of this device is restricted to indoor use only, unless the relevant user’s manual states that this device can be installed outdoors.
FCC Radiation Exposure Statement
The following information applies to products with wireless functions.
• This device complies with FCC Radio Frequency (RF) radiation exposure limits set forth for an uncontrolled environment.
• This transmitter must be at least 20 cm from the user and must not be co-located or operating in conjunction with any other antenna or
transmitter. Refer to the list below for the models whose transmitters require a minimum distance of over 20 cm from the user, along with the
required distances.
• USG FLEX 100W: 22 cm
Canada
The following information applies if you use the product within Canada area
background
Appendix C Legal Information
USG FLEX Series User’s Guide
1237
Innovation, Science and Economic Development Canada ICES Statement
CAN ICES(B)/NMB(B)
Innovation, Science and Economic Development Canada RSS-GEN & RSS-247 Statement
The following information applies to products with wireless functions.
• For indoor use only. (For indoor devices only)
• This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's
licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference (2) This device must
accept any interference, including interference that may cause undesired operation of the device.
• For 2.4 G WLAN, only channels 1-11 are operational. Selection of other channels is NoT possible.
• This radio transmitter 2468C-ATP100W and 9968A-AW7915NPD has been approved by Industry Canada to operate with the antenna types
listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Antenna Information
If the product with 5G wireless function operating in 5150-5250 MHz and 5725-5850 MHz, the following attention must be paid,
• The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel
mobile satellite systems.
• For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits as appropriate; and
• Where applicable, antenna type(s), antenna model(s), and the worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p.
elevation mask requirement set forth in Section 6.2.2.3 of RSS 247 shall be clearly indicated.
If the product with 5G wireless function operating in 5250 – 5350 MHz and 5470 – 5725 MHz, the following attention must be paid.
• For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250 – 5350 MHz and 5470 – 5725
MHz shall be such that the equipment still complies with the e.i.r.p. limit.
Innovation, Sciences et Développement économique Canada RSS-GEN & RSS-247
• Pour une utilisation en intérieur uniquement. (sauf modèle extérieur)
• L'émetterur/récepteur exempt de licence contenu dans le prés ent appareil est conforme aux CNR d'Innovation, Sciences et
Développement économique Canada applicables aux appareils radio ex empts de licence. L'exploitation est autorisée aux deux condi
tions suivantes: (1)L'appareil ne doit pas produire de brouillage (2)L'appareil doit accepter tout brouillage radioélectrique su bi, même si le
brouillage est susc eptible d'en compromettre le fonctionnement.
• Pour le WLAN 2,4 G, seuls les canaux 1 à 11 sont opérationnels. La sélection d'autres canaux n'est PAS possible.
• Le présent émetteur radio 2468C-ATP100W et 9968A-AW7915NPD a été approuvé par Innovation, Sciences et Développement économique
Canada pour fonctionner avec les types d'antenne énumérés ci dessous et ayant un gain admissible maximal. Les types d'antenne non
inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué pour tout type figurant sur la liste, sont strictement interdits pour
l'exploitation de l'émetteur.
informations antenne
Lorsque la fonction sans fil 5G fonctionnant en 5150-5250 MHz and 5725-5850 MHz est activée pour ce produit, il est nécessaire de porter une
attention particulière aux choses suivantes
• Les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les
risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
• Pour les dispositifs munis d'antennes amovibles, le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5 850 MHz)
doit être conforme à la limite de la p.i.r.e. spécifiée, selon le cas;
• Lorsqu'il y a lieu, les types d'antennes (s'il y en a plusieurs), les numéros de modèle de l'antenne et les pires angles d'inclinaison nécessaires
pour rester conforme à l'exigence de la p.i.r.e. applicable au masque d'élévation, énoncée à la section 6.2.2.3 du CNR-247, doivent être
clairement indiqués.
Lorsque la fonction sans fil 5G fonctionnant en 5250-5350 MHz et 5470-5725 MHz est activée pour ce produit , il est nécessaire de porter une
attention particulière aux choses suivantes.
• Pour les dispositifs munis d’antennes amovibles, le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5 250 à 5 350 MHz
et de 5 470 à 5 725 MHz doit être conforme à la limite de la p.i.r.e.
Model Name No. Type Gain (dBi) Impedance
USG FLEX 100W 1 Dipole 2.7 dBi (2.4 GHz)
4.17 dBi (5 GHz)
50 Ω
USG FLEX 100AX 1 Dipole 2.7 dBi (2400-2483.5 MHz)
3.86 dBi (5180-5249 MHz)
4.17 dBi (5745-5825 MHz)
50 Ω
Nom du Modèle Nb. Type Gain (dBi) Impédance
USG FLEX 100W 1 Dipole 2.7 dBi (2.4 GHz)
4.17 dBi (5 GHz)
50 Ω
USG FLEX 100AX 1 Dipole 2.7 dBi (2400-2483.5 MHz)
3.86 dBi (5180-5249 MHz)
4.17 dBi (5745-5825 MHz)
50 Ω
background
Appendix C Legal Information
USG FLEX Series User’s Guide
1238
Innovation, Science and Economic Development Radio Frequency (RF) Exposure Statement (For device
with WiFi function)
This equipment complies with ISED RF exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 20 cm between the radiator and your body. Refer to the list below for the models whose radiators require a
minimum distance of over 20 cm from your body, along with the required distances.
• USG FLEX 100W: 25 cm
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement
doit être installé et utilisé en respectant une distance minimale de 20 cm entre le radiateur et votre corps. Veuillez vous référer à la liste ci-
dessous pour connaître les modèles dont les radiateurs nécessitent une distance minimale de plus de 20 cm par rapport à votre corps, ainsi que
les distances requises.
• USG FLEX 100W: 25 cm
Europe and the United Kingdom
The following information applies if you use the product within the European Union and United Kingdom.
Declaration of Conformity with Regard to EU Directive 2014/53/EU (Radio Equipment Directive, RED) and
UK Radio Equipment Regulations 2017
Model List: USG FLEX 100W, USG FLEX 100AX
• Compliance information for wireless products relevant to the EU and other Countries following the EU Directive 2014/53/EU (RED) and UK
regulation 2017 SI 2017-1206. And this product may be used in all EU countries (and other countries following the EU Directive 2014/53/EU) and
the United Kingdom without any limitation except for the countries mentioned in the below table:
• In the majority of the EU and other European countries, the 5GHz bands have been made available for the use of wireless local area
networks (LANs). Later in this document you will find an overview of countries in which additional restrictions or requirements or both are
applicable. The requirements for any country may evolve. Zyxel recommends that you check with the local authorities for the latest status of
their national regulations for the 5GHz wireless LANs.
• If this device operates in the 5150-5350 MHz band, it is for indoor use only.
• This equipment should be installed and operated with a minimum distance of 20 cm between the radio equipment and your body.
• The maximum RF operating power for each band is as follows:
Frequency Maximum Power
2,400 MHz to 2,483.5 MHz < 100mW
5,150 MHz to 5,350 MHz
< 200mW
5,470 MHz to 5,725 MHz < 1000mW
5,945 MHz to 6,425 MHz
(For device with 6 GHz function)
< 200mW
Belgium (English)
België (Flemish)
Belgique
(French)
National Restrictions
• The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor
wireless link having a range exceeding 300 meters. Please check
http://www.bipt.be for more details.
• Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300 meter dienen
aangemeld te worden bij het Belgisch Instituut voor postdiensten en telecommunicatie (BIPT). Zie
http://
www.bipt.be voor meer gegevens.
• Les liaisons sans fil pour une utilisation en extérieur d’une distance supérieure à 300 mètres doivent être
notifiées à l’Institut Belge des services Postaux et des Télécommunications (IBPT). Visitez
http://www.ibpt.be
pour de plus amples détails.
Čeština (Czech) Zyxel tímto prohlašuje, že tento zařízení je ve shodě se základními požadavky a dalšími příslušnými ustanoveními
směrnice 2014/53/EU.
Dansk (Danish
Undertegnede Zyxel erklærer herved, at følgende udstyr udstyr overholder de væsentlige krav og øvrige
relevante krav i direktiv 2014/53/EU.
Deutsch
(German)
Hiermit erklärt Zyxel, dass sich das Gerät Ausstattung in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie
2014/53/EU befindet.
Eesti keel
(Estonian)
Käesolevaga kinnitab Zyxel seadme seadmed vastavust direktiivi 2014/53/EL põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, Zyxel declares that this equipment is in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
background
Appendix C Legal Information
USG FLEX Series User’s Guide
1239
Notes:
• Not all European states that implement EU Directive 2014/53/EU are European Union (EU) members.
• The regulatory limits for maximum output power are specified in EIRP. The EIRP level (in dBm) of a device can be calculated by adding the
gain of the antenna used (specified in dBi) to the output power available at the connector (specified in dBm).
Español (Spanish) Por medio de la presente Zyxel declara que el equipo cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 2014/53/UE.
Français (French) Par la présente Zyxel déclare que l'appareil équipements est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 2014/53/UE.
Hrvatski
(Croatian)
Zyxel ovime izjavljuje da je radijska oprema tipa u skladu s Direktivom 2014/53/UE.
Íslenska
(Icelandic)
Hér með lýsir, Zyxel því yfir að þessi búnaður er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipunar
2014/53/UE.
Italiano (Italian) Con la presente Zyxel dichiara che questo attrezzatura è conforme ai requisiti essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva 2014/53/UE.
National Restrictions
• This product meets the National Radio Interface and the requirements specified in the National Frequency
Allocation Table for Italy. Unless this wireless LAN product is operating within the boundaries of the owner's
property, its use requires a “general authorization.” Please check https://www.mise.gov.it/it/ for more details.
• Questo prodotto è conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il Piano Nazionale di
ripartizione delle frequenze in Italia. Se non viene installato all 'interno del proprio fondo, l'utilizzo di prodotti
Wireless LAN richiede una “Autorizzazione Generale”. Consultare https://www.mise.gov.it/it/ per maggiori
dettagli.
Latviešu valoda
(Latvian)
Ar šo Zyxel deklarē, ka iekārtas atbilst Direktīvas 2014/53/EU būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių kalba
(Lithuanian)
Šiuo Zyxel deklaruoja, kad šis įranga atitinka esminius reikalavimus ir kitas 2014/53/EU Direktyvos nuostatas.
Magyar
(Hungarian)
Alulírott, Zyxel nyilatkozom, hogy a berendezés megfelel a vonatkozó alapvetõ követelményeknek és az 2014/
53/EU
irányelv egyéb elõírásainak.
Malti (Maltese) Hawnhekk, Zyxel, jiddikjara li dan tagħmir jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti
li hemm fid-Dirrettiva 2014/53/EU.
Nederlands
(Dutch)
Hierbij verklaart Zyxel dat het toestel uitrusting in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn
2014/53/EU.
Norsk
(Norwegian)
Erklærer herved Zyxel at dette utstyret er I samsvar med de grunnleggende kravene og andre relevante
bestemmelser I direktiv 2014/53/EU.
Polski (Polish) Niniejszym Zyxel oświadcza, że sprzęt jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 2014/53/EU.
Português
(Portuguese)
Zyxel declara que este equipamento está conforme com os requisitos essenciais e outras disposições da
Directiva
2014/53/EU.
Română
(Romanian)
Prin prezenta, Zyxel declară că acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi
relevante ale Directivei 2014/53/EU.
Slovenčina
(Slovak)
Zyxel týmto vyhlasuje, že zariadenia spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/
53/EU.
Slovenščina
(Slovene)
Zyxel izjavlja, da je ta oprema v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/
EU
.
Suomi (Finnish) Zyxel vakuuttaa täten että laitteet tyyppinen laite on direktiivin 2014/53/EU oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Svenska
(Swedish)
Härmed intygar Zyxel att denna utrustning står I överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv 2014/53/EU.
Български
(Bulgarian)
С настоящото Zyxel декларира, че това оборудване е в съответствие със съществените изисквания и
другите приложими разпоредбите на Директива 2014/53/ЕC.
background
Appendix C Legal Information
USG FLEX Series User’s Guide
1240
List of national codes
Safety Warnings
• Do not put the device in a place that is humid, dusty, has extreme temperatures, or that blocks the device ventilation slots. These conditions
may harm your device.
• Please refer to the device back label, datasheet, box specifications or catalog information for power rating of the device and operating
temperature.
• There is a remote risk of electric shock from lightning: (1) Do not use the device outside, and make sure all the connections are indoors. (For
indoor devices only)(2) Do not install or service this device during a thunderstorm.
• Do not expose your device to dampness, dust or corrosive liquids.
• Do not store things on the device.
• Do not obstruct the device ventilation slots as insufficient airflow may harm your device. For example, do not place the device in an
enclosed space such as a box or on a very soft surface such as a bed or sofa.
• Connect ONLY suitable accessories to the device.
• Do not open the device. Opening or removing the device covers can expose you to dangerous high voltage points or other risks.
• Only qualified service personnel should service or disassemble this device. Please contact your vendor for further information.
• Make sure to connect the cables to the correct ports.
• Place connected cables carefully so that no one will step on them or stumble over them.
• Disconnect all cables from this device before servicing or disassembling.
• Do not remove the plug and connect it to a power outlet by itself; always attach the plug to the power adaptor first before connecting it to
a power outlet.
• Do not allow anything to rest on the power adaptor or cord and do NoT place the product where anyone can walk on the power adaptor
or cord.
• Please use the provided or designated connection cables/power cables/ adaptors. Connect the power adaptor or cord to the right supply
voltage (for example, 120V AC in North America or 230V AC in Europe). If the power adaptor or cord is damaged, it might cause
electrocution. Remove the damaged power adaptor or cord from the device and the power source. Do not try to repair the power adaptor
or cord by yourself. Contact your local vendor to order a new one.
• CAUTION: There is a risk of explosion if you replace the device battery with an incorrect one. Dispose of used batteries according to the
instructions. Dispose them at the applicable collection point for the recycling of electrical and electronic devices. For detailed information
about recycling of this product, please contact your local city office, your household waste disposal service or the store where you
purchased the product.
• The following warning statements apply, where the disconnect device is not incorporated in the device or where the plug on the power
supply cord is intended to serve as the disconnect device.
- For a permanently connected device, a readily accessible method to disconnect the device shall be incorporated externally to the
device;
- For a pluggable device, the socket-outlet shall be installed near the device and shall be easily accessible.
• Caution - Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation
exposure.
• Attention - L'utilisation des commandes ou reglages ou l'execution des procedures autres que celles specifiees dans les presents exigences
peuvent etre la cause d'une exposition a un rayonnement dangereux)
• Do not leave a battery in an extremely high temperature environment or surroundings since it can result in an explosion or the leakage of
flammable liquid or gas. (For devices with a battery)
• Do not subject a battery to extremely low air pressure since it may result in an explosion or the leakage of flammable liquid or gas. (For
devices with a battery)
• Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8,
2019. (For devices with fiber)
• Conforme à 21 CFR 1040.10 et 1040.11 sauf pour la conformité à la norme CEI 60825-1 Ed. 3., comme décrit dans la notice laser Numéro 56
du 8 mai 2019. (For devices with fiber)
• CLASS 1 LASER PRODUCT & “IEC 60825-1:2014” (For devices with fiber)
• CLASS 1 CONSUMER LASER PRODUCT & “EN 50689:2021” (For devices with fiber)
COUNTRY ISO 3166 2 LETTER CODE COUNTRY ISO 3166 2 LETTER CODE
Austria AT Liechtenstein LI
Belgium BE Lithuania LT
Bulgaria BG Luxembourg LU
Croatia HR Malta MT
Cyprus CY Netherlands NL
Czech Republic CZ Norway No
Denmark DK Poland PL
Estonia EE Portugal PT
Finland FI Romania RO
France FR Serbia RS
Germany DE Slovakia SK
Greece GR Slovenia SI
Hungary HU Spain ES
Iceland IS Switzerland CH
Ireland IE Sweden SE
Italy IT Turkey TR
Latvia LV United Kingdom GB
background
Appendix C Legal Information
USG FLEX Series User’s Guide
1241
Environment Statement
ErP (Energy-related Products)
Zyxel products put on the EU and United Kingdom markets comply with the requirement of the European Parliament and the Council published
Directive 2009/125/EC and UK regulation establishing a framework for the setting of ecodesign requirements for energy-related products
(recast), the so called "ErP Directive (Energy-related Products directive), as well as ecodesign requirements laid down in applicable
implementation measures. Power consumption has satisfied the regulation requirements which are:
• Network standby power consumption < 8 W (watts), and/or
• Off mode power consumption < 0.5 W (watts), and/or
• Standby mode power consumption < 0.5 W (watts).
Disposal and Recycling Information
The symbol below means that according to local regulations your product and/or its battery shall be disposed of separately from domestic
waste. If this product is end of life, take it to a recycling station designated by local authorities. At the time of disposal, the separate collection of
your product and/or its battery will help save natural resources and ensure that the environment is sustainable development.
Die folgende Symbol bedeutet, dass Ihr Produkt und/oder seine Batterie gemäß den örtlichen Bestimmungen getrennt vom Hausmüll entsorgt
werden muss. Wenden Sie sich an eine Recyclingstation, wenn dieses Produkt das Ende seiner Lebensdauer erreicht hat. Zum Zeitpunkt der
Entsorgung wird die getrennte Sammlung von Produkt und/oder seiner Batterie dazu beitragen, natürliche Ressourcen zu sparen und die Umwelt
und die menschliche Gesundheit zu schützen.
El símbolo de abajo indica que según las regulaciones locales, su producto y/o su batería deberán depositarse como basura separada de la
doméstica. Cuando este producto alcance el final de su vida útil, llévelo a un punto limpio. Cuando llegue el momento de desechar el
producto, la recogida por separado éste y/o su batería ayudará a salvar los recursos naturales y a proteger la salud humana y
medioambiental.
Le symbole ci-dessous signifie que selon les réglementations locales votre produit et/ou sa batterie doivent être éliminés séparément des ordures
ménagères. Lorsque ce produit atteint sa fin de vie, amenez-le à un centre de recyclage. Au moment de la mise au rebut, la collecte séparée
de votre produit et/ou de sa batterie aidera à économiser les ressources naturelles et protéger l'environnement et la santé humaine.
Il simbolo sotto significa che secondo i regolamenti locali il vostro prodotto e/o batteria deve essere smaltito separatamente dai rifiuti domestici.
Quando questo prodotto raggiunge la fine della vita di servizio portarlo a una stazione di riciclaggio. Al momento dello smaltimento, la raccolta
separata del vostro prodotto e/o della sua batteria aiuta a risparmiare risorse naturali e a proteggere l'ambiente e la salute umana.
Symbolen innebär att enligt lokal lagstiftning ska produkten och/eller dess batteri kastas separat från hushållsavfallet. När den här produkten når
slutet av sin livslängd ska du ta den till en återvinningsstation. Vid tiden för kasseringen bidrar du till en bättre miljö och mänsklig hälsa genom att
göra dig av med den på ett återvinningsställe.
台灣
以下訊息僅適用於產品具有無線功能且銷售至台灣地區 (USG FLEX 100W, USG FLEX 100AX)
• 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
• 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前述合法通
信，指依電信管理法規定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
• 使用無線產品時，應避免影響附近雷達系統之操作。
• 高增益指向性天線只得應用於固定式點對點系統。
以下訊息僅適用於產品屬於專業安裝並銷售至台灣地區
• 本器材須經專業工程人員安裝及設定，始得設置使用，且不得直接販售給⼀般消費者。
安全警告 - 為了您的安全，請先閱讀以下警告及指示 :
background
Appendix C Legal Information
USG FLEX Series User’s Guide
1242
• 請勿將此產品接近水、火焰或放置在高溫的環境。
• 避免設備接觸 :
- 任何液體 - 切勿讓設備接觸水、雨水、高濕度、污水腐蝕性的液體或其他水份。
- 灰塵及污物 - 切勿接觸灰塵、污物、沙土、食物或其他不合適的材料。
• 雷雨天氣時，不要安裝或維修此設備。有遭受電擊的風險。
• 切勿重摔或撞擊設備，並勿使用不正確的電源變壓器。
• 若接上不正確的電源變壓器會有爆炸的風險。
• 請勿隨意更換產品內的電池。
• 如果更換不正確之電池型式，會有爆炸的風險，請依製造商說明書處理使用過之電池。
• 請將廢電池丟棄在適當的電器或電子設備回收處。
• 請勿將設備解體。
• 請勿阻礙設備的散熱孔，空氣對流不足將會造成設備損害。
• 請使用隨貨提供或指定的連接線 / 電源線 / 電源變壓器，將其連接到合適的供應電壓 ( 如 : 台灣供應電壓 110 伏特 )。
• 假若電源變壓器或電源變壓器的纜線損壞，請從插座拔除，若您還繼續插電使用，會有觸電死亡的風險。
• 請勿試圖修理電源變壓器或電源變壓器的纜線，若有毀損，請直接聯絡您購買的店家，購買⼀個新的電源變壓器。
• 請勿將此設備安裝於室外，此設備僅適合放置於室內。
• 請勿隨⼀般垃圾丟棄。
• 請參閱產品背貼上的設備額定功率。
• 請參考產品型錄或是彩盒上的作業溫度。
• 產品沒有斷電裝置或者採用電源線的插頭視為斷電裝置的⼀部分，以下警語將適用 :
- 對永久連接之設備， 在設備外部須安裝可觸及之斷電裝置；
- 對插接式之設備， 插座必須接近安裝之地點而且是易於觸及的。
About the Symbols
Various symbols are used in this product to ensure correct usage, to prevent danger to the user and others, and to prevent property damage.
The meaning of these symbols are described below. It is important that you read these descriptions thoroughly and fully understand the
contents.
Explanation of the Symbols
Viewing Certifications
Go to http://www.zyxel.com to view this product’s documentation and certifications.
Zyxel Limited Warranty
Zyxel warrants to the original end user (purchaser) that this product is free from any defects in material or workmanship for a specific period (the
Warranty Period) from the date of purchase. The Warranty Period varies by region. Check with your vendor and/or the authorized Zyxel local
distributor for details about the Warranty Period of this product. During the warranty period, and upon proof of purchase, should the product
have indications of failure due to faulty workmanship and/or materials, Zyxel will, at its discretion, repair or replace the defective products or
components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to
proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value,
and will be solely at the discretion of Zyxel. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by
an act of God, or subjected to abnormal working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties,
express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. Zyxel shall in no event be held
liable for indirect or consequential damages of any kind to the purchaser.
To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the
device at https://www.zyxel.com/global/en/support/warranty-information.
SYMBOL EXPLANATION
Alternating current (AC):
AC is an electric current in which the flow of electric charge periodically reverses direction.
Direct current (DC):
DC is the unidirectional flow or movement of electric charge carriers.
Earth; ground:
A wiring terminal intended for connection of a Protective Earthing Conductor.
Class II equipment:
The method of protection against electric shock in the case of class II equipment is either double insulation or
reinforced insulation.
background
Appendix C Legal Information
USG FLEX Series User’s Guide
1243
Registration
Register your product online at www.zyxel.com to receive email notices of firmware upgrades and related information.
Trademarks
ZyNoS (Zyxel Network Operating System) and ZON (Zyxel One Network) are registered trademarks of Zyxel Communications, Inc. Other
trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.
Open Source Licenses
This product may contain in part some free software distributed under GPL license terms and/or GPL like licenses.
To request the source code covered under these licenses, please go to: https://www.zyxel.com/form/gpl_oss_software_notice.shtml
Regulatory Notice and Statement (Class A)
Model List: USG FLEX 500, USG FLEX 700
United States of America
The following information applies if you use the product within USA area.
Federal Communications Commission (FCC) EMC Statement
• This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operations.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
• This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
Canada
The following information applies if you use the product within Canada area
Innovation, Science and Economic Development Canada ICES Statement
CAN ICES(A)/NMB(A)
Europe and the United Kingdom
The following information applies if you use the product within the European Union or United Kingdom.
EMC statement
WARNING: This equipment is compliant with Class A of EN55032. In a residential environment this equipment may cause radio interference.
background
Appendix C Legal Information
USG FLEX Series User’s Guide
1244
List of National Codes
Safety Warnings
• Do not put the device in a place that is humid, dusty, has extreme temperatures, or that blocks the device ventilation slots. These conditions
may harm your device.
• Please refer to the device back label, datasheet, box specifications or catalog information for power rating of the device and operating
temperature.
• There is a remote risk of electric shock from lightning: (1) Do not use the device outside, and make sure all the connections are indoors. (For
indoor devices only) (2) Do not install or service this device during a thunderstorm.
• Do not expose your device to dampness, dust or corrosive liquids.
• Do not store things on the device.
• Do not obstruct the device ventilation slots as insufficient airflow may harm your device. For example, do not place the device in an
enclosed space such as a box or on a very soft surface such as a bed or sofa.
• Connect ONLY suitable accessories to the device.
• Do not open the device. Opening or removing the device covers can expose you to dangerous high voltage points or other risks.
• Only qualified service personnel should service or disassemble this device. Please contact your vendor for further information.
• Make sure to connect the cables to the correct ports.
• Place connected cables carefully so that no one will step on them or stumble over them.
• Disconnect all cables from this device before servicing or disassembling.
• Do not remove the plug and connect it to a power outlet by itself; always attach the plug to the power adaptor first before connecting it to
a power outlet.
• Do not allow anything to rest on the power adaptor or cord and do NoT place the product where anyone can walk on the power adaptor
or cord.
• Please use the provided or designated connection cables/power cables/ adaptors. Connect the power adaptor or cord to the right supply
voltage (for example, 120V AC in North America or 230V AC in Europe). If the power adaptor or cord is damaged, it might cause
electrocution. Remove the damaged power adaptor or cord from the device and the power source. Do not try to repair the power adaptor
or cord by yourself. Contact your local vendor to order a new one.
• CAUTION: There is a risk of explosion if you replace the device battery with an incorrect one. Dispose of used batteries according to the
instructions. Dispose them at the applicable collection point for the recycling of electrical and electronic devices. For detailed information
about recycling of this product, please contact your local city office, your household waste disposal service or the store where you
purchased the product.
• Use ONLY power wires of the appropriate wire gauge for your device. Connect it to a power supply of the correct voltage.
• The following warning statements apply, where the disconnect device is not incorporated in the device or where the plug on the power
supply cord is intended to serve as the disconnect device.
- For a permanently connected device, a readily accessible method to disconnect the device shall be incorporated externally to the
device;
- For a pluggable device, the socket-outlet shall be installed near the device and shall be easily accessible.
• When connecting or disconnecting power to hot-pluggable power supplies, if offered with your system, observe the following guidelines:
- Install the power supply before connecting the power cable to the power supply.
- Unplug the power cable before removing the power supply.
- If the system has multiple sources of power, disconnect power from the system by unplugging all power cables from the power supply.
• Caution - Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation
exposure.
• Attention - L'utilisation des commandes ou reglages ou l'execution des procedures autres que celles specifiees dans les presents exigences
peuvent etre la cause d'une exposition a un rayonnement dangereux)
COUNTRY ISO 3166 2 LETTER CODE COUNTRY ISO 3166 2 LETTER CODE
Austria AT Liechtenstein LI
Belgium BE Lithuania LT
Bulgaria BG Luxembourg LU
Croatia HR Malta MT
Cyprus CY Netherlands NL
Czech Republic CZ Norway No
Denmark DK Poland PL
Estonia EE Portugal PT
Finland FI Romania RO
France FR Serbia RS
Germany DE Slovakia SK
Greece GR Slovenia SI
Hungary HU Spain ES
Iceland IS Sweden SE
Ireland IE Switzerland CH
Italy IT Turkey TR
Latvia LV United Kingdom GB
background
Appendix C Legal Information
USG FLEX Series User’s Guide
1245
• This device must be grounded by qualified service personnel. Never defeat the ground conductor or operate the device in the absence of a
suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that
suitable grounding is available. If your device has an earthing screw (frame ground), connect the screw to a ground terminal using an
appropriate AWG ground wire. Do this before you make other connections. If your device has no earthing screw, but has a 3-prong power
plug, make sure to connect the plug to a 3-hole earthed socket.
• Do not leave a battery in an extremely high temperature environment or surroundings since it can result in an explosion or the leakage of
flammable liquid or gas. (For devices with a battery)
• Do not subject a battery to extremely low air pressure since it may result in an explosion or the leakage of flammable liquid or gas. (For
devices with a battery)
• Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8,
2019. (For devices with fiber)
• Conforme à 21 CFR 1040.10 et 1040.11 sauf pour la conformité à la norme CEI 60825-1 Ed. 3., comme décrit dans la notice laser Numéro 56
du 8 mai 2019. (For devices with fiber)
• CLASS 1 LASER PRODUCT & “IEC 60825-1:2014” (For devices with fiber)
• CLASS 1 CONSUMER LASER PRODUCT & “EN 50689:2021” (For devices with fiber)
Environment Statement
Disposal and Recycling Information
The symbol below means that according to local regulations your product and/or its battery shall be disposed of separately from domestic
waste. If this product is end of life, take it to a recycling station designated by local authorities. At the time of disposal, the separate collection of
your product and/or its battery will help save natural resources and ensure that the environment is sustainable development.
Die folgende Symbol bedeutet, dass Ihr Produkt und/oder seine Batterie gemäß den örtlichen Bestimmungen getrennt vom Hausmüll entsorgt
werden muss. Wenden Sie sich an eine Recyclingstation, wenn dieses Produkt das Ende seiner Lebensdauer erreicht hat. Zum Zeitpunkt der
Entsorgung wird die getrennte Sammlung von Produkt und/oder seiner Batterie dazu beitragen, natürliche Ressourcen zu sparen und die Umwelt
und die menschliche Gesundheit zu schützen.
El símbolo de abajo indica que según las regulaciones locales, su producto y/o su batería deberán depositarse como basura separada de la
doméstica. Cuando este producto alcance el final de su vida útil, llévelo a un punto limpio. Cuando llegue el momento de desechar el
producto, la recogida por separado éste y/o su batería ayudará a salvar los recursos naturales y a proteger la salud humana y
medioambiental.
Le symbole ci-dessous signifie que selon les réglementations locales votre produit et/ou sa batterie doivent être éliminés séparément des ordures
ménagères. Lorsque ce produit atteint sa fin de vie, amenez-le à un centre de recyclage. Au moment de la mise au rebut, la collecte séparée
de votre produit et/ou de sa batterie aidera à économiser les ressources naturelles et protéger l'environnement et la santé humaine.
Il simbolo sotto significa che secondo i regolamenti locali il vostro prodotto e/o batteria deve essere smaltito separatamente dai rifiuti domestici.
Quando questo prodotto raggiunge la fine della vita di servizio portarlo a una stazione di riciclaggio. Al momento dello smaltimento, la raccolta
separata del vostro prodotto e/o della sua batteria aiuta a risparmiare risorse naturali e a proteggere l'ambiente e la salute umana.
Symbolen innebär att enligt lokal lagstiftning ska produkten och/eller dess batteri kastas separat från hushållsavfallet. När den här produkten når
slutet av sin livslängd ska du ta den till en återvinningsstation. Vid tiden för kasseringen bidrar du till en bättre miljö och mänsklig hälsa genom att
göra dig av med den på ett återvinningsställe.
台灣
警告使用者
• 這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下，使用者會被要求採取某些適當的對策。
• 為避免電磁干擾，本產品不應安裝或使用於住宅環境。
安全警告 – 為了您的安全，請先閱讀以下警告及指示 :
• 請勿將此產品接近水、火焰或放置在高溫的環境。
• 避免設備接觸 :
– 任何液體 - 切勿讓設備接觸水、雨水、高濕度、污水腐蝕性的液體或其他水份。
– 灰塵及污物 - 切勿接觸灰塵、污物、沙土、食物或其他不合適的材料。
• 雷雨天氣時，不要安裝或維修此設備。有遭受電擊的風險。
• 切勿重摔或撞擊設備，並勿使用不正確的電源變壓器。
• 若接上不正確的電源變壓器會有爆炸的風險。
• 請勿隨意更換產品內的電池。
background
Appendix C Legal Information
USG FLEX Series User’s Guide
1246
• 如果更換不正確之電池型式，會有爆炸的風險，請依製造商說明書處理使用過之電池。
• 請將廢電池丟棄在適當的電器或電子設備回收處。
• 請勿將設備解體。
• 請勿阻礙設備的散熱孔，空氣對流不足將會造成設備損害。
• 請使用隨貨提供或指定的連接線 / 電源線 / 電源變壓器，將其連接到合適的供應電壓 ( 如 : 台灣供應電壓 110 伏特 )。
• 假若電源變壓器或電源變壓器的纜線損壞，請從插座拔除，若您還繼續插電使用，會有觸電死亡的風險。
• 請勿試圖修理電源變壓器或電源變壓器的纜線，若有毀損，請直接聯絡您購買的店家，購買⼀個新的電源變壓器。
• 請勿將此設備安裝於室外，此設備僅適合放置於室內。
• 請勿隨⼀般垃圾丟棄。
• 請參閱產品背貼上的設備額定功率。
• 請參考產品型錄或是彩盒上的作業溫度。
• 設備必須接地，接地導線不允許被破壞或沒有適當安裝接地導線，如果不確定接地方式是否符合要求可聯繫相應的電氣檢驗機構檢驗。
• 如果您提供的系統中有提供熱插拔電源，連接或斷開電源請遵循以下指導原則
– 先連接電源線至設備連，再連接電源。
– 先斷開電源再拔除連接至設備的電源線。
– 如果系統有多個電源，需拔除所有連接至電源的電源線再關閉設備電源。
• 產品沒有斷電裝置或者採用電源線的插頭視為斷電裝置的⼀部分，以下警語將適用 :
– 對永久連接之設備， 在設備外部須安裝可觸及之斷電裝置；
– 對插接式之設備， 插座必須接近安裝之地點而且是易於觸及的。
About the Symbols
Various symbols are used in this product to ensure correct usage, to prevent danger to the user and others, and to prevent property damage.
The meaning of these symbols are described below. It is important that you read these descriptions thoroughly and fully understand the
contents.
Explanation of the Symbols
Viewing Certifications
Go to http://www.zyxel.com to view this product’s documentation and certifications.
Zyxel Limited Warranty
Zyxel warrants to the original end user (purchaser) that this product is free from any defects in material or workmanship for a specific period (the
Warranty Period) from the date of purchase. The Warranty Period varies by region. Check with your vendor and/or the authorized Zyxel local
distributor for details about the Warranty Period of this product. During the warranty period, and upon proof of purchase, should the product
have indications of failure due to faulty workmanship and/or materials, Zyxel will, at its discretion, repair or replace the defective products or
components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to
proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value,
and will be solely at the discretion of Zyxel. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by
an act of God, or subjected to abnormal working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties,
express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. Zyxel shall in no event be held
liable for indirect or consequential damages of any kind to the purchaser.
To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the
device at https://www.zyxel.com/global/en/support/warranty-information.
Open Source Licenses
This product may contain in part some free software distributed under GPL license terms and/or GPL like licenses.
SYMBOL EXPLANATION
Alternating current (AC):
AC is an electric current in which the flow of electric charge periodically reverses direction.
Direct current (DC):
DC is the unidirectional flow or movement of electric charge carriers.
Earth; ground:
A wiring terminal intended for connection of a Protective Earthing Conductor.
Class II equipment:
The method of protection against electric shock in the case of class II equipment is either double insulation
or reinforced insulation.
background
Appendix C Legal Information
USG FLEX Series User’s Guide
1247
To request the source code covered under these licenses, please go to: https://www.zyxel.com/form/gpl_oss_software_notice.shtml
background
Index
USG FLEX Series User’s Guide
1248
Index
Symbols
Numbers
3322 Dynamic DNS 458
3DES 553
6in4 tunneling 367
6to4 tunneling 367
A
AAA
Base DN 1016
Bind DN 1016, 1018
directory structure 1015
Distinguished Name, see DN
DN 1015, 1017, 1018
password 1018
port 1018, 1021
search time limit 1018
SSL 1018
AAA server 1013
AD 1015
and users 932
directory service 1013
LDAP 1013, 1015
local user database 1015
RADIUS 1014, 1015, 1019
RADIUS group 1020
see also RADIUS
access 45
access control attacks 833
Access Point Name, see APN
Access Restricted Web Page
Response Message 1131
access users 932, 934
custom page 1099
forcing login 598
idle timeout 953
logging in 598
multiple logins 954
see also users 932
Web Configurator 955
access users, see also force user authentication
policies
account
dynamic guest 184
quota (T/U/D) 185
user 931, 1052
accounting server 1013
Active Directory, see AD
active protocol 558
AH 558
and encapsulation 558
ESP 558
active sessions 158, 175
ActiveX 743
AD 1013, 1015, 1016, 1017, 1018
directory structure 1015
Distinguished Name, see DN
password 1018
port 1018, 1021
search time limit 1018
SSL 1018
address groups 993
and content filtering 722
and FTP 1118
and security policy 603
and SNMP 1123
and SSH 1113
and Telnet 1116
and WWW 1099
address objects 993
and content filtering 722
and FTP 1118
and NAT 439, 469
and policy routes 438
and security policy 603
and SNMP 1123
and SSH 1113
background
Index
USG FLEX Series User’s Guide
1249
and Telnet 1116
and VPN connections 529
and WWW 1099
HOST 994
RANGE 994
SUBNET 994
types of 994, 1000
address record 1088
admin user
troubleshooting 1218
admin users 932
multiple logins 954
see also users 932
ADP 691
false negatives 692
false positives 692
inline profile 693
monitor profile 692
Advanced Encryption Standard, see AES
advertisement
remove 671
URL entries 672
web page 671
AES 553
AF 442
AH 535, 558
and transport mode 559
alerts 1145, 1146, 1148, 1149, 1150, 1151
IDP 897, 898
ALG 487, 493
and NAT 487, 489
and policy routes 489, 493
and security policy 487, 489
and trunks 493
FTP 487, 488
H.323 487, 488, 493
peer-to-peer calls 489
RTP 493
see also VoIP pass through 487
SIP 487, 488
and anti-malware 778
Anomaly Detection and Prevention, see ADP
Anonymizer 803, 810, 816, 822
Anonymous Proxies 794
anti-malware 770
boot sector virus 789
EICAR 777, 788
e-mail
virus 789
encryption 778
file decompression 778, 784
file infector 789
file infector virus 789
firmware package blocking 778, 785
infection and prevention 789
macro virus 789
malware life cycle 789
malware types 789
mutation virus 789
overview 770
packet scan 770
packet types 772
polymorphic virus 789
scanner types 790
signatures 781
statistics 232
virus 770
worm 770
anti-spam 858, 863, 868
action for spam mails 861, 868
black list 858, 863, 868
concurrent e-mail sessions 244
DNSBL 859, 861, 868
e-mail header buffer 859
e-mail headers 859
general settings 860
identifying legitimate e-mail 858
identifying spam 858
POP2 859
POP3 859
regular expressions 866
SMTP 859
white list 858, 864, 868
anti-virus
EICAR 777, 788
e-mail virus 789
polymorphic virus 789
statistics 232, 241
troubleshooting 1207, 1210
troubleshooting signatures update 1207
updating signatures 263, 264
AP
group 205
management icons 198
status 198
status icons 201
background
Index
USG FLEX Series User’s Guide
1250
AP group 289, 296, 300
APN 362
Application Layer Gateway, see ALG
application patrol 707
actions 707
and HTTP redirect 482
and security policy 707
classification 707
exceptions 707
port-less 707
ports 708
service ports 708
troubleshooting 1207, 1214, 1215, 1217
ASAS (Authenex Strong Authentication System) 1014
asymmetrical routes 677
allowing through the security policy 679
vs virtual interfaces 677
attacks
access control 833
backdoor 833
buffer overflow 834
Denial of Service (DoS) 533
DoS/DDoS 834
IM 834
P2P 834
scan 834
spam 834
trapdoor 833
trojan 833
virus 770, 835
worm 835
Authenex Strong Authentication System (ASAS) 1014
authentication
in IPSec 536
LDAP/AD 1015
server 1013
authentication algorithms 552, 553
and active protocol 553
MD5 553
SHA1 553
Authentication Header, see AH
authentication method objects 1022
and users 932
and WWW 1098
create 1024
example 1022
authentication policy
exceptional services 600
Authentication server
RADIUS client 1127
authentication server 1125, 1128
authentication type 111, 1051
Authentication, Authorization, Accounting servers,
see AAA server
authorization server 1013
Autonomous Systems (AS) 452
auxiliary interfaces 319
B
backdoor attacks 833
backing up configuration files 1157
bandwidth
egress 363, 372
ingress 363, 372
bandwidth limit
troubleshooting 1210
bandwidth management 707
maximize bandwidth usage 442, 584
see also application patrol 707
troubleshooting 1210
Base DN 1016
Batch import 1064
BGP 457
billing
accumulation accounting method 627
built-in billing 627
credit card service 639
discount pricing plan 637
identity token 640
online payment service 641
printout 634
profile 627, 630
quota (T/U/D) 631
quota type 637
SMS message 633
time-to-finish accounting method 627
user logon settings 629
Bind DN 1016, 1018
BitTorrent 834
black list 863, 868
anti-spam 858
Blaster 851
background
Index
USG FLEX Series User’s Guide
1251
Botnet 795
bridge interfaces 319, 388
and virtual interfaces of members 388
basic characteristics 319
effect on routing table 388
member interfaces 388
virtual 347
bridges 387
Brute Force Attack 795
buffer overflow 834
buffer overflow attacks 834
C
CA
and certificates 1033
CA (Certificate Authority), see certificates
Calling Station ID 975, 977, 979, 982, 985
capturing packets 1180, 1182
card SIM 363
CEF (Common Event Format) 1143, 1149
cellular 357
APN 362
interfaces 319
network types 190
signal quality 190, 191
SIM card 363
SIM Card IMSI 191
status 189, 192
system 190, 191
troubleshooting 1209
certificate
troubleshooting 1219
Certificate Authority (CA)
see certificates
Certificate Revocation List (CRL) 1033
vs OCSP 1049
certificates 1032
advantages of 1033
and CA 1033
and FTP 1118
and HTTPS 1095
and IKE SA 557
and SSH 1113
and VPN gateways 529
and WWW 1097
certification path 1033, 1041, 1047
expired 1033
factory-default 1033
file formats 1034
fingerprints 1042, 1048
importing 1038
in IPSec 542
not used for encryption 1033
revoked 1033
self-signed 1033, 1040
serial number 1042, 1047
storage space 1036, 1044
thumbprint algorithms 1034
thumbprints 1034
used for authentication 1033
verifying fingerprints 1034
certification requests 1040
certifications 1240
viewing 1242, 1246
Challenge Handshake Authentication Protocol
(CHAP) 1051
CHAP (Challenge Handshake Authentication
Protocol) 1051
CHAP/PAP 1051
CLI 43, 53
button 53
messages 53
popup window 53
Reference Guide 2
Collaborative Detection & Response 880
commands 43
sent by Web Configurator 53
Common Event Format (CEF) 1143, 1149
compression (stac) 1052
computer names 342, 384, 398, 429, 571, 886
computer virus 770
see also virus
concurrent e-mail sessions 244
configuration
information 1174
configuration file
troubleshooting 1220
configuration files 1153
at restart 1157
backing up 1157
downloading 1159, 1195
downloading with FTP 1117
editing 1153
background
Index
USG FLEX Series User’s Guide
1252
how applied 1154
lastgood.conf 1157, 1161
managing 1157
startup-config.conf 1161
startup-config-bad.conf 1157
syntax 1154
system-default.conf 1161
uploading 1161
uploading with FTP 1117
use without restart 1153
connection
troubleshooting 1215
connection monitor (in SSL) 225
connectivity check 341, 356, 363, 372, 383, 399, 411,
415, 536, 885
console port
speed 1083
contact information 1226, 1232
content (pattern) 841
content filter
troubleshooting 1208
content filtering 721, 722
and address groups 722
and address objects 722
and schedules 722
and user groups 722
and users 722
by category 722, 730, 750
by keyword (in URL) 722, 723, 744
by URL 722, 743, 745, 746
by web feature 722, 743
categories 730, 750
category service 729
default policy 722
external web filtering service 729
filter list 722
managed web pages 729
policies 722
registration status 262
testing 730
uncategorized pages 729
URL for blocked access 725
cookies 45, 743
copyright 1236
CPU usage 158
Cross Site Scripting 795
current date/time 156, 1079
and schedules 1008
daylight savings 1081
setting manually 1082
time server 1083
current user list 225
custom
access user page 1099
login page 1099
custom signatures 831, 836, 850, 1212
applying 843
example 841
verifying 844
custom.rules file 831, 850, 1212
customer support 1226, 1232
D
Data Encryption Standard, see DES
date 1079
daylight savings 1081
DDNS 458
backup mail exchanger 463
mail exchanger 463
service providers 458
troubleshooting 1214
DDoS attacks 834
Dead Peer Detection, see DPD
decompression of files (in anti-malware) 778, 784
default
security policy behavior 675
Default_L2TP_VPN_GW 569
Denial of Service (DoS) attacks 834
Denial of Service (Dos) attacks 533
DES 553
device access
troubleshooting 1206
Device HA 1056
device HA
virtual router 1058
device High Availability see Device HA 1056
DHCP 428, 1077
and DNS servers 429
and domain name 1077
and interfaces 428
pool 429
static DHCP 429
background
Index
USG FLEX Series User’s Guide
1253
DHCP Unique IDentifier 323
DHCPv6 1052
DHCP Unique IDentifier 323
DHCPv6 Request 1052
diagnostics 1174
Differentiated Services Code Point (DSCP) 837
Diffie-Hellman key group 553
DiffServ 442
direct routes 434
directory 1013
directory service 1013
file structure 1015
disclaimer 1236
Distinguished Name (DN) 1015, 1017, 1018
Distributed Denial of Service (DDoS) attacks 834
DN 1015, 1017, 1018
DNS 1084
address records 1088
domain name forwarders 1090
domain name to IP address 1088
IP address to domain name 1088
L2TP VPN 571
Mail eXchange (MX) records 1091
pointer (PTR) records 1088
DNS Blacklist see DNSBL 859
DNS Filter 791
Priority 801
types of queries 800
DNS inbound LB 518
DNS servers 112, 1084, 1090
and interfaces 429
DNSBL 859, 861, 868, 871
see also anti-spam 859
domain name 1077
Domain Name System, see DNS
DoS 794
DoS (Denial of Service) attacks 834
DPD 544
DSCP 435, 438, 586, 1199
DUID 323
Dynamic Domain Name System, see DDNS
dynamic guest 184
dynamic guest account 184, 933
dynamic guest accounts 631
Dynamic Host Configuration Protocol, see DHCP.
dynamic peers in IPSec 534
DynDNS 458
DynDNS see also DDNS 458
Dynu 458
E
eBGP (exterior Border Gate Protocol) 452
e-Donkey 834
egress bandwidth 363, 372
Ekahau RTLS 313
e-mail 858
daily statistics report 1139
header buffer 859
headers 859
Email Security
DNSBL 871
e-Mule 834
Encapsulating Security Payload, see ESP
encapsulation
and active protocol 558
IPSec 535
transport mode 558
tunnel mode 558
VPN 558
encryption
and anti-malware 785
IPSec 536
RSA 1042
encryption algorithms 553
3DES 553
AES 553
and active protocol 553
DES 553
encryption method 1051
end of IP list 837
enforcing policies in IPSec 534
ESP 535, 558
and transport mode 559
Ethernet interfaces 319
and OSPF 329
and RIP 329
and routing protocols 327
basic characteristics 319
virtual 347
background
Index
USG FLEX Series User’s Guide
1254
ethernet interfaces
neighboring devices 193
exceptional services 600
Exploits 794
extended authentication
and VPN gateways 529
IKE SA 557
Extended Service Set IDentification 960
ext-user
troubleshooting 1218
F
false negatives 692
false positives 692, 694, 695
FCC interference statement 1236, 1243
file decompression (in anti-malware) 778, 784
file extensions
configuration files 1153
shell scripts 1153
file manager 1153
Firefox 45
firewall
and SMTP redirect 483
firmware 645
and restart 1163
current version 156, 1167
getting updated 1163
uploading 1166
uploading with FTP 1117
firmware package
troubleshooting 1217
firmware upload
troubleshooting 1221
flags 837
flash usage 158
forcing login 598
FQDN 1088
fragmentation flag 839
fragmentation offset 839
free time
configuration 657
dynamic guest account 657
enable 657
maximum number of users 658
reset 658
settings 657
FTP 1117
additional signaling port 492
ALG 487
and address groups 1118
and address objects 1118
and certificates 1118
and zones 1118
signaling port 492
troubleshooting 1215
with Transport Layer Security (TLS) 1118
full tunnel mode 562, 566
Fully-Qualified Domain Name, see FQDN
G
Generic Routing Encapsulation, see GRE.
global SSL setting 567
Grace Period 39
GRE 430
GSM 363
Guide
CLI Reference 2
Quick Start 2
H
H.323 493
additional signaling port 492
ALG 487, 493
and RTP 493
and security policy 488
signaling port 492
troubleshooting 1214
header checksum 837
host-based intrusions 851
Hotspot Service Status 630
HSDPA 363
HTTP
over SSL, see HTTPS
redirect to HTTPS 1097
vs HTTPS 1095
background
Index
USG FLEX Series User’s Guide
1255
HTTP redirect
and application patrol 482
and interfaces 486
and policy routes 482, 483
and security policy 482
packet flow 482
troubleshooting 1214
HTTPS 1095
and certificates 1095
authenticating clients 1095
avoiding warning messages 1105
example 1104
vs HTTP 1095
with Internet Explorer 1104
with Netscape Navigator 1104
hub-and-spoke VPN, see VPN concentrator
HyperText Transfer Protocol over Secure Socket Layer,
see HTTPS
I
ICMP 1004
code 840
sequence number 840
type 840
icons
dynamic guest 185
identification (IP) 839
identifying
legitimate e-mail 858
spam 858
IDP 827
action 698
alerts 897, 898
applying custom signatures 843
custom signature example 841
custom signatures 836
log options 695, 698, 897, 898
reject sender 698
reject-both 698
reject-receiver 698
service group 835
signatures 827
Snort signatures 851
statistics 238
troubleshooting 1207, 1212
verifying custom signatures 844
IEEE 802.11ax 960
IEEE 802.1q VLAN
IEEE 802.1q. See VLAN.
IEEE 802.1x 960
Iframe Injection 795
IHL (IP Header Length) 837
IKE SA
aggressive mode 552, 556
and certificates 557
and RADIUS 557
and to-ZyWALL security policy 1216
authentication algorithms 552, 553
content 555
Dead Peer Detection (DPD) 544
Diffie-Hellman key group 553
encryption algorithms 553
extended authentication 557
ID type 555
IP address, remote IPSec router 552
IP address, Zyxel device 552
local identity 555
main mode 552, 556
NAT traversal 557
negotiation mode 552
password 557
peer identity 555
pre-shared key 555
proposal 552
see also VPN
user name 557
IM (Instant Messenger) 834
IMAP 859
iMesh 834
inbound LB algorithm
least connection 520
least load 520
weighted round robin 520
inbound load balancing 518
time to live 521
incoming bandwidth 363, 372
ingress bandwidth 363, 372
inline profile 693
installation
desktop 101
installation scenarios 100
Instant Messenger (IM) 707, 834
managing 707
background
Index
USG FLEX Series User’s Guide
1256
interface
status 169
troubleshooting 1208
interfaces 318
and DNS servers 429
and HTTP redirect 486
and layer-3 virtualization 319
and NAT 468
and physical ports 319
and policy routes 438
and static routes 441
and VPN gateways 529
and zones 319
as DHCP relays 428
as DHCP servers 428, 1077
auxiliary, see also auxiliary interfaces.
backup, see trunks
bandwidth management 423, 424, 427
bridge, see also bridge interfaces.
cellular 319
DHCP clients 427
Ethernet, see also Ethernet interfaces.
gateway 427
general characteristics 319
IP address 426
metric 427
MTU 428
overlapping IP address and subnet mask 427
port groups, see also port groups.
PPPoE/PPTP, see also PPPoE/PPTP interfaces.
prerequisites 320
relationships between 320
static DHCP 429
subnet mask 426
trunks, see also trunks.
Tunnel, see also Tunnel interfaces.
types 319
virtual, see also virtual interfaces.
VLAN, see also VLAN interfaces.
WLAN, see also WLAN interfaces.
Internet access
troubleshooting 1207, 1217
Internet Control Message Protocol, see ICMP
Internet Explorer 45
Internet Message Access Protocol, see IMAP 859
Internet Protocol (IP) 836
Internet Protocol Security, see IPSec
Internet Protocol version 6, see IPv6
Intrusion, Detection and Prevention see IDP 827
intrusions
host 851
network 851
IP (Internet Protocol) 836
IP options 837, 840
IP Plug and Play (IPnP) 662
internal interface(s) 663
scenario 662
IP policy routing, see policy routes
IP pool 566
IP protocols 1003
and service objects 1004
ICMP, see ICMP
TCP, see TCP
UDP, see UDP
IP Reputation 791
IP security option 837
IP static routes, see static routes
IP stream identifier 837
IP v4 packet headers 837
IP/MAC binding 509
exempt list 513
monitor 187
static DHCP 512
IPSec 524
active protocol 535
AH 535
and certificates 529
authentication 536
basic troubleshooting 1215
certificates 542
connections 529
connectivity check 536
Default_L2TP_VPN_GW 569
encapsulation 535
encryption 536
ESP 535
established in two phases 526
L2TP VPN 568
local network 524
local policy 534
NetBIOS 533
peer 524
Perfect Forward Secrecy 536
PFS 536
phase 2 settings 535
policy enforcement 534
background
Index
USG FLEX Series User’s Guide
1257
remote access 534
remote IPSec router 524
remote network 524
remote policy 534
replay detection 533
SA life time 535
SA monitor 223, 227
SA see also IPSec SA 558
see also VPN
site-to-site with dynamic peer 534
static site-to-site 534
transport encapsulation 535
tunnel encapsulation 535
VPN gateway 529
IPSec SA
active protocol 558
and security policy 1216
and to-ZyWALL security policy 1216
authentication algorithms 552, 553
destination NAT for inbound traffic 560
encapsulation 558
encryption algorithms 553
local policy 558
NAT for inbound traffic 559
NAT for outbound traffic 559
Perfect Forward Secrecy (PFS) 559
proposal 559
remote policy 558
search by name 224, 227
search by policy 224, 227
Security Parameter Index (SPI) (manual keys) 559
see also IPSec
see also VPN
source NAT for inbound traffic 560
source NAT for outbound traffic 560
status 223, 227
transport mode 558
tunnel mode 558
when IKE SA is disconnected 558
IPSec VPN
troubleshooting 1215
IPv6 321
link-local address 322
prefix 321
prefix delegation 322
prefix length 321
stateless autoconfiguration 322
IPv6 tunnelings
6in4 tunneling 367
6to4 tunneling 367
IPv6-in-IPv4 tunneling 367
ISP account
CHAP 1051
CHAP/PAP 1051
MPPE 1051
MSCHAP 1051
MSCHAP-V2 1051
PAP 1051
ISP accounts 1049
and PPPoE/PPTP interfaces 351, 1049
authentication type 1051
encryption method 1051
stac compression 1052
J
Java 743
permissions 45
JavaScripts 45
K
key pairs 1032
L
L2TP VPN 568
Default_L2TP_VPN_GW 569
DNS 571
IPSec configuration 568
policy routes 569
session monitor 226
WINS 571
lastgood.conf 1157, 1161
Layer 2 Tunneling Protocol Virtual Private Network, see
L2TP VPN
568
layer-2 isolation 514
example 514
IP 516
LDAP 1013
and users 932
Base DN 1016
background
Index
USG FLEX Series User’s Guide
1258
Bind DN 1016, 1018
directory 1013
directory structure 1015
Distinguished Name, see DN
DN 1015, 1017, 1018
password 1018
port 1018, 1021
search time limit 1018
SSL 1018
user attributes 958
least connection algorithm 520
least load algorithm 520
least load first load balancing 418
LED suppression mode 199, 284
LED troubleshooting 1206
legitimate e-mail 858
level-4 inspection 708
level-7 inspection 707
licensing 256
Lightweight Directory Access Protocol, see LDAP
Link Layer Discovery Protocol (LLDP ) 193
LLDP (Link Layer Discovery Protocol) 193
load balancing 304, 417
algorithms 418, 422, 424
DNS inbound 518
least load first 418
round robin 418
see also trunks 417
session-oriented 418
spillover 419
weighted round robin 419
local user database 1015
log
dynamic guest account 166
troubleshooting 1220
log messages
categories 1146, 1148, 1149, 1150, 1151
debugging 250
regular 250
types of 250
log options
(IDP) 695, 698, 897, 898
login
custom page 1099
logo
troubleshooting 1220
logout
Web Configurator 51
logs
and security policy 686
e-mail profiles 1141
e-mailing log messages 254, 1145
formats 1143
log consolidation 1146
settings 1141
syslog servers 1141
system 1141
types of 1141
loose source routing 837
M
MAC address 956
and VLAN 373
Ethernet interface 337
range 156
MAC authentication 974, 976, 979, 982, 985
Calling Station ID 975, 977, 979, 982, 985
case 974, 975, 977, 979, 982, 985
delimiter 974, 975, 976, 977, 979, 982, 985
mac role 956
managed web pages 729
management access
troubleshooting 1220
Management Information Base (MIB) 1120, 1121
managing the device
using SNMP. See SNMP.
MD5 553
memory usage 158
Message Digest 5, see MD5
messages
CLI 53
metrics, see reports
Microsoft
Challenge-Handshake Authentication Protocol
(MSCHAP)
1051
Challenge-Handshake Authentication Protocol
Version 2 (MSCHAP-V2)
1051
Point-to-Point Encryption (MPPE) 1051
mobile broadband see also cellular 357
Monitor 1064
monitor 225
SA 223, 227
background
Index
USG FLEX Series User’s Guide
1259
sessions 175
monitor profile
ADP 692
mounting
rack 42, 100
wall 103
MPPE (Microsoft Point-to-Point Encryption) 1051
MSCHAP (Microsoft Challenge-Handshake
Authentication Protocol) 1051
MSCHAP-V2 (Microsoft Challenge-Handshake
Authentication Protocol Version 2)
1051
MTU 363, 372
multicast 278, 967
multicast rate 279, 967
My Certificates, see also certificates 1035
MyDoom 851
myZyXEL 38
accounts, creating 39
N
NAT 442, 464
ALG, see ALG
and address objects 439
and address objects (HOST) 469
and ALG 487, 489
and interfaces 468
and policy routes 432, 439
and security policy 677
and to-ZyWALL security policy 470
and VoIP pass through 489
and VPN 556
loopback 471
port forwarding, see NAT
port translation, see NAT
traversal 557
NAT Port Mapping Protocol 494
NAT Traversal 494
NAT-PMP 494
NBNS 342, 384, 398, 429, 566, 886
NetBIOS
Broadcast over IPSec 533
Name Server, see NBNS.
NetBIOS Name Server, see NBNS
NetMeeting 493
see also H.323
Netscape Navigator 45
network access mode 41
full tunnel 562
Network Address Translation, see NAT
network list, see SSL 566
Network Time Protocol (NTP) 1082
network-based intrusions 851
Nimda 851
no IP options 837
No-IP 458
NSSA 445
O
objects 563
AAA server 1013
addresses and address groups 993
authentication method 1022
certificates 1032
schedules 1008
services and service groups 1003
users, user groups 931, 1052
offset (patterns) 841
ommon 789
One-Time Password (OTP) 1014
Online Certificate Status Protocol (OCSP) 1049
vs CRL 1049
Open Shortest Path First, see OSPF
operating mode 303
OSI (Open System Interconnection) 827
OSI level-4 708
OSI level-7 707
OSPF 445
and Ethernet interfaces 329
and RIP 446
and static routes 446
and to-ZyWALL security policy 445
area 0 446
areas, see OSPF areas
authentication method 330
autonomous system (AS) 445
backbone 446
configuration steps 447
direction 330
background
Index
USG FLEX Series User’s Guide
1260
link cost 330
priority 330
redistribute 446
redistribute type (cost) 448
routers, see OSPF routers
virtual links 447
vs RIP 443, 445
OSPF areas 445
and Ethernet interfaces 330
backbone 445
Not So Stubby Area (NSSA) 445
stub areas 445
types of 445
OSPF routers 446
area border (ABR) 446
autonomous system boundary (ASBR) 446
backbone (BR) 446
backup designated (BDR) 447
designated (DR) 447
internal (IR) 446
link state advertisements
priority 447
types of 446
OTP (One-Time Password) 1014
outgoing bandwidth 363, 372
P
P Reputation
Priority 792
P2P (Peer-to-peer) 834
attacks 834
see also Peer-to-peer
packet
inspection signatures 828
scan 770
statistics 166, 167, 202
packet capture 1180, 1182
files 1179, 1185, 1186, 1187, 1189
troubleshooting 1221
packet captures
downloading files 1179, 1186, 1189
packet statistics 166
padding 837
PAP (Password Authentication Protocol) 1051
Password Authentication Protocol (PAP) 1051
payload
option 840
size 841
Peanut Hull 458
Peer-to-peer (P2P) 834
calls 489
managing 707
Perfect Forward Secrecy (PFS) 536
Diffie-Hellman key group 559
performance
troubleshooting 1210, 1212
Personal Identification Number code, see PIN code
PFS (Perfect Forward Secrecy) 536, 559
Phishing 791, 795
physical ports
packet statistics 166, 167, 202
PIN code 363
PIN generator 1014
pointer record 1088
policy enforcement in IPSec 534
policy routes 432
actions 433
and address objects 438
and ALG 489, 493
and HTTP redirect 482, 483
and interfaces 438
and NAT 432
and schedules 438, 585, 589
and service objects 1004
and SMTP redirect 483
and trunks 417, 438
and user groups 437, 585, 589
and users 437, 585, 589
and VoIP pass through 489
and VPN connections 438, 1216
benefits 432
criteria 433
L2TP VPN 569
overriding direct routes 434
troubleshooting 1208, 1218
POP
POP2 859
POP3 859
pop-up windows 45
port forwarding, see NAT
port groups 319
port roles 323, 324
background
Index
USG FLEX Series User’s Guide
1261
and Ethernet interfaces 323, 324
and physical ports 323, 324
port translation, see NAT
Post Office Protocol, see POP 859
power off 1203
PPP
troubleshooting 1209
PPP interfaces
subnet mask 427
PPPoE 429
and RADIUS 429
TCP port 1723 430
PPPoE/PPTP interfaces 319, 351
and ISP accounts 351, 1049
basic characteristics 319
gateway 351
subnet mask 351
PPTP
and GRE 430
as VPN 430
prefix delegation 322
printer
account printout. 652
add 648
edit 648
external statement 645
key combination 653
list 645
management 645
manually configure 649
reports 653
secret key 646
status 223
product registration 1243
proxy servers 482
web, see web proxy servers
PTR record 1088
Public-Key Infrastructure (PKI) 1033
public-private key pairs 1032
Q
QoS 432, 581
Quick Start Guide 2
R
rack-mounting 42, 100
RADIUS 1014, 1015
advantages 1014
and IKE SA 557
and PPPoE 429
and users 932
user attributes 958
RADIUS server 1125, 1128
troubleshooting 1218
Real-time Transport Protocol, see RTP
record route 837
Reference Guide, CLI 2
registration 256
product 1243
reject (IDP)
both 698
receiver 698
sender 698
Relative Distinguished Name (RDN) 1015, 1017, 1018
remote access IPSec 534
Remote Authentication Dial-In User Service, see
RADIUS
remote management
FTP, see FTP
see also service control 1094
Telnet 1115
to-Device security policy 676
WWW, see WWW
remote network 524
replay detection 533
reports
anti-virus 232, 241
collecting data 172
daily 1139
daily e-mail 1139
IDP 238
specifications 174
traffic statistics 172
reputation filter
anonymizers 791
categories 791
spyware adware keyloggers 791
statistics 234
reset 1225
RESET button 1225
background
Index
USG FLEX Series User’s Guide
1262
Response Message 1131
RFC
1058 (RIP) 443
1389 (RIP) 443
1587 (OSPF areas) 445
1631 (NAT) 442
1889 (RTP) 493
2131 (DHCP) 428
2132 (DHCP) 428
2328 (OSPF) 445
2402 (AH) 535, 558
2406 (ESP) 535, 558
2890 (GRE) 430
RIP 443
and Ethernet interfaces 329
and OSPF 443
and static routes 443
and to-ZyWALL security policyl 443
authentication 443
direction 329
redistribute 443
RIP-2 broadcasting methods 329
versions 329
vs OSPF 443
round robin 418
routing
troubleshooting 1214
Routing Information Protocol, see RIP
routing protocols 442
and Ethernet interfaces 327
RSA 1042, 1048
RSSI threshold 278, 966
RTLS 313
RTP 493
see also ALG 493
rubber feet 101
S
same IP 840
sandboxing
action 856
defend center 854
EICAR test files 855
file submission options 857
log 856
securirty mechanism 854
scan attacks 834
scanner types 790
Scanners 794
schedule
troubleshooting 1219
schedules 1008
and content filtering 722
and current date/time 1008
and policy routes 438, 585, 589
and security policy 585, 589, 603, 686
one-time 1008
recurring 1008
types of 1008
screen resolution 45
Secure Hash Algorithm, see SHA1
Secure Socket Layer, see SSL
security associations, see IPSec
security policy 675
actions 686
and address groups 603
and address objects 603
and ALG 487, 489
and application patrol 707
and H.323 (ALG) 488
and HTTP redirect 482
and IPSec VPN 1216
and logs 686
and NAT 677
and schedules 585, 589, 603, 686
and service groups 685
and service objects 1004
and services 685
and SIP (ALG) 488
and user groups 686, 704
and users 686, 704
and VoIP pass through 489
and zones 675, 680, 711, 727, 896
asymmetrical routes 677, 679
global rules 676
priority 680, 711, 727, 896
rule criteria 676
see also to-Device security policy 675
session limits 676, 701
triangle routes 677, 679
troubleshooting 1208
security settings
troubleshooting 1208
background
Index
USG FLEX Series User’s Guide
1263
sensitivity level 694
serial number 155
service control 1094
and to-ZyWALL security policy 1094
and users 1094
limitations 1094
timeouts 1094
service groups 1004
and security policy 685
in IDP 835
service objects 1003
and IP protocols 1004
and policy routes 1004
and security policy 1004
Service Set 960
service subscription status 262
services 1003
and security policy 685
Session Initiation Protocol 493
session limits 676, 701
session monitor (L2TP VPN) 226
sessions 175
sessions usage 158
SHA1 553
shell script
troubleshooting 1220
shell scripts 1153
and users 958
downloading 1172
editing 1171
how applied 1154
managing 1171
syntax 1154
uploading 1173
Short Message Service 1129
shutdown 1203
signal quality 190, 191
signature categories
access control 833
backdoor/Trojan 833
buffer overflow 834
DoS/DDoS 834
IM 834
P2P 834
scan 834
spam 834
virus/worm 835
Web attack 835
signature ID 831, 832, 839, 850
signatures
anti-malware 781
IDP 827
updating 263, 799, 819
SIM card 363
Simple Mail Transfer Protocol, see SMTP 859
Simple Network Management Protocol, see SNMP
SIP 488, 493
ALG 487
and RTP 493
and security policy 488
media inactivity timeout 491
signaling inactivity timeout 492
signaling port 492
troubleshooting 1214
SMS 1129
Email-to-SMS 1129
send account information 1129
SMS gateway 1129
SMTP 859
SMTP redirect
and firewall 483
and policy routes 483
packet flow 483
SNAT 442
troubleshooting 1214
SNMP 43, 1119, 1120
agents 1120
and address groups 1123
and address objects 1123
and zones 1123
authentication 1124
Get 1120
GetNext 1120
Manager 1120
managers 1120
MIB 1120, 1121
network components 1120
Set 1120
Trap 1120
traps 1121
version 3 and security 1120
versions 1119
Snort
equivalent terms 852
rule header 851
background
Index
USG FLEX Series User’s Guide
1264
rule options 851
signatures 851
Source Network Address Translation, see SNAT
spam 834, 858
Spam Sources 794
Spam URLs 791
spillover (for load balancing) 419
SQL Injection 795
SQL slammer 851
SSH 1111
and address groups 1113
and address objects 1113
and certificates 1113
and zones 1113
client requirements 1112
encryption methods 1112
for secure Telnet 1114
versions 1112
SSL 562, 566, 1095
access policy 562
and AAA 1018
and AD 1018
and LDAP 1018
computer names 566
connection monitor 225
full tunnel mode 566
global setting 567
IP pool 566
network list 566
see also SSL VPN 562
troubleshooting 1216
WINS 566
SSL Inspection
Protocols 891
SSL inspection
Server Signed Certificate Keys 893
SSL policy
add 565
edit 565
objects used 563
SSL VPN 562
access policy 562
full tunnel mode 562
network access mode 41
see also SSL 562
troubleshooting 1216
stac compression 1052
startup-config.conf 1161
if errors 1157
missing at restart 1157
present at restart 1157
startup-config-bad.conf 1157
static DHCP 512
static routes 432
and interfaces 441
and OSPF 446
and RIP 443
metric 441
statistics
anti-virus 232, 241
daily e-mail report 1139
IDP 238
traffic 172
status 153
streaming protocols management 707
strict source routing 837
stub area 445
subscription services
status 262
supported browsers 45
syslog 1149
syslog servers, see also logs
system log, see logs
system name 155, 1077
system reports, see reports
system uptime 156
system-default.conf 1161
T
TCP 1003
ACK number 840
attack packet 698
connections 1003
flag bits 840
port numbers 1003
window size 840
Telnet 1115
and address groups 1116
and address objects 1116
and zones 1116
with SSH 1114
background
Index
USG FLEX Series User’s Guide
1265
throughput rate
troubleshooting 1220
time 1079
time servers (default) 1082
time to live 837
timestamp 837
to-Device security policy
and remote management 676
global rules 675
see also security policy 675
token 1014
Tor 794
to-ZyWALL security policy
and NAT 470
and NAT traversal (VPN) 1216
and OSPF 445
and RIP 443
and service control 1094
and VPN 1216
TR-069 protocol 1063
trademarks 1243
traffic statistics 172
Transmission Control Protocol, see TCP
transport encapsulation 535
Transport Layer Security (TLS) 1118
trapdoor attacks 833
triangle routes 677
allowing through the security policy 679
vs virtual interfaces 677
Triple Data Encryption Standard, see 3DES
trojan attacks 833
troubleshooting 1174, 1206
admin user 1218
anti-virus 1207, 1210
anti-virus signatures update 1207
application patrol 1207, 1214, 1215, 1217
bandwidth limit 1210
bandwidth management 1210
cellular 1209
certificate 1219
configuration file 1220
connection resets 1215
content filter 1208
DDNS 1214
device access 1206
ext-user 1218
firmware package 1217
firmware upload 1221
FTP 1215
H.323 1214
HTTP redirect 1214
IDP 1207, 1212
interface 1208
Internet access 1207, 1217
IPSec VPN 1215
LEDs 1206
logo 1220
logs 1220
management access 1220
packet capture 1221
performance 1210, 1212
policy routes 1208, 1218
PPP 1209
problems 1206
RADIUS server 1218
routing 1214
schedules 1219
security policy 1208
security settings 1208
shell scripts 1220
SIP 1214
SNAT 1214
SSL 1216
SSL VPN 1216
throughput rate 1220
VLAN 1210
VPN 1216
WLAN 1209
zipped files 1211
trunks 319, 417
and ALG 493
and policy routes 417, 438
member interface mode 422, 424
member interfaces 422, 424
see also load balancing 417
Trusted Certificates, see also certificates 1044
tunnel encapsulation 535
Tunnel interfaces 319
TWT (Target Wakeup Time) 960
U
UDP 1003
attack packet 698
background
Index
USG FLEX Series User’s Guide
1266
messages 1003
port numbers 1003
Universal Plug and Play 494
Application 494
security issues 495
unsolicited commercial e-mail 858
updating
anti-virus signatures 263, 264
signatures 263, 799, 819
upgrading
firmware 1166
uploading
configuration files 1161
firmware 1166
shell scripts 1171
UPnP 494
UPnP-enabled Network Device
auto-discover 502
URI (Uniform Resource Identifier) 841
URL Threat Filter 791, 814
Priority 814
usage
CPU 158
flash 158
memory 158
onboard flash 158
sessions 158
user accounts
for WLAN 934
user authentication 932
external 932
local user database 1015
user awareness 934
User Datagram Protocol, see UDP
user group objects 931, 1052
user groups 931, 933, 1052
and content filtering 722
and policy routes 437, 585, 589
and security policy 686, 704
user name
rules 935
user objects 931, 1052
user sessions, see sessions
user-authentication 604
users 931, 932, 1052
access, see also access users
admin (type) 932
admin, see also admin users
and AAA servers 932
and authentication method objects 932
and content filtering 722
and LDAP 932
and policy routes 437, 585, 589
and RADIUS 932
and security policy 686, 704
and service control 1094
and shell scripts 958
attributes for Ext-User 933
attributes for LDAP 958
attributes for RADIUS 958
attributes in AAA servers 958
default lease time 953, 955
default reauthentication time 953, 955
default type for Ext-User 933
ext-group-user (type) 932
Ext-User (type) 932
ext-user (type) 932
groups, see user groups
Guest (type) 932
guest-manager (type) 932
lease time 939
limited-admin (type) 932
lockout 954
reauthentication time 939
types of 932
user (type) 932
user names 935
V
Vantage Report (VRPT) 1149
ventilation holes 101
virtual interfaces 319, 346
basic characteristics 319
not DHCP clients 427
types of 347
vs asymmetrical routes 677
vs triangle routes 677
virtual load balancing 196
Virtual Local Area Network, see VLAN.
Virtual Local Area Network. See VLAN.
Virtual Private Network, see VPN
virtual router 1058
background
Index
USG FLEX Series User’s Guide
1267
virus 835
attack 770, 835
boot sector 789
e-mail 789
file infector 789
macro 789
mutation 789
polymorphic 789
VLAN 366, 373
advantages 373
and MAC address 373
ID 373
troubleshooting 1210
VLAN interfaces 319, 374
and Ethernet interfaces 374, 1210
basic characteristics 319
virtual 347
VoIP pass through 493
and NAT 489
and policy routes 489
and security policy 489
see also ALG 487
VPN 524
active protocol 558
and NAT 556
basic troubleshooting 1215
hub-and-spoke, see VPN concentrator
IKE SA, see IKE SA
IPSec 524
IPSec SA
proposal 553
security associations (SA) 526
see also IKE SA
see also IPSec 524
see also IPSec SA
troubleshooting 1216
VPN concentrator 546
advantages 546
and IPSec SA policy enforcement 548
disadvantages 546
VPN connections
and address objects 529
and policy routes 438, 1216
VPN gateways
and certificates 529
and extended authentication 529
and interfaces 529
and to-ZyWALL security policy 1216
VRPT (Vantage Report) 1149
W
walled garden 665
define 665
domain name 668
site links 665
URLs 666
wall-mounting 103
warranty 1242, 1246
note 1242, 1246
Web attack 835
Web Configurator 42
access 45
access users 955
requirements 45
supported browsers 45
web features
ActiveX 743
cookies 743
Java 743
web proxy servers 743
web proxy servers 482, 743
weighted round robin (for load balancing) 419
weighted round robin algorithm 520
WEP (Wired Equivalent Privacy) 960
white list (anti-spam) 858, 864, 868
Wi-Fi Protected Access 150, 960
WiFi standards
comparison table 961
WiFi6 introduction 960
Windows Internet Naming Service, see WINS
Windows Internet Naming Service, see WINS.
WINS 342, 384, 398, 429, 566, 886
in L2TP VPN 571
WINS server 342, 571
Wireshark 842
Wizard Setup 67, 106
WLAN
troubleshooting 1209
user accounts 934
WLAN interfaces 319
worm 770, 835
background
Index
USG FLEX Series User’s Guide
1268
attacks 835
WPA 960
WPA2 150, 960
WWW 1095
and address groups 1099
and address objects 1099
and authentication method objects 1098
and certificates 1097
and zones 1099
see also HTTP, HTTPS 1095
Z
zipped files
troubleshooting 1211
ZON
utility 193, 1133
zones 928
and FTP 1118
and interfaces 928
and security policy 675, 680, 711, 727, 896
and SNMP 1123
and SSH 1113
and Telnet 1116
and VPN 928
and WWW 1099
extra-zone traffic 929
inter-zone traffic 929
intra-zone traffic 929
types of traffic 929
ZyMesh 990
auto provision 990
bridge loops 991
hop 991
profile 991
Repeater 991
repeater 990
root AP 990, 991
security 993
SSID 993
WDS 990
Zyxel One Network (ZON) 193
