CAUTION
R
www.pyleaudio.com

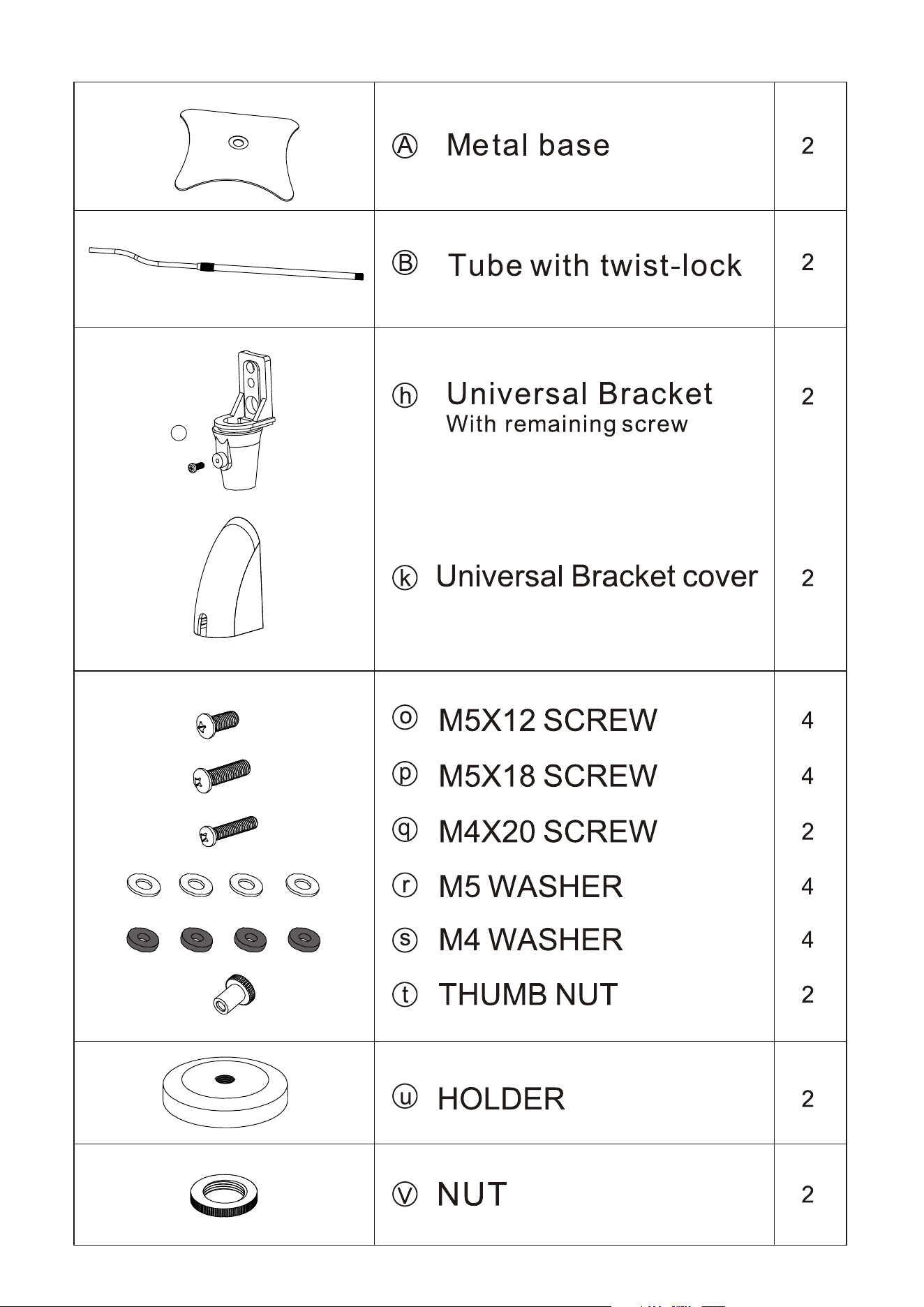

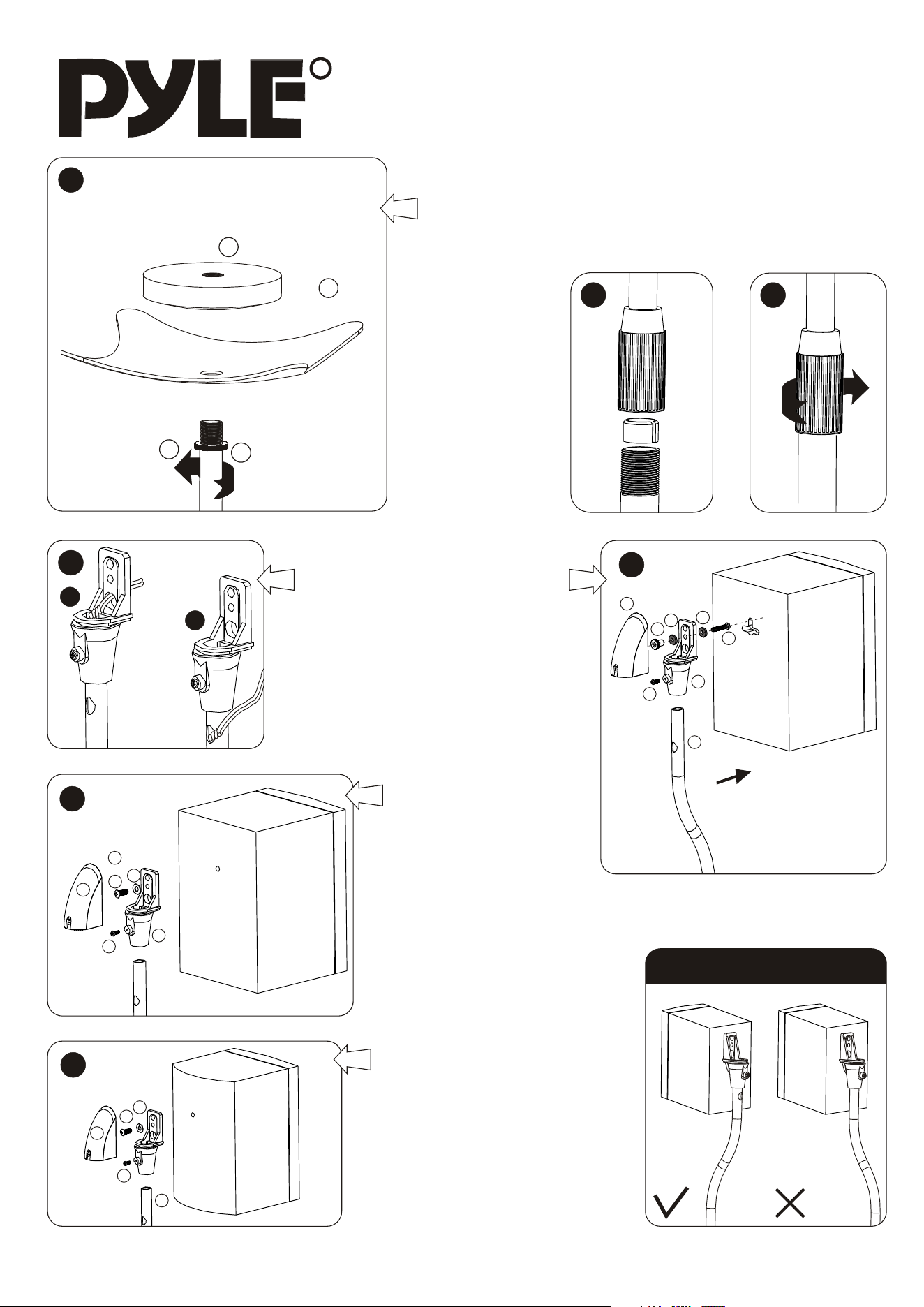

Insert assembled tube(B) into bas (A) and
screw on holder. Turn counterclockwise
to release sliding tube. Adjust to required
height and re-tighten.
For Speakers with Key Hole Mount Please
secure the universal bracket (h) to upright
pole using screw (i). Thread speaker cable
through pole and bracket as pictured in
fig. 3a or 3b. Assemble thumbnut (t)
washers and M4 screw (q) as shown.
Attach speaker-tighten thumbnut. Install
cover cap (k).
PSTND19
For Speakers with Threaded Hole
Secure universal bracket (h) to
upright screw (i). The speaker
cable should be connected to the
speaker and threaded through the
upright as shown in fig. 3a or 3b.
The speaker should be fixed to
bracket (h) using washer (r) and
either screw (o) or (p). Fit cover
cap (k) if required.
For Acoustic Loudspeakers Attach
universal bracket (h) to pole using
screw (i) Feed cable down pole as
shown in fig. 3a or 3b. Attach
loudspeaker to bracket using screw (o)
and washers (r). If required attach
universal cover cap (k).
