AFTER SALE SERVICE
COMMERCIAL ICE MAKER
INSTRUCTION MANUAL
ICE MACHINE
The picture is for reference only. Please be subject to the actual product.
Please read the user manual carefully before using the appliance and keep it for future reference.
Email Address: help@coomotech.com
Phone Number: (213)516-2282
1.If
your
product
breaks
down
or
has
any
problems
after
purchase,
please
contact
us,
you
can
always
contact
our
customer
service
by
email
at
help@coomotech.com
2.Regarding
any
product
problems
or
issues
you
encounter,
our
customer
service
will
guide
you
through
the
entire
service
process.
We
reserves
the
right
to
re-inspect
damaged
or
returned
products.
3.If
you
have
any
warranty
questions,
please
contact
us
at
Email
Address:
Phone
Number:
(213)516-2282
- 17 -

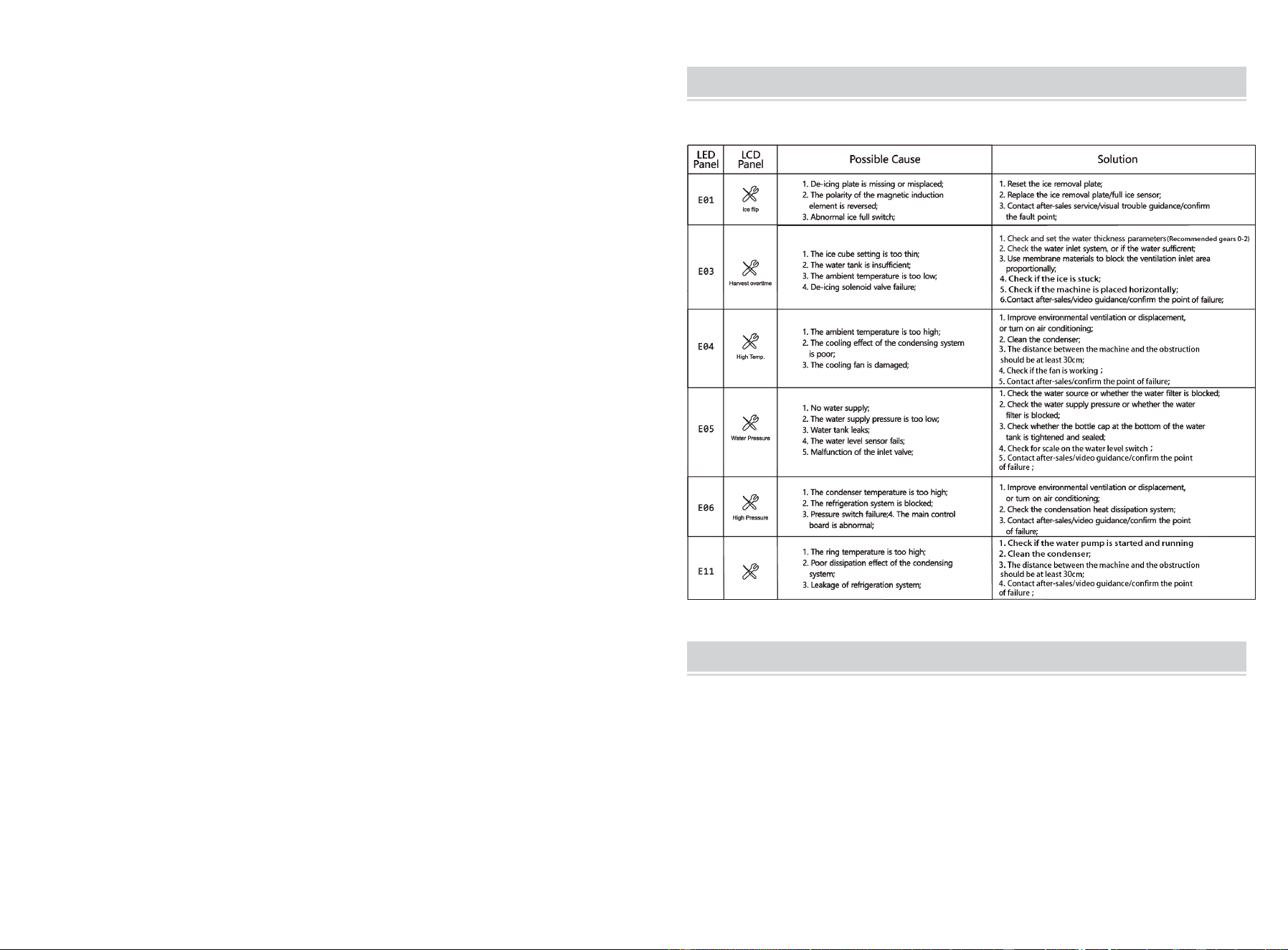

TROUBLE SHOOTING
TECHNICAL PARAMETER AND WIRING DIAGRAM
A.Technology parameters are on the nameplate.
B.The electrical schematic diagram is on the inner side of the board .
- 16 -
- 1 -
SAFETY PRECAUTION
Before the appliance is used, please read the manual carefully. To
reduce the risk of fire, electrical shock or injury when using the
appliance, follow basic precaution, including the following:
DANGER:
Read all instructions before using the ice-making machine.
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not
use an adapter, and do not use an extension cord.
It is recommended that a separate circuit, serving only your appliance be
provided. Use an outlet that cannot be turned off by a switch.
Never clean appliance parts with flammable fluids. These fumes can create a
fire hazard or explosion. And do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or any other appliance. The fumes
can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the
power line of the unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing.
Failure to do so can result in electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is
specifically recommended in this material. All other servicing should be
referred to a qualified technician.
To prevent a child from being entrapped, Keep out of reach of children and
not in the vicinity of ice-making machine.
Before you throw away your old ice-making machine, take off the door but
leave the shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Warning：
This machine should be operated by professionals or trained personnel;
Make sure the machine is reliably connected to the ground to keep safe
- 2 -
Use the power consistent with the one in the nameplate, and the bias voltage
is less than ± 10% of the rated voltage. The professionals must do the wiring;
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.;
Before maintaining the machine, make sure you have cut off the power;
Don’t wet or sprinkle the liquid onto the plugs, motors, or other electrical parts
to avoid electric shock;
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
FLAMMABLE REFRIGERANT
For your safety observe the following recommendations.
This appliance contains a small quantity of R290/R600a ice-making machine
which is environmentally friendly, but flammable. It does not damage the
ozone layer, nor does it increase the greenhouse effect.
During transportation and installation, ensure that the tubing of the refrigerant
circuit is not damaged.
when handling, moving and use of the refrigerator or freezer to avoid either
damaging the refrigerant tubing or increasing the risk of a leak.
Avoid using or manipulating sharp objects near by the appliances.
Leaking refrigerant can ignite and may damage the eyes.
In the event any damage does occur, avoid exposure to open fires and any
device which creates a spark. Disconnect the appliance from the mains
power.
Thoroughly ventilate the room in which the appliance is located for several
minutes.
Notify Customer Service for necessary action and advice.
The ice-making machine quantity contained in this appliance is listed above in
grams; it is also noted on the Rating Plate of the appliance.
- 15 -
- 14 -

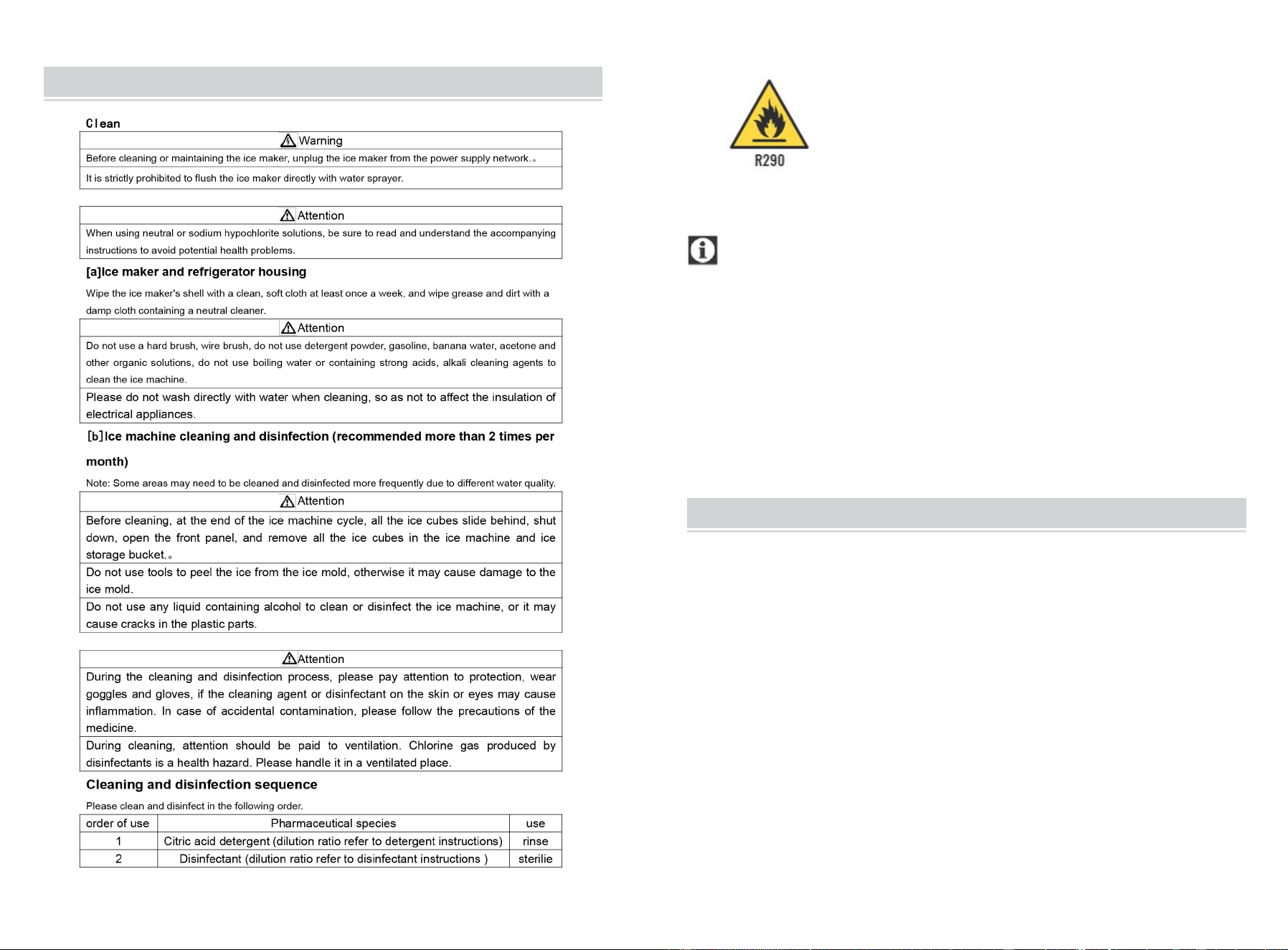

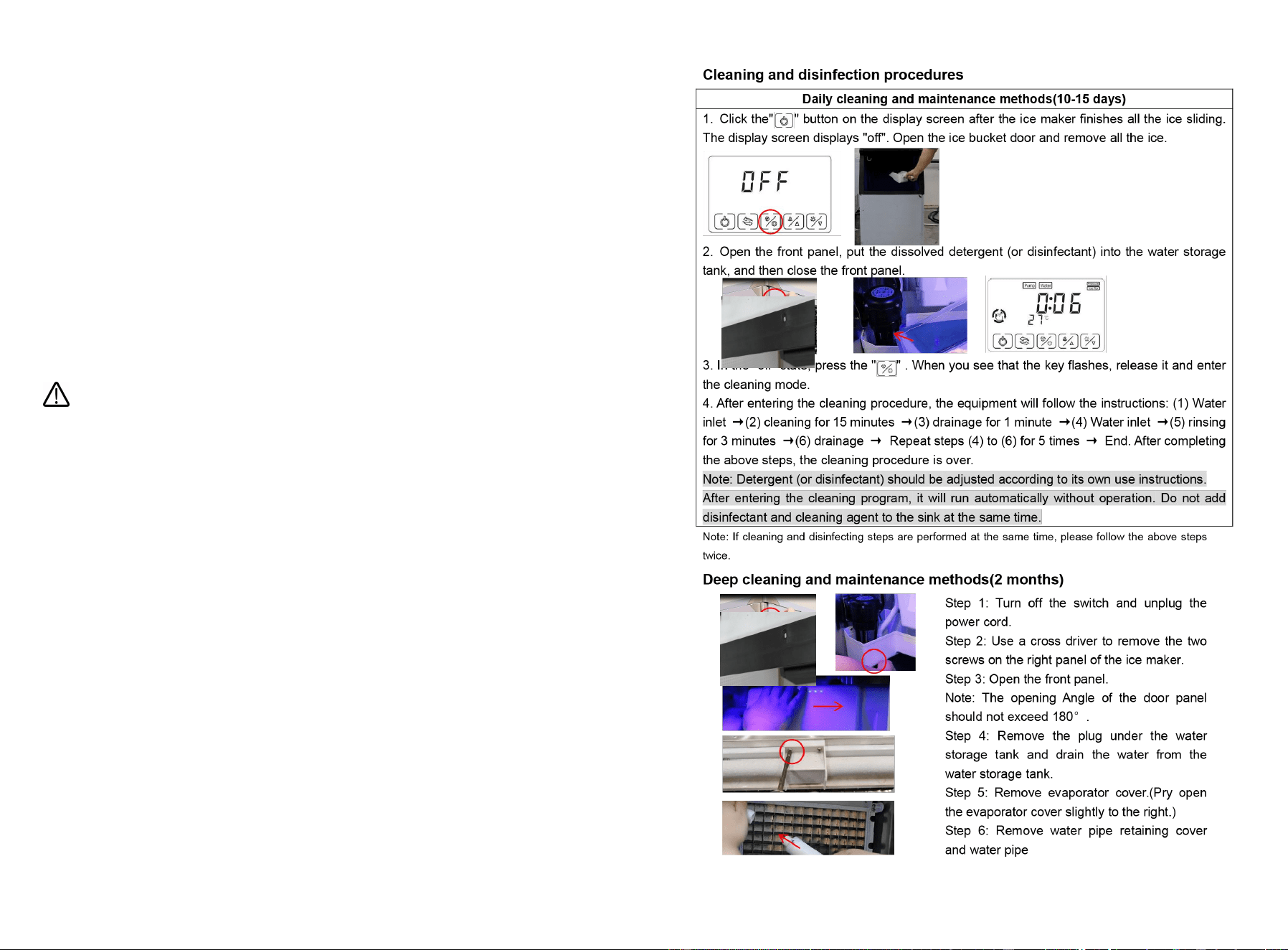

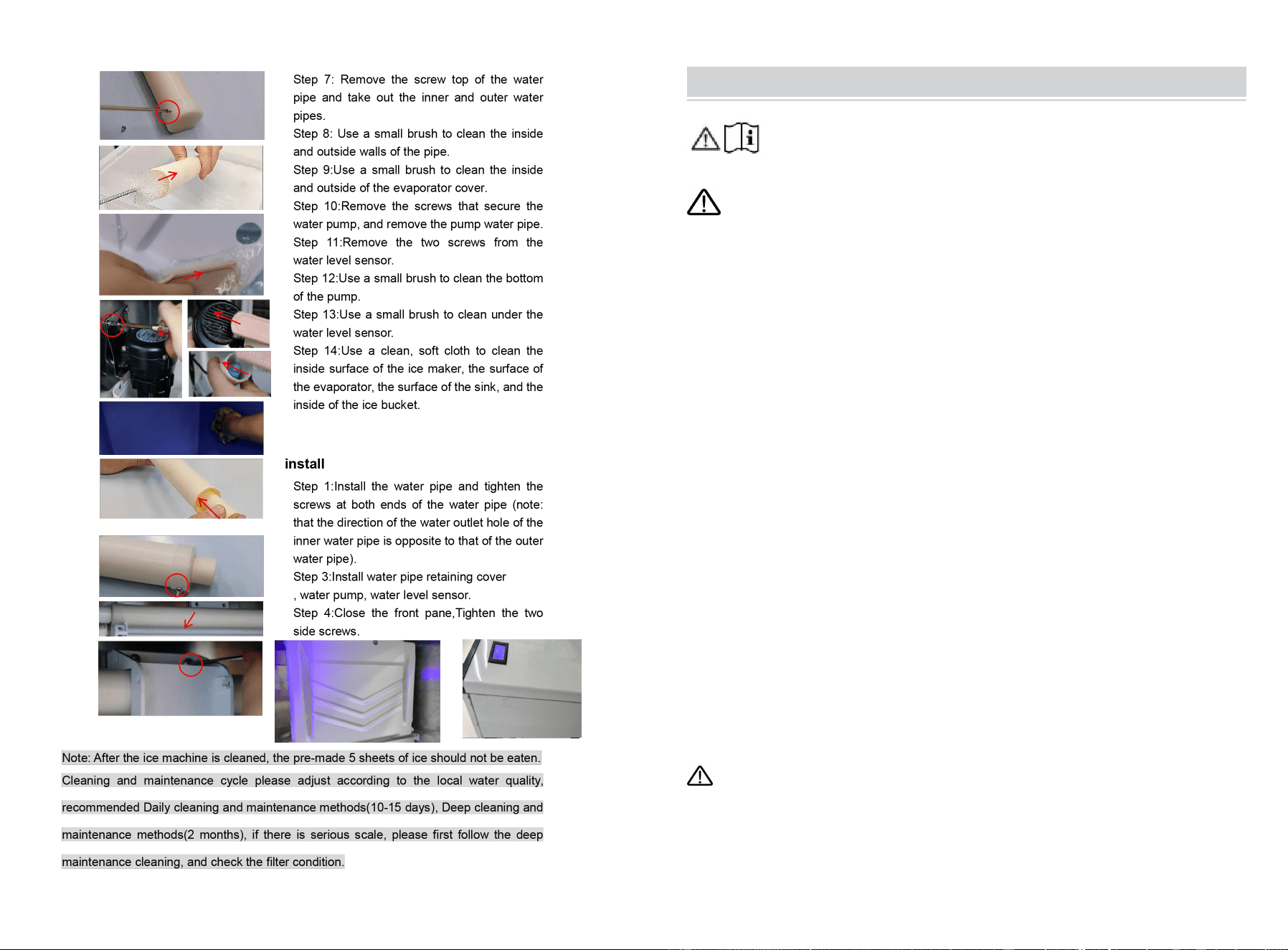

DAILY CLEANING AND MAINTENANCE
- 3 -
WARNING: During using, service and disposal the
appliance, please pay attention to symbol similar as
left side, which is located on rear of appliance (rear
panel or compressor) and with yellow or orange color.
It’s risk of fire warning symbol. There are flammable
materials in refrigerant pipes and compressor. Please be far away fire
source during using, service and disposal.
Note:
Please keep the water or other conductive liquids away from the machine;
Don’t stick clubs into the machine;
During the movement of the machine, it should be carefully carried at an
angle of less than 45 degrees.
Prohibit water discharge pipe or water supply pipe from being bent so that the
pipes are damaged and water leaks out from the pipes.

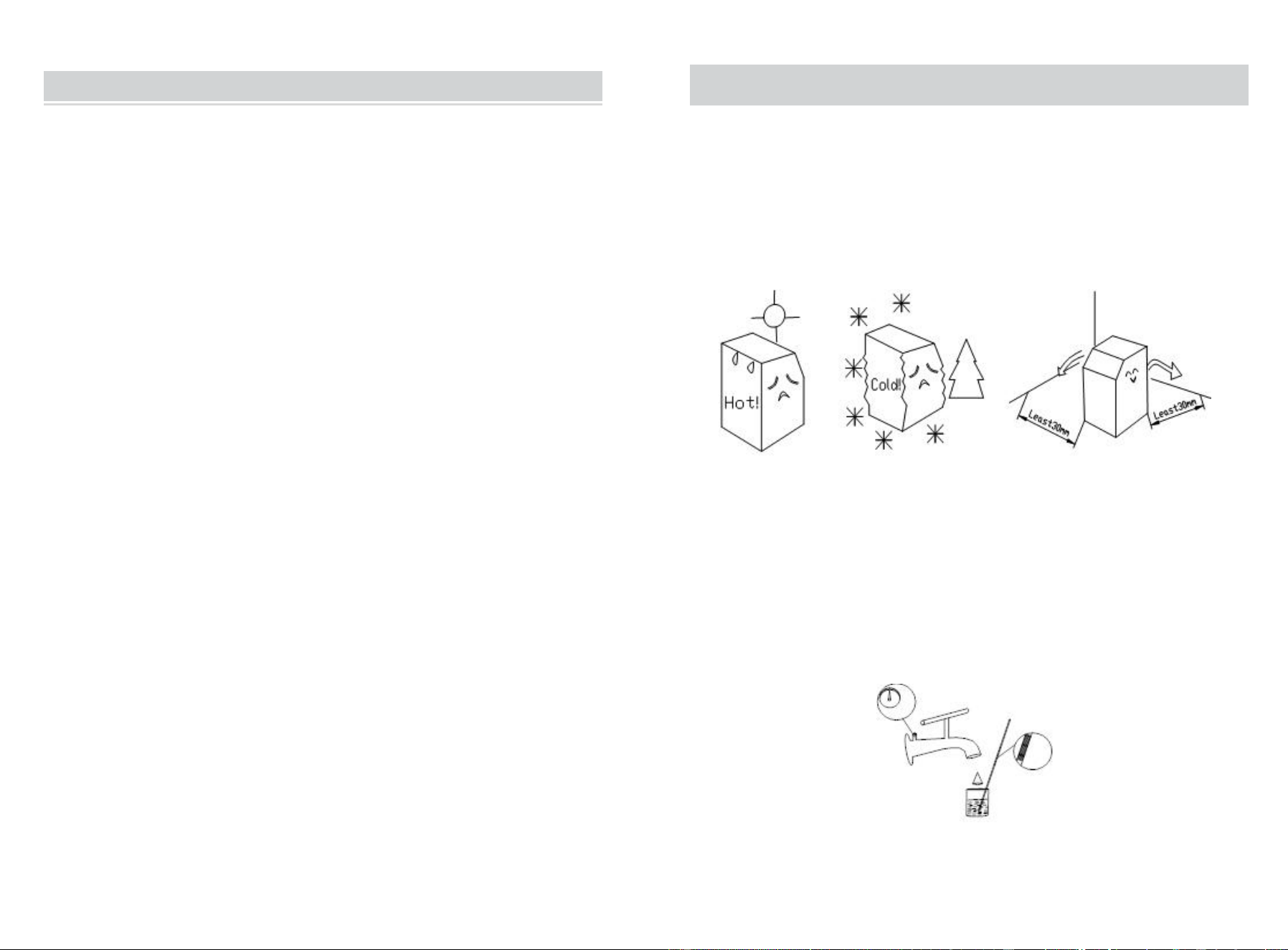

The distance between the air outlets and the wall should be over 30 cm.
Besides, keep good ventilation and ensure the machine is dry and clean.
QUICK USAGE INSTRUCTIONS
Installation requirements:
1.The surface of the machine is covered with a metal protective film, which needs
to be removed before use
2.In order to extend the service life of the ice maker, it must be placed upright for at
least 6 hours before being powered on .
3.The host of this product should be placed directly above the ice storage bin, and
the left, right, and back of the ice maker host should be aligned with the ice storage
bin
4.Pay attention to personal safety when placing the main unit of the ice maker, and
the main unit should not tilt more than 15 °and be at least 30cm away from
obstacles

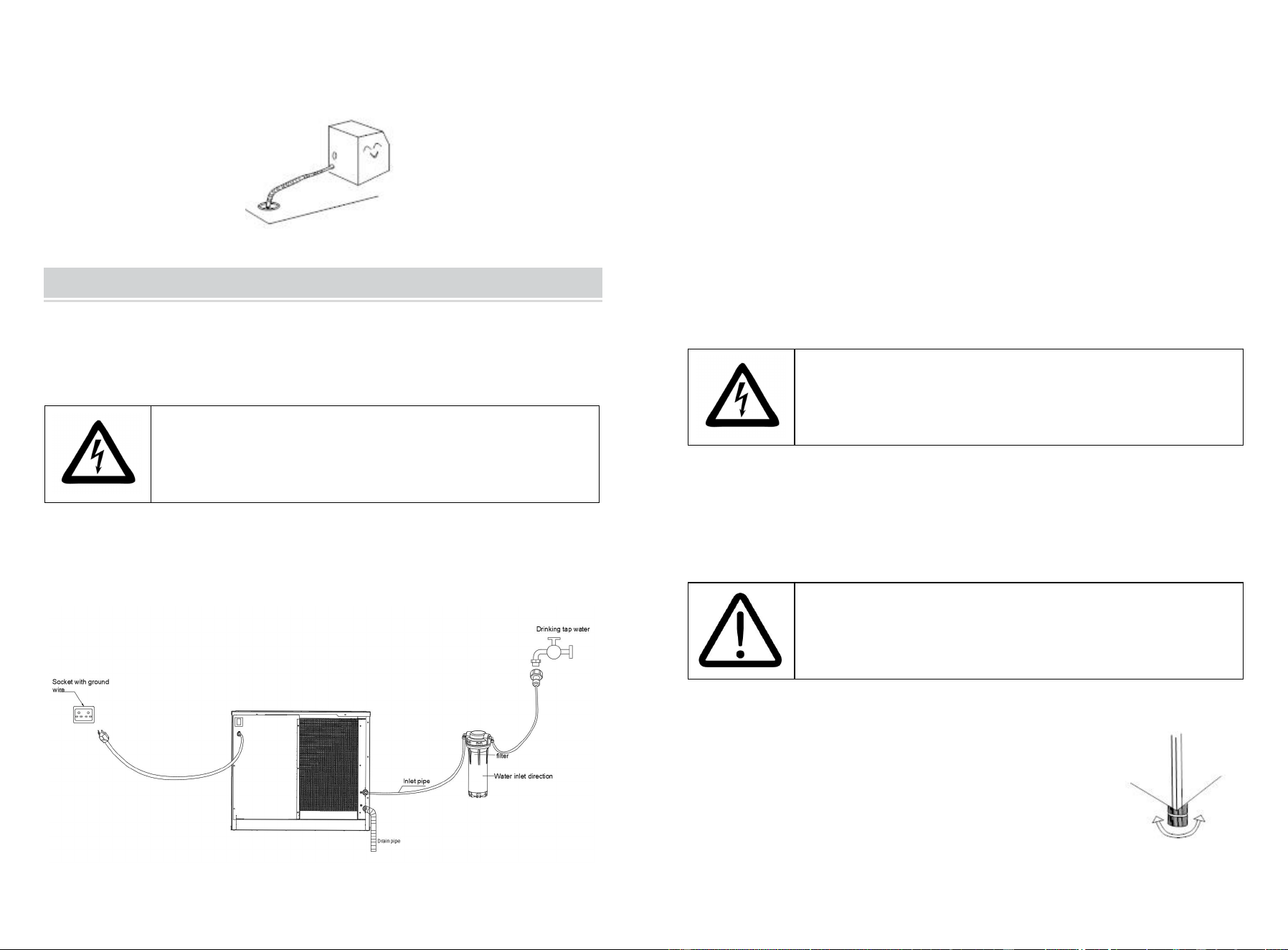

5.Please install the water inlet and outlet pipes of the ice maker host according to
the installation diagram on the back of the host
- 4 -
6.The ambient temperature of this product should not exceed 38 ℃, and the inlet
water temperature should not exceed 32 ℃
7.If there is an E04 alarm, please check the ambient temperature and water
temperature in a timely manner and make corresponding adjustments

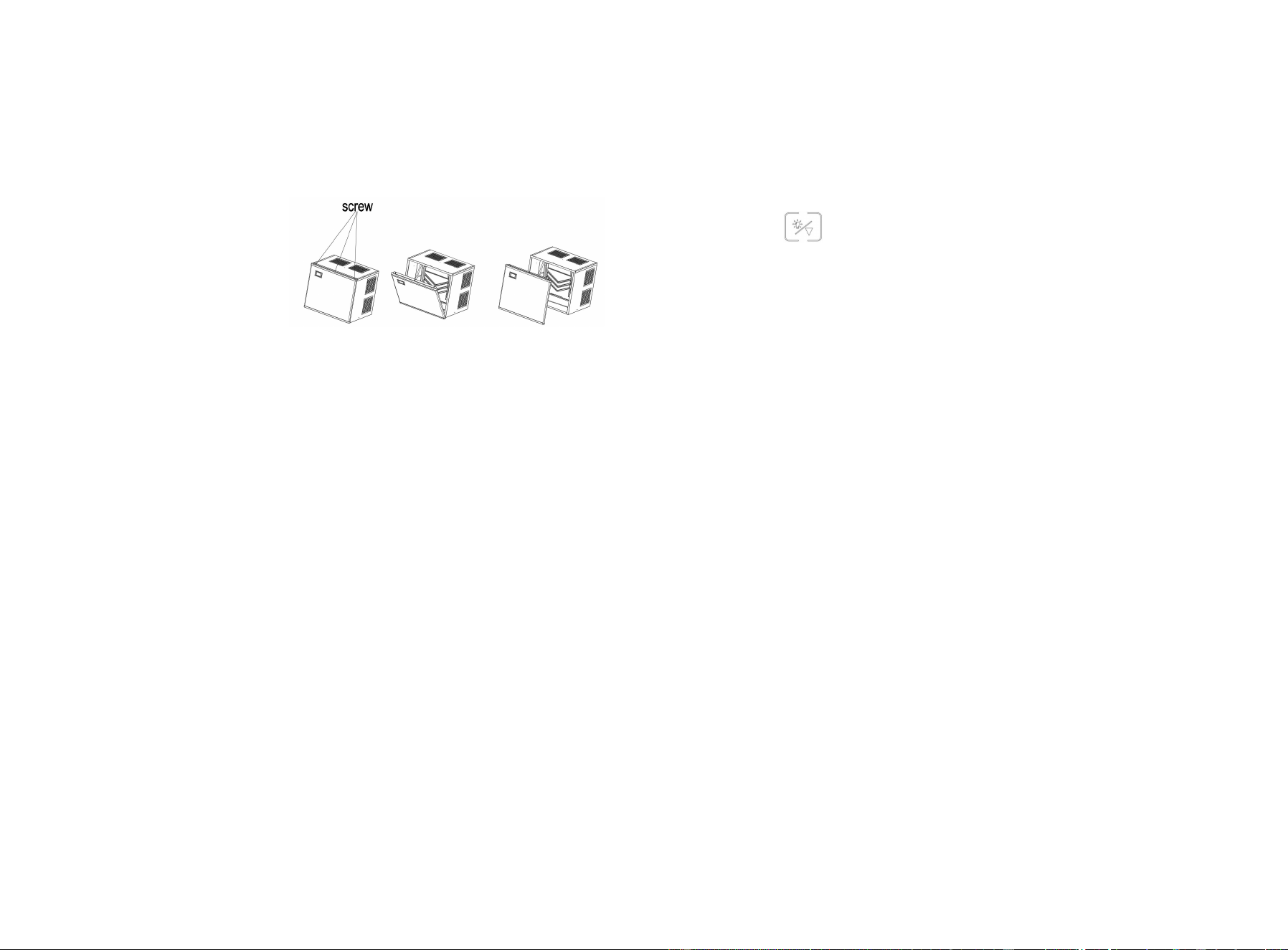

8.Before use, the protective tape needs to be removed. The specific steps are as
follows
step1:Loose the screws .
step2:Remove the tape.
step3:remove the pearl cotton.
Cleaning requirements:
1.Due to significant differences in water quality among different regions, it is
recommended to connect the inlet to prevent impurities from depositing and
blocking pipelines and water pumps
2.Adding a water purification device to the water pipe may cause impurities to
deposit and block the water path, which is not a product quality issue. Please
clean the machine regularly
3.It is recommended to clean the main water system (sink, water pump, water pipe)
every 10-14 days
4.Before manual cleaning mode, add the prepared cleaning agent (such as citric
acid descaling agent) to the water tank. Clean for about 40 minutes
Function Description:
1. Ice thickness setting function: Press "reservation/addition" twice in the startup
state to enter the ice thickness gear state. At this time, you can adjust the ice
thickness according to the actual ice thickness by pressing "reservation/addition"
and "lighting/reduction". It is recommended that the ice thickness gear is not less
than 0
2. Cleaning function: Press the "switch" to display OFF, then press "clean/set" to
enter the cleaning mode. The cleaning time in the cleaning mode is about 40
minutes
- 13 -
press to ice thickness adjust under pressure equilibrium、making ice、 unload ice、
ice full status
click to increase 1, long press the button to increase continuously under ice
thickness adjust status
click to reservation time setting status under turn off status
-/light button:
click to decrease 1,long press the button to decrease continuously under ice
thickness adjust status
Instruction: when the machine is in the “lack-water protection” condition, it can
restart automatically after the sink is filled with appropriate water. If other faults
cause the machine to stop, press the start button or supply power again after
forty-five minutes, and the machine will start again.
- 12 -
LCD FULL PAGE DISPLAY
7. Buttons on display board
Boot / shutdown:
press 3 seconds to turn off the machine under turn on status
press on/off button to turn on the machine under turn off status press the on/off
button to exit setting under ice thickness setting and filling water adjust status
Mode button:
Switch the ice making program
Clean / Set Button:
Press to clean status under machine turn off status
+/reservation button:
- 5 -
SAVE THESE INSTRUCTIONS

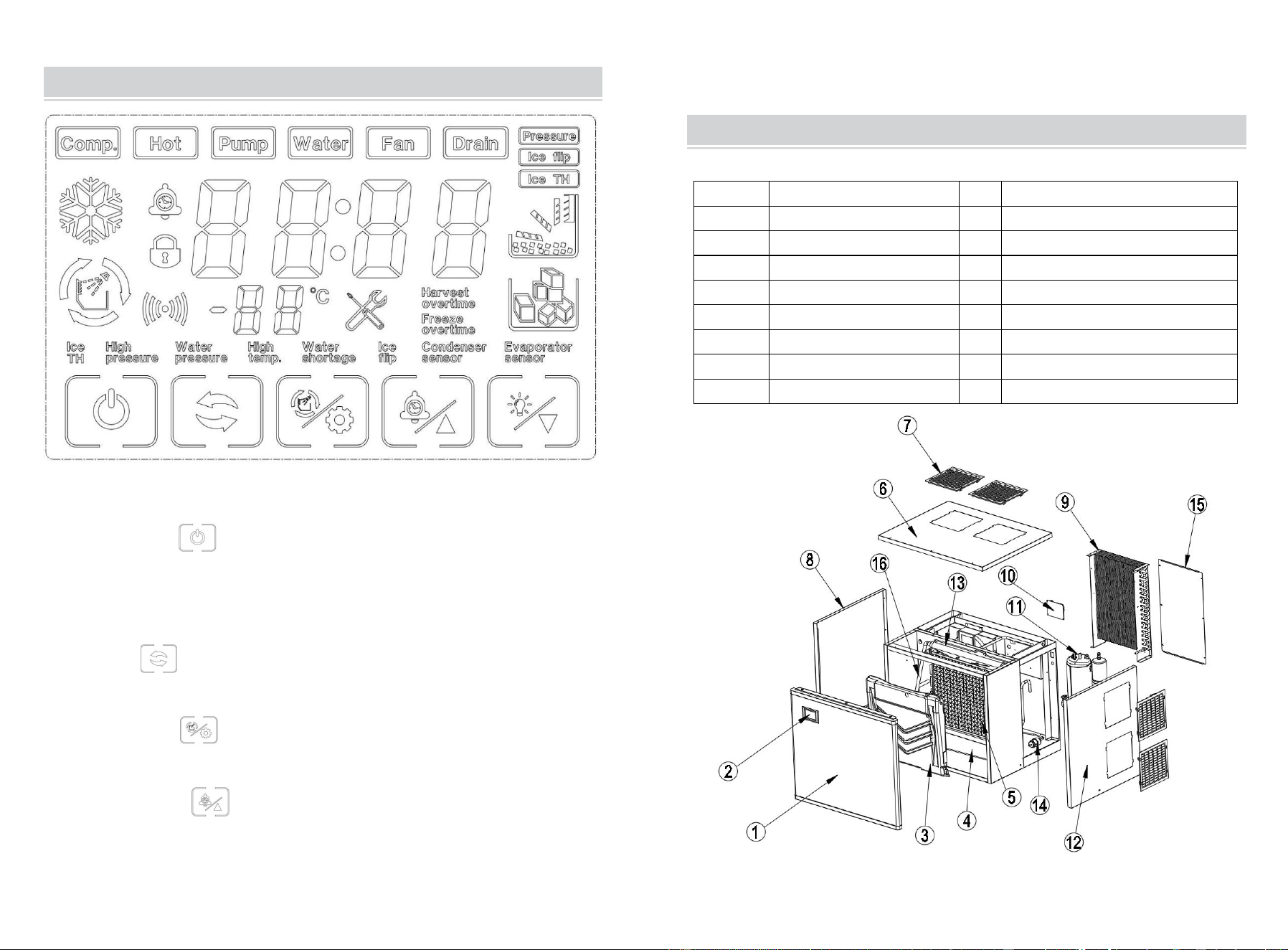

BASIC STRUCTURE
Split type

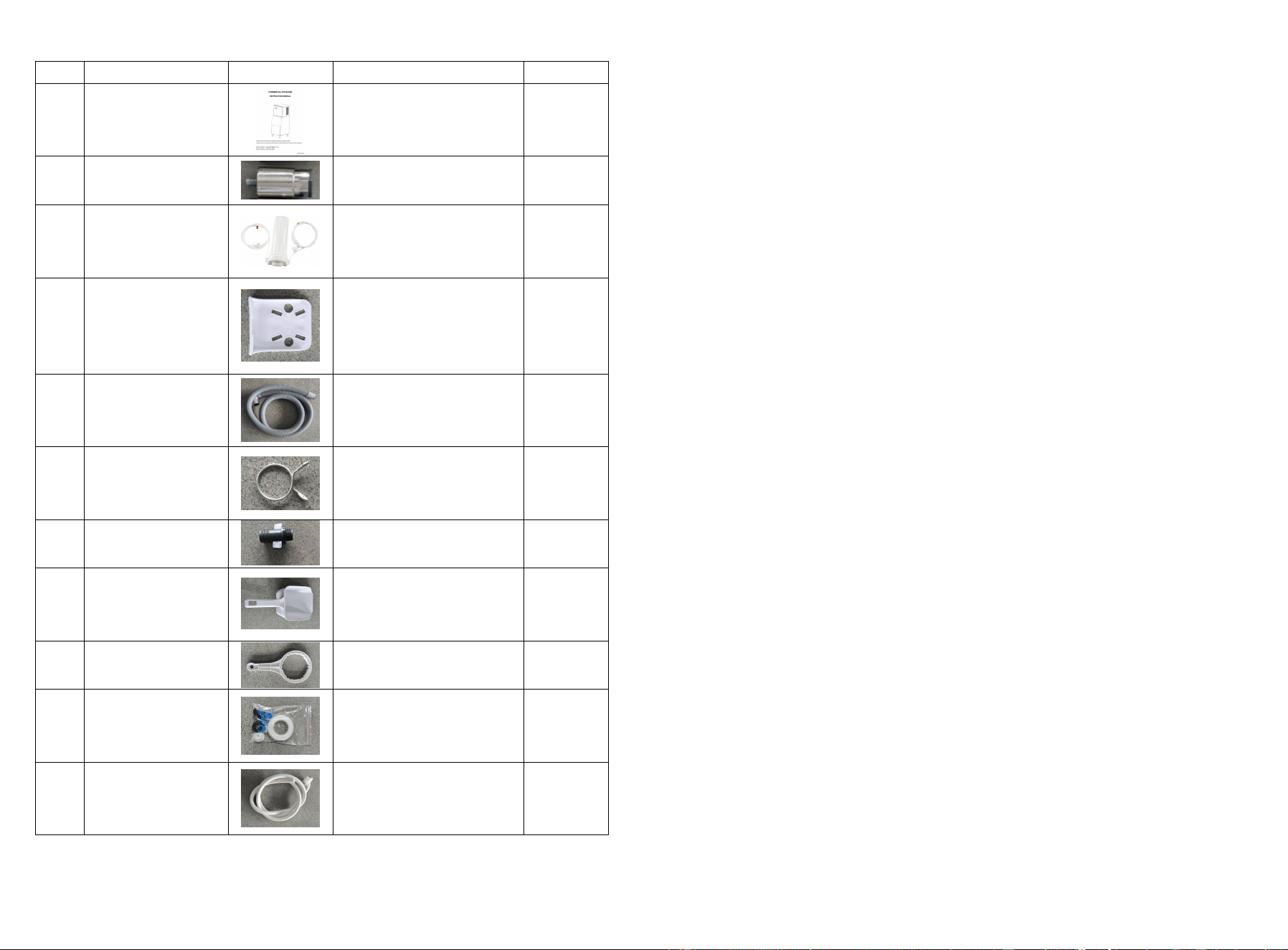

No.
Name
No.
Name
1
Front panel
9
condenser
2
Control panel
10
electric control panel
3
Evaporator cover
11
Compressor
4
Water storage tank
12
Right panel
5
Evaporator
13
spray pipe
6
Top panel
14
device for drying and filtering
7
ventlight
15
back shroud
8
Left panel
16
water pump outlet pipe
- 6 -
No.
Name
Purpose
Quantity
1
Manual
Machine operating
instructions
1PCS
2
Adjustable feet
Assemble before using
4PCS
3
Assembled filter
Filter water
1SET
4
Mounted panel
Fix the filter
1PCS
5
Drain hose of ice
bin
Drain
1PCS
6
Hoop
Fix drain hose
1PCS
7
Drain hose
connector
Connect the drain hose
and ice bin
1PCS
8
Ice spoon
Take ice
1PCS
9
Wrench
Loose the filter
1PCS
10
Accessory kit
If needed
1PCS
11
Water intake
hose
Intake water
1PCS
- 11 -
B.The fan motor for condenser is controlled by temperature, when condenser’s
surface temperature is lower, the fan motor will stop, so as to save power; when
surface temperature rises up, the fan motor will work again, so fan motor work
intermittently during the ice-make process.
C.When a commercial ice maker works at a lower ambient temperature, the
ice-drop process will be later than usual. If it occurs three times continuously, the
machine will stop automatically, and the red light in the electrical box alternately
flickers with the other four lights. After restarting the machine, it will become
normal. Therefore, we suggest the user not use the machine at a low ambient
temperature.
- 10 -
SERVICE INSTRUCTION
1.Operation process
First, turn on the water faucet, power, and water supply valve, then fill the sink with
water, and turn off the faucet when the sink is filled with appropriate water.
2. Ice-make process
After several minutes, the water pump starts work, and the water will be pumped
and flowed through the ice model evenly. At last, the ice is formed in the model.
When the ice thickness sensor detects the regulated thickness of ice, the ice starts
to drop.
3. Ice-drop process
The water pump stops working, the water supply valve will be opened, and water
go into the sink. The heating valve will be turned on, and the refrigerant gas is led
into the ice model; the ice root will be melted, and after about 2 minutes, the ice
block drop into the ice cabinet. The falling ice block hit the retaining board (the
inductive switch, which is fixed on the right side of the retaining board, till now, one
circle is over, and the new ice-make circle will start.
4. Auto-stop
When the ice cabinet is filled with ice blocks, the continuing falling ice block will be
locked between the retained board and evaporator; the retained board would be
opened continually and couldn’t return to the original position. After several
seconds, the ice maker will stop working automatically. Once the ice block locked
between the retained board and evaporator is taken away, the retained board will
return to the its original position, and the ice maker will restart to make ice.
5. Running check
A.When the ice maker is in the working process, a sudden interruption of water
supply can lead to the sink not being filled with appropriate water. The ice maker
will turn into standby condition and not make ice as usual. After the water supply
becomes normal and restart the machine, it can work normally.
- 7 -
INSTALLATION
1.Open the case, move the machine to a appropriate location. Check the packing
list and the contents, if they are different, please inquire your dealer.
2. Operating environment
A. Environment temperature：SN/N：10℃～38℃
Environment humidity: relative humidity ≤90%
Ice maker accessories
The distance between the air outlets and the wall should be over 30 cm. Besides,
keep good ventilation and ensure the machine is dry and clean. The position to
place the ice maker must be far away from the heat source, such as a bake
oven,electric cooker, etc.
B. Water source is suitable for the sanitary standards, the water temperature
and pressure is suitable. For getting the biggest efficiency, the inlet water
temperature value should be 0.6~32℃, and the pressure should be
0.138~0.552MPa.
C. There should be a sewer. While working, some of the water will be
- 8 -
discharged, so the sewer is necessary. Furthermore, the sewer must be kept
unblocked.
POWER SUPPLY
1.Select the proper power supply according to the voltage and power on the
nameplate.
2.Connect the power wire and supply, ensuring the yellow and green wires were
connected with the ground wire firmly.
Caution:
a.For safety, ensure the ground connection is in good condition.
b.All the exterior wires and other appliances must confirm with
national standard.
3.If the voltage fluctuation range is extensive (± 10% over the rated voltage), it will
cause many faults, such as the machine can’t be started, the electronic control
board is damaged, or the compressor being damaged. Therefore, you must use a
suitable automatic voltage regulator.
- 9 -
4. Connect the water supply pipe
Take out the water supply pipe from accessory bag, connect pipe’s double ends to
the water supply valve and water faucet. First, sleeve the connector 1 to the water
faucet, then join one end of water supply pipe which has steel balls to the
connector 1(hang on this water supply pipe’s end, loose it after being connected to
the connector 1), and connect the other end which is attached with a screw to the
water supply valve, the valve also has a screw in its end, screw down the valve in
clockwise. Once finished installation, check the connect part if it is leaks or not.
you should connect the water pipes according to the diagram on the rear panel.
The flow rate of condensate water is adjustable according to customers’ need.
(Condensate flow relates to the speed of making ice)
Warning：The water used to make edible ice block must be
drinking water, furthermore, water’s temperature must be
among 0.6~32℃ and the pressure among 0.138~0.552Mpa.
5. Connect the water discharge pipe
The water discharge pipe is situated at the back of the machine, extended pipe’s
end to the sewer.
Attention
：
In order to keep the water discharged smoothly,
discharge pipe’s lowest point must be above the highest point of
the sewer, so to prevent the discharge water to flow back.
6. Keep the main body in level situation
Please keep the main body level to ensure the ice maker
usually works. First, screw down the two adjustable legs into
the machine’s nuts. You can adjust the two legs properly if the
main body is not level.
