TWG120A
WELDER GENERATOR
Parts Manual

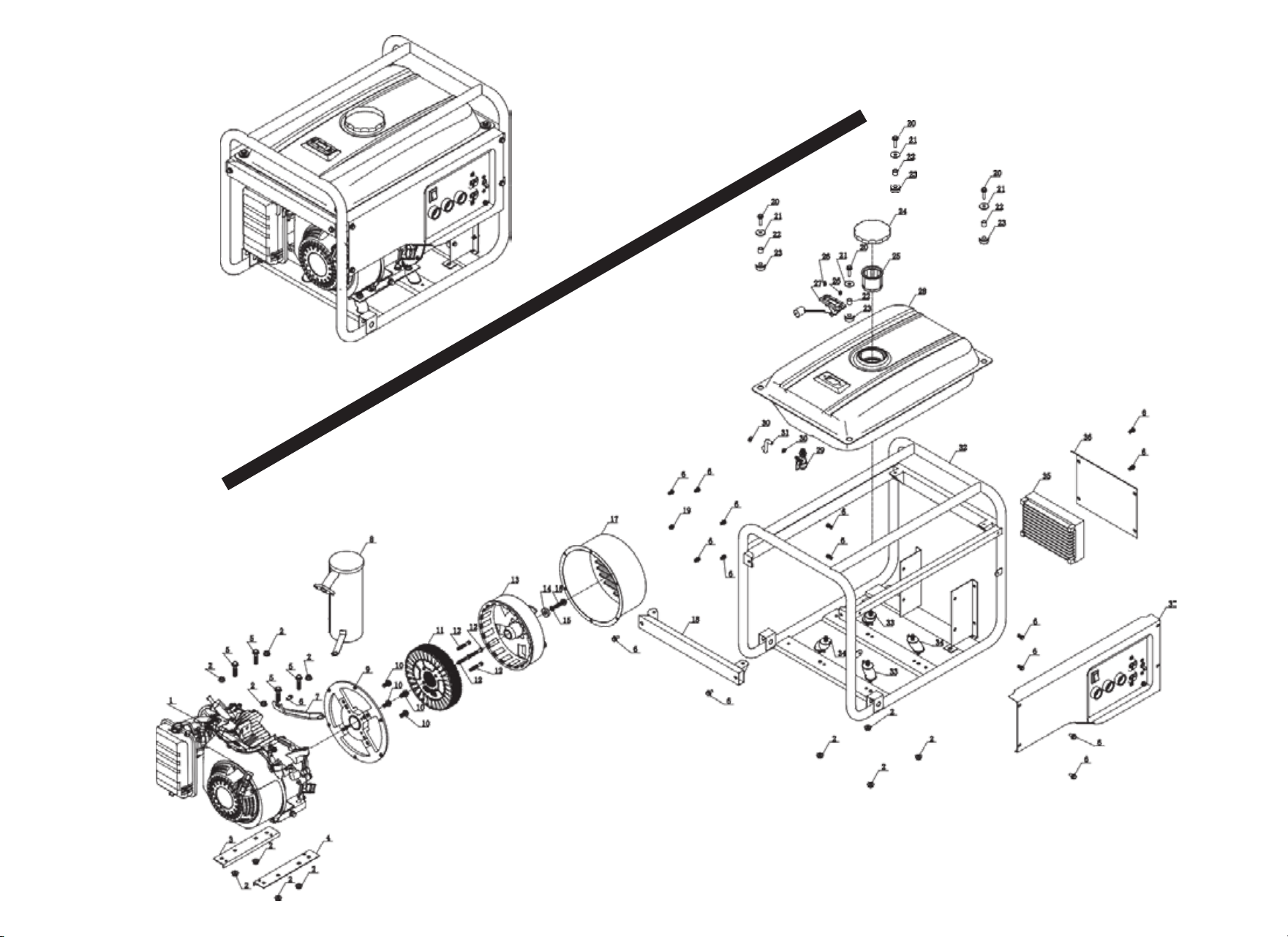

ROTOR AND FRAME ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
ROTOR AND FRAME ASSEMBLY
No. Code Description Qty.
70F.00.0000(A) 170F Engine 1
GB/T 6177 Hex nut,flange M8 12
DC120.40.0001 Back bracket 1
DC120.40.0002 Front bracket 1
GB/T 5787 Hex nut,flange M8X35 4
GB/T 5787 Hex nut,flange M6X12 20
DC120.40.0003 Stay,air cleaner 1
DC120.50.0000 Muffler comp. 1
DC120.10.0001 Housing 1
GB/T 5787 Hex nut,flange M8X16 4
DC120.10.1000 Stator 1
GB/T 5787 Hex nut,flange M6X40 4
DC120.10.2000 Rotor 1
DC120.10.
0002 Washer 1
GB/T 93 Spring washer8 1
DC120.10.0003 Hex nut,flange M8X1X30 1
DC120.10.0001 Cover 1
DC120.40.2000 Bracket 1
GB/T 5787 Hex nut,flange M6X8 1
GB/T 5787 Hex nut,flange M6X25 4
DC120.60.0001 Washer 6X25X1 4
DC120.60.0002
Collar,tank cushion 12X12
4
DC120.60.0003 Rubber,tank cushion 4
DC120.60.2000 Cap comp. 1
DC120.60.0004 Filter comp. 1
GB/T 819 Screw,flat M5X10 2
DC120.60.3000 Fuel meter assy. 1
DC120.60.1000 Fuel tank 1
DC120.60.4000 Fuel cock assy. 1
DC120.60.0004 Tube clip 2
DC120.60.0005 Tube 1
DC120.40.1000 Frame comp. 1
DC120.40.0004 Rubber,Bottom I 2
DC120.40.0005 Rubber,Bottom II 2
DC120.20.1000 Control system,inverter 1
DC120.20.0001 Contro
l panel 1
DC120.30.0000 Plate 1
r:
"
JliL.,,Q I
' 1
·
,;:
1/
\
.
..
' .
,,.tS
"""'
s.a,
...

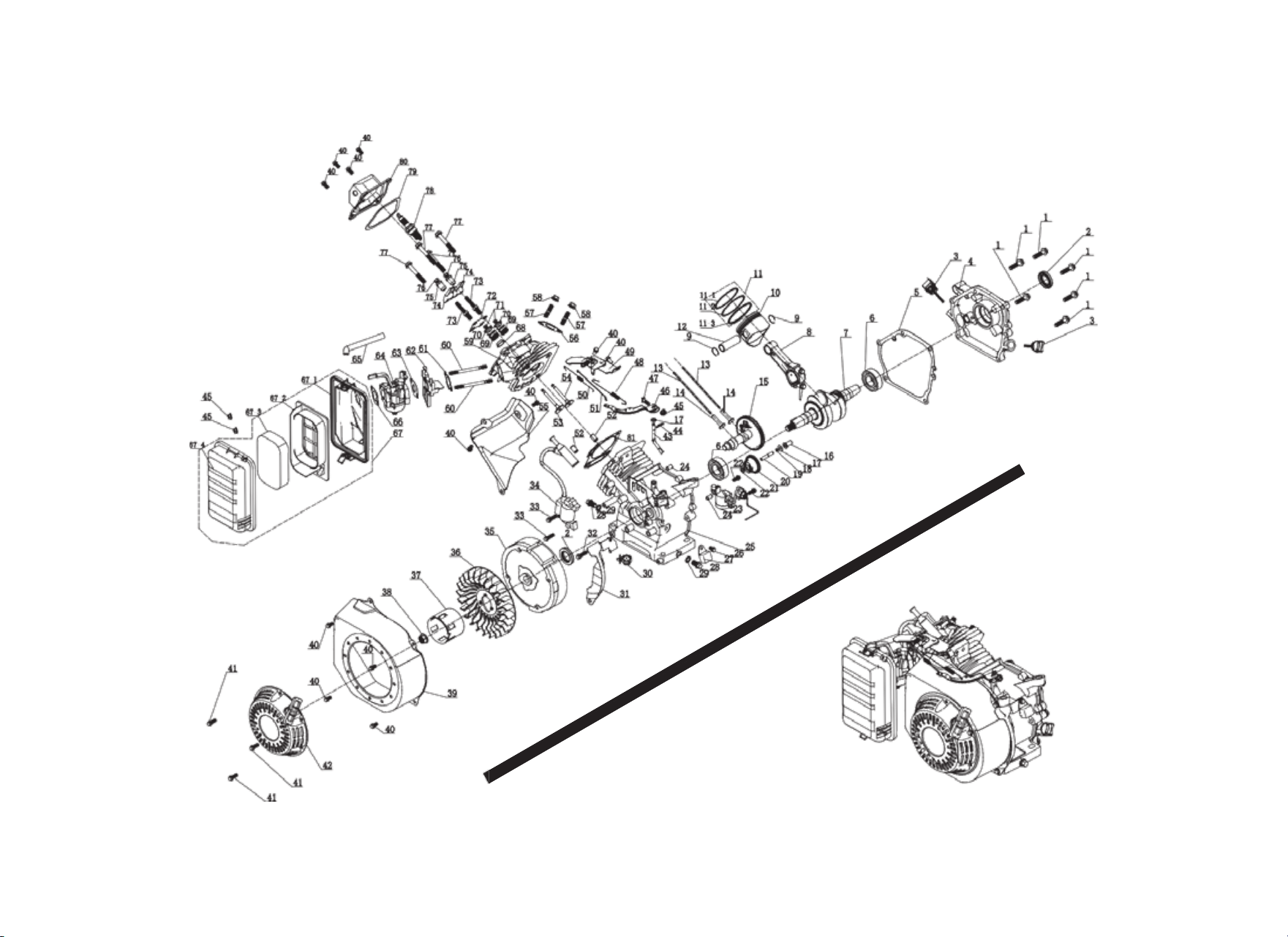

ENGINE ASSEMBLY
5
10
15
20
25
30
35
40
ENGINE ASSEMBLY
No. Code Description Qty.
1 GB/T 5787 Hex nut,flange M8X32 6
2 70F.01.0002 Oil seal 41.25X25X6 2
3 70F.01.2100 Cap,oil filter 2
4 70F.01.2001
（A)
Crankcase cover 1
70F.01.0001 Packing,case cover 1
6 GB/T 276 Bearing 6205/P6 2
7 70F.05.1000 Crankshaft comp. 1
8 70F.02.2000 Connecting rod assy. 1
9 70F.02.1003 Cilp,piston pin 2
70F.02.1001 Piston 1
11 70F.02.1004/1005/1100 Piston ring set 1
11-1 70F.02.1004 1
11-2 70F.02.1005 1
11-3 70F.02.1100 1
12
70F.02.1002 Piston pin 1
13 70F.09.0002 Push rod 2
14 70F.09.0001 Valve lifter 2
70F.04.0000(A) Camshaft assy. 1
16 70F.50.1002 Slider,governor 1
17 70F.50.0004 Washer 15X6.1X0.5 2
18 70F.50.0002 Clip,governor holder 1
19 70F.50.0001 Governor pin 1
70F.50.1000 Governor assy. 1
21 70F.50.0003 Washer 12.8X6.1X1 1
22 GB/T 5787 Hex nut,flange M6X14 2
23 70F.40.1000 Oil sensor 1
24 70F.01.0003 Dowel pin 8X14 2
70F.01.1000 Barrel,assy.,cylinder 1
26 GB/T 5787 Hex nut,flange M6X7 1
27 70F.40.2000 Alert unit 1
28 70F.01.0004 Bolt M10X1.25X15 2
29 70F.01.0005 Washer 15X10X1 2
70F.34.0001 Clip 1
31 70F.01.3000 Plate 1
32 GB/T 5787
Hex nut,flange M6X16 1
33 GB/T 5787 Hex nut,flange M6X22 2
34 70F.06.0001 Ignition coil 1
70F.05.2000 Flywheel 1
36 70F.05.0001 Cooling fan 1
37 70F.05.0002 Pulley,starter 1
38 70F.05.0003 Nut M14X1.5 1
39 70F.30.0001(A) Fan cover 1
GB/T 5787 Hex nut,flange M6X
12 12
41 GB/T 5787 Hex nut,flange M6X8 3
ENGINE ASSEMBLY
No. Code Description Qty.
42 70F.30.1000 Recoil starter 1
43 70F.51.0001 Shaft,Governor arm 1
44 70F.51.0003 Lock pin 1
45 GB/T 6177 Hex nut,flange M6 3
46 70F.51.0004 Governor arm 1
47 70F.51.0005 Bolt M6X21 1
48 70F.51.0007(A) Spring,governor 1
49 70F.53.0000(A) Control assy. 1
50 70F.51.0008 Spring,throttle return 1
51 70F.51.0006 Governor rod 1
52 70F.07.0012 Dowel pin 10X16 2
53 70F.07.0001 Valve,In. 1
54 70F.07.0002 Valve,Ex. 1
55 70F.60.0001 Plat
e 1
56 70F.07.0011 Cylinder head 1
57 70F.07.0008 Bolt M8X32 2
58 GB/T 6177 Hex nut,flange M8 2
59 70F.07.1000 Cylinder head 1
60 70F.07.0007(A) Bolt M6X90 2
61 70F.07.0010 Packing,air cleaner 1
62 70F.10.0001 Insulator 1
63 70F.10.0003 Packing,carburetor 1
64 70F.10.1000(A) Carburetor 1
65 70F.03.0002(A) Tube 1
66 70F.20.0001(A) Air cleaner 1
67 70F.20.1000(A) Packing 1
67-1 70F.20.1001(A) Base comp. 1
67-2 70F.20.1002(A) Case comp. 1
67-3 70F.20.1003(A
) Element,air cleaner 1
67-4 70F.20.1004(A) Cover,air cleaner 1
68 70F.07.0015 Seal,valve 1
69 70F.07.0003 Spring,valve 2
70
70F.07.0005 Retainer 2
71 70F.07.0006 Rotator,valve 2
72 70F.07.0014 Guide,push rod 1
73 70F.07.2002 Bolt,pivot 2
74 70F.07.2001 Arm,valve rocker 2
75 70F.07.2004 Pivot 2
76 70F.07.2003 Nut 2
77 70F.07.0013 Bolt M8X60 4
78 70F.06.2000 Spark plug 1
79 70F.03.0001 Packing,head cover 1
80 70F.03.1000 Cover comp. 1
81 70F.07.0009 Packing 1

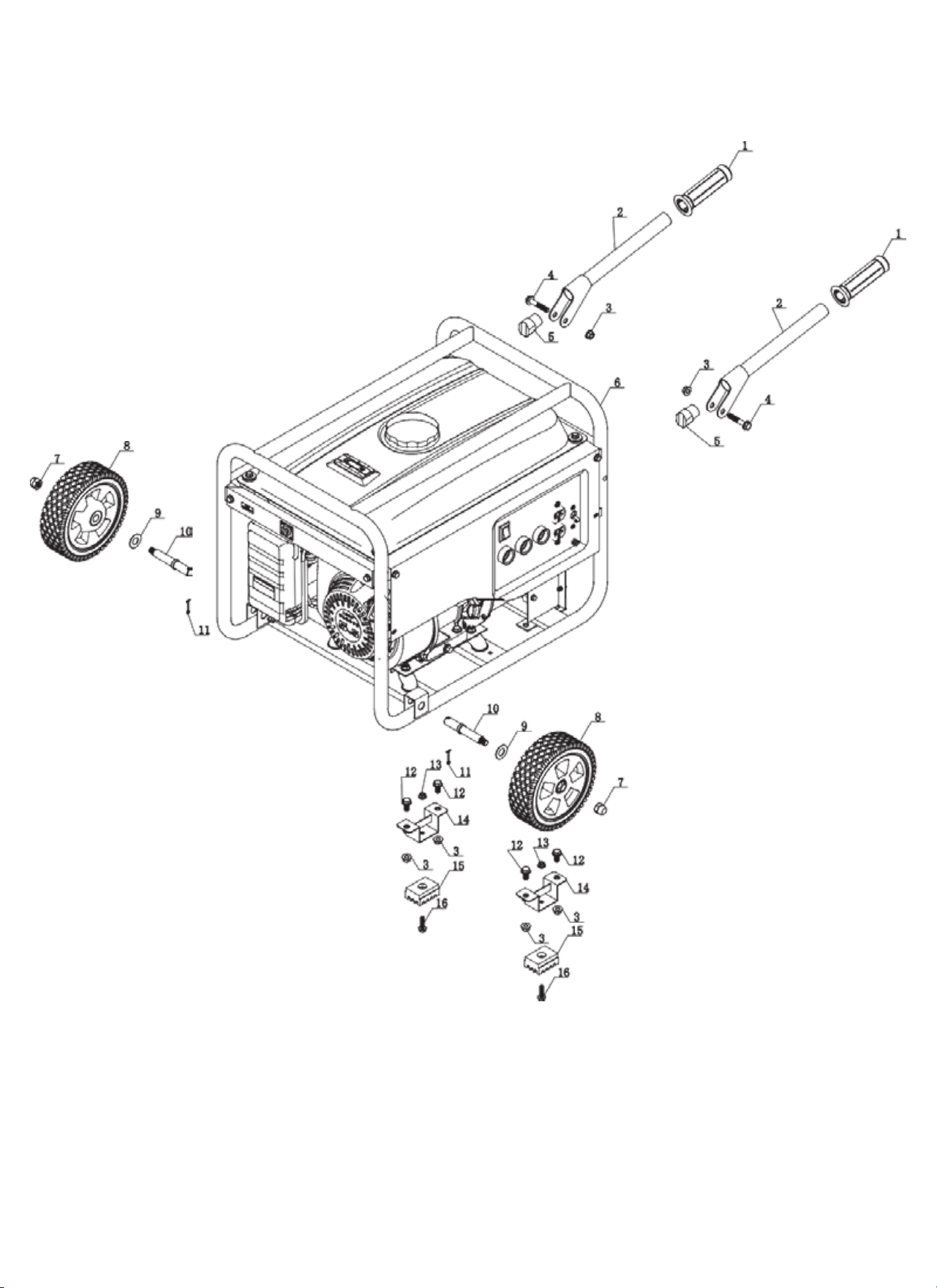

HANDLES AND WHEELS ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
HANDLES AND WHEELS ASSEMBLY
No. Code Description Qty.
DC120.60.1001 Grip,handle 2
DC120.60.1002 Handle comp. 2
GB/T 6177 Hex nut,flange M8 6
GB/T 5787 Hex nut,flange M8X45 2
DC120.60.1003 Rubber,handle 2
DC120.00.0000 Welder generator 1
GB/T 923 Nut M10 2
DC120.60.2000 Wheel comp. 2
DC120.60.0001 Washer 14X28X1.5 2
DC120.60.0001 Shaft comp.wheel 2
GB/T 91 Pin 3X50 2
GB/T 5787 Hex nut,flange M8X16 4
GB/T 6177 Hex nut,flange M6 2
DC120.60.0002 Stand 2
DC120.60.0003 Rubber 2
GB/T 5787 Hex nut,flange M6X25 2
■
