2A9398-010
Hoshizaki SD-271 Cabinet Stand
For Use with DCM-271BAH and DCM-271BAH-OS
Installation Instructions to attach a DCM-271 series dispenser to the cabinet stand.
1) Select a at and rm installation site.
2) Attach the four (4) adjustable legs (included) to the stand. Adjust the legs to prevent instability.
3) Open the door.
4) Remove the two screws securing the panel and then remove the panel.
5) Remove the legs from the dispenser. Make sure the drain line and water supply line are disconnected from the
dispenser.
6) Position the dispenser on top of the stand. Be sure to align the drain on the dispenser with the drain hole on the
stand.
7) Using the four (4) bolts included with the stand, secure the dispenser to the stand.
8) Make the drain line and water line connections. Route the lines and the electrical cord through the grommets on
the stand's rear panel.
9) Using the two screws, reattach the panel in its proper position.
10) Seal the seam all the way around between the dispenser and stand with food grade silicone.
Note: The door on the stand is reversible. To reverse the door, remove the screws securing the hinges to the
stand. Rotate the door 180° and reattach on the other side.

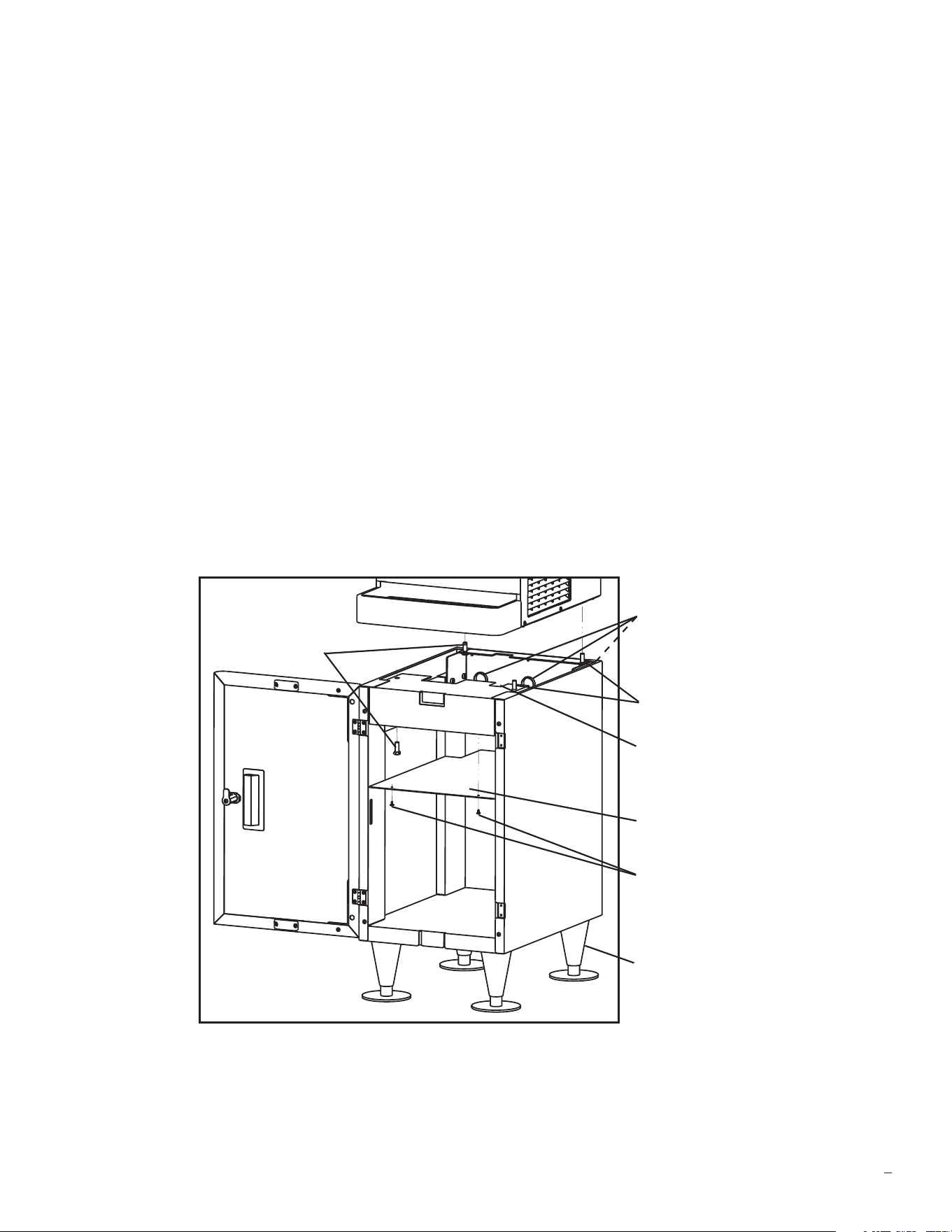

Panel
Screws
Bolts
Drain
Pipe Area
Bolts
Grommets
Leg
