90cm Wide 177cm
High American Style Fridge Freezer
Instruction Manual
Model number:
RH90AFF201
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
- 2 -
Contents
Safety Instructions ………………………………………. 3-5
Installing & Switching on your Appliance ………………………………………. 6
Before Switching On ………………………………………. 7
Product Overview ………………………………………. 8
Positioning & Installation ………………………………………. 9
Usage ………………………………………. 10-14
Shelving & Racking Adjustment ………………………………………. 14
Water Dispenser (if applicable) ………………………………………. 15
Replacing the Bulb & Door Reversal ………………………………………. 16
Removing the Doors ………………………………………. 17
Freezer Storage Advice ………………………………………. 18
Food Storage Advice ………………………………………. 18
Energy Saving Advice ………………………………………. 19
Power Failure ………………………………………. 19
Maintenance & Cleaning ………………………………………. 20-21
Trouble Shooting ………………………………………. 22-23
Connection to the Mains Supply ………………………………………. 24
Guarantee ………………………………………. 25
Technical Specification ………………………………………. 26
Product Fiche ………………………………………. 27
Product Fiche ………………………………………. 28
Notes ………………………………………. 29-31
- 3 -
Safety Instructions
Important note: Please read this booklet before installing and switching on this
appliance. The manufacturer assumes no responsibility for incorrect installation
and usage as described in this booklet.
Warning: When positioning the appliance, ensure the supply cord is not
trapped or damaged.
Warning: Do not locate multiple portable socket-outlets or portable power
suppliers at the rear of the appliance.
• This model uses natural refrigerant gas as part of its cooling system. This
gas is known as R600a (Isobutene) and is environmentally friendly but can be
combustible. Care should therefore be taken when handling or transporting the
product to ensure that none of the refrigeration circuit components are
damaged,
• Do not obstruct ventilation openings in the appliance
• The appliance must not be placed or rested on its power cord.
• Do not use mechanical devices or other artificial means to accelerate the
defrosting process, such as a heater or a hair dryer.
• Do not use electrical appliances in the refrigerator compartment of the
appliance.
• If this appliance is to replace an old refrigerator with a lock, the lock must be
removed as a safety measure before storing it or disposing of it. This is to
protect children from locking themselves inside the appliance.
• Old refrigerators and freezers contain insulation gases and refrigerant, they
must be disposed of properly. Contact your local authority or your dealer if
you have any questions. Please ensure that you do not damage the scrap unit
prior to being picked-up by the relevant waste disposal service.
• Do not use adaptors or extension leads when connecting the appliance to the
electrical power supply
- 4 -
• Do not plug in damaged plugs.
• Do not pull, twist or damage the power cable.
• Do not plug-in or un-plug the appliance with wet hands to prevent electrical
shock.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• This appliance is designed to be used by adults, do not allow children to play
with the appliance or let them hang over the door.
• Do not place explosive or flammable material in your appliance for your own
safety.
• Bottles containing a high percentage of alcohol must be sealed well and placed
vertically in the refrigerator.
• Do not cover the body or the top of the appliance
• Fix down the accessories in the appliance during transportation to prevent
damage to them.
• To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage
systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
• Two-star frozen-food compartments(if they are presented in the appliance) are
suitable for storing pre-frozen food, storing or making ice-cream and making ice
cubes.
- 5 -
• One-, two- and three -star compartments (if they are presented in the
appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean,
dry and leave the door open to prevent mount developing within the
appliance.
Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
• Before switching on, make sure that the voltage of your electricity supply is the
same as that indicated on the rating plate. This product is designed to operate
on 220 – 240V AC; 50Hz. Connection to any other power source may damage
the unit.
• This product may be fitted with a non re-wireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
• If the plug has to be changed because it is not suitable for your socket, or
becomes damaged in any way, it should be cut off and an appropriate plug
fitted following the wiring instructions. This should be carried out by a qualified
electrician. The plug removed must be disposed of safely, as insertion into a 13
Amp socket is likely to cause an electrical hazard.
Transportation and Handling
For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the
base and rear corners of cabinet. Lift the refrigerator carefully. Never use the door
handles for lifting. To move the refrigerator on a flat level surface, tilt it slightly
backwards and push backwards.
This unit is heavy and could cause injury – ensure there are adequate people
present to move the appliance.
- 6 -
Installing and Switching on Your Appliance
• Operating voltage for your appliance is 220-240V at 50Hz.
• Before plugging in the power supply, ensure that the voltage on the rating label
corresponds to the working voltage of your electrical system in your home.
• Insert the plug into an efficient Ground (Earth) connection. If the socket has no
Ground (Earth) contact or the plug does not match, we suggest you call an authorised
electrician for assistance.
• Place your appliance in an area that is not exposed to direct sunlight.
• Your appliance should be placed at least 10cm away from stoves, ovens and other
heating cores.
• This appliance should never be used outdoors or left in the rain.
• When your appliance is placed next to a chest freezer or freezer, there should be at
least 10cms between them to prevent humidity on the outer surface.
• Do not place anything on your appliance and install the unit in a suitable place so that
there is at least 30cm clearance above the appliance.
• If placing your appliance next to kitchen cabinets, leave 5cm between them.
• The rear of the appliance should be at least 6cm away from the back wall.
• The appliance must be used in the vertical position and on a flat surface.
• To level the appliance, use the adjustable feet on the appliance.
• Do not place your appliance on a carpeted surface as this will prevent adequate
ventilation.
• "This appliance is not intended to be built-in to worktops or other units, unless
specifically outlined in this instruction manual. All vents must remain clear of
obstruction to ensure safety and performance.
• This appliance should only be placed on a flat, firm surface.
• Choose a dry and well-ventilated space.
• The appliance should be positioned so that the plug is easily accessible.
WARNING! During use, service and disposal of the appliance,
please pay attention to symbol similar to the one shown, which is
located on rear of the appliance (rear panel or compressor) and
with a yellow or orange colour. It’s risk of fire warning symbol.
There are flammable materials in refrigerant pipes and
compressor. Please be far away from fire source during use,
service and disposal.
- 7 -
Before Switching On
• Before using your appliance, add a teaspoon of bicarbonate of soda to warm
water and with a damp cloth wipe down all parts of the new appliance, then
repeat the process with a clean damp cloth and dry (ensure the appliance is not
connected to the power when performing this task).
• Remove all transport tapes and foam protection pieces . Clean the interior with
a cloth dampened in lukewarm soap and water. Wipe with clean water and
wipe dry.
• There may be an odour when you first switch on the appliance, it will disappear
when the appliance starts to cool.
• When the appliance has been positioned, adjust the feet to ensure the unit is
stable. This is essential to ensure quiet running and proper door opening
/closing.
• Connect to the electrical socket but do not switch the power to the refrigerator
on for at least 3 hours. The coolant within the product needs time to settle after
it has been transported and put in to position, failure to do this will affect the
cooling performance of your appliance.
• Once the appliance has settled switch on the power, the compressor will begin
to work. Locate the control panel and set the temperature of the fridge
compartment to 4°C and the freezer compartment to -18°C. Close the door
• You may hear faint gurgling or bubbling sounds when the refrigerant is pumped
to the cooling system and through the coils or tubing at the rear of the
appliance. When the compressor is in operation you may hear a slight whirring
sound or pulsating noise. The thermostat controls the operation of the
compressor, and you may hear a slight click as it cycles in and out (this is
normal).
• To save energy, you should minimize the frequency and duration of door
opening.
- 8 -

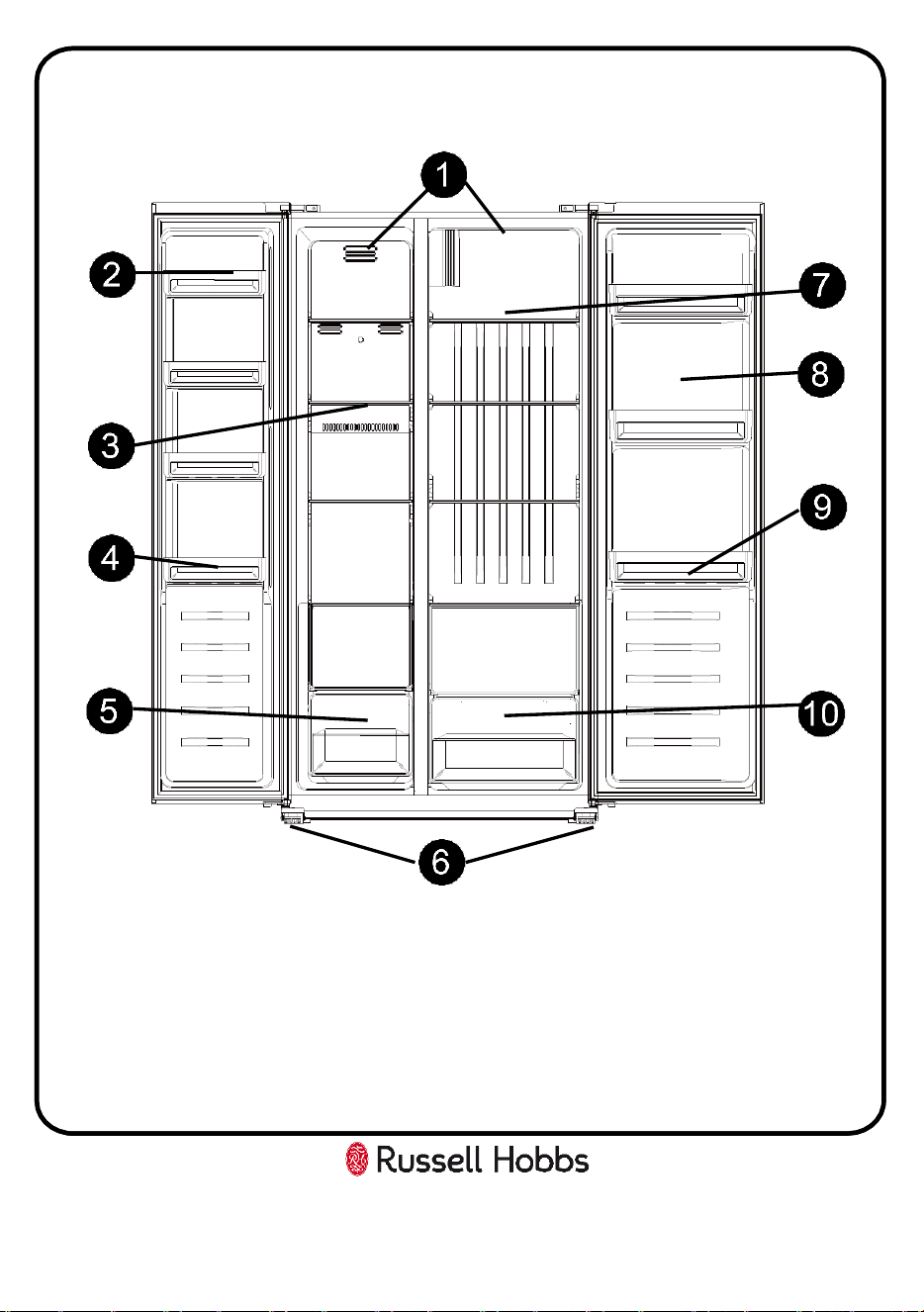

1. Internal LED Lights
2. 2 Star Freezer Balcony
3. Freezer Glass Shelves
4. Freezer Door Balconies
5. Freezer Drawer
6. Adjustable Feet
7. Fridge Glass Shelves
8. Water Tank (*if applicable)
9. Fridge Door Balconies
10. Fridge Crisper Drawer
Your Appliance and the Compartments
*
Positioning & Installation
- 9 -
This appliance should be installed well away from sources of heat such as
radiators, boilers or direct sunlight. This appliance should have a minimum of
100mm from overhead cabinets. This appliance is not intended to be used as a
built-in appliance.
IMPORTANT Ensure there is a minimum of 50mm gap around the sides and back
of the appliance to provide adequate airflow.
Levelling the Appliance
The two feet at the bottom of the appliance can be adjusted to level it the
appliance. A minimum of 2 people must adjust the feet of the appliance.
A 900mm
B 590mm
C 1770mm
D Min. 50mm
E Min. 50mm
F 1537mm
G 1050mm
H 135°
Using a spirit level, turn the feet clockwise or counter-clockwise to raise/lower
the front. Levelling the appliance will ensure the doors and magnetic seal
operate correctly.
- 10 -
Usage Information

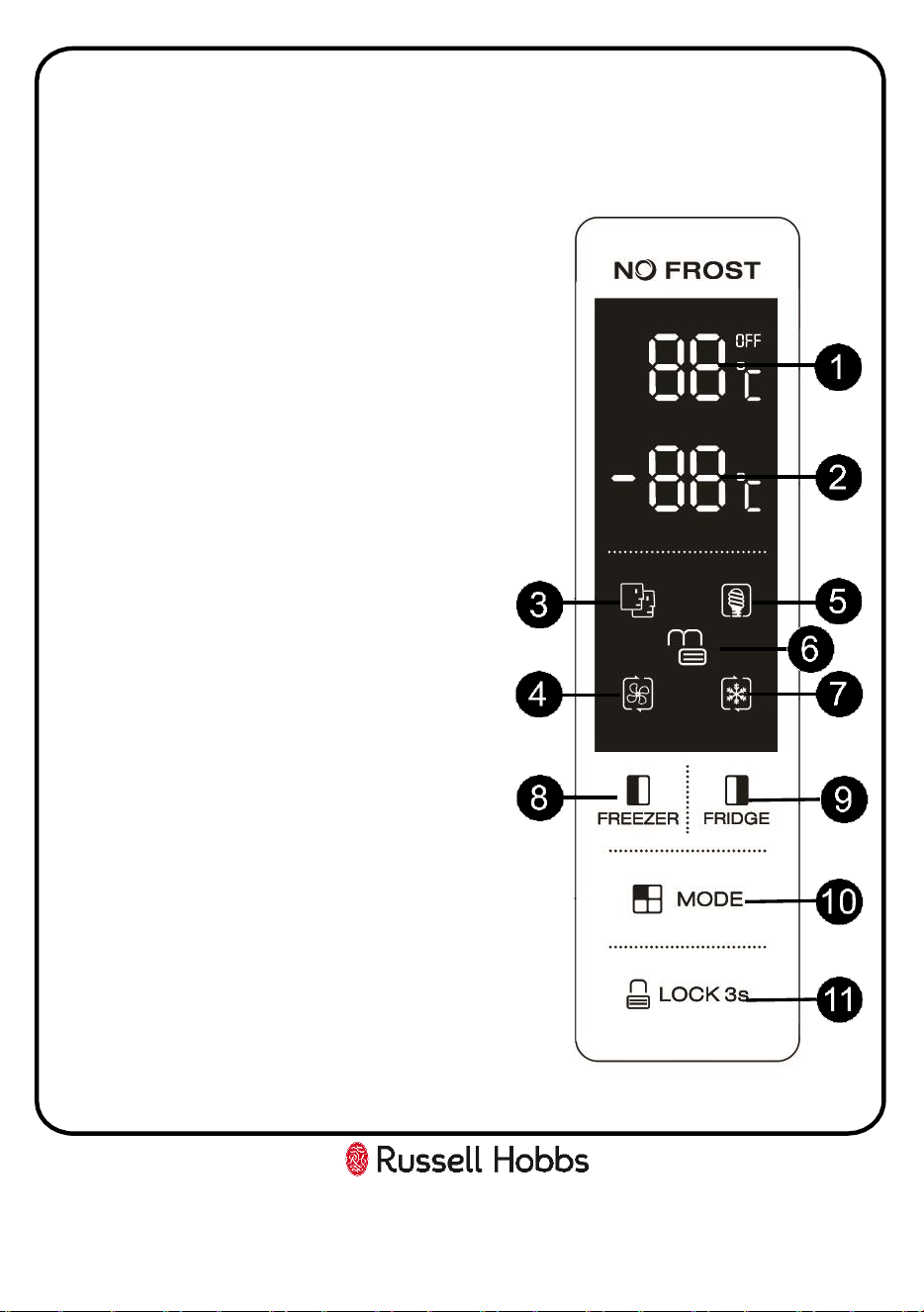

Control panel
1. Fridge compartment temperature
2. Freezer compartment temperature
3. SMART mode indicator
4. SUPER COOL mode indicator
5. ECO mode indicator
6. LOCK indicator
7. SUPER FREEZE indicator
8. Freezer compartment manual
temperature adjustment
9. Fridge compartment manual
temperature adjustment
10. Mode function/setting
11. Lock/unlock controls (hold for 3s)
Buttons
Display
- 11 -
Usage Information
Functions
Mode Indicator Freezer Temp.
Display
Fridge Temp.
Display
SMART
The temperature displayed will change
depending on the ambient temperature.
ECO
-15°C +8°C
SUPER COOL
No Change +2°C
SUPER FREEZE
-25°C No Change
Mode Function
ECO The appliance runs on the lowest power consumption
SUPER
COOL
Cools the fridge compartment to the lowest temperature
for 2hr30min before reverting to the previous set
temperature
SUPER
FREEZE
Cools the freezer compartment to the lowest temperature
for 50hrs before reverting to the previous set temperature.
Use to quickly freeze foods.
SMART The internal temperatures are automatically adjusted
based on the ambient temperature
MANUAL Temperatures are manually adjusted using the
FREEZER/FRIDGE buttons as desired
The control panel can be locked to prevent inadvertent adjustment of the internal
temperatures, or to prevent children adjusting the temperatures.
To activate the lock, press and hold the LOCK icon for 3 seconds.
The padlock icon will illuminate on the control panel.
To deactivate the lock, press and hold the LOCK icon for 3 seconds.
The open padlock icon will illuminate on the control panel.
- 12 -
Usage Information
Lock/Unlock Controls
If a door is left open or ajar for 60 seconds, an alarm will sound in the appliance every
30 seconds. Closing the doors will silence the alarm.
If the doors are open for more than 10 minutes, the internal LED will switch off.
Door Open Alarm
We recommend that the temperature of the appliance is adjusted based on usage and
ambient environment temperature.
- 13 -
Usage Information
Temperature Settings
Recommended Temperature Setting
Ambient
Temperature
Temperature Setting
Summer (>36°C) Fridge: 4°C
Freezer: -18°C
Normal Fridge: 4°C
Freezer: -18°C
Winter (<16°C) Fridge: 4°C
Freezer: -18°C
Note: The standard operating temperature for the fridge compartment should be
between 0°C and 4°C and the standard operating temperature for the freezer
compartment should be between -18°C and -25°C.
Note: The temperature of the freshly stored food and how often the door is opened
affects the temperature in the refrigerator compartment. If required, change the
temperature setting.
The glass shelves can be adjusted to & positioned as
desired. When the door is open, and the contents of
the fridge have been removed, carefully lift the
shelves from the side rails, and reposition on empty
rails.
*Note your fridge freezer has been installed at
factory in the optimal configuration for energy
efficiency. Adjustment of the shelves may lead to
performance decrease.
Adjusting the Shelves
- 14 -
The door balconies can be removed for
cleaning. Ensuring any transportation tape has
been removed, and the balconies are empty,
gently lift from the bottom of the balcony until
it comes free. Replace in the same position
once cleaned.
To remove the crisper drawer for cleaning, ensuring all items and foodstuffs have
been removed, pull the crisper until it comes to a stop. Carefully tilt the drawer in
the direction shown in the diagram below until it comes free. To replace, first tilt
the drawer, then carefully slide back into the appliance.
- 15 -
Below is only applicable to those appliances supplied with a water
dispenser. It is designed for only water, do not use any other liquids.
If your appliance has been supplied with a water dispenser you are required to
clean prior to first use.
Water Dispenser (-WD Models Only)
• Dispenser must be cleaned regularly.
• Ensure that water is changed regularly and not left for a
prolonged period, as this can lead to unpleasant odours.
• Only use with water.
• Empty drip tray on the front of the appliance regularly.
1. Remove the door
balcony located
above the water
dispenser tank.
2. Lift and remove the
water tank, and
clean using warm
water and a gentle
detergent.
4. Replace the water
dispenser tank
cover.
3. Replace the empty
water tank into the
water dispenser
position on the
inside of the door.
5. Reinstall the door
balcony above the
water dispenser
tank.
6. Open the flap in the
balcony and carefully
fill the tank with
water.
- 16 -
Bulb Replacement
The fridge and freezer lights are energy efficient, long life LEDs. Therefore, they should not
need replacing throughout the life of the product.
The bulb is a direct current 12V LED module and in the unlikely event it does fail then it will
need to be replaced by a qualified engineer.
The following symbol indicates that the light source in this appliance should only be
replaced by a qualified engineer:
This product contains two lights of energy efficiency class G
Reversing the Door
The doors cannot be reversed.
Removing the Doors
- 17 -
TOOLS REQUIRED Philips Screwdriver, Flat head screwdriver.
WARNING: A minimum of 2 people are required to lift this appliance.
WARNING: Contact between the appliance and any object can result in damage to
either.
DO NOT lay the appliance flat as this may result in damage to the coolant system.
WARNING After adjusting the position in any way, allow 3 hours before switching
on to allow the coolant to settle.
- Ensure the appliance is unplugged and empty
- Carefully tilt the appliance backwards, ensuring it is rested against a solid
surface with padded protection applied. Ensure at least one person holds the
appliance steady whilst the doors are being removed.
1. Unscrew the hinge
cover using a Philips
screwdriver.
2. Disconnect the
electrical fitting
carefully.
3. Unscrew the top
hinge.
4. Lift the door & place
on a cushioned
surface. Repeat for
the second door.
5. Unscrew the
bottom hinges.
6. Reverse the process to
re-install the doors.
- 18 -
Freezer Storage Advice
• Store fresh food in airtight boxes or wrap in bags or foil which are suitable for
freezing.
• Do not allow frozen food in to direct contact with food to be frozen.
• Pre-frozen food must be placed in the freezer as quickly as possible after
purchasing.
• To prevent frost damage to fresh vegetables or fruits they must be processed
appropriately before being placed into the freezer compartment.
• You must always follow the storage guidelines printed on all food packaging.
However, below is some suggested maximum storage times at -18°C (4 star
freezer rating) for a variety of foods:
• Fresh meat & poultry – up to 12 months
• Cooked meat – up to 2 months
• Fresh fish – up to 6 months
• Fruit & vegetables – up to 12 months
• Bread & cakes – up to 6 months
• CAUTION – 2 Star Freezer balcony is not suitable for ice cream.
Food Storage Guidelines
Refrigerator compartments Type of food
Door or balconies of fridge
compartment
Foods with natural preservatives, such as jams, juices, drinks,
condiments.
Do not store perishable foods.
Crisper drawer (salad drawer)
Fruits, herbs and vegetables should be placed separately in the
crisper bin.
Do not store bananas, onions, potatoes, garlic in the
refrigerator.
Fridge shelf
– bottom
Chiller (box/drawer)
Raw meat, poultry, fish (for short
-term storage)
Fridge shelf
– middle
Dairy products, eggs
Fridge shelf
– top
Foods that do not need cooking, such as ready
-to-eat foods,
deli meats, leftovers.
Freezer drawer(s)/shelf
Foods for long
-term storage.
Bottom drawer/shelf for raw meat, poultry, fish.
Middle drawer/shelf for frozen vegetables, chips.
Top drawer/shelf for ice cream, frozen fruit, frozen baked
goods.
- 19 -
Energy Saving Advice
• Do not install the appliance close to sources of heat, such as a cooker,
dishwasher or radiator.
• Locate the appliance in a cool well-ventilated room and make sure that the air
vents are clear.
• Try to avoid keeping the doors open for a long time, warm air will enter the
cabinet and may cause a build-up of ice as well as affecting the energy
consumption. Ensure there are no obstructions preventing the doors from
closing properly.
• Ensure that the door seals are clean and there are no tears or splits.
• Keep the most perishable foods, (those with a short shelf-life, such as cooked
meats), in the coldest part of the fridge. The Salad Crisper Box is the warmest
part of your fridge and should be used for vegetables, salads and fruits etc.
• Do not overload the appliance: the cooling air that circulates to keep the
appliance cold gets blocked and pockets of warm air form.
• Do not put hot food into the fridge or freezer – let it cool down first.
• The shelves are placed in factory mode this delivers the most energy efficient
usage for this appliance.
Power Failure
If there is a power failure during the storage of frozen foods, keep the door closed.
If the temperature within your freezer should rise, do not refreeze the food
without checking it's condition.
• Ice Cream: Once thawed should be discarded.
• Fruit and Vegetables: If soft should be cooked and used up.
• Bread and Cakes: Can be refrozen without danger.
• Shellfish: Should be refrigerated and used up quickly.
• Cooked Dishes: i.e. casseroles should be refrigerated and used up.
• Large Pieces of Meat: Should be refrigerated and used up quickly
• Small Joints: Should be refrigerated and used up quickly
• Chicken: Should be refrigerated and used up quickly
- 20 -
Maintenance & Cleaning
Disconnect the appliance from the power supply before cleaning.
Internal Cleaning
• Do not pour water over the appliance.
• The cavity should be cleaned periodically using a solution of bicarbonate of
soda and lukewarm water (5ml to 0.5 litre of water)
• Clean the accessories separately with soap and water. Do not put them in the
dishwasher.
• Do not use abrasive products, detergents or soaps.
• After washing, rinse with clean water and dry carefully.
• When you have finished cleaning reconnect the plug with dry hands.
External Cleaning
• Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.
• There are sharp edges on the underside of the product so care should be taken
when cleaning.
• Once or twice a year dust the rear of the appliance and the compressor at the
back of the appliance, with a brush or vacuum cleaner, as an accumulation of
dust will affect the performance of the appliance and cause increased energy
consumption.
When the appliance is not in use
When the appliance is not in use for long periods, disconnect from the electricity
supply, empty all of the food and clean the inside. Leave the door open to prevent
the build-up of odours.
- 21 -
Never use sharp metal tools as it may damage the appliance.
Never use an electrical heater, this may cause an electric shock.
Maintenance & Cleaning
Defrosting
Note: Care must be taken when performing the following procedure.
• The appliance is frost free, so there shouldn’t be any requirement to defrost the
freezer. However, in the unlikely event the appliance does need defrosting please
follow the below steps:
• Try to use as much as possible of the food in the freezer, before defrosting.
However, any food that is left, wrap in newspaper and place aside until ready
to place back after cleaning.
• Switch the appliance off at the wall socket and remove the plug.
• Open the freezer door.
• Place a suitable container to collect the water created from the defrosted ice.
• After defrosting, clean and dry the interior.
• Switch the appliance on and replace any frozen food.
Defrosting can be accelerated by putting bowls of hot (not boiling) water in the freezer and
loosening the frost with a suitable plastic scraper.
- 22 -
Trouble shooting
Problem
Solution
The fridge/freezer doesn't work
Check that the appliance is switched on.
Check that there has not been a power cut.
Check that the plug is not
faulty.
Check that the fuse has not blown.
Check that the voltage is correct for the appliance.
Are there any faults with the socket? For this purpose, try
the plug of your appliance by connecting it to a socket
which you are sure is working.
The temperature inside the
appliance is not cold enough
Check that there is not too much food in the appliance.
Check that the temperature is set to a suitable
temperature.
Check that the appliance is not placed in direct sunlight,
or too near to a heating source.
Check that the ambient temperature is within the
operation limits of the appliance.
Are the doors of the appliance opened frequently? Once
the door is opened, the humidity found in the air in the
room enters the appliance, especially if the humidity
levels in the room are very high. The more frequently the
door is opened in humid conditions the more chance of
the build up of moisture.
The temperature within the
appliance is too cold.
Increase the working temperature by adjusting the
temperature
to a higher level.
The
lowest setting/temperature
should only be used as a
rapid cool setting and should only be set 2 hours before a
large amount of food is placed in the fridge. If this is not
done the temperature in the fridge compartment could
fall below
0ºC as the compressor will run continuously.
The inner surfaces of the
appliance are wet
Caused by condensation
-
dry the inside of the appliance.
The outer surfaces of the
appliance are wet
Caused by condensation
-
dry the outer of the appliance
carefully.
- 23 -
Trouble shooting
Problem
Solution
Smell/odour
Check all
the food and drink that is in the fridge is in date
and correctly packaged. If it isn’t then it should be
removed immediately or repackaged.
Check for spillages on each shelf, rack and drawer. You
may need to remove the drawers to check that no
spillages have settled underneath them. As spillages that
have not been cleaned and have been left can cause
smells and unwanted odours.
Check the drainage pipe is not clogged or the drip tray at
the back of the appliance is full. The pipe can be cleared
by pouring hot water through, but you must ensure the
appliance is turned off, the plug is removed from the
socket and a jug or bucket is in place to catch the flow of
water.
The doors do not close properly
Ensure there are no obstructions preventing door closure.
Check the door compartments and shelves are correctly
in place.
Check the door seal is not warped or torn.
Check the appliance is level.
Unusual noises
Check that the appliance is on a flat, level surface and is
stable.
Check the spacing's around the appliance
and ensure it is
not touching other items.
Bubbling and gurgling sound:
• This noise is emitted as
the coolant fluid flows through the pipes within the
system. This is normal.
Water flowing sound: • This is the normal sound of water
flowing into the drain trough during the defrosting
process.
If the appliance is operating noisily (compressor noise):
This is normal. This noise indicates that the compressor is
operating normally.
As the compressor is being energized,
it might run a bit more noisily for a short period of time.
- 24 -
Connection to the mains supply
For UK use only – Plug fitting details (where applicable):
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:
The GREEN/YELLOW wire is the EARTH and must be connected to the
terminal which is marked with the letter E or by the earth symbol or coloured
GREEN or
GREEN/YELLOW.
The BLUE wire is the NEUTRAL and must be connected to the
terminal marked with the letter N or coloured BLACK. The
BROWN wire is the LIVE wire and must be connected to the
terminal marked with the letter L or coloured RED.
Always ensure that the plug cord grip is fastened correctly.
If a 13A (BS1363) fused plug is used it must be fitted with a
13amp fuse conforming to BS1362 and be BSI or ASTA approved.
25
Guarantee
This product is guaranteed for 12 months from the date of the original purchase. If
any defect arises due to faulty materials or workmanship you must contact Product
Care with the original proof of purchase so a replacement or refund can be
arranged.
Refund or replacement is at the discretion of Product Care.
The following conditions apply:
• Product Care will require a valid proof of purchase at the point of replacement
or refund.
• The product must be installed and used in accordance with the instructions
contained in this instruction guide and any other instructions for use which has
been supplied.
• It must be used for domestic purposes only and for its intended use.
• This guarantee does not cover wear and tear, damage, misuse or consumable
parts.
This does not affect your statutory rights.
Region Contact Website
UK & Northern
Ireland
0345 209 7461 mda.russellhobbs.com
Ireland 1 800 938982 ie.mda.russellhobbs.com
Rest of Europe [email protected]
de.mda.russellhobbs.com
fr.mda.russellhobbs.com
es.mda.russellhobbs.com
it.mda.russellhobbs.com
nl.mda.russellhobbs.com
- 26 -
Technical Specification
Model number RH90AFF201 W/B/SS/DI/DS
Rated Voltage 220V – 240V ~ 50Hz
Capacity 442L (291L Fridge/151L Freezer)
External Dimensions(HxWxD) 177.0 x 90.0 x 59.0cm
Model number RH90AFF201 W-WD/B-WD/SS-
WD/DI-WD/DS-WD
Rated Voltage 220V – 240V ~ 50Hz
Capacity 439L (288L Fridge/151L Freezer)
External Dimensions(HxWxD) 177.0 x 90.0 x 59.0cm
- 27 -
Product Fiche
Supplier's name or
Trade Mark: Russell Hobbs
Supplier's Address:
Product Care Trading Limited, Wigan, WN2 4AY, UK /
Product Care (Ireland) Ltd, Cork, T23 AT2P, Ireland
Model Identifier:
RH90AFF201 W/B/SS/DS/DI
Product Type
Fridge Freezer
Value Value
Total Volume (L) 442
Dimensions (cm)
Height 177.0
Width 91.0
Depth 58.0
Net Weight (kg) 75.0
Rated Voltage AC220V-240V / 50Hz Rated Current 1.5A
EEI 100 Energy Efficiency Rating E
Airborne acoustical noise emissions (dB) 39
Airborne acoustical noise
emission class
C
Annual Energy Consumption (kWh/a)
*Actual consumption may vary depending on
how the appliance is used
286 Climate Class SN/N/ST/T
Temperature Rise Time (H)
9.5
Minimum ambient temperature (
°
C) for which
the refrigerating appliance is suitable
10°C
Maximum ambient
temperature (
°
C) for which
the refrigerating appliance
is suitable
38°C
Winter Setting No
Compartment Type
Compartment Parameters and Values
Compartment Volume (L)
Recommended temperature setting
for optimised food storage (°C)
These settings shall not contradict
the storage conditions set out in
Annex IV, Table 3
Freezing
capacity
(kg/24 h)
Defrosting type
(Automatic /
Manual / Static)
Pantry No N/A +17 N/A N/A
Wine Storage No N/A +12 N/A N/A
Cellar No N/A +12 N/A N/A
Fresh Food Yes 291.0 +4 N/A Automatic
Chill No N/A +2 N/A N/A
0 Star or Ice Maker No N/A 0 N/A N/A
1 Star No N/A -6 N/A N/A
2 Star Yes 3.0 -12 N/A Automatic
3 Star No N/A -18 N/A N/A
4 Star Yes 148.0 -18 11.2 Automatic
2 Star Section No N/A -12 N/A N/A
Variable Temperature
Compartment
No N/A -18 N/A N/A
Light Source Parameters (for models with an LED lamp)
Type of Light Source LED
For 4-Star Compartments
Energy Efficiency Class G Fast Freeze Yes
Low Noise Appliance No Design Type Freestanding
Wine Storage Appliance No Other Refrigerating Appliance Yes
Minimum duration of the guarantee offered by the supplier: 12 months
Weblink to the manufacturer's website, where the information in point 4(a)
Annex of Commission Regulation (EU) 2019/2019 (1) (b) is found:
mda.russellhobbs.com
- 28 -
Product Fiche
Supplier's name or
Trade Mark: Russell Hobbs
Supplier's Address:
Product Care Trading Limited, Wigan, WN2 4AY, UK /
Product Care (Ireland) Ltd, Cork, T23 AT2P, Ireland
Model Identifier:
RH90AFF201 W/B/SS/DS/DI –WD (Water Dispenser)
Product Type
Fridge Freezer
Value Value
Total Volume (L) 439
Dimensions (cm)
Height 177.0
Width 91.0
Depth 58.0
Net Weight (kg) 75.0
Rated Voltage AC220V-240V / 50Hz Rated Current 1.5A
EEI 100 Energy Efficiency Rating E
Airborne acoustical noise emissions (dB) 39
Airborne acoustical noise
emission class
C
Annual Energy Consumption (kWh/a)
*Actual consumption may vary depending on
how the appliance is used
286 Climate Class SN/N/ST/T
Temperature Rise Time (H)
9.5
Minimum ambient temperature (
°
C) for which
the refrigerating appliance is suitable
10°C
Maximum ambient
temperature (
°
C) for which
the refrigerating appliance
is suitable
38°C
Winter Setting No
Compartment Type
Compartment Parameters and Values
Compartment Volume (L)
Recommended temperature setting
for optimised food storage (°C)
These settings shall not contradict
the storage conditions set out in
Annex IV, Table 3
Freezing
capacity
(kg/24 h)
Defrosting type
(Automatic /
Manual / Static)
Pantry No N/A +17 N/A N/A
Wine Storage No N/A +12 N/A N/A
Cellar No N/A +12 N/A N/A
Fresh Food Yes 288.0 +4 N/A Automatic
Chill No N/A +2 N/A N/A
0 Star or Ice Maker No N/A 0 N/A N/A
1 Star No N/A -6 N/A N/A
2 Star Yes 3.0 -12 N/A Automatic
3 Star No N/A -18 N/A N/A
4 Star Yes 148.0 -18 11.2 Automatic
2 Star Section No N/A -12 N/A N/A
Variable Temperature
Compartment
No N/A -18 N/A N/A
Light Source Parameters (for models with an LED lamp)
Type of Light Source LED
For 4-Star Compartments
Energy Efficiency Class G Fast Freeze Yes
Low Noise Appliance No Design Type Freestanding
Wine Storage Appliance No Other Refrigerating Appliance Yes
Minimum duration of the guarantee offered by the supplier: 12 months
Weblink to the manufacturer's website, where the information in point 4(a)
Annex of Commission Regulation (EU) 2019/2019 (1) (b) is found:
mda.russellhobbs.com
- 29 -
Notes
- 30 -
Notes
- 31 -
Notes
Made by Product Care Trading Limited under license from Spectrum Brands
(UK) Limited. Product Care Trading Ltd, Unit 1, Green Bank Business Park,
Swan Lane, Hindley Green, Wigan, WN2 4AY, United Kingdom
Product Care (Ireland) Ltd, Unit 3D North Point House, North Point Business
Park, New Mallow Road, Cork, T23 AT2P, Ireland. Russell Hobbs is the
registered trademark of Spectrum Brands (UK) Ltd.
The ‘wheelie bin’ symbol is known as the 'Crossed-out wheelie bin Symbol'.
When this symbol is marked on a product/batteries, it means that the
product/batteries should not be disposed of with your general household
waste. Only discard electrical/electronic/battery items in separate collection
schemes, which cater for the recovery and recycling of materials contained
within. Your co-operation is vital to ensure the success of these schemes
and for the protection of the environment. For your nearest disposal facility,
visit www.recycle-more.co.uk or ask in store for details.
SEDEX – Connecting businesses and their global suppliers to share ethical
data and enabling improvement in ethical performance. Visit
www.sedex.org.uk for further information.
We reserve the right, due to possible changes to design, to alter the
instruction manual without prior notice.
Revision 1.9
