INSTRUCTIONS FOR USE
warming drawer
EN
ODW61AS0
ODW61BS0
ODW61SS0
3Pictograms used ........................................
4Safety regulations ......................................
6Use ..............................................................
7Operation ....................................................
8Warming time ...............................................
9Installation ..................................................
9Safety ...........................................................
11Preparation ..................................................
11Appliance dimensions .................................
11Built-in dimensions .......................................
12Built-in ..........................................................
13Environmental aspects ..............................
13Disposal of the appliance and packaging ....
Contents
The following symbols are used throughout the manual, and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning – general danger
ELECTRIC SHOCK!
Warning – danger of electric shock
HOT SURFACE!
Warning – danger of hot surface
DANGER OF FIRE!
Warning – danger of fire
It is important that you carefully read the instructions.
3
Pictograms used
WARNING!
READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE!
EU
WARNING!
This appliance and the accessible parts will become hot during
use. Do not touch hot parts. Keep children younger than 8 away
from the appliance unless they are under continuous supervision.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Never use a steam cleaner for cleaning the appliance.
Only clean the appliance when switched off. The steam of a steam
cleaner could reach the conducting parts and cause an electrical
short.
• Always disconnect the appliance from the supply if it is left
unattended and before assembling, disassembling or cleaning.
• A defective appliance may cause electric shock. Never switch
on a defective appliance. Disconnect it and contact customer
service.
• Improper installation and maintenance work or repairs are
dangerous. Do not touch any conducting connections and do not
change the electrical and mechanical design of the appliance.
These may only be performed by authorized and trained
technicians. If the appliance has a defect, please disconnect it
and contact customer service.
• Do not operate the appliance with wet hands or in contact with
water.
4
Safety regulations
• This appliance is intended to be used in household only.
• The appliance must not be installed behind a decorative door in
order to avoid overheating.
• The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
ELECTRIC SHOCK!
WARNING: If the surface is cracked, switch off the appliance to
avoid the possibility of electric shock.
AU/NZS
WARNING!
Accessible parts may become hot during use. Young children
should be kept away.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
5
Safety regulations

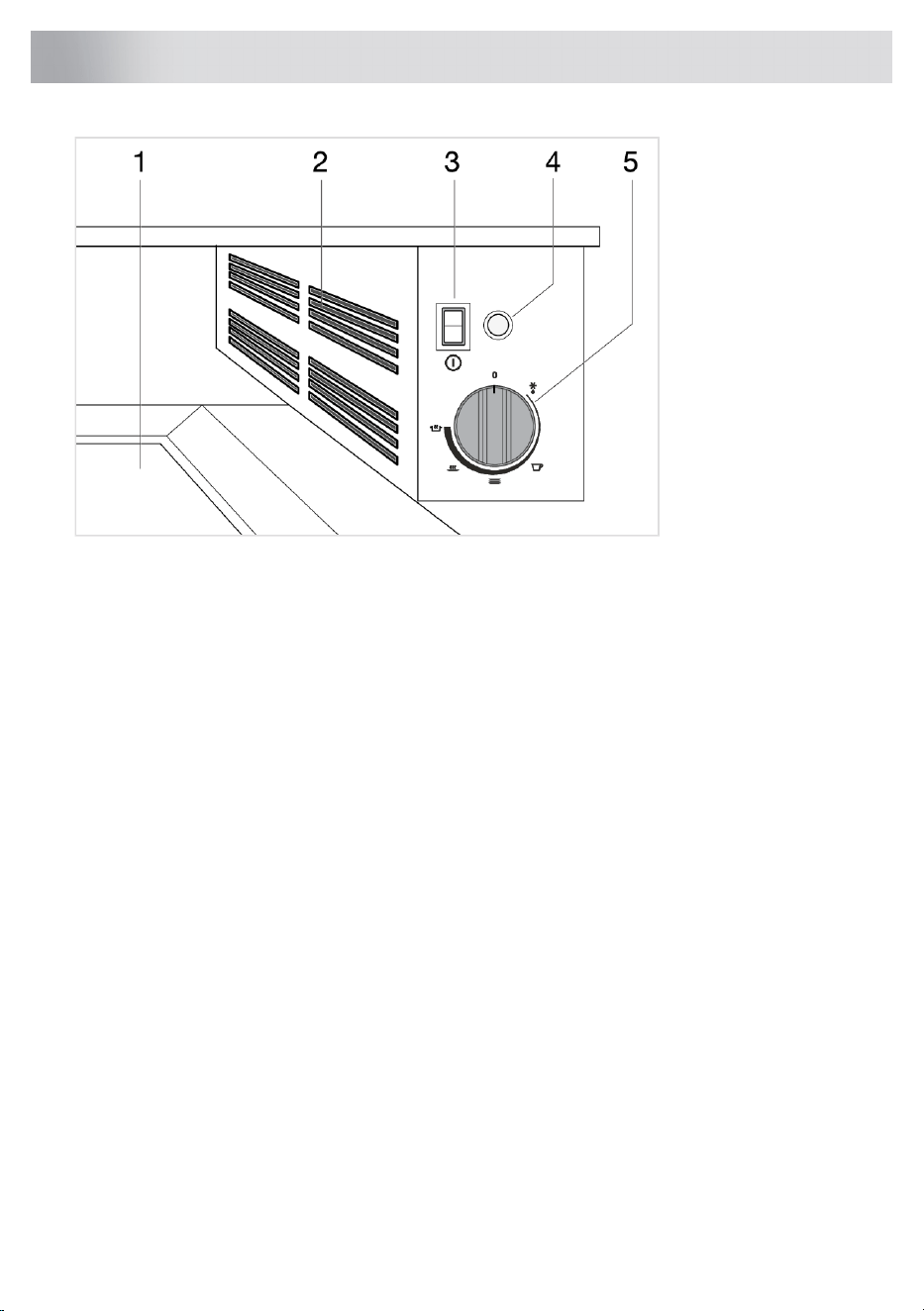

1. Anti-slip mat
2. Fan and heating
3. On/off switch
4. Indicator light
• Flashes if the appliance is switched on.
• Lights up if the appliance is switched on and the drawer is closed.
5. Dial for setting the temperature.
• The temperature set is the temperature of the hot plate at the bottom of the drawer when the
drawer is empty. Measurements using an external thermometer can vary and are not suitable
for checking the temperature precisely.
• The appliance will only heat up when the drawer is closed.
6
Use
The drawer has an ON/OFF and temperature regulation dial. This dial is only visible when the drawer
is open. When the drawer is closed, the indicator light on the front shows whether the appliance is
switched on.
1. Place the crockery or plates with food in the drawer.
2. Set the desired temperature.
• The ‘appliance on’ indicator will flash.
• Use the temperature knob to set a temperature between 30 °C and 80 °C.
3. Close the drawer.
• The ‘appliance on’ indicator will light up.

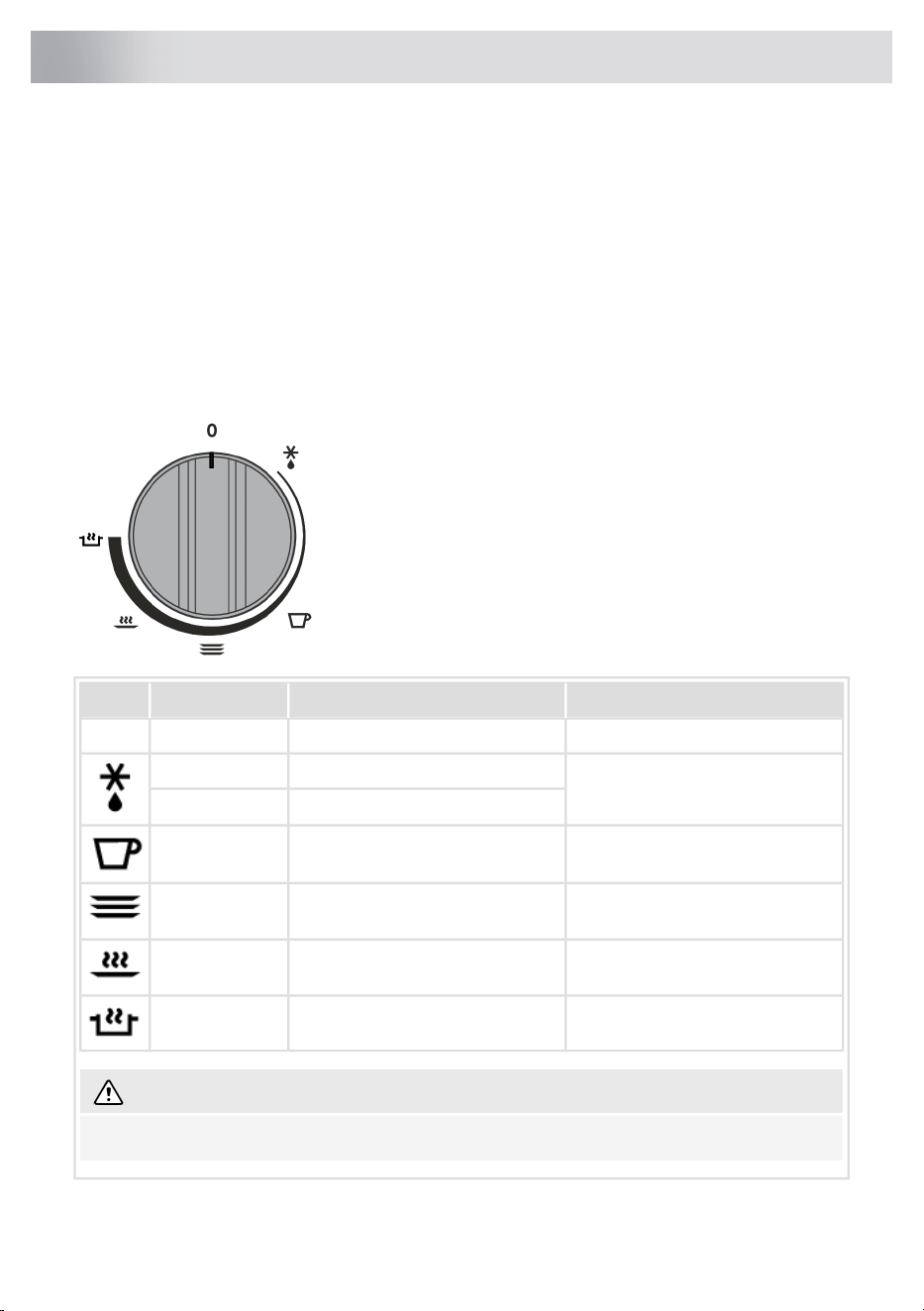

ApplicationFunctionTemperatureIcon
-Off00
For defrosting food. Allowing
dough to rise.
Defrosting30 °C
Defrosting40 °C
Warming coffee cups.Warming cups and glasses.50 °C
Warming plates and dishes.
Keeping food warm (eggs, bread).
Warming crockery.60 °C
Keeping food warm (meat, fish,
vegetables).
Keeping food warm.70 °C
Keeping food warm and reheating.Keeping warm and Heating up80 °C
WARNING!
A protective grille prevents contact with the elements and the fan.
7
Operation
Warming time
The warming time for tableware depends on several factors:
• Material and thickness of the tableware.
• Fill level.
• Distribution of the load.
• Temperature control.
This means that it is not possible to give precise data in advance.
A few recommendations:
Even warming at a temperature of 60 °C will take:
• approximately 30 mins for crockery for a meal for six people.
• approximately 40 mins for crockery for a meal for twelve people.
You will learn from experience which timing suits your crockery best.
8
Operation
Safety
• This appliance should only be connected by a registered installer!
• The electrical connection must comply with national and local regulations.
• The wall plug socket and plug should always be accessible.
• If the power cord is damaged, it should be replaced by the manufacturer or an authorised service
technician, in order to avoid hazard.
• If you want to make a fixed connection, make sure that a omnipolar switch with a contact
separation of at least 3 mm is fitted in the supply cable.
• If a stationary appliance is not fitted with a supply cord and a plug, or with other means for
disconnection from the supply mains having a contact separation in all poles that provide full
disconnection under overvoltage category III conditions, the instructions shall state that means
for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• WARNING: Never open the appliance casing. The casing may only be opened by a service
technician.
• Prior to connecting the drawer, ensure that all cables in your home’s electrical system are of
sufficient diameter to supply the appliance properly.
• Complete all electrical connections before building in the appliance.
• Improper installation and maintenance work or repairs are dangerous. These may only be
performed by authorized and trained technicians. If the appliance has a defect, please disconnect
it and contact customer service.
• If the appliance is mounted behind a furniture front (e.g. a door), never close it while the appliance
is in use. Heat and humidity accumulate behind a closed furniture front. This may damage drawer,
cupboard and floor.
• Only use original replacement parts. These meet the required safety specifications.
• Please note that the appliance must not be mounted tilted or upended. The design of the
appliance includes an oil-containing pump. Please refer to the installation instructions.
• The manufacturer cannot be held liable for any damage resulting from failure to follow the safety
instructions and warnings.
Electrical connection
• This appliance is manufactured in Class I; this means the device must be grounded.
• For AU/NZS: Means providing full disconnection under overvoltage category III conditions must
be incorporated in the fixed wiring in accordance with AS/NZS 3000.
• Check whether the power of the electrical mains corresponds to the power on the identification
plate on the appliance.
• Before connecting to the electrical mains, check whether the power socket is grounded.
• The device is equipped with a plug. When installing the appliance, remember that this plug must
remain accessible.
This warming drawer is designed for use by individuals in their home. It is only intended for
pre-warming tableware, keeping food warm and slow cooking. Any other use is prohibited and may
be dangerous. The manufacturer disclaims liability in the event of improper use.
Under certain conditions, the outside of the warming drawer may reach 70 °C (depending on the
selected temperature and length of use). Always use oven mitts or gloves to remove the warmed
tableware from the drawer.
9
Installation
WARNING!
If a stationary appliance is not fitted with a supply cord and a plug, or with other means for
disconnection from the supply mains having a contact separation in all poles that provide full
disconnection under overvoltage category III conditions, the means for disconnection must be
incorporated in the fixed wiring in accordance with the wiring rules. This is also applicable for
appliances with a supply cord and plug when the plug is not accessible after installing the
appliance. Using an omnipolar switch with a contact separation of at least 3 mm fitted in the fixed
wiring will fulfil this requirement.
Prior to connecting the drawer, ensure that all cables in your home’s electrical system are
of sufficient diameter. Your system should be protected by a 10-amp fuse.
10
Installation
Preparation

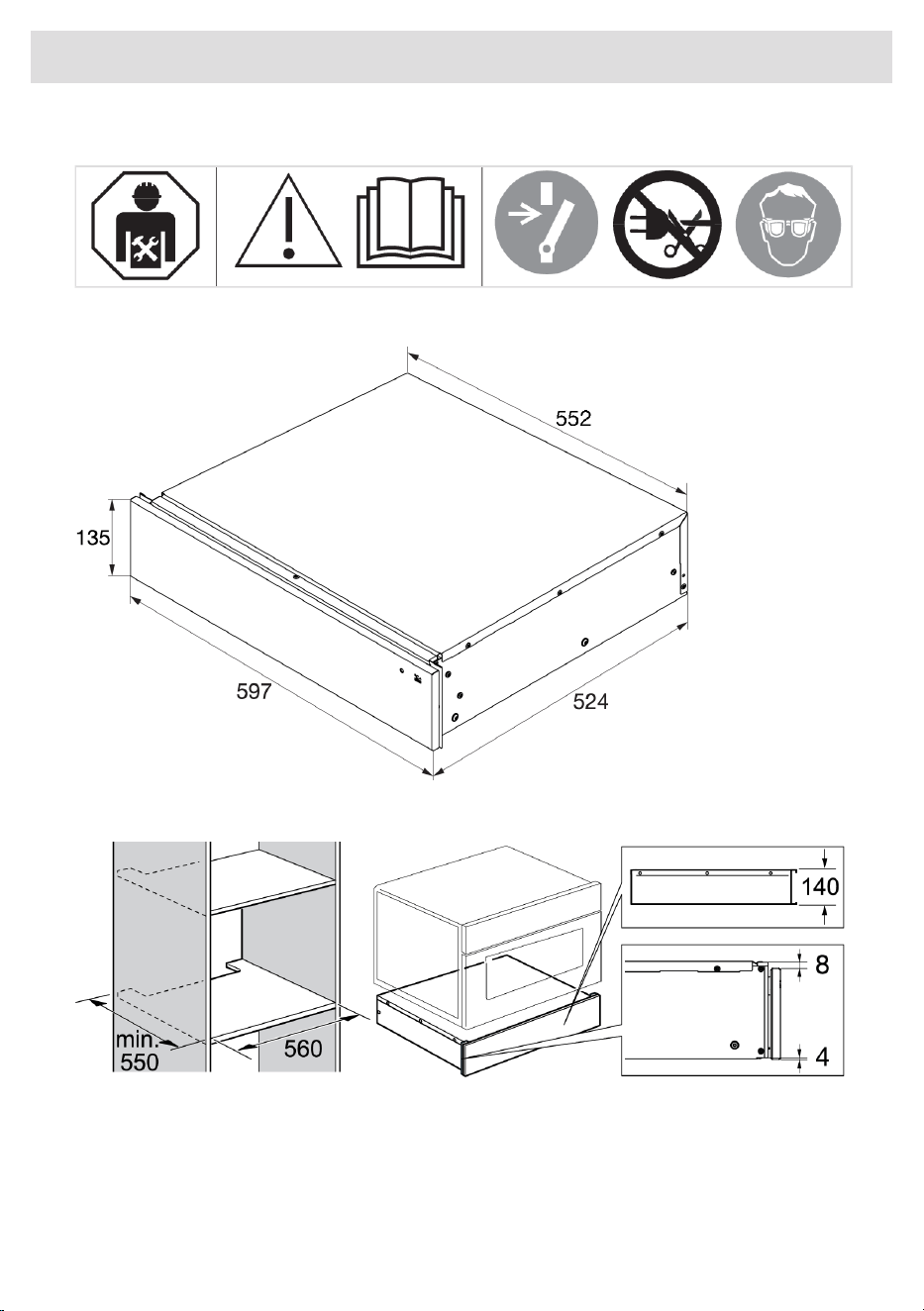

Appliance dimensions
Built-in dimensions
11
Installation

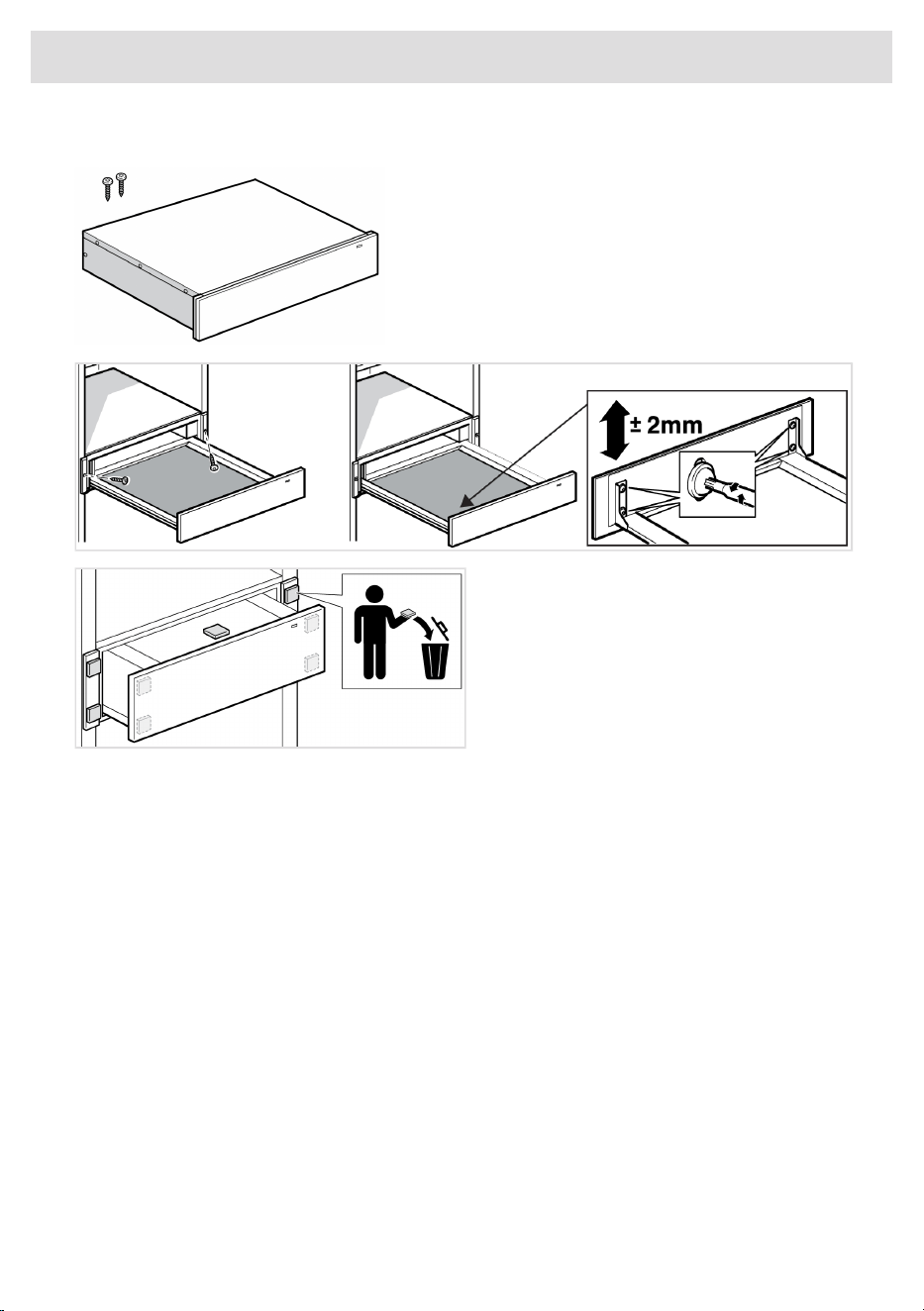

Built-in
12
Installation
Disposal of the appliance and packaging
Sustainable materials have been used during the manufacture of this appliance. This appliance must
be disposed of responsibly at the end of its service life. Ask your local authorities for more information
about how to do this.
The appliance packaging is recyclable. The following may have been used:
• cardboard;
• polyethylene film (PE);
• CFC-free polystyrene (PS rigid foam).
Dispose of these materials in a responsible manner and in accordance with government regulations.
The product has been marked with a crossed-out dustbin symbol to
remind you of the obligation to dispose of electrical household
appliances separately. This means that the appliance may not be
included with normal domestic refuse at the end of its service life.
The appliance must be taken to a special municipal centre for separated
waste collection or to a dealer providing this service.
A separate collection of household appliances helps to prevent any
potential negative impact on the environment and on human health
caused by improper disposal. It ensures that the materials of which the
appliance is composed can be recovered to obtain significant savings
in energy and raw materials.
NOTE!
Please note! Do not throw a broken ceramic glass plate in the glass recycling bin but take this
to the Municipality's waste recycling centre.
