3-3/8" COMPACT
CIRCULAR SAW
Instruction Manual
IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-847-429-9263 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
MODEL 36704
Replacement Wood-Cutting Blade (Model B8515W)
Soft Metal-Cutting Blade (Model B8515M)
Tile-Cutting Blade (Model B8515T)
CONTENTS
WELCOME 3
Introduction ..................................................................................................... 3
Specifications ................................................................................................... 3
SAFETY 4
General Safety Rules ........................................................................................ 4
Circular Saw Safety Warnings .......................................................................... 6
Electrical Information ....................................................................................... 8
BEFORE OPERATING 9

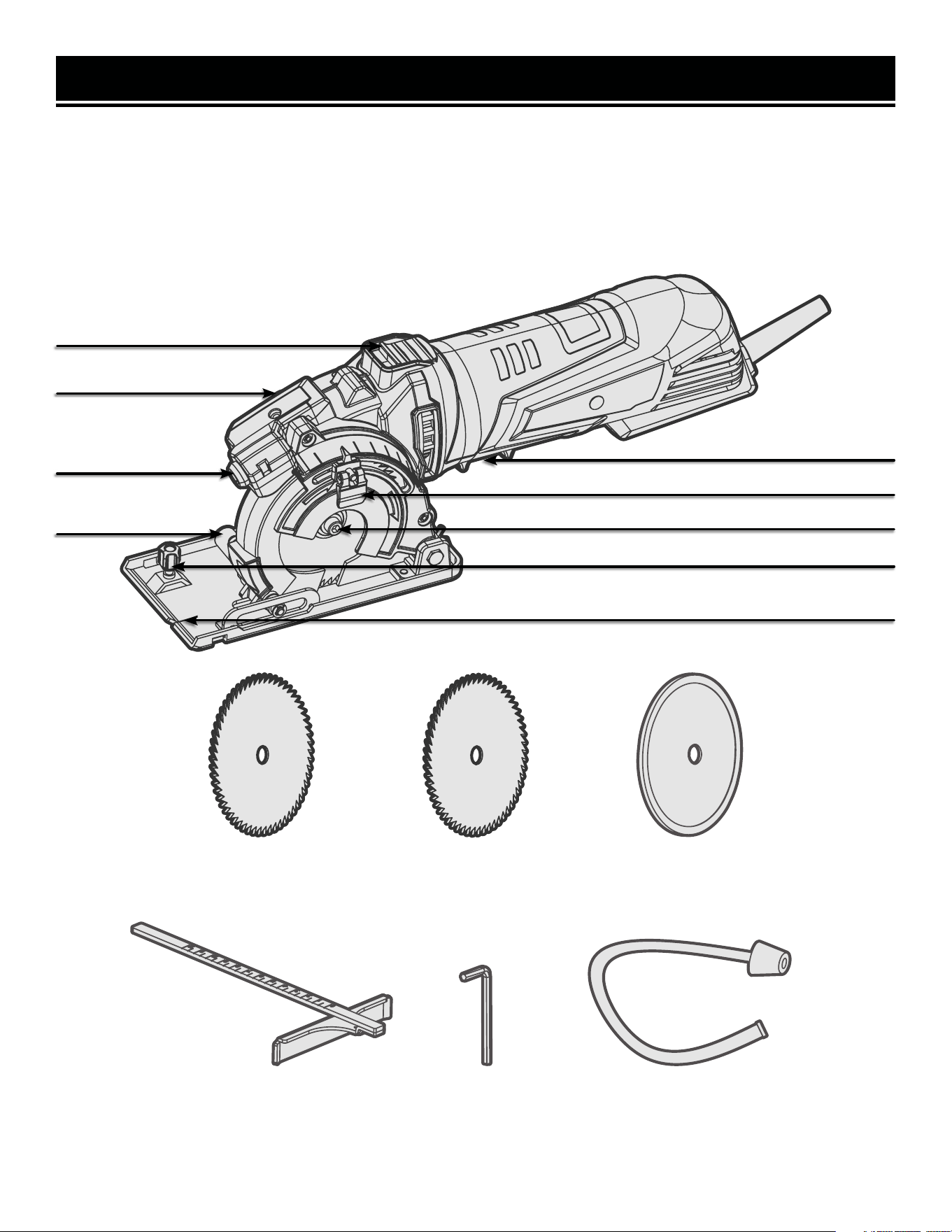

Know Your Circular Saw....................................................................................9

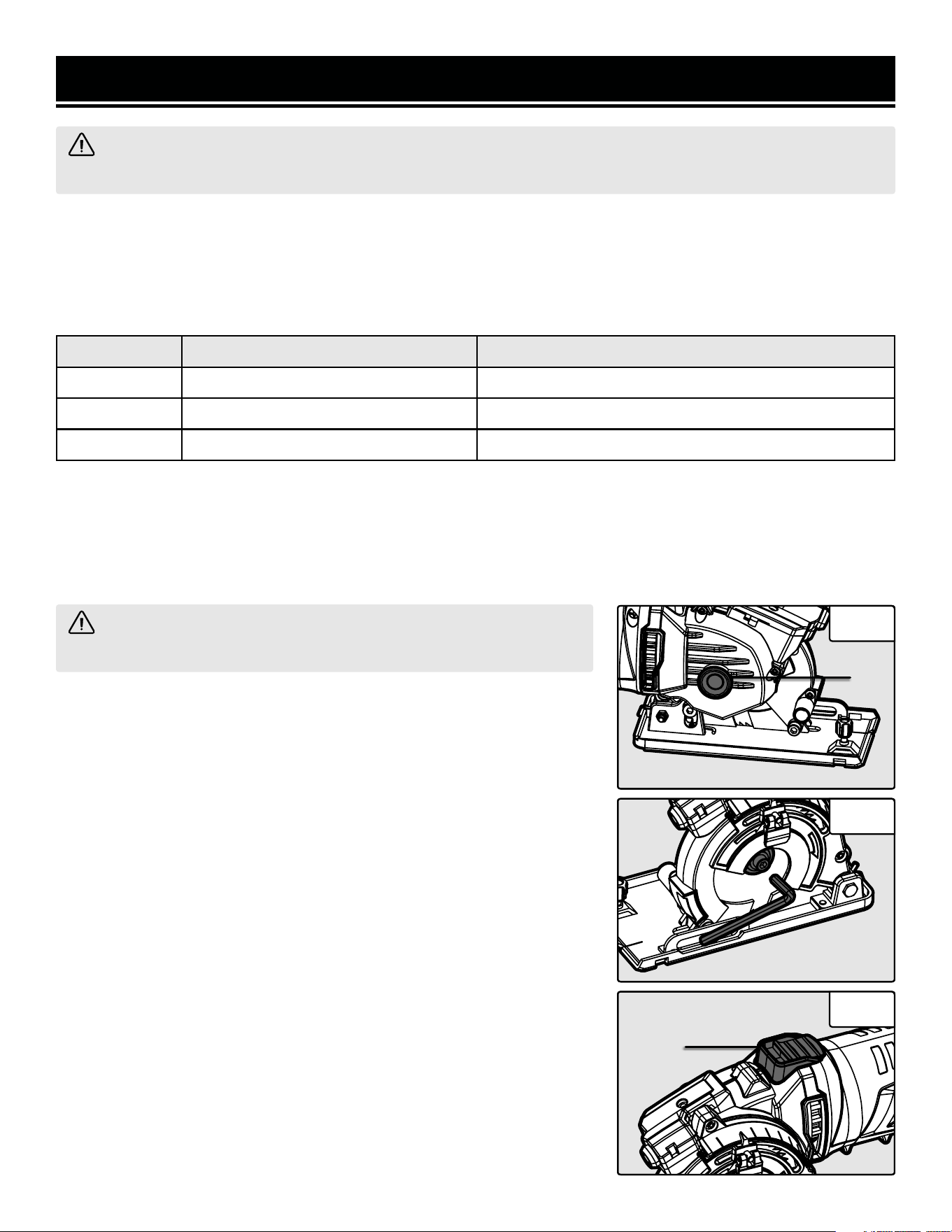

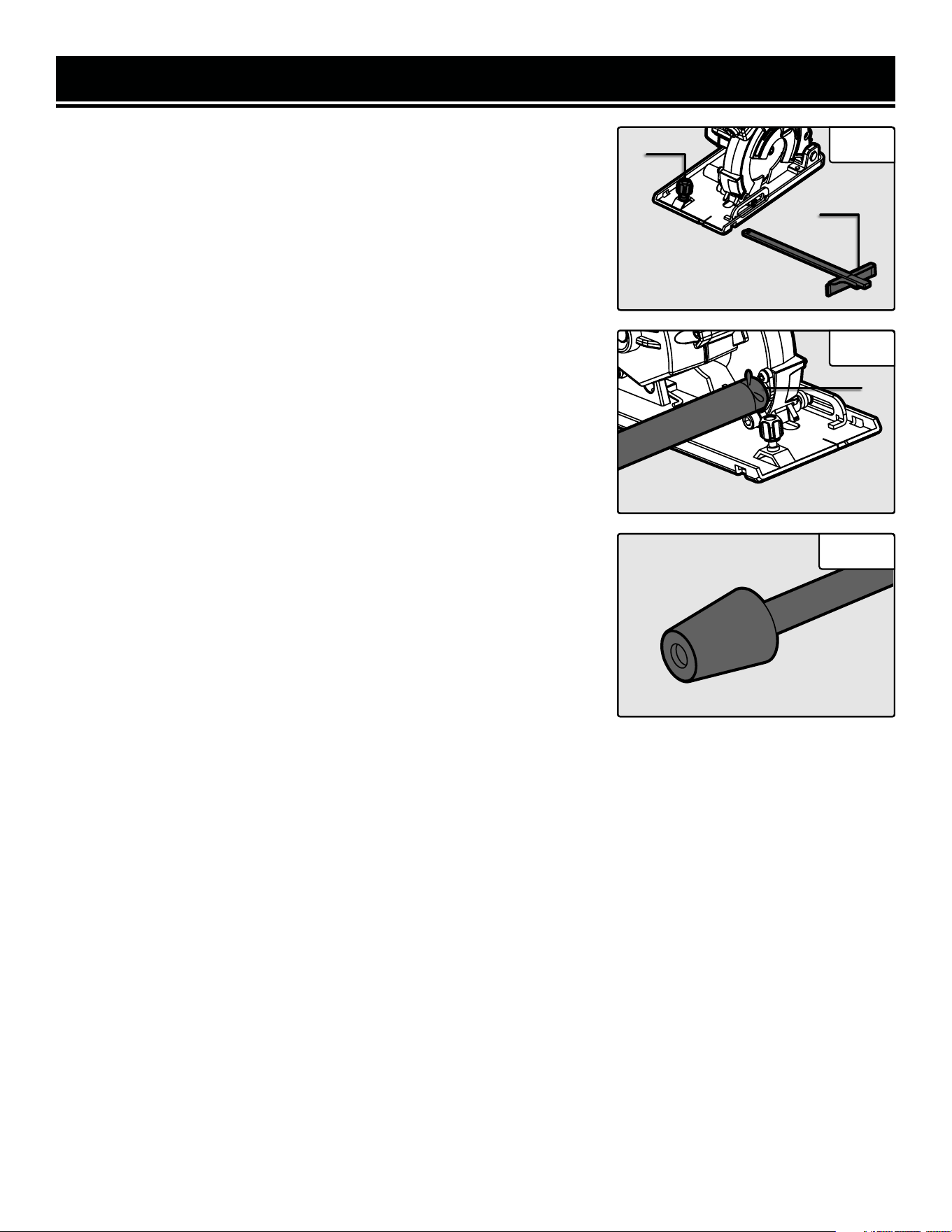

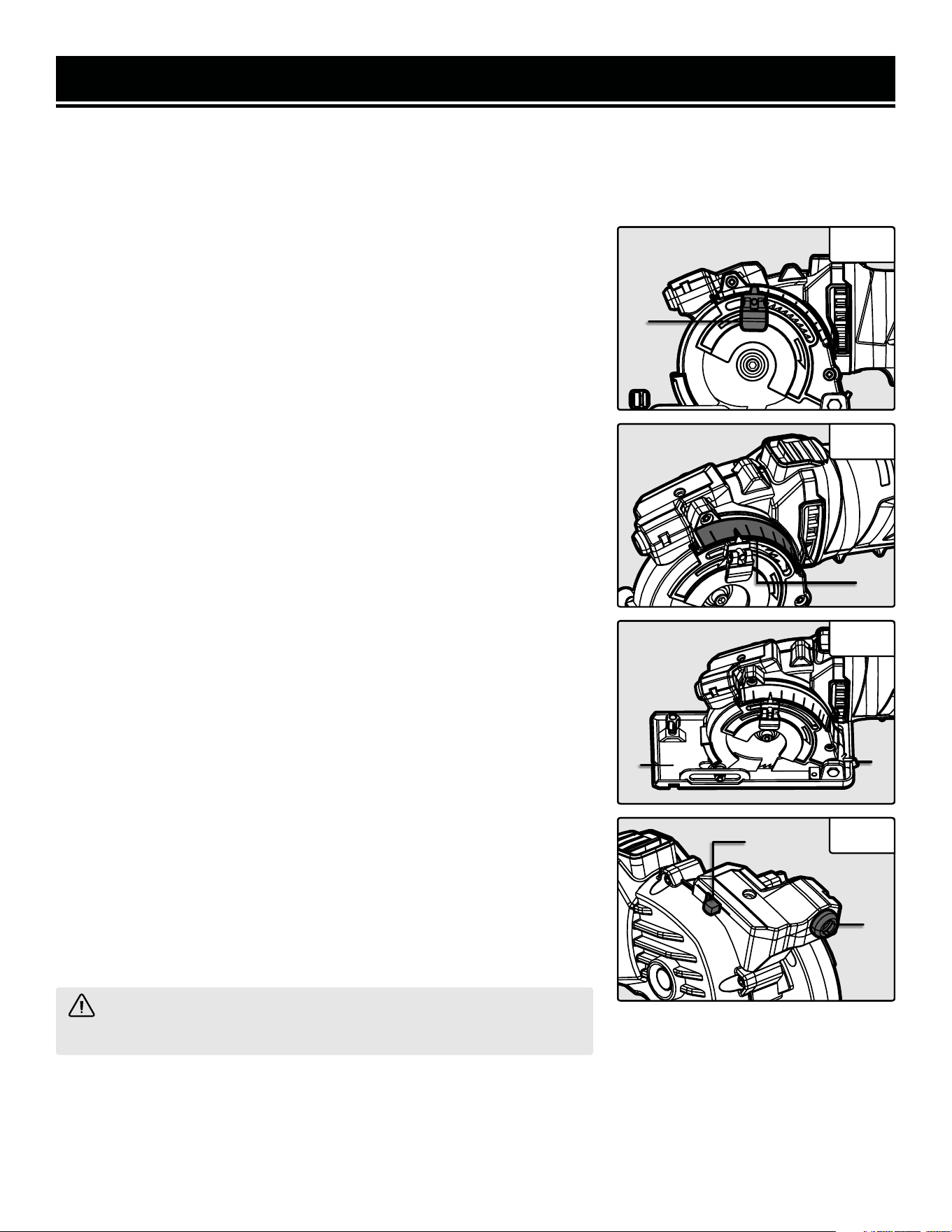

Assembly & Adjustments ............................................................................... 10
OPERATION & MAINTENANCE 13

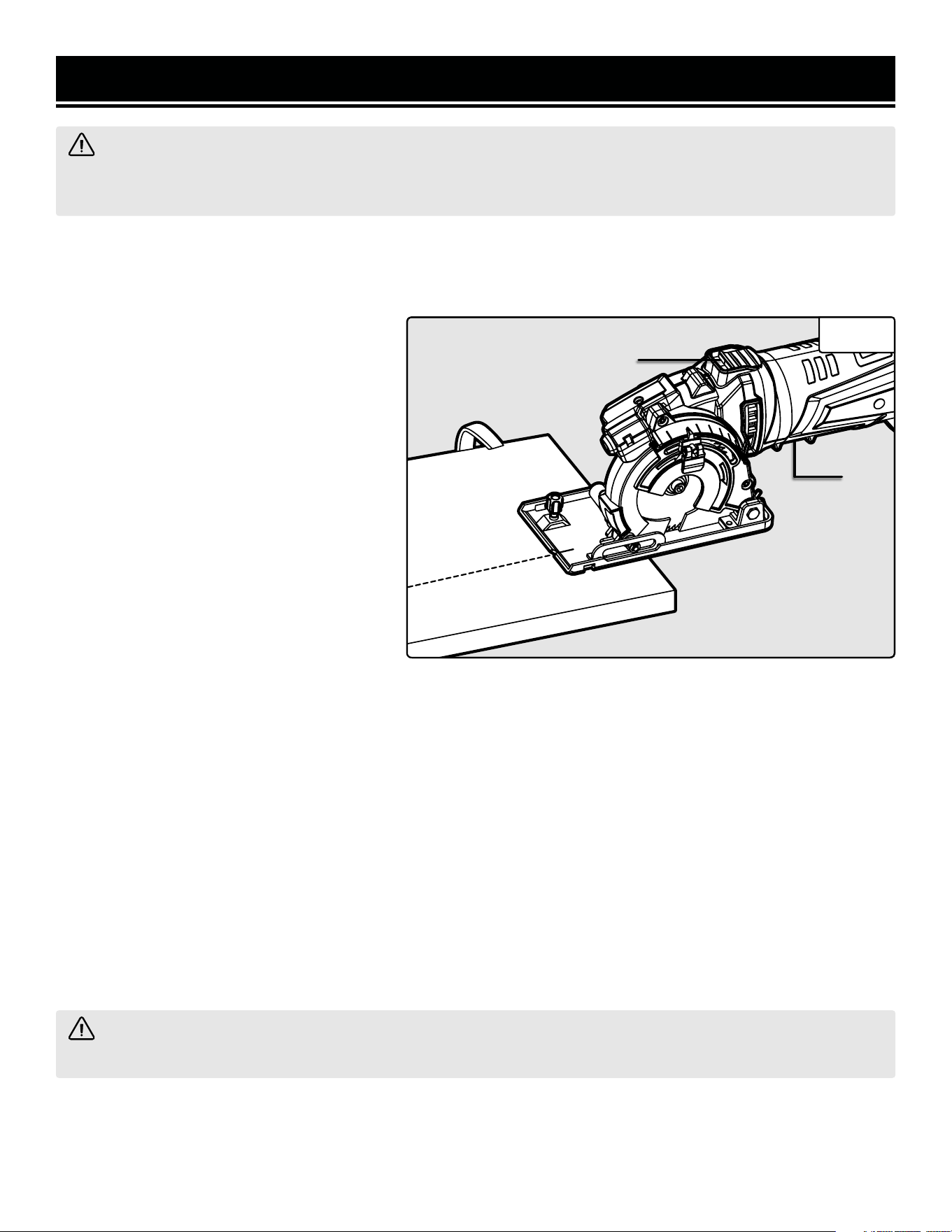

Operation ....................................................................................................... 13
Maintenance ................................................................................................... 14
Troubleshooting Guide ................................................................................... 15

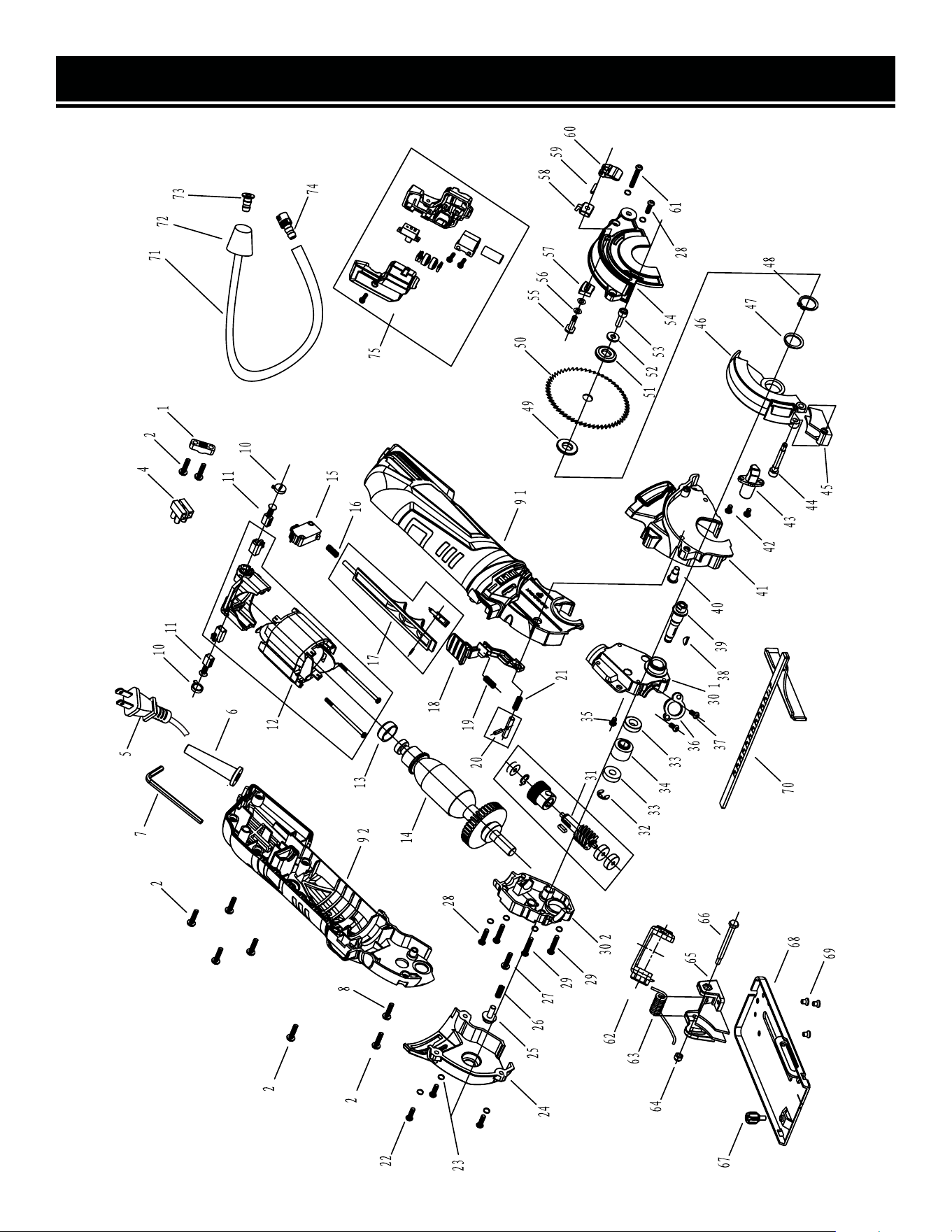

Exploded View & Parts List .............................................................................16
Warranty Statement ....................................................................................... 18
To purchase accessories and replacement parts for your tool, visit WENPRODUCTS.COM
2
Model Number 36704
Motor AC 120V, 60 Hz, 4.2A
No-Load Speed 4500 RPM
Maximum Cutting Depth 1 Inch (25mm)
Blade Size 3-3/8 Inches (85mm)
Arbor Size
19/32 Inch (15mm)
Blade Body Thickness 1mm
Blade Teeth Thickness 1.6mm to 1.8mm
Laser Specifications
Class II Laser, EN 60825-1:2014
Maximum Power < 1mW, Wavelength 650mm
Battery Type AG13
Dust Tube Outer Diameter 1 to 1-1/2 Inches
Base Plate Dimensions 6-1/4 in. x 3 in.
Product Dimensions 13-3/4 in. x 3-1/2 in. x 4-5/8 in.
Product Weight 4.5 Pounds
SPECIFICATIONS
INTRODUCTION
Thanks for purchasing the WEN Compact Circular Saw. We know you are excited to put your tool to work, but first,
please take a moment to read through the manual. Safe operation of this tool requires that you read and understand
this operator’s manual and all the labels affixed to the tool. This manual provides information regarding potential
safety concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-847-429-9263.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. The safety symbols and the explanations
with them deserve your careful attention and understanding. Always follow the safety precautions to reduce the
risk of fire, electric shock or personal injury. However, please note that these instructions and warnings are not
substitutes for proper accident prevention measures.
3
GENERAL SAFETY RULES
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ig-
nite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
Electrical safety
1. Power tool plugs must match the outlet. Never mod-
ify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of elec-
tric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a ground fault circuit interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of elec-
tric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respira-
tory mask, non-skid safety shoes and hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
4
GENERAL SAFETY RULES
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained us-
ers.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
5
CIRCULAR SAW SAFETY WARNINGS
CIRCULAR SAW SAFETY
1. WORK ENVIRONMENT. Do not operate the tool in wet
or damp conditions; doing so significantly increases the
risk of electrical shock. Do not operate the tool in the
presence of flammable liquids or gases.
2. PERSONAL SAFETY. Always wear ANSI Z87.1-ap-
proved glasses, a dust mask and hearing protection
when using the saw. Tie back long hair. Do not wear
loose clothing or jewelry as they might get drawn in by
the tool.
3. PREVENTING ELECTRIC SHOCK. When working with
the tool, make sure to keep the blade away from any
power cables, extension cords or wiring. Only hold the
tool by insulated gripping surfaces when performing an
operation in case the cutter contacts its own cord. Cut-
ting a “live” wire may make exposed metal parts of the
tool “live” and could give the operator an electric shock.
4. TOOL INSPECTION. Before operation, check the tool
for any damage or missing parts. Do not use the tool if
any part is missing or damaged. Do not use the tool if
the power switch is faulty, the plug or cable is damaged,
or the tool produces sparks, smoke, or unpleasant odors
(you may smell brushes wearing down for a few minutes
as the tool breaks in during the first use, that is normal).
Make sure all adjustments are correct and all connec-
tions are tight.
5. SECURING THE WORKPIECE. Use clamps to secure
the workpiece whenever possible to prevent wobble,
damage to the workpiece, and personal injury. Never
hold a piece being cut in your hands or across your legs.
It is important to support the work properly to minimize
body exposure, blade binding, or loss of control.
6. STANDING POSITION. Keep your body positioned to
either side of the saw blade, but not in line with cutting
path. Kickback could cause the saw to jump backwards.
7. STARTING THE TOOL. Always start the saw before
the blade is in contact with the workpiece. Let the blade
reach full speed before using the tool. The reaction to the
torque as the motor accelerates to full speed may cause
the tool to kick back.
8. KEEP HANDS AWAY. Keep hands away from the cut-
ting area and the blade. Do not reach underneath the
workpiece. The blade guard cannot protect you from the
blade protruding from the underside of the workpiece.
Do not attempt to remove cut material when the blade
is moving.
9. DURING OPERATION. Do not apply excessive pres-
sure to the tool. Overstressing the tool may cause kick-
back and damage the tool and accessories. Use special
care when working corners, sharp edges etc.
10. TURNING OFF THE TOOL. The blade coasts after the
saw is turned off. Wait until the blade comes to a full
stop before reaching for loose materials or setting the
tool down.
11. REPLACING THE SAW BLADE. Check the blade for
chipped or broken teeth. Do not use dull or damaged
blades. Unsharpened or improperly set blades produce
narrow kerf, causing excessive friction, blade binding,
and kickback. Always use blades with correct size and
arbor holes. Blades that do not match the mounting
hardware of the saw will run eccentrically, causing a loss
of control.
12. MAKING ADJUSTMENTS. Always turn off and un-
plug the saw before making adjustments or changing
attachments. Accidental start-ups may occur if the saw
is plugged in during an accessory change. Develop a pe-
riodic maintenance schedule for your tool.
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
6
CIRCULAR SAW SAFETY WARNINGS
REDUCING KICKBACK
Kickback is a sudden reaction to a pinched, bound or
misaligned saw blade, causing an uncontrolled saw to
lift up and out of the work piece toward the operator.
When the blade is pinched or bound tightly by the kerf
closing down, the blade stalls and the motor reaction
drives the unit rapidly back toward the operator. If the
blade becomes twisted or misaligned in the cut, the teeth
at the back edge of the blade can dig into the top surface
of the wood causing the blade to climb out of the kerf
and jump back towards the operator. Take the proper
precautions below to reduce the risk of kickback.
• Maintain a firm grip on the saw and position your body
and arm in a way that allows you to resist kickback forc-
es. Kickback forces can be controlled by the operator, if
proper precautions are taken.
• When a blade is binding (or when interrupting a cut for
any reason), release the trigger and hold the saw motion-
less in the material until the blade comes to a complete
stop. Never attempt to remove the saw from the work
or pull the saw backward while the blade is in motion or
kickback may occur.
• When restarting a saw in the workpiece, center the
blade in the kerf and check that the teeth are not en-
gaged into the material. If the saw blade is binding, it
may walk up or kickback from the work piece as the saw
is restarted. Investigate and take corrective actions to
eliminate the causes of blade binding.
• Support large workpieces to minimize the risk of blade
pinching and kickback. Large panels tend to sag under
their own weight. Supports must be placed under the
panel on both sides, near the line of the cut and near the
edge of the panel.
• Do not use dull or damaged blades. Unsharpened or
improperly set blades produce narrow kerf, causing ex-
cessive friction, blade binding, and kickback.
• Blade depth and bevel adjusting locking levers must
be tight and secure before making a cut. If the blade ad-
justment shifts while cutting, it will cause binding and
kickback.
LASER SAFETY
ATTENTION: LASER RADIATION. Class 2 laser.
DO NOT STARE INTO THE BEAM.
1. Do not look directly into the laser beam with unpro-
tected eyes. Never look into the path of the beam.
2. Never point the laser beam towards reflecting sur-
faces. Never point the laser towards people or animals.
Even a laser beam with a low output can cause damage
to the eyes.
3. Never open the laser module as unexpected exposure
to the beam can occur. The laser cannot be replaced with
a different type of laser.
4. Repairs of the laser may only be carried out by the
laser manufacturer or an authorized representative.
BATTERY SAFETY
1. Do not short-circuit batteries. Keep the batteries away
from metal objects when not in use.
2. Do not charge non-rechargeable batteries.
3. Do not mix old and new batteries or batteries of differ-
ent types. Replace an entire set of batteries at the same
time.
4. Do not keep batteries near fire, ovens or other sources
of heat. Do not use batteries in direct sunlight.
5. Remove batteries from the equipment when it will not
be used for an extended period of time.
6. Never handle batteries that have leaked without ap-
propriate protection. If the leaked fluid comes into con-
tact with your skin, the skin in this area should be rinsed
off under running water immediately. Always prevent the
fluid from coming into contact with the eyes and mouth.
In the event of contact, please seek immediate medical
attention.
7. Do not dismantle batteries. Dispose of used batteries
properly at your local collection/recycling facility.
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
7
ELECTRICAL INFORMATION
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 FT. 50 F T. 100 FT. 150 FT.
4.2A 18 gauge 16 gauge 16 gauge 14 gauge
IMPORTANT: Servicing a double-insulated product requires extreme care and knowledge of the system, and
should be done only by qualified service personnel using identical replacement parts. Always use original factory
replacement parts when servicing.
1. POLARIZED PLUGS. To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not modify the machine
plug or the extension cord in any way.
2. GROUND FAULT CIRCUIT INTERRUPTER PROTECTION (GFCI) should be provided on the circuit or outlet used
for this power tool to reduce the risk of electric shock.
3. SERVICE AND REPAIR. To avoid danger, electrical appliances must only be repaired by a qualified service
technician using original replacement parts.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. The table below shows
the correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The
smaller the gauge number, the heavier the cord.
DOUBLE-INSULATED TOOL
The tool’s electrical system is double-insulated where two systems of insulation are provided. This
eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need
to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are
isolated from the internal metal components with protecting insulation.
1. EXAMINE EXTENSION CORD BEFORE USE. Make sure your extension cord is properly wired and in good condi-
tion. Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2. DO NOT ABUSE EXTENSION CORD. Do not pull on cord to disconnect from receptacle; always disconnect by
pulling on plug. Disconnect the extension cord from the receptacle before disconnecting the product from the exten-
sion cord. Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3. USE A SEPARATE ELECTRICAL CIRCUIT FOR YOUR TOOL. This circuit must not be less than a 12-gauge wire
and should be protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure
the switch is in the OFF position and the electric current is rated the same as the current stamped on the motor
nameplate. Running at a lower voltage will damage the motor.
8
KNOW YOUR CIRCULAR SAW
UNPACKING
Carefully remove the circular saw from the packaging. Do not discard the packaging until all of the parts below are
accounted for. If any part is damaged or missing, please contact our customer service at 1 (847) 429-9263, M-F
8-5 CST or email us at [email protected]. Refer to the diagram below to become familiarized with the
parts and controls of your circular saw.
Blade Release Switch
Laser ON/OFF Switch
Laser
Depth Lock Knob
Power Switch
Blade Arbor Screw
Fence Lock Knob
Dust Port
Cutting Guide
TCT Wood-cutting Blade
(Pre-installed)
Soft Metal & Plastics
HSS Blade
Tile-cutting
Diamond Blade
Dust Extraction TubeRip Fence M6 Hex Wrench
9
Blade Model Blade Type Suitable Materials
B8515W TCT Wood-Cutting Blade (30 Teeth) Soft Wood, Hard Wood, and Plastics
B8515M HSS Metal-Cutting Blade (36 Teeth) Soft Metals (Aluminum and Copper) and Plastics
B8515T Diamond Tile-Cutting Disc Tile, Ceramics, and Plastics
Fig. 1
1
Fig. 2
Fig. 3
SELECT THE RIGHT BLADE
Your compact circular saw is a versatile tool that is capable of cutting different materials by using the correct blade.
Your tool comes with three blades: a wood-cutting blade (pre-installed), a metal-cutting blade and a tile-cutting
blade. Make sure to select the suitable blade type for the material being cut. Follow the next section to replace or
install your saw blade.
ASSEMBLY & ADJUSTMENTS
WARNING! To avoid injury from accidental startups, be sure that the tool is switched off and disconnected
from the power supply before inspecting the unit, making adjustments or changing accessories.
INSTALLING / REPLACING THE SAW BLADE
Use saw blades with a 3-3/8 inch (85mm) diameter and a 19/32 inch (15mm) arbor. Do not use a blade that does not
match the diameter or arbor size. The thickness of the included blades are 1 mm on the body and 1.6mm to 1.8mm
on the blade teeth. Do not use a blade too thick that will prevent the arbor screw from properly securing the blade.
Replacement saw blades (models B8515W, B8515M, and B8515T) can be purchased from wenproducts.com.
WARNING! Wear safety gloves when handling saw blades to pre-
vent injuries from accidentally contacting the blade tip.
1. Unplug your compact circular saw from the power source.
2. Press down the spindle lock (Fig. 1 - 1) to prevent the blade from spin-
ning. With the spindle lock pressed down, use the included M6 hex wrench
to loosen the arbor screw by turning it clockwise (Fig. 2).
3. Remove the arbor screw, washer and outer flange.
4. Push the blade release switch (Fig. 3 - 1) and swing the base plate up-
wards. Carefully remove the existing blade.
5. With the base plate swung upwards as in Step 4, slide the new saw
blade onto the spindle. Make sure the blade teeth beneath the base plate
are pointing forward and the arrows printed on the blade point in the
clockwise direction.
6. Replace the outer flange washer. Press the spindle lock (Fig. 1 - 1) and
replace the arbor screw and washer. Fully tighten the arbor screw by turn-
ing it counterclockwise with the hex wrench.
NOTE: The quality of the cut depends on the condition of the saw blade.
Never use a dull, rusty, or damaged blade. Before operation, check the
condition of the blade and replace if the blade is worn-out or damaged.
1
10
SETTING THE DEPTH OF CUT
Before making a cut, it is important to set the correct cutting depth. The saw’s maximum cutting depth is 1 inch
(25mm). We recommend adjusting the cutting depth about 1/16 inch (2mm) deeper than the thickness of the mate-
rial. To adjust the cutting depth, you can either reference the depth scale, or the edge of the workpiece.
ASSEMBLY & ADJUSTMENTS
Using the Depth Scale:
1. Disconnect your saw from the power source.
2. Flip up the depth lock lever (Fig. 4 - 1) to loosen it .
3. Slide the depth lock lever so that the arrow points to your desired cut-
ting depth indicated on the depth scale (Fig. 5 - 1).
4. Press down on the depth lock lever to securely lock the depth setting.
Using the Edge of the Workpiece:
1. Disconnect your saw from the power source.
2. Flip up the depth lock lever to loosen it and slide the lever to all the way
to the right of the slot.
3. Place the base plate onto the workpiece with the saw blade positioned
against the left edge of the workpiece.
4. Grip the tool and push the blade release switch forward with your
thumb. Lower the blade to your desired cutting depth by observing how
deep the blade will cut relative to the top face of the workpiece.
5. Holding the saw in position at a constant depth, slide the depth lock
lever to the left until it is flush against the edge of the inner blade guard.
6. Press down on the depth lock lever to securely lock the depth setting.
CUTTING GUIDE INDICATOR
The cutting guide indicators can be found at the front and rear of the saw
base (Fig. 6 - 1). This guide helps to indicate where the cut will be oc-
curring. Before cutting, draw a guideline on the workpiece and follow the
guideline with the cutting guide to create more accurate cuts.
Using the laser
The laser (Fig. 7 - 1) located on the top of your saw can also be used to
indicate the line of cut. Remove the laser cover and install the two AG13
batteries. Securely replace the laser cover. Switch the laser ON (Fig. 7 - 2)
and align the laser line with your cutting guideline.
WARNING! Do not look directly into the laser beam with unpro-
tected eyes. See page 7 for important rules regarding laser safety.
Fig. 4
Fig. 5
Fig. 6
Fig. 7
1
1
1
1
1
2
11
ASSEMBLY & ADJUSTMENTS
INSTALLING THE RIP FENCE
When making a rip cut along a straight edge, it is recommended to clamp
a straight edge to the workpiece or use the included rip fence (Fig. 8 - 1).
To install the rip fence onto your saw:
1. Loosen the fence lock knob (Fig. 8 - 2) on the front of the base plate.
2. Insert the rip fence from the left side of the tool through all three slots
on the base plate.
3. Adjust the rip fence to the desired width of cut indicated by the cutting
guide indicator.
4. Tighten the fence lock knob to secure the rip fence in place.
CONNECTING THE DUST EXTRACTION HOSE
Dust and chips will be produced during operation that can harm your
health and create a mess in your work area. It is recommended to extract
the sawdust by connecting your tool to a dust extraction system using the
included dust extraction hose.
1. Disconnect your saw from the power source.
2. Attach the dust extraction hose to the dust port on the right side of your
tool. Secure the connection using the wing lock (Fig. 9 - 1).
3. Connect the rubber port end (Fig. 10) of the hose to a suitable dust ex-
traction system. The outer diameter of the hose rubber port is 1 to 1-1/2
inches.
4. Turn on the dust collector before cutting to keep saw dust away from
your lungs and the work area.
PREPARING FOR OPERATION
1. Prepare the work space and position power cords away from the cut-
ting area. Connect your saw to a dust extraction system (see the previous
section).
2. Select and install the correct saw blade for the material to be cut (see
page 10). Check to ensure that the saw blade is sharp. Set the correct
depth of cut for your workpiece (see page 11).
3. Draw a guideline along the desired path of the cut on the workpiece
surface.
4. Place the workpiece with the “good” side down (the saw blade cuts
upward through the material, and may “blow out” the top side) on a flat
supporting surface. Secure the workpiece in place with clamps or vises.
To prevent cutting into the support surface, place sufficient scrap material
under the workpiece.
5. Wear safety glasses, a dust mask and hearing protection. Do not wear
loose clothing or jewelry, and tie back long hair to avoid getting anything
caught in the tool.
Fig. 8
2
Fig. 9
Fig. 10
1
1
12
OPERATION
OPERATING THE SAW
1. Hold the tool firmly in your right hand with your thumb on the blade release switch (Fig. 11 - 1) and your fingers
in the grooves of the power switch (Fig. 11 - 2). Stand to the left side of the saw.
WARNING! To prevent serious injury, make sure all the instructions have been read and understood before
operating this tool. Check that the power switch mechanism works properly before plugging the tool into the
power supply.
2. Set the front portion of the base plate onto
the workpiece. Position the base plate with
its right side resting on the larger section of
board that does not fall off when being cut.
Align the cutting guide indicator (see page
6) with the cutting guideline marked on the
workpiece (Fig. 11). Ensure that the blade is
NOT in contact with the workpiece.
3. Pull the power switch back with your fin-
gers to turn on the saw. Wait three seconds to
allow the blade to reach full speed.
4. Make sure that the base plate is stable on
the workpiece; this is very important espe-
cially during the start or finish of a cut. Push
the blade release switch forward with your
thumb to lower the saw blade. Slowly push
the blade into the workpiece.
5. Gently push the saw forward along the cutting guideline while keeping the base plate flat against the workpiece
surface. Do not force the saw forward too quickly in order to try and hurry up the process. Let the tool work at its
own pace. Never pull the saw backwards while cutting.
6. Let the saw blade run through the entire cut, then lift the tool from the work surface and then release the power
switch and blade release switch. Disconnect the saw from the power source.
CUTTING METAL
It is recommended to start with cutting wood to become familiarized with your tool before attempting to cut tougher
materials such as metal and some plastics as they require more pressure.
Make sure to install the metal blade for metal cutting operations (see page 10). Before cutting metal, remove burrs
and rust from the metal workpiece to avoid impeding the blade feed across the material. Apply thick beeswax (fur-
niture polish) to the underside of the base plate to make metal cutting easier.
WARNING! Wear work gloves and safety goggles to protect your eyes and hands from sparks and metal
chips. Every 2 minutes of metal cutting should be followed by letting your saw rest for at least 3 minutes.
CUTTING CERAMIC TILES
Install the diamond blade (see page 10) for tile cutting. Make sure to connect the tool to a dust collector as ceramic
dust can be hazardous to your health and clog the blade guard. Place duct tape on the base plate to prevent any
scratching on the work surface.
Fig. 11
Side to be cut
2
1
13
CLEANING
Cleaning your tool immediately after each operation is recommended. Wipe the equipment with a clean cloth or
blow away the dust with compressed air at low pressure. Keep the ventilation openings free from dust and debris to
prevent the motor from overheating. Do not let water enter the tool.
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy
plastic which may result in serious personal injury.
NOTE: Electric tools used on fiberglass material, wallboard, spackling compounds, or plaster are prone to acceler-
ated wear and possible premature failure, because the fiberglass chips and grindings are highly abrasive to the
bearings, brushes, etc. We do not recommended using this tool for extended work on these types of materials.
However, if you do work with any of these materials, it is extremely important to clean the tool using compressed
air after operation.
STORAGE
Store the tool in the storage case and place it in a clean, dry place away from the reach of children.
PRODUCT DISPOSAL
Used power tools should not be disposed of together with household waste. This product contains electrical or elec-
tronic components that should be recycled. Please take this product to your local recycling facility for responsible
disposal and to minimize its environmental impact.
MAINTENANCE
WARNING! To avoid accidents, always disconnect the tool from the power supply before cleaning or per-
forming any maintenance.
14
Repairs and replacements should only be performed by an authorized technician. If you have any questions, please
contact our customer service at 1-847-429-9263, M-F 8-5 CST or email us at [email protected].
Problem Cause Solution
Motor does not start
Power cord damaged or not prop-
erly plugged in.
Check the power cord, extension cord, pow-
er plug and the power outlet. Make sure the
outlet is functional. Do not use the tool if any
cord is damaged.
Defective power switch.
Stop using the tool and contact customer
service at 1-847-429-9263, M-F 8-5 CST for
assistance.
Motor carbon brushes (Part No.
36704-011) are worn.
Have the carbon brushes checked and re-
placed by an experienced technician.
Defective Motor.
Stop using the tool and contact customer
service at 1-847-429-9263, M-F 8-5 CST for
assistance.
Ineffective Cutting
Cutting blade edges are dull/worn. Replace the cutting blade (see page 10).
Blade not suitable for the material
being cut.
Select the correct cutting blade (see page
10) for your material.
The blade is not installed properly.
See instructions for properly installing the
blade on
page 10.
TROUBLESHOOTING GUIDE
NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of nor-
mal use are not covered under the warranty.
15
.
.
.
.
EXPLODED VIEW & PARTS LIST
16
No. Part No. Description Qty.
1 36704-001 Pressing Line Plate 1
2 36704-002 Screw ST4x16 8
3 36704-003 Capacitor 1
4 36704-004 Terminal 1
5 36704-005 Power Cord 1
6 36704-006 Power Cord Sheath 1
7 36704-007 M6 Hex Wrench 1
8 36704-008 Screw ST4x25 1
9.1 36704-009.1 Left Handle Housing 1
9.2 36704-009.2 Right Handle Housing 1
10 36704-010
Carbon Brush
Inside Cover
2
11 36704-011 Carbon Brush 2
12 36704-012 Stator 1
13 36704-013 Bump Protection Ring 1
14 36704-014 Rotor 1
15 36704-015 Switch Box 1
16 36704-016 Switch Lever Spring 1
17 36704-017 Power Switch 1
18 36704-018 Shield Push Button 1
19 36704-019 Blade Release Switch 1
20 36704-020 Locking Shaft 1
21 36704-021 Cover Locking Spring 1
22 36704-022 Screw M4x12 3
23 36704-023 Spring Washers M4 9
24 36704-024 Left Cover 1
25 36704-025 Spindle Lock Button 1
26 36704-026 Spindle Lock Spring 1
27 36704-027 Screw ST4x20 1
28 36704-028 Screw M4x16 1
29 36704-029 Screw M4x20 3
30.1 36704-030.1 Left Reducer 1
30.2 36704-030.2 Right Reducer 1
31 36704-031 Gear Module 1
32 36704-032 Retainer Ring M6 1
33 36704-033 Bearing 607 2
34 36704-034 Worm Gear 1
35 36704-035 Screw M4x6 1
36 36704-036 Worm Baffle 1
37 36704-037 Screw M4x8 2
38 36704-038 Shaft Key 1
39 36704-039 Blade Arbor 1
40 36704-040 Base Cap Screw 1
41 36704-041 Right Cover 1
No. Part No. Description Qty.
42 36704-042 Screw M4x6 2
43 36704-043 Dust Port 1
44 36704-044
Cover Connecting
Screw
1
45 36704-045 Slider Cover 1
46 36704-046 Movable Cover 1
47 36704-047 Friction Pad 1
48 36704-048 Retainer Ring M17 1
49 36704-049 Inner Flange 1
50 B8515W
TCT Wood-Cutting
Blade
1
51 36704-051 Outer Flange 1
52 36704-052 Clamped Gasket 1
53 36704-053 Screw M6x10 1
54 36704-054 Upper Blade Guard 1
55 36704-055 Depth Lock Pin 1
56 36704-056 Flat Mat 2
57 36704-057 Depth Stop 1
58 36704-058 Depth Pointer 1
59 36704-059 Pointer Axis 1
60 36704-060 Pointer Lever 1
61 36704-061 Screw M4x25 1
62 36704-062 Screw Cover 1
63 36704-063 Spring 1
64 36704-064 Nut M4 1
65 36704-065
Base Connection
Bracket
1
66 36704-066 Base Connection Screw 1
67 36704-067 Fence Lock Knob 1
68 36704-068 Base Plate 1
69 36704-069 Screw M4x6 3
70 36704-070 Rip Fence 1
71 36704-071 Dust Extraction Hose 1
72 36704-072
Extraction Hose
Rubber Port
1
73 36704-073 Plug Pipe 1
74 36704-074
Vacuum Tube
Connector
1
75 36704-075 Laser Assembly 1
76 B8515M
HSS Metal-Cutting
Blade (Not Shown)
1
77 B8515T
Diamond Tile-Cutting
Blade (Not Shown)
1
EXPLODED VIEW & PARTS LIST
17
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to qualit
y.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GRE
AT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer
power tools will be free from defects in material or workmanship during personal use for a period of two (2) years
used
for professional or commercial use. Purchaser has 30 days from the date of purchase to report missing or
damaged parts.
SELLER’S
SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted
by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which are
defective
in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepair
, abuse, neglect, normal wear and tear, improper maintenance, or other conditions adversely affecting the
Product
or the component of the Product, whether by accident or intentionally, by persons other than Seller. To
make
a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that clearly
-
dor
of Great Lakes Technologies, LLC. Purchasing through third party vendors, including but not limited to garage
sales,
pawn shops, resale shops, or any other secondhand merchant, voids the warranty included with this product.
Contact [email protected] or 1-847-429-9263 with the following information to make arrangements:
your
shipping address, phone number, serial number, required part numbers, and proof of purchase. Damaged or
defective parts and products may need to be sent to WEN before the replacements can be shipped out.
-
turning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must
be
shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product
must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of the
will be returned and shipped back to the pur
chaser at no charge for addresses within the contiguous United States.
THIS
LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING
BELTS, BRUSHES, BLADES, BATTERIES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN
DUR
ATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN
PROVINCES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMI-
TAT
ION MAY NOT APPLY TO YOU.
IN
NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT.
SOME ST
ATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
THIS
LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNT
RY.
THIS
LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANA-
DA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES,
CONT
ACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER
W
ARRANTY SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING
CHARGES MAY APPLY.
18
NOTES
19
V. 2022.09.13
THANKS FOR
REMEMBERING
