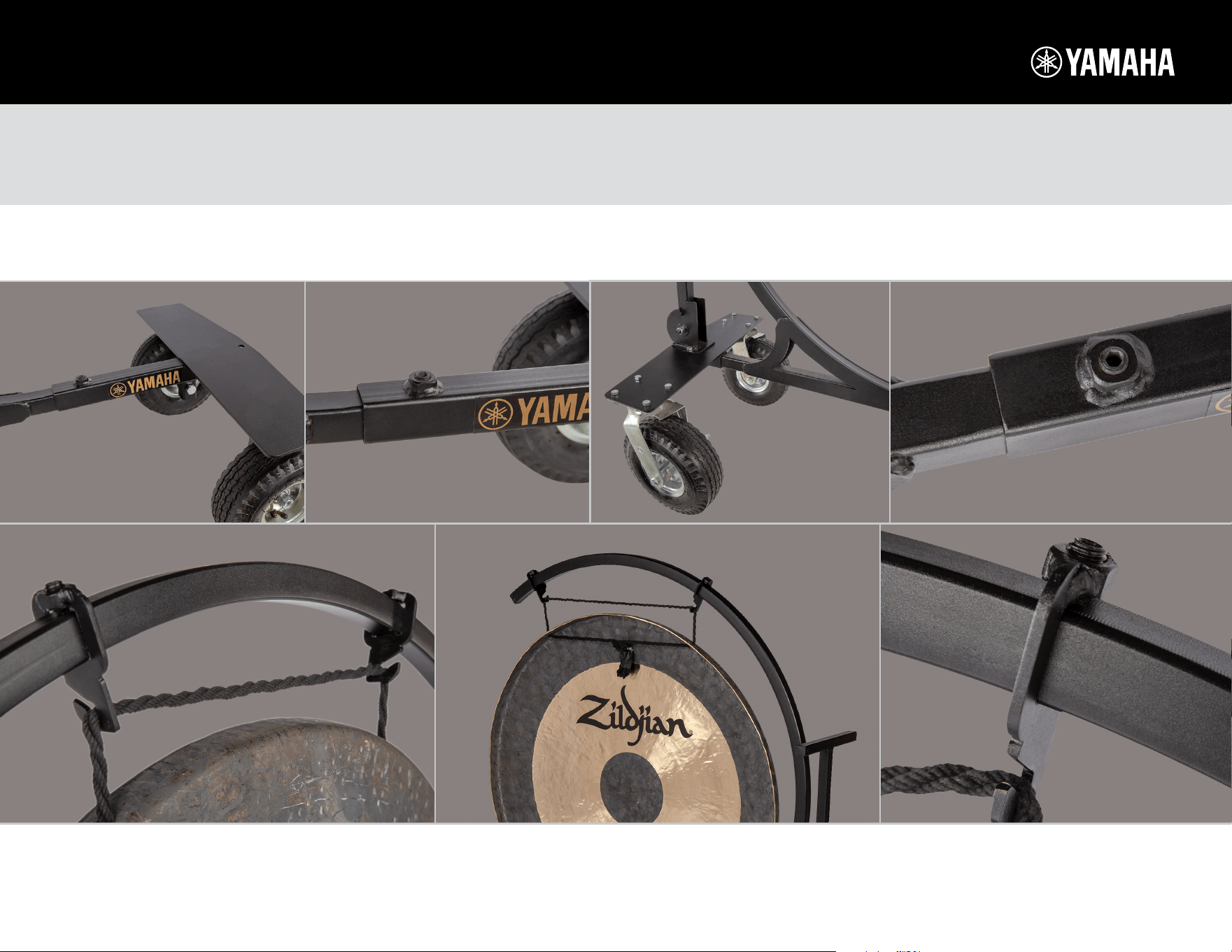

1. Insert the open end of the C-Frame
tubing into the back wheel assembly
with stationary wheels.
2. Tighten screws on the back end of the
frame with the provided Allen wrench.
3. Insert the closed end of the C-frame
tubing into the front wheel assembly
with swivel wheels.
4. Tighten screws on the front end of the
frame with the provided Allen wrench.
5. Adjust the gong placement as needed by moving the
positions of the gong rope hooks.
6. Ensure the gong rope is tight, with very little slack. 7. Adjust the gong rope hooks and tighten the
set screw as needed.
T-GONG ASSEMBLY GUIDE
1. 2. 3. 4.
5. 6. 7.
Assembly guide online: yamaha.io/tgong v1.0
PARTS:
• C-Frame with two attached gong holders
• Front wheel assembly with swivel wheels
• Back wheel assembly with stationary wheels
YOU WILL NEED:
• Allen wrench (provided)
