To reduce the risk of injury, the user must read and understand the Operator’s
Manual before using this product. Save these instructions for future reference.
2
1. SAFETY INFORMATION
1.1 Laws Pertaining to Spark Arresters
1.2 Operating Safety
1.3 Safety While Using Combustion Engines
1.4 Service Safety
2. GENERAL INFORMATION
2.1 Intended Use
2.2 Trowel Familiarization
3. TECHNICAL DATA
3.1 Specifications
3.2 Product Features
3.3 Parts Included

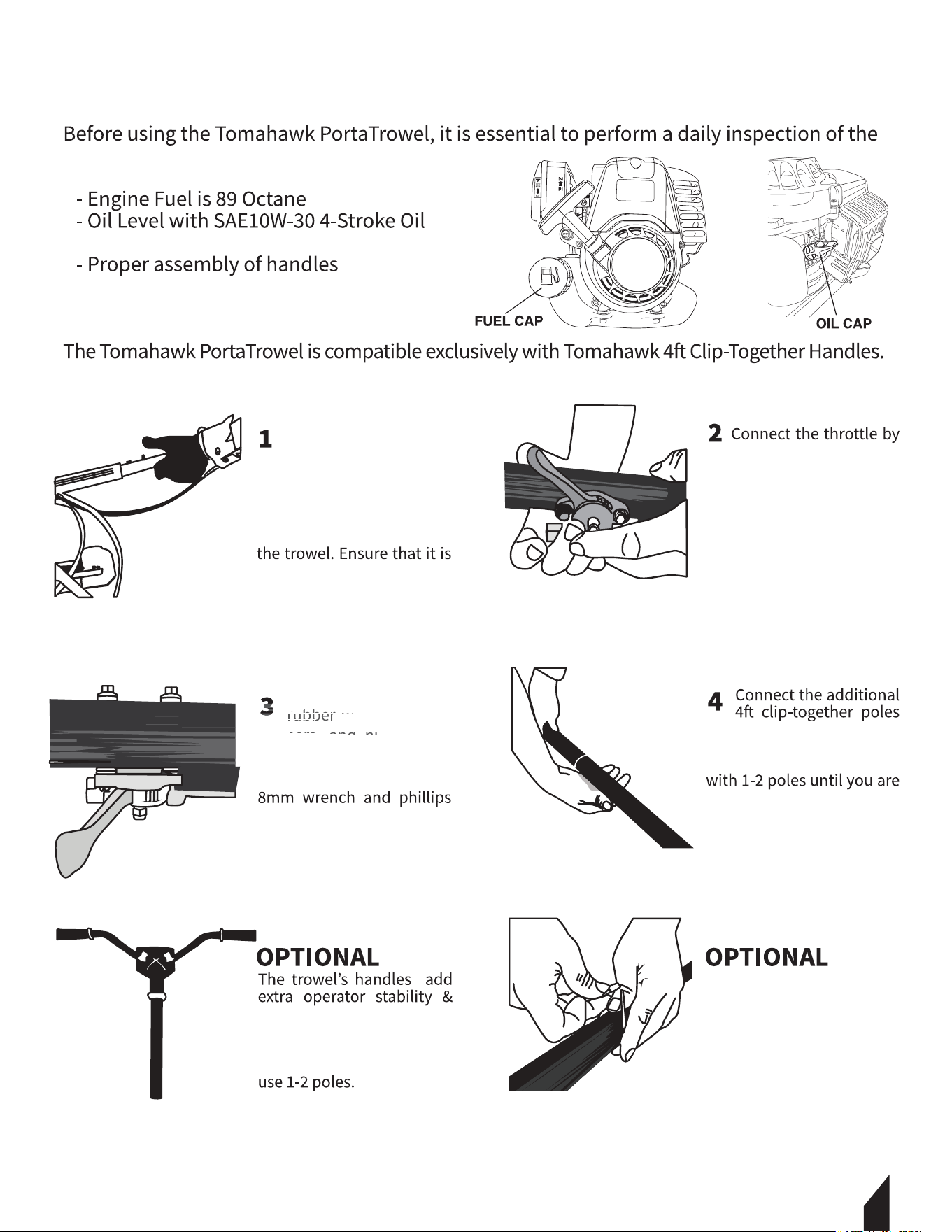

4. OPERATION
4.1 Before Operation
4.2 Connecting the Handles
4.3 Starting the Machine
4.4 Stopping the Machine
4.5 Using the Trowel
4.6 Pitching the Blades
4.7 Floating Operation
4.8 Finishing Operation
5. MAINTENANCE
6. STORAGE & CLEANING
7. ACCESSORY OPTIONS
9. TOMAHAWK CATALOG & COUPON
4
5
5
6
6
7
7
7
8
8
8
8
9
9
9
10
10
10
11
11
11
12
13
14
18
Table of Contents
3
Register Your Equipment
Thank you for purchasing TOMAHAWK equipment! Your product is covered by the
TOMAHAWK Warranty policy, but in order to activate your warranty, we need you to register
your product. In addition to activating your equipment warranty, product registration will
grant you access to important product updates, streamlined customer service and more.
INCLUDED WITH YOUR REGISTRATION
STEPS TO REGISTER YOUR EQUIPMENT
1. Visit www.tomahawk-power.com
2.
3.
4.
5.
Equipment Resources
T
running smoothly - the proper equipment, spare parts, instruction manuals, and more are
needed at the drop of a hat. Visit www.tomahawk-power.com to gain access to the incredible
resources below.
How To Video Library
More of a visual person? Visit our Video Library for equipment
assembly instructions, troubleshooting tips, and more!
Found on each product listing or the Service Videos Page
Manual and Assembly Guide Library
Visit our Manual Library if you are looking for a lost
operations manual or a particular spare part?
Found on each product listing or the Tomahawk Manuals Page
Service Requests
shortly to get you the help you need.
Choose “Service Request” at the bottom of www.tomahawk-power.com

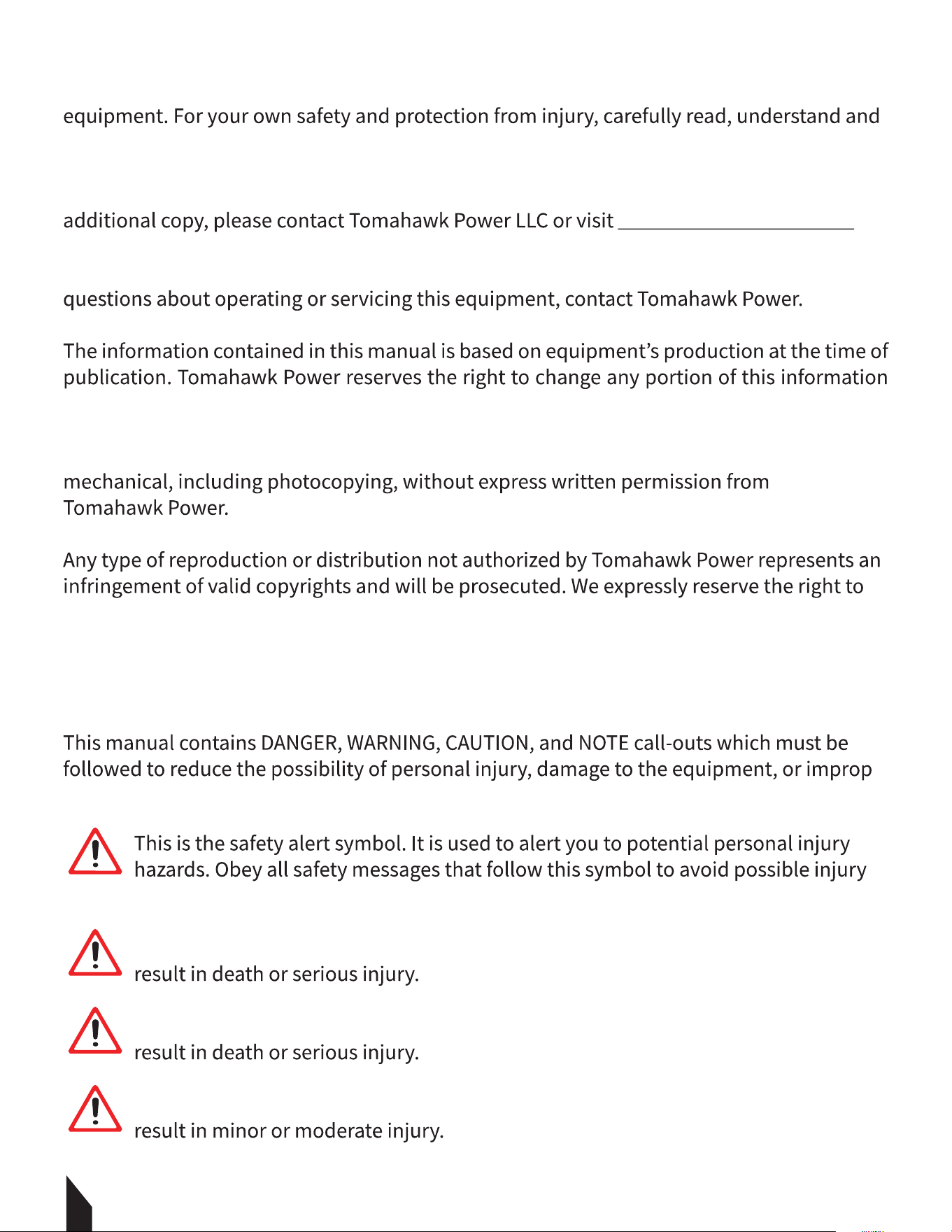

This manual provides information and procedures to safely operate and maintain this
observe the safety instructions described in this manual.
Keep this manual or a copy of it with the equipment. If you lose this manual or need an
www.tomahawk-power.com
This equipment is built with user safety in mind; however, it can present hazards if
improperly operated and serviced. Follow operating instructions carefully. If you have
without notice.
No part of this publication may be reproduced in any form or by any means, electronic or
make technical modifications, even without due notice, which aim at improving our
machines or their safety standards.
1. SAFETY INFORMATION
-
er service.
or death.
DANGER indicates an imminently hazardous situation which, if not avoided, will
WARNING indicates a potentially hazardous situation which, if not avoided, could
CAUTION indicates a potentially hazardous situation which, if not avoided, may
DANGER
WARNING
CAUTION
4
5

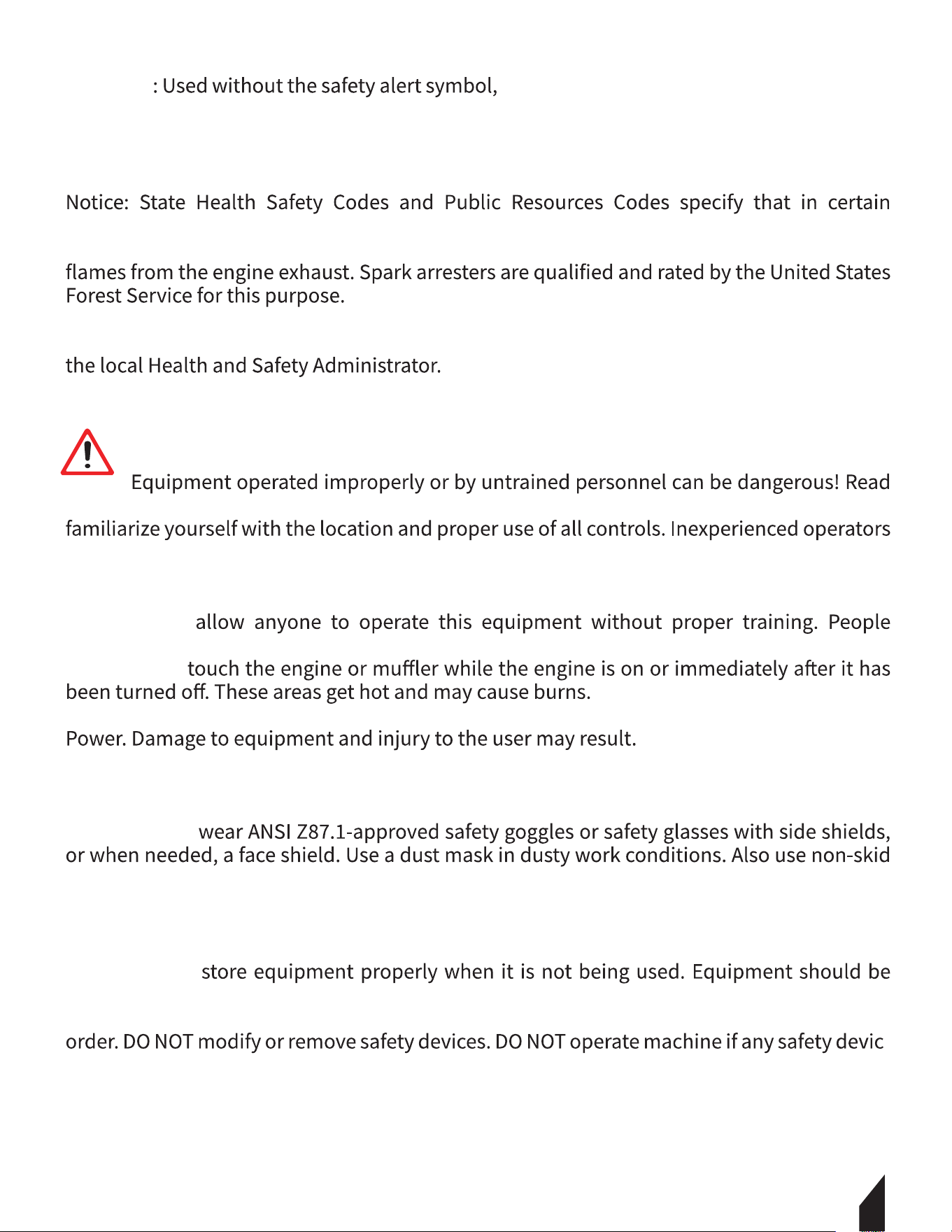

CAUTION CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in property damage.
1.1 Laws Pertaining to Spark Arresters
locations spark arresters be used on internal combustion engines that use hydrocarbon
fuels. A spark arrester is a device designed to prevent accidental discharge of sparks or
In order to comply with local laws regarding spark arresters, consult the engine distributor or
1.2 Operating Safety
Familiarity and proper training are required for the safe operation of equipment!
the operating instructions contained in both this manual and the engine manual and
should receive instruction from someone familiar with the equipment before being allowed
to operate the machine.
1.2.1 NEVER
operating this equipment must be familiar with the risks and hazards associated with it.
1.2.2 NEVER
1.2.3 NEVER use accessories or attachments that are not recommended by Tomahawk
1.2.4 NEVER leave machine running unattended.
1.2.5 ALWAYS be sure operator is familiar with proper safety precautions and operation
techniques before using machine.
1.2.6 ALWAYS
safety shoes, hardhat, gloves, dust collection systems, and hearing protection when
appropriate. This applies to all persons in the work area.
1.2.7 ALWAYS close fuel valve on engines equipped with one when machine is not being
operated.
1.2.8 ALWAYS
stored in a clean, dry location out of the reach of children.
1.2.9 ALWAYS operate machine with all safety devices and guards in place and in working
-
es or guards are missing or inoperative.
1.2.10 ALWAYS read, understand, and follow procedures in Operator's Manual before
attempting to operate equipment.
WARNING
6

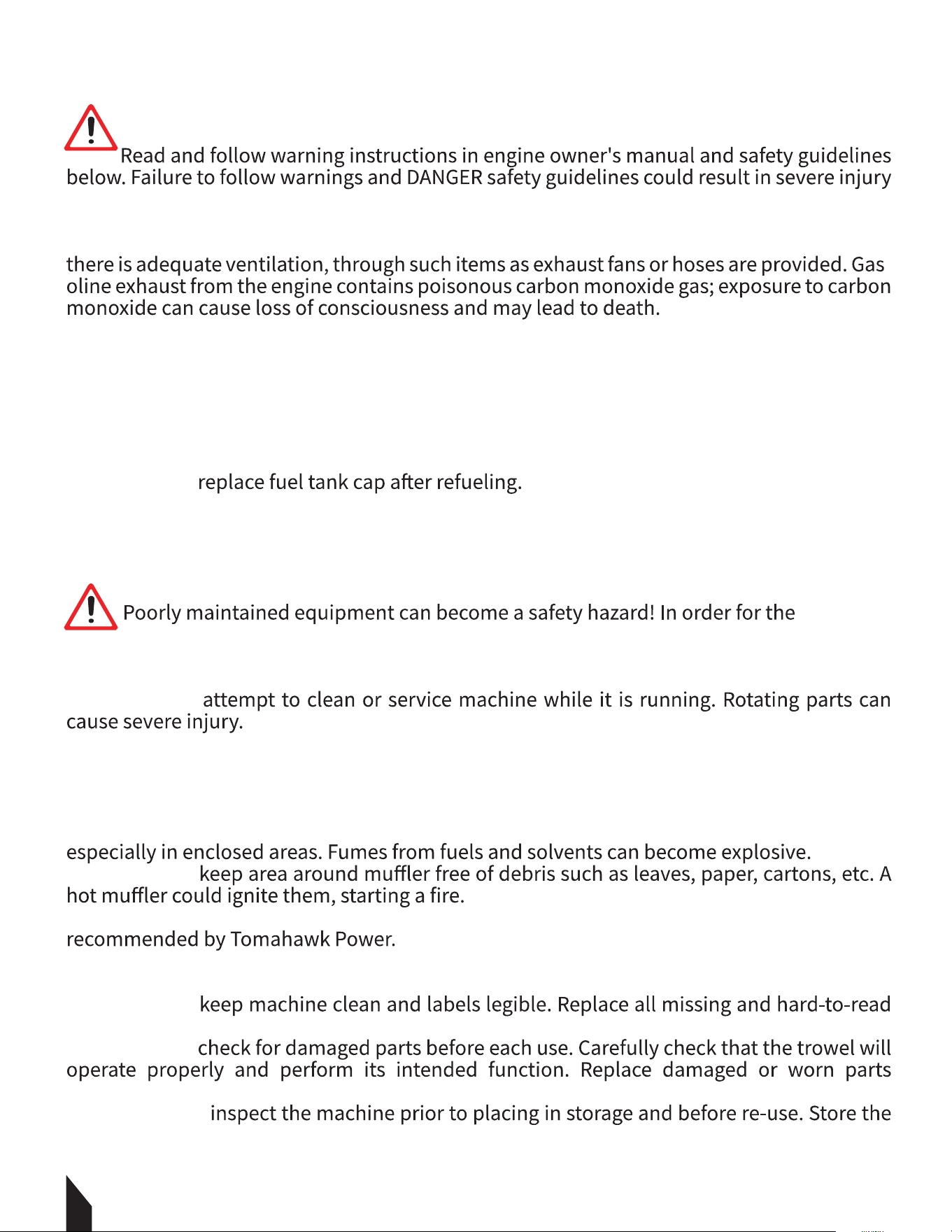

1.3 Safety while using Combustion Engines
Internal combustion engines present special hazards during operation and fueling!
or death.
1.3.1 DO NOT run machine indoors or in an enclosed area such as a deep trenches unless
-
1.3.2 DO NOT smoke while operating machine.
1.3.3 DO NOT smoke when refueling engine.
1.3.4 DO NOT refuel hot or running engine.
1.3.5 DO NOT refuel engine near open flame.
1.3.6 DO NOT spill fuel when refueling engine.
1.3.7 DO NOT run engine near open flames.
1.3.8 ALWAYS refill fuel tank in well-ventilated area.
1.3.9 ALWAYS
1.3.10 ALWAYS check fuel lines and fuel tank for leaks and cracks before starting engine.
1.3.11 DO NOT run machine if fuel leaks are present or fuel lines are loose.
1.4 Service Safety
equipment to operate safely and properly over a long period of time, periodic
maintenance and occasional repairs are necessary.
1.4.1 DO NOT
1.4.2 DO NOT crank a flooded engine with the spark plug removed on gasoline-powered
engines. Fuel trapped in the cylinder will squirt out the spark plug opening.
1.4.3 DO NOT test for spark on gasoline-powered engines, if engine is flooded or the smell of
gasoline is present. A stray spark could ignite fumes.
1.4.4 DO NOT use gasoline or other types of fuels or flammable solvents to clean parts,
1.4.5 ALWAYS
1.4.6 ALWAYS replace worn or damaged components with spare parts designed and
1.4.7 ALWAYS disconnect spark plug on machines equipped with gasoline engines, before
servicing, to avoid accidental start-up.
1.4.8 ALWAYS
labels. Labels provide important operating instructions and warn of dangers and hazards.
1.4.9 ALWAYS
immediately. Never operate the trowel with a damaged part.
1.4.10 ALWAYS
trowel in a dry, secure place out of the reach of children when not in use.
DANGER
WARNING
7

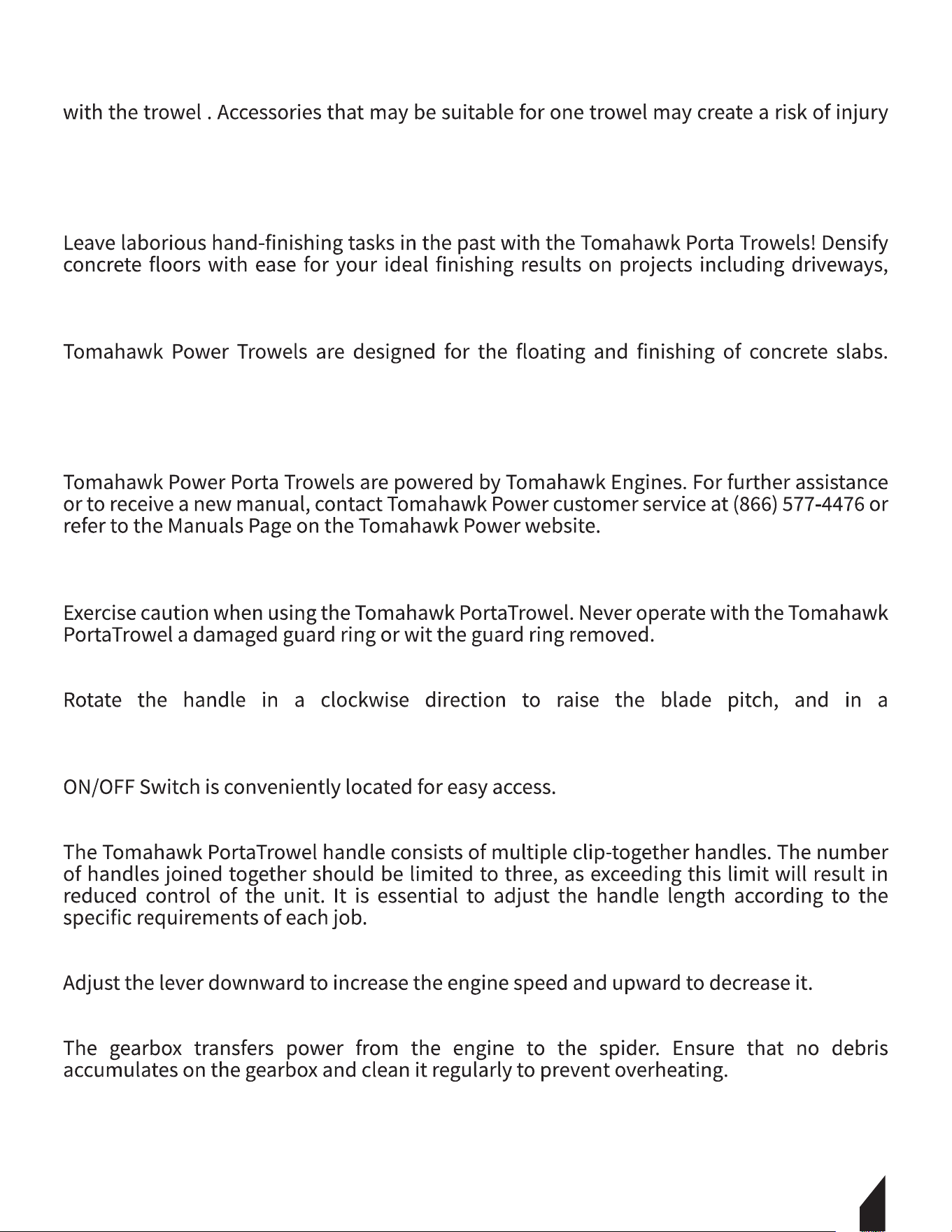

1.4.11 ALWAYS use only accessories that are recommended by the manufacturer for use
when used with the equipment.
1.4.12 ALWAYS keep blades clean when not in use and guards in place and in working order.
2. GENERAL INFORMATION
2.1 Intended Use
footpaths, tilt/precast concrete panels, residential foundations, and more!
2.2 Trowel Familiarization
Analyze your trowel and take notice of each component: the engine, blades, air filter,
centrifugal stop switch, clutch and pulley system. Be sure that there is always oil in the
engine.
2.3 Engine
2.4 Guard Ring
Avoid placing your hands or feet within the guard ring while the engine is in operation.
2.5 Blade Pitch Control
counter-clockwise direction to lower it.
2.6 ON/OFF Switch
2.7 Handle
2.8 Throttle Control
2.9 Gearbox
2.10 Spider Plate and Trowel Arm
to clean and maintain the spider plates and trowel arms to prevent uneven blade wear on
the concrete surface.

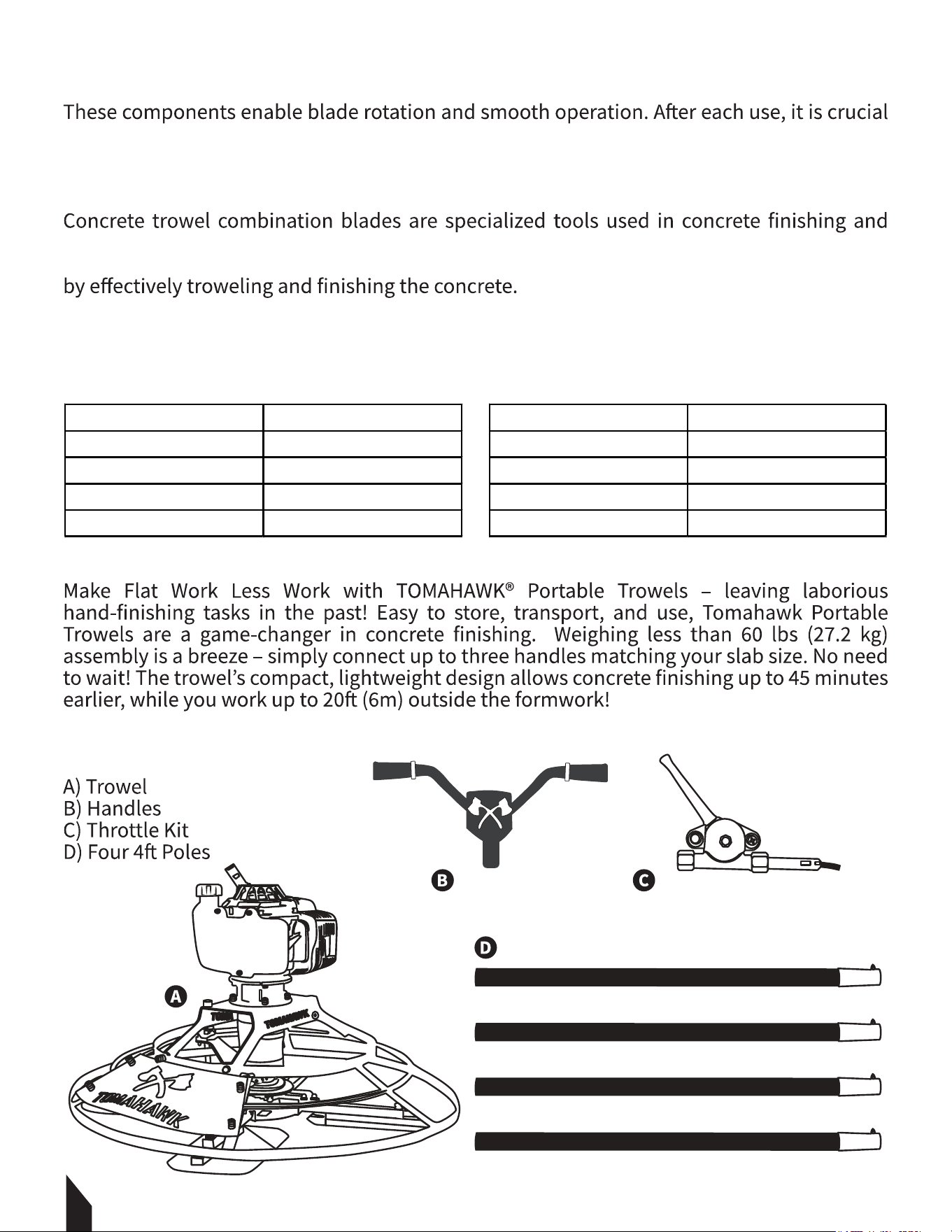

2.11 Combination Blades
smoothing processes. They typically consist of multiple blades attached to a trowel machine
or power trowel. These blades are designed to achieve a smooth and level concrete surface
3. TECHNICAL DATA
3.1 Specifications
3.2 Product Features
3.3 Parts Included
8
Engine Tomahawk 4 Stroke Blades Included 4
Power 37.7cc Handles Included
4 (4ft/1.2m Each)
Blade Speed 40 - 70 RPM Fuel Type SAE 10W30
Rotor Diameter
30" (76.2cm)
Oil Type 89 Octane
Blade Pitch 0-28° Weight
56 lbs (25.4 kg)
4. OPERATION
4.1 Before Operation
following parts.
- Blade condition and pitch control operation
4.2 Connecting the Handles
Tie down the throttle cable
with a zip-]tie to prevent
damage or dragging.
9
Locate the handles
with the two holes
meant to attach the
throttle. Insert the silver
end of the handle, featuring
the push button locking
pin, into the handle slot of
properly inserted and
locked into position.
9
placing two rubber
washers over the screws,
then insert the screws into
the right side of the pole.
Add the remaining
rubber washers, metal
washers, and nuts to the
end of the screws and
fasten tightly using an
head screw driver.
rubber washers, metal
washers, and nuts to the
comfort during operation,
however they are not
necessary to operate the
machine, if you choose to
as needed. If this is your
first time using the machine,
Tomahawk suggests starting
comfortable operating the
machine.
10

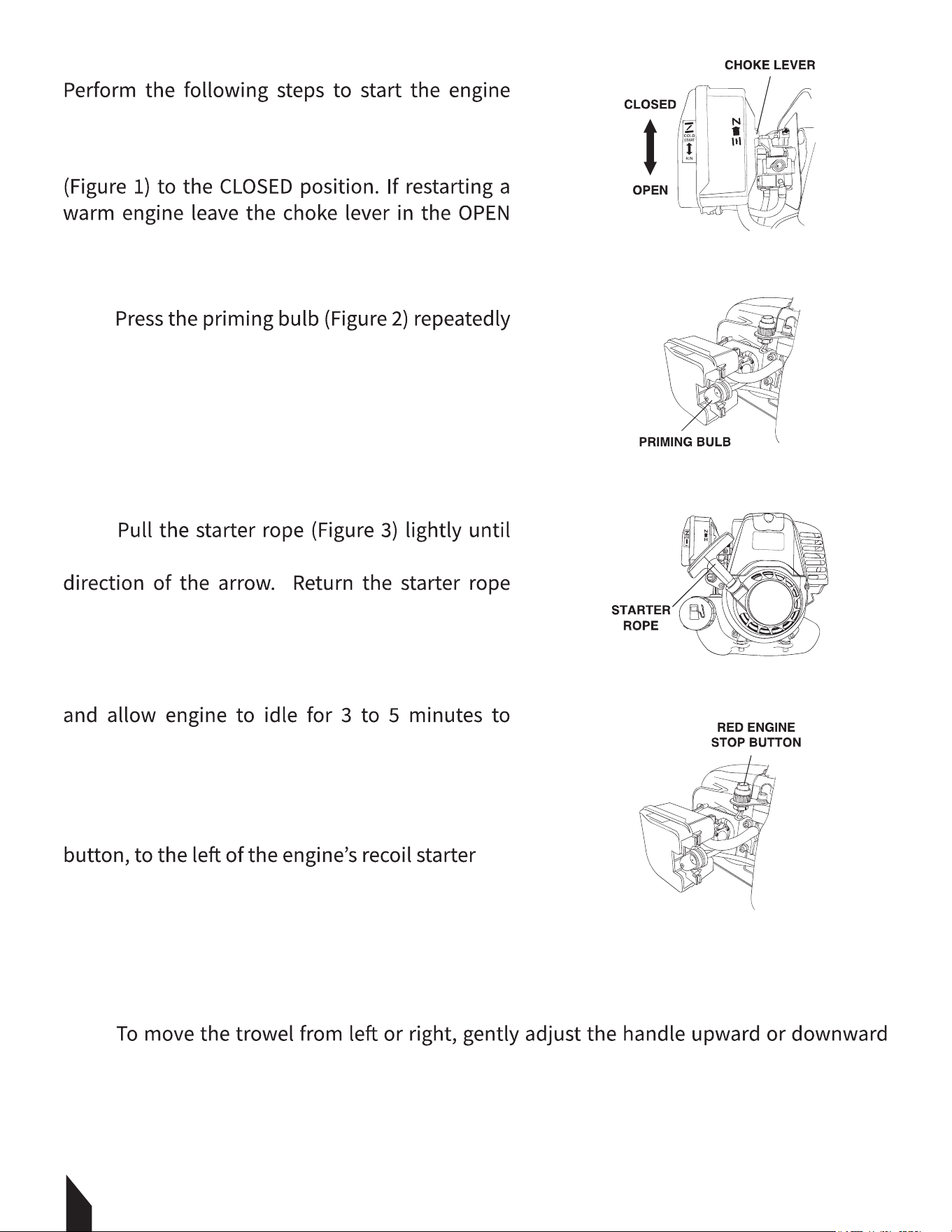

4.3 Starting the Machine
and begin troweling:
4.3.1 To start a cold engine, move the choke lever
position.
4.3.2
until fuel can be seen inside the fuel lines.
4.3.3 Move the throttle lever slightly to give the
engine some speed.
4.3.4
you feel resistance, then pull briskly in the
gently.
4.3.5 Once the engine has started, open the choke
warm-up.
4.4 Stopping the Machine
To stop the machine, press the red engine stop
4.5 Using the Trowel
4.4.1 To maneuver the trowel in a forward and backward motion, push the handle away from
your body and then pull it back towards you, similar to how you would handle a bull float.
4.4.2
using a slow and gentle motion.
Figure 1
Figure 2
Figure 3
Figure 4
11
WARNING
slab surface.

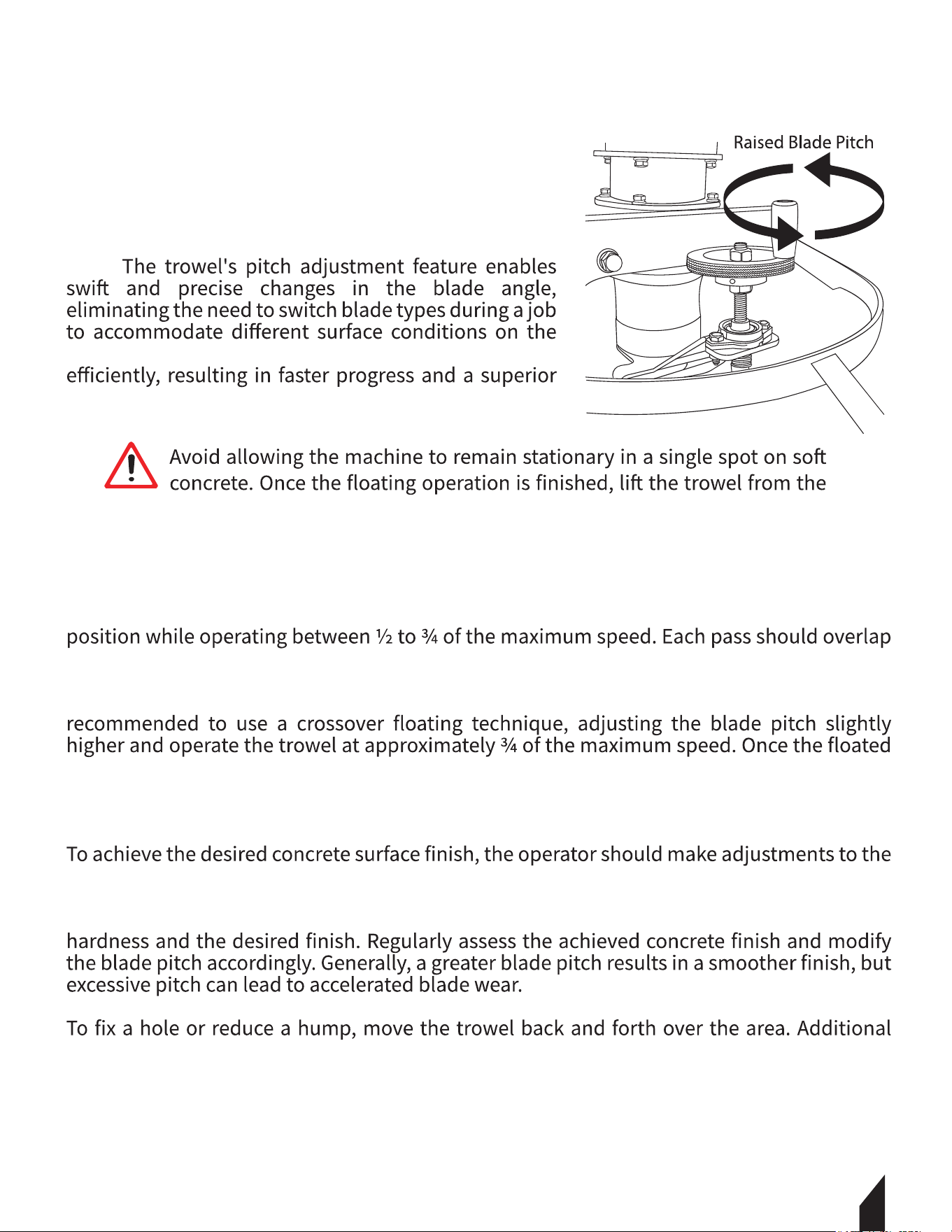

4.6 Pitching the Blades
4.5.1 To pitch the blades upwards, turn the handle
clockwise.
4.5.2 To lay the blades flat, turn the handle
counter-clockwise.
4.5.3
slab. This capability allows the operator to work more
finish on the slab.
4.7 Floating Operation
For optimal floating performance, it is advisable to maintain the trowel blades in a level
the previous one by half the width of the trowel.
To achieve the desired finish, an additional trowel pass may be necessary. For this pass, it is
slab has adequately set, it is ready for the finishing process.
4.8 Finishing Operation
blade pitch, taking into account the hardness or plasticity of the concrete. For wet or plastic
concrete, begin with the blades positioned flat or at a slight angle on the surface. As the
concrete adequately hardens, increase the blade pitch while considering the concrete
passes may be necessary to achieve the desired surface finish.
12

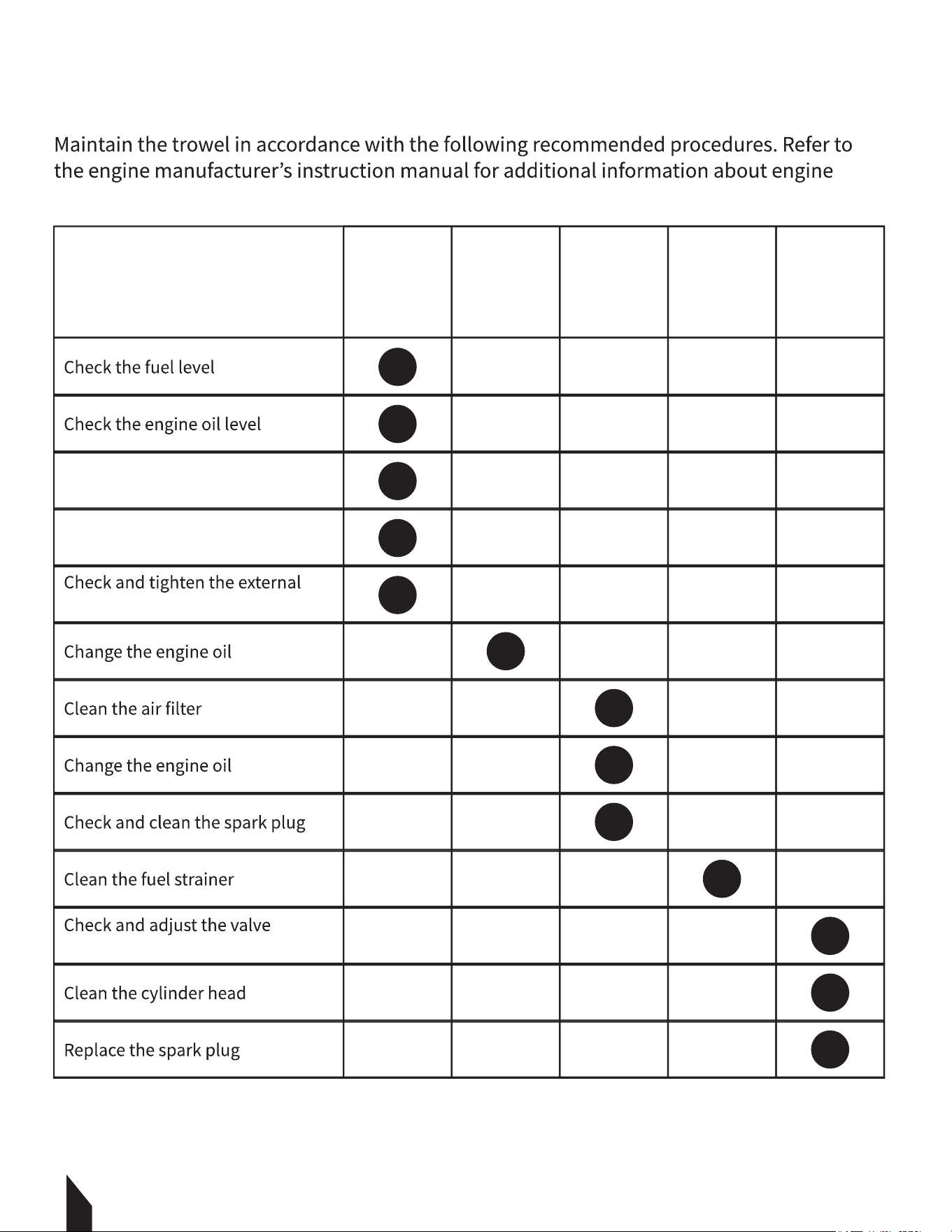

5. MAINTENANCE
maintenance. The following chart is based on a normal operation schedule.
Inspect the fuel lines
Inspect the air filter and replace if
needed
hardware
clearance
DAILY
BEFORE
STARTING
AFTER
FIRST 20
HOURS OR 3
MONTHS
AFTER
FIRST 50
HOURS OR 6
MONTHS
AFTER
FIRST 100
HOURS OR
EVERY YEAR
AFTER
FIRST 200
HOURS OR
EVERY
2 YEARS
6. STORAGE AND CLEANING
6.1 Cleaning
Keep the unit clean and free from concrete build up.

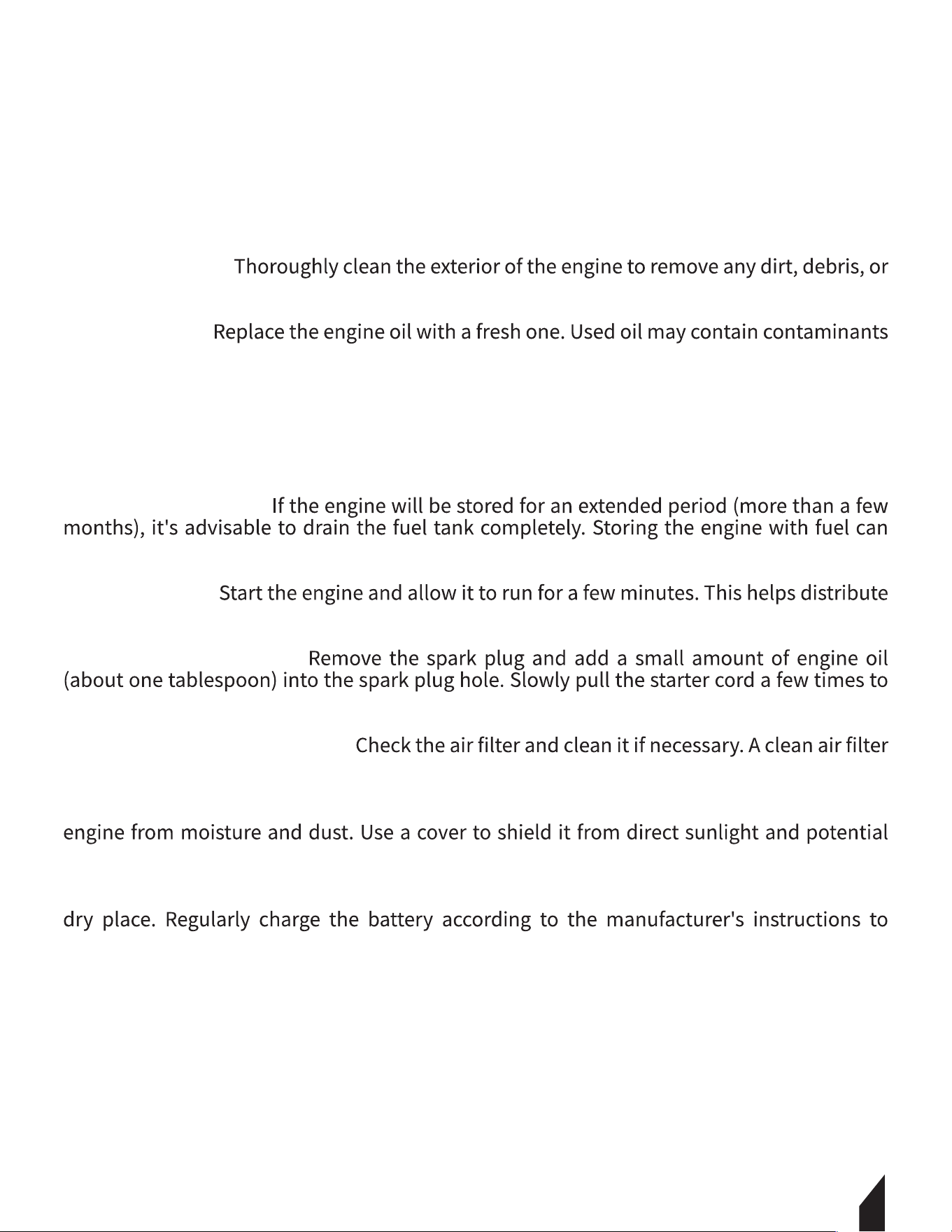

6.2 Storage
Clean the Engine:
grime. This helps prevent corrosion and ensures a clean storage environment.
Change the Oil:
that can cause damage during storage. Follow the manufacturer's recommendations for the
correct oil type and change procedure.
Stabilize the Fuel: Add a fuel stabilizer to the gas tank and run the engine for a few minutes
to allow the treated fuel to circulate through the system. This prevents the fuel from
deteriorating and causing issues when starting the engine later.
Empty the Fuel Tank:
lead to fuel degradation and carburetor problems.
Run the Engine:
the stabilized fuel throughout the system and prevents the formation of deposits.
Remove the Spark Plug:
distribute the oil inside the cylinder. This helps prevent rust formation during storage.
Clean or Replace the Air Filter:
ensures proper airflow and prevents debris from entering the engine during storage.
Store in a Dry and Covered Area: Find a dry and well-ventilated storage area to protect the
damage.
Battery Maintenance: If the engine has a battery, remove it and store it separately in a cool,
maintain its health during storage.
Periodic Inspection: While the engine is in storage, periodically inspect it for any signs of
damage, corrosion, or pests. This allows for early detection and timely maintenance if
required.
13
7. ACCESSORY OPTIONS

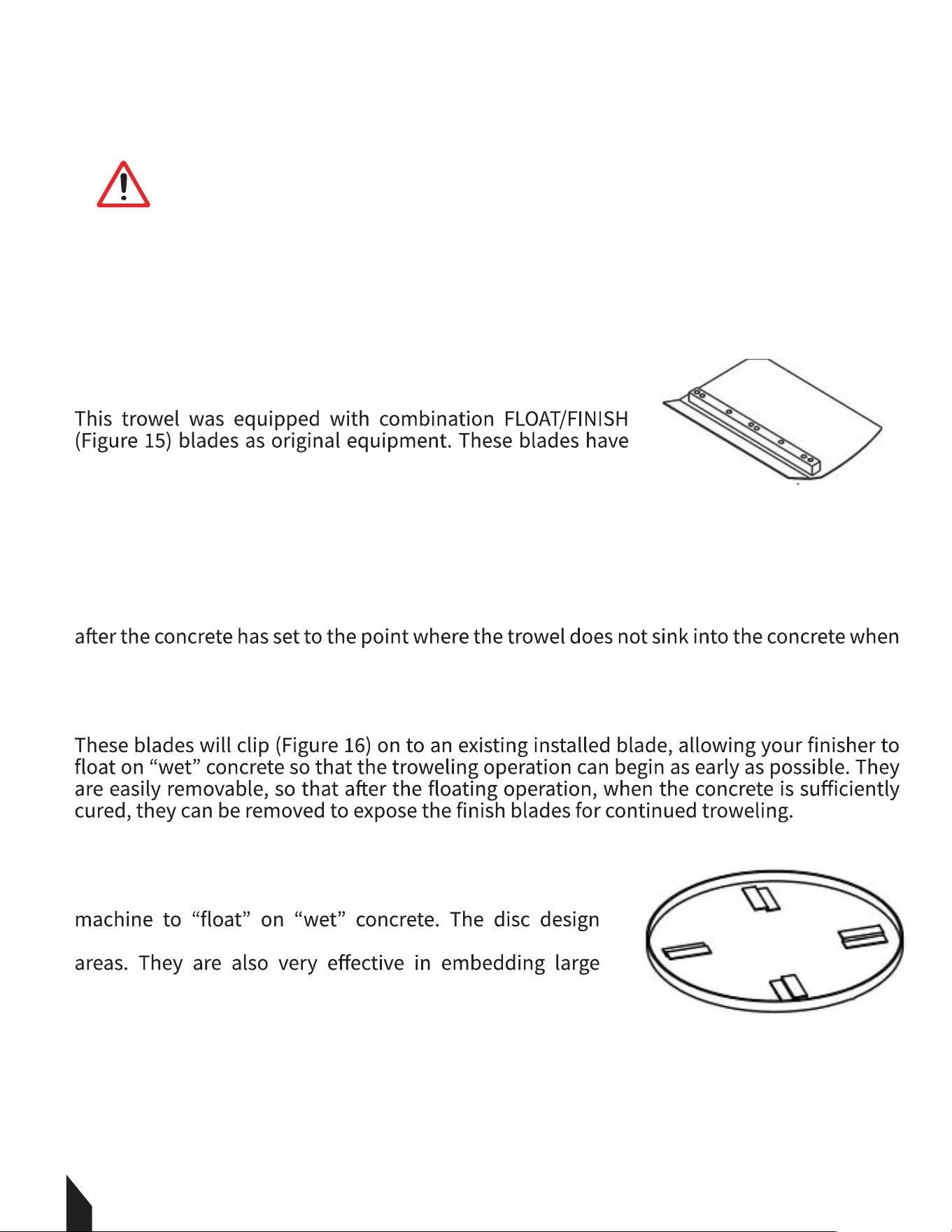

7.1 Blades
Blades are a vital part of finishing concrete. This Tomahawk Trowel has been designed to
finish concrete and is built to stringent quality standards out of the finest trowel steel. If you
need replacement blades, consult your parts list in this manual for part numbers and order
them from the Tomahawk Website or your Tomahawk parts
dealer.
7.2 Combo Blades
been designed for optimum performance in both the floating
and finishing operations. These blades are versatile and
should take care of most troweling needs.
7.3 Finishing Blades (Optional)
These blades have been specifically designed for finish operations with this trowel. They will
provide a premium surface finishing capability from your trowel. They should only be used
placed on it.
7.4 Clip-On Float Blades (Optional)
7.5 Float Pans (Optional)
These round discs attach to the spiders and allow the
allows early floating and easy movement from wet to dry
aggregates and surface hardeners.
NOTE
Blades should be changed when they fail to finish
concrete in a satisfactory manner.
FIGURE 15
FIGURE 16
14
FAST TRACK
YOUR CONCRETE JOB
Master your ne t concrete b with Tomahawk oncrete
ower creeds! Bundle ave when choosing blades from
e iciency!
Item #:
TVSA-T, TVSA-H, eTVSA
VIBRATORY CONCRETE
POWER SCREEDS
www.tomahawk-power.com
NEVER PUMP
NEVER LOSE PRESSURE
Lose the manual pump and gain the power to spray
or less while maintaining constant, stable pressure from with
your ideal concrete sealant, cure, top cast, form release, and more!
27
24
Item #: TCS6.5
6.5 GAL MOTORIZED
CONCRETE SPRAYER
www.tomahawk-power.com
24
Item #: TFS6H
6” EARLY ENTRY
GREEN CONCRETE SAW
www.tomahawk-power.com
CUT CONCRETE FASTER
PRODUCT
CATALOG
3,550 lbs/ft Vibratory Rammer
Part#: TR68H
3.6 HP Honda GXR120 Engine
Easily achieve a 100% compaction rating
3-in-One Fuel System with carburetor protection
13” x 11” plate for narrow trenches and corners
3 Year Engine Warranty & 1 Year Product Warranty
6.5 Gal Backpack Concrete Sprayer
Part#: TCS6.5
Maintain constant, adjustable pressure up to 450 PSI
Achieve superior concrete finishes with even spraying
Spray 15,000 sq ft in less than 10 minutes
Compatible with major manufacturer wands
1 Year Product Warranty
3,550 lbs/ft Vibratory Rammer
Part#: TR68H
3.6 HP Honda GXR120 Engine
Easily achieve a 100% compaction rating
3-in-One Fuel System with carburetor protection
13” x 11” plate for narrow trenches and corners
3 Year Engine Warranty & 1 Year Product Warranty
6.5 Gal Backpack Concrete Sprayer
Part#: TCS6.5
Maintain constant, adjustable pressure up to 450 PSI
Achieve superior concrete finishes with even spraying
Spray 15,000 sq ft in less than 10 minutes
Compatible with major manufacturer wands
1 Year Product Warranty
8” Gas Powered Concrete Scarifier
Part#: TSCAR8H
5.5 HP Honda GX160 Engine
Remove traffic lines at 800 - 1,000 linear ft/hr
Tungsten Carbide Blade Kit Available
OSHA approved dust port for silica vacuum removal
3 Year Engine Warranty & 1 Year Product Warranty
36” & 46” Concrete Power Trowel
Part#: TPT36H/K & TPT46H/K
6 HP/14HP Kohler & 5.5HP/8.5HP Honda Engines
Adjust trowel blade pitch from 0-28°
60-115 RPM rotor speed for superior concrete finishes
Includes float pan and trowel blades
3 Year Engine Warranty & 1 Year Product Warranty
3,400 lbs/ft Plate Compactor
Part#: TPC90H
5.5 HP Honda GX160 Engine
Easily achieve a 100% compaction rating
22” x 20” cold, rolled steel beveled base plate
Includes 3.5 gallon water tank for asphalt compaction
3 Year Engine Warranty & 1 Year Product Warranty
3,000 lbs/ft Plate Compactor
Part#: TPC80 & TPC80H
6 HP Kohler CH260 & 5.5 HP Honda GX160 Engines
Easily achieve a 100% compaction rating
16.5” x 21.5” plate for narrow trenches and corners
Optional Honda Engine model: TPC80H
3 Year Engine Warranty & 1 Year Product Warranty
1.6 HP Vibratory Concrete Screed
Part#: TVSA-H
1.6 HP Honda GX35 Engine
Aluminum Magnesium blades available from 8ft - 14ft
Finish concrete 4X faster than other screed methods
360° adjustable handle placement
3 Year Engine Warranty & 1 Year Product Warranty
6” Early Entry Green Concrete Saw
Part#: TFS6H
5.5 HP Honda GX160 Engine
Maximum cutting depth of 1 3/16 inches
OSHA compliant vacuum port for dust collection
Includes 6” early entry concrete blade
3 Year Engine Warranty & 1 Year Product Warranty
8” Gas Powered Concrete Scarifier
Part#: TSCAR8H
5.5 HP Honda GX160 Engine
Remove traffic lines at 800 - 1,000 linear ft/hr
Tungsten Carbide Blade Kit Available
OSHA approved dust port for silica vacuum removal
3 Year Engine Warranty & 1 Year Product Warranty
36” & 46” Concrete Power Trowel
Part#: TPT36H/K & TPT46H/K
6 HP/14HP Kohler & 5.5HP/8.5HP Honda Engines
Adjust trowel blade pitch from 0-28°
60-115 RPM rotor speed for superior concrete finishes
Includes float pan and trowel blades
3 Year Engine Warranty & 1 Year Product Warranty
3,400 lbs/ft Plate Compactor
Part#: TPC90H
5.5 HP Honda GX160 Engine
Easily achieve a 100% compaction rating
22” x 20” cold, rolled steel beveled base plate
Includes 3.5 gallon water tank for asphalt compaction
3 Year Engine Warranty & 1 Year Product Warranty
3,000 lbs/ft Plate Compactor
Part#: TPC80 & TPC80H
6 HP Kohler CH260 & 5.5 HP Honda GX160 Engines
Easily achieve a 100% compaction rating
16.5” x 21.5” plate for narrow trenches and corners
Optional Honda Engine model: TPC80H
3 Year Engine Warranty & 1 Year Product Warranty
1.6 HP Vibratory Concrete Screed
Part#: TVSA-H
1.6 HP Honda GX35 Engine
Aluminum Magnesium blades available from 8ft - 14ft
Finish concrete 4X faster than other screed methods
360° adjustable handle placement
3 Year Engine Warranty & 1 Year Product Warranty
6” Early Entry Green Concrete Saw
Part#: TFS6H
5.5 HP Honda GX160 Engine
Maximum cutting depth of 1 3/16 inches
OSHA compliant vacuum port for dust collection
Includes 6” early entry concrete blade
3 Year Engine Warranty & 1 Year Product Warranty
1.6HP Backpack Concrete Vibrator
Part#: TVIBH + TVW10-P
1.6 HP Honda GX35 engine
Consolidation with speeds of 10,000-12,000 VPM
Quick Connect centrifugal clutch vibrator
1” and 2” Diameter Whips Available in 10ft Length
3 Year Engine Warranty & 1 Year Product Warranty
1.6HP Backpack Concrete Vibrator
Part#: TVIBH + TVW10-P
1.6 HP Honda GX35 engine
Consolidation with speeds of 10,000-12,000 VPM
Quick Connect centrifugal clutch vibrator
1” and 2” Diameter Whips Available in 10ft Length
3 Year Engine Warranty & 1 Year Product Warranty
We’re here to help!We’re here to help!
tomahawk-power.com
3.7 Gallon 3HP Backpack Fogger
Part#: TMD14
Turbo Boosted Pump with 40ft + Horizontal Reach
Sprays 1 acre in 30 minutes
10X Faster than Manual Pump Sprayers
Converts to Leaf Blower with 200 MPH Air Velocity
1 Year Product Warranty
Commercial 38" Push Sweeper
Part#: TOS38
Collect up to 14.5 gallons of dust and debris
Can be used indoors & outdoors on wet or dry surfaces
Includes integrated airflow control and fine dust filter
Lightweight design, capable of fitting through doorways
1 Year Product Warranty
INVERTER
210 Amp Portable Welder Generator
Part#: TWG210A
Steady 50 - 210 Amp DC welding output
60% Duty Cycle for extended use
Suitable for welding rods from 6010 to 7024
Electric Key Start with battery included
2 Year Product Warranty
7000 Watt Generators
Part#: TG7000
7000 Max Watts, 5500 Rated Watts
Voltage Selector gives Full Wattage for 120V or 240V
Run Time of 8 hours at 50% Load
OSHA and GFCI Compliant
2 Year Product Warranty
INVERTER
Part#: TG2000i
2000 Max Watts, 1600 Rated Watts
Run Time of 8 hours on 1 gallon of gas
OSHA and GFCI Compliant
Parallel technology capable for double the power
2 Year Product Warranty
2000 Watt Inverter Generator
5 Gallon Backpack Power Sprayer
Part#: TPS25
Reach Up to 30ft Horizontal Reach
Sprays acres in 10 minutes
10X Faster than Manual Pump Sprayers
50-435 Adjustable PSI Commercial Grade Pump
1 Year Product Warranty
4.75 Gallon Battery Power Sprayer
Part#: eTPS18
Reach Up to 30ft Horizontal Reach
Sprays 6000 sq ft in 10 minutes
10X Faster than Manual Pump Sprayers
70 PSI Commercial Grade Pump
1 Year Product Warranty
4 Gal. Backpack Fertilizer Spreader
Part#: TGS30
Reach up to 30ft Horizontally
Sprays 1 acre in 30 minutes
20X Faster than push spreaders
Converts to Leaf Blower with 200 MPH Air Velocity
1 Year Product Warranty
3” Full Trash Water Pump
Part#: TW3H
Moves liquids at a rate up to 375 gal/min
Handle solids up to 1.5"
Silicone carbide seals and a chrome plated volute
8 HP engine protected by rugged all purpose frame
3 Year Engine Warranty & 1 Year Product Warranty
INVERTER INVERTER
Part#: TG2000i
2000 Max Watts, 1600 Rated Watts
Run Time of 8 hours on 1 gallon of gas
OSHA and GFCI Compliant
Parallel technology capable for double the power
2 Year Product Warranty
2000 Watt Inverter Generator
USE CODE
SAVE10
AT CHECKOUT FOR
10% OFF YOUR ORDER AT
WWW.TOMAHAWK-POWER.COM
* All coupons in this manual are valid only for orders placed on www.tomahawk-power.com, unless otherwise noted. Coupon codes
may only be used once per customer and may not be combined with any other offer. Coupons may expire at any time without notice.
tomahawk-power.com
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
tomahawk-power.com
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
tomahawk-power.com
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
* All coupons in this manual are valid only for orders placed on www.tomahawk-power.com, unless otherwise noted. Coupon codes
may only be used once per customer and may not be combined with any other offer. Coupons may expire at any time without notice.
Tomahawk Power, LLC
San Diego, CA
Sales Support
(866) 577-4476
Equipment Support
(866) 577-4476
www.tomahawk-power.com
Tomahawk understands to keep a job-site running smoothly the proper equipment and
spare parts are needed at the drop of a hat. With same day shipping and faster
delivery times, count on Tomahawk to keep you powered throughout the day! With
long lasting parts and engines, Tomahawk equipment will be the star of your fleet for
years to come. Visit www.tomahawk-power.com to get started today!
FACEBOOK
facebook.com/TomahawkPowerUSA
YOUTUBE
youtube.com/TomahawkPower
INSTAGRAM
@tomahawkpower
Figure 4
