Model Number:
CAS60102
CAS75102
www.ciarraappliances.com
Dear customer:
Thank you so much for your purchase, please
read this instruction manual carefully before
installation & use.
If you have any question, please contact us at:
E-mail: [email protected]
Scan this QR code to get installation video:
1
CONTENTS
Safety------------------------------------------- 3-4
Specifications--------------------------------------5
Before Using the Range Hood ----------------------6
Prepare for Installation ----------------------------7
Installation--------------------------------------8-17
Install the Hood-------------------------------------------8-16
Carbon Filter Installation------------------------------------17
Operation----------------------------------------- 18
Cleaning and Maintenance---------------------19-21
Grease Filter------------------------------------------------19
Carbon Filter -----------------------------------------------19
Stainless Steel Cleaning ------------------------------------19
Painted Finish Cleaning-------------------------------------19
LED Replacement---------------------------------------20-21
Troubleshooting-----------------------------------22
Environmental Protection -------------------------23
2
Safety
! WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in
the warranty.
Before servicing or cleaning unit, unplug or disconnect the
cooker hood from the power supply.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent back drafting.
When cutting or drilling into a wall or ceiling, do not damage
electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Ensure the requirements of the local authorities are adhered
to concerning the discharge of exhaust air.
This unit must be grounded.
When applicable local regulations comprise more restrictive
installation and/or certification requirements, the
aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expense.
Clean cooker hood frequently. Grease should not be allowed
to accumulate on fans, filters or in exhaust ducts.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
3
Safety
!
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT
OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or
metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. IF THE FLAMES DO NOT GO OUT
IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
a) You own a Class ABC extinguisher and you know how to
operate it.
b) The fire is small and contained in the area where it
started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
! CAUTION
For indoor use only.
For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
To avoid motor bearing damage and noisy and/or unbalanced fan
blade, keep drywall spray, construction dust, etc. off cooker hood.
Your hood motor has a thermal overload which will automatically
shut off the motor if it becomes overheated. The motor will restart
when it cools down. If the motor continues to shut off and restart,
have the hood serviced.
Always follows the cooking equipment manufacturer’s requirements
regarding the ventilation needs.
To reduce the risk of fire and to properly exhaust air, be sure to duct
air outside — Do not exhaust air into spaces within walls or ceiling or
into attics, crawl space or garage.
When installing, servicing or cleaning the unit, it is recommended to
wear safety glasses and gloves.
Please read specification label on product for further information
and requirements.
4

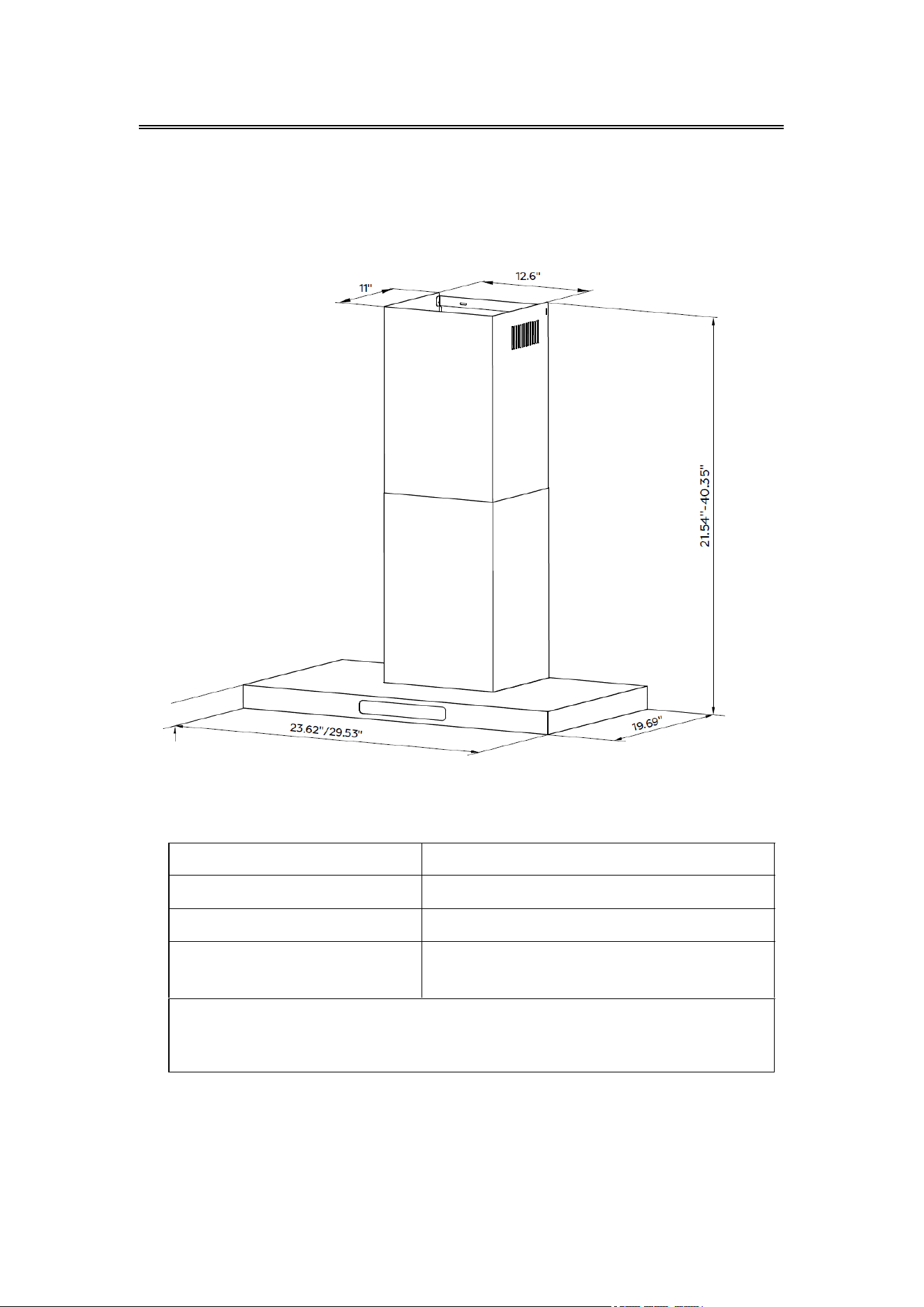

Specifications
Voltage
110V-120V/60Hz
Power of Motor
1 x 200W
Power of lamps
2x 1.5W
Appliance Dimension
23.62/29.53*19.69*21.54-40.35(inchs)
(W x D x H)
Note: The manufacturer reserves the right to change any
technological improvement or modification without prior
notice.
5
Before Using the Cooker Hood

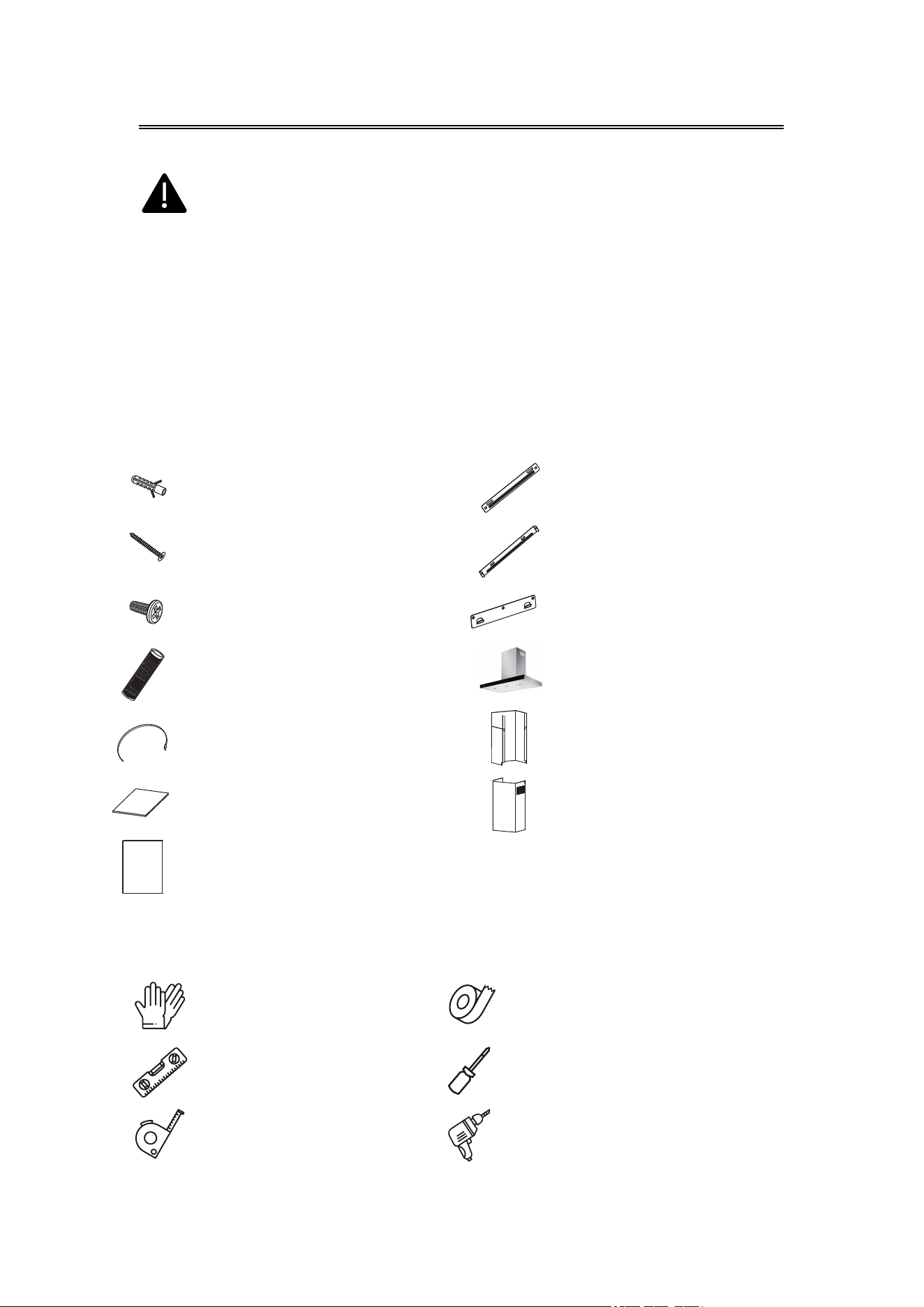

COMPONENTS:
YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION
1.Protective Gloves
2.Spirit Level Ruler
3.Measuring Tape
4.Double Sided Tape or Tape
5.Cross-Head Screwdriver Set
6.Electric drill and 8mm drill
CAUTION: Before proceeding to the installation, check if items
are missing or damaged, contact the manufacturer.
Observe all governing codes and ordinances. Have a qualified
technician install the cooker hood. It is the installer’s
responsibility to comply with installation clearances specified
on the model/serial rating plate. The manufacturer declines all
responsibility for improper installation and does not accept
responsibility for appliance warranty in the event of damage
caused by incorrect installation.
Part 1 : Wall Plug X 9
Part 2 : 4*30mm Screws X 9
Part 3 : 4*8mm Screws X 2
Part 4 : Aluminum Exhaust Pipe X 1
Part 5 : Cable Ties X 2
Part 6 : Installtion Manual X 1
Part 7 : 1:1 Installation Diagram X 1
Part 11 : Cooker Hood Body X 1
Part 12 : Lower Chimney X 1
Part 13 : Upper Chimney X 1
Part 9 : Upper Chimney Bracket X 1
Part 10 : Wall Bracket X 1
Part 8 : Lower Chimney Bracket X 1
6
Prepare for Installation

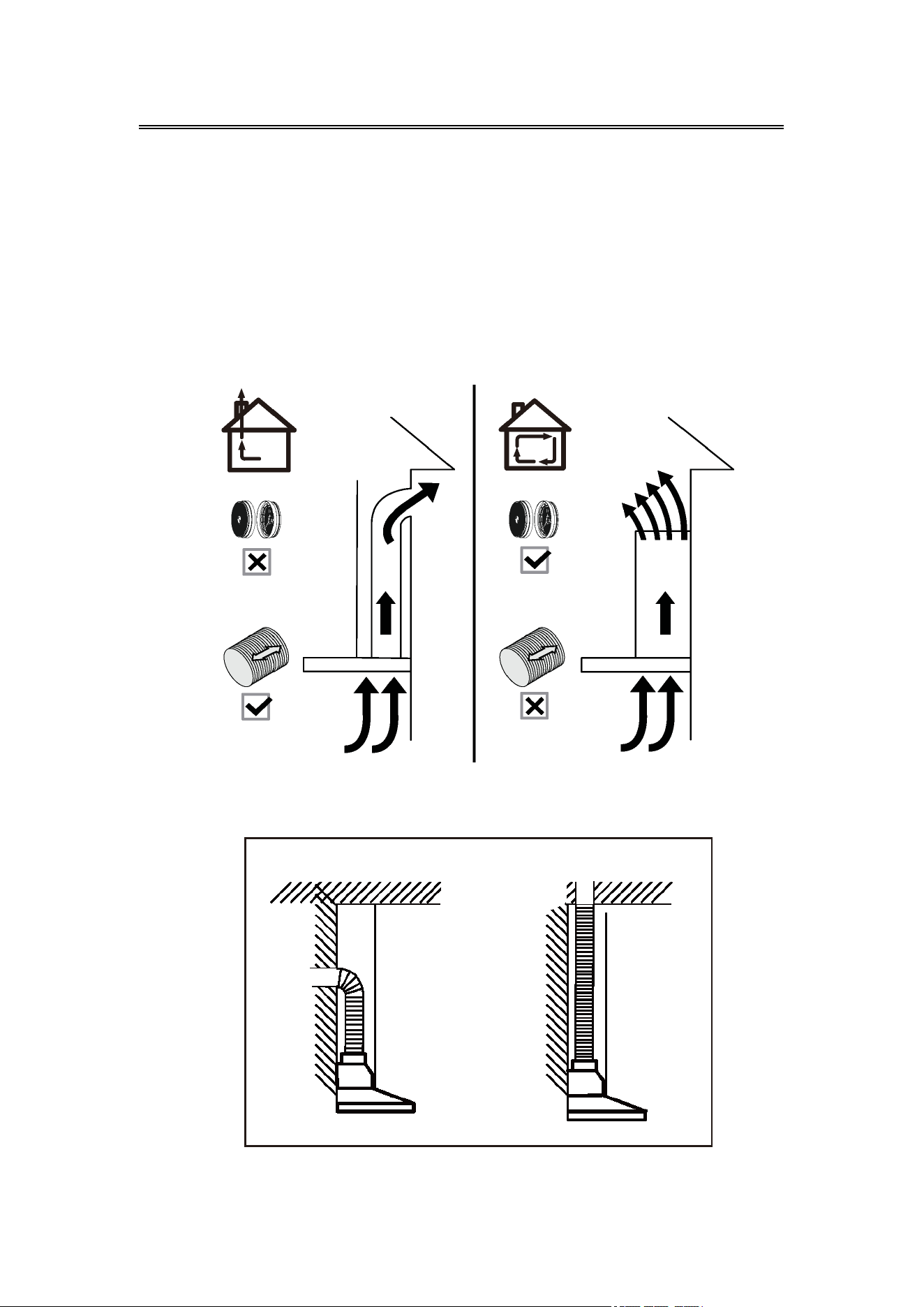

Prepare for Installation:
a) Ventilation Mode
duct work may be required for best performance with longer duct runs.
c) Before installation, don't connect the power.
Recirculation Mode: Recirculating with carbon filter (required), the
smells and odors can be filtered and vented through the top
vented hole and the exhaust pipe is not required.
Extraction Mode: You can install the 59" long and 6" diameter
aluminum exhaust pipe for extracting, which is included in the
installation kit.
b) When possible, use at least 2 foot straight runs before any turns. Larger
7
Installation

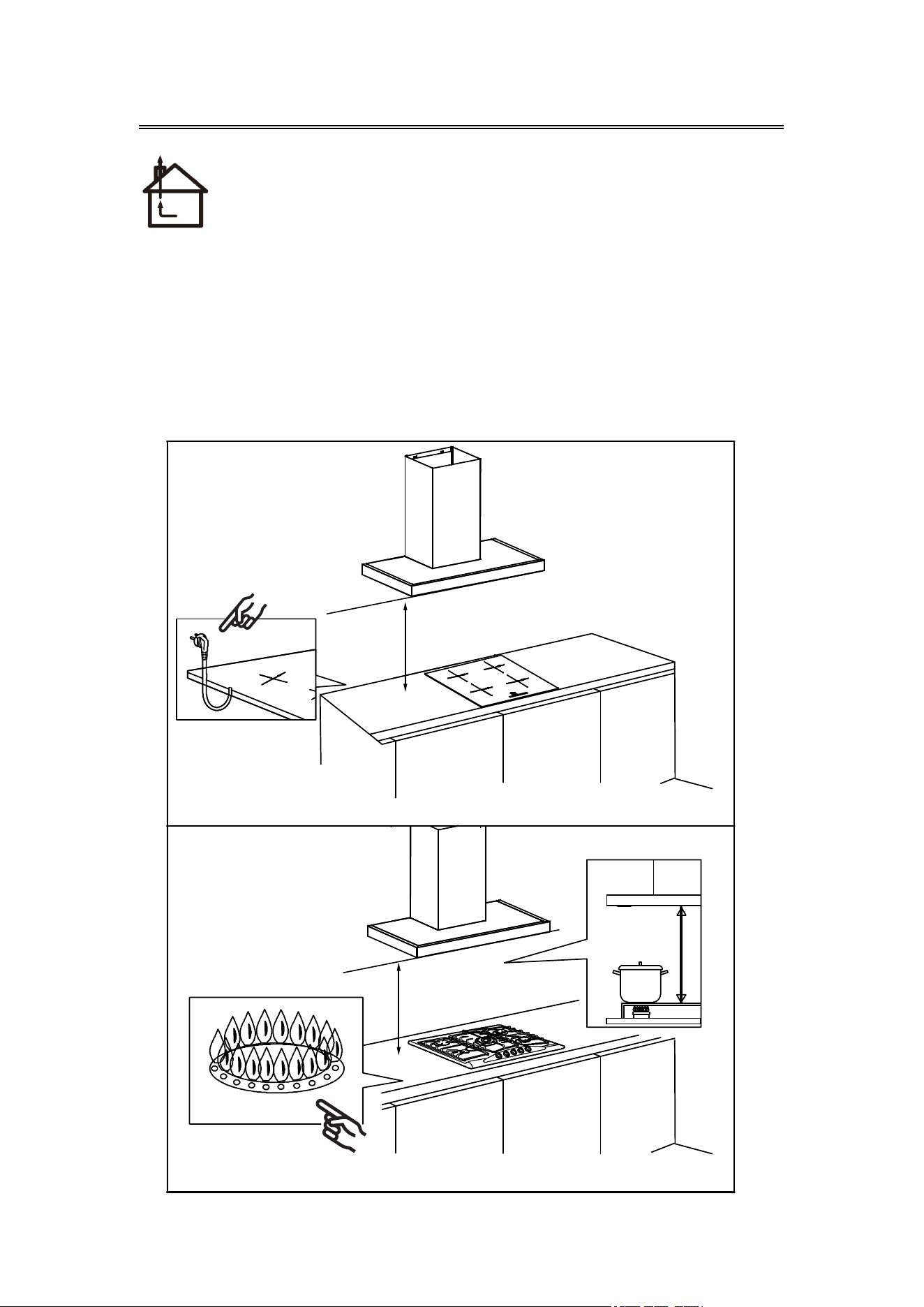

Install the Hood（Extraction）:
29.5"
25.6"
1) Remove all protective poly film from the hood and/or parts.
2) Recommend installation height: 25.6"~29.5" above the cooktop
for best extraction.
Required height over gas hob: 29.5";
Required height over electric hob: 25.6".
8
Installation

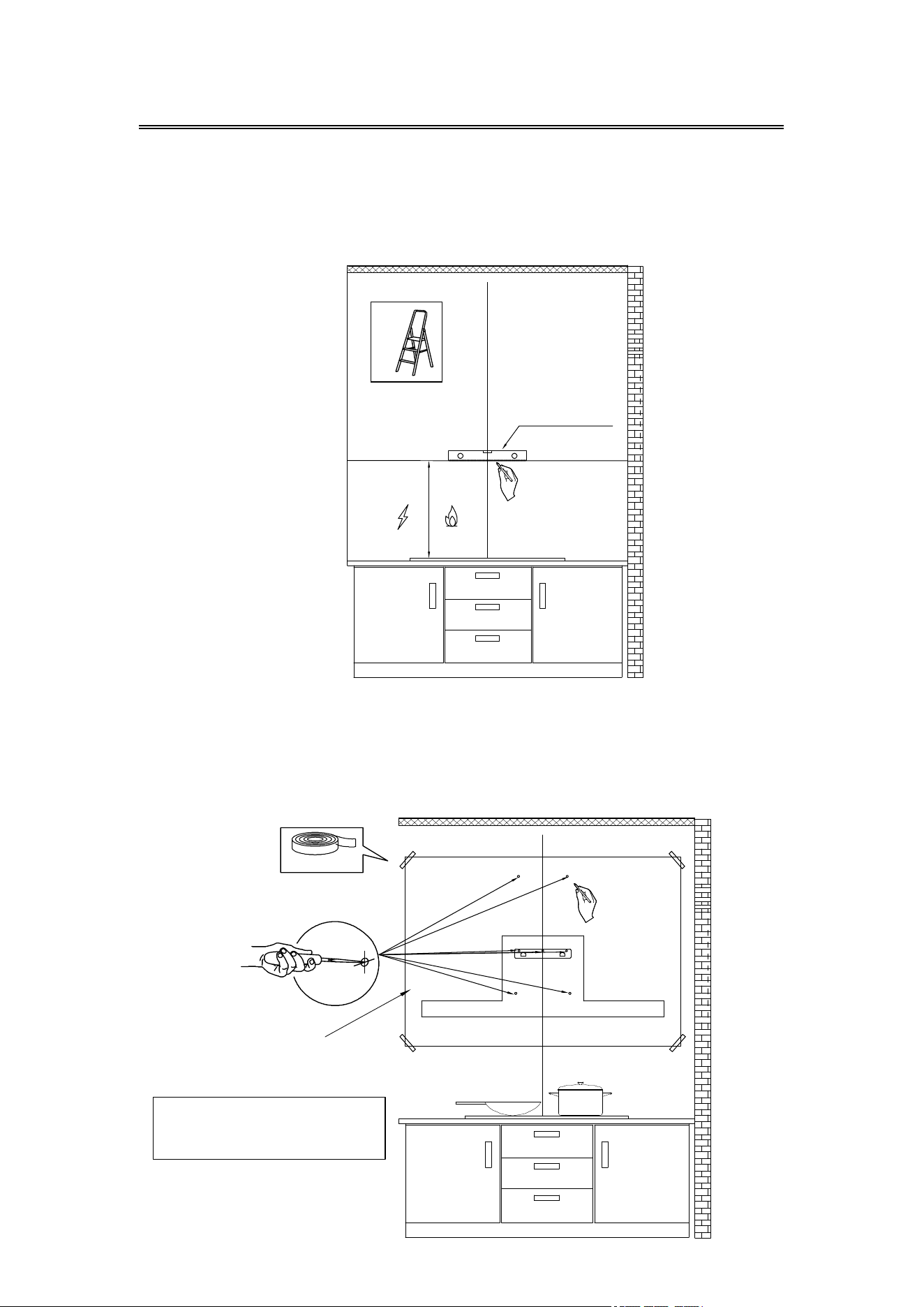

3) First use a pencil to mark the installation position on the wall, then
use a Measuring Tape to measure the height from the stove surface
to the hood (the center point of aluminum grease filter) and use a
Spirit Level Ruler to maintain the level, then use a pencil to draw a
horizontal line along the level.
4) Poke the 7 perforated positions on the 1:1 Installation Diagram, then
align with the center point of aluminum grease filter on the
Installation Diagram with the horizontal line on the wall, then tape
the Installation Diagram to the wall, and use a pencil to mark the
perforated positions on the wall in the corresponding positions.
Spirit Level Ruler
650mm 750mm
1:1 Installation Diagram
Tape
COMPONENTS:
Part 7: 1 :1 Installation Diagram X 1
9
Installation

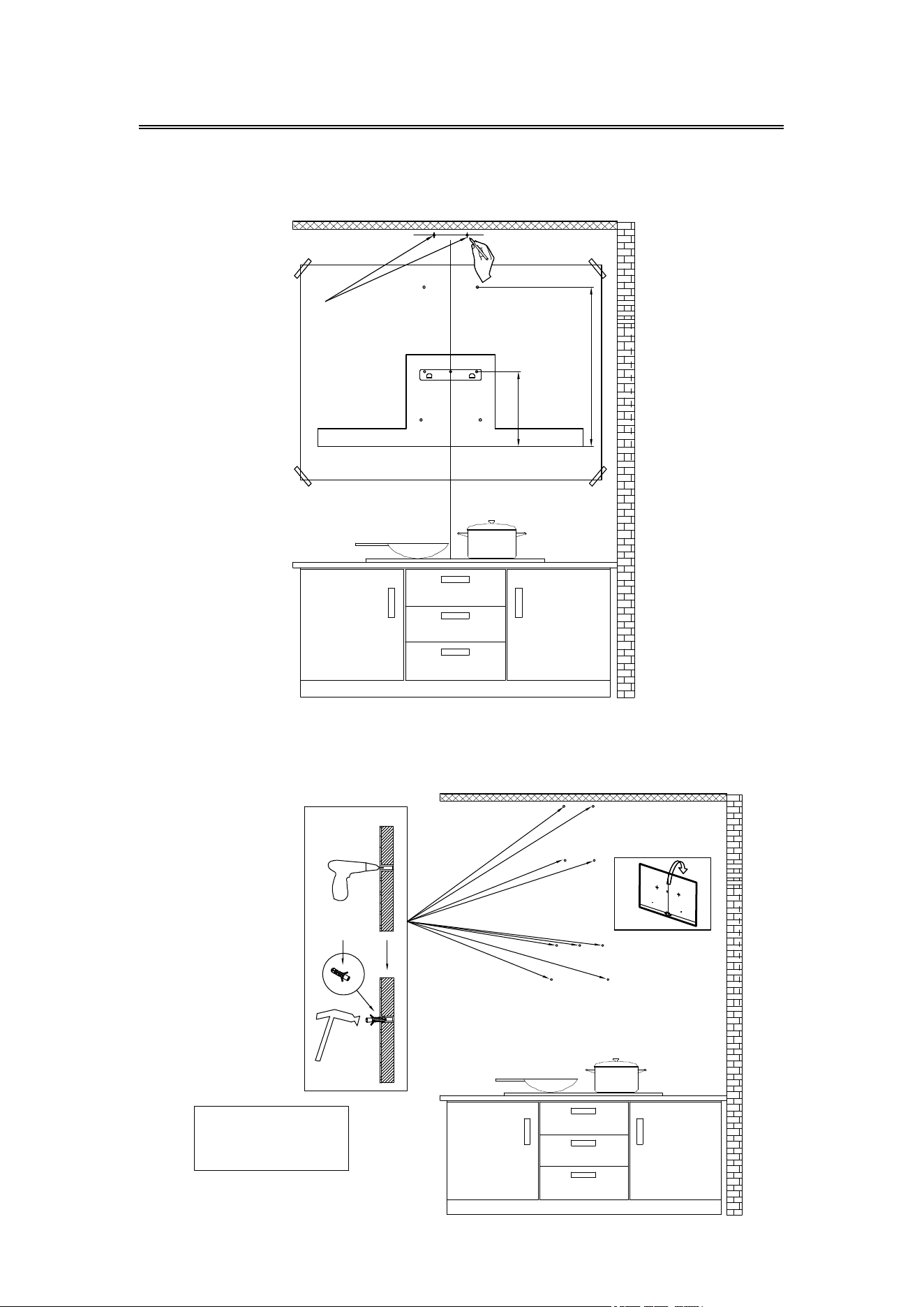

5) Determine the maximum chimney installation height according to
the actual scenario and mark the chimney installation
locations along the center line of the Installation Diagram.
6) Remove the Installation Diagram, drill the holes that have been
marked on the wall with an Electric Drill (8mm drill), and hammer
the Wall Plug into the wall.
Chimney
installation
locations
537mm
310mm
Wall Plug
COMPONENTS:
Part 1: Wall Plug X 9
10
Installation

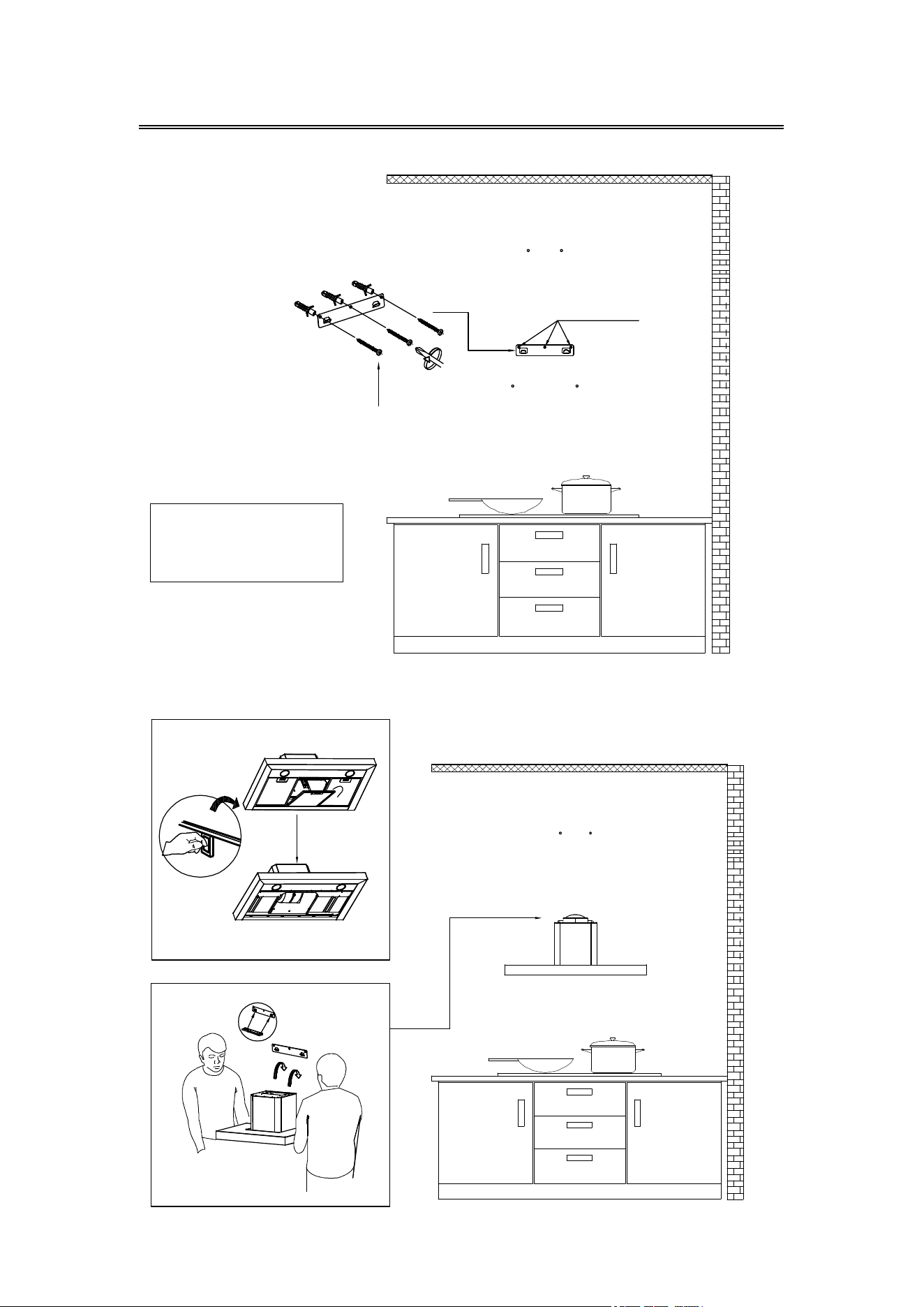

7) Use three 4*30mm Screws to fasten the Wall Bracket on the wall.
8) Remove the aluminum grease filter and hang the hood on the
corresponding hook of the Wall Bracket.
4*30mm Screws
4*30mm Screws 3pcs
COMPONENTS:
Part 2: 4 *30mm Screws X 3
Part 10: Wall Bracket X 1
11
In
stallation

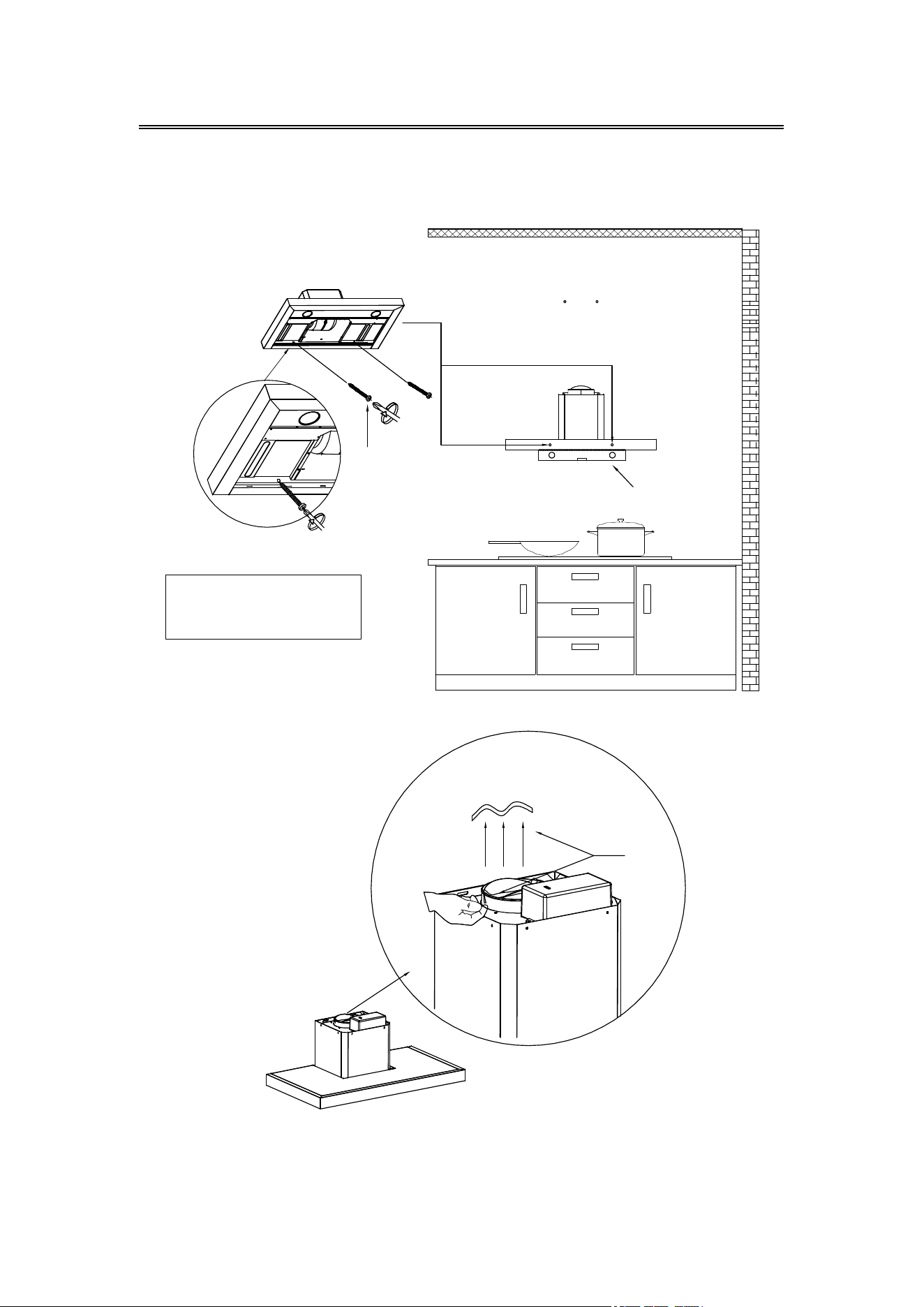

9) Use a Spirit Level Ruler to measure whether the hood is in a horizontal
level, and use two 4*30mm Screws to lock into the safety hole
position of the hood (not mandatory, according to user's wishes to
choose whether to lock).
10) Tear off the tape from the air outlet.
NOTE:
Make sure you remove the tape on the damper and check if the
damper opens and closes freely, otherwise it make noises, and
the cooker hood will be shaking.
4*30mm
Screws 2pcs
Spirit Level Ruler
Tape
COMPONENTS:
Part 2: 4*30mm Screws X 2
12
Installation

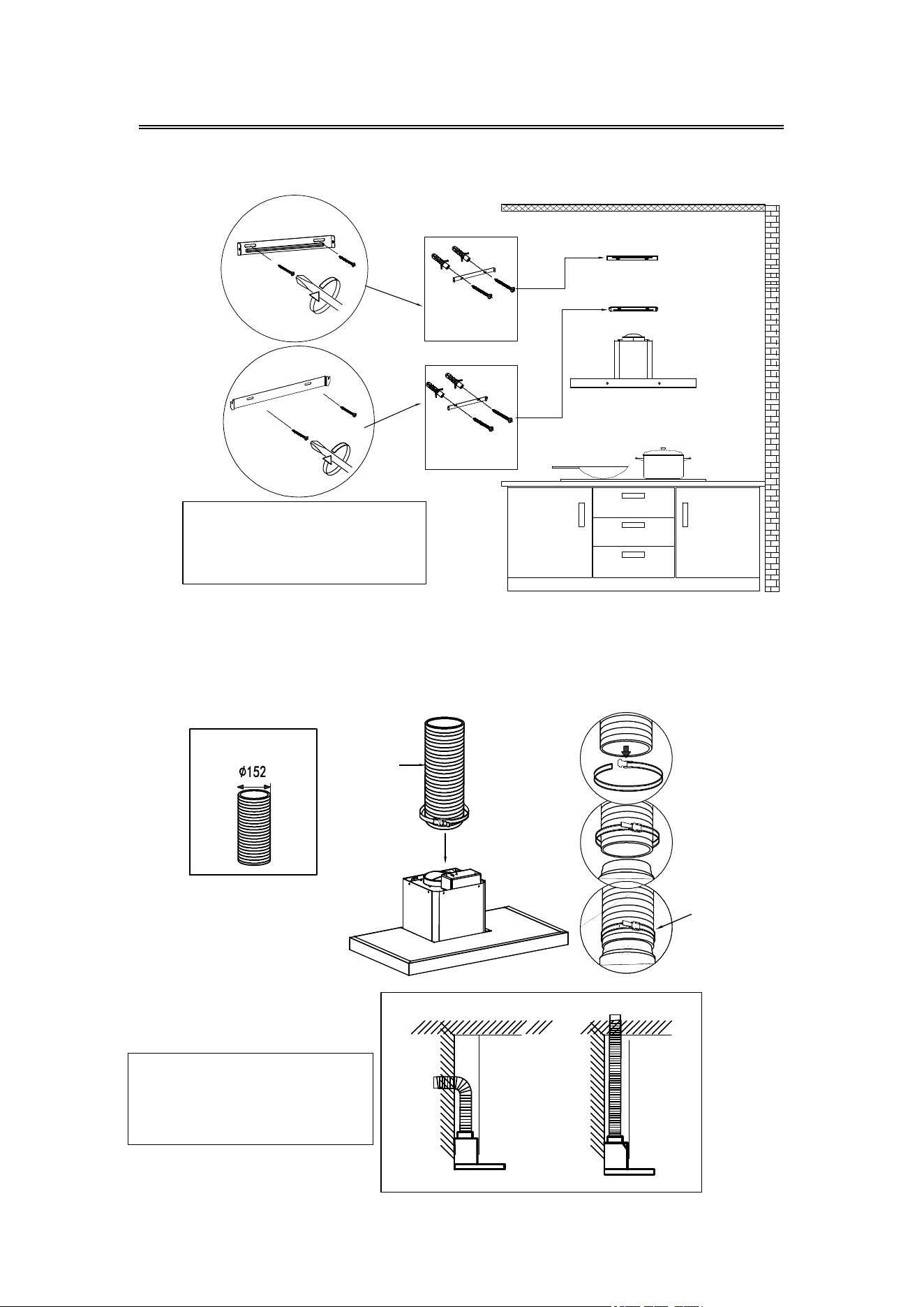

11) Use two 4*30 mm Screws to lock the Upper and Lower Chimney
Brackets to the corresponding positioning holes on the wall.
12) Install the Aluminum Exhaust Pipe into the air outlet and lock it with
a Cable Tie; the other end of the Aluminum Exhaust Pipe will be
pulled upward to outdoor and lock it with a Cable Tie (Note: This
step can be ignored if use as recirculation mode with carbon filter).
Wall Plug
Wall Plug
4*30mm
Screws
4*30mm
Screws
Lower Chimney
Bracket
Upper Chimney
Bracket
Aluminum
Exhaust Pipe
Cable Tie
COMPONENTS:
Part 8: Lower Chimney Bracket X 1
Part 9: Upper Chimney Bracket X 1
Part 2: 4*30mm Screws X 4
COMPONENTS:
Part 4: Aluminum Exhaust Pipe X 1
Part 5: Cable Tie X 1
13
Installation

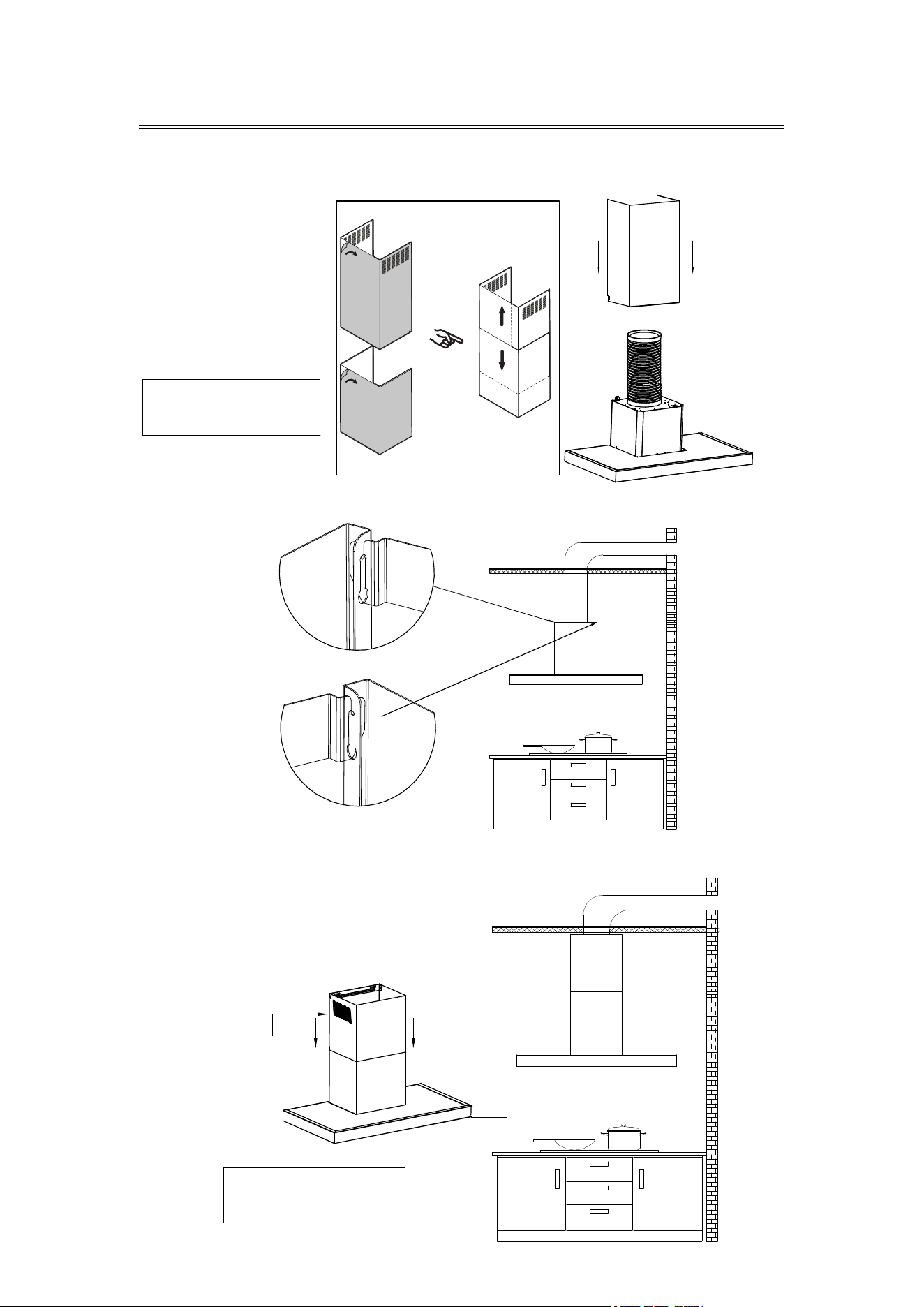

13) Insert the Lower Chimney into the hood (Note: That the power cord
needs to go through the chimney and connect the power).
14) Lock the Lower Chimney on the Lower Chimney Bracket by two sides.
15) Put the Upper Chimney into the Lower Chimney, and then pulled
to the height of the Upper Chimney Bracket.
Lower Chimney
Upper Chimney
Upper Chimney
COMPONENTS:
Part 12: Lower Chimney X 1
COMPONENTS:
Part 13: Upper Chimney X 1
14
Installation

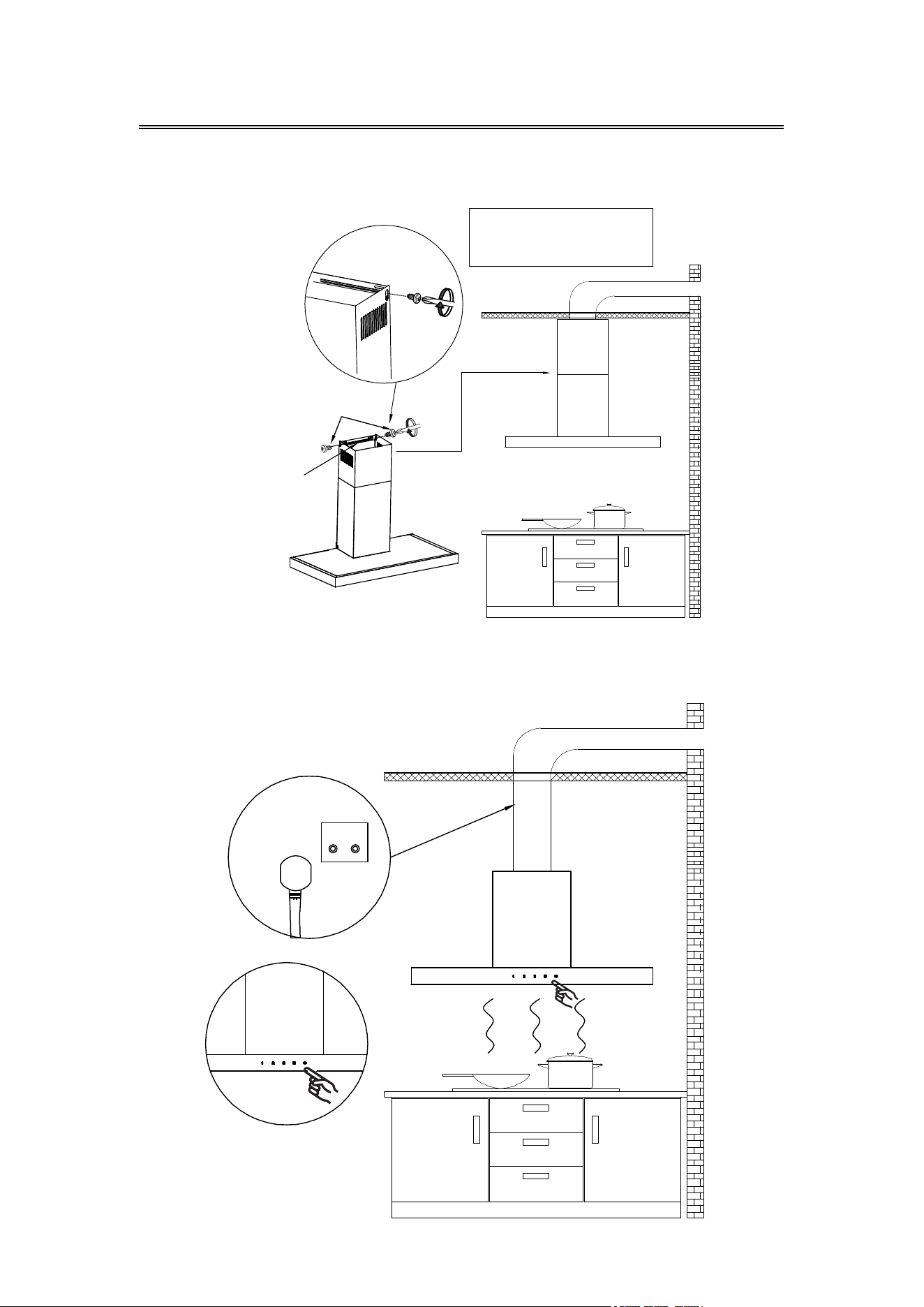

16) Use two 4*8mm Screws to assemble the Upper Chimney on the Upper
Chimney Bracket.
17) Turn the LED lights on/off, and test whether the functions are
working properly.
4*8mm Screws 2pcs
Upper Chimney Bracket
COMPONENTS:
Part 3: 4*8mm Screws X 2
15
In
stallation

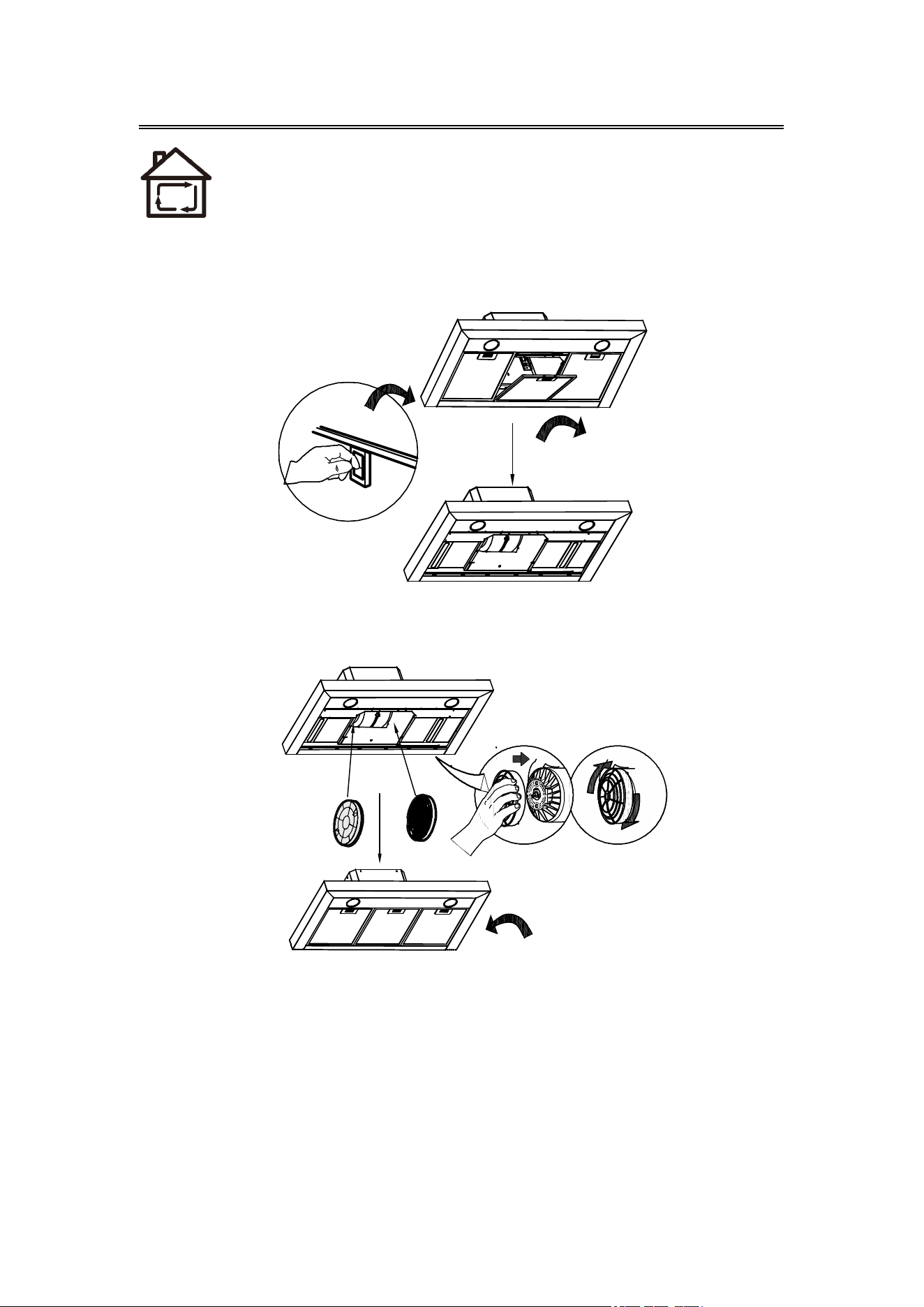

Carbon Filter Installation（Recirculation）:
1. Carbon filter can be used to trap odors.
In order to install the carbon filter, the grease filter should be
detached first. Press the lock and pull it down.
2. Place the carbon filter into the unit and turn it in the clockwise
direction to lock it in place.
3. If the carbon filter needs to be replaced, please turn it in the
anti-clockwise direction.
NOTE:
Make sure the carbon filter is securely locked.
When the carbon filter is installed, the suction of the cooker hood
will be reduced.
The carbon filter should be changed every 2-4 months depending
on the conditions of use.
16
Operation

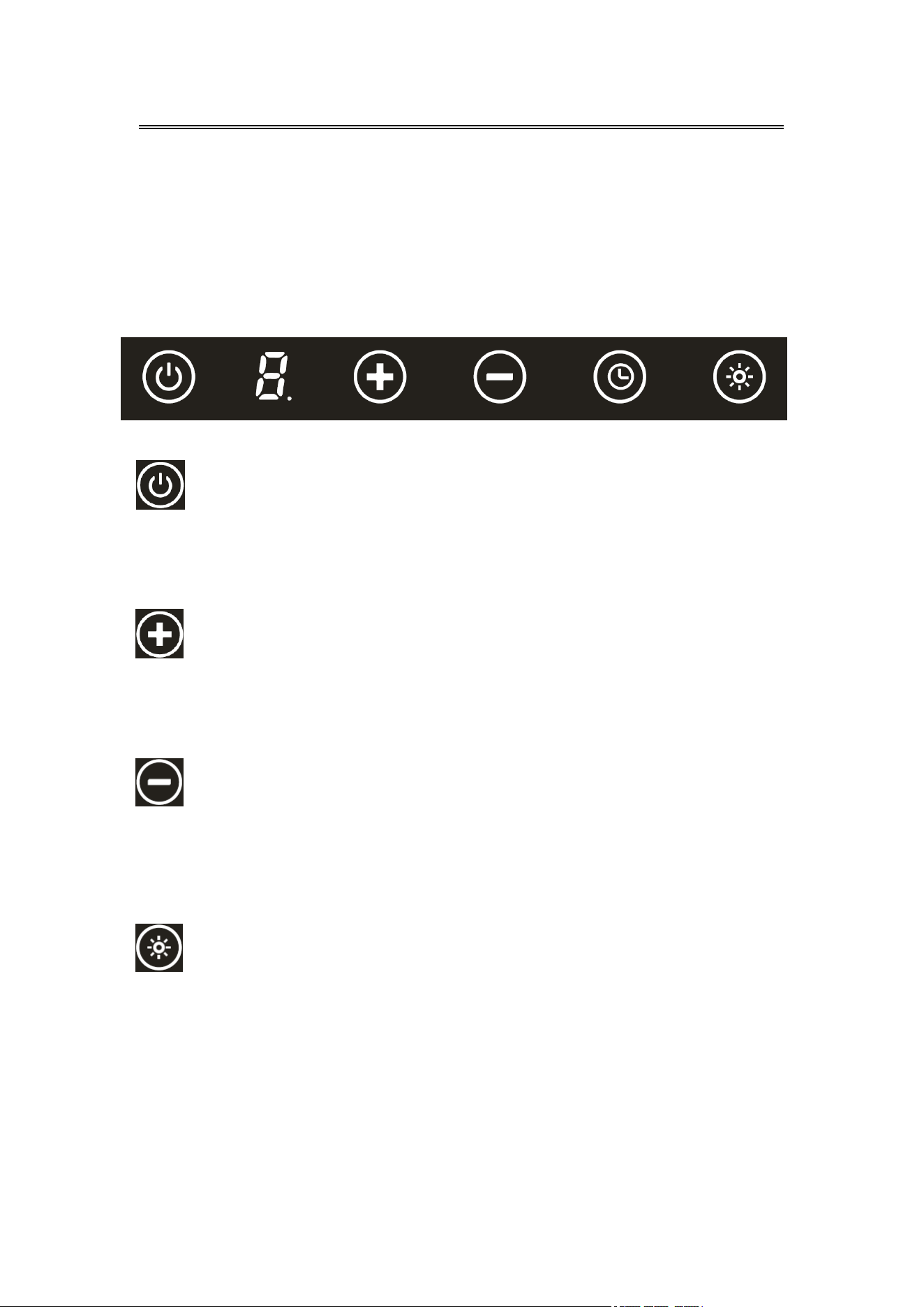

Touch control
Power key:
after turning on show all function key drawing, Logo backlight also
lighten(always show orange color light in out-ring).
Added level key:
Indicator show level adjustment 1-2-3-0-1, Show 0 for turning off,
Loosen hand turn off orange color out-ring delay 5 seconds.
Reduced level key:
Indicator show level adjustment 3-2-1-0-3, Show 0 for turning off,
Loosen hand and delay 5 seconds turn off orange color out-ring.
Turn on/off Switch key:
When the range hood is turned on:
Press once, turn on the LED light in level 1, orange out ring light will be
on; Press for the second time, turn on the LED light in level 2,increase
brightness; Press for the third time, turn off the LED light and the orange
out ring light.
Always turn your hood on before you begin cooking to establish an
air flow
in the kitchen.
Operate the hood as follows:
17
Motor work about 90 hours and remind cleaning filter, show that
remind decimal point blink slowly in indicator lower right. Long push
timer key 5 seconds and cancel reminder, turn off decimal point, now
working, record time again.
Motor work about 270 hours, decimal point light for long time in
indicator lower right, remind changing filter, long push delay key 5
seconds and cancel reminder, turn off decimal point, record time again.
Delay function:
When range hood working, could set delay function.
Push first time and indicator show1, for delaying 5 minutes;
Push second time and indicator show 2, for delaying 10 minutes;
Push third time and indicator show 3, for delaying 15 minutes;
Push fourth time and indicator show 4, for delaying 20 minutes;
Push fifth time and indicator show 0, after 5 seconds in level 0 and
drop out delay function automatically.
When setting delay function for level 1-4, indicator blink, after 5
seconds confirm working automatically, After confirming work jump
to motor level showing automatically, when delay function work,
always show orange color out-ring. When need to check delay level,
shortly push one time delay key, show current working level. When
delay time is up, turn off all function automatically.
Operation
Setting clean & fresh function:
After turning on, push “＋” and “—” button 3 seconds, go into clean &
fresh function, “＋” and “—” button orange color out-ring light will be on,
range hood go into one level clean&fresh function and not influence on
function operation, same method could used for turn off clean & fresh
function, turn off “＋” and “—” button orange out-ring light will be off.
18
Cleaning and Maintenance
Proper maintenance of the Cooker Hood will assure proper
performance of the unit. Before cleaning unit, unplug or disconnect
the cooker hood from the power supply.
GREASE FILTERS
The grease filters should be cleaned frequently. Can be cleaned in
dishwasher under high temperature without using any detergent.
CARBON FILTER
The carbon filter should be changed every 2-4 months depending on
the conditions of use. Replace more often if your cooking style
generates lots of greases, such as stir frying. These filters are not
washable and cannot be reused. Refer to installation instructions
included with a carbon filter.
STAINLESS STEEL CLEANING
Do:
Regularly clean it with a cloth or rag soaked with warm water and
mild soap or liquid dish detergent.
You may also use a specialized household stainless steel cleaner.
Don't:
Use any steel or stainless-steel wool or any other scrapers to remove
stubborn dirt.
Use any harsh or abrasive cleansers.
Let plaster dust or any other construction residues reach the hood.
During construction/ renovation, cover the cooker hood to make sure no
dust sticks to the stainless-steel surface.
Avoid when choosing a detergent:
Any cleaners that contain bleach will attack stainless steel.
Any products containing: chloride, fluoride, iodide, bromide will
deteriorate surfaces rapidly.
Any combustible products used for cleaning such as acetone,
alcohol, ether, benzol, etc., are highly explosive and should never
be used close to a range.
PAINTED FINISH CLEANING:
Clean with warm water and mild detergent only. If discoloration
occurs, use a finish polish such as automotive polish. (DO NOT use a
rough abrasive cleaner or porcelain cleaner.)
19
Cleaning and Maintenance

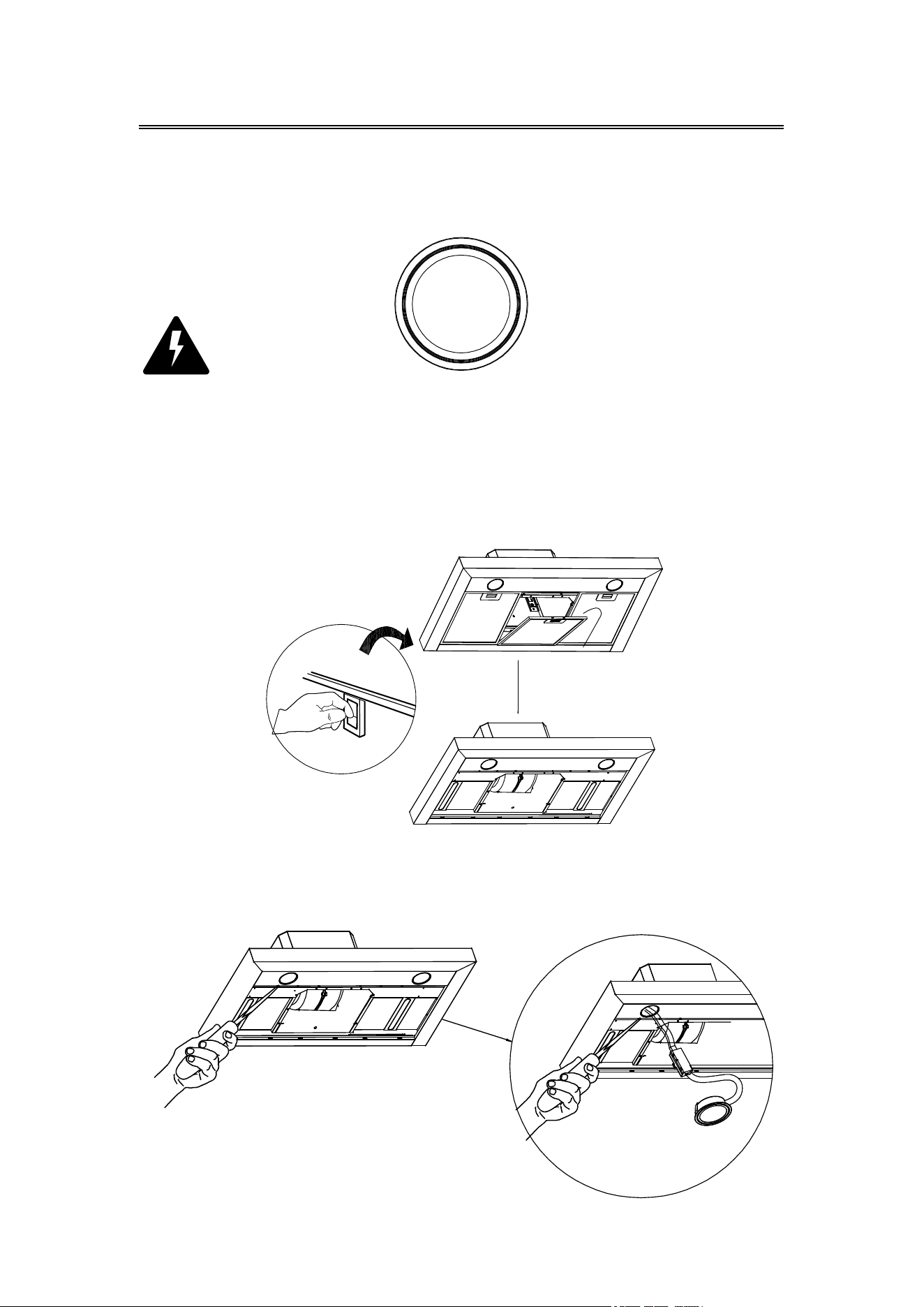

LED REPLACEMENT
Rectangle LED lamp(Led Light Ring):
CAUTION
：
Before cleaning or repairing and replacing accessories, please make
sure to shut down the power before operation, so as to avoid electric
shock, damage to human body and even endanger life safety!
1. Turn off the hood and unplug the power outlet. Detach the grease filter
in order for you to replace the LED lamp.
2. Push the LED lamp holder out from the cabinet by hand, or use slotted
screwdriver to prize up the LED lamp around the edges, pull out the
LED lamp and the wire together.
20
Cleaning and Maintenance

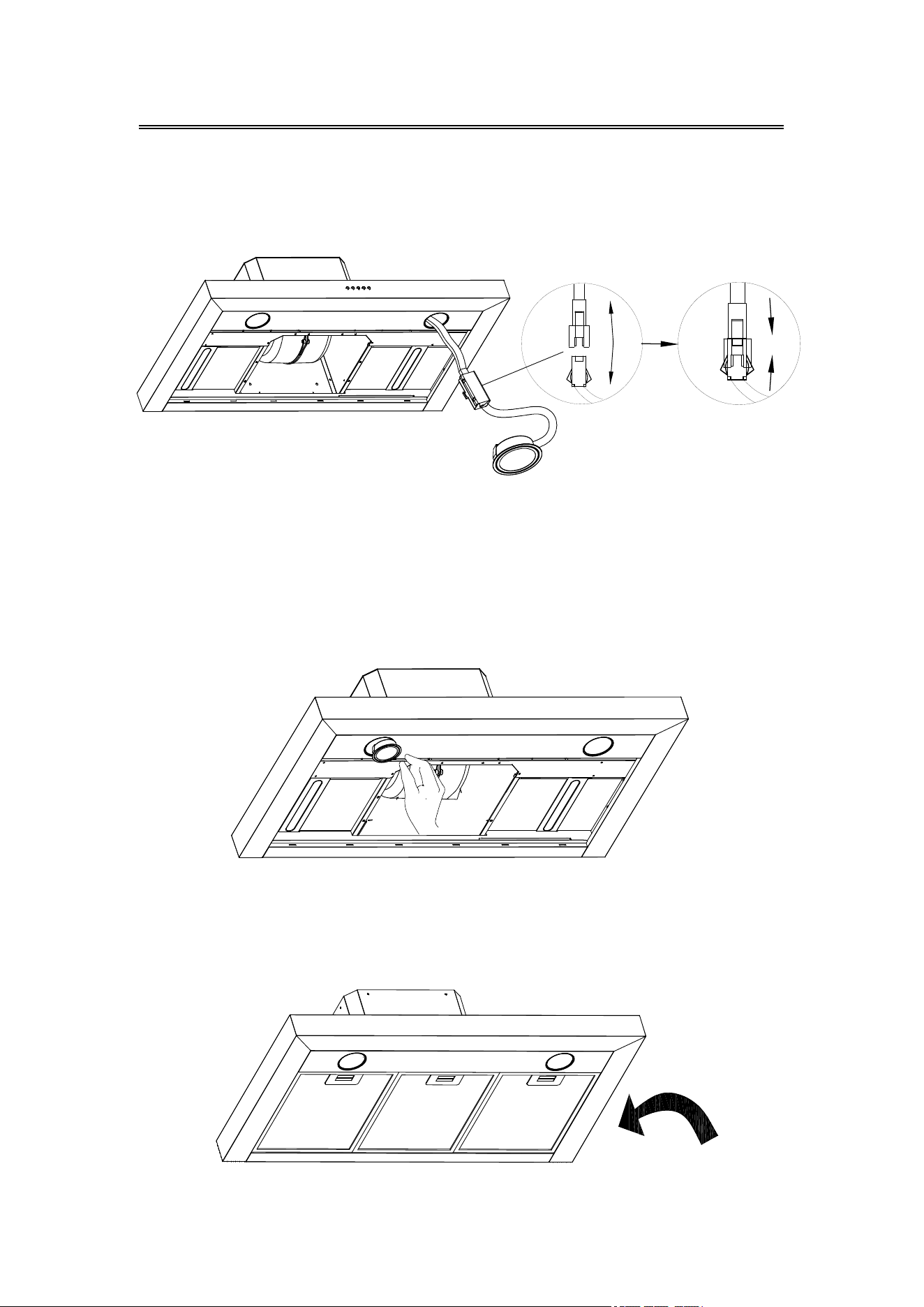

3. Open the power protection cover, pull out the plug and replace the
corresponding model of the LED lamp.
4. Turn the power on and test all blower and light functions to ensure they
are operating properly.
Insert the new LED light gently into the light socket, please make
sure you aim at the grooves on the lighting panel when installing.
Push the LED light in until it is flushed with the light panel.
5. Put the grease filter back on, you are good to go.
21
Troubleshooting
If problem persists after the above checks, please contact CIARRA
Customer Care Centre for assistance.
Problem Possible Cause Solution
Extractor
hood does
not turn on
No electrical supply
Make sure that range hood
is plugged into powered
outlet. Test outlet with other
device if not working
My range
hood has
poor
performance
Inadequate ventilation
Ensure that the kitchen is
sufficiently ventilated to
allow entry of fresh air
The range hood and
cooktop are too far
away from each other
Optimal distance is
65~75cm above the cooktop
for best extraction
Check and make sure
the tape holding down
the damper flaps at the
vent hole are removed
before use
Remove the tape holding
down the damper
Grease filters clogged
with grease build-up
Clean the grease filters or
replace the grease filters
Carbon filters clogged
with grease build-up
Replace new carbon filters
Motor is running but no
extraction
Please contact CIARRA
Customer Care Service
My range
hood is noisy
Check inside the range
hood for any loose
debris and remove
Please contact CIARRA
Customer Care Service
If the noise is from the
motor, please contact
our Customer Care
Service
Lights are
not working
Light is damaged
Replace with new LED lamp;
remove grease filters, reach
inside behind the control
panel and locate the wire
with clip behind the light
housing.
The light wire terminal is
loose
Reset the connection
22
Environmental Protection
Waste electrical products should not be disposed with
household waste. Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling advice.
This appliance is marked according to the European directive
2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product indicates that this product may not be
treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
23
