OWNER'S MANUAL
GAS HOB
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
CG5Z3626S
MFL71950103
Rev.02_040425
www.lg.com
Copyright © 2024-2025 LG Electronics. All Rights Reserved
Scan the QR code to see the manual.
TABLE OF CONTENTS
This manual may contain images or
content that may be different from the
model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE...........................................................3
WARNING............................................................................................................3
CAUTION .............................................................................................................5
INSTALLATION
Product Overview.............................................................................................10
Technical Instructions .....................................................................................11
Installation ........................................................................................................12
OPERATION
Using the Surface Burners..............................................................................18
MAINTENANCE
Care and Cleaning............................................................................................20
TROUBLESHOOTING
Before Calling for Service................................................................................22
3
SAFETY INSTRUCTIONS
ENGLISH
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
The following safety guidelines are intended to prevent unforeseen
risks or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘
WARNING
’ and ‘
CAUTION
’ as
described below.
Safety Messages
WARNING
WARNING
• To reduce the risk of explosion, fire, death, electric shock, injury or
scalding to persons when using this product, follow basic
precautions, including the following:
Installation
• The flexible hose shall be fitted in such a way that it cannot come into
contact with a moveable part of the housing unit and does not pass
through any space susceptible of becoming congested.
This symbol is displayed to indicate matters and operations
that can cause risk. Read the part with this symbol carefully
and follow the instructions in order to avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
4
SAFETY INSTRUCTIONS
• This appliance shall be installed in accordance with regulations in
force and only used in a well ventilated space.
• Prior to installation, ensure that the gas and electrical supply
complies with the type stated on the rating plate.
• Where this appliance is installed in marine craft or in caravans, it
should not be used as a space heater.
• The gas pipe and electrical cable must be installed in such a way that
they do not touch any parts or the appliance.
• After installation, please dispose of the packaging with due regard to
safety and the environment.
• If the country symbol does not appear on the appliance, it is
necessary to refer to the instructions for installation which should
provide the necessary instructions concerning modification of the
appliance to the conditions of use of the country.
Operation
• Do not allow children to play near or with the appliance. The
appliance gets hot when it is in use. Children should be kept away
until it has cooled.
• Only use the appliance for preparing food.
• Do not modify this appliance. Burner panel is not designed to operate
from an external timer or separate remote control system.
• Do not use this appliance if it in contact with water. Do not operate
this appliance with wet hands.
• The heating and cooking surfaces of the appliance become hot when
they are in use, take all due precautions.
• Do not use large cloths, tea towels or similar as the ends could touch
the flames and catch fire.
• Never leave the appliance unattended when cooking.
• Unstable or misshapen pans should not be used on the appliance as
they can cause an accident by tipping or spillage.
• Do not use or store flammable materials in the storage drawer near
this appliance.
5
SAFETY INSTRUCTIONS
ENGLISH
• Perishable food, plastic items and aerosols may be affected by heat
and should not stored above or below the appliance.
• Do not spray aerosols in the vicinity of this appliance while it is in
operation.
• Ensure the control knobs are in the ‘
#
’ position when not in use.
• If you smell the gas, take the following instructions.
- Do not turn on the lights.
- Do not switch on/off any electrical appliance and do not touch any
electric plug.
- Do not use a telephone.
1) Stop using the product and close the middle valve.
2) Open the window for ventilate.
3) Contact our service center using a phone outside the room.
- The fuel gas contains mercaptan so you can smell a gas leak (smell
of spoiled garlic or egg) even if there is only 1/1000 of gas in the air.
• When disposing of an old appliance, make it unusable, by cutting off
the cable.
Maintenance
• Never use abrasive or caustic cleaning agents.
• This appliance should only be repaired or serviced by an authorised
Service Engineer and only genuine approved spare parts should be
used.
CAUTION
CAUTION
• To reduce the risk of injury to persons, malfunction, or damage to the
product or property when using the appliance, follow basic safety
precautions, including the following:
6
SAFETY INSTRUCTIONS
Installation
• This appliance should be installed by a qualified technician or
installer.
• This appliance must be connected to the mains power supply by a
specially licensed electrician only.
• To maintain the efficiency and safety of your appliance, we
recommend you always use original spare parts and to call only our
authorized service agents in case of need.
• The adjustment conditions for this appliance are stated on the label
or data plate.
• Remove all packaging before using the appliance.
• After unpacking the appliance, make sure the product is not
damaged and that the connection cord is in perfect condition.
Otherwise, contact the dealer before installing the appliance.
• The adjacent furniture and all materials used in the installation must
be able to withstand a minimum temperature of 85 ℃ above the
ambient temperature of the room it is located in, whilst in use.
• Protect your appliance against atmospheric effects. Do not expose it
to effects such as sun, rain, snow etc.
• The use of a gas cooking appliance results in the production of heat,
moisture and products of combustion in the room in which it is
installed. Ensure that the kitchen is well ventilated especially when
the appliance is in use.
• Prolonged intensive use of the appliance may require additional
ventilation, for example the increasing of mechanical ventilation
where present, additional ventilation to safely remove the products
of combustion to outside (external) air whilst also providing room air
changes with additional ventilation.
• Consult a professional before installation of the additional
ventilation.
Operation
• This appliance is designed to be operated by adults.
7
SAFETY INSTRUCTIONS
ENGLISH
• Children can also injure themselves by pulling pans or pots off the
appliance.
• This appliance is not intended for use by children or other persons
whose physical, sensory or mental capabilities or lack of experience
and knowledge prevents them from using the appliance safety
without supervision or instruction by a responsible person to ensure
that they can use the appliance safety.
• Accessible parts may be hot when the grill is in use. Young children
should be kept away.
• Accessible parts may become hot during use. Young children should
be kept away.
• This appliance is intended for domestic cooking only. It is not
designed for commercial or industrial purposes.
• Prolonged intensive use of the appliance may call for additional
ventilation, for example opening of a window, or increasing the level
of mechanical ventilation where present.
• Use heat-resistant pot holders or gloves when handling hot pots and
pans.
• Do not let pot holders come near open flames when lifting cookware.
• Take care not to let pot holders or gloves get damp or wet, as this
causes heat to transfer through the material quicker with the risk of
burning yourself.
• Only ever use the burners after placing pots and pans on them. Do
not heat up any empty pots or pans.
• Never use plastic or aluminium foil dishes on the appliance.
• When using other electrical appliances, ensure the cable does not
come into contact with the appliance surfaces of the cooking
appliance.
• If you will not use the appliance for a long time, plug it off. Keep the
main control switch off. Also when you do not use the appliance, keep
the gas valve off.
• In the case of the owner of the artificial organ, Be careful because
high voltage may be generated in the spark by ignition. When there
is an abnormality problem in the body, please consult your doctor.
8
SAFETY INSTRUCTIONS
• Do not hang towels, dishcloths or clothes from the appliance.
• Do not use a tea towel or similar materials in place of a pot holder.
Such cloths can catch fire on a hot burner.
• When using glass cookware, make sure it is designed for top plate
cooking. If the surface is made of glass-cracked, switch off the
appliance to avoid defeat electrcution.
• To minimise the possibility of burns, ignition of flammable materials
and spillage, turn cookware handles toward the side or center of the
top plate without extending over adjacent burners.
• Always turn burner controls off before removing cookware.
• Carefully watch foods being fried at a high flame setting.
• Always heat fat slowly and watch as it heats.
• Foods for frying should be as dry as possible. Frost on frozen foods or
moisture on fresh foods can cause hot fat to bubble up and over the
sides of the pan.
• Never try to move a pan of hot fat, especially a deep fat fryer. Wait
until the fat is completely cool.
• In the event of the burner flames being accidentally extinguished,
turn off the burner control and do not attempt to re-ignite the burner
for at least 1 min.
• This appliance is for cooking purposes only. It must not be used for
other purposes, for example room heating.
Maintenance
• Before attempting to clean the appliance, it should be disconnected
from the mainsand cooled.
• You should not use a steam jet or any other high pressure cleaning
equipment to cleanthe appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
9
SAFETY INSTRUCTIONS
ENGLISH
• Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be done by a
qualified technician.
10
INSTALLATION
INSTALLATION
Product Overview
Parts and Features
Model CG5Z3626S
Pan Support Cast iron
Wok pan Support Not available
Top plate Stainless steel
Dimensions (W X D X H) 860 mm X 510 mm X 90 mm
Ignition device Continuous Ignition Type
Gas connection G1/2 thread
Electric supply 220-240 V~, 50 Hz/60 Hz, 2.0 W
Burner Feature Triple-Crown (1 ea)
Rapid (1 ea)
Semi-rapid (2 ea)
Auxiliary (1 ea)
ΣQn 11.5 kW
11
INSTALLATION
ENGLISH
Accessories
a
Bracket (4 ea)
b
Sponge (4 ea)
c
Screw (4 ea)
d
Injector for LNG G20 20 mbar (5 ea)
e
Seal (2 ea)
f
LNG Gas Pipe Elbow (1 ea)
Technical Instructions
Technical Instructions
WARNING
• Do not modify this appliance.
• This appliance must be installed by an
authorised technician or installer.
• Prior to installation, ensure that the local
distribution conditions (nature of the gas and
gas pressure) and the adjustment of the
appliance are compatible.
• The adjustment conditions for this appliance are
stated on the label (or data plate).
• This appliance is not connected to a combustion
products evacuation device. It should be
installed and connected in accordance with
current installation regulations. Particular
attention should be given to the relevant
requirements regarding ventilaton.
• The device shall not be operated for more than
15 seconds. If after 15 seconds the burner has
not lit, stop operating the device and open the
compartment door and/or wait at least 1 minute
before attempting a further ignition of the
burner.
• Before installing, turn off the gas and electricity
supply to the appliance.
• All appliances containing any electrical
components must be earthed.
• Ensure that the gas pipe and electrical cable are
installed in such a way that they do not touch any
parts of the appliacne which may become hot.
• Gas pipe or connector should not be bent or
blocked by any other appliances.
• Check the dimensions of the appliance as well as
the dimensions of the gap to be cut in the
kitchen unit.
12
INSTALLATION
WARNING
• The panels located above the work surface,
directly next to the appliance, must be made of
nonflammable material. Both the stratified
surfacing and the glue used to secure it should
be heat resistant to prevent deterioration.
• Turn on appliance tap and light each burners.
Check for a clear blue flame without yellow
tipping.
If burners show any abnormalties, check the
following :
- Burner lid positioned correctly
- Flame spreader positioned correctly
- Burner vertically aligned with injector nipple
• A full operational test and a test for possible
leakages must be carried out by the technician
after installation.
• The fiexible hose shall be fitted in such a way that
it cannot come into contact with a moveable part
of the housing unit and does not pass through
any space susceptible of becoming congested.
Installation

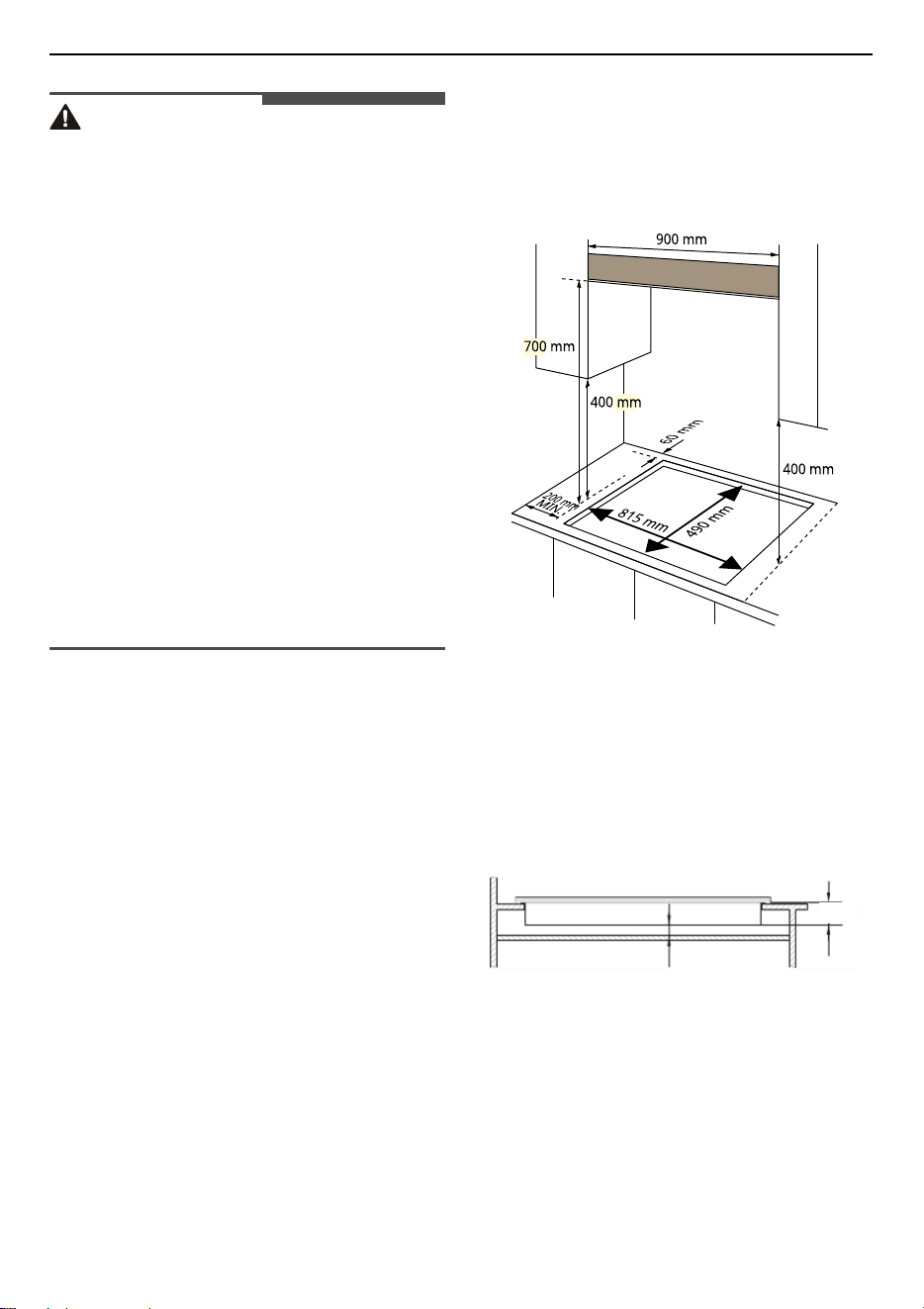

Dimensions and Clearances
This appliance is to be built into a kitchen unit or
600 mm worktop, providing the following
minimum distances are allowed;
• The edges of the hob must be a minimum
distance of 60 mm from a side or rear wall.
• 700 mm between the highest point of the hob
surface including the burners and the underside
of any horizontal surface directly above it.
• 400 mm between the hob surfaces, providing
that the underside of the horizontal surface is in
line with the outer edge of the hob. If the
underside of the horizontal surface is lower than
400 mm, then it must be at least 50 mm away
from the outer edges of the hob.
• There should be 50 mm clearance around the
appliance.
• There should be 50 mm clearance between the
hob surface and any combustible materials.
• If the installation surface is narrow, install the
heatproof plate on the right, left and back.
• It is necessary to be built into kitchen furniture
as indicated below. Clearances are required
when fitting the hob with a cooker hood above.
• You must have a gap of at least 25 mm and at
most 74 mm between the underneath of the
appliance and any surface that is below it.
- An oven must have forced ventilation to install
a hob above it.
- Check the dimensions of the oven in the
installation manual.
- The cut out size must obey the indication.
Installing the Appliance
Sponge
• Remove the pan supports, the burner lid and
flame spreader and carefully turn the appliance
upside down and place it on a cushioned mat.
Take care that the Ignition devices and flame
supervision devices are not damaged in this
operation.
45 mm
25 mm (MIN.)
13
INSTALLATION
ENGLISH

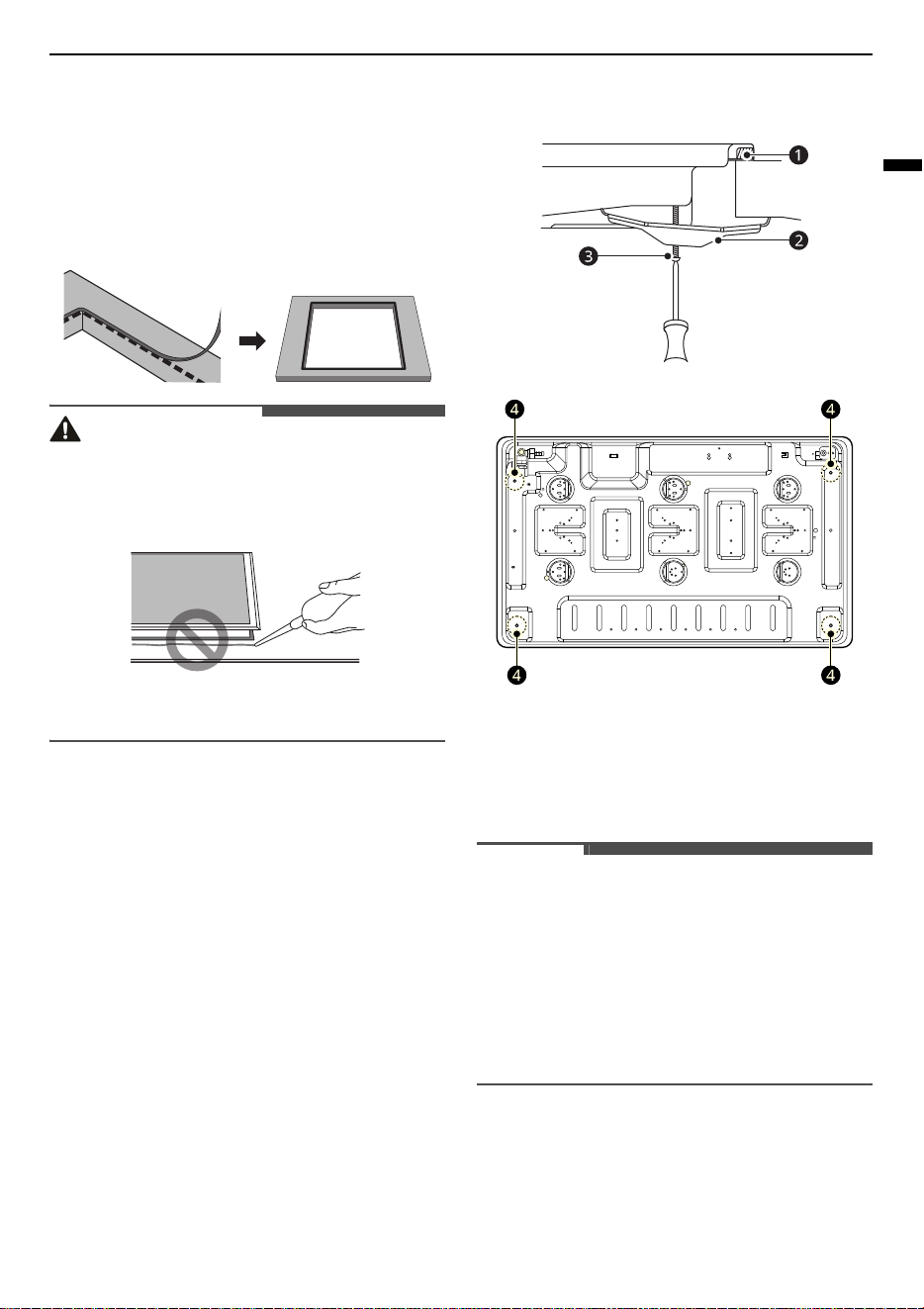

• Attach the sponge provided around the edge of
the appliance.
• Do not leave a gap in the sealing agent or
overlap the thickness.
The thickness of the sponge material is 3 mm. The
width of the sponge material is 10 mm. Attach the
sponge around the edge of the hole in the worktop.
CAUTION
• Do not use a silicon sealant to seal the appliance
against the aperture. This will make it difficult to
remove the appliance from the aperture in
future, particularly if it needs to be serviced.
• Make sure to install the stabilizing brackets to
prevent tipping of the appliance.
1
Place the bracket
b
over the holes that match
the size of the screws. There are one set of
screw holes in each corner of the hob. Slightly
tighten a screw
c
through the bracket
b
so
that the bracket is attached to the hob. Adjust
the position.
2
Carefully turn the hob back over and then
gently lower it into the hole that you have cut
out.
3
On the underneath of the hob, adjust the
brackets into a position that is suitable for your
worktop. Then fully tighten the screws to
secure the hob into position.
d
Screw Position
Gas Connection
NOTE
• This appliance must be installed and connected
in accordance with installation regulations in
force in the country in which the appliance is to
be used.
• This appliance is supplied to run on LPG and
natural gas. Conversion for use on LPG and
natural gases must only be undertaken by a
qualified person.
• It is the law that all gas appliances are installed
by competent persons in accordance with the
current edition of the Gas Safety Installation and
Use Regulations.
• It is in your interest and that of safety to ensure
compliance with the law.
14
INSTALLATION
• In the UK, GASSAFE registered installers work to
safe standards of practice. The hob must also be
installed in accordance with the current edition
of BS 6172.
• Failure to install the hob correctly could
invalidate the warranty, liability claims and lead
to prosecution.
• The appliance must be connected in accordance
with the currently applicable regulations.
• Before installing the appliance, check that the
local conditions (type of gas and pressure) are
compatible with the appliance settings. The
permissible appliance settings can be found on
the rating plate.
• Connection to the gas lines and seal fitting must
be carried out professionally according to the
currently applicable standards.
Gas Connection on the Appliance
The gas connection is located at the rear right of
the appliance.
Only use connecting lines or flexible hoses (tubes)
which comply with the applicable regulations and
which are approved for this purpose.
Gas supply replacement and installation
guidelines:
• Screw the female threaded elbow and the seal to
the end of the gas pipe.
• Hold the elbow with a wrench and connect the
flexible gas connecting tube (hose) to the elbow.

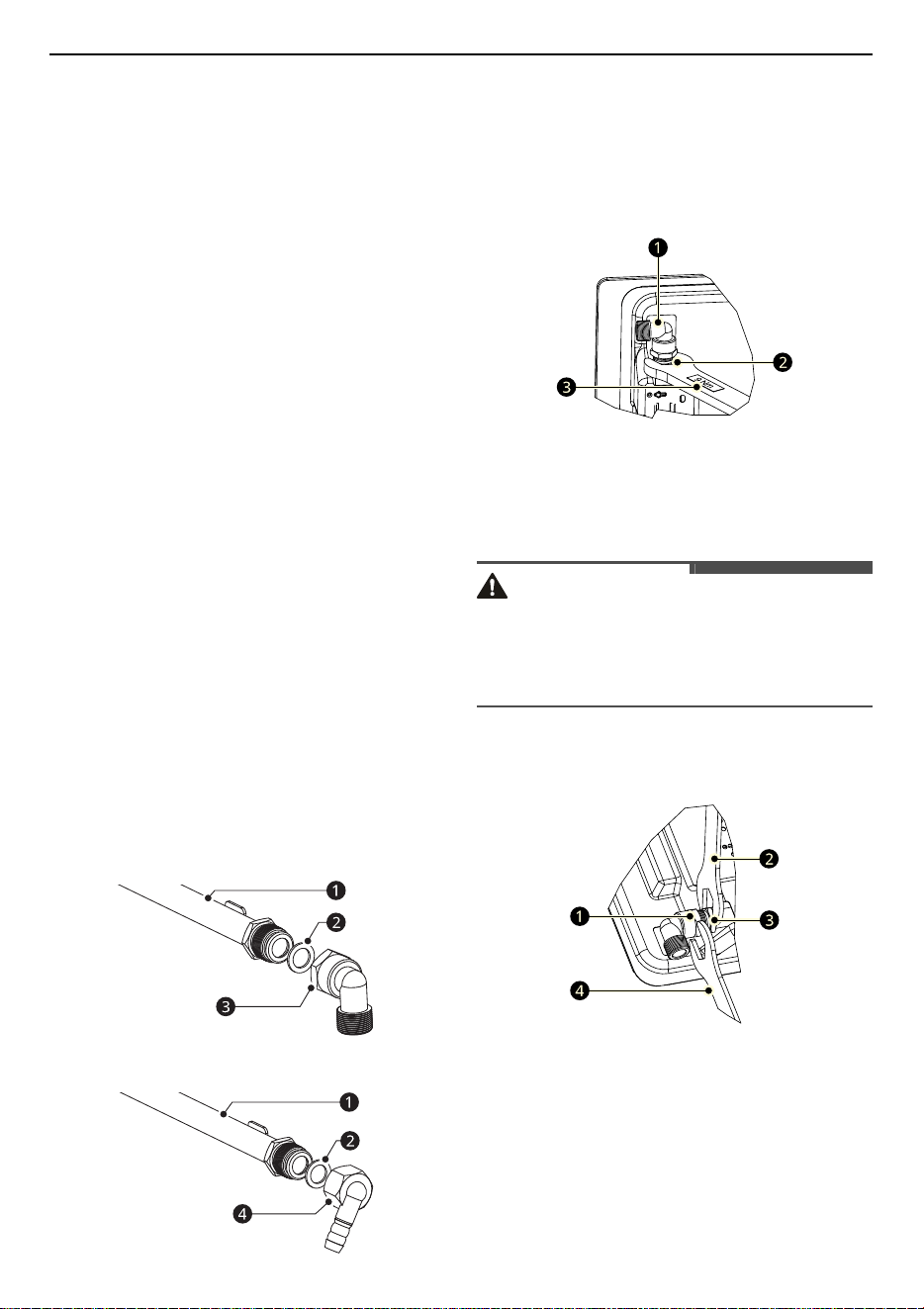

LNG
LPG
a
Gas Pipe
b
Seal
c
G1/2" female threaded elbow (suitable for 24
mm wrench)
d
Ø11.5 female threaded elbow (suitable for 24
mm wrench)
a
Elbow
b
Black nut of manifold
c
Torque: 9±1 Nm
CAUTION
• lf necessary to adjust or install the elbow, it is
allowed only torque wrench with 9±1 Nm, and
work on the Black nut of manifold instead of on
the elbow.
Adjusting the Direction of Elbow
a
The hexagonal head of the elbow
b
Tighten with a torque wrench of 9±1 Nm
c
The black bolt of the gas inlet pipe assembly
d
Hold still
After loosening the elbow, adjust the elbow
interface to the required direction as required, and
keep the hexagonal head of the elbow motionless
15
INSTALLATION
ENGLISH
with a wrench. Use a 9±1 Nm torque wrench to
tighten the black bolt of the gas inlet pipe
assembly. Ensure that the torque of the wrench is
within the required range to prevent elbow
breakage or damage caused by excessive force.
After the installation is tightened, check whether
the parts are in good condition and test the air
tightness to ensure the tightness of the
installation. The installer is responsible for the
results of the process.
Installing the Gas Hob
• Do not use too much force when tightening;
Otherwise, it will cause elbow fracture or rubber
ring deformation and leakage.
• Note that the torque wrench must be used to
tighten with a torque of 10 Nm. The maximum
torque cannot exceed 20 Nm.
The gas connection must be located in position
where the stop tap is accessible. The end of the
inlet connection point of the gas hob has a 1/2"
thread that allows for:
• A fixed connection
• Connection using a flexible pipe
The seal supplied must be inserted between the
manifold outlet and the gas supply. You must
prevent the pipe from coming into contact with
moving parts of the kitchen unit (for example, a
drawer) and prevent access to any spaces which
might become obstructed.
If there is no digital torque wrench, it is also
allowed to use a wrench with a length of less than
200 mm (within 8 inches) for tightening. When
tightening, care should be taken to avoid
overtightening, and the airtightness must be
checked after installation;
WARNING
• If any connection is handled, check the seal.
• The manufacturer is not liable for any
connection leaking, after being handled.
Flexible hose
If you use flexible hoses, make sure that:
• The hoses must not become trapped or
squashed.
• The hoses must not be subject to twisting or
pulling forces.
• The hoses must not come into contact with
sharp edges or cutting edges.
• The hoses must not go behind the gas hob or
close to the hot air exits.
• The hoses must come into contact with parts
that could reach a temperature higher than 70
℃, above room temperature. The hoses should
be fine under these conditions.
• The flexible hose (tube) shall be fitted in such a
way that it cannot come into contact with a
moveable part of the housing unit (e.g. a drawer)
and does not pass through any space
susceptible of becoming congested.
• After the installation, check if there is any gas
leak, using soap or liquid detergent foam.
Ensure that the full length of the hoses are
accessible for inspection.
WARNING
• Do not use plastic hoses to connect gas hob
because they can cause a leakage. The use of
metal flexible hoses to connect home appliances
is recommended.
16
INSTALLATION
Gas Specifications
Electrical Connection
• This appliance must be earthed.
• This appliance is designed to be connected to a
220~240 V, 50/60 Hz AC electricity supply.
• The wires in the mains lead are coloured in
accordance with the following code;
- Green/yellow = Earth
- Blue = Neutral
- Brown = Live
• Wiring diagram
a
Switch 1
b
Switch 2
c
Switch 3
d
Switch 4
e
Switch 5
f
Ignition
NOTE
• Make sure to connect the green and yellow wires
to the terminal marked with the letter E or earth
symbol.
Gas Adjustment
CAUTION
• Take precautions on the operations and
adjustments to be carried out when converting
from one gas to another.
• All work must be carried out by a qualified
technician.
• Before you begin, turn off the gas and electricity
supply to the appliance.

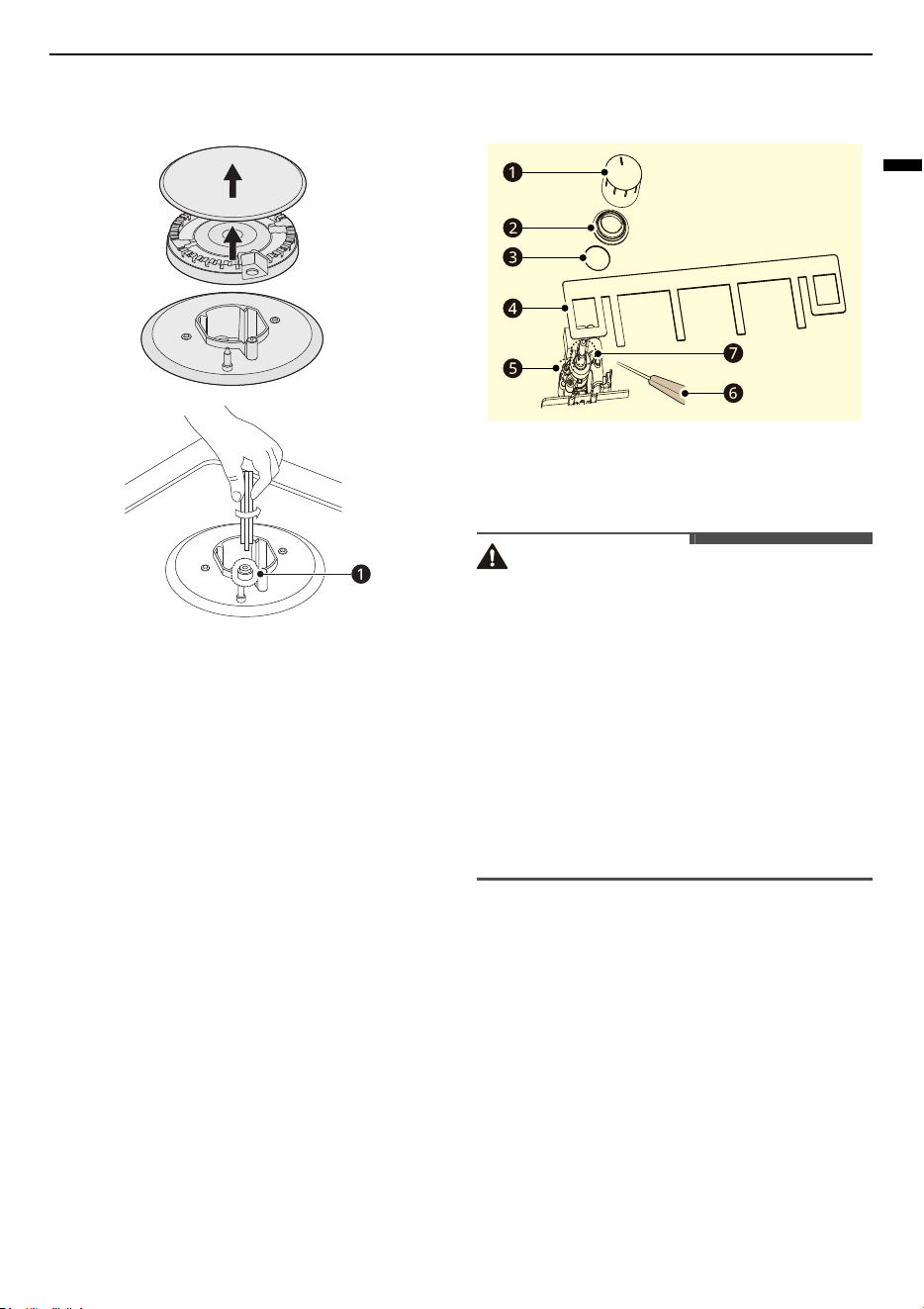

Change the Injector of the Burners.
1) Remove the pan support, burner lid and flame
spreader.
2) Unscrew the injector
a
using a 7 mm box
spanner and replace it with the stipulated
injector for new gas supply.
3) Carefully reassemble all the components.
Model no.
Gas type
&
pressure
Electrical
power
Heat input and orifice size marked (mm)
Total
heat
input
Triple-
Crown
burner
Rapid
burner
Semi-
rapid
burner
Auxiliar
y burner
CG5Z3626S
class: 3
220-240 V~
50/60 Hz
4.0 kW
(291 g/h)
3.0 kW
(219 g/
h)
1.75 kW
(127 g/h)
1.0 kW
(73 g/h)
11.5 kW
(837 g/h)
G30 29
mbar
1.00 0.87 0.66 0.50
NA
G20 20
mbar
1.50 1.30 1.0 0.78
$&9
/
(
1
17
INSTALLATION
ENGLISH
4) After replacing the injectors, strongly tighten
the injectors in place.
Adjustment of minimum Level of the
Flame
1) Turn the taps down to minimum.
2) Remove the knob
a
, seal ring
b
, panel, film
d
. Place a flat bladed screwdriver
f
in the left
side of the tap. Adjust by-pass screw.
3) If by-pass screw adjusted correctly, the flame
length is about 3 mm - 4 mm.
• For butane propane gas, the adjusting
screw must be tightly screwed in.
• Refit the control knob.
• Make sure that the flame does not go out by
quickly turning from maximum flow to
minimum flow. If it does, remove the
control knob, make further adjustments to
the gas flow, and test again.
4) Repeat this process for each one of the gas
taps.
c
Ring of Panel
e
By-pass Screw
g
Tap
CAUTION
• Do not dismantle the tap shaft: in the event of a
malfunction, change the whole tap.
• Before placing the burners back on the top
place, make sure that the injector is not blocked.
• A full operational test and a test for possible
leakages must be carried out after gas
conversion (such as soap water or gas detector).
• After completing conversion, a qualified
technician or installer has to mark “V” on the
right gas category to match with the setting in
rating label. Remove the previous setting “V”
mark.
18
OPERATION
OPERATION
Using the Surface Burners
How to Use the Appliance
• The minimum setting is at the end of the
anticlockwise rotation of the control knob.
• All operation positions must be selected
between the maximum and minimum position.
• The symbol
e
on the control panel, next to the
control knob indicates the burner in operation.
a
Black Circle: Gas Off
b
Star: Ignition Position
c
Large Flame: Maximum Setting
d
Small Flame: Minimum Setting
Automatic ignition with flame failure safety
device (gas control)
The appliance is fitted with a flame failure safety
device on each burner, which is designed to stop
the flow of gas to the burner head in the event of
the flame going out.
To ignite a burner:
• Push the control knob of the burner that you
wish to light and turn it anticlockwise to the
maximum position.
• If you keep the control knob holded down, the
automatic ignition for the burner will operate.
• You should hold down the control knob for 15
seconds after the flame on the burner has lit. If
after 15 seconds the burner has not lit, stop
operating the device and open the compartment
door and/or wait at least 1 minute before
attempting a further ignition of the burner.
• After this 15-second interval, to regulate the
flame you should continue turning the control
knob anticlockwise until the flame is at a suitable
level. The operating position must be at a
position between the maximum and minimum
position.
• To switch the burner off, turn the control knob
fully clockwise to the gas off position.
• In case of power failure, the burners can be lit by
carefully using a match.
Safety and Energy Saving

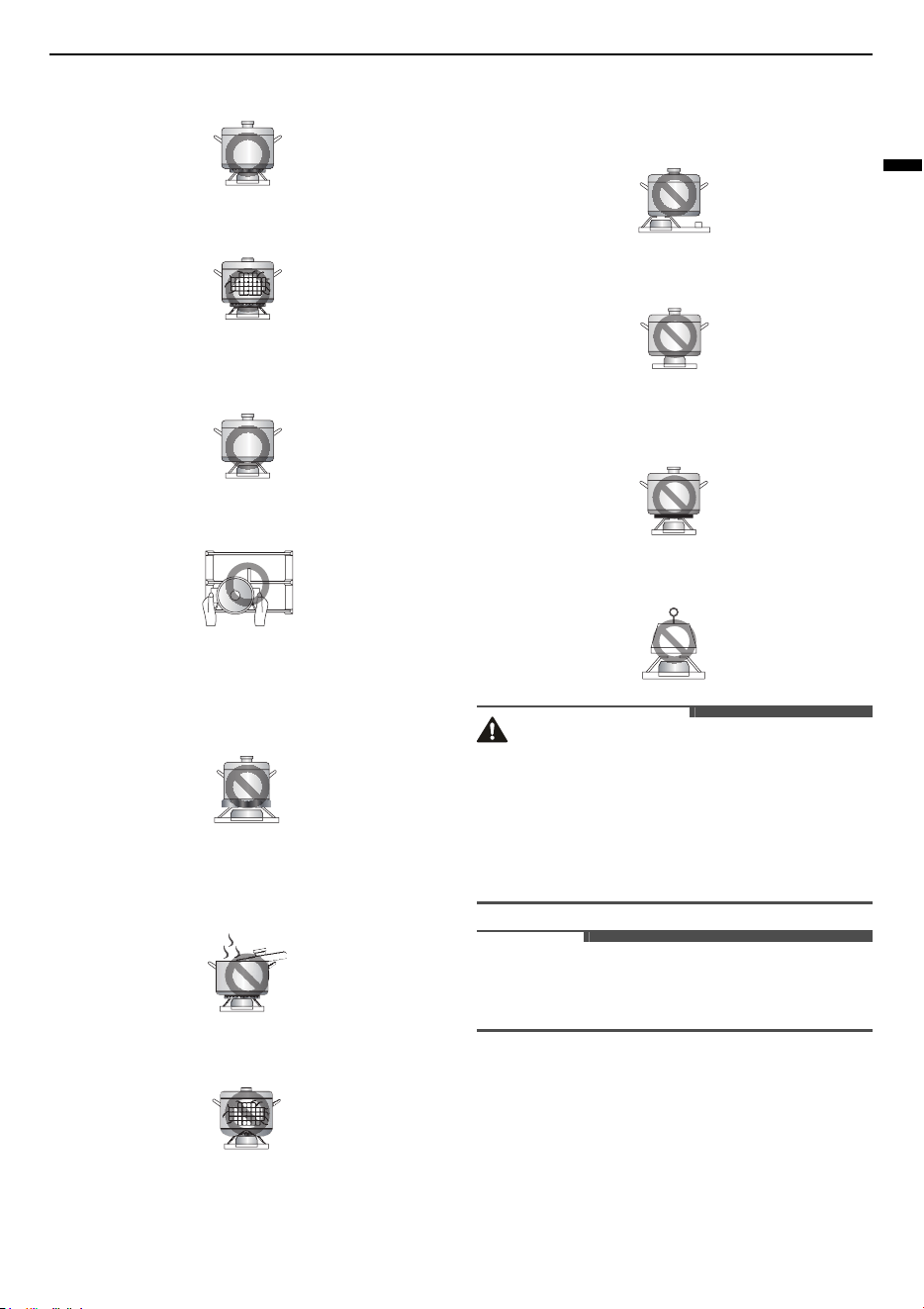

The diameter of the bottom of the pan should
correspond to that of the burner.
CAUTION
• Be careful! When you use oversize pot, the
surface and around product may be overheated.
Use the pot that is described below.
• Do not use cookware that overlaps the edge of
the burner.
Correct
• Always use cookware that is suitable for each
burner to avoid wasting gas and discolouring the
cookware.
Burners
Pans
min. max.
Triple-Crown 200 mm 240 mm
Rapid 200 mm 240 mm
Semi-rapid 160 mm 180 mm
Auxiliary 120 mm 160 mm
19
OPERATION
ENGLISH
• Place a lid on the cookware.
• Only use pots, saucepans and frying pans with a
thick, flat bottom.
• Always place the cookware right over the
burners, not to one side. Place the cookware on
top of the trivet.
• Handle cookware carefully when they are on the
burner.
Incorrect
• Do not use small-diameter cookware on large
burners. The flame should never come up the
sides of the cookware.
• Avoid cooking without a lid or with the lid half
open
- as this wastes energy
• Do not use a pan with a convex or concave
bottom.
• Do not place cookware on one side of a burner,
as it could tip over. Do not use cookware with a
large diameter on the burners near the controls,
which when placed on the middle of the burner
may touch the controls or be so close to them
that they increase the temperature in this area
and may cause damage.
• Never place cookware directly on top of the
burner.
• Do not place anything, e.g. flame tamer,
asbestos mat, between pan and pan support as
it may cause serious damage to the appliance.
• Do not use excessive weight and do not hit the
with heavy objects.
CAUTION
• Do not use roasting pans, frying pans or grill
stones heated simultaneously on several
burners because the resulting heat build-up may
damage the appliance.
• Do not touch the top plate and trivet whilst in use
and for a certain period after use.
NOTE
• As soon as a liquid starts boiling, turn down the
flame to keep the liquid simmering.
20
MAINTENANCE
MAINTENANCE
Care and Cleaning
Cleaning the Appliance
CAUTION
• Cleaning operations must only be carried out
when the appliance is completely cool.
• The appliance should be disconnected from the
main supply before commencing any cleaning
process.
• Clean the appliance regularly, preferably after
each use.
• Abrasive cleaners or sharp objects will damage
the appliance surface; you should clean it using
water and a little washing up liquid.
• Do not clean the control knobs and pan support
in a dishwasher.
• Do not spray cleansers directly onto the control
panel. Moisture entering the electric circuits may
cause electric shock or product damage.
Usable
a
Soft Cloth
b
Neutral Detergent
Unsuitable
a
Nylon Brush
b
Metal Brush
c
Edible Oil
d
Acidic / Alkaline Detergent
e
Abrasive
f
Thinner / Benzene
Pan support and Control knobs
• Take off the pan support.
• Clean pan support and the control knobs with a
damp cloth, washing up liquid and warm water.
For stubbon soiling, soak beforehand.
• Dry everything with a clean soft cloth.
Top plate
• Regularly wipe over the top plate using a soft
cloth well wrung-out in warm water to which a
little washing up liquid has been added.
• Dry the top plate thoroughly after cleaning.
• Thoroughly remove salty foods or liquids from
the hob as soon as possible to avoid the risk of
corrosion.
• Stainless steel parts of the appliance may
become discoloured over time. This is normal
because of the high temperatures. Each time the
appliance is used, these parts should be cleaned
with a product that is suitable for stainless steel.
• When you finish cooking, ensure that the panel
and accessories have cooled down completely.
And remove the accessories (pan support,
burnersand lids). If it is dirty, clean with a warm,
damp sponge, using only stainless steel
detergent. Then wipe dry with a soft cloth. After
cleaning is complete, reassemble in reverse
order.
• Do not allow liquids such as vinegar, coffee, milk,
salt water, lemon or tomato juice to come in
contact with stainless steel parts for extended
periods of time.
WARNING
• Be careful. The water can be hot.
NOTE
• Use of abrasive powders or abrasive cleaners
may cause scratches.
• Be careful. Do not use excessive force when
cleaning the product. This can lead to scratches.
21
MAINTENANCE
ENGLISH
• Be careful. Do not allow water to enter the top
ring.
• Clean the top plate (stainless steel) immediately
after use. It will be difficult to clean completely if
it is very dirty.
Burners
• Remove the burner lids and flame spreaders by
pulling them upwards and away from the top
plate.
• Soak them in hot water and a little detergent or
washing up liquid.
• After cleaning and washing them, wipe and dry
them carefully. Make sure that the flame holes
are clean and completely dry.
• Wipe the fixed parts of the burner cup with a
damp cloth and dry afterwards.
• Gently wipe the ignition device and flame
supervision device with a well wrung-out cloth
and wipe dry with a clean cloth.
• Do not attempt to remove the ignition device
from the cooktop or burner bases.
• Before placing the burners back on the top plate,
make sure that the injector is not blocked.

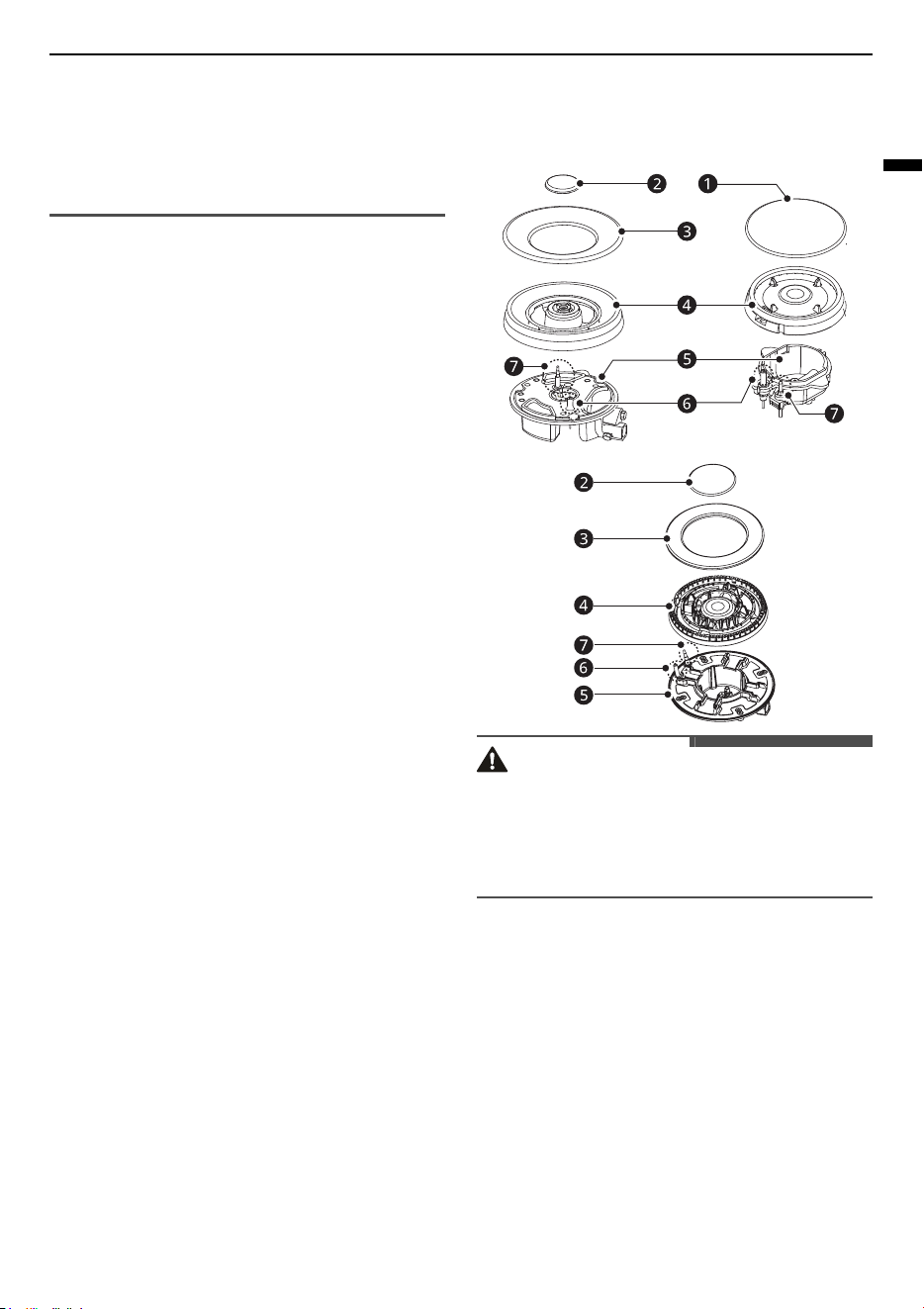

Reassemble the Auxiliary, Semi-Rapid, Rapid
and Triple-Crown Burners as follows:
1
Place the flame spreader
d
onto the burner
cup
e
so that the ignition device and the flame
supervision device extend through their
respective holes in the flame spreader. The
flame spreader must click into place correctly.
2
Position the burner lids (
a
,
b
,
c
) onto the
flame speader
d
so that the retaining pins fit
into their respective recesses.
CAUTION
• Replace parts in the correct order after cleaning.
- Do not mix up the top and bottom.
- The locating pins must fit exactly into the
notches.
22
TROUBLESHOOTING
TROUBLESHOOTING
Before Calling for Service
Repairs should be performed by a licensed technician only. Improper repair may result in considerable
danger to you and others. However, some minor problems can be resolved as in the table below:
If a problem is not solved, please contact an LG Electronics Customer Information Centre.
Parts and Features
Symptoms Possible Cause & Solution
Not ignited. No spark
• Check the electricity supply.
The burner lid is badly assembled.
• Assemble the lid correctly.
The gas supply is closed.
• Open the gas supply completely.
Badly ignited. The gas supply is not completely open.
• Open the gas supply completely.
The burner lid is badly assembled.
• Assemble the lid correctly.
The ignition plug is contaminated with alien substance.
• Wipe alien substance with a dry cloth.
The burners are wet.
• Dry the burners lids carefully.
The holes in the flame spreader are clogged.
• Clean the flame spreader.
Noise made when
combusted and
ignited.
The burner lid is badly assembled.
• Assemble the burner lid correctly.
Flame goes out when
in use.
The flame supervision device is contaminated with alien substance.
• Clean the flame supervision device.
Product being cooked has boiled over and extinguished the flame.
• Turn off burner knob. Wait one minute and reignite zone.
A strong draught may have blown the flame out.
• Please turn off zone and check cooking area for draught such as open
windows. Wait one minute and reignite zone.
Yellow flame The holes in the flame spreader are clogged.
• Clean the flame spreader.
23
TROUBLESHOOTING
ENGLISH
Customer Service
Our after-sales service is there for you if your appliance needs to be repaired. We will always find an
appropriate solution. Please contact the dealer where you buy this appliance.
Country of Origin : China
After Sales Service (Egypt Only)
• Shelf Life Time : 6 Years
• LG is committed to providing all spare parts of this appliance during the shelf life time.
Yellow flame Different gas is used.
• Check the gas used.
Unstable flame The burner lid is badly assembled.
• Assemble the burner lid correctly.
Gas Smell Gas leakage
• Stop using the product and close the middle valve. Open the window to
ventilate. Contact our service center by using a phone outside.
Rated voltage 220 - 240 V~
Rated frequency 50/60 Hz
Manufacturer LG Electronics Inc.
170, Seongsanpaechong-ro, Seongsan-gu, Changwon-si, Gyeonsangnam-do,
51533, Republic of Korea
Symptoms Possible Cause & Solution
