Disposal
WARNING!
WARNING!
Safety notice
Thank you for purchasing a Candy Product.
WARNING!
Thank Y
OU
Please read this instruction carefully before using the appliance. The instruction contains
important information which will guide you in order to have a safe and proper installation as
well as daily use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
WARNING! – Important safety information
General information and tips
Environmental information
This marking on the product, accessories or literature indicates that the
product and its electronic accessories (e.g. charger,headset, USB cable )
should not be disposed of with other household waste at the end of their
working life.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate these items from other types
of waste and recycle them responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they purchased
this product, or their local government office, for details of where and how
they can take these items for environmentally safe recycling.Business users
should contact their supplier and check the terms and conditions of the
purchase contract.
This product and its electronic accessories should not be mixed with other
commercial wastes for disposal.
This appliance is filled with R290 Flammable material risk of fire.
WARNING : In the appliance enclosure or in the built-in structure,keep
ventilation openings clear of obstruction.
WARNING : Do not damage the refrigerant circuit.
Risk of injury or suffo cation!
To ensure safety when disposing of an old tumble dryer, disconnect the mains plug from
the socket, cut the mains power cable and destroy this together with the plug. To prevent
children shutting themselves in the machine, break the door hinges or the door lock.
The appliance must not be powered through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on and off by a utility.
3
Content
EN
1
- Safety information ......................................................................................................................... 4
2- Installation ........................................................................................................................................ 7
3- Practical hints ................................................................................................................................ 10
4- Product description ..................................................................................................................... 11
5- Control panel ................................................................................................................................. 12
6- Programmes ................................................................................................................................. 16
7- Consumption .......................................................................................................... 17
9- ............................................................................................................... 20
10-
................................
........................................................................................ 23
11-
................................
............................................................................................ 25
12-
................................
...................................................................................... 27
Customer service
Technical data
Troubleshooting
Care and cleaning
Daily use
................................
....................
13-
................................
........................................................................................29
8- ...........................
.................................................................................... 18
Suggestions and tips
.........
EN
1-Safety in formation
WARNING!
Before rst use
Make sure there is no transportation damage.
.hcaer s 'nerdlihc fo tuo ti peek dna egakcap lla evomeR
ti esuaceb tsael ta elpoep owt htiw ecnailppa eht evom syawl A
is heavy.
Daily use
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
Children shall not play with the appliance.
Do make sure the room is dry and well ventilated. The ambient
temperature should be between 5 °C and 35 °C.
Do not cover any ventilation openings in the base by a carpet or
similar object.
Keep the area around the tumble dryer free of dust and lint.
Do make sure
that there is only laundry inside the appliance and
no pets or children before you use it.
Only touch the mains plug with dry hands and do not touch or
use the appliance if you are barefoot or with wet hands or feet
Do not dry unwashed items in the tumble dryer.
Do make sure not to load more than nominal load.
Remove all items such as lighters and matches from pockets.
by the fabric softener instructions
close vicinity to the appliance.
Do not place heavy objects or sources of heat or damp on top of
the appliance.
Hold the plug, not the cable, when unplugging the appliance.
Do not touch the rear and the drum during operation, they
are hot.
4
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
EN
1-Safety information
5
WARNING!
Daily use
Do not use the appliance to dry the following items:
Items which are not washed.
Items which have been contaminated with
sub-
stances such as cooking oil, acetone, alcohol, benzine, petrol,
kerosene, spot removers, turpentine, waxes, wax removers
or other chemicals. The fumes can cause a re or explosion.
Items that have been soiled with substances such as cooking
oil,acetone, alcohol, petrol,kerosene, spot removers,
turpentine,waxes and wax removers should be washed
Items which contain padding or (e.g. pillows, jackets), as
-retaw ,spac rewohs , )maof xetal ( rebbur maof sa hcus smetI
proof textiles, rubber backed articles and clothes or pillows
Do not drink the condensed water.
Do not use the appliance without the lint
ter or condenser lter
in plac
ter.
Notice that the last part of the drying cycle occurs without heat
(cool down cycle) to ensure remaining garments are under a
temperature which does not damage them.
Do not leave the appliance unattended during run time for a long
time. If a long absence is needed, the drying cycle have to be
interrupted by switching o
and unplugging the mains.
Never stop a tumble dryer before the end of the drying cycle
unless all items are quickly removed and spread out so that
ctricity and for safety.
Maintenance / cleaning
Make sure children are supervised if they carry out cleaning and
maintenance.
Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance.
in hot water with an extra amount of detergent before
being dried in the tumble dryer
dryer.
the heat is dissipated
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
6
1-Safety information
EN

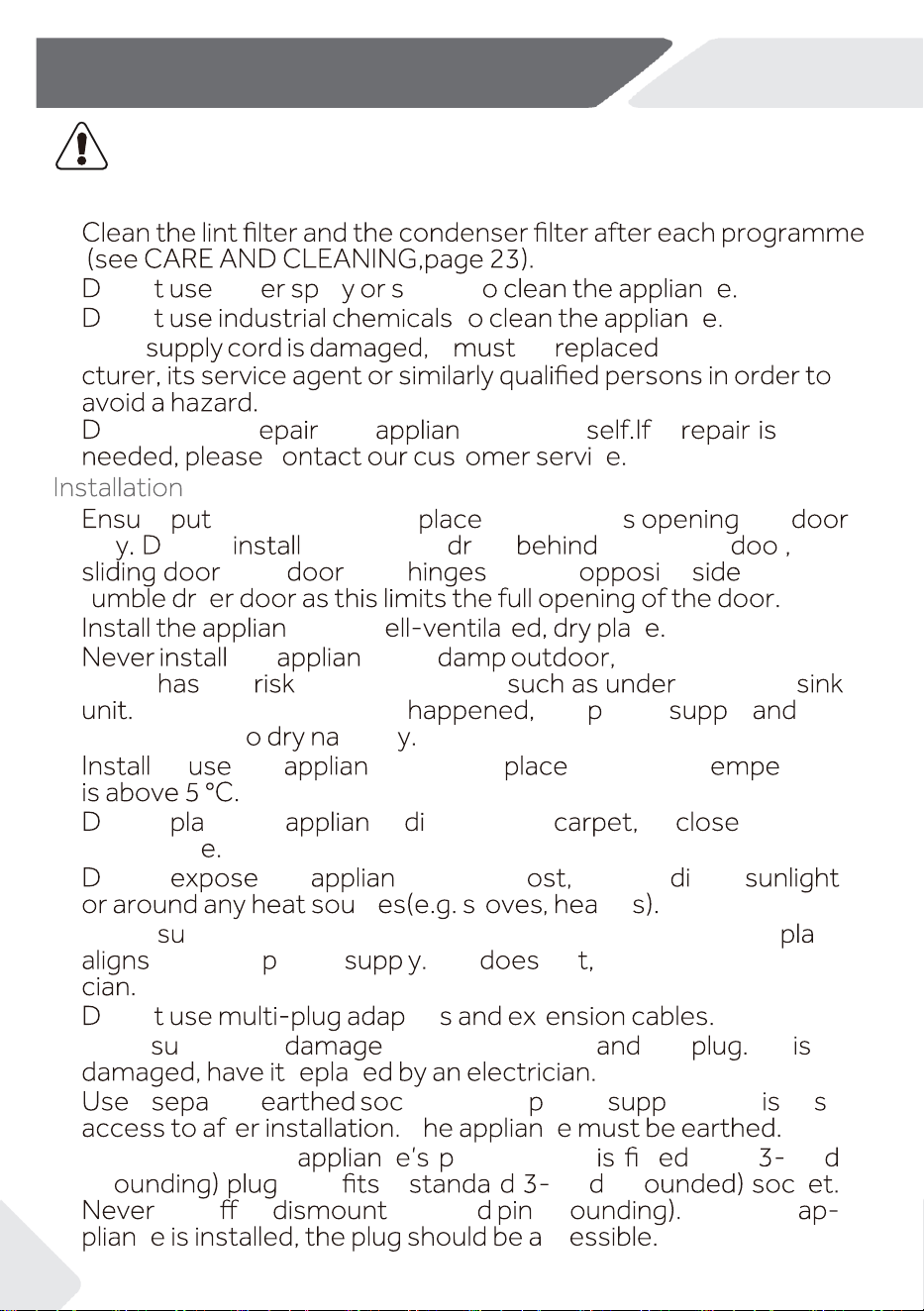

WARNING!
Maintenance / cleaning
o no wat ra team t c
o no t c
If the it be by the manufa-
o not try to r the ce by your a
c t c
re the machine in a which allow the
full o not the tumble yer a lockable r a
or a with on the te of the
t
y
ce in a w t c
the ce in a or in an area
which the of water leakage or near a
Once a water leakage cut ower ly allow
the machine t
turall
or the ce only in a where the t rature
o not ce the ce rectly on a or to a wall
or furnit
ur
o not the ce to any fr heat or rect
rc t ter
Make re that the electrical information on the rating te
with the ower l If it no contact an electri-
o no ter t
Make re not to the electric cable the if it
r c
a rate ket for the ower ly which ea y
t T c
Only for UK: The c ower cable tt with cor
(gr that a r cor (gr k
cut o or the thir (gr After the
c cc
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
›
7
2-Installation
EN
2-Installation
2.1 Preparation

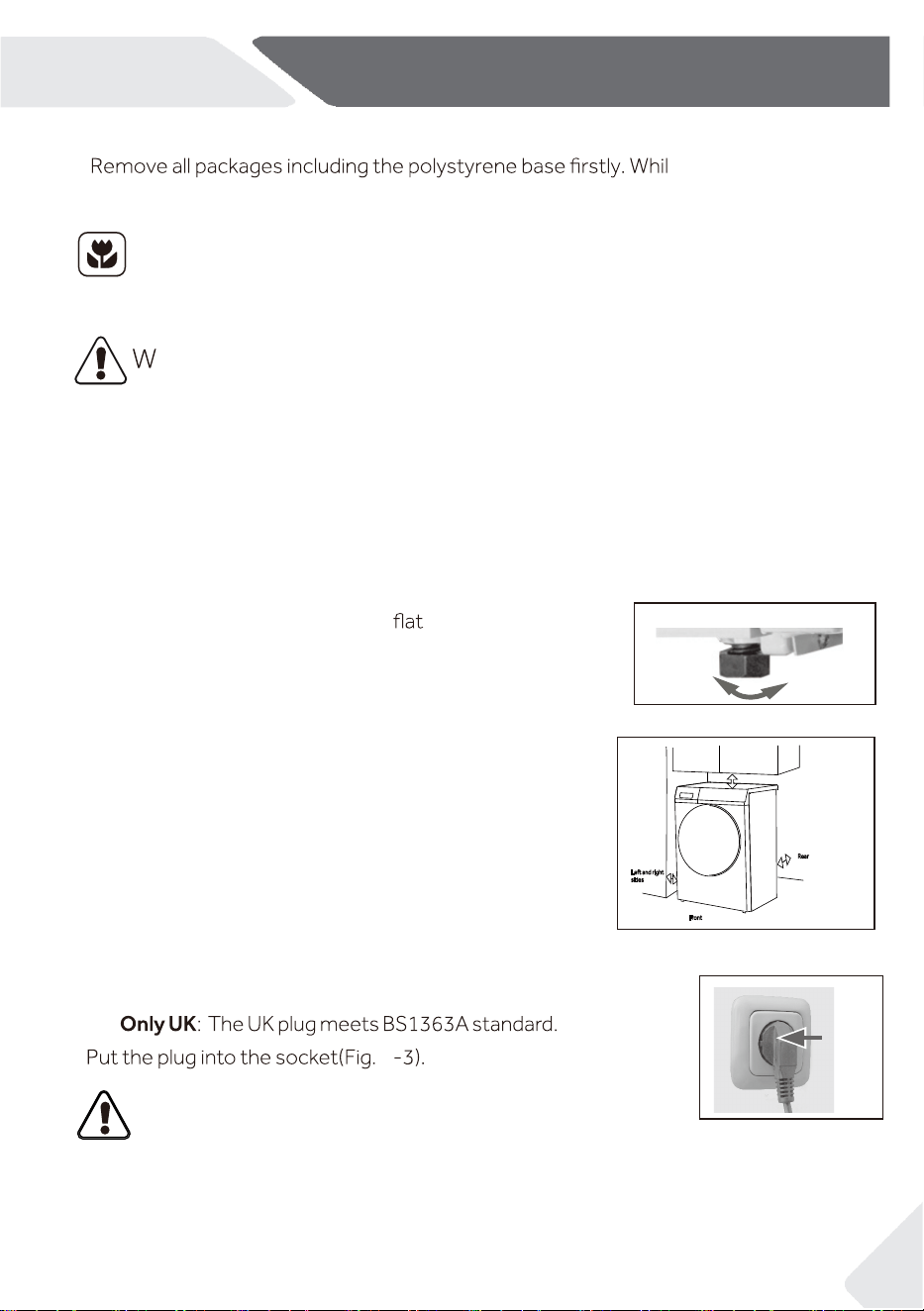

e removing the package,
water drops may be observed. This is normal phenomenon results from water test
Notice
Dispose of the package in an environmental friendly manner. For information referring
to current disposal sites, consult your retailer or the local authorities.
ARNING!
After transportation and installation, you MUST leave the dryer to stand for two
hours before use.
2.2 Transport and waiting time
Transport the appliance in horizontal position only. To the maintenance-free lubrication
oil is located in the capsule of the compressor. This oil can get through the closed pipe
system during slanting transport. Before connecting the appliance to the power supply
you have to wait 2 hours so that the oil runs back into the capsule.
2.3 Place the appliance
The appliance should be placed on a and solid surface.
Set the feet to the desired level (2-1) .
the factory.
›
2.4 Installation under worktop
The
. )2-2 .gi F (snoisnemid
eht htiw hctam tsael ta dluohs ssecer eht fo snoisnemid
1. Put the appliance adjacent to the slot. Make sure that all
connections are easily accessible and functional.
2.
3. Install the appliance prudently into the recess.
4.
Adjust all feet accurately to get a firm level position.
Make sure there is a suffi cient ventilation.
2-1
2-2
sides
Front
Top
Rear
Left and right
2.5 Electrical connection
Before each connection check if:
Power supply, socket and fusing are appropriate to the rating plate.
The power socket is earthed and no multi-plug or extension.
The power plug and socket are strictly match.
›
›
›
2-3
WARNING!
If the supply cord is damaged, it must be replaced by the service agent (see warranty
card) in order to avoid a hazard!
2
8
2-Installation
EN

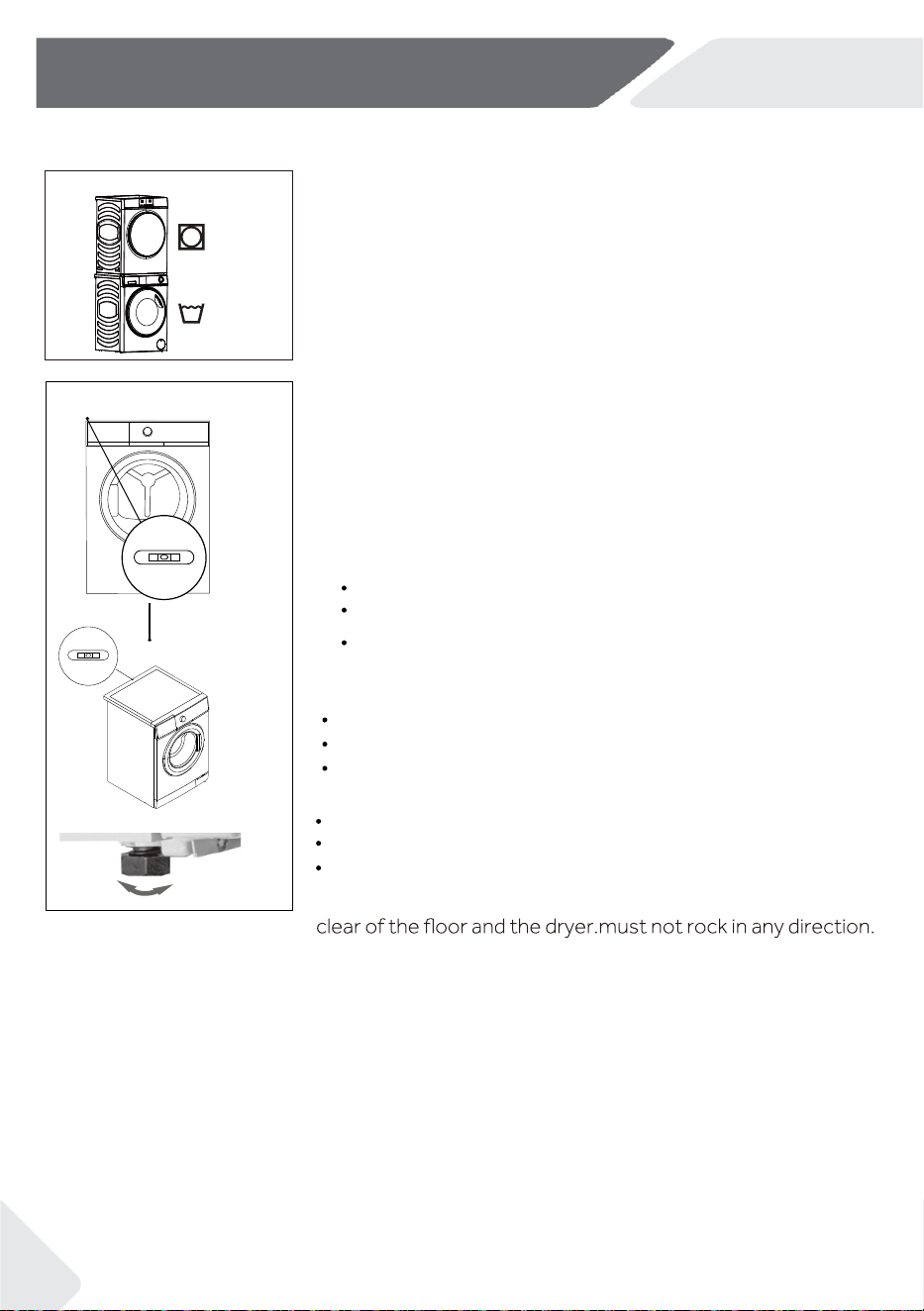

2.7 Level the dryer
Level the dryer front to back(Fig. 2-5):
Place the gradienter on the left side.
Adjust the front left foot (wind down).
Repeat the above for the right foot.
Double check the dryer is balanced(Fig. 2-5):
Ensure the dryer does not rock
Place the gradienter at the centre front of the dryer.
in any direction.
If dryer is not balanced repeat the above steps.
After levelling, the corners of the dryer cabinet should be
2-5
level
2.6 Wash-dryer stack
4)-2
.gi F (.kcats reyrd-rehsaw a eveihca ot elbissop si tI
Stacking information, as well as the corresponding
mounting kit are available via your local dealer.
The mounting instructions are supplied with the kit
which thoroughly inform the installation steps.
2-4
Not every washing machine is suitable for this purpose.
It is IMPORT A NT to level the dryer to ensure the
machine runs efficiently with minimal noise.The dryer
should be levelled in, so it stands balanced ecenly on
all four feet.Ensure the dryer does not rock in any
direction.
Level the dryer side to side(Fig. 2-5):
Place the gradienter at the centre back of the dryer.
Adjust the rear feet until the dryer is level side to side.
Never fully screw the feet completely from their
housings.
9
EN
2-Installation
2-6
2-7

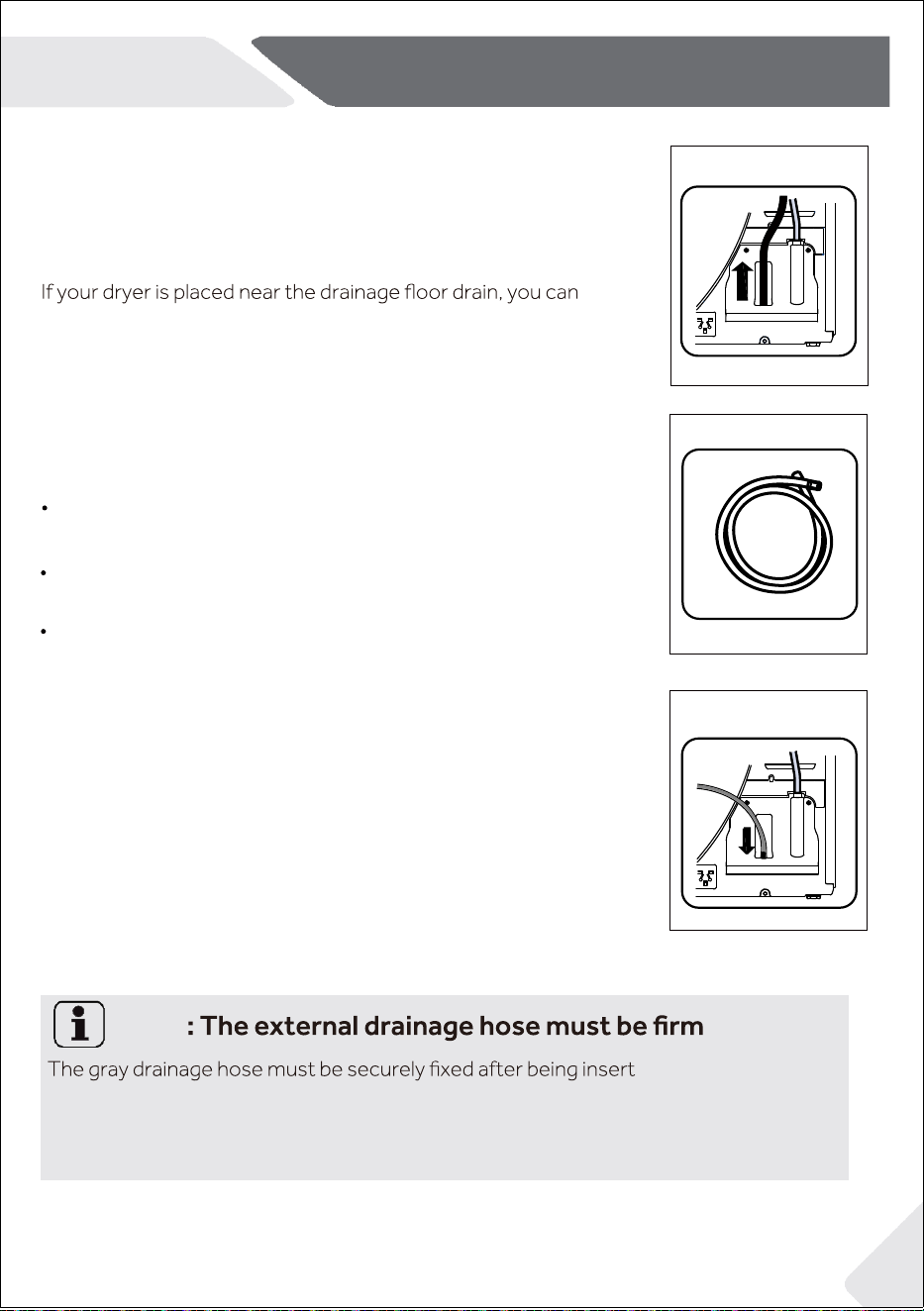

2.8 Drainage pipe connected to the outside
During the drying process of clothes, condensed water will be
automatically stored in the water box located in the upper left
corner of the machine. The water box is full or needs to be
emptied after each drying session.
directly drain the condensate water into the drain through the
drain hose in the attachment, so you don't have to empty the
water box every time.
The method of connecting the drainage hose is as follows:
2-8
Note
ed at both ends.
The gray drainage hose cannot be bent.
The gray drainage hose cannot be higher than the top of the machine by 15cm.
Remove the black hose from the connection
Uncoil the grey drain hose (included with your dryer) and
Place the other end of the drain hose into a
tub or standpipe.
connect it to the machine drain port( Fig. 2-7,2-8).
at the back
of the dryer(Bottom right of the the back Fig. 2-6).
10
EN
3-Practical hints
Intended use
This applian ce is intended for drying items which have been washed in a water solution and
are marked on the manufacturer‘s ca re label as being suitable for tumble drying.
It is designed exclusively for domestic use inside the house. It is not intended for commer-
cial or industrial use. Changes or modifications to the device are not allowed. Unintended
use may cause hazards and loss of all warranty and liability cl aims.
Standards and directives
This product meets the requirements of all applicable EC directives with the correspond-
ing harmonised standards, which p rovide for CE marking.
Environmentally responsible use
›
›
›
›
›
›
›
›
Completely spin: Spin the laundry with the maximum spin speed.
Maximum load :Use the maximum filling amount according to the programme table,
but do not overload the dryer. To take advantage of the maximum load, the laundry
which should be dried “READY to wear“, can be first dried easily with “ Ironing reminder”
When program ends, remove the laundry which should be ironed and dry the
remaining laundry then to end.
Loosen up the laundry :Shake out the laundry before putting them into the dryer.
Avoid excess drying: An excessive drying should be avoided. Select the right programme
and the appropriate dry level.
Softener unnecessary: Do not use softener when washing, because the laundry will
become fluffy and soft in the dryer .
Cleaning of the lint filters :Clean the lint filters after each cycle.
Ventilation: Make sure the appliance is properly ventilated (see INSTALLATION).
Condensed water reuse:The collected condensed water can be used for the steam
iron. Before that, it should be poured through a fine sieve or coffee filter paper.
Smallest parts will be retained by the filter.
11
4-Product description
EN
4-Product description
Note:

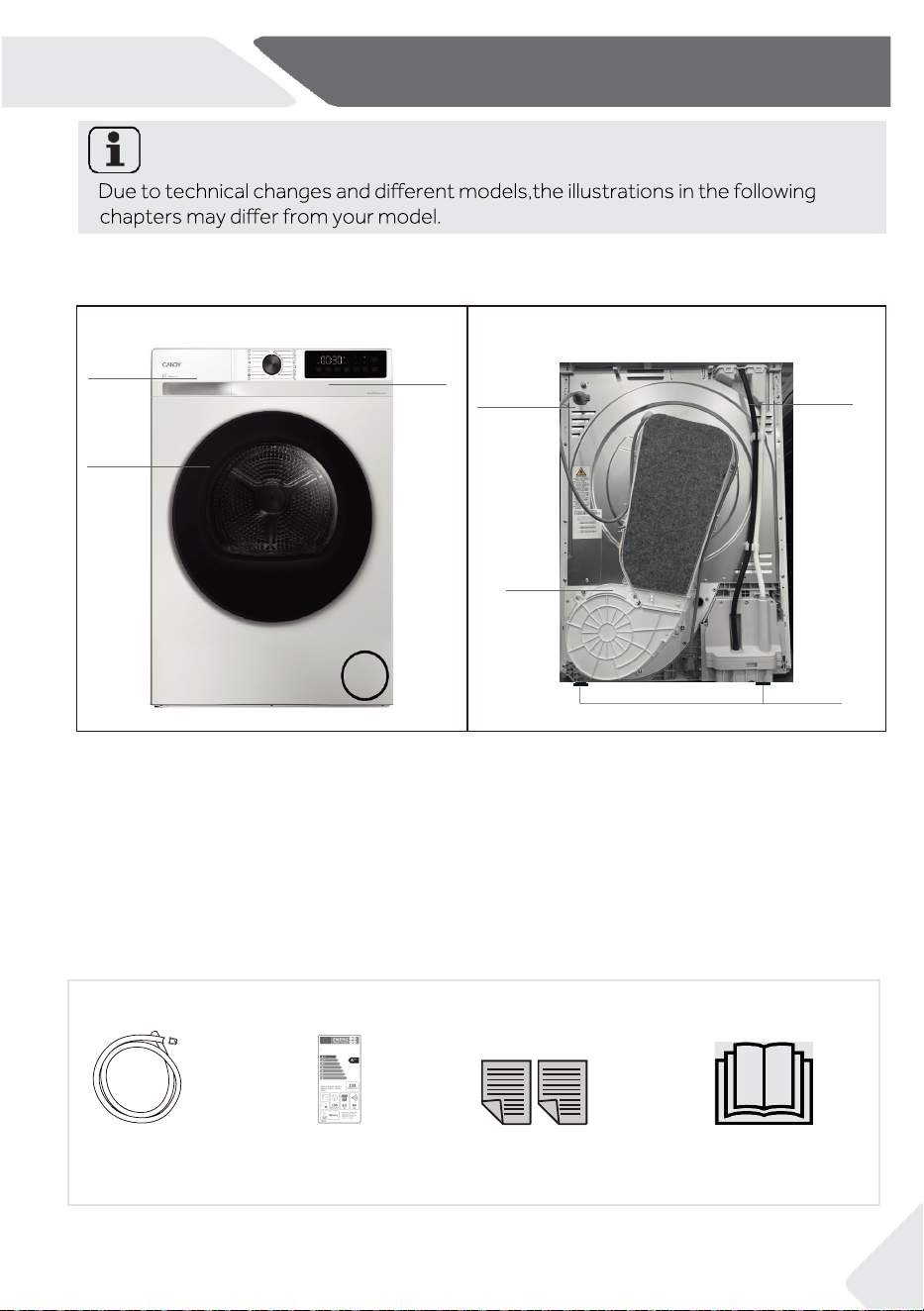

4.1 Picture of appliance
Front (Fig. 4-1): Rear side (Fig. 4-2):
Quick guide
4.2 Accessories
4-1
4-2
4-3
1
3
2
4
5
6
7
Hoover
HDY7 H9A3BCEX-S
1 Water tank
2 Tumble dryer door
3 Control panel
4 Power supply cord
5 Back plate
6 Drainage outlet
7 Adjustable feet
Warranty cards
Energy label
Drain hose
12

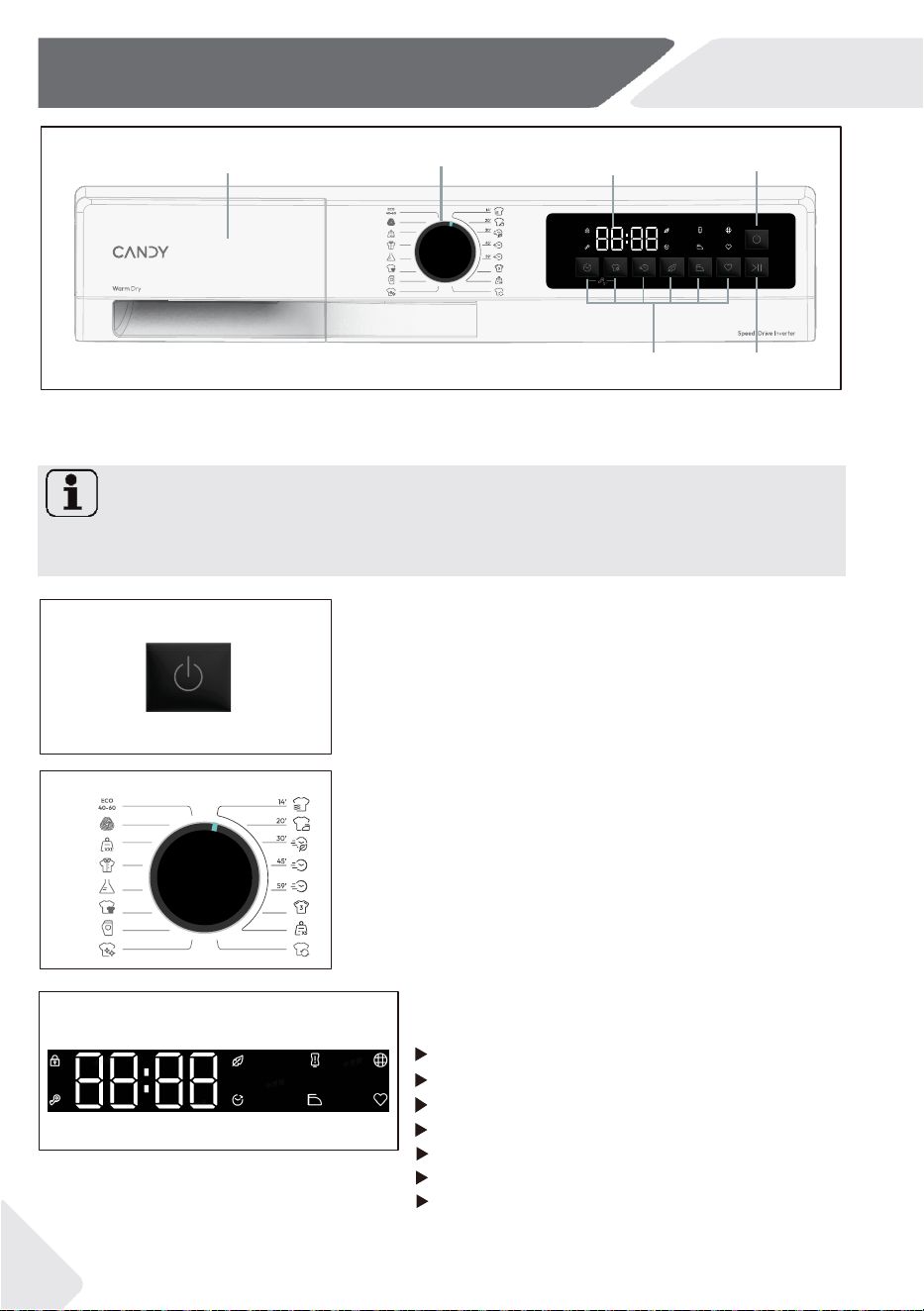

5-Control panel
EN
5-Control panel
The acoustic signal can be selected or canceled if necessary;see DAILY USE
(see P _______ ).
5.1
Power button
Touch this button(Fig.5-2) for about 3 seconds to switch
on,the display is shining,the indicator of the Start/Pause
button is flashing. Touch it again for about 3 seconds to
switch off.lf no panel element or program is activated
after specified timing machine will shut down automatically.
5.2
Programme selector
By turning the knob (Fig.5-3) one of 16 programmes
can be selected,its default settings will be displayed.
5.3
Display
The display (Fig.5-4) shows following information:
Program name
Remaining time
Reservation remaining time
Alarm information and prompt information
Pause end information
5-1
5-2
5-3
Delay time
3
5 6
4
2
1
1.
Programme selector
2.
Display
3.
4.
Function buttons
5.
“Start/Pause” button
Water tank
6.
Power button
Note: Acoustic signal
5-4
Error codes and service information
5
-
Control panel
EN
13
5.4 Water Tank
Open water tank , the
following components can
be seen (Fig. 5-5):
1: water tank.
2: The location of pouring water
To get best results in each programme
If there is no special requirement default settings are recommended.
5.5.1
Delay button
"
5.5.2 Dry Level button " "
5-5
5-7
5-8
Press the button (Fig. 5-8) t ture content
of the laundry at the end of cycle.
There are 4 levels:
When it is in bright light, the function is selected ;
When it is in dull light, the function is unselected ;
When it is completely o
, the function cannot be selected.
5-6

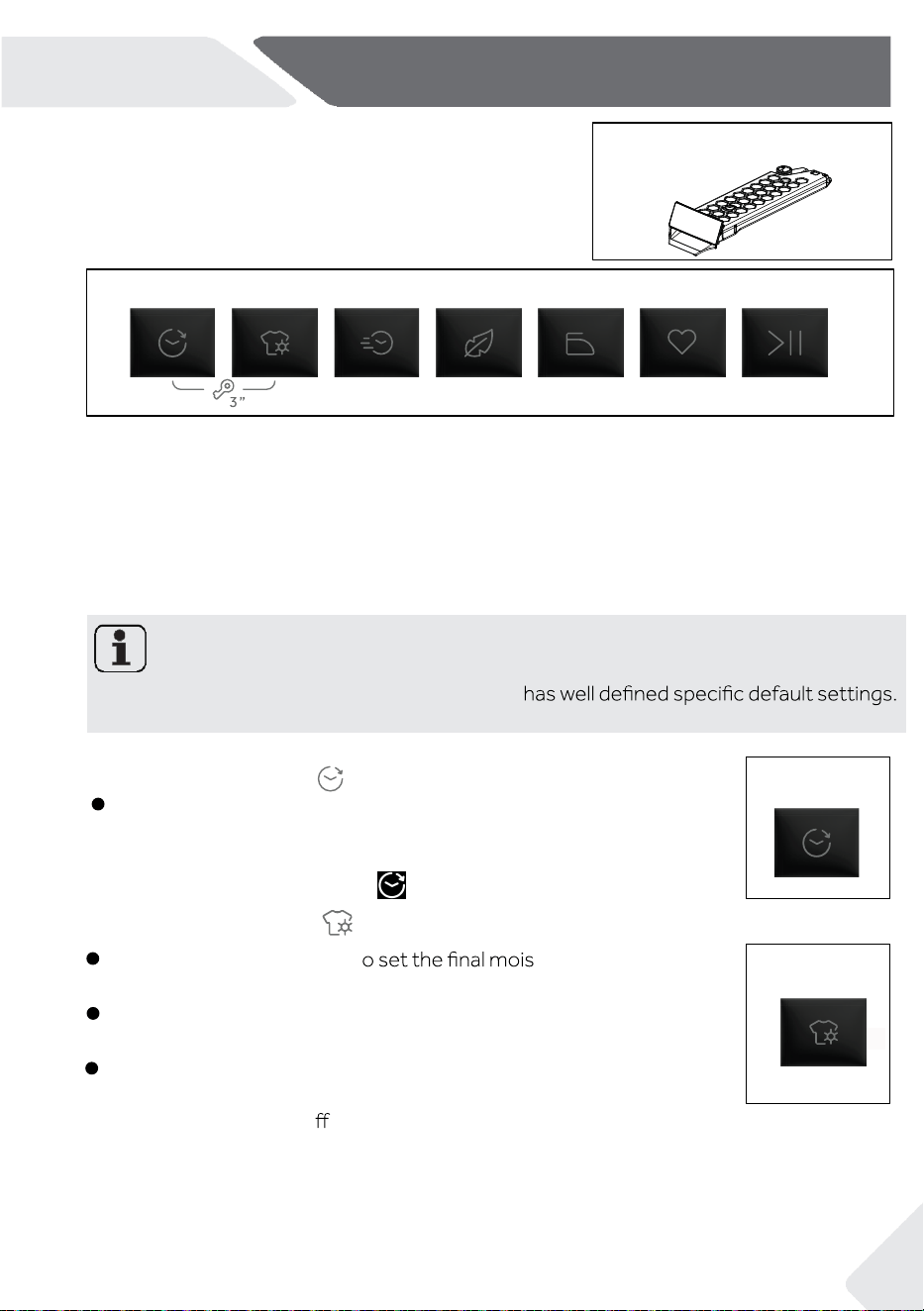

5.5 Function buttons
The function buttons (Fig. 5-6) enable additional options in the selected programme
before programme starts.The related indicators are displayed.By switching off the
app liance or setting a new programme,all options are displayed.If a button has
multiple options, the desired option can be selected by pressing the button sequentially.
By touching the buttons, when it is in dull light, the function is unselected; when it is in
bright light, the function is selected.
Note: Factory settings
Candy
Press the button (Fig. 5-7) to set the delay time .The start
time can delay from 0.5 hour up to 24 hours in 0.5 hour steps.
Touch the Start/Pause button to activate the time delay.
When activated,the icon will light up.
ironing L-1 / ready-to-wear L-2 /storage L-3 / extra dry L-4 .
"
14
5-Control panel
EN

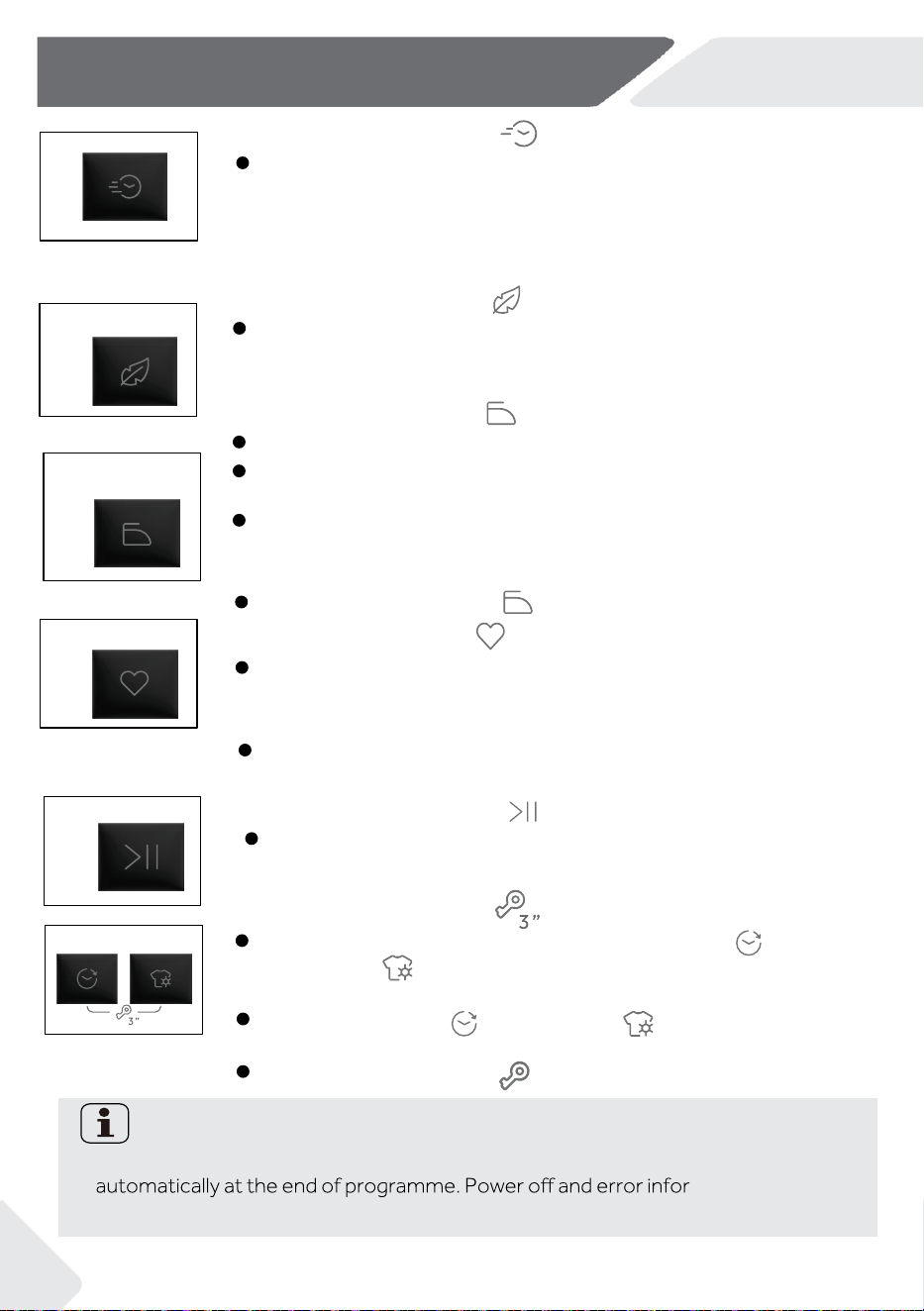

5.5.3
5.5.4 Soft touch button
5.5.5 Easy Iron button
" "
5-9
5-10
5-11
5.5.6 Memo button " "
This function is designed to memorize the users preferred
settings under each program so that there is no need to adjust
it before use.
When standby, press the button (Fig .5-12)and hold for
3 seconds to memorize the current program.
5-12
5.5.7 Start/Pause button " "
5-13
5.5.8 Child lock button
5-14
Note: Child lock
The child lock which is set up manually must be cancelled manually or will be canceled
mation won't cancel
child lock. It still works when the appliance is powered on next time.
Press this button (Fig.5-13) gently to start or interrupt the
currently displayed programme.
After selecting a program to s tart,long press the “ ”
button and “ ” button for 3 seconds to open the childlock
(Fig.5-14).
Press and hold t he “ ” button and “ ” button
for about 3 seconds to unlock the child lock .
"
"
Adjust the time of the automatic program: within the first 3
minutes after running, you can increase the drying time of the
drying program (after reaching the end condition, extend the
time of setting), and the step size is 10 minutes; After 3min,
press the time button and sound 3 invalid tones .
" "
When this function is turned on, at the end of the program,
the load retains a small amount of moisture, ensuring that
the laundry is soft and comfortable .
Press the button (Fig. 5-11) to set the Easy iron.
After opening, the drying level automatically adjusts to
ironing L-1;
When the ironing function is turned on, the anti wrinkle
function is also turned on synchronously, and the default
anti wrinkle time is 6 hours.
When activated , the icon will light up.
"
"
When activated , the icon will light up.
Time/Rapid button
15
5-Control panel
EN

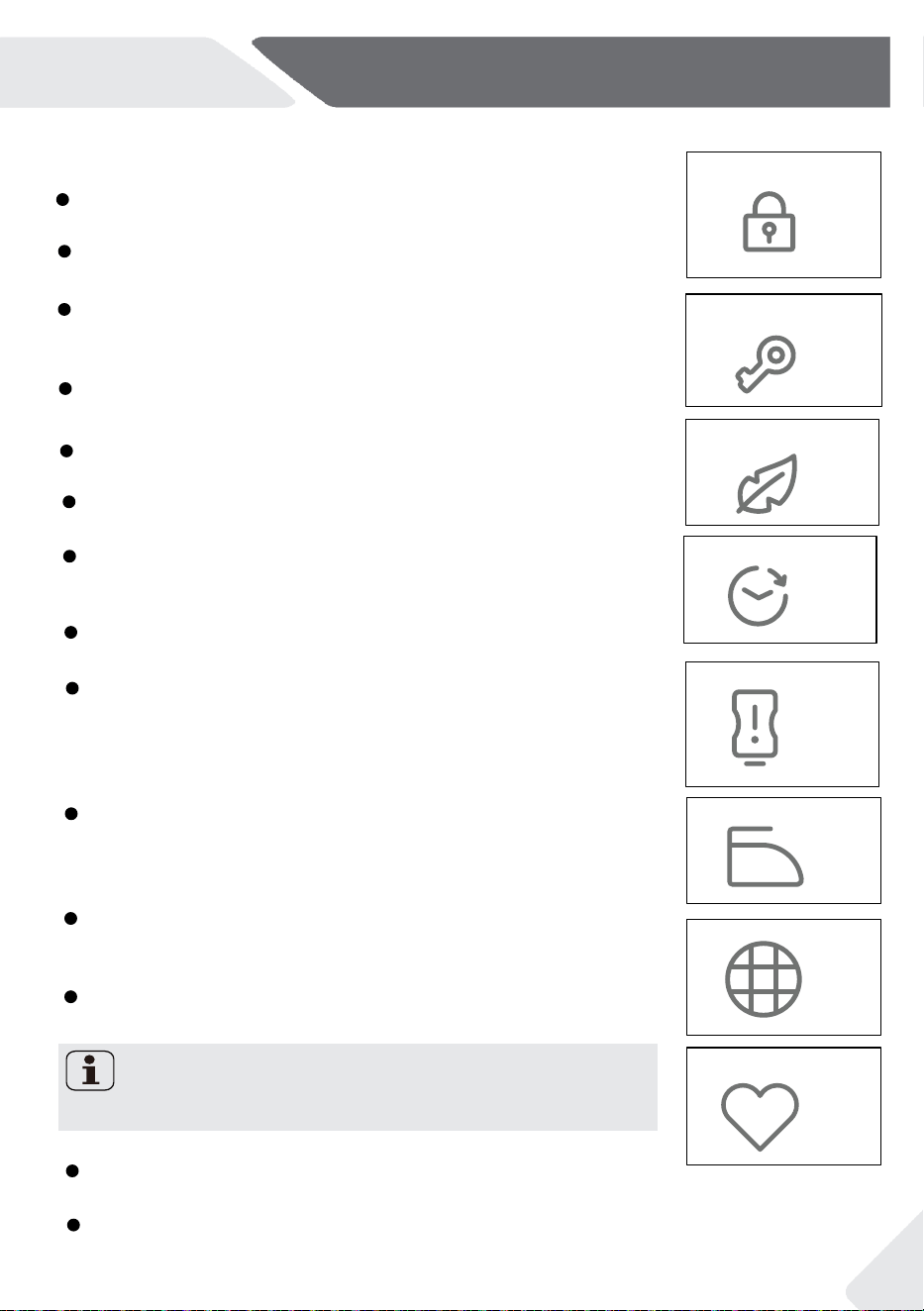

5.6 Indicator icons
5.6.1 Door unlock icon
5-15
If the door is open or not closed properly, it (Fig.5-15)will not
light up.This icon does light up by default.
Pressing the start/pause button,the icon will flash;
5.6.2 Child-lock
icon
Child lock is designed to prevent children from adjusting the
program setting.When users choose the indicator,the icon
( Fig. 5-16 ) will illuminate.
This icon does not light up by default.
5-16
5.6.3 Soft touch icon
5-17
5.6.5 Empty tank icon
5.6.6 Easy iron icon
5.6.7 Clean filter icon
5.6.8 Memo icon
5.6.4 Delay icon
This indicator is designed to remind users to clean filter before
using. When this icon (Fig. 5-21) lights up users should clean the
filter before use.
For the cleaning steps,see Lint filter cleaning or Condenser
filter cleaning section of this manual.
When choosing the delay program, it (Fig. 5-18) will illuminate.
Continuously during the delay time running phase, and turns
off after the reservation ends.
This icon does not light up by default.
5-18
5-19
5-20
5-21
5-22
Note:
After each cycle, indicator will flash to remind cleaning the filters.
After the ironing function is turned on, it (5-20)stays on and
flashes when entering the ironing stage. When the ironing
function is ineffective, it flashes 3 times.
It(5-19) does not light up under normal conditions, but flashes
when the water tank is full or the program ends.During
operation, the machine pauses when the water tank is full,
and the indicator light for the water tank flashes.
When choosing the bookmarked program, it (Fig. 5-22) will
illuminate.
This icon does not light up by default.
When users choose the indicator,the icon ( Fig. 5-17 ) will
illuminate.
This icon does not light up by default.
16
EN

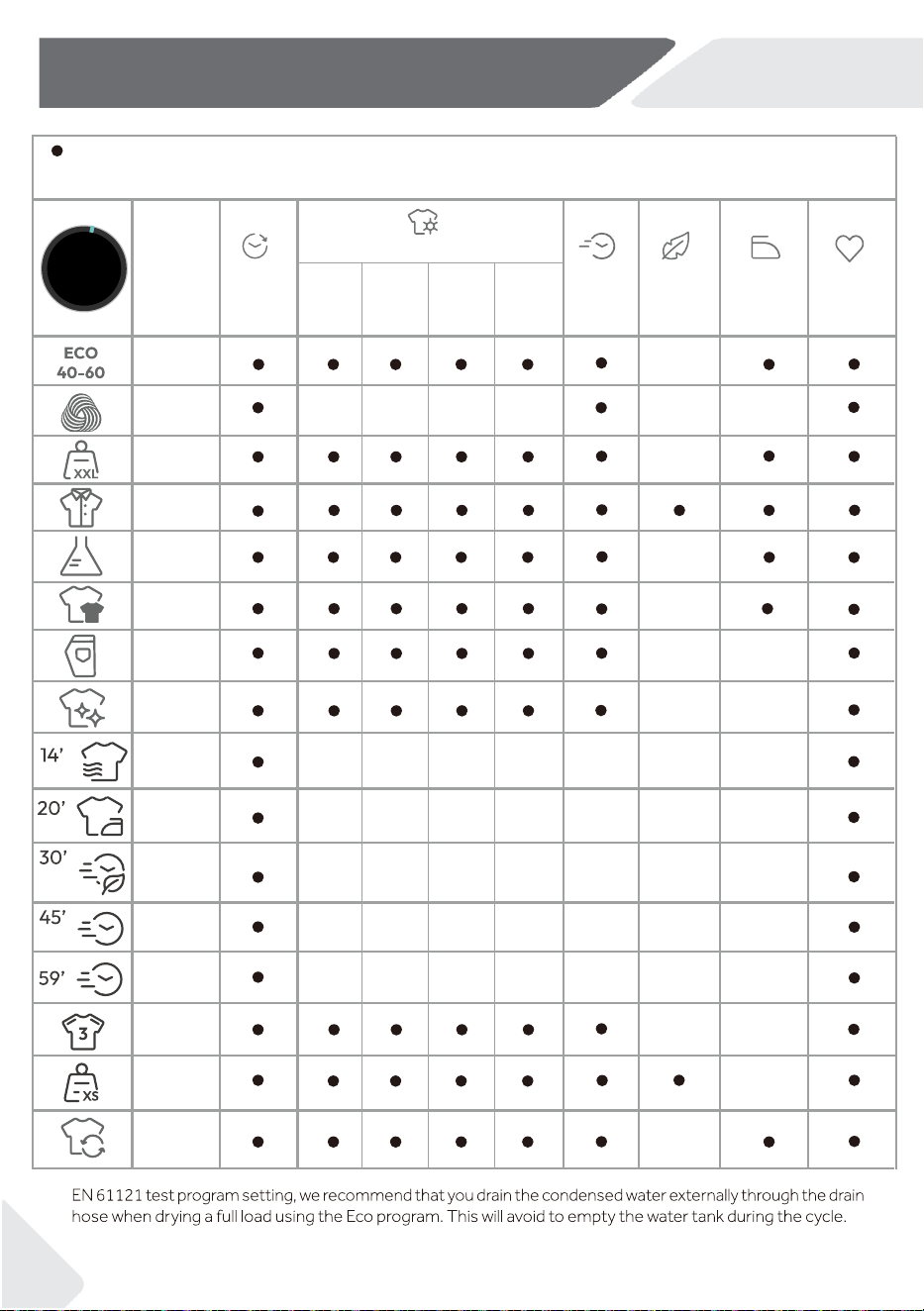

6-Programmes
Yes
/ No
Max. Load
kg
Extra Dry
Dry level
Ironing
Ready-to
-wear
Storage
Start
delay
Easy
Iron
Soft
Touch
Time/
Rapid
Memo
/
/
/
/
/
////
////
////
////
////
////
/
/
/
/
/
/
/
/
/
/
/
/
/ /
/
/
/
/
/
/
/
/
/
/
8
1
8
8
4
4
/
5
4
2
/
/
/
/
/
2
* )
17
7-Consumption
EN
Environmentally responsible use
Heat pump technology
The condensation dryer with heat exchanger is outstanding in terms of energy
consumption.
These are guide values determined under standard conditions. The values may differ
from those given, depending on overvoltage and undervoltage, the type of fabric,
composition of the laundry to be dried, the residual moisture and the actual loading.
Spin the laundry as dry as possible before putting it into the tumble dryer.
Shake the laundry loose before putting it into the tumble dryer.
Choose a proper drying program. Make sure the laundry is not dried longer than
needed.
Avoid overloading the tumble dryer.
Make sure to use the tumble dryer with cleaned filters.
›
›
›
›
›
删除能耗表
Program
Cotton / Linen
Spin speed
in rpm
Residual
moisture
in %
in h:min
Energy
consumption
in kWh
Storage(L-3)
1000
approx. 60
3:35 2.12
Ready-to-wear(L-2)
1000
approx. 60
3:20 1.63
ironing(L-1)
1000
approx. 60
3:00 1.43
Extra dry(L-4)
1000
approx. 60
3:50 2.30
Time
EN
8-Suggestions and tips
18
8.1 Starched laundry
Starched laundry leaves a film of starch in the drum and is not suitable for the dryer.
8.2 Softener
Do not use softener when washing, because the laundry will become soft and fluffy
in the dryer.
8.3 Soft care cloths
The use of “soft care cloths” can lead to a coating at the lint filters. This can cause a
blockage of the filters. In such cases, we recommend either to abstain from adding
soft care cloths or to choose a different brand. In any case note the manufacturer’s
instructions.
8.4 Small amounts of filling
In a quantity of less than 1.0 kg, the “Timer”-programme should be selected because
the dry level of clothes cannot be sensored sometimes due to the small load.
8.5 Drum interior light
When the appliance is switched on, the drum light will keep on when the door is open.
8.6 Service flap
Make sure that the service flap is always closed during operation.
8.7 Anti crease protection
At the end of the cycle, if the laundry is not taken out,the drum moves time to time to
prevent creases.
8.8 Remaining time
The program duration is influenced by the following factors: the type of fabric, the
loading quantity, moisture content, the desired dry level, as well as the spin speed
during washing . These factors are registered by the electronics during the program
and the
remaining time will be corrected accordingly.
8.9 Extra large pieces
W hen cycle ends, if the desired dry level is not achieved , loosen up the laundry and
dry again with the time programme (TIMER ).
8.10 Especially delicate fabrics
Textiles which can easily shrink or lose their shape, as well as silk stockings, lingerie
should not be put in the dryer directly. Put delicate garments inside a laundry bag and
avoid over-drying them.
8.11 Flipping clothes
It is recommended to close the zipper and flip it inside and outside before operation.
8.12 Metal ornament
If metal decorations and plastic nail beads are used on the clothing, it should be pro-
perly wrapped to avoid hitting the drum and causing damage before operation.
6
19
EN
8-Suggestions and tips
An a coustic signal can be activated:
8.13 Acoustic signal
.margorp fo dne eht t A
. nottub a gnisserp neh W
.rotceles margorp eht gninrut neh W
Washing
Washable up to 95℃
normal process
Washable up to 60℃
normal process
Washable up to 60℃
mild process
Washable up to 40℃
normal process
Washable up to 40℃
mild process
Washable up to 40℃
very mild process
Washable up to 30℃
normal process
Washable up to 30℃
mild process
Washable up to 30℃
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Only oxygen/
non -chlorine
Do not bleach
Drying
Tumble drying possible
normal temperature
Tumble drying possible
lower temperature
Do not tumble dry
Ironing
I
ron at a maximum
temperature
up to 200 °C
Iron at a medial tem-
perature
up to 150°C
Iron at a low temper-
ature up to 110 °C;
without steam(steam
ironing may cause
irreversible damage)
Do not iron
Line drying Flat drying
Any bleaching allowed

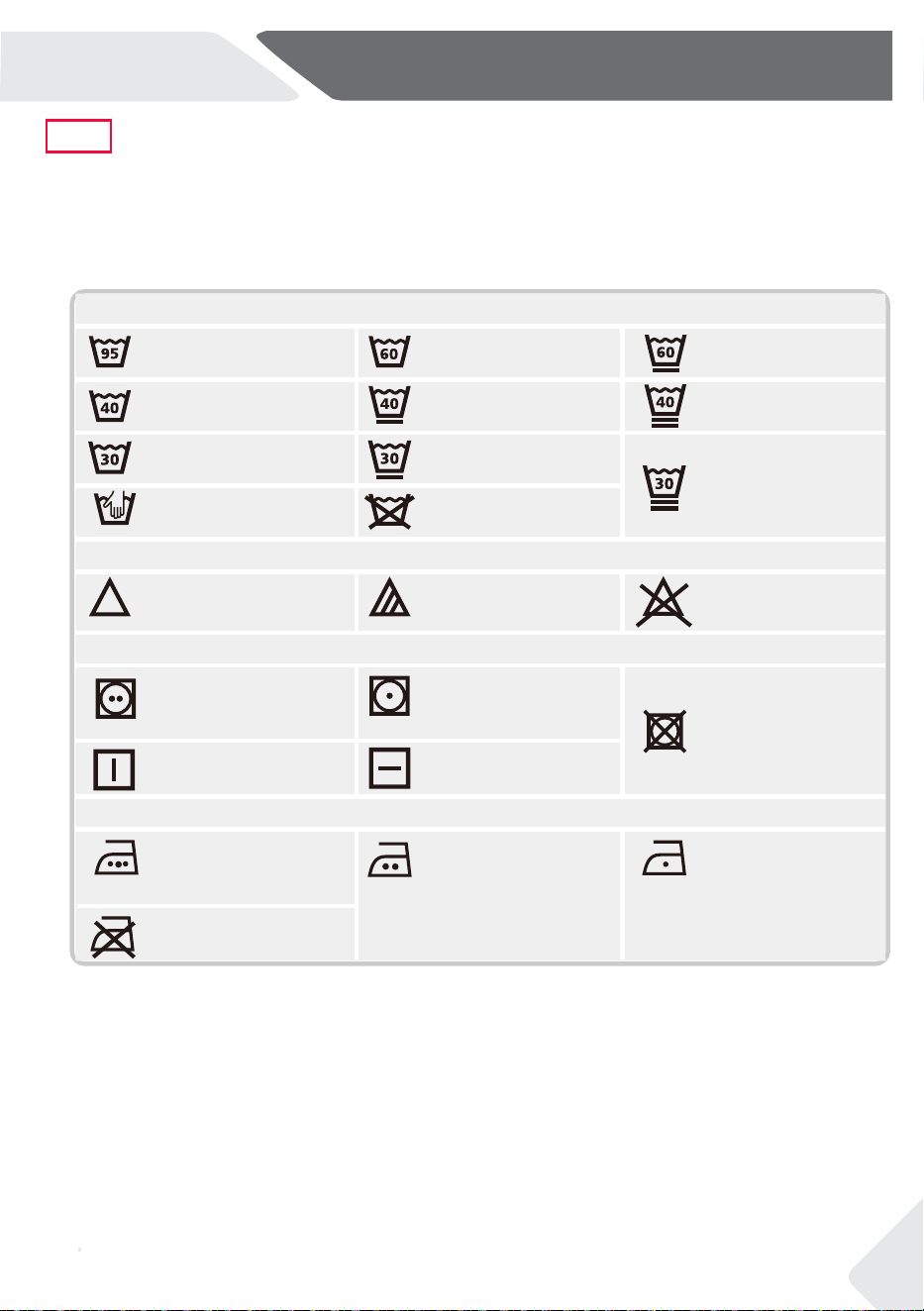

Care chart
When the water tank is full.
Failures happen.
›
›
6-Programmes
EN
20
9-Daily use
-
9-1
9-3
9-2
9-4
9-5
9-6
Load Reference
Cotton
Blended fabric clothes
Jackets Cotton
Jeans
Overalls Cotton
Pyjamas
Shirts
Socks Blended fabrics
T-Shirts Cotton
Underwear Blended fabrics
Composition
Average weight per item

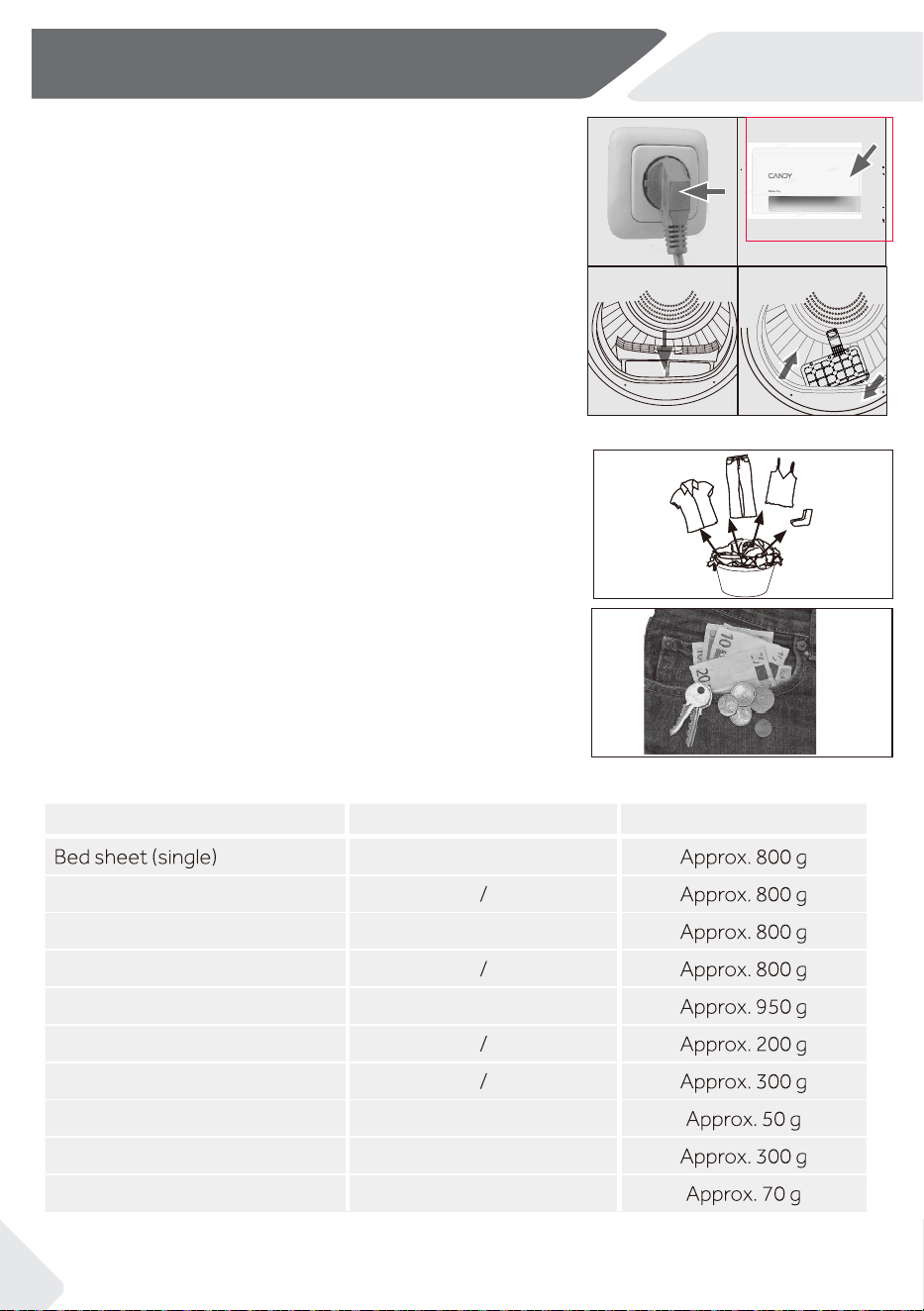

9.2 Prepare the laundry
Sort clothes according to fabric
Only dry clothes that have been spun.
such as keys, lighters and matches. Remove
hard decorative objects such as brooches.
Zippers up and make sure the buttons are sewn
on tightly and place small items such as socks,
bras etc. in a wash bag.
Unfold bulky items of fabric such as bed sheets,
table cloth etc.
the garments which can be dried by the machine.
9.1 Prepare the appliance
1.
2. Make sure:
The water tank is empty and properly installed.
(Fig.9-2) .
The lint filter is clean and properly installed. (Fig.
9-3) .
The condenser filter is clean and properly
installed (Fig. 9-4).
›
›
›
›
›
›
›
›
(cotton,synthetics, wool etc.).
Empty pockets of all sharp or flammable objects
Follow the instructions on the laundry label and dry
Connect the appliance to a power supply (220V to
240V/50Hz) (Fig. 9-1) Please also refer to section
INSTALLATION.
21
EN
9-Daily use
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and
damage of clothes and appliance.
9.3 Load clothes the appliance
Don‘t overload.
Close the door carefully. Make sure that clothes are not pinched.
9.4 Take out and add clothes
WARNING!
removed and spread out so that the heat can be released.
To remove or add clothes, the program can be interrupted at any time:
The cycle will be interrupted if opening the door.
Be careful when taking out or adding clothes! The Interior of the drum or the clothes
themselves may be hot, so that there is danger of burns .
Tips:
Separate white clothes from coloured ones.
Bed linen and pillowcases should be buttoned, so that small parts cannot stuck inside.
Close zippers and hooks, and tie loose belts without metal parts, apron strings etc.
together.
Remove loose metal items from pockets of clothes before putting into dryer.
›
›
›
›
›
›
›
›
›
›
›
›
Never turn the dryer off before the end of the drying cycle unless all items are quickly
Do not over-dry easy-care linen. Risk of creases. Allow final drying in open air.
Clothes like knitwear can be over-drying sometimes."Ironing" dry level are always
recommended to choose.
For pre-dried, multi-layered garments or for final drying the time-program
should be chosen.
Loosen up and insert presorted laundry.
To continue the program, press the "Start/Pause" button after closing the door.
9.5 Loading the dryer
1. Place the laundry evenly in the drum making sure
not to overload the dryer.
2. Switch on the tumble dryer by pressing the Power
button (Fig.9-7).
9-7
Notice
instructions.
EN
22
9-Daily use
3. Set functions such as Temperature, Dry level, Delay.
Afterwards press the Start/Pause button (Fig. 9-8)
to start the dry cycle.

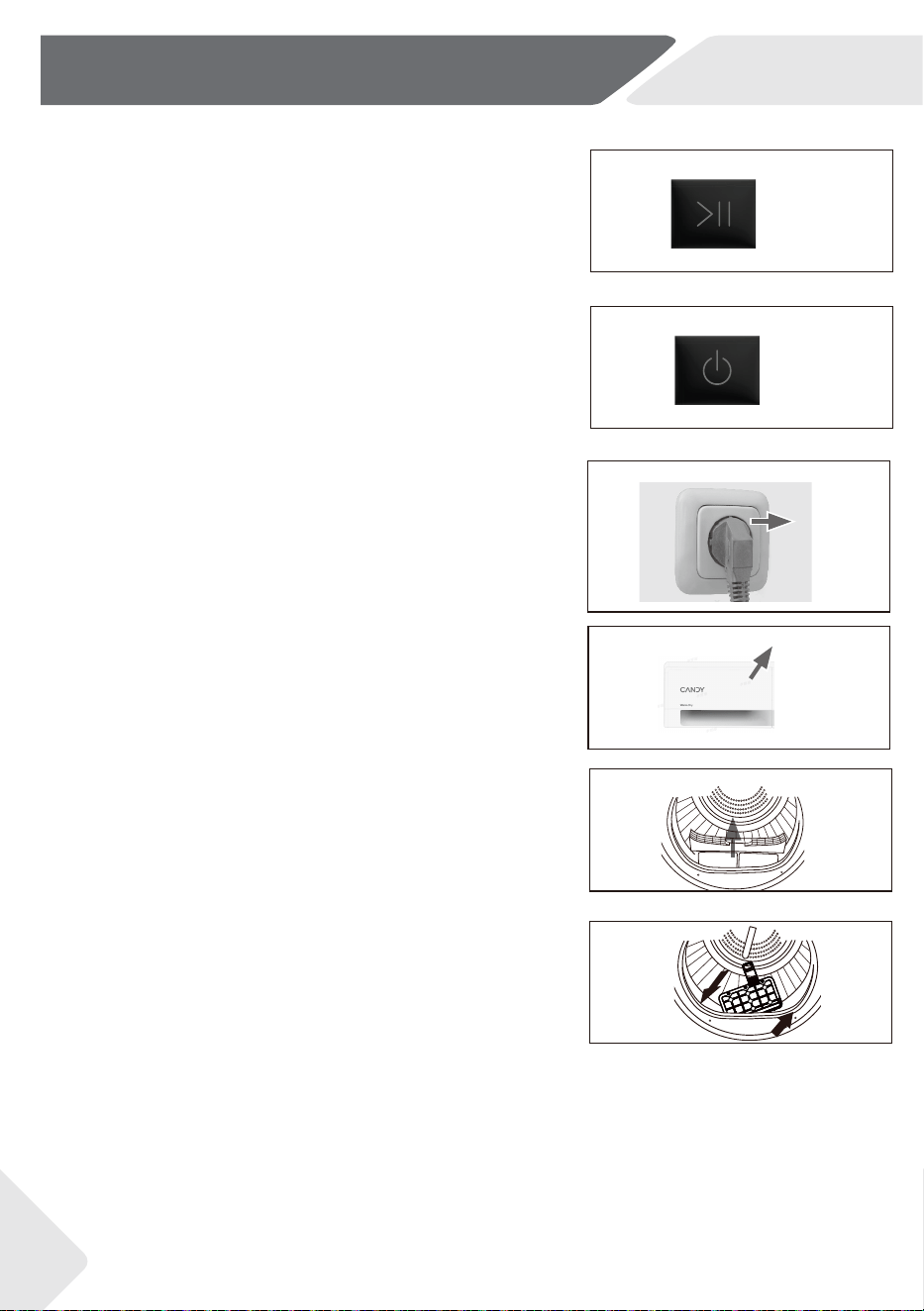

9.6 End of dry cycle
The tumble dryer stops operation automatically when a
dry cycle is complete. The display shows END for about
5 seconds. Open the tumble dryer door and take out
clothes .
1. Switch off the tumble dryer by pressing the Power
button(Fig.9-9).
2. Unplug the tumble dryer from the power socket
(Fig. 9-10).
4.
5. Clean the condenser filter after each dry cycle
(Fig. 9-13).
3.
Clean the lint filter after each dry cycle (Fig. 9-12).
Empty the water tank after each dry cycle (Fig.
9-11) .
9-12
9-13
9-8
9-9
9-11
9-10
EN
23
Notice
If the lint / the condenser lter is very dirty, it can be cleaned under running water.
Let it dry completely before use.
2
4
10-1
10-2
10-3
10-4
10-5
10-6
10-7
10-8

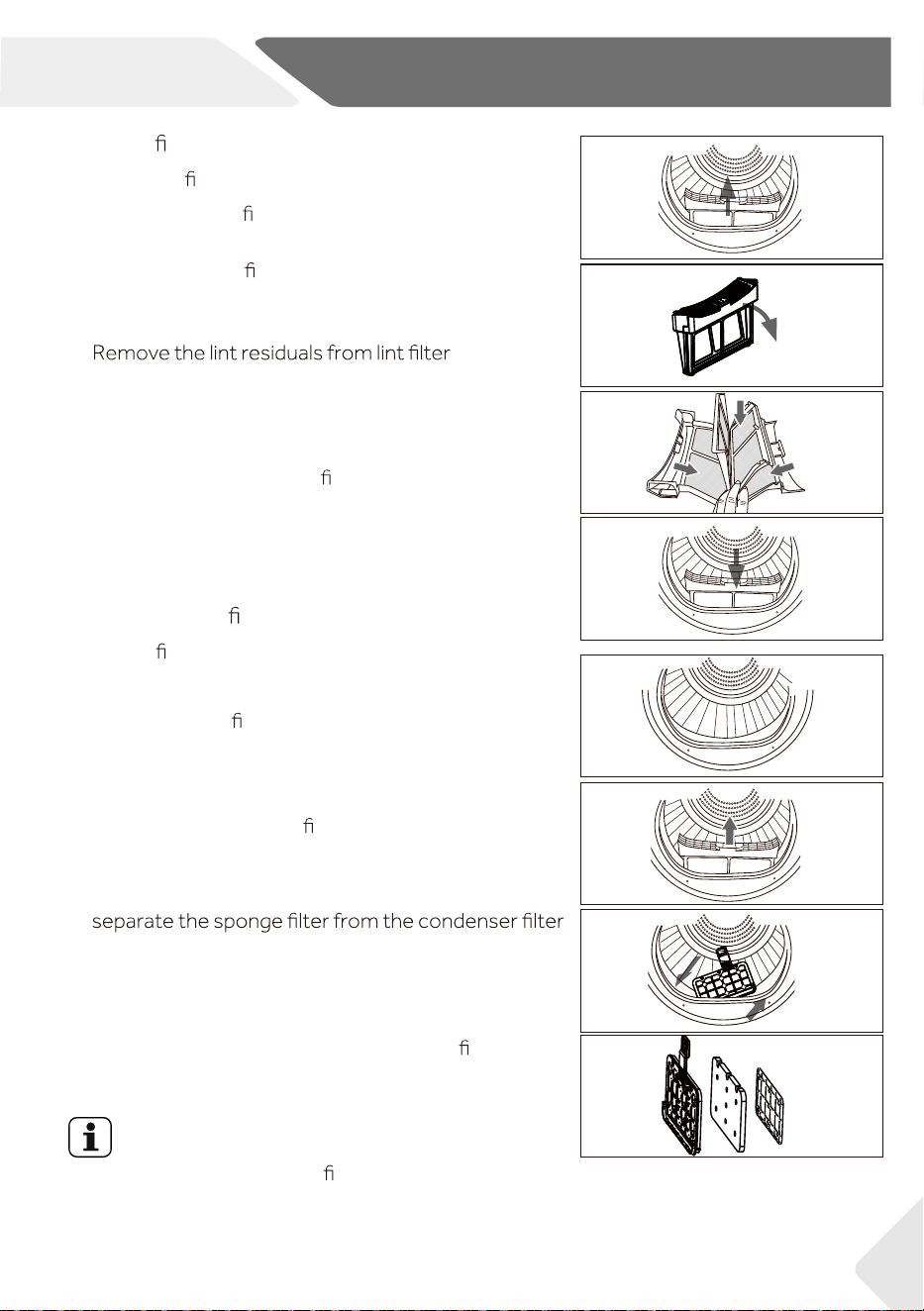

10.1 Lint lter cleaning
Clean the lint lter after each dry cycle.
1. Remove the lint
lter from the drum (Fig. 10-1).
2. Open up the lint
lter (Fig. 10-2).
3.
(Fig. 10-3).
4. Reinstall the cleaned lint
lter in the tumble dryer
(Fig. 10-4).
10.2 Condenser lter cleaning
Clean the lter after each dry cycle.
1. Open the door.
2. Pull out the lint
lter from front duct (Fig. 10-6).
3. Pull out the condenser lter from the air duct (Fig.
10-7).
4.
and clean it from any residuals(Fig.10-8).
5. Reinstall the sponge to the condenser lter and put
it back into the duct.
10-Care and cleaning
EN
24
Notice
Do not use the water for any kind of drinking or food processing.
10-10
10.4 Tumble dryer
Wipe the outside of the tumble dryer and the control panel with a damp cloth. Do
not use any organic solvent or corrosive agent to avoid damage to the device.
10.5 Drum
After running for a while, micro elements like calcium and mineral substances contained
drum. Use a damp cloth and
some detergent to remove it. Do not use any organic solvent or corrosive agent
to avoid damage to the device.
10-9
10-11

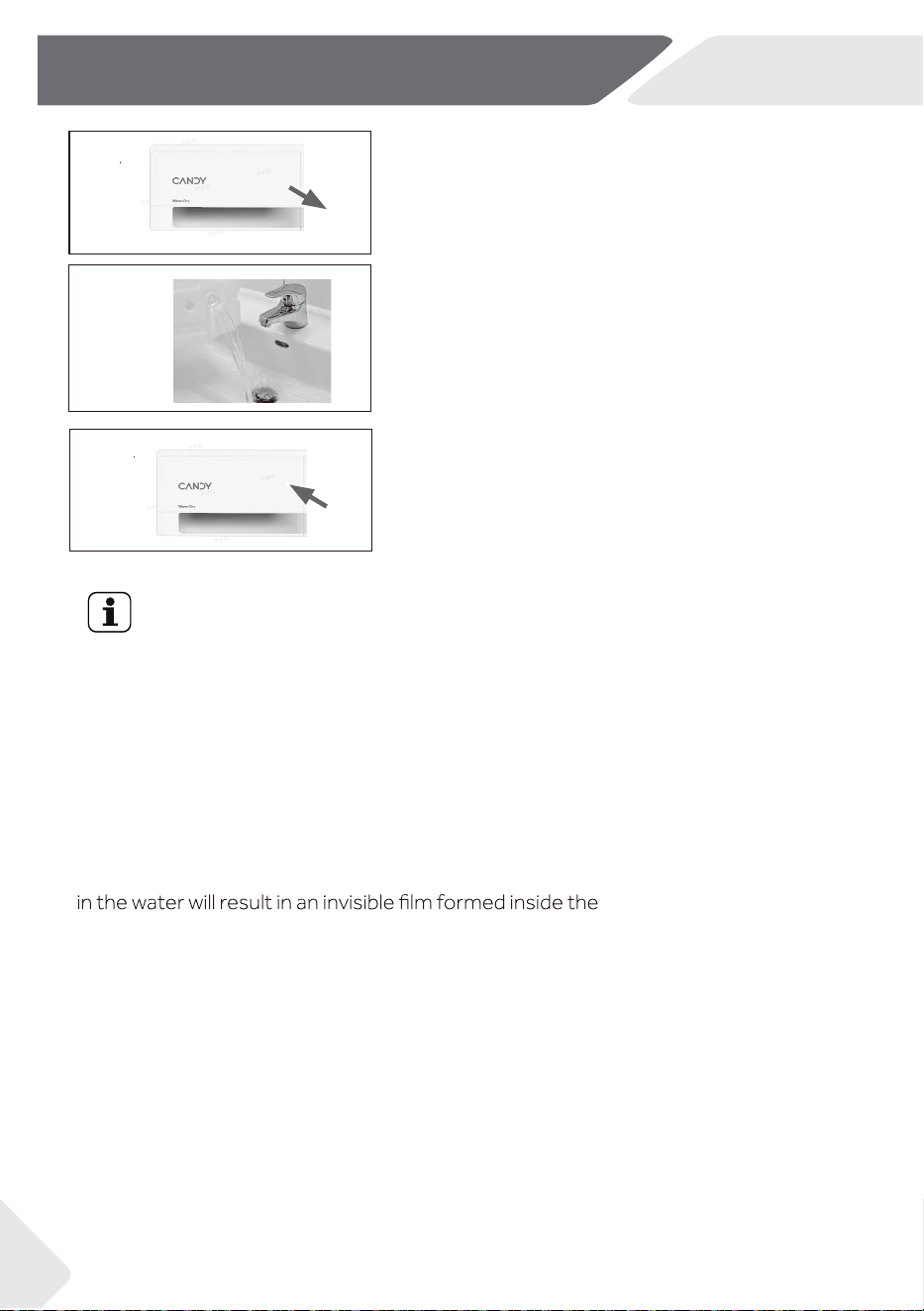

10.3 Empty the water tank
During operation, steam is condensed into water and
collected in the water tank. Empty the water tank after
each drying cycle.
1. Pull out the water tank from its housing (Fig. 10-9).
2. Empty the water tank (Fig. 10-10).
3. Reinstall the water tank to the tumble dryer (Fig.
10-11).
10-Care and cleaning
EN
25
8-Remote control (WI-FI)
11-Troubleshooting
Many problems can be solved by yourself without specific expertise.
Please check all shown possibilities and follow below instructions before you contact
an after sales service. See CUSTOMER SERVICE.
WARNING!
Before maintenance, turn off the appliance and disconnect the mains plug from
the socket.
Electrical equipment should be serviced only by qualified electrical experts,
because improper repairs can cause considerable consequential damages.
A damaged power cable should only be replaced by the manufacturer, its service
agent or similarly qualified workers in order to avoid a hazard.
Display
Solution
hctiws level retaw eht ro noitcnuflam pmup niard ehT:2 F
Contact the customer service.
teltuo resnednoc eht ta detacol rosnes erutarepmet ehT:23 F
Contact the customer service.
.gnitaeh lamronb A:4 F Contact the customer service.
noitacinummoc draob yalpsid eht dna draob rewop ehT:2C F
Contact the customer service.
Contact the customer service.
Contact the customer service.
Contact the customer service.
ro daolrevo draob revird rotom eht ( noitcnuflam rotom ehT:7 F
.noitcnuflam noitacinummoc rotom ehT:1C F
.noitcnuflam enil niaM: 0C F
.deliaf noitarugifnoc TOI:H F
noitacinummoc draob yalpsid eht dna draob IU ehT :UC F
.noitcnuflam rosserpmoc ehT: F F
.draob evird rosserpmoc fo eruliaf noitacinummoC:DC F
Contact the customer service.
Contact the customer service.
Contact the customer service.
Contact the customer service.
malfunction.
.)gnitaehrevo
malfunction.
malfunction.
teltuo rosserpmoc eht ta detacol rosnes erutarepmet ehT:33 F
it is broken.
iis broken.
The water tank is full please empty it.
Empty the tank.
Contact the customer service.
›
›
›
EN
26
11-Troubleshooting
If the error codes appear again after taking measures, switch off the appliance,
disconnect the power supply and contact the customer service.
Troubleshooting without display-codes
Problem Possible cause Possible solution
Tumble dryer
fails to operate.
Poor connection to the power
supply.
Power failure.
No drying program is set.
Device has not been switched
on.
The door is not closed properly.
Check connection to the pow-
er supply.
Check the power supply.
Set a drying program.
Switch on the device.
Close the door properly.
Tumble dryer
fails to operate
and the display
shows END.
The laundry has reached the
gram.
Check the program setting is
appropriate or not.
Drying time is
too long and
the results are
not satisfactory
The program setting is not
correct.
The evaporator is blocked.
The tumble dryer is overloaded.
The laundry is too wet.
The vent duct is blocked.
Make sure the program is set
correctly.
Clean the filter screen.
Clean the evaporator.
Reduce the amount of laun-
dry.
Spin the laundry completely
before drying.
Check and clean the vent duct.
Remaining time-
on the display-
stops or skips.
The remaining time will be adjus-
ted continuously based upon the
following factors:
.yrdnual fo cirba F
Loading weight.
Moisture degree of the laundry.
Ambient temperature.
The automatic adjustment is a
normal operation.
The filter is blocked.
EN
27
12-Technical data
Trade mark
CANDY
Model identi
er
Rated capacity (kg)
8
Kind of tumble dryer
Heat Pump
Energy e
ciency class
E
Weighted Annual Energy Consumption
(AE
c
in kWh/year
)
1)
190
Tumble dryer with or without automatic
with automatic
Energy consumption of the standard cotton
program
3)
at full load (kWh/cycle)
1.56
Energy consumption of the standard cotton
program
3)
at partial load (kWh/cycle)
0.87
Power consumption of the o -mode (W)
0.3
Power consumption of the left-on mode (W)
0.44
Duration of the „left-on mode“ (min)
2)
16
Standard drying program
3)
ECO
Condensation effi ciency class
4)
A
Weighted condensation effi ciency for the
standard cotton program
3)
at full and partial
load (%)
91
Average condensation efficiency of the
standard cotton program
3)
at full load.
91
Average condensation efficiency of the
standard cotton program
3)
at partial
load
91
Weighted sound power level of the
standard cotton program
3)
)Bd ( daol lluf ta
64
Built-in or freestanding
Freestanding
GDL 8N1B-S
8-Remote control (WI-FI)
EN
28
12-Technical data
Permissible ambient temperature 5°C to 35°C
0.105 kg
Additional data
1) Based on 160 drying cycles of the standard cotton program at full and partial load, and the
consumption of the Tow-power modes. Actual energy consumption per cycle will depend on
how the appliance is used.
2) In case there is a power management system.
3) This program used at full and partial load is the standard drying program to which the infor
mation in the label and the fiche relates to. This is the program suitable for drying normal wet
cotton laundry and it is the most efficient .
4)

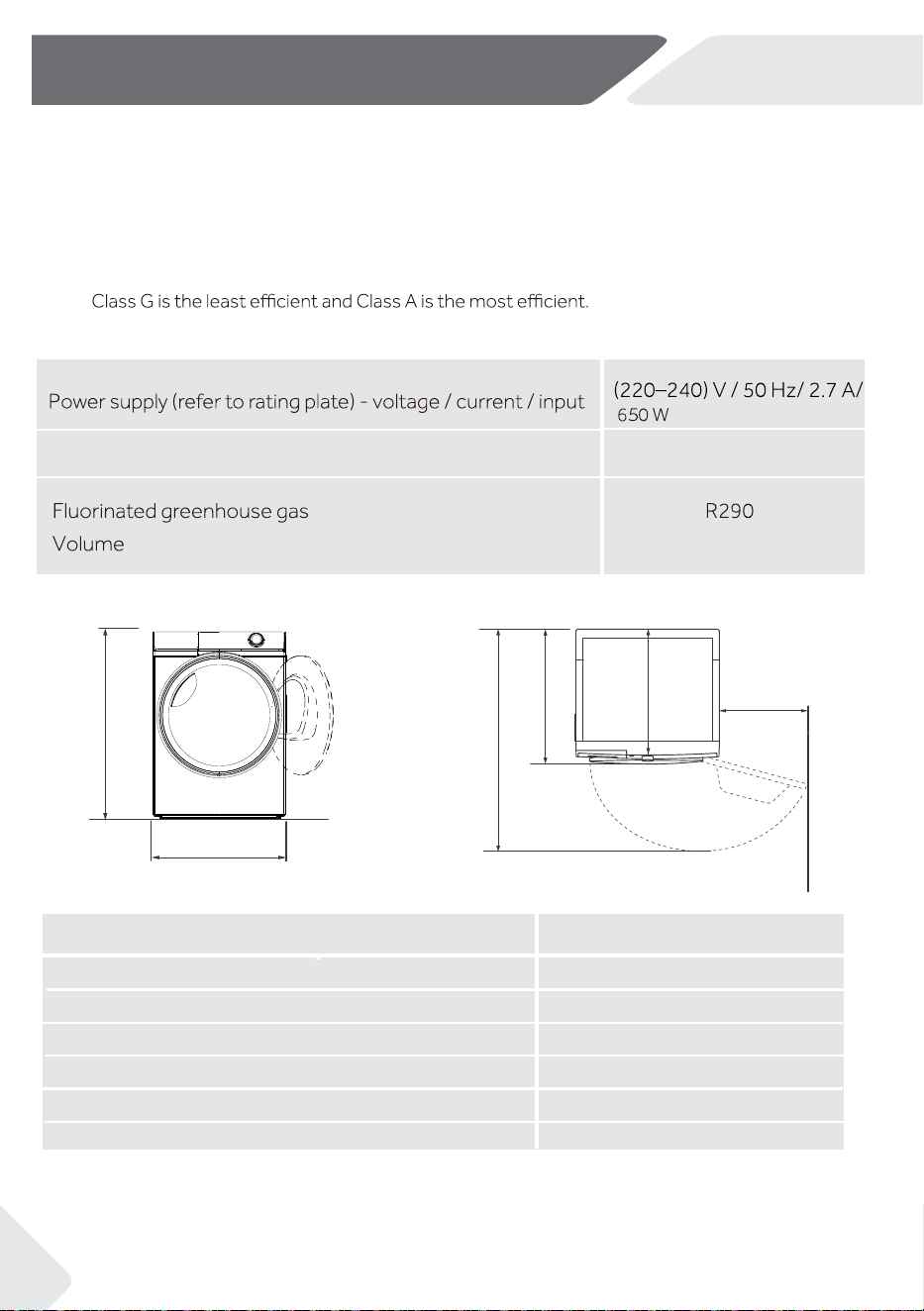

FRONT VIEW
A
B
PRODUCT DIM ENSIONS
B
Overall width of product (mm)
A
Overall height of product (mm)
C
Overall depth of product
Overall depth of product (mm)
(To main control board size) (mm)
D
Depth of door open (mm)
E
F
Minimum door clearance
to adjacent wall (mm)
Product dimensions
850
595
547
590
1044
160
Note: The exact height of your dryer is dependent on how far the feet are extended from
the base of the machine. The space where you install your dryer needs to be at least
30mm wider and 10mm deeper than its dimensions.
TOP VIEW
LLAW
F
E
C
D
29
13-Customer service
EN
10-Troubleshooting
12-Customer service
We recommend our Candy Customer Service and the use of original spare parts.
ction TROUBLES-
HOOTING.
If you cannot
solution there, please contact:
your local dealer.
ormation on
Warranties, Accessories and Spare Parts and Contact numbers.
To contact our Service, ensure that you have the following data available.
Each product is ident
by a unique code, also called the “serial number”, printed on a
stic
er. This can be found inside the door opening.
Model Serial No.
Also chec the Warranty Card supplied with the product in case of warranty.
It is always recommended to use original spare parts, that are available at our Authorised
Customer Service Centres.
Warranty
The product is guaranteed under the terms and conditions stated on the certi
ate
included with the product. The certi
te has to be stored so as to be shown to the
Authorized Customer Service Centre in case of need. You can also chec
the warranty
conditions on our web site. To obtain assistance, please
ll in the form on-line or contact
us at the number indicated on the support page of our web site.
The standard manufacturer warranty covers faults caused by electrical or
mechanical faults in the product due to an act or omission of the manufacturer.
If a
fault is found to be caused by factors outside the product supplied, miss-use or as a
result of the instructions on use not being followed, a charge may be applied.
The manufacturer declines all responsibility for any printing errors in the
included
with this product. Moreover, it also reserves the right to ma
any changes deemed
useful to its products without changing their essential characteristics.
*For more information please refer to www.haier-europe.com
Candy
25.04 - 018050XXX
- RT -
