User Manual
TMP15
Waterproof Digital Thermometer
Features

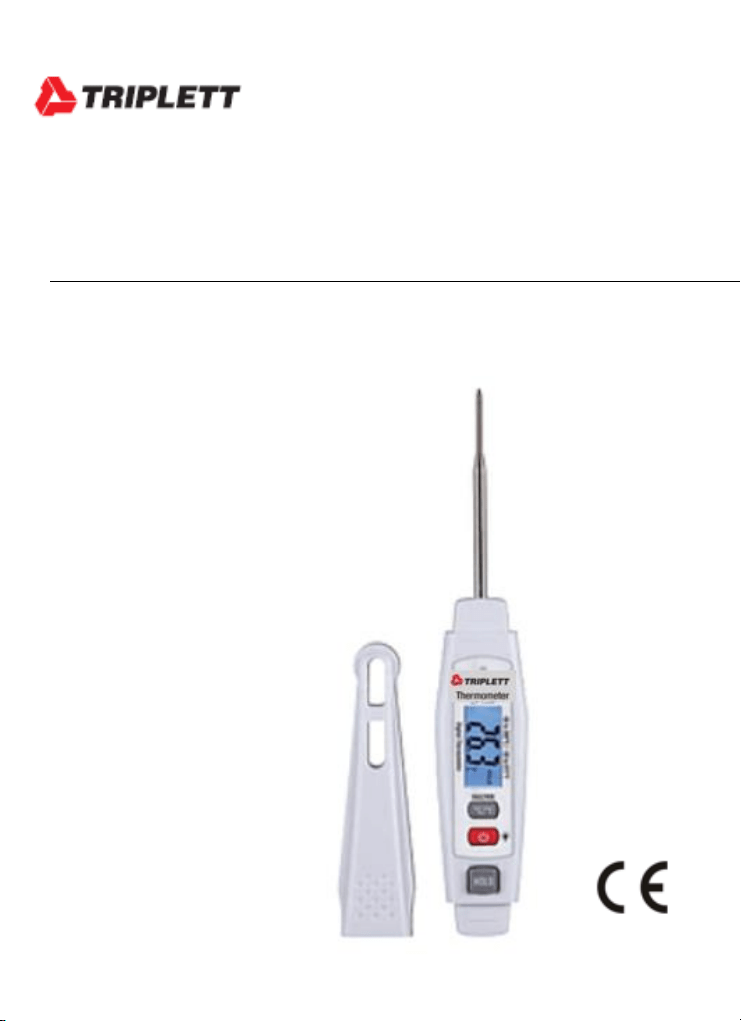

Congratulations on your purchase of the Triplett TMP15 Pocket
Thermometer. The thermometer is designed for measuring
temperatures of liquids and semi-solids.
• 2.9” (73mm) food
grade stainless steel
probe
• Data Hold freezes the
reading on the display
• Min/Max with reset
• Includes CR2032
battery and protective
probe cover.
Operation
•
To use the thermometer, remove the protective sheath, long press the
ON/OFF Button and insert at least “1/2” of the stem into the testing area,
the current temperature will be displayed.
•
To save battery life, the thermometer will automatically turn off after
approximately 10 minutes.
•
When the temperature is higher than 100°C/212°F, the alarm red light is on,
when the temperature is lower than 0°C/32°F, the alarm green light is on.
Power On/Off
• Long press the ON/OFF & Backlight Button to power ON/OFF.
Changing Units (°F/°C)
• The temperature unit can be changed from changing °C to °F by
long pressing the °C/°F & MAX/MIN Button.
DATA Hold Temperature Function
• From “Normal” mode, press the Data HOLD Button once, the
“HOLD” will appear on the display.
• Press the Data HOLD Button once more to return to normal mode.
Backlight ON/OFF
• Press the ON/OFF & Backlight Button to turn backlight On/Off.
MAX/MIN Mode
• To recall the highest temperature: From “Normal” mode, press the
°C/°F & MAX/MIN Button, the “MAX” will appear on the display.
• Press the °C/°F & MAX/MIN Button once more to recall the lowest
temperature, the “MIN” will appear on the display.
• Press the °C/°F & MAX/MIN Button once more to return to “Normal”
mode.
Specification
•
TMP15
Temperature Range
-58 to 572°F (-50 to 300°C)
Accuracy
±1.8°F /1°C within -4 to 212°F (-20 to 100°C);
±3.6°/2°C -58 to -4°F (-50 to -20°C) and
212 to 482°F (100 to 250°C)
Resolution
0.1°F/°C(-58 to 391.9°F/-50 to 199.9°C)
1°F/°C(392 to 572°F/200 to 300°C )
Stem
2.5“(63.5mm) Food Grade Stainless Steel
Power
CR2032
Dimensions/Weight
6.25 x 1.25 x 0.75” (159 x 32 x 19mm) / 1.6oz (45.4g)
Warranty
Triplett / Jewell Instruments extends the following warranty to the original
purchaser of these goods for use. Triplett warrants to the original purchaser for
use that the products sold by it will be free from defects in workmanship and
material for a period of (1) one year from the date of purchase. This warranty
does not apply to any of our products which have been repaired or altered by
unauthorized persons in any way or purchased from unauthorized distributors so
as, in our sole judgment, to injure their stability or reliability, or which have been
subject to misuse, abuse, misapplication, negligence, accident or which have
had the serial numbers altered, defaced, or removed. Accessories, including
batteries are not covered by this warranty
Copyright © 2022 Triplett
www.triplett.com
