C3-CDPOD
INSTALL GUIDE

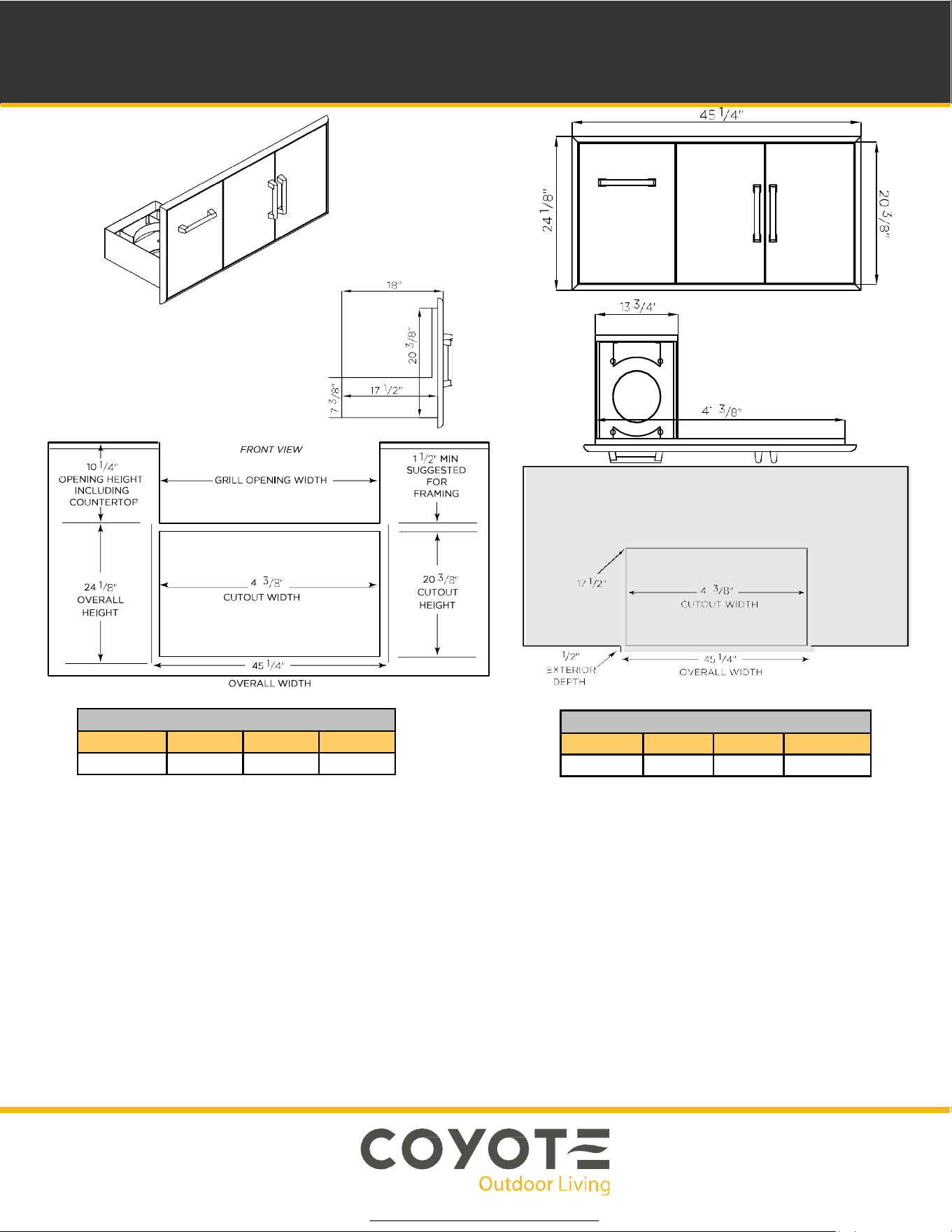

Cutout Dimensions for Island
Model No. Height Width Depth
C3WD
20 3/8"
41
3
/8"
17
1
/2"
Overall Product Dimensions
Model No. Height Width Depth
C3CDPOD
24
1
/8"
45
1
/4"
18"
Install Notes:
2 anchor points are located on each side of the doors interior frame (top, bottom, left and right)
Due to wide variance of possible building materials, anchors are not included
When inserting your anchors be sure to use a framing square to ensure the door is not pulled out of square
Additional framing and/or support underneath the rear (hanging portion) of the cabinet is recommended
These specs are accurate but we always suggest having the product physically on site to ensure full understanding of how this product
will coordinate with your build
Electrical Requirements:
The proper voltage, frequency and amperage ratings are listed on the product rating plate.
The warming drawer must be properly grounded at all times when electrical power is applied.
Never allow any debris to build up underneath, or in front of the unit, blocking ventilation.
Important Note to Installer: This file is not intended to replace your Owners' Manual which contains specific safety requirements and
consumer guidelines. Please refer to your Owners' Manual prior to installing or operating your built-in warming drawer.
