User Guide
SUMMARY
This guide provides technical specications and information about monitor features, setting up the monitor, and using
the monitor.
© Copyright 2021 HP Development Company,
L.P.
HDMI, the HDMI Logo and High-Denition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
Windows is either a registered trademark or
trademark of Microsoft Corporation in the
United States and/or other countries. USB
Type-C®and USB-C® are registered trademarks
of USB Implementers Forum. DisplayPort™, the
DisplayPort™ logo, and VESA® are trademarks
or registered trademarks owned by the Video
Electronics Standards Association (VESA) in the
United States and other countries.
The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.
Product notice
This guide describes features that are common
to most models. Some features may not be
available on your product. To access the latest
user guide, go to http://www.hp.com/support,
and follow the instructions to nd your
product. Then select Manuals.
First Edition: January 2021
Document part number: M42747-001
About this guide
This guide provides technical specications and information about monitor features, setting up the monitor,
and using the software. Depending on the model, your monitor may not have all the features included in this
guide.
WARNING! Indicates a hazardous situation that, if not avoided, could result in serious injury or death.
CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
IMPORTANT: Indicates information considered important but not hazard-related (for example, messages
related to property damage). Warns the user that failure to follow a procedure exactly as described could
result in loss of data or in damage to hardware or software. Also contains essential information to explain a
concept or to complete a task.
NOTE: Contains additional information to emphasize or supplement important points of the main text.
TIP: Provides helpful hints for completing a task.
This product incorporates HDMI technology.
iii
iv About this guide
Table of contents
1 Getting started ............................................................................................................................................. 1
Important safety information ............................................................................................................................... 1
More HP resources ................................................................................................................................................. 1
Preparing to call technical support ..................................................................................................... 2
Getting to know your monitor ............................................................................................................................... 2
Features ............................................................................................................................................... 2
Front components ............................................................................................................................... 3
Rear components 54.6 cm (21.5 in) and 60.5 cm (23.8 in) models .................................................... 4
Rear components 68.6 cm (27 in) and 80.0 cm (31.5 in) models ....................................................... 5
Rear components 68.6 cm (27 in) QHD model .................................................................................... 5
Rear components 68.6 cm (27 in) USB Type-C model ........................................................................ 6
Locating the serial number and product number ............................................................................... 7
Setting up the monitor .......................................................................................................................................... 7
Attaching the monitor stand ............................................................................................................... 8
Routing the cables ............................................................................................................................... 8

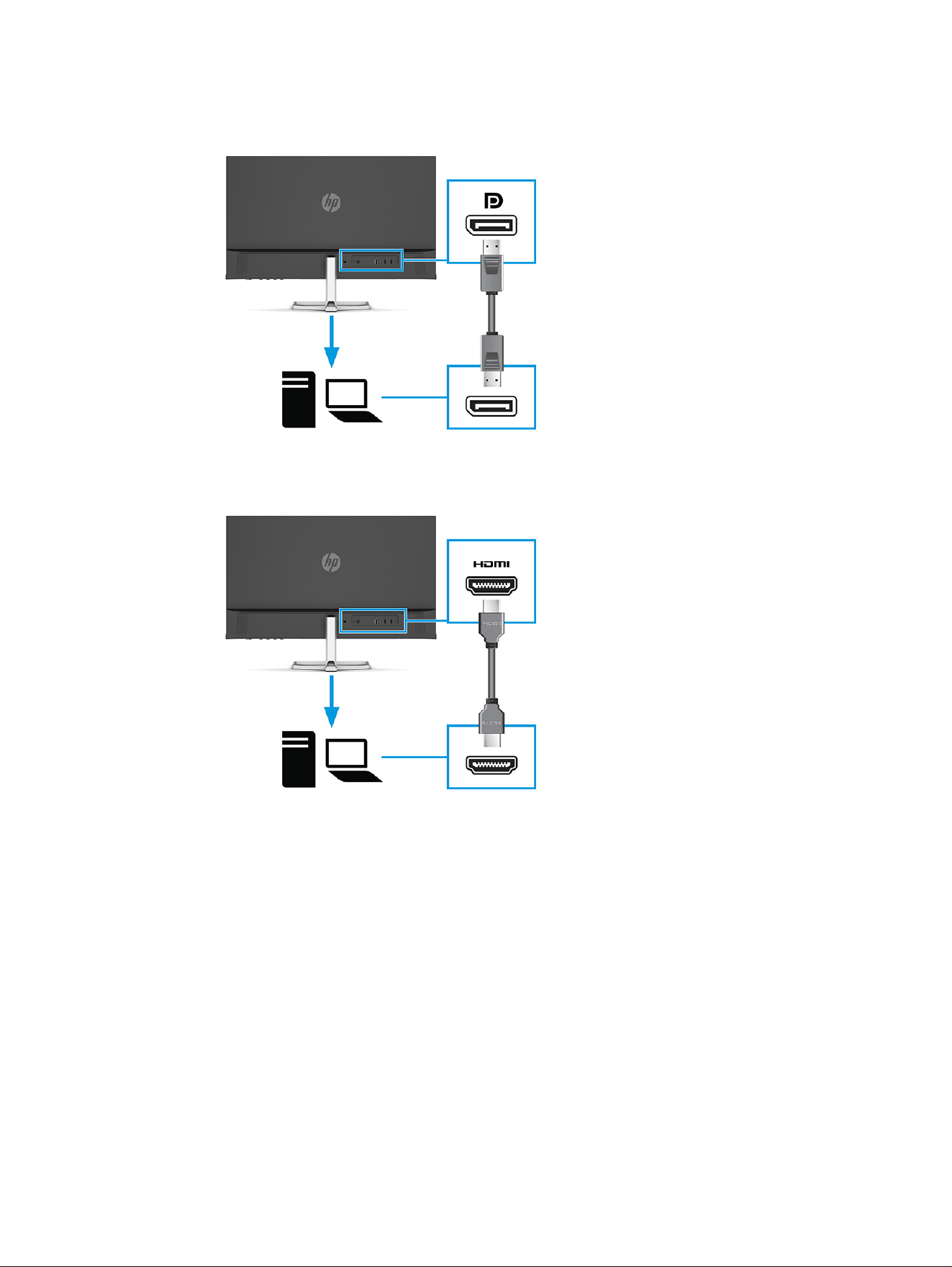

Connecting the cables ......................................................................................................................... 9
Connecting USB devices (select products only) ................................................................................ 12
Adjusting the monitor ....................................................................................................................... 12
Installing a security cable ................................................................................................................. 13
Turning on the monitor ..................................................................................................................... 13
HP watermark and image retention policy ....................................................................................... 14
2 Using the monitor ........................................................................................................................................ 15
Downloading software and utilities .................................................................................................................... 15
The Information le ............................................................................................................................................. 15
The Image Color Matching le ............................................................................................................................. 15
Using the OSD menu ............................................................................................................................................ 15
Using the OSD function buttons .......................................................................................................................... 16
Reassigning the function buttons ....................................................................................................................... 17
Changing the Power Mode setting (select products only) .................................................................................. 17
Using Auto-Sleep Mode (select products only) ................................................................................................... 17
Setting up Windows Hello facial recognition (select products only) .................................................................. 18
Using Windows Hello (select products only) ..................................................................................... 18
3 Support and troubleshooting ........................................................................................................................ 19
Solving common issues ....................................................................................................................................... 19
v
Button lockouts ................................................................................................................................................... 20
Using the auto-adjustment function (analog input) ........................................................................................... 20
Optimizing image performance (analog input) ................................................................................................... 21
4 Maintaining the monitor .............................................................................................................................. 23
Maintenance guidelines ....................................................................................................................................... 23
Cleaning the monitor ......................................................................................................................... 23
Shipping the monitor ......................................................................................................................... 24
Appendix A Technical specications ................................................................................................................. 25
Technical specications 54.6 cm (21.5 in) model ............................................................................................... 25
Technical specications 60.5 cm (23.8 in) model ............................................................................................... 25
Technical specications 68.6 cm (27 in) model .................................................................................................. 26
Technical specications 80.0 cm (31.5 in) model ............................................................................................... 27
Preset display resolutions ................................................................................................................................... 27
FHD Preset display and timing resolutions ....................................................................................... 27
QHD Preset display and timing resolutions ...................................................................................... 28
Power supply specications ................................................................................................................................ 29
Energy saver feature ........................................................................................................................................... 30
Appendix B Accessibility ................................................................................................................................. 31
HP and accessibility ............................................................................................................................................. 31
Finding the technology tools you need ............................................................................................ 31
The HP commitment ......................................................................................................................... 31
International Association of Accessibility Professionals (IAAP) ....................................................... 32
Finding the best assistive technology .............................................................................................. 32
Assessing your needs ..................................................................................................... 32
Accessibility for HP products .......................................................................................... 32
Standards and legislation .................................................................................................................................... 33
Standards .......................................................................................................................................... 33
Mandate 376 – EN 301 549 ............................................................................................ 33
Web Content Accessibility Guidelines (WCAG) ................................................................ 33
Legislation and regulations .............................................................................................................. 33
Useful accessibility resources and links .............................................................................................................. 34
Organizations .................................................................................................................................... 34
Educational institutions .................................................................................................................... 34
Other disability resources ................................................................................................................. 34
HP links .............................................................................................................................................. 35
Contacting support .............................................................................................................................................. 35
vi
viii
1 Getting started
Read this chapter to learn about safety information and where to nd additional HP resources.
Important safety information
An AC adapter and power cord might be included with the monitor. If you use another cord, use only a power
source and connection appropriate for this monitor. For information about the correct power cord set to use
with the monitor, see the Product Notices provided in your documentation kit.
WARNING! To reduce the risk of electric shock or damage to the equipment:
● Plug the power cord into an AC outlet that is easily accessible at all times.
● If the power cord has a three-pin attachment plug, plug the cord into a grounded (earthed) three-pin
outlet.
● Disconnect power from the computer by unplugging the power cord from the AC outlet. When
unplugging the power cord from the AC outlet, grasp the cord by the plug.
For your safety, do not place anything on power cords or cables. Take care to route all cords and cables
connected to the monitor so that they cannot be stepped on, pulled, grabbed, or tripped over.
To reduce the risk of serious injury, read the Safety & Comfort Guide provided with your user guides. It
describes proper workstation setup and proper posture, health, and work habits for computer users. The
Safety & Comfort Guide also provides important electrical and mechanical safety information. The Safety &
Comfort Guide is also available on the web at http://www.hp.com/ergo.
IMPORTANT: For the protection of the monitor and the computer, connect all power cords for the computer
and its peripheral devices (such as a monitor, printer, scanner) to a surge protection device such as a power
strip or uninterruptible power supply (UPS). Not all power strips provide surge protection; the power strip
must be specically labeled as having this capability. Use a power strip whose manufacturer oers a damage
replacement policy so that you can replace the equipment if surge protection fails.
Use the appropriate and correctly sized furniture designed to properly support your monitor.
WARNING! Monitors that are inappropriately situated on dressers, bookcases, shelves, desks, speakers,
chests, or carts could fall over and cause personal injury.
WARNING! Stability hazard: The device might fall, causing serious personal injury or death. To prevent
injury, securely attach the monitor to the oor or wall in accordance with the installation instructions.
WARNING! This equipment is not suitable for use in locations where children are likely to be present.
NOTE: This product is suitable for entertainment purposes. Consider placing the monitor in a controlled
luminous environment to avoid interference from surrounding light and bright surfaces that might cause
disturbing reections from the screen.
More HP resources
Use this table to locate resources that provide product details, how-to information, and more.
Important safety information 1
Table 1-1 Additional information
Resource Contents
Setup Instructions Overview of monitor setup and features
HP support For HP support or to resolve a hardware or software problem, go to
http://www.hp.com/support, and follow the instructions to nd your product.
– or –
Type support in the taskbar search box, and then select HP Support Assistant.
Then select Support.
– or –
Select the question mark icon in the taskbar search box.
Then select Support.
NOTE: Contact customer support to replace the power cord, the AC adapter (select products only), or any other cables that shipped
with your monitor.
Preparing to call technical support
Use this information if you have to troubleshoot an issue.
If you cannot solve a problem using Support and troubleshooting on page 19, a call to technical support can
provide additional help. Have the following information available when you call.
● Monitor model number
● Monitor serial number
● Purchase date on invoice
● Conditions under which the problem occurred
● Error messages received
● Hardware conguration
● Name and version of the hardware and software that you are using
Getting to know your monitor
Your monitor has top-rated features. This section provides details about your components, where they are
located, and how they work.
Features
Depending on the model, your monitor might include the following features:
Display features
● 54.6 cm (21.5 in) diagonal viewable screen area with 1920 × 1080 FHD plus full-screen support for lower
resolutions; includes custom scaling for maximum image size while preserving original aspect ratio
● 60.5 (23.8 in) diagonal viewable screen area with 1920 × 1080 FHD plus full-screen support for lower
resolutions; includes custom scaling for maximum image size while preserving original aspect ratio
2 Chapter 1 Getting started
● 68.6 cm (27 in) diagonal viewable screen area with 1920 × 1080 FHD or 2560 × 1440 QHD resolution,
plus full-screen support for lower resolutions; includes custom scaling for maximum image size while
preserving original aspect ratio
● 80.0 cm (31.5 in) diagonal viewable screen area with 1920 × 1080 FHD resolution, plus full-screen
support for lower resolutions; includes custom scaling for maximum image size while preserving
original aspect ratio
● Liquid crystal display (LCD) with active matrix and in-plane switching (IPS)
● Wide color gamut to provide coverage of sRGB color spaces
●
Nonglare panel with an LED backlight
● Wide viewing angle to allow viewing from a sitting or standing position, or moving from side to side
● Tilt adjustment capability
● Four on-screen display (OSD) buttons, three that you can recongure to quickly allow selection of the
most commonly used operations
● On-screen display (OSD) adjustments in several languages for easy setup and screen optimization
● Color space presets for sRGB and BT.709
● Energy saver feature to meet requirements for reduced power consumption
● Security cable slot on the rear of the monitor for an optional security cable
● Cable management feature for placement of cables and cords
Connectors
● DisplayPort™ video input (select models)
● High-Denition Multimedia Interface™ (HDMI) video input
● Video Graphics Array (VGA) video input (select models)
● USB Type-C® port (select models)
● USB ports that connect to downstream USB devices (select models)
● Plug and Play capability, if supported by your operating system
Front components
To identify the components on the front of the monitor, use this illustration and table.
Getting to know your monitor 3
Table 1-2 Front components and their descriptions
Component Description
(1) Power button Turns the monitor on or o.
(2) Menu button Press to open the OSD menu. When the OSD menu is open, the Menu light turns on.
(3) OSD buttons
(assignable)
When the OSD menu is open, press the buttons to navigate through the menu. The
function light icons indicate the default button functions. For a description of these
functions, see Using the OSD function buttons on page 16.
You can reassign the function buttons to quickly select the most commonly used
operations. See Reassigning the function buttons on page 17.
Rear components 54.6 cm (21.5 in) and 60.5 cm (23.8 in) models
To identify the components on the rear of the 54.6 cm (21.5 in) and 60.5 cm (23.8 in) monitors, use this
illustration and table.
Table
1-3 Rear components and their descriptions
Component Description
(1) Security cable slot Connects an optional security cable.
4 Chapter 1 Getting started
Table 1-3 Rear components and their descriptions (continued)
Component Description
(2) Power connector Connects an AC adapter.
(3) Power light On: The monitor is on.
O: Depending on your monitor model, the monitor is o or in Sleep state.
(4) VGA connector Connects the VGA cable to a source device.
(5) HDMI port Connects the HDMI cable to a source device such as a computer or game console.
Rear components 68.6 cm (27 in) and 80.0 cm (31.5 in) models
To identify the components on the rear of the monitor, use this illustration and table.
Table 1-4 Rear components and their descriptions
Component Description
(1) Security cable slot Connects an optional security cable.
(2) Power connector Connects an AC adapter.
(3) Power light On: The monitor is on.
O: Depending on your monitor model, the monitor is o or in Sleep state.
(4) VGA connector Connects the VGA cable to a source device.
(5) HDMI ports (2) Connect the HDMI cable to a source device such as a computer or game console.
Rear components 68.6 cm (27 in) QHD model
To identify the components on the rear of the monitor, use this illustration and table.
Getting to know your monitor 5
Table 1-5 Rear components and their descriptions
Component Description
(1) Security cable slot Connects an optional security cable.
(2) Power connector Connects an AC adapter.
(3) Power light On: The monitor is on.
O: Depending on your monitor model, the monitor is o or in Sleep state.
(4) DisplayPort connector Connects the DisplayPort cable to a source device such as a computer or game console.
(5) HDMI ports (2) Connects the HDMI cable to a source device such as a computer or game console.
Rear components 68.6 cm (27 in) USB Type-C model
To identify the components on the rear of the monitor, use this illustration and table.
6 Chapter 1 Getting started
Table 1-6 Rear components and their descriptions
Component Description
(1) Security cable slot Connects an optional security cable.
(2) Power connector Connects an AC adapter.
(3) Power light On: The monitor is on.
O: Depending on your monitor model, the monitor is o or in Sleep mode.
(4) USB connectors (2) Connect USB devices.
IMPORTANT: If you use a VGA, DisplayPort, or HDMI cable for the video signal, you must
also connect a USB Type-C to USB Type-C cable between the monitor and the source
device to provide the upstream connection to enable the monitor hubs on the connected
host device.
(5) USB Type-C port Connects a USB Type-C cable to a source device such as a computer or game console.
Provides video display, data transfer, and (for select products) charges small devices
when the computer is on or in Sleep state.
(6) VGA port Connects the VGA cable to a source device such as a computer or game console.
(7) HDMI ports (2) Connect the HDMI cable to a source device such as a computer or game console.
Locating the serial number and product number
Depending on the product, the serial number and product number are located on a label on the rear of the
monitor or on a label under the front bezel of the monitor head. You might need these numbers when
contacting HP for support.
Setting up the monitor
This section describes attaching the monitor stand or wall mount and the options for connecting your monitor
to a PC, notebook, gaming console, or similar device.
WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper
workstation setup and proper posture, health, and work habits for computer users. The Safety & Comfort
Guide also provides important electrical and mechanical safety information. The Safety & Comfort Guide is
available on the web at http://www.hp.com/ergo.
IMPORTANT: To prevent damage to the monitor, do not touch the surface of the LCD panel. Pressure on the
panel can cause nonuniformity of color or disorientation of the liquid crystals. If this occurs, the screen will
not recover to its normal condition.
IMPORTANT: To prevent the screen from getting scratched, defaced, or broken and to prevent damage to
the control buttons, position the monitor facedown on a at surface covered with protective sheet foam or a
nonabrasive cloth.
Setting up the monitor 7
Attaching the monitor stand
Correctly attaching your monitor stand is critical for safe use. This section describes how to safely attach a
stand.
TIP: Consider the placement of the monitor, because surrounding light and bright surfaces might cause
interfering reections.
NOTE: The procedures for attaching a monitor stand might be dierent on other models.
1. Position the monitor head facedown on a at surface covered by protective sheet made of foam or a
clean, dry cloth.
2. Insert the stand into the connector on the back of the monitor.
The latch on the bottom of the mounting plate pops up when the stand is locked in place.
3. Attach the base to the stand (1) and tighten the screw (2).
Routing the cables
The monitor stand includes a cable management feature that you can use to organize your monitor cables.
1. Remove the cover from the stand (1).
2. Route any cables that you want to organize through the stand and connect them to the appropriate
connectors on the rear of the monitor (2).
8 Chapter 1 Getting started
3. Replace the cover on the stand (3).
Connecting the cables
In addition to details about how to connect a cable, this section contains information about how your monitor
functions when you connect certain cables.
NOTE: Depending on the model, the monitor might be capable of supporting VGA, USB Type-C, HDMI, or
DisplayPort inputs. The video mode is determined by the video cable used. The monitor automatically
determines which inputs have valid video signals. You can select the inputs through the OSD menu. The
monitor ships with select cables. Not all cables shown in this section are included with the monitor.
1. Place the monitor in a convenient, well-ventilated location near the computer.
2. Connect a video cable.
NOTE: Except for USB Type-C input, the monitor automatically determines which inputs have valid
video signals. You must manually select USB Type-C input. To select any input, including USB Type-C,
open the OSD menu and select Input.
● Connect one end of a VGA cable to the VGA port on the rear of the monitor and the other end to the
VGA port on the source device.
Setting up the monitor 9
● Connect one end of a DisplayPort cable to the DisplayPort connector on the rear of the monitor and
the other end to the DisplayPort connector on the source device.
● Connect one end of an HDMI cable to the HDMI port on the rear of the monitor and the other end to
the HDMI port on the source device.
10 Chapter 1 Getting started
● Connect one end of a USB Type-C cable to the USB Type-C port on the rear of the monitor and the
other end to the USB Type-C port on the source device. (Use only the HP-approved USB Type-C
cable provided with the monitor.)
IMPORTANT: The monitor’s USB Type-C port provides network, data, video, and power delivery
(up to 65 W). If you use a VGA, DisplayPort, or HDMI cable for the video signal, you must also
connect a USB Type-C to USB Type-C cable between the monitor and source device. This connection
is required to provide the upstream connection to enable the monitor hubs on the connected host
device.
3. Connect one end of the power cord to the AC adapter (1) and the other end to a grounded AC outlet (2).
Then connect the AC adapter to the power connector on the monitor (3).
WARNING! To reduce the risk of electric shock or damage to the equipment:
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
Plug the power cord into a grounded (earthed) AC outlet that is easily accessible at all times.
Disconnect power from the equipment by unplugging the power cord from the AC outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one can
accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging the power cord
from the AC outlet, grasp the cord by the plug.
Setting up the monitor 11
Connecting USB devices (select products only)
Use USB ports to connect devices such as a digital camera, USB keyboard, or USB mouse.
Table 1-7 USB port locations
USB Ports
(1) USB ports (2)
(2) USB Type-C port
Adjusting the monitor
To support an ergonomic work space, your monitor oers the adjustment option outlined in this section.
WARNING! To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper
workstation setup and proper posture, health, and work habits for computer users. The Safety & Comfort
Guide also provides important electrical and mechanical safety information. The Safety & Comfort Guide is
available on the web at http://www.hp.com/ergo.
▲ Tilt the monitor head forward or backward to set it to a comfortable eye level.
12 Chapter 1 Getting started
Installing a security cable
As a security measure, you can secure the monitor to a xed object with an optional security cable that is
available from HP. Use the key that came with the optional security cable to attach and remove the lock.
Turning on the monitor
This section provides important information about preventing damage to your monitor, startup indicators,
and troubleshooting information.
IMPORTANT: Burn-in image damage might occur on monitors that display the same static image on the
screen for 12 or more hours. To avoid burn-in image damage, you should always activate a screen saver
application or turn o the monitor when it will not be in use for a prolonged period of time. Image retention is
a condition that might occur on all LCD screens. Burn-in damage on the monitor is not covered under the HP
warranty.
NOTE: If pressing the power button has no eect, the Power Button Lockout feature might be enabled. To
disable this feature, press and hold the monitor power button for 10 seconds.
NOTE: On select HP monitors, you can disable the power light in the OSD menu. Press the Menu button to
open the OSD, select Power, select Power LED, and then select O.
▲ Press the power button on the monitor to turn it on.
Setting up the monitor 13
When you rst turn on your monitor, a monitor status message is displayed for 5 seconds. The message
shows which input is the current active signal, the status of the auto-switch source setting (On or O; default
setting is On), the current preset display resolution, and the recommended preset display resolution.
The monitor automatically scans the signal inputs for an active input and uses that input for the display.
HP watermark and image retention policy
Some monitors are designed with In-Plane Switching (IPS) display technology, which provides ultrawide
viewing angles and advanced image quality. Though suitable for many applications, this panel technology is
not suitable for static, stationary, or xed images for long periods of time, unless you use screen savers.
Applications with static images can include camera surveillance, video games, marketing logos, and
templates. Static images can cause image retention damage that could look like stains or watermarks on the
monitor's screen.
Image retention damage on monitors that are in use 24 hours per day is not covered under the HP warranty.
To avoid image retention damage, always turn o the monitor when it is not in use, or use the power
management setting, if supported on your computer, to turn o the monitor when the computer is idle.
14 Chapter 1 Getting started
2 Using the monitor
This chapter describes how to use your monitor and its features, including software and utilities, the OSD
menu, the function buttons, power modes, and Windows Hello.
Downloading software and utilities
You can download and install these les from HP Support.
● INF (Information) le
● ICM (Image Color Matching) les
To download the les:
1. Go to http://www.hp.com/support.
2. Select Software and Drivers.
3. Select your product type.
4. Enter your HP monitor model in the search eld and follow the on-screen instructions.
The Information le
The INF le denes monitor resources used by Windows® operating systems to ensure monitor compatibility
with the computer’s graphics adapter.
This monitor is Plug and Play compatible, and the monitor will work correctly without installing the INF le.
Monitor Plug and Play compatibility requires that the computer’s graphics card is VESA DDC2 compliant and
that the monitor connects directly to the graphics card. Plug and Play does not work through separate BNC-
type connectors or through distribution buers, boxes, or both.
The Image Color Matching le
The ICM les are data les that are used in conjunction with graphics programs to provide consistent color
matching from monitor screen to printer, or from scanner to monitor screen. These les are activated from
within graphics programs that support this feature.
NOTE: The ICM color prole is written in accordance with the International Color Consortium (ICC) Prole
Format specication.
Using the OSD menu
You can adjust your HP monitor to suit your preferences. Use the OSD menu to customize the viewing features
of your monitor.
To access and make adjustments in the OSD:
● Use the buttons under the bottom of the monitor’s front bezel.
To access the OSD menu and make adjustments:
Downloading software and utilities 15
1. If the monitor is not already on, press the power button to turn on the monitor.
2. Press the Menu button.
3. Use the three function buttons to navigate, select, and adjust the menu choices. The on-screen button
labels vary, depending on which menu or submenu is active.
The following table lists possible menu selections in the OSD main menu. It includes descriptions for each
setting and its impacts on your monitor's appearance or performance.
Table 2-1 OSD menu options and descriptions
Main menu Description
Brightness+ Adjusts the brightness level of the screen. The factory default is 65.
Color Selects and adjusts the screen color.
Image Adjusts the screen image.
Input Selects the video input signal.
Power Adjusts the power settings.
Menu Adjusts the OSD menu and selects the language in which the OSD menu is displayed (the factory default is
English).
Management Adjusts the DDC/CI settings and returns all OSD menu settings to the factory default settings.
Information Provides information about the monitor, such as optimal display mode, power mode, and serial number.
Exit Exits the OSD menu screen.
Using the OSD function buttons
The function buttons oer useful actions, and you can customize all but one of them to make them even more
useful.
NOTE: The actions of the function buttons vary among monitor models.
For information about changing the function of the buttons, see Reassigning the function buttons
on page 17.
Table
2-2 Button names and descriptions
Button Description
(1) Menu button Opens the OSD main menu, selects a menu item from the OSD, or closes the OSD
menu.
(2) Brightness button
Assignable function button
Adjusts the monitor screen brightness.
(3) Color button Opens the Viewing Modes menu where you can adjust the monitor screen to a
comfortable viewing light or select a preset view mode.
16 Chapter 2 Using the monitor
Table 2-2 Button names and descriptions (continued)
Button Description
Assignable function button
(4) Next input button
Assignable function button
Switches the monitor's input source to the next active input.
Reassigning the function buttons
Except for the Menu button, you can change the action associated with a function button from the default
action that you can quickly access your most commonly used menu items.
To reassign the function buttons:
1. Press the Menu button to open the OSD menu.
2. Select Menu, select Assign Buttons, and then select one of the available options for the button that you
want to assign.
Changing the Power Mode setting (select products only)
This section describes how to activate Performance mode. Certain features on your monitor might require
Performance mode to be active.
When in Sleep state, to comply with international power standards, the monitor default setting is Power
Saver mode.
If your monitor supports Performance mode, then to keep the USB ports enabled when the monitor is in Auto-
Sleep Mode, change the Power Mode setting from Power Saver to Performance.
NOTE: If you are connecting a computer that is not battery powered, the Power Mode setting must be
changed to Performance mode.
To change the power mode setting:
1. Press the Menu button to open the OSD menu.
2. Select Power, select Power Mode, and then select Performance.
3. Select Back and close the OSD.
Using Auto-Sleep Mode (select products only)
Your monitor has an energy-saving feature called Auto-Sleep Mode, a reduced power state. This section
describes how to activate or adjust Auto-Sleep Mode on your monitor.
When Auto-Sleep Mode is enabled (enabled by default), the monitor enters a reduced power state when the
computer signals low power mode (absence of either horizontal or vertical sync signal).
Upon entering this reduced power state (Auto-Sleep Mode), the monitor screen is blanked, the backlight turns
o, and the power light turns amber. The monitor draws less than 0.5 W of power when in this reduced power
state. The monitor wakes from Auto-Sleep mode when the computer sends an active signal to the monitor
(for example, when you activate the mouse or keyboard).
To disable Auto-Sleep Mode in the OSD:
Reassigning the function buttons 17
1. Press the Menu button to open the OSD, or press the center of the OSD controller to open the OSD.
2. In the OSD, select Power.
3. Select Auto-Sleep Mode, and then select O.
Setting up Windows Hello facial recognition (select products
only)
In select products, you can use Windows Hello facial recognition to gain quick, secure access to your
computer. You can establish facial recognition by using either the camera on your computer or the camera on
your monitor (select models).
NOTE: Windows Hello is only supported on the Windows 10 operating system.
Using Windows Hello (select products only)
Even if your computer does not have a Windows Hello camera, you can still set up Windows Hello facial
recognition using the IR camera on your monitor (select models).
1. Select the Start button, select Settings, select Accounts, and then select Sign-in options.
2. Under Windows Hello, select Set up under Face Recognition.
3. Under Welcome to Windows Hello, select Get Started, and then follow the on-screen instructions to
enroll your facial ID and set up a PIN.
You can now use the IR camera on the monitor to log in when using Windows Hello.
18 Chapter 2 Using the monitor
3 Support and troubleshooting
If your monitor is not working as expected, you might be able to resolve the issue by following the
instructions in this section.
Solving common issues
The following table lists possible issues, the possible cause of each issue, and the recommended solutions.
Table 3-1 Common issues and solutions
Issues Possible cause Solution
USB ports are not working. A USB Type-C to USB Type-C cable is
not connected between the monitor
and the source device.
If you use a VGA, DisplayPort, or HDMI cable for the video
signal, you must also connect a USB Type-C to USB Type-C
cable between the monitor and the source device to provide
the upstream connection to enable the monitor hubs on the
connected host device.
Screen is blank or video is
blinking.
Power cord is disconnected. Connect the power cord.
Monitor is o. Press the monitor power button.
NOTE: If pressing the power button has no eect, press and
hold the power button for 10 sec to disable the Power Button
Lockout feature.
Video cable is improperly connected. Connect the video cable properly. For more information, see
Connecting the cables on page 9.
System is in Auto-Sleep Mode. Press any key on the keyboard or move the mouse to
inactivate the screen blanking utility.
Video card is incompatible. Open the OSD menu and select the Input menu. Set Auto-
Switch Input to O and manually select the input.
or
Replace the video card or connect the video cable to one of
the computer’s on-board video sources.
Image appears blurred,
indistinct, or too dark.
Brightness setting is too low. Open the OSD menu, and select Brightness+ to adjust the
brightness scale as needed.
“Check Video Cable” is
displayed on the screen.
Monitor video cable is disconnected. Connect the appropriate video signal cable between the
computer and monitor. Be sure that the computer power is o
while connecting the video cable.
“Input Signal Out of Range” is
displayed on screen.
Video resolution and/or refresh rate
are set higher than the monitor
supports.
Change the settings to a supported setting (see Preset display
resolutions on page 27).
The monitor does not enter
into a low-power sleep state.
The monitor's power saving control is
disabled.
Open the OSD menu and select Power, select Auto-Sleep
Mode, and then set auto-sleep to On.
“OSD Lockout” is displayed. The monitor's OSD Lockout function
is enabled.
Press and hold the Menu button for 10 seconds to disable the
OSD Lockout function.
“Power Button Lockout” is
displayed.
The monitor's Power Button Lockout
feature is enabled.
Press and hold the Power button for 10 seconds to unlock the
power button function.
Solving common issues 19
Button lockouts
The button lockout function is available only when the monitor is on, an active signal is displayed, and the
OSD menu is closed. Holding down the power button or Menu button for 10 seconds disables that button. You
can re-enable the button by holding it down again for 10 seconds.
Using the auto-adjustment function (analog input)
The auto-adjustment feature automatically engages and attempts to optimize your screen under several
conditions.
● Monitor setup
● Factory reset of the computer
● Changing monitor resolution
You can manually optimize the screen performance for the VGA (analog) input at any time from the Auto
Adjustment menu in the OSD. You can download the auto-adjustment pattern software utility from
http://www.hp.com/support.
Do not use this procedure if the monitor is using an input other than VGA. If the monitor is using a VGA
(analog) input, this procedure can correct the following image quality conditions:
● Fuzzy or unclear focus
● Ghosting, streaking, or shadowing eects
● Faint vertical bars
● Thin, horizontal scrolling lines
● An o-center picture
To use the auto-adjustment feature:
1. Turn the monitor on, and then wait for 20 minutes before adjusting.
2. Press the Menu button to open the OSD menu, select Image, and then select Auto Adjustment. If the
result is not satisfactory, continue with the procedure.
3. Open the auto-adjustment utility. (You can download this utility from http://www.hp.com/support.) The
setup test pattern is displayed.
4. Press the esc key or any other key on the keyboard to exit the test pattern.
20 Chapter 3 Support and troubleshooting
Optimizing image performance (analog input)
If you would like to customize your settings, this section describes how to manually optimize your monitor's
image.
You can adjust two controls in the on-screen display to improve image performance: Clock and Phase
(available in the OSD menu). Use these controls only when the auto-adjustment function does not provide a
satisfactory image.
NOTE: You can adjust the Clock and Phase controls only when you use an analog (VGA) input. These controls
are not adjustable for digital inputs.
The Clock must rst be set correctly because the Phase settings are dependent on the main Clock setting.
● Clock—Increases or decreases the value to minimize any vertical bars or stripes visible on the screen
background.
● Phase—Increases or decreases the value to minimize video ickering or blurring.
NOTE: When you use the controls, you will obtain the best results by using the auto-adjustment pattern
software utility. You can download this utility from http://www.hp.com/support.
When adjusting the Clock and Phase values, if the monitor images become distorted, continue adjusting the
values until the distortion disappears. To restore the factory settings, press the Menu button to open the OSD
menu, then select Management, select Factory Reset, and select Yes.
To eliminate vertical bars (Clock):
1. Press the Menu button to open the OSD menu, select Image, and then select Clock and Phase.
2. Select Clock, and then use the OSD buttons on the monitor that display up and down arrow icons to
eliminate vertical bars. Press the buttons slowly so that you do not miss the optimum adjustment point.
3. After adjusting the Clock, if ickering, blurring, or bars appear on the screen, proceed to adjust the
Phase.
To remove ickering or blurring (Phase):
1. Press the Menu button to open the OSD menu, select Image, and then select Clock and Phase.
2. Select Phase, and then use the OSD buttons on the monitor that display up and down arrow icons to
eliminate ickering or blurring. Flickering or blurring might not be eliminated, depending on the
computer or graphics controller card installed.
To correct screen position (Horizontal Position or Vertical Position):
1. Press the Menu button to open the OSD menu, select Image, and then select Image Position.
Optimizing image performance (analog input) 21
2. Press the OSD buttons on the monitor that display up and down arrow icons to properly adjust the
position of the image in the display area of the monitor. The Horizontal Position shifts the image left or
right; the Vertical Position shifts the image up or down.
22 Chapter 3 Support and troubleshooting
4 Maintaining the monitor
Properly maintained, your monitor can run for many years. These instructions provide steps you can perform
to keep your monitor in the best condition.
Maintenance guidelines
Follow these instructions to enhance the performance and extend the life of the monitor.
● Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those controls
that are covered in the operating instructions. If the monitor is not operating properly or has been
dropped or damaged, contact an authorized HP dealer, reseller, or service provider.
● Use only a power source and connection appropriate for this monitor, as indicated on the label or back
plate of the monitor.
● Be sure that the total ampere rating of the products connected to the outlet does not exceed the current
rating of the AC outlet and that the total ampere rating of the products connected to the cord does not
exceed the rating of the cord. Look on the power label to determine the ampere rating (AMPS or A) for
each device.
● Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping the plug
rmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
● Turn the monitor o when it is not in use, and use a screen saver program. Doing this can substantially
increase the life expectancy of the monitor.
NOTE: A burned-in image on the monitor is not covered under the HP warranty.
● Never block the slots and openings of the cabinet or push objects into them. These openings provide
ventilation.
● Do not drop the monitor or place it on an unstable surface.
● Do not allow anything to rest on the power cord. Do not walk on the cord.
● Keep the monitor in a well-ventilated area, away from excessive light, heat, or moisture.
Cleaning the monitor
Use these instructions to clean your monitor when necessary.
1. Turn o the monitor and unplug the power cord from the AC outlet.
2. Disconnect any external devices.
3. Dust the monitor by wiping the screen and the cabinet with a soft, clean antistatic cloth.
4. For more diicult cleaning situations, use a 50/50 mix of water and isopropyl alcohol.
IMPORTANT: Do not use cleaners that contain petroleum-based materials such as benzene, thinner, or
any volatile substance to clean the monitor screen or cabinet. These chemicals might damage the
monitor.
Maintenance guidelines 23
IMPORTANT: Spray the cleaner onto a cloth and use the damp cloth to gently wipe the screen surface.
Never spray the cleaner directly on the screen surface. It can run behind the bezel and damage the
electronics. The cloth should be moist, but not wet. Water dripping into the ventilation openings or other
points of entry can cause damage to the monitor. Allow the monitor to air-dry before use.
5. After you remove the dirt and debris, you can also clean the surfaces with a disinfectant. The World
Health Organization (WHO) recommends cleaning surfaces, followed by disinfection, as a best practice
for preventing the spread of viral respiratory illnesses and harmful bacteria. A disinfectant that is within
HP’s cleaning guidelines is an alcohol solution consisting of 70% isopropyl alcohol and 30% water. This
solution is also known as rubbing alcohol and is sold in most stores.
Shipping the monitor
Keep the original packing box in a storage area. You might need it later if you ship the monitor or move.
24 Chapter 4 Maintaining the monitor
A Technical specications
This section contains technical specications for the physical aspects of your monitor, such as the weight and
viewing dimensions, as well as required environmental operating conditions and power source ranges.
All specications represent the typical specications provided by HP component manufacturers; actual
performance can vary either higher or lower.
NOTE: For the latest specications or additional specications for this product, go to http://www.hp.com/
go/quickspecs/ and search for your specic monitor model to nd the model-specic QuickSpecs.
Technical specications 54.6 cm (21.5 in) model
This section provides specications for your monitor.
Table A-1 Technical specications
Specication Measurement
Display, widescreen 54.6 cm 21.5 in
Type IPS/AHVA
Viewable image size 54.6 cm diagonal 21.5 in diagonal
Maximum weight (unpacked without stand) 1.80 kg 3.96 lbs
Dimensions
Height 28.72 cm 11.31 in
Depth 3.18 cm 1.25 in
Width 48.55 cm 19.11 in
Tilt –5° to 25°
Environmental requirements temperature
Operating temperature 5°C to 35°C 41°F to 95°F
Storage temperature –20°C to 60°C –4°F to 140°F
Storage humidity 5% to 95% (noncondensing)
Power source 100-240 VAC 50/60 Hz
Input terminal One HDMI port, one VGA port
Technical specications 60.5 cm (23.8 in) model
This section provides specications for your monitor.
25
Table A-2 Technical specications
Specication Measurement
Display, widescreen 60.5 cm 23.8 in
Type IPS/AHVA
Viewable image size 60.5 cm diagonal 23.8 in diagonal
Maximum weight (unpacked without stand) 2.20 kg 4.85 lbs
Dimensions
Height 31.55 cm 12.42 in
Depth 3.38 cm 1.33 in
Width 53.58 cm 21.09 in
Tilt –5° to 25°
Environmental requirements temperature
Operating temperature 5°C to 35°C 41°F to 95°F
Storage temperature –20°C to 60°C –4°F to 140°F
Storage humidity 5% to 95% (noncondensing)
Power source 100–240 VAC 50/60 Hz
Input terminal One HDMI port, one VGA port
Technical specications 68.6 cm (27 in) model
This section provides specications for your monitor.
Table
A-3 Technical specications
Specication Measurement
Display, widescreen 68.6 cm 27.0 in
Type IPS/AHVA
Viewable image size 68.6 cm diagonal 27.0 in diagonal
Maximum weight (unpacked without stand) 2.90 kg 6.39 lbs
Dimensions
Height 35.60 cm 14.01 in
Depth 3.42 cm 1.35 in
Width 60.79 cm 23.93 in
Tilt –5° to 25°
Environmental requirements temperature
Operating temperature 5°C to 35°C 41°F to 95°F
Storage temperature –20°C to 60°C –4°F to 140°F
26 Appendix A Technical specications
Table A-3 Technical specications (continued)
Specication Measurement
Storage humidity 5% to 95% (noncondensing)
Power source 100–240 VAC 50/60 Hz
Input terminal Two HDMI ports and one VGA port (select models)
Two HDMI ports and one DisplayPort connector (select models)
One USB Type-C port, two downstream USB ports, two HDMI ports, and one
VGA port (select models)
Technical specications 80.0 cm (31.5 in) model
This section provides specications for your monitor.
Table A-4 Technical specications
Specication Measurement
Display, widescreen 80.0 cm 31.5 in
Type VA
Viewable image size 80.0 cm diagonal 31.5 in diagonal
Maximum weight (unpacked without stand) 4.6 kg 10.14 lbs
Dimensions
Height 41.46 cm 16.32 in
Depth 4.02 cm 1.58 in
Width 71.03 cm 27.96 in
Tilt –5° to 25°
Environmental requirements temperature
Operating temperature 5°C to 35°C 41°F to 95°F
Storage temperature –20°C to 60°C –4°F to 140°F
Storage humidity 5% to 95% (noncondensing)
Power source 100–240 VAC 50/60 Hz
Input terminal Two HDMI ports and one VGA port
Preset display resolutions
The following display resolutions are the most commonly used modes and are set as factory defaults. The
monitor automatically recognizes these preset modes, and they will appear properly sized and centered on
the screen.
FHD Preset display and timing resolutions
This section provides preset display resolutions and preset timing resolutions for FHD monitor models.
Technical specications 80.0 cm (31.5 in) model 27
Table A-5 Preset display resolutions
Preset Pixel format Horz freq (kHz) Vert freq (Hz)
1 640 × 480 31.469 59.940
2 720 × 400 31.469 70.087
3 800 × 600 37.879 60.317
4 1024 × 768 48.363 60.004
5 1280 × 720 45.000 60.000
6 1280 × 800 49.702 59.810
7 1280 × 1024 63.981 60.020
8 1440 × 900 55.935 59.887
9 1600 × 900 60.000 60.000
10 1680 × 1050 65.290 59.954
11 1920 × 1080 67.500 60.000
12 1920 × 1080 83.894 75.000
Table A-6 Preset timing resolutions
Preset Timing name Pixel format Horz freq (kHz) Vert freq (Hz)
1 480p60 640 × 480 31.469 60
2 480p60 720 × 480 31.469 60
3 576p50 720 × 576 31.250 50
4 720p50 1280 × 720 37.500 50
5 720p60 1280 × 720 45.000 60
6 1080p50 1920 × 1080 56.250 50
7 1080p60 1920 × 1080 67.500 60
QHD Preset display and timing resolutions
This section provides preset display resolutions and preset timing resolutions for QHD monitor models.
Table
A-7 Preset display resolutions
Preset Pixel format Horz freq (kHz) Vert freq (Hz)
1 640 × 480 31.469 59.940
2 720 × 400 31.469 70.087
3 800 × 600 37.879 60.317
4 1024 × 768 48.363 60.004
5 1280 × 720 45.000 60.000
28 Appendix A Technical specications
Table A-7 Preset display resolutions (continued)
Preset Pixel format Horz freq (kHz) Vert freq (Hz)
6 1280 × 800 49.702 59.810
7 1280 × 1024 63.981 60.020
8 1440 × 900 55.935 59.887
9 1600 × 900 60.000 60.000
10 1680 × 1050 65.290 59.954
11 1920 × 1080 67.500 60.000
12 1920 × 1200 74.038 59.950
13 2560 × 1440 88.787 59.951
Table A-8 Preset timing resolutions
Preset Timing name Pixel format Horz freq (kHz) Vert freq (Hz)
1 480p60 640 × 480 31.469 60
2 480p60 720 × 480 31.469 60
3 576p50 720 × 576 31.250 50
4 720p50 1280 × 720 37.500 50
5 720p60 1280 × 720 45.000 60
6 1080p24 1920 × 1080 27.000 24
7 1080p25 1920 × 1080 27.284 25
8 1080p30 1920 × 1080 33.750 30
9 1080p50 1920 × 1080 56.250 50
10 1080p60 1920 × 1080 67.500 60
11 1080p75 1920 × 1080 83.894 75
12 1440p60 2560 × 1440 88.787 60
Power supply specications
This section provides power supply specications.
Table
A-9 Power supply specications
Manufacturer Model number Power supply rating
Honor ADS-25PE-19-3 19525E 25 W
Honor ADS-45PE-19-3 19540E 40 W
Delta TPN-DA11/ADP-135MB BA 45 W
Delta TPN-DA16/ADP-45FE FA 135 W
Power supply specications 29
Energy saver feature
This monitor supports a reduced power state.
The reduced power state is initiated if the monitor detects the absence of either the horizontal sync signal or
the vertical sync signal. Upon detecting the absence of these signals, the monitor screen is blank, the
backlight is turned o, and the power light turns amber. In the reduced power state, the monitor uses < 0.5 W
of power. There is a brief warm-up period before the monitor returns to its normal operating state.
See the computer manual for instructions on setting the energy saver mode (sometimes called “power
management feature”).
NOTE: This power saver feature works only when the monitor is connected to a computer that has energy-
saver features.
By selecting the settings in the monitor Sleep Timer utility, you can also program the monitor to initiate the
reduced power state at a predetermined time. When the monitor Sleep Timer utility initiates the reduced
power state, the power light blinks amber.
30 Appendix A Technical specications
B Accessibility
HP's goal is to design, produce, and market products, services, and information that everyone everywhere can
use, either on a stand-alone basis or with appropriate third-party assistive technology (AT) devices or
applications.
HP and accessibility
Because HP works to weave diversity, inclusion, and work/life into the fabric of the company, it is reected in
everything HP does. HP strives to create an inclusive environment focused on connecting people to the power
of technology throughout the world.
Finding the technology tools you need
Technology can unleash your human potential. Assistive technology removes barriers and helps you create
independence at home, at work, and in the community. Assistive technology helps increase, maintain, and
improve the functional capabilities of electronic and information technology.
For more information, see Finding the best assistive technology on page 32.
The HP commitment
HP is committed to providing products and services that are accessible for people with disabilities. This
commitment supports the company's diversity objectives and helps ensure that the benets of technology
are available to all.
The HP accessibility goal is to design, produce, and market products and services that can be eectively used
by everyone, including people with disabilities, either on a stand-alone basis or with appropriate assistive
devices.
To achieve that goal, this Accessibility Policy establishes seven key objectives to guide HP actions. All HP
managers and employees are expected to support these objectives and their implementation in accordance
with their roles and responsibilities:
● Raise the level of awareness of accessibility issues within HP, and provide employees with the training
they need to design, produce, market, and deliver accessible products and services.
● Develop accessibility guidelines for products and services, and hold product development groups
accountable for implementing these guidelines where competitively, technically, and economically
feasible.
● Involve people with disabilities in the development of accessibility guidelines and in the design and
testing of products and services.
● Document accessibility features, and make information about HP products and services publicly
available in an accessible form.
● Establish relationships with leading assistive technology and solution providers.
● Support internal and external research and development that improves assistive technology relevant to
HP products and services.
● Support and contribute to industry standards and guidelines for accessibility.
HP and accessibility 31
International Association of Accessibility Professionals (IAAP)
IAAP is a not-for-prot association focused on advancing the accessibility profession through networking,
education, and certication. The objective is to help accessibility professionals develop and advance their
careers and to better enable organizations to integrate accessibility into their products and infrastructure.
As a founding member, HP joined to participate with other organizations to advance the eld of accessibility.
This commitment supports HP’s accessibility goal of designing, producing, and marketing products and
services that people with disabilities can eectively use.
IAAP will make the profession strong by globally connecting individuals, students, and organizations to learn
from one another. If you are interested in learning more, go to
http://www.accessibilityassociation.org to join
the online community, sign up for newsletters, and learn about membership options.
Finding the best assistive technology
Everyone, including people with disabilities or age-related limitations, should be able to communicate,
express themselves, and connect with the world using technology. HP is committed to increasing accessibility
awareness within HP and with our customers and partners.
Whether it’s large fonts that are easy on the eyes, voice recognition that lets you give your hands a rest, or
any other assistive technology to help with your specic situation—a variety of assistive technologies make
HP products easier to use. How do you choose?
Assessing your needs
Technology can unleash your potential. Assistive technology removes barriers and helps you create
independence at home, at work, and in the community. Assistive technology (AT) helps increase, maintain,
and improve the functional capabilities of electronic and information technology.
You can choose from many AT products. Your AT assessment should allow you to evaluate several products,
answer your questions, and facilitate your selection of the best solution for your situation. You will nd that
professionals qualied to do AT assessments come from many elds, including those licensed or certied in
physical therapy, occupational therapy, speech/language pathology, and other areas of expertise. Others,
while not certied or licensed, can also provide evaluation information. You will want to ask about the
individual's experience, expertise, and fees to determine if they are appropriate for your needs.
Accessibility for HP products
These links provide information about accessibility features and assistive technology, if applicable, included
in various HP products. These resources will help you select the specic assistive technology features and
products most appropriate for your situation.
● HP Aging & Accessibility: Go to http://www.hp.com, type Accessibility in the search box. Select
Oice of Aging and Accessibility.
● HP computers: For Windows 7, Windows 8, and Windows 10, go to http://www.hp.com/support, type
Windows Accessibility Options in the Search our knowledge search box. Select the
appropriate operating system in the results.
● HP Shopping, peripherals for HP products: Go to http://store.hp.com, select Shop, and then select
Monitors or Accessories.
If you need additional support with the accessibility features on your HP product, see Contacting support
on page 35.
Additional links to external partners and suppliers that may provide additional assistance:
32 Appendix B Accessibility
● Microsoft Accessibility information (Windows 7, Windows 8, Windows 10, Microsoft Oice)
● Google Products accessibility information (Android, Chrome, Google Apps)
Standards and legislation
Countries worldwide are enacting regulations to improve access to products and services for persons with
disabilities. These regulations are historically applicable to telecommunications products and services, PCs
and printers with certain communications and video playback features, their associated user documentation,
and their customer support.
Standards
The US Access Board created Section 508 of the Federal Acquisition Regulation (FAR) standards to address
access to information and communication technology (ICT) for people with physical, sensory, or cognitive
disabilities.
The standards contain technical criteria specic to various types of technologies, as well as performance-
based requirements which focus on functional capabilities of covered products. Specic criteria cover
software applications and operating systems, web-based information and applications, computers,
telecommunications products, video and multimedia, and self-contained closed products.
Mandate 376 – EN 301 549
The European Union created the EN 301 549 standard within Mandate 376 as an online toolkit for public
procurement of ICT products. The standard species the accessibility requirements applicable to ICT products
and services, with a description of the test procedures and evaluation methodology for each requirement.
Web Content Accessibility Guidelines (WCAG)
Web Content Accessibility Guidelines (WCAG) from the W3C's Web Accessibility Initiative (WAI) helps web
designers and developers create sites that better meet the needs of people with disabilities or age-related
limitations.
WCAG advances accessibility across the full range of web content (text, images, audio, and video) and web
applications. WCAG can be precisely tested, is easy to understand and use, and allows web developers
exibility for innovation. WCAG 2.0 has also been approved as ISO/IEC 40500:2012.
WCAG specically addresses barriers to accessing the web experienced by people with visual, auditory,
physical, cognitive, and neurological disabilities, and by older web users with accessibility needs. WCAG 2.0
provides characteristics of accessible content:
● Perceivable (for instance, by addressing text alternatives for images, captions for audio, adaptability of
presentation, and color contrast)
● Operable (by addressing keyboard access, color contrast, timing of input, seizure avoidance, and
navigability)
● Understandable (by addressing readability, predictability, and input assistance)
● Robust (for instance, by addressing compatibility with assistive technologies)
Legislation and regulations
Accessibility of IT and information has become an area of increasing legislative importance. These links
provide information about key legislation, regulations, and standards.
Standards and legislation 33
● United States
● Canada
● Europe
● Australia
Useful accessibility resources and links
These organizations, institutions, and resources might be good sources of information about disabilities and
age-related limitations.
NOTE: This is not an exhaustive list. These organizations are provided for informational purposes only. HP
assumes no responsibility for information or contacts you encounter on the internet. Listing on this page
does not imply endorsement by HP.
Organizations
These organizations are a few of the many that provide information about disabilities and age-related
limitations.
●
American Association of People with Disabilities (AAPD)
● The Association of Assistive Technology Act Programs (ATAP)
● Hearing Loss Association of America (HLAA)
● Information Technology Technical Assistance and Training Center (ITTATC)
● Lighthouse International
● National Association of the Deaf
● National Federation of the Blind
● Rehabilitation Engineering & Assistive Technology Society of North America (RESNA)
● Telecommunications for the Deaf and Hard of Hearing, Inc. (TDI)
● W3C Web Accessibility Initiative (WAI)
Educational institutions
Many educational institutions, including these examples, provide information about disabilities and age-
related limitations.
● California State University, Northridge, Center on Disabilities (CSUN)
● University of Wisconsin - Madison, Trace Center
● University of Minnesota computer accommodations program
Other disability resources
Many resources, including these examples, provide information about disabilities and age-related limitations.
● ADA (Americans with Disabilities Act) Technical Assistance Program
● ILO Global Business and Disability network
● EnableMart
34 Appendix B Accessibility
● European Disability Forum
● Job Accommodation Network
● Microsoft Enable
HP links
These HP-specic links provide information that relates to disabilities and age-related limitations.
HP comfort and safety guide
HP public sector sales
Contacting support
HP oers technical support and assistance with accessibility options for customers with disabilities.
NOTE: Support is in English only.
● Customers who are deaf or hard of hearing who have questions about technical support or accessibility
of HP products:
–
Use TRS/VRS/WebCapTel to call (877) 656-7058 Monday through Friday, 6 a.m. to 9 p.m. Mountain
Time.
● Customers with other disabilities or age-related limitations who have questions about technical support
or accessibility of HP products, choose one of the following options:
– Call (888) 259-5707 Monday through Friday, 6 a.m. to 9 p.m. Mountain Time.
– Complete the Contact form for people with disabilities or age-related limitations.
Contacting support 35
Index
A
accessibility 31, 32, 33, 35
accessibility needs assessment 32
assistive technology (AT)
nding 32
purpose 31
AT (assistive technology)
nding 32
purpose 31
auto-adjustment (analog input) 19
C
calling technical support 2
components
front 3
rear 4, 5, 6
connectors
DisplayPort 5
power 4, 5, 6
customer support, accessibility 35
D
DisplayPort connector 5
F
front components 3
G
getting started 1
getting to know your monitor 2
H
HDMI port 4, 5, 6
HP Assistive Policy 31
HP resources 1
HP support 1
I
International Association of
Accessibility Professionals 32
L
label 7
M
menu button 3
O
optimizing image performance
(analog input) 19, 21
OSD button 3
P
ports
HDMI 4, 5, 6
USB Type-C 6
VGA 5
power connector 4, 5, 6
product label 7
product number 7
R
rear components 4, 5, 6
resources, accessibility 34
routing cables 8
S
safety information 1
Section 508 accessibility standards
33
serial number 7
standards and legislation,
accessibility 33
support 2
T
technical support 2
U
USB Type-C port 6
W
warnings 1
36 Index
