Printing a Mounting Template
NOTICE
It is not recommended that you print a mounting template on your own. Use the template that came in the product box.
If you do print the template, you must follow these instructions for printing a mounting template precisely. To print large templates,
you need large enough paper and printer. Failure to have the correct sized paper and printer, or a failure to follow these instructions,
may result in an incorrectly sized template and therefore an incorrect cutout (too large or too small) on the mounting surface of your
boat.
NOTE: The options and locations
of the options differ between Adobe
Acrobat versions and other PDF
viewing/printing applications. Be
sure the scaling is 100% before
printing.
1
Select File > Print.
2
Enter 2
in Pages to Print ➊➊.
3
Select Actual Size ➋➋ for Page
Sizing & Handling.
4
Verify that the paper size is larger
than the template ➌➌.
In this example, the paper is not
larger than the template.
5
If the paper size is not large
enough, select Properties
➍➍
and select a Paper Size that is
larger than the template.
6
After printing the template, use
a ruler to measure at least one
dimension line to ensure the
template printed to 100% scale.
NOTICE
Garmin is not responsible for any damages or expenses resulting from a miscut mounting surface arising from a failure to follow
these instructions.
➋➋
➌➌
➍➍
➊➊
August 2024 Printed in China 190-03089-04_0A

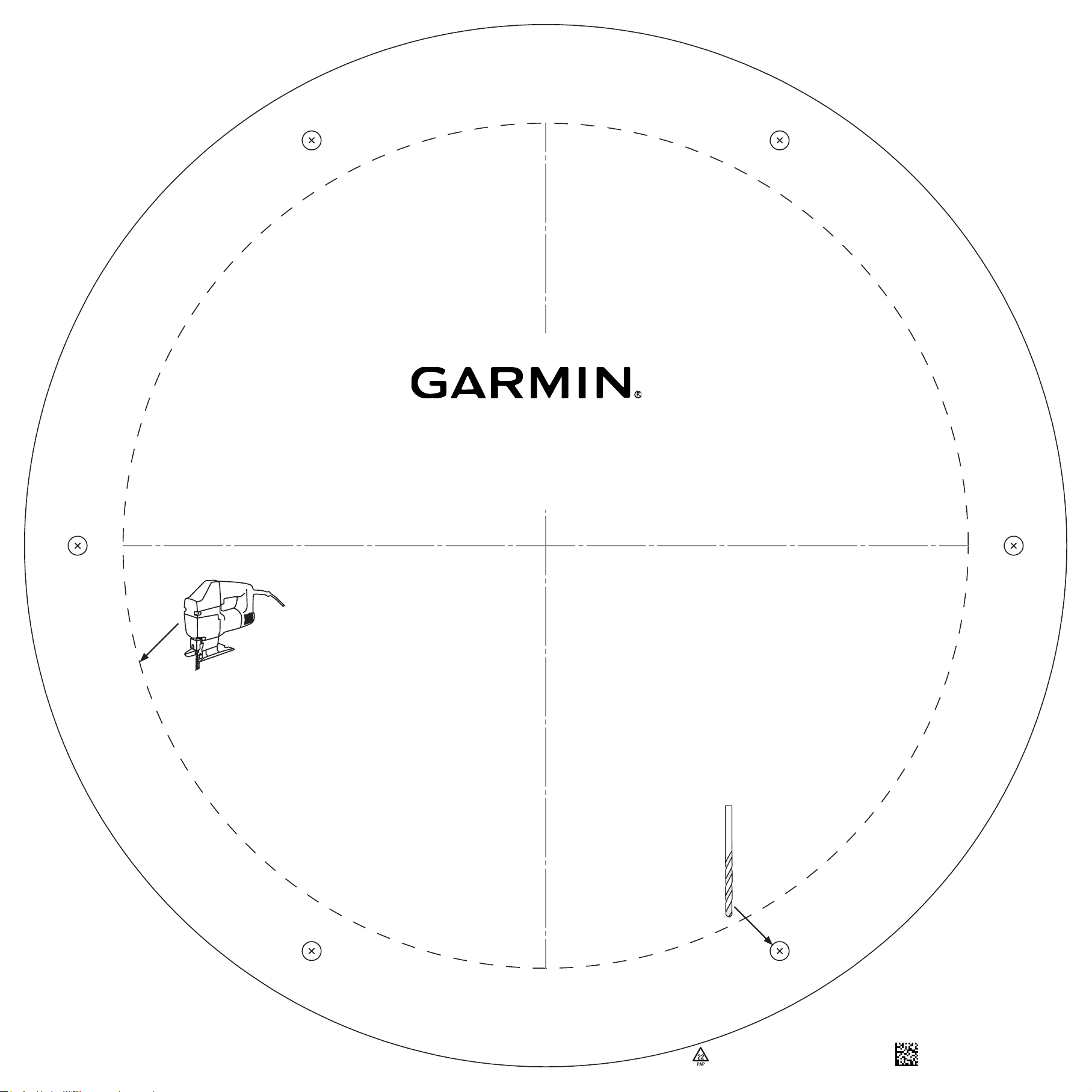

Ø 223 mm
