BY530
MODEL :BY530
RATED VOLTAGE :115V~
RATED FREQUENCY :60Hz
HEATING POWER :500 W
COOLING POWER/ CURRENT :85 W/1.5A
HOT WATER 90 5L / h
COLD WATER 10
2L / h
ENVIRONMENTAL TEMP. :ST
COOLANT :R134a, 38g
RELATIVE HUMIDITY 90%
PROTECTION OF ANTI-ELECTRIC-SHOCK:I
≥ ℃
≤ ℃
≤
Heat Switch
Cold Switch
BEFORE PLUGGING THE UNIT
1. Make sure the water dispenser is not plugged into an electrical
outlet.
2. Open the door of the lower cabinet.
3. Place full water bottle on floor. Remove the plastic cover over the
mouth of the water bottle.
4. Place the suction tube inside the bottle and place the water bottle
cap firmly over the mouth of the water bottle.
5. Slide the bottle inside the cabinet and close the lower cabinet door
6. Plug the water cooler into a grounded power outlet and turn on the
power switch located on the back.
7. The unit will start to operate, but you should wait at least half an
hour before using the water cooler.
8. This unit is equipped with a switch that turns the heating feature in
and off. If you are not going to use hot water, turn the heating
switch to "OFF" to conserve energy.
After the water bottle has been connected to the water cooler, the unit is ready for use. When connecting
to power, the pump will start running. First the unit will pump the water from the water bottle into the
cooling and heating tanks. After 7-10 minutes, push hot and cold tap until water coming out. And then
turn on heating and cooling switch to start heating and cooling function. The first time the water cooler is
used, you will have to wait at least half an hour for hot and cold water.

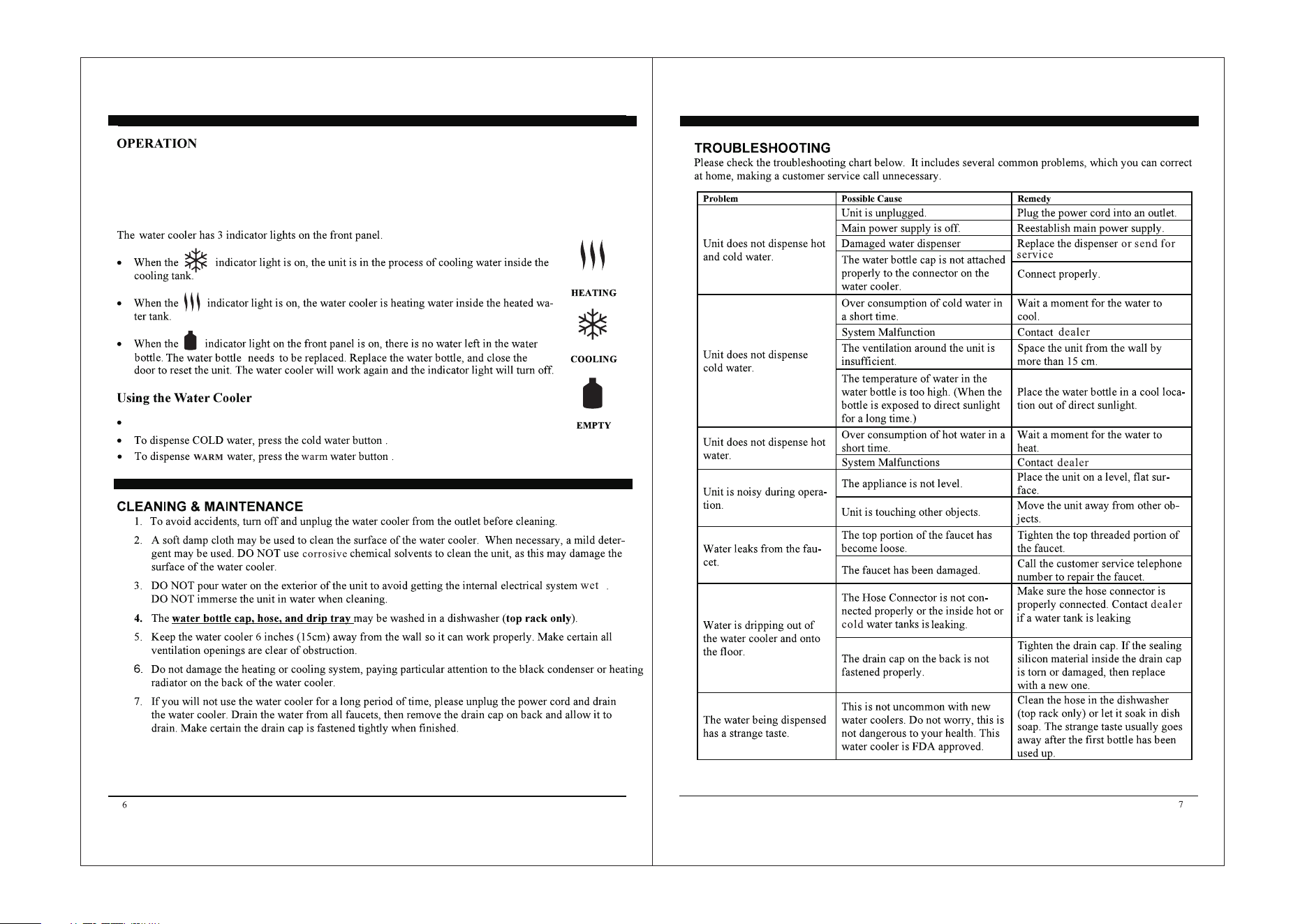

To dispense HOT wa
ter, push child safety lock, and push hot faucet at same time.
Rinkmo Support : [email protected]
