UTV4B
BLUETOOTH®
0224
BOSS Audio Systems
3451 Lunar Court • Oxnard, CA 93030
V:1X
Thank you for purchasing this
UTV4B All-Terrain Sound System
Please read through these instructions carefully so you will know
how to operate your model properly.
After you have nished reading the instructions, keep this document
in a safe place for future reference.
THIS PACKAGE CONTAINS
1x All-terrain sound system (with a 12V power port plug)
1x 12V power port plug adapter
1x AUX cable with 3.5 mm plug
2x Mounting straps + 2x Nylon zip ties
1x User manual + 1x Warranty card
IMPORTANT
Please enter below the Serial No. which is located on the exterior of the product. Retain this
information for future reference.
Model
Serial No.
Date of Purchase
1
Before You Start
Read and understand all instructions before you use your product. If you do not follow the instructions
in this manual, we are not responsible for injury or damage resulting from improper handling. This will
also void the warranty.
Important Safety Precautions
• Be sure to observe the following guidelines:
- Do not increase speaker volume so high that you cannot hear what is around you.
- Use caution or temporarily discontinue use in potentially hazardous situations.
• Do not make any adjustment on the product when driving or in other situations where distractions can be
hazardous. Responsible and safe driving is your primary responsibility when operating a vehicle.
• Start volume at a low setting then gradually increase the volume until you can hear it comfortably, without
sound distortion and ear discomfort.
• In the event of smoke, strange noise or odor emitted from the product or any other abnormal operational
signs appearing on the product, disconnect the product from the power supply. Discontinue use and contact
your dealer or our technical support. Using the product in this condition may result in permanent damage to
the system.
• Servicing must only be carried out by a technician. Contact our technical support for any service questions.
Installation Precautions
• WARNING: Always consult a professional installer.
• Installation must be performed by a professional. Contact our technical support for any installation questions.
• Observe the safety and operating instructions of the devices which are connected to the product.
• Only use attachments/accessories specied by the manufacturer for installation.
• Do not modify this product, as this affects the safety of the product and creates a risk of injury.
• Before installation, disconnect the negative terminal of the vehicle battery to prevent damage to the product,
re, and/or possible injury.
Care for Your Product
• DO NOT clean the product in hot weather (e.g. hot sunlight).
• DO NOT use abrasive or highly alkaline cleaner on the product.
• DO NOT use gasoline, acetone, carbon tetrachloride or other aggressive chemical solutions on the product.
• DO NOT scrape the product with razor blade or other sharp instrument.
• This product is weatherproof. However, never submerge the product in water.
• Wash the product with lukewarm water and mild soap or detergent, using a clean sponge or soft cloth. Rinse
well with clean water.
2
Getting to Know Your ATV6.5B
Introduction
The product is a Bluetooth speaker system which is ideal for installation in a ATV (All Terrain Vehicle) or UTV
(Utility Vehicle). You can stream audio from a mobile phone to this product via Bluetooth. You can also play music
from an external device (e.g. a mobile phone or MP3 player) via 3.5 mm AUX input jack.
This product is shockproof and weatherproof. This product is operated with 12 VDC vehicle power supply. Never
connect this product to any other voltage supply (e.g. 24 VDC).
Please read this manual carefully so you will know how to operate your product properly. After you have nished
reading this manual, store it in a safe place for future reference.

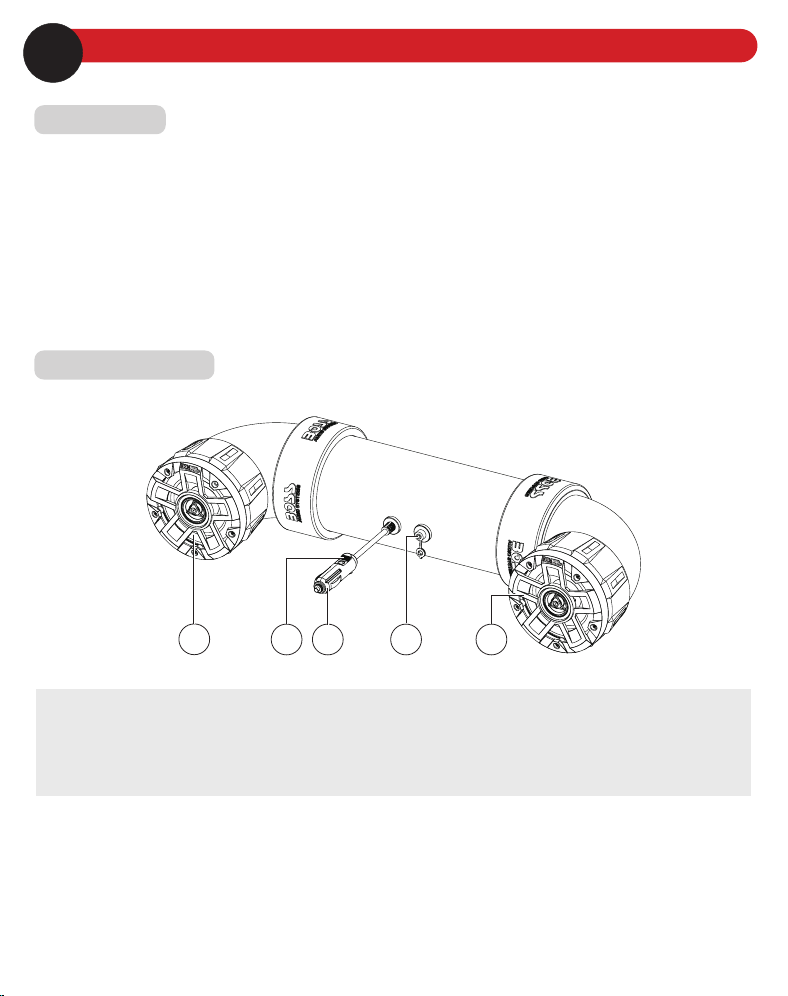

Product Overview
1
3 4 52
1 Speaker
2 Power LED indicator
3 12V power port plug with 10A fuse
4 3.5mm audio input jack
5 Speaker
3
Mounting

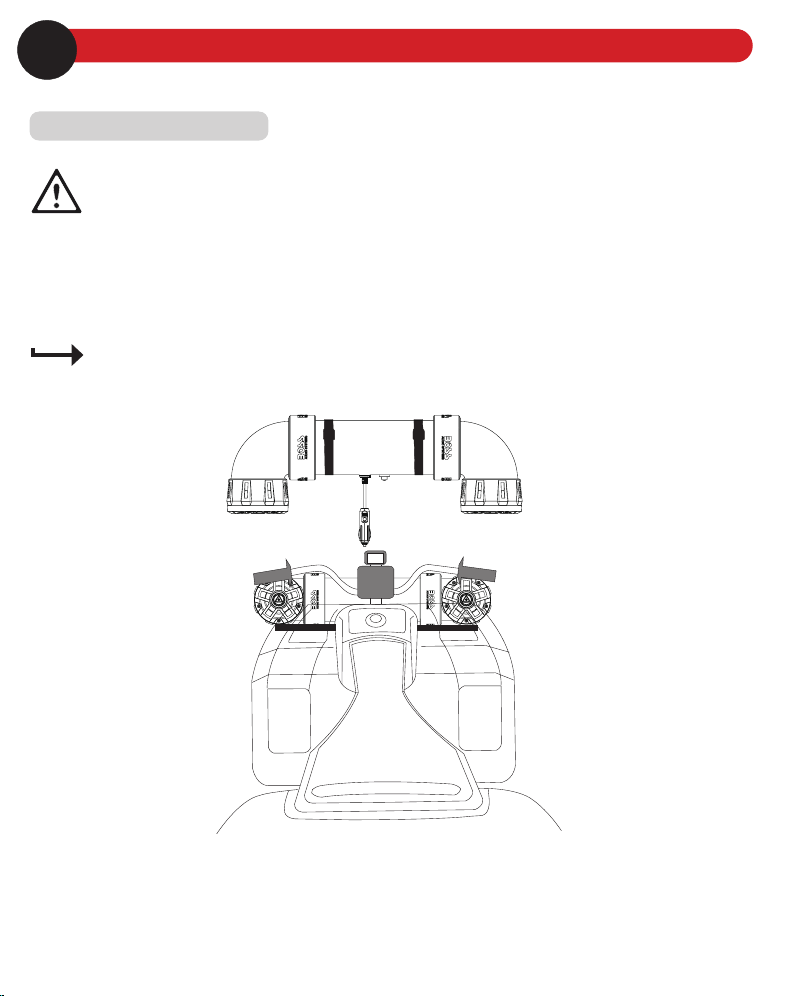

Mounting on ATV or UTV
Always consult an expert when in doubt about the installation.
Use only the supplied accessory for mounting. Using other mounting methods may void the warranty.
To ensure safety of the mounted sound system, always check the mounting conditions (e.g.
mounting straps) of the sound system before each vehicle ride.
1. Using the two supplied mounting straps and zip ties, secure the sound system on the rails or roll bars of
your vehicle, as shown in the gure below. Make sure the sound system is securely attached to your vehicle.
No special tool is required when mounting the sound system on ATV or UTV.
The illustration is for reference only. Your vehicle may vary.
4
Power Connection

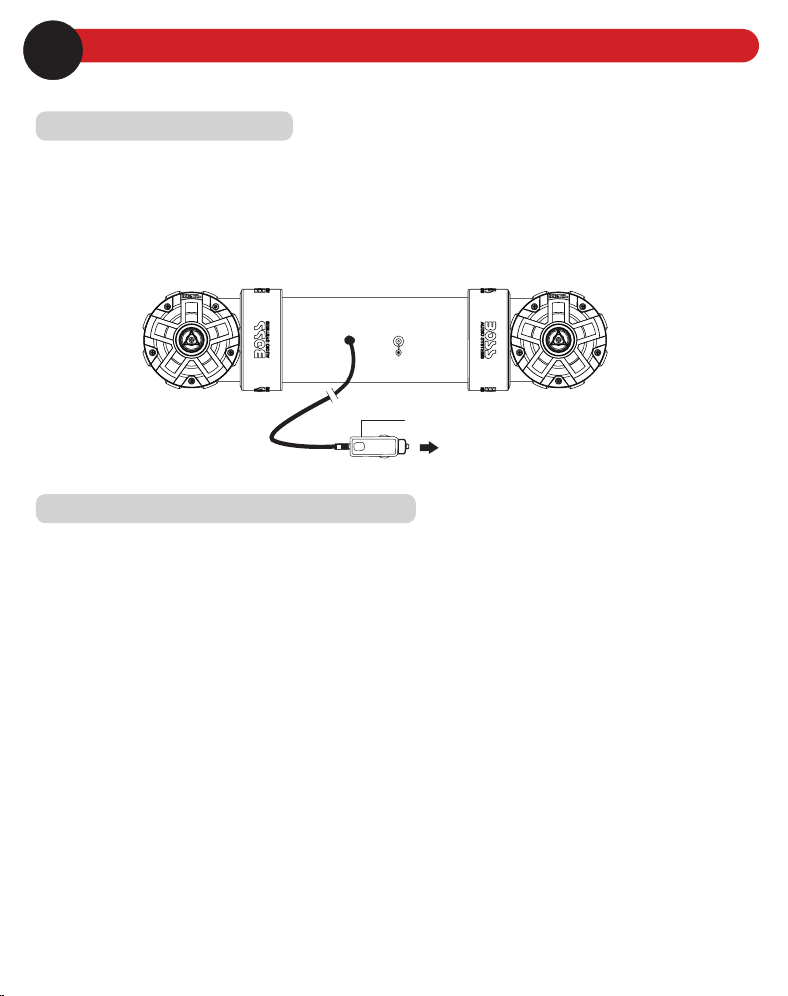

Option1: Using Power Port
If your vehicle has a 12V power port, directly connect the sound system to your vehicle for power connection.
1. Insert the 12V power port plug of the sound system into your vehicle power port. When the power supply is
connected, the power LED indicator illuminates on the power port plug.
Note: To avoid battery drain, unplug the power port cable after each use (if the port power is not switched
off with the ignition key).
To your vehicle power port
12V power port plug with 10A fuse
Option 2: Using Power Port Plug Adapter
If your vehicle dose not have a 12V power port, use the supplied power port plug adapter for connection to your
vehicle battery.
Important:
• To avoid short circuits and any resulting damage to the sound system, the negative terminal of the vehicle’s
battery must be disconnected rst.
1. Connect the black/ground wire of the power port plug adapter to the vehicle’s metal frame or to the negative
battery terminal. Fasten the ground wire with a bolt/screw on the metal surface. Make sure the metal surface
is scraped clean with no paint, rust or dirt.
2. Connect the red wire of the power port plug adapter to the positive battery terminal.
If needed, use extension wires of 12-14 gauge for connection to the battery. Remember to install a 15A in-
line fuse (not included) and an on-off switch (not included). An on/off switch is not needed if you unplug
the power port cable after each use or if the vehicle power port is turned off with the ignition key. Refer to
the illustration.
3. Insert the power port plug of the sound system into the power port plug adapter.
When the power supply is connected, the power LED indicator illuminates on the power port plug.
5

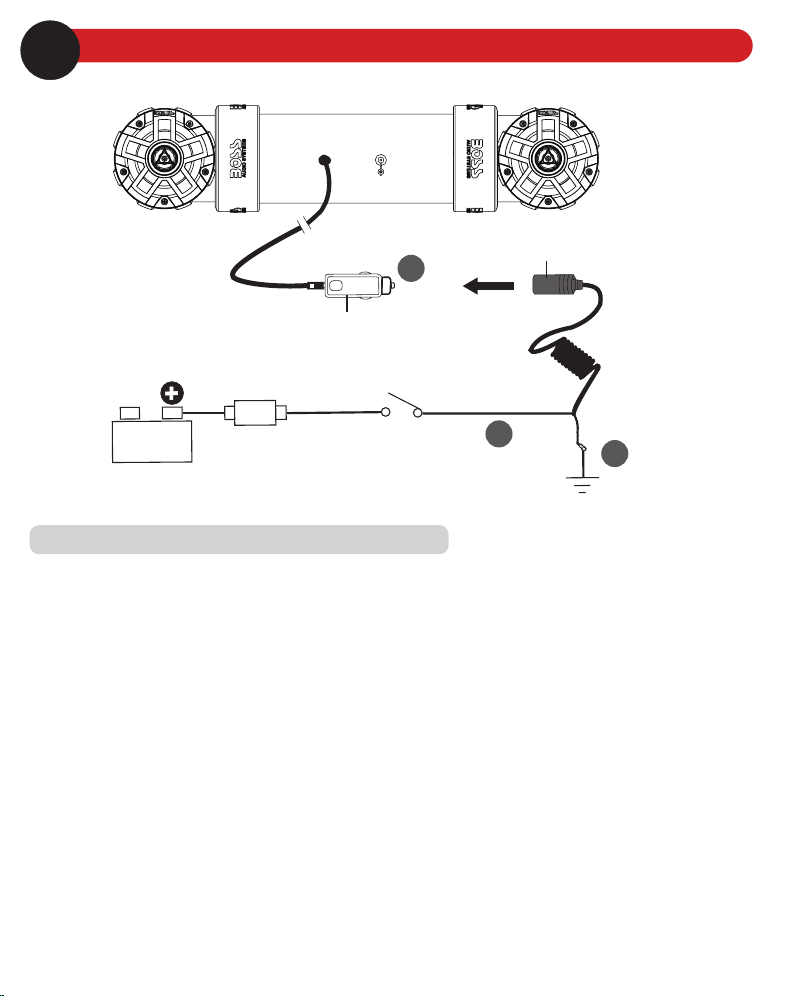

Power Connection
15A
Vehicle’s metal frame
Black wire
12V power port plug with 10A fuse
Power port plug adapter
Red wire
Battery
Fuse
(not included)
1
2
On/Off switch
(not included)
3
Option 3: Direct connection to vehicle battery
Important:
• To avoid short circuits and any resulting damage to the sound system, the negative terminal of the vehicle’s
battery must be disconnected rst.
1. Remove the plug from the supplied power port plug cable.
2. Connect the power port plug’s negative wire to the vehicle’s metal frame or to the negative battery terminal,
and the power port plug’s positive wire to the positive battery terminal.
• To prevent electrical damage, you must install 1) a 15A fuse (not included) and 2) an on/off switch
(not included) to be in line with the power wire which connects to the positive battery terminal.
• Fasten the ground wire with a bolt/screw on the metal surface. Make sure the metal surface is scraped
clean with no paint, rust or dirt.
Note:
To avoid battery drain when the sound system is not used, disconnect the sound system from the battery by
unplugging the power port cable or using the inline on/off switch (not included).
6

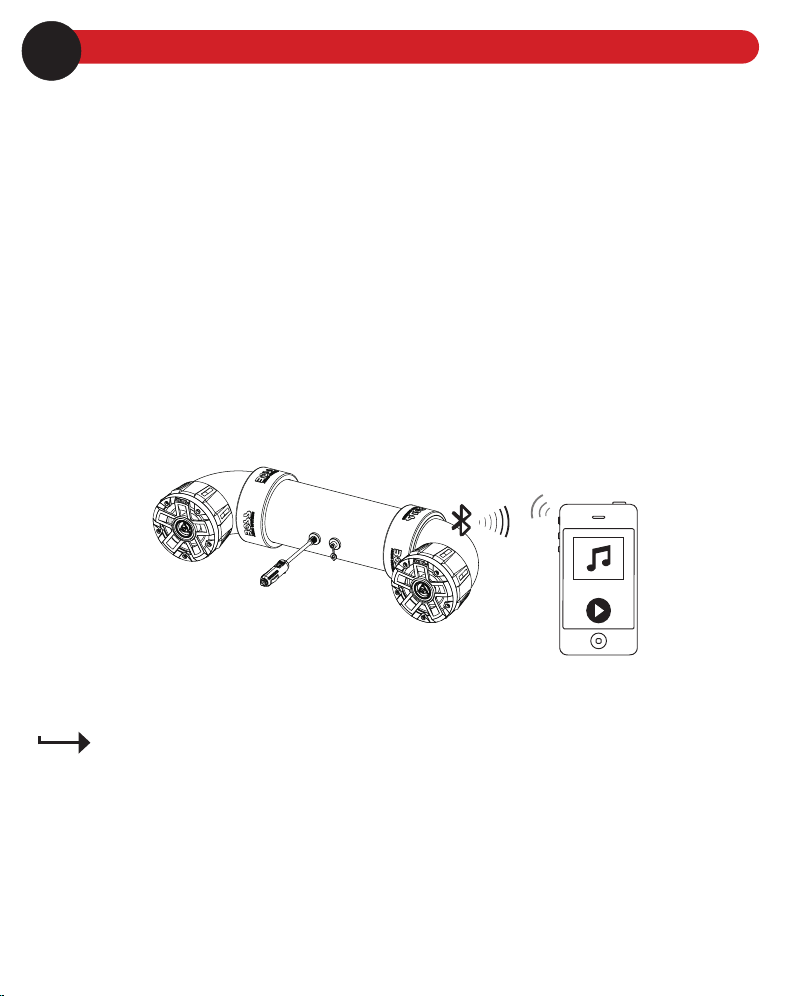

Bluetooth
Before you can stream music from your mobile device (iOS device or Android device) to this sound system
through Bluetooth, pair the sound system with your mobile device.
1. Make sure the AUX cable is not connected to the sound system, and connect to power supply.
The power LED indicator illuminates on the power port plug, and the sound system will automatically enter
pairing mode.
2. On your mobile device, enable Bluetooth function and select the device name (“Boss Audio UTV4B”) to pair
the sound system with the mobile device.
If prompted for password input on your mobile device, input “0000”.
Note: Only one device can be paired at a time.
3. When successfully paired/connected, conrmation tone can be heard. Play audio on your mobile device,
and audio will be streamed to the sound system. Use the volume control on the connected device to adjust
volume.
After pairing, the sound system will be automatically connected to your mobile device each time the two are
turned on. To change Bluetooth source, disconnect the current Bluetooth connection then repeat the steps
above to connect/pair with another mobile device.
6Playback control
Use the controls on the connected device to control play (e.g. play/pause, volume and track selection).
To maximize audio performance, set the volume of the connected device to a minimum of 75%.
Ideally, on the highest volume setting you can get without distortion.
Operating the sound system consumes the vehicle battery. To avoid battery exhaustion, make sure to
run the vehicle engine when operating the sound system.
Operational range can be reduced by any obstacle between the sound system and the device.
If the connected device is out of the effective range from the sound system, the device will be
automatically disconnected. The device will be automatically re-connected if it is back to the operational
range within three minutes.
7

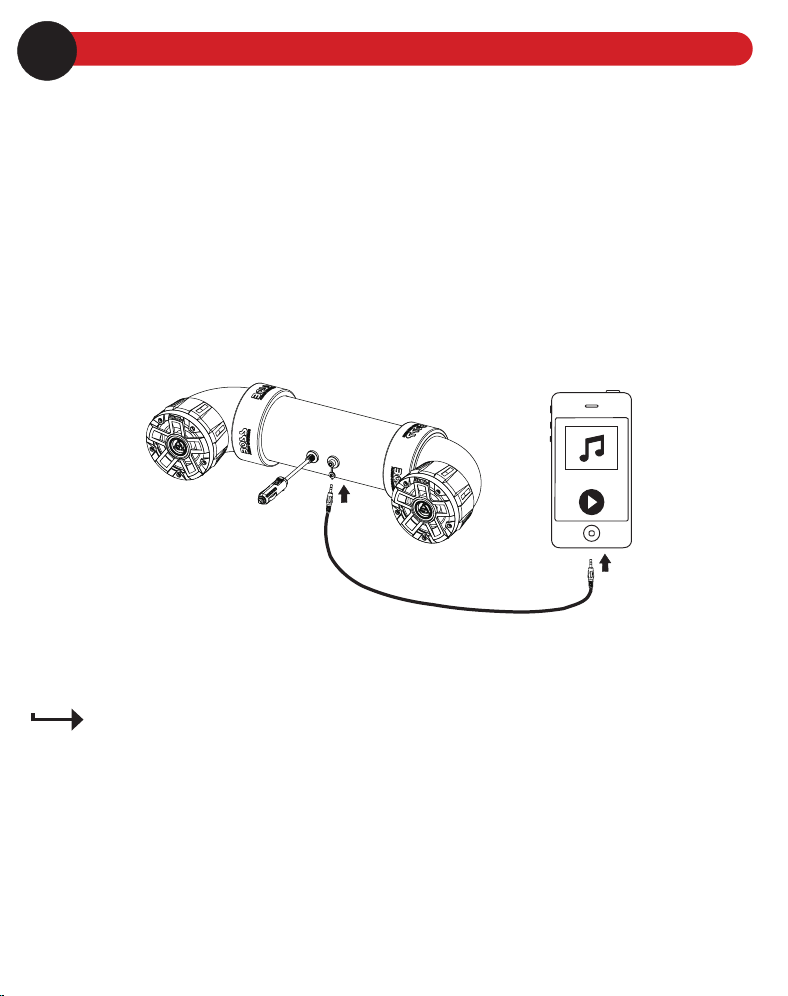

AUX
You can listen to an external audio device (e.g. MP3 player or a mobile phone) through this sound system.
1. Connect the AUX input (3.5mm) from the sound system to the audio output jack on your mobile phone, using
the following audio cable.
• For a mobile phone with 3.5mm headphone jack, use the supplied 3.5mm audio cable.
• For a mobile phone with USB-C port, use USB-C to 3.5mm cable (not included).
• For an iPhone with lightning connector, use lightning to 3.5mm cable (not included).
If the sound system is currently connected to a mobile device through Bluetooth, Bluetooth connection will
be automatically disconnected.
2. Select and play audio les on your audio device. Audio from the connected device will be played on this
sound system.
3.5 mm audio cable
7Playback control
Use the controls on the connected device to control play (e.g. play/pause, volume and track selection).
To maximize audio performance, set the volume of the connected device to a minimum of 75% before
connection to the audio device.
To resume Bluetooth connection, you must disconnect the AUX cable from the sound system.
Operating the sound system consumes the vehicle battery. To avoid battery exhaustion, make sure to
run the vehicle engine when operating the sound system.
8

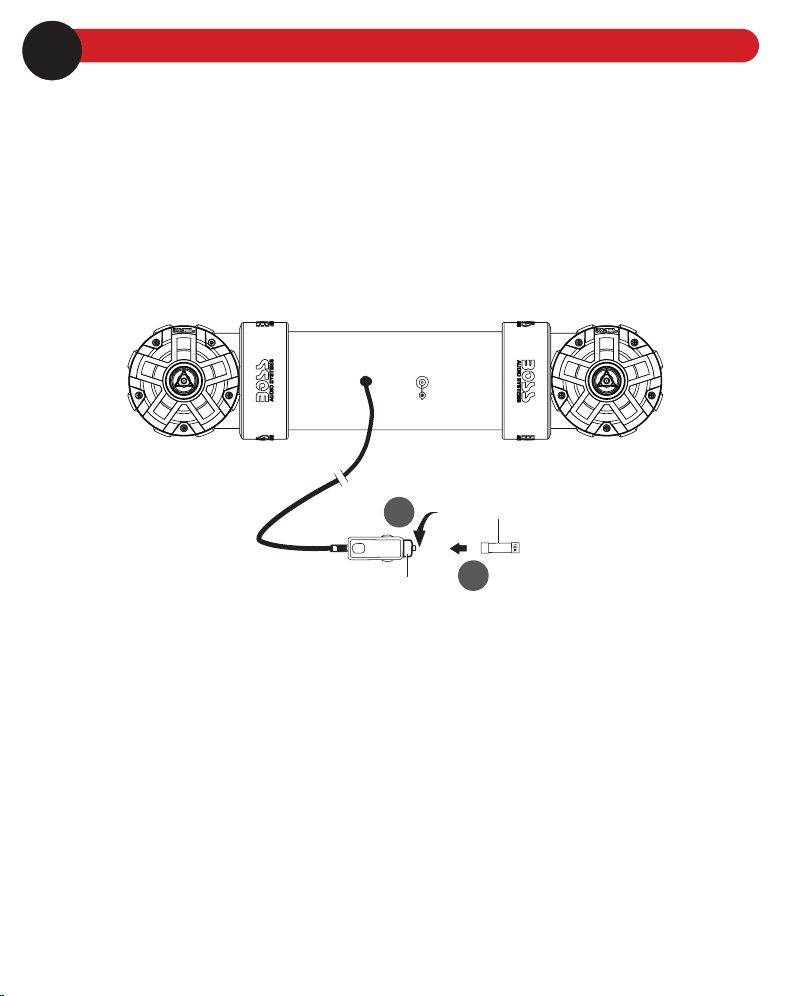

Fuse Replacement
8Fuse replacement of the vehicle power port plug
If the power LED indicator on the power port plug does not illuminate, this indicates the fuse inside the power port
plug is blown. Replace the blown fuse with a new 10A AGC fuse (glass cartridge type).
1. Locate the screw cap on the front end of the power port plug. Turn counterclockwise the screw cap to open
then access the fuse inside.
2. Replace with a new fuse (not included). Then replace the power port plug while ensuring the contact head
sticks out.
1
2
Screw cap and
contact head
AGC fuse (10A)
9
Troubleshooting
If you have problems using this product, check the following points before you request service. If you still have
a problem, contact our technical support.
Problem Solution
No power.
Power connection is not made. See the section “Power
Connection” for details.
The ACC switch of the vehicle is not on. Turn the ACC switch on.
The fuse inside the power port plug is blown. Replace the fuse.
No sound.
Check the connected device for volume level or playback status
(e.g. pause or stop).
Cannot connect through Bluetooth.
Make sure the AUX cable is not connected to the sound system.
Bluetooth function on the device is disabled. Refer to the device’s
user manual on how to enable Bluetooth function.
Make sure the device is within range.
The sound system is already connected with another Bluetooth
device. Disconnect the current Bluetooth connection.
Bluetooth has been disconnected for more than three minutes,
manually reconnect Bluetooth through your mobile device.
Audio quality from Bluetooth
connection is poor.
Move the device closer to the sound system or remove obstacles
or sources of interference that are affecting Bluetooth reception.
No response.
Power glitch or interference. Disconnect power for ten seconds
then reconnect power.
Care of the Environment
Do not throw away the product with normal household waste at the end of its life. Follow your local laws if/when
disposing of electronic products. By doing this, you help preserve the environment.
10
Specications
Bluetooth
Bluetooth version ..............................................5.0 / EDR
Bluetooth prole ................................................A2DP
Transmission distance ......................................up to 33 ft /10 m (line of sight)
Speakers

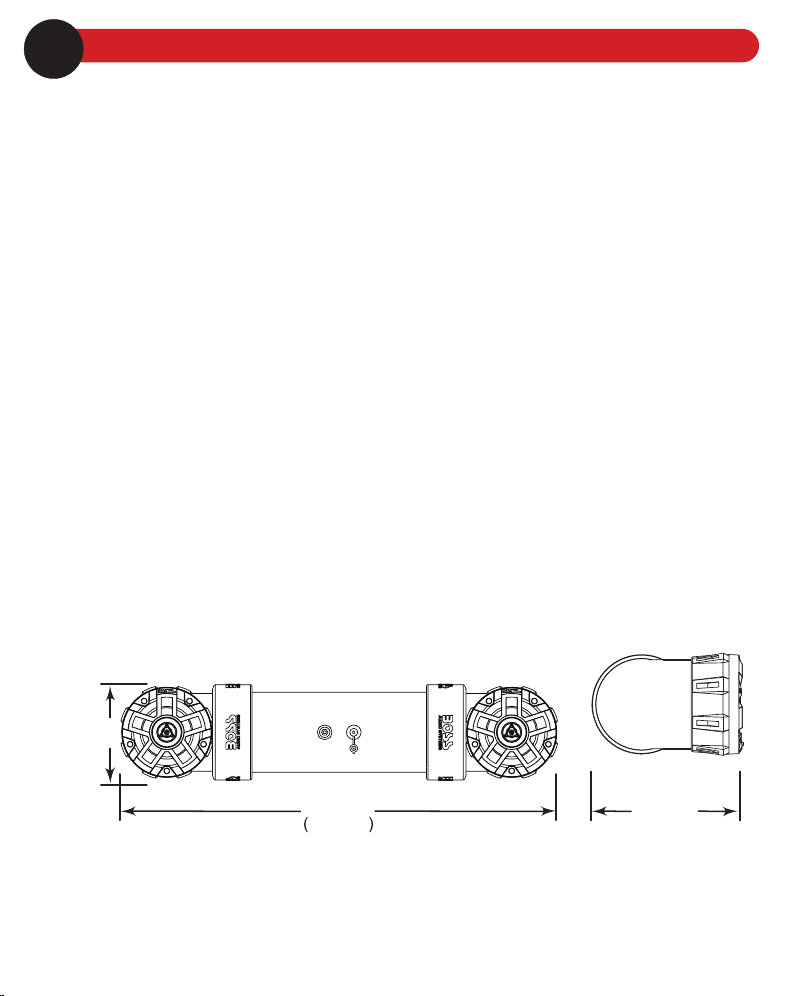

Dimensions .......................................................4” / 102 mm
Cone type .........................................................PP carbon + rubber surround
Tweeter size .....................................................1” PEI soft dome
Amplier
Amplier class ..................................................Class D
Input impedance ...............................................10 kΩ
Frequency response .........................................65 Hz - 22 kHz
General
Input voltage/current ......................................... 12 VDC (allowable 10 - 16 VDC)
Current draw .....................................................max. 6 A
Fuse ..................................................................10 A AGC type
Weight ..............................................................8.8 lbs / 4.0 kg
Dimensions drawings
597 mm
23.5”
(191 mm)
7.5”
5”
(127 mm)
Specications are subject to change without notice.
11
UTV4B
BLUETOOTH®
0224
BOSS Audio Systems
3451 Lunar Court • Oxnard, CA 93030
V:1X
