PERLICK RESIDENTIAL DESIGN GUIDE
INSPIRE
24" Signature Series Dual-Zone Refrigerator/
Wine Reserve (left), 24" Signature Series Adara
Beer Dispenser, 2 Tap
WHAT MAKES IT A PERLICK .....................................................4
OUTDOOR REFRIGERATION .....................................................6
MARINE MATERIALS UPGRADE ..................................................8
ELEVATE YOUR HOME EXPERIENCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
DUAL-ZONE REFRIGERATION ..................................................12
DELICIOUS DETAILS ...........................................................14
SEAMLESS INTEGRATION ......................................................16
DON’T FORGET THE BEER .....................................................17
COMMITMENT TO SUSTAINABILITY .............................................18
INDUSTRY’S BEST WARRANTY .................................................19
QUALITY AND INNOVATION THAT
Enjoy ice cold beverages, brewery-fresh draft beer,
the perfectly chilled vintage, crisp fruits and vegetables
bursting with flavor, and even chilled face cream – all
made possible with Perlick’s quality line of residential
undercounter refrigeration.
As the leader in high quality commercial refrigeration
and bar solutions for the world’s finest restaurants,
bars, stadiums, and entertainment venues, Perlick
oers homeowners the opportunity to bring that same
level of quality into the comfort of their own home
with our line of luxury residential products that blend
professional level performance with exquisite style
and modern functionality.
GET INSPIRED. CHOOSE PERLICK.
INSPIRE
HANDCRAFTED SINCE 1917 .........................................................20
RAPIDCOOL REFRIGERATION ......................................................21
SIGNATURE SERIES ................................................................22
SIGNATURE SERIES MOBILE BARS AND MOBILE TAP .................................34
C-SERIES / ADA HEIGHT COMPLIANT ...............................................36
ICE MAKERS ......................................................................38
COLUMN REFRIGERATORS / FREEZERS / WINE RESERVES ...........................40
DOOR STYLES AND ACCESSORIES ..................................................44
MODEL SPECIFICATION GUIDE .....................................................48
QUALITY AND INNOVATION THAT
4
Food and beverages are brightly
illuminated by choice of Crisp
White or Cool Blue adjustable
LED lighting
Sleek stainless steel interiors are
not only beautiful to look at, but
also provide a sanitary environment
resistant to stains and odors
Two inch thick foamed-in-place
Insulation provides industry
leading protection against
outside ambient and vibration
Industry Exclusive RapidCool™
Forced-Air Refrigeration System's
superior construction provides
ideal combination of energy
ecient operation and powerful
refrigeration performance ideal for
food and beverages
RAPIDcool™
Forced-Air
System
RAPIDcool™
Forced-Air
System
All models are available with
stainless steel or fully integrated
overlay panel-ready fronts. All
doors are reversible, and stainless
steel doors can be converted to
overlay models with ease.
Stock and retrieve product
with ease with adjustable Full
Extension Pullout Shelves for all
models – including refrigerators
Digital controller with audible
door alarm provides precision
temperature control and readout
Industry-best 6 Year Parts and
Labor Warranty on all undercounter
refrigeration. 2 year Parts and Labor
Warranty oered on all ice makers.
I
N
D
U
S
T
R
Y
’
S
B
E
S
T
I
N
D
U
S
T
R
Y
’
S
B
E
S
T
W
A
R
R
A
N
T
Y
W
A
R
R
A
N
T
Y
6 YEAR
6 YEAR
FULL PARTS AND LABOR WARRANTY
FULL PARTS AND LABOR WARRANTY
Industry’s largest collection
of ENERGY STAR™ Certified
undercounter refrigeration
5 |
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
WHAT MAKES IT A PERLICK?
There is a reason that Perlick is regarded as the industry leader in undercounter
refrigeration. Unmatched cooling performance is complemented by a bevy of
thoughtful design details for convenience and beauty.
24” Signature Series
Refrigerator
6
MEET THE INDUSTRY’S WIDEST SELECTION OF

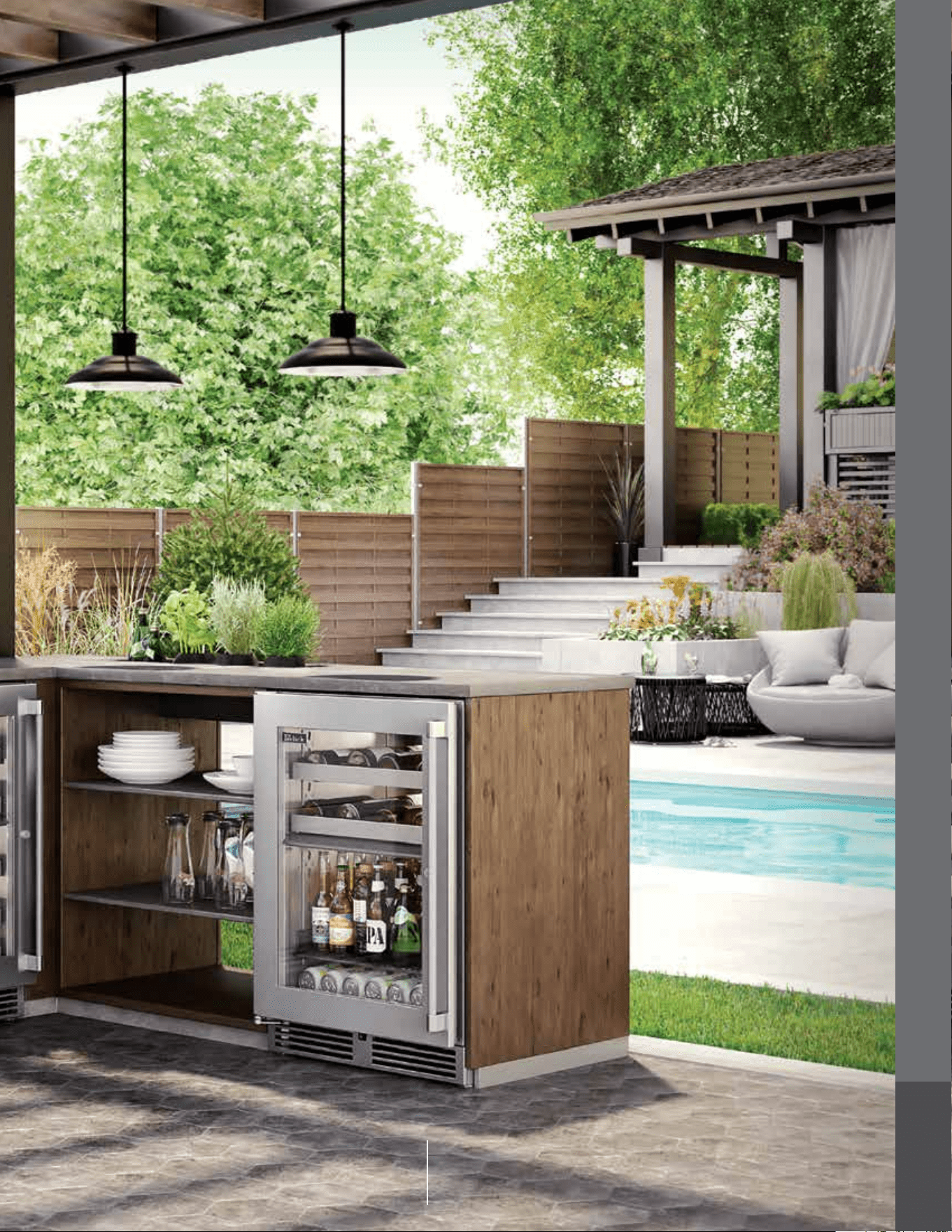

OUTDOOR REFRIGERATION
With over 125 models to choose from, Perlick boasts the largest portfolio of undercounter
refrigeration UL-rated for outdoor use. Available in 15- and 24-inch configurations, Perlick
refrigerators, beverage centers, wine reserves, beer dispensers, freezers, and ice makers are
designed to take your outdoor entertaining space to the next level.
Perlick’s patented Signature Series Dual-Zone models oer two independently-controlled
temperature zones within a single 24" footprint to make the most of your available space.
The Signature Series Shallow Depth collection of 18" depth refrigeration is perfect for
balcony patios that require an appliance with a shallow depth.
See below to learn more about what makes Perlick outdoor models special.
A full line of accessories
take your Perlick from
day to night, including
our industry-exclusive
Martini Rack – perfect
for entertaining
Store fresh herbs, citrus,
snacks, and beverages
in Perlick’s industry-
exclusive 15" Signature
Series Outdoor
Refrigerator Drawers
Perlick’s Anti-Condensation
System™ heats the front
face of the cabinet,
eliminating condensation
and extending product
life in high humidity
environments
7
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info

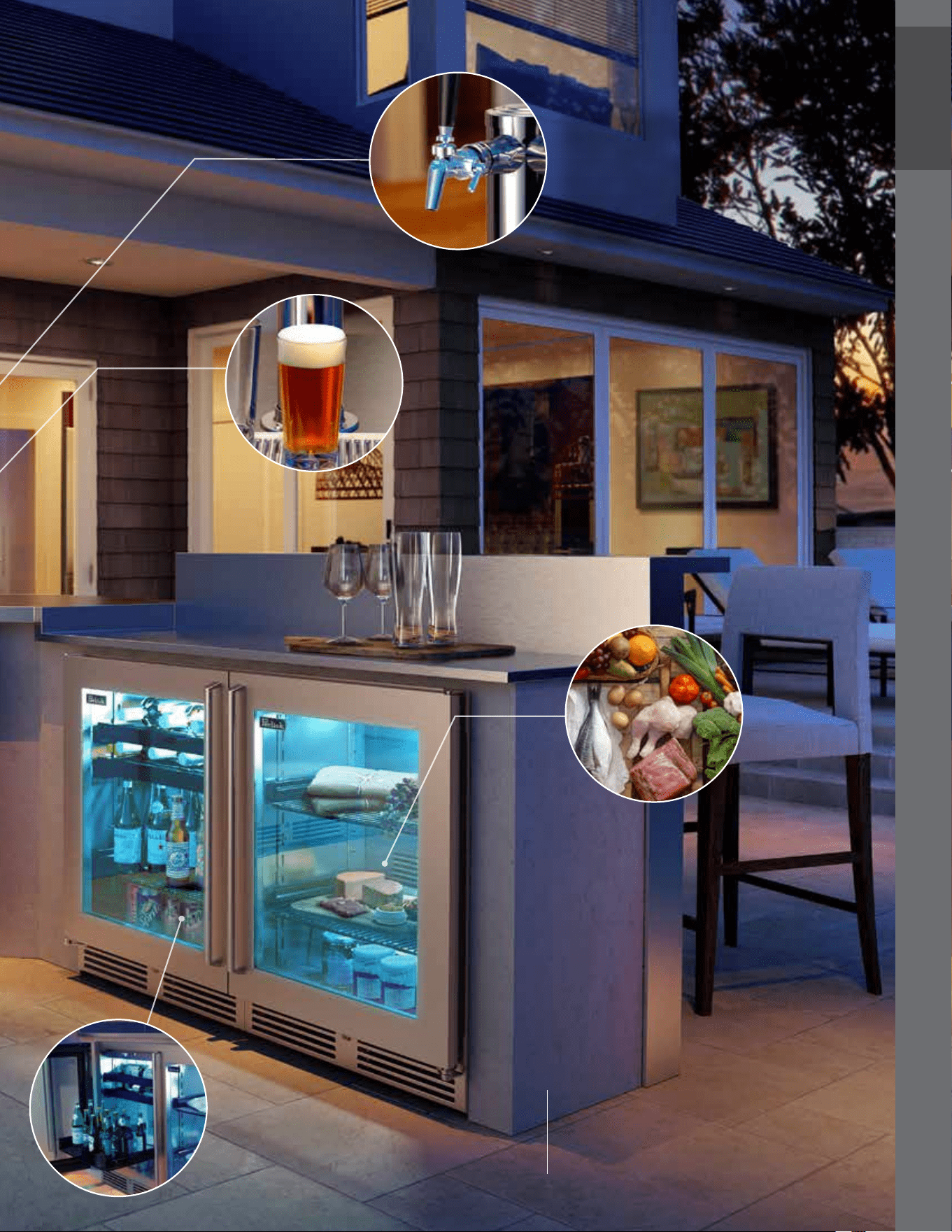

Perlick’s exclusive
Signature Series Flow
Control Faucet is
constructed of stainless
steel and features the
industry-exclusive flow
control lever to expertly
pour your favorite
craft beers
RAPIDcool™ forced air-
cooled dispensing towers
keep beer cold from the keg
to the faucet by circulating
cold through and around
beer lines
The unmatched cooling power of
Perlick’s RAPIDcool™ forced-air
refrigeration system keeps food at
a safe and consistent temperature
– even on hot summer days
Up to 70% faster cooling
than leading competitor
with the industry-
exclusive RapidCool™
Refrigeration System

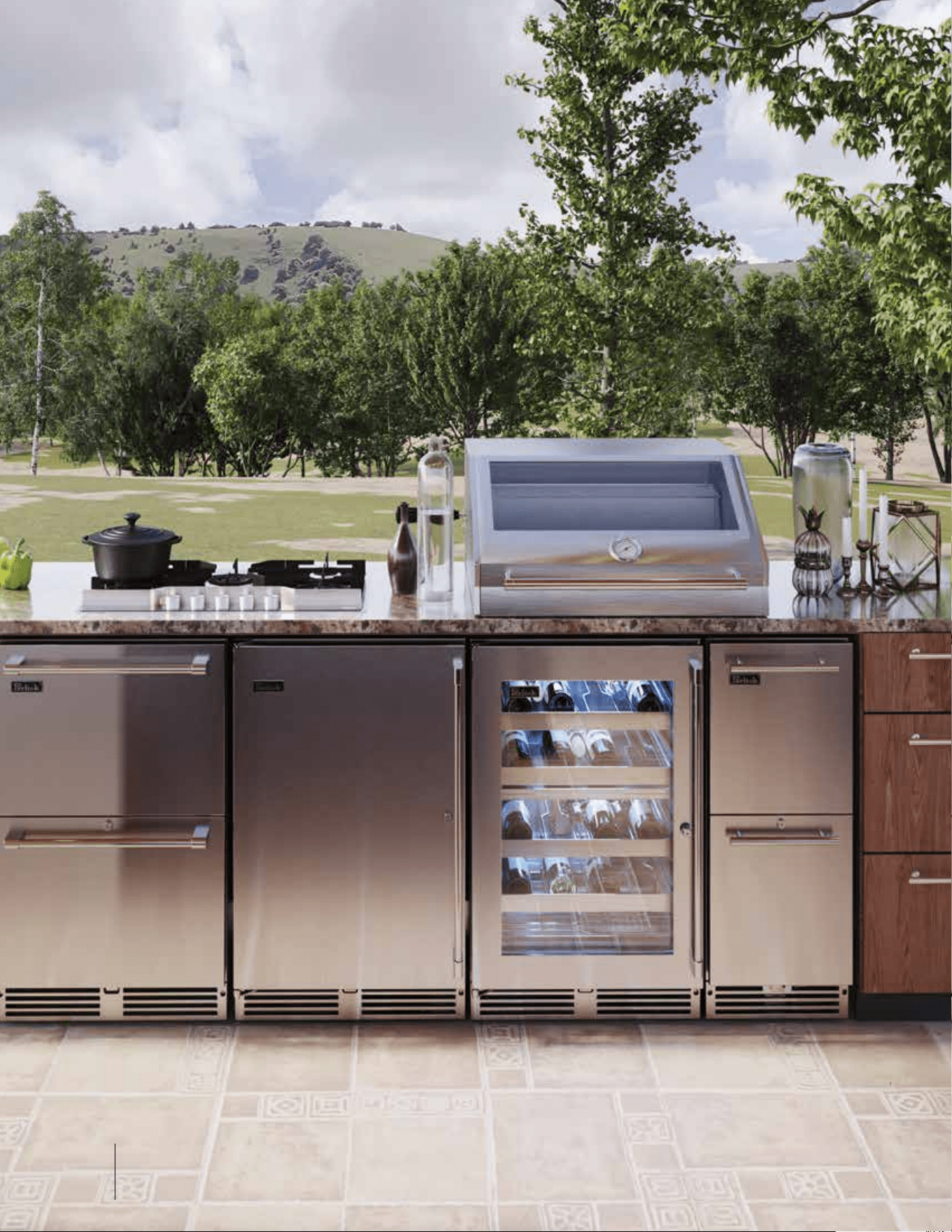

(Left to right)
24" Signature Series Outdoor Freezer,
15" Signature Series Outdoor Refrigerator Drawers, 24"
Signature Series Outdoor Beer Dispenser, Signature
Shallow Depth Outdoor Beverage Center and Signature
Shallow Depth Outdoor Refrigerator
8
(Left to right)
24" Signature Series Dual-Zone Refrigerator/Freezer
Drawers, 24" Signature Series Refrigerator, 24" Signature Series
Dual-Zone Wine Reserve, 15" Signature Series Refrigerator Drawers
BATTLE THE HARSHEST CONDITIONS WITH A
MARINE MATERIALS UPGRADE
Coastal areas are the perfect place for luxury outdoor kitchens, but when presented with the
extreme conditions of these environments, salt and sand can take their toll on your outdoor
refrigeration equipment. You asked, we listened. Perlick is happy to announce the availability
of an all-new Perlick Armor™ Marine Materials Upgrade for our Signature Series equipment,
providing optimal corrosion resistance for food and beverage storage safety. Designed for life
in even the most extreme coastal conditions, it allows you to enjoy the ultimate in refrigeration
wherever you find paradise.
9
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
* Photos may vary from actual product.
Components of Perlick Armor™
• Mix of all 316 and 304 stainless steel for
optimal corrosion resistance food and
beverage storage safety
• Upgraded 18-8 stainless steel and zinc
plated fasteners ensure rust won’t form
in attachment zones
• E-coated condensers add durability to
the refrigeration system in the most
extreme conditions
• Available on all HP and HH Series
residential models
Along with the standard Signature Series features:
• Robust 1000 BTU refrigeration system
powered by Perlick’s exclusive variable speed
compressor provides industry-leading cooling
capabilities and intuitive temperature control,
which means the system will only run when it
senses a temperature rise
• Superior construction provides ideal
combination of energy ecient operation and
powerful refrigeration performance ideal for
food and beverage
• Front vented, RAPIDcool™ forced air
refrigeration system provides the most energy
ecient cool down, up to 70% faster than
leading competitors
• Illuminated by dual-color LED lighting, giving
you the option of 6000K Crisp White or Cool
Blue lighting with just the press of a button
• At 32" tall, the Shallow Depth collection is ADA
height compliant for accessible design needs
(Left to right) 24” Signature Series Dual-Zone Refrigerator/Freezer Drawers,
24" Signature Series Dual-Zone Wine Reserve/Wine Reserve, 15" Signature
Series Refrigerator Drawers
PERLICK MARINE GRADE SIGNATURE SERIES UNDERCOUNTER MODELS
10
ELEVATE YOUR
HOME ENTERTAINING
EXPERIENCE

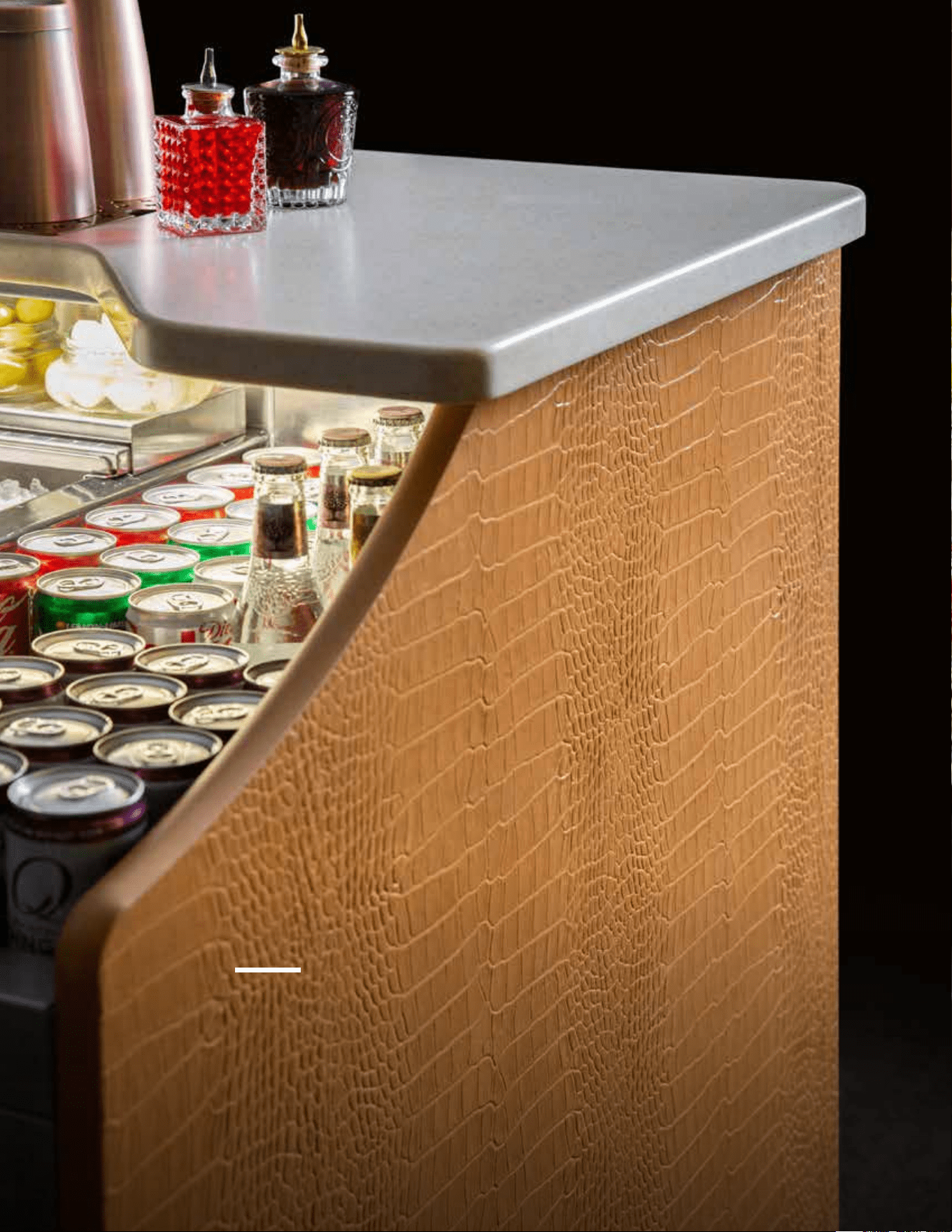

Perlick’s Tobin Ellis Signature Series Residential Mobile Bars bring the
best designs featured at the world’s top bars and restaurants to the
comfort of your own home! Perlick’s line of mobile bars will elevate your
home entertaining experience while making you feel like a professional
mixologist utilizing our “bartender cockpit” design and luxury finishes.
11
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
• Homeowners have the ultimate in design flexibility with the option of either
the Tobin Ellis designed Limited Edition or the Signature Series Mobile Bars
for the look that matches their home’s design aesthetic
• The Perlick Mobile Tap is versatile and flexible for dispensing beverages
in venue spaces with two taps and a 24” refrigeration unit that can
dispense Nitro coffee or wine, beer and wine, two varieties of wine,
or two varieties of beer
• Easily move the bar anywhere inside or outside of your home
for expanding your upscale home entertaining needs
• Available in 46”, 70” with 2 drainboards, 70” with
hand sink configurations, and 70” limited edition
with custom finishes
• Features ample lower storage area for glasses,
dry goods, canned goods, or beverages
• Bartender cockpit features bottle rail,
insulated ice chest, and insulated bottle well
RMB-001
70” Limited Edition Mobile
Bar with 2 drainboards
and custom finishes
HC24RS4S-J0-SLFLT
Mobile Tap Beer
Dispensers
PERLICK MOBILE BAR MODELS
12
TWO TEMPERATURES. ONE 24" FOOTPRINT.
DUAL-ZONE REFRIGERATION
Perlick’s full line of dual-zone refrigeration boasts two independently controlled temperature zones,
serving double duty for the storage and service of your favorite foods and beverages within the
same 24" footprint.
Powered by Perlick’s exclusive RAPIDcool forced-air refrigeration system for exceptional cooling
performance and sleek, stainless steel interiors for beauty and durability, Signature Series Dual-Zone
units are built with form and function in mind. Indoor and UL-approved outdoor freezer/refrigerator
drawer, refrigerator/wine reserve, and wine reserve/wine reserve models are available.
TOP ZONE
BOTTOM ZONE
SIGNATURE SERIES DUAL-ZONE
WINE RESERVE
• Store red wine and white wine
together in the same unit, both at
their ideal temperatures
• Full extension wine shelves are
black vinyl coated to gently cradle
bottles and reduce vibration
• Top zone (red wine) holds 14
bottles, bottom zone (white wine)
holds 18 bottles
24" Signature Series Dual-Zone Wine Reserve/
Wine Reserve
(model HP24DS-4-4L shown)
13
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
TOP ZONE
BOTTOM ZONE
SIGNATURE SERIES DUAL-ZONE
REFRIGERATOR/
WINE RESERVE
• Store wine and food (or cold beverages)
at their appropriate temperatures
• Accommodates 14 bottles of wine
in top zone
• Bottom zone features full extension
refrigerator shelf for easy stocking
and retrieving of product
24" Signature Series Dual-Zone Refrigerator/Wine Reserve
(model HP24CS-4-4L with custom overlay shown)
TOP ZONE
BOTTOM ZONE
SIGNATURE SERIES DUAL-ZONE
FREEZER/REFRIGERATOR
DRAWERS
• Store fresh and frozen food at their
appropriate temperatures in the
same small footprint
• Top drawer is deep enough to
accommodate a gallon of milk or
other similarly sized tall items
• Separate zones ensure freezer
temperatures won’t be transferred
to the top drawer, putting foods and
drinks at risk of freezing
24" Signature Series Dual-Zone Outdoor Freezer/Refrigerator
Drawers
(model HP24ZO-4-5DL shown)
14
Perlick QuatroCool™ cooling
system keeps food fresh for
longer in 4 zones
• Main compartment
• Deli drawer
• Meat and fish drawer
• Tip out produce bin
BEHOLD THE DELICIOUS DETAILS OF OUR
COLUMN REFRIGERATORS,
FREEZERS, AND WINE RESERVES
Our 24" and 30" refrigerators feature Perlick’s patented QuatroCool™ cooling system, oering
four independently controlled temperature zones for deli, meat/fish, produce, and beverages.
Our tip out produce bin features proven food preservation technology that keeps greens
fresher and crisper, longer. Advanced electronic monitoring of humidity levels adds moisture
back into the compartment, while our filtration system removes the gases emitted by fruits
and vegetables.
Our freezers oer a commercial-grade, stainless-steel interior, full-extension open drawer
bins, and vibrant LED lighting. It incorporates our quiet, powerful, frost-free cooling that has
made us the choice of fine commercial venues for more than 100 years. Pair your freezer with
the 24" or 30" column refrigerator for the ultimate fresh and frozen food preservation system.
Our 24" Column Single- and Dual-Zone Wine Reserves feature vibration-resistant soft-coat
glide out shelves and advanced humidity, air filtration, and temperature control. Vibrant blue or
white LED roll-on theatre lighting adjusts for display or storage, and emits no UV light to protect
against oxidation and degradation. bronze tinted, UV resistant glass is Low-E and argon filled,
protecting from light exposure which can cause oxidation in wine and degrade it over time.
Advanced technology maintains humidity levels to preserve corks and prevent oxidation.
24" Column Freezer
(left)
and
24" Column Refrigerator
(right)
15
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
Tip out produce bin uses advanced
electronic monitoring of humidity
levels to add real moisture back into
the compartment, while our filtration
system removes gases emitted by
some fruits and vegetables
PerlIQ™ touch-screen control panel disappears
into the backdrop until it’s awoken with a touch.
Customize temperature preferences in precise,
one degree increments and activate Sabbath
mode with the touch of a button.
Instead of plastic, our column
refrigeration oers brushed
stainless steel and glass
interiors, resulting in a
non-porous, easy to clean,
and elegant looking appliance
16
24" Signature Series Wine Reserve
with custom wood overlay
ADD TO YOUR HOME’S CHARM WITH
INTEGRATION
Homeowners often don’t want appliances taking away from their home’s
visual appeal. Integrating your appliances oers everything from sleek
design to space saving solutions. Set your appliances flush with surrounding
cabinetry, highlighting Perlick’s renowned brushed stainless steel finish, or
choose our panel-ready overlay options to complement the aesthetic of
your kitchen, family room, back yard, bathroom, or rec room.
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
Perlick designed and engineered
630SS and 650SS (shown) beer
faucets are stainless steel and
standard on all models – it’s what
the professionals use
Adjust the speed of the
pour for multiple craft beers
or when foaming occurs.
It’s another award-winning
Perlick exclusive you won’t
find anywhere else.
Perlick’s exclusive accessories,
S-Series low profile keg
couplers, are available for
all beer dispenser models
(for Newcastle, Stella Artois,
Strongbow, Pilsner Urquell,
Heineken, etc.)
Towers are air-cooled with
RAPIDcool™ forced-air
technology to keep beer
cold from keg to faucet
24" Signature Series
Adara Beer Dispenser
AND DON’T FORGET ABOUT
THE BEER
We’ve spent decades developing proprietary technologies in both
refrigeration and beverage dispensing to serve that perfect cold beer to
crowds of thousands. You can now enjoy the same experience and quality
in the comfort of your own home surrounded by friends and family.
17
18
(Left to right)
24" Signature Series Refrigerator,
24" Signature Series Dual-Zone Wine Reserve
OUR COMMITMENT TO
SUSTAINABILITY
Perlick features the industry’s largest selection of Energy Star™ Rated
undercounter refrigeration and utilizes clean technologies like Hydrocarbon
Refrigerant for their very low Global Warming Potential (GWP). We’ve also
been a partner on the Partners for a Cleaner Environment Honor Roll for
the Milwaukee Metropolitan Sewerage District (MMSD) since 2002.
19
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
INDUSTRY-BEST
6-YEAR WARRANTY
At Perlick we don’t just “walk the walk.” We have so much
confidence in our products we upped our 3-Year Warranty to
a FULL 6 Years – another industry exclusive.
24" C-Series Beverage Center
I
N
D
U
S
T
R
Y
’
S
B
E
S
T
I
N
D
U
S
T
R
Y
’
S
B
E
S
T
W
A
R
R
A
N
T
Y
W
A
R
R
A
N
T
Y
6 YEAR
6 YEAR
FULL PARTS AND LABOR WARRANTY
FULL PARTS AND LABOR WARRANTY
20
CRAFTSMANSHIP
IS IN OUR DNA
We’re a family-owned company, spanning 100+ years and five
generations of Perlick family members who are dedicated to providing
the industry’s highest quality commercial and residential refrigeration.
Every Perlick refrigerator is built to exacting standards to meet strict
commercial regulations, which means you can be confident that your
Perlick is built to last under even the heaviest usage.
We’ve mastered the art of balancing innovation and craftsmanship.
You can trust Perlick to provide precision temperature control and
build every unit with the finest features and materials.
SINCE 1917
21
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
THE MOST INNOVATIVE REFRIGERATION
SYSTEM IN THE INDUSTRY
RAPIDCOOL
™
Perlick has refrigeration down to a science. With a century’s worth of experience in
designing, engineering, and manufacturing bar and beverage refrigeration for the
commercial market, we’ve mastered the art of building cutting-edge refrigeration
systems that balance power and precision. All Perlick models boast RAPIDcool™
forced-air refrigeration, providing the industry’s most energy ecient cooling with
up to 70% faster cooling speeds than leading competitors. Read on to compare
competitor refrigeration systems.
Air is blown with a powerful fan through
thousands of aluminum fins, providing
superior cooling with 7x the cooling
surface compared to cold plate models.
Air is blown over a thin aluminum
sheet known as a cold plate.
PERLICK RAPIDCOOL™ FORCED-AIR REFRIGERATION
COMPETITOR COLD PLATE REFRIGERATION
7x
22
MEET THE
SIGNATURE SERIES
Our flagship collection of undercounter refrigeration, the Perlick Signature Series, comes in
a variety of sizes and styles to fit any space and storage need. It’s the crème de la crème
of undercounter refrigeration, and every Signature Series model is available for indoor or
outdoor use.
(Left to right)
30" Column Refrigerator, 15"Signature Series Ice Maker,
24" Signature Series Refrigerator, 24" Signature Series Freezer
23
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
* Photos may vary from actual product.
(Top: Left to right)
15" Signature Series
Refrigerator, 24" Signature Series Drawers
(Bottom right) 18" Signature Series Shallow Depth
Undercounter Wine Reserves with wood overlay
• Available in 15" and 24" models, as well as
the exclusive Signature Series Shallow Depth
models which feature an 18" depth
• Robust 1000 BTU refrigeration system
powered by Perlick’s exclusive variable speed
compressor provides industry-leading cooling
capabilities and intuitive temperature control
which means the system will only run when
it senses a temperature rise
• Front vented, RAPIDcool™ forced air
refrigeration system provides the most
energy ecient cool down, up to 70% faster
than leading competitors
• State of the art digital temperature control
with audible door alarm in all models
• Illuminated by dual-color LED lighting, giving
you the option of 6000K Crisp White or Cool
Blue lighting with just the press of a button
• Stainless steel interiors and exteriors for long
life durability and easy cleaning
• All Signature Series products are available as
indoor or UL-rated outdoor models
• Industry-exclusive Shallow Depth undercounter
refrigeration that measures just 18" deep
• Measuring 32" tall, the Shallow Depth
collection is ADA height compliant for
accessible design needs
PERLICK SIGNATURE SERIES UNDERCOUNTER REFRIGERATION MODELS
24
SIGNATURE SERIES REFRIGERATORS
A REFRIGERATION SOLUTION FOR
SPACES WHERE A TRADITIONAL
24" DEEP UNIT WON’T WORK.
Designers asked and we listened. We
designed a cabinet with a slim profile and
added our premium Signature Series features
to create the industry’s first shallow depth
refrigerator. This industry exclusive collection
of undercounter refrigeration measures just
18" deep and 32" tall, ensuring our Shallow
Depth units are also ADA height compliant
for increased design flexibility.
(Left to right)
24" Signature Series Shallow Depth Wine Reserve,
24" Signature Series Shallow Depth Beverage Center, 24" Signature
Series Shallow Depth Refrigerator
Perlick’s exclusive RAPIDcool™
forced-air refrigeration technology
provides the industry's most energy
ecient cool down using less energy
while cooling up to 70% faster than
leading competitors.
Perlick’s sleek stainless steel interiors
are easy to clean and resistant to
odors, stains, and mold – it’s what the
professionals demand in their kitchens.
Perlick’s exclusive full extension
shelves pull completely out of
the cabinet to make stocking and
retrieving product easy. Stainless steel
ball bearing glides provide smooth
movement in and out of the cabinet
even when fully stocked.
FOOD SAFETY THE BEAUTY OF STAINLESS UNMATCHED SHELVING
Perlick proudly oers the industry’s widest selection of undercounter refrigerators, making it easier than ever to
add point-of-use refrigeration to anywhere inside – or outside – the home. Stainless steel interiors and energy
ecient operation makes Perlick the perfect choice for all of your favorite foods and beverages.
25
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
- 5 Stainless Steel Drawers
- 6 Fully Integrated Drawers*
15”
34-
1/4”
24”
15" SIGNATURE SERIES REFRIGERATORS
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
- 5 Stainless Steel Drawers
- 6 Fully Integrated Drawers*
24”
24”
34-
1/4”
24" SIGNATURE SERIES REFRIGERATORS (Single Zone Models)
- 5 Stainless Steel Drawers
- 6 Fully Integrated Drawers*
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Door
s*
24”
24”
34-
1/4”
24" SIGNATURE SERIES REFRIGERATORS (Dual Zone Models)
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
24”
18”
32”
* This model comes ready to accept a custom panelPhotos may vary from actual product.
SIGNATURE SERIES SHALLOW DEPTH REFRIGERATORS (ADA height compliant)
AVAILABLE MODELS
For complete model number listing, product
specs, and quick reference, see page 50.
Outdoor
Models
Available
Indicates
Energy Star™
Qualified
26
Maintenance-free defrosting
makes owning and maintaining
Perlick freezers simple.
Perlick’s sleek stainless steel
interiors are easy to clean and
resistant to odors, stains, and mold.
It’s what the professionals demand
in their kitchens and it’s available
to you, too.
Perlick’s state of the art digital
controller provides precise
temperature readout and adjusts
automatically for temperature
consistency, and an audible door
alarm warns user if door is held open.
MAINTENANCE-FREE THE BEAUTY OF STAINLESS PRECISION AND CONTROL
When it comes to stylish freezer solutions, Perlick oers it all with freezers that are energy ecient, powerful,
and provide industry-leading drawer capacity. All Perlick freezers – including the Signature Series Dual-Zone
Freezer/Refrigerator Drawers – feature forced-air refrigeration and maintenance-free defrosting.
NOW YOU CAN STORE ICE
CREAM AND FRESH BERRIES
IN THE SAME 24" FOOTPRINT
Perlick’s exclusive Dual-Zone Freezer/
Refrigerator Drawers feature two
independently controlled temperature
zones. The top drawer oers refrigeration
temperatures and is deep enough for
large items such as a gallon of milk. The
freezer drawer below is perfect for storing
a variety of frozen goods, including that
secret stash of ice cream.
24" Signature Series Dual-Zone
Freezer/Refrigerator Drawers
SIGNATURE SERIES FREEZERS
27
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
- 5 Stainless Steel Drawers
- 6 Fully Integrated Drawers*
24”
24”
34-1/4”
24" SIGNATURE SERIES FREEZERS (Dual-Zone Models)
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 5 Stainless Steel Drawers
- 6 Fully Integrated Drawers*
24" SIGNATURE SERIES FREEZERS (Single Zone Models)
24”
24”
34-1/4”
* This model comes ready to accept a custom panelPhotos may vary from actual product.
RS-SK-15L/R / RS-SK-24L/R / RS-SK-18-L/R
Mix and match Perlick undercounter refrigeration
to create custom modular refrigeration for
anywhere inside or outside the home. Choose
from refrigerators, freezers, beverage centers
and wine reserves, as well as our dual-zone
refrigeration, to create flexible storage for your
specific refrigeration needs.
STACKING KITS
AVAILABLE MODELS
For complete model number listing, product
specs, and quick reference, see page 50.
Outdoor
Models
Available
Indicates
Energy Star™
Qualified
28
(Left to right)
24" Signature Series Dual-Zone Refrigerator/
Wine Reserve, 24" Signature Series Adara Beer Dispenser
The elegance of a wine reserve meets the practicality of a refrigerator with Perlick’s full line of beverage centers.
With storage for up to 16 bottles of your favorite wine and a variety of canned and bottled beverages below, the
Perlick beverage center keeps refreshments cold anywhere inside – or outside – the home.
Glass doors feature Low E, Argon
filled dual-pane thermal glass with
UV resistant coating to limit energy
transfer through glass and add
increased strength indoors or out.
All models feature Perlick’s exclusive
RAPIDcool™ forced-air refrigeration
system for the industry's most energy
ecient cool down using less energy
while cooling up to 70% faster than
leading competitors.
Perlick’s exclusive full extension shelves
pull completely out of the cabinet to
make stocking and retrieving beverages
easy. Our stainless steel ball bearing
glides provide smooth movement in and
out of cabinet even when fully stocked.
FOR SHOW AND STRENGTH RAPIDCOOL TECHNOLOGY UNMATCHED SHELVING
RAPIDRAPIDcoolcool
MAKE ENTERTAINING EASIER
BY BRINGING YOUR BEVERAGES
WITHIN ARM’S REACH
Beer, wine, soda, juices – all where you need
them most. Our beverage centers eliminate
trips from your theater room in the basement,
your bedroom across the house, or your
outdoor patio – wherever you entertain or
just need a cold beverage nearby. And our
Shallow Depth Beverage Centers are ADA
height compliant for aging-in-place needs.
SIGNATURE SERIES BEVERAGE CENTERS
29
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
15”
34-1/4”
24”
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
24”
24”
34-1/4”
15" SIGNATURE SERIES BEVERAGE CENTERS
24" SIGNATURE SERIES BEVERAGE CENTERS
SIGNATURE SERIES SHALLOW DEPTH BEVERAGE CENTERS (ADA height compliant)
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
24”
18”
32”
RS-18-18R
Shelf, HH24 Refrigerator
RS-18-18W
Shelf, HH24 Wine
RS-24-24WD
Shelf, 24” Dual-Zone Wine
67115-15/67115-24
15” and 24” Wood
Wine Faces
67964
Stainless Steel Drawer
Dividers
SHELVING AND COMPARTMENT ACCESSORIES
RS-15-15R
Shelf, HP15 Refrigerator
RS-15-15W
Shelf, HP15 Wine
RS-24-24R
Shelf, 24” Refrigerator
RS-24-24W
Shelf, 24” Wine
RS-24-24M
Shelf, 24” Martini Rack
* This model comes ready to accept a custom panelPhotos may vary from actual product.
AVAILABLE MODELS
For complete model number listing, product
specs, and quick reference, see page 50.
Outdoor
Models
Available
Indicates
Energy Star™
Qualified
30
NO TWO WINE COLLECTIONS
ARE THE SAME
Wine is complex. Whether a crisp white
or a robust red, all wine is perishable and
requires proper conditions to protect it from
spoilage. To enjoy wine at its peak, Perlick
wine reserves are designed to combat the
common enemies of wine: temperature,
vibration, oxygen, light, and odor.
(Left to right)
24" Column Wine Reserve, 24" Signature
Series Beverage Center, 24" Signature Series Refrigerator
with Martini Rack, 24" Column Wine Reserve
Whether you are a wine novice or a collector of the finest vintages, Perlick has the answer for the storage
and service of your prized bottles of wine. Store up to 45 bottles of your favorite wine in the Perlick patented
24" Signature Series Wine Reserve, or keep a small collection of 20 bottles on hand for gatherings in our
15" Signature Series Wine Reserve.
Glass doors feature Low E, Argon
filled dual-pane thermal glass with
UV resistant coating to limit energy
transfer through glass and add
increased strength indoors or out.
All models feature Perlick’s exclusive
RAPIDcool™ forced-air refrigeration
system for the industry's most energy
ecient cool down using less energy
while cooling up to 70% faster than
leading competitors.
Perlick’s exclusive full extension flex
shelves pull completely out of the
cabinet to make stocking and retrieving
wine bottles easy. Stainless steel
ball bearing glides provide smooth
movement in and out of cabinet even
when fully stocked.
FOR SHOW AND STRENGTH RAPIDCOOL TECHNOLOGY UNMATCHED SHELVING
RAPIDRAPIDcoolcool
SIGNATURE SERIES WINE RESERVES
31
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
15”
34-1/4”
24”
15" SIGNATURE SERIES WINE RESERVES
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
24”
24”
34-1/4”
24" SIGNATURE SERIES WINE RESERVES (Single Zone Models)
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
24”
24”
34-1/4”
24" SIGNATURE SERIES WINE RESERVES (Dual Zone Models)
SIGNATURE SERIES SHALLOW DEPTH WINE RESERVES (ADA height compliant)
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
24”
18”
32”
* This model comes ready to accept a custom panelPhotos may vary from actual product.
AVAILABLE MODELS
For complete model number listing, product
specs, and quick reference, see page 50.
Outdoor
Models
Available
Indicates
Energy Star™
Qualified
32
POUR YOUR BEER LIKE THE PROS
DO WITH PERLICK’S FULL LINE
OF RESIDENTIAL INDOOR AND
OUTDOOR BEER DISPENSERS
For decades, Perlick has designed and
manufactured refrigeration and beer dispensing
systems for bars, restaurants, and stadiums
around the world. Our proprietary technologies
in both refrigeration and beverage dispensing
allow bartenders to serve perfectly chilled beer
to crowds of thousands. Now you can pour
like a pro in the comfort of your own home.
Perlick is the brand professionals trust to dispense beer at their bars, restaurants and stadiums around the
world. We’ve taken the same, innovative technology we’ve been developing since prohibition to bring you
the industry’s best residential beer dispensers.
24" Signature Series Beer
Dispenser (Two Faucet Model)
Perlick patented dispensing
technology, including the Perlick
650SS Stainless Steel Flow Control
Faucet, works in tandem with Perlick’s
powerful refrigeration system to serve
the perfect beer, pour after pour.
All models feature Perlick’s exclusive
RAPIDcool™ forced-air refrigeration
system for unmatched cooling
capabilities and temperature control in
the cabinet and up through the tower.
Two-inch thick foamed in place
Insulation provides industry-leading
protection against outside ambient.
Stainless steel interiors are heavy
duty enough to stand up to kegs
and are sanitary for easy cleaning.
POWER AND CONTROL RAPIDCOOL TECHNOLOGY UNMATCHED CONSTRUCTION
RAPIDRAPIDcoolcool
SIGNATURE SERIES BEER DISPENSERS
33
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
15”
34-1/4”
24”
24”
24”
34-1/4”
24”
24”
34-1/4”
15" SIGNATURE SERIES BEER DISPENSERS
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
CAPACITY:
1/6
One 1/6 barrel
24" SIGNATURE SERIES BEER DISPENSERS (Single Faucet Models)
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
24" SIGNATURE SERIES BEER DISPENSERS (Two Faucet Models)
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
63797
Beer Dispenser
Cleaning Kit
(Includes pump, sanitizer,
and tools to clean lines)
BLC32 / BLC4
Sanitizer for Beer
Dispensers
(32 oz / 4 oz)
308-40C
Beer Faucet Lock
(Compatible with
630SS Faucets)
67141-1
Perlick Beer
Faucet Handle
630SS
630SS
Forward-Sealing Faucet
67782
Drip Pan for
Beer Dispensers
BEER DISPENSER ACCESSORIES
* This model comes ready to accept a custom panelPhotos may vary from actual product.
AVAILABLE MODELS
For complete model number listing, product
specs, and quick reference, see page 50.
Outdoor
Models
Available
Indicates
Energy Star™
Qualified
1/4
1/4
SLIM
CAPACITY:
1/6
Two 1/6 barrels
1/6
One 1/4 barrel
One slim
1/4 barrel
OR
OR
1/4
1/4
SLIM
CAPACITY:
1/6
Two 1/6 barrels
1/6
One 1/4 barrel
One slim
1/4 barrel
OR
OR
34
TAKE THE PARTY ANYWHERE
WITH THE PERLICK SIGNATURE
SERIES MOBILE BARS,
DESIGNED BY TOBIN ELLIS
Perlick’s Tobin Ellis Signature Series Residential
Mobile Bars bring the best designs featured
at the world’s top bars and restaurants to the
comfort of your own home! Perlick’s line of
mobile bars will elevate your home entertaining
experience while making you feel like a
professional mixologist utilizing our “bartender
cockpit” design and luxury finishes.
Tobin Ellis Signature Series
Limited Edition Mobile Bar
PERLICK MOBILE BARS AND MOBILE TAP
• Homeowners have the ultimate in design flexibility with
the option of either the Signature Series Limited Edition,
Signature Series Mobile Bars, or the Perlick Mobile Tap for
the look that complements their home’s aesthetic
• Easily move the bars anywhere inside or outside of your
home for expanding your upscale home entertaining needs
• Available in 46”, 70” with 2 drainboards, 70” with hand sink
configurations, and 70” limited edition with custom finishes
• Features ample lower storage area for glasses, dry goods,
canned goods, or beverages
• Bartender cockpit features bottle rail, insulated ice chest,
and insulated bottle well
• Perlick Mobile Tap units include a two-faucet draft arm and
a 24” refrigeration unit that can dispense beer, wine, coffee,
and nitro infused beverages
MEET THE
PERLICK MOBILE SERIES
Perlick oers a full line of mobile products made for when a centralized bar isn’t an option.
We have the products you need to operate eciently despite the labor shortage, all
designed and built with the quality you can only expect from Perlick.
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
35
HC24RS4S-J0-SLFLT
Mobile Tap Beer Dispensers
RMB-001
70” Limited Edition Mobile Bar with
2 drainboards and custom finishes
RMB-001 Top View
RMB-004
46” Mobile Bar
RMB-003
70” Mobile Bar
with 2 drainboards
PERLICK MOBILE TAP
RMB-002
70” Mobile Bar with drainboard
and sink configuration
HC24RS4S-G0-SLFLT
Mobile Tap Nitro
and Coee or Wine -
inside view
TOBIN ELLIS SIGNATURE SERIES LIMITED EDITION MOBILE BAR
TOBIN ELLIS SIGNATURE SERIES MOBILE BARS
AVAILABLE MODELS
For complete model number listing, product
specs, and quick reference, see page 55.
36
C-SERIES / ADA HEIGHT
COMPLIANT SERIES
Inspired by our commercial oering, the C-Series includes a thoughtful selection of features
in a 24" width. Select outdoor models available.
The industry’s widest selection of ADA height compliant undercounter refrigeration features
superior refrigeration and stainless steel interiors. It’s a designer favorite for both residential
and light commercial projects that require ADA compatibility.
24" C-Series
Beverage Center
37
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
* Photos may vary from actual product.
24" ADA Height Compliant Series
Beverage Center
• Robust 800 BTU refrigeration system featuring
Perlick’s exclusive front vented, RAPIDcool™
forced air refrigeration system
• Rated for beverage and open food storage
• Digital temperature control with audible
door alarm in all models
• Stainless steel interiors
• Full extension smooth glide shelving
eliminates reaching into the back of
the cabinet
• Industry-best 6 Year Full Parts and
Labor Warranty
• ADA Series units feature 32" height and
ADA height compliant product design for
accessible and aging-in-place designs
C-SERIES AND ADA HEIGHT COMPLIANT MODELS
ADA Compliant
32" Height
38
C-SERIES PRODUCTS
24" C-SERIES BEVERAGE CENTERS
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
24”
24”
34-1/4”
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
24”
24”
34-1/4”
24" C-SERIES WINE RESERVES
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
24”
24”
34-1/4”
1/4
1/4
SLIM
CAPACITY:
1/6
Two 1/6 barrels
1/6
One 1/4 barrel
One slim 1/4
barrel
OR
OR
24" C-SERIES BEER DISPENSERS (Single and Two Faucet Models)
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
- 5 Stainless Steel Drawers
- 6 Fully Integrated Drawers *
24”
24”
34-1/4”
24" C-SERIES REFRIGERATORS
* This model comes ready to accept a custom panelPhotos may vary from actual product.
AVAILABLE MODELS
For complete model number listing, product
specs, and quick reference, see page 52.
Outdoor
Models
Available
Indicates
Energy Star™
Qualified
39
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
ADA HEIGHT COMPLIANT SERIES PRODUCTS
24" ADA HEIGHT COMPLIANT SERIES WINE RESERVES
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
24”
32”
24”
24" ADA HEIGHT COMPLIANT SERIES FREEZERS
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Door *
- 5 Stainless Steel Drawers
- 6 Fully Integrated Drawers *
24”
32”
24”
24" ADA HEIGHT COMPLIANT SERIES BEVERAGE CENTERS
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
24”
32”
24”
24” ADA HEIGHT COMPLIANT SERIES REFRIGERATORS
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Door *
- 4 Stainless Steel Glass Door
- 4 Fully Integrated Glass Door *
- 5 Stainless Steel Drawers
- 6 Fully Integrated Drawers *
24”
32”
24”
* This model comes ready to accept a custom panelPhotos may vary from actual product.
AVAILABLE MODELS
For complete model number listing, product
specs, and quick reference, see page 52.
Outdoor
Models
Available
Indicates
Energy Star™
Qualified
40 |40
ON THE ROCKS WITH
ICE MAKERS
Your beverage is only as good as the ice that keeps it cold. Trust Perlick to produce pure ice
that lets your cocktails and other beverages shine. Available in clear and cubelet ice styles in
both standard and ADA height compliant heights, Perlick indoor/outdoor undercounter ice
makers are a must for any well-appointed entertainment space.
(Left to right)
30" Column Refrigerator, and
15" Signature Series Cubelet Ice Maker
41
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
S - Stainless Steel Solid Door
W - Fully Integrated Solid Door *
14-7/8”
33-1/2”
22-9/16”
S - Stainless Steel Solid Door
W - Fully Integrated Solid Door *
14-7/8”
31-1/2”
22-9/16”
15" SIGNATURE SERIES ICE MAKERS (Clear or Cubelet)
ADA HEIGHT COMPLIANT SERIES ICE MAKERS (Clear or Cubelet)
ICE SHAPE
Rounded, top hat shape
ICE TYPE
Hard, clear, slow melting ice
ADVANTAGES
This ice maker produces solid cubes, resulting in
clear, slow melting ice that won’t dilute your drink
as fast as regular ice. The unique shape of each
cube isn’t just aesthetically pleasing, it also
prevents the ice from clumping.
CLEAR ICE MAKERS CUBELET ICE MAKERS
ICE SHAPE
Pellet/nugget shape
ICE TYPE
Soft, compacted ice
ADVANTAGES
This popular chewable ice absorbs the flavors
of the beverages poured over it. It’s easy to
crunch and is perfect for a wide variety drinks.
Cubelet ice is also great for serving specialty
foods like seafood.
AVAILABLE MODELS
7/ 8 "
1"
5/8"
5/8"
1/2"
3/8"
For complete model number listing, product
specs, and quick reference, see page 52.
Outdoor
Models
Available
* This model comes ready to accept a custom panelPhotos may vary from actual product.
42
ALL THE DELICIOUS DETAILS OF
COLUMN REFRIGERATION
Perlick’s line of column appliances includes 24" and 30" column refrigerators,
24" column freezers, and single- and dual-zone 24"column wine reserves.
(Left to right)
24" Dual-Zone Column Wine
Reserve, 24" Column Refrigerator
43
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
(Top left to right)
24" Signature Series
Dual-Zone Refrigerator/Wine Reserve,
24" Dual-Zone Wine Column, 24" Column
Refrigerator, 24" Column Freezer
• 24" and 30" column refrigerators feature
Perlick’s exclusive QuatroCool™ Technology,
ensuring precision temperature and humidity
control in 4 dierent regions oering dual
chamber air filtration throughout.
• Touch screen controls are customizable to
one degree increments in all our columns. Enjoy
access to smart settings for a variety of fresh
and frozen foods, or store your wines at their
ideal temperatures. Access settings for lighting,
Sabbath mode, and more with a single touch.
• 24" and 30" column refrigerators feature
frameless spill proof shelving, tiered deli drawers,
tip out produce bins, and slide in stainless
steel pans for marinating or storing premade
appetizers and sous vide packets.
• Column refrigerators and freezers are brightly
illuminated by white roll-on theatre lighting,
while wine columns include the option of
white and blue roll-on theatre lighting.
• Wine columns are available in an industry-
exclusive single temperature model for
maximum capacity or a dual-zone model
to store red and white wine at their
recommended temperatures.
• Wine columns feature a convertible display
shelf to showcase 6 prized wine bottles with
additional storage for 4 dessert (half sized)
wine bottles when angled up. The shelf easily
lays flat to store 11 bottles without additional
parts and pieces.
• Perlick’s advanced technology monitors
humidity levels in our wine reserve and, if
necessary, pushes additional moisture into
the compartment to maintain 60-70% relative
humidity and preserve corks and prevent
oxidation. Soft coat full extension shelves
gently cradle each bottle and protect them
from vibration.
• All columns have stainless steel interiors and
exteriors for long life durability, easy cleaning,
and sanitation. Manufactured ready to accept
custom or stainless steel panels.
Photos may vary from actual product.
30" Column Refrigerator, 24" Column Freezer shown
COLUMN REFRIGERATOR MODELS
44
COLUMN REFRIGERATORS / FREEZER
24" COLUMN REFRIGERATOR
30" COLUMN REFRIGERATOR
24" COLUMN FREEZER
Tip out produce bin Open pull out bins (freezer)
24” D.
83-5/8” H.
23-3/4” W.
25” D.
84” H.
24” W.
Appliance Cutout
24” D.
83-5/8” H.
29-3/4” W.
25” D.
84” H.
30” W.
Appliance Cutout
24” D.
83-5/8” H.
23-3/4” W.
25” D.
84” H.
24” W.
Appliance Cutout
AVAILABLE MODELS
For complete model number listing, product
specs, and quick reference, see page 54.
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
- 1 Stainless Steel Solid Door
- 2 Fully Integrated Solid Doors*
45
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
WINE COLUMN REFRIGERATORS
Convertible display shelf
PerlIQ™ Touch Screen Control Panel (all columns)
24" COLUMN DUAL-ZONE WINE RESERVE
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
- 4 Stainless Steel Glass Doors
- 4 Fully Integrated Glass Doors*
24" COLUMN SINGLE-ZONE WINE RESERVE
24” D.
83-5/8” H.
23-3/4” W.
25” D.
84” H.
24” W.
Appliance Cutout
24” D.
83-5/8” H.
23-3/4” W.
25” D.
84” H.
24” W.
Appliance Cutout
AVAILABLE MODELS
For complete model number listing, product
specs, and quick reference, see page 54.
* This model comes ready to accept a custom panelPhotos may vary from actual product.
46
ACCESSORIES
AND DOOR STYLES
Perlick oers the industry’s widest selection of premium
undercounter refrigeration for inside and outside the home,
and for that, we have a wide selection of accessories and
door styles to choose from. Customize your Perlick to meet
your exact storing and serving needs.
RK24DP
Organize fresh and prepared ingredients with Perlick’s drawer
pan tray. A stainless steel tray holds three stainless steel
prep pans that come with stain resistant translucent covers.
Available for 24" Signature Series, 24" C-Series and 24"
ADA Height Compliant Series Refrigerator Drawer models.
DRAWER PAN TRAY
RS-15-15R
Shelf, HP15 Refrigerator
RS-15-15W
Shelf, HP15 Wine
RS-24-24R
Shelf, 24" Refrigerator
RS-24-24W
Shelf, 24” Wine
RS-24-24M
Shelf, 24” Martini Rack
RS-24-24D
Shelf, 24” Divider
RS-18-18R
Shelf, HH24 Refrigerator
RS-18-18W
Shelf, HH24 Wine
RS-24-24WD
Shelf, 24”
Dual-Zone Wine
65629
Bottle Display Rack
67115-15/67115-24
15” and 24” Wood
Wine Faces
67964
Stainless Steel
Drawer Dividers
(L) Factory Installed
Door/Drawer Lock
67439 L/R
Door Hinge Kit
RS-TK-HA24-6 / RS-TK-HH24
6” Toe Kick for ADA
(RS-TK-HA24-6) and Shallow
Depth (RS-TK-HH24)
66736-15/66736
15”/24” Caster Kits
63802A
Drain Pump for
H50 Clear Ice Makers
68117-1
Optional Stainless
Steel Toe Kick for
H50 Ice Makers
MISC. HARDWARE KITS AND ICE MAKER ACCESSORIES
24" Signature Series Freezer
with 24" Martini Rack accessory
SHELVING AND COMPARTMENT ACCESSORIES
47
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
RS-SK-15L/R / RS-SK-24L/R / RS-SK-18-L/R
Mix and match Perlick undercounter refrigeration to
create custom modular refrigeration anywhere inside or
outside the home. Choose from refrigerators, freezers,
beverage centers and wine reserves, as well as our new
dual-zone refrigeration, to create flexible storage for
your specific refrigeration needs.
STACKING KITS
63797
Beer Dispenser Cleaning Kit
(Includes pump, sanitizer,
and tools to clean lines)
BLC32 / BLC4
Sanitizer for
Beer Dispensers
(32 oz / 4 oz)
308-40C
Beer Faucet Lock
(Compatible with
630SS Faucets)
67141-1
Perlick Beer
Faucet Handle
630SS
630SS Forward -
Sealing Faucet
67782
Drip Pan for
Beer Dispensers
BEER DISPENSER ACCESSORIES
40030S
Enjoy a wider variety of kegged beer with the Perlick Low Profile “S” Series
Keg Coupler. This coupler fits “S” system kegs, which are used by brands
such as Heineken, Newcastle, Stella Artois, Amstel, Bemish, Murphy’s,
Strongbow, and Hofbrau (just to name a few). This coupler can be used on
all Perlick beer dispenser models and is exclusive to Perlick.
LOW PROFILE “S” SERIES KEG COUPLER
Stainless Steel Solid Door
Fully Integrated Solid Door
Fully Integrated Glass Door
Stainless Steel Glass Door
Fully Integrated Drawers
Stainless Steel Drawers
DOOR STYLES FOR EVERY DESIGN
Perlick oers a variety of door styles to complement any
design. The numbered image above coordinates with the
‘Door Styles Available’ column in the Quick Reference chart.
All doors are available hinged left or right, and fully integrated
overlay panels come ready to accept a custom panel from
your millworker to create a seamless look with cabinetry.
1 2 3 4 5
• Industry-exclusive convertible door design
allows all doors to be converted to overlay
from stainless steel
• All doors are field reversible with accessory
hinge kit (excluding ice maker models)
• Template available to create a matching
overlay toe kick
6
48
(Left to right)
24" Signature Series Dual-Zone Refrigerator/Freezer
Drawers, 24" Signature Series Refrigerator, 24" Signature Series
Dual-Zone Wine Reserve, 15" Signature Series Refrigerator Drawers
(outdoor)
49
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
(Left to right)
15" Signature Series
Beer Dispenser, 24" Signature Series
Beverage Center (outdoor)
50
Overall Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Width Depth Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Temp. Range °F(°C) Power Requirements Refrigerant
LED Lighting
Options
K Level
Door
Styles
Outdoor Model
Number
Marine Model
Number
Warranty
Industry
Exclusive
Energy
Star
SIGNATURE SERIES
HP15RS-4-** Refrigerator 23
15" Signature Series
Indoor Refrigerator
14-7/8" (378) 24" (610) 34-1/4" (870)
2 full-extension
pullout shelves
2.8 cu.ft. 66 cans
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (38g)
Cool blue or
crisp white
6000K 1,2,3,4 HP15R0-4-** HP15RM-4-**
Full
6 Year
15" (381) 24-7/8” (632) 34-1/2" (876)
HP15RS-4-** Refrigerator 23
15" Signature Series
Indoor Refrigerator Drawers
14-7/8" (378) 24" (610) 34-1/4" (870)
No shelves 2.8 cu.ft.
18 cans
(Top Drawer)
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (38g)
White LED
task lighting
6000K 5,6 HP15R0-4-** HP15RM-4-**
Full
6 Year
•
15" (381) 24-7/8” (632) 34-1/2" (876)
HP24RS-4-** Refrigerator 23
24" Signature Series
Indoor Refrigerator
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension
pullout shelves
5.2 cu.ft. 144 cans
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HP24RO-4-** HP24RM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24RS-4-** Refrigerator 23
24" Signature Series
Indoor Refrigerator Drawers
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft. N/A
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 5,6 HP24RO-4-** HP24RM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HH24RS-4-** Refrigerator 23
18" Signature Shallow Depth
Indoor Refrigerator
(ADA height compliant)
23-7/8" (606) 18” (457) 32" (813)
2 full-extension
pullout shelves
3.1 cu.ft. 68 cans
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HH24RO-4-** HH24RM-4-**
Full
6 Year
•
24" (610) 18” (457) 32-1/4” (819)
HP24ZS-4-**
Refrigerator/
Freezer
25
24" Signature Series
Indoor Dual-Zone Refrigerator
/Freezer Drawers
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.0 cu.ft.
42 cans
(Ref. Drawer)
Lower (-10°-10°) / Upper
30°-42°)
115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 5,6 HP24ZO-4-** HP24ZM-4-**
Full
6 Year
•
24" (610) 24" (610) 34-1/2" (876)
HP24CS-4-**
Refrigerator/
Wine Reserve
29
24" Signature Series
Indoor Dual-Zone Refrigerator/
Wine Reserve
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension wine shelves,
1 full-extension shelf
5.0 cu.ft.
41 cans and
14 bottles of wine
Lower (33° - 42°F) / Upper
(45° - 65°F)
115 VAC/60 Hz/1 Ph R600a (57g)
Cool blue or
crisp white
6000K 1,2,3,4 HP24CO-4-** HP24CM-4-**
Full
6 Year
•
24" (610) 24" (610) 34-1/2" (876)
HP24FS-4-** Freezer 25
24" Signature Series
Indoor Freezer
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension
pullout shelves
5.2 cu.ft. N/A
-10° (-23.3°) - 10° (-12.2°) 115 VAC/60 Hz/1 Ph R600a (57g)
White LED
task lighting
6000K 1,2,5,6 HP24FO-4-** HP24FM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24FS-4-** Freezer 25
24" Signature Series
Indoor Freezer Drawers
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.0 cu.ft. N/A
-10° (-23.3°) - 10° (-12.2°) 115 VAC/60 Hz/1 Ph R600a (57g)
White LED
task lighting
6000K 5,6 HP24FO-4-** HP24FM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP15BS-4-**
Beverage
Center
27
15" Signature Series
Indoor Beverage Center
14-7/8" (378) 24" (610) 34-1/4" (870)
2 full-extension wine shelves,
1 full-extension shelf
2.8 cu.ft.
30 cans and
8 bottles of wine
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (38g)
Cool blue or
crisp white
6000K 1,2,3,4,5,6 HP15BO-4-** HP15BM-4-**
Full
6 Year
•
15" (381) 24-7/8” (632) 34-1/2" (876)
HP24BS-4-**
Beverage
Center
27
24" Signature Series
Beverage Center
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension wine shelves,
1 full-extension shelf
5.2 cu.ft.
62 cans and
16 bottles of wine
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HP24BO-4-** HP24BM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HH24BS-4-**
Beverage
Center
27
18" Signature Shallow Depth
Indoor Beverage Center
(ADA height compliant)
23-7/8" (606) 18” (457) 32" (813)
2 full-extension wine shelves,
1 full-extension shelf
3.1 cu.ft.
41 cans and
10 bottles of wine
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HH24BO-4-** HH24BM-4-**
Full
6 Year
•
24" (610) 18” (457) 32-1/4” (819)
HP15WS-4-** Wine Reserve 29
15" Signature Series
Indoor Wine Reserve
14-7/8" (378) 24" (610) 34-1/4" (870)
5 full-extension
wine shelves
2.8 cu.ft. 20 bottles of wine
45° (7.2°) - 65° (18.33°) 115 VAC/60 Hz/1 Ph R600a (38g)
Cool blue or
crisp white
6000K 1,2,3,4 HP15WO-4-** HP15WM-4-**
Full
6 Year
15" (381) 24-7/8” (632) 34-1/2" (876)
HP24WS-4-** Wine Reserve 29
24" Signature Series Indoor
Single-Zone Wine Reserve
23-7/8" (606) 24" (610) 34-1/4" (870)
5 full-extension
wine shelves
5.2 cu.ft. 45 bottles of wine
45° (7.2°) - 65° (18.3°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HP24WO-4-** HP24WM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24DS-4-** Wine Reserve 29
24" Signature Series Indoor
Dual-Zone Wine Reserve
23-7/8" (606) 24" (610) 34-1/4" (870)
2 (Upper) + 2-1/2 (Lower)
full-extension wine shelves
5.2 cu.ft. 32 bottles of wine
45°/ 51° (7.2°/ 10.5°)
- 55°/ 65° (12.7°/ 18.3°)
115 VAC/60 Hz/1 Ph R600a (45g)
Cool blue or
crisp white
6000K 1,2,3,4 HP24DO-4-** HP24DM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HH24WS-4-** Wine Reserve 29
18" Signature Series Indoor
Shallow Depth Wine Reserve
(ADA height compliant)
23-7/8" (606) 18” (457) 32" (813)
4 full-extension
wine shelves
3.1 cu.ft. 20 bottles of wine
45° (7.2°) - 65° (18.3°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HH24WO-4-** HH24WM-4-**
Full
6 Year
•
24" (610) 18” (457) 32-1/4” (819)
HP15TS-4-**-1*
Beer
Dispenser
31
15" Signature Series
Indoor Beer Dispenser
14-7/8" (378) 24" (610) 34-1/4" (870)
No shelves 2.8 cu.ft. (1) 1/6 barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (38g)
White LED
task lighting
6000K 1,2 HP15TO-4-**-1* HP15TM-4-**-1*
Full
6 Year
15" (381) 24-7/8” (632) 34-1/2" (876)
HP15TS-4-**-1A*
Beer
Dispenser
31
15" Signature Series
Indoor Adara Beer Dispenser
14-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 2.8 cu.ft. (1) 1/6 barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (38g)
White LED
task lighting
6000K 1,2 N/A N/A
Full
6 Year
•
15" (610) 24-7/8” (632) 34-1/2" (876)
HP24TS-4-**-1*
Beer
Dispenser
31
24" Signature Series
Indoor Beer Dispenser
- Single Tap
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-1* HP24TM-4-**-1*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-**-2*
Beer
Dispenser
31
24" Signature Series
Indoor Beer Dispenser
- Two Tap
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-2* HP24TM-4-**-2*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-**-1A*
Beer
Dispenser
31
24" Signature Series
Indoor Adara Beer Dispenser
- Single Tap
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 N/A N/A
Full
6 Year
•
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-**-2A*
Beer
Dispenser
31
24" Signature Series
Indoor Adara Beer Dispenser
- Two Tap
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 N/A N/A
Full
6 Year
•
24" (610) 24" (610) 34-1/2" (876)
MODEL SPECIFICATION GUIDE
51
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
Overall Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Width Depth Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Temp. Range °F(°C) Power Requirements Refrigerant
LED Lighting
Options
K Level
Door
Styles
Outdoor Model
Number
Marine Model
Number
Warranty
Industry
Exclusive
Energy
Star
SIGNATURE SERIES
HP15RS-4-** Refrigerator 23
15" Signature Series
Indoor Refrigerator
14-7/8" (378) 24" (610) 34-1/4" (870)
2 full-extension
pullout shelves
2.8 cu.ft. 66 cans
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (38g)
Cool blue or
crisp white
6000K 1,2,3,4 HP15R0-4-** HP15RM-4-**
Full
6 Year
15" (381) 24-7/8” (632) 34-1/2" (876)
HP15RS-4-** Refrigerator 23
15" Signature Series
Indoor Refrigerator Drawers
14-7/8" (378) 24" (610) 34-1/4" (870)
No shelves 2.8 cu.ft.
18 cans
(Top Drawer)
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (38g)
White LED
task lighting
6000K 5,6 HP15R0-4-** HP15RM-4-**
Full
6 Year
•
15" (381) 24-7/8” (632) 34-1/2" (876)
HP24RS-4-** Refrigerator 23
24" Signature Series
Indoor Refrigerator
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension
pullout shelves
5.2 cu.ft. 144 cans
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HP24RO-4-** HP24RM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24RS-4-** Refrigerator 23
24" Signature Series
Indoor Refrigerator Drawers
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft. N/A
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 5,6 HP24RO-4-** HP24RM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HH24RS-4-** Refrigerator 23
18" Signature Shallow Depth
Indoor Refrigerator
(ADA height compliant)
23-7/8" (606) 18” (457) 32" (813)
2 full-extension
pullout shelves
3.1 cu.ft. 68 cans
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HH24RO-4-** HH24RM-4-**
Full
6 Year
•
24" (610) 18” (457) 32-1/4” (819)
HP24ZS-4-**
Refrigerator/
Freezer
25
24" Signature Series
Indoor Dual-Zone Refrigerator
/Freezer Drawers
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.0 cu.ft.
42 cans
(Ref. Drawer)
Lower (-10°-10°) / Upper
30°-42°)
115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 5,6 HP24ZO-4-** HP24ZM-4-**
Full
6 Year
•
24" (610) 24" (610) 34-1/2" (876)
HP24CS-4-**
Refrigerator/
Wine Reserve
29
24" Signature Series
Indoor Dual-Zone Refrigerator/
Wine Reserve
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension wine shelves,
1 full-extension shelf
5.0 cu.ft.
41 cans and
14 bottles of wine
Lower (33° - 42°F) / Upper
(45° - 65°F)
115 VAC/60 Hz/1 Ph R600a (57g)
Cool blue or
crisp white
6000K 1,2,3,4 HP24CO-4-** HP24CM-4-**
Full
6 Year
•
24" (610) 24" (610) 34-1/2" (876)
HP24FS-4-** Freezer 25
24" Signature Series
Indoor Freezer
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension
pullout shelves
5.2 cu.ft. N/A
-10° (-23.3°) - 10° (-12.2°) 115 VAC/60 Hz/1 Ph R600a (57g)
White LED
task lighting
6000K 1,2,5,6 HP24FO-4-** HP24FM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24FS-4-** Freezer 25
24" Signature Series
Indoor Freezer Drawers
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.0 cu.ft. N/A
-10° (-23.3°) - 10° (-12.2°) 115 VAC/60 Hz/1 Ph R600a (57g)
White LED
task lighting
6000K 5,6 HP24FO-4-** HP24FM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP15BS-4-**
Beverage
Center
27
15" Signature Series
Indoor Beverage Center
14-7/8" (378) 24" (610) 34-1/4" (870)
2 full-extension wine shelves,
1 full-extension shelf
2.8 cu.ft.
30 cans and
8 bottles of wine
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (38g)
Cool blue or
crisp white
6000K 1,2,3,4,5,6 HP15BO-4-** HP15BM-4-**
Full
6 Year
•
15" (381) 24-7/8” (632) 34-1/2" (876)
HP24BS-4-**
Beverage
Center
27
24" Signature Series
Beverage Center
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension wine shelves,
1 full-extension shelf
5.2 cu.ft.
62 cans and
16 bottles of wine
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HP24BO-4-** HP24BM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HH24BS-4-**
Beverage
Center
27
18" Signature Shallow Depth
Indoor Beverage Center
(ADA height compliant)
23-7/8" (606) 18” (457) 32" (813)
2 full-extension wine shelves,
1 full-extension shelf
3.1 cu.ft.
41 cans and
10 bottles of wine
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HH24BO-4-** HH24BM-4-**
Full
6 Year
•
24" (610) 18” (457) 32-1/4” (819)
HP15WS-4-** Wine Reserve 29
15" Signature Series
Indoor Wine Reserve
14-7/8" (378) 24" (610) 34-1/4" (870)
5 full-extension
wine shelves
2.8 cu.ft. 20 bottles of wine
45° (7.2°) - 65° (18.33°) 115 VAC/60 Hz/1 Ph R600a (38g)
Cool blue or
crisp white
6000K 1,2,3,4 HP15WO-4-** HP15WM-4-**
Full
6 Year
15" (381) 24-7/8” (632) 34-1/2" (876)
HP24WS-4-** Wine Reserve 29
24" Signature Series Indoor
Single-Zone Wine Reserve
23-7/8" (606) 24" (610) 34-1/4" (870)
5 full-extension
wine shelves
5.2 cu.ft. 45 bottles of wine
45° (7.2°) - 65° (18.3°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HP24WO-4-** HP24WM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24DS-4-** Wine Reserve 29
24" Signature Series Indoor
Dual-Zone Wine Reserve
23-7/8" (606) 24" (610) 34-1/4" (870)
2 (Upper) + 2-1/2 (Lower)
full-extension wine shelves
5.2 cu.ft. 32 bottles of wine
45°/ 51° (7.2°/ 10.5°)
- 55°/ 65° (12.7°/ 18.3°)
115 VAC/60 Hz/1 Ph R600a (45g)
Cool blue or
crisp white
6000K 1,2,3,4 HP24DO-4-** HP24DM-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HH24WS-4-** Wine Reserve 29
18" Signature Series Indoor
Shallow Depth Wine Reserve
(ADA height compliant)
23-7/8" (606) 18” (457) 32" (813)
4 full-extension
wine shelves
3.1 cu.ft. 20 bottles of wine
45° (7.2°) - 65° (18.3°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HH24WO-4-** HH24WM-4-**
Full
6 Year
•
24" (610) 18” (457) 32-1/4” (819)
HP15TS-4-**-1*
Beer
Dispenser
31
15" Signature Series
Indoor Beer Dispenser
14-7/8" (378) 24" (610) 34-1/4" (870)
No shelves 2.8 cu.ft. (1) 1/6 barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (38g)
White LED
task lighting
6000K 1,2 HP15TO-4-**-1* HP15TM-4-**-1*
Full
6 Year
15" (381) 24-7/8” (632) 34-1/2" (876)
HP15TS-4-**-1A*
Beer
Dispenser
31
15" Signature Series
Indoor Adara Beer Dispenser
14-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 2.8 cu.ft. (1) 1/6 barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (38g)
White LED
task lighting
6000K 1,2 N/A N/A
Full
6 Year
•
15" (610) 24-7/8” (632) 34-1/2" (876)
HP24TS-4-**-1*
Beer
Dispenser
31
24" Signature Series
Indoor Beer Dispenser
- Single Tap
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-1* HP24TM-4-**-1*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-**-2*
Beer
Dispenser
31
24" Signature Series
Indoor Beer Dispenser
- Two Tap
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-2* HP24TM-4-**-2*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-**-1A*
Beer
Dispenser
31
24" Signature Series
Indoor Adara Beer Dispenser
- Single Tap
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 N/A N/A
Full
6 Year
•
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-**-2A*
Beer
Dispenser
31
24" Signature Series
Indoor Adara Beer Dispenser
- Two Tap
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 N/A N/A
Full
6 Year
•
24" (610) 24" (610) 34-1/2" (876)
1) Stainless Steel Solid Door 2) Fully Integrated Solid Door 3) Stainless Steel Glass Door 4) Fully Integrated Glass Door 5) Stainless Steel Drawers
6) Fully Integrated Drawers
DOOR STYLE GUIDE:
52
Overall Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Width Depth Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Temp. Range °F(°C) Power Requirements Refrigerant LED Lighting Options K Level
Door
Styles
Outdoor Model
Number
Warranty
Industry
Exclusive
Energy
Star
C-SERIES
HC24RB-4-** Refrigerator 34 24" C-Series Indoor Refrigerator
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension
pullout shelves
5.2 cu.ft.
144 cans
(Door Model)
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HC24RO-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HC24RB-4-** Refrigerator 34
24" C-Series Indoor
Refrigerator Drawers
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft. N/A
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 5,6 HC24RO-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HC24BB-4-**
Beverage
Center
34
24" C-Series Indoor Beverage
Center
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension wine shelves,
1 full-extension shelf
5.2 cu.ft.
62 cans and 16
bottles of wine
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 N/A
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HC24WB-4-**
Wine
Reserve
34 24" C-Series Indoor Wine Reserve
23-7/8" (606) 24" (610) 34-1/4" (870)
5 full-extension wine shelves 5.2 cu.ft. 45 bottles of wine
45° (7.2°) - 65° (18.3°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 N/A
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HC24TB-4-**
Beer
Dispenser
34
24" C-Series Indoor Beer
Dispenser Single or Two Faucet
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels
or (1) 1/4 slim or
standard barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2 HC24TO-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
Overall Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Width Depth Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Temp. Range °F(°C)
Power
Requirements
Refrigerant LED Lighting Options K Level
Door
Styles
Outdoor Model
Number
Warranty
Industry
Exclusive
Energy
Star
ADA HEIGHT COMPLIANT SERIES
HA24RB-4-** Refrigerator 35
ADA Height Compliant
Indoor Refrigerator
23-7/8" (606) 24" (610) 32" (813)
2 full-extension
pullout shelves
4.8 cu.ft. 108 cans
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 N/A
Full
6 Year
24" (610) 24-7/8" (632) 32-1/4" (819)
HA24RB-4-** Refrigerator 35
ADA Height Compliant
Indoor Refrigerator Drawers
23-7/8" (606) 24" (610) 32" (813)
No shelves 4.8 cu.ft. N/A
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED task
lighting
6000K 5,6 N/A
Full
6 Year
24" (610) 24-7/8" (632) 32-1/4" (819)
HA24FB-4-** Freezer 35
ADA Height Compliant
Indoor Freezer
23-7/8" (606) 24" (610) 32" (813)
2 full-extension
pullout shelves
4.8 cu.ft. N/A
-10° (-23.3°) - 10° (-12.2°) 115 VAC/60 Hz/1 Ph R600a (57g)
White LED task
lighting
6000K 1,2 N/A
Full
6 Year
•
24" (610) 24-7/8" (632) 32-1/4" (819)
HA24FB-4-** Freezer 35
ADA Height Compliant
Indoor Freezer Drawers
23-7/8" (606) 24" (610) 32" (813)
No shelves 4.6 cu.ft. N/A
-10° (-23.3°) - 10° (-12.2°) 115 VAC/60 Hz/1 Ph R600a (57g)
White LED task
lighting
6000K 5,6 N/A
Full
6 Year
24" (610) 24-7/8" (632) 32-1/4" (819)
HA24BB-4-**
Beverage
Center
35
ADA Height Compliant
Indoor Beverage Center
23-7/8" (606) 24" (610) 32" (813)
2 full-extension wine shelves,
1 full-extension shelf
4.8 cu.ft.
62 cans and 16
bottles of wine
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 N/A
Full
6 Year
24" (610) 24-7/8" (632) 32-1/4" (819)
HA24WB-4-**
Wine
Reserve
35
ADA Height Compliant
Indoor Wine Reserve
23-7/8" (606) 24" (610) 32" (813)
4 full-extension wine shelves 4.8 cu.ft. 32 bottles of wine
45° (7.2°) - 65° (18.3°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 N/A
Full
6 Year
24" (610) 24-7/8" (632) 32-1/4" (819)
Overall Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Width Depth Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Ambient Temp. Range °F(°C)
Water Temp. Range
°F(°C)
Water Pressure
Power
Requirements
Refrigerant
Door
Styles
Outdoor Model
Number
Warranty
Industry
Exclusive
Energy
Star
ICE MAKERS
H50IMS-* Ice Maker 37
15" Signature Series Clear Ice
Maker, hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 51lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 1 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H50IMW* Ice Maker 37
15" Signature Series Clear Ice
Maker, panel-ready, hinge
reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 51lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 2 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H50IMS-AD* Ice Maker 37
15" ADA Height Compliant
Signature Series Clear Ice Maker,
hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 51lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (57g) 1 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H50IMW-AD* Ice Maker 37
15" ADA Height Compliant
Signature Series Clear Ice Maker,
panel-ready, hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 51lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (57g) 2 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H80CIMS-* Ice Maker 37
15" Signature Series Cubelet Ice
Maker, hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 80lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 1 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H80CIMW* Ice Maker 37
15" Signature Series Cubelet
Ice Maker, panel-ready, hinge
reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 80lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 2 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H80CIMS-AD* Ice Maker 37
15" ADA Height Compliant
Signature Series Cubelet Ice
Maker, hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 80lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 1 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H80CIMW-AD* Ice Maker 37
15" ADA Height Compliant
Signature Series Cubelet
Ice Maker, panel-ready,
hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 80lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 2 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
MODEL SPECIFICATION GUIDE
53
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
Overall Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Width Depth Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Temp. Range °F(°C) Power Requirements Refrigerant LED Lighting Options K Level
Door
Styles
Outdoor Model
Number
Warranty
Industry
Exclusive
Energy
Star
C-SERIES
HC24RB-4-** Refrigerator 34 24" C-Series Indoor Refrigerator
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension
pullout shelves
5.2 cu.ft.
144 cans
(Door Model)
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 HC24RO-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HC24RB-4-** Refrigerator 34
24" C-Series Indoor
Refrigerator Drawers
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft. N/A
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 5,6 HC24RO-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HC24BB-4-**
Beverage
Center
34
24" C-Series Indoor Beverage
Center
23-7/8" (606) 24" (610) 34-1/4" (870)
2 full-extension wine shelves,
1 full-extension shelf
5.2 cu.ft.
62 cans and 16
bottles of wine
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 N/A
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HC24WB-4-**
Wine
Reserve
34 24" C-Series Indoor Wine Reserve
23-7/8" (606) 24" (610) 34-1/4" (870)
5 full-extension wine shelves 5.2 cu.ft. 45 bottles of wine
45° (7.2°) - 65° (18.3°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 N/A
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HC24TB-4-**
Beer
Dispenser
34
24" C-Series Indoor Beer
Dispenser Single or Two Faucet
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels
or (1) 1/4 slim or
standard barrel
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2 HC24TO-4-**
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
Overall Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Width Depth Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Temp. Range °F(°C)
Power
Requirements
Refrigerant LED Lighting Options K Level
Door
Styles
Outdoor Model
Number
Warranty
Industry
Exclusive
Energy
Star
ADA HEIGHT COMPLIANT SERIES
HA24RB-4-** Refrigerator 35
ADA Height Compliant
Indoor Refrigerator
23-7/8" (606) 24" (610) 32" (813)
2 full-extension
pullout shelves
4.8 cu.ft. 108 cans
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 N/A
Full
6 Year
24" (610) 24-7/8" (632) 32-1/4" (819)
HA24RB-4-** Refrigerator 35
ADA Height Compliant
Indoor Refrigerator Drawers
23-7/8" (606) 24" (610) 32" (813)
No shelves 4.8 cu.ft. N/A
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
White LED task
lighting
6000K 5,6 N/A
Full
6 Year
24" (610) 24-7/8" (632) 32-1/4" (819)
HA24FB-4-** Freezer 35
ADA Height Compliant
Indoor Freezer
23-7/8" (606) 24" (610) 32" (813)
2 full-extension
pullout shelves
4.8 cu.ft. N/A
-10° (-23.3°) - 10° (-12.2°) 115 VAC/60 Hz/1 Ph R600a (57g)
White LED task
lighting
6000K 1,2 N/A
Full
6 Year
•
24" (610) 24-7/8" (632) 32-1/4" (819)
HA24FB-4-** Freezer 35
ADA Height Compliant
Indoor Freezer Drawers
23-7/8" (606) 24" (610) 32" (813)
No shelves 4.6 cu.ft. N/A
-10° (-23.3°) - 10° (-12.2°) 115 VAC/60 Hz/1 Ph R600a (57g)
White LED task
lighting
6000K 5,6 N/A
Full
6 Year
24" (610) 24-7/8" (632) 32-1/4" (819)
HA24BB-4-**
Beverage
Center
35
ADA Height Compliant
Indoor Beverage Center
23-7/8" (606) 24" (610) 32" (813)
2 full-extension wine shelves,
1 full-extension shelf
4.8 cu.ft.
62 cans and 16
bottles of wine
33°(.5°) - 48°(8.8°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 N/A
Full
6 Year
24" (610) 24-7/8" (632) 32-1/4" (819)
HA24WB-4-**
Wine
Reserve
35
ADA Height Compliant
Indoor Wine Reserve
23-7/8" (606) 24" (610) 32" (813)
4 full-extension wine shelves 4.8 cu.ft. 32 bottles of wine
45° (7.2°) - 65° (18.3°) 115 VAC/60 Hz/1 Ph R600a (50g)
Cool blue or
crisp white
6000K 1,2,3,4 N/A
Full
6 Year
24" (610) 24-7/8" (632) 32-1/4" (819)
Overall Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Width Depth Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Ambient Temp. Range °F(°C)
Water Temp. Range
°F(°C)
Water Pressure
Power
Requirements
Refrigerant
Door
Styles
Outdoor Model
Number
Warranty
Industry
Exclusive
Energy
Star
ICE MAKERS
H50IMS-* Ice Maker 37
15" Signature Series Clear Ice
Maker, hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 51lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 1 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H50IMW* Ice Maker 37
15" Signature Series Clear Ice
Maker, panel-ready, hinge
reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 51lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 2 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H50IMS-AD* Ice Maker 37
15" ADA Height Compliant
Signature Series Clear Ice Maker,
hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 51lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (57g) 1 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H50IMW-AD* Ice Maker 37
15" ADA Height Compliant
Signature Series Clear Ice Maker,
panel-ready, hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 51lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (57g) 2 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H80CIMS-* Ice Maker 37
15" Signature Series Cubelet Ice
Maker, hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 80lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 1 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H80CIMW* Ice Maker 37
15" Signature Series Cubelet
Ice Maker, panel-ready, hinge
reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 80lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 2 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H80CIMS-AD* Ice Maker 37
15" ADA Height Compliant
Signature Series Cubelet Ice
Maker, hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 80lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 1 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
H80CIMW-AD* Ice Maker 37
15" ADA Height Compliant
Signature Series Cubelet
Ice Maker, panel-ready,
hinge reversible
14-7/8” (378) 22-9/16" (573) 33-1/2" (851)
N/A 80lbs. 22lbs.
45°(7.2°) - 100°(37.8°) 45°(7.2°) - 90°(32.2°) 7-113 psig 115 VAC/60 Hz/1 Ph R600a (50g) 2 Same
Full
2 Year
15" (381) 23" (584) 34" (864)
1) Stainless Steel Solid Door 2) Fully Integrated Solid Door 3) Stainless Steel Glass Door 4) Fully Integrated Glass Door 5) Stainless Steel Drawers
6) Fully Integrated Drawers
DOOR STYLE GUIDE:
54
Appliance Exterior Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Width Depth Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Temp. Range °F(°C) Power Requirements Refrigerant
LED Lighting
Options
K Level
Door
Styles
Outdoor Model
Number
Warranty
Industry
Exclusive
Energy
Star
COLUMNS
CR24R-1-2*
24" Column
Refrigerator
40 All Refrigerator, hinge reversible
23-3/4" (603) 24" (610)
83-5/8"
(2125)
3 adjustable height
spill-proof shelves
Deli drawer
Meat drawer
1 marinating pan
Tip out produce bin
4 door bins
12.8 cu.ft. N/A
Main Compartment - 34°(1.1°) - 42°(5.6°)
Deli Drawer - 32°(0°) - 37°(2.8°)
Meat/Fish Drawer - 32°(0°) - 37°(2.8°)
Tip out Produce Bin - 32°(0°) - 37°(2.8°)
115 VAC/60 Hz/2.3 Amps R600a (50g)
White roll-on
theater lighting
4000K 1,2 N/A
Full
6 Year
24" (610) 25" (635) 84" (2134)
CR30R-1-2*
30" Column
Refrigerator
40 All Refrigerator, hinge reversible
29-3/4" (756) 24" (610)
83-5/8"
(2125)
3 adjustable height
spill-proof shelves
Deli drawer
Meatdrawer
2 marinating pans
Tip out produce bin
4 door bins
16.6 cu.ft. N/A
Main Compartment - 34°(1.1°) - 42°(5.6°)
Deli Drawer - 32°(0°) - 37°(2.8°)
Meat/Fish Drawer - 32°(0°) - 37°(2.8°)
Tip out Produce Bin - 32°(0°) - 37°(2.8°)
115 VAC/60 Hz/2.3 Amps R600a (50g)
White roll-on
theater lighting
4000K 1,2 N/A
Full
6 Year
30" (762) 25" (635) 84" (2134)
CR24F-1-2*
24" Column
Freezer
40 All Freezer, hinge reversible
23-3/4" (603) 24" (610)
83-5/8"
(2125)
3 adjustable height shelves
3 pull-out bins
4 door bins
12.6 cu.ft. N/A
-10°(-23.3°) - 10°(-12.2°) 115 VAC/60 Hz/2.3 Amps R600a (50g)
White roll-on
theater lighting
4000K 1,2 N/A
Full
6 Year
24" (610) 25" (635) 84" (2134)
CR24W-1-2*
24" Wine
Reserve
41
Single-zone wine reserve,
hinge reversible
23-3/4" (603) 24" (610)
83-5/8"
(2125)
12 full-extension wine
shelves including one
convertible display shelf
12.6 cu.ft.
94 750 mL bottles
(99 bottles if you
double stack the
display shelf)
40°(4.4°) - 68°(20°) 115 VAC/60 Hz/2.3 Amps R600a (50g)
White and blue
roll-on theater
lighting including
Sabbath Mode
4000K 1,2,3,4 N/A
Full
6 Year
24" (610) 25" (635) 84" (2134)
CR24D-1-2*
24" Wine
Reserve
41
Dual-zone wine reserve,
hinge reversible
23-3/4" (603) 24" (610)
83-5/8"
(2125)
10 full-extension wine
shelves including one
convertible display shelf
12.2 cu.ft.
86 750 mL bottles
(91 bottles if you
double stack the
display shelf)
Upper Zone - 40°(4.4°) - 68°(20°)
Lower Zone - 40°(4.4°) - 68°(20°)"
115 VAC/60 Hz/2.3 Amps R600a (50g)
White and blue
roll-on theater
lighting including
Sabbath Mode
4000K 1,2,3,4 N/A
Full
6 Year
24" (610) 25" (635) 84" (2134)
CUTOUT
WIDTH
15”
CUTOUT
WIDTH
24”
CUTOUT
HEIGHT
34-1/2”
CUTOUT
HEIGHT
34-1/2”
CUTOUT
WIDTH
24”
CUTOUT
HEIGHT
32-1/4”
CUTOUT
WIDTH
24”
CUTOUT
HEIGHT
32-1/4”
CUTOUT
DEPTH
24-7/8”
CUTOUT
DEPTH
24-7/8”
CUTOUT
DEPTH
24-7/8”
HP15
15” Signature Series
HP24
24” Signature Series
HC24
24” C-Series
HA24
24” ADA Height Compliant Series
HH24
Signature Series
Shallow Depth
CUTOUT
DEPTH
18”
CUTOUT
WIDTH
24”
CUTOUT
HEIGHT
84”
CUTOUT
DEPTH
25"
CUTOUT
WIDTH
30”
CUTOUT
HEIGHT
84”
CUTOUT
DEPTH
25"
CR24
24” Columns
CR30
30” Columns
* HH24 models have a recessed plug for a true 18” depth* For all HP, HC, and HA models. To achieve 24" installation depth, install electrical connection
in adjacent cabinetry. See spec sheets and installation instructions for install instructions.
ROUGH CUTOUT DIMENSIONS
MODEL SPECIFICATION GUIDE
55
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
Appliance Exterior Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Width Depth Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Temp. Range °F(°C) Power Requirements Refrigerant
LED Lighting
Options
K Level
Door
Styles
Outdoor Model
Number
Warranty
Industry
Exclusive
Energy
Star
COLUMNS
CR24R-1-2*
24" Column
Refrigerator
40 All Refrigerator, hinge reversible
23-3/4" (603) 24" (610)
83-5/8"
(2125)
3 adjustable height
spill-proof shelves
Deli drawer
Meat drawer
1 marinating pan
Tip out produce bin
4 door bins
12.8 cu.ft. N/A
Main Compartment - 34°(1.1°) - 42°(5.6°)
Deli Drawer - 32°(0°) - 37°(2.8°)
Meat/Fish Drawer - 32°(0°) - 37°(2.8°)
Tip out Produce Bin - 32°(0°) - 37°(2.8°)
115 VAC/60 Hz/2.3 Amps R600a (50g)
White roll-on
theater lighting
4000K 1,2 N/A
Full
6 Year
24" (610) 25" (635) 84" (2134)
CR30R-1-2*
30" Column
Refrigerator
40 All Refrigerator, hinge reversible
29-3/4" (756) 24" (610)
83-5/8"
(2125)
3 adjustable height
spill-proof shelves
Deli drawer
Meatdrawer
2 marinating pans
Tip out produce bin
4 door bins
16.6 cu.ft. N/A
Main Compartment - 34°(1.1°) - 42°(5.6°)
Deli Drawer - 32°(0°) - 37°(2.8°)
Meat/Fish Drawer - 32°(0°) - 37°(2.8°)
Tip out Produce Bin - 32°(0°) - 37°(2.8°)
115 VAC/60 Hz/2.3 Amps R600a (50g)
White roll-on
theater lighting
4000K 1,2 N/A
Full
6 Year
30" (762) 25" (635) 84" (2134)
CR24F-1-2*
24" Column
Freezer
40 All Freezer, hinge reversible
23-3/4" (603) 24" (610)
83-5/8"
(2125)
3 adjustable height shelves
3 pull-out bins
4 door bins
12.6 cu.ft. N/A
-10°(-23.3°) - 10°(-12.2°) 115 VAC/60 Hz/2.3 Amps R600a (50g)
White roll-on
theater lighting
4000K 1,2 N/A
Full
6 Year
24" (610) 25" (635) 84" (2134)
CR24W-1-2*
24" Wine
Reserve
41
Single-zone wine reserve,
hinge reversible
23-3/4" (603) 24" (610)
83-5/8"
(2125)
12 full-extension wine
shelves including one
convertible display shelf
12.6 cu.ft.
94 750 mL bottles
(99 bottles if you
double stack the
display shelf)
40°(4.4°) - 68°(20°) 115 VAC/60 Hz/2.3 Amps R600a (50g)
White and blue
roll-on theater
lighting including
Sabbath Mode
4000K 1,2,3,4 N/A
Full
6 Year
24" (610) 25" (635) 84" (2134)
CR24D-1-2*
24" Wine
Reserve
41
Dual-zone wine reserve,
hinge reversible
23-3/4" (603) 24" (610)
83-5/8"
(2125)
10 full-extension wine
shelves including one
convertible display shelf
12.2 cu.ft.
86 750 mL bottles
(91 bottles if you
double stack the
display shelf)
Upper Zone - 40°(4.4°) - 68°(20°)
Lower Zone - 40°(4.4°) - 68°(20°)"
115 VAC/60 Hz/2.3 Amps R600a (50g)
White and blue
roll-on theater
lighting including
Sabbath Mode
4000K 1,2,3,4 N/A
Full
6 Year
24" (610) 25" (635) 84" (2134)
1) Stainless Steel Solid Door 2) Fully Integrated Solid Door 3) Stainless Steel Glass Door 4) Fully Integrated Glass Door 5) Stainless Steel Drawers
6) Fully Integrated Drawers
DOOR STYLE GUIDE:
56
Overall Dimensions - in. (mm)
Model Type Page Description Length Width Height Ice Chest
Insulated
Bottle Well
Drainboard
Hand Sink Speed Rail Electrical
LED
Bartender
Task Lighting
Water Heater
Water Heater
Tank Volume
Water Pump
Gray Water/
Ice Melt Tank
(Pre-Plumbed)
Capacity
Potable Water Tank
(Pre-Plumbed)
Capacity
Exterior Materials
MOBILE BARS
RMB-001 Mobile Bar 34
Tobin Ellis Signature Series
Limited Edition Mobile Bar
70"
(1778)
34-1/2"
(877)
43-3/4"
(1112)
TS30IC with sliding cover TSC12IBW TSCS12 (2 ea.)
N/A
SRC-CL left curved (1 ea.)
SRC-CR right curved (1 ea.)
SRC-S18 18” straight (1 ea.)
Voltage 120V AC/
Frequency 60 Hz
4000K/
1200 LM
N/A N/A N/A (2) 2.5gal N/A
Toee Crocodile
exterior/Vanilla
Sugar engineered
solid surface top
RMB-002 Mobile Bar 34
70” Tobin Ellis Signature Series
Mobile Bar with drainboard
and sink conguration
70-1/8"
(1785)
35-9/16"
(903)
46-5/16"
(1176)
TS30IC with sliding cover TSC12IBW TSCS12 (1 ea.)
TS12HSN
with side
splash
SRC-CL left curved (1 ea.)
SRC-CR right curved (1 ea.)
SRC-S18 18” straight (1 ea.)
Voltage 120V AC/
Frequency 60 Hz
4000K/
1200 LM
50°F - 140°F
(10°C - 60°C)
1.5 gal
(5.7 L)
3 GPM
(11.3 LPM)
(1) 2.5gal
and (1) 6gal
5 gal (18.9 L)
Black laminate
exterior/White
Quartz engineered
solid surface top
RMB-003 Mobile Bar 34
70” Tobin Ellis Signature Series
Mobile Bar with 2 drainboards
70-1/8"
(1785)
35-9/16"
(903)
34-1/4" (870)
34-1/2" (876)
TS30IC with sliding cover TSC12IBW TSCS12 (2 ea.)
N/A
SRC-CL left curved (1 ea.)
SRC-CR right curved (1 ea.)
SRC-S18 18” straight (1 ea.)
Voltage 120V AC/
Frequency 60 Hz
4000K/
1200 LM
N/A N/A N/A (2) 2.5gal N/A
Black laminate
exterior/White
Quartz engineered
solid surface top
RMB-004 Mobile Bar 34
46” Tobin Ellis Signature Series
Mobile Bar
46-1/4"
(1175)
35-9/16"
(903)
46-5/16"
(1176)
TS30IC with sliding cover TSC12IBW N/A
N/A
SRC-CL left curved (1 ea.)
SRC-CR right curved (1 ea.)
SRC-S18 18” straight (1 ea.)
Voltage 120V AC/
Frequency 60 Hz
4000K/
800 LM
N/A N/A N/A (1) 2.5gal N/A
Black laminate
exterior/White
Quartz engineered
solid surface top
Overall Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Length Width Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Temp. Range
°F(°C)
Power Requirements Refrigerant
LED Lighting
Options
K Level
Door
Styles
Outdoor Model
Number
Marine Model
Number
Warranty
Industry
Exclusive
Energy
Star
MOBILE TAP
HP24TS-4-1L-
2MNC
Mobile Tap 34
Mobile Tap Nitro and Coee
or Wine
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) -
48°(8.8°)
115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-1* HP24TM-4-**-1*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-1L-
2MWW
Mobile Tap 34 Mobile Tap Wine
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) -
48°(8.8°)
115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-1* HP24TM-4-**-1*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-1L-
2MBW
Mobile Tap 34 Mobile Tap Beer
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) -
48°(8.8°)
115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-1* HP24TM-4-**-1*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-1L-
2MBB
Mobile Tap 34 Mobile Tap Beer and Wine
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) -
48°(8.8°)
115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-1* HP24TM-4-**-1*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
MODEL SPECIFICATION GUIDE
57
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
Mobile Bar Spec info?
Overall Dimensions - in. (mm)
Model Type Page Description Length Width Height Ice Chest
Insulated
Bottle Well
Drainboard
Hand Sink Speed Rail Electrical
LED
Bartender
Task Lighting
Water Heater
Water Heater
Tank Volume
Water Pump
Gray Water/
Ice Melt Tank
(Pre-Plumbed)
Capacity
Potable Water Tank
(Pre-Plumbed)
Capacity
Exterior Materials
MOBILE BARS
RMB-001 Mobile Bar 34
Tobin Ellis Signature Series
Limited Edition Mobile Bar
70"
(1778)
34-1/2"
(877)
43-3/4"
(1112)
TS30IC with sliding cover TSC12IBW TSCS12 (2 ea.)
N/A
SRC-CL left curved (1 ea.)
SRC-CR right curved (1 ea.)
SRC-S18 18” straight (1 ea.)
Voltage 120V AC/
Frequency 60 Hz
4000K/
1200 LM
N/A N/A N/A (2) 2.5gal N/A
Toee Crocodile
exterior/Vanilla
Sugar engineered
solid surface top
RMB-002 Mobile Bar 34
70” Tobin Ellis Signature Series
Mobile Bar with drainboard
and sink conguration
70-1/8"
(1785)
35-9/16"
(903)
46-5/16"
(1176)
TS30IC with sliding cover TSC12IBW TSCS12 (1 ea.)
TS12HSN
with side
splash
SRC-CL left curved (1 ea.)
SRC-CR right curved (1 ea.)
SRC-S18 18” straight (1 ea.)
Voltage 120V AC/
Frequency 60 Hz
4000K/
1200 LM
50°F - 140°F
(10°C - 60°C)
1.5 gal
(5.7 L)
3 GPM
(11.3 LPM)
(1) 2.5gal
and (1) 6gal
5 gal (18.9 L)
Black laminate
exterior/White
Quartz engineered
solid surface top
RMB-003 Mobile Bar 34
70” Tobin Ellis Signature Series
Mobile Bar with 2 drainboards
70-1/8"
(1785)
35-9/16"
(903)
34-1/4" (870)
34-1/2" (876)
TS30IC with sliding cover TSC12IBW TSCS12 (2 ea.)
N/A
SRC-CL left curved (1 ea.)
SRC-CR right curved (1 ea.)
SRC-S18 18” straight (1 ea.)
Voltage 120V AC/
Frequency 60 Hz
4000K/
1200 LM
N/A N/A N/A (2) 2.5gal N/A
Black laminate
exterior/White
Quartz engineered
solid surface top
RMB-004 Mobile Bar 34
46” Tobin Ellis Signature Series
Mobile Bar
46-1/4"
(1175)
35-9/16"
(903)
46-5/16"
(1176)
TS30IC with sliding cover TSC12IBW N/A
N/A
SRC-CL left curved (1 ea.)
SRC-CR right curved (1 ea.)
SRC-S18 18” straight (1 ea.)
Voltage 120V AC/
Frequency 60 Hz
4000K/
800 LM
N/A N/A N/A (1) 2.5gal N/A
Black laminate
exterior/White
Quartz engineered
solid surface top
Overall Dimensions - in. (mm) /
Cutout Dimensions - in. (mm)
Model Type Page Description Length Width Height
Shelving
(Door Models)
Capacity
Storage
Capacity
Temp. Range
°F(°C)
Power Requirements Refrigerant
LED Lighting
Options
K Level
Door
Styles
Outdoor Model
Number
Marine Model
Number
Warranty
Industry
Exclusive
Energy
Star
MOBILE TAP
HP24TS-4-1L-
2MNC
Mobile Tap 34
Mobile Tap Nitro and Coee
or Wine
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) -
48°(8.8°)
115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-1* HP24TM-4-**-1*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-1L-
2MWW
Mobile Tap 34 Mobile Tap Wine
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) -
48°(8.8°)
115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-1* HP24TM-4-**-1*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-1L-
2MBW
Mobile Tap 34 Mobile Tap Beer
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) -
48°(8.8°)
115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-1* HP24TM-4-**-1*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
HP24TS-4-1L-
2MBB
Mobile Tap 34 Mobile Tap Beer and Wine
23-7/8" (606) 24" (610) 34-1/4" (870)
No shelves 5.2 cu.ft.
(2) 1/6 barrels or
(1) 1/4 slim or
standard barrel
33°(.5°) -
48°(8.8°)
115 VAC/60 Hz/1 Ph R600a (50g)
White LED
task lighting
6000K 1,2 HP24TO-4-**-1* HP24TM-4-**-1*
Full
6 Year
24" (610) 24" (610) 34-1/2" (876)
58
59
Intro
signature
series
mobile bar/
mobile tap c-series ice makers columns accessories
quick reference /
model info
(Left to right)
24" Signature Series Dual-Zone Refrigerator/Freezer
Drawers, 24" Signature Series Dual-Zone Wine Reserve/Wine
Reserve, 24" Signature Series Beverage Center
Form No. 67721P
Rev. 09.06.23
8300 WEST GOOD HOPE ROAD | MILWAUKEE, WI 53223
800.558.5592 | PERLICK.COM
