FOLDING DOOR GATE
USER MANUAL
MODEL NO.: ZDM-091122, ZDM-166122, ZDM-15167, ZDM-18122, ZDM-22,
ZDM-2228
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL NO.: ZDM-091122, ZDM-166122, ZDM-15167, ZDM-18122, ZDM-22,
ZDM-2228
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Folding Door Gate
- 2 -
WARNING:
Please read this manual carefully before using the product. Failure to
do so may result in serious injury. SAVE THESE INSTRUCTION
ASSEMBLY PRECAUTIONS
1. Assemble only according to these instructions. Improper assembly can
create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves
during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or under the influence of alcohol, drugs or
medication.
6. The product capabilities apply to properly and completely assembled
products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely
supporting the Folding Door Gate.
8. For additional information regarding the parts listed in the following
pages, please refer to the Assembly Diagram of this manual. Unwrap
and separate all parts in a clean work area.
USE PRECAUTIONS
TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:
1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this
item.
3. Use only on a flat, level, hard and smooth surface capable of safely
supporting a fully loaded Folding Door Gate.
4. Use as intended only.
5. Inspect before every use. Do not use if parts are loose or damaged.
- 3 -
TECHNICAL SPECIFICATIONS
Model
ZDM-091122
ZDM-166122
ZDM-15167
Product
Dimensions
(LxWxH)(mm)
1310*40*910
1310*40*1660
1610*40*1670
Packing Size
(LxWxH)(mm)
1385*70*230
1385*70*260
1690*70*240
Net Weight (kg)
About 8.95
About 9.75
About 10.65
Gross Weight
(kg)
About 9.95
About 10.75
About 11.65
Model
ZDM-18122
ZDM-22
ZDM-2228
Product
Dimensions
(LxWxH)(mm)
1310*40*1800
2210*40*2000
2210*40*2280
Packing Size
(LxWxH)(mm)
1385*70*260
2350*70*260
2350*70*260
Net Weight (kg)
About 10.15
About 16.05
About 17.05
Gross Weight
(kg)
About 11.15
About 17.55
About 18.55
- 4 -

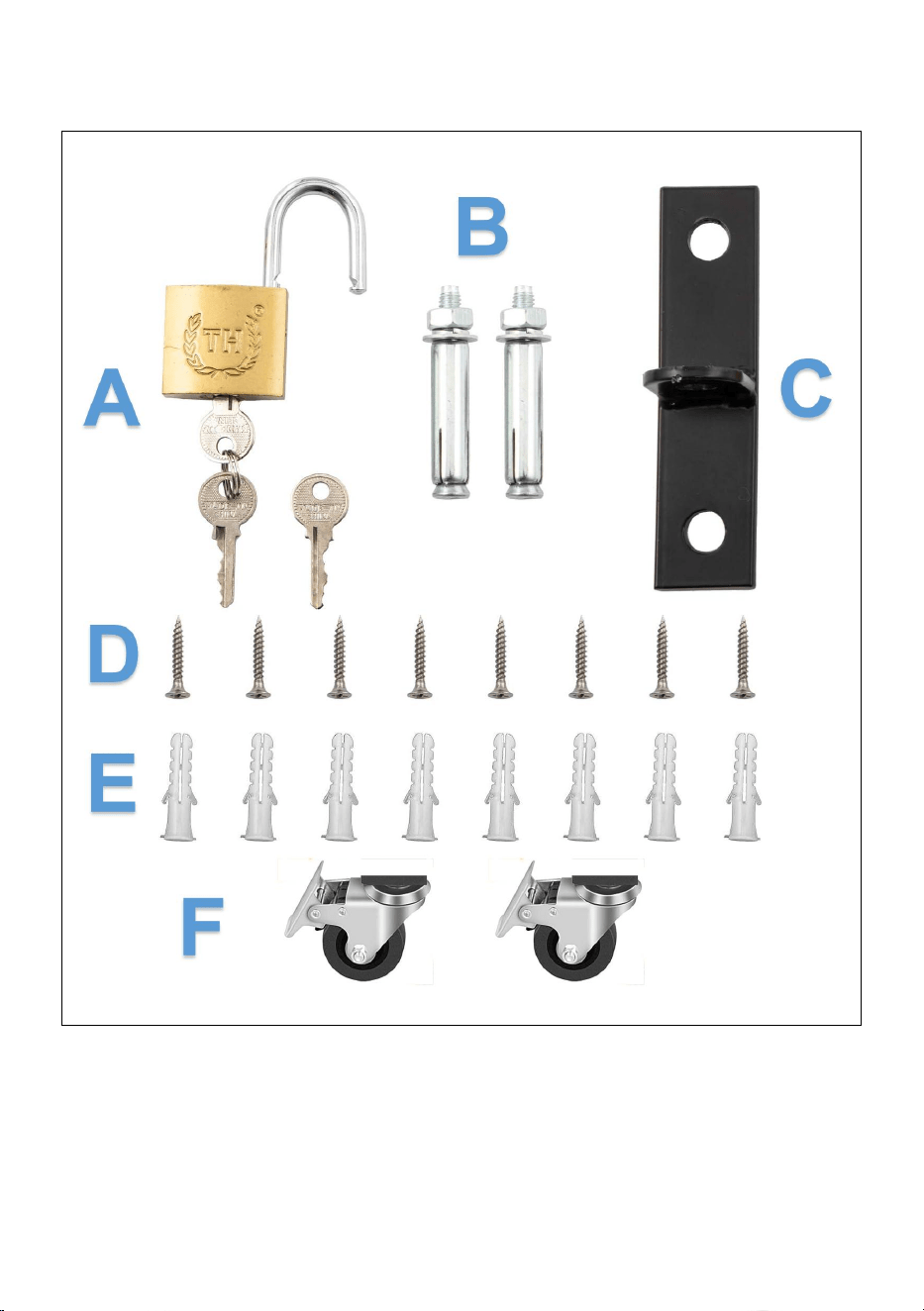

PACKAGE CONTENTS
- 5 -
ASSEMBLY STEPS
Note: Product images are shown for display purposes only and may
not be representative of the final product.

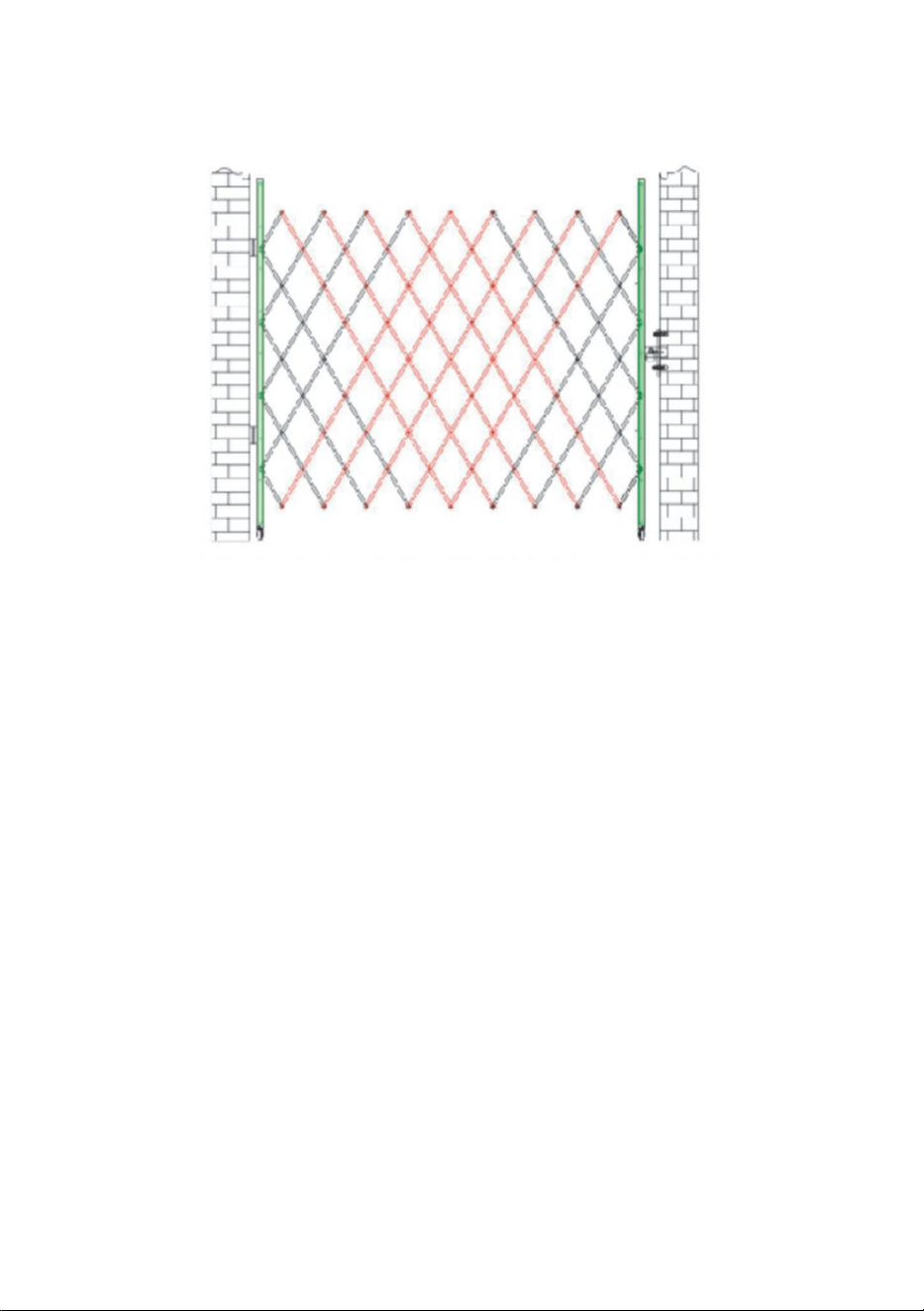

Using Step
Step 1: Unpack the product and take it out. Place the retractable
door in the position where it needs to be used. Open the hinges,
position them in the actual position on the wall and punch the holes.
Step 2: Place the plastic expansion screws (Serial E in the parts list)
in the perforated position, hold the door in place and fix it with the
self-tapping screws (Serial D in the parts list).
Step 3: Pull the telescopic door into position and remove the wall
fittings (Serial C in the Accessories List, positioned vertically, refer to
the parts List for placement).
Step 4: Attach the clips on the side posts to the wall fixings and
position them in a sensible position and make the holes again, Place
the expansion screws (Serial B in the parts list) in the holes to fix the
wall fittings to the wall.
Caution: Keep hands and fingers out of moving diamonds of web
when handling gate.
- 6 -
COMPLETION
