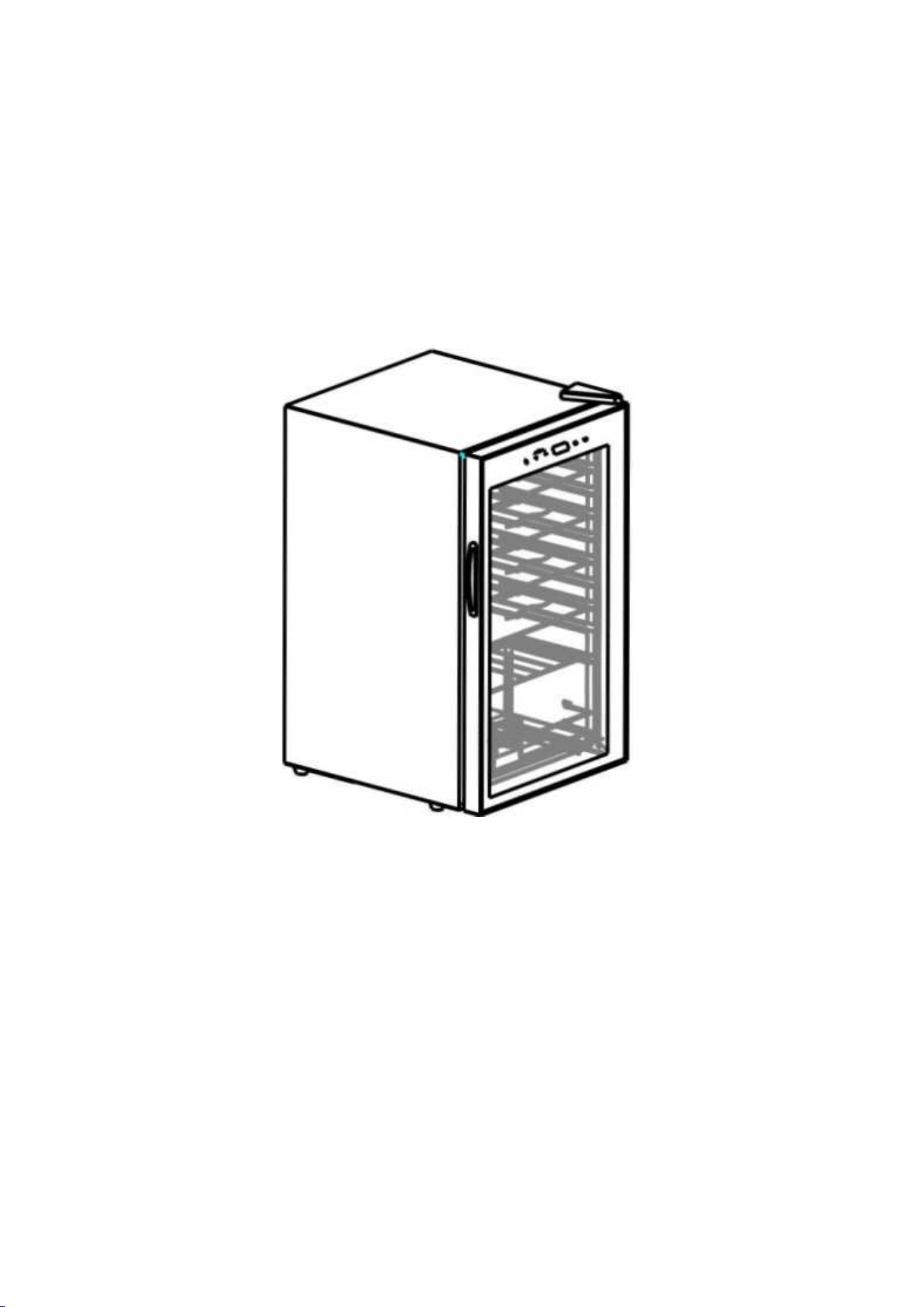

WINE COOLER WC65
USER MANUAL
MODEL: YH-24A
Read this manual and follow all safety rules and operating instructions before
first use of this Wine cooler.
CONTENT
SAFETY INSTRUCTIONS ...................................................................... 1
PRODUCT STRUCTURE ....................................................................... 2
ELECTRICAL CONNECTION ................................................................ 3
INSTALLATION .......................................................................................5
OPERATION INSTRUCTIONS...............................................................5
CARE & MAINTENANCE ....................................................................... 7
TROUBLESHOOTING ............................................................................9
WARRANTY ..........................................................................................11
GET SALES SERVICE ......................................................................... 11
AFTER-SALES INFORMATION ........................................................... 12
1
SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
Before the appliance is used, it must be properly positioned and
installed as described in this manual, so read the manual
carefully. To reduce the risk of fire, electrical shock or injury.
When using the appliance, following basic precaution, including:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do
not use an adapter, and do not use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit, serving only your appliance be
provided. Use receptacles that cannot be turned off by a switch or pull
chain.
Never clean appliance parts with flammable fluids. These fumes can create
a fire hazard or explosion. And do not store or use gasoline or other
flammable vapour and liquids in the vicinity of this or any other appliance.
The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure
the power line of the unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing.
Failure to do so can result in electrical shock or death.
WARNING: Do not attempt to repair or replace any part of your appliance
unless it is specifically recommended in this manual. All other servicing
should be referred to a qualified technician.
2

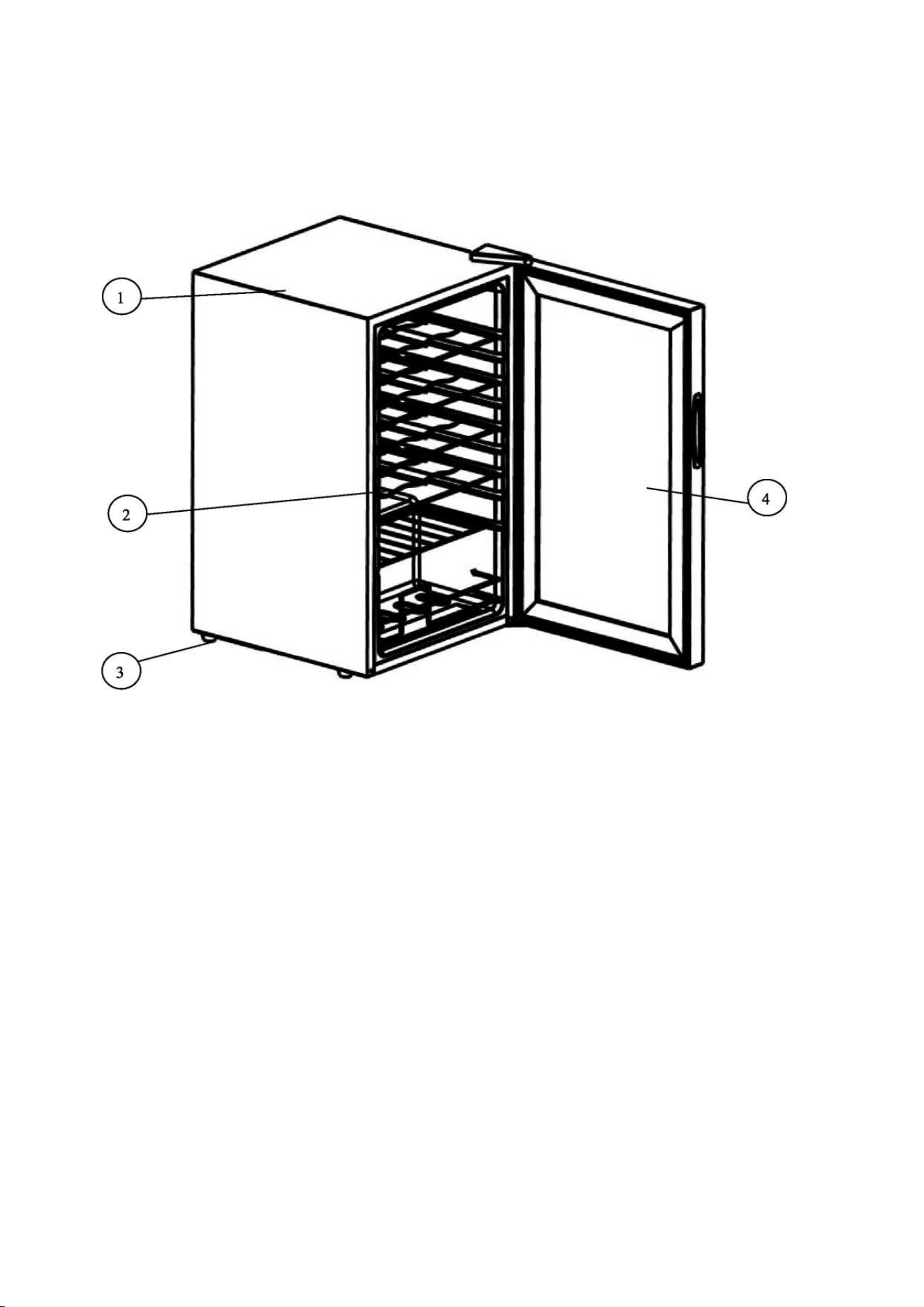

PRODUCT STRUCTURE
1. Cabinet
3. Leveling Legs
2. Metal shelves
4. Glass door
3
SPECIFICATIONS
Model YH-24A
Rated Voltage 115V/60HZ
Input Power 70W
Rated Current 0.9A
Refrigerant R600a
Volume 65L
Climate Type SN/N/ST
Net Weight 25Kg
Gross Weight 29Kg
Product Dimensions 430*480*756 mm
Package Dimensions 510*560*825 mm
4
ELECTRICAL CONNECTION
WARNING: Improper use of the grounded plug can result in the risk of electrical
shock. If the power cord is damaged, have it replaced by an authorized service
center.
This appliance should be properly grounded for your safety. The power cord
of this appliance is equipped with a three-prong plug which mates with
standard three prong wall outlets to minimize the possibility of electrical
shock.
Do not under any circumstances cut or remove the third ground prong from
the power cord supplied. For personal safety, this appliance must be properly
grounded.
This appliance requires a standard 115V/60Hz electrical ground outlet with
three-prong. Have the wall outlet and circuit checked by a qualified electrician
to make sure the outlet is properly grounded. When a standard 2-prong wall
outlet is encountered, it is your responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet. The cord should be
secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical
outlet which has a voltage rating that matches the rating label on the
appliance. This provides the best performance and also prevent overloading
house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly
and pull straight out from the receptacle. Repair or replace immediately all
power cords that have become frayed or otherwise damaged. Do not use a
cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
5
INSTALLATION
This appliance is designed for free standing only.
Place your wine cooler on a floor that is strong enough to support it when it is
fully loaded. To level your wine cooler, adjust the front leveling legs at the
bottom of the wine cooler.
Locate the wine cooler away from direct sunlight and sources of heat (stove,
heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat
sources may increase electrical consumption. Extreme cold ambient
temperatures may also cause the unit not to perform properly.
Avoid locating the unit in moist areas.
Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet.
Do not under any circumstances cut or remove the third (ground) prong from
the power cord. Any questions concerning power and/or grounding should be
directed toward a certified electrician or an authorized Products service
center.
OPERATION INSTRUCTIONS
It is recommended you install the wine cooler in a place where the ambient
temperature is between 19°C-24°C (66°F-75°F), and humidity is under
60%. If the ambient temperature is above or below recommended
temperatures, the performance of the unit may be affected. For example,
placing your unit in extreme cold or hot conditions may cause interior
temperatures to fluctuate.
6
Recommended temperature settings:
Wine conservation: 12°C-14°C (53°F-57°F)
Rose and sparkling wines: 5°C-8°C (41°F-46°F)
Dry/white wines: 9°C-12°C (48°F-53°F)
Red wines: 14°C-18°C (59°F-65°F)
NOTE: Temperature may varies between ± 2 °C
Temperature Setting
：
1.
Adjusts the temperature in 1 degree increments.
2.
Adjusts the temperature in 1 degree decrements.
3.
Press for 1 second: Turns the interior light on or off.
Press for 3 seconds: Toggles the temperature display between Celsius and
Fahrenheit.
4.
Press for 3 seconds to turn on /off the appliance.
Storage:
This wine cooler is designed to store standard Bordeaux 750 ml wine
bottles. Many bottles differ in size and dimensions. Therefore, the actual
number of bottles you may be able to store may vary.
Storing large and/or oddly shaped bottles (including champagne and
sparkling wine bottles) will decrease the capacity of your wine cooler.
7
CARE & MAINTENANCE
IMPORTANT:
Always unplug the cooler before cleaning or performing
maintenance. Never use harsh cleansers or scouring pads to clean any part of the
cooler.
Turn off the power, unplug the Wine cooler, and remove all items including
shelves.
Wash the inside surfaces with warm water and baking soda solution. The
solution should be about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning the area near the
controls, or any electrical parts.
Wash the outside cabinet with warm water and a mild liquid detergent. Rinse
well and wipe dry with a clean soft cloth. Do not use steel wool or steel brush to
rub the stainless steel, which will contaminate the stainless steel with steel
particles and rusting may occur.
Power Failure
Most power failures are corrected within a few hours and should not affect the
temperature of your Wine cooler. If the power is off for an extended period of time,
proper steps should be taken to protect your contents.
Vacation Time
Leave the Wine cooler operating during vacations of less than three weeks. For
periods longer than this, turn the Wine cooler off and leave the door slightly ajar to
prevent odor from building inside the Wine cooler.
8
Moving Your Wine Cooler
Remove all items (bottles) from the cooler.
Securely tape down any loose items, such as shelves, inside the cooler.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Ensure that the Wine cooler stays securely in the upright position during
transportation. Protect the outside of the Wine cooler with a blanket or a similar
item.
Energy Saving Tips
The cooler should be located in the coolest area of the room away from heat
sources or direct sunlight.
Ensure that the cooler is adequately ventilated. Never cover air vents.
Only open the cooler door for necessary. Frequent opening of the door will
affect internal temperature.
9
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The Wine Cooler
does not run.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped
or a blown fuse.
Plug the unit.
Press to turn on the unit.
Check the breaker and/or
fuses.
Cooler is not cold
enough.
External environment may
require a higher setting.
The door is opened too
often.
The door is not closed
completely.
The door gasket does not
seal properly.
Check the temperature
control setting.
Close the door properly.
Check the door gasket.
The compressor
turns on and off
frequently.
The room temperature is
hotter than normal.
A large amount of contents
has been added to the
cooler.
The door is not closed
completely.
The temperature control is
not set correctly.
The door gasket does not
seal properly.
Close the door properly.
Check the door gasket.
The fans turn on
and off frequently.
In order to circulate the air and maintain the set
temperature inside the cabinet the fans must cycle on and
off even when the compressor is off. The fans will cycle
ON and OFF while the compressor is off approximately
every 10 seconds, this is called "Semi-speed status " .
This cycle is normal and meant both to circulate the air as
well as ensure the continued operational status of the
fans. If the fan stops completely and does not complete
this cycle the fan is non-operational.
The light does not
work.
Not plugged in.
The circuit breaker tripped
or a blown fuse.
The light button is “OFF” .
Plug the unit.
Check the breaker and/or
fuses.
10
Vibrations.
The cooler is not leveled.
Check to assure that the
cooler is level.
The bottles are vibrating.
Make sure the bottles don't
touch each others.
There is an object under the
cooler.
Remove the object under the
cooler.
The cooler seems to
make too much
noise.
The cooler is not level. Level the cooler.
Normal noise from the flow of
the refrigerant.
The rattling noise may come
from the flow of the
refrigerant, which is normal.
As each cycle ends, you may
hear gurgling sounds caused
by the flow of refrigerant in
your cooler. Contraction and
expansion of the inside walls
may cause popping and
crackling noises.
The door will not
close properly.
The cooler is not level. Level the cooler.
The door was reversed and
not properly installed.
Re-install the door properly.
The gasket is dirty. Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
11
WARRANTY
This device is covered by a limited manufacturer's warranty. The manufacturer
will repair or replace any part of this equipment that is defective in material or
workmanship within one year from the date of original purchase, provided that the
equipment is used under normal operating conditions as intended by the
manufacturer.
WARRANTY TERMS
During the first year, any part of this equipment that is defective due to material or
workmanship will be repaired or replaced at the manufacturer's discretion, free of
charge, to the original purchaser. The purchaser will be responsible for any
removal or shipping costs.
WARRANTY EXCLUSIONS
Warranty will not apply if damage is caused by any of the following:
Damaged when transporting or moving the device
Improper power supply, such as low voltage, defective household wiring, or
improper fuses
Accidents, alterations, misuse or abuse of electrical appliances, such as the
use of unapproved accessories, insufficient indoor air circulation, or abnormal
operating conditions (extreme temperatures)
Fire, flood, war, riot, hostilities or acts of God such as hurricanes, floods, etc.
Damage caused by the use of force or external influence
Partially or completely disassembled equipment that is excessively worn by
the user
GET SALES SERVICE
When making a warranty claim, please have the original purchase checklist with
the purchase date ready. Once your device is confirmed to be eligible for warranty
service, all repairs will be performed by an authorized repair facility. For technical
12
AFTER-SALES INFORMATION
Model: YH-24A
Email: [email protected]
Phone: 1-866-658-5891 (US)
Monday-Friday from 7 a.m.- 3 p.m. EST
