Printing a Mounting Template
NOTICE
It is not recommended that you print a mounting template on your own. Use the template that came in the product box.
If you do print the template, you must follow these instructions for printing a mounting template precisely. To print large templates,
you need large enough paper and printer. Failure to have the correct sized paper and printer, or a failure to follow these instructions,
may result in an incorrectly sized template and therefore an incorrect cutout (too large or too small) on the mounting surface of your
boat.
1

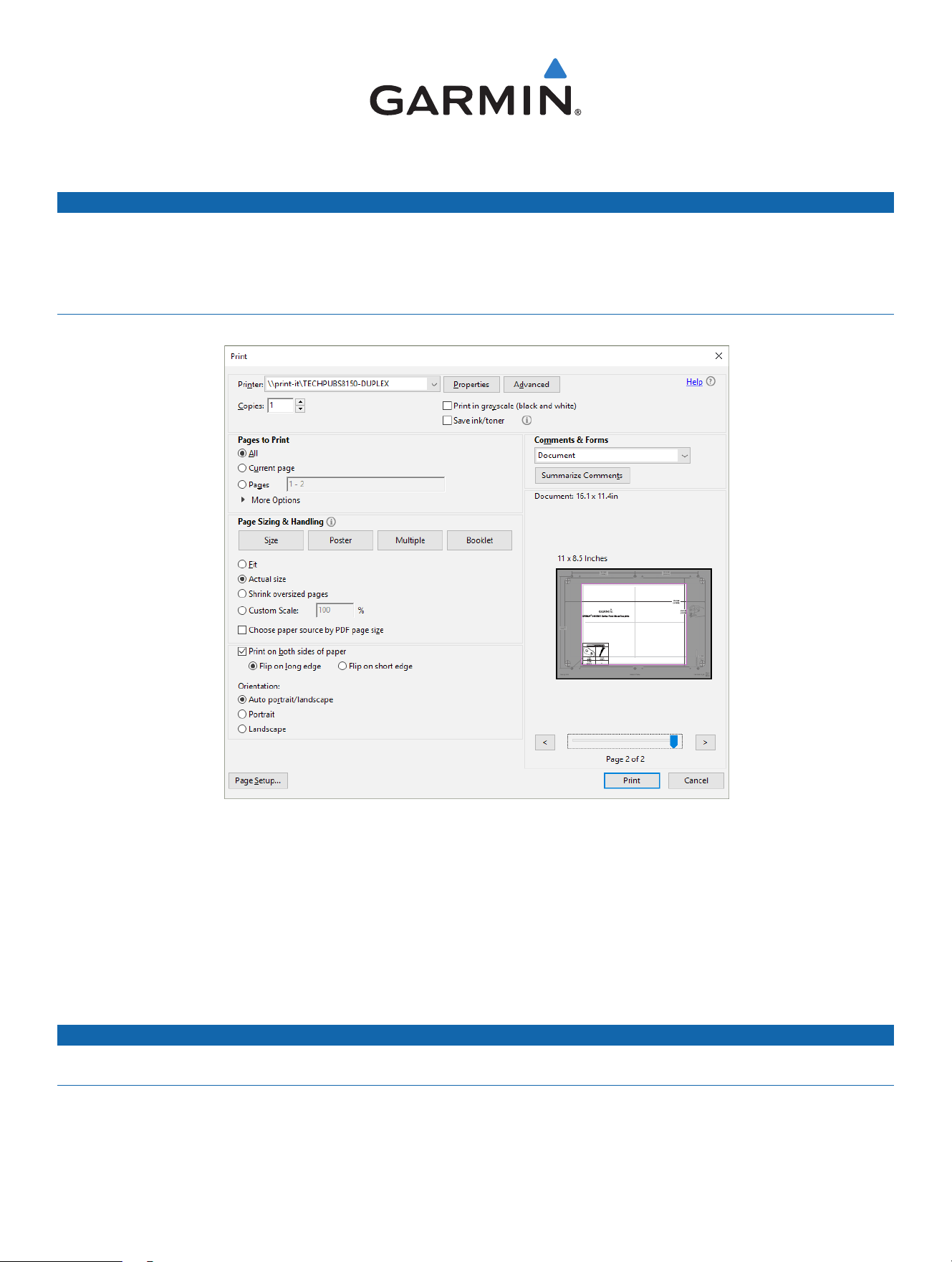

Select File > Print.
➋➋
➌➌
➍➍
➎➎
➊➊
2
Select None for Page Scaling ➊➊.
3
Ensure the check mark is next to Auto-Rotate and Center ➋➋.
4
Drag the arrow ➌➌ to the right, to view page 2 in the window below.
4
Verify that the paper size is larger than the template ➍➍.
In this example, the paper is not larger than the template.
5
If the paper size is not large enough, select Properties ➎➎ and select a Page Size that is larger than the template.
NOTICE
Fusion is not responsible for any damages or expenses resulting from a miscut mounting surface arising from a failure to follow
these instructions.

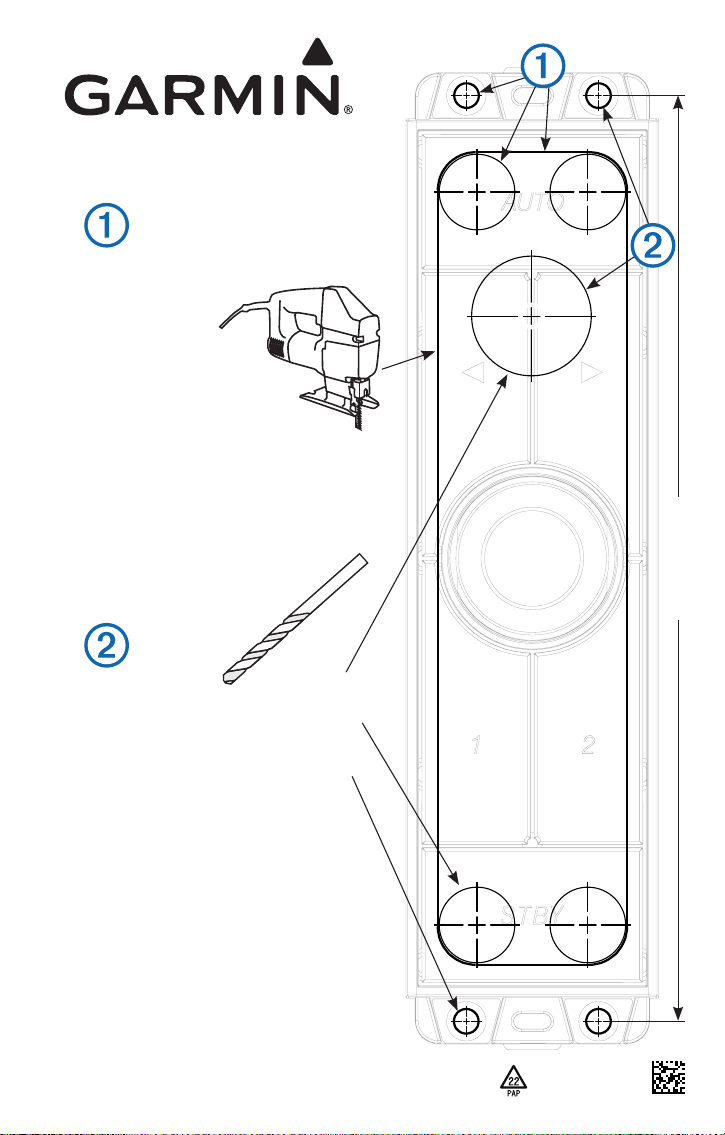

APK 10 Vertical
Mounting Template
20 mm (13/16 in.)
11.2 mm (7/16 in.)
2 mm (5/64 in.)
Printed in Taiwan
© 2024 Garmin Ltd. or its subsidiariesDecember 2024
190-02921-06_0C
147 mm (5 25/32 in.)
Flush mount
Montage encastré
Montaggio a incasso
Bündige Montage
Montaje empotrado
Montagem embutida
Planmontering
Verzonken montage
Tasoasennus
Innbygging
Nedsänkt montering
嵌入式安裝
Surface mount
Montage à plat pont
Montaggio su
supercie
Aufgesetzte Montage
Montaje empotrado
Montagem em
superfície
Overademontering
Oppervlaktemontage
Pinta-asennus
Overatemontering
Ytmontering
表面安裝
