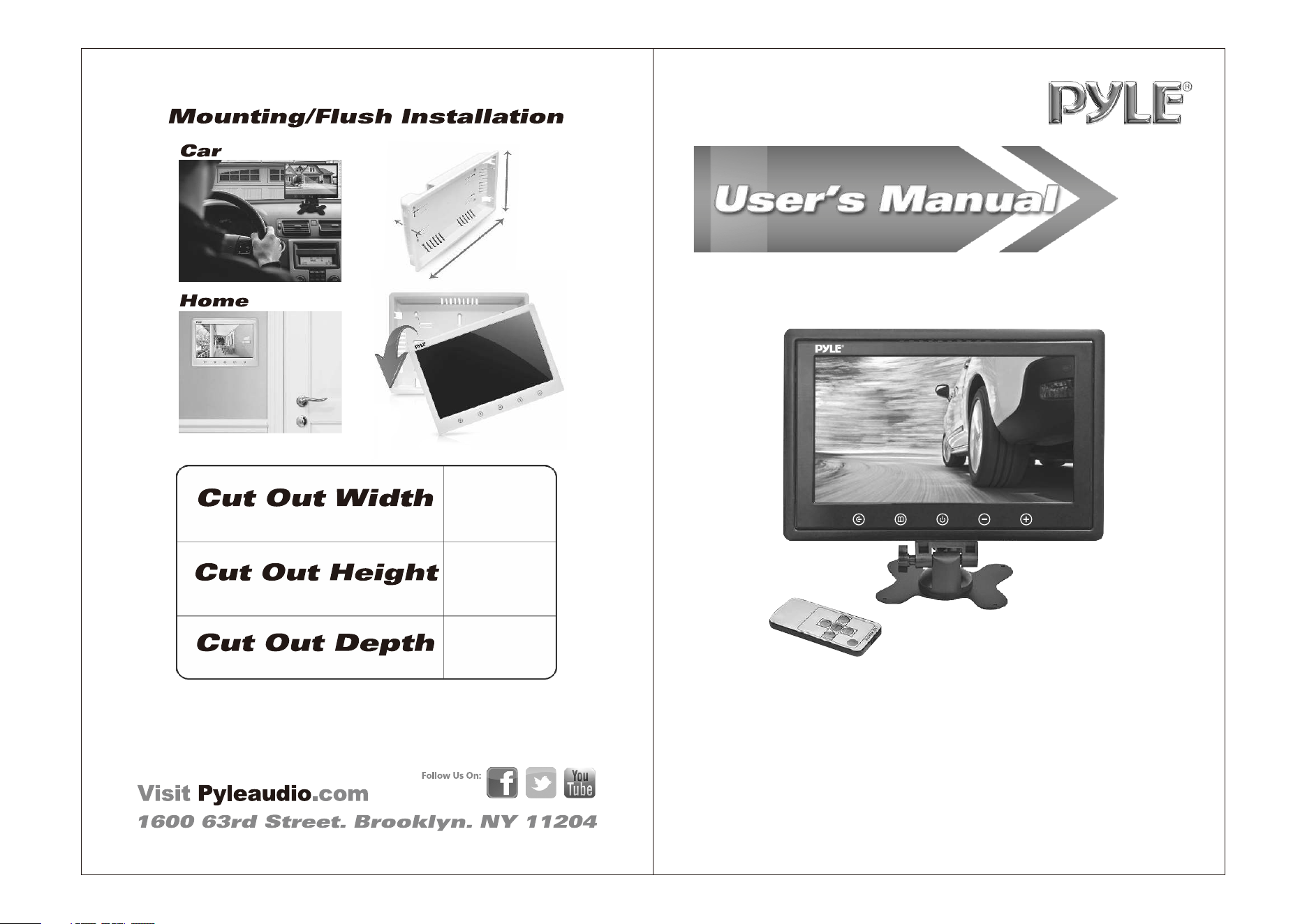

PLHR95B
PLHR98W
9.2-Inch Hi-Resolution Widescreen
Headrest Monitor, Stand and Shroud
with RCA Connectors and Remote Control
PLHR95B
8.7"
5.7"
0.8"
PLHR95B

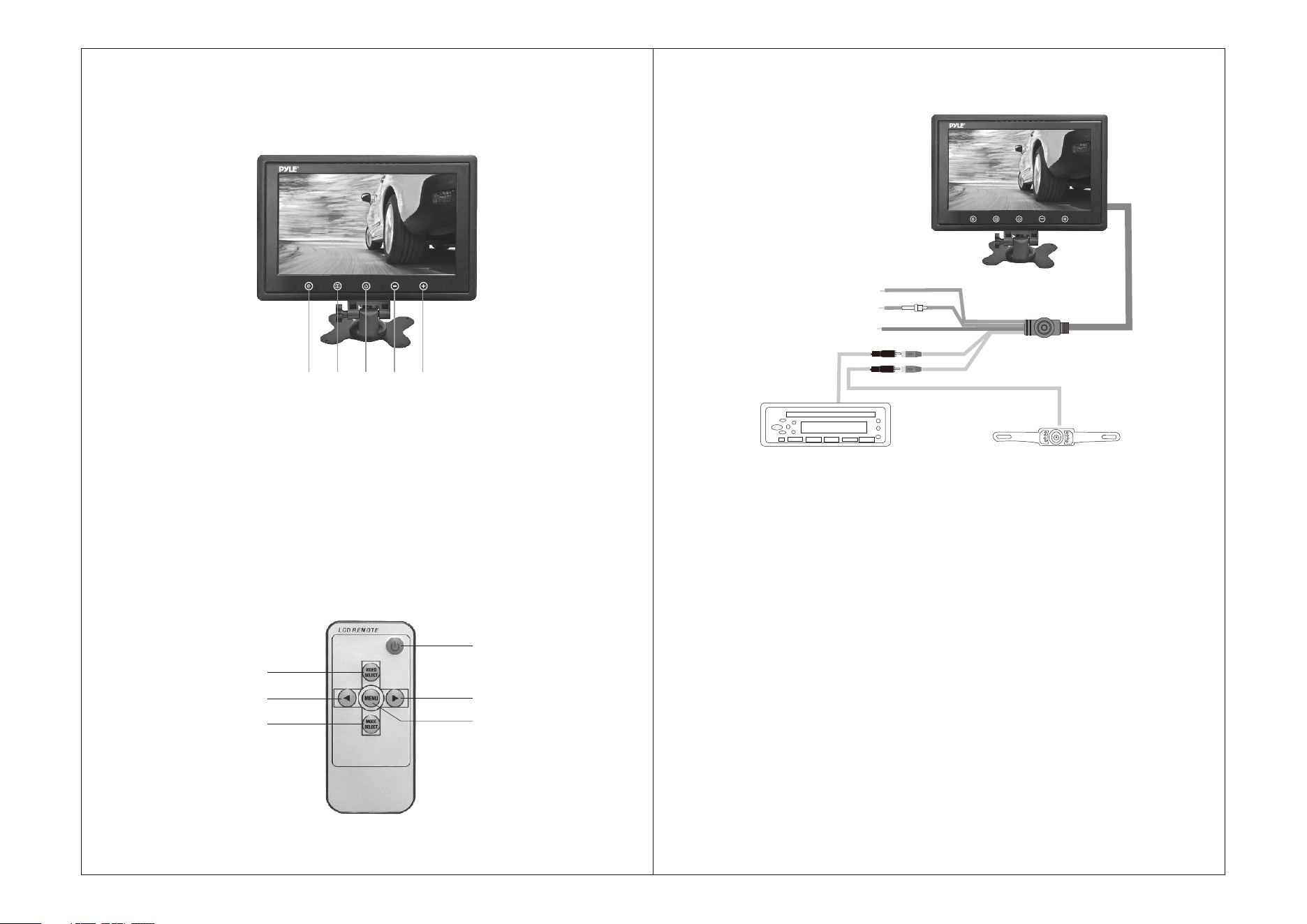

Function keys panel
12345
1. Video input selection
2. Menu
3. Power on/off
4. Analog variable decrease
5. Analog variable increase
Methods of remote using
Wire diagram
Features:
• 9.2'' TFT/LCD Digital Monitor
• 16:9 Wide Screen Format
• High Resolution 800 x 480
• NTSC/ PAL System Compatible
• 2 Video Input, 1 Audio Input
• RCA Connectors
• Built-in IR Transmitter for Wireless Headphones
• Built with Speaker
• Brightness/ Contrast/ Color/ Tint Adjustments
• Headrest Shroud & Universal Stand Mount
• Wireless Full Function Remote Control
• Power Requirement: Dc 12V +/- 10%
• Power Consumption: 5W Max
• Unit Dimensions: 8.7''H x 5.7''W x 0.8''D
• Weight :2.59 lbs.
Power ON/OFF
Analog variable increase
Menu button
V1/V2 conversion
Analog variable decrease
Switch for mode
(Green) reverse car
PLAYER
CAMERA
(Red) battery+12V
(Black) grounding
(Yellow) video 1 input
(Yellow) video 2 input
PLHR95B
