MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. Lisbon Road, Brookfi eld, WI 53005

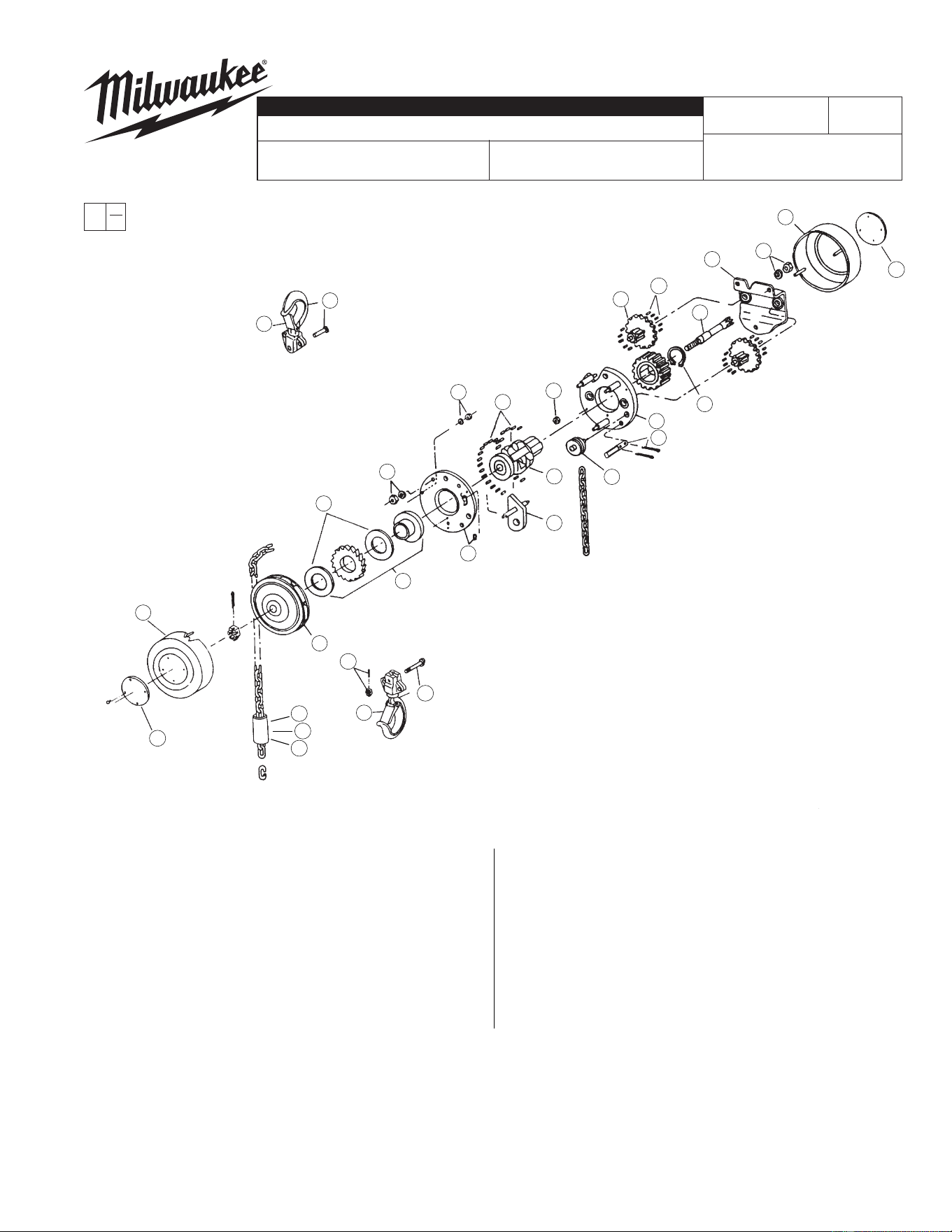

Drwg. 3
BULLETIN NO.
54-02-0255
SERVICE PARTS LIST
FIG. PART NO. DESCRIPTION OF PART QTY
1 14-47-0860 Main Hardware Kit (1)
2 14-47-0870 Liftwheel Roller Kit (1)
3 45-88-8847 Washer-Friction (2)
4 45-94-0425 Handwheel (1 Ton) (1)
5 14-47-0855 Brake Set (1)
6 44-66-6187 Handwheel Side Plate (1 Ton) (1)
7 44-66-6188 Geared Side Plate (1 Ton) (1)
8 32-60-2660 Gear Set (1 Ton) (1)
9 36-66-9685 Pinion Shaft (1 Ton) (1)
10 14-47-0865 Pinion & Liftwheel Hardware Kit (1)
11 45-11-0205 Liftwheel w/Bearing Races (1)
12 44-77-0115 Stripper (1 Ton) (1)
FIG. PART NO. DESCRIPTION OF PART QTY
13 44-60-1605 Loose End Pin Kit (1 Ton) (1)
14 43-56-0575 Chain Guide Roller (1)
15 14-47-0875 Gear Cage w/Bushing (1)
16 14-47-0945 Latch Kit (1 Ton) (2)
17 42-92-1260 Handwheel Cover w/Studs (1)
18 42-92-1265 Gear Cover w/Studs (1)
19 14-36-0250 Upper Hook Kit (1 Ton) (1)
20 14-36-0255 Lower Hook Kit (1 Ton) (1)
21 10-15-1520 Warning Tube (English) (1)
22 10-15-1525 Warning Tube (Spanish) (1)
23 10-15-1530 Warning Tube (French) (1)
24 44-96-0180 Gear Set Roller Kit (1 Ton) (1)
25 12-20-9670 Service Nameplate Kit (1 Ton) (1)
EXAMPLE:
Component Parts
(Small #) Are Included
When Ordering The
Assembly (Large #).
0
00
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
1
16
23
22
21
20
20
1 TON CHAIN HOISTS
CATALOG NOS. 9670-20, 9671-20,
9672-20 and 9673-20
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
STARTING
SERIAL NO.
ND-B
DATE
July 2010
WIRING INSTRUCTION
N/A
24
1
25
25
