Model No.
944.360480
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
®
Owner’s Manual
6.25 HORSEPOWER
21"MULTI-CUT
ROTARY LAWN MOWER
• Safety
• Assembly
• Operation
• Maintenance
• Repair Parts
Sears Canada, Inc., Toronto, Ontario M5B 2B8
172724 Rev.1 02.28.00 VB Printed in U.S.A.
NEED A PART?
SEARS HAS ACCESS TO OVER 800,000 PARTS
WHETHER IT'S A SPARK PLUG OR LAWNMOWER BLADE.
SEARS PARTS AND SERVICE CAN SUPPLY YOU WITH
TOP QUALITY REPAIR PARTS FOR ALL YOUR PRODUCTS.
JUST CALL :
1-800-4MY-HOME
2
Warranty 2
Safety Rules 2
Assembly 4
Operation 5
Maintenance Schedule 9
Maintenance 9
Product Specifications 10
Service and Adjustments 12
Storage 13
Troubleshooting 15
Repair Parts 18
Parts Ordering Back Cover
SAFETY RULES
WARRANTY
TABLE OF CONTENTS
TRAINING:
• Read this operator’s manual carefully.
Become familiar with the controls and
know how to operate your mower
properly. Learn how to quickly stop
mower.
• Do not allow children to use your mower.
Never allow adults to use mower without
proper instructions.
• Keep the area of operation clear of all
persons, especially small children and
pets.
• Use mower only as the manufacturer
intended and as described in this
manual.
• Do not operate mower if it has been
dropped or damaged in any manner.
Always have damage repaired before
using your mower.
• Do not use accessory attachments that
are not recommended by the manufac-
turer. Use of such attachments may be
hazardous.
• The blade turns when the engine is
running.
PREPARATION:
• Always thoroughly check the area to be
mowed and clear it of all stones, sticks,
wires, bones, and other foreign objects.
These objects will be thrown by the
blade and can cause severe injury.
• Always wear safety glasses or eye
shields when starting and while using
your mower.
Safety standards require operator
presence controls to minimize the
risk of injury. Your unit is equipped
with such controls. Do not attempt to
defeat the function of the operator
presence controls under any
circumstances.
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase Sears Canada, Inc. will repair or replace at Sears
option free of charge parts which are defective as a result of material or workmanship.
COMMERCIAL OR RENTAL USE:
Warranty on Power Mower (Gas) will be ninety (90) days from date of purchase if used
for commercial or rental purposes.
This Warranty does
NOT cover:
• Pre-delivery set-up.
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner’s manual.
Warranty service is available by returning the Craftsman Power Mower to the nearest
Sears Service Centre/Department in Canada. This warranty applies only while this
product is in use in Canada.
This warranty is in addition to any statutory warranty and does not exclude or limit legal
rights you may have but shall run concurrently with applicable provincial legislation.
Furthermore, some provinces do NOT allow limitation on how long an implied warranty
will last so the above limitations may not apply to you.
SEARS CANADA, INC., TORONTO, ONTARIO M5B 2B8
23

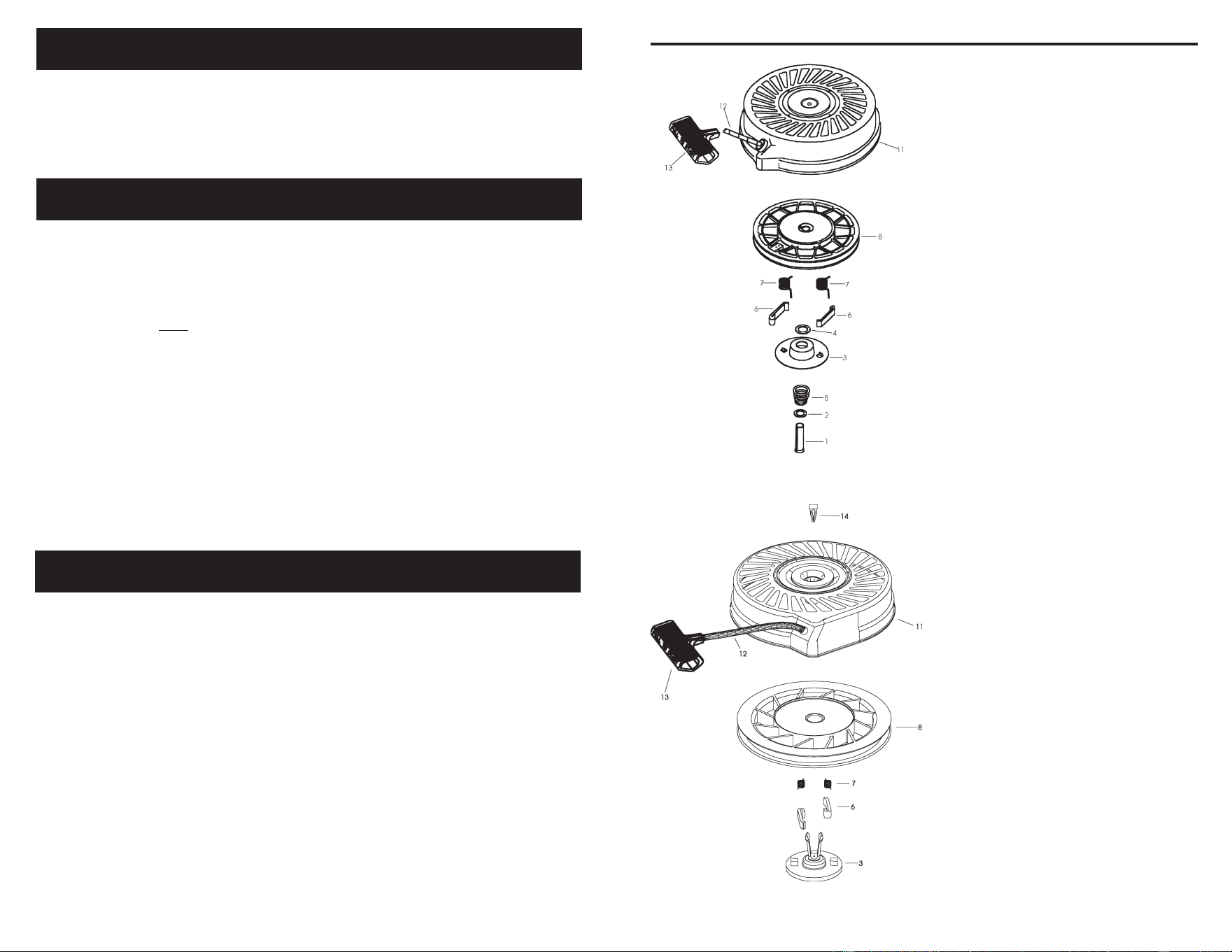

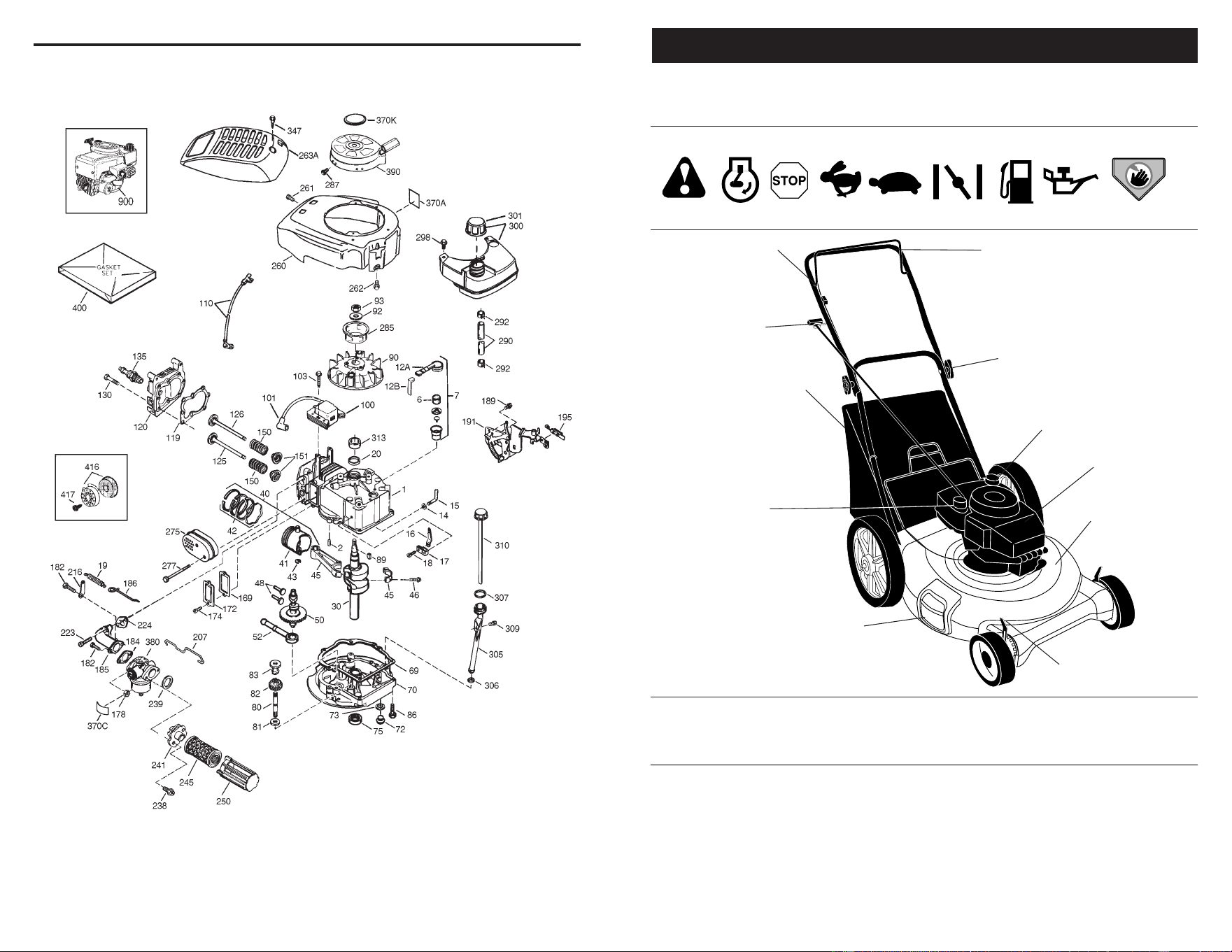

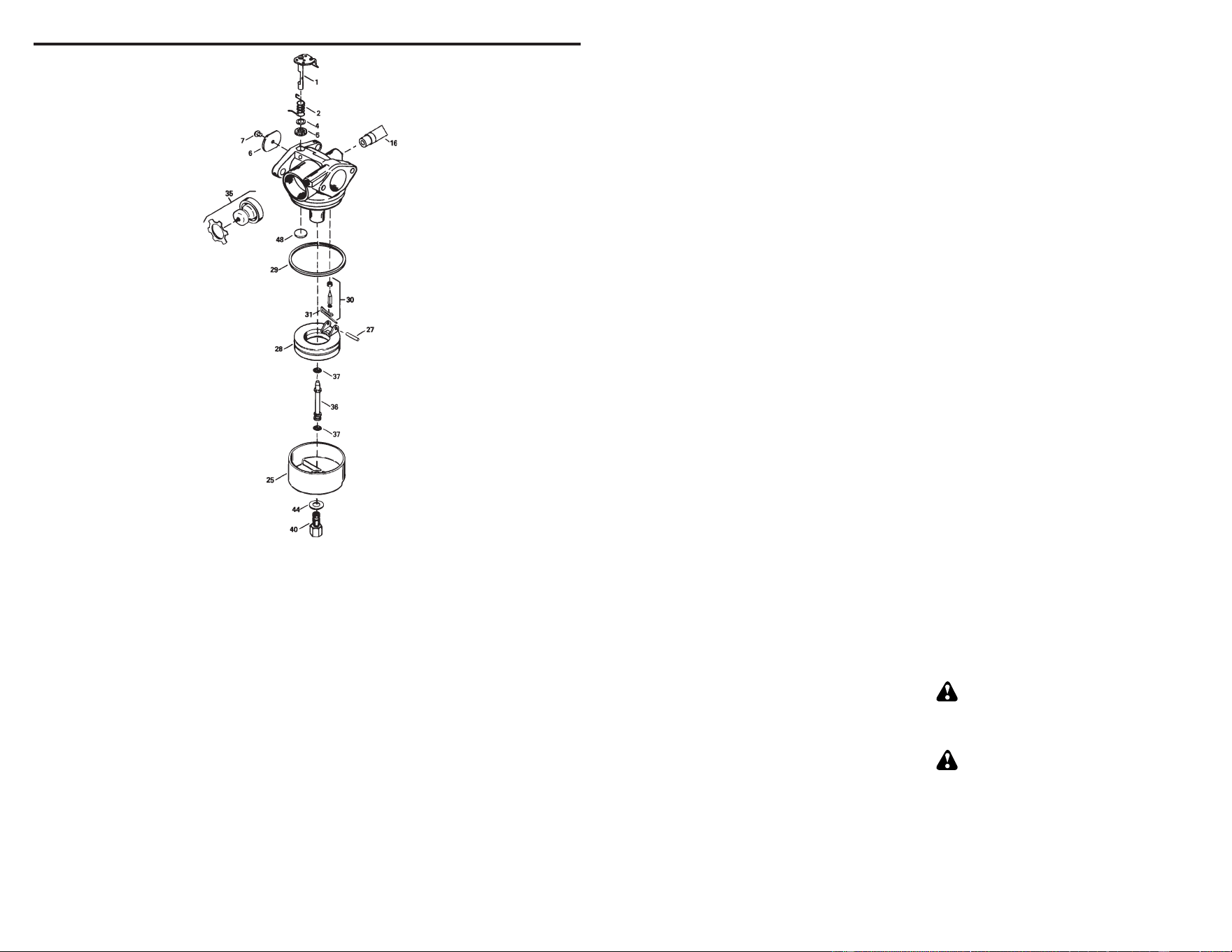

MODEL NO. 143.006202
CRAFTSMAN 4-CYCLE ENGINE

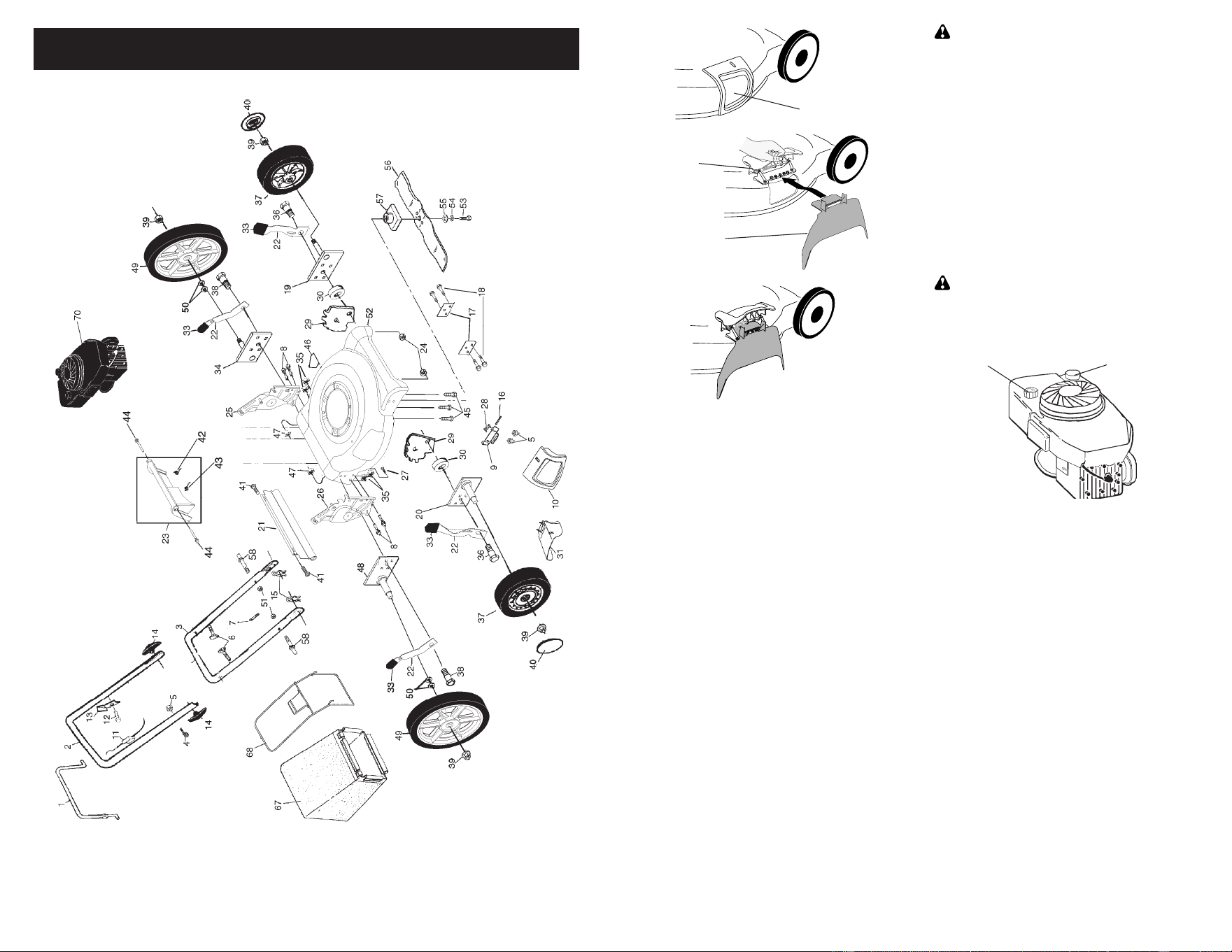

KEY PART
NO. NO. DESCRIPTION
— — 590694 Recoil Starter
1 590599A Spring Pin (Incl. 4)
2 590600 Washer
3 590696 Retainer
4 590601 Washer
5 590697 Brake Spring
6 590698 Starter Dog
7 590699 Dog Spring
8 590700 Pulley & Rewind Spring Ass’y.
11 590695 Starter Housing Ass’y. (40
degree grommet)
12 590535 Starter Rope ( 98" X 9/64"
dia.)
13 590701 Starter Handle
KEY PART
NO. NO. DESCRIPTION
— — 590737 Rewind Starter
3 590740 Retainer
6 590616 Starter Dog
7 590617 Dog Spring
8 590618A Pulley & Rewind Spring Ass’y
11 590687A Starter Housing Ass’y (40
degree grommet)
12 590535 Starter Rope(Length 98" x 9/
64" dia.)
13 590701 Starter Handle
14 590760 Spring Clip
3
• Dress properly. Do not operate mower
when barefoot or wearing open sandals.
Wear only solid shoes with good traction
when mowing.
• Check fuel tank before starting engine.
Do not fill gas tank indoors, when the
engine is running or when the engine is
hot. Allow the engine to cool for several
minutes before filling the gas tank. Clean
off any spilled gasoline before starting
the engine.
• Always make wheel height adjustments
before starting your mower. Never
attempt to do this while the engine is
running.
• Mow only in daylight or good artificial
light.
OPERATION:
• Keep your eyes and mind on your
mower and the area being cut. Do not let
other interests distract you.
• Do not mow wet or slippery grass. Never
run while operating your mower. Always
be sure of your footing — keep a firm
hold on the handles and walk.
• Do not put hands or feet near or under
rotating parts. Keep clear of the dis-
charge opening at all times.
• Always stop the engine whenever you
leave or are not using your mower, or
before crossing driveways, walks, roads,
and any gravel—covered areas.
• Never direct discharge of material
toward bystanders nor allow anyone
near the mower while you are operating
it.
• Before cleaning, inspecting, or repairing
your mower, stop the engine and make
absolutely sure the blade and all moving
parts have stopped. Then disconnect the
spark plug wire and keep it away from
the spark plug to prevent accidental
starting.
• Do not continue to run your mower if you
hit a foreign object. Follow the procedure
outlined above, then repair any damage
before restarting and operating you
mower.
• Do not change the governor settings or
overspeed the engine. Engine damage
or personal injury may result.
• Do not operate your mower if it vibrates
abnormally. Excessive vibration is an
indication of damage; stop the engine,
safely check for the cause of vibration
and repair as required.
• Do not run the engine indoors. Exhaust
fumes are dangerous.
• Never cut grass by pulling the mower
towards you. Mow across the face of
slopes, never up and down or you
might lose your footing. Do not mow
excessively steep slopes. Use caution
when operating the mower on uneven
terrain or when changing directions —
maintain good footing.
• Never operate your mower without
proper guards, plates, grass catcher or
other safety devices in place.
MAINTENANCE AND STORAGE:
• Check the blade and the engine
mounting bolts often to be sure they are
tightened properly.
• Check all bolts, nuts and screws at
frequent intervals for proper tightness to
be sure mower is in safe working
condition.
• Keep all safety devices in place and
working.
• To reduce fire hazard, keep the engine
free of grass, leaves or excessive
grease and oil.
• Check grass catcher often for deteriora-
tion and wear and replace worn bags.
Use only replacement bags that are
recommended by and comply with
specifications of the manufacturer of
your mower.
• Always keep a sharp blade on your
mower.
• Allow engine to cool before storing in
any enclosure.
• Never store mower with fuel in the tank
inside a building where fumes may
reach an open flame or an ignition
source such as a hot water heater,
space heater, clothes dryer, etc.
Look for this symbol to point out
important safety precautions. It means
CAUTION!!! BECOME ALERT!!! YOUR
SAFETY IS INVOLVED.
CAUTION: Always disconnect spark
plug wire and place wire where it cannot
contact spark plug in order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs.
22
MODEL NO. 143.006202
CRAFTSMAN 4-CYCLE ENGINE
KEY PART
NO. NO. DESCRIPTION
— — 632747 Carburetor (Incl. 184 of Engine Parts List)
1 631615 Throttle Shaft & Lever Assembly
2 631767 Throttle Return Spring
4 631184 Dust Seal Washer
5 631183 Dust Seal (Throttle)
6 632504 Throttle Shutter
7 650506 Shutter Screw
16 631807 Fuel Fitting
25 631867 Float Bowl
27 631024 Float Shaft
28 632019 Float
29 631028 Float Bowl “O” Ring
30 631021 Inlet Needle, Seat, & Clip (Incl. 31)
31 631022 Spring Clip
35 36045A Primer Bulb/Retainer Ring
36 632735 Main Nozzle Tube
37 632547 “O” Ring, Main Nozzle Tube
40 632736 High Speed Bowl Nut
44 27110 Bowl Nut Washer
48 631027 Welch Plug, Atmospheric Vent
4
Mowing
position
Lift up
Lift up
Lower handle
Operator presence control
bar
Upper handle
CAUTION: Do not run your lawn
mower without mulcher plug in place or
approved clipping deflector or grass
catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or propped open.
ASSEMBLY
Read these instructions and this manual in its
entirety before you attempt to assemble or
operate your new lawn mower.
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the engine.
Your new lawn mower has been assembled
at the factory with the exception of those parts
left unassembled for shipping purposes. All
parts such as nuts, washers, bolts, etc.,
necessary to complete the assembly have
been placed in the parts bag. To ensure safe
and proper operation of your lawn mower, all
parts and hardware you assemble must be
tightened securely. Use the correct tools as
necessary to ensure proper tightness.
TO REMOVE LAWN MOWER FROM
CARTON
• Remove loose parts included with mower.
• Cut down two end corners of carton and
lay end panel down flat.
• Remove all packing materials except
padding between upper and lower handle
and padding holding operator presence
control bar to upper handle.
• Roll lawn mower out of carton and check
carton thoroughly for additional loose parts.

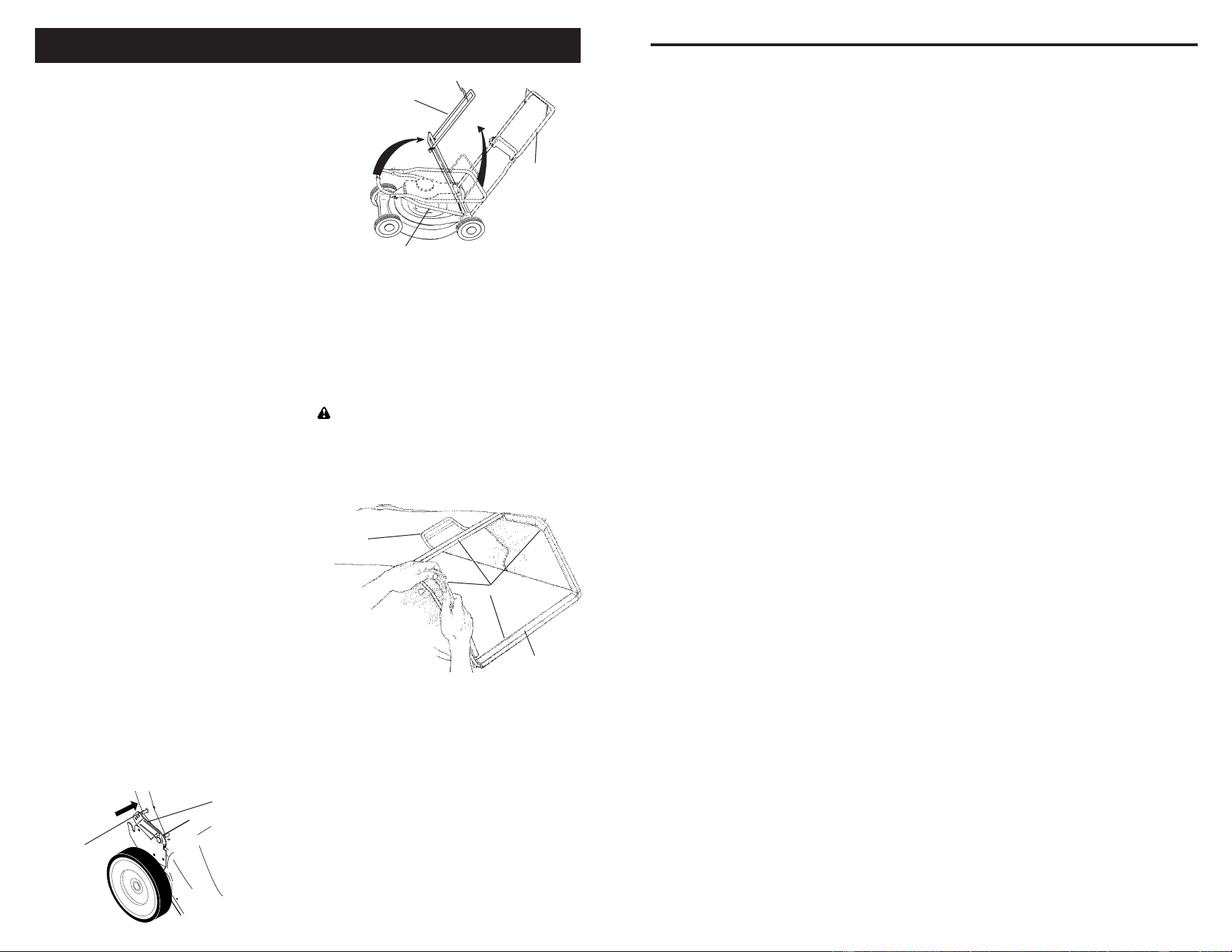

HOW TO SET UP YOUR LAWN MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handles carefully so as
not to pinch or damage control cables.
• Raise lower handle section to operating
position and squeeze the bottom ends
of lower handle towards each other
until the pin in handle can be inserted
into one of the three height adjustment
holes.
• Remove protective padding, raise
upper handle section into place on
lower handle and tighten both handle
knobs.
• Remove any packing material from
around control bar.
• Your handles may be adjusted for your
mowing comfort. Refer to Service and
Adjustments section of this manual.
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to
be used as a mulcher. To convert to
bagging or discharging, see "TO CON-
VERT MOWER" in the OPERATION
section of this manual.
Catcher
frame
handle
Vinyl bindings
Frame
opening

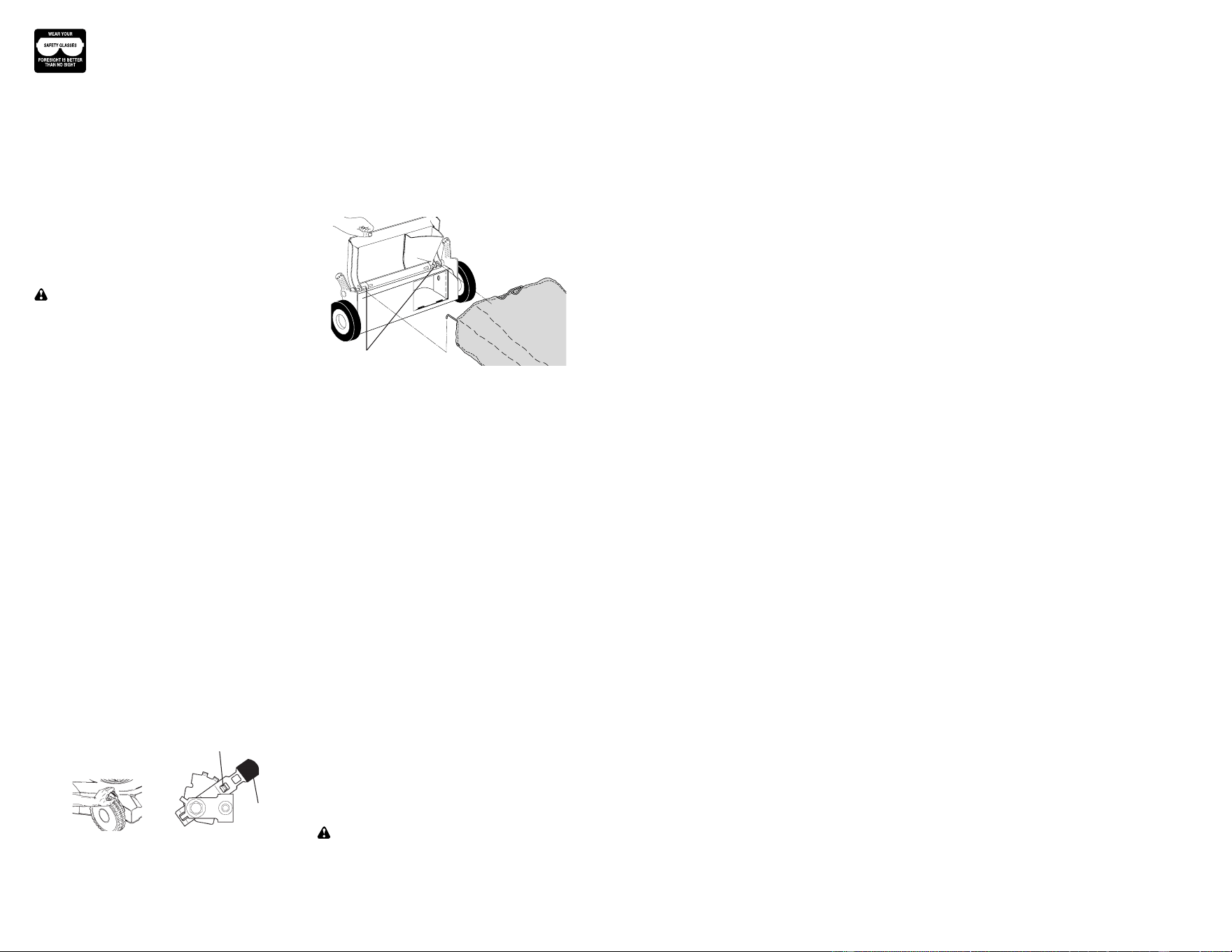

TO ASSEMBLE GRASS CATCHER
• Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
• Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
3-position
Handle
adjustment
bracket
Handle
pin
21
MODEL NO. 143.006202
CRAFTSMAN 4-CYCLE ENGINE
KEY PART
NO. NO. DESCRIPTION
1 36478A Cylinder (Incl. 2,7,20 & 125)
2 26727 Dowel Pin
6 33734 Breather Element
7 36557 Breather Ass’y. (Incl. 6 &
12A)
12A 36558 Breather Cover & Tube (Incl.
12B)
12B 34695 Breather Tube Elbow
14 28277 Washer
15 30589 Governor Rod (Incl. 14)
16 34839A Governor Lever
17 31335 Governor Lever Clamp
18 651018 Screw, Torx T-15, 8-32 x 19/
64"
19 36281 Extension Spring
20 32600 Oil Seal
30 35801 Crankshaft
40 36073 Piston, Pin & Ring Set (Std.)
36074 Piston, Pin & Ring Set (.010"
OS)
36075 Piston, Pin & Ring Set (.020"
OS)
41 36070 Piston & Pin Ass’y. (Std.)
(Incl. 43)
36071 Piston & Pin Ass’y. (.010"
OS) (Incl. 43)
36072 Piston & Pin Ass’y. (.020"
OS) (Incl. 43)
42 36076 Ring Set (Std.)
36077 Ring Set (.010" OS)
36078 Ring Set (.020" OS)
43 20381 Piston Pin Retaining Ring
45 32875A Connecting Rod Ass’y. (Incl.
46)
46 32610A Connecting Rod Bolt
48 27241 Valve Lifter
50 35992 Camshaft (MCR)
52 29914 Oil Pump Ass’y.
69 35261 * Mounting Flange Gasket
70 34311E Mounting Flange (Incl. 72
thru 83)
72 36083 Oil Drain Plug (Incl. 73)
73 28833 Drain Plug Gasket
75 27897 Oil Seal
80 30574A Governor Shaft
81 30590A Washer
82 30591 Governor Gear Ass’y. (Incl.
81)
83 30588A Governor Spool
86 650488 Screw, 1/4-20 x 1-1/4"
89 611004 Flywheel Key
90 611112 Flywheel
92 650815 Belleville Washer
93 650816 Flywheel Nut
100 34443B Solid State Ignition
101 610118 Spark Plug Cover
103 651007 Screw, Torx T-15, 10-24 x 15/
16"
110 37047 Ground Wire
119 36477 * Cylinder Head Gasket
125 36471 Exhaust Valve (Std.) (Incl.
151)
36472 Exhaust Valve (1/32" OS)
(Incl. 151)
126 29314B Intake Valve (Std.) (Incl. 151)
29315C Intake Valve (1/32" OS) (Incl.
151)
130 6021A Screw, 5/16-18 x 1-1/2"
135 35395 Resistor Spark Plug
(RJ19LM)
KEY PART
NO. NO. DESCRIPTION
150 31672 Valve Spring
151 31673 Valve Spring Cap
169 27234A * Valve Cover Gasket
172 32755 Valve Cover
174 30200 Screw, 10-24 x 9/16"
178 29752 Nut & Lock Washer, 1/4-28
182 6201 Screw, 1/4-28 x 7/8"
184 26756 * Carburetor To Intake Pipe
Gasket
185 36544 Intake Pipe
186 32653 Governor Link
189 650839 Screw, 1/4-20 x 3/8"
191 36559A S.E. Brake Bracket (Incl. 195)
195 610973 Terminal
207 34336 Throttle Link
216 33086 R.P.M. Adjusting Lever
223 650451 Screw, 1/4-20 x 1"
224 34690A * Intake Pipe Gasket
238 650932 Screw, 10-32 x 49/64"
239 34338 * Air Cleaner Gasket
241 35797 Air Cleaner Collar
245 35066 Air Cleaner Filter (Conical)
250 36065 Air Cleaner Cover
260 36915 Blower Housing
261 30200 Screw, 10-24 x 9/16"
262 650831 Screw, 1/4-20 x 1/2"
263A 36921 Starter Grill
275 36473A Muffler (Incl. 277)
277 650988 Screw, 1/4-20 x 2-5/16"
285 35000A Starter Cup
287 650926 Screw, 8-32 x 21/64"
290 29774 Fuel Line
292 26460 Fuel Line Clamp
298 28763 Screw, 10-32 x 35/64"
300 36916 Fuel Tank (Incl. 292 & 301)
301 36246 Fuel Cap
305 35647 Oil Fill Tube
306 36996 * “O”-Ring
307 35499 “O”-Ring
309 650562 Screw, 10-32 x 1/2"
310 35648 Dipstick
313 34080 Spacer
347 651038 Screw, 10-32 x 27/32"
370A 36261 Lubrication Decal
370C 37199 Primer Decal (5 X)
370K 36695 Starter Decal
380 632747 Carburetor (Incl. 184)
390 590737 Rewind Starter
400 36481B Gasket Set (Incl. Items Marked
*)
416 36085 Spark Arrestor Kit
(Incl.417)(Optional)
417 650760 Screw, 8-32 x 3/8" (Optional)
900 — — Replacement S/B 750670B,
order from 71-999
— — RPM High 2900 to 3200
NOTE: This engine could have been built with
632646 carburetor).
NOTE: This engine could have been built with
590694 starter).
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
5
OPERATION
KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN
MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the
location of various controls and adjustments. Save this manual for future reference.
CAUTION
OR WARNING
FAST SLOWENGINE
ON
ENGINE
OFF
OILFUELCHOKE DANGER, KEEP HANDS
AND FEET AWAY
Starter handle
Gasoline cap
Housing
Primer
Wheel adjuster
(on each wheel)
Handle knob
Grass catcher
Engine oil
cap w/
dipstick
Operator presence control bar
Engine zone control cable
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the American
National Standards Institute and the U.S. Consumer Product Safety Commission. The blade
turns when the engine is running.
Operator presence control bar - must be
held down to the handle to start the engine.
Release to stop the engine.
These symbols may appear on your lawn mower or in literature supplied with the product. Learn and
understand there meaning.
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the engine.
Primer - pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Starter handle - used for starting the engine.
Mulcher door
20
MODEL NO. 143.006202
CRAFTSMAN 4-CYCLE ENGINE
6
HOW TO USE YOUR LAWN MOWER
ENGINE SPEED
The engine speed was set at the factory
for optimum performance. Speed is not
adjustable.
ENGINE ZONE CONTROL
CAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
• Your lawn mower is equipped with an
operator presence control bar which
requires the operator to be positioned
behind the lawn mower handle to start and
operate the lawn mower.
The operation of any lawn
mower can result in foreign
objects thrown into the eyes,
which can result in severe eye damage.
Always wear safety glasses or eye shields
while operating your lawn mower or
performing any adjustments or repairs.
We recommend a wide vision safety mask
over spectacles or standard safety
glasses.
Lower Wheels for High Cut
Raise Wheels for Low Cut
Plate Tab
Lever

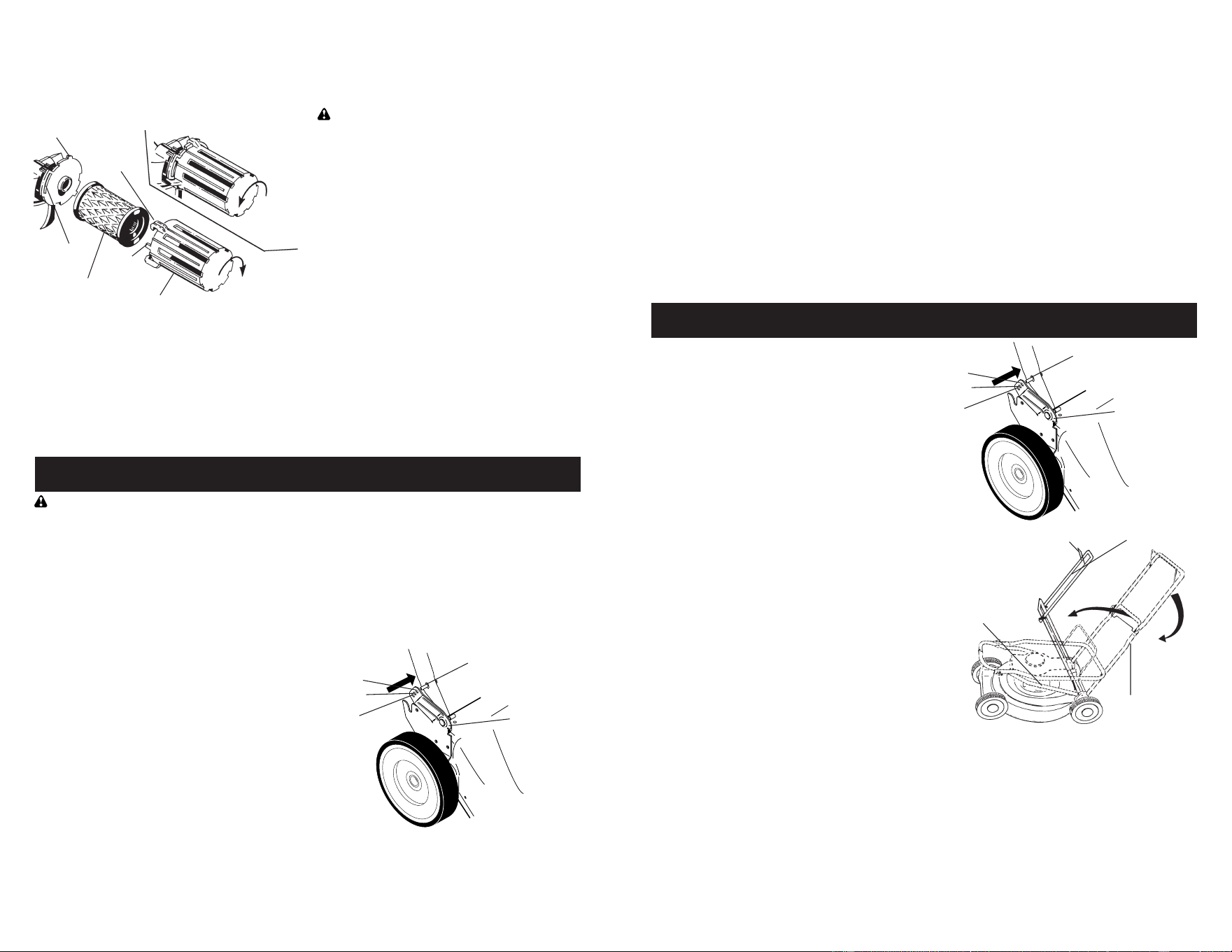

TO ADJUST CUTTING HEIGHT
• Raise wheels for low cut and lower wheels
for high cut.
• Adjust cutting height to suit your require-
ments. Medium position is best for most
lawns.
• To change cutting height, squeeze adjuster
lever toward wheel. Move wheel up or
down to suit your requirements. Be sure all
wheels are in the same setting.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
TO CONVERT MOWER
Your lawn mower was shipped ready to
be used as a mulcher. To convert to
bagging or discharging:
REAR BAGGING
• Lift rear door of the lawn mower and
place the grass catcher frame hooks
onto the door pivot pins.
• To convert to mulching or discharging
operation, remove grass catcher and
close rear door.
Pivot pins
SIMPLE STEPS TO REMEMBER
WHEN CONVERTING YOUR LAWN
MOWER
FOR MULCHING -
• Rear door closed.
• Mulcher door closed.
FOR REAR BAGGING -
• Grass catcher installed.
• Mulcher door closed.
FOR SIDE DISCHARGING -
• Rear door closed.
• Side discharge deflector installed.
CAUTION: Do not run your lawn
mower without rear door closed or
approved grass catcher in place. Never
attempt to operate the lawn mower with
the rear door removed or propped open.
SIDE DISCHARGING
• Rear door must be closed.
• Open mulcher door and install dis-
charge deflector under guard as
shown.
• Mower is now ready for discharging
operation.
• To convert to mulching or bagging
operation, discharge deflector must be
removed and mulcher door must be
closed.
19
KEY PART
NO. NO. DESCRIPTION
33 87877 Selector Knob
34 167130X004 Axle Arm Assembly - LR
35 166785 Locknut 5/16-18
36 160828 Shoulder Bolt 5/16-18
37 151162 Wheel Assembly
38 164362 Shoulder Bolt
39 83923 Flanged Locknut
40 77400 Hubcap
41 88652 Hinge Screw
42 165766 Spring (LH)
43 165767 Spring (RH)
44 165912 Door Bolt
45 150406 Hex Head Thread Rolling Screw 3/8-16 x 1
46 107339X Danger Decal
47 63124 Nut
48 167131X004 Axle Arm Assembly - RR
49 151161 Wheel
50 57143 Wave Washer
51 73990500 Nut
52 167712 Housing Assembly (Incl. Ref. #17, 18 & 46)
53 851084 Hex Head Screw 3/8-24 x 1-3/8 Grd. 8
54 850263 Helical Lockwasher
55 851074 Hardened Washer
56 165833 21'’ Blade
57 851514 Blade Adapter
58 161551 Adjustment Bolt
67 167710 Grass Bag
68 165755 Catcher Frame
70 - - - - - - Engine - (See Breakdown)
Craftsman 143.006202
- - 162300 Warning Decal (Not Shown)
- - 172724 Owner's Manual (English)
- - 173422 Owner’s Manual (French)
1 131696 Control Bar
2 166860X479 Upper Handle
3 161105X479 Lower Handle
4 132001 Rope Guide
5 63601 Locknut 1/4-20
6 131959 Handle Bolt
7 66426 Wire Tie
8 74780512 Hex Bolt 5/16-18 x 3/4
9 154132 Hinge Bracket
10 165754 Mulcher Door
11 156577 Engine Zone Control Cable
12 750097 Hex Washer Head Screw #10-24 x 1/2
13 850733X004 Up-Stop Bracket
14 136376 Handle Knob
15 51793 Hairpin Cotter
16 147286 Hinge Rod
17 165946X479 Support Bracket
18 17600406 Screw
19 167132X004 Axle Arm Assembly - LF
20 167133X004 Axle Arm Assembly - RF
21 165858 Rear Skirt
22 168360X004 Selector Spring
23 166875 Rear Door Assembly Kit (Incl. Springs)
24 751153 Locknut 5/16-18
25 166236X479 Handle Bracket Assembly (Left)
26 166243x479 Handle Bracket Assembly (Right)
27 851856 Screw 1/4-20 x 3/8
28 152124 Hinge Spring
29 160835X007 Wheel Adjusting Bracket - Front
30 19112222 Spacer
31 165760 Clip on Discharge Guard
KEY PART
NO. NO. DESCRIPTION
ROTARY LAWN MOWER MODEL NUMBER 944.360480
7
BEFORE STARTING ENGINE
OIL
Your lawn mower is shipped without oil in
the engine.
• Be sure mower is level and area around oil
fill is clean.
• Remove engine oil cap and fill to the full
line on the dipstick.
NOTE: Allow oil to settle down into engine
for accurate dipstick reading.
• Engine holds 20 ozs. of oil. For type and
grade of oil to use, see “ENGINE” in
Maintenance section of this manual.
• Pour oil slowly. Do not over fill.
• Check oil level before each use. Add oil if
needed. Fill to full line on dipstick.
• To read proper level, tighten engine oil cap
each time.
• Reinstall engine oil cap and tighten.
• Change the oil after every 25 hours of
operation or each season. You may need
to change the oil more often under dusty,
dirty conditions.
ADD GASOLINE
• Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of 87
octane. Do not mix oil with gasoline.
Purchase fuel in quantities that can be
used within 30 days to assure fuel
freshness.
Gasoline filler cap
Engine oil cap
TO START ENGINE
• To start a cold engine, push primer five (5)
times before trying to start. Use a firm
push. This step is not usually necessary
when starting an engine which has
already run for a few minutes.
• Hold operator presence control bar down
to the handle and pull starter handle
quickly. Do not allow starter rope to snap
back.
• To stop engine, release operator presence
control bar.
NOTE: In cooler weather it may be
necessary to repeat priming steps. In
warmer weather over priming may cause
flooding and engine will not start. If you
do flood engine, wait a few minutes
before attempting to start and do not
repeat priming steps.
WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
CAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or
use gasoline near an open flame.
Mulcher door
Open
mulcher
door
Discharge
deflector
18
REPAIR PARTS
ROTARY LAWN MOWER MODEL NUMBER 944.360480
8
MULCHING MOWING TIPS
IMPORTANT: For best performance, keep
mower housing free of built-up grass and
trash. See “Cleaning” in Maintenance section
of this manual.
• The special mulching blade will recut the
grass clippings many times and reduce
them in size so that as they fall onto the
lawn they will disperse into the grass and
not be noticed. Also, the mulched grass
will biodegrade quickly to provide nutrients
for the lawn. Always mulch with your
highest engine (blade) speed as this will
provide the best recutting action of the
blades.
• Avoid cutting your lawn when it is wet. Wet
grass tends to form clumps and interferes
with the mulching action. The best time to
mow your lawn is the early afternoon. At
this time the grass has dried and the newly
cut area will not be exposed to the direct
sun.
• For best results, adjust the lawn mower
cutting height so that the lawn mower cuts
off only the top one-third of the grass
blades. If the lawn is overgrown it will be
necessary to raise the height of cut to
reduce pushing effort and to keep from
overloading the engine and leaving
clumps of mulched grass. For extremely
heavy mulching, reduce your width of cut
by overlapping previously cut path and
mow slowly.

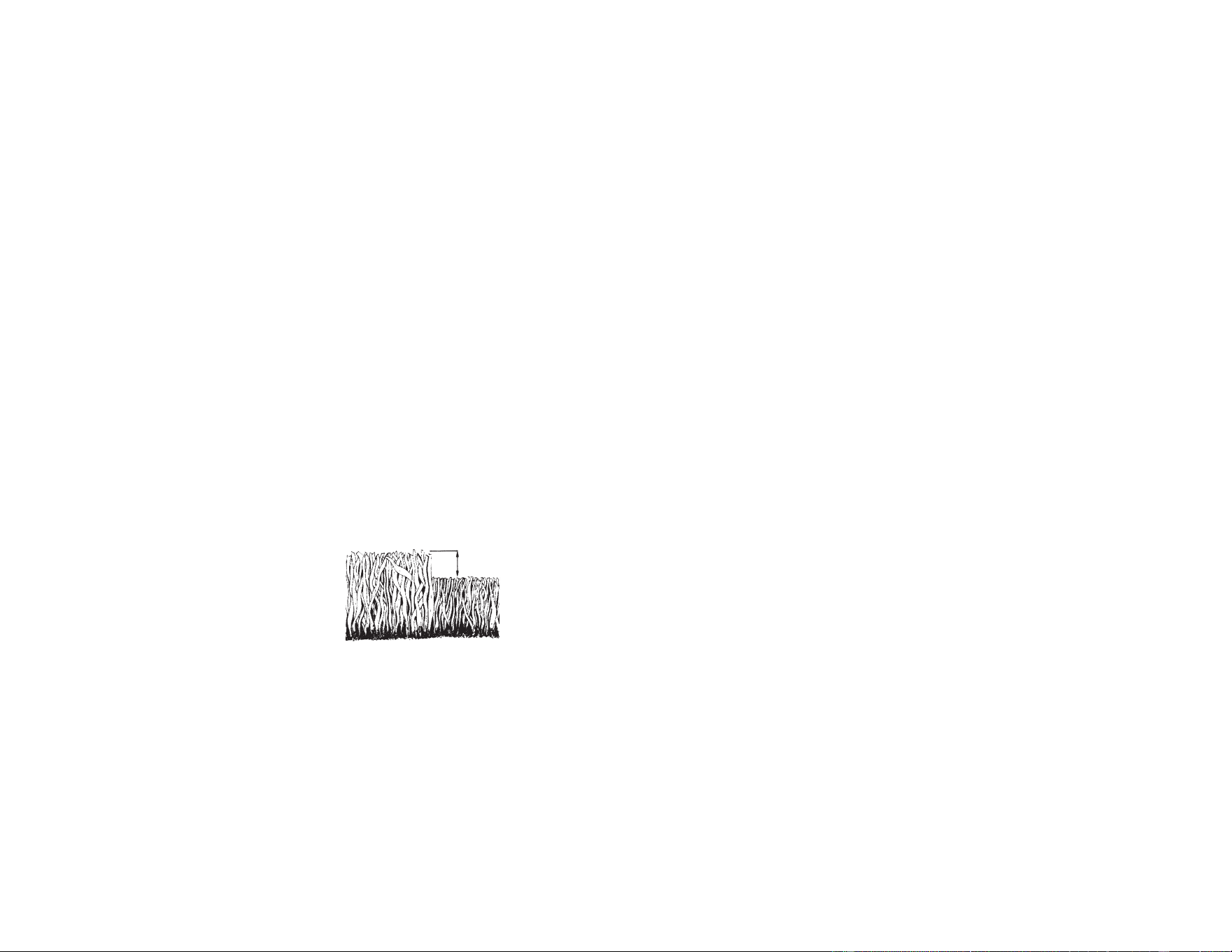

Max 1/3
MOWING TIPS
• Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area a second
time.
• For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
• Pores in cloth grass catchers can
become filled with dirt and dust with use
and catchers will collect less grass. To
prevent this, regularly hose catcher off
with water and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
• Certain types of grass and grass condi-
tions may require that an area be mulched
a second time to completely hide the
clippings. When doing a second cut, mow
across or perpendicular to the first cut path.
• Change your cutting pattern from week to
week. Mow north to south one week then
change to east to west the next week. This
will help prevent matting and graining of
the lawn.
17
9
MAINTENANCE
IMPORTANT: Do not oil or grease plastic
wheel bearings. Viscous lubricants will attract
dust and dirt that will shorten the life of the self
lubricating bearings. If you feel they must be
lubricated, use only a dry, powdered graphite
type lubricant sparingly.
À
Spray lubricant
Á
Refer to Maintenance "ENGINE" section.

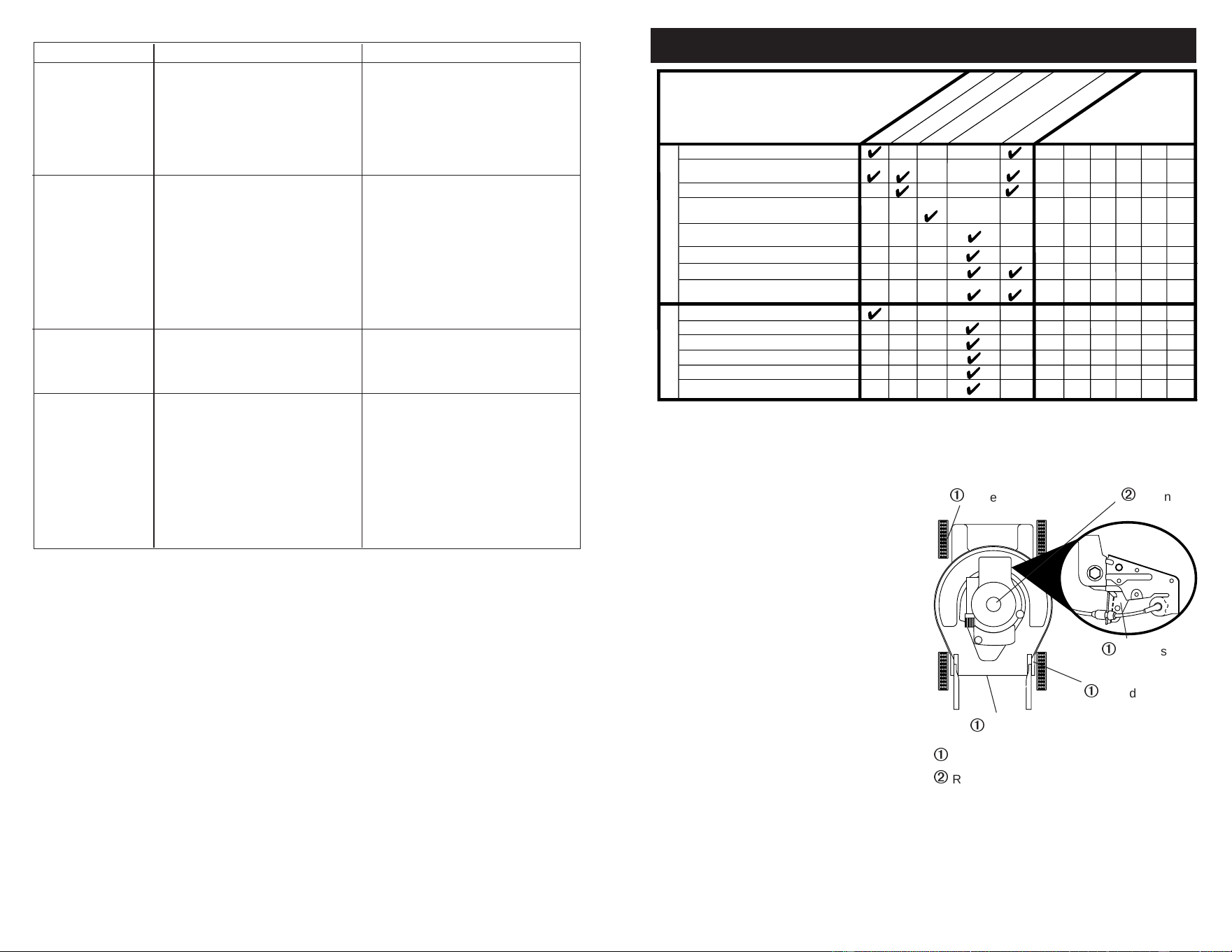

LUBRICATION CHART
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does
not cover items that have been subjected
to operator abuse or negligence. To
receive full value from the warranty,
operator must maintain mower as
instructed in this manual.
Some adjustments will need to be made
periodically to properly maintain your unit.
All adjustments in the Service and
Adjustments section of this manual should
be checked at least once each season.
• Once a year, replace the spark plug,
replace air filter element and check
blade for wear. A new spark plug and
clean/new air filter element assures
proper air-fuel mixture and helps your
engine run better and last longer.
• Follow the maintenance schedule in
this manual.
BEFORE EACH USE
• Check engine oil level.
• Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRICA-
TION CHART").
À
Wheel adjuster
À
Handle bracket
mounting pin
À
Rear door hinge
Á
Engine oil
Change Engine Oil
Lubrication Chart
Clean Air Filter
Replace Air Filter Paper Cartridge
Clean or Replace Spark Plug
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE
MAINTENANCE SCHEDULE
BEFORE EACH USE
AFTER EACH USE
EVERY 25 HOURS
OR EVERY SEASON
SERVICE DATES
Check for Loose Fasteners
BEFORE STORAGE
Check Engine Oil Level
Check/Sharpen/Replace Blade
Inspect Muffler
1 - Change more often when operating under a heavy load or in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions.
3 - Replace blades more often when mowing in sandy soil.
4 - Charge 48 hours at end of season.
1,2
3
2
M
O
W
E
R
E
N
G
I
N
E
2
Clean Lawn Mower
Clean/Inspect Grass Catcher
(If Equipped)
EVERY 10 HOURS
Clean Under Drive Cover
(Power-Propelled Mowers)
Clean Battery/Recharge
(Electric Start Mowers)
4
Check drive belt/pulleys
(Power-Propelled Mowers)
2

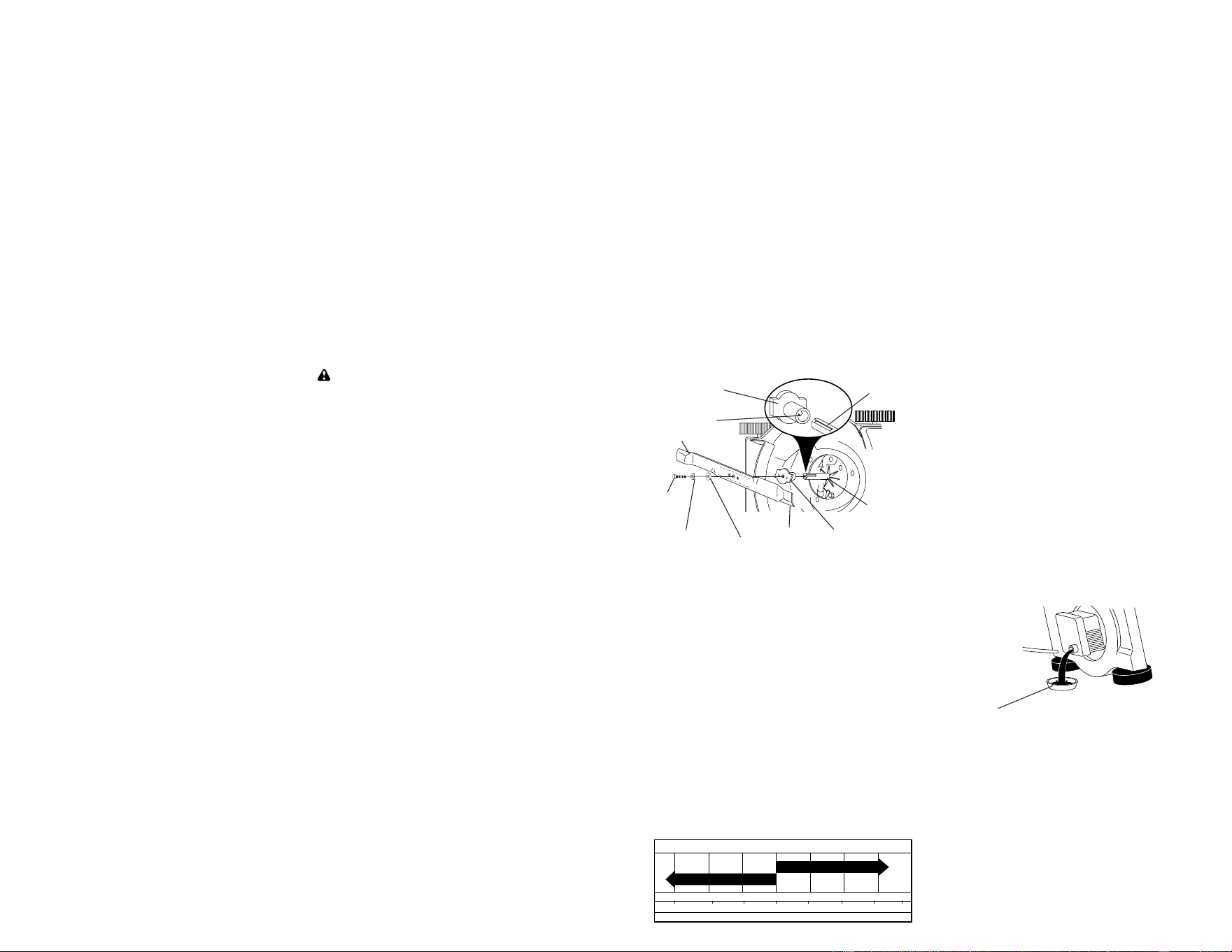

À
Brake spring
Bracket
16
Excessive 1. Worn, bent or loose blade. 1. Replace blade. Tighten
vibration blade bolt.
2. Bent engine crankshaft. 2. Contact an authorized
service center.
Starter rope hard 1. Engine flywheel brake is on 1. Depress control bar to
to pull when control bar is released. upper handle before
pulling starter rope.
2. Bent engine crankshaft. 2. Contact an authorized
service center.
3. Blade adapter broken. 3. Replace blade adapter.
4. Blade dragging in grass. 4. Move lawn mower to cut
grass or to hard surface.
Grass catcher 1. Cutting height too low. 1. Raise cutting height.
not filling (if so 2. Lift on blade worn off. 2. Replace blade.
equipped) 3. Catcher not venting air. 3. Clean grass catcher.
Hard to push 1. Grass is too high or wheel 1. Raise cutting height.
height is too low.
2. Rear of lawn mower 2. Raise rear of lawn mower
housing or blade dragging housing one (1) setting
in grass. higher.
3. Grass catcher too full. 3. Empty grass catcher.
4. Handle height position not 4. Adjust handle height to
right for you. suit.
PROBLEM CAUSE CORRECTION
TROUBLESHOOTING CHART
10
PRODUCT SPECIFICATIONS
SERIALNUMBER
DATE OF PURCHASE
GASOLINE CAPACITY/ TYPE: 1.5 QUARTS
UNLEADED REGULAR
OIL TYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
OIL CAPACITY: 20 OZS.
SPARK PLUG (GAP: .030") CHAMPION RJ19LM OR J19LM
VALVE CLEARANCE: INTAKE: .004 - .008
EXHAUST: .004 - .008
SOLID STATE IGNITION
AIR GAP: .0125 IN.
BLADE BOLT TORQUE: 35-40 FT. LBS.
• The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when perform-
ing any maintenance.
TIRES
• Keep tires free of gasoline, oil, or insect
control chemicals which can harm rubber.
• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may cause
tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
• Turn lawn mower on its side. Make
sure air filter and carburetor are up.
• Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
• Protect your hands with gloves and/or
wrap blade with heavy cloth.
• Remove blade bolt by turning counter-
clockwise.
• Remove blade and attaching hardware
(bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade
adapter. The key must be in good
condition to work properly. Replace
adapter if damaged.
TO REPLACE BLADE
• Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
• Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
• Be sure the trailing edge of blade
(opposite sharp edge) is up toward the
engine.
• Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
• Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tightening torque is
35-40 ft. lbs.
15
Does not start 1. Dirty air filter. 1. Clean/replace air filter.
2. Out of fuel. 2. Fill fuel tank.
3. Stale fuel. 3. Drain tank and refill with
fresh clean fuel.
4. Water in fuel. 4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Spark plug wire is 5. Connect wire to plug.
disconnected.
6. Bad spark plug. 6. Replace spark plug.
7. Loose blade or broken blade 7. Tighten blade bolt or
adapter. replace blade adapter.
8. Control bar in released 8. Depress control bar to
position. handle.
9. Control bar defective. 9. Replace control bar.
Loss of power 1. Rear of lawn mower housing 1. Set to “Higher Cut”
or cutting blade dragging position.
in heavy grass.
2. Cutting too much grass. 2. Set to “Higher Cut”
position.
3. Dirty air filter. 3. Clean/replace air filter.
4. Buildup of grass, leaves, 4. Clean underside of mower
and trash under mower. housing.
5. Too much oil in engine. 5. Check oil level.
6. Walking speed too fast. 6. Cut at slower walking
speed.
Poor cut – uneven 1. Worn, bent or loose blade. 1. Replace blade. Tighten
blade bolt.
2. Wheel heights uneven. 2. Set all wheels at same
height
3. Buildup of grass, leaves 3. Clean underside of
and trash under mower. mower housing.
PROBLEM CAUSE CORRECTION
TROUBLESHOOTING CHART
11
Container
AIR FILTER
Your engine will not run properly and may
be damaged by using a dirty air filter.
Replace the air filter every year, more
often if you mow in very dusty, dirty
conditions. Do not wash air filter.
TO CHANGE AIR FILTER
• Remove the air filter by turning counter-
clockwise to the stop and pull away
from collar.
• Remove filter from inside of cover.
• Clean the inside of the cover and the
collar to remove any dirt accumulation.
Blade
adapter
Blade
bolt
Crank shaft
keyway
Hardened
washer
Lock
washer
Blade
adapter
Key
Blade
Trailing
edge
Crank
shaft
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classification SF, SG or
SH. Select the oil's SAE viscosity grade
according to your expected operating
temperature.
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
SAE VISCOSITY GRADES
-20° 0° 30° 40°
80°
100°
-30°
-20° 0°
20° 30° 40°
°
F
°
C
32°
-10°
10°
60°
5W-30
SAE 30
IMPORTANT: Blade bolt is grade 8 heat
treated.
TO SHARPEN BLADE
NOTE: We do not recommend sharpen-
ing blade - but if you do, be sure the blade
is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower or
engine.
• The blade can be sharpened with a file
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
• To check blade balance, drive a nail
into a beam or wall. Leave about one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position. If either
end of the blade moves downward,
sharpen the heavy end until the blade
is balanced.
GRASS CATCHER
• The grass catcher may be hosed with
water, but must be dry when used.
• Check your grass catcher often for
damage or deterioration. Through normal
use it will wear. If catcher needs replacing,
replace only with a manufacturer approved
replacement catcher. Give the lawn
mower model number when ordering.
NOTE: Although multi-viscosity oils
(5W30, 10W30 etc.) improve starting in
cold weather, these multi-viscosity oils
will result in increased oil consumption
when used above 32°F. Check your
engine oil level more frequently to avoid
possible engine damage from running
low on oil.
Change the oil after every 25 hours of
operation or at least once a year if the
lawn mower is not used for 25 hours in
one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Tighten oil plug
securely each time you check the oil
level.
TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to
drain oil, drain fuel tank by running
engine until fuel tank is empty.
• Disconnect spark plug wire from spark
plug and place wire where it cannot come
in contact with spark plug.
• Remove engine oil cap; lay aside on a
clean surface.
• Tip lawn mower on its side as shown and
drain oil into a suitable container. Rock
lawn mower back and forth to remove any
oil trapped inside of engine.
• Wipe off any spilled oil on lawn mower and
on side of engine.
• Fill engine with oil. Fill only to the "FULL"
line on the dipstick. DO NOT overfill.
• Replace engine oil cap.
• Reconnect spark plug wire to spark plug.
14
• Drain the fuel tank.
• Start the engine and let it run until the fuel
lines and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of fuel
gum deposits during storage. Add stabilizer
to gasoline in fuel tank or storage container.
Always follow the mix ratio found on stabilizer
container. Run engine at least 10 minutes
after adding stabilizer to allow the stabilizer to
reach the carburetor. Do not drain the gas
tank and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace with
clean engine oil. (See "ENGINE" in the
Maintenance section of this manual).
CYLINDER
• Remove spark plug.
• Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
• Pull starter handle slowly a few times to
distribute oil.
• Replace with new spark plug.
OTHER
• Do not store gasoline from one season to
another.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to give protection from dust and dirt.
• Cover your unit with a suitable protective
cover that does not retain moisture. Do
not use plastic. Plastic cannot breathe
which allows condensation to form and will
cause your unit to rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm.
CAUTION: Never store the lawn
mower with gasoline in the tank inside a
building where fumes may reach an open
flame or spark. Allow the engine to cool
before storing in any enclosure.
12
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or damage.
SPARK PLUG
Change your spark plug each year to make
your engine start easier and run better. Set
spark plug gap at .030 inch.
• Insert new filter into cover.
• Put air filter cover and filter into collar
aligning the tab with the slot.
• Push in on cover and turn clockwise to
tighten.
Collar
Tab
Air filter cover
Slot
Air filter
Turn
counter-
clockwise
to remove
Turn
clockwise to
tighten
Clip
CLEANING
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. Clean the underside of
your mower after each use.
CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• Turn lawn mower on its side. Make sure air
filter and carburetor are up. Clean the
underside of your lawn mower by scraping
to remove build-up of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels free of
all gasoline, oil,etc.
• We do not recommend using a garden
hose to clean lawn mower unless the
electrical system, muffler, air filter and
carburetor are covered to keep water out.
Water in engine can result in shortened
engine life.
SERVICE AND ADJUSTMENTS
CAUTION: Before performing any
service and adjustments:
• Release control bar and stop engine.
• Make sure the blade and all moving
parts have completely stopped.
• Disconnect spark plug wire from spark
plug and place where it cannot come
in contact with plug.
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in the
Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the rear
wheels of your lawn mower, is provided to
minimize the possibility that objects will be
thrown out the rear of the lawn mower into the
operator's mowing position. If the rear
deflector becomes damaged, it should be
replaced.
TO ADJUST HANDLE
The handle on your lawn mower has
three (3) height positions - adjust to
height that suits you.
• Squeeze the bottom ends of lower
handle towards each other until the pin
in handle can be inserted into one of
the three height adjustment holes.
High
Med.
Low
3-Position
handle
adjustment
bracket
Handle pin
13
STORAGE
Immediately prepare your lawn mower for
storage at the end of the season or if the unit
will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a period
of time, clean it thoroughly, remove all dirt,
grease, leaves, etc. Store in a clean, dry area.
• Clean entire lawn mower (See "CLEAN-
ING" in the Maintenance section of this
manual).
• Lubricate as shown in the Maintenance
section of this manual.
• Be sure that all nuts, bolts, screws, and pins
are securely fastened. Inspect moving
parts for damage, breakage and wear.
Replace if necessary.
• Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
• You can fold your lawn mower handle
for storage.
• Loosen the two (2) handle knobs on
sides of the upper handle and allow
handle to fold down to the rear.
• Squeeze the bottom ends of lower
handle toward each other until pins in
handle clear the brackets and pivot
entire handle assembly forward and
allow it to rest on mower.
• When setting up your handle from the
storage position, the lower handle will
require manually locking into the
mowing position.
IMPORTANT: When folding the handle for
storage or transportation, be sure to fold the
handle as shown or you any damage the
control cables.
Operator presence control bar
Upper
handle
Mowing
position
Fold
backward
Fold foward
for storage
Lower
handle
ENGINE
FUEL SYSTEM
IMPORTANT: It is important to prevent gum
deposits from forming in essential fuel system
parts such as carburetor, f fuel filter, fuel hose
or tank during storage. Also, experience
indicates that alcohol blended fuels ( called
gasohol or using ethanol or methanol) can
attract moisture which leads to separation and
formation of acids during storage. Acidic gas
can damage the fuel system of an engine
while in storage.
CARBURETOR
Your carburetor has a non-adjustable
fixed main jet for mixture control. If your
engine does not operate properly due to
suspected carburetor problems, take your
lawn mower to an authorized service
center for repair and/or adjustment.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed. Overspeeding the
engine above the factory high speed
setting can be dangerous. if you think the
engine-governed high speed needs
adjusting, contact your nearest authorzed
service center, which has proper
equipment and experience to make any
necessary adjustments.
ENGINE SPEED
Your engine speed has been factory set.
Do not attempt to increase engine speed
or it may result in personal injury. If you
believe that the engine is running too fast
or too slow, take your lawn mower to an
authorized service center for repair and
adjustment.
High
Med.
Low
Handle pin
3-Position
Handle
adjustment
bracket
