14" x 20" VARIABLE
SPEED WOOD LATHE
Instruction Manual
MODEL 34035
IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-847-429-9263 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
2
CONTENTS
WELCOME 3
Introduction ..................................................................................................... 3
Specifications ................................................................................................... 3
SAFETY 4
General Safety Rules ........................................................................................ 4
Specific Rules for Your Lathe ........................................................................... 6
Electrical Information ....................................................................................... 8
9

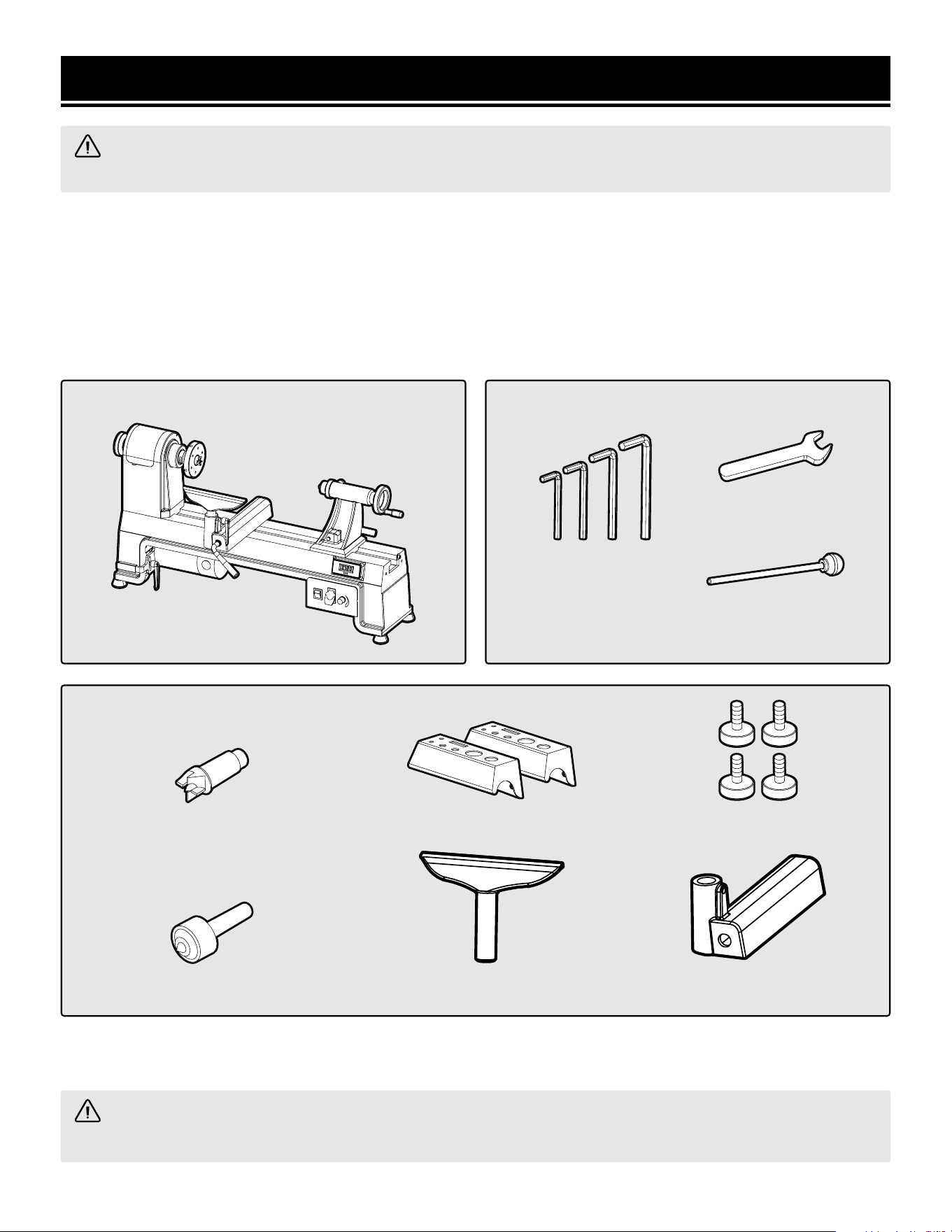

Unpacking & Transportation ............................................................................ 9

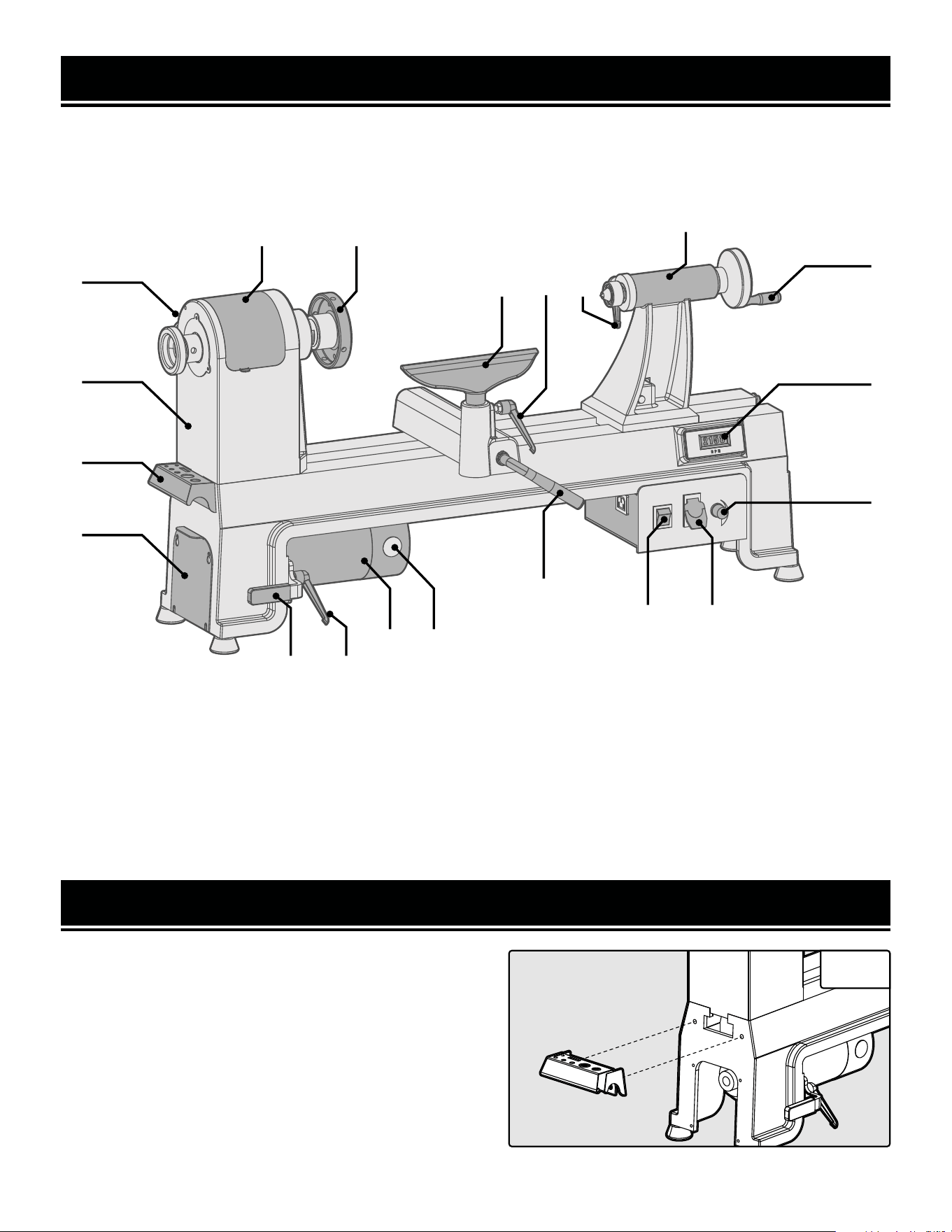

Know Your Lathe ............................................................................................ 10
Assembly & Adjustments ............................................................................... 10
BEFORE OPERATING
12
Operation ....................................................................................................... 15
Troubleshooting Guide ................................................................................... 20
Maintenance ................................................................................................... 22
Exploded View & Parts List ............................................................................ 23
Warranty Statement ....................................................................................... 25
OPERATION & MAINTENANCE
To purchase accessories for your tool, visit WENPRODUCTS.COM
Lathe Chuck (Models LA4444, LA4275, LA4374)
Drive & Live Center Kit (Model LA0009)
Tailstock Live Center (Model LA1158)
Crown Revolving Live Center (Model LA1334)
Chisels (Models CH11, CH14, CH4704)
Lathe Stand (Model LA8800)
Extension Bed (Model 34035EX)
INTRODUCTION
Thanks for purchasing a WEN Lathe. We know you are excited to put your tool to work, but first, please take a mo-
ment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s
manual and all the labels affixed to the tool. This manual provides information regarding potential safety concerns,
as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-847-429-9263.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. The safety symbols and the explanations
with them deserve your careful attention and understanding. Always follow the safety precautions to reduce the
risk of fire, electric shock or personal injury. However, please note that these instructions and warnings are not
substitutes for proper accident prevention measures.
SPECIFICATIONS
Model Number 34035
Motor 120V, 60 Hz, 6A
Swing Over Bed 14 inches (355mm)
Distance Between Centers 20 inches (510 mm)
Center Height 7 inches (178mm)
Spindle Speeds 250-720, 600-1700, 1200-3550 RPM
Spindle Taper MT2
Spindle Thread 1 inch x 8 TPI
Tailstock Taper MT2
Quill Travel 3-1/2 inches
Tool Rest Length 8 inches
Face Plate Diameter 4 inches (102mm)
Weight 125.7 lbs
Product Dimensions 38 x 11.8 x 22.6 inches
3
GENERAL SAFETY RULES
4
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liq-
uids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
3. Keep children and bystanders away while operat-
ing a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodi-
fied plugs and matching outlets will reduce risk of elec-
tric shock.
2. Avoid body contact with earthed or grounded sur-
faces such as pipes, radiators, ranges and refrigera-
tors. There is an increased risk of electric shock if your
body is earthed or grounded.
3. Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the risk
of electric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of elec-
tric shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a GFCI reduces the risk
of electric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respi-
ratory mask, non-skid safety shoes and hearing protec-
tion used for appropriate conditions will reduce the risk
of personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
GENERAL SAFETY RULES
5
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
TURNING SAFETY
1. This lathe is designed and intended for use by prop-
erly trained and experienced personnel only. If you are
not familiar with the proper and safe operation of a
lathe, do not use it until proper training and knowledge
have been acquired.
2. DO NOT wear loose clothing or jewelry. Keep your
hair, clothing and gloves away from moving parts.
Loose clothes, jewelry or long hair can be caught in the
spinning tool.
3. Select the right tool for your task at hand. Make sure
all tools, chisels and accessories are sharp before using
them. Do not use dull or damaged tools.
4. Select the appropriate speed for the task. Use slower
speeds when starting on a workpiece. Allow the lathe to
ramp up to the operating speed before engaging carving
tools.
5. Check the workpiece carefully for splits, knots, nails,
or other obstructions. These types of blemishes may
cause a safety hazard during turning.
6. If gluing up a workpiece for turning, always use a
high quality glue that meets the needs of the particular
workpiece to prevent the workpiece from falling off dur-
ing operation.
7. Rough cut the workpiece as close as possible to the
finished shape before mounting it on the lathe.
PERSONAL SAFETY
1. Operate in a well ventilated area. Keep the floor area
around the lathe level and free of slippery substances or
other tripping hazards.
2. Wear ANSI-approved safety goggles to protect your
eyes from sawdust. Use hearing protection to protect
yourself from hearing loss.
3. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in close
proximity to pacemakers could cause pacemaker inter-
ference or pacemaker failure.
4. Sawdust is harmful to your health. Use NIOSH-ap-
proved dust masks or other respiratory protection dur-
ing operation and cleaning.
5. Always turn off and unplug the lathe before making
any adjustments or repair tasks. Never adjust the lathe
or the workpiece while the lathe is running.
6. Do not use to cut metal, logs, tree limbs, or uneven
lumber. Inspect the workpiece and remove all nails and
other embedded objects prior to starting work.
7. Wet lumber, green (unseasoned) lumber, and pres-
sure treated lumber all have an increased potential for
kickback and should only be cut with a blade specifically
designed for that lumber type. Wear a NIOSH-approved
respirator and have appropriate ventilation whenever
cutting pressure treated lumber.
SPECIFIC RULES FOR YOUR LATHE
WARNING! Do not operate the power tool until you have read and understood the following instructions
and the warning labels.
6
PREPARING THE LATHE
1. When transporting the lathe, carry it by the base or
handles. Never carry the device by its guards or its ac-
cessories.
2. Examine the lathe for any damaged or missing parts.
Replace or repair damaged parts before operation. Pe-
riodically check that all nuts, bolts and other fasteners
are properly tightened.
SECURE YOUR WORKPIECE
1. Securely fasten the workpiece to the faceplate prior
to faceplate turning. Use the appropriate size faceplate
to properly support the workpiece. Do not let the screw
fasteners interfere with the turning tool at the finished
dimension of the workpiece.
2. When turning between centers, make sure the head-
stock and tailstock are tight and snug against the work-
piece.
3. Never drive the workpiece into the spur center while
the spur center is in the headstock. Set the drive center
into the work piece with a soft mallet prior to installing
it on the headstock.
DURING CUTTING OPERATIONS
1. Make sure the spindle lock is DISENGAGED before
starting the lathe. Never start the lathe with the spindle
lock in the locked position.
2. Rotate the workpiece by hand to check clearance with
the tool rest before turning the machine on.
3. Ensure hands are away from the turning area.
4. If you are interrupted when operating the lathe, com-
plete the process and switch the lathe OFF before look-
ing up.
5. Do not use the lathe unless all guards are in place.
Do not operate with any guard disabled, damaged, or
removed. Moving guards must move freely and close
instantly.
6. Turn on the lathe and let it reach full speed, then
slowly slide your tool into the workpiece. This will help
produce safer and cleaner cuts.
7. Never apply coolants, water, or other liquids to a
spinning workpiece.
8. Turn off the lathe and wait for your workpiece to stop
rotating before moving workpiece or changing settings.
Never stop a rotating workpiece with your hand.
9. Turn off the machine before changing the spindle ro-
tation direction.
10. Turn off and unplug the machine before doing any
cleaning or maintenance. Use a brush or compressed
air to remove chips or debris. Never use your hands to
remove excess material and debris.
SPECIFIC RULES FOR YOUR LATHE
WARNING! Do not operate the power tool until you have read and understood the following instructions
and the warning labels.
7
ELECTRICAL INFORMATION
8
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
6A 18 gauge 16 gauge 14 gauge 12 gauge
3. Check
with a licensed electrician or service personnel if you do not completely
understand the grounding instructions or whether the tool is properly grounded.
4. Use only three-wire extension cords
that have three-pronged plugs and outlets
that accept the tool’s plug (INSERT CR). Repair or replace a damaged or worn
cord immediately.
CAUTION!
In all cases, make certain the outlet in question is properly grounded. If
you are not sure, have a licensed electrician check the outlet.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown
, grounding provides the path of least resistance for an electric
current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an
equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching outlet
that is properly installed and grounded in accordance with ALL local codes and ordinances.
1. Do not modify the plug provided.
If it will not fit the outlet, have the proper outlet installed by a licensed
electrician.
2. Improper connection
of the equipment grounding conductor can result in electric shock. The conductor
with the green insulation (with or without yellow stripes) is the equipment grounding conductor. If repair or
replacement of the electric cord or plug is necessary, DO NOT connect the equipment grounding conductor
to a live terminal.
1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling
on plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension
cord. Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should
be protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch
is in the OFF position and the electric current is rated the same as the current stamped on the motor nameplate.
Running at a lower voltage will damage the motor.
Fig. 1
When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table below shows
the correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The
smaller the gauge number, the heavier the cord.
ToolsPre-Assembled
9
UNPACKING
With the help of a friend or trustworthy foe, carefully remove the Lathe from the packaging. Make sure to take
out all contents and accessories. Do not discard the packaging until everything is removed. Check the packing list
below to make sure you have all of the parts and accessories. If any part is missing or broken, please contact our
customer service at 1-847-429-9263 (M-F 8-5 CST), or email [email protected].
PACKING LIST
TRANSPORTING
When transporting the lathe, carry it by the base or handles. Never carry the device by its guards or its accessories.
Parts & Accessories
UNPACKING & TRANSPORTATION
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure
to follow the safety instructions may result in serious personal injury.
Lathe (1)
Wrench (1)
Knockout Rod (1)
Hex Wrench
(3mm, 4mm,
5mm, & 12mm)
Live Center for Tailstock (MT2)
Spur Center for Headstock (MT2)
CAUTION! Your lathe is shipped with the spindle lock engaged. The spindle lock must be disengaged before
use. Failure to do so can damage the machine. Refer to "Indexing/Spindle Lock" on p. 13 for more details.
Rubber Feet (4)
Tool Rest Base Assembly (1)
Handle / Tool Holder (2)
Tool Rest (1)
ASSEMBLY & ADJUSTMENTS
10
KNOW YOUR LATHE
10
TOOL PURPOSE
Lathes are tools that turn your workpiece so you can cut, shape, and sand them. Refer to the following diagrams
to become familiarized with all the parts and controls of your Lathe. The components will be referred to later in the
manual for assembly and operation instructions.
INSTALL THE HANDLES (FIG. 2)
Your lathe comes with a handle kit that can be used for car-
rying the lathe, as well as for tool storage.
1. Use the included hex wrench to remove the two socket-
head cap screws from either end of the lathe bed.
NOTE: Install the tool rest base (see p. 11) before installing
the handle on the tailstock end of the bed.
2. Position the handle on the bed of the lathe. Align the
mounting holes in the handle with those in the bed. Insert
and tighten the two screws using the included hex wrench.
A. Lower Belt Door
B. Handle/Tool Holder
C. Headstock
D. Spindle Lock (on back)
E. Upper Belt Door
F. Face Plate
G. Tool Rest
H. Tool Rest Locking Handle
I. Quill Locking Handle
J. Tailstock
K. Tailstock Handle
L. Digital RPM Readout
M. Speed Adjustment Knob
N. ON/OFF Switch (w/ Safety Key)
O. Direction Switch
P. Tool Rest Locking Lever
Q. Carbon Brush Cap
R. Motor
S. Belt Tension Locking Handle
T. Belt Tension Handle
A
B
C
D
E F
T
P
O N
S
R
G I
Q
J
H
K
L
M
Fig. 2
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read
through and become familiarized with the following procedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious personal injury.
ASSEMBLY & ADJUSTMENTS
11
REMOVE THE ANTI-RUST COATING
Tool comes protected with a layer of anti-rust coating that needs
to be cleaned off before use. Wipe off coating using an acetone-
moistened cloth. Wear gloves to protect your hands. Apply a
light coat of good-quality paste wax to the bed.
INSTALLING THE TOOL REST BASE
Before installing the handle on the tailstock end of the bed, you
must install the tool rest base.
1. Loosen the tailstock locking lever (see p. 13) and remove the
tailstock from the bed.
2. Slide the tool rest base onto the bed of the lathe.
3. Lock the tool rest base in place using the locking lever (Fig.
4 – 4) see “ADJUST THE TOOL REST” below).
Fig. 3
Fig. 4
INSTALL THE TOOL REST
1. Loosen the tool rest locking handle (Fig. 4 – 3). The handle is spring-loaded and can be re-positioned as needed.
2. Insert the tool rest (Fig. 4 – 1) into the tool rest base (Fig. 4 – 2).
3. Tighten the tool rest locking handle.

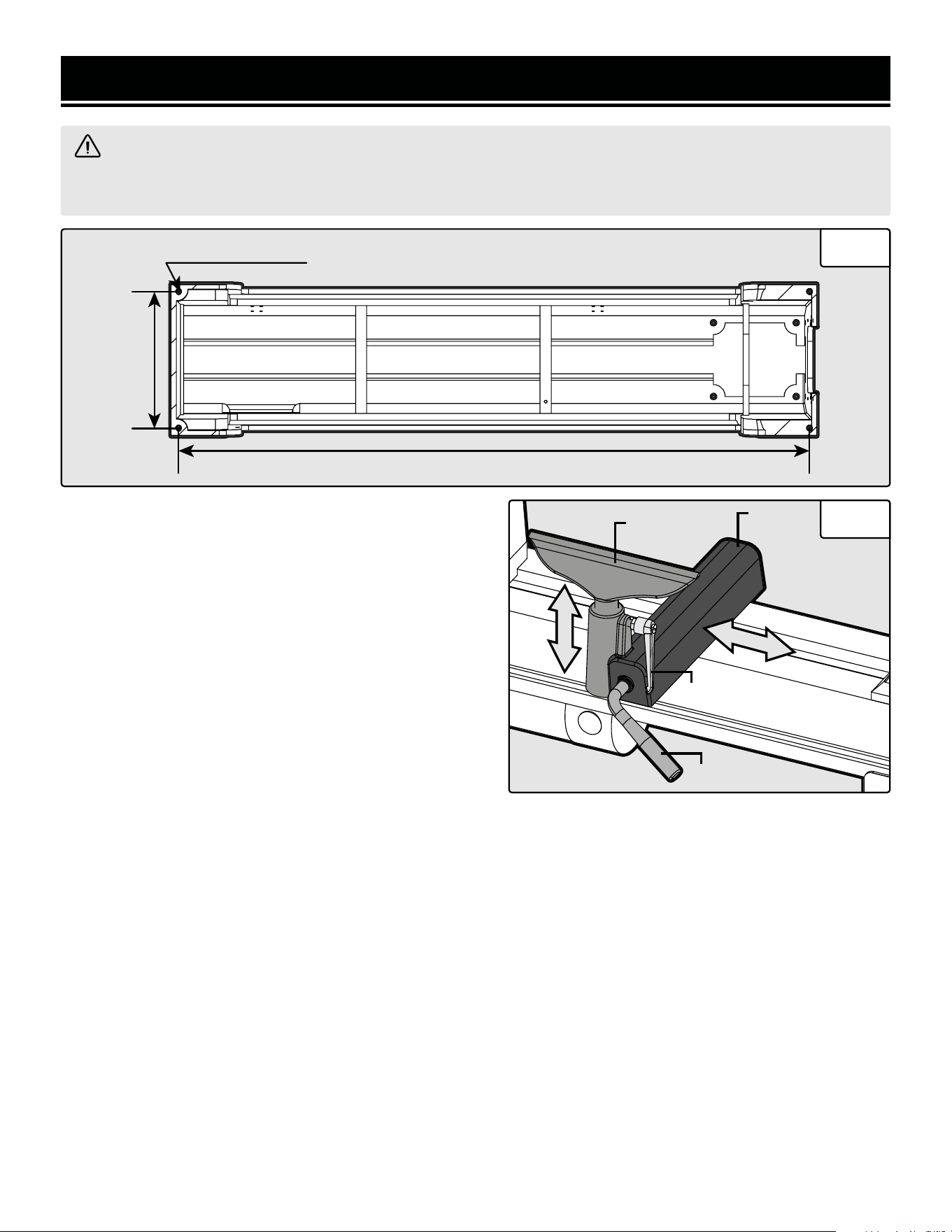

MOUNT THE LATHE TO A BENCHTOP
For safe operation, securely mount the lathe onto a secure workbench to prevent movement during operation (mounting
hardware is not included). Refer to Fig. 3 for your lathe’s base dimensions and mounting hole threads.
NOTE: If the machine is not being mounted onto a benchtop, install the 4 rubber feet into the mounting holes.
ADJUST THE TOOL REST
You can adjust the position, height and angle of the tool rest assembly to suit your task at hand.
1. The tool rest locking lever (Fig. 4 - 4) locks the tool rest base (Fig. 4 - 2) in position. Loosen the lever to slide the tool rest
base along the lathe bed. Tighten the lever firmly when the tool rest base is properly positioned.
NOTE: There is a nut on the underside of the tool rest base that needs to be adjusted periodically to enable the tool rest base
locking lever to tighten properly.
2. The tool rest locking handle (Fig. 4 - 3) locks the tool rest (Fig. 4 - 1) in place. Loosen the handle to position the tool rest
at the specific angle or height. Tighten the handle firmly when the tool rest is properly positioned.
NOTE: Adjust the height of the tool rest to just below the center of the workpiece, so that the tool will cut at the center of the
workpiece (see page 16, step 7).
44
33
11
22
865 mm
185 mm
M8-1.25x15mm
ASSEMBLY & ADJUSTMENTS
12
INSTALL THE FACE PLATE
When installing the face plate for turning bowls and plates,
mount the workpiece onto the face plate prior to installing
the face plate on the headstock (see "Mount The Workpiece
Onto The Face Plate" on page 19).
To install the face plate:

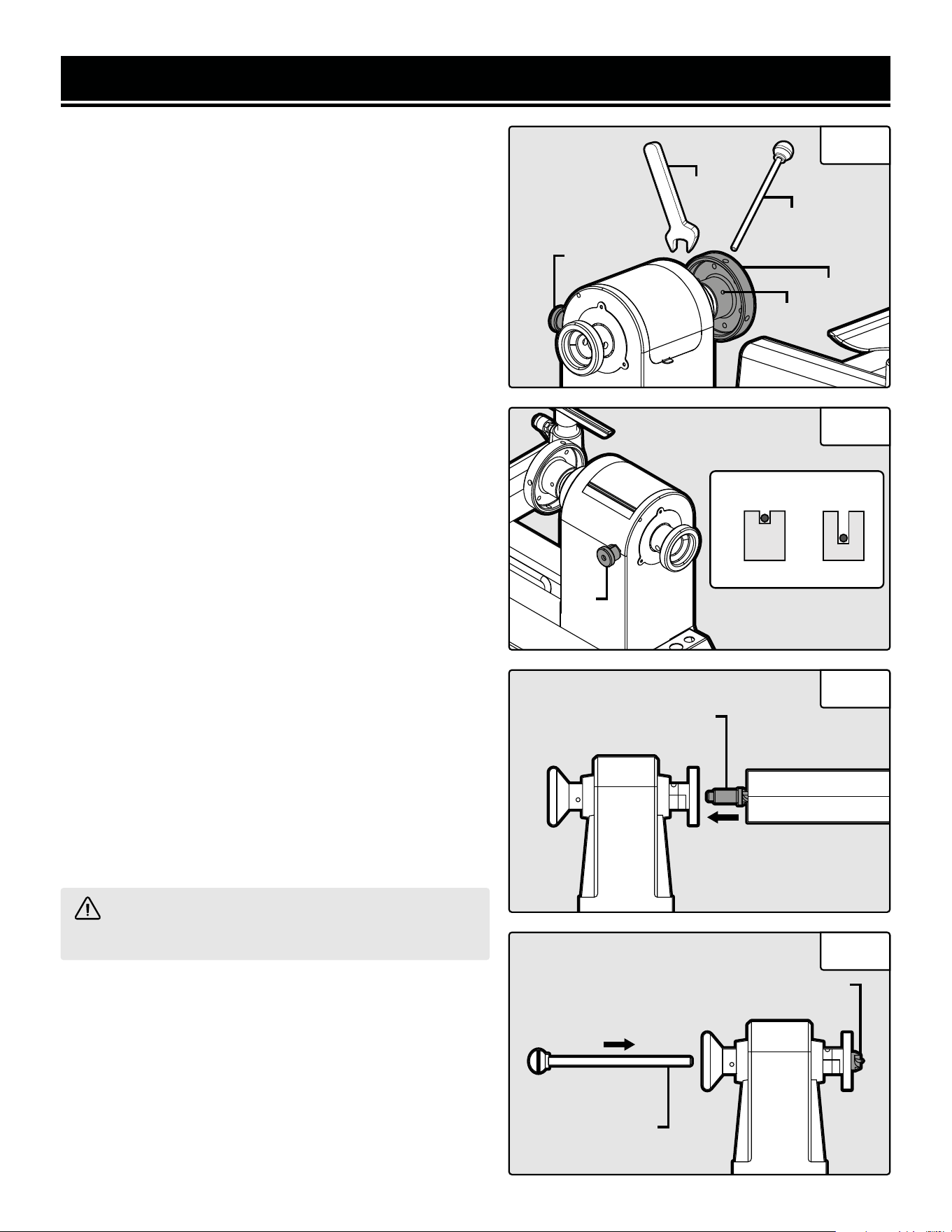

1. Thread the face plate (Fig. 5 - 4) onto the headstock
spindle by turning it clockwise as far as it will go, and then
tighten the two set screws (Fig. 5 - 5) with a hex wrench.
2. Lock the spindle lock (Fig. 5 - 1) by engaging the knob in
the deep groove (Fig. 6). Insert the knockout rod (Fig. 5 - 3)
into a hole on the side of the face plate and use the wrench
(Fig. 5 - 2) to fully tighten the face plate.
To remove the face plate:
1. Loosen the two face plate set screws (Fig. 5 - 5).
2. Lock the spindle lock (Fig. 5 - 1) and insert the knock out
rod into the face plate side hole. Use the wrench to unscrew
the face plate by turning it towards the operator.
INSTALL THE HEADSTOCK SPUR CENTER
Install the headstock spur center to turn workpiece between
centers.
To install the spur center:
1. Make sure the mating surfaces of both the spur center
and the headstock spindle are clean. You can use an ace-
tone-moistened cloth to remove any other debris, oil, etc.

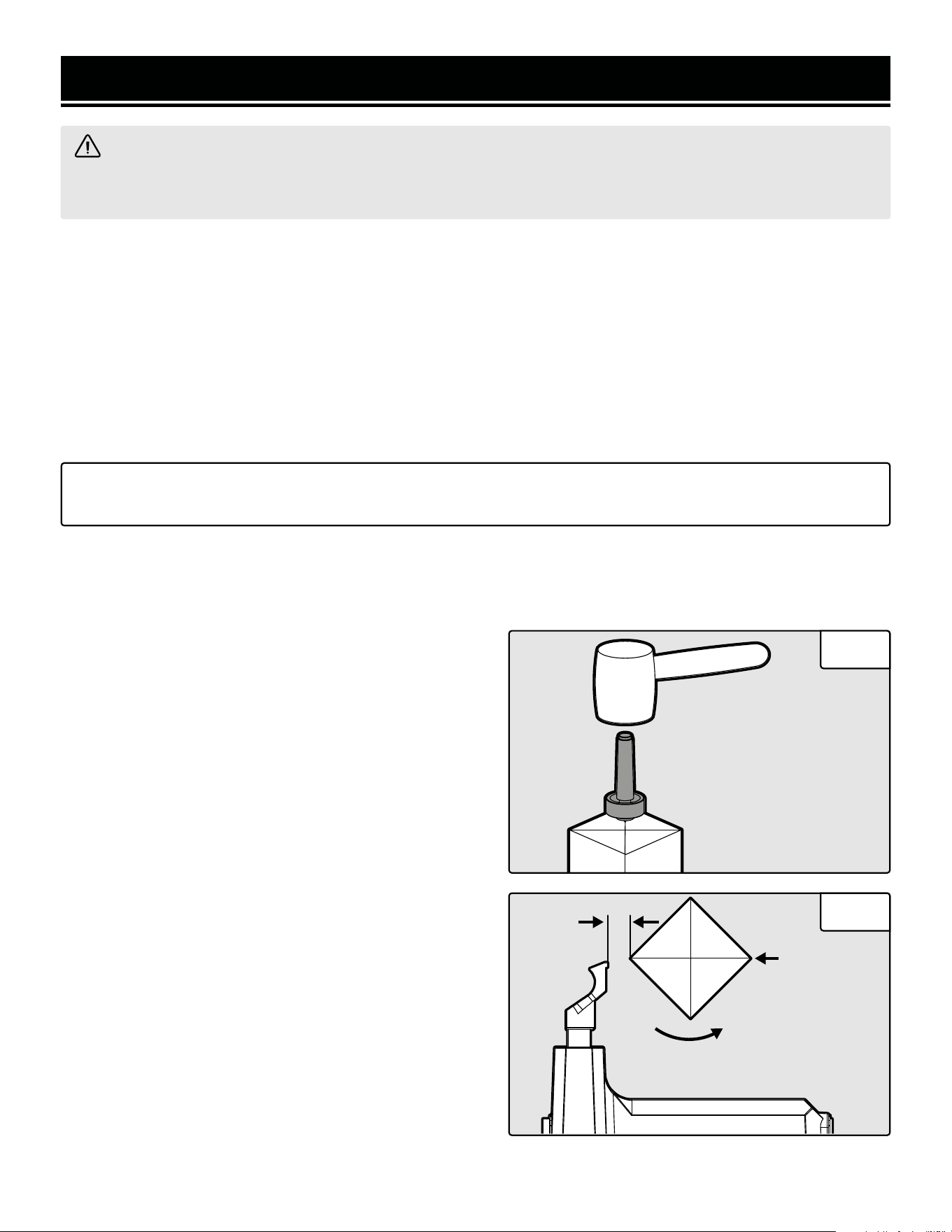

2. Drive the spur center into the workpiece using a rubber
mallet or a piece of scrap wood (Fig. 7). See page 16,
step 3 for detailed instructions.
Spindle Lock
Disengaged Locked
CAUTION! Never drive the workpiece into the spur
center while the spur center is in the headstock.
3. Push the spur center through the face plate into the
headstock spindle.
To remove the spur center:
1. Hold the spur center (Fig. 8) to prevent it from falling.
Use a rag to protect your hand from the sharp edges.
2. Insert the knockout rod (Fig. 8) through the spindle hole
to tap out the spur center.
Fig. 5
Fig. 6
Fig. 7
Fig. 8
11
SpindleSpindle
LockLock
33
22
44
55
Spur CenterSpur Center
Spur CenterSpur Center
Knockout RodKnockout Rod
WorkpieceWorkpiece
ADJUST THE TAILSTOCK

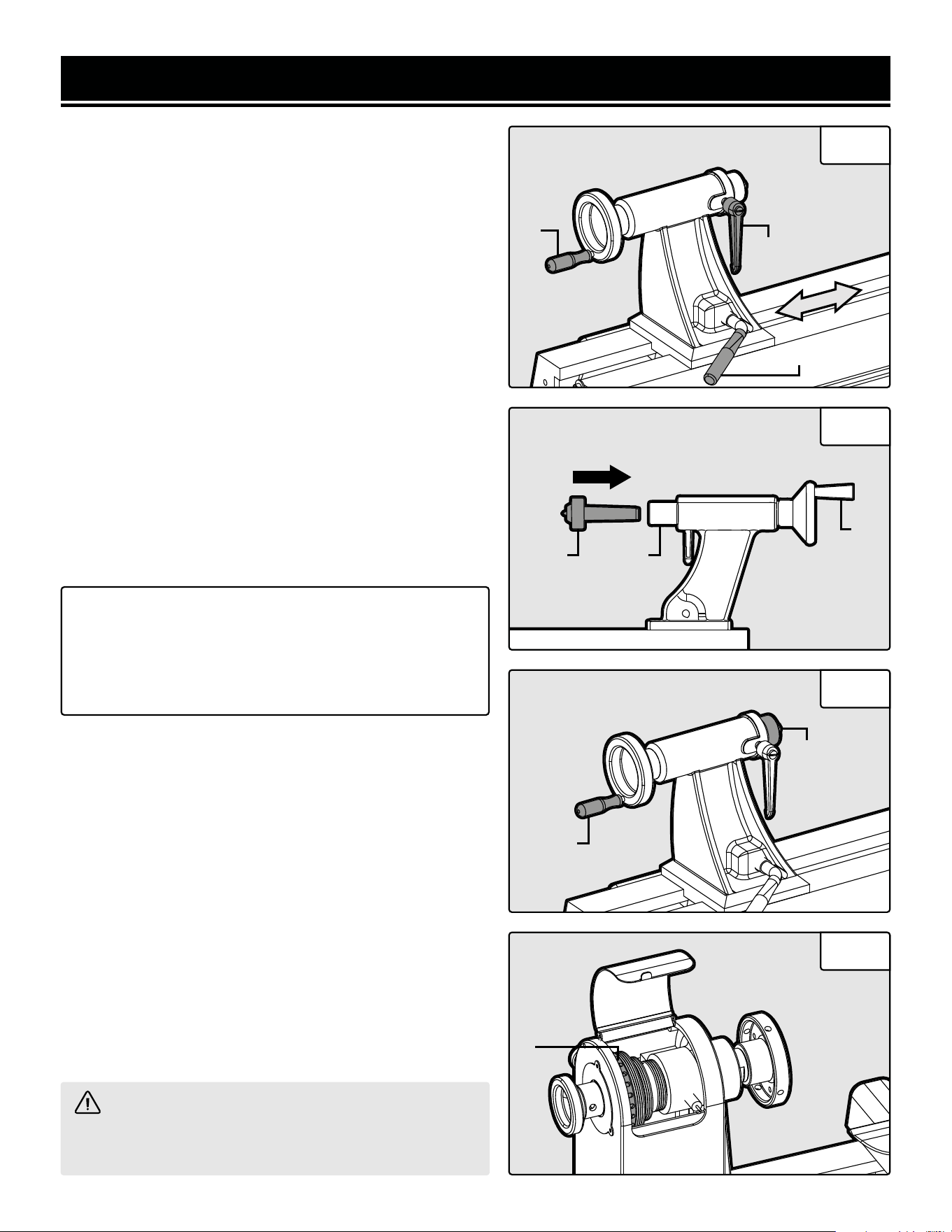

1. Loosen the tailstock locking lever (Fig. 9 - 3) and slide
the tailstock along the lathe bed into the desired position.
Retighten the locking lever.
2. Loosen the quill locking handle (Fig. 9 - 2) just enough
to unlock the tailstock quill. Turn the handwheel (Fig. 9 - 1)
clockwise to advance the quill and counterclockwise to re-
tract the quill. Retighten the quill locking handle.
NOTE: There is a nut on the underside of the tool rest body
that needs to be adjusted periodically to enable the tail-
stock locking lever to tighten properly.
INSTALL THE TAILSTOCK LIVE CENTER
To install the live center:
1. Rotate the tailstock handwheel (Fig. 10 - 3) clockwise a
few times to advance the quill (Fig. 10 - 2) forward.
2. Make sure the mating surfaces are clean. Push the live
center (Fig. 10 - 3) into the quill.
ASSEMBLY & ADJUSTMENTS
13
CAUTION! Make sure to DISENGAGE the spindle
lock before starting the lathe again. Never start the lathe
with the index pin engaged in the spindle pulley.
Fig. 9
Fig. 10
Fig. 11
Fig. 12
11
22
11
11
22
22
33
33
NOTE: If the tailstock quill gets fully retracted when the
live center is mounted, it will dismount the live center.
This is normal. Remount the live center by extending
the tailstock quill approximately 0.5 inch and pushing
the live center in place.
To remove the live center:
1. Hold the live center (Fig. 11 - 2) to prevent it from falling.
Use a rag to protect your hand from the sharp edges.
2. Rotate the handwheel (Fig. 11 - 1) counterclockwise to
retract the quill until the live center is released from the
quill.
INDEXING/SPINDLE LOCK
Indexing is used to create evenly spaced features around
the circumference of the workpiece while keeping the spin-
dle locked. There are 24 index positions (Fig. 11 - 1) in
the spindle pulley, each 15° apart, to help you rotate the
workpiece evenly for accurately spaced features. Place the
spindle lock in the locked position (Fig. 6 on page 12) to
help maintain the certain index point.
11
ASSEMBLY & ADJUSTMENTS
14
ADJUST THE SPEED
Your variable speed lathe has three speed ranges: Low
250-720 RPM, Medium 600-1700 RPM, and High 1200-
3550 RPM. Always start at slower speeds for rough cuts
and larger workpieces. Use faster speeds for refined cuts
and detailed work.
Set the suitable speed range for your operation by adjust-
ing the belt position. Change the speed within a speed
range using the speed adjustment knob. The speed will be
displayed on the digital RPM readout (Fig. 17 - 1) on the
front panel.
1. Turn off and disconnect the lathe.

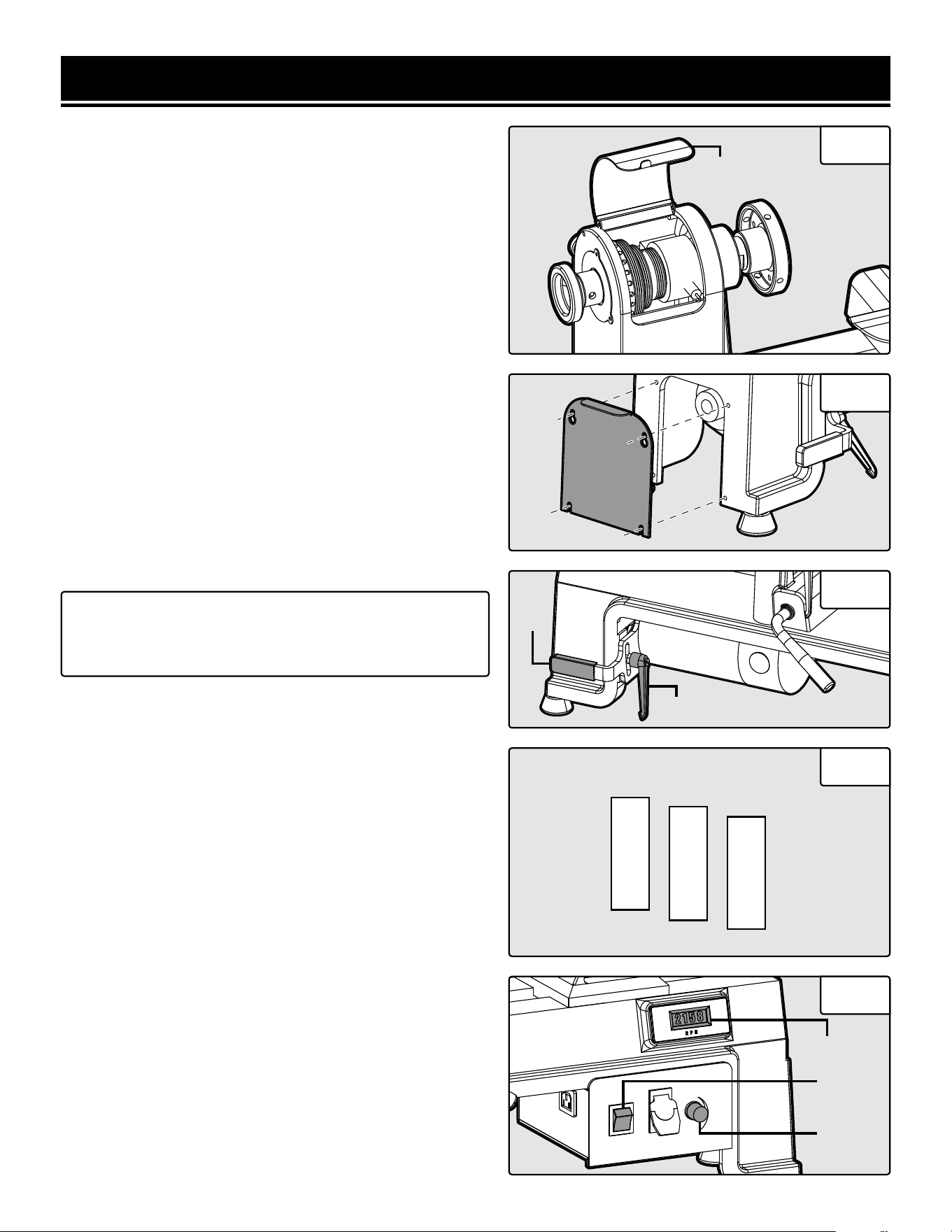

2. Open the belt drive access panel (Fig. 13 - 1).
3. Loosen (but do not remove) the four screws holding the
lower belt drive plate (Fig. 14) onto the left side of the head-
stock. Lift and remove the lower belt drive plate.
4. Loosen the motor tensioning locking handle (Fig. 15 - 2).
Fig. 13
Fig. 14
Belt Position Speed Chart (RPM)
Low
250
600
1200
720
1700
3550
Med
High
Fig. 16
11
Fig. 15
22
11
11
22
33
Fig. 17
NOTE: The locking handle is spring-loaded. To re-posi-
tion the handle, pull it outwards, place it in the desired
position, and let go.
5. Pull upwards on the tensioning handle (Fig. 15 - 1) to
relieve tension on the belt. It may help to wedge a piece of
wood or other support under the tensioning handle to keep
it in place while you adjust the belt position.
6. Adjust the belt’s position on both the upper and lower
drive pulleys to the desired speed range setting according
to Fig. 16. Make sure the belt is vertically aligned on the
upper and lower pulleys.
7. Lower the tensioning handle back to its original position,
allowing the weight of the motor to place the belt under
tension. Tighten the locking handle.
8. Replace the lower belt drive plate and tighten the screws.
Lower the upper belt drive access panel.
9. Use the speed adjustment knob (Fig. 17 - 3) on the front
panel to set the speed within your selected speed range.
Use the direction switch (Fig. 17 - 2) to set the rotational
direction. Do not change the direction when the tool is ON.
OPERATION
15
TURNING TOOLS
If possible, select only quality high-speed steel turning tools. High-speed steel tools hold an edge and last longer
than ordinary carbon steel. As one becomes proficient in turning, a variety of specialty tools for specific applica-
tions can be acquired. The following tools provide the basics for most woodturning projects.
CAUTION! Select the right tool for your task at hand. Make sure all tools, chisels and accessories are sharp
before using them. DO NOT use dull or damaged tools.

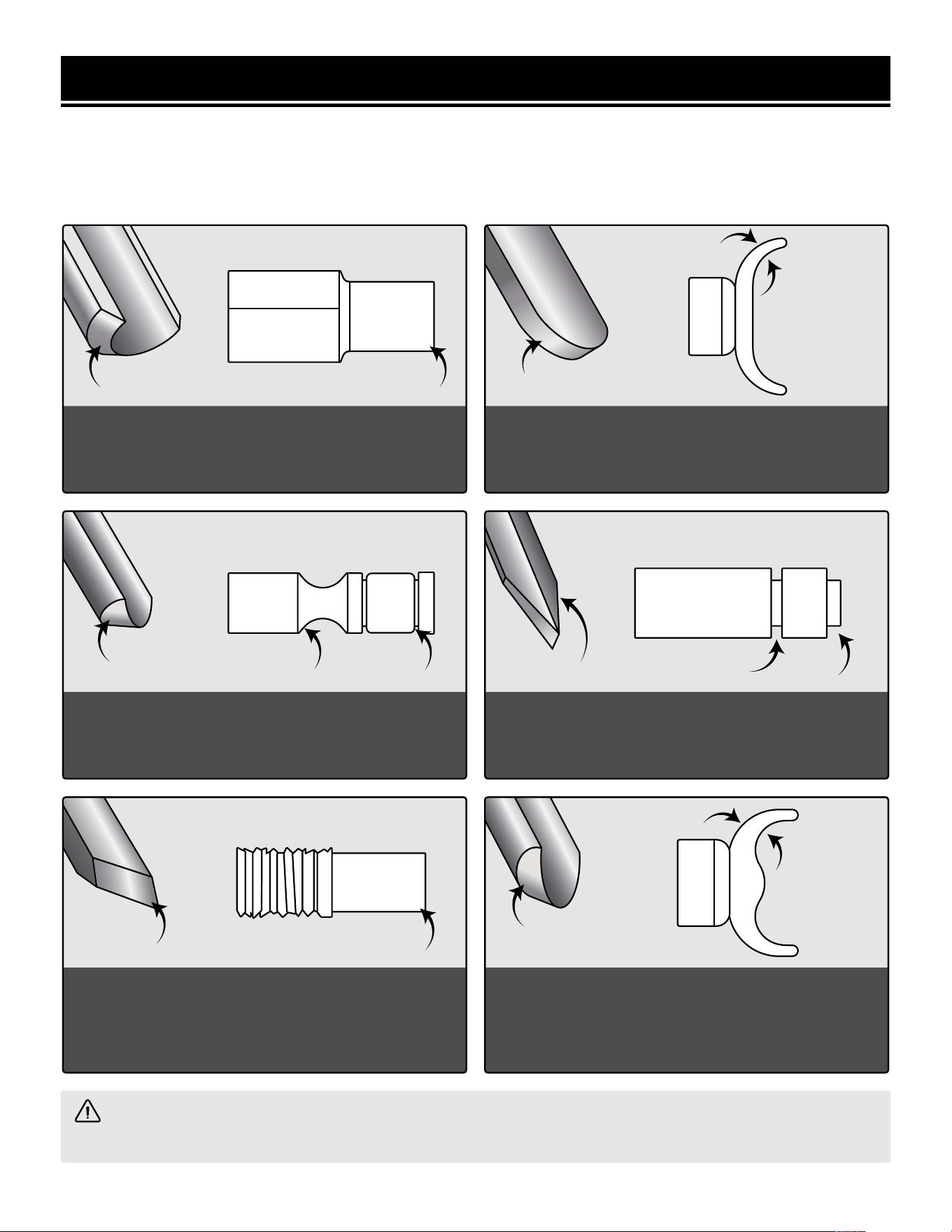

1. ROUGHING GOUGE - use this tool to shape square or
out-of-round spindle-turning stock into a cylinder. This can
also be used for creating shallow coves.
2. ROUND NOSE SCRAPER - use this tool for non-agres-
sive shaping of spindles and bowls and to smooth out
surfaces without removing too much stock.
45° Bevel 75-90° Bevel
Smoothing
Bowls
Turning Rough Stock Round
5. SKEW CHISEL - use this tool to even out high and low
spots to shape cylinders. Vary the angle at which the tip
meets the workpiece to change the aggressiveness of the
cut. This can also be used for cutting beads and V-grooves.
6. BOWL GOUGE - use this tool to cut external and internal
profiles on faceplate-mounted stock, such as bowls and
platters. It can also be used for creating ultra smooth cuts
on bowls and spindles by using it as a shearing scraper.
70° Bevel 60-80° Bevel
Shaping &
Hollowing
Bowls
Planing and Smoothing
3. SPINDLE GOUGE - tuse this tool to cut coves, beads
and free-form contours. It can also be used for producing
shallow hollows on faceplate turnings.
4. PARTING TOOL - use this tool to form grooves and
tenons, and to remove stock. It can also be used for rolling
small beads.
30-40° Bevel
Cove Groove TenonBead
30-45° Bevel
MOUNT THE WORKPIECE BETWEEN SPINDLES
Spindle turning takes place between the centers of the lathe, with the workpiece being held between the spur center
in the headstock and the live center in the tailstock. The wood stock for spindle turning should be straight grained
and free of cracks, knots, nails and other defects. Prepare the stock so that the end faces are approximately square
shaped and vertical to the sides.
1. Using a combination square, locate and mark the center on both ends of the workpiece. Accuracy is not critical
if you’re turning full rounds, but it is extremely important if square sections are to remain on the workpiece.
2. Put a dimple in the stock with a punch awl or nail (or use a spring-loaded automatic center punch).
OPERATION
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read
through and become familiarized with the following procedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious personal injury.
16
4. Clean the tapered end of the spur center and the inside
of the headstock spindle. Insert the tapered end of the spur
center (with the attached workpiece) into the headstock
spindle.
5. Support the workpiece while loosening the tailstock
locking lever and bringing the tailstock into position. Tight-
en the tailstock locking lever to lock the tailstock to the bed.
6. Advance the tailstock quill with the hand wheel in order
to seat the live center into the workpiece. Use enough pres-
sure to secure the workpiece between the centers so that it
won’t fly off, but do not use excessive pressure. Excessive
pressure runs the risk of overheating the center bearings
and damaging both the workpiece and the lathe. Tighten
the quill locking handle.
7. Adjust the position of the tool rest to be parallel to the
workpiece. The tool rest height should be just below the
centerline and approximately 0.1 to 0.2 inches (3 to 6 mm)
from the corners of the workpiece to be turned. Secure the
tool rest by tightening the tool rest locking handle and lock-
ing lever (Fig. 19).
8. Before switching the lathe ON, rotate the workpiece by
hand to check for proper seating and clearance.
3-6 mm
Centerline
Direction of Rotation
NOTE: For extremely hard woods, you may need to cut kerfs into the ends of the stock using a band saw for it
to be mounted onto the spur center and the live center.
3. Drive the spur center about 0.1 inches (3 mm) into the workpiece using a wood mallet or dead blow hammer
(Fig. 18). Be careful not to split the workpiece. Do not use a steel face hammer and NEVER drive the workpiece
onto the spur center while it is mounted on the spindle of the lathe.
Fig. 18
Fig. 19
OPERATION
17
SPINDLE TURNING - ROUGHING OUT CUT
Roughing out is the first step of the lathe operation, which uses the large roughing gouge tool to smooth out sharp
corners to make the workpiece cylindrical. When roughing out a workpiece, run the lathe at low speed and always
cut downhill, from the large diameter side of the workpiece to the small diameter side.
1. Make sure the lathe turned off and disconnected. The first cut will start about 2 inches from the tailstock end of
the workpiece. Adjust the tool rest to the suitable position and set the lathe to a slow speed.
2. Plug in and turn on the lathe. Wait for the motor to reach full speed. Place the roughing gouge on the tool rest
about 2 inches from the tailstock end of the workpiece. Slowly and gently raise the tool handle until the cutting
edge comes into contact with the workpiece.
NOTE: The following operation instructions serves as a beginning point for some common lathe operations.
Practice on scrap material to become familiarized with the operation process and make the necessary adjust-
ments before working on your workpiece.
NOTE: Remember to constantly move the tool rest inward towards the workpiece to keep a safe distance be-
tween the tool and your workpiece.
NOTE: Make sure that the tool is being held well on the work, with the bevel or grind tangent to the revolving
surface or the workpiece. This position will generate a clean shearing cut. Do not push the tool straight into
the work.
NOTE: Always work towards the end of the workpiece; NEVER start a cut at the end.
3. To make the first pass, rolling the flute of the tool (the hollowed-out portion) towards the end of the tailstock.
4. Make the second pass, starting at about 2 or 3 inches to the left of the first cut. Again, advance the tool towards
the tailstock, and merge with the previous cut.
5. As your cuts get close to the headstock live center end of the workpiece, roll the gouge in the opposite direction
to carry the final cut off the live center end of the workpiece.
6. Make long sweeping cuts in a continuous motion to turn the workpiece to a cylinder. Keep as much of the bevel
of the tool in contact with the workpiece as possible to ensure control and avoid catches. The roughing cut is con-
tinued until the work approaches about 1/8 inch to the required cylinder diameter.
7. Once the workpiece is roughed down to a cylinder, smooth it with a large skew chisel tool. The turning speed can
be increased. Keep the skew handle perpendicular to the spindle and use only the center third of the cutting edge
for a long smoothing cut (touching one of the points of the skew to the spinning workpiece may cause a catch and
ruin the workpiece).
8. See pages 18 and 19 for adding details and finishing the workpiece.
SPINDLE TURNING - CREATING BEADS
Making a parting cut for the desired depth and location of your bead.
1. Place the parting tool on the tool rest and move the tool forward to make the full bevel of the tool come into
contact with the workpiece. Gently raise the handle to make cuts of the appropriate depth. Repeat for the other
side of the bead.
2. Using a small skew or spindle gouge, start in the center between the two cuts and cut down each side to form
the bead. Roll the tool in the direction of the cut.
SPINDLE TURNING - CREATING COVES
Using a spindle gouge to create a cove.
1. With the flute of the tool at 90 degrees to the workpiece, touch the point of the tool to the workpiece and roll in
towards the bottom of the cove. Stop at the bottom, as attempting to go up the opposite side may cause the tool
to catch.
2. Move the tool over the desired width of the cove. With the flute facing the opposite direction, repeat the step for
the other side of the cove. Stop at the bottom of the cut.
SPINDLE TURNING - CREATING V-GROOVES
Using the point of the skew to create a V-groove in the workpiece.
1. Lightly mark the center of the V with the top of the skew. Move the point of the skew to the right half of the
desired width of your cut.
2. With the bevel parallel to the right side of the cut, raise the handle and push the tool in to the desired depth.
Repeat from the left side.
OPERATION
18
NOTE: The two cuts should meet at the bottom and leave a clean V-groove. Additional cuts may be taken to add
to either the depth or the width of the cut.
SPINDLE TURNING - PARTING OFF
Adjust the lathe to a slower speed for parting through a workpiece.
1. Place a parting tool on the tool rest and raise the handle until is starts to cut. Continue cutting towards the center
of the workpiece.
2. Loosely hold on to the piece in one hand as it separates from the waste wood.
OPERATION
19
SPINDLE TURNING - SANDING THE WORKPIECE
Adjust the lathe to a slower speed for sanding and finishing. High speed can build friction while sanding and cause
burns in some woods. The cleaner the cuts, the less sanding will be required. So try to make the cuts as refined as
you can before moving to the sanding process.
1. Use sandpaper finer than 120 grit, as coarse sandpaper may scratch the workpiece. Fold the sandpaper into a
pad will allow easier and safer sanding. Do not wrap the sandpaper around your fingers or the workpiece.
2. Apply light pressure to the workpiece during sanding. Use power-sanding techniques to avoid concentric sand-
ing marks around your finished piece.
3. Progress through finer grits of sandpaper until the desired surface is achieved. Finish sanding with 220 grit
sandpaper.
SPINDLE TURNING - FINISHING THE WORKPIECE
1. Turn off the lathe. The workpiece can be left on the lathe when applying finish.
2. Remove the sanding dust with tack cloth or compressed air.
3. Apply the finish using a brush or paper towel. Let the finish stand for several minutes and remove any excess
finish before restarting the lathe.
4. Start the lathe at the lowest speed, as high speed may cause the fresh coat to splash. Allow the finish to dry and
sand the workpiece with 320 to 400 grit sandpaper.
5. Apply a second coat of finish and buff the workpiece.
MOUNT THE WORKPIECE ONTO THE FACE PLATE
When turning bowls or plates with a large diameter, mounting it to the face plate to gives the maximum amount
of support. While face plates are the most reliable method for holding a larger block of wood for turning, a lathe
chucks can also be used. A chuck is handy when working on more than one piece at a time, allowing your to open
the chuck and change workpieces instead of having to remove the mounting screws.
1. Select a stock that is at least 0.2 inches (5 mm) larger than each dimension of the finished workpiece.
2. Remove any bark from the top of the wood stock (that will be later attached onto a face plate or in a chuck).
3. True one of the surfaces of the workpiece for mounting against the face plate. Using the face plate as a template,
mark the location of the mounting holes on the workpiece and drill pilot holes of the appropriate size.
20 21
TROUBLESHOOTING GUIDE
20
ERROR CODE PROBLEM SOLUTION
F1
Low voltage protection has
activated.
Check supply voltage and restart lathe.
F2
High voltage protection has
activated.
Check supply voltage and restart lathe.
F3
Operator error - direction changed
while the lathe was ON.
Turn lathe OFF and wait for the display to
show 00, then restart the lathe. ONLY change
directions when the lathe is OFF.
OPERATION
TO SHAPE THE INSIDE OF A BOWL OR PLATE
Turn off the lathe and move the tailstock out of the way. Mount the workpiece onto the face plate and install the face
plate onto the headstock (see "Install The Face Plate" on page 12). Adjust the tool rest in front of the workpiece
to be just below the centerline and at the right angle to the lathe’s turning axis. Rotate the workpiece by hand to
check for proper seating and clearance.
Begin shaping by lightly shearing across the top of the bowl from rim to center. Place a bowl gouge tool on the
tool rest at the center of the workpiece with the flute facing the top of the bowl. The tool handle should be level and
pointed toward the four o’clock position.
Control the cutting edge of the gouge with the left hand, while swinging the tool handle around towards your body
with the right hand. The flute should start out facing the top of the workpiece, rotating it upwards as it moves
deeper into the bowl to maintain a clean and even curve. As the tool goes deeper into the bowl, progressively work
outwards towards the rim of the bowl. It may be necessary to turn the tool rest into the piece as you get deeper
into the bowl.
The variable speed display will show an error code if the lathe has been used incorrectly. Refer to the chart below
to troubleshoot the problem.
Develop the preferred wall thickness at the rim and maintain it as you work deeper into the bowl (once the piece
is thin toward the bottom, you cannot make it thinner at the rim). When the interior is finished, move the tool rest
back to the exterior to re-define the bottom of the bowl. Work the tight area around the face plate or the chuck with
a bowl gouge. Begin the separation with a parting tool, but do not cut all the way through.
NOTE: Try to make one light continuous movement from the rim to the bottom of the bowl to ensure a clean,
sweeping curve through the piece. Should there be a few small ridges left, a light cut with a large domed
scraper can even out the surface.
20 21
TROUBLESHOOTING GUIDE
21
PROBLEM POSSIBLE CAUSE SOLUTION
Motor will not start.
1. Power cord damaged or not properly
plugged in.
1. Check the power cord, extension cord, power plug
and the power outlet. Do not use the tool if any cord
is damaged.
2. Defective power switch.
2. Stop using the tool and call 1-847-429-9263 for
customer service.
3. Defective motor or other internal
damage.
3. Stop using the tool and call 1-847-429-9263 for
customer service.
4. Motor carbon brushes are worn
4. Have the carbon brushes checked and replaced by
an experienced technician.
Motor or spindle stalls.
1. Excessive cut 1. Reduce the depth of the cut
2. Worn, damaged, or improperly
adjusted drive belt
2. Adjust or replace the drive belt
(Part No. 34034-205).
3. Worn bearings.
3. Stop using the tool and call 1-847-429-9263 for
customer service.
Excessive vibration.
1. Workpiece is warped, out of round,
has major flaw, or was improperly
prepared for turning.
1. Correct the problem by planing or sawing
workpiece, or discard it entirely and restart.
2. Worn bearings.
2. Stop using the tool and call 1-847-429-9263 for
customer service.
3. Worn drive belt. 3. Replace the drive belt (Part No. 34034-205).
4. Lathe is on an uneven surface. 4. Mount the lathe on a stable, flat surface.
Tools grab or dig in.
1. Dull tools. 1. Use sharp tools.
2. Tool rest position too low. 2. Reposition the tool rest height.
3. Tool rest position too far from work
piece.
3. Reposition the tool rest closer to the workpiece.
4. Improper tool being used. 4. Use correct tool for operation.
Tailstock or tool rest base
moves when locked and
pressure is applied.
1. Lock nut needs adjusting.
1. Adjust lock nut (Part No. 34034-052). Make small
adjustments (1/8 turn) at a time until the tailstock or
tool rest base locks down securely. Call 1-847-429-
9263 for customer service.
2. Lathe bed and tailstock or tool rest
base mating surfaces are greasy or oily.
2. Remove the tailstock or tool rest base and clean the
surfaces with a cleaner. Apply a light coat of oil to the
lathe bed surface.
Error code shown. 1. Lathe is being used incorrectly. 1. Consult chart on page 20.
WARNING! Stop using the tool immediately if any of the following problems occur. Repairs and replacements
should only be performed by an authorized technician. For any questions, please contact our customer service
at 1-847-429-9263, M-F 8-5 CST or email us at [email protected].
NOTE: Repairs and replacements should only be performed by an authorized technician. Parts and accessories
that wear down over the course of normal use are not covered by the two-year warranty.
ROUTINE INSPECTION
Before each use, inspect the general condition of the
tool. If any of these following conditions exist, do not
use until parts are replaced or the lathe is properly re-
paired.
Check for:
• Loose hardware,
• Misalignment or binding of moving parts,
• Damaged cord/electrical wiring,
• Cracked or broken parts, and
• Any other condition that may affect its safe operation.
CLEANING & STORAGE
1. Keep the ventilation openings free from dust and de-
bris to prevent the motor from overheating.
2. Wipe the tool surfaces clean with a clean cloth. Make
sure water does not get into the tool.
CAUTION! Most plastics are susceptible to damage
from various types of commercial solvents. Do not use
any solvents or cleaning products that could damage
the plastic parts. Some of these include but are not
limited to: gasoline, carbon tetrachloride, chlorinated
cleaning solvents, and household detergents that con-
tain ammonia.
3. Store the tool in a clean and dry place away from the
reach of children. Store in temperatures between 41° to
86°F.
4. Cover the Lathe in order to protect it from dust and
moisture. It is preferable to store it in its original pack-
aging with the instruction manual and all accessories.
MAINTENANCE
WARNING! To avoid accidents, turn OFF and unplug the tool from the electrical outlet before cleaning,
adjusting, or performing any maintenance work.
WARNING! Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the
tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts.
Use of other parts may be hazardous or induce product failure.
LUBRICATION
The bearings of your Lathe are permanently sealed and
require no extra lubrication.
DRIVE BELT
The drive belt should last for many years depending on
usage, but it needs to be inspected regularly for cracks,
cuts and general wear. If damage is found, replace the
belt before operation.
RUST
The Lathe is made from steel and cast iron. All non-
painted surfaces will rust if not protected. It is recom-
mended that they are protected by applying a light coat
of good-quality paste wax to the surfaces to guard
against rust and corrosion.
PRODUCT DISPOSAL
Used power tools should not be disposed of together
with household waste. This product contains electronic
components that should be recycled. Please take this
product to your local recycling facility for responsible
disposal and to minimize its environmental impact.
Please recycle the packaging and electronic
components where facilities exist.
22

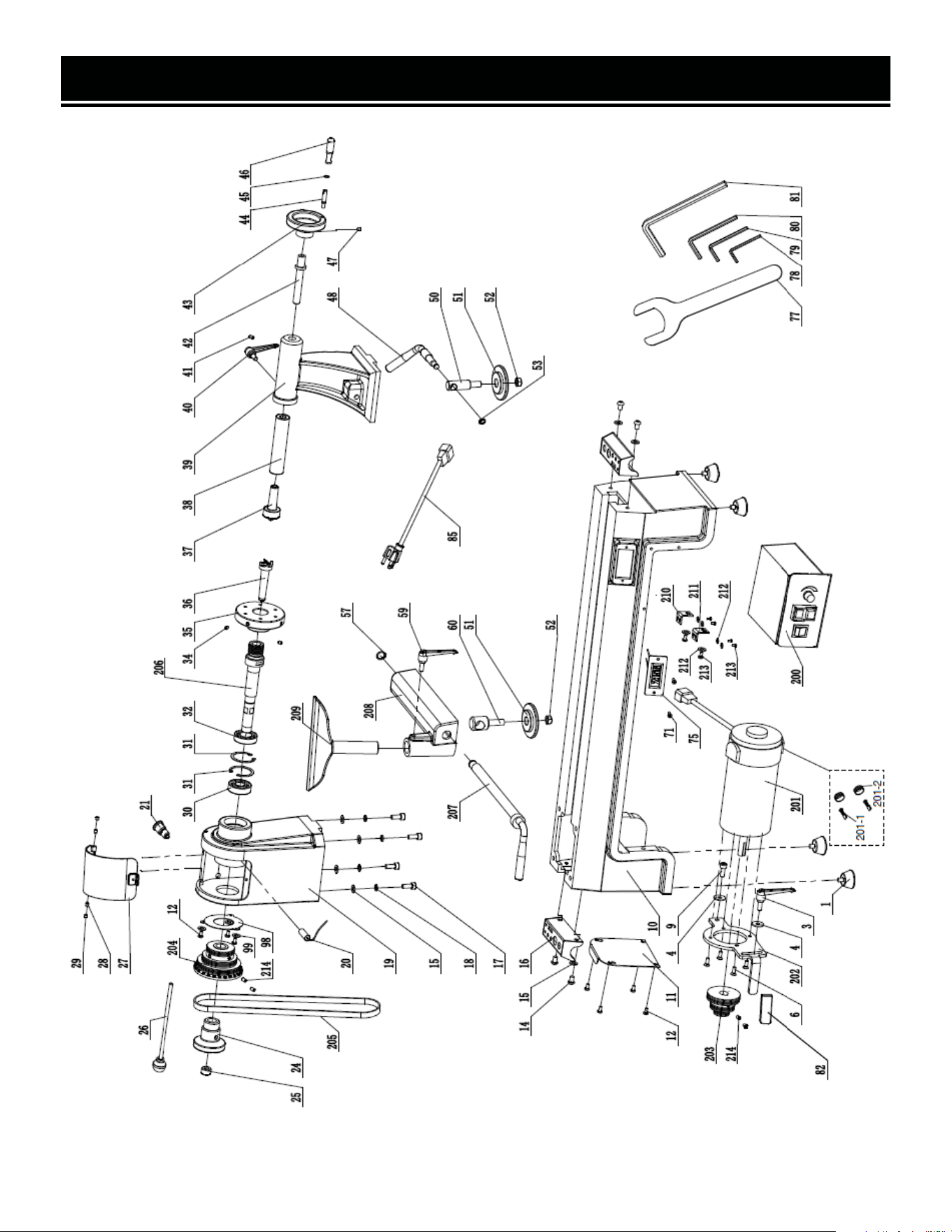

EXPLODED VIEW & PARTS LIST
23
NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of
normal use are not covered under the warranty.
24
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 34034-001 Foot 4
3 34034-003
Belt Tension Lock Lever,
M8x20
1
4 34034-004 Washer, 8mm 2
6 34034-006 Head Cap Screw, M6x16 4
9 34034-009 Cap Screw, M8x16 1
10 34034-010 Bed 1
11 34034-011 Lower Belt Door 1
12 34034-012 Phillip Head Screw, M5x10 7
14 34034-014 Head Screw, M8x12 4
15 34034-015 Washer, 8mm 8
16 34034-016 Handle With Tool Rack 2
17 34034-017 Cap Screw, M8x20 4
18 34034-018 Spring Washer, 8mm 4
19 34034-019B Headstock Body 1
20 34034-020
Spindle Speed Sensor,
M8x20
1
21 34034-021 Location Pin Assembly 1
24 34034-024 Headstock Handwheel 1
25 34034-025 Locking Nut, M20-1.5x12 1
26 34034-026 Knockout Rod Assembly 1
27 34034-027B Upper Belt Door 1
28 34034-028 Cap Screw, M5x10 2
29 34034-029 Set Screw, M5x6 2
30 34034-030 Bearing, 6204 1
31 34034-031 Ring 2
32 34034-032 Bearing, 6005 1
34 34034-034 Cap Screw, M6x8 2
35 34034-035 Face Plate 1
36 34034-036 Spur Center 1
37 34034-037 Live Center 1
38 34034-038B Quill 1
39 34034-039B Tailstock 1
40 34034-040 Quill Lock Lever 1
41 34034-041 Pin 1
42 34034-042B Leadscrew 1
43 34034-043 Tailstock Wheel 1
44 34034-044 Handwheel Axle 1
45 34034-045 Ring 1
46 34034-046 Handwheel Handle 1
No. Part No. Description Qty.
47 34034-047 Set Screw, M8x10 1
48 34034-048 Tailstock Lock Lever 1
50 34034-050 Tailstock Clamp Bolt 1
51 34035-051 Tailstock Clamp Plate 2
52 34034-052 Lock Nut, M12 2
53 34034-053 C-Ring 1
57 34034-057 C-Ring 2
59 34034-059 Lock Lever 1
60 34034-060 Tool Rest Clamp Bolt 1
71 34034-071 Phillip Head Screw, M4x8 2
75 34034-075 RPM Digital Readout 1
77 34034-077 Wrench 1
78 34034-078 Hex Wrench, 3mm 1
79 34034-079 Hex Wrench, 4mm 1
80 34034-080 Hex Wrench, 5mm 1
81 34034-081 Hex Wrench, 12mm 1
82 34034-082 Handle Sleeve 1
85 34034-085 Power Plug 1
98 34034-098 Headstock Cover 1
99 34034-099 Washer, 5mm 3
200 34034-200 Electrical Box Assembly 1
201 34034-201 Motor 1
201-
1
34034-215 Carbon Brush 2
201-
2
34034-216 Carbon Brush Cap 2
202 34034-202 Motor Plate 1
203 34034-203 Motor Pulley 1
204 34034-204 Spindle Pulley 1
205 34034-205 Belt, Micro-V 310J 1
206 34034-206 Spindle 1
207 34034-207 Tool Rest Base Lock Lever 1
208 34034-208 Tool Rest Base (Banjo) 1
209 34034-209 Tool Rest 1
210 34034-210 Electrical Box Bracket 2 1
211 34034-211 Electrical Box Bracket 1 1
212 34034-212 Washer, 4mm 6
213 34034-213 Screw, M5x10 6
214 34034-214 Screw, M8x10 4
WARRANTY STATEMENT
25
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to quality.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power
tools will be free from defects in material or workmanship during personal use for a period of two (2) years from date
of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for pro-
fessional or commercial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which are
defective in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepair, abuse, neglect, normal wear and tear, improper maintenance, or other conditions adversely affecting the
Product or the component of the Product, whether by accident or intentionally, by persons other than Seller. To make
a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that clearly defines
the Date of Purchase (month and year) and the Place of Purchase. Place of Purchase must be a direct vendor of Great
Lakes Technologies, LLC. Purchasing through third party vendors, including but not limited to garage sales, pawn
shops, resale shops, or any other secondhand merchant, voids the warranty included with this product. Contact tech-
[email protected] or 1-847-429-9263 with the following information to make arrangements: your shipping
address, phone number, serial number, required part numbers, and proof of purchase. Damaged or defective parts
and products may need to be sent to WEN before the replacements can be shipped out.
Upon the confirmation of a WEN representative, your product may qualify for repairs and service work. When re-
turning a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must
be shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of the
problem in order to help our repairs department diagnose and fix the issue. Repairs will be made and the product
will be returned and shipped back to the purchaser at no charge for addresses within the contiguous United States.
THIS LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING BELTS, BRUSHES, BLADES, BATTERIES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DU-
RATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN PROV-
INCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION
MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME
STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN-
CIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO
COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CON-
TACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WARRAN-
TY SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING CHARGES
MAY APPLY.
26
NOTES
27
NOTES
THANKS FOR
REMEMBERING
V. 2024.05.21
