Installation Guide
AT-GAIN-VOL
GAIN Volume Control Wallplate
AT-GAIN-VOL

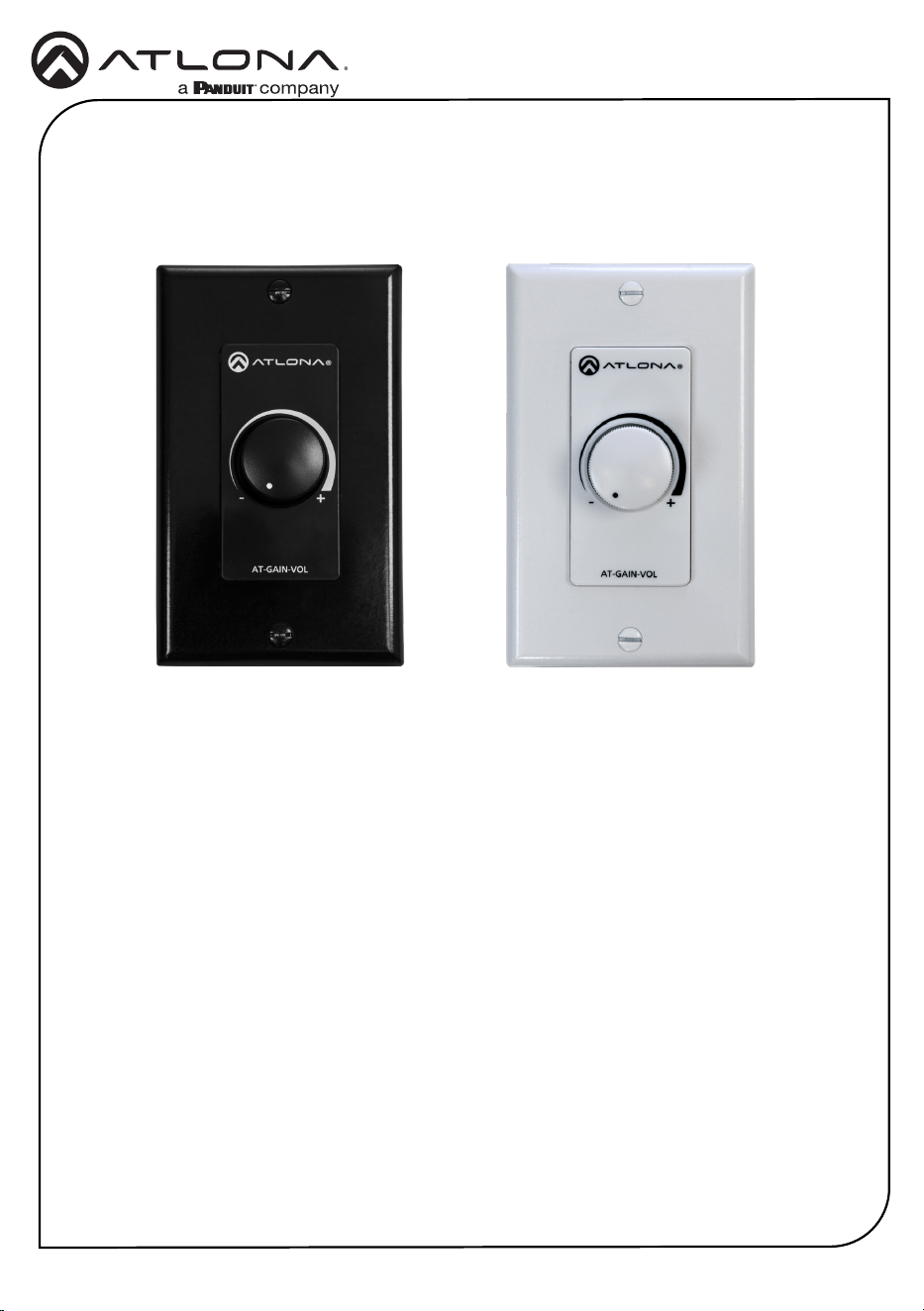

The Atlona AT-GAIN-VOL is a volume control wallplate for use with the AT-GAIN-M50-LZ mixer
amplier. It provides a convenient, easy-to-use manual interface for controlling audio levels
of the amplier. Volume control range is from no audio (mute) to maximum output level. The
GAIN-VOL is housed in a US one-gang enclosure intended for wallplate openings and includes
interchangeable black or white trim kits.
1 x AT-GAIN-VOL
1 x White faceplate
1 x White Decora
®
wallplate
1 x Black faceplate
1 x Black Decora
®
wallplate
1 x 3-pin captive screw connector
1 x Insert w/ QR code
Package Contents
2
Installation Guide
AT-GAIN-VOL

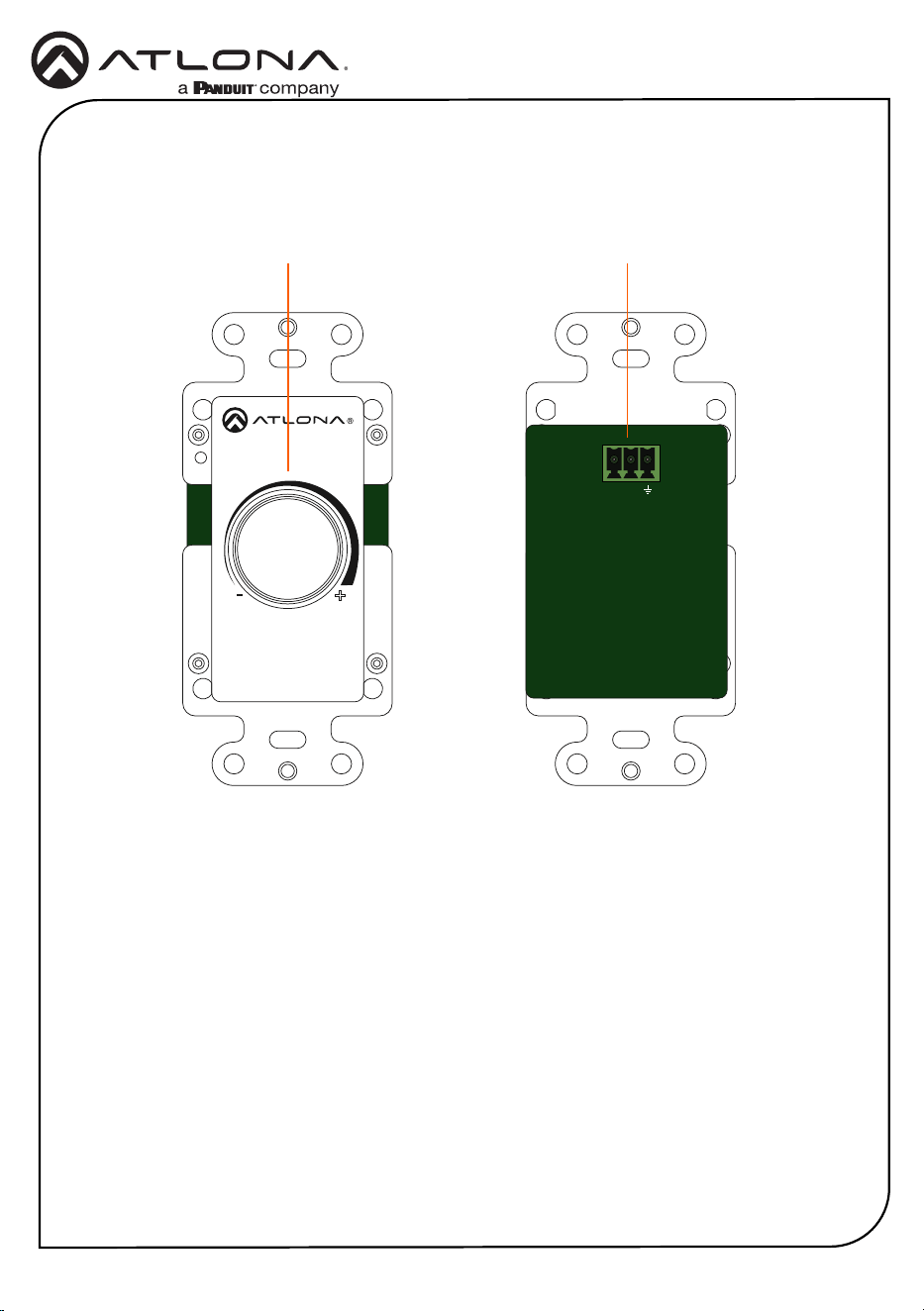

1 Volume Knob
Rotate this knob clockwise to increase
the output volume. Rotate clockwise to
decrease the output volume.
2 Control
This port connects to the top port of the
CTRL / RS-232 port on the AT-GAIN-M50-
LZ.
Panel Descriptions
+
-
AT-GAIN-VOL
+
-
AT-GAIN-VOL
V C
1 2
Front Back
3
Installation Guide
AT-GAIN-VOL
Installation
1. Connect the included 3-pin captive screw connector from the Control port to the top port of
the CTRL / RS-232 port on the AT-GAIN-M50-LZ.
2. Install the AT-GAIN-VOL into the electrical box or mud ring.
3. Attach the wallplate.
+
-
AT-GAIN-VOL
+
-
AT-GAIN-VOL
V C
PWR
IN 1
IN 2
OUT
USB PORT
LEVEL MUTE
DUCKING
AT-GAIN-M50-LZ
GAIN
TM
-
+
INPUT
OUTPUT
3ADC 24V
RX TX
CTRL / RS-232
V
C
L R
1 2
-
+
TRIGGER
MODE
STEREO
MONO
PA SENSE
CLASS 2 WIRING
L R
- -
+ +
LOOP
4Ω
8Ω
SPEAKER
+
-
25V-100V
+
-
PWR
IN 1
IN 2
OUT
USB PORT
LEVEL MUTE
DUCKING
AT-GAIN-M50-LZ
GAIN
TM
-
+
INPUT OUTPUT 3ADC 24V
RX TX
CTRL / RS-232
V
C
L R
1 2
-
+
TRIGGER MODE
STEREO
MONO
PA SENSE
CLASS 2 WIRING
L R
- -
+ +
LOOP
4Ω
8Ω
SPEAKER
+
-
25V-100V
+
-
AT-GAIN-M50-LZ
GND
To CTRL / RS-232 port
on AT-GAIN-M50-LZ
}
C
V
1

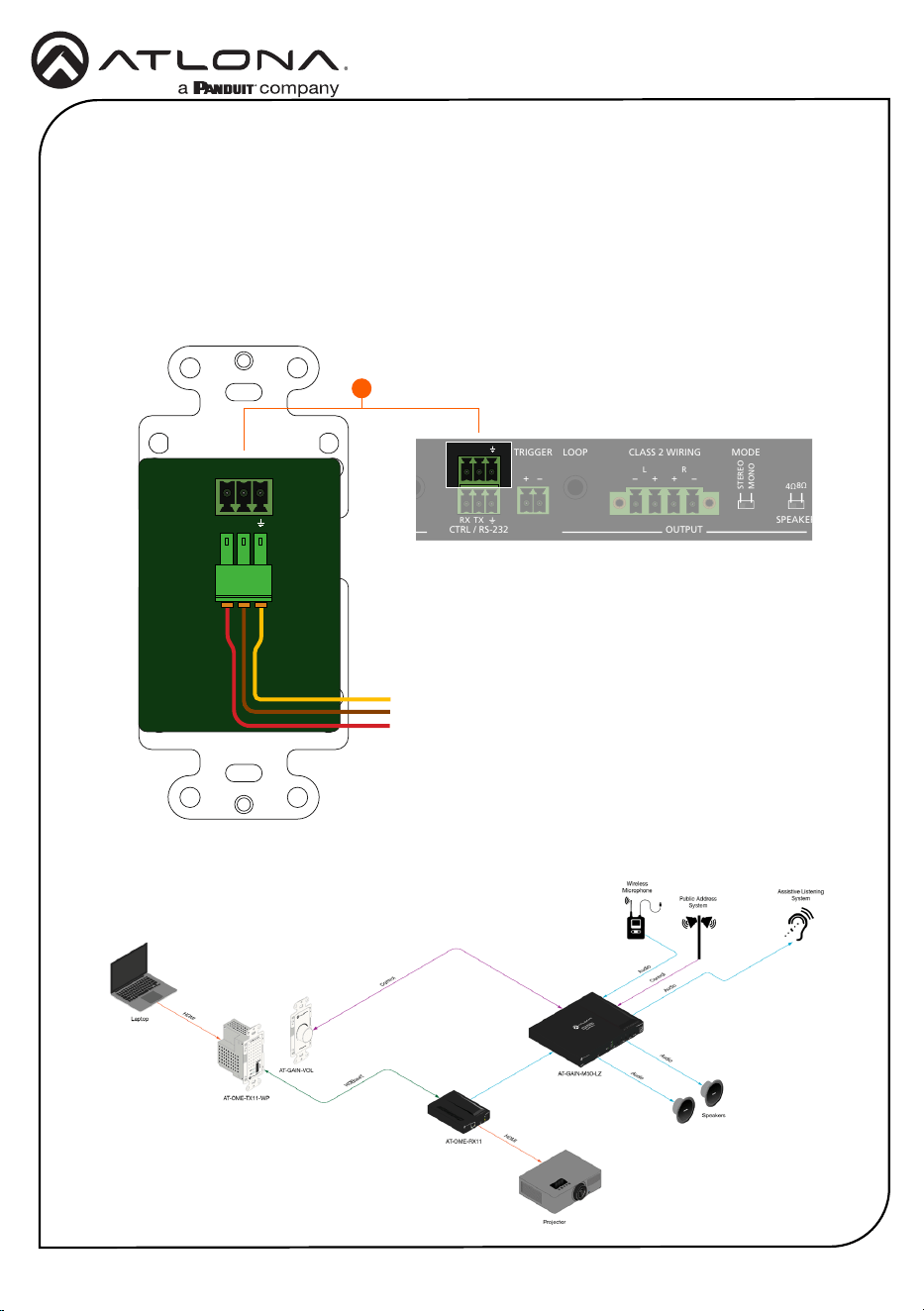

Wiring Diagram
AT-GAIN-M50-LZ
4
Installation Guide
AT-GAIN-VOL
Faceplate Removal and Assembly

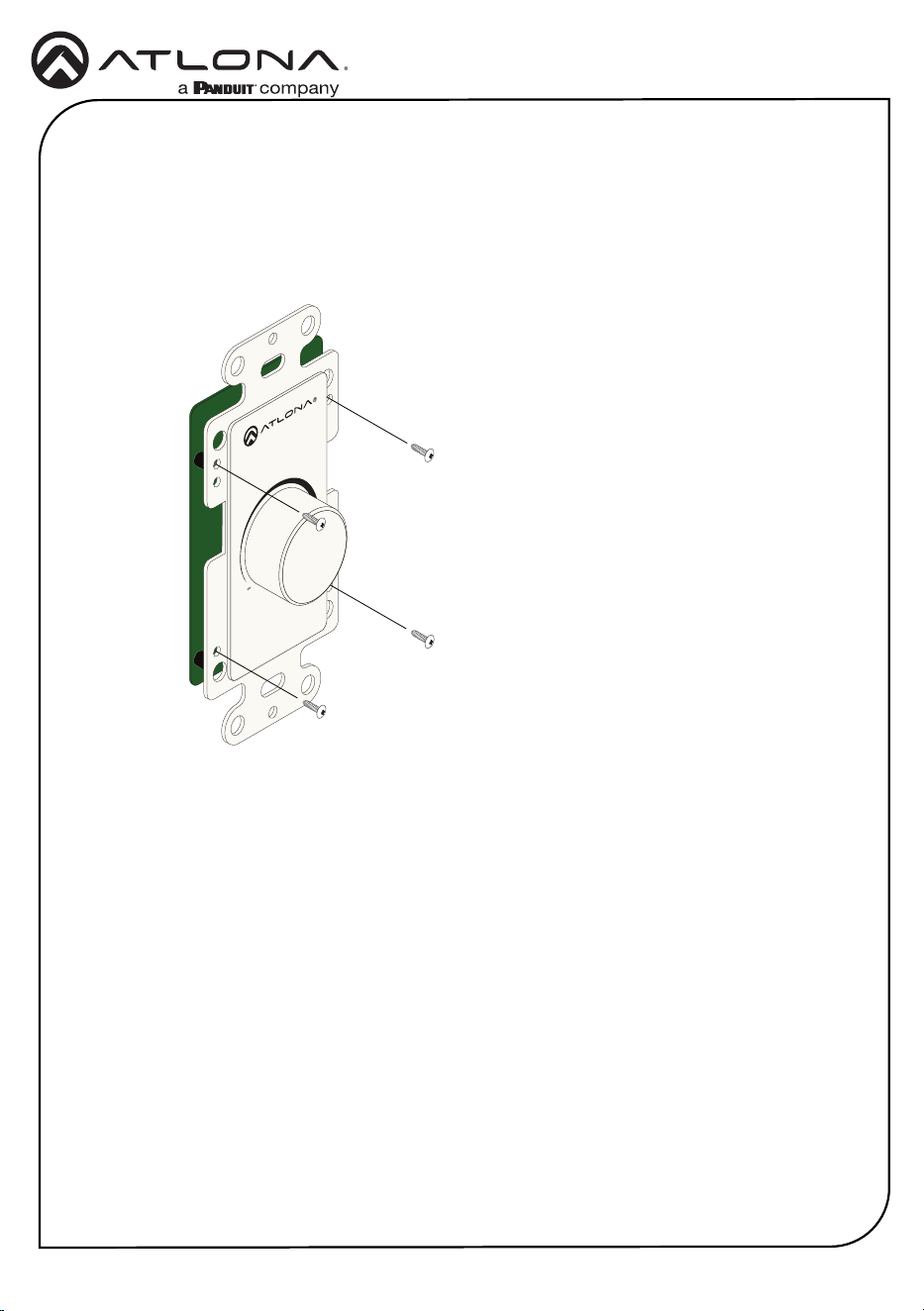

1. Unscrew the four Phillips-head screws from the sides of the faceplate, as shown:
2. Gently remove the faceplate by pulling it toward you.
3. Attach the new faceplate, then secure it using the four Phillips-head screws. Do not over-
tighten or apply high-torque devices to the screws. Doing so may damage the faceplate
and/or the screws.
4. Reinstall the AT-GAIN-VOL into the electrical box or mud ring.
5. Reattach the wallplate.
Removal of the faceplate requires that the AT-GAIN-VOL be disassembled from the electrical box
or mud ring. A small Phillips-head screwdriver is required to remove the faceplate.
AT-GAIN-VOL
+
-
5
Installation Guide
AT-GAIN-VOL
25319-R1
