PLANNING GUIDE
SERIES 9 & 11
OB30DDPTDX2 | OB30SDPTDX2 | OS30SDTDX1 | OS30NDTDX1 | OM30NDTDX1
SERIES 9
EB24DSX1 | TK7630NDX1 | WB30SDX1-SET | WB30SDB1-SET | VB30SDX1-SET | VB30SDB1-SET
SERIES 7
OB30SD17PLX1 | OB30SD14PLX1 | OS30SDLX1 | OS30NDLX1 | OM30NDLX1
30" BUILT-IN OVENS ANDCOMPANIONS
CONTEMPORARY
PAGE 2© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
PLANNING GUIDE | 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY
This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with Fisher & Paykel appliances. In this guide, you will
find a range of conceptual, detailed, and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.
CONCEPT DESIGN PAGE
Design Choices 4
Specification Guides Oven
Built-In Double Oven 9
Built-In Oven 11
Specification Guides Steam & Speed Ovens
Combination Steam Oven 13
Combination Steam Oven 15
Convection Speed Oven 16
Specification Guides Coee Maker
Built-In Coee Maker with Trim Kit 19
Specification Guides Drawers
Warming Drawer 22
Vacuum Seal Drawer 24
Specification Guides Oven
Built-In Oven 27
Built-In Oven 29
Specification Guides Steam & Speed Ovens
Combination Steam Oven 31
Combination Steam Oven 33
Convection Speed Oven 34
CONTENTS
DEVELOPED AND DETAILED DESIGN PAGE
Planning Guide information for Developed and Detailed Design
available in Q3 2024
DEVELOPED AND DETAILED DESIGN PAGE
i
i
CONTENTS
i
© FISHER & PAYKEL LIMITED 2024 PAGE 390003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
DESIGN CHOICES
PAGE 4© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024

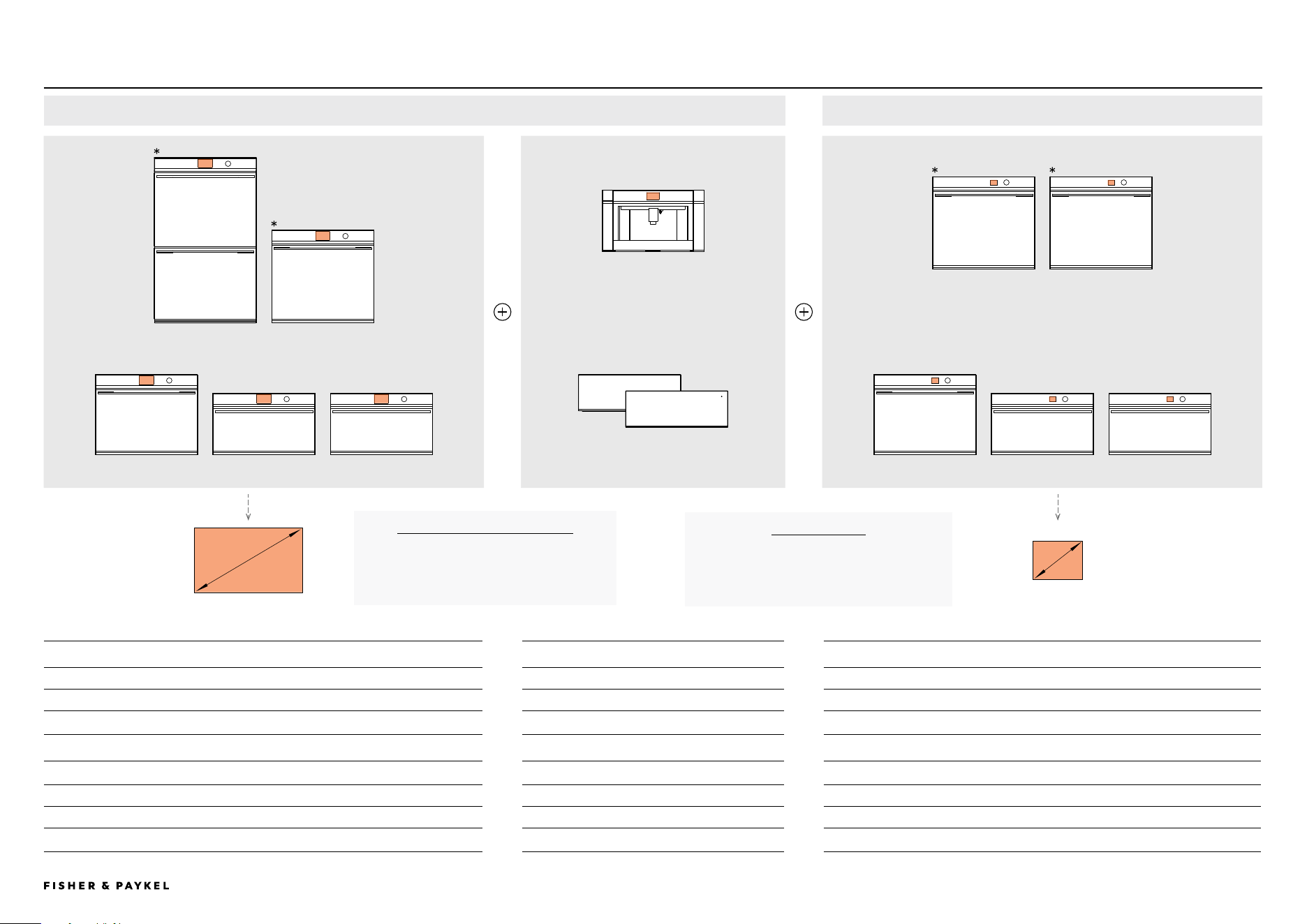

DESIGN CHOICES | 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY
BUILT-IN OVENS
STEAM AND SPEED OVENS
BUILT-IN COFFEE MAKER
DRAWERS
BUILT-IN OVENS
STEAM AND SPEED OVENS
5" 2.4"
SCREEN SIZE SCREEN SIZE
BUILT-IN OVENS BUILT-IN COFFEE MAKER BUILT-IN OVENS
Built-In Double Oven OB30DDPTDX2 Built-In Coffee Maker EB24DSX1 Built-In Oven OB30SD17PLX1
Built-In Oven OB30SDPTDX2 Coffee Maker Trim Kit TK7630NDX1 Built-In Oven OB30SD14PLX1
STEAM AND SPEED OVENS DRAWERS STEAM AND SPEED OVENS
Combination Steam Oven OS30SDTDX1 Warming Drawer WB30SDX1-SET Combination Steam Oven OS30SDLX1
Combination Steam Oven OS30NDTDX1 Warming Drawer WB30SDB1-SET Combination Steam Oven OS30NDLX1
Convection Speed Oven OM30NDTDX1 Vacuum Seal Drawer VB30SDX1-SET Convection Speed Oven OM30NDLX1
Vacuum Seal Drawer VB30SDB1-SET
SERIES 9 & 11
SERIES 7
All models can be installed together but
consider screen size and product height for
multiple installation.
INSTALLATION CONSIDERATIONS
*Thickness of oven front and control panel
(excl. handle and dials) on these models is
40mm. All other products are 20mm.
IMPORTANT NOTE
DESIGN CHOICES
<< CONTENT
PAGE 5© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
DESIGN CHOICES | 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY
PRODUCT OVERVIEW
1 OB30DDPTDX2
Built-In Double Oven, 5" Touchscreen, Dial Control
2 OB30SDPTDX2
Built-In Oven, 5" Touchscreen, Dial Control
3 OS30SDTDX1 (AVAILABLE Q3, 2024)
Combination Steam Oven, 5" Touchscreen, Dial Control
4 OS30NDTDX1 (AVAILABLE Q3, 2024)
Combination Steam Oven, 5" Touchscreen, Dial Control
5 OM30NDTDX1 (AVAILABLE Q3, 2024)
Convection Speed Oven, 5" Touchscreen, Dial Control
1 2
3 4 5
27 3/16"
48 1/2"
23 9/16"
18" 18"
SERIES 9 & 11
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
Different configurations possible, consider product
heights for side-by-side installation.
CONSIDERATION
<< CONTENT
PAGE 6© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
DESIGN CHOICES | 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY
PRODUCT OVERVIEW
1 EB24DSX1 (Trim Kit TK7630NDX1)
Built-in Coffee Maker, 4.3" Touchscreen
2 WB30SDX1-SET | WB30SDB1-SET
Warming Drawer, Stainless Steel
Warming Drawer, Black Glass
3 VB30SDX1-SET | VB30SDB1-SET
Vacuum Seal Drawer, Stainless Steel
Vacuum Seal Drawer, Black Glass
Companions
1
2 3
10 11/16" 10 11/16"
18"
SERIES 9
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
Different configurations possible, consider product
heights for side-by-side installation.
CONSIDERATION
<< CONTENT
PAGE 7© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
1 2
3 4 5
23 9/16"
18"
18"
PRODUCT OVERVIEW
1 OB30SD17PLX1
Built-In Oven, 2.4" Screen, Dial Control
2 OB30SD14PLX1
Built-In Oven, 2.4" Screen, Dial Control
3 OS30SDLX1 (AVAILABLE Q3, 2024)
Combination Steam Oven, 2.4" Screen, Dial Control
4 OS30NDLX1 (AVAILABLE Q3, 2024)
Combination Steam Oven, 2.4" Screen, Dial Control
5 OM30NDLX1 (AVAILABLE Q3, 2024)
Convection Speed Oven, 2.4" Screen, Dial Control
27 3/16"
27 3/16"
DESIGN CHOICES | 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY
SERIES 7
Different configurations possible, consider product
heights for side-by-side installation.
CONSIDERATION
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
<< CONTENT
© FISHER & PAYKEL LIMITED 2024 PAGE 890003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
SPECIFICATION GUIDE OVENS
SERIES 9 & 11
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 9© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024

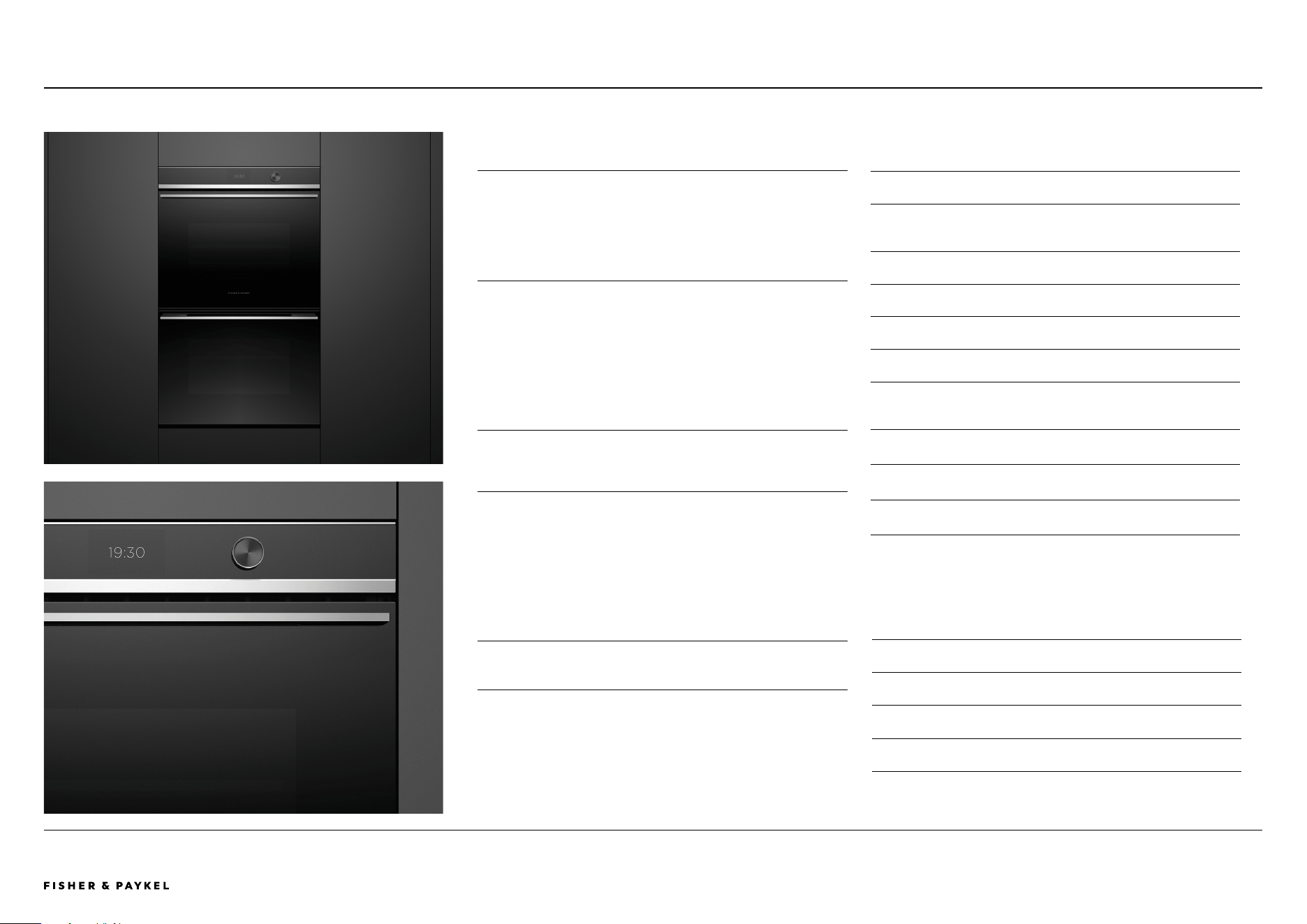

Built-In Double Oven
SPECIFICATION GUIDE | BUILT-IN DOUBLE OVEN, 30"
OVERVIEW
Enhance your kitchen design with the refined styling of the
30" Double Oven. Complementing the other products in
our Contemporary collection, you can create a coherent,
considered look with ease. Intuitive controls and the
performance to deliver perfect results make this double
oven beautiful to use.
PRODUCTS
OB30DDPTDX2
Double Oven, 30", 17 Function, Self-cleaning, 4.1 + 4.1cu ft,
Touchscreen, Dial Controls, Stainless Steel
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Designed to fit flush with cabinetry
2 Styled to perfectly match our Contemporary kitchen
appliances
3 Generous 4.1cu ft total capacity per oven
4 High-resolution, user-friendly touch display
5 Guided cooking and recipes
6 Perfect results from a variety of oven functions
7 Even heat distribution throughout with AeroTech™
technology
8 Self-cleaning
9 CoolTouch door
"0
Wi-Fi/Connected capability though the SmartHQ™ app
ACCESSORIES
1 Full-extension sliding shelves*
2 Self-cleaning-proof side racks*
3 Roasting dish, tray and rack*
4 Wired Temperature Sensor*
*Included with product
OB30DDPTDX2
SPECIFICATION GUIDES OVEN
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 10© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024

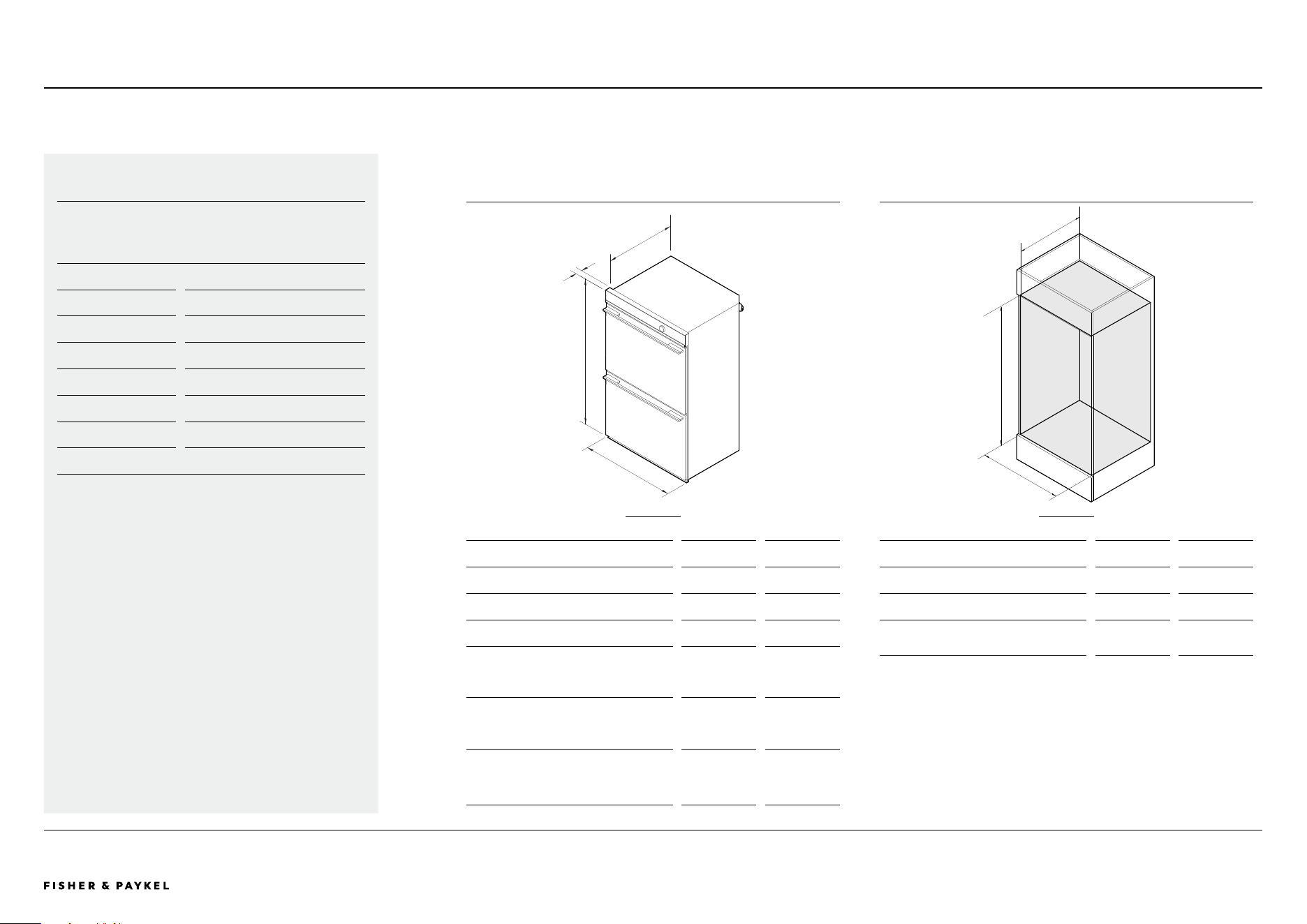

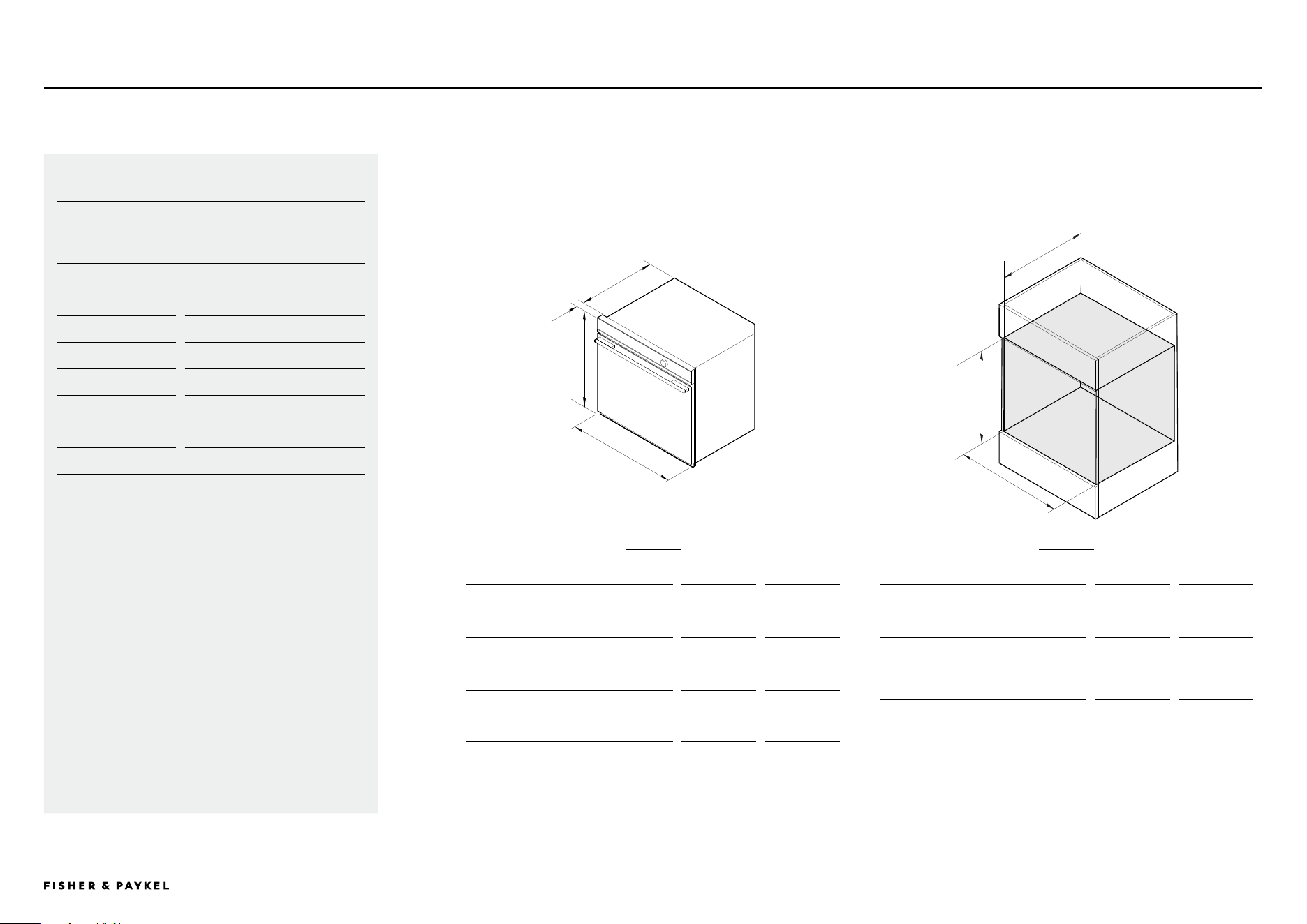

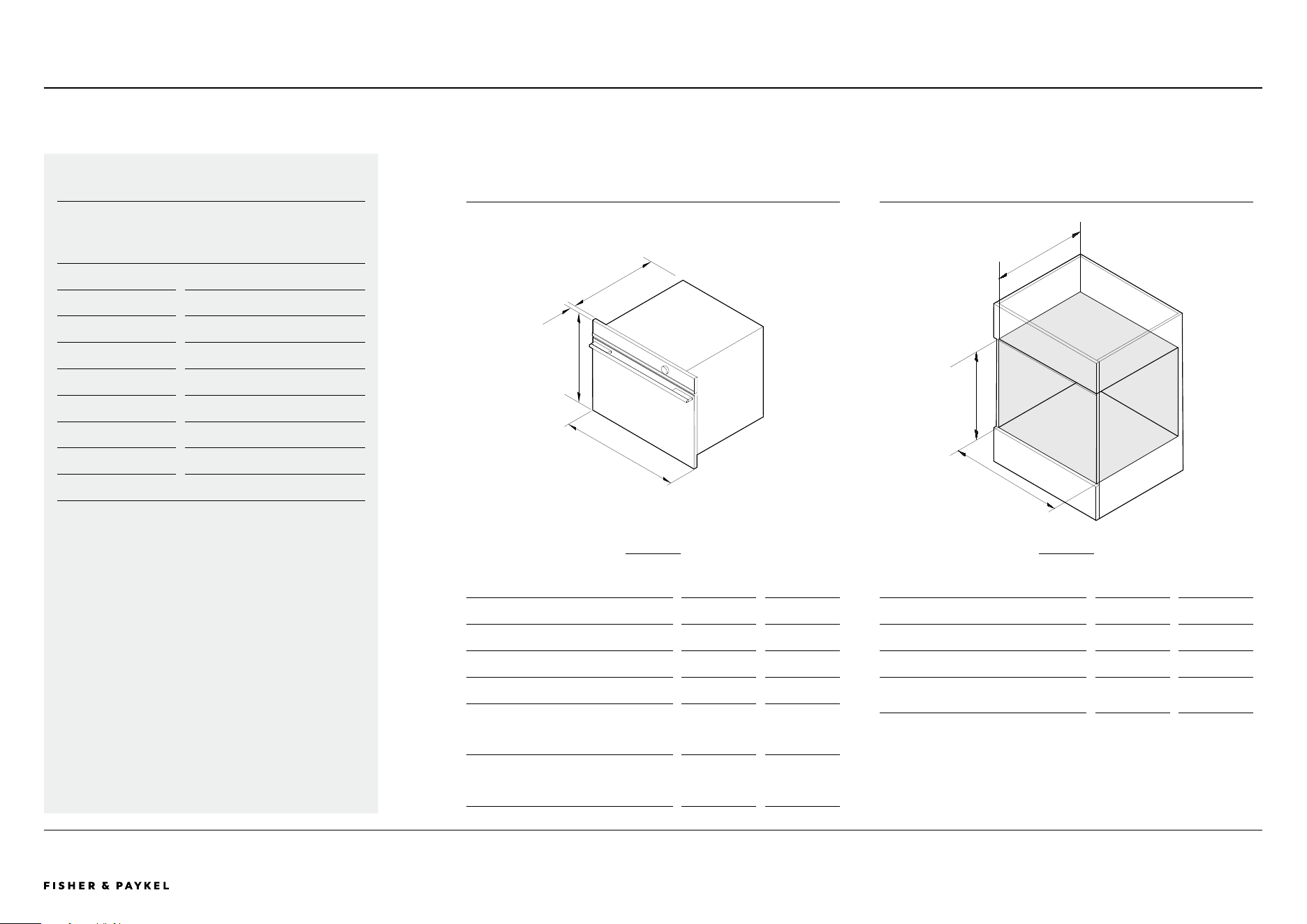

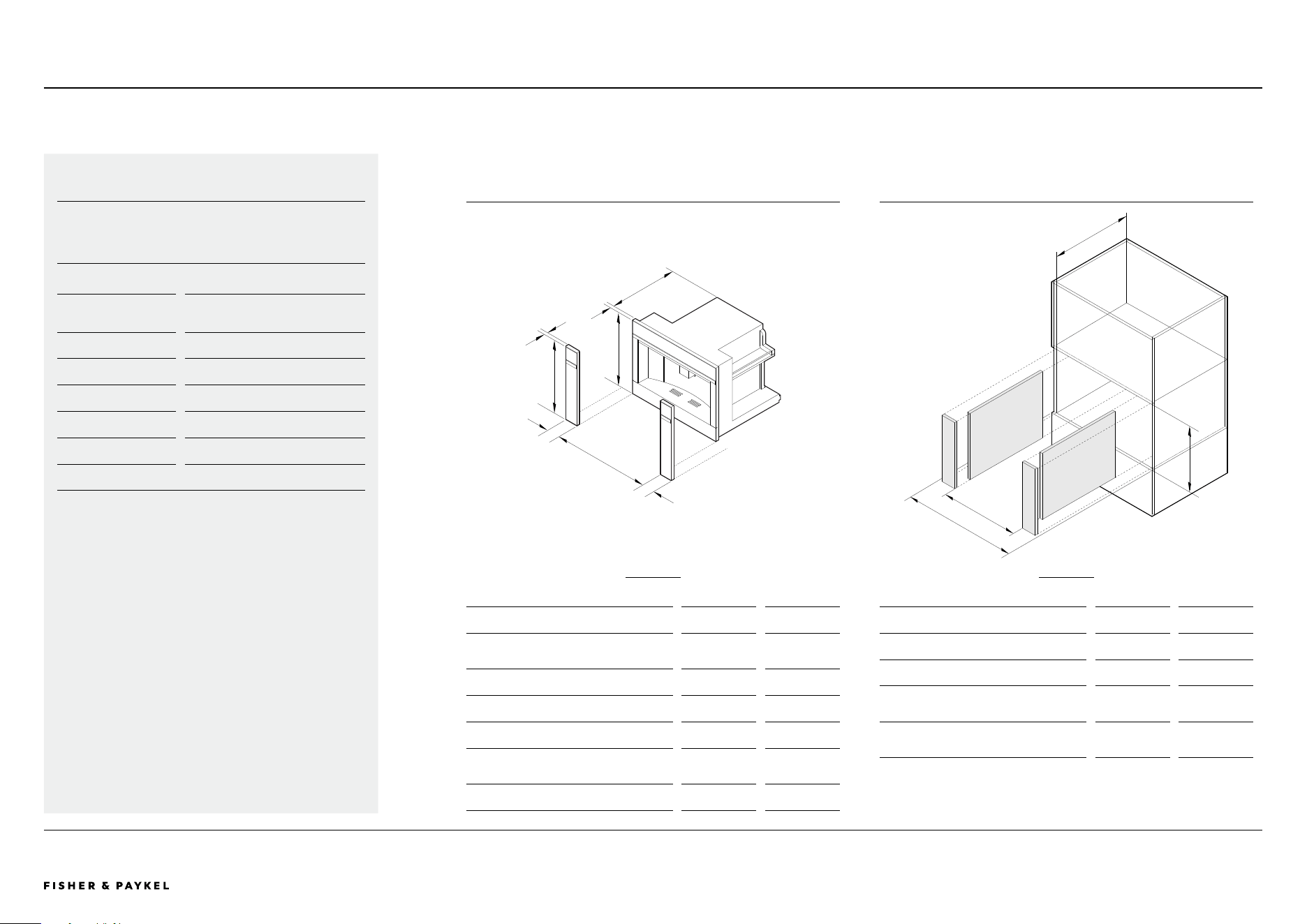

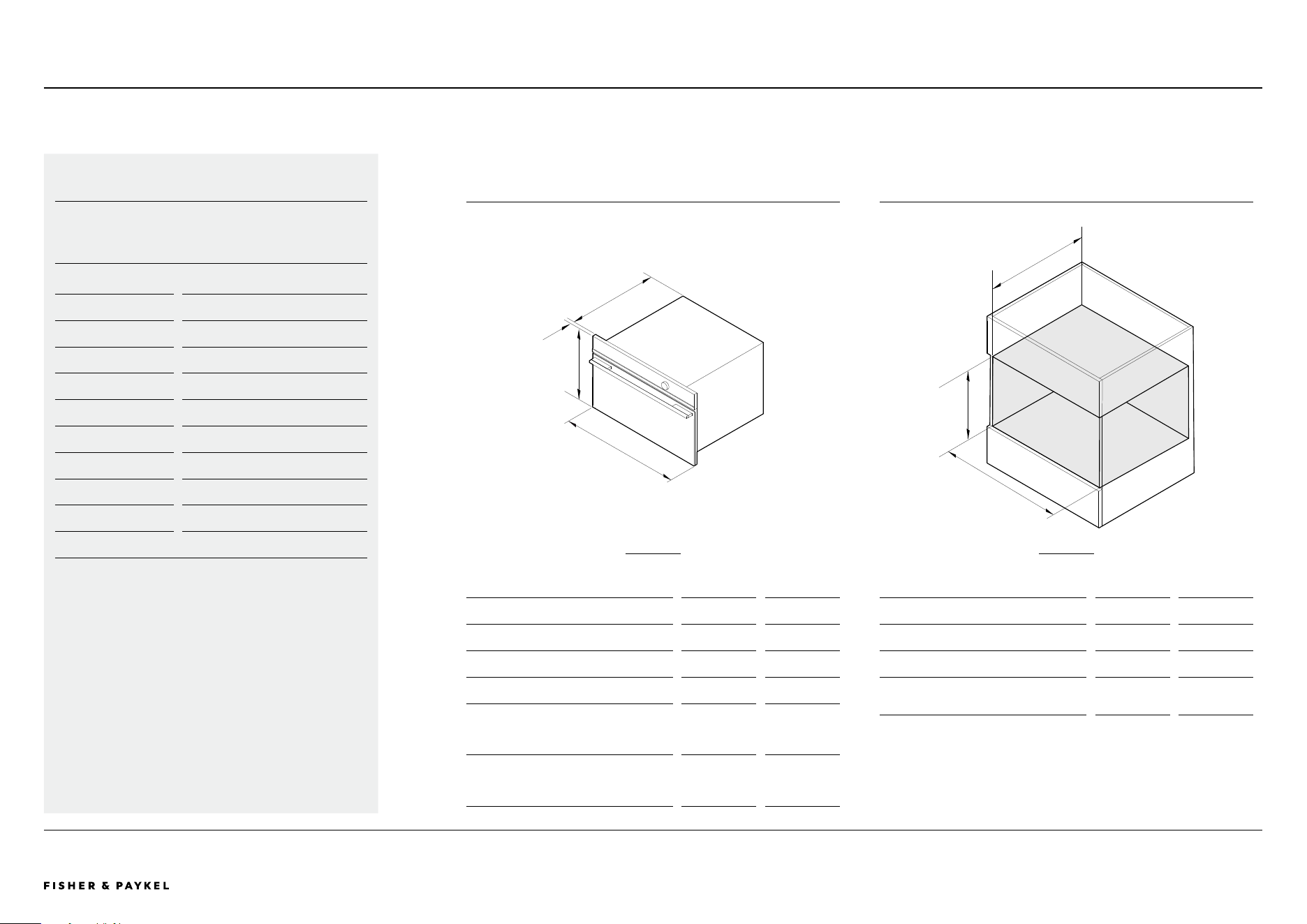

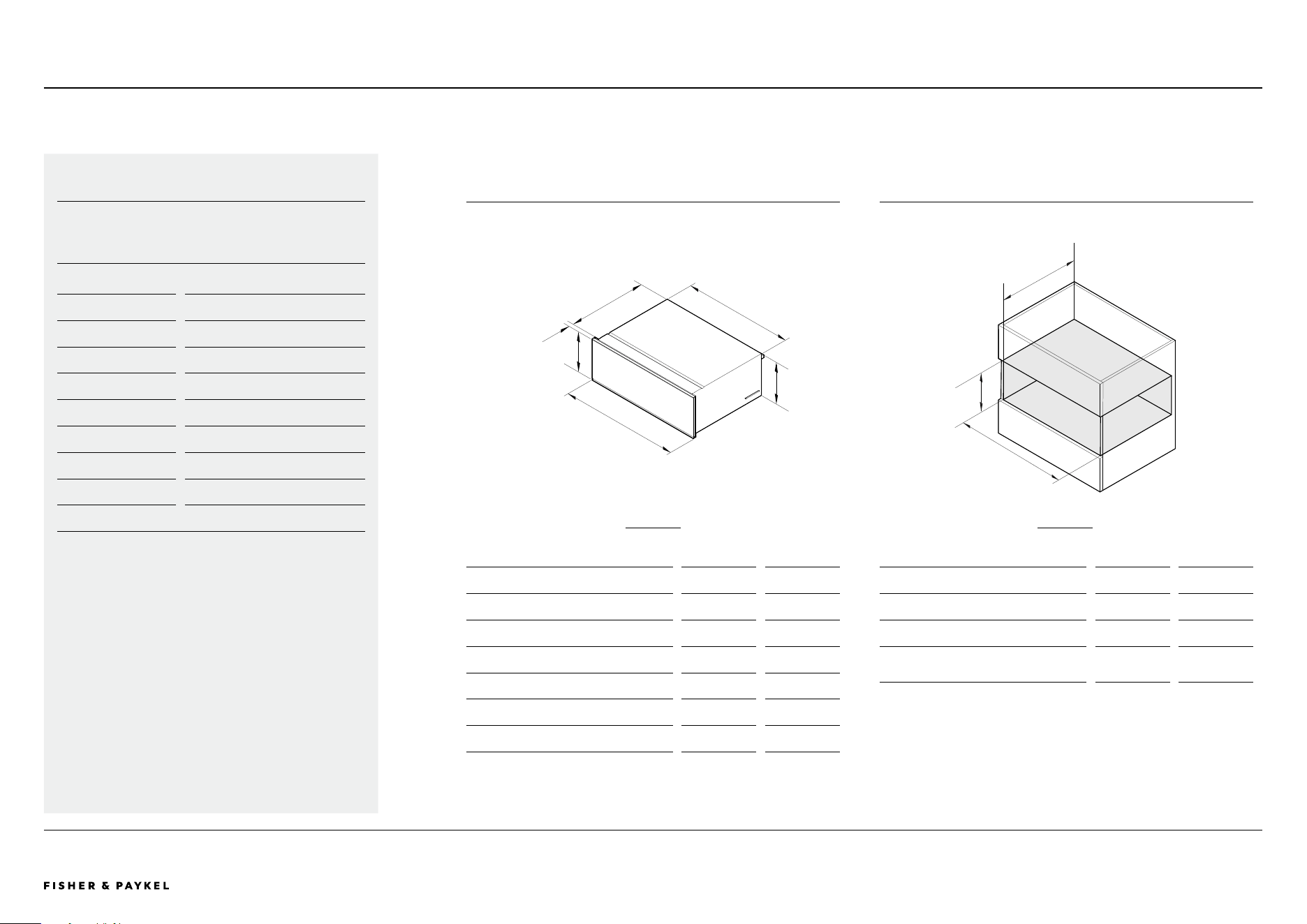

CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 48 3/16 1224
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
for flush installation
24 3/16 615

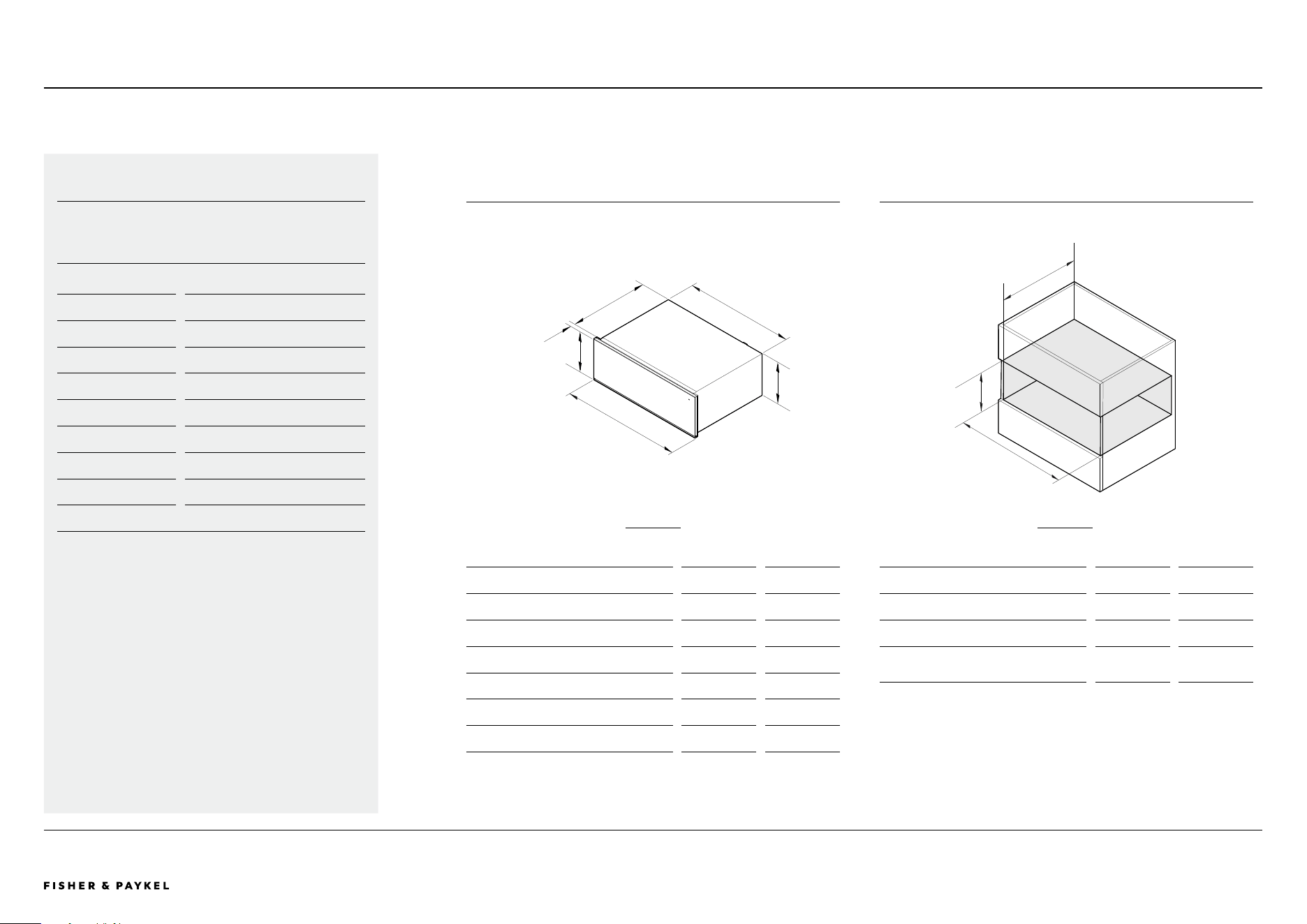

PRODUCT DIMENSIONS
inch mm
A Overall height 48 1/2 1232
B Overall width 29 15/16 760
C Depth of chassis 22 7/16 569
D Thickness of oven
front and control panel
(excl. handle and dials)
1 9/16 40
Depth of upper door when fully
open (measured from front
of control panel)
21 11/16 550
Depth of lower door when fully
open (measured from front of
control panel)
20 7/8 530
Note: If installing with other contemporary products, consider trim front
thickness.
OB30DDPTDX2
SPECIFICATION GUIDE | BUILT-IN DOUBLE OVEN, 30"
SPECIFICATIONS
Model No.
OB30DDPTDX2
Dimensions
H 48 1/2" W 29 15/16 D 24"
Total Oven Capacity
4.1cu ft (115L) per oven
Weight
Packaged
405lb (184kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
40 A
ISO VIEW
A
B
C
ISO VIEW
C
A
B
d
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 11© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024

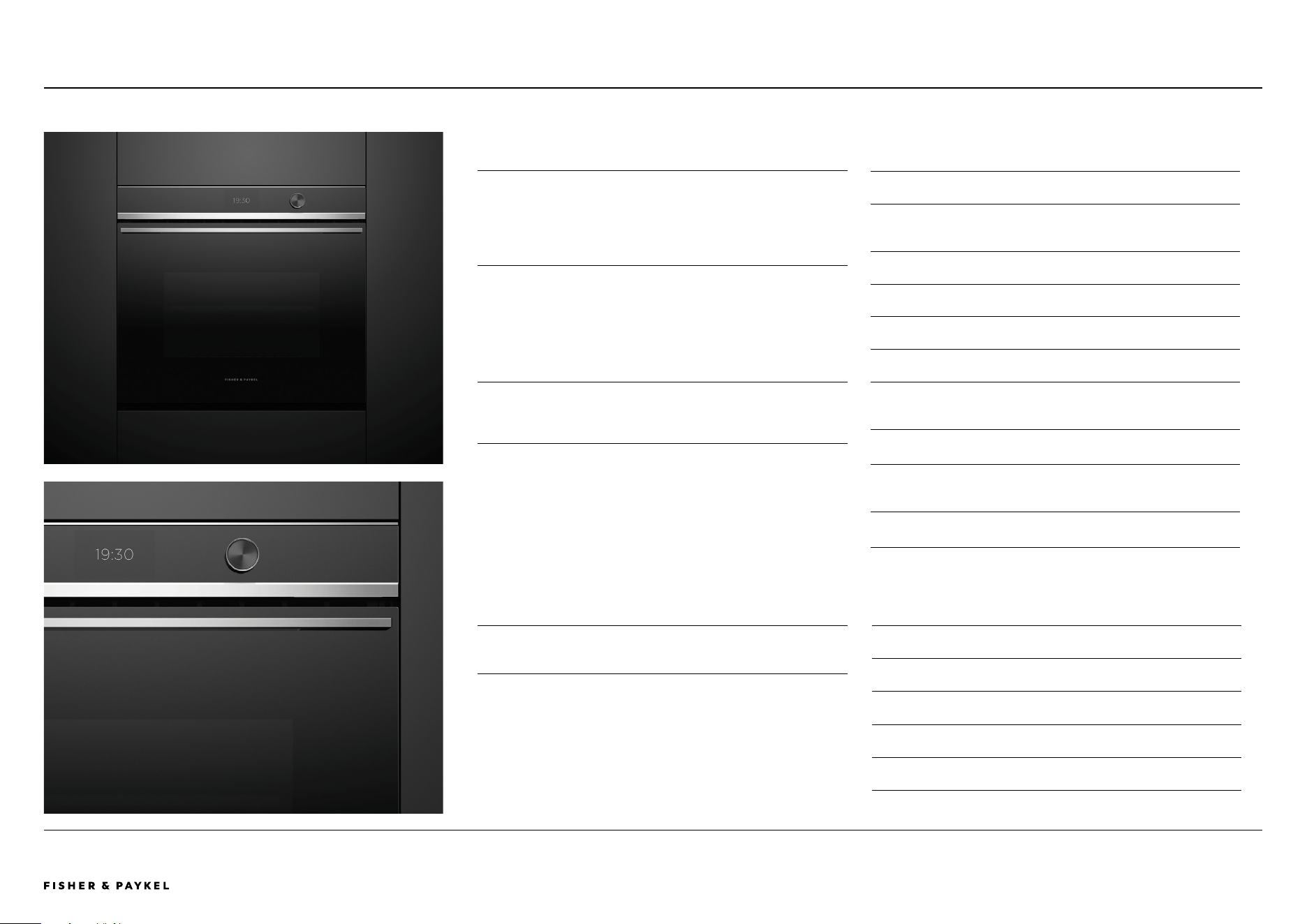

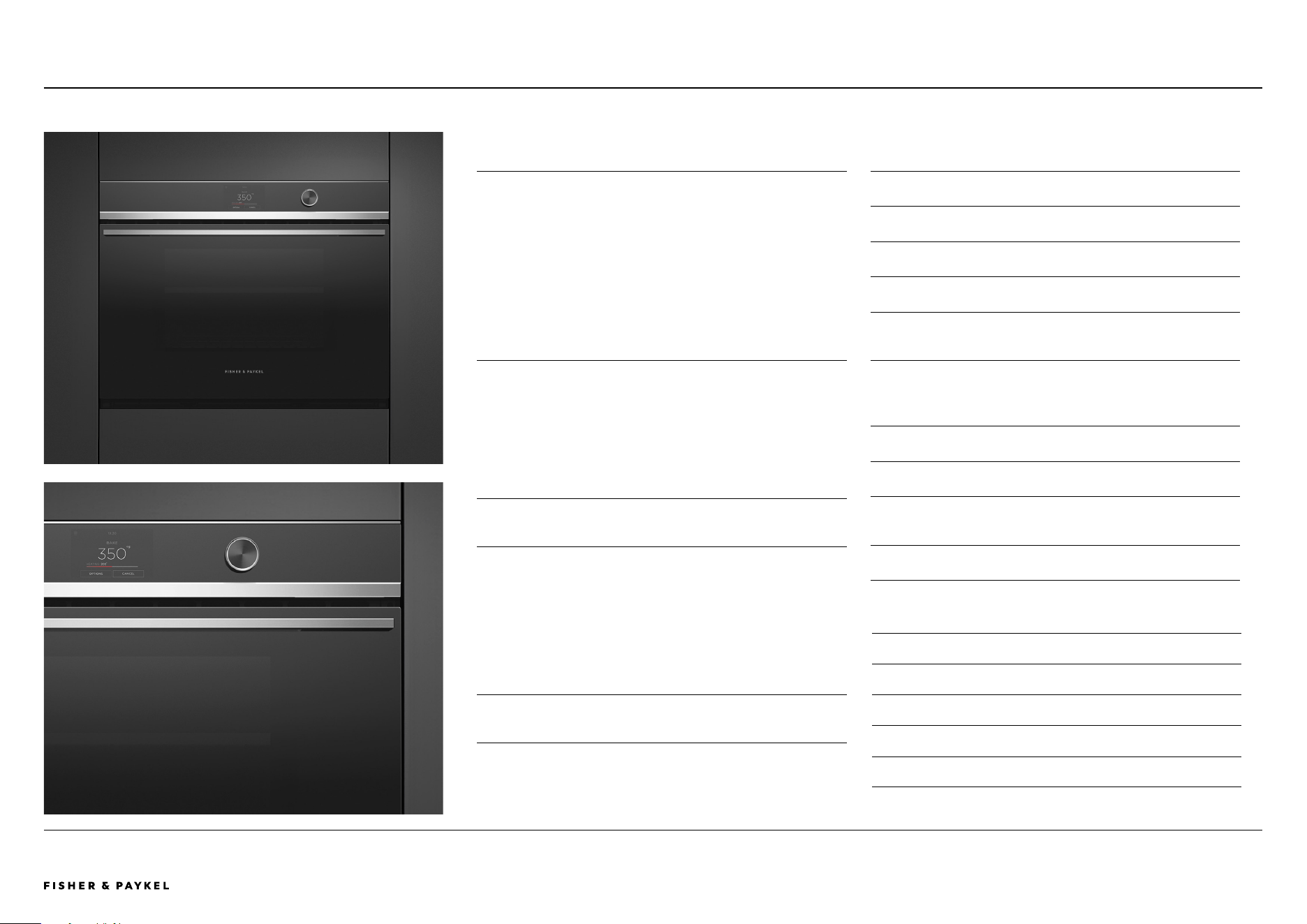

Built-In Oven
SPECIFICATION GUIDE | BUILT-IN OVEN, 30"
OVERVIEW
Enhance your kitchen design with the refined styling.
Complementing the other products in our Contemporary
collection, you can create a coherent, considered look with
ease. Intuitive controls and the performance to deliver
perfect results make this oven beautiful to use.
PRODUCTS
OB30SDPTDX2
Oven, 30", 17 Function, 4.1cu ft, Touchscreen, Dial Controls,
Stainless Steel
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Designed to fit flush with cabinetry
2 Styled to perfectly match our Contemporary kitchen
appliances
3 Generous 4.1cu ft total capacity
4 High-resolution, user-friendly touch display
5 Guided cooking and recipes
6 Perfect results from a variety of oven functions
7 Even heat distribution throughout with AeroTech™
technology
8 Self-cleaning
9 Wireless temperature sensor precisely monitors cooking
in real time*
"0
Wi-Fi/Connected capability though the SmartHQ™ app
ACCESSORIES
1 Full-extension sliding shelves*
2 Self-cleaning-proof side racks*
3 Roasting dish, tray and rack*
4 Wired temperature sensor*
5 Wireless temperature sensor - Part WTSC1
*Included with product
OB30SDPTDX2
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 12© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 26 13/16 681
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
for flush installation
24 3/16 615
PRODUCT DIMENSIONS
inch mm
A Overall height 27 3/16 690
B Overall width 29 15/16 760
C Depth of chassis 22 7/16 569
D Thickness of oven
front and control panel
(excl. handle and dials)
1 9/16 40
Depth of door when fully
open (measured from front
of control panel)
21 11/16 550
Note: If installing with other contemporary products, consider trim front
thickness.
SPECIFICATION GUIDE | BUILT-IN OVEN, 30"
ISO VIEW
A
B
C
ISO VIEW
C
A
B
d
SPECIFICATIONS
Model No.
OB30SDPTDX2
Dimensions
H 27 3/16" W 29 15/16" D 24"
Total Oven Capacity
4.1cu ft (115L)
Weight
Packaged
247lb (110kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
20 A
OB30SDPTDX2
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 13© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024

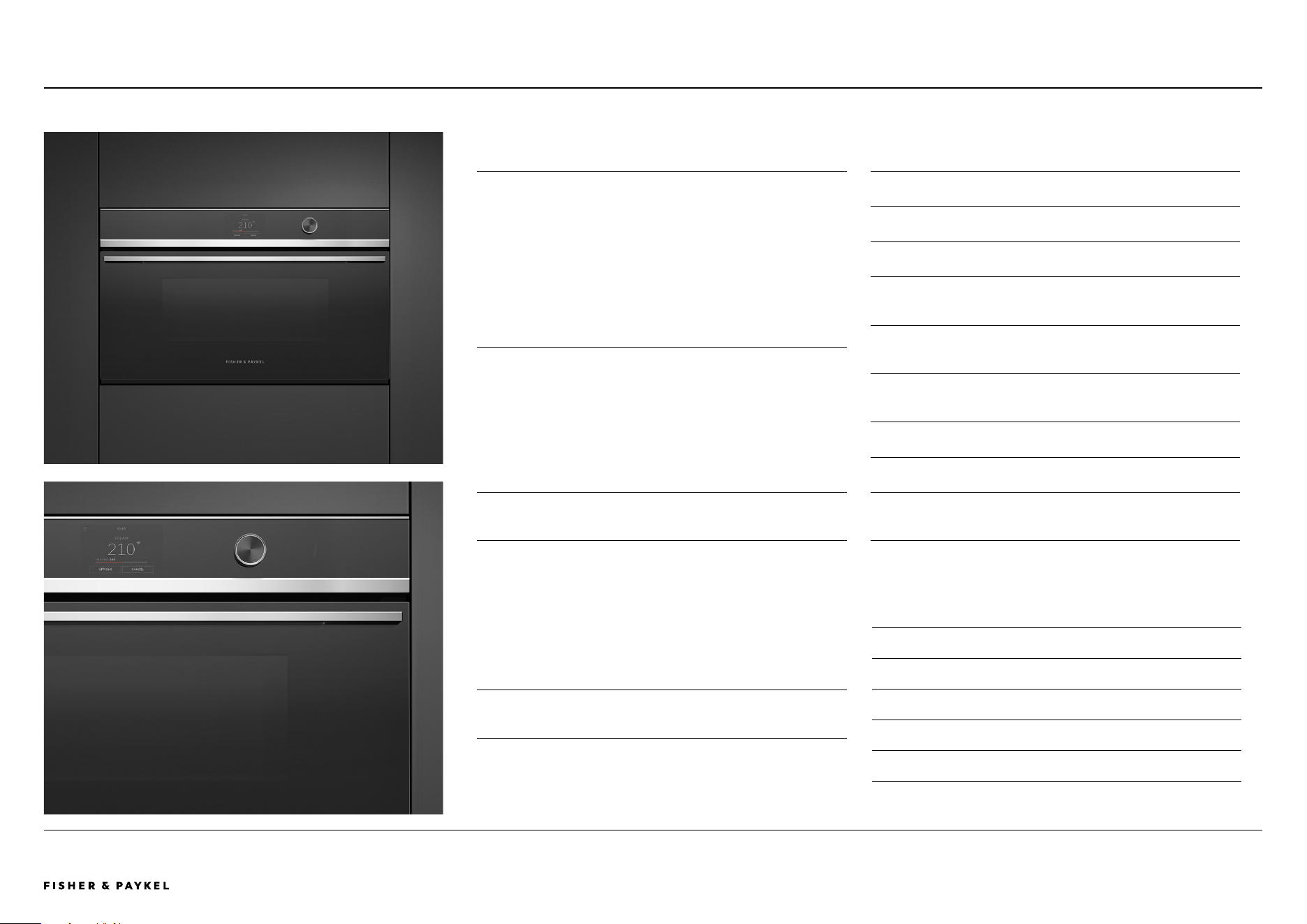

Combination Steam Oven
SPECIFICATION GUIDE | COMBINATION STEAM OVEN, 30"
OS30SDTDX1
OVERVIEW
With timeless Contemporary styling, the compact
Combination Steam Oven fits seamlessly into any kitchen.
As a companion product, this Steam Oven is designed to
install easily and fit perfectly with other companion
products. It features 23 functions, including steam-only,
convection-only, or a combination of both. Reduce the
need for oils and fats with six standalone steam functions,
perfect for creating flavorful and healthy restaurant-quality
meals at home. Beautiful to use, the large 5” touchscreen
interface has simple and intuitive guided cooking, helping
to ensure perfect results.

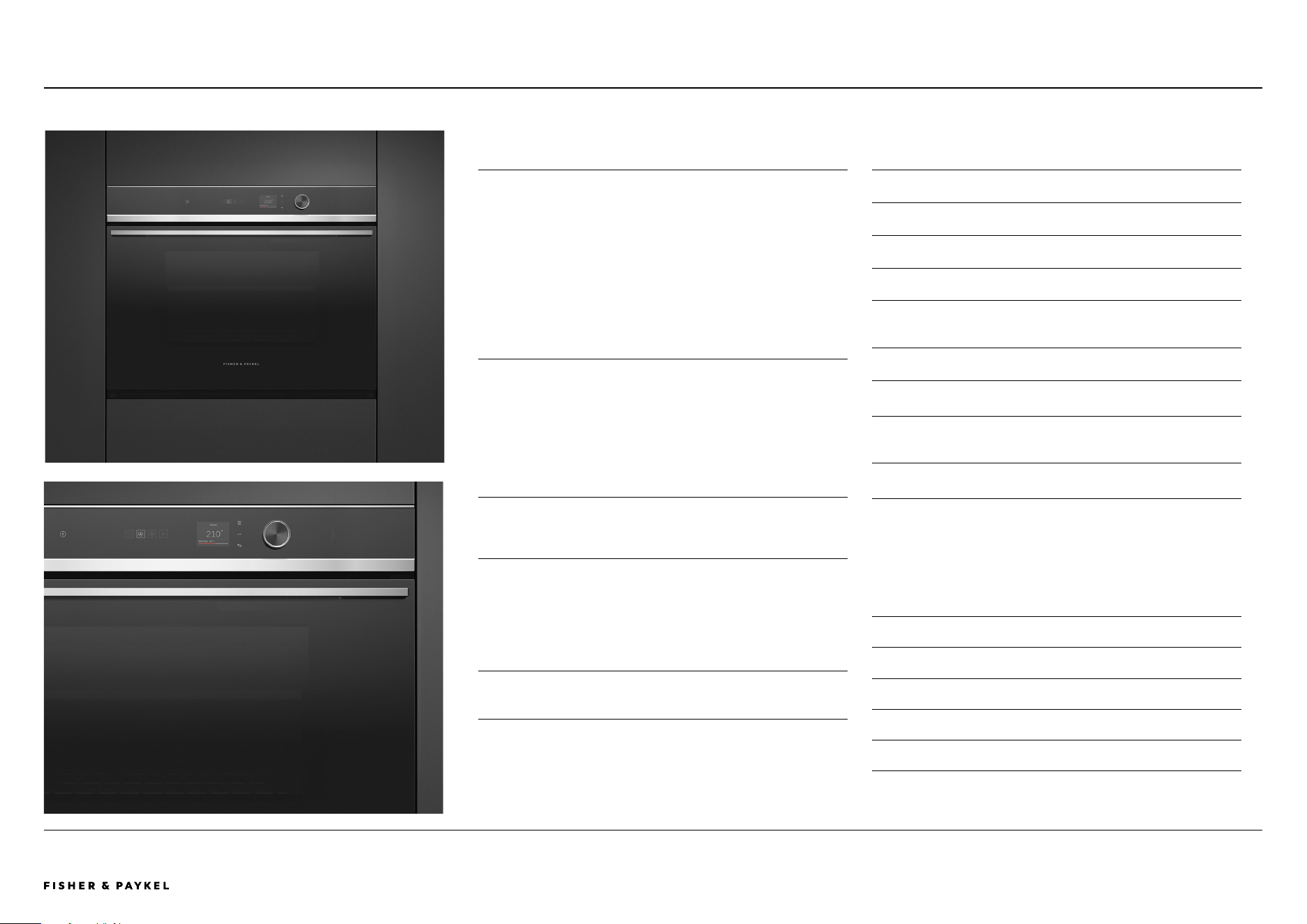

PRODUCTS
OS30SDTDX1
Combination Steam Oven, 30", 23 Function
SERIES & STYLE
Series 11
Contemporary
FEATURES
1 Contemporary style, designed to fit flush with cabinetry
2 Generous 3 cu ft total capacity with six shelf positions
3 Intuitive, large 5" touchscreen display with illuminated dial
4 23 oven functions, including six steam-only functions
5 Moisture control and even heat distribution thanks to
ActiveVent and AeroTech™ technology
6 Guided cooking, with the option to access additional
functionality via the SmartHQ™ app, with the purchase of
the wireless temperature sensor
7 Water tank capacity of 50.7 fl oz
8 Wi-Fi/Connected capability through the SmartHQ™ app
9 Wireless Temperature Sensor precisely monitors cooking
in real time. Purchased separately
"0
Soft open and close door
SPECIFICATION GUIDES STEAM & SPEED OVENS
ACCESSORIES
1 Full-extension sliding shelves*
2 Self-cleaning-proof side racks*
3 Roasting dish, tray and rack*
4 Wired temperature sensor*
5 Descale solution, 2 sachets - Part 580925
*Included with product
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 14© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 22 13/16 580
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
for flush installation
22 7/16 570
PRODUCT DIMENSIONS
inch mm
A Overall height 23 9/16 598
B Overall width 29 15/16 760
C Depth of chassis 21 7/16 545
D Thickness of oven
front and control panel
(excl. handle and dials)
13/16 20
Depth of door when fully
open (measured from front
of control panel)
18 1/8 460
OS30SDTDX1
SPECIFICATION GUIDE | COMBINATION STEAM OVEN, 30"
ISO VIEWISO VIEW
A
B
C
C
A
B
d
SPECIFICATIONS
Model No.
OS30SDTDX1
Dimensions
H 23 9/16" W 29 15/16" D 22 1/4"
Total Oven Capacity
3cu ft (85L)
Weight
Packaged
152lb (69kg)
Unpackaged
119lb (54kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
20 A
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 15© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024

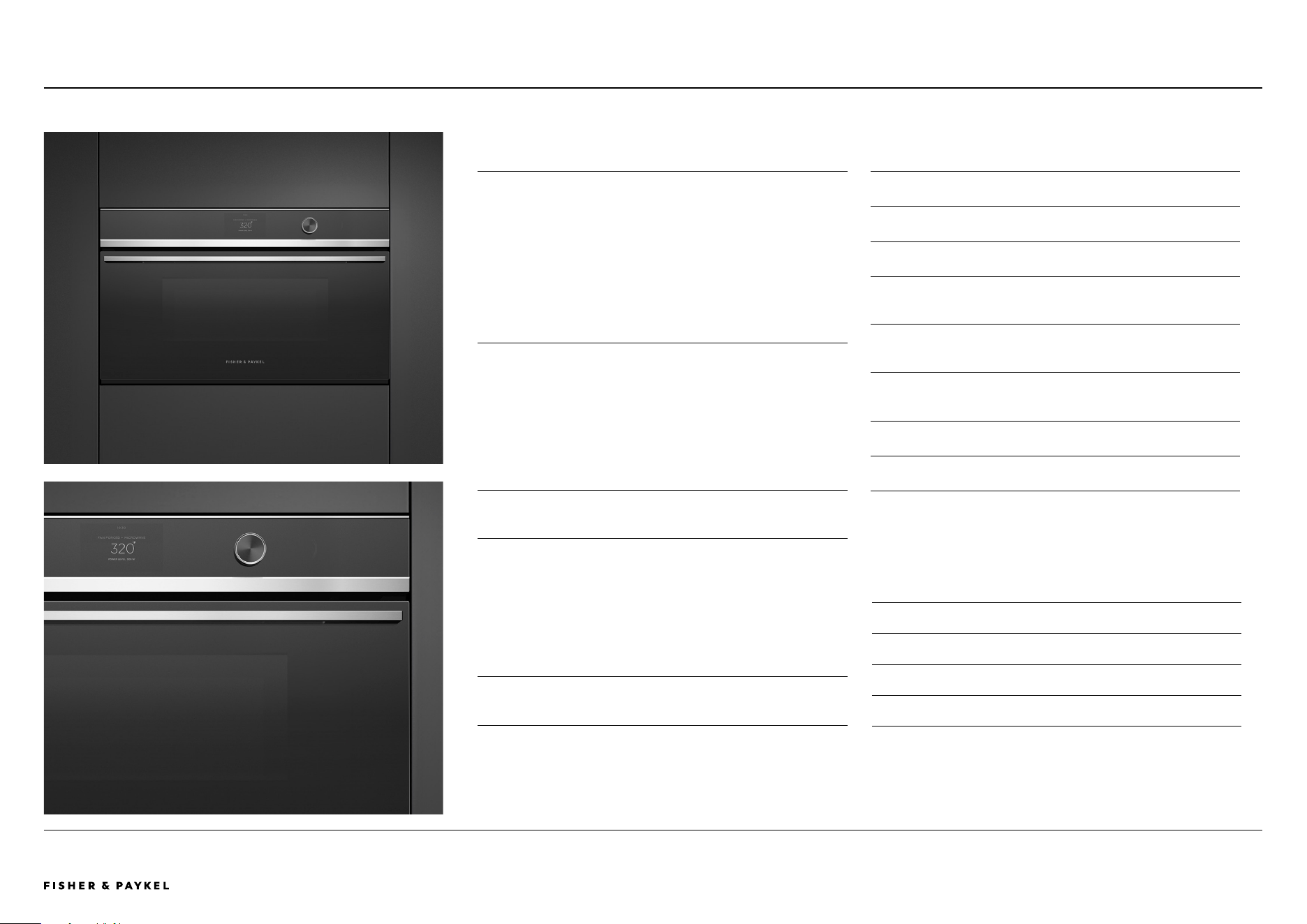

SPECIFICATION GUIDE | COMBINATION STEAM OVEN, 30"
OS30NDTDX1
Combination Steam Oven
OVERVIEW
With timeless Contemporary styling, the Convection Speed
Oven fits seamlessly into any kitchen. As a companion
product, this Speed Oven is designed to install easily and fit
perfectly with other companion products such as the
Combination Steam Oven, or Vacuum Seal Drawer. A
flexible appliance that pairs the speed of microwave
cooking with oven technology, which can crisp and brown
as it cooks. Featuring 23 cooking functions on an intuitive
touch display for easy programming of desired cooking
mode and duration.
PRODUCTS
OS30NDTDX1
Convection Speed Oven, 30", 23 Function
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style, designed to fit flush with cabinetry
2 1.9cu ft total capacity
3 Intuitive, large 5" touchscreen display with illuminated dial
4 With 23 functions: four microwave, 14 oven and four
combination
5 A Wired Temperature Sensor precisely monitors cooking
in real time
6 Guided cooking, with the option to access additional
functionality via the SmartHQ™ app
7 Wi-Fi/Connected capability through the SmartHQ™ app
8 Soft open and close door
9 Wireless Temperature Sensor precisely monitors cooking
in real time. Purchased separately
ACCESSORIES
1 Full-extension sliding shelves*
2 Step down wire shelf*
3 Roasting dish, tray and rack*
4 Wired Temperature Sensor*
5 Descale solution, 2 sachets - Part 580925
*Included with product
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 16© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024

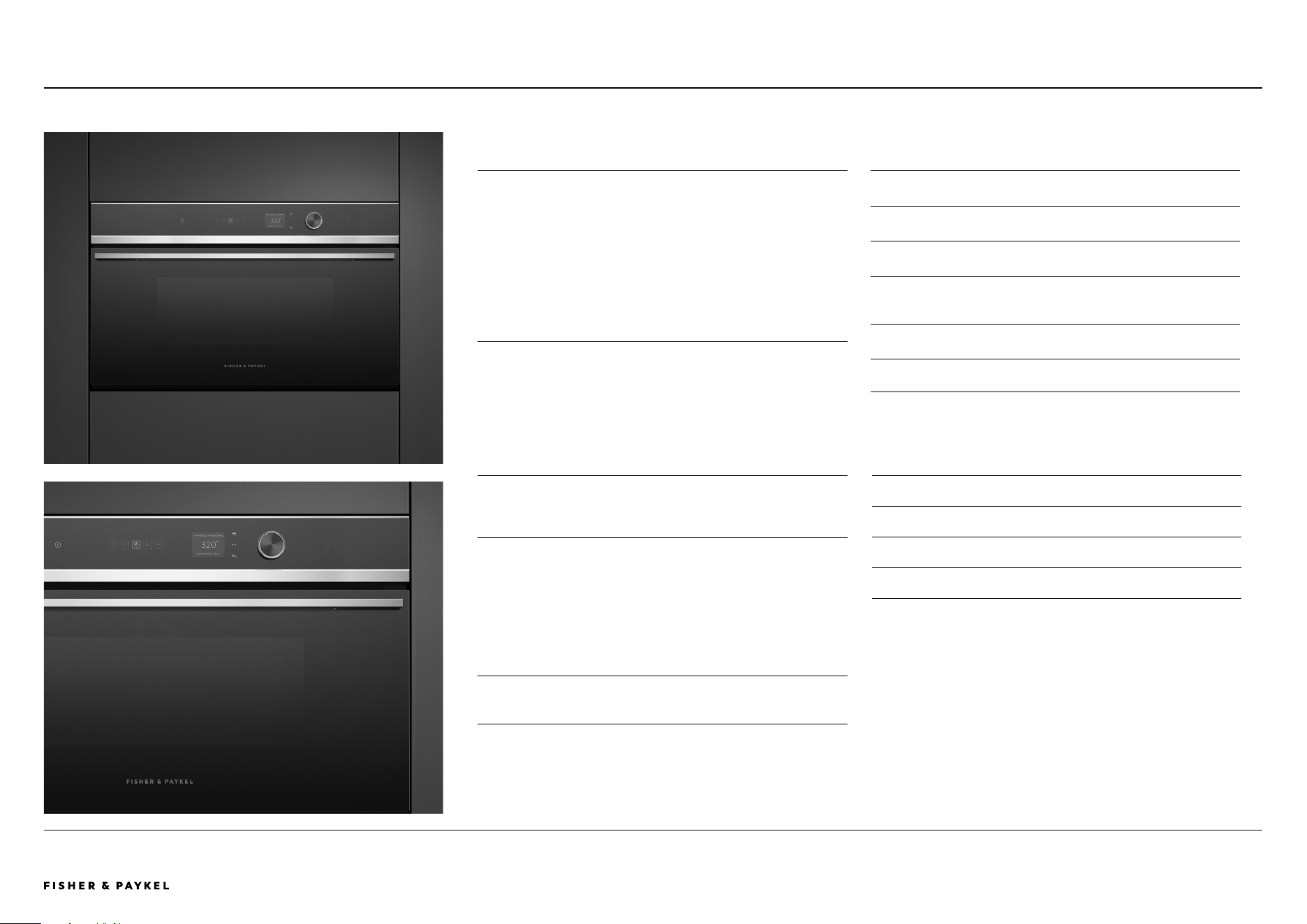

Convection Speed Oven
SPECIFICATION GUIDE | CONVECTION SPEED OVEN, 30"
OVERVIEW
With timeless Contemporary styling, the Convection Speed
Oven fits seamlessly into any kitchen. As a companion
product, this Speed Oven is designed to install easily and fit
perfectly with other companion products such as the
Combination Steam Oven, or Vacuum Seal Drawer. A
flexible appliance that pairs the speed of microwave
cooking with oven technology, which can crisp and brown
as it cooks. Featuring 22 cooking functions on an intuitive
touch display for easy programming of desired cooking
mode and duration.
PRODUCTS
OM30NDTDX1
Convection Speed Oven, 30", 22 Function
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Contemporary style, designed to fit flush with cabinetry
2 With 1.7cu ft total capacity
3 Intuitive, large 5" touchscreen display with illuminated dial
4 With 22 functions: four microwave, 14 oven and four
combination
5 A Wired Temperature Sensor precisely monitors cooking
in real time
6 Guided cooking, with the option to access additional
functionality via the SmartHQ™ app
7 Wi-Fi/Connected capability through the SmartHQ™ app
8 Soft open and close door
OM30NDTDX1
ACCESSORIES
1 Chromed shelf runners*
2 Glass tray*
3 Wire shelf*
4 Wired Temperature Sensor
*Included with product
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 17© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 17 5/16 440
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
for flush installation 22 7/16 570
Note: Convection Speed Oven requires ventilation at the rear of the cavity.
PRODUCT DIMENSIONS
inch mm
A Overall height 18 458
B Overall width 29 15/16 760
C Depth of chassis 21 7/16 545
D Thickness of oven
front and control panel
(excl. handle and dials)
13/16 20
Depth of door when fully
open (measured from front
of control panel)
12 5/8 320
OS30NDTDX1 | OM30NDTDX1
SPECIFICATION GUIDE | COMBINATION STEAM OVEN AND COMBINATION SPEED OVEN, 30"
ISO VIEWISO VIEW
A
B
C
C
A
B
d
SPECIFICATIONS
Model No.
OS30NDTDX1, Combination Steam Oven
OM30NDTDX1, Convection Speed Oven
Dimensions
H 18" W 29 15/16" D 22 1/4"
Total Oven Capacity
OS30NDTDX1
1.9cu ft (55L)
OM30NDTDX1
1.7cu ft (49L)
Weight
Packaged
121lb (55kg)
Unpackaged
101lb (46kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
20 A
<< CONTENT
© FISHER & PAYKEL LIMITED 2024 PAGE 1890003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
SPECIFICATION GUIDE COFFEE MAKER
SERIES 9
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 19© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
Built-In Coee Maker with Trim Kit
SPECIFICATION GUIDE | BUILT-IN COFFEE MAKER WITH TRIM KIT
OVERVIEW
The Built-in Coee Maker features a stylish stainless steel
finish and can be installed in multiple configurations to suit
kitchen design and preference. With 13 beverage options,
our Coee Maker is designed to consistently pour delicious
coee – from Flat White to Latte or Americano. Favourite
coee can be memorised and set to start at the same time
each day, while the conical burr grinder delivers a
consistent grind for the perfect coee.
PRODUCTS
EB24DSX1
Built-in Coee Maker, 24", Touchscreen, Stainless Steel
TK7630NDX1
Companion Trim Kit, 30", Stainless Steel
Note: Trim Kit purchased separately.
SERIES & STYLE
Series 9
Contemporary
FEATURES
1 Designed to pair perfectly with 30" ovens and companion
products
2 Stylish stainless steel finish
3 Install in multiple configurations to suit your kitchen
design
4 Intuitive touch display
5 13 functions to suit any taste and selection – from
Espresso to Latte
6 Personalised coffee and smart self-learning menu
preferences
7 Stainless steel conical burr grinder with 13 coarseness
positions
8 15 bar pump pressure
9 Self-cleaning function and easy to empty coffee grounds
container and drip tray
"0 84ft oz (2.5L) water tank capacity
ACCESSORIES
1 Thermal milk jug 17ft oz (0.5L)*
2 Water filter*
3 Coffee spoon*
4 Extractable steam outlet*
5 Descaling agent bottle*
*Included with product
EB24DSX1 | TK7630NDX1
SPECIFICATION GUIDES COFFEE MAKER
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 20© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 17 5/16 440
B Minimum inside width of cavity* 22 1/16 560
C Width needed to include trim
within cabinetry
29 15/16 760
D Minimum inside depth of cavity
with trim for flush installation
22 13/16 580
*Cabinetry requires additional vertical sidewalls to secure the product
Note: Ventilation required at the rear of the cavity.
PRODUCT DIMENSIONS
inch mm
A Overall height of coffee maker
and trim kit
18 458
B Overall width of coffee maker 23 1/2 596
C Width of trim kit 3 1/9 79
D Depth of coffee maker chassis 18 1/8 460
E Thickness of coffee maker front
and control panel
13/16 20
F Thickness of trim kit front 13/16 20
A
B
c
D
ISO VIEWISO VIEW
SPECIFICATION GUIDE | BUILT-IN COFFEE MAKER WITH TRIM KIT
EB24DSX1 | TK7630NDX1
c
A
a
e
b
d
f
c
SPECIFICATIONS
Model No.
EB24DSX1, Coee Maker
TK7630NDX1, Trim Kit
Dimensions
With Trim Kit
H 18" W 29 15/16" D 18 7/8"
Weight - EB24DSX1
Packaged
72lb (33kg)
Unpackaged
52lb (24kg)
Electrical
Supply
120 V, 60 Hz
Service
10 A
<< CONTENT
© FISHER & PAYKEL LIMITED 2024 PAGE 2190003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
SPECIFICATION GUIDE DRAWERS
SERIES 9
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 22© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
SPECIFICATION GUIDES DRAWERS
Warming Drawer
SPECIFICATION GUIDE | WARMING DRAWER, 30"
OVERVIEW
Designed to complement our Minimal and Contemporary
ovens, these warming drawers are handle-free, and
push-to-open for a coherent, considered look. Beautiful to
use, with capacitive touch controls and six tailored
functions for warming, proofing, dehydrating and slow
cook. Pair with other companion products to create a
kitchen suite for every need.
PRODUCTS
WB30SDB1-SET
Warming Drawer, 30", Black Glass
WB30SDX1-SET
Warming Drawer, 30", Stainless Steel
SERIES & STYLE
Series 9
Minimal - Black Glass
Series 9
Contemporary - Stainless Steel
FEATURES
1 Styled to perfectly match our Minimal and Contemporary
kitchen appliances
2 Seamless pairing with other companion products in either
stylish black reflective glass or brushed stainless steel
3 Push-to-open drawer
4 Easy-to-use capacitive touch controls
5 Automatic timing and switch-off functionality
6 Easy-to-clean, smooth-glass base
7 Room for 16 standard-sized place settings
8 Versatile with six tailored programmes for warming,
proofing, dehydrating and slow cook
WB30SDX1-SET | WB30SDB1-SET
Warming Drawer, WB30SDB1-SET Black Glass, paired with Built-in Oven OB30SDPTDX2
Warming Drawer, WB30SDX1-SET Stainless Steel
ACCESSORIES
1 Accessory rack for optimizing space*
*Included with product
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 23© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 10 3/4 273
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
for flush installation
22 13/16 580
PRODUCT DIMENSIONS
inch mm
A Overall height 10 11/16 271
B Overall width 29 15/16 760
C Depth of chassis* 21 9/16 547
D Thickness of front panel 13/16 20
E Height of chassis 10 11/16 271
F Width of chassis 27 3/4 704
* Including power plug
Note: The drawer can fully support 30inch Fisher & Paykel wall oven without
adding shelf between.
ISO VIEW
A
B
C
ISO VIEW
SPECIFICATION GUIDE | WARMING DRAWER, 30"
WB30SDX1-SET | WB30SDB1-SET
SPECIFICATIONS
Model No.
WB30SDB1-SET, Black Glass
WB30SDX1-SET, Stainless Steel
Dimensions
H 10 11/16" W 29 15/16" D 22 5/16"
Weight - Packaged
WB30SDB1-SET
94lb (42kg)
WB30SDX1-SET
132lb (59kg)
Electrical
Supply
120 V, 60 Hz
Service
10 A
Connection
Flex cord
Power cord length
70 7/8" (1800mm)
A
c
b
d
e
f
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 24© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
Vacuum Seal Drawer
SPECIFICATION GUIDE | VACUUM SEAL DRAWER, 30"
OVERVIEW
Designed to complement our Combination Steam Ovens,
these vacuum seal drawers are handle-free, and push-to-
pen for a coherent, considered look. Beautiful to use, with
capacitive touch controls and three levels of vacuuming
and sealing to deliver perfect results. Pair with other
companion products to create a kitchen suite for every
need.
PRODUCTS
VB30SDB1-SET
Vacuum Seal Drawer, 30", Black Glass
VB30SDX1-SET
Vacuum Seal Drawer, 30", Stainless Steel
SERIES & STYLE
Series 9
Minimal Black
Series 9
Contemporary
FEATURES
1 Styled to perfectly match our Minimal and Contemporary
kitchen appliances
2 Push-to-open drawer
3 Three levels of vacuum and heat sealing
4 Easy-to-use capacitive touch controls
5 Easy-to-clean stainless steel interior
6 Vacuum sealing for easy food portioning, marinating,
storage and extended food life
7 Sealing to capture and intensify flavors and retain
nutrients
8 Effortless preparation for sous vide cooking
9 External vacuuming to remove air from glass jars and
bottles
"0 Additional storage drawer
ACCESSORIES
1 Large vacuum bags, 50 Bags - Part 793034
2 Small vacuum bags, 50 Bags - Part 793033
3 Adapter accessory kit for external vacuuming*
*Included with product
Vacuum Seal Drawer, VB30SDB1-SET Back Glass, paired with Built-in Oven OB30SDPTDX2
VB30SDX1-SET | VB30SDB1-SET
Vacuum Seal Drawer, VB30SDX1-SET Stainless Steel
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 25© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
PRODUCT DIMENSIONS
inch mm
A Overall height 10 11/16 271
B Overall width 29 15/16 760
C Depth of chassis* 21 11/16 551
D Thickness of front panel 13/16 20
E Height of chassis 10 11/16 271
F Width of chassis** 28 7/16 722
* Including power plug
**Including side brackets
Note: The drawer can fully support 30inch Fisher & Paykel wall oven without
adding shelf between.
SPECIFICATIONS
Model No.
VB30SDB1-SET, Black Glass
VB30SDX1-SET, Stainless Steel
Dimensions
H 10 11/16" W 29 15/16" D 22 1/2"
Weight - Packaged
VB30SDB1-SET
132lb (60kg)
VB30SDX1-SET
132lb (60kg)
Electrical
Supply
120 V, 60 Hz
Service
10 A
Connection
Flex cord
Power cord length
70 7/8" (1800mm)
ISO VIEWISO VIEW
SPECIFICATION GUIDE | VACUUM SEAL DRAWER, 30"
VB30SDX1-SET | VB30SDB1-SET
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 10 3/4 273
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
for flush installation
22 13/16 580
A
B
C
A
c
b
d
e
f
<< CONTENT
© FISHER & PAYKEL LIMITED 2024 PAGE 2690003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
SPECIFICATION GUIDE OVENS
SERIES 7
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 27© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
SPECIFICATION GUIDES OVEN
Built-In Oven
SPECIFICATION GUIDE | BUILT-IN OVEN, 30"
OVERVIEW
Designed to fit seamlessly into any kitchen with
Contemporary styling. Achieve perfect results with
Aerotech™ technology which circulates heat evenly
throughout the cavity, ideal for multi-shelf cooking.
Beautiful to use, the intuitive interface and dial oer simple
guided cooking, while Pyrolytic self-cleaning breaks down
grime and grease, to keep the oven pristine for the next
use.
PRODUCTS
OB30SD17PLX1
Oven, 30", 18 Function, Self-Cleaning, Dial Controls,
Stainless Steel
SERIES & STYLE
Series 7
Contemporary
OB30SD17PLX1
FEATURES
1 Designed to fit flush with cabinetry
2 Styled to perfectly match our Contemporary kitchen
appliances
3 Generous 4.1cu ft total capacity
4 Intuitive 2.4" screen with illuminated dial
5 Perfect results from a variety of oven functions
6 Even heat distribution throughout with AeroTech™
technology
7 Pyrolytic self-cleaning function breaks down food residue
for an easy clean
8 CoolTouch door
"0
Wired Temperature Sensor
"1
Wi-Fi/Connected capability
ACCESSORIES
1 Full-extension sliding shelves*
2 Self-cleaning-proof side racks*
3 Roasting dish, tray and rack*
4 Food probe*
*Included with product
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 28© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 26 13/16 681
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
for flush installation
24 3/16 615
PRODUCT DIMENSIONS
inch mm
A Overall height 27 3/16 690
B Overall width 28 15/16 760
C Depth of chassis 22 7/16 569
D Thickness of oven
front and control panel
(excl. handle and dials)
1 9/16 40
Depth of door when fully
open (measured from front
of control panel)
21 11/16 550
Note: If installing with other contemporary products, consider trim front
thickness.
OB30SD17PLX1
SPECIFICATION GUIDE | BUILT-IN OVEN, 30"
SPECIFICATIONS
Model No.
OB30SD17PLX1
Dimensions
H 27 3/16" W 29 15/16" D 24"
Total Oven Capacity
4.1cu ft (115L)
Weight
Packaged
242lb (110kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
20 A
ISO VIEW
A
B
C
ISO VIEW
C
A
B
d
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 29© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
Built-In Oven
SPECIFICATION GUIDE | BUILT-IN OVEN, 30"
OB30SD14PLX1
OVERVIEW
Designed to fit seamlessly into any kitchen with
Contemporary styling. Achieve perfect results with
Aerotech™ technology which circulates heat evenly
throughout the cavity, ideal for multi-shelf cooking.
Beautiful to use, the intuitive interface and dial oer simple
guided cooking, while Pyrolytic self-cleaning breaks down
grime and grease to keep the oven pristine for the next use.
PRODUCTS
OB30SD14PLX1
Oven, 30", 18 Function, Self-Cleaning, Dial Controls,
Stainless Steel
SERIES & STYLE
Series 7
Contemporary
FEATURES
1 Designed to fit flush with cabinetry
2 Styled to perfectly match our Contemporary kitchen
appliances
3 Generous 4.1cu ft total capacity
4 Intuitive 2.4" screen with illuminated dial
5 Perfect results from a variety of oven functions
6 Even heat distribution throughout with AeroTech™
technology
7 Pyrolytic self-cleaning function breaks down food residue
for an easy clean
8 CoolTouch door
"0
Wired Temperature Sensor
"1
Wi-Fi/Connected capability
ACCESSORIES
1 Full-extension sliding shelves*
2 Self-cleaning-proof side racks*
3 Roasting dish, tray and rack*
4 Wired Temperature Sensor*
*Included with product
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 30© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
SPECIFICATION GUIDE | BUILT-IN OVEN, 30"
SPECIFICATIONS
Model No.
OB30SD14PLX1
Dimensions
H 27 3/16" W 29 15/16" D 24"
Total Oven Capacity
4.1cu ft (115L)
Weight
Packaged
242lb (110kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
20 A
OB30SD14PLX1
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 26 13/16 681
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
for flush installation
24 3/16 615
PRODUCT DIMENSIONS
inch mm
A Overall height 27 3/16 690
B Overall width 28 15/16 760
C Depth of chassis 22 7/16 569
D Thickness of oven
front and control panel
(excl. handle and dials)
1 9/16 40
Depth of door when fully
open (measured from front
of control panel)
21 11/16 550
Note: If installing with other contemporary products, consider trim front
thickness.
ISO VIEW
A
B
C
ISO VIEW
C
A
B
d
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 31© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
Combination Steam Oven
SPECIFICATION GUIDE | COMBINATION STEAM OVEN, 30"
OS30SDLX1
OVERVIEW
With striking Contemporary styling, the Combination Steam
Oven fits seamlessly into any kitchen. As a companion
product, this oven is designed to install easily and fit
perfectly with other companion products such as the
Vacuum Seal Drawer. It features 18 functions, including
steam-only, convection-only, or a combination of both.
Reduce the need for oils and fats with six standalone steam
functions, perfect for creating flavourful and healthy
restaurant-quality meals at home. Beautiful to use, the 2.4"
screen interface has simple and intuitive guided cooking,
helping to ensure perfect results.
PRODUCTS
OS30SDLX1
Combination Steam Oven, 30", 18 Function, Dial Controls
SERIES & STYLE
Series 7
Contemporary
FEATURES
1 Contemporary style, designed to fit flush with cabinetry
2 Generous 3cu ft total capacity with six shelf positions
3 Intuitive 2.4" screen with illuminated dial
4 18 oven functions including six steam-only functions
5 Moisture control and even heat distribution thanks to
ActiveVent and AeroTech™ technology
6 Water tank capacity of 50.7 fl oz
7 Wi-Fi/Connected capability through the SmartHQ™ app
8 Wireless Temperature Sensor precisely monitors cooking
in real time. Purchased separately
"0
Soft open and close door
SPECIFICATION GUIDES STEAM & SPEED OVENS
ACCESSORIES
1 Full-extension sliding shelves*
2 Step down wire shelf*
3 Roasting dish, tray and rack*
4 Wired temperature sensor*
5 Descale solution, 2 sachets - Part 580925
*Included with product
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 32© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
PRODUCT DIMENSIONS
inch mm
A Overall height 23 9/16 598
B Overall width 29 15/16 760
C Depth of chassis 21 7/16 545
D Thickness of oven
front and control panel
(excl. handle and dials)
13/16 20
Depth of door when fully
open (measured from front
of control panel)
18 1/8 460
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 22 13/16 580
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
for flush installation
22 7/16 570
OS30SDLX1
SPECIFICATION GUIDE | COMBINATION STEAM OVEN, 30"
ISO VIEWISO VIEW
SPECIFICATIONS
Model No.
OS30SDLX1
Dimensions
H 23 9/16" W 29 15/16" D 22 1/4"
Total Oven Capacity
3cu ft (85L)
Weight
Packaged
152lb (69kg)
Unpackaged
119lb (54kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
20 A
A
B
C
C
A
B
d
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 33© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
SPECIFICATION GUIDE | COMBINATION STEAM OVEN, 30"
OS30NDLX1
Combination Steam Oven
OVERVIEW
With timeless Contemporary styling, the Combination
Steam Oven fits seamlessly into any kitchen. As a
companion product, this oven is designed to install easily
and fit perfectly with other companion products such as
the Combination Microwave Oven, or Vacuum Seal Drawer.
It features 18 functions, including steam-only, convection-
only, or a combination of both. Reduce the need for oils
and fats with six standalone steam functions, perfect for
creating flavorful and healthy restaurant-quality meals at
home. Beautiful to use, the 2.4" screen interface has simple
and intuitive guided cooking, helping to ensure perfect
results.
PRODUCTS
OS30NDLX1
Combination Steam Oven, 30", 18 Function
SERIES & STYLE
Series 7
Contemporary
FEATURES
1 Contemporary style, designed to fit flush with cabinetry
2 1.94cu ft total capacity
3 Intuitive 2.4" screen with illuminated dial
4 18 oven functions, including five steam-only functions
5 Moisture control and even heat distribution thanks to
ActiveVent and AeroTech™ technology
6 Water tank capacity of 50.7 fl oz
7 Wi-Fi/Connected capability through the SmartHQ™ app
8 Wireless Temperature Sensor precisely monitors cooking
in real time. Purchased separately
"0
Soft open and close door
ACCESSORIES
1 Full-extension sliding shelves*
2 Step down wire shelf*
3 Roasting dish, tray and rack*
4 Wired Temperature Sensor*
5 Descale solution, 2 sachets - Part 580925
*Included with product
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 34© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
Convection Speed Oven
SPECIFICATION GUIDE | CONVECTION SPEED OVEN, 30"
OVERVIEW
With timeless Contemporary styling, the Convection Speed
Oven fits seamlessly into any kitchen. As a companion
product, this Speed Oven is designed to install easily and fit
perfectly with other companion products such as the
Combination Steam Oven, or Vacuum Seal Drawer. A
flexible appliance that pairs the speed of microwave
cooking with oven technology, which can crisp and brown
as it cooks. Featuring 19 cooking functions on an intuitive
touch display for easy programming of desired cooking
mode and duration.
PRODUCTS
OM30NDLX1
Convection Speed Oven, 30", 19 Function
SERIES & STYLE
Series 7
Contemporary
FEATURES
1 Contemporary style, designed to fit flush with cabinetry
2 1.94cu ft total capacity
3 Intuitive 2.4" screen with illuminated dial
4 Choose from 19 cooking modes including True Convection
and Broil
5 Wi-Fi/Connected capability through the SmartHQ™ app
6 Soft open and close door
OM30NDLX1
ACCESSORIES
1 Chromed shelf runners*
2 Glass tray*
3 Wire shelf*
4 Wired Temperature Sensor*
*Included with product
<< CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the
products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 35© FISHER & PAYKEL LIMITED 202490003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
CAVITY DIMENSIONS: STANDARD INSTALLATION
inch mm
A Minimum inside height of cavity 17 5/16 440
B Minimum inside width of cavity 28 1/2 724
C Minimum inside depth of cavity
for flush installation 22 7/16 570
Note: Convection Speed Oven requires ventilation at the rear of the cavity.
PRODUCT DIMENSIONS
inch mm
A Overall height 18 458
B Overall width 29 15/16 760
C Depth of chassis 21 7/16 545
D Thickness of oven
front and control panel
(excl. handle and dials)
13/16 20
Depth of door when fully
open (measured from front
of control panel)
12 5/8 320
OS30NDLX1 | OM30NDLX1
SPECIFICATION GUIDE | COMBINATION STEAM OVEN AND COMBINATION SPEED OVEN, 30"
ISO VIEWISO VIEW
SPECIFICATIONS
Model No.
OS30NDLX1, Combination Steam Oven
OM30NDLX1, Convection Speed Oven
Dimensions
H 18" W 29 15/16" D 22 1/4"
Total Oven Capacity
OS30NDLX1
1.94cu ft (55L)
OM30NDLX1
1.73cu ft (49L)
Weight
Packaged
121lb (55kg)
Unpackaged
101lb (46kg)
Electrical
Supply
208 V or 240 V, 60 Hz
Service
20 A
A
B
C
C
A
B
d
<< CONTENT
© FISHER & PAYKEL LIMITED 2024 PAGE 3690003337B PLANNING GUIDE 30" BUILT-IN OVENS AND COMPANIONS, CONTEMPORARY - VERSION B - JANUARY 2024
