Hose Reel
OWNER'S MANUAL
Product appearance may vary.
2
Before You Begin
• Read and follow instructions carefully.
This product contains parts that can be damaged if incorrectly assembled. Suncast is not responsible
for replacing parts damaged due to incorrect assembly.
Care Instructions

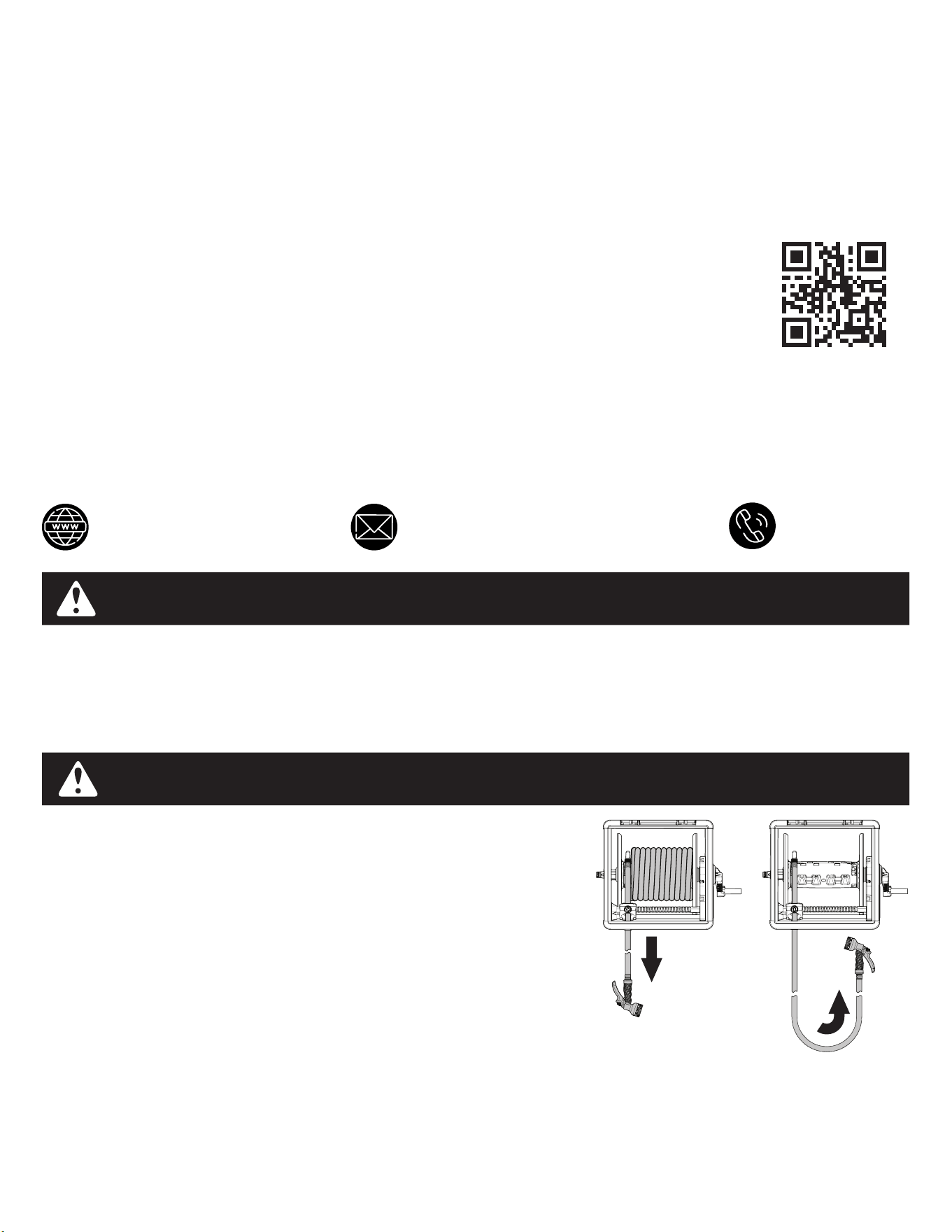

• To unwind your hose, pull the hose out away from your hose
reel in a straight line (X). To rewind the hose, walk the end back
to the hose reel so the hose is in a "U" shape in front of the
reel (Z), this assists in easier rewinding of the hose. If applicable,
place your foot on the right side foot hold during winding and
unwinding to stabilize the unit. Keep hands away from the
rotating crank handle.
• TURN OFF WATER AT SOURCE AND DRAIN HOSE
WHEN NOT IN USE.
• Check in-tube and out-tube connections prior to first use each spring. If hose reel starts to leak, tighten all
water connections and check washers in the in-tube and the garden hose. Replace washers, if necessary.
Z
X
Register within 90 days of purchase to activate Warranty!
Registration is not required for products with a warranty term of 90 days or less.
1. Verify warranty term of your product by visiting www/suncast.com/warranty
(products with a warranty term of 90 days or less do not require registration)
2. Complete registration: fill out the form and upload a copy of your receipt by
visiting https://support.suncast.com or scanning the QR code
Thank you for purchasing this Suncast
®
product.
Suncast Corporation Customer Care
701 N. Kirk Road, Batavia, IL 60510
1-800-846-2345
1-630-381-6309
https://support.suncast.com
Have Questions?
For product questions, assembly assistance, replacement parts and more:
3
Using Your Hose Reel
1
A

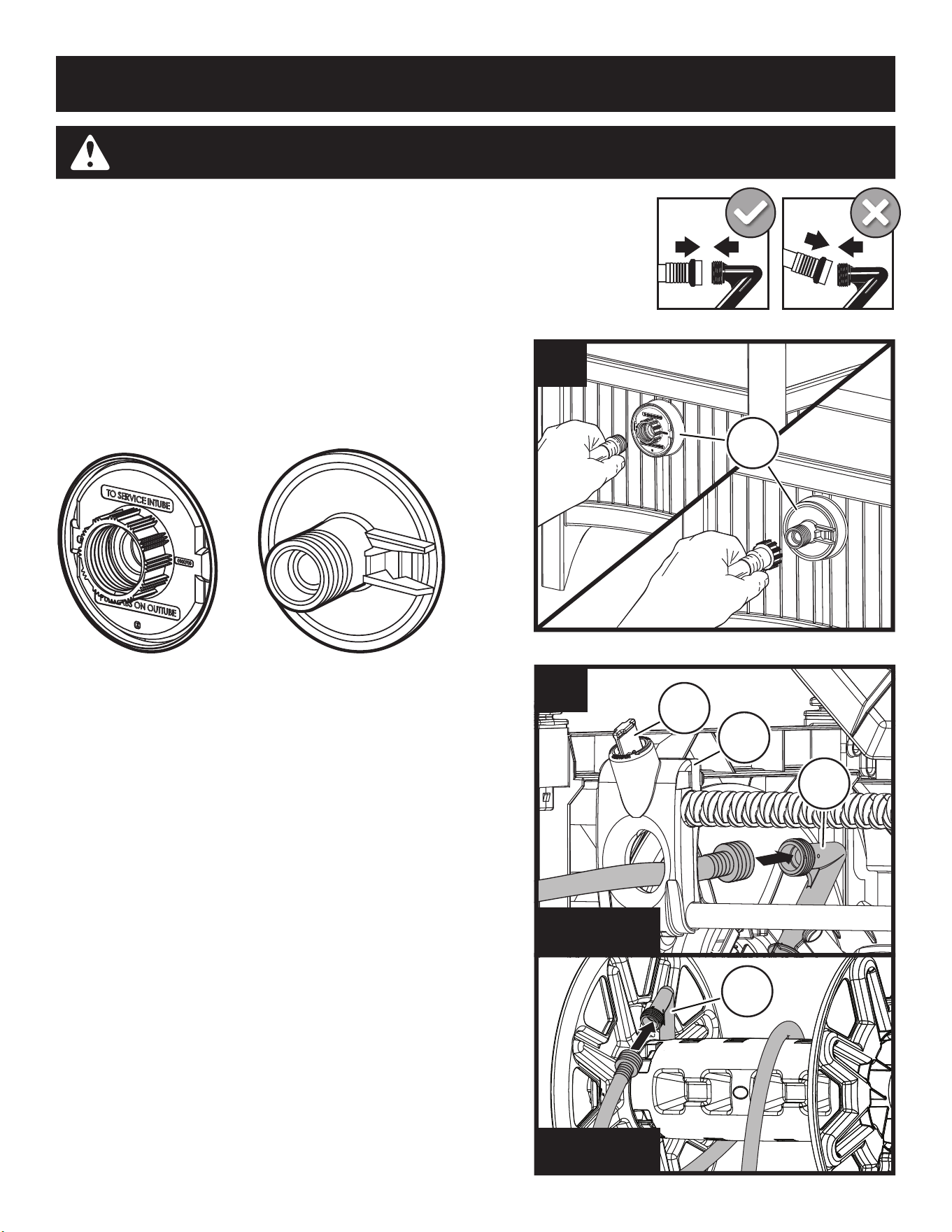

Connect leader hose to the in-tube (A) on the exterior of the
hose reel. Connect the opposite end of the leader hose to the
water supply.
NOTE: Your unit may contain either a male or female in-tube
connector.
Female In-Tube Male In-Tube
Actual images shown may differ based on model
purchased.
CAUTION
• DO NOT cross-thread hose connections. When attaching the garden
hose to the out-tube and/or the leader hose to the in-tube, be sure to
attach correctly. Cross-threading could cause permanent damage.
Options
1. Reel With Hose Guide
2. Reel Without Hose Guide
Connect a garden hose to the out-tube (B). Turn on the water
supply and check for leaks. If leaking occurs, turn off the water
supply and re-tighten the connection.
NOTE: For Option #1, feed the garden hose through the hose
guide prior to connecting to the out-tube (B). The hose guide (C)
must be aligned with the out-tube. If not aligned, crank the guide
handle or lift the guide release (D) to move the hose guide into
alignment with the out-tube. If guide release is used, make sure
it snaps back down to lock the hose guide into position.
B
2
Option 1
Option 2
B
D
C
4
Back View
3

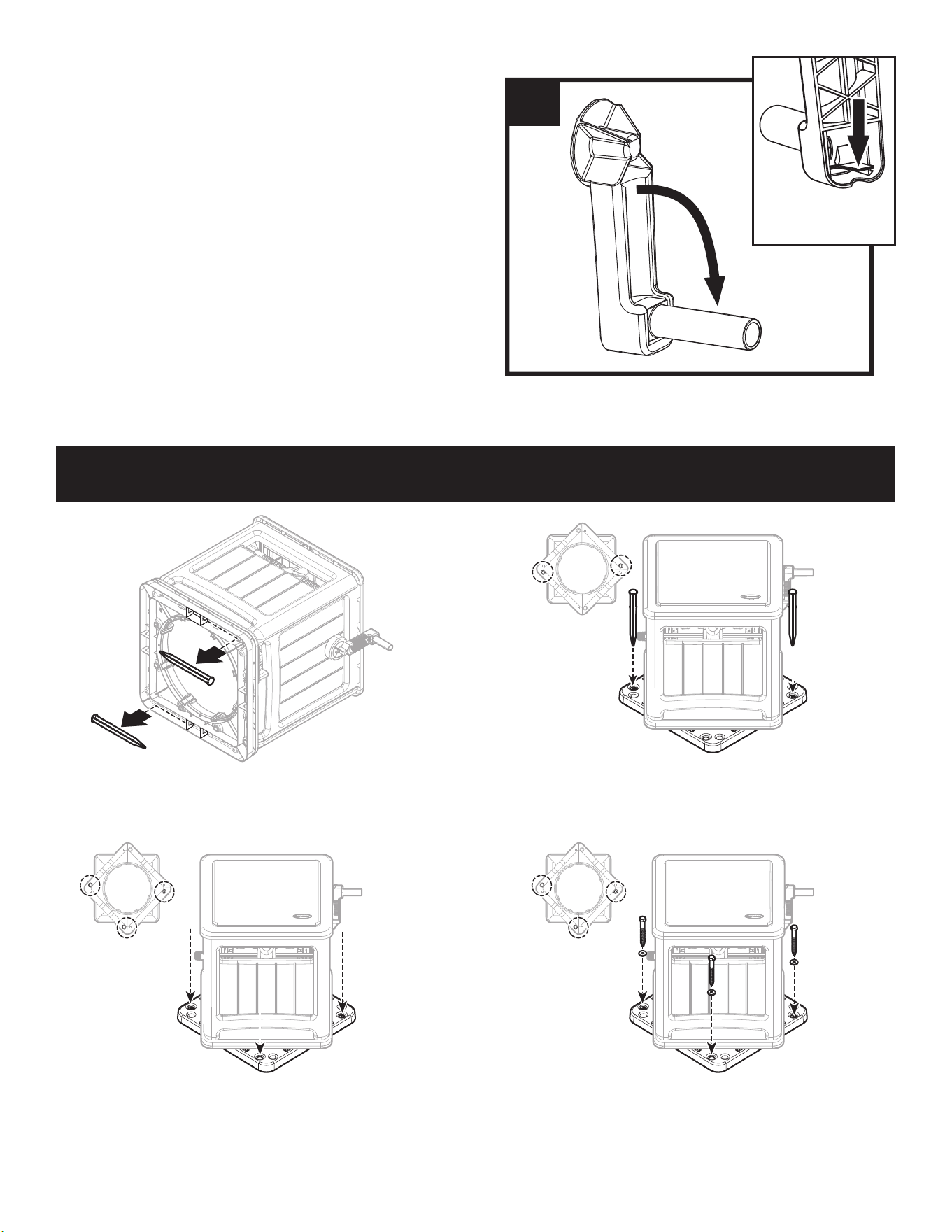

Flip the crank handle grip down until it snaps into its locked
position. Your hose reel is now ready to use. To fold the grip
back into the crank handle, press the tab on the back of the
handle and fold the handle grip upward.
Using Your Hose Reel (cont.)
Appearance may vary by model.
Remove provided stakes from the underside of base. Insert 2 stakes through openings. Secure with rubber mallet.
NOTE: Ensure stake head is recessed in base, enabling the unit to rotate freely.
Concrete Installation:
Consult your local hardware store for hardware
recommendations.
Wood Installation:
Secure using #10 x 2" wood screw, and #10 x .5" OD washer
(not included).
SSM2120
Swivel Base Installation
5
Depending on usage and water hardness, the in-tube and out-tube connections may become
worn and start to leak. Check the following regularly to maintain water tight connections:
1. Check that washers are in place and not worn. Replace the washers, if necessary.
2. Check that all connections are tight. If the hose reel still leaks, replacement of the in-tube and
out-tube may be necessary. To purchase replacement parts, contact us at www.suncast.com or
call 1-800-846-2345.
Maintaining a Water Tight Connection
WST150
WPT150
SMT212
SMW212
Staking the frame to the ground is highly recommended (where applicable) – Refer to your specific unit for location
and size of any staking holes. Stakes are not included in some models. Consult local hardware store for staking options.
Hideaway Installation
