Tea Dispensers
for Holding and Serving
Bunn-O-Matic Corporation
Post Office Box 3227, Springfield, Illinois 62708-3227
Phone (217) 529-6601 | Fax (217) 529-6644
USE & CARE GUIDE
For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
45301.0003 E 6/23 © 2015 Bunn-O-Matic Corporation
www.bunn.com
CAUTION - CLEAN AND SANITIZE YOUR DISPENSER BEFORE USING.
See Note 1 of DAILY CLEANING
2
060723
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All coffee and tea dispensers/servers, MCR/MCP/MCA single cup brewers, and BUNNlink
®
electronic circuit and/or
control boards – 1 year parts and 1 year labor.
2) Product-specific warranties for Crescendo
®
, Fast Cup
®
, Sure Immersion
®
, Sure Tamp
®
, and others – 1 year parts and 1
year labor. Please visit commercial.bunn.com/support/warranty-lookup for further details.
3) All other equipment – 2 years parts and 1 year labor plus added warranties as specified below:
a) Electronic circuit and/or control boards – parts and labor for 3 years.
b) Compressors on refrigeration equipment – 5 years parts and 1 year labor.
c) Grinding burrs on coffee grinding equipment for 4 years or 40,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation. BUNN warrants that the equipment manufactured by it will
be commercially free of defects in material and workmanship existing at the time of manufacture and appearing within
the applicable warranty period. This warranty does not apply to any equipment, component or part that was not manu-
factured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation
or operation, improper maintenance or repair, non periodic cleaning and descaling, equipment failures related to poor
water quality, damage or casualty. In addition, the warranty does not apply to replacement of items subject to normal wear
with use including but not limited to user replaceable parts such as seals and gaskets. This warranty is conditioned on the
Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by
writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment
prepaid to an authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equip-
ment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL,
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANT-
ABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not authorized
to make modifications to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements
by such individuals, whether oral or written, do not constitute warranties and should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or
labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace the
equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE
OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of
use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or
services, or any other special, incidental or consequential damages.
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
3
INTRODUCTION
These dispensers are designed to hold and serve either a three and a half, four or five gallon batch of iced tea or
iced coffee, depending on the model. When proper precautions are followed, tea/coffee may be brewed directly
into the dispenser and then transported to a remote serving location. The dispenser must be placed on a sturdy
counter or shelf.
060723
USE & CARE INFORMATION
TDO/N-3.5: Dispenser weighs approximately 35 pounds when full.
TDO/N-3.5 LP: Dispenser weighs approximately 33 pounds when full.
TDO/N-2.0 LP: Dispenser weighs approximately 31 pounds when full.
TDO/N-4: Dispenser weighs approximately 48-50 pounds when full.
TDO-5: Dispenser weighs approximately 59 pounds when full.
TDS-3S & ICD-3S:
Dispenser weighs approximately 40 pounds when full.
TDS-5S: Dispenser weighs approximately 55 pounds when full.
TD4/TD4T: These dispensers are designed to hold and serve up to 4 gallons of iced tea or iced coffee.
TD4T-DR: These dispensers are designed to hold and serve up to 2 gallons of cold beverage in each of two
reservoirs at remote locations. Two separate reservoirs, each having its own faucet, means you can now serve
two different kinds of beverage. Easy to see indicators on the front of the dispenser shows when a refill is
needed to either reservoir.
• YOU MUST BE CAREFUL WHEN LIFTING THESE DISPENSERS. WHEN THE DISPENSER IS
HOLDING LIQUID, LIFT THE DISPENSER USING THE HANDLES ONLY.
• CAUTION: LIFT THE DISPENSER USING THE HANDLES ONLY.
• CAUTION: DO NOT LIFT THE DISPENSER FROM THE BOTTOM.
• CAUTION: DO NOT USE FAUCET AS HANDLE.
• NOTICE: DO NOT BREW INTO PLASTIC LINER BY ITSELF (If equipped) IT MUST BE IN IT’S
STAINLESS STEEL HOUSING.
• NOTICE: DO NOT USE BREW THROUGH LID WITH POUCH PACK FUNNELS WHEN
BREWING INTO TD3T-N.
• NOTICE: DO NOT OVERTIGHTEN FAUCET WING NUT. HAND TIGHTEN ONLY
(Failure to observe caution may result in personal injury.)
continued >
4
Transfer these parts to
a three compartment
sink for cleaning. Fill
the first sink with a
soap solution using
a mild detergent, the
second sink is used
for clean rinse, and
the third sink with
a sanitizer solution
(75°F warm chlorine
solution of 50-100 ppm).
Use a brush to
thoroughly scrub the
faucet body.
Once a day, turn the
faucet wing nut in a
clockwise direction
and remove the faucet
from the dispenser.
Unscrew the faucet
bonnet from the faucet
body and disassemble
all faucet parts.
Allow the parts to
soak in a sanitizer
solution for a minimum
of ten minutes.
STEP 1 STEP 2 STEP 3 STEP 4
Remove the faucet
parts from the sanitizer
solution. Allow parts
to air dry over night.
Reassemble faucet
assembly prior to
brewing into dispenser.
Wash the entire
outside surface of the
dispenser with a clean
damp cloth.
STEP 5

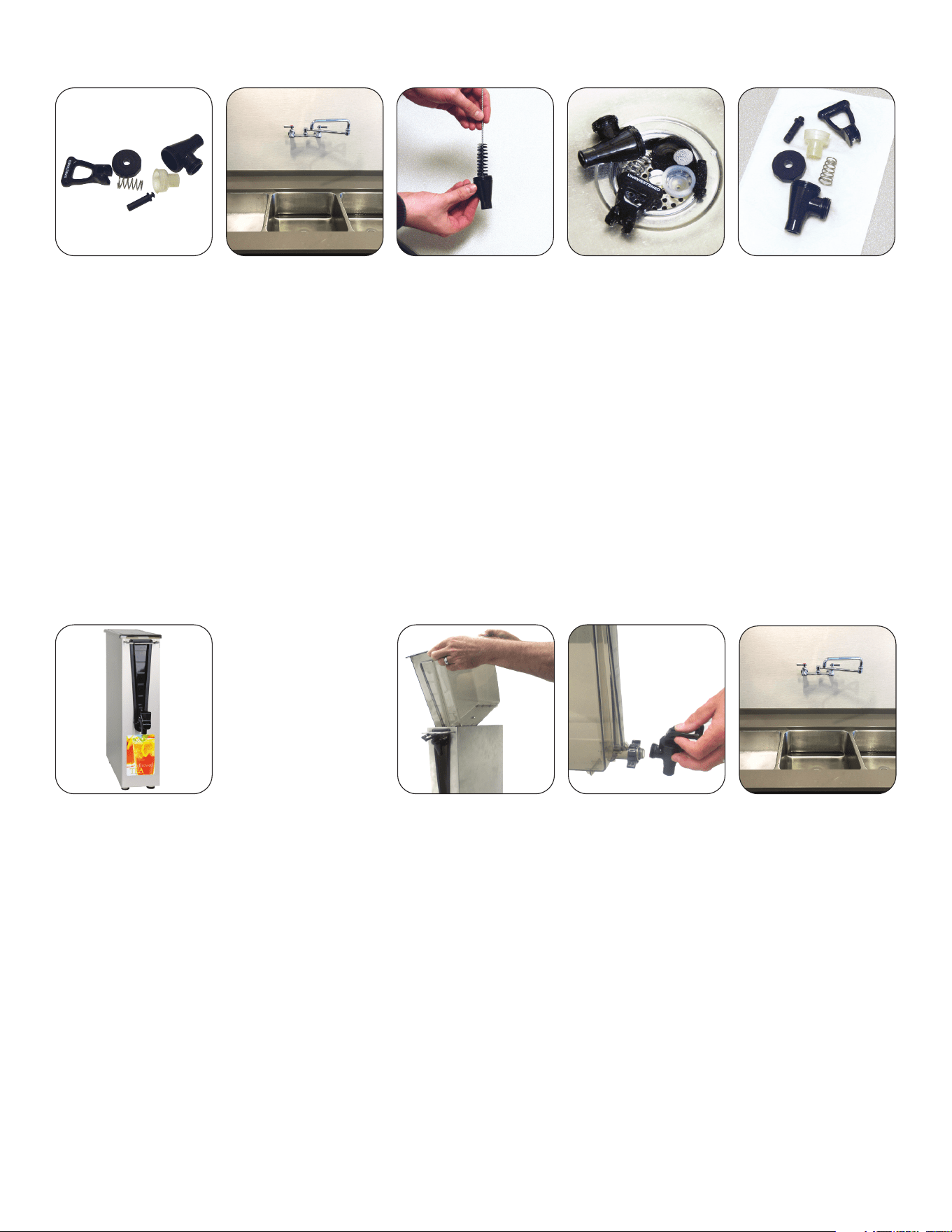

DAILY CLEANING INSTRUCTIONS
Remove faucet from
reservoir and follow
steps 1-5 above.
Lift reservoir up, then
tilt forward to clear
faucet.
STEP 1 STEP 2
REMOVABLE RESERVOIRS
Soak /clean reservoir
in large sink following
steps above.
STEP 3Clean reservoir in housing
like other servers shown.
OR
NOTE: USE ONLY NONABRASIVE
CLEANERS
060723
continued >
5

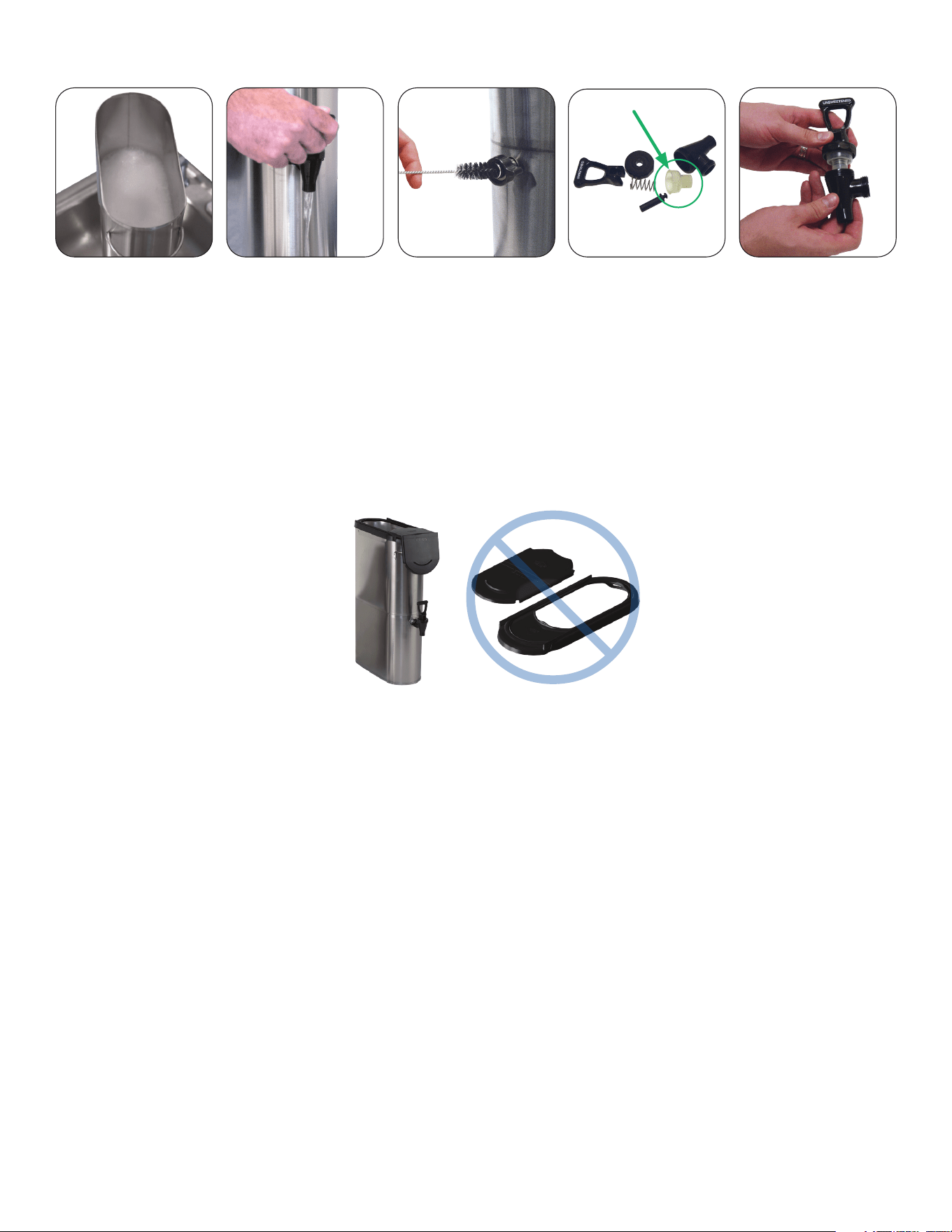

– DO NOT KEEP BREWED BEVERAGES OVERNIGHT –
Draw a small amount
(2 oz.) of presoak
through the faucet
making contact with
the faucet components.
Allow the dispenser to
soak over night.
Once a week, fill the
dispenser with a chlorine
solution: (75°F warm
chlorine solution of
50-100 ppm).
STEP 1 STEP 2
Once a month, replace
the faucet seat cup.
Discard the old seat
cup.
The faucet assembly
can be ordered for
replacement.
STEP 4 STEP 5
WEEKLY CLEANING INSTRUCTIONS
The next morning,
perform the daily
cleaning procedures
on the faucet and
dispenser.
STEP 3
NOTE: When cleaning a hinged, two-piece, brew-thru lid, DO NOT separate the two pieces.
060723
continued >
6

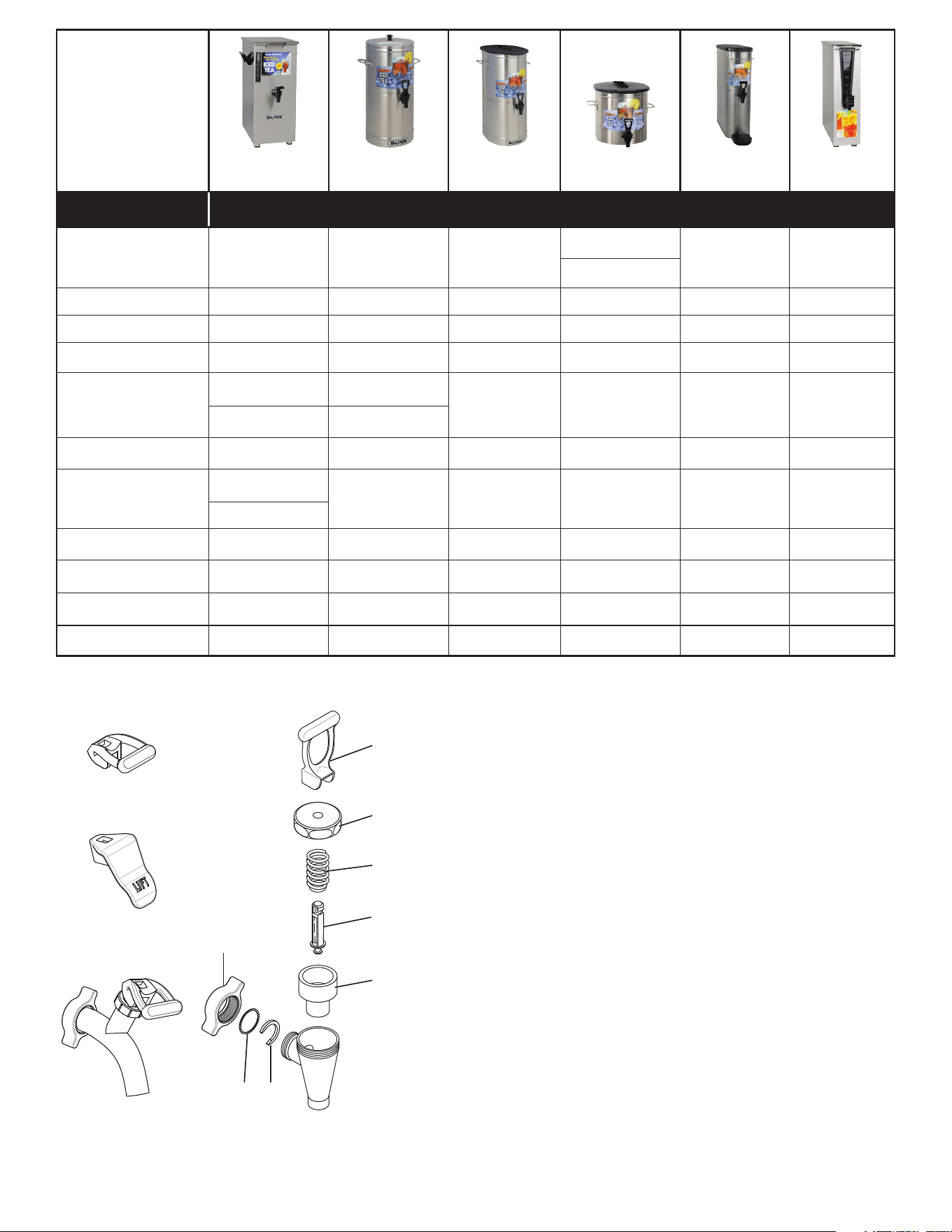

1. 03260.0101 Faucet Assy (Bunn Black) (Includes 2, 5 - 8)
03260.0102 Faucet Assy (Swt/Unswt) (Includes 2, 5 - 8)
03260.0103 Faucet Assy (Blank) Black (Includes 2, 5 - 8)
03260.0119 Faucet Assy (Nudger) (Includes 2, 5 - 8)
47326.1000 Pinch Tube Faucet Assy
03260.0021 Lift Handle Faucet Assy (Includes items 2, 5 - 8)
2. 29163.0101 Faucet Handle, Bunn Black
29163.0103 Faucet Handle, (Swt/Unswt)
29163.0106 Faucet Handle, (Blank) Black
32253.0101 Faucet Handle, Nudger
45946.0100 Faucet Handle, Lift
3. 03093.0002 Faucet Wing Nut
4. 01221.0000 C-Ring, Faucet Shank (Except Nudger Assy)
5. 00601.0000 Faucet Spring (Except pinch)
6. 00600.0000 Faucet Seat Cup (Except pinch)
7. 29164.0000 Faucet Stem (Except pinch)
8. 29165.0101 Faucet Bonnet, Black (Except pinch)
9. 29166.0001 Faucet Repair Kit (Bunn-O-Matic) (Incl 2, 5-7)
29166.0002 Faucet Repair Kit (Swt/Unswt) (Incl 2, 5-7)
41183.0000 Faucet Repair Kit (Swt/Unswt) (Includes 1, 3, 4)
41183.0001 Faucet Repair Kit (Blank) (Incl 1, 3, 4, 10)
29166.0008 Faucet Repair Kit, Nudger (Incl 2, 5-7)
29166.0009 Faucet Repair Kit, Lift Handle (Incl 2, 5-7)
41183.0002 Faucet Repair Kit, Lift Handle (Incl 1, 3, 4, 10)
10. 45415.0000 Washer
8
NUDGER
HANDLE
STANDARD
2
5
7
6
3
4
COMMON REPLACEMENT PARTS
Refer to www.bunn.com for complete Illustrated Parts Catalog.
LIFT
HANDLE
PINCH TUBE
FAUCET
No repair kit available
10
060723
TD4/TD4T
TD4T-DR
TDS-3/3.5/5/
ICD-3
TDO-
3.5/3.5LP/4/5
TDO-N-3.5/LP
TDO-N-2.0LP
TDO-N-4/4-LP TD3T--N
DESCRIPTION PART NUMBER
Decal, Fresh
Brewed Tea
03043.0002 03043.0004 03043.0004
03043.0004 (3.5)
03043.0004 47501.0000
03043.0013 (2.0)
Decal, Iced Coffee X 21412.0001 X X X X
Decal, BUNN 00651.0001 00651.0001 00651.0001 00651.0001 00651.0001 X
Cleaning Card 49562.0000 49562.0000 49562.0000 49562.0000 49562.0000 49562.0000
Lid, Solid
03255.0000 4/4T 33130.0000 SST
34093.0000 40851.0000 39624.0000 44310.0004
27155.1000 D.R. 49203.0000 Plas
Lid, Brew Thru 03255.0002 X 34093.0001 50534.0000 X 44310.0003
Reservoir
03078.1002 TD4
X X X X 44309.1003
26941.1000 D.R.
Feet 01175.0000 X X 43379.1000 43379.1000 01175.0000
Drip Tray Cover X X X X 39626.0000 X
Drip Tray X X X X 39627.0000 X
Handle X X X 40854.0000 X 40854.0000
